Synthesis, Crystal Structure, and Photoluminescent Properties of 3,3′,4,4′-Tetraethyl-5,5′-divinyl-2,2′-bipyrrole Derivatives
Abstract
:1. Introduction
2. Results and Discussion

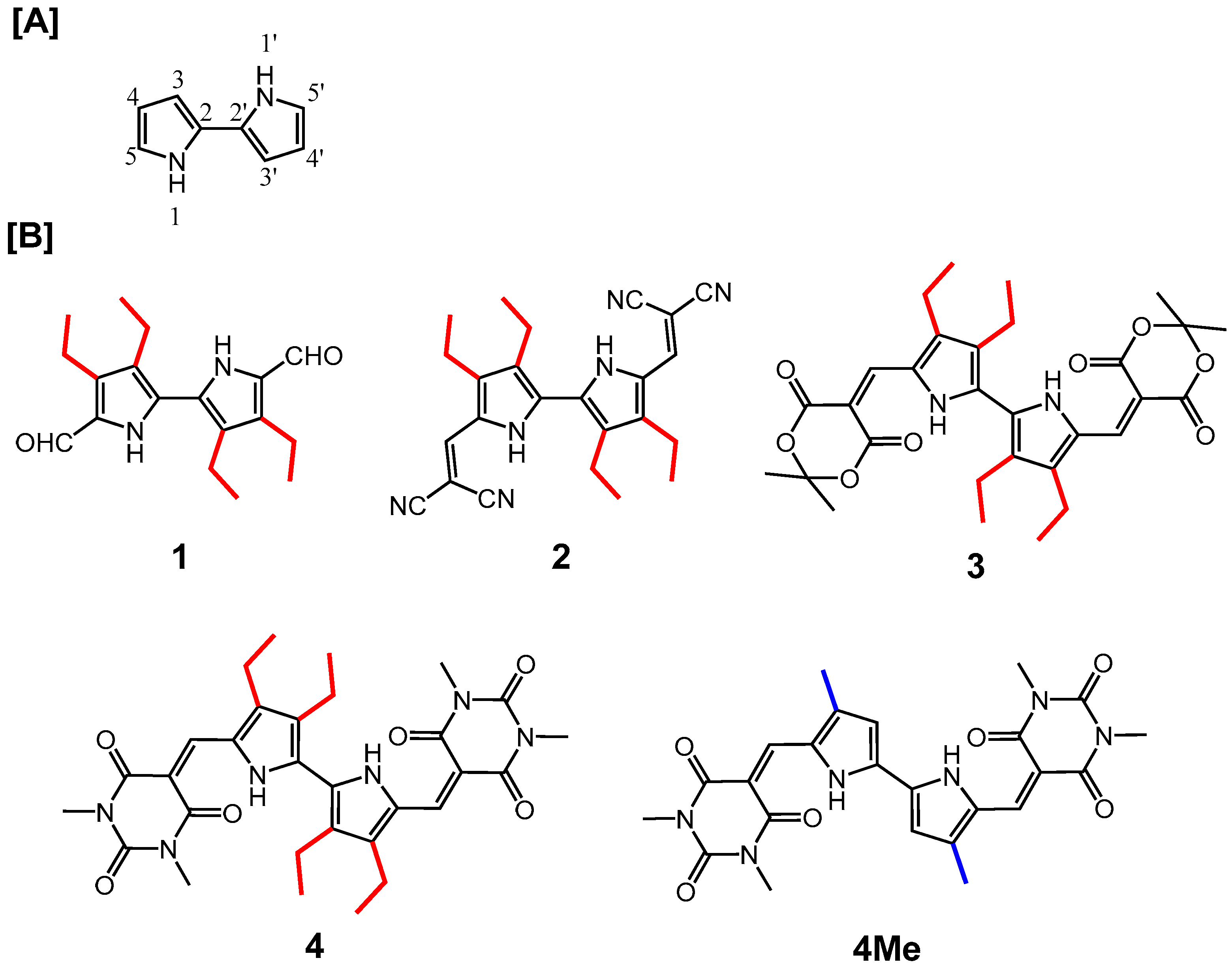

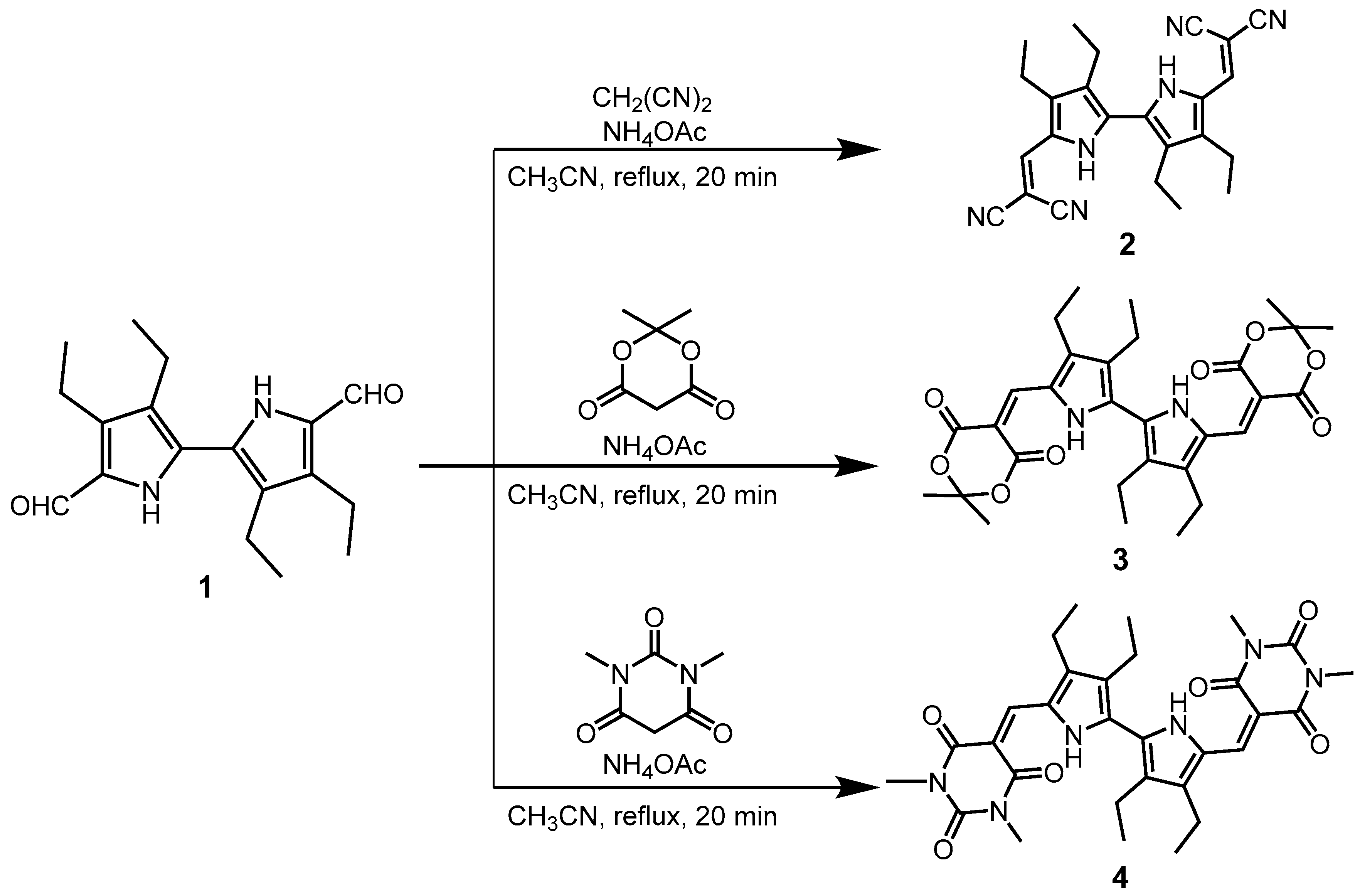

2.1. Synthesis
2.2. Nuclear Magnetic Resonance (NMR) Spectroscopy

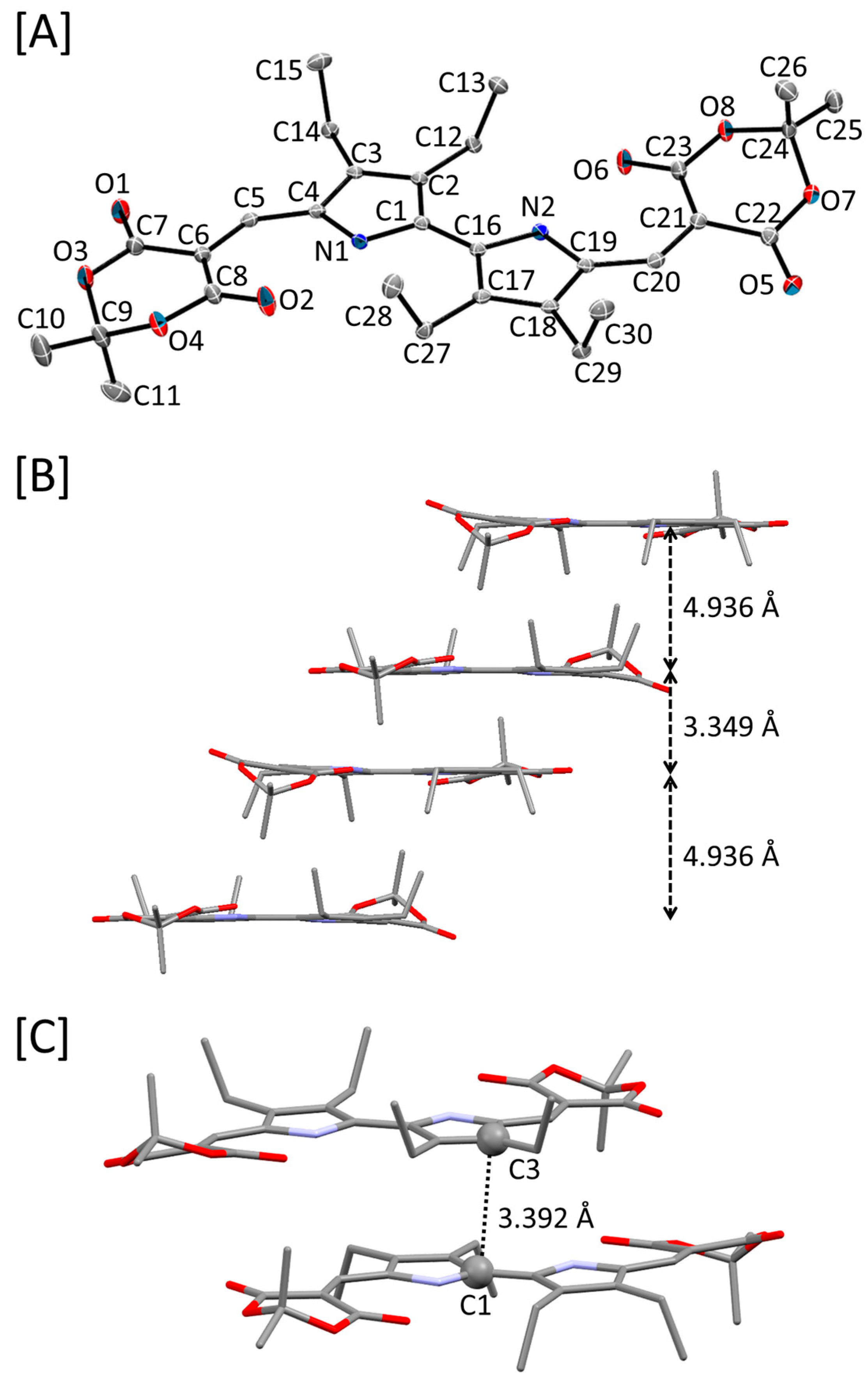

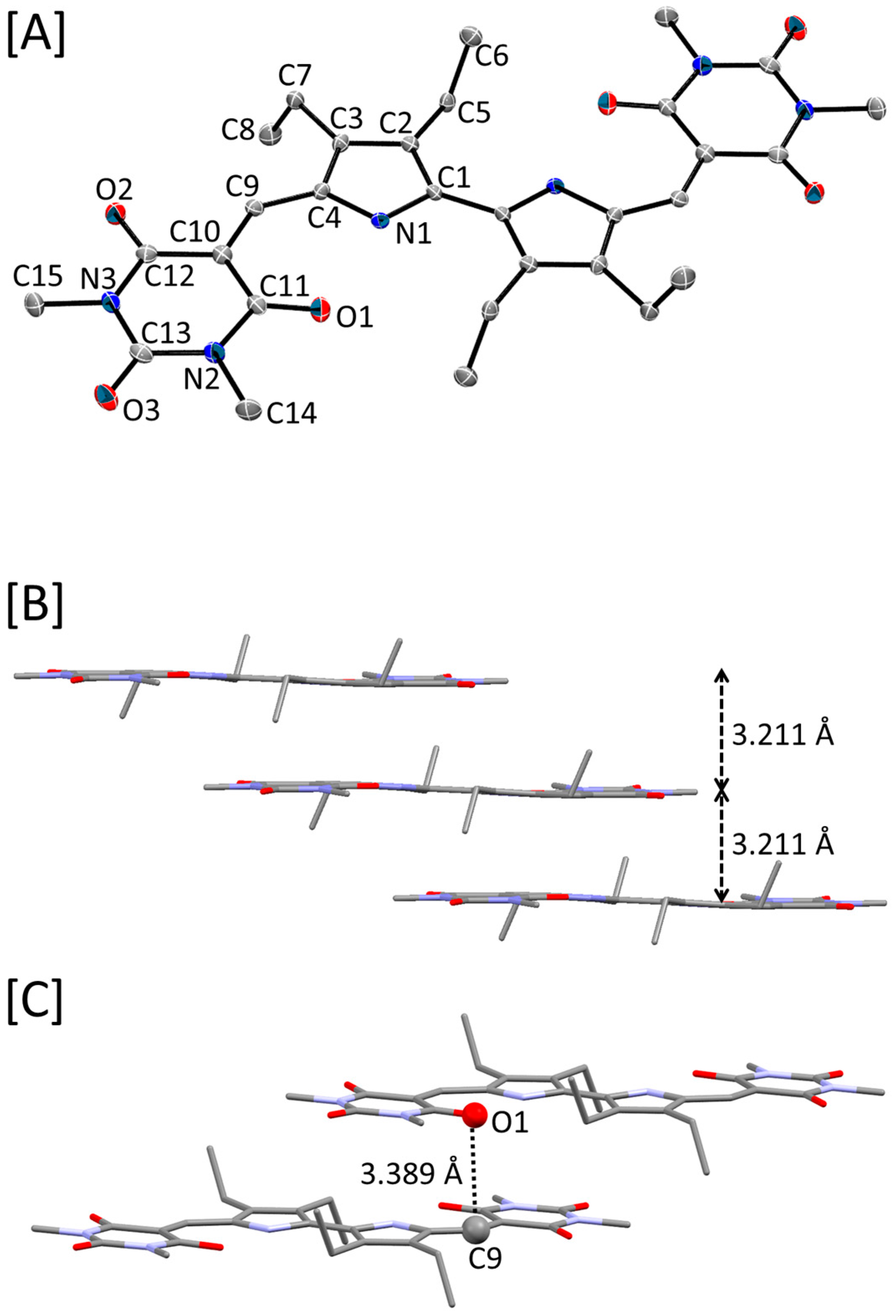

2.3. Crystal Structure

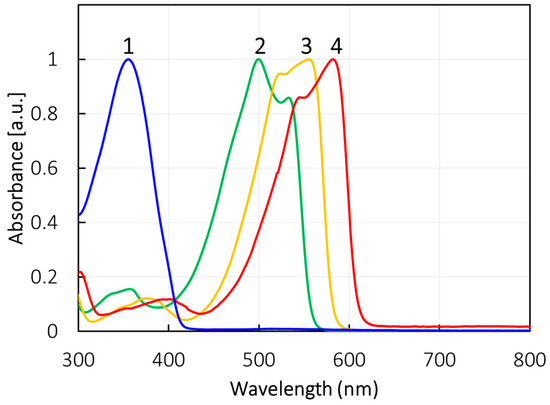

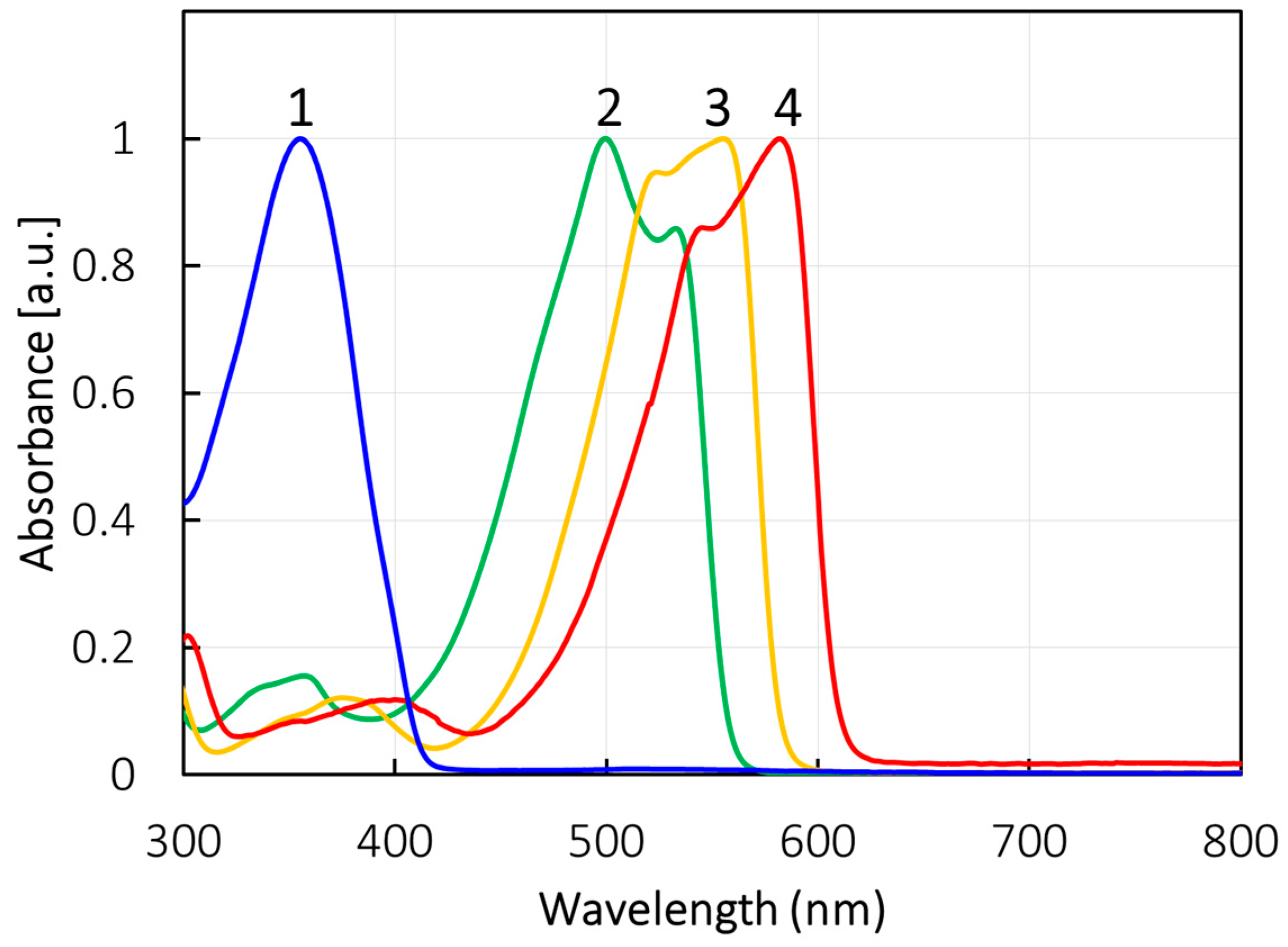

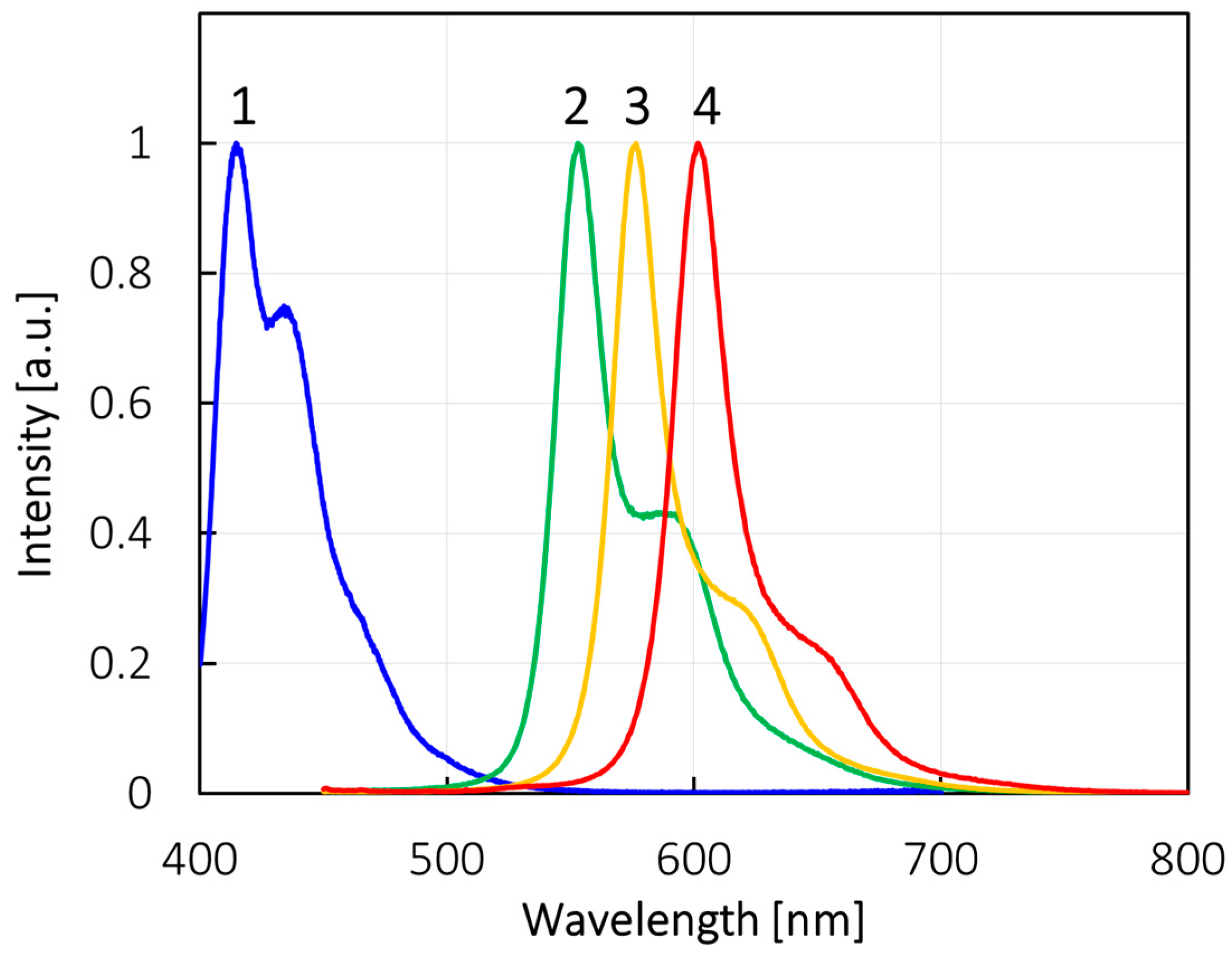

2.4. UV-Vis Absorption and Photoluminescence

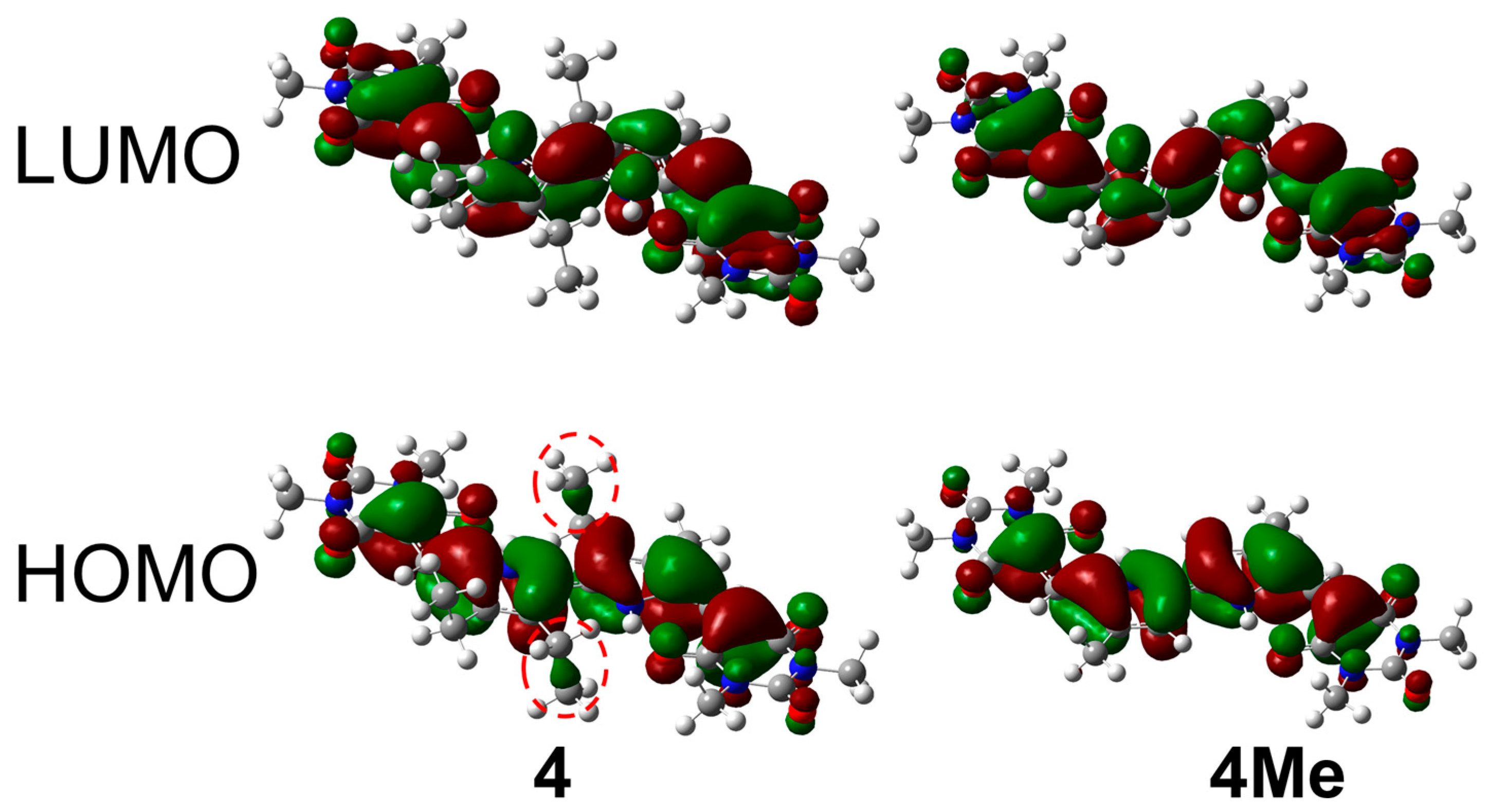

2.5. TD-DFT Calculations
3. Experimental
3.1. Materials and Instruments
3.2. X-ray Crystallography
3.3. Synthesis
3.4. Computational Methods
4. Conclusions
Supplementary Materials
Acknowledgments
Author Contributions
Conflicts of Interest
References
