Tuning the Geometrical Structures and Optical Properties of Blue-Emitting Iridium(III) Complexes through Dimethylamine Substitutions: A Theoretical Study

Abstract

The geometrical structures and photophysical properties of Ir(4,6-dFppy)₂(pic) (FIrpic) and its derivative (o-FIr, m-FIr, p-FIr) with dimethylamine substituted at the picolinic acid (N^∧O) ligand were fully investigated by density functional theory and time-dependent density functional theory. The simulated electronic structure, as well as absorption and emission spectra of FIrpic are in good agreement with the experimental observations. The introduction of dimethylamine at the N^∧O ligand at different positions is beneficial to extend the π-electron delocalization, increase HOMO energy levels, and hence improve the hole injection and transfer ability compared with those of FIrpic. Furthermore, o-FIr, m-FIr, and p-FIr have large absorption intensity and participation of metal-to-ligand charge transfer (MLCT) contribution in the main absorption spectra, which would be useful to improve the intersystem crossing (ISC) from the singlet to triplet excited state. More importantly, the high quantum yield of o-FIr (which is explained based on the detailed analysis of triplet energy, E_T1), participation of ³MLCT contribution in the phosphorescent spectra, and energy difference between ³MLCT and triplet metal centered (³MC) d-d excited state compared with m-FIr and p-FIr indicate that o-FIr is expected to be an excellent blue phosphorescence emitter with high efficiency.

1. Introduction

Phosphorescent transition metal materials such as Re(I), Ru(II), and Ir(III) complexes are of great interest [1,2,3,4], because these materials have been extensively investigated for optoelectronic and microelectronic applications, such as dye-sensitized solar cells (DSSCs) and organic light-emitting diodes (OLEDs) [5,6,7]. Among these emitters, Ir(4,6-dFppy)₂(pic) (FIrpic) is one of the most well-known blue phosphorescent emitters, which is widely used as a dopant in the electroluminescent layers of OLEDs [8,9,10]. However, the quantum yield and equilibrium between the hole and electron transportation of FIrpic are considered to be difficult for its further application. The development of high-performance blue-emitting materials is strongly required for the fabrication of OLEDs. Unfortunately, it is a challenging task to achieve stable and high-efficiency blue phosphorescent emitters because the blue phosphorescence complex has a high emission state compared with other color complexes. This enables thermal activation to triplet metal centered (³MC) d-d state, which is one of the main nonradiative processes from the emissive excited state for Ir(III) complexes [11,12].

In OLEDs, researchers can control the emission color and photophysical properties of emitters by a modification of the chelating ligands [13,14,15,16,17]. The common approach in tuning the photophysical properties of FIrpic is to modify the chemical structures of 2-(2,4-difluorophenyl) pyridine (C^∧N) ligands. Baranoff et al. [18] replaced the F atoms on FIrpic by H, Cl, and Br. They found that the large halogen substituent contributed to sizable distortions of specific (C^∧N) ligands, which were likely to play a role in the emissive and nonradiative properties when coupled with the heavy-atom effect. Owing to the introduction of the strong electron withdrawing perfluoro carbonyl group on (C^∧N) ligands of FIrpic, the newly designed Ir complexes displayed deepest blue emissions and considerably high external quantum efficiencies (EQEs) [19]. Li et al. [20] investigated a series of Ir(III) complexes by introducing tert-butyl, n-heptyl, 3-ethylheptyl, and 2,4,6-trimethylphenyl substituted groups into the (C^∧N) ligands of FIrpic. They revealed that both the substituted group and position had an effect on tuning the emission energies and quantum yield. However, the important chelating picolinic acid (N^∧O) ligand of FIrpic has not received as much attention, to the best our knowledge. Herein, we will theoretically design and investigate a type of Ir complexes o-FIr, m-FIr, p-FIr (Figure 1) by introducing the dimethylamine substituted at the picolinic acid (N^∧O) ligand, because the dimethylamine is one of the most popular functional groups used as hole transfer materials. We perform detailed theoretical calculations on the electronic structure, absorption and emission properties, quantum efficiency, as well as charge transport properties, aiming at revealing the relationship between the structures and photophysical properties. This work is expected to give some insights into the design and synthesis of blue emitters with high quantum efficiency.

2. Results and Discussion

2.1. The Optimized Geometries in the Ground and Lowest Lying Triplet Excited States

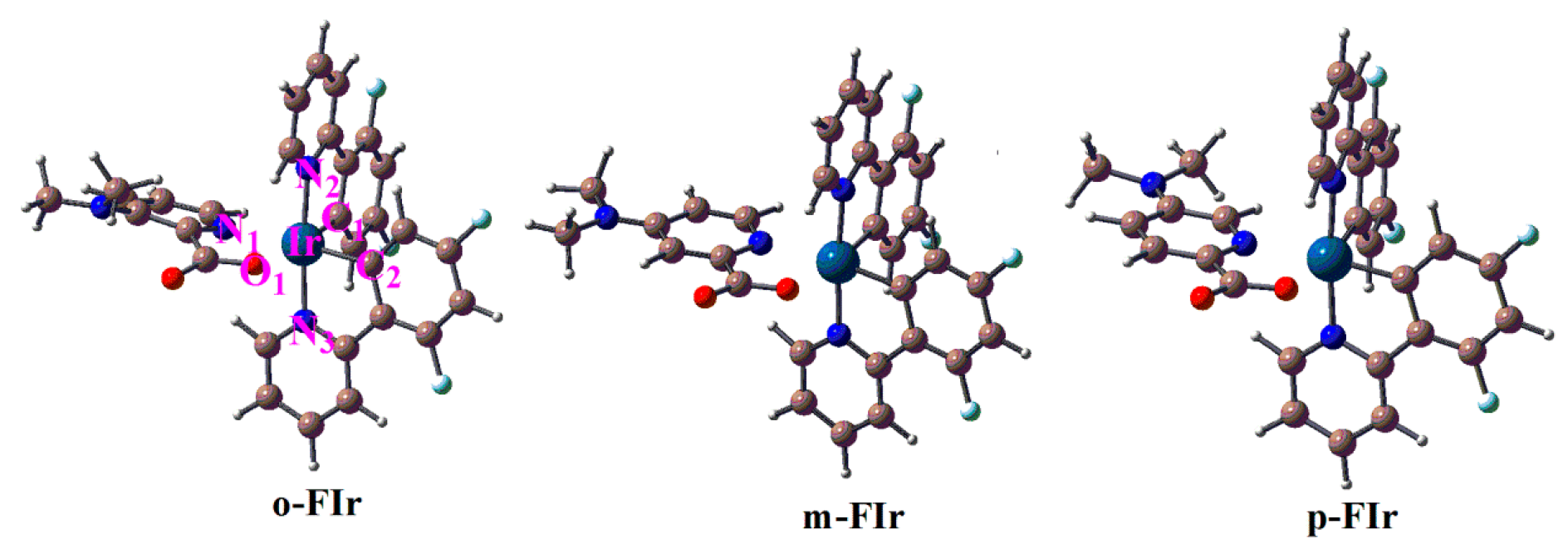

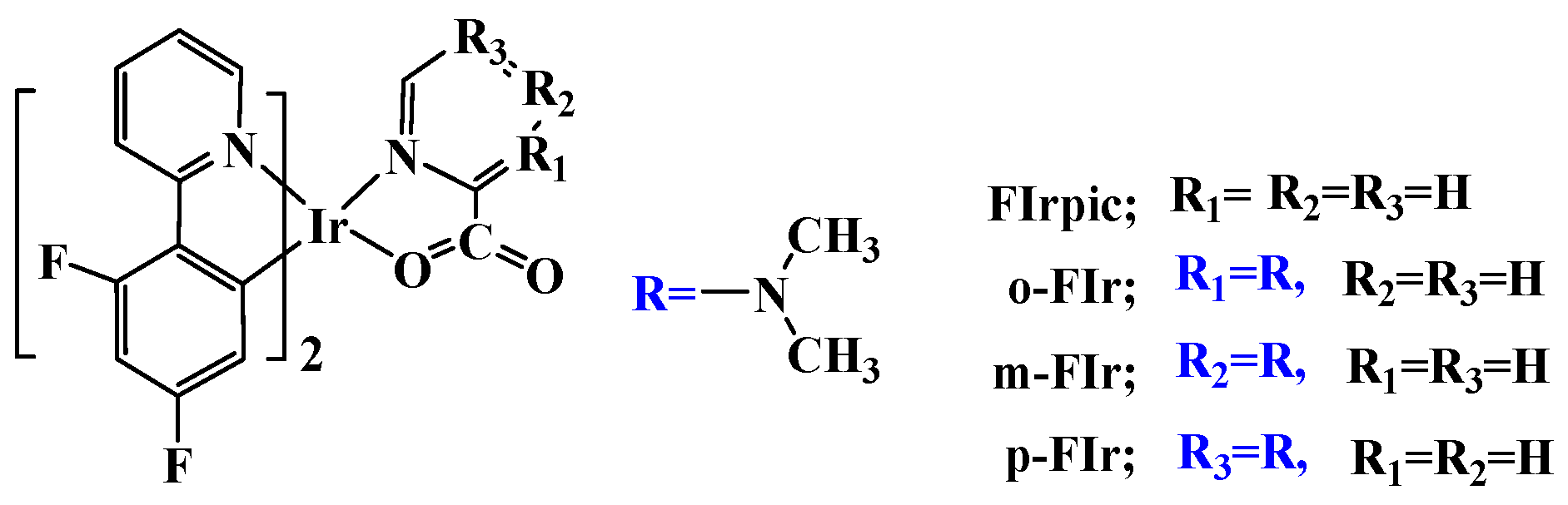

The schematic structures of FIrpic, o-FIr, m-FIr, and p-FIr are depicted in Figure 1. The ground-state (S₀) geometry of FIrpic was optimized by B3LYP, CAMB3LYP, M06L, MPW1PW91 functionals with the same basis set. The detailed geometries and available crystal data of FIrpic [21] are collected in Table S1 in supporting information. It is found that M06L functional predicts more satisfied geometrical structures by compared with the experimental data. Therefore, the S₀ geometries of o-FIr, m-FIr, p-FIr are calculated by M06L functional, and the optimized geometries as well as the numbering of some key atoms are depicted in Figure 2. The optimized primary metal–ligand bond lengths of these designed complexes in the ground-state (S₀) geometry are collected in

Table 1. Calculated metal–ligand bond lengths (Å), bond angles (°), and dihedral angles (°) for studied complexes in the ground state (S₀) and first excited triplet state(T₁).

Molecule	State	Ir-N1	Ir-O1	Ir-N2	Ir-C1	Ir-N3	Ir-C2	N1-Ir-N2	O1-Ir-N2	N1-O1-C2-C1
FIrpic	S0	2.215	2.190	2.066	2.001	2.058	1.997	88.4	93.5	6.8
	T1	2.313	2.172	2.069	1.979	2.060	1.975	97.1	88.7	−3.4
o-FIr	S0	2.210	2.180	2.066	2.002	2.054	1.997	87.3	94.0	5.0
	T1	2.316	2.154	2.057	1.981	2.067	1.977	84.4	93.7	3.1
m-FIr	S0	2.206	2.193	2.064	2.002	2.056	1.995	88.6	93.0	7.2
	T1	2.285	2.171	2.069	1.979	2.057	1.978	95.9	89.0	−4.6
p-FIr	S0	2.165	2.177	2.055	2.010	2.045	2.001	87.6	92.9	6.3
	T1	2.305	2.160	2.068	1.982	2.058	1.977	97.4	88.7	−3.0

.

As listed in Table 1, the N₁-Ir-N₂ and O₁-Ir-N₂ of FIrpic are ca. 90°, and the dihedral angle of N₁-O₁-C₂-C₁ of FIrpic is 6.8°. Obviously, FIrpic has distorted octahedral geometry around the Ir(Ш) atom. Table 1 shows that the N₁-Ir-N₂, O₁-Ir-N₂, and N₁-O₁-C₂-C₁ of o-FIr, m-FIr, and p-FIr are similar to those of FIrpic. Clearly, the introduction of a dimethylamine moiety on the pyridine moiety of picolinic acid (N^∧O) does not affect the distorted octahedral geometry of the Ir(Ш) complex. For o-FIr and p-FIr, because of the introduction of dimethylamine group on the pyridine, the Ir-N₁ and Ir-O₁ of o-FIr and p-FIr are shortened (0.005 Å and 0.01 Å for o-FIr, while 0.05 Å and 0.016 Å for p-FIr) in comparison to those of FIrpic. These calculated results indicate that there is a strong interaction between the Ir(Ш) and (N^∧O) ligand. Furthermore, the Ir-N₁ bond length of o-FIr, m-FIr, and p-FIr are significantly shortened compared with that of FIrpic; therefore, the possible of dissociation of Ir-N₁ bond in the ³MC state is expected to be decreased by the incorporation of N(CH₃)₂ groups.

The lowest lying triplet excited states (T₁) of studied complexes are also listed in Table 1. As listed in Table 1, the Ir-N₁ bond length of these complexes is dramatically elongated in the T₁ state in comparison with that in S₀ state. This suggests that the interaction between the N^∧O ligand and the metal is weakened in the T₁ state. From the S₀ to the T₁ state, the Ir-C_1/2 and Ir-N_2/3 bond lengths of 2-(2,4-difluorophenyl)pyridine (C^∧N) ligands in o-FIr, m-FIr, and p-FIr are contracted by the substitutions of the dimethylamine groups on the pyridine moiety. The strengthened metal–ligand bonds will strength the interaction between the metal and C^∧N ligands and further benefit the charge transfer from the metal to ligand, which may improve the quantum efficiency.

2.2. Froniter Molecular Orbtials

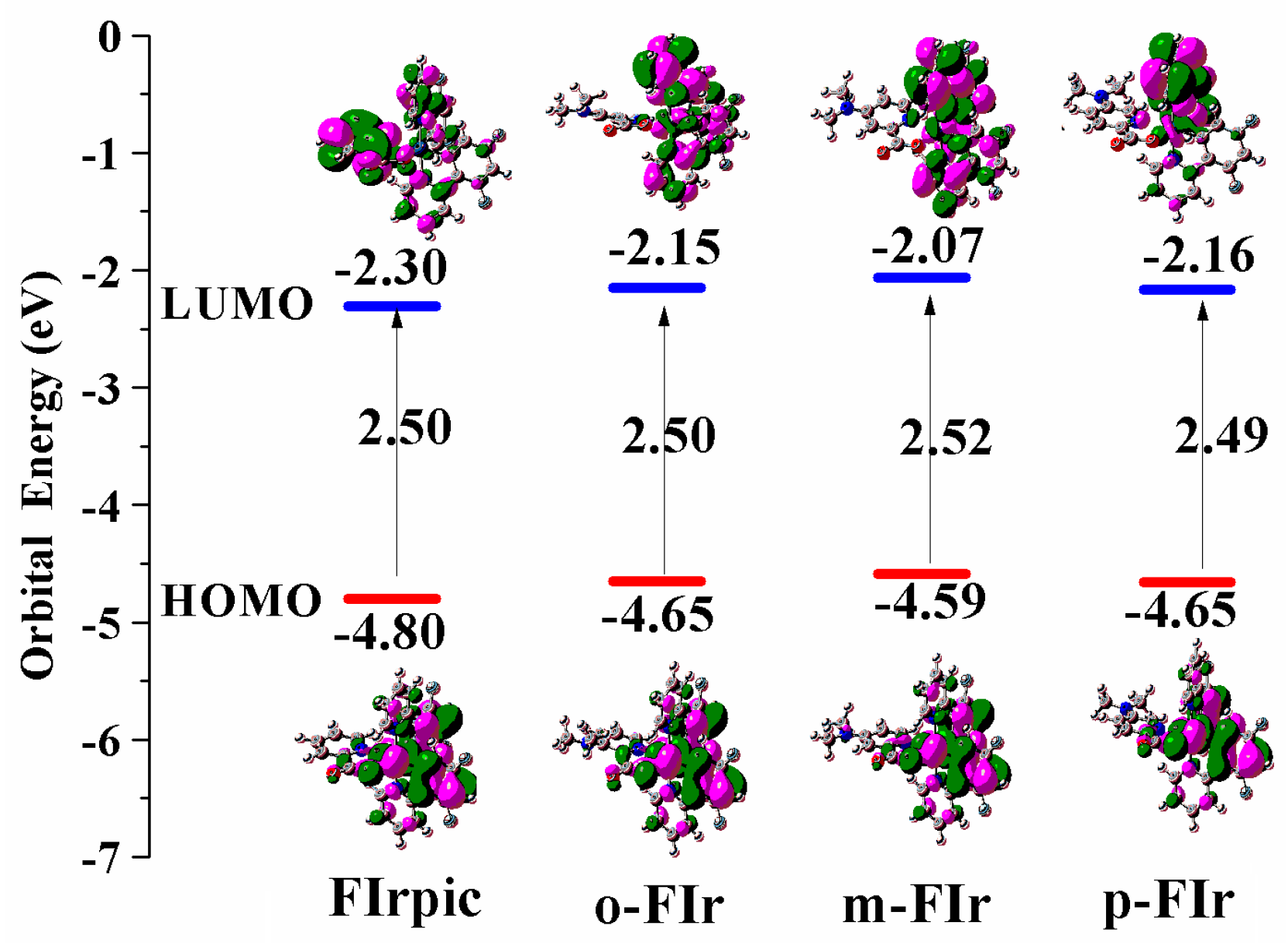

Considering that frontier molecular orbitals are useful to provide the nature of the charge transfer and photophysical properties in the excited state, the HOMO and LUMO energies, HOMO–LUMO energy gaps, and the contour plots of these orbitals of studied complexes are drawn in Figure 3. Detailed descriptions of the frontier molecular compositions are collected in Table S2 in the supporting information.

Normally, when the interfacial vacuum energy shift can be neglected, the hole (or electron) injection energy barrier from the electrode to semiconductor (Φ_h) (or Φ_e) can be calculated by Φ_h = |HOMO| − Φ_m (or Φ_e = Φ_m − |LUMO|), where Φ_m is the work function of the electrode [22]. Consider that Au (Φ_m = 5.1 eV) is widely used as electrode in OLEDs; therefore, it is used as reference electrode [22]. As depicted in Figure 3, the HOMO and LUMO energies of o-FIr, p-FIr, and m-FIr increase remarkably (−4.65 eV and −2.15 eV for o-FIr, −4.59 eV and −2.07 eV for m-FIr, −4.65 eV and −2.16 eV for p-FIr) compared with FIrpic (−4.80 eV and −2.30 eV). Therefore, the calculated Φ_h of these complexes are (in the region of 0.30–0.51 eV) much smaller than those of the calculated Φ_h values (in the region of 2.80–3.03 eV). It is obvious that these emitters are suitable for use as p-type organic semiconductors [23]. Furthermore, the HOMO energy level of o-FIr (0.15 eV), m-FIr (0.21 eV), and p-FIr (0.15 eV) is significantly higher than that of FIrpic. The higher HOMO energies will benefit the hole injection abilities. Together with the increasing HOMO and LUMO energy, the HOMO–LUMO energy gaps of our designed molecules are similar to that of FIrpic, which means that absorption and phosphorescent spectra of these designed complexes might be similar to that of FIrpic when these spectra are predominantly contributed by the HOMO→LUMO transition.

For FIrpic, o-FIr, p-FIr, and m-FIr, the electron densities of HOMOs are mainly located on 50% d(Ir) orbital and 38% π(C^∧N ligands) orbital, as shown in Figure 3 and Table S2. Owing to the introduction of N(CH₃)₂ groups, the LUMOs in o-FIr_, m-FIr_, and p-FIr are mainly focused on the C^∧N ligands with about 90% compositions, while the LUMO in FIrpic is contributed by N^∧O ligand. The HOMO-1 of these studied complexes is mainly focused on the ca. 50% d orbital the ca. 30% π orbitals of N^∧O ligand, while theirs HOMO-2 are mainly contributed by N^∧O ligand. The contributions of d(Ir) orbital on HOMO-3 of o-FIr (67.5%) and m-FIr (56.9%) are similar to that of FIrpic (67.1%). This means that the N(CH₃)₂ substitutions have a minor effect on the composition of the frontier molecular orbital. Therefore, the nature of electron transition upon excitations of o-FIr, p-FIr, and m-FIr might be similar with those of FIrpic, which will be further investigated in the following section.

2.3. Absorption Spectra

The calculated absorption spectra of studied complexes associated with oscillator strengths (f) and the corresponding compositions, as well as the experimental data [24] are given in

Table 2. The calculated maximum absorption wavelength (nm), oscillator strengths (f), and major contribution transition composition for studied complexes obtained by TD-M06L method. FIrpic: Ir(4,6-dFppy)₂(pic).

Molecule	Transition	λ(nm)	f	Composition	CI	Exp. [24] (nm)
FIrpic	S0→S2	453.00	0.0250	HOMO→LUMO + 1	0.68971	455
	S0→S7	380.95	0.0614	HOMO − 1→LUMO + 2	0.55936	379
	S0→S50	265.86	0.2104	HOMO − 8→LUMO + 2	0.38300	256
				HOMO→LUMO + 7	0.24359
o-FIr	S0→S1	463.87	0.0258	HOMO→LUMO	0.70168
	S0→S7	395.15	0.0266	HOMO − 2→LUMO + 2	0.56244
				HOMO − 1→LUMO + 2	−0.40890
	S0→S52	269.04	0.1135	HOMO − 9→LUMO + 1	0.25480
				HOMO − 5→LUMO + 5	0.42176
				HOMO − 1→LUMO + 7	0.23321
	S0→S53	268.66	0.1642	HOMO − 7→LUMO + 4	−0.35667
				HOMO − 1→LUMO + 7	0.36355
	S0→S54	266.76	0.1318	HOMO − 9→LUMO + 2	0.21920
				HOMO − 2→LUMO + 7	0.26962
				HOMO − 1→LUMO + 7	−0.21838
				HOMO→LUMO + 7	0.41903
	S0→S55	266.32	0.0836	HOMO − 5→LUMO + 5	0.42068
	S0→S56	264.54	0.1094	HOMO − 9→LUMO + 2	0.48856
				HOMO − 8→LUMO + 2	−0.19242
				HOMO − 1→LUMO + 5	0.27865
	S0→S57	262.33	0.1716	HOMO − 9→LUMO + 2	−0.24371
				HOMO − 5→LUMO + 5	−0.24091
				HOMO − 4→LUMO + 5	−0.25407
				HOMO − 2→LUMO + 5	0.20626
				HOMO − 2→LUMO + 7	0.30782
				HOMO − 1→LUMO + 5	0.32002
m-FIr	S0→S1	462.95	0.0263	HOMO→LUMO	0.70166
	S0→S6	393.55	0.0423	HOMO − 2→LUMO	−0.41398
				HOMO − 2→LUMO + 1	0.42182
				HOMO − 1→LUMO + 1	0.31148
	S0→S53	267.06	0.3060	HOMO − 8→LUMO + 2	−0.24031
				HOMO→LUMO+7	0.25154
p-FIr	S0→S1	463.29	0.0286	HOMO→LUMO	0.70148
	S0→S8	388.02	0.0581	HOMO − 1→LUMO + 1	−0.43685
				HOMO→LUMO + 3	0.47613
	S0→S52	271.08	0.2512	HOMO − 7→LUMO + 4	−0.27219
				HOMO − 3→LUMO + 5	0.21898
				HOMO − 2→LUMO + 5	0.29024
				HOMO→LUMO + 7	−0.21723

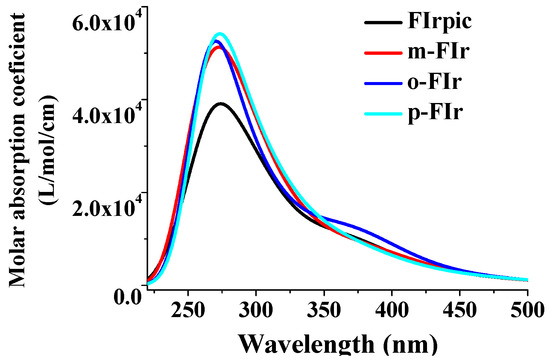

. Simulated absorption spectra of these complexes with the data calculated at the TD-M06L method are drawn in Figure 4.

As listed in Table 2, the main calculated values of these bands are localized at 453.00, 380.95, and 265.86 nm for FIrpic, respectively, which are in good agreement with the experimental results of 458, 379, and 256 nm, respectively [24]. For the low-lying absorption spectra of FIrpic, the excitations of HOMO→LUMO + 1 and HOMO − 1→LUMO + 2 are dominantly responsible for the absorption peaks at 453.00 and 380.95 nm, respectively. As listed in Table S2, the HOMO and HOMO − 1 are delocalized on the Ir(d), N^∧O, and N^∧C ligand, while the LUMO + 1 and LUMO + 2 are mainly contributed by the N^∧C ligand. Therefore, from the analysis of FMOs, the absorption peaks at 453.00 and 380.95 nm can be characterized as metal-to-ligand charge transfer (MLCT), inter-ligand charge transfer (ILCT), and ligand–ligand charge transfer (LLCT). The absorption peak with largest oscillator strength (f = 0.2104) of FIrpic is located at 265.86 nm, which is arising from the HOMO − 8→LUMO + 2 and HOMO→LUMO + 7 transitions. Because of the large of amount of Ir(d) in HOMO (50.7%) and HOMO – 8 (20.8%), the absorption peak at 265.86 nm can mainly be assigned to the MLCT/LLCT/ILCT character. From the analysis of frontier molecule orbital compositions, the mount of MLCT of the 453.00, 380.95, and 265.86 for FIrpic is 21.07%, 21.07%, and 7.16%, respectively. The significant MLCT contributions on the lower-lying absorptions of FIrpic are in good agreement with the experimental results [24].

Table 2 also shows the lowest-lying absorption peak of o-FIr, m-FIr, and p-FIr at 463.87, 462.95, and 463.29 nm, respectively, which is dominantly responsible for the excitation of HOMO→LUMO. Table S2 shows that the HOMO of o-FIr, m-FIr, and p-FIr is composed of 50.1% Ir(d) + 47.7% π(N^∧O + N^∧C), 50.3% Ir(d) + 47.9% π(N^∧O + N^∧C), 48.6% Ir(d) + 49.3% π(N^∧O + N^∧C), respectively, while their LUMOs are contributed by ca. 80% π*(N^∧C). Thus, the lowest-lying absorptions of these complexes originate from the [Ir(d) + π(N^∧O + N^∧C)]→π*(N^∧C) excited state with MLCT/ILCT/LLCT character. The mount of MLCT of the lowest-lying absorption of o-FIr, m-FIr, and p-FIr is ca.22%, which is similar to that of FIrpic. Furthermore, as shown in Figure 4, the absorption intensity of N(CH₃)₂-substituted Ir complexes (m-FIr, o-FIr, p-FIr) in the highest energy absorption spectra have been effectively enhanced, which may increase the intersystem crossing rates (ISC). For o-FIr, the highest energy absorption peak (262.33 nm) is contributed by the mixture excitations of HOMO − 9→LUMO + 2, HOMO − 5→LUMO + 5, HOMO − 4→LUMO + 5, HOMO − 2→LUMO + 5, HOMO − 1→ LUMO + 5. Since the Ir(d) in the HOMO − 9, HOMO − 4, HOMO is 22.7%, 67.5%, 50.1%, respectively, the MLCT contributed 8.9% to the 262.33 nm of o-FIr, which is slightly larger than that of FIrpic. For m-FIr and p-FIr, the absorption peak with large oscillator strength is located at 267.06 (attributed by HOMO − 8→LUMO + 2 and HOMO→LUMO + 7) and 271.08 nm (attributed by HOMO − 7→LUMO + 4, HOMO − 3→LUMO + 5, HOMO − 2→LUMO + 5, HOMO→LUMO + 7), respectively. Combining the transition configuration with the orbital composition, the mount of MLCT of the high energy absorption peaks for m-FIr and p-FIr are only 4.4% and 5.2%, respectively. Clearly, the contribution of MLCT in the whole absorption spectra of o-FIr are remarkably larger than those of FIrpic, m-FIr, and p-FIr. Normally, the participation of MLCT in the absorption spectra is a critical factor affecting the intensity of the singlet–triplet transitions, and thus improves the quantum efficiency. Thus, the calculated results indicate that the introduction of N(CH₃)₂ groups at the ortho-position of N^∧O ligand is useful to enhance the intersystem crossing and singlet–triplet transitions, and therefore the possibility of the phosphorescent quantum yield might be enhanced.

2.4. Phosphorescence Emission Spectra

Based on the optimized lowest triplet excited state (T₁) geometries, vertical T₁–S₀ transition energies (ΔE_vert) and the emission wavelength (nm) obtained by CAMB3LYP functional are collected in

Table 3. The calculated phosphorescence emission wavelength (nm), along with metal–ligand charge transfer character (³MLCT, %) and available experimental values.

Molecule	Evert				E0-0		Exp [24]
	λ (nm)	E (eV)	Composition	3MLCT (%)	λ (nm)	E (eV)	λ (nm)
FIrpic	490.49	2.53	0.49 (HOMO→LUMO)	20.31	480.86	2.58	468
o-FIr	492.78	2.52	0.45 (HOMO − 4→LUMO) 0.43 (HOMO→LUMO)	18.78	482.58	2.60
m-FIr	484.32	2.56	−0.36 (HOMO − 4→LUMO) 0.40 (HOMO→LUMO)	9.11	481.78	2.57
p-FIr	485.83	2.55	−0.36 (HOMO − 4→LUMO) 0.49 (HOMO→LUMO)	11.56	481.76	2.57

, together with available experimental values [24]. Since the vertical T₁–S₀ transition energy (ΔE_vert) is the electronic energy difference between the T₁ and S₀ state at the optimized T₁ geometry, it is therefore strongly dependent on the functional. The molecular orbital compositions responsible for the emission spectra of the studied complex are given in Table S3. The 0-0 T₁→S₀ transition energy (ΔE_0-0) is calculated by the energy difference between the S₀ and T₁ states at their respective optimized geometries obtained by M06 functional.

As listed in Table 3, the calculated emission peak for FIrpic based on the calculated E_vert and E_0-0 method is located at 490.49 and 480.86 nm, respectively. The slightly longer wavelength derived from E_vert is caused by only one single configuration, while real emission is composed of more than one configuration. The phosphorescence at 490.49 nm of FIrpic is contributed by the excitation of HOMO→LUMO. According to the orbital composition analyses, the HOMO is contributed by 42.8% Ir(d) + 54.3% π(C^∧N + N^∧O), while the LUMO is mainly focused on C^∧N ligand. Accordingly, the emission of FIrpic can be attributed to ³MLCT/³LLCT/³ILCT character. The d(Ir) orbital contributes to 42.8% for HOMO, and thus the emission of FIrpic at 490.49 nm has ³MLCT (20.31%) transition character. For N(CH₃)₂-substituted Ir complexes, the phosphorescent emissions based on E_vert method are located at 492.78, 484.32, and 485.83 nm for o-FIr, m-FIr, and p-FIr, respectively, which is dominantly responsible for excitations of HOMO→LUMO and HOMO − 4→LUMO. This is because the HOMO and HOMO − 4 of o-FIr, m-FIr, and p-FIr are mainly contributed by d(Ir) and π(C^∧N + N^∧O) (besides the HOMO − 4 of m-FIr), while the LUMOs of o-FIr and m-FIr are located at π*(C^∧N). Table 3 shows that the calculated E_0–0 for these designed complexes are ca. 480nm. Accordingly, these designed complexes have similar phosphorescent emissions and transition character with that of FIrpic, which might be a potential candidate for blue-emitting materials. Furthermore, the d(Ir) orbital contributions to HOMO and HOMO − 4 (42.8% and 0.97% for m-FIr, 30.68% and 36.68% for p-FIr) are much smaller than that of HOMO (41.35%) and HOMO − 4 (63.39%) for o-FIr. The larger d(Ir) orbital composition results in slightly larger ³MLCT% in its phosphorescence of o-FIr (18.78%) than m-FIr (9.11%) and p-FIr (11.56%). Therefore, the o-FIr may have improved Φ_p compared with m-FIr and p-FIr.

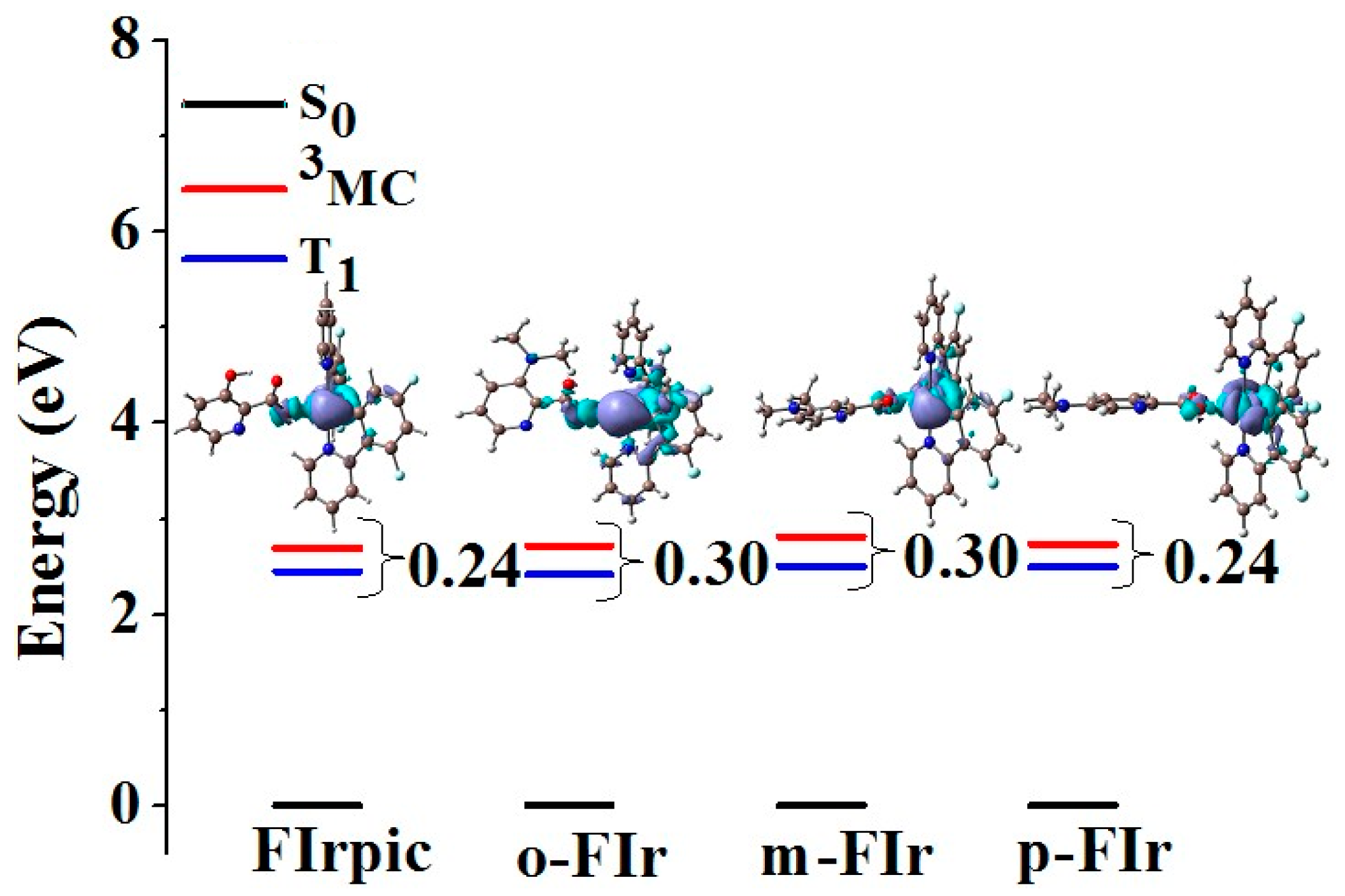

To give some insight into the nonradiative rate constant (k_nr), the high lying metal-centered (³MC d-d) excited states of studied complexes—which is one of the most important deactivation pathways for the phosphoresce emission from T₁ in transition-metal complexes—were optimized by unrestricted M06L method. The energy difference between ³MLCT/π-π* and ³MC d-d excited states are drawn in Figure 5, along with the spin density distribution in the ³MC d–d state. As shown in Figure 5, the ³MC d-d state of studied complexes are lying at a relatively higher energy than that of ³MLCT/π-π* state, which suggests that the possibility of a radiationless pathway is low. Furthermore, the energy difference between the ³MLCT/π-π* and ³MC d-d excited states of o-FIr (0.30 eV) and m-FIr (0.30 eV) is larger than that of FIrpic (0.24 eV). Therefore, these calculation results show that ortho- and meta- substituted Ir complexes are useful to decrease the K_nr. Based on the above viewpoint, it becomes clear that introducing the N(CH₃)₂ at the ortho-position of N^∧O ligand in FIrpic led to larger ISC and k_r values, as well as the smaller k_nr value relative to others. Therefore, o-FIr is considered to be used as potential blue-emitting emits with high quantum efficiency.

2.5. Performance in OLEDs

To evaluate the performance of OLED devices, it is highly important to investigate the charge injection and transfer ability. The ionization potential (IP) and electron affinity (EA) are usually employed to evaluate the energy barrier for the hole and electron injections. Normally, the lower IP (larger EA) value suggests that it is easier to inject hole (electron). According to the Marcus theory [25], the electron transfer rate constants can be expressed by the following formula:

$$k={\left(\frac{\pi }{\lambda k_{B}T}\right)}^{1/2}\frac{V^2}{\hslash }\exp (-\frac{\lambda }{4k_{B}T})$$

(1)

where T and k_B is the temperature and Boltzmann constant, respectively. The λ is the reorganization energy, and V is the coupling matrix element. According to Equation (1), the intermolecular charge transfer rate k is determined by two factors, λ and V. Due to the limited intermolecular charge transfer range in the solid state, the mobility of charges has been demonstrated to be primarily associated with the reorganization energy λ for OLED materials [26]. The detailed description of the calculations of vertical ionization potential (IP(v)), vertical electron affinity (EA(v)), hole extraction potential, (HEP), electron extraction potential (EEP) and electron reorganization energy (λ_electron), as well as hole reorganization energy (λ_hole) are listed in our previous report [16]. According to the previous report [16], the IP, EA, and λ of studied complexes are calculated and listed in

Table 4. The calculated ionization potential (IP, eV), electron affinities (EA, eV), hole extraction potential, (HEP, eV), electron extraction potential (EEP, eV) hole/electron reorganization energy (λ_hole/λ_electron, eV).

Molecule	IP(v)	HEP	EA(v)	EEP	λhole	λelectron
FIrpic	6.56	6.29	0.72	0.98	0.27	0.26
o-FIr	6.32	6.06	0.48	0.69	0.26	0.21
m-FIr	6.39	6.09	0.56	0.75	0.30	0.19
p-FIr	6.34	6.11	0.53	0.73	0.23	0.20

.

Compared with FIrpic, all these designed complexes have smaller IP(v) and HEP, which is consistent with their higher HOMO energy levels. Thus, the hole injection ability of these designed complexes are improved by introduction of dimethylamine substitutions at the C^∧O ligand. However, o-FIr, m-FIr, and p-FIr have smaller EA values than FIrpic, which will lead to worse electron injection ability compared with FIrpic. According to Equation (1), the λ is required to be small for efficient charge transport. As listed in Table 4, the λ_electron of studied complexes are slightly smaller than that of FIrpic, indicating that these complexes have excellent electron transfer ability. The difference between the λ_hole and λ_electron of FIrpic, o-FIr, and p-FIr is less than 0.05 eV. Hence, it is expected that the FIrpic, o-FIr, and p-FIr might have excellent charge transfer balance, which is one of the key factors affecting the performance of OLEDs.

3. Computational Details

The geometrical structures of the ground state (S₀) of FIrpic were fully optimized by B3LYP [27,28], CAMB3LYP [29], M06L [30], and mPW1PW91 [31] methods, respectively, combined with 6-31G(d) basis set for the non-metal atoms (H, C, N, O, and F) and a “double-j” quality basis set LANL2DZ for Ir atom. The calculated vibrational frequencies with no imaginary frequencies based on the optimized geometries verify that each of the optimized structures was a true minimum on the potential energy surface. The calculated results are collected in Table S1 in the supporting information, together with the crystal data [21]. As depicted in Table S1, the bond lengths obtained for B3LYP and CAMBLYP overestimated the bond lengths, especially Ir-N₁ (0.024 Å for CAMB3LYP and 0.031 Å for B3LYP) and Ir-N₃ (0.049 Å for CAMB3LYP and 0.073 Å for B3LYP), while the bond length differences between the calculated results obtained by M06L and crystal data were small. Therefore, the ground-state geometries of the studied complexes were calculated by M06L method. Based on the ground-optimized structure, the vertical excitation energies were calculated by TD-M06L method with continuum polarizable continuum model (CPCM). The lowest-lying triplet excited state geometries (T₁) and triplet-centered (³MC) d-d states were optimized by unrestricted M06L method. Based on the T₁ equilibrium geometries, four different functionals—PBE0, B3LYP, CAMB3LYP, and M06L—were performed on the emission spectra calculations (as listed in Table S4). The CAMB3LYP functional was adopted to predict the emission spectra of these complexes, because the calculated results obtained by CAMB3LYP were consistent with the experimental results. All calculations were performed with the Gaussian 09 software package [32].

4. Conclusions

In this work, the geometrical and electronic structures, absorption and emission spectra, as well as phosphorescence efficiencies for a series of dimethylamine-substituted iridium(Ш) complexes FIrpic have been investigated by density functional theory (DFT) and time-dependent density functional theory (TDDFT) methods. The results indicate that the introduction of dimethylamine is useful to extend the π-electron delocalization, increase HOMO energy levels, and enhance hole injection and transfer ability. Furthermore, the absorption intensity and participation of MLCT of these dimethylamine substitutions are significantly stronger than that of FIrpic, suggesting the possibility of singlet-to-triplet transitions are enhanced, and therefore the phosphorescent quantum yield might be increased by introducing dimethylamine. Importantly, through the analyses of triplet energy (E_T1), participation of ³MLCT in phosphorescent spectra, as well as the energy difference between the ³MLCT/π-π and ³MC d-d state, it can be inferred that o-FIr has larger k_r values and smaller k_nr values compared with other molecules. So, the strategy of introducing the dimethylamine in N^∧O ligand of FIrpic should be useful in the design of more-efficient blue emitters.
