Secondary Metabolite Profiling of Species of the Genus Usnea by UHPLC-ESI-OT-MS-MS
by
, and
Francisco Salgado
1,
Laura Albornoz
1,
Carmen Cortéz
1,
Elena Stashenko
2,
Kelly Urrea-Vallejo
3,
Edgar Nagles
1,
Cesar Galicia-Virviescas
1,
Alberto Cornejo
4,
Alejandro Ardiles
5,
Mario Simirgiotis
6,7
,
Olimpo García-Beltrán
3,*
and
Carlos Areche
1,*
1
Departamento de Química, Facultad de Ciencias, Universidad de Chile, Las Palmeras 3425, Nuñoa, Santiago 7800024, Chile
2
Research Center of Excellence CENIVAM, CIBIMOL, Universidad Industrial de Santander, Building 45, UIS, Carrera 27, Calle 9, Bucaramanga 680002, Colombia
3
Facultad de Ciencias Naturales y Matemáticas, Universidad de Ibagué, Carrera 22 Calle 67, Ibagué 730001, Colombia
4
Escuela de Tecnología Médica, Facultad de Medicina, Universidad Andrés Bello, Sazié 2315, Santiago 8370092, Chile
5
Facultad de Ciencias de la Salud, Universidad Arturo Prat, Casilla 121, Iquique 1100000, Chile
6
Instituto de Farmacia, Facultad de Ciencias, Universidad Austral de Chile, Campus Isla Teja, Valdivia 5090000, Chile
7
Center for Interdisciplinary Studies on the Nervous System, Universidad Austral de Chile, Campus Isla Teja, Valdivia 5090000, Chile
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(1), 54; https://doi.org/10.3390/molecules23010054
Submission received: 1 December 2017
/
Revised: 20 December 2017
/
Accepted: 24 December 2017
/
Published: 27 December 2017
(This article belongs to the Section Metabolites)
Abstract
:Lichens are symbiotic associations of fungi with microalgae and/or cyanobacteria, which are considered among the slowest growing organisms, with strong tolerance to adverse environmental conditions. There are about 400 genera and 1600 species of lichens and those belonging to the Usnea genus comprise about 360 of these species. Usnea lichens have been used since ancient times as dyes, cosmetics, preservatives, deodorants and folk medicines. The phytochemistry of the Usnea genus includes more than 60 compounds which belong to the following classes: depsides, depsidones, depsones, lactones, quinones, phenolics, polysaccharides, fatty acids and dibenzofurans. Due to scarce knowledge of metabolomic profiles of Usnea species (U. barbata, U. antarctica, U. rubicunda and U. subfloridana), a study based on UHPLC-ESI-OT-MS-MS was performed for a comprehensive characterization of their secondary metabolites. From the methanolic extracts of these species a total of 73 metabolites were identified for the first time using this hyphenated technique, including 34 compounds in U. barbata, 21 in U. antarctica, 38 in U. rubicunda and 37 in U. subfloridana. Besides, a total of 13 metabolites were not identified and reported so far, and could be new according to our data analysis. This study showed that this hyphenated technique is rapid, effective and accurate for phytochemical identification of lichen metabolites and the data collected could be useful for chemotaxonomic studies.
1. Introduction
Lichens are symbiotic associations of fungi with microalgae and/or cyanobacteria. Lichens are among the slowest growing organisms with strong tolerance to adverse environmental conditions ranging from plains to the highest mountains of tropical to Arctic regions under xeric to aquatic conditions. Lichens can grow on or within rocks, soil, trees, shrubs, trunks, on bricks, leather and wood. They have been used since ancient times as sources of color dyes, cosmetics, and as medicine for the treatment of bronchitis, asthma, leprosy, burning sensation, spleen enlargement, heart diseases, stomach disorders, liver pain, inflammation, and vomiting [1,2].
Lichens are sources of phenolic secondary metabolites of different types, including phenols (orcinol and β-orcinol), quinones (parietin and emodin), dibenzofurans (pannaric acid), depsidones (salazinic acid), depsones (picrolichenic acid), depsides (homosekikaic acid), γ-lactones (protolichesterinic acid), pulvinic acid derivatives (vulpinic acid), and xanthones (lichexanthone). In addition other constituents as cyclodepsipeptides, phenylalanine derivatives, halogenated compounds, brominated acetylenic fatty acids, and acetogenins, macrolactone glycosides have also been reported from lichens [3,4].
On the other hand, the genus Usnea contains more the 360 species, which are distributed in polar and tropical regions and their morphology is characterized by the presence of a cartilaginous central axis composed by dense fungal hyphae. Usnic acid is the most typical and abundant compound in the genus Usnea, which gives yellow color to thalli. Traditionally, the genus Usnea has been used to treat diarrhea, ulcers, urinary infections, tuberculosis, pneumonia, stomachache, antifungal, and cattle fungal diseases. The phytochemistry from Usnea species has revealed the presence of almost 60 compounds, distributed among depsidones, depsides, depsones, lactones, quinones, polyphenolics, polysaccharides, fatty acids, and dibenzofurans [2].
New techniques like ultra-high performance liquid chromatography-diode array detection (UHPLC-DAD) coupled to an electrospray ionization tandem mass spectrometer (ESI-MS-MS) have emerged for identification and elucidation of metabolites in complex extracts [5,6,7,8,9]. The Q-Exactive Focus is a newly released fast high-resolution mass spectrometer used to detect and quantify small organic compounds (up to 2000 amu). The hyphenated Q-exactive focus instrument is a high-resolution accurate mass (HRAM) instrument which combines UHPLC-DAD with an Orbitrap™, a quadrupole (Q) and a high-resolution collision cell (HCD), which allows high resolution MS fragments [5,6,7]. This hyphenated technique is a strong weapon in the field of chemical lichenology and some lichens, namely: Ramalina siliquosa, Parmotrema grayana, Heterodermia obscurata, Ramalina terebrata, Everniopsis trulla have been studied under this technique [6,7,9,10].
Continuing our research on lichens, we have analyzed the phytochemical profile of four Usnea species for the first time based on UHPLC-DAD coupled with high resolution electrospray ionization tandem mass spectrometry (ESI-MS-MS).
2. Results and Discussion
Four Usnea species were studied in order to determine their metabolomics profiles and chemical fingerprints: U. barbata from Longavi, Chile; U. antarctica from Antarctica, U. rubicunda and U. subfloridana from Colombia.
2.1. Metabolomics in Usnea barbata
Forty-four peaks (Figure 1) were detected for the first time in a methanolic extract (Table S1 in Supplementary Information) using UHPLC/ESI/MS/MS in negative mode. Thirty-four compounds identified in this species were mainly depsides, depsidones, lipids, diphenylether derivatives and dibenzofurans.
Depsides
Thirteen depsides were identified (peaks 8, 10, 22, 31, 48, 60, 63, 69–72, 79 and 86) using UHPLC with DAD and high-resolution mass spectrometry (HRMS) and MS2 analysis. Peak 8 was identified as barbatolic acid (molecular anion at m/z 389.0516) whose fragmentation produced a diagnostic MS2 ions at m/z 167.0342 and 121.0285. Peaks 10 and 22 were identified as thamnolic acid and haemathamnolic acid isomers, showing [M − H]− ions at m/z 419.0619 and 403.0672, respectively. Peak 31 was identified as lecanoric acid, which showed an [M − H]− ion at m/z 317.0668. Major diagnostic daughter MS ions of lecanoric acid were [M − H − C8H6O3]−, [M − H − C8H8O4]− and [C7H7O2]− (167.0343, 149.0237 and 123.0444 a.m.u., respectively). Peak 48 with a [M − H]− pseudomolecular ion at m/z 467.0985 was identified as gyrophoric acid, which showed diagnostic daughter ions at m/z 317.0667, 167.0345, 149.0238 and 123.0443. Peak 60 was identified as diffractaic acid, whose molecular anion was at m/z 373.1294. Its fragmentation produced ions at m/z 297.1149 [M − H − C2H4O3]−, 181.0499 [M − H − C11H12O3]−, 177.0549 [M − H − C10H12O4]−, and 137.0600 [M − H − C12H12O5]− confirming this depside. Peak 63 was identified as methyl-8-hydroxy-4-O-demethylbarbatate, which showed an [M − H]− ion at m/z 375.1085. Peak 69 with a [M − H]− ion at m/z 387.1452 was identified as divaricatic acid. The parent ion produced major diagnostic MS ions at m/z 195.0661 [M − H − C11H12O3]−, 177.0551 [M − H − C11H14O4]− and 151.0759 [C9H11O2]− confirming this depside. Peak 70 presented a pseudomolecular ion at m/z 359.1139, which produced fragmented ions at m/z 181.0503, 163.0394 and 137.0601, thus it was identified as barbatic acid. Peak 71 was identified as sekikaic acid (molecular anion at m/z 417.1556). The fragmentation of peak 71 produced diagnostic ions at m/z 225.0764 [M − H − C11H12O3]−, 209.0815 [M − H − C11H12O4]−, and 165.0915 [M − H − C12H12O5]−. Peak 72 were identified as 8-hydroxybarbatic acid, which showed an [M − H]− ion at m/z 375.1088. Peak 79 and 86 were identified as atranorin and chloroatranorin, which showed [M − H]− ions at m/z 373.0929 and 407.0541, respectively. The major diagnostic daughter ions were at m/z 177.0187 and 163.0394 a.m.u. for atranorin, while for chloroatranorin ions were at m/z 228.9906. These findings are in good agreement with the studies of Le Pogam et al. [8], Musharraf et al. [9] and Parrot et al. [10].
Depsidones
Eight depsidones corresponding to peaks 18, 24, 29, 32, 35, 46, 50, and 73 were identified using UHPLC with DAD and HRMS-MS analysis. Peak 18 was identified as salazinic acid, which showed a [M − H]− ion at m/z 387.0359. Its major diagnostic daughter ions were at m/z 269.0464, 241.0504, 151.0394 and 123.0445 a.m.u. Peak 24 was identified as connorstictic acid, which showed an [M − H]− ion at m/z 373.0565. Peak 29 with a [M − H]− pseudomolecular ion at m/z 401.0514 was identified as siphulellic acid, which showed diagnostic daughter ions at m/z 253.0505, 149.0238, and 123.0444. Galbanic acid was at the peak 32 (molecular anion at m/z 429.0463). The fragmentation of peak 32 produced ions at m/z 269.0456, 149.0237 and 123.0443. Peak 35 with a [M − H]− ion at m/z 371.0409 was identified as norstictic acid. The parent ion produced major diagnostic MS ions at m/z 327.0509, 151.0393 and 123.0444 confirming this depsidone. Peak 46 and 50 were identified as α-acetylconstictic acid and stictic acid, which showed a [M − H]− ion at m/z 443.0620 and 385.0567 respectively. The major diagnostic daughter ions were at m/z 383.0418, 343.0425 and 269.0457 a.m.u. for α-acetylconstictic, while for stictic acid ions were at m/z 357.0617, 313.0720 and 179.0347. Peak 73 was identified as lobaric acid (molecular anion at m/z 455.1712). The fragmentation of peak 38 also produced ions at m/z 411.1815 [M − H − CO2]−, 367.1909 [M − H − 2CO2]−, 352.1681 [M − H − 2CO2 − CH3]−, and 296.1048 [M − H − 2CO2 − C5H11]− confirming this depsidone. These findings are in good agreement with the reports of Castro et al. [7], Le Pogam et al. [8] and Musharraf et al. [9].
Lipids
Eleven polyhydroxylated lipids were identified (peaks 26, 34, 37, 38, 43, 54, 56, 67, 76, 82 and 83) using UHPLC-ESI-MS-MS analysis. Peak 26 with an [M − H]− ion at m/z 375.2752 was identified as tetrahydroxyeicosanoic acid. Peak 34 showed an [M − H]− ion at m/z 403.3067 was identified as tetrahydroxydocosanoic acid. Peak 37, 38 and 43 were identified as tetrahydroxytricosanoic acid (C23H46O6), tetrahydroxydocosanoic acid (C22H44O6) and 6-ethyl-6-n-pentylpentadecan-4,5,7,8,15-pentol-15-acetate (C24H48O6), which showed a [M − H]− ion at m/z 417.3221, 403.3066 and 431.3379 respectively. Besides, peak 54, 56 and 67 were identified as tetrahydroxyhexacosanoic acid (C26H52O6), nonahydroxyoctacosanoic acid (C28H56O11) and heptahydroxytricosatrienoic acid (C23H40O9), which showed a [M − H]− ion at m/z 459.3693, 567.3667 and 459.2602 respectively. Finally, peak 76, 82 and 83 presented an [M − H]− ion at m/z 473.2756, 251.2016 and 295.1916, respectively. They were identified as the fatty acids tetrahydroxytrioxotetracosanoic acid (C24H42O9), hexadecadienoic acid (C16H28O2), and dihydroxyheptadecatrienoic acid (C17H28O4), respectively.
Diphenylethers
A diphenylether (peak 62) was detected in the methanolic extract using UHPLC-DAD-MS-MS analysis. Peak 62 was identified as β-alectoronic acid, which showed a [M − H]− ion at m/z 511.1976. Its major diagnostic daughter ions were at m/z 369.1339, 247.0969, and 163.0396 a.m.u.
Dibenzofurans
Usnic acid with a [M − H]− ion at m/z 343.0823 was evidenced as peak 78. The main daughter ions of peak 78 were [M − H − CH3]−, [M − H − C4H3O2]− and [M − H − C5H3O3]− (328.0591, 259.0609 and 231.0661 a.m.u., respectively).
Unknown Compounds
Ten other compounds were detected (peaks 1–5, peaks 11, 13, 14, 17 and peak 44) but none was identified.
2.2. Metabolomics in Usnea antarctica
Twenty-one peaks (Figure 2) were identified for the first time in the methanolic extract (Table 1) using UHPLC/ESI/MS/MS in negative mode. Among the classes of compounds identified we can cite depsides, depsidones, lipids, and dibenzofurans.
Depsides
Five depsides were identified (peaks 48, 58, 63, 70 and 72) using UHPLC with DAD and HRMS and MS2 analysis. Peak 48 was identified as gyrophoric acid. Peak 58 and 72 were identified as baeomycesic acid and 8-hydroxybarbatic acid, showing [M − H]− ions at m/z 373.0915 and 375.1070, respectively. Peak 63 and 70 were identified as methyl-8-hydroxy-4-O-demethylbarbatate and barbatic acid respectively. These findings are in good agreement with the studies of Castro et al. [7], Le Pogam et al. [8], Musharraf et al. [9] and Parrot et al. [10].
Depsidones
Four depsidones corresponding to the peaks 24, 36, 40, and 73 were identified using UHPLC with DAD and HRMS-MS analysis. Peak 24 was identified as connorstictic acid. Peak 36 was identified as fumarprotocetraric acid (C22H16O12), which showed an [M − H]− ion at m/z 471.0547. The fragmentation of this peak 36 produced ions at m/z 355.0441, 311.0545 and 115.0023. Peak 40 with a [M − H]− pseudomolecular ion at m/z 387.0705 was identified as hypoconstictic acid, which showed diagnostic daughter ions at m/z 343.0808 and 299.0923. Finally, peak 73 was identified as lobaric acid. These findings are in good agreement with the reports of Le Pogam et al. [8], Musharraf et al. [9] and Parrot et al. [10].
Lipids
Other Compounds
Finally, an aromatic compound (peak 77) and two dibenzofurans (peak 64 and 78) corresponding to ethyl-4-O-methylolivetolcarboxylate, usnic acid and placodiolic acid were identified in this extract, respectively. Placodiolic acid showed a molecular anion at m/z 375.1069. The fragmentation of this compound produced ions at m/z 343.0806 [M − H − CH3OH]−, 259.0597 [M − H − C5H8O3]−, and 231.0648 [M − H − C6H8O5]− confirming this dibenzofuran.
2.3. Metabolomics in Usnea rubicunda
Forty-five peaks (Figure 3) were detected for the first time in the methanolic extract of U. rubicunda using UHPLC/ESI/MS/MS in negative mode (Table 1). Thirty-eight compounds were identified in U. rubicunda and among them are depsides, depsidones, lipids, diphenylether and dibenzofurans. These findings are in good agreement with the reports of Cornejo et al. [6], Castro et al. [7], Le Pogam et al. [8], Musharraf et al. [9] and Parrot et al. [10].
Depsides
Nine depsides were identified and assigned to the peaks 6, 15, 19, 31, 53, 63, 71, 74 and 79 using UHPLC-DAD-MS-MS. Peak 6 and peak 15 were identified as conprotocetraric acid and squamatic acid (molecular anions at m/z 375.0724 and 389.0880, respectively). Peak 19 was identified as conhypoprotocetraric acid which showed an [M − H]− ion at m/z 359.0775 and its fragmentation MS2 ion at m/z 253.0870 [M − H − C2H2O5]−. Peak 31, 53, 63, 71, 74 and 79 were identified as lecanoric acid, 4-O-methylnorsekikaic acid, methyl-8-hydroxy-4-O-demethylbarbatate, sekikaic acid, boninic acid and atranorin, respectively.
Depsidones
Ten depsidones corresponding to peaks 9, 16, 18, 21, 23-25, 35, 39, and 50 were identified (Table 1). Peak 9 was identified as siphulellic acid isomer ([M − H]− ion at m/z 401.0517), its fragmentation produced ions at m/z 359.0410 and 240.0427. Peak 16, 18, 21, 23-25, 35, 39 and 50 were identified as protocetraric acid, salazinic acid, constictic acid, hypoconstictic acid, connorstictic acid, menegazziaic acid, norstictic acid, cryptostictic acid, and stictic acid respectively.
Lipids
Eighteen polyhydroxylated lipids were identified at the peaks 26, 28, 30, 33, 34, 37, 42, 43, 47, 55, 59, 61, 65, 66, 75, 80, and 84, 85 using UHPLC-ESI-MS-MS analysis.
Unknown Compounds
Seven compounds were detected in this extract by the peaks 2, 3, 5, 12, 17, 27 and peak 45 but none of them were identified.
Other Compounds
Finally, a dibenzofuran (peak 78) corresponding to usnic acid was detected and identified in this extract.
2.4. Metabolomics in Usnea subfloridana
Forty-five (Figure 4) peaks were detected for the first time in the methanolic extract of U. subfloridana using UHPLC/ESI/MS/MS in negative mode (Table 1). Thirty-seven compounds were identified in this species which can be arranged as depsides, depsidones, lipids and dibenzofurans. These findings are in good agreement with the reports of Cornejo et al. [6], Castro et al. [7], Le Pogam [8], Musharraf et al. [9] and Parrot et al. [10].
Depsides
Seven depsides were identified and assigned to peaks 7, 31, 63, 70–72 and 81 using UHPLC-DAD-MS-MS. Peak 7 and peak 31 were identified as haemathamnolic acid isomer and lecanoric acid whose molecular anions were at m/z 403.0675 and 317.0670, respectively. Peak 63, 70, 71 and 72 were identified as methyl-8-hydroxy-4-O-demethylbarbatate, barbatic acid, sekikaic acid, and 8-hydroxybarbatic acid respectively. Besides, peak 81 was identified as perlatolic acid which showed an [M − H]− ion at m/z 443.2077 and its fragmentation produced ions at m/z 223.0973, 205.0867 and 179.1073.
Depsidones
Twelve depsidones corresponding to peaks 9, 18, 20, 21, 23–25, 29, 32, 35, 39 and 73 were identified (Table 1). Peak 9 was identified as siphulellic acid isomer ([M − H]− ion at m/z 401.0518) and its fragmentation produced ions at 359.0410 and 240.0427. Peak 18, 20, 21, 23–25, 29, 32, 35, 39 and 73 were identified as salazinic acid, physodalic acid, constictic acid, hypoconstictic acid, connorstictic acid, menegazziaic acid, siphulellic acid, galbinic acid, norstictic acid, cryptostictic acid, and lobaric acid respectively.
Lipids
Seventeen polyhydroxylated lipids were identified: peaks 34, 37, 41–43, 47, 52, 54, 55, 57, 59, 61, 66, 68, 75 and 84, 85 using UHPLC-ESI-MS-MS analysis.
Unknown Compounds
Eight compounds were detected in this extract: peaks 2, 3, 5, 11, 13, 14, 17 and peak 27 but none of them was identified.
Other Compounds
Finally, a dibenzofuran corresponding to usnic acid (peak 78) was detected and identified in this extract.
Among the compounds present in the four-species, we found connorstictic acid (peak 24), tetrahydroxydocosanoic acid (peak 34), 6-ethyl-6-n-pentylpentadecan-4,5,7,8,15-pentol-15-acetate (peak 43), tetrahydroxytricosanoic acid (peak 37), methyl-8-hydroxy-4-O-demethylbarbatate (peak 63) and usnic acid (peak 78). Furthermore, in all species except U. antarctic the following compounds were detected: salazinic acid, lecanoric acid, norstictic acid, and sekikaic acid.
According to Singh et al. 2016 [2] to date more than 60 compounds belonging to different classes such as depsides, depsidones, depsones, lactones, quinones, fatty acids, phenols, polysaccharides and dibenzofurans have been reported from Usnea species. In this work we have identified 76 lichen substances using UHPLC-ESI-OT-MS-MS in these four Usnea species. Several fatty acids have been previously reported from Usnea genus: bourgeanic acid, caperatic acid, murolic acid, isomuronic acid, murotic acid, lichesterinic acid, neuropogolic acid, protolichesteric acid, 18R-hydroxydihydroalloprotolichesterenic acid, methyl 3,4-dicarboxy-3-hydroxy-19-oxoeicosanoate, and 2-methylene-3R-carboxy-18R-hydroxynonadecanoic acid.
We found eleven lipids in U. barbata, nine in U. antarctica, eighteen in U. rubicunda and seventeen in U. subfloridana but the following lipids were reported in all mentioned species tetrahydroxydocosanoic acid (peak 34), tetrahydroxytricosanoic acid (peak 37), and 6-ethyl-6-n-pentylpentadecan-4,5,7,8,15-pentol-15-acetate (peak 43). Moreover, both in U. rubicunda and U. subfloridana methyl 3,4-dicarboxy-3-hydroxy-19-oxoeicosanoate (peak 55), neodihydromurolic acid (peak 59), murolic acid (peak 61), muronic acid (peak 66), norcaperatic acid (peak 75), and caperatic acid (peak 84) were identified, following the same trend as reported in the Usnea genus. The other lipids mentioned here are reported for the first time in these species and in the genus.
So far, twenty-three depsides have been reported from Usnea genus according to Huneck et al. 1996 [3] and Singh et al. 2016 [2]. In this study, we found twenty depsides distributed as: thirteen in U. barbata, five in U. antarctica, nine in U. rubicunda and seven in U. subfloridana. We identified barbatolic acid (peak 8), thamnolic acid (peak 10), squamatic acid (peak 15), baeomycesic acid (peak 58), diffractaic acid (peak 60), barbatic acid (peak 70), and atranorin (peak 79), which were previously reported in the genus Usnea. The others depsides identified by us are reported for the first time in the genus.
Regarding depsidones, thirteen compounds have been reported in the genus Usnea [2,3], while in this study we could identify seventeen. Among the depsidones reported in Usnea genus and identified by us were: protocetraric acid (peak 16), salazinic acid (peak 18), constictic acid (peak 21), menegazziaic acid (peak 25), galbinic acid (peak 32), norstictic acid (peak 35), fumarprotocetraric acid (peak 36), hypoconstictic acid (40), stictic acid (peak 50), and lobaric acid (peak 73). The other depsidones identified in this study are reported for the first time in the genus.
Some eight dibenzofurans have been published in the Usnea genus [2,3] so far, but we identified two: placodiolic acid (peak 64) and usnic acid (peak 78). It is necessary to mention that usnic acid has been identified in all the species studied. Thirteen compounds have not been identified, which could be new according to our data. Therefore, these compounds should be worthy of further research (isolation and NMR identification).
A pioneering work to determine the components in crude extracts of lichens using MS/MS was done by Leuckert and Holzmann [11]. At that study its authors identified usnic acid, diffractaic acid, gyrophoric acid, lecanoric acid, orsellinic acid, ovoic acid, thamnolic acid, hypothamnolic acid, divaricatic acid, fumarprotocetraric acid, protocetraric acid, homosekikaic acid and sekikaic acid by their specific fragmentation patterns, without an isolation methodology, in the following lichens: Alectoria ochroleuca, Umbilicaria torrefacta, Thamnolia vermicularis, Ophioparma ventosa, Cladonia cryptochlorophaea and Cladonia rei. The Tomasi group [10] has reported a chemical study of eight chemotypes of Ramalina siliquosa using LC-ESI-MS/MS and identified ten compounds—conhypoprotocetraric acid, salazinic acid, peristictic acid, cryptostictic acid, protocetraric acid, stictic acid, norstictic acid, hypoprotocetraric acid, 4-O-demethylbarbatic acid, usnic acid—and twenty-two more, which were detected but not identified. In another study, nine compounds were identified using a HPLC-MS/MS approach in nine lichens belonging to the genus Lichina, Collema and Roccella [12]. Among them β-orcinol, orsenillic acid, choline sulphate, roccellic acid, montagnetol, lecanoric acid, erythrin, lepraric acid and acetylportentol were identified based on their fragmentation pathways. Choudhary et al. 2015 [9] studied the lichens Parmotrema grayana and Heterodermia obscurata using HPLC-ESI-QqTOF-MS/MS on negative ion mode. A total of fifteen compounds were detected and identified from the dichloromethane and methanolic extracts. Finally, Le Pogam et al. [8] proposed the rapid identification of lichen extracts using laser desorption/ionization time of flight mass spectrometry instead of electrospray ionization. The analyzed samples were Diploicia canescens, Evernia prunastri, Ophioparma ventosa, Pseudevernia furfuracea, Roccella fuciformis, Xanthoria parietina, Cladonia portentosa, flavocetraria nivalis, Lecidella asema, Ramalina siliquosa, Vulpicida pinastri and Usnea filipendula and, in general in each studied species 2–5 compounds were detected. For example in the lichen Usnea filipendula only salazinic acid and usnic acid were detected.
Regarding the biological activity of Usnea species, several methanolic extracts of U. filipendula, U. antarctica, U. barbata, U. complanta, U. longissima, U. lapponica, U. ghattensis, U. fasciata, U. rubicunda, U. siamensis, and U. articulate have been evaluated for anticancer, antioxidant, antiviral, antibacterial, antimycobacterial, anti-inflammatory, cytotoxicity, antigenotoxic, antitumoral, antifungal, antiulcer, antiplatelet, antithrombotic, hepatoprotective and melanogenesis inhibitory activity [2].
In the study conducted in the four species of the genus Usnea eighty six compounds were identified in total, and of these only six compounds (connorstictic acid (24), tetrahydroxydocosanoic acid (34), tetrahydroxytricosanoic acid (37), 6-ethyl-6-n-pentylpentadecan-4,5,7,8,15-pentol-15-acetate (43), methyl 8-hydroxy-4-O-demethylbarbatate (63) and usnic acid (78), Figure 5) were reported previously in the four species;. The species U. barbata, U. subfloridana and U. rubicunda showed nearly 45 metabolites distributed among the lipid, depsidone, depside, diphenylether, dibenzofuran and chromone classes, while U. barbata was the only species to show the presence of β-alectoronic acid (62). The species U. antarctica from the Antarctic continent showed the presence of only 21 compounds distributed in six families of secondary metabolites arranged as aromatic, lipid, depsidone, depside, dibenzofuran and chromone classes and unlike the other species studied in this lichen we could detect aromatic compounds.
3. Materials and Methods
3.1. Lichen Material
The lichen specimen Usnea barbata (30 g) was collected at “Longavi”, VII Region, Talca, Chile, in 2015, while U. antarctica (50 g) was collected in Ardley Island, Chilean Antarctic, in 2014. Voucher specimens number: UB-19092015 and UA-01032014 were deposited in the Extreme Natural Product Laboratory. Prof. Dr. Reinaldo Vargas confirmed their identity. The species U. rubicunda (21 g) and U. subfloridana (20 g) were collected in “Combeima river basin”, Ibagué-Tolima, Colombia by Prof. O. Garcia and Prof. A. Torres-Benítez, voucher specimens (COL-015 and COL-016) were deposited in the herbarium of Universidad Distrital Francisco José de Caldas and Prof. Alejandra Suárez Corredor confirmed their identity.
3.2. UHPLC-Orbitrap-ESI-MS-MS
3.2.1. Sample Preparation
About 3 g of each lichen species were macerated with methanol (three times, 30 mL each time, 3 days/extraction). The solutions were concentrated to obtain 10 mg (U. barbata), 8 mg (U. antarctica), 18 mg (U. rubicunda) and 22 mg (U. subfloridana) of extracts, respectively.
3.2.2. Instruments
A Thermo Scientific Dionex Ultimate 3000 UHPLC system equipped with a quaternary Series RS pump and a Thermo Scientific Dionex Ultimate 3000 Series TCC-3000RS column compartments with a Thermo Fisher Scientific Ultimate 3000 Series WPS-3000RS autosampler and a rapid separations PDA detector controlled by Chromeleon 7.2 Software (Thermo Fisher Scientific, Waltham, MA, USA and Dionex Softron GmbH, a part of Thermo Fisher Scientific, Bremen, Germany) hyphenated with a Thermo high resolution Q Exactive focus mass spectrometer (Thermo, Bremen, Germany) were used for analysis. The chromatographic system was coupled with the MS with a Heated Electrospray Ionization Source II (HESI II). Nitrogen (purity > 99.999%) obtained from a Genius NM32LA nitrogen generator (Peak Scientific, Billerica, MA, USA) was employed as both the collision and damping gas. Mass calibration for the Orbitrap™ was performed once a week, in both negative and positive modes, to ensure a working mass accuracy lower than or equal to 5 ppm. Cafeine and n-butylamine (Sigma Aldrich, St. Louis, MO, USA) were the calibration standards for positive ions and buspirone hydrochloride, sodium dodecyl sulfate, and taurocholic acid sodium salt (Sigma Aldrich) were used to calibrate the mass spectrometer. These compounds were dissolved in a mixture of acetic acid, acetonitrile, water and methanol (Merck, Darmstadt, Germany) and were infused using a Chemyx Fusion 100 syringe pump (Thermo Fisher Scientific, Bremen, Germany). XCalibur 2.3 software (Thermo Fisher Scientific, Bremen, Germany) and Trace Finder 3.2 (Thermo Fisher Scientific, San José, CA, USA) were used for UHPLC control and data processing, respectively. Q Exactive 2.0 SP 2 from Thermo Fisher Scientific was used to control the mass spectrometer.
3.2.3. LC Parameters
An UHPLC C18 column (Acclaim, 150 mm × 4.6 mm ID, 5 m, Thermo Fisher Scientific, Bremen, Germany) operated at 25 °C was employed. The detection wavelengths were 254, 280, 320 and 440 nm. PDA was recorded from 200 to 800 nm, and mobile phases were 1% formic aqueous solution (A) and acetonitrile (B). The gradient program (time (min), % B) was: (0.00, 5); (5.00, 5); (10.00, 30); (15.00, 30); (20.00, 70); (25.00, 70); (35.00, 5) and 12 min for column equilibration before each injection. The flow rate was 1.00 mL min−1, and the injection volume was 10 μL. Standards and lichen extracts dissolved in methanol were kept at 10 °C inside the autosampler.
3.2.4. MS Parameters
The HESI parameters were as follows: sheath gas flow rate 75 units; aux. gas unit flow rate 20; capillary temperature 400 °C; aux gas heater temperature 500 °C; spray voltage 2500 V (for ESI−); and S lens RF level 30. Full scan data in positive and negative was acquired at the resolving power of 70,000 FWHM (full width half maximum) at m/z 200. For the compounds of interest, a scan range of m/z 100–1000 was chosen; the automatic gain control (AGC) set at 3 × 106 and the injection time set to 200 ms. Scan-rate was set at 2 scans s−1. External calibration was performed using a calibration solution in positive and negative modes. For confirmation purposes, a targeted MS/MS analysis was performed using the mass inclusion list, with a 30 s time window, with the Orbitrap spectrometer operating both in positive and negative mode at 17,500 FWHM (m/z 200). The AGC target was set to 2 × 105, with the maximun injection time of 20 ms. The precursor ions are filtered by the quadrupole which operates at an isolation window of m/z 2. The fore vacuum, high vacuum and ultrahigh vacuum were maintained at approximately 2 mbar, from 105 and below 1010 mbar, respectively. Collision energy (HCD cell) was operated at 30 kv. Detection was based on calculated exact mass and on retention time of target compounds, as shown in Table 1. The mass tolerance window was set to 5 ppm for the two modes.
4. Conclusions
In the present study, the use of hyphenated UHPLC-ESI-OT-MS-MS applied to Usnea methanolic extracts resulted in the identification of 73 compounds for the first time. The study indicates that lipids, depsides, depsidones, and dibenzofurans were the main compounds detected. This report represents a contribution to the better understanding of the phytochemistry of Usnea species.
Supplementary Materials
The following are available online. Table S1: Structure of the compounds identified by UHPLC-ESI-MS-MS from Usnea species.
Acknowledgments
This work was supported from INACH grants RT-13-13 and MT-03-14, Fondecyt Regular No. 1150745, grants 16-443-SEM and 17-477-SEM Universidad de Ibagué-Gobernación del Tolima.
Author Contributions
C.A. and O.G.-B. conceived and designed the experiments; F.S., L.A., C.C., C.G.-V., K.U.-V., A.C., A.A., E.N. and M.S. performed the experiments; C.A., O.G.-B. and M.J.S. analyzed the data; E.S., C.A., O.G.-B. and M.S. wrote the paper.
Conflicts of Interest
The authors declare no conflict of interest. The funding sponsors had no role in the design of the study; in the collection, analyses, interpretation of data; in the writing of the manuscript, and in the decision to publish the results.
References
- Upreti, D.K.; Divakar, P.K.; Shukla, V.; Bajpai, R. Recent Advances on Lichenology; Springer: New Delhi, India, 2015. [Google Scholar]
- Paliya, B.S.; Bajpai, R.; Jadaun, V.; Kumar, J.; Kumar, S.; Upreti, D.K.; Singh, B.R.; Nayaka, S.; Joshi, Y.; Singh, B.N.; et al. The genus Usnea: A potent phytomedicine with multifarious ethnobotany, phytochemistry and pharmacology. RSC Adv. 2016, 6, 21672–21696. [Google Scholar]
- Huneck, S.; Yoshimura, I. Identification of Lichen Substances; Springer: Berlin, Germany, 1996. [Google Scholar]
- Rankovic, B. (Ed.) Lichen Secondary Metabolites: Bioactive Properties and Pharmaceutical Potential; Springer: New York, NY, USA, 2015. [Google Scholar]
- Simirgiotis, M.J.; Quispe, C.; Areche, C.; Sepúlveda, B. Phenolic compounds in Chilean Mistletoe (Quintral, Tristerix tetrandus) analyzed by UHPLC-Q/Orbitrap/MS/MS and its antioxidant properties. Molecules 2016, 21, 245. [Google Scholar] [CrossRef] [PubMed]
- Cornejo, A.; Salgado, F.; Caballero, J.; Vargas, R.; Simirgiotis, M.; Areche, C. Secondary metabolites in Ramalina terebrata detected by UHPLC/ESI/MS/MS and identificaction of parietin as tau protein inhibitor. Int. J. Mol. Sci. 2016, 17, E1303. [Google Scholar] [CrossRef] [PubMed]
- Castro, O.N.; Benites, J.; Rodilla, J.; Santiago, J.C.; Simirgiotis, M.; Sepúlveda, B.; Areche, C. Metabolomic analysis of the lichen Everniopsis trulla using ultra high performance liquid chromatography-quadrupole-orbitrap mass spectrometry (UHPLC-Q-OT-MS). Chromatographia 2017, 80, 967–973. [Google Scholar] [CrossRef]
- Le Pogam, P.; Schinkovitz, A.; Legouin, B.; Le Lamer, A.C.; Boustie, J.; Richomme, P. Matrix-Free UV-laser desorption ionization mass spectrometry as a versatile approach for accelerating dereplication studies on Lichens. Anal. Chem. 2015, 87, 10421–10428. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Musharraf, S.G.; Kanwal, N.; Thadhani, V.M.; Choudhary, M.I. Rapid identification of lichen compounds based on the structure-fragmentation relationship using ESI-MS/MS analysis. Anal. Methods 2015, 7, 6066–6076. [Google Scholar] [CrossRef]
- Parrot, D.; Jan, S.; Baert, N.; Guyot, S.; Tomasi, S. Comparative metabolite profiling and chemical study of Ramalina siliquosa complex using LC–ESI-MS/MS approach. Phytochemistry 2013, 89, 114–124. [Google Scholar] [CrossRef] [PubMed]
- Holzmann, G.; Leuckert, C. Applications of negative fast atom bombardment and MS/MS to screening of lichen compounds. Phytochemistry 1990, 29, 2277–2283. [Google Scholar] [CrossRef]
- Parrot, D.; Peresse, A.T.; Hitti, E.; Carrie, D.; Grube, M.; Tomasi, S. Qualitative and spatial metabolite profiling of lichens by a LC-MS approach combined with optimised extraction. Phytochem. Anal. 2015, 26, 23–33. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the lichens are available from the authors. |

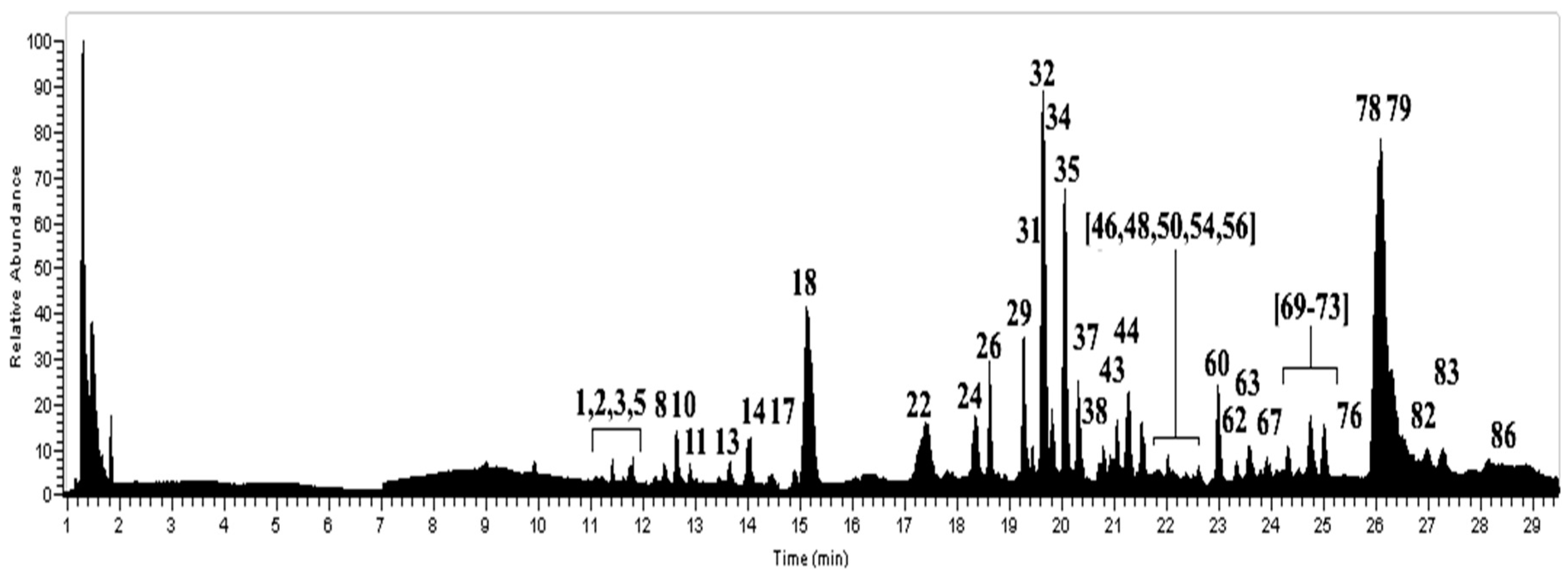

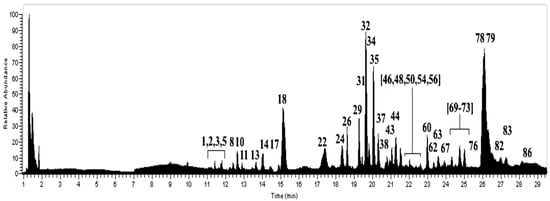

Figure 1.
UHPLC-MS Chromatogram of U. barbata.

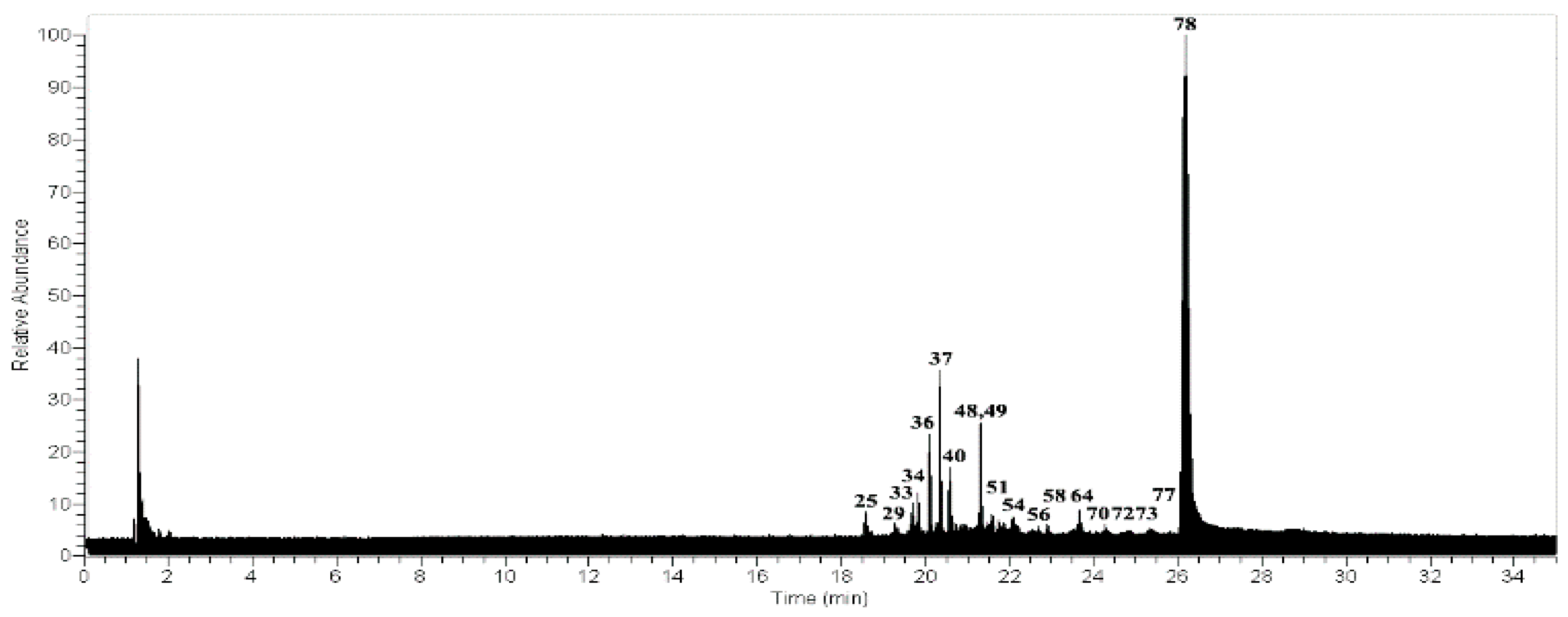

Figure 2.
UHPLC-MS Chromatogram of U. antarctica.
Figure 3.
UHPLC-MS Chromatogram of U. rubicunda.

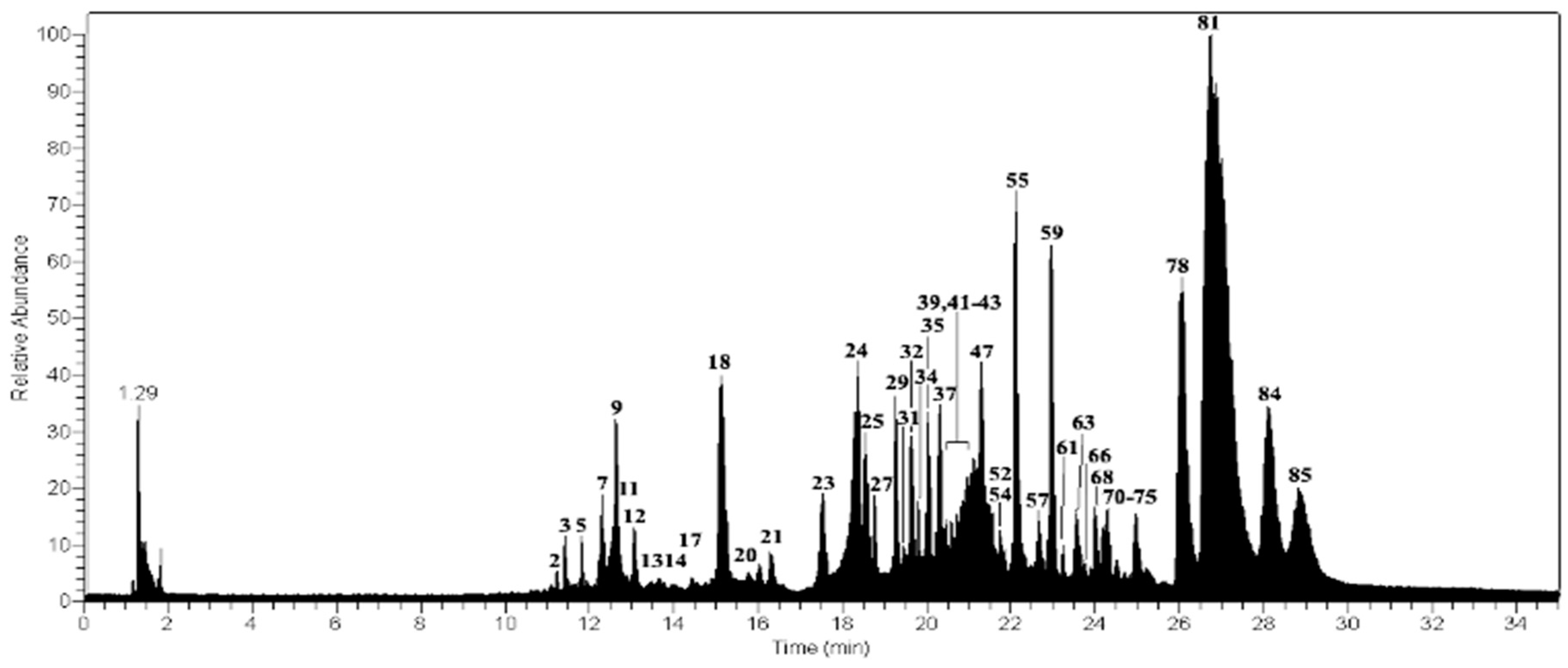

Figure 4.
UHPLC-MS Chromatogram of U. subfloridana.

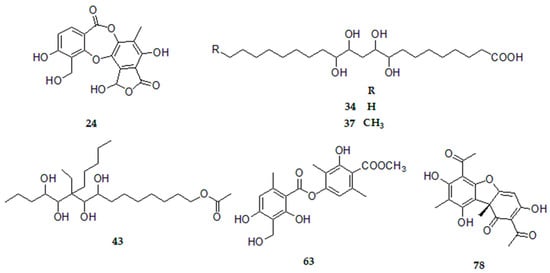

Figure 5.
Chemical structures of similar compounds in U. antarctica, U. barbata, U. subfloridana and U. rubicunda.
Figure 5.
Chemical structures of similar compounds in U. antarctica, U. barbata, U. subfloridana and U. rubicunda.
Table 1.
Identification of metabolites in Usnea species by UHPLC-ESI-MS-MS.
| Peak | Tentative Identification | [M − H]− | Retention Time (min) | Theoretical Mass (m/z) | Measured Mass (m/z) | Accuracy (ppm) | Metabolite Type | MS2 Ions (ppm) | Lichens |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Unknown | C21H19O12 | 11.09 | 463.0882 | 463.0883 | 0.4 | - | - | UB |
| 2 | Unknown | C22H19O10N2 | 11.21 | 471.1040 | 471.1045 | 1.1 | - | - | UB, US, UR |
| 3 | Unknown | C18H13O10 | 11.42 | 389.0514 | 389.0515 | 0.2 | - | - | UB, US, UR |
| 4 | Unknown | C24H25O15 | 11.74 | 553.1193 | 553.1195 | 0.4 | - | - | UB |
| 5 | Unknown | C22H18O11N | 11.80 | 472.0880 | 472.0886 | 1.3 | - | - | UB, US, UR |
| 6 | Conprotocetraric acid | C18H15O9 | 12.27 | 375.0722 | 375.0724 | 0.5 | d | 357.0618; 313.0722 295.0611; 251.0710 | UR |
| 7 | Haemathamnolic acid | C19H15O10 | 12.29 | 403.0671 | 403.0675 | 0.9 | d | 209.0002 | US |
| 8 | Barbatolic acid | C18H13O10 | 12.40 | 389.0514 | 389.0516 | 0.2 | d | 167.0342; 121.0285 | UB |
| 9 | Siphulellic acid isomer | C19H13O10 | 12.62 | 401.0509 | 401.0518 | 0.7 | D | 359.0410; 240.0427 | US, UR |
| 10 | Thamnolic acid | C19H15O11 | 12.64 | 419.0620 | 419.0619 | 0.2 | d | 375.0725; 167.0344 | UB |
| 11 | Unknown | C29H21O9 | 12.88 | 513.1186 | 513.1149 | 7.2 | - | - | UB, US |
| 12 | Unknown | C21H19O11 | 13.06 | 447.0927 | 447.0935 | 1.8 | - | - | UR |
| 13 | Unknown | C20H15O11 | 13.64 | 431.0620 | 431.0620 | 0.0 | - | - | UB, US |
| 14 | Unknown | C21H22O15 | 14.01 | 514.0959 | 514.0988 | 5.6 | - | - | UB, US |
| 15 | Squamatic acid | C19H17O9 | 14.17 | 389.0878 | 389.0880 | 0.5 | d | 211.0260 | UR |
| 16 | Protocetraric acid | C18H13O9 | 14.43 | 373.0565 | 373.0567 | 0.5 | D | 311.0559; 267.0657 | UR |
| 17 | Unknown | C22H18O10N | 14.88 | 456.0931 | 456.0936 | 1.1 | - | - | UB, US, UR |
| 18 | Salazinic acid | C18H11O10 | 15.11 | 387.0358 | 387.0352 | 0.2 | D | 269.0464; 241.0504 151.0394; 123.0445 | UB, US, UR |
| 19 | Conhypoprotocetraric acid | C18H15O8 | 15.60 | 359.0772 | 359.0775 | 0.8 | d | 253.0870 | UR |
| 20 | Physodalic acid | C20H15O10 | 15.79 | 415.0671 | 415.0674 | 0.7 | D | 387.0712; 343.0815 | US |
| 21 | Constictic acid | C19H13O10 | 16.32 | 401.0514 | 401.0516 | 0.5 | D | 357.0618; 313.0718 | US, UR |
| 22 | Haemathamnolic acid isomer | C19H15O10 | 17.40 | 403.0665 | 403.0672 | 1.7 | d | 373.0568 | UB |
| 23 | Hypoconstictic acid derivative | C19H15O9 | 17.55 | 387.0722 | 387.0724 | 0.5 | D | 343.0824; 299.0925 | US, UR |
| 24 | Connorstictic acid | C18H13O9 | 18.35 | 373.0565 | 373.0568 | 0.8 | D | 329.0666; 181.0555 | UB, UA, US, UR |
| 25 | Menegazziaic acid | C18H13O9 | 18.53 | 373.0565 | 373.0567 | 0.7 | D | 329.0667; 167.0344 151.0395 | US, UR |
| 26 | tetrahydroxyeicosanoic acid | C20H39O6 | 18.64 | 375.2752 | 375.2752 | 0.0 | L | - | UB, UR |
| 27 | Unknown | C21H19O10 | 18.77 | 431.0978 | 431.0986 | 1.8 | - | - | US, UR |
| 28 | Pentahydroxytricosanoic acid | C23H45O7 | 19.16 | 433.3171 | 433.3174 | 0.7 | L | - | UR |
| 29 | Siphulellic acid | C19H13O10 | 19.27 | 401.0509 | 401.0514 | 1.6 | D | 253.0505; 149.0238 123.0444 | UB, US |
| 30 | Tetrahydroxyheneicosanoic | C21H41O6 | 19.27 | 389.2909 | 389.2010 | 0.3 | L | - | UA, UR |
| 31 | Lecanoric acid | C16H13O7 | 19.44 | 317.0667 | 317.0661 | 1.9 | d | 167.0343; 149.0237 123.0444 | UB, US, UR |
| 32 | Galbinic acid | C20H13O11 | 19.66 | 429.0458 | 429.0463 | 1.4 | D | 269.0456; 149.0238 123.0443 | UB, US |
| 33 | Pentahydroxytetracosanoic acid | C24H47O7 | 19.69 | 447.3327 | 447.3307 | 4.5 | L | - | UA, UR |
| 34 | tetrahydroxydocosanoic acid | C22H43O6 | 19.80 | 403.3065 | 403.3067 | 0.6 | L | - | UB, UA, US, UR |
| 35 | Norstictic acid | C18H11O9 | 20.09 | 371.0409 | 371.0403 | 1.6 | D | 327.0509 151.0393; 123.0444 | UB, US, UR |
| 36 | Fumarprotocetraric acid | C22H15O12 | 20.11 | 471.0569 | 471.0547 | 4.7 | D | 355.0441; 311.0545 115.0023 | UA |
| 37 | tetrahydroxytricosanoic acid | C23H45O6 | 20.33 | 417.3222 | 417.3216 | 0.4 | L | - | UB, UA, US, UR |
| 38 | tetrahydroxydocosanoic acid | C22H43O6 | 20.38 | 403.3065 | 403.3066 | 0.6 | L | - | UB |
| 39 | Cryptostictic acid | C19H15O9 | 20.44 | 387.0716 | 387.0726 | 2.6 | D | 343.0826; 311.0566 267.0661 | US, UR |
| 40 | Hypoconstictic acid | C19H15O9 | 20.57 | 387.0716 | 387.0705 | 2.8 | D | 343.0808; 299.0923 | UA |
| 41 | Tetrahydroxydioxoheneicosanoic acid | C21H37O8 | 20.58 | 417.2494 | 417.2498 | 0.9 | L | - | US |
| 42 | Tetrahydroxytricosanoic acid | C23H45O6 | 20.74 | 417.3222 | 417.3225 | 0.7 | L | - | US, UR |
| 43 | 6-ethyl-6-n-pentylpentadecan-4,5,7,8,15-pentol-15-acetate | C24H47O6 | 20.80 | 431.3373 | 431.3379 | 1.4 | L | - | UB, UA, US, UR |
| 44 | Unknown | C18H11O8 | 20.93 | 355.0459 | 355.0462 | 0.8 | - | - | UB |
| 45 | Unknown | C29H59O7N9 | 20.95 | 645.4537 | 645.4937 | 0.0 | - | - | UR |
| 46 | α-acetylconstictic acid | C21H15O11 | 21.05 | 443.0620 | 443.0620 | 0.0 | D | 383.0418; 343.0425 269.0457 | UB |
| 47 | Trihydroxytrioxodocosanoic acid | C22H37O8 | 21.29 | 429.2494 | 429.2496 | 0.4 | L | - | US, UR |
| 48 | Gyrophoric acid * | C24H19O10 | 21.32 | 467.0978 | 467.0985 | 1.3 | d | 317.0667; 167.0345 149.0238; 123.0443 | UB, UA |
| 49 | Tetrahydroxyhexacosenoic acid | C26H49O6 | 21.32 | 457.3535 | 457.3510 | 4.4 | L | - | UA |
| 50 | Stictic acid | C19H13O9 | 21.54 | 385.0565 | 385.0567 | 0.5 | D | 357.0617; 313.0720 179.0347 | UB, UR |
| 51 | Tetrahydroxypentacosanoic acid | C25H49O6 | 21.59 | 445.3535 | 445.3515 | 4.5 | L | - | UA |
| 52 | Tetrahydroxydioxotricosanoic acid | C23H41O8 | 21.73 | 445.2807 | 445.2812 | 1.1 | L | - | US |
| 53 | 4-O-methylnorsekikaic acid | C21H23O8 | 21.85 | 403.1398 | 403.1400 | 0.4 | d | 209.0416; 193.0803 165.0916 | UR |
| 54 | Tetrahydroxyhexacosanoic acid | C26H51O6 | 22.03 | 459.3691 | 459.3693 | 0.4 | L | - | UB, UA, US |
| 55 | Methyl 3,4-dicarboxy-3-hydroxy-19-oxoeicosanoate | C23H39O8 | 22.14 | 443.2650 | 443.2653 | 0.4 | L | - | US, UR |
| 56 | Nonahydroxyoctacosanoic acid | C28H55O11 | 22.65 | 567.3650 | 567.3667 | 3.0 | L | - | UB, UA |
| 57 | Trihydroxytrioxotetracosanoic acid | C24H41O8 | 22.72 | 457.2807 | 457.2810 | 0.6 | L | - | US |
| 58 | Baeomycesic acid | C19H17O8 | 22.88 | 373.0923 | 373.0915 | 2.1 | d | - | UA |
| 59 | Neodihydromurolic acid | C21H37O5 | 22.94 | 369.2646 | 369.2650 | 1.1 | L | - | US, UR |
| 60 | Diffractaic acid | C20H21O7 | 22.98 | 373.1293 | 373.1294 | 0.3 | d | 297.1149; 181.0499 177.0549; 137.0600 | UB |
| 61 | Murolic acid | C21H35O5 | 23.23 | 367.2490 | 367.2494 | 0.4 | L | - | US, UR |
| 62 | β-Alectoronic acid | C28H31O9 | 23.43 | 511.1968 | 511.1976 | 1.3 | DE | 369.1339; 247.0969 163.0396 | UB |
| 63 | Methyl 8-hydroxy-4-O-demethylbarbatate | C19H19O8 | 23.58 | 375.1080 | 375.1085 | 1.6 | d | 343.0818; 181.0500 | UB, UA, US, UR |
| 64 | Placodiolic acid | C19H19O8 | 23.65 | 375.1080 | 375.1069 | 2.9 | DBF | 343.0806; 259.0597 231.0648 | UA |
| 65 | Hydroxyeicosatrienoic acid | C20H33O3 | 23.65 | 321.2435 | 321.2437 | 0.6 | L | - | UR |
| 66 | muronic acid | C21H33O5 | 23.89 | 365.2333 | 365.2338 | 0.6 | L | - | US, UR |
| 67 | Tetrahydroxytrioxotricosanoic acid | C23H39O9 | 23.98 | 459.2594 | 459.2602 | 1.7 | L | - | UB |
| 68 | Trihydroxytrioxopentacosanoic acid | C25H43O8 | 24.00 | 471.2963 | 471.2970 | 1.5 | L | - | US |
| 69 | Divaricatic acid | C21H23O7 | 24.09 | 387.1449 | 387.1452 | 0.7 | d | 195.0661; 177.0551 151.0759 | UB |
| 70 | Barbatic acid | C19H19O7 | 24.20 | 359.1136 | 359.1139 | 0.8 | d | 181.0503; 163.0394 137.0601 | UB, UA, US |
| 71 | Sekikaic acid | C22H25O8 | 24.31 | 417.1549 | 417.1556 | 1.7 | d | 225.0764; 209.0815 165.0915 | UB, US, UR |
| 72 | 8-hydroxybarbatic acid | C19H19O8 | 24.53 | 375.1080 | 375.1088 | 2.4 | d | 195.0663; 181.0506 | UB, UA, US |
| 73 | Lobaric acid | C25H27O8 | 24.73 | 455.1711 | 455.1712 | 0.4 | D | 411.1815; 367.1909 352.1681; 296.1048 | UB, UA, US |
| 74 | Boninic acid | C25H31O8 | 24.83 | 459.2024 | 459.2027 | 0.6 | d | 209.1180 | UR |
| 75 | Norcaperatic acid | C20H35O7 | 24.95 | 387.2388 | 387.2392 | 0.8 | L | - | US, UR |
| 76 | Tetrahydroxytrioxotetracosanoic acid | C24H41O9 | 25.01 | 473.2756 | 473.2756 | 0.0 | L | - | UB |
| 77 | Ethyl-4-O-methylolivetolcarboxylate | C15H21O4 | 25.34 | 265.1445 | 265.1466 | 7.9 | A | - | UA |
| 78 | Usnic acid * | C18H15O7 | 26.04 | 343.0818 | 343.0823 | 1.5 | DBF | 328.0591; 259.0609; 231.0661 | UB, UA, US, UR |
| 79 | Atranorin | C19H17O8 | 26.31 | 373.0923 | 373.0929 | 1.6 | d | 177.0187; 163.0394 | UB, UR |
| 80 | trioxotricosanoic acid | C23H39O5 | 26.45 | 395.2803 | 395.2805 | 0.5 | L | - | UR |
| 81 | Perlatolic acid | C25H31O7 | 26.77 | 443.2075 | 443.2077 | 0.5 | d | 223.0973; 205.0867 179.1073 | US |
| 82 | Hexadecadienoic acid | C16H27O2 | 26.96 | 251.2017 | 251.2016 | 0.1 | L | - | UB |
| 83 | Dihydroxyheptadecatrienoic acid | C17H27O4 | 27.31 | 295.1915 | 295.1916 | 0.3 | L | - | UB |
| 84 | Caperatic acid | C21H37O7 | 28.10 | 401.2545 | 401.2548 | 0.7 | L | - | US, UR |
| 85 | Hydroxytrioxotricosanoic acid | C23H39O6 | 28.87 | 411.2752 | 411.2754 | 0.4 | L | - | US, UR |
| 86 | Chloroatranorin | C19H16O8Cl | 28.96 | 407.0534 | 407.0541 | 1.5 | d | 228.9906; 210.9800 163.0394 | UB |
* Identified by spiking experiments with an authentic compound. A = Aromatic; L = Lipid; D = depsidone; d = depside; DE = diphenylether; DBF = dibenzofuran. C = Chromone. UA: Usnea antarctica; UB: Usnea barbata; UR: Usnea rubicunda; US: Usnea subfloridana; MS2 = Daughter ions.
© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Salgado, F.; Albornoz, L.; Cortéz, C.; Stashenko, E.; Urrea-Vallejo, K.; Nagles, E.; Galicia-Virviescas, C.; Cornejo, A.; Ardiles, A.; Simirgiotis, M.; et al. Secondary Metabolite Profiling of Species of the Genus Usnea by UHPLC-ESI-OT-MS-MS. Molecules 2018, 23, 54. https://doi.org/10.3390/molecules23010054
AMA Style
Salgado F, Albornoz L, Cortéz C, Stashenko E, Urrea-Vallejo K, Nagles E, Galicia-Virviescas C, Cornejo A, Ardiles A, Simirgiotis M, et al. Secondary Metabolite Profiling of Species of the Genus Usnea by UHPLC-ESI-OT-MS-MS. Molecules. 2018; 23(1):54. https://doi.org/10.3390/molecules23010054
Chicago/Turabian StyleSalgado, Francisco, Laura Albornoz, Carmen Cortéz, Elena Stashenko, Kelly Urrea-Vallejo, Edgar Nagles, Cesar Galicia-Virviescas, Alberto Cornejo, Alejandro Ardiles, Mario Simirgiotis, and et al. 2018. "Secondary Metabolite Profiling of Species of the Genus Usnea by UHPLC-ESI-OT-MS-MS" Molecules 23, no. 1: 54. https://doi.org/10.3390/molecules23010054
APA StyleSalgado, F., Albornoz, L., Cortéz, C., Stashenko, E., Urrea-Vallejo, K., Nagles, E., Galicia-Virviescas, C., Cornejo, A., Ardiles, A., Simirgiotis, M., García-Beltrán, O., & Areche, C. (2018). Secondary Metabolite Profiling of Species of the Genus Usnea by UHPLC-ESI-OT-MS-MS. Molecules, 23(1), 54. https://doi.org/10.3390/molecules23010054
