Article

Improving Hydrophilicity and Inducing Bone-Like Apatite Formation on PPBES by Polydopamine Coating for Biomedical Application

by
Chengde Liu
1,2,
Yizheng Li
2,
Jinyan Wang
1,2,3,
Cheng Liu
1,2,*,
Wentao Liu
2 and
Xigao Jian
1,2,3,*
1
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian 116024, China
2
Department of Polymer Science & Engineering, Dalian University of Technology, Dalian 116024, China
3
Liaoning Province Engineering Research Centre of High Performance Resins, Dalian 116024, China
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(7), 1643; https://doi.org/10.3390/molecules23071643
Submission received: 21 June 2018 / Revised: 29 June 2018 / Accepted: 29 June 2018 / Published: 5 July 2018
(This article belongs to the Special Issue Amphiphilic Polymers: Self-Assembly and Applications)
Browse Figures
Versions Notes

Abstract

:
Copoly(phthalazinone biphenyl ether sulfone) (PPBES) as a commercially available polyarylether is a promising orthopaedic implant material because its mechanical properties are similar to bone. However, the bioinert surface of polyarylether causes some clinical problems after implantation, which limits its application as an implant material. In this study, the surface of PPBES was modified by a biomineralization method of polydopamine-assisted hydroxyapatite formation (pHAF) to enhance its cytocompatibility. Polydopamine (PDA) coating, inspired by the adhesion mechanism of mussels, can readily endow PPBES with high hydrophilicity and the ability to integrate via the bone-like apatite coating. PPBES and PDA-coated PPBES were evaluated by scanning electronic microscopy (SEM), X-ray photoelectron spectroscopy (XPS), and contact angle measurement. The water contact angles were reduced significantly after coating with PDA. PDA was successfully synthesized on PPBES and more PDA was obtained by increasing the temperature. Bone-like apatite on PPBES (apatite-coated PPBES) was confirmed by SEM and transmission electron microscopy (TEM). The cytotoxicity of pristine PPBES and apatite-coated PPBES were characterized by culturing of NIH-3T3 cells. Bone-like apatite synthesized by pHAF could further enhance cytocompatibility in vitro. This study provides a promising alternative for biofunctionalized PPBES with improved cytocompatibility for bone implant application.

Graphical Abstract

1. Introduction

Polyarylethers have been widely applied for biomedical application due to their chemical resistance, mechanical properties similar to bone, radiolucency, and their structures. Poly(aryl ether ether ketone) (PEEK), as a commercially-used biomaterial, has become a leading thermoplastic candidate for medical implant materials in orthopedics [1]. Bioactive materials as the surface coating or composite filler are used to improve its osteointegration [2,3,4,5,6]. Although composites can promote bioactivity, the drawbacks, including low implant strength and high roughness, retard its application as a biomaterial.
The modification of polymer surfaces is another area of academic research to improve bone–implant interfaces. Ti and hydroxyapatite (HA) have been coated on PEEK to improve the bone–implant interface [7,8,9,10]. The authors reported that Ti-coated polyarylether implants improve osteogenesis compared to uncoated implants. HA coating on PEEK typically exhibits excellent biocompatibility and bioactivity in vitro and in vivo [11,12]. HA (chemical formula Ca10(PO4)6(OH)2) is most widely used to coat PEEK to enhance biocompatibility and osteogenesis because it is similar to bone mineral. HA coating can be fabricated on PEEK or PEEK composite using a thermal plasma spray coating [8], a cold spray technique [13], a spin coating technique [14], RF magnetron sputtering [15,16], aerosol deposition (AD) [17], and biomimetic mineralization [18,19]. Among the existing approaches, biomimetic mineralization is attractive due to its simplicity.
Biomimetic mineralization is to fabricate mimetic materials similar to nature’s sophisticated structures or their biologic functions [20]. A simple way to induce apatite coating called polydopamine-assisted hydroxyapatite formation (pHAF) has been found by a mussel-inspired strategy [21,22]. Dopamine polymerization is carried out in an aqueous solution to produce adhesive polydopamine (PDA) on various substrates. Catechol groups of PDA exhibit high calcium-ion coordination ability in simulated body fluid (SBF) and enhance hydroxyapatite formation on various substrates. In addition, the hydrophobic surface constrains the biomimetic mineralization. PDA, as a hydrophilic modifier, improves the wettability of the chitosan-based substrates to enhance its biomineralization capacity [23,24]. The effective and simple pHAF approach could be promising for the surface modification of PEEK.
Copoly(phthalazinone biphenyl ether sulfone) (PPBES), a commercially-used polyarylether, has a structure similar to PEEK. Furthermore, the twisted and non-coplanar heterocyclic phthalazinone moiety is introduced into the main chain of PPBES (Figure 1), which results in PPBES with superior solubility in a variety of solvents (such as NMP, DMF, DMAc, and CHCl3) [25]. Moreover, the wholly aromatic and heterocyclic structure imparts PPBES with excellent mechanical properties. Moreover, it has better solubility, higher Tg and lower cost than PEEK [26]. The bioinert surface of PPBES also inhibits its biomedical application.
In this work, the pHAF approach combining mussel-inspired polydopamine coating and biomimetic mineralization in SBF was used to improve the cytocompatibility of PPBES (Figure 1). The polydopamine layer was first employed to modify the surface of PPBES. Then, the apatite coating was created by the PDA layer using a biomineralization process. Finally, the apatite that formed on PPBES was examined and its cytocompatibility was then investigated in vitro. The results described herein demonstrate that PPBES with a bone-like apatite coating holds promising potential for biomedical applications.

2. Results and Discussion

2.1. Mussel-Inspired Hydrophilization

Polydopamine, as a bio-inspired polymer, has similar properties to the proteins secreted from mussels. Polydopamine, with the ability to adhere to most surfaces, has been used to increase the hydrophilicity of a surface in membrane science and biomedical application [27,28,29]. However, the detailed mechanism of PDA formation is still elusive [30]. In the proposed mechanisms, 5,6-dihydroxindole of polydopamine can adsorb onto the surface of various materials by hydrogen bonding [31]. The hydrophilicity of PDA coating enhances the performance of functional materials [29,30]. The effects of deposition conditions, including time and dopamine concentration, on the hydrophilicity of substrates have been investigated systematically in this study. While dopamine concentration was increased from 2 to 8 mg/mL, the PDA coating became unstable (data not shown). After dopamine was dissolved in Tris-HCl buffer, the colorless solution gradually turned black. PDA formed particles and aggregates in the aqueous solution during the oxidative polymerization process and adsorbed on the substrate. PDA particles adsorbed after a thin PDA coating was formed [32].
PPBES plates were produced by hot pressing. The surface morphology changes were observed by SEM [33]. Pristine PPBES is smooth, while the roughness of PPBES was increased by the PDA nanoparticles after PDA coating (Figure 2). To obtain a stable and uniform PDA layer on PPBES, the dopamine solution was exchanged every 12 h. The growth of deposited PDA is influenced by reaction time and temperature [32]. PDA particles and aggregates on the PPBES plate were obtained after reacting for 72 h. It has been reported that the reaction rate for dopamine is highly elevated by reaction temperature. More PDA particles were observed on the PPBES plate when the reaction temperature was increased from room temperature to 60 °C. However, the coating became unstable and could be scratched easily.
XPS has been used to determine the elemental composition [34]. The XPS spectra acquired from PDA, pristine PPBES, and PDA-coated PPBES show the signals of O, N, and C, as shown in Figure 3. In detail, the nitrogen-to-carbon signal ratios (N/C) of PDA, pristine PPBES, and PDA-coated PPBES are 0.11, 0.06, and 0.08, respectively. The increase in the atomic composition of PDA-coated PPBES was observed compared to pristine PPBES, suggesting that PDA was coated on PPBES successfully. The difference of N/C between PDA and PDA-coated PPBES indicates that the XPS signals of PPBES was detected after PDA coating.
PDA coating is a simple and versatile method for surface modification towards functional materials. The hydrophilic-hydrophobic balance can be influenced by PDA deposition [35]. Contact angle measurement is a useful method of determining the surface hydrophilicity. The contact angles of these resultant samples are shown in Figure 4. After PPBES was modified by PDA coating, the static contact angles decreased obviously, which means improved hydrophilicity due to the formation of PDA layer on the PPBES plate. Moreover, the contact angle is also affected by the reaction time and temperature when preparing the PDA layer. As shown in Figure 4, PDA-coated PPBES(RT48) prepared at room temperature (RT) for 48 h demonstrated a smaller contact angle compared to PDA-coated PPBES(RT24) prepared at RT for 24 h. However, further extension of reaction time did not reduce the contact angle, as shown for PDA-coated PPBES(RT72). Another important factor of dopamine polymerization is reaction temperature. The contact angle decreased slightly as the reaction temperature was increased from RT to 45 °C. A little increase was observed from 45 to 60 °C, due to the rougher surface of the PDA layer that can increase the contact area with water.
The surface energy (SE) data of PDA coating on PPBES versus reaction temperature and time are tabulated in Table 1. The SE value of the PPBES plate was apparently increased from 38.3 to 43.1 mN/m by the PDA coating, owing to the strong polar interactions in the PDA coating. The total SE increased from 43.1 to 43.9 mN/m by increased reaction time from 24 to 48 h and then slightly decreased with longer reaction time. Temperature influences the dopamine polymerization to a certain extent. The roughness of PDA-coated PPBES increased with elevating reaction temperature from 45 to 60 °C, which decreased the total SE slightly. Therefore, stable PDA coating was efficiently obtained at room temperature for 48 h and PDA-coated PPBES(RT48) was used for biomineralization.

2.2. Characterization of Apatite-Coated PPBES

Catecholamine moieties in the PDA coating can induce formation of hydroxyapatite crystals similar to natural hydroxyapatite in mineralized tissues on various materials [21]. Pristine PPBES did not facilitate apatite formation (data not shown). Quantities of small spherical particles were seen on PDA-coated PPBES after PDA coating (Figure 2). The hemispherical apatite particles adhered to the PDA coating and some clusters of apatite particles appeared on PDA-coated PPBES after biomimetic mineralization for 6 days (Figure 5). The apatite coating has a typical form for hydroxyapatite as reported by Ref. [36]. Moreover, the SEM images of the cross-sections of the PPBES plate modified with apatite coating are presented in Figure 5b. The thickness of the apatite coating is less than 1 µm.
The morphology of the apatite layer was evaluated by TEM (Figure 6). Apatite coating on PPBES displayed characteristic particles similar to synthesized HA [37] and HA in bone tissue [38]. The bone-like apatite layer formed on PPBES was also confirmed by SEM data. Selected area electron diffraction (SAED) patterns were utilized to further verify the chemical composition of the apatite coating. The concentric ring patterns could be assigned to the (211) plane which corresponds to HA (Figure 6).

2.3. Cell Viability and Adhesion

The cytotoxicity of pristine PPBES and apatite-coated PPBES was characterized by culturing NIH-3T3 cells with the sample extracts. Phenol was used as positive control. It was observed that phenol elicited a cytotoxic response against NIH-3T3 cells when its concentration was increased to 1 mg/mL (Figure 7a). The aim of the extraction procedure based on the ISO 10993 protocol is to determine the cytotoxicity of the samples without affecting the mechanical properties of chemical compositions of the samples. MTT assay was used to quantify the toxicological hazard of the samples. Aqueous extracts of pristine PPBES and apatite-coated PPBES do not elicit a significant cytotoxic response against NIH-3T3 cells. The cell viability was increased slightly after the extracts were diluted with fresh cell culture medium. The apatite-coated PPBES is expected to be biosafe as an implant biomaterial.
Cell adhesion is responsible for cell functions and formation of new tissues [39]. Cell-adhesion properties were characterized by culturing NIH-3T3 cells with the two samples. The surface roughness and wettability of polymer substrates influence cell adhesion behavior significantly [40]. The water contact angle of apatite-coated PPBES (30.4 ± 2.9°) was decreased by the bone-like apatite coating compared to the pristine PPBES. The roughness was increased by the bone-like apatite coating (Figure 5). In addition, cell adherence to substrates can be facilitated by Ca2+ ions from apatite-coated substrates. After cell culture for 48 h, the samples with adhered cells were washed with PBS solution to remove the loosely attached cells. Figure 8 shows the representative SEM images of NIH-3T3 cells adhering to pristine PPBES and apatite-coated PPBES surfaces. The NIH-3T3 cells attached and proliferate to some extent on pristine PPBES surface. However, the cell-adhesion property of pristine PPBES is not good. Polymer substrates can be surface-modified to enhance cell-adhesion properties [41]. Cells on apatite-coated PPBES spread better than those on pristine PPBES and the cell area was high. Cells exhibited a more flattened morphology. Attached cells were increased significantly after pristine PPBES was coated with apatite. The relative cell-adhesion density on both of the two samples is shown in Figure 8. The density change is consistent with the result drawn from SEM images of attached cells. In conclusion, cell-adhesion property of PPBES is improved by apatite coating.

3. Materials and Methods

3.1. Materials

PPBES was supplied by Dalian Polymer New Material Co. Ltd. (Dalian, China). Dopamine hydrochloride and tris(hydroxymethyl)aminomethane (Tris) were purchased from Aladdin Corp. (Shanghai, China). MTT reagents were purchased from Sangon Biotech (Shanghai, China).

3.2. Dopamine Polymerization and Biomineralization

PPBES plates were prepared by hot pressing and cleaned ultrasonically in acetone, ethanol, and deionized water successively. A series of PDA-coated PPBES samples were prepared by creating a polydopamine coating through dopamine polymerization on PPBES plates in 10 mM Tris buffer at pH 8.5. PDA-coated PPBES was extensively rinsed with deionized water and dried in a stream of N2 gas. PPBES coated by PDA at room temperature for 48 h (PDA-coated PPBES(RT48)) was chosen for biomineralization. It was transferred into 1.5× SBF and incubated at 37 °C. The composition of the 1.5× SBF was as follows (mM): Ca2+, 3.8; Na+, 213.0; K+, 7.5; Mg2+, 2.3; Cl−, 221.7; HCO3−, 6.3; HPO42−, 1.5; SO42−, 0.8. The 1.5× SBF was renewed every 24 h in order to preserve its ion concentration. After immersion for 6 days, apatite-coated PPBES was rinsed with deionized water and dried by N2 gas.

3.3. Structural and Morphological Characterizations

The morphological changes after dopamine polymerization and biomineralization were investigated by scanning electron microscopy (SEM, QUANTA 450, FEI Company, Hillsborough, OR, USA) [42]. The samples were coated with platinum using a sputter coater (Quorum Technologies Ltd., East Sussex, UK).
Surface chemical compositions were analyzed using an X-ray photoelectron spectroscopy (XPS, ESCALABTM 250Xi, Thermo Fisher Scientific Inc., Waltham, MA, USA). AlKα X-ray was used as source. All binding energies were referenced to the C 1s component set to 285 eV.
The surface hydrophilicity and SE of the PPBESK layer and the coatings were characterized by a contact angle analyzer (JC2000D2W, Shanghai Zhongchen Digital Technic Apparatus Co. Ltd., Shanghai, China). Five measurements were performed for each sample at 25 °C and 55% relative humidity. The SE value was determined according to the Owens, Wendt, Rabel, and Kaelble (OWRK) method by using water and diiodomethane.
The apatite coating was confirmed by a Tecnai F30 transmission electron microscopy (TEM, FEI Company, Hillsborough, OR, USA) at an acceleration voltage of 300 kV. For TEM and selected-area electron diffraction (SAED) analyses, apatite coating was dispersed into ethanol by scraping and the suspension was dropped onto carbon-coated copper grids and dried by N2 gas before observation.

3.4. In Vitro Cell Culture

NIH-3T3 cells were seeded in Dulbecco’s modified eagle medium (DMEM) supplemented with 10% fetal bovine serum and penicillin/streptomycin at 37 °C under a humidified 5% CO2 atmosphere. The cell viability was determined using a 3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyl tetrazolium bromide (MTT) assay [43,44]. Sterile pristine PPBES and apatite-coated PPBES were incubated with the complete culture medium in the ratio of 3 cm2 mL−1 between the surface area of the sample and the volume of cell culture medium according to the protocol ISO10993. The extract from the sample was aseptically diluted at volume ratios of 1:0, 1:1, 1:3, 1:7, and 1:15 using fresh culture medium. Cells were seeded at a density of 5 × 104 cells mL−1 into wells in 96-well plates containing 100 μL of culture medium for 1 day. Then, the medium was exchanged with the respective extracts. Phenol solution and fresh culture medium were used as positive control and negative control, respectively.
The cell-adhesion characteristics were assessed by cell culture on pristine and apatite-coated PPBES. The surfaces after incubation were washed with PBS solution to remove the loosely attached cells. Fixation with 4% glutaraldehyde for 2 h and dehydration in a series of ethanol solutions (50–100%) were carried out for cell imaging. The cell immobilized PPBES and HA-coated PPBES were imaged using a scanning electron microscope. Prior to the SEM measurements, specimens were fixed on the holders and sputtered with a thin Pt layer. For cell number determination, the surfaces were incubated with 0.25% trypsin solution for 5 min at 37 °C to detach the cells. The detached cells were collected and counted using a hemocytometer.

3.5. Statistical Analysis

The data were shown as the means ± standard deviation for each group. A one-way analysis of variance (ANOVA) was utilized to perform the statistical analysis among the groups. p-value < 0.05 was regarded as statistically significant.

4. Conclusions

The low bioactivity of current synthetic polyarylethers, such as PEEK, has limited the choice of materials, slowing down the development of bone implant materials. PPBES is a kind of commercial polyarylether which has the potential to replace PEEK as an implant material. In this study, it was demonstrated that the pHAF method was a feasible method to produce a novel apatite coating on synthetic PPBES. The hydrophilic modification and catecholamine moieties are beneficial for biomineralization. In vitro studies, including MTT assay and cell adhesion tests, indicated that the apatite coating on PPBES did not elicit cytotoxicity against NIH-3T3 cells and promoted cell adhesion significantly. As the pHAF approach can be used to integrate hydroxyapatites onto virtually any material morphology, it is an attractive approach to prepare functional coatings on polyarylether medical implants.

Author Contributions

Methodology, Y.L. and W.L.; Validation, C.L. (Chengde Liu), J.W. and X.J.; Formal Analysis, C.L. (Chengde Liu) and C.L. (Cheng Liu); Investigation, Y.L.; Resources, X.J.; Data Curation, Y.L. and W.L.; Writing-Original Draft Preparation, C.L. (Chengde Liu); Visualization, C.L. (Chengde Liu) and Y.L.; Supervision, C.L. (Cheng Liu) and X.J.; Project Administration, C.L. (Cheng Liu) and X.J.; Funding Acquisition, C.L. (Chengde Liu) and C.L. (Cheng Liu); all authors have read the final version of the manuscript.

Funding

This research was funded by National Key R&D Program of China (No. 2017YFB0307600), Liaoning Natural Science Foundation of China (No. 201501174 and 20170540175), National Natural Science Foundation of China (No. 51503025), and China Postdoctoral Science Foundation (No. 2016M591426).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liao, K. Performance characterization and modeling of a composite hip-prosthesis. Exp. Tech. 1994, 18, 33–38. [Google Scholar] [CrossRef]
  2. Yu, S.C.; Hariram, K.P.; Kumar, R.; Cheang, P.; Aik, K.K. In vitro apatite formation and its growth kinetics on hydroxyapatite/polyetheretherketone biocomposites. Biomaterials 2005, 26, 2343–2352. [Google Scholar] [CrossRef] [PubMed]
  3. Fan, J.P.; Tsui, C.P.; Tang, C.Y.; Chow, C.L. Influence of interphase layer on the overall elasto-plastic behaviors of HA/PEEK biocomposite. Biomaterials 2004, 25, 5363–5373. [Google Scholar] [CrossRef] [PubMed]
  4. Ha, S.W.; Kirch, M.; Birchler, F.; Eckert, K.L.; Mayer, J.; Wintermantel, E.; Sittig, C.; PfundKlingenfuss, I.; Textor, M.; Spencer, N.D.; et al. Surface activation of polyetheretherketone (PEEK) and formation of calcium phosphate coatings by precipitation. J. Mater. Sci. Mater. Med. 1997, 8, 683–690. [Google Scholar] [CrossRef] [PubMed]
  5. Li, Q.W.; Wang, D.H.; Qiu, J.J.; Peng, F.; Liu, X.Y. Regulating the local pH level of titanium via Mg-Fe layered double hydroxides films for enhanced osteogenesis. Biomater. Sci. 2018, 6, 1227–1237. [Google Scholar] [CrossRef] [PubMed]
  6. Vaezi, M.; Black, C.; Gibbs, D.M.R.; Oreffo, R.O.C.; Brady, M.; Moshrefi-Torbati, M.; Yang, S.F. Characterization of new PEEK/HA composites with 3D HA network fabricated by extrusion freeforming. Molecules 2016, 21, 687. [Google Scholar] [CrossRef] [PubMed]
  7. Ha, S.W.; Mayer, J.; Koch, B.; Wintermantel, E. Plasma-sprayed hydroxylapatite coating on carbon-fiber-reinforced thermoplastic composite-materials. J. Mater. Sci. Mater. Med. 1994, 5, 481–484. [Google Scholar] [CrossRef]
  8. Kurtz, S.M.; Devine, J.N. PEEK biomaterials in trauma, orthopedic, and spinal implants. Biomaterials 2007, 28, 4845–4869. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Miller, J.L.; Progar, D.J.; Johnson, W.S.; St Clair, T.L. Preliminary evaluation of hybrid titanium composite laminates. J. Adhes. 1995, 54, 223–240. [Google Scholar] [CrossRef]
  10. Li, D.; Lv, P.F.; Fan, L.F.; Huang, Y.Y.; Yang, F.; Mei, X.F.; Wu, D.C. The immobilization of antibiotic-loaded polymeric coatings on osteoarticular Ti implants for the prevention of bone infections. Biomater. Sci. 2017, 5, 2337–2346. [Google Scholar] [CrossRef] [PubMed]
  11. Roeder, R.K.; Converse, G.L.; Kane, R.J.; Yue, W.M. Hydroxyapatite-reinforced polymer biocomposites for synthetic bone substitutes. JOM 2008, 60, 38–45. [Google Scholar] [CrossRef]
  12. Jarcho, M. Calcium-phosphate ceramics as hard tissue prosthetics. Clin. Orthop. Relat. Res. 1981, 157, 259–278. [Google Scholar] [CrossRef]
  13. Lee, J.H.; Jang, H.L.; Lee, K.M.; Baek, H.R.; Jin, K.; Hong, K.S.; Noh, J.H.; Lee, H.K. In vitro and in vivo evaluation of the bioactivity of hydroxyapatite-coated polyetheretherketone biocomposites created by cold spray technology. Acta Biomater. 2013, 9, 6177–6187. [Google Scholar] [CrossRef] [PubMed]
  14. Barkarmo, S.; Wennerberg, A.; Hoffman, M.; Kjellin, P.; Breding, K.; Handa, P.; Stenport, V. Nano-hydroxyapatite-coated peek implants: A pilot study in rabbit bone. J. Biomed. Mater. Res. Part A 2013, 101, 465–471. [Google Scholar] [CrossRef] [PubMed]
  15. Rabiei, A.; Sandukas, S. Processing and evaluation of bioactive coatings on polymeric implants. J. Biomed. Mater. Res. Part A 2013, 101, 2621–2629. [Google Scholar] [CrossRef] [PubMed]
  16. Ma, R.; Tang, T.T. Current strategies to improve the bioactivity of peek. Int. J. Mol. Sci. 2014, 15, 5426–5445. [Google Scholar] [CrossRef] [PubMed]
  17. Hahn, B.D.; Park, D.S.; Choi, J.J.; Ryu, J.; Yoon, W.H.; Choi, J.H.; Kim, J.W.; Ahn, C.W.; Kim, H.E.; Yoon, B.H.; et al. Osteoconductive hydroxyapatite coated peek for spinal fusion surgery. Appl. Surf. Sci. 2013, 283, 6–11. [Google Scholar] [CrossRef]
  18. Mahjoubi, H.; Buck, E.; Manimunda, P.; Farivar, R.; Chromik, R.; Murshed, M.; Cerruti, M. Surface phosphonation enhances hydroxyapatite coating adhesion on polyetheretherketone and its osseointegration potential. Acta Biomater. 2017, 47, 149–158. [Google Scholar] [CrossRef] [PubMed]
  19. Zheng, Y.Y.; Xiong, C.D.; Zhang, S.L.; Li, X.Y.; Zhang, L.F. Bone-like apatite coating on functionalized poly(etheretherketone) surface via tailored silanization layers technique. Mater. Sci. Eng. C 2015, 55, 512–523. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, C.C.; Wang, F.; Han, Y. The structure, bond strength and apatite-inducing ability of micro-arc oxidized tantalum and their response to annealing. Appl. Surf. Sci. 2016, 361, 190–198. [Google Scholar] [CrossRef]
  21. Ryu, J.; Ku, S.H.; Lee, H.; Park, C.B. Mussel-inspired polydopamine coating as a universal route to hydroxyapatite crystallization. Adv. Funct. Mater. 2010, 20, 2132–2139. [Google Scholar] [CrossRef]
  22. Kim, S.; Park, C.B. Bio-inspired synthesis of minerals for energy, environment, and medicinal applications. Adv. Funct. Mater. 2013, 23, 10–25. [Google Scholar] [CrossRef]
  23. Liu, Y.; Zhang, Z.X.; Lv, H.L.; Qin, Y.; Deng, L.H. Surface modification of chitosan film via polydopamine coating to promote biomineralization in bone tissue engineering. J. Bioact. Compat. Polym. 2018, 33, 134–145. [Google Scholar] [CrossRef]
  24. Zain, N.M.; Hussain, R.; Kadir, M.R.A. Quinone-rich polydopamine functionalization of yttria stabilized zirconia for apatite biomineralization: The effects of coating temperature. Appl. Surf. Sci. 2015, 346, 317–328. [Google Scholar] [CrossRef]
  25. Yang, Y.Q.; Yang, D.L.; Zhang, S.H.; Wang, J.; Jian, X.G. Preparation and characterization of poly(phthalazinone ether sulfone ketone) hollow fiber ultrafiltration membranes with excellent thermal stability. J. Membr. Sci. 2006, 280, 957–968. [Google Scholar] [CrossRef]
  26. Yu, G.P.; Liu, C.; Wang, J.Y.; Xu, J.; Jian, X.G. Synthesis and characterization of poly(arylene ether s-triazine)s containing alkyl-, aryl- and chloro-substituted phthalazinone moieties in the main chain. Polym. Int. 2010, 59, 1233–1239. [Google Scholar] [CrossRef]
  27. Huang, L.W.; Arena, J.T.; Manickam, S.S.; Jiang, X.Q.; Willis, B.G.; McCutcheon, J.R. Improved mechanical properties and hydrophilicity of electrospun nanofiber membranes for filtration applications by dopamine modification. J. Membr. Sci. 2014, 460, 241–249. [Google Scholar] [CrossRef]
  28. Arena, J.T.; McCloskey, B.; Freeman, B.D.; McCutcheon, J.R. Surface modification of thin film composite membrane support layers with polydopamine: Enabling use of reverse osmosis membranes in pressure retarded osmosis. J. Membr. Sci. 2011, 375, 55–62. [Google Scholar] [CrossRef]
  29. Amstad, E.; Gillich, T.; Bilecka, I.; Textor, M.; Reimhult, E. Ultrastable iron oxide nanoparticle colloidal suspensions using dispersants with catechol-derived anchor groups. Nano Lett. 2009, 9, 4042–4048. [Google Scholar] [CrossRef] [PubMed]
  30. Yang, H.C.; Luo, J.Q.; Lv, Y.; Shen, P.; Xu, Z.K. Surface engineering of polymer membranes via mussel-inspired chemistry. J. Membr. Sci. 2015, 483, 42–59. [Google Scholar] [CrossRef]
  31. Lee, H.; Lee, Y.; Statz, A.R.; Rho, J.; Park, T.G.; Messersmith, P.B. Substrate-independent layer-by-layer assembly by using mussel-adhesive-inspired polymers. Adv. Mater. 2008, 20, 1619–1623. [Google Scholar] [CrossRef] [PubMed]
  32. Jiang, J.H.; Zhu, L.P.; Zhu, L.J.; Zhu, B.K.; Xu, Y.Y. Surface characteristics of a self-polymerized dopamine coating deposited on hydrophobic polymer films. Langmuir 2011, 27, 14180–14187. [Google Scholar] [CrossRef] [PubMed]
  33. Luo, R.C.; Wu, J.; Dinh, N.D.; Chen, C.H. Gradient porous elastic hydrogels with shape-memory property and anisotropic responses for programmable locomotion. Adv. Funct. Mater. 2015, 25, 7272–7279. [Google Scholar] [CrossRef]
  34. Xu, F.J.; Wang, Z.H.; Yang, W.T. Surface functionalization of polycaprolactone films via surface-initiated atom transfer radical polymerization for covalently coupling cell-adhesive biomolecules. Biomaterials 2010, 31, 3139–3147. [Google Scholar] [CrossRef] [PubMed]
  35. Kang, S.M.; You, I.; Cho, W.K.; Shon, H.K.; Lee, T.G.; Choi, I.S.; Karp, J.M.; Lee, H. One-step modification of superhydrophobic surfaces by a mussel-inspired polymer coating. Angew. Chem. Int. Ed. 2010, 49, 9401–9404. [Google Scholar] [CrossRef] [PubMed]
  36. Yang, H.S.; Park, J.; La, W.G.; Jang, H.K.; Lee, M.; Kim, B.S. 3,4-dihydroxyphenylalanine-assisted hydroxyapatite nanoparticle coating on polymer scaffolds for efficient osteoconduction. Tissue Eng. Part C Methods 2012, 18, 245–251. [Google Scholar] [CrossRef] [PubMed]
  37. Sun, Y.H.; Deng, Y.; Ye, Z.Y.; Liang, S.S.; Tang, Z.H.; Wei, S.C. Peptide decorated nano-hydroxyapatite with enhanced bioactivity and osteogenic differentiation via polydopamine coating. Colloid Surface B 2013, 111, 107–116. [Google Scholar] [CrossRef] [PubMed]
  38. Gao, X.; Song, J.L.; Ji, P.; Zhang, X.H.; Li, X.M.; Xu, X.; Wang, M.K.; Zhang, S.Q.; Deng, Y.; Deng, F.; et al. Polydopamine-templated hydroxyapatite reinforced polycaprolactone composite nanofibers with enhanced cytocompatibility and osteogenesis for bone tissue engineering. ACS Appl. Mater. Int. 2016, 8, 3499–3515. [Google Scholar] [CrossRef] [PubMed]
  39. Wang, L.X.; He, S.; Wu, X.M.; Liang, S.S.; Mu, Z.L.; Wei, J.; Deng, F.; Deng, Y.; Wei, S.C. Polyetheretherketone/nano-fluorohydroxyapatite composite with antimicrobial activity and osseointegration properties. Biomaterials 2014, 35, 6758–6775. [Google Scholar] [CrossRef] [PubMed]
  40. Li, Y.; Yang, W.; Li, X.K.; Zhang, X.; Wang, C.R.; Meng, X.F.; Pei, Y.F.; Fan, X.L.; Lan, P.H.; Wang, C.H.; et al. Improving osteointegration and osteogenesis of three-dimensional porous Ti6Ai4V scaffolds by polydopamine-assisted biomimetic hydroxyapatite coating. ACS Appl. Mater. Int. 2015, 7, 5715–5724. [Google Scholar] [CrossRef] [PubMed]
  41. Cheng, Z.Y.; Teoh, S.H. Surface modification of ultra thin poly (epsilon-caprolactone) films using acrylic acid and collagen. Biomaterials 2004, 25, 1991–2001. [Google Scholar] [CrossRef] [PubMed]
  42. Zhu, Y.; Zhang, K.; Zhao, R.; Ye, X.J.; Chen, X.N.; Xiao, Z.W.; Yang, X.; Zhu, X.D.; Zhang, K.; Fan, Y.J.; et al. Bone regeneration with micro/nano hybrid-structured biphasic calcium phosphate bioceramics at segmental bone defect and the induced immunoregulation of MSCs. Biomaterials 2017, 147, 133–144. [Google Scholar] [CrossRef] [PubMed]
  43. Loh, X.J.; Sng, K.B.C.; Li, J. Synthesis and water-swelling of thermo-responsive poly(ester urethane)s containing poly(epsilon-caprolactone), poly(ethylene glycol) and poly(propylene glycol). Biomaterials 2008, 29, 3185–3194. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, S.; Yang, W.T.; Cui, J.; Li, X.; Dou, Y.; Su, L.; Chang, J.; Wang, H.J.; Li, X.D.; Zhang, B.B. pH- and NIR light responsive nanocarriers for combination treatment of chemotherapy and photodynamic therapy. Biomater. Sci. 2016, 4, 338–345. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 23 01643 g001 550

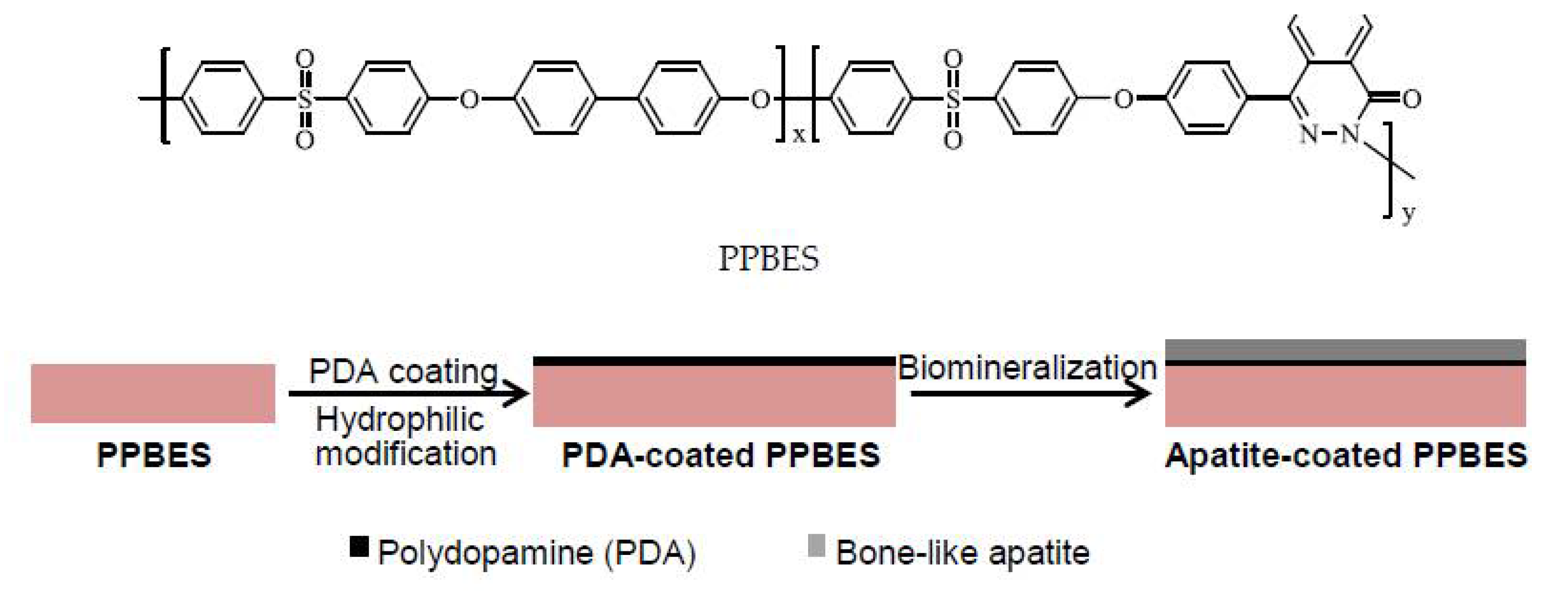

Figure 1. Chemical structure of Copoly(phthalazinone biphenyl ether sulfone) (PPBES) and schematic illustration of dopamine polymerisation and apatite biomineralisation on PPBES.
Figure 1. Chemical structure of Copoly(phthalazinone biphenyl ether sulfone) (PPBES) and schematic illustration of dopamine polymerisation and apatite biomineralisation on PPBES.
Molecules 23 01643 g001
Molecules 23 01643 g002 550

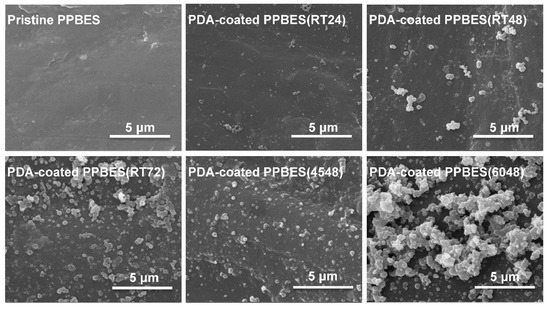

Figure 2. Surface morphology of the polydopamine (PDA)-coated PPBES.
Figure 2. Surface morphology of the polydopamine (PDA)-coated PPBES.
Molecules 23 01643 g002
Molecules 23 01643 g003 550

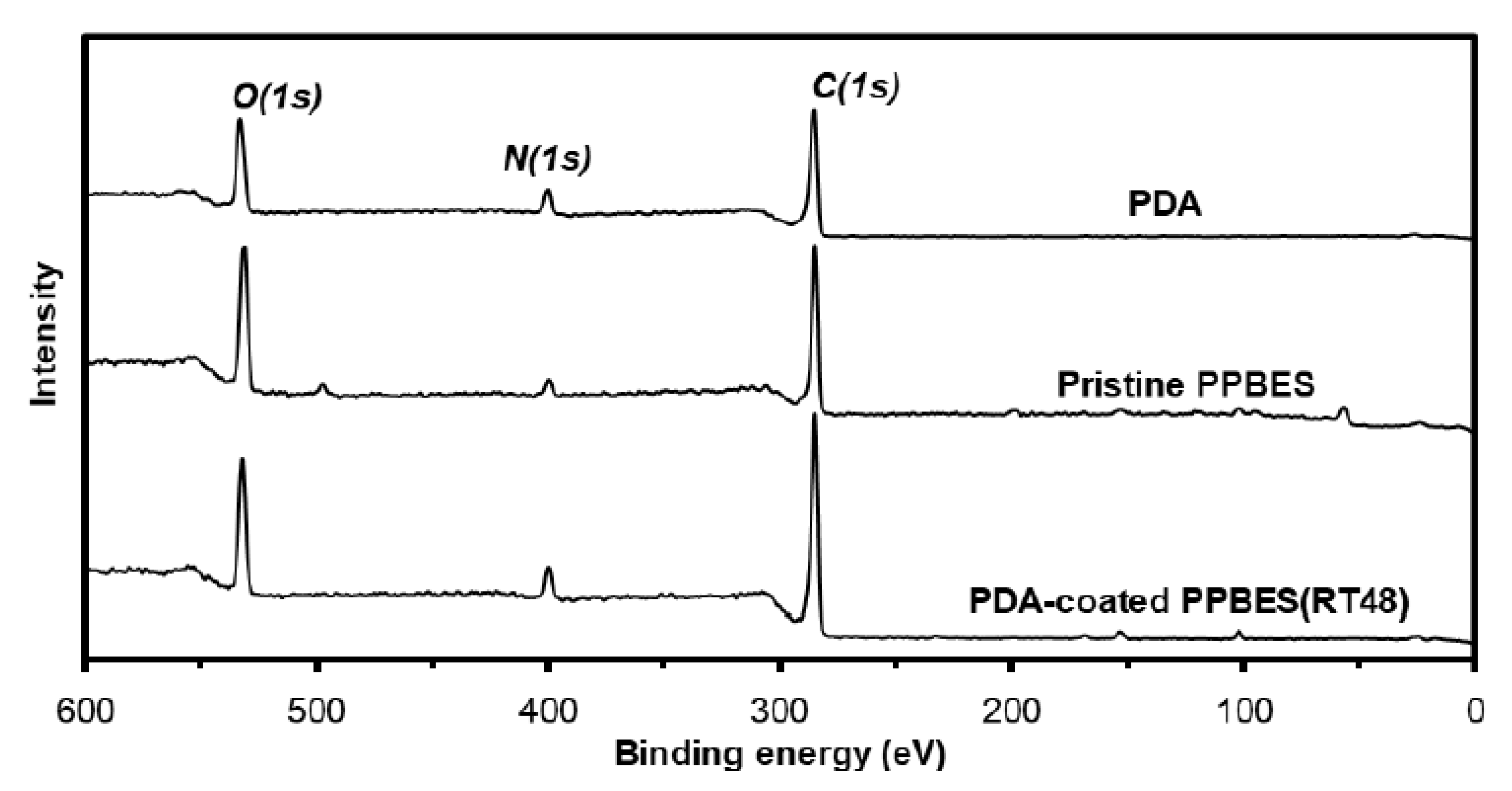

Figure 3. XPS survey spectra of PDA, PPBES, and PDA-coated PPBES.
Figure 3. XPS survey spectra of PDA, PPBES, and PDA-coated PPBES.
Molecules 23 01643 g003
Molecules 23 01643 g004 550

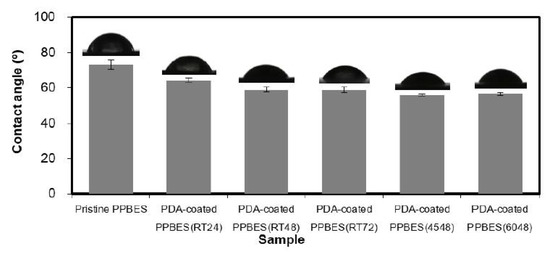

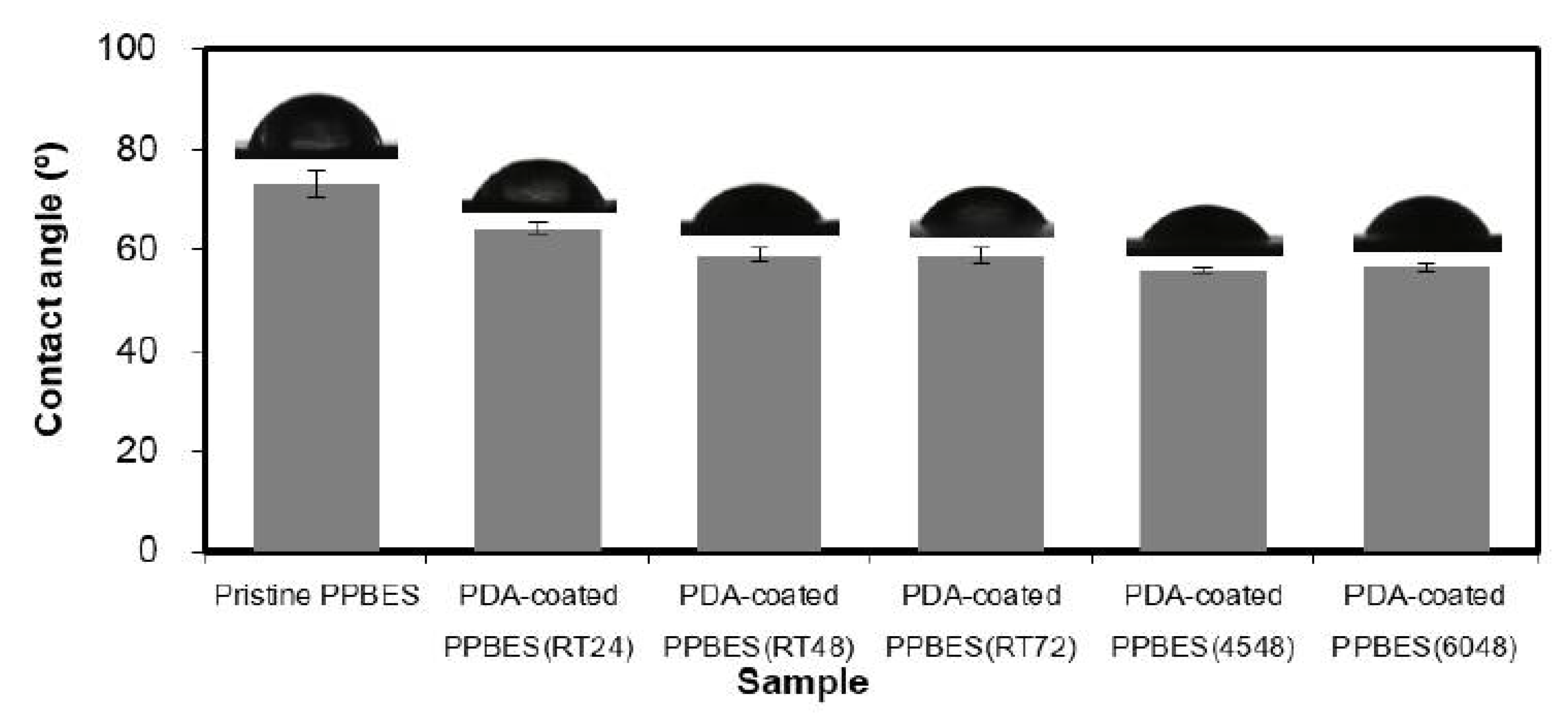

Figure 4. Water contact angles of pristine and PDA-coated PPBES prepared under different reaction conditions. PDA-coated PPBES(RT24) means that PDA coating was performed at room temperature for 24 h.
Figure 4. Water contact angles of pristine and PDA-coated PPBES prepared under different reaction conditions. PDA-coated PPBES(RT24) means that PDA coating was performed at room temperature for 24 h.
Molecules 23 01643 g004
Molecules 23 01643 g005 550

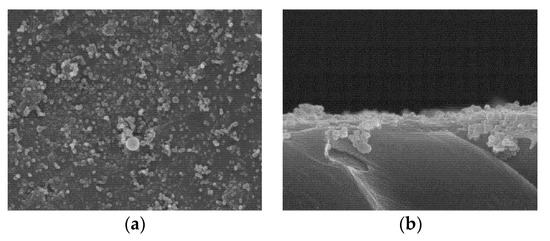

Figure 5. Apatite formation on PPBES via pHAF. (a) Top-down SEM image; (b). Cross-sectional SEM image.
Figure 5. Apatite formation on PPBES via pHAF. (a) Top-down SEM image; (b). Cross-sectional SEM image.
Molecules 23 01643 g005
Molecules 23 01643 g006 550
Figure 6. TEM and SEAD images of the bone-like apatite layer.
Figure 6. TEM and SEAD images of the bone-like apatite layer.
Molecules 23 01643 g006
Molecules 23 01643 g007 550

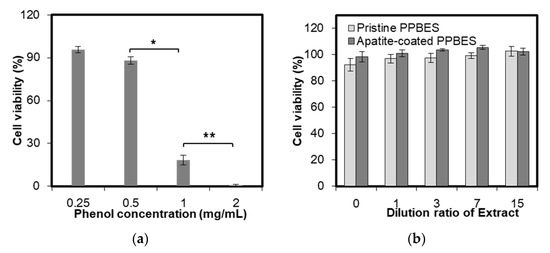

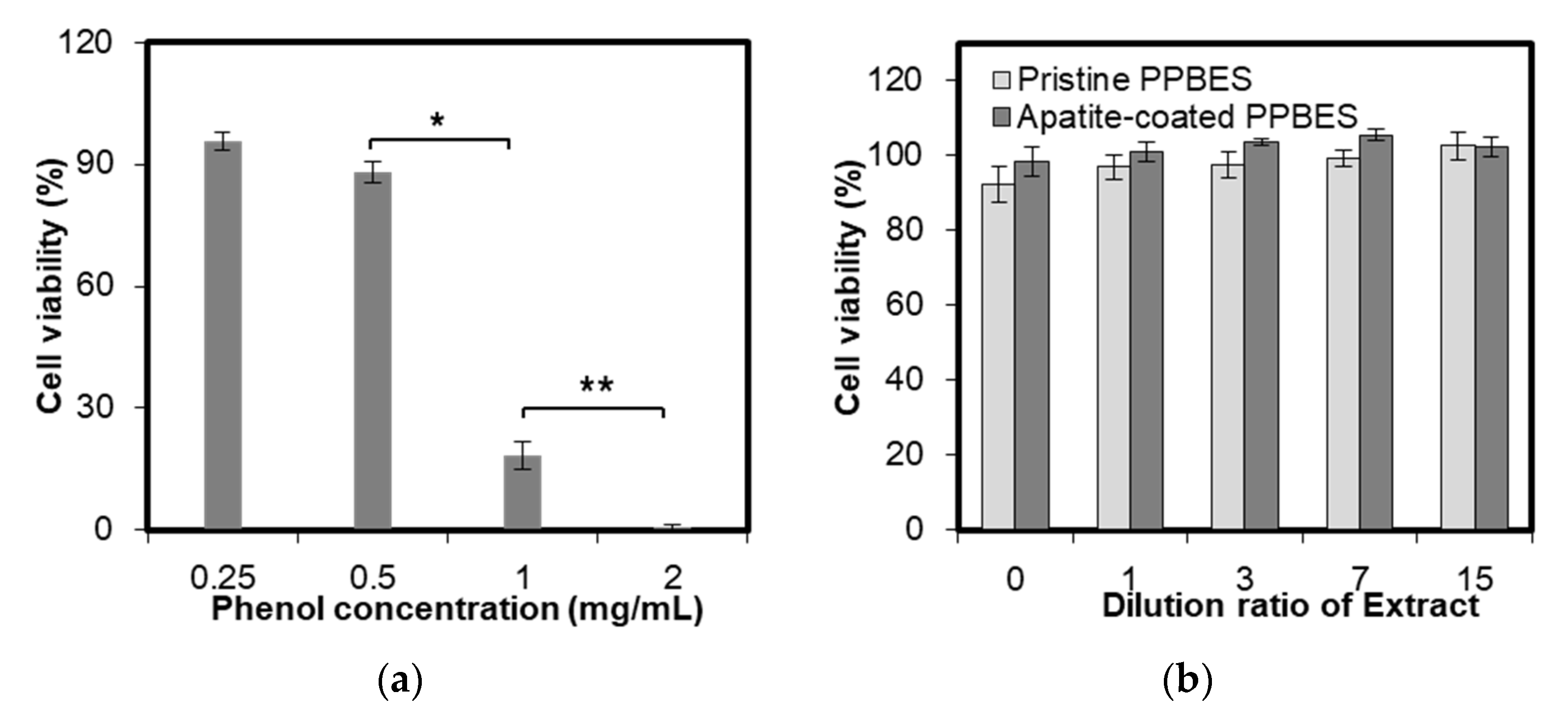

Figure 7. Cell viability incubated with phenol solution (a) and known concentrations of the aqueous-based extracts from pristine PPBES and apatite-coated PPBES (b). * and **: p < 0.05 relative to the phenol concentration 1 mg/mL.
Figure 7. Cell viability incubated with phenol solution (a) and known concentrations of the aqueous-based extracts from pristine PPBES and apatite-coated PPBES (b). * and **: p < 0.05 relative to the phenol concentration 1 mg/mL.
Molecules 23 01643 g007
Molecules 23 01643 g008 550

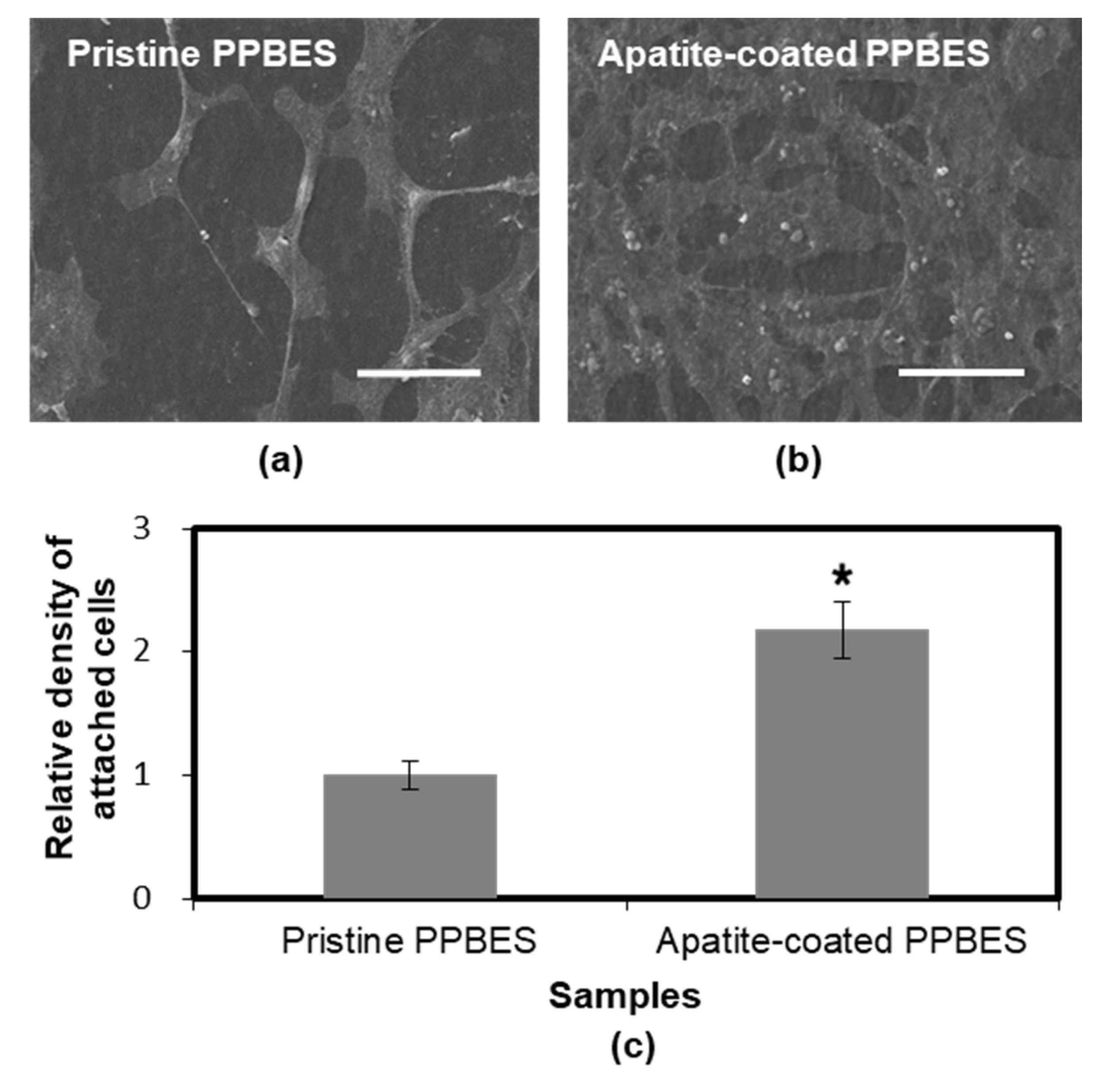

Figure 8. SEM images of NIH-3T3 cells cultured for 48 h on pristine PPBES (a) and apatite-coated PPBES (b) (scale bar = 50 μm). (c) Relative cell-adhesion density of NIH-3T3 cells cultured for 48 h on pristine PPBES and apatite-coated PPBES. * p < 0.05 relative to pristine PPBES.
Figure 8. SEM images of NIH-3T3 cells cultured for 48 h on pristine PPBES (a) and apatite-coated PPBES (b) (scale bar = 50 μm). (c) Relative cell-adhesion density of NIH-3T3 cells cultured for 48 h on pristine PPBES and apatite-coated PPBES. * p < 0.05 relative to pristine PPBES.
Molecules 23 01643 g008
Table
Table 1. Effect of Reaction Time and Temperature on the SE of PDA-coated PPBES.
Table 1. Effect of Reaction Time and Temperature on the SE of PDA-coated PPBES.
Sample aContact Angle (deg)Surface-Energy Components (mN/m)
WaterDiiodomethaneσs aσs bσs c
Pristine PPBES73.2 ± 2.748 ± 1.238.328.49.9
PDA-coated PPBES(RT24)64.3 ± 1.044.7 ± 0.843.128.115.0
PDA-coated PPBES(RT48)59.0 ± 1.352.9 ± 1.443.922.421.5
PDA-coated PPBES(RT72)58.9 ± 1.553.9 ± 1.843.822.917.8
PDA-coated PPBES(4548)56.0 ± 0.552.7 ± 1.645.922.023.9
PDA-coated PPBES(6048)56.7 ± 0.760.0 ± 0.644.218.126.1
σs a: total SE; σs b: disperse part of SE; σs c: polar part of SE.
