Review

Suppressive Effects of EGCG on Cervical Cancer

by
Ying-Qi Wang
,
Jian-Liang Lu
,
Yue-Rong Liang
and
Qing-Sheng Li
*
Tea Research Institute, Zhejiang University, # 866 Yuhangtang Road, Hangzhou 310058, China
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(9), 2334; https://doi.org/10.3390/molecules23092334
Submission received: 9 August 2018 / Revised: 5 September 2018 / Accepted: 11 September 2018 / Published: 12 September 2018
(This article belongs to the Special Issue EGCG, Green Tea and Polyphenols)
Browse Figures
Versions Notes

Abstract

:
Cervical cancer is the fourth most common gynecological cancer worldwide. Although prophylactic vaccination presents the most effective method for cervical cancer prevention, chemotherapy is still the primary invasive intervention. It is urgent to exploit low-toxic natural anticancer drugs on account of high cytotoxicity and side-effects of conventional agents. As a natural product, (-)-epigallocatechingallate (EGCG) has abilities in anti-proliferation, anti-metastasis and pro-apoptosis of cervical cancer cells. Moreover, EGCG also has pharmaceutical synergistic effects with conventional agents such as cisplatin (CDDP) and bleomycin (BLM). The underlying mechanisms of EGCG suppressive effects on cervical cancer are reviewed in this article. Further research directions and ambiguous results are also discussed.

1. Introduction

Cervical cancer is the fourth most common female cancer in terms of both incidence and mortality rates worldwide, with an estimated 528,000 new cases in 2012, including 266,000 deaths (85% occurring in developing countries) [1]. Although screening methods and early detection programs have been established, invasive cervical cancer still represents a major concern for public health. Risk factors of cervical cancer include human papillomavirus (HPV), sexual behavior beginning at a young age (<16 years old), multiple sexual partners (more than four), history of genital warts, HIV positive, and cigarette smoking or environmental tobacco smoke [2]. More than 99% of cervical cancer patients carry at least one genotype of oncogenic HPV [3], since persistent infection with HPV is the prominent etiological reason in the formation of cervical cancer [4]. However, more than 200 types of identified HPVs can be classified as low-risk HPVs and high-risk HPVs [5]. Low-risk HPVs induce inconspicuous infection or benign papilloma which could eventually be resolved by the immune system and rarely cause neoplasia and carcinogenesis [6]. On the contrary, high-risk HPVs are related to the propensity of malignant progression of virus-mediated lesions [7,8]. Among them, HPV16 and HPV18 are the two major viruses responsible for approximately 70% of all cervical carcinomas worldwide. HPV has two vital transcriptional units, E6 and E7, that encoded oncoproteins primarily attribute to its oncogenic function [9]. E6 protein inhibits the activity of tumor suppressor P53, and E7 protein targets other tumor suppressors of the retinoblastoma family [10,11]. A series of human cervical cancer cell lines have been used to study the potential anticancer ability of chemo therapeutic agents, including HPV18-positive HeLa cell lines, HPV16-positive CaSki and SiHa cell lines, etc. Similar to other cancers, cervical cancer harms the human body mainly due to the proliferation and metastasis of cancer cells. Current treatments in curing cancers aim at anti-proliferation, anti-metastasis of cancer cells, and inducing cancer cell apoptosis.
Until now, prophylactic vaccination is the primarily effective prevention strategy for cervical malignancies [12]. Although these vaccines could prevent approximately 90% of cervical carcinoma, the prohibitive price is incubus especially in developing countries [13,14]. Besides prophylactic vaccination, cervical cancer remains curable if detected at early stage, but hard to remedy in metastatic or recurrent carcinoma [5]. Among conventional therapies including surgery, radiotherapy, chemotherapy and immunotherapy [15], chemotherapy is the first option for patients that could effectively promote the apoptosis of cancer cells. Nevertheless, due to its high chemoresistance ability and toxicity on normal cells, more effective methods using less toxic anticancer drugs and novel therapeutic intervention strategies are required nowadays. Polyphenols such as catechins, curcumin and ferulic acid with low side effects are potential safe anticancer strategies for cervical cancer intervention.
Tea is one of the three most widely consumed non-alcohol beverages in the world. The prominent catechins in teas are (-)-epigallocatechingallate (EGCG), (-)-epicatechingallate (ECG), (-)-epigallocatechin (EGC), and (-)-epicatechin (EC) [16]. EGCG accounts for more than 40% of total catechins in green tea [17], and plays a critical role in cancer chemoprevention, diabetes, neurodegenerative diseases, stroke, obesity and other biochemical disorders [18]. The cancer prevention ability of EGCG is widely supported by results from epidemiological, in vivo and in vitro studies [19,20,21,22], especially in breast cancer [23], liver cancer [24], and prostate cancer [25,26]. However, the effects of EGCG on the prevention of cervical cancer are still inconclusive and controversial [27]. This review summarizes recent research data mainly focused on the effects of EGCG on cervical cancer, including in vivo and in vitro studies, and offers directions for further study.

2. Anti-Proliferation of Cervical Cancer Cells

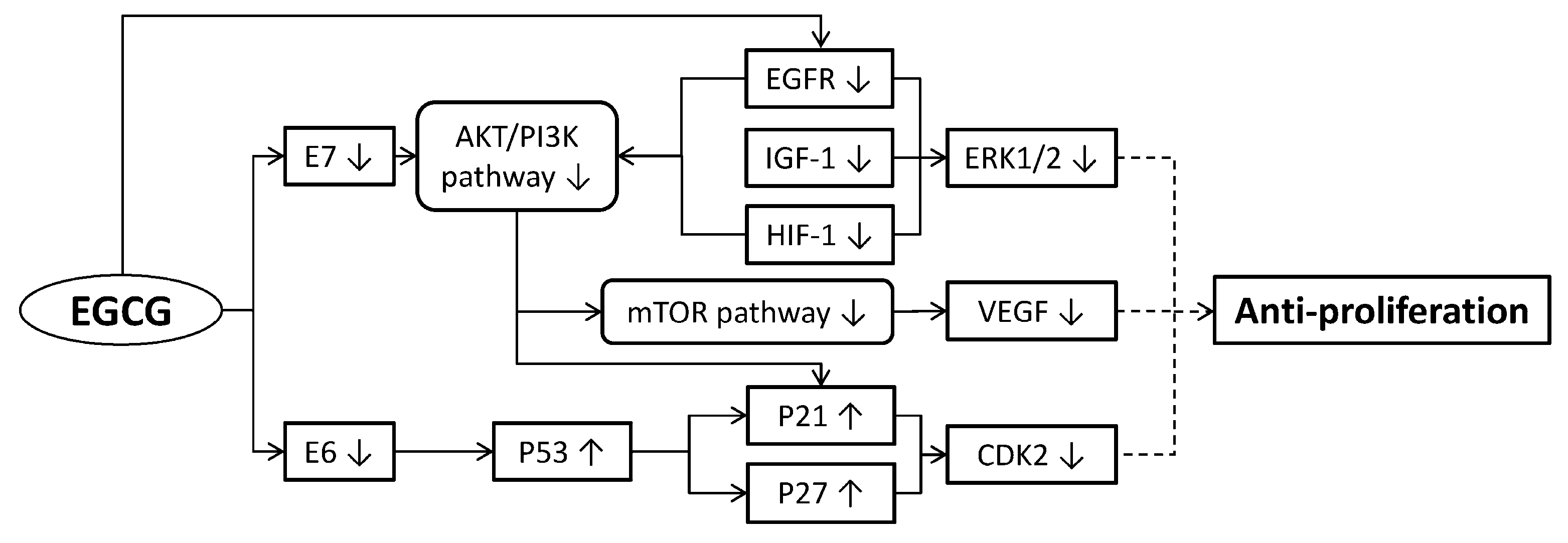

The mechanism of tumor progression is based on the proliferation and metastasis of cancer cells [28]. One of the characteristics in advanced malignancies is infinite proliferation of cancer cells. Inhibiting proliferation of cervical cancer cells could stabilize the symptoms of a patient and extend the treatment duration with higher curative potential. EGCG can reduce cervical cancer cell proliferation in various ways (Figure 1), including: (1) inducing cancer cell cycle arrest; (2) regulating cancer cell growth; (3) inducing cellular microtubule depolymerization and inhibiting tubulin assembly; (4) inhibiting angiogenesis; and (5) restraining HPV oncoproteins.

2.1. Inducing Cancer Cell Cycle Arrest

Mitosis consists of G1, S, G2 and M phases. EGCG-induced mitosis arrest at low concentration (0–25 μg/mL) in squamous cervical carcinoma Me180 cells [29]. EGCG also could arrest cell division during different phases of the cell cycle in various cell lines. In HeLa cells, EGCG and theaflavins induced sub-G1 phase arrest in a dose-dependent manner and showed a time-dependent inhibition of their proliferations [30]. EGCG induced G1 phase arrested in HPV16-related CaSki cells and regulated related gene expressions [31]. In G2/M phases, EGCG could arrest the cell growth of the HeLa cell line and SiHa cell line in a time-dependent and dose-dependent manner, respectively.
Organisms secrete tumor suppressors to arrest the cell cycle in tumor cells, such as P53 protein and cyclin-dependent kinases inhibitors (CKI) [32]. During cancer cell proliferation, the activation of epidermal growth factor receptor (EGFR) and its downstream target, extracellular signal regulated protein kinases ERK1/2, are also required. By increasing the level of P53 and CKIs (P21/WAF-1, P27/KIP-1), EGCG inactivated EGFR and ERK1/2 protein kinases, resulting in G1 arrest and increasing cell apoptosis in several cervical cancer cell lines finally [33]. Moreover, EGCG increased the expression of P53 dose-dependently. Besides, insulin-like growth factor receptor (IGF-1R) is a tyrosine kinase receptor which could activate the ERK signaling pathway by recruiting the Src homolog-2 domain transforming protein, and has been confirmed to induce mitosis, transformation and anti-apoptosis of cancer cells [34]. EGCG effectively decreased the phosphorylation of ERKs in a dose-dependent manner, meanwhile, reduced activity of IGF-1R and decreased its binding ability with insulin-like growth factor (IGF-1), result in inhibiting the proliferation and anchorage-independent transformation of HeLa cells [35]. In G2 arrest, the potential mechanism was that EGCG upregulated the expression of P21, an inhibitor of cyclin/cyclin-dependent kinase complexes, which induced mitosis arrest [36]. Otherwise, Polo-like kinase 1 (PLK1) plays a key role in mitotic progression and cell-cycle control [37], which is confirmed to be one of the potential drug targets for cancer therapy [38]. By inhibiting the binding of phosphopeptide to C-terminal of polo-box domain (PBD), green tea catechin containing EGCG was found to be the potent inhibitor of PBD in PLK1. In addition, EGC, as another kind of catechins, also could lead cell-cycle arrest in S and G2/M phases by disturbing the proper cellular localization of PLK1, finally inducing apoptosis in several cancer cells including HeLa cells [39].

2.2. Regulating Cancer Cell Growth

Current research reveals that EGCG could regulate cancer cell growth through telomerase and RNA polymerase III. Telomerase, as a reverse transcriptase, adds new DNA onto the telomeres that are located at the ends of chromosomes [40]. Recent studies manifested that the telomerase-regulated telomeres’ length stability might correlated with this phenomenon [41]. Thus, inhibiting the expression of telomerase has been considered as an effective method for anticancer protection. EGCG inhibited telomerase activity and more than 90% of the growth rate of both primary human endocervical cells and ectocervical cells [42]. Telomeric repeat amplification protocol assay showed EGCG could also suppress the telomerase activity in OMC-4 and TMCC-1 cervical adenocarcinoma cell lines [43].
RNA polymerase III (RNA pol III) transcribes RNA processing and related RNA molecules, such as U6 snRNA and tRNA, and dictates the growth rate of a cell [44]. It has been proved that the activity of RNA pol III will be deregulated in multiple cancer cells including cervical cancer cells [45]. RNA pol III proper initiation is decided by transcription factor TF III B, while TF III B is initiated from both internal [46] and external [47] RNA pol III promoters. By inhibiting the expression of TF III B subunits Brf1, Brf2 and its promoter, EGCG modulate the RNA pol III transcription and regulate the cell growth of HeLa cell line [48]. Another study showed the combination therapy of EGCG and retinoic acid also seemed to be effective through inducing apoptosis and inhibiting telomerase activity in cervical adenocarcinoma cells [49]. Those results suggest that EGCG may be beneficial in early cervical lesions and cervical adenocarcinoma prevention.

2.3. Inducing Cellular Microtubule Depolymerization and Inhibiting Tubulin Assembly

Microtubules are dynamic filamentous cytoskeletal protein structures [50] composed of tubulins including α and β subunits [50]. Some key roles of microtubules are in proliferation, signaling and migration in cancer cells, hence both microtubule and tubulin are crucial therapeutic targets for anticancer drugs. A recent study found that EGCG could inhibit proliferation of HeLa cells through depolymerizing cellular microtubule and restraining tubulin assembly both in cells and cell-free system (IC50 of 39.6 ± 0.63 μM) [36]. EGCG and theaflavins also prevented the reformation of cold-treat cellular microtubule network distortion in HeLa cells [51]. The mechanism of microtubule depolymerization by EGCG is a similar anti-proliferation function to colchicine (a well-known tubulin drug) through bounding to the α subunit of tubulin, and ultimately leading to apoptosis in cervical cancer cells [36].

2.4. Inhibiting Angiogenesis

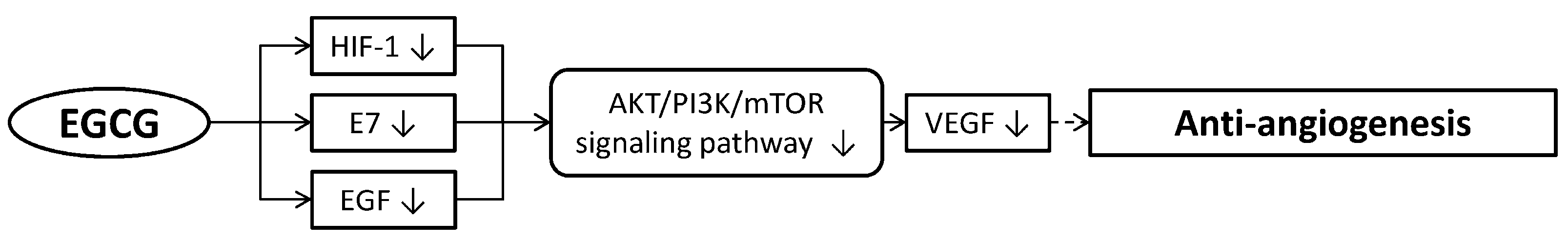

Angiogenesis consists of vascular endothelial degradation, adhesion and migration procedures, that provide nutrients and oxygen in tumor growth and proliferation. Therefore, inhibiting angiogenesis could effectively suppress the growth and proliferation of tumor cells. Recent work revealed that EGCG could interfere with cell signaling pathways of angiogenesis in ovarian, lung, breast and cervical cancer cells (Figure 2) [52,53,54].
Vascular endothelial growth factor (VEGF) is the key regulator of physiological angiogenesis [55] which can significantly stimulate proliferation and division of vascular endothelial cells, resulting in enhancing the formation of new blood vessels. The expression of VEGF in a tumor is activated by hypoxia-inducible factor 1 (HIF-1) under cellular hypoxia condition [56] and upregulated by protooncogene RAS, SRC, HER2. Hypoxia-inducible factor-1α (HIF-1α) is the subunit of HIF-1 [57], which plays a critical role in tumor growth, angiogenesis [58] and apoptosis [59]. In cervical carcinoma HeLa cells, EGCG and green tea extract effectively inhibited the accumulation of hypoxia-induced HIF-1α protein through blocking PI3K/Akt and ERKs signal pathways, and promoted the degradation of HIF-1α protein via the proteasome system [60]. Moreover, by reducing downstream substrates’ phosphorylation or inhibiting Akt activation directly, EGCG could modulate the activity level of Akt to inhibit epidermal growth factor (EGF)-dependent signaling pathway transportation and restrict HeLa cell proliferation [33]. As a result, EGCG and green tea extract reduced the expression of VEGF at both protein and mRNA levels [61]. Functionally, EGCG and green tea extract abolish the migration of hypoxia-stimulated HeLa cells.
Modulating the expression of the angiogenesis signaling cascade may be one of the potential anticancer mechanisms of EGCG. Transcriptional analysis revealed that EGCG modulated the transcription level of 11 genes in angiogenesis process. Among them, EGCG down-regulated 7 gene expressions including PDGFA (platelet-derived growth factor α, promoting angiogenesis through paracrine mechanism [62,63]), THBS-1 (thrombospondin 1, promoting vascular adhesion, migration and invasion through integrin pathways [64]), CCL2 (monocyte chemoattractant protein 1, related to the recruitment of tumor-infiltrating macrophages [65]), EFNA1 (ephrin A1, a prototype ligand [66]), TGF-β2 (transforming growth factor β 2), TNFAIP2 (tumor necrosis factor α-induced protein 2), and CXCL6 (granulocyte chemotactic protein 2); meanwhile, EGCG up-regulated 4 gene expressions consisting of ANGPTL4 (angiopoietin-like 4, inhibiting vascular invasion [67]), IFN-β1 (interferon β 1, reducing pro-angiogenic factors [68] and blocking endothelial cell migration [69]), IL-1β (interleukin 1 β, decreasing the secretion of matrix metalloproteinase (MMP)-2 in cervical cancer [70]), and ID1 (inhibitor of DNA binding 1). These genes are known as mediating multiple mechanisms in proliferation, adhesion, migration and invasion of vascular endothelial cells [71]. The results suggest that EGCG may act as an important anti-angiogenic agent in cervical cancer.

2.5. Restraining Human Papillomavirus (HPV) Oncoproteins

Since persistent infection with HPV is the prominent etiological reason in the formation of cervical cancer [4], seeking drugs for restraining HPV-related oncoproteins is essential. EGCG has a positive effect on suppressing HPV oncogenes and oncoproteins.
E6 and E7 of HPV are two main encoded oncoproteins in cervical cancer. In conjunction with the cellular ubiquitin ligase E6AP, E6 oncoprotein could degrade tumor suppressor protein P53 via the ubiquitin-proteasome pathway; meanwhile, E7 oncoprotein could induce retinoblastoma tumor suppressor gene product pRb degradation [72], resulting in disrupting cell cycle regulation and inhibiting apoptosis of cervical carcinoma [73]. Thus, restraining the expressions of E6 and E7 oncoproteins and their proteasome pathways could inhibit HPV infection and the development of cervical cancer. By accumulating ubiquitinated proteins and natural proteasome targets including tumor suppressor protein P27, IκB-α and Bcl-2 associated X protein (BAX) in HeLa cells [74], EGCG potently inhibited the degradation ability of E7 on pRb through restraining ubiquitin-proteasomal activity and suppressing tumor growth [75,76]. Estrogen also has been confirmed to play a critical role in HPV positive cervical cancer. Aromatase, as the key enzyme in estrogen biosynthesis, could upregulate the expression of estrogen receptor (ER). EGCG could suppress the mRNA and protein expression levels of estrogen receptor-α (ER-α) and aromatase, hence restraining E6 and E7 expressions. As a result, EGCG indirectly inhibits the proliferation and induces the apoptosis of cervical cancer cells [77]. Immunohistochemistry study shows a similar result in both HeLa cells and HPV immortalized cervical epithelial TCL-1 cells [29].

3. Anti-Metastasis of Cervical Cancer Cells

The metastasis of cancer cells includes three key steps, adhesion, migration and invasion. EGCG shows an inhibitory effect on the migratory and invasive ability of cervical cancer cells by regulating the activities of proteolytic enzymes, signal pathways, growth factors/receptors and angiogenesis. Moreover, EGCG could inhibit the spreading of HeLa cells through keeping their round shape from changing to multiple filopodia and lamellipodia, which were the characteristics of spreading cells, hence reducing the adherence rate and migration ability of HeLa cells by 40% and 68% after 48 h respectively [71].
Matrix metalloproteinases (MMPs) are related to several proteolytic events [78] and the tissue inhibitor of metalloproteinase-1 (TIMP-1) is confirmed to directly regulate MMPs activity. Both MMPs and TIMP-1 can be used as tumor therapeutic targets in the clinic [79]. By treating HeLa cells with EGCG, the expression of MMP-9 was down-regulated; in an opposite way, the expression of TIMP-1 was significantly increased in a time-dependent manner [80]. Another study also confirmed that EGCG decreased the expressions of both MMP-2 and MMP-9 in HeLa cells and completely abolished their expressions at 50 μg/mL of EGCG, illustrating the inhibition ability of EGCG on MMP-driven migration in cervical cancer cells. A mixture therapy combined with doxycycline, EGCG had a better effect on inhibiting MMP-2 expression in HeLa cells [81]. VEGF, as a crucial regulator for physiological angiogenesis, also plays a key role in cancer cell metastasis. By interfering in hypoxia-mediated activation of PI3K/Akt and ERK1/2 signaling pathways, EGCG and green tea extract down-regulated the mRNA and protein levels of VEGF that results in inhibiting HeLa cell migration [61].

4. Pro-Apoptosis of Cervical Cancer Cells

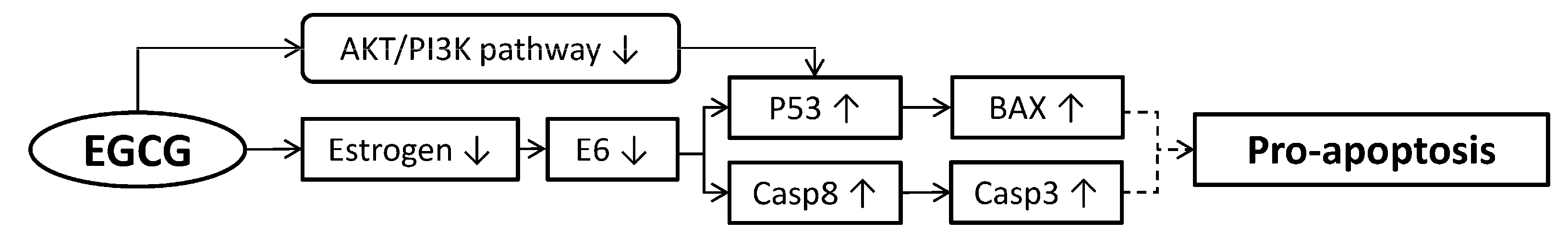

Anti-proliferation and anti-metastasis of cancer cells stand for restraining malignancies, while pro-apoptosis of cancer cells could cure cancer eventually. EGCG can induce apoptosis of cervical cancer cells (Figure 3) through (1) inducing caspase secretion, (2) ROS induced apoptosis of cancer cells, and (3) inducing lysosomal proteases secretion.

4.1. Inducing Caspase Secretion

Caspases are a series of proteases which have been verified as involved in tumor cell apoptosis, necrosis and inflammation. The deficiency of caspase would lead to tumor proliferation. EGCG induced cancer cells apoptosis at high concentration (25–50 μg/mL) in squamous cervical carcinoma Me180 cells [29]. In the meantime, EGCG improved the expression of caspase-3 in cervical carcinoma cells [82]. Black tea polyphenol theaflavins and green tea catechins hydrate could also induce the expressions of caspase-3, -8, -9 and P53 in HeLa [30] or SiHa cells [83]. Eventually, EGCG could promote caspase-mediated cancer cell apoptosis.

4.2. Reactive Oxygen Species (ROS) Induced Apoptosis of Cancer Cells

Reactive oxygen species (ROS) are a series of chemical-reactive molecules, containing hydrogen peroxide, superoxide anion radical, singlet oxygen, and hydroxyl radical, which are associated with the decreased antioxidant capability of cells and multiple stages of carcinogenesis [84]. In cancer cells, a low ROS level supports survival pathways that makes a positive impact in cell proliferation, but a medium or high level of ROS causes oxidative stress that could lead to cell apoptosis, necrosis and genotoxic damage [85].
EGCG is not only a natural antioxidant agent in normal cells but also exhibits prooxidant and apoptosis-inducing properties in cancer cells [86,87]. High concentrations of EGCG (50 μg to 200 μg gallic acid equivalents GAE/mL) induced formation of intracellular superoxide anion radical, H2O2 and hydroxyl radical, as a consequence of increasing oxidative stress in HeLa cells [88]. High-concentration (100 μg gallic acid equivalents GAE/mL) green tea induced the formation of intracellular ROS and inhibited the activity of catalase, while increasing the production of superoxide anion radicals and reducing glutathione. Thioredoxin (Trx) and thioredoxin reductase (TrxR) presenting in all living cells act as antioxidant and apoptotic resistance proteins, which are often overexpressed in drug-resistant cancer cells. Both of them are critical regulators of cellular redox homeostasis. The increased level of ROS induced by EGCG has proven to be an effective regulator for both Trx and TrxR [89]. The inactivation of Trx/TrxR by a high concentration of EGCG was linked to elevation of ROS levels in HeLa cells. By autoxidation, EGCG oxidized into EGCG (semi) quinones and released H2O2, then inactivated Trx/TrxR through binding with them separately and formed irreversible EGCG-Trx and EGCG-TrxR conjugates, thus inducing prooxidant cytotoxicity and apoptosis of HeLa cells.
Mitochondria, which play an important role in energy production, are major sites of ROS generation [90]. Excessive generation of ROS could lead to the opening of a mitochondrial permeability transition pore with decline in mitochondrial membrane potential (ΔΨm) and consequent release of cytochrome-C from the inter-membrane space into the cytosol, culminating in activation of the caspase cascade and apoptotic cell death pathways [91]. Treating SiHa cells with green tea polyphenols consisting of EGCG decreased ΔΨm of mitochondria and disrupted mitochondrial function, finally inducing apoptosis of SiHa cells [92]. The mitochondrial perturbation ability of EGCG and tea polyphenols may because they can induce the excess hydrogen peroxide.

4.3. Inducing Lysosomal Proteases Secretion

Lysosomes are cytoplasmic membrane-enclosed organelles containing hydrolytic enzymes that control the intracellular turnover and degradation of macromolecules [93]. Under lysosomal membrane permeabilization (LMP), lysosomal proteases leak into the cytosol and induce cell death. EGCG was able to trigger LMP supported by Lyso-Tracker Red staining, cathepsin-D cytosolic translocation and cytosolic acidulation, and then lysosomal proteases were released into cytosol and inducing death of HeLa cells [94]. ROS is known to be the principle inducer of LMP. In cancer cell lines, 60 μM EGCG led to intracellular ROS formation which resulted in LMP onset and cytosolic acidification, eventually promoting cell death [94].

5. Pharmaceutical Synergistic Effect

Chemotherapy is the most important cancer treatment. But the side-effects of certain chemotherapeutic agents make the human body unbearable before they cure cancers. Chemotherapeutic agents with low side-effects are urgently needed, while seeking chemical compounds with pharmaceutical synergistic effect to reduce the side-effects of chemotherapeutic agents is another effective approach, such as EGCG. Besides, EGCG also has the ability to inhibit cancer cell proliferation, metastasis, and promoting their apoptosis (Table 1).
Cisplatin (cisdiamminedichloroplatinum II, CDDP) is one of the traditional chemotherapeutic agents in the treatment of several types of cancer [95]. The clinical use of CDDP is always limited to its undesirable side-effects, such as nephrotoxicity, gastrointestinal toxicity, neurotoxicity, bone marrow toxicity and ototoxicity [96]. Oxidative stress induced by the strong electrophilic nature of activated CDDP is another common adverse effect of CDDP [97]. Additionally, CDDP-based chemotherapy with concurrent radiation therapy is the commonly used strategy in cervical carcinoma, but the result is unsatisfactory due to its chemoresistance. Therefore, novel combination strategies are required. EGCG has synergistic anticancer activity with CDDP. EGCG could enhance the efficacy of CDDP in inhibiting proliferation of HeLa cells than CDDP alone [98]. Using EGCG combined with CDDP to treat HeLa and SiHa cell lines exhibited significant inhibition of cell growth through blocking kappa-Bα inhibitor phosphorylation, resulting in inhibiting the activation of Akt and NF-κB signaling pathways [99]. Meanwhile, encapsulated polyphenols consisting of EGCG exhibit a higher effect in enhancing the sensitivity of CDDP [100]. TPP@Pt, a nanoparticle synthesized by tea polyphenols with EGCG and platinum, was tested with ability of inducing cell cycle arrest in G2/M phase and increased cell quantity in subG0 death phase in SiHa cells [101]. These findings highlight the synergistic anticancer activity of tea components with CDDP.
Bleomycin (BLM) is another anti-neoplastic chemotherapeutic agent which made by Streptomyces verticillus. By inducing DNA oxidative damage and inhibiting cancer cell proliferation [102], BLM is used in redox-related cancer, including testicular cancer and cervical squamous cell cancer [103]. However, BLM also causes several side effects in normal cells, such as immune system damage, hyperpigmentation, pneumonitis and pulmonary fibrosis, which are mediated by redox status disturbances [104,105]. The combination of tea polyphenols with EGCG and BLM could overcome the side effects of BLM and have therapeutic benefits for uterine cervical cancer patients. The combination therapy induced stronger cancer cell apoptosis ability than treated either tea polyphenols or BLM alone, by activating caspase-3, -8, -9 and up-regulating the expressions of P53 and Bcl-2 [106].

6. Ambiguous Potential Functions of (-)-Epigallocatechingallate (EGCG) on Cervical Cancer

DNA methylation and histone deacetylase are important epigenetic mechanisms for the inactivation of many genes related to tumor suppressors. Epigenetic alterations are mainly mediated by DNA methyltransferases (DNMT), histone deacetylase (HDAC), and other classes of enzymes [107]. Through targeting epigenetic alterations consisting of DNA methylation, EGCG acts as an epigenetic modifier in bounding the process of carcinogenesis in tumors [108,109]. EGCG significantly reduced the enzymatic activity of DNMT and HDAC in a time-dependent manner in HeLa cells; furthermore, molecular modeling data also supported the result. It was interesting that the expression of DNMT3B normally increased in various cancer tissues and cell lines [110], was decreased in EGCG-treated HeLa cells, whereas there were no significant changes in the expression of HDAC1 [108]. Thus, further studies are needed to determine the efficacy of EGCG for therapeutic purposes as an epigenetic drug.
The 67KD laminin receptor (67LR) is a non-integrin cell surface receptor for extracellular matrix with higher expressions in tumor cells [111]. It is widely related to several processes of cancer cells metastasis [112]. As a major surface receptor of EGCG [113], 67LR could coordinate with EGCG in regulation of several signal pathways and inhibition of tumor growth and promotion of apoptosis. Through 67LR mediation, EGCG inhibited HeLa cells growth by inducing myosin regulatory light chain dephosphorylation [114]. Both eukaryotic translation elongation factor-1A and myosin phosphatase-targeting subunit-1 were considered to be the mediators for EGCG-induced cancer prevention through 67LR in HeLa cells [115]. The sensitivity of 67LR to EGCG would be influenced by the tumor oxidative conditions, high O2 pressure suppressed the degradation of ubiquitin/proteasome-mediated 67LR and enhanced the sensitivity of cancer cells [116].

7. Further Suggestions

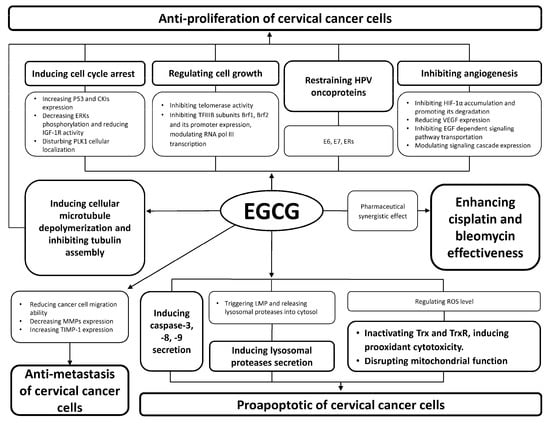

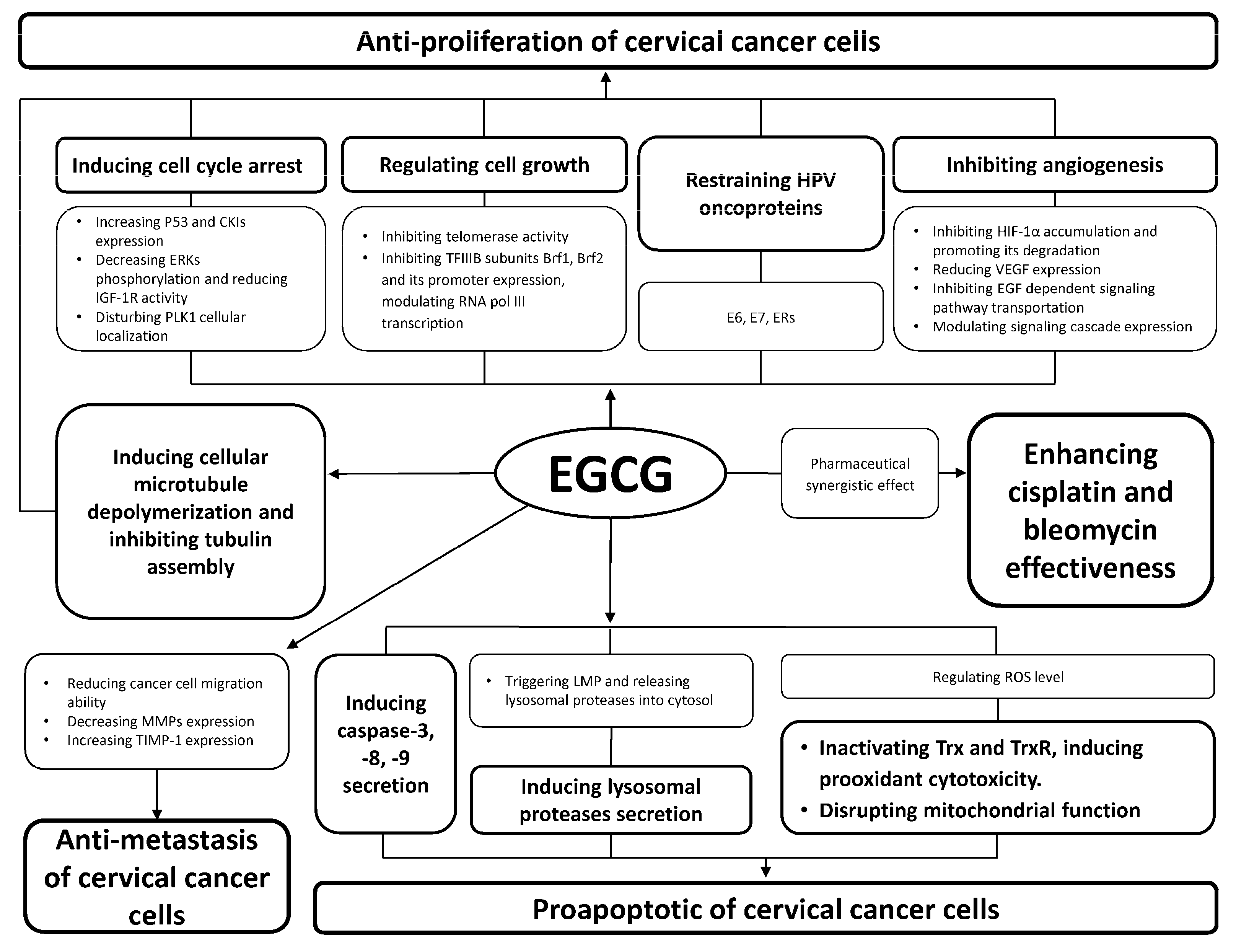

Based on its anti-proliferation, anti-metastasis, pro-apoptosis and pharmaceutical synergistic effects, EGCG shows suppressive effects on cervical cancer. An overview of suppressive effects of EGCG on cervical cancer is illustrated in Figure 4. Meanwhile, the cytotoxic activities of EGCG on human cervical cancer cell lines are summarized in Table 2.
Among anti-proliferation of cervical cancer cells, EGCG depolymerizes the cellular microtubule and binds on tubulin identical to colchicine. However, the IC50 of EGCG is 1000-fold higher than colchicine. This indicates that EGCG may not only target on tubulin of microtubule but also other targets in cellular or extracellular regions [36]. Therefore, further studies should focus on the mechanism of EGCG on depolymerizing cellular microtubule. In addition, EGCG can inhibit telomerase in breast cancer [117], esophageal carcinoma [118], endocervical cells and ectocervical cells [42], but shows much milder cytotoxic effects in cervical cancer cells [119]. The activity of telomerase is related to DNA methylation [120], and thus whether EGCG can inhibit telomerase activity through reducing DNA methylation is a promising research project.
EGCG can induce non-apoptotic cell death through LMP in cervical cancer cells. But the potential mechanism of cervical cancer cell death through upregulating ROS formation has not been certified in HeLa cells [88]. There is only one study focused on the potency of tea components in lysosome-associated cell death pathways [121]. Further studies could work on the mechanism of LMP induced by EGCG in cervical cancer cells.
DNMT and HDAC are two promising targets for anticancer drugs. A series of effective epigenetic targeting drugs in clinical trials has been proved, but adverse reactions such as marrow suppression and gastrointestinal symptoms also appeared during treatment [122]. Thus, a low toxicity natural inhibitor for epigenetic modification is an attractive research direction. EGCG as a dietary agent in cancer treatment has the ability to inhibit the enzymatic activity of DNMT and HDAC in HeLa cells. However, the inhibition mechanism needs more research to support and the efficacy of EGCG for therapeutic purpose as an epigenetic drug should be tested in the future [108].
Although chemoprevention effects and molecular mechanisms of EGCG have been illustrated in cervical cancer, there is only one piece of epidemiological evidence and only one clinical study has been undertaken until now. A case control study in central China showed that green tea intake was identified as a protective factor against cervical cancer or cervical intraepithelial neoplasia [123]. Compared with other cancers [18,19,20], epidemiological research on the suppressive effects of EGCG in cervical cancer is extremely rare.

8. Conclusions

EGCG has abilities in the anti-proliferation, anti-metastasis and pro-apoptosis of cervical cancer cells. Although little epidemiological and clinical research supports the suppressive effects of EGCG on cervical cancer, molecular evidence shows positive results of EGCG in inhibiting cervical cancer. Moreover, EGCG could reduce the side-effects of traditional chemotherapy agents, such as CDDP and BLM. Knowledge of more precise and deeper mechanisms of how EGCG restrains cervical cancer cells is required. Overall, EGCG shows a potential role in suppressing cervical cancer.

Author Contributions

Y.-Q.W.: Figure 1, Figure 2, Figure 3 and Figure 4; Table 1 and Table 2; Section 4: Pro-apoptosis of cervical cancer cells; Section 5: Pharmaceutical synergistic effect; J.-L.L.: Section 1: Introduction; Section 6: Ambiguous potential functions of EGCG on cervical cancer; Y.-R.L.: Section 7: Further suggestions; Section 8: Conclusions; Q.-S.L.: Section 2: Anti-proliferation of cervical cancer cells; Section 3: Anti-metastasis of cervical cancer cells; modifying manuscript.

Funding

This work was financially supported by National Natural Science Foundation of China (No. 31470687).

Acknowledgments

The authors appreciate the advice of Xiao-Chang Wang, Xin-Qiang Zheng and Jian-Hui Ye.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AKT: protein kinase B; ANGPTL4: angiopoietin-like 4; BAX: Bcl-2 associated X protein; BLM: bleomycin; Casp3: caspase 3; Casp8: caspase 8; CCL2: chemoattractant protein 1; CDDP: cisdiamminedichloroplatinum II; CDK2: cyclin-dependent kinase 2; CKI: cyclin-dependent kinases inhibitor; CXCL6: granulocyte chemotactic protein 2; DNMT: DNA methyltransferase; EC: epicatechin; ECG: epicatechingallate; EFNA1: ephrin A1; EGC: epigallocatechin; EGCG: epigallocatechingallate; EGF: epidermal growth factor; EGFR: epidermal growth factor receptor; ER: estrogen receptor; ERK: extracellular signal-regulated kinase; ER-α: estrogen receptor-α; HDAC: histone deacetylase; HIF-1: hypoxia-inducible factor 1; HIV: human immunodeficiency virus; HPV: human papillomavirus; ID1: inhibitor of DNA binding 1; IFN-β1: interferon β 1; IGF-1: insulin-like growth factor 1; IGF-1R: insulin-like growth factor receptor; LMP: lysosomal membrane permeabilization; MMPs: matrix metalloproteinases; mTOR: mammalian target of rapamycin; PBD: polo-box domain; PDGFA: platelet-derived growth factor α; PI3K: phosphoinositide-3-kinase; PLK1: Polo-like kinase 1; RNA pol III: RNA polymerase III; ROS: reactive oxygen species; TGF-β2: transforming growth factor β 2; THBS-1: thrombospondin 1; TIMP-1: tissue inhibitor of metalloproteinase-1; TNFAIP2: tumor necrosis factor α-induced protein 2; Trx: thioredoxin; TrxR: thioredoxin reductase; VEGF: vascular endothelial growth factor; 67LR: 67KD laminin receptor.
