Synthesis and Density Functional Theory Studies of Azirinyl and Oxiranyl Functionalized Isoindigo and (3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(indolin-2-one) Derivatives

by
Gholamhossein Khalili
1,2,*,
Patrick M. McCosker
1,3,
Timothy Clark
3 and
Paul A. Keller
1,*
1
School of Chemistry and Molecular Biosciences, Molecular Horizons, Illawarra Health and Medical Research Institute University of Wollongong, Wollongong, New South Wales 2522, Australia
2
Chemistry Department, Bushehr Branch, Islamic Azad University, PO Box 7519619555 Bushehr, Iran
3
Department of Chemistry and Pharmacy, Computer-Chemistry-Center (CCC), Friedrich-Alexander-Universität Erlangen-Nürnberg (FAU), Nägelsbachstrasse 25, 91052 Erlangen, Germany
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(20), 3649; https://doi.org/10.3390/molecules24203649
Submission received: 6 September 2019 / Revised: 9 October 2019 / Accepted: 9 October 2019 / Published: 10 October 2019
(This article belongs to the Special Issue Indole Derivatives: Synthesis and Application)

Abstract

:
The design and synthesis of functionalized isoindigo compounds by reaction of isoindigo with (S)-glycidyl tosylate, epibromohydrin, 2-(bromomethyl)-1-(arylsulfonyl)aziridine, and 2-(bromomethyl)-1-(alkylsulfonyl)aziridine in the presence of MeONa proceed under mild conditions in moderate yields. (3Z,3’Z)-3,3’-(Ethane-1,2-diylidene)bis(1-(oxiran-2-ylmethyl)indolin-2-one), with an extended central olefin π-conjugated moiety was also reacted with methyl-oxiranes to give the corresponding N,N’-disubstituted derivative. Calculations with DFT and TD-DFT of hypothetical isoindigo-thiophene DA molecules with various electron withdrawing substituents, including aziridine, oxirane, nitrile, carbonyl, and sulfonate, indicated that the proximity and strength of the functional group have a significant effect on the HOMO, LUMO, vertical excitation energy, and oscillator strength of the π–π* transitions.

Graphical Abstract

1. Introduction

The synthesis of new dyes with intense absorption in the visible spectrum is of interest in the development of high-performance organic electronic materials [1,2,3]. For example, donor–acceptor (DA) type semiconductors have been investigated widely for potential application in the design and application of organic-based solar-cell devices. Ideal acceptor building block molecules would possess strong electron withdrawing character, should be solution processable, be of low cost, easily accessible and have excellent stability.
Isoindigo, the structural isomer of the better-known indigo, has been the subject of numerous studies of solar-cell technologies [4,5,6,7,8,9,10,11,12]. It is an electron-deficient moiety, as indicated by low highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energies, essential for small bandgap DA systems [10]. Furthermore, isoindigo features NH functionalities, which are easily alkylated, allowing facile derivative synthesis [13,14]. This method has been employed to modify a variety of DA systems that have been noted to influence solubility, aggregation, light absorption, blend morphology, charge-carrier mobility, stability, and electronic properties [11,12,15,16,17,18,19,20,21,22,23,24].
In the design of DA-semiconductors, N-alkylation is primarily used to influence solubility; this has previously been investigated both experimentally and theoretically for isoindigo-based materials [15,16,19,24,25]. These studies, however, did not investigate the effect of functional groups, neglecting their potential influence on the electronics of the DA system. Such effects have been explored in other polymeric systems, and were found primarily to affect the donor and acceptor strength, in addition to film morphology. Extensive experimental screening of new DA-semiconducting molecules can be an expensive process consuming time and resources hence the application of computational theory has become common in screening for new molecules [5,19,25]. Density functional theory (DFT) and the respective time-dependent (TD)-DFT are the most popularly applied theories due to their reasonable accuracy with an attractive computational cost. Within the TD-DFT sphere, the hybrid functional B3LYP combined with Pople basis sets are routinely applied and have generally provided good prediction of singlet excitations [26,27]. However, it has been noted hybrid functionals perform poorly with charge transfer states, which has previously been attributed to isoindigo [28]. To account for this, the long range corrected CAM_B3LYP functional was developed, which has since been considered a more robust method for investigating excited states through TD-DFT, particularly with respect to charge transfer states and oscillator strengths [26,27,28,29,30].
In addition to the calculated vertical excitation energies and their respective oscillator strengths, TD-DFT calculation provides information regarding the molecular orbitals (MOs) involved in the transition. This information can be utilized for qualitative analysis, such as identification of charge transfer states. For the first excitation, the MOs are generally sufficient since the transition is generally only composed of a direct HOMO to LUMO excitation. For higher energy transitions however, the contributions of multiple MOs to an excitation can make their subsequent analysis difficult. To overcome this problem, the natural transition orbital (NTO) transformation was developed, which offers a simplified orbital representation of the electronic transition density matrix by its mathematical diagonalization [31]. Therefore, by transforming each TD-DFT transition density matrix, each vertical excitation can be satisfactorily described by one or two pairs of excited “particle” and empty “hole” orbitals.
We report here the continued exploration of the N-alkylation of isoindigo, with a focus on the incorporation of aziridines and epoxides, which are valuable synthetic building blocks for subsequent synthetic manipulation [32,33,34]. The N-alkylation of the related (3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(indolin-2-one) as an extended π-conjugated dimeric heterocycle was also investigated. Selected isoindigo-aziridine and -oxirane derivatives were then studied using DFT and TD DFT for isoindigo-thiophene DA monomers and dimers and compared with the previously characterized PTI1 [25], alkylated analogue in order to establish the effect of functional groups on photophysical properties. Results were further probed by investigating other proposed N-alkylations with electron-withdrawing functional groups, which focused on changes to the calculated vertical excitations.

2. Results

2.1. Chemical Synthesis and Characterisation

The N-substituted reactions of isoindigo (Scheme 1) and (3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(indolin-2-one) (Scheme 2) with epoxides of (S)-glycidyl tosylate, epibromohydrin and aziridine heterocycles such as 2-(bromomethyl)-1-(arylsulfonyl)aziridine, and 2-(bromomethyl)-1-(alkylsulfonyl)aziridine were investigated, using sodium methoxide as a base. Therefore, reaction of isoindigo 1 with (S)-glycidyl tosylate or epibromohydrin 2 gave the (E)-1,1’-bis(oxiran-2-ylmethyl)-[3,3’-biindolinylidene]-2,2’-diones 3 in 71% and 65% yield respectively.
In a typical example, analysis of the 13C NMR spectra of compound 3 showed a resonance at δ 44.1 assigned to C2’’ of epoxide ring. Analysis of the 1H NMR spectrum showed two doublets of doublets at δ 3.61 (J = 15.1, 5.5 Hz), and δ 4.20 (J = 15.0, 3.2 Hz) assigned to H3’’ with protons of CH2O assigned to a multiplet at δ 2.60–2.62 and a triplet at δ 2.76 due to the a stereogenic C2’’. Broad absorption bands with maxima at 204 nm and 390 nm were observed in the UV-vis spectrum.
The isoindigo analogue (3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(indolin-2-one) 4 is an extended π-conjugated dimeric heterocycle that has recently been investigated for applications in performance organic semiconductors [35]. Derivatives of this molecule were synthesized by reaction of 4 with (S)-glycidyl tosylate or epibromohydrin 2 in the presence of MeONa in DMF at 40 °C for 4 h, which gave (3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(1-(oxiran-2-ylmethyl)indolin-2-one)s 5 in 68% and 62% yield respectively (Table 1). Analysis of the FTIR spectrum of 5 showed an absorption at 1689 cm−1 assigned to the two identical carbonyl moieties and the UV-vis spectrum showed two absorption maxima at 201 and 302 nm for this red compound. The HRESI mass spectrum showed a peak at m/z 423.1313, assigned to the molecular formula C24H20N2O4Na and was indicative of the addition of two 2-methyloxirane units.
The diverse array of 2-(bromomethyl)-1-(arylsulfonyl)aziridines, and 2-(bromomethyl)-1-(alkylsulfonyl)aziridines 6 constitute a unique subclass of N-activated aziridines due to the presence of three electrophilic sites; the exocyclic methylene group and the two carbon atoms of the aziridine moiety [36,37,38]. These valuable precursors, with extensive applications in the synthesis of organic or biological compounds such as β-lactams, amino acids, alkaloids, and antibiotics, were synthesized in high yields in two steps starting with allylsulfonamides [39].
The synthesis of the functionalized red-coloured (E)-1,1’-bis((1-(alkylsulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-diones and (E)-1,1’-bis((1-(arylsulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-diones 7a–7h from 2-(bromomethyl)-1-(arylsulfonyl)aziridine, and 2-(bromomethyl)-1-(alkylsulfonyl)aziridine 6 proceeded in 53%–60% yield (Table 1). Analysis of the FTIR spectrum of 7a showed stretches at 1678 cm−1 assigned to the two carbonyl groups while the stretches at 1290 and 1196 cm−1 were assigned to the sulfonamide moiety. Analysis of the 1H NMR spectrum showed doublets of doublets at δ 3.81 (J = 15.0, 5.4 Hz) and 4.08 (J = 14.9, 2.4 Hz), doublets at δ 2.20 (J = 4.2 Hz) and 2.57 (J = 6.9 Hz), a triplet at δ 0.96 ppm (J = 7.4 Hz), and three multiplet resonances at δ 1.70–1.79, 2.87–2.91, and 2.99–3.02 assigned to the aliphatic protons of (E)-1,1’-bis((1-(propylsulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-dione 7a. The 13C NMR spectrum showed two resonances at δ 35.11 and 35.13 assigned to C3’’ and resonances at δ 39.43 and 39.45 ppm were assigned to C1’’ indicating a mixture of diastereomers present due to the stereogenicity of aziridine C2’’. The UV-vis spectrum showed two absorption maxima at 203 and 390 nm for this red compound.
The utility of the protocol was extended to the reaction of isoindigo 1 with (1S,4S/R)-1-(((2-(bromomethyl)aziridin-1-yl)sulfonyl)methyl)-7,7-dimethylbicyclo[2.2.1]heptan-2-one 6i produced from enantiomerically pure (S)-10-camphor sulfonyl chloride as mixtures of SR and SS isomers in DMF at 35–40 °C to give the (E)-1,1’-bis((1-((((1S,4S/R)-7,7-dimethyl-2-oxobicyclo[2.2.1]heptan-1-yl)methyl)sulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-dione 7i in 52% yield (Table 1, entry 9). Analysis of the FTIR spectrum of 7i showed absorptions at 1740 and 1693 cm−1 assigned to the carbonyls of the ketone and amide moieties. Analysis of the 13C NMR spectrum revealed four resonances at 166.90, 166.94, 212.6, and 213.1 ppm assigned to carbonyls of the amide and ketone respectively. These observations are in agreement with the formation of the stable 7i as two diastereomers. The presence of two singlet resonances at δ 0.69 and 0.97 with an integration equivalent to two methyl groups in 1H NMR spectrum is a further confirmation of the synthesis of the SR and SS isomers. The HRMS spectrum of this molecule displayed a peak at 799.2875, assigned to molecular formula C42H48N4O8S2.

2.2. Computational Studies

To investigate the theoretical application of the synthesized N-alkylated molecules in DA-molecules, molecular modelling of theoretical thiophene isoindigo molecules was performed on DFT optimized monomer and dimer structures (Figure 1). Only the substitution of mesyl protected aziridine (Me-aziridine) and oxirane (Me-oxirane) were modelled, and these were compared with an iso-butyl substitution (PTI1), which has previously been characterized [25].
Analysis of the TD-DFT calculations indicated that substitution with the Me-oxirane had negligible effect on the vertical excitations and therefore the modelled UV-vis absorption (Figure 2). The aziridine substitution did, however, result in a red shift and increased oscillator strength for the first vertical excitation. Despite the methyl group separating the aziridine ring from the isoindigo unit, it is apparent that functional groups do influence the electronics of the principle DA system.
To probe and obtain a better understanding of this N-substitution effect, a series of electron-withdrawing substitutions were subsequently modelled, including nitrile, carbonyl, and sulfonate-based substitutions (Figure 1). Comparison of the optimized monomer geometries revealed substitutions with a greater electron withdrawing character altered C3-C3’ and C2’’-C6 torsion angles and resulted in a more twisted core (Figure 3). The Me-aziridine substitution was the exception to this trend, wherein the change was towards a more planar geometry. This is not likely to be a steric effect, since the N-substitution groups are well placed facing out from the system. Nevertheless, because of the separation of the aziridine moiety from the DA system core, this flatter geometry is likely the reason for the observed energy red shift and oscillator strength increase for the first vertical transition.
Comparison of the modelled absorption spectra revealed a general energy red shift and oscillator strength increase for the first vertical excitation, with a decrease in oscillator strength for the next prominent vertical excitation. The most prominent difference between the monomer and dimer vertical excitations was a general red shift of the energies, in addition to an almost 3-fold increase in the oscillator strength of the first vertical excitation, which was interpreted as being due to increasing the size of the π system, in agreement with theory and experiment [5].
The changing oscillator strengths was a distinct observation. It has been previously noted that increasing the number of electrons in the molecule, in our case with the substituents, will give an increase of oscillator strength in TD-DFT calculations [40]. However, it was observed here that only specific transitions underwent significant change, and did not always increase in oscillator strength. Furthermore, molecular modelling of thiophene-isoindigo monomers with hexyl carbonyl N-substitutions, where the position of the carbonyl is changed, indicated the calculated vertical excitations are directly influenced by the proximity of the carbonyls (Figure 4).
As oscillator strength is related to the transition dipole moment [30], it is possible the MOs involved are changing such that the orbital overlap between the ground and excited state are different. Therefore, to investigate this proposition further, the character of these transitions, the MOs and NTOs were calculated for iso-butyl, acetonitrile and mesylate substituted molecules, as a sample of the complete set of molecules studied. In all TD-DFT calculations, the 1st vertical excitation was found to consist primarily of the HOMO and LUMO, which were found to be π/π* in character, in agreement with previous studies (Figure 5 and Figure S4) [4,5,6]. Visual comparison of these molecular orbitals indicated similar shape and distribution, with delocalization of π and π* orbitals on the isoindigo and thiophene moieties.
The MO analysis indicated the principle MOs are consistent, independent of the specific N,N´-substitutive groups present, and therefore the primary changes observed can be related to the inductive influences of the respective substitutions. Inspection of the calculated orbital energy levels for the monomers indicated similar stabilization of the HOMO and LUMO for weaker inductive groups, i.e., Me-oxirane or Me-aziridine, up to 0.05 eV. Derivatives with stronger inductive groups, i.e., the sulfonates and carbonyls, showed greater LUMO stabilization, up to 0.36 eV (Table S1).
To analyze the next major vertical excitation, NTO analysis was used to simplify the mixed occupied component. This π/π* transition was similar to the 1st excitation, however, minimal electron density is present on the thiophene moiety, and disappears completely with mesylate substitution (Figure 6). This is particularly interesting in relation to the oscillator strengths calculated, whereby the 1st vertical excitation increased, this excitation has decreased. Relating this back to the observed changes in geometry, it can be rationalized in terms of conjugation, whereby the 1st excitation is delocalized over both isoindigo and thiophene, the increased planarity of the thiophene-isoindigo bond improves the orbital overlap and conjugation. The 3rd excitation however, is localized on the isoindigo because twisting has hindered orbital overlap and conjugation. This can be seen in the NTO analysis, where the π orbital seen in the iso-butyl substituted isoindigo central C2=C2´ alkene loses orbital overlap with acetonitrile or mesylate substitution and resulted in more p-type orbitals over the C2 and C2´carbons.
From the MO and NTO analyses performed here no significant patterns were found to relate the electron density distribution and the TD-DFT patterns observed. Like the 1st excited state HOMO to LUMO transition, substitutions with electron-withdrawing groups lower the energy of the principle π-states. Based on the TD-DFT excitation patterns, in agreement with the changes observed in the HOMO and LUMO energy levels, the result reported here is in agreement with those previously found for substitutive effects in other molecules [5,18]. That is, N-alkylation of isoindigo in DA-semiconductor molecules has an opto-electronic stabilizing effect on the MOs, particularly the LUMO when electron-withdrawing groups are used, however they are not directly involved in any transitions. Therefore, the N-alkylation of isoindigo with electron-withdrawing substituents red-shifts the first vertical optical transition and could provide useful chromophores for subsequent reactions or functionalization.

3. Conclusions

An efficient synthesis of the functionalized red-colored (E)-1,1’-bis((1-(alkylsulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-diones 7a–d and (E)-1,1’-bis((1-(arylsulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-diones 7e–h has been accomplished starting from accessible N-activated Me-aziridine substrates using inexpensive sodium methoxide as base at room temperature. This approach was applied successfully to the synthesis of (E)-1,1’-bis(oxiran-2-ylmethyl)-[3,3’-biindolinylidene]-2,2’-dione by the incorporation of the appropriate leaving group, such as Br or OTs, into the epoxide substrate.
To investigate the applicability of these molecules in DA based solar cells, molecular modelling showed these N-substitutions had minimal influence on the electronics of the primary DA system. Further computational investigations indicated that the proximity of functional groups with the DA system is important, and proposed acetonitrile, carbonyl or sulfonate substitutions can have a substantial effect. Briefly, this included a lowering of the HOMO and particularly the LUMO energies, with a respective increase in oscillator strength and decrease in energy for the 1st vertical excitation (HOMO to LUMO).

4. Experimental Section

4.1. General Methods

Reagents and solvents were purchased reagent grade and used without further purification except 2-(bromomethyl)-1-(arylsulfonyl)aziridine and 2-(bromomethyl)-1-(alkylsulfonyl)aziridine (1.5 mmol), 2-(bromomethyl)-1-tosylaziridine, 2-(bromomethyl)-1-(phenylsulfonyl)aziridine, 2-(bromomethyl)-1-(methylsulfonyl)aziridine. All reactions were performed in standard oven dried glassware under a nitrogen atmosphere unless otherwise stated. Melting point temperatures are expressed in degrees Celsius (°C) and are uncorrected. 1H and 13C NMR spectra (CDCl3) were recorded at 400 MHz and 100.6 MHz respectively with chemical shifts (δ) reported in parts per million relative to TMS (δ = 0 ppm) or CDCl3 (δ = 77.0 ppm) as internal standards. Coupling constants (J) are reported in Hertz (Hz). Multiplicities are reported as singlet (s), broad singlet (bs), doublet of doublets (dd), or multiplet (m). High Resolution Electrospray Ionization (HRESI-single quadrupole) mass spectra have their ion mass to charge (m/z) values stated with their relative abundances as a percentage in parentheses. Peaks assigned to the molecular ion are denoted by [M + H]+ or [M + Na]+. Infrared (IR) spectra were recorded on neat samples. UV-visible spectra were recorded CH2Cl2 solutions. Thin Layer Chromatography (TLC) was performed using Silica Gel F254 aluminum sheets. Column chromatography was performed under gravity using Silica Gel 60 (0.063–0.200 mm). Eluents are in volume to volume (v:v) proportions. Solvent extracts or chromatographic fractions were concentrated by rotary evaporation in vacuo.

4.2. Synthesis and Characterisation

(E)-1,1’-bis(oxiran-2-ylmethyl)-[3,3’-biindolinylidene]-2,2’-dione (3). To a stirred solution of isoindigo 1 (131 mg, 0.5 mmol) in DMF (3 mL) was added sodium methoxide solution (59.4 mg, 1.0 mmol) in DMF (2 mL) at room temperature. The reaction mixture stirred for 20 min, followed by the addition of the (S)-glycidyltosylate or epibromohydrin (1.5 mmol) and the reaction stirred for 5 h at 40 °C. The mixture was poured onto H2O (10 mL), extracted with CH2Cl2 (20 mL), dried (MgSO4), and the solvent was removed under reduced pressure. The residue was subjected to silica gel (0.063–0.200 size) column chromatography using hexane-ethyl acetate as eluent. Red powder, m.p. 158 °C. IR (KBr) (νmax/cm−1): 1682, 1604, 1464, 1353, 846, 774. λmax/nm (ɛ, M−1 cm−1) 204 (39120), 390 (1091). 1H NMR (400.1 MHz, CDCl3): δ 2.60–2.62 (m, 2H), 2.76 (t, J = 4.3 Hz, 2H), 3.13–3.15 (m, 2H), 3.61 (dd, J = 15.1, 5.5 Hz, 2H), 4.20 (dd, J = 15.0, 3.2 Hz, 2H), 6.87 (d, J = 7.8 Hz, 2H), 6.98 (t, J = 7.6 Hz, 2H), 7.28 (t, J = 7.6 Hz, 2H), 9.07 (d, J = 7.9 Hz, Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 41.0, 44.1, 48.8, 107.6, 120.4, 121.5, 128.8, 131.7, 132.2, 143.6, 166.9. HRMS (ESI) [M + Na]+ calcd for C22H18N2O4Na 397.1164, found, 397.1176.
(3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(1-(oxiran-2-ylmethyl)indolin-2-one) (5). To a stirred solution of (3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(indolin-2-one) 4 (131 mg, 0.5 mmol) in DMF (3 mL) was added sodium methoxide solution (59.4 mg, 1.0 mmol) in DMF (2 mL) at room temperature. The reaction mixture stirred for 20 min, followed by the addition of the (S)-glycidyltosylate or epibromohydrin (1.5 mmol) and the reaction stirred for 5 h at 40 °C. The mixture was poured onto H2O (10 mL), extracted with CH2Cl2 (20 mL), dried (MgSO4), and the solvent was removed under reduced pressure. The residue was subjected to silica gel (0.063–0.200 size) column chromatography using hexane-ethyl acetate as eluent. Red powder, m.p. 150 °C. IR (KBr) (νmax): 1689, 1603, 1465, 1346, 1093, 711, 679 cm-1. λmax/nm (ɛ, M−1 cm−1) 201 (2767), 302 (2929). 1H NMR (400.1 MHz, CDCl3): δ 2.61-2.63 (m, 2H), 2.78 (t, J = 4.1 Hz, 2H), 3.16 (s, 2H), 3.60 (dd, J = 15.0, 5.4 Hz, 2H), 4.18 (dd, J = 15.1, 2.9 Hz, 2H), 6.90 (d, J = 7.8 Hz, 2H), 6.98 (t, J = 7.5 Hz, 2H), 7.23 (t, J = 7.7 Hz, 2H), 7.55 (d, J = 7.4 Hz, 2H), 8.91 (s, 2H). 13C NMR (100.6 MHz, CDCl3): δ 40.6, 44.1, 48.9, 108.1, 120.2, 121.5, 122.0, 127.9, 129.7, 129.8, 141.9, 166.1. HRMS (ESI) [M + Na]+ calcd for C24H20N2O4Na 423.1321, found, 423.1313.

4.2.1. General procedure for the synthesis of 7

To a magnetically stirred solution of isoindigo 1 (131 mg, 0.5 mmol) in DMF (3 mL) was added sodium methoxide solution (59.4 mg, 1.0 mmol) in DMF (2 mL) at room temperature. The reaction mixture stirred for 20 min, followed by the addition of the 2-(bromomethyl)-1-(arylsulfonyl)aziridine, or 2-(bromomethyl)-1-(alkylsulfonyl)aziridine (1.5 mmol) and the reaction stirred for 12 h at room temperature. The mixture was poured onto H2O (10 mL), extracted with CH2Cl2 (20 mL), dried (MgSO4), and the solvent was removed under reduced pressure. The residue was subjected to silica gel (0.063–0.200 size) column chromatography using hexane-ethyl acetate as eluent.
(E)-1,1’-bis((1-(propylsulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-dione (7a). Red powder, Yield 58%, m.p. 125 °C. IR (KBr) (νmax): 1678, 1606, 1464, 1315, 1290, 1259, 1230, 1196, 1139, 681 cm–1. λmax/nm (ɛ, M−1 cm−1) 203 (1262), 390 (416). 1H NMR (400.1 MHz, CDCl3): δ 0.86 (t, J = 7.4 Hz, 6H), 1.70–1.79 (m, 4H), 2.20 (d, J = 4.2 Hz, 2H), 2.57 (d, J = 6.9 Hz, 2H), 2.87–2.91 (m, 4H), 2.99–3.02 (m, 2H), 3.81 (dd, J = 15.0, 5.4 Hz, 2H), 4.08 (dd, J = 14.9, 2.4 Hz, 2H), 6.85 (d, J = 7.7 Hz, 2H), 7.01 (t, J = 7.7 Hz, 2H), 7.31 (t, J = 7.5 Hz, 2H), 9.06 (d, J = 7.9 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 11.8, 15.8, 29.9, 35.11, 35.13, 39.43, 39.45, 53.1, 107.4, 120.4, 121.7, 128.9, 131.7, 132.0, 143.2, 166.9. HRMS (ESI) [M + H]+ calcd for C28H32N4O6S2Na 607.1661, found, 607.1652.
(E)-1,1’-bis((1-(isopropylsulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-dione (7b). Red powder, Yield 57%, m.p. 142 °C. IR (KBr) (νmax/cm−1): 1691, 1607, 1466, 1354, 1307, 1260, 1095, 1017, 796. λmax/nm (ɛ, M−1 cm−1) 219 (1228), 272 (1324). 1H NMR (400.1 MHz, CDCl3): δ 1.30 (d, J = 5.4 Hz, 12H), 2.20 (d, J = 4.2 Hz, 2H), 2.56 (d, J = 6.9 Hz, 2H), 3.01–3.02 (m, 2H), 3.12 (q, J = 6.8 Hz, 2H), 3.93 (dd, J = 15.0, 4.6 Hz, 2H), 4.03 (dd, J = 10.6, 3.2 Hz, 2H), 6.85 (d, J = 7.8 Hz, 2H), 7.01 (t, J = 7.8 Hz, 2H), 7.31 (t, J = 7.2 Hz, 2H), 9.06 (d, J = 7.9 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 15.2, 15.3, 30.7, 34.1, 39.2, 52.6, 107.5, 120.4, 121.7, 128.8, 131.6, 132.1, 143.3, 167.0. HRMS (ESI) [M + Na]+ calcd for C28H32N4O6S2Na 607.1661, found, 607.1691.
(E)-1,1’-bis((1-(ethylsulfonyl)aziridin-2-yl)methyl)-[3,3’-biindolinylidene]-2,2’-dione (7c). Red powder, Yield 59%, m.p. 142 °C. IR (KBr) (νmax/cm−1): 1690, 1607, 1465, 1312, 1142, 741. λmax/nm (ɛ, M−1 cm−1) 202 (2972), 273 (1742). 1H NMR (400.1 MHz, CDCl3): δ 1.34 (t, J = 7.4 Hz, 6H), 2.28 (d, J = 4.2 Hz, 2H), 2.65 (d, J = 6.9 Hz, 2H), 3.01–3.11 (m, 6H), 3.92 (dd, J = 14.5, 4.9 Hz, 2H), 4.15 (dd, J = 15.0 Hz, 4.0 Hz, 2H), 6.93 (d, J = 7.8 Hz, 2H), 7.08 (t, J = 7.6 Hz, 2H), 7.39 (t, J = 8.0 Hz, 2H), 9.13 (d, J = 7.6 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 7.7, 31.2, 35.96, 35.98, 40.41, 40.44, 47.0, 108.5, 121.4, 122.8, 129.9, 132.7, 133.1, 144.2, 168.0. HRMS (ESI) [M + Na]+ calcd for C26H28N4O6S2Na 579.1348, found, 579.1374.
(E)-1,1’-bis((1-(methylsulfonyl)aziridin-2-yl)methyl)[3,3’-biindolinylidene]-2,2’-dione (7d). Red powder, Yield 60%, m.p. 171 °C. IR (KBr) (νmax/cm−1): 1680, 1603, 1463, 1141, 1097, 973, 773. λmax/nm (ɛ, M−1 cm−1) 203 (1254), 272 (889). 1H NMR (400.1 MHz, CDCl3): δ 2.32 (d, J = 4.2 Hz, 2H), 2.67 (d, J = 6.9 Hz, 2H), 2.90 (m, 6H), 3.08 (s, 2H), 3.81–3.86 (m, 2H), 4.20 (dd, J = 15.0, 4.0 Hz, 2H), 6.95 (d, J = 7.7 Hz, 2H), 7.09 (t, J = 7.6 Hz, 2H), 7.40 (t, J = 7.5 Hz, 2H), 9.14 (d, J = 7.7 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 31.0, 36.8, 39.6, 40.5, 108.5, 121.4, 121.9, 130.0, 132.8, 133.1, 144.1, 168.0. HRMS (ESI) [M + Na]+ calcd for C26H28N4O6S2Na 551.1035, found, 551.1060.
(E)-1,1’-bis((1-(m-tolylsulfonyl)aziridin-2-yl)methyl)[3,3’-biindolinylidene]-2,2’-dione (7e). Red powder, Yield 57%, m.p. 138 °C. IR (KBr) (νmax/cm−1): 1682, 1606, 1466, 1354, 1155, 1091, 740, 687. λmax/nm (ɛ, M−1 cm−1) 223 (1740), 272 (868). 1H NMR (400.1 MHz, CDCl3): δ 2.08 (s, 6H), 2.28 (d, J = 4.2 Hz, 2H), 2.77–2.81 (m, 2H), 3.03–3.05 (m, 2H), 3.44–3.55 (m, 2H), 4.03–4.41 (m, 2H), 6.62 (d, J = 7.8 Hz, 2H), 6.92–7.16 (m, 6H), 7.19 (d, J = 6.2 Hz, 2H), 7.16–7.20 (m, 2H), 7.40–7.44 (m, 2H), 8.90 (d, J = 7.9 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 20.1, 30.2, 36.6, 39.7, 39.9, 107.2, 107.3, 120.2, 121.4, 123.7, 127.0, 127.6, 128.7, 128.8, 131.4, 131.6, 133.5, 135.9, 138.2, 142.7, 166.5. HRMS (ESI) [M + Na]+ calcd for C36H32N4O6S2Na 703.1661, found, 703.1674.
(E)-1,1’-bis((1-tosylaziridin-2-yl)methyl)[3,3’-biindolinylidene]-2,2’-dione (7f). Red powder, Yield 53%, m.p. 144 °C. IR (KBr) (νmax/cm−1): 1688, 1603, 1466, 1321, 1259, 1175, 1088, 1014, 793. λmax/nm (ɛ, M−1 cm−1) 212 (1438), 272 (966). 1H NMR (400.1 MHz, CDCl3): δ 2.10 (b, 6H), 2.28 (s, 2H), 2.79 (t, J = 6.2 Hz, 2H), 3.00 (s, 2H), 3.35–3.47 (m, 2H), 4.08 (td, J = 14.3, 2.6 Hz, 2H), 6.60–6.61 (m, 2H), 6.85 (t, J = 7.7 Hz, 4H), 6.95 (t, J = 7.6 Hz, 2H), 7.19 (b, 2H), 7.47 (t, J = 7.16 Hz, 4H), 8.92 (d, J = 7.8 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 20.4, 30.1, 30.2, 36.7, 36.8, 39.9, 40.0, 107.3, 107.4, 120.2, 121.3, 126.5, 128.2, 128.36, 128.39, 131.56, 131.59, 133.0, 133.1, 142.7, 143.7, 166.5 HRMS (ESI) [M + Na]+ calcd for C36H32N4O6S2Na 703.1661, found, 703.1655.
(E)-1,1’-bis((1-(phenylsulfonyl)aziridin-2-yl)methyl)[3,3’-biindolinylidene]-2,2’-dione (7g). Red powder, Yield 54%, m.p. 148 °C. IR (KBr) (νmax/cm−1): 1679, 1612, 1435, 1353, 1318, 1084, 745. λmax/nm (ɛ, M−1 cm−1) 218 (1251), 245 (1857). 1H NMR (400.1 MHz, CDCl3): δ 2.36–2.37 (m, 2H), 2.84–2.87 (m, 2H), 3.10–3.12 (m, 2H), 3.51–3.60 (m, 2H), 4.08–4.15 (m, 2H), 6.67 (d, J = 7.8, 2H), 7.01 (t, J = 7.7 Hz, 2H), 7.16–7.21 (m, 6H), 7.23–7.35 (m, 2H), 7.68 (d, J = 8.0 Hz, 2H), 8.93 (d, J = 7.9 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 31.40, 31.43, 37.66, 37.69, 40.7, 40.8, 108.30, 108.34, 121.3, 122.4, 127.5, 128.75, 128.77, 129.64, 129.69, 132.5, 132.7, 133.7, 137.0, 137.1, 143.7, 169.5. HRMS (ESI) [M + Na]+ calcd for C36H32N4O6S2Na 675.1345, found, 675.1371.
(E)-1,1’-bis((1-((4-isopropylphenyl)sulfonyl)aziridin-2-yl)methyl)-3,3’-biindolinylidene]-2,2’-dione (7h). Red powder, Yield 56%, m.p. 136 °C. IR (KBr) (νmax/cm−1): 1691, 1603, 1321, 1158, 1092, 744. λmax/nm (ɛ, M−1 cm−1) 211 (634), 272 (604). 1H NMR (400.1 MHz, CDCl3): δ 1.15 (b, 12H), 2.32 (s, 2H), 2.78 (d, J = 6.7 Hz, 2H), 3.12 (s, 2H), 3.47–3.48 (m, 2H), 3.63–3.68 (m, 2H), 4.09–4.12 (m, 2H), 6.72 (d, J = 7.5 Hz, 2H), 7.02 (t, J = 7.3 Hz, 2H), 7.13 (s, 4H), 7.26 (s, 2H), 7.66 (d, J = 7.2 Hz, 4H), 8.99 (d, J = 7.4 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 22.3, 22.4, 30.3, 32.9, 36.4, 39.7, 107.4, 120.2, 121.5, 125.9, 126.8, 128.5, 131.5, 131.7, 133.5, 142.9, 154.1, 166.7. HRMS (ESI) [M + H]+ calcd for C40H41N4O6S2 737.2468, found, 737.2501.
(E)-1,1’-bis((1-((((1S,4S/R)-7,7-dimethyl-2-oxobicyclo[2.2.1]heptan-1-yl)methyl)sulfonyl)aziridin-2-yl)methyl)[3,3’-biindolinylidene]-2,2’-dione (7i). Red powder, Yield 52%, m.p. 186 °C. IR (KBr) (νmax/cm−1): 1740, 1693, 1607, 1349, 1146, 1097, 665. λmax/nm (ɛ, M−1 cm−1) 201 (2550), 272 (1110). 1H NMR (400.1 MHz, CDCl3): δ 0.69 (s, 6H), 0.92 (s, 6H), 1.29–1.34 (m, 2H), 1.84–1.99 (m, 8H), 2.25 (b, 5H), 2.60–2.62 (m, 2H), 2.80–2.87 (m, 2H), 3.02–3.09 (m, 2H), 3.38–3.53 (m, 3H), 3.80–4.11 (m, 4H), 6.89 (d, J = 7.2 Hz, 2H), 6.98 (d, J = 7.2 Hz, 2H), 7.30 (d, J = 7.6 Hz, 2H), 9.02–9.05 (m, 2H). 13C NMR (100.6 MHz, CDCl3): δ 14.2, 18.5, 18.61, 18.69, 18.7, 23.7, 25.8, 30.3, 30.5, 35.5, 35.9, 39.30, 39.36, 39.42, 39.46, 41.3, 41.4, 41.5, 46.9, 47.0, 48.0, 48.2, 57.1, 64.8, 107.4, 107.5, 120.5, 121.6, 121.7, 129.0, 129.1, 131.5, 131.6, 131.7, 132.1, 143.13, 143.17, 143.2, 166.90, 166.94, 212.6, 213.1. HRMS (ESI) [M − H]+ calcd for C42H47N4O8S2 799.2835, found, 799.2875.

4.2.2. General procedure for the synthesis of 6

To a magnetically stirred solution of N-allylarylsulfonamide or N-allylalkylsulfonamide (20 mmol) in dry dichloromethane (25 mL) at 0 °C was added dropwise a solution bromine (25 mmol) in dichloromethane (3 mL). The reaction mixture stirred for 30 min at 0 °C and the solvent was removed in vacuo. The mixture was dissolved in ethanol (15 mL) and added to aqueous NaOH solution (1 M, 100 mL), stirred for 10 min at room temperature and extracted with ether. The organic solution was dried (MgSO4), and the solvent removed under reduced pressure to give the products 6. The spectroscopic data for compounds 6d, 6g, and 6e are in agreement with that reported [41,42].
2-(bromomethyl)-1-(propylsulfonyl)aziridine (6a). Colorless oil, Yield 75%. IR (KBr) (νmax/cm−1): 1316, 1143, 932, 794. 1H NMR (400.1 MHz, CDCl3): δ 1.10 (t, J = 7.4 Hz, 3H), 1.93–2.00 (m, 2H), 2.28 (d, J = 4.2 Hz, 1H), 2.77 (d, J = 6.8 Hz, 1H), 3.01–3.04 (m, 1H), 3.16–3.31 (m, 2H), 3.49–3.53 (m, 2H). 13C NMR (100.6 MHz, CDCl3): δ 12.9, 16.8, 31.4, 33.2, 39.6, 53.8.
2-(bromomethyl)-1-(isopropylsulfonyl)aziridine (6b). Colorless oil, Yield 80%. IR (KBr) (νmax/cm−1): 1313, 1139, 931, 878, 724, 629. 1H NMR (400.1 MHz, CDCl3): δ 1.39 (d, J = 6.8 Hz, 3H), 1.43 (d, J = 6.8 Hz, 3H), 2.20 (d, J = 4.4 Hz, 1H), 2.70 (d, J = 6.8 Hz, 1H), 2.96–3.00 (m, 1H), 3.27–3.38 (m, 3H). 13C NMR (100.6 MHz, CDCl3): δ 15.9, 16.6, 31.2, 33.6, 39.0, 53.5.
2-(bromomethyl)-1-(ethylsulfonyl)aziridine (6c). Colorless oil, Yield 82%. IR (KBr) (νmax/cm−1): 1316, 1142, 931. 1H NMR (400.1 MHz, CDCl3): δ 1.42 (t, J = 7.6 Hz, 3H), 2.22 (d, J = 4.0 Hz, 1H), 2.72 (d, J = 6.8 Hz, 1H), 2.96–2.99 (m, 1H), 3.12-3.26 (m, 3H), 3.44 (dd, J = 9.2 Hz, 4.8 Hz, 1H). 13C NMR (100.6 MHz, CDCl3): δ 6.8, 30.4, 32.3, 38.7, 45.8.
2-(bromomethyl)-1-(m-tolylsulfonyl)aziridine (6f). Colorless oil, Yield 85%. IR (KBr) (νmax/cm−1): 1324, 1305, 1152, 872, 687. 1H NMR (400.1 MHz, CDCl3): δ 2.25 (d, J = 8.4 Hz, 1H), 2.44 (s, 3H), 2.82 (d, J = 6.8 Hz, 1H), 3.08–3.14 (m, 1H), 3.27-3.29 (m, 2H), 7.43–7.46 (m, 2H), 7.74–7.78 (m, 2H). 13C NMR (100.6 MHz, CDCl3): δ 21.3, 30.6, 34.3, 39.8, 125.3, 128.5, 128.9, 134.7, 137.2, 139.4.
2-(bromomethyl)-1-((4-isopropylphenyl)sulfonyl)aziridine (6h). Colorless oil, Yield 75%. IR (KBr) (νmax/cm−1): 1322, 1160, 781, 696. 1H NMR (400.1 MHz, CDCl3): δ 1.27 (d, J = 6.8 Hz, 6H), 2.23 (d, J = 4.4 Hz, 1H), 2.80 (d, J = 6.8 Hz, 1H), 2.96–3.01 (m, 1H), 3.08–3.11 (m, 1H), 3.28 (d, J = 6.8 Hz, 2H), 7.40 (d, J = 8.0 Hz, 2H), 7.87 (d, J = 8.4 Hz, 2H). 13C NMR (100.6 MHz, CDCl3): δ 22.5, 29.6, 33.2, 33.3, 38.7, 126.2, 127.3, 133.6, 154.6.
(1S,4S/R)-1-(((2-(bromomethyl)aziridin-1-yl)sulfonyl)methyl)-7,7-dimethylbicyclo[2.2.1]heptan-2-one (6i). Colorless oil, Yield 81%. IR (KBr) (νmax/cm−1): 1742, 1325, 1146, 930, 793, 689. 1H NMR (400.1 MHz, CDCl3): δ 0.89 (s, 3H), 1.12 (s, 3H), 1.21 (t, J = 7.2 Hz, 1H), 1.45–1.48 (m, 1H), 1.74–1.79 (m, 1H), 2.06–2.07 (m, 1H), 2.12-2.14 (m, 1H), 2.30–2.32 (m, 1H), 2.32–2.53 (m, 2H), 2.79 (d, J = 6.8 Hz, 1H), 3.08–3.22 (m, 1H), 3.36–3.49 (m, 2H), 3.66–3.76 (m, 2H). 13C NMR (100.6 MHz, CDCl3): δ 15.1, 18.2, 19.61, 19.67, 19.7, 24.7, 24.8, 26.8, 31.2, 31.3, 33.6, 33.7, 39.6, 39.8, 42.4, 42.6, 48.01, 48.08, 49.0, 49.1, 57.9, 58.1, 58.2, 65.7, 214.23, 214.26.

4.3. Computational Method

All molecules investigated were initially subjected to a complete conformational analysis applying the Drieding forcefield within Materials Studio 2016. The 10 lowest energy conformers were optimized with VAMP (AM1) and the lowest energy structure subsequently used for DFT and TDDFT calculations within Gaussian16. All structures, unless specified otherwise, were optimized with B3LYP/6-31G(d) and confirmed minima by the absence of imaginary frequencies [25]. The MOs, NTOs and vertical excitations (TD-DFT) were calculated with additional polarization/diffuse functions (B3LYP/6-31+G(2d,p)) and with a range corrected exchange functional (CAM-B3LYP/6-31+G(2d,p)) for better treatment of potential charge transfer states [26,27,28,29]. Only NTOs with an eigenvalue (λi) greater than 0.10 were analyzed.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/24/20/3649/s1; Copies of NMR spectra (1H and 13C) of relevant compounds. The calculated MOs, NTOs, absorption spectra, HOMO and LUMO energies and XYZ coordinates are also available.

Author Contributions

Conceptualization, G.K., P.A.K. and T.C.; methodology, G.K. and P.M.M.; formal analysis, G.K. and P.M.M.; investigation, G.K., P.M.M.; writing—original draft preparation, review and editing G.K., P.M.M. and P.A.K.; T.C.; supervision, P.A.K. and T.C.; project administration, P.A.K.

Funding

This research received no external funding.

Acknowledgments

The authors would like to acknowledge the Australian Government Department of Education and Training, for the awarding of an Endeavour Leadership Program scholarship to P.M.M.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Roncali, J. Molecular Bulk Heterojunctions: An Emerging Approach to Organic Solar Cells. Acc. Chem. Res. 2009, 42, 1719–1730. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Walker, B.; Kim, C.; Nguyen, T. Small Molecule Solution-Processed Bulk Heterojunction Solar Cells. Chem. Mater. 2011, 23, 470–482. [Google Scholar] [CrossRef]
  3. Hains, A.; Liang, Z.; Woodhouse, M.; Gregg, B. Molecular Semiconductors in Organic Photovoltaic Cells. Chem. Rev. 2010, 110, 6689–6735. [Google Scholar] [CrossRef] [PubMed]
  4. Ren, Y.; Hiszpanski, A.M.; Whittaker-Brooks, L.; Loo, Y.-L. Structure–Property Relationship Study of Substitution Effects on Isoindigo-Based Model Compounds as Electron Donors in Organic Solar Cells. ACS Appl. Mater. Interfaces 2014, 6, 14533–14542. [Google Scholar] [CrossRef] [PubMed]
  5. Estrada, L.A.; Stalder, R.; Abboud, K.A.; Risko, C.; Bredas, J.-L.; Reynolds, J.R. Understanding the Electronic Structure of Isoindigo in Conjugated Systems: A Combined Theoretical and Experimental Approach. Macromolecules 2013, 46, 8832–8844. [Google Scholar] [CrossRef]
  6. Stalder, R.; Mei, J.; Graham, K.R.; Estrada, L.A.; Reynolds, J.R. Isoindigo, a Versatile Electron-Deficient Unit For High-Performance Organic Electronics. Chem. Mater. 2014, 26, 664–678. [Google Scholar] [CrossRef]
  7. Mei, J.; Graham, K.R.; Stalder, R.; Reynolds, J.R. Synthesis of Isoindigo-Based Oligothiophenes for Molecular Bulk Heterojunction Solar Cells. Org. Lett. 2010, 12, 660–663. [Google Scholar] [CrossRef] [PubMed]
  8. Estrada, L.A.; Liu, D.Y.; Salazar, D.H.; Dyer, A.L.; Reynolds, J.R. Poly[Bis-EDOTIsoindigo]: An Electroactive Polymer Applied to Electrochemical Supercapacitors. Macromolecules 2012, 45, 8211–8220. [Google Scholar] [CrossRef]
  9. Wang, E.; Mammo, W.; Andersson, M.R. 25th Anniversary Article: Isoindigo-Based Polymers and Small Molecules for Bulk Heterojunction Solar Cells and Field Effect Transistors. Adv. Mater. 2014, 26, 1801–1826. [Google Scholar] [CrossRef]
  10. Deng, Y.; Liu, J.; Wang, J.; Liu, L.; Li, W.; Tian, H.; Zhang, X.; Xie, Z.; Geng, Y.; Wang, F. Dithienocarbazole and Isoindigo based Amorphous Low Bandgap Conjugated Polymers for Efficient Polymer Solar Cells. Adv. Mater. 2014, 26, 471–476. [Google Scholar] [CrossRef]
  11. Nishinaga, S.; Mori, H.; Nishihara, Y. Impact of Alkyl Side Chains on Thin-film Transistor Performances in Phenanthrodithiophene - Isoindigo Copolymers. Chem. Lett. 2015, 44, 998–1000. [Google Scholar] [CrossRef]
  12. Wang, E.; Ma, Z.; Zhang, Z.; Henriksson, P.; Inganas, O.; Zhang, F.; Andersson, M.R. An isoindigo-based low band gap polymer for efficient polymer solar cells with high photovoltage. Chem. Commun. 2011, 47, 4908–4910. [Google Scholar] [CrossRef] [PubMed]
  13. Lu, L.; Zheng, T.; Wu, Q.; Schneider, A.M.; Zhao, D.; Yu, L. Recent Advances in Bulk Heterojunction Polymer Solar Cells. Chem. Rev. 2015, 115, 12666–12731. [Google Scholar] [CrossRef] [PubMed]
  14. Khalili, G.; Willis, A.; Keller, P. Design and synthesis of new functionalized isoindigo and (3Z,3Z)-3,3-(ethane-1,2-diylidene)bis(indolin-2-one) derivatives. Mon. Fur Chem.-Chem. 2018, 149, 2103–2111. [Google Scholar] [CrossRef]
  15. Sun, X.; Zhang, Z.; Hou, R.; Huang, M.; Zhao, B.; Tan, S. The effect of the length of alkyl side-chains on the molecular aggregation and photovoltaic performance of the isoindigo based polymers. Dye. Pigment. 2017, 139, 403–411. [Google Scholar] [CrossRef]
  16. Grand, C.; Baek, S.; Lai, T.-H.; Deb, N.; Zajaczkowski, W.; Stalder, R.; Mullen, K.; Pisula, W.; Bucknall, D.G.; So, F.; et al. Structure–Property Relationships Directing Transport and Charge Separation in Isoindigo Polymers. Macromolecules 2016, 49, 4008–4022. [Google Scholar] [CrossRef]
  17. Yang, L.; Zhou, H.; You, W. Quantitatively Analyzing the Influence of Side Chains on Photovoltaic Properties of PolymerFullerene Solar Cells. J. Phys. Chem. C 2010, 114, 16793–16800. [Google Scholar] [CrossRef]
  18. Mei, J.; Bao, Z. Side Chain Engineering in Solution-Processable Conjugated Polymers. Chem. Mater. 2014, 26, 604–615. [Google Scholar] [CrossRef]
  19. Ma, Z.; Geng, H.; Wang, D.; Shuai, Z. Influence of alkyl side-chain length on the carrier mobility in organic semiconductors: Herringbone vs. pi–pi stacking. J. Mater. Chem. C 2016, 4, 4546–4555. [Google Scholar] [CrossRef]
  20. Dang, D.; Chen, W.; Himmelberger, S.; Tao, Q.; Lundin, A.; Yang, R.; Zhu, W.; Salleo, A.; Muller, C.; Wang, E. Enhanced Photovoltaic Performance of Indacenodithiophene-Quinoxaline Copolymers by Side-Chain Modulation. Adv. Energy Mater. 2014, 4, 1400680. [Google Scholar] [CrossRef]
  21. Liu, Y.; Zhao, J.; Li, Z.; Mu, C.; Ma, W.; Hu, H.; Jiang, K.; Lin, H.; Ade, H.; Yan, H. Aggregation and morphology control enables multiple cases of high-efficiency polymer solar cells. Nat. Commun. 2014, 5, 5293. [Google Scholar] [CrossRef] [PubMed]
  22. Constantinou, I.; Lai, T.-H.; Klump, E.D.; Goswami, S.; Schanze, K.S.; So, F. Effect of Polymer Side Chains on Charge Generation and Disorder in PBDTTPD Solar Cells. ACS Appl. Mater. Interfaces 2015, 7, 26999–27005. [Google Scholar] [CrossRef] [PubMed]
  23. Han, A.-R.; Lee, J.; Lee, H.R.; Lee, J.; Kang, S.-H.; Ahn, H.; Shin, T.J.; Oh, J.H.; Yang, C. Siloxane Side Chains: A Universal Tool for Practical Applications of Organic Field Effect Transistors. Macromolecules 2016, 49, 3739–3748. [Google Scholar] [CrossRef]
  24. Wang, P.-I.; Pisula, W.; Mullen, K.; Liaw, D.-J. Structurally defined nanographene-containing conjugated polymers for high quality dispersions and optoelectronic applications. Polym. Chem. 2016, 7, 6211–6219. [Google Scholar] [CrossRef] [Green Version]
  25. Salvatori, P.; Mosconi, E.; Wang, E.; Andersson, M.; Muccini, M.; De Angelis, F. Computational Modeling of Isoindigo-Based Polymers Used in Organic Solar Cells. J. Phys. Chem. C 2013, 117, 17940–17954. [Google Scholar] [CrossRef]
  26. Adamo, C.; Jacquemin, D. The calculations of excited-state properties with Time-Dependent Density Functional Theory. Chem. Soc. Rev. 2013, 42, 845–856. [Google Scholar] [CrossRef] [PubMed]
  27. Pastore, M.; Mosconi, E.; De Angelis, F.; Gratzel, M. A Computational Investigation of¨ Organic Dyes for Dye-Sensitized Solar Cells: Benchmark, Strategies, and Open Issues. J. Phys. Chem. C 2010, 114, 7205–7212. [Google Scholar] [CrossRef]
  28. Perpète, E.A.; Preat, J.; André, J.-M.; Jacquemin, D. An Ab Initio Study of the Absorption Spectra of Indirubin, Isoindigo, and Related Derivatives. J. Phys. Chem. A 2006, 110, 5629–5635. [Google Scholar] [CrossRef]
  29. Yanai, T.; Tew, D.P.; Handy, N.C. A new hybrid exchange–correlation functional using the Coulomb-attenuating method (CAM-B3LYP). Chem. Phys. Lett. 2004, 393, 51–57. [Google Scholar] [CrossRef]
  30. Robinson, D. Comparison of the Transition Dipole Moments Calculated by TDDFT with High Level Wave Function Theory. J. Chem. Theory Comput. 2018, 14, 5303–5309. [Google Scholar] [CrossRef] [Green Version]
  31. Martin, R.L. Natural transition orbitals. J. Chem. Phys. 2003, 118, 4775–4777. [Google Scholar] [CrossRef]
  32. Lowden, P. Aziridines and Epoxides in Organic Synthesis; Yudin, A., Ed.; Wiley-VCH: Weinheim, Germany, 2006; p. 399. [Google Scholar]
  33. Ismail, F.; Levitsky, D.; Dembitsky, V. Aziridine alkaloids as potential therapeutic agents. Eur. J. Med. Chem. 2009, 44, 3373–3387. [Google Scholar] [CrossRef] [PubMed]
  34. Bailey, S.J.; Wales, S.M.; Willis, A.C.; Keller, P.A. Ring-Opening and -Expansion of 2,2’-Biaziridine: Access to Diverse Enantiopure Linear and Bicyclic Vicinal Diamines. Org. Lett. 2014, 16, 4344–4347. [Google Scholar] [CrossRef] [PubMed]
  35. Chen, S.; Sun, B.; Guo, C.; Hong, W.; Meng, Y.; Li, Y. 3,3-(Ethane-1,2-diylidene)bis(indolin2-one) based conjugated polymers for organic thin film transistors. Chem. Commun. 2014, 50, 6509–6512. [Google Scholar] [CrossRef] [PubMed]
  36. Thakur, V.; Sudalai, A. N-Bromoamides as versatile catalysts for aziridination of olefins using chloramine-T. Tetrahedron Lett. 2003, 44, 989–992. [Google Scholar] [CrossRef]
  37. Ali, S.; Nikalje, M.; Sudalai, A. Pyridinium Hydrobromide Perbromide: A Versatile Catalyst for Aziridination of Olefins Using Chloramine-T. Org. Lett. 1999, 1, 705–707. [Google Scholar] [CrossRef] [PubMed]
  38. Butler, N.M.; Hendra, R.; Bremner, J.B.; Willis, A.C.; Lucantoni, L.; Avery, V.M.; Keller, P.A. Cascade Reactions of Indigo with Oxiranes and Aziridines: Efficient Access to Dihydropyrazinodiindoles and Sprio-oxazocinodiindoles. Org. Biomol. Chem. 2018, 16, 6006–6016. [Google Scholar] [CrossRef] [PubMed]
  39. Tanner, D. Chiral Aziridines—Their Synthesis and Use in Stereoselective Transformations. Angew. Chem. Int. Ed. 1994, 33, 599–619. [Google Scholar] [CrossRef]
  40. Panda, A.N.; Plasser, F.; Aquino, A.J.A.; Burghardt, I.; Lischka, H. Electronically Excited States in Poly(p-phenylenevinylene): Vertical Excitations and Torsional Potentials from High Level Ab Initio Calculations. J. Phys. Chem. A 2013, 117, 2181–2189. [Google Scholar] [CrossRef]
  41. Tehrani, K.A.; Van, T.N.; Karikomi, M.; Rottiers, M.; De Kimpe, N. Electron Transfer Induced Ring Opening of 2-(bromomethyl)aziridines by Magnesium in Methanol. Tetrahedron 2002, 58, 7145–7152. [Google Scholar] [CrossRef]
  42. D’hooghe, M.; Kerkaert, I.; Rottiers, M.; Norbert De Kimpe, N. Ring Opening Reactions of 1-arenesulfonyl-2-(bromomethyl)aziridines. Tetrahedron 2004, 60, 3637–3641. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 3, 5, 7a–d, and 7f–i are available from the authors.

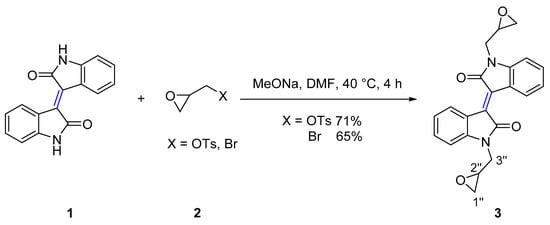

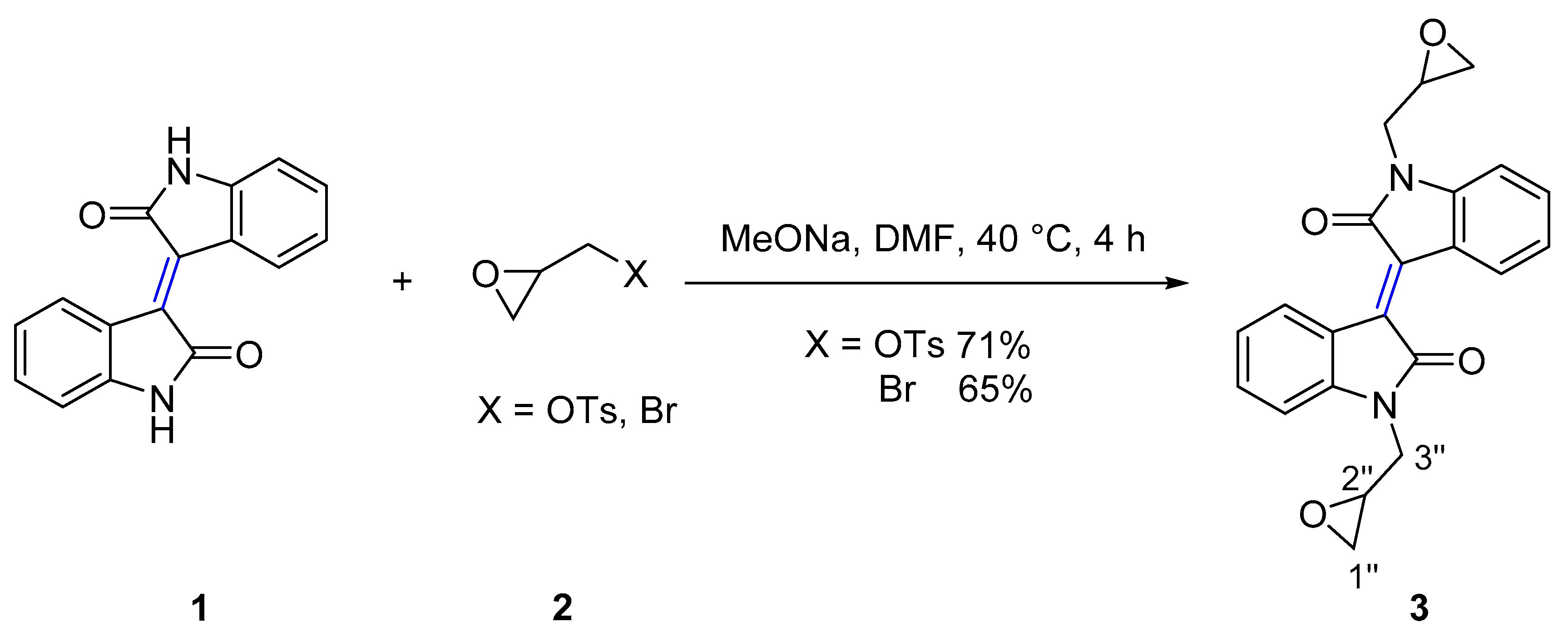

Scheme 1. Synthesis of isoindigo derivative 3.
Scheme 1. Synthesis of isoindigo derivative 3.
Molecules 24 03649 sch001

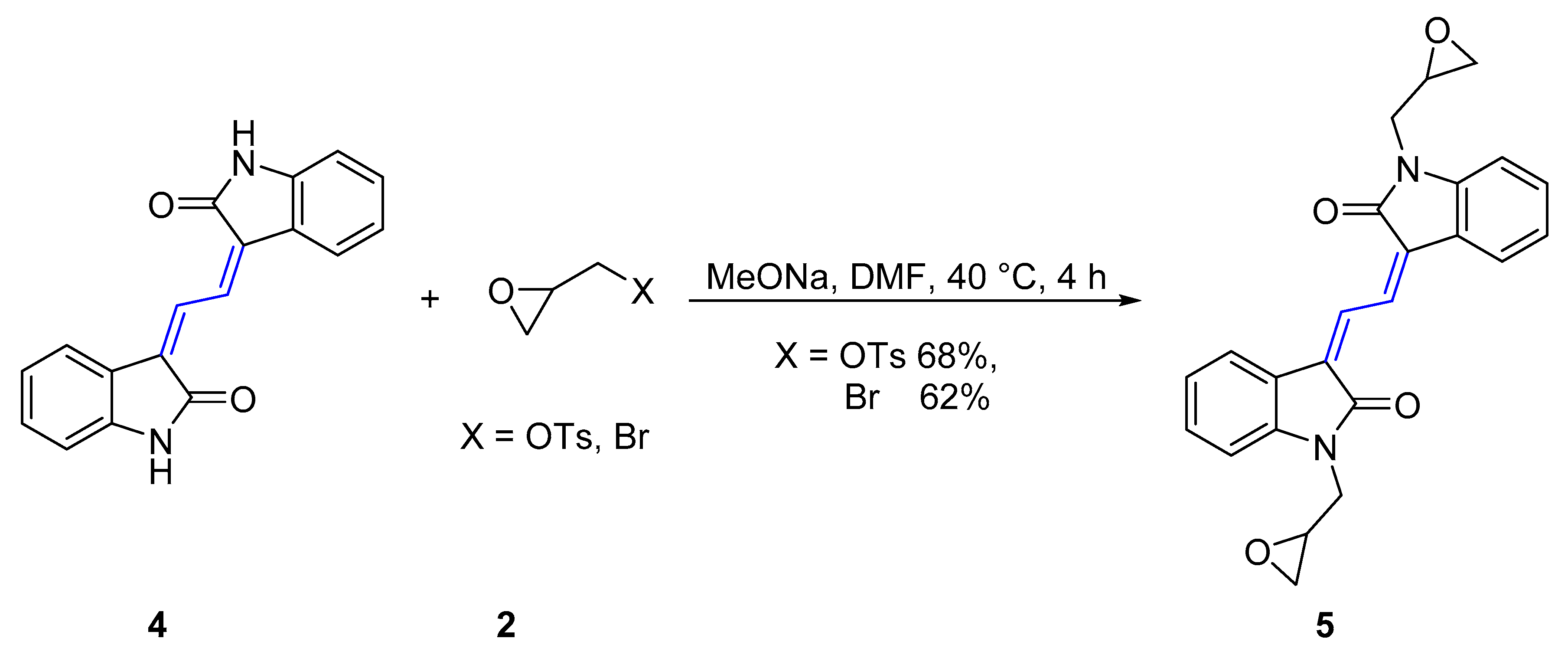

Scheme 2. Synthesis of (3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(1-(oxiran-2-ylmethyl)indolin-2-one) 5.
Scheme 2. Synthesis of (3Z,3’Z)-3,3’-(ethane-1,2-diylidene)bis(1-(oxiran-2-ylmethyl)indolin-2-one) 5.
Molecules 24 03649 sch002

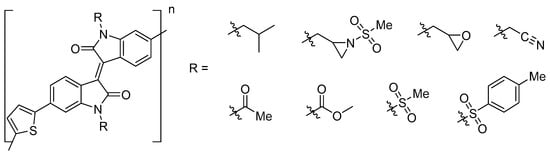

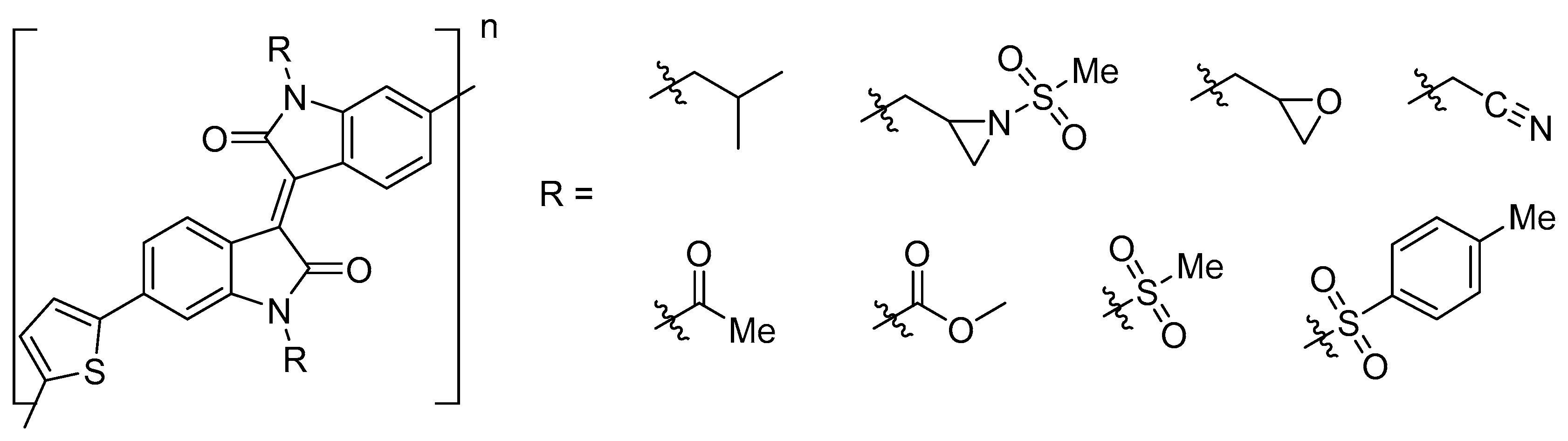

Figure 1. Hypothetical donor–acceptor (DA)-semiconductor molecules investigated with density-functional theory (DFT) and time-dependent (TD)-DFT calculations. n = 0 for monomers, n = 1 for dimers.
Figure 1. Hypothetical donor–acceptor (DA)-semiconductor molecules investigated with density-functional theory (DFT) and time-dependent (TD)-DFT calculations. n = 0 for monomers, n = 1 for dimers.
Molecules 24 03649 g001

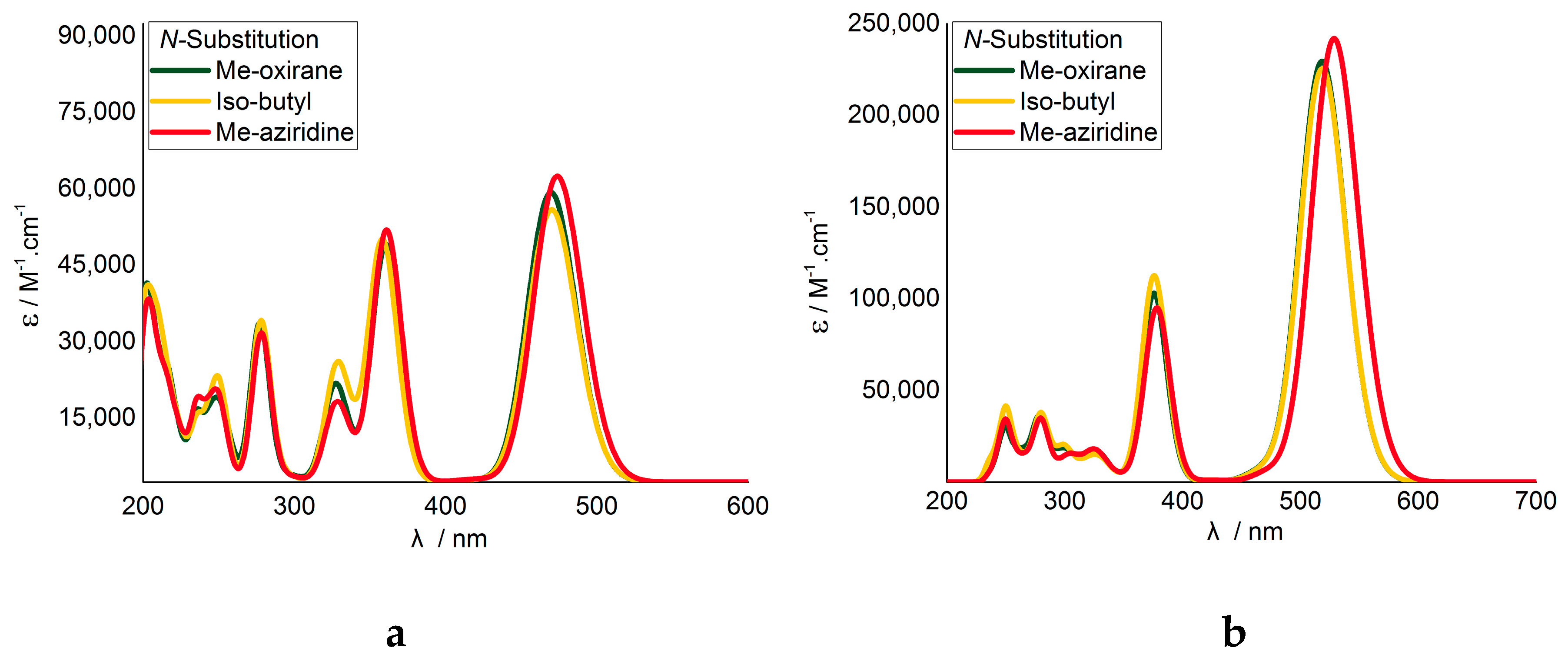

Figure 2. Modelled UV-vis spectra for thiophene-N,N’substituted isoindigo (a) monomers and (b) dimers. Calculated with TD-CAM-B3LYP/6-31+G(2d,p).
Figure 2. Modelled UV-vis spectra for thiophene-N,N’substituted isoindigo (a) monomers and (b) dimers. Calculated with TD-CAM-B3LYP/6-31+G(2d,p).
Molecules 24 03649 g002

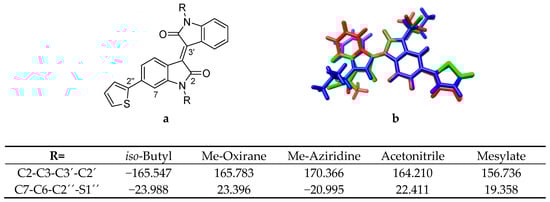

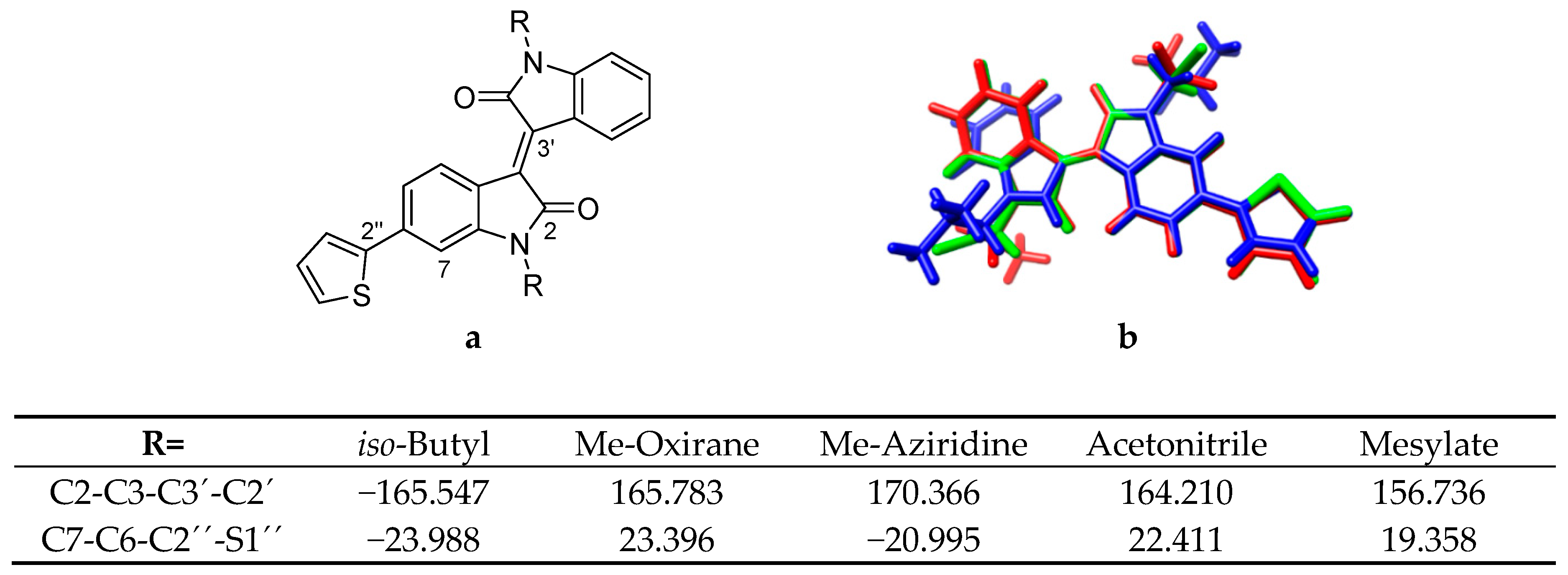

Figure 3. (a) Thiophene-isoindigo with atom numbers included. (b) Overlay of thiophene-isoindigo monomers with iso-butyl (blue), acetonitrile (green) and mesylate (red) N,N′-disubstitutions. Table shows torsion angles in the thiophene-isoindigo system for selected substitutions.
Figure 3. (a) Thiophene-isoindigo with atom numbers included. (b) Overlay of thiophene-isoindigo monomers with iso-butyl (blue), acetonitrile (green) and mesylate (red) N,N′-disubstitutions. Table shows torsion angles in the thiophene-isoindigo system for selected substitutions.
Molecules 24 03649 g003

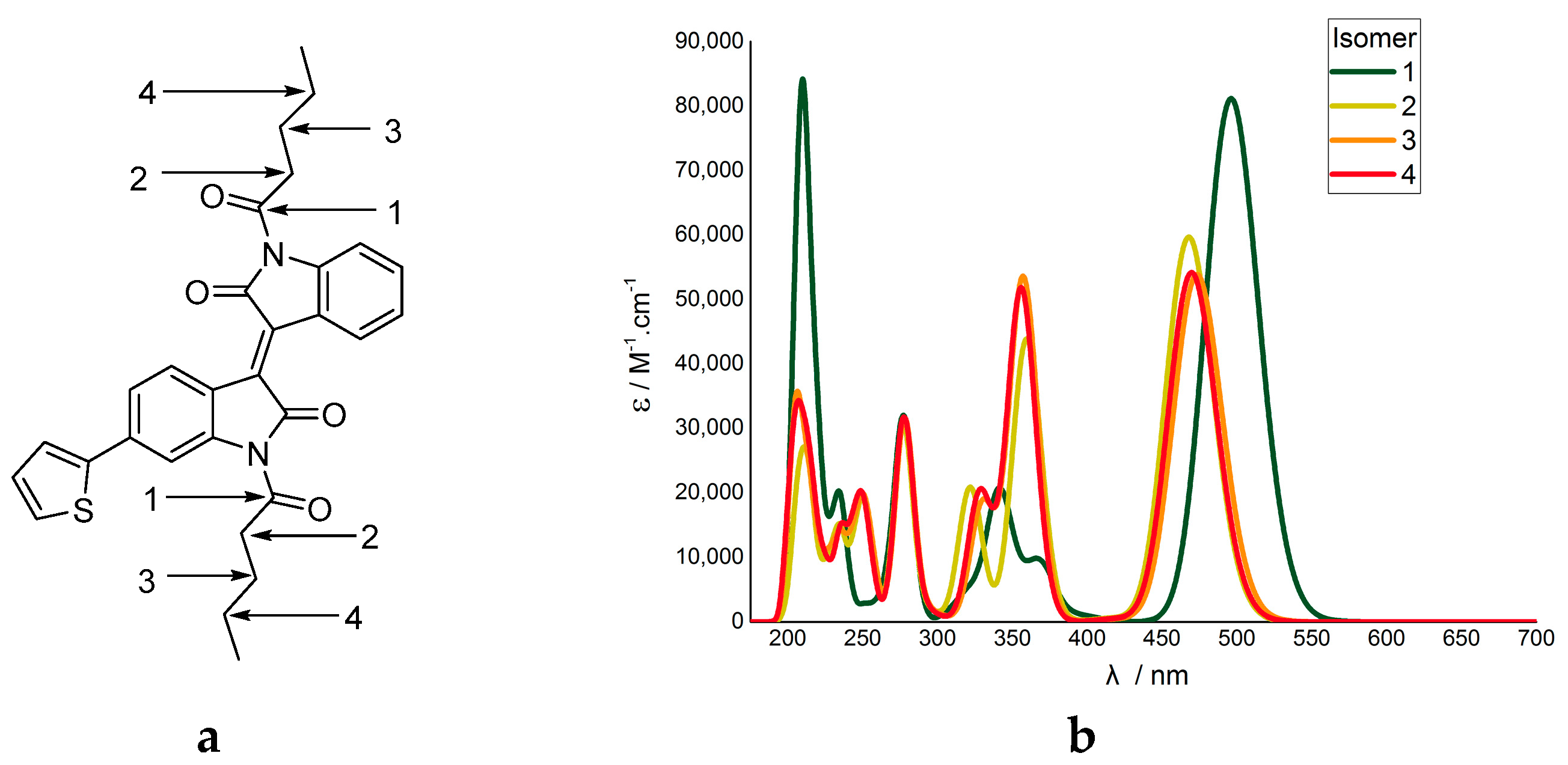

Figure 4. (a) Modelled N,N´-dihexylcarbonyl-isoindigo thiophene isomers, with the 4 potential carbonyl positions labelled 1–4. (b) the resultant TD-DFT output shown as a UV-vis plot.
Figure 4. (a) Modelled N,N´-dihexylcarbonyl-isoindigo thiophene isomers, with the 4 potential carbonyl positions labelled 1–4. (b) the resultant TD-DFT output shown as a UV-vis plot.
Molecules 24 03649 g004

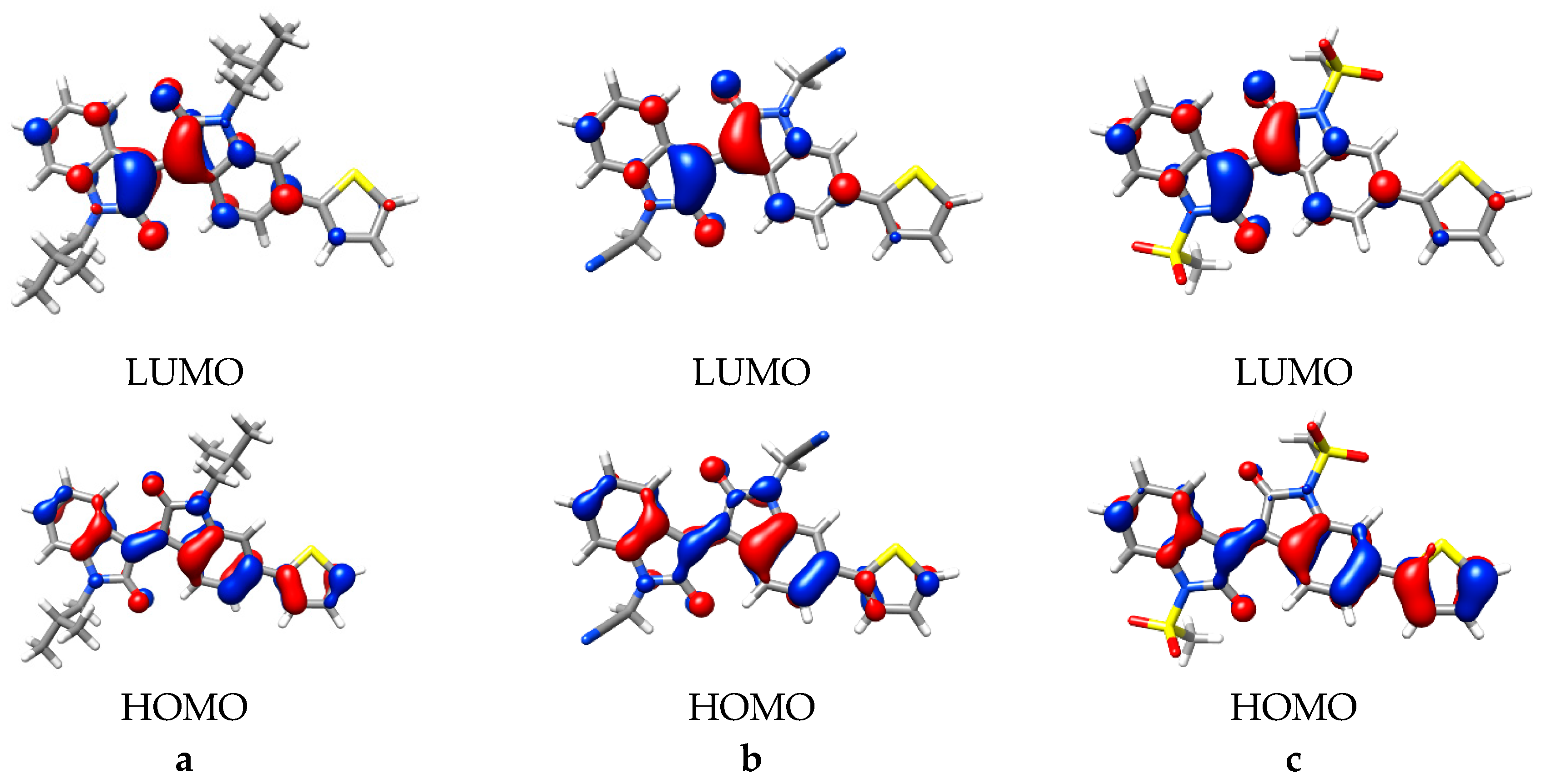

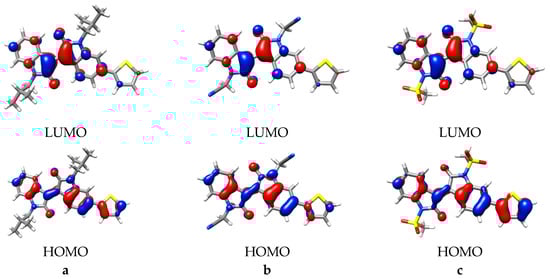

Figure 5. The highest occupied molecular orbital (HOMO)/lowest unoccupied molecular orbital (LUMO) pairs for (a) iso-butyl, (b) acetonitrile, and (c) mesylate substitutions (monomers). Isovalue = 0.04.
Figure 5. The highest occupied molecular orbital (HOMO)/lowest unoccupied molecular orbital (LUMO) pairs for (a) iso-butyl, (b) acetonitrile, and (c) mesylate substitutions (monomers). Isovalue = 0.04.
Molecules 24 03649 g005

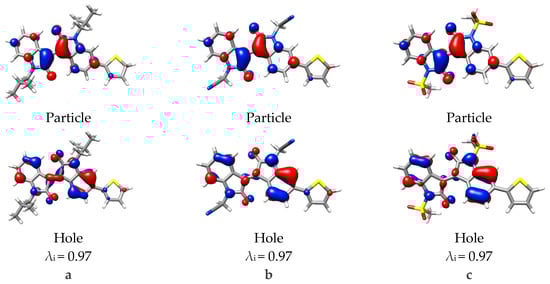

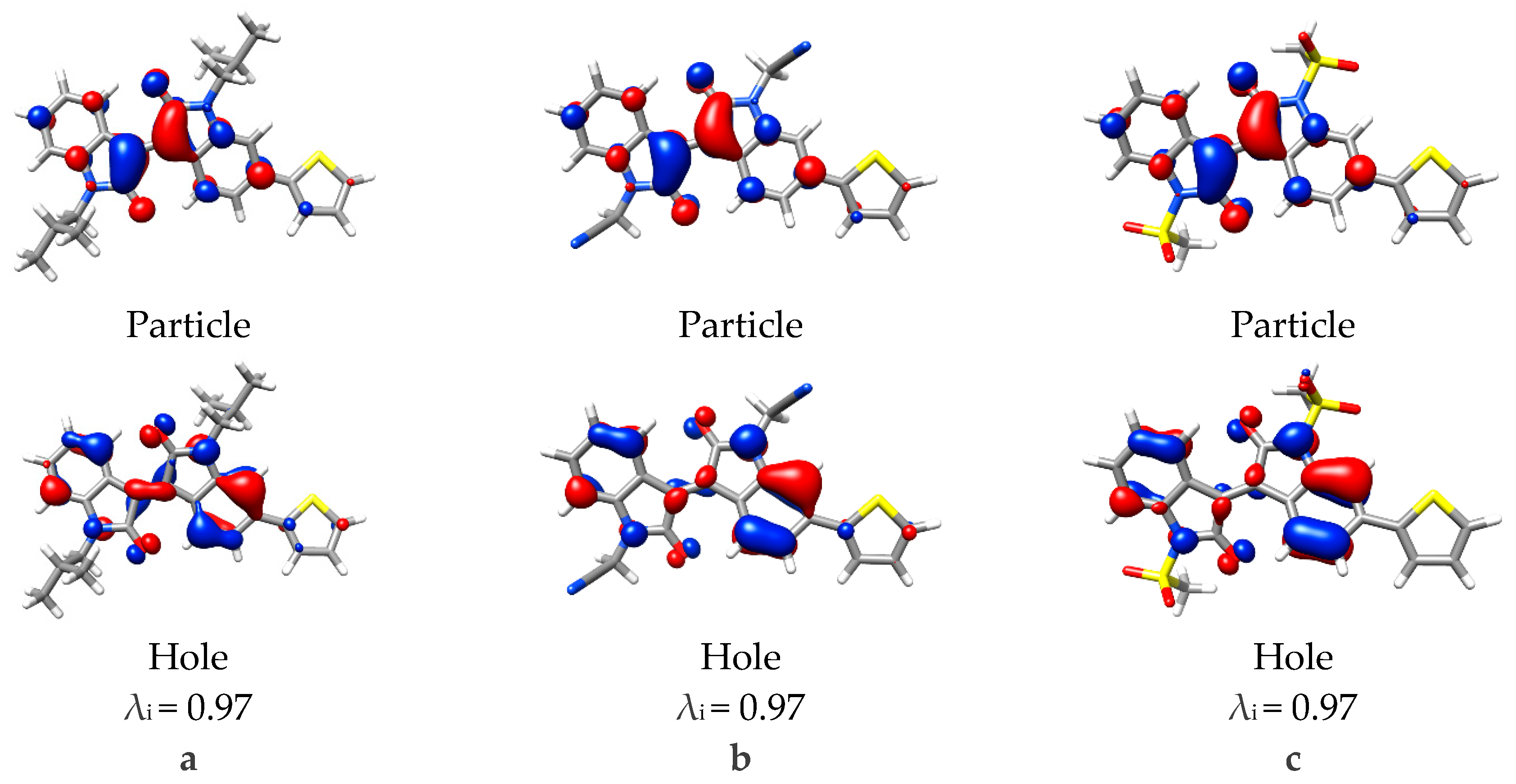

Figure 6. Natural transition orbitals for the 3rd vertical excitation calculated with TD-DFT for monomers (a) iso-butyl, (b) acetonitrile, and (c) mesylate substitutions. Eigenvalue (λi) for the transition also provided, isovalue = 0.04.
Figure 6. Natural transition orbitals for the 3rd vertical excitation calculated with TD-DFT for monomers (a) iso-butyl, (b) acetonitrile, and (c) mesylate substitutions. Eigenvalue (λi) for the transition also provided, isovalue = 0.04.
Molecules 24 03649 g006

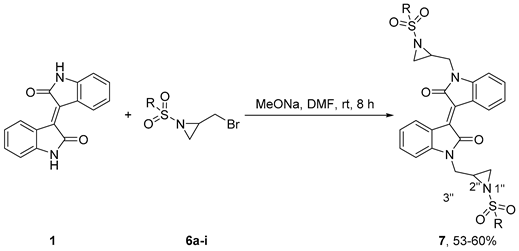

Table 1. Reaction of isoindigo with aziridine derivatives producing N,N-disubstituted derivatives.
Table 1. Reaction of isoindigo with aziridine derivatives producing N,N-disubstituted derivatives.
Molecules 24 03649 i001
EntryCompoundRYield %
17apropyl58
27bisopropyl57
37cethyl59
47dmethyl60
57e Molecules 24 03649 i00257
67f Molecules 24 03649 i00353
77g Molecules 24 03649 i00454
87h Molecules 24 03649 i00556
97i Molecules 24 03649 i00652 1
1 A diastereomeric mixture of S,R and S,S was produced.
