Design and Synthesis of N-phenyl Phthalimides as Potent Protoporphyrinogen Oxidase Inhibitors

by
Wei Gao
,
Xiaotian Li
,
Da Ren
,
Susu Sun
,
Jingqian Huo
,
Yanen Wang
,
Lai Chen
* and
Jinlin Zhang
*
Plant Protection College, Hebei Agricultural University, Baoding 071000, China
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(23), 4363; https://doi.org/10.3390/molecules24234363
Submission received: 19 November 2019 / Revised: 26 November 2019 / Accepted: 27 November 2019 / Published: 29 November 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
Protoporphyrinogen oxidase (PPO) has been identified as one of the most promising targets for herbicide discovery. A series of novel phthalimide derivatives were designed by molecular docking studies targeting the crystal structure of mitochondrial PPO from tobacco (mtPPO, PDB: 1SEZ) by using Flumioxazin as a lead, after which the derivatives were synthesized and characterized, and their herbicidal activities were subsequently evaluated. The herbicidal bioassay results showed that compounds such as 3a (2-(4-bromo-2,6-difluorophenyl) isoindoline-1,3-dione), 3d (methyl 2-(4-chloro-1,3-dioxoisoindolin-2-yl)-5-fluorobenzoate), 3g (4-chloro-2-(5-methylisoxazol-3-yl) isoindoline-1,3-dione), 3j (4-chloro-2-(thiophen-2-ylmethyl) isoindoline-1,3-dione) and 3r (2-(4-bromo-2,6-difluorophenyl)-4-fluoroisoindoline-1,3-dione) had good herbicidal activities; among them, 3a showed excellent herbicidal efficacy against A. retroflexus and B. campestris via the small cup method and via pre-emergence and post-emergence spray treatments. The efficacy was comparable to that of the commercial herbicides Flumioxazin, Atrazine, and Chlortoluron. Further, the enzyme activity assay results suggest that the mode of action of compound 3a involves the inhibition of the PPO enzyme, and 3a showed better inhibitory activity against PPO than did Flumioxazin. These results indicate that our molecular design strategy contributes to the development of novel promising PPO inhibitors.

Graphical Abstract

1. Introduction

Protoporphyrinogen oxidase (PPO) is the last common enzyme in both chlorophyll (in plants) and haem (in animals) biosynthesis [1,2,3,4], catalyzing the oxidation of protoporphyrinogen IX to protoporphyrin IX via molecular oxygen [5,6,7,8,9], and this enzyme has been identified as one of the most significant targets for herbicide research [10,11]. During the last thirty years, a number of active compounds inhibiting the enzyme PPO have been synthesized [12,13], some of which have been developed for use as low-toxicity, efficient, broad-spectrum commercial herbicides [14,15], such as Flumioxazin [16,17], sulfentrazone [18] and saflufenacil [19].
Among the protox herbicides, N-phenyl phthalimides, which exhibit broad structural diversity [20], have attracted considerable attention; their representative commercial products, Cinidon-ethyl, Flumiclorac-pentyl and Flumioxazin, were identified as a result of a stepwise optimization procedure from Chlorphthalim. Their common structural feature consists of two parts: An N-substituted phenyl group and tetrahydrophthalimide, which can interact with key active centre residues of the mtPPO enzyme, such as Arg98, Gly175, Leu372, Phe392, and FAD600, via H-bonding or π–π stacking interactions [21]. These findings have contributed to the development of PPO inhibitors.
To obtain novel PPO inhibitors, a series of N-phenyl phthalimides were designed by molecular docking using the mtPPO as a target, and by using Flumioxazin as a lead (Figure 1) [22,23], after which they were synthesized and characterized by NMR and High resolution mass spectrometry (HR-MS). Their herbicidal activities were also evaluated against Brassica campestris (B. campestris), Amaranthus retroflexus (A. retroflexus) and Digitaria sanguinalis (D. sanguinalis) to verify our molecular design strategy.

2. Results and Discussion

2.1. Docking Analysis

The affinity values of molecular docking between the ligand-mtPPO complexes were determined, which demonstrated that the affinity between 3a, 3c and 3s and mtPPO exhibited the highest values with −10.0, −10.1, 10.2 Kcal/mol (Table 1), respectively, suggesting that these compounds may have good herbicidal activity. Their docking models were displayed by Pymol software (Figure 2), which indicated that no hydrogen bonding was found between these compounds and mtPPO, which differs from the results of Flumioxazin (three hydrogen bonds). However, the phthalimide rings of compounds 3a, 3c and 3s shape π-π stacking interactions with Phe392, which is conserved in plant PPO enzymes. The phenyl rings of compounds 3a, 3c and 3s were sandwiched by the residues Leu356 and Leu372. These results suggest that these compounds, with a phenyl ring substituting phthalimide rings, could be PPO inhibitors that exhibit good herbicidal activity.

2.2. Chemistry

The starting material 1 and 2 could be commercially available. Compounds 3 were prepared by nucleophilic substitution reaction between phthalic anhydrides 1 and amines 2 in glacial acetic acid, with yields ranging from 28% to 87% (Table 2). The reaction solvent and temperature were the key conditions for the reaction yield. The yield of the reaction stirred at 110 °C was much better than that of 80 °C. Besides, the yield of the reaction in glacial acetic acid was higher than that of other solvents, such as ethanol.

2.3. Herbicidal Activity

The herbicidal activity against B. campestris, A. retroflexus and D. sanguinalis at 200 mg/L of compound 3 were evaluated by the small cup method, and the results are shown in Table 3. The data showed that 3a at 200 mg/L displayed 92% growth inhibition against B. campestris roots, which was better than that of the positive controls Chlortoluron (85%), Atrazine (80%), and Flumioxazin (85%); 3a also showed 61% growth inhibition against stems of B. campestris, which was better than that of Atrazine (51%) and similar to that of Chlortoluron (58%). During the test, the B. campestris plants treated with 3a became chlorotic, and blade yellowing was also observed. In addition, with 87% growth inhibition, 3a exhibited better efficacy against A. retroflexus stems than did Atrazine, which was similar to that of Flumioxazin (88%); the leaves of A. retroflexus were wrinkled. Furthermore, 3a displayed 68% and 83% growth inhibition against the roots and stems of D. sanguinalis, respectively, which were better than the inhibition due to Atrazine. Compounds 3d and 3o exhibited high activity against the roots of A. retroflexus, with 81% and 83% growth inhibition, respectively, while Atrazine showed only 32% inhibition under the same conditions; 3o also showed 89% growth inhibition activity against B. campestris roots, which was slightly better than that of the three positive controls. 3g showed excellent efficacy against D. sanguinalis roots and stems, with 91% and 83% growth inhibition, respectively, these percentages were better than those due to Atrazine.
The results of the evaluation of the post-emergence herbicidal activities are shown in Table 4. The data showed that compounds 3a and 3d exhibited 82% and 73% fresh weight growth inhibition at 90 g ai/ha against A. retroflexus, respectively. Therefore, 3a and 3d were also chosen for further pre-emergence herbicidal activity tests. As shown in Table 5, 3a at 90 g ai/ha exhibited a 98% inhibitory effect against A. retroflexus, and the effects were not significantly different from those of Flumioxazin.
In summary, 3a exhibited excellent herbicidal activity and should be further developed. Moreover, its herbicidal activity conformed to the predictions of the molecular docking studies.

2.4. Crystal Structure Determination of Compound 3a

The X-ray diffraction structure of compound 3a, cultured from the mixture of ethanol and chloroform, was shown in Figure 3, and the data were available at the Cambridge Crystallographic Data Centre (CCDC 1923372).

2.5. PPO Enzyme Assays

The PPO enzyme activity of D. sanguinalis, treated with 3a and Flumioxazin at 90 g ai/ha, were measured, and the control was sprayed with blank solution without any compounds. The results, shown in Figure 4, indicated that the PPO activity values of the 3a treatment and the control Flumioxazin were affected; in addition, 3a showed a stronger effect on the PPO enzyme, with 33.01%, compared to that of the positive control Flumioxazin, with 21.80%.

3. Materials and Methods

3.1. Molecular Docking

The structure of mtPPO was available at the National Center for Biotechnology Information (NCBI) database. The modelled complexes of mtPPO and ligands (Flumioxazin, Chlorotoluron, Atrazine and designed target compounds) were prepared by using AutoDockTools 1.5.6 (Molecular Graphics Laboratory, La Jolla, CA 92037-1000, USA) and analysed via the AutoDock Vina program (Molecular Graphics Laboratory, La Jolla, CA 92037-1000, USA) [24,25]. The structures of the complexes were generated by the Pymol tool 2.2.0 [26,27].

3.2. Equipment and Materials

The melting points of the new compounds were measured in a microfusion melting point apparatus (X-4) (Taike, Beijing, China) and uncorrected. 1H-NMR and 13C-NMR spectra were recorded on Varian 400 spectrometer at 400 MHz and 101 MHz using tetramethylsilane as internal standard (solvent CDCl3 or DMSO-d6). HR-MS date were detected on an FTICR-MS Varian 7.0T FTICR-MS equipment (Agilent, Lexington, MA, USA). Crystal structure was recorded on a Bruker SMART 1000CCD diffraction meter.

3.3. General Synthetic Procedure for Compounds 3

The starting materials 1 and 2 were commercially available (Energy Chemical, Shanghai, China). Compound 2 (3.72 mmol) was added to a stirred solution of compound 1 (3.38 mmol) in glacial acetic acid (10 mL). The reaction mixture was then stirred at 110 °C for 4 h. After completion of the reaction, the solvent was evaporated, and the residue was purified on a silica gel column chromatography and eluted with ethyl acetate/petroleum ether (bp 60–90 °C) (1:3, v/v) to give compounds 3. Among them, compounds 3k, 3l, 3n, 3x and 3y were published [28,29,30,31,32], while their herbicidal activities were not studied. Their yields, physical properties, 1H-NMR, 13C-NMR, and HR-MS results are shown as follows:
Data for 3a (2-(4-bromo-2,6-difluorophenyl)isoindoline-1,3-dione): white solid; yield, 73%; m.p.: 175–176 °C; 1H-NMR (400 MHz, CDCl3) δ 7.98 (dd, J = 5.5, 3.1 Hz, 2H), 7.83 (dd, J = 5.5, 3.1 Hz, 2H), 7.29 (d, J = 6.7 Hz, 2H).13C-NMR (101 MHz, CDCl3) δ 165.41 (s), 160.09 (s), 157.47 (s), 134.73 (s), 131.93 (s), 124.22 (s), 123.29 (s), 116.52 (s), 116.25 (s). HR-MS (ESI) [M + H]+ calcd for C14H6BrF2NO2: 337.9500, found: 337.9621.
Data for 3b (5-chloro-2-(5-methylisoxazol-3-yl)isoindoline-1,3-dione): white solid; yield, 77%; m.p.: 164–165 °C; 1H-NMR (400 MHz, CDCl3) δ 7.95 (dd, J = 12.4, 4.8 Hz, 2H), 7.79 (dd, J = 8.0, 1.7 Hz, 1H), 6.48 (s, 1H), 2.51 (s, 3H). 13C-NMR (101 MHz, CDCl3) δ 170.98 (s), 163.90 (s), 163.65 (s), 153.28 (s), 141.86 (s), 135.13 (s), 133.13 (s), 129.55 (s), 125.56 (s), 124.67 (s), 97.96 (s), 12.73 (s). HR-MS (ESI) [M + H]+ calcd for C12H7N2O3: 263.0145, found: 263.0223.
Data for 3c (4-chloro-2-(3-fluoro-4-methylphenyl)isoindoline-1,3-dione): white solid; yield, 81%; m.p.: 197–198 °C; 1H-NMR (400 MHz, CDCl3) δ 7.95–7.80 (m, 1H), 7.79–7.60 (m, 2H), 7.30 (d, J = 8.1 Hz, 1H), 7.14 (t, J = 8.3 Hz, 2H), 2.32 (d, J = 7.1 Hz, 3H). 13C-NMR (101 MHz, CDCl3) δ 165.46 (s), 162.00 (s), 159.55 (s), 136.11 (s), 135.23 (s), 133.58 (s), 131.88 (s), 131.49 (s), 129.90 (s), 127.14 (s), 125.23 (s), 122.18 (s), 121.74 (s), 113.59 (s), 14.27 (s). HR-MS (ESI) [M + H]+ calcd for C15H9ClFNO2: 290.0306, found: 290.0380.
Data for 3d (methyl 2-(4-chloro-1,3-dioxoisoindolin-2-yl)-5-fluorobenzoate): white solid; yield, 28%; m.p.: 136–137 °C; 1H-NMR (400 MHz, CDCl3) δ 7.89 (d, J = 3.8 Hz, 2H), 7.74 (d, J = 3.8 Hz, 2H), 7.40 (d, J = 4.6 Hz, 2H), 3.80 (s, 3H). 13C-NMR (101 MHz, CDCl3) δ 165.96 (s), 164.93 (s), 163.85 (s), 160.96 (s), 136.04 (s), 135.19 (s), 134.03 (s), 132.32 (s), 131.86 (s), 129.68 (s), 127.72 (s), 127.45 (s), 122.25 (s), 120.48 (s), 118.88 (s), 52.62 (s). HR-MS (ESI) [M + H]+ calcd for C16H9ClFNO4: 334.0204, found: 334.0273.
Data for 3e (2-(4-bromo-2,6-difluorophenyl)-4-chloroisoindoline-1,3-dione): white solid; yield, 80%; m.p.: 185–186 °C; 1H-NMR (400 MHz, CDCl3) δ 7.94–7.82 (m, 2H), 7.74 (d, J = 3.8 Hz, 2H), 7.45–7.35 (m, 2H), 3.80 (s, 3H).13C-NMR (101 MHz, CDCl3) δ 163.97 (s), 162.87 (s), 159.98 (s), 157.41 (s), 136.47 (s), 135.60 (s), 133.91 (s), 132.39 (s), 127.72 (s), 123.57 (s), 122.67 (s), 116.55 (s), 116.28 (s), 108.22 (s). HR-MS (ESI) [M + H]+ calcd for C14H5BrClF2NO2: 371.9160, found: 371.9232.
Data for 3f (4-chloro-2-(4-isopropylphenyl)isoindoline-1,3-dione): white solid; yield, 78%; m.p.: 154–155 °C; 1H-NMR (400 MHz, CDCl3) δ 7.89 (dd, J = 4.4, 3.9 Hz, 1H), 7.76–7.68 (m, 2H), 7.43–7.32 (m, 4H), 2.99 (s, 1H), 1.31 (d, J = 6.9 Hz, 6H). 13C-NMR (101 MHz, CDCl3) δ 166.04 (s), 165.03 (s), 149.13 (s), 136.09 (s), 135.22 (s), 133.93 (s), 131.85 (s), 128.83 (s), 127.46 (s), 127.25 (s), 126.42 (s), 122.21 (s), 33.95 (s), 23.93 (s). HR-MS (ESI) [M + H]+ calcd for C17H14ClNO2: 300.0713, found: 300.0791.
Data for 3g (4-chloro-2-(5-methylisoxazol-3-yl)isoindoline-1,3-dione): White solid; yield, 58%; m.p.: 160–161 °C; 1H-NMR (400 MHz, CDCl3) δ 7.95–7.89 (m, 1H), 7.76 (d, J = 4.4 Hz, 2H), 6.49 (s, 1H), 2.52 (s, 3H). 13C-NMR (101 MHz, CDCl3) δ 170.96 (s), 163.34 (s), 162.52 (s), 153.18 (s), 136.69 (s), 135.83 (s), 133.59 (s), 132.52 (s), 127.21 (s), 122.81 (s), 98.09 (s), 12.76 (s). HR-MS (ESI) [M + H]+ calcd for C12H7ClN2O3: 263.0145, found: 263.0220.
Data for 3h (4-chloro-2-(1-methyl-1H-pyrazol-5-yl)isoindoline-1,3-dione): white solid; yield, 60%; m.p.: 195–196 °C; 1H-NMR (400 MHz, CDCl3) δ 7.91 (dd, J = 4.6, 3.7 Hz, 1H), 7.81–7.74 (m, 2H), 7.60 (d, J = 2.0 Hz, 1H), 6.33 (d, J = 2.0 Hz, 1H), 3.78 (s, 3H).13C-NMR (101 MHz, CDCl3) δ 164.65 (s), 163.59 (s), 138.84 (s), 136.69 (s), 135.83 (s), 133.61 (s), 132.52 (s), 129.13 (s), 127.39 (s), 122.76 (s), 104.67 (s), 36.51 (s). HR-MS (ESI) [M + H]+ calcd for C12H8ClN3O2: 262.0305, found: 262.0379.
Data for 3i (4-chloro-2-(3,4-dichlorobenzyl)isoindoline-1,3-dione): white solid; yield, 67%; m.p.: 143–144 °C; 1H-NMR (400 MHz, CDCl3) δ 7.78 (dd, J = 4.8, 3.4 Hz, 1H), 7.69–7.62 (m, 2H), 7.53 (d, J = 2.0 Hz, 1H), 7.39 (d, J = 8.2 Hz, 1H), 7.30 (d, J = 2.0 Hz, 1H), 4.78 (s, 2H). 13C-NMR (101 MHz, CDCl3) δ 166.32 (s), 165.47 (s), 135.99 (d, J = 4.7 Hz), 135.18 (s), 133.97 (s), 132.77 (s), 132.30 (s), 131.65 (s), 130.76 (d, J = 8.8 Hz), 128.30 (s), 127.63 (s), 122.05 (s), 40.70 (s). HR-MS (ESI) [M + H]+ calcd for C15H8Cl3NO2: 339.9621, found: 339.9692.
Data for 3j (4-chloro-2-(thiophen-2-ylmethyl)isoindoline-1,3-dione): white solid; yield, 71%; m.p.: 135–136 °C; 1H-NMR (400 MHz, CDCl3) δ 7.78 (dd, J = 4.6, 3.6 Hz, 1H), 7.68–7.61 (m, 2H), 7.31–7.15 (m, 2H), 6.95 (dd, J = 5.1, 3.6 Hz, 1H), 5.03 (s, 2H).13C-NMR (101 MHz, CDCl3) δ 166.09 (s), 165.20 (s), 137.56 (s), 135.81 (s), 135.03 (s), 134.09 (s), 131.54 (s), 128.08 (s), 127.74 (s), 126.95 (s), 126.08 (s), 121.95 (s), 35.82 (s). HR-MS (ESI) [M + H]+ calcd for C13H8ClNO2S: 277.9964, found: 278.0038.
Data for 3k (4-chloro-2-(3-fluoro-4-nitrophenyl)isoindoline-1,3-dione): brown solid, yield, 63%; m.p.: 231–232 °C; 1H-NMR (400 MHz, DMSO) δ 8.42 (dd, J = 9.7, 2.1 Hz, 1H), 8.31 (d, J = 8.7 Hz, 1H), 7.95 (ddd, J = 26.6, 16.0, 7.9 Hz, 4H).13C-NMR (101 MHz, DMSO) δ 164.72 (s), 163.70 (s), 158.45 (s), 155.91 (s), 148.65 (s), 137.06 (s), 134.29 (s), 131.84 (s), 130.71 (s), 127.86 (s), 125.75 (s), 123.36 (s), 120.71 (s), 113.21 (s). HR-MS (ESI) [M + H]+ calcd for C14H6ClFN2O4: 321.0000, found: 321.0059.
Data for 3l (4-chloro-2-(4-phenoxyphenyl)isoindoline-1,3-dione): white solid; yield, 86%; m.p.: 172–173 °C; 1H-NMR (400 MHz, CDCl3) δ 8.05–7.98 (m, 1H), 7.86 (d, J = 4.3 Hz, 2H), 7.52 (dd, J = 4.7, 4.0 Hz, 4H), 7.35–7.14 (m, 5H).13C-NMR (101 MHz, CDCl3) δ 165.97 (s), 164.98 (s), 157.39 (s), 156.44 (s), 136.16 (s), 135.29 (s), 133.86 (s), 131.92 (s), 129.94 (s), 128.07 (s), 127.40 (s), 125.97 (s), 123.97 (s), 122.25 (s), 119.60 (s), 118.81 (s). HR-MS (ESI) [M + H]+ calcd for C20H12ClNO3: 350.0506, found: 350.0580.
Data for 3m (3-(4-chloro-1,3-dioxoisoindolin-2-yl)benzamide): light yellow solid; yield, 84%; m.p.: 252–253 °C; 1H-NMR (400 MHz, DMSO) δ 8.09 (s, 1H), 8.03–7.83 (m, 5H), 7.62 (s, 2H), 7.53 (s, 1H). 13C-NMR (101 MHz, CDCl3) δ 172.19 (s), 170.82 (s), 169.85 (s), 141.41 (s), 141.12 (s), 140.34 (s), 139.16 (s), 136.99 (s), 135.44 (s), 135.05 (s), 134.05 (s), 132.53 (s), 132.23 (s), 132.10 (s), 127.60 (s). HR-MS (ESI) [M + H]+ calcd for C15H9ClN2O3: 301.0302, found: 301.0380.
Data for 3n (2-(4-(tert-butyl)phenyl)-4-chloroisoindoline-1,3-dione): white solid; yield, 52%; m.p.: 178–179 °C; 1H-NMR (400 MHz, CDCl3) δ 7.93–7.82 (m, 1H), 7.70 (d, J = 3.8 Hz, 2H), 7.52 (d, J = 8.5 Hz, 2H), 7.35 (d, J = 8.4 Hz, 2H), 1.36 (s, 9H).13C-NMR (101 MHz, CDCl3) δ 166.02 (s), 165.01 (s), 151.35 (s), 136.08 (s), 135.21 (s), 133.94 (s), 131.84 (s), 128.59 (s), 127.47 (s), 126.18 (s), 126.04 (s), 122.21 (s), 34.76 (s), 31.32 (s). HR-MS (ESI) [M + H]+ calcd for C18H16ClNO2: 314.0870, found: 314.0947.
Data for 3o (4-chloro-2-(3-fluoro-2-methoxyphenyl)isoindoline-1,3-dione): white solid; yield, 87%; m.p.: 153–154 °C; 1H-NMR (400 MHz, CDCl3) δ 8.10–7.99 (m, 1H), 7.97–7.81 (m, 2H), 7.46–7.37 (m, 1H), 7.30 (td, J = 8.1, 5.2 Hz, 1H), 7.26–7.15 (m, 1H), 4.14 (d, J = 2.4 Hz, 3H).13C-NMR (101 MHz, CDCl3) δ 165.63 (s), 164.59 (s), 156.89 (s), 154.43 (s), 144.39 (s), 136.11 (s), 135.25 (s), 134.10 (s), 131.93 (s), 127.76 (s), 125.01 (s), 123.03 (s), 122.32 (s), 118.40 (s), 61.42 (s). HR-MS (ESI) [M + H]+ calcd for C15H9ClFNO3: 306.0255, found: 306.0331.
Data for 3p (4-chloro-2-(5-methylthiazol-2-yl)isoindoline-1,3-dione): yellow solid; yield, 30%; m.p.: 143–144 °C; 1H-NMR (400 MHz, CDCl3) δ 7.83 (dd, J = 63.0, 3.8 Hz, 3H), 6.93 (s, 1H), 2.52 (s, 3H).13C-NMR (101 MHz, CDCl3) δ 163.32 (s), 162.62 (s), 150.64 (s), 150.45 (s), 136.77 (s), 135.92 (s), 133.30 (s), 132.62 (s), 126.87 (s), 122.81 (s), 113.01 (s), 17.48 (s). HR-MS (ESI) [M + H]+ calcd for C12H7ClN2O2S: 278.9917, found: 278.9988.
Data for 3q (methyl 5-fluoro-2-(4-fluoro-1,3-dioxoisoindolin-2-yl)benzoate): white solid; yield, 57%; m.p.: 179–180 °C; 1H-NMR (400 MHz, CDCl3) δ 8.09–7.65 (m, 3H), 7.56–7.29 (m, 3H), 3.79 (d, J = 3.0 Hz, 3H). 13C-NMR (101 MHz, CDCl3) δ 166.33 (s), 163.96 (s), 159.24 (s), 156.59 (s), 136.94 (s), 134.23 (s), 132.38 (s), 129.82 (s), 127.45 (s), 122.87 (s), 122.68 (s), 120.38 (s), 120.10 (s), 119.00 (s), 118.75 (s), 52.72 (s). HR-MS (ESI) [M + H]+ calcd for C16H9F2NO4: 318.0500, found: 318.0574.
Data for 3r (2-(4-bromo-2,6-difluorophenyl)-4-fluoroisoindoline-1,3-dione): shite solid; yield, 78%; m.p.: 140–142 °C; 1H-NMR (400 MHz, CDCl3) δ 7.90–7.79 (m, 2H), 7.52 (t, J = 8.0 Hz, 1H), 7.32 (d, J = 6.9 Hz, 2H). 13C-NMR (101 MHz, CDCl3) δ 164.25 (s), 161.90 (s), 160.05 (s), 159.36 (s), 156.70 (s), 137.41 (s), 133.92 (s), 123.60 (s), 123.20 (s), 123.01 (s), 120.43 (s), 117.81 (s), 116.30 (s), 108.15 (s). HR-MS (ESI) [M + H]+ calcd for C14H5BrF3NO2: 355.9456, found: 355.9522.
Data for 3s (4-fluoro-2-(4-isopropylphenyl)isoindoline-1,3-dione): shite solid; yield, 79%; m.p.: 116–117 °C; 1H-NMR (400 MHz, CDCl3) δ 7.68 (d, J = 2.4 Hz, 2H), 7.34 (ddd, J = 9.0, 6.1, 3.1 Hz, 1H), 7.25 (q, J = 8.6 Hz, 4H), 2.87 (dt, J = 13.8, 6.9 Hz, 1H), 1.19 (d, J = 6.9 Hz,6H).13C-NMR (101 MHz, CDCl3) δ 166.33 (s), 164.08 (s), 159.21 (s), 156.56 (s), 149.16 (s), 136.84 (s), 134.03 (s), 128.77 (s), 127.28 (s), 126.44 (s), 122.59 (s), 119.94 (s), 33.94 (s), 23.91 (s). HR-MS (ESI) [M + H]+ calcd for C17H14FNO2: 284.1009, found: 284.1086.
Data for 3t (5-chloro-2-(3-fluoro-4-methylphenyl)isoindoline-1,3-dione): shite solid; yield, 79%; m.p.: 178–179 °C; 1H-NMR (400 MHz, CDCl3) δ 7.96–7.85 (m, 2H), 7.76 (dd, J = 8.0, 1.4 Hz, 1H), 7.31 (t, J = 8.1 Hz, 1H), 7.14 (d, J = 8.8 Hz, 2H), 2.33 (s, 3H). 13C-NMR (101 MHz, CDCl3) δ 166.07 (s), 165.76 (s), 162.14 (s), 141.29 (s), 134.61 (s), 133.29 (s), 131.68 (s), 129.67 (s), 125.10 (s), 124.26 (s), 121.79 (s), 113.65 (s), 113.40 (s), 99.99 (s), 14.41 (s). HR-MS (ESI) [M + H]+ calcd for C15H9ClFNO2: 290.0306, found: 290.0376.
Data for 3u (5-chloro-2-(4-isopropylphenyl)isoindoline-1,3-dione): white solid; yield, 70%; m.p.: 137–138 °C; 1H-NMR (400 MHz, CDCl3) δ 7.90 (dd, J = 13.7, 4.7 Hz, 2H), 7.74 (dd, J = 8.0, 1.8 Hz, 1H), 7.34 (d, J = 8.6 Hz, 4H), 2.97 (dt, J = 13.8, 6.9 Hz, 1H), 1.28 (d, J = 6.9 Hz, 6H).13C-NMR (101 MHz, CDCl3) δ 166.50 (s), 166.19 (s), 149.16 (s), 141.06 (s), 134.41 (s), 133.50 (s), 129.88 (s), 128.91 (s), 127.29 (s), 126.34 (s), 124.97 (s), 124.14 (s), 33.94 (s), 23.91 (s). HR-MS (ESI) [M + H]+ calcd for C17H14ClNO2: 300.0713, found: 300.0791.
Data for 3v (5-chloro-2-(1-methyl-1H-pyrazol-5-yl)isoindoline-1,3-dione): white solid; yield, 76%; m.p.: 175–176 °C; 1H-NMR (400 MHz, CDCl3) δ 7.95 (dd, J = 12.1, 4.7 Hz, 2H), 7.83 (dd, J = 8.0, 1.6 Hz, 1H), 7.61 (d, J = 1.9 Hz, 1H), 6.33 (d, J = 1.9 Hz, 1H), 3.78 (s, 3H).13C-NMR (101 MHz, CDCl3) δ 165.09 (s), 164.81 (s), 141.88 (s), 138.85 (s), 135.10 (s), 133.20 (s), 129.59 (s), 129.20 (s), 125.55 (s), 124.69 (s), 104.63 (s), 36.47 (s). HR-MS (ESI) [M + H]+ calcd for C12H8ClN3O2: 262.0305, found: 262.0384.
Data for 3w (5-chloro-2-(thiophen-2-ylmethyl)isoindoline-1,3-dione): white solid; yield, 79%; m.p.: 93–94 °C; 1H-NMR (400 MHz, CDCl3) δ 7.89 (dd, J = 11.9, 4.9 Hz, 2H), 7.78 (d, J = 8.0 Hz, 1H), 7.39–7.22 (m, 2H), 7.04 (dd, J = 6.0, 2.4 Hz, 1H), 5.11 (s, 2H).13C-NMR (101 MHz, CDCl3) δ 166.60 (s), 166.27 (s), 140.81 (s), 137.67 (s), 134.12 (s), 133.72 (s), 130.11 (s), 127.90 (s), 126.94 (s), 126.05 (s), 124.70 (s), 123.93 (s), 35.91 (s). HR-MS (ESI) [M + H]+ calcd for C13H8ClNO2S: 277.9964, found: 278.0032.
Data for 3x (2-(4-isopropylphenyl)-5-methylisoindoline-1,3-dione): white solid; yield, 47%; m.p.: 161–162 °C; 1H-NMR (400 MHz, CDCl3) δ 7.82 (d, J = 7.6 Hz, 1H), 7.75 (s, 1H), 7.57 (d, J = 7.5 Hz, 1H), 7.35 (s, 4H), 2.96 (dt, J = 13.7, 6.9 Hz, 1H), 2.54 (s, 3H), 1.28 (d, J = 6.9 Hz, 6H).13C-NMR (101 MHz, CDCl3) δ 167.66 (s), 167.54 (s), 148.77 (s), 145.67 (s), 134.89 (s), 132.22 (s), 129.32 (s), 129.25 (s), 127.19 (s), 126.44 (s), 124.21 (s), 123.62 (s), 33.94 (s), 23.94 (s), 22.07 (s). HR-MS (ESI) [M + H]+ calcd for C18H17NO2: 280.1259, found: 280.1338.
Data for 3y (2-(4-isopropylphenyl)-5-nitroisoindoline-1,3-dione): white solid; yield, 57%; m.p.: 179–180 °C; 1H-NMR (400 MHz, CDCl3) δ 8.77 (d, J = 1.7 Hz, 1H), 8.67 (dd, J = 8.1, 1.9 Hz, 1H), 8.15 (d, J = 8.1 Hz, 1H), 7.44–7.30 (m, 4H), 3.09–2.84 (m, 1H), 1.29 (d, J = 6.9 Hz, 6H).13C-NMR (101 MHz, CDCl3) δ 165.11 (s), 151.97 (s), 149.66 (s), 136.21 (s), 133.21 (s), 129.56 (s), 128.51 (s), 127.44 (s), 126.23 (s), 124.97 (s), 119.14 (s), 33.97 (s), 23.90 (s). HR-MS (ESI) [M + H]+ calcd for C17H14N2O4: 311.0954, found: 311.1032.

3.4. Herbicidal Activity

The herbicidal activities of the test compounds against B. campestris, A. retroflexus and D. sanguinalis were evaluated by the small cup method and foliar spray method at 200 mg/L, according the following procedure [33,34]. With respect to the small cup method, generally, the test compound (20 mg) was dissolved in N,N-dimethylformamide (DMF) (1 mL) and then diluted in water containing 0.1% Tween 80 to a final concentration of 200 mg/L. The controls were treated with the same solution but without any test compound. A piece of filter paper in a 50 mL beaker was treated with the test compound solution (1 mL), and then 10 seeds that were soaked in water for 24 h were added. All treatments were repeated three times.
The pre- and post-emergence herbicidal activities of the title compounds were evaluated at an application rate of 90 g ai/ha in a greenhouse according to a reported method [35,36]. Nine seeds of these plants (A. retroflexus seeds, B. campestris seeds or D. sanguinalis seeds) were sown at a depth of 5 mm in a mixture of vermiculite/nutrient-enriched soil (1:1, m/m) with some water at 4 cm below the surface and then cultivated at 20–25 °C. To test the pre-emergence herbicidal activities, the abovementioned soil was sprayed with the title compound solution before germination, and the results were determined after two weeks. To test the post-emergence herbicidal activities, plants at the 2–4 leaf stage after germination were treated with the test compound solution by a walking spray tower and then cultivated for one week. The percentage of herbicidal activity was calculated by comparing the fresh weight of the growth-inhibited plants with that of the healthy control plants, where completely inhibited growth was set as 100 and the healthy control was set as 0.

3.5. PPO Enzyme Assays

To further explore the mode of action of these target compounds, 3a was selected as a representative to confirm whether it can act on PPO. Briefly, the procedures were followed as described here. D. sanguinalis plants were treated with 90 g ai/ha of compound 3a and Flumioxazin by the post-emergence method. After 3 days, D. sanguinalis leaves (0.2 g) were collected and dissolved in extraction medium (1.5 mL) in an ice bath, and the mixture was then centrifuged at 4 °C × 12,000 rpm for 15 min. A polyphenol oxidase kit (G0113W, Suzhou Grace Bio-technology Co., Ltd., Suzhou, China) was obtained from commercial sources to determine the PPO activity. The change in absorbance (every 5 min) was measured on a POLARstar Optima/Galaxy instrument (BMG) (Shanghai Microplate Co., Ltd., Shanghai, China) at 420 nm [37,38,39]. One unit of PPO activity was defined as a change in absorbance of 0.01 per minute.

4. Conclusions

In summary, a series of phthalimide derivatives were designed by molecular docking and by using Flumioxazin as a lead, then synthesized and characterized by NMR, HR-MS, and the typical crystal structure was determined by X-ray diffraction. The herbicidal activities of these compounds were assessed against B. campestris, A. retroflexus and D. sanguinalis, by the small cup, pre-emergence, and post-emergence methods, respectively. Most of the synthesized compounds exhibited good to excellent herbicidal activities, and especially 3a displayed the same efficacy against A. retroflexus and B. campestris to commercial standards of Flumioxazin. Further PPO activity assays confirmed that the mode of action of 3a is similar to PPO inhibitors. These results suggest that our molecular design strategy is effective.

Author Contributions

The experiments were conceived and planned by W.G., L.C. and J.Z., the manuscript was written by W.G., L.C. and J.H. Experiments were performed by W.G., X.L., D.R., S.S. and Y.W. The final version of this manuscript has been read and approved by all authors.

Funding

This research was in financial supported by the National Natural Science Foundation of China (Nos. 31871981); the starting Scientific Research Foundation for the introduced talents of Hebei Agricultural University (Nos. 201842); Youth Natural Science Foundation of Hebei Province (Nos. B2019204030); Modern Agriculture Industry Technology System Innovation Team of Phase II of Hebei Province (Nos. HB2018020205).

Conflicts of Interest

Authors hereby declare that there are no financial/commercial conflict of interest.

References

  1. Poulson, R.; Polglase, W. The enzymic conversion of protoporphyrinogen IX to protoporphyrin IX. Protoporphyrinogen oxidase activity in mitochondrial extracts of Saccharomyces cerevisiae. J. Biol. Chem. 1975, 250, 1269–1274. [Google Scholar]
  2. Poulson, R. The enzymic conversion of protoporphyrinogen IX to protoporphyrin IX in mammalian mitochondria. J. Biol. Chem. 1976, 251, 3730–3733. [Google Scholar]
  3. Ajioka, R.S.; Phillips, J.D.; Kushner, J.P. Biosynthesis of heme in mammals. Biochim. Biophys. Acta 2006, 1763, 723–736. [Google Scholar] [CrossRef]
  4. Heinemann, I.U.; Jahn, M.; Jahn, D. The biochemistry of heme biosynthesis. Biochem. Biophys. 2008, 474, 238–251. [Google Scholar] [CrossRef]
  5. Kato, K.; Tanaka, R.; Sano, S.; Tanaka, A.; Hosaka, H. Identification of a gene essential for protoporphyrinogen IX oxidase activity in the cyanobacterium Synechocystis sp. PCC6803. Natl. Acad. Sci. 2010, 107, 16649–16654. [Google Scholar] [CrossRef]
  6. Wang, B.; Wen, X.; Qin, X.; Wang, Z.; Tan, Y.; Shen, Y.; Xi, Z. Quantitative structural insight into human variegate porphyria disease. J. Biol. Chem. 2013, 288, 11731–11740. [Google Scholar] [CrossRef]
  7. Wang, B.; Wen, X.; Xi, Z. Molecular simulations bring new insights into protoporphyrinogen IX oxidase/protoporphyrinogen IX interaction modes. Mol. Inform. 2016, 35, 476–482. [Google Scholar] [CrossRef]
  8. Dayan, F.E.; Barker, A.; Tranel, P.J. Origins and structure of chloroplastic and mitochondrial plant protoporphyrinogen oxidases: Implications for the evolution of herbicide resistance. Pest Manage. Sci. 2018, 74, 2226–2234. [Google Scholar] [CrossRef] [PubMed]
  9. Qin, X.; Sun, L.; Wen, X.; Yang, X.; Tan, Y.; Jin, H.; Cao, Q.; Zhou, W.; Xi, Z.; Shen, Y. Structural insight into unique properties of protoporphyrinogen oxidase from Bacillus subtilis. J. Struct. Biol. 2010, 170, 76–82. [Google Scholar] [CrossRef] [PubMed]
  10. Sherman, T.D.; Becerril, J.M.; Matsumoto, H.; Duke, M.V.; Jacobs, J.M.; Jacobs, N.J.; Duke, S.O. Physiological basis for differential sensitivities of plant species to protoporphyrinogen oxidase-inhibiting herbicides. Plant Physiol. 1991, 97, 280–287. [Google Scholar] [CrossRef] [PubMed]
  11. Hao, G.F.; Zuo, Y.; Yang, S.G.; Yang, G.F. Protoporphyrinogen oxidase inhibitor: An ideal target for herbicide discovery. CHIMIA Int. J. Chem. 2011, 65, 961–969. [Google Scholar] [CrossRef] [PubMed]
  12. Meazza, G.; Bettarini, F.; Porta, P.L.; Piccardi, P.; Signorini, E.; Portoso, D.; Fornara, L. Synthesis and herbicidal activity of novel heterocyclic protoporphyrinogen oxidase inhibitors. Pest Manage. Sci. 2004, 60, 1178–1188. [Google Scholar] [CrossRef] [PubMed]
  13. Jiang, L.L.; Tan, Y.; Zhu, X.L.; Wang, Z.F.; Zuo, Y.; Chen, Q.; Xi, Z.; Yang, G.F. Design, synthesis, and 3D-QSAR analysis of novel 1, 3, 4-oxadiazol-2 (3H)-ones as protoporphyrinogen oxidase inhibitors. J. Agric. Food Chem. 2009, 58, 2643–2651. [Google Scholar] [CrossRef] [PubMed]
  14. Jiang, L.L.; Zuo, Y.; Wang, Z.F.; Tan, Y.; Wu, Q.Y.; Xi, Z.; Yang, G.F. Design and syntheses of novel N-(benzothiazol-5-yl)-4,5,6,7-tetrahydro-1H-isoindole-1,3(2H)-dione and N-(benzothiazol-5-yl) isoindoline-1,3-dione as potent protoporphyrinogen oxidase inhibitors. J. Agric. Food Chem. 2011, 59, 6172–6179. [Google Scholar] [CrossRef] [PubMed]
  15. Zuo, Y.; Wu, Q.; Su, S.W.; Niu, C.W.; Xi, Z.; Yang, G.F. Synthesis, herbicidal activity, and QSAR of novel N-benzothiazolyl-pyrimidine-2,4-diones as protoporphyrinogen oxidase inhibitors. J. Agric. Food Chem. 2016, 64, 552–562. [Google Scholar] [CrossRef] [PubMed]
  16. Kwon, J.W.; Armbrust, K.L.; Grey, T.L. ydrolysis and photolysis of flumioxazin in aqueous buffer solutions. Pest Manage. Sci. 2004, 60, 939–943. [Google Scholar] [CrossRef]
  17. Arakawa, A.; Otani, M.; Iwashita, K.; Yamazaki, K. Molecular dynamics mechanism to generate species differences in inhibition of protoporphyrinogen oxidase by flumioxazin. Comp. Toxi. 2017, 1, 12–21. [Google Scholar] [CrossRef]
  18. Dayan, F.E.; Armstrong, B.M.; Weete, J.D. Inhibitory activity of sulfentrazone and its metabolic derivatives on soybean (Glycine max) protoporphyrinogen oxidase. J. Agric. Food Chem. 1998, 46, 2024–2029. [Google Scholar] [CrossRef]
  19. Grossmann, K.; Niggeweg, R.; Christiansen, N.; Looser, R.; Ehrhardt, T. The herbicide saflufenacil (Kixor™) is a new inhibitor of protoporphyrinogen IX oxidase activity. Weed Sci. 2010, 58, 1–9. [Google Scholar] [CrossRef]
  20. Chen, L.; Zhang, Y.; Yu, H.; Cui, D.; Li, B. Tetrahydrophthalimidobenzoates as protoporphyrinogen IX oxidase inhibiting herbicides. Pestic. Biochem. Physiol. 2017, 139, 40–45. [Google Scholar] [CrossRef]
  21. Chaudhari, R.; Tan, Z.; Huang, B.; Zhang, S. Computational polypharmacology: A new paradigm for drug discovery. Expert Opin. Drug Discov. 2017, 12, 279–291. [Google Scholar] [CrossRef] [PubMed]
  22. Huang, M.Z.; Luo, F.X.; Mo, H.B.; Ren, Y.G.; Wang, X.G.; Ou, X.M.; Lei, M.X.; Liu, A.P.; Huang, L.; Xu, M.C. Synthesis and herbicidal activity of isoindoline-1,3-dione substituted benzoxazinone derivatives containing a carboxylic ester group. J. Agric. Food Chem. 2009, 57, 9585–9592. [Google Scholar] [CrossRef] [PubMed]
  23. Jeschke, P. The Unique Role of Halogen Substituents in the Design of Modern Crop Protection Compounds; Wiley Online Library: Weinheim, Germany, 2012. [Google Scholar]
  24. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [PubMed]
  25. Tanchuk, V.Y.; Tanin, V.O.; Vovk, I.; Poda, G. A new improved hybrid scoring function for molecular docking and scoring based on autodock and autodock vina. Chem. Biol. Drug Des. 2016, 87, 618–625. [Google Scholar] [CrossRef] [PubMed]
  26. Chaudhari, R.; Li, Z. PyMine: A PyMOL plugin to integrate and visualize data for drug discovery. BMC Res. Notes 2015, 8, 517. [Google Scholar] [CrossRef] [PubMed]
  27. Giovani, S.; Penzo, M.; Butini, S.; Brindisi, M.; Gemma, S.; Novellino, E.; Campiani, G.; Blackman, M.J.; Brogi, S. Plasmodium falciparum subtilisin-like protease 1: Discovery of potent difluorostatone-based inhibitors. RSC Adv. 2015, 5, 22431–22448. [Google Scholar] [CrossRef]
  28. Garcia-Barrantes, P.M.; Cho, H.P.; Metts, A.M.; Blobaum, A.L.; Niswender, C.M.; Conn, P.J.; Lindsley, C.W. Lead optimization of the VU0486321 series of mGlu1 PAMs. Part 2: SAR of alternative 3-methyl heterocycles and progress towards an in vivo tool. Bioorg. Med. Chem. Lett. 2016, 26, 751–756. [Google Scholar] [CrossRef]
  29. Cheng, H.; Fu, Y.; Chang, Q.; Zhang, N.; Bu, M.W.; Niu, Y.; Wu, Q.Y.; Chen, C.; Verpoort, F. Synthesis, biochemical evaluation and computational simulations of new cytochrome bc1 complex inhibitors based on N-(4-aryloxyphenyl) phthalimides. Chin. Chem. Lett. 2018, 29, 1897–1900. [Google Scholar] [CrossRef]
  30. Yoon, H.S.; Hong, W.P.; Kang, Y.J.; Kim, J.J.; Han, S.H. Preparation of Indolocarbazole Compound for Organic Light Emitting Device. KR 2019101894, 2 September 2019. [Google Scholar]
  31. Barchín, B.M.; Cuadro, A.M.; Alvarez-Builla, J. Microwave-assisted parallel synthesis of a 2-aryl-1H-isoindole-1,3-dione library. Synlett 2002, 2, 343–345. [Google Scholar] [CrossRef]
  32. Fujimaki, N.; Nakagomi, M.; Shudo, K. Preparation of Aromatic Amide Derivatives Affecting Gene Transcription Process. WO 2009107762, 3 September 2009. [Google Scholar]
  33. Wang, D.W.; Lin, H.Y.; Cao, R.J.; Chen, T.; Wu, F.X.; Hao, G.F.; Chen, Q.; Yang, W.C.; Yang, G.F. Synthesis and herbicidal activity of triketone-quinoline hybrids as novel 4-hydroxyphenylpyruvate dioxygenase inhibitors. J. Agric. Food Chem. 2015, 63, 5587–5596. [Google Scholar] [CrossRef]
  34. Huo, J.Q.; Zhao, B.; Zhang, Z.; Xing, J.H.; Zhang, J.L.; Dong, J.G.; Fan, Z.J. Structure-Based Discovery and Synthesis of Potential Transketolase Inhibitors. Molecules 2018, 23, 2116. [Google Scholar] [CrossRef] [PubMed]
  35. Sartori, S.K.; Alvarenga, E.S.; Franco, C.A.; Ramos, D.S.; Oliveira, D.F. One-pot synthesis of anilides, herbicidal activity and molecular docking study. Pest Manage. Sci. 2018, 74, 1637–1645. [Google Scholar] [CrossRef] [PubMed]
  36. Zhao, A.; Liu., S.; Zhu., Y.; Wang., T.; Luo., J. Designed, Synthesis and Herbicidal Activity of Novel 2-Alkylthio-thieno[2,3-d] pyrimidin-4-ones. Chin. J. Chem. 2017, 37, 1877. [Google Scholar] [CrossRef] [Green Version]
  37. Aquino-Bolaños, E.N.; Mercado-Silva, E. Effects of polyphenol oxidase and peroxidase activity, phenolics and lignin content on the browning of cut jicama. Postharvest Biol. Technol. 2004, 33, 275–283. [Google Scholar] [CrossRef]
  38. Queiroz, C.; da-Silva, A.J.R.; Lopes, M.L.M.; Fialho, E.; Valente-Mesquita, V.L. Polyphenol oxidase activity, phenolic acid composition and browning in cashew apple (Anacardium occidentale, L.) after processing. Food Chem. 2011, 125, 128–132. [Google Scholar] [CrossRef]
  39. Ciou, J.Y.; Lin, H.H.; Chiang, P.Y.; Wang, C.C.; Charles, A.L. The role of polyphenol oxidase and peroxidase in the browning of water caltrop pericarp during heat treatment. Food Chem. 2011, 127, 523–527. [Google Scholar] [CrossRef]
Molecules 24 04363 g001 550

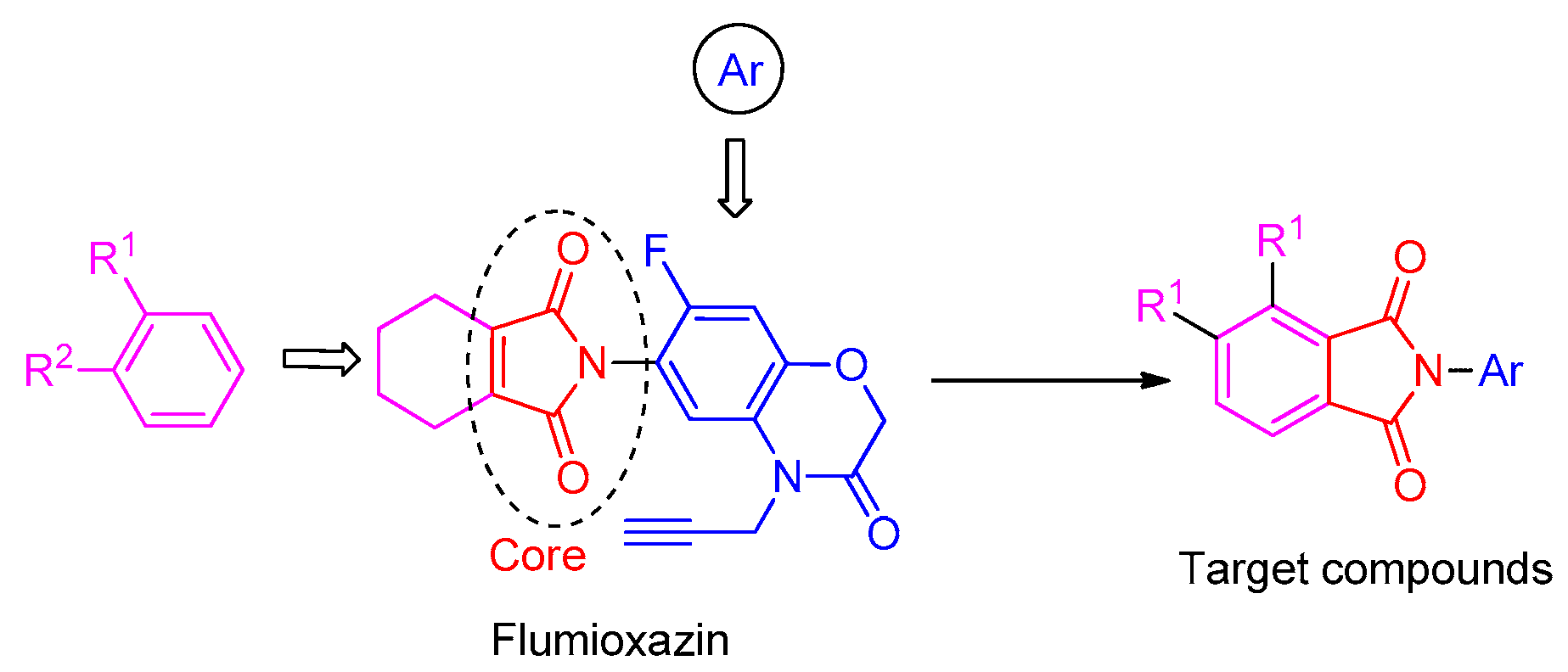

Figure 1. Design of the title compounds.
Figure 1. Design of the title compounds.
Molecules 24 04363 g001
Molecules 24 04363 g002 550
Figure 2. Docking model shown in Pymol, molecule (blade yellowing) and residues of mtPPO (wrinkling); Flumioxazin (A), 3a (B), 3c (C), and 3s (D).
Figure 2. Docking model shown in Pymol, molecule (blade yellowing) and residues of mtPPO (wrinkling); Flumioxazin (A), 3a (B), 3c (C), and 3s (D).
Molecules 24 04363 g002
Molecules 24 04363 g003 550
Figure 3. Crystal structure for 3a by X-ray diffraction determination.
Figure 3. Crystal structure for 3a by X-ray diffraction determination.
Molecules 24 04363 g003
Molecules 24 04363 g004 550

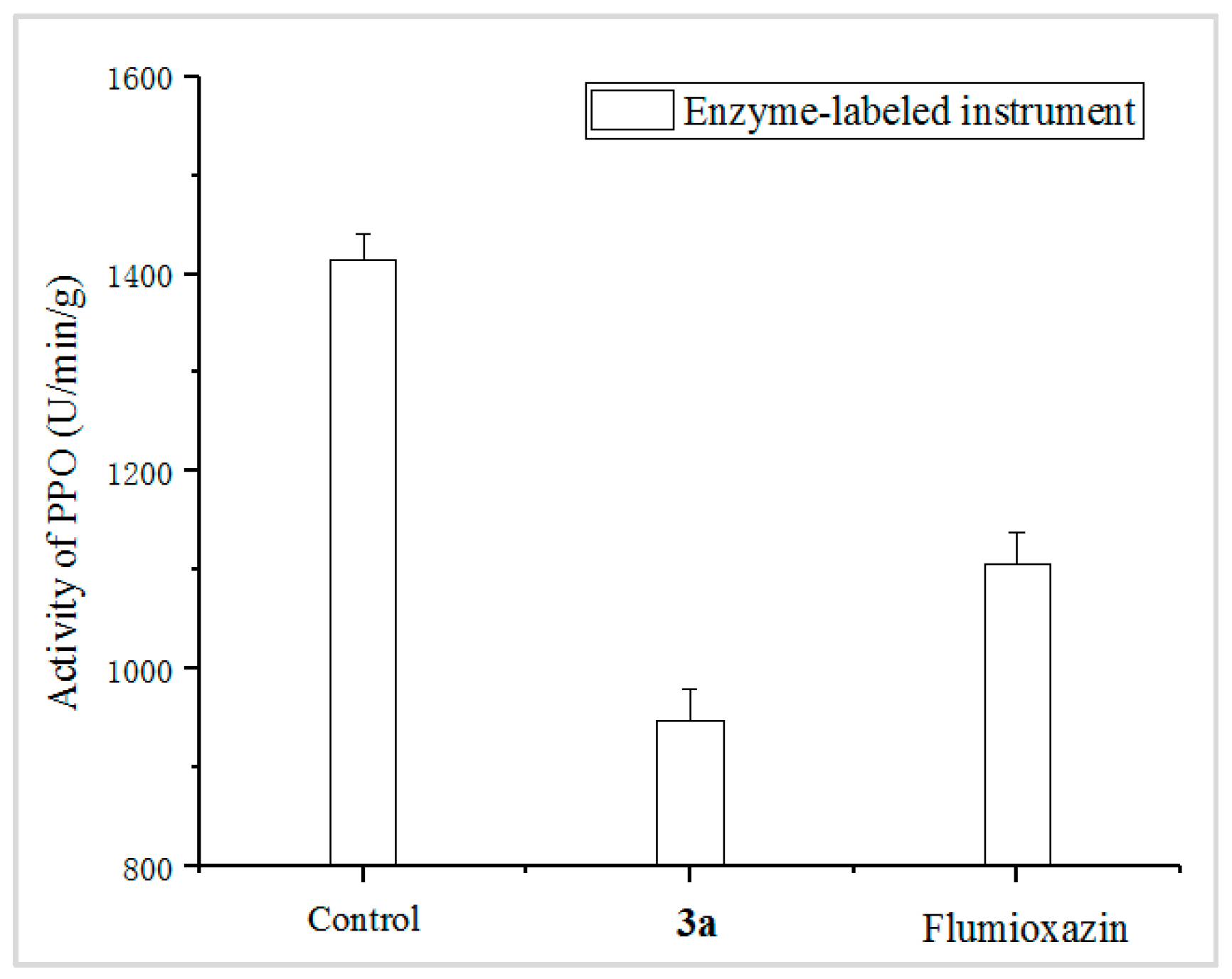

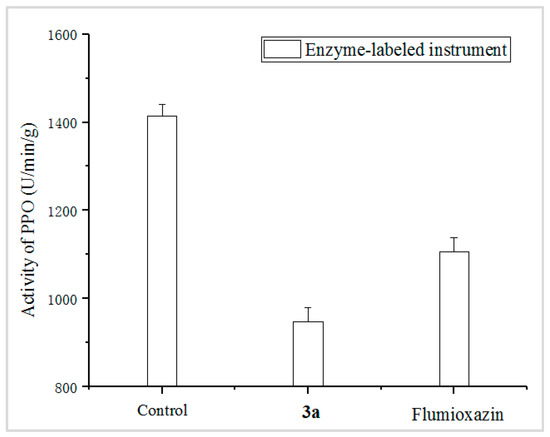

Figure 4. PPO enzyme activity involved by 3a and Flumioxazin. (The control was sprayed with blank solution without any compounds; the 3a and Flumioxazin were sprayed with 3a and Flumioxazin at 90 g ai/ha, respectively).
Figure 4. PPO enzyme activity involved by 3a and Flumioxazin. (The control was sprayed with blank solution without any compounds; the 3a and Flumioxazin were sprayed with 3a and Flumioxazin at 90 g ai/ha, respectively).
Molecules 24 04363 g004
Table
Table 1. The affinity between compounds and mtPPO. (Affinity, Kcal/mol).
Table 1. The affinity between compounds and mtPPO. (Affinity, Kcal/mol).
Compd.AffinityCompd.AffinityCompd.AffinityCompd.Affinity
3a−10.03h−8.73o−9.53v−8.1
3b−8.63i−8.43p−8.73w−7.7
3c−10.13j−7.73q−9.33x−9.8
3d−9.13k−9.43r−9.03y−9.5
3e−9.83l−8.93s−10.2Flumioxazin−9.5
3f−9.73m−9.93t−9.7Chlortoluron−7.1
Table

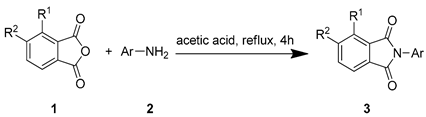

Table 2. General Synthetic Route for Compounds 3a–3y.
Table 2. General Synthetic Route for Compounds 3a–3y.

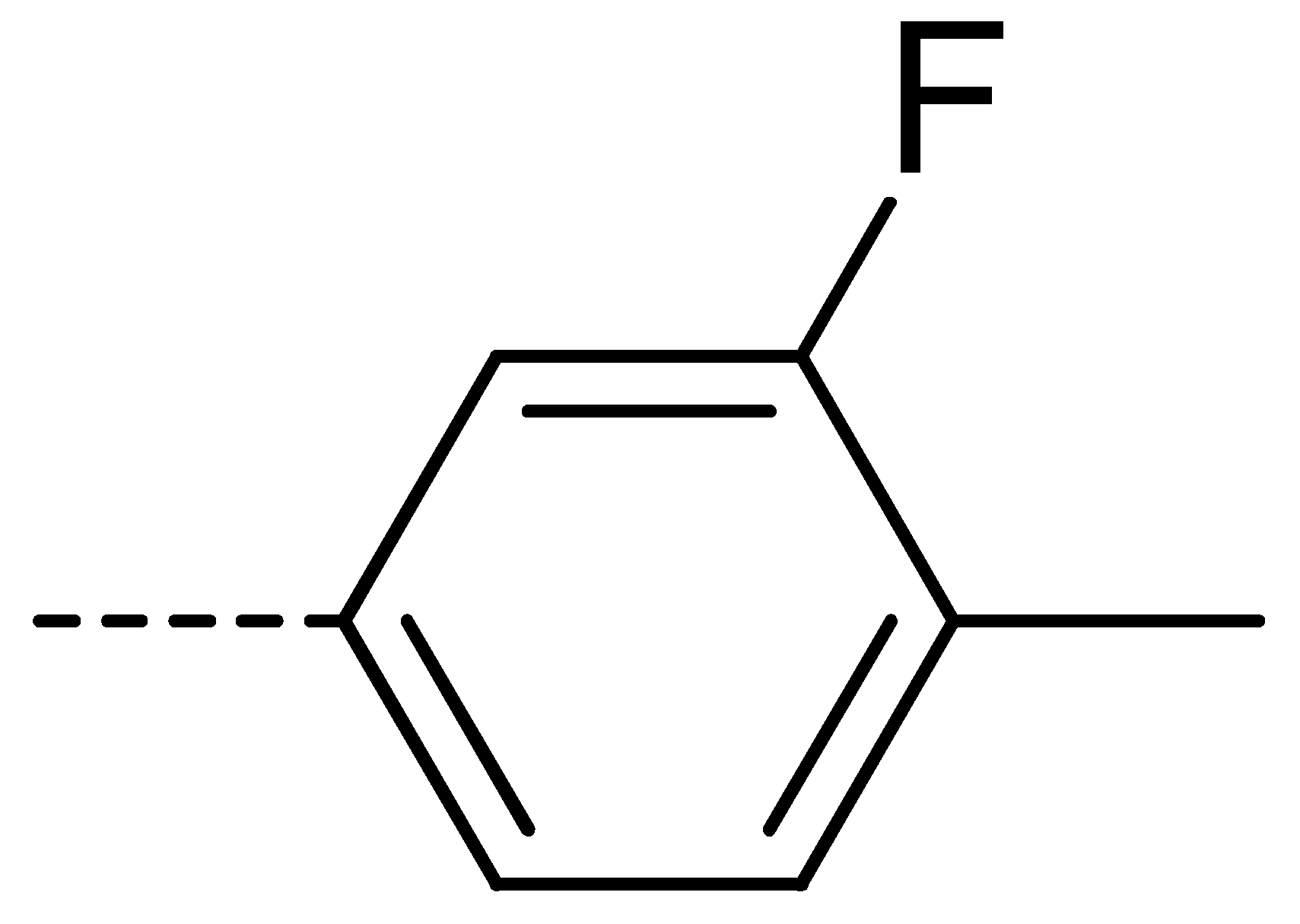

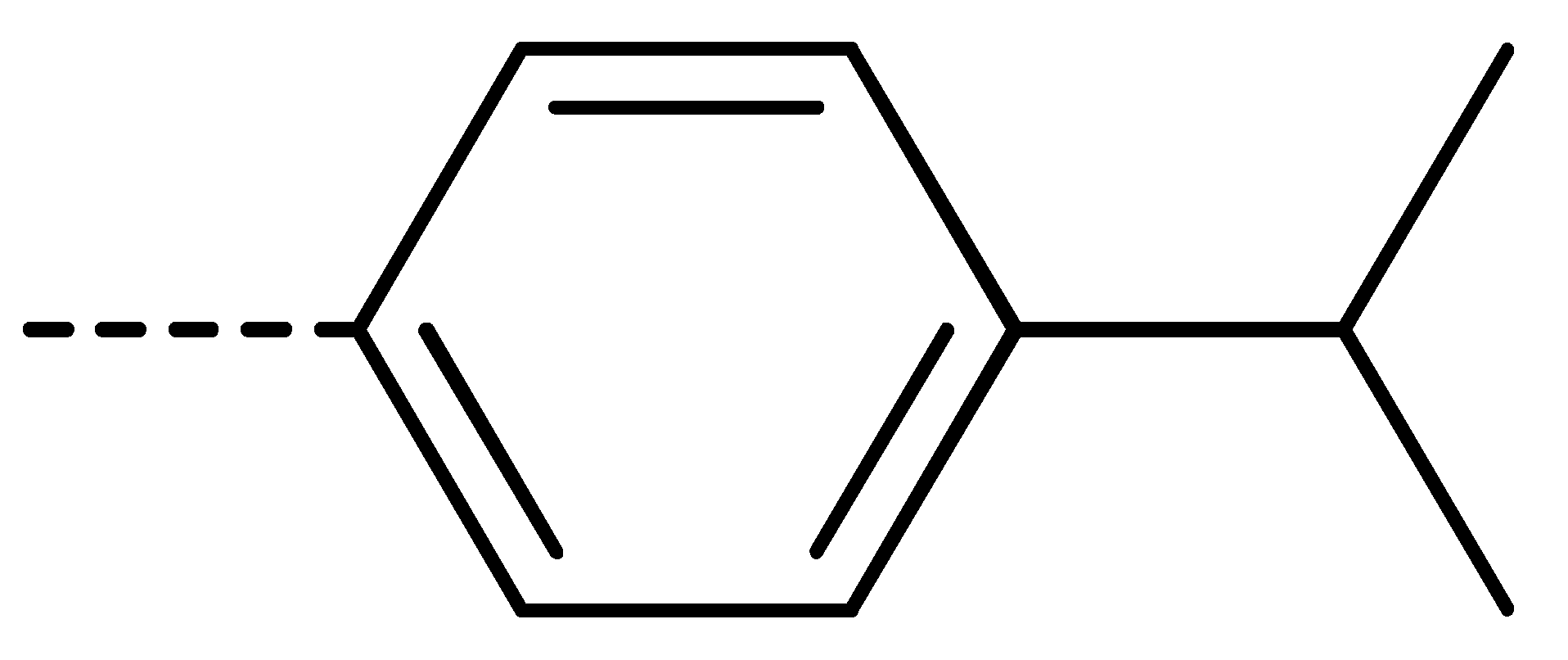

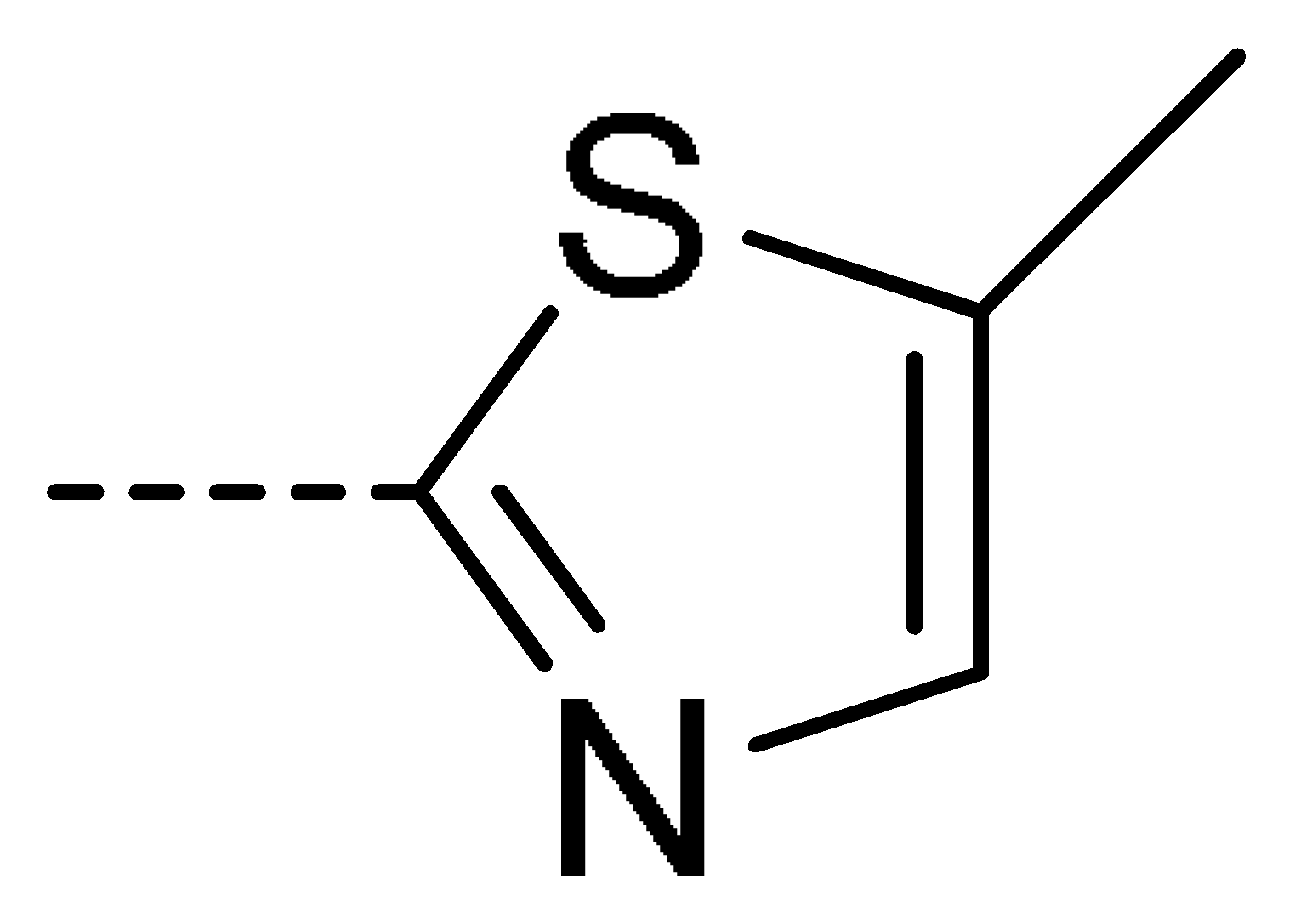

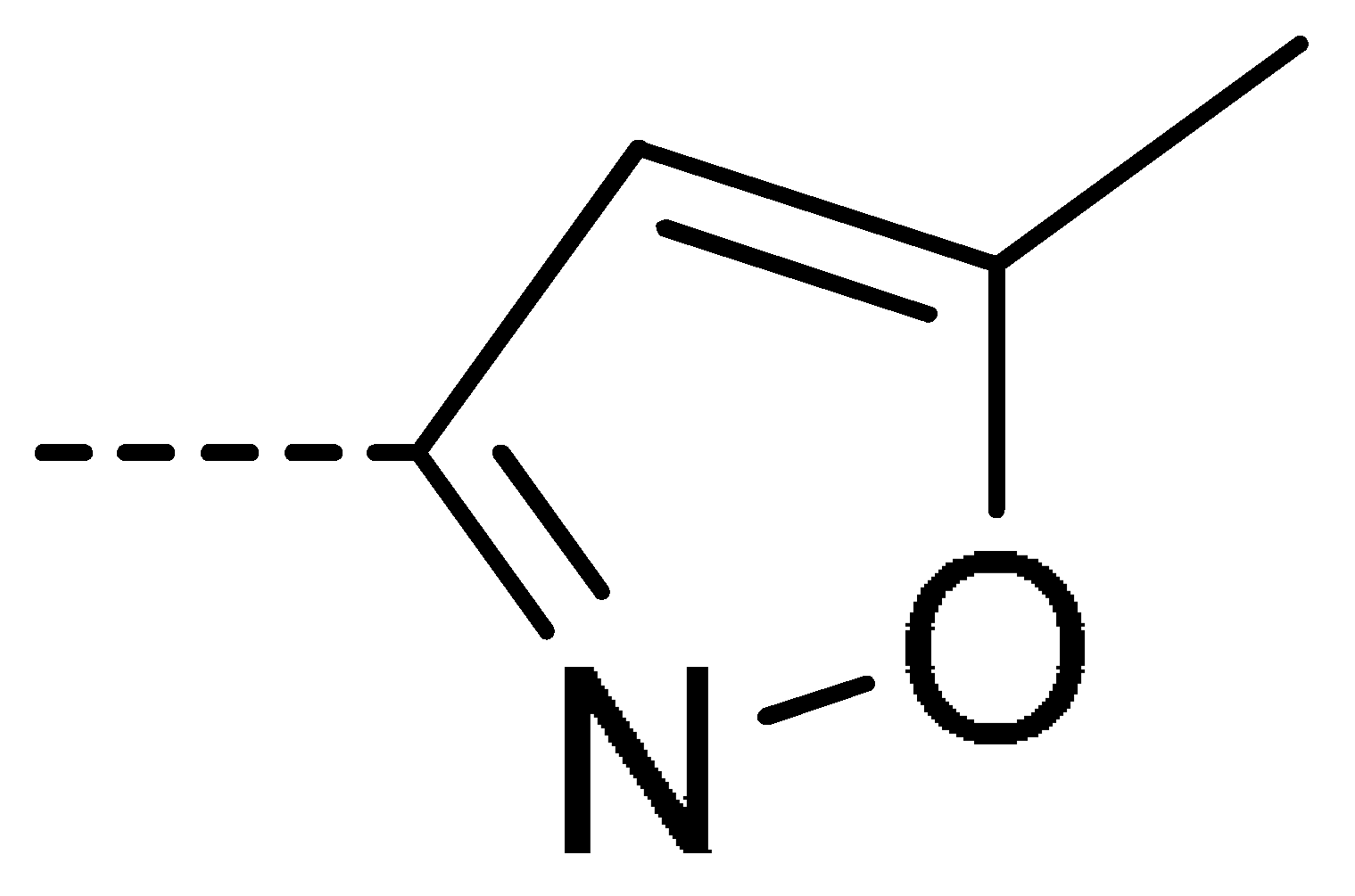

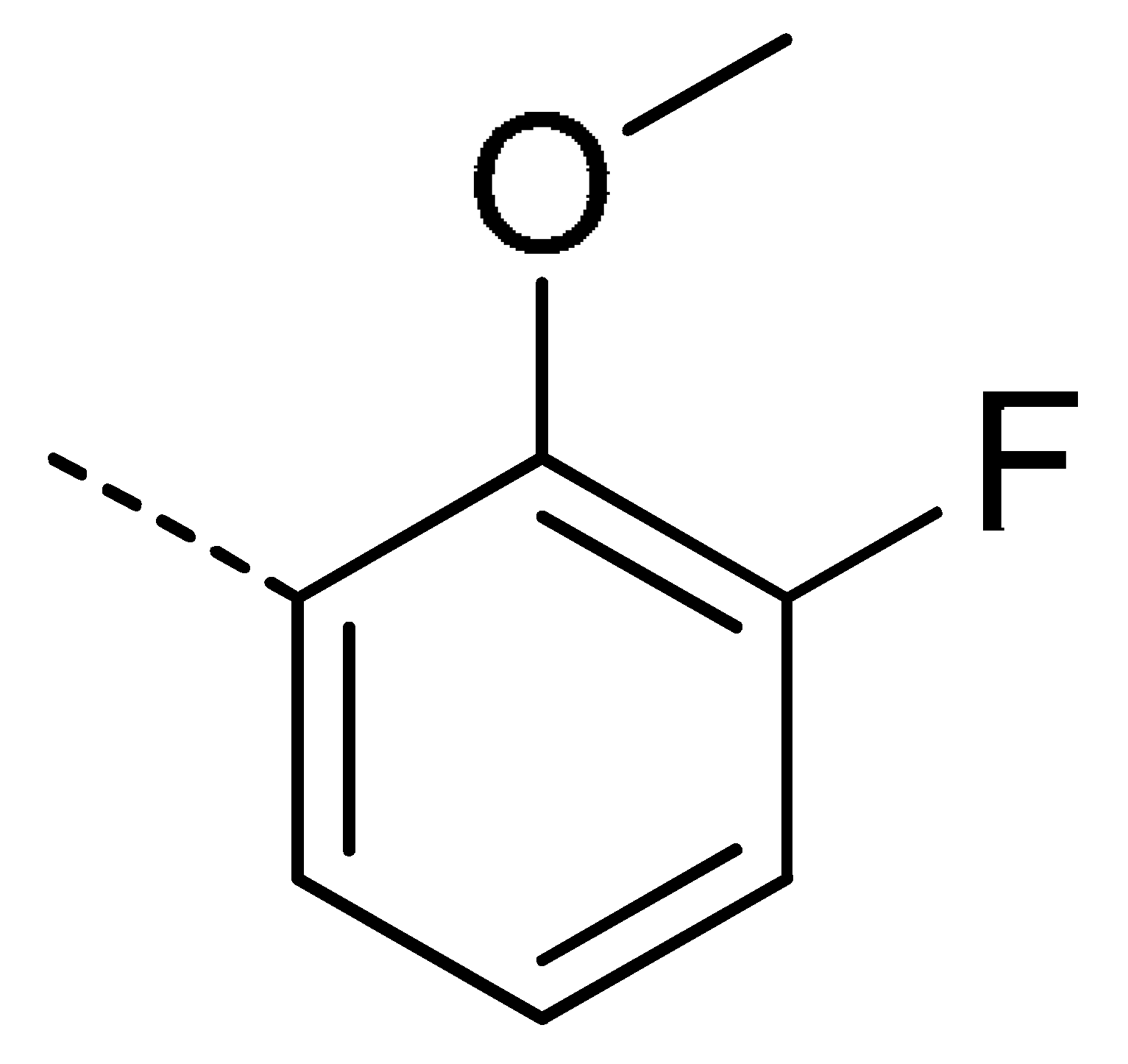

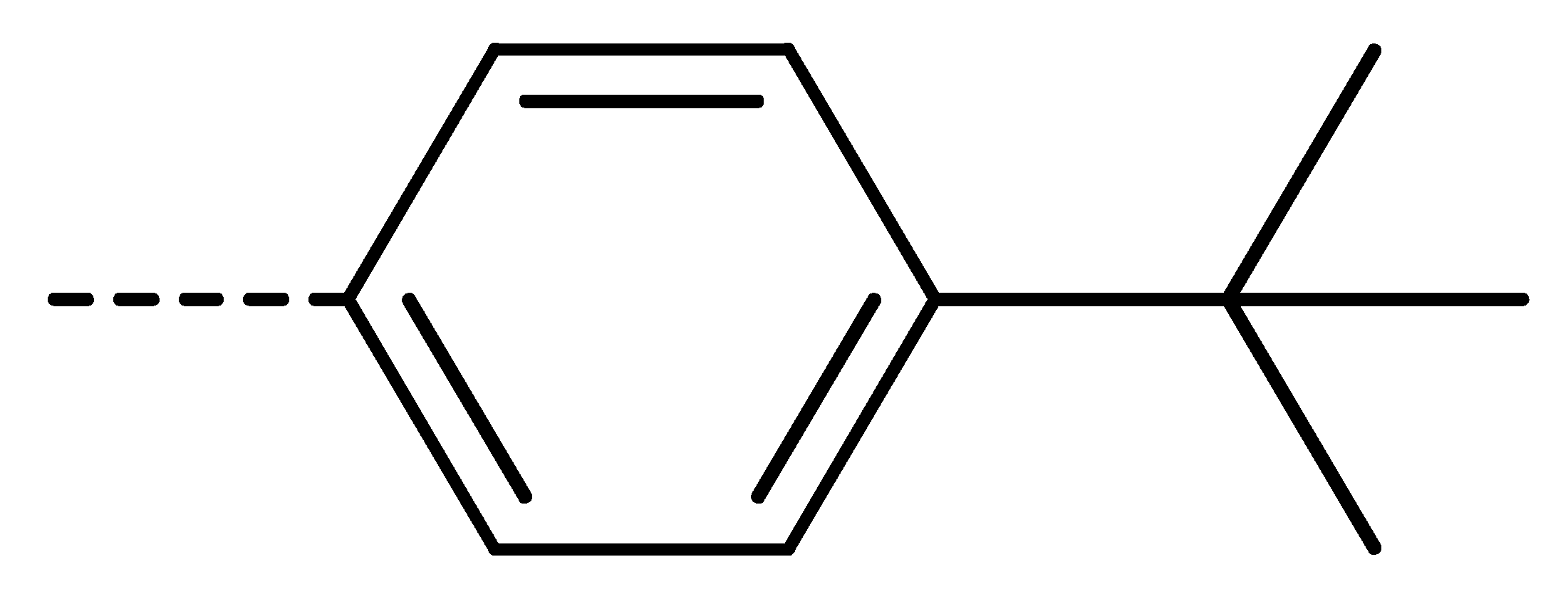

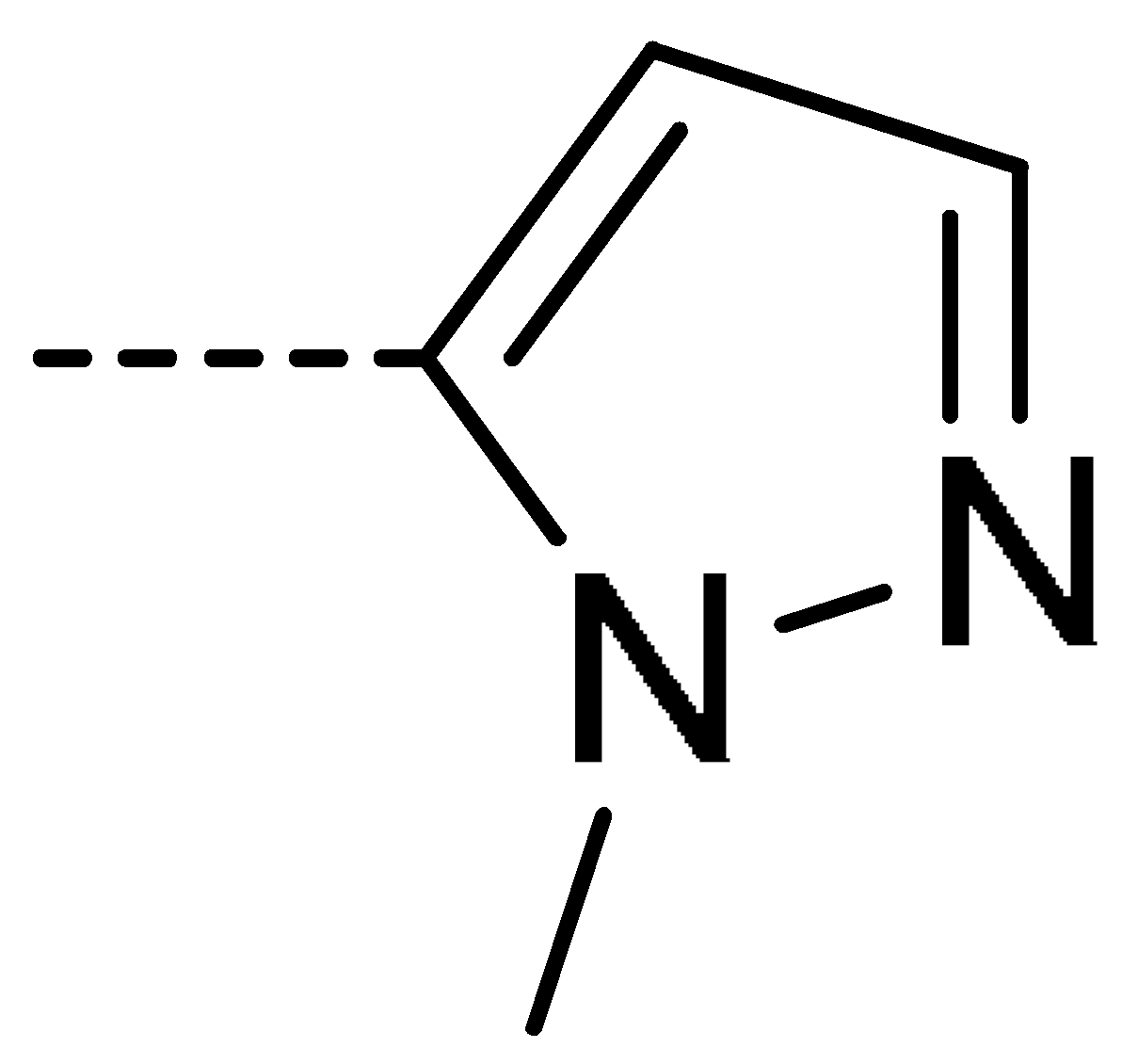

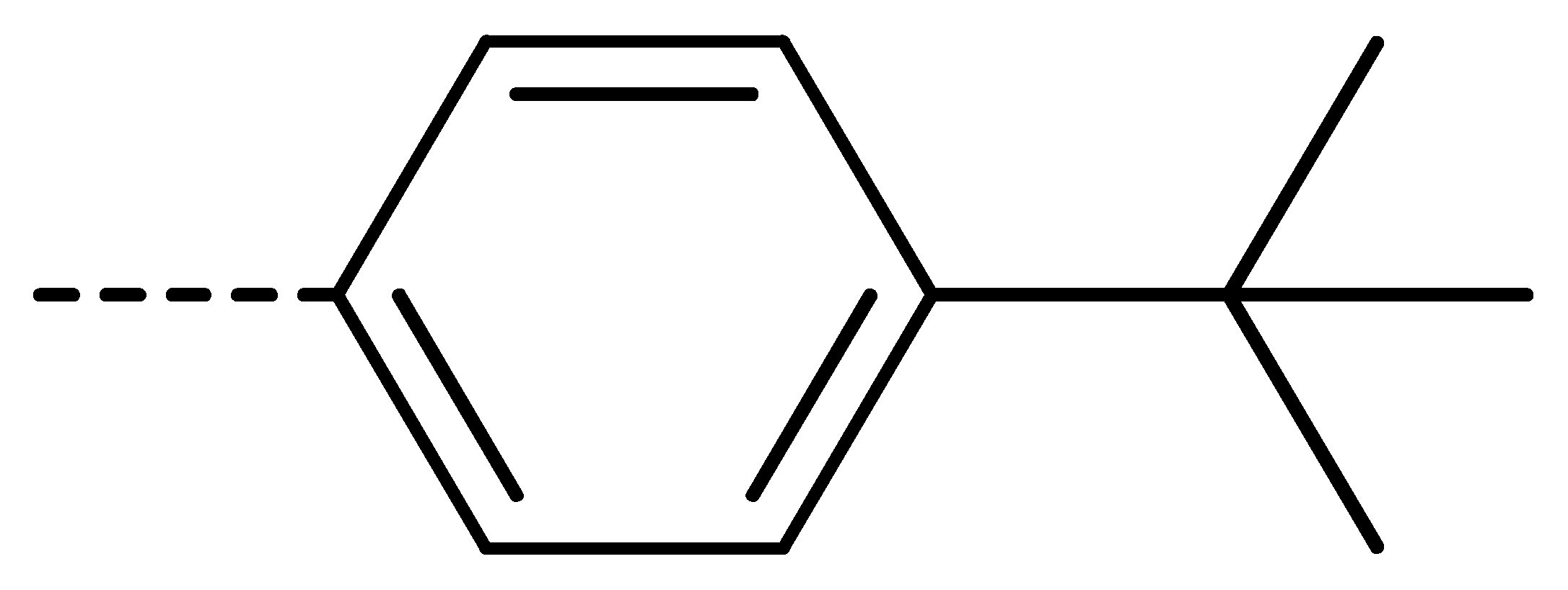

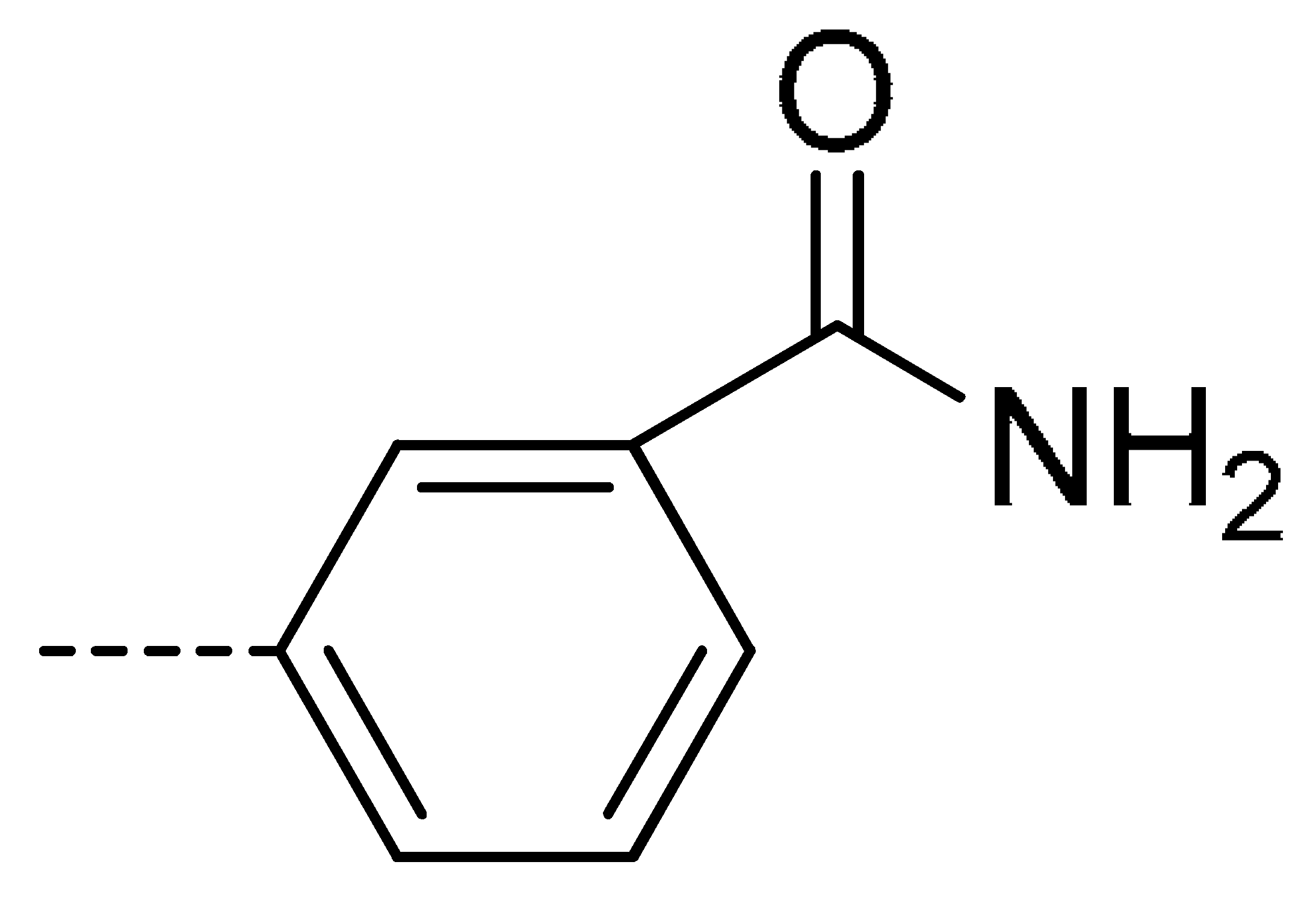

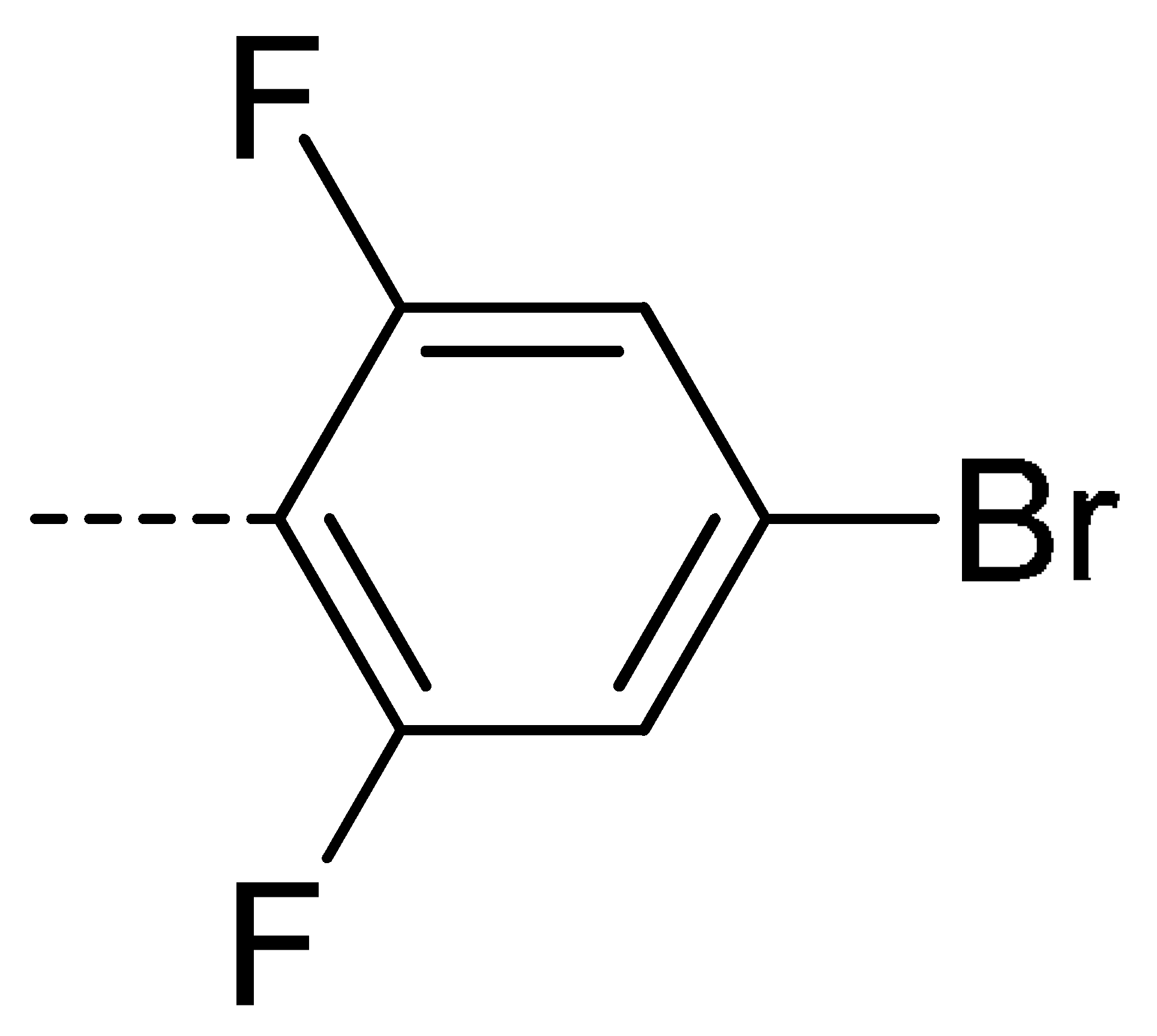

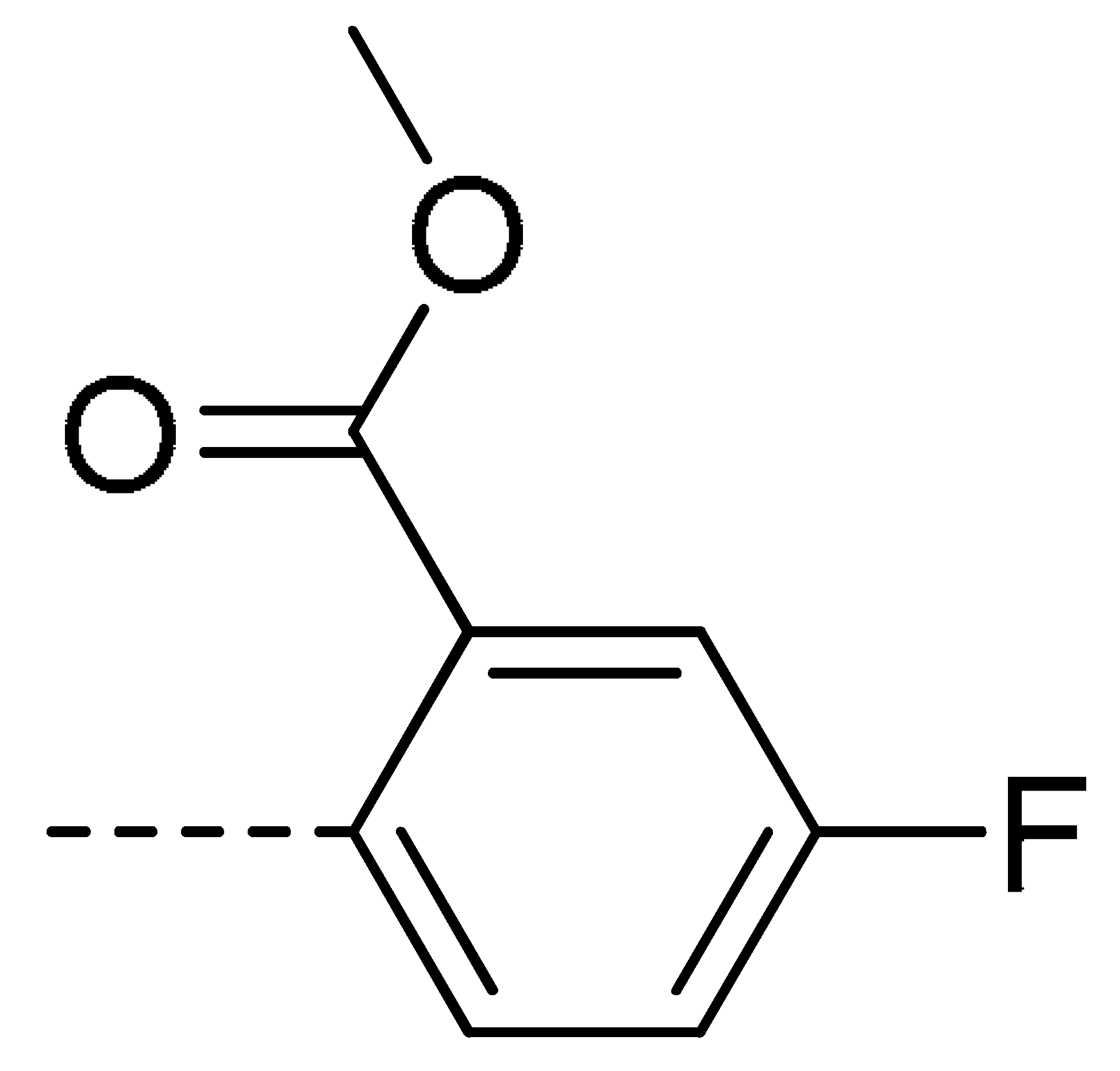

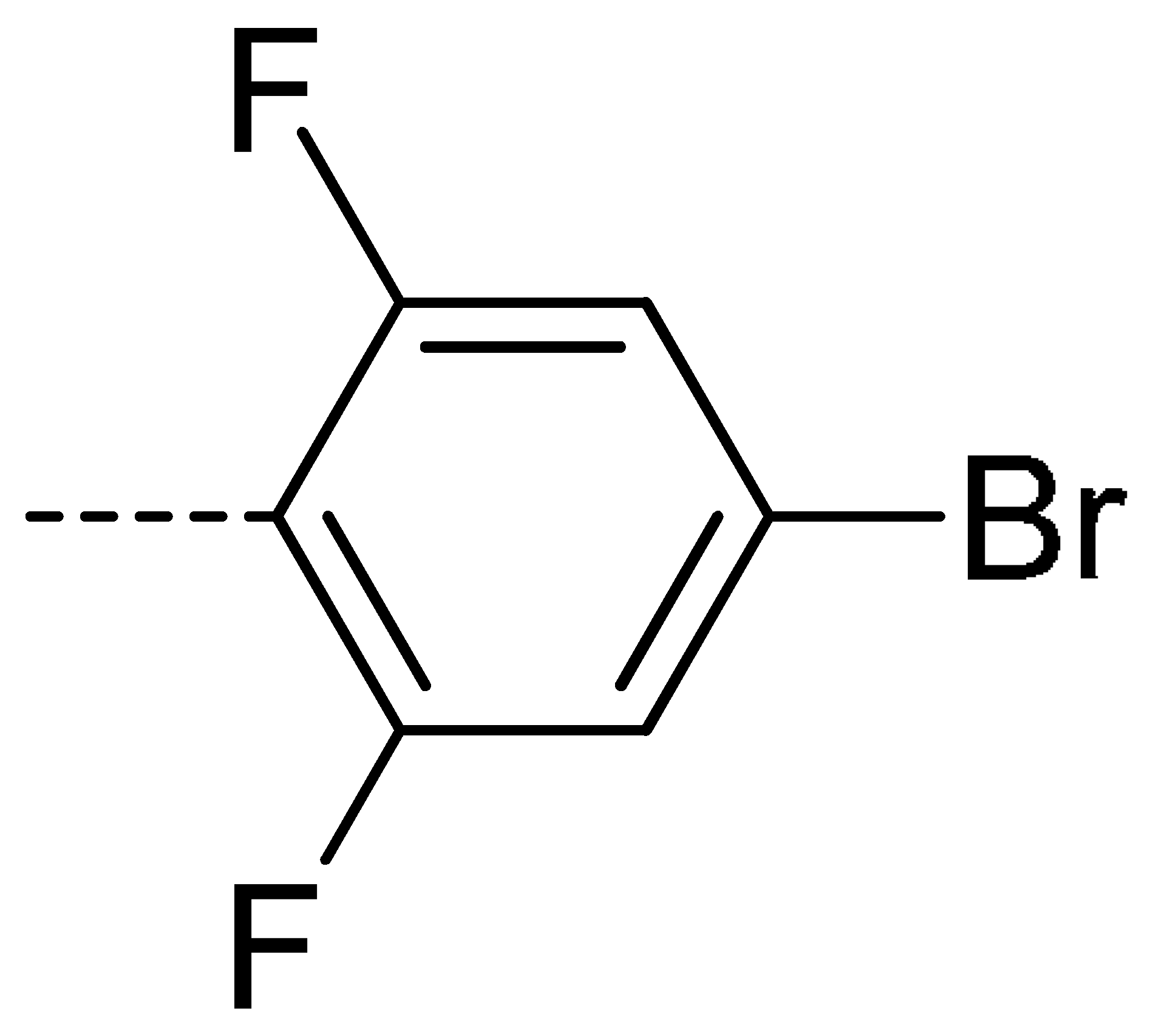

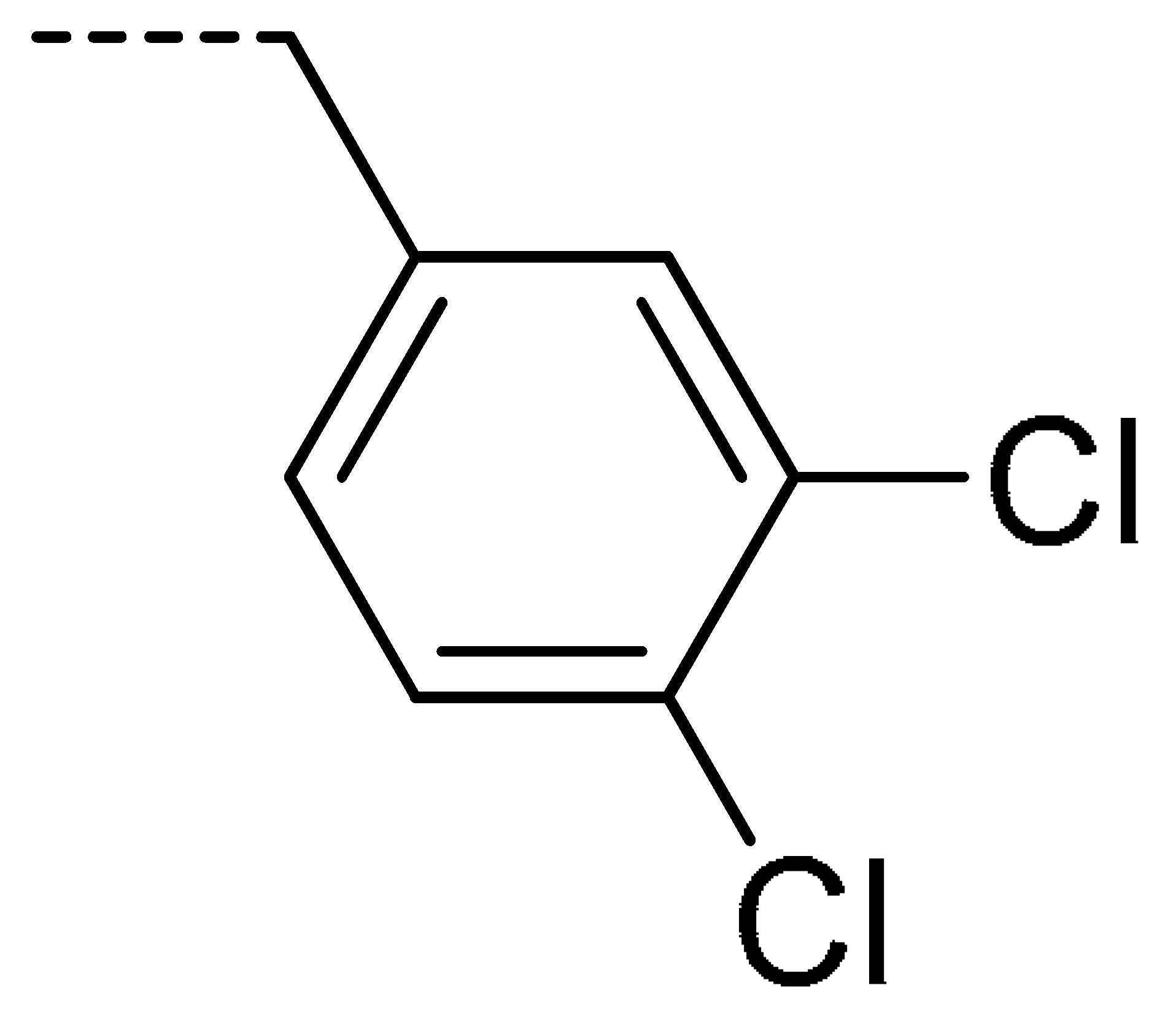

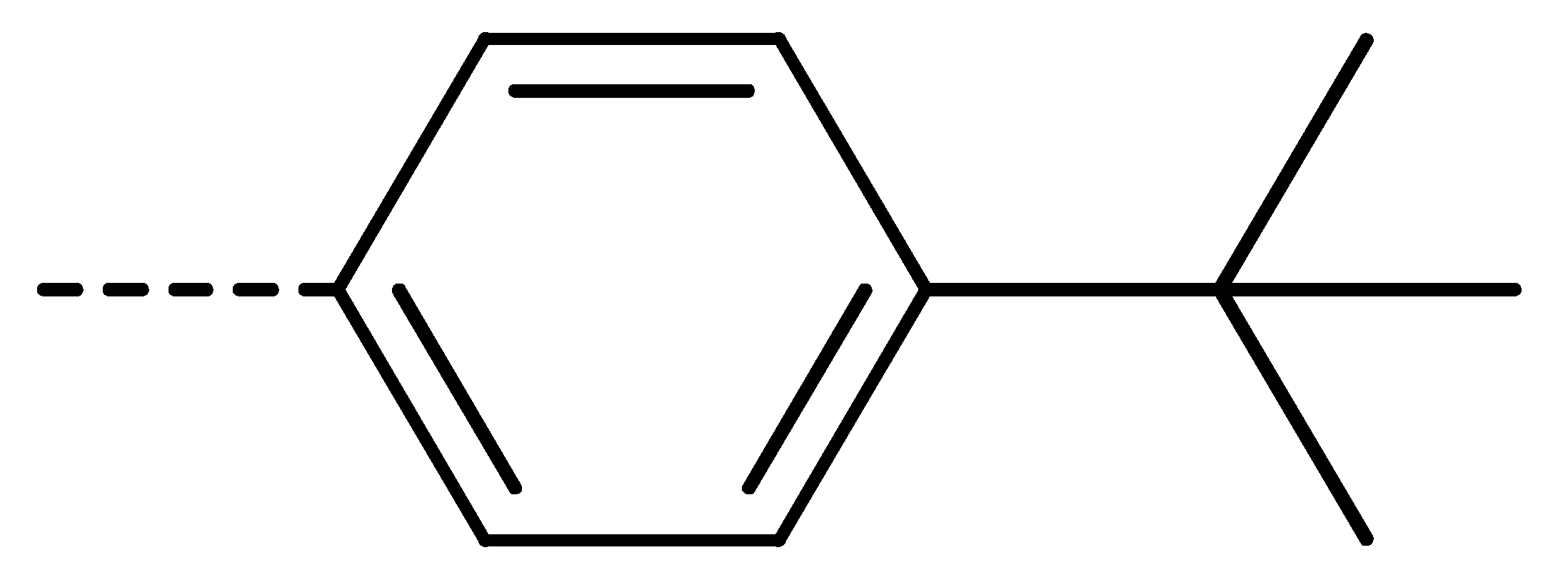

Molecules 24 04363 i001
