Communication

Development of Anthraquinone Analogues as Phosphoglycerate Mutase 1 Inhibitors

by
Ke Huang
,
Lulu Jiang
,
Huiti Li
,
Deyong Ye
* and
Lu Zhou
*
Department of Medicinal Chemistry, School of Pharmacy, Fudan University, No. 826, Zhangheng Rd., Shanghai 201203, China
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(5), 845; https://doi.org/10.3390/molecules24050845
Submission received: 18 December 2018 / Revised: 24 January 2019 / Accepted: 28 January 2019 / Published: 27 February 2019
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
Phosphoglycerate mutase 1 (PGAM1) coordinates glycolysis and biosynthesis to promote cancer cell proliferation, and is believed to be a promising target for cancer therapy. Herein, based on the anthraquinone scaffold, we synthesized 31 anthraquinone derivatives and investigated the structure−activity relationship (SAR). The 3-substitient of sulfonamide on the anthraquinone scaffold was essential for maintaining potency and the modifications of the hydroxyl of alizarin would cause a sharp decrease in potency. In the meantime, we determined the co-crystal structure of PGAM1 and one of the anthraquinone inhibitors 9i with IC50 value of 0.27 μM. The co-crystal structure revealed that F22, K100 and R116 of PGAM1 were critical residues for the binding of inhibitors which further validated the SAR. Consistent with the crystal structure, a competitive assay illustrated that compound 9i was a noncompetitive inhibitor. In addition, compound 9i effectively restrained different lung cancer cells proliferation in vitro. Taken together, this work provides reliable guide for future development of PGAM1 inhibitors and compound 9i may act as a new leading compound for further optimization.

1. Introduction

In 1924, Warburg discovered that cancer cells tended to metabolize glucose through aerobic glycolysis rather than oxidative phosphorylation, even if there was sufficient oxygen [1,2]. This character of cancer cells was distinct from normal differentiated cells and the phenomenon was thereafter named the “Warburg effect”. However, the reason why cancer cells adopt such an altered metabolism remained unclear. In the past decades, reprogramming energy metabolism was considered as an emerging hallmark of cancer cells [3] and the study of cancer metabolism has drawn great interest [4,5,6,7,8]. During aerobic glycolysis of cancer cells, adenosine 5′-triphosphate (ATP) is produced inefficiently in this metabolic pattern, whereas building blocks such as nucleotides, and amino acids are generated in large amounts, satisfying the demands of anabolic biosynthesis which are essential for rapid cell proliferation [9,10,11,12]. Nowadays, various enzymes playing critical roles in cancer metabolism have been reported, including isocitrate dehydrogenase [13,14,15]. Inhibitors targeting these enzymes have been approved by Food and Drug Administration [14,15] which further demonstrated the potential of modulating cancer metabolism for cancer therapy.
Phosphoglycerate mutase 1 (PGAM1) is a key enzyme in the 8th step of glycolysis pathway converting 3-phosphoglycerate (3PG) to 2-phosphoglycerate (2PG) [16]. Previously we found that PGAM1 could balance the intracellular concentrations of its substrate 3PG and its product 2PG to control tumor growth [17]. In detail, 3PG inhibits 6-phosphogluconate dehydrogenase in pentose phosphate pathway (PPP) and 2PG activates 3-phosphoglycerate dehydrogenase in serine synthesis [17]. When PGAM1 is inhibited by a small molecule or shRNA, intracellular level of 3PG increased and 2PG decreased which led to the blockade of PPP, serine synthesis, glycolysis and subsequently impaired tumor growth. Since PGAM1 regulates both glycolysis and biosynthesis, developing inhibitors targeting PGAM1 is considered as a way of dual inhibition of catabolism and anabolism for cancer therapy [18]. Furthermore, PGAM1 is upregulated in many kinds of tumors and the expression of PGAM1 is correlated with cancer patients’ prognosis [19,20,21]. Recently, more functions of PGAM1 in cancer metabolism were described. Posttranslational modulations of PGAM1 such as Y26 phosphorylation [22] and deacetylation of K100 [23] would promote cancer cell proliferation and tumor growth. Besides, it is essential for homologous recombination repair by regulating the deoxyribonucleotide triphosphate nucleoside (dNTP) pool [24] and it facilitates cancer cell migration independent of its metabolic function [25]. Taken together, PGAM1 is a promising target for cancer treatment.
However, up to now, only four representative PGAM1 inhibitors were reported (Figure 1). The first PGAM1 inhibitor 1 (MJE3) was discovered by the Cravatt group in 2005 [26]. It was identified as a covalent inhibitor labeling the K100 of PGAM1 by spiroepoxides [27]. Another PGAM1 inhibitor described these days was 2((−)-epigallocatechin-3-gallate (EGCG)), a natural product from green tea [28]. It demonstrated strong inhibition activity towards PGAM1 [28] but it was reported to display extensive potency on multiple targets [29,30,31]. We discovered the other two inhibitors, one of which was anthraquinone derivative 3 (PGMI-004A) [17] and the other was the xanthone derivative 4 (12r) [32]. Both of them showed moderate inhibition activity on PGAM1 and cancer cell proliferation.
Since only a limited amount of anthraquinone inhibitors were reported, the structure−activity relationship (SAR) of anthraquinone derivatives and PGAM1 was not well studied yet. Besides, up to these days, the molecular interactions of PGAM1 and anthraquinone inhibitor were not observed in crystal structure. However, anthraquinones exhibit a variety of pharmacological activities including anticancer [33,34,35], antifungal [36], and antibacterial properties [37] and so on. What’s more, there are many clinically approved anthraquinone drugs such as doxorubicin and mitoxantrone with strong potency in suppressing cancer cell proliferation [38]. Here we designed and synthesized a series of new anthraquinone compounds and evaluated their biological activity on PGAM1 and cancer cell proliferation. In addition, we solved the co-crystal structure of PGAM1 and compound 9i which interpreted the molecular mechanism of compound 9i interacting with PGAM1 and further confirmed the SAR we investigated. Combined with the crystal structure, additional competitive assay demonstrated the noncompetitive binding of compound 9i with the 3PG substrate.

2. Results and Discussion

2.1. Chemistry

Four classes of anthraquinone derivatives were synthesized, with 1,2-substituted, 3-substituted, 2,4-substituted, and 2,3-substituted anthraquinone core scaffolds (Figure 2).
As shown in Scheme 1, starting from commercially available alizarin, compounds 6a–e were obtained by substitution with ethyl bromoacetate, hydrolysis of the ester, and amidation.
In Scheme 2, firstly, alizarin was nitrated by HNO3 and then reduced by Sn and HCl to afford the key amine intermediate 8, which was reacted with diverse sulfonyl chlorides to give the target compounds 9a–q.
As shown in Scheme 3, the 4-nitro group was reduced to an amino group after the nitrification of compound 6c, followed by sulfonylation of the amino group and hydrolysis of the ester as described above.
Finally, compound 9i was employed as a starting material, and compounds 14a–g were obtained by substitution with different reagents and further hydrolysis of the ester or amidation of the carboxyl group (Scheme 4).

2.2. SAR Exploration of the Anthraquinone Derivatives Against PGAM1

Previously we reported several anthraquinone compounds as PGAM1 inhibitors [17]. Due to the limited amount of compounds and the lack of chemical diversity, the SAR of anthraquinone derivatives and PGAM1 remained poorly understood. Here we synthesized four classes of compounds on the base of bioisosterism to study the SAR of anthraquinone derivatives against PGAM1 in detail (Figure 2), using an optimized enzymatic assay in which PGMI-004A served as a control with an IC50 value of 1.2 ± 0.3 μM. Firstly, we found that different modifications of the hydroxyl of alizarin (6a–e) showed weak PGAM1 inhibition activity at 10 μM (Table 1).
In order to explore the SAR of 3-substituents of the anthraquinone scaffold against PGAM1, compounds 9a–q were synthesized by reversing the sulfonamide group of PGMI-004A. Compounds 9a–e with different substituents on the phenyl ring displayed comparable inhibition activity towards PGAM1, with IC50 values of 0.5 μM or so (Table 2). They were much more potent than the compounds without the sulfonamide group, suggesting the sulfonamide group was essential for maintaining potency. Then, we studied the impact of substituents of different halogens on the phenyl ring (9f–q) on the inhibition activity towards PGAM1 (Table 2). Generally, compounds with Cl, Br and I substituents (9i–q) with IC50 values below 0.5 μM performed better than F substituents (9f–h). Among them, we discovered one of the most potent PGAM1 inhibitors 9i with an IC50 value of 0.27 μM and we solved the co-crystal structure of compound 9i with PGAM1 which would be discussed below.
We next moved the sulfonamide to the C4 position of alizarin by substituting the hydroxyl, followed by nitrification, reduction, and sulfonylation. Probably due to the modification of the hydroxyl and replacement of the sulfonamide, compounds 12 and 13 failed to maintain potency, decreasing 10% and 34% of PGAM1 activity at 10 μM, respectively. Finally, considering the good solubility and potency of inhibitor 9i, we kept the 4-chlorobenzene group and synthesized compounds 14a–g. However, diverse modifications of the hydroxyl caused a loss of inhibition activity toward PGAM1 to different extents (Table 3).
In order to exclude the inhibition of the other three enzymes (enolase-pyruvate kinase-LDH) in the coupled assay, we performed counter screening of selected compounds with IC50 value below 1 μM on PGAM1.
As shown in Table 4, the compounds displayed almost no inhibition on the three downstream enzymes at 0.5 μM which further confirmed the on-target effect of the compounds.

2.3. Binding Mode of Compound 9i with PGAM1

To further understand the molecular mechanism of the anthraquinone derivatives interacting with PGAM1, we determined the X-ray structure of PGAM1 in complex with compound 9i at resolution of 1.98 Å (Table 5). Compound 9i occupied a novel allosteric site adjacent to substrate binding site with nice electron density (Figure 3A,B). The allosteric pocket was surrounded by the residues of F22, R90, K100, R116 and R191. In detail, the anthraquinone scaffold and sulfonamide of compound 9i interacted with the main chain carbonyl of K100 through water bridges (Figure 3C). In addition, a hydrophobic interaction was observed between F22 and chlorine-substituted phenyl ring of compound 9i (Figure 3C). Compound 9i also engaged in a π-cation interaction with R116 (Figure 3C), which explains why modifications of the hydroxyl group led to decreased potency [39]. To validate the binding mode revealed by the co-crystal structure, we tested the activity of PGAM1 mutants (Supplementary Data, Figure S1) and the inhibition activity of compound 9i on different mutations of PGAM1. Compound 9i failed to inhibit mutations of PGAM1 (F22A, R116H and R191H) as effectively as the wild type at concentration of 5 μM which agreed with the results from crystal structure. Furthermore, a substrate competitive assay demonstrated that compound 9i held a non-competitive property with substrate 3PG which was also consistent with the binding mode revealed by X-ray structure. The co-crystal structure together with the molecular biological assays illustrated the binding mode of the anthraquinone inhibitor with PGAM1 and provided useful information for further optimization.

2.4. Inhibition Activity of Selected Compounds on Cancer Cell Proliferation

Given PGAM1 plays a crucial part in cancer metabolism, inhibition of PGAM1 by small molecules is supposed to suppress cancer cell proliferation. We selected the compounds with IC50 values below 10 μM toward PGAM1 to inhibit H1299 cells proliferation. Then the potent inhibitors with IC50 values below 20 μM on H1299 cells were further tested on A549 and PC9 cells. In general, proliferation inhibition of the compounds was correlated with PGAM1 inhibition and the inhibitors performed similarly among different cancer cells, with IC50 values ranging from approximately 6–50 μM (Table 6 and Table 7). Notably, compound 9i effectively suppressed the three different cancer cells proliferation which was also potent towards PGAM1.

3. Materials and Methods

3.1. General Procedures

All reagents were purchased commercially. 1H-NMR and 13C-NMR spectra were recorded on Bruker AC400 and Bruker AC600 NMR spectrometers, respectively (Billerica, MA, USA). Low-resolution mass spectra were recorded on a 6120 Quadrupole mass spectrometer (Agilent, Santa Clara, CA, USA) equipped with electrospray ionization (ESI). High-resolution mass spectra were determined on triple TOF 5600+ MS/MS system (AB Sciex, Concord, ON, Canada) in negative ESI mode. The purity of target compounds was determined by high-performance liquid chromatography (Agilent, Santa Clara, CA, USA, DIKMA Diamonsil Plus C18, 250 × 4.6 mm, 5 μm, 25 °C, UV 290 nM). All the biologically tested compounds achieved ≥95% purity.

3.2. Synthesis of diethyl 2,2′-((9,10-dioxo-9,10-dihydroanthracene-1,2-diyl) bis(oxy)) diacetate (6a)

1,2-Dihydroxyanthracene-9,10-dione (1.2 g, 5 mmol), ethyl 2-bromoacetate (2 g, 12 mmol) and K2CO3 (1.66 g, 12 mmol) were added to N,N-dimethylformamide (DMF, 50 mL) and the mixture was stirred at 80 °C. The mixture was cooled to room temperature and poured into 10% aqueous HCl (350 mL). Then the suspension was extracted with ethyl acetate and the organic phase was washed with brine, dried over anhydrous Na2SO4 and filtered. The residue was purified by silica chromatography after removal of ethyl acetate to afford 6a as a yellow solid (0.89 g, 43%). 1H-NMR (400 MHz, DMSO-d6) δ 8.16–8.10 (m, 2H), 8.01 (d, J = 8.8 Hz, 1H), 7.93–7.84 (m, 2H), 7.53 (d, J = 8.8 Hz, 1H), 5.07 (s, 2H), 4.74 (s, 2H), 4.20 (qd, J = 4.0, 7.2 Hz, 4H), 1.23 (td, J = 2.4, 7.2 Hz, 6H). 13C-NMR (151 MHz, DMSO) δ 181.69, 181.42, 168.27, 167.97, 156.49, 146.23, 134.58, 134.32, 133.94, 132.26, 127.15, 126.94, 126.67, 126.18, 124.64, 118.20, 68.72, 65.22, 60.99, 60.44, 14.07, 13.98. MS (ESI) (m/z): 413.1 (M − H)−. HRMS (ESI) calcd. for C22H20O8 [M − H]−: 413.1231; found: 413.1239. Purity 95.1% by HPLC.

3.3. Synthesis of 2,2′-((9,10-dioxo-9,10-dihydroanthracene-1,2-diyl) bis(oxy)) diacetic acid (6b)

Compound 6a (206 mg, 0.5 mmol) and 0.5M aqueous LiOH (8 mL) were added into methanol (8 mL) and the mixture was stirred at 30 °C. The mixture was added dropwise to 10% aqueous HCl and acidified to pH 1–2. A yellow solid (169 mg, 95%) of 6b was obtained by filtration. 1H-NMR (400 MHz, DMSO-d6) δ 12.76 (brs, 2H), 8.14 (d, J = 7.6 Hz, 2H), 8.01 (d, J = 8.4 Hz, 1H), 7.93–7.85 (m, 2H), 7.51 (d, J = 8.8 Hz, 1H), 4.98 (s, 2H), 4.67 (s, 2H). 13C-NMR (151 MHz, DMSO) δ 181.95, 181.45, 169.75, 169.45, 156.76, 146.32, 134.62, 134.31, 133.98, 132.34, 126.97, 126.82, 126.71, 126.20, 124.61, 118.12, 68.62, 65.05. MS (ESI) (m/z): 355.0 (M − H)−. HRMS (ESI) calcd. for C18H12O8 [M − H]−: 355.0459; found: 355.0462. Purity 95.1% by HPLC.

3.4. Synthesis of 2-((1-hydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) oxy)-N,N-dimethylacetamide (6e)

Compound 6d (149 mg, 0.5 mmol), dimethylamine hydrochloride (31 mg, 0.68 mmol), N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDCI, 120 mg, 0.6 mmol), 1-hydroxybenzotriazole (HOBt, 80 mg, 0.6 mmol) and diisopropylethylamine (DIPEA, 175 μL, 1 mmol) were added to dry DMF (10 mL) and the mixture was stirred at room temperature. The mixture was added dropwise to H2O (140 mL). An orange solid (114 mg, 70%) of 6e was obtained by filtration. 1H-NMR (400 MHz, DMSO-d6) δ 12.74 (s, 1H), 8.28–8.11 (m, 2H), 7.99–7.87 (m, 2H), 7.68 (d, J = 8.4 Hz, 1H), 7.31 (d, J = 8.8 Hz, 1H), 5.09 (s, 2H), 3.02 (s, 3H), 2.87 (s, 3H). 13C-NMR (151 MHz, DMSO) δ 188.67, 180.76, 166.18, 152.60, 151.79, 135.20, 134.26, 133.48, 132.95, 126.81, 126.60, 124.89, 120.20, 118.29, 115.94, 66.12, 35.46, 35.01. MS (ESI) (m/z): 324.0 (M − H)−. HRMS (ESI) calcd. for C18H15NO5 [M − H]−: 324.0877; found: 324.0876. Purity 96.4% by HPLC.

3.5. General Procedure for the Synthesis of Compounds 9a–q

Step 1. Nitric acid (1.5 mL, 33.33 mmol, Sinopharm Chemical Reagent Co., Ltd, Shanghai, China) was added to the suspension of alizarin (5 g, 20.8 mmol) in acetic acid (350 mL) at 50 °C. A yellow solid (4.15 g, 70%) of crude product 6 was obtained by filtration [40].
Step 2. Sn (10.5 g, 341 mmol, Sinopharm Chemical Reagent Co., Ltd, Shanghai, China), SnCl2·2H2O (12.5 g, 55.4 mmol) and concentrated HCl (50.4 mL, 604.8 mmol) were added to the suspension of crude product 6 (1.75 g, 6.14 mmol) in ethanol (350 mL, Sinopharm) and the mixture was stirred at room temperature overnight. Then the mixture was poured into water (1 L) and a red solid precipitated. A black solid of crude product 7 (1.41 g, 90%) was obtained after filtration and being dried under vacuum [40].
Step 3. To the solution of crude product 7 (255 mg, 1 mmol) in dry pyridine (5 mL, Sinopharm), corresponding sulfonyl chloride (1.5 mmol, Energy Chemical, Shanghai, China) was added and the mixture was stirred at room temperature. Then it was added to 10% aqueous HCl (50 mL, Sinopharm) and the suspension was extracted with ethyl acetate (Sinopharm). The organic phase was washed with brine, dried over anhydrous Na2SO4 and filtered. The residue was purified by silica chromatography after removal of ethyl acetate to give compounds 9a–q.
N-(3,4-Dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl)-4-(trifluoromethyl) benzenesulfonamide (9a). Yellow solid, 25% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.60 (brs, 1H), 10.90 (brs, 1H), 10.67 (brs, 1H), 8.22–8.12 (m, 2H), 8.09 (d, J = 8.4 Hz, 2H), 8.01 (d, J = 8.4 Hz, 2H), 7.95–7.86 (m, 2H), 7.73 (s, 1H). 13C-NMR (151 MHz, DMSO) δ 187.78, 180.56, 150.37, 144.20, 143.23, 135.02, 134.22, 133.28, 132.79, 132.68 (q, J = 31.7 Hz), 130.34, 127.60 (2C), 126.77, 126.61, 126.59, 126.39, 123.71, 123.38 (q, J = 273.3 Hz), 113.49, 113.35. MS (ESI) (m/z): 462.0 (M − H)−. HRMS (ESI) calcd. for C21H12F3NO6S [M − H]−: 462.0265; found: 462.0284. Purity 99.8% by HPLC.
N-(3,4-Dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl)-4-nitrobenzenesulfonamide (9b). Orange solid, 50% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.61 (brs, 1H), 10.98 (brs, 1H), 10.79 (brs, 1H), 8.41 (d, J = 8.0 Hz, 2H), 8.25–8.06 (m, 4H), 7.97–7.86 (m, 2H), 7.73 (s, 1H). 13C-NMR (151 MHz, DMSO) δ 187.79, 180.53, 150.41, 149.90, 145.71, 143.61, 135.05, 134.24, 133.27, 132.79, 130.11, 128.22(2C), 126.77, 126.41, 124.65(2C), 123.70, 114.04, 113.50. MS (ESI) (m/z): 439.0 (M − H)−. HRMS (ESI) calcd. for C20H12N2O8S [M − H]−: 439.0242; found: 439.0228. Purity 98.4% by HPLC.
N-(3,4-Dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl)-4-(trifluoromethoxy) benzenesulfonamide (9c). Yellow solid, 41% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.61 (brs, 1H), 10.94 (brs, 1H), 10.51 (brs, 1H), 8.22–8.12 (m, 2H), 8.05–7.99 (m, 2H), 7.95–7.85 (m, 2H), 7.74 (s, 1H), 7.61 (dd, J = 1.2, 9.2 Hz, 2H). 13C-NMR (151 MHz, DMSO) δ 187.78, 180.60, 151.20, 150.35, 142.96, 139.19, 135.02, 134.23, 133.30, 132.82, 130.63, 129.29, 126.78, 126.40, 123.74, 121.47, 119.80 (q, J = 259.7 Hz), 113.22, 113.12. MS (ESI) (m/z): 478.0 (M − H)−. HRMS (ESI) calcd. for C21H12F3NO7S [M − H]−: 478.0214; found: 478.0207. Purity 96.8% by HPLC.
N-(3,4-Dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl)-2-(trifluoromethoxy) benzenesulfonamide (9d). Yellow solid, 40% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.62 (brs, 1H), 11.00 (brs, 1H), 10.37 (brs, 1H), 8.24–8.09 (m, 2H), 8.00 (dd, J = 2.0, 8.0 Hz, 1H), 7.96–7.86 (m, 2H), 7.83–7.75 (m, 1H), 7.71 (s, 1H), 7.63–7.51 (m, 2H). 13C-NMR (151 MHz, DMSO) δ 187.81, 180.54, 150.37, 145.18, 143.20, 135.55, 135.05, 134.25, 133.28, 132.82, 132.34, 130.65, 130.41, 127.45, 126.80, 126.43, 123.61, 120.97, 119.81 (q, J = 259.7 Hz), 113.72, 113.26. MS (ESI) (m/z): 477.8 (M − H)−. HRMS (ESI) calcd. for C21H12F3NO7S [M − H]−: 478.0214; found: 478.0225. Purity 95.2% by HPLC.
4-Cyano-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9e). Red solid, 60% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.60 (brs, 1H), 10.77 (brs, 2H), 8.22–8.12 (m, 2H), 8.09 (d, J = 8.0 Hz, 2H), 8.02 (d, J = 8.4 Hz, 2H), 7.96–7.87 (m, 2H), 7.70 (s, 1H). 13C-NMR (151 MHz, DMSO) δ 187.81, 180.57, 150.39, 144.34, 143.46, 135.05, 134.25, 133.49, 133.29, 132.81, 130.22, 127.34, 126.81, 126.75, 126.44, 123.71, 117.60, 115.48, 113.78(2C), 113.44. MS (ESI) (m/z): 419.0 (M − H)−. HRMS (ESI) calcd. for C21H12N2O6S [M − H]−: 419.0343; found: 419.0348. Purity 95.1% by HPLC.
N-(3,4-Dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl)-4-fluorobenzenesulfonamide (9f). Yellow solid, 62% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.58 (brs, 1H), 10.84 (brs, 1H), 10.43 (brs, 1H), 8.19–8.11 (m, 2H), 8.01–7.84 (m, 4H), 7.73 (s, 1H), 7.46 (t, J = 8.8 Hz, 2H). 13C-NMR (151 MHz, DMSO) δ 187.75, 180.59, 164.47 (d, J = 250.7 Hz), 150.32, 142.76, 136.58, 134.99, 134.21, 133.28, 132.81, 130.82, 129.75 (d, J = 9.1 Hz,2C), 126.76, 126.38, 123.72, 116.57 (d, J = 22.7 Hz, 2C), 113.10, 112.89. MS (ESI) (m/z): 412.0 (M − H)−. HRMS (ESI) calcd. for C20H12FNO6S [M − H]−: 412.0297; found: 412.0305. Purity 98.7% by HPLC.
N-(3,4-Dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl)-2-fluorobenzenesulfonamide (9g). Yellow solid, 42% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.61 (brs, 1H), 10.95 (brs, 1H), 10.49 (brs, 1H), 8.21–8.09 (m, 2H), 7.95–7.80 (m, 3H), 7.77–7.67 (m, 2H), 7.46 (t, J = 9.4 Hz, 1H), 7.38 (t, J = 7.6 Hz, 1H). 13C-NMR (151 MHz, DMSO) δ 187.80, 180.56, 158.34 (d, J = 256.7 Hz), 150.40, 143.42, 136.02, 135.01, 134.21, 133.28, 132.81, 130.39, 129.87, 127.94 (d, J = 12.1 Hz), 126.77, 126.41, 124.90, 123.57, 117.44 (d, J = 21.1 Hz), 113.88, 113.32. MS (ESI) (m/z): 412.0 (M − H)−. HRMS (ESI) calcd. for C20H12FNO6S [M − H]−: 412.0297; found: 412.0300. Purity 96.1% by HPLC.
N-(3,4-Dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl)-2,3-difluorobenzenesulfonamide (9h). Red solid, 52% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.60 (brs, 1H), 10.83 (brs, 2H), 8.23–8.11 (m, 2H), 7.96–7.86 (m, 2H), 7.79 (q, J = 8.6 Hz, 1H), 7.69 (s, 1H), 7.62 (t, J = 7.0 Hz, 1H), 7.44–7.34 (m, 1H). 13C-NMR (151 MHz, DMSO) δ 187.86, 180.52, 150.46, 149.96 (dd, J = 249.9 Hz, J = 12.1 Hz), 146.64 (dd, J = 256.7 Hz, J = 13.6 Hz) 144.45, 135.05, 134.22, 133.29, 132.81, 130.25 (d, J = 10.6 Hz), 129.75, 126.78 (d, J = 10.6 Hz), 126.43 d, J = 7.6 Hz), 125.26, 124.95, 123.51, 122.86 (d, J = 16.6 Hz), 115.28 (d, J = 6.0 Hz), 113.72. MS (ESI) (m/z): 430.0 (M − H)−. HRMS (ESI) calcd. for C20H11FNO6S [M − H]−: 430.0202; found: 430.0206. Purity 95.4% by HPLC.
4-Chloro-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9i). Yellow solid, 56% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.61 (brs, 1H), 10.94 (brs, 1H), 10.47 (brs, 1H), 8.22–8.11 (m, 2H), 7.96–7.83 (m, 4H), 7.78–7.63 (m, 3H). 13C-NMR (151 MHz, DMSO) δ 187.76, 180.58, 150.34, 142.90, 139.07, 138.04, 135.00, 134.22, 133.28, 132.80, 130.63, 129.50 (2C), 128.57 (2C), 126.77, 126.39, 123.72, 113.18, 113.08. MS (ESI) (m/z): 427.8 (M − H)−. HRMS (ESI) calcd. for C20H12ClNO6S [M − H]−: 428.0001; found: 428.0005. Purity 99.4% by HPLC.
2,4-Dichloro-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9j). Orange solid, 60% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.62 (brs, 1H), 11.00 (brs, 1H), 10.56 (brs, 1H), 8.20–8.08 (m, 2H), 8.01 (d, J = 8.8 Hz, 1H), 7.95–7.84 (m, 3H), 7.68–7.63 (m, 2H). 13C-NMR (151 MHz, DMSO) δ 187.76, 180.50, 150.44, 143.33, 138.62, 136.55, 134.99, 134.20, 133.24, 132.79, 132.25, 132.12, 131.49, 130.24, 127.85, 126.75, 126.38, 123.63, 113.52, 113.36. MS (ESI) (m/z): 461.8 (M − H)−. HRMS (ESI) calcd. for C20H11Cl2NO6S [M − H]−: 461.9611; found: 461.9614. Purity 99.2% by HPLC.
2,6-Dichloro-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9k). Red solid, 12% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.62 (brs, 1H), 11.00 (brs, 1H), 10.56 (brs, 1H), 8.20–8.09 (m, 2H), 7.94–7.83 (m, 2H), 7.72–7.52 (m, 4H). 13C-NMR (151 MHz, DMSO) δ 187.71, 180.43, 150.40, 142.57, 134.95, 134.80, 134.29, 134.17, 134.13 (2C), 133.22, 132.78, 131.85 (2C), 130.41, 126.75, 126.36, 123.79, 113.20, 112.18. MS (ESI) (m/z): 461.8 (M − H)−. HRMS (ESI) calcd. for C20H11Cl2NO6S [M − H]−: 461.9611; found: 461.9601. Purity 95.7% by HPLC.
2,4,6-Trichloro-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9l). Yellow solid, 10% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.62 (brs, 1H), 10.96 (brs, 1H), 10.73 (brs, 1H), 8.21–8.11 (m, 2H), 7.96–7.86 (m, 4H), 7.66 (s, 1H). 13C-NMR (151 MHz, DMSO) δ 187.77, 180.49, 150.48, 143.28, 137.64, 135.25 (2C), 135.00, 134.43, 134.22, 133.27, 132.83, 131.20 (3C), 126.79, 126.41, 123.78, 113.43, 113.21. MS (ESI) (m/z): 495.8 (M − H)−. HRMS (ESI) calcd. for C20H10Cl3NO6S [M − H]−: 495.9222; found: 495.9220. Purity 99.4% by HPLC.
4-Bromo-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9m). Yellow solid, 65% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.60 (brs, 1H), 10.88 (brs, 1H), 10.47 (brs, 1H), 8.22–8.11 (m, 2H), 7.95–7.78 (m, 6H), 7.73 (s, 1H). 13C-NMR (151 MHz, DMSO) δ 187.77, 180.59, 150.33, 142.88, 139.50, 135.01, 134.23, 133.29, 132.81, 132.44 (2C), 130.65, 128.64 (2C), 127.08, 126.78, 126.39, 123.73, 113.18, 113.05. MS (ESI) (m/z): 471.8 (M − H)−. HRMS (ESI) calcd. for C20H12BrNO6S [M − H]−: 471.9496; found: 471.9495. Purity 96.0% by HPLC.
2-Bromo-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9n). Yellow solid, 46% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.63 (brs, 1H), 11.10 (brs, 1H), 10.24 (brs, 1H), 8.20–8.05 (m, 3H), 7.93–7.84 (m, 3H), 7.67–7.53 (m, 3H). 13C-NMR (151 MHz, DMSO) δ 187.72, 180.55, 150.37, 142.31, 138.96, 135.62, 134.97, 134.74, 134.21, 133.23, 132.80, 130.93, 130.76, 128.28, 126.75, 126.38, 123.75, 119.31, 113.07, 112.14. MS (ESI) (m/z): 471.8 (M − H)−. HRMS (ESI) calcd. for C20H12BrNO6S [M − H]−: 417.9496; found: 417.9498. Purity 97.5% by HPLC.
3-Bromo-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9o). Yellow solid, 54% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.60 (brs, 1H), 10.99 (brs, 1H), 10.53 (brs, 1H), 8.21–8.11 (m, 2H), 8.10 (s, 1H), 7.94–7.83 (m, 4H), 7.71 (s, 1H), 7.57 (t, J = 8.0 Hz, 1H). 13C-NMR (151 MHz, DMSO) δ 187.75, 180.55, 150.33, 142.90, 142.23, 136.02, 134.98, 134.19, 133.27, 132.79, 131.56, 130.49, 129.08, 126.76, 126.37, 125.61, 123.71, 122.16, 113.22, 112.97. MS (ESI) (m/z): 473.8 (M − H)−.HRMS (ESI) calcd. for C20H12BrNO6S [M − H]−: 417.9496; found: 417.9500. Purity 96.1% by HPLC.
4-Iodo-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9p). Yellow solid, 70% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.60 (brs, 1H), 10.87 (brs, 1H), 10.44 (brs, 1H), 8.23–8.10 (m, 2H), 7.99 (d, J = 8.0 Hz, 2H), 7.96–7.85 (m, 2H), 7.73 (s, 1H), 7.64 (d, J = 8.0 Hz, 2H). 13C-NMR (151 MHz, DMSO) δ 187.75, 180.61, 150.31, 142.73, 139.85, 138.23 (2C), 135.00, 134.22, 133.29, 132.82, 130.76, 128.27 (2C), 126.78, 126.39, 123.74, 113.12, 112.85, 101.56. MS (ESI) (m/z): 519.8 (M − H)−. HRMS (ESI) calcd. for C20H12INO6S [M − H]−: 519.9357; found: 519.9334. Purity 99.3% by HPLC.
2-Iodo-N-(3,4-dihydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (9q). Yellow solid, 48% yield.1H-NMR (400 MHz, DMSO-d6) δ 12.64 (brs, 1H), 11.18 (brs, 1H), 10.02 (brs, 1H), 8.19–8.06 (m, 4H), 7.93–7.85 (m, 2H), 7.65 (s, 1H), 7.61 (td, J = 1.2, 8.0 Hz, 1H), 7.33 (td, J = 1.6, 8.0 Hz, 1H). 13C-NMR (151 MHz, DMSO) δ 187.72, 180.58, 150.30, 142.77, 142.13, 141.83, 134.97, 134.22, 134.21, 133.24, 132.81, 131.01, 130.16, 128.64, 126.76, 126.38, 123.83, 112.96, 111.59, 93.30. MS (ESI) (m/z): 519.8 (M − H)−. HRMS (ESI) calcd. for C20H12INO6S [M − H]−: 519.9357; found: 519.9356. Purity 96.3% by HPLC.

3.6. Synthesis of ethyl 2-((4-((4-chlorophenyl) sulfonamido)-1-hydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) oxy) acetate (12)

Step 1. Compound 10 was synthesized according to the same route of compound 7 in which compound 5 was replaced by compound 6c. Yellow solid, 73% yield.
Step 2. Compound 11 was synthesized according to the same route of compound 8 in which compound 7 was replaced by compound 10. Purple solid, 93% yield.
Step 3. Compound 12 was synthesized according to the same route of 9i in which compound 8 was replaced by compound 11. Red solid, 6% yield. 1H-NMR (400 MHz, DMSO-d6) δ 13.37 (s, 1H), 12.44 (s, 1H), 8.20 (d, J = 7.2 Hz, 2H), 8.00–7.83 (m, 4H), 7.64 (d, J = 8.0 Hz, 2H), 7.32 (s, 1H), 5.09 (s, 2H), 4.25 (q, J = 7.2 Hz, 2H), 1.27 (t, J = 7.2 Hz, 3H).13C-NMR (151 MHz, DMSO) δ 187.87, 184.15, 167.48, 153.41, 150.30, 138.86, 137.31, 135.41, 135.23, 134.74, 133.52, 132.12, 129.90 (2C), 128.71 (2C), 127.06, 126.50, 114.75, 109.81, 107.99, 65.44, 61.24, 14.04. MS (ESI) (m/z): 514.2 (M − H)−. HRMS (ESI) calcd. for C24H18ClNO8S [M − H]−: 514.0369; found: 514.0364. Purity 96.0% by HPLC.

3.7. Synthesis of 2-((4-((4-chlorophenyl) sulfonamido)-1-hydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) oxy) acetic acid (13)

Compound 13 was synthesized according to the same route of 6b in which compound 6a was replaced by compound 12. Red solid, 95% yield. 1H-NMR (400 MHz, DMSO-d6) δ 13.36 (s, 1H), 12.53 (s, 1H), 8.23–8.13 (m, 2H), 7.98–7.84 (m, 4H), 7.64 (d, J = 8.4 Hz, 2H), 7.35 (s, 1H), 4.99 (s, 2H). 13C-NMR (151 MHz, Pyr) δ 188.75, 185.01, 171.15, 155.76, 152.45, 140.30, 139.12, 137.34, 134.82, 133.21, 130.44 (2C), 129.85 (2C), 127.85, 127.27, 121.12, 119.10, 115.52, 110.23, 108.94, 67.24. MS (ESI) (m/z): 485.8 (M − H)−. HRMS (ESI) calcd. for C22H14ClNO8S [M − H]−: 486.0056; found: 486.0061. Purity 98.0% by HPLC.

3.8. Synthesis of ethyl 2-((3-((4-chlorophenyl) sulfonamido)-1-hydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) oxy) acetate (14a)

Compound 14a was synthesized according to the same route of 6c in which compound 5 was replaced by compound 9i. Yellow solid, 24% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.74 (s, 1H), 10.59 (s, 1H), 8.22–8.09 (m, 2H), 8.01–7.87 (m, 4H), 7.83–7.68 (m, 3H), 4.85 (s, 2H), 4.19 (q, J = 7.2 Hz, 2H), 1.22 (t, J = 7.2 Hz, 3H). 13C-NMR (151 MHz, DMSO) δ 187.53, 180.83, 169.46, 154.03, 139.72, 138.49, 138.21, 136.81, 135.08, 134.58, 132.87, 132.72, 129.71 (2C), 128.70 (2C), 128.46, 126.88, 126.45, 113.29, 109.22, 68.53, 60.98, 13.98. MS (ESI) (m/z): 514.0 (M − H)−. HRMS (ESI) calcd. for C24H18ClNO8S [M − H]−: 514.0369; found: 514.0363. Purity 95.6% by HPLC.

3.9. Synthesis of 2-((3-((4-chlorophenyl) sulfonamido)-1-hydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) oxy) acetic acid (14b)

Compound 14b was synthesized according to the same route of 6b in which compound 6a was replaced by compound 14a. Yellow solid, 95% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.72 (s, 1H), 8.19–8.10 (m, 2H), 7.97–7.87 (m, 4H), 7.75 (s, 1H), 7.71 (d, J = 8.4 Hz, 2H), 4.80 (s, 2H). 13C-NMR (151 MHz, DMSO) δ 187.49, 180.86, 171.92, 154.23, 139.93, 138.53, 138.14, 137.00, 135.06, 134.59, 132.86, 132.74, 129.76 (2C), 128.67 (2C), 128.58, 126.89, 126.45, 113.28, 108.86, 68.92. MS (ESI) (m/z): 486.0 (M − H)−. HRMS (ESI) calcd. for C22H14ClNO8S [M − H]−: 486.0056; found: 486.0049. Purity 99.0% by HPLC.

3.10. Synthesis of 4-chloro-N-(4-hydroxy-3-methoxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzene- sulfonamide (14c)

Compound 9i (215 mg, 0.5 mmol), K2CO3 (70 mg, 0.5 mmol) and iodomethane (70 mg, 12 mmol) were added to DMF (2.5 mL) and mixture was stirred at room temperature. The mixture was added to 10% aqueous HCl (20 mL). The suspension was extracted with ethyl acetate and the organic phase was washed with brine, dried over anhydrous Na2SO4 and filtered. The residue was purified by silica chromatography after removal of ethyl acetate to afford 14c as a yellow solid (115 mg, 52%). 1H-NMR (400 MHz, DMSO-d6) δ 12.68 (brs, 1H), 11.02 (brs, 1H), 8.28–8.14 (m, 2H), 7.99–7.89 (m, 2H), 7.70 (q, J = 8.5 Hz, 4H), 7.45 (s, 1H), 3.20 (s, 3H). 13C-NMR (151 MHz, DMSO) δ 188.19, 180.25, 151.50, 150.13, 138.19, 137.11, 135.30, 134.32, 133.37, 132.82, 132.10, 129.46 (2C), 129.16 (2C), 126.88, 126.62, 122.74, 121.75, 115.43, 37.30. MS (ESI) (m/z): 442.0 (M − H)−. HRMS (ESI) calcd. for C21H14ClNO6S [M − H]−: 442.0158; found: 442.0162. Purity 100% by HPLC. Purity 97.0% by HPLC.

3.11. Synthesis of 4-chloro-N-(4-hydroxy-3-methoxy-9,10-dioxo-9,10-dihydroanthracen-2-yl)-N-methyl- benzenesulfonamide (14d)

Compound 14d was synthesized according to the same route of 14c in which room temperature was raised to 40 °C. Orange solid, 50% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.79 (s, 1H), 8.28–8.13 (m, 2H), 8.00–7.92 (m, 2H), 7.76 (q, J = 8.4 Hz,4H), 7.40 (s, 1H), 3.80 (s, 3H), 3.23 (s, 3H). 13C-NMR (151 MHz, DMSO) δ 188.22, 180.56, 155.48, 150.66, 138.57, 138.37, 136.79, 135.40, 134.67, 132.96, 132.83, 129.62 (2C), 129.23 (2C), 127.10, 126.96, 126.72, 119.91, 116.60, 60.65, 38.12. MS (ESI) (m/z): 456.0 (M − H)−. HRMS (ESI) calcd. for C22H16ClNO6S [M − H]−: 456.0314; found: 456.0305. Purity 100% by HPLC.

3.12. Synthesis of 4-((4-chlorophenyl) sulfonyl)-12-hydroxy-3,4-dihydro-2H-anthra[2,3-b][1,4]-oxazine- 6,11-dione (14e)

Compound 14e was synthesized according to the same route of 14c in which iodomethane was replaced by 1,2-dibromoethane. Orange solid, 32% yield. 1H-NMR (400 MHz, DMSO-d6) δ 12.63 (s, 1H), 8.18 (t, J = 8.2 Hz, 2H), 8.11 (s, 1H), 7.98–7.88 (m, 2H), 7.84 (d, J = 8.4 Hz, 2H), 7.72 (d, J = 8.4 Hz, 2H), 4.06 (dd, J = 4.4, 16.8 Hz, 4H). 13C-NMR (151 MHz, DMSO) δ 187.52, 180.70, 151.78, 140.17, 139.33, 136.21, 135.07, 134.43, 133.27, 132.79, 130.21 (2C), 129.30, 129.04 (2C), 126.92, 126.55, 124.47, 113.41, 112.82, 64.03, 43.77. MS (ESI) (m/z): 456.0 (M + H)+. HRMS (ESI) calcd. for C22H14ClNO6S [M + H]+: 456.0303; found: 456.0307. Purity 100% by HPLC.

3.13. Synthesis of 4-chloro-N-(3-(2-hydrazinyl-2-oxoethoxy)-4-hydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl) benzenesulfonamide (14f)

Compound 14a (20 mg, 0.04 mmol) and hydrazine hydrate (85%, 5 μL, 0.16 mmol) were added to ethanol (1.5 mL) and mixture was stirred at 76 °C. A yellow solid (14 mg, 72%) of 14f was obtained by filtration. 1H-NMR (400 MHz, DMSO-d6) δ 12.95 (brs, 1H), 8.43–7.36 (m, 9H), 4.53 (s, 2H). 13C-NMR (151 MHz, DMSO) δ 187.43, 180.96, 168.15, 154.79, 140.49, 138.43, 135.10, 134.98, 134.67, 132.89, 132.81, 129.78 (2C), 129.08, 128.64 (2C), 128.51, 126.95, 126.49, 113.41, 109.56, 70.47. MS (ESI) (m/z): 500.0 (M − H)−. HRMS (ESI) calcd. for C22H16ClN3O7S [M − H]−: 500.0325; found: 500.0340. Purity 95.1% by HPLC.

3.14. Synthesis of 3-((4-chlorophenyl) sulfonamido)-1-hydroxy-9,10-dioxo-9,10-dihydroanthracen-2-yl methanesulfonate (14g)

Compound 9i (107 mg, 0.25 mmol) and DIPEA (50 μL, 0.3mmol) were added to pyridine (1.5 mL), and then methanesulfonyl chloride (23 μL,0.3 mmol) was added to the mixture. After being stirred at room temperature for 4 h, the mixture was added to 10% aqueous HCl (20 mL). The suspension was extracted with ethyl acetate and the organic phase was washed with brine, dried over anhydrous Na2SO4 and filtered. The residue was purified by silica chromatography after removal of ethyl acetate to afford 14 g as a yellow solid (83 mg, 65%). 1H-NMR (400 MHz, DMSO-d6) δ 12.81 (s, 1H), 8.23–8.11 (m, 2H), 8.00–7.90 (m, 4H), 7.72 (d, J = 8.4 Hz, 2H), 7.64 (s, 1H), 3.61 (s, 3H). 13C-NMR (151 MHz, DMSO) δ 186.86, 180.93, 155.49, 138.86, 138.32, 135.07, 134.76, 132.83 (2C), 131.81, 131.31, 129.70 (3C), 128.79, (3C) 126.98, 126.50, 109.55, 40.45. MS (ESI) (m/z): 505.8 (M − H)−. HRMS (ESI) calcd. for C21H14ClNO8S2 [M − H]−: 505.9777; found: 505.9791. Purity 99.5% by HPLC.

3.15. PGAM1 Enzymatic Assay

Firstly, 1 μL inhibitor in dimethyl sulfoxide (DMSO) incubated with 49 μL 4.6 nM recombinant PGAM1, then 50 μL enzyme mix containing 3 units/mL enolase (Sigma-Aldrich, Saint Louis, MO, USA), 3 units/mL recombinant pyruvate kinase M2 (Sigma-Aldrich), 0.6 units/mL recombinant lactatdehydrogenase (LDH, Sigma-Aldrich), 100 mM Tris-HCl, 100 mM KCl, 5 mM MgCl2, 1 mM adenosine diphosphate (ADP), 0.2 mM the reduced form of nicotinamide adenine dinucleotide (NADH) and 4 mM 3PG was added. PGAM1 activity was measured as the decrease in OD at 340 nm. In addition, we performed a counter screening in which 4mM 2PG was added to 50 μL reaction mix containing the indicated inhibitor, 3 units/mL enolase (Sigma-Aldrich), 3 units/mL recombinant pyruvate kinase M2 (Sigma-Aldrich), 0.6 units/mL recombinant LDH (Sigma-Aldrich), 100 mM Tris-HCl, 100 mM KCl, 5 mM MgCl2, 1 mM ADP and 0.2 mM NADH. The other three enzyme activity was measured as the decrease in OD at 340 nm [17].

3.16. Constructions of Mutations of PGAM1

The wild-type plasmid was a gift from Department of Chemistry and Institute for Biophysical Dynamics, University of Chicago (Chicago, IL, USA). To obtain PGAM1 F22A/R116H/R191H mutant construct, the quick change kit (#KOD-401, TOYOBO, Osaka, Japan) was used to make site-specific mutagenesis, which confirmed by standard DNA sequencing methods. The primers used for the mutation were listed below:
  • PGAM1 F22A Forward: GAACCTGGAGAACCGCGCCAGCGGCTGGTACGAC
  • PGAM1 F22A Reverse: GTCGTACCAGCCGCTGGCGCGGTTCTCCAGGTTC
  • PGAM1 K116H Forward: CAGGTGAAGATCTGGCACCGCTCCTATGATGTCC
  • PGAM1 K116H Reverse: GGACATCATAGGAGCGGTGCCAGATCTTCATCTG
  • PGAM1 K119H Forward: CATGGCAACAGCCTCCACGGCATTGTCAAGCAT
  • PGAM1 K119H Reverse: ATGCTTGACAATGCCGTGGAGGCTGTTGCCATG

3.17. Protein Purification, Crystallization, Data Collection and Structure Determination

The C-terminal His6-tagged PGAM1 was expressed and affinity purified following the reported protocols [22]. The crystals of PGAM1 were obtained using the hanging drop vapor-diffusion method at 16 °C in a crystallization buffer containing of 8% (w/v) PEG3350 and 100 mM MES 6.0. To obtain the co-crystal of PGAM1 with compound 9i, the crystals of PGAM1 were soaked in stock solution containing 500 μM 9i for 2 h. Crystals were then cryo-protected by brief soaking in a mixture solution of crystallization buffer:glycerol (76:24) and quickly cooled in liquid nitrogen. Diffraction data were collected at beamline BL17U1, BL18U1 and BL19U1 in the Shanghai Synchrotron Radiation Facility (SSRF, Shanghai, China) using an X-ray beam of wavelength 0.97851 Å. The data was handled with HKL3000 [41] and the structure was determined by using molecular replacement in CCP4 [42] via an initial model of PGAM1 derived from PDB entry 4GPZ [22]. The model was then refined to 1.98 Å resolution using Phenix. The ligand restraints were generated using eLBOW in Phenix and manual rebuilding of the model was completed using the molecular graphics program COOT [43] according to the electronic density. All the graphs were plotted by Pymol (DeLano Scientific LLC, San Carlos, CA, USA).

3.18. Cell Viability Assays

The H1299 cell line was obtained from Guangzhou Jenniobio Biotechnology Co., Ltd. (Guangzhou, China), PC9 and A549 cells were gifted from Deng Jiong’s lab in the School of Medicine, Shanghai Jiao Tong University, Shanghai, China). H1299, PC9 cells were cultured in RPMI-1640 medium and A549 cells were cultured in F-12K medium containing 10% fetal bovine serum (FBS), 100 units/mL of Penicillin and 100 μg/mL Streptomycin. In cell viability assays, 2000 H1299 cells, A549 cells or 1000 PC9 cells per well were seeded in 96-well plate. After attachment for 24 h, the cells were treated with indicated inhibitor for 72 h. After incubation with 0.5 mg/mL methylthiazolyldiphenyl-tetrazolium bromide (MTT) for 4 h, cell viability was measured as the OD at 570 nm.

4. Conclusions

In summary, we designed and synthesized 31 anthraquinone derivatives as PGAM1 inhibitors. The SAR study focused on the effect of 1,2-substituents, 3-substituents, 2,4-substituents, and 2,3-substituents on the anthraquinone core scaffold activity against PGAM1. Among them, 3- sulfonamide substituents but not 4-substituents on the anthraquinone scaffold were essential for maintaining potency, which was further revealed by the X-ray structure of PGAM1 complexed with compound 9i with IC50 value of 0.27 μM. In addition, modifications of the hydroxyl of alizarin disrupted the π-cation interaction of PGAM1 and the anthraquinone derivatives which led to the loss of potency. Taken as a whole, the SAR study of anthraquinone derivatives against PGAM1 provided useful information for further discovery of PGAM1 inhibitors.

Supplementary Materials

The following are available online, Figure S1: The activity of PGAM1 mutant.

Author Contributions

conceptualization, K.H., D.Y. and L.Z.; chemistry, K.H. and H.L.; biological assay, K.H. and L.J.; structure determination, L.J. and L.Z.; writing—original draft preparation, K.H.; writing—review and editing, K.H., D.Y. and L.Z.

Funding

This research was funded by the Chinese National Natural Science Foundation (grant no. 21472026, 21877014), the Shanghai Municipal Committee of Science and Technology(14XD1400300), the program for Shanghai Rising Star (15QA1400300), and the open grant of the State Key Laboratory of Bio-organic and Natural Products Chemistry, CAS.

Acknowledgments

We thank Deng Jiong’s lab in the School of Medicine, Shanghai Jiao Tong University for providing the A549 and PC9 cells.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Warburg, O.; Posener, K.; Negelein, E. Ueber den stoffwechsel der tumoren. Biochem. Z. 1924, 152, 319–344. [Google Scholar]
  2. Warburg, O. On the origin of cancer cells. Science 1956, 123, 309–314. [Google Scholar] [CrossRef] [PubMed]
  3. Hanahan, D.; Weinberg, R.A. Hallmarks of cancer: The next generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef] [PubMed]
  4. Vander Heiden, M.G.; DeBerardinis, R.J. Understanding the Intersections between Metabolism and Cancer Biology. Cell 2017, 168, 657–669. [Google Scholar] [CrossRef] [PubMed]
  5. DeNicola, G.M.; Cantley, L.C. Cancer’s fuel choice: New flavors for a picky eater. Mol. Cell 2015, 60, 514–523. [Google Scholar] [CrossRef] [PubMed]
  6. Pavlova, N.N.; Thompson, C.B. The Emerging Hallmarks of Cancer Metabolism. Cell Metab. 2016, 23, 27–47. [Google Scholar] [CrossRef] [PubMed]
  7. Schulze, A.; Harris, A.L. How cancer metabolism is tuned for proliferation and vulnerable to disruption. Nature 2012, 491, 364–373. [Google Scholar] [CrossRef] [PubMed]
  8. Dang, C.V. Links between metabolism and cancer. Genes Dev. 2012, 26, 877–890. [Google Scholar] [CrossRef] [PubMed]
  9. Kroemer, G.; Pouyssegur, J. Tumor cell metabolism: Cancer’s Achilles’ heel. Cancer Cell 2008, 13, 472–482. [Google Scholar] [CrossRef] [PubMed]
  10. DeBerardinis, R.J.; Lum, J.J.; Hatzivassiliou, G.; Thompson, C.B. The biology of cancer: Metabolic reprogramming fuels cell growth and proliferation. Cell Metab. 2008, 7, 11–20. [Google Scholar] [CrossRef] [PubMed]
  11. Vander Heiden, M.G.; Cantley, L.C.; Thompson, C.B. Understanding the Warburg effect: The metabolic requirements of cell proliferation. Science 2009, 324, 1029–1033. [Google Scholar] [CrossRef] [PubMed]
  12. Cantor, J.R.; Sabatini, D.M. Cancer cell metabolism: One hallmark, many faces. Cancer Discov. 2012, 2, 881–898. [Google Scholar] [CrossRef] [PubMed]
  13. Hay, N. Reprogramming glucose metabolism in cancer: Can it be exploited for cancer therapy? Nat. Rev. Cancer 2016, 16, 635–649. [Google Scholar] [CrossRef] [PubMed]
  14. Vander Heiden, M.G. Targeting cancer metabolism: A therapeutic window opens. Nat. Rev. Drug Discov. 2011, 10, 671–684. [Google Scholar] [CrossRef] [PubMed]
  15. Wolpaw, A.J.; Dang, C.V. Exploiting Metabolic Vulnerabilities of Cancer with Precision and Accuracy. Trends Cell Biol. 2018, 28, 201–212. [Google Scholar] [CrossRef] [PubMed]
  16. Fothergill-Gilmore, L.A.; Watson, H.C. The phosphoglycerate mutases. Adv. Enzymol. Relat. Areas Mol. Biol. 1989, 62, 227–313. [Google Scholar] [PubMed]
  17. Hitosugi, T.; Zhou, L.; Elf, S.; Fan, J.; Kang, H.B.; Seo, J.H.; Shan, C.; Dai, Q.; Zhang, L.; Xie, J.; et al. Phosphoglycerate mutase 1 coordinates glycolysis and biosynthesis to promote tumor growth. Cancer Cell 2012, 22, 585–600. [Google Scholar] [CrossRef] [PubMed]
  18. Chaneton, B.; Gottlieb, E. PGAMgnam style: A glycolytic switch controls biosynthesis. Cancer Cell 2012, 22, 565–566. [Google Scholar] [CrossRef] [PubMed]
  19. Li, C.; Shu, F.; Lei, B.; Lv, D.; Zhang, S.; Mao, X. Expression of PGAM1 in renal clear cell carcinoma and its clinical significance. Int. J. Clin. Exp. Pathol. 2015, 8, 9410–9415. [Google Scholar] [PubMed]
  20. Peng, X.C.; Gong, F.M.; Chen, Y.; Qiu, M.; Cheng, K.; Tang, J.; Ge, J.; Chen, N.; Zeng, H.; Liu, J.Y. Proteomics identification of PGAM1 as a potential therapeutic target for urothelial bladder cancer. J. Proteomics 2016, 132, 85–92. [Google Scholar] [CrossRef] [PubMed]
  21. Liu, X.; Tan, X.; Liu, P.; Wu, Y.; Qian, S.; Zhang, X. Phosphoglycerate mutase 1 (PGAM1) promotes pancreatic ductal adenocarcinoma (PDAC) metastasis by acting as a novel downstream target of the PI3K/Akt/mTOR pathway. Oncol. Res. 2018, 26, 1123–1131. [Google Scholar] [CrossRef] [PubMed]
  22. Hitosugi, T.; Zhou, L.; Fan, J.; Elf, S.; Zhang, L.; Xie, J.; Wang, Y.; Gu, T.L.; Alečković, M.; LeRoy, G.; et al. Tyr26 phosphorylation of PGAM1 provides a metabolic advantage to tumours by stabilizing the active conformation. Nat. Commun. 2013, 4. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, Y.; Li, F.; Lv, L.; Li, T.; Zhou, X.; Deng, C.X.; Guan, K.L.; Lei, Q.Y.; Xiong, Y. Oxidative stress activates SIRT2 to deacetylate and stimulate phosphoglycerate mutase. Cancer Res. 2014, 74, 3630–3642. [Google Scholar] [CrossRef] [PubMed]
  24. Qu, J.; Sun, W.; Zhong, J.; Lv, H.; Zhu, M.; Xu, J.; Jin, N.; Xie, Z.; Tan, M.; Lin, S.H.; et al. Phosphoglycerate mutase 1 regulates dNTP pool and promotes homologous recombination repair in cancer cells. J. Cell Biol. 2017, 216, 409–424. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, D.; Jin, N.; Sun, W.; Li, X.; Liu, B.; Xie, Z.; Qu, J.; Xu, J.; Yang, X.; Su, Y.; et al. Phosphoglycerate mutase1 promotes cancer cell migration independent of its metabolic activity. Oncogene 2017, 36, 2900–2909. [Google Scholar] [CrossRef] [PubMed]
  26. Evans, M.J.; Saghatelian, A.; Sorensen, E.J.; Cravatt, B.F. Target discovery in small- molecule cell-based screens by in situ proteome reactivity profiling. Nat. Biotechnol. 2005, 23, 1303–1307. [Google Scholar] [CrossRef] [PubMed]
  27. Evans, M.J.; Morris, G.M.; Wu, J.; Olson, A.J.; Sorensen, E.J.; Cravatt, B.F. Mechanistic and structural requirements for active site labeling of phosphoglycerate mutase by spiroepoxides. Mol. Biosyst. 2007, 3, 495–506. [Google Scholar] [CrossRef] [PubMed]
  28. Li, X.; Tang, S.; Wang, Q.Q.; Leung, E.L.; Jin, H.; Huang, Y.; Liu, J.; Geng, M.; Huang, M.; Yuan, S.; et al. Identification of epigallocatechin-3-gallate as an inhibitor of phosphoglycerate mutase 1. Front. Pharmacol. 2017, 8. [Google Scholar] [CrossRef] [PubMed]
  29. Berletch, J.B.; Liu, C.; Love, W.K.; Andrews, L.G.; Katiyar, S.K.; Tollefsbol, T.O. Epigenetic and genetic mechanisms contribute to telomerase inhibition by EGCG. J. Cell. Biochem. 2008, 103, 509–519. [Google Scholar] [CrossRef] [PubMed]
  30. Gao, Y.; Li, W.; Jia, L.; Li, B.; Chen, Y.C.; Tu, Y. Enhancement of (−)-epigallocatechin-3-gallate and theaflavin-3-3’-digallate induced apoptosis by ascorbic acid in human lung adenocarcinoma SPC-A-1 cells and esophageal carcinoma Eca-109 cells via MAPK pathways. Biochem. Biophys. Res. Commun. 2013, 438, 370–374. [Google Scholar] [CrossRef] [PubMed]
  31. Ma, Y.C.; Li, C.; Gao, F.; Xu, Y.; Jiang, Z.B.; Liu, J.X. Epigallocatechin gallate inhibits the growth of human lung cancer by directly targeting the EGFR signaling pathway. Oncol. Rep. 2014, 31, 1343–1349. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, P.; Jiang, L.; Cao, Y.; Zhang, X.; Chen, B.; Zhang, S.; Huang, K.; Ye, D.; Zhou, L. Xanthone derivatives as phosphoglycerate mutase 1 inhibitors: Design, synthesis, and biological evaluation. Bioorg. Med. Chem. 2018, 26, 1961–1970. [Google Scholar] [CrossRef] [PubMed]
  33. Huang, Q.; Lu, G.; Shen, H.M.; Chung, M.C.; Choon, N.O. Anti-cancer properties of anthraquinones from rhubarb. Med. Res. Rev. 2007, 27, 609–630. [Google Scholar] [CrossRef] [PubMed]
  34. Murdock, K.C.; Child, R.G.; Fabio, P.F.; Angier, R.B.; Wallace, R.E.; Durr, F.E.; Citarella, R.V. Antitumor Agents. I. 1,4-Bis[(aminoalkyl)amino]-9,l0-anthracenediones. J. Med. Chem. 1979, 22, 1024–1030. [Google Scholar] [CrossRef] [PubMed]
  35. Shrestha, J.P.; Subedi, Y.P.; Chen, L.; Chang, C.-W.T. A mode of action study of cationic anthraquinone analogs: A new class of highly potent anticancer agents. MedChemComm 2015, 6, 2012–2022. [Google Scholar] [CrossRef]
  36. Wuthi-udomlert, M.; Kupittayanant, P.; Gritsanapan, W. In vitro evaluation of antifungal activity of anthraquinone derivatives of Senna alata. J. Health Res. 2010, 24, 117–122. [Google Scholar]
  37. Fosso, M.Y.; Chan, K.Y.; Gregory, R.; Chang, C.-W.T. Library synthesis and antibacterial investigation of cationic anthraquinone analogs. ACS Comb. Sci. 2012, 14, 231–235. [Google Scholar] [CrossRef] [PubMed]
  38. Malik, E.M.; Müller, C.E. Anthraquinones As Pharmacological Tools and Drugs. Med. Res. Rev. 2016, 36, 705–748. [Google Scholar] [CrossRef] [PubMed]
  39. Hunter, C.A.; Low, C.M.R.; Rotger, C.; Vinter, J.G.; Zonta, C. Substituent effects on cation-π interactions: A quantitative study. Proc. Natl. Acad. Sci. USA 2002, 99, 4873–4876. [Google Scholar] [CrossRef] [PubMed]
  40. Antonello, C.; Uriarte, E.; Palumbo, M. Diethylaminopropionamido-hydroxy-a nthraquinones as potential anticancer agents: Synthesis and characterization. Arch. Pharm. 1989, 322, 541–544. [Google Scholar] [CrossRef]
  41. Otwinowski, Z.; Minor, W. Processing of X-ray diffraction data collected in oscillation mode. Methods Enzymol. 1997, 276, 307–326. [Google Scholar]
  42. Winn, M.D.; Ballard, C.C.; Cowtan, K.D.; Dodson, E.J.; Emsley, P.; Evans, P.R.; Keegan, R.M.; Krissinel, E.B.; Leslie, A.G.; McCoy, A.; et al. Overview of the CCP4 suite and current developments. Acta Crystallogr. D. Biol. Crystallogr. 2011, 67, 235–242. [Google Scholar] [CrossRef] [PubMed]
  43. Emsley, P.; Cowtan, K. Coot: model-building tools for molecular graphics. Acta Crystallogr. D. Biol. Crystallogr. 2004, 60, 2126–2132. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 24 00845 g001 550

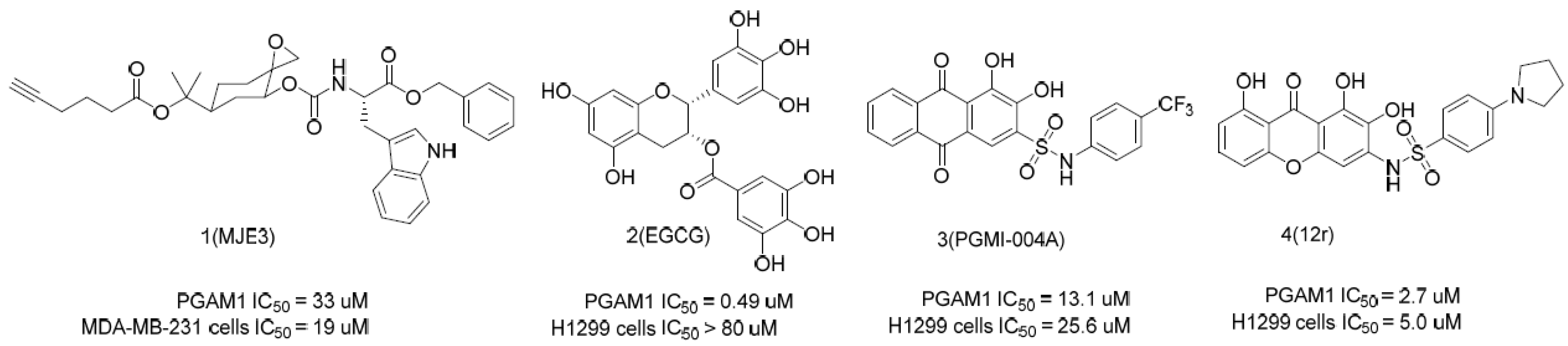

Figure 1. Reported phosphoglycerate mutase 1 (PGAM1) inhibitors.
Figure 1. Reported phosphoglycerate mutase 1 (PGAM1) inhibitors.
Molecules 24 00845 g001
Molecules 24 00845 g002 550

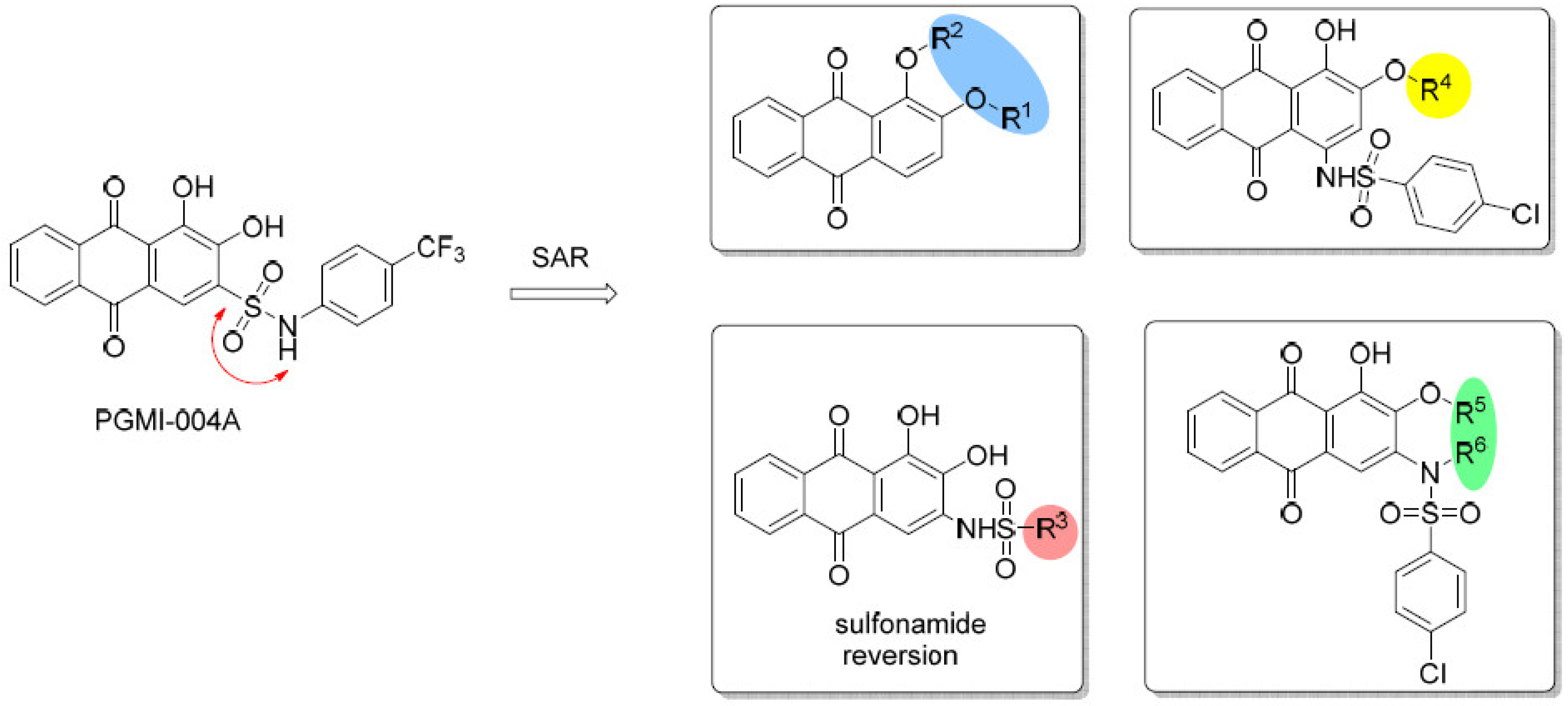

Figure 2. The optimization strategy and SAR exploration of the anthraquinone derivatives against PGAM1.
Figure 2. The optimization strategy and SAR exploration of the anthraquinone derivatives against PGAM1.
Molecules 24 00845 g002
Molecules 24 00845 sch001 550

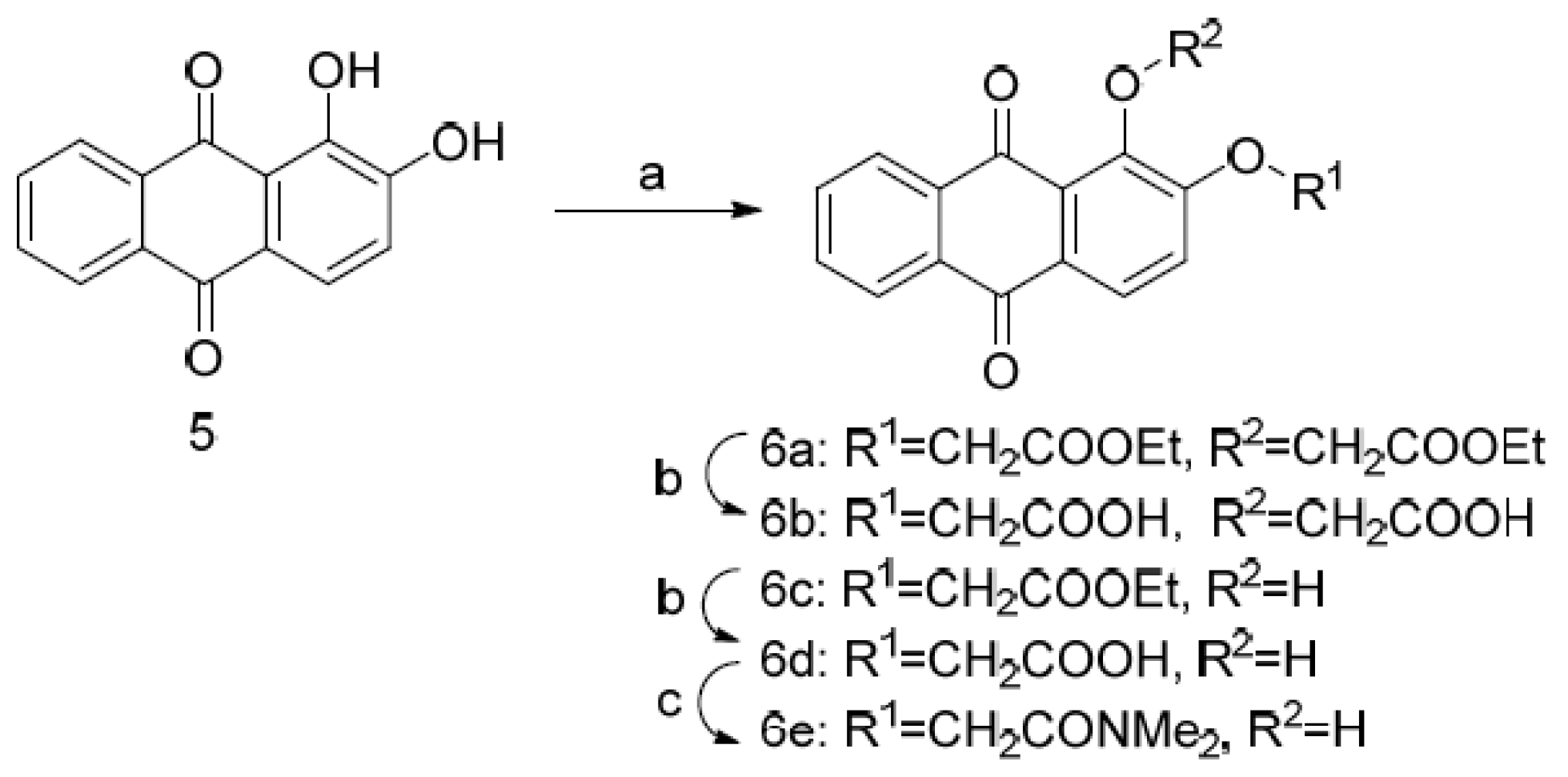

Scheme 1. Synthesis of compounds 6a–e. Reagents and conditions: (a) BrCH2COOEt, K2CO3, DMF, 80 °C; (b) LiOH, MeOH, H2O, 30 °C; (c)NHMe2·HCl, EDCI, HOBt, DIPEA, DMF.
Scheme 1. Synthesis of compounds 6a–e. Reagents and conditions: (a) BrCH2COOEt, K2CO3, DMF, 80 °C; (b) LiOH, MeOH, H2O, 30 °C; (c)NHMe2·HCl, EDCI, HOBt, DIPEA, DMF.
Molecules 24 00845 sch001
Molecules 24 00845 sch002 550

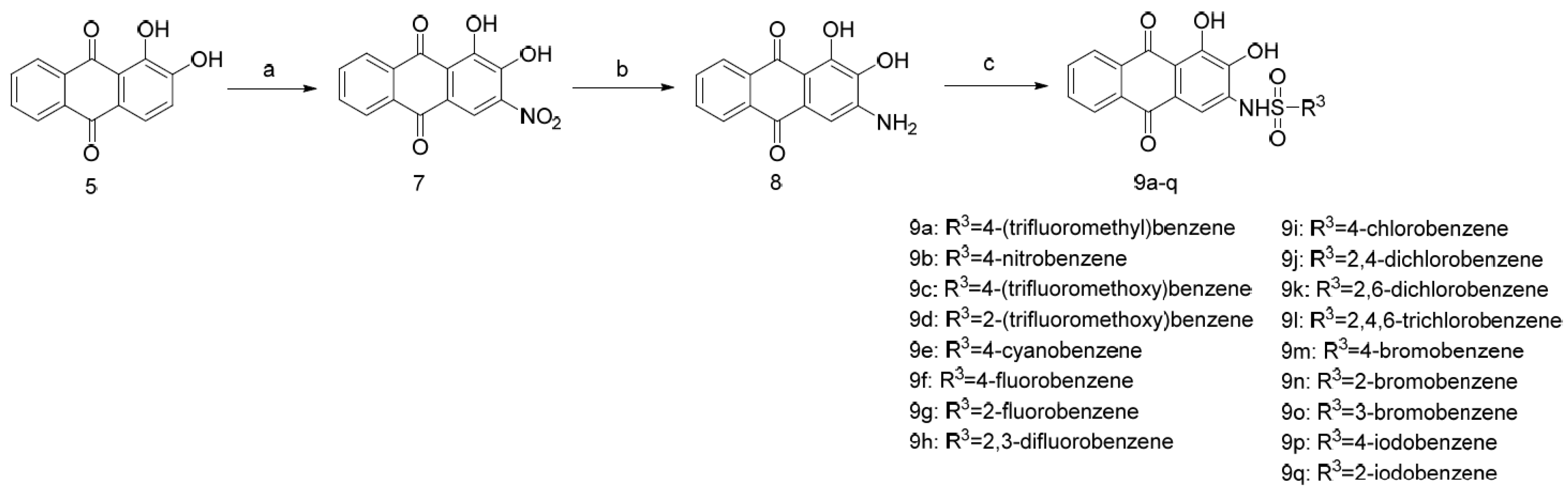

Scheme 2. Synthesis of compounds 9a–q. Reagents and conditions: (a) HNO3, CH3COOH, 50 °C; (b) Sn, SnCl2·H2O, HCl, EtOH; (c) R3SO2Cl, Py.
Scheme 2. Synthesis of compounds 9a–q. Reagents and conditions: (a) HNO3, CH3COOH, 50 °C; (b) Sn, SnCl2·H2O, HCl, EtOH; (c) R3SO2Cl, Py.
Molecules 24 00845 sch002
Molecules 24 00845 sch003 550
Scheme 3. Synthesis of compounds 12 and 13. Reagents and conditions: (a) HNO3, CH3COOH, 50 °C; (b) Sn, SnCl2·H2O, HCl, EtOH; (c) 4-chlorobenzenesulfonyl chloride, Py; (d) LiOH, MeOH, H2O, 30 °C.
Scheme 3. Synthesis of compounds 12 and 13. Reagents and conditions: (a) HNO3, CH3COOH, 50 °C; (b) Sn, SnCl2·H2O, HCl, EtOH; (c) 4-chlorobenzenesulfonyl chloride, Py; (d) LiOH, MeOH, H2O, 30 °C.
Molecules 24 00845 sch003
Molecules 24 00845 sch004 550
Scheme 4. Synthesis of compounds 14a–g. Reagents and conditions: (a) K2CO3, DMF, corresponding substituted reagent; (b) methanesulfonyl chloride, DIPEA, Py; (c) LiOH, MeOH, H2O, 30 °C; (d) NH2NH2·H2O, EtOH, reflux.
Scheme 4. Synthesis of compounds 14a–g. Reagents and conditions: (a) K2CO3, DMF, corresponding substituted reagent; (b) methanesulfonyl chloride, DIPEA, Py; (c) LiOH, MeOH, H2O, 30 °C; (d) NH2NH2·H2O, EtOH, reflux.
Molecules 24 00845 sch004
Molecules 24 00845 g003 550
Figure 3. Binding mode of anthraquinone inhibitor 9i with PGAM1. (a) Chemical structure of compound 9i and Fo–Fc electron density of compound 9i contoured at 2.0σ; (b) Overlay of compound 9i (PBD: 6ISN) and 3PG (PBD:2F90) in PGAM1; (c) Interactions of compound 9i and the critical residues of PGAM1 in the co-crystal structure; (d) Inhibition of compounds 9i on wild-type and mutations of PGAM1 at concentration of 5 μM; (e) Noncompetitive property of compound 9i with substrate 3PG. The data are presented as mean ±s.d.
Figure 3. Binding mode of anthraquinone inhibitor 9i with PGAM1. (a) Chemical structure of compound 9i and Fo–Fc electron density of compound 9i contoured at 2.0σ; (b) Overlay of compound 9i (PBD: 6ISN) and 3PG (PBD:2F90) in PGAM1; (c) Interactions of compound 9i and the critical residues of PGAM1 in the co-crystal structure; (d) Inhibition of compounds 9i on wild-type and mutations of PGAM1 at concentration of 5 μM; (e) Noncompetitive property of compound 9i with substrate 3PG. The data are presented as mean ±s.d.
Molecules 24 00845 g003
Table
Table 1. Inhibition activity of compounds 6a–e towards PGAM1.
Table 1. Inhibition activity of compounds 6a–e towards PGAM1.
Molecules 24 00845 i001
CompoundR 1R 2Inhibition of PGAM1 Activity at 10 μM 1
6a Molecules 24 00845 i002 Molecules 24 00845 i002−0.6 ± 1%
6b Molecules 24 00845 i003 Molecules 24 00845 i00314.3 ± 5.9%
6c Molecules 24 00845 i002H0 ± 1.8%
6d Molecules 24 00845 i003H5.5 ± 0.03%
6e Molecules 24 00845 i004H20.2 ± 2.2%
1 The data are presented as mean ±s.d. (n = 2).
Table
Table 2. Inhibition activity of compounds 9a–q towards PGAM1.
Table 2. Inhibition activity of compounds 9a–q towards PGAM1.
Molecules 24 00845 i005
CompoundR 3PGAM1 IC50 (μM) 1
9a Molecules 24 00845 i0060.54 ± 0.04
9b Molecules 24 00845 i0070.47 ± 0.08
9c Molecules 24 00845 i0080.90 ± 0.07
9d Molecules 24 00845 i0092.2 ± 0.5
9e Molecules 24 00845 i0100.61 ± 0.12
9f Molecules 24 00845 i0110.54 ± 0.07
9g Molecules 24 00845 i0120.79 ± 0.04
9h Molecules 24 00845 i0130.89 ± 0.13
9i Molecules 24 00845 i0140.27 ± 0.04
9j Molecules 24 00845 i0150.28 ± 0.07
9k Molecules 24 00845 i0160.89 ± 0.33
9l Molecules 24 00845 i0170.90 ± 0.26
9m Molecules 24 00845 i0180.26 ± 0.02
9n Molecules 24 00845 i0190.20 ± 0.04
9o Molecules 24 00845 i0200.35 ± 0.005
9p Molecules 24 00845 i0210.47 ± 0.07
9q Molecules 24 00845 i0220.26 ± 0.03
1 The data are presented as mean ± s.d. (n = 3).
Table
Table 3. Inhibition activity of compounds 14a–14g towards PGAM1.
Table 3. Inhibition activity of compounds 14a–14g towards PGAM1.
Molecules 24 00845 i023
CompoundR 5R 6PGAM1 IC50 (μM) 1
14a Molecules 24 00845 i024H>10 μM
14b Molecules 24 00845 i025H>10 μM
14cCH3H2.92 ± 0.11
14dCH3CH37.01 ± 0.92
14e-CH2--CH2->10 μM
14f Molecules 24 00845 i026H2.0 ± 0.2
14g Molecules 24 00845 i027H>10 μM
1 The data are presented as mean ±s.d. (n = 3).
Table
Table 4. The inhibition in the control linked enzyme assay of selected compounds.
Table 4. The inhibition in the control linked enzyme assay of selected compounds.
CompoundPGAM1 IC50 (μM)Inhibition in the Control Linked Enzyme Assay (0.5 μM) 1
9a0.54 ± 0.048.0 ± 5.0%
9b0.47 ± 0.08−2.9 ± 0.3%
9c0.90 ± 0.073.7 ± 1.8%
9e0.61 ± 0.126.7 ± 0.2%
9f0.54 ± 0.075.7 ± 0.7%
9g0.79 ± 0.0410.2 ± 3.0%
9h0.89 ± 0.130.06 ± 0.4%
9i0.27 ± 0.04−6.4 ± 5.0%
9j0.28 ± 0.07−2.0 ± 5.1%
9k0.89 ± 0.330.5 ± 3.2%
9l0.90 ± 0.260.2 ± 1.7%
9m0.26 ± 0.02−0.1 ± 2.5%
9n0.20 ± 0.046.1 ± 0.8%
9o0.35 ± 0.0057.7 ± 0.2%
9p0.47 ± 0.071.9 ± 0.1%
9q0.26 ± 0.03−2.3 ± 2.4%
1 The data are presented as mean ±s.d. (n = 2).
Table
Table 5. Data collection and refinement statistics.
Table 5. Data collection and refinement statistics.
PropertyValue
Data Collection
Space groupP 21 21 21
Cell constants
a, b, c (Å)		82.54, 82.76, 104.20
α, β, γ (°)90.00, 90.00, 90.00
Resolution *(Å)50–1.98 (2.05–1.98)
% Data completeness100.0 (100.0)
No. Observations330639
No. Unique Reflections50593 (4986)
Redundancy6.5 (6.6)
Rmerge0.06 (0.88)
< I/σ(I) >2.05 (at 1.98Å)
CC1/20.996 (0.728)
Refinement
Resolution (Å)38.89–1.98 (2.02–1.98)
% Data completeness100.0 (100.0)
No. reflections50362 (2636)
Rwork/Rfree0.197/0.225
Rfree test set2569 reflections (5.08%)
Wilson B-factor (Å2)39.4
Fo, Fc correlation0.96
Total number of atoms4046
Average B, all atoms (Å2)41.0
Ramachandran favored (%)98.7
Ramachandran allowed (%)1.3
Ramachandran outliers (%)0.0
Rmsd bond lengths (Å)0.007
Rmsd bond angles (°)1.044
PDB Accession Code6ISN
Table
Table 6. Inhibition activity of compounds 9a–q on cancer cell proliferation.
Table 6. Inhibition activity of compounds 9a–q on cancer cell proliferation.
Molecules 24 00845 i028
CompoundR3H1299 IC50 (μM)A549 IC50 (μM)PC9 IC50 (μM) 1
9a Molecules 24 00845 i00620.7 ± 0.6n.d.n.d.
9b Molecules 24 00845 i00725.8 ± 2.2n.d.n.d.
9c Molecules 24 00845 i00816.6 ± 1.88.0 ± 0.810.2 ± 0.7
9d Molecules 24 00845 i00913.9 ± 3.617.0 ± 4.944.2 ± 1.5
9e Molecules 24 00845 i01026.3 ± 4.5n.d.n.d.
9f Molecules 24 00845 i01124.2 ± 2.6n.d.n.d.
9g Molecules 24 00845 i01231.3 ± 1.9n.d.n.d.
9h Molecules 24 00845 i01345.7 ± 2.7n.d.n.d.
9i Molecules 24 00845 i0146.9 ± 1.212.7 ± 2.713.8 ± 1.0
9j Molecules 24 00845 i01523.7 ± 1.1n.d.n.d.
9k Molecules 24 00845 i01634.6 ± 2.4n.d.n.d.
9l Molecules 24 00845 i0176.2 ± 1.2>50>50
9m Molecules 24 00845 i01828.1 ± 1.9n.d.n.d.
9n Molecules 24 00845 i01950 ± 0.6n.d.n.d.
9o Molecules 24 00845 i02024.5 ± 0.2n.d.n.d.
9p Molecules 24 00845 i02117.3 ± 3.910.3 ± 1.413.4 ± 1.8
9q Molecules 24 00845 i02226.4 ± 3.8n.d.n.d.
1 The data are presented as mean ±s.d. (n = 3) n.d. = not determined.
Table
Table 7. Inhibition activity of compounds 14a–g on cancer cell proliferation.
Table 7. Inhibition activity of compounds 14a–g on cancer cell proliferation.
Molecules 24 00845 i029
CompoundR5R6H1299 IC50 (μM)A549 IC50 (μM)PC9 IC50 (μM) 1
14cCH3H26.9 ± 2.1n.d.n.d.
14dCH3CH310.3 ± 0.89.9 ± 0.249.1 ± 1.9
14f Molecules 24 00845 i026H>100n.d.n.d.
14g Molecules 24 00845 i027H28.5 ± 0.6n.d.n.d.
1 The data are presented as mean ±s.d. (n = 3) n.d. = not determined.

Share and Cite

MDPI and ACS Style

Huang, K.; Jiang, L.; Li, H.; Ye, D.; Zhou, L. Development of Anthraquinone Analogues as Phosphoglycerate Mutase 1 Inhibitors. Molecules 2019, 24, 845. https://doi.org/10.3390/molecules24050845

AMA Style

Huang K, Jiang L, Li H, Ye D, Zhou L. Development of Anthraquinone Analogues as Phosphoglycerate Mutase 1 Inhibitors. Molecules. 2019; 24(5):845. https://doi.org/10.3390/molecules24050845

Chicago/Turabian Style

Huang, Ke, Lulu Jiang, Huiti Li, Deyong Ye, and Lu Zhou. 2019. "Development of Anthraquinone Analogues as Phosphoglycerate Mutase 1 Inhibitors" Molecules 24, no. 5: 845. https://doi.org/10.3390/molecules24050845

Article Metrics

Back to TopTop
