One-Pot NBS-Promoted Synthesis of Imidazoles and Thiazoles from Ethylarenes in Water

by
Liang Chen
1,2,
Huajian Zhu
1,2,
Jiang Wang
2,* and
Hong Liu
1,2,*
1
School of Pharmacy, China Pharmaceutical University, Nanjing 210009, Jiangsu, China
2
State Key Laboratory of Drug Research and CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, Shanghai, China
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(5), 893; https://doi.org/10.3390/molecules24050893
Submission received: 2 January 2019 / Revised: 22 February 2019 / Accepted: 26 February 2019 / Published: 4 March 2019
(This article belongs to the Section Green Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
A facile and eco-friendly method has been developed for the synthesis of imidazoles and thiazoles from ethylarenes in water. The reaction proceeds via in situ formation of α-bromoketone using NBS as a bromine source as well as an oxidant, followed by trapping with suitable nucleophiles to provide the corresponding products in good yields under metal-free conditions.

Graphical Abstract

1. Introduction

Nitrogen-containing heterocycles are found in many biologically active synthetic targets, including natural products and designed pharmaceuticals [1,2,3]. Therefore, the construction and functionalization of nitrogen-containing heterocycles has attracted considerable attention from synthetic chemists. Imidazoles and thiazoles are of particular interest, as these building blocks have been incorporated into a number of bioactive compounds including zolpidem, miroprofen, amiphenazole, zolimidine, YM-11124, and CICTO (Figure 1) [4,5,6,7,8,9,10,11,12,13,14,15,16]. These compounds exhibit a plethora of biological properties displayed over a broad range of therapeutic classes, including antibacterial, antifungal, antiviral, antiulcer, anti-inflammatory, β-amyloid formation inhibitory, immunosuppressive, GABA receptor agonist, cardiotonic agent, and nonpeptide B2 receptor antagonist effects [17,18,19,20,21]. Various synthetic methods have been reported for the construction of these motifs such as C-H amination, oxidative cyclization, multi-component reaction, hydroamination, and tandem processes from various starting materials [22,23,24,25,26]. Traditionally, procedures for these reactions required the use of metals and catalysts in various organic solvents, which makes the sequence longer and increases waste production. For example, Toste et al. reported a dichloro(2-pyridinecarboxylato)-gold [PicAuCl2]-catalyzed reaction of 2-aminopyridine N-oxide and alkynes in dichloromethane for the synthesis of imidazo[1,2-a]pyridines. The reaction needs an expensive gold catalyst and an acid additive, which increases costs and creates pollution [27]. Hence, the development of new methodologies for the synthesis of these compounds continues to attract the interest of academic and industrial researchers.
As a direct and efficient approach to the synthesis of these imidazoles and thiazoles, α-halo-ketones have reacted with suitable nitrogen nucleophiles and bases in various organic solvents (Scheme 1a) [28,29]. Although this method is suitable for certain synthetic conditions, sometimes, however, these procedures have one or more disadvantages such as the use of hazardous organic solvents, long reaction times, use of stoichiometric and even excess amounts of reagents, etc. To overcome these limitations, Mahesh and co-workers recently reported a two-step approach to synthesize these heterocycles from alkenes, which involves preparing α-bromoketones by reaction of olefins with NBS in water, and these α-bromoketones were treated with suitable nucleophiles to give a diverse range of imidazoles and thiazoles (Scheme 1b) [30]. This method is only applied in synthesis of some specific nitrogen-containing heterocycles, but, other heterocycles are not mentioned. α-Bromoacetophenone was also reported by Shimokawa et al. to be the important intermediate dealing with ethylarenes with NBS in a mixture of ethyl acetate and water [31]. In this report, a variety of ethylarenes were converted into the corresponding primary aromatic amides. Inspired by this work, we envisaged the possibility to synthesize various imidazoles and thiazoles from ethylarenes.
Here, we report an NBS-promoted, one-pot method for the construction of various imidazoles and thiazoles from ethylarenes in water as a solvent (Scheme 1c).
NBS plays a dual role of both a safe bromine source and an oxidant, and the reaction was carried out with water, which also acts as the oxygen source for the in situ preparation of α-bromoketones. Water is an economical, safe, and environmentally benign solvent, and, therefore, its use as a solvent for organic reactions is a very attractive option [32,33]. This protocol presents an operationally simple, rapid, and environmentally friendly strategy for enriching a complex nitrogen heterocycle library.

2. Results and Discussion

2.1. Optimization of Reaction Conditions for Synthesis of Imi-azo[1,2-a]pyridine 3a

Our study was initiated by treating ethylbenzene (1a, 1 mmol) as model substrate with NBS (3.5 equiv.) in the presence of AIBN (10 mol %) in a mixture of ethyl acetate:water (5:1, 6 mL) at 65 °C for 1.5 h, followed by addition of 2-aminopyridine (2a) at 80 °C to give the desired imidazo[1,2-a]pyridine (3a) in 38% yield (Table 1, entry 1). Interestingly, when NBS was replaced with N-chlorosuccinimide (NCS) or N-iodosuccinimide (NIS), formation of 3a was not observed (Table 1, entries 2 and 3), whereas with N-bromophthalimide (BrNPhth), compound 3a was obtained in 34% yield (Table 1, entry 4).
No improvement in the yield was observed by using acetonitrile, acetone, and 1,4-dioxane instead of ethyl acetate (Table 1, entries 5–7). A series of screening reactions to optimize the amount of oxidant, solvent system and reaction temperature was also performed, which had no good effect (Tables S1 and S2, see the Supplementary Information for details). After extensive experimentation, it was found that the presence of ethyl acetate in the reaction mixture was detrimental to the second reaction step. Hence, the solvent of second reaction step was replaced with water, ethanol, and acetone [34,35]. Water was found to be the best solvent, furnishing imidazo[1,2-a]pyridine (3a) in 67% yield (Table 1, entries 8–10). Further optimization of the reaction conditions was made by adding sodium carbonate (Table 1, entries 11 and 12). In these cases, the yield of target product was improved to 78%. It is presumed that the sodium carbonate neutralizes the acid formed in the reaction, which accelerates the intramolecular cyclization of the second step. Bringing the temperature to reflux did not have any noteworthy effect on the yield of 3a (Table 1, entry 13).

2.2. Substrate Scope for the Imidazo[1,2-a]pyridines

With optimized conditions in hand, the reactions of different 2-aminopyridines with various ethylarenes were investigated to explore the scope and generality of this method for the synthesis of different imidazo[1,2-a]pyridines (Table 2). The reaction of 2-aminopyridine (2a) with ethylarenes containing electron-withdrawing groups on the aromatic ring such as halogen, trifluoromethyl, methylsulfonyl, and cyano, provided the corresponding products 3b–3h smoothly in medium to good yields (32% and 65%). Ethylbenzenes with electron-rich groups, such as methyl and methoxy, also afforded the corresponding imidazo[1,2-a]pyridines 3i and 3j in very good yield (68% and 59%). The same treatment of 1-ethylnaphthalene gave the desired product 3k in good yield (65%). Furthermore, electron-rich and electron-withdrawing groups in the 2-aminopyridines were well tolerated. The results revealed that electron-rich groups such as methyl and methoxyl afforded the corresponding products in very good yield (yields 75–80%, 3l–3p). However, introduction of the electron-withdrawing groups such as halogen, trifluoromethyl, and cyano afforded the corresponding products in lower yields (yields 56–71%, 3q–3u).

2.3. Substrate Scope for Diverse Imidazoles and Thiazoles

Encouraged by the results above, we shifted to investigate the scope of other nucleophiles. As shown in Figure 2, a range of nucleophiles were suitable for this reaction. These substrates 4a–4g were effective to give corresponding products 5a–5g in moderate to high yields (60–91%). It is worth noting that valuable and more-complex substrates were also suitable for this reaction to afford corresponding products, which is extremely useful for enriching a complex nitrogen-containing heterocycle library.

2.4. Gram-Scale Preparation and Practice Application

To evaluate the efficiency and potential for practical applications of our method, a scale-up experiment was carried out under the standard conditions (Scheme 2a). As a result, preparation of 3a on a gram scale (2.95 g) was carried out, giving 76% yield. The compatibility of this reaction encouraged us to start the study of large-scale synthesis of zolimidine, which is a gastroprotective drug previously used for peptic ulcers and gastroesophageal reflux disease [36,37,38]. Starting with 1-bromo-4-ethylbenzene (1c) the intermediate product 1h was obtained on the basis of a literature procedure [39]. Then, according to the standard conditions, the target product 3h was obtained in 40% yield in total (Scheme 2b).

2.5. Mechanism

A series of mechanistic experiments were performed to shed more light on the reaction mechanism, as shown in Scheme 3.
When ethylbenzene (1a) was treated with NBS (3.5 equiv.) in the presence of AIBN (10 mol%) in a mixture of ethyl acetate and water (5:1) at 65 °C for 1.5 h, 2-bromoacetophenone (1aa) was obtained in 86% yield. At the same time, α,α-dibromoethybenzene (1ab) and acetophenone (1ac) were formed in 7% and 3% yields, respectively (Scheme 3b). 2-Phenylimidazo[1,2-a]pyridine (3a) was obtained in 95% yield when 2-bromoacetophenone (1aa) was directly treated with pyridin-2-amine (2a) at 80 °C for 2 h (Scheme 3c). α,α-Dibromoethybenzene (1ab) was treated with NBS (1.5 equiv.) in the presence of AIBN (10 mol %) in a mixture of ethyl acetate and water (5:1) at 65 °C for 1.5 h, followed by the reaction with 2a at 80 °C for 2 h to give 3a in 71% yields (Scheme 3d). Besides, when acetophenone (1ac) was treated with NBS (1 equiv.) at 60 °C for 1 h, followed by the reaction with 2a at 80 °C for 2 h, 3a was obtained in 86% yield (Scheme 3e). As a result, α,α-dibromoethybenzene (1ab) and acetophenone (1ac) could also be converted into 3a using the present reaction procedure and conditions, which contributes to improve the yield of this reaction. On the basis of mechanistic experiments and a literature survey [24,40], a plausible pathway for the reaction has been proposed, as shown in Scheme 4, taking the reaction of ethylbenzene (1a) and 2-aminopyridine (2a) for the synthesis of imidazo[1,2-a]pyridine (3a) as an example. α-Bromoethybenzene is formed in the reaction of ethylbenzene (1a) with bromine atoms formed from NBS (Wohl-Ziegler reaction) [41]. α,α-Dibromoethybenzene (1ab) is the main product of the second Wohl-Ziegler reaction of α-bromoethylarene. The hydrolysis of α,α-dibromoethybenzene (1ab) in a mixture of ethyl acetate and water under warming conditions proceeds to give acetophenone (1ac). Meanwhile, the hydrolysis of α-bromoethybenzene may occur to form α-hydroxyethybenzene as a minor product. Acetophenone (1ac) can also be easily obtained from α-hydroxyethybenzene oxidized by NBS. Once acetophenone (1ac) is formed, it smoothly reacts with NBS to form the important intermediate 2-bromo-acetophenone (1aa) which is isolated by column chromatography and confirmed by comparison of NMR with literature. Finally, treatment of 2-bromoacetophenone (1aa) with 2a afforded the desired product 3a by cyclization.

3. Materials and Methods

3.1. General Information

The reagents (chemicals) were purchased from commercial sources, and used without further purification. Analytical thin layer chromatography (TLC) was performed on HSGF 254 (0.15–0.2 mm thickness) plates. All products were characterized by their NMR and MS spectra. The 1H- (500 MHz) and 13C-NMR (125 MHz) spectra were recorded in deuterochloroform (CDCl3) on Bruker Avance III spectrometer (Billerica, MA, USA). Chemical shifts were reported in parts per million (ppm, δ) downfield from tetramethylsilane. Proton coupling patterns are described as singlet (s), doublet (d), triplet (t), quartet (q), multiplet (m). Low- and high-resolution mass spectra (LRMS and HRMS) were measured on Agilent 1260 Infinity II and Agilent 1290-6545 UHPLC-QTOF respectively (Palo Alto, CA, USA).

3.2. Experimental Part Method

3.2.1. General Procedure for the Synthesis of Nitrogen-Containing Heterocycles

Synthesis of 3a is representative. To a solution of ethylbenzene (1a, 1 mmol, 107 mg) in ethyl acetate:water (5:1, 6 mL) were added NBS (3.5 mmol, 628 mg) and AIBN (0.1 mmol, 16.5 mg) at room temperature, and the mixture was stirred at 65 °C for 1.5 h. The mixture was concentrated to dryness and then dissolved in water (5 mL), followed by reaction with 2-aminopyridine (2a, 1.2 mmol, 114 mg) and sodium carbonate (5 mmol, 534 mg) for 2 h at 80 °C. After completion of the reaction (as indicated by TLC), the crude product was extracted with ethyl acetate (3 × 10 mL). The combined organic layer was dried over anhydrous Na2SO4 and concentrated in vacuo. The crude product was purified by silica gel column chromatography (PE/EA = 8/1–4/1, v/v) to give 3a (78% yield) as a white solid.

3.2.2. Procedure for the Synthesis of 1-Ethyl-4-(methylsulfonyl)benzene (1h)

1-Bromo-4-ethylbenzene (1c, 10 mmol), DMSO (50 mL), acetyl acetone (10 mmol), Cu2O (1 mmol), and t-BuOK (45 mmol) were added into the reactor in turn. The reaction was carried out at reflux (100 °C) under an air atmosphere for 20 h. After the reaction was finished, the mixture was diluted with the saturated NaCl aqueous solution and extracted with ethyl acetate (3 × 40 mL). The organic layers were combined, and then dried with anhydrous Na2SO4. After the solvent was removed by rotovapor, the product was purified by column chromatograph (PE/EA = 5/1, v/v).

3.3. Product Characterization

2-Bromo-1-phenylethan-1-one (1aa) [42]: white solid, 1H-NMR (CDCl3) δ 8.04–7.95 (m, 2H), 7.65–7.59 (m, 1H), 7.53–7.47 (m, 2H), 4.46 (s, 2H). 13C-NMR (CDCl3) δ 191.0, 133.7, 133.7, 128.7, 128.6, 30.7.
2-Phenylimidazo[1,2-a]pyridine (3a): white solid, 1H-NMR (CDCl3) δ 8.11 (dt, J = 6.8, 1.3 Hz, 1H), 8.00–7.91 (m, 2H), 7.85 (s, 1H), 7.64 (d, J = 9.1 Hz, 1H), 7.44 (t, J = 7.6 Hz, 2H), 7.37–7.30 (m, 1H), 7.17 (ddd, J = 9.1, 6.7, 1.3 Hz, 1H), 6.77 (td, J = 6.8, 1.2 Hz, 1H). 13C-NMR (CDCl3) δ 145.7, 145.6, 133.7, 128.7, 128.0, 126.0, 125.6, 124.7, 117.5, 112.4, 108.1. LRMS (ESI) m/z: [M + H]+ found 195.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C13H10N2 195.0917; found 195.0914.
2-(4-Fluorophenyl)imidazo[1,2-a]pyridine (3b): white solid, 1H-NMR (CDCl3) δ 8.11 (dd, J = 6.8, 1.3 Hz, 1H), 7.97–7.87 (m, 2H), 7.80 (s, 1H), 7.69–7.54 (m, 1H), 7.22–7.03 (m, 3H), 6.78 (td, J = 6.7, 1.2 Hz, 1H). 13C-NMR (CDCl3) δ 163.7, 161.7, 145.7, 144.9, 129.9, 127.7, 125.6, 124.8, 117.4, 115.7, 115.5, 112.5, 107.7. LRMS (ESI) m/z: [M + H]+ found 213.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C13H9FN2 213.0823; found 213.0822.
2-(4-Bromophenyl)imidazo[1,2-a]pyridine (3c): white solid, 1H-NMR (CDCl3) δ 8.10 (dt, J = 6.8, 1.2 Hz, 1H), 7.92–7.76 (m, 3H), 7.69–7.58 (m, 1H), 7.59–7.47 (m, 2H), 7.23–7.08 (m, 1H), 6.79 (td, J = 6.8, 1.2 Hz, 1H). 13C-NMR (CDCl3) δ 145.8, 144.8, 132.8, 132.0, 131.9, 127.7, 125.7, 125.0, 122.0, 117.7, 112.7, 108.3. LRMS (ESI) m/z: [M + H]+ found 273.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C13H10BrN2 273.0022; found 273.0017.
2-(4-Chlorophenyl)imidazo[1,2-a]pyridine (3d): white solid, 1H-NMR (CDCl3) δ 8.36 (d, J = 6.7 Hz, 1H), 8.07 (s, 1H), 8.03–7.92 (m, 3H), 7.53–7.46 (m, 1H), 7.43–7.37 (m, 2H), 7.10 (t, J = 6.8 Hz, 1H). 13C-NMR (CDCl3) δ 142.7, 135.5, 131.5, 129.3, 129.1, 128.2, 127.7, 126.5, 115.3, 108.8. LRMS (ESI) m/z: [M + H]+ found 229.0, HRMS (ESI) m/z: [M + H]+ Calcd. for C13H9ClN2 229.0527; found 229.0527.
2-(3,5-Difluorophenyl)imidazo[1,2-a]pyridine (3e): white solid, 1H-NMR (CDCl3) δ 8.67 (s, 1H), 8.43 (s, 1H), 8.25 (d, J = 9.1 Hz, 1H), 7.70 (qt, J = 7.6, 4.5 Hz, 3H), 7.30 (d, J = 6.6 Hz, 1H), 6.86 (tt, J = 8.7, 2.3 Hz, 1H). 13C-NMR (CDCl3) δ 164.4, 164.3, 162.4, 162.3, 127.4, 116.8, 114.5, 110.0, 109.8, 105.8, 105.6, 105.4. LRMS (ESI) m/z: [M + H]+ found 231.0, HRMS (ESI) m/z: [M + H]+ Calcd. for C13H8F2N2 231.0728 found 231.0725.
4-(Imidazo[1,2-a]pyridin-2-yl)benzonitrile (3f): white solid, 1H-NMR (CDCl3) δ 8.18 (dt, J = 6.7, 1.2 Hz, 1H), 8.11–8.07 (m, 2H), 7.99–7.96 (m, 1H), 7.77–7.68 (m, 3H), 7.29–7.23 (m, 1H), 6.88 (td, J = 6.8, 1.1 Hz, 1H). 13C-NMR (CDCl3) δ 145.7, 143.3, 137.9, 132.6, 126.4, 125.8, 125.8, 118.9, 117.7, 113.2, 111.2, 109.5. LRMS (ESI) m/z: [M + H]+ found 220.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H9N3 220.0869; found 220.0872.
2-(4-(Trifluoromethyl)phenyl)imidazo[1,2-a]pyridine (3g): white solid, 1H-NMR (CDCl3) δ 8.20 (dt, J = 6.8, 1.3 Hz, 1H), 8.11 (d, J = 8.1 Hz, 2H), 7.97 (s, 1H), 7.76 (d, J = 9.1 Hz, 1H), 7.72 (d, J = 8.2 Hz, 2H), 7.33–7.29 (m, 1H), 6.90 (td, J = 6.8, 1.1 Hz, 1H). 13C-NMR (CDCl3) δ 145.2, 143.3, 130.1, 129.9, 126.2, 126.0, 125.8, 125.8, 125.7, 125.2, 123.0, 117.4, 113.4, 109.0. LRMS (ESI) m/z: [M + H]+ found 263.0, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H9F3N2 263.0791; found 263.0791.
2-(4-(Methylsulfonyl)phenyl)imidazo[1,2-a]pyridine (3h): white solid, 1H-NMR (CDCl3) δ 8.19–8.11 (m, 3H), 8.04–7.94 (m, 3H), 7.64 (dd, J = 9.0, 1.1 Hz, 1H), 7.22 (ddd, J = 9.1, 6.7, 1.3 Hz, 1H), 6.83 (td, J = 6.8, 1.2 Hz, 1H), 3.08 (s, 3H). 13C-NMR (CDCl3) δ 145.7, 143.3, 139.0, 127.6, 126.3, 125.5, 125.2, 117.6, 112.8, 109.4, 44.3. LRMS (ESI) m/z: [M + H]+ found 272.9, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H12N2O2S 273.0692; found 273.0694.
2-(p-Tolyl)imidazo[1,2-a]pyridine (3i): white solid, 1H-NMR (CDCl3) δ 8.23 (dt, J = 6.8, 1.2 Hz, 1H), 7.93–7.83 (m, 4H), 7.34–7.30 (m, 1H), 7.26 (d, J = 7.9 Hz, 2H), 6.96–6.88 (m, 1H), 2.40 (s, 3H). 13C-NMR (CDCl3) δ 144.1, 143.4, 138.8, 129.6, 126.61, 126.2, 125.9, 116.4, 113.7, 107.9, 21.3. LRMS (ESI) m/z: [M + H]+ found 209.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H12N2 209.1073; found 209.1072.
2-(4-Methoxyphenyl)imidazo[1,2-a]pyridine (3j): white solid, 1H-NMR (CDCl3) δ 8.15 (dt, J = 6.7, 1.2 Hz, 1H), 7.95–7.90 (m, 2H), 7.81 (d, J = 0.7 Hz, 1H), 7.74 (d, J = 9.0 Hz, 1H), 7.24 (ddd, J = 9.1, 6.8, 1.3 Hz, 1H), 7.02–6.97 (m, 2H), 6.84 (td, J = 6.8, 1.1 Hz, 1H), 3.87 (s, 3H). 13C-NMR (CDCl3) δ 159.9, 144.8, 144.5, 127.4, 125.6, 125.4, 125.2, 116.8, 114.2, 112.9, 107.2, 55.3. LRMS (ESI) m/z: [M + H]+ found 225.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H12N2O 225.1022; found 225.1025.
2-(Naphthalen-1-yl)imidazo[1,2-a]pyridine (3k): white solid, 1H-NMR (CDCl3) δ 8.59–8.49 (m, 1H), 8.15 (dt, J = 6.7, 1.2 Hz, 1H), 8.01 (dd, J = 8.5, 1.7 Hz, 1H), 7.99 (d, J = 0.7 Hz, 1H), 7.96–7.88 (m, 2H), 7.86–7.82 (m, 1H), 7.69 (dd, J = 9.0, 1.2 Hz, 1H), 7.53–7.44 (m, 2H), 7.21 (ddd, J = 9.1, 6.7, 1.3 Hz, 1H), 6.81 (td, J = 6.7, 1.1 Hz, 1H). 13C-NMR (CDCl3) δ 145.7, 145.5, 140.7, 140.6, 132.7, 128.7, 127.4, 127.3, 126.9, 126.4, 125.5, 124.6, 117.5, 112.4, 108.2. LRMS (ESI) m/z: [M + H]+ found 244.9, HRMS (ESI) m/z: [M + H]+ Calcd. for C17H12N2 245.1073; found 245.1072.
8-Methyl-2-phenylimidazo[1,2-a]pyridine (3l): white solid, 1H-NMR (CDCl3) δ 7.98–7.91 (m, 2H), 7.91–7.85 (m, 1H), 7.76 (s, 1H), 7.54 (d, J = 9.2 Hz, 1H), 7.42 (t, J = 7.7 Hz, 2H), 7.32 (d, J = 7.4 Hz, 1H), 7.01 (dd, J = 9.2, 1.7 Hz, 1H), 2.37–2.27 (m, 3H). 13C-NMR (CDCl3) δ 145.7, 145.1, 135.1, 133.5, 128.2, 127.4, 125.7, 124.3, 115.5, 114.6, 107.1, 21.0. LRMS (ESI) m/z: [M + H]+ found 209.2, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H12N2 209.1073; found 209.1075.
7-Methyl-2-phenylimidazo[1,2-a]pyridine (3m): white solid, 1H-NMR (CDCl3) δ 8.02–7.87 (m, 3H), 7.76 (s, 1H), 7.50–7.36 (m, 3H), 7.32 (d, J = 7.3 Hz, 1H), 6.59 (dd, J = 6.9, 1.7 Hz, 1H), 2.39 (d, J = 1.1 Hz, 3H). 13C-NMR (CDCl3) δ 145.7, 145.1, 135.2, 133.5, 128.2, 127.4, 125.6, 124.3, 115.5, 114.6, 107.1, 21.0. LRMS (ESI) m/z: [M + H]+ found 209.2, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H12N2 209.1073; found 209.1075.
6-Methyl-2-phenylimidazo[1,2-a]pyridine (3n): white solid, 1H-NMR (CDCl3) δ 8.00–7.86 (m, 3H), 7.77 (s, 1H), 7.54 (d, J = 9.2 Hz, 1H), 7.43 (t, J = 7.6 Hz, 2H), 7.36–7.29 (m, 1H), 7.01 (dd, J = 9.2, 1.7 Hz, 1H), 2.34–2.28 (m, 3H). 13C-NMR (CDCl3) δ 134.0, 128.8, 127.9, 127.9, 126.0, 123.4, 122.1, 116.9, 107.9, 18.1. LRMS (ESI) m/z: [M + H]+ found 209.2, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H12N2 209.1073; found 209.1075.
6-Methoxy-2-phenylimidazo[1,2-a]pyridine (3o): white solid, 1H-NMR (CDCl3) δ 7.95–7.87 (m, 2H), 7.79 (s, 1H), 7.63 (d, J = 2.4 Hz, 1H), 7.53 (d, J = 9.7 Hz, 1H), 7.42 (t, J = 7.7 Hz, 2H), 7.32 (d, J = 7.3 Hz, 1H), 6.97 (dd, J = 9.7, 2.4 Hz, 1H), 3.82 (s, 3H). 13C-NMR (CDCl3) δ 148.9, 145.2, 142.4, 133.5, 128.3, 127.3, 125.4, 119.4, 117.3, 108.8, 107.1, 55.8. LRMS (ESI) m/z: [M + H]+ found 225.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H12N2O 225.1022; found 225.1018.
5-Methoxy-2-phenylimidazo[1,2-a]pyridine (3p): white solid, 1H-NMR (CDCl3) δ 7.97–7.92 (m, 2H), 7.83 (s, 1H), 7.68 (d, J = 2.4 Hz, 1H), 7.57 (d, J = 9.7 Hz, 1H), 7.45 (t, J = 7.8 Hz, 2H), 7.34 (td, J = 7.2, 1.3 Hz, 1H), 7.00 (dd, J = 9.7, 2.3 Hz, 1H), 3.86 (s, 3H). 13C-NMR (CDCl3) δ 149.4, 146.8, 145.1, 133.9, 128.6, 127.8, 126.0, 125.9, 109.4, 103.6, 87.7, 56.3. LRMS (ESI) m/z: [M + H]+ found 225.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H12N2O 225.1022; found 225.1018
6-Fluoro-2-phenylimidazo[1,2-a]pyridine (3q): white solid, 1H-NMR (CDCl3) δ 8.20 (dd, J = 2.0, 0.9 Hz, 1H), 7.99–7.94 (m, 2H), 7.86 (d, J = 0.7 Hz, 1H), 7.62 (d, J = 9.5 Hz, 1H), 7.47 (dd, J = 8.4, 7.0 Hz, 2H), 7.41–7.35 (m, 1H), 7.18 (dd, J = 9.5, 2.0 Hz, 1H). 13C-NMR (CDCl3) δ 146.6, 144.0, 133.1, 128.8, 128.3, 128.1, 126.1, 125.5, 118.1, 108.2, 107.0. LRMS (ESI) m/z: [M + H]+ found 213.2, HRMS (ESI) m/z: [M + H]+ Calcd. for C13H9FN2 213.0823; found 213.0822.
6-Chloro-2-phenylimidazo[1,2-a]pyridine (3r): white solid, 1H-NMR (CDCl3) δ 8.18 (dd, J = 2.0, 0.9 Hz, 1H), 8.03–7.88 (m, 2H), 7.84 (s, 1H), 7.60 (d, J = 9.5 Hz, 1H), 7.45 (t, J = 7.5 Hz, 2H), 7.36 (d, J = 7.3 Hz, 1H), 7.15 (dd, J = 9.5, 2.0 Hz, 1H). 13C-NMR (CDCl3) δ 147.1, 144.3, 133.6, 129.1, 128.6, 126.4, 126.4, 123.7, 120.9, 118.2, 108.8. LRMS (ESI) m/z: [M + H]+ found 229.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C13H9ClN2 229.0527; found 229.0526.
6-Bromo-2-phenylimidazo[1,2-a]pyridine (3s): white solid, 1H-NMR (CDCl3) δ 8.33–8.21 (m, 1H), 8.00–7.89 (m, 2H), 7.82 (s, 1H), 7.53 (d, J = 9.5 Hz, 1H), 7.44 (dd, J = 8.3, 6.8 Hz, 2H), 7.39–7.30 (m, 1H), 7.23 (dd, J = 9.5, 1.9 Hz, 1H). 13C-NMR (CDCl3) δ 147.0, 144.4, 133.5, 129.1, 128.6, 128.4, 126.4, 125.9, 118.5, 108.6, 107.3. LRMS (ESI) m/z: [M + H]+ found 273.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C13H10BrN2 273.0022; found 273.0017.
2-Phenyl-6-(trifluoromethyl)imidazo[1,2-a]pyridine (3t): white solid, 1H-NMR (CDCl3) δ 8.25 (d, J = 7.0 Hz, 1H), 8.02–7.96 (m, 4H), 7.49 (t, J = 7.7 Hz, 2H), 7.43–7.37 (m, 1H), 6.99 (dd, J = 7.1, 1.8 Hz, 1H). 13C-NMR (CDCl3) δ 147.8, 145.3, 132.9, 128.9, 128.6, 126.2, 124.6, 120.6, 118.1, 109.2. LRMS (ESI) m/z: [M + H]+ found 263.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H10 F3N2 263.0791; found 263.0794.
2-Phenylimidazo[1,2-a]pyridine-6-carbonitrile (3u): white solid, 1H-NMR (CDCl3) δ 8.20 (dd, J = 7.0, 1.0 Hz, 1H), 8.08–7.90 (m, 4H), 7.46 (d, J = 7.8 Hz, 2H), 7.40 (d, J = 7.3 Hz, 1H), 6.94 (dd, J = 7.0, 1.6 Hz, 1H). 13C-NMR (CDCl3) δ 149.0, 143.5, 132.6, 129.0, 126.3, 126.2, 123.7, 117.7, 112.8, 110.3, 107.2. LRMS (ESI) m/z: [M + H]+ found 220.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C14H9N3 220.0869; found 220.0862.
2-Phenylbenzo[d]imidazo[2,1-b]thiazole (5a): white solid, 1H-NMR (CDCl3) δ 7.95 (d, J = 2.1 Hz, 1H), 7.91–7.82 (m, 2H), 7.72–7.63 (m, 1H), 7.63–7.55 (m, 1H), 7.45–7.38 (m, 3H), 7.36–7.29 (m, 2H). 13C-NMR (CDCl3) δ 148.1, 147.7, 133.8, 132.2, 130.3, 128.7, 127.5, 126.2, 125.2, 124.9, 124.4, 112.6, 106.8. LRMS (ESI) m/z: [M + H]+ found 251.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C15H10N2S 251.0637; found 251.0632.
6-Phenylimidazo[2,1-b]thiazole (5b): white solid, 1H-NMR (CDCl3) δ 7.88–7.82 (m, 2H), 7.77 (s, 1H), 7.47–7.39 (m, 3H), 7.34–7.28 (m, 1H), 6.85 (d, J = 4.5 Hz, 1H). 13C-NMR (CDCl3) δ 150.2, 147.9, 134.1, 128.6, 127.3, 125.2, 118.4, 112.4, 107.9. LRMS (ESI) m/z: [M + H]+ found 201.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C11H9N2S 201.0481; found 201.0482.
N,4-Diphenylthiazol-2-amine (5c): white solid, 1H-NMR (CDCl3) δ 7.88 (dd, J = 8.2, 1.4 Hz, 2H), 7.49–7.30 (m, 7H), 7.09 (tt, J = 6.9, 1.5 Hz, 1H), 6.84 (s, 1H). 13C-NMR (CDCl3) δ 164.3, 139.7, 133.9, 129.0, 128.2, 127.5, 125.7, 122.6, 117.8, 101.2. LRMS (ESI) m/z: [M + H]+ found 253.0, HRMS (ESI) m/z: [M + H]+ Calcd. for C15H12N2S 253.0794; found 253.0797.
4-Phenylthiazol-2-amine (5d): white solid, 1H-NMR (CDCl3) δ 7.86–7.67 (m, 2H), 7.38 (t, J = 7.5 Hz, 2H), 7.30 (d, J = 7.4 Hz, 1H), 6.72 (s, 1H), 5.26 (s, 2H). 13C-NMR (CDCl3) δ 167.3, 151.3, 134.7, 128.5, 127.7, 126.0, 102.8. LRMS (ESI) m/z: [M + H]+ found 177.1, HRMS (ESI) m/z: [M + H]+ Calcd. for C9H8N2S 177.0481; found 177.0486.
2-Methyl-4-phenylthiazole (5e): white solid, 1H-NMR (CDCl3) δ 7.93–7.88 (m, 2H), 7.44 (dd, J = 8.3, 7.0 Hz, 2H), 7.38–7.31 (m, 2H), 2.81 (s, 3H). 13C-NMR (CDCl3) δ 165.9, 155.1, 134.5, 128.7, 128.0, 126.3, 112.2, 19.3. LRMS (ESI) m/z: [M + H]+ found 176.0, HRMS (ESI) m/z: [M + H]+ Calcd. for C10H9NS 176.0534; found 176.0530.
2,4-Diphenylthiazole (5f): white solid, 1H-NMR (CDCl3) δ 8.09 (dd, J = 7.8, 1.7 Hz, 2H), 8.06–8.01 (m, 2H), 7.56–7.44 (m, 6H), 7.43–7.34 (m, 1H). 13C-NMR (CDCl3) δ 168.0, 133.6, 130.1, 128.9, 128.8, 128.2, 126.7, 126.5, 112.6. LRMS (ESI) m/z: [M + H]+ found 238.0, HRMS (ESI) m/z: [M + H]+ Calcd. for C15H11NS 238.0612; found 238.0614.
2-Phenylimidazo[2,1-a]isoquinoline (5g): white solid, 1H-NMR (CDCl3) δ 8.77 (d, J = 8.0 Hz, 1H), 8.12–8.01 (m, 2H), 7.90 (d, J = 7.2 Hz, 1H), 7.83 (s, 1H), 7.73–7.70 (m, 1H), 7.67 (ddd, J = 8.2, 7.1, 1.2 Hz, 1H), 7.59 (ddd, J = 8.2, 7.2, 1.3 Hz, 1H), 7.48 (t, J = 7.7 Hz, 2H), 7.40–7.33 (m, 1H), 7.05 (d, J = 7.2 Hz, 1H). 13C-NMR (CDCl3) δ 144.0, 143.3, 134.0, 129.4, 128.7, 128.1, 127.5, 126.9, 125.8, 123.8, 123.5, 122.9, 113.0, 109.8. LRMS (ESI) m/z: [M + H]+ found 244.9, HRMS (ESI) m/z: [M + H]+ Calcd. for C17H12N2 245.1073; found 245.1072.

4. Conclusions

In summary, we demonstrated a one-pot approach for the synthesis of various imidazoles and thiazoles. The process involves the reaction of different ethylarenes with different suitable nucleophiles via treatment with NBS and a catalytic amount of AIBN in a mixture of ethyl acetate and water, to give corresponding products. It is notable that all reactions were carried out in water as the solvent and were metal-free, with NBS playing a dual role as both a bromine source and oxidant.

Supplementary Materials

The supplementary materials are available online.

Author Contributions

Conceptualization, L.C. and H.Z.; Experiments and analyses, L.C.; Writing—Original Draft Preparation, J.W. and H.L.; Writing—Review & Editing.

Funding

We gratefully acknowledge financial support from the National Natural Science Foundation of China (81620108027, 21632008, and 21672231), the Major Project of Chinese National Programs for Fundamental Research and Development (2015CB910304).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Katritzky, A.R.; Xu, Y.J.; Tu, H. Regiospecific synthesis of 3-substituted imidazo[1,2-a]pyridines, imidazo[1,2-a]pyrimidines, and imidazo[1,2-c]pyrimidine. J. Org. Chem. 2003, 68, 4935–4937. [Google Scholar] [CrossRef] [PubMed]
  2. Martin, R.; Rodriguez Rivero, M.; Buchwald, S.L. Domino cu-catalyzed C--N coupling/hydroamidation: A highly efficient synthesis of nitrogen heterocycles. Angew. Chem. Int. Ed. 2006, 45, 7079–7082. [Google Scholar] [CrossRef] [PubMed]
  3. Naito, T. Development of new synthetic reactions for nitrogen-containing compounds and their application. Chem. Pharm. Bull. 2008, 56, 1367–1383. [Google Scholar] [CrossRef] [PubMed]
  4. Butler, M.S. The role of natural product chemistry in drug discovery. J. Nat. Prod. 2004, 67, 2141–2153. [Google Scholar] [CrossRef] [PubMed]
  5. Almirante, L.; Polo, L.; Mugnaini, A.; Provinciali, E.; Rugarli, P.; Biancotti, A.; Gamba, A.; Murmann, W. Derivatives of Imidazole. I. Synthesis and Reactions of Imidazo(1,2-a)Pyridines with Analgesic, Anti-Inflammatory, Antipyretic, and Anticonvulsant Activity. J. Med. Chem. 1965, 8, 305–312. [Google Scholar] [CrossRef] [PubMed]
  6. Chakraborty, S.; Kanakasabai, S.; Bright, J.J. Constitutive androstane receptor agonist CITCO inhibits growth and expansion of brain tumour stem cells. Br. J. Cancer 2011, 104, 448–459. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Langer, S.Z.; Arbilla, S.; Benavides, J.; Scatton, B. Zolpidem and alpidem: Two imidazopyridines with selectivity for omega 1- and omega 3-receptor subtypes. Adv. Biochem. Psychopharmacol. 1990, 46, 61–72. [Google Scholar] [PubMed]
  8. Maruyama, Y.; Anami, K.; Terasawa, M.; Goto, K.; Imayoshi, T.; Kadobe, Y.; Mizushima, Y. Anti-inflammatory activity of an imidazopyridine derivative (miroprofen). Arzneimittelforschung 1981, 31, 1111–1118. [Google Scholar] [PubMed]
  9. Tomioka, K.; Yamada, T.; Mase, T.; Murase, K. Pharmacological properties of YM-11124, a selective immunosuppressive agent for cell-mediated immunity. Pharmacology 1989, 39, 28–38. [Google Scholar] [CrossRef] [PubMed]
  10. Gunaganti, N.; Kharbanda, A.; Lakkaniga, N.R.; Zhang, L.; Cooper, R.; Li, H.Y.; Frett, B. Catalyst free, C-3 functionalization of imidazo[1,2-a]pyridines to rapidly access new chemical space for drug discovery efforts. Chem. Commun. 2018, 54, 12954–12957. [Google Scholar] [CrossRef] [PubMed]
  11. Guo, T.; Liang, J.J.; Yang, S.; Chen, H.; Fu, Y.N.; Han, S.L.; Zhao, Y.H. Palladium-catalyzed oxidative C-H/C-H cross-coupling of imidazopyridines with azoles. Org. Biomol. Chem. 2018, 16, 6039–6046. [Google Scholar] [CrossRef] [PubMed]
  12. Guo, Y.J.; Lu, S.; Tian, L.L.; Huang, E.L.; Hao, X.Q.; Zhu, X.; Shao, T.; Song, M.P. Iodine-Mediated Difunctionalization of Imidazopyridines with Sodium Sulfinates: Synthesis of Sulfones and Sulfides. J. Org. Chem. 2018, 83, 338–349. [Google Scholar] [CrossRef] [PubMed]
  13. Kitson, P.J.; Marie, G.; Francoia, J.P.; Zalesskiy, S.S.; Sigerson, R.C.; Mathieson, J.S.; Cronin, L. Digitization of multistep organic synthesis in reactionware for on-demand pharmaceuticals. Science 2018, 359, 314–319. [Google Scholar] [CrossRef] [PubMed]
  14. Lefin, R.; van der Walt, M.M.; Milne, P.J.; Terre’Blanche, G. Imidazo[1,2-alpha]pyridines possess adenosine A1 receptor affinity for the potential treatment of cognition in neurological disorders. Bioorg. Med. Chem. Lett. 2017, 27, 3963–3967. [Google Scholar] [CrossRef] [PubMed]
  15. McDonald, I.M.; Peese, K.M. General Method for the Preparation of Electron-Deficient Imidazo[1,2-a]pyridines and Related Heterocycles. Org. Lett. 2015, 17, 6002–6005. [Google Scholar] [CrossRef] [PubMed]
  16. Sun, K.; Mu, S.; Liu, Z.; Feng, R.; Li, Y.; Pang, K.; Zhang, B. Copper-catalyzed C-N bond formation with imidazo[1,2-a]pyridines. Org. Biomol. Chem. 2018, 16, 6655–6658. [Google Scholar] [CrossRef] [PubMed]
  17. Abe, Y.; Kayakiri, H.; Satoh, S.; Inoue, T.; Sawada, Y.; Imai, K.; Inamura, N.; Asano, M.; Hatori, C.; Katayama, A.; et al. A novel class of orally active non-peptide bradykinin B2 receptor antagonists. 1. Construction of the basic framework. J. Med. Chem. 1998, 41, 564–578. [Google Scholar] [CrossRef] [PubMed]
  18. Che, H.; Park, B.K.; Lim, H.; Kim, H.P.; Chang, H.W.; Jeong, J.H.; Park, H. Synthesis of biflavones having a 6-O-7’’ linkage and effects on cyclooxygenase-2 and inducible nitric oxide synthase. Bioorg. Med. Chem. Lett. 2009, 19, 74–76. [Google Scholar] [CrossRef] [PubMed]
  19. Fookes, C.J.; Pham, T.Q.; Mattner, F.; Greguric, I.; Loc’h, C.; Liu, X.; Berghofer, P.; Shepherd, R.; Gregoire, M.C.; Katsifis, A. Synthesis and biological evaluation of substituted [18F]imidazo[1,2-a]pyridines and [18F]pyrazolo[1,5-a]pyrimidines for the study of the peripheral benzodiazepine receptor using positron emission tomography. J. Med. Chem. 2008, 51, 3700–3712. [Google Scholar] [CrossRef] [PubMed]
  20. Humphries, A.C.; Gancia, E.; Gilligan, M.T.; Goodacre, S.; Hallett, D.; Merchant, K.J.; Thomas, S.R. 8-Fluoroimidazo[1,2-a]pyridine: Synthesis, physicochemical properties and evaluation as a bioisosteric replacement for imidazo[1,2-a]pyrimidine in an allosteric modulator ligand of the GABA A receptor. Bioorg. Med. Chem. Lett. 2006, 16, 1518–1522. [Google Scholar] [CrossRef] [PubMed]
  21. Rupert, K.C.; Henry, J.R.; Dodd, J.H.; Wadsworth, S.A.; Cavender, D.E.; Olini, G.C.; Fahmy, B.; Siekierka, J.J. Imidazopyrimidines, potent inhibitors of p38 MAP kinase. Bioorg. Med. Chem. Lett. 2003, 13, 347–350. [Google Scholar] [CrossRef]
  22. Bagdi, A.K.; Santra, S.; Monir, K.; Hajra, A. Synthesis of imidazo[1,2-a]pyridines: A decade update. Chem. Commun. 2015, 51, 1555–1575. [Google Scholar] [CrossRef] [PubMed]
  23. Chernyak, N.; Gevorgyan, V. General and efficient copper-catalyzed three-component coupling reaction towards imidazoheterocycles: One-pot synthesis of alpidem and zolpidem. Angew. Chem. Int. Ed. 2010, 49, 2743–2746. [Google Scholar] [CrossRef] [PubMed]
  24. Nandwana, N.K.; Pericherla, K.; Kaswan, P.; Kumar, A. Synthesis of novel azole-fused quinazolines via one-pot, sequential Ullmann-type coupling and intramolecular dehydrogenative C-N bonding. Org. Biomol. Chem. 2015, 13, 2947–5290. [Google Scholar] [CrossRef] [PubMed]
  25. Yan, R.L.; Yan, H.; Ma, C.; Ren, Z.Y.; Gao, X.A.; Huang, G.S.; Liang, Y.M. Cu(I)-catalyzed synthesis of imidazo[1,2-a]pyridines from aminopyridines and nitroolefins using air as the oxidant. J. Org. Chem. 2012, 77, 2024–2028. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, Y.; Chen, Z.; Wu, W.; Zhang, Y.; Su, W. CuI-catalyzed aerobic oxidative alpha-aminaton cyclization of ketones to access aryl or alkenyl-substituted imidazoheterocycles. J. Org. Chem. 2013, 78, 12494–12504. [Google Scholar] [CrossRef] [PubMed]
  27. Talbot, E.P.; Richardson, M.; McKenna, J.M.; Toste, F.D. Gold Catalysed Redox Synthesis of Imidazo[1,2-a]pyridine using Pyridine N-Oxide and Alkynes. Adv. Synth. Catal. 2014, 356, 687–691. [Google Scholar] [CrossRef] [PubMed]
  28. Alajarin, M.; Cabrera, J.; Pastor, A.; Sanchez-Andrada, P.; Bautista, D. On the [2+2] cycloaddition of 2-aminothiazoles and dimethyl acetylenedicarboxylate. Experimental and computational evidence of a thermal disrotatory ring opening of fused cyclobutenes. J. Org. Chem. 2006, 71, 5328–5339. [Google Scholar] [CrossRef] [PubMed]
  29. Fisher, M.H.; Lusi, A. Imidazo(1,2-a)pyridine anthelmintic and antifungal agents. J. Med. Chem. 1972, 15, 982–985. [Google Scholar] [CrossRef] [PubMed]
  30. Shinde, M.H.; Kshirsagar, U.A. One pot synthesis of substituted imidazopyridines and thiazoles from styrenes in water assisted by NBS. Green Chem. 2016, 18, 1455–1458. [Google Scholar] [CrossRef]
  31. Shimokawa, S.; Kawagoe, Y.; Moriyama, K.; Togo, H. Direct Transformation of Ethylarenes into Primary Aromatic Amides with N-Bromosuccinimide and I2-Aqueous NH3. Org. Lett. 2016, 18, 784–787. [Google Scholar] [CrossRef] [PubMed]
  32. Li, C.J. Organic reactions in aqueous media with a focus on carbon-carbon bond formations: A decade update. Chem. Rev. 2005, 105, 3095–3165. [Google Scholar] [CrossRef] [PubMed]
  33. Simon, M.O.; Li, C.J. Green chemistry oriented organic synthesis in water. Chem. Soc. Rev. 2012, 41, 1415–1427. [Google Scholar] [CrossRef] [PubMed]
  34. Park, H.J.; Jun, J.-G. An Efficient Copper-catalyzed Nucleophilic Addition to N-Acyliminium Ions Derived from N-Benzyloxycarbonylamino Sulfones: A Novel Approach to C-3 Functionalization of 2-Phenylimidazo[1,2-a]pyridine. Bulletin Korean Chem. Soc. 2017, 38, 1123–1128. [Google Scholar] [CrossRef]
  35. Redon, S.; Obah Kosso, A.R.; Broggi, J.; Vanelle, P. Easy and efficient selenocyanation of imidazoheterocycles using triselenodicyanide. Tetrahedron Lett. 2017, 58, 2771–2773. [Google Scholar] [CrossRef] [Green Version]
  36. Parisio, C.; Clementi, F. Surface alterations induced by stress in gastric mucosa: Protective effect of zolimidine. A transmission and scanning electron microscope investigation. Lab. Investig. 1976, 35, 484–495. [Google Scholar] [PubMed]
  37. Belohlavek, D.; Malfertheiner, P. The effect of zolimidine, imidazopyridine-derivate, on the duodenal ulcer healing. Scand. J. Gastroenterol Suppl. 1979, 54, 44. [Google Scholar] [PubMed]
  38. Materia, A.; Basso, N.; Bagarani, M.; Basoli, A.; Speranza, V. Treatment of alkaline reflux gastritis with zolimidine. Controlled study. Clin. Ter. 1981, 97, 183–191. [Google Scholar] [PubMed]
  39. Yuan, G.; Zheng, J.; Gao, X.; Li, X.; Huang, L.; Chen, H.; Jiang, H. Copper-catalyzed aerobic oxidation and cleavage/formation of C-S bond: A novel synthesis of aryl methyl sulfones from aryl halides and DMSO. Chem. Commun. 2012, 48, 7513–7515. [Google Scholar] [CrossRef] [PubMed]
  40. Bhagat, S.B.; Telvekar, V.N. NBS mediated protocol for the synthesis of N -bridged fused heterocycles in water. Tetrahedron Lett. 2017, 58, 3662–3666. [Google Scholar] [CrossRef]
  41. Djerassi, C. Brominations with N-bromosuccinimide and related compounds; the Wohl-Ziegler reaction. Chem. Rev. 1948, 43, 271–317. [Google Scholar] [CrossRef] [PubMed]
  42. Gonzalez-de-Castro, A.; Xiao, J. Green and Efficient: Iron-Catalyzed Selective Oxidation of Olefins to Carbonyls with O2. J. Am. Chem. Soc. 2015, 137, 8206–8218. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Not available.
Molecules 24 00893 g001 550

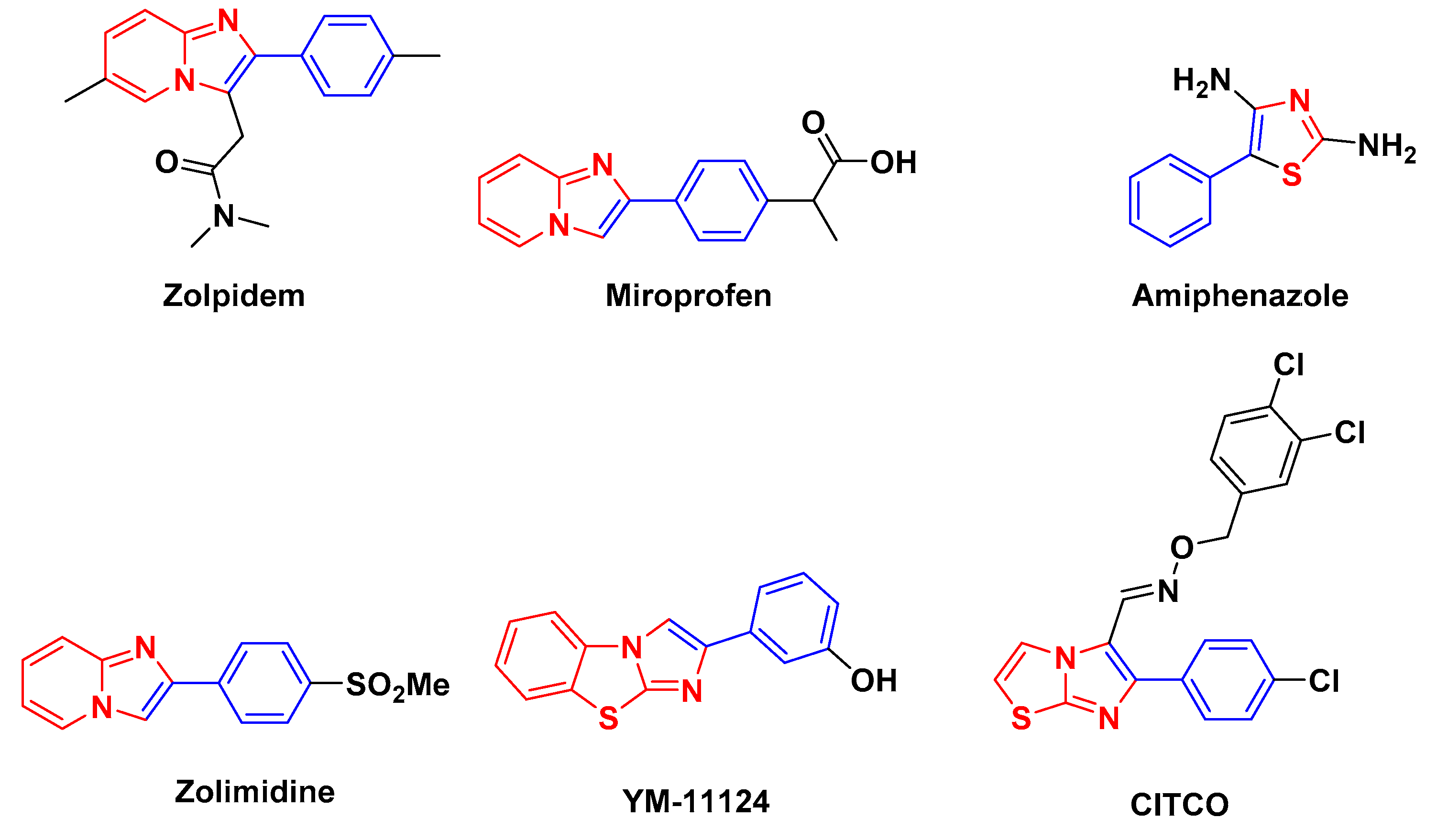

Figure 1. Biologically active compounds based on imidazoles and thiazoles.
Figure 1. Biologically active compounds based on imidazoles and thiazoles.
Molecules 24 00893 g001
Molecules 24 00893 sch001 550

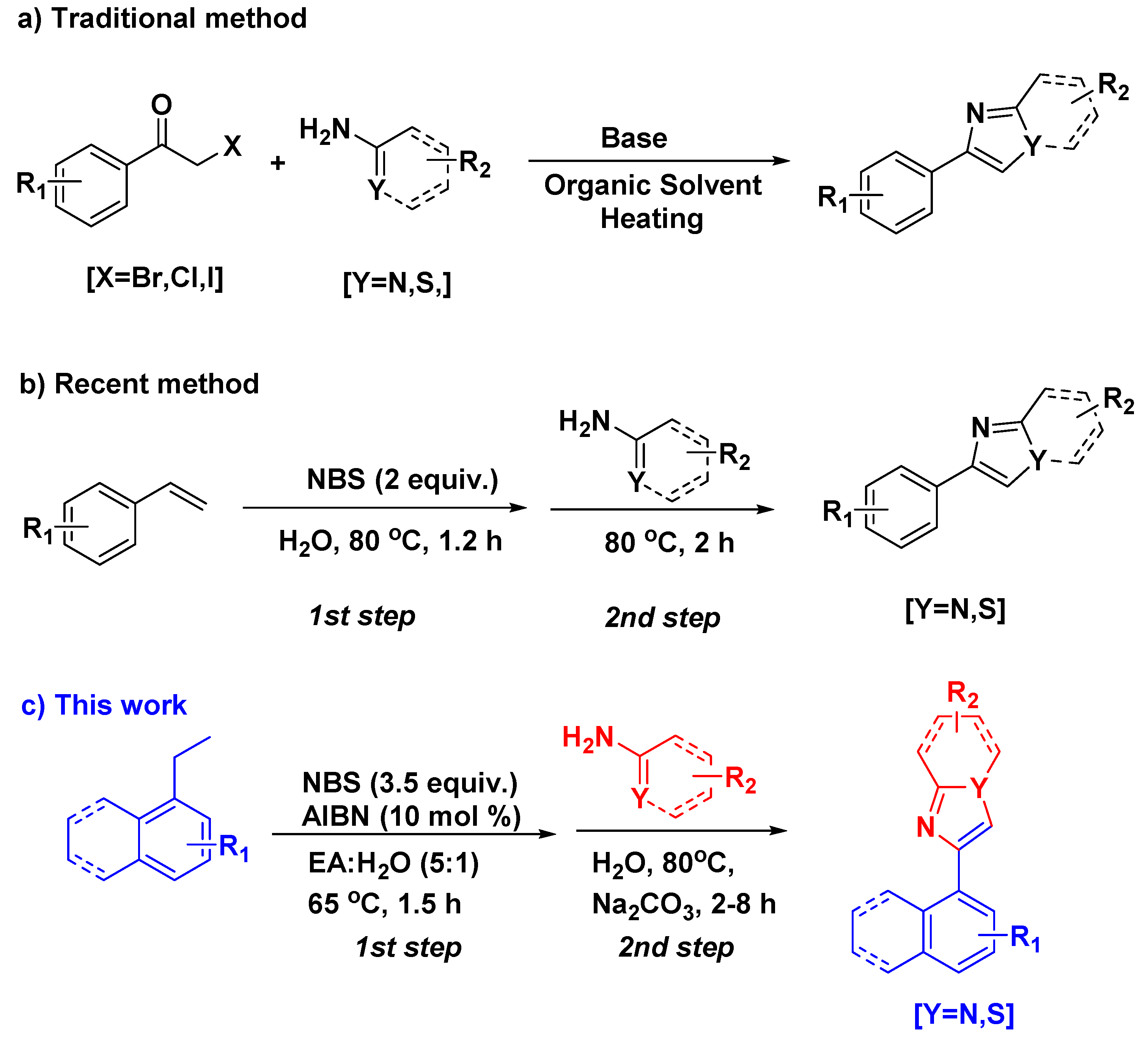

Scheme 1. Approach for the synthesis of imidazoles and thiazoles.
Scheme 1. Approach for the synthesis of imidazoles and thiazoles.
Molecules 24 00893 sch001
Molecules 24 00893 g002 550

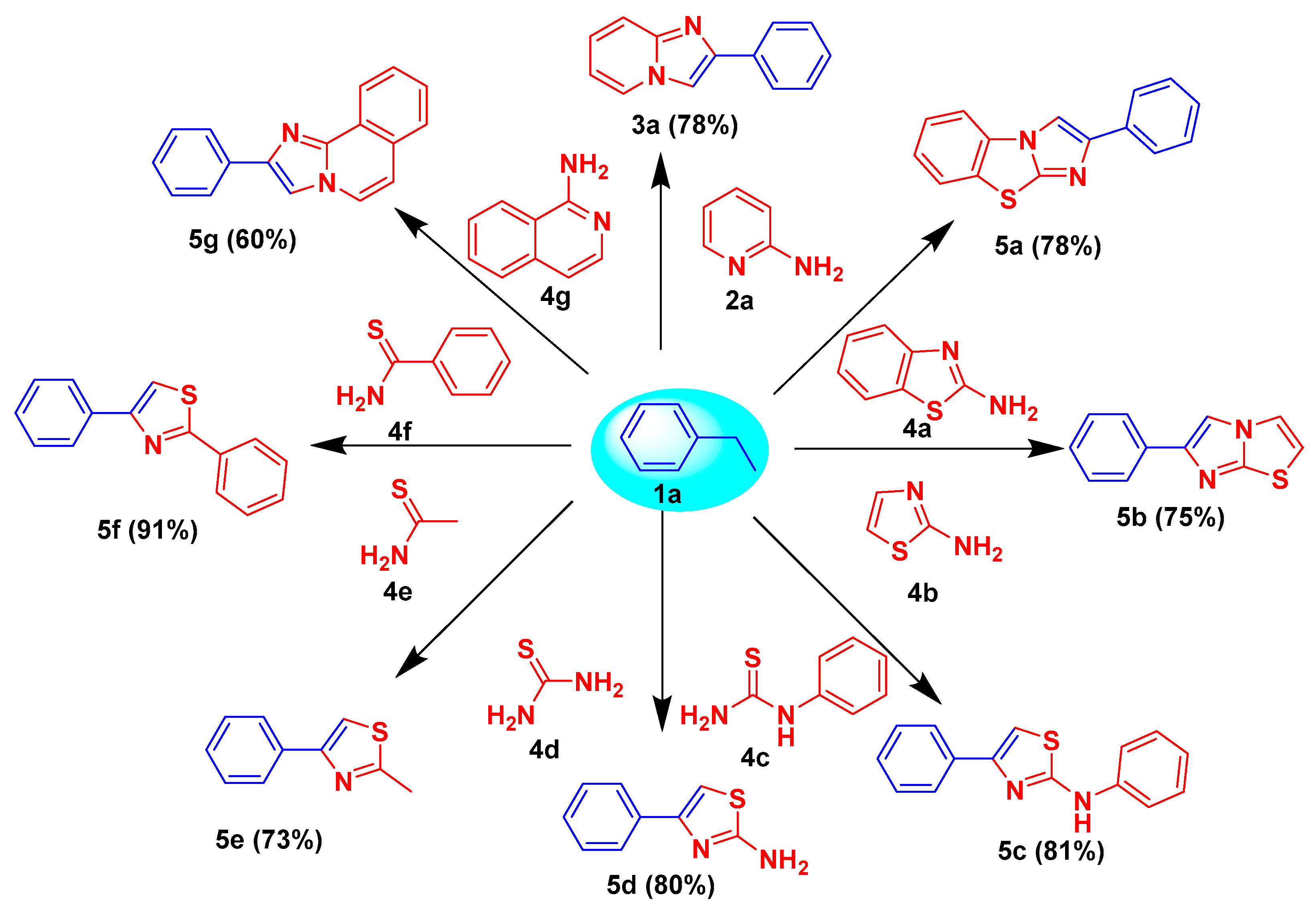

Figure 2. Substrate scope for diverse imidazoles and thiazoles.
Figure 2. Substrate scope for diverse imidazoles and thiazoles.
Molecules 24 00893 g002
Molecules 24 00893 sch002 550
Scheme 2. Gram-scale preparation of 3a and synthesis of the gastroprotective drug zolimidine.
Scheme 2. Gram-scale preparation of 3a and synthesis of the gastroprotective drug zolimidine.
Molecules 24 00893 sch002
Molecules 24 00893 sch003 550
Scheme 3. Mechanism experiments.
Scheme 3. Mechanism experiments.
Molecules 24 00893 sch003
Molecules 24 00893 sch004 550
Scheme 4. Plausible reaction mechanism.
Scheme 4. Plausible reaction mechanism.
Molecules 24 00893 sch004
Table

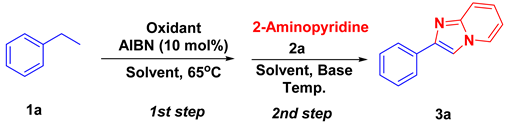

Table 1. Optimization of reaction conditions a.
Table 1. Optimization of reaction conditions a.
Molecules 24 00893 i001
EntryFirst StepSecond Step
OxidantSolventSolventTemp. (°C)Base (Equiv.)Yield b (%)
1NBSEA/H2O (5:1)EA/H2O (5:1)80none38
2NCSEA/H2O (5:1)EA/H2O (5:1)80none0
3NISEA/H2O (5:1)EA/H2O (5:1)80none0
4BrNPhthEA/H2O (2:1)EA/H2O (5:1)80none34
5NBSMeCN/H2O (5:1)MeCN/H2O (5:1)75none33
6NBSAcetone/H2O (5:1)Acetone/H2O (5:1)50none28
7NBS1,4-Dioxane/H2O (5:1)1,4-Dioxane/H2O (5:1)95nonetrace
8NBSEA/H2O (5:1)H2O80none67
9NBSEA/H2O (5:1)EtOH70none65
10NBSEA/H2O (5:1)Acetone50none62
11NBSEA/H2O (5:1)H2O80Na2CO3 (2)72
12NBSEA/H2O (5:1)H2O80Na2CO3 (5)78
13NBSEA/H2O (5:1)H2OrefluxNa2CO3 (5)77
a Reactions were run with ethylbenzene 1a (1 mmol) of with oxidant in the presence of AIBN (10 mol %) in 6 mL of solvent at 65 °C for 1.5 h, followed by reaction with 2-aminopyridine 2a (1.2 mmol) and base if needed heated for 2 h. b Isolated yields.
Table

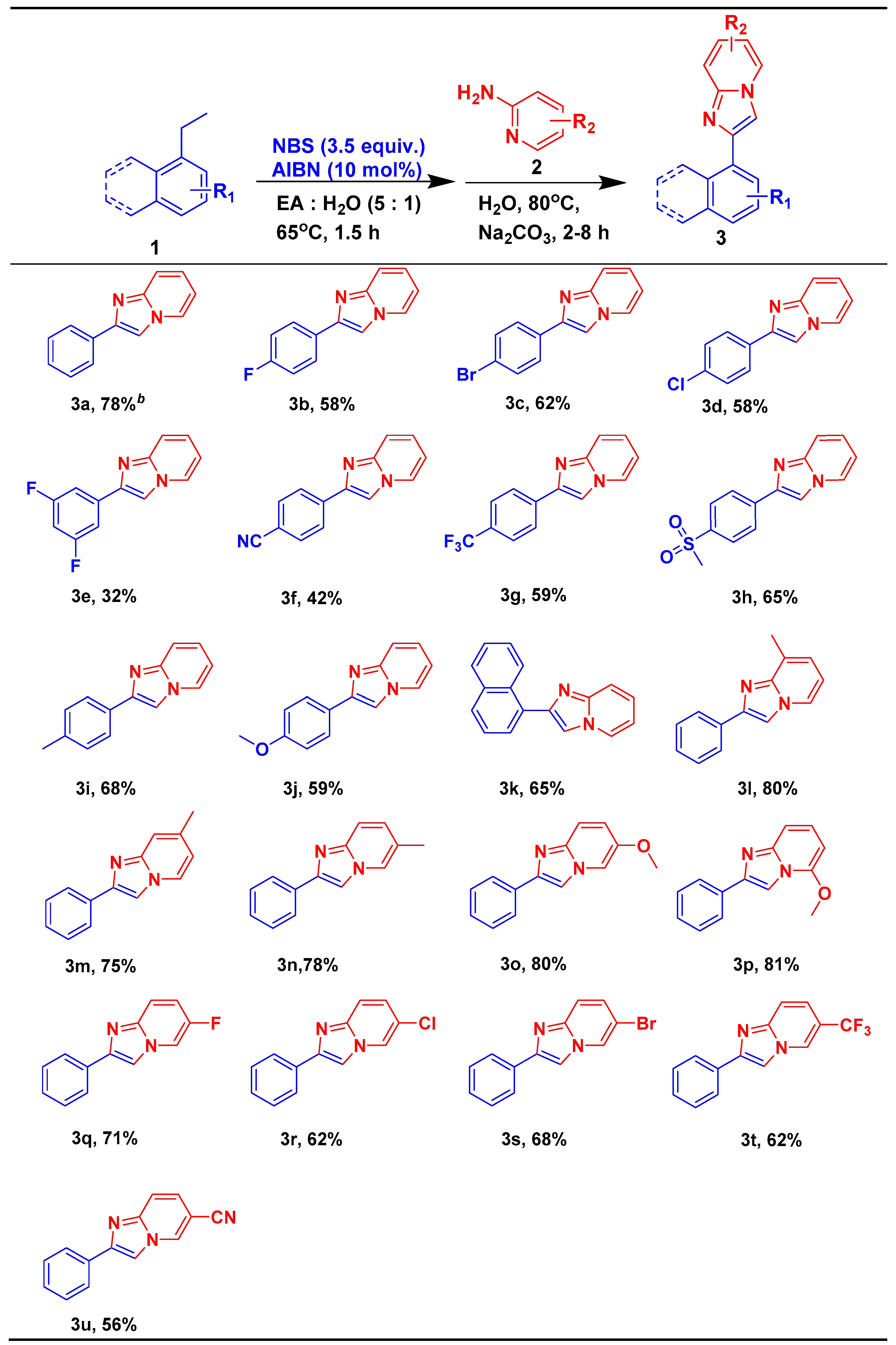

Table 2. Substrate scope for the imidazo[1,2-a]pyridines a.
Table 2. Substrate scope for the imidazo[1,2-a]pyridines a.
Molecules 24 00893 i002
a Reactions were run with 1 (1 mmol) of with NBS (3.5 equiv.) in the presence of AIBN (10 mol %) in EA:H2O (5:1, 6 mL) at 65 °C for 1.5 h, followed by reaction with 2 (1.2 mmol) and Na2CO3 (5 equiv.) at 80 °C in water for 2–8 h, monitored by TLC. b Isolated yields.
