Study of Catalytic CO₂ Absorption and Desorption with Tertiary Amine DEEA and 1DMA-2P with the Aid of Solid Acid and Solid Alkaline Chemicals

Abstract

Studies of catalytic CO₂ absorption and desorption were completed in two well-performed tertiary amines: diethylmonoethanolamine (DEEA) and 1-dimethylamino-2-propanol (1DMA-2P), with the aid of CaCO₃ and MgCO₃ in the absorption process, and with the aid of γ-Al₂O₃ and H-ZSM-5 in the desorption process. The batch process was used for CO₂ absorption with solid alkalis, and the recirculation process was used for CO₂ desorption with solid acid catalysts. The CO₂ equilibrium solubility and pKa were also measured at 293 K with results comparable to the literature. The catalytic tests discovered that the heterogeneous catalysis of tertiary amines on both absorption and desorption sides were quite different from monoethanolamine (MEA) and diethanolamine (DEA). These results were illustrative as a start-up to further study of the kinetics of heterogeneous catalysis of CO₂ to tertiary amines based on their special reaction schemes and base-catalyzed hydration mechanism.

1. Introduction

The global warming and sudden change of climates have driven scientists and engineers to develop cost-effective processes for CO₂ removal from coal-fired power plants [1]. The chemical absorption of CO₂ in the post-combustion CO₂ capture process may be implemented on the commercial scale [2]. This absorption process enables the CO₂ removal with “energy efficient” amine solvents via an absorption-desorption unit [1].

The development of attractive and novel amines has been a strong drive to meet these basic requirements: high absorption rates, large cyclic capacity, and low regeneration energy [3,4]. Amine solutions of monoethanolamine (MEA), diethanolamine (DEA) and methyldiethanolamine (MDEA) have been widely used for CO₂ removal, as benchmarks of primary, secondary, and tertiary amines [5]. MEA exhibits a higher reaction rate, but smaller cyclic capacity, higher energy costs for regeneration and higher corrosion rates [4]. To overcome these limitations, MEA is usually blended with a variety of tertiary amines in preparation for improved solvents called “MEA-R₃N blends” such as MEA-MDEA [6,7], MEA-4-diethylamino-2butabol (DEAB) [6,7], MEA-diethylmonoethanolamine (DEEA) [8] and MEA-1-dimethylamino-2-propanol (1DMA-2P), etc. [9]. Among these MEA-R₃N blends, the concentration of MEA is usually 5.0 mol/L, but the concentration of tertiary amine is around 1.0–2.0 mol/L for MDEA [6,7], and 1.0–1.5 for amines such as DEEA (1.0 mol/L) [9], 1DMA-2P (1.0 mol/L) [9] of DEAB (1.25 mol/L) [6,7] etc. In industry, the tertiary amines are usually prepared at a concentration of 1–1.5 mol/L for absorption if blended with a concentrated amine such as 5.0 mol/L MEA.

Most tertiary amines fulfill two basic requirements: a large cyclic capacity with a relatively lower regeneration energy compared with MEA and DEA [5]. Among these commercial tertiary amines, MDEA is always used as benchmark. Recently, two good performance tertiary amines have drawn research interest: DEEA and 1DMA-2P [1,5]. DEEA is studied for its relatively higher CO₂ equilibrium solubility than MDEA [10]. The pKa of it [11] is studied, and its mass transfer performance [12] is also better than MDEA. 1DMA-2P is also investigated for its large CO₂ cyclic capacity, much higher absorption rates (kinetics) [13] and better mass transfer characteristics [14] than MDEA. It also has a much lower CO₂ absorption heat than MEA, DEA, PZ and MDEA [15]. Moreover, the equilibrium solubility, the pKa [16] and ion speciation plots of 1DMA-2P-CO₂-H₂O are generated with ¹³C NMR methods [17].

Meanwhile, based on recent studies, the effects of solid base chemicals to MEA (K/MgO, CaCO₃ and MgCO₃) [18,19] and DEA (CaCO₃ and MgCO₃) [20] on CO₂ absorption have been verified. They accelerate the CO₂ absorption rates. However, the effects of both solid bases onto a tertiary amine have rarely been discussed either. The effects of solid acid catalysts (γ-Al₂O₃, H-ZSM-5, TiO(OH)₂, and transition metal oxides V₂O₅, MoO₃, WO₃, TiO₂, and Cr₂O₃) to MEA [9,21,22,23,24,25] and DEA [26] have also been studied and proven to be effective in the reduction of heat duty. Some studies have been completed to investigate the effects of solid acid catalysts (H-ZSM-5, MCM-41 and SO₄²⁻/ZrO₂) with blended amine solvents of 5 + 1.0 mol/L MEA-DEEA and MEA-1DMA-2P [9]. However, the effects of the heterogeneous catalysis toward CO₂-R₃N alone require detailed investigation.

The catalytic effects were verified of CaCO₃ and MgCO₃ toward MEA (19) and DEA (20) on CO₂ absorption, and also (γ-Al₂O₃ and H-ZSM-5) to MEA [9,21,22,23] and DEA [26] on CO₂ desorption. These catalytic effects toward tertiary amines were the purpose of this study. Since the reaction schemes and the mechanism of CO₂ absorption with tertiary amines are quite different from primary amine (MEA) or secondary amine (DEA), these differences make the effects of heterogeneous catalysis worthy of deep investigation with solid bases and solid acids as a start-up. For this study, the CO₂ absorption with 1.0–1.5 mol/L DEEA and 1DMA-2P solvents were investigated with the aid of a solid base (CaCO₃ and MgCO₃), and CO₂ desorption 1.0–2.0 mol/L DEEA and 1DMA-2P solvents for solid acids (γ-Al₂O₃ and H-ZSM-5). The effects of heterogeneous catalysis on both sides of absorption and desorption were studied and compared with MEA and DEA.

2. Theory

2.1. Reaction Scheme, and Suitable Mechanisms of CO₂-R₃N Interaction

The reaction scheme of the CO₂ reaction with tertiary amine (R₁R₂R₃N) is presented below with Equations (1)–(6) [3]. Equation (1) is the major reaction being emphasized. Different from primary/secondary amines (R₁NH₂/R₁R₂NH), the major anion is bicarbonate (HCO₃⁻) instead of carbamate (R₁R₂N-COO⁻).

CO₂ + R₁R₂R₃N + H₂O ↔ R₁R₂R₃NH⁺ + HCO₃⁻

(1)

R₁R₂R₃NH⁺ ↔ R₁R₂R₃N + H⁺

(2)

CO₂ + H₂O ↔ H₂CO₃ ↔ H⁺ + HCO₃⁻

(3)

CO₂ + OH⁻ ↔ HCO₃⁻

(4)

HCO₃⁻ ↔ H⁺ + CO₃²⁻

(5)

H₂O ↔ H⁺ + OH⁻

(6)

Based on a recent review of kinetics [27], the Zwitterion mechanism [28] and Termolecular mechanism [29] are suitable for CO₂ reactions with primary and secondary amines. The mechanism of CO₂ reaction with tertiary amines was proposed by Donaldson and Nguyen and is termed the “base-catalyzed hydration mechanism” [30]. The tertiary amine (R₁R₂R₃N) does not react directly with CO₂, but rather acts as a base that catalyzes the hydration of CO₂ [30] based on Equation (1).

The rate equation was written as Equation (7), with the rate constant of tertiary amine (R₃N) of ${\mathrm{k}}_{{\mathrm{R}}_3\mathrm{N}}$: [31] from Equation (7), the bigger amine concentration results in higher absorption rates.

$${\mathrm{r}}_{{\mathrm{CO}}_2}={\mathrm{k}}_{{\mathrm{R}}_3\mathrm{N}}\left[{\mathrm{R}}_3\mathrm{N}\right]\left[{\mathrm{CO}}_2\right].$$

(7)

Moreover, there are three balance equations in the R₃N-CO₂-H₂O systems, as presented in Equations (8)–(10) [3].

Mass balance of R₃N:

[R₁R₂R₃N]₀ = [R₁R₂R₃NH⁺] + [R₁R₂R₃N]

(8)

Mass balance of Carbon, where α is CO₂ loading:

α × [R₁R₂R₃N]₀ = [CO_2(aq)] + [HCO₃⁻] + [CO₃²⁻]

(9)

Charge balance:

[R₁R₂R₃NH⁺] + [H⁺] = [OH⁻] + [HCO₃⁻] + 2[CO₃²⁻]

(10)

2.2. Role of Solid Alkalis Chemicals for Absorption

The catalytic effects of both solid alkalis to MEA and DEA were already studied [19,20]. However, the role was slightly different with tertiary amines. Since the reaction mechanism of CO₂-R₃N was “base-catalyzed hydration” [30], reactions (1)–(6) could be facilitated with either a liquid base [OH⁻] or solid alkalis/Lewis base [19] due to the acidic chemical nature of CO₂. Therefore, the solid alkalis (CaCO₃ and MgCO₃) could enhance the hydration of CO₂, and proton transfer of [H₂CO₃] to water or R₃N, as an aid to the liquid base of [OH⁻].

$${\mathrm{CO}}_2+{\mathrm{H}}_2\mathrm{O}\stackrel{\mathrm{Base}}{\leftrightarrow }{\mathrm{H}}^{+}+{{\mathrm{HCO}}_3}^{-}$$

(11)

$${\mathrm{CO}}_2+{\mathrm{R}}_1{\mathrm{R}}_2{\mathrm{R}}_3\mathrm{N}+{\mathrm{H}}_2\mathrm{O}\stackrel{\mathrm{Base}}{\leftrightarrow }{\mathrm{H}}^{+}+{{\mathrm{HCO}}_3}^{-}$$

(12)

After detailed investigations, the role of solid alkalis was “Lewis base” and “proton acceptor” [19] to facilitate proton transfer of H₂CO₃, with reactions below:

H₂CO₃ + Catalyst ↔ HCO₃⁻ + Cat-[H⁺]

(13)

Cat-[H⁺] + R₃N ↔ Catalyst + [R₃NH⁺]

(14)

The solid catalyst (CaCO₃/MgCO₃) accepted the protons [H⁺] from H₂CO₃ with its long pair of electrons on the “O atom” via (13). After that, the proton was transferred from the solid catalyst to the tertiary amine (R₃N) via (14), because the tertiary amine is a stronger base than Lewis base (CaCO₃/MgCO₃). The overall reaction was (3) + (13) + (14) = (1), and the solid catalyst was involved in the reaction but did not change the reactant or products. From Equations (13) and (14), with an increased amount of solid base, the reaction rate of (13) would increase but the rate of (14) would decrease. With an increased mass of catalysts, the protons [H⁺] are easier to transfer onto a solid surface, but harder to release back to R₃N. Therefore, there is an optimized amount of solid catalyst for CO₂ absorption, after that, the rates slightly decreased.

2.3. Role of Lewis Acid and BrØnsted Acid for CO₂ Desorption

The role of Lewis acid (γ-Al₂O₃) and BrØnsted acid for CO₂ desorption with MEA and DEA has already been discussed repeatedly [9,21,26].

However, the role of both acids needs to be discussed for CO₂ desorption with tertiary amines because the reactions were different, and no carbamate was involved. After the study of reaction schemes, the effect and mechanism of both solid acids were discussed as follows:

γ-Al₂O₃ as catalyst:

Al₂O₃ + 2OH⁻ ↔ 2 AlO₂⁻ + H₂O

(15)

R₁R₂R₃NH⁺ + AlO₂⁻ ↔ R₁R₂R₃N + HAlO₂

(16)

HAlO₂ + HCO₃⁻ ↔ AlO₂⁻ + H₂O + CO₂ ↑

(17)

H-ZSM-5 as catalyst:

H-ZSM-5 + HCO₃⁻ ↔ (ZSM-5)⁻ + H₂O + CO₂ ↑

(18)

R₁R₂R₃NH⁺ + (ZSM-5)⁻ ↔ R₁R₂R₃N + H-ZSM-5

(19)

Both solid acids could facilitate the CO₂ production rates and reduce the energy costs. In short, the Al₂O₃ is Amphoteric Oxide, and it was converted into AlO₂⁻ in basic solutions. From the published energy diagrams [6], Al₂O₃ (AlO₂⁻) can speed up the proton transfer from R₁R₂R₃NH⁺ to HCO₃⁻ and CO₂ generation under heat. H-ZSM-5 is the proton donor, which directly provides protons to the solvent and facilitates CO₂ generation.

Based on the reaction schemes above, both solid acids involve two steps, namely “accept proton” and “donate/transfer proton”. Since γ-Al₂O₃ contains no proton, it has to “accept proton” first and “transfer proton” later in the desorption process. The H-ZSM-5 contains proton itself, and it intends to “donate proton” first and then “accept proton” from R₁R₂R₃NH⁺. The mechanisms are similar for both solid catalysts but the order of “accept proton” and “donate/transfer proton” is opposite.

3. Materials and Experimental Methods

3.1. Chemicals

The solid chemicals were purchased from Huishan Chemical Ltd; they were CaCO₃ and MgCO₃. The CO₂ gas and the liquid chemicals DEEA and 1-DMA2P were purchased from Tansoole Chemical Ltd. (Shanghai, China). HCl and methyl orange were commercially obtained from Guoyao Chemical Ltd. (Shanghai, China). The chemical structures and full name of DEEA and 1DMA2P were presented elsewhere [5].

3.2. pKa Analysis

The titration technique was adopted to determine the amine dissociation constant (Ka) with standard 1 mol/L HCl [32,33,34,35]. This is a simplified pH method to test the pKa of different amines under different temperatures. For an aqueous amine solution, the Equation (20) below showed the deprotonation reaction of AmineH⁺/Amine as a conjugated pair of acid-bases.

$${\mathrm{AmineH}}^{+}\stackrel{k_a}{\leftrightarrow }\mathrm{Amine}+{\mathrm{H}}^{+}$$

(20)

Based on a detailed pKa study of tertiary amines [11] the pH meter measured the activity {R₃NH⁺} of amine solvents instead of its real concentration [R₃NH⁺]. The correlation is {R₃NH⁺} = [R₃NH⁺] ${\gamma }_{{\mathrm{BH}}^{+}}$ [11]. This study assumed that this diluted amine solvent (<0.10 mol/L) is the ideal solution (when the concentration is very low and the activity coefficient ${\gamma }_{{\mathrm{BH}}^{+}}$ equals to 1 {BH⁺} ≈ [BH⁺]) [11]. Then, Equations (21) and (22) below were used to calculate the Ka.

$${\mathrm{K}}_{\mathrm{a},\mathrm{Amine}}=\frac{\left[\mathrm{Amine}\right]\left[{\mathrm{H}}^{+}\right]}{\left[{\mathrm{AmineH}}^{+}\right]}$$

(21)

$$p{K}_a=-\log \left({\mathrm{K}}_{\mathrm{a},\mathrm{Amine}}\right)=-\log (\left[\mathrm{Amine}\right]\left[{\mathrm{H}}^{+}\right]/\left[{\mathrm{AmineH}}^{+}\right])$$

(22)

The pH meter was used to measure the concentration of H⁺ in the solution [32,33,34,35]. As presented in Equation (23), the disappearance of H⁺ during the titration process resulted from its reaction with Amine to generate AmineH⁺, and reaction (20) is the dominant in aqueous solution. A mass balance of protons as shown in Equation (23) was adopted to calculate the concentration of AmineH⁺, and the amine balance equation as shown in Equation (24) was adopted to calculate free amine.

$$\mathrm{nHCl}-\left[{\mathrm{H}}^{+}\right]{\mathrm{V}}_{\mathrm{total}}=\left[{\mathrm{AmineH}}^{+}\right]{\mathrm{V}}_{\mathrm{total}}$$

(23)

$$(\left[\mathrm{Amine}\right]+\left[{\mathrm{AmineH}}^{+}\right]){\mathrm{V}}_{\mathrm{total}}={\mathrm{n}}_{0,\mathrm{Amine}}$$

(24)

In Equations (23) and (24) above, nHCl is the number of moles of HCl added during the titration process, V_total is the total liquid volume after the titration process, and n_0,Amine is the moles of free amines as a start, which can be determined by titration with 1.0 mol/L HCl until the indicator of methyl orange turns pink.

For the experiment, the Ka of amine was determined based on the procedure described [32]. Briefly speaking, 100 mL of 0.10 mol/L amine solution was carefully prepared and titrated with 10 mL of 1.0 mol/L HCl standard solution at 298 K until the end point was observed. During the titration process, the pH meter was placed in the solution to record pH value with the addition of 1 mL HCl each time. A table of pH value and amount of HCl was generated. Equations (21)–(24), were used to determine the concentration of [AmineH⁺], [Amine] and then calculate the dissociation constant (Ka). The dataset was only recorded at pH > 9, because the results would be inaccurate if pH < 9, where the generation of [H⁺] or [OH⁻] from water is not negligible.

3.3. CO₂ Absorption Process with Absorption Profiles

A set of stirred-cell reactors were built in the lab, with the flow chart exhibited in Figure S1. The process was similar to that of other studies, [17,20] and the diameter of the reactor is 11.0 cm (a constant interfacial area of 95.0 cm²). The solid alkalis (CaCO₃ and MgCO₃) were pelletized at 2–3 mm and wrapped into small balls with a diameter of 2.5 cm, each ball contained about 2.5 g, similarly [20].

The CO₂ absorption process was similar to that of other works [17,20]. Three-hundred milliliters of amine solvent was prepared at a concentration of 1.0–1.5 mol/L. For 1DMA-2P, it started to crystalize at 2.0 mol/L at 293 K, then 2.0 mol/L was not tested for absorption. The CO₂ gas flow was introduced into the reactor at a rate of 1.5 L/min. The PCO₂ was 101.3kPa with 100% purity. The operation temperature was maintained at 20 °C by the cooled water bath. The process was connected to the air with the pressure of 1 atm. Some vials were prepared and 2 mL samples were pipetted every 3–5 min into each of them. The titration technique was adopted to test the CO₂ loadings and the results were recorded within 3−5 min [17]. A Chittick apparatus with an AAD of 2.5% was adopted to conduct the CO₂-loading tests of the samples [36]. In order to ensure repeatability, these tests were performed at least twice.

We already verified the catalytic effect of CaCO₃ with CO₂ absorption with 1.0 mol/L MEA in another study [19]. The results exhibited that the order of catalytic effects was: 5 g CaCO₃ in gas-liquid interface >5 g, CaCO₃ in bulk of liquid >0 g, CaCO₃ ≈ intert stainless steel. From the BET tests of CaCO₃ and MgCO₃, the surface areas were 0.428 m²/g for CaCO₃ and 9.498 m²/g for MgCO₃. The pore diameters were 31.3 nm and 4.31 nm, which facilitated the external mass transfer of amine molecules onto a solid surface. The inert material with large surface area might have a significant effects of mass transfer causing the increase of CO₂ absorption. However, it could not replace the role of “Lewis base“ or “proton acceptor“ as solid alkaline catalysts to enhance the CO₂ absorption with tertiary amine.

After the absorption profiles were plotted with (α, time), the initial absorption rates (I_{abs_rate}, mol CO₂/min) [34] are determined as the slope of the linear regression of absorption profiles was at data range of CO₂ loadings of 0.0–0.20 mol/mol, in Equation (25):

$${\mathrm{I}}_{\mathrm{abs}\_\mathrm{rate}}=\mathrm{C}\times \mathrm{V}\frac{d\alpha }{dt}$$

(25)

where “C” is the Concentration and “V” is the Volume, and α is the CO₂ loading.

The initial absorption rates were adopted in this study to compare the CO₂ absorption performance of different cases of catalysts. These data were generated at a consistent level for different catalytic and non-catalytic cases. The results were inadequate for kinetic studies for now, but it was adequate to verify the catalytic effect as a start up.

3.4. CO₂ Desorption Tests with Heat Duty Calculation

An open recirculation-process (Figure S2) vessel equipped with an electrometer [9,26,37] was adopted to conduct the CO₂ desorption tests under atmosphere to extract DEEA and 1DMA-2P solvents at 1.0 mol/L, 1.5 mol/L and 2.0 mol/L, and two types of solid acid catalyst were used as γ-Al₂O₃ and H-ZSM-5 representing Lewis acids and Brønsted acids [9,26]. The acidic catalytic conditions were 5.0 g, 7.5 g and 10.0 g, This CO₂ desorption process was similar to that of others in the literature [9,26]. In this study, 250 mL of the amine solvent was put into the flask with a volume of 500 mL. The CO₂ loading was over 0.80 mol/mol in preparation for desorption, with CO₂ introduced into amine solvents beforehand. Small balls of various catalysts were placed into the solvents as well.

The experimental procedures were similar to those in our previous study [26]. The process was stirred and heated to 363 K. Based on the analysis of the CO₂ loading of samples at 0−4 h, the catalytic effects on CO₂ desorption were evaluated. A vial into which the samples were pipetted was then cooled down in a cooled water bath so as to maintain the CO₂ loading. Similar to absorption, the CO₂ loading was tested immediately after sample collection by titration [26]. A Chittick apparatus [36] was adopted to conduct the CO₂-loading tests of each sample and they were performed at least twice so as to ensure repeatability. The average CO₂ loading was then plotted for each run.

As part of the pivotal desorption parameter [9,26,33], the heat duties were calculated from CO₂ production with Equations (26) and (27) below [9,21,26]. The nCO₂ (mol) is the amount of desorbed CO₂, α (mol of CO₂ per mole of amine) is the CO₂ loading, and C (mol/L) and V (L) are the concentration and volume of amine solvent. This method of calculating heat duties was similar to that in other studies [9,21,26].

$$\mathrm{H}=\frac{\mathrm{heat}\mathrm{input}/\mathrm{time}}{{\mathrm{amount}\mathrm{of}\mathrm{CO}}_2/\mathrm{time}}=\frac{\mathrm{E}}{{\mathrm{nCO}}_2}\frac{\mathrm{kJ}\mathrm{of}\mathrm{electricity}/\mathrm{h}}{{\mathrm{mol}\mathrm{of}\mathrm{CO}}_2/\mathrm{h}}$$

(26)

$${\mathrm{nCO}}_2=\left({\mathsf{\alpha }}_{\mathrm{rich}}-{\mathsf{\alpha }}_{\mathrm{lean}}\right)\mathrm{C}\times \mathrm{V}$$

(27)

4. Results and Discussions

4.1. The Critical Point of CO₂ Absorption Curve of DEEA and 1-DMA-2P at 293 K, Affected by Equilibrium Solubility

The CO₂ equilibrium solubility at different temperatures and pressures was one of the key parameters for screen solvent [15]. Although different solid base chemicals could accelerate the CO₂ absorption rates, they could hardly shift the CO₂ equilibrium solubility under the VLE model, which was only determined by temperature [10].

There are two common methods to generate the VLE model of tertiary amines, (1) the predictive model by simulation using MDEA as benchmark [38,39], (2) experimental studies of CO₂ solubility with absorption [5,10,15]. The equilibrium solubility of DEEA and 1DMA-2P was reported based on long-term vapor liquid equilibrium experiments at 298–313 K [5]. The accurate equilibrium solubility was relatively high due to the experimental procedures. Luo et al. completed the experiments and the modeling of data of DEEA-CO₂-H₂O at 1.0 to 4.0 mol/L under vapor-liquid equilibrium, from 293–353 K [10]. They used 0.15 L/min mixed gas of CO₂/N₂, with CO₂ partial pressures from 6.2 kPa to 100.8 kPa and maintained 8–10 h to reach the thermodynamic equilibrium conditions. By the long-term tests, the equilibrium solubility of DEEA was 0.971 mol/mol at 293 K with P_CO2 of 100.8 kPa. Similarly, Liu et al. completed the modeling of CO₂ equilibrium solubility of 1DMA-2P solution, with CO₂ partial pressures from 8 kPa to 101.3 kPa at 1, 2, and 5 mol/L, 298–333 K [15]. For 1.0 mol/L 1DMA-2P, the solubility was reported as 1.02 mol/mol at 101.3 kPa at 298 K with 8 h operation [15].

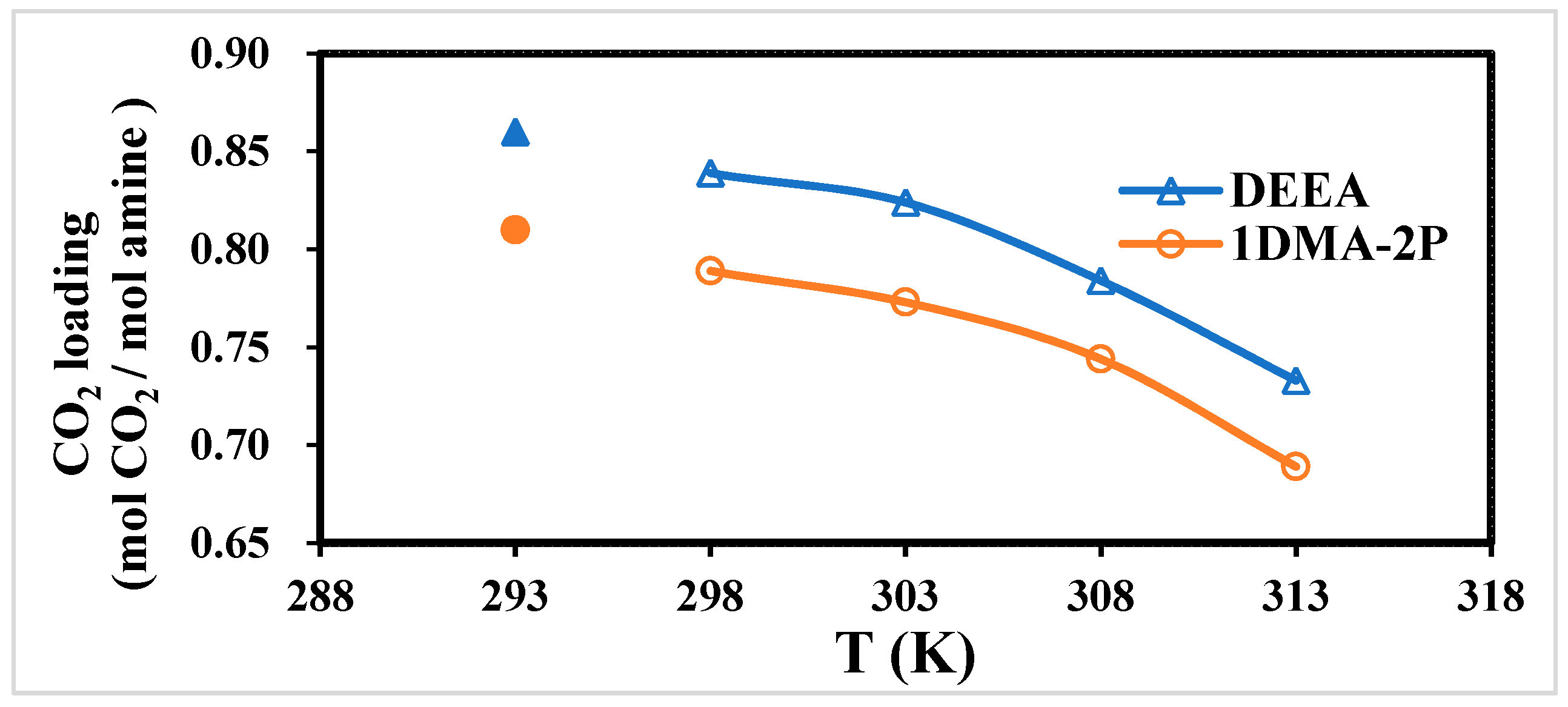

In this study, we determined the “critical point of CO₂ absorption curves” based on the slope of CO₂ absorption curves of 1.0 mol/L amine without catalysts. It was affected by the CO₂ solubility or “Ion speciation plot” of R₃N-CO₂-H₂O systems under the Vapor-liquid equilibrium model. From the CO₂ absorption curves, different stages of the reaction were contained, (1) CO₂ + R₃N + H₂O around 0–0.85 mol/mol, and (2) CO₂ + H₂O above 0.85 mol/mol when free R₃N was exhausted. The slope of absorption curves turned very flat after this critical point, indicating that all the amines were converted to amineH⁺, and CO₂ only reacted with water afterward. The critical point was determined by the graphic method based on the cross of slopes at different stages (Support Information).

Therefore, the “critical point of CO₂ absorption curves” was calculated as about 0.87 mol/mol for DEEA, and 0.81 mol/mol for 1DMA-2P at 1.0 mol/L and 293 K here was based on the graphic method. The CO₂ solubility of DEEA and 1DMA-2P under Vapor-Liquid Equilibrium (VLE) model was plotted in Figure 1 at 298–313 K [5]. Our data were added in Figure 1, but these data were not “CO₂ equilibrium solubility”. It was affected by the “CO₂ equilibrium solubility” and “Ion speciation plots”. From the literature value, CO₂ equilibrium solubility of CO₂ is 0.839 mol/mol for DEEA, and 0.789 mol/mol for 1DMA-2P at 298 K [5]. The trend was consistent from Figure 1 at 298–313 K: with an increase of temperature, the solubility of CO₂ was slightly decreasing [5,10].

4.2. The pKa of DEEA and 1-DMA-2P at 293 K

The pKa is also an important parameter for tertiary amines, which can be used for the selection of amine solutions for both CO₂ removal and the study of the reaction kinetic mechanism [15]. Based on the base-catalyzed mechanism, tertiary amines (R₃N) do not directly react with CO₂, but absorbed protons from H₂CO₃. The simplified pH method for the detection of pKa is quite similar to that of other studies [32,33,34,35]. It excluded the data of pH < 9.0. This was because the conjugated acid/base of [Amine]/[AmineH⁺] did not exist under acidic conditions (pH < 7.0). Moreover, a pH value between 7–9 was not selected either, for the calculation of pKa in Equation (22) was based on the assumption that the [H⁺] released into the solution was 100% from [AmineH⁺] with neglect of proton release from H₂O. Meanwhile, the [OH⁻] in the water solution was mainly from proton transfer from H₂O to Amine, and [OH⁻] released from H₂O was also negligible. In the case of pH < 9, the [OH⁻] in the solution was smaller than 10⁻⁵ mol/L, which was not 100 times bigger than the [OH⁻] (10⁻⁷ mol/L) dissociated by neutral H₂O. Then the dissociation of [OH⁻] from H₂O was not negligible, and thus Equation (22) had errors. Finally, the pKa was measured and grouped into

Table 1. pKa of investigates amines at 293 K and 1 atm.

Amine	Predicted pKa	Reference	Measured This Work
DEEA	9.60 (298 K) [5]	9.73 (298 K) [11] 9.82 (293 K) [11]	9.82 (293 K)
1DMA-2P	9.20 (298 K) [5]	9.67 (301 K) [17] 9.41 (298 K) [15]	9.51 (293 K)

and Figure 2 for comparison.

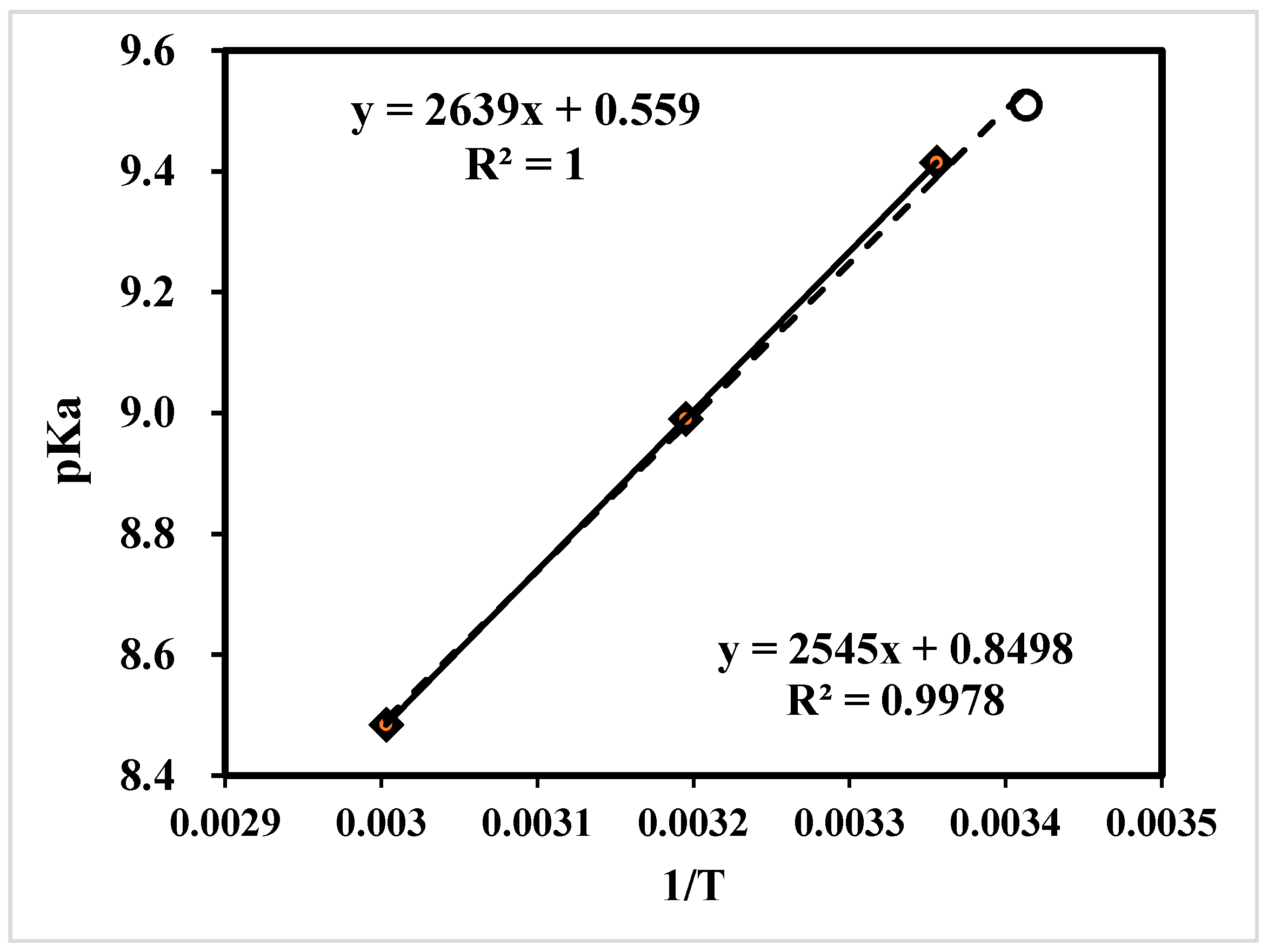

Hence, the pKa was measured as 9.82 for DEEA at 293 K. This value was the same as the literature value of 9.82 at 293 K, [11] which reflected the accuracy. The pKa was measured as 9.51 for 1DMA-2P at 293 K, comparable to 9.41 at 298 K [15] from K₂ correlation model for solubility study. It was measured as 9.67 at 301 K based on ¹³C NMR analysis. [17] Different methods might result in slight deviations. Recently, Liu et al developed a linear calibration of pKa of 1DMA-2P in Equation (27) at 298–333 K [15]. We combined these data with our own results and plotted in Figure 2. Our data (9.51, 293 K) was outside the range of that calibration curve, but the data was consistent with the line. The new linear calibration was generated in Equation (28) to expand the pKa of 1DMA-2P at 293-333 K.

$$\mathrm{pKa}=\frac{2639}{\mathrm{T}}+0.559;298-333\mathrm{K}$$

(28)

$$\mathrm{pKa}=\frac{2545}{\mathrm{T}}+0.850;293-333\mathrm{K}$$

(29)

4.3. The CO₂ Absorption Profiles with Initial Absorption Rates

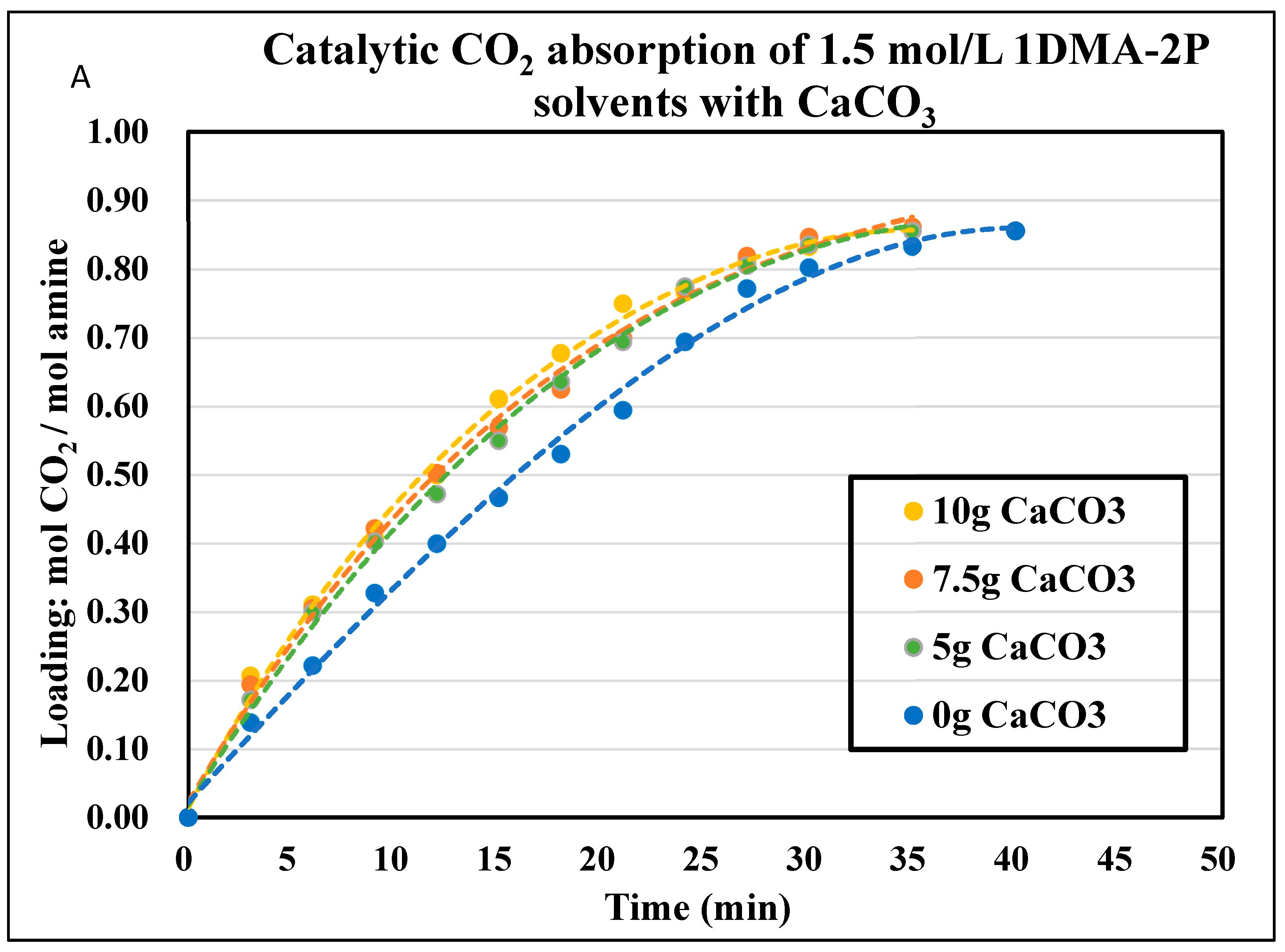

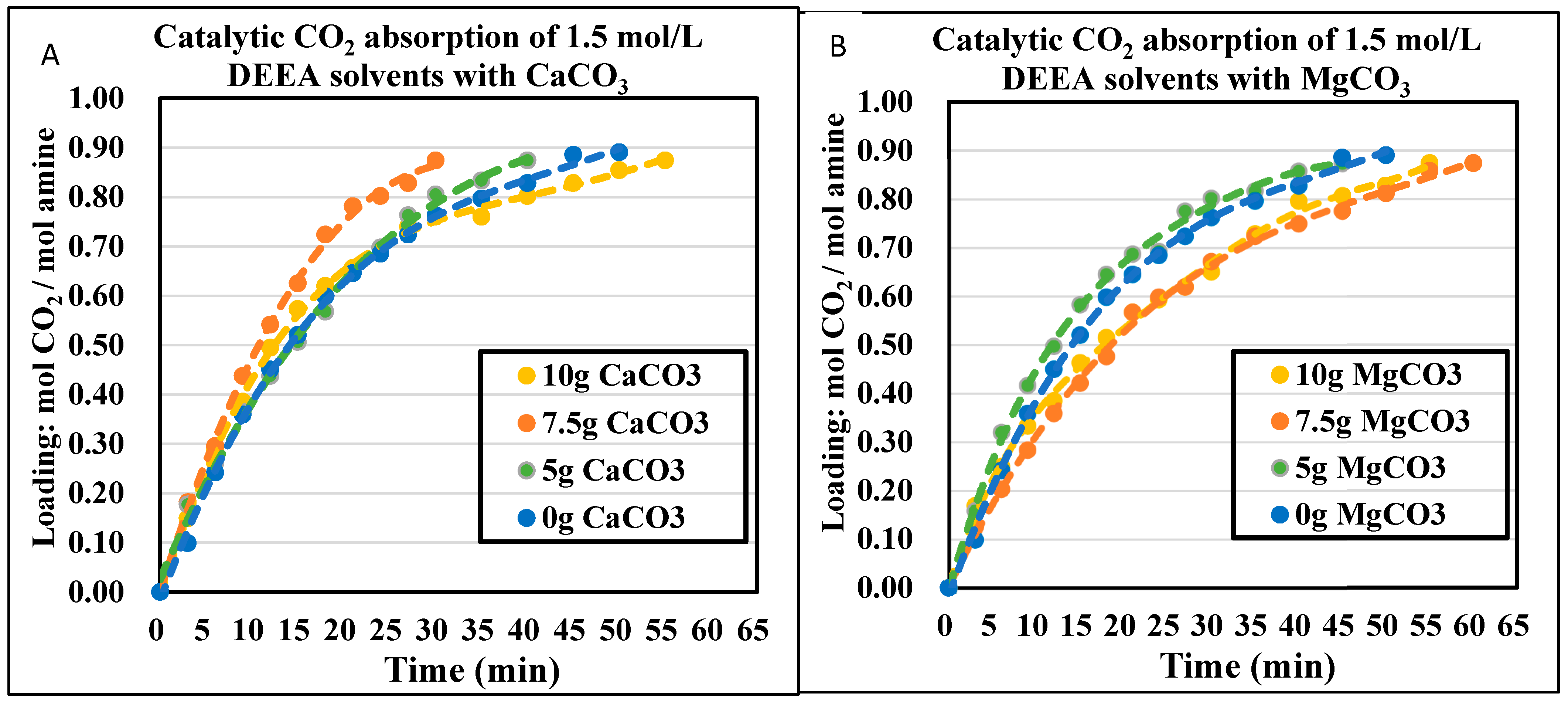

The CO₂ absorption profiles of 1.0 mol/L and 1.5 mol/L DEEA and 1DMA-2P solvents were plotted in Figure 3, Figure 4, Figure 5 and Figure 6, with the aid of CaCO₃ and MgCO₃, respectively. The optimized mass of solid alkalis under various amine concentrations was presented in

Table 2. The optimized mass of CaCO₃ and MgCO₃ for different amine solvents at 293 K and 1 atm.

Amine Solvents	CaCO3 (g)	MgCO3 (g)
1.0 M DEEA	7.5	10
1.5 M DEEA	7.5	5
1.0 M 1DMA-2P	7.5	10
1.5 M 1DMA-2P	10	5

. The optimized mass was based on the catalytic reactions (13) and (14), with explanation in Section 2.2. With an increased mass of solid catalysts, the initial absorption rates increased first, reached an optimum and then decreased after that.

The non-catalytic curves for DEEA were plotted in Figure 3 and Figure 4. In this time period, amine absorption was recorded from fresh solvent to equilibrium solubility of 0.87 mol/mol, the rest of the data was not displayed because CO₂ was reacting with H₂O. It took 40 min for 1.0 mol/L and 45 min for 1.5 mol/L. With the aid of solid alkalis CaCO₃, the time was reduced to 24 min (21 min less) for 1.0 mol/L and 30 min (15 min less) for 1.5 mol/L at optimized conditions. With the aid of MgCO₃, the time was reduced to 24 min (21 min less) for 1.0 mol/L and 45 min for 1.5 mol/L at optimized conditions. The effect of MgCO₃ was similar to that of CaCO₃ at 1.0 mol/L, but not very helpful at 1.5 mol/L with 5 g. If bigger than 5 g MgCO₃, the absorption curves were worse than the non-catalytic curves due to “agglomeration” [40]. Therefore, CaCO₃ was a better solid for DEEA than MgCO₃.

The non-catalytic curves for 1DMA-2P were plotted in Figure 5 and Figure 6. In this time period, amine absorption was recorded from fresh solvent to equilibrium solubility of 0.81 mol/mol. It took 35 min for 1.0 mol/L, 30 min for 1.5 mol/L. The bigger amine concentration was, the less time it would take, due to faster absorption rates [5] and the smaller cyclic capacity (0.81 mol/mol). With the aid of CaCO₃, the time was reduced to 18 min for 1.0 mol/L, 27 min for 1.5 mol/L at optimized conditions. With the aid of MgCO₃, the time was reduced to 17 min for 1.0 mol/L, 27 min for 1.5 mol/L at optimized conditions. The effect of CaCO₃ was comparable to that of MgCO₃. It was quite effective at 1.0 mol/L when the time was reduced by 18 min, and the time was reduced by only 3 min at 1.5 mol/L.

The optimized amount of solid base chemicals is presented in Table 2. The orders were different under different amine concentrations. For DEEA, it was 7.5 g > 10 g > 5 g > 0 g for 1.0 mol/L and 7.5 g ≈ 5 g > 0 g > 10 g for 1.5 mol/L for CaCO₃. The catalytic absorptions were better than the non-catalytic absorptions. For MgCO₃, it was 10 g > 5 g > 7.5 g > 0 g for 1.0 mol/L, but 5 g > 0 g > 10 g > 7.5 g for 1.5 mol/L. We repeated the experiments of Figure 4A,B and Figure 6B at least twice. This poorer effect of CaCO₃ and MgCO₃ at large amount to 1.5 mol/L DEEA was probably due to the “agglomeration” [40] of solid chemicals, where the liquid covered the solid surface area and inhibited the catalysis. Such phenomena were also reported by other researchers with 0 g > 50 g CaCO₃ to 4.0 mol/L BEA + AMP amine blend [40]. For 1DMA-2P, it was 7.5 g > 5 g > 10 g > 0 g for 1.0 mol/L and 10 g > 7.5 g ≈ 5 g > 0 g for 1.5 mol/L for CaCO₃. For MgCO₃, it was 10 g > 5 g > 7.5 g > 0 g for 1.0 mol/L and 5 g > 7.5 g ≈ 10 g ≈ 0 g for 1.5 mol/L. The larger amount of MgCO₃ at 1.5 mol/L also resulted in agglomeration and made the catalysis comparable to non-catalytic absorption [40]. The removal of agglomeration awaits further investigation.

Under both amine concentrations without agglomeration, the catalytic absorptions were better than the non-catalytic absorptions. For 1.0 mol/L, the absorption rates increased significantly with different amounts of solid chemicals. For 1.5 mol/L, the catalytic absorptions were better than non-catalytic cases at moderate ability. This difference was explained by Equations (13) and (14). At a dilute concentration of 1.0 mol/L the solid catalyst was helpful, for there are limited free R₃N amines around H₂CO₃. However, at a higher concentration of 1.5 mol/L, there are more free R₃N molecules in solution with higher pH value in solution, the reaction rate was increased with [R₃N] and the solid chemical had only moderate improvements ${\mathrm{r}}_{{\mathrm{CO}}_2}={\mathrm{k}}_{{\mathrm{R}}_3\mathrm{N}}\left[{\mathrm{R}}_3\mathrm{N}\right]\left[{\mathrm{CO}}_2\right]$.

4.4. The Effect of Solid Base to CO₂ Absorption to Tertiary Amine DEEA and 1DMA-2P with Comparison to MEA and DEA

In addition to the periods of absorption profiles, the effect of CaCO₃ and MgCO₃ could also be evaluated by the initial absorption rates, which was an important parameter [33]. The initial absorption rates were shown in Figure 7 for non-catalytic absorption and optimized catalytic absorption. The effect of solid alkalis was not the more the better, and there was an optimized mass. According to Section 2.2 with Equation (13), the increased mass of solid alkalis helped the proton transfer from H₂CO₃ to solid surface at start. However, after the optimized mass from Equation (14), the excess amount of solid base inhibited the proton transfer from catalyst to R₃N, and reduced the overall absorption rates.

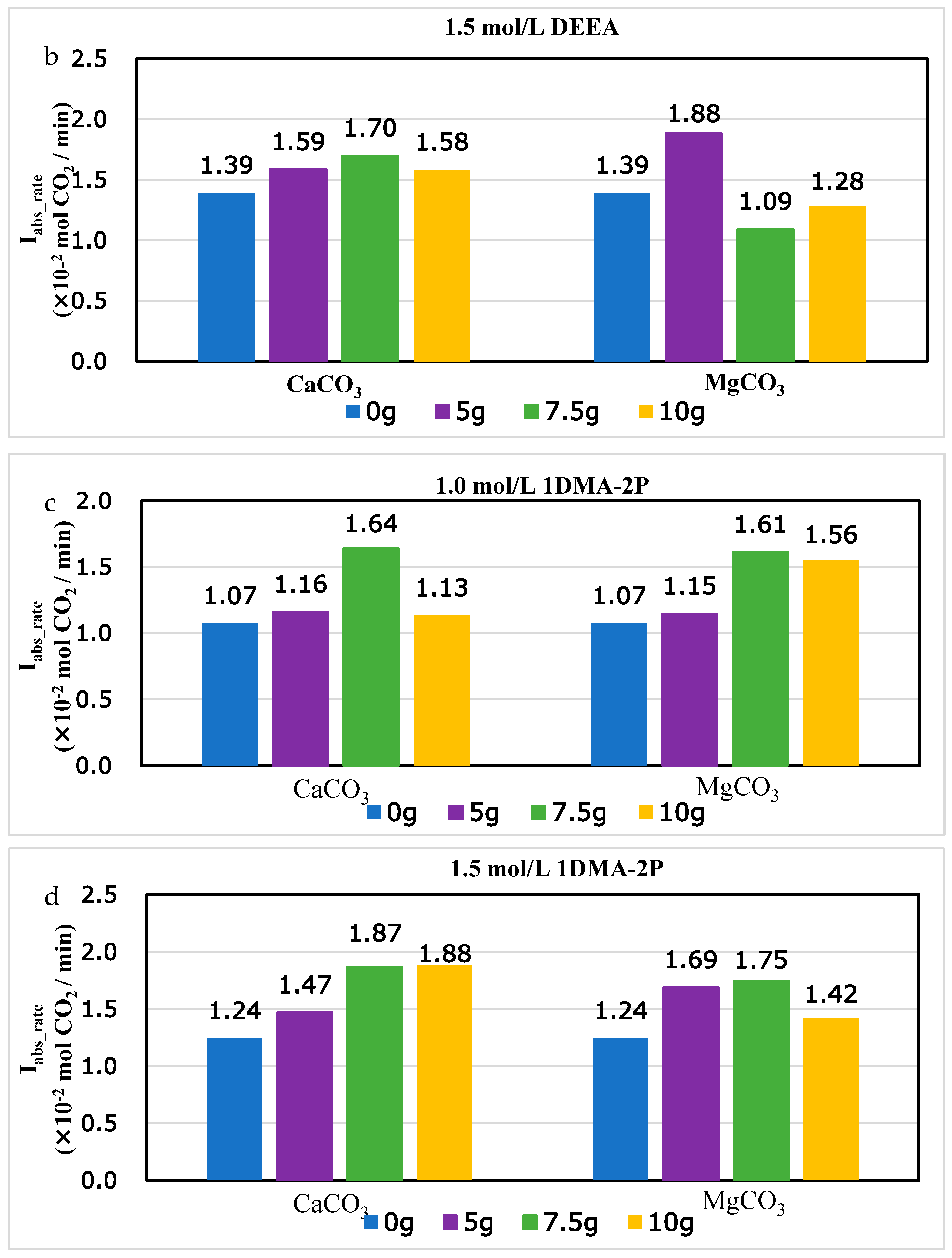

At optimized conditions, both rates increased significantly. For DEEA, the initial absorption rate was 0.74 × 10⁻² mol CO₂/min for 1.0 mol/L without catalysts, and it increased to 238% and 247% with the aid of CaCO₃ and MgCO₃. The initial absorption rate increased to 1.39 × 10⁻² mol CO₂/min for 1.5 mol/L, but increased to only 122% and 135% with CaCO₃ and MgCO₃. For 1DMA-2P, the initial absorption rate was 1.07 × 10⁻² mol CO₂/min for 1.0 mol/L without catalysts, and it increased to 153% and 150% with CaCO₃ and MgCO₃. The initial absorption rate increased to 1.24 × 10⁻² mol CO₂/min for 1.5 mol/L and increased to 165% and 149% with CaCO₃ and MgCO₃.

Compared with other studies of MEA and DEA, the absolute value of initial absorption rates of R₃N was smaller than MEA and DEA, because of the lower absorption rates and smaller second order rate constant k₂ [27]. With the aid of solid bases, the initial rates properly increased. The effect of solid chemicals was stronger at 1.0 mol/L and turned moderate at 1.5 mol/L for DEEA. For 1DMA-2P, the increase of initial absorption rates was similar at the range of 150–165% for 1.0 mol/L and 1.5 mol/L. The overall absorption periods were reduced by about 46–48% at 1.0 mol/L for DEEA and 1DMA-2P, but were reduced by only about 33% and 10% for 1.5 mol/L DEEA and 1DMA-2P.

Such a difference was due to the different reaction mechanisms of different reactions. For CO₂ reaction with tertiary amine, it was the based catalyzed hydration mechanism. The R₃N do not react with CO₂ directly, but accept protons from [H₂CO₃]. The stronger basicity of the solvents led to stronger proton affinity, and caused better CO₂ absorption. On the basis of kinetic studies, the second order rate constant (k₂) was related to pKa of the tertiary amine. [5] The increased amine concentration led to a bigger pH value of the solution and higher absorption rates. The solid base chemicals could not directly affect the [OH⁻] or pH value in solvent, and provided only moderate enhancement of CO₂ absorption rates at higher concentrations. In short, the solid alkalis were effective for tertiary amines, but the effects were not as good as for primary and secondary amines. They were more effective at a dilute concentration.

However, for MEA and DEA, the CO₂ reaction is driven by Zwitterion mechanism with the carbamate formation as products [28]. Solid alkalis might enhance the mass transfer or reduce the activation energy (Ea) of the reaction process and facilitate N-C bond formation of CO₂-amine. The solid surface area contains abundant active sites which facilitate CO₂ absorption in another reaction pathway [19,20].

4.5. The CO₂ Desorption Profiles with Heat Duty Analyses

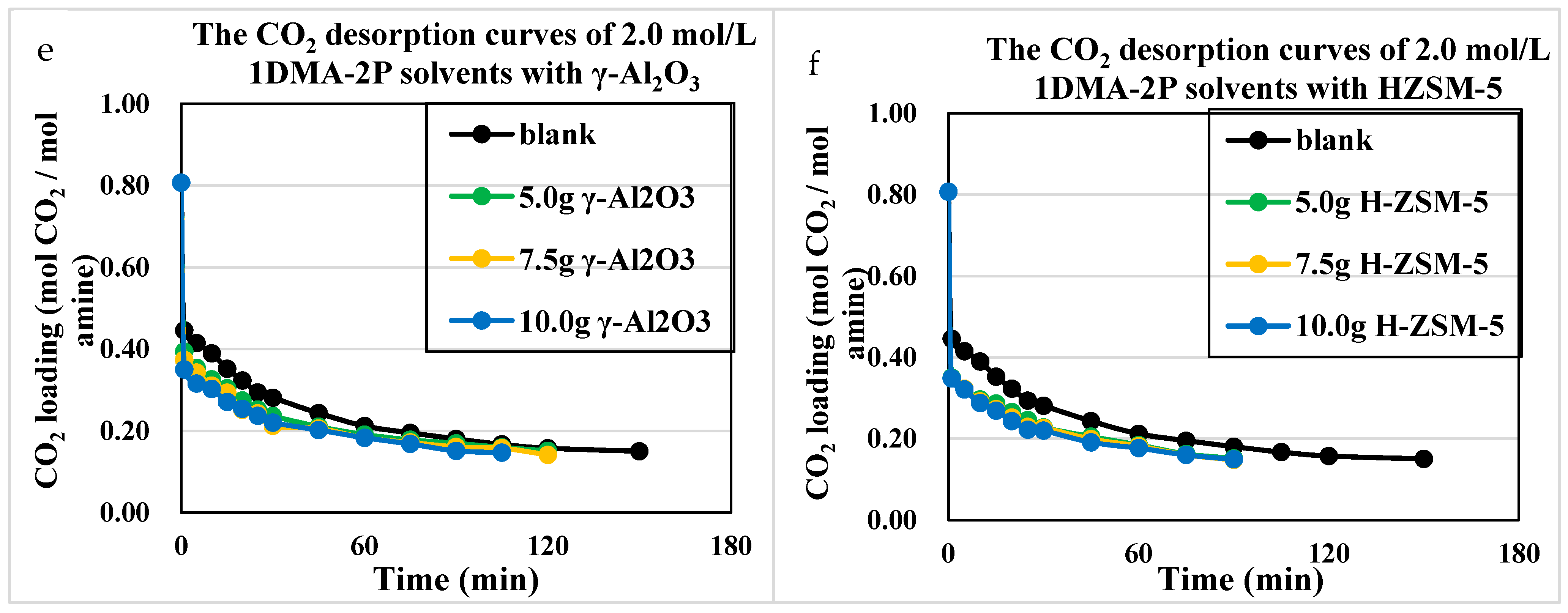

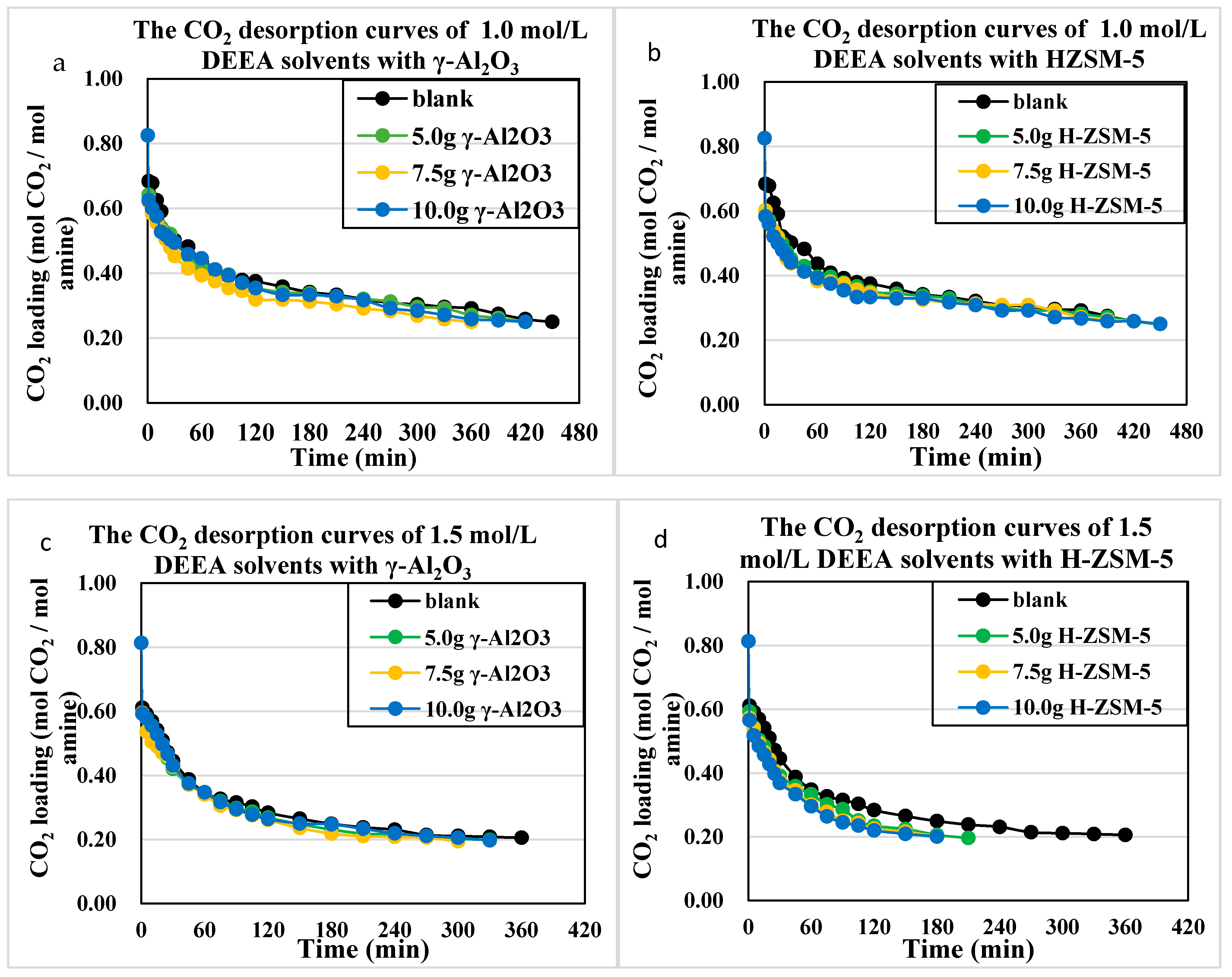

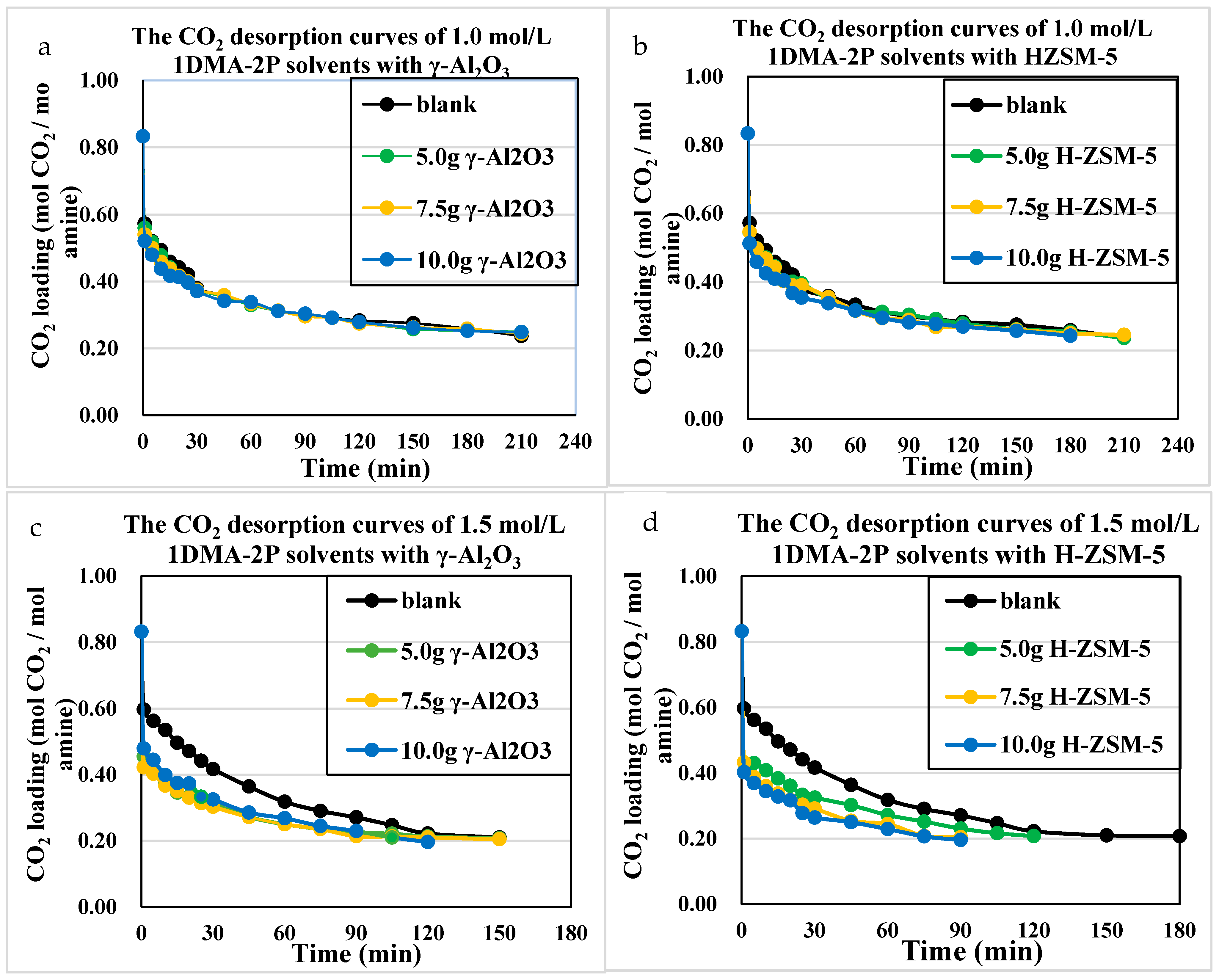

The CO₂ desorption profiles were plotted in Figure 8 and Figure 9 for 1~2 mol/L DEEA and 1DMA-2P solvents. This range of amine concentration was suitable for industrial application, for the 0–2 mol/L MDEA were usually blended with 5M MEA to prepare MEA-R₃N solvents, usually 5 + 0.5, 5 + 1, 5 + 1.25, 5 + 1.5 M [6,7,9]. The operation condition of MEA-R₃N was also 0.20~0.60 mol/mol. Moreover, for 1DMA-2P, the solubility was low. Small amounts of crystal were observed in 2.0 mol/L solvent at 293 K, but it was soluble in water at 363 K.

From the CO₂ desorption curves, there were some clues. For DEEA, the catalytic desorption was better than the non-catalytic one, with the order of H-ZSM-5 > γ-Al₂O₃ > non-catalyst at 5.0 g, 7.5 g and 10 g through 1.0~2.0 mol/L. For 1DMA-2P, the effects of H-ZSM-5 ≈ γ-Al₂O₃ > non-catalyst at 5.0 and 7.5 g, but H-ZSM-5 > γ-Al₂O₃ > non-catalyst at 10 g at optimized amount of H-ZSM-5. This effect was reasonable because the CO₂ loading decreased from 0.80 to 0.30 mol/mol at the first 30 min. There were abundant bicarbonates [HCO₃⁻], and more [R₃NH⁺] from ion speciation plot, which made the CO₂ production comparable with γ-Al₂O₃ and HZSM-5. Both solid acids could enhance the proton transfer process. However, at 10 g H-ZSM-5 of the series, an excess amount of H-ZSM-5 provided excessive protons into the solvents, and then fully reacted with [HCO₃⁻] and produced more CO₂ to reduce heat duty.

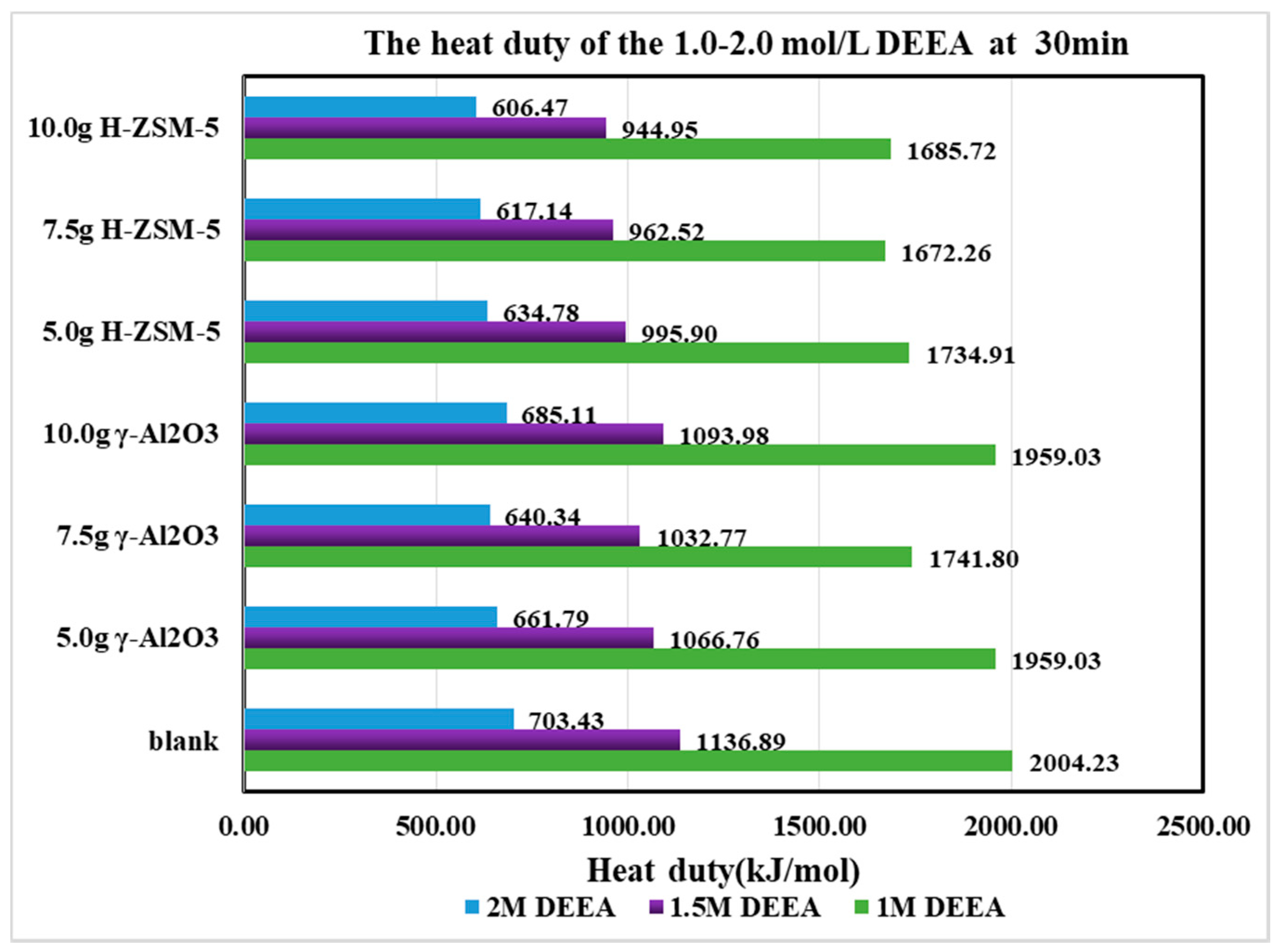

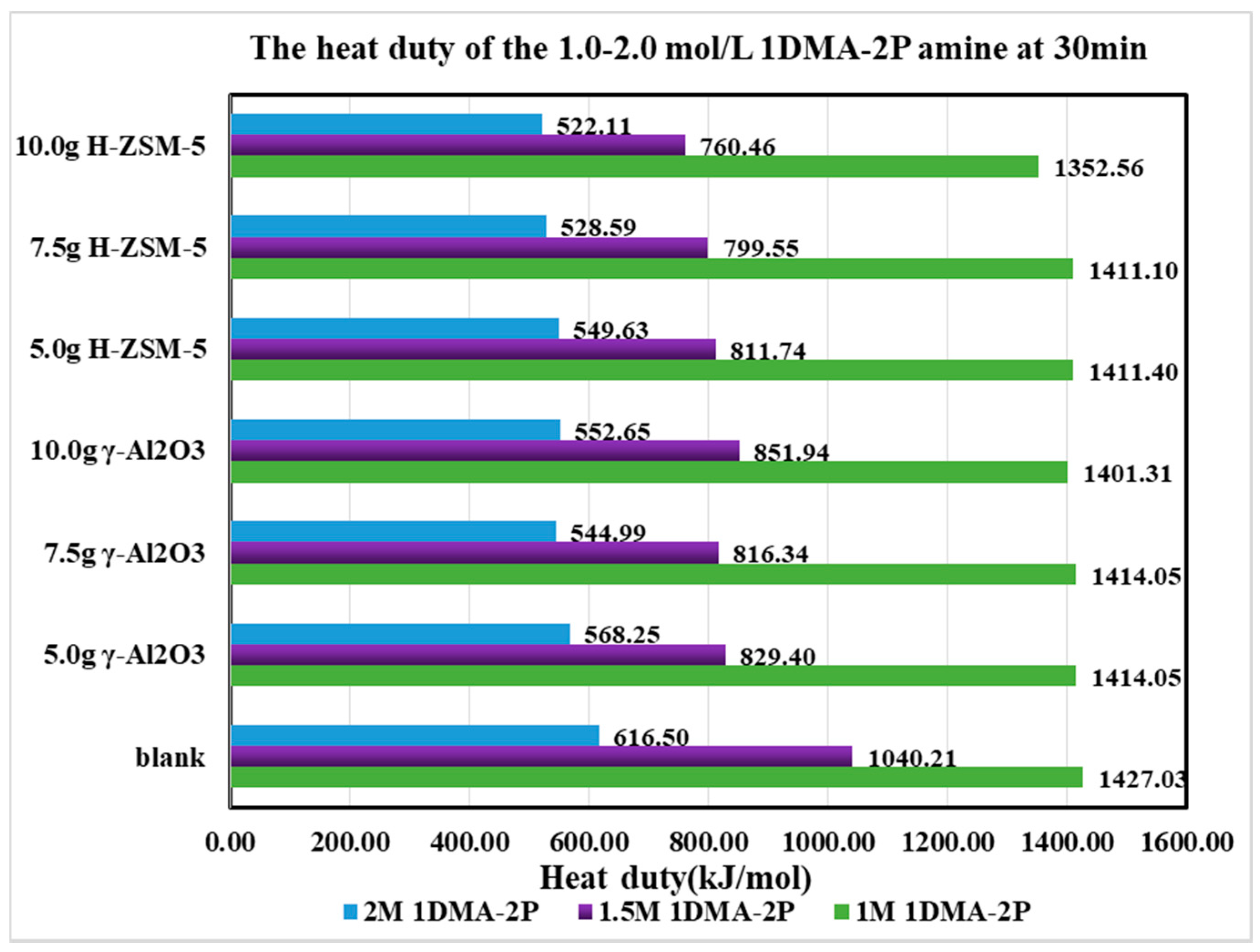

The heat duty for the first 30 min was calculated in Figure 10 and Figure 11. The heat duty was mostly determined by the CO₂ production (nCO₂) as the heat inputs were similar for the first 30 min. During that period, most of the CO₂ desorption process was completed as the CO₂ loading decreased from 0.80 to 0.30 mol/mol. The CO₂ desorption curves did not shift significantly after loading <0.30 mol/mol, since most [HCO₃⁻] was exhausted.

Based on

Table 3. The relative heat duty (%) of different amine solvents under optimized catalysis at 363 K and 1 atm.

Amine Solvents	Optimized Catalysts	Heat Duty (kJ/mol CO2)
		Optimized Catalysis	Non-Catalyst	Ratio (%)
DEEA 1.0 mol/L	7.5 g γ-Al2O3	1741.8	2004.2	86.91%
	10 g HZSM-5	1685.7	2004.2	84.11%
1.5 mol/L	7.5 g γ-Al2O3	1032.8	1136.9	90.84%
	10 g HZSM-5	945.0	1136.9	83.12%
2.0 mol/L	7.5 g γ-Al2O3	640.3	703.4	91.03%
	10 g HZSM-5	606.5	703.4	86.22%
1DMA-2P 1.0 mol/L	10 g γ-Al2O3	1401.3	1427.0	98.20%
	10 g HZSM-5	1352.6	1427.0	94.78%
1.5 mol/L	7.5 g γ-Al2O3	816.3	1040.2	78.48%
	10 g HZSM-5	760.5	1040.2	73.11%
2.0 mol/L	10 g γ-Al2O3	545.0	616.5	88.40%
	10 g HZSM-5	522.1	616.5	84.69%

, it was discovered that the heat duty was properly reduced. For γ-Al₂O₃, the order was 7.5 g > 10 ≈ 5 g > 0 g, and for H-ZSM-5, the order was 10 g > 7.5 g > 5 g > 0 g. At optimized catalytic conditions, the heat duty was reduced by about 83-98 % under different conditions. For DEEA, the reduction of heat duty followed the order of 1.5 > 1.0 > 2.0 mol/L. For 1DMA-2P, the reduction of heat duty followed the order of 1.5 > 2.0 > 1.0 mol/L. Hence, the amine concentration was preferred at 1.0–1.5 mol/L for DEEA and at 1.5–2.0 mol/L for 1DMA-2P with catalysts.

4.6. The Effect of Solid Acid to Tertiary Amine DEEA and 1DMA-2P and Compared with MEA and DEA

The effect of solid acids to 1DMA-2P and DEEA was shown in Table 3. Briefly, the effects of H-ZSM-5 and γ-Al₂O₃ were different due to different reaction schemes and mechanisms. For tertiary amine, HZSM-5 was better than γ-Al₂O₃ for DEEA within the scope of 1–2 mol/L and 0–10 g. For 1DMA-2P, H-ZSM-5 was comparable to γ-Al₂O₃ with inadequate catalysis (5 g and 7.5 g), and better than γ-Al₂O₃ at 10 g. The increased mass of H-ZSM-5 led to better desorption performance, with the order of: 10 g > 7.5 g > 5 g > 0 g.

This could be explained by the reactions (18) and (19) in Section 2.3. The Equation (18) reflected the fact that CO₂ desorption rates were determined by mass of H-ZSM-5. Since H-ZSM-5 was a proton donor that reacted with bicarbonate right away, more H-ZSM-5 led to better desorption performance. After loading < 0.25 mol/mol, the effect of H-ZSM-5 was almost the same despite different masses because [HCO₃⁻] was exhausted from ion speciation plot [17].

On the other hand, the effect of γ-Al₂O₃ was complicated. In some cases, 10 g was the best, and in other cases, 7.5 g was the best, which was even better than 10 g and 5 g. This trend was quite different from MEA [21] and DEA [26]. In short, for single catalysts, the increased mass of solid acid led to better desorption performance for MEA [21] and DEA [26]. From Table S1 [26] it’s concluded that the order was H-ZSM-5 > blended catalyst (γ-Al₂O₃/H-ZSM-5) > γ-Al₂O₃ at 0.50–0.30 mol/mol for MEA, blended catalyst (γ-Al₂O₃/H-ZSM-5) > γ-Al₂O₃ > H-ZSM-5 at 0.30–0.15 mol/mol for MEA [21]. For DEA, HZSM-5 was better than γ-Al₂O₃ in both rich and lean regions [26]. However, excessive amounts of γ-Al₂O₃ might reduce the catalysis of tertiary amines from optimum dose, while the effect was still better than that of non-catalyst.

The reason was based on reactions (15)–(17), for the role of γ-Al₂O₃ was twofold. It had to accept [H⁺] from [R₃NH⁺] first because it contained no proton, and then released [H⁺] to [HCO₃⁻]. The release of CO₂ was determined by Equation (17), and it was affected by [HAlO₂]. From Equation (16), HAlO₂ was generated from proton release from [R₃NH⁺] to [AlO₂⁻]. From Equation (15), the concentration of [AlO₂⁻] increased with increased amounts of γ-Al₂O₃. The increased [AlO₂⁻] enhanced the acceptance of [H⁺] in Equation (16), but the extra [AlO₂⁻] might inhibit the proton transfer to [HCO₃⁻] in Equation (17) and then affected the CO₂ desorption rates. The increased mass of γ-Al₂O₃ enhanced desorption firstly, and then reduce desorption after the optimum, for the excessive amounts of [AlO₂⁻] might inhibit the proton transfer from [HAlO₂] to [HCO₃⁻]. Similar to solid base (CaCO₃ and MgCO₃) to CO₂ absorption, there was also an optimized dose of γ-Al₂O₃, and inadequate or excessive amounts of it would reduce the effects of CO₂ desorption.

5. Conclusions

(1). The CO₂ equilibrium solubility and pKa of DEEA and 1DMA-2P were comparable to published data, and the scope was expanded to 293 K from the previous 298–313 K.

(2). The existence of CaCO₃ and MgCO₃ as solid alkalis accelerated the CO₂-R₃N absorption, via the “base-catalyzed mechanism”. The effect of solid alkaline was indirect, it facilitated proton transfer from H₂CO₃ firstly, and the proton was then transferred to stronger base R₃N. The increased mass of solid base boosted proton transfer, but the excess amount might inhibit the proton transfer from solid to R₃N. Therefore, there was an optimized dose of CaCO₃ and MgCO₃ as catalysts. For solid alkalis, their effects were significant at 1.0 mol/L, but moderate at 1.5 mol/L because the increase of the amine concentration resulted in the increase of absorption rates and the increase of pH value. High amine concentration provided more free molecules into the solution to enhance the proton transfer of H₂CO₃.

(3). The solid acids could enhance the CO₂ desorption and reduce the heat duties of both tertiary amines. The effect of catalytic desorption was better than that of non-catalytic ones. For DEEA, it was H-ZSM-5 > γ-Al₂O₃ > non-catalyst. For 1DMA-2P, it was H-ZSM-5 ≈ γ-Al₂O₃ > non-catalyst with inadequate catalysts, but H-ZSM-5 > γ-Al₂O₃ > non-catalyst at optimized performance.

(4). The effect of Bronsted acid/proton donor H-ZSM-5 to CO₂ desorption was straightforward, that is, the more the better as it reacts with bicarbonate directly. The effect of Lewis acid such as γ-Al₂O₃ to CO₂ desorption was indirect. The increased mass of γ-Al₂O₃ resulted in increased [AlO₂⁻], which could boost proton transfer of [R₃NH⁺] to generate [HAlO₂]. However, the excess amount of [AlO₂⁻] might inhibit the proton transfer of [HAlO₂] to [HCO₃⁻] and release CO₂. Therefore, there was surely an optimized dose of γ-Al₂O₃, which was not the more the better.
