Experimental Comparative Study of Dynamic Behavior in Solution Phase of C-Tetra(phenyl)resorcin[4]arene and C-Tetra(phenyl)pyrogallol[4]arene

by
José Luis Casas-Hinestroza
,
Miguel Ángel Vela Suazo
and
Mauricio Maldonado Villamil
*
Departamento de Química, Facultad de Ciencias, Universidad Nacional de Colombia-sede Bogotá, Carrera 30 # 45-03, Bogotá 111321, Colombia
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(10), 2275; https://doi.org/10.3390/molecules25102275
Submission received: 11 March 2020 / Revised: 25 April 2020 / Accepted: 8 May 2020 / Published: 12 May 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
The synthesis of phenyl-resorcinarenes and pyrogallolarenes is known to produce a conformational mixture of cone and chair isomers. Depending on the synthesis conditions the composition of the conformational mixture is variable; however, the cone conformer is the greatest proportion of phenyl-resorcin[4]arenes and chair conformer of pyrogallol[4]arenes. The experimental evidence suggests that phenyl-substituted resorcinarene and pyrogallolarene exist as a dynamic boat in solution.

Graphical Abstract

1. Introduction

Among the macromolecules there are specific groups with chemical and structural characteristics that have attracted attention in recent years in different fields of research. An interesting example is the Calixarenes family—in particular resorcinarenes and pyrogallolarenes [1]—which can be obtained by reactions between aldehydes and resorcinol or pyrogallol, respectively, the latter being the main difference between the two types of macrocycles (Scheme 1). Using different phenols for the synthesis leads to different properties; for example, resorcinarenes have two active sites on the upper rim (position 2 and hydroxyl groups), where the macromolecule can be functionalized or derivatized. A different case occurs with pyrogallolarenes, which only have hydroxyl groups on the upper rim, which restricts their derivation possibilities somewhat as compared with resorcinarenes. In both cases, the cyclocondensation reaction is performed under acid catalysis conditions [2,3,4], which has the advantage of a low cost together with a minimum of synthetic steps, in addition to a minimum variation in the synthetic design of the macrocyclic molecules with different chemical functions [5].
An interesting aspect of this type of compound is that it can adopt different structural isomers. This often depends on the reaction conditions or the type of aldehyde used and the reaction time [6]. Among the most prominent isomers are those of the cone and boat type, thanks to the fact that they are more stable and are usually obtained in greater proportion when the synthesis is carried out [7,8]. The influence of the substituent on the lower rim can influence the type of conformation that can be obtained. In this way, resorcinarenes with aliphatic substitutions on the lower rim exhibit the same cone-type isomers as the majority, while the resorcinarenes that have aromatic substitutions show cone-chair-type isomeric mixtures, in which their relationship varies depending on the synthesis conditions [9]. With respect to pyrogallolarenes, the products obtained in the synthesis with aliphatic aldehydes show a tendency for the formation of cone isomers in greater proportion. On the other hand, those synthesized from aromatic aldehydes show a preference for producing chair-type isomers [10,11]. Even so, as with resorcinarenes, there are some cases where the tendency changes or an isomeric mixture is produced, depending on the synthesis conditions [12].
The cone and boat isomers have structural properties that have been beneficial in the vast majority of applications, due to the fact that these forms have an electron-rich cavity [13], which can interact with other molecules or analytes in such a way that they can stay within these macrocycles. Another important feature is that their hydroxyl groups, both in resorcinarenes and pyrogallolarenes, have an upward orientation, which sometimes can form supramolecular assemblies through hydrogen bonds, such as capsules or aggregates. These bonds commonly established between the upper edges of resorcinarenes or pyrogallolarenes are not unique forms such as supramolecular structures—there are also assemblies where agents such as solvents [14], coordinating metals [15,16] and covalent bonds [17,18] exist. There are several applications where resorcinarenes and pyrogallolarenes have contributed to significant advances, basically due to their versatility, both in synthesis and derivatives and in their molecular structure itself. A field where they have been widely used is host-guest systems [19,20,21], since the electron-rich cavity of cone-type isomers allows different types of interactions with molecules [22] to be established, especially with tetraalkylammonium-type salts or metal cations [23,24]. This has led to different areas of applications, such as sensors [25], catalysis [26,27], heavy metal complexes for purification of water tributaries [28,29,30] and chemical separations by modification of Hight Performance Liquid Chromatography (HPLC) columns [31,32,33,34], among others.
The aforementioned applications are possible because the polyhydroxylated platforms undergo conformations and conformational interconversions in solution [35], which allows host-guest interactions. For example, the conformation of resorcinarenes can be rigidified into a cone by linking the hydroxyl groups of the upper rim, which provides a higher degree of preorganization. Nevertheless, in solution the rccc isomer may adopt cone and boat conformations [36,37,38], which interconvert rapidly at room temperature. Studies of the conformational properties of resorcinarenes modified on the lower rim show that the most stable conformer in solution is cone and this trend is favored by bulky substituents in the macrocyclic ring [39].
Continuing with our studies of the structure of polyhydroxylated platforms [12,33,40,41], we found that the bulky aromatic substituents on the lower rim of polyhydroxylated platforms in cone conformation exhibited a dynamic behavior, which stimulated interest in examining the conformational preferences. For this purpose, in this article, the comparative behavior of C-tetra(phenyl)-resorcin[4]arene (1) and C-tetra(phenyl)pyrogallol[4]arene (2) compounds is studied using 1H-NMR and 13C-NMR data and dynamic 1H-NMR spectra.

2. Results and Discussion

2.1. Synthesis and Separation of Conformers

As mentioned in the introduction, we chose C-tetra(phenyl)-resorcin[4]arene (1) and C-tetra(phenyl)pyrogallol[4]arene (2) in order to explore the dynamic behavior of cone conformers in dimethyl sulfoxide and acetonitrile. In this way, the obtaining of 1 and 2 was done according to the procedure described in the literature, through the acid-catalized cyclocondensation of benzaldehyde with resorcinol or pyrogallol, respectively [8,9]. The synthesis was carried out through the acid-catalyzed cyclocondensation of phenol with benzaldehyde in ethyl alcohol at reflux condition. In the reaction (Scheme 2), two products were obtained (Supplementary Material, Figures S1 and S10, which were used for dynamic nuclear magnetic resonance (NMR) studies after separation.
In the 1H-NMR spectrum of 1a (Figure S3), individual assignments of the protons were made based on their positions, multiplicities, integral values and comparison of spectral data with reported values of similar compounds [12,40]. In this way, the 1H-NMR spectrum of 1a displayed the characteristic signal of a methine bridge at 5.63 ppm. In the aromatic region, normally the ortho- and meta-protons of resorcinarene moiety attached to a hydroxyl group produce separate signals and the ortho-protons are shielded by hydroxyl groups, while the meta-protons are unshielded and resonate in the upfield region. Given this, the hydrogen of the tetrasubstituted resorcinol units appears at 6.32 and 6.15 ppm, respectively. The signals at 6.97 and 6.75 were attributed to the hydrogen in the aromatic ring of the phenyl substituent on the lower rim. Finally, the signal at 8.53 ppm was assigned to hydroxyl groups in the molecule. As mentioned above, resorcinarenes can exist in conformations of various symmetries; in this way, in the first product formed the 1H-NMR showed the characteristic signals for the cone conformation (diastereomer rccc). Initially in our case, the signals indicate the existence of highly symmetric cone conformation in solution if the 1H-NMR spectrum of 1a is recorded at 333 K but if the 1H-NMR spectrum of 1a is recorded at room temperature, the signals allowed inferring the presence of other conformations, as will be analyzed later. The 13C-NMR spectrum in DMSO-d6 (Figure S4) exhibited nine signals, which agree with the structure of compound 1a, that is, it displayed eight signals for the aromatic systems and the signal at 41.6 ppm confirmed the presence of a methyne-bridge fragment between the aromatic rings, signal assignment was confirmed using the 2D-NMR-HSQC spectrum (Figure S5).
The second product 1b, obtained in the synthesis, exhibited absorptions for C-O stretching (1159 cm−1), an aromatic ring (1614 cm−1) and the hydroxyl groups (3318 cm−1) in the FT-IR spectrum (Figure S7). The 1H-NMR spectrum (Figure S8) displayed the characteristic signal of a methine-bridge fragment between the aromatic rings (5.56 ppm) and the aromatic hydrogen of the tetrasubstituted resorcinol unit at 6.12 and 6.22 ppm for the protons in the ortho position and the signal at 6.61 ppm for meta-protons, the signals at 6.84 were attributed to the hydrogen in the aromatic ring of the phenyl substituent on the lower rim. Finally, the signals at 8.57 and 8.46 ppm were assigned to two types of hydroxyl groups in the molecule. The signals observed in 13C-NMR spectrum are consistent with the structure (Figure S9).
The reaction of pyrogallol with benzaldehyde was carried out under the same conditions. After 12 h in reflux, Thin Layer Chromatography (TLC) analysis of the reaction mixture showed two products corresponding to the conformational mixture—cone (2a) and chair (2b) (Figure S11). Then the separation of cone and chair conformers was carried out by using the solvent-extraction technique.
The 1H-NMR spectrum of product 2a (Figure S13) exhibited two single peaks, at 7.77 and 7.65 ppm, corresponding to two classes of hydroxyl groups, signals corresponding to the pyrogallol residues—the first signal corresponds to a hydroxyl group in position 2 and the second signal for the hydroxyl group in positions 1 and 3. Additionally, all the patterns were consistent with the structure of the expected cone conformer 2a. On the other hand, the spectrum of product 2b (Figure S17) exhibited four different hydroxyl moieties, at 7.86, 7.67, 7.56 and 7.45 ppm, corresponding to two classes of hydroxyl groups attached to pyrogallol residues in the macrocyclic system. Careful analysis of all the patterns confirmed the structure of chair conformer 2b. The increase of signals in the 13C-NMR spectrum also confirmed the chair conformation (Figure S18). A comparison of the NMR spectra for the two isomer types is shown in Figure 1.

2.2. Dynamic 1H-NMR Studies

As mentioned above, if the 1H-NMR spectrum in DMSO-d6 of 1a was recorded at room temperature, the signal in the aromatic region at 6.32 ppm was observed as a broad signal. This fact was interesting, because this behavior is characteristic of a dynamic system in solution. In order to establish this behavior in DMSO-d6 initially, the 1H-NMR spectrum was recorded at a temperature of 333 K (Figure 1), observing that this signal was better defined, so it was decided to perform a dynamic study at variable temperature. As shown in Figure 2, at the lowest temperature, the spectrum of Compound 1a in the aromatic region (resorcinol residue) exhibited four signals—two for aromatic protons on the upper rim at 6.55 and 6.20 ppm and two signals for the protons on the lower rim at 6.00 and 6.15 ppm.
The 1H-NMR spectra of conformer 1a at 253.15 K was consistent with the presence of two conformers that exhibited two resonances for a flattened ring and two resonances for an opposite ring. This observation prompted a detailed study of the NMR spectra. It has been well established that the conformation of the resorcinarene skeleton can be assigned in solution by a comparison of the chemical shift for the arene resonance in other analogues macrocycles, because the protons in the flattened ring are more shielded. In this way, flattened cone A and flattened cone B (Figure 3) are possible conformations in DMSO-d6 for this macrocyclic system, which is confirmed by other areas of the spectrum, which are consistent with this conformational assignment. In the same way, in DMSO, the spectrum obtained at 268.15 K shows coalescence of the peaks in the aromatic zone, particularly for resorcinol ring signals, confirming a very dynamic interconversion system between the conformers flattened cone A and flattened cone B.
At other temperatures (283.15, 298.15 and 333.15 K), aromatic protons in ortho- and meta-positions of the resorcinol unit are sensitive to the chemical environment of the different conformations, as has been observed in other similar systems and is favored by the interaction with the solvent. In this way, the 1H-NMR spectrum of 1a in DMSO showed mixed conformations, according to the following signals—two protons in the aromatic region (6.32 and 6.15 ppm) indicate a high degree of conformational equilibrium between cone and flattened cone (A and B) conformers for diastereomer rccc (Figure 3).
1H-NMR spectrum of 2a in DMSO-d6 at 293.15 K is characteristic of the cone conformation and this change when the temperature decreases (Figure 4). At 248.15 K, the spectrum showed two resonances consistent with the presence of two conformers—flattened cone A and flattened cone B (Figure 3), which showed one resonance at 6.00 ppm for a flattened pentasubstituted pyrogallol unit and one resonance at 6.60 ppm for an opposite pentasubstituted pyrogallol unit and the spectrum obtained at 273.15 K shows coalescence of these peaks in the aromatic zone. Similarly, and as seen with compound 1a, these observations suggest that the compound exists in two forms in solution, cone and flattened cone conformers. In DMSO-d6, 1b showed a similar pattern of signals and this confirms the presence of the two conformers with very small differences with respect to their coalescence temperatures.
According to the known experimental evidence for aliphatic resorcinarenes and pyrogallolarenes, those exhibit a rigid cone(rccc) structure at room temperature in solution and solid state [42,43] which is established due to the intramolecular hydrogen bonds in the upper rim. In contrast with the behavior of platforms with aliphatic substituent, the experimental evidence for platforms 1a and 1b showed that they have a dynamic behavior in solution, this behavior can be due to loss of intramolecular hydrogen bonds on the upper rim, the existence of π-π interactions of the aromatic system in the lower rim and polar··· π, C-H···π [44,45] between solvent molecules and aromatic system permitting a temporal rearrangement of the macrocycle.

3. Materials and Methods

Infrared (IR) spectra were recorded on a ThermoFisher Scientific Nicolet iS10 Fourier transform infrared (FTIR) spectrometer with a monolithic Diamond, Attenuated Total Reflection (ATR) accessory and absorption in cm−1 (Thermo Scientific, Waltham, MA, USA). 1H and 13C-NMR spectra were recorded at 400 MHz on a Bruker Advance 400 instrument. Molar mass was determined with Agilent 6470 triple quadrupole mass spectrometer. RP–HPLC analyses were performed on a Chomolith® C18 column (Merck, Kenilworth, NJ, USA, 50 mm), using an Agilent 1200 Liquid Chromatograph (Agilent, Omaha, NE, USA). Chemical shifts are reported in ppm, using the solvent residual signal. Melting points were measured on a Stuart apparatus (Cole-Parmer, Stafford, UK) and are not corrected. The elemental analysis for carbon and hydrogen was carried out using a Thermo Flash 2000 elemental analyzer (Thermo Scientific, Waltham, MA, USA).

3.1. Synthesis of Tetra(phenyl)-pyrogallol[4]arene and Resorcin[4]arene

Synthesis of C-tetra(phenyl)-pyrogallol[4]arene. A Pyrogallol solution (5 mmol) in 10 mL of ethanol was added dropwise to 0.4 mL of concentrated chlorine acid (37%), the mixture was stirred at 0 ºC for 5 min and then 0.5 mL of benzaldehyde (5 mmol) was added dropwise. After 10 min, the mixture was heated to 70–80 °C and refluxed for 12 h and the solid precipitate was filtered and washed with a mixture of water and ethanol (1:1), producing a pink solid (569 mg) at 56% yield, which was characterized by means IR, 1H-NMR and 13C-NMR and used for separation experiments.
Conformation separation. The separation of boat and chair conformers was carried out by using the solvent-extraction technique with mixtures of solvents such as ethyl acetate, water and ethanol. The crude mixture (200 mg) was stirred in 10 mL of a mixture of solvents (ethyl acetate, ethanol and water, at a ratio of 2:1:1, respectively) for 10 min and the suspended solid was separated by filtration, dried and used for conformational studies, whereupon it was determined to be in the chair conformer configuration. The mixture of solvents was removed by evaporation, resulting in a second red solid that exhibited the boat conformation.
C-tetra(phenyl)pyrogallol[4]arene (boat) m.p. > 350 °C IR (ATR/cm−1): 3300–3600 (broad), 1630, 1500, 1464, 1368, 1282, 1247, 1209, 1064, 1015, 163, 699, 566, 416 cm−1; 1H-NMR (400 MHz, DMSO-d6): δ 7.77 (s, 4H, OH); 7.65 (s, 8H, OH); 6.95–6.96 (m, 12H, Ar); 6.76–6.77 (m, 8H, Ar); 6.04 (s, 4H, Ar); 5.78 (s, 4H, CH). 13C-NMR (100 MHz, DMSO-d6): δ (ppm) 145.4; 142.0; 131.8; 128.6; 127.0; 124.5; 121.3. 41.3. Calcd. For C52H40O12 (%) C 72.89; H 4.72; O 22.41. Found: C 73.85; H 4.67; O 21.49.
C-tetra(phenyl)pyrogallol[4]arene (chair) m.p. > 350 °C IR (ATR/cm−1): 3300–3600 (broad), 1630, 1500, 1464, 1368, 1282, 1247, 1209, 1064, 1015, 163, 699, 566, 416; 1H-NMR (400 MHz, DMSO-d6): δ 7.86 (s, 2H, OH); 7.67 (s, 2H, OH); 7.56 (s, 4H, OH); 7.45 (s, 4H, OH), 6.84 (s, 12H, Ar); 6.60 (d, J = 8 Hz, 8H, Ar); 6.01 (s, 2H, Ar); 5.67 (s, 4H, CH); 5.20 (s, 2H, Ar). 13C-NMR (100 MHz, DMSO-d6): δ (ppm) 143.8; 141.9; 141.6; 131.8; 131.3; 128.7; 126.7; 124.2; 122.4; 121.5; 121.4; 119.8; 42.6. Calcd. For C52H40O12 (%) C 72.89; H 4.72; O 22.41. Found: C 73.52; H 4.21; O 21.91.
Synthesis of C-tetra(phenyl)-resorcin[4]arene. A resorcinol solution (10 mmol) in 20 mL of ethanol was added to 10 mmol of benzaldehyde, the mixture was stirred at 90 °C and 2.5 mL of concentrated hydrochloric acid (37%) was added dropwise. The solution was refluxed for 6 h and the precipitated solid was filtered and washed with ethanol, producing a green solid at 86% yield. The green powder was dried and used for 1H-NMR analysis. Water was added to the ethanol used in the reaction and washed by inducing the precipitate. The obtained solid was filtered, washed with water and was recrystallized from acetonitrile. The second yellow solid at 14% yield was dried and used for conformational studies.
C-tetra(phenyl)-resorcin[4]arene(boat) m.p. > 300 °C IR (KBr/cm−1): 3300–3600 (broad), 1600, 1470, 1440, 1380, 1340, 1210, 1260, 1150, 850, 740, 700; 1H-NMR(400MHz, DMSO-d6): δ 8.53 (s, 8H, OH); 6.98–6.96 (m, 12H, Ar); 6.75–6.74 (m, 8H, Ar); 6.32 (br s, 4H, CH meta to OH); 6.15(s, 4H, CH orto to OH); 5.63 (s, 4H, CH). 13C-NMR(100 MHz, DMSO-d6) δ (ppm): 152.4; 145.6, 130.7; 128.4; 126.8; 124.3; 120.5; 102.2; 41.6.
C-tetra(phenyl)-resorcin[4]arene(chair) m.p. > 300 °C IR (KBr/cm−1): 3300–3600 (broad), 1600, 1470, 1440, 1380, 1340, 1210, 1260, 1150, 850, 740, 700; 1H-NMR(400MHz, DMSO-d6): δ 8.52 (s, 4H, OH); 8.41 (s, 4H, OH); 6,80 (s, 12H, Ar); 6.57 (s, 8H, Ar); 6.31 (s, 4H, Ar); 6.08 (s, 2H, Ar); 5.52 (s, 2H, Ar); 5.49 (s, 4H, CH). 13C-NMR (100 MHz, DMSO-d6) δ (ppm): 152.7; 152.5; 144.7; 131.7; 129.1; 128.9; 126.9; 124.3; 121.0; 120.6; 101.6; 42.1.

3.2. Dynamic Studies

The dynamic studies were carried out by using 1H-NMR. The solids 1a and 2a were dissolved in a mixture of solvents such as DMSO-d6 and acetonitrile (MeCN). The solution was cooled within a range of 296.15 K to 258.15 K taking 1H-NMR spectra each 5 or 10 K.

4. Conclusions

C-tetra(phenyl)-resorcin[4]arene and C-tetra(phenyl)-pyrogallol[4]arene were synthesized as conformational mixtures composed of the boat and the chair isomers. The analysis of the conformational mixture showed the formation of cone isomers in a greater proportion for the C-tetra(phenyl)-resorcin[4]arene, while for C-tetra(phenyl)-pyrogallol[4]arene, the chair isomer had the greater proportion. The dynamic studies in the solution phase showed that structures 1a and 2a are a dynamic boat in the solution phase, in contrast with previous studies, where the structure was reported as a cone conformer. The dynamic behavior is a consequence of absence of intramolecular hydrogen bonds on the upper rim, as an effect of the aromatic substituent on the lower rim.

Supplementary Materials

The following are available online: Figure S1: 1H-NMR spectrum DMSO-d6 conformational mixture(1a and 1b), Figure S2: IR Spectrum of tetra(phenyl)-resorcin[4]arene(1a), Figure S3: 1H-NMR spectrum-DMSO-d6 of tetra(phenyl)-resorcin[4]arene(1a), Figure S4: 13C-NMR spectrum- DMSO-d6 of tetra(phenyl)-resorcin[4]arene(1a), Figure S5: 2D-NMR-HSQC spectrum-DMSO-d6 of tetra(phenyl)-resorcin[4]arene(1a), Figure S6: Dynamic 1H-NMR study for tetra(phenyl)-resorcin[4]arene(1a), Figure S7: IR Spectrum of tetra(phenyl)-resorcin[4]arene(1b), Figure S8: 1H-NMR spectrum-DMSO-d6 of tetra(phenyl)-resorcin[4]arene(1b), Figure S9: 13C-NMR spectrum of tetra(phenyl)-resorcin[4]arene (1b), Figure S10: 1H-NMR spectra of boat(rccc)(1a), Figure S11: 1H-NMR spectrum DMSO-d6 conformational mixture(2a and 2b) and chair(rctt)(1b), Figure S12: IR Spectrum of tetra(phenyl)-pyrogallol[4]arene(2a), Figure S13: 1H-NMR spectrum-DMSO-d6 of tetra(phenyl)-pyrogallol[4]arene(2a), Figure S14: 13C-NMR spectrum-DMSO-d6 of tetra(phenyl)-pyrogallol[4]arene(2a), Figure S15: Dynamic 1H-NMR study for tetra(phenyl)-pyrogallol[4]arene(2a), Figure S16: IR Spectrum of tetra(phenyl)-pyrogallol[4]arene(2a), Figure S17: 1H-NMR spectrum-DMSO-d6 of tetra(phenyl)-pyrogallol[4]arene(2b), Figure S18: 13C-NMR spectrum-DMSO-d6 of tetra(phenyl)-pyrogallol[4]arene(2b), Figure S19: 1H-NMR spectra of conformational mixture, boat(rccc)(2a) and chair(rctt)(2b) isomers.

Author Contributions

Designed the research, M.M.V.; performed the experiments and collected the data, analyzed the results and corrected and edited the manuscript, M.M.V., J.L.C.-H. and M.Á.V.S. All authors contributed to the preparation of the manuscript and have read and agreed to the published version of the manuscript.

Funding

This research was funded by Department of Science, Technology and Innovation COLCIENCIAS (Colombia). grant conv. 727.

Acknowledgments

We wish to thank the Universidad Nacional de Colombia and José Luis Casas-Hinestroza acknowledge the Administrative Department of Science, Technology and Innovation COLCIENCIAS (Colombia) for his Ph.D. grant conv. 727.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Scott, M.; Sherburn, M. Resorcinarenes and Pyrogallolarenes. In Comprehensive Supramolecular Chemistry II; Elsevier: Amsterdam, The Netherlands, 2017; pp. 337–374. [Google Scholar] [CrossRef]
  2. Han, J.; Song, X.; Liu, L.; Yan, C. Synthesis, crystal structure and configuration of acetylated aryl Pyrogallol[4]arenes. J. Incl. Phenom. Macrocycl. Chem. 2007, 59, 257–263. [Google Scholar] [CrossRef]
  3. Yasmin, L.; Coyle, T.; Stubbs, K.A.; Raston, C.L. Stereospecific synthesis of resorcin[4]arenes and pyrogallol[4]arenes in dynamic thin films. Chem. Commun. 2013, 49, 10932. [Google Scholar] [CrossRef] [PubMed]
  4. Pfeiffer, C.; Feaster, K.A.; Dalgarno, S.J.; Atwood, J. Syntheses and characterization of aryl-substituted pyrogallol[4]arenes and resorcin[4]arenes. CrystEngComm 2016, 18, 222–229. [Google Scholar] [CrossRef] [Green Version]
  5. Jain, V.K.; Kanaiya, P.H. Chemistry of calix[4]resorcinarenes. Russ. Chem. Rev. 2011, 80, 75–102. [Google Scholar] [CrossRef]
  6. Patil, R.S.; Zhang, C.; Atwood, J. Process development for separation of conformers from derivatives of resorcin[4]arenes and pyrogallol[4]arenes. Chem. Eur. J. 2016, 22, 15202–15207. [Google Scholar] [CrossRef]
  7. Tunstad, L.M.; Tucker, J.A.; Dalcanale, E.; Weiser, J.; Bryant, J.A.; Sherman, J.C.; Helgeson, R.C.; Knobler, C.B.; Cram, D.J. Host-guest complexation. 48. Octol building blocks for cavitands and carcerands. J. Org. Chem. 1989, 54, 1305–1312. [Google Scholar] [CrossRef]
  8. Hoegberg, A.G.S. Two stereoisomeric macrocyclic resorcinol-acetaldehyde condensation products. J. Org. Chem. 1980, 45, 4498–4500. [Google Scholar] [CrossRef]
  9. Hoegberg, A.G.S. Cyclooligomeric phenol-aldehyde condensation products. 2. Stereoselective synthesis and DNMR study of two 1,8,15,22-tetraphenyl[14]metacyclophan-3,5,10,12,17,19,24,26-octols. J. Am. Chem. Soc. 1980, 102, 6046–6050. [Google Scholar] [CrossRef]
  10. Yan, C.-G.; Chen, W.; Chen, J.; Jiang, T.; Yao, Y. Microwave irradiation assisted synthesis, alkylation reaction and configuration analysis of aryl pyrogallol[4]arenes. Tetrahedron 2007, 63, 9614–9620. [Google Scholar] [CrossRef]
  11. Chen, J.; Chen, W.; Yan, C. Microwave Assisted Efficient Synthesis and Crystal Structures ofO-Hexadecalkylated Pyrogallol[4]arenes. Chin. J. Chem. 2009, 27, 1703–1706. [Google Scholar] [CrossRef]
  12. Casas-Hinestroza, J.L.; Villamil, M.M. Conformational Aspects of the O-acetylation of C-tetra(phenyl)calixpyrogallol[4]arene. Molecules 2018, 23, 1225. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Timmerman, P.; Verboom, W.; Reinhoudt, D.N. Resorcinarenes. Tetrahedron 1996, 52, 2663–2704. [Google Scholar] [CrossRef] [Green Version]
  14. Morales-Morales, D.; Gómez-Benítez, V.; Toscano, R.A. Quasi-Complete Solvation of C-Phenylcalix[4]resorcinarene in the Crystalline State. Single Crystal X-ray Diffraction Study. J. Incl. Phenom. Macrocycl. Chem. 2004, 50, 199–202. [Google Scholar] [CrossRef]
  15. Kumari, H.; Mossine, A.V.; Kline, S.R.; Dennis, C.L.; Fowler, D.A.; Teat, S.J.; Barnes, C.L.; Deakyne, C.A.; Atwood, J. Controlling the Self-Assembly of Metal-Seamed Organic Nanocapsules. Angew. Chem. Int. Ed. 2012, 51, 1452–1454. [Google Scholar] [CrossRef]
  16. Fowler, D.A.; Mossine, A.V.; Beavers, C.M.; Teat, S.J.; Dalgarno, S.J.; Atwood, J.L. Coordination Polymer Chains of Dimeric Pyrogallol[4]arene Capsules. J. Am. Chem. Soc. 2011, 133, 11069–11071. [Google Scholar] [CrossRef]
  17. Beyeh, N.K.; Valkonen, A.; Rissanen, K. Piperazine Bridged Resorcinarene Cages. Org. Lett. 2010, 12, 1392–1395. [Google Scholar] [CrossRef]
  18. Makeiff, D.; Sherman, J.C. A Six-Bowl Carceplex That Entraps Seven Guest Molecules. J. Am. Chem. Soc. 2005, 127, 12363–12367. [Google Scholar] [CrossRef]
  19. Kazakova, E.K.; Ziganshina, A.Y.; Muslinkina, L.A.; Morozova, J.E.; Makarova, N.A.; Mustafina, A.R.; Habicher, W. The Complexation Properties of the Water-Soluble Tetrasulfonatomethylcalix[4]resorcinarene toward α-Aminoacids. J. Incl. Phenom. Macrocycl. Chem. 2002, 43, 65–69. [Google Scholar] [CrossRef]
  20. Waidely, E.; Pumilia, C.; Malagon, A.; Vargas, E.F.; Li, S.; Leblanc, R.M. Host–Guest Complexation of a Pyrogallol[4]arene Derivative at the Air–Water Interface. Langmuir 2015, 31, 1368–1375. [Google Scholar] [CrossRef]
  21. Hong, M.; Zhang, Y.-M.; Liu, Y. Selective Binding Affinity between Quaternary Ammonium Cations and Water-Soluble Calix[4]resorcinarene. J. Org. Chem. 2015, 80, 1849–1855. [Google Scholar] [CrossRef] [PubMed]
  22. Ballester, P.; Biros, S.M. CH-π and π-π Interactions as Contributors to the Guest Binding in Reversible Inclusion and Encapsulation Complexes. In The Importance of Pi-Interactions in Crystal Engineering; John Wiley & Sons, Ltd.: Chichester, West Sussex, UK, 2012; pp. 79–107. [Google Scholar]
  23. Puttreddy, R.; Beyeh, N.K.; Taimoory, S.M.; Meister, D.; Trant, J.F.; Rissanen, K. Host–guest complexes of conformationally flexible C-hexyl-2-bromoresorcinarene and aromatic N-oxides: Solid-state, solution and computational studies. Beilstein J. Org. Chem. 2018, 14, 1723–1733. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Al’Tshuler, G.N.; Fedyaeva, O.N.; Ostapova, E. The reaction ofC-phenylcalix[4]resorcinarene-based polymer with quaternary ammonium and potassium cations. Russ. Chem. Bull. 2000, 49, 1468–1470. [Google Scholar] [CrossRef]
  25. Kumar, S.; Chawla, S.; Zou, M.C. Calixarenes based materials for gas sensing applications: A review. J. Incl. Phenom. Macrocycl. Chem. 2017, 88, 129–158. [Google Scholar] [CrossRef]
  26. Catti, L.; Tiefenbacher, K.; Pöthig, A. Host-Catalyzed Cyclodehydration-Rearrangement Cascade Reaction of Unsaturated Tertiary Alcohols. Adv. Synth. Catal. 2017, 359, 1331–1338. [Google Scholar] [CrossRef]
  27. Zhang, Q.; Catti, L.; Kaila, V.R.I.; Tiefenbacher, K. To catalyze or not to catalyze: Elucidation of the subtle differences between the hexameric capsules of pyrogallolarene and resorcinarene. Chem. Sci. 2016, 8, 1653–1657. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Eisler, D.J.; Puddephatt, R.J. Structure and Dynamics of Tetrakis(thiophosphinato)resorcinarene Complexes of Silver(I), Gold(I) and Palladium(II). Inorg. Chem. 2006, 45, 7295–7305. [Google Scholar] [CrossRef]
  29. Ngurah, B.I.G.M.; Jumina; Anwar, C. Synthesis and Application of C-Phenylcalix[4]resorcinarene in Adsorption of Cr(III) and Pb(II). J. Appl. Chem. Sci. 2016, 3, 289–298. [Google Scholar] [CrossRef] [Green Version]
  30. Al-Trawneh, S.A. Studies on Adsorptive Removal of Some Heavy Metal Ions by Calix[4]Resorcine. Jordan J. Earth Environ. Sci. 2015, 7, 1–9. [Google Scholar]
  31. Li, N.; Harrison, R.G.; Lamb, J.D. Application of resorcinarene derivatives in chemical separations. J. Incl. Phenom. Macrocycl. Chem. 2013, 78, 39–60. [Google Scholar] [CrossRef]
  32. Pietraszkiewicz, O.; Pietraszkiewicz, M. Separation of Pyrimidine Bases on a HPLC Stationary RP-18 Phase Coated with Calix[4]resorcinarene. J. Incl. Phenom. Macrocycl. Chem. 1999, 35, 261–270. [Google Scholar] [CrossRef]
  33. Velásquez-Silva, B.A.; Aguirre, A.A.C.; Rivera-Monroy, Z.J.; Villamil, M.M. Aminomethylated Calix[4]resorcinarenes as Modifying Agents for Glycidyl Methacrylate (GMA) Rigid Copolymers Surface. Polymers 2019, 11, 1147. [Google Scholar] [CrossRef] [Green Version]
  34. Zhang, H.; Dai, R.; Ling, Y.; Wen, Y.; Zhang, S.; Fu, R.; Gu, J. Resorcarene derivative used as a new stationary phase for capillary gas chromatography. J. Chromatogr. A 1997, 787, 161–169. [Google Scholar] [CrossRef]
  35. Thondorf, I.; Brenn, J.; Böhmer, V. Conformational properties of methylene bridged resorcarenes. Tetrahedron 1998, 54, 12823–12828. [Google Scholar] [CrossRef]
  36. Rumboldt, G.; Böhmer, V.; Botta, B.; Paulus, E.F. Rational Synthesis of Resorcarenes with Alternating Substituents at Their Bridging Methine Carbons. J. Org. Chem. 1998, 63, 9618–9619. [Google Scholar] [CrossRef]
  37. Abis, L.; Dalcanale, E.; Du Vosel, A.; Spera, S. Nuclear magnetic resonance elucidation of ring-inversion processes in macrocyclic octaols. J. Chem. Soc. Perkin Trans. 2 1990, 2075–2080. [Google Scholar] [CrossRef]
  38. Konishi, H.; Morikawa, O. Conformational properties of octahydroxy[1.4]metacyclophanes with unsubstituted methylene bridges. J. Chem. Soc. Chem. Commun. 1993, 34–35. [Google Scholar] [CrossRef]
  39. Knyazeva, I.R.; Sokolova, V.I.; Gruner, M.; Habicher, W.D.; Syakaev, V.V.; Khrizanforova, V.; Gabidullin, B.M.; Gubaidullin, A.T.; Budnikova, Y.; Burilov, A.R.; et al. One-step synthesis of rccc- and rctt-diastereomers of novel calix[4]resorcinols based on a para-thiophosphorylated derivative of benzaldehyde. Tetrahedron Lett. 2013, 54, 3538–3542. [Google Scholar] [CrossRef]
  40. Velásquez-Silva, A.; Cortés, B.; Rivera-Monroy, Z.J.; Pérez-Redondo, A.; Villamil, M.M. Crystal structure and dynamic NMR studies of octaacetyl-tetra(propyl)calix[4]resorcinarene. J. Mol. Struct. 2017, 1137, 380–386. [Google Scholar] [CrossRef]
  41. Aguirre, A.A.C.; Rivera-Monroy, Z.J.; Villamil, M.M. Selective O-Alkylation of the Crown Conformer of Tetra(4-hydroxyphenyl)calix[4]resorcinarene to the Corresponding Tetraalkyl Ether. Molecules 2017, 22, 1660. [Google Scholar] [CrossRef]
  42. Gareth, W.V. CaveCurrent address: School of Biom; Ferrarelli, M.C.; Atwood, J.L.; Cave, G.W.V. Nano-dimensions for the pyrogallol[4]arene cavity. Chem. Commun. 2005, 2787–2789. [Google Scholar] [CrossRef]
  43. Kulikov, O.V.; Negin, S.; Rath, N.P.; Gokel, G.W. Morphologies of branched-chain pyrogallol[4]arenes in the solid state. Supramol. Chem. 2014, 26, 506–516. [Google Scholar] [CrossRef]
  44. Fagnani, D.; Sotuyo, A.; Castellano, R. π–π Interactions. In Comprehensive Supramolecular Chemistry II; Elsevier BV: Oxford, UK, 2017; Volume 1, pp. 121–148. [Google Scholar]
  45. Mahadevi, A.S.; Sastry, G.N. Cooperativity in Noncovalent Interactions. Chem. Rev. 2016, 116, 2775–2825. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds 1a, 2a, 1b and 2b are available from the authors.
Molecules 25 02275 sch001 550

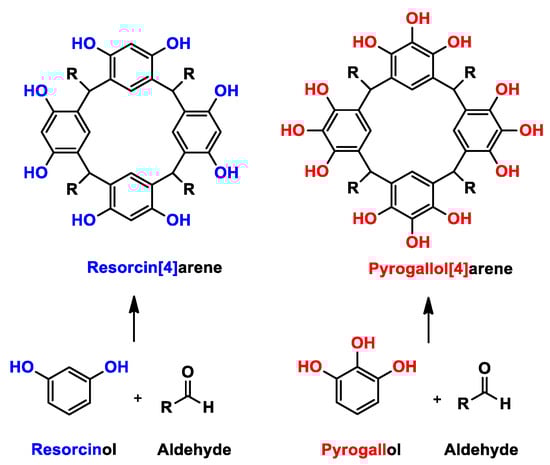

Scheme 1. Synthesis of resorcinarenes and pyrogallolarenes.
Scheme 1. Synthesis of resorcinarenes and pyrogallolarenes.
Molecules 25 02275 sch001
Molecules 25 02275 sch002 550

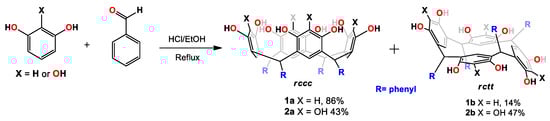

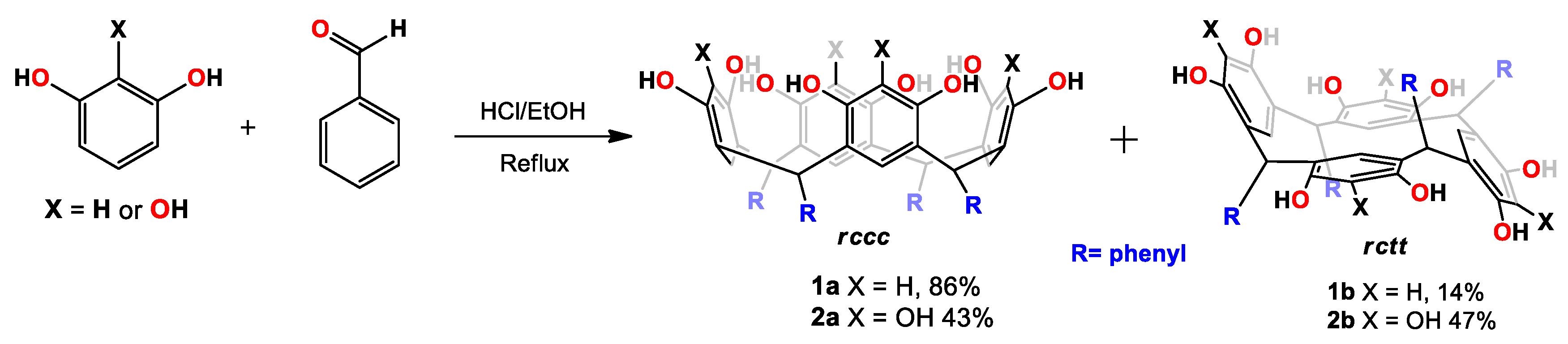

Scheme 2. Synthesis of tetra(phenyl) pyrogallol[4]arene and resocin[4]arene.
Scheme 2. Synthesis of tetra(phenyl) pyrogallol[4]arene and resocin[4]arene.
Molecules 25 02275 sch002
Molecules 25 02275 g001 550

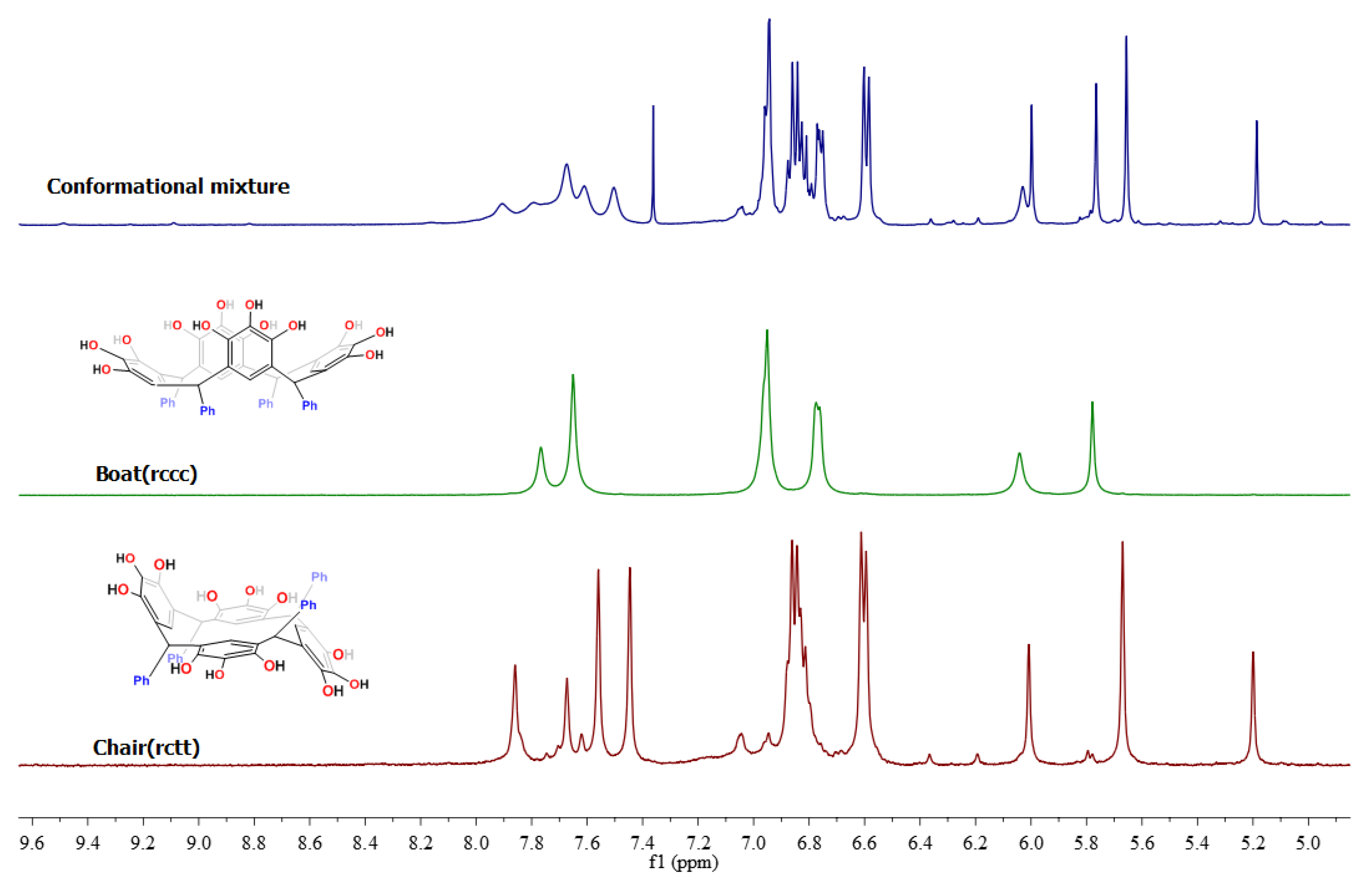

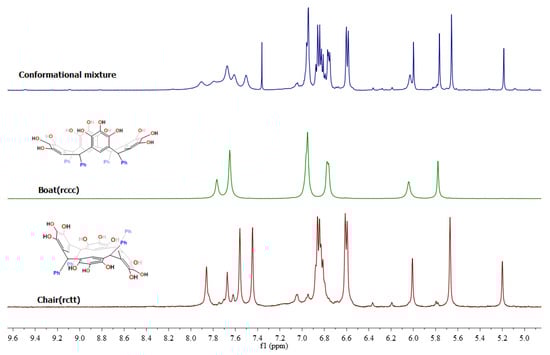

Figure 1. Comparative 1H-NMR spectra of de products 2a and 2b in DMSO-d6 at room temperature.
Figure 1. Comparative 1H-NMR spectra of de products 2a and 2b in DMSO-d6 at room temperature.
Molecules 25 02275 g001
Molecules 25 02275 g002 550

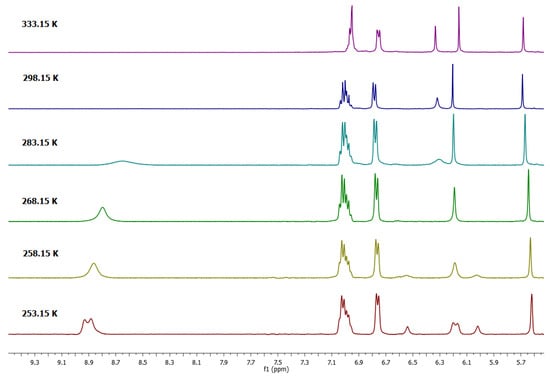

Figure 2. Dynamic study of tetra(phenyl)-resorcin[4]arene (1a) in MeCN-DMSO-d6 mixture.
Figure 2. Dynamic study of tetra(phenyl)-resorcin[4]arene (1a) in MeCN-DMSO-d6 mixture.
Molecules 25 02275 g002
Molecules 25 02275 g003 550

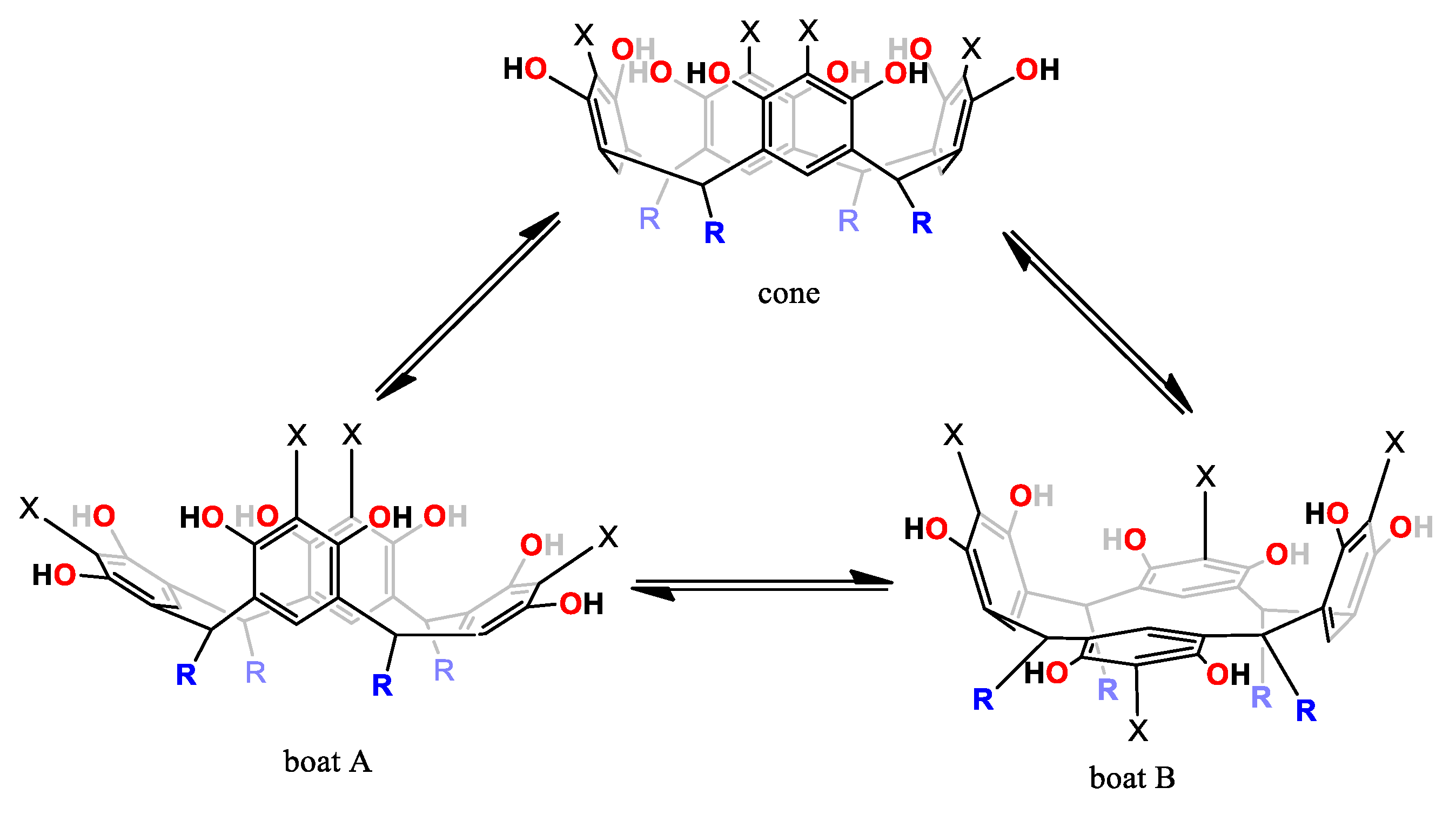

Figure 3. Dynamic behavior of 1a and 2a.
Figure 3. Dynamic behavior of 1a and 2a.
Molecules 25 02275 g003
Molecules 25 02275 g004 550

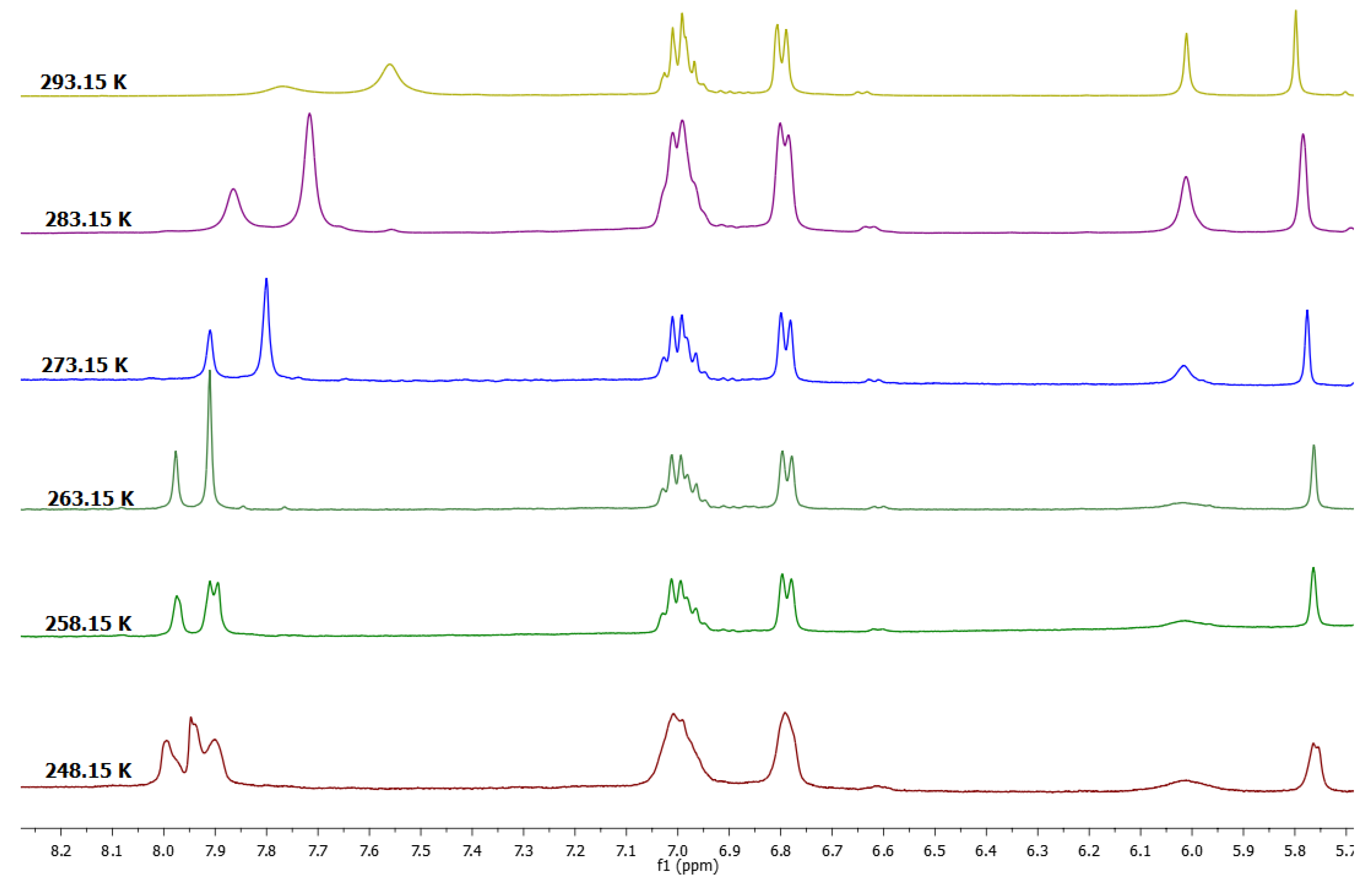

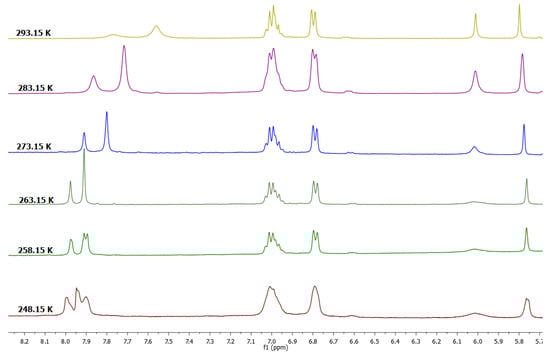

Figure 4. Dynamic study of tetra(phenyl)-pyrogallol[4]arene (2a) in MeCN-DMSO-d6 mixture.
