Porous V₂O₅/TiO₂ Nanoheterostructure Films with Enhanced Visible-Light Photocatalytic Performance Prepared by the Sparking Method

Abstract

Porous V₂O₅/TiO₂ nanoheterostructure films with different atomic ratios of Ti/V (4:1, 2:1, 1:1, and 1:2) were synthesized by a sparking method for the first time. The sparking method, which is a simple and cost-effective process, can synthesize highly porous and composite films in one step. Field-emission scanning electron microscope (FE-SEM) images revealed the porosity morphology of all prepared samples. V₂O₅/TiO₂ nanoheterostructure films were confirmed by Raman spectroscopy, high-resolution transmission electron microscopy (HRTEM), and X-ray photoelectron spectroscopy (XPS). The secondary particle size and band gap of the samples were highly correlated to the V₂O₅ proportion, resulting in enhanced visible-light absorbance. V₂O₅/TiO₂ nanoheterostructure films at an atomic ratio of 1:1 showed the highest photocatalytic performance, which improved the degradation rate up to 24% compared to pure TiO₂ film. It is believed that the formed nanoheterostructure and greater portion of V⁴⁺ ions are reflected by this ratio.

1. Introduction

Titanium dioxide (TiO₂) is a widely used photocatalyst because of its low cost, environmental friendliness, and stable photocatalytic reaction [1,2]. There are three forms of TiO₂ phases (anatase, rutile, and brookite), in which the anatase phase has higher photocatalytic activity than both the rutile and brookite phases. Moreover, a mixed phase of anatase and rutile was found and is a better alternative [3,4]. However, the wide energy gap of TiO₂ (~3.2 eV) limits use of the visible-light region as the excitation energy for photo-generated electron-hole pairs. At present, there are many methods that have been used to improve the photocatalytic property of TiO₂.

Surface modification is known to be able to promote photocatalytic performance by providing more effective interfacial properties. In particular, the large surface areas of 1-D structures and porous morphology are preferred in the design [5,6]. Moreover, composite films with a narrow band gap semiconductor are preferred, which can lead to superior performance of the pure TiO₂ films [7,8,9]. Both TiO2 and V₂O₅ are two important materials due to their excellent electronic, chemical, and optical properties [10,11]. The strong interaction between TiO₂ and V₂O₅ is a common scientific phenomenon used in catalytic systems. Furthermore, the heterojunction between V₂O₅ and TiO₂ can improve the photocatalytic efficiency of the host by supporting the separation and transfusion of photogenerated electron-hole pairs at the interfaces [12,13]. In addition, transformation of oxygen vacancies during preparation processing can further promote the separation of photoexcited electrons and holes [14,15].

However, the simplicity and cost-effectiveness of the production method are important factors to consider when applied to large-scale manufacturing. At present, many physical and chemical techniques have been used for preparing V₂O₅/TiO₂ composite films, including sol-gel, chemical vapor deposition, DC arc plasma, electrospinning, hydrothermal, and pulsed laser deposition [16,17,18,19,20,21]. Some techniques require multiple processes for fabricating porous structures and composite materials, which usually leads to expensive and complicated processes. The sparking method has the potential to synthesize highly porous and composite films in a one-step process. Using this process, films can be deposited directly onto a substrate without the need for a vacuum system [22,23]. Moreover, it is also possible to fabricate the films in large-scale manufacturing.

Therefore, photocatalytic performance can be effectively improved through the designs of porous morphologies and composite films. Moreover, simplicity and cost-effectiveness are also required for the production method. Thus, this paper aimed to synthesize porous vanadium pentoxide/titanium dioxide (V₂O₅/TiO₂) nanoheterostructure films using the sparking method. The influences of the structural, morphological, optical, and photocatalytic properties of the prepared films were investigated and reported in this work.

2. Results and Discussion

2.1. Morphology, Crystal Structure, and Property Investigations

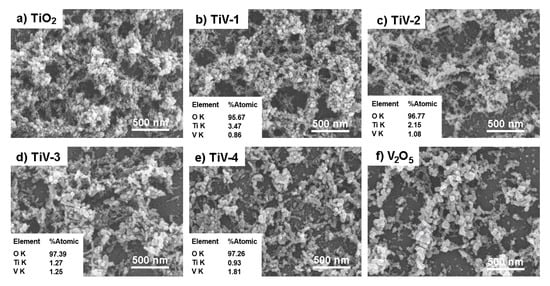

FE-SEM images revealed the porosity morphology of small particles for all prepared samples, which is the highlight of the sparking method. Our previous papers reported that the as-deposited particles produced by the sparking method were small with primary sizes of approximately 1–5 nm [24]. In this paper, the TiO₂ films exhibited interconnected, spherical-like shapes with average secondary particle sizes of 20 nm that were measured by an imageJ program. While the composite films showed the particles, the sizes increased slightly when the proportion of vanadium increased due to the large size of V₂O₅ particles, as summarized in

Table 1. Correlations of the atomic ratio of Ti/V, particle size, band gap, and the degradation rate of samples.

Samples	Atomic Ratio of Ti/V	Particle Size (nm)	Band Gap (eV)	V4+/Vtotal (%)	Degradation Rate (%)
TiO2	-	20 $\pm$ 2	3.28	0	52.0
TiV-1	4:1	35 $\pm$ 3	3.12	14.5	53.8
TiV-2	2:1	42 $\pm$ 5	2.84	22.6	60.8
TiV-3	1:1	48 $\pm$ 2	2.63	24.4	64.8
TiV-4	1:2	55 $\pm$ 3	2.56	18.0	60.4
V2O5	-	70 $\pm$ 4	2.32	9.1	46.6

. The film′s thickness was approximately 300 nm for all prepared samples as confirmed by the cross-section analysis. In addition, the element composition of samples was determined using EDS and revealed that the atomic ratios of Ti/V were approximately 4:1, 2:1, 1:1, and 1:2 for TiV1-4 samples, respectively, as shown in the inset images of Figure 1b–e. Interestingly, the equal proportion of Ti and V wires in the TiV-4 sample did not correlate with the quantity of their atoms due to their own properties (melting point, latent heat, specific heat capacity) [25]. The sparked films in this experiment were very thin and porous; therefore, the large number of oxygen peaks in the EDS results is due to the quartz substrates (SiO₂).

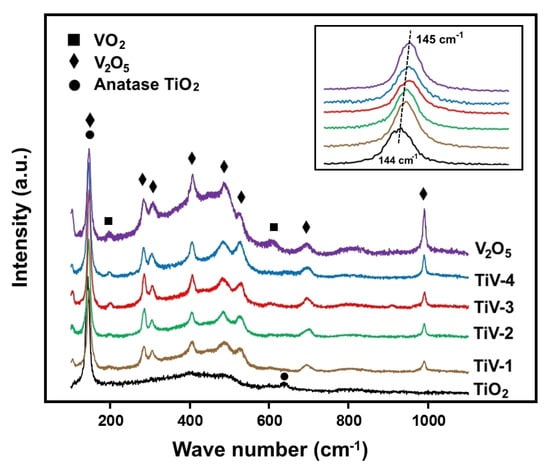

Figure 2 illustrates the Raman spectra of prepared samples in the range of 100 to 1100 cm⁻¹. The peaks spiked at 144 and 631 cm⁻¹, which correspond to E_g and B2_g vibration modes, respectively, and confirmed the anatase phase structure of the TiO₂ film [26]. In the case of the V₂O₅ film, nine strong peaks of V₂O₅ (145.1, 283.2, 306.5, 406.7, 484.3, 521.9, 696.9, and 990.1 cm⁻¹) and two weak peaks of VO₂ (195.6 and 611.2 cm^-1) were observed indicating the V₂O₅-VO₂ mixed phase [27]. The inset image in Figure 2 shows a high-magnification of the overlap between the strong TiO₂ (anatase) and main V₂O₅ (orthorhombic) peaks, which shifted from 144 to 145 cm⁻¹ for TiV1-4 samples, respectively. The slight shift of peak positions could plausibly be regarded as the result of modifications in the force constants of tetragonal TiO₂ lattices by the added V₂O₅, which indicates the formation of a V₂O₅/TiO₂ nanoheterostructure [28].

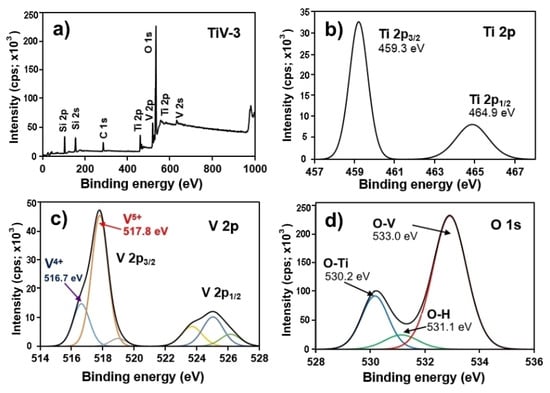

The XPS survey spectra presented various peaks corresponding to Ti, V, O, Si, and C, which are elements of the prepared films, except only C occurs during the sparking method and Si from quartz substrate, as shown in Figure 3a. There were no impure peaks, which confirms the formation of pure V₂O₅/TiO₂ composites films. The different core levels of high-resolution XPS spectra for Ti 2p, V 2p, and O 1s were investigated further. In Figure 3b, the two peaks centered at binding energies of 459.3 and 464.9 eV were assigned to be Ti 2p_3/2 and 2p_1/2 of Ti⁴⁺, respectively, which are consistent with the typical values of TiO₂ [29]. In addition, the small shift of the Ti 2p peak position towards a higher binding energy indicates the integration of V ions into the TiO₂ lattice [28]. The V 2p spectra displayed that V⁵⁺ and V⁴⁺ ions were uniformly distributed on the composite films, which were centered at 517.8 and 516.7 eV, respectively, as shown in Figure 3c. This affirms the result from Raman spectra that there was some content of VO₂ in the composite films. In Figure 3d, three peaks at binding energies of 530.2, 531.1, and 533 eV observed in O 1s spectra also confirmed the O-Ti, O-H, and O-V bonding, respectively, of Ti-O-V bonds in the composite samples [30,31].

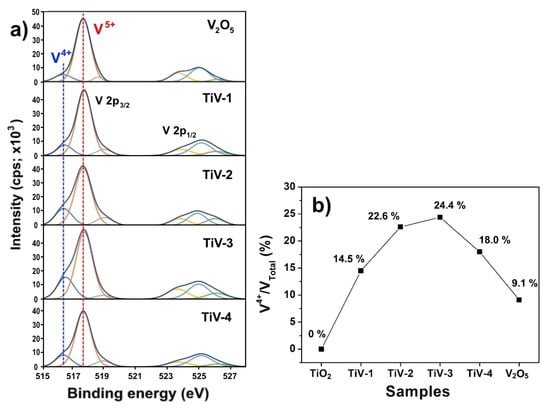

Normally, V⁴⁺ ions can only integrate within the TiO₂ lattice by the replacement of Ti⁴⁺ ions because of the similar radii of V⁴⁺ and Ti⁴⁺ species. The Ti-O-V bond was formed by sharing oxygen atoms of the V⁴⁺ ions in the TiO₂ lattice, leading to oxygen vacancy in the lattice and exposure to a high electron generation capacity. Moreover, we know that the greater number of V⁴⁺ ions led to the formation of more O₂ radicals, which is the strongest oxidizing species in photocatalysis [32,33]. Thus, the existence of V⁴⁺ plays an important role in improving photocatalytic performance [34], which shows its maximum content in the TiV-3 sample as present by the V⁴⁺/ V_total ratio in Figure 4b. The V⁴⁺/V_total ratio were calculated by area under the curve of high-resolution V 2p XPS spectra as shown in Figure 4a.

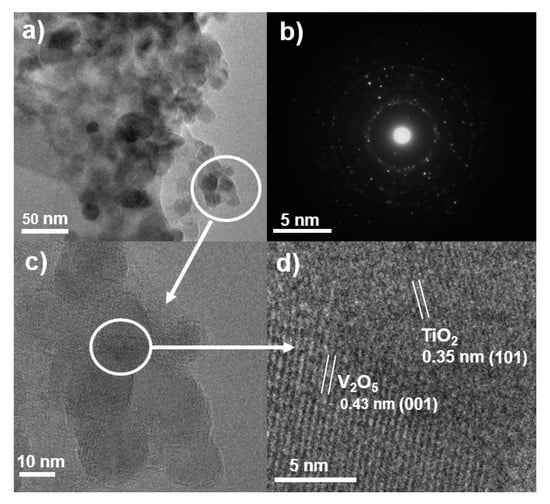

The TEM and HRTEM images in Figure 5a,c confirm that the primary particle size of V₂O₅/TiO₂ nanoheterostructure films was less than 20 nm and then agglomerated to secondary particles at larger sizes correlating to the SEM result. These images clearly present V₂O₅ particle interfaces that are dispersed on the surface of TiO₂ particles, resulting in the formation of a heterostructure. The lattice fringes of 0.35 and 0.43 nm correspond to the (101) lattice distance of anatase TiO₂ and the (001) orthorhombic V₂O₅, respectively, [30,31] and were measured to confirm the heterostructure at their particle interface, as shown in Figure 5d. These heterostructures are expected to adjust the charge separation and improve the photocatalytic efficiency. Moreover, Figure 5b represents the indexed selected area electron diffraction (SAED) patterns of the TiV-3 sample, which, again, confirms the presence of anatase-TiO₂ and V₂O₅ phases and the absence of any other impurity [16].

2.2. UV–Vis Results, Band Gap Investigation, and Photocatalytic Performance

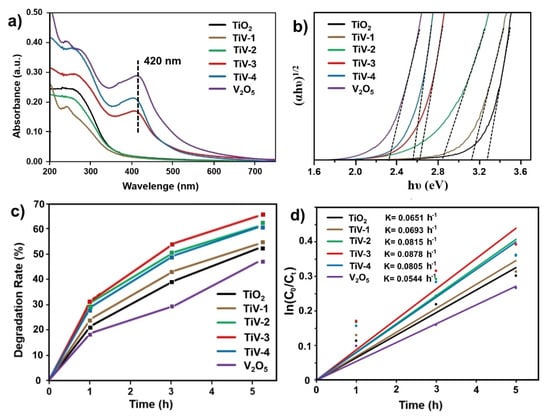

Figure 6a illustrates the UV-Vis absorption spectra of the prepared samples. Notably, large absorption in the visible-light region (peaks arise at 420 nm) was only seen in the V₂O₅, TiV-4, and TiV-3 samples, while other samples exhibited only UV absorption. Moreover, the band gaps (E_gap) of samples were calculated from the Tauc plot as shown in Figure 6b [35,36]. The graph shows that the band gaps were approximately 3.28, 3.12, 2.84, 2.63, 2.56, and 2.32 eV for pure TiO₂, TiV1-4, and pure V₂O₅ samples, respectively. These results show that the band gaps of the samples were slightly narrowed with increased vanadium proportion, and this led to enhanced photocatalytic activity under the visible-light region correlated with the previous absorption spectra.

The degradation rate of MB was calculated to investigate the photocatalytic activity under visible-light irradiation, as shown in Figure 6c. Calculations show that all composite films had more prominent photocatalytic performances than pure TiO₂ that could be due to their narrowed band gap and the heterostructure at the interface between pure TiO₂ and pure V₂O₅ particles [13,18,30]. To quantify the photocatalytic ability of the samples, the photocatalytic reduction process followed the pseudo-first-order kinetic reaction, which can be expressed as (ln(C₀/C_t) = kt), where C₀, C_t, k, and t represent the initial concentration of MB, the concentration of MB after visible light irradiation, the rate constant, and the reaction time, respectively [37]. As shown in Figure 6d, the k values were 0.0651, 0.0693, 0.0815, 0.0878, 0.0805, and 0.0544 h⁻¹ for pure TiO₂, TiV1-4, and pure V₂O₅ samples, respectively. Especially in the TiV-3 sample, the highest photocatalytic activity at 64.8% and maximum rate constant were achieved due to the large heterojunction interface and the existence of V⁴⁺ ions integrated within the TiO₂ lattice [32].

2.3. Possible Photocatalysis Process in the Visible-Light-Irradiated V₂O₅/TiO₂ System

To investigate the electronic band structure, the conduction and valence band edge position of TiO₂ and V₂O₅ were calculated through the following formula [38]:

$$\mathrm{Conduction} \mathrm{band} \mathrm{edge} ({\mathrm{E}}_{\mathrm{CB}})=\mathrm{X}-{\mathrm{E}}^{\mathrm{e}}-\frac{1}{2}{\mathrm{E}}_{\mathrm{g}}$$

(1)

$$\mathrm{Valence} \mathrm{band} \mathrm{edge} ({\mathrm{E}}_{\mathrm{VB}})={\mathrm{E}}_{\mathrm{CB}}+{\mathrm{E}}_{\mathrm{g} }$$

(2)

where X is the absolute electronegativity of the semiconductor (TiO₂ ~ 5.81 eV, V₂O₅ ~ 6.10 eV), E^e is the energy of free electrons on the hydrogen scale, and E_g is the band gap of the semiconductor [38]. When TiO₂ and V₂O₅ semiconductors with different energy levels contact each other, electric charge is redistributed, leading to Fermi-level alignment. This induces electron and hole transfers at the V₂O₅/TiO₂ interface. After combining TiO₂ using V₂O₅, the band gap width was reduced and led to the absorption of more visible light, which is more conducive to dye degradation.

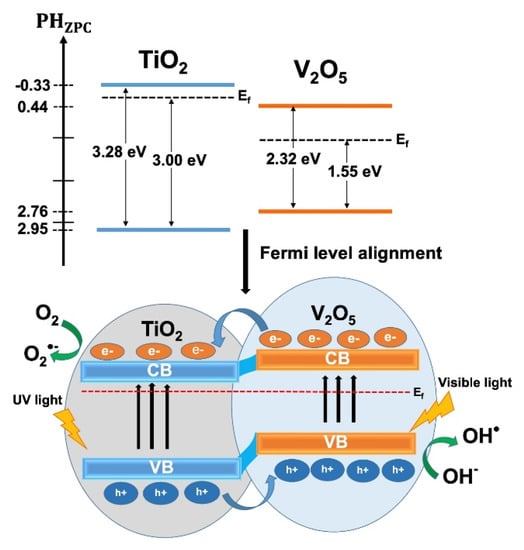

Figure 7 illustrates a schematic diagram of the possible photocatalysis process on the heterostructure of V₂O₅/TiO₂ under UV-Visible light irradiation. The surface complex can be exited to generate photoelectrons (e⁻) and holes (h⁺) by V₂O₅ and TiO₂ semiconductors. The e⁻ in the conduction band of V₂O₅, which has a higher valance band edge than that of TiO₂, is produced by the difference in energy levels and shifts the conduction band of TiO₂ in order to promote photoreduction and produce oxygen ion radicals (O₂·⁻). The h⁺ at the valence band of TiO₂ was produced and then transferred to the valence band of V₂O₅ to promote photooxidation. Furthermore, the presence of V⁴⁺, as evidenced by the XPS result in our work, supports and provides the higher active sites. It also provides high electrical conductivity, leading to boosting the separation and transfer of photogenerated charge carriers, which is important for photocatalytic reactions, as reported previously [39,40,41,42]. In this process, it was indicated that photoelectrons and holes were well separated and their recombinations were reduced. It is believed that the enhanced photocatalytic activity could be attributed to the synergism between efficient V₂O₅/TiO₂ nanoheterostructures and the existence of V⁴⁺ ions.

3. Experimental Setup

3.1. Preparation of Samples

The experiment was carried out by sparking off four pairs of titanium wires (Ti, ø 0.25 mm, purity 99.5%, Advent Research Material Ltd., Oxford, UK) with a high DC voltage of ~3 kV and a limited current of ~3 mA for synthesizing pure TiO₂ films. The spark pulse duration and repetition rate were fixed at 0.16 s and 6.2 Hz, respectively. The wires were then placed with 1 mm spacing and 1 mm above the substrate. The sparking head was adjusted to cover all substrates using computer numerical control (CNC) as shown in Figure 8a.

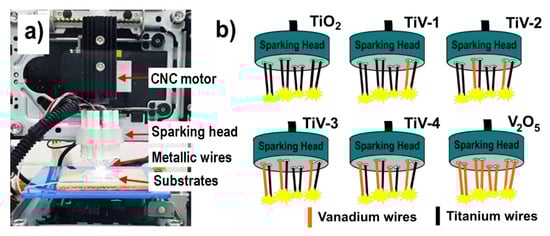

To synthesize V₂O₅/TiO₂ nanocomposite films, the vanadium wires (V, ø 0.25 mm, purity 99.8%, Advent Research Material Ltd., Oxford, UK) and titanium wires were sparked at the same time. The vanadium concentration was varied by replacing titanium wires with vanadium wires from one pair to four pairs, which were labeled as TiV1-4, respectively, as shown in Figure 8b. Finally, vanadium and titanium nanoparticles were deposited onto the substrate and formed nanocomposite films with different atomic ratios of Ti/V. All as-deposited films were synthesized on quartz glass substrates (10 × 10 × 1 mm³) for 30 min at room temperature and post-annealed at 400 °C for 1 h at atmospheric pressure. The structural, morphological, optical, and photocatalytic properties of the samples were investigated and reported in this paper.

3.2. Characterization Methods

The surface morphology of samples was observed by a field-emission scanning electron microscope (FE-SEM, JEOL JSM 6335F, JOEL Ltd, Concord, MA, USA) equipped with an energy-dispersive spectroscope (EDS, Oxford, Concord, MA, USA) to study the film’s elemental distributions. The high-resolution transmission electron microscope (HRTEM) images were analyzed by a JEOL model JEM 2010 instrument (Concord, MA, USA) at an accelerating 200 kV. The structures of samples were investigated by a Raman spectrometer (JOBIN YVON HORIBA T64000, palaiseau, France) at room temperature with 514.5 nm of 150 mW Ar laser and X-ray Photoelectron Spectroscope (XPS, Rigaku Smartlab Japan system, Rigaku Corp., Tokyo, Japan) using an Al K-alpha source at 1487 eV. Optical properties were carried out over a wavelength range from 200 to 800 nm using a UV-Vis spectrometer (Perkin Elmer Instruments, Tokyo, Japan).

3.3. Photocatalytic Activity Measurement

The photocatalytic reaction of samples was evaluated by 0.01 mmol/L methylene blue (MB) solution (Ajex Finechem Pty. Ltd., Sydney, Australia) under visible light for 1–5 h. visible irradiation was produced by a 75 W Xenon lamp (100 w/m², Philip, Bangkok, Thailand), which has a spectrum nearly similar to the solar light spectrum. The catalyst films were placed on the bottom of cuvettes with aqueous MB solution, and then variations in the concentration of MB with samples were analyzed at given irradiation times by a UV-Vis spectrometer (Perkin Elmer Instruments, Tokyo, Japan) in absorption mode. The degradation rate of MB, which represents the photocatalytic efficiency of films, can be calculated with the following Equation:

$$\mathrm{D} (\%)=\left[\frac{{\mathrm{C}}_0-{\mathrm{C}}_{\mathrm{t}}}{{\mathrm{C}}_0}\right]\times 100$$

(3)

where D is degradation rate, C₀ is absorption before irradiation, and C_t is absorption after irradiation [43].

4. Conclusions

Porous V₂O₅/TiO₂ nanoheterostructure films with various atomic ratios of Ti/V (4:1, 2:1, 1:1, and 1:2 for TiV1-4 samples, respectively) were successfully fabricated by the sparking method in one step. Raman spectra, SAED patterns, and HRTEM were used to confirm the formation of V₂O₅/TiO₂ nanoheterostructure films and their particle interface area. XPS revealed the existence of V⁴⁺ that integrated within the V₂O₅/TiO₂ nanoheterostructure and had a significant effect on its photocatalytic performance. The interface heterojunctions on the surface of the catalyst are believed to encourage the photocatalytic performance through electron-hole pair production and the easy electron transport mechanism between the valance and conduction bands due to the low band gap of V₂O₅/TiO₂ nanoheterostructure samples. Notably, the TiV-3 sample (atomic ratio of V/Ti approximately 1:1) showed strong absorbance in the visible-light region and had large interface heterojunctions that displayed the highest degradation rate of MB up to 24% compared to pure TiO₂ films. The higher electronic conductivity which arise from greater portion of V⁴⁺/V_toatal supports the more active surface reaction and promoting the separation and transfer of photogenerated charge carriers. Thus, this research provides an alternative route for the one-step synthesis of porous V₂O₅/TiO₂ nanoheterostructure films and shows that these nanocomposite films can potentially be used in photocatalytic applications.
