Article

Efficient Removal of Bisphenol A Using Nitrogen-Doped Graphene-Like Plates from Green Petroleum Coke

by
Zhipeng Liu
1,
Quanyong Wang
2,
Bei Zhang
1,
Tao Wu
3,* and
Yujiang Li
1,*
1
Shandong Provincial Research Center for Water Pollution Control, School of Environmental Science and Engineering, Shandong University, Jinan 250100, China
2
China Urban Construction Design and Research Institute Co., Ltd., Jinan 250101, China
3
Key Laboratory of Colloid and Interface Science of Education Ministry, Shandong University, Jinan 250100, China
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(15), 3543; https://doi.org/10.3390/molecules25153543
Submission received: 9 June 2020 / Revised: 30 July 2020 / Accepted: 30 July 2020 / Published: 3 August 2020
Browse Figures
Versions Notes

Abstract

:
Green petroleum coke, a form of industrial waste produced in the oil-refining process, was used to synthesize nitrogen-doped graphene-like plates (N-GLPs) together with melamine. In this study, characterization and batch experiments were performed to elucidate the interaction mechanism of N-GLPs and bisphenol A (BPA). Structural analysis of N-GLPs, including scanning electron microscopy (SEM), X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FT-IR), Brunauer-Emmett-Teller (BET), and X-ray photoelectron spectroscopy (XPS), showed an obvious graphene-like structure and successful nitrogen doping. In addition, compared with 8.0 m2/g for green petroleum coke, the BET surface area of N-GLPs markedly increased to 96.6 m2/g. The influences of various factors, including contact time, temperature, and initial pH on BPA removal efficiency were investigated. It was found that 92.0% of BPA was successfully removed by N-GLPs at 50 °C. Based on the adsorption experiments, it was shown that electrostatic attraction, hydrogen bonding, and π-π interaction enhanced the adsorption capacity of N-GLPs for BPA. According to the thermodynamic data, the adsorption process was spontaneous, physical, and endothermic in nature. Therefore, N-GLPs are efficient adsorbent material to remove BPA from wastewater.

1. Introduction

As a phenolic compound with high production, bisphenol A (BPA) is widely utilized in the manufacturing of epoxy resins and polycarbonate plastics [1,2]. Due to its pervasive application, a tremendous amount of BPA is discharged into the environment. Indeed, BPA has been confirmed to be present in a broad variety of areas, such as water systems, air, sediment, landfills, and some food matrices [3]. BPA is known as an endocrine-disrupting compound and may lead to deleterious effects on humans due to its estrogenic activity [4]. As the existence of BPA in water environments constitutes a potential major hazard for both humans and aquatic organisms, it is critical to develop an efficient method to remove BPA.
Among the various methods available for the removal of BPA, adsorption has attracted great attention due to its economic applicability, high efficiency, easy operation, and hypotoxicity [5,6]. The particular adsorbent used in an adsorption process determines both adsorption efficiency and cost and thus plays a key role in its use and effectiveness. Carbonaceous materials, including activated carbon, graphene, graphene oxide, and reduced graphene oxide, have been widely utilized in water purification processes. They can achieve rapid adsorption rates due to their large surface area and pore volume [7]. However, these adsorbents possess numerous disadvantages, such as high production cost, low productivity, and challenging regeneration. All of these disadvantages have demonstrated the necessity to identify or develop a novel adsorbent with superior adsorption efficiency and lower production cost to remove BPA from wastewater.
Green petroleum coke is a by-product from the carbonization of petroleum feedstock and oil-refining process [8,9]. It offers numerous advantages, such as high fixed carbon content, low content of ash, extensive sources, low cost, and abundant benzene rings or aromatic domains [10,11]. However, as a by-product with high production, a vast amount of green petroleum coke is not utilized in a timely manner and is instead stacked. This presents a major environmental concern because soluble substances in green petroleum coke will permeate into the groundwater and soil during the leaching process [12]. Consequently, the development of a method to promptly and effectively utilize green petroleum coke is needed. Considering its major advantages, it is feasible for green petroleum coke to serve as a raw adsorbent material to deal with BPA in aqueous solution.
In this work, we report a cost-effective method for synthesizing nitrogen-doped graphene-like plates from green petroleum coke as a novel adsorption material. Green petroleum coke was calcined at high temperature as a post-treatment to obtain petroleum coke as a precursor. Melamine was chosen as the nitrogen source for the nitrogen-doped graphene-like plates (N-GLPs). Nitrogen doping on a carbon network has been confirmed to introduce positive charge and then augment electrostatic interaction [13]. In addition, nitrogen doping on petroleum coke would obtain pyridinic N, pyrrolic N, and graphitic N, thus regularizing the crystal structure [14]. Moreover, a π-π interaction might form between nitrogen-doped graphene-like plates and benzene rings in BPA. Scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDX), X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FT-IR), the Brunauer-Emmett-Teller (BET) specific surface area, and X-ray photoelectron spectroscopy (XPS) were utilized to analyze the physicochemical properties of nitrogen-doped graphene-like plates. Subsequently, the influence of adsorption conditions, including contact time, temperature, and pH, were investigated, thereby determining the optimum conditions for maximum removal efficiency of BPA. The adsorption mechanism of BPA was also elucidated with the structure of nitrogen-doped graphene-like plates and the adsorption isotherms.

2. Results and Discussions

2.1. Optimization of Adsorption Materials

2.1.1. Effect of N-Doped Temperature

N-doped temperature is a key factor affecting a material’s physicochemical properties. For the variation in physicochemical properties, we used several techniques, e.g., SEM, XED, FT-IR, BET, and XPS, to characterize the obtained materials. In this work, we fixed the N-doping time at 2 h and varied the N-doped temperature to 350, 550, and 750 °C to produce three N-doped samples. After calcination and nitrogen doping, green petroleum coke particles transformed into N-GLPs. We defined the three obtained N-doped samples as N-GLPs 3502, N-GLPs 5502, and N-GLPs 7502.

SEM

SEM was performed to analyze the morphologies and microstructures of the green petroleum coke and N-GLP samples obtained from calcination at 350, 550, and 750 °C. SEM images of green petroleum coke, N-GLPs 3502, N-GLPs 5502, and N-GLPs 7502 composites at the same magnification are shown in Figure 1. Compared with green petroleum coke’s irregular granular structure (Figure 1a), N-GLP samples with N-doping and thermal processing (Figure 1b–d) showed a more regular and larger lamella structure. The SEM images indicated that calcination and nitrogen doping transformed the green petroleum coke into a more regular and neater lamella structure. Moreover, the SEM image of N-GLPs 7502 (Figure 1d) demonstrated that N-doping at 750 °C obtained the N-GLP sample with the smoothest lamellar structure among the samples mentioned above.

XRD

X-ray diffraction analysis determined the crystal structure in green petroleum coke and N-GLP samples by measuring the reflection angle from the crystal lattice. The XRD profiles of green petroleum coke, graphene, N-GLPs 3502, N-GLPs 5502, and N-GLPs 7502 are given in Figure 2. As shown in Figure 2, green petroleum coke, graphene, and all of the N-GLP samples exhibited a characteristic peak at 2θ = 26° on their XRD diffraction spectrum. With the temperature increasing, a small peak at 2θ = 44° on XRD diffraction spectrums of N-GLP samples could be identified. The peak at 2θ = 26° and 2θ = 44° corresponded to crystalline regions of diffraction from layering of graphitic carbons and formation of small 2D lattices, respectively [15]. In addition, the peak height and intensity at 2θ = 26° of the N-GLP samples were higher than those of green petroleum coke, which demonstrated that green petroleum coke was led to an orderly crystal structure through calcination and N-doping. Compared with other samples, N-GLPs 7502 (Figure 2e) exhibited the highest peak intensity. The XRD results revealed that the green petroleum coke tended to be graphitized to a greater extent with N-doping and the increase in temperature [16].

FT-IR

Information about surface functional groups and chemical bonding behavior was obtained by FT-IR [17,18]. The FT-IR spectra of green petroleum coke, N-GLPs 3502, N-GLPs 5502, and N-GLPs 7502 are shown in Figure 3. For green petroleum coke (Figure 3a), the bands in the FT-IR spectrum can be summarized as follows: (1) the typical band at 3446 cm−1 can be attributed to -OH stretching vibration; (2) the bands at 3044 and 2915 cm−1 can be assigned to C-H asymmetric and symmetric stretching vibrations of CH2 and CH3 groups [19]; (3) the bands at 1596 and 1438 cm−1 can be identified as C-C stretching vibration; and (4) the bands at 869, 806, and 747 cm−1 can be ascribed to the characteristic peaks of aromatic structure [20,21]. The characteristic bands of green petroleum coke decreased apparently with increasing N-doping temperature. In addition, the bands at 3044 and 2915 cm−1 disappeared, indicating that calcination removed some aromatic hydrocarbons with small molecular weight from the green petroleum coke. Compared with green petroleum coke, the FT-IR spectrum of N-GLPs exhibited a typical transformation process of bands with increasing N-doping temperature. For the FT-IR spectrum of N-GLPs 7502 (Figure 3d), five main regions were identified: (1) the bands at 3864 and 3743 cm−1 can be assigned to -OH stretching vibration [22]; (2) the band at 3447 cm−1 can be attributed to N-H symmetric stretching vibration [23]; (3) the band at 1636 cm−1 can be identified as N-H in-plane deformation vibration [23,24,25]; (4) the band at 1520 cm−1 can be ascribed to C=N stretching vibration, while the band at 1052 cm−1 can be assigned to C-N stretching vibration [25,26]; and (5) the bands at 753 and 630 cm−1 can be attributed to -NH2 vibration bands [27]. All of these characteristics indicated the existence of N-containing functional groups and the successful doping of nitrogen in N-GLP samples.

BET

It is important to measure specific surface area and pore volume of green petroleum coke and N-GLP samples in order to determine their physicochemical properties [28]. To identify the pore volume and specific surface area, we performed N2 sorption measurements. The BET method from the N2 adsorption isotherm was carried out to determine the BET surface area (SBET) of green petroleum coke and N-GLP samples, while the pore volume was obtained by holding the N2 volume at a relative pressure of P/P0 = 0.998. The SBET and pore volume (Vp) of the green petroleum coke and N-doped samples are listed in Table 1. The green petroleum coke only possessed a small SBET and Vp of 8.0 m2/g and 0.013 cm3/g, respectively. After thermal processing and N-doping, the SBET of N-GLPs 3502, N-GLPs 5502, and N-GLPs 7502 increased to 35.9, 44.8, and 65.4 m2/g, respectively. In addition, the Vp of N-GLPs 3502, N-GLPs 5502, and N-GLPs 7502 also increased to 0.029, 0.040, and 0.055 cm3/g, respectively. These analysis data indicated that N-GLP samples with a larger specific surface area and higher porosity would constitute potential adsorbents for BPA.

XPS

The elemental composition and nitrogen bonding configurations in green petroleum coke and N-GLP samples were obtained by XPS characterizations. The detailed characteristics of the nitrogen species on the surface of the samples were probed by high-resolution N 1s spectra, as shown in Figure 4. For all samples, the raw peaks of N 1s were deconvoluted into three types of nitrogen species. The peaks around 398.8, 399.8, and 401.3 eV were ascribed to pyridinic N, pyrrolic N, and graphitic N, respectively [29,30,31]. The ratio of pyrrolic N:pyridinic N:graphitic N was 1:0.20:0.36 (overall 3.97 at%), 1:6.22:1.98 (overall 5.59 at%), and 1:2.20:1.68 (overall 6.21 at%) for N-GLPs 3502, N-GLPs 5502, and N-GLPs 7502, respectively. With increasing thermal annealing temperature, more graphitic N incorporated into the graphene-like plane due to superior thermal stability compared to pyrrole-like N [32,33,34,35]. Moreover, the binding energy of graphitic N increased with the increase in temperature, which was due to successful nitrogen doping [36,37,38]. The increase in graphitic N content indicate that N-GLPs can be successfully synthesized by calcining green petroleum coke with melamine. Moreover, nitrogen species and doping content can be controlled by synthesis conditions. Higher temperatures cause more nitrogen atoms to be doped into N-GLPs films, and graphitic N structures are formed preferably at higher temperatures [39]. Combining the nitrogen compositional species and nitrogen content, N-GLPs 7502 at 750 °C (Figure 4d) obtained the ideal N-doping effect.
Based on the analysis results of all characterizations, we chose 750 °C as the most appropriate N-doped temperature.

2.1.2. Effect of N-Doping Time

N-doping time is another crucial factor affecting a material’s physicochemical properties, thereby further influencing a material’s adsorption capacities. In this study, we fixed N-doped temperature at 750 °C and varied the N-doping time from 2 to 6 h to produce three N-doped samples. The obtained three N-doping samples were defined as N-GLPs 7502, N-GLPs 7504, and N-GLPs 7506, corresponding to an N-doping time of 2, 4, and 6 h, respectively.

SEM

The morphological and structural features of green petroleum coke and N-GLP samples were characterized by SEM. SEM images of green petroleum coke, N-GLPs 7502, N-GLPs 7504, and N-GLPs 7506 composites are shown in Figure 5. All N-GLP samples obtained at 750 °C (Figure 5b–d) exhibited a regular lamella structure in contrast to that of green petroleum coke (Figure 5a). Furthermore, the lamella structure became more apparent with the increase in N-doping time. As shown in Figure 5d, the lamella of N-GLPs 7506 was extremely obvious and defined, demonstrating that the structure of N-GLPs would become clear and ordered with longer N-doping time. Consequently, we identified that controlling the N-doping time at 6 h could obtain the N-GLP sample with the optimal lamella structure.

XRD

The X-ray diffraction profiles of green petroleum coke, N-GLPs 7502, N-GLPs 7504, and N-GLPs 7506 are given in Figure 6. All the XRD diffraction spectrum of N-GLP samples showed two characteristic peaks at 2θ = 26° and 2θ = 44°, indicating that the crystal structures of N-GLP samples were identical to that of graphene. In addition, all of the N-GLP samples at 750 °C exhibited great peak height and intensity with narrow difference (Figure 6b–d). Compared with other N-GLP samples, N-GLPs 7506 (Figure 6d) revealed a slightly higher peak intensity. In this case, we concluded that N-GLP samples obtained at 750 °C contained an excellent crystal structure and increasing the N-doping time would narrowly improve the material property.

FT-IR

The FT-IR spectra of green petroleum coke, N-GLPs 7502, N-GLPs 7504, and N-GLPs 7506 are shown in Figure 7. The N-GLP samples at 750 °C with different N-doping times exhibited similar characteristic bands, while the N-GLPs 7504 and N-GLPs 7506 (Figure 7c,d) showed some differences. Compared with N-GLPs 7502 (Figure 7b), for the FT-IR spectrum of N-GLPs 7504 (Figure 7c), two main differences could be identified: (1) the broad band at 753 and 630 cm−1 of N-GLPs 7502 shifted to 700 and 632 cm−1 with increasing N-doping time, and the intensity of these two bands was also lower, which indicated the decrease in -NH2 bands; and (2) the intensity of the band at 3447 cm−1 was higher, suggesting the improvement of N-H concentration. The FT-IR spectra also revealed that the increase in N-doping time would decrease unstable -NH2 bands and increase the concentration of stable N-H bands.

BET

The SBET and Vp of the green petroleum coke and N-doped samples of different N-doping times are listed in Table 2. After extending the N-doping time, the SBET of N-GLPs 7502, N-GLPs 7504, and N-GLPs 7506 increased to 65.4, 76.9, and 96.6 m2/g, respectively. The Vp of N-GLPs 7502, N-GLPs 7504, and N-GLPs 7506 also rose to 0.055, 0.068, and 0.082 cm3/g, respectively. Compared with green petroleum coke’s low SBET and Vp parameters, N-GLPs 7506 calcined at 750 °C for 6 h could obtain larger SBET and Vp and thus offer great adsorption efficiency.

XPS

The N 1s XPS spectrum of green petroleum coke and N-GLP samples at different N-doping times is illustrated in Figure 8. The ratio of pyrrolic N:pyridinic N:graphitic N was 1:2.20:1.68 (overall 6.21 at%), 1:3.51:3.79 (overall 6.37 at%), and 1:2.40:2.81 (overall 7.11 at%) for N-GLPs 7502, N-GLPs 7504, and N-GLPs 7506, respectively. With increasing N-doping time, the total content of doped nitrogen for N-GLP samples rose. In addition, the increase in graphitic N indicated that N-GLP samples at longer N-doping time would become more stable. N-GLPs 7506 (Figure 8d) contained the greatest nitrogen content and a stable nitrogen composition, thereby having the potential to improve the adsorption capacity.
Combining the analysis results of all characterizations, we chose 6 h as the optimal N-doping time. Therefore, N-GLPs 7506 at 750 °C for 6 h was the ideal adsorbent used in further adsorption experiments.

2.2. Adsorption of BPA on N-GLPs 7506

2.2.1. Effect of Contact Time and Initial BPA Concentration

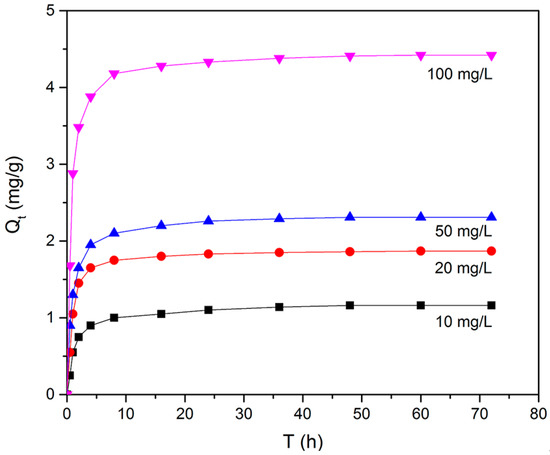

The effect of contact time on the adsorption of BPA at various BPA concentrations was investigated at 30 °C. As shown in Figure 9, the adsorption capacity of N-GLPs 7506 rose with increasing initial BPA concentration. Moreover, with increasing contact time, it was observed that the adsorption capacity of N-GLPs 7506 rose rapidly in the first 10 h and then slowly attained the maximum adsorption capacity after 48 h, indicating the adsorption equilibrium. Due to the large molecular size of BPA, it took a long time for BPA molecules to move to the surface of N-GLPs 7506 through Brownian movement. BPA then entered the adsorbent and was adsorbed under various forces, thus enhancing the adsorption time [40,41]. In further adsorption studies, based on the above results, 48 h was selected as the most appropriate contact time to reach the adsorption equilibrium. Pseudo-first-order and pseudo-second-order kinetic models were adopted to understand the adsorption behavior of N-GLPs 7506 for BPA [42,43,44]. As shown in Table S1 (Supplementary Materials), the adsorption kinetics of BPA on N-GLPs 7506 could be better fitted by the pseudo-second-order model (0.9993–1) than the pseudo-first-order model (0.8343–0.9152), indicating that the adsorption process was controlled by multiple factors. When the adsorption was far from equilibrium, the adsorption process was governed by the rate of surface reactions (electrostatic interaction and π-π interaction), and the intraparticle diffusion became predominant before approaching equilibrium [45,46].

2.2.2. Effect of pH

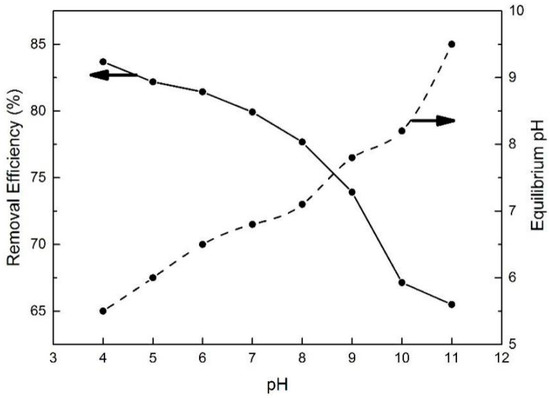

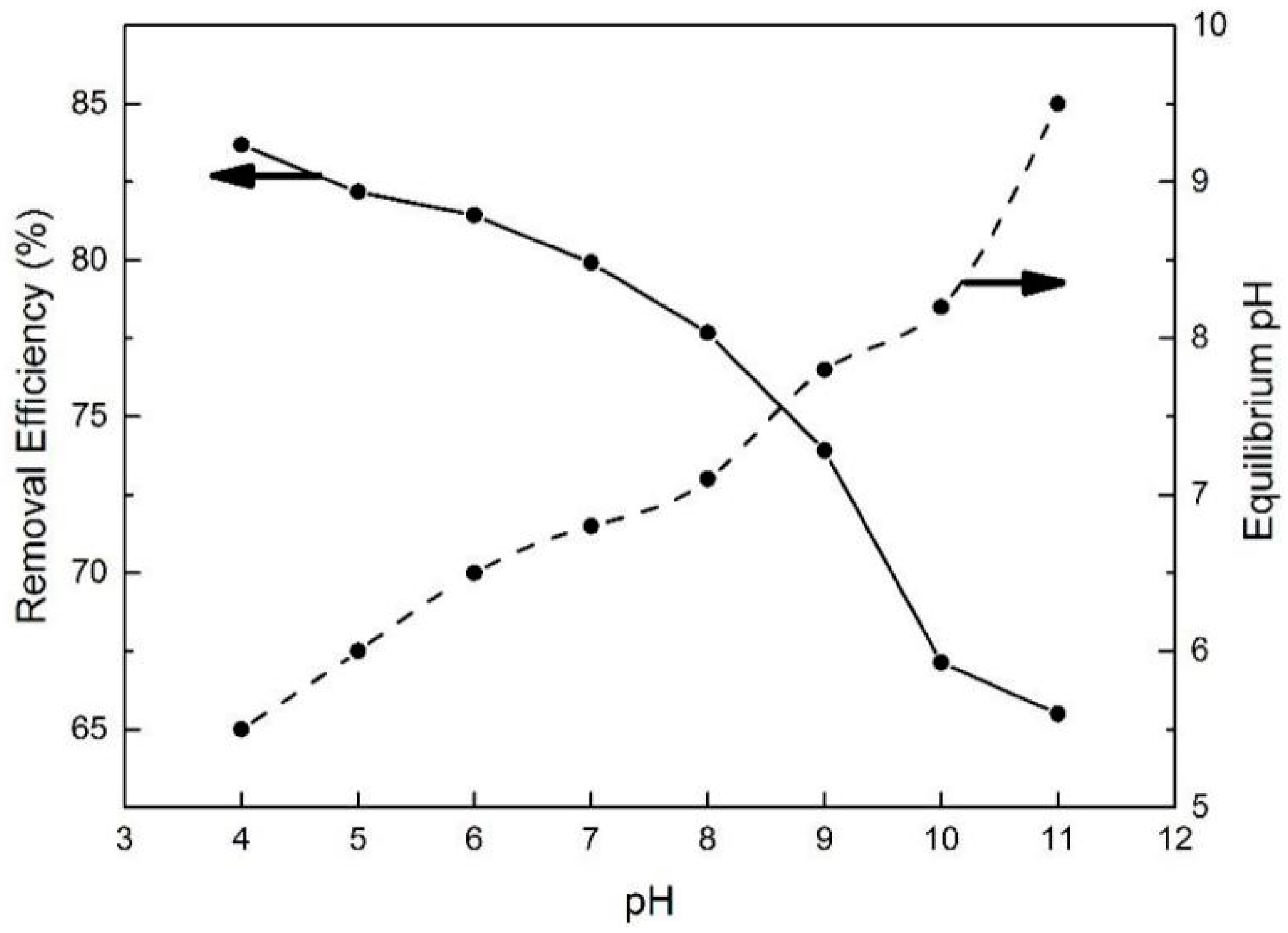

As one of the most important adsorption parameters for practical water environmental remediation, the initial pH of a solution intensively influences the surface physicochemical properties of adsorbents [46]. As shown in Figure 10, the initial pH of the BPA aqueous solution was varied from 4 to 11 to investigate its effect on BPA removal efficiency. With the initial pH increasing to 8, the removal efficiency of BPA on N-GLPs 7506 decreased slightly. Then, the removal efficiency decreased rapidly as the pH further increased. This phenomenon can be attributed to the following: (1) The charge of the adsorbent and pollutant. To determine the conditions of charge on N-GLPs 7506 layers and BPA aqueous solution, zeta potential was measured. The zeta potential values of N-GLPs 7506 dispersion and BPA solution were measured at 25 °C in 10−3 mol/L NaCl solution, and the results are presented in Figure 11. A charge inversion from positive to negative was observed in the N-GLPs 7506 dispersion with the BPA solution containing a negative charge. At pH = 4–6, the N-GLPs 7506 layers contained high positive charge density. Therefore, strong electrostatic attraction existed between N-GLPs 7506 and BPA. Correspondingly, the removal efficiency of BPA showed a high level at pH = 4–6. When the positively charged N-GLPs 7506 interacted with electronegative pollutants, it possessed enhanced electrostatic attraction for removing BPA in aqueous solution. With the pH further increasing, there were more negatively charged sites on the surface of adsorbents because of the available hydroxyl ions [47]. In this way, electrostatic repulsion between the negatively charged BPA and N-GLPs 7506 decreased the adsorption capacity. (2) The pKa of BPA (9.5), which also affected removal efficiency [48]. When the pH was less than the pKa, BPA was present in its molecular form, thus containing a lower negative charge. However, when the pH of the solution was higher than the pKa, BPA was present in the form of the phenolate ion. With the hydroxyl ion increasing, BPA was highly negatively charged. Moreover, the number of negatively charged sites on the N-GLPs 7506 also rose. The electrostatic repulsion between BPA and N-GLPs 7506 induced the decrease in adsorption capacity and removal efficiency. The equilibrium pH for BPA adsorption was also measured. As shown in Figure 10, when the equilibrium pH was lower, the removal efficiency of BPA increased. In contrast, when the equilibrium pH was higher, the adsorption of BPA was negatively influenced, which corresponds to the conclusions from the analysis of the initial pH. Combining the removal efficiency and the feasibility in practical application, we chose pH of 6 as the optimal adsorption condition.

2.2.3. Effect of Temperature

Temperature exerts a major effect on the adsorption capacity of BPA. The effect of temperature on the adsorption of BPA with N-GLPs 7506 was investigated in a temperature range from 10 to 60 °C at constant pH (6.0) and contact time (48 h). As shown in Figure 12, the removal efficiency of BPA on N-GLPs 7506 rose with increasing temperature, indicating that the adsorption of BPA onto N-GLPs 7506 was endothermic. In addition, Brownian movement of BPA molecules increased with rising temperature, which resulted in an increase in the rate of mass transfer from the liquid phase to the solid/liquid phase [49]. BPA would have been attached on the surface of N-GLPs 7506 and led to further interaction when they became closer. The viscosity of bulk also decreased with increasing temperature, thus augmenting the mobility of BPA in aqueous solution. Moreover, the active sites on N-GLPs 7506 contained intensive electrostatic attraction with BPA at higher temperatures [47]. Overall, the increase in temperature enhanced the interaction between BPA and N-GLPs 7506 and modified the adsorption condition. Considering removal efficiency and economic feasibility, we chose 50 °C as the ideal adsorption temperature.

2.2.4. BPA Adsorption Isotherms and Thermodynamics Studies

It is important to identify and understand the adsorption mechanisms and the interactions between BPA and the adsorbents through equilibrium adsorption isotherms [50]. The adsorption isotherms of BPA on N-GLPs 7506 at different temperatures are shown in Figure S1. The Langmuir and Freundlich isotherms were utilized to analyze the equilibrium adsorption data. The equations are expressed as follows [42,51,52,53]:
Langmuir   isotherm :   q e = q max K L c e ( 1 + K L c e )
Freundlich   isotherm :   q e = K F c e 1 / n
where qe is the equilibrium adsorption concentration of BPA (mg/g); ce is the equilibrium BPA concentration in aqueous solution (mg/L); qmax is the maximum adsorption capacity (mg/g); KL is the Langmuir isotherm constant (L/mg); and KF and n are the Freundlich isotherm constant and adsorption capacity parameter, respectively.
Table S2 shows the values of KL, qm, KF, and n and the correlation coefficients for Langmuir and Freundlich. Compared with the Freundlich model (0.9580–0.9376), the Langmuir model (0.9982–0.9922) contained much better correlation coefficients, indicating that the adsorption of BPA on N-GLPs 7506 was inclined to monolayer adsorption on homogeneous adsorbent surfaces. Furthermore, with rising temperature, the increase in qm demonstrated that adsorption was facilitated.
The thermodynamic parameters were next evaluated by the following equations to confirm the conditions of the adsorption process [52,53]:
K C = q e c e
Δ G ° = − R T ln K C
Δ G ° = Δ H ° − T Δ S °
ln K C = − Δ H ° R T + Δ S ° R
where KC is the adsorption equilibrium constant, calculated by qe and ce at initial concentration = 10 mg/L; R is the gas constant (8.314 J∙mol−1 K−1); and T is the temperature in Kelvin.
As shown in Table S3, the negative values of Δ G ° (−0.97 to −7.13 KJ/mol) suggested a spontaneous adsorption process, and the decrease in values with increasing temperature indicated that adsorption was promoted at high temperatures. The positive value of Δ H ° (42.01 KJ/mol) also suggested that the adsorption process was endothermic, which led to the increase in adsorption capacity at higher temperatures. Moreover, the positive value of Δ S ° (150.41 J∙mol−1∙K−1) showed an increase in the number of species and randomness at the N-GLPs 7506/water interface [54].

2.2.5. Adsorption Mechanism

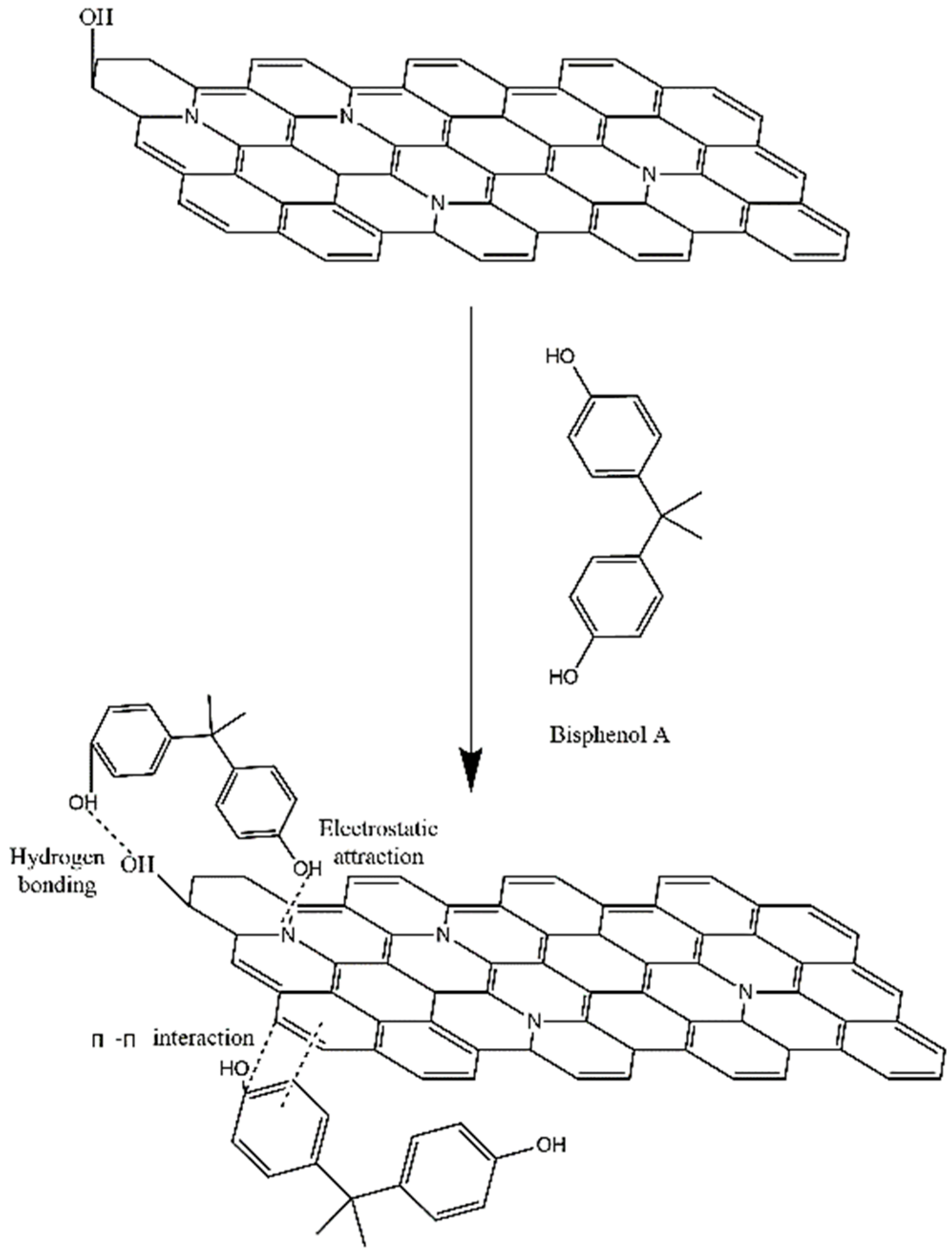

The adsorption mechanism of BPA onto N-GLPs 7506 was further clarified with the structural analyses of N-GLPs 7506 and adsorption experiment. As shown in Figure 13, with the structural features of nitrogen-doped graphene-like plates and the adsorption isotherms, the following three main interactions could be related to the adsorption of BPA on N-GLPs 7506: (1) The strong electrostatic interaction between BPA and the N-GLPs 7506. Electrostatic attraction significantly promoted the adsorption process [55]. When interacting with negatively charged BPA in aqueous solution, the N-GLPs 7506 with positive charge possessed enhanced electrostatic attraction for removing pollutants, resulting in higher removal efficiency. (2) The hydrogen bonding between the oxygen-containing groups contained in both BPA and N-GLPs 7506. With the FT-IR result (Figure 7d), some oxygen-containing groups, such as hydroxyl groups, remained in N-GLPs 7506. In aqueous solution, the hydroxyl groups of BPA and adsorbent will form hydrogen bonds to increase the adsorption ability. (3) The π-π interaction that might exist between the N-GLPs 7506 planes and the benzene rings of BPA. N-GLPs 7506 possessed structural units that were similar to benzene rings through calcination and nitrogen doping. Therefore, π-π electron coupling might exist between the π electrons of benzene rings on BPA and N-GLPs 7506, thus forming a π-π interaction [56]. With all of these strong interactions, N-GLPs 7506 obtained a great adsorption capacity of BPA.

2.2.6. Desorption and Regeneration of N-GLPs 7506

In practical applications of pollutant removal, high adsorption capacity and good recyclability are requisite [57]. In this way, it is important to test the regeneration performance of N-GLPs 7506 in order to evaluate the economic feasibility in practical BPA removal applications. The regeneration of N-GLPs 7506 was determined using a simple solvent (ethyl/water: 4/1, v/v) washing method under ultrasound (US) irradiation [5]. The separation of N-GLPs 7506 and liquid phase was carried out by centrifuging at 9000 rpm for 15 min and then stoved in an oven at 80 °C for 30 min. The resulting N-GLPs 7506 sample was used again for the next recycling experiment. Adsorption-desorption experiments were repeated for six cycles in this study. Figure 14 shows that the removal efficiencies of BPA were decreased after each adsorption cycle. This phenomenon might have resulted from the occupation of the adsorption sites at the surface of N-GLPs 7506. After six adsorption-desorption cycles, the removal efficiency of BPA decreased from 92.0% to 80.4%, which is still an appropriate efficiency for industrial application. Therefore, according to the regeneration study, it was concluded that N-GLPs 7506 possess great regeneration ability and can be used in practical application for the treatment of BPA in wastewater.
A comparison was made of other carbonaceous adsorbents previously reported in the literature (Table 3) [58,59,60,61]. Although the removal efficiency of N-GLPs 7506 is narrowly lower than that of activated carbon, the preparation of N-GLPs 7506 is easier and more cost-effective because its raw material is green petroleum coke—a kind of potential pollutant and by-product. Besides, N-GLPs 7506 also contains great recyclability, which can further reduce the cost. The contact time for N-GLPs 7506 is also smaller than that of activated carbon. Considering the zeta potential of the adsorbents, the high affinity of N-GLPs 7506 to BPA is even more obvious. Therefore, N-GLPs 7506 is an excellent BPA absorbent in wastewater treatment.

3. Materials and Methods

3.1. Materials

Green petroleum coke with 93% carbon content was purchased from Chambroad Holding Group Co., Ltd. (Shandong, China). H2SO4 (98%) and NaOH with high chemical purity were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Melamine was purchased from Kemiou Chemical Reagent Co., Ltd. (Tianjin, China). Bisphenol A was purchased from Macklin Biochemical Co., Ltd. (Shanghai, China). Ethanol was purchased from Fuyu Fine Chemical Co., Ltd. (Tianjin, China). The latter three chemicals were all of analytical grade. Deionized water (resistivity of 18.2 MΩ cm−1) was achieved using an ultrapure water purifier system (Millipore, Billerica, MA, USA). All chemicals and materials were used without further purification.

3.2. Characterization

SEM (JSM-6700F, JEOL, Tokyo, Japan) was used to analyze the structural features and surface morphologies of the green petroleum coke, petroleum coke, and nitrogen-doped graphene-like plates. The acceleration voltage of SEM was 3.0 KV, and the mode of operation was SE. An energy-dispersive X-ray spectroscopy (EDX) instrument was attached to the JSM-6700F to investigate chemical composition. XRD was conducted on a diffractometer (Rigaku D-Max 2200, Tokyo, Japan) to characterize the structural features of samples at a scanning rate of 2°/min in 2θ range of 10–80°. The XRD data was analyzed by MDI Jade 6. FT-IR (Vector 22, Bruker AXS, Co., Ltd., Karlsruhe, Germany) of the samples was performed using KBr pellets in reflectance mode from 400 to 4000 cm−1 with a resolution of 2 cm−1 to examine the functional groups. A surface area and porosity analyzer (ASAP, 2020 HD88, Micromeritics, Norcross, GA, USA) was conducted to analyze the pore structure of samples. The BET specific surface area was calculated with multipoint adsorption data in relative pressure (P/P0) between 0.05 and 0.1, and the Vp was obtained at P/P0 = 0.998. XPS was performed to determine the elementary characteristics on the X-ray photoelectron spectrometer (Thermo ESCALAB 250XI, Thermo Fisher Scientific, Waltham, MA, USA). The source gun type was Al K alpha, and the pass energy was 100.0 eV for the XPS survey spectra and 30.0 eV for the C (1s), O (1s), N (1s) and S (2p) spectra. The XPS data was analyzed by XPS Peak 4.1. The zeta potential of the samples was measured by a ZetaPALS (Zetasizer NanoZS, Malvern, UK). All the figures were drawn by Origin 9.1 and Photoshop 2018.

3.3. Preparation of Petroleum Coke

Green petroleum coke was pulverized by a high-speed pulverizer and passed through a 200-mesh screen to prepare green petroleum coke powder within 75 μm of granularity. Green petroleum coke powder in a porcelain boat with a lid was then placed into a corundum tube with a flow of nitrogen atmosphere and heated to 200 °C at a rate of 10 °C/min and directly to 800 °C at a rate of 5 °C/min in a tubular furnace [32]. After the temperature was maintained for 6 h, the furnace was slowly cooled to room temperature, and the petroleum coke was directly collected from the porcelain boat. Compared to green petroleum coke, obvious changes occurred in petroleum coke in terms of morphology, microstructure, and particle size (Figure S2a,b). EDX quantitative microanalysis indicated the presence of C, N, O, and S in the green petroleum coke (Figure S3a). After calcination, the elemental content of N and O decreased slightly in petroleum coke, while S disappeared in the EDX spectrum of petroleum coke (Figure S3b). Combining the XPS survey spectra and C(1s), O(1s), and S(2p) spectra of green petroleum coke and petroleum coke (Figure S4) as well as the XPS atomic concentration report (Table S4), the S in green petroleum coke was successfully removed.

3.4. Preparation of Nitrogen-Doped Graphene-Like Plates

Nitrogen-doped graphene-like plates were synthesized by calcining a mixture of petroleum coke and melamine powder in a tubular furnace. Melamine powder (2.0 g) was added to 40 mL ethanol. After 30 min of stirring at 70 rpm at 60 °C, petroleum coke powder (2.0 g) was continuously added into the mixture, with stirring maintained for an additional 30 min. The mixture was then stoved in an oven at 80 °C for 30 min. The obtained grey-color powder mixture was loaded on a porcelain boat and inserted into a quartz tube of a tubular furnace for thermal annealing [32,38,62]. The N-doped graphene-like plate samples were obtained by annealing the mixture at 350–750 °C for 2–6 h under N2 flow.

3.5. Adsorption Experiments

The adsorption experiment of bisphenol A was carried out with batch techniques. The adsorbent (7.0 g/L) was added into BPA solution (10–100 mg/L) and mixed uniformly by shaking at 150 rpm for 48 h at different temperatures (10–60 °C). NaOH and HCl were utilized to adjust the pH to 4–11. After the adsorption process, the mixture was centrifuged at 9500 rpm for 15 min to separate the supernatants. The concentration of BPA was measured with a UV/vis spectrometer (TU-1810 PC, Purkinje, Beijing, China) and calculated by absorbance at 276 nm. The removal efficiency (R) for BPA was calculated as follows:
R = (c0 − ct)/c0 × 100%
where c0 and ct (mg/L) are concentration of pollutants at initial and specific adsorption times, respectively. The removal amount (Qt) of pollutants by samples was calculated as follows:
Qt = (c0 − ct)V/W
where V (L) is the volume of the solution, and W (g) is the mass of the catalysts. The adsorption isotherms were used to analyze the adsorption mechanisms of BPA onto N-doped graphene-like plates. The desorption and regeneration of the N-GLPs were also examined to figure out the recycling ability.

4. Conclusions

In summary, N-GLP samples were successfully synthesized via nitrogen doping and thermal annealing, which offered a potential low-cost and efficient adsorbent to treat BPA in aqueous solution. Green petroleum coke was used as a raw material due to advantages such as its abundance as waste in the oil-refining process and inexpensiveness. N-GLPs 7506 obtained by calcinating melamine and petroleum coke at 750 °C for 6 h exhibited a graphene-like structure according to SEM images and XRD analysis. Moreover, FT-IR analysis and XPS analysis of N-GLPs 7506 confirmed successful nitrogen doping. BET analysis demonstrated that nitrogen doping and calcination could increase the specific surface area and pore volume of the adsorbent in order to augment adsorption capacity. The zeta potentials of adsorbate and adsorbent indicated strong electrostatic attraction between positive N-GLPs 7506 and negative BPA, which was the main interaction enhancing the adsorption of more BPA onto the surface of N-GLPs 7506. Batch adsorption experiments revealed that the removal of BPA depended on contact time, initial pH, and temperature. Furthermore, adsorption experiments showed that N-GLPs 7506 possessed high adsorption capacity for BPA via electrostatic attraction, hydrogen bonding, and π-π interaction. Thermodynamic studies also revealed that the adsorption process was feasible, spontaneous, endothermic, and controlled by a physisorption process. Therefore, it is suggested that N-GLPs 7506 is a promising adsorbent to remove BPA in wastewater.

Supplementary Materials

The following are available online. Figure S1: Adsorption isotherms of BPA on N-GLPs 7506 (experimental conditions: adsorbent dose = 7.0 g/L, initial concentration = 10–200 mg/L, contact time = 48 h, pH = 6.0, T = 10–50 °C); Figure S2: SEM images of (a) green petroleum coke and (b) petroleum coke; Figure S3: EDX analysis of (a) green petroleum coke and (b) petroleum coke; Figure S4: XPS survey (1) and high-resolution C 1 s (2), O 1 s (3), S 2p (4) spectra of (a) green petroleum coke and (b) petroleum coke; Table S1: Pseudo-first-order and pseudo-second-order kinetic parameters for the adsorption of BPA onto N-GLPs 7506 at 303 K; Table S2: Langmuir and Freundlich adsorption isotherm parameters for the adsorption of BPA onto N-GLPs 7506; Table S3: Thermodynamic parameters for the adsorption of BPA onto N-GLPs 7506; Table S4: XPS atomic concentration report of green petroleum coke and petroleum coke.

Author Contributions

Conceptualization, T.W. and Y.L.; experiments, Z.L.; data curation, Q.W. and B.Z.; writing—original draft preparation, Z.L.; writing—review and editing, T.W. and Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (Grant Number 21677087). The authors express appreciation to Jake Carpenter from UCLA for linguistic assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, W.; Wang, X.; Xing, J.; Gong, Q.; Wang, H.; Wang, J.; Chen, Z.; Ai, Y.; Wang, X. Multi-heteroatom doped graphene-like carbon nanospheres with 3D inverse opal structure: A promising bisphenol-A remediation material. Environ. Sci. Nano 2019, 6, 809–819. [Google Scholar] [CrossRef]
  2. Mauck, J.R.; Bassett, A.W.; Sadler, J.M.; La Scala, J.J.; Napadensky, E.; Reno, K.H.; Stanzione, J.F. Synthesis and characterization of a lignin-derived aromatic polycarbonate. J. Biobased Mater. Bioenergy 2018, 12, 471–476. [Google Scholar] [CrossRef]
  3. Liu, Y.; Yao, L.; He, L.; Liu, N.; Piao, Y. Electrochemical Enzyme Biosensor Bearing Biochar Nanoparticle as Signal Enhancer for Bisphenol A Detection in Water. Sensors 2019, 19, 1619. [Google Scholar] [CrossRef] [Green Version]
  4. Nie, M.; Deng, Y.; Nie, S.; Yan, C.; Ding, M.; Dong, W.; Dai, Y.; Zhang, Y. Simultaneous removal of bisphenol A and phosphate from water by peroxymonosulfate combined with calcium hydroxide. Chem. Eng. J. 2019, 369, 35–45. [Google Scholar] [CrossRef]
  5. Bhadra, B.N.; Lee, J.K.; Cho, C.-W.; Jhung, S.H. Remarkably efficient adsorbent for the removal of bisphenol A from water: Bio-MOF-1-derived porous carbon. Chem. Eng. J. 2018, 343, 225–234. [Google Scholar] [CrossRef]
  6. Xiao, P.; Wang, P.; Li, H.; Li, Q.; Shi, Y.; Wu, X.-L.; Lin, H.; Chen, J.; Wang, X. New insights into bisphenols removal by nitrogen-rich nanocarbons: Synergistic effect between adsorption and oxidative degradation. J. Hazard. Mater. 2018, 345, 123–130. [Google Scholar] [CrossRef]
  7. Yuan, M.; Tong, S.; Zhao, S.; Jia, C.Q. Adsorption of polycyclic aromatic hydrocarbons from water using petroleum coke-derived porous carbon. J. Hazard. Mater. 2010, 181, 1115–1120. [Google Scholar] [CrossRef]
  8. Tripathi, N.; Singh, R.S.; Hills, C.D. Microbial removal of sulphur from petroleum coke (petcoke). Fuel 2019, 235, 1501–1505. [Google Scholar] [CrossRef]
  9. Caruso, J.A.; Zhang, K.; Schroeck, N.J.; McCoy, B.; McElmurry, S.P. Petroleum Coke in the Urban Environment: A Review of Potential Health Effects. Int. J. Environ. Res. Public Health 2015, 12, 6218–6231. [Google Scholar] [CrossRef] [PubMed]
  10. Wu, M.; Wang, Y.; Wu, W.; Hu, C.; Wang, X.; Zheng, J.; Li, Z.; Jiang, B.; Qiu, J. Preparation of functionalized water-soluble photoluminescent carbon quantum dots from petroleum coke. Carbon 2014, 78, 480–489. [Google Scholar] [CrossRef]
  11. Li, P.; Hwang, J.-Y.; Park, S.-M.; Sun, Y.-K. Superior lithium/potassium storage capability of nitrogen-rich porous carbon nanosheets derived from petroleum coke. J. Mater. Chem. A 2018, 6, 12551–12558. [Google Scholar] [CrossRef]
  12. Andrews, A.; Lattanzio, R.K. Petroleum Coke: Industry and Environmental Issues; Congressional Research Service: Washington, DC, USA, 2014; pp. 91–99. [Google Scholar]
  13. Jeong, D.S.; Yun, J.M.; Kim, K.H. Nitrogen-doped carbon from waste cardboard recycling for electric double-layer capacitors. Nanosci. Nanotech. Let. 2018, 10, 809–813. [Google Scholar] [CrossRef]
  14. Sethia, G.; Sayari, A. Nitrogen-doped carbons: Remarkably stable materials for CO2 capture. Energy Fuels 2014, 28, 2727–2731. [Google Scholar] [CrossRef]
  15. Javed, H.; Luong, D.X.; Lee, C.G.; Zhang, D.; Tour, J.M.; Alvarez, P.J.J. Efficient removal of bisphenol-A by ultra-high surface area porous activated carbon derived from asphalt. Carbon N. Y. 2018, 140, 441–448. [Google Scholar] [CrossRef]
  16. Li, C.; Liu, X.; Zhou, Z.; Dai, Z.; Yang, J.; Wang, F. Effect of heat treatment on structure and gasification reactivity of petroleum coke. Int. J. Coal Sci. Technol. 2016, 3, 53–61. [Google Scholar] [CrossRef] [Green Version]
  17. Eren, E.; Cubuk, O.; Ciftci, H.; Eren, B.; Caglar, B. Adsorption of basic dye from aqueous solutions by modified sepiolite: Equilibrium, kinetics and thermodynamics study. Desalination 2010, 252, 88–96. [Google Scholar] [CrossRef]
  18. Zhang, B.; Dong, Z.; Sun, D.; Wu, T.; Li, Y. Enhanced adsorption capacity of dyes by surfactant-modified layered double hydroxides from aqueous solution. J. Ind. Eng. Chem. 2017, 49, 208–218. [Google Scholar] [CrossRef]
  19. Wang, M.; Zhang, B.; Li, G.; Wu, T.; Sun, D. Efficient remediation of crude oil-contaminated soil using a solvent/surfactant system. Rsc Adv. 2019, 9, 2402–2411. [Google Scholar] [CrossRef] [Green Version]
  20. Hoffmann, J.; Jensen, C.U.; Rosendahl, L.A. Co-processing potential of HTL bio-crude at petroleum refineries-Part 1: Fractional distillation and characterization. Fuel 2016, 165, 526–535. [Google Scholar] [CrossRef]
  21. Colati, K.A.P.; Dalmaschio, G.P.; de Castro, E.V.R.; Gomes, A.O.; Vaz, B.G.; Romão, W. Monitoring the liquid/liquid extraction of naphthenic acids in brazilian crude oil using electrospray ionization FT-ICR mass spectrometry (ESI FT-ICR MS). Fuel 2013, 108, 647–655. [Google Scholar] [CrossRef] [Green Version]
  22. Yu, J.; Guo, M.; Muhammad, F.; Wang, A.; Zhang, F.; Li, Q.; Zhu, G. One-pot synthesis of highly ordered nitrogen-containing mesoporous carbon with resorcinol-urea-formaldehyde resin for CO2 capture. Carbon 2014, 69, 502–514. [Google Scholar] [CrossRef]
  23. Bai, R.; Yang, M.; Hu, G.; Xu, L.; Hu, X.; Li, Z.; Wang, S.; Dai, W.; Fan, M. A new nanoporous nitrogen-doped highly-efficient carbonaceous CO2 sorbent synthesized with inexpensive urea and petroleum coke. Carbon 2015, 81, 465–473. [Google Scholar] [CrossRef]
  24. Shen, W.; Zhang, S.; He, Y.; Li, J.; Fan, W. Hierarchical porous polyacrylonitrile-based activated carbon fibers for CO2 capture. J. Mater. Chem. 2011, 21, 14036–14040. [Google Scholar] [CrossRef]
  25. Yang, M.; Guo, L.; Hu, G.; Hu, X.; Chen, J.; Shen, S.; Dai, W.; Fan, M. Adsorption of CO2 by Petroleum Coke Nitrogen-Doped Porous Carbons Synthesized by Combining Ammoxidation with KOH Activation. Ind. Eng. Chem. Res. 2016, 55, 757–765. [Google Scholar] [CrossRef]
  26. Liu, L.; Deng, Q.-F.; Ma, T.-Y.; Lin, X.-Z.; Hou, X.-X.; Liu, Y.-P.; Yuan, Z.-Y. Ordered mesoporous carbons: Citric acid-catalyzed synthesis, nitrogen doping and CO2 capture. J. Mater. Chem. 2011, 21, 16001–16009. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Zhang, Y.; Huang, J.; Du, D.; Xing, W.; Yan, Z. Enhanced capacitive performance of N-doped activated carbon from petroleum coke by combining ammoxidation with KOH activation. Nanoscale Res. Lett. 2016, 11, 245. [Google Scholar] [CrossRef] [Green Version]
  28. Sarkar, B.; Xi, Y.; Megharaj, M.; Naidu, R. Orange II adsorption on palygorskites modified with alkyl trimethylammonium and dialkyl dimethylammonium bromide—An isothermal and kinetic study. Appl. Clay Sci. 2011, 51, 370–374. [Google Scholar] [CrossRef]
  29. Long, D.; Li, W.; Ling, L.; Miyawaki, J.; Mochida, I.; Yoon, S.-H. Preparation of Nitrogen-Doped Graphene Sheets by a Combined Chemical and Hydrothermal Reduction of Graphene Oxide. Langmuir 2010, 26, 16096–16102. [Google Scholar] [CrossRef]
  30. Chen, X.; Ching, W.K.; Lam, K.F.; Wei, W.; Yeung, K.L. An Investigation of the Selective Adsorptions of Metals on Mesoporous NH2-MCM-41. J. Phys. Chem. C 2016, 120, 18365–18376. [Google Scholar] [CrossRef]
  31. Deng, B.; Wang, D.; Jiang, Z.; Zhang, J.; Shi, S.; Jiang, Z.-J.; Liu, M. Amine group induced high activity of highly torn amine functionalized nitrogen-doped graphene as the metal-free catalyst for hydrogen evolution reaction. Carbon 2018, 138, 169–178. [Google Scholar] [CrossRef]
  32. Sheng, Z.H.; Shao, L.; Chen, J.J.; Bao, W.J.; Wang, F.B.; Xia, X.H. Catalyst-Free synthesis of nitrogen-doped graphene via thermal annealing graphite oxide with melamine and its excellent electrocatalysis. Acs Nano 2011, 5, 4350–4358. [Google Scholar] [CrossRef] [PubMed]
  33. Miao, F.J.; Miao, R.; Yu, Z.; Shi, C.P.; Zhu, L.; Chu, P.K. A stacked structure comprising 3-dimensional nitrogen-doped graphene, silicon microchannel plate, and TiO2 for high-performance anode in lithium-ion battery. Mater. Express 2019, 9, 629–634. [Google Scholar] [CrossRef]
  34. Xiao, P.Y.; Wang, K.B.; Chen, Z.; Zhou, N.; Wang, T.H.; Zhang, M. The improvement of SiO2 nanoparticles on the oxygen reduction reaction property of nitrogen-doped mesoporous graphene spheres prepared by spray drying. Nanosci. Nanotech. Let. 2018, 10, 200–206. [Google Scholar] [CrossRef]
  35. Zhang, E.L.; Sun, T.; Ge, B.T.; Zhang, W.G.; Gao, X.; Jiang, H.; Li, Z.C.; Liu, G.J.; Shen, J. High-performance solar-blind photodetector with graphene and nitrogen-doped reduced graphene oxide quantum dots (rGOQDs). Mater. Express 2018, 8, 105–111. [Google Scholar] [CrossRef]
  36. Sun, H.; Wang, Y.; Liu, S.; Ge, L.; Wang, L.; Zhu, Z.; Wang, S. Facile synthesis of nitrogen doped reduced graphene oxide as a superior metal-free catalyst for oxidation. Chem. Commun. 2013, 49, 9914–9916. [Google Scholar] [CrossRef] [PubMed]
  37. Zhu, M.; Muhammad, Y.; Hu, P.; Wang, B.; Wu, Y.; Sun, X.; Tong, Z.; Zhao, Z. Enhanced interfacial contact of dopamine bridged melamine-graphene/TiO2 nano-capsules for efficient photocatalytic degradation of gaseous formaldehyde. Appl. Catal. B Environ. 2018, 232, 182–193. [Google Scholar] [CrossRef]
  38. Soo, L.T.; Loh, K.S.; Mohamad, A.B.; Daud, W.R.W.; Wong, W.Y. Effect of nitrogen precursors on the electrochemical performance of nitrogen-doped reduced graphene oxide towards oxygen reduction reaction. J. Alloys Compd. 2016, 677, 112–120. [Google Scholar] [CrossRef]
  39. Wang, Z.; Li, P.; Chen, Y.; Liu, J.; Tian, H.; Zhou, J.; Zhang, W.; Li, Y. Synthesis of nitrogen-doped graphene by chemical vapour deposition using melamine as the sole solid source of carbon and nitrogen. J. Mater. Chem. C 2014, 2, 7396–7401. [Google Scholar] [CrossRef]
  40. Dehghani, M.H.; Mahvi, A.H.; Rastkari, N.; Saeedi, R.; Nazmara, S.; Iravani, E. Adsorption of bisphenol A (BPA) from aqueous solutions by carbon nanotubes: Kinetic and equilibrium studies. Desalin. Water Treat. 2015, 54, 84–92. [Google Scholar] [CrossRef]
  41. Guo, W.; Hu, W.; Pan, J.; Zhou, H.; Guan, W.; Wang, X.; Dai, J.; Xu, L. Selective adsorption and separation of BPA from aqueous solution using novel molecularly imprinted polymers based on kaolinite/Fe3O4 composites. Chem. Eng. J. 2011, 171, 603–611. [Google Scholar] [CrossRef]
  42. Kabiri, S.; Tran, D.N.H.; Azari, S.; Losic, D. Graphene-Diatom Silica Aerogels for Efficient Removal of Mercury Ions from Water. Acs Appl. Mater. Interfaces 2015, 7, 11815–11823. [Google Scholar] [CrossRef]
  43. Travlou, N.A.; Kyzas, G.Z.; Lazaridis, N.K.; Deliyanni, E.A. Graphite oxide/chitosan composite for reactive dye removal. Chem. Eng. J. 2013, 217, 256–265. [Google Scholar] [CrossRef]
  44. Tan, P.; Bi, Q.; Hu, Y.; Fang, Z.; Chen, Y.; Cheng, J. Effect of the degree of oxidation and defects of graphene oxide on adsorption of Cu2+ from aqueous solution. Appl. Surf. Sci. 2017, 423, 1141–1151. [Google Scholar] [CrossRef]
  45. Travlou, N.A.; Kyzas, G.Z.; Lazaridis, N.K.; Deliyanni, E.A. Functionalization of Graphite Oxide with Magnetic Chitosan for the Preparation of a Nanocomposite Dye Adsorbent. Langmuir 2015, 29, 1657–1668. [Google Scholar] [CrossRef] [PubMed]
  46. Ramesha, G.K.; Vijaya Kumara, A.; Muralidhara, H.B.; Sampath, S. Graphene and graphene oxide as effective adsorbents toward anionic and cationic dyes. J. Colloid Interface Sci. 2011, 361, 270–277. [Google Scholar] [CrossRef]
  47. Machedi, S.; Ejidike, I.P.; Mtunzi, F.M.; Pakade, V.E.; Klink, M.J. Chlorinated Phenols Sorption Performance by Macadamia Activated Carbon and Grafted Macadamia Activated Carbon: Characterization, Kinetics, and Thermodynamic studies. Orient. J. Chem. 2019, 35, 1469–1479. [Google Scholar] [CrossRef]
  48. Qi, C.; Liu, X.; Lin, C.; Zhang, H.; Li, X.; Ma, J. Activation of peroxymonosulfate by microwave irradiation for degradation of organic contaminants. Chem. Eng. J. 2017, 315, 201–209. [Google Scholar] [CrossRef]
  49. Ibrahim, S.; Wang, S.; Ang, H.M. Removal of emulsified oil from oily wastewater using agricultural waste barley straw. Biochem. Eng. J. 2010, 49, 78–83. [Google Scholar] [CrossRef]
  50. Farah, J.Y.; El-Gendy, N.S.; Farahat, L.A. Biosorption of Astrazone Blue basic dye from an aqueous solution using dried biomass of Baker’s yeast. J. Hazard. Mater. 2007, 148, 402–408. [Google Scholar] [CrossRef]
  51. Sidik, S.M.; Jalil, A.A.; Triwahyono, S.; Adam, S.H.; Satar, M.A.H.; Hameed, B.H. Modified oil palm leaves adsorbent with enhanced hydrophobicity for crude oil removal. Chem. Eng. J. 2012, 203, 9–18. [Google Scholar] [CrossRef]
  52. Wang, D.; Liu, L.; Jiang, X.; Yu, J.; Chen, X.; Chen, X. Adsorbent for p-phenylenediamine adsorption and removal based on graphene oxide functionalized with magnetic cyclodextrin. Appl. Surf. Sci. 2015, 329, 197–205. [Google Scholar] [CrossRef]
  53. Zhao, D.; Gao, X.; Wu, C.; Xie, R.; Feng, S.; Chen, C. Facile preparation of amino functionalized graphene oxide decorated with Fe3O4 nanoparticles for the adsorption of Cr (VI). Appl. Surf. Sci. 2016, 384, 1–9. [Google Scholar] [CrossRef]
  54. Li, Y.; Wang, M.; Sun, D.; Li, Y.; Wu, T. Effective removal of emulsified oil from oily wastewater using surfactant-modified sepiolite. Appl. Clay Sci. 2018, 157, 227–236. [Google Scholar] [CrossRef]
  55. Hu, Y.; Guo, T.; Ye, X.; Li, Q.; Guo, M.; Liu, H.; Wu, Z. Dye adsorption by resins: Effect of ionic strength on hydrophobic and electrostatic interactions. Chem. Eng. J. 2013, 228, 392–397. [Google Scholar] [CrossRef]
  56. Wu, T.; Cai, X.; Tan, S.; Li, H.; Liu, J.; Yang, W. Adsorption characteristics of acrylonitrile, p-toluenesulfonic acid, 1-naphthalenesulfonic acid and methyl blue on graphene in aqueous solutions. Chem. Eng. J. 2011, 173, 144–149. [Google Scholar] [CrossRef]
  57. Xi, P.; Huang, L.; Xu, Z.; Chen, F.; An, L.; Wang, B.; Chen, Z.N. Low cost and robust soot dipped polyurethane sponge for highly efficient and recyclable oil and organic solvent cleanup. Rsc Adv. 2014, 4, 59481–59485. [Google Scholar] [CrossRef]
  58. Asada, T.; Oikawa, K.; Kawata, K.; Ishihara, S.; Iyobe, T.; Yamada, A. Study of Removal Effect of Bisphenol A and. BETA-Estradiol by Porous Carbon. J. Health Sci. 2004, 50, 588–593. [Google Scholar] [CrossRef] [Green Version]
  59. Koduru, J.R.; Lingamdinne, L.P.; Singh, J.; Choo, K.H. Effective removal of bisphenol-A (BPA) from water using a goethite/activated carbon composite. Process. Saf. Environ. Prot. 2016, 103, 87–96. [Google Scholar] [CrossRef]
  60. Kuo, C.Y. Comparison with as-grown and microwave modified carbon nanotubes to removal aqueous bisphenol A. Desalination 2009, 249, 976–982. [Google Scholar] [CrossRef]
  61. Zhang, B.; Wu, T.; Sun, D.; Chen, W.; Li, G.; Li, Y. NH2 -MCM-41 supported on nitrogen-doped graphene as bifunctional composites for removing phenol compounds: Synergistic effect between catalytic degradation and adsorption. Carbon N. Y. 2019, 147, 312–322. [Google Scholar] [CrossRef]
  62. Liu, Y.; Feng, Q.; Tang, N.; Wan, X.; Liu, F.; Lv, L.; Du, Y. Increased magnetization of reduced graphene oxide by nitrogen-doping. Carbon 2013, 60, 549–551. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.

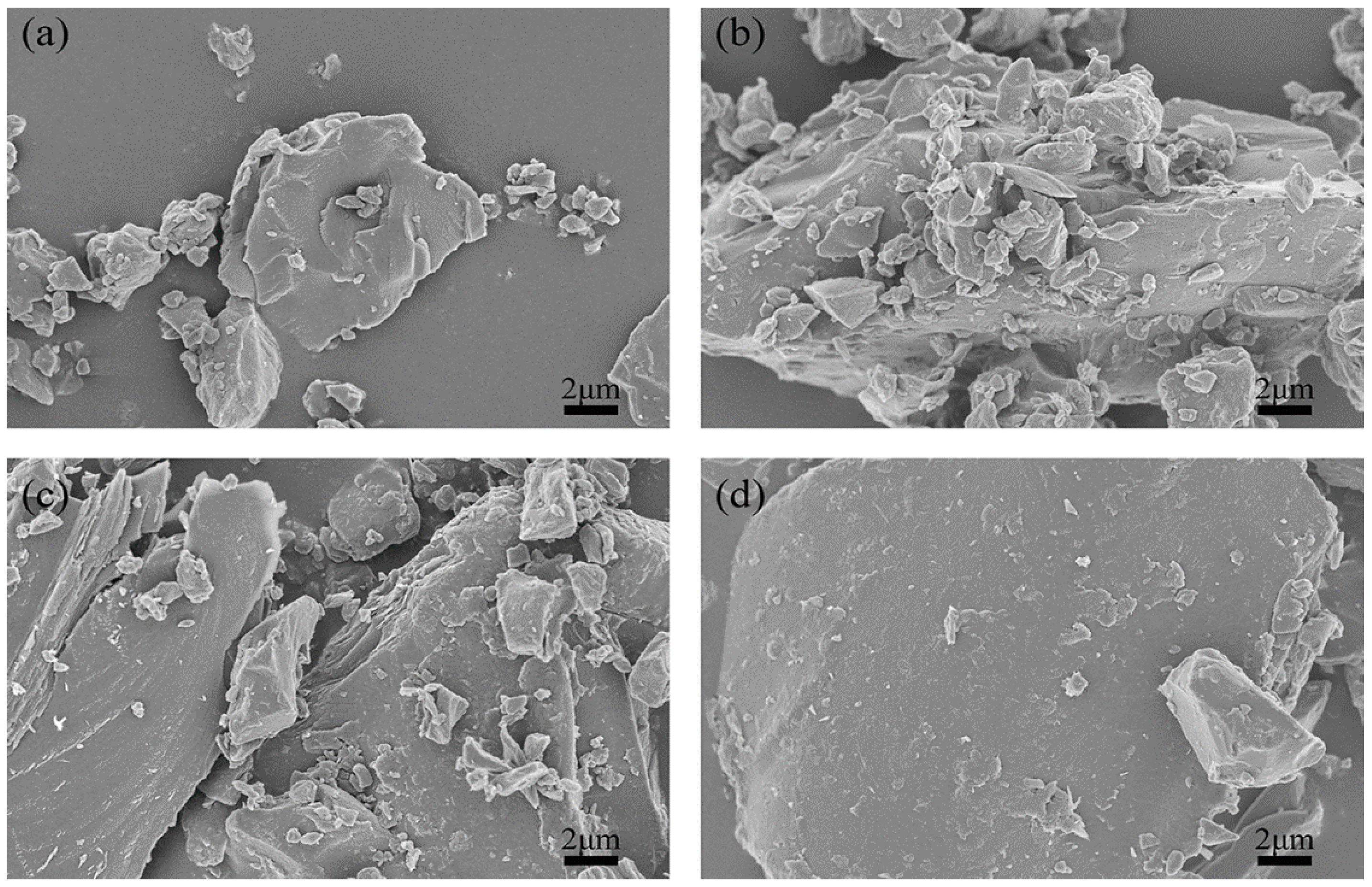

Molecules 25 03543 g001 550

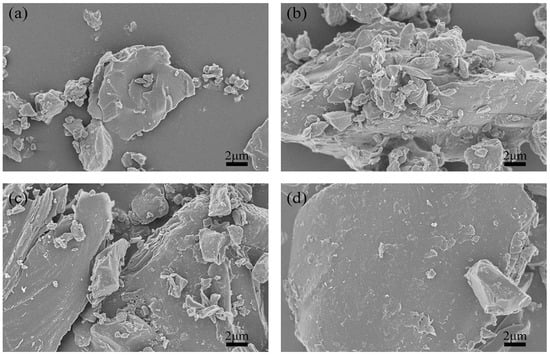

Figure 1. Effect of N-doped temperature on material’s optimization: (a) green petroleum coke, (b) nitrogen-doped graphene-like plates (N-GLPs) 3502, (c) N-GLPs 5502, and (d) N-GLPs 7502.
Figure 1. Effect of N-doped temperature on material’s optimization: (a) green petroleum coke, (b) nitrogen-doped graphene-like plates (N-GLPs) 3502, (c) N-GLPs 5502, and (d) N-GLPs 7502.
Molecules 25 03543 g001
Molecules 25 03543 g002 550

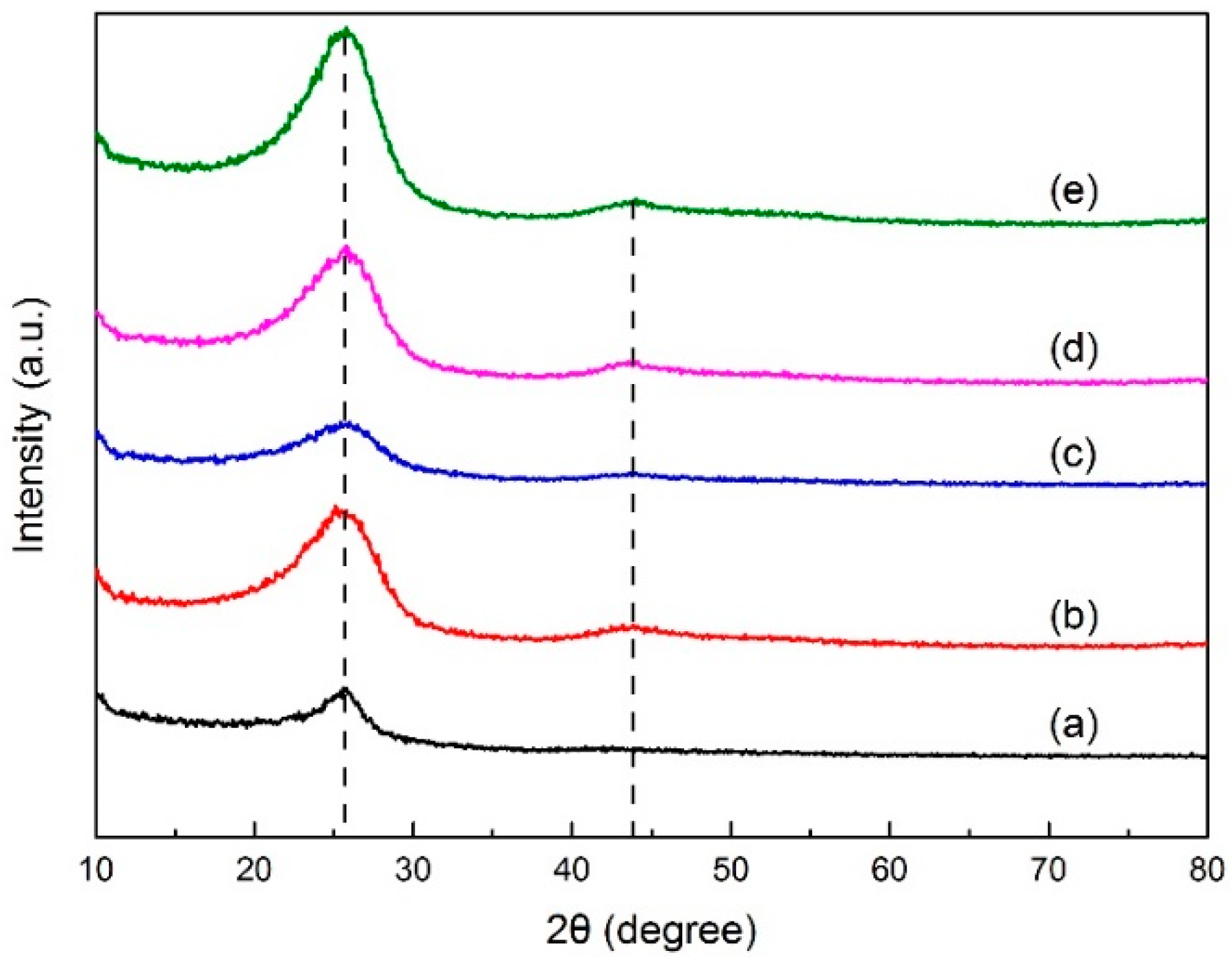

Figure 2. X-ray diffraction (XRD) patterns of (a) green petroleum coke, (b) graphene, (c) N-GLPs 3502, (d) N-GLPs 5502, and (e) N-GLPs 7502.
Figure 2. X-ray diffraction (XRD) patterns of (a) green petroleum coke, (b) graphene, (c) N-GLPs 3502, (d) N-GLPs 5502, and (e) N-GLPs 7502.
Molecules 25 03543 g002

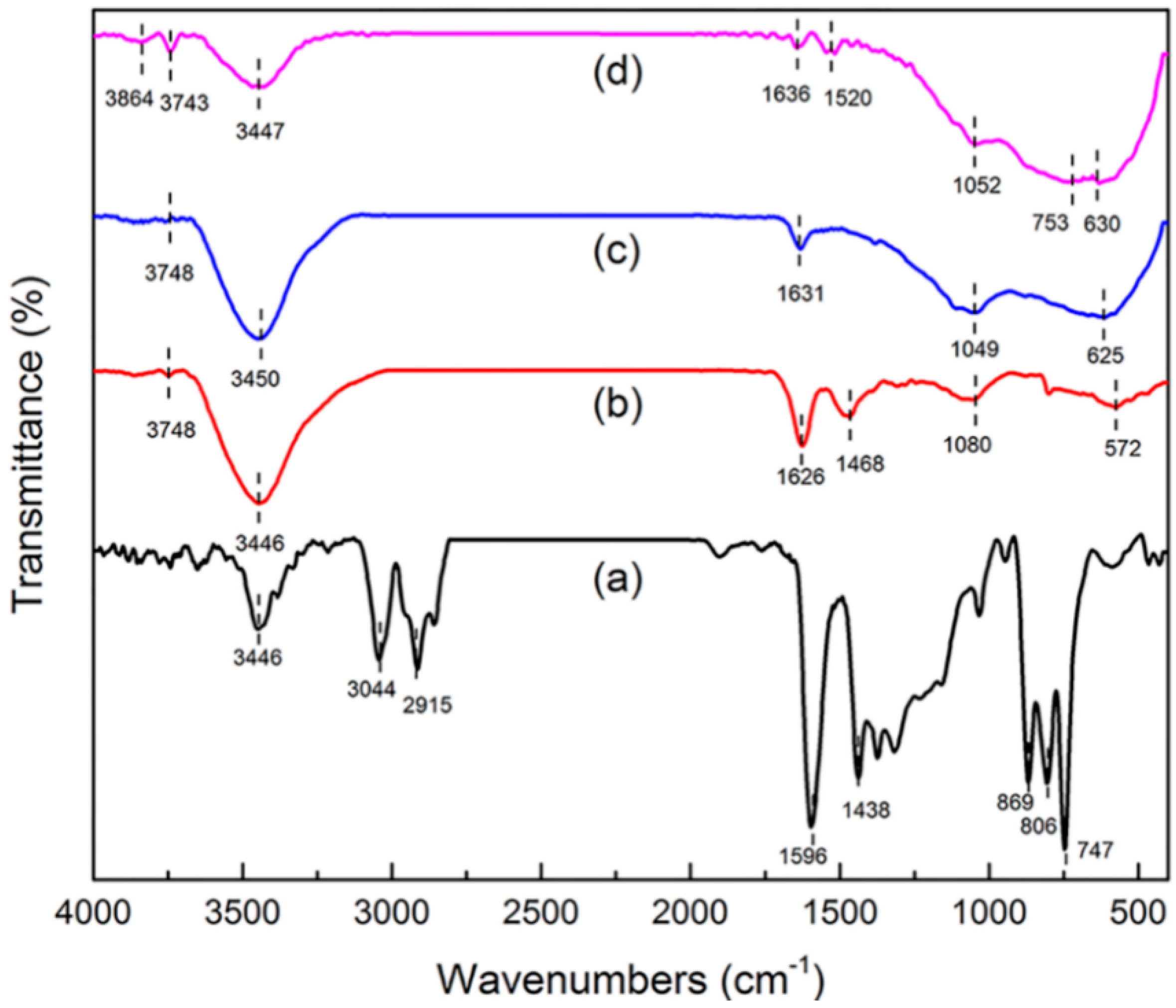

Molecules 25 03543 g003 550

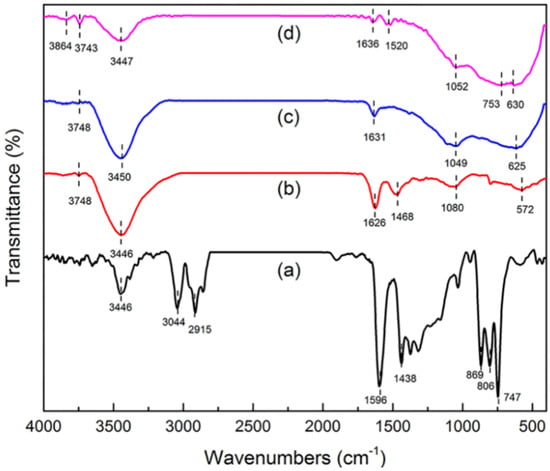

Figure 3. Fourier transform infrared spectroscopy (FT-IR) spectra of (a) green petroleum coke, (b) N-GLPs 3502, (c) N-GLPs 5502, and (d) N-GLPs 7502.
Figure 3. Fourier transform infrared spectroscopy (FT-IR) spectra of (a) green petroleum coke, (b) N-GLPs 3502, (c) N-GLPs 5502, and (d) N-GLPs 7502.
Molecules 25 03543 g003

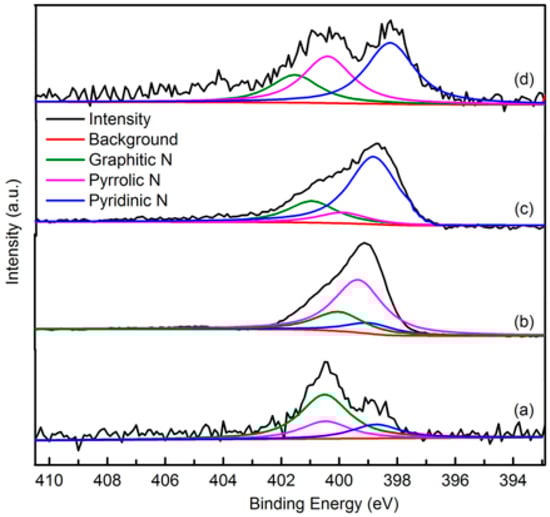

Molecules 25 03543 g004 550

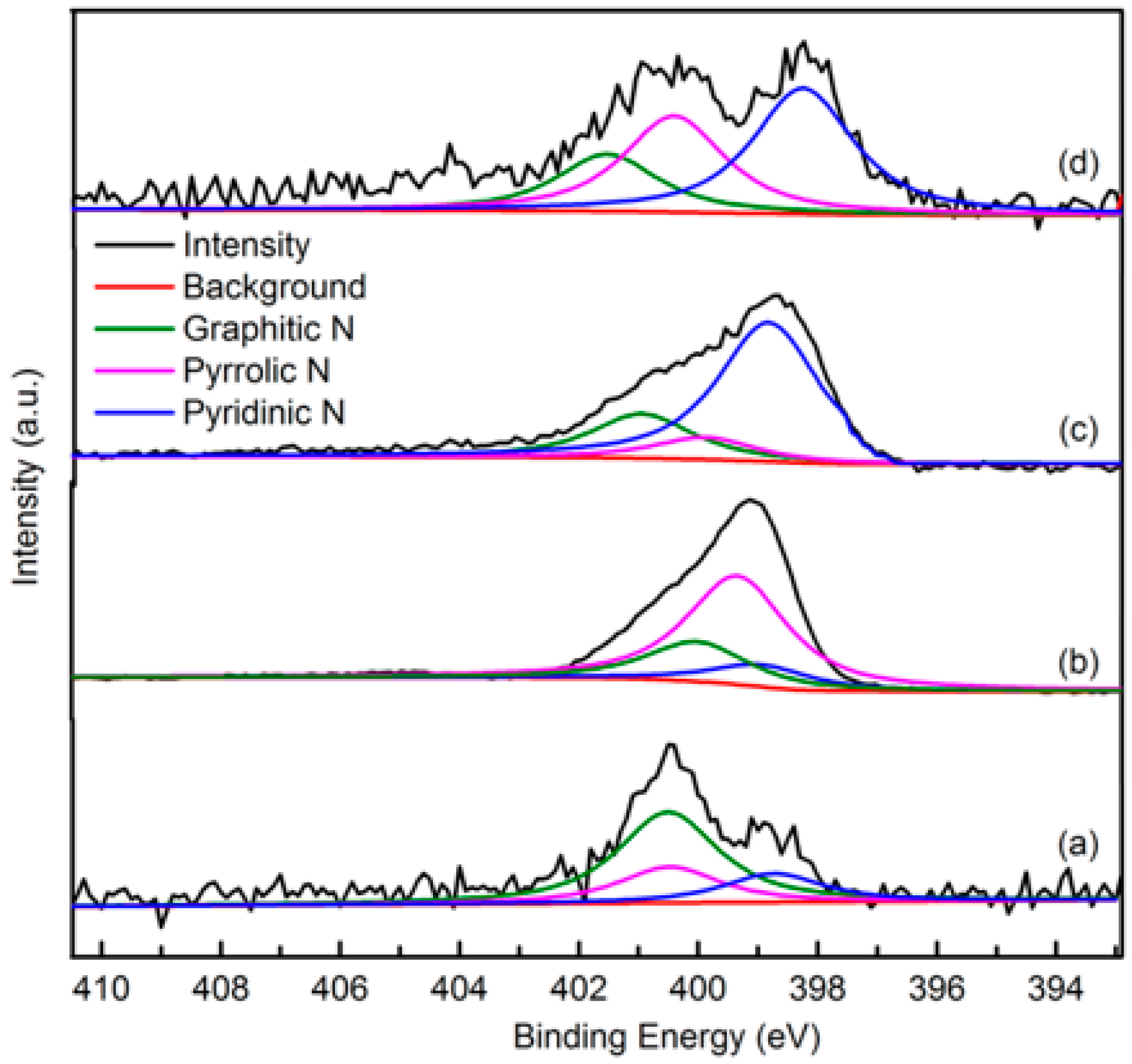

Figure 4. Narrow scanning N 1s X-ray photoelectron spectroscopy (XPS) spectra of (a) green petroleum coke, (b) N-GLPs 3502, (c) N-GLPs 5502, and (d) N-GLPs 7502.
Figure 4. Narrow scanning N 1s X-ray photoelectron spectroscopy (XPS) spectra of (a) green petroleum coke, (b) N-GLPs 3502, (c) N-GLPs 5502, and (d) N-GLPs 7502.
Molecules 25 03543 g004

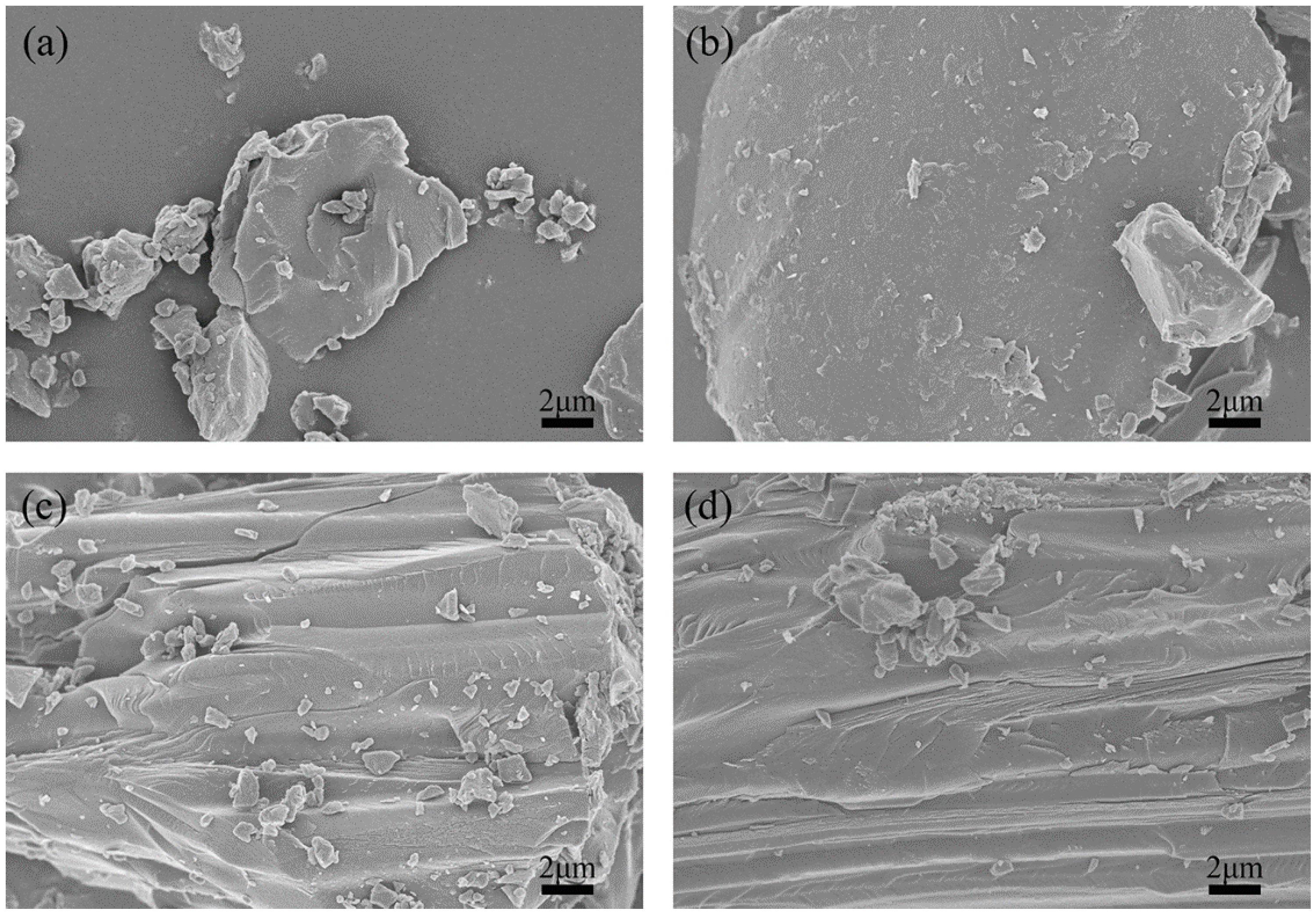

Molecules 25 03543 g005 550
Figure 5. Effect of N-doping time on material’s optimization: (a) green petroleum coke, (b) N-GLPs 7502, (c) N-GLPs 7504, and (d) N-GLPs 7506.
Figure 5. Effect of N-doping time on material’s optimization: (a) green petroleum coke, (b) N-GLPs 7502, (c) N-GLPs 7504, and (d) N-GLPs 7506.
Molecules 25 03543 g005
Molecules 25 03543 g006 550

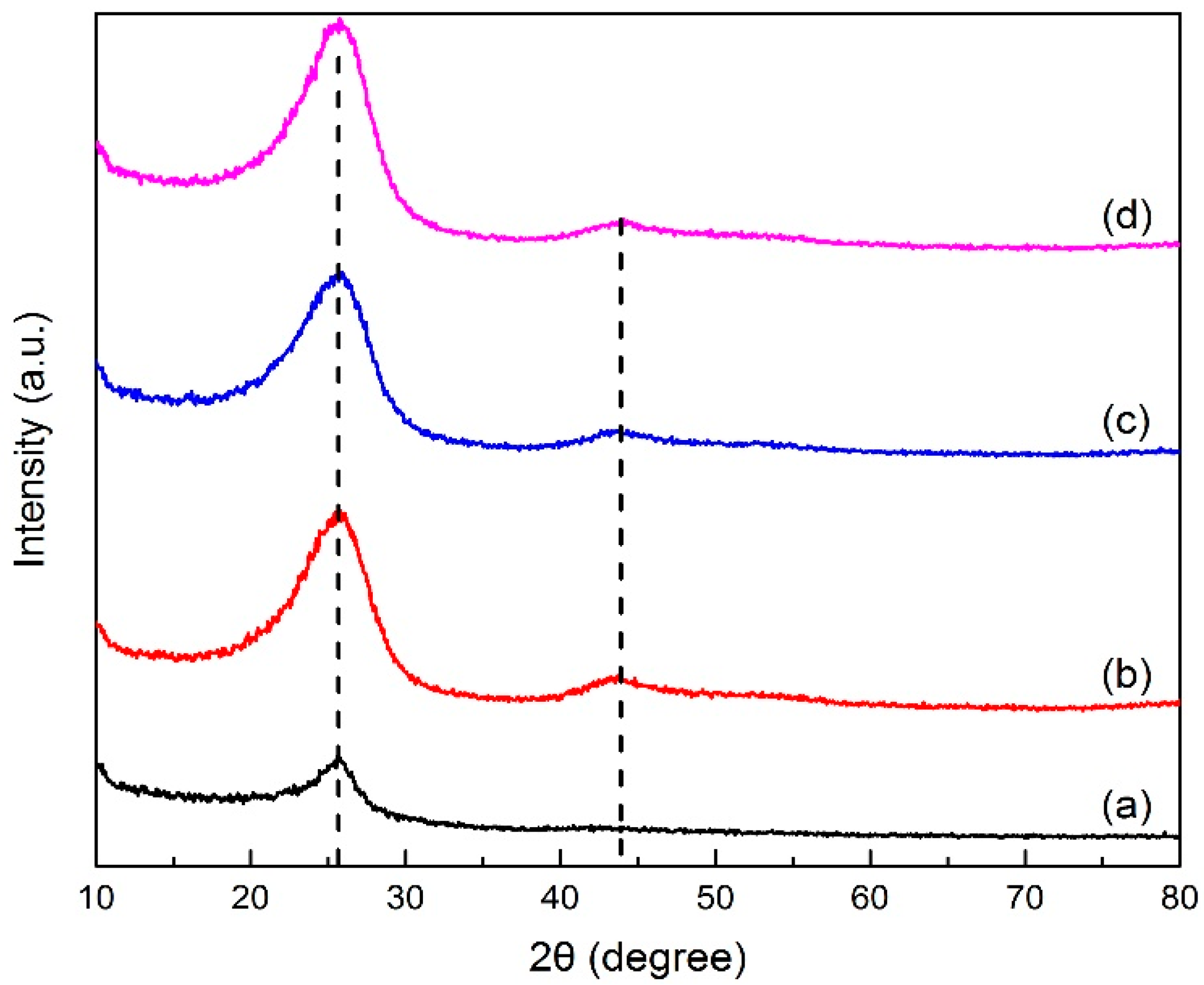

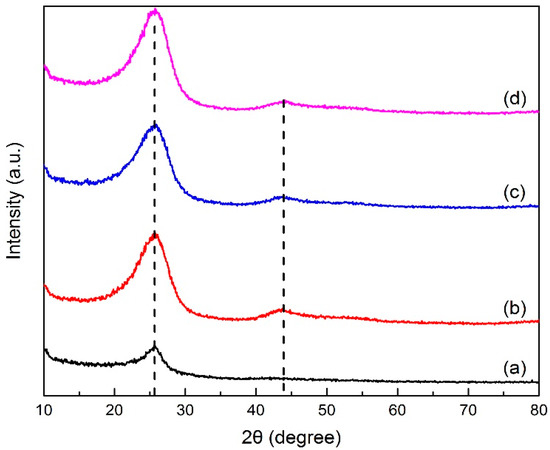

Figure 6. XRD patterns of (a) green petroleum coke, (b) N-GLPs 7502, (c) N-GLPs 7504, and (d) N-GLPs 7506.
Figure 6. XRD patterns of (a) green petroleum coke, (b) N-GLPs 7502, (c) N-GLPs 7504, and (d) N-GLPs 7506.
Molecules 25 03543 g006
Molecules 25 03543 g007 550

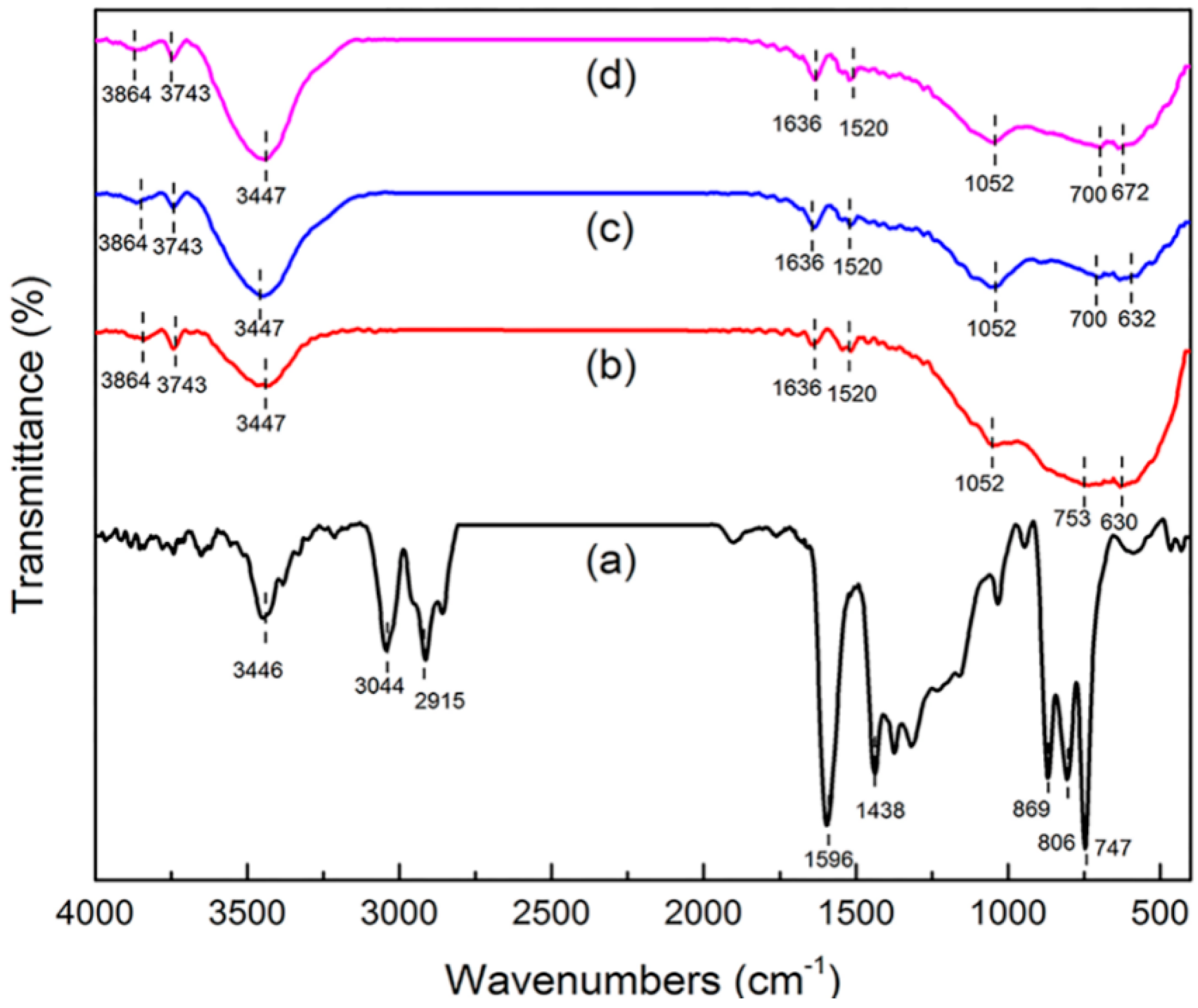

Figure 7. FT-IR spectra of (a) green petroleum coke, (b) N-GLPs 7502, (c) N-GLPs 7504, and (d) N-GLPs 7506.
Figure 7. FT-IR spectra of (a) green petroleum coke, (b) N-GLPs 7502, (c) N-GLPs 7504, and (d) N-GLPs 7506.
Molecules 25 03543 g007
Molecules 25 03543 g008 550

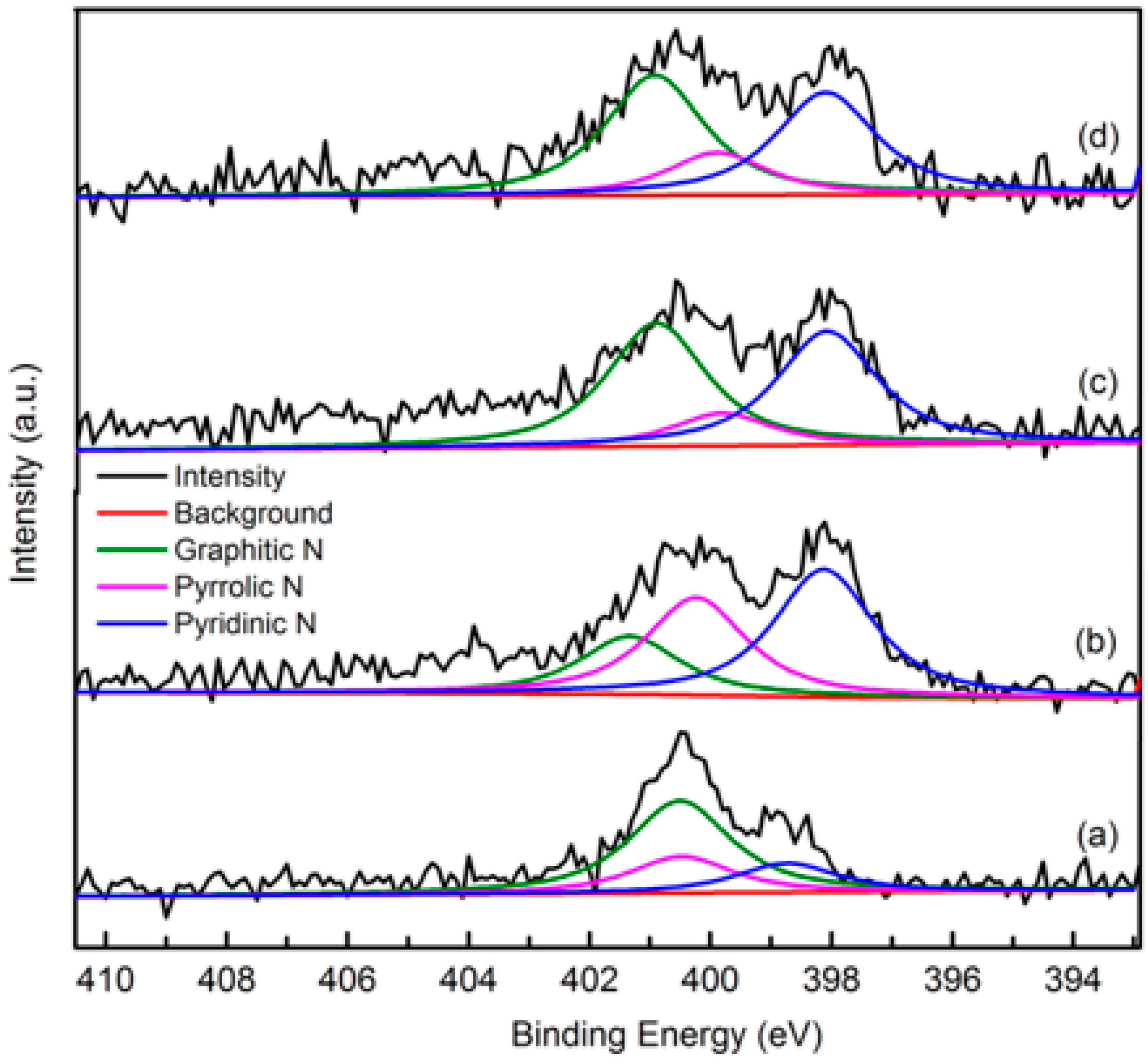

Figure 8. Narrow scanning N 1s XPS spectra of (a) green petroleum coke, (b) N-GLPs 7502, (c) N-GLPs 7504, and (d) N-GLPs 7506.
Figure 8. Narrow scanning N 1s XPS spectra of (a) green petroleum coke, (b) N-GLPs 7502, (c) N-GLPs 7504, and (d) N-GLPs 7506.
Molecules 25 03543 g008
Molecules 25 03543 g009 550

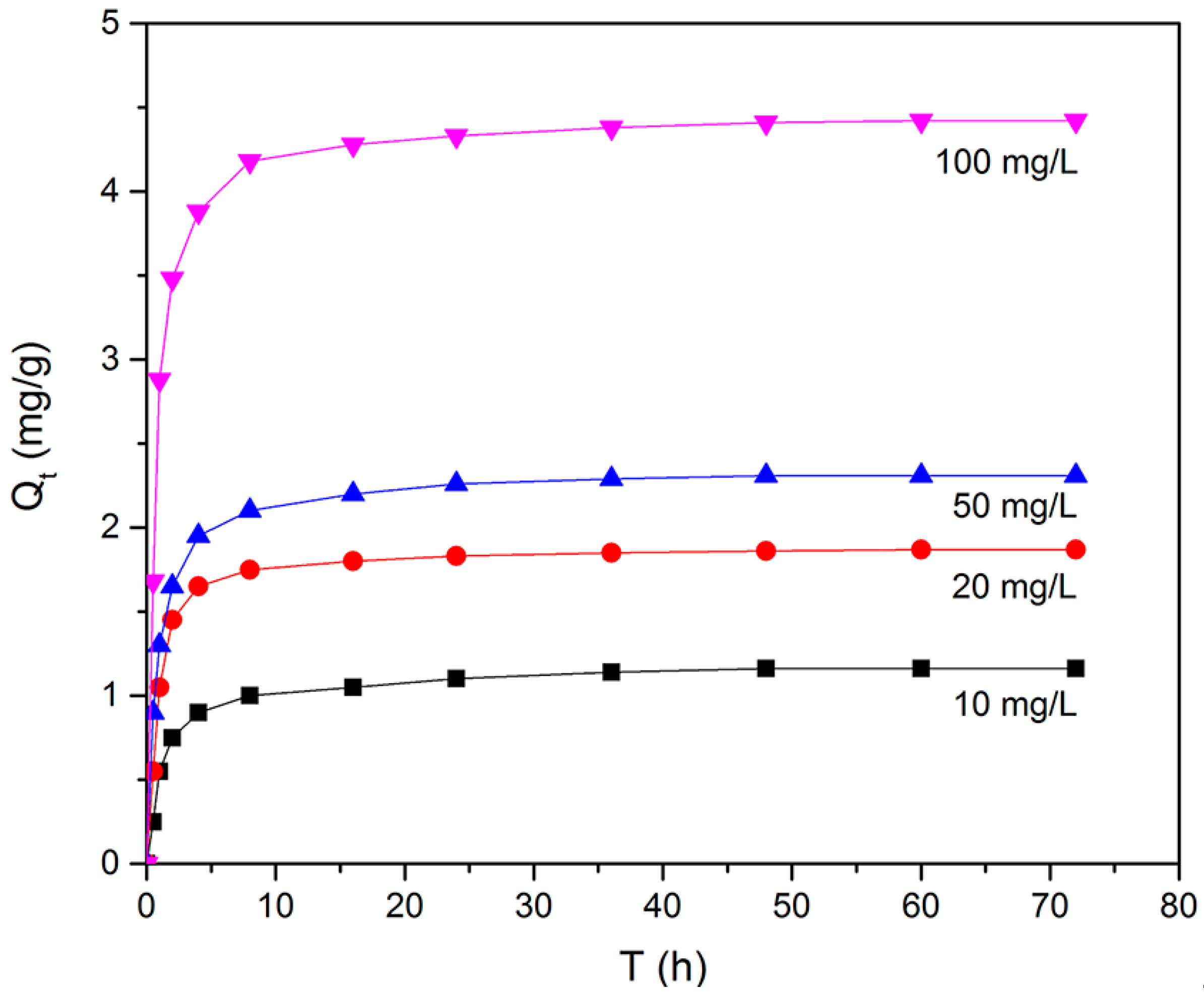

Figure 9. Effect of initial concentration and contact time on removal efficiency (experimental conditions: adsorbent dose = 7.0 g/L, initial concentration = 10–100 mg/L, pH = 6, T = 30 °C).
Figure 9. Effect of initial concentration and contact time on removal efficiency (experimental conditions: adsorbent dose = 7.0 g/L, initial concentration = 10–100 mg/L, pH = 6, T = 30 °C).
Molecules 25 03543 g009
Molecules 25 03543 g010 550
Figure 10. Effect of pH on removal efficiency and equilibrium pH (experimental conditions: initial concentration = 10 mg/L, adsorbent dose = 7.0 g/L, contact time = 48 h, T = 30 °C).
Figure 10. Effect of pH on removal efficiency and equilibrium pH (experimental conditions: initial concentration = 10 mg/L, adsorbent dose = 7.0 g/L, contact time = 48 h, T = 30 °C).
Molecules 25 03543 g010
Molecules 25 03543 g011 550

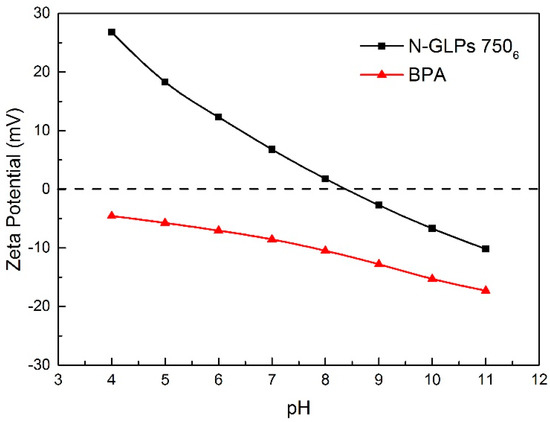

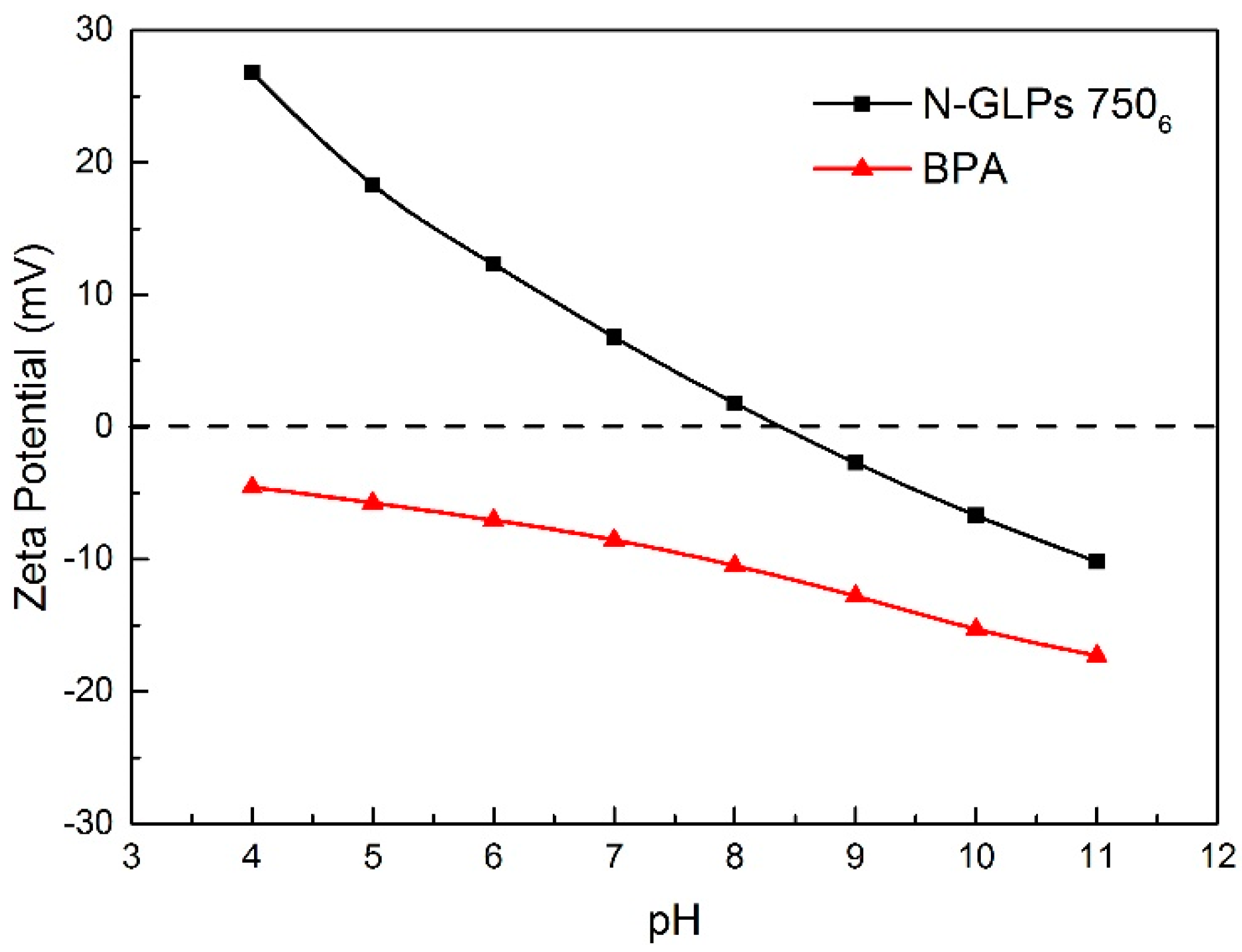

Figure 11. Zeta potentials of adsorbent and pollutant in 0.001 M NaCl solution (25 °C).
Figure 11. Zeta potentials of adsorbent and pollutant in 0.001 M NaCl solution (25 °C).
Molecules 25 03543 g011
Molecules 25 03543 g012 550

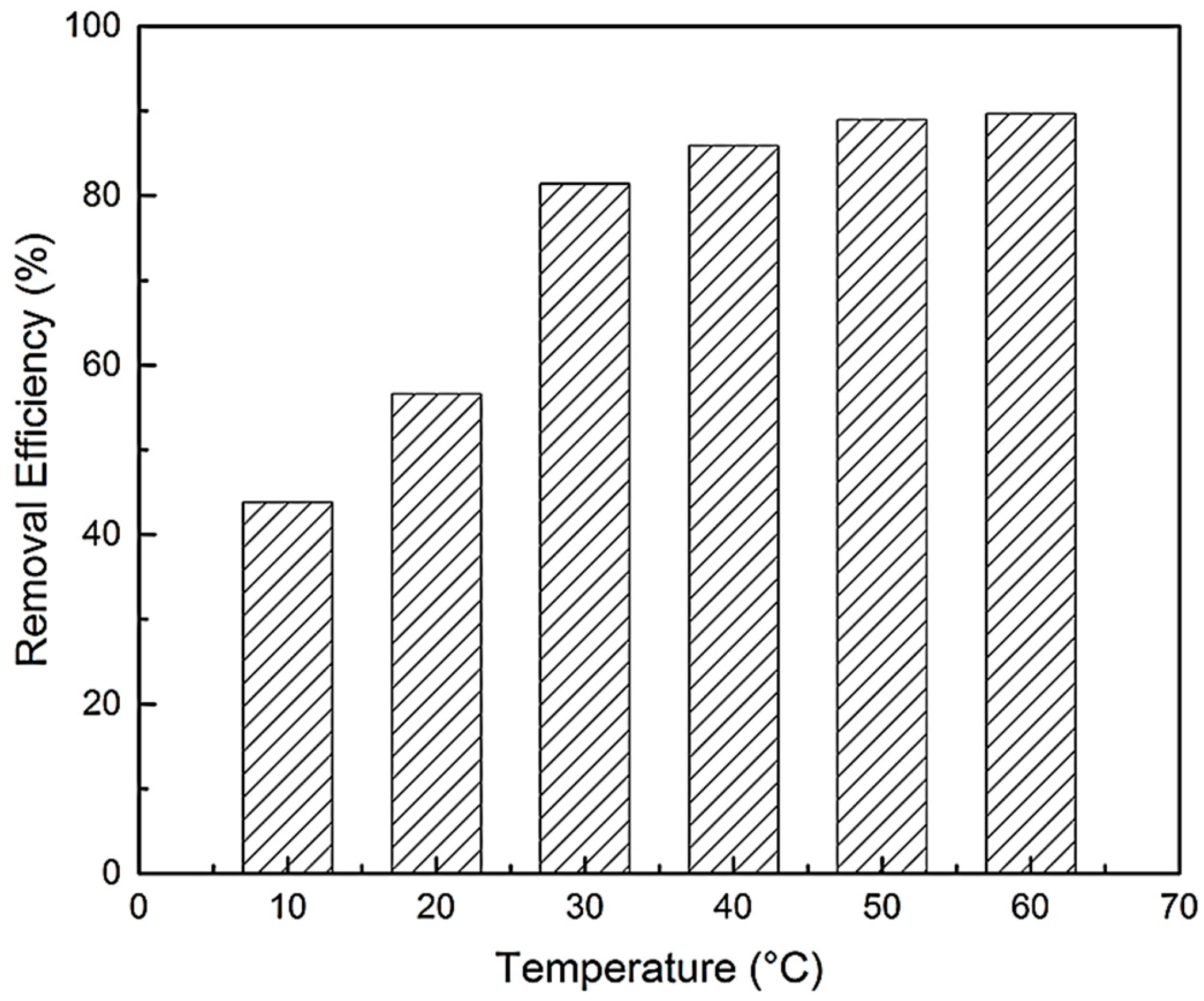

Figure 12. Effect of temperature on removal efficiency (experimental conditions: adsorbent dose = 7.0 g/L, initial concentration = 10 mg/L, contact time = 48 h, pH = 6.0).
Figure 12. Effect of temperature on removal efficiency (experimental conditions: adsorbent dose = 7.0 g/L, initial concentration = 10 mg/L, contact time = 48 h, pH = 6.0).
Molecules 25 03543 g012
Molecules 25 03543 g013 550
Figure 13. Schematic of adsorption interaction of bisphenol A (BPA) onto N-GLPs 7506.
Figure 13. Schematic of adsorption interaction of bisphenol A (BPA) onto N-GLPs 7506.
Molecules 25 03543 g013
Molecules 25 03543 g014 550

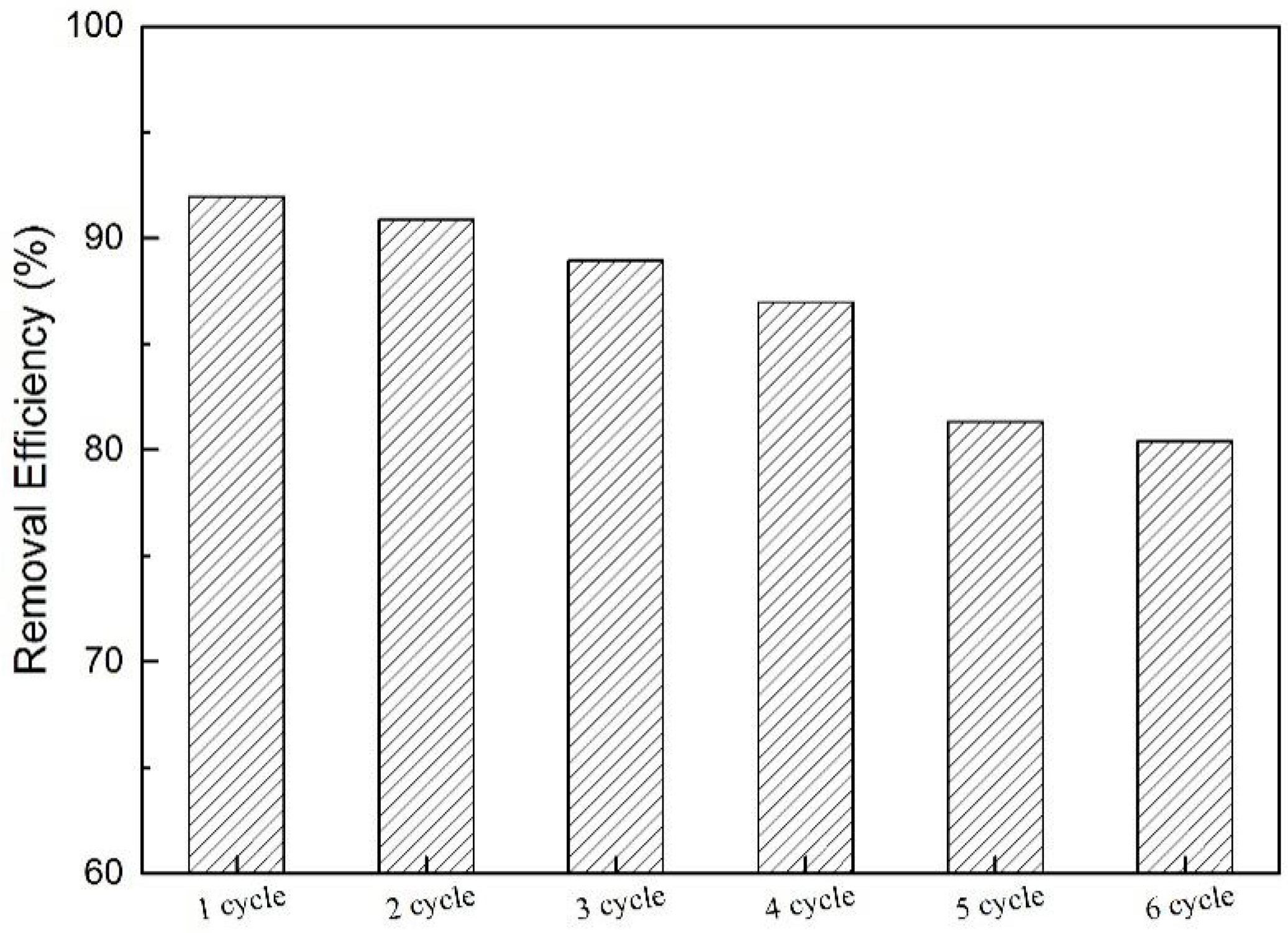

Figure 14. Recyclability of N-GLPs 7506 for six cycles.
Figure 14. Recyclability of N-GLPs 7506 for six cycles.
Molecules 25 03543 g014
Table
Table 1. Surface area and porous volume of the green petroleum coke and N-doped samples.
Table 1. Surface area and porous volume of the green petroleum coke and N-doped samples.
SampleSBET (m2/g)Vp (cm3/g)
Green petroleum coke8.00.013
N-GLPs 350235.90.029
N-GLPs 550244.80.040
N-GLPs 750265.40.055
Table
Table 2. Surface area and porous volume of the green petroleum coke and N-doped samples.
Table 2. Surface area and porous volume of the green petroleum coke and N-doped samples.
SampleSBET (m2/g)Vp (cm3/g)
Green petroleum coke8.00.013
N-GLPs 750265.40.055
N-GLPs 750476.90.068
N-GLPs 750696.60.082
Table
Table 3. Adsorption capacity of BPA by N-GLPs 7506 in comparison to other literature values.
Table 3. Adsorption capacity of BPA by N-GLPs 7506 in comparison to other literature values.
AdsorbentPollutantpHContact Time (h)C0 (mg/L)Removal Efficiency (%)Reference
Activated carbonBPA-601094.4[58]
Porous carbonBPA-24590.0[59]
CNTsBPA6.0241071.8[60]
Nitrogen-doped grapheneBPA6.0121090.5[61]
N-GLPs 7506BPA6.0481092.0This Work
N-GLPs 7506BPA6.048598.3This Work

Share and Cite

MDPI and ACS Style

Liu, Z.; Wang, Q.; Zhang, B.; Wu, T.; Li, Y. Efficient Removal of Bisphenol A Using Nitrogen-Doped Graphene-Like Plates from Green Petroleum Coke. Molecules 2020, 25, 3543. https://doi.org/10.3390/molecules25153543

AMA Style

Liu Z, Wang Q, Zhang B, Wu T, Li Y. Efficient Removal of Bisphenol A Using Nitrogen-Doped Graphene-Like Plates from Green Petroleum Coke. Molecules. 2020; 25(15):3543. https://doi.org/10.3390/molecules25153543

Chicago/Turabian Style

Liu, Zhipeng, Quanyong Wang, Bei Zhang, Tao Wu, and Yujiang Li. 2020. "Efficient Removal of Bisphenol A Using Nitrogen-Doped Graphene-Like Plates from Green Petroleum Coke" Molecules 25, no. 15: 3543. https://doi.org/10.3390/molecules25153543

APA Style

Liu, Z., Wang, Q., Zhang, B., Wu, T., & Li, Y. (2020). Efficient Removal of Bisphenol A Using Nitrogen-Doped Graphene-Like Plates from Green Petroleum Coke. Molecules, 25(15), 3543. https://doi.org/10.3390/molecules25153543

Article Metrics

Back to TopTop
