Synthesis, Structure and Supramolecular Properties of a Novel C3 Cryptand with Pyridine Units in the Bridges

by
Cosmin Vasile Crişan
1,
Albert Soran
1,
Attila Bende
2,
Niculina Daniela Hӑdade
1,
Anamaria Terec
1 and
Ion Grosu
1,*
1
Department of Chemistry and SOOMCC, Faculty of Chemistry and Chemical Engineering, Babes-Bolyai University, Cluj-Napoca, 11 Arany Janos str., 400028 Cluj-Napoca, Romania
2
National Institute for Research and Development of Isotopic and Molecular Technologies, 67-103 Donath str., RO-400293 Cluj-Napoca, Romania
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(17), 3789; https://doi.org/10.3390/molecules25173789
Submission received: 30 July 2020 / Revised: 10 August 2020 / Accepted: 17 August 2020 / Published: 20 August 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
The high-yield synthesis and the structural investigation of a new cryptand with C3 symmetry, exhibiting 2,4,6-triphenyl-1,3,5-triazine central units and pyridine-based bridges, are reported. The structure of the compound was investigated by single crystal X-ray diffractometry, NMR (nuclear magnetic resonance), HRMS (high resolution mass spectrometry) measurements, and theoretical calculations. The study of supramolecular behavior in solid state revealed the association of cryptand molecules by C-H---π and π---π contacts. Moreover, theoretical calculations indicated the high binding affinity of the cryptand for various organic molecules as guests.

Graphical Abstract

1. Introduction

Cryptands exhibiting C3 symmetry have been exciting synthetic targets, due to their high ability to form stable “host–guest” supramolecular assemblies (i.e., as result of the macrobicyclic effect [1]) either with ions (cations and anions) [2,3,4] or neutral organic molecules [5,6,7,8,9]. Many aromatic tripodand units were employed to access this type of cryptand. Thus, bicyclocyclophanes exhibiting 1,3,5-trisubstituted benzene [10,11,12,13,14], 2,4,6-trisubstituted-1,3,5-triazine [15,16,17], tertiary amines [18,19], or phosphines [20,21], as well as cyclotribenzylene [22,23,24] as central units, connected by various bridges, such as oligoethyleneoxide [25,26], di-yne [17,27,28], pyridine [29,30,31], or triazole [32,33,34,35], in agreement with the employed macrocyclization procedure, have been reported and showed good binding abilities for various guests.
1,3,5-Triazine is a largely investigated heterocycle, on one side due to the versatile synthesis ofits many derivatives (e.g.,acid-catalyzedtrimerization of nitriles, O-substitution of cyanuric acid, or N-substitution of isocyanuric acid) and on the other side due to the exciting properties and applications of 1,3,5-triazine’s derivatives (e.g., melamine resins in the furniture industry) [36,37,38].
In previous works, we investigated several C3 cryptands (Scheme 1, 1–3) exhibiting 1,3,5-triazine or 2,4,6-triphenyl-1,3,5-triazine central aromatic units. Cryptand 1 was obtained by an acetylenic coupling reaction and, despite our expectation to have a shape-persistent compound with a large internal cavity, the single crystal X-ray diffraction molecular structure of cryptand 1 showed the completely collapsed cavity behavior of the cryptand [17]. Compounds 2(a–c) exhibit a high affinity for alkali (Na+, K+) and ammonium cations (e.g., dication of 1,5-naphthalenediamine). This complexation behavior is due to the ethyleneoxide groups in the bridges and, in the investigated series, the affinity for K+increased with the number of ethyleneoxide units [2]. High-affinity, charge–transfer complexes of compound 3, based on the electron deficient 1,3,5-triazine units (with electron acceptor ability) with electron rich aromatic guests (pyrene, anthracene, 1,5-dinaphthol) were reported, where π–π stacking contacts ensured the formation of the host–guest complexes. No complexations via H-bonds involving the pyridine rings of the bridges were observed, confirming the expected low basicity of pyridine groups due to the powerful electron-withdrawing CN substituents attached to the heterocycles in the chains [7]. In this context, we considered it of interest to investigate the structure and properties of cryptand 4, exhibiting more basic pyridine rings, that should have better proton and halogen binding affinity, along with slightly more flexible arms than those in the case of the previously investigated cryptand 3.

2. Results and Discussion

2.1. Synthesis and Structure of Cryptand 4

Cryptand 4 was obtained in good yields (64%) by a nucleophilic substitution reaction using 1,3,5-triazine-2,4,6-triphenol 5 [39,40,41] as a nucleophile and 2,6-dibromomethyl-pyridine as a substrate (Scheme 2). The procedure was adapted from the literature using our previous experience with similar reactions [2,7,8,42,43].
The structural investigation of cryptand 4 was carried out using NMR, HRMS (high resolution mass spectrometry), and single crystal X-ray diffractometry. Theoretical calculations were performed to estimate the contribution of different crystal fragments to the crystal cohesive energy. In order to fulfill this target, fragments were extracted from the lattice obtained by single crystal X-ray diffraction, and the calculated energy of the assembly of the extracted molecules was compared to the energy of the system exhibiting the same molecules in isolated behavior. The second goal of theoretical calculations was to estimate the binding ability of the cryptand towards some representative organic molecules as guests. The NMR spectra of 4 were very simple and confirmed the C3 symmetrical structure. Thus, the 1H NMR spectrum of 4 (Figure 1) revealed one singlet (δ = 5.35 ppm (parts per million)) for all CH2 groups, while in the aromatic region of the spectrum there were two doublets (δ = 6.81 and 7.90 ppm) for the protons of the 1,4-phenylene groups and the classic pattern for the symmetrically 2,6-disubstituted pyridine unit (doublet (δ = 7.53 ppm) and triplet (δ = 7.92 ppm)). The 13C NMR spectrum (APT (attached proton test), Figure 1) exhibited only nine signals, five on one side for CH2 (δ = 69.32 ppm) and quaternary aromatic carbon atoms (δ = 127.89, 158.04, 161.29, 169.56 ppm) and four signals on the other side belonging to the tertiary aromatic carbon atoms (δ = 114.58, 121.78, 129.52, 137.75 ppm).
Single crystals of 4 were obtained at room temperature by vapor diffusion between a dichloromethane solution of 4 and ethanol.
The X-ray diffraction on a single crystal of compound 4 revealed an asymmetric unit with one molecule (Figure 2). In this structure, the two 1,3,5-triazine units were slightly rotated and parallel to each other with an angle between the planes defined by these rings of 4.5 (1)°, an average dihedral angle C−Cg−Cg’−C or N−Cg−Cg’−N of 36.3(1)° and a Cg−Cg’ distance of 3.35 Å, which suggests high π···π interactions (where Cg and Cg’ are the centroids of the two triazine rings) (Figure 3a). Due to the rotation and orientation of the p-phenylene units relative to the 1,3,5-triazine rings, a propeller-like arrangement can be identified within the molecule, with the unit cell containing two molecules, one with left- and the other one with a right-handed propeller arrangement (Figure 3b). The left/right-handed propeller arrangement was, however, consistent only for the C1−N1−C2−N2−C3−N3 triazine unit but not for the C23−N4−C24−N5−C25−N6 unit.
In the crystal of 4, several weak C−H···O and C−H···N hydrogen interactions were found (see Figure 4, Figure 5 and Figure 6). [44] The numerical data for these interactions are given in Table 1.
Furthermore, several C−H···π and π···π intermolecular interactions were found in the crystal of 4 (see Figure 7 and Figure 8 and numerical data in Table 1) [44,45,46].
The associations of cryptand molecules, either by π---π contacts with an assembly (named a “stacked” pair) or by C-H---π interactions with the so called “side” pair, are shown in Figure 9. For the stacked pair, the 2,4,6-triphenyl-1,3,5-triazine central units partially overlapped, so the two triazines formed stacking contacts with the two benzene rings. The intermolecular binding energy between the two cryptands in this stacking supramolecular structure was −28.77 kcal/mol. In the case of the side-pair superstructure, two benzene rings from the phenyl fragments of two different cryptands form T-shape contacts with the aromatic rings of the pyridine fragments of the bridge. In these two T-shape contacts, the distance between the H atoms of the benzene units and the centroids of the pyridine rings was 2.99 Å, while the whole intermolecular binding energy, where these T-shape structures were included, was −18.60 kcal/mol.

2.2. Complexation Abilities of Cryptand 4

In the next step, the ability of the cryptand to bind guest molecules into the cavity, defined by the two 2,4,6-triphenylene-1,3,5-triazine central units was investigated. Accordingly, four guest molecules (G1, G2, G3, and G4; Figure 10), chosen for their potential ability to interact by hydrogen or halogen bonding with pyridine units in the bridges of the cryptand, as well as to form charge–transfer or π–π-associated complexes with the central units, were investigated.
It is known from our previous experience [7] that the first step inthe inclusion kinetics, when the cavity is being opened, is quite slow and cumbersome, since, at the beginning of the intercalation, the excess energy obtained from the interaction cannot fully compensate for the increased energy required to deform the cryptand. To overcome this problem, the initial geometries of the host–guest complexes were set with the guest molecule fully inserted between the central units of the cryptand. In this sense, two energy components are particularly important. One of them is the intermolecular binding energy between the cryptand and the guest molecules, while the second is the deformation energy of the cryptand. The host–guest supramolecular structure of the cryptand–G1 complex is shown in Figure 11a,b. Surprisingly, the interplanar distances between the guest system and the two 2,4,6-triphenyl-1,3,5-triazine central units of the cryptand were not similar. They were 3.38 Å and 3.77 Å, respectively, while, due to the intercalation process, the cryptand’s two central units departed from 3.40 Å to 7.15 Å. The binding energy between the cryptand and the G1 guest molecule was -56.76 kcal/mol, while the deformation energy of the cryptand from its equilibrium geometry was +24.21 kcal/mol. Accordingly, the energy balance of this complexation was −32.55 kcal/mol. It is noteworthy that, in the host–guest complex, the pyridine bridge fragments were barely involved. The second G2 guest molecule had almost the same behavior as the one found for the G1 case. The host–guest configuration of the cryptand–G2complex is depicted in Figure 11c,d. The binding energy between the cryptand and the G2 guest molecule was −56.60 kcal/mol, while the deformation energy of the cryptand from its equilibrium geometry conformation was +21.44 kcal/mol. Comparing cases G1 and G2, the role of triazine in the guest molecule can be clearly demonstrated. Since the peripheral aromatic rings were not twisted so much with respect to the central triazine ring, the deformation of the cryptand became slightly smaller (with 2.77 kcal/mol) and the interplanar distance between the cryptand 1,3,5-triazine units shorter (6.68 Å). The interplanar distances between the guest molecule and the cryptand central units, taken at the central rings, were 3.27 Å and 3.39 Å, respectively.
In order to check whether the functional group at the end of the peripheral arms of the guest complex could enhance the effect of the intercalation, in the case of the G3 guest system, the OH (targeted to be involved in hydrogen bond with the pyridine rings of the bridges) ending groups were changed to iodine atoms (able to form N---I halogen bonds). The host–guest structure of the cryptand–G3 complex is shown in Figure 11e,f. The binding energy between the cryptand and the G3 guest molecule was −53.13 kcal/mol, while the deformation energy of the cryptand from its equilibrium geometry was +21.21 kcal/mol. As one can observe, there is almost no energetic influence of the ending group on the stability of the intercalated guest molecules into the cryptand.
The interplanar distances between the guest molecule and the two cryptand central units, taken at the central rings, were 3.31 Å and 3.35 Å, respectively, while the interplanar distance between the two caps of the cryptand was 6.66 Å. It is known that fluorinated iodobenzene rings show stronger stacking interaction and stronger halogen bonds [47]. Accordingly, the 1,4-diiodotetrafluorobenzene (G4) was considered as the next guest structure and its intercalation properties were investigated. The host–guestconfiguration of the cryptand–G4 complex is depicted in Figure 11g,h. As it can be observed, the cryptand and the guest system showed a parallel-displaced arrangement and no halogen bonds were formed. The binding energy between the cryptand and the G4 guest molecule was −32.51 kcal/mol, while the deformation energy of the cryptand from its equilibrium was +19.72 kcal/mol. This binding can be considered as relatively strong, since the guest molecule contains only one aromatic ring and not four of them, as was the case for the previous three guests. The interplanar distances between the guest molecule and the cryptand 1,3,5-triazine units were 3.23 Å and 3.34 Å, respectively, while the interplanar distance between the two 1,3,5-triazine units of the cryptand was 6.57 Å.
The energetic study of the fitting of the guest molecules inside the cryptand cavity has shown that all four molecular structures chosen as possible guest molecules for the cryptand cavity are suitable. The binding energies rank between −32 and −56 kcal/mol, which are large enough to overcome the relatively high deformation potential of the cryptand. The complexation of 4 with different organic molecules is mainly due to the stacking (aromatic–aromatic) contacts, and no-binding via the hydrogen or halogen bond contacts was revealed.
Despite the lack of hydrogen and halogen bonds in the theoretical previsions concerning the binding abilities of cryptand 4 versus the investigated host–guest systems (G1–G4), the theoretical calculations were encouraging, and we carried out NMR and ESI (electrospray ionization)-MS experiments in order to reveal the formation of the supramolecular associations of cryptand 4 with G1, G2, and G5 (the equivalent of G3 but exhibiting Br instead of I atoms). Unfortunately, these experiments showed no clear complexation results, and we concluded that the kinetic barriers for the formation of the host–guest complexes are too high and other methods and experiments have to be envisaged for the future complexation investigations of cryptand 4.

3. Materials and Methods

3.1. General Data

The 1H NMR (600 MHz) and 13C NMR (150 MHz) spectra were recorded in DMSO (dimethylsulfoxide)-d6 at rt, using the solvent line as a reference. The atmospheric pressure chemical ionization (APCI, positive ions mode) was recorded on an LTQ ORBITRAP XL spectrometer (Thermo Scientific) using external mass calibration. The melting point was measured with a routine apparatus. The triphenol triazine 5 and guests G1 and G5 were obtained using procedures described in the literature [39,40,41], while the other reagents were commercially available and used without further purifications. Thin layer chromatography (TLC) was conducted on silica gel 60 F254 TLC plates (Merck). The solvents were dried and distilled under argon using standard procedures.
Single crystals of 4 were obtained at room temperature by vapor diffusion between a dichloromethane solution of 4 and ethanol. The crystals were mounted on MiTeGen microMountscryoloops and data were collected on a Bruker D8 VENTURE diffractometer, using Mo-Kα radiation (λ = 0.71073 Å) from a IμS 3.0 micro focus source with multilayer optics at a low temperature (103 K). For structure solving and refinement, the Bruker APEX3 software package was used [48]. The structure was solved by dual methods (SHELXT-2014/5) [49] and refined by full matrix least-squares procedures based on F2 with all measured reflections (SHELXL-2018/3) [50]. The structures were refined with anisotropic thermal parameters for non-H atoms. Hydrogen atoms were placed in fixed, idealized positions and refined with a riding model and a mutual isotropic thermal parameter. Several highly disordered and partially occupied dichloromethane molecules were found in the crystal structure, and their contribution to the electron density map was calculated and removed from the final model using PLATON-SQUEEZE [51,52]. The structure was deposited at the CCDC (Cambridge Crystallographic Data Centre) and the deposition number is 2019839.
Further details on the data collection and refinement methods can be found in Table 2. The drawings were created with the Diamond program [53]. The Supplementary Crystallographic Data for this paper can be obtained free of charge from the Cambridge Crystallographic Data Centre via https://www.ccdc.cam.ac.uk/structures/.
The equilibrium geometries and the intermolecular binding energies (ΔE in kcal/mol) for different host–guest assemblies between the cryptand 4 and G1–G4 have been obtained at density functionaltheory level, using the Head–Gordon’s density functional with minimal Fock exchange, called the ωB97X [54] exchange-correlation functional, including the Grimme’s empirical dispersion correction with Becke–Johnson damping (D3BJ) [55,56], as well as the def2-TZVP [57] basis set, together with the def2/J [58] auxiliary basis, as it is implemented in the Orca program package [59,60].

3.2. Procedure for the Synthesis of Cryptand 4

A solution of 2,6-bis(bromomethyl)pyridine (78 mg, 0.294 mmol) and triphenol 5 (70 mg, 0.196 mmol) in tetrahydrofuran (5 mL) was added, dropwise and under stirring, to a mixture of potassium carbonate (270 mg, 1.96 mmol) and refluxing acetone (70 mL). The reflux of the solvent was continued overnight. After cooling to room temperature, water (50 mL) was added to the reaction mixture and the organic compounds were extracted with chloroform (3 × 25 mL). The crude product was washed with tetrahydrofuran (3 × 5 mL) to give pure cryptand 4 in 64% yields.
10,18,32,40,50,58-hexaoxa-2,4,24,26,45,63,66,71,76-nonaazatridecacyclo[25.17.2.6,92.19,222.28,312.41,442.46,492.59,621.1,51.12,161.25,291.34,381.52,56]octaheptaconta-1,3,5(45),6,8,12,14,16(71),19,21,23,25,27(63),28,30,34,36, 38(66),41,43,46,48,52,54,56(76),59,61,64,67,69,72,74,77-tricontaene 4
White solid, mp = 211–212 °C (decomposition), 1H NMR (600 MHz, DMSO-d6, ppm) δ 7.93 (t, J = 7.8 Hz, 3H), 7.90 (d, J = 8.8 Hz, 12H), 7.53 (d, J = 7.8 Hz, 6H), 6.81 (d, J = 8.8 Hz, 12H), 5.35 (s, 12H); 13C NMR (150 MHz, DMSO-d6, ppm) δ 169.56, 161.29, 156.04, 137.75, 129.52, 127.89, 121.78, 114.58, 69.32.
HRMS(APCI; Atmospheric pressure chemical ionization) calculated for C63H46N9O6 [M+H]+: 1024.3566; found:1024.3550

4. Conclusions

The structural investigations and theoretical calculations revealed significant stacking abilities for cryptand 4, which led to the formation in the crystal structure of two types of dimeric associations with a large contribution to the stability of the solid state structure. The theoretical calculations concerning the complexation of 4 with triphenols G1 and G2 and halogenated guests G3 and G4 showed the high stabilization of the complexes of cryptand 4 by aromatic–aromatic contacts, and no contributions by hydrogen or halogen bonds were observed. Despite the high stability of the investigated host–guest systems, there are huge energy barriers for the formation of these complexes, due to the deformation energy requested by the change of the shape of the cavity and its preparation for interaction with the guests. These high complexation barriers explain the failure of the NMR and ESI-MS investigations concerning the complexation abilities of cryptand 4.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/25/17/3789/s1, The atomic coordinates for the complexes 4-G1, 4-G2, 4-G3, and 4-G4 and the Checkcif file for our deposition, CCDC No 2019839.

Author Contributions

Conceptualization, methodology, validation, resources, funding acquisition, writing—review and editing, I.G., N.D.H., A.T.; supervision, I.G.; formal analysis and investigation, C.V.C. (synthesis, NMR, HRMS), A.S. (X-ray diffractometry), A.B. (theoretical calculations); writing—original draft preparation, C.V.C., A.S., A.B. Please turn to the CRediT taxonomy for the term explanations. Authorship must be limited to those who have contributed substantially to the work reported. All authors have read and agreed to the published version of the manuscript.

Funding

Financial support by the Romanian National Authority for Scientific Research and Innovation, CNCS-UEFISCDI, project number PN-II-ID-PCE-2012-4-0248, is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Steed, J.W.; Atwood, J.L. Supramolecular Chemistry, 2nd ed.; Wiley & Sons: New York, USA, 2009; pp. 23–24. [Google Scholar]
  2. Crisan, C.; Terec, A.; Hădade, N.D.; Grosu, I. Cryptands with 2,4,6-tris(p-phenylene)-1,3,5-triazine central units and oligoethyleneoxide bridges: Synthesis, structure and complexation abilities. Tetrahedron 2015, 71, 6888–6893. [Google Scholar] [CrossRef]
  3. Wang, Q.; Cheng, M.; Zhao, Y.; Yang, Z.; Jiang, J.; Wang, L.; Pan, Y. Redox-switchable host–guest systems based on a bisthiotetrathiafulvalene-bridged cryptand. Chem. Commun. 2014, 50, 15585–15588. [Google Scholar] [CrossRef]
  4. Delecluse, M.; Colomban, C.; Chatelet, B.; Chevallier-Michaud, S.; Moraleda, D.; Dutasta, J.-P.; Martinez, A. Highly Selective Fluoride Recognition by a Small Tris-Urea Covalent Cage. J. Org. Chem. 2020, 85, 4706–4711. [Google Scholar] [CrossRef]
  5. Zhang, R.; Hu, W.-J.; Liu, Y.A.; Zhao, X.-L.; Li, J.-S.; Jiang, B.; Wen, K. A Shape-Persistent Cryptand for Capturing Polycyclic Aromatic Hydrocarbons. J. Org. Chem. 2016, 81, 5649–5654. [Google Scholar] [CrossRef]
  6. Zhang, M.; Yan, X.; Huang, F.; Niu, Z.; Gibson, H.W. Stimuli-Responsive Host–Guest Systems Based on the Recognition of Cryptands by Organic Guests. Acc. Chem. Res. 2014, 47, 1995–2005. [Google Scholar] [CrossRef]
  7. Lar, C.; Woiczechowski-Pop, A.; Bende, A.; Grosu, I.G.; Miklášová, N.; Bogdan, E.; Hădade, N.D.; Terec, A.; Grosu, I. A three-armed cryptand with triazine and pyridine units: Synthesis, structure and complexation with polycyclic aromatic compounds. Beilstein J. Org. Chem. 2018, 14, 1370–1377. [Google Scholar] [CrossRef]
  8. Woiczechowski-Pop, A.; Gligor, D.; Bende, A.; Varodi, C.; Bogdan, E.; Terec, A.; Grosu, I. Synthesis, structure, electrochemical behaviour and electrochemical investigations on the assembling with pyrene of a novel C 3 cryptand. Supramol. Chem. 2015, 27, 52–58. [Google Scholar] [CrossRef]
  9. Dale, E.J.; Vermeulen, N.A.; Thomas, A.A.; Barnes, J.C.; Jurίček, M.; Blackburn, A.K.; Strutt, N.L.; Sarjeant, A.A.; Stern, C.L.; Denmark, S.E.; et al. ExCage. J. Am. Chem. Soc. 2014, 136, 10669–10682. [Google Scholar] [CrossRef]
  10. Mastalerz, M. Shape-Persistent Organic Cage Compounds by Dynamic Covalent Bond Formation. Angew. Chem. Int. Ed. 2010, 49, 5042–5053. [Google Scholar] [CrossRef]
  11. Sambasivan, S.; Kim, S.-G.; Choi, S.M.; Rhee, Y.M.; Ahn, K.H. C3-Symmetric Cage-like Receptors: Chiral Discrimination of α-Chiral Amines in a Confined Space. Org. Lett. 2010, 12, 4228–4231. [Google Scholar] [CrossRef]
  12. Gomez-Lor, B.; Hennrich, G.; Alonso, B.; Monge, A.; Gutierrez-Puebla, E.; Echavarren, A.M. A Redox-Active C3-Symmetric Triindole-Based Triazacyclophane. Angew. Chem. Int. Ed. 2006, 45, 4491–4494. [Google Scholar] [CrossRef]
  13. Greenaway, R.L.; Santolini, V.; Szczypiński, F.T.; Bennison, M.J.; Little, M.A.; Marsh, A.; Jelfs, K.E.; Cooper, A.I. Organic Cage Dumbbells. Chem. Eur. J. 2020, 26, 3718–3722. [Google Scholar] [CrossRef]
  14. Chakraborty, S.; Saha, S.; Lima, L.M.P.; Warzok, U.; Sarkar, S.; Akhuli, B.; Nandi, M.; Bej, S.; Adarsh, N.N.; Schalley, C.A.; et al. Polyamide–Polyamine Cryptand as Dicarboxylate Receptor: Dianion Binding Studies in the Solid State, in Solution, and in the Gas Phase. J. Org. Chem. 2017, 82, 10007–10014. [Google Scholar] [CrossRef]
  15. Naseer, M.M.; Wang, D.-X.; Zhao, L.; Huang, Z.-T.; Wang, M.-X. Synthesis and Functionalization of Heteroatom-Bridged Bicyclocalixaromatics, Large Molecular Triangular Prisms with Electron-Rich and -Deficient Aromatic Interiors. J. Org. Chem. 2011, 76, 1804–1813. [Google Scholar] [CrossRef]
  16. Morales-Sanfrutos, J.; Ortega-Muñoz, M.; Lopez-Jaramillo, J.; Hernandez-Mateo, F.; Santoyo-Gonzalez, F.; Lopez-Jaramillo, F.J. Synthesis of Molecular Nanocages by Click Chemistry. J. Org. Chem. 2008, 73, 7772–7774. [Google Scholar] [CrossRef]
  17. Pop, F.; Socaci, C.; Terec, A.; Condamine, E.; Varga, R.A.; Raţ, C.I.; Roncali, J.; Grosu, I. Cryptands and bismacrocycles with cyanuric and isocyanuric units: Synthesis and structural investigations. Tetrahedron 2012, 68, 8581–8588. [Google Scholar] [CrossRef] [Green Version]
  18. Ballester, P. Anion binding in covalent and self-assembled molecular capsules. Chem. Soc. Rev. 2010, 39, 3810–3830. [Google Scholar] [CrossRef]
  19. Kang, S.O.; Llinares, J.M.; Day, V.W.; Bowman-James, K. Cryptand-like anion receptors. Chem. Soc. Rev. 2010, 39, 3980–4003. [Google Scholar] [CrossRef]
  20. Stollenz, M.; Barbasiewicz, M.; Nawara-Hultzsch, A.J.; Fiedler, T.; Laddusaw, R.M.; Bhuvanesh, N.; Gladysz, J.A. Dibridge head Diphosphines that Turn Themselves Inside Out. Angew. Chem. Int. Ed. 2011, 50, 6647–6651. [Google Scholar] [CrossRef]
  21. Bauer, I.; Habicher, W.D. In, out-Isomerism of Phosphorus Bridgehead Cage Compounds. A Review. Collect. Czech. Chem. Commun. 2004, 69, 1195–1230. [Google Scholar] [CrossRef]
  22. Brotin, T.; Dutasta, J.-P. Cryptophanes and Their Complexes—Present and Future. Chem. Rev. 2009, 109, 88–130. [Google Scholar] [CrossRef] [PubMed]
  23. Holman, K.T.; Drake, S.D.; Steed, J.W.; Orr, G.W.; Atwood, J.L. Anion binding, aryl-extended cyclotriguaiacylenes and an aryl-bridged cryptophane that provides snapshots of a molecular gating mechanism. Supramol. Chem. 2010, 22, 870–890. [Google Scholar] [CrossRef]
  24. Li, M.-J.; Lai, C.-C.; Liu, Y.-H.; Peng, S.-M.; Chiu, S.-H. Two guest complexation modes in a cyclotriveratrylene-based molecular container. Chem. Commun. 2009, 39, 5814–5816. [Google Scholar] [CrossRef] [PubMed]
  25. Wei, P.; Wang, H.; Jie, K.; Huang, F. Taco complex-templated highly regio- and stereo-selective photodimerization of a coumarin-containing crown ether. Chem. Commun. 2017, 53, 1688–1691. [Google Scholar] [CrossRef]
  26. Cheng, M.; Yao, C.; Cao, Y.; Wang, Q.; Pan, Y.; Jiang, J.; Wang, L. 4-Methylcoumarin-bridged fluorescent responsive cryptand: From [2+2] photodimerization to supramolecular polymer. Chem. Commun. 2016, 52, 8715–8718. [Google Scholar] [CrossRef] [Green Version]
  27. Xu, Z.; Huang, X.; Liang, J.; Zhang, S.; Zhou, S.; Chen, M.; Tang, M.; Jiang, L. Efficient Syntheses of Novel Cryptands Based on Bis(m-phenylene)-26-crown-8 and Their Complexation with Paraquat. Eur. J. Org. Chem. 2010, 1904–1911. [Google Scholar] [CrossRef]
  28. Pascanu, V.; Cîrcu, M.; Socaci, C.; Terec, A.; Soran, A.; Grosu, I. Synthesis of cryptands with di-yne units via acetylenic homocoupling reactions of C3 tripodands. Tetrahedron Lett. 2013, 54, 6133–6136. [Google Scholar] [CrossRef]
  29. Otte, M.; Lutz, M.; Gebbink, R.J.M.K. Selective Synthesis of Hetero-Sequenced Aza-Cyclophanes. Eur. J. Org. Chem. 2017, 1657–1661. [Google Scholar] [CrossRef]
  30. Pederson, A.M.-P.; Price, T.L.; Slebodnick, C.; Schoonover, D.V.; Gibson, H.W. The Long and the Short of It: Regiospecific Syntheses of Isomers of Dicarbomethoxydibenzo-27-crown-9 and Binding Abilities of Their Pyridyl Cryptands. J. Org. Chem. 2017, 82, 8489–8496. [Google Scholar] [CrossRef]
  31. Price, T.L.; Wessels, H.R.; Slebodnick, C.; Gibson, H.W. High-Yielding Syntheses of Crown Ether-Based Pyridyl Cryptands. J. Org. Chem. 2017, 82, 8117–8122. [Google Scholar] [CrossRef]
  32. Kocher, L.; Durot, S.; Heitz, V. Control of the cavity size of flexible covalent cages by silver coordination to the peripheral binding sites. Chem. Commun. 2015, 51, 13181–13184. [Google Scholar] [CrossRef] [Green Version]
  33. Wang, L.; Wang, G.-T.; Zhao, X.; Jiang, X.-K.; Li, Z.-T. Hydrogen Bonding-Directed Quantitative Self-Assembly of Cyclotriveratrylene Capsules and Their Encapsulation of C60 and C70. J. Org. Chem. 2011, 76, 3531–3535. [Google Scholar] [CrossRef] [PubMed]
  34. Cîrcu, M.; Soran, A.; Hadade, N.D.; Rednic, M.; Terec, A.; Grosu, I. Cryptands with 1,3,5-Tris(1′,3′-dioxan-2′-yl)-benzene Units: Synthesis and Structural Investigations. J. Org. Chem. 2013, 78, 8722–8729. [Google Scholar] [CrossRef] [PubMed]
  35. Samanta, J.; Natarajan, R. Cofacial Organic Click Cage to Intercalate Polycyclic Aromatic Hydrocarbons. Org. Lett. 2016, 18, 3394–3397. [Google Scholar] [CrossRef] [PubMed]
  36. Prokhorov, A.M.; Kozhevnikov, D.N. Triazines, Tetrazines, and Fused Ring Polyaza Systems. Prog. Heterocycl. Chem. 2012, 24, 421–441. [Google Scholar]
  37. Soler-Illia, G.J.A.A.; Azzaroni, O. Multifunctional hybrids by combining ordered mesoporous materials and macromolecular building blocks. Chem. Soc. Rev. 2011, 40, 1107–1150. [Google Scholar] [CrossRef]
  38. Mintzer, M.A.; Grinstaff, M.W. Biomedical applications of dendrimers: A tutorial. Chem. Soc. Rev. 2011, 40, 173–190. [Google Scholar] [CrossRef]
  39. Dash, B.P.; Satapathy, R.; Maguire, J.A.; Hosmane, N.S. Facile Synthetic Routes to Phenylene and Triazine Core Based Dendritic Cobaltabisdicarbollides. Organometallics 2010, 29, 5230–5235. [Google Scholar] [CrossRef]
  40. Woiczechowski-Pop, A.; Dobra, I.L.; Roiban, G.D.; Terec, A.; Grosu, I. Synthesis and Structural Analysis of Some Podands with C3 Symmetry. Synth. Commun. 2012, 42, 3579–3588. [Google Scholar] [CrossRef]
  41. Cismaş, C.; Grosu, I.; Piron, F.; Oprea, C.; Terec, A.; Roncali, J. Synthesis of Podands with Cyanurate or Isocyanurate Cores and Terminal Triple Bonds. Synthesis 2010, 2010, 1639–1644. [Google Scholar] [CrossRef] [Green Version]
  42. Bogdan, E.; Hădade, N.D.; Terec, A.; Grosu, I. The 1,3-Dioxane Motif—A Useful Tool in Monitoring Molecular and Supramolecular Architectures. Tetrahedron Lett. 2016, 57, 2683–2691. [Google Scholar] [CrossRef]
  43. Medruţ, I.; Turdean, R.; Gropeanu, R.; Pop, F.; Toupet, L.; Hădade, N.D.; Bogdan, E.; Grosu, I. Macrocycles with a phenothiazine core: Synthesis, structural analysis, and electronic properties. Tetrahedron Lett. 2013, 54, 1107–1111. [Google Scholar] [CrossRef]
  44. Desiraju, G.R.; Steiner, T. The Weak Hydrogen Bond in Structural Chemistry and Biology; Oxford University Press: Oxford, UK, 1999; Volume 9, pp. 1–480. ISBN 0-19-850252-4. [Google Scholar]
  45. Hunter, C.A.; Sanders, J.K.M. The nature of π-π interactions. J. Am. Chem. Soc. 1990, 112, 5525–5534. [Google Scholar] [CrossRef]
  46. Janiak, C. A critical account on π–π stacking in metal complexes with aromatic nitrogen-containing ligands. J. Chem. Soc. Dalton Trans. 2000, 3885–3896. [Google Scholar] [CrossRef]
  47. Tsuzuki, S.; Uchimaru, T.; Mikami, M. Intermolecular Interaction between Hexafluorobenzene and Benzene: Ab Initio Calculations Including CCSD(T) Level Electron Correlation Correction. J. Phys. Chem. A 2006, 110, 2027–2033. [Google Scholar] [CrossRef] [PubMed]
  48. Bruker 2012: APEX3; Bruker AXS Inc.: Madison, WI, USA, 2012.
  49. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. A Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  50. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  51. Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. Sect. D Boil. Crystallogr. 2009, 65, 148–155. [Google Scholar] [CrossRef]
  52. Spek, A.L. PLATON SQUEEZE: A tool for the calculation of the disordered solvent contribution to the calculated structure factors. Acta Crystallogr. C 2015, 71, 9–18. [Google Scholar] [CrossRef] [Green Version]
  53. DIAMOND—Crystal and Molecular Structure Visualization; Crystal Impact; Kreuzherrenstr: Bonn, Germany, 2018.
  54. Chai, J.-D.; Head-Gordon, M. Systematic optimization of long-range corrected hybrid density functionals. J. Chem. Phys. 2008, 128, 84106. [Google Scholar] [CrossRef]
  55. Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 2011, 32, 1456–1465. [Google Scholar] [CrossRef] [PubMed]
  56. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef] [PubMed]
  58. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef]
  59. Neese, F. The ORCA program system. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2011, 2, 73–78. [Google Scholar] [CrossRef]
  60. Neese, F. Software update: The ORCA program system, version 4.0. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2017, 8, e1327. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available.
Molecules 25 03789 sch001 550

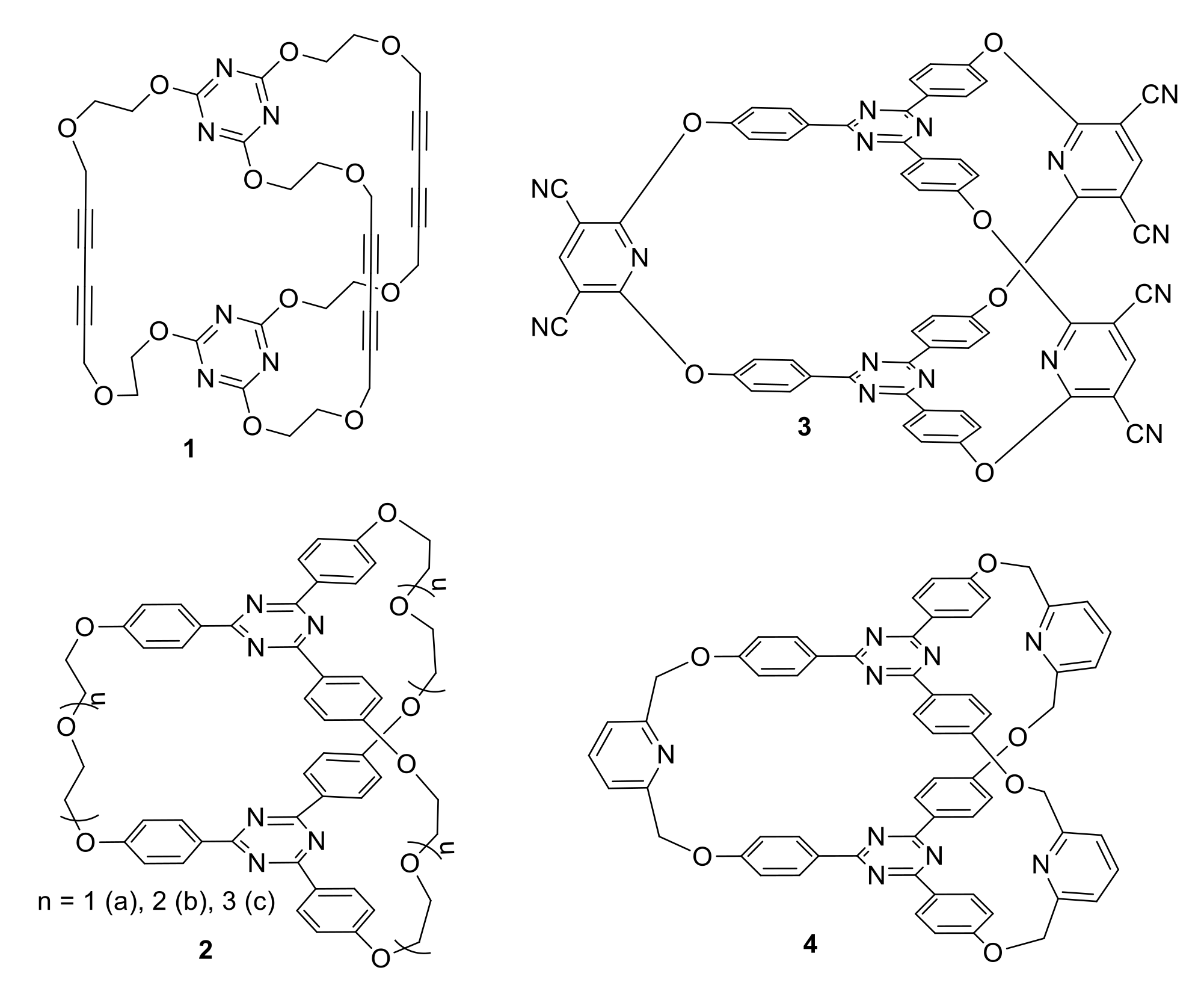

Scheme 1. Reference (1–3) and target (4) cryptands.
Scheme 1. Reference (1–3) and target (4) cryptands.
Molecules 25 03789 sch001
Molecules 25 03789 sch002 550

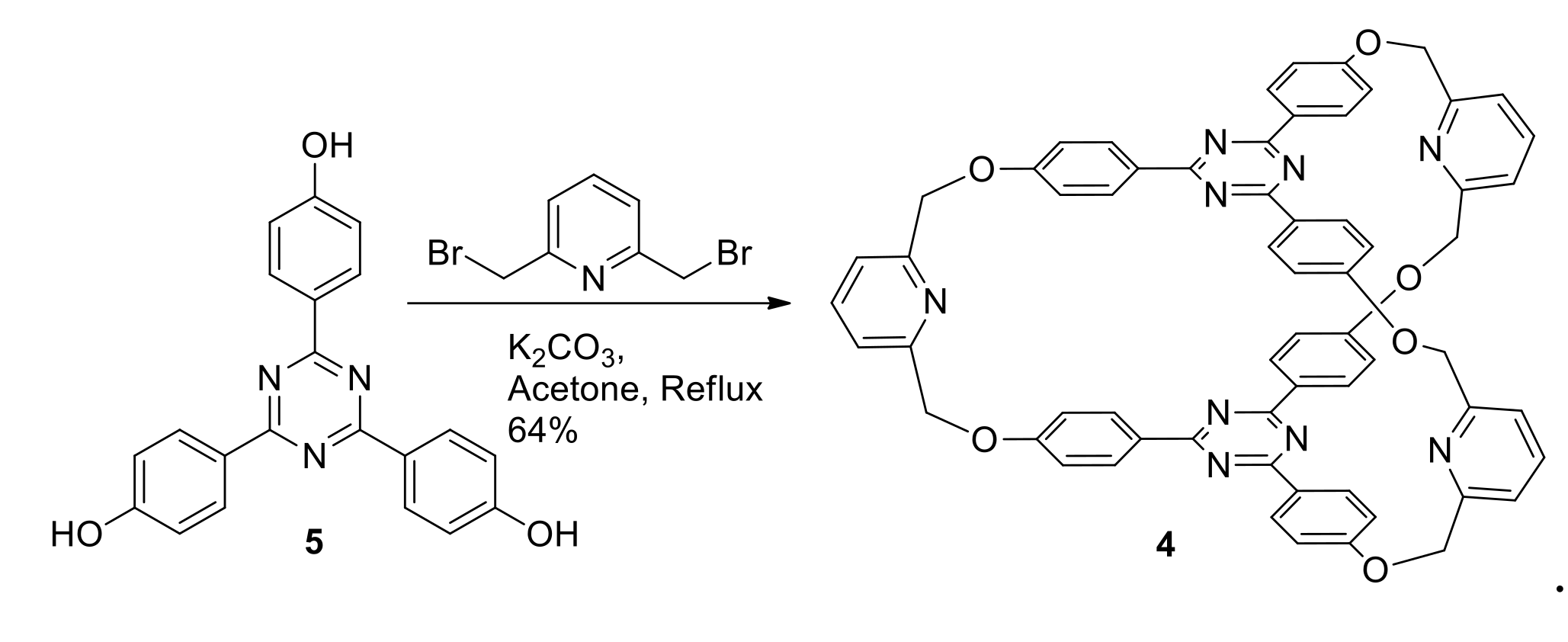

Scheme 2. Synthesis of cryptand 4.
Scheme 2. Synthesis of cryptand 4.
Molecules 25 03789 sch002
Molecules 25 03789 g001 550

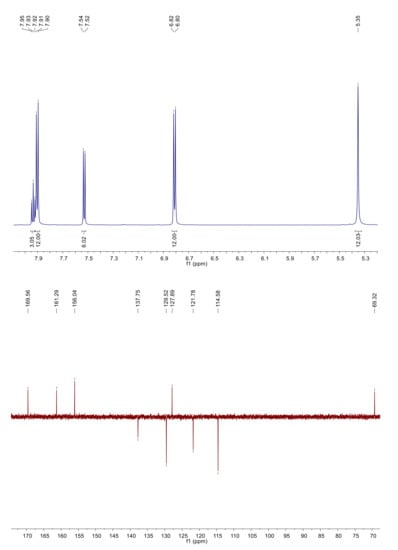

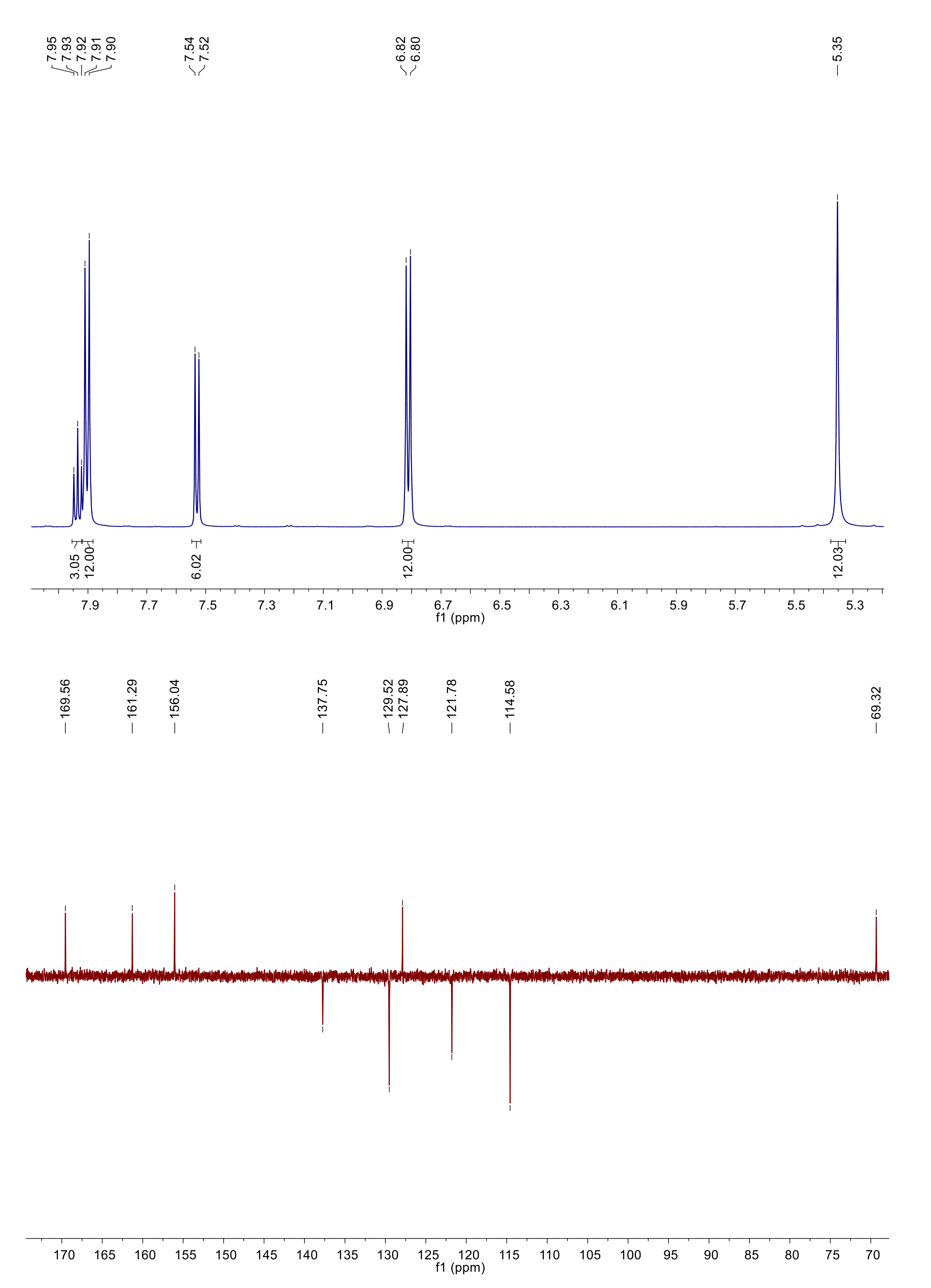

Figure 1. 1H (top) and 13C (bottom) NMR spectra (DMSO (dimethylsulfoxide)-d6, 600 MHz (1H); 150 MHz (13C)) of 4.
Figure 1. 1H (top) and 13C (bottom) NMR spectra (DMSO (dimethylsulfoxide)-d6, 600 MHz (1H); 150 MHz (13C)) of 4.
Molecules 25 03789 g001
Molecules 25 03789 g002 550

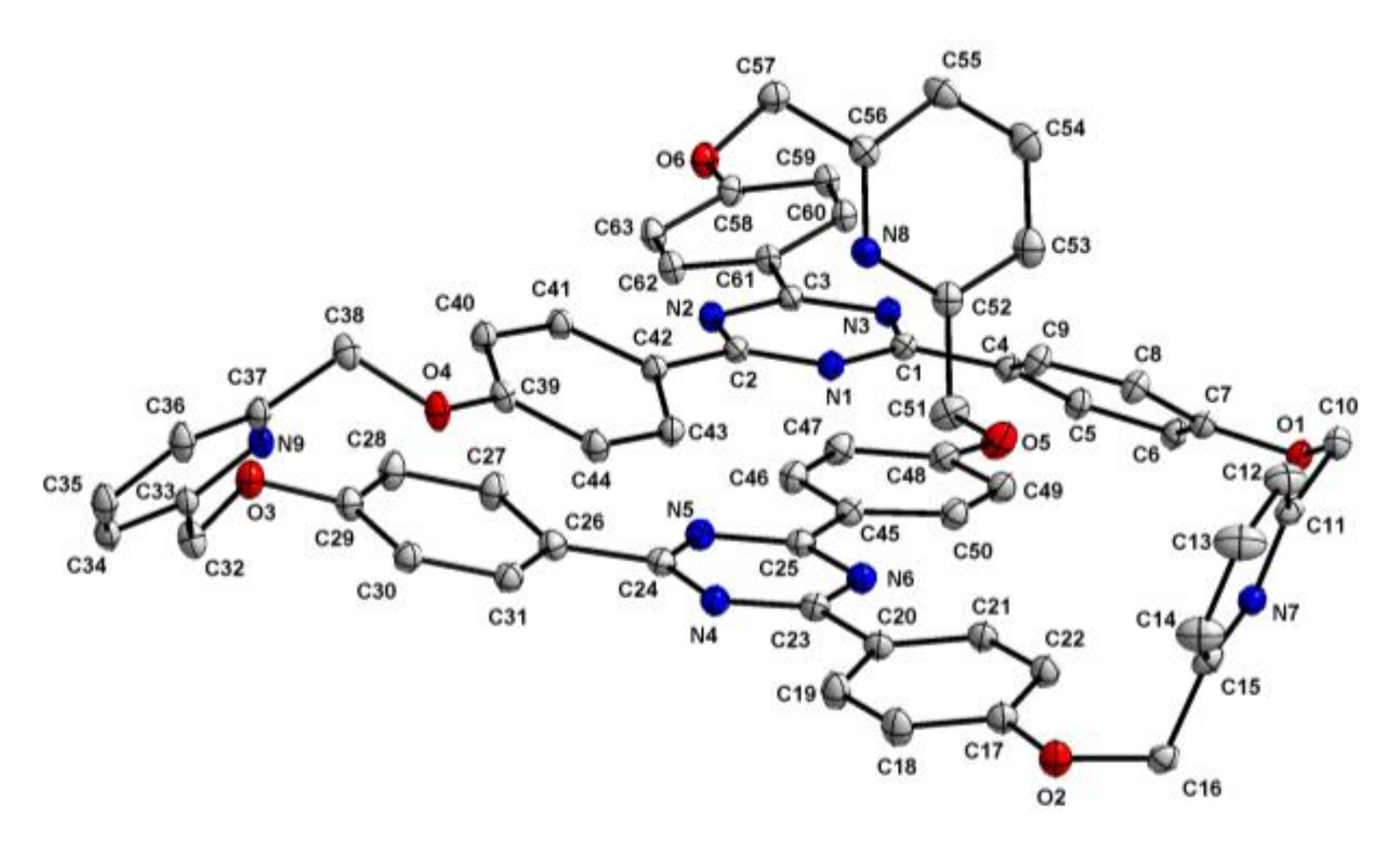

Figure 2. View of the asymmetric unit in the crystal of 4, shown with 40% probability ellipsoids (hydrogen atoms are omitted for clarity).
Figure 2. View of the asymmetric unit in the crystal of 4, shown with 40% probability ellipsoids (hydrogen atoms are omitted for clarity).
Molecules 25 03789 g002
Molecules 25 03789 g003 550

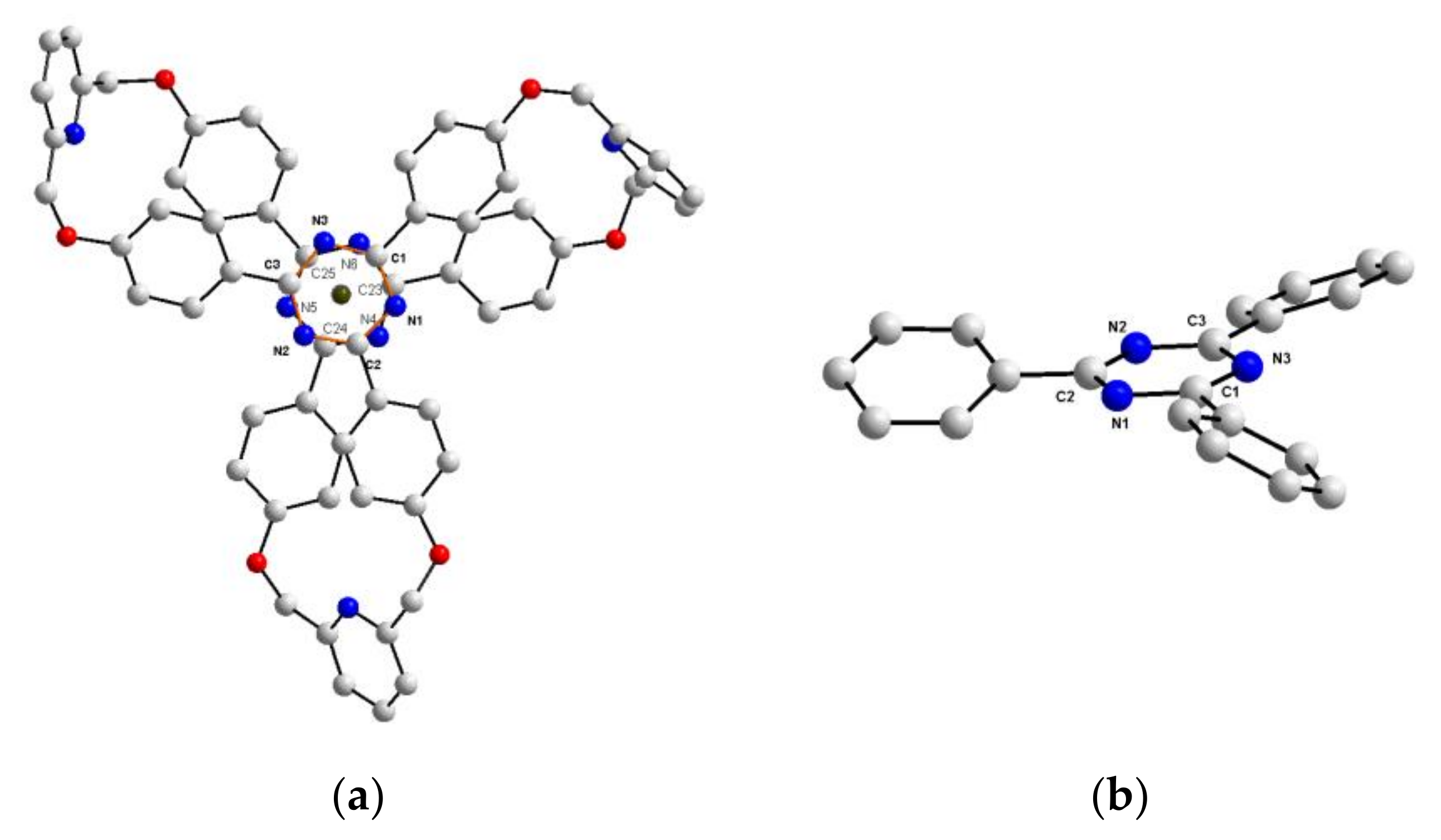

Figure 3. (a) View of the asymmetric unit in the crystal of 4 showing the arrangement of the 1,3,5-triazine units; (b) Fragment showing the propeller-like arrangement of the p-phenylene rings attached to one of the 1,3,5-triazine units.
Figure 3. (a) View of the asymmetric unit in the crystal of 4 showing the arrangement of the 1,3,5-triazine units; (b) Fragment showing the propeller-like arrangement of the p-phenylene rings attached to one of the 1,3,5-triazine units.
Molecules 25 03789 g003
Molecules 25 03789 g004 550

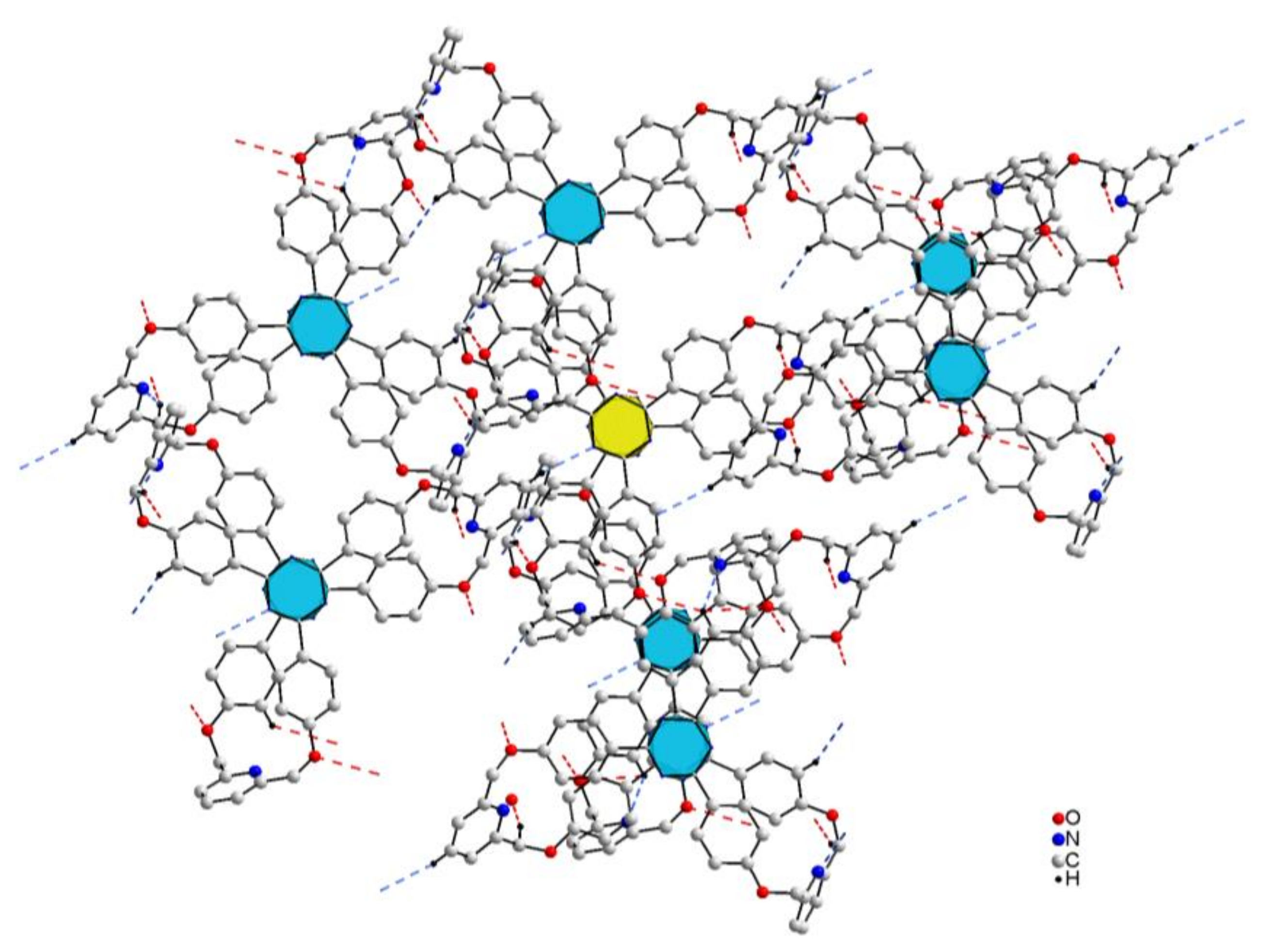

Figure 4. Intermolecular associations through C−H···O (red dotted lines) and C−H···N (blue dotted lines) hydrogen interactions in the crystal of 4. The central core of each molecule (the two 1,3,5-triazine units) is depicted with a polyhedral design (the yellow polyhedron corresponds to the molecule in the asymmetric unit).
Figure 4. Intermolecular associations through C−H···O (red dotted lines) and C−H···N (blue dotted lines) hydrogen interactions in the crystal of 4. The central core of each molecule (the two 1,3,5-triazine units) is depicted with a polyhedral design (the yellow polyhedron corresponds to the molecule in the asymmetric unit).
Molecules 25 03789 g004
Molecules 25 03789 g005 550

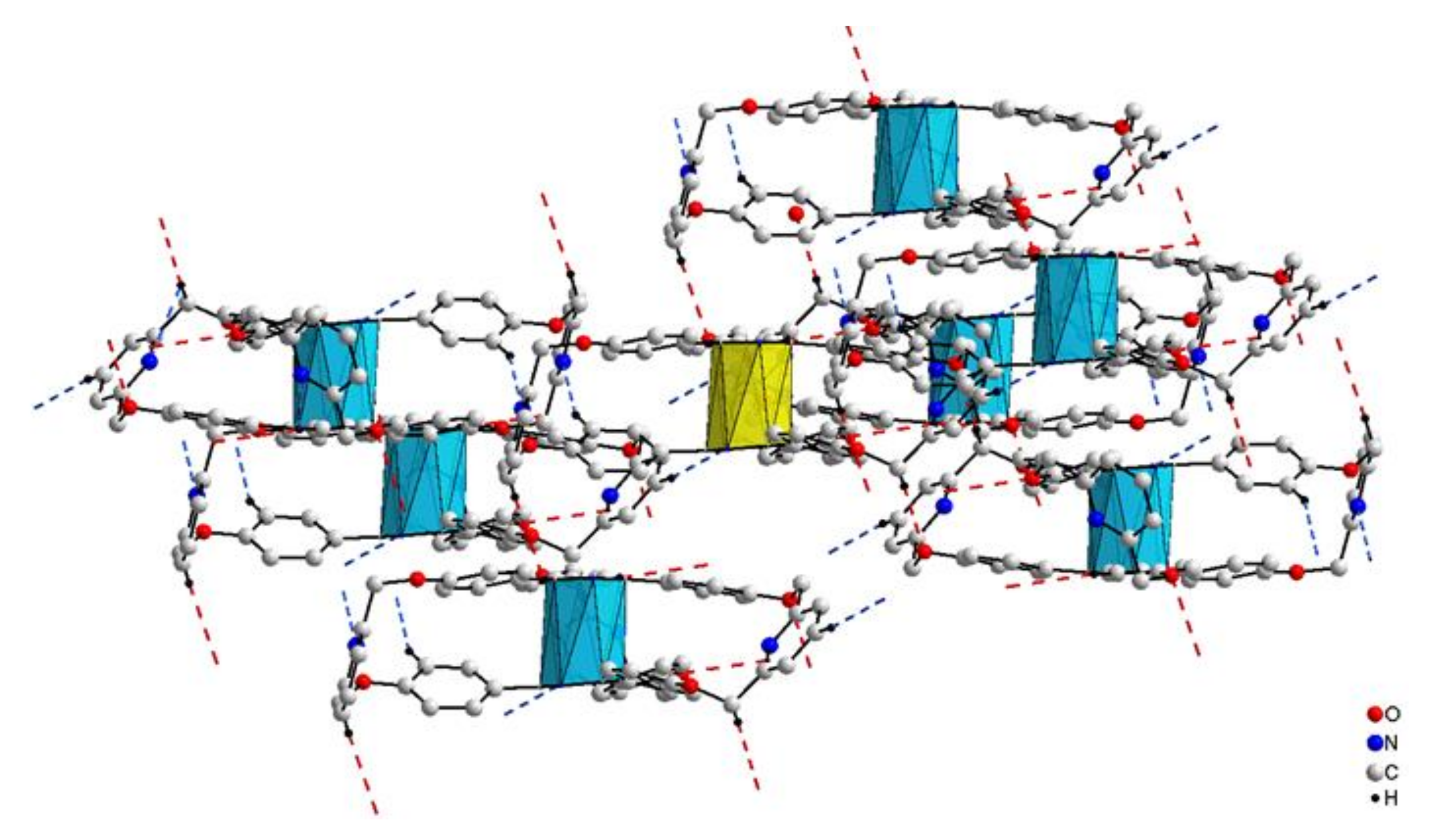

Figure 5. Sideview, showing the intermolecular associations through C−H···O (red dotted lines) and C−H···N (blue dotted lines) hydrogen interactions in the crystal of 4.
Figure 5. Sideview, showing the intermolecular associations through C−H···O (red dotted lines) and C−H···N (blue dotted lines) hydrogen interactions in the crystal of 4.
Molecules 25 03789 g005
Molecules 25 03789 g006 550

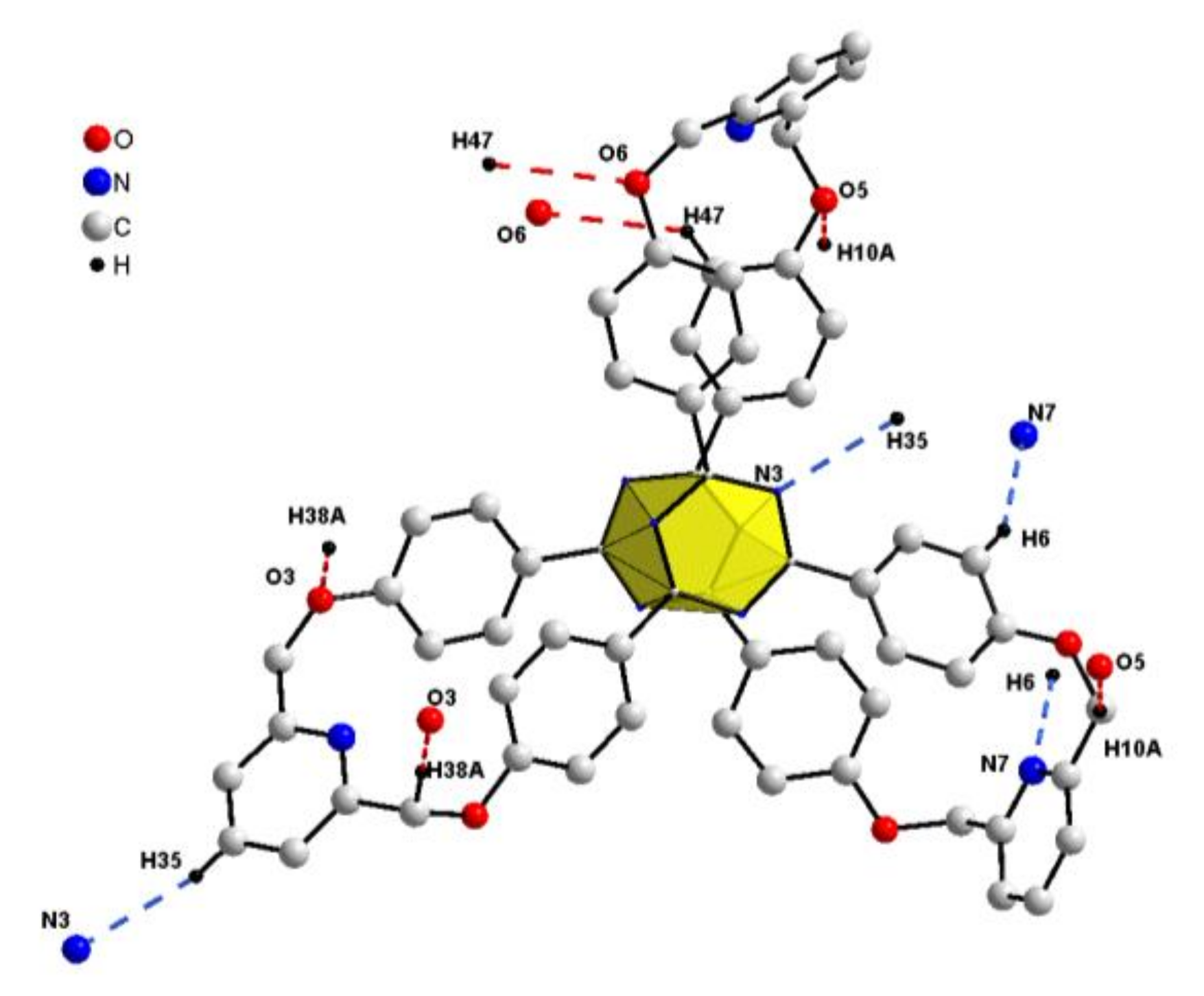

Figure 6. Detail, showing the C−H···O (red dotted lines) and C−H···N (blue dotted lines) hydrogen interactions on each molecule.
Figure 6. Detail, showing the C−H···O (red dotted lines) and C−H···N (blue dotted lines) hydrogen interactions on each molecule.
Molecules 25 03789 g006
Molecules 25 03789 g007 550

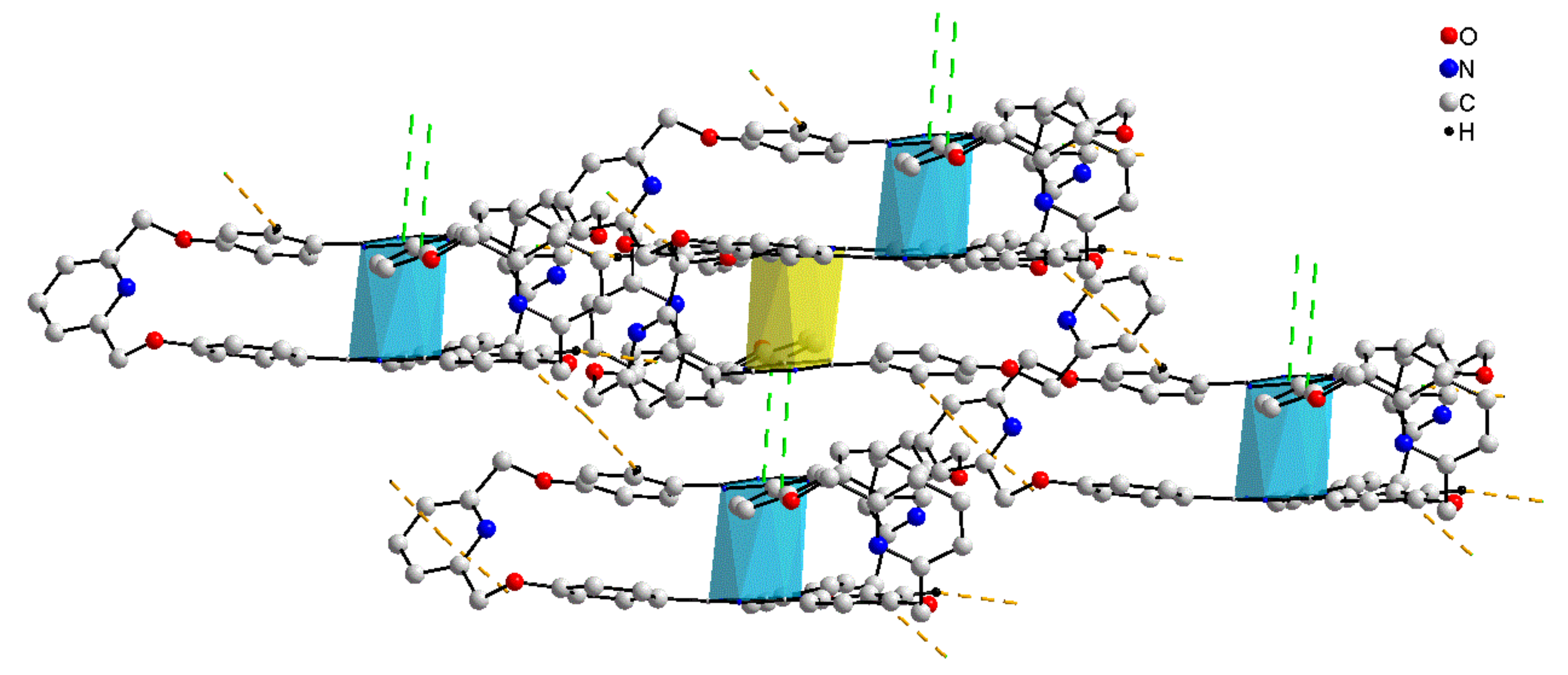

Figure 7. Intermolecular associations through C−H···π (orange dotted lines) and π···π (green dotted lines) interactions in the crystal of 4. The central core of each molecule (the two 1,3,5-triazine units) is depicted with a polyhedral design (the yellow polyhedron corresponds to the molecule in the asymmetric unit).
Figure 7. Intermolecular associations through C−H···π (orange dotted lines) and π···π (green dotted lines) interactions in the crystal of 4. The central core of each molecule (the two 1,3,5-triazine units) is depicted with a polyhedral design (the yellow polyhedron corresponds to the molecule in the asymmetric unit).
Molecules 25 03789 g007
Molecules 25 03789 g008 550

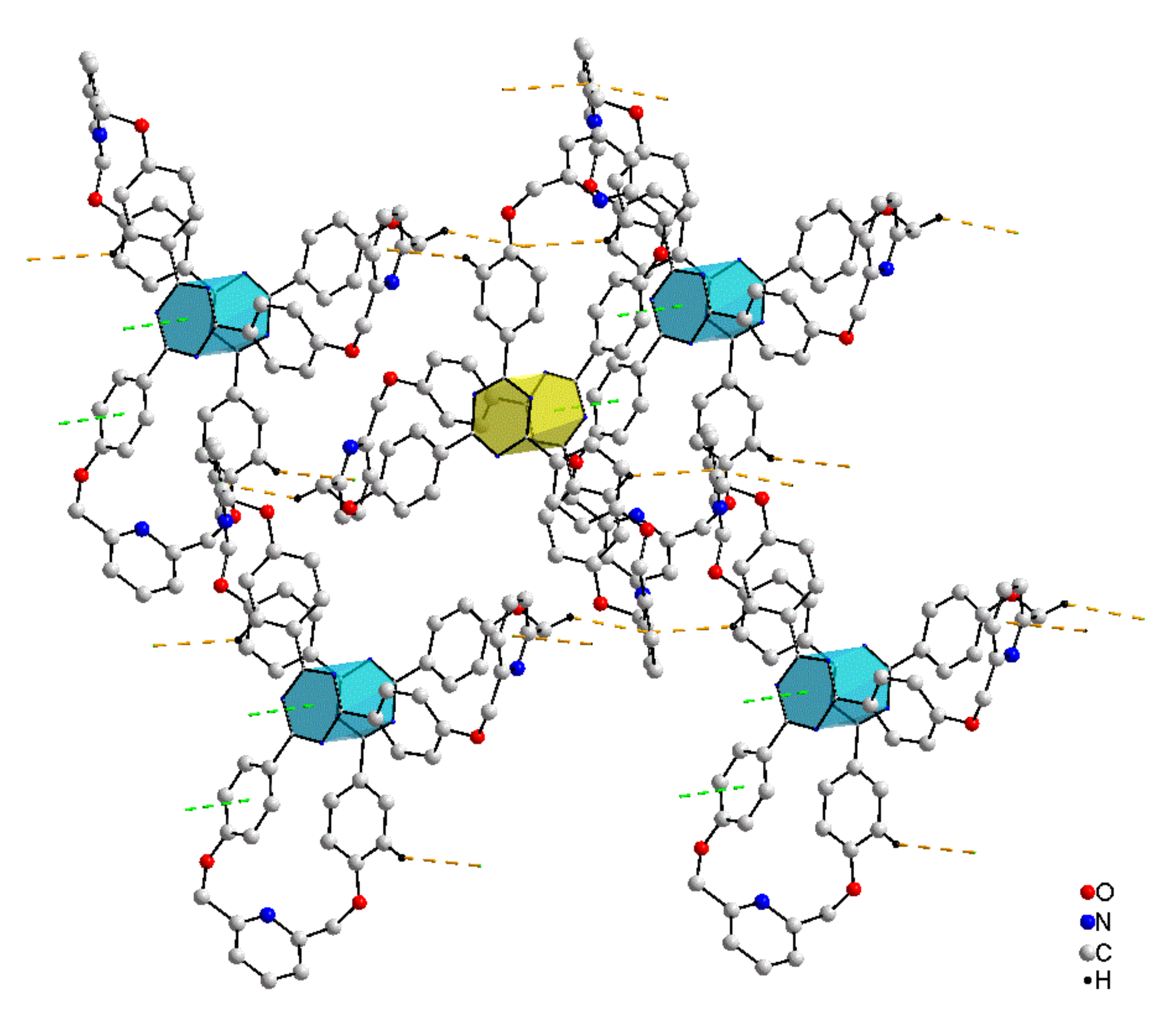

Figure 8. Intermolecular associations through C−H···π (orange dotted lines) and π···π (green dotted lines) interactions in the crystal of 4.
Figure 8. Intermolecular associations through C−H···π (orange dotted lines) and π···π (green dotted lines) interactions in the crystal of 4.
Molecules 25 03789 g008
Molecules 25 03789 g009 550

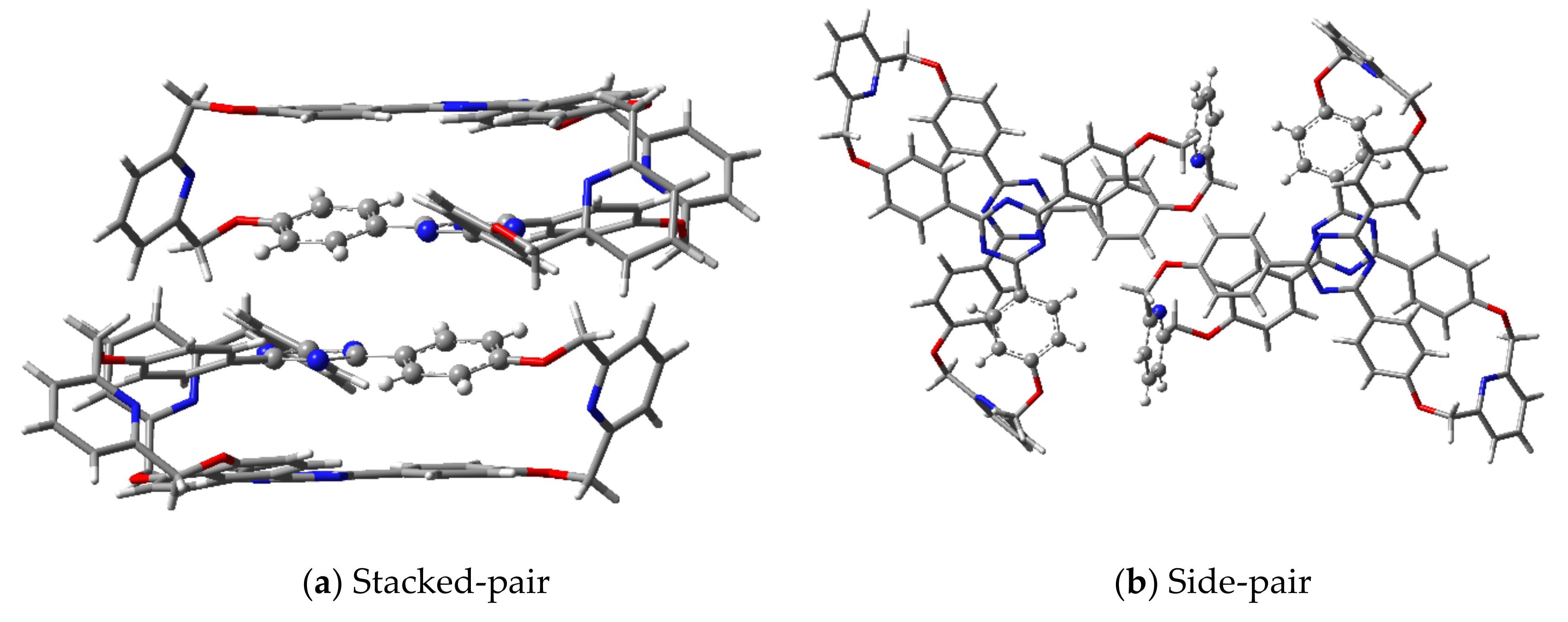

Figure 9. Stacked (a) and side (b) pairs of cryptand4 in the crystal cell unit.
Figure 9. Stacked (a) and side (b) pairs of cryptand4 in the crystal cell unit.
Molecules 25 03789 g009
Molecules 25 03789 g010 550

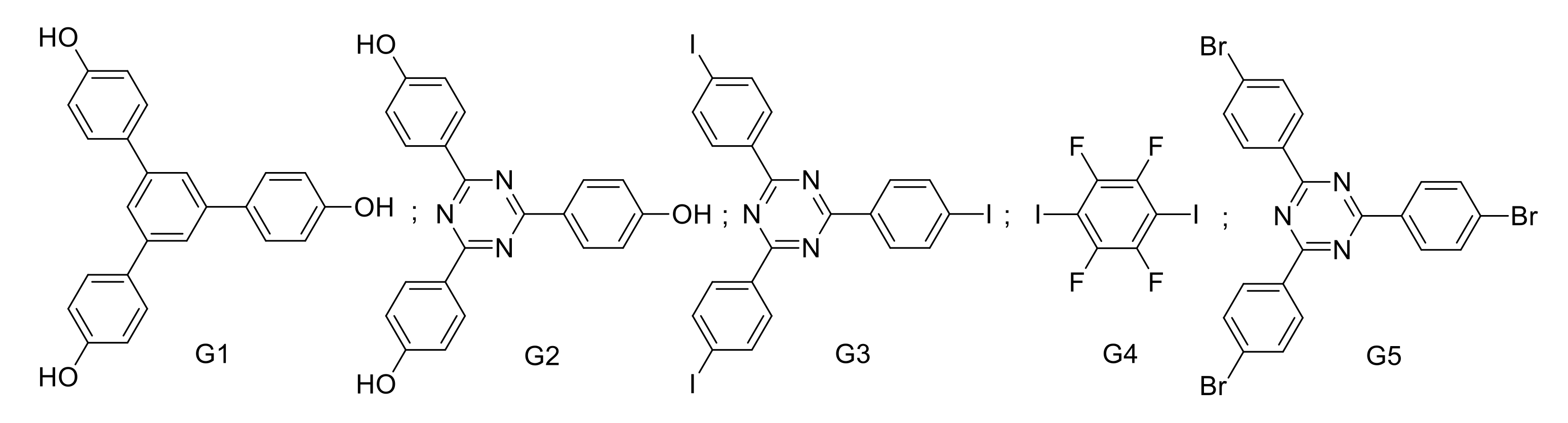

Figure 10. Structure of the investigated guests (G1-G5) proposed for cryptand 4 as a host (G1–G4 theoretical calculations, G1, G2, and G5 in ESI (electrospray ionization)-MS and NMR experiments).
Figure 10. Structure of the investigated guests (G1-G5) proposed for cryptand 4 as a host (G1–G4 theoretical calculations, G1, G2, and G5 in ESI (electrospray ionization)-MS and NMR experiments).
Molecules 25 03789 g010
Molecules 25 03789 g011a 550Molecules 25 03789 g011b 550

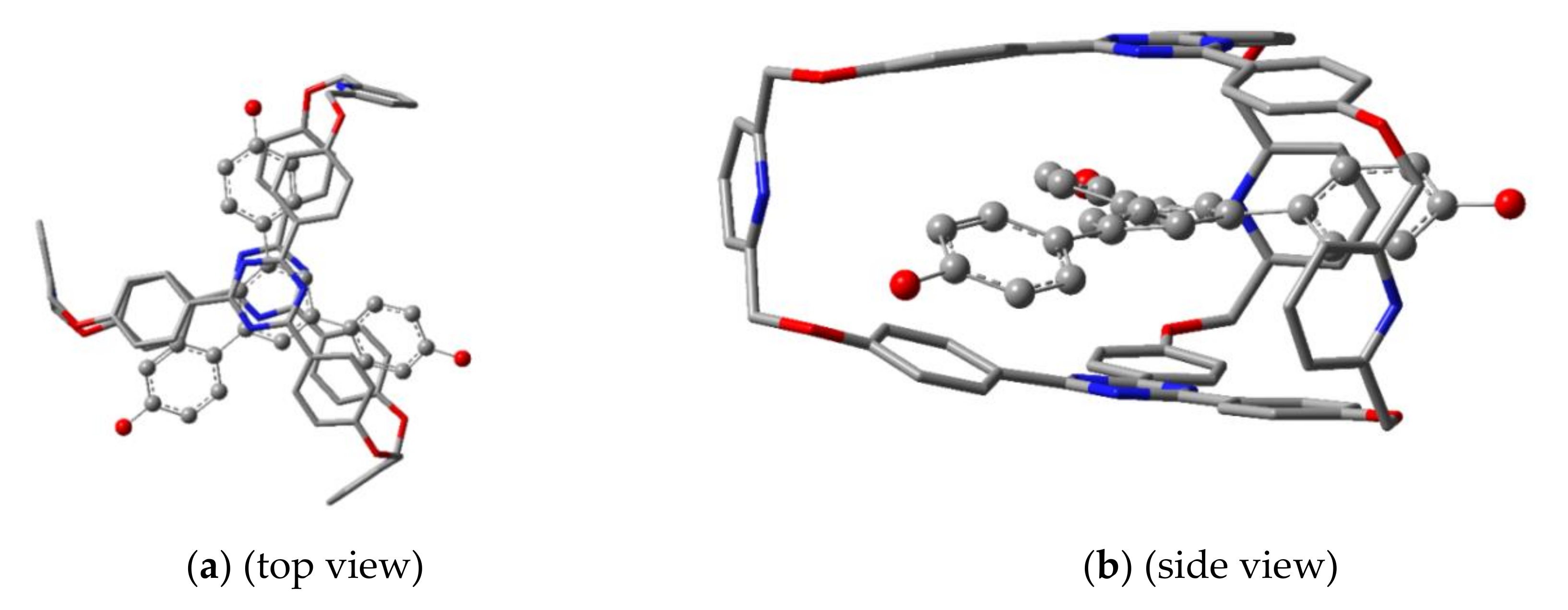

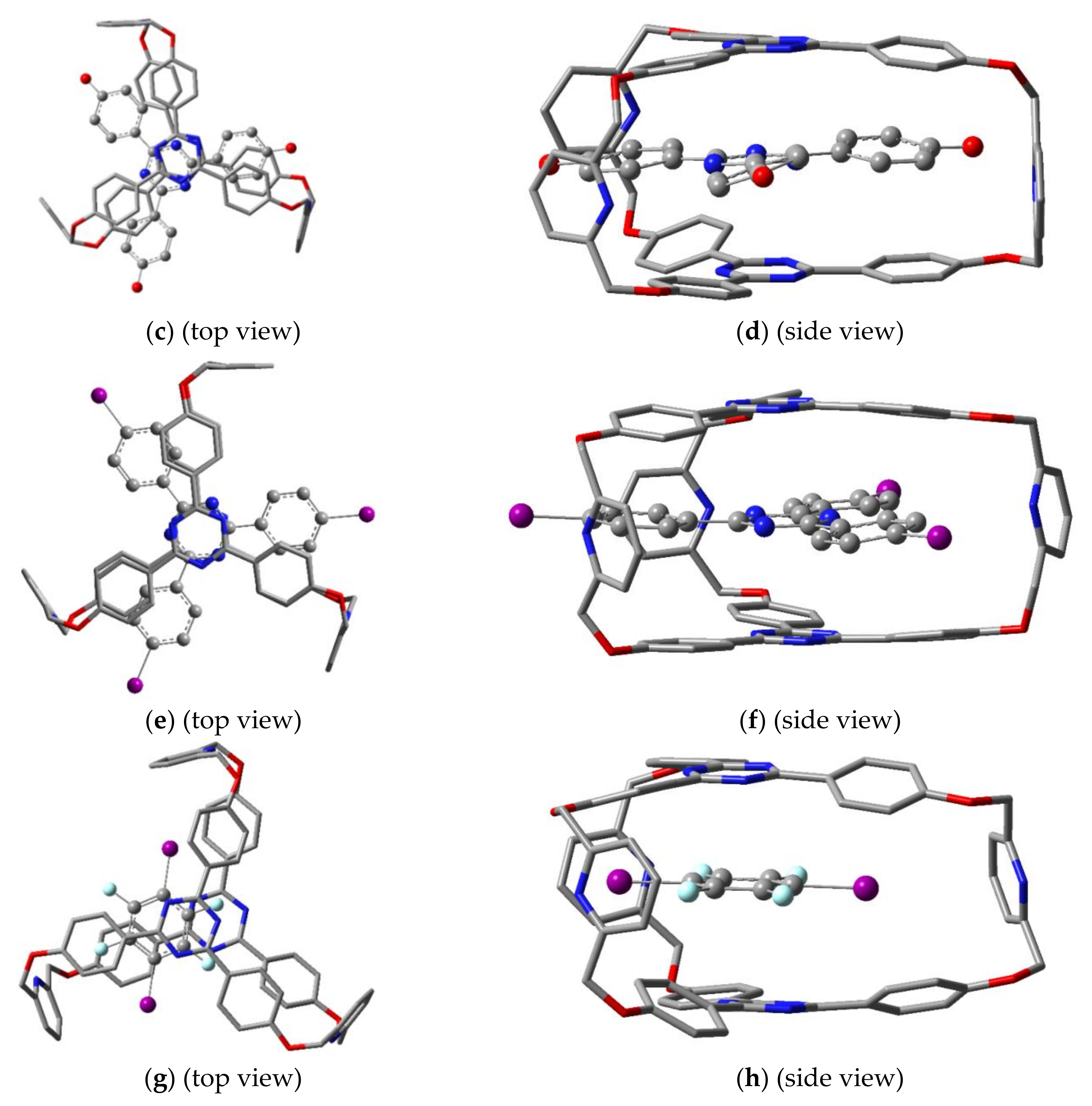

Figure 11. Representations of the host–guest complexes formed by cryptand 4 with the guests G1 (a,b), G2 (c,d), G3 (e,f), and G4 (g,h).
Figure 11. Representations of the host–guest complexes formed by cryptand 4 with the guests G1 (a,b), G2 (c,d), G3 (e,f), and G4 (g,h).
Molecules 25 03789 g011aMolecules 25 03789 g011b
Table

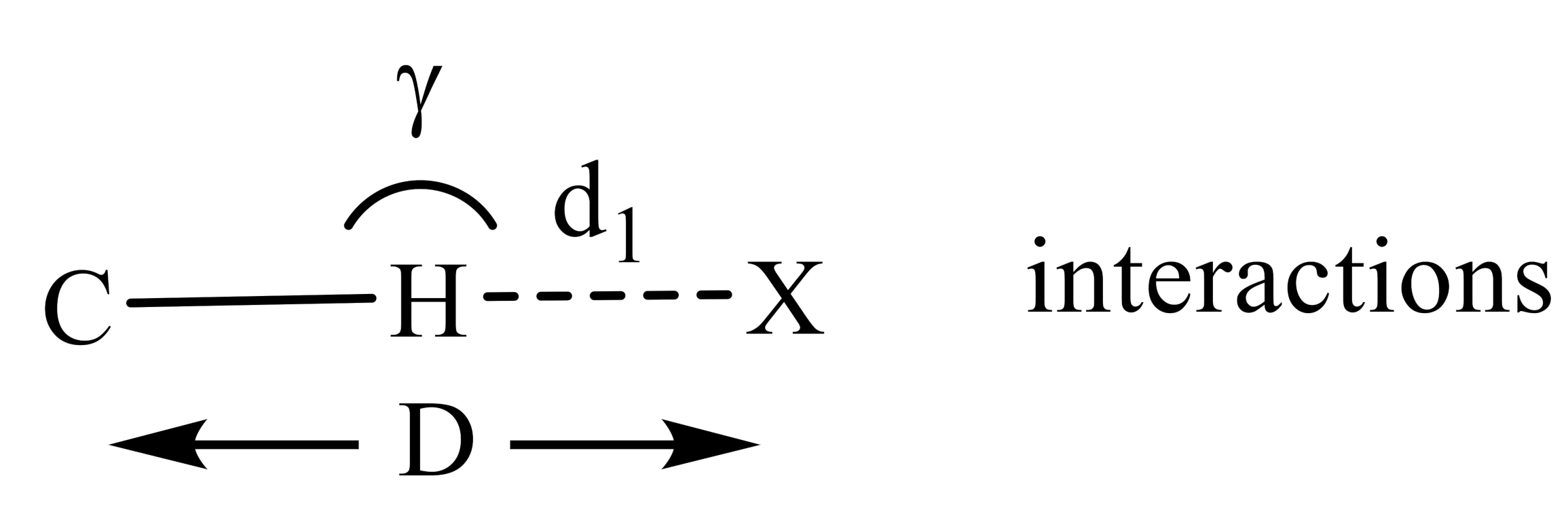

Table 1. Intermolecular contacts for compound 4.
Table 1. Intermolecular contacts for compound 4.
Molecules 25 03789 i001 Molecules 25 03789 i002
C−H····X d1 (Å)γ (°)D (Å)
C10−H10A····O5a 2.83(1)160.7(1)3.78(1)
C38−H38A····O3b 2.45(1)154.0(1)3.36(1)
C47−H47····O6c 2.80(1)133,0(1)3,51(1)
C6−H6····N7d 2.45(1)155,2(1)3.33(1)
C35−H35····N3e 2.68(1)165.2(1)3.60(1)
C−H····π interactions
C−H····planelateral shift, d0 (Å)Dpln (Å)α (°)βpln(°)
C16−H16B····C(33-37)N9f0.902.5818.3(1)-
C41−H41····C(33-37)N9b0.252.8841.2(1)69.3(1)
C49−H49····C(11-15)N7d0.372.9928.5(1)72.9(1)
π····π interactions
plane····plane-d (Å)-βpln(°)
C(1-3)N(1-3)····C(58-63)g 3.60(1) 16.8(1)
Symmetry equivalent atoms are given by: a 1 + x, y, z; b 1 − x, −y, 2 − z; c –x, 1 − y, 2 − z; d 1 − x, 1 − y, 1 − z; e x, −1 + y, z; f 1 − x, −y, 1 − z; g 1 − x, 1 − y, 2 − z.
Table
Table 2. Crystal data and structure refinement for compound 4.
Table 2. Crystal data and structure refinement for compound 4.
Compound4
Empirical formulaC63H45N9O6
Formula weight1024.08
Crystal size (mm)0.147 × 0.136 × 0.126
Crystal habitcolorless-yellow block
Wavelength (Å)0.71073
Temperature (K)103.(2)
Crystal systemTriclinic
Space groupP-1
a (Å)11.4981(6)
b (Å)15.6040(9)
c (Å)17.0964(9)
α (°)108.841(2)
β (°)105.346(2)
γ (°)91.215(2)
Volume(Å3)2780.3(3)
Z2
Density (calculated) (g cm−1)1.223
Absorption coefficient(mm−1)0.081
F(000)1068
θ range for data collection (°)2.18–28.26
Tmax/Tmin0.99/0.97
Reflections collected188,523
Independent reflections, Rint13,743; 0.0292
Completeness to θ = 28.26°99.8 %
Refinement methodFull-matrix least-squares on F2
Data/restraints/parameters13,743/0/706
Goodness-of-fit on F21.053
Final R indices [I > 2σ(I)]R1 = 0.0351
wR2= 0.0822
R indices (all data)R1 = 0.0382
wR2 = 0.0845
Largest diff. peak and hole, eA−30.326, −0.189
CCDC No.2019839

Share and Cite

MDPI and ACS Style

Crişan, C.V.; Soran, A.; Bende, A.; Hӑdade, N.D.; Terec, A.; Grosu, I. Synthesis, Structure and Supramolecular Properties of a Novel C3 Cryptand with Pyridine Units in the Bridges. Molecules 2020, 25, 3789. https://doi.org/10.3390/molecules25173789

AMA Style

Crişan CV, Soran A, Bende A, Hӑdade ND, Terec A, Grosu I. Synthesis, Structure and Supramolecular Properties of a Novel C3 Cryptand with Pyridine Units in the Bridges. Molecules. 2020; 25(17):3789. https://doi.org/10.3390/molecules25173789

Chicago/Turabian Style

Crişan, Cosmin Vasile, Albert Soran, Attila Bende, Niculina Daniela Hӑdade, Anamaria Terec, and Ion Grosu. 2020. "Synthesis, Structure and Supramolecular Properties of a Novel C3 Cryptand with Pyridine Units in the Bridges" Molecules 25, no. 17: 3789. https://doi.org/10.3390/molecules25173789

APA Style

Crişan, C. V., Soran, A., Bende, A., Hӑdade, N. D., Terec, A., & Grosu, I. (2020). Synthesis, Structure and Supramolecular Properties of a Novel C3 Cryptand with Pyridine Units in the Bridges. Molecules, 25(17), 3789. https://doi.org/10.3390/molecules25173789

Article Metrics

Back to TopTop
