Design, Synthesis and Biological Investigation of Flavone Derivatives as Potential Multi-Receptor Atypical Antipsychotics

Abstract

The design of a series of novel flavone derivatives was synthesized as potential broad-spectrum antipsychotics by using multi-receptor affinity strategy between dopamine receptors and serotonin receptors. Among them, 7-(4-(4-(6-fluorobenzo[d]isoxazol-3-yl) piperidin- 1-yl) butoxy)-2,2-dimethylchroman-4-one (6j) exhibited a promising preclinical profile. Compound 6j not only showed high affinity for dopamine D₂, D₃, and serotonin 5-HT_1A, 5-HT_2A receptors, but was also endowed with low to moderate activities on 5-HT_2C, α₁, and H₁ receptors, indicating a low liability to induce side effects such as weight gain, orthostatic hypotension and QT prolongation. In vivo behavioral studies suggested that 6j has favorable effects in alleviating the schizophrenia-like symptoms without causing catalepsy. Taken together, compound 6j has the potential to be further developed as a novel atypical antipsychotic.

1. Introduction

Schizophrenia is a severe neuropsychiatric disorder that affects over 1% of the world’s population [1]. The clinical symptoms of schizophrenia are categorized into three general types, including positive, negative, and cognitive symptoms [2]. Currently, antipsychotics are the mainstay in schizophrenia treatment. For example, the first-generation antipsychotics (FGAs), namely typical antipsychotics including chlorpromazine and haloperidol, are all dopamine D₂ receptor antagonists and effective for the treatment of positive symptoms, but invalid for the negative symptoms and cognitive impairment [3,4]. However, the strong antagonism of D₂ receptor results in serious side effects such as extrapyramidal symptoms (EPS), hyperprolactinemia, and cognitive impairments [5]. The second-generation antipsychotics (SGAs), also known as atypical antipsychotics, including clozapine [6], and risperidone [7], have antagonistic action on both dopamine and serotonin receptors, especially with high affinity for 5-HT_1A and 5-HT_2A receptors, which contributes to various kinds of therapeutic advantages, such as fewer EPSs than FGAs [8]. However, the SGAs also produce many adverse metabolic and cardiovascular effects [9], such as weight gain, hyperprolactinemia, constipation, QT prolongation, and also show limited effects on negative symptoms and cognitive impairments [10,11]. Fortunately, these defects could be avoided by developing a multi-receptor ligand with a “selective” multi-receptor profile which can precisely modulates several specific targets to get a better effect and safety in the therapy of schizophrenia [12,13].

To verify this multi-receptor affinity strategy, we have previously developed several novel potential antipsychotics, such as compounds 1 and 2 shown in Figure 1, both of which could significantly alleviate the positive symptoms of schizophrenia, are associated with lower weight gain and lower prolactin levels, and have obvious therapeutic effects. In order to obtain versatile molecules with better therapeutic effects and less side effects, in this paper, a series of new compounds was designed and synthesized by means of a polypharmacological strategy and molecular hybridization method on the basis of our previous research [14,15]. The design concept of new compounds as shown in Figure 1, where the general structure contains a flavone-like moiety, a heterocyclic or arylpiperazine (piperidine) moiety and a flexible linker. By optimizing the combination of the benzocaprolactam fragment of brexpiprazole and the coumarin derivative scaffolds of compounds 1 and 2, they were transformed into a flavone-like fragment. The choice of heterocyclic or arylpiperazine (piperidine) originates from the commercial atypical antipsychotics [16], such as risperidone, brexpiprazole, aripiprazole. The linker flexibility of the new compounds also be evaluated as our previous SAR studies have proved it to play an important role in modulating the receptor function profiles [14,15,17].

Among these derivatives, compound 6j [7-(4-(4-(6-fluorobenzo[d]isoxazol-3-yl) iperidin-1-yl) butoxy)-2,2-dimethylchroman-4-one] exhibited a favorable polypharmacological antipsychotic profile. In vitro, it showed much higher potency for the desired targets (D₂, 5-HT_1A, 5-HT_2A, and D₃) than other off-target receptors (5-HT_2C, α₁, and H₁). Further in vivo behavioral studies suggested that it has favorable effects in alleviating schizophrenia-like symptoms without causing catalepsy and a low liability to induce side-effects. Thus, compound 6j has the potential to be developed as a novel atypical antipsychotic candidate to treat schizophrenia.

2. Results and Discussion

2.1. Chemistry

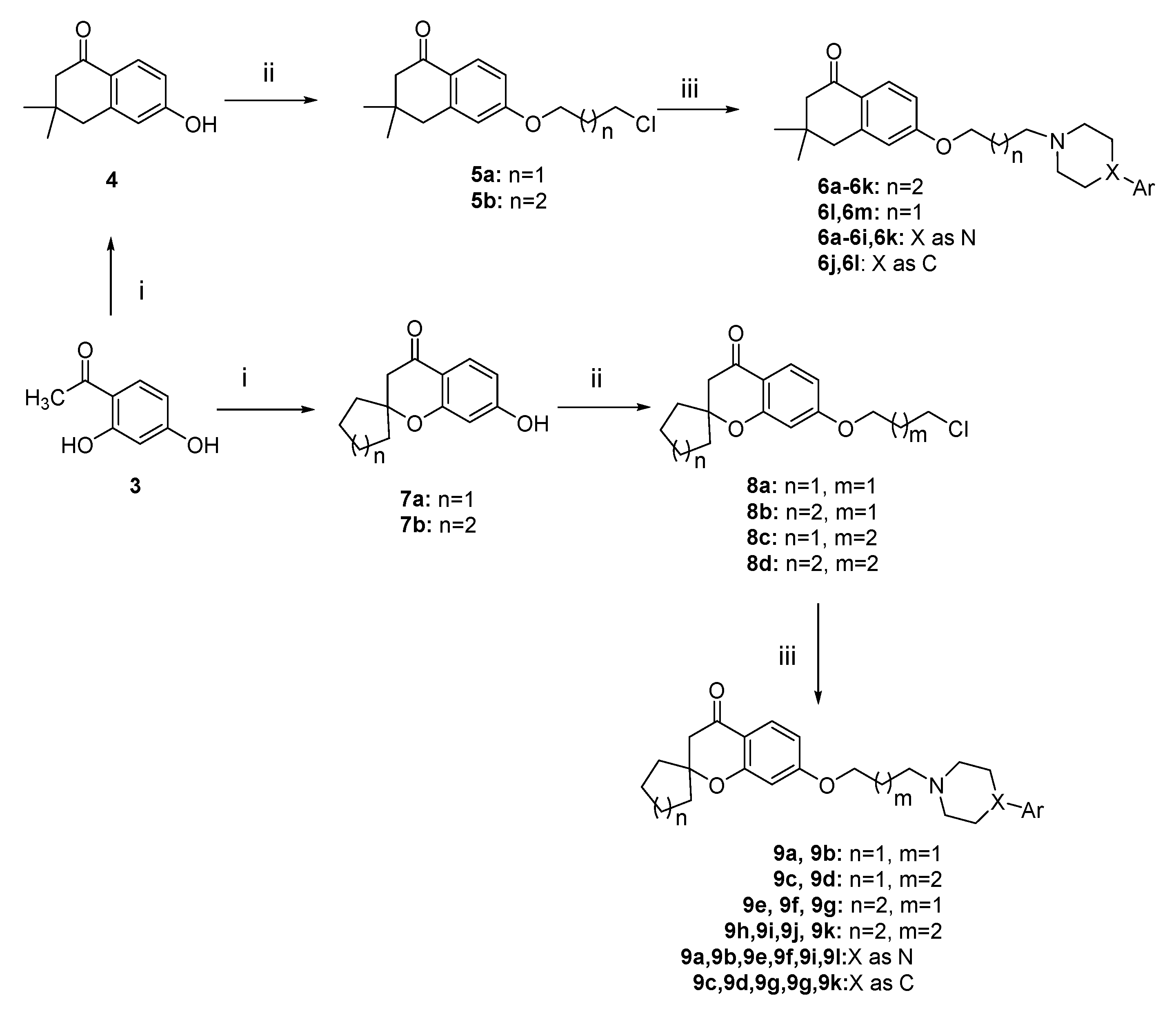

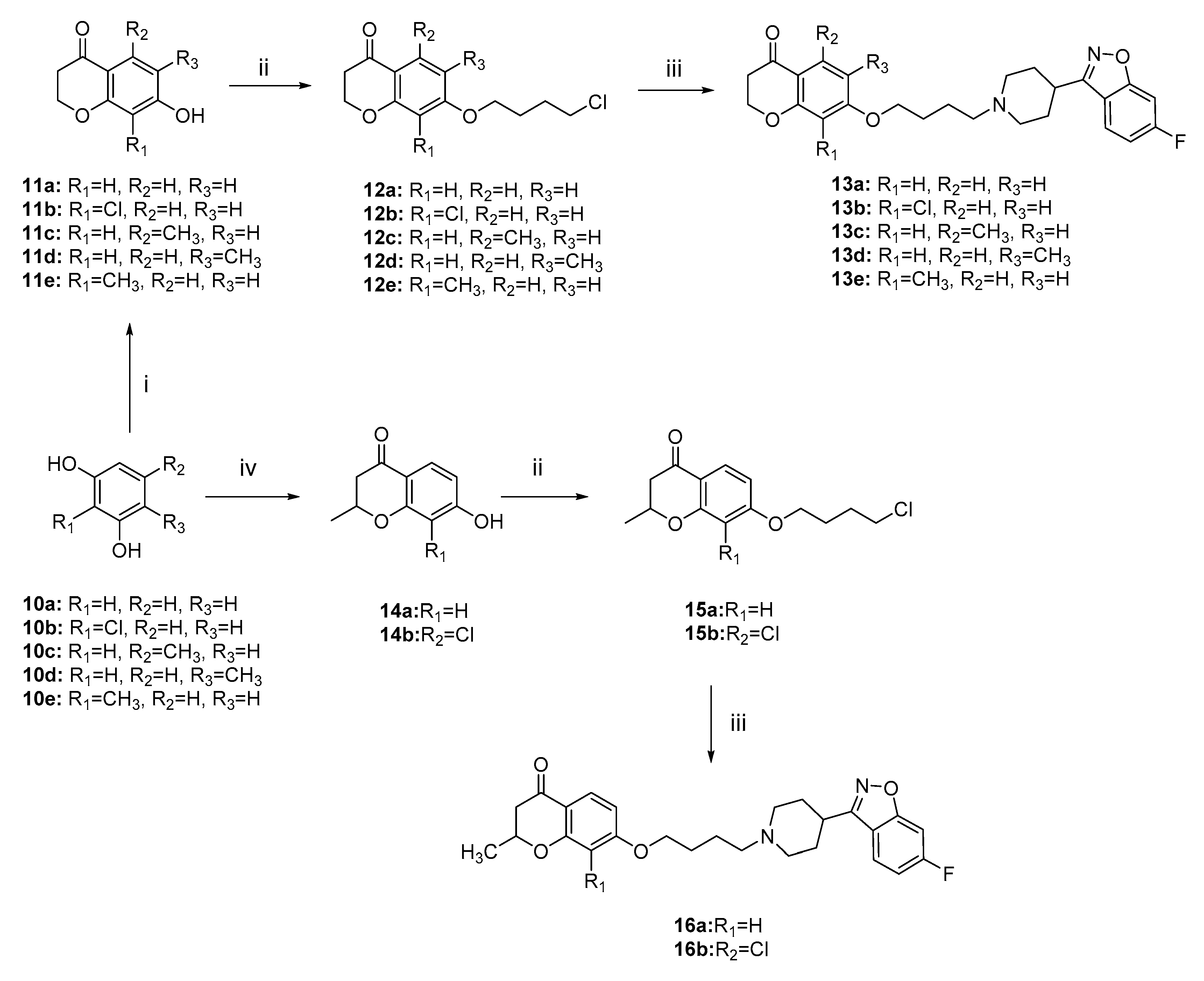

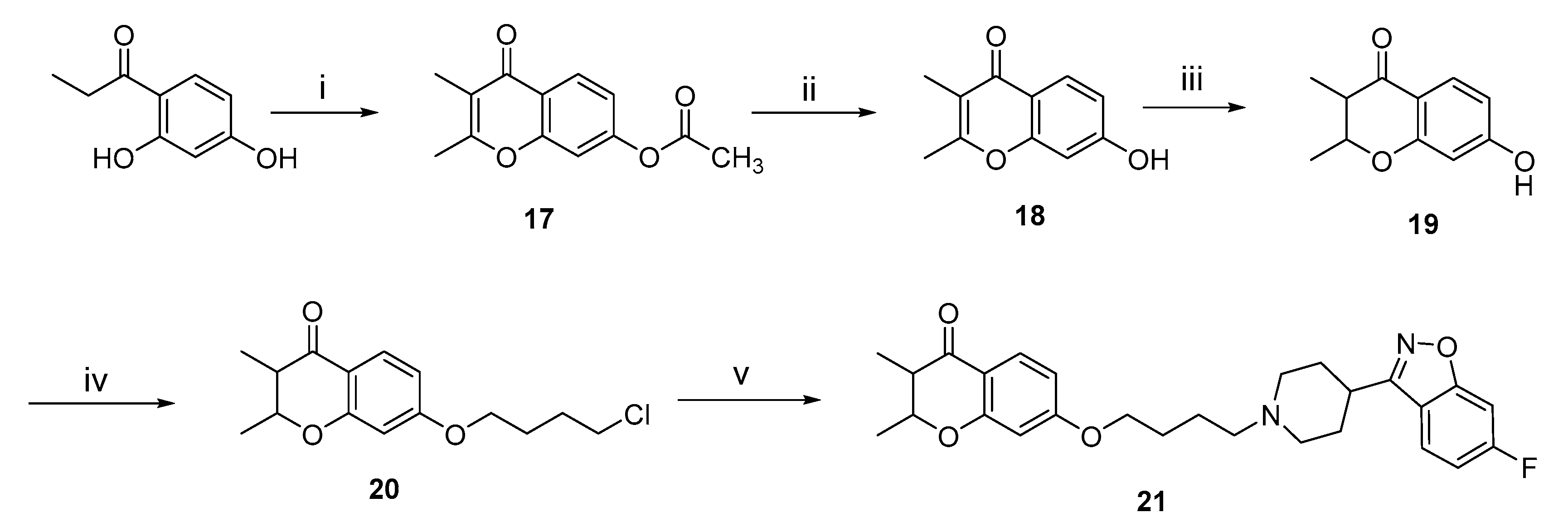

New compounds were synthesized as shown in Scheme 1, Scheme 2 and Scheme 3. In Scheme 1, 2,4-dihydroxyacetophenone (3) was converted into intermediate 4 by reaction with acetone in the presence of pyrrolidine and acetonitrile, and the intermediates 7a and 7b were prepared using a similar process. Compounds 5a–5b and 8a-8d were obtained through alkylation of 4 and 7a–7b with 1-bromo-3-chloropropane or 1-bromo-4-chlorobutane. Compounds 6a–6j and 9a–9k were obtained by coupling 5a–5b and 8a-8d with different arylpiperazines or heterocyclic arylpiperidines in the presence of K₂CO₃ in acetonitrile. As shown in Scheme 2, the new compounds 11a–11e and 14a–14b were synthesized following similar approaches to those described in Scheme 1, that is treatment of resorcinol and its derivatives 10a-10e with trifluoromethanesulfonic acid in the presence of 3-chloropropionic acid, and then treatment with sodium hydroxide solution to afford 11a-11e. Compounds 14a and 14b were synthesized starting from resorcinol and its derivatives by treatment with crotonic acid in the presence of anhydrous zinc chloride. The preparation of 12a–12e and 15a–15b used the same procedure as the synthesis of 5a-5b. Subsequently the intermediates 12a–12e and 14a–14b were coupled with 6-fluoro-3-(piperidin-4-yl) benzo[d]isoxazole to yield compounds 13a-13d and 16a–16b. Compound 21 was synthesized in five steps as described in Scheme 3. The intermediate 17 was synthesized from 2,4-dihydroxypropiophenone. Hydrolysis of 17 under basic conditions (NaHCO₃/MeOH) produced 18. Intermediate 19 was prepared by reduction with Pd/C, followed by reaction with 1-bromo-4-chlorobutane to afford 20. The target compound 21 was obtained by coupling 20 with 6-fluoro-3-(piperidin-4-yl)benzo[d]isoxazole in the presence of K₂CO₃ in acetonitrile.

2.2. In Vitro Evaluation and Structure-Activity Relationship (SAR)

At beginning of this study, the 7-hydroxy-2,2-dimethylchroman-4-one group was selected as a privileged structure derived from coumarin and flavone. The influence of various heterocyclic and aryl piperazines(piperidine) on the activities of D₂, 5-HT_1A and 5-HT_2A receptors were primarily evaluated and the results are summarized in

Table 1. Binding Affinities for D₂, 5-HT_1A, and 5-HT_2A Receptors of Compounds.

Compound	NR1R2	Receptor Affinity Ki ± SEM (nM) a
		D2	5-HT1A	5-HT2A
6a		553.5 ± 68.7	118.9 ± 17.4	89.8 ± 11.3
6b		776.8 ± 84.7	155.6 ± 19.5	72.5 ± 8.4
6c		1128.6 ± 108.4	269.1 ± 30.3	147.4 ± 16.9
6d		2351.5 ± 317.4	275.2 ± 25.2	86.8 ± 5.6
6e		4587.3 ± 510.3	627.4 ± 75.3	722.1 ± 64.9
6f		>10,000 b	735.6 ± 82.7	1135.1 ± 151.7
6g		1135.2 ± 140.4	216.5 ± 20.8	379.5 ± 39.1
6h		43.1 ± 5.7	25.3 ± 2.8	55.2 ± 4.9
6i		26.2 ± 2.7	81.7 ± 9.5	19.5 ± 2.2
6j		12.1 ± 1.5	9.7 ± 1.3	3.2 ± 0.4

^aK_i values are taken from three experiments, expressed as means SEM. ^b The K_i values were not calculated because the inhibition percentages at 10 mM were too low.

. Among those compounds, 6a–6d bearing phenylpiperazine and substituted phenylpiperazines (-F, -CF₃, -OCH₃) showed moderate affinity for 5-HT_1A and 5-HT_2A receptors and lower affinity for D₂ receptors. When the phenylpiperazine was replaced with a heterocyclic piperazine, compound 6e bearing a pyripiperazine devoid of affinity for D₂ receptor resulted. Compound 6f with pyrimidine almost lost the affinity for all the three receptors. Compound 6g bearing a 1-(benzo[d][1,3] dioxol-5-ylmethyl) piperazine showed lower affinity for the D₂ receptor. Interestingly, replacing the phenylpiperazine with a benzoheterocycle-piperazines(piperidine), such as benzothiazole-piperazine and benzisothiazole- piperazine, gave compounds 6h and 6i, which showed significantly increased for all three receptors. Especially, compound 6j bearing a 6-fluorobenzo[d]isoxazole-piperidine moiety displayed excellent D₂ (K_i = 8.1 nM), 5-HT_1A (K_i = 9.7 nM) and 5-HT_2A (K_i = 3.2 nM) receptor potency.

According to the above results, the 6-fluoro-3-(piperidin-4-yl)benzo[d]isoxazole moiety was selected as a privileged fragment, as our previous studies have proved that compounds bearing this pharmacophore show favorable activities for D₂, 5-HT_1A and 5-HT_2A receptors [14,15,17]. Next the effect of substituents on the 7-hydroxy-2,2-dimethylchroman-4-one group (

Table 2. Binding Affinities for D₂, 5-HT_1A, and 5-HT_2A Receptors of Compounds and Reference Antipsychotics.

Compound	Structure	Receptor Affinity Ki ± SEM (nM) a
		D2	5-HT1A	5-HT2A
6k		3157.4 ± 466.4	115.8 ± 15.8	33.1 ± 4.5
6l		18.6 ± 2.3	11.5 ± 1.2	6.7 ± 0.7
9a		3853.8 ± 327.9	476.1 ± 57.5	72.0 ± 6.8
9b		3793.4 ± 408.7	384.9 ± 49.4	61.7 ± 8.6
9c		18.9 ± 2.1	10.4 ± 1.4	8.3 ± 0.9
9d		15.7 ± 1.9	8.2 ± 0.8	8.5 ± 0.7
9e		2054.9 ± 229.5	312.1 ± 41.4	93.5 ± 7.9
9f		914.6 ± 90.3	48.3 ± 5.2	76.7 ± 9.4
9g		18.4 ± 1.8	7.7 ± 0.9	9.1 ± 1.1
9h		17.0 ± 2.3	5.6 ± 0.3	7.3 ± 0.4
9i		154.2 ± 19.6	92.1 ± 8.8	67.5 ± 7.4
9j		81.7 ± 9.7	76.3 ± 7.1	35.8 ± 5.2
9k		35.1 ± 4.7	213.3 ± 39.5	75.6 ± 8.6
13a		22.5 ± 2.6	13.1 ± 1.7	9.6 ± 0.8
13b		28.9 ± 3.4	24.6 ± 2.9	10.5 ± 1.3
13c		25.8 ± 3.9	18.1 ± 1.3	15.9 ± 2.3
13d		22.9 ± 3.1	17.0 ± 2.2	13.7 ± 1.9
16a		19.7 ± 2.7	10.1 ± 1.3	7.9 ± 0.5
16b		21.4 ± 2.4	78.8 ± 8.9	8.1 ± 1.1
21		28.4 ± 3.2	16.2 ± 1.5	2.4 ± 1.9
Clozapine		132.5 ± 13.7	188.5 ± 18.3	12.7 ± 1.8
Risperidone		3.5 ± 0.4	191.5 ± 16.9	0.17 ± 0.03

^a K_i values obtained from three experiments, recorded as means ± SEM.

) was investigated, such as five-membered rings, six-membered rings, methyl and chlorine groups. First, when dimethyl was replaced with a cyclopentyl ring, the obtained compound 9d had reduce activities on the D₂, 5-HT_1A and 5-HT_2A receptors (9d vs. 6j). Similarly, enlargement of the five-membered ring to a cyclohexyl ring (compound 9h) slightly lowered the affinity for the three receptors compared with 6j. Removing the dimethyl or replacing the dimethyl with a methyl (13a and 16a) showed a negative impact on all the three receptors compared with compound 6j. Meanwhile, when the two methyl substituents at the 5 and 6 positions (compounds 21) of 7-hydroxy-2,2-dimethylchroman-4-one group were changed simultaneously, it resulted in increased activities for the 5-HT_2A receptor but decreased activity for the D₂ and 5-HT_1A receptors. We further investigated the influence of a methyl group substituted at different positions on the phenyl ring. The activities of the substitution of methyl at the 2- (13c), 3- (13b) and 8- (13d) positions of the phenyl ring were retained, but were slightly lower than without a substituent (13a). According the results, when the methyl was substituted at the 6 position of 7-hydroxy-2,2-dimethylchroman-4-one group (16a) and the 8-chloro substituted derivative 16b displayed decreased activity for the 5-HT_1A receptor (16a vs. 16b).

As the compounds bearing a cyclopentyl ring (9c and 9d) and a cyclohexyl ring (9g and 9h) moiety showed higher potency for the three receptors (Table 1 and Table 2), we therefore attempted to expand the structural transformation of 6-fluoro-3-(piperidin-4-yl) benzo[d]isoxazole fragment. When the privileged structure 6-fluoro-3-(piperidin-4-yl) benzo[d]isoxazole was replaced with phenylpiperazine derivatives and heterocyclic piperazines, such as 1-(2-methoxyphenyl) piperazine (9a,9b,9e),1-(2-(trifluoromethyl)phenyl)piperazine (9f), 1-(2,3-dimethylphenyl)piperazine (9i), 1-(2,3-dichlorophenyl)piperazine (9j) and 3-(piperidin-4-yl)benzo[d]isothiazole (9k), all of the resulting compounds fail to improve the affinities for the D₂, 5-HT_1A and 5-HT_2A receptors, indicating that the 6-fluoro-3-(piperidin-4-yl)benzo[d]isoxazole was the optimum structure for this type of compound.

Our previous SAR studies reveal that the linker length and flexibility play an important role in the regulation of the receptor potency, and the lengths of the linker generally considered appropriate were three carbons and four carbons 1415. Therefore, investigation of chain length was focused on three carbons and four carbons. As shown in Table 1 and Table 2, most of the compounds with chain lengths of four carbons exhibited higher affinities for the three receptors than that of three carbon derivatives (6j vs. 6l; 9a vs. 9b; 9g vs. 9h), for example, elongation of the linker of 9c from three carbons to four carbons resulted in improved activities for D₂ and 5-HT_1A but had a negative effect on the 5-HT_2A receptor (9c vs. 9d). This indicated that the appropriate length of the linker was four carbons.

Overall, compounds 6j, 9d, 9g and 9h demonstrated high affinity for the D₂, 5-HT_1A and 5-HT_2A receptors (D₂, K_i < 20 nM; 5-HT_1A, K_i <10 nM; 5-HT_2A, K_i < 10 nM) and the potency ratio between D₂ and 5-HT_1A, 5-HT_2A was less than 5, which means the compounds have balanced receptor activity profiles. Therefore, compounds 6j, 9d, 9g and 9h were selected for further evaluation.

A vast number of clinical studies has demonstrated that atypical antipsychotics can induce a series of adverse effects in the treatment of schizophrenia, such as weight gain, hyperglycaemia and QTc prolongation [18,19,20]. These adverse side effects have been proved to be associated with several off-target receptors, mainly focused on histamine H₁, 5-HT_2C, and adrenergic α₁ [21,22]. For instance, the synergistic effects of H₁ and 5-HT_2C antagonism may cause weight gain and hyperglycaemia while antagonism on the adrenergic α₁ receptor may trigger orthostatic hypotension [23]. Therefore, the selected compounds were further evaluated for these receptors in the present study. As shown in

Table 3. Activities on D_3, 5-HT_2C, α₁ and H₁ Receptors of compounds and reference antipsychotics.

Compound	Receptor Affinity Ki ± SEM (nM) a				hERG IC50 (nM)
	D3	5-HT2C	α1	H1
6j	25.4 ± 3.1	565.8 ± 75.4	237.2 ± 86.4	938.5 ± 101.3	3769.8 ± 297.5
9d	42.6 ± 5.3	425.6 ± 47.8	161.7 ± 57.1	784.2 ± 98.3	3380.3 ± 352.3
9g	35.2 ± 2.8	401.1 ± 55.6	138.2 ± 39.8	909.3 ± 78.5	3015.5 ± 290.8
9h	38.6 ± 3.7	528.2 ± 68.5	101.5 ± 50.6	819.5 ± 91.8	3982.6 ± 411.5
Risperidone	10.9 ± 1.9	19.7 ± 2.7	2.8 ± 0.4.	26.1 ± 2.8	168.5 ± 23.1
Clozapine	265.2 ± 18.5	16.1 ± 3.1	33.6 ± 3.9	4.3 ± 0.5	2750.4 ± 317.2

^a K_i values obtained from three experiments, recorded as means ± SEM.

, compounds 6j, 9d, 9g and 9h exhibited moderate activities for the α₁ and H₁ receptors and lower activities for 5-HT_2c receptors compared with risperidone (α₁, K_i = 2.8 ± 0.4 nM; H₁, K_i = 26.1 ± 2.8 nM; 5-HT₂c, K_i = 19.7 ± 2.7 nM), suggesting that 6j, 9d, 9g and 9h had low liability to elicit treatment-associated adverse effects. In addition, the selected compounds were subjected to additional studies of binding to the D₃ receptor, as the effect of atypical antipsychotic drugs on the D₃ receptor is related to cognitive and motivational behaviors [24], and several recent pharmacological studies strongly support the idea that antagonism on the D₃ receptor might reduce catalepsy [25]. As shown in Table 3, compounds 6j, 9d, 9g and 9h had high affinities for the D₃ receptor, which may be beneficial for the treatment of schizophrenia.

Cardiotoxicity is an important drug evaluation indicator, which is often caused by the blockade of the human ether-a-go-go-related gene (hERG) potassium channel [26,27]. To assess the cardiotoxicity of compounds 6j, 9d, 9g and 9h, their inhibitory actions on hERG were assessed in vitro. As shown in Table 3, all of the tested compounds exhibited lower levels of inhibition on hERG compared to clozapine and risperidone, indicating that they have low risks for QT interval prolongation.

To sum up, all the in vitro evaluations results have shown that compound 6j exhibited higher affinity for D₂, D₃, 5-HT_1A and 5-HT_2A receptors and weaker affinity for 5-HT_2c, α₁ and H₁ receptors than other candidates, therefore, compound 6j was then subjected to further investigation.

2.3. Acute Toxicity

To assess the safety of compound 6j, its acute toxicity was assayed in vivo in terms of LD₅₀ values. As shown in

Table 4. In Vivo Pharmacological Profile of Compound.

Compound	APO a	MK-80 b	CAT c	CAT/APO	CAT/MK-801	LD50
6j	0.19	0.16	56.84	299.16	355.25	>2000
Clozapine	17.92	2.28	50.0	21.93	5.58	150.0
Risperidone	0.046	0.011	0.92	20	83.63	82.1

^a APO: apomorphine-induced climbing (ED₅₀, mg/kg, po). ^b MK-801: MK-801-induced hyperactivity (ED₅₀, mg/kg, po). ^c CAT: catalepsy (ED₅₀, mg/kg, po).

, compound 6j showed a high safety threshold, even exceeds the maximum dose (LD₅₀ > 2000 mg/kg). The results indicated that compound 6j possesses high safety performance and low acute toxicity.

2.4. Intrinsic Activity of Compound 6j

As shown in

Table 5. Activities of Compound 6j and Reference Compounds to D_2L, D₃, 5-HT_1A, 5-HT_2A Receptors.

Receptor	Compd	Activation (10 μM, %) (n = 3)	EC50 (nM)	Inhibition (10 μM, %) (n = 3)	IC50 (nM)
D2L	dopamine	101.3 ± 5.3	19.1
	SCH23390			99.1 ± 3.2	31.6
	6j	4.5 ± 0.6		97.4 ± 4.1	8.9
D3	dopamine	98.4 ± 4.4	2.5
	spiperone			98.8 ± 4.8	93.9
	6j	5.9 ± 0.7		97.5 ± 2.7	31.5
5-HT1A	5-HT	99.7 ± 3.8	2.3
	WAY-100635			98.4 ± 3.7	11.2
	6j	0.8 ± 0.1		99.1 ± 4.5	201.4
5-HT2A	5-HT	100.2 ± 2.6	20.4
	ketanserin			98.2 ± 2.6	87.6
	6j	1.4 ± 0.2		99.8 ± 2.2	195.5

, compound 6j stimulated the D_2L, D₃, 5-HT_1A, 5-HT_2A receptors in the agonist assay and showed weak agonist activity, the efficacy of the reference compounds less than 10%, respectively. In the antagonist assay, the efficacy of compound 6j blocked the four receptors more than 90%. Thus, 6j functioned as an antagonist at the D_2L (IC₅₀ = 8.9 nM), D₃ (IC₅₀ = 31.5 nM), 5-HT_1A (IC₅₀ = 201.4 nM), 5-HT_2A (IC₅₀ = 195.5 nM) receptors.

2.5. Behavioral Studies

As schizophrenic patients show many psychiatric and somatic symptoms in clinical manifestations, more intuitive and visual models to evaluate the antipsychotic-like activities of the new compounds are required. Nowadays, there are several models commonly used to assess the antipsychotic-like efficacy of potential compounds, such as apomorphine (APO)-induced hyperlocomotion [28,29] and MK-801-induced hyperactivity models [30]. In the APO-induced hyperlocomotion model, the D₂ receptor agonist apomorphine is commonly used to induce behavioral agitation in mice to simulate the positive symptoms of schizophrenia, but this can be reversed by compounds with antipsychotic-like efficacies. In the MK-801-induced hyperactivity model, the non-competitive NMDA receptor antagonist MK-801 can induce the schizophrenia-like symptoms in healthy animals, but compounds with antipsychotic-like efficacies can significantly reverse these symptoms. In addition, the catalepsy test model is used to predict the propensity of antipsychotics to induce EPS in humans [31]. This model has become a common and important animal model for assessing the potential therapeutic effect in schizophrenia [31]. In this study, 6j was subjected to these models to verify its potential antipsychotic activity.

2.5.1. Apomorphine-Induced Hyperlocomotion

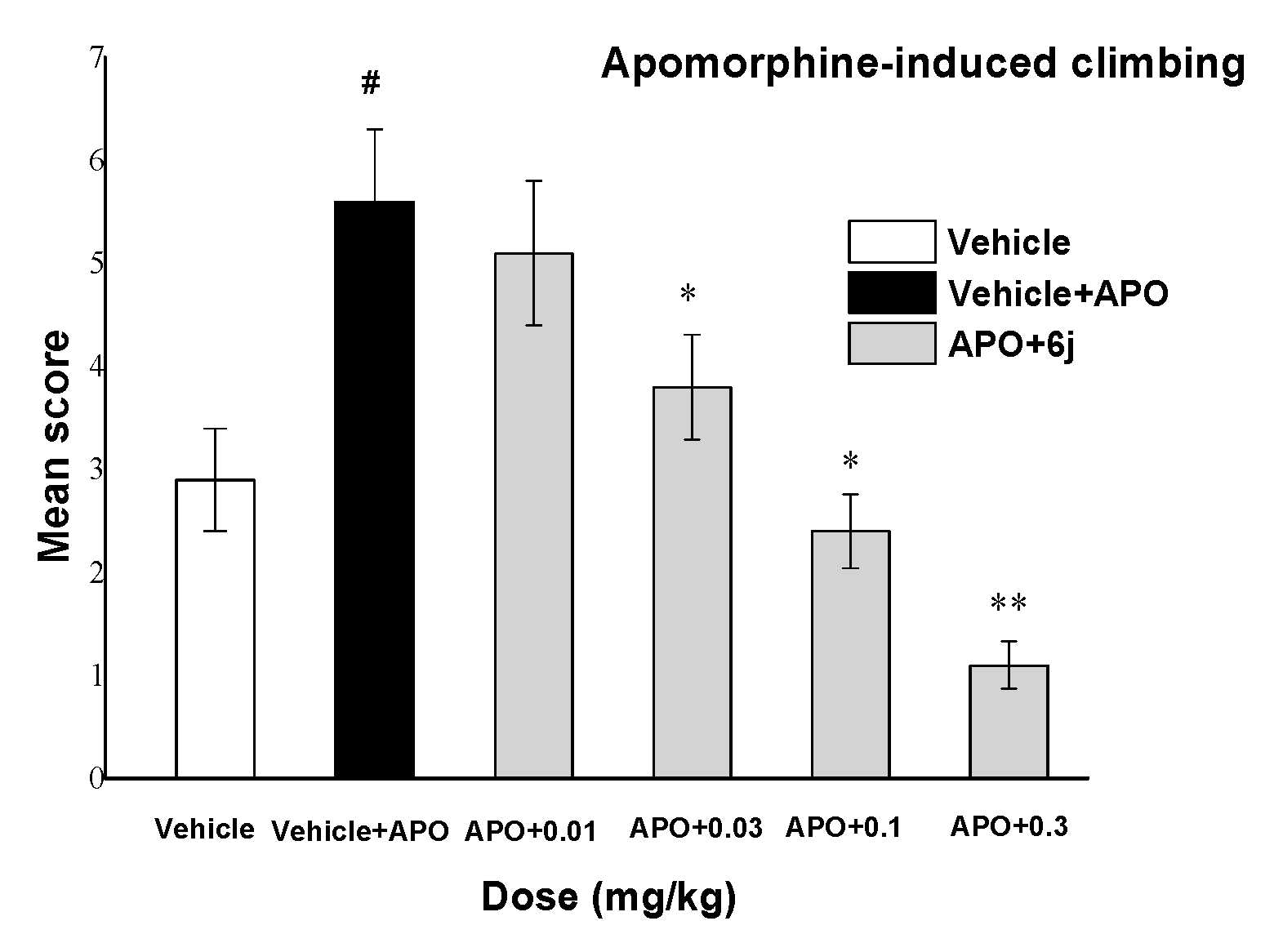

As shown in Figure 2, compound 6j induced a dose-dependent response in APO-induced hyperlocomotion model, with an ED₅₀ value of 0.19 mg/kg (Table 4). Mice in the control groups received clozapine and risperidone inhibit the APO-induced climbing with ED₅₀ values of 17.92 and 0.046 mg/kg, respectively. The comparison of results indicates that compound 6j has certain efficacy against the positive symptoms of psychosis.

2.5.2. MK-801-Induced Hyperactivity

In the MK-801-induced hyperactivity model, compound 6j significantly and dose dependently attenuated the increased locomotor activity (Figure 3) with an ED₅₀ value of 0.16 mg/kg (Table 4). In the control group, mice treated with clozapine and risperidone with ED₅₀ values of 2.28 and 0.011 mg/kg, respectively. The comparison of the results shows that compound 6j was more potent than clozapine.

2.5.3. Catalepsy

In the catalepsy test model, compound 6j displayed a high threshold for catalepsy with an ED₅₀ value of 56.84 mg/kg, but the ED₅₀ values of clozapine and risperidone were 50.0 mg/kg and 0.92 mg/kg, the comparison of results indicates that 6j has a lower incidence of EPS (Table 4).

In addition, compound 6j displayed a wide therapeutic index (TI) range (299.16–352.5) based on its efficacy (APO and MK-801 models) and its side effects (catalepsy), while the TI of clozapine range from 5.58 to 21.93, and 20.0 to 83.63 of risperidone (Table 4). The result demonstrated that 6j has a higher safety margin than clozapine and risperidone.

3. Materials and Methods

3.1. General Information

All solvents were from commercial sources and used without further purification. The purity of all the reagents and the test compounds was more than 95%. Melting points were determined in open capillary tubes and are uncorrected. ¹H-NMR spectra were recorded on an Avance III 400 spectrometer (Bruker, Karlsruhe, Germany) at 400 MHz (¹H) using CDCl₃ and DMSO-d₆ as solvents. Chemical shifts recorded as δ values (ppm), using tetramethylsilane (TMS) as the internal reference; Coupling constants (J) are given in Hz. Proton multiplicities are labeled as s (singlet), d (doublet), t (triplet), q (quartet), m (multiplet), and br (broad signal). Thin layer chromatography (TLC) was performed using silica gel GF254. Flash column chromatography was carried out using silica gel.

3.2. Instrumentation

High performance liquid chromatography (HPLC) methods: LC-20AD spectrometer (Shimadzu, Kyoto, Japan); column, Shimadzu VP-ODS (4.6 mm × 250 mm, 5 μm) C₁₈-253; mobile phase, A: acetonitrile 0.01 mol/L NH₄H₂PO₄ (0.2% Et₃N, pH = 3.0) (10:90); B: acetonitrile 0.01 mol/L NH₄H₂PO₄ (0.1% Et₃N, pH = 3.0)(70:30); flow rate, 1.0 mL/min; sample size, 10 μL; column temperature, 40 °C; UV detection condition, 210 nm; High resolution mass spectra (HRMS) spectrometer, Agilent 6530 Q-TOF LC/MS and Agilent 1290 Infinity (G4212A) spectrometer (Agilent, Santa Carla, CA, USA). The HPLC conditions as following: column X Bridge^R Shield RP18 (4.6 × 150 mm, 3.5 μm, Waters, Milford MA USA), C18-330; mobile phase: A, 5mmol/L NH₄OAc (pH = 6.0)(10:90); B, MeOH; eluent, 30% A and 70% B (V:V); flow rate, 1.0 mL/min; column temperature, 35 °C; UV detection, 254 nm. Mass spectrometry conditions: Dual AJS ESI, positive; Gas temperature, 350 °C; Fragmentor, 80 KV; Drying gas, 7 mL/min; Nebulizer, 45 psi; Sheath gas temperature, 350 °C; Capillary Voltage, 4000 V; Sheath gas flow, 11 L/min; Nozzle Voltage, 500 V. Low resolution mass spectrometry (LRMS) and high performance liquid chromatography-mass spectrometry (HPLC-MS) were obtained using an Agilent MS/1200 HPLC liquid chromatograph/mass spectrometer (JXZX-FXS-064).Agilent ZORBAX SB-C18 (4.6 × 150 mm, 5 µm); ESI source: scan mode, positive/negative; Rage, 50–1000; Nitrogen gas flow, 11 L/min; Column pressure: −3000–3000 eV. Chromatographic parameter: Mobile phase, 50% acetonitrile, 50% water; UV detection, 210 nm, 245 nm; injection volume, 1.0 µL; flow rate, 0.3 mL/min; column temperature, 30 °C.

3.3. Synthesis

3.3.1. General Procedures for the Preparation of Intermediates 4 and 7

Compound 4, 7a and 7b were synthesized by the following reaction: 2,4-dihydroxyacetophenone and pyrrolidine were added to a suitable amount of acetonitrile and then corresponding ketone was added and the mixture was stirred at 50 °C for 12 h. Then, it was cooled down and poured into an ice-cold 2 M solution of hydrochloric acid and water, stirred for another 30 min, filtered and the obtained solid was recrystallized from EtOH (95%) to give 4 and 7a–7b.

3.3.2. General Procedures for the Preparation of Intermediates 5 and 8

To a suspension of intermediate 4 and 7 in DMF, 1.5 equivalents of K₂CO₃ and 1-bromo-3-chloropropane or 1-bromo-4-chlorobutane were added and the suspension was stirred for 24 h at room temperature and then filtered. The filtrate was evaporated in vacuo followed by addition of dichloromethane (DCM), washed with water and dried over anhydrous Na₂SO₄, the solvent was evaporated in vacuo and the residue was separated by silica gel column chromatography to afford 5a, 5b and 8a–8d.

3.3.3. General Procedures for the Preparation of Target Compounds 6 and 9

A mixture of intermediates 5 or 8, anhydrous potassium carbonate, CH₃CN and a catalytic amount of potassium iodide (KI) was stirred at 70 °C for 10 h. The mixture was filtered and the filtrate was concentrated under reduced pressure, the residue was dissolved in DCM, washed with water and dried with anhydrous MgSO₄, the solvent was removed under reduced pressure and the residue was separated by silica gel column chromatography to afford 6a-6l and 9a-9k.

3.3.4. General Procedures for the Preparation of Intermediates 11, 12, 14, and 15

A mixture of resorcinol or a derivative, 3-chloropropionic acid and trifluoromethanesulfonic acid was stirred at 80 °C for 1 h. The reaction mixtures were cooled to room temperature and poured into water, extracted with ethyl acetate (EA), The combined organic phase was washed with water and dried over anhydrous MgSO₄, the solvent was removed under reduced pressure and the residue was added to a certain amount of sodium hydroxide solution (2N) at 0–5 °C, then stirred for 2 h. The pH was adjusted to above 2 with hydrochloric acid solution and stand for 30 min, the formed intermediates 11a–11d were collected by filtration, washed with water and dried in vacuo.

A mixture of resorcinol or 2-chlororesorcinol, crotonic acid and anhydrous zinc chloride was stirred at 180 °C for 30 min. The reaction mixtures were cooled to room temperature and poured into water, extracted with EA, the combined organic layer was washed with water, brine, and dried over MgSO₄, the solvents were removed under reduced pressure and the crude products was purified via column chromatography to give pure products 14a–14b.

Intermediates 12 and 15 were prepared as described for compound 5 using 11 or 14, 1-bromo-4-chlorobutane and anhydrous K₂CO₃ in DMF; the crude products were purified via column chromatography.

3.3.5. General Procedures for the Preparation of Target Intermediates 13 and 16

The target compounds 13a–13d and 16a–16b were prepared as described for compound 6 using 12a–12e, 15a–15b and K₂CO₃, KI, 6-fluoro-3-(piperidin-4-yl) benzo[d]isoxazole in acetonitrile, the crude products were purified via column chromatography.

3.3.6. General Procedures for the Preparation of Intermediates 17, 18 and 19

1-(2,4-Dihydroxyphenyl)propan-1-one (16.6 g) and sodium acetate anhydrous (8.3 g) were added to acetic anhydride (70 mL), the reaction mixture was stirred at reflux for 14 h and cooled to room temperature, diluted with water and extracted with DCM, the organic layer was separated and washed with water, dried over MgSO₄, concentrated in vacuo to give intermediate 17 as a yellow solid. The intermediate 17 was dissolved in a solution (50 mL) of saturated sodium bicarbonate and MeOH (V:V = 1:1), the suspension was stirred at rt for 3 h, the product intermediate 18 obtained by filtration. Intermediate 18 was dissolved in MeOH, and then Pd/C added and stirred at rt for 10 h under hydrogen atmosphere, filtered and the filtrate concentrated in vacuo to give intermediate 19.

3.3.7. The Preparation of Intermediate 20 and Target Compound 21

The intermediate 20 and target compound 21 were prepared as described for intermediate 15 and target compound 16.

3.3.8. The Characteristics and Spectroscopic Data of the Target Compounds

2,2-Dimethyl-7-(4-(4-phenylpiperazin-1-yl)butoxy) chroman-4-one (6a).Pale-white solid; m. p. 131–133 °C; yield 80.3%; ¹H-NMR (CDCl₃) δ 7.84 (d, J = 8.8 Hz, 1H), 7.32 (dd, J = 8.6, 7.4 Hz, 2H), 6.98 (dd, J = 8.8, 0.9 Hz, 2H), 6.91 (t, J = 7.3 Hz, 1H), 6.58 (dd, J = 8.8, 2.4 Hz, 1H), 6.42 (d, J = 2.3 Hz, 1H), 4.07 (t, J = 6.3 Hz, 2H), 3.31–3.21 (m, 4H), 2.71 (s, 2H), 2.70–2.65 (m, 4H), 2.56–2.43 (m, 2H), 1.89 (dd, J = 14.4, 6.3 Hz, 2H), 1.83–1.69 (m, 2H), 1.50 (d, J = 2.0 Hz, 6H). HRMS (ESI) calculated for C₂₅H₃₃N₂O₃ [M + H]⁺, 409.2486; found, 409.2479.

7-(4-(4-(2-Fluorophenyl) piperazin-1-yl) butoxy)-2,2-dimethylchroman-4-one (6b). Pale-white solid; m. p. 135–137 °C; yield 78.8%; ¹H-NMR (CDCl₃) δ 7.84 (d, J = 8.8 Hz, 1H), 7.19–6.87 (m, 4H), 6.57 (dd, J = 8.8, 2.3 Hz, 1H), 6.41 (d, J = 2.3 Hz, 1H), 4.06 (t, J = 6.3 Hz, 2H), 3.27–3.06 (m, 4H), 2.71–2.97 (m, 6H), 2.58–2.40 (m, 2H), 1.93–1.71 (m, 4H), 1.49 (s, 6H). HRMS (ESI) calculated for C₂₅H₃₂FN₂O₃ [M + H]⁺, 427.2391; found, 427.2390.

2,2-Dimethyl-7-(4-(4-(3-(trifluoromethyl) phenyl) piperazin-1-yl) butoxy) chroman-4-one (6c). Pale-white solid; m. p. 139–140 °C; yield 76.2%; ¹H-NMR (CDCl₃) δ 7.84 (d, J = 8.8 Hz, 1H), 7.40 (t, J = 8.0 Hz, 1H), 7.31 (s, 1H), 7.20 - 7.02 (m, 2H), 6.58 (dd, J = 8.8, 2.4 Hz, 1H), 6.41 (dd, J = 5.0, 2.7 Hz, 1H), 4.07 (dd, J = 8.0, 4.4 Hz, 2H), 3.33 (s, 4H), 2.68 (d, J = 24.9 Hz, 6H), 2.56 (s, 2H), 1.96–1.85 (m, 2H), 1.83–1.71 (m, 2H), 1.50 (d, J = 2.7 Hz, 6H). HRMS (ESI) calculated for C₂₆H₃₂F₃N₂O₃ [M + H]⁺, 477.2360; found, 477.2358.

7-(4-(4-(2-Methoxyphenyl) piperazin-1-yl) butoxy)-2,2-dimethylchroman-4-one (6d).Off-white solid; m. p. 128–130 °C; yield 75.5%; ¹H-NMR (CDCl₃) δ 7.80 (t, J = 4.0 Hz, 1H), 7.02–6.87 (m, 4H), 6.57 (m, 1H), 6.41 (d, J = 4.0 Hz, 1H), 4.09 (d, J = 4.0 Hz, 2H), 3.87 (s, 2H), 2.70-2.60 (m, 4H), 2.05 (d, J = 8.0 Hz, 2H), 2.68 (d, J = 22.9 Hz, 2H), 2.67–2.58 (m, 4H), 2.57–2.42 (m, 2H), 1.89 (dd, J = 14.4, 6.3 Hz, 2H), 1.45 (s, 6H). HRMS (ESI) calculated for C₂₆H₃₄N₂O₄ [M + H]⁺, 438.2519; found, 438.2511.

2,2-Dimethyl-7-(4-(4-(pyridin-2-yl) piperazin-1-yl) butoxy) chroman-4-one (6e).Pale-white solid; m. p. 127–129 °C; yield 73.2%; ¹H-NMR (CDCl₃) δ 8.33 - 8.17 (m, 1H), 7.83 (t, J = 8.1 Hz, 1H), 7.53 (ddd, J = 8.9, 7.1, 2.0 Hz, 1H), 6.79–6.62 (m, 2H), 6.58 (dd, J = 8.8, 2.4 Hz, 1H), 6.42 (d, J = 2.3 Hz, 1H), 4.07 (t, J = 6.3 Hz, 2H), 3.67–3.53 (m, 4H), 2.68 (d, J = 22.9 Hz, 2H), 2.67–2.58 (m, 4H), 2.57–2.42 (m, 2H), 1.89 (dd, J = 14.4, 6.3 Hz, 2H), 1.78 (dd, J = 14.9, 8.1 Hz, 2H), 1.49 (s, 6H). HRMS (ESI) calculated for C₂₄H₃₂N₃O₃ [M + H]⁺, 410.2438; found, 410.2438.

2,2-Dimethyl-7-(4-(4-(pyrimidin-2-yl) piperazin-1-yl) butoxy) chroman-4-one (6f).Pale-white solid; m. p. 128–131 °C; yield 69.7%; ¹H-NMR (CDCl₃) δ 8.35 (d, J = 4.7 Hz, 2H), 7.83 (d, J = 8.8 Hz, 1H), 6.64–6.52 (m, 2H), 6.42 (d, J = 2.3 Hz, 1H), 4.06 (t, J = 6.3 Hz, 2H), 3.90 (s, 4H), 2.71 (s, 2H), 2.56 (d, J = 20.1 Hz, 4H), 2.51 (d, J = 7.4 Hz, 2H), 1.94 - 1.82 (m, 2H), 1.82 - 1.70 (m, 2H), 1.49 (s, 6H). HRMS (ESI) calculated for C₂₃H₃₁N₄O₃ [M + H] ⁺, 411.2391; found, 411.2390.

7-(4-(4-(Benzo[d] [1,3] dioxol-5-ylmethyl) piperazin-1-yl) butoxy)-2,2-dimethylchroman-4-one(6g).White solid; m. p. 112–114 °C; yield 69.4%; ¹H-NMR (CDCl₃) δ 7.82 (d, J = 8.8 Hz, 1H), 6.89 (s, 1H), 6.78 (d, J = 0.8 Hz, 2H), 6.55 (dd, J = 8.8, 2.3 Hz, 1H), 6.39 (d, J = 2.3 Hz, 1H), 5.97 (s, 2H), 4.16 (q, J = 7.1 Hz, 2H), 4.03 (t, J = 6.4 Hz, 2H), 3.45 (s, 2H), 2.70 (s, 2H), 2.46 (m, 6H), 1.94–1.60 (m, 4H), 1.49 (s, 6H), 1.30 (t, J = 7.1 Hz, 2H). HRMS (ESI) calculated for C₂₇H₃₅N₂O₅ [M + H]⁺, 467.2540; found, 467.2529.

7-(4-(4-(Benzo[b]thiophen-4-yl) piperazin-1-yl) butoxy)-2,2-dimethylchroman-4-one(6h).Pale white solid; m. p. 117119 °C; yield 67.7%; ¹H-NMR (CDCl₃) δ 7.85 (d, J = 8.8 Hz, 1H), 7.60 (d, J = 8.1 Hz, 1H), 7.45 (q, J = 5.6 Hz, 2H), 7.32 (dd, J = 9.6, 6.1 Hz, 1H), 6.95 (d, J = 7.6 Hz, 1H), 6.59 (dd, J = 8.8, 2.3 Hz, 1H), 6.43 (d, J = 2.3 Hz, 1H), 4.27 - 3.97 (m, 2H), 3.26 (s, 4H), 2.75 (d, J = 30.9 Hz, 4H), 2.64–2.41 (m, 2H), 2.02–1.70 (m, 4H), 1.50 (s, 6H), 1.31 (t, J = 7.1 Hz, 2H). HRMS (ESI) calculated for C₂₇H₃₃N₂O₃S [M + H]⁺, 465.2206; found, 465.2201.

7-(4-(4-(Benzo[d]isothiazol-3-yl) piperazin-1-yl) butoxy)-2,2-dimethylchroman-4-one (6i). Pale white solid; m. p. 119–120 °C; yield 65.8%; ¹H-NMR (CDCl₃) δ 7.96 (d, J = 8.2 Hz, 1H), 7.85 (t, J = 8.1 Hz, 2H), 7.52 (ddd, J = 8.1, 7.0, 1.0 Hz, 1H), 7.41 (ddd, J = 8.0, 7.0, 0.9 Hz, 1H), 6.58 (dd, J = 8.8, 2.4 Hz, 1H), 6.43 (d, J = 2.3 Hz, 1H), 4.08 (t, J = 6.3 Hz, 2H), 3.71–3.50 (m, 4H), 2.86–2.66 (m, 4H), 2.64–2.44 (m, 2H), 1.98–1.68 (m, 4H), 1.50 (s, 6H), 1.31 (t, J = 7.1 Hz, 2H). HRMS (ESI) calculated for C₂₆H₃₂N₃O₃S [M + H]⁺, 466.2195; found, 466.2189.

7-(4-(4-(6-Fluorobenzo[d]isoxazol-3-yl) piperidin-1-yl) butoxy)-2,2-dimethylchroman- 4-one (6j). Pale white solid; m. p. 116–117 °C; yield 70.2%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.8 Hz, 1H), 7.70 (dd, J = 8.7, 5.0 Hz, 1H), 7.25 (dd, J = 8.5, 1.9 Hz, 1H), 7.06 (td, J = 8.9, 2.1 Hz, 1H), 6.57 (dd, J = 8.8, 2.4 Hz, 1H), 6.40 (d, J = 2.4 Hz, 1H), 4.23–4.13 (m, 2H), 3.86 (dd, J = 5.4, 4.2 Hz, 2H), 3.74 (d, J = 5.8 Hz, 2H), 3.15 – 3.01 (m, 3H), 2.69 (dd, J = 11.2, 5.4 Hz, 4H), 2.26 (dd, J = 11.3, 3.0 Hz, 2H), 2.15 – 2.02 (m, 4H), 1.45 (s, 6H). HRMS (ESI) calculated for C₂₇H₃₂FN₂O₄ [M + H]⁺, 467.2341; found, 467.2335.

7-(3-(4-(2-Methoxyphenyl)piperazin-1-yl)propoxy)-2,2-dimethylchroman-4-one (6k). Pale-white solid; m. p. 103–105 °C; yield 71.5%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.0 Hz, 1H), 7.02–6.87(m, 4 H), 6.54–6.57 (m, 1H), 6.40 (d, J =4 Hz, 1H), 3.88 (s, 3H), 3.13 (s, br, 4H), 2.70–2.67 (m, 8H), 2.60 (t, J = 8.0 Hz, 2H), 2.05-2.03 (m, 2H), 1.46 (s, 6H). HRMS (ESI) calculated for C₂₅H₃₃FN₂O₄ [M + H]⁺, 425.2435; found, 425.2433.

7-(3-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)propoxy)-2,2-dimethylchroman-4-one (6l). Pale-white solid; m. p. 116–118 °C; yield 73.4%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.0 Hz, 1H), 7.74–7.70 (m, 1H), 7.27–7.25 (m, 1H), 7.09-7.05 (m, 1H), 6.57-6.54 (m, 1H), 6.40 (d, J = 4.0 Hz, 1H), 4.10 (t, J = 8.0 Hz, 2H), 3.13-3.09 (m, 3H), 2.68 (s, 2H), 2.59 (t, J = 8.0 Hz, 2H), 2.21-2.00 (m, 8H), 1.46 (s, 6H).HRMS (ESI) calculated for C₂₆H₃₀FN₂O₄ [M + H]⁺, 453.2184; found, 453.2182.

7-(3-(4-(2-Methoxyphenyl) piperazin-1-yl) propoxy) spiro[chromane-2,1′-cyclopentan]-4-one (9a). Off-white solid; m. p. 128–130 °C; yield 68.5%; ¹H-NMR (CDCl₃) δ 7.81 (d, J = 8.0 Hz, 1H), 7.04–6.88(m, 4H), 6.58–6.55 (m, 1H), 6.40 (d, J = 4.0 Hz, 1H), 4.09 (t, J = 8.0 Hz, 2H), 3.89 (s, 3H), 3.13 (s, br, 4H), 2.79 (s, 2H), 2.71 (s, br, 4H), 2.61 (t, J = 8.0 Hz, 2H), 2.03–2.12 (m, 4H), 1.87-1.91 (m, 2H), 1.74-1.65 (m, 4H). HRMS (ESI) calculated for C₂₇H₃₅FN₂O₄ [M + H]⁺, 451.2519; found, 451.2511.

7-(4-(4-(2-Methoxyphenyl) piperazin-1-yl) butoxy) spiro[chromane-2,1′-cyclopentan]- 4-one (9b). Off-white solid; m. p. 96–98 °C; yield 76.4%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.0 Hz, 1H), 7.03–6.86 (m, 4H), 6.56–6.53 (m, 1H), 6.37 (d, J = 4.0 Hz, 1H), 4.03 (t, J = 8.0 Hz, 2H), 3.88 (s, 3H), 3.12 (s, br, 4H), 2.78 (s, 2H), 2.68 (s, br, 4H), 2.49 (t, J = 8.0 Hz, 2H), 2.10–2.05 (m, 2H), 1.87–1.84 (m, 4H), 1.75–1.69 (m, 6H). HRMS (ESI) calculated for C₂₇H₃₅FN₂O₄ [M + H]⁺, 451.2519; found, 451.2511. HRMS (ESI) calculated for C₂₈H₃₇N₂O₄ [M+H]⁺, 465.2748; found, 465.2745.

7-(3-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)propoxy)spiro[chromane-2,1′-cyclopentan]-4-one (9c). White solid; m. p. 91–93 °C; yield 70.2%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.0 Hz, 1H), 7.72-7.69(m, 1H), 7.26–7.24 (m, 1H), 7.09-7.04 (m, 1H), 6.57–6.54(m, 1H), 6.41 (d, J = 4.0 Hz, 1H), 4.09 (t, J = 8.0 Hz, 2H), 3.11-3.08 (m, 3H), 2.78 (s, 2H), 2.58 (t, J = 8.0 Hz, 2H), 2.23-1.86 (m, 12H), 1.74-1.64 (m, 4H). HRMS (ESI) calculated for C₂₈H₃₂FN₂O₄ [M + H]⁺, 479.2341; found, 479.2338.

7-(4-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)spiro[chromane-2,1′-cyclopentan]-4-one (9d). Pale-white solid; m. p. 103–105 °C; yield 68.6%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.0 Hz, 1H), 7.69–7.73(m, 1H), 7.26–7.24 (m, 1H), 7.09–7.04 (m, 1H), 6.56–6.54 (m, 1H), 6.38 (d, J = 4.0 Hz, 1H), 4.04 (t, J = 8.0 Hz, 2H), 3.12-3.08 (m, 3H), 2.78 (s, 2H), 2.48 (t, J = 8.0 Hz, 2H), 2.19-2.07 (m, 8H), 1.90-1.63 (s, 10H). HRMS (ESI) calculated for C₂₉H₃₄FN₂O₄ [M + H]⁺, 493.2497; found, 493.2496.

7-(3-(4-(2-Methoxyphenyl)piperazin-1-yl)propoxy)spiro[chromane-2,1′-cyclohexan]-4-one (9e). Pale-white solid; m. p. 105–107 °C; yield 71.4%; ¹H-NMR (CDCl₃) δ 7.79 (d, J = 8.0 Hz, 1H), 6.85–7.00 (m, 4H), 6.56–6.53 (m, 1H), 6.44 (d, J = 4.0 Hz, 1H), 4.09 (t, J = 8.0 Hz, 2H), 3.87 (s, 3H), 3.12 (m, 4H), 2.70 (s, br, 4H), 2.64 (s, 2H), 2.60 (t, J = 8.0 Hz, 2H), 2.07-1.97 (m, 4H), 1.72-1.66 (m, 2H), 1.52-1.45 (m, 4H), 1.34–1.30 (s, 2H). HRMS (ESI) calculated for C₂₈H₃₇N₂O₄ [M + H]⁺, 465.2748; found, 465.2740.

7-(3-(4-(2-(Trifluoromethyl)phenyl)piperazin-1-yl)propoxy)spiro[chromane-2,1′-cyclohexan]-4-one (9f). Off-white solid; m. p. 138–140 °C; yield 74.7%; ¹H-NMR (CDCl₃) δ 7.80–7.73 (m, 1H), 7.42–7.34 (m, 1H), 7.19–7.06 (m, 3H), 6.56–6.52 (m, 1H), 6.41 (d, J = 4.0 Hz, 1H), 4.05 (t, J = 8.0 Hz, 2H), 3.31-3.28 (m, 2H), 2.70–2.52 (m, 6H), 2.30–2.05 (m, 4H), 1.99–1.48 (m, 10H), 1.36–1.32 (m, 2H). HRMS (ESI) calculated for C₂₈H₃₄F₃N₂O₃ [M + H]⁺, 503.2516; found, 503.2511.

7-(3-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)propoxy)spiro[chromane-2,1′-cyclohexan]-4-one (9g). Pale-white solid; m. p. 96–98 °C; yield 67.1%; ¹H-NMR (CDCl₃) δ 7.79(d, J = 8.0 Hz, 1H), 7.74–7.70 (m, 1H), 7.26–7.24 (m, 1H), 7.10–7.05 (m, 1H), 6.58-6.55 (m, 1H), 6.45 (d, J = 4.0 Hz, 1H), 4.11 (t, J = 8.0 Hz, 2H), 3.12–3.10 (m, 3H), 2.66 (s, 2H), 2.61 (t, J = 8.0 Hz, 2H), 2.2–1.98 (m, 12H), 1.74–1.48 (m, 4H), 1.36-1.33 (m, 2H). HRMS (ESI) calculated for C₂₉H₃₄FN₂O₄ [M + H]⁺, 493.2497; found, 493.2495.

7-(4-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)spiro[chromane-2,1′-cyclohexan]-4-one (9h). White solid; m. p. 126–128 °C; yield 72.9%; ¹H-NMR (CDCl₃) δ 7.78(d, J = 8.0 Hz, 1H), 7.70–7.73 (m, 1H), 7.26–7.24 (m, 1H), 7.09–7.04 (m, 1H), 6.55–6.52 (m, 1H), 6.42 (d, J = 4.0 Hz, 1H), 4.05 (t, J = 8.0 Hz, 2H), 3.13-3.06 (m, 3H), 2.65 (s, 2H), 2.49(t, J = 8.0 Hz, 2H), 2.18-1.98 (m, 8H), 1.86-1.84 (m, 2H), 1.75-1.69 (m, 4H), 1.53-1.50 (m, 4H), 1.37-1.31 (m, 2H). HRMS (ESI) calculated for C₃₀H₃₆FN₂O₄ [M + H]⁺, 507.2654; found, 507.6259.

7-(4-(4-(2,3-Dimethylphenyl)piperazin-1-yl)butoxy)spiro[chromane-2,1′-cyclohexan]-4-one (9i). White solid; m. p. 138–140 °C; yield 74.3%; ¹H-NMR (CDCl₃) δ 7.81–7.76 (m, 1H), 7.10–6.92(m, 3H), 6.56–6.52 (m, 1H), 6.42 (d, J = 4.0 Hz, 1H), 4.06(t, J = 8.0 Hz, 2H), 3.06 (s, br, 4H), 2.66 (s, 2H), 2.60 (t, J = 8.0 Hz, 2H), 2.29 (s, 3H), 2.23 (s, 3H), 2.07–1.48 (m, 16H), 1.37–1.31 (m, 2H).HRMS (ESI) calculated for C₃₀H₄₁N₂O₃ [M + H]⁺,477.3112; found, 477.3110.

7-(4-(4-(2,3-Dichlorophenyl)piperazin-1-yl)butoxy)spiro[chromane-2,1′-cyclohexan]-4-one(9j). White solid; m. p. 119–121 °C; yield 70.7%; ¹H-NMR (CDCl₃) δ 7.81–7.76(m, 1H), 7.10–6.92 (m, 3H), 6.56–6.52 (m, 1H), 6.42 (d, J = 4.0 Hz, 1H), 4.06 (t, J = 8.0 Hz, 2H), 3.00 (s, br, 4H), 2.66 (s, 2H), 2.54(t, J = 8.0 Hz, 3H), 2.29 (s, 3H), 2.01-1.48 (m, 12H), 1.37–1.33 (m, 2H). HRMS (ESI) calculated for C₂₈H₃₅Cl₂N₂O₃ [M + H]⁺, 517.2019; found, 517.2013.

7-(4-(4-(Benzo[d]isothiazol-3-yl)piperidin-1-yl)butoxy)spiro[chromane-2,1′-cyclohexan]-4-one (9k). Pale-white solid; m. p. 129–130 °C; yield 62.8%; ¹H-NMR (CDCl₃) δ 7.79 (d, J = 8.0 Hz, 2H), 7.19–7.16 (m, 2H), 7.49–7.45 (m, 1H), 6.99–6.96 (m, 1H), 6.56–6.53 (m, 1H), 6.42 (d, J = 4.0 Hz, 1H), 4.05 (t, J = 8.0 Hz, 2H), 3.11(s, br, 4H), 2.70 (s, br, 4H), 2.66(s, 2H), 2.52 (t, J = 8.0 Hz, 2H), 2.00-1.48 (m, 12H), 1.34-1.31 (m, 2H). HRMS (ESI) calculated for C₃₀H₃₇N₂O₃S [M + H]⁺, 505.2519; found, 505.2514.

7-(4-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)chroman-4-one (13a). Colorless oily liquid; yield 58.1%; ¹H-NMR (CDCl₃) δ 7.80(d, J = 8.0 Hz, 1H), 7.75–7.71 (m, 1H), 7.26–7.24 (m, 1H), 7.11–7.06 (m, 1H), 6.56–6.53 (m, 1H), 6.38 (d, J = 4.0 Hz, 1H), 4.42 (t, J = 8.0 Hz, 2H), 4.06 (t, J = 8.0 Hz, 2H),3.06–2.95 (m, 4H), 2.81–2.78 (m, 1H), 2.52–2.43 (m, 4H), 1.92–1.69 (m, 6H), 1.41-1.35 (m, 2H). HRMS (ESI) calculated for C₂₅H₂₈FN₂O₄ [M + H]⁺, 439.2018; found, 439.2017.

7-(4-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)-5-methylchroman-4-one (13b). Pale-white solid; m. p. 85–87 °C; yield 63.6%; ¹H-NMR (CDCl₃) δ 7.75–7.71 (m, 1H), 7.25–7.23 (m, 1H), 7.06–7.11 (m, 1H), 6.54–6.57 (m, 1H), 6.39 (d, J = 4.0 Hz, 1H), 4.45 (t, J = 8.0 Hz, 2H), 4.07 (t, J = 8.0 Hz, 2H), 3.07–2.96 (m, 4H), 2.80–2.77 (m, 1H), 2.52–2.43 (m, 4H), 2.39 (s, 3H), 1.91–1.67 (m, 6H), 1.40–1.33 (m, 2H). HRMS (ESI) calculated for C₂₆H₃₀FN₂O₄ [M + H]⁺, 453.2184; found, 453.2182.

7-(4-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)-6-methylchroman-4-one (13c). Pale-white solid; m. p. 91–93 °C; yield 60.3%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.0 Hz, 1H), 7.74–7.70 (m, 1H), 7.26-7.24 (m, 1H), 7.12–7.07 (m, 1H), 6.38 (d, J = 4.0 Hz, 1H), 4.46 (t, J = 8.0 Hz, 2H), 4.06 (t, J = 8.0 Hz, 2H), 3.08–2.99 (m, 4H), 2.80–2.77 (m, 1H), 2.52–2.43 (m, 4H), 2.38 (s, 3H), 1.92–1.68 (m, 6H), 1.41–1.35 (m, 2H). HRMS (ESI) calculated for C₂₆H₃₀FN₂O₄ [M + H]⁺, 453.2184; found, 453.2182.

7-(4-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)-8-methylchroman-4-one (13d). Pale-white solid; m.p. 88–90 °C; yield 67.0%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.0 Hz, 1H), 7.74–7.70 (m, 1H), 7.26–7.24 (m, 1H), 7.12–7.07 (m, 1H), 6.57–6.54 (m, 1H), 4.45 (t, J = 8.0 Hz, 2H), 4.06 (t, J = 8.0 Hz, 2H), 3.08–3.01 (m, 4H), 2.82–2.79 (m, 1H), 2.55–2.44 (m, 4H), 2.40 (s, 3H), 1.91–1.69 (m, 6H), 1.41–1.36 (m, 2H). HRMS (ESI) calculated for C₂₆H₃₀FN₂O₄ [M + H]⁺, 453.2184; found, 453.2179.

7-(4-(4-(6-Fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)-2-methylchroman-4–one (16a). Pale-white solid; m. p. 95–97 °C; yield 63.4%; ¹H-NMR (CDCl₃) δ 7.80(d, J = 8.0 Hz, 1H), 7.74–7.70 (m, 1H), 7.27–7.25 (m, 1H), 7.10–7.05 (m, 1H), 6.57–6.54 (m,1H), 6.39 (d, J = 4.0 Hz, 1H), 4.41–4.38 (m, 1H), 4.05 (t, J = 8.0 Hz, 2H), 3.06–3.01 (m, 3H), 2.81–2.78 (m, 2H), 2.51–2.41 (m, 4H), 1.93–1.67 (m, 6H), 1.50–1.47 (m, 5H). HRMS (ESI) calculated for C₂₆H₃₀FN₂O₄ [M + H]⁺, 453.2184; found, 453.2180.

8-Chloro-7-(4-(4-(6-fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)-2-methylchroman-4-one (16b). Pale-white solid; m. p. 99–101 °C; yield 64.7%; ¹H-NMR (CDCl₃) δ 7.81(d, J = 8.0 Hz, 1H), 7.74–7.71 (m, 1H), 7.26–7.23 (m, 1H), 7.10–7.05 (m, 1H), 6.56–6.54 (m,1H), 4.40–4.38 (m, 1H), 4.05 (t, J = 8.0 Hz, 2H), 3.05–3.01 (m, 3H), 2.81–2.78 (m, 2H), 2.51–2.41 (m, 4H), 1.92–1.67 (m, 6H), 1.50–1.46 (m, 5H). HRMS (ESI) calculated for C₂₆H₂₉ClFN₂O₄ [M + H]⁺, 487.1794; found, 487.1785.

7-(4-(4-(6-fluorobenzo[d]isoxazol-3-yl)piperidin-1-yl)butoxy)-2,3-dimethylchroman-4-one (21). Pale-white solid; m. p. 82–84 °C; yield 86.1%; ¹H-NMR (CDCl₃) δ 7.80 (d, J = 8.0 Hz, 1H), 7.75–7.71 (m, 1H), 7.26–7.24 (m, 1H), 7.13–7.08 (m, 1H), 6.58–6.54 (m, 1H), 6.38 (d, J = 4.0 Hz, 1H), 4.45 (m, 1H), 4.05 (t, J = 8.0 Hz, 2H), 3.69 (m, 1H), 3.03-3.01(m, 2H), 2.82-2.78 (m, 1H), 2.55–2.44 (m, 4H), 1.92–1.69 (m, 6H), 1.41–1.28 (m, 8H). HRMS (ESI) calculated for C₂₇H₃₂FN₂O₄ [M + H]⁺, 467.2341; found, 467.2335.

3.4. Biological Studies

Ethics Statement

Chinese Kun Ming (KM) Mice (20 ± 2.0 g) and Sprague-Dawley (SD) rats (250 ± 5.0 g) were used as experimental animals in this study. Animals were housed under standardized light and temperature conditions and received standard rat chow and tap water at libitum. Animals were randomly assigned to different experimental groups and each group was kept in a separate cage. All the research involving animals in this study follows the guidelines of the bylaws on experiments on animals, and has been approved by the Ethics and Experimental Animal Committee of Jiangsu Ocean University (Project identification code:2020002, date of approval: 8 January 2020). For the procedural details of the biological studies see the Supplementary Materials.

4. Conclusions

In summary, a series of new flavone derivatives were synthesized based on heterocyclic and aromatic piperazines (piperidine), and their antipsychotic activities were evaluated. Of these compounds, 6j was favorable for binding to multiple acceptors with the KI value of D₂ (12.1 nM), D₃ (25.4 nM), 5-HT_1A (9.7 nM) and 5-HT_2A (3.2 nM), respectively. On the other hand, 6j showed low potency for 5-HT_2C, α₁, H₁ receptors and human ether-a-go-go-related gene (hERG) channel (IC₅₀ 3769.8 nM), which are closely related to the adverse effects of existing antipsychotics. In addition, compound 6j exhibited significant inhibition of schizophrenia-like symptoms (APO and MK-801-induced motor behavior) without causing catalepsy. Furthermore, compound 6j with its high value of ED₅₀ (58.4 mg/kg) in catalepsy and LD₅₀ (>2000 mg/kg) acts at a low dose in apomorphine-induced climbing test (ED₅₀ 0.19 mg/kg), which results in a wider therapeutic index range compared with the typical antipsychotics clozapine and risperidone. Thus, compound 6j has great potential in the treatment of schizophrenia as a novel multi-target antipsychotic drug.
