Article

Effects of Chemically-Modified Polypyridyl Ligands on the Structural and Redox Properties of Tricarbonylmanganese(I) Complexes

by
Takatoshi Kanno
1,
Tsugiko Takase
2 and
Dai Oyama
2,*
1
Graduate School of Science and Engineering, Fukushima University, 1 Kanayagawa, Fukushima 960-1296, Japan
2
Department of Natural Sciences and Informatics, Fukushima University, 1 Kanayagawa, Fukushima 960-1296, Japan
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(24), 5921; https://doi.org/10.3390/molecules25245921
Submission received: 27 November 2020 / Revised: 11 December 2020 / Accepted: 11 December 2020 / Published: 14 December 2020
(This article belongs to the Special Issue 25th Anniversary of Molecules - Featuring Element 25: Manganese and/or Other Metals)
Browse Figures
Versions Notes

Abstract

:
Carbonyl complexes with manganese(I) as the central metal are very attractive catalysts. The introduction of redox-active ligands, such as quinones and methyl viologen analogs into these catalysts, would be expected to lead to superior catalyst performances, since they can function as excellent electron carriers. In this study, we synthesized four tricarbonylmanganese(I) complexes containing typical bidentate polypyridyl ligands, including 1,10-phenanthroline (phen) and 2,2′-bipyridine (bpy) frameworks bound to redox-active ortho-quinone/catechol or methyl viologen-like units. The molecular structures of the resulting complexes were determined by X-ray crystallography to clarify their steric features. As expected from the infrared (IR) data, three CO ligands for each complex were coordinated in the facial configuration around the central manganese(I) atom. Additionally, the structural parameters were found to differ significantly between the quinone/catechol units. Electrochemical analysis revealed some differences between them and their reference complexes, namely [MnBr(CO)3(phen)] and [MnBr(CO)3(bpy)]. Notably, interconversions induced by two-electron/two-proton transfers between the quinone and catechol units were observed in the phenanthroline-based complexes. This work indicated that the structural and redox properties in tricarbonylmanganese(I) complexes were significantly affected by chemically modified polypyridyl ligands. A better understanding of structures and redox behaviors of the present compounds would facilitate the design of new manganese complexes with enhanced properties.

Academic Editor: Rudy J. Richardson

1. Introduction

Due to the fact that manganese, a Group 7 element, is located in the center of the d-block elements on the periodic table, it has the widest oxidation number of the first-row transition metals (i.e., +7 state). As a result of its unique properties, manganese compounds such as KMnO4 and MnO2 have long been used as versatile oxidants and oxidation catalysts. Manganese is also present in the oxygen-evolving complex (OEC) that takes part in photosynthesis, where it plays an important role in catalyzing the oxidation of water [1].
On the other hand, manganese compounds containing π-acidic ligands, such as carbonyl (CO), generally exhibit lower valences. In this type of compound, since manganese(I) is overwhelmingly abundant compared to similar d6 complexes of other noble metals (e.g., Re(I) or Ru(II) [2]); the replacement of these noble metals by first-row transition metals is of particular importance from an applied and industrial standpoint [3]. In manganese(I) carbonyl complexes containing a typical bidentate polypyridyl ligand (N-N) such as 1,10-phenanthroline (phen) or 2,2′-bipyridine (bpy) of the type [MnL(CO)3(N-N)]n+ (L = monodentate ligand, n = 0 or 1), much attention has been paid to the catalytic reactions based on the electrochemistry and photochemistry of the complex [4,5,6,7,8,9,10,11,12]. In this context, the synthesis of a manganese(I) carbonyl complex containing 1,10-phenanthroline-5,6-dione (dpq) as a ligand in which a redox-active quinone unit is introduced into the phenanthroline flamework ([MnBr(CO)3(dpq)]: Mn-dpq) has recently been reported, as has the application of such a system in the catalytic reduction of CO2 [13]; however, the molecular structure of Mn-dpq has yet to be determined. In addition, although the quinone moiety reversibly generates its reduced form (i.e., catechol) by a two-electron/two-proton process (Scheme 1a), the corresponding catechol complex has not been prepared.
Thus, we herein describe the synthesis and molecular structure of the reduced compound [MnBr(CO)3(dpc)]: dpc = 5,6-dihydoxy-1,10-phenanthroline (Mn-dpc), as well as the molecular structure of the abovementioned Mn-dpq (Figure 1). In addition to a comparison of the structure and properties of both complexes, the redox-induced interconversion between these complexes is investigated in detail. Furthermore, we attempt the synthesis of a further manganese(I) system that contains 4,4′-substituted bipyridine units, which are representative of polypyridyl ligands; one is replaced with pyridine (4,4′:2′,2′’:4′’,4′’’-quaterpyridine; qpy), and the substituted pyridines are further quaternized to form the redox-active pyridinium compound (N’’,N’’’-dimethyl-4,4′:2′,2′’:4′’,4′’’-quaterpyridinium ion; dmqpy2+). In particular, since the latter ligand (dmqpy2+) is similar to methyl viologen, which functions as a multi-electron carrier (Scheme 1b) [14]; the introduction of the ligand into the manganese(I) complex would be expected to lead to an improvement in its reduction potential [15]. In addition to the phenanthroline-based manganese(I) complexes described above, the molecular structures and the redox properties of these bipyridine-based complexes (i.e., [MnBr(CO)3(qpy)]; Mn-qpy and [MnBr(CO)3(dmqpy)]2+; Mn-dmqpy) are also examined (Figure 1). Furthermore, the structures and redox properties of polypyridylmanganese(I) complexes containing these two different redox-active units are compared with their reference complexes ([MnBr(CO)3(phen)]; Mn-phen and [MnBr(CO)3(bpy)]; Mn-bpy, respectively), and the diversification of molecules caused by the introduction of redox-active ligands is evaluated.

2. Results and Discussion

2.1. Synthesis and Spectroscopic Characterization of the Tricarbonylmanganese Complexes

Chemical reduction of the metal-free dpq to dpc was previously reported through the use of hydrazine, sodium borohydride (NaBH4), dithiooxamide, and sodium dithionite (Na2S2O4) [16,17,18,19,20]. In contrast, reduction of the dpq ligand in metal complexes was achieved during the formation of a heterodimer between the {Ru(dpq)}2+ site and M0 compounds (M = Pd or Pt) [21]. In this study, when the reduced catechol molecule (dpc) was reacted with [MnBr(CO)5], the coordinated dpc ligand was partially oxidized during the reaction to give a mixture of [MnBr(CO)3(dpq)] and [MnBr(CO)3(dpc)] under the heating conditions required for this reaction to take place. Therefore, the quinone-coordinated complex was initially prepared according to a previously reported procedure [13], and the corresponding catechol complex was subsequently obtained by chemical reduction at a low temperature (Scheme 2a). The conversion of quinone to catechol was confirmed by the absence of a C=O stretching band (1698 cm−1) at the quinone unit in the infrared (IR) spectrum. Meanwhile, no OH proton signal was observed in the 1H-NMR spectrum [22]. Since the catechol unit of the complex in solution is gradually oxidized by air to produce the corresponding quinone unit, the quinone form can be considered more stable in terms of this system (vide infra).
In the bipyridine-based complexes, on the other hand, qpy and dmqpy2+, which were substituted at the 4,4′-position of bpy with pyridine and pyridinium ions, respectively, were synthesized according to previously reported procedures [23,24], and then, each ligand was reacted with [MnBr(CO)5] to afford the corresponding 4,4′-substituted bipyridine complexes (Scheme 2b). In the elemental analysis of the isolated Mn-dmqpy, the calculated value was satisfactory when PF6− was a counterion. However, when single crystals of this compound were prepared, single crystal X-ray structural and energy-dispersive X-ray (EDX) analyses suggested that both PF6− and Br− were mixed as counterions (results described later). Therefore, it is expected that bromide ions are also contained in a part of the isolated complex, and the PF6/Br salt present as a minor component is more likely to crystallize, leading to the selective precipitation of single crystals of the PF6/Br mixture. In addition, the quaternized unit was stably maintained during this complexation, since the methyl signal was observed at 4.44 ppm (1H) and 49.45 ppm (13C) in the NMR spectra of Mn-dmqpy.
In the IR measurements of the synthesized complexes, three CO-stretching bands attributed to the terminal carbonyl moieties were observed (Table 1). This suggests that the coordination geometries of all complexes are in the facial configuration, which is in agreement with the X-ray structural analyses results described below. In addition, the UV-visible spectra of acetonitrile solutions of the complexes showed several absorption bands in the visible region, which were attributed to metal-to-ligand charge transfer (MLCT) and/or halogen-to-ligand charge transfer (XLCT) (Figure 2 and Table 1) [13,25,26], and the phenanthroline-based complexes exhibited a red shift of ~20 nm compared to the reference Mn-phen [13]. Although the absorption in the visible region remained relatively unchanged upon reduction of the quinone unit to catechol, the extinction coefficient at the higher energy region (~290 nm) increased. Considering that the high energy absorption was assigned to intra-ligand π-π* transitions [13], this distinction indicates that dpq and dpc ligands exhibit different energy states despite their identical molecular frameworks. On the other hand, Mn-qpy was not significantly different from the reference Mn-bpy in the bipyridine-based complexes, and the absorption maximum of Mn-dmqpy was red-shifted by 40 nm, due to quaternization of the free pyridine units. Furthermore, since the absorbance in the visible region was also increased by approximately three times, it was apparent that introduction of the redox-active unit greatly affected the electronic states of the present complexes.

2.2. Structural Characterization of the Tricarbonylmanganese Complexes

Structural analyses were then performed on the four complexes synthesized in this work. As expected from the IR data, it was confirmed that the three CO ligands of all complexes were coordinated in the facial configuration around the central manganese(I) atom. The main bond parameters (Mn–C, Mn–N, Mn–Br, and C–O lengths and Mn–C–O angles) shown in Table 2 are similar to those reported in fac-[MnBr(CO)3(N-N)]-type complexes [4,25,26,27,28,29,30,31,32]. On the basis of these bond parameters, all CO ligands were concluded to exhibit typical triple-bond characteristics. Furthermore, the calculated density functional theory (DFT)-optimized structures of the complexes were found to be analogous to their experimentally determined structures (Table 2). For example, the Mn–N bond lengths were calculated to be 2.063–2.080 Å, which corresponds to the experimentally determined values of 2.0344(15)–2.0614(19) Å.
As shown in Figure 3, although the coordination geometries of the two phenanthroline-based complexes are essentially the same, the structural parameters of the redox-active sites are quite different (Table 2). More specifically, the C–O bond lengths at the quinone unit in Mn-dpq are 1.212(6) and 1.220(7) Å; these smaller values are typical for C=O bonds. In contrast, the C–OH bond lengths of the catechol unit in Mn-dpc are 1.362(2) and 1.367(2) Å, which are within the range of C–O single-bond distances; these values are similar to those in the previously reported metal-free dpq and dpc, respectively [33,34]. Therefore, from a crystallographic point of view, it was confirmed that Mn-dpq and Mn-dpc possess quinone and catechol units, respectively. In addition, Mn-dpq possesses hydrogen bonds between the complex and the solvent molecules (acetone) (Figure 4 and Table S1), which may contribute to stabilization of the crystal. Meanwhile, intermolecular O–H…Br hydrogen bonds and a distinct π-π stacking (3.445(1) Å for the centroid-centroid distance between the central aromatic rings), as well as intramolecular hydrogen bonds between the two OH groups, were confirmed in Mn-dpc, given its tight dimer formation (Figure S1). These interactions perhaps correlate with the calculated density of the complexes.
The molecular structures of the bipyridine-based complexes are shown in Figure 5. More specifically, Mn-qpy is neutral, whereas Mn-dmqpy is a divalent cation due to introduction of the quaternized dmqpy2+ ligand. As described above, incorporating both Br− and PF6− as counterions led to the more facile formation of single crystals suitable for X-ray diffraction. The structural analysis data suggest that the two kinds of counterions (i.e., PF6− and Br−) were present in equal quantities. Actually, from the EDX analysis of the crystals, the Mn/Br/P molar ratio could be estimated to be nearly 1:2:1, which strongly supports the results of the structural analysis. The dihedral angles between the free pyridine (or pyridinium) rings and the coordinated pyridine rings were found to be small (mean values of 10.08 and 14.4°, respectively; Table 2) but distinct from those of the optimized structures (30.58 and 30.88° for Mn-qpy and 35.56 and 35.65° for Mn-dmqpy). This difference can be ascribed in part to some packing effects in the crystal. In particular, Mn-dmqpy constructs essential quasi-coplanarities due to multiple hydrogen bonds (C–H…Br) between the counterion and the free pyridinium rings (Figure 6 and Table S2), in addition to exhibiting intermolecular π-π stacking (3.704(3) Å for the centroid-centroid distance).

2.3. Redox Properties of the Tricarbonylmanganese Complexes

2.3.1. Phenanthroline-Based Complexes: Interconversion between Quinone and Catechol Units

In the reference Mn-phen, two irreversible one-electron reductions and an oxidation wave were observed. These reductions rapidly led to the loss of bromide, followed by dimerization on the timescale of the cyclic voltammetry (CV) measurements [13]. In contrast, the electrochemical behaviors of Mn-dpq and Mn-dpc differed significantly. Initially, CV measurements were performed on Mn-dpq containing the quinone unit; either acetonitrile or a dilute aqueous HClO4 solution as a proton source were used as the solvent for carrying out the CV measurements. As previously reported, an irreversible oxidation wave (Epa = 0.74 V) attributed to MnII/I was observed, in addition to two reversible redox pairs (E1/2 = −0.58 and −1.19 V) under aprotic conditions (Table 3 and Figure 7a) [13]. These successive waves were attributed to the stepwise electron transfers between quinone and the catecholate dianion via the semiquinone anion radical (Scheme 3) [13,35]. These potentials are shifted towards more positive values (210–350 mV) than those of the free ligand (dpq) due to complexation with the {Mn(CO)3}+ moiety [13]. When two equivalents of protons were added to the solution, a new reduction wave, in which two sets of redox pairs were united, appeared at a more positive potential (−0.2 V), and small oxidation waves were observable on the anodic scan after the reduction (i.e., at 0.27 and 0.43 V) (Figure 7b) [36]. This result suggests that proton-coupled electron transfer (PCET) occurs upon the addition of protons to generate the corresponding catechol unit directly by 2e−/2H+ transfers, as shown in Scheme 1a. On the other hand, in the CV of Mn-dpc, which contains the catechol unit, two oxidation waves were observed at 0.43 and 0.74 V (Figure 8a) [37]. In general, the first oxidation wave was assigned to oxidation of the catechol site [38], and our DFT calculation results also supported this assumption. When the anodic scan was immediately reversed after the first peak potential, a coupled reduction wave was observed at −0.28 V (Figure 8b). Since this reduction potential almost coincides with that of the quinone moiety during PCET (Figure 7b), it appears that Mn-dpq and Mn-dpc can electrochemically interconvert between one another via the PCET process.
To examine the reversible structural changes induced by electrochemical and chemical reactions, the interconversion between the two complexes was monitored by absorption spectroscopy. The spectral changes of Mn-dpq observed during the course of the electrolysis at −0.6 V in the presence of protons are shown in Figure 9a. Upon application of the potential, the new bands at 288 and 343 nm gradually increased in intensity, and the final spectrum obtained matched that of the corresponding Mn-dpc. This supports the results of the CV experiments discussed above (Figure 7b), i.e., the quinone unit was completely converted to catechol through reduction in the presence of protons. In contrast, when the acetonitrile solution of Mn-dpc was allowed to stand for 1 h in the air, the spectrum matched that of Mn-dpq (Figure 9b), indicating that the catechol unit of Mn-dpc returned to the corresponding quinone by oxidation under air. Considering that Mn-dpc can be prepared by the chemical reduction of Mn-dpq, both the chemical and electrochemical interconversions shown in Scheme 4 are possible between Mn-dpq and Mn-dpc.

2.3.2. Bipyridine-Based Complexes

The redox properties of the reference Mn-bpy are also similar to those of the Mn-phen species described above [4,13,39]. Unclear redox waves were observed in Mn-qpy owing to its poor solubility in almost all organic solvents (Table 3 and Figure S2). Since an oxidation wave of the species generated by an EC reaction (electron transfer followed by a homogeneous chemical reaction) was observed at −0.42 V in the CV of Mn-qpy, the formation of a Mn-Mn dimer upon reduction is expected, as in the case of Mn-bpy [40]. On the other hand, four successive reduction waves were observed in the CV of Mn-dmqpy (Table 3 and Figure S3). More specifically, the first reduction wave was observed at −1.14 V, which was a more positive potential than those observed for dmqpy2+ (−1.45 V) and Mn-bpy (−1.73 V) under the same conditions. DFT calculations suggested that this is attributable to the reduction of the ligand moiety (dmqpy2+). Since the reduction properties of Mn-dmqpy are similar to those of a ruthenium complex containing the dmqpy2+ ligand [15], the quaternization of the bpy-based ligand facilitates electron transfer. In addition, considering that no oxidation wave was observed at approximately −0.4 V during the reduction, it appeared Mn-dmqpy does not undergo dimer formation. This result confirmed that the reduction properties of the bipyridine-based complexes are also affected considerably by the differences in the redox-active unit.

3. Materials and Methods

3.1. General Remarks

All chemicals were used without further purification unless otherwise stated. All solvents purchased for organic synthesis were anhydrous and were used without further purification. Acetonitrile for the electrochemical measurements was purified using a Glass Contour Ultimate Solvent System (Laguna, CA, USA). [MnBr(CO)5] was purchased from Sigma-Aldrich (Tokyo, Japan). The ligands (dpq, qpy, and dmqpy2+) and the complexes ([MnBr(CO)3(dpq)], [MnBr(CO)3(phen)], and [MnBr(CO)3(bpy)]) were synthesized according to previously reported procedures [13,23,24,41,42]. The formation of these compounds was confirmed by MS, 1H-NMR, and IR spectral data. All manganese(I) complexes were handled and stored in the dark to minimize exposure to light.
Elemental analysis data were obtained on a PerkinElmer 2400II series CHN analyzer (Yokohama, Japan). IR spectra were obtained using a JASCO FT-IR 4100 spectrometer (Tokyo, Japan). Electrospray ionization mass spectrometry (ESI-MS) data were obtained using a Bruker Daltonics micrOTOF spectrometer (Yokohama, Japan). UV-visible spectra were obtained on a JASCO V-560 spectrophotometer (Tokyo, Japan). 1H and 13C{1H}-NMR spectra were acquired on a JEOL JMN-AL300 spectrometer (Tokyo, Japan) operating at 1H and 13C frequencies of 300 and 75.5 MHz, respectively. EDX analyses were performed using a JEOL JSM-6380LANV/EX37001 system (Tokyo, Japan). Electrochemical measurements were performed on an electrochemical analyzer (ALS/CHI model 660E, Tokyo, Japan) with a solution of the complex in acetonitrile (1 mM of Mn-dpq and Mn-dpc) or in DMF (1 mM of Mn-dmqpy and 0.5 mM of Mn-qpy) and with n-Bu4NClO4 (0.1 M) as a supporting electrolyte in a cell consisting of a glassy carbon or a platinum working electrode (ϕ = 1.6 mm), a Pt wire counter electrode, and Ag/AgNO3 (0.01 M) as the reference electrode. All potentials were reported in volts vs. the ferrocenium/ferrocene couple (Fc+/Fc) under Ar at 25 °C. UV/vis-SEC was carried out using a homemade thin-layer electrode cell with a Pt mesh working electrode sandwiched between two glass sides of an optical quartz cell (path length 0.5 mm), where an Ag/Ag+ reference electrode was separated from the working compartment by Vycor glass. A Hokuto Denko HAB-151 potentiostat (Tokyo, Japan) was employed to control the cell potential. Thin-layer bulk electrolysis was monitored by UV-vis spectroscopy at regular time intervals. DFT calculations were performed using the quantum computation software Gaussian 09 [43]. The geometries of the complexes were fully optimized using a restricted DFT method employing the B3LYP function [44,45] at the 6-31G(d) level of theory with a LanL2DZ basis set [46,47,48]. The solvent effect of acetonitrile or DMF was evaluated using an implicit solvent model and a polarizable continuum model. Vibrational analyses were performed at the same calculation level employed for geometry optimization.

3.2. Synthesis of the Complexes

3.2.1. Synthesis of fac-[MnBr(CO)3(dpc)]

A Schlenk flask was charged with [MnBr(CO)3(dpq)] (25 mg, 59 µmol), HBr aq. (1 M, 150 µL), Na2S2O4 aq. (1 M, 90 µL), and degassed CH3CN (3 mL) at 0 °C. The resulting mixture was vigorously stirred at ambient temperature under N2 for 30 min. After the addition of CH3CN (5 mL) to the solution, the reaction mixture was allowed to stand at −20 °C overnight. After this time, some insoluble matter was removed by filtration, and the volume of the filtrate was reduced to 1 mL using a rotary evaporator. Following the addition of diethyl ether (30 mL) to the solution, it was allowed to stand at −20 °C to yield [MnBr(CO)3(dpc)] as a yellow precipitate. The product was collected by filtration, washed with diethyl ether, and dried in vacuo. Yield: 20 mg (79%) [49]. IR (KBr): 2032, 1961, 1938 cm−1 (νCO). 1H-NMR (CD3CN): δ 9.36 (dd, J = 4.8, 1.5 Hz, 2H), 8.78 (dd, J = 8.4, 1.5 Hz, 2H), 7.84 (dd, J = 8.4, 5.1 Hz, 2H). All attempts to obtain 13C{1H} NMR data for the compound were unsuccessful due to its instability in solution (see Section 2.3.1).

3.2.2. Synthesis of fac-[MnBr(CO)3(qpy)] and fac-[MnBr(CO)3(dmqpy)](PF6)2

[MnBr(CO)5] (24 mg, 88 µmol) and qpy (22 mg, 68 µmol) were dissolved in MeOH (20 mL), and the reaction mixture was stirred at ambient temperature for 24 h. After this time, the solvent was evaporated to a volume of 4 mL under reduced pressure, an excess of diethyl ether (20 mL) was added, and the resulting solution was allowed to stand at 4 °C overnight. The obtained precipitate was collected by filtration, washed with diethyl ether, and then dried under vacuum (30 mg, 86%). Anal. Calcd for [MnBr(CO)3(qpy)]·0.5H2O: C23H15N4O3.5BrMn: C, 51.32; H, 2.81; N, 10.41. Found: C, 51.35; H, 2.98; N, 10.69. IR (KBr): 2027, 1936, 1914 cm−1 (νCO). 1H-NMR (DMSO-d6): δ 9.31 (d, J = 5.7 Hz, 2H), 9.20 (s, 2H), 8.84 (s, 4H), 8.15 (d, J = 6.9 Hz, 2H), 8.06 (s, 4H). 13C{1H}-NMR (DMSO-d6): δ 155.90, 154.05, 147.44, 142.65, 130.22, 128.32, 126.95, 124.31.
A similar reaction between [MnBr(CO)5] (26 mg, 92 µmol) and dmqpy(PF6)2 (22 mg, 34 µmol) in acetone (20 mL) afforded [MnBr(CO)3(dmqpy)](PF6)2. Yield: 24 mg (80%). Anal. Calcd for [MnBr(CO)3(dmqpy)](PF6)2: C25H20N4O3F12P2BrMn: C, 33.92; H, 2.73; N, 6.33. Found: C, 33.56; H, 2.53; N, 6.10. ESI-MS (CH3CN): m/z 280.0 ([M]2+). IR (KBr): 2029, 1944, 1927 cm−1 (νCO). 1H-NMR (DMSO-d6): δ 9.50 (d, J = 5.7 Hz, 2H), 9.37 (s, 2H), 9.28 (d, J = 6.3 Hz, 4H), 8.81 (d, J = 6.0 Hz, 4H), 8.35 (d, J = 6.3 Hz, 4H), 4.44 (s, 6H). 13C{1H}-NMR (DMSO-d6): δ 157.47, 155.80, 152.35, 147.89, 145.10, 127.19, 125.81, 123.75, 49.45.

3.3. X-ray Crystallographic Analyses

Single crystals of [MnBr(CO)3(dpq)]·(CH3)2CO (orange plate-like crystals), [MnBr(CO)3(dpc)] (yellow block-like crystals), [MnBr(CO)3(qpy)] (orange block-like crystals), and [MnBr(CO)3(dmqpy)]Br(PF6) (reddish-orange plate-like crystals) were obtained by the vapor diffusion of n-hexane into an acetone solution of the complex. Crystal structure determination and refinement data for the complexes are given in Figure 3, Figure 4, Figure 5 and Figure 6, Table 2, Table 4, and Supplementary Materials Figure S1, Table S1 and Table S2. The occupancies of the counter-anions (Br− and PF6−) in [MnBr(CO)3(dmqpy)]Br(PF6) were 1:1. We confirmed the CIF data by using the checkCIF/PLATON tests [50]. CCDC-2039786–2039789 contains the supplementary crystallographic data for this paper.

4. Conclusions

We herein demonstrated that various functions can be imparted onto conventional manganese complexes by introducing redox-active units into typical bidentate polypyridyl ligands. In particular, metal complexes containing quinone/catechol units that cause a reversible proton-coupled electron transfer can interconvert by redox reactions, thereby leading to a variety of applications, such as the construction of a reversible molecular switch based on an external stimulus. Our new manganese compounds will open up new pathways, not only for systematic research into the molecular structures and catalytic properties of manganese compounds but, also, for the creation of new functions for manganese complexes. Further studies are underway to explore a manganese-catalyzed redox system for the reduction of carbon dioxide to some high value-added organics, and the results will be presented in due course.

Supplementary Materials

Figure S1: A dimer formation caused by intermolecular hydrogen bonds and π-π stacking in the crystal packing of Mn-dpc. Figure S2: Cyclic voltammogram of Mn-qpy in DMF (v = 0.1 V s–1, c = 0.5 mM). Figure S3: Cyclic voltammogram of Mn-dmqpy in DMF (v = 0.1 V s–1, c = 1 mM). Table S1: Hydrogen-bond geometry (Å, °) for Mn-dpq and Mn-dpc. Table S2: Hydrogen-bond geometry (Å, °) for Mn-qpy and Mn-dmqpy.

Author Contributions

The syntheses and characterizations of compounds, T.K.; investigation and data analysis, T.K.; crystallography and computational analysis, T.T.; writing—original draft preparation, T.K.; writing—review and editing, D.O.; and supervision and funding acquisition, D.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by JSPS KAKENHI, grant number JP20K05536 (JSPS, Japan).

Acknowledgments

The authors are indebted to Shota Hirayama and Ryosuke Abe of Fukushima University for the experimental assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Umena, Y.; Kawakami, K.; Shen, J.-R.; Kamiya, N. Crystal structure of oxygen-evolving photosystem II at a resolution of 1.9 Å. Nature 2011, 473, 55–60. [Google Scholar] [CrossRef] [PubMed]
  2. Valyaev, D.A.; Lavigne, G.; Lugan, N. Manganese organometallic compounds in homogeneous catalysis: Past, present, and prospects. Coord. Chem. Rev. 2016, 308, 191–235. [Google Scholar] [CrossRef]
  3. Takeda, H.; Cometto, C.; Ishitani, O.; Robert, M. Electrons, photons, protons and earth-abundant metal complexes for molecular catalysis of CO2 reduction. ACS Catal. 2017, 7, 70–88. [Google Scholar] [CrossRef]
  4. Bourrez, M.; Molton, F.; Chardon-Noblat, S.; Deronzier, A. [Mn(bipyridyl)(CO)3Br]: An abundant metal carbonyl complex as efficient electrocatalyst for CO2 reduction. Angew. Chem. Int. Ed. 2011, 50, 9903–9906. [Google Scholar] [CrossRef]
  5. Smieja, J.M.; Sampson, M.D.; Grice, K.A.; Benson, E.E.; Froehlich, J.D.; Kubiak, C.P. Manganese as a substitute for rhenium in CO2 reduction catalysts: The importance of acids. Inorg. Chem. 2013, 52, 2484–2491. [Google Scholar] [CrossRef]
  6. Riplinger, C.; Sampson, M.D.; Ritzmann, A.M.; Kubiak, C.P.; Carter, E.A. Mechanistic contrasts between manganese and rhenium bipyridine electrocatalysts for the reduction of carbon dioxide. J. Am. Chem. Soc. 2014, 136, 16285–16298. [Google Scholar] [CrossRef]
  7. Takeda, H.; Koizumi, H.; Okamoto, K.; Ishitani, O. Photocatalytic CO2 reduction using a Mn complex as a catalyst. Chem. Commun. 2014, 50, 1491–1493. [Google Scholar] [CrossRef]
  8. Torralba-Peñalver, E.; Luo, Y.; Compain, J.-D.; Chardon-Noblat, S.; Fabre, B. Selective catalytic electroreduction of CO2 at silicon nanowires (SiNWs) photocathodes using non-noble metal-based manganese carbonyl bipyridyl molecular catalysts in solution and grafted onto SiNWs. ACS Catal. 2015, 5, 6138–6147. [Google Scholar] [CrossRef] [Green Version]
  9. Sampson, M.D.; Kubiak, C.P. Electrocatalytic dihydrogen production by an earth-abundant manganese bipyridine catalyst. Inorg. Chem. 2015, 54, 6674–6676. [Google Scholar] [CrossRef]
  10. Fei, H.; Sampson, M.D.; Lee, Y.; Kubiak, C.P.; Cohen, S.M. Photocatalytic CO2 reduction to formate using a Mn(I) molecular catalyst in a robust metal-organic framework. Inorg. Chem. 2015, 54, 6821–6828. [Google Scholar] [CrossRef] [PubMed]
  11. Zhang, J.-X.; Hu, C.-Y.; Wang, W.; Wang, H.; Bian, Z.-Y. Visible light driven reduction of CO2 catalyzed by an abundant manganese catalyst with zinc porphyrin photosensitizer. Appl. Catal. A Gen. 2016, 522, 145–151. [Google Scholar] [CrossRef]
  12. Sampson, M.D.; Kubiak, C.P. Manganese electrocatalysts with bulky bipyridine ligands: Utilizing Lewis acids to promote carbon dioxide reduction at low overpotentials. J. Am. Chem. Soc. 2016, 138, 1386–1393. [Google Scholar] [CrossRef] [PubMed]
  13. Stanbury, M.; Compain, J.-D.; Trejo, M.; Smith, P.; Gouré, E.; Chardon-Noblat, S. Mn-carbonyl molecular catalysts containing a redox-active phenanthroline-5,6-dione for selective electro- and photoreduction of CO2 to CO or HCOOH. Electrochim. Acta 2017, 240, 288–299. [Google Scholar] [CrossRef]
  14. Morgan, R.J.; Baker, A.D. 2,2′:4,4′’:4′,4′’’-Quaterpyridyl: A building block for the preparation of novel redox reagents. 1. Preparation and quaternization. J. Org. Chem. 1990, 55, 1986–1993. [Google Scholar] [CrossRef]
  15. Kalyanasundaram, K. Photophysics, photochemistry and solar energy conversion with tris(bipyridyl)ruthenium(II) and its analogues. Coord. Chem. Rev. 1982, 46, 159–244. [Google Scholar] [CrossRef]
  16. Eckert, T.S.; Bruice, T.C. Chemical properties of phenanthrolinequinones and the mechanism of amine oxidation by o-quinones of medium redox potentials. J. Am. Chem. Soc. 1983, 105, 4431–4441. [Google Scholar] [CrossRef]
  17. Wu, J.-Z.; Li, H.; Zhang, J.-G.; Xu, J.-H. Synthesis and DNA binding behavior of a dipyridocatecholate bridged dicopper(II) complex. Inorg. Chem. Commun. 2002, 5, 71–75. [Google Scholar] [CrossRef]
  18. Liu, Y.; Hammitt, R.; Lutterman, D.A.; Thummel, R.P.; Turro, C. Marked differences in light-switch behavior of Ru(II) complexes possessing a tridentate DNA intercalating ligand. Inorg. Chem. 2007, 46, 6011–6021. [Google Scholar] [CrossRef]
  19. Paw, W.; Eisenberg, R. Synthesis, characterization, and spectroscopy of dipyridocatecholate complexes of platinum. Inorg. Chem. 1997, 36, 2287–2293. [Google Scholar] [CrossRef]
  20. Ambroise, A.; Maiya, B.G. Ruthenium(II) complexes of 6,7-dicyanodipyridoquinoxaline:  Synthesis, luminescence studies, and DNA interaction. Inorg. Chem. 2000, 39, 4264–4272. [Google Scholar] [CrossRef]
  21. Fujihara, T.; Okamura, R.; Wada, T.; Tanaka, K. Coordination ability of 1,10-phenanthroline-5,6-dione: Syntheses and redox behavior of a Ru(II) complex with an o-quinoid moiety and of bridged Ru(II)–M(II) complexes (M = Pd, Pt). Dalton Trans. 2003, 3221–3226. [Google Scholar] [CrossRef]
  22. We could not observe signals derived from the OH groups of the catechol units even in DMSO-d6.
  23. Shi, A.; Pokhrel, M.R.; Bossmann, S.H. Synthesis of highly charged ruthenium(II)-quaterpyridinium complexes: A bottom-up approach to monodisperse nanostructures. Synthesis 2007, 4, 505–514. [Google Scholar]
  24. Coe, B.J.; Harper, E.C.; Helliwell, M.; Ta, Y.T. Syntheses and properties of complexes with bis(2,2′-bipyridyl)ruthenium(II) moieties coordinated to 4,4′:2′,2′’:4′’,4′’’-quaterpyridinium ligands. Polyhedron 2011, 30, 1830–1841. [Google Scholar] [CrossRef]
  25. Kurtz, D.A.; Dhakal, B.; Hulme, R.J.; Nichol, G.S.; Felton, G.A.N. Correlations between photophysical and electrochemical properties for a series of new Mn carbonyl complexes containing substituted phenanthroline ligands. Inorg. Chim. Acta 2015, 427, 22–26. [Google Scholar] [CrossRef]
  26. Henke, W.C.; Otolski, C.J.; Moore, W.N.G.; Elles, C.G.; Blakemore, J.D. Ultrafast spectroscopy of [Mn(CO)3] complexes: Tuning the kinetics of light-driven CO release and solvent binding. Inorg. Chem. 2020, 59, 2178–2187. [Google Scholar] [CrossRef]
  27. Machan, C.W.; Sampson, M.D.; Chabolla, S.A.; Dang, T.; Kubiak, C.P. Developing a mechanistic understanding of molecular electrocatalysts for CO2 reduction using infrared spectroelectrochemistry. Organometallics 2014, 33, 4550–4559. [Google Scholar] [CrossRef]
  28. Jimenez, J.; Chakraborty, I.; Mascharak, P.K. Synthesis and assessment of CO-release capacity of manganese carbonyl complexes derived from rigid α-diimine ligands of varied complexity. Eur. J. Inorg. Chem. 2015, 30, 5021–5026. [Google Scholar] [CrossRef] [Green Version]
  29. Lense, S.; Guzei, I.A.; Andersen, J.; Thao, K.C. Crystal structures of a manganese(I) and a rhenium(I) complex of a bipyridine ligand with a non-coordinating benzoic acid moiety. Acta Cryst. 2018, E74, 731–736. [Google Scholar] [CrossRef] [Green Version]
  30. Walsh, J.J.; Smith, C.L.; Neri, G.; Whitehead, G.F.S.; Robertson, C.M.; Cowan, A.J. Improving the efficiency of electrochemical CO2 reduction using immobilized manganese complexes. Faraday Discuss. 2015, 183, 147–160. [Google Scholar] [CrossRef] [Green Version]
  31. Wadayama, K.; Takase, T.; Oyama, D. fac-Bromido/chlorido(0.50/0.50)[3-carbamoyl-1-(1,10-phenanthrolin-2-ylmethyl)pyridinium-κ2N,N’]tricarbonylmanganese(I) 0.49-bromide 0.51-chloride methanol monosolvate. IUCrData 2019, 4, x181792. [Google Scholar] [CrossRef]
  32. Kanno, T.; Takase, T.; Oyama, D. Synthesis and crystal structures of manganese(I) carbonyl complexes bearing ester-substituted α-diimine ligands. Acta Cryst. 2020, E76, 1433–1436. [Google Scholar]
  33. Calderazzo, F.; Marchetti, F.; Pampaloni, G.; Passarelli, V. Co-ordination properties of 1,10-phenanthroline-5,6-dione towards group 4 and 5 metals in low and high oxidation states. J. Chem. Soc. Dalton Trans. 1999, 4389–4396. [Google Scholar] [CrossRef]
  34. Lin, X.-Y.; Tang, S.-J.; Wu, W.-S. 5,6-Dihydroxy-1,10-phenanthrolin-1-ium chloride dihydrate. Acta Cryst. 2009, E65, o2367. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Goss, C.A.; Abruna, H.D. Spectral, electrochemical and electrocatalytic properties of 1,10-phenanthroline-5,6-dione complexes of transition metals. Inorg. Chem. 1985, 24, 4263–4267. [Google Scholar] [CrossRef]
  36. When Mn-dpq was measured with a Pt working electrode, only an oxidation wave was observed at 0.43 V. Thus, the electrode reactions taking place under these conditions may depend on the material employed (i.e., carbon or platinum); Lei, Y.; Anson, F.C. Hydration of the carbonyl groups in 1,10-phenanthroline-5,6-dione induced by binding protons or metal cations to the pyridine nitrogen sites. J. Am. Chem. Soc. 1995, 117, 9849–9854.
  37. We could not carry out CV measurements for dpc due to its low solubility in almost all solvents.
  38. Stallings, M.D.; Morrison, M.M.; Sawyer, D.T. Redox chemistry of metal-catechol complexes in aprotic media. 1. Electrochemistry of substituted catechols and their oxidation products. Inorg. Chem. 1981, 20, 2655–2660. [Google Scholar] [CrossRef]
  39. Pordel, S.; White, J.K. Impact of Mn(I) photoCORM ligand set on photochemical intermediate formation during visible light-activated CO release. Inorg. Chim. Acta 2020, 500, 119206. [Google Scholar] [CrossRef]
  40. A newly emerged oxidation wave (0.35 V) accompanying the reductions was assignable to the oxidation of Br– since another CV measurement using n-Bu4NBr showed an oxidation wave at 0.34 V under identical conditions. Therefore, the electrochemical results strongly suggest dissociation of the Br ligand and the following Mn-Mn dimerization.
  41. Yamada, M.; Tanaka, Y.; Yoshimoto, Y.; Kuroda, S.; Shimao, I. Synthesis and properties of diamino-substituted dipyrido [3,2-a:2′,3′-c]phenazine. Bull. Chem. Soc. Jpn. 1992, 65, 1006–1011. [Google Scholar] [CrossRef]
  42. Chakraborty, I.; Carrington, S.J.; Mascharak, P.K. Photodelivery of CO by designed photoCORMs: Correlation between absorption in the visible region and metal–CO bond labilization in carbonyl complexes. ChemMedChem 2014, 9, 1266–1274. [Google Scholar] [CrossRef]
  43. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09W, revision D.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  44. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Green Version]
  45. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  46. Francl, M.M.; Pietro, W.J.; Hehre, W.J. Self-consistent molecular orbital methods. XXIII. A polarization-type basis set for second-row elements. J. Chem. Phys. 1982, 77, 3654–3665. [Google Scholar] [CrossRef] [Green Version]
  47. Hehre, W.J.; Ditchfield, R.; Pople, J.A. Self-consistent molecular orbital methods. XII. Further extensions of Gaussian-type basis sets for use in molecular orbital studies of organic molecules. J. Chem. Phys. 1972, 56, 2257–2261. [Google Scholar] [CrossRef]
  48. Wadt, W.R.; Hay, P.J. Ab initio effective core potentials for molecular calculations. Potentials for main group elements Na to Bi. J. Chem. Phys. 1985, 82, 284–298. [Google Scholar] [CrossRef]
  49. We could not obtain any satisfactory results in the elemental analysis of Mn-dpc, due to its incombustibility.
  50. This is a service of the International Union of Crystallography (IUCr).
Molecules 25 05921 sch001 550

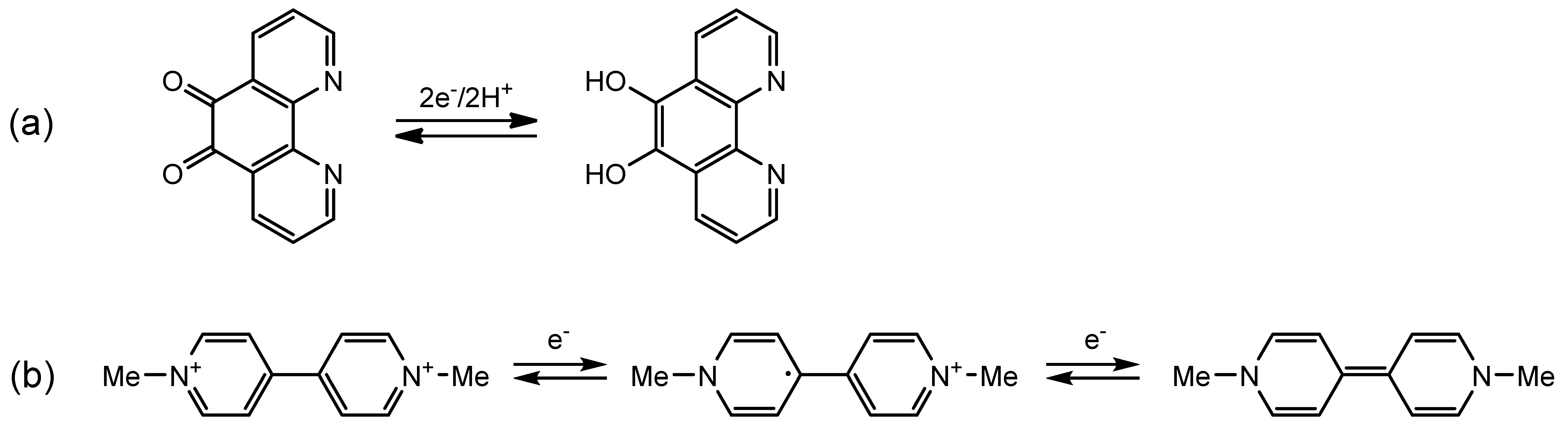

Scheme 1. (a) Direct reversible 2e−/2H+ process of dpq, and (b) successive reversible 2e− process of methyl viologen.
Scheme 1. (a) Direct reversible 2e−/2H+ process of dpq, and (b) successive reversible 2e− process of methyl viologen.
Molecules 25 05921 sch001
Molecules 25 05921 g001 550

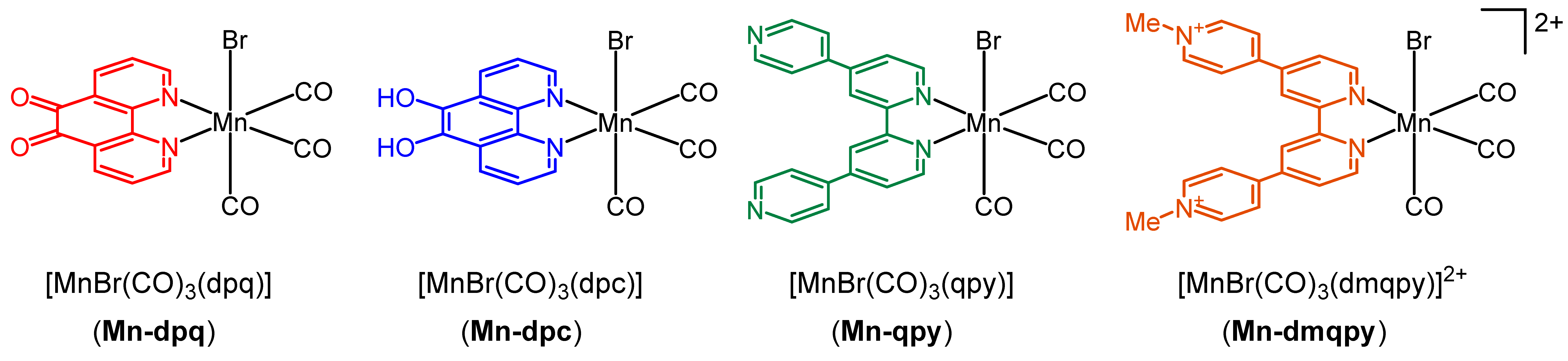

Figure 1. Chemical structures of the Mn(I) complexes presented in this study.
Figure 1. Chemical structures of the Mn(I) complexes presented in this study.
Molecules 25 05921 g001
Molecules 25 05921 sch002 550
Scheme 2. Synthetic routes to the Mn(I) complexes: (a) phenanthroline-based complexes and (b) bipyridine-based complexes.
Scheme 2. Synthetic routes to the Mn(I) complexes: (a) phenanthroline-based complexes and (b) bipyridine-based complexes.
Molecules 25 05921 sch002
Molecules 25 05921 g002 550
Figure 2. UV-visible spectra of the Mn(I) complexes (0.1-mM solutions in CH3CN).
Figure 2. UV-visible spectra of the Mn(I) complexes (0.1-mM solutions in CH3CN).
Molecules 25 05921 g002
Molecules 25 05921 g003 550

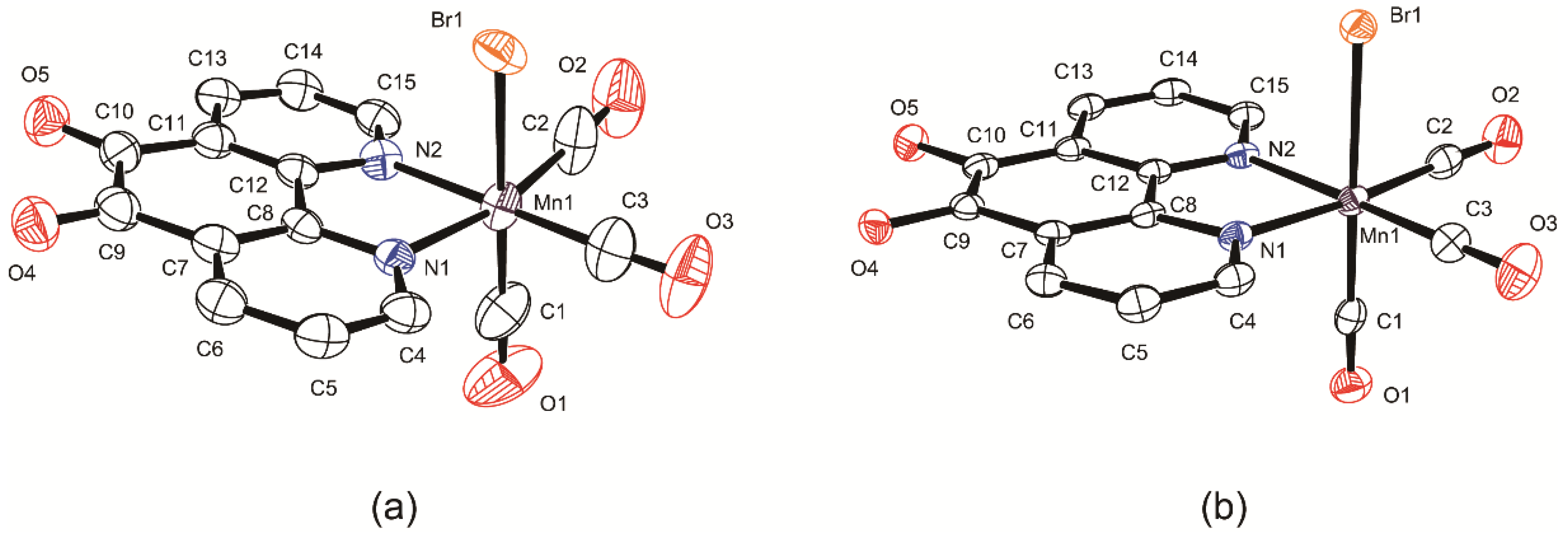

Figure 3. Molecular structures with atom labels and displacement ellipsoids for non-H atoms drawn at the 50% probability level. H atoms and the solvent molecule are omitted for clarity. (a) fac-[MnBr(CO)3(dpq)] and (b) fac-[MnBr(CO)3(dpc)].
Figure 3. Molecular structures with atom labels and displacement ellipsoids for non-H atoms drawn at the 50% probability level. H atoms and the solvent molecule are omitted for clarity. (a) fac-[MnBr(CO)3(dpq)] and (b) fac-[MnBr(CO)3(dpc)].
Molecules 25 05921 g003
Molecules 25 05921 g004 550
Figure 4. Crystal packing of [MnBr(CO)3(dpq)]·(CH3)2CO with C–H…O hydrogen bonds indicated by blue dashed lines.
Figure 4. Crystal packing of [MnBr(CO)3(dpq)]·(CH3)2CO with C–H…O hydrogen bonds indicated by blue dashed lines.
Molecules 25 05921 g004
Molecules 25 05921 g005 550

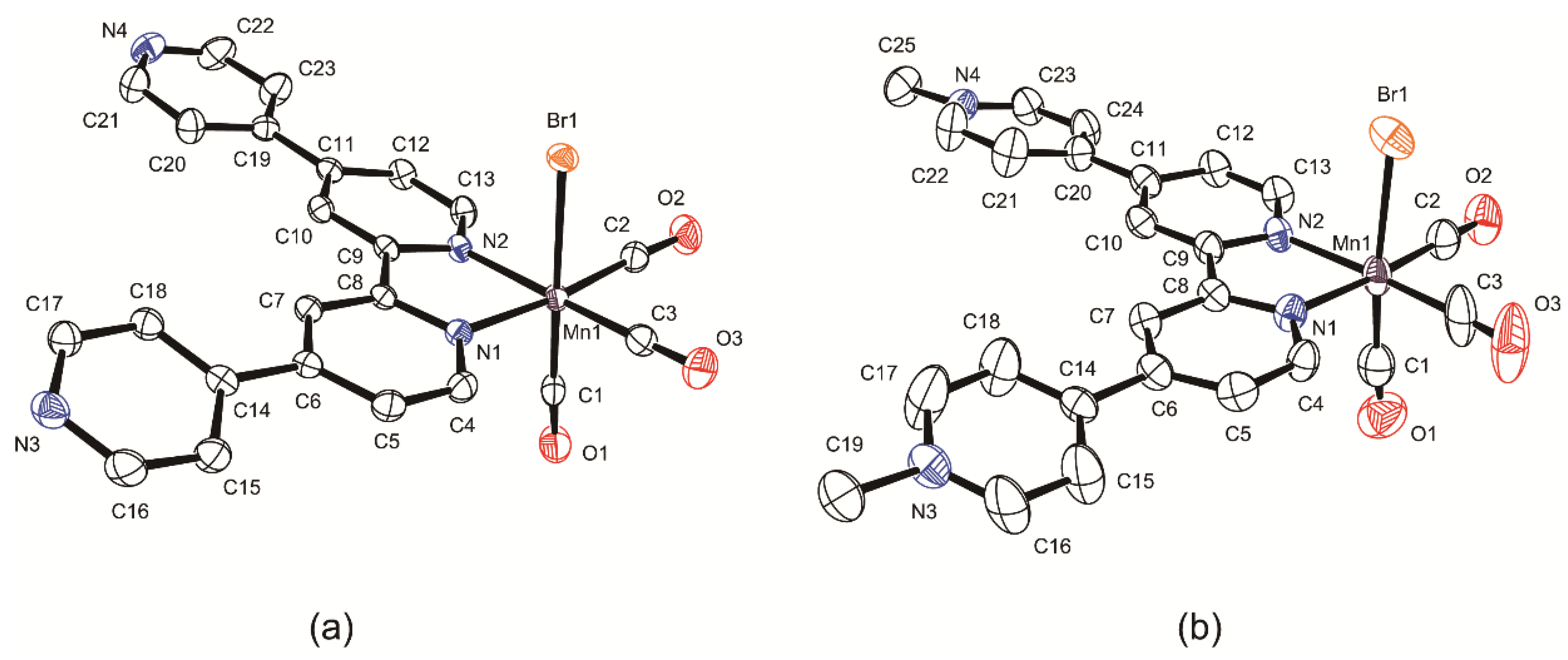

Figure 5. Molecular structures with atom labels and displacement ellipsoids for non-H atoms drawn at the 50% probability level. Counter-anions and H atoms are omitted for clarity. (a) fac-[MnBr(CO)3(qpy)] and (b) fac-[MnBr(CO)3(dmqpy)]2+.
Figure 5. Molecular structures with atom labels and displacement ellipsoids for non-H atoms drawn at the 50% probability level. Counter-anions and H atoms are omitted for clarity. (a) fac-[MnBr(CO)3(qpy)] and (b) fac-[MnBr(CO)3(dmqpy)]2+.
Molecules 25 05921 g005
Molecules 25 05921 g006 550

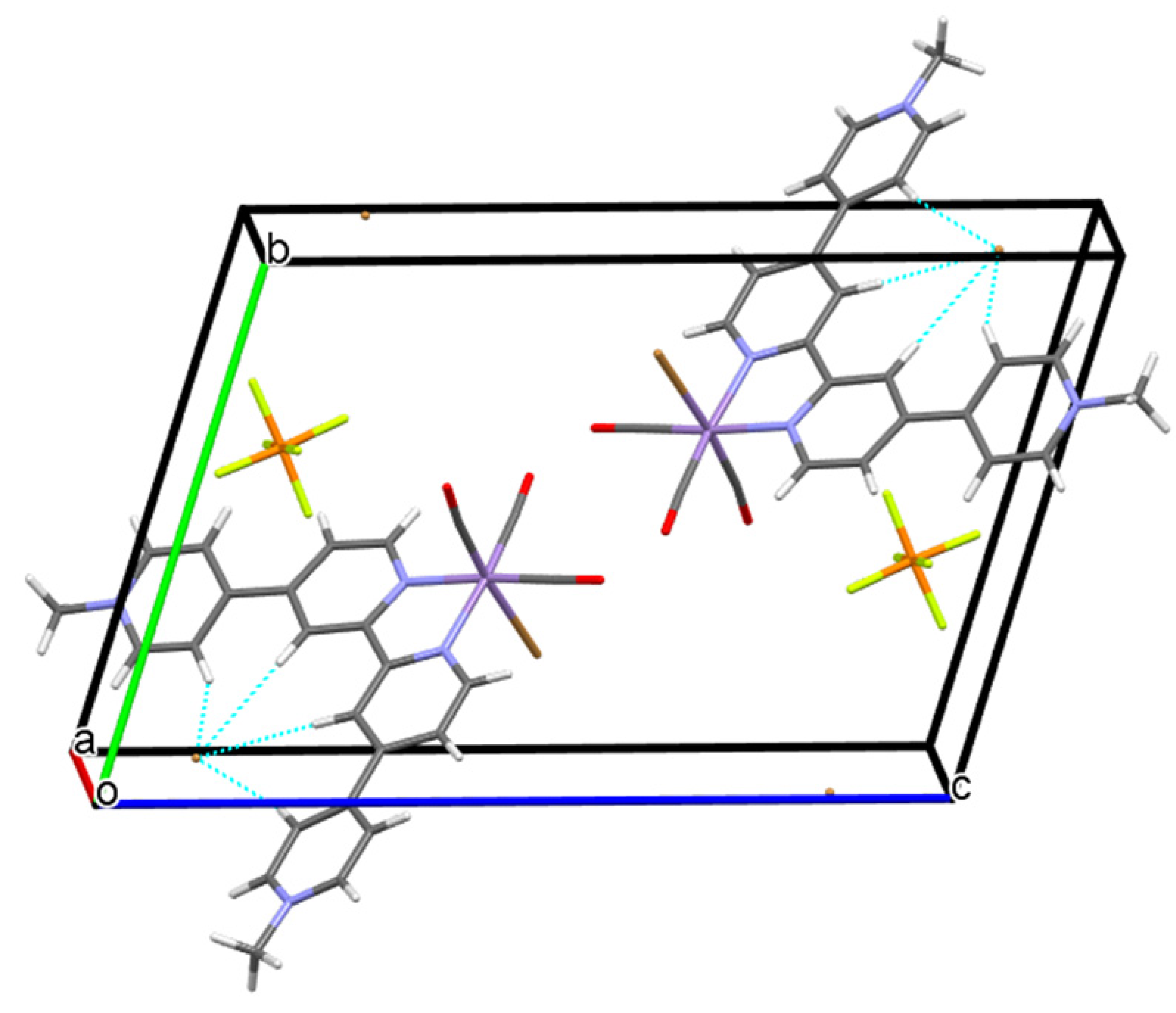

Figure 6. Crystal packing of [MnBr(CO)3(dmqpy)]Br(PF6) with the C–H…Br hydrogen bonds indicated by blue dashed lines.
Figure 6. Crystal packing of [MnBr(CO)3(dmqpy)]Br(PF6) with the C–H…Br hydrogen bonds indicated by blue dashed lines.
Molecules 25 05921 g006
Molecules 25 05921 g007 550
Figure 7. Cyclic voltammograms of [MnBr(CO)3(dpq)] in the absence and presence of H+ in CH3CN (glassy carbon WE): (a) 0 equiv. and (b) 2 equiv. of H+ (v = 0.1 V s−1). An aqueous solution of HClO4 (0.1 M) was used as the proton source.
Figure 7. Cyclic voltammograms of [MnBr(CO)3(dpq)] in the absence and presence of H+ in CH3CN (glassy carbon WE): (a) 0 equiv. and (b) 2 equiv. of H+ (v = 0.1 V s−1). An aqueous solution of HClO4 (0.1 M) was used as the proton source.
Molecules 25 05921 g007
Molecules 25 05921 sch003 550

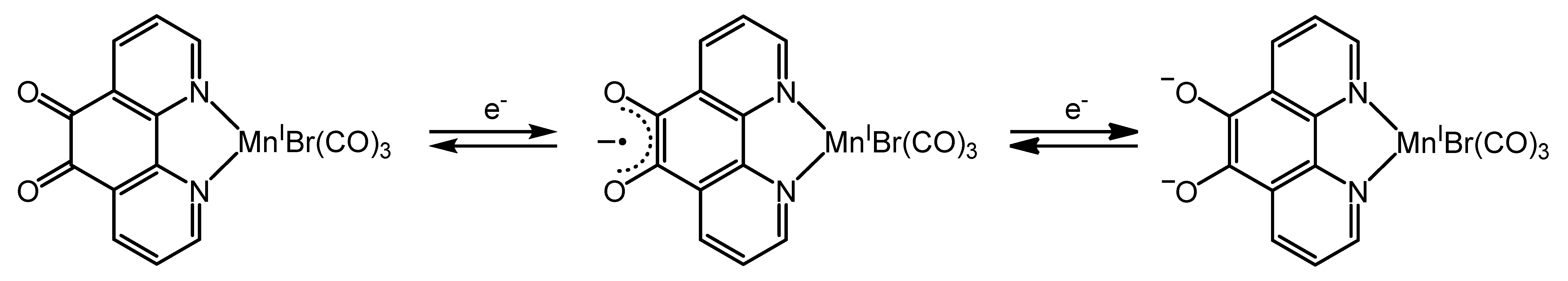

Scheme 3. Two successive one-electron reductions of the dpq ligand under aprotic conditions.
Scheme 3. Two successive one-electron reductions of the dpq ligand under aprotic conditions.
Molecules 25 05921 sch003
Molecules 25 05921 g008 550

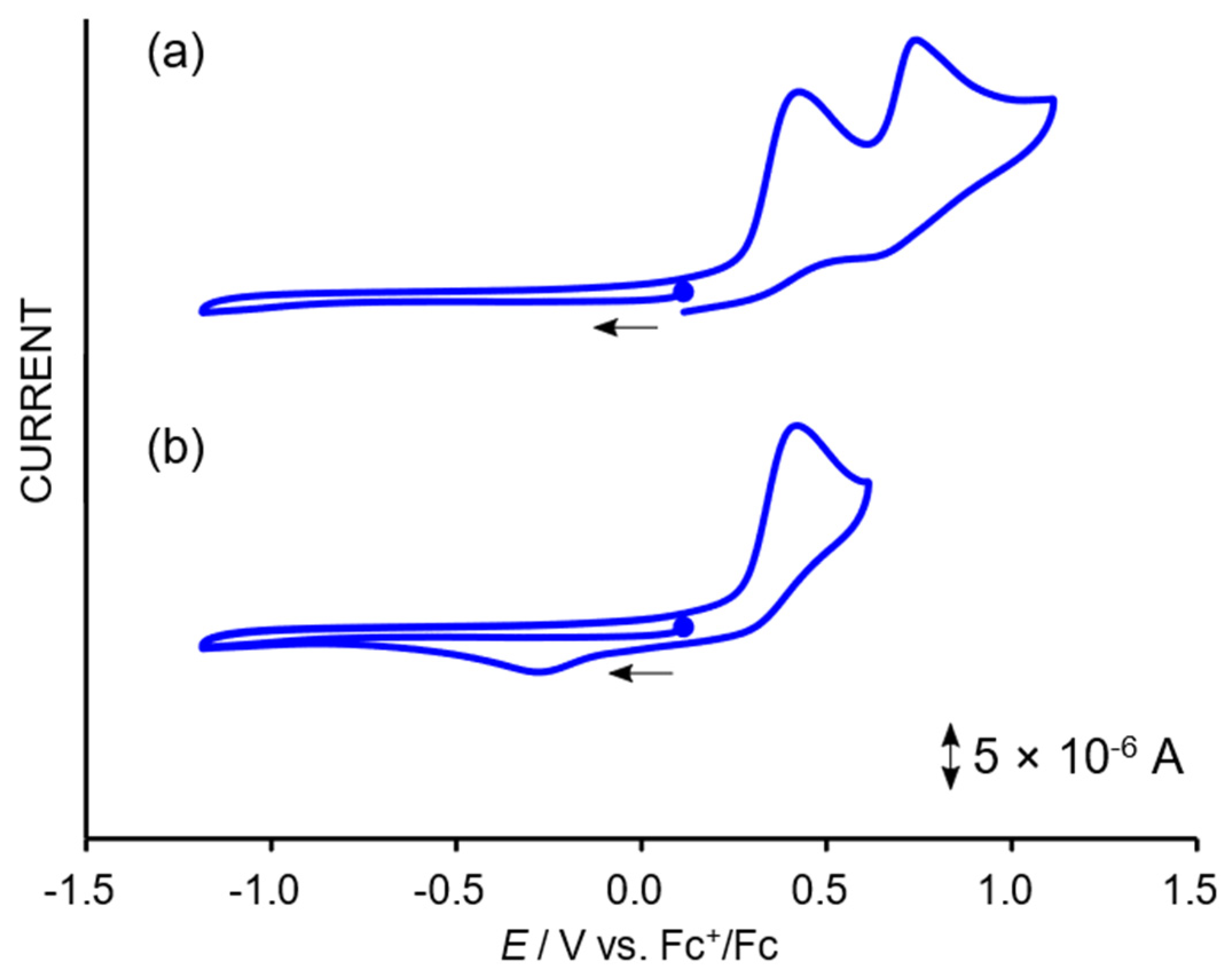

Figure 8. Cyclic voltammograms of [MnBr(CO)3(dpc)] in CH3CN (glassy carbon WE): (a) the whole scan and (b) the anodic scan reversed after the first oxidation peak (v = 0.1 Vs−1).
Figure 8. Cyclic voltammograms of [MnBr(CO)3(dpc)] in CH3CN (glassy carbon WE): (a) the whole scan and (b) the anodic scan reversed after the first oxidation peak (v = 0.1 Vs−1).
Molecules 25 05921 g008
Molecules 25 05921 g009 550

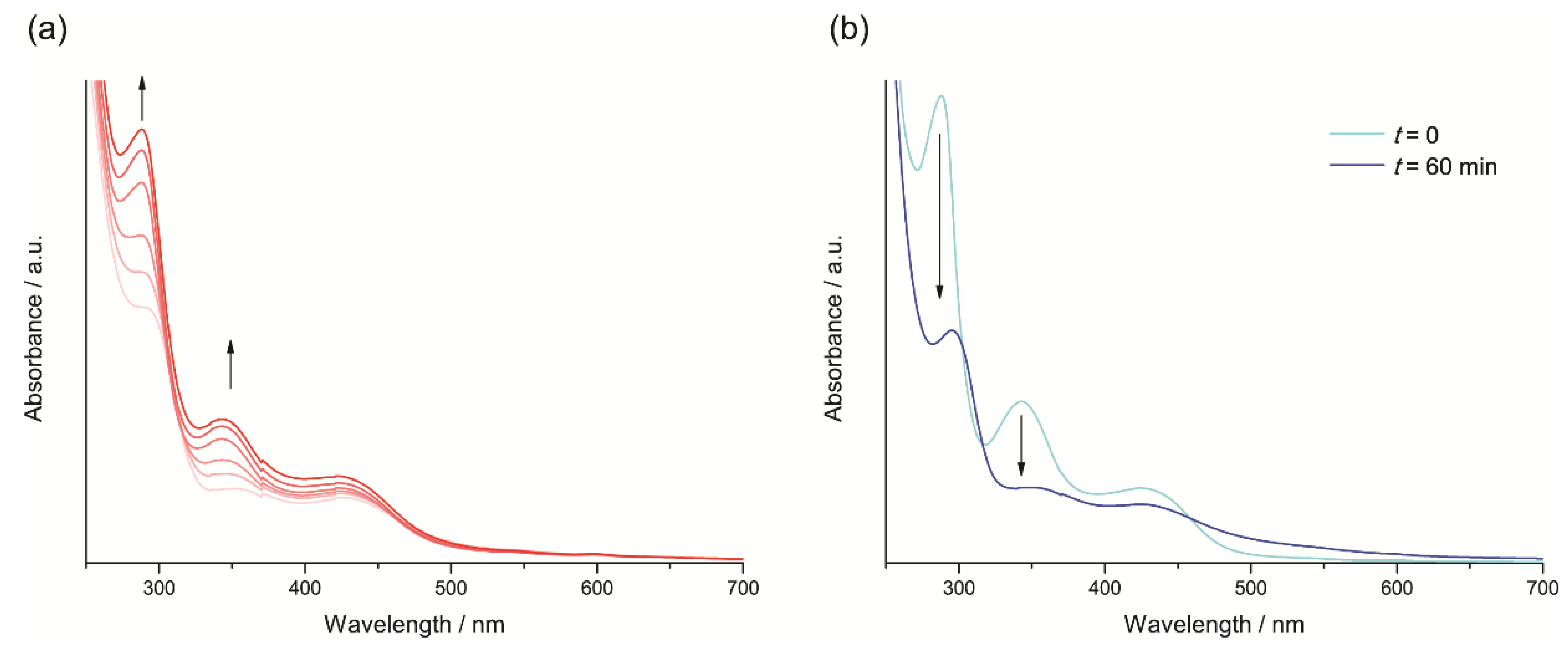

Figure 9. (a) UV-visible spectroelectrochemistry (UV/vis-SEC) data for [MnBr(CO)3(dpq)] in the CH3CN/2 equiv. of H+ at −0.6 V. (b) Spectral changes of [MnBr(CO)3(dpc)] in CH3CN under air.
Figure 9. (a) UV-visible spectroelectrochemistry (UV/vis-SEC) data for [MnBr(CO)3(dpq)] in the CH3CN/2 equiv. of H+ at −0.6 V. (b) Spectral changes of [MnBr(CO)3(dpc)] in CH3CN under air.
Molecules 25 05921 g009
Molecules 25 05921 sch004 550

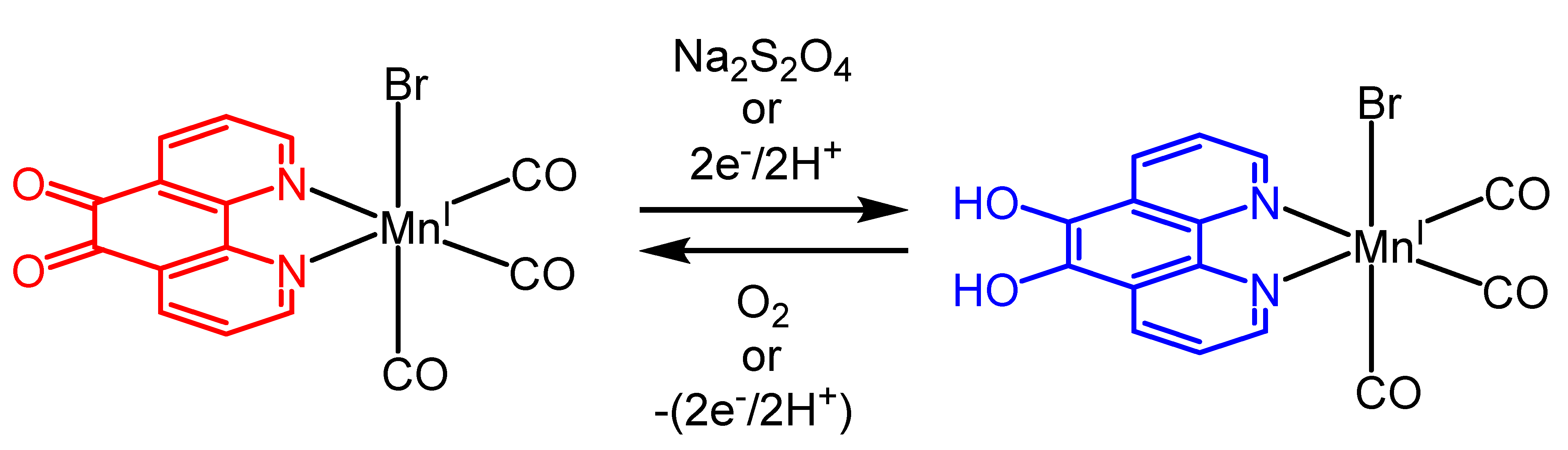

Scheme 4. Schematic representation of the chemical and electrochemical interconversions between [MnBr(CO)3(dpq)] and [MnBr(CO)3(dpc)].
Scheme 4. Schematic representation of the chemical and electrochemical interconversions between [MnBr(CO)3(dpq)] and [MnBr(CO)3(dpc)].
Molecules 25 05921 sch004
Table
Table 1. Spectral data for the Mn(I) complexes. IR: infrared.
Table 1. Spectral data for the Mn(I) complexes. IR: infrared.
Technique Mn-dpqMn-dpcMn-qpyMn-dmqpy
IR (νCO/cm−1)2033203220272029
1944
1928
1698		1961
1938		1936
1914		1944
1927
UV-vis (λmax/nm)427 (2.4)425 (1.9)427 (1.4)468 (4.1)
(ε/×103 M−1cm−1)352 (2.9)
294 (9.0)		343 (4.1)
288 (12)		297 (11)319 (17)
Table
Table 2. Selected bond lengths (Å) and angles (°) for the Mn(I) complexes.
Table 2. Selected bond lengths (Å) and angles (°) for the Mn(I) complexes.
ParameterMn-dpqMn-dpcMn-qpyMn-dmqpy
Expt.Calc.Expt.Calc.Expt.Calc.Expt.Calc.
Mn1-C11.799(5)1.8011.812(2)1.7971.813(2)1.7971.806(8)1.801
Mn1-C21.817(7)1.8151.804(2)1.8131.8123(19)1.8141.829(8)1.817
Mn1-C31.810(7)1.8151.809(2)1.8131.8054(17)1.8151.834(12)1.817
Mn1-N12.054(4)2.0772.0452(17)2.0802.0344(15)2.0662.051(6)2.063
Mn1-N22.049(4)2.0772.0614(19)2.0802.0369(12)2.0652.045(7)2.063
Mn1-Br12.5385(7)2.5992.5628(10)2.6102.5250(4)2.6102.5617(12)2.600
C1-O11.133(7)1.1561.121(3)1.1571.120(3)1.1561.124(11)1.155
C2-O21.145(9)1.1541.141(3)1.1551.142(2)1.1551.140(11)1.154
C3-O31.151(8)1.1541.143(3)1.1551.145(2)1.1551.091(16)1.154
C9-O41.212(6)1.2171.362(2)1.353
C10-O51.220(7)1.2171.367(2)1.353
Mn1-C1-O1177.5(6)179.9178.53(19)179.9176.81(17)179.9173.1(9)180.0
Mn1-C2-O2177.5(6)178.9177.09(18)178.9176.06(15)178.9178.6(7)178.8
Mn1-C3-O3176.5(5)178.8177.56(18)178.9177.8(2)178.9176.5(9)178.8
R1/R3 1 15.52(7)30.5816.8(3)35.56
R2/R4 2 4.63(7)30.8812.0(3)35.65
1 Dihedral angle between Ring 1 (N1-pyridine) and Ring 3 (N3-pyridine). 2 Dihedral angle between Ring 2 (N2-pyridine) and Ring 4 (N4-pyridine).
Table
Table 3. Electrochemical data in aprotic media for the Mn(I) complexes.
Table 3. Electrochemical data in aprotic media for the Mn(I) complexes.
Reaction
(V vs. Fc+/Fc)		Mn-dpqMn-dpcMn-qpyMn-dmqpy
Reductions (ΔE)−0.58 1 (0.07)−0.28 3,4−1.48 3−1.14 1 (0.06)
−1.19 1 (0.08) −1.56 3−1.36 3
−1.78 1 (0.08)
−2.20 1 (0.09)
Oxidations0.74 20.43 2−1.26 2−1.34 2
0.74 2−0.42 2,40.34 2,5
0.35 2,4
1E1/2 value. 2Epa value. 3Epc value. 4 The waves appear by the corresponding EC reaction. 5 This wave is assignable to the oxidation of a free Br−, which is partially contained as a counter ion.
Table
Table 4. Crystallographic data for the Mn(I) complexes.
Table 4. Crystallographic data for the Mn(I) complexes.
ParameterMn-dpq [MnBr(CO)3(dpq)](CH3)2COMn-dpc [MnBr(CO)3(dpc)]Mn-qpy [MnBr(CO)3(qpy)]Mn-dmqpy [MnBr(CO)3(dmqpy)]BrPF6
FormulaC18H12BrMnN2O6C15H8BrMnN2O5C23H14BrMnN4O3C25H20Br2F6MnN4O3P
Formula weight487.14431.08529.23784.17
Temperature (K)93939393
Crystal systemmonoclinictriclinicmonoclinictriclinic
Space groupP21/cP-1P21/cP-1
a (Å)20.3113(11)7.077(3)11.8530(2)6.4688(3)
b (Å)6.9096(3)9.759(4)18.0938(3)12.4896(6)
c (Å)14.1250(7)11.600(5)10.53500(19)18.8132(10)
α (°)9091.966(4)9072.4654(14)
β (°)108.8940(14)107.572(3)111.2740(7)89.3644(14)
γ (°)90104.311(5)9082.1867(13)
V (Å3)1875.54(16)734.9(6)2105.43(7)1435.18(12)
Z4242
Calcd density (g/cm3)1.7251.9481.6691.814
μ (Mo Kα) (mm−1)2.8793.6552.5643.383
No. unique reflns1845274852153714809
No. obsd reflns4280330348156510
Refinement methodFull-matrix least squares on F2
Parameters255217289379
R (I > 2σ(I)) 10.05720.02470.02540.0776
wR (all data) 20.14800.06670.06420.2171
S1.0421.0651.0721.025
1R = Σ(||Fo| − |Fc||)/Σ|Fo|; 2 wR = {Σw(Fo2 − Fc2)2/Σw(Fo2)2}1/2.
Sample Availability: Samples of the compounds Mn-dpq, Mn-dpc, Mn-qpy, and Mn-dmqpy are available from the authors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kanno, T.; Takase, T.; Oyama, D. Effects of Chemically-Modified Polypyridyl Ligands on the Structural and Redox Properties of Tricarbonylmanganese(I) Complexes. Molecules 2020, 25, 5921. https://doi.org/10.3390/molecules25245921

AMA Style

Kanno T, Takase T, Oyama D. Effects of Chemically-Modified Polypyridyl Ligands on the Structural and Redox Properties of Tricarbonylmanganese(I) Complexes. Molecules. 2020; 25(24):5921. https://doi.org/10.3390/molecules25245921

Chicago/Turabian Style

Kanno, Takatoshi, Tsugiko Takase, and Dai Oyama. 2020. "Effects of Chemically-Modified Polypyridyl Ligands on the Structural and Redox Properties of Tricarbonylmanganese(I) Complexes" Molecules 25, no. 24: 5921. https://doi.org/10.3390/molecules25245921

APA Style

Kanno, T., Takase, T., & Oyama, D. (2020). Effects of Chemically-Modified Polypyridyl Ligands on the Structural and Redox Properties of Tricarbonylmanganese(I) Complexes. Molecules, 25(24), 5921. https://doi.org/10.3390/molecules25245921

Article Metrics

Back to TopTop
