Process Development and Synthesis of Process-Related Impurities of an Efficient Scale-Up Preparation of 5,2′-Dibromo-2,4′,5′-Trihydroxy Diphenylmethanone as a New Acute Pyelonephritis Candidate Drug

Abstract

Based on a foregoing gram-scale laboratory process, an efficient scale-up preparation process of 5,2′-dibromo-2,4′,5′-trihydroxydiphenylmethanone (LM49-API), a new acute pyelonephritis candidate drug, was developed and validated aiming to reduce by-products and achieve better impurity profiles. Meanwhile, the polymorph of LM49-API and process-related impurities were also investigated. Ultimately, the optimal reaction conditions were verified by evaluating the impurity profiles and their formation during the synthesis. Six process-related impurities were synthesized and identified, being useful for the quality control of LM49-API. Its finalized preparation process was further validated at 329–410 g scale-up production in 53.4–57.1% overall yield with 99.95–99.98% high-performance liquid chromatography (HPLC) purity, and it is currently viable for commercial production. LM49-API-imC and LM49-API-imX were identified as the main single impurities in LM49-API, with the content controlled to be less than 0.03%.

1. Introduction

Acute pyelonephritis (APN) is a bacterial infection of the renal pelvis, accompanied by severe symptoms that range from mild discomfort to life-threatening illness or death [1]. If given prompt and adequate treatment, APN can be completely cured, and no complications occur. However, delayed or inappropriate treatment of APN may lead to the development of seriously repeated attacks and life-threatening infection, which can finally cause renal scarring and impairment of kidney function [2]. At present, the appropriate antimicrobial drugs remain the main selection for the clinical treatment of APN [2,3]. However, due to the misuse of antimicrobial drugs, drug-resistant strains continuously appear, and APN is easy to relapse after treatment, which affects the clinically curative effects thereof [4]. Therefore, it is imperative to develop novel treatment strategies to improve therapeutic options.

5,2′-Dibromo-2,4′,5′-trihydroxydiphenylmethanone (LM49-API) (shown in Scheme 1), a polyphenolic compound developed by our research group, exhibits strong inhibitory inflammation and antioxidant stress abilities [5,6,7,8]. Recently, we reported its therapeutic effects in an APN rat model. It is interesting that LM49-API does not directly inhibit bacteria; rather, its therapeutic efficacy on APN is closely related to inhibiting inflammation and regulating immune responses of T lymphocytes [9,10]. These continuous research results suggest its prospectively important clinical application in the treatment of APN. In order to explore the preclinical research and development of the new drug, it is necessary to develop an active pharmaceutical ingredients (API) scale-up preparation process suitable for commercial production, conduct the polymorphism analysis, investigate impurity profiling, and control impurity limits. In this way, we could obtain uniform quality, safe, and reliable API sample for druggability research.

The original laboratory preparation process of candidate compound LM49-API is at a gram scale [5], which is not conducive for its commercial production with some emerged drawbacks upon scale-up production: specifically, (i) difficult product purification in Friedel–Crafts acylation step; (ii) use of hazardous reagents, such as liquid bromine in bromination reaction step; (iii) release of a large amount of heat during neutralization with aqueous ammonia after the ending of bromination; (iv) difficult removal of by-products in bromination step; (v) severe temperature requirement of −78 °C in demethylation step; (vi) use of class 2 solvent methanol (MeOH) during recrystallization of LM49-API; (vii) lower overall yield of 47.0%. To address these problems, we focused on the improvement of the LM49-API preparation process aiming to develop an efficient, practical, economic, scalable, and safely reproducible process with mild reacting conditions, controllable impurities, easy purification, and high yield for its commercial production. In parallel, the potential process-related impurities were investigated and speculated for their formation pathway according to the organic reaction mechanism, and fully synthesized by chemical methods. Thus, the impurity reference substances were obtained, and the related impurities in the test samples were analyzed, identified, and controlled by high-performance liquid chromatography (HPLC).

2. Results and Discussion

2.1. Process Optimization

The main purpose of preclinical API process development is to prepare sufficient API samples so as to rapidly conduct the safety evaluation and collect data on safety, drug metabolism, and biological activity [11]. The original gram-scale laboratory preparation process of LM49-API is as follows [5]: (i) 2-methoxybenzoic acid reacted with anhydrous thionyl chloride (SOCl₂) in the presence of N,N-dimethyl formamide (DMF) to prepare corresponding acyl chloride, then conducted the Friedel–Crafts acylation reaction with 1,2-dimethoxybenzene (SM01) in anhydrous dichloromethane (CH₂Cl₂) under the catalysis of aluminum chloride (AlCl₃) to obtain the intermediate LM49-01 by column chromatography separation. (ii) LM49-01 was brominated with liquid bromine in acetic acid (HOAc), then neutralized with aqueous ammonia in the post-treatment, and separated by column chromatography to gain the key intermediate LM49-02. (iii) LM49-02 was demethylated with boron tribromide (BBr₃) in anhydrous CH₂Cl₂, and the crude product was recrystallized with methanol to obtain the target product LM49-API. In order to meet the large-scale commercial production of LM49-API, the reagent ratio, reaction temperature, reaction time, bromination reagent, and the purification conditions of intermediates and the final product were optimized and improved in this paper. The preparation process of LM49-API was shortened to three steps from the original four steps, achieving a high yield, easily available reagents, low cost, and simple separation and purification [5] (Scheme 1).

2.1.1. Friedel–Crafts Acylation Step

SOCl₂ was used in the original process. When exposed to water, it releases irritating toxic and harmful gases, such as sulfur dioxide and hydrogen chloride. In this paper, purchased 2-methoxybenzoyl chloride (SM02) directly reacted with SM01 to prepare LM49-01 by Friedel–Crafts acylation, thus avoiding the use of SOCl₂. In the experiment, it was found that: (i) Since AlCl₃ is insoluble in CH₂Cl₂, a small amount of solvent (SM01/CH₂Cl₂ was 1 g/5 mL) will lead to a thick reaction system, but increasing the CH₂Cl₂ amount will lead to rising costs. Finally, the reagent ratio of SM01 to CH₂Cl₂ was chosen to be 1 g/10 mL. (ii) When the molar ratio of SM01 to SM02 was 1/1, SM01 was found to be of incomplete reaction, being difficult to be removed as an organic impurity. SM02 is easily hydrolyzed to 2-methoxybenzoic acid. If excess SM02 was used in this step, it could be quickly removed by washing with 5% NaOH aqueous solution. The molar ratio of SM01 to SM02 was then determined to be 1/1.05. (iii) When the reaction temperature was kept between 0 °C and 30 °C, all reagents completely reacted with a higher yield. Meanwhile, we found that increasing the reaction temperature to 30 ± 5 °C will result in more impurities and a lower yield. In consideration of decreasing impurities and cost, the reaction temperature was preferably 15 ± 5 °C. (iv) The reaction process was relatively rapid and could be completely transformed within 1 h. If the reaction time was prolonged, more impurities were found. The reaction time was finally determined as 1 h. (v) In the presence of AlCl₃, increasing the temperature resulted in demethylation of the product. Hence, the reaction temperature and the amount of AlCl₃ should be controlled. When the molar ratio of SM01 to AlCl₃ was 1/1, the reaction was completed with the highest yield (

Table 1. Parameter optimization of synthetic process of LM49-01.

Entry #	SM01 (g)	Solvent Amount (mL)	SM01/SM02 *	SM01/AlCl3 *	Temp. (°C)	Yield (%)
Solvent Amount	5.0	25	1:1.05	1:1	15 ± 5	98.5 a
	5.0	50	1:1.05	1:1	15 ± 5	98.8 a
	5.0	75	1:1.05	1:1	15 ± 5	98.3 a
SM01/SM02	5.0	50	1:1	1:1	15 ± 5	96.7 a
	5.0	50	1:1.05	1:1	15 ± 5	98.8 a
	5.0	50	1:1.1	1:1	15 ± 5	98.7 a
	5.0	50	1:1.2	1:1	15 ± 5	98.5 a
SM01/AlCl3	5.0	50	1:1.05	1:0.75	15 ± 5	74.7 a
	5.0	50	1:1.05	1:1	15 ± 5	98.8 a
	5.0	50	1:1.05	1:1.5	15 ± 5	98.5 a
Temp.	5.0	50	1:1.05	1:1	0 ± 5	97.9 a
	5.0	50	1:1.05	1:1	15 ± 5	98.8 a
	5.0	50	1:1.05	1:1	30 ± 5	97.3 a
Time	5.0	50	1:1.05	1:1	15 ± 5	98.8 a
	5.0	50	1:1.05	1:1	0 ± 5	98.9 b
	5.0	50	1:1.05	1:1	15 ± 5	98.3 b

^# The reaction process was monitored by thin-layer chromatography (TLC). * mole ratio of reagents. ^a The reaction time was 1 h. ^b The reaction time was 3 h.

).

In the original preparation process, LM49-01 was separated and purified by column chromatography. In this paper, the crude product of LM49-01 was directly purified using the mixed solvents of CH₂Cl₂/n-hexane or ethyl acetate/n-hexane. When the CH₂Cl₂/n-hexane system was employed, its different proportions were screened. When the reagent ratio of LM49-01/CH₂Cl₂/n-hexane was 1 g/1 mL/20 mL, a white crystal powder product was obtained with a higher yield and purity. However, when changing the ratio to 1 g/1 mL/30 mL, the yield and purity were significantly reduced. A white block solid product was obtained, which may have contained more impurities. We also found that when the ratio was changed to 1 g/2 mL/40 mL, a lower yield was given due to the excessive use of solvent. In addition, when an ethyl acetate/n-hexane system was used for purification, various ratios were tried, and the yield was lower than 50%. Therefore, the reagent ratio of LM49-01/CH₂Cl₂/n-hexane for crystallization was determined as 1 g/1 mL/20 mL (

Table 2. Screening of purification conditions for LM49-01.

Entry #	LM49-01 (g)	Amount (V(mL)/V(mL))	Yield (%)	Appearance	Purity (%) *	Maximal Impurity LM49-01-imX (%) *
a					97.66	1.45
CH2Cl2/n-hexane	10.0	10/100	-	-	-	-
	10.0	10/200	80	white crystal powder	99.90	0.10
	10.0	10/300	78	white block solid	99.47	0.53
	10.0	20/200	-	-	-	-
	10.0	20/300	69	white crystal powder	99.89	0.11
	10.0	20/400	52	white crystal powder	99.78	0.22
ethyl acetate/n-hexane	10.0	50/50	-	-	-	-
	10.0	50/100	-	-	-	-
	10.0	50/150	25	white crystal powder	98.82	1.01
	10.0	50/200	31	white crystal powder	99.84	0.06
	10.0	50/300	40	white crystal powder	99.85	0.09
	10.0	50/500	48	white block solid	99.89	0.11
	10.0	30/90	44	white crystal powder	99.80	0.09
	10.0	40/120	49	white crystal powder	99.79	0.10

^# The crystallization temperature was 20 ± 5 °C with stirring, unless otherwise mentioned. ^a Crude product of LM49-01. * Calculated from the high-performance liquid chromatography (HPLC) relative area. ^- No solid precipitated.

).

The finally determined process of this step exhibits more advantages over the prior technology. For one thing, the reaction time was shortened significantly, and the use of the dangerous reagent thionyl chloride was prevented. For another, purification of LM49-01 was easy by stirring to crystallize product at 20 ± 5 °C. This process is more suitable for scale-up production.

2.1.2. Bromination Reaction Step

Liquid bromine is volatile, highly toxic, and dangerous for post-treatment. In order to avoid the use of liquid bromine, we mainly investigated several solid bromination reagents, such as N-bromosuccinimide (NBS), dibromohydantoin (DBDMH), and pyridine tribromide (PyBr₃) [12,13,14]. The results in

Table 3. Parameter optimization of synthetic process of LM49-02.

Entry #	LM49-01 (g)	Reagent	Solvent/Amount (mL)	LM49-01/Reagent *	Temp. (°C)	Yield (%)
Reagent	1.0	NBS	THF/20	1:12	20 ± 5	90.6 a
	1.0	DBDMH	THF/20	1:5	20 ± 5	87.6 b
	1.0	PyBr3	MeOH/20	1:10	reflux	86.3 b
Solvent	1.0	NBS	MeOH/20	1:12	20 ± 5	69.5 b
	1.0	NBS	DMF/20	1:12	20 ± 5	47.4 b
	1.0	NBS	CH2Cl2/20	1:12	20 ± 5	42.9 b
	1.0	NBS	HOAc/20	1:12	20 ± 5	67.6 b
	1.0	NBS	THF/20	1:12	20 ± 5	90.6 a
LM49-01/Reagent	5.0	NBS	THF/25	1:2.5	20 ± 5	49.7 b
	5.0	NBS	THF/25	1:3	20 ± 5	64.2 b
	5.0	NBS	THF/25	1:3.5	20 ± 5	78.4 b
	5.0	NBS	THF/25	1:4	20 ± 5	91.3 a
Temp.	5.0	NBS	THF/25	1:4	0 ± 5	45.3 b
	5.0	NBS	THF/25	1:4	20 ± 5	91.3 a
	5.0	NBS	THF/25	1:4	reflux	75.5 b
Time	5.0	NBS	THF/25	1:4	20 ± 5	69.5 c
	5.0	NBS	THF/25	1:4	20 ± 5	91.3 a
	5.0	NBS	THF/25	1:4	20 ± 5	91.5 b

^# The reaction process was monitored by TLC. * mole ratio of reagents. ^a The reaction time was 5 h. ^b The reaction time was 24 h. ^c The reaction time was 3 h.

present that when NBS and DBDMH were used as bromination reagents in tetrahydrofuran (THF), the reactions were completed in 5 h and 24 h, respectively, by stirring at room temperature. However, for PyBr₃ bromination in MeOH, the reaction was completed with refluxing. By comparison, DBDMH and PyBr₃ are more expensive than NBS, the required reaction time is longer, and heating is required in the case of PyBr₃. Moreover, in consideration of the large-scale preparation in prospectively commercial production, the use of NBS as a bromination reagent displays more advantages including a shorter reaction time, low cost, low energy consumption, and simple post-treatment. Therefore, NBS was selected as a final bromination reagent in this step. Next, we mainly explored the influence of solvent, reagent ratio, reaction temperature, reaction time, and recrystallization conditions. As shown in Table 3, (i) when MeOH, HOAc, DMF, and CH₂Cl₂ were used as reaction media, thin-layer chromatography (TLC) monitoring indicated that the reaction was incomplete with obvious impurities in the lower yield. However, when THF was applied as the medium, the yield was significantly increased, and THF was therefore selected as the reaction solvent. (iii) With the decrease of solvent dosage, NBS dosage was also greatly reduced. At a determined LM49-01/THF ratio of 1 g/5 mL, the amount of NBS was screened. The results reveal that when the molar ratio of LM49-01 to NBS was 1/4, the reaction was complete in 5 h with the highest yield. (3) The reaction temperature was screened between 0–65 °C. At 20 ± 5 °C, the reaction can be completed within 5 h with the highest yield. With increasing or decreasing temperature, the yield was significantly decreased. Especially when refluxing was performed for 24 h, a large amount of mono-brominated impurity LM49-02-imB (depicted in Scheme 2) was found.

The results in

Table 4. Screening of purification conditions for LM49-02.

LM49-02 (g)	Crystallization Temp. (°C)	Method	Amount (mL)	Yield (%)	Purity (%) *	Maximal Impurity LM49-02-imB (%) *
a					98.39	1.61
b					96.16	3.84
5.0 a	25	standing	150 c	78.0	99.71	0.29
5.0 a	15	standing	150 c	86.0	99.73	0.27
5.0 a	25	stirring	150 c	84.0	99.93	0.07
5.0 a	15	stirring	150 c	88.0	99.87	0.13
5.0 a	25	standing	150 d	66.0	99.74	0.26
5.0 a	15	standing	150 d	86.0	99.57	0.43
5.0 a	25	stirring	150 d	82.0	99.94	0.06
5.0 a	15	stirring	150 d	88.0	99.69	0.31
5.0 b	25	stirring	50 d	91.0	99.84	0.16
5.0 b	25	stirring	75 d	89.6	99.69	0.31
5.0 b	25	stirring	100 d	87.6	99.78	0.22
5.0 b	25	stirring	125 d	84.8	99.79	0.21
5.0 b	25	stirring	150 d	82.5	99.80	0.20

^a,b Different batches of crude product. * Calculated from the HPLC relative area. ^c Methanol was used as the recrystallization solvent. ^d Ethanol was used as the recrystallization solvent.

show that for the same type of solvent and recrystallization method, 15 °C was more conducive to the precipitation of the product than 25 °C with a slightly higher yield but lower purity. Hence, we chose 25 °C as the crystallization temperature. Under the condition of same temperature and solvent, the yield and purity of stirring crystallization were higher than that of standing crystallization, with the former finally adopted. We also compared the use of methanol and ethanol as recrystallization solvents. No significant difference was found in yield and purity. In order to reduce the use of class 2 solvents, ethanol was preferred as the recrystallization solvent, and the amount of ethanol was further selected. With the increase of the ethanol amount, the yield of the product decreased, and the purity did not change considerably. Finally, the ratio of LM49-02 to ethanol was selected as 1 g/10 mL.

Compared with the original technology, the finally determined bromination process presents the following advantages: (i) NBS was used to replace liquid bromine, which is convenient for feeding, the needed reagents are readily available, and it is suitable for scale-up production. (ii) The solvent was changed to THF. The post-treatment has therefore become easier. After the reaction was finished, the mixture was poured into ice water to stir and precipitate granular solid, and the crude product was obtained through filtration. (iii) In the purification process, the qualified product can be obtained by single recrystallization with ethanol.

2.1.3. Demethylation Reaction Step

Using BBr₃ as the demethylated reagent, we mainly investigated the influence of LM49-02/BBr₃ ratio, feed temperature, reaction time, and recrystallization conditions. The research results in

Table 5. Parameter optimization of synthetic process of LM49-API.

Entry #	LM49-02 (g)	LM49-02/BBr3 *	Temp. (°C)	Yield (%)
LM49-02/BBr3	4.0	1:2	−15 ± 5	95.8 a
	4.0	1:3	−15 ± 5	93.9 a
	4.0	1:4	−15 ± 5	93.9 a
	4.0	1:5	−15 ± 5	93.4 a
Temp.	5.0	1:3	15 ± 5	94.7 a
	5.0	1:3	0 ± 5	94.5 a
	5.0	1:3	−15 ± 5	95.1 a
	5.0	1:3	−25 ± 5	95.8 a
Time	5.0	1:3	−15 ± 5	96.7 b
	5.0	1:3	−15 ± 5	97.6 a
	5.0	1:3	−15 ± 5	98.2 c

^# The reaction process was monitored by TLC. * mole ratio of reagents. ^a The reaction time was 2 h. ^b The reaction time was 1 h. ^c The reaction time was 4 h.

exhibit that when the molar ratio of LM49-02 to BBr₃ was 1/3, the reaction could be completed within 2 h. When decreasing the amount of BBr₃ with a LM49-02/BBr₃ ratio of 1/2, more impurities were detected by TLC. When feeding at 15 ± 5 °C, the temperature will rise sharply, which may lead to the spillage of reaction mixture. When feeding at 0 ± 5 °C, the temperature can be maintained below 10 °C. However, considering the prospectively larger scale production, the overall volume of the reaction was increased, and the specific surface area was then decreased, resulting in slower heat dissipation rate, and there might be a risk. Therefore, the reaction temperature was further lowered. It was found that when the temperature of the system was always kept below 0 °C and when feeding BBr₃ at −15 ± 5 °C, the reaction was stable and safe. Finally, BBr₃ was added at −15 ± 5 °C.

Different recrystallization solvents were selected. The results in

Table 6. Screening of purification conditions for LM49-API.

LM49-API (g)	Solvent/Amount (mL)	Yield (%)	Appearance	Purity (%) *	Maximal Impurity LM49-API-imC (%) *
a				99.72	0.22
3.0 a	MeOH/6.0	42.0	light yellow crystal powder	99.93	0.05
3.0 a	Ethyl Acetate/12	8.7	Saffron crystal	99.79	0.15
3.0 a	EtOH/4.8	59.3	Light yellow crystal powder	99.92	0.06
3.0 a	Isopropanol/6.5	66.7	Light yellow crystal powder	99.86	0.09
3.0 a	Isopropyl Acetate/10.0	56.0	Saffron crystal	99.84	0.05
3.0 a	MeOH + H2O/12 + 6	80.7	Light yellow crystal powder	99.85	0.11
3.0 a	EtOH + H2O/12 + 6	81.5	Light yellow crystal powder	99.90	0.06
3.0 a	EtOH + H2O/12 + 12	88.7	Light yellow crystal powder	99.91	0.08
3.0 a	EtOH + H2O/15 + 15	82.6	Light yellow crystal powder	99.85	0.12
3.0 a	EtOH + H2O/18 + 18	76.0	Light yellow crystal powder	99.90	0.08

^a Crude product. * Calculated from the HPLC relative area.

reveal that when methanol/water and ethanol/water were used as recrystallized solvents, the yield and purity were higher than those of other solvents. Considering that methanol is a class 2 solvent, ethanol/water was preferred as the crystallization solvent. When the LM49-API/ethanol/water ratio was 3 g/12 mL/6 mL, the product was obtained with the lowest impurity content. However, in the crystallization process, due to the low solvent consumption, the system was thick and difficult to stir, and the solid was likely to stick to the wall of the container. Therefore, increasing the amount of solvent to a LM49-API/ethanol/water ratio of 3 g/12 mL/12 mL, the product was easy to precipitate and be separated at the highest yield.

Ultimately, the feeding temperature of BBr₃ in demethylation step was improved from −78 °C to −15 ± 5 °C compared with original process, thus, reducing energy consumption. Moreover, in the recrystallization of LM49-API, the LM49-API/ethanol/water ratio was determined as 1 g/4 mL/4 mL, avoiding the use of the class 2 solvent methanol.

2.2. Process Verification

In the improved laboratory process, the one-time feeding scale of SM01 was 5 g. According to the requirements of new drug development, the final process needs to be verified through step-by-step amplification. In order to further confirm the stability and feasibility of the process parameters, the production scale of API was increased by a factor of 60, that is, increasing the one-time feeding amount of SM01 to 300 g. The preparation process of LM49-API was verified by three batches of production.

2.2.1. Process Verification of Friedel–Crafts Acylation Step

As presented in

Table 7. Process validation of intermediate LM49-01.

Batch No. a	SM01 (g)/SM02 (g)	Product	Output (g)	Crude Product Yield (%)	Recrystallization Yield (%)	Yield (%)	Purity (%) *	Total Impurities (%) *
1st	300/419	Crude product	602	101.5	76.7	77.9	96.68	3.32
		Purified product	461				99.97	0.03
2nd	300/419	Crude product	601	101.4	77.5	78.6	96.13	3.87
		Purified product	465				99.96	0.04
3rd	300/419	Crude product	605	102.2	80.1	82.7	96.67	3.33
		Purified product	490				99.95	0.05

^a The reaction temperature and time was 15 ± 5 °C and 1 h, respectively, unless otherwise mentioned. * Calculated from the HPLC relative area by method A.

and

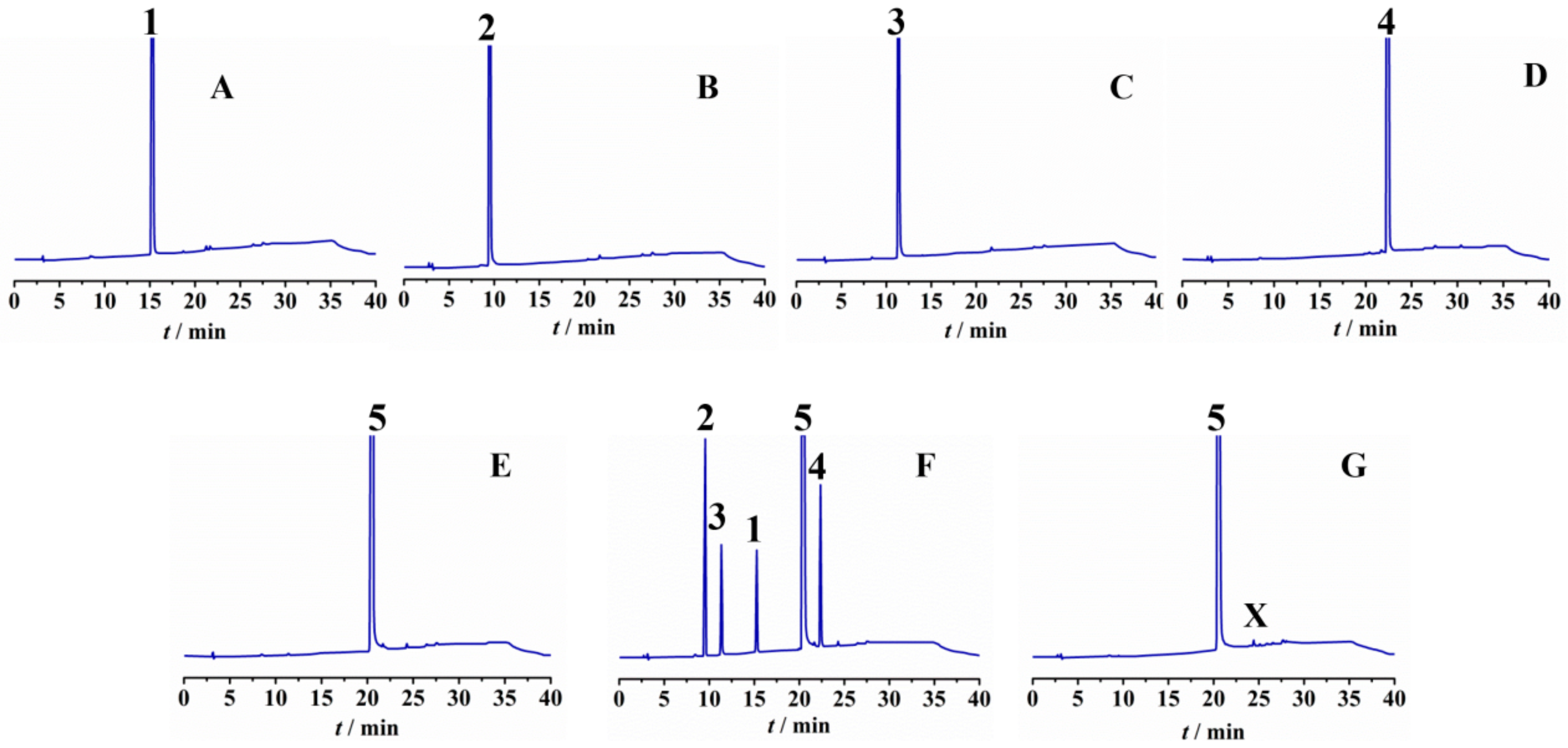

Table 8. The impurity profile of three batches for the Friedel–Crafts acylation step.

Batch No.	SM01 (tR = 15.3) (%) *	SM02-imA (tR = 9.5) (%) *	SM01-imA (tR = 11.4) (%) *	LM49-01-imA (tR = 22.4) (%) *	LM49-01-imX (tR = 24.4) (%) *
1st	-	-	-	-	0.03
2nd	-	-	-	-	0.04
3rd	-	-	-	-	0.05

- Not detected. * Calculated from the HPLC relative area by method A.

, three batches of LM49-01 samples were obtained at a scale of 461–490 g. In view of 2-methoxyphenol (SM01-imA) from SM01 being a potential impurity and SM02 being easily hydrolyzed to 2-methoxybenzoic acid (SM02-imA), the control substances of SM01, SM02-imA, SM01-imA, LM49-01-imA, and LM49-01, as well as their mixture and LM49-01 test sample were compared under the same chromatographic condition (HPLC method A) (Figure 1). The results show that each component can be well separated and that related-process impurities can be detected effectively. After purification, the purities of three batches of samples were significantly increased. SM01, SM02-imA, SM01-imA, and LM49-01-imA were not detected in the LM49-01 test sample, but an unknown single impurity LM49-01-imX was identified with its content below 0.05%.

In addition, the system of methylene chloride and AlCl₃ commonly used in Friedel–Crafts acylation was employed in this experiment [15,16]. In consideration of the possibility of chloromethylation, we carefully analyzed the MS and HPLC data of LM49-01 test sample. No chloromethylation product was observed.

2.2.2. Process Verification of Bromination Step

As shown in

Table 9. Process validation of intermediate LM49-02.

Batch No. a	LM49-01 (g)/NBS(g)	Product	Output (g)	Crude Product Yield (%)	Recrystallization Yield (%)	Yield (%)	Purity (%) *	Total Impurities (%) *
1st	435/1137	Crude product	619	90.2	92.0	83.0	97.80	2.20
		Purified product	460				99.83	0.17
2nd	450/1174	Crude product	604	85.0	90.4	76.8	95.77	4.23
		Purified product	452				99.58	0.42
3rd	480/1255	Crude product	646	85.3	91.0	77.6	97.73	2.27
		Purified product	490				99.62	0.38

^a The reaction temperature and time was 20 ± 5 °C and 5 h, respectively, unless otherwise mentioned. * Detected by the HPLC relative area by method B.

and

Table 10. The impurity profile of three batches for the bromination step.

Batch No.	LM49-01 (tR = 10.7) (%) *	LM49-02-imA (tR = 14.3) (%) *	LM49-02-imB (tR = 16.5) (%) *
1st	-	-	0.17
2nd	-	-	0.42
3rd	-	-	0.38

- Not detected. * Calculated from the HPLC relative area by method B.

, three batches of LM49-02 samples were obtained at a 452–490 g scale. In view of the impurities LM49-02-imA and LM49-02-imB possibly brought from the course of bromination, the control substances of LM49-01, LM49-02-imA, LM49-02-imB, and LM49-02, as well as their mixture and LM49-02 test sample were compared under the same chromatographic condition (HPLC method B) (Figure 2). The results exhibit that each component can be well separated, and related-process impurities can be detected effectively. After purification, the purities of three batches of samples were markedly enhanced. LM49-01 and LM49-02-imA were not detected in the LM49-02 test sample, only LM49-02-imB was identified with its content below 0.42%.

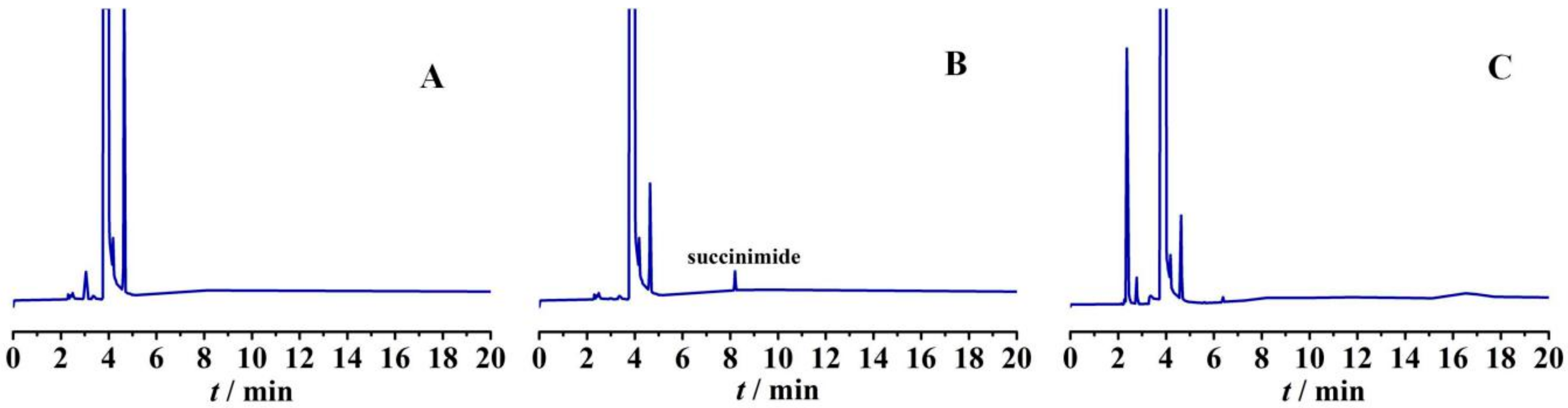

Additionally, in view of the use of NBS in the bromination reaction, the byproduct of NBS is succinimide, which may be a potential impurity in LM49-02 sample. When the bromination reaction was finished, the mixture was poured into a large excess of ice water. Thereafter, the LM49-02 crude product was recrystallized with ethanol as the solvent. Because succinimide is soluble in water and ethanol, during this treatment, succinimide can be effectively removed from the reaction mixture. In order to control the limit of impurities, gas chromatography (GC) analysis was applied to test the residue of NBS and succinimide [17]. However, we found NBS was decomposed into succinimide (t_R = 8.2 min) during detection. Thus, succinimide as a potential impurity was determined and controlled by GC analysis. After purification, three batches of LM49-02 samples were analyzed. No succinimide was detected (Figure 3).

2.2.3. Process Verification of Demethylation Step

As presented in

Table 11. Process validation of LM49-API.

Batch No. a	LM49-02 (g)/BBr3 (g)	Product	Output (g)	Crude Product Yield (%)	Recrystallization Yield (%)	Yield (%)	Total Yield (%)	Purity (%) *	Total Impurities (%) *
1st	450/786	Crude product	400	98.5	89.7	88.3	57.1	99.95	0.05
		Final API	350					99.98	0.02
2nd	440/769	Crude product	390	98.2	86.6	88.5	53.4	99.71	0.29
		Final API	329					99.95	0.05
3rd	530/926	Crude product	474	99.2	89.1	88.4	56.7	99.77	0.23
		Final API	410					99.96	0.04

^a The reaction temperature and time was −15 ± 5 °C and 2 h, respectively, unless otherwise mentioned. * Calculated from the HPLC relative area by method C.

and

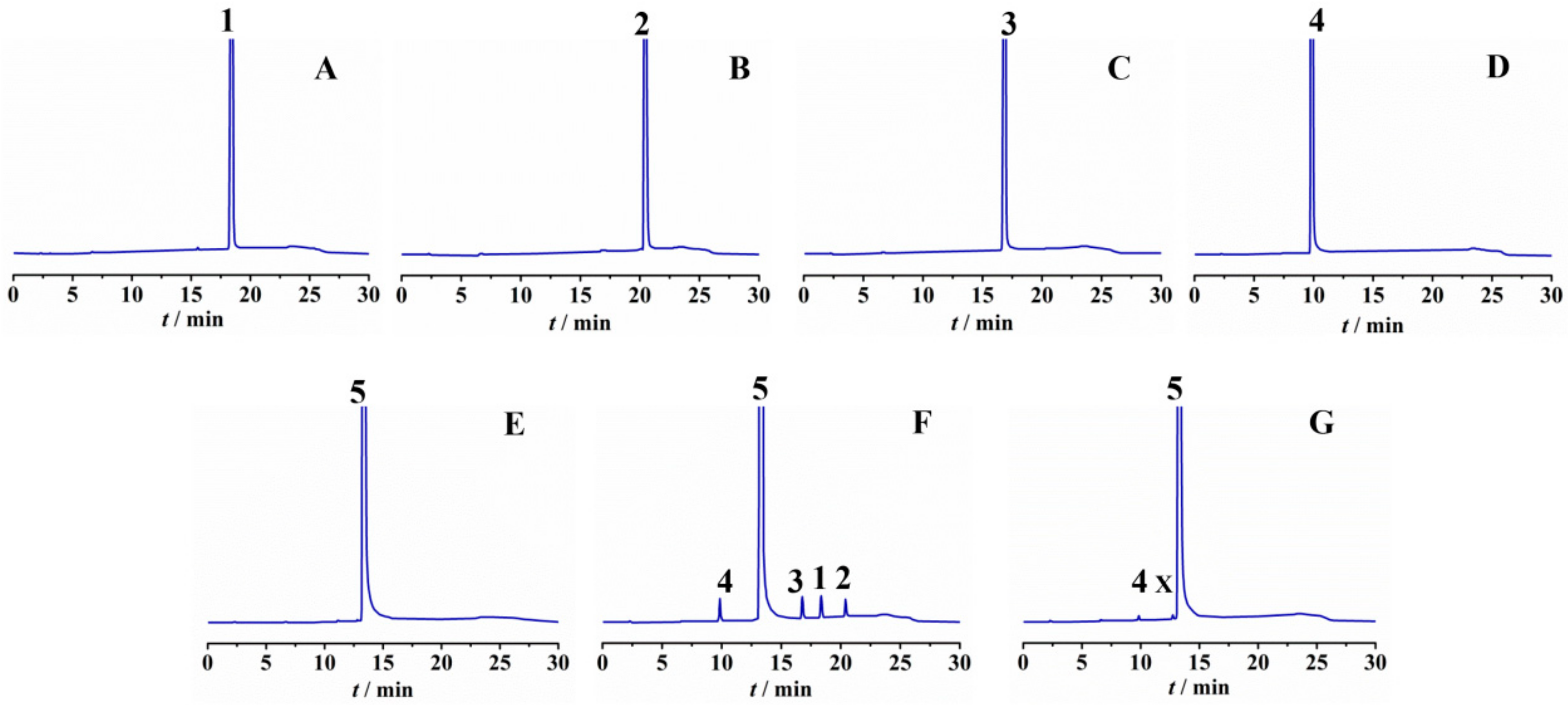

Table 12. The impurity profile of three batches for LM49-API.

Batch No.	LM49-02 (tR = 18.3) (%) *	LM49-API-imA (tR = 20.4) (%) *	LM49-API-imB (tR = 16.8) (%) *	LM49-API-imC (tR = 9.8) (%) *	LM49-API-imX (tR = 12.8) (%) *
1st	-	-	-	0.01	0.01
2nd	-	-	-	0.03	0.02
3rd	-	-	-	0.02	0.02

- Not detected. * Calculated from the HPLC relative area by method C.

, the final LM49-API samples of the three-batch production were obtained at a 329–410 g scale. In consideration of the impurities LM49-API-imA, LM49-API-imB, and LM49-API-imC possibly brought from the course of demethylation, the control substances of LM49-02, LM49-API-imA, LM49-API-imB, LM49-API-imC, and LM49-API as well as their mixture and LM49-API test sample were compared under the same chromatographic condition (HPLC method C) (Figure 4). The results exhibit that each component can be well separated, and related-process impurities can be detected effectively. After purification, the purities of three batches of samples were obviously improved. LM49-02, LM49-API-imA, and LM49-API-imB were not found in the LM49-API test sample. The maximal impurity LM49-API-imC was identified as the main impurity with its content below 0.03%, respectively. In addition, another unknown impurity LM49-API-imX was discovered with its content below 0.02%, its structure was not determined.

2.3. Polymorph Investigation of LM49-API

Polymorphs are different solid crystalline forms of the same drug or compound. To the same drug, polymorphs will directly affect its solubility, dissolution, absorption, efficacy, bioavailability, and safety [18,19]. Therefore, the polymorph study is essential to the druggability evaluation. In this paper, different recrystallization conditions were used to inspect the crystal forms of LM49-API [20]. Multiple batches of samples were obtained (

Table 13. Polymorph investigation of LM49-API in different solvents.

Entry	LM49-API (g)	Solvent/Amount (mL)	Yield (%)	Appearance	Mp (°C)
1	a			Light yellow powder	218.0–218.5
2	3.0 a	EthylAcetate/12	8.7	Saffron crystal	218.0–218.5
3	3.0 a	MeOH/6.0	42.0	Light yellow crystal	218.0–219.0
4	3.0 a	EtOH/4.8	59.3	Light yellow crystal	218.5–219.5
5	3.0 a	Isopropanol/6.5	66.7	Light yellow crystal	218.0–219.5
6	3.0 a	IsopropylAcetate/10.0	56.0	Light yellow crystal	218.0–219.0
7	3.0 a	EtOH + H2O/4 + 0.2	51.5	Light yellow crystal	218.5–219.5
8	3.0 a	MeOH + H2O/4 + 0.2	54.5	Light yellow crystal	218.5–219.5
9	3.0 a	EtOH + H2O/12 + 6	81.5	Light yellow crystal	219.0–220.0
10	3.0 a	EtOH + H2O/12 + 12	88.7	Light yellow crystal	219.0–220.0
11	b			Light yellow crystal	218.0–219.0

^aLM49-API crude product. ^b Obtained LM49-API sample from originally laboratorial synthetic process.

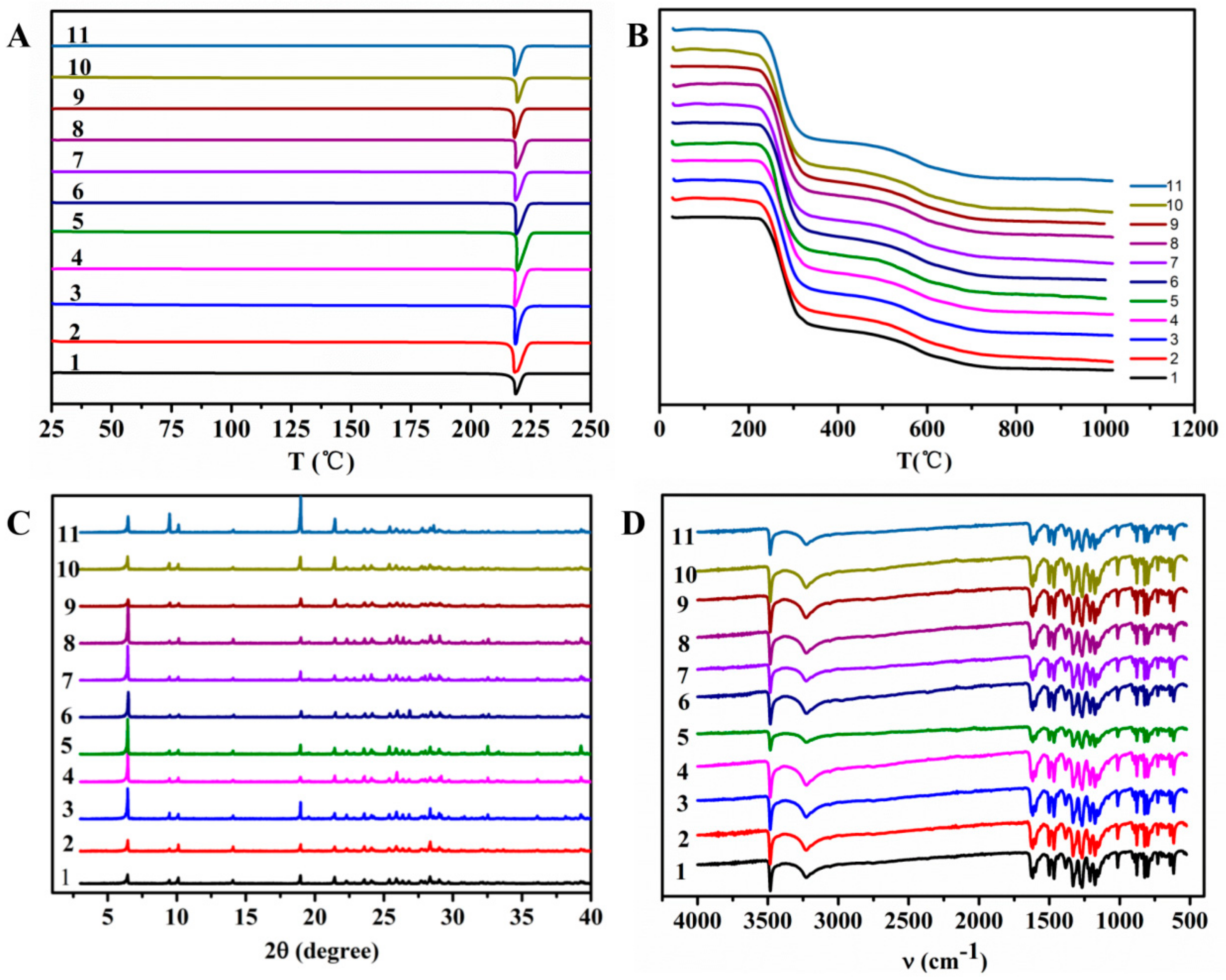

), and various analytical methods including differential scanning calorimetry (DSC), thermogravimetry (TG), X-ray powder diffraction (XRD), and infrared spectroscopy (IR) were applied to analyze their crystal forms [21,22,23]. DSC measurement data can analyze the desolvation temperature and melting temperature of the compound. The results in Figure 5A show that the only melting peak (220 °C) of the compound appeared in each batch of samples within the measurement temperature range, which is consistent with the melting point result (219~222 °C), with no solvent endothermic peak found. The TG measurement results in Figure 5B exhibit that each batch of samples displayed two identical weight loss peaks within the temperature range. The compound decomposed quickly after melting, and no obvious solvent weight loss peak was found. XRD results in Figure 5C show that each batch of samples contained the following characteristic peaks expressed in 2θ angles within the measurement angle range: 6.4° ± 0.1°, 9.4° ± 0.1°, 10.1° ± 0.1°, 14.1° ± 0.1°, 18.9° ± 0.1°, and 21.4° ± 0.1°. There was no obvious difference in 2θ angles and peak intensity of the characteristic peaks. The differences in crystal forms lead to different intermolecular forces, modes of action, and intensities of action, and then result in different lattice energies to present different infrared spectra. Further IR characterization was measured. The results in Figure 5D indicate that the infrared absorption spectra of each batch of samples were consistent without obvious peak shift, and all spectra contained the following characteristic absorption peaks: 3482 cm⁻¹ (O-H) and 3228 cm⁻¹ (=C-H). The above analysis results confirm that the tested LM49-API samples did not contain crystal water or other crystal solvents and are of the same crystal form. Moreover, compared with the sample obtained from the original laboratory process, no difference was found.

2.4. Impurity Synthesis

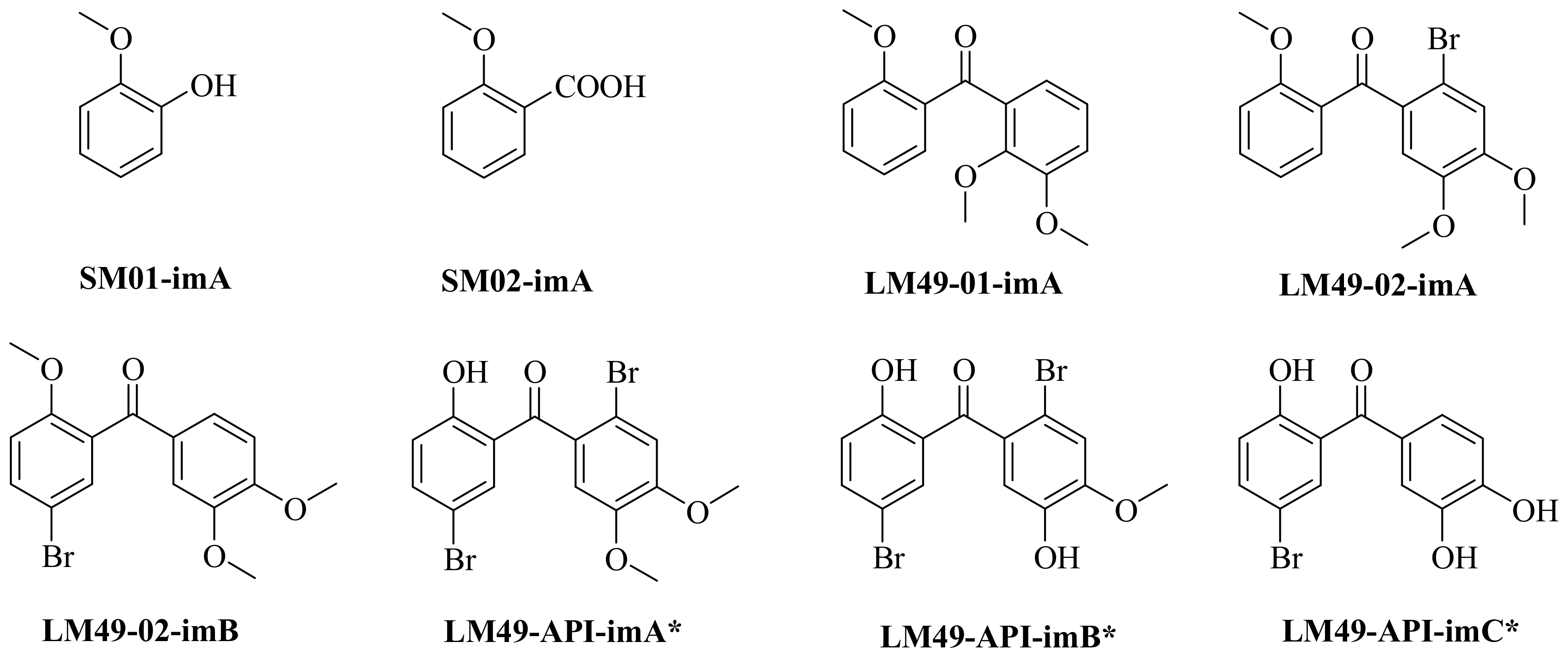

During the process development of API, identification of process-related impurities is an important task, which may hamper the API effectiveness and leads to several side effects due to the formation of toxic degradation products [11]. Therefore, process-related impurities must be determined qualitatively and quantitatively. According to the synthetic process and reaction mechanism, we investigated the potential related impurities (shown in Scheme 2), speculated on their formation path, and further prepared them by chemical synthesis methods.

2.4.1. Impurity Analysis

In Friedel–Crafts acylation reaction step, when electrophilic reagent 2-methoxybenzoyl positive ion attacks SM01, there are two possible sites at the 3-position and 4-position. When attacking the 4-position, the steric hindrance is smallest, and the resultant product is LM49-01. When attacking the 3-position, the by-product LM49-01-imA is generated. In addition, SM01-imA may be introduced from the purchased raw material SM01. Another raw material SM02 is acyl chloride and is easily hydrolyzed to SM02-imA. Therefore, the possible process impurities in this step are SM01, SM01-imA, SM02-imA, and LM49-01-imA. However, they are not detected in the test sample of LM49-01, but an unknown impurity LM49-01-imX is found, whose structure has not been determined yet.

In the bromination reaction step, the main sites of bromine substitution are the 2′- and 5-positions. There may be two mono-bromination by-products, LM49-02-imA and LM49-02-imB, substituted at the 2′- or 5-positions in the reaction. Therefore, the main process impurities in the bromination reaction are LM49-01, LM49-02-imA, and LM49-02-imB. In fact, only one impurity, LM49-02-imB, is detected. Other impurities are not measured in the test samples of LM49-02 by HPLC. It shows that the 5-position is more active than the 2′-position, and that bromination occurs at the 5-position first. The 2′-position is not conducive to substitution due to the steric hindrance of the adjacent benzene ring.

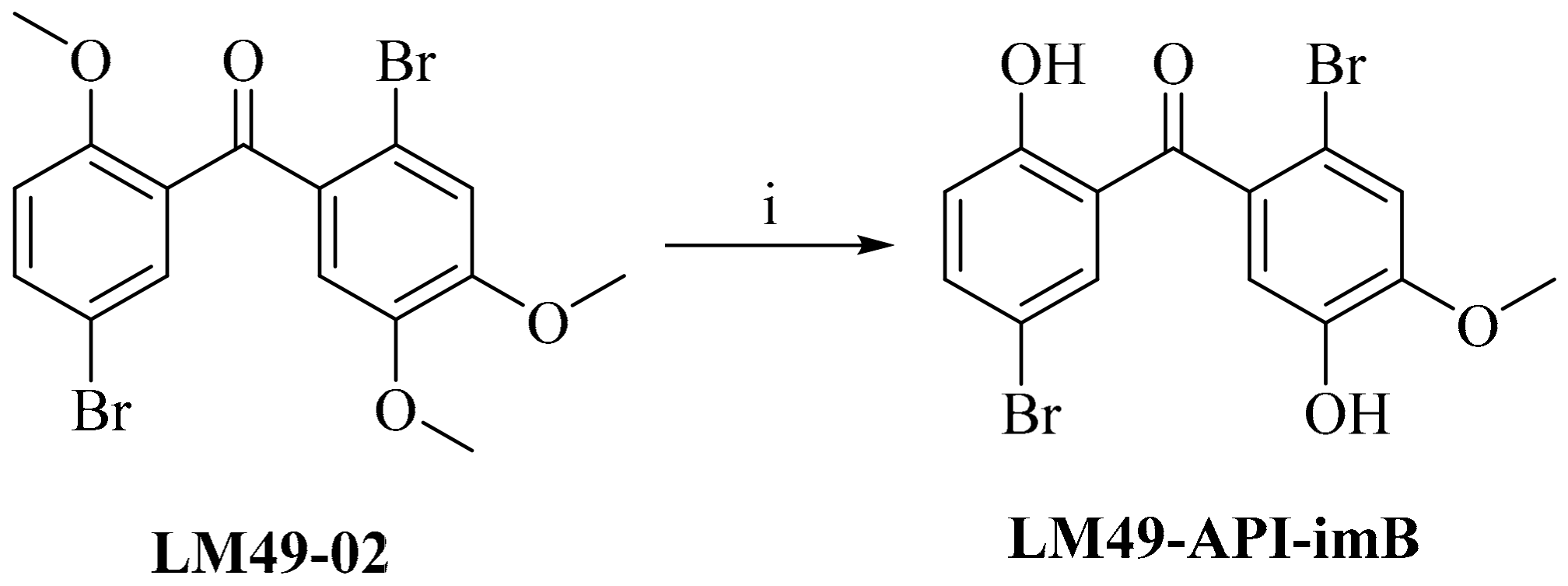

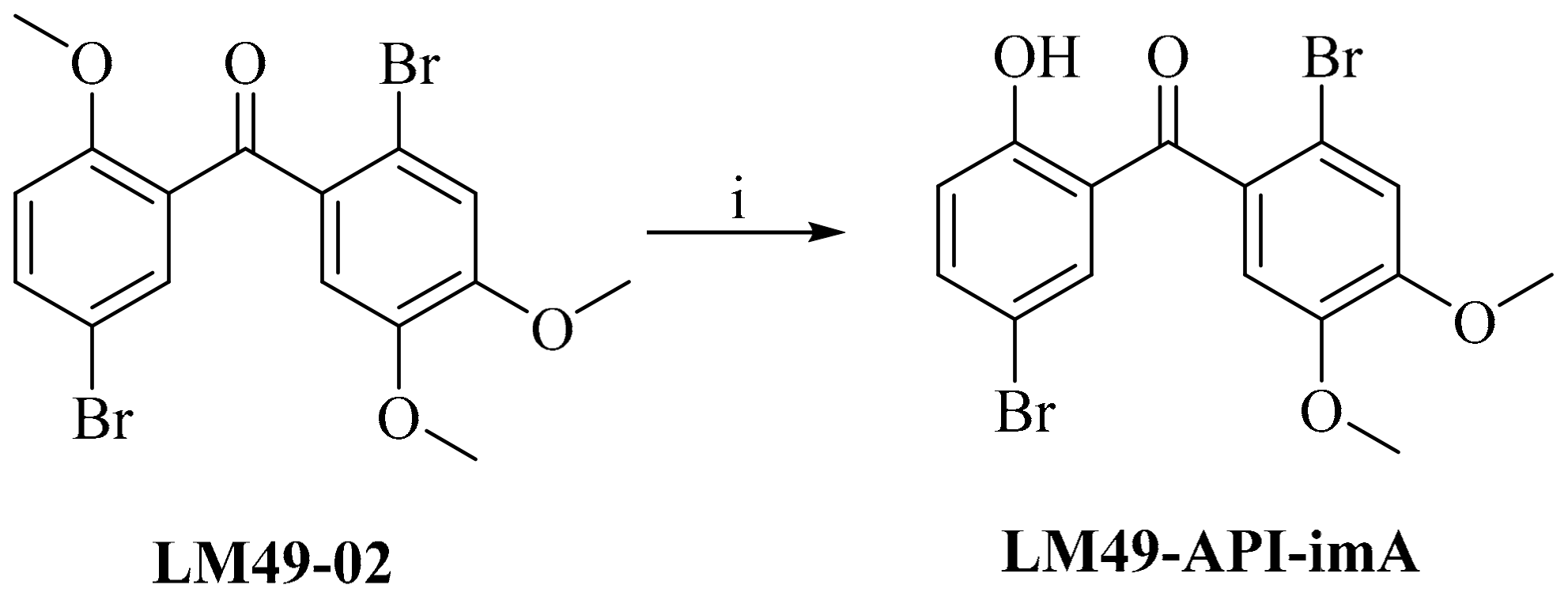

In a demethylation step, the target product LM49-API can be obtained by demethylation of LM49-02. Because of the presence of three methoxyl groups in LM49-02, there may be the corresponding by-products LM49-API-imA and LM49-API-imB due to incomplete demethylation. In addition, LM49-02-imB exists in multiple batches of LM49-02 samples, and its demethylation will generate a corresponding impurity LM49-API-imC. Therefore, the possible process impurities in demethylation reaction are LM49-02, LM49-API-imA, LM49-API-imB, and LM49-API-imC. However, only LM49-API-imC and another unknown impurity LM49-API-imX are found in the test samples of LM49-API.

2.4.2. Preparation of Impurities

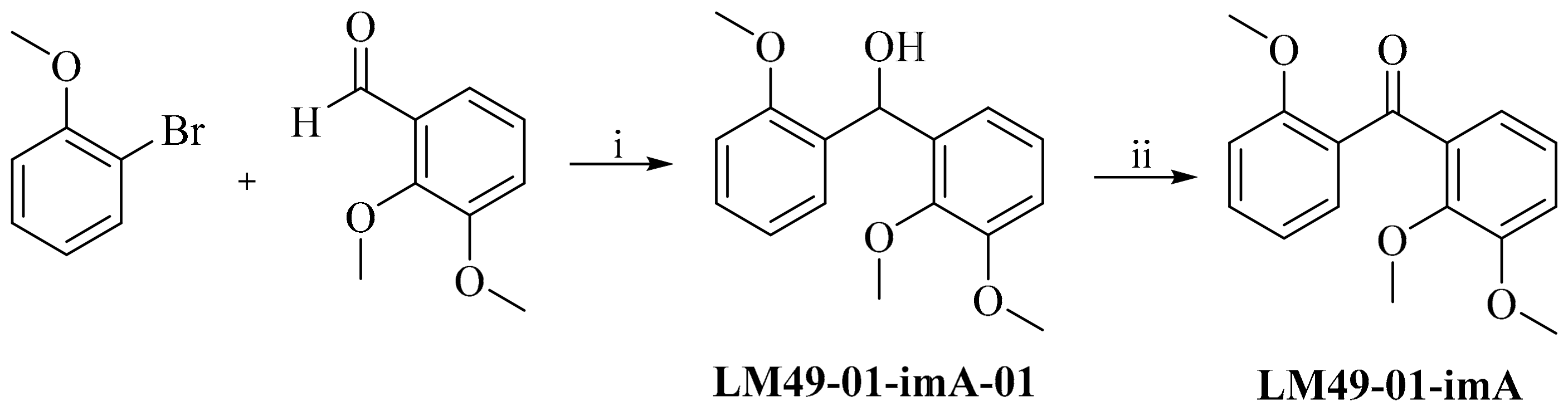

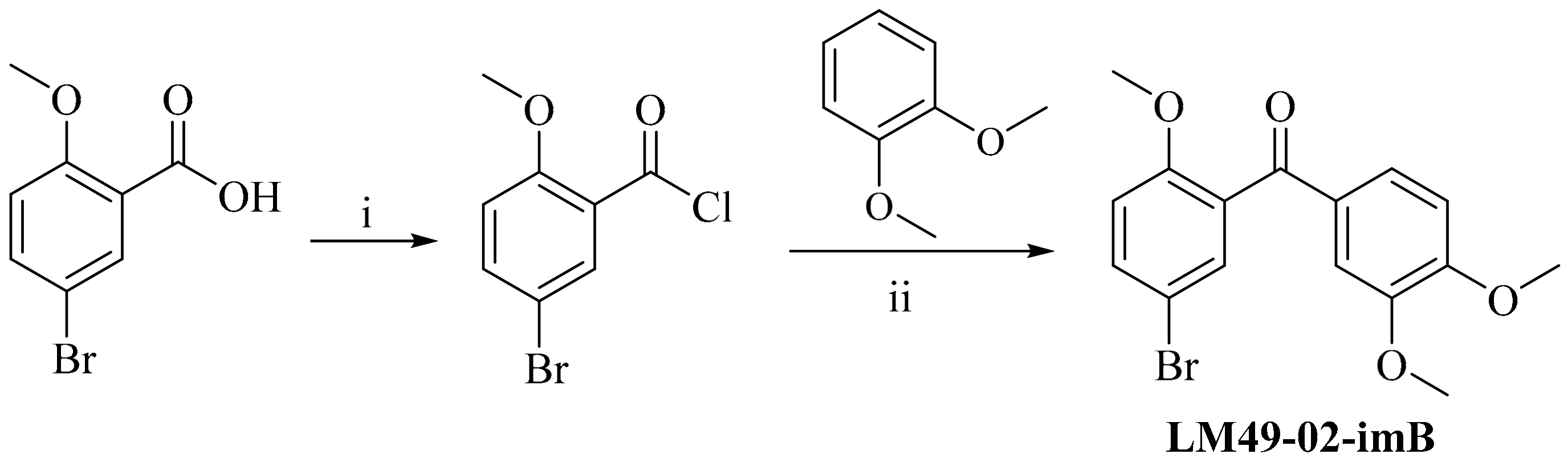

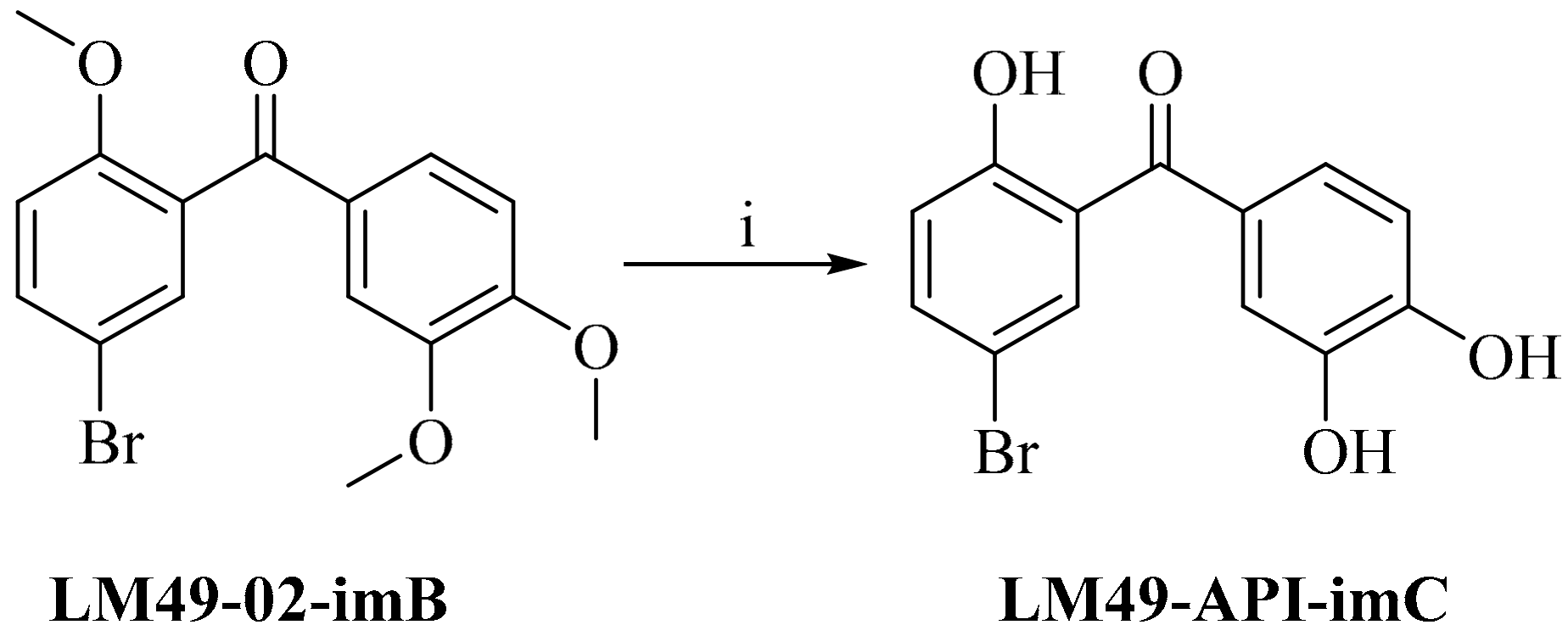

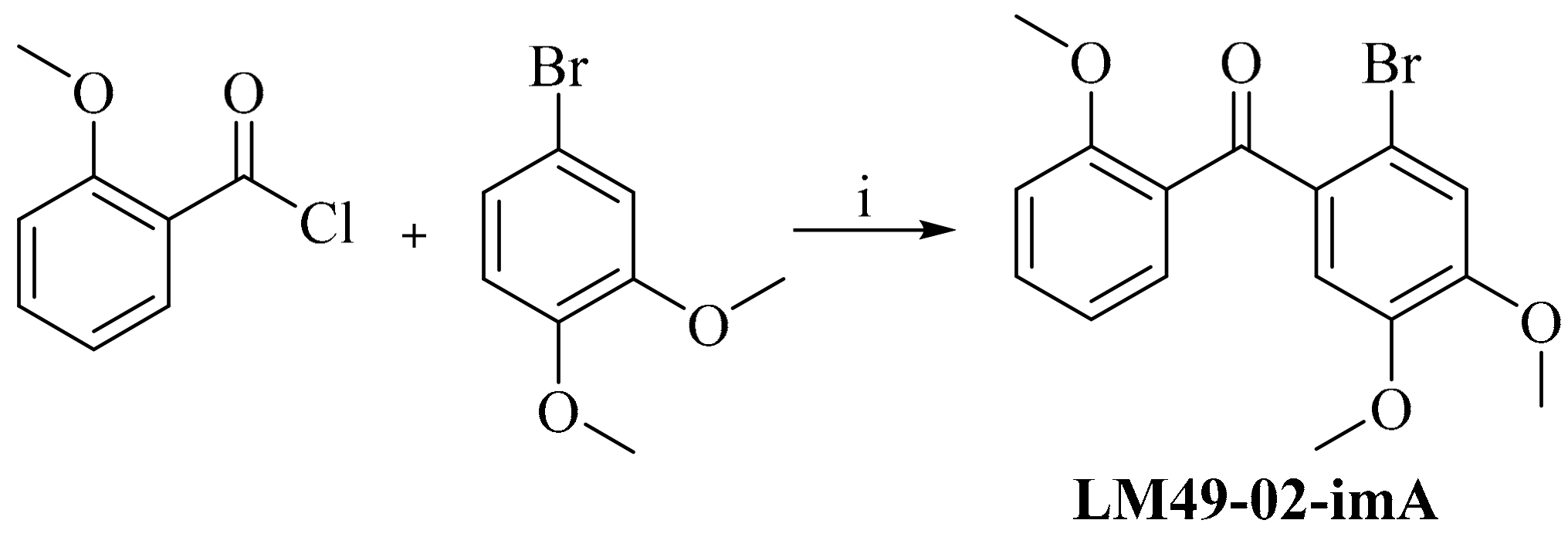

In this paper, the possible process-related impurities were prepared by chemical synthesis. In the presence of n-butyl lithium, 2-methoxybromobenzene was subjected to halogen–lithium exchange to become 2-methoxyphenyl lithium, and then nucleophilic addition with 2,3-dimethoxybenzaldehyde was carried out to obtain (3,4-dimethoxyphenyl) (2-methoxyphenyl) methanol. Finally, Swern oxidation was conducted to obtain the impurity LM49-01-imA. Under the catalysis of AlCl₃, 2-methoxybenzoyl chloride and 3,4-dimethoxybromobenzene underwent the Friedel–Crafts acylation reaction to obtain the impurity LM49-02-imA. 5-Bromo 2-methoxybenzoic acid reacted with SOCl₂ to obtain the corresponding acyl chloride, and then the Friedel–Crafts acylation with 1,2-dimetoxybenzene was carried out to gain LM49-02-imB. During the synthesis of LM49-02, it was found that the mono-brominated impurity LM49-02-imB was also obtained when the molar ratio of LM49-01 to NBS was 1/1. During the demethylation of LM49-02, if the molar ratio of LM49-02 to BBr₃ was controlled to be 1/1–1/1.5, the impurities LM49-API-imA and LM49-API-imB can be obtained by column chromatography separation. The impurity LM49-02-imB brought from the previous step reacted with BBr₃ to generate the impurity LM49-API-imC. Finally, more than 5 g of samples with a purity greater than 98% were obtained for all six impurities, which can be used as impurity reference substances for the quality control of LM49-API.

Six prepared impurities were characterized by MS, ¹H-NMR, ¹³C-NMR, and HRMS. In order to confirm the positions of the hydroxyl groups in LM49-API-imA and LM49-API-imB, correlation spectra of ¹H-¹H COSY, ¹H-¹H NOESY, and ¹H-¹³C HMBC were further employed. The ¹H-¹H COSY spectrum data of LM49-API-imA show that the low-field aromatic hydrogen signals 7.67 (dd, 1H) and 6.98 (d, 1H) have strong coupling (ortho-position relationship) and belong to 4-Ph-H and 3-Ph-H, respectively. ¹H-¹H NOESY spectrum data reveal that the hydrogen signal at 6.98 (d, 1H) is not correlated with high-field methyl hydrogen signals, which indicates that there is no methoxyl group spatially close to it, and that the two methoxyl groups on LM49-API-imA should be on another benzene ring. Finally, the hydroxyl group of LM49-API-imA was confirmed to be at the 2-position. NOESY spectrum data of LM49-API-imB show that 7.22 (s, 1H) is coupled with high-field methyl hydrogen signals, which indicates that this hydrogen atom and the methoxyl group are on the same benzene ring and are spatially close to each other. However, whether the methoxyl group is at the 4′-or 5′-position is still not clear. The ¹H-NMR data of LM49-API-imB indicate that the hydrogen signal 7.22 (s, 1H) may be at the 3′-position or 6′-position. If the position of 7.22 (s, 1H) can be determined, the accurate position of the methoxyl group can be finally confirmed. Further ¹H-¹³C HMBC results exhibit that the carbonyl carbon signal 195.4 is correlated with the hydrogen signal 6.90 (s, 1H), but is not correlated with the hydrogen signal 7.22 (s, 1H). The hydrogen signals 6.90 (s, 1H) and 7.22 (s, 1H) are therefore attributed to 6′-Ph-H and 3′-Ph-H, respectively. In addition, the hydrogen signal 7.22 (s, 3′-Ph-H, 1H) is found to correlate with the high-field methyl hydrogen signals, which indicates that these hydrogen atoms are adjacent to each other in space. Thus, the methoxyl group in the structure of LM49-API-imB can be concluded to belong to the 4′-position.

3. Experimental Section

3.1. Instruments and Reagents

Melting points were determined on X-4 micro melting point apparatus (Shanghai, China), and were uncorrected. NMR spectra were recorded on a Bruker AVANCE II (Karlsruhe, Germany), 400 MHz or 500 MHz with TMS as an internal standard in DMSO solution. Chemical shifts were given in δ values (ppm), and coupling constants (J values) were given in Hz. ESI mass spectra were acquired on a Waters ZQ2000 spectrometer (Milford, MA, USA). HRMS was recorded on a Bruker APEX IV mass spectrometer (Karlsruhe, Germany). IR spectrographs were obtained on the Thermo Scientific Nicolet iS5 (Waltham, MA, USA). XRD was detected on PANalytical X’Pert3 Powder multi-function X-ray diffractometer (Almelo, Dutch). DSC data was obtained from the Differential scanning calorimeter (METTLER TOLEDO, Zurich, Switzerland). TG analysis was detected on a thermogravimetric analyzer (Netzsch, Selb, Germany). HPLC was tested on an Agilent 1260 liquid chromatograph (San Diego, CA, USA) with a DAD detector. HPLC data were obtained using the following methods: HPLC method A: column of Phenomenex-C18 (250 mm × 4.6 mm, 5 µm); mobile phase A (water, adjusted to pH 2.0 with phosphoric acid) and B (acetonitrile). Gradient elution was carried out by adjusting the proportion of mobile phase A/B from 80:20 (20 min) and 60:40 (15 min) to 80:20 (5 min) over 40 min (detection at 210 nm, flow rate of 1.0 mL/min, temperature of 30 °C). HPLC method B: column of Phenomenex-C18 (250 mm × 4.6 mm, 5 µm) and mobile phase A (water, adjusted to pH 2.0 with phosphoric acid) and B (acetonitrile). Gradient elution was carried out by adjusting the proportion of mobile phase A/B from 55:45 (5 min), 48:52 (20 min), 47:53 (5 min), and 46:54 (5 min) to 55:45 (5 min) over 40 min (detection at 230 nm, flow rate of 1.0 mL/min, temperature of 30 °C). HPLC method C: column of Phenomenex-C18 (250 mm × 4.6 mm, 5 µm) and mobile phase A (water, adjusted to pH 2.0 with phosphoric acid) and B (acetonitrile). Gradient elution was carried out by adjusting the proportion of mobile phase A/B from 60:40 (20 min) and 20:80 (3 min) to 60:40 (7 min) over 30 min (detection at 230 nm, flow rate of 1.0 mL/min, temperature of 30 °C). GC data were obtained on an Agilent 7820A Gas Chromatograph (San Diego, CA, USA) with FID detector. GC method: capillary column of Agilent DB-624 (30 m × 0.32 mm, 1.8 μm); split ratio of 10:1; temperature programming: initial column temperature of 120 °C for 0 min with a 20 °C/min ramp to 160 °C, held at 160 °C for 3 min; next with a 20 °C/min ramp to 220 °C, and held at 220 °C for 12 min; carrier gas for N₂; flow rate of 1.0 mL/min; injection temperature of 240 °C, detector temperature of 250 °C.

The main reagents including SM01 and SM02 were provided from Aikon International Ltd. (Nanjing, China). Their purities were controlled to be higher than 99%, the content of maximal single impurity was limited to be less than 0.5%. NBS was purchased from Shanghai Hanhong Chemical, Co., Ltd. (Shanghai, China). DBDMH was obtained from Shanghai Aladdin Bio-Chem Technology Co., Ltd. (Shanghai, China). PyBr₃, BBr₃, and AlCl₃ were purchased from Beijing MREDA Technology Co., Ltd. (Beijing, China). Succinimide was provided by Shanghai Macklin Biochemical Co., Ltd. (Shanghai, China). Other chemical reagents and solvents were commercially available unless otherwise indicated.

3.2. Improved Prepared Process of LM49-API

As can be seen in Scheme 1, LM49-API was prepared starting from SM01 and SM02 by Friedel–Crafts acylation, bromination, and demethylation reaction.

3.2.1. Preparation of Intermediate 2,4′5′-Trimethoxybenzophenone (LM49-01)

Anhydrous aluminum chloride (289 g, 2.17 mol) was added to 3.0 L CH₂Cl₂ and kept at a temperature of 15 °C with stirring. SM01 (300 g, 2.17 mol) was slowly added into the mixture, which was gradually changed to a light-yellow transparent solution. Then SM02 (409 g, 2.28 mol) was slowly dropped into the system, which changed the color from light yellow to red-brown and allowed the solution to warm to room temperature. The reaction process was monitored by TLC. After being stirred for 1 h at room temperature, the mixture was slowly poured into 12 L ice water. The organic phase was separated, and the water phase was extracted once with 3.0 L CH₂Cl₂. The combined organics were washed with 3.0 L 5% NaOH water solution, dried over anhydrous sodium sulfate, and then concentrated via rotary evaporation to obtain the light-yellow oily liquid, which was next dissolved in 0.6 L CH₂Cl₂. 12 L n-hexane was added, stirred, and kept at 20 °C for 8 h. The precipitation was filtered and dried at 35 °C to gain the white solid (461 g in 76.7% yield with 99.97% HPLC purity). Mp 59–60 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 7.51 (td, J = 1.8 Hz, 1H), 7.39 (d, J = 2.0 Hz, 1H), 7.26 (dd, J = 7.4, 1.8 Hz, 1H), 7.17 (d, J = 1.8, 1H), 7.15 (dd, J = 15.6, 2.0 Hz, 1H), 7.07 (td, J = 7.5 Hz, 1H), 7.03 (d, J = 8.5 Hz, 1H), 3.84 (s, 3H), 3.80 (s, 3H), 3.70 (s, 3H); ¹³C-NMR (100MHz, DMSO-d₆) δ 194.6, 156.8, 153.8, 149.2, 131.8, 130.3, 129.3, 128.8, 125.8, 120.8, 112.2, 111.1, 110.9, 56.2, 55.9, 55.9; MS (ESI) m/z (100%) 273 [M + H]⁺.

3.2.2. Preparation of Key Intermediate 5,2′-Dibromo-2,4′5′-Trimethoxybenzophenone (LM49-02)

NBS (1137 g, 6.39 mol) was added into the solution of LM49-01 (435 g, 1.60 mol) in 2.2 L THF. The mixture was stirred for 5 h at room temperature, then poured into 8 L ice water to quench the reaction. The precipitation was filtered and separated to get the yellow-like solid, which was recrystallized at a proportion of 1 g/10 mL of LM49-02/ethanol and dried at 50 °C to afford 460 g white granular solid in 83.0% yield with 99.82% HPLC purity. Mp 133–134 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 7.74 (dd, J = 8.9, 2.5 Hz, 1H), 7.54 (d, J = 2.5 Hz, 1H), 7.21 (s, 1H), 7.13 (d, J = 8.9 Hz, 1H), 7.03 (s, 1H), 3.74 (s, 3H), 3.66 (s, 3H), 3.30 (s, 3H); ¹³C-NMR (100MHz, DMSO-d₆) δ 192.8, 157.9, 151.8, 148.3, 136.5, 132.8, 132.5, 130.1, 116.6, 115.5, 113.7, 112.4, 111.6, 56.7, 56.6, 56.3; MS (ESI) m/z (100%) 429,431,433 [M + H]⁺.

3.2.3. Preparation of the Target Compound (LM49-API)

LM49-02 (450 g, 1.05 mol) was added to 2.25 L CH₂Cl₂, stirred to dissolve completely. Next, BBr₃ (786 g, 3.14 mol) was slowly dropped into the system at –15 °C. Then the mixture was allowed to warm to room temperature. After stirring for 2 h, the reaction mixture was slowly poured into 9 L ice water to quench the reaction. The precipitation was filtered to obtain the yellow solid, which was recrystallized with the mixed solvent of ethanol and water with the 1 g/4 mL/4 mL proportion of LM49-API/ethanol/water and dried at 50 °C in a vacuum oven to afford 350 g light yellow crystal solid in 88.3% yield with 99.98% HPLC purity. Mp 220–221 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 10.83 (s, 1H), 10.10 (brs, 1H), 9.61 (brs, 1H), 7.62 (dd, J = 8.8, 2.6 Hz, 1H), 7.39 (d, J = 2.6 Hz, 1H), 7.02 (s, 1H), 6.95 (d, J = 8.8 Hz, 1H), 6.89 (s, 1H); ¹³C-NMR (100MHz, DMSO-d₆) δ 195.4, 157.8, 149.1, 144.6, 137.0, 133.2, 129.4, 125.1, 119.8, 119.6, 117.4, 109.8, 108.3; MS (ESI) m/z (100%)386, 389, 391 [M + H]⁺.

3.3. Polymorphs Investigation of LM49-API

The target product LM49-API was recrystallized with different single or mixed solvents to obtain different batches of samples, which were further analyzed by DSC, TG, XRD, and IR techniques.

DSC determination: nitrogen protection, flow rate 50.0 mL min⁻¹, heating rate 10.0 K min⁻¹, temperature range 25–250 °C. TG measurement: argon gas protection, heating rate 5.0 K min⁻¹, temperature range 25–1020 °C. XRD determination: tube pressure 40 kV, tube flow 40 mA, Cu Target Kα radiation, array detector detection, scan step 0.013°, scanning speed 19° min⁻¹, 2θ scanning range 3–40°, continuous scanning mode, room temperature (25 °C). IR detection: scanning range 4000–400 cm⁻¹, resolution 4 cm⁻¹, scan times 5.

3.4. Preparation of Process-Related Impurities

3.4.1. 2,2′3′-Trimethoxylbenzophenone (LM49-01-imA)

2-Bromoanisole (25 g, 13.4 mmol) was dissolved in 100 mL anhydrous THF kept at a temperature of −78 °C with protection of nitrogen. The solution of n-butyllithium (n-BuLi) in hexane (2.5 mol·L⁻¹, 60 mL) was slowly added into the system. After stirring for 30 min, 2,3-dimethoxybenzaldehyde (22 g, 13.4 mol) was dissolved in the 50 mL anhydrous THF, which was slowly dropped into the mixture. The reaction mixture was stirred for 4 h, then poured into 200 mL water to quench reaction, which was twice extracted with 400 mL ethyl acetate. The combined organics phase was dried by anhydrous sodium sulfate and concentrated via rotary evaporation to obtain 34.6 g light yellow solid. Crude product was purified by silica gel column chromatography with the system of petroleum ether-ethyl acetate (v/v, 6/1) as the eluent to afford 26.3 g white solid-compound LM49-01-imA-01.

Oxalyl chloride 6.15 mL was added to 100 mL CH₂Cl₂ protected by nitrogen. Then the mixed solvent of 16.5 mL DMSO and 35 mL CH₂Cl₂ was dropped into the reaction mixture slowly at −78 °C. After stirring for 1 h, the solution of 10 g LM49-01-imA-01 in 15 mL DMSO was slowly dropped into the system. After stirring for 2 h, the temperature of the mixture was allowed to warm to 0 °C, and 50 mL triethylamine was added dropwise into the system. After stirring for 30 min, the reaction mixture was poured into 300 mL of water. Then the separated organic phase was washed with 100 mL saturated sodium chloride solution and dried over anhydrous sodium sulfate. The dried organic phase was concentrated via rotary evaporation to obtain the off-white solid. The crude product was further purified by silica gel column chromatography with the system of petroleum ether-ethyl acetate (v/v, 3/1) as the eluent to afford 9.8 g white solid-compound LM49-01-imA in 70.8% yield with 99.16% HPLC purity (Scheme 3). Mp 97–98 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 7.52 (m, 1H), 7.38 (d, J = 7.6 Hz, 1H), 7.21 (d, J = 8.2 Hz, 1H), 7.12 (m, 2H), 7.03 (m, 1H), 6.93 (d, J = 7.8 Hz, 1H), 3.83 (s, 3H), 3.62 (s, 3H), 3.43 (s, 3H); ¹³C-NMR (100MHz, DMSO-d₆) δ 195.4, 158.1, 152.8, 147.4, 135.5, 133.4, 130.1, 130.0, 124.2, 120.7, 120.7, 116.1, 112.6, 60.9, 56.4, 56.0; MS (ESI) m/z (100%) 273.2 [M + H]⁺.

3.4.2. 2′-Bromo-2,4′,5′-Trimethoxylbenzophenone (LM49-02-imA)

Anhydrous aluminum chloride (3.7 g, 28.0 mmol) was added to 50 mL CH₂Cl₂. Then, 3,4-dimethoxybromobenzene (6.6 g, 28.0 mmol) and 2-methoxybenzoyl chloride (5 g, 36.0 mmol) were slowly added into the mixture at 0 °C, respectively. The temperature of mixture was allowed to warm to room temperature, stirred for 2 h, then poured into 200 mL water to quench the reaction. The organic phase was separated, and the aqueous phase was extracted twice with 50 mL CH₂Cl₂. The combined organics were dried over anhydrous sodium sulfate and concentrated via rotary evaporation to get light yellow oil liquid. The crude product was purified by silica gel column chromatography with the system of petroleum ether-ethyl acetate (v/v, 6/1) as the eluent to give 7.0 g white solid-compound LM49-02-imA in 66.0% yield with 100% HPLC purity (Scheme 4). Mp 73–74 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 7.61–7.53 (m, 1H), 7.44 (dd, J = 7.6, 1.8 Hz, 1H), 7.19 (s, 1H), 7.14 (d, J = 8.4 Hz, 1H), 7.05 (td, J = 1.0 Hz, 1H), 6.97 (s, 1H), 3.85 (s, 3H), 3.71 (s, 3H), 3.66 (s, 3H); ¹³C-NMR (100MHz, DMSO-d₆) δ 194.2, 158.8, 151.4, 148.3, 134.5, 133.6, 131.2, 128.0, 121.0, 116.5, 113.4, 113.0, 111.1, 56.6, 56.3, 56.2; MS (ESI) m/z (100%) 351.1, 353.1 [M + H]⁺; HRMS (ESI) calculated for C₁₆H₁₆BrO₄ [M + H]⁺ 351.0232, found 351.0222.

3.4.3. 5-Bromo-2,3′,4′-Trimethoxylbenzophenone (LM49-02-imB)

5-Bromo-2-methoxybenzoic acid (5 g, 21.6 mmol) was dissolved in 25 mL anhydrous SOCl₂, which was heated to reflux for 4 h in the presence of DMF and then concentrated under reduced pressure to afford 5-bromo-2-methoxybenzoyl chloride. Then 50 mL of anhydrous CH₂Cl₂ was added into the system, and anhydrous AlCl₃ (2.88 g, 21.6 mmol) and 1,2-dimethoxybenzene (2.99 g, 21.6 mmol) were added to the system at 0 °C, respectively. The reaction mixture was allowed to warm to room temperature, stirred for 2 h, and then slowly poured into 100 mL of water to quench the reaction. The organic phase was separated, and the aqueous phase was extracted twice with 50 mL CH₂Cl₂. The combined organics were dried over anhydrous sodium sulfate, concentrated under reduced pressure, and purified by silica gel column chromatography with the system of methanol-CH₂Cl₂ (v/v, 1/80) as the eluent to obtain 5 g white solid-compound LM49-02-imB in 66.0% yield with 99.19% HPLC purity (Scheme 5). Mp 114–115 °C; ¹H-NMR (500 MHz, DMSO-d₆) δ 7.68 (dd, J = 8.9, 2.5 Hz, 1H), 7.43 (d, J = 2.5 Hz, 1H), 7.39 (d, J = 1.9 Hz, 1H), 7.17–7.14 (m, 2H), 7.03 (d, J = 8.5 Hz, 1H), 3.84 (s, 3H), 3.81 (s, 3H), 3.70 (s, 3H); ¹³C-NMR (100MHz, DMSO-d₆) δ 192. 8, 156.1, 154.1, 149.2, 134.2, 131.3, 131.0, 129.7, 126.0, 114.8, 112.3, 111.3, 110.8, 56.4, 56.3, 56.0; MS (ESI) m/z (100%) 351.1, 353.0, 354.3 [M + H]⁺; HRMS (ESI) calculated for C₁₆H₁₆BrO₄ [M + H]⁺ 351.0232, found 351.0212.

3.4.4. 5,2′-Dibromo-2-Hydroxyl-4′,5′-Dimethoxylbenzophenone (LM49-API-imA)

LM49-02 (7 g, 16.3 mmol) was dissolved in 50 mL CH₂Cl₂, and 4.1 g (16.3 mmol) BBr₃ was slowly dropped into the system at 0 °C. The reaction mixture was allowed to warm to room temperature, stirred for 1 h, and poured into 150 mL ice water to quench the reaction. The organic phase was separated, and the water phase was extracted with 50 mL CH₂Cl₂. The combined organic phase was dried on anhydrous sodium sulfate and concentrated under reduced pressure to give the crude product, which was further purified by silica gel column chromatography with the system of petroleum ether-ethyl acetate-dichloromethane (v/v/v, 6/1/1) as the eluent to acquire 5 g light yellow solid-compound LM49-API-imA in 74.1% yield with 98.72% HPLC purity (Scheme 6). Mp 130–131 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 11.03 (s, 1H), 7.67 (dd, J = 8.8, 2.6 Hz, 1H), 7.41 (d, J = 2.6 Hz, 1H), 7.25 (s, 1H), 7.11 (s, 1H), 6.98 (d, J = 8.8 Hz, 1H), 3.86 (s, 3H), 3.75 (s, 3H); ¹³C-NMR (100MHz, DMSO-d₆) δ 196.9 159.3, 151.4, 148.5, 138.5, 134.3, 131.9, 124.3, 120.5, 116.2, 113.0, 110.5, 110.2, 56.6, 56.4; MS (ESI) m/z (100%)415.3, 416.2 [M + H]⁺; HRMS (ESI) calculated for C₁₅H₁₂Br₂O₄ [M − H]⁻ 414.9004, found 414.9002.

3.4.5. 5,2′-Dibromo-2,5′-Dihydroxyl-4′-Methoxylbenzophenone (LM49-API-imB)

LM49-02 (20 g, 46.5 mmol) was dissolved in 100 mL CH₂Cl₂, and 17.5 g BBr₃ (69.7 mmol) was added to the system slowly at 0 °C. The mixture was allowed to warm to room temperature, stirred for 1 h, and poured into 400 mL water to quench the reaction. The precipitation was removed by filtration. The separated organic phase was dried over anhydrous sodium sulfate and then concentrated under reduced pressure to obtain the crude product, which was purified by silica gel column chromatography with the system of petroleum ether-ethyl acetate-dichloromethane (v/v/v, 6/1/1) as the eluent to obtain 5.1g yellow solid-compound LM49-API-imB in 27.3% yield with 99.40% HPLC purity (Scheme 7). Mp 198–199 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 10.90 (s, 1H), 9.68 (s, 1H), 7.64 (dd, J = 8.8, 2.6 Hz, 1H), 7.39 (d, J = 2.6 Hz, 1H), 7.21 (s, 1H), 6.95 (d, J = 8.8 Hz, 1H), 6.90 (s, 1H), 3.86 (s, 3H); ¹³C-NMR (100MHz, DMSO-d₆) δ 196.3, 158.7, 150.8, 146.3, 138.0, 133.9, 131.7, 125.1, 120.3, 117.0, 116.9, 110.4, 108.5, 56.6; HRMS (ESI) calculated for C₁₄H₁₀Br₂O₄ [M + H]⁺ 402.9004, found 402.9822.

3.4.6. 5-Bromo-2,3′,4′-Trihydroxylbenzophenone (LM49-API-imC)

LM49-02-imB (6 g, 17.1 mmol) was dissolved in 50 mL CH₂Cl₂. BBr₃ (17.2 g, 68.4 mmol) was dropped into the system at 0 °C. The mixture was allowed to warm to room temperature, stirred for 1 h, and poured into 200 mL ice water slowly. The precipitate was filtered and dried at 50 °C in a vacuum oven to obtain 5.2 g yellow solid-compound LM49-API-imC in 98.5% yield with 99.52% HPLC purity (Scheme 8). Mp 112–113 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 10.18 (s, 1H), 9.92 (brs, 1H), 9.40 (brs, 1H), 7.49 (dd, J = 8.7, 2.6 Hz, 1H), 7.33 (d, J = 2.6 Hz, 1H), 7.19 (d, J = 2.1 Hz, 1H), 7.08 (dd, J = 8.3, 2.1 Hz, 1H), 6.90 (d, J = 8.7 Hz, 1H), 6.82 (d, J = 8.3 Hz, 1H); ¹³C-NMR (100 MHz, DMSO-d₆) δ 193.7, 155.0, 151.6, 145.6, 134.2, 131.4, 129.6, 128.9, 123.6, 119.0, 116.9, 115.7, 110.3; MS (ESI) m/z (100%) 309.0, 311.0 [M + H]⁺; HRMS (ESI) calculated for C₁₃H₉BrO₄ [M − H]⁻ 306.9606, found 306.9604.

4. Conclusions

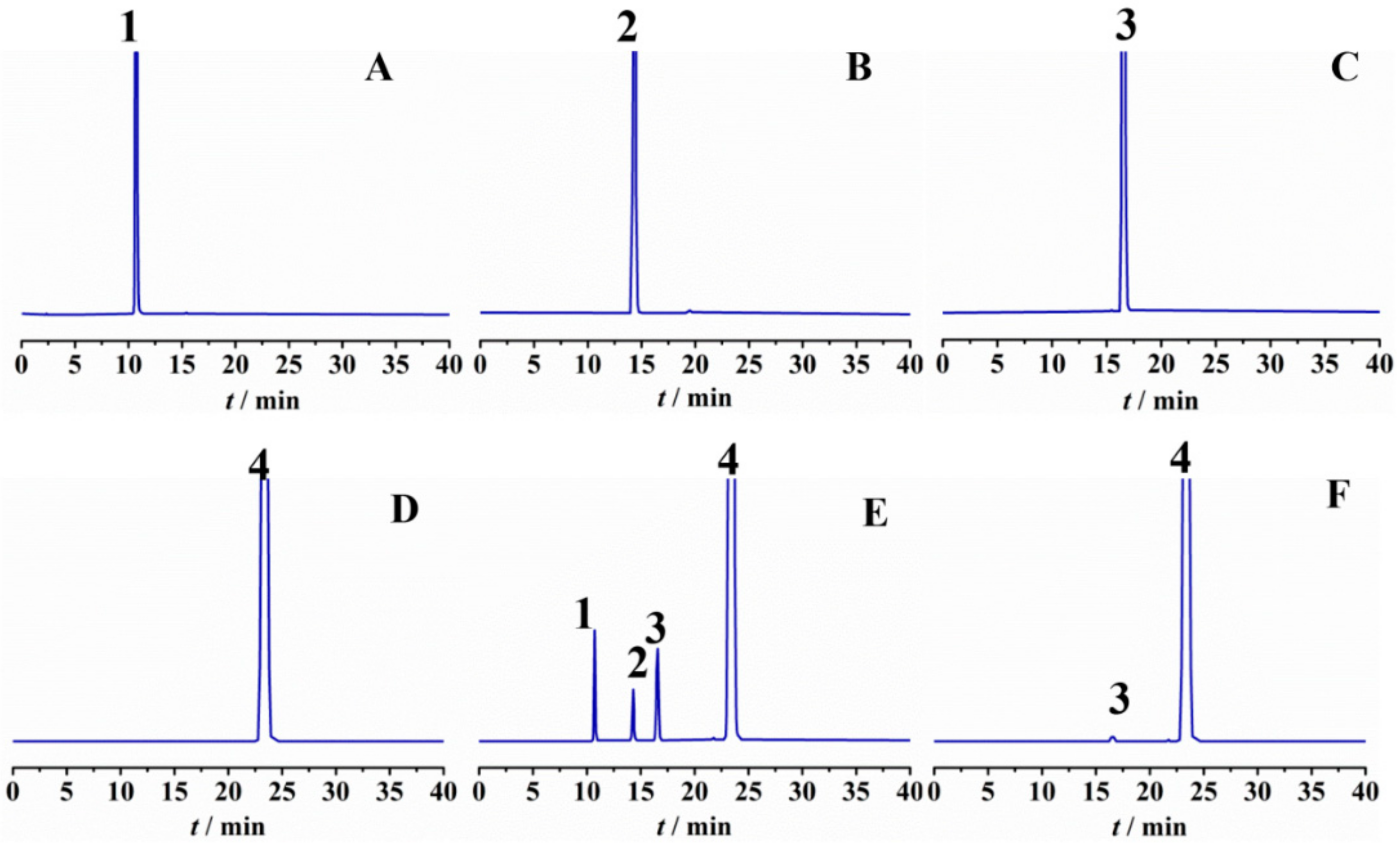

The improved LM49-API preparation process addresses the main issues encountered in the original laboratory synthesis by changing the reacted reagents and optimizing the conditions. In particular, the key intermediate LM49-02 is facilely prepared using NBS as a bromination reagent and a simple post-treatment method. Ultimately, these improvements lead to an efficient, economic, and easy preparation of LM49-API in three steps, with mild reaction conditions, low energy consumption, high purity, and controllable impurities. The preparation scale of LM49-API attains to 329–410 g, with the HPLC purity greater than 99.95%, total impurities less than 0.05%, and maximum single impurity less than 0.03%, with no polymorphic phenomenon found. Meanwhile, six potential process-related impurities were also prepared to obtain the samples of over 5 g with the HPLC purity higher than 98%, respectively, which can be used as the corresponding impurity reference substances. Through HPLC analysis, the main impurities in LM49-API contain LM49-API-imC and LM49-API-imX, the content of which is less than 0.03%.
