Review

Nitroso Diels-Alder Cycloadducts Derived From N-Acyl-1,2-dihydropyridines as a New Platform to Molecular Diversity

Department of Pharmacy, University of Pisa, Via Bonanno 33, 56126 Pisa, Italy
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(3), 563; https://doi.org/10.3390/molecules25030563
Submission received: 30 December 2019 / Revised: 24 January 2020 / Accepted: 27 January 2020 / Published: 28 January 2020
(This article belongs to the Special Issue New Insights in Diversity Oriented Synthesis)

Abstract

:
This review focuses upon the use of nitroso Diels–Alder reactions as a structural complexity generating reaction that has been so far a quite scarcely treated topic, despite its potential. In particular, the use of N-acyl-1,2-dihydropyridines as a non-symmetrical diene component in nitroso Diels–Alder reactions encompasses an initial diversification of pathways giving rise to different cycloadducts (direct and inverse). Selective elaborations of these cycloadducts, basically using a reagent-based approach, deliver a discrete number of structurally diverse compounds, including some original heterobicyclic scaffolds and functionalized heterocycles. This forward synthetic planning allowed the individuation of a new biologically active compound based on a novel oxadiaza-bicyclic-[3.3.1]-nonene scaffold which is still under preclinical evaluation.

Graphical Abstract

1. Introduction

Organic reactions that result in the formation of multiple covalent bonds in a regio- and stereoselective fashion are very powerful tools in synthetic organic chemistry. Nitroso Diels–Alder (NDA) reactions belong in their own right to this kind of organic transformations, as they are able to install simultaneously a C−O and a C−N bond in a predictable regio- and stereoselective way [1,2,3,4]. A variety of substituted-C-nitroso compounds, such as α-chloro-, α-acetoxy-, vinyl-, aryl- and acylnitroso, have been widely used as dienophiles in cycloaddition reactions to produce differently substituted 3,6-dihydro-1,2-oxazines of type 1 in a single step (Scheme 1).
Since the discovery of nitrosobenzene [5], arylnitroso compounds were among the first to be used in NDA reactions. Some of these are stable and commercially available compounds.
Nevertheless, the direct nitrosation of aromatic compounds is restricted to electron-rich systems, while electron-poor aromatic rings are excluded from this synthetic route. A valuable alternative was described by Taylor and co-workers reporting the preparation of synthetically useful 2-nitrosopyridine starting from 2-aminopyridine [6]. On the other hand, acylnitroso are a very reactive species with a lifetime in the order of 1 ms in organic solution [1,7]. Therefore, they are commonly generated in situ from the corresponding hydroxamic acid by means of periodate salts [8], or by various combinations of transition metals and reoxidating agents [9,10,11]. It is worth mentioning that the possibility to induce asymmetry in the NDA reaction is very much limited. In a seminal paper, Yamamoto reported the first example of a copper–Segphos-catalyzed enantioselective NDA reaction of 6-methylnitroso pyridine and cyclic 1,3-dienes [12]. Later, Studer and Jana reported a highly enantioselective regiodivergent NDA reaction using 2-nitrosopyridine [13]. More recently, Yamamoto and coworkers showed that also the particular chelating properties of pyrimidine and pyrazine arylnitroso derivatives allows the catalytic asymmetric arylnitroso DA reaction to occur with even higher enantioselectivities [14]. An interesting organocatalyzed enantioselective NDA reaction of (non-chelating) nitrosoaryl derivatives has been described by Masson and co-workers [15]. On the other hand, catalytic asymmetric acylnitroso DA reactions have met with very limited success [16,17].
Diversity Oriented Synthesis (DOS) has emerged as a powerful strategy in drug discovery, as it allows us to produce structurally diverse and unbiased collections of small molecules covering unique chemical space [18]. The scaffold or skeletal diversity is the most difficult type of chemical diversity to achieve, but also the most attractive one, as the scaffold diversity is a tight requisite for an efficient interaction with biological macromolecules [19]. The search for new molecular entities endowed with biological activity is a fundamental topic in modern drug discovery programs. In fact, the number of new, small molecules launched in the drug market dramatically decreased in recent years, and the application of DOS is considered as a new paradigm for the revival of a drug discovery process centered on small molecules. Despite the rich chemistry of NDA reactions, its clear-cut inclusion in a DOS approach to discover new chemical entities which are possibly useful in medicinal chemistry is an underdeveloped field. To our knowledge, the only explicit DOS approach making use of NDA chemistry has been reported by Miller and co-workers some years ago [20]. They prepared several highly functionalized hydroxylamine-containing compounds using Lewis acid-mediated nucleophilic ring-opening reactions of NDA cycloadducts, such as 1a with alcohols. Biological screening revealed selective and potent antibacterial activity against Micrococcus luteus ATCC 10240 for hydroxylamine compounds with a pyridyl heterocycle such as compounds 2a and 2b (Scheme 2).
It should be noted that the use of N-acyl-1,2-dihydropyridines (3) as the diene component in the NDA reaction and the subsequent elaborations of the obtained cycloadducts have received scarce attention to date.
In general, the synthesis of 2-substituted N-acyl-1,2-dihydropyridines can be readily accomplished by the nucleophilic addition of carbon nucleophiles to N-acyl-pyridinium salts [21]. The regioselectivity of the reaction has been rationalized in terms of the HSAB model, where soft organometallic reagents, such as organocuprates, generally prefer the C4 position, where harder nucleophiles attack the C2 position. Unsubstituted N-acyl-1,2-dihydropyridines can be regioselectively obtained by a Fowler’s type reduction of the N-carbalkoxypyridinium ion using NaBH4 [22]. The benefit of NDA reaction that makes use of N-acyl-1,2-dihydropyridines relies on a regio- and stereoselective introduction of new C−O and C−N bonds on a pyridine scaffold. It is amply recognized that pyridines, partially hydrogenated pyridines and piperidines are privileged scaffolds in medicinal chemistry [23]. Therefore, the resulting NDA cycloadducts are in principle valuable compounds that can easily be elaborated towards the preparation of substituted partially hydrogenated pyridines. Notwithstanding this encouraging premise, there are only a couple of papers describing the fundamental aspects of this chemistry using acylnitroso dienophiles that date back to the 1980s [24,25]. A very important difference between 1,2-dihydropyridines and normal all carbon-containing 1,3-dienes, is that the former is an inherently dissymmetric diene and the regioselectivity of the cycloaddition can be simply modulated, changing the nature of the group bearing the nitroso moiety. Thus, an arylnitroso species gives with complete regioselectivity the direct cycloadduct of type 4, whereas very electron-poor acylnitroso species give the inverse bicycle of type 5 with an opposite regioselectivity (Scheme 3). A mixture of both direct and inverse cycloadducts 6 and 7 is obtained when nitrosoformate esters are employed as dienophiles. The observed regioselectivity has been rationalized in terms of FMO theory, considering that N-acyl-1,2-dihydropyridine is a particular diene composed of a double bond conjugated with an enamide, thus giving a remarkable asymmetry of the HOMO of the diene [26].
The possibility to switch the regioselectivity by a simple change of the nature of the nitroso dienophile is particularly meaningful within a DOS approach as it allows researchers to diversify the couple stage (Scheme 4) at will. Fairly, a conceptualization as a DOS approach of most of the chemistry described in this review was envisioned only a posteriori by the authors. Anyway, we are now providing this kind of B/C/P framework of the NDA reaction starting from N-acyl-1,2-dihydropyridines because it offers a clearer picture of the overall strategy, and can offer in perspective further points of the functionalization of the cycloadducts so far not explored.
The development and examples of applications of DOS approach using NDA chemistry starting from 1,2-dihydropyridines will be explained in the following sections. The present Review of DOS approaches using NDA cycloadducts starting from 1,2-dihydropyridines is classified by the type NDA cycloadducts.

2. Discussion

2.1. Direct NDA Cycloadducts

Arylnitroso species are bench-stable compounds that generally require mild reaction conditions in the NDA reaction with dienes. On the other hand, the resulting NDA adduct might be poorly stable because it is prone to undergo a retro NDA reaction. The rich chemistry of NDA adducts mostly relies on the elaboration of the oxazine moiety, as the cleavage of the N−O bond provides access to 1,4-aminoalcohol derivatives [27]. Having a lower stability than a carbon–carbon bond, the N−O bond can be cleaved exploiting different approaches, such as a combination of zinc and acid [28], molybdenum hexacarbonyl [29,30], titanium(III) salts [31,32], samarium diiodide [33] and metal-catalyzed hydrogenation [34].
In addition, a further drawback of the use of arylnitroso is the difficult removal of the aryl moiety. Yamamoto has addressed this issue by using substituted nitroso compounds derived from pyridine [12], pyrimidine and pyridazine [14]. For example, the synthesis of chiral bicycle 10 was ensured by a chelating control of Cu(I) salt exerted on both the phosphine ligand and nitroso pyridine 9 species. After the N−O bond cleavage, the pyridine ring was treated with methyl triflate, and the resulting quaternary intermediate was removed using sodium hydroxide to deliver protected amino-alcohol 11 in enantiomerically-enriched form and satisfactory overall yield (Scheme 5).
According to the DOS approach proposed in Scheme 4, the elaboration of direct NDA cycloadducts of 1,2-dihydropyridines is the pair stage in which the critical point of diversification is the cleavage of the N−O bond. The 1,4-aminoalcohol framework obtained is installed in a piperidine scaffold in a stereodefined fashion. Moreover, the initial cleavage of the N–O bond unveils a labile N-acyliminium ion precursor that can be properly activated to undergo inter- and intramolecular nucleophilic additions. Hence, the direct NDA cycloadducts elaborations can be classified as a reagent-based approach. In a seminal example, aiming at a stereoselective synthesis of iminosugars, Streith and coworkers reported the first elaboration of such direct NDA cycloadducts [34]. Initially, adduct 4a was treated with KMnO4 to provide the dihydroxylated compound 12 (Scheme 6). The cis-dihydroxylation took place at the opposite face with respect to the N–O bond in a completely stereoselective fashion. The iminosugar 13 was obtained after a palladium-catalyzed reduction of the N–O bond.
A direct cleavage of the N−O bond without a preventive elaboration of the double bond was reported by Pineschi and co-workers using titanium(III) salts [35]. In particular, exposing the adduct 4b to TiCl3 gave rise to a mixture of gem-amino-ether and gem-amino-alcohol derivatives 14a and 14b, respectively, in which the relative stereochemistry of hydroxyl moiety is lost (Scheme 7). According to the authors, the expected product was not isolated because the titanium species readily catalyzes the conversion of hemiaminal 14b into a N-acyliminium ion amenable to being trapped by the nucleophilic protic solvents. Moreover, 14a and 14b are also N-acyliminium ion precursors, and an equilibrium of these two species cannot be ruled out. Surprisingly, replacing TiCl3 with titanocene monochloride led to a different reaction outcome as 1,2-dihydropyridine 15 and the pyrrole 16a were recovered. While the formation of 1,2-dihydropyridine 15 was ascribable to a rapid retro NDA process, the synthesis of pyrrole 16 was completely unexpected, and it thus required an extensive study to understand the reaction mechanism.
A screening of various reaction conditions highlighted that a sub-stoichiometric amount of copper(I)chloride smoothly catalyzed the conversion of cycloadducts 4 into the corresponding pyrrole derivatives of type 16 (Scheme 8). The scope of the reaction was mainly limited to N-acyl-protected bicycles, and it could be also carried out in a one-pot, two-step fashion, starting from the appropriately protected 1,2-dihydropyridine. In contrast, sulfonyl-protecting groups showed to be reactive, only raising the temperature while carbamate-protected bicycles gave a lower yield due to the formation of by-products. Nevertheless, reducing the amount of alcohol and using DCM as the solvent enabled the synthesis of a novel [2.2.1]-bicycle 17a starting from the N-phenoxycarbonyl cycloadduct [36]. Moreover, warming 17a in the presence of copper(I)chloride gave the corresponding methylamino-substituted pyrrole 16b, suggesting that 17a is a key intermediate in the pyrrole synthesis.
The proposed reaction mechanism involves a copper-catalyzed cleavage of the N−O bond followed by the formation of a conjugated N-acyliminium ion 19. Subsequent intramolecular addition of the amine moiety gave rise to the 2,7-diazabicycloheptene 17 (Scheme 9). To address the transformation of 17 into the final pyrrole, the author postulated that a [3,3] hetero-Cope rearrangement occurred. At this point, the assistance of elevated temperature is critical when the scaffold bears a carbamate protecting group.
In fact, in literature, it is known as to the tendency of acyl-protected NDA bicycles to undergo a Cope rearrangement, whereas the bicycles bearing a carbamate moiety are poorly reactive [24]. The last step of the mechanism proceeds via an electronic reorganization of the unstable oxazine 20 to afford 16.
It is worth noting that this procedure can be also used to prepare chiral N-phenyl pyrroles 16c (Scheme 10). The chiral center introduced in the starting N-carbamoyl-1,2-dihydropyridine 22 is maintained through the synthesis of both the corresponding arylnitroso NDA bicycle and pyrrole adduct [37]. This catalytic asymmetric arylation of pyridine devised by Doyle can be considered as a reliable entry to non-racemic 1,2-dihydropyridines used as starting material at the couple stage.
A further diversification of arylnitroso NDA adducts was achieved by replacing the phenyl moiety with a pyridine [36]. The aforementioned copper-catalyzed approach was unsuccessful in this case, likely due to the formation of a stable complex between the metal and the pyridine subunit. In contrast, alternative known procedures to cleave the N−O bond resulted in the formation of enantio-enriched 1,2,3,6-tetrahydropyridine 23 and [2.2.1] bicycle 17b. The latter was obtained using Mo(CO)6 in a mixture of water and acetonitrile, while upon treatment of 4c with in-situ-formed titanocene monochloride led to compound 23. In this case, the initial cleavage of the N−O bond is followed by the reduction of the hemiaminal moiety (Scheme 11).
The synthesis of chiral 3-aminopiperidines using NDA adduct was also described by Charette and co-workers [38]. The chiral adduct 4d was treated with aluminum hydride (Scheme 12), and surprisingly, a chemoselective reduction of the N−O bond, the amidine protecting group and the hemiaminal moiety occurred. The resulting 2,3-disubstituted 4,5-dehydropiperidine was protected using Boc2O to afford chiral non-racemic 24 with a good yield. An unexpected product was obtained by reducing the NDA adduct 4d with hydrogen over palladium on charcoal. Bicycle 25 was recovered with a satisfactory yield, although partial racemization occurred.

2.2. Elaboration of Inverse Cycloadducts

As aforementioned, NDA reactions on 1,2-dihydropyridines with acylnitroso compounds gives inverse cycloadducts selectively, furnishing N-amide-protected ones. On the other hand, carbamate-protected inverse NDA cycloadducts can be obtained in a pure state only by the chromatographic separation of the regioisomeric direct/inverse mixture delivered by the NDA reaction of 1,2-dihydropyridines with carbamoylnitroso compounds [24]. As illustrated in this section, inverse cycloadducts have an interesting capability of diversification in the pair stage in a DOS approach, and several diverse and pharmaceutically relevant molecular skeletons, such as polyfunctionalized tetrahydropyridines and piperidines, iminosugars, dioxazines and unusual oxadiaza[3.3.1]bicycles have been prepared in accordance with a reagent-based approach (see Scheme 4). It should be noticed that inverse NDA cycloadducts have been so far scarcely explored substrates. A seminal in-depth study of the reactivity of inverse cycloadduct was carried out by Knaus and co-workers in 1985 [24]. First of all, both 5a and 27a were obtained after chromatographic purification of the crude of NDA reaction, suggesting the possibility of a cycloaddition reaction occurring either on the C3–C6 or on the C3–C4 position of 1,2-dihydropyridine (Scheme 13). Nevertheless, a slow conversion of 5a to 27a was noticed at room temperature, clearly demonstrating that dioxazine 27a is not the primary reaction product. Also, cycloadducts 5b and 5c slowly underwent conversion to 27b and 27c at room temperature, while only heating up to 60 °C in dimethyl sulfoxide (DMSO), compound 5d afforded complete conversion to 27d. The authors proposed a reasonable [3,3]-sigmatropic rearrangement pathway to explain the obtained results. Importantly, only benzoyl–nitroso cycloadducts (5ad) with very few substitution patterns were examined, whereas carbamate–nitroso cycloadducts proved to be unreactive. This behavior was ascribed to the lower electron-withdrawing effect of the carbonyl attached to N3, which is not sufficient electron-withdrawing to trigger the C4–N3 shift necessary for the rearrangement reaction.
The formation of a dioxazine ring by [3,3]-sigmatropic rearrangement was also reported by Streith and co-workers in 1990 [39]. However, the corresponding experimental procedure was very poorly defined, and the authors simply indicated that the treatment of a dichloromethane solution of NDA cycloadduct 5b with a large amount of silicic acid afforded stereospecifically the dioxazine 27b. Aiming to synthesize iminosugar derivatives (Scheme 14), the authors performed a cis-dihydroxylation of the latter compounds that occurred anti with respect to the dioxazine backbone to give orthogonally-protected polyhydroxylated piperidines 28 (diacetate). The subsequent reductive destruction of the dioxazine ring with Raney nickel delivered, after peracetylation, the tetraacetate 29 which was an arabinose derivative. Hence, in addition to an elaboration of the NDA bicycle, the authors carried out a manipulation on the dioxazine system allowing the obtainment of an analogous-carbohydrate scaffold, that can be considered the first example of a pair stage on the dioxazine backbone in a general concept of DOS (see above, Scheme 4).
Some years before, the same research group developed a further diversification of NDA cycloadducts to deliver racemic iminosugars [25]. They initially performed the cis-dihydroxylation (and subsequent acetylation) of some inverse cycloadducts (5b, eg). As this reaction occurred in a stereospecific manner exclusively in anti with respect to the N−O bridge, the following reductive hydrogenolysis (and acetylation) allowed the formation of racemic amino-α-dl-lyxopyranose derivatives 31ad (Scheme 15).
To find other elaborations of inverse cycloadducts, we need to move about thirty years after, when the Pineschi and co-workers group attempted N−O cleavage protocols directly on inverse cycloadducts [40]. Amide-protected substrate 5h was subjected to N−O cleavage by the use of stoichiometric amount of Cp2TiCl2 [32], yielding gem-diamine iminosugar 32 in an efficient fashion (Scheme 16a). It should be noted that gem-diamine iminosugars represent an important class of glycomimetic compounds possessing biological activity [41]. In the same study, the formation of a dioxazine system (33a, b) was postulated as intermediate (Scheme 16b) for the formation of an endocyclic enecarbamate motif.
In fact, the use of Mo(CO)6 at 75 °C in a mixture of CH3CN/H2O furnished the unexpected 4-hydroxytetrahydropyridine 34a and 34b. After careful analysis of reaction conditions, molybdenum hexacarbonyl was found unnecessary, and the same products, albeit more slowly, were also formed in wet DMSO at 55 °C with both carbamate- and amide-protected cycloadducts. It should be noticed that in these conditions dioxazines 33a,b cannot be isolated as a pure compound but, the formation of observed product inevitably has to come from a [3,3]-sigmatropic rearrangement, that generates a dioxazine intermediate, and its subsequent hydrolysis.
Due to the remarkable importance of 4-hydroxytetrahydropyridines in many fields [42], different carbamate nitroso compounds were used in previously mentioned thermal conditions, but the reaction outcomes were found to be not much predictable. Only bicycles 7b and 7c were found to be reactive, albeit forming a different type of products (35a, 34c), as shown in Scheme 17, either derived from the hydrolysis processes. Thus, the nature of substituent at the 6-position of starting DHP and also of the nature of the protecting groups showed a considerable influence on the reaction outcomes. In particular, the presence of the phenyl group seemed to be essential to promote the rearrangement for this type of cycloadducts. Importantly, the use of water-tolerated Lewis acid, such as Yb(OTf)3, has markedly increased the yield of compound 34c up to 65%.
Very recently, similar reaction conditions were applied on Boc-protected cycloadduct 7d by Reiser and co-workers, achieving bicyclic enecarbamates 35b containing an ester moiety at the C5 position [43] (Scheme 18). They developed an innovative palladium-catalyzed synthesis of 1,2-dihydropyridines (37) starting from monocyclopropanated pyrroles (36), and after the NDA reaction, the obtained inverse cycloadducts 7d underwent a rearrangement reaction with Mo(CO)6 and CH3CN/H2O at 70 °C, providing compounds of type 35b.
The shortage of data on hetero-Cope rearrangement reactions of amide-NDA cycloadducts stimulated Pineschi and co-workers to investigate alternative reaction conditions to prepare dioxazine compounds, since they could be an interesting key intermediate for the synthesis of nitrogen-containing scaffolds [44]. To this end, an extensive screening of reaction conditions was carried out for amide-protected inverse cycloadducts, as only thermal reaction conditions showed very long reaction times and incomplete conversion. The rearrangement took place by means of the use of a catalytic amount of CuCl in a dichloroethane solution of inverse cycloadduct, heating up to 75 °C to give moderate to good yields of dioxazine 38. It should be noticed that the use of degassed solvent notably increases the reaction rate and the yield of the process (Scheme 19).
Importantly, under these reaction conditions, carbamate-protected cycloadducts turned out to be unreactive. Therefore, an important differentiation of reactivity between carbamate and amide series cycloadducts may lead to achieve a reagent-based diversification in accordance with the concepts of DOS. The different reactivity observed between the NDA adducts of the carbamate and amide series can be ascribed to the different nature of the carbon at the C3 position of the 1,2,4-dioxazine skeleton. In fact, the carbamate-derived dioxazine of type A has never been isolated as such, but they can be admitted as a transient intermediate in the formation of 4-hydroxypiperidines 34ac (see Scheme 17 and Scheme 18) [44]. Starting from amide nitroso derivatives (compounds of type B) we are dealing with less reactive O,O-dialkylhydroxamate derivatives, whereas we have a more reactive alkoxyimido carbonate, such as A when dealing with carbamate nitroso cycloadducts (Scheme 20). The possibility in the latter to give hydrolysis products is reasonably related with the increased electrophilicity of the C=N double bond in compounds having the A framework, as shown by quantum-chemical computations [44].

2.3. Reductive Elaboration of 1,4,2-Dioxazines

To our knowledge, the first and unique example of a reductive manipulation of a bicyclic 1,4,2-dioxazine have been described in the previous paragraph for the synthesis of iminosugars (see Scheme 14) [39]. Basically, twenty-eight years later, Pineschi and co-workers chanced upon a diversification on the behavior of dioxazines in the presence of different combinations of hydride sources and/or metal catalysts [45]. Some preliminary unpublished results had already shown the different behavior of dioxazines in diverse catalyzed reductive protocols. For example, hydrogenation of compound 38a in the presence of PtO2 furnished selectively the trans-disubstituted piperidine 39, but the use of Pd/C gave also the 2-substituted piperidine 40 as a minor product (70/30 NMR ratio). Then, heterogeneous hydrogenation carried out with ammonium formate at 80 °C with a catalytic amount of Pd/C [46] provided a 60/40 mixture of piperidines 39 (minor) and 40 (major). A plausible reason of this reactivity involves the oxidative addition of palladium or platinum to the enecarbamate moiety, due to the known capacity of these metals to generate π-allyl complexes [47]. The displacement of the dioxazine motif as an unconventional leaving group generates a first 3,4-tetrahydropiperidine intermediate that can undergo a direct reduction of a double bond in the presence of PtO2, giving selectively compound 39, or a second oxidative addition in the presence of palladium, given by the higher propensity of this metal to form π-allyl complexes. The second oxidative addition and subsequent reduction of the double bond delivered piperidine 40 (Scheme 21). Interestingly, 2,3-disubstituted piperidine scaffolds (type 39) represent a pharmaceutically interesting molecular skeleton, since this motif is included into non-peptidic human neurokinin-1 (NK1) substance P receptor antagonists, natural products, antiprotozoal agent and potential chemotherapeutic agents [48,49,50]. The use of common reducing agents, with or without palladium catalysts, provided selectively Δ2,3- or Δ3,4-piperidine derivatives 41 and 42 with unconventional substitution patterns [45]. In particular, NaBH4 or LiBH4 in presence of 5 mol % of (CH3CN)PdCl2 gave selectively compound 42. Replacing the palladium catalyst with (PPh3)2PdCl2 leads to a mixture of 41 and 42 in different ratio using NaBH4 or LiBH4. Moreover, employing a different hydride sources such as LiBEt3H (Super Hydride®) and NaBEt3H reagent in the presence of (CH3CN)PdCl2 as a catalyst, compound 42 was selectively generated. Serendipitously, an unusual and novel heterobicycle 43 was obtained with high selectivity, making use of (PPh3)2PdCl2 and (PPh3)4Pd. Furthermore, with Pd(dba)2, a 63/37 mixture of 42 and 43 was detected. Importantly, it was noticed that the selective formation of compound 43 can be also achieved in moderate to good yields without any palladium-based catalysts starting from carbamate-protected dioxazines [45].
The attainment of compound 43 having a novel 1,3-diazo-4-oxa-bicyclic-[3.3.1]-nonene architecture has been fully rationalized by means of a cascade reaction (Scheme 22). The only way to obtain 1,3-diaza-4-oxa-[3.3.1]-bicyclic framework 43 comes from an initial regioselective SN2′-addition of the hydride to enecarbamate 38a. The obtained anionic 3,4-unsaturated intermediate 44 does not undergo a further reduction of the oxyamido functionality, arguably due to an intramolecular chelate stabilization. It is also likely that the concomitant reduction of the carbamate moiety of species 44 gives rise to a zwitterionic iminium ion 45 that undergoes intramolecular trapping by N-alkylation to deliver the bicyclic framework 43. In accordance with the proposed mechanism, the formation of such a bicyclic framework necessarily requires the presence of a carbamate protecting group on the endocyclic piperidine nitrogen [45].
In the Open Innovation Drug Discovering Program sponsored by Eli Lilly, compound 43 showed a promising in vitro activity promoting the release of GLP-1 (glucagon-like peptide 1) (Figure 1). GLP-1 is a 30 amino-acid peptide hormone that triggers insulin secretion in pancreatic cells, and that has proven difficult to activate with small molecules. Existing molecules that stimulate its secretion are only peptides similar to the native GLP-1 peptide, and are delivered by injection. Therefore, there is a huge interest in finding new orally active drugs useful for treatment of diabetes and NAFLD by means of novel mechanisms of action [51].

3. Conclusions

In this review, a systematic overview of the possibilities so far offered by the NDA chemistry starting from 1,2-dihydropyridine is provided and rationalized for the first time within a DOS approach. In fact, the reaction of aryl-, acyl- and carbamoyl nitroso derivatives with N-protected 1,2-dihydropyridines afford NDA cycloadducts of different kinds that can be differently manipulated, offering a range of synthetic alternatives.
Most of the diversifications were obtained using different reductive reaction conditions on the NDA cycloadducts in a reagent-based approach to give stereochemical and skeletal diversity. A DOS conceptualization of the NDA chemistry of 1,2-dihydropyridines provided in this review can offer further points of functionalization beyond the stages of diversification so far individuated. For example, nucleophilic ring-opening reactions of NDA cycloadducts with 1,2-dihydropyridines have not yet been explored. Overall, the chemistry herein described is particularly valuable, considering the remarkable importance that partially hydrogenated pyridines and piperidines have in biologically active compounds. In particular, the obtainment of novel sp3-rich scaffolds having biological activity can give new inputs in medicinal chemistry programs, with the necessary inclusion on the active scaffold individuated of the less appealing diversity (i.e., appendage diversity), in order to find more potent compounds.

Funding

This research was funded by the University of Pisa.

Acknowledgments

Article processing charge was sponsored by MDPI. We also gratefully acknowledge Eli Lilly Company for providing us biological data on GLP-1 secretion within the Open Innovation Drug Discovery Program used with Lilly’s permission. (https://openinnovation.lilly.com/dd/).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bodnar, B.S.; Miller, M.J. The nitrosocarbonyl hetero-Diels-Alder reaction as a useful tool for organic synthesis. Angew. Chem. Int. Ed. 2011, 50, 5630–5647. [Google Scholar] [CrossRef]
  2. Carosso, S.; Miller, M.J. Nitroso Diels-Alder (NDA) reaction as an efficient tool for the functionalization of diene-containing natural products. Org. Biomol. Chem. 2014, 12, 7445–7468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Yamamoto, Y.; Yamamoto, H. Recent Advances in Asymmetric Nitroso Diels-Alder Reactions. Eur. J. Org. Chem. 2006, 2031–2043. [Google Scholar] [CrossRef]
  4. Adamo, M.F.A.; Bruschi, S. Generation of nitroso species and their use as dienophiles in the hetero Diels Alder reaction. Targets Heterocycl. Chem. Chem. Prop. 2007, 11, 396–430. [Google Scholar]
  5. Baeyer, A. Nitrosobenzol und nitrosonaphtalin. Chem. Ber. 1874, 7, 1638–1640. [Google Scholar] [CrossRef] [Green Version]
  6. Taylor, E.C.; Tseng, C.-P.; Rampal, J.B. Conversion of a primary amino group into a nitroso group. Synthesis of nitroso-substituted heterocycles. J. Org. Chem. 1982, 47, 552–555. [Google Scholar]
  7. Memeo, M.G.; Quadrelli, P. Generation and trapping of nitrosocarbonyl intermediate. Chem. Rev. 2017, 117, 2108–2200. [Google Scholar] [CrossRef] [PubMed]
  8. Kirby, G.W.; Sweeny, J.G. Nitrosocarbonyl compounds as intermediates in the oxidative cleavage of hydroxamic acids. Chem. Soc. Chem. Commun. 1973, 704–705. [Google Scholar] [CrossRef]
  9. Frazier, C.P.; Engelking, J.R.; Read de Alaniz, J. Copper-catalyzed aerobic oxidation of hydroxamic acids leads to a mild and versatile acylnitroso ene reaction. J. Am. Chem. Soc. 2011, 133, 10430–10433. [Google Scholar] [CrossRef]
  10. Flower, K.R.; Lighfoot, A.P.; Wan, H.; Whiting, A. Direct evidence for a ruthenium(iv) oxo complex-mediated oxidation of a hydroxamic acid in the presence of phosphine oxide donors. Chem. Commun. 2001, 1812–1813. [Google Scholar] [CrossRef]
  11. Adamo, M.F.A.; Bruschi, S. Generation of acylnitroso dienophiles: A study of metal catalysis. J. Org. Chem. 2007, 72, 2666–2669. [Google Scholar] [CrossRef] [PubMed]
  12. Yamamoto, Y.; Yamamoto, H. Catalytic, highly enantio, and diastereoselective nitroso Diels−Alder reaction. J. Am. Chem. Soc. 2004, 126, 4128–4129. [Google Scholar] [CrossRef] [PubMed]
  13. Jana, C.K.; Studer, A. Divergent reactions for racemates: Catalytic, enantioselective, and regiodivergent nitroso Diels-Alder reactions. Angew. Chem. Int. Ed. 2007, 46, 6542–6544. [Google Scholar] [CrossRef] [PubMed]
  14. Maji, B.; Yamamoto, H. Catalytic enantioselective nitroso-Diels-Alder reaction. J. Am. Chem. Soc. 2015, 137, 15957–15963. [Google Scholar] [CrossRef] [PubMed]
  15. Pous, J.; Courant, T.; Bernadat, G.; Iorga, B.I.; Blanchard, F.; Masson, G. Regio-, Diastereo-, and Enantioselective Nitroso-Diels–Alder Reaction of 1,3-Diene-1-carbamates Catalyzed by Chiral Phosphoric Acids. J. Am. Chem. Soc. 2015, 137, 11950–11953. [Google Scholar] [CrossRef] [PubMed]
  16. Flower, K.R.; Lightfoot, A.P.; Wanc, H.; Whiting, A. The development and application of ruthenium catalyzed oxidations of a hydroxamic acid and in situ Diels–Alder trappingm of the acyl nitroso derivative. J. Chem. Soc. Perkin Trans. 2002, 18, 2058–2064. [Google Scholar] [CrossRef]
  17. Chow, C.P.; Shea, K.J. Dual Function Catalysts. Dehydrogenation and Asymmetric Intramolecular Diels-Alder Cycloaddition of N-Hydroxy Formate Esters and Hydroxamic Acids: Evidence for a Ruthenium-Acylnitroso Intermediate. J. Am. Chem. Soc. 2005, 127, 3678–3679. [Google Scholar] [CrossRef]
  18. Lenci, E.; Guarna, A.; Trabocchi, A. Diversity-oriented synthesis as a tool for chemical genetics. Molecules 2014, 19, 16506–16528. [Google Scholar] [CrossRef] [Green Version]
  19. Schreiber, S.L. Target-oriented and diversity-oriented synthesis in drug discovery. Science 2000, 287, 1964–1969. [Google Scholar] [CrossRef] [Green Version]
  20. Wencewicz, T.A.; Yang, B.; Rudloff, J.R.; Oliver, A.J.; Miller, M.J. NO chemistry for antibiotics: Discovery of N-alkyl-N-(pyridin-2-yl)hydroxylamine scaffolds as selective antibacterial agents using nitroso Diels-Alder and ene chemistry. J. Med. Chem. 2011, 54, 6843–6858. [Google Scholar] [CrossRef] [Green Version]
  21. Bull, J.A.; Mosseau, J.J.; Pelletier, J.; Charette, A.B. Synthesis of pyridine and dihydropyridine derivatives by regio- and stereoselective addition to N-activated pyridines. Chem. Rev. 2012, 112, 2642–2713. [Google Scholar] [CrossRef] [PubMed]
  22. Fowler, F.W. Synthesis of 1,2- and 1,4-dihydropyridines. J. Org. Chem. 1972, 37, 1321–1323. [Google Scholar] [CrossRef]
  23. Vitaku, E.; Smith, D.T.; Njardarson, J.T. Analysis of the Structural Diversity, Substitution Patterns, and Frequency of Nitrogen Heterocycles among U.S. FDA Approved Pharmaceuticals. J. Med. Chem. 2014, 57, 10257–10274. [Google Scholar] [CrossRef] [PubMed]
  24. Dubey, S.K.; Knaus, E.E. Some regio- and stereochemical aspects of the Diels-Alder reaction of nitrosocarbonyl compounds with N-substituted 1,2-dihydropyridines. J. Org. Chem. 1985, 50, 2080–2086. [Google Scholar] [CrossRef]
  25. Defoin, A.; Fritz, H.; Schmidlin, C.; Streith, J. Synthesis of diaminodideoxylyxose using acylnitroso dienophiles. Helv. Chim. Acta 1987, 70, 554–569. [Google Scholar] [CrossRef]
  26. Streith, J.; Defoin, A. Azasugar Synthesis and multistep cascade rearrangemements via hetero Diels-Alder cycloadditions with nitroso dienophiles. Synlett 1996, 189–200. [Google Scholar] [CrossRef]
  27. Scholz, S.; Plietker, B. Fe-Catalyzed reductive NO-bond cleavage—A route to the diastereoselective 1,4-aminohydroxylation of 1,3-dienes. Org. Chem. Front. 2016, 10, 1295–1298. [Google Scholar]
  28. Kresze, G.; Schulz, G. Polyhydroxyamine via dien-synthese mit nitroso-verbindungen. Angew. Chem. Int. Ed. 1963, 375. [Google Scholar] [CrossRef]
  29. Cicchi, S.; Goti, A.; Brandi, A.; Guarna, A.; De Sarlo, F. 1,3-Aminoalcohols by reductive cleavage of isoxazolidines with molybdenum hexacarbonyl. Tetrahedron Lett. 1990, 31, 3351–3354. [Google Scholar] [CrossRef]
  30. Zhang, D.; Ghosh, A.; Stüling, C.; Miller, M.J. Efficient functionalization of acylnitroso cycloadducts: Application to the syntheses of carbocyclic nucleoside precursors. Tetrahedron Lett 1996, 37, 3799–3802. [Google Scholar] [CrossRef]
  31. Mattingly, P.G.; Miller, M.J. Titanium trichloride reduction of substituted N-hydroxy-2-azetidinones and other hydroxamic acids. J. Org. Chem. 1980, 45, 410–415. [Google Scholar] [CrossRef]
  32. Cesario, C.; Tardibono, L.P., Jr.; Miller, M.J. Titanocene(III) chloride-mediated reductions of oxazines, hydroxamic acids, and N-hydroxy carbamates. J. Org. Chem. 2009, 74, 448–451. [Google Scholar] [CrossRef] [Green Version]
  33. Keck, G.E.; Wager, T.T.; McHardy, S.F. Reductive cleavage of N-O bonds in hydroxylamines and hydroxamic acid derivatives using samarium diiodide. Tetrahedron Lett. 1995, 36, 7419–7422. [Google Scholar] [CrossRef]
  34. Streith, J.; Augelmann, G.; Fritz, H.; Strub, H. A facile three-step synthesis of a racemic 4,5-diamino-dideoxy-α-D., β-L-lyxopyranose. Tetrahedron Lett. 1982, 23, 1909–1912. [Google Scholar] [CrossRef]
  35. Berti, F.; Di Bussolo, V.; Pineschi, M. Synthesis of protected (1-phenyl-1H-pyrrol-2-yl)-alkane-1-amines from phenylnitroso Diels-Alder adducts with 1,2-dihydropyridines. J. Org. Chem. 2013, 78, 7324–7329. [Google Scholar] [CrossRef] [PubMed]
  36. Berti, F.; Di Bussolo, V.; Pineschi, M. Synthesis of 2,7-Diazabicyclo[2.2.1]heptenes by N–O Bond Cleavage of Arylnitroso Diels–Alder 1,2-Dihydropyridine Cycloadducts. Synthesis 2015, 47, 647–652. [Google Scholar] [CrossRef]
  37. Lutz, J.P.; Chau, S.T.; Doyle, A.G. Nickel-catalyzed enantioselective arylation of pyridine. Chem. Sci. 2016, 7, 4105–4109. [Google Scholar] [CrossRef] [Green Version]
  38. Lemire, A.; Beaudoin, D.; Grenon, M.; Charette, A.B. [4+2] Cycloaddition of 2-substituted 1,2-dihydropyridines with nitrosobenzene: Asymmetric synthesis of trans-2-substituted 3-amino-1,2,3,6-tetrahydropyridines. J. Org. Chem. 2005, 70, 2368–2371. [Google Scholar] [CrossRef]
  39. Backenstrass, F.; Streith, J.; Tschamber, T. Stereospecific double glycolisation of 1,2-dihydropyridines with OsO4. Synthesis of (±)-aminoarabinose and of (±) aminoaltrose derivatives. Tetrahedron Lett. 1990, 31, 2139–2142. [Google Scholar] [CrossRef]
  40. Crotti, S.; Berti, F.; Pineschi, M. Copper-catalyzed Perkin acyl-Mannich reaction of acetic anhydride with pyridine: Expeditious entry to unconventional piperidines. Org. Lett. 2011, 13, 5152–5155. [Google Scholar] [CrossRef]
  41. Nishimura, Y. Gem-diamine 1-N-iminosugars as versatile glycomimetics: Synthesis, biological activity and therapeutic potential. J. Antibiot. 2009, 62, 407–423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Tong, S.; Wang, D.-X.; Zhao, L.; Zhu, J.; Wang, M.-X. Enantioselective synthesis of 4-hydroxytetrahydropyridine derivatives by intramolecular addition of tertiary enamides to aldehydes. Angew. Chem. Int. Ed. 2012, 51, 4417–4419. [Google Scholar] [CrossRef]
  43. Yedoyan, J.; Wurzer, N.; Klimczak, U.; Ertl, T.; Reiser, O. Regio- and stereoselective synthesis of functionalized dihydropyridines, pyridines, and 2H-pyrans: Heck coupling of monocyclopropanated heterocycles. Angew. Chem. Int. Ed. 2019, 58, 3594–3598. [Google Scholar] [CrossRef] [PubMed]
  44. Berti, F.; Menichetti, A.; Di Bussolo, V.; Favero, L.; Pineschi, M. Synthesis of bicyclic piperidinyl enamides and enecarbamates by hetero-cope rearrangement of nitroso cycloadducts. Chem. Heterocycl. Compd. 2018, 54, 458–468. [Google Scholar] [CrossRef]
  45. Berti, F.; Menichetti, A.; Favero, L.; Marchetti, F.; Pineschi, M. Regio- and stereodivergent allylic reductions of bicyclic piperidine enecarbamate derivatives. J. Org. Chem. 2018, 83, 12221–12228. [Google Scholar] [CrossRef]
  46. Mandai, T.; Matsumoto, T.; Kawada, M.; Tsuji, J. Stereocontrolled formation of cis and trans ring junctions in hydrindane and decalin systems by palladium-catalyzed regioselective and stereospecific hydrogenolysis of allylic formates. J. Org. Chem. 1992, 57, 1326–1327. [Google Scholar] [CrossRef]
  47. Mirza-Aghayan, M.; Boukherroub, R.; Bolourtchian, M. A mild and efficient palladium–triethylsilane system for reduction of olefins and carbon–carbon double bond isomerization. Appl. Organometal. Chem. 2006, 20, 214–219. [Google Scholar] [CrossRef]
  48. Huy, P.H.; Westphal, J.C.; Koskinen, A.M.P. Concise, stereodivergent and highly stereoselective synthesis of cis- and trans-2-substituted 3-hydroxypiperidines—Development of a phosphite-driven cyclodehydration. Beilstein J. Org. Chem. 2014, 10, 369–383. [Google Scholar] [CrossRef] [Green Version]
  49. Hélal, B.; Ferreira, F.; Botuha, C.; Chemla, F.; Pérez-Luna, A. Concise synthesis of (2S,3R)-3-hydroxy-2-phenylpiperidine: An advanced key intermediate of human non-peptide NK-1 receptor antagonists. Synlett 2009, 19, 3115–3118. [Google Scholar]
  50. Garrido, N.M.; García, M.; Sánchez, M.R.; Díez, D.; Urones, J.G. Enantioselective synthesis of (+)-L-733,060 and (+)-CP-99,994: Application of an Ireland–Claisen rearrangement/Michael addition domino sequence. Synlett 2010, 3, 387–390. [Google Scholar] [CrossRef]
  51. Pineschi, M.; Berti, F.; Menichetti, A. 1,3-Diazo-4-oxa-[3.3.1]-bicyclic Derivatives, Process for Their Manufacture and Their Use as a Medicament, in Particular for Treating Diabetes. Patent Application WO 2018/220542, 30 May 2018. [Google Scholar]

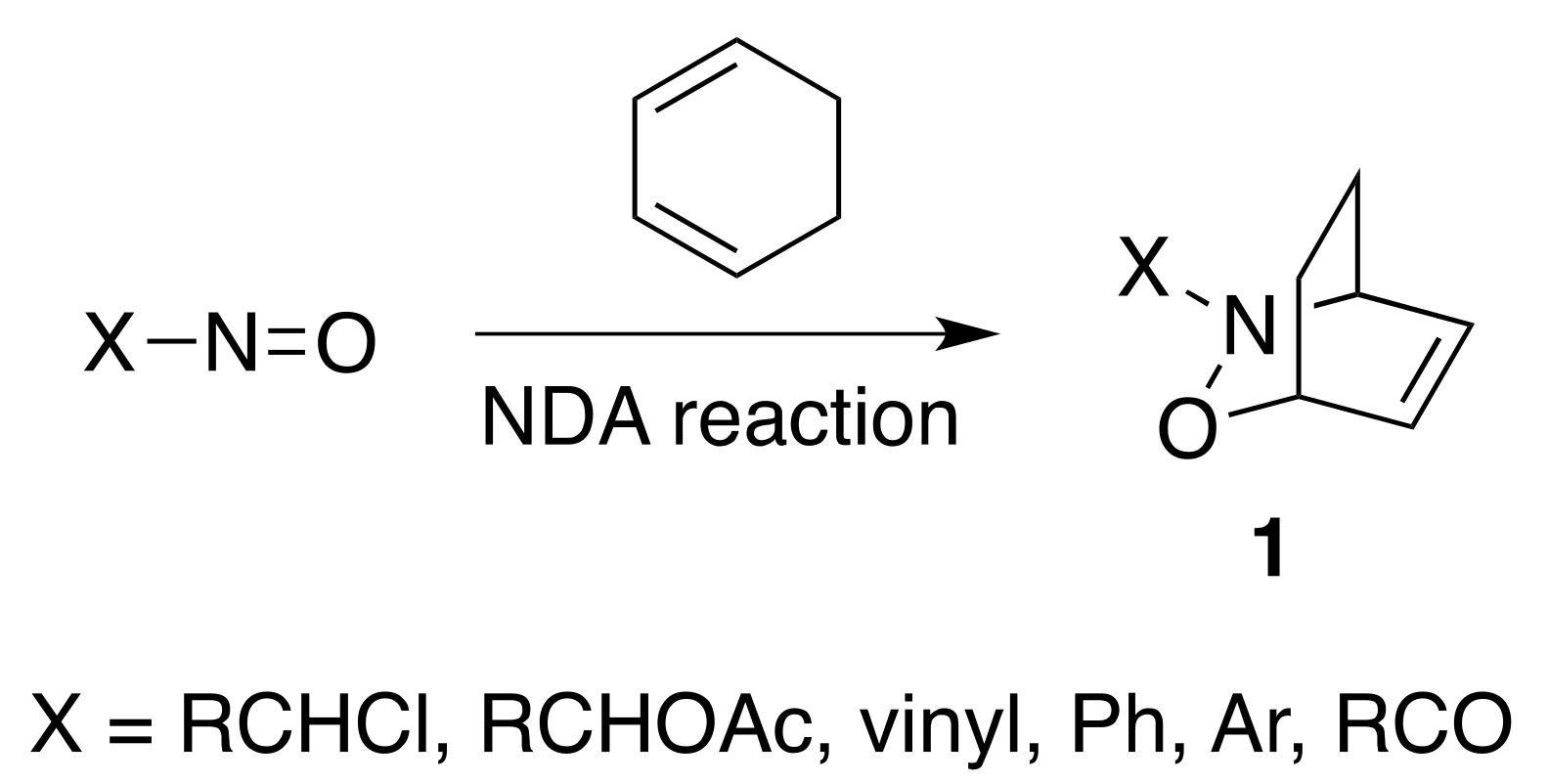

Scheme 1. Examples of C-nitroso compounds and of a nitroso Diels–Alder (NDA) reaction.
Scheme 1. Examples of C-nitroso compounds and of a nitroso Diels–Alder (NDA) reaction.
Molecules 25 00563 sch001

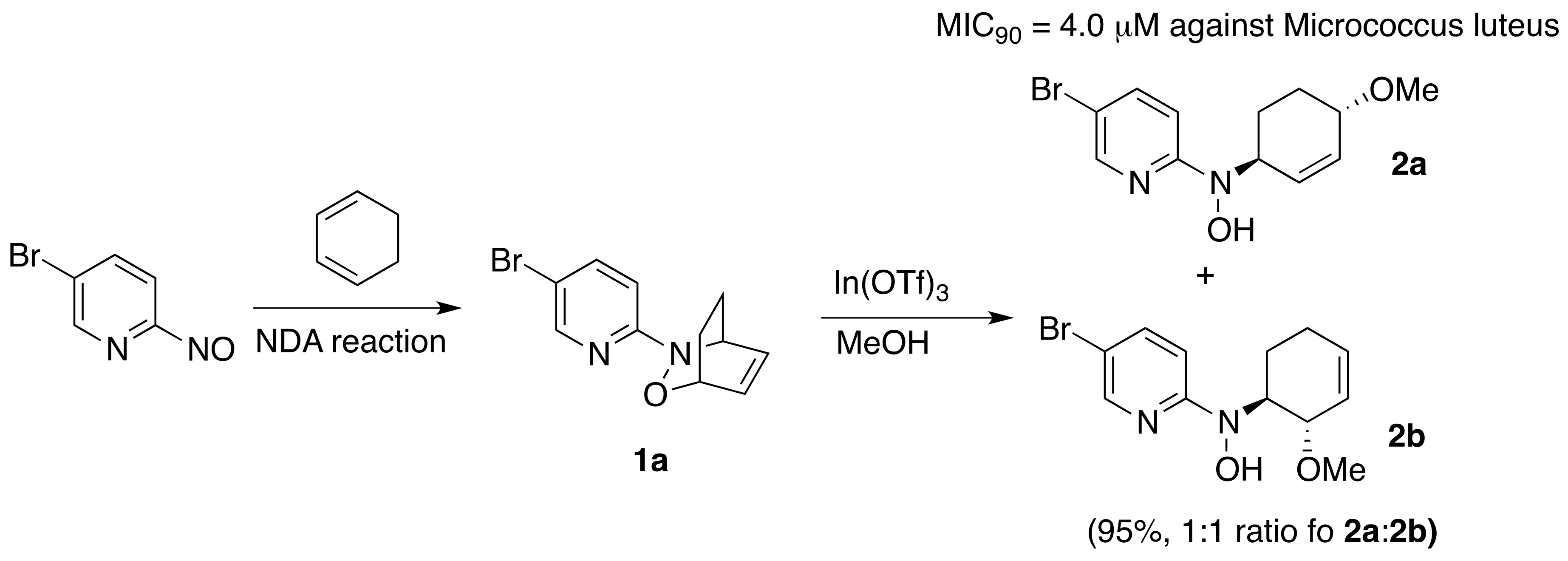

Scheme 2. Diversity Oriented Synthesis (DOS) approach for the synthesis of new antibiotics using NDA chemistry by Miller.
Scheme 2. Diversity Oriented Synthesis (DOS) approach for the synthesis of new antibiotics using NDA chemistry by Miller.
Molecules 25 00563 sch002

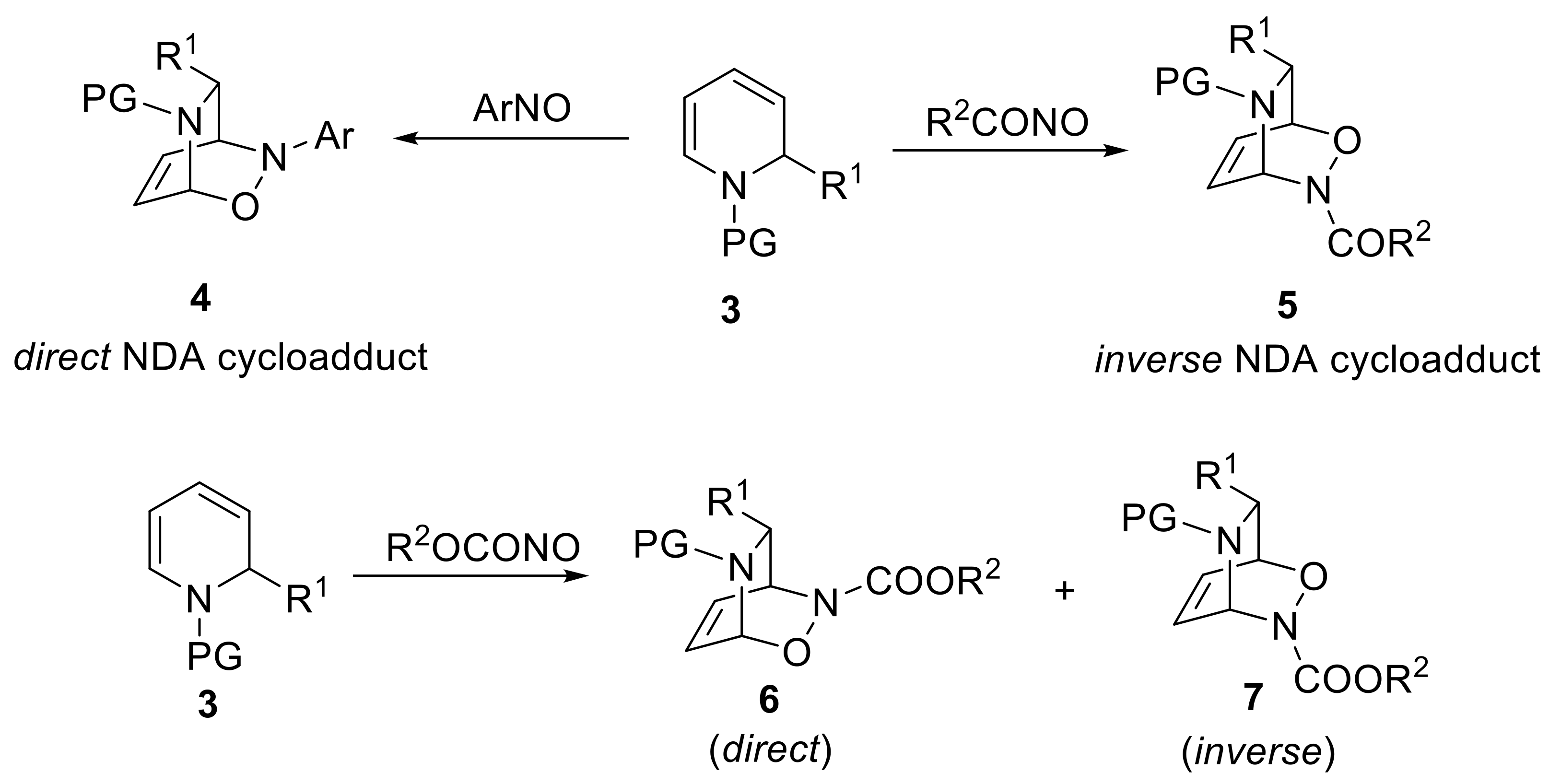

Scheme 3. Regioselectivity of NDA reactions of N-acyl 1,2-dihydropyridines using diverse nitroso species.
Scheme 3. Regioselectivity of NDA reactions of N-acyl 1,2-dihydropyridines using diverse nitroso species.
Molecules 25 00563 sch003

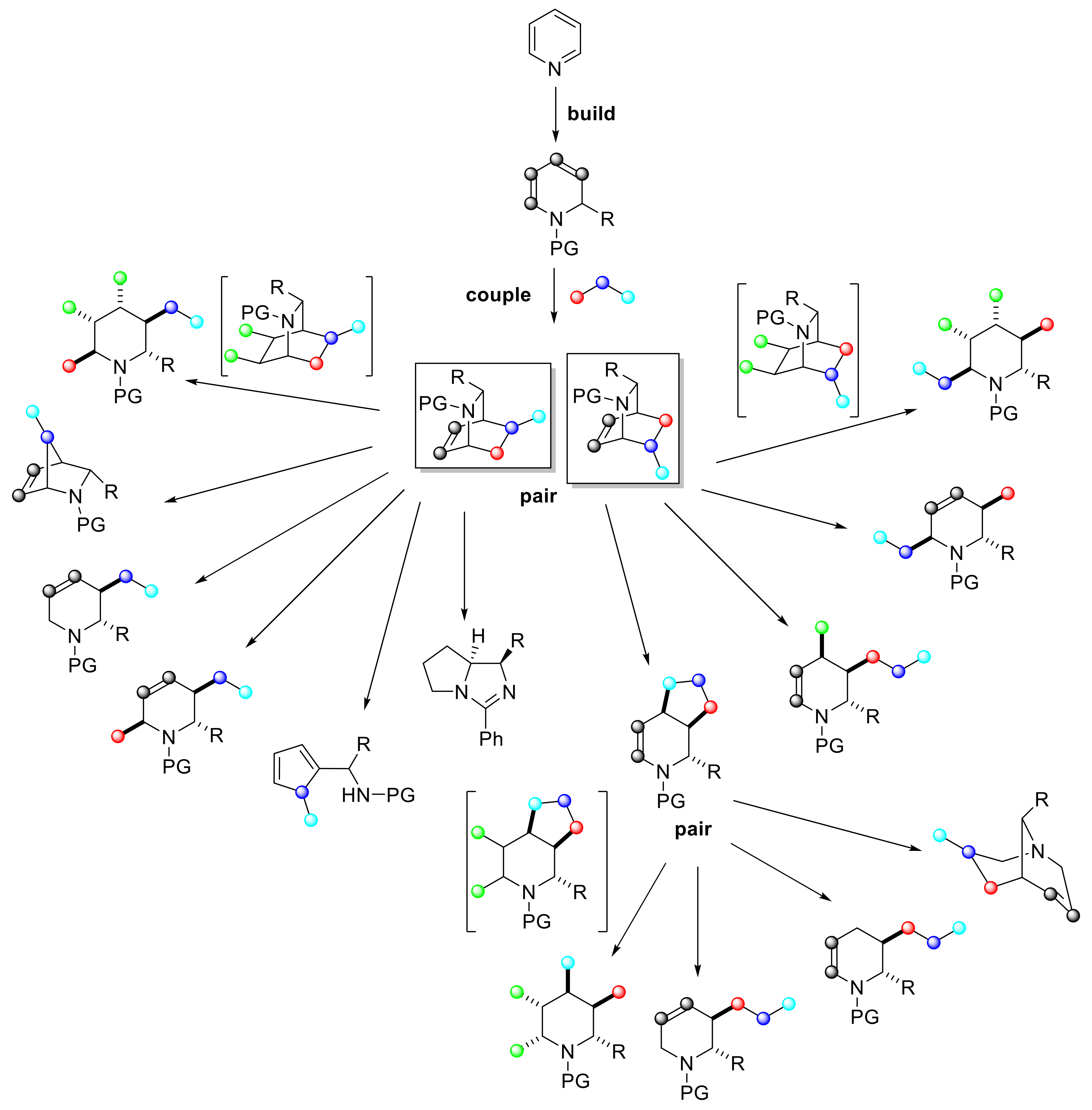

Scheme 4. Schematization of B/C/P strategy in NDA chemistry starting from 1,2-dihydropyridines.
Scheme 4. Schematization of B/C/P strategy in NDA chemistry starting from 1,2-dihydropyridines.
Molecules 25 00563 sch004

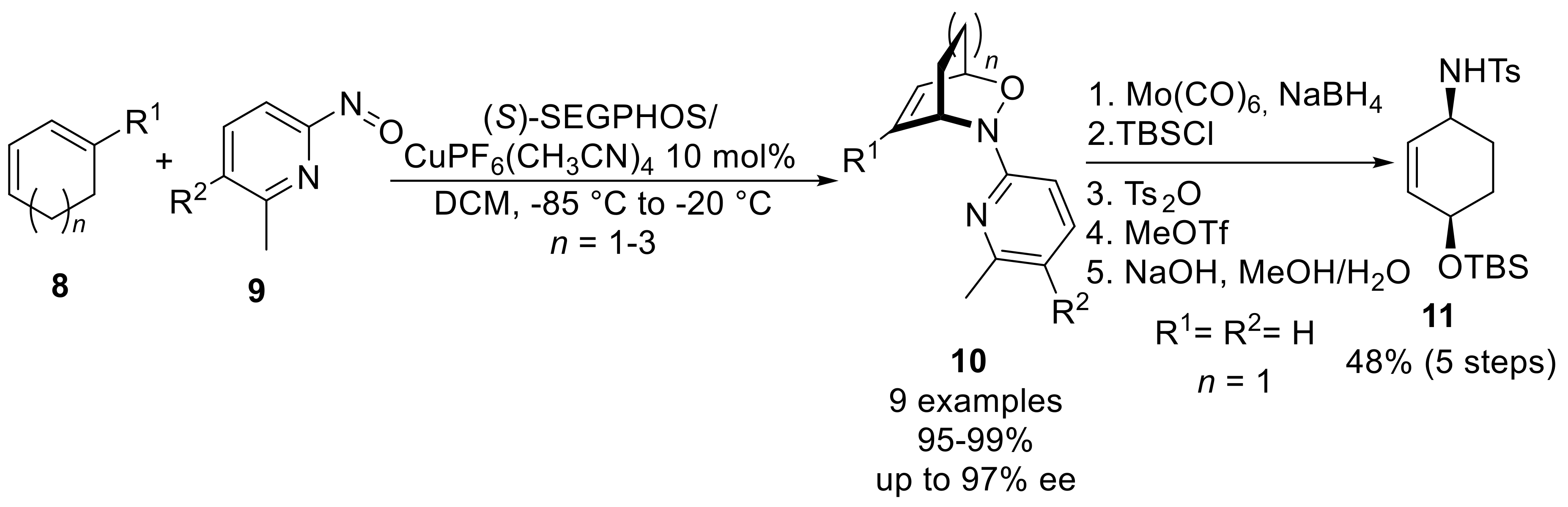

Scheme 5. Enantioselective NDA reaction and subsequent N−O cleavage.
Scheme 5. Enantioselective NDA reaction and subsequent N−O cleavage.
Molecules 25 00563 sch005

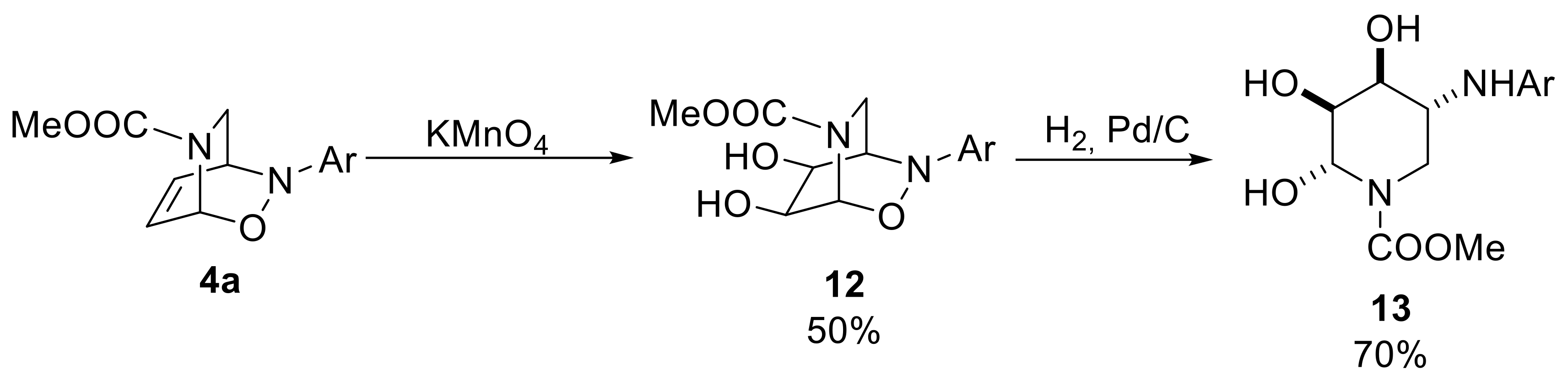

Scheme 6. Synthesis of iminosugar derivatives by Streith.
Scheme 6. Synthesis of iminosugar derivatives by Streith.
Molecules 25 00563 sch006

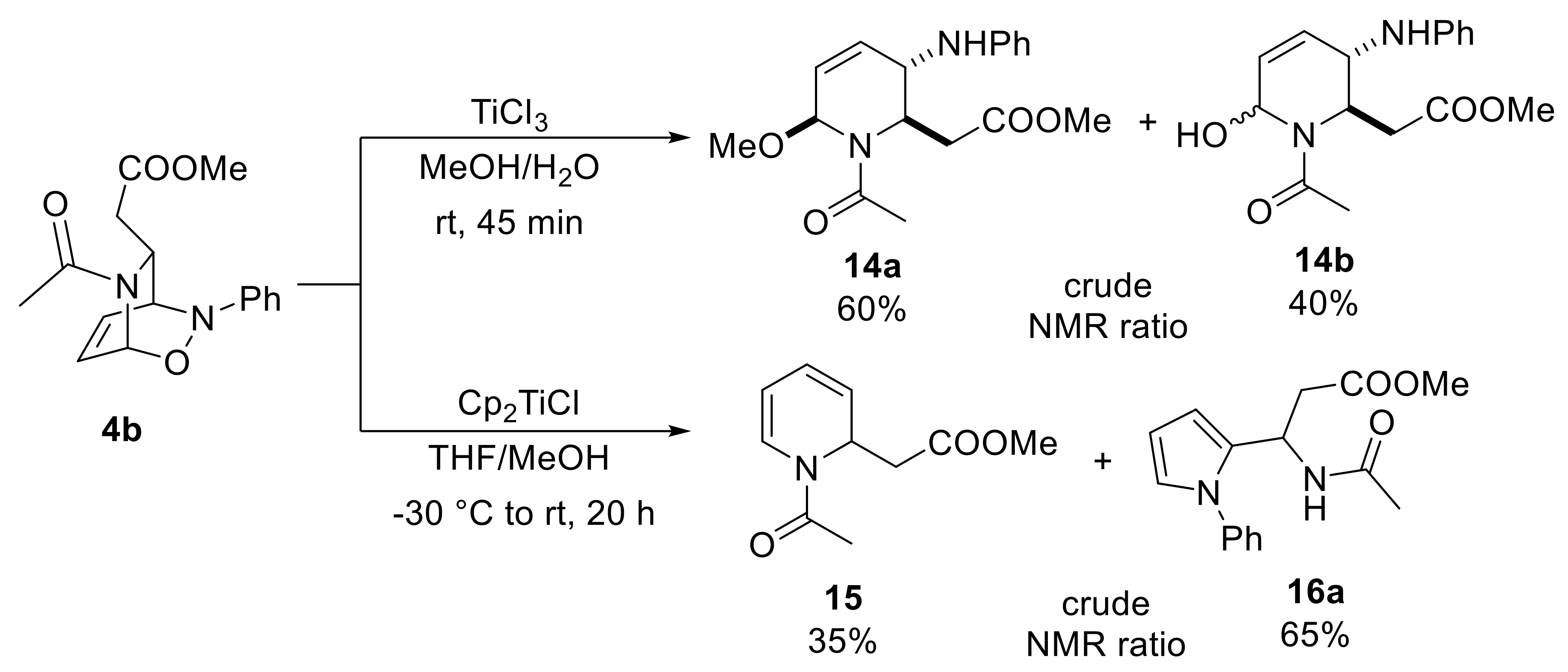

Scheme 7. Reagent-based diversification of direct cycloadduct 4b.
Scheme 7. Reagent-based diversification of direct cycloadduct 4b.
Molecules 25 00563 sch007

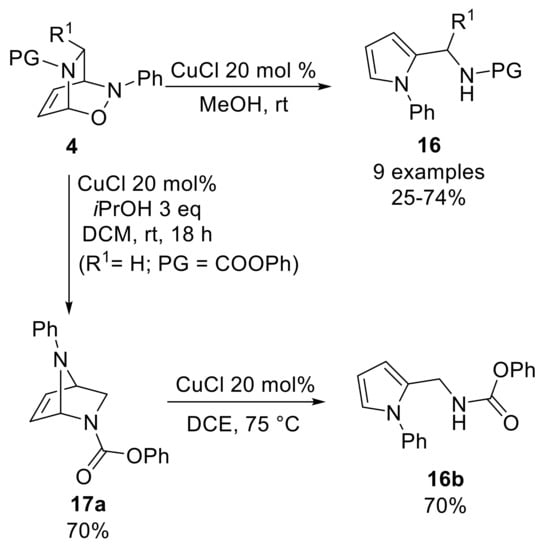

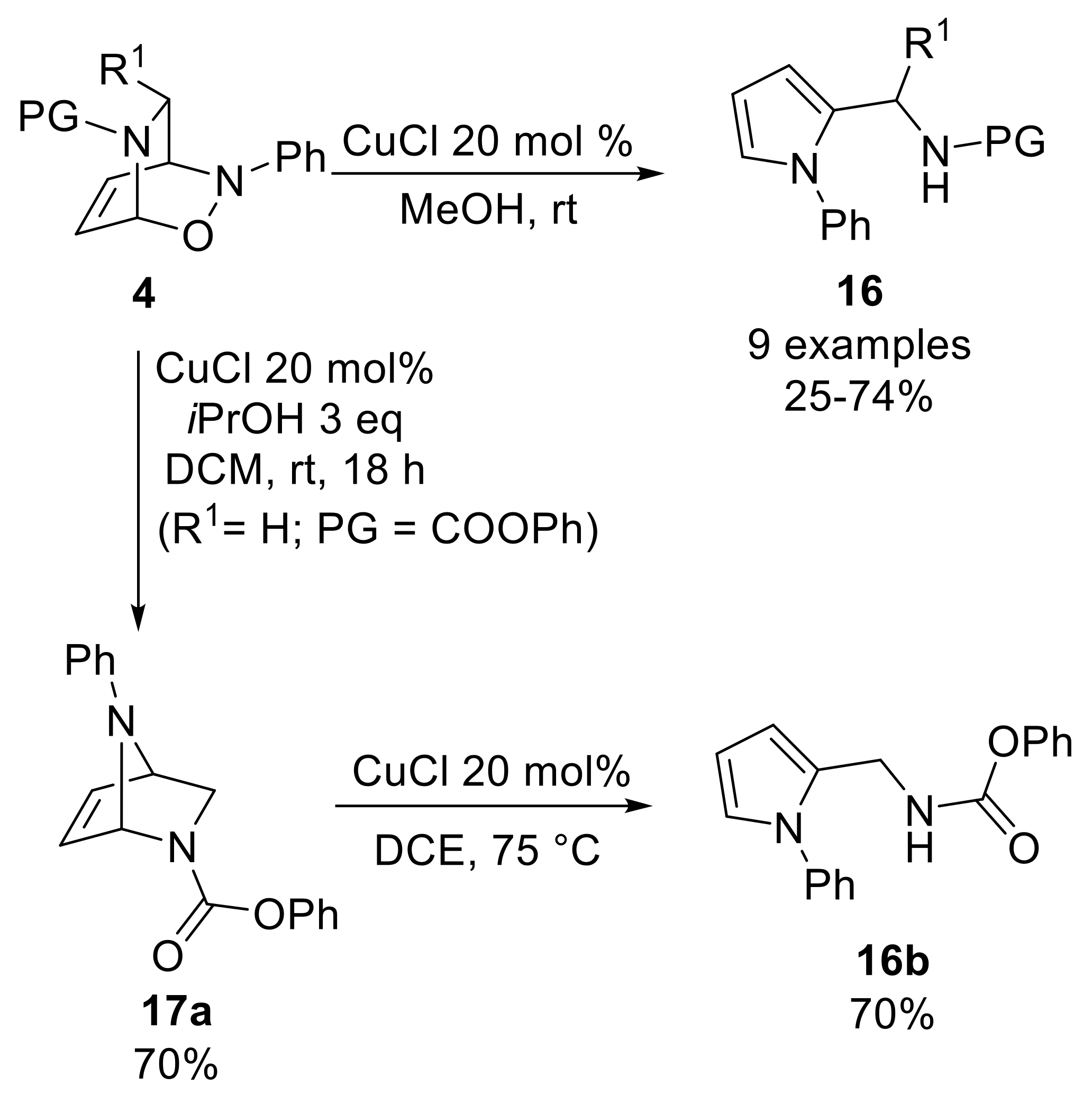

Scheme 8. Copper-catalyzed elaborations of direct cycloadducts of type 4.
Scheme 8. Copper-catalyzed elaborations of direct cycloadducts of type 4.
Molecules 25 00563 sch008

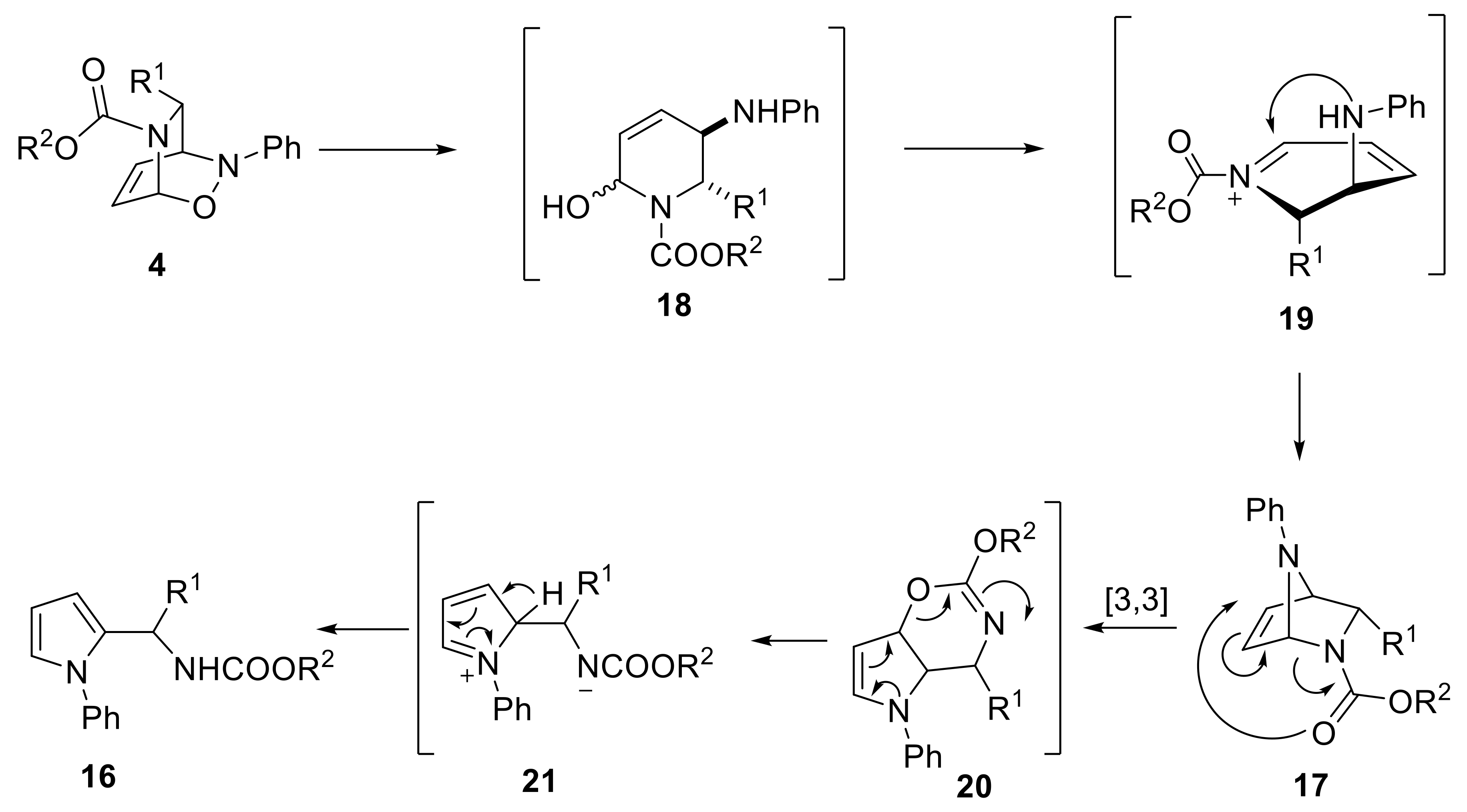

Scheme 9. Plausible mechanism for N-phenylpyrrole formation.
Scheme 9. Plausible mechanism for N-phenylpyrrole formation.
Molecules 25 00563 sch009

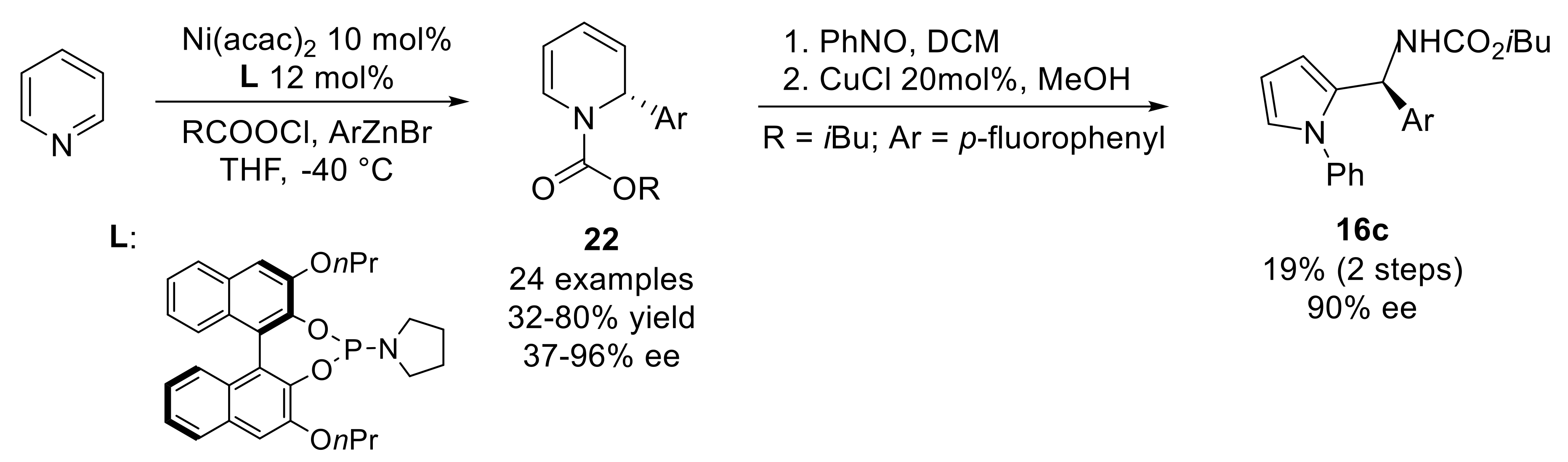

Scheme 10. Synthesis of non-racemic N-phenylpyrroles by Doyle.
Scheme 10. Synthesis of non-racemic N-phenylpyrroles by Doyle.
Molecules 25 00563 sch010

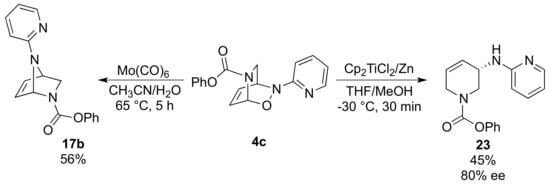

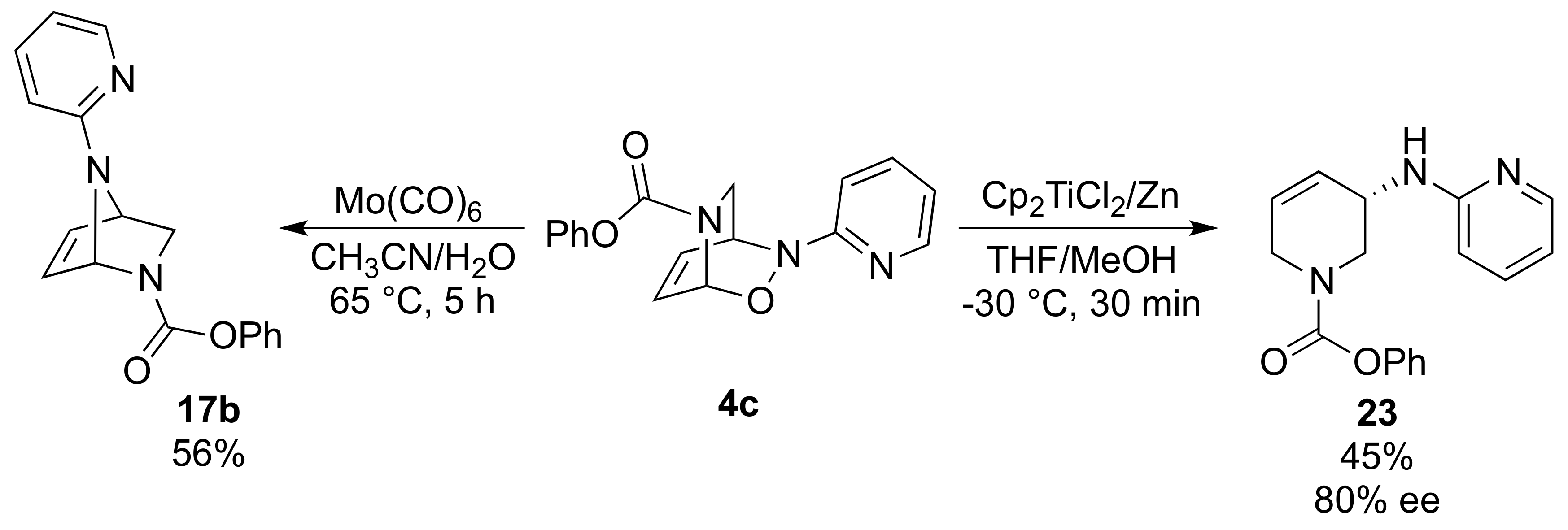

Scheme 11. Diversification of pyridine nitroso cycloadduct 4c.
Scheme 11. Diversification of pyridine nitroso cycloadduct 4c.
Molecules 25 00563 sch011

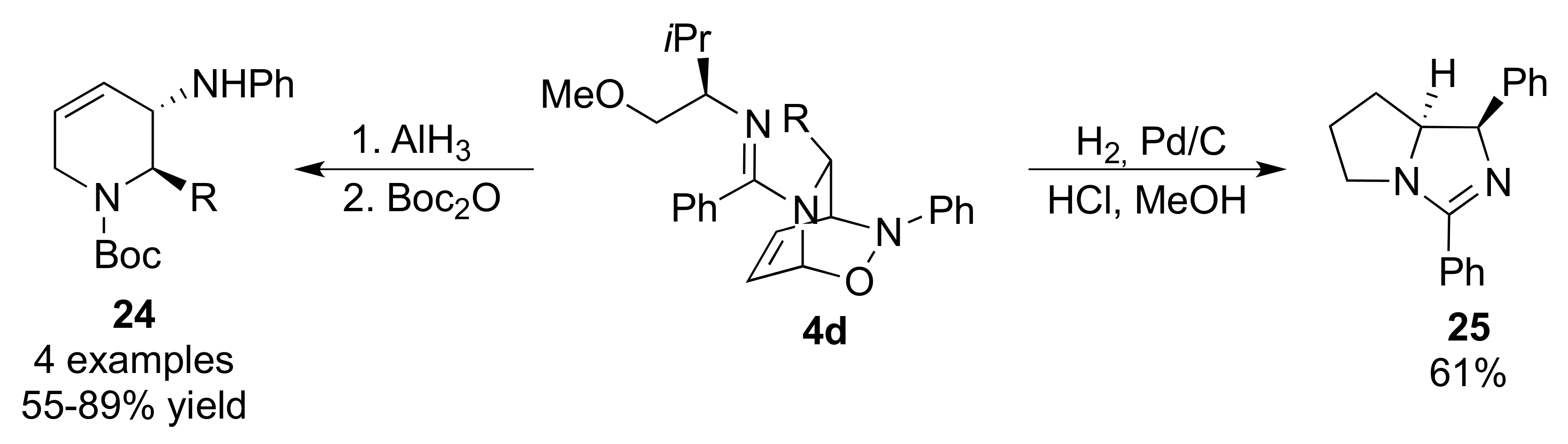

Scheme 12. Diversification of chiral non-racemic direct arylnitroso cycloadducts by Charette.
Scheme 12. Diversification of chiral non-racemic direct arylnitroso cycloadducts by Charette.
Molecules 25 00563 sch012

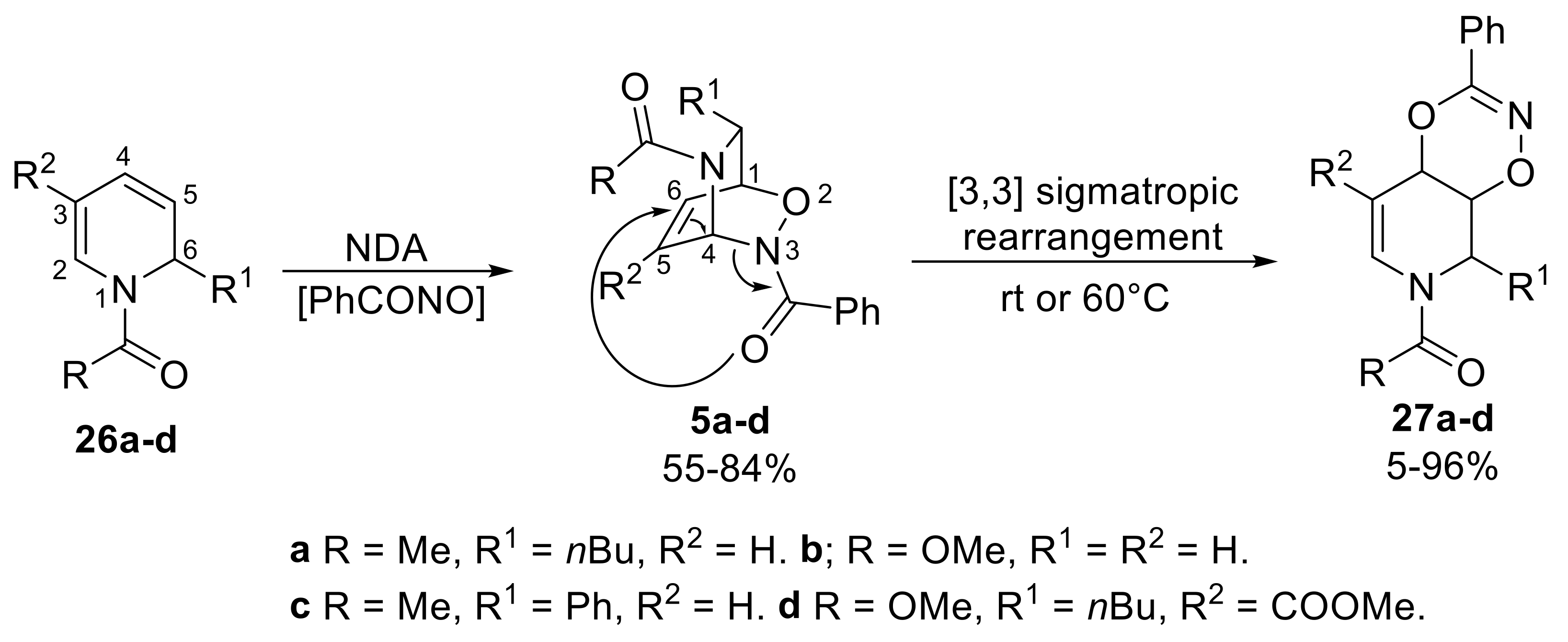

Scheme 13. Acyl-NDA reaction and subsequent sigmatropic rearrangement observed by Knaus.
Scheme 13. Acyl-NDA reaction and subsequent sigmatropic rearrangement observed by Knaus.
Molecules 25 00563 sch013

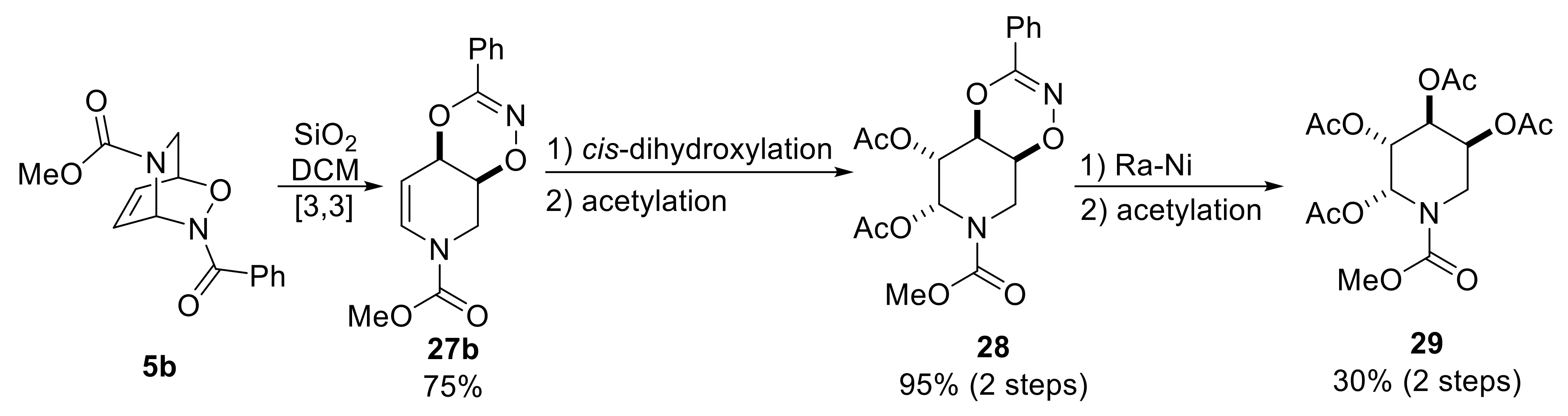

Scheme 14. Dioxazine diversification en route to iminosugars.
Scheme 14. Dioxazine diversification en route to iminosugars.
Molecules 25 00563 sch014

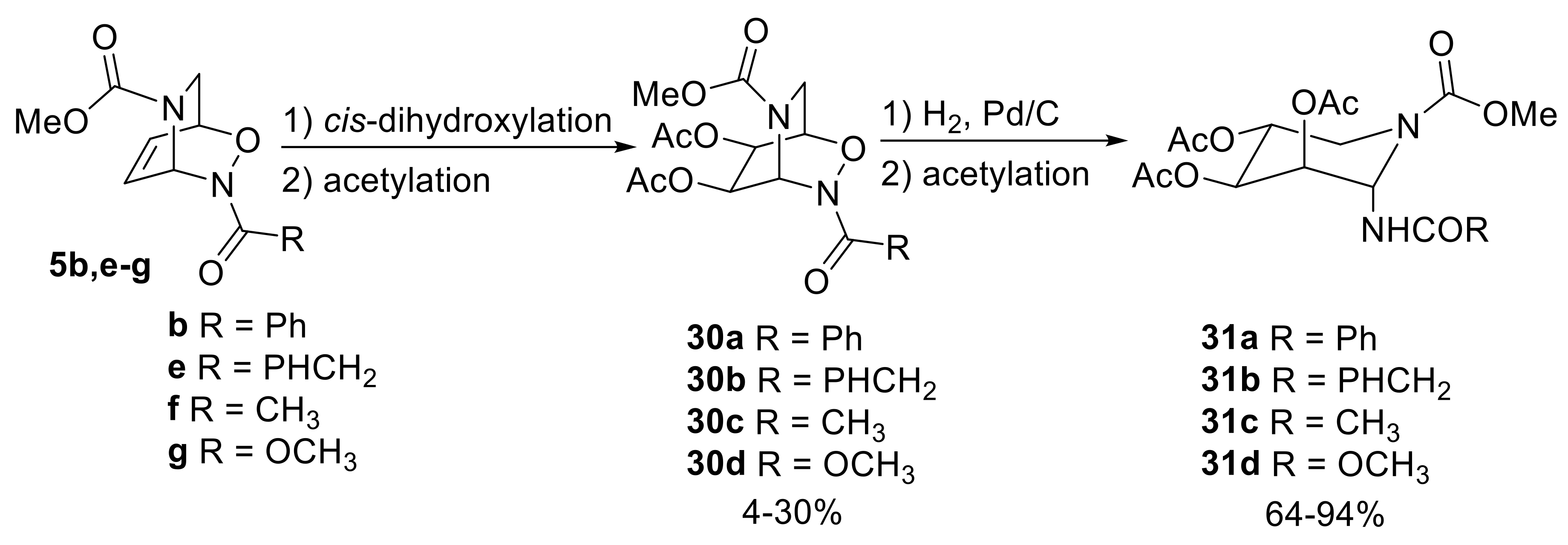

Scheme 15. Acyl-NDA diversification en route to iminosugars.
Scheme 15. Acyl-NDA diversification en route to iminosugars.
Molecules 25 00563 sch015

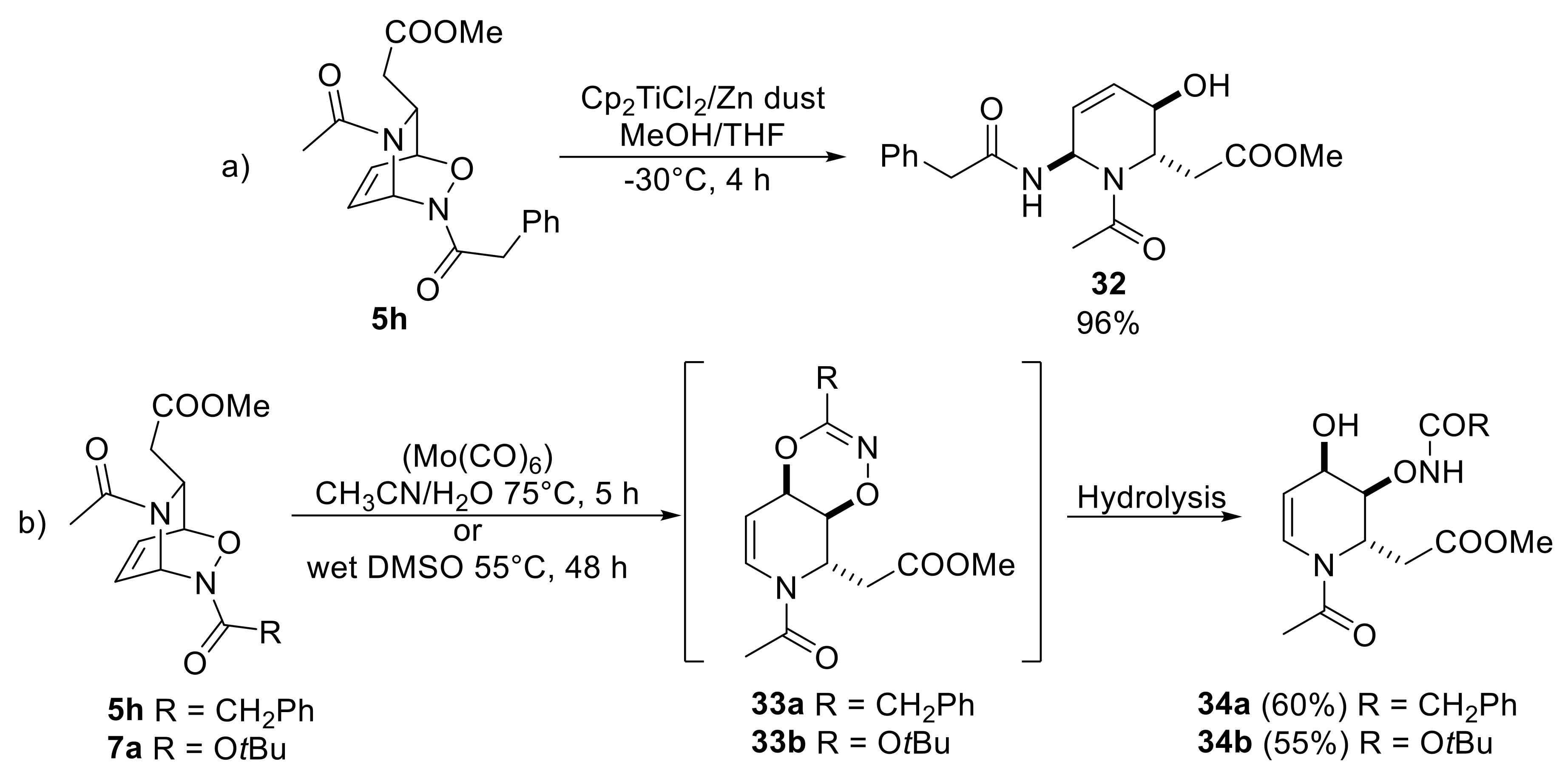

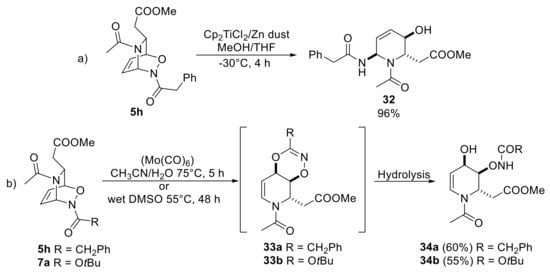

Scheme 16. Different outcomes of the reductive treatment of acyl-NDA cycloadducts. Conditions a: cleavage of the N−O bond. Conditions b: [3,3]-rearrangement.
Scheme 16. Different outcomes of the reductive treatment of acyl-NDA cycloadducts. Conditions a: cleavage of the N−O bond. Conditions b: [3,3]-rearrangement.
Molecules 25 00563 sch016

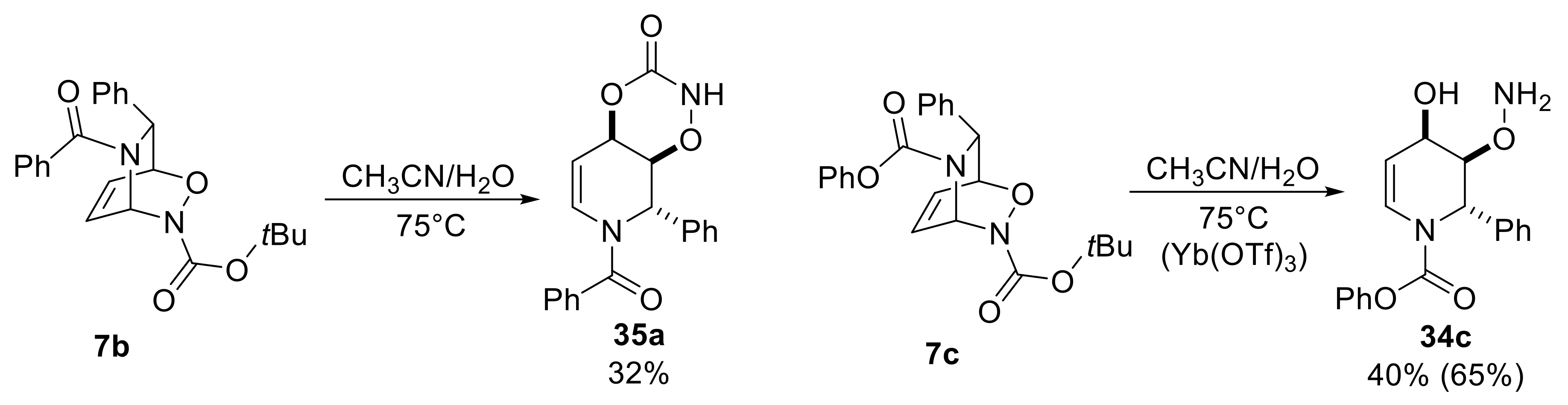

Scheme 17. Rearrangement of carbamate-NDA cycloadducts.
Scheme 17. Rearrangement of carbamate-NDA cycloadducts.
Molecules 25 00563 sch017

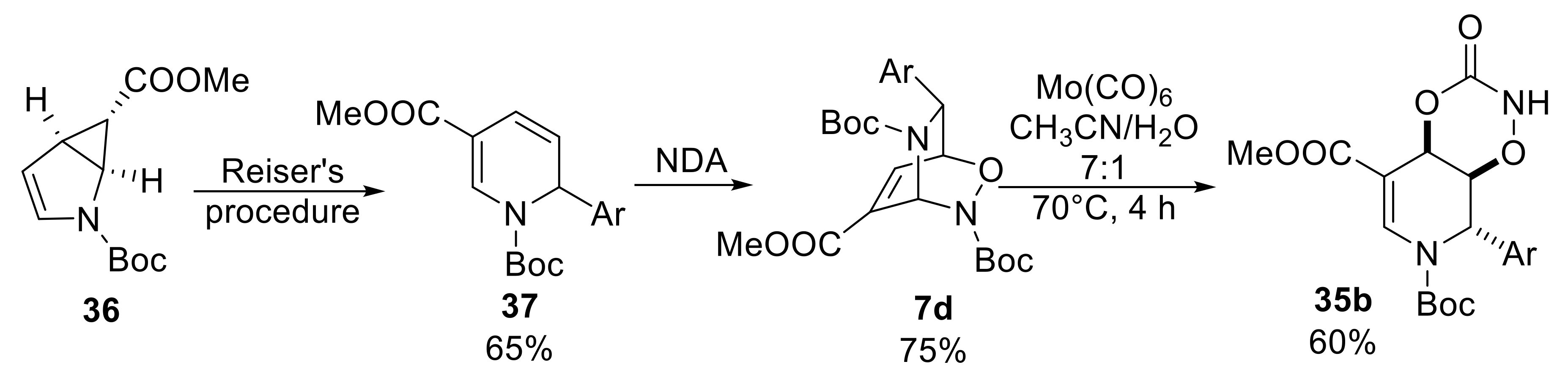

Scheme 18. New entries to 1,2-dihydropyridines and subsequent elaboration of the carbamate-NDA cycloadduct.
Scheme 18. New entries to 1,2-dihydropyridines and subsequent elaboration of the carbamate-NDA cycloadduct.
Molecules 25 00563 sch018

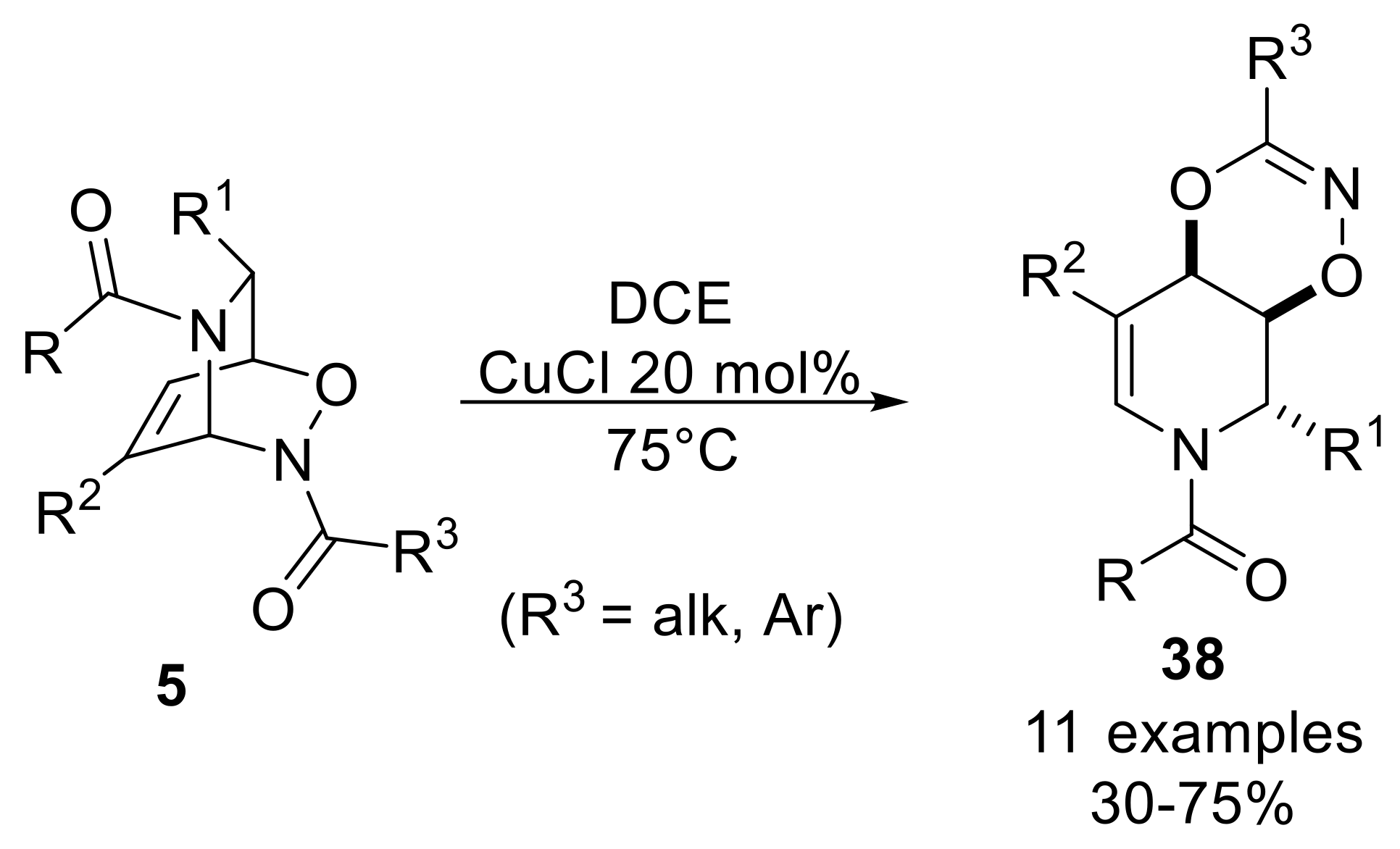

Scheme 19. Copper-catalyzed rearrangement reactions of amide-NDA cycloadducts.
Scheme 19. Copper-catalyzed rearrangement reactions of amide-NDA cycloadducts.
Molecules 25 00563 sch019

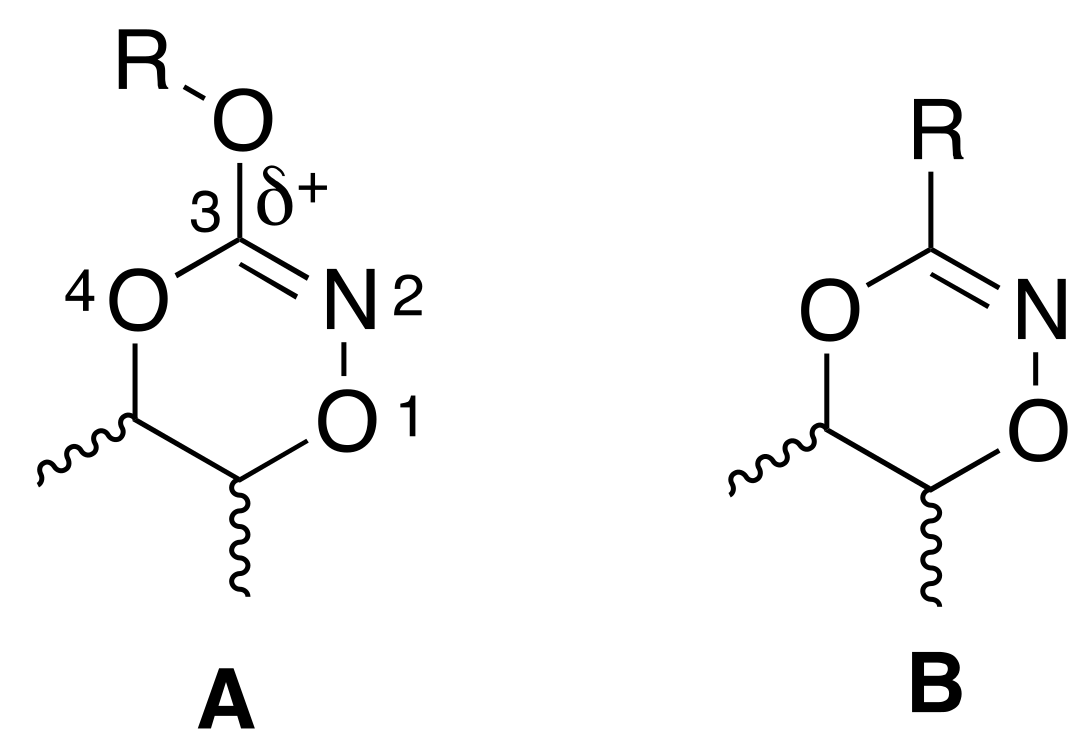

Scheme 20. Diverse reactivity of the C3 carbon in the carbamate (A) and amide (B) derived 1,4,2-dioxazines.
Scheme 20. Diverse reactivity of the C3 carbon in the carbamate (A) and amide (B) derived 1,4,2-dioxazines.
Molecules 25 00563 sch020

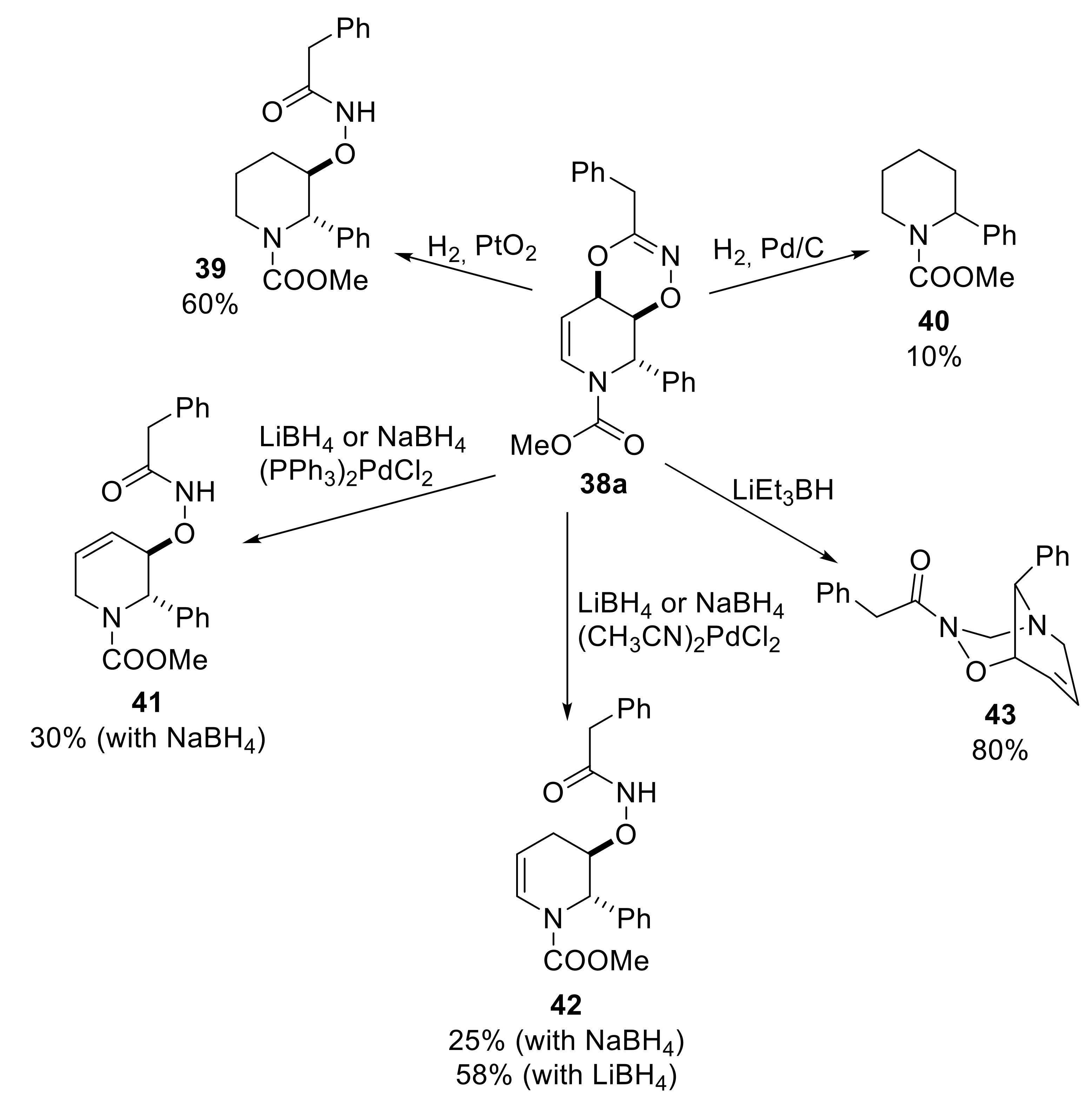

Scheme 21. Reductive diversifications of 1,4,2-dioxazine 38a.
Scheme 21. Reductive diversifications of 1,4,2-dioxazine 38a.
Molecules 25 00563 sch021

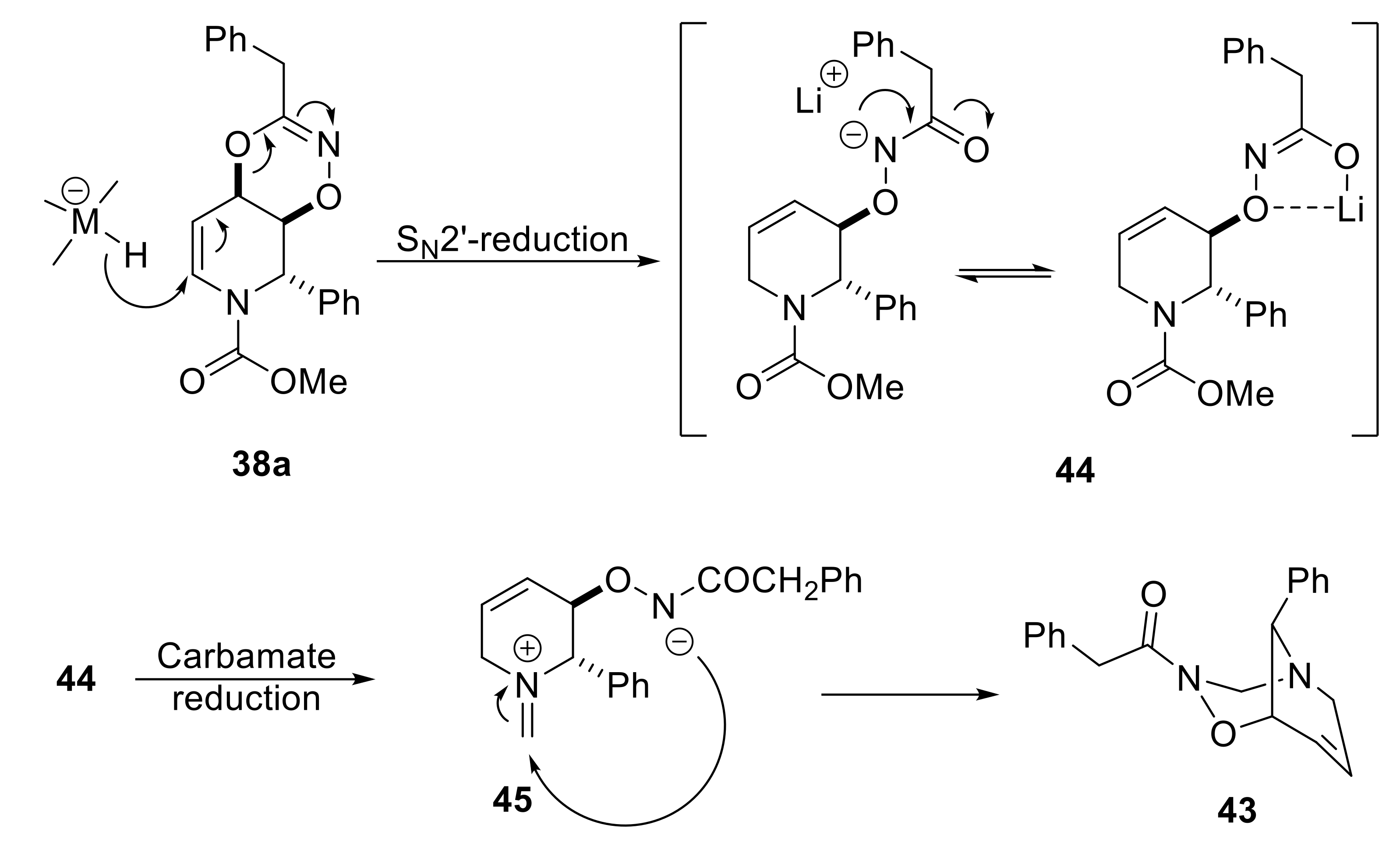

Scheme 22. Plausible mechanism for the formation of the 1,3-diaza-4-oxa-[3.3.1]-nonene framework.
Scheme 22. Plausible mechanism for the formation of the 1,3-diaza-4-oxa-[3.3.1]-nonene framework.
Molecules 25 00563 sch022

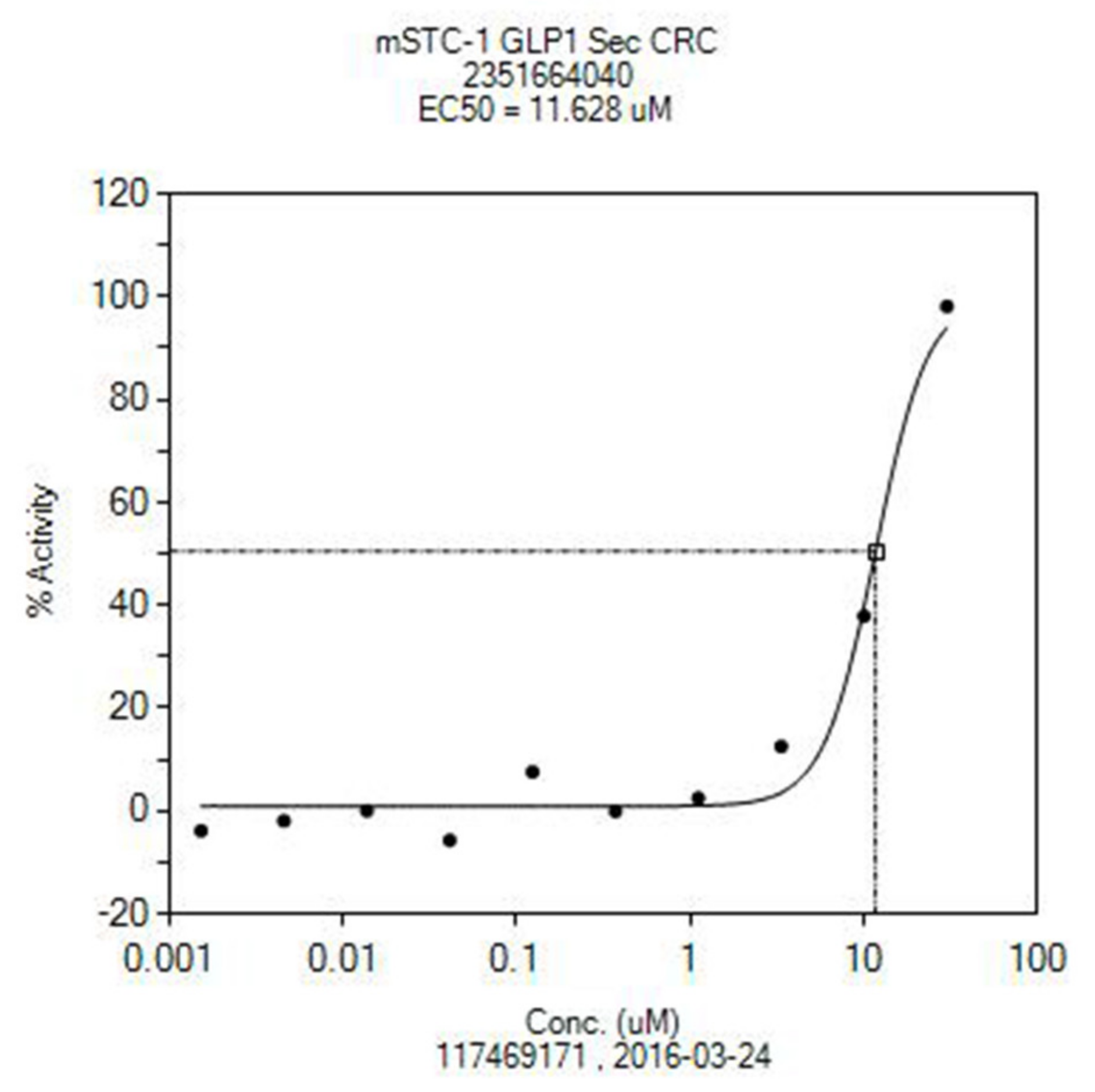

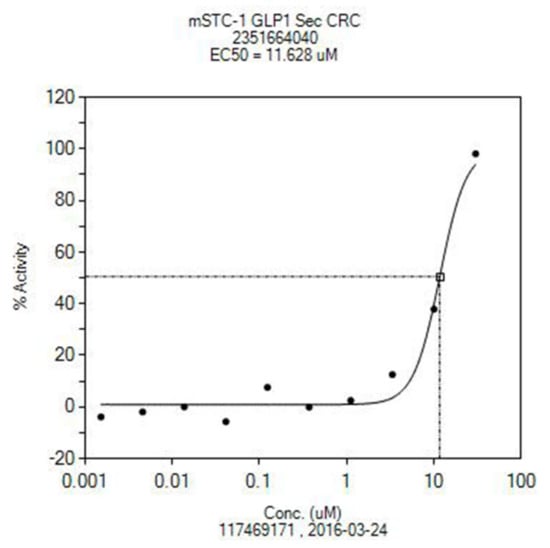

Figure 1. Increase in GLP-1 secretion by compound 43.
Figure 1. Increase in GLP-1 secretion by compound 43.
Molecules 25 00563 g001
