Iron-Catalyzed Cross-Coupling of Bis-(aryl)manganese Nucleophiles with Alkenyl Halides: Optimization and Mechanistic Investigations

by
Lidie Rousseau
1,2,
Alexandre Desaintjean
3,
Paul Knochel
3 and
Guillaume Lefèvre
1,*
1
Chimie ParisTech, PSL University, CNRS, Institute of Chemistry for Life and Health Sciences (i-CLeHS FRE2027), CSB2D, 75005 Paris, France
2
NIMBE, CEA, CNRS, Univ. Paris-Saclay, 91191 Gif-sur-Yvette, France
3
Department of Chemistry, Ludwig-Maximilians-Universitat München, Butenandstr. 5-13, Haus F, 81377 Munich, Germany
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(3), 723; https://doi.org/10.3390/molecules25030723
Submission received: 15 January 2020 / Revised: 4 February 2020 / Accepted: 6 February 2020 / Published: 7 February 2020
(This article belongs to the Special Issue Recent Advances in Iron Catalysis)
Browse Figures
Versions Notes

Abstract

:
Various substituted bis-(aryl)manganese species were prepared from aryl bromides by one-pot insertion of magnesium turnings in the presence of LiCl and in situ trans-metalation with MnCl2 in THF at −5 °C within 2 h. These bis-(aryl)manganese reagents undergo smooth iron-catalyzed cross-couplings using 10 mol% Fe(acac)3 with various functionalized alkenyl iodides and bromides in 1 h at 25 °C. The aryl-alkenyl cross-coupling reaction mechanism was thoroughly investigated through paramagnetic 1H-NMR, which identified the key role of tris-coordinated ate-iron(II) species in the catalytic process.

1. Introduction

Transition-metal catalyzed cross-couplings are widely used in the development and production of pharmaceutical compounds [1]. The most versatile of them are palladium-catalyzed and nickel-catalyzed cross-couplings [2,3,4,5] as they tolerate a great variety of functionalities on both coupling partners. Yet, these metals have drawbacks such as toxicity [6,7] and high prices in the case of palladium [8]. That is one of the reasons why copper [9], iron [10,11,12,13], or cobalt [14] have been developed as alternative metal-catalysts.
Organomanganese species pioneered by Cahiez [15] often considerably reduce the amount of side reactions such as homo-coupling [16,17] and have proven to be excellent nucleophiles in various types of reactions [18,19,20,21,22,23,24] including cross-couplings [25,26]. Organomanganese species then constitute an interesting alternative to usual cross-coupling partners such as organomagnesium [27], organozinc [28], and organo-boronic esters, which may have genotoxic properties [29,30].
Recently, we have developed a two-step preparation of functionalized bis-(aryl)manganese reagents by oxidative insertion of magnesium into the C-Br bond of aryl bromides, which is followed by a trans-metalation with MnCl2·2LiCl [31]. Herein, we wish to report an effective one-pot preparation of those functionalized bis-(aryl)manganese reagents (Ar2Mn•2MgX2•4LiCl, denoted as Ar2Mn (1), Scheme 1) starting from aryl bromides, which are followed by an iron-catalyzed cross-coupling of 1 with alkenyl iodides and bromides, and provide a range of polyfunctionalized alkenes (4, Scheme 1). These bis-(aryl)manganese reagents are generally stable at RT (25 °C) for several hours, which makes them suitable reagents for mild cross-coupling reactions [32].

2. Results

In preliminary experiments, the bis-(aryl)manganese reagent 1a was conveniently prepared by treating 4-bromoanisole (2a, 1.0 equiv.) in THF at −5 °C with magnesium turnings and LiCl (2.4 equiv.) in the presence of MnCl2 (0.6 equiv.) within 1 h. Titration [31] with iodine led to a yield for 1a of 87%. Cross-coupling methodologies involving those bis-(aryl)manganese species were then investigated (see Supporting Information file for details).
In the absence of any iron catalyst, the cross-coupling of 1a with (Z)-ethyl 3-iodoacrylate (3a; 25 °C, 1 h) produced a Z/E = 50:50 mixture of the desired cross-coupling product 4a in 60% yield (Table 1, entry 1). Although the cross-coupling performed with FeBr2 gave a moderate yield of 42%, the use of FeCl3, FeBr3, or FeCl2 afforded the E isomer of 4a in 54–64% yield (entries 2–5). Using Fe(acac)2 proved to be more effective since the yield increased to 67% (entry 6). Our best result was obtained with Fe(acac)3 (>99% purity) as a catalyst, producing the E isomer of 4a in a 79% yield (entry 7).
Furthermore, the cross-coupling of 1a with (2-bromovinyl)trimethylsilane (3b; Z/E = 10:90) gave the olefin 4b in 98% yield with complete E-selectivity (Z/E = 1:99) whereas the yield without iron salt was 24% (Z/E = 20:80, Table 2, entry 1). When the electron-rich bis-(3,4-dimethoxyphenyl)manganese (1b) was mixed with 3a, the E-acrylate 4c was generated in 69% yield and a Z/E = 69:31 mixture of products was obtained in 58% yield without an iron catalyst (entry 2). The tri-substituted bis-(3,4,5-trimethoxyphenyl)manganese (1c) underwent smooth cross-coupling with 3b to afford the E-alkene 4d in 80% (8% were obtained without a catalyst, entry 3). Additionally, 1c reacted with 3a and 2-bromostyrene (3c; Z/E = 18:82) to give the acrylate 4e and 4f (Z/E = 1:99) in 57% and 82% yield whereas 66% (Z/E = 72:28) and 80% (Z/E = 53:47) were, respectively, obtained without a catalyst (entries 4–5). In the last experiment, 1c reacted with (E)-1-iodooctene (3d) to provide the alkene 4g in 87% yield (Z/E = 9:91) when 77% yield (Z/E = 4:96) was obtained without a catalyst (entry 6). Furthermore, bis-(4-(trifluoromethoxy)phenyl)manganese (1d) reacted with 3a to provide the acrylate 4h (Z/E = 1:99) in 77% yield (entry 7). The reaction without Fe(acac)3 gave a similar yield but a mix of the two isomers (74%, Z/E = 81:19, entry 7). The silicon-containing bis-(aryl)manganese reagent 1e could also react with 3a, which produces 4i (Z/E = 1:99) in 64% yield (51%, Z/E = 57:43 were obtained without Fe(acac)3, entry 8). Some good yields could be achieved in the absence of the iron catalyst (entries 2, 4–8), which could be attributed to the catalytic activity of the manganese(II) itself. For example, manganese salts proved to efficiently catalyze several couplings of organomagnesium reagents with alkenyl electrophiles in the past [32]. The bis-benzo[d][1,3]dioxol-5-ylmanganese (1f) also reacted with 3a and 3b to yield the E-alkenes 4j and 4k in 78–84% yield (entries 9–10). The bulkier bis-mesitylmanganese 1g reacted with 3b to afford 4l with a small 20% yield (91% after 18 h, entry 11). This method also proved to tolerate nitriles, since 4-(2-bromovinyl)benzonitrile 3e (Z/E = 98:2) could be used as a coupling partner with 1d and 1e in good yields (entries 12–13). Moreover, the coupling generally proceeds with an excellent E-selectivity when iodoalkenes are used. Total isomerization is observed for Z-starting iodoalkenes (entries 2, 4, 7, 8, 10). A similar tendency is observed for bromoalkenes, with the exception of 4-(2-bromovinyl)benzonitrile 3e (Z/E = 98:2), which, intriguingly, did not lead to isomerization of the starting Z bond when coupled with nucleophile 1d, entry 12, or to a slight isomerization when coupled with 1e, entry 13. In all cases, efficient transference of both aryl groups from the starting bis-(aryl)manganese species has been observed.

3. Discussion

In order to rationalize some of the mechanistic features of the transformations reported in the first section, we focused our efforts on the coupling system involving various bis-(aryl)manganese nucleophiles (bis-mesitylmanganese and bis-phenylmanganese) with (2-bromovinyl)-trimethylsilane (3b). This choice has been motivated by the low cross-coupling yields obtained with this electrophile in the absence of the iron catalyst, which ascertains the requirement of an Fe-based catalysis for this coupling (see Table 2, entries 1, 3, 9 and 11).
The bis-(mesityl)manganese reagent was prepared by adding MesMgBr (2.0 equiv.) into a solution of MnCl2•LiCl (1.0 equiv.) in THF at −5 °C within 1 h. 1H-NMR showed no free MesMgBr left. The spectra presented high signal-to-noise ratios and broad signals, due to the high paramagnetism of manganese(II) species, which could not be attributed to a specific molecule (Figure 1a) [33]. High-spin organomanganese compounds are often reported to be NMR silent [34] or without NMR characterization at all [35,36,37]. Yet, after addition of a catalytic load of FeCl2 (0.10 equiv.) to the Mes2Mn solution, the ate complex [Mes3FeII]− was detected by 1H-NMR from the three signals at 127 ppm (s, 6H, meta-H of the Mes group), 110 ppm (s, 9H, para-CH3), and 26 ppm (bs, 18 H, ortho-CH3), as shown in Figure 1b. These signals attest to a strong paramagnetism, due to the high-spin (S = 2) configuration of this complex [38]. This proves a fast trans-metalation of the aryl groups from the manganese toward the iron(II) center. A similar result was obtained while adding an excess of the Mes2Mn solution onto Fe(acac)3 (0.10 equiv.) as an iron(III) precursor. [Mes3FeII]− was detected by 1H-NMR, showing that, when an iron(III) precursor is used, a first 1-electron reduction of the latter by the nucleophile can take place, affording an iron(II) species. This is in agreement with recent reports by Neidig [39] and by some of us [40] regarding the reduction of iron(III) salts by Grignard reagents as MeMgBr and PhMgBr. Accordingly, all the mechanistic studies discussed thereafter were performed using an iron(II) precursor.
Upon addition of the electrophile 3b ((2-bromovinyl)trimethylsilane) to a mixture of FeCl2 and Mes2Mn at 25 °C, the signals corresponding to [Mes3FeII]− were observed to slowly decrease, affording [Mes2BrFeII]−, characterized by new signals at 128 ppm (s, 4H, meta-H of the Mes group), 104 ppm (s, 6H, para-CH3), and 29 ppm (bs, 12 H, ortho-CH3) (see Figure 1c) (this tricoordinate ate species also presents a high-spin S = 2 configuration) [38]. The same reaction was run at 25 °C for 1 h, then quenched, and analyzed by GC-MS, which proved formation of the desired cross-coupling product with a low conversion (ca. 20%). This is in fair agreement with the result given in Table 2, entry 11 (due to the high paramagnetism of the NMR-analyzed solution and due to the presence of non-deuterated solvents (THF solutions of organometallics), NMR monitoring of the coupling product formation could not be efficiently performed).
The same observations were made while performing the coupling of 3b with MesMgBr as a sole nucleophilic partner in a Kumada-type reaction using FeCl2, as [Mes3FeII]− and [Mes2BrFeII]− were also detected under these cross-coupling conditions (Figure 1d, in the absence of manganese, the signals of [Mes2BrFeII]− shifted to 131, 106, and 30 ppm). These series of experiments, therefore, confirm that both [Ar3FeII]− and [Ar2BrFeII]− ate complexes are part of a coupling catalytic cycle and [Ar3FeII]− can be involved in the activation step of the electrophile. The following catalytic cycle (Scheme 2) can be suggested, which echoes recent reports by Neidig on the Fe-catalyzed alkyl-alkenyl coupling reactions [39], and by ourselves on the benzyl-alkenyl coupling [26].
Thanks to the steric hindrance in the ortho positions, the ate [Mes3FeII]− species remains stable for hours at 25 °C [38,41]. Thus, the use of a mesityl nucleophile in the mechanistic experiments discussed earlier prevents any degradation of the FeII catalyst toward lower oxidation states. In order to delineate the influence of the formation of lower oxidation states on the system, additional investigations were, therefore, carried out using PhMgBr as a less hindered nucleophile [42].
First, [Ph3FeII]− was generated at −20 °C by stoichiometric trans-metalation between FeCl2 and 3.0 equiv. of PhMgBr, and characterized by its 1H-NMR signals at 116 and −41 ppm. As we recently reported, [Ph3FeII]− is stable for more than 1 h at this temperature [40,41]. Its fate upon addition of an excess of the electrophile 3b (10 equiv.) was then monitored by paramagnetic 1H-NMR. [Ph3FeII]− reacted rapidly, as attested by the decrease of its resonances (ca. 75% of the starting [Ph3FeII]− reacted after 10 min). The reaction was quenched after 1 h, and the GC-MS confirmed formation of the cross-coupling product, which confirms that [Ph3FeII]− was able to react with 3b in a cross-coupling process, akin to [Mes3FeII]−. Moreover, several transient resonances in the −15/−5 ppm area could also be detected in the course of the reaction (see Figure 2). These elusive resonances quickly disappeared, and were not detected after 30 min at −20 °C. These signals echo the formation of (η2-alkene)n-Fe0 intermediates, as recently reported by Deng, which exhibit similar resonances [43]. This suggests that Fe0 species are formed in situ by 2-electron reductive elimination from [Ph3FeII]−, which is in agreement with a recent report by some of us demonstrating that the evolution of [Ph3FeII]− led to the formation of a distribution of Fe0 and FeI oxidation states (identified as (η4-arene)2Fe0 and [(η6-arene)FeI(Ph)2]−, “arene” being an aromatic ligand present in the bulk medium (e.g., C6H6 or C6H5-C6H5 coming from the oxidation of PhMgBr). Fe0 being preponderantly formed [40,41]). Those Fe0 intermediates would then be trapped by alkene ligands present in the bulk medium, which leads to the observed resonances.
Then, the reactivity of the low valent Fe0 and FeI oxidation states in the reaction medium was investigated. Following one of our recent procedures, reduction of FeII into a distribution of Fe0 and FeI species was performed, by fast trans-metalation between FeCl2 and PhMgBr (2.0 equiv.) at room temperature [40,41]. After 10 min, 1.0 equiv. of MesMgBr was added. The 1H-NMR spectrum showed no signal in the 100–150 ppm area, which attests to the absence of any Mes-FeII species, which shows that all the starting FeII was reduced by PhMgBr (Figure 3a).
The addition of 3.0 equiv. of the electrophile 3b to the in situ generated solution of Fe0 and FeI species led to a color change of the sample, which turned from dark brown to yellow. The 1H-NMR spectrum showed that, after 30 min, ca. 20% of the iron contained in the solution was converted into [Mes3FeII]− (Figure 3b). The presence of 3b, therefore, allows a re-oxidation of the reduced Fe0 and/or FeI species to the FeII oxidation state, the latter being trapped by trans-metalation with MesMgBr to afford [Mes3FeII]−. The re-oxidation of low iron oxidation states by 3b to the FeII stage was also confirmed by the observation of bis(trimethylsilyl)butadienes TMS-CH=CH-CH=CH-TMS (TMS-(CH)4-TMS, E/E; Z/E; Z/Z) in GC-MS, after catalytic reactions involving 10 mol% of FeCl2, PhMgBr, and 3b as coupling partners. Formation of TMS-(CH)4-TMS undoubtedly comes from the sacrificial monoelectronic reduction of the electrophile that permits re-oxidation of the low Fe0 and/or FeI oxidation states. TMS-(CH)4-TMS, moreover, also appears as a suitable ligand for Fe0 oxidation state, and a (η4-TMS-(CH)4-TMS)Fe0 complex might, thus, contribute to the group of high field resonances in the in the −15/−5 ppm area (Figure 2). Quantity of detected TMS-(CH)4-TMS represents ca. 10% of the quantity of a detected coupling product, which shows that this off-cycle sacrificial reduction pathway is not preponderant. By comparison, no traces of TMS-(CH)4-TMS were detected when using mesityl nucleophiles (conditions of Figure 1), attesting that no sacrificial 1-electron reduction of 3b by oxidation states lower than FeII formed in situ occurred.
Scheme 3 presents a summary of the competitive reactions that were observed in this work during the Fe-catalyzed coupling of Ph2Mn with (2-bromovinyl)-trimethylsilane (3b), taking into account the possibility of an off-cycle process involving in situ formed low iron oxidation states.
Kinetic studies will further be pursued in order to determine the global kinetics of the aryl-alkenyl cross-coupling reaction, and to examine the possibility for the low Fe0 and FeI oxidation states involved in a cross-coupling catalytic cycle, in addition to the off-cycle sacrificial reduction of the alkenyl electrophile evidenced herein. Such studies will also help analyze the mechanism of the activation of the C-X bond of the alkenyl halide. Isomerization toward the sterically more stable E coupling products may suggest the implication of an iron-based radical activation of the alkenyl halide, as observed in the case of alkyl electrophiles [44], albeit formation of the Csp2-centered radical is generally more energetically-demanding. Additionally, it cannot be excluded in an alternative scenario that isomerization of the C=C bond occurs after the coupling step, akin to the observations made by Jacobi von Wangelin for the iron-catalyzed isomerization of Z-olefins to their E analogues [45].

4. Materials and Methods

4.1. Materials and Instruments

All reactions, except otherwise noted, were carried out in flame-dried glassware equipped with magnetic stirring under an argon atmosphere using standard Schlenk techniques. To transfer solvents or reagents, syringes were used, which were purged three times with argon prior to use. After purification by flash column chromatography, products were concentrated using a rotary evaporator and, subsequently, dried under high vacuum. Indicated yields are isolated yields of compounds estimated to be >95% pure, as determined by 1H-NMR (25 °C) and capillary GC.
To examine the reaction progress of the performed reactions, GC-analysis of quenched hydrolyzed and iodolyzed reaction aliquots relative to an internal standard was used. For this purpose, small amounts of the reaction mixture were hydrolyzed using a saturated aqueous solution of NH4Cl, subsequently extracted with EtOAc, dried over MgSO4 and gaschromatographically quantified. To monitor the process of directed metalations and oxidative insertion reactions, small amounts of the reaction mixture were iodolyzed. A small quantity of iodine was dissolved in freshly distilled THF (0.50 mL), charged with the reaction mixture, and added to a solution of Na2S2O3. The mixture was extracted with EtOAc, dried over MgSO4, and was then gas chromatographically measured.
To determine the concentration of the different synthesized metallic reagents, iodometric titration was used. For this purpose, a known amount of iodine was charged with freshly distilled THF (1.00 mL) to give a deep red solution. The metallic reagent was added dropwise at 2 °C to the iodine solution until the red coloration went colorless. The concentration of the organometallic reagent could be calculated via the consumed volume of the reaction mixture and the amount of used iodine.
Thin layer chromatography (TLC) was implemented on alumina plates coated with SiO2 (Merck 60, F-254, Merck, Darmstadt, Germany). To visualize the spots of the different products, UV light was used.
Flash column chromatography was performed using SiO2 (0.04–0.06 mm, 230–400 mesh) from Merck.
1H-NMR, 13C-NMR, 19F-NMR, and 2D-NMR spectra were recorded on VARIAN Mercury 200, BRUKER ARX 300, VARIAN VXR 400 S, and BRUKER AMX 600 instruments (Bruker, Billerica, MA, USA). Chemical shifts are reported as δ-values in ppm relative to tetramethylsilane. The following abbreviations were used to characterize signal multiplicities: s (singlet), d (doublet), t (triplet), q (quartet), m (multiplet), and bs (broad singlet).
Mass spectroscopy: High resolution (HRMS) and low resolution (MS) spectra were recorded on a FINNIGAN MAT 95Q instrument (now Thermo Fisher company, Waltham, MA, USA). Electron impact ionization (EI) was conducted with an ionization energy of 70 eV. For coupled gas chromatography/mass spectrometry, a HEWLETT-PACKARD HP 6890 /MSD 5973 GC/MS system was used. Molecular fragments are reported starting at a relative intensity of 10%.
Infrared spectra (IR) were recorded from 4500 cm−1 to 650 cm−1 on a PERKIN ELMER Spectrum BX59343 instrument (Perkin Elmer, Wellesley, MA, USA). For detection, a SMITHS DETECTION DuraSamplIR IIDiamond ATR sensor (Smiths Detection, Hemel Hempstead, UK) was used. Wavenumbers are reported in cm−1 starting at an absorption of 10%.
Melting points (m.p.) were determined on a BÜCHI B-540 melting point apparatus (BÜCHI LabortechnikAG, Flawil, Switzerland) and are uncorrected. Compounds decomposing upon melting are indicated by (decomp.).
Gas chromatography was executed with machines of type Agilent Technologies 7890A GC-Systems with 6890 GC inlets, detectors (Agilent, Santa Clara, CA, USA), a GC oven, and a column of type HP 5 (Hewlett-Packard, 5% phenylmethylpolysiloxane; length: 10 m, diameter: 0.25 mm, film thickness: 0.2 µm).
Gas chromatography-Mass spectra were recorded on a networking system called Hewlett-Packard 6890/MSD 5973 GC/MS (Hewlett Packard, Palo Alto, CA, USA) with a column of type HP 5 (Hewlett-Packard, 5% phenylmethylpolysiloxane; length: 10m, diameter: 0.25 mm, film thickness: 0.2 µm).

4.2. Chemicals, Solvents, and Typical Procedures

All chemicals were purchased from commercial sources and were used without any further purification unless otherwise noted.
THF was continuously refluxed and freshly distilled from benzophenone ketyl under nitrogen. The freshly distilled THF was stored over a molecular sieve (4 Å) under argon. Solvents for column chromatography were distilled prior to use.

4.2.1. Typical Procedure for the One-Pot Preparation of Bis-(aryl)manganese Reagents 1a–g

A dry and argon-flushed Schlenk-tube, equipped with a magnetic stirring bar and a rubber septum, was charged with LiCl (0.610 g, 14.4 mmol, 2.4 equiv.), heated to 450 °C under high vacuum, and then cooled to room temperature. After being switched to argon, the same procedure was applied after MnCl2 was added (453 mg, 3.60 mmol, 0.6 equiv.). After cooling to room temperature, magnesium turnings were added (0.350 g, 14.4 mmol, 2.4 equiv.), which was followed by freshly distilled THF (12 mL). After the reaction mixture was cooled to −5 °C, the aryl bromides 2a–g were then added dropwise using 1 mL syringes (6.0 mmol, 1.0 equiv., addition time: 1 min) and the reaction mixture was stirred until a complete conversion of the starting material was observed. The reaction progress was monitored by GC-analysis of hydrolyzed and iodolyzed aliquots.
When the metalation was completed, the concentration of the bis-(aryl)manganese species was determined by titration against iodine in freshly distilled THF. The black solutions of the aryl reagents 1a–g were then separated from the magnesium turnings using a syringe and, subsequently, transferred into another pre-dried and argon-flushed Schlenk-tube, which was cooled to −5 °C. After a titration against iodine in freshly distilled THF was performed, the reagent was ready to use for Cross-Couplings.

4.2.2. Typical Procedure for the Cross-Coupling Reactions of Bis-(aryl)manganese Reagents 1a–g with Different Electrophiles 3a–e

A pre-dried and argon-flushed Schlenk-tube equipped with a magnetic stirring bar and a rubber septum was charged with Fe(acac)3 (35 mg, 0.10 mmol, 10 mol%), the corresponding electrophile (3a–e, 1.0 mmol, 1.0 equiv.), tetradecane as internal standard (50 µL) and freshly distilled THF (1.0 mL) as solvent. The reaction mixture was cooled to 0 °C and the bis-(aryl)manganese solution (1a–g, 0.6 equiv.) was added dropwise whereupon a color change to dark brown could be recognized. After the addition was complete, the reaction mixture was stirred for a given time at room temperature and the completion of the cross-coupling reaction was monitored by GC-analysis of hydrolyzed aliquots. Thereupon, a saturated aqueous solution of NH4Cl was added and the aqueous layer was extracted with EtOAc (3 × 100 mL). The combined organic layers were dried over MgSO4, filtered, and concentrated under reduced pressure. Purification of the crude products by flash column chromatography afforded the desired cross-coupling reaction products (4a–k, 4m, 4n).

4.3. Studies on the Catalytically Active Species and Catalytic Cycle

All the samples were prepared in a recirculating JACOMEX inert atmosphere (Ar) drybox and vacuum Schlenk lines. Glassware was dried overnight at 120 °C before use. NMR spectra were obtained using a Bruker DPX 400 MHz spectrometer (Bruker, Billerica, MA, USA). Chemical shifts for 1H-NMR spectra were referenced to solvent impurities (herein, THF). NMR tubes were equipped with a J. Young valves were used for all 1H-NMR experiments and catalytic tests. The GC-MS analysis was performed using n-decane as an internal standard. The reaction media aliquots were quenched by the addition of distilled water under air. The organic products were extracted using DCM, and injected into the GC-MS. Mass spectra were recorded on a Hewlett-Packart HP 5973 mass spectrometer (Hewlett Packard, Palo Alto, CA, USA) via a GC-MS coupling with a Hewlett-Packart HP 6890 chromatograph (Hewlett Packard, Palo Alto, CA, USA) equipped with a capillary column HP-5MS (50 m × 0.25 mm × 0.25 µm, Hewlett Packard, Palo Alto, CA, USA). Ionisation was due to an electronic impact (EI, 70 eV).

5. Conclusions

In summary, various functionalized bis-(aryl)manganese species have been readily prepared in one-pot conditions from the corresponding aryl bromides by inserting magnesium in the presence of LiCl and in situ trans-metalation with MnCl2 in THF at −5 °C within 2 h. These bis-(aryl)manganese reagents have been allowed to undergo smooth iron-catalyzed cross-couplings using 10 mol% Fe(acac)3 and various functionalized alkenyl iodides and bromides at 25 °C for 1 h. Mechanistic investigations carried out by 1H-NMR showed that ate-iron(II) species [Ar3FeII]− are formed by trans-metalation of the bis-(aryl)manganese reagent with the iron catalyst, and that they can react with alkenyl bromides to afford the expected cross-coupling product. Low-valent Fe0 and FeI oxidation states can also be formed by the reduction of the ate-iron(II) catalyst under these conditions. This leads to the sacrificial reduction of the alkenyl electrophile via an off-cycle pathway, which partly regenerates the FeII oxidation state, where the latter is able to enter a new catalytic cycle.

Supplementary Materials

The following are available online. Additional synthesis and characterization (NMR, IR, HRMS, m.p.) data are available online.

Author Contributions

Conceptualization, G.L. and P.K. Methodology, A.D. and L.R. Writing—original draft preparation, G.L., L.R., and A.D. Writing—review and editing, G.L. and P.K. Supervision, G.L. and P.K. Project administration, G.L. and P.K. Funding acquisition, G.L. and P.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the CNRS, Chimie ParisTech (Paris), and LMU (Munich) in the framework of the International Associated Laboratory IrMaCar.

Acknowledgments

We thank the DFG (SFB749) for financial support, and Albemarle (Germany) and BASF (Ludwigshafen, Germany) for the generous gift of chemicals. G.L. also thanks the ANR research program (project JCJC SIROCCO). Aurélien Adenot (CEA Saclay) is warmly thanked for his kind technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Crawley, M.L.; Trost, B.M. Applications of Transition Metal Catalysis in Drug Discovery and Development: An Industrial Perspective; John Wiley & Sons: Hoboken, NJ, USA, 2012. [Google Scholar]
  2. Miyaura, N. Cross-Coupling Reactions. A Practical Guide. Org. Process Res. Dev. 2003, 7, 1084. [Google Scholar] [CrossRef]
  3. Phapale, V.B.; Cárdenas, D.J. Nickel-Catalysed Negishi cross-coupling reactions: Scope and mechanisms. Chem. Soc. Rev. 2009, 38, 1598–1607. [Google Scholar] [CrossRef] [PubMed]
  4. Hartwig, J.F. Organotransition Metal Chemistry. From Bonding to Catalysis. Angew. Chem. Int. Ed. 2010, 49, 7622. [Google Scholar] [CrossRef]
  5. Jana, R.; Pathak, T.P.; Sigman, M.S. Advances in Transition Metal (Pd,Ni,Fe)-Catalyzed Cross-Coupling Reactions Using Alkyl-organometallics as Reaction Partners. Chem. Rev. 2011, 111, 1417–1492. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. LD50(FeCl2, rat oral) = 900 mg/kg; LD50(NiCl2, rat oral) = 186 mg/kg.
  7. Egorova, K.S.; Ananikov, V.P. Which Metals are Green for Catalysis? Comparison of the Toxicities of Ni, Cu, Fe, Pd, Pt, Rh, and Au Salts. Angew. Chem. Int. Ed. 2016, 55, 12150–12162. [Google Scholar] [CrossRef] [PubMed]
  8. FeCl2 ca. 332 €/mol, PdCl2 ca. 6164 €/mol; prices retrieved from Alfa Aesar in August 2019.
  9. Thapa, S.; Shrestha, B.; Gurung, S.K.; Giri, R. Copper-catalysed cross-coupling: An untapped potential. Org. Biomol. Chem. 2015, 13, 4816–4827. [Google Scholar] [CrossRef]
  10. Fürstner, A.; Leitner, A.; Méndez, M.; Krause, H. Iron-Catalyzed Cross-Coupling Reactions. J. Am. Chem. Soc. 2002, 124, 13856–13863. [Google Scholar] [CrossRef]
  11. Bedford, R.B.; Brenner, P.B. Iron Catalysis II; Bauer, E., Ed.; Springer: Berlin, Germany, 2015. [Google Scholar]
  12. Cahiez, G.; Moyeux, A.; Cossy, J. Grignard Reagents and Non-Precious Metals: Cheap and Eco-Friendly Reagents for Developing Industrial Cross-Couplings. A Personal Account. Adv. Synth. Catal. 2015, 357, 1983–1989. [Google Scholar] [CrossRef]
  13. Bauer, I.; Knölker, H.-J. Iron Catalysis in Organic Synthesis. Chem. Rev. 2015, 115, 3170–3387. [Google Scholar] [CrossRef]
  14. Cahiez, G.; Moyeux, A. Cobalt-Catalyzed Cross-Coupling Reactions. Chem. Rev. 2010, 110, 1435–1462. [Google Scholar] [CrossRef]
  15. Cahiez, G.; Duplais, C.; Buendia, J. Chemistry of Organomanganese(II) Compounds. Chem. Rev. 2009, 109, 1434–1476. [Google Scholar] [CrossRef] [PubMed]
  16. Peng, Z.; Li, N.; Sun, X.; Wang, F.; Xu, L.; Jiang, C.; Song, L.; Yan, Z.-F. The transition-metal-catalyst-free oxidative homocoupling of organomanganese reagents prepared by the insertion of magnesium into organic halides in the presence of MnCl2·2LiCl. Org. Biomol. Chem. 2014, 12, 7800–7809. [Google Scholar] [CrossRef] [PubMed]
  17. Haas, D.; Hammann, J.M.; Moyeux, A.; Cahiez, G.; Knochel, P. Oxidative Homocoupling of Diheteroaryl- or Diarylmanganese Reagents Generated via Directed Manganation Using TMP2Mn. Synlett 2015, 26, 1515. [Google Scholar] [CrossRef]
  18. Cahiez, G.; Masuda, A.; Bernard, D.; Normant, J.F. Reactivite des derives organo-manganeux.I-action sur les chlorures d’acides. synthese de cetones. Tetrahedron Lett. 1976, 36, 3155–3156. [Google Scholar] [CrossRef]
  19. Friour, G.; Alexakis, A.; Cahiez, G.; Normant, J.F. Reactivite des derives organomanganeux—VIII: Préparation de cétones par acylation d’organomanganeux. Influence de la nature de l’agent acylant, des solvants et des ligands. Tetrahedron 1984, 40, 683–693. [Google Scholar] [CrossRef]
  20. Kauffmann, T.; Bisling, M. Zwei neue reaktionsweisen von alkyl-Mn(II)-verbindungen: 1,4-addition an cyclohex-2-enon(1) und desoxygenierung von oxiranen (1). Tetrahedron Lett. 1984, 25, 293–296. [Google Scholar] [CrossRef]
  21. Cahiez, G.; Alami, M. Organomanganese (II) reagents XI.: A study of their reactions with cyclic conjugated enones: Conjugate addition and reductive dimerization. Tetrahedron Lett. 1986, 27, 569–572. [Google Scholar] [CrossRef]
  22. Cahiez, G.; Alami, M. Organomanganese (II) reagents XVI1: Copper-catalyzed 1,4-addition of organomanganese chlorides to conjugated enones. Tetrahedron Lett. 1989, 30, 3541–3544. [Google Scholar] [CrossRef]
  23. Cahiez, G.; Alami, M. Composés organomanganeux XXI. Réaction d’un composé organomanganeux avec une énone conjuguée: Influence d’un acide de Lewis, d’un sel de fer ou d’un sel de nickel. J. Organomet. Chem. 1990, 397, 291–298. [Google Scholar] [CrossRef]
  24. Quinio, P.; Benischke, A.D.; Moyeux, A.; Cahiez, G.; Knochel, P. New Preparation of Benzylic Manganese Chlorides by the Direct Insertion of Magnesium into Benzylic Chlorides in the Presence of MnCl2·2LiCl. Synlett 2015, 26, 514. [Google Scholar] [CrossRef]
  25. Cahiez, G.; Marquais, S. Highly Chemo- and Stereoselective Fe-Catalyzed Alkenylation of Organomanganese Reagents. Tetrahedron Lett. 1996, 37, 1773–1776. [Google Scholar] [CrossRef]
  26. Desaintjean, A.; Belrhomari, S.; Rousseau, L.; Lefèvre, G.; Knochel, P. Iron-Catalyzed Cross-Coupling of Functionalized Benzylmanganese Halides with Alkenyl Iodides, Bromides, and Triflates. Org. Lett. 2019, 21, 8684–8688. [Google Scholar] [CrossRef] [PubMed]
  27. Tamao, K.; Sumitani, K.; Kumada, M. Selective carbon-carbon bond formation by cross-coupling of Grignard reagents with organic halides. Catalysis by nickel-phosphine complexes. J. Am. Chem. Soc. 1972, 94, 4374–4376. [Google Scholar] [CrossRef]
  28. Haas, D.; Hammann, J.F.; Greiner, R.; Knochel, P. Recent Developments in Negishi Cross-Coupling Reactions. ACS Catal. 2016, 6, 1540–1552. [Google Scholar] [CrossRef]
  29. O’Donovan, M.R.; Mee, C.D.; Fenner, S.; Teasdale, A.; Phillips, D.H. Boronic acids-a novel class of bacterial mutagen. Mutat. Res. 2011, 724, 1–6. [Google Scholar] [CrossRef]
  30. Hansen, M.M.; Jolly, R.A.; Linder, R.J. Boronic Acids and Derivatives-Probing the Structure-Activity Relationships for Mutagenicity. Org. Process Res. Dev. 2015, 19, 1507–1516. [Google Scholar] [CrossRef]
  31. Benischke, A.D.; Desaintjean, A.; Juli, T.; Cahiez, G.; Knochel, P. Nickel-Catalyzed Cross-Coupling of Functionalized Organo-manganese Reagents with Aryl and Heteroaryl Halides Promoted by 4-Fluorostyrene. Synthesis 2017, 49, 5396. [Google Scholar] [CrossRef] [Green Version]
  32. Cahiez, G.; Gager, O.; Lecomte, F. Manganese-Catalyzed Cross-Coupling Reaction between Aryl Grignard Reagents and Alkenyl Halides. Org. Lett. 2008, 10, 5255–5256. [Google Scholar] [CrossRef]
  33. Additionally, 55Mn nucleus is quadrupolar (100 % natural abundance, I = 5/2).
  34. Morris, R.J.; Girolami, G.S. High-valent organomanganese chemistry. 2. Synthesis and characterization of manganese(III) aryls. Organometallics 1991, 10, 799–804. [Google Scholar] [CrossRef]
  35. Krasovskiy, A.; Knochel, P. Convenient Titration Method for Organometallic Zinc, Magnesium, and Lanthanide Reagents. Synthesis 2006, 5, 890. [Google Scholar] [CrossRef]
  36. Fischer, R.; Görls, H.; Friedrich, M.; Westerhausen, M. Reinvestigation of arylmanganese chemistry—Synthesis and molecular structures of [(thf)4Mg(μ-Cl)2Mn(Br)Mes], [Mes(thf)Mn(μ-Mes)]2, and (MnPh2)∞ (Ph=C6H5; Mes= mesityl, 2,4,6-Me3C6H2). J. Organomet. Chem. 2009, 694, 1107–1111. [Google Scholar] [CrossRef]
  37. Meyer, R.M.; Hanusa, T.P. Structural organomanganese chemistry. In The Chemistry of Organomanganese Compounds; Rappoport, Z., Marek, I., Eds.; Wiley: Hoboken, NJ, USA, 2011; p. 45. [Google Scholar]
  38. Bedford, R.B.; Brenner, P.B.; Carter, E.; Cogswell, P.M.; Haddow, M.F.; Harvey, J.N.; Murphy, D.M.; Nunn, J.; Woodall, C.H. TMEDA in Iron-Catalyzed Kumada Coupling: Amine Adduct versus Homoleptic “ate” Complex Formation. Angew. Chem. Int. Ed. 2014, 53, 1804–1808. [Google Scholar] [CrossRef] [PubMed]
  39. Muñoz, S.B.; Daifuku, S.L.; Sears, J.D.; Baker, T.M.; Carpenter, S.H.; Brennessel, W.W.; Neidig, M.L. The N-Methylpyrrolidone (NMP) Effect in Iron-Catalyzed Cross-Coupling with Simple Ferric Salts and MeMgBr. Angew. Chem. Int. Ed. 2018, 57, 6496–6500. [Google Scholar] [CrossRef] [PubMed]
  40. Clémancey, M.; Cantat, T.; Blondin, G.; Latour, J.-M.; Dorlet, P.; Lefèvre, G. Structural insights into the nature of Fe0 and FeI low-valent species obtained upon reduction of Iron salts by Aryl Grignard reagents. Inorg. Chem. 2017, 56, 3834–3848. [Google Scholar] [CrossRef] [Green Version]
  41. Rousseau, L.; Herrero, C.; Clémancey, M.; Imberdis, A.; Blondin, G.; Lefèvre, G. Evolution of ate organoiron(II) species towards lower oxidation states: Role of the steric and electronic factors. Chem. Eur. J. 2019. [Google Scholar] [CrossRef]
  42. The mechanistic studies were pursued using only aryl Grignard nucleophiles, as the transmetalation of the latter with iron was proceeding in the same way than that of manganese, and as the NMR spectra allowed a much more precise and accurate interpretation thanks to the absence of highly paramagnetic Mn-containing species.
  43. Cheng, J.; Chen, Q.; Leng, X.; Ye, S.; Deng, L. Three-Coordinate Iron(0) complexes with N-Heterocyclic Carbene and Vinyltrimethylsilane Ligation: Synthesis, Characterization, and Ligand Substitution Reactions. Inorg. Chem. 2019, 58, 13129–13141. [Google Scholar] [CrossRef]
  44. Mo, Z.; Deng, L. Open-shell iron hydrocarbyls. Coord. Chem. Rev. 2017, 350, 285–299. [Google Scholar] [CrossRef]
  45. Mayer, M.; Welther, A.; Jacobi von Wangelin, A. Iron-Catalyzed Isomerizations of Olefins. ChemCatChem 2011, 3, 1567–1571. [Google Scholar] [CrossRef]
Sample Availability: Samples of all the compounds described in this article are available from the authors.
Molecules 25 00723 sch001 550

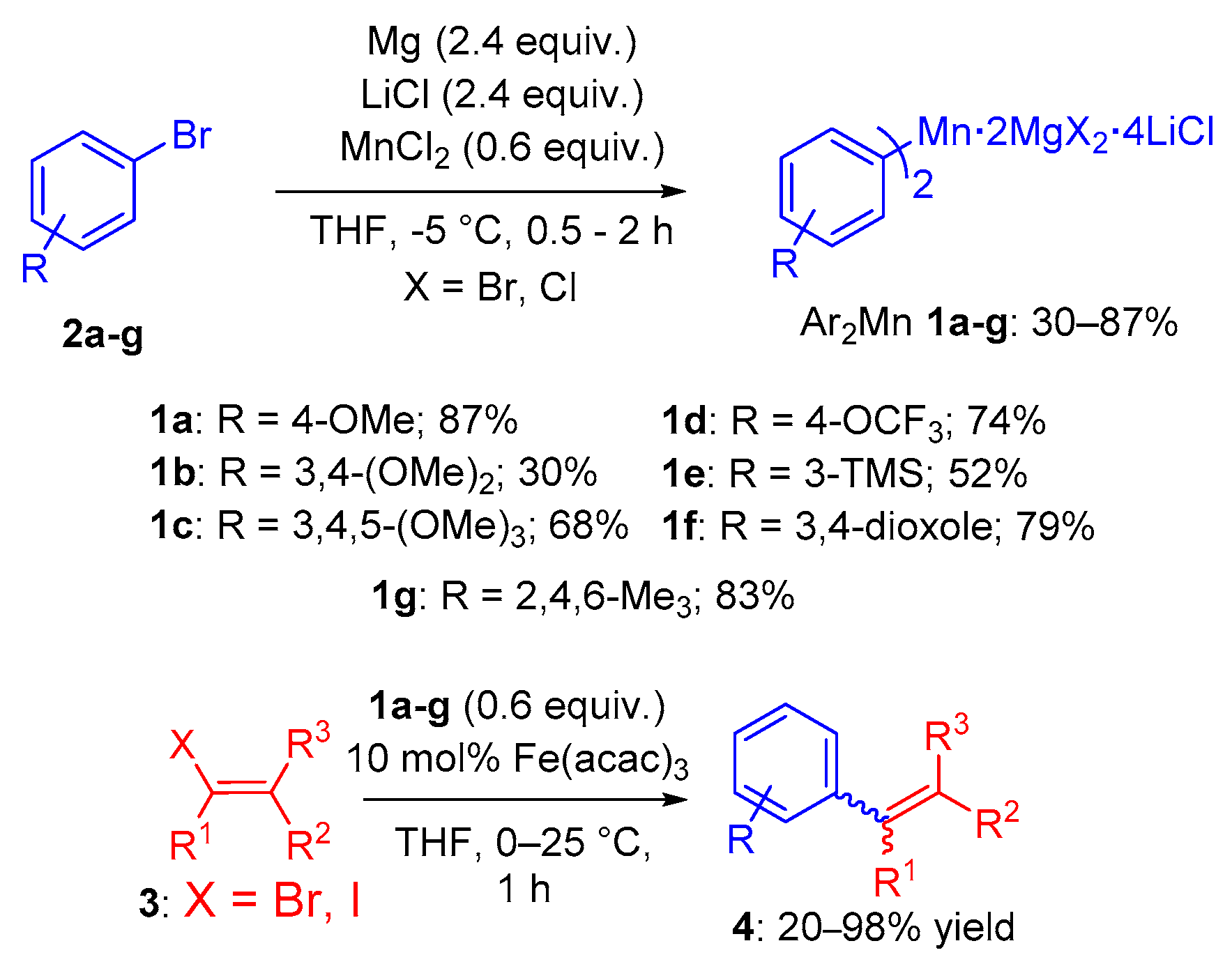

Scheme 1. One-pot preparation of bis-(aryl)manganese reagents by in situ trans-metalation followed by iron-catalyzed cross-couplings with alkenyl iodides and bromides.
Scheme 1. One-pot preparation of bis-(aryl)manganese reagents by in situ trans-metalation followed by iron-catalyzed cross-couplings with alkenyl iodides and bromides.
Molecules 25 00723 sch001
Molecules 25 00723 g001 550

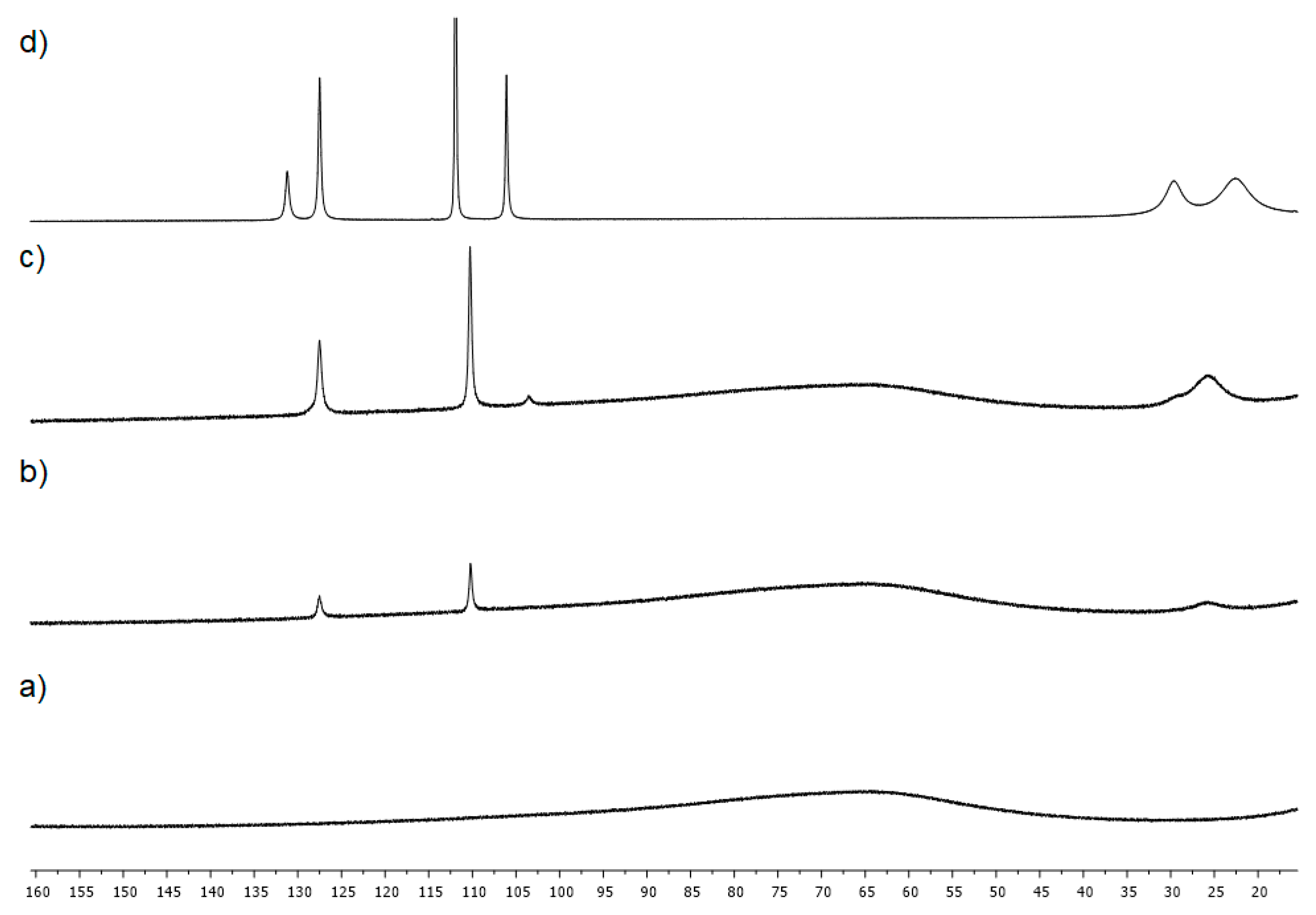

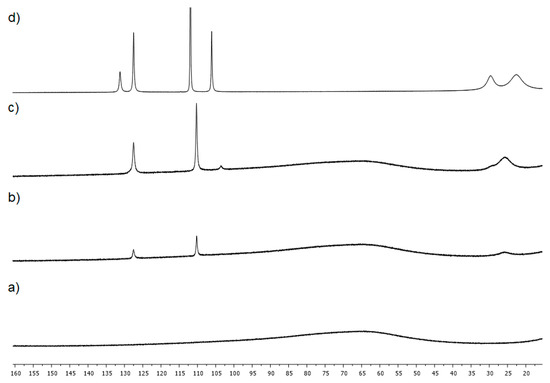

Figure 1. 1H-NMR spectra (recorded at 25 °C in d8-THF) of a 0.08 M solution of (a) Mes2Mn, (b) Mes2Mn + 0.10 equiv. FeCl2, (c) Mes2Mn + 0.10 equiv. FeCl2 + 1.0 equiv. 3b, (d) FeCl2 + 3.0 equiv. MesMgBr + 10 equiv. 3b.
Figure 1. 1H-NMR spectra (recorded at 25 °C in d8-THF) of a 0.08 M solution of (a) Mes2Mn, (b) Mes2Mn + 0.10 equiv. FeCl2, (c) Mes2Mn + 0.10 equiv. FeCl2 + 1.0 equiv. 3b, (d) FeCl2 + 3.0 equiv. MesMgBr + 10 equiv. 3b.
Molecules 25 00723 g001
Molecules 25 00723 sch002 550

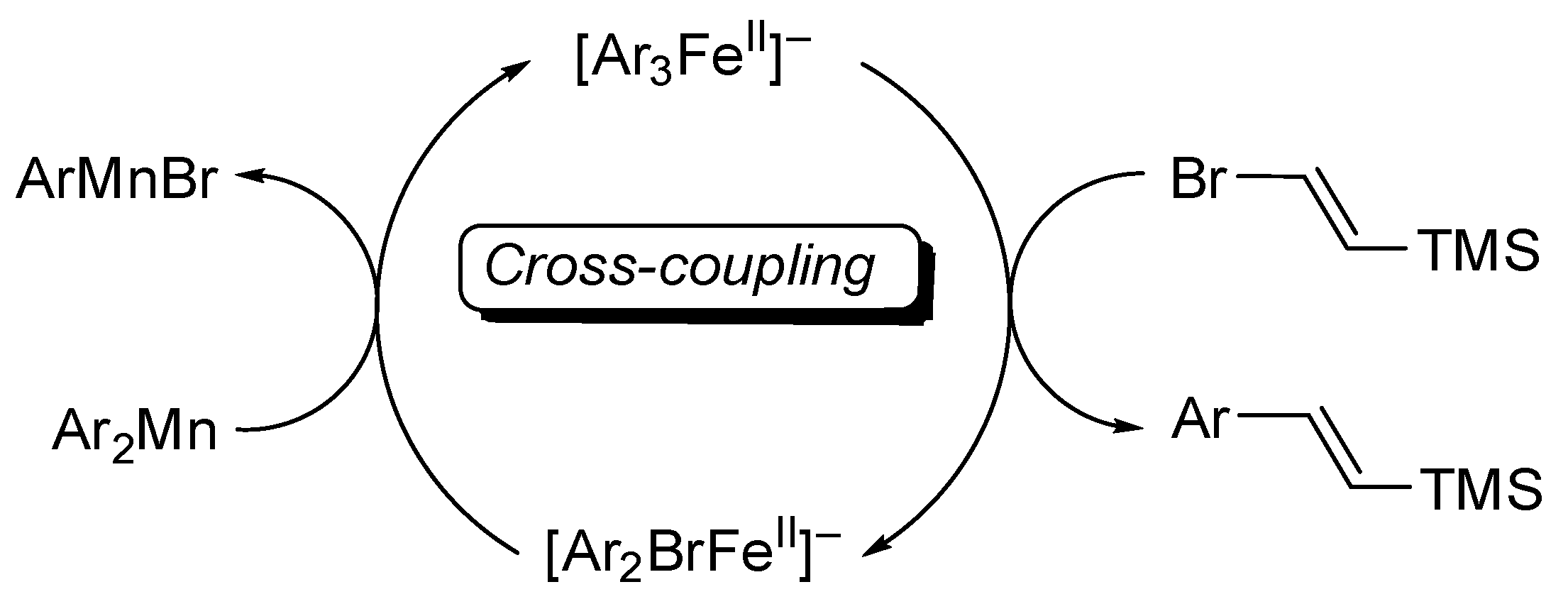

Scheme 2. Proposed catalytic cycle for the aryl-alkenyl cross-coupling between Ar2Mn and an alkenyl bromide under Fe-catalytic conditions.
Scheme 2. Proposed catalytic cycle for the aryl-alkenyl cross-coupling between Ar2Mn and an alkenyl bromide under Fe-catalytic conditions.
Molecules 25 00723 sch002
Molecules 25 00723 g002 550

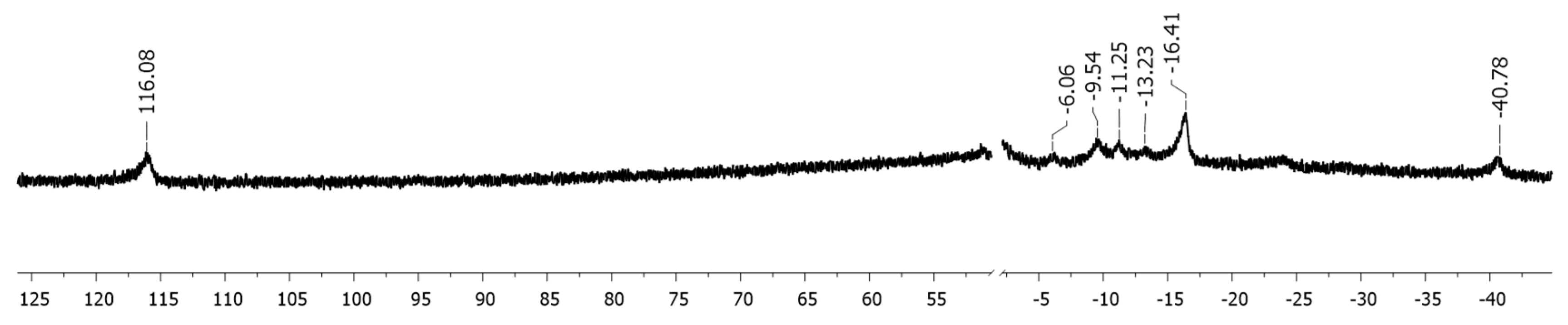

Figure 2. 1H-NMR spectrum (recorded at −20 °C in d8-THF) of a 0.08 M solution of [Ph3FeII]− followed by addition of 3b (10 equiv.). Spectrum recorded 20 min after addition of 3b.
Figure 2. 1H-NMR spectrum (recorded at −20 °C in d8-THF) of a 0.08 M solution of [Ph3FeII]− followed by addition of 3b (10 equiv.). Spectrum recorded 20 min after addition of 3b.
Molecules 25 00723 g002
Molecules 25 00723 g003 550

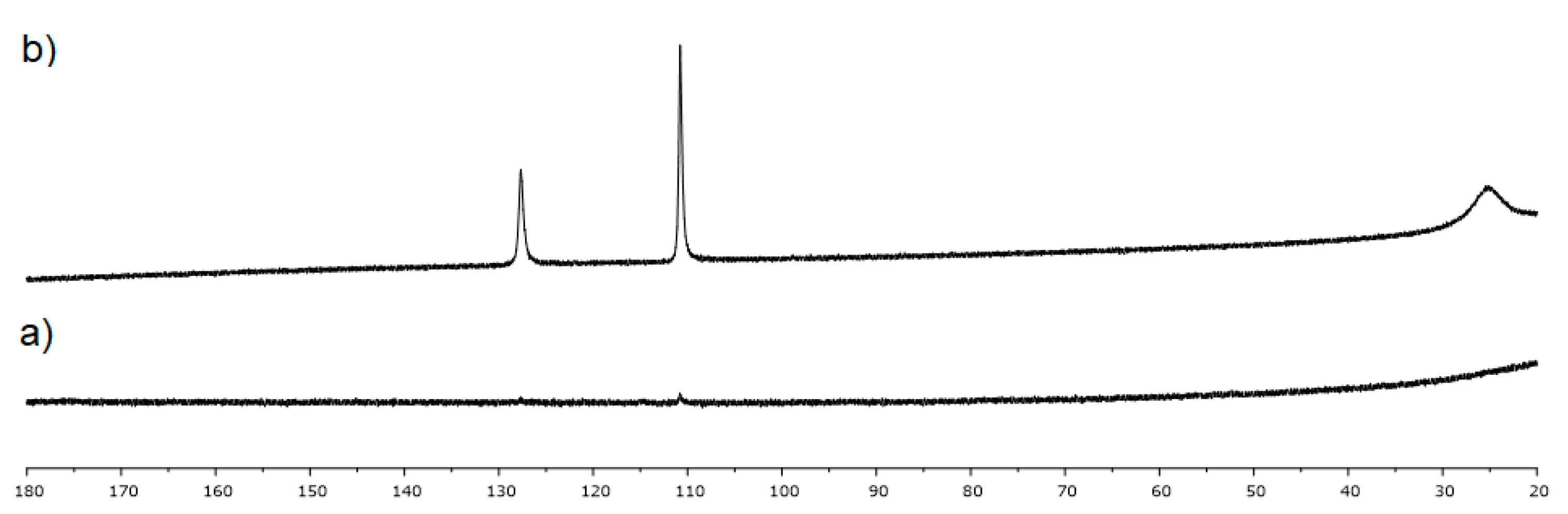

Figure 3. 1H-NMR spectra (recorded at 25 °C in d8-THF) of a 0.08 M solution of (a) FeCl2 + 2.0 equiv. PhMgBr, + 1.0 equiv. MesMgBr after 10 min agitation at RT. (b) Same tube, + 3.0 equiv. 3b, after 30 min.
Figure 3. 1H-NMR spectra (recorded at 25 °C in d8-THF) of a 0.08 M solution of (a) FeCl2 + 2.0 equiv. PhMgBr, + 1.0 equiv. MesMgBr after 10 min agitation at RT. (b) Same tube, + 3.0 equiv. 3b, after 30 min.
Molecules 25 00723 g003
Molecules 25 00723 sch003 550

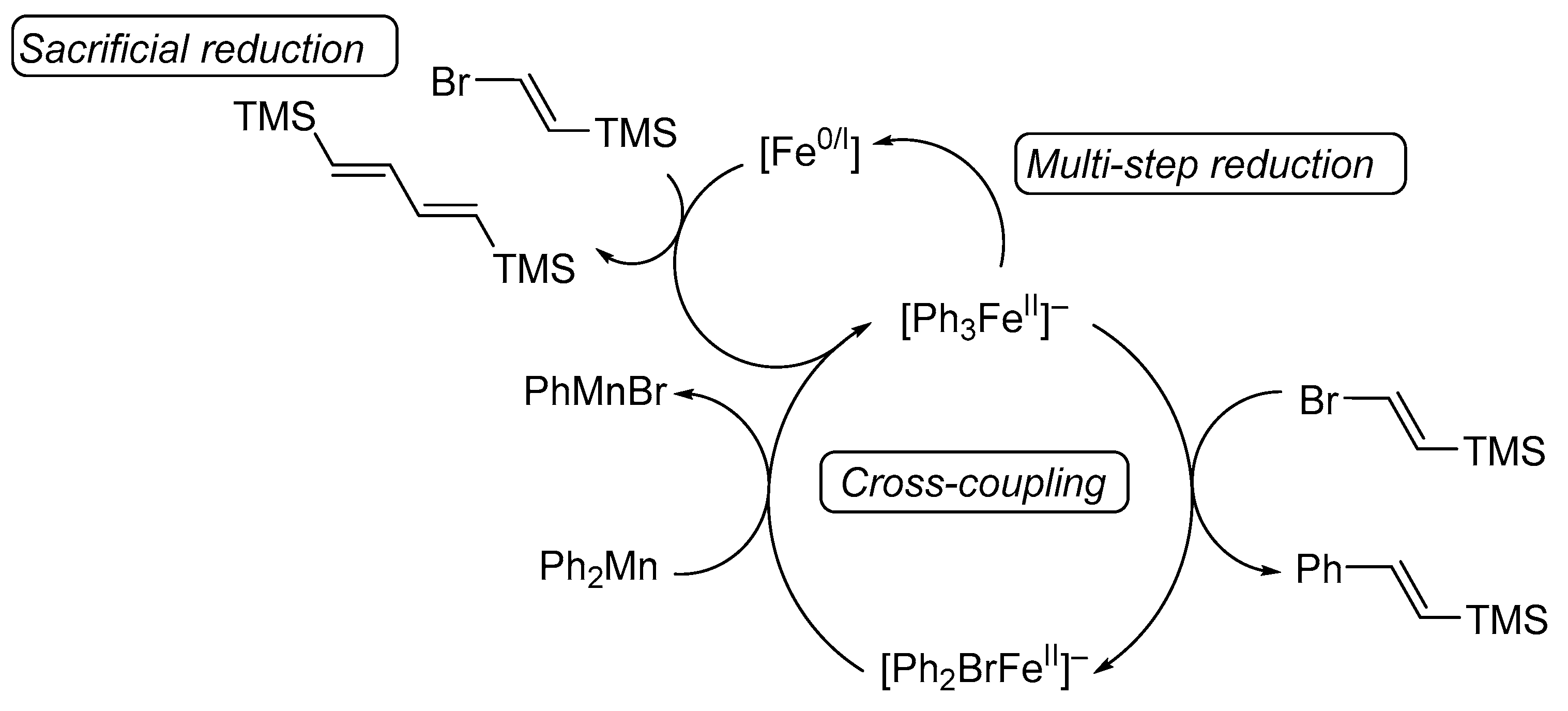

Scheme 3. Proposed catalytic cycle and side reactions for the aryl-alkenyl cross-coupling between Ph2Mn and an alkenyl bromide under Fe-catalytic conditions.
Scheme 3. Proposed catalytic cycle and side reactions for the aryl-alkenyl cross-coupling between Ph2Mn and an alkenyl bromide under Fe-catalytic conditions.
Molecules 25 00723 sch003
Table
Table 1. Catalyst screening of the reaction between the bis-(aryl)manganese reagent 1a and (Z)-ethyl 3-iodoacrylate (3a).
Table 1. Catalyst screening of the reaction between the bis-(aryl)manganese reagent 1a and (Z)-ethyl 3-iodoacrylate (3a).
Molecules 25 00723 i001
EntryCatalyst (10 mol%)Yield (%) a
1none60 b
2FeBr242
3FeCl354
4FeBr357
5FeCl264
6Fe(acac)267
7Fe(acac)3 (>99% purity)79
a Yield of analytically pure product. b A Z/E = 50:50 mixture of 4a was obtained.
Table

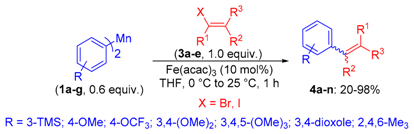

Table 2. Iron-catalyzed couplings of bis-(aryl)manganese (1a–g) a with alkenyl electrophiles (3a–e).
Table 2. Iron-catalyzed couplings of bis-(aryl)manganese (1a–g) a with alkenyl electrophiles (3a–e).
Molecules 25 00723 i002
EntryAr2MnElectrophileYield (%) bEntryAr2MnElectrophileYield (%) b
11a Molecules 25 00723 i003
3b: Z/E = 10:90		 Molecules 25 00723 i004
4b: 98, Z/E = 1:99
(24, Z/E = 20:80) c		81e Molecules 25 00723 i005
3a		 Molecules 25 00723 i006
4i: 64, Z/E = 1:99
(51, Z/E = 57:43) c
21b Molecules 25 00723 i007
3a		 Molecules 25 00723 i008
4c: 69, Z/E = 1:99
(58, Z/E = 69:31) c		91f Molecules 25 00723 i009
3b: Z/E = 10:90		 Molecules 25 00723 i010
4j: 78,
Z/E = 1:99
(39, Z/E = 20:80) c
31c Molecules 25 00723 i011
3b: Z/E = 10:90		 Molecules 25 00723 i012
4d: 80, Z/E = 1:99
(8, Z/E = 1:99) c		101f Molecules 25 00723 i013
3a		 Molecules 25 00723 i014
4k: 84, Z/E = 1:99
(48, Z/E = 99:1) c
41c Molecules 25 00723 i015
3a		 Molecules 25 00723 i016
4e: 57, Z/E = 1:99
(66, Z/E = 72:28) c		111g Molecules 25 00723 i017
3b: Z/E = 10:90		 Molecules 25 00723 i018
4l: d
20, Z/E = 21:79
91, Z/E = 5:95 e
(traces, Z/E = 50:50) c
51c Molecules 25 00723 i019
3c: Z/E = 18:82		 Molecules 25 00723 i020
4f: 82, Z/E = 1:99
(80, Z/E = 53:47) c		121d Molecules 25 00723 i021
3e: Z/E = 98:2		 Molecules 25 00723 i022
4m: 74, Z/E = 98:2
(19, Z/E = 73:27) c
61c Molecules 25 00723 i023
3d		 Molecules 25 00723 i024
4g: 87, Z/E = 9:91
(77, Z/E = 4:96) c		131e Molecules 25 00723 i025
3e: Z/E = 98:2		 Molecules 25 00723 i026
4n: 66, Z/E = 70:30
(41, Z/E = 72:28)c
71d Molecules 25 00723 i027
3a		 Molecules 25 00723 i028
4h: 77, Z/E = 1:99
(74, Z/E = 81:19) c
a For clarity reasons, the magnesium salt has been omitted. b Yield of analytically pure product. c In parentheses, yield and Z/E ratio obtained without catalysis. d Yields determined by GC and 1H-NMR. e After 18 h.

Share and Cite

MDPI and ACS Style

Rousseau, L.; Desaintjean, A.; Knochel, P.; Lefèvre, G. Iron-Catalyzed Cross-Coupling of Bis-(aryl)manganese Nucleophiles with Alkenyl Halides: Optimization and Mechanistic Investigations. Molecules 2020, 25, 723. https://doi.org/10.3390/molecules25030723

AMA Style

Rousseau L, Desaintjean A, Knochel P, Lefèvre G. Iron-Catalyzed Cross-Coupling of Bis-(aryl)manganese Nucleophiles with Alkenyl Halides: Optimization and Mechanistic Investigations. Molecules. 2020; 25(3):723. https://doi.org/10.3390/molecules25030723

Chicago/Turabian Style

Rousseau, Lidie, Alexandre Desaintjean, Paul Knochel, and Guillaume Lefèvre. 2020. "Iron-Catalyzed Cross-Coupling of Bis-(aryl)manganese Nucleophiles with Alkenyl Halides: Optimization and Mechanistic Investigations" Molecules 25, no. 3: 723. https://doi.org/10.3390/molecules25030723

Article Metrics

Back to TopTop
