High-Efficient Production of (S)-1-[3,5-Bis(trifluoromethyl)phenyl]ethanol via Whole-Cell Catalyst in Deep-Eutectic Solvent-Containing Micro-Aerobic Medium System

by
Zhiren Zhu
,
Shunde Bi
,
Ning Ye
and
Pu Wang
*
College of Pharmaceutical Science, Zhejiang University of Technology, Hangzhou 310014, China
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(8), 1855; https://doi.org/10.3390/molecules25081855
Submission received: 4 March 2020 / Revised: 9 April 2020 / Accepted: 15 April 2020 / Published: 17 April 2020
Browse Figures
Versions Notes

Abstract

:
The ratio of substrate to catalyst (S/C) is a prime target for the application of asymmetric production of enantiomerically enriched intermediates by whole-cell biocatalyst. In the present study, an attractive increase in S/C was achieved in a natural deep-eutectic solvent (NADES) containing reaction system under microaerobic condition for high production of (S)-1-[3,5-bis(trifluoromethyl)phenyl]ethanol ((S)-3,5-BTPE) with Candida tropicalis 104. In PBS buffer (0.2 M, pH 8.0) at 200 rpm and 30 °C, 79.5 g (Dry Cell Weight, DCW)/L C. tropicalis 104 maintained the same yield of 73.7% for the bioreduction of 3,5-bis(trifluoromethyl)acetophenone (BTAP) under an oxygen-deficient environment compared with oxygen-sufficient conditions, while substrate load increased 4.0-fold (from 50 mM to 200 mM). Furthermore, when choline chloride:trehalose (ChCl:T, 1:1 molar ratio) was introduced into the reaction system for its versatility of increasing cell membrane permeability and declining BTAP cytotoxicity to biocatalyst, the yields were further increased to 86.2% under 200 mM BTAP, or 72.9% at 300 mM BTAP. After the optimization of various reaction parameters involved in the bioreduction, and the amount of biocatalyst and maltose co-substrate remained 79.5 g (DCW)/L and 50 g/L, the S/C for the reduction elevated 6.3 times (3.8 mM/g versus 0.6 mM/g). By altering the respiratory pattern of the whole-cell biocatalyst and exploiting the ChCl:T-containing reaction system, the developed strategy exhibits an attractive potential for enhancing catalytic efficiency of whole-cell-mediated reduction, and provides valuable insight for the development of whole-cell catalysis.

1. Introduction

Asymmetric reduction is a direct and vital approach to acquiring enantiomerically enriched alcohols in chemical catalysis or biocatalysis, which has received much attention and been explored for decades [1,2,3]. Optically active isomer of 3,5-bis(trifluoromethyl)phenyl ethanol (3,5-BTPE) has been exhibited to be versatile in pharmaceutical synthesis, such as (R)-[3,5-bis(trifluoromethyl)phenyl]ethanol ((R)-3,5-BTPE) for compounding the NK1 antagonists [4,5], and (S)-3,5-BTPE is a crucial intermediate of lipid-lowering agent (compound 1, shown in Figure 1), which is capable of reducing the amount of PCSK9 protein and increasing the amount of low density lipoprotein-receptor [6,7]. Two primary methods of acquiring (S)-3,5-BTPE are known: chemical catalysis and biocatalysis. Compared to chemical synthesis, a biological approach exploits a cell or enzyme instead of a rare-metal-contained compound as catalyst, and avoids involving a good deal of organic/inorganic hydrogen donors, or even insecure H2 gas for hydrogen donors [8,9,10,11]. Obviously, acquiring chiral alcohols via biocatalysis conforms to the “green chemistry” principle. In consideration of the convenience and cost-effectiveness for practical application, the whole-cell catalyst holds immense potential compared to an enzyme catalyst [10,11,12].
Furthermore, in the whole-cell catalysis for bioprocess, the whole cell could be in growing and proliferation status [13,14], such as the biocatalysis of 2,3-butanediol production by B. licheniformis DSM 8785, or in resting status [12,15], such as (S)-3,5-BTPE production by Rhodococcus erythropolis XS1012. The cells will be in a buffer medium to be non-growing status for less metabolism and the enzyme with the ability for catalysis remains in the cell [16]. Thus, for the whole-cell catalysis in bioprocess, the resting status cell as catalyst will probably facilitate the bioprocess and promote catalytic efficiency.
For the potential medicinal value of (S)-3,5-BTPE, the biocatalytic asymmetric reduction of BTAP to (S)-isomer has been examined by a few groups [11,15], and the research on bioprocesses via whole-cell catalysts are few [12,15]. In the present study, C. tropicalis 104 was employed as a whole-cell catalyst in (S)-3,5-BTPE production, and this bioreduction was used as a model reaction. The isolate of C. tropicalis 104 was obtained in our previous work with excellent enantioselectivity [12].
For more efficient production by biocatalytic process, there are many process metrics to control, such as substrate conversion efficiency, catalyst recycling or ratio of substrate to catalyst (S/C) [17,18,19]. For example, a high S/C ratio is one of significant issues in highly efficient preparation via biocatalysis. Generally, an unsatisfactory S/C ratio is a bottleneck for scaled-up production in whole-cell catalysis compared with chemical catalysis and enzymatic catalysis [8,10,11,15]. There are several measures associated with the S/C ratio enhancement, such as improvement of biocatalyst activity, promoting cofactor regeneration and enhancement of membrane permeability in cells, or reducing inhibition of the substrate [20,21,22,23]. Many ways with respect to optimization of key parameters related to the S/C ratio have been exhibited [24,25,26,27]. For instance, by enhancing CO2 content to improve the photosynthesis of recombinant Synechocystis elongatus PCC 7942, the capacity of cofactor regeneration in the biocatalyst was efficaciously enhanced [25]. Altering the composition of air has obvious effects on photoautotrophic microorganisms in biocatalysis, but research on asymmetric reduction of aromatic ketone by nonphotoautotrophic microorganisms has been infrequent. In order to decline substrate inhibition to biocatalyst, generally, a water-organic biphase reaction system was established for substrate transient storage and separating the cells from substrate [28]. Recently, using ionic liquids (ILs) or deep-eutectic solvents (DESs) is a hot spot of research for enhancing mass-transfer efficiency. An IL 1-ethyl-3-methylimidazolium tosylate (Emim:TOS) containing reaction medium was established with the conversion yield doubled, because the IL in the reaction medium increased the mass-transfer efficiency for reducing aggregation of the R. erythropolis MA7213 in bioprocess [29]. Zhang, et al. reported that, by the treatment of Escherichia coli cells with choline chloride:urea to improve membrane permeability has led to the boost of the binding between intracellular enzyme and substrate [23]. Up to now, the function of deep-eutectic solvent (DES) or NADES for whole-cell catalysis was prevailingly focused on the enhancement of cell membrane permeability or substrate solubility in aqueous medium [21,23,30,31].
In this study, we examined the impact of oxygen supply on the model reaction for (S)-3,5-BTPE production mediated by C. tropicalis 104 resting cells, and found that performing the bioreduction under an oxygen-deficient environment led to an appealing improvement in the ratio of S/C. Moreover, by the introduction of ChCl:T into the reaction system, the bioreductive efficiency was evidently improved. It is the first report on establishing and exploiting an efficient integrated strategy of changing the respiratory pattern of a whole-cell catalyst, and constructing a multifunctional NADES-containing reaction system for challenging the asymmetric synthesis of chiral alcohols under high substrate loading. The developed mixed-strategy also provides a valuable insight for the scaled-up development of asymmetric reduction by a whole-cell biocatalyst.

2. Results and Discussion

2.1. Oxygen Control Means Selecting and Effect on (S)-3,5-BTPE Production by C. tropicalis 104

2.1.1. Developing an Oxygen Control Proposal for (S)-3,5-BTPE Production by C. tropicalis 104

Oxygen content makes a great difference to intracellular redox homeostasis such as NADH (Nicotinamide adenine dinucleotide) content. Using a microaerophilic environment to keep intracellular redox homeostasis has a signal effect on biocatalysis [14,24]. The shaker speed is relevant to oxygen supply and mass-transfer efficiency. According to the results in Figure 2, 200 rpm was the optimal shaker speed. First, as the rotating speed lowered, the yield reduced and the more biocatalyst precipitates could be observed. Because the mass-transfer efficiency is dependent on shaker speed, diffusion of the substrate at a lower rotating speed reduced the mass-transfer efficiency. Therewith, mass-transfer efficiency led to less contact of the biocatalyst and BTAP. Second, as the shaker speed rose over 200 rpm, the yield of (S)-3,5-BTPE did not keep increasing and even declined slightly, and the reasons for this result could be as follows: (1) there was an immoderately high physical force from high speed of the shaker, and cells could not endure the force and the cell integrity might be damaged [32]; (2) as the rotating speed rose over 200 rpm, superfluous oxygen within cells might give rise to oxidative stress, such as damage of the enzyme or DNA [33].
Nevertheless, we were inspired by the bioprocess that used the Bacillus sp.-mediated efficient reduction of acetoin to 2,3-butanediol by means of reducing the agitation speed or adding vitamin C/E [13,14]. To raise catalytic efficiency, the C. tropicalis 104-mediated asymmetric reduction of BTAP proceeded by limiting oxygen supply by settling the bioprocess in a conical flask with a stopper, and it worked. As the results showed in Figure 3, compared to the group without the stopper, a higher ratio of S/C was achieved under the oxygen-deficient condition, and the bioreductive period was shortened. The yield of the group with the stopper reached 90.5% at 0.6 mM/g of S/C in 6 h under 50 mM BTAP and 300 g/L cell concentration (79.5 g/L DCW). The product enantiomer excess (ee) for (S)-3,5-BTPE was over 99.9%. Comparatively, a yield of only 41.5% was observed under the oxygen-sufficient condition, with a product ee value over 99.9%. Furthermore, benefiting from the oxygen-deficient condition, a 73.7% yield was obtained at 200 mM BTAP, and a 4.0-fold increase in S/C for BATP reduction by C. tropicalis 104 in the energy-saving mode was evident.
However, although the efficiency of (S)-3,5-BTPE production via C. tropicalis 104 was enhanced by limiting the oxygen supply, the mechanism of the effects of above operations on the cells in the (S)-3,5-BTPE production was unknown.

2.1.2. Effect of Limited Oxygen on C. tropicalis 104 in Bioprocess

In an attempt to explain the remarkable effect of microaerobic conditions on improving the catalytic efficiency of C. tropicalis 104 mediated (S)-3,5-BTPE production, the intracellular NAD(P)H concentration of C. tropicalis 104 was detected because of the relevance between cofactor cycle and asymmetric reduction of prochiral ketone to chiral alcohol [34,35]. Firstly, the cofactor specificity of C. tropicalis 104 cells for BTAP reduction was estimated by the assay of OD340 nm variation as the indicator of NAD(P)H content in a cell-free extract from C. tropicalis 104 [36], and the results were illustrated in Table 1. The carbonyl reductase derived from C. tropicalis 104 cells for BTAP reduction emerged cofactor preference to NADH. As the results of intracellular NADH concentration shown in Table 2, compared with the group under the oxygen-sufficient condition, it was detected that the NADH concentration increased by 2.2 times under the oxygen-deficient condition.
First of all, NADH, which is consumed primarily in respiration to generate ATP, was mainly produced by the catabolism in cytoplasm and the tricarboxylic acid (TCA) cycle [37,38]. Secondly, as research has shown [39], when in an oxygen-abundant environment, the water-forming NADH oxidase (noxE) within the exogenous gene of noxE expressible recombinant Candida tropicalis No. 121 increased and would consume NADH. Then, for the explanation of Table 2, there might be a conjecture: the crude C. tropicalis 104 in our study might possess and be able to express the gene of noxE or an analogue naturally, and noxE or an analogue within the cell might be shut down for there was little oxygen for accepting hydride ions, as crude C. tropicalis 104 was settled in an oxygen-abundant environment. Spontaneously, as cofactor NADH content increased, the BTAP reduction to (S)-3,5-BTPE was further facilitated by carbonyl reductase in crude C. tropicalis 104. The other factors also may be related to NADH concentration enhancement. According to the research [40], while the oxygen content was reduced in cell, less NADH from glycolysis would be transferred into the electron transport chain in mitochondria, and the carbonyl reductase might have more available NADH for reduction.
In addition, the approach of exploiting crude C. tropicalis 104 under oxygen-deficient conditions to alter cell energy metabolism for enhancing catalytic efficiency was more convenient and cost-effective compared to the introduction of exogenous cofactor regeneration, direct addition of an exogenous cofactor or other cosubstrate to enhance cofactor regeneration [34,41].
Additionally, our results showed that altering the whole-cell biocatalyst’s intracellular redox homeostasis is an effective way to improve biocatalyst productivity in other crude strain. As shown in Table 3, when the reaction was under an oxygen-deficient environment compared with an oxygen-abundant environment as control, the yield of catalysis via C. tropicalis 104 increased from 68.8% to 91.3% with over 99.9% ee, and the yield of catalysis via G. candidum ZJPH1704 rose from 2.5% to 60.4% with ee increasing from 66.9% to over 99%. However, the yield of catalysis via R. erythropolis XS1012 was slightly decreased. The oxygen-deficient environment had positive effects on C. tropicalis 104 and Geotrichum candidum ZJPH1704, but a lesser effect on Rhodococcus erythropolis XS1012. Therefore, it seems that noxE [39] or isozyme was present in both C. tropicalis 104 and G. candidum ZJPH1704, but R. erythropolis XS1012 had a correlation with altering the whole-cell biocatalyst’s intracellular redox homeostasis in BTAP reduction to (S)-3,5-BTPE.

2.2. NADESs Selection and Effect on (S)-3,5-BTPE Production by C. tropicalis 104

2.2.1. Effect of Various NADESs on Membrane Permeability of C. tropicalis 104

Strengthening mass-transfer also exerted impact on catalytic efficiency. Some positive results were observed with the enhanced membrane permeability by introducing ionic liquids or DESs in the reaction medium for bioconversion catalyzed by microbial cells [30,31]. However, exploiting NADESs with multifunction in aqueous reaction system was rarely explored [30,42]. In this research, seven choline chloride-based NADESs were evaluated for their performances in the asymmetric reduction of BTAP. As shown in Figure 4, choline chloride:cysteine, ChCl:T (1:1, molar ratio), and choline chloride:isopropanol all increased the membrane permeability of C. tropicalis 104 in different degrees. Among these three NADESs, the values of OD260 nm and OD280 nm were different, especially ChCl:T (1:1)-added group for the increasing of OD260 nm and declining OD280 nm, which were opposite to other groups. Refer to the OD260 nm value in connection with nucleic acid content, it was found that the leak of nucleic acid was obvious in choline chloride:cysteine-added group, ChCl:T (1:1)-added group and choline chloride:isopropanol-added group, while the leaks of nucleic acid in other groups were slight or null. As the value of OD280 nm was concerned with protein content, the leaks of protein in choline chloride:cysteine- and choline:isopropanol-added groups were apparent, while the leaks of protein in other groups were lower than the control. Nevertheless, when undue leak of nucleic acid or intracellular protein occurred, the cells would be viability-declined or even be killed [30]. It is crucial to balance the membrane permeability and viability of the cells for biocatalysis.
Interestingly, the other groups of the results did not affect or even decrease the membrane permeability, especially for choline chloride:glycine and ChCl:T (1:2). There were some matters relevant to that. For choline chloride:glycine, as a component of the NADES, glycine could protect cells and maintain membrane potential, although the definite mechanism still remains unclear [43,44]; As for ChCl:T (1:2 in molar ratio), while the trehalose proportion in this NADES went up from 1/2 to 2/3, both the values of OD260 nm and OD280 nm declined due to the predominant protection effect of trehalose. Based on the results showed above, the NADES ChCl:T (1:1) was capable of not only providing the enhancement of membrane permeability, but also preventing the leak of intracellular proteins. Moreover, trehalose can restore acid-denatured myoglobin to its native structure [45,46]. Trehalose in the introduced NADES ChCl:T (1:1) might provide protection to the protein (for example, an enzyme). Our results provide some valuable insight for the multifunction of ChCl:T (1:1) NADES.

2.2.2. Effect of Various NADESs on Cell Viability of C. tropicalis 104

To estimate NADESs’ impact on the cell viability of C. tropicalis 104, cell viability was examined by means of detecting the residual glucose content after hatching with various NADES-treated C. tropicalis 104 cells. As shown in Figure 5, it seemed that all tested NADESs did not inhibit cell viability. With the addition of BTAP, however, cell viability declined in varying degrees. Obviously, the control group demonstrated that BTAP was highly toxic to the biocatalyst. Cell viability of groups treated by choline chloride:glycine, choline chloride:cysteine, ChCl:T (1:1), and ChCl:T (1:2) was higher than the control. Moreover, among all tested NADESs, ChCl:T (1:1) group gave the best cell viability, and approximately 3.0-fold higher than the control with 200 mM BTAP. However, though the choline chloride:cysteine increased cellular membrane permeability most among the DESs, the cell viability of its group was not the best. So, while the cellular membrane permeability was overdoing, the cell viability would decrease for damaging structures of cells. As seen in Figure 4, with the increased trehalose proportion in NADES, the protection effect of NADES will surpass its surfactant function. Because of that, ChCl:T (1:2) was blocked outside the cells for its poor capacity of increasing membrane permeability, and the enzymes in cells might be vulnerable to BTAP without the protection of trehalose. Thus, if the cellular membrane permeability was low, the cell viability surely would not be reduced by it, but the catalytic efficiency would decrease most likely for a reduced mass transfer rate of substrate. Hence, to be satisfactory to both sides of NADESs on membrane permeability and cell viability, the ChCl:T (1:1) was the most compatible among the examined NADESs.

2.2.3. Effect of NADESs on (S)-3,5-BTPE Production with C. tropicalis 104 under Oxygen-Deficient Environment

Encouraged by the foregoing positive effects of difunctional ChCl:T (1:1) for BTAP asymmetric reduction with C. tropicalis 104, ChCl:T (1:1) was determined for establishing a NADES-containing reaction system, and we combined this novel reaction medium with “energy-saving” mode in C. tropicalis 104 bioconversion. To verify the results of NADESs selection, as shown in Figure 6, seven NADESs were assessed for their performances in BTAP bioreduction. Except the choline chloride:ethanediol group, which gave roughly the same yield as control, the others increased the yields by different degrees owing to the enhanced membrane permeability or remaining cell viability, and the ChCl:T (1:1) group turned out to be the best.
As illustrated in Figure 7, the optimal content for NADES ChCl:T (1:1) addition was 1% (w/v). The reason for the result of the 1% (w/v) amount of ChCl:T (1:1) might be that while the dosage of ChCl:T (1:1) increased unduly, the membrane permeability of the cells probably went beyond the suitable level and might have weakened the vitality of the cells, or the protection from ChCl:T (1:1) overdid. As Figure 8 showed, the effect of ChCl:T (1:1) on (S)-3,5-BTPE production was better than the effects of one-component of ChCl:T (1:1) or a mixture of them. And it was probably because the presence of intermolecular forces [47] made the choline chloride and trehalose bind, and the trehalose would be able to enter the cell easily to protect the structure in the cell. What’s more, the data in Figure 7 expounded that when C. tropicalis 104 resting cells were situated monolithically in an oxygen-deficient condition, or catalyzed in a 1% (w/v) NADES-containing reaction medium, the yields of 73.8% or 62.1% were obviously lower than the yield of 86.2% under both of the conditions above.
Furthermore, under the conditions of 30 °C and 200 rpm shaker speed, and in the established ChCl:T (1:1) containing reaction medium, which was composed of 300 g/L (wet cell weight) cell, 50 g/L maltose, 1% (w/v) ChCl:T (1:1), 0.2 M PBS (pH 8.0), as Figure 9 showed, BTAP concentration further upped from 200 mM to 300 mM, with a yield of 72.9%, which benefited from enhanced membrane permeability and declining cytotoxicity of BTAP to the biocatalyst based on the multifunctional ChCl:T (1:1). For the presence of ChCl:T (1:1) with multifunction of enhancing membrane permeability for mass transfer efficiency and protecting cells from 3,5-BTAP cytotoxicity, the ratio of S/C was further enhanced from 2.5 mM/g to 3.8 mM/g.

3. Materials and Methods

3.1. Materials

The source of BTAP (purity > 99%) was Beijing Golden Olive Co., Ltd., China. (R)-3,5-BTPE (purity > 99%) and (S)-3,5-BTPE (purity > 99%) were provided by Capot Chemical Co., Ltd., Hangzhou, China. NADH (BC grade), NADPH (BC grade), ADH (activity ≥300 U/mg protein) and MTT (BC grade) were purchased from Sangon Biotech Co., Ltd., Shanghai, China. Phenazine ethosulfate (PES, BR grade) was bought from Yuanye Shengwu Co., Ltd., Shanghai, China. DESs (purity > 98%) were synthesized and supplied by Shanghai Fujie Chemical Co., Ltd., China. All other reagents and chemicals were obtained from commercial sources.

3.2. Methods

3.2.1. Microorganism and Cultivation

C. tropicalis 104 cells were incubated in seed medium for 12 h at 200 rpm and 30 °C, and subsequently cultured in fermentation medium under the same conditions for 20 h. As in our previous work [12], both the seed medium and fermentation medium consisted of 47 g/L glucose, 13 g/L yeast extract, 0.4 g/L MgSO4·7H2O, 3 g/L NH4Cl, 1 g/L KH2PO4 and 1 g/L K2HPO4 with initial pH 6.5. The culture conditions for G. candidum ZJPH1704 strain and R. erythropolis XS1012 see supporting information “S1”.

3.2.2. General Procedure for Asymmetric Bio-Reduction of BTAP to (S)-3,5-BTPE

After 20 h culture of C. tropicalis 104, cells were harvested by centrifugation under 4500 rpm for 10 min at 4 °C, and washed twice with 10 mL potassium phosphate buffer (0.2 M, pH 8.0). Afterward, 300 g/L (wet cell weight) of the collected cells were resuspended in 10 mL potassium phosphate buffer (0.2 M, pH 8.0), then we then conducted the BTAP reductive reaction with 50 g/L maltose as cosubstrate, as in our previous work [12]. All trials were performed in triplicate.

3.2.3. Investigation of Cofactor Specificity

Cofactor specificity of carbonyl reductase from C. tropicalis 104 was investigated as follows: assay was conducted at 30 °C by measuring the variation in the absorbance at 340 nm. The definition of enzyme activity was that 1 μmol of NADH or NADPH produced or consumed per minute under the assay conditions. The molar extinction coefficient of NAD(P)H was 6220 L·mol−1·cm−1. The protein concentration was determined by the Bradford method according to the report [36]. All trials were performed in triplicate.

3.2.4. Assays of Intracellular NADH Concentration

First, the extraction of NADH proceeded. One milliliter of bio-converted solution was mixed with 1 mL pre-cooled (−20 °C) extractive solution comprised of 50% (v/v) absolute ethyl alcohol and 50% (v/v) 2.0 M KOH for quitting the reaction, and the mixture-containing tubes were immediately put into 70 °C water-bath for 7 min to obtain NADH. Then, after centrifugation at 12,000 rpm and 4 °C for 10 min, the supernatants were collected as samples for further assay. Based on literature [34], samples were detected at 570 nm and 30 °C, and checked every minute for 10 min. The slope of time-varying absorbance could be worked out. For example, in one of the tests, the slope of the control was 0.0109 and that of the test group was 0.0311 (see Figure S1b,c). Then the slope was put into a NADH standard curve, such as the curve in one of the tests that y = 0.0009x + 0.0049 (Figure S1a) to get the intracellular NADH concentration. All trials were performed in triplicate.

3.2.5. Assays of Membrane Permeability

In 10 mL potassium phosphate buffer (0.2 M, pH 8.0) which contained 1% (w/v) NADES, 300 g/L (wet cell weight) of C. tropicalis 104 cells was resuspended in the buffer and hatched at 200 rpm and 30 °C. After a 24 h hatch, the cell-containing buffer was centrifuged at 8000 rpm, and the collected supernatant was detected at OD260 nm and OD280 nm to estimate the leaked nucleic acid and protein content, respectively [48]. All trials were performed in triplicate.

3.2.6. Assays of Cell Viability

By detecting the amount of glucose consumed by cells pretreated in various NADES-containing buffer systems, the viability of C. tropicalis 104 cells was assessed. The operation was as follows: 300 g/L (wet cell weight) cells were pre-incubated at 30 °C, 200 rpm for 24 h in various NADES (1%, w/v)-phosphate buffer (0.2 M, pH 8.0) medium and in the presence of 200 mM BTAP or not, then treated cells were collected and hatched in 30 g/L glucose solution at 30 °C, 200 rpm for 3 h. Then, the residual glucose concentrations in the glucose solution were assayed by using a biological sensing analyzer. All trials were performed in triplicate.

3.2.7. GC Analysis for (S)-3,5-BTPE and BTAP

After reaction, 40 mL ethyl acetate, which contained 4.4 mM dodecane, was added into the reaction system to terminate the reaction, and extract the resulting (S)-3,5-BTPE and residual BTAP. Then, 1 mL extraction-containing ethyl acetate was taken and dehydrated with anhydrous sodium sulfate. The produced (S)-3,5-BTPE and residual BTAP were detected on Agilent GC-7820A system with a flame ionization detector [36]. GC chiral column type was Varian CP-Chirasil-Dex (25 m × 0.25 mm × 0.25 μm, df = 0.25).
The detection conditions: the injection volume was 1 μL, and the split ratio was 15:1. Nitrogen carrier gas flowed at 2 mL·min−1 flux. The injection port and detector both were at 250 °C, and the column temperature was maintained at 80 °C for 2 min, then risen up to 125 °C at the rate of 5 °C·min−1. The retention times were 4.1 min for BTAP, 8.8 min for dodecane, 10.1 min for (S)-3,5-BTPE, and 10.6 min for (R)-3,5-BTPE. All trials were performed in triplicate.

4. Conclusions

In this study, the (S)-3,5-BTPE production mediated by crude C. tropicalis 104 in ChCl:T -containing micro-aerobic catalytic medium system, led to an exalting increase in the ratio of S/C without genetic manipulation for target carbonyl reductase activity of cells, addition of exogenous cofactor, or more amount demand of co-substrate for coenzyme regeneration. It was found that the enhancement of catalytic efficiency is relevant to the fortifying of intracellular cofactor recycle in C. tropicalis 104 resting cells by limiting oxygen supply during the bio-reductive reaction. Moreover, the capacity of introduced ChCl:T NADESs into reaction system was multifunctional for not only increasing the cell membrane permeability of C. tropicalis 104, but also declining the cytotoxicity of BTAP to biocatalyst, and thus improving bio-reductive efficiency. It is the first report on establishing and exploiting a feasible integrated strategy of altering respiratory pattern of resting whole-cell catalyst, and constructing a multifunctional NADES-containing reaction system for high-efficient synthesis of chiral aromatic alcohol. The developed combinational strategy also provides a novel “energy-saving” approach to improve the catalytic efficiency of (S)-3,5-BTPE production, and valuable insight for the development of asymmetric reduction by whole-cell biocatalyst.

Supplementary Materials

The following are available online, S1: Microorganism and Culture Conditions, Figure S1: (a) Standard curve of NADH; (b) OD570 nm variation of sample in 6 h under oxygen-abundant condition; (c) OD 570 nm variation of sample in 6 h under oxygen-deficient condition. Figure S2: Chiral analysis of the bio-converted sample: (a) GC analysis for standards of BTAP, (S)-3,5-BTPE and (R)-3,5-BTPE with chiral Varian CP-Chirasil-Dex CB column; (b) GC chiral analysis of the bio-converted sample by C. tropicalis 104; (c) GC chiral analysis of the bio-converted sample by G. candidum ZJPH1704; (d) GC chiral analysis of the bio-converted sample by R. erythropolis XS1012. Figure S3: 1H NMR Spectroscopy of the product by C. tropicalis 104. Figure S4: 13C NMR Spectroscopy of the product by C. tropicalis 104. Figure S5: 1H NMR Spectroscopy of ChCl: T (1:1).

Author Contributions

Conceptualization, P.W.; Methodology, P.W.; Software, Z.Z.; Validation, S.B. and N.Y.; Investigation, Z.Z.; Resources, P.W.; Data curation, Z.Z.; Writing—original draft preparation, Z.Z.; Writing—review and editing, Z.Z. and P.W.; Project administration, P.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by grants from the National Natural Science Foundation of China (No. 21676250), and the Natural Science Foundation of Zhejiang Province, China (LY16B060010).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fabián, G.P.; Liliana, B.F.; José, H.A.; Diego, G.S. Whole cells as biocatalysts in organic transformations. Molecules 2018, 23, 1265. [Google Scholar] [CrossRef] [Green Version]
  2. Liu, Z.-Q.; Yin, H.-H.; Zhang, X.-J.; Zhou, R.; Wang, Y.-M.; Zheng, Y.-G. Improvement of carbonyl reductase activity for the bioproduction of tert-butyl (3R,5S)-6-chloro-3,5-dihydroxyhexanoate. Bioorganic Chem. 2018, 80, 733–740. [Google Scholar] [CrossRef] [PubMed]
  3. Koto, H.; Shinjiro, T.; Tatsuya, T. Asymmetric aerobic oxidation of secondary alcohols catalyzed by poly(N-vinyl-2-pyrrolidone)-stabilized gold clusters modified with cyclodextrin derivatives. Chem. Commun. 2019, 55, 15033. [Google Scholar] [CrossRef]
  4. Christopher, S.; Nadia, M.J.R. Progress in the development of neurokinin antagonists. Annu. Rep. Med. Chem. 1999, 34, 51–60. [Google Scholar] [CrossRef]
  5. Böhm, H.-J.; Banner, D.; Bendels, S.; Kansy, M.; Kuhn, B.; Müller, K.; Obst-Sander, U.; Stahl, M. Fluorine in Medicinal Chemistry. ChemBioChem 2004, 5, 637–643. [Google Scholar] [CrossRef]
  6. Murakami, T.; Murakami, K.; Ogiya, T.; Shibuya, K. Agent for Inhibiting Expression of NFKBIL1, ITGAZ, FCER1A, PHACTR1, and/or IRF5 mRNA, and Agent for Preventing and/or Treating Immune Disease. Patent Number JP 2013112674, 29 May 2013. [Google Scholar]
  7. Tadaaki, O.; Takaeshi, M.; Katsutoshi, M.; Koichi, Y.; Taichi, K. Optically Active Dibenzylamine Derivative, and Method for Preparing Thereof. U.S. Patent 201,302,258,14A, 29 August 2013. [Google Scholar]
  8. Szőllősi, G.; Kolcsár, V.J. Highly Enantioselective Transfer Hydrogenation of Prochiral Ketones Using Ru(II)-Chitosan Catalyst in Aqueous Media. ChemCatChem 2018, 11, 820–830. [Google Scholar] [CrossRef] [Green Version]
  9. Yu, S.; Ma, S. Allenes in Catalytic Asymmetric Synthesis and Natural Product Syntheses. Angew. Chem. Int. Ed. 2012, 51, 3074–3112. [Google Scholar] [CrossRef]
  10. Diya, A.; Safaa, A.; Francesca, P. Extreme halophilic alcohol dehydrogenase mediated highly efficient syntheses of enantiopure aromatic alcohols. Org. Biomol. Chem. 2017, 15, 9169–9175. [Google Scholar] [CrossRef] [Green Version]
  11. Pollard, D.; Truppo, M.; Pollard, J.; Chen, C.-Y.; Moore, J. Effective synthesis of (S)-3,5-bistrifluoromethylphenyl ethanol by asymmetric enzymatic reduction. Tetrahedron Asymmetry 2006, 17, 554–559. [Google Scholar] [CrossRef]
  12. Wang, P.; Su, H.; Sun, L.; He, J.; Lü, Y. Asymmetric Bioreduction of 3,5-Bis(trifluoromethyl) Acetophenone to Its Corresponding Alcohol by Candida tropicalis. Chin. J. Chem. Eng. 2011, 19, 1028–1032. [Google Scholar] [CrossRef]
  13. Dai, J.-J.; Cheng, J.-S.; Liang, Y.-Q.; Jiang, T.; Yuan, Y.-J. Regulation of extracellular oxidoreduction potential enhanced (R,R)-2,3-butanediol production by Paenibacillus polymyxa CJX518. Bioresour. Technol. 2014, 167, 433–440. [Google Scholar] [CrossRef]
  14. Benedikt, H.; Robin, L.; Hannah, T.; Lars, R.; Jochen, B. Shake flask methodology for assessing the influence of the maximum oxygen transfer capacity on 2,3-butanediol production. Microb. Cell Fact. 2019, 18, 78. [Google Scholar] [CrossRef]
  15. Chen, H.J.; Qian, F.; Lin, H.; Wang, P.; Chen, H.; Chen, W. Using Choline Chloride-Based DESs as Co-Solvent for 3,5-Bis(trifluoromethyl) Acetophenone Bioreduction with Rhodococcus erythropolis XS1012. Catalysts 2019, 10, 30. [Google Scholar] [CrossRef] [Green Version]
  16. Hui, L.; Bi-Shuang, C.; Fayene, D.S.; Lan, L. A comparative study on asymmetric reduction of ketones using the growing and resting cells of marine-derived fungi. Mar. Drugs 2018, 16, 62. [Google Scholar] [CrossRef] [Green Version]
  17. Wu, T.-T.; Zhao, X.-J.; Yang, R.-L.; Bilal, M.; Wang, Z.-Y.; Luo, H.-Z.; Xu, N.-N.; Nie, Z.-K. Catalytic Performance of a Robust Whole-Cell Biocatalyst in the Regioselective Synthesis of Helicid Esters Under Optimized Processing Conditions. Catal. Lett. 2020, 1–8. [Google Scholar] [CrossRef]
  18. Zhao, Q.; Ansorge-Schumacher, M.B.; Haag, R.; Wu, C. Living whole-cell catalysis in compartmentalized emulsion. Bioresour. Technol. 2019, 295, 122221. [Google Scholar] [CrossRef] [PubMed]
  19. Xu, G.-P.; Wang, H.-B.; Wu, Z.-L. Efficient bioreductive production of (S)-N-Boc-3-hydroxypiperidine using ketoreductase ChKRED03. Process. Biochem. 2016, 51, 881–885. [Google Scholar] [CrossRef]
  20. Klibanov, A.M. Improving enzymes by using them in organic solvents. Nature 2001, 409, 241–246. [Google Scholar] [CrossRef]
  21. Xiao, Z.-J.; Du, P.-X.; Lou, W.-Y.; Wu, H.; Zong, M.-H. Using water-miscible ionic liquids to improve the biocatalytic anti-Prelog asymmetric reduction of prochiral ketones with whole cells of Acetobacter sp. CCTCC M209061. Chem. Eng. Sci. 2012, 84, 695–705. [Google Scholar] [CrossRef]
  22. Luo, W.; Deng, X.-X.; Huo, J.; Ruan, T.; Gong, Z.; Yan, J.-B.; Yang, Z.-H.; Quan, C.; Cui, Z.-F. Strengthening NADPH Regeneration for Improving Photo-biocatalytic Ketones Asymmetric Reduction Reaction by Synechocystis Through Overexpression of FNR. Catal. Lett. 2018, 148, 1714–1722. [Google Scholar] [CrossRef]
  23. Yang, X.; Jiang, L.; Jia, Y.; Hu, Y.; Xu, Q.; Xu, X.; Huang, H. Counteraction of Trehalose on N, N-Dimethylformamide-Induced Candida rugosa Lipase Denaturation: Spectroscopic Insight and Molecular Dynamic Simulation. PLoS ONE 2016, 11, e0152275. [Google Scholar] [CrossRef] [PubMed]
  24. Lukito, B.R.; Wu, S.; Saw, H.J.J.; Li, Z. One-Pot Production of Natural 2-Phenylethanol from L -Phenylalanine via Cascade Biotransformations. ChemCatChem 2019, 11, 831–840. [Google Scholar] [CrossRef]
  25. Hussain, W.; Pollard, D.J.; Lye, G.J. The bioreduction of a beta-tetralone to its corresponding alcohol by the yeast Trichosporon capitatum MY1890 and bacterium Rhodococcus erythropolis MA7213 in a range of ionic liquids. Biocatal. Biotransfor. 2007, 25, 443–452. [Google Scholar] [CrossRef]
  26. Liu, J.; Li, H.; Zhao, G.; Caiyin, Q.; Qiao, J. Redox cofactor engineering in industrial microorganisms: Strategies, recent applications and future directions. J. Ind. Microbiol. Biotechnol. 2018, 45, 313–327. [Google Scholar] [CrossRef]
  27. Annesha, S.; Avinash, V.S.; Sujata, V.S.; Pramod, P.W. The effect of CO2 in enhancing photosynthetic cofactor recycling for alcohol dehydrogenase mediated chiral synthesis in cyanobacteria. J. Biotechnol. 2019, 289, 1–6. [Google Scholar] [CrossRef]
  28. Zhang, F.; Zhu, C.-T.; Peng, Q.-M.; Wang, F.-Q.; Sheng, S.; Wu, Q.-Y.; Wang, J. Enhanced permeability of recombinant E. coli cells with deep eutectic solvent for transformation of rutin. J. Chem. Technol. Biotechnol. 2019, 95, 384–393. [Google Scholar] [CrossRef]
  29. Vicente, G.F.; Caroline, E.P. Deep eutectic solvents for redox biocatalysis. J. Biotechnol. 2019, 293, 24–35. [Google Scholar] [CrossRef]
  30. Mai, N.L.; Koo, Y.-M. Whole-Cell Biocatalysis in ionic liquids. In Advances in Biochemical Engineering/Biotechnology; Springer: Cham, Switzerland, 2018; Volume 168, pp. 105–132. [Google Scholar] [CrossRef]
  31. Li, J.; Wang, P.; He, Y.-S.; Zhu, Z.-R.; Huang, J. Toward Designing a Novel Oligopeptide-Based Deep Eutectic Solvent: Applied in Biocatalytic Reduction. ACS Sustain. Chem. Eng. 2018, 7, 1318–1326. [Google Scholar] [CrossRef]
  32. Priyanka, G.; Ismadi, M.-Z.; Paul, J.V.; Andreas, F.; Sameer, J.; Jayesh, B.; Kerry, H. Optimization of agitation speed in spinner flask for microcarrier structural integrity and expansion of induced pluripotent stem cells. Cytotechnology 2016, 68, 45–59. [Google Scholar] [CrossRef] [Green Version]
  33. Jennifer, S.S.; Nikolaos, P.; Edmund, M. Carbonyl reductase sniffer from the model organism daphnia: Cloning, substrate determination and inhibitory sensitivity. Chem. Bio. Interact. 2019, 307, 29–36. [Google Scholar] [CrossRef]
  34. Zhang, Y.; Huang, Z.; Du, C.; Li, Y.; Cao, Z. Introduction of an NADH regeneration system into Klebsiella oxytoca leads to an enhanced oxidative and reductive metabolism of glycerol. Metab. Eng. 2009, 11, 101–106. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, P.; Cai, J.-B.; Ouyang, Q.; He, J.-Y.; Su, H.-Z. Asymmetric biocatalytic reduction of 3,5-bis(trifluoromethyl) acetophenone to (1R)-[3,5-bis(trifluoromethyl)phenyl] ethanol using whole cells of newly isolated Leifsonia xyli HS0904. Appl. Microbiol. Biotechnol. 2011, 90, 1897–1904. [Google Scholar] [CrossRef]
  36. Li, J.; Wang, P.; He, J.-Y.; Huang, J.; Tang, J. Efficient biocatalytic synthesis of (R)-[3,5-bis(trifluoromethyl)phenyl] ethanol by a newly isolated Trichoderma asperellum ZJPH0810 using dual cosubstrate: Ethanol and glycerol. Appl. Microbiol. Biotechnol. 2013, 97, 6685–6692. [Google Scholar] [CrossRef] [PubMed]
  37. Chou, H.-H.; Marx, C.J.; Sauer, U. Transhydrogenase Promotes the Robustness and Evolvability of E. coli Deficient in NADPH Production. PLoS Genet. 2015, 11, e1005007. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Vemuri, G.N.; Eiteman, M.A.; McEwen, J.E.; Olsson, L.; Nielsen, J. Increasing NADH oxidation reduces overflow metabolism in Saccharomyces cerevisiae. Proc. Natl. Acad. Sci. USA 2007, 104, 2402–2407. [Google Scholar] [CrossRef] [Green Version]
  39. Li, B.; Liu, Y.; Wang, L.; Hong, J.; Chen, Y.; Ying, H. RNA accumulation in Candida tropicalis based on cofactor engineering. FEMS Yeast Res. 2019, 19, 028. [Google Scholar] [CrossRef] [Green Version]
  40. Christer, L.; Inga-Lill, P.; Ricky, A.; Michel, R.; Lennart, A.; Lena, G. The importance of the glycerol 3-phosphate shuttle during aerobic growth of Saccharomyces cerevisiae. Yeast 1998, 14, 347–357. [Google Scholar] [CrossRef]
  41. He, Y.-C.; Zhang, D.-P.; Tao, Z.-C.; Lu, Y.; Ding, Y.; Liu, F.; Zhu, Z.-Z.; Rui, H.; Zheng, G.-W.; Zhang, X. Improved biosynthesis of ethyl (S)-4-chloro-3-hydroxybutanoate by adding l-glutamine plus glycine instead of NAD+ in β-cyclodextrin–water system. Bioresour. Technol. 2015, 182, 98–102. [Google Scholar] [CrossRef]
  42. Ou, X.-Y.; Wu, X.-L.; Peng, F.; Xu, P.; Zhang, S.-Y.; Zong, M.-H.; Lou, W.-Y. Highly efficient asymmetric reduction of 2-octanone in biphasic system by immobilized Acetobacter sp. CCTCC M209061 cells. J. Biotechnol. 2019, 299, 37–43. [Google Scholar] [CrossRef]
  43. Weinberg, J.M.; Bienholz, A.; Venkatachalam, M.A. The role of glycine in regulated cell death. Cell. Mol. Life Sci. 2016, 73, 2285–2308. [Google Scholar] [CrossRef] [Green Version]
  44. Chen, J.; Liu, X.; Mandel, L.J.; Schnellmann, R.G. Progressive Disruption of the Plasma Membrane during Renal Proximal Tubule Cellular Injury. Toxicol. Appl. Pharmacol. 2001, 171, 1–11. [Google Scholar] [CrossRef] [PubMed]
  45. Mitsuhiro, H.; Satoshi, A.; Hiroki, I.; Shinichi, T.; Noboru, O.; Noriyuki, I.; Nobutaka, S. Restoration of myoglobin native fold from its initial state of amyloid formation by trehalose. J. Phy. Chem. B 2018, 122, 11962–11968. [Google Scholar] [CrossRef]
  46. Patist, A.; Zoerb, H. Preservation mechanisms of trehalose in food and biosystems. Colloids Surf. B Biointerfaces 2005, 40, 107–113. [Google Scholar] [CrossRef] [PubMed]
  47. Xin, R.; Qi, S.; Zeng, C.; Khan, F.I.; Yang, B.; Wang, Y. A functional natural deep eutectic solvent based on trehalose: Structural and physicochemical properties. Food Chem. 2017, 217, 560–567. [Google Scholar] [CrossRef]
  48. Wang, N.-Q.; Li, J.; Sun, J.; Huang, J.; Wang, P. Bioreduction of 3,5-bis(trifluoromethyl)acetophenone using ionic liquid as a co-solvent catalyzed by recombinant Escherichia coli cells. Biochem. Eng. J. 2015, 101, 119–125. [Google Scholar] [CrossRef]
Sample Availability: Samples of (S)-3,5-BTPE are available from the authors.
Molecules 25 01855 g001 550
Figure 1. Sketch of synthesis compound 1 of lipid-lowering agent.
Figure 1. Sketch of synthesis compound 1 of lipid-lowering agent.
Molecules 25 01855 g001
Molecules 25 01855 g002 550
Figure 2. Effect of different shaker speeds on yield and product ee value. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet weight), 50 mM 3,5-bis(trifluoromethyl)acetophenone (BTAP), 50 g/L maltose, 30 °C, reaction for 30 h.
Figure 2. Effect of different shaker speeds on yield and product ee value. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet weight), 50 mM 3,5-bis(trifluoromethyl)acetophenone (BTAP), 50 g/L maltose, 30 °C, reaction for 30 h.
Molecules 25 01855 g002
Molecules 25 01855 g003 550

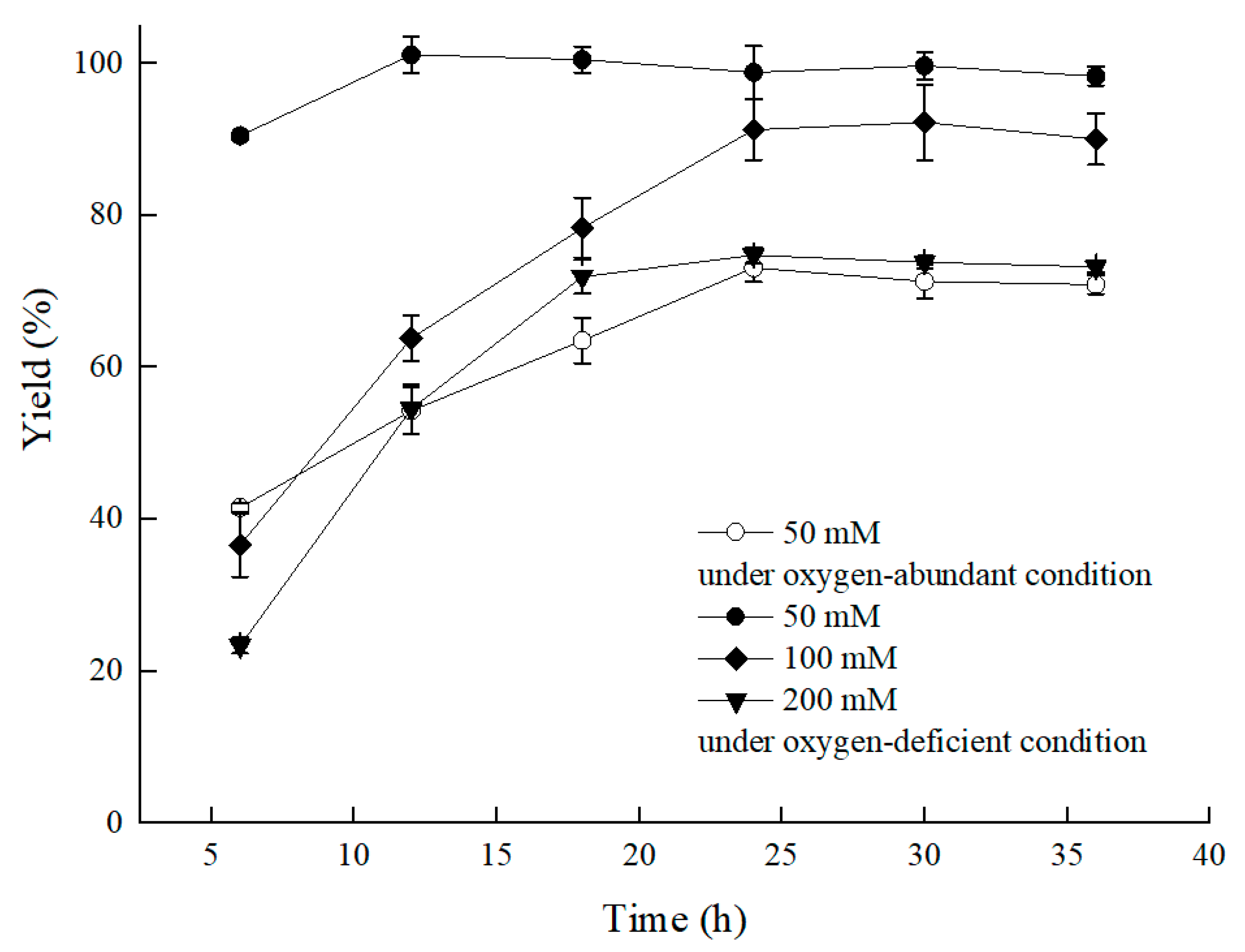

Figure 3. Effect of substrate concentration on the asymmetric reduction of BTAP under oxygen-deficient environment. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet weight), a certain amount of BTAP, 50 g/L maltose, 30 °C, 200 rpm, reaction for 36 h. Except control group, the others were all under oxygen-deficient environment.
Figure 3. Effect of substrate concentration on the asymmetric reduction of BTAP under oxygen-deficient environment. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet weight), a certain amount of BTAP, 50 g/L maltose, 30 °C, 200 rpm, reaction for 36 h. Except control group, the others were all under oxygen-deficient environment.
Molecules 25 01855 g003
Molecules 25 01855 g004 550
Figure 4. Effect of various NADESs on membrane permeability of C. tropicalis 104 cells. Reaction conditions: 0.2 M phosphate buffer (pH 8.0), 1% (w/v) various NADESs, and 300 g/L C. tropicalis 104, 30 °C and 200 rpm for 6 h.
Figure 4. Effect of various NADESs on membrane permeability of C. tropicalis 104 cells. Reaction conditions: 0.2 M phosphate buffer (pH 8.0), 1% (w/v) various NADESs, and 300 g/L C. tropicalis 104, 30 °C and 200 rpm for 6 h.
Molecules 25 01855 g004
Molecules 25 01855 g005 550
Figure 5. Effect of various NADESs on cell viability of C. tropicalis 104 cells. Conditions: 300 g/L cells (wet cell weight) were exposed to buffer systems comprising 1% (w/v) of various NADESs and potassium phosphate buffer (0.2 M, pH 8.0), with and without 200 mM BTAP. The cell viability of C. tropicalis 104 cells was taken as 100% in buffer systems without the addition of BTAP.
Figure 5. Effect of various NADESs on cell viability of C. tropicalis 104 cells. Conditions: 300 g/L cells (wet cell weight) were exposed to buffer systems comprising 1% (w/v) of various NADESs and potassium phosphate buffer (0.2 M, pH 8.0), with and without 200 mM BTAP. The cell viability of C. tropicalis 104 cells was taken as 100% in buffer systems without the addition of BTAP.
Molecules 25 01855 g005
Molecules 25 01855 g006 550
Figure 6. Effect of various NADESs on yield and product ee under oxygen-deficient environment. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), 200 mM BTAP, 50 g/L maltose, 30 °C, 200 rpm, reaction for 24 h. The amount of NADESs was all added by 1% (w/v).
Figure 6. Effect of various NADESs on yield and product ee under oxygen-deficient environment. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), 200 mM BTAP, 50 g/L maltose, 30 °C, 200 rpm, reaction for 24 h. The amount of NADESs was all added by 1% (w/v).
Molecules 25 01855 g006
Molecules 25 01855 g007 550
Figure 7. Effect of ChCl:T (1:1) amount on yield and product ee under oxygen-deficient or oxygen-abundant environment. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), 200 mM BTAP, 50 g/L maltose, adding certain amount (w/v) of ChCl:T (1:1), 30 °C, 200 rpm, reaction for 24 h.
Figure 7. Effect of ChCl:T (1:1) amount on yield and product ee under oxygen-deficient or oxygen-abundant environment. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), 200 mM BTAP, 50 g/L maltose, adding certain amount (w/v) of ChCl:T (1:1), 30 °C, 200 rpm, reaction for 24 h.
Molecules 25 01855 g007
Molecules 25 01855 g008 550
Figure 8. Effect of different components of ChCl:T (1:1) on yield and product ee under oxygen-deficient environment. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), 200 mM BTAP, 50 g/L maltose, 30 °C, 200 rpm, reaction for 24 h. Except “control”, the other groups adding 1% (w/v) choline chloride, 1% (w/v) trehalose or 1% (w/v) ChCl:T (1:1), respectively.
Figure 8. Effect of different components of ChCl:T (1:1) on yield and product ee under oxygen-deficient environment. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), 200 mM BTAP, 50 g/L maltose, 30 °C, 200 rpm, reaction for 24 h. Except “control”, the other groups adding 1% (w/v) choline chloride, 1% (w/v) trehalose or 1% (w/v) ChCl:T (1:1), respectively.
Molecules 25 01855 g008
Molecules 25 01855 g009 550
Figure 9. Effect of substrate concentration on the asymmetric reduction under oxygen-deficient environment with NADES-containing system. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), a certain amount of BTAP, 50 g/L maltose, 30 °C, 200 rpm, reaction for 24 h. Except “200 mM BTAP” group and “300 mM BTAP” group, the “ChCl:T (1:1) containing and 200 mM BTAP” group and “ChCl:T (1:1) containing and 300 mM BTAP” group were under oxygen-deficient environment and reacted in NADES-containing system.
Figure 9. Effect of substrate concentration on the asymmetric reduction under oxygen-deficient environment with NADES-containing system. Reaction conditions: 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), a certain amount of BTAP, 50 g/L maltose, 30 °C, 200 rpm, reaction for 24 h. Except “200 mM BTAP” group and “300 mM BTAP” group, the “ChCl:T (1:1) containing and 200 mM BTAP” group and “ChCl:T (1:1) containing and 300 mM BTAP” group were under oxygen-deficient environment and reacted in NADES-containing system.
Molecules 25 01855 g009
Table
Table 1. Investigation of the cofactor specificity.
Table 1. Investigation of the cofactor specificity.
SubstrateNADHNADPHSpecific Activity (U/g)
++−0.37 ± 0.04
+−+none
Reaction conditions: 1 mL cell-free extract (24 mg of total protein) was added into 1 mL potassium phosphate buffer (0.2 M, pH 8.0) containing 50 mM BTAP, with the addition of 50 g/L maltose, 0.3 mM NADH or NADPH. + reagents or chemicals added, − not added.
Table
Table 2. Assays of yield and NADH content under oxygen-deficient environment.
Table 2. Assays of yield and NADH content under oxygen-deficient environment.
GroupNADH Content μmol/g Cell (DCW) bYield (%) aee (%) a
Control26.9 ± 0.0141.54 ± 0.58>99.9
Oxygen-deficient environment40.3 ± 0.3390.47 ± 0.54>99.9
Reaction conditions: a 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), 50 mM BTAP, 50 g/L maltose, 30 °C, 200 rpm, in conical flask without or with stopper, reaction for 6 h. b After 6 h reaction and cells separation from reaction system, refer to the “3.2.4” method, the intracellular NADH was extracted and was put into 1800 μL bicine buffer (0.1 M, pH 8.0) containing 200 μL EDTA (Ethylene diamine tetraacetic acid, 40 mM), 100 μL MTT (3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2-H-tetrazolium bromide, 12.068 mM), 75 μL absolute ethyl alcohol, 200 μL PES (Phenazine ethosulfate), and 100 U ADH (Alcohol dehydrogenase). The mixture was detected at 570 nm under 30 °C for 10 min.
Table
Table 3. Yield of different species of strain under oxygen-deficient environment.
Table 3. Yield of different species of strain under oxygen-deficient environment.
ControlOxygen-Deficient Environment
CatalystYield (%)ee (%)Yield (%)ee (%)
C. tropicalis 104 a68.8 ± 3.54>99.991.3 ± 1.84>99.9
G. candidum ZJPH1704 b2.5 ± 1.2366.9 ± 0.8460.4 ± 2.91>99.0
R. erythropolis XS1012 c78.7 ± 1.69>99.974.4 ± 3.55>99.9
Reaction conditions: a 10 mL potassium phosphate buffer (0.2 M, pH 8.0), 300 g/L cells (wet cell weight), 50 mM BTAP, 50 g/L maltose, reaction at 30 °C, 200 rpm for 24 h, under oxygen-deficient environment or not. b 10 mL Tris-HCl buffer (0.2 M, pH 8.0), 200 g/L cells (wet cell weight), 50 mM BTAP, 50 g/L glucose, reaction at 30 °C, 200 rpm for 24 h, under oxygen-deficient environment or not. c 10 mL Na2HPO4-KH2PO4 buffer (0.2 M, pH 8.0), 250 g/L cells (wet cell weight), 20 mM BTAP, 50 g/L glucose, reaction at 30 °C, 200 rpm for 24 h, under oxygen-deficient environment or not.
