Riley Oxidation of Heterocyclic Intermediates on Paths to Hydroporphyrins—A Review

Abstract

Riley oxidation of advanced heterocyclic intermediates (dihydrodipyrrins and tetrahydrodipyrrins) is pivotal in routes to synthetic hydroporphyrins including chlorins, bacteriochlorins, and model (bacterio)chlorophylls. Such macrocycles find wide use in studies ranging from energy sciences to photomedicine. The key transformation (–CH₃ → –CHO) is often inefficient, however, thereby crimping the synthesis of hydroporphyrins. The first part of the review summarizes 12 representative conditions for Riley oxidation across diverse (non-hydrodipyrrin) substrates. An interlude summarizes the proposed mechanisms and provides context concerning the nature of various selenium species other than SeO₂. The second part of the review comprehensively reports the conditions and results upon Riley oxidation of 45 1-methyltetrahydrodipyrrins and 1-methyldihydrodipyrrins. A comparison of the results provides insights into the tolerable structural features for Riley oxidation of hydrodipyrrins. In general, Riley oxidation of dihydrodipyrrins has a broad scope toward substituents, but proceeds in only modest yield. Too few tetrahydrodipyrrins have been examined to draw conclusions concerning scope. New reaction conditions or approaches will be required to achieve high yields for this critical transformation in the synthesis of hydroporphyrins.

1. Introduction

The oxidation of active methylene groups with selenium dioxide was reported in the open literature in 1932 [1]. While studies of the eponymous SeO₂-mediated oxidation [1,2,3,4,5,6,7,8] and companion chemistry occupied Harry Lister Riley (1899–1986) [9] for a relatively short period, the 1932 publication [1] had perhaps the deepest impact among his more than four decades of publications. The role of selenium oxides as oxidants of organic compounds was apparently surmised in the late 19th century owing to the presence of the congeneric selenium oxide as an impurity in fuming sulfuric acid [10], yet it was the systematic studies of Riley and coworkers with purified SeO₂ that captured the imagination of synthetic chemists. The impact was torrential—at least 10 overviews and summaries appeared in the ensuing dozen years [11], and a chapter in Organic Reactions (1948) listed >500 distinct substrates that had been subjected to reaction with SeO₂ [10]—all of which highlight the unmet needs for synthetic transformations that were fulfilled by the advent of SeO₂-mediated oxidation. Riley oxidation has found enduring use with application to diverse substrates, as recounted in broad-ranging reviews [10,11,12,13]. Our focus here is to comprehensively review the use of Riley oxidation in a key transformation leading to synthetic analogues of the native photosynthetic pigments. The scope of this targeted review covers the totality of all work on this topic since inception, which was in 2001.

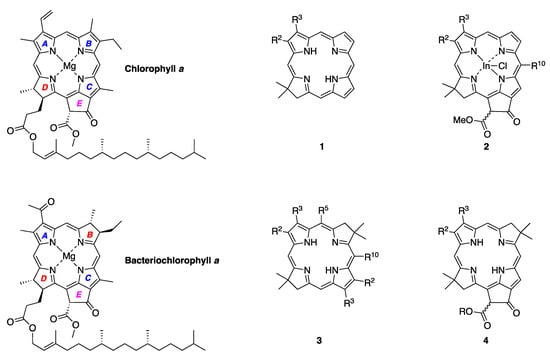

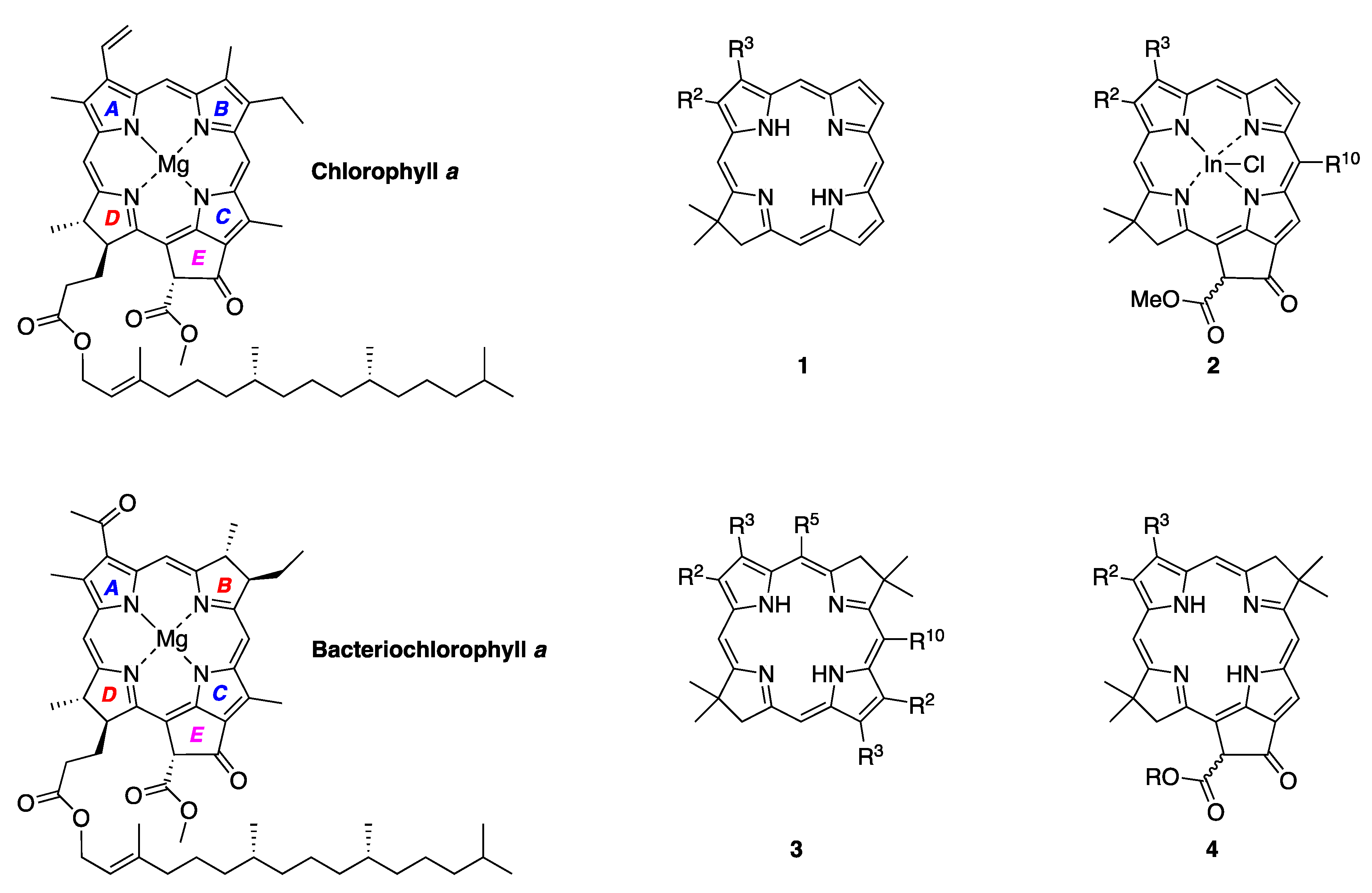

Chlorophyll a and bacteriochlorophyll a, the respective chief pigments of oxygenic and anoxygenic photosynthesis [14], are shown in Chart 1. Shown alongside the native pigments are the structures of synthetic chlorin (1, 2) and bacteriochlorin (3, 4) analogues. Each analogue contains a gem-dimethyl group in the pyrroline ring, and each synthesis begins with gem-dimethyl substituted precursors. Direct hydrogenation of, or cycloaddition to, a porphyrin to form the chlorin or bacteriochlorin also constitutes de novo synthesis, but the inclusion of a gem-dimethyl group via the precursors affords the following advantages: (1) achieves complete control over the location of the pyrroline ring relative to the other substituents in the macrocycle, (2) imparts resistance to adventitious oxidation that leads to the less saturated macrocycle (i.e., the chlorin or porphyrin), and (3) is compatible with formation of the isocyclic ring (ring E). On the other hand, the de novo construction of gem-dimethyl substituted hydroporphyrins entails a considerable synthetic effort [15], the simplification of which is an ongoing effort in our lab.

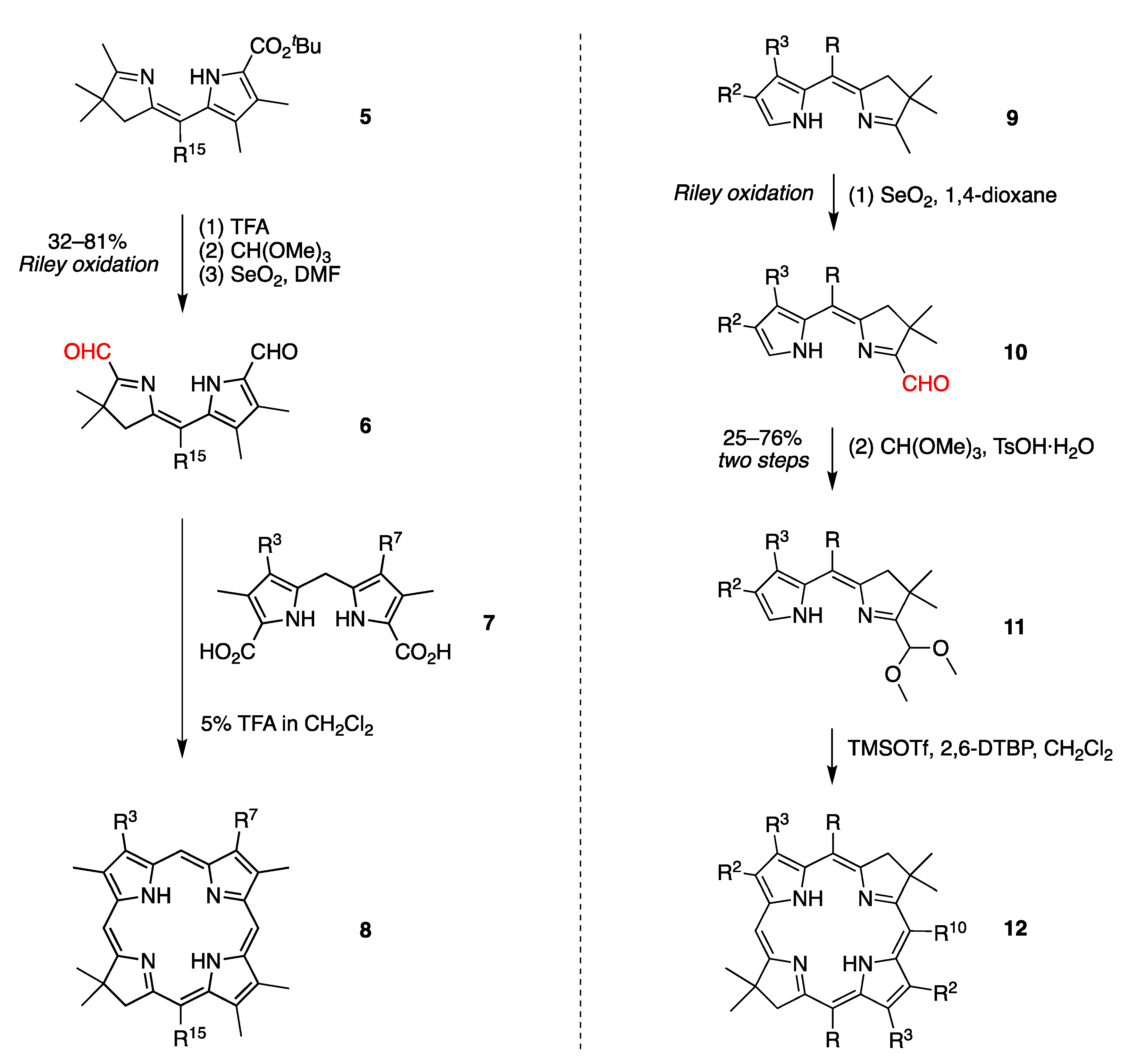

Two prior routes to gem-dimethyl-substituted hydroporphyrins have employed Riley oxidation as a key step in the synthesis. Jacobi and co-workers developed a route to dihydrodipyrrin-dicarboxaldehydes, wherein the aldehyde attached to the pyrrole is installed by the use of trimethyl orthoformate, and the aldehyde attached to the pyrroline is formed by Riley oxidation of a 1-methyldihydrodipyrrin (5) (Scheme 1, left). Acid-catalyzed reaction of a dihydrodipyrrin-dicarboxaldehyde (6) and a dipyrromethane-dicarboxylic acid (7, which undergoes didecarboxylation in situ) affords the corresponding chlorin (8) [16,17,18]. In our work, analogous Riley oxidation of a 1-methyldihydrodipyrrin (9) affords the dihydrodipyrrin-carboxaldehyde (10). Conversion of the latter to the corresponding dimethyl acetal (11) followed by head-to-tail self-condensation under acid catalysis affords the bacteriochlorin (12) (Scheme 1, right) [19,20]. In both synthetic routes, the gem-dimethyl group of the dihydrodipyrrin is conveyed to the pyrroline ring (ring D) of the corresponding chlorin. The pre-installation of the gem-dimethyl group in the dihydrodipyrrin enables the presence of peripheral substituents, and the positions of such substituents relative to ring D, to be set at very early stages in the synthesis. The specific location of such substituents relative to the pyrroline ring can alter the spectroscopic features, physicochemical features, and supramolecular phenomena exhibited by the resulting macrocycles.

Dihydrodipyrrin-carboxaldehydes have also been employed in more elaborate reactions leading to hydroporphyrins. The Riley oxidation of a 1-methyldihydrodipyrrin (13) affords the dihydrodipyrrin-carboxaldehyde (14), which upon Knoevenagel condensation with a β-ketoester-substituted dipyrromethane (15) or dihydrodipyrrin (16) affords the corresponding enone. Double-ring closure of each affords the model chlorophyll (2) [21] or bacteriochlorophyll (4) [22], respectively (Scheme 2). The resulting macrocycles share the full hydrocarbon skeleton with the native tetrapyrrole photosynthetic pigments, exemplified by chlorophyll a and bacteriochlorophyll a. The double-ring closure is carried out as a one-flask procedure, wherein multiple chemical transformations occur—including Nazarov cyclization, electrophilic aromatic substitution (S_EAr), and elimination of methanol—albeit in unknown sequence. For a definition of all abbreviations employed herein, please see the Section entitled Abbreviations. Again, the desired array of substituents in the target macrocycle is established at a very early stage of the synthesis, upon creation and/or modification of the dihydrodipyrrins for synthesis of the bacteriochlorophyll model compounds (4), or with the dihydrodipyrrin and dipyrromethane precursors to the chlorophyll model compounds (2). In both cases, the pre-arranged substituents are conveyed intact to the corresponding hydroporphyrins. Riley oxidation is essential in each of the routes (5 → 6, 9 → 10, and 13 → 14) for gaining access to the requisite dihydrodipyrrin-carboxaldehyde.

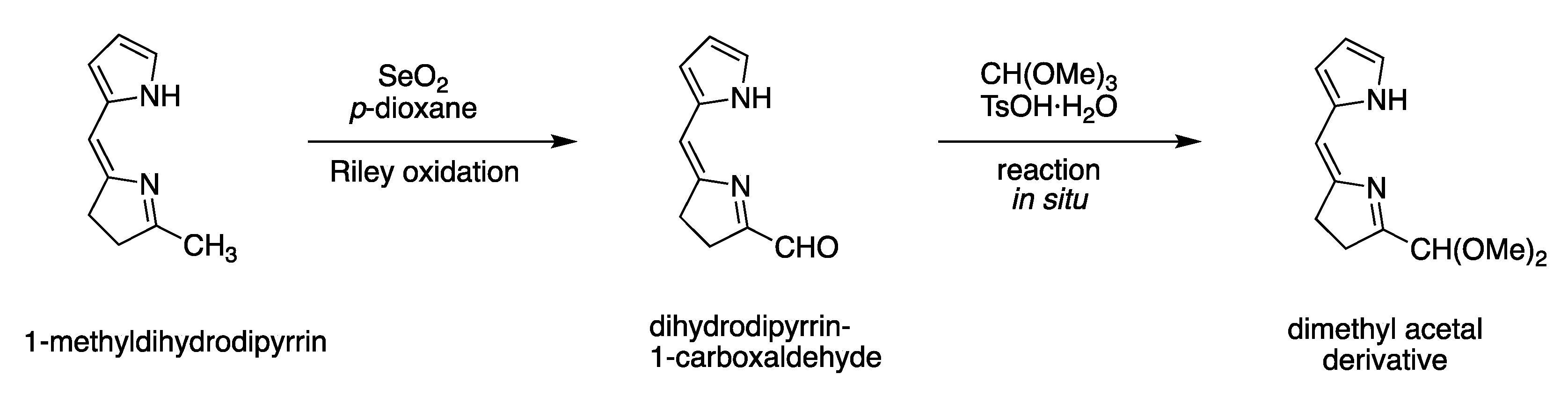

The preceding schemes illustrate the critical role of Riley oxidation in preparing a dihydrodipyrrin-carboxaldehyde for conversion to the hydroporphyrin. Yet a critical limitation is the generally low yield, often less than 50%, for Riley oxidation. Altogether, some 45 dihydrodipyrrins and tetrahydrodipyrrins have been treated with Riley oxidation as part of the synthesis of the aforementioned types of synthetic hydroporphyrins. The general structures are shown in Chart 2. As stated for the analogous tetrahydrodipyrrins [23], a dihydrodipyrrin appears quite simple, but the appearance may be deceptive because the two different heterocycles (pyrrole, pyrroline) present quite distinct reactivity as follows: (1) the pyrrole contains up to three open sites for electrophilic substitution; (2) the imine of the pyrroline, and the methylidene linkage between the pyrrole and pyrroline, are susceptible to reduction and addition; (3) the imine nitrogen can coordinate to metals; and (4) the pyrrole is a weak acid, whereas the pyrroline is a weak base.

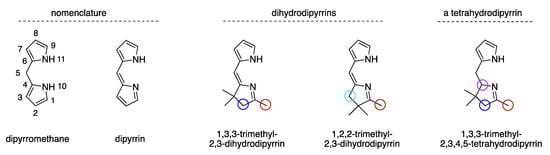

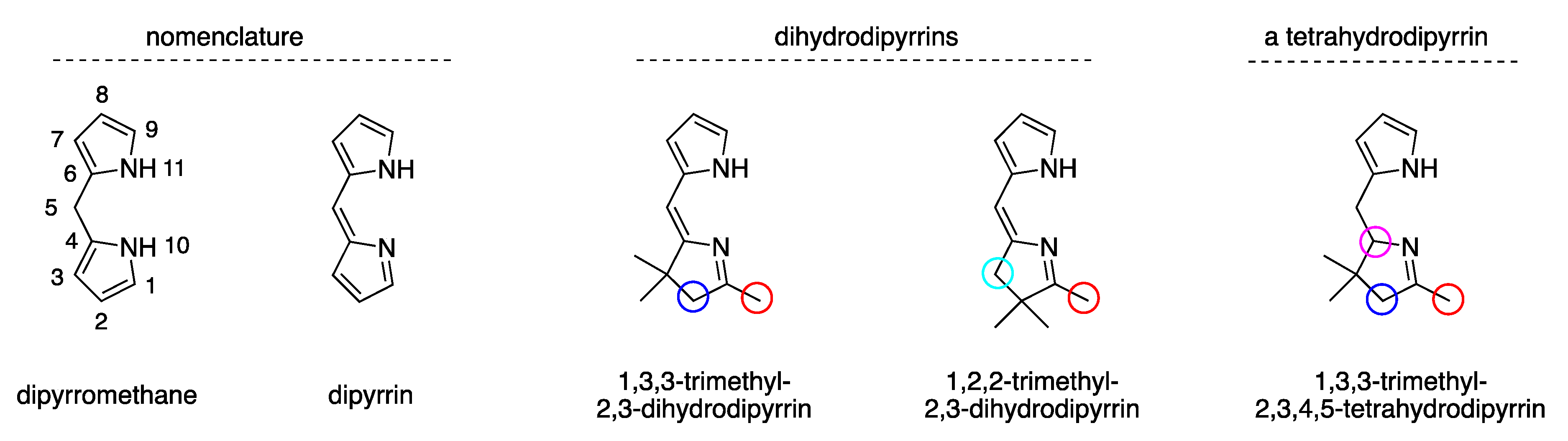

With regards to Riley oxidation, there are multiple sites of potential reactivity. For the 1,3,3-trimethyldihydrodipyrrin, there are two aza-allylic sites: the 1-methyl group (1°, encircled in red) and the 2-methylene group (2°, encircled in blue). For the 1,2,2-trimethyldihydrodipyrrin, the 1-methyl group (1°) is an aza-allylic site, whereas the 3-methylene (2°, encircled in turquoise) presents an allylic site. For the 1,3,3-trimethyltetrahydrodipyrrin, there are three aza-allylic sites: the 1-methyl group (1°), the 2-methylene group (2°), and the 4-methine (3°, encircled in magenta); with the latter only amenable to oxidative accommodation of the hydroxy group.

The objective of this paper is to develop a comprehensive view of the outcome of Riley oxidation in these cases, particularly concerning substituent patterns and reaction conditions (solvent, temperature, additive, concentrations, time, selenium reagent). The paper is divided into two main parts. Part 1 provides a representative summary of the various conditions that have been employed, some quite sporadically, in Riley oxidations of diverse substrates (beyond dihydrodipyrrins) over the years. This section aims to cover the scope of the conditions, but is not comprehensive with regards to the scope of substrates and applications, for which other reviews are available [10,11,12,13]. Part 2 provides a review of all cases of dihydrodipyrrins subjected to Riley oxidation including structures, reaction conditions, and yields. One known dihydrodipyrrin is subjected to several reaction conditions identified in part 1. An interlude between the two parts provides an overview of mechanisms. Some insights have emerged from this comparative analysis, although a solution to the limited yields of the Riley oxidation with dihydrodipyrrins remains obscure.

2. Results and Discussion

2.1. Diverse Conditions for the Riley Oxidation

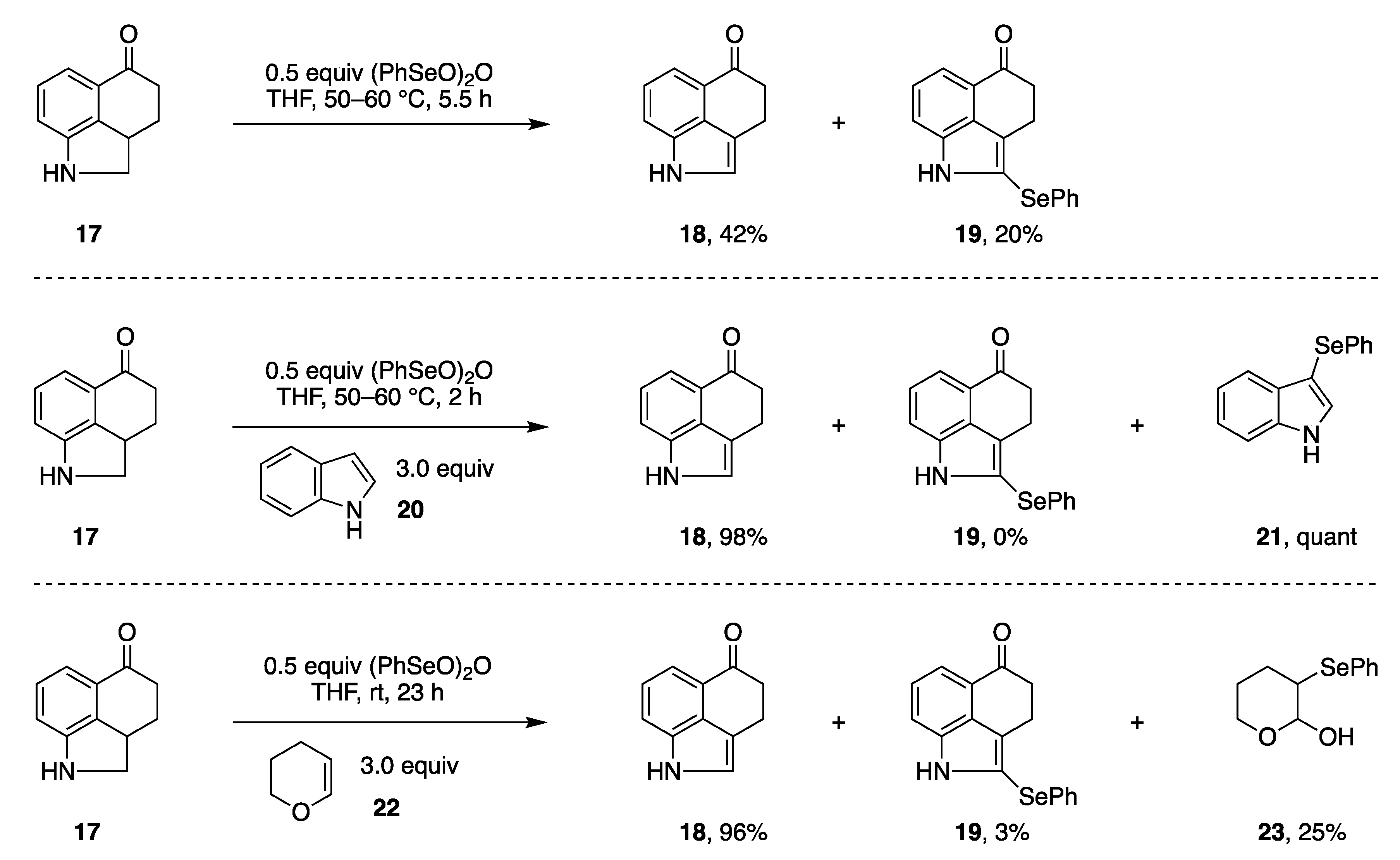

The classic Riley oxidation entails the use of SeO₂ in 1,4-dioxane (hereafter termed dioxane), either anhydrous or with a small amount of added water. A key issue here is the use of additives or other variations to the reaction conditions. While benzeneseleninic anhydride is not the same as SeO₂, owing to the remarkable observations of Barton and coworkers, one set of examples is included. Barton and co-workers found the reaction of 17 and benzeneseleninic anhydride afforded 18 in 42% yield and the 2-selenide derivative 19 in 20% yield [24]. The addition of 3.0 equiv of indole (20) as a scavenger for Se(II) caused formation of 18 in almost quantitative yield, the complete absence of the unwanted derivative 19, and the formation of the indole-trapped phenylselenide 21 (Scheme 3). Reaction with dihydropyran (22) as a scavenging agent afforded similar results along with formation of the dihydropyran-phenylselenide adduct (23). An upshot of this result is that the selenium product likely reacts with the organic product, an undesirable process that can be thwarted by the addition of a scavenging agent. The following examples focus almost exclusively on additives in reactions with SeO₂.

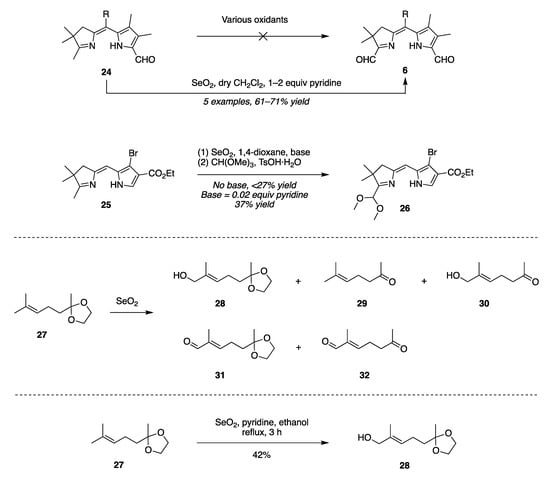

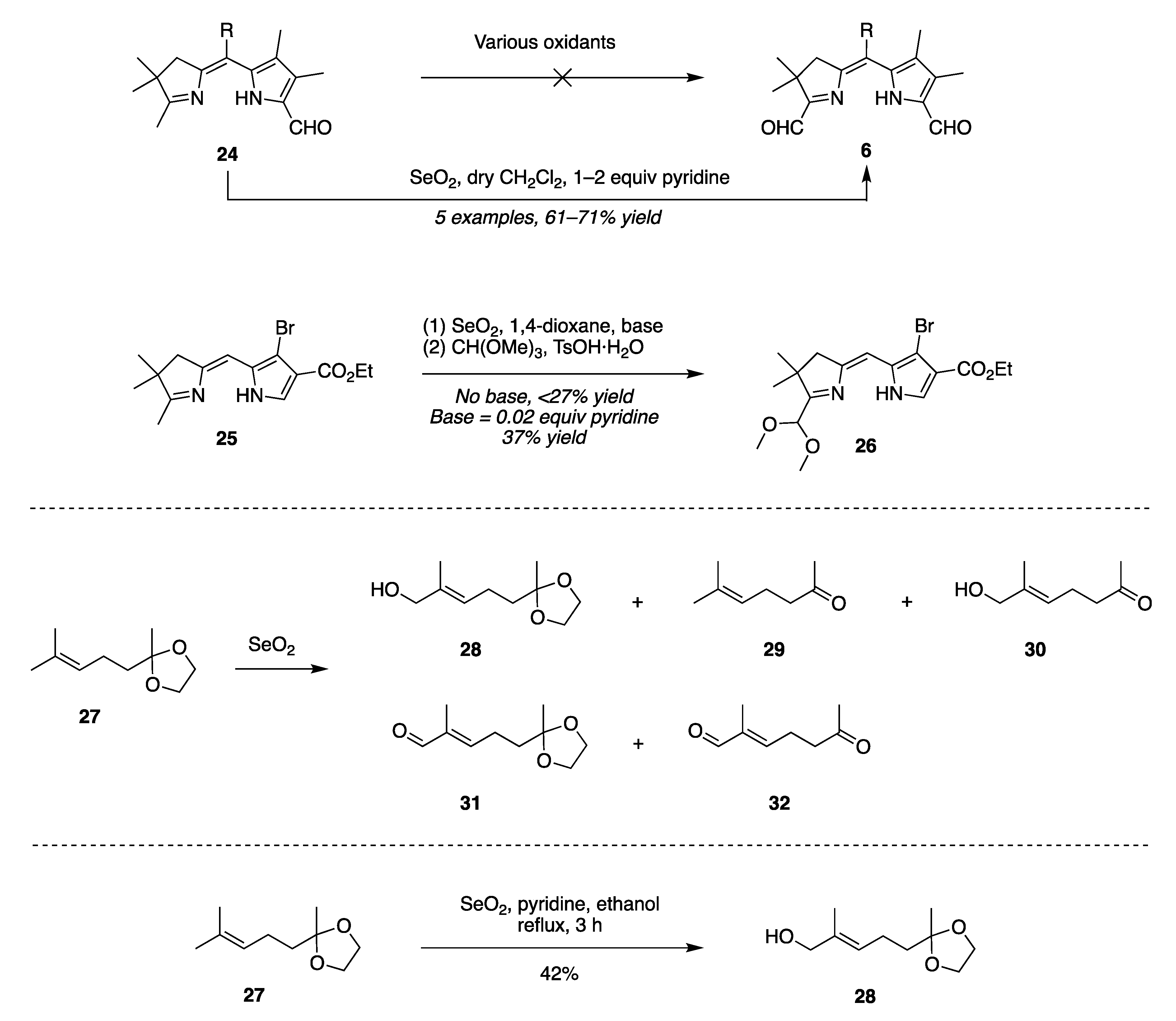

Pyridine is known to cause an acceleration in rate of the Riley oxidation [25]. On account of the rate-accelerating effect of pyridine and perhaps also the limited stability of dihydrodipyrrins under acidic conditions [17,26], pyridine was added to the Riley oxidation of a set of dihydrodipyrrins. Thus, dihydrodipyrrin-carboxaldehyde 24 afforded the dihydrodipyrrin-dicarboxaldehyde 6 in 61%–71% yield, and increased the yield for the conversion of 25 to 26 to 37% (Scheme 4, top). For those substrates with acid-labile groups, only a few oxidations were successful [27,28]. The reaction of 27 with SeO₂ gave a mixture of compounds (28–32) owing to hydrolysis of the ketal (Scheme 4, middle). However, the addition of a slight stoichiometric excess of pyridine with respect to the SeO₂ resulted in the isolation of 28 as a major product in 42% yield (Scheme 4, bottom) [29].

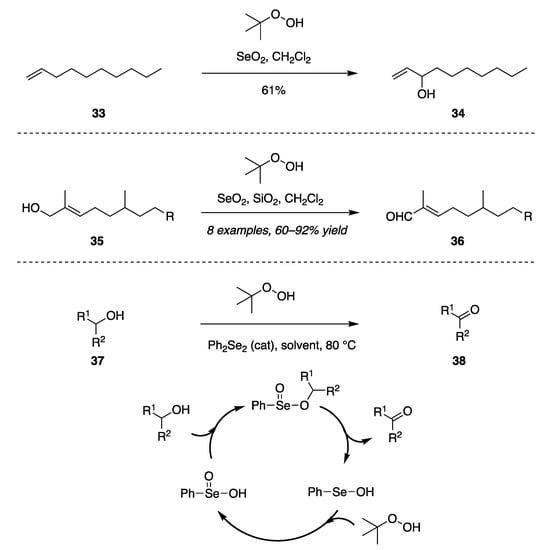

The reaction of SeO₂ with alkenes in the presence of hydrogen peroxide was clean for the highly reactive alkene, β-pinene, whereas less substituted alkenes reacted poorly. However, the allylic oxidation of alkenes such as 33 in the presence of 0.5 mol equiv of SeO₂ and 2 equiv of tert-butyl hydroperoxide (TBHP) in CH₂Cl₂ afforded the corresponding allylic alcohol (34) in a clean and mild manner (Scheme 5, top); with other substrates, the aldehyde or ketone was similarly obtained [30]. This method also avoids many unexpected rearrangements and dehydrations that can occur under the standard conditions. In addition, SiO₂-promoted SeO₂ oxidation of an allylic alcohol such as 35 in the presence of TBHP gave the corresponding aldehyde 36 in 60%–92% yield (Scheme 5, middle) [31]. Recently, the catalytic oxidation with Ph₂Se₂ in the presence of oxygen donors such as TBHP has been used for a variety of functional groups [32,33]. The oxidation of 37 in the presence of a catalytic amount of selenium reagent and excess TBHP afforded the corresponding carbonyl compound 38 in a mild manner (Scheme 5, bottom).

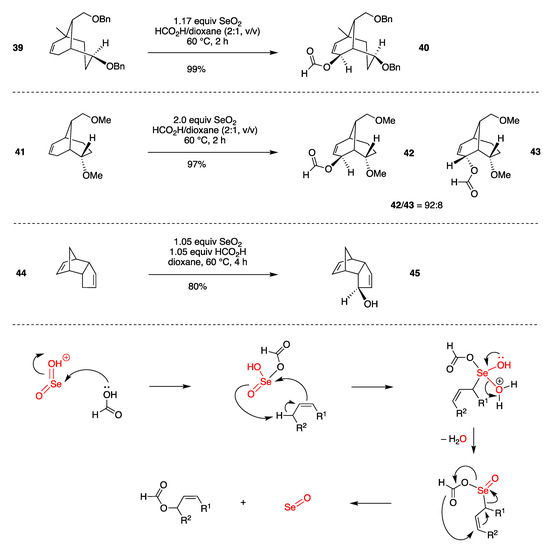

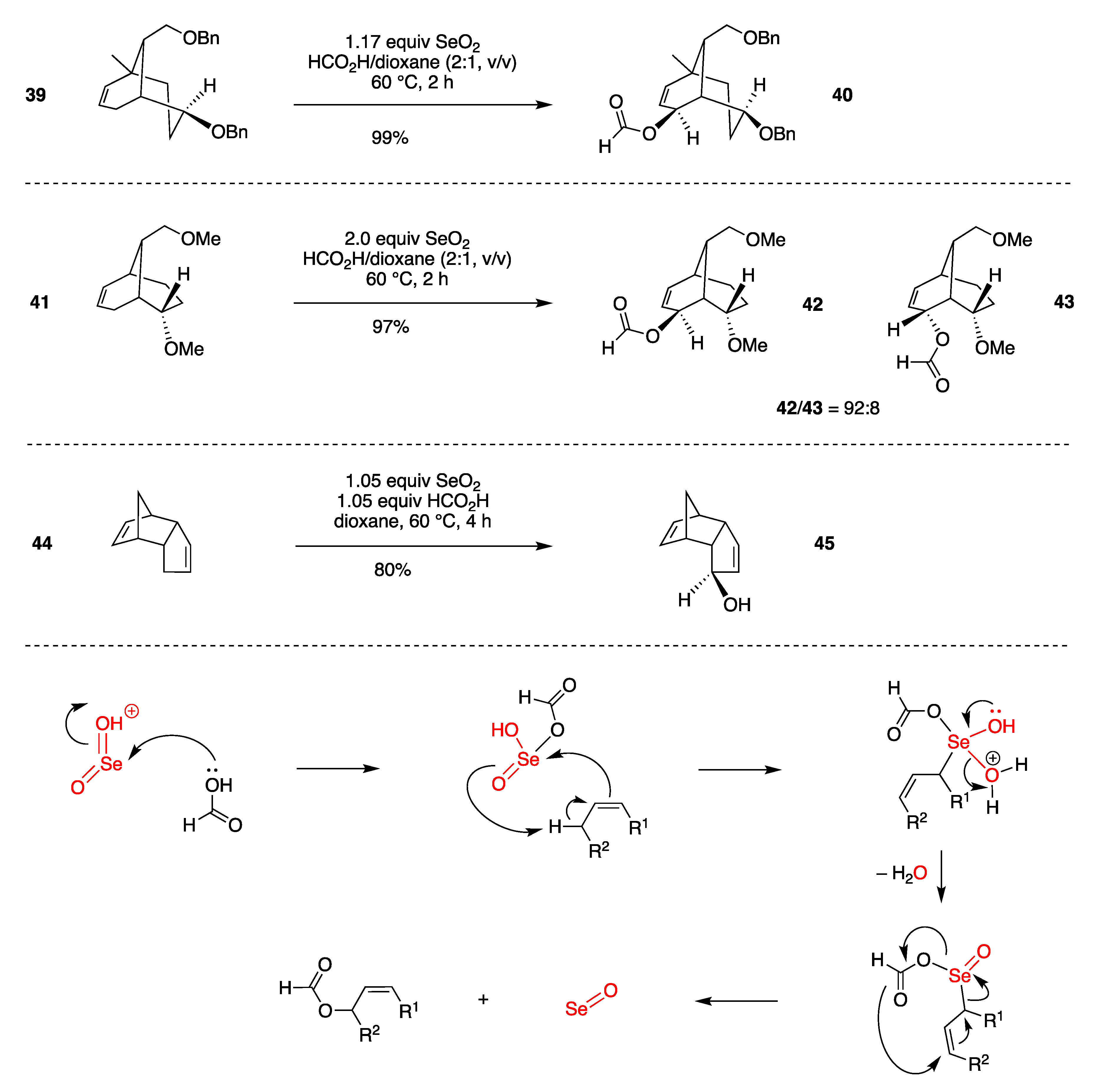

The standard allylic oxidation of hindered substrates with SeO₂ can cause undesired side reactions and leave starting material unreacted [34,35]. On the other hand, SeO₂ oxidation of 39 in a 2:1 mixture of formic acid and dioxane afforded 40 in 99% yield, but the use of acetic acid as solvent gave a longer reaction time and lower yield of the product [34]. A combination of formic acid and SeO₂ was found to accelerate the allylic oxidation of sterically hindered alkene 41, affording excellent yields of the corresponding allylic formates 42 and 43 in a regioselective and stereoselective manner (Scheme 6) [35]. Application of quite similar conditions to dicyclopentadiene 44 gave the allylic alcohol 45 [35]. A proposed mechanism for oxidation with SeO₂ in formic acid leading to the allylic formate [35] is provided in the lower panel of Scheme 6. Other discussions of mechanisms are collected in Section 2.2 (vide infra).

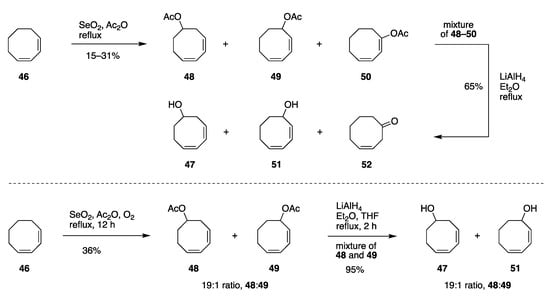

The conversion of cycloocta-1,3-diene (46) to the alcohol cycloocta-3,5-dien-1-ol (47) has been attempted by reduction of vinyl epoxides or by SeO₂ oxidation of alkenes or dienes [36]. Such methods usually gave a mixture of allylic and homoallylic products and were only performed in a small scale accompanied by chromatographic purification. For example, Riley oxidation of cycloocta-1,3-diene (46) gave 48, the acetate of 47, along with two other isomeric acetates, 49 and 50. Subsequent reduction with LiAlH₄ gave a mixture of 47, 51, and 52 in 7.5:1.5:1 ratio, respectively [37]. To achieve a larger quantity of product and facilitate purification, the reaction was carried out under an atmosphere of O₂, whereupon only two isomers (48 and 49) were obtained in a 19:1 ratio [36]. Herein, an SeO₂/O₂ combination increased the yield and selectivity for the formation of 47 (Scheme 7).

Selenium dioxide oxidation of alkenes in acetic acid is known to give allylic oxidation products, but in the presence of acid (H₂SO₄), the oxidation of cyclohexene (53) gave cyclohexane-1,2-diol diacetate (54) as the major product (32% yield) as compared with cyclohex-2-en-1-ol acetate in the absence of acid [38]. On face value, the presence of the protic catalyst promotes the formation of the direct double addition (which is still an oxidation process) versus the expected allylic substitution via the presumed organoselenium intermediate [38]. The same H₂SO₄-catalyzed oxidation of the acetylenic substrate 55 in acetic acid generated 56 in 66% yield. By contrast, the reaction in acetic acid gave a mixture of 57 and 58 in 26% and 34% yield, respectively; the reaction in ethanol afforded 59 and 60 in 33% and 8% yield, respectively; and in ethanol alone, no reaction occurred [39]. A remarkable change depending on reaction conditions was observed with the acetylenic substrate 61, which has α-protons. SeO₂ oxidation of 61 in ethanol gave the allylic product 62 in 27% yield, whereas use of a catalytic amount of H₂SO₄ afforded 63, 64, and 62 in 16.3%, 8.7%, and 6.3% yield, respectively (Scheme 8). Thus, the acid-catalyzed SeO₂ oxidation proceeded at the triple bond rather than the α-position of the acetylenic substrate [39].

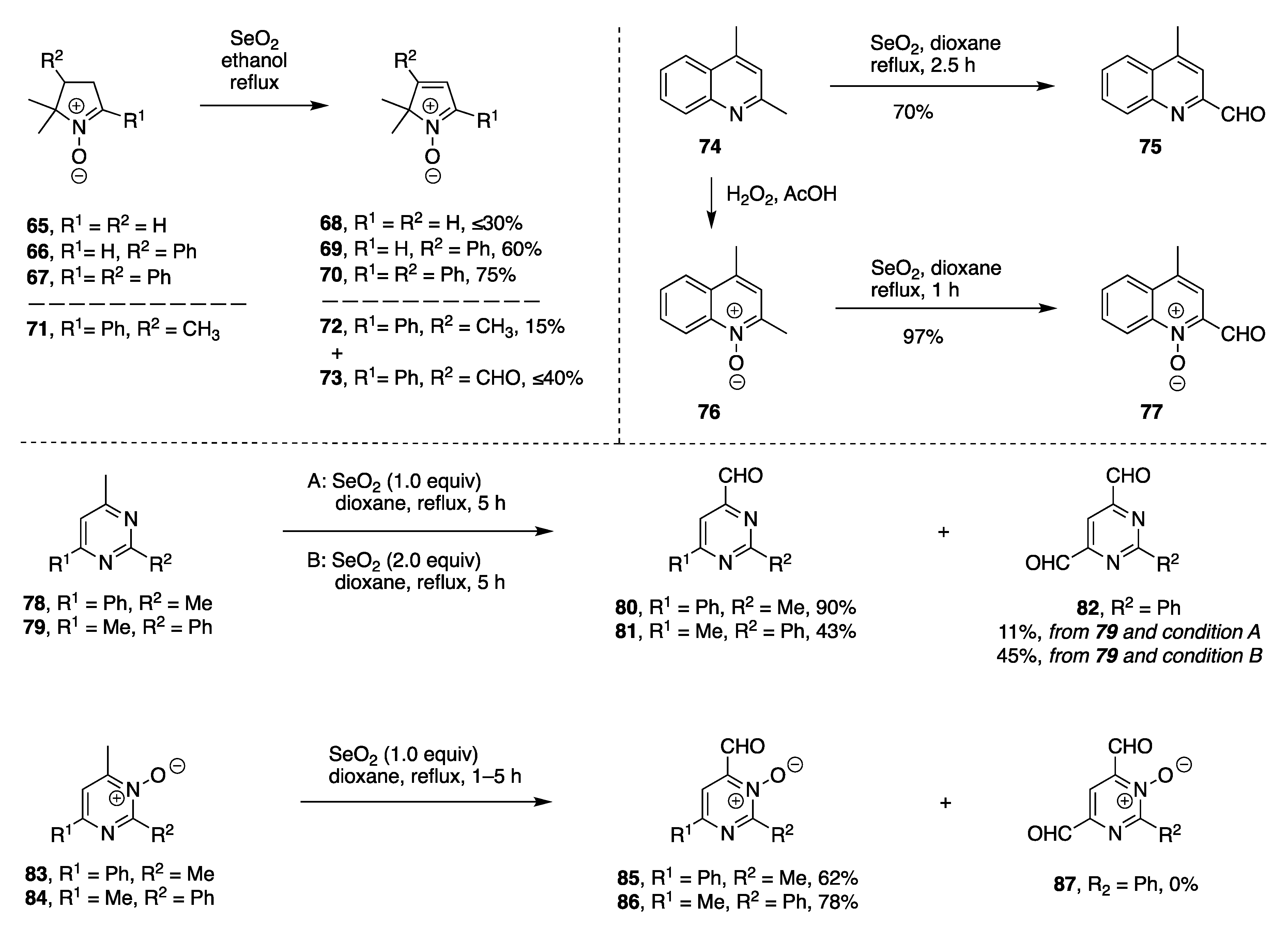

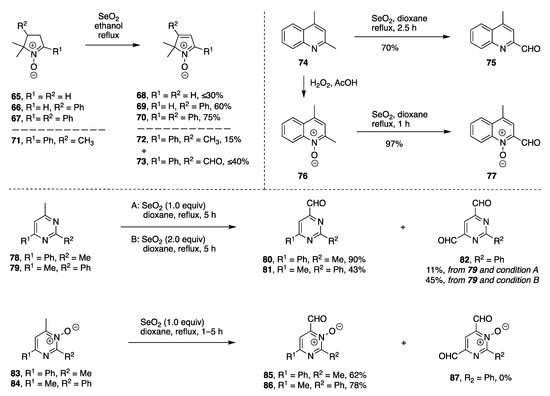

Riley oxidation has been applied to a number of heterocyclic N-oxide substrates (Scheme 9). In the case of pyrroline N-oxides lacking an α-methyl group (65–67), treatment with SeO₂ introduced an unsaturation at the β-positions, giving the corresponding 2H-pyrrole (68–70). For the substrate containing a β-methyl group, but also lacking an α-methyl group (71), the product mixture included the corresponding β-unsaturated, 2H-pyrrole (72) and the β-unsaturated, 2H-pyrrole bearing a β-carboxaldehyde group (73) [40].

Riley oxidation of α-methyl substituted (and fully unsaturated) heterocyclic N-oxides generally affords good to excellent yields of the corresponding aldehyde [41,42]. Good comparisons are provided within families of methyl-substituted quinolines and of methyl-substituted pyrimidines [41]. Thus, the oxidation of a free base dimethylquinoline (74, lacking the N-oxide) gave the corresponding aldehyde 75 in 70% yield, to be compared with 97% for conversion of the analogous quinoline N-oxide 76 to the aldehyde 77. The oxidation of pyrimidines 78 and 79 gave the corresponding aldehydes 80 and 81 in 90% and 43% yield, respectively, and 79 also gave the dialdehyde product 82. The N-oxide substrates 83 and 84 did not give a substantially higher yield of the corresponding aldehydes 85 and 86 upon Riley oxidation versus that of 78 and 79; however, for the N-oxide, a monoaldehyde was formed to the exclusion of any dialdehyde 87 (Scheme 9). In this case, the improved reaction selectivity and yield of the monoaldehyde with N-oxide substrates must stem in part, if not wholly, from the greater ease of formation of the corresponding enamine, although the greater stability of the heterocycle-N-oxide versus the parent heterocycle toward indiscriminate oxidation (e.g., removal of an electron from the heterocyclic nucleus) as opposed to site-specific SeO₂-mediated oxidation cannot be discounted.

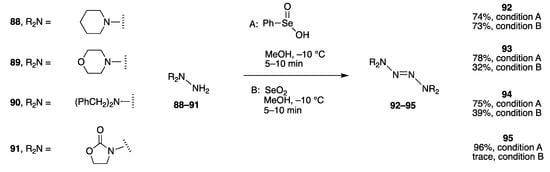

Some seleninic acid derivatives can be used in conjunction with SeO₂ to improve the reaction. One example shown in Scheme 10 illustrates the efficient oxidation provided by benzeneseleninic acid and its anhydride of various hydrazines (88–90) and hydrazo (91) derivatives. The hydrazines afforded the azo products (92–94) in yields that varied by <2-fold. On the other hand, an extreme case of reagent distinction is provided by 91, where the yield of azo product 95 was 96% with benzeneseleninic acid compared with a trace amount of product upon use of the classic SeO₂ conditions [43].

The Riley oxidation often presents challenges in purification owing to the presence of a stoichiometric if not excess quantity of SeO₂. The reaction can be carried out catalytically by the addition of stoichiometric oxidants such as TBHP or O₂, both of which are desirable from economic, health, and environmental standpoints, as well as easing the challenges of purification. A method for benzylic oxidation that employed O₂ in excess in conjunction with catalytic amounts of nitric oxide and Se or SeO₂ was applied to a series of 2-alkylnaphthalenes (96–98), affording the corresponding naphthalene-2-carboxylic acid (99) (Scheme 11, top) [44]. The same reaction with picolines 100 and 101 afforded the isonicotinic acid (102) and picolinic acid (103), respectively [44]. In both reaction sets, the yields spanned a considerable range, from 25% to 80% for 99, and 38% and 94% for 103 and 102, respectively. The mixture of nitric oxide and O₂ recycles reduced selenium (elemental selenium and/or other partially reduced selenium species), and thereby maintains the selenium in the catalytically active, oxidized form (Scheme 11, bottom; shown for elemental Se).

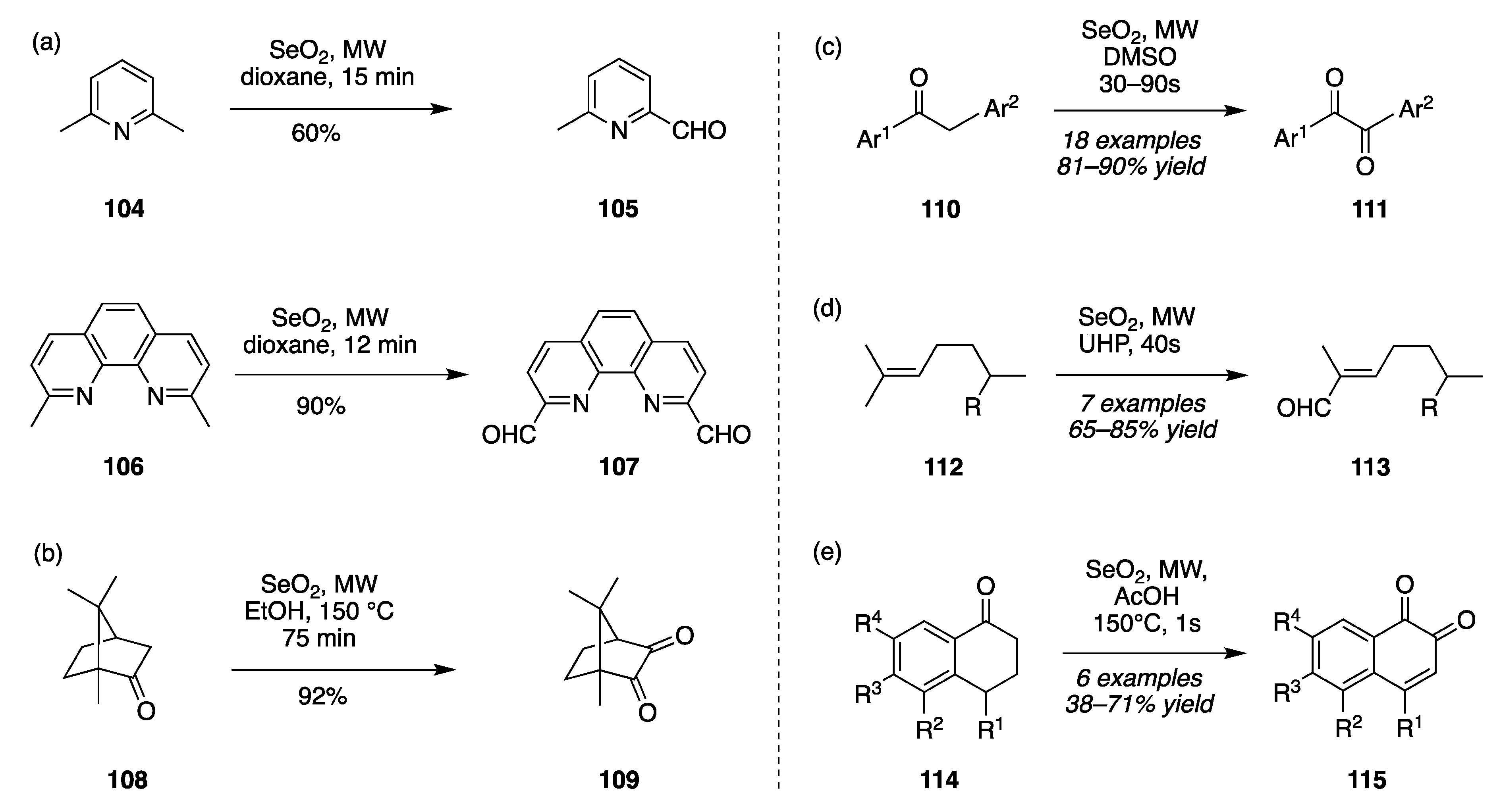

Microwave-assisted SeO₂ oxidation of some aromatic substrates was found to improve reaction rates and form a cleaner product; the shorter reaction times often enabled the use of a lesser excess of SeO₂, thereby facilitating the workup. A first set of examples includes conversion of 2,6-lutidine (104) and neocuproine (106) to the respective products 105 and 107 (Scheme 12, a) [45]. The oxidation of camphor (108) and derivatives by SeO₂ is often sluggish (15 h–14 days), whereas the microwave-assisted process shortened the reaction time to 75 min and produced the corresponding product (109) in good yield (Scheme 12, b) [46]. The microwave-assisted SeO₂ oxidation of 1,2-diarylethanones (110, representing 18 compounds) to form the diones 111 also shortened the reaction time from 8 h to 30–90 s (Scheme 12, c) [47]. The nature of the aryl groups in 110 included considerable diversity in Ar¹ (= X-phenyl, where X includes –H, –F, –Cl, –Br, –CH₃, –OCH₃, –SCH₃; 2- and 4-positions only) and also Ar¹ = thiophen-2-yl, but was more limited for Ar² (= X-phenyl, where X includes –H, –NO₂, –Cl, and –OCH₃; 2- and 4-positions only). In addition, the inclusion of urea-hydrogen peroxide (UHP) and application of microwave-assisted SeO₂ oxidation of alkenes (112) shortened the reaction time to 40 s and increased the yield of the corresponding α,β-unsaturated aldehydes (113) (Scheme 12, d) [48]. The substituents accommodated in the R group of 112 include an ethyl group terminated with –OH, –OAc, or –Br; an oxo group; an ethylidene acetal; a 2-acetoxyethylidene group; and an acetoxymethyl-substituted oxiranyl group [48]. More recently, closed-vessel microwave (CVMW) irradiation accelerated the SeO₂ oxidation of 1-tetralones (114) to 1,2-naphthoquinones (115) to the remarkably brief period of 1 s, compared with 4–7 h upon refluxing in acetic acid (Scheme 12, e) [49].

In summary, the conditions explored over the years beyond the classic Riley oxidation (SeO₂ in dioxane) include the following:

• Selenium reagent benzeneseleninic acid in methanol.
• Selenium reagent benzeneseleninic anhydride with indole or dihydropyran as a scavenger.
• SeO₂ in dioxane with an added base such as pyridine.
• SeO₂ in CH₂Cl₂ with the oxygen donor TBHP.
• SeO₂ in CH₂Cl₂ with the oxygen donor TBHP and SiO₂.
• Selenium reagent Ph₂Se₂ in CH₂Cl₂ with the oxygen donor TBHP.
• SeO₂ in a mixture of formic acid and dioxane.
• SeO₂ in acetic anhydride under an atmosphere of O₂.
• SeO₂ in acetic acid or ethanol with H₂SO₄ as an acid catalyst.

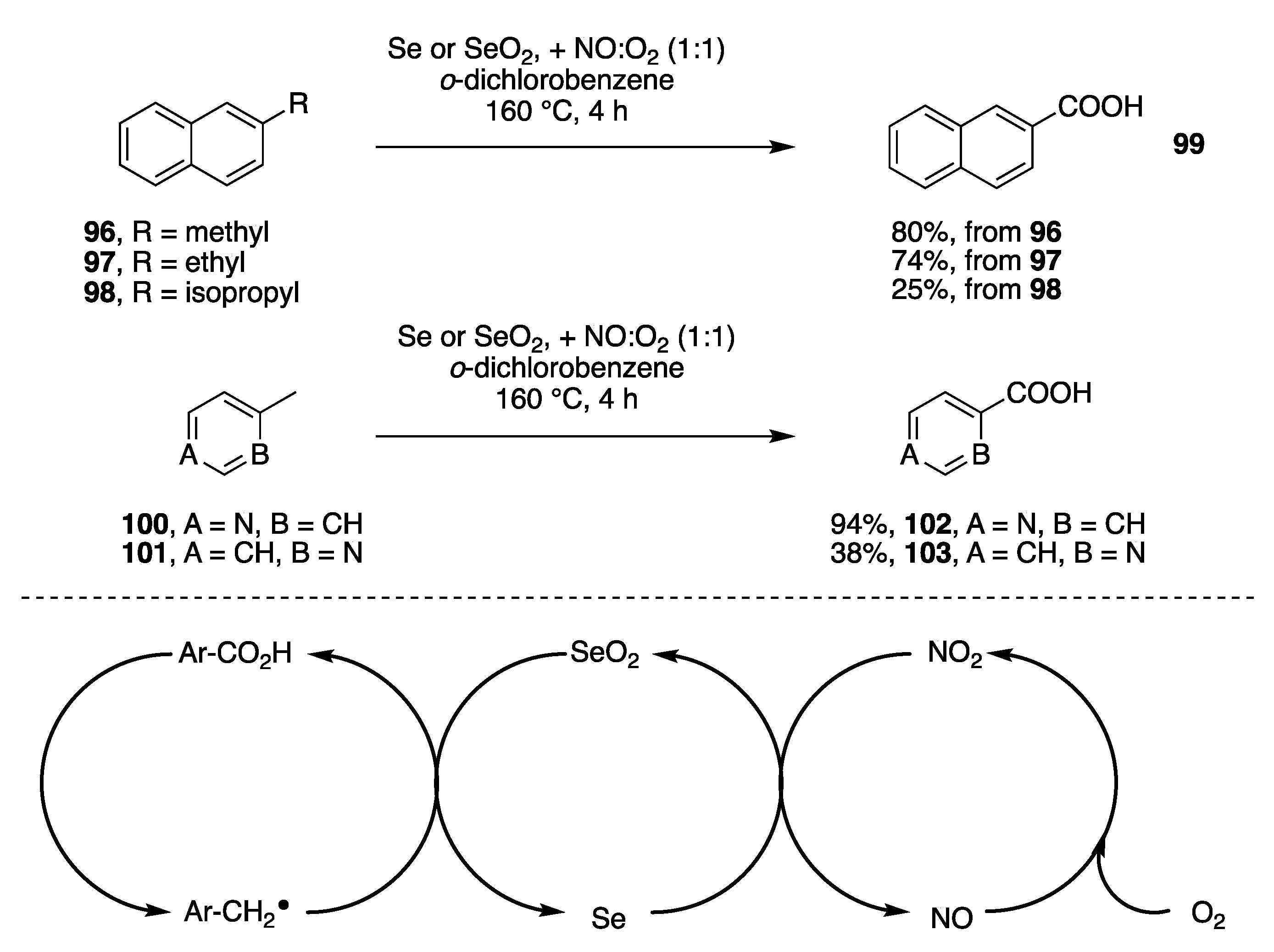

• Se or SeO₂ in o-dichlorobenzene purged with a mixture of nitric oxide and O₂.
• Microwave-assisted SeO₂ oxidation in dioxane.

2.2. Mechanistic Considerations

The mechanistic course of the Riley oxidation has been the subject of investigation for more than three-quarters of a century [10]. Prior to delving into mechanism, perspective may be provided by the consideration of an experimental procedure reported in 1935 by H. A. Riley and A. R. Gray in Organic Syntheses [50,51]. (Note: the authors of this review believe that the cited contribution likely is that of H. L. Riley with typographical replacement of A for L. While the aforementioned publications in Organic Syntheses list no information concerning institutional affiliation, our supposition is posited on (i) familiarity with typewriters and typed print from that era, wherein A could be easily misread for L; (ii) the topic; (iii) publication in 1935, so soon after the original discovery; and (iv) the absence of any other publications concerning chemistry by an H. A. Riley in the period 1920–1950 as concluded from a search in Web of Science across all databases; moreover, there are only six publications to A. R. Gray, suggesting the latter likely was a research group member with H. L. Riley.) The balanced reaction for Riley oxidation of acetophenone to form phenylglyoxal is provided below (Equation (1)), where the inorganic products are elemental selenium and water. The reaction was carried out in dioxane containing 1.2 molar equivalents of H₂O relative to SeO₂.

C₆H₅COCH₃ + SeO₂ → C₆H₅COCHO + Se + H₂O

(1)

Riley and Gray make several comments [50,51] that are germane to this discussion. First, that “commercial selenious acid (129 g, 1 mol) may be used in place of the mixture of selenium dioxide and water”. Second, referring to the mixture of SeO₂ and water in dioxane, “the mixture is heated to 50–55 °C and stirred until the solid has gone into solution”, whereupon acetophenone is then added. Third, at the end of the reaction, that “the hot solution is decanted from the precipitated selenium”. The first and second statements highlight the question concerning the nature of the oxidizing species, while the third points to the heterogeneity of the process regardless of whether there is a homogeneous solution at the outset. The oxidation of acetophenone to form phenylglyoxal (Figure 1) was carried out by one of us following the protocol of Riley and Gray (except at 1/100th scale and at 1.0 rather than 1.7 M). The presence of water is required to achieve a homogeneous solution with SeO₂ in dioxane. A black precipitate forms early in the reaction upon refluxing in the presence of acetophenone. Note that acetophenone is colorless, whereas phenylglyoxal is light yellow. The same reaction entirely at room temperature did not yield an initial homogeneous solution, but did afford a red precipitate.

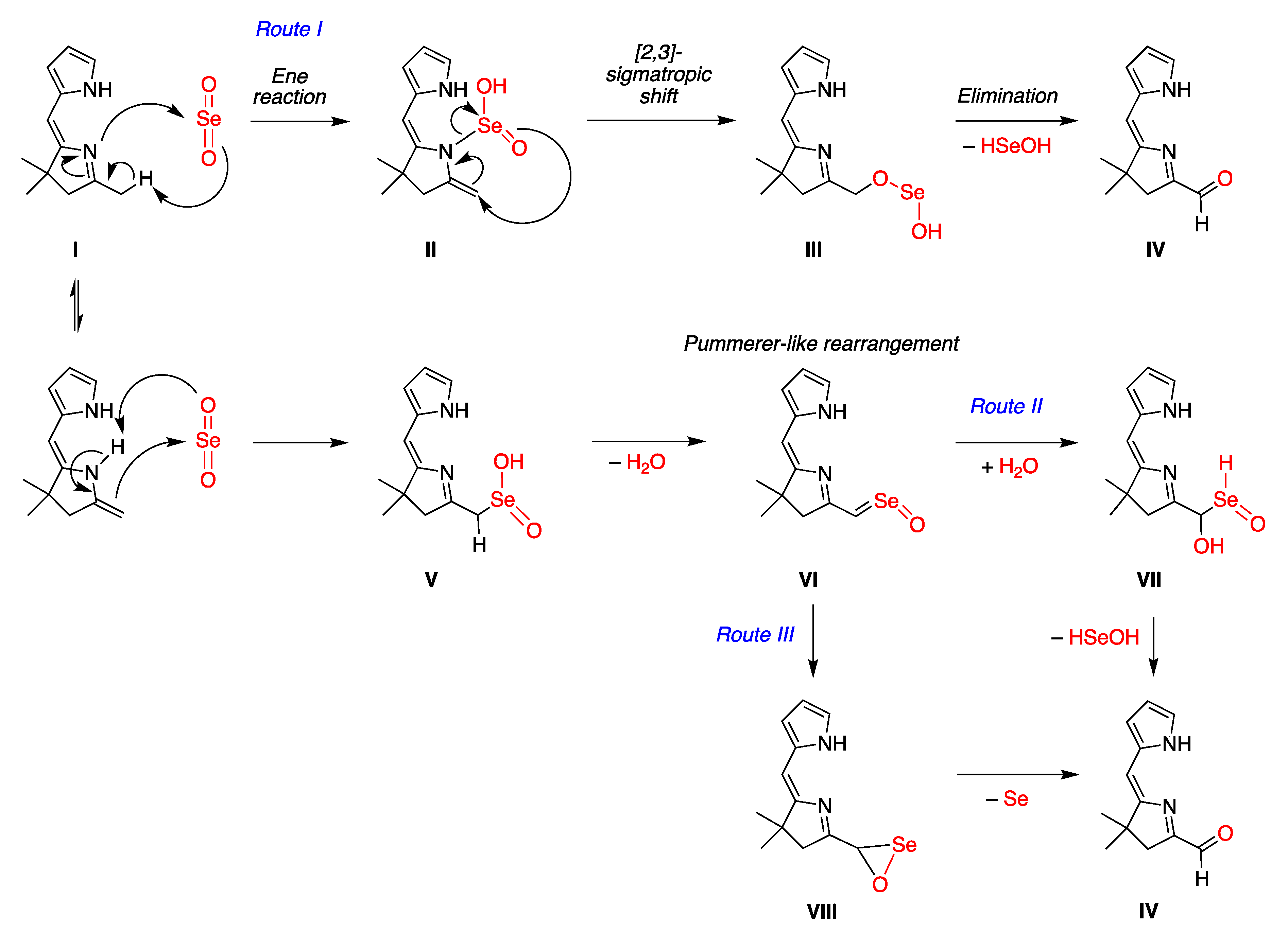

At least three pathways for the mechanism of Riley oxidation have been proposed over the years [52,53,54,55,56,57,58,59]. Three composite pathways are shown in Scheme 13. The pathways, which have not been discussed previously for reactions of hydrodipyrrins, are shown here in the context of dihydrodipyrrin-carboxaldehyde formation from the corresponding 1-methyldihydrodipyrrin I. A distinct pathway proposed for the oxidation in the presence of formic acid, leading to allylic formates [35], is shown in Scheme 6.

• Route I entails an ene reaction of I and SeO₂ to give intermediate II. The subsequent intramolecular [2,3]-sigmatropic shift of II gives III, which, upon elimination, generates IV. The latter could proceed via reductive elimination or by hydrolysis followed by redox transformations.
• Route II begins with imine–enamine tautomerization of I. The enamine of I reacts with SeO₂ to generate intermediate V, and then Pummerer-like rearrangement via intermediate VI yields VII. Subsequent elimination affords IV.
• Route III has an alternate endgame, wherein the Pummerer-like intermediate VI cyclizes to give the selaoxirane-containing VIII, which, upon loss of Se, gives IV.

The mechanisms displayed are formal and encapsulate key pathways drawn from multiple reports in the literature. The term formal here refers to electron counting, use of SeO₂ alone as an intact species, and production of minimal selenium byproducts. Several points [60] germane to any contemplation of mechanism are as follows: (1) SeO₂ in the solid state is a polymer; (2) SeO₂ hydrates reversibly to give selenous acid (H₂SeO₃; known as selenious acid in the older literature); (3) SeO₂ is insoluble in many organic solvents, whereas selenous acid is more soluble; (4) water is often added to the reaction mixture [1] to “dissolve” SeO₂; (5) the common oxidation states of selenium are −2, 0, +2, +4, and +6; and (6) elemental selenium forms multiple allotropes (red, black, grey) including ring species (e.g., cyclo-Se₈) akin to those for elemental sulfur.

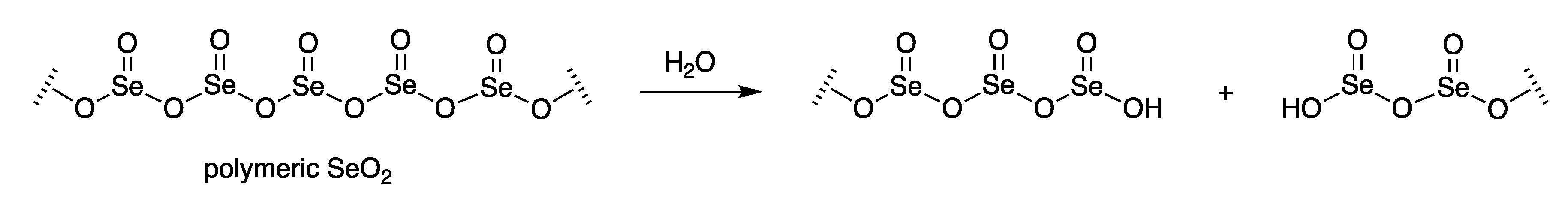

The polymeric selenium dioxide (SeO₂)_n is shown in Scheme 14. The structure resembles a polycarbonate with replacement of carbon by selenium. Treatment with a limiting amount of water produces oligomeric species containing selenous acid-like end groups. Hydrolysis with a stoichiometric quantity of water would afford a quantitative yield of selenous acid. Selenous acid is a reasonably strong acid, with pK_a ~2.5 (H₂SeO₃ → HSeO₃⁻ + H⁺) [60]. One expects the terminal selenous-acid like end-groups of the oligomers derived by hydrolysis of polymeric SeO₂ to have similar acidity. If so, one rationale for the addition of pyridine or another base to the reaction mixture in Riley oxidation may be to neutralize the resulting Bronsted acid.

A minimum conclusion from the above points is that the nature of the reacting selenium oxide species, invariably displayed as the three-atom entity SeO₂ in textbook presentations, may include more complex substances. For the mechanisms shown in Scheme 13, the eliminated selenium byproducts (Se or HSeOH)—often not displayed explicitly in reports wherein mechanisms are proffered—are formal entities, and in fact, relatively little data are typically available concerning the composition of the selenium products, which is understandable given the focus by synthetic chemists on the organic product of the reaction. In his first paper, Riley described the appearance, recovery, and regeneration of the precipitated selenium species [1], and a selenium-containing insoluble orange, red, or black film inside the flask upon quenching the Riley oxidation (by addition of water or base) has been noted by many, including Jacobi and coworkers, who performed the first Riley oxidations of hydrodipyrrins [17], the focus of the present review. Early reviews described reports of complexes of organic substrates and selenium species in the precipitates, as well as controversies about mechanism [10]. The complexity of oxoselenium chemistry precludes simple correlation of selenium products with proposed organic mechanisms; in this regard, a formal species such as HSeOH could in principle undergo reaction, disproportionation, or combination with SeO₂ or other species to form polyselenides and/or other products (as one hypothetical example, HSeOH + SeO₂ → H₂SeO₃ + Se); similar reactions may occur with SeO₂ (or oligomeric species thereof) with O–Se–OH moieties attached to an intermediate (e.g., III or V). If multiple selenium oxide species are present, one or more of a multiplicity of pathways may prevail, particularly under various conditions—as one explicit example, acidic conditions that cause protonation of a heterocyclic nitrogen atom may shift a reaction toward one pathway that is not a significant conduit for reactant to product under neutral conditions, and vice versa. Thus, the three mechanisms displayed in Scheme 13 are shown here for completeness as well as consideration of the results obtained upon Riley oxidation of diverse substrates.

2.3. Riley Oxidation of Diverse Hydrodipyrrins

The following tables contain examples of reactions of 45 distinct substrates including tetrahydrodipyrrins (entries 1–3) and dihydrodipyrrins (entries 4–45). A key organizational feature is that entries 1–17 contain hydrodipyrrins with gem-dialkyl groups at the 3-position, whereas entries 18–45 pertain to hydrodipyrrins with gem-dialkyl (or diphenyl) groups at the 2-position. For many cases, the yields range from 20%–60%, although some cases are reported to fail completely, while others give yields exceeding 60%. In most cases, the aldehyde is isolated, whereas in some cases, the aldehyde is converted in situ to the dimethyl acetal (Scheme 15). Isolation of the Riley oxidation product as the dimethyl acetal is provided in entries 7, 8, 18, 19, 21–28, 30–32, and 34. In rare instances, the Riley oxidation product was directly subjected to bacteriochlorin-forming conditions (entries 10 and 44), in which case the yield of the oxidation alone is obscured as one step in a three-step process (Riley oxidation, dimethyl acetal formation, and self-condensation to form the bacteriochlorin).

A few compounds listed as entries in

Table 1. Summary of Riley oxidation of hydrodipyrrins ^a.

Entry	Substrate, R = CH3	Oxidant (Equiv)	Solvent, (Conc), and Additive (Equiv)	T (°C), Atmosphere, and Time	Product, R	Yield (%)	Ref
1		SeO2 (1.5)	dioxane (0.08 M)	rt argon 2.5 h	–CHO	79	[42]
2		SeO2	– b	– b	–CHO	0	[42]
3		SeO2 (1.3)	dioxane (0.10 M)	rt argon 2.5 h	–CHO	43	[42]
4a		SeO2 (3.0)	dioxane (0.05 M)	rt argon 100 min	–CHO	40	[61]
4b	Same as 4a	SeO2 (3.0)	dioxane (0.05 M)	rt argon 1.5 h	–CHO	32	[22]
5		SeO2 (3.0)	dioxane (0.04 M)	rt argon 15 min	–CHO	66	[62]
6		SeO2 (3.0)	dioxane (0.05 M)	rt argon 1 h	–CHO	39	[62]
7		SeO2 (3.0)	dioxane (0.05 M)	rt argon 2 h	–CH(OMe)2	42	[61]
8		SeO2 (3.0)	dioxane (0.05 M)	rt argon 1 h	–CH(OMe)2	44	[61]
9		SeO2 (3.0)	dioxane (0.05 M)	rt argon 1.5 h	–CHO	63	[19]
10		SeO2 (3.0)	dioxane (0.05 M)	rt – b 2 h	BC c	6.6	[19]
11		SeO2 (3.0)	dioxane (0.05 M)	rt argon 1.5 h	–CHO	55	[26]
12		SeO2 (3.0)	dioxane (0.04 M)	rt argon 30 min	–CHO	59	[62]
13		SeO2 (1.5)	dioxane (0.12 M)	rt argon 2 h	–CHO	99 d	[16]
14		SeO2 (1.5)	dioxane (0.05 M)	rt argon 1.5 h	–CHO	47	[19]
15		SeO2 (1.46)	dioxane (0.05 M)	rt – b 2 h	–CHO	57	[19]
16a		SeO2 (3.0)	dioxane (0.05 M)	rt argon 1.5 h	–CHO	22	[22]
16b e,f	Same as 16a	SeO2 (1.5)	dioxane (0.05 M)	rt air 0.5 h	–CHO	36 g	this work
16c e,f	Same as 16a	SeO2 (1.5)	dioxane (0.05 M) SiO2 (5.0 eq)	rt air 0.5 h	–CHO	38 g	this work
16d e,f	Same as 16a	SeO2 (1.5)	dioxane (0.05 M) pyridine (0.02 eq)	rt air 0.5 h	–CHO	28 g	this work
16e e,f	Same as 16a	SeO2 (1.5)	dioxane (0.05 M) C6F5CHO (1.5)	rt air 0.5 h	–CHO	18 g	this work
17 h		SeO2 (1.0–3.0)	dioxane (0.05 M)	0 °C to rt air or argon 15 min to 3 h	–CHO	0	this work
18		SeO2 (3.0)	dioxane (0.06 M)	rt – b 30 min	–CH(OMe)2	30	[20]
19		SeO2 (3.0)	dioxane (0.08 M)	rt – b 30 min	–CH(OMe)2	63	[20]
20		SeO2 (3.0)	dioxane (0.05 M)	rt – b 2 h	–CHO	65	[63]
21		SeO2 (3.0)	dioxane (0.05 M)	rt – b 30 min	–CH(OMe)2	43	[20]
22		SeO2 (3.0)	dioxane (0.07 M)	rt – b 30 min	–CH(OMe)2	76	[20]
23		SeO2 (3.0)	dioxane (0.06 M)	rt – b 30 min	–CH(OMe)2	25	[20]
24		SeO2 (3.0)	dioxane (0.06 M)	rt – b 30 min	–CH(OMe)2	42	[26]
25		SeO2 (3.0)	dioxane (0.05 M) pyridine (0.02 eq)	rt – b 5 h	–CH(OMe)2	37	[26]
26		SeO2 (3.0)	dioxane (0.02 M)	rt – b 30 min	–CH(OMe)2	31	[20]
27		SeO2 (3.0)	dioxane (0.02 M)	rt – b 30 min	–CH(OMe)2	31	[20]
28		SeO2 (2.9)	dioxane (0.01 M)	rt – b 30 min	–CH(OMe)2	48	[20]
29		SeO2 (3.0)	dioxane (0.01 M)	rt – b 30 min	–CHO	57	[64]
30		SeO2 (3.0)	dioxane (0.01 M)	rt – b 2 h	–CH(OMe)2	12, E 51, Z	[64]
31		SeO2 (3.0)	dioxane (0.02 M)	rt – b 6 h	–CH(OMe)2	30, Z 25, E	[64]
32		SeO2 (3.0)	dioxane (0.01 M)	rt – b 2 h	–CH(OMe)2	45, E 15, Z	[64]
33		SeO2	– b	– b	–CHO	0	[64]
34		SeO2 (3.0)	dioxane (0.04 M)	rt – b 30 min	–CH(OMe)2	47	[20]
35		SeO2 (1.3)	DMF (0.18 M) pyridine (1.2 eq)	rt, then 80 – b 5 h and 15 min	–CHO	71	[18]
36a		SeO2 (1.2)	DMF (0.11 M) pyridine (1.2 eq)	rt, then 80 – b 5 h and 15 min	–CHO	65	[18]
36b	Same as 36a	SeO2 (1.5)	dioxane (0.04 M)	reflux argon 30 min	–CHO	32	[16]
37		SeO2	DMF (0.09 M) pyridine (1.2 eq)	rt, then 80 – b 5 h and 15 min	–CHO	81	[18]
38		SeO2 (1.2)	DMF (0.11 M)	rt, then 80 – b 5 h and 15 min	–CHO	46	[65]
39a		SeO2 (1.6)	dioxane (0.08 M)	rt argon 2 h	–CHO	68 d	[16]
39b		SeO2 (1.3)	CH2Cl2 (0.05 M) pyridine (1.3 equiv), then DMF (0.10) M	rt, then 80 – b 2 h and 15 min	–CHO	61	[17]
40a		SeO2 (1.3)	dioxane (0.09 M)	rt argon 2 h	–CHO	99 E/Z 1:5 i	[16]
40b	Same as 40a	SeO2 (1.2)	CH2Cl2 (0.05 M) pyridine (1.19 equiv), then DMF (0.10) M	rt, then 80 – b 2 h and 15 min	–CHO	71	[17]
41a		SeO2 (1.6)	dioxane (0.12 M)	rt argon 2 h	–CHO	62 d	[16]
41b	Same as 41a	SeO2 (1.0)	CH2Cl2 (0.05 M) pyridine (1.0 eq), then DMF (0.07 M)	rt, then 80 – b 5 h and 15 min	–CHO	70	[17]
42		SeO2 (1.2)	CH2Cl2 (0.05 M) pyridine (1.2 eq), then DMF	rt, then 80 – b 5 h and 15 min	–CHO	63	[17]
43		SeO2 (1.2)	CH2Cl2 (0.05 M) pyridine (1.2 eq), then DMF	rt, then 80 – b 5 h and 15 min	–CHO	65	[17]
44		SeO2 (2.1)	CH2Cl2 (0.02 M)	rt argon – b	BC c	5.8	[20]
45		SeO2	– b	– b	–CHO	0	[20]

^a Terms: dioxane refers to 1,4-dioxane (bp = 101 °C); rt = room temperature; DMF = N,N-dimethylformamide. ^b The reaction conditions including atmosphere or reaction time were not reported. ^c The product was converted to the bacteriochlorin (denoted BC); the yield is given for the overall transformation yielding the bacteriochlorin. ^d Reported to be unstable. ^e Each reaction used 0.02 mmol of 1-methyldihydrodipyrrin. ^f 1,3,5-Trimethoxybenzene (0.02 mmol) was used as an internal standard. ^g The yield was based on the –CHO proton versus the nine protons of the methyl groups of the internal standard using ¹H-NMR spectroscopy. ^h Reaction with 1–3 equivalents of SeO₂, a shorter reaction time, lower concentration, and dioxane (American Chemical Society grade) gave multiple spots upon thin layer chromatographic analysis, and no product was isolated. ⁱ Inseparable mixture.

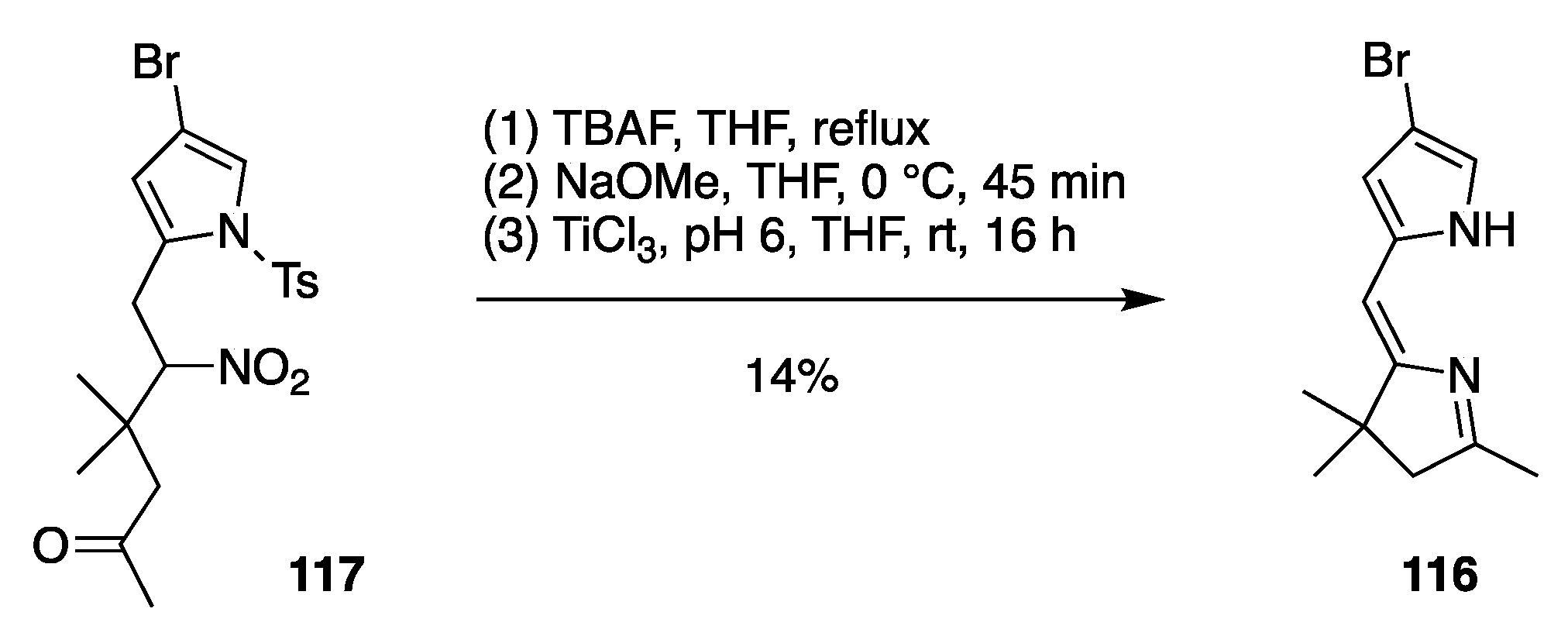

have been described in the preceding text. The dihydrodipyrrins presented in five entries (39b, 40b, 41b, 42, and 43) correspond to structure 24 in Scheme 4. Similarly, compound 25 (Scheme 4) is shown in entry 25. The dihydrodipyrrin shown in entry 16a was examined under various Riley oxidation conditions, and the results are presented here (entries 16b–e). The dihydrodipyrrin shown in entry 17 (compound 116) was synthesized for this review. The synthesis procedure and characterization data for 116 are provided in Appendix A.

Examination of Table 1 for Riley oxidation of diverse 1-methyldihydrodipyrrins and several 1-methyltetrahydrodipyrrins leads to a number of insights. Concerning solvent, dioxane and DMF were usually employed. In some cases, pyridine was also added as a base. Jacobi and coworkers reported that the use of sublimed SeO₂ and a “wet” solvent did not substantially increase the yield, and even a trace amount of water accelerated decomposition [17]. Concerning temperature, most reactions were carried out at room temperature. On the other hand, the Jacobi and Lash groups often performed the oxidation for several hours at room temperature, and then at 80 °C for 15 min (entries 35, 36a, 37, 38, 39b, 40b, 41b, 42, and 43). No examples are known of reactions at a lower temperature (<0 °C). The most significant insights concern structural effects. The interpretations drawn from the results in the table must be provisional in many cases given that, often, only single instances are available for comparison, and the synthetic work was carried out at a range of scales with various purification methods by different experimentalists. With those caveats, the insights to date include the following:

• A pyrroline N-oxide provides superior results (entry 1 versus 2, 79% versus 0%).
• Two 1-methyltetrahydrodipyrrin-N-oxides (entries 1 and 3) could be converted to the corresponding aldehyde, but neither product was subsequently converted to a hydroporphyrin. Methods for N-deoxygenation will likely be required to do so.
• β-Alkyl versus β-aryl groups afford comparable results (entry 6 versus 4, ~40%; and 26 versus 27, 31%).
• An aza-spirohexyl group in lieu of a gem-dimethyl has no adverse effect (entries 7,8 versus 4; ~40% for both; the former are dimethyl acetals).
• β,β-Dialkyl or β,β-annulated arenes afford comparable results (entries 9, 11 and 12; ~60%).
• A tert-butyl ester and ethyl ester at the 9-position afford comparable results (entries 9 and 12; ~60%).
• A pre-existing aldehyde group on the pyrrole unit survives intact and causes no adverse effect (entries 13 and 39–43; all yields >60%).
• The presence of a single aryl-substituted pyrrole gives yields of 22%–57% (entries 14–16).
• A lone p-bromophenyl group on the pyrrole unit affords acceptable results (entry 16, 38%), as does a p-iodophenyl group (entry 15, 57%), whereas a lone bromine atom on the pyrrole unit results in failure (entry 17, 0%) unless the pyrrole is stabilized with an ester substituent (entry 25, 37%; a dimethyl acetal) or a pyrrole N-tosyl group (entry 3, 43%; also a pyrroline N-oxide). Halopyrroles lacking stabilizing (e.g., electron-withdrawing) substituents are known to be unstable [66].
• A meso-alkyl or meso-aryl group affords comparable results (entries 19 and 20; 63% and 65%; the former is a dimethyl acetal).
• A meso-alkyl group has no apparent adverse effect (entries 42 and 43 versus 39a; >60%).
• The position of the gem-dimethyl group at the 2,2- versus 3,3-site has relatively little adverse effect (entry 23 versus 4; 25% for the dimethyl acetal versus 32 or 40% for the aldehyde).
• The presence of larger 2,2-dialkyl groups is satisfactory (entries 29 and 30; yields >50%, the latter is a dimethyl acetal).
• In one case, a Z-isomer gives the Z-isomer (entry 29, 57%), whereas the E-isomer gave a ~4:1 mixture of the Z- and E-products (entry 30; 51% and 12%; both dimethyl acetals).
• In another case, the Z- and E-isomers individually each give a mixture of the Z and E products (entries 31 and 32; total yields >55%; all dimethyl acetals). In this and the preceding example, the 2-position substituents are bulky (alkyl or phenyl) groups.
• 2,2-Diphenyl substituents afford both the Z- and E-isomers in comparable quantities and nearly twice the yield of the 2,2-dimethyl unit (entry 31 versus 18; 55% total versus 30%).
• In yet another case, the Z-isomer gives a 5:1 mixture of the Z and E products (entry 40a).
• The remarkably high yields of 99% (entries 13 and 40a) are hard to reconcile with yields of ~60% for nearly identical substrates (entries 12 and 39).
• The presence of a single ester substituent on the pyrrole unit affords good yield, whereas the fully unsubstituted pyrrole does not afford product (entry 34 versus 45; 47% versus 0%; the former is a dimethyl acetal).
• The presence of an unsubstituted pyrrole affords products that are not stable or are formed in low yield (entries 44, 45; 5.8% for the bacteriochlorin product of the former, 0% for the latter).

3. Outlook

Selenium—discovered in 1817 (by Berzelius and Gahn) and named after the moon (Gk, selene) [60]—has found myriad use in the materials sciences (e.g., photoconductors, semiconductors) and in organic chemistry, all with no sign of eclipse through >200 years of study. In organic chemistry, selenium finds its most widespread use in the SeO₂-mediated conversion of a methyl group to the corresponding aldehyde group, which originated with the pioneering work of Harry Lister Riley in the early 1930s. In tetrapyrrole chemistry, Riley oxidation provides an essential transformation of 1-methylhydrodipyrrins to the corresponding hydrodipyrrin-carboxaldehyde or dimethyl acetal thereof. The comprehensive review here shows that the Riley oxidation has considerable tolerance for substituents in the pyrrole and pyrroline ring of the dihydrodipyrrin, although in general, the yields rarely exceed 70%, with yields of 30%–40% often more typical. Hardly any data are available concerning the nature of the side reactions, and byproducts formed, that account for the low yields. In context, most substrates examined to date for Riley oxidations have contained ketones or alkenes rather than heterocycles or imines, as described herein. Particular structural limitations that cause failure of the Riley oxidation with hydrodipyrrins include the absence of any substituents in the pyrrole nucleus, or the presence of a lone bromine atom. On the other hand, a single ester or even aryl substituent in the pyrrole nucleus suffices to give a successful oxidation. Such structural limitations impact the scope of available hydroporphyrins. The survey in part I here of a broad range of substrates reveals diverse conditions beyond those considered for the classic Riley oxidation, namely SeO₂ in 1,4-dioxane. Many observations that bear on mechanism have been reported over the years, but fundamental mechanistic studies (which largely petered out in the latter part of the 20th century) may warrant renewed investigation, particularly in the context of the available diversity of reaction conditions. Most such reaction conditions have not been applied to the hydrodipyrrins, which may present new synthetic opportunities as the Riley oxidation nears its century mark.
