Article

Structural Study of the Compounds Formed in the Reactions of FeCl3·6H2O with Ni(OH)2 in the Presence of Dithiolenes HSRSH (R = C6H2Cl2 or C6H4)

by
Esther Delgado
1,
Elisa Hernández
1,
María Pérez
1,
Josefina Perles
2 and
Félix Zamora
1,3,*
1
Departamento de Química Inorgánica, Universidad Autónoma de Madrid, 28049 Madrid, Spain
2
SCXRD Laboratory, SIdI, Universidad Autónoma de Madrid, 28049 Madrid, Spain
3
Instituto Madrileño de Estudios Avanzados en Nanociencia, 28049 Madrid, Spain
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(9), 2240; https://doi.org/10.3390/molecules25092240
Submission received: 2 April 2020 / Revised: 25 April 2020 / Accepted: 6 May 2020 / Published: 10 May 2020
(This article belongs to the Special Issue Advances in Coordination Chemistry)
Browse Figures
Versions Notes

Abstract

:
In our attempts to prepare coordination polymers by reaction of FeCl3·6H2O and Ni(OH)2 in the presence of dithiolenes HSC6H2X2SH (X = Cl or H), several ion pairs of compounds containing the anionic entity [Ni(SC6H2X2S)2]− were obtained instead. It was also found that other species without dithiolene ligands were formed in these reactions, giving rise to different ion pairs and a tetrametallic cluster. The careful isolation of the different types of crystalline solids allowed the characterization of all of the resulting compounds by single crystal X-ray diffraction (SCXRD). In order to establish the amount of nickel and iron present in the crystals, complementary total reflection X-ray fluorescence (TXRF) analyses were performed. The eight different structural types that were obtained are described and compared with related ones found in the literature.

Graphical Abstract

1. Introduction

The chemistry of transition metals with dithiolene derivatives is a research field of high interest due to the outstanding physical properties that these compounds can show, as well as their wide structural diversity [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15]. The dithiolenes are known as “non-innocent” ligands since they can form complexes with metals in different oxidation states giving rise to a rich redox chemistry of both the ligand and the metal center [16], leading to the formation of neutral, monoanionic and dianionic dithiolene derivatives [17]. We have previously studied the influence of several parameters, such as the nature of the dithiolene ligands, the size of the counter cations, the influence of crystallization conditions, as well as the type of iron precursor used, in the synthesis of a series of coordination polymers (CPs) containing the dianionic entities [Fe2(SC6H2X2S)4]2− (X = Cl or H) and [M2(µ-L)n]2+ (M = alkali metal) as counter-cations [18,19]. More recently, we also described the syntheses of some ion-pair molecules instead of CPs, when divalent cations such as Ca(II), Ba(II), and Zn(II) were used [20].
Taking into account these results, we now evaluated whether the Ni(II) cation, that shows high ability to coordinate to sulfur atoms, could act as a linker between the anionic entities [Fe2(SC6H2X2S)4]2− (X = Cl or H) in order to prepare CPs. Herein, we report on the syntheses and crystal structures of the new compounds [Ni(DMF)6][Ni(SC6H2Cl2S)2]2·2DMF (1), [Ni(DMF)6][Fe2(µ-O)Cl6] (2), [Ni2(µ-Cl)3(THF)6][FeCl4] (3), [Ni2(µ-Cl)3(THF)6][Ni(SC6H2Cl2S)2] (4), [Ni(DMF)6][Ni(SC6H4S)2]2·2DMF (5), [Ni(DMF)5Cl][Ni(SC6H4S)2] (6) and [Fe2.6Ni1.4(µ-Cl)8(THF)6] (7) formed in the reactions between FeCl3·6H2O with Ni(OH)2 in the presence of dithiolenes HSRSH (R = C6H2Cl2 or C6H4). It has to be noticed that models obtained from single-crystal X-ray diffraction (SCXRD) data of some heterobimetallic structures cannot properly differentiate between iron and nickel atoms, two metal centers with very similar electron densities. Then, a total reflection X-ray fluorescence (TXRF) analysis on the measured single crystals was successfully applied to calculate the element content and to refine the occupation of the metal positions [21].

2. Results and Discussion

Previously, we have observed that the method used for the syntheses of CPs with [Fe2(SC6H2Cl2S)4]2− and different alkali metals [20] failed in our attempts to prepare CPs with the same dianionic entity and divalent metals such as Ca(II), Ba(II) and Zn(II) as counter-cations.
Taking into account these results, we decided to evaluate the role of Ni2+ in the reaction with FeCl3·6H2O and HSC6H2Cl2SH, using Ni(OH)2 as a deprotonating agent (Scheme 1). Thus, after stirring a mixture of FeCl3·6H2O, HSC6H2Cl2SH and Ni(OH)2 for 24 h at room temperature, the precipitate obtained was crystallized in DMF/Diethyl ether (1:4) giving rise to green crystals of [Ni(DMF)6][Ni(SC6H2Cl2S)2]2·2DMF (1) together with yellow crystals of [Ni(DMF)6][Fe2(µ-O)Cl6] (2A), as major and minor compounds of the reaction, respectively. Furthermore, after removing in vacuum the solvent of the initial filtrate and dissolving the solid residue in THF/n-heptane, a mixture of crystals of compounds [Ni2(µ-Cl)3(THF)6][FeCl4] (3) and [Ni2(µ-Cl3)(THF)6][Ni(SC6H2Cl2S)2] (4) were obtained in trace amounts.
On the other hand, it is well known that the nature of the dithiolene ligands can affect the formation of different metal-dithiolene derivatives. Taking into account this fact, we considered it interesting to carry out a similar reaction as described above using HSC6H4SH instead in order to compare the behavior of both dithiolenes. Thus, the solid compound obtained after stirring the mixture of FeCl3·6H2O, HSC6H4SH and Ni(OH)2 for 24 h, was crystallized in DMF/Diethyl ether, yielding [Ni(DMF)6][Ni(SC6H4S)2]2·2DMF (5) as the main reaction product, together with trace amounts of compounds [Ni(DMF)5Cl][Ni(SC6H4S)2]2 (6) and [Ni(DMF)6][Fe2(µ-O)Cl6] (2B) (Scheme 1). Additionally, the residue obtained after removing the solvent of the filtrate in the reaction was recrystallized from a THF/n-heptane mixture, yielding a few yellow crystals of [Fe2.6Ni1.4(µ-Cl)8(THF)6] (7).
All of the different compounds were isolated and analyzed by single-crystal X-ray diffraction (SCXRD), and their crystal structures were solved. The existence of both Ni and Fe atoms in the reaction media represented a problem for the structural determination, as both metals showed similar electron densities, making it very difficult to assign the occupation of the metal centers in the electron density maps solely based on the data obtained by SCRXD. To overcome this problem, TXRF analysis (Supplementary Materials section S2) was performed on the selected and measured single crystals, in order to state the chemical nature of the metals present in the crystalline solids (Table S27).
As depicted in Figure 1, the resulting compounds 1 and 4-6 contained the anionic entity [Ni(SC6H2X2S)]− (X = Cl, H) in their structure, where Ni adopts the commonly found square planar coordination environment NiS4 with Ni-S (2.136(2)–2.1570(9) Å) distances and angles (Tables S17 and S18 in the Supplementary Materials) similar to those found in other related compounds [22,23,24]. In these four structures, the negative charge is balanced with cationic species derived from the coordination of the solvent molecules to another nickel atom.
Compound 1 (Figure 1a) crystallizes as green prisms in the P21/n space group with half a [Ni(DMF)6]2+ cation, one [Ni(SC6H2Cl2S)2]− anion, and one DMF molecule in the asymmetric unit, yielding a general formula [Ni(DMF)6][Ni(SC6H2Cl2S)2]2·2DMF. Compound 5 (Figure 1c) obtained in the reaction with HSC6H4SH instead of the chlorinated one, presented an analogous formula {[Ni(DMF)6][Ni(SC6H4S)2]2·2 DMF}. It crystallized as small green plates in the P21/c space group, also with half a [Ni(DMF)6]2+ cation, one [Ni(SC6H2Cl2S)2]− anion, and one DMF molecule in the asymmetric unit. In both cases, the nickel atom in the cationic moiety is coordinated to six oxygen atoms from six DMF ligands in an octahedral NiO6 geometry, while in the anionic species, Ni2+ is coordinated to four sulfur atoms from two dithiolene ligands, as explained above. Both Ni-O (2.035(3)-2.065(4) Å) [25,26,27] distances and angles (Tables S17 and S18) are similar to those found in other related compounds. The TXRF measurements for compounds 1 and 5 confirm that only nickel atoms are present in both metal positions (Tables S20 and S24).
Compound 4, with formula [Ni2(µ-Cl3)(THF)6][Ni(SC6H2Cl2S)2] (Figure 1b), crystallized as green prisms in the P-1 space group with a [Ni2(µ-Cl3)(THF)6]+ cation, and two halves of the mentioned [Ni(SC6H2Cl2S)2]− anionic molecules. In the cationic moiety, the Ni atom is coordinated to three oxygen atoms from the THF molecules and three bridge chlorine atoms, and the two NiO3Cl3 octahedra are sharing the triangular Cl-Cl-Cl face. This cation has been found in the literature in compounds [Ni2(µ-Cl3)(THF)6][SnCl(THF)6] [28], and [Ni2(µ-Cl3)(THF)6][NMe4][NiSn4C5H12Cl8O] [29], and the observed Ni-Ni (2.9849(5) Å), Ni-O (2.059(2)-2.115(2) Å) and Ni-Cl (2.4002(9)-2.4299(9) Å) distances and angles in 4 (Tables S17 and S18) agree with the reported values. The TXRF analysis (Table S23) for compound 4 shows a small content of iron (approximately 12%) apparently due to the deposition on the surface of the crystals of some iron-containing compounds, present in the reaction media, as amorphous or nanocrystalline solids.
Compound 6 (Figure 1d) crystallized as green prisms in the P-1 space group with a [Ni (DMF)5Cl]+ cation and two halves of the common [Ni(SC6H2S)2]− anionic molecules, for a sum formula [Ni(DMF)5Cl][Ni(SC6H4S)2]. The [Ni(SC6H2S)2]− anion presents the expected square planar NiS4 geometry, while the nickel atom in the cation is surrounded by five oxygen atoms from five DMF molecules (Ni-O distances in the range 2.065(2)–2.107(2) Å, see Table S17) plus a chlorine atom (Ni-Cl distance of 2.3723(8) Å, Table S17) in a distorted octahedral NiO5Cl environment, similar to the one described in the bibliography for this moiety in [Ni(DMF)5Cl][Ni(Se2C2(CN)2)2] [30].
Additionally, compounds 2A, 2B, and 3 (Figure 2a–c) were also obtained and isolated in the reactions described in the experimental section (Section 3.1.1 and Section 3.1.2). These three compounds contained nickel cationic moieties that were already present in compounds 1 and 5 ([Ni(DMF)6]2+) and 4 ([Ni2(µ-Cl3)(THF)6]+), together with some iron anions derived from the FeCl3·6H2O reactant.
Compound 2A, with formula [Ni(DMF)6][Fe2(µ-O)Cl6] (Figure 2a), crystallized as yellow prisms and was found to be isostructural with a previously reported manganese-iron compound with formula [Mn(DMF)6][Fe2(µ-O)Cl6] [31], which had been isolated in a reaction to obtain heterometallic complexes using FeCl3·6H2O as reactant. It includes the cationic entity [Ni(DMF)6]2+ (found in compounds 1 and 5) and the anionic dimer [Fe2(µ-O)(Cl)6]2−. This anion is composed of two fused FeCl3O tetrahedra sharing the central oxygen vertex. The Fe-Cl and Fe-O distances are 2.231(9) Å and 1.7663(9) Å, respectively, in the range expected for this species. The Fe-O-Fe angle has a value of 180°, and the two iron tetrahedra adopt a staggered conformation as a consequence of the O and Fe locations at positions with -3 and 3 symmetry, respectively. The formation of the [Fe2(µ-O)(Cl)6]2− anion in this reaction may be the result of the partial hydrolysis of either FeCl3 or [FeCl4]− by oxygen from water [32]. TXRF measurements in compound 2A (Table S21) confirmed the presence in the crystal of both nickel and iron atoms in a 1:2 ratio. Compound 2B (Figure 2b) was found to be a new structural type, a polymorph of compound 2A, with a slightly different geometry for the [Fe2(µ-O)(Cl)6]2− anion. Fe-Cl (2.222(1)-2.219(2) Å) and Fe-O (1.753(3) Å) distances are slightly shorter than the ones found in 2A. In this case, the Fe-O-Fe angle in the anion is 154.2(2)°, closer to the most frequent values found in the literature for this molecule [33,34], and resulting in a different and less dense supramolecular arrangement (Figure S4).
Compound [Ni2(µ-Cl3)(THF)6][FeCl4] 3 (Figure 2c) appeared as yellow prismatic polyhedra and crystallized in the monoclinic P21/c space group. A structural search in the Cambridge Structural Database found that 3 is isostructural with reported compounds [Mg2(µ-Cl3)(THF)6][FeCl4] [35] and [V2(µ-Cl3)(THF)6][FeCl4] [36]. In the dinuclear cation [Ni2(µ-Cl3)(THF)6]+, analogous to the one found in compound 4, each Ni atom is coordinated to three THF molecules (Ni-O distances from 2.070(4) to 2.104(4) Å) and three bridging chloride ligands (Ni-Cl 1.395(2)–1.439(2) Å), yielding distorted NiO3Cl3 octahedra, and the two polyhedra share the Cl-Cl-Cl face. Regarding the [FeCl4]− anion, the usual tetrahedral geometry was observed around the iron atom (Fe-Cl 1.156(2)–1.184(2) Å) as a consequence of the coordination of four chloride ligands to this metal. The TXRF measurements carried out on the crystal of 3 (Table S22) confirmed the presence in the molecule of nickel and iron atoms in the expected 2:1 ratio.
Compound 7 (Figure 2d) crystallized in the triclinic P-1 space group and was isostructural with the iron [Fe4(µ-Cl)8(THF)6] [37,38] and the cobalt [Co4(µ-Cl)8(THF)6] [39] derivatives. As described in the previous reports [37,38,39], it consists of a tetrametallic cluster of edge-sharing polyhedra related to the inorganic CdI2 structure, with two metal positions in the asymmetric unit (MA and MB). The MA location displays a MACl4O trigonal bipyramidal environment (MA-Cl between 2.252(1) and 2.7018(8) Å and MA-O 2.130 (2) Å) while the MB site displays an MBCl4O2 octahedral geometry with the two oxygen atoms in a cis disposition (MB-Cl between 2.4375(8) and 2.4814(8) Å) and MB-O 2.087(2), 2.115(2) Å). As the TXRF measurements carried out on the crystal of compound 7 (Figure S9) confirmed the presence in the structure of Ni:Fe atoms in a 0.35:0.65 ratio, the model was refined with a 100% occupation of position MA by iron atoms (with label Fe1) and the MB position shared by iron and nickel atoms in a 70% Ni:30% Fe ratio (with atoms labeled Ni1/Fe2). This assignation was based on the fact that compounds with Fe atoms displaying both metal environments were found in the literature; however, for Ni atoms, no structures with MACl4O trigonal bipyramidal geometry were reported, but two structures displaying analogous MCl4O2 octahedral geometry (with two cis oxygen atoms) could be found [40,41].

3. Materials and Methods

All the reagents and solvents are commercially available and were used as received without further purification. Syntheses of all compounds were carried out under argon atmosphere at room temperature.
Elemental analysis measurements were conducted with a LECO CHNS-932 (Model NO: 601-800-500) microelemental analyser (LECO, St. Joseph, Mich., USA). TXRF (Total reflection X-Ray Fluorescence) analysis of the samples was performed with a benchtop S2 PicoFox TXRF spectrometer (Bruker Nano, Berlin, Germany), equipped with a molybdenum X-ray source working at 50 kV, 600 µA and 500 s and an XFlash SDD detector (effective area of 30 mm2) and an energy resolution better than 150 eV for Mn Kα. The Spectra 7 software package, also from Bruker, was used for control, acquisition, deconvolution, and integration of all analyzed samples.
Single-crystal X-ray diffraction (SCXRD) measurements were collected in a Bruker Kappa Apex II diffractometer using graphite-monochromated Mo Kα radiation (λ = 0.71073 Å) Single crystals of each of the compounds were isolated and covered with a layer of an inert mineral oil, mounted on a MiTeGen micromount with the aid of a microscope (MiTeGen, Ithaca, NY), and immediately placed in the low temperature nitrogen stream at 200 K from an Oxford Cryostream (Oxford Cryosystems, Oxford, United Kingdom) 700 unit. A summary of selected crystal and refinement data can be found in Table 1 and Table 2 and more comprehensive information is collected in the Supplementary Material (Tables S1–S16). Representations of the labelled asymmetric units for each one of the crystal structures are collected in Figures S1 (1), S2 (2A), S3 (2B), S5 (3), S6 (4), S7 (5), S8 (6) and S9 (7). Metal environment parameters are listed in Tables S17 (distances) and S18 (angles), and the existent weak C-H···S, C-H···O, and C-H···Cl supramolecular interactions are gathered in Table S19. CCDC 1834782 (1), 1989776 (2A), 1989767 (2B), 1989768 (3), 1989769 (4), 1989770 (5), 1989771 (6), and 1989772 (7) contain the crystallographic data for the crystal structures. Structural data can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.

3.1. Synthesis

3.1.1. Reaction of FeCl3·6H2O and Ni(OH)2 in the presence of HSC6H2Cl2SH

A mixture of HSC6H2Cl2SH (162 mg, 0.78 mmol) and Ni(OH)2 (93 mg, 1 mmol) in 10 mL of EtOH-H2O (1:1) was stirred at room temperature for 2 h, then a solution of FeCl3·6H2O (102 mg, 0.38 mmol) in 10 mL of EtOH-H2O (1:1) was added. The mixture was stirred for 24 h and then filtered off. The solid obtained in this reaction was crystallized at −20 °C in DMF/diethyl ether (1:4) giving rise to green crystals of [NiII(DMF)6][NiIIISC6H2Cl2S)2]2·2DMF, (1) (52 mg, 34.3% yield) together with yellow crystals of compound [NiII(DMF)6][FeIII2(µ-O)Cl6], (2A) (29 mg, 9% yield). Anal. Calcd. (Found) for C48H64Cl8N8Ni3O8S8 (1): C, 36.16 (36.08); H, 4.05 (4.05); N, 7.03 (6.88); S, 16.09 (15.70). Anal. Calcd. (Found) for C21H49Cl6Fe2N7NiO8 (2A+1DMF): C, 27.69 (28.22); H, 5.42 (5.75); N, 10.77 (9.74).
The residue obtained after removing the solvent was extracted with 5 mL of THF, and further crystallization at room temperature in THF/n-heptane (1:1) yielded a mixture of crystals consisting of: yellow prisms [NiII2(µ-Cl)3(THF)6][FeIIICl4], (3), and green ones of [NiII2(µ-Cl3)(THF)6][NiIII(SC6H2Cl2S)2], (4), both in trace amounts.

3.1.2. Reaction of FeCl3·6H2O and Ni(OH)2 in the presence of HSC6H4SH

A similar procedure followed in the reaction described above was carried out, but using HSC6H4SH, instead. The residue obtained from the reaction was crystallized at −20 °C in DMF/diethyl ether (1:4) giving rise to green crystals of [NiII(DMF)6][NiIII(SC6H4S)2]2·2DMF (5) as the main product (234 mg, 26% yield), together with some other green and yellow crystals of [NiII(DMF)5Cl][NiIII(SC6H4S)2] (6) and [NiII(DMF)6][FeIII2(µ-O)Cl6] (2B) respectively, as trace amounts.
Anal. Calcd. (Found) for C45H65N7Ni3O7S8 (5 -1 DMF): C, 43.29 (44.12); H, 5.25 (5.23); N, 7.85 (6.74); S, 20.54 (20.67).
Additionally, the residue obtained by removing the solvent in the initial filtrate was crystallized at room temperature in THF/n-heptane (1:1), giving rise to few yellow crystals of compound [FeII2.6NiII1.4(µ-Cl)8(THF)6] (7).
Please note that in some cases, the experimental analyses were not fully satisfactory. This is due to the moderate-to-low stability of the coordination compounds, showing volatile molecules of solvent weakly coordinated to the metal center. This behavior has been previously reported for related compounds [16,18,19,20].

4. Conclusions

Homo- or hetero-bimetallic ion-pairs were obtained, instead of coordination polymers, from the reactions between FeCl3·6H2O, Ni(OH)2, and the dithiolates HSC6H2X2SH (X = Cl or H). The analysis of the products formed in these reactions clearly shows the higher tendency of nickel versus iron to coordinate to sulphur atoms, giving rise to the formation of [Ni2(SC6H2X 2S)4]2− (X = Cl or H) instead of [Fe2(SC6H2X 2S)4]2− (X = Cl or H). Eight different crystalline phases (1, 2A, 2B, 3, 4, 5, 6, and 7) were obtained from these reactions and characterized by SCXRD and other techniques.
TXRF analyses were used for the identification and quantification of the metal atoms present in the solids. This technique was particularly useful, as it could be applied to very small quantities of sample and could be performed on the crystals measured in SCXRD. The analyses of the different types of solids allowed us to better understand the species that are formed, both during the reactions and in the crystallization processes.

Supplementary Materials

The following are available online, crystal structure data for compounds 1–7; section S1. Metal coordination environment parameters; section S2. Supramolecular interactions; section S3. TXRF analyses for compounds 1, 2A, and 3–7; section S4.

Author Contributions

Conceptualization, F.Z., E.D., and E.H.; experimental laboratory work, M.P.; structure solution, molecular graphics, and structural analysis, J.P.; writing, E.D., E.H., J.P., and F.Z.; funding acquisition, F.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Spanish Ministerio de Economía y Competitividad, grand number (MAT2016-77608-C3-1-P) and Ministerio de Ciencia, Innovación y Universidades (PGC2018-094644-B-C21).

Acknowledgments

We thank Avelino Martín for the structure solution of compound 1.

Conflicts of Interest

The authors declare no conflict of interest

References

  1. Robertson:, N.; Cronin, L. Metal bis-1,2-dithiolene complexes in conducting or magnetic crystalline assemblies. Coord. Chem. Rev. 2002, 227, 93–127. [Google Scholar] [CrossRef]
  2. Rauchfuss, T.B. Dithiolene Chemistry: Synthesis, Properties and applications. In Progress in Inorganic Chemistry; John Wiley & Sons: New York, NY, USA, 2004; Volume 52, pp. 1–54. [Google Scholar]
  3. Müller-Westerhoff, U.T.; Vance, B. Dithiolenes and Related Species. In Comprehensive Coordination Chemistry; Pergamon Press: Oxford, UK, 1987; Volume 2, pp. 595–631. [Google Scholar]
  4. Clemenson, P.I. The Chemistry and Solid State Properties of Nickel, Palladium and Platinum Bis(Maleonitriledithiolate) Compounds. Coord. Chem. Rev. 1990, 106, 171–203. [Google Scholar] [CrossRef]
  5. Ezzaher, S.; Gogoll, A.; Bruhn, C.; Ott, S. Directing protonation in [FeFe] hydrogenase active site models by modifications in their second coordination sphere. Chem. Commun. 2010, 46, 5775–5777. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Alcácer, L.; Novais, H. Linear Chain 1,2-Dithiolene Complexes. In Extended Linear Chain Compounds; Miller, J.S., Ed.; Springer: New York, NY, USA, 1983; Volume 6, pp. 319–351. [Google Scholar]
  7. Cassoux, P.; Valade, L.; Kobayashi, H.; Kobayashi, A.; Clark, R.A.; Underhill, A.E. Molecular metals and superconductors derived from metal complexes of 1,3-dithiol-2-thione-4,5-dithiolate (dmit). Coord. Chem. Rev. 1991, 110, 115–160. [Google Scholar] [CrossRef]
  8. Sproules, S.; Wieghardt, K. o-Dithiolene and o-aminothiolate chemistry of iron: Synthesis, structure and reactivity. Coord. Chem. Rev. 2010, 254, 1358–1382. [Google Scholar] [CrossRef]
  9. Bonneval, B.G.D.; Ching, K.I.M.-C.; Alary, F.; Bui, T.-T.; Valade, L. Neutral d8 metal bis-dithiolene complexes: Synthesis, electronic properties and applications. Coord. Chem. Rev. 2010, 254, 1457–1467. [Google Scholar] [CrossRef]
  10. Alvarez, S.; Vicente, R.; Hoffmann, R. Dimerization and stacking in transition-metal bisdithiolenes and tetrathiolates. J. Am. Chem. Soc. 1985, 107, 6253–6277. [Google Scholar] [CrossRef]
  11. Takaishi, S.; Hosoda, M.; Kajiwara, T.; Miyasaka, H.; Yamashita, M.; Nakanishi, Y.; Kitagawa, Y.; Yamaguchi, K.; Kobayashi, A.; Kitagawa, H. Electroconductive Porous Coordination Polymer Cu[Cu(pdt)2] Composed of Donor and Acceptor Building Units. Inorg. Chem. 2009, 48, 9048–9050. [Google Scholar] [CrossRef]
  12. Ribas, X.; Dias, J.C.; Morgado, J.; Wusrt, K.; Santos, I.C.; Almeida, M.; Vidal-Gancedo, J.; Veciana, J.; Rovira, C. Alkaline Side-Coordination Strategy for the Design of Nickel(II) and Nickel(III) Bis(1,2-diselenolene) Complex Based Materials. Inorg. Chem. 2004, 43, 3631–3641. [Google Scholar] [CrossRef]
  13. Llusar, R.; Uriel, S.; Vicent, C.; Clemente-Juan, J.; Coronado, E.; Gómez-García, C.J.; Braïda, B.; Canadell, E. Single-Component Magnetic Conductors Based on Mo3S7 Trinuclear Clusters with Outer Dithiolate Ligands. J. Am. Chem. Soc. 2004, 126, 12076–12083. [Google Scholar] [CrossRef]
  14. Llusar, R.; Triguero, S.; Polo, V.; Vicent, C.; Gómez-García, C.J.; Jeannin, O.; Fourmigué, M. Trinuclear Mo3S7 Clusters Coordinated to Dithiolate or Diselenolate Ligands and Their Use in the Preparation of Magnetic Single Component Molecular Conductors. Inorg. Chem. 2008, 47, 9400–9409. [Google Scholar] [CrossRef] [PubMed]
  15. Gushchin, A.L.; Llusar, R.; Vicent, C.; Abramov, P.A.; Gómez-Garcia, C.J. Mo3Q7 (Q = S, Se) Clusters Containing Dithiolate/Diselenolate Ligands: Synthesis, Structures, and Their Use as Precursors of Magnetic Single-Component Molecular Conductors. Eur. J. Inorg. Chem. 2013, 2013, 2615–2622. [Google Scholar] [CrossRef]
  16. Delgado, E.; Gómez-García, C.J.; Hernández, D.; Hernández, E.; Martín, A.; Zamora, F. Unprecedented layered coordination polymers of dithiolene group 10 metals: Magnetic and electrical properties. Dalton Trans. 2016, 45, 6696–6701. [Google Scholar] [CrossRef] [PubMed]
  17. Belo, D.; Almeida, M. Transition metal complexes based on thiophene-dithiolene ligands. Coord. Chem. Rev. 2010, 254, 1479–1492. [Google Scholar] [CrossRef]
  18. Benmansour, S.; Delgado, E.; Gómez-García, C.J.; Hernández, D.; Hernández, E.; Martín, A.; Perles, J.; Zamora, F. Coordination Polymers Based on Diiron Tetrakis(dithiolato) Bridged by Alkali Metals, Electrical Bistability around Room Temperature, and Strong Antiferromagnetic Coupling. Inorg. Chem. 2015, 54, 2243–2252. [Google Scholar] [CrossRef]
  19. Castillo, O.; Delgado, E.; Hernández, D.; Hernández, E.; Martín, A.; Martín, I.; Zamora, F. Structural Diversity of Compounds Based on Iron-Dithiolene with Sodium or Potassium Complexes. Cryst. Growth Des. 2016, 16, 5466–5478. [Google Scholar] [CrossRef]
  20. Delgado, E.; Hernández, D.; Hernández, E.; Martín, A.; Zamora, F. Synthesis and Structural Characterization of Transition Metal Dithiolene Derivatives Containing Divalent Metals as Counter-Cations. Cryst. Eng. Commun. 2019, 21, 1423–1432. [Google Scholar]
  21. Martinez-Martin, P.; Perles, J.; Rodriguez-Ubis, J.C. Structure Dependence of the Energy Transfer from Tb(III) to Yb(III) in Metal–Organic Frameworks Based in Bispyrazolylpyridines. Crystals 2020, 10, 69. [Google Scholar] [CrossRef] [Green Version]
  22. Madhu, V.; Das, S.K. New Series of Asymmetrically Substituted Bis(1,2-dithiolato)-Nickel(III) Complexes Exhibiting Near IR Absorption and Structural Diversity. Inorg. Chem. 2008, 47, 5055–5070. [Google Scholar] [CrossRef]
  23. Keefer, C.E.; Purrington, S.T.; Bereman, R.D.; Boyle, P.D. The First Systematic Synthesis of Heterobimetallic Dithiolene-Bridged Complexes. Synthesis and Characterization of Metal Complexes of 4-(1’,2’-Ethylenedithiolate)-1,3-dithiole-2-one and Dimeric Metal Complexes of 1,2,3,4-Butadienetetrathiolate. Inorg. Chem. 1999, 38, 5437–5442. [Google Scholar] [CrossRef]
  24. Qu, L.; Guo, Y.; Luo, H.; Zhong, C.; Yu, G.; Liu, Y.; Qin, J. A simple nickel bis(dithiolene) complex as an excellent n-type molecular semiconductor for field-effect transistors. Chem. Commun. 2012, 48, 9965–9967. [Google Scholar] [CrossRef] [PubMed]
  25. Curreli, S.; Deplano, P.; Mercuri, M.L.; Pilia, L.; Serpe, A.; Bigoli, F.; Pellinghelli, M.A.; Coronado, E.; Gómez-Garcıa, C.J.; Canadell, E. A New Conducting Molecular Solid Based on the Magnetic [Ni(dmf)6]2+ Cation on [Ni(dsit)2]22- (dsit = 1,3-dithiole-2-thione-4,5-diselenolate) Showing an Unprecedent Anion Packing. J. Solid State Chem. 2002, 168, 653–660. [Google Scholar] [CrossRef]
  26. Karlheinz, S.; Dietmar, R. Coordination Chemistry of Polynitriles, I. Syntheses and Crystal Structures of [Ag(PCC)(DMF)], [Ni(DMF)6](PCC)2 and [Co(DMF)6](PCC)2 (PCC = [C5(CN)5]−, DMF = N,N-Dimethylformamide). Z. Nat. B 2013, 68, 546–550. [Google Scholar]
  27. Famengo, A.; Pinero, D.; Jeannin, O.; Guizouarn, T.; Fourmigue, M. Paramagnetic dithiolene complexes as metallo-ligands: Ether/thioether coordination. Dalton Trans. 2012, 41, 1441–1443. [Google Scholar] [CrossRef] [Green Version]
  28. Janas, Z.; Lis, T.; Sobota, P. Chloride ion abstraction from cobalt and nickel chlorides by SnCI4. Crystal structure of [Ni2(µ-Cl3)(THF)6][SnCl5(THF)]. Polyhedron 1992, 11, 3019. [Google Scholar] [CrossRef]
  29. Zebrowski, J.P.; Hayashi, R.K.; Dahl, L.F. A new family of icosahedral cages with transition metal and main group IV (14) atoms: Synthesis and structural-bonding analysis of the [Ni11(SnR)2(CO)18]2- dianions (R = Bu, Me) containing nickel-centered icosahedral Ni10Sn2 cages and of their unusual [Ni(SnRCl2)4(CO)]2- precursors containing a trigonal-bipyramidal d8 nickel(II) configuration. J. Am. Chem. Soc. 1993, 115, 1142–1144. [Google Scholar]
  30. McLauchlan, C.; Robowski, S.; Ibers, J.A. Syntheses and Characterization of the Metal Maleonitrilediselenolates [K([2.2.2]-cryptand)]2[M(Se2C2(CN)2)2] (M = Ni, Pd, Pt) and [Ni(dmf)5Cl]2[Ni(Se2C2(CN)2)2]. Inorg. Chem. 2001, 40, 1372. [Google Scholar] [CrossRef]
  31. Chygorin, E.N.; Petrusenko, S.R.; Kokozay, V.N.; Smal, Y.O.; Omelchenko, I.V.; Shishkin, O.V. Hexakis(dimethylformamide-κO)-manganese(II) μ-oxido-bis[trichloridoferrate(III)]. Acta Cryst. 2011, 67, m1563–m1564. [Google Scholar] [CrossRef]
  32. Girma, K.B.; Lorenz, V.; Blaurock, S.; Edelmann, F.T. Coordination chemistry of acrylamide: Formation and structural characterization of [Fe(O-OC(NH2)CHCH2)6][Fe2Cl6O]. Inorg. Chim. Acta 2008, 361, 346–348. [Google Scholar] [CrossRef]
  33. Yana, B.; Chen, Z.-D.; Wang, S.-X. Synthesis, Crystal Structure and Magnetic Property of Diiron Complex [Fe(phen)3][Fe2Cl6O].2CH3CN. J. Chin. Chem. Soc. 2000, 47, 1211–1214. [Google Scholar] [CrossRef]
  34. Wei, J.; Ju, G.; You, X. Study on magnetic properties for (μ-oxo)bis[trichloroferrate(III)] dimer [Fe2Cl6O]2− by local spin theory. Chem. Phys. Lett. 2004, 391, 226–233. [Google Scholar] [CrossRef]
  35. Liu, T.; Shao, Y.; Li, G.; Gu, M.; Hu, J.; Xu, S.; Nie, Z.; Chen, X.; Wang, C.; Liu, J. A facile approach using MgCl2 to formulate high performance Mg2+ electrolytes for rechargeable Mg batteries. J. Mater. Chem. A 2014, 2, 3430–3438. [Google Scholar] [CrossRef]
  36. Calderazzo, F.; De Benedetto, G.E.; Pampaloni, G.; Mossmer, C.M.; Strahle, J.; Wurst, K. Bis(arene)vanadium(O) complexes as a source of vanadium(II) derivatives by both disproportionation of the [V(η6-arene)2]+ cations and oxidation. of [V(η6-arene)2]. J. Organomet. Chem. 1993, 73, 451. [Google Scholar] [CrossRef]
  37. Cotton, F.-A.; Luck, R.-L.; Son, K.-A. New polynuclear compounds of iron(II) chloride with oxygen donor ligands Part I. Fe4Cl8(THF)6: Synthesis and a single crystal X-ray structure determination. Inorg. Chim. Acta 1991, 179, 11–15. [Google Scholar] [CrossRef]
  38. Zhao, H.; Clérac, R.; Sun, J.-S.; Ouyang, X.; Clemente-Juan, J.M.; Gómez-García, C.J.; Coronado, E.; Dunbar, K.R. Comparative Structural and Magnetic Study of Three Compounds Based on the Cluster Unit M4Cl8(THF)6 (M = Mn, Fe, Co). J. Solid State Chem. 2001, 159, 281–292. [Google Scholar] [CrossRef] [Green Version]
  39. Sobota, P.; Olejnik, Z.; Utko, J.; Lis, T. Synthesis, magnetic properties and structure of the [Co4(μ3-Cl)2(μ2-Cl)4Cl2(THF)6] complex. Polyhedron 1993, 12, 613. [Google Scholar] [CrossRef]
  40. Bkouche-Waksman, I. Données cristallographiques sur les solvates des halogénures de CoII et NiII avec le méthanol et l’éthanol. J. Inorg. Nucl. Chem. 1976, 38, 1871. [Google Scholar] [CrossRef]
  41. Luo, F.; Zheng, J.-M.; Kurmoo, M. One-Pot Synthesis of Schiff-Base-Containing Ni8 Clusters:  Solvothermal Synthesis, Structure, and Magnetic Properties. Inorg. Chem. 2007, 46, 8448–8450. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 1–7 are available from the authors.
Molecules 25 02240 sch001 550

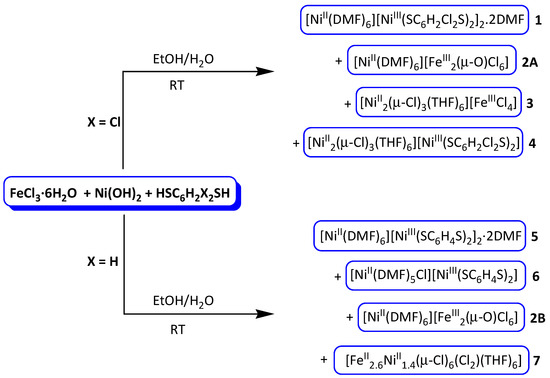

Scheme 1. Schematic representation of the reactions carried out to isolate compounds 1–7.
Scheme 1. Schematic representation of the reactions carried out to isolate compounds 1–7.
Molecules 25 02240 sch001
Molecules 25 02240 g001 550

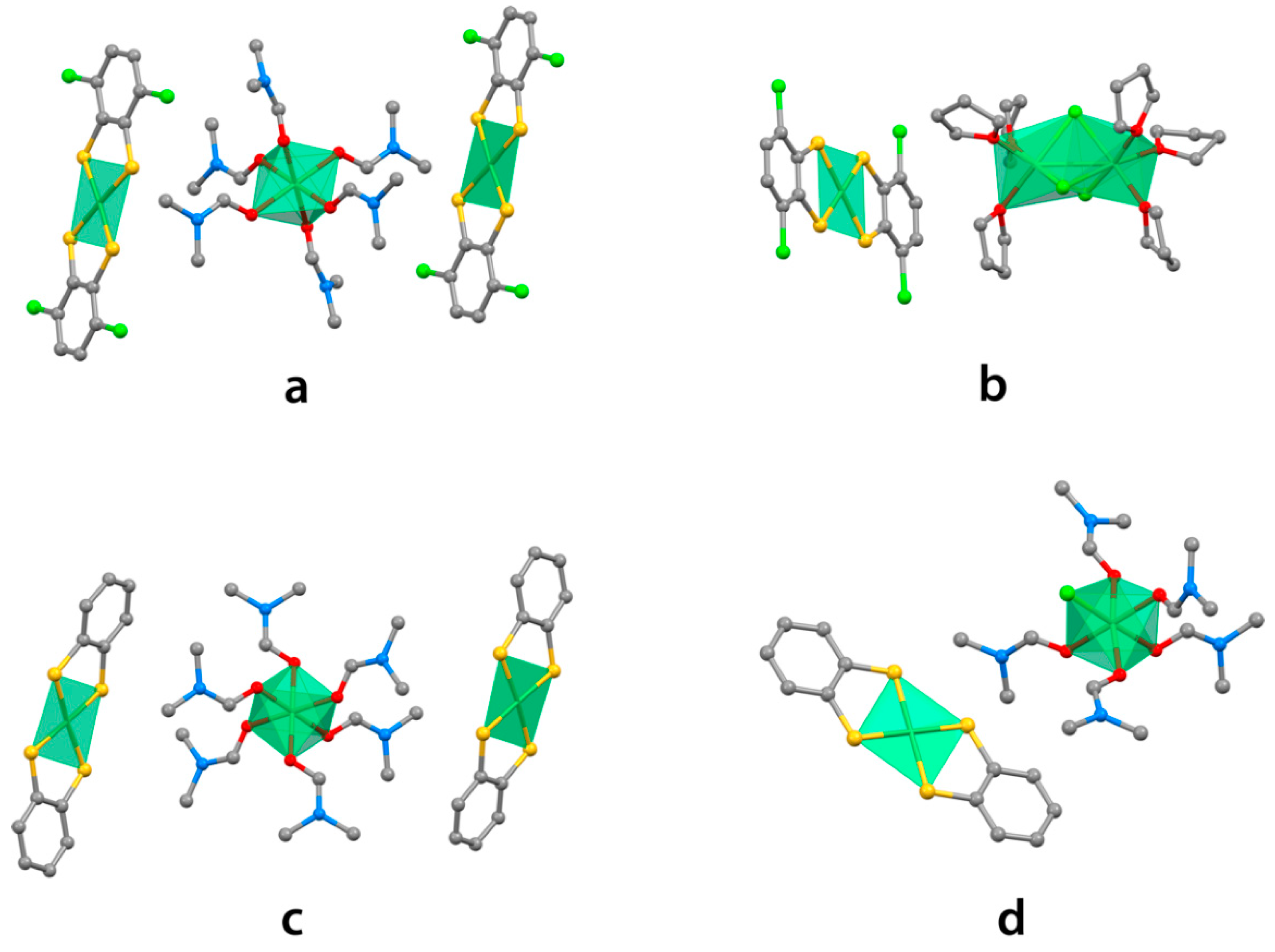

Figure 1. Ionic species per formula unit found in the dithiolene derivatives: a, [Ni(DMF)6][Ni(SC6H2Cl2S)2]2 1; b, [Ni2(µ-Cl3)(THF)6][Ni(SC6H2Cl2S)2] 4; c, [Ni(DMF)6][Ni(SC6H4S)2]2 5; and d, [Ni(DMF)5Cl][Ni(SC6H4S)2] 6. Green octahedra and square planar geometries represent Ni coordination environments. Oxygen atoms are depicted in red, sulfur ones in yellow, nitrogen in blue, chlorine in light green, and carbon in grey. Solvent molecules and hydrogen atoms have been omitted for clarity.
Figure 1. Ionic species per formula unit found in the dithiolene derivatives: a, [Ni(DMF)6][Ni(SC6H2Cl2S)2]2 1; b, [Ni2(µ-Cl3)(THF)6][Ni(SC6H2Cl2S)2] 4; c, [Ni(DMF)6][Ni(SC6H4S)2]2 5; and d, [Ni(DMF)5Cl][Ni(SC6H4S)2] 6. Green octahedra and square planar geometries represent Ni coordination environments. Oxygen atoms are depicted in red, sulfur ones in yellow, nitrogen in blue, chlorine in light green, and carbon in grey. Solvent molecules and hydrogen atoms have been omitted for clarity.
Molecules 25 02240 g001
Molecules 25 02240 g002 550

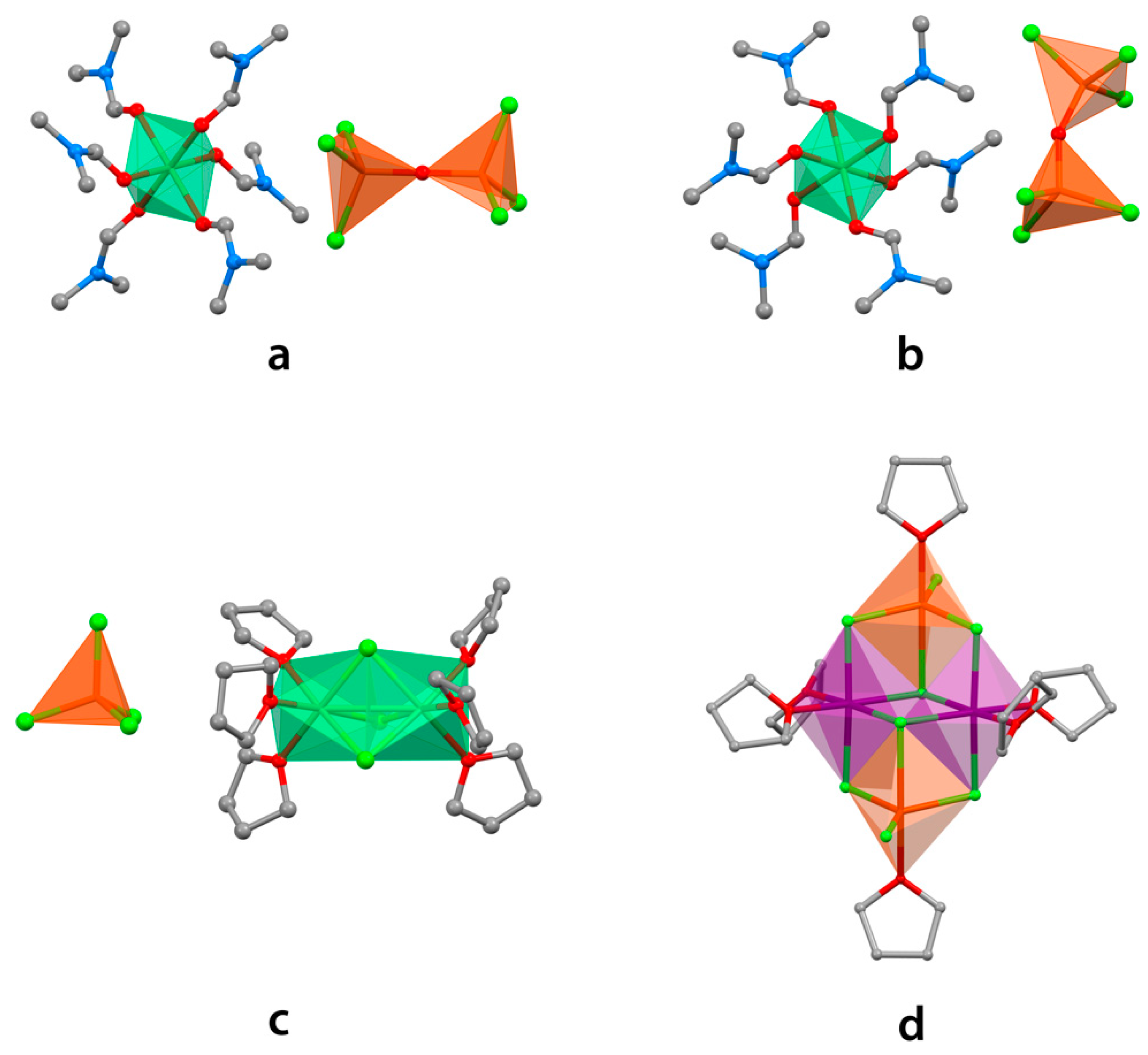

Figure 2. Molecular species per formula unit in the compounds containing both Fe and Ni metals: a, [Ni(DMF)6][Fe2(µ-O)Cl6] 2A; b, [Ni(DMF)6][Fe2(µ-O)Cl6] 2B; c, [Ni2(µ-Cl)3(THF)6][FeCl4] 3; d, tetrametallic compound [M4(µ-Cl)8(THF)6] 7; hydrogen atoms have been omitted for clarity. Green octahedra represent Ni coordination environments; orange tetrahedra, Fe environments; and purple octahedra the shared Fe/Ni ones; oxygen atoms are depicted in red, nitrogen in blue, chlorine in light green and carbon in grey.
