Isolation, Physicochemical Properties, and Structural Characteristics of Arabinoxylan from Hull-Less Barley

by
Haoyingye Yao
1,
Yuxiao Wang
1,
Junyi Yin
1,
Shaoping Nie
1 and
Mingyong Xie
1,2,*
1
State Key Laboratory of Food Science and Technology, China-Canada Joint Lab of Food Science and Technology (Nanchang), Nanchang University, 235 Nanjing East Road, Nanchang 330047, China
2
National R&D Center for Freshwater Fish Processing, Jiangxi Normal University, Nanchang 330022, China
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(10), 3026; https://doi.org/10.3390/molecules26103026
Submission received: 17 April 2021 / Revised: 10 May 2021 / Accepted: 14 May 2021 / Published: 19 May 2021
(This article belongs to the Special Issue Isolation, Identification and Applications of Polysaccharides)
Browse Figures
Versions Notes

Abstract

:
Arabinoxylan (HBAX-60) was fractioned from alkaline-extracted arabinoxylan (HBAX) in the whole grain of hull-less barley (Hordeum vulgare L. var. nudum Hook. f. Poaceae) by 60% ethanol precipitation, which was studied for physicochemical properties and structure elucidation. Highly purified HBAX-60 mainly composed of arabinose (40.7%) and xylose (59.3%) was created. The methylation and NMR analysis of HBAX-60 indicated that a low-branched β-(1→4)-linked xylan backbone possessed un-substituted (1,4-linked β-Xylp, 36.2%), mono-substituted (β-1,3,4-linked Xylp, 5.9%), and di-substituted (1,2,3,4-linked β-Xylp, 12.1%) xylose units as the main chains, though other residues (α-Araf-(1→, β-Xylp-(1→, α-Araf-(1→3)-α-Araf-(1→ or β-Xylp-(1→3)-α-Araf-(1→) were also determined. Additionally, HBAX-60 exhibited random coil conformation in a 0.1 M NaNO3 solution. This work provides the properties and structural basis of the hull-less barley-derived arabinoxylan, which facilitates further research for exploring the structure–function relationship and application of arabinoxylan from hull-less barley.

1. Introduction

Hull-less barley (Hordeum vulgare L. var. nudum Hook. f. Poaceae; “Qingke” in Chinese), also known as highland barley, is mainly grown in the Qinghai–Tibet Plateau. Since hull-less barley is rich in nutritious ingredients and offers some advantages for food uses, it has gradually been noticed over the past decade that hull-less barley is healthy and can be used as a functional food [1]. The limited value of nutrient compositions in traditionally processed barley products is underestimated and able to satisfy demand from people [2]. Arabinoxylan (AX) is one of the most special and valuable compounds in hull-less barley. It usually originates from the starchy endosperm and bran, and it has been studied as a natural interfacial antioxidant in emulsion [3], as well as for the interaction with gluten [4]. However, AX has not received much attention due to its isolation method and complex structure.
The substitution of cereal AX is α-L-arabinofuranosyl (Araf) units occurred at the O-2 and/or O-3 sites of the β-(1→4)-D-xylopyranosyl (Xylp) backbone [5]. Other substituents, such as glucuronosyl residues and short oligosaccharide side chains, are also present [6,7]. The structural characteristics of AXs are related to the used raw material and various extraction methods, such as hot water, alkaline solutions, diluted acids, and various combinations of the techniques. For example, corn hull-derived AX contains a higher content of galactose or glucuronic acid than barley AX, while AX extracted by enzyme has a lower molecular mass (Mw) value than an alkali-extracted fraction [8,9]. Physical treatments, such as extrusion cooking, would break glycosidic bonds and reduce the Mw of AX while lowering the degree of polymerization [10]. The Mw of AX was found to be positively correlated with the inhibition of starch digestibility [11], as well as viscosity, in vitro. The low ratio of arabinose to xylose (A/X) and unsubstituted parts of AXs, along with the cross-linking effect of the bound ferulic acid, were found to exert a negative effect on solubility [12]. Moreover, barley-derived AX has gained much more popularity regarding its biological activities, such as immunomodulation [13], glucose metabolism improvements [14], and the regulation of lipid metabolism [15]. In summary, structural characteristics (such as molecular masses and sugar repeating units) might result in different physicochemical properties, surface morphologies, rheological properties, and biological activities.
Due to its special geographical position and growing environment, the structural characterization, physicochemical properties, and solution properties of AX from whole hull-less barley grain have yet to be elucidated in depth. In this study, arabinoxylan (HBAX) was prepared from the whole grain of hull-less barley. Then, HBAX-60 was prepared from HBAX by 60% ethanol precipitation. Combined with the yield, monosaccharide composition, and molecular mass distribution, HBAX-60 was subjected to physicochemical analysis and structural elucidation in this study.

2. Results and Discussion

2.1. Physicochemical Properties

Initially, the enzymatic hydrolysis of lichenase was applied for HBAX purification. Due to the heterogeneous average molecular mass distribution detected by high performance gel permeation chromatography (HPGPC), it was not suitable for structural identification. Thus, 60% ethanol precipitation was used to purify HBAX to give a satisfying result in molecular mass profile, illustrating the high homogeneity of the purified fraction, which was named HBAX-60.
Table 1 lists chemical compositions of the hull-less barley AXs before and after purification. The main component of HBAX-60 was neutral sugar, the content of which was up to 98.3% after purification. Compared with the raw material, HBAX-60 had lower contents of starch and protein, which indicated that enzymatic hydrolysis and ethanol precipitation were effective in the extraction process for removing the starch and protein. Moreover, the content of total AX detected by the orcinol–hydrochloric acid method was increased after purification, while the β-glucan content analyzed by Megazyme β-glucan assay kit was decreased. HBAX-60 was composed of arabinose (40.7%) and xylose (59.3%), accompanied by a trace of glucose. To provide more information on the exact branching types and degrees, A/X was used as an indicator of a fine molecular structure [16]. The value of A/X in HBAX-60 was 0.7, representative of low-branched HBAX-60.

2.2. SEM Images and FT-IR Spectroscopy Analysis

SEM images of HBAX-60 with different magnifications (3000 and 5000 fold) are shown in Figure 1A. Obviously, the microstructure of HBAX-60 was a little different from that of HBAX (Figure S1), the surface morphology of which comprised lamellar structures intertwined with linear and spherical shapes. After purification, HBAX-60 presented a spherical-like structure with some filamentary or linear structures.
As shown in Figure 1B, an obvious shoulder peak (988.4 cm−1) and a comparatively intense peak (1043.5 cm−1) were typical for the FT-IR spectrum of HBAX-60 [17], which was similar with that of HBAX (Figure S2). Moreover, the characteristic peaks in the “fingerprint region” at 896.1 and 848.8 cm−1 were recognized as the β-pyranose and α-furanose of HBAX-60, respectively [18]. Additionally, two relatively extensive absorptions at 3316.4 and 2925.9 cm−1 were indicated as the vibration of O-H stretching group and the bending vibration of methylene groups, respectively. The peak at 1386.7 cm−1 was related to a deviational vibration of the C-H moiety. The absorption band centered at approximately 1650 cm−1 was attributed to the bound water.

2.3. Methylation Analysis

To identify linkage patterns, HBAX-60 was reduced to get its corresponding partially methylated alditol acetates (PMAAs) after methylation and hydrolyzation, followed by analysis by GC–MS [19]. Along with the monosaccharide composition, the results are shown in Table 2. Glycosyl linkages were characterized based on retention time and compared with the mass spectra of PMAAs (Figure S3). HBAX-60 mainly consisted of Araf-(1→, →4)-Xylp-(1→, →3,4)-Xylp-(1→ and →2,3,4)-Xylp-(1→ residues, accounting for 88.6% of the total proportion of sugar residues. Previous reports [6,20] has proposed the backbone of HBAX-60 as (1→4)-linked xylan consisting of un-substituted (36.2%), mono-substituted (O-2 or O-3, 7.1%), and di-substituted (O-2,3, 12.1%) Xylp residues. The high proportion of Araf-(1→ (34.4%) suggested that the terminal Araf residues possibly appended to the backbone, mostly and directly as single chains. This AX derived from the proportion of ramified positions in the backbone had an accurate degree of substitution of 0.7 (Table 2), further confirming the results of monosaccharide compositions in Table 1. In general, HBAX-60 was considered to be a low branched arabinoxylan. The low branch of AX may be relevant to its low water-holding capacity and intrinsic viscosity [21], which could be proved and improved upon in further research.

2.4. NMR Analysis

NMR spectroscopy is one of the most essential and useful techniques for the structural identification of polysaccharides, including 1D NMR (1H and 13C NMR) and 2D NMR (COSY, TOCSY, NOESY, HSQC, and HMBC NMR). The 1H NMR spectrum (Figure 2a) of HBAX-60 was collected at 303 K, and signals were assigned by referring to previous data and methylation results. Nine explicit sugar residues are labelled in Figure 2a. The chemical shifts of anomeric protons in α-configuration ranged from 4.7 to 5.5 ppm, while the resonances observed at 4.2–4.7 ppm were derived from β-anomeric protons [20]. As the negative peaks were overlapped by an HOD peak at 3.39–3.59 ppm, another 1H NMR test (Figure 2a) was carried out at 333 K.
Specifically, the H/C signals of α-Araf-(1→ could be classified as three kinds of patterns, since α-Araf-(1→ was attached to mono-substituted β-Xylp residues and di-substituted β-Xylp residues at the O-2 and/or O-3 sites [6,22]. Their anomeric proton resonance signals appeared at 5.34, 5.12, and 4.99 ppm, which were designated as residues A, B, and C, respectively [6,23,24]. Combined with the 13C (Figure 2b) and HSQC (Figure 2c) spectra, the corresponding resonances of anomeric carbons were ascribed to 107.57, 108.33, and 109.35 ppm. However, due to the limitation of the 1H NMR spectrum and the weak signals of the 13C NMR spectrum, 2D NMR spectra were applied. According to the COSY spectrum (Figure 2d), the signals assigned to protons of α-Araf-(1→ residues were fully assigned, as confirmed by the TOCSY spectrum (Figure S4a). The corresponding carbon resonances were identified by HSQC experiments, as summarized in Table 3. A signal at 4.77/108.48 ppm was observed in the 2D NMR of the HSQC spectrum, which confirmed that residue D was of the α-configuration. When combined with the relative peak area percentage in methylation analysis, residue D was found to correspond to →3)-α-Araf-(1→. Resonance signals at 75–87 ppm indicated C2~C4 of α-Araf residues, and the resonance signal in the region of 61–62 ppm arose from C5 of α-Araf-(1→ residue [25,26]. Along with the results of the COSY, TOCSY, and HSQC experiments, the other protons and carbons resonances of →3)-α-Araf-(1→ residue are shown in Table 3.
On the other hand, xylose (59.3%) was the main monosaccharide composition of HBAX-60 and comprised five linkage types: →2,3,4)-β-Xylp-(1→ (residue E; 12.1%), →3,4)-β-Xylp-(1→ (residue F; 5.9%), β-Xylp-(1→ (residue G; 3.1%), →4)-β-Xylp-(1→ (residue H; 36.2%), and →2,4)-β-Xylp-(1→ (residue I; 1.2%). By referring to previous reports [6,23,24,26], main peaks in the anomeric regions of the 1D NMR spectra (1H and 13C NMR) could be easily identified, and their anomeric signals were assigned at 4.57/100.83, 4.32/102.18, 4.26/102.18, 4.24/102.18, and 4.40/103.96 ppm, respectively. They were interpretable to be →2,3,4)-β-Xylp-(1→, →3,4)-β-Xylp-(1→, β-Xylp-(1→, →4)-β-Xylp-(1→ and →2,4)-β-Xylp-(1→. Resonance signals at 65–85 ppm corresponded to C2~C4 of β-Xylp residues [25], while the chemical shifts in the region of 61–63 ppm corresponded to C5 of β-Xylp-(1→ residues [26]. Moreover, most resonances of the cross peaks are summarized in Table 3 according to the 2D spectra (Figure 2c,d and Figure S4a). However, the signal of residue I was too low to be well-confirmed.
In order to identify the sequence of glycosidic linkages existing in HBAX-60, long-range 1H and 1H correlation (NOESY) and 1H and 13C correlation (HMBC) spectra were generally preferred. Due to the low resolution and worthless spectral assignments of solvent peaks in the HMBC spectrum (not provided), the NOESY spectrum (Figure S4b) was able to identify the sequences of various bonds. From the cross peaks in the NOESY spectrum and relevant evidence, the long-range coupling between protons (residue H H1–residue H H4, residue F H1–residue H H4, residue F H1–residue E H4, and residue E H1–residue H H4) among xylose units implied that the O-1 of residue H was attached to the O-4 of residue H or residue E via β-(1→4) linkages [6,20,23,26]. Moreover, there were some signals observed for the anomeric protons from residues C and D attached to the H2 of residue E. Above all, the main chain of HBAX-60 was a low-branched arabinoxylan that possessed a →4)-β-Xylp-(1→ (residue H) backbone linked by other branches. The possible linkages are summarized as follows [23,27,28,29]: (1) the terminal α-Araf-(1→ or β-Xylp-(1→ might be substituted at O-3 of →4)-β-Xylp-(1→ residue, and (2) α-Araf-(1→, β-Xylp-(1→, β-Xylp-(1→3)-α-Araf-(1→ or α-Araf-(1→3)-α-Araf-(1→ might be substituted at the O-2 site, which still needs further identification. The →2)-α-Araf-(1→ (1.4%), →5)-α-Araf-(1→ (1.3%), Glcp-(1→ (0.8%), →3)-Glcp-(1→ (0.4%), and →4)-Glcp-(1→ (1.5%) residues could not be assigned because of their low relative peak area percentages. Finally, combined with the results from the above-mentioned GC–MS analysis and NMR experiments, the core unit structure of HBAX-60 was deduced, as shown in Figure 3.

2.5. Molecular Properties

HBAX-60 had a high mean Mw of 222.3 kDa. The relationships of the mean molar number (Mn) (129.3 kDa), Mw, and Mz (800.6 kDa) with cumulative weight fraction are presented in Figure 4b. The value of Mw/Mn of HBAX-60 was 1.7, indicating a relatively narrower distribution of arabinoxylan chains under the detected condition.
The intrinsic viscosity ([η]), root mean square (Rg), and average hydrodynamic radius (Rh) are important parameters that can be applied to explore the solution properties of a polymer chain. According to the equation of Mark–Houwink–Sakurada (MHS) ([η] = KMα), the relationship of [η] (619.7 mL/g) and molecular mass could be associated with the “stiffness” of HBAX-60 [30]. The double logarithmic plots of Mw versus [η] showed a decreased slope (Figure 4c), revealing the presence of the enhancement of intermolecular interactions in the high Mw fraction. A major plot accounting for 84.0% of the total molecular mass was used to fit the curves to reflect more specific molecular properties. The value of α in the region was 0.59, which probably exhibited a random coil conformation in 0.1 mol/L NaNO3 solution [31]. The particle size distribution and aggregation state affected the viscosity of the solution and the structural network of the gel, as well as the functional properties of arabinoxylan. Through using linear regression (Figure 4d), the slope of Log Rg vs. Log Mw was found to be 0.44 and the slope of Log Rh vs. Log Mw was found to be 0.53, suggesting the presence of linear flexible polymer chains in aqueous solution [32]. Moreover, with the decrease of Mw, the value of Rg and Rh decreased, which indicated that HBAX-60 had a better ductility in the 0.1 mol/L NaNO3 solution.

3. Materials and Methods

3.1. Sample Preparation

Hull-less barley was cultivated in Qinghai Province, China. Enzymes (thermostable α-amylase, amyloglucosidase and papin) were provided by Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). The β-glucan assay kit was from Megazyme International (Wicklow, Ireland). d-xylose was obtained from J&K Scientific Ltd. (Beijing, China). Other monosaccharide standards (d-arabinose, d-galactose, d-glucose, glucuronic acid, and galacturonic acid), deuterium oxide (D2O), dimethyl sulfoxide-d6 (DMSO-d6), methyl iodide, and sodium borodeuteride (98 atom% d) were bought from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA). All other used reagents were of analytical grade unless otherwise specified.

3.2. Extraction and Purification of Arabinoxylan in Hull-Less Barley

As shown in Figure 5, the whole hull-less barley grains were ground into powder (not sieved), which was then refluxed by 85% (v/v) ethanol for 2 h to remove oligosaccharides, volatile oil, and other small molecules [33]. The residue was separated and eventually dried to get a hull-less barley precipitate (HBP-1). Because arabinoxylan usually occurs together with β-glucan in cereal cell walls [34], HBP-1 was treated with hot water (1:10 w/v) three times to avoid the influence of β-glucan, followed by centrifugation to separate the residue (named as HBP-2) from the supernatant. Dried HBP-2 was extracted from a saturated barium hydroxide solution with constant stirring at 25 °C [20]. The extraction process was repeated twice. After centrifugation (5000 rpm for 15 min), the pH of the obtained supernatant was adjusted to be 6.5 with 2 mol/L HCl. Then, the supernatant was hydrolyzed by enzymes to successively remove starches and proteins, including α-amylase (95 °C for 3 h), amyloglucosidase (60 °C for 30 min), and papin (60 °C for 1 h). The enzymes were inactivated at 100 °C for 10 min and then centrifugated (5000 rpm for 15 min). The supernatant was concentrated, followed by an ethanol precipitation until a final concentration of 80% (v/v). The freeze-dried hull-less barley arabinoxylan (HBAX) was collected.
HBAX was dissolved to obtain a homogeneous aqueous solution (10%, w/v), and then 1.5 times volume of ethanol was added until the solution reach a final concentration of 60%. The fraction collected after centrifugation (10,000 rpm at 4 °C for 15 min) was washed with 100% ethanol and freeze-dried. The resultant fraction (HBAX-60) was chosen for further analysis.

3.3. Chemical Compositions

The content of neutral sugar was analyzed according to phenol-sulfuric acid method [35] with xylose as a standard, while the percentage of uronic acid was determined by the m-hydroxybiphenyl photometric assay with glucuronic acid as a standard [36]. Protein content was studied by a spectrophotometric method [37] with bovine serum albumin as the standard. The content of β-glucan was found with the Megazyme β-glucan assay kit (AOAC method 995.16, Wicklow, Ireland), and the determination of the total starch was conducted by the Megazyme total starch assay kit (AOAC method 996.11, Wicklow, Ireland). The content of arabinoxylan was identified with the orcinol–hydrochloric acid method [38]. In addition, monosaccharide composition was measured by following the method of a previous report [39] with some modifications. Polysaccharide (5 mg) was hydrolyzed in 12 mol/L H2SO4 in an ice-water bath for 30 min and then diluted into 2 mol/L in an oil bath at 100 °C for 2 h. The hydrolysate was diluted and passed through the hydrophilic membrane (0.22 μm), and then it was subjected to high-performance anion-exchange chromatography with pulsed amperometry (HPAEC-PAD).
The Mw distribution, radius of gyration, and [η] of HBAX-60 were quantified by high performance size exclusion chromatography (HPSEC) coupled with the three online detectors, as previously reported [30]. A Series 1500 pump (Scientific Systems Inc., Janesville, WI, USA) and two columns—SB-806 HQ column (8 × 300 mm) and SB-804 HQ column (8 × 300 mm, Showa Denko Inc., Tokyo, Japan)—in series were equipped in the HPSEC system, to which an SB-G guard column (6 × 50 mm) was connected. The eluent was a 0.1M NaNO3 solution (containing 0.02% NaN3) with a flow rate of 0.6 mL/min, while the columns were maintained at 35.0 ± 0.5 °C. HBAX-60 was injected after passing through a 0.22 μm hydrophilic membrane. All parameters were processed and analyzed using the ASTRA 6.1.7 software (Wyatt Technology Corporation, Santa Barbara, CA, USA). A refractive index increment (dn/dc) of 0.146 mL/g was used in the calculation.

3.4. SEM and FT-IR Spectroscopy Analysis

The HBAX-60 re-dissolved in distilled water (1.0 mg/mL) was freeze-dried and placed onto an aluminum stub and gold-coated with an ion sputter coater with an SU8100 SEM (Hitachi Ltd., Tokyo, Japan) for observation.
The polysaccharide sample, mixed with KBr powder, was ground and pressed as tablets prior to FT-IR spectroscopy, which was conducted with a Thermo Nicolet 5700 infrared spectrograph (Thermo-Electron, Madison, WI, USA) in a range from 4000 to 400 cm−1. In addition, each FT-IR spectrum was scanned 32 times at a resolution ratio of 4 cm−1.

3.5. Methylation and GC–MS Analysis

The assignments of linkage types in HBAX-60 were analyzed with GC–MS according to the method of Shi et al. [31]. A dried polysaccharide sample (2–3 mg) was dissolved in anhydrous DMSO and methylated with 1 mL of iodomethane. The methylated sample was converted into partially methylated alditol acetates (PMAAs) by hydrolysis and acetylation. Then, the acetylated sample was injected into an Agilent Technology 7890/7000 QQQ system (Agilent Technologies Corp., Santa Clara, CA, USA) equipped with a Supelco-2330 column (30 m × 0.25 mml 0.2 μm film thickness).

3.6. NMR Analysis

Freeze-dried HBAX-60 was exchanged with D2O (5:1 w/v) three times and then dissolved in DMSO-d6 before testing. NMR experiments were conducted on a Bruker Avance III HD 400 MHz NMR spectrometer (Brucker, Switzerland) coupled with a liquid nitrogen cryogenic probe (CryoProbeTM Prodigy, 5 mm BB0, Fällanden, Switzerland). The 1H, 13C, 1H-1H homonuclear correlated spectroscopy (1H-1H COSY), total correlated spectroscopy (TOCSY), nuclear Overhauser effect spectroscopy (NOESY), 1H-13C heteronuclear single-quantum coherence (1H-13C HSQC), and heteronuclear multiple-bond correlation (HMBC) spectra were recorded at 303 K with the standard Bruker pulse sequence.

4. Conclusions

In this work, highly pure arabinoxylan (HBAX-60) was isolated from the whole grain of hull-less barley from an alkaline solution and purified through enzymatic hydrolysis and ethanol precipitation. HBAX-60 was considered to be a relatively low-branched polysaccharide comprising un-substituted (1,4-linked β-Xylp, 36.2%), mono-substituted (1,3,4-linked β-Xylp, 5.9%), and di-substituted (1,2,3,4-linked β-Xylp, 12.1%) xylose as the backbone, as well as some terminal α-Araf, β-Xylp and 1,3-linked Araf as the side chains. HBAX-60 presented a spherical shape with a filamentary or linear appearance in solid morphology. HBAX-60 exhibited random coil conformation in a 0.1 M NaNO3 solution, which could provide a basis for studying conformational behaviors in different aqueous systems in other ways, such as dynamic and static light scattering. Branches of AX have positive effects on film formation and properties [40], which could be discussed in further research focusing on the amount and positions of branching in HBAX-60. This study provides a foundation for potential applications in food and other value-added health products of hull-less barley. How highly purified HBAX-60′s fine structure affects its functional characteristics and biological activities needs further study.

Supplementary Materials

The following are available online. Figure S1. SEM images of HBAX in hull-less barley: (a) 3000 × and (b) 5000 ×; Figure S2. FT-IR spectrum of HBAX in hull-less barley; Figure S3. The total ion chromatography of PMAA derivatives (a) and mass spectra (b–m) of HBAX-60; b: 1,4-di-O-acetyl-2,3,5-tri-O-methyl arabinitol; c: 1,5-di-O-acetyl-2,3,4-tri-O-methyl xylitol; d: 1,2,4-tri-O-acetyl-3,5-di-O-methyl arabinitol; e: 1,5-di-O-acetyl-2,3,4,6-tetra-O-methyl glucitol; f: 1,3,4-tri-O-acetyl-2,5-di-O-methyl arabinitol; g: 1,4,5-tri-O-acetyl-2,3-di-O-methyl arabinitol; h: 1,4,5-tri-O-acetyl-2,3-di-O-methyl xylitol; i: 1,3,5-tri-O-acetyl-2,4,6-tri-O-methyl glucitol; j: 1,4,5-tri-O-acetyl-2,3,6-tri-O-methyl glucitol; k: 1,2,4,5-tera-O-acetyl-3-O-methyl xylitol; l: 1,3,4,5-tri-O-acetyl-2-O-methyl xylitol; m: 1,2,3,4,5-penta-O-acetyl-xylitol. The PMAAs were derived from individual sugars, e.g., 1,5-di-O-acetyl-2,3,4-tri-O-methyl xylitol means that xylose was methylated at the O-2,3,4 sites and acetylated at the O-1,5 sites, which indicates that the corresponding linkage pattern was Xylp-(1→. Figure S4. TOCSY (a) and NOESY (b) NMR spectra of HBAX-60.

Author Contributions

Conceptualization, S.N. and M.X.; methodology and data curation, H.Y. and S.N.; validation, S.N. and M.X.; investigation, H.Y.; resources, M.X.; writing—original draft preparation, H.Y.; writing—review and editing, H.Y., Y.W., and J.Y.; supervision, M.X.; funding acquisition, J.Y., S.N., and M.X. All authors have read and agreed to the published version of the manuscript.

Funding

The financial supports from the National Science Fund for Distinguished Young Scholars of China (31825020), Scientific and Technological Innovation Foundation for Distinguished Young Scholars of Jiangxi Province of China (20192BCB23005), and Research Project of Sate Key Laboratory of Food Science and Technology, Nanchang University (SKLF-ZZB-201921) were gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Guo, T.; Horvath, C.; Chen, L.; Chen, J.; Zheng, B. Understanding the nutrient composition and nutritional functions of highland barley (qingke): A review. Trends Food Sci. Tech. 2020, 103, 109–117. [Google Scholar] [CrossRef]
  2. Xiao, X.; Tan, C.; Sun, X.; Zhao, Y.; Zhang, J.; Zhu, Y.; Bai, J.; Dong, Y.; Zhou, X. Effects of fermentation on structural characteristics and in vitro physiological activities of barley β-glucan. Carbohyd. Polym. 2020, 231, 115685. [Google Scholar] [CrossRef] [PubMed]
  3. Li, S.; Chen, H.; Cheng, W.; Yang, K.; Cai, L.; He, L.; Du, L.; Liu, Y.; Liu, A.; Zeng, Z.; et al. Impact of arabinoxylan on characteristics, stability and lipid oxidation of oil-in-water emulsions: Arabinoxylan from wheat bran, corn bran, rice bran, and rye bran. Food Chem. 2021, 358, 129813. [Google Scholar] [CrossRef] [PubMed]
  4. Si, X.; Li, T.; Zhang, Y.; Zhang, W.; Qian, H.; Li, Y.; Zhang, H.; Qi, X.; Wang, L. Interactions between gluten and water-unextractable arabinoxylan during the thermal treatment. Food Chem. 2021, 345, 128785. [Google Scholar] [CrossRef]
  5. Wang, J.; Bai, J.; Fan, M.; Li, T.; Li, Y.; Qian, H.; Wang, L.; Zhang, H.; Qi, X.; Rao, Z. Cereal-derived arabinoxylans: Structural features and structure-activity correlations. Trends Food Sci. Tech. 2020, 96, 157–165. [Google Scholar] [CrossRef]
  6. Guo, R.; Xu, Z.; Wu, S.; Li, X.; Li, J.; Hu, H.; Wu, Y.; Ai, L. Molecular properties and structural characterization of an alkaline extractable arabinoxylan from hull-less barley bran. Carbohyd. Polym. 2019, 218, 250–260. [Google Scholar] [CrossRef]
  7. Chen, Z.; Li, S.; Fu, Y.; Li, C.; Chen, D.; Chen, H. Arabinoxylan structural characteristics, interaction with gut microbiota and potential health functions. J. Funct. Foods 2019, 54, 536–551. [Google Scholar] [CrossRef]
  8. Ogawa, K.; Takeuchi, M.; Nakamura, N. Immunological effects of partially hydrolyzed arabinoxylan from corn husk in mice. Biosci. Biotechnol. Biochem. 2005, 69, 19–25. [Google Scholar] [CrossRef]
  9. Zhou, S.; Liu, X.; Guo, Y.; Wang, Q.; Peng, D.; Cao, L. Comparison of the immunological activities of arabinoxylans from wheat bran with alkali and xylanase-aided extraction. Carbohyd. Polym. 2010, 81, 784–789. [Google Scholar] [CrossRef]
  10. Nyman, M. Importance of processing for physico-chemical and physiological properties of dietary fibre. Proc. Nutr. Soc. 2003, 62, 187–192. [Google Scholar]
  11. Liu, Y.; Wang, S.; Kang, J.; Wang, N.; Xiao, M.; Li, Z.; Wang, C.; Guo, Q.; Hu, X. Arabinoxylan from wheat bran: Molecular degradation and functional investigation. Food Hydrocoll. 2020, 107, 105914. [Google Scholar] [CrossRef]
  12. Köhnke, O.; Östlund, Å.; Brelid, H. Adsorption of arabinoxylan on cellulosic surfaces: Influence of degree of substitution and substitution pattern on adsorption characteristics. Biomacromolecules 2011, 12, 2633–2641. [Google Scholar] [CrossRef]
  13. Fadel, A.; Plunkett, A.; Li, W.; Tessu Gyamfi, V.E.; Nyaranga, R.R.; Fadel, F.; Dakak, S.; Ranneh, Y.; Salmon, Y.; Ashworth, J.J. Modulation of innate and adaptive immune responses by arabinoxylans. J. Food Biochem. 2017, 42, e12473. [Google Scholar] [CrossRef]
  14. Behall, K.M.; Scholfield, D.J.; Hallfrisch, J.G. Barley β-glucan reduces plasma glucose and insulin responses compared with resistant starch in men. Nutr. Res. 2006, 26, 644–650. [Google Scholar] [CrossRef]
  15. Li, L.; Pan, M.; Pan, S.; Li, W.; Zhong, Y.; Hu, J.; Nie, S. Effects of insoluble and soluble fibers isolated from barley on blood glucose, serum lipids, liver function and caecal short-chain fatty acids in type 2 diabetic and normal rats. Food Chem. Toxicol. 2019, 135, 110937. [Google Scholar] [CrossRef]
  16. Bastos, R.; Coelho, E.; Coimbra, M.A. Arabinoxylans from cereal by-products: Insights into structural features, recovery, and applications. In Sustainable Recovery and Reutilization of Cereal Processing By-Products; Galanakis, C.M., Ed.; Woodhead Publishing: Sawston, UK, 2018; pp. 227–251. [Google Scholar]
  17. Hromádková, Z.; Paulsen, B.S.; Polovka, M.; Košťálová, Z.; Ebringerová, A. Structural features of two heteroxylan polysaccharide fractions from wheat bran with anti-complementary and antioxidant activities. Carbohyd. Polym. 2013, 93, 22–30. [Google Scholar] [CrossRef]
  18. Kačuráková, M.; Capek, P.; Sasinková, V.; Wellner, N.; Ebringerová, A. FT-IR study of plant cell wall model compounds: Pectic polysaccharides and hemicelluloses. Carbohyd. Polym. 2000, 43, 195–203. [Google Scholar] [CrossRef]
  19. Laine, C.; Tamminen, T.; Vikkula, A.; Vuorinen, T. Methylation analysis as a tool for structural analysis of wood polysaccharides. Holzforschung 2002, 56, 607–614. [Google Scholar] [CrossRef]
  20. Li, L.; Wang, Y.; Zhang, T.; Zhang, J.; Pan, M.; Huang, X.; Yin, J.; Nie, S. Structural characteristics and rheological properties of alkali-extracted arabinoxylan from dehulled barley kernel. Carbohyd. Polym. 2020, 249, 116813. [Google Scholar] [CrossRef]
  21. Yadav, M.P.; Kale, M.S.; Hicks, K.B.; Hanah, K. Isolation, characterization and the functional properties of cellulosic arabinoxylan fiber isolated from agricultural processing by-products, agricultural residues and energy crops. Food Hydrocoll. 2017, 63, 545–551. [Google Scholar] [CrossRef] [Green Version]
  22. Hoffmann, R.A.; Kamerling, J.P.; Vliegenthart, J.F.G. Structural features of a water-soluble arabinoxylan from the endosperm of wheat. Carbohyd. Res. 1992, 226, 303–311. [Google Scholar] [CrossRef] [Green Version]
  23. Ding, H.; Qian, K.; Goff, D.H.; Wang, Q.; Cui, S.W. Structural and conformational characterization of arabinoxylans from flaxseed mucilage. Food Chem. 2018, 254, 266–271. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, H.; Liu, Y.; Yang, T.; Chen, D.; Xiao, Y.; Qin, W.; Wu, D.; Zhang, Q.; Lin, D.; Liu, Y.; et al. Interactive effects of molecular weight and degree of substitution on biological activities of arabinoxylan and its hydrolysates from triticale bran. Int. J. Biol. Macromol. 2021, 166, 1409–1418. [Google Scholar] [CrossRef] [PubMed]
  25. Cui, S.W. Food Carbohydrates: Chemistry, Physical Properties, and Applications; CRC Press: Boca Raton, FL, USA, 2005. [Google Scholar]
  26. Sun, Y.; Cui, S.W.; Gu, X.; Zhang, J. Isolation and structural characterization of water unextractable arabinoxylans from Chinese black-grained wheat bran. Carbohyd. Polym. 2011, 85, 615–621. [Google Scholar] [CrossRef]
  27. Devi, S.; Lakhera, A.K.; Kumar, V. Structural analysis and antioxidant activity of an arabinoxylan from Malvastrum coromandelianum L. (Garcke). Rsc. Adv. 2019, 9, 24267–24279. [Google Scholar] [CrossRef] [Green Version]
  28. Benaoun, F.; Delattre, C.; Boual, Z.; Ursu, A.V.; Vial, C.; Gardarin, C.; Wadouachi, A.; Le Cerf, D.; Varacavoudin, T.; Ould El-Hadj, M.D.; et al. Structural characterization and rheological behavior of a heteroxylan extracted from Plantago notata Lagasca (Plantaginaceae) seeds. Carbohyd. Polym. 2017, 175, 96–104. [Google Scholar] [CrossRef] [PubMed]
  29. Höije, A.; Sandström, C.; Roubroeks, J.P.; Andersson, R.; Gohil, S.; Gatenholm, P. Evidence of the presence of 2-O-β-D-xylopyranosyl-α-L-arabinofuranose side chains in barley husk arabinoxylan. Carbohyd. Res. 2006, 341, 2959–2966. [Google Scholar] [CrossRef]
  30. Yin, J.; Nie, S.; Guo, Q.; Wang, Q.; Cui, S.W.; Xie, M. Effect of calcium on solution and conformational characteristics of polysaccharide from seeds of Plantago asiatica L. Carbohyd. Polym. 2015, 124, 331–336. [Google Scholar] [CrossRef]
  31. Shi, X.; Yin, J.; Zhang, L.; Li, O.; Huang, X.; Nie, S. Studies on polysaccharides from leaf skin of Aloe barbadensis Miller: Part II. Structural characteristics and molecular properties of two lower molecular weight fractions. Food Hydrocoll. 2019, 86, 50–61. [Google Scholar] [CrossRef]
  32. Wang, J.; Ma, Z.; Zhang, L.; Fang, Y.; Jiang, F.; Phillips, G.O. Structure and chain conformation of water-soluble heteropolysaccharides from Ganoderma lucidum. Carbohyd. Polym. 2011, 86, 844–851. [Google Scholar] [CrossRef]
  33. Pavlovich-Abril, A.; Rouzaud-Sández, O.; Carvajal-Millán, E.; Navarro, R.E.; Robles-Sánchez, R.M.; Barrón-Hoyos, J.M. Molecular characterization of water extractable arabinoxylans isolated from wheat fine bran and their effect on dough viscosity. LWT-Food Sci. Technol. 2016, 74, 484–492. [Google Scholar] [CrossRef]
  34. Lazaridou, A.; Chornick, T.; Biliaderis, C.G.; Izydorczyk, M.S. Sequential solvent extraction and structural characterization of polysaccharides from the endosperm cell walls of barley grown in different environments. Carbohyd. Polym. 2008, 73, 621–639. [Google Scholar] [CrossRef]
  35. DuBois, M.; Gilles, K.A.; Hamilton, J.K.; Rebers, P.A.; Smith, F. Colorimetric method for determination of sugars and related substances. Anal. Chem. 1956, 28, 350–356. [Google Scholar] [CrossRef]
  36. Blumenkrantz, N.; Asboe-Hansen, G. New method for quantitative determination of uronic acids. Anal. Biochem. 1973, 54, 484–489. [Google Scholar] [CrossRef]
  37. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef]
  38. Delcour, J.A.; Vanhamel, S.; Geest, C.D. Physico-chemical and functional properties of rye nonstarch polysaccharides. I. Colorimetric analysis of pentosans and their relative monosaccharide compositions in fractionated (milled) rye products. Cereal Chem. 1989, 66, 107–111. [Google Scholar]
  39. Liu, D.; Tang, W.; Yin, J.; Nie, S.; Xie, M. Monosaccharide composition analysis of polysaccharides from natural sources: Hydrolysis condition and detection method development. Food Hydrocoll. 2021, 116, 106641. [Google Scholar] [CrossRef]
  40. Stoklosa, R.J.; Latona, R.J.; Bonnaillie, L.M.; Yadav, M.P. Evaluation of arabinoxylan isolated from sorghum bran, biomass, and bagasse for film formation. Carbohydr. Polym. 2019, 213, 382–392. [Google Scholar] [CrossRef]
Molecules 26 03026 g001 550

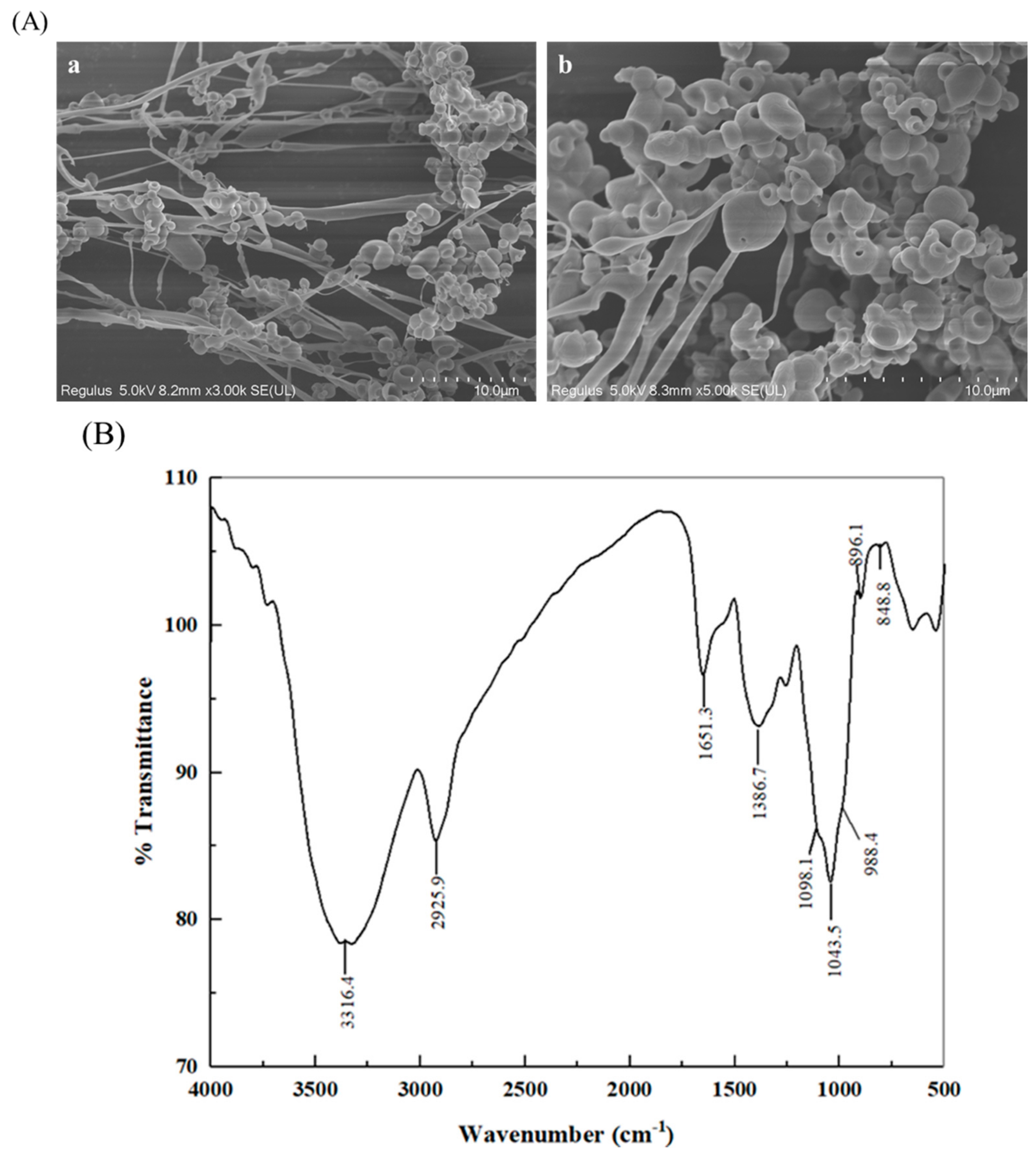

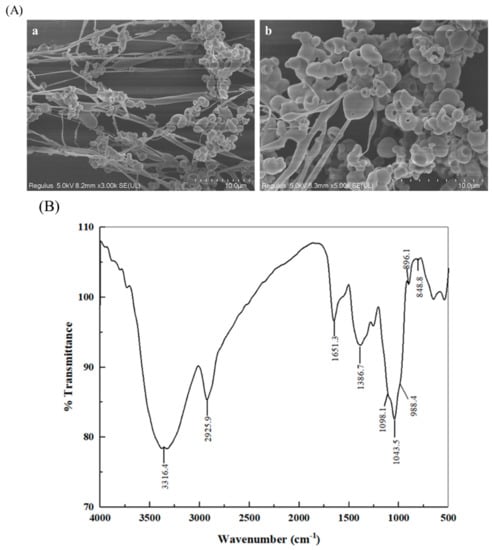

Figure 1. The results of SEM imaging and FT-IR spectroscopy: (A) SEM images at magnifications of (a) 3000× and (b) 5000×; (B) FT-IR spectrum of HBAX-60.
Figure 1. The results of SEM imaging and FT-IR spectroscopy: (A) SEM images at magnifications of (a) 3000× and (b) 5000×; (B) FT-IR spectrum of HBAX-60.
Molecules 26 03026 g001
Molecules 26 03026 g002 550

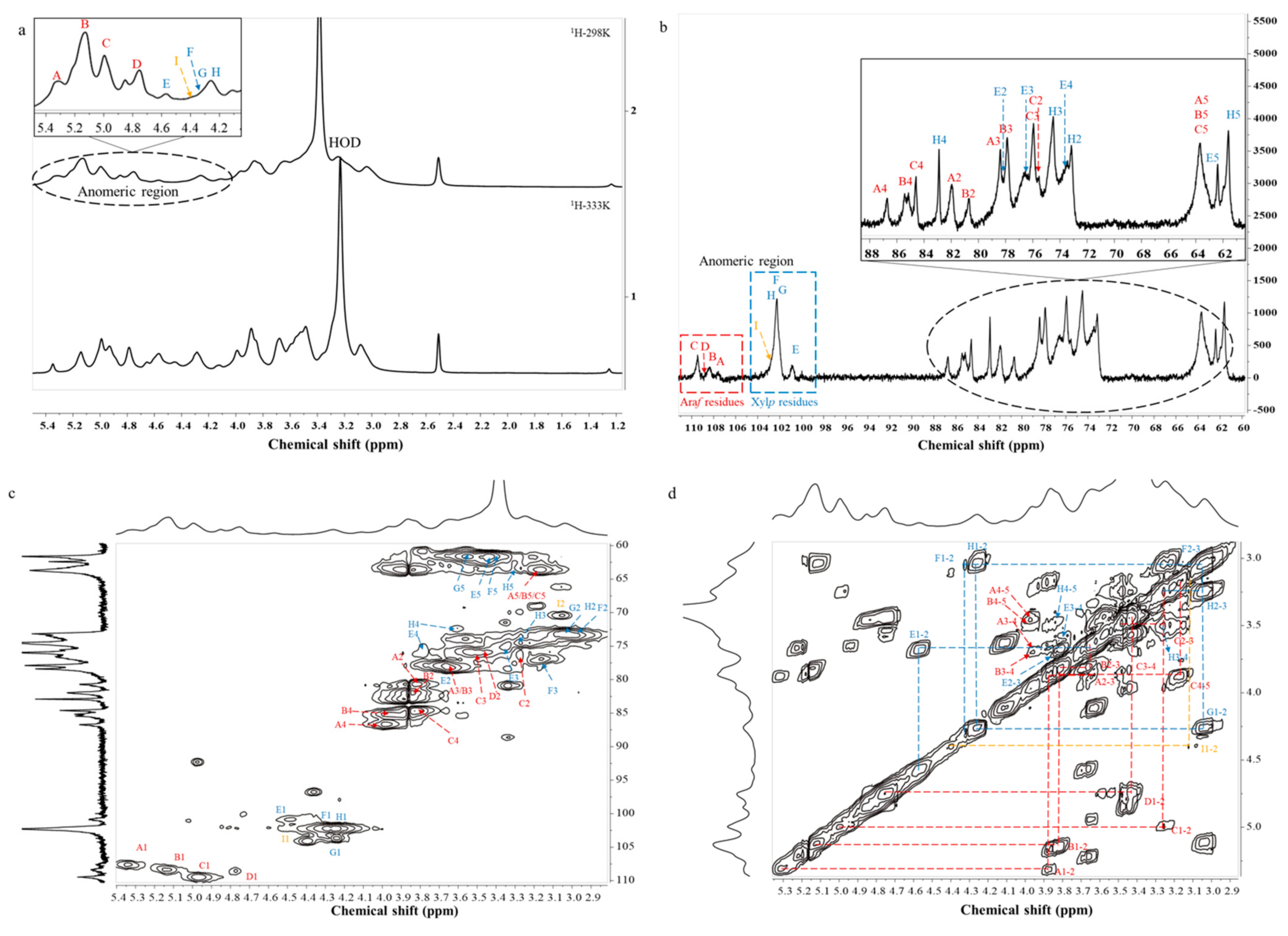

Figure 2. NMR spectra of HBAX-60: (a) 1H NMR spectrum, (b) 13C NMR spectrum, (c) HSQC NMR spectrum, and (d) COSY NMR spectrum.
Figure 2. NMR spectra of HBAX-60: (a) 1H NMR spectrum, (b) 13C NMR spectrum, (c) HSQC NMR spectrum, and (d) COSY NMR spectrum.
Molecules 26 03026 g002
Molecules 26 03026 g003 550

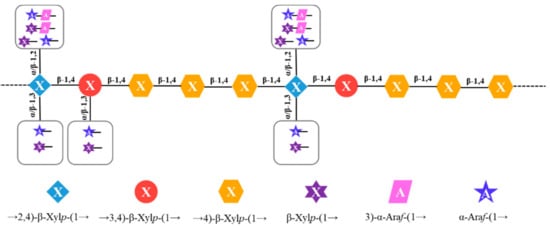

Figure 3. The proposed core units of arabinoxylan from HBAX-60.
Figure 3. The proposed core units of arabinoxylan from HBAX-60.
Molecules 26 03026 g003
Molecules 26 03026 g004a 550Molecules 26 03026 g004b 550

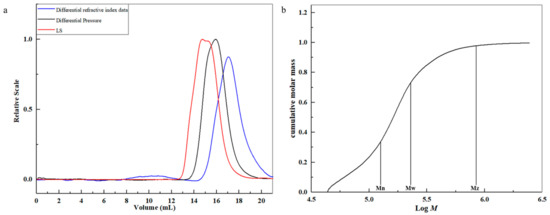

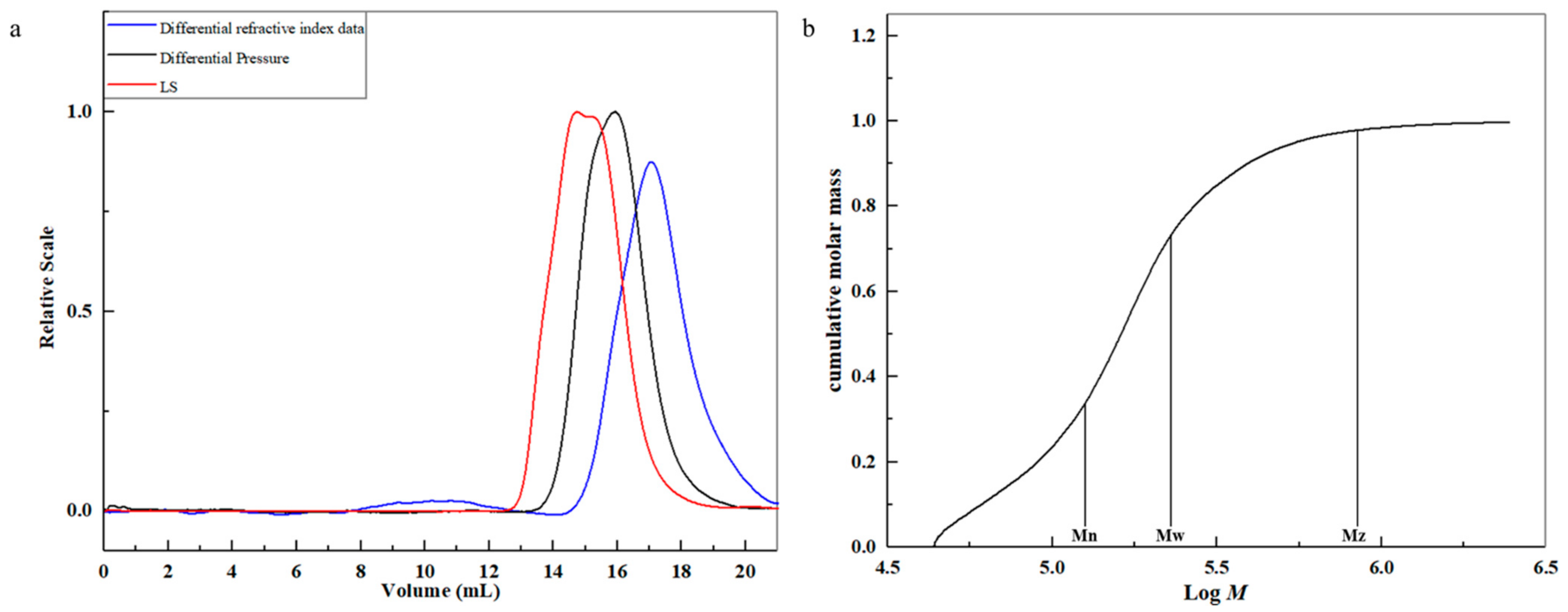

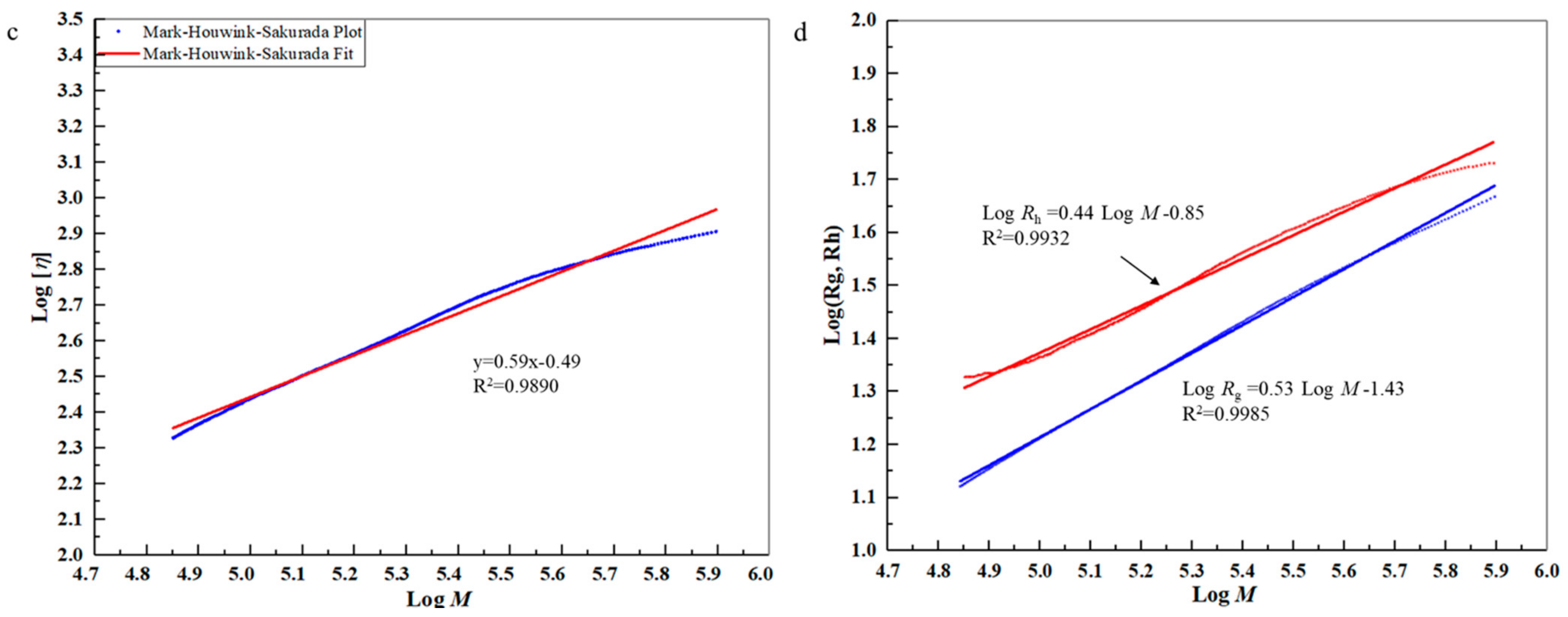

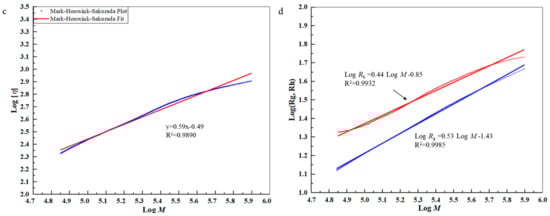

Figure 4. SEC elution profile of HBAX-60 (a); double logarithmic plots of Mw vs. cumulative weight fraction (b); [η] (c); and Rg, Rh, and the ratio of Rg/Rh (d).
Figure 4. SEC elution profile of HBAX-60 (a); double logarithmic plots of Mw vs. cumulative weight fraction (b); [η] (c); and Rg, Rh, and the ratio of Rg/Rh (d).
Molecules 26 03026 g004aMolecules 26 03026 g004b
Molecules 26 03026 g005 550

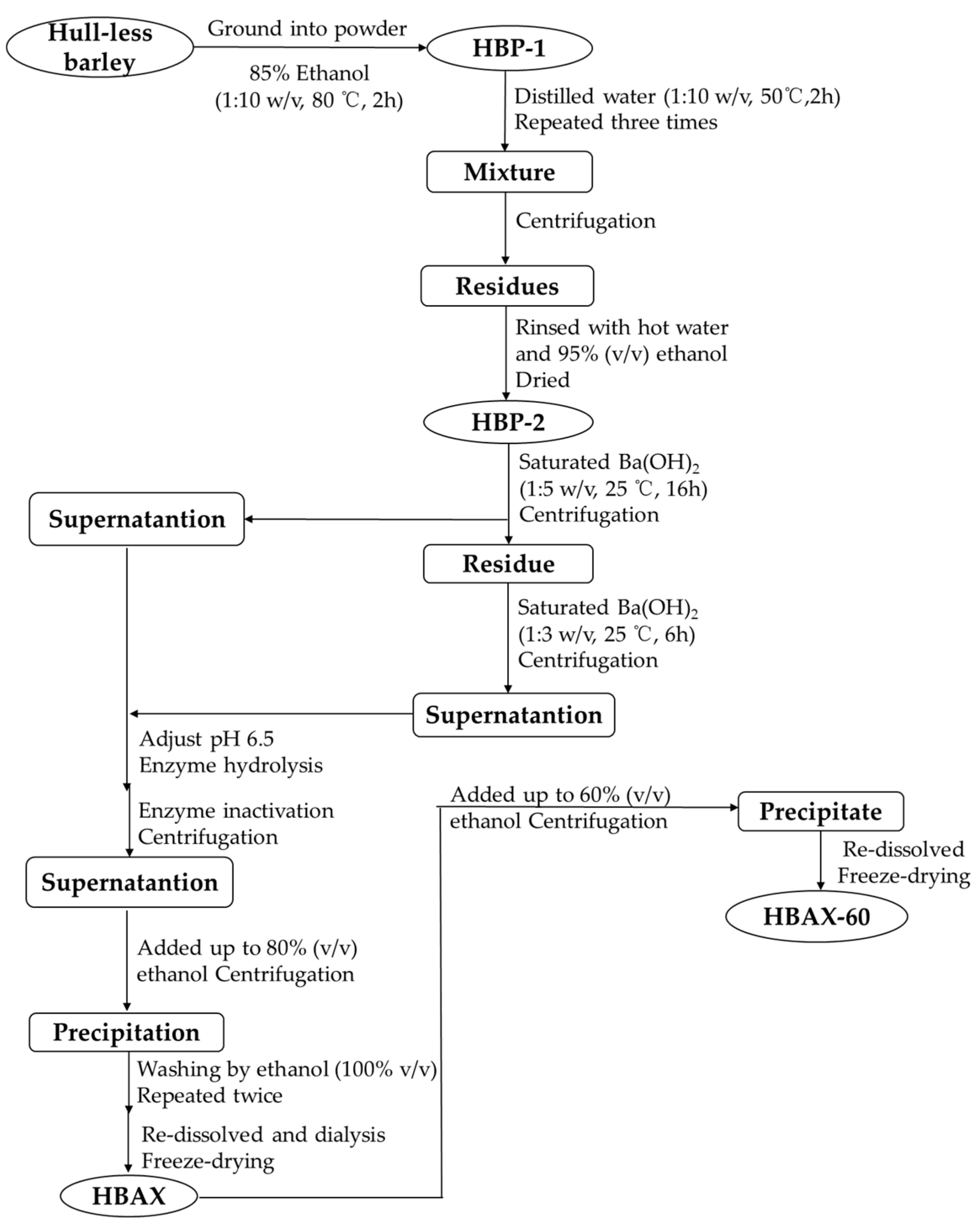

Figure 5. Extraction and purification processes of arabinoxylan from hull-less barley.
Figure 5. Extraction and purification processes of arabinoxylan from hull-less barley.
Molecules 26 03026 g005
Table
Table 1. Chemical properties and monosaccharide compositions of arabinoxylan from hull-less barley.
Table 1. Chemical properties and monosaccharide compositions of arabinoxylan from hull-less barley.
SampleYield (%)Neutral Sugar (%)Uronic Acid (%)Protein (%)Starch (%)β-Glucan (%)AX (%)Monosaccharide Composition
(%, w/w) c		A/X
Ratio
AraGalGlcXyl
HBAX1.5 a83.6 ± 1.83.5 ± 0.610.2 ± 0.10.4 ± 0.21.6 ± 0.167.9 ± 2.226.3 ± 2.20.9 ± 0.15.1 ± 0.138.3 ± 0.60.7
HBAX-6072.2 b98.3 ± 1.4n.d.7.0 ± 0.10.3 ± 0.1n.d.93.7 ± 3.040.7 ± 2.0n.d.0.1 ± 0.159.3 ± 6.60.7
Ara: arabinose; Gal: galactose; Glc: glucose; Xyl: xylose; n.d.: not detected or lower than limit of quantification. a Yield of subfractions (%, w/w) based on the amount of material recovered after fractionation (HBP-2). b Yield of subfractions (%, w/w) based on the amount of HBAX. c The content was calculated based on the amount of the sample measured—the amount of individual monosaccharide detected by HPAEC/the weight of HBAX-60 × 100%.
Table
Table 2. Chemical properties and monosaccharide compositions of arabinoxylan from hull-less barley.
Table 2. Chemical properties and monosaccharide compositions of arabinoxylan from hull-less barley.
Mass Fragments (m/z)PMAAs aLinkage PatternRelative Peak Area Percentage (%) b
43,101,102,117,118,161,1621,5-di-O-acetyl-2,3,4-tri-O-methyl xylitolXylp-(1→3.1
43,87,102,118,129,162,189,2331,4,5-tri-O-acetyl-2,3-di-O-methyl xylitol→4)-Xylp-(1→36.2
43,87,88,129,130,189,190,2341,2,4,5-tera-O-acetyl-3-O-methyl xylitol→2,4)-Xylp-(1→1.2
43,59,85,118,160,201,2611,3,4,5-tri-O-acetyl-2-O-methyl xylitol→3,4)-Xylp-(1→5.9
43,73,74,115,116,145,146,217,218,289,2901,2,3,4,5-penta-O-acetyl-xylitol→2,3,4)-Xylp-(1→12.1
Total58.5
43,87,101,102,118,129,145,161,162,2051,4-di-O-acetyl-2,3,5-tri-O-methyl arabinitolAraf-(1→34.4
43,87,88,101,129,130,161,1901,2,4-tri-O-acetyl-3,5-di-O-methyl arabinitol→2)-Araf-(1→1.4
43,59,87,113,118,160,202,2331,3,4-tri-O-acetyl-2,5-di-O-methyl arabinitol→3)-Araf-(1→1.7
43,59,87,102,117,118,129,189,2341,4,5-tri-O-acetyl-2,3-di-O-methyl arabinitol→5)-Araf-(1→1.3
Total38.8
43,87,102,118,129,145,161,162,2051,5-di-O-acetyl-2,3,4,6-tetra-O-methyl glucitolGlcp-(1→0.8
43,87,101,118,129,161,2341,3,5-tri-O-acetyl-2,4,6-tri-O-methyl glucitol→3)-Glcp-(1→0.4
43,87,118,129,162,2331,4,5-tri-O-acetyl-2,3,6-tri-O-methyl glucitol→4)-Glcp-(1→1.5
Total2.7
a Determined from mass spectra of the PMAAs in Figure S3. The PMAAs were derived from individual sugars, e.g., 1,5-di-O-acetyl-2,3,4-tri-O-methyl xylitol means that xylose was methylated at the O-2,3,4 sites and acetylated at the O-1,5 sites, which indicates that the corresponding linkage pattern was Xylp-(1→. b Ratio of each sugar residue was based on the percentage of its peak area.
Table
Table 3. Assignments of 1H and 13C NMR chemical shifts of HBAX-60.
Table 3. Assignments of 1H and 13C NMR chemical shifts of HBAX-60.
CodeResidue LinkagesH1/C1H2/C2H3/C3H4/C4H5/C5
Aα-Araf-(1→3 a5.34/107.573.88/82.003.65/77.853.96/86.733.44/61.49
Bα-Araf-(1→3 b5.12/108.333.82/80.453.68/78.033.84/85.193.45/61.60
Cα-Araf-(1→2 c4.99/109.353.27/75.673.49/76.153.85/84.68-
D→3)-α-Araf-(1→4.77/108.483.43/76.07---
E→2,3,4)-β-Xylp-(1→4.57/100.833.70/78.033.41/75.083.83/75.833.44/61.26
F→3,4)-β-Xylp-(1→4.32/102.183.05/73.383.26/76.97--/61.76
Gβ-Xylp-(1→4.26/102.183.04/73.54---/61.92
H→4)-β-Xylp-(1→4.24/102.183.03/73.223.25/74.443.62/73.703.32/63.30
“-“ means not detected. a The α-Araf-(1→ residue was attached to O-3-mono-substituted β-Xylp residues. b The α-Araf-(1→ residue was attached to O-3-di-substituted β-Xylp residues. c The α-Araf-(1→ residue was attached to O-2-di-substituted β-Xylp residues.
