Review

Overview of the Structure–Dynamics–Function Relationships in Borohydrides for Use as Solid-State Electrolytes in Battery Applications

by
Tabbetha A. Dobbins
Department of Physics and Astronomy, Rowan University, Glassboro, NJ 08028, USA
Molecules 2021, 26(11), 3239; https://doi.org/10.3390/molecules26113239
Submission received: 6 December 2020 / Revised: 22 February 2021 / Accepted: 17 April 2021 / Published: 28 May 2021
(This article belongs to the Special Issue Advances in Hydrogen Storage Materials for Energy Utilization)
Browse Figures
Review Reports Versions Notes

Abstract

:
The goal of this article is to highlight crucial breakthroughs in solid-state ionic conduction in borohydrides for battery applications. Borohydrides, Mz+BxHy, form in various molecular structures, for example, nido-M+BH4; closo-M2+B10H10; closo-M2+B12H12; and planar-M6+B6H6 with M = cations such as Li+, K+, Na+, Ca2+, and Mg2+, which can participate in ionic conduction. This overview article will fully explore the phase space of boron–hydrogen chemistry in order to discuss parameters that optimize these materials as solid electrolytes for battery applications. Key properties for effective solid-state electrolytes, including ionic conduction, electrochemical window, high energy density, and resistance to dendrite formation, are also discussed. Because of their open structures (for closo-boranes) leading to rapid ionic conduction, and their ability to undergo phase transition between low conductivity and high conductivity phases, borohydrides deserve a focused discussion and further experimental efforts. One challenge that remains is the low electrochemical stability of borohydrides. This overview article highlights current knowledge and additionally recommends a path towards further computational and experimental research efforts.

1. Introduction

Recent advances in battery technologies have permitted the development of rechargeable lithium ion batteries with high energy density, high power density, durability, long term cycle life, and low loss in capacity with cycling. The intent of this article is to provide inspiration to undertake research to advance “beyond lithium battery concepts”, specifically towards borohydride solid-state electrolytes. However, today lithium ion batteries are dominating the market. Lithium ion batteries boast specific power densities of ~500 W/kg and specific energy densities of up to 200 kWh/kg (values reported using 50% efficiency estimates) [1]. These lithium ion batteries use an organic liquid electrolyte to ensure high ionic conduction. Safety remains a concern for these materials because of the organic materials in the electrolyte layer [2,3,4,5]. Figure 1a schematically shows currently used batteries with an organic liquid electrolyte layer to transport the Li+ ions. Figure 1b schematically shows the essential components of an all solid-state battery—containing a solid electrolyte layer between the electrodes. For the all solid-state lithium ion battery, it is important for Li+ to diffuse rapidly across the electrolyte layer. Solid-state electrolytes, which have high ionic conduction, will reduce the need for organic liquid electrolytes and will, in turn, have a large impact on further growth of lithium ion battery technologies [6]. Materials development in the electrolyte layer will revolutionize applications available for lithium ion battery use.

1.1. Why Study Borohydrides for Solid-State Electrolytes? The Versatility of Boron–Hydrogen Chemistry

This overview article work seeks to provide discussion germane to materials based in the borohydride family for solid-state electrolyte applications. The development of borohydrides as a class of materials for use as solid electrolytes could lead to innovations in low temperature fuel cells and safer ion conducting batteries. This class of materials has not been fully explored experimentally or computationally for use as solid-state electrolytes. A review by Matsuo and Orimo published in 2011 describes fast ionic conduction in LiBH4, LiNH2, and LiAlH4 systems (and their mixtures), providing a prospectus on improving room temperature ionic conduction [7]. Nevertheless, these classes of materials do not explore the full spectrum of borohydride polymorphs. The promise of borohydrides for solid-state electrolytes was also assessed in a review article by Cuan et al. in early 2019 [8]. That comprehensive review is useful, and should be considered, for a very in-depth discussion of the ionic conductivity of borohydrides and carboranes as candidate solid-state electrolyte materials.
The attractiveness of borohydrides is that they form in various molecular structures. Boron–hydrogen chemistry is versatile (forming bridge and cyclic structures), and this could lead to improved tunability in cationic conduction. For example, nido- M+BH4, closo-M2+B10H10, closo-M+B12H12, and planar-M6+B6H6 (with M = cations) can form ionic compounds with cations such as Li+, K+, Na+, Ca2+, and Mg2+. Anion structural renderings are shown in Figure 2. The closo-borane (-B10H102− and -B12H12−) structures have open channels for ionic conduction [9].

1.2. Key Technical Challenges for Borohydrides as Solid-State Electrolytes

There are several technical challenges remaining for lithium ion batteries (in general) and, in particular, for solid-state batteries. Among those are increasing ionic conduction, broadening the electrochemical stability window, alleviating dendrite formation, and achieving high energy density. Figure 3 is reproduced from the work by Lu et al. [10] and shows an assessment (in spider diagram) of how well the materials perform as battery electrolytes with respect to ionic conduction, dendrite formation, and width of the electrochemical window (which is defined by anodic reaction and electrochemical oxidation potentials) [10]. Like Lu et al. [10], many others have undertaken comprehensive engineering studies on borohydride materials, showing their promise for solid-state battery applications [6,11,12,13,14,15,16,17,18,19]. This overview article examines some of the scientific underpinnings for these performance metrics in borohydride solid electrolytes. The next sections of this overview article focus their discussions solely on ionic conduction and electrochemical stability in order to render detailed treatment of those topics (with some suggestions for experimental undertakings that would enhance the field). This article serves to inspire further research into the topic of borohydrides for solid-state battery applications.

2. Borohydrides as Solid-State Electrolytes

2.1. Foundational Work with Borohydrides in the Electrolyte Layer of Batteries

Early research utilizing borohydrides in the electrolyte layer was done with the addition of organic liquid carriers [11,20,21]. Work published by researchers at the Toyota Research Institute of North America (Ann Arbor, MI) [20,21] used organic liquid phases tetrahydrofuran (THF) and dimethoxyethane (DME) with Mg(BH4)2 and LiBH4 mixtures as electrolytes in operational batteries and showed reasonably high full cell electric potential and cycle life. Work using Mg(BH4)2 and LiBH4 was followed by use of carboranes, e.g., (C2BH10H11)2Mg, in diglyme and tetraglyme solvents as electrolytes [11,22] which demonstrated a wide electrochemical window of 3.6 V [11]. Similar data were collected in our laboratory at Rowan University in order to determine whether particle morphology is influenced by cycling. Figure 4a shows results of three cycles for voltammetry done by on solutions similar to those used in literature [20,21] on 2 M LiBH4 with 0.5 M NaBH4 in THF solution. Microstructure changes are indeed apparent before (Figure 4a) and after (Figure 4b) cycling, and these changes could play a role in limiting the cycle life of batteries formed using these materials.
Contemporaneous with work done using borohydrides inside of solvents, borohydrides in the closo-borane phases were being considered as superionic conductors for rapid ion motion through their open channel pore structures [12,23,24,25]. Researchers doing theoretical work began to suggest that the superionic conduction would make closo-boranes promising for solid electrolytes [10,12,26]. The reasons for this superionic conduction are described in the theory paper by Kweon et al. as a flat energy landscape (with many available sites for hopping), symmetry competition that ejects the cation from particular sites, and thermal reorientation of the anions [12]. Since Lipscomb first published the probable structure of B10H10− in 1959 [27], there have been many studies undertaken to understand the aromatic character over 3D space in carboranes and boranes primarily by NMR and density functional theory [28,29]. Only a few crystallographic measurements have been performed on closo-boranes using diffraction [30,31,32,33,34]. Many years after the first proposed structure of the closo-borane B10H10−, a 2004 diffraction study by Lipscomb confirmed the Cu2B10H10 structure [31]. Experimental studies showed that Li2B12H12 has an ionic conduction of 0.1 S/cm at ~110 °C, even higher than was predicted [13]. Further, Kim et al. [14] demonstrated that with deficiencies on the Li and H sites in Li2B12H12, ionic conductivities can be improved by three orders of magnitude [14]. Other studies on solid electrolytes with the BH4− allomorph have demonstrated their feasibility for competitive ionic conduction (but with a narrower electrochemical window relative to sulfide and phosphate class of solid electrolyte materials) [15,16,17,18,19,35].

2.2. A Survey of Ionic Conductivity in Borohydrides

Ionic conduction is considered the most important variable for solid electrolytes, and hence there have been many material developments for improved ionic conductivity [9,20,36,37,38]. Table 1 describes some experimentally and computationally determined ionic conductivities. Some traditional ionic conductors that are considered “good” in performance with respect to this measure are included in Table 1 for comparison. Addition of adducts and other modifications to borohydrides have been demonstrated to be effective at improving ionic conduction [6,39,40,41]. As an example, pure lithium borohydride (LiBH4−) has a room temperature ionic conductivity of ~10−7 S/cm [40]. Doping and adducts have been demonstrated to enhance ionic conductivities. These increases are realized for a variety of reasons, among which are stabilizing high ionic conductivity phases, expanding the lattice, and forming high conductivity sub-lattice pathways [40,41]. Work has been done in adding ligands, such as -NH2, to affect ionic conduction in borohydrides. For example, MgBH4 having an ionic conductivity of 10−8 S/cm realizes an increase in ionic conduction to 10−5 S/cm with the addition of an -NH2 adduct [39].
The conductivity for Mg(BH4)2 with an adduct of -NH2 reaches ionic conductivity levels of 10−6 S/cm at 150 °C [39,42]. This compares well with the highly researched Mg3(PO4)2, which has an ionic conductivity of 10−6 S/cm at temperatures in excess of 400 °C. Another factor that is well known to affect ionic conduction in LiBH4 is crystallographic phase. When measured above the orthorhombic to hexagonal phase transition (occurring at 130 °C), a higher ionic conduction is realized in the elevated temperature hexagonal phase [15]. The lithium ion conductivity is realized in the hexagonal phase of LiBH4 is 10−3 S/cm [15]. It will be useful to develop approaches to stabilize the elevated temperature phase down to room temperature. Work done by doping LiCa3(BH4)(BO3), formed by decomposing LiBH4, Ca(BH4)2 in the presence of carbon, has demonstrated a Li+ conduction of 10−5 S/cm at room temperature [41]. The -BO3 molecular unit is reported to define the transport pathway for the lithium ion [41]. Additions of, Sr2+, Eu2+, and Na+ have all demonstrated improved Li+ conductivity when added to LiCa3BH4BO3. The larger-sized divalent substitutions, Sr2+ and Eu2+, expand the lattice to enhance transport. The monovalent Na+ substituting onto Ca2+ O-sites also causes a lattice expansion when there is excess Li+ [41].
As noted earlier in this paper, the open structure of the closo-boranes (BnHn−) results in increased ionic conduction over the nido- BH4− units. In fact, closo-boranes realize ionic conductivities, which are five orders of magnitude higher than nido- structures. Other work has shown that rapid cationic conduction (3 × 10−2 S/cm) occurs in the LiB10H10 and NaB10H10 phases [10,12]. Similarly, rapid ionic conduction is observed for the -B12H12 closo-borane phases [10,11,12,20,24]. Because of their high ionic conductivities, ease of synthesis and safety of use, for the closo-boranes should also be considered. The closo-boranes (BnHn−) could readily be synthesized following the resin-based ion exchange methods as described in the thesis by Blake [43], beginning with commercial triethanolamine (TEAH)-BnHn purchased from Boron Specialties, LLC. Some borohydrides, such as borane, diborane, and pentaborane, are known to be toxic and pose environmental safety hazards and so safe handling must be considered. These are primarily in stoichiometries x < 5 in BxHy (e.g., BH3, B2H6, or B5H9) and are liquid or gaseous at room temperature, toxic, and highly reactive with oxygen in air.

2.3. Electrochemical Stability Window of Borohydrides

The electrochemical stability window is the electric potential range over which the material is electrochemically stable. One drawback of borohydrides is their narrow electrochemical windows [10,44]. Figure 5 shows the calculated electrochemical stability ranges for common electrolytes and electrodes (relative to lithium metal at 0 V). The Cuan et al. [8] R article provides example of electrochemical stability window for a limited selection of borohydrides. A more comprehensive list relative to these materials is provided by Ceder et al. [45] and Lu et al. [10]. Most electrochemical stability window data reported in the literature has been computationally predicted. Although focused on high ionic conduction oxides, nitrides, and sulfides, Ceders et al. [44] include LiH and LiBH4 in electrochemical stability window calculations (Figure 5). Lu et al. [10] provide electrochemical stability window calculations for a variety of borohydrides shown in Figure 5. With the exception of CaB12H12, the electrochemical stability ranges are all below 3V. Lu et al. [10] also provide comparison to experiments in the cases of LiBH4 and NaBH4 (not shown in Figure 5). For all materials examined in that work, the measured stability window is larger than the computationally predicted electrochemical window. This is reportedly due to slow kinetics of the decomposition reaction (and product phase formation) at the cathode [10]. Furthermore, Lu et al. [10] show electrochemical windows computational predictions assuming removal (i.e., not inclusive) of BxHy product species. Higher cathodic potentials are demonstrated in computations performed without the BxHy species [10]. The electrochemical window of the borohydride LiBH4 is predicted to be low, ranging from 0.5 V to 1.9 V (vs. Li metal) [44]. Other compounds, such as Li2S and Li3PS4, are stable up to 2.3 V to 2.5 V vs. Li metal, while LiH is stable down to 0 V [44]. The stability window for other borohydrides has been reported in theoretical work to be as high as 5.5 V (for CaB12H12) [10]. It will be important to establish reliable approaches to measure the electrochemical window. In practice, BxHy product species cannot be easily removed and must be considered. In practical applications, the electrochemical windows could be far from those predicted computationally. This is an important avenue of experimental research that should be undertaken. Moreover, research which considers interlayered compounds comprised of several borohydrides as the solid electrolyte could serve the objective of increasing electrochemical window of the entire layer while isolating product phases into close proximity to one another for overcoming diffusion barriers to forming starting compounds upon reverse cycling.

2.4. Useful Characterization Techniques to Gain Insights on Structure-Dynamic-Property Relationships

The experimental data are determined by the most widely used approach for measuring ionic conductivity: impedance spectroscopy. Impedance spectroscopy is able to distinguish localized, non-localized, and space charge effects [46,47,48]. More useful insights are gained when additionally using characterization techniques that measure structure and dynamics. Lithium ion conductivity LiBH4 is 10−3 S/cm in the high temperature hexagonal phase [15]. To examine the stability of the hexagonal phase at temperatures lower than 130 °C, we used Raman spectroscopy to track the structural changes in the BH4− unit with temperature on ramp up and ramp down at a slow heating and cooling rate of 5 °C/min (Figure 6). Gomes, Hagemann, et al. [49] reported that Raman spectroscopy tracks structural changes occurring to the BH4− molecular unit upon phase transition from the orthorhombic to the hexagonal phase. Figure 6 shows Raman data collected at Rowan University. Heating LiBH4 to elevated temperatures shows that the B-H stretching modes (at ~2300 cm−1) transition from a ν3 splitting to a single broad peak at elevated temperature, which is consistent with a phase transition to the hexagonal phase (which occurs at 130 °C) [49]. Upon cooling, the single broad peak persists down to 113 °C, suggesting the possibility to extend the structural features associated with the elevated temperature hexagonal phase down below the phase transition [15]. Additional research could explore whether the stability of this single broad peak associated with the high temperature hexagonal phase could be further decreased towards room temperature by using additives or processing conditions to stabilize it. As well, Maekawa et al. explored lithium halides for the purpose of stabilizing the elevated temperature phase [40]. Additions of LiCl were also demonstrated to increase ionic conduction in LiBH4− (although not by the mechanism of stabilizing the hexagonal phase) [6]. Nanostructuring LiBH4 has a marked effect on room temperature ionic conduction, measured at 10−3 S/cm [18]. The relationship between the crystallographic phase, state of the BH4− unit (determined by techniques such as Raman spectroscopy), and ionic conductivity (using impedance spectroscopy) should be explored for both nanostructured LiBH4 and the LiBH4 having additives such as lithium halides incorporated in the materials processing. Vibrational spectroscopy and other crystallographic and structural measurement techniques should be, ideally, partnered with ionic conductivity measurements in order to gain “fine-structure” insights that could lead to novel approaches to improved properties.
Other advanced characterization techniques, such as quasi-elastic neutron scattering (QENS), which can deliver both structural information (such as H-H distances), diffusivities, and mechanism of motion (i.e., tumbling, hopping, etc.), should be considered when studying ionic mobility in borohydrides. Impedance spectroscopy was used to study superionic conduction in the Na2B12H12 phase. Results suggest that the high rotational mobility of the in -B12H122− anionic structures aids in the high ionic mobility of Na+ [24]. Furthermore, QENS studies performed by two separate teams of researchers both suggest that the motion of the B12H122− anions plays a correlated role in cationic conduction [50,51]. In another example, fundamental insights were gained using QENS, and results showed that even at temperatures as low as 4 K to 70 K, tunneling rotational dynamics for molecules as large as ammonia (NH4) in -B12H122− structures is possible [52].

3. Conclusions

In work documenting battery development by Scrosati, the timeline growth in lithium ion battery sales in various market sectors (i.e., HEV, cellular, notebooks, power tools, and camcorders) between 2000 and 2015 demonstrates the enormous potential of the technology to penetrate further into new markets [5,53]. There is a need for more research to understand key scientific barriers to the development of a new class of solid electrolyte materials, i.e., borohydrides. Ideal solid-state borohydride electrolytes will address the four scientific barriers of (i) low room temperature ionic conduction in the solid-state, (ii) formation of deleterious phases and dendrites at the electrolyte/anode interface, (iii) low electrochemical window (voltage range over which the phase is electrochemically stable), and (iv) low energy density owing to poor mechanical stability of thinner electrolytes. The development of new solid electrolytes could additionally lead to innovations in low temperature fuel cells (as well as safer ion conducting batteries). Boron–hydrogen chemistry is versatile (forming bridge and cyclic structures), and this could lead to improved tunability in cationic conduction. Materials developments require a better understanding of scientific underpinnings in order to create new materials for all solid-state battery applications. Specifically, the knowledge gap yet to be addressed surrounds our understanding of which strategies for enhancing ionic mobility (i.e., additives, dopants, mixtures, adducts, and nanostructuring) ultimately perform best at enhancing solid-state diffusion in these materials.

Funding

This research received no external funding. The APC was funded by TadPrisma Technology Solutions, LLC.

Acknowledgments

General support for early hydride work came from the NSF (grant # DMR1231153). Our use of the many reproductions of figures in preparation of this manuscript are attributed in citation, and use of these renderings is gratefully acknowledged. Data represented in these figures were approximated from the original works cited. Mention of particular commercial products or vendors in this paper is only intended to provide information and does not suggest recommendation or endorsement by the author or the author’s institution. It also does not imply that those products or vendors are necessarily the best available for the purpose or application. The author gratefully acknowledges those undergraduate students who collected data presented in this paper during their time at Rowan University: Jennifer Hildebrand for careful collection of the Raman data; Aaron Hopkins and Aadil Rathore for collection of the cyclic voltammetry and SEM data; and Frank Cifone, Andrew Cuje, Kyle Nemeth, and Jessica Wacker for preparation of the CSP pellet.

Conflicts of Interest

The author declare no conflict of interest.

References

  1. Van Hassel, B.A. Niche Application Opportunities. Department of Energy Materials-Based Hydrogen Storage Summit: Defining Pathways for Onboard Automotive Applications. Available online: http://energy.gov/sites/prod/files/2015/02/f19/fcto_h2_storage_summit_van_hassel.pdf (accessed on 9 May 2021).
  2. Goodenough, J.B.; Kim, Y. Challenges for Rechargeable Li Batteries. Chem. Mater. 2010, 22, 587–603. [Google Scholar] [CrossRef]
  3. Lu, L.; Han, X.; Li, J.; Hua, J.; Ouyang, M. A review on the key issues for lithium-ion battery management in electric vehicles. J. Power Sources 2013, 226, 272–288. [Google Scholar] [CrossRef]
  4. Nitta, N.; Wu, F.; Lee, J.T.; Yushin, G. Li-ion battery materials: Present and future. Mater. Today 2015, 18, 252–264. [Google Scholar] [CrossRef]
  5. Scrosati, B.; Garche, J. Lithium batteries: Status, prospects and future. J. Power Sources 2010, 195, 2419–2430. [Google Scholar] [CrossRef]
  6. Manthiram, A.; Yu, X.; Wang, S. Lithium battery chemistries enabled by solid-state electrolytes. Nat. Rev. Mater. 2017, 2, 16103. [Google Scholar] [CrossRef]
  7. Matsuo, M.; Orimo, S.-I. Lithium Fast-Ionic Conduction in Complex Hydrides: Review and Prospects. Adv. Energy Mater. 2011, 1, 161–172. [Google Scholar] [CrossRef]
  8. Cuan, J.; Zhou, Y.; Zhou, T.; Ling, S.; Rui, K.; Guo, Z.; Liu, H.; Yu, X. Borohydride-Scaffolded Li/Na/Mg Fast Ionic Conductors for Promising Solid-State Electrolytes. Adv. Mater. 2018, 31, e1803533. [Google Scholar] [CrossRef] [Green Version]
  9. Lipscomb, W.N. Boron Hydrides, Dover Edition (2012); W.A. Benjamin Inc.: New York, NY, USA, 1963. [Google Scholar]
  10. Lu, Z.; Ciucci, F. Metal Borohydrides as Electrolytes for Solid-State Li, Na, Mg, and Ca Batteries: A First-Principles Study. Chem. Mater. 2017, 29, 9308–9319. [Google Scholar] [CrossRef]
  11. Tutusaus, O.; Mohtadi, R.; Arthur, T.S.; Mizuno, F.; Nelson, E.G.; Sevryugina, Y.V. An Efficient Halogen-Free Electrolyte for Use in Rechargeable Magnesium Batteries. Angew. Chem. Int. Ed. 2015, 54, 7900–7904. [Google Scholar] [CrossRef]
  12. Kweon, K.E.; Varley, J.B.; Shea, P.; Adelstein, N.; Mehta, P.; Heo, T.W.; Udovic, T.J.; Stavila, V.; Wood, B.C. Structural, Chemical, and Dynamical Frustration: Origins of Superionic Conductivity in closo-Borate Solid Electrolytes. Chem. Mater. 2017, 29, 9142–9153. [Google Scholar] [CrossRef]
  13. Tang, W.S.; Unemoto, A.; Zhou, W.; Stavila, V.; Matsuo, M.; Wu, H.; Orimo, S.-I.; Udovic, T.J. Unparalleled lithium and sodium superionic conduction in solid electrolytes with large monovalent cage-like anions. Energy Environ. Sci. 2015, 8, 3637–3645. [Google Scholar] [CrossRef] [Green Version]
  14. Kim, S.; Toyama, N.; Oguchi, H.; Sato, T.; Takagi, S.; Ikeshoji, T.; Orimo, S.-I. Fast Lithium-Ion Conduction in Atom-Deficient closo-Type Complex Hydride Solid Electrolytes. Chem. Mater. 2018, 30, 386–391. [Google Scholar] [CrossRef]
  15. Weeks, J.A.; Tinkey, S.C.; Ward, P.A.; Lascola, R.; Zidan, R.; Teprovich, J.A. Investigation of the Reversible Lithiation of an Oxide Free Aluminum Anode by a LiBH4 Solid State Electrolyte. Inorganics 2017, 5, 83. [Google Scholar] [CrossRef] [Green Version]
  16. Unemoto, A.; Ikeshoji, T.; Yasaku, S.; Matsuo, M.; Stavila, V.; Udovic, T.J.; Orimo, S.-I. Stable Interface Formation between TiS2 and LiBH4 in Bulk-Type All-Solid-State Lithium Batteries. Chem. Mater. 2015, 27, 5407–5416. [Google Scholar] [CrossRef]
  17. Xiang, M.; Zhang, Y.; Lin, H.; Zhu, Y.; Guo, X.; Chen, J.; Li, L. LiBH4-NaX (X=Cl, I) composites with enhanced lithium ionic conductivity. J. Alloys Compd. 2018, 764, 307–313. [Google Scholar] [CrossRef]
  18. Das, S.; Ngene, P.; Norby, P.; Vegge, T.; De Jongh, P.E.; Blanchard, D. All-Solid-State Lithium-Sulfur Battery Based on a Nanoconfined LiBH4Electrolyte. J. Electrochem. Soc. 2016, 163, A2029–A2034. [Google Scholar] [CrossRef] [Green Version]
  19. El Kharbachi, A.; Uesato, H.; Kawai, H.; Wenner, S.; Miyaoka, H.; Sørby, M.H.; Fjellvåg, H.; Ichikawa, T.; Hauback, B.C. MgH2–CoO: A conversion-type composite electrode for LiBH4-based all-solid-state lithium ion batteries. RSC Adv. 2018, 8, 23468–23474. [Google Scholar] [CrossRef] [Green Version]
  20. Tutusaus, O.; Mohtadi, R. Paving the Way towards Highly Stable and Practical Electrolytes for Rechargeable Magnesium Batteries. ChemElectroChem 2014, 2, 51–57. [Google Scholar] [CrossRef] [Green Version]
  21. Mohtadi, R.; Matsui, M.; Arthur, T.S.; Hwang, S.-J. Magnesium Borohydride: From Hydrogen Storage to Magnesium Battery. Angew. Chem. Int. Ed. 2012, 51, 9780–9783. [Google Scholar] [CrossRef] [PubMed]
  22. Tuerxun, F.; Abulizi, Y.; Nuli, Y.; Su, S.; Yang, J.; Wang, J. High concentration magnesium borohydride/tetraglyme electrolyte for rechargeable magnesium batteries. J. Power Sources 2015, 276, 255–261. [Google Scholar] [CrossRef]
  23. Kamaya, N.; Homma, K.; Yamakawa, Y.; Hirayama, M.; Kanno, R.; Yonemura, M.; Kamiyama, T.; Kato, Y.; Hama, S.; Kawamoto, K.; et al. A lithium superionic conductor. Nat. Mater. 2011, 10, 682–686. [Google Scholar] [CrossRef] [PubMed]
  24. Udovic, T.J.; Matsuo, M.; Unemoto, A.; Verdal, N.; Stavila, V.; Skripov, A.V.; Rush, J.J.; Takamura, H.; Orimo, S.-I. Sodium superionic conduction in Na2B12H12. Chem. Commun. 2014, 50, 3750–3752. [Google Scholar] [CrossRef] [PubMed]
  25. Makiura, R.; Yonemura, T.; Yamada, T.; Yamauchi, M.; Ikeda, R.; Kitagawa, H.; Kato, K.; Takata, M. Size-controlled stabilization of the superionic phase to room temperature in polymer-coated AgI nanoparticles. Nat. Mater. 2009, 8, 476–480. [Google Scholar] [CrossRef] [PubMed]
  26. Maniadaki, A.E.; Lodziana, Z. Theoretical description of alkali metal closo-boranes—Towards the crystal structure of MgB12H12. Phys. Chem. Chem. Phys. 2018, 20, 30140–30149. [Google Scholar] [CrossRef]
  27. Lipscomb, W.N.; Pitochelli, A.R.; Hawthorne, M.F. PROBABLE STRUCTURE OF THE B10H10−2 ION. J. Am. Chem. Soc. 1959, 81, 5833–5834. [Google Scholar] [CrossRef]
  28. Lipscomb, W.N. Framework Rearrangement in Boranes and Carboranes. Science 1966, 153, 373–378. [Google Scholar] [CrossRef]
  29. Chen, Z.; King, R.B. Spherical Aromaticity: Recent Work on Fullerenes, Polyhedral Boranes, and Related Structures†. Chem. Rev. 2005, 105, 3613–3642. [Google Scholar] [CrossRef]
  30. Zimmermann, L.W.; Kleeberg, F.M.; Schleid, T. Synthesis and X-ray Crystallography of Two Lead(II) Decahydro-closo-Decaborate Hydrates. Z. Anorg. Allg. Chem. 2017, 643, 365–372. [Google Scholar] [CrossRef]
  31. Dobrott, R.D.; Lipscomb, W.N. Structure of Cu2B10H10. J. Chem. Phys. 1962, 37, 1779. [Google Scholar] [CrossRef]
  32. Wu, H.; Tang, W.S.; Stavila, V.; Zhou, W.; Rush, J.J.; Udovic, T.J. Structural Behavior of Li2B10H10. J. Phys. Chem. C 2015, 119, 6481–6487. [Google Scholar] [CrossRef]
  33. Bernard, R.; Cornu, D.; Perrin, M.; Scharff, J.-P.; Miele, P. Synthesis and X-ray structural characterisation of the tetramethylene oxonium derivative of the hydrodecaborate anion. A versatile route for derivative chemistry of [B10H10]2−. J. Organomet. Chem. 2004, 689, 2581–2585. [Google Scholar] [CrossRef]
  34. Panda, M. Synthesis and Characterization of Alkali Metal Borides and Closo-Hydroborates. Ph.D. Thesis, University of Hamburg, Hamburg, Germany, 2006. [Google Scholar]
  35. Unemoto, A.; Wu, H.; Udovic, T.J.; Matsuo, M.; Ikeshoji, T.; Orimo, S.-I. Fast lithium-ionic conduction in a new complex hydride–sulphide crystalline phase. Chem. Commun. 2015, 52, 564–566. [Google Scholar] [CrossRef] [PubMed]
  36. Nanda, J.; Wang, C.; Liu, P. Frontiers of solid-state batteries. MRS Bull. 2018, 43, 740–745. [Google Scholar] [CrossRef] [Green Version]
  37. Yan, X.; Li, Z.; Wen, Z.; Han, W.-Q. Li/Li7La3Zr2O12/LiFePO4 All-Solid-State Battery with Ultrathin Nanoscale Solid Electrolyte. J. Phys. Chem. C 2017, 121, 1431–1435. [Google Scholar] [CrossRef]
  38. Shoji, M.; Munakata, H.; Kanamura, K. Fabrication of All-Solid-State Lithium-Ion Cells Using Three-Dimensionally Structured Solid Electrolyte Li7La3Zr2O12 Pellets. Front. Energy Res. 2016, 4, 1–7. [Google Scholar] [CrossRef] [Green Version]
  39. Roedern, E.; Kühnel, R.-S.; Remhof, A.; Battaglia, C. Magnesium Ethylenediamine Borohydride as Solid-State Electrolyte for Magnesium Batteries. Sci. Rep. 2017, 7, srep46189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Maekawa, H.; Matsuo, M.; Takamura, H.; Ando, M.; Noda, Y.; Karahashi, T.; Orimo, S.-I. Halide-Stabilized LiBH4, a Room-Temperature Lithium Fast-Ion Conductor. J. Am. Chem. Soc. 2009, 131, 894–895. [Google Scholar] [CrossRef]
  41. Didelot, E.; Černý, R. Ionic conduction in bimetallic borohydride borate, LiCa3(BH4)(BO3)2. Solid State Ionics 2017, 305, 16–22. [Google Scholar] [CrossRef]
  42. Yan, Y.; Kühnel, R.-S.; Remhof, A.; Duchêne, L.; Reyes, E.C.; Rentsch, D.; Łodziana, Z.; Battaglia, C. A Lithium Amide-Borohydride Solid-State Electrolyte with Lithium-Ion Conductivities Comparable to Liquid Electrolytes. Adv. Energy Mater. 2017, 7, 1–7. [Google Scholar] [CrossRef]
  43. Blake, A. Characterization of Boron Hydride Compounds for Potential use in Pressurized Water Nuclear Reactors. Master’s Thesis, Pittsburg State University, Pittsburg, KS, USA, 2015. [Google Scholar]
  44. Ceder, G.; Ong, S.P.; Wang, Y. Predictive modeling and design rules for solid electrolytes. MRS Bull. 2018, 43, 746–751. [Google Scholar] [CrossRef]
  45. Mueller, T.; Ceder, G. Effect of Particle Size on Hydrogen Release from Sodium Alanate Nanoparticles. ACS Nano 2010, 4, 5647–5656. [Google Scholar] [CrossRef]
  46. Gerhardt, R. Impedance and dielectric spectroscopy revisited: Distinguishing localized relaxation from long-range conductivity. J. Phys. Chem. Solids 1994, 55, 1491–1506. [Google Scholar] [CrossRef]
  47. Sullivan, E.M.; Gerhardt, R.A.; Wang, B.; Kalaitzidou, K. Effect of compounding method and processing conditions on the electrical response of exfoliated graphite nanoplatelet/polylactic acid nanocomposite films. J. Mater. Sci. 2016, 51, 2980–2990. [Google Scholar] [CrossRef]
  48. Jin, Y.; Xia, N.; Gerhardt, R.A. Enhanced dielectric properties of polymer matrix composites with BaTiO3 and MWCNT hybrid fillers using simple phase separation. Nano Energy 2016, 30, 407–416. [Google Scholar] [CrossRef] [Green Version]
  49. Gomes, S.; Hagemann, H.; Yvon, K. Lithium boro-hydride LiBH4 II. Raman spectroscopy. J. Alloys Compd. 2002, 346, 206–210. [Google Scholar] [CrossRef] [Green Version]
  50. Duchêne, L.; Lunghammer, S.; Burankova, T.; Liao, W.C.; Embs, J.P.; Copéret, C.; Wilkening, H.M.; Remhof, A.; Hagemann, H.; Battaglia, C. Borate Solid-State Electrolyte: Interplay of Disorder and Ion-Ion Interactions. Chem. Mater. 2019, 31, 3449–3460. [Google Scholar] [CrossRef]
  51. Verdal, N.; Hartman, M.R.; Jenkins, T.; Devries, D.J.; Rush, J.J.; Udovic, T.J. Re-orientational Dynamics of NaBH4 and KBH4. J. Phys. Chem. C 2010, 114, 10027–10033. [Google Scholar] [CrossRef]
  52. Verdal, N.; Udovic, T.J.; Rush, J.J.; Stavila, V.; Wu, H.; Zhou, W.; Jenkins, T. Low-temperature tunneling and rotational dynamics of the ammonium cations in (NH4)2B12H12. J. Chem. Phys. 2011, 135, 094501. [Google Scholar] [CrossRef]
  53. Scrosati, B. History of lithium batteries. J. Solid State Electrochem. 2011, 15, 1623–1630. [Google Scholar] [CrossRef]
Molecules 26 03239 g001 550

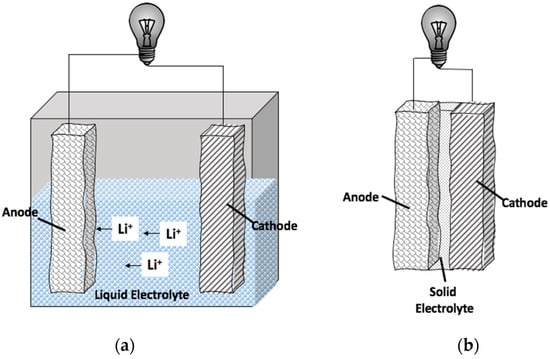

Figure 1. Schematics of (a) the current lithium ion battery containing a liquid electrolyte layer. (b) An all solid-state battery configuration. For the solid-state borohydride electrolyte shown in (b), a potential battery architecture would be comprised of LiCoO2 cathode and Li4Ti5O12 spinel anode.
Figure 1. Schematics of (a) the current lithium ion battery containing a liquid electrolyte layer. (b) An all solid-state battery configuration. For the solid-state borohydride electrolyte shown in (b), a potential battery architecture would be comprised of LiCoO2 cathode and Li4Ti5O12 spinel anode.
Molecules 26 03239 g001
Molecules 26 03239 g002 550

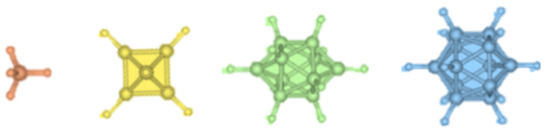

Figure 2. Structural renderings of (left to right) BH4−, B6H62, B10H102−, and B12H122− wherein the ionic radii are reported as 2 Å, 4.7 Å, 6 Å, and 5.8 Å, respectively. Image adapted with permission from [10]. Copyright permissions granted by American Chemical Society (2017).
Figure 2. Structural renderings of (left to right) BH4−, B6H62, B10H102−, and B12H122− wherein the ionic radii are reported as 2 Å, 4.7 Å, 6 Å, and 5.8 Å, respectively. Image adapted with permission from [10]. Copyright permissions granted by American Chemical Society (2017).
Molecules 26 03239 g002
Molecules 26 03239 g003 550
Figure 3. Spider diagram of key factors in solid electrolyte performance. Anodic and electrochemical oxidation stability together define the electrochemical window. Image adapted with permission from [10]. Copyright permissions granted by American Chemical Society (2017).
Figure 3. Spider diagram of key factors in solid electrolyte performance. Anodic and electrochemical oxidation stability together define the electrochemical window. Image adapted with permission from [10]. Copyright permissions granted by American Chemical Society (2017).
Molecules 26 03239 g003
Molecules 26 03239 g004 550
Figure 4. (a) Cyclic voltammetry done in 2 M LiBH4 + 0.5 M NaBH4 solution along with scanning electron microscopy (SEM) of borohydride powders (b) before and (c) after cycling. In solution, cyclic voltammetry drives topological changes in the hydride morphology.
Figure 4. (a) Cyclic voltammetry done in 2 M LiBH4 + 0.5 M NaBH4 solution along with scanning electron microscopy (SEM) of borohydride powders (b) before and (c) after cycling. In solution, cyclic voltammetry drives topological changes in the hydride morphology.
Molecules 26 03239 g004
Molecules 26 03239 g005 550

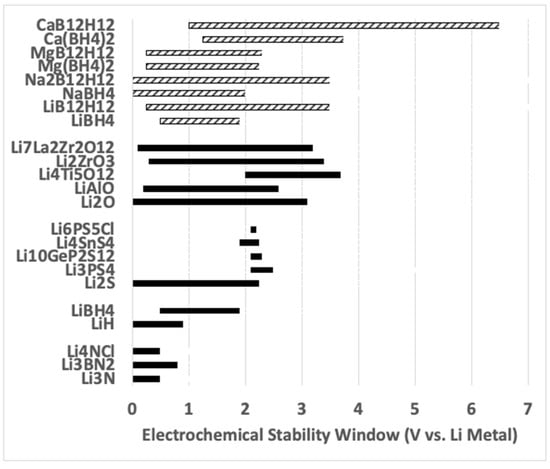

Figure 5. Image showing electrochemical stability windows for several potential solid electrolyte materials adapted with permission from works of Ceder et al. (in solid fill) [44] and Lu et al. [10] (in hashed fill). Copyright permissions granted by Cambridge University Press (2018) and American Chemical Society (2017), respectively.
Figure 5. Image showing electrochemical stability windows for several potential solid electrolyte materials adapted with permission from works of Ceder et al. (in solid fill) [44] and Lu et al. [10] (in hashed fill). Copyright permissions granted by Cambridge University Press (2018) and American Chemical Society (2017), respectively.
Molecules 26 03239 g005
Molecules 26 03239 g006 550

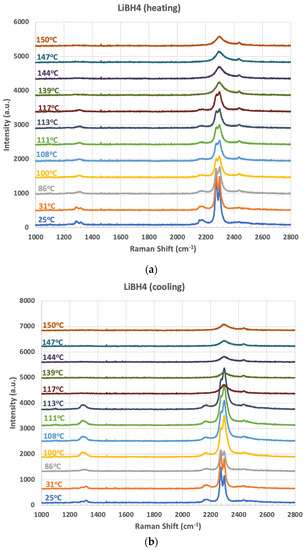

Figure 6. Raman spectroscopy of LiBH4 as a function of temperature during ramp up from RT to 150 °C (a) and ramp down from 150 °C to RT (b).
