Article

Synthesis of Novel N-Acylhydrazones and Their C-N/N-N Bond Conformational Characterization by NMR Spectroscopy

by
Rubina Munir
1,2,*,
Noman Javid
3,
Muhammad Zia-ur-Rehman
4,*,
Muhammad Zaheer
4,
Rahila Huma
2,
Ayesha Roohi
2 and
Muhammad Makshoof Athar
1
1
Institute of Chemistry, University of the Punjab, Lahore 54590, Pakistan
2
Department of Chemistry, Kinnaird College for Women, Lahore 54000, Pakistan
3
Department of Chemistry (C-Block), Forman Christian College, Ferozepur Road, Lahore 54600, Pakistan
4
Applied Chemistry Research Centre, PCSIR Laboratories Complex, Lahore 54600, Pakistan
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(16), 4908; https://doi.org/10.3390/molecules26164908
Submission received: 27 July 2021 / Revised: 10 August 2021 / Accepted: 11 August 2021 / Published: 13 August 2021
(This article belongs to the Section Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
In this article, a synthesis of N’-(benzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazides and their structural interpretation by NMR experiments is described in an attempt to explain the duplication of some peaks in their 1H- and 13C-NMR spectra. Twenty new 6-methyl-1H-pyrazolo[3,4-b]quinoline substituted N-acylhydrazones 6(a–t) were synthesized from 2-chloro-6-methylquinoline-3-carbaldehyde (1) in four steps. 2-Chloro-6-methylquinoline-3-carbaldehyde (1) afforded 6-methyl-1H-pyrazolo[3,4-b]quinoline (2), which upon N-alkylation yielded 2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetate (3). The hydrazinolysis of 3 followed by the condensation of resulting 2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (4) with aromatic aldehydes gave N-acylhydrazones 6(a–t). Structures of the synthesized compounds were established by readily available techniques such as FT-IR, NMR and mass spectral studies. The stereochemical behavior of 6(a–t) was studied in dimethyl sulfoxide-d6 solvent by means of 1H NMR and 13C NMR techniques at room temperature. NMR spectra revealed the presence of N’-(benzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazides as a mixture of two conformers, i.e., E(C=N)(N-N) synperiplanar and E(C=N)(N-N) antiperiplanar at room temperature in DMSO-d6. The ratio of both conformers was also calculated and E(C=N) (N-N) syn-periplanar conformer was established to be in higher percentage in equilibrium with the E(C=N) (N-N) anti-periplanar form.

1. Introduction

N-Acylhydrazone (NAH) scaffold has been identified as a lead pharmacophore in many bioactive compounds that act against different molecular targets [1,2,3,4,5,6,7,8]. This moiety is a putative bioisostere of amide backbone [9]. Its achiral nature and higher chemical stability than peptide bond have urged the medicinal chemists to consider this privileged scaffold for structural design of new drug candidates [10,11,12,13,14,15,16]. Due to the presence of H-bonding sites and viability of adopting multiple conformational orientations, N-acylhydrazones have a promising prospective to interact with various bioreceptors. Thus, NAH subunit is of central importance in the process of molecular recognition by the target as well as during structure–activity relationship studies (SARs) [17,18,19].
The N-acyl hydrazone backbone (-C(O)-N-N=C<) is an assemblage of amide and imine functional groups which is likely to exhibit geometric as well as conformational stereoisomerism [20]. Rotation along imine C=N linkage may give rise to two geometrical stereoisomers, i.e., E and Z forms. By means of 1H- and 13C NMR data, Palla and coworkers speculated that N-Acyl hydrazones of aromatic aldehydes tend to exist in E configuration in solid form [21]. In solution too, the less hindered E is the preferred geometry; however, the Z isomer can be detected in fewer polar solvents [22,23]. The configurational interconversion in solution is quite slow due to restriction of rotation about C=N bond and the achievement of equilibrium in solution requires hours (or even days) [24]. The E/Z switching usually requires energy and can be achieved thermodynamically [20,24], photochemically [25,26,27], or chemically by base or acid catalysis [28,29,30,31].
Other than geometrical isomerism, rotation across amide C(O)-NH bond may give rise to conformational stereoisomerism [20,32]. Referring to the arrangement of NH bond cis or trans to carbonyl bond, NAH may exist as synperiplanar (sp) and antiperiplanar (ap) conformers (Figure 1). NMR spectroscopy is a useful tool to distinguish the stereoisomers in N-acylhydrazones [33,34]. Though there is a general tendency of NH to undergo rapid exchange with the solvent, fortunately the C(O)-NH proton in N-acylhydrazones exhibits conspicuous signals for each isomer and provides a better assessment because neither this proton undergoes considerable exchange nor the signal gets superimposed by aromatic protons [35].
Until now, the researchers have focused on stereoisomers arising from C=N and C(O)-NH bond rotation; however, rotation about the N-N bond remained overlooked. In this study, we demonstrate the synthesis and investigation of the stereochemical behavior of new N-acylhydrazones of 2-(6-Methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide by interpretation of the signal duplication in their 1H NMR and 13C NMR spectra in DMSO-d6 solvent. Since the comprehensive information including stereochemistry of a molecule is very important for optimization in drug design and discovery; the conformers arising from rotation around N-N bond too have been considered to depict a clear picture of the steric factors.

2. Results and Discussion

2.1. Synthetic Chemistry

New N’-(benzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazides 6(a–t) were synthesized in four steps as illustrated in Scheme 1.
2-Chloro-6-methylquinoline-3-carbaldehyde (1) was used as precursor for the synergism of quinoline ring with pyrazole scaffold to afford 6-methyl-1H-pyrazolo[3,4-b]quinoline (2) after cyclocondensation with hydrazine monohydrate. 6-Methyl-1H-pyrazolo[3,4-b]quinoline (2) was converted to methyl 2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetate (3) by reacting it with methyl chloroacetate under SN2 conditions. Hydrazinolysis of the synthesized ester (3) resulted in the formation of 2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (4), which was finally condensed with a variety of aromatic aldehydes 5(a–t) in acidic conditions to afford titled N-acylhydrazones 6(a–t) in 82–99% yield. The progress of reaction was monitored by TLC and structures of the synthesized compounds 6(a–t) were elucidated using different techniques including FT-IR, 1H NMR, 13C NMR spectroscopies and mass spectrometry (see Supplementary Materials). The purity of the titled compounds was established from elemental analysis.

2.2. Spectroscopic Characterization

Primarily, the functional groups of the synthesized products were determined by recording their vibrational spectra. The IR spectra of methyl 2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetate (3) displayed a strong absorption band at 1741 cm−1 for C=O bond while C-O stretching vibration at 1217 cm−1 which confirmed the presence of ester functionality. The 1H NMR spectrum of the compound 3 showed a singlet peak of methylene protons at 5.44 ppm. The ester linkage was confirmed from a sharp singlet at 3.78 ppm referring to -OCH3 protons. Aromatic protons exhibited signals between 7.62 and 8.56 ppm among which H-4 of the pyrazolo[3,4-b]quinoline ring emerged as the most deshielded proton. In the 13C NMR spectrum of the compound 3, signals for carbonyl carbon and -OCH3 group of ester were observed at 169.3 and 52.8 ppm, respectively, while methylene carbon showed up at 48.3 ppm.
The FT-IR spectrum of hydrazide 4 disclosed the absorption band of C=O at 1665 cm−1 which indicated the transformation of ester linkage into hydrazide. The two individual absorption bands referring to NH stretching vibrations at 3345 cm−1 and 3256 cm−1 proved the hydrazide formation. In 1H NMR spectrum of the compound 4, the absence of methoxy protons at 3.78 ppm and presence of two singlet peaks of NH protons confirmed the structure of hydrazide. The broad singlet of C(O)-NH proton emerged downfield at 9.39 ppm due to significant deshielding, whereas -NH2 protons resonated upfield at 4.32 ppm. The signal of methylene protons appeared downfield resonating near 5.14 ppm. Aromatic ring protons exhibited peaks between 7.65 ppm and 9.39 ppm. H-3 and H-4 exhibited distinct singlets at 8.44 ppm and 8.84 ppm, respectively; however, the chemical shifts and multiplicity of the rest aromatic signals varied according to their position on the ring. Ar-CH3 protons showed up as singlet at 2.51 ppm though the signal was overlapped by the solvent signal. The 13C NMR spectrum displayed C=O carbon at 166.9 ppm.
Structures of the titled N-acylhydrazones 6(a–t) were explicated by infrared spectroscopy, NMR spectroscopy and elemental analysis. The presence of C=O and C=N stretching vibrations at 1643–1658 cm−1 and 1596–1627 cm−1, but NH absorption band around 3195–3310 cm−1, confirmed the acyl hydrazone backbone in all the compounds. The synthesized compounds were also analyzed by mass spectrometry. The molecular masses of few representative compounds determined from mass spectra were in agreement with the given structures, hence validating the formation of the titled N-acylhydrazones.
In the 1H NMR spectra (recorded in DMSO-d6) of the synthesized N-acylhydrazones 6(a–t), the characteristic peak for -CH3 appeared at 2.52 ppm, which was unfortunately disguised by the solvent signal. NH proton resonated between 11.40–12.20 ppm whereas the methylene and aromatic protons appeared in their respective region. H-4 of pyrazoloquinoline ring was eminent as the most deshielded aromatic proton which displayed a singlet resonating around 8.86–8.88 ppm. The signal of H-3 too, emerged as a singlet near 8.48 ppm. The peak for imine N=CH proton was observed around 7.95–8.50 ppm. The 13C NMR spectra displayed -CH3 carbon at 21.5 ppm and methylene carbon near 48 ppm. Carbonyl carbon and azomethine N=CH carbon exhibited peaks near 169 ppm and 146–149 ppm, respectively. In 1H NMR of the synthesized N-acylhydrazones 6(a–t), duplicate appearance of signals was observed for NH, N=CH, -CH2- and aryl protons. The same behavior was witnessed in 13C NMR spectra (Figure 2).

2.3. Stereochemical Characterization of N-Acylhydrazones

In all the 1H NMR and 13C NMR spectra, a particular pattern of two explicit sets of signals for certain protons was observed. Although similar in pattern, the heights of the duplicated peaks varied from compound to compound indicating the existence of two stereoisomers in solution in dissimilar ratio (Figure 2). Structures of the two isomers in DMSO-d6 are resolved by considering all the plausible configurations and conformations arising due to C=N, C(O)-NH and N-N bond rotations in order to determine whether the duplication of some peaks in their 1H- and 13C-NMR spectra was associated with a mixture of geometric (E/Z) stereoisomers or rotational stereoisomers (synperiplanar and antiperiplanar).
The first possibility is the existence of compounds 6(a–t) as two geometrical isomers, i.e., Z and E forms in solution which arise due to rotation along imine C=N bond [20]. On the other hand, the synthesized compounds are likely to exist as rotational stereoisomers (synperiplanar and antiperiplanar) due restriction of rotation about C-N bond of amide linkage C(O)-NH [20,21] (Figure 3).
In this study, the rotational isomers Iʹ–IVʹ arising from rotation around N-N bond, are demonstrated for all the four stereoisomers I–IV to illustrate a clear picture of the steric factors (Figure 4).
Literature studies have established the Z(C=N) configuration to be the short-lived isomeric form due to steric crowding leading towards relatively less stability than E(C=N) forms [20,36,37]. As the illustration of representative forms II, IIʹ and IVʹ clearly depicts the crowding of groups (Figure 4); hence, this is not the preferred geometric configuration. The relative amounts of E(C=N)/Z(C=N) isomers also depend upon the solvent; the Z(C=N) form, due to intramolecular Hydrogen bonding, can be detected in less polar solvents such as chloroform. The 100% isomer in DMSO-d6, however, is the E isomer [22,23]. Furthermore, the chemical shifts for NH signals of Z(C=N) isomers of N-acylhydrazones are reported around 14 ppm [37]; no signal in this region was observed for the synthesized compounds 6(a–t). The geometry of the titled compounds was further confirmed from the thin layer chromatography and LC-MS techniques. E(C=N) and Z(C=N) isomers have significantly different Rf values to difference in polarity and dipole moment of the molecules [38,39,40,41]. During the characterization of the synthesized compounds 6(a–t), single spot in TLC negated the existence of geometric isomers in the solution under study. Based on literature studies and behavior of compounds during chromatography, the presence of Z(C=N) forms (II, IIʹ, IV and IVʹ) in the solutions of 6(a–t) was ruled out.
The emergence of the duo signals in the 1H-NMR spectra of the compounds is, hence, ascribed to the existence of rotational isomers. The conformers arising due to N-N bond rotation have also been considered; however, Z(N–N) (Iʹ–IVʹ) conformations (dihedral angle = 0°) are unlikely to exist due to steric crowding of acyl group and benzylidene part of the molecule. The co-planarity and eclipsing of C=O and C=N bonds in forms Iʹ and IIʹ while steric hindrance in forms IIIʹ and IVʹ demonstrates that Z(N–N) forms are not likely to prevail (Figure 4). Relative prevalence of E(C=N) geometric isomer and E(N-N) conformer suggests that the duplicate signals in the 1H NMR spectra of the synthesized compounds refer to the existence of conformers about amide linkage only, hence the two isomers observed in NMR spectra are anticipated to be E(C=N) (N-N)-antiperiplanar and E(C=N) (N-N)-synperiplanar forms I and III (Figure 3 and Figure 4). Spectral studies regarding rotamers, i.e., synperiplanar and antiperiplanar conformers of N-acyl hydrazones have already been described by researchers [42,43,44].
The paired peaks, emerging as two discrete sets of singlets in the spectra of the synthesized compounds, are designated to amide C(O)NH, imine N=CH and methylene -CH2- protons. For C(O)NH and N=CH protons, the downfield signals are assigned to the antiperiplanar (ap) conformer while the upfield signals to the synperiplanar (sp) conformers, as established from literature [42,43,44]. On the contrary, for methylene protons the upfield signal is denoted as anti- while downfield signal as the syn- isomer, as is evident from the integration of the signals relative to those of imine and amide peaks (Table 1).
The number and ratio of stereoisomers in solution is a function of solvent and temperature [24]. Moreover, N-acylhydrazones of aromatic aldehydes are reported to exist in dimeric forms, arising as a result of intermolecular H-bonding [45]. For this type of H-bonding, the most equitable arrangement of the molecule is syn-periplanar conformation with E(C=N) (N-N) configuration (Form III), as this form possesses C=O and N-N groups trans with respect to each other which not only allow the development of electrostatic interactions to form dimers but are also available for interaction with polar solvents (Figure 5). The dimerization of N-acylhydrazones may take place in DMSO according to the literature studies [24]; however, in this research work, no experimental evidence of this was observed. Due to the electronic repulsions in anti- form and availability of sites for intermolecular hydrogen bonding interactions between solute and solvent molecules, the ratio of syn- conformer is expected to be higher in DMSO, as this conformation is the most appropriate arrangement for this type of interaction.
The C(O)-NH signals of the syn- form appeared at around 11.41–2.04 ppm, and for the anti- form at 11.66–12.18 ppm. The signals of methylene protons of the syn- form resonated around 5.67–5.80 ppm, while those of the anti- form were in the range 5.29–5.39 ppm (Table 1). The C-N bond rotation has also influenced the chemical shifts of aromatic protons which have exhibited paired signals, though the multiplicity of most of the aromatic signals has not been particularly allocated due to superimposition of signals.
The percentage of both the conformers were calculated by taking the ratio of integral intensities of the paired peaks (Table 2). The higher ratio is allotted to synperiplanar isomer. The calculations from the 1H NMR spectra of compounds 6(a–t) revealed that the DMSO-d6 solution of these compounds contained E(C=N)(N-N)-synperiplanar and E(C=N)(N-N)-antiperiplanar conformers in an approximate ratio 3:1 (75% syn- isomer while 25% anti- conformer) with slight variation from compound to compound.
An exceptionally higher percentage ratio of antiperiplanar form is demonstrated in the spectrum of compound 6q. In 6q, the two isomers have shown approximately equal amounts that are attributed to the presence of -OH substituent at ortho position of phenyl ring, leading towards the increased stability of anti- conformation via intramolecular H-bonding (Figure 6).
13C NMR spectra of the synthesized compounds 6(a–t) too, displayed duplicated signals which indicated the presence of a mixture of conformational stereoisomers [46]. The duplicated signals of three representative carbon (C=O, N=CH and -CH2-) atoms are identified and precisely interpreted in order to recognize and validate the isomers. For carbonyl carbon, two signals were observed; the upfield peak was referred to ap conformer while the downfield signal was assigned to sp conformer. Conversely, the downfield signal for azomethine stood for ap rotamer while upfield peak for to sp conformer. The methylene carbon also gave two signals, among which the signal for sp isomer appeared upfield (Table 3).

3. Materials and Methods

3.1. General

All the chemicals (solvents and reagents) were purchased from renowned chemical manufacturing companies (Alpha Aesar: Ward Hill, MA, USA, Fluka: Buchs, Switzerland, Merck: Darmstadt, Germany and Sigma/Aldrich: Saint Louis, MO, USA) through their indigenous suppliers. Most of the chemicals were used without further purification. Thin layer chromatography was executed on aluminum plates coated with silica gel 60 F254 (Merck) in a suitable mobile phase and spots were visualized under ultraviolet irradiation (λ = 366 and 254 nm). Melting points were noted on Gallenkamp melting point apparatus by the open capillary method and are uncorrected. FTIR spectra were recorded on an Agilent Technologies Cary 630 FTIR spectrophotometer (Santa Clara, CA, USA). 1H NMR spectra were recorded in CDCl3 and DMSO-d6 on Brücker Avance NMR (300 MHz, Billerica, MA, USA) instrument using TMS as internal standard. Chemical shifts were recorded in δ (ppm) and coupling constant (J) is stated in Hertz. 13C NMR spectra were recorded on an operating radio frequency of 75 MHz. NMR spectra were recorded at room temperature. Mass spectra were recorded on an LCQ Advantage Max Thermofisher instrument (Poway, CA, USA) using ESI+ mode. Elemental analysis was achieved on a LECO 630-200-200 TRUSPEC CHNS micro analyzer (St. Joseph, MI, USA) and the values observed are within ±0.4% of the calculated results. Compounds 1 and 2 were synthesized by using literature procedures [47,48].

3.2. Synthesis of Methyl 2-(6-Methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetate (3)

To a stirred solution of 6-methyl-1H-pyrazolo[3,4-b]quinoline (2) (1.83 g; 10 mmol) in acetonitrile (25 mL) was added anhydrous potassium bicarbonate (2.07 g; 15 mmol). Subsequently, methylchloroacetate (1.3 mL; 1.6 g; 15 mmol) was added to the resulting mixture followed by heating under reflux conditions for 24 h. Excess solvent was removed under vacuum and the contents were filtered after the addition of water. The crude product was dried and purified by column chromatography (Eluting solvent: n-Hexane-ethyl acetate (7:3)).
Yield 71%. Light brown solid. m.p. 260–261 °C. FT-IR (ῡ cm–1; neat): 3021 (CH-Aromatic), 2927 (CH), 1741 (C=O), 1217 (C-O). 1H NMR (CDCl3, 300 MHz) δ = 2.57 (s, 3H, -CH3), 3.78 (s, 3H, -OCH3), 5.44 (s, 2H, -CH2-), 7.62 (dd, J = 8.7, 2.1 Hz, 1H, H-7), 7.75 (s, 1H, H-5), 8.01 (d, J = 8.7 Hz, 1H, H-8), 8.30 (s, 1H, H-3), 8.56 (s, 1H, H-4) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.3 (-CH2-), 52.8 (-OCH3), 116.8 (C-13), 124.8 (C-11), 127.9 (C-5), 128.3 (C-8), 130.9 (C-7), 133.4 (C-3), 134.0 (C-4), 134.5 (C-6), 146.8 (C-10), 150.3 (C-12), 169.3 (C=O) ppm. MS m/z: 256.28 [M+ + 1]. Anal. Calcd. for C14H13N3O2: C, 65.87; H, 5.13; N, 16.46%. Found: C, 65.95; H, 5.31; N, 16.68%.

3.3. Synthesis of 2-(6-Methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (4)

Hydrazine monohydrate (98%; 1.6 mL; 50 mmol) was added to the stirred solution of methyl 2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetate (3) (6.375 g; 25 mmol) in absolute ethanol (50 mL) and the reaction mixture was refluxed for 3 h. Excess solvent was removed on rotavapor and water was added to the obtained residue. Neutralization of the resulting solution with 2N HCl solution yielded precipitates which were filtered, washed with water and cold ethanol respectively, and dried.
Yield 80%. Off-white solid. m.p. 246–248 °C. FT-IR (ῡ cm–1; neat): 3345 (NH2), 3256 (NH), 3040 (CH-Aromatic), 2928 (CH), 1665 (C=O). 1H NMR (DMSO-d6, 300 MHz) δ = 2.51 (s, 3H, -CH3), 4.32 (s, 2H, -NH2), 5.14 (s, 2H, -CH2-), 7.65 (d, J = 9.0 Hz, 1H, H-7), 7.91–7.94 (m, 2H, H-5, H-8), 8.44 (s, 1H, H-3), 8.84 (s, 1H, H-4), 9.39 (s, 1H, -NH-) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.3 (-CH2-), 116.9 (C-13), 124.6 (C-11), 127.9 (C-5), 128.3 (C-8), 130.6 (C-7), 133.1 (C-3), 133.8 (C-4), 134.0 (C-6), 146.7 (C-10), 150.5 (C-12), 166.9 (C=O) ppm. MS m/z: 256.39 [M+ + 1]. Anal. Calcd. for C13H13N5O: C, 61.17; H, 5.13; N, 27.43%. Found: C, 61.49; H, 5.39; N, 27.75%.

3.4. General Procedure for the Synthesis of N-Acyl hydrazones 6(a–t)

Title compounds 6(a–t) were synthesized by refluxing an ethanolic solution of 2-(6-Methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (4) (1.275 g; 5 mmol) and corresponding aromatic aldehyde 5(a–u) (5 mmol) with catalytic amount of orthophosphoric acid. The products precipitated within 0.5–2.0 h were filtered, washed with cold ethanol, and dried in the oven. Off-white or pale-yellow solids were obtained after recrystallization from absolute ethanol.
(E)-N’-benzylidene-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6a) Yield 85%, pale yellow solid. m.p. 266–268 °C. FT-IR (ῡ cm–1; neat): 3290 (NH), 3042 (CH-Aromatic), 2932 (CH), 1658 (C=O), 1604 (C=N). 1H NMR (DMSO-d6, 300 MHz): δ = 2.52(sp + ap) (s, 3H, -CH3), 5.35ap, 5.75sp (2 s, 2H, -CH2-), 7.41–7.45(sp + ap) (m, 3H, H-3′, H-4′, H-5′), 7.64–7.73(sp + ap) (m, 3H, H-7, H-2′, H-6′), 7.9–7.96(sp + ap) (m, 2H, H-5, H-8), 8.06sp, 8.28ap (2 s, 1H, N = CH), 8.48sp, 8.49ap (s, 1H, H-3), 8.87(sp + ap) (s, 1H, H-4), 11.75sp, 11.88ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.5 (-CH3), 48.5sp, 48.9ap (-CH2-), 116.9, 124.7, 127.5, 127.6, 127.9, 128.3, 129.3, 130.5, 130.6, 133.2, 133.8, 133.9, 134.4, 134.5, 144.6, 146.7sp, 147.9ap (N=CH), 150.7, 164.1ap, 169.0sp (C=O) ppm. Anal. Calcd. for C20H17N5O: C, 69.96; H, 4.99; N, 20.40%. Found: C, 70.14; H, 5.11; N, 20.62%.
(E)-N’-(2-chlorobenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6b) Yield 84%, pale yellow solid, m.p. 256–258 °C. FT-IR (ῡ cm–1; neat): 3302 (NH), 3038 (CH-Aromatic), 2929 (CH), 1651 (C=O), 1615 (C=N), 771 (C-Cl). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.35ap, 5.77sp (2 s, 2H, -CH2-), 7.33(sp + ap) (t, J = 7.5 Hz, 1H, H-5′), 7.44(sp + ap) (td, J = 7.8 Hz, 1.8 Hz, 1H, H-4′), 7.54(sp + ap) (d, J = 7.8 Hz, 1H, H-6′), 7.66(sp + ap) (dd, J = 9.0 Hz, 1.8 Hz, 1H, H-7), 7.93–7.96(sp + ap) (m, 2H, H-5, H-8), 8.02(sp + ap) (dd, J = 8.1 Hz, 1.5 Hz, 1H, H-3′), 8.45sp, 8.66ap (2 s, 1H, N=CH), 8.48sp, 8.50ap (s, 1H, H-3), 8.87sp, 8.89ap (s, 1H, H-4), 11.92sp, 12.12ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.6sp, 49.0ap (-CH2-), 116.9, 124.7, 127.5, 127.9, 128.0, 128.1, 128.3, 130.3, 130.6, 131.6, 131.7, 131.9, 133.2, 133.5, 133.8, 134.0, 134.3, 140.6, 143.8, 146.7sp, 147.9ap (N=CH), 150.7, 164.3ap, 169.1sp (C=O) ppm. MS m/z: 378.91 [M+ + 1]. Anal. Calcd. for C20H16ClN5O: C, 63.58; H, 4.27; N, 18.54%. Found: C, 63.30; H, 4.09; N, 18.40%.
(E)-N’-(3-chlorobenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6c) Yield 94%. Off-white solid. m.p. 257–259 °C. FT-IR (ῡ cm–1; neat): 3307 (NH), 3040 (CH-Aromatic), 2928 (CH), 1656 (C=O), 1610 (C=N), 774 (C-Cl). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.36ap, 5.77sp (2 s, 2H, -CH2-), 7.41–7.50(sp + ap) (m, 2H, H-5′, H-6′), 7.63–7.69(sp + ap) (m, 2H, H-7, H-4′), 7.76ap, 7.83sp (2 t, J = 1.5 Hz, 1H, H-2′), 7.92–7.95(sp + ap) (m, 2H, H-5, H-8), 8.04sp, 8.26ap (2 s, 1H, N=CH), 8.47sp, 8.49ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 11.86sp, 12.02ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.6sp, 48.9ap (-CH2-), 116.9, 124.7, 126.2, 126.3, 126.6, 127.0, 128.3, 130.1, 130.6, 130.7, 131.1, 131.2, 133.2, 133.8, 133.9, 134.2, 136.6, 136.8, 143.1, 146.2, 146.7sp (N=CH), 150.7, 164.3ap, 169.2sp (C=O) ppm. Anal. Calcd. for C20H16ClN5O: C, 63.58; H, 4.27; N, 18.54%. Found: C, 63.65; H, 4.41; N, 18.68%.
(E)-N’-(4-chlorobenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6d) yield 92%. Off-white solid. m.p. 262–264 °C. FT-IR (ῡ cm–1; neat): 3296 (NH), 3021 (CH-Aromatic), 2928 (CH), 1643 (C=O), 1596 (C=N), 774 (C-Cl). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.35ap, 5.75sp (2 s, 2H, -CH2-), 7.47sp, 7.51ap (2 d, J = 8.7 Hz, 2H, H-2′, H-6′), 7.66(sp + ap) (dd, J = 9.0 Hz, 1.5 Hz, 1H, H-7), 7.72–7.77(sp + ap) (m, 2H, H-3′, H-5′), 7.92–7.95(sp + ap) (m, 2H, H-5, H-8), 8.05sp, 8.26ap (2 s, 1H, N=CH), 8.47sp, 8.49ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 11.81sp, 11.95ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.8ap (-CH2-), 116.7, 124.4, 124.7, 125.4, 127.9, 128.2, 128.3, 130.7, 133.8, 133.9, 134.1, 135.0, 144.7, 146.7sp, 147.5ap (N=CH), 148.1, 150.3, 163.7ap, 169.3sp (C=O) ppm. Anal. Calcd. for C20H16ClN5O: C, 63.58; H, 4.27; N, 18.54%. Found: C, 63.74; H, 4.59; N, 18.80%.
(E)-N’-(2,4-dichlorobenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6e) Yield 85%. Off-white solid. Decomposed at 272 °C. FT-IR (ῡ cm–1; neat): 3265 (NH), 3025 (CH-Aromatic), 2931 (CH), 1651 (C=O), 1601 (C=N), 775 (C-Cl). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.35ap, 5.77sp (2 s, 2H, -CH2-), 7.39sp, 7.50ap (dd, J = 8.7 Hz, 2.1 Hz, 1H, H-5′), 7.66(sp + ap) (dd, J = 9.0 Hz, 1.8 Hz, 1H, H-7), 7.73(sp + ap) (d, J = 2.1 Hz, 1H, H-3′), 7.92–7.95(sp + ap) (m, 2H, H-5, H-8), 8.03(sp + ap) (d, J = 8.4 Hz, 1H, H-6′), 8.38sp, 8.60ap (2 s, 1H, N=CH), 8.48sp, 8.49ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 11.96sp, 12.16ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp (-CH2-), 116.9, 124.7, 127.9, 128.3, 128.5, 128.7, 129.8, 130.6, 130.8, 133.2, 133.3, 133.8, 134.0, 134.2, 134.3, 135.4, 139.6, 142.8, 146.7sp (N=CH), 150.7, 164.3ap, 169.2sp (C=O) ppm. Anal. Calcd. for C20H15Cl2N5O: C, 58.27; H, 3.67; N, 16.99%. Found: C, 58.15; H, 3.51; N, 16.75%.
(E)-N’-(2,6-dichlorobenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6f) Yield 82%. Pale yellow solid. m.p. 268–270 °C. FT-IR (ῡ cm–1; neat): 3233 (NH), 3030 (CH-Aromatic), 2925 (CH), 1650 (C=O), 1619 (C=N), 771 (C-Cl). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.38ap, 5.67sp (2 s, 2H, -CH2-), 7.41–7.48(sp + ap) (m, 1H, H-4′), 7.55–7.68(sp + ap) (m, 3H, H-7, H-3′, H-5′), 7.91–7.97(sp + ap) (m, 2H, H-5, H-8), 8.35sp, 8.46ap (s, 1H, N=CH), 8.47sp, 8.50ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 12.04sp, 12.18ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.3sp, 48.8ap (-CH2-), 116.9, 124.7, 127.9, 128.3, 129.5, 129.9, 130.6, 131.6, 133.2, 133.8, 134.0, 134.4, 134.5, 139.8, 146.7sp (N=CH), 150.7, 169.2sp (C=O) ppm. Anal. Calcd. for C20H15Cl2N5O: C, 58.27; H, 3.67; N, 16.99%. Found: C, 58.41; H, 3.83; N, 17.11%.
(E)-N’-(4-fluorobenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6g) Yield 89%. Pale yellow solid. m.p. 284–286 °C. FT-IR (ῡ cm–1; neat): 3310 (NH), 3030 (CH-Aromatic), 2928 (CH), 1654 (C=O), 1601 (C=N). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.34ap, 5.75sp (2 s, 2H, -CH2-), 7.22–7.32(sp + ap) (m, 2H, H-2′, H-6′), 7.66(sp + ap) (dd, J = 9.0 Hz, 1.8 Hz, 1H, H-7), 7.74–7.82(sp + ap) (m, 2H, H-3′, H-5′), 7.92–7.95(sp + ap) (m, 2H, H-5, H-8), 8.06sp, 8.27ap (2 s, 1H, N=CH), 8.47sp, 8.49ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 11.76sp, 11.89ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.9ap (-CH2-), 116.1, 116.4, 116.9, 124.6, 127.9, 128.3, 129.6, 129.7, 130.6, 133.2, 133.8, 143.5, 146.7sp (N=CH), 150.7, 161.8, 164.0ap, 169.0sp (C=O) ppm. Anal. Calcd. for C20H16FN5O: C, 66.47; H, 4.46; N, 19.38%. Found: C, 66.71; H, 4.60; N, 19.62%.
(E)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)-N’-(3-nitrobenzylidene)acetohydrazide (6h) Yield 98%. Off-white solid. m.p. 258–260 °C. FT-IR (ῡ cm–1; neat): 3301 (NH), 3040 (CH-Aromatic), 2929 (CH), 1651 (C=O), 1627 (C=N), 1545 (NO2 Antisym.), 1313 (NO2 Sym.). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.38ap, 5.80sp (2 s, 2H, -CH2-), 7.63–7.73(sp + ap) (m, 2H, H-7, H-5′), 7.92–7.94(sp + ap) (m, 2H, H-5, H-8), 8.13–8.27 (m, 3H, H-4′(sp + ap), H-6′(sp + ap), N=CHsp), 8.40ap (s, N=CH), 8.48sp, 8.49ap (s, 1H, H-3), 8.53ap, 8.56sp (s, 1H, H-2′), 8.87sp, 8.88ap (s, 1H, H-4), 11.98sp, 12.14ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.9ap (-CH2-), 116.9, 121.8, 124.6, 127.9, 128.3, 130.6, 130.8, 133.2, 133.3, 133.8, 134.0, 134.2, 136.3, 136.4, 142.4, 145.5, 146.7sp, 148.6ap (N=CH), 148.7, 150.7, 164.5ap, 169.3sp (C=O) ppm. Anal. Calcd. for C20H16N6O3: C, 61.85; H, 4.15; N, 21.64%. Found: C, 61.99; H, 4.33; N, 21.80%.
(E)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)-N’-(4-nitrobenzylidene)acetohydrazide (6i) Yield 99%. Off-white solid. m.p. 282–284 °C. FT-IR (ῡ cm–1; neat): 3306 (NH), 3031 (CH-Aromatic), 2931 (CH), 1650 (C=O), 1624 (C=N), 1543 (NO2 Antisym.), 1307 (NO2 Sym.). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.39ap, 5.79sp (2 s, 2H, -CH2-), 7.66(sp + ap) (dd, J = 8.4 Hz, 1.5 Hz, 1H, H-7), 7.93–7.99(sp + ap) (m, 4H, H-5, H-8, H-2′, H-6′), 8.22sp, 8.29ap (d, J = 8.7 Hz, 2H, H-3′, H-5′), 8.15sp, 8.38ap (2 s, 1H, N=CH), 8.48sp, 8.49ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 12.04sp, 12.19ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 26.2 (-CH3), 53.3sp, 53.7ap (-CH2-), 121.7, 129.4, 132.6, 133.0, 133.9, 134.1, 134.4, 135.4, 137.9, 138.1, 138.2, 138.5, 138.7, 139.0, 139.6, 139.8, 148.1sp, 151.3ap (N=CH), 151.5, 155.4, 168.9ap, 173.8sp (C=O) ppm. Anal. Calcd. for C20H16N6O3: C, 61.85; H, 4.15; N, 21.64%. Found: C, 61.93; H, 4.39; N, 21.78%.
(E)-N’-(2-methoxybenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6j) Yield 83%. Off-white solid. m.p. 238–240 °C. FT-IR (ῡ cm–1; neat): 3205 (NH), 3005 (CH-Aromatic), 2923 (CH), 1648 (C=O), 1596 (C=N), 1228 (C-O-C). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 3.86(sp + ap) (s, 3H, -OCH3), 5.31ap, 5.73sp (2 s, 2H, -CH2-), 6.93sp, 6.96ap (t, J = 7.5 Hz, 1H, H-5′), 7.11(sp + ap) (d, J = 8.4 Hz, 1H, H-3′), 7.41(sp + ap) (t, J = 8.1 Hz, 1H, H-4′), 7.66(sp + ap) (d, J = 9.0 Hz, 1H, H-7), 7.78ap, 7.85sp (d, J = 8.1 Hz, 1H, H-6′), 7.93–7.95(sp + ap) (m, 2H, H-5, H-8), 8.47sp, 8.48ap (s, 1H, H-3), 8.40sp, 8.61ap (2 s, 1H, N=CH), 8.87sp, 8.88ap (s, 1H, H-4), 11.70sp, 11.86ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.9ap (-CH2-), 56.2, 112.2, 116.9, 121.1, 122.4, 124.7, 126.0, 127.9, 128.3, 130.6, 132.0, 133.1, 133.8, 133.9, 140.2, 146.7sp (N=CH), 150.7, 158.1, 168.8sp (C=O) ppm. Anal. Calcd. for C21H19N5O2: C, 67.55; H, 5.13; N, 18.76%. Found: C, 67.71; H, 5.25; N, 18.88%.
(E)-N’-(3-methoxybenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6k) Yield 92%. Off-white solid. m.p. 236–238 °C. FT-IR (ῡ cm-1; neat): 3216 (NH), 3010 (CH-Aromatic), 2928 (CH), 1645 (C=O), 1599 (C=N), 1225 (C-O-C). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 3.80(sp + ap) (s, 3H, -OCH3), 5.34ap, 5.76sp (2 s, 2H, -CH2-), 7.00(sp + ap) (ddd, J = 7.8 Hz, 2.7 Hz, 1.8 Hz, 1H, H-4′), 7.25–7.36(sp + ap) (m, 3H, H-2′, H-5′, H-6′), 7.65(sp + ap) (dd, J = 8.7 Hz, 2.1 Hz, 1H, H-7), 7.92–7.95(sp + ap) (m, 2H, H-5, H-8), 8.04sp, 8.24ap (2 s, 1H, N=CH), 8.48sp, 8.49ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 11.77sp, 11.89ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.9ap (-CH2-), 55.6 (-OCH3), 111.9, 116.6, 116.7, 116.9, 120.2, 120.4, 124.6, 127.9, 128.3, 130.4, 130.6, 130.7, 133.2, 133.3, 133.8, 133.9, 134.2, 135.8, 136.0, 144.5, 146.7sp, 147.8ap (N=CH), 150.6, 150.7, 160.0, 164.1ap, 169.0sp (C=O) ppm. Anal. Calcd. for C21H19N5O2: C, 67.55; H, 5.13; N, 18.76%. Found: C, 67.81; H, 5.37; N, 18.88%.
(E)-N’-(4-methoxybenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6l) Yield 80%. Off-white solid. m.p. 238–240 °C. FT-IR (ῡ cm–1; neat): 3195 (NH), 3019 (CH-Aromatic), 2930 (CH), 1645 (C=O), 1598 (C=N), 1227 (C-O-C). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 3.80(sp + ap) (s, 3H, -OCH3), 5.32ap, 5.72sp (2 s, 2H, -CH2-), 6.96sp, 7.00ap (d, J = 8.7 Hz, 2H, H-3′, H-5′), 7.65(sp + ap) (d, J = 8.7 Hz, 3H, H-7, H-2′, H-6′), 7.93–7.96(sp + ap) (m, 2H, H-5, H-8), 8.00sp, 8.21ap (2 s, 1H, N=CH), 8.47sp, 8.48ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 11.61sp, 11.73ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.9ap (-CH2-), 55.8 (-OCH3), 114.7, 114.8, 116.9, 124.6, 127.0, 127.9, 128.3, 129.0, 129.2, 130.6, 130.7, 133.2, 133.8, 133.9, 134.1, 144.5, 146.7sp, 147.7ap (N=CH), 150.6, 150.7, 161.2, 161.4, 163.8ap, 168.7sp (C=O) ppm. MS m/z: 374.26 [M+ + 1]. Anal. Calcd. for C21H19N5O2: C, 67.55; H, 5.13; N, 18.76 %. Found: C, 67.29; H, 5.00; N, 18.54 %.
(E)-N’-(3,4-dimethoxybenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6m) Yield 80%. Pale yellow solid. m.p. 232–234 °C. FT-IR (ῡ cm–1; neat): 3210 (NH), 3010 (CH-Aromatic), 2929 (CH), 1647 (C=O), 1596 (C=N), 1225 (C-O-C). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 3.78(sp + ap), 3.80(sp + ap) (2 overlapping s, 6H, -OCH3), 5.33ap, 5.76sp (2 s, 2H, -CH2-), 6.99sp, 7.02ap (d, J = 8.4 Hz, 1H, H-5′), 7.21(sp + ap) (dd, J = 8.4 Hz, 1.8 Hz, 1H, H-6′), 7.29ap, 7.41sp (d, J = 1.8 Hz, 1H, H-2′), 7.65(sp + ap) (dd, J = 8.7 Hz, 2.1 Hz, 1H, H-7), 7.92–7.95(sp + ap) (m, 2H, H-5, H-8), 7.99sp, 8.19ap (2 s, 1H, N=CH), 8.47sp, 8.48ap (s, 1H, H-3), 8.87(sp + ap) (s, 1H, H-4), 11.66sp, 11.76ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.6sp, 48.9ap (-CH2-), 55.9 (-OCH3), 56.0 (-OCH3), 108.9, 111.9, 116.9, 121.9, 122.3, 124.6, 127.2, 127.9, 128.3, 130.6, 133.2, 133.8, 144.7, 146.7sp, 148.0ap (N=CH), 149.5, 150.6, 150.7, 151.1, 151.2, 163.8ap, 168.8sp (C=O) ppm. Anal. Calcd. for C22H21N5O3: C, 65.50; H, 5.25; N, 17.36%. Found: C, 65.76; H, 5.51; N, 17.60%.
(E)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)-N’-(3,4,5-trimethoxybenzylidene)acetohydrazide (6n) Yield 85%. Off-white solid. Decomposes at 254 °C. FT-IR (ῡ cm–1; neat): 3209 (NH), 3005 (CH-Aromatic), 2927 (CH), 1643 (C=O), 1596 (C=N), 1227 (C-O-C). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 3.70ap, 3.71sp (s, 3H, -OCH3), 3.81ap, 3.83sp (s, 6H, -OCH3), 5.35ap, 5.78sp (2 s, 2H, -CH2-), 7.01ap, 7.10sp (2 s, 2H, H-2′, H-6′), 7.65(sp + ap) (dd, J = 9.0 Hz, 1.8 Hz, 1H, H-7), 7.92–7.94(sp + ap) (m, 2H, H-5, H-8), 8.00sp, 8.20ap (s, 1H, N=CH), 8.48(sp + ap) (s, 1H, H-3), 8.88(sp + ap) (s, 1H, H-4), 11.79sp, 11.86ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.6sp, 49.0ap (-CH2-), 56.4 (-OCH3), 60.6 (-OCH3), 104.7, 104.8, 116.9, 124.6, 127.9, 128.3, 130.0, 130.6, 133.2, 133.8, 133.9, 139.5, 144.5, 146.7sp, 147.8ap (N=CH), 150.7, 153.6, 164.0ap, 169.0sp (C=O) ppm. Anal. Calcd. for C23H23N5O4: C, 63.73; H, 5.35; N, 16.16%. Found: C, 63.65; H, 5.27; N, 16.06%.
(E)-N’-(4-(dimethylamino)benzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6o) Yield 80%. Pale yellow solid. m.p. 260–262 °C. FT-IR (ῡ cm–1; neat): 3198 (NH), 3030 (CH-Aromatic), 2927 (CH), 1651 (C=O), 1601 (C=N). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 2.96(sp + ap) (s, 6H, N-CH3), 5.29ap, 5.69sp (2 s, 2H, -CH2-), 6.68sp, 6.74ap (d, J = 9.0 Hz, 2H, H-3′, H-5′), 7.47–7.52(sp + ap) (m, 2H, H-2′, H-6′), 7.66(sp + ap) (dd, J = 8.7 Hz, 1.8 Hz, 1H, H-7), 7.91–7.93(sp + ap) (m, 2H, H-5, H-8), 7.96sp, 8.12ap (2 s, 1H, N=CH), 8.46sp, 8.48ap (s, 1H, H-3), 8.86sp, 8.87ap (s, 1H, H-4), 11.44sp, 11.55ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.9ap (-CH2-), 112.2, 116.9, 121.8, 124.6, 127.9, 128.3, 128.7, 128.9, 130.6, 133.1, 133.2, 133.7, 133.8, 145.4, 146.7sp, 148.6ap (N=CH), 150.7, 151.9, 163.4ap, 168.3sp (C=O) ppm. MS m/z: 387.34 [M+ + 1]. Anal. Calcd. for C22H22N6O: C, 68.38; H, 5.74; N, 21.75%. Found: C, 68.50; H, 5.92; N, 21.91%.
(E)-N’-(4-(diethylamino)benzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6p) Yield 80%. Pale yellow solid. m.p. 208–210 °C. FT-IR (ῡ cm–1; neat): 3216 (NH), 3032 (CH-Aromatic), 2969, 2928 (CH), 1661 (C=O), 1603 (C=N). 1H NMR (DMSO-d6, 300 MHz) δ = 1.09(sp + ap) (t, J = 6.9 Hz, 6H, -CH2-CH3), 2.52(sp + ap) (s, 3H, -CH3), 3.36(sp + ap) (q, J = 6.9 Hz, 4H, -CH2-CH3), 5.29ap, 5.67sp (2 s, 2H, -CH2-), 6.59sp, 6.68ap (d, J = 8.7 Hz, 2H, H-3′, H-5′), 7.40sp, 7.47ap (d, J = 8.7 Hz, 2H, H-2′, H-6′), 7.66(sp + ap) (dd, J = 8.7 Hz, 1.8 Hz, 1H, H-7), 7.94–7.97(sp + ap) (m, 2H, H-5, H-8), 7.86sp, 8.08ap (2 s, 1H, N=CH), 8.46sp, 8.48ap (s, 1H, H-3), 8.86sp, 8.87ap (s, 1H, H-4), 11.41sp, 11.53ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 12.9 (-CH2-CH3), 21.5 (-CH3), 44.2 (-CH2-CH3), 48.6sp, 48.9ap (-CH2-), 111.4, 116.9, 120.8, 124.7, 127.9, 128.3, 129.0, 129.3, 130.6, 133.1, 133.7, 133.8, 145.3, 146.7sp, 148.6ap (N=CH), 149.1, 150.7, 164.2ap, 168.3sp (C=O) ppm. Anal. Calcd. for C24H26N6O: C, 69.54; H, 6.32; N, 20.27%. Found: C, 69.78; H, 6.50; N, 20.43%.
(E)-N’-(2-hydroxybenzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazide (6q) Yield 87%. Off-white solid. m.p. 262–264 °C. FT-IR (ῡ cm–1; neat): 3416 (-OH), 3276 (NH), 3040 (CH-Aromatic), 2921 (CH), 1658 (C=O), 1601 (C=N). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.36ap, 5.72sp (2 s, 2H, -CH2-), 6.91sp (t, J = 7.5 Hz, 1H, H-5′), 6.88–6.93 (m, 1H, H-3′(sp + ap), H-5′ap), 7.22–7.32(sp + ap) (m, 1H, H-4′), 7.55ap, 7.73sp (2 dd, J = 7.8 Hz, 1.5 Hz, 1H, H-6′), 7.64–7.68(sp + ap) (m, 1H, H-7), 7.93–7.96(sp + ap) (m, 2H, H-5, H-8), 8.38sp, 8.48ap (2 s, 1H, N=CH), 8.47sp, 8.49ap (s, 1H, H-3), 8.86sp, 8.88ap (s, 1H, H-4), 10.05sp, 10.95ap (2 s, 1H, -OH), 11.65sp, 12.06ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.8ap (-CH2-), 116.6, 116.8, 116.9, 119.1, 119.8, 120.6, 124.6, 124.7, 126.7, 127.9, 128.3, 129.6, 130.6, 130.8, 131.7, 132.0, 133.2, 133.3, 133.8, 133.9, 134.3, 141.8, 146.7sp, 148.0ap (N=CH), 150.6, 150.7, 156.9, 157.8, 164.0ap, 168.6sp (C=O) ppm. Anal. Calcd. for C20H17N5O2: C, 66.84; H, 4.77; N, 19.49%. Found: C, 67.02; H, 4.95; N, 19.63%.
(E)-4-((2-(2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetyl)hydrazono)methyl)benzoic acid (6r) Yield 90%. Off-white solid. Decomposes at 302 °C. FT-IR (ῡ cm–1; neat): 3434 (-OH), 3223 (NH), 3053 (CH-Aromatic), 2927 (CH), 1741 (C=O, Carboxyl), 1652 (C=O), 1619 (C=N). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.37ap, 5.77sp (2 s, 2H, -CH2-), 7.66(sp + ap) (dd, J = 9.0 Hz, 1.8 Hz, 1H, H-7), 7.82(sp + ap) (d, J = 8.4 Hz, 2H, H-2′, H-6′), 7.93–8.01(sp + ap) (m, 4H, H-5, H-8, H-3′, H-5′), 8.11sp, 8.32ap (2 s, 1H, N=CH), 8.48sp, 8.49ap (s, 1H, H-3), 8.87sp, 8.88ap (s, 1H, H-4), 11.89sp, 12.04ap (s, 1H, NH), 13.03(sp + ap) (s, 1H, -COOH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.6sp, 49.0ap (-CH2-), 116.9, 124.7, 127.5, 127.6, 127.9, 128.3, 130.2, 130.7, 132.1, 132.2, 133.2, 133.3, 133.8, 134.0, 134.2, 138.4, 138.6, 143.5, 146.7sp (N=CH), 150.6, 150.7, 167.3 (C=O of COOH), 164.3ap, 169.2sp (C=O) ppm. Anal. Calcd. for C21H17N5O3: C, 65.11; H, 4.42; N, 18.08%. Found: C, 65.19; H, 4.46; N, 18.14%.
(E)-N-(4-((2-(2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetyl)hydrazono)methyl)phenyl)acetamide (6s) Yield 86%. Off-white solid. m.p. 286–288 °C. FT-IR (ῡ cm–1; neat): 3305 (NH), 3235 (NH), 3041 (CH-Aromatic), 2929 (CH), 1651 (C=O), 1611 (C=N). 1H NMR (DMSO-d6, 300 MHz) δ = 2.06(sp + ap) (s, 3H, C(O)-CH3), 2.52(sp + ap) (s, 3H, -CH3), 5.32ap, 5.73sp (2 s, 2H, -CH2-), 7.62–7.67(sp + ap) (m, 5H, H-7, H-2′, H-3′, H-5′, H-6′), 7.93–7.95(sp + ap) (m, 2H, H-5, H-8), 8.00sp, 8.20ap (2 s, 1H, N=CH), 8.47sp, 8.48ap (s, 1H, H-3), 8.87(sp + ap) (s, 1H, H-4), 10.13(sp + ap) (s, 1H, Ar-NH), 11.65sp, 11.78ap (2 s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.5 (-CH3), 24.6 (C(O)-CH3), 48.5sp, 48.9ap (-CH2-), 116.9, 119.3, 124.6, 127.9, 128.2, 128.3, 129.0, 130.6, 133.2, 133.8, 133.9, 141.4, 144.4, 146.7sp, 147.6ap (N=CH), 150.7, 163.8ap, 168.8sp (C=O), 169.0 (C=O)ppm. Anal. Calcd. for C22H20N6O2: C, 65.99; H, 5.03; N, 20.99%. Found: C, 66.17; H, 5.25; N, 21.13%.
(E)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)-N’-(pyridin-3-ylmethylene)acetohydrazide (6t) Yield 83%. Off-white solid. m.p. 248–250 °C. FT-IR (ῡ cm–1; neat): 3302 (NH), 3040 (CH-Aromatic), 2920 (CH), 1656 (C=O), 1606 (C=N), 1571 (C=N, Pyridine). 1H NMR (DMSO-d6, 300 MHz) δ = 2.52(sp + ap) (s, 3H, -CH3), 5.36ap, 5.77sp (2 s, 2H, -CH2-), 7.41–7.49(sp + ap) (m, 1H, H-5′), 7.65(sp + ap) (dd, J = 9.0, 1.8 Hz, 1H, H-7), 7.92–7.95(sp + ap) (m, 2H, H-5, H-8), 8.16(sp + ap) (dt, J = 8.1 Hz, 1.8 Hz, 1H, H-6′), 8.11sp, 8.33ap (2 s, 1H, N=CH), 8.48sp, 8.49ap (s, 1H, H-3), 8.61(sp + ap) (dd, J = 4.8 Hz, 1.8 Hz, 1H, H-4′), 8.87sp, 8.88ap (s, 1H, H-4), 8.84ap, 8.91sp (d, J = 1.8 Hz, 1H, H-2′), 11.93(sp + ap) (s, 1H, NH) ppm. 13C NMR (DMSO-d6, 75 MHz) δ = 21.4 (-CH3), 48.5sp, 48.9ap (-CH2-), 116.9, 124.3, 124.4, 124.7, 127.9, 128.3, 130.4, 130.5, 130.6, 130.7, 133.2, 133.3, 133.8, 133.9, 134.0, 134.2, 141.9, 145.2, 146.7sp, 149.2ap (N=CH), 149.3, 150.6, 150.7, 151.1, 151.3, 164.3ap, 169.2sp (C=O) ppm. Anal. Calcd. for C19H16N6O: C, 66.27; H, 4.68; N, 24.40%. Found: C, 66.41; H, 4.80; N, 24.56%.

4. Conclusions

In summary, we have described the synthesis and characterization of novel N’-(benzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazides. The compounds were synthesized by a facile route using multistep synthesis approach and their structures were established by different spectroscopic techniques. This study illustrates that duplicated signals observed in NMR spectra of N’-(benzylidene)-2-(6-methyl-1H-pyrazolo[3,4-b]quinolin-1-yl)acetohydrazides correspond to the presence of two amide bond-related conformers. The consistency of the combined results of the obtained 1H NMR and 13C NMR spectra to the previously reported literature has revealed that the E(C=N) configurational isomers of 6(a–t) rapidly establish a synperiplanar/antiperiplanar equilibrium about amide bond in DMSO-d6 solution. The ratio of sp/ap rotational stereoisomers of 6(a–t) is determined on the basis of the investigation of 1H as well as 13C NMR spectra at room temperature. The synperiplanar conformer, being more stable, predominates the antiperiplanar isomer due to its ability to develop intermolecular interactions with the polar solvent, i.e., DMSO. The rotational isomers arise from the increase in rotational barriers among them, which results from the steric and electronic factors in the molecules.

Supplementary Materials

The following are available online. Experimental procedures for compounds 1 and 2, NMR spectra (1H NMR and 13C NMR) of all the synthesized compounds and mass spectra of representative compounds.

Author Contributions

Conceptualization, R.M.; methodology, R.M.; formal analysis, N.J., M.Z., A.R.; investigation, R.M.; resources, M.M.A.; data curation, R.M.; writing—original draft preparation, R.M.; writing—review and editing, M.Z.R., R.H.; supervision, M.M.A.; project administration, M.Z.R.; funding acquisition, R.M. All authors have read and agreed to the published version of the manuscript.

Funding

Rubina Munir extends her gratitude to Higher Education Commission of Pakistan for financial support to carry out this research work under “Indigenous PhD Fellowship Program for 5000 Scholars” (Grant No. 112-33715-2PS1-501).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in Supplementary Material.

Acknowledgments

The authors extend their gratitude towards University of the Punjab and PCSIR Laboratories complex for providing research facilities. R.M. is thankful to “Molecules” for the invitation to contribute paper and for APC discount.

Conflicts of Interest

The authors declare that they have no significant conflict of interest.

Sample Availability

Samples of the synthesized N-acylhydrazone compounds are available from the authors on justified request.

References

  1. Cardoso, L.N.; Nogueira, T.C.; Rodrigues, F.A.; Oliveira, A.C.A.; dos Santos Luciano, M.C.; Pessoa, C.; de Souza, M.V. N-acylhydrazones containing thiophene nucleus: A new anticancer class. Med. Chem. Res. 2017, 26, 1605–1608. [Google Scholar] [CrossRef]
  2. Rozada, A.M.; Rodrigues, F.A.; Sampiron, E.G.; Seixas, F.A.; Basso, E.A.; Scodro, R.B.; Kioshima, É.S.; Gauze, G.F. Novel 4-methoxynaphthalene-N-acylhydrazones as potential for paracoccidioidomycosis and tuberculosis co-infection. Future Microbiol. 2019, 14, 587–598. [Google Scholar] [CrossRef]
  3. De Oliveira, C.S.; Lira, B.F.; dos Santos Falcão-Silva, V.; Siqueira-Junior, J.P.; Barbosa-Filho, J.M.; Athayde-Filho, D.; Filgueiras, P. Synthesis, molecular properties prediction, and anti-staphylococcal activity of N-acylhydrazones and new 1,3,4-oxadiazole derivatives. Molecules 2012, 17, 5095–5107. [Google Scholar] [CrossRef] [PubMed]
  4. Nogueira, T.C.M.; dos Santos Cruz, L.; Lourenço, M.C.; de Souza, M.V. Design, synthesis and anti-tuberculosis activity of hydrazones and N-acylhydrazones containing vitamin B6 and different heteroaromatic nucleus. Lett. Drug Des. Discov. 2019, 16, 792–798. [Google Scholar] [CrossRef]
  5. Tian, B.; He, M.; Tan, Z.; Tang, S.; Hewlett, I.; Chen, S.; Jin, Y.; Yang, M. Synthesis and antiviral evaluation of new N-acylhydrazones containing glycine residue. Chem. Biol. Drug Des. 2011, 77, 189–198. [Google Scholar] [CrossRef] [PubMed]
  6. Diaz, P.; Phatak, S.S.; Xu, J.; Astruc-Diaz, F.; Cavasotto, C.N.; Naguib, M. 6-Methoxy-N-alkyl isatin acylhydrazone derivatives as a novel series of potent selective cannabinoid receptor 2 inverse agonists: Design, synthesis, and binding mode prediction. J. Med. Chem. 2009, 52, 433–444. [Google Scholar] [CrossRef] [PubMed]
  7. Tributino, J.L.M.; Santos, M.L.H.; Mesquita, C.M.; Lima, C.K.F.; Silva, L.L.; Maia, R.C.; Duarte, C.D.; Barreiro, E.J.; Fraga, C.A.M.; Castro, N.G.; et al. LASSBio-881: An N-acylhydrazone transient receptor potential vanilloid subfamily type 1 antagonist orally effective against the hypernociception induced by capsaicin or partial sciatic ligation. Br. J. Pharmacol. 2010, 159, 1716–1723. [Google Scholar] [CrossRef] [Green Version]
  8. Zapata-Sudo, G.; Pereira, S.L.; Beiral, H.J.; Kummerle, A.E.; Raimundo, J.M.; Antunes, F.; Sudo, R.T.; Barreiro, E.J.; Fraga, C.A. Pharmacological characterization of (3-thienylidene)-3, 4-methylenedioxybenzoylhydrazide: A novel muscarinic agonist with antihypertensive profile. Am. J. Hypertens. 2010, 23, 135–141. [Google Scholar] [CrossRef] [Green Version]
  9. Pedreira, J.G.; Nahidino, P.; Kudolo, M.; Pantsar, T.; Berger, B.T.; Forster, M.; Knapp, S.; Laufer, S.; Barreiro, E.J. Bioisosteric replacement of arylamide-linked spine residues with N-Acylhydrazones and selenophenes as a design strategy to novel dibenzosuberone derivatives as type I 1/2 p38α MAP kinase inhibitors. J. Med. Chem. 2020, 63, 7347–7354. [Google Scholar] [CrossRef]
  10. de Oliveira Carneiro Brum, J.; França, T.C.; LaPlante, S.R.; Villar, J.D.F. Synthesis and biological activity of hydrazones and derivatives: A review. Mini-Rev. Med. Chem. 2020, 20, 342–368. [Google Scholar] [CrossRef]
  11. Yamazaki, D.A.; Rozada, A.M.; Baréa, P.; Reis, E.C.; Basso, E.A.; Sarragiotto, M.H.; Seixas, F.A.; Gauze, G.F. Novel arylcarbamate-N-acylhydrazones derivatives as promising BuChE inhibitors: Design, synthesis, molecular modeling and biological evaluation. Bioorg. Med. Chem. 2021, 32, 115991. [Google Scholar] [CrossRef]
  12. Kovaleva, K.S.; Zubkov, F.I.; Bormotov, N.I.; Novikov, R.A.; Dorovatovskii, P.V.; Khrustalev, V.N.; Gatilov, Y.V.; Zarubaev, V.V.; Yarovaya, O.I.; Shishkina, L.N.; et al. Synthesis of D-(+)-camphor-based N-acylhydrazones and their antiviral activity. Med. Chem. Comm. 2018, 9, 2072–2082. [Google Scholar] [CrossRef] [PubMed]
  13. Meira, C.S.; dos Santos Filho, J.M.; Sousa, C.C.; Anjos, P.S.; Cerqueira, J.V.; Neto, H.A.D.; da Silveira, R.G.; Russo, H.M.; Wolfender, J.L.; Queiroz, E.F.; et al. Structural design, synthesis and substituent effect of hydrazone-N-acylhydrazones reveal potent immunomodulatory agents. Bioorg. Med. Chem. 2018, 26, 1971–1985. [Google Scholar] [CrossRef] [PubMed]
  14. Kausar, N.; Murtaza, S.; Arshad, M.N.; Munir, R.; Saleem, R.S.Z.; Rafique, H.; Tawab, A. Design, synthesis, structure activity relationship and molecular docking studies of thiophene-2-carboxamide schiff base derivatives of benzohydrazide as novel acetylcholinesterase and butyrylcholinesterase inhibitors. J. Mol. Struct. 2021, 2021, 130983. [Google Scholar] [CrossRef]
  15. Duarte, C.D.; Barreiro, E.J.; Fraga, C.A. Privileged structures: A useful concept for the rational design of new lead drug candidates. Mini-Rev. Med. Chem. 2007, 7, 1108–1119. [Google Scholar] [CrossRef]
  16. Thota, S.; Rodrigues, D.A.; Pinheiro, P.D.S.M.; Lima, L.M.; Fraga, C.A.; Barreiro, E.J. N-Acylhydrazones as drugs. Bioorg. Med. Chem. Lett. 2018, 28, 2797–2806. [Google Scholar] [CrossRef]
  17. Lopes, A.B.; Miguez, E.; Kümmerle, A.E.; Rumjanek, V.M.; Fraga, C.A.M.; Barreiro, E.J. Characterization of amide bond conformers for a novel heterocyclic template of N-acylhydrazone derivatives. Molecules 2013, 18, 11683–11704. [Google Scholar] [CrossRef] [PubMed]
  18. Fraga, C.A.; Barreiro, E.J. Medicinal chemistry of N-acylhydrazones: New lead-compounds of analgesic, antiinflammatory and antithrombotic drugs. Curr. Med. Chem. 2006, 13, 167–198. [Google Scholar] [CrossRef]
  19. Rollas, S.; Küçükgüzel, S.G. Biological activities of hydrazone derivatives. Molecules 2007, 12, 1910–1939. [Google Scholar] [CrossRef] [Green Version]
  20. Palla, G.; Predieri, G.; Domiano, P.; Vignali, C.; Turner, W. Conformational behaviour and E/Z isomerization of N-acyl and N-aroylhydrazones. Tetrahedron 1986, 42, 3649–3654. [Google Scholar] [CrossRef]
  21. Palla, G.; Pelizzi, C.; Predieri, G.; Vignali, C. Conformational study on N-acylhydrazones of aromatic-aldehydes by nmr-spectroscopy. Gazz. Chim. Ital. 1982, 112, 339–341. [Google Scholar]
  22. Wyrzykiewicz, E.; Błaszczyk, A.; Turowska-Tyrk, I. N-(E)-2-stilbenyloxymethylenecarbonyl substituted hydrazones of ortho, meta and para hydroxybenzaldehydes. Bull. Pol. Acad. Sci. Chem. 2000, 48, 213–229. [Google Scholar]
  23. Syakaev, V.V.; Podyachev, S.N.; Buzykin, B.I.; Latypov, S.K.; Habicher, W.D.; Konovalov, A.I. NMR study of conformation and isomerization of aryl-and heteroarylaldehyde 4-tert-butylphenoxyacetylhydrazones. J. Mol. Struct. 2006, 788, 55–62. [Google Scholar] [CrossRef]
  24. Pihlaja, K.; Simeonov, M.F.; Fülöp, F. Conformational Complexity in Seven-Membered Cyclic Triazepinone/Open Hydrazones. 1. 1D and 2D Variable Temperature NMR Study. J. Org. Chem. 1997, 62, 5080–5088. [Google Scholar] [CrossRef]
  25. Courtot, P.; Pichon, R.; Le Saint, J. Photochromisme par isomerisation syn-anti de phenylhydrazones-2-de tricetones-1,2,3 et de dicetones-1,2 substituees. Tetrahedron Lett. 1976, 17, 1181–1184. [Google Scholar] [CrossRef]
  26. Padwa, A. Photochemistry of the carbon-nitrogen double bond. Chem. Rev. 1977, 77, 37–68. [Google Scholar] [CrossRef]
  27. Pichon, R.; Le, S.J.; Courtot, P. Photoisomerization of 2-arylhydrazones of 2-substituted 1, 2-diketones. Mechanism of thermal isomerization of carbon nitrogen double bond. Tetrahedron 1981, 37, 1517–1524. [Google Scholar] [CrossRef]
  28. Landge, S.M.; Aprahamian, I. A pH activated configurational rotary switch: Controlling the E/Z isomerization in hydrazones. J. Am. Chem. Soc. 2009, 131, 18269–18271. [Google Scholar] [CrossRef]
  29. Landge, S.M.; Tkatchouk, E.; Benítez, D.; Lanfranchi, D.A.; Elhabiri, M.; Goddard III, W.A.; Aprahamian, I. Isomerization mechanism in hydrazone-based rotary switches: Lateral shift, rotation, or tautomerization? J. Am. Chem. Soc. 2011, 133, 9812–9823. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Su, X.; Aprahamian, I. Switching around two axles: Controlling the configuration and conformation of a hydrazone-based switch. Org. Lett. 2011, 13, 30–33. [Google Scholar] [CrossRef] [PubMed]
  31. Su, X.; Lessing, T.; Aprahamian, I. The importance of the rotor in hydrazone-based molecular switches. Beilstein J. Org. Chem. 2012, 8, 872–876. [Google Scholar] [CrossRef]
  32. Fraser, R.R.; Banville, J.; Akiyama, F.; Chuaqui-Offermanns, N. 13C shieldings in syn and anti aldimines and ketimines. Can. J. Chem. 1981, 59, 705–709. [Google Scholar] [CrossRef]
  33. Bhattacharya, A. Naproxen and ibuprofen based acyl hydrazone derivatives: Synthesis, structure analysis and cytotoxicity studies. J. Chem. 2010, 2, 393–409. [Google Scholar]
  34. Patorski, P.; Wyrzykiewicz, E.; Bartkowiak, G. Synthesis and conformational assignment of N-(E)-stilbenyloxymethylenecarbonyl-substituted hydrazones of acetone and o-(m-and p-) chloro-(nitro-) benzaldehydes by means of and NMR spectroscopy. Asian J. Spectro. 2013, 2013, 197475. [Google Scholar] [CrossRef] [Green Version]
  35. dos Santos Filho, J.M.; Leite, A.C.L.; de Oliveira, B.G.; Moreira, D.R.M.; Lima, M.S.; Soares, M.B.P.; Leite, L.F.C. Design, synthesis and cruzain docking of 3-(4-substituted-aryl)-1,2,4-oxadiazole-N-acylhydrazones as anti-Trypanosoma cruzi agents. Bioorg. Med. Chem. 2009, 17, 6682–6691. [Google Scholar] [CrossRef]
  36. Ramzan, A.; Siddiqui, S.; Irfan, A.; Al-Sehemi, A.G.; Ahmad, A.; Verpoort, F.; Chughtai, A.H.; Khan, M.A.; Munawar, M.A.; Basra, M.A.R. Antiplatelet activity, molecular docking and QSAR study of novel N′-arylmethylidene-3-methyl-1-phenyl-6-p-chlorophenyl-1 H-pyrazolo [3,4-b] pyridine-4-carbohydrazides. Med. Chem. Res. 2018, 27, 388–405. [Google Scholar] [CrossRef]
  37. Reis, D.C.; Despaigne, A.A.R.; Silva, J.G.D.; Silva, N.F.; Vilela, C.F.; Mendes, I.C.; Takahashi, J.A.; Beraldo, H. Structural studies and investigation on the activity of imidazole-derived thiosemicarbazones and hydrazones against crop-related fungi. Molecules 2013, 18, 12645–12662. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Liberek, B.; Augustyniak, J.; Ciarkowski, J.; Plucinska, K.; Stachowiak, K. Thin-Layer chromatographic separation of the Z and E rotational isomers of α-N-nitroso-N-alkylamino acids. J. Chromatogr. A 1974, 95, 223–228. [Google Scholar] [CrossRef]
  39. Breuer, B.; Stuhlfauth, T.; Fock, H.P. Separation of fatty acids or methyl esters including positional and geometric isomers by alumina argentation thin-layer chromatography. J. Chromatogr. Sci. 1987, 25, 302–306. [Google Scholar] [CrossRef]
  40. Kanamori, T.; Iwata, Y.T.; Segawa, H.; Yamamuro, T.; Kuwayama, K.; Tsujikawa, K.; Inoue, H. Characterization and differentiation of geometric isomers of 3-methylfentanyl analogs by gas chromatography/mass spectrometry, liquid chromatography/mass spectrometry, and nuclear magnetic resonance spectroscopy. J. Forensic. Sci. 2017, 62, 1472–1478. [Google Scholar] [CrossRef]
  41. Turnpenny, P.; Dickie, A.; Malec, J.; McClements, J. Retention-directed and selectivity controlled chromatographic resolution: Rapid post-hoc analysis of DMPK samples to achieve high-throughput LC-MS separation. J. Chromatogr. B 2021, 1164, 122514. [Google Scholar] [CrossRef] [PubMed]
  42. Quattropani, A.; Dorbais, J.; Covini, D.; Pittet, P.A.; Colovray, V.; Thomas, R.J.; Coxhead, R.; Halazy, S.; Scheer, A.; Missotten, M.; et al. Discovery and development of a new class of potent, selective, orally active oxytocin receptor antagonists. J. Med. Chem. 2005, 48, 7882–7905. [Google Scholar] [CrossRef] [PubMed]
  43. Kuodis, Z.; Rutavičius, A.; Matijoška, A.; Eicher-Lorka, O. Synthesis and isomerism of hydrazones of 2-(5-thioxo-4, 5-dihydro-1, 3, 4-thiadiazol-2-ylthio) acetohydrazide. Open Chem. 2007, 5, 996–1006. [Google Scholar] [CrossRef]
  44. Tian, B.; He, M.; Tang, S.; Hewlett, I.; Tan, Z.; Li, J.; Jin, Y.; Yang, M. Synthesis and antiviral activities of novel acylhydrazone derivatives targeting HIV-1 capsid protein. Bioorg. Med. Chem. Lett. 2009, 19, 2162–2167. [Google Scholar] [CrossRef] [PubMed]
  45. Litvinov, I.A.; Kataeva, O.N.; Ermolaeva, L.V.; Vargina, G.A.; Troepol’skaya, T.V.; Naumov, V.A. Crystal and molecular structure of aroyl- and acetylhydrazones of acet- and benzaldehydes. Russ. Chem. Bull. 1991, 40, 62–67. [Google Scholar] [CrossRef]
  46. Bock, K.; Pedersen, C. A study of 13 CH coupling constants in hexopyranoses. J. Chem. Soc. Perkin Trans. 1974, 2, 293–297. [Google Scholar] [CrossRef]
  47. Meth-Cohn, O.; Rhouati, S.; Tarnowski, B.; Robinson, A. A versatile new synthesis of quinolines and related fused pyridines. Part 8. Conversion of anilides into 3-substituted quinolines and into quinoxalines. J. Chem. Soc. Perkin Trans. 1981, 1537–1543. [Google Scholar] [CrossRef]
  48. Mali, J.R.; Pratap, U.R.; Jawale, D.V.; Mane, R.A. Water-mediated one-pot synthetic route for pyrazolo [3, 4-b] quinolines. Tetrahedron Lett. 2010, 51, 3980–3982. [Google Scholar] [CrossRef]
Molecules 26 04908 g001 550

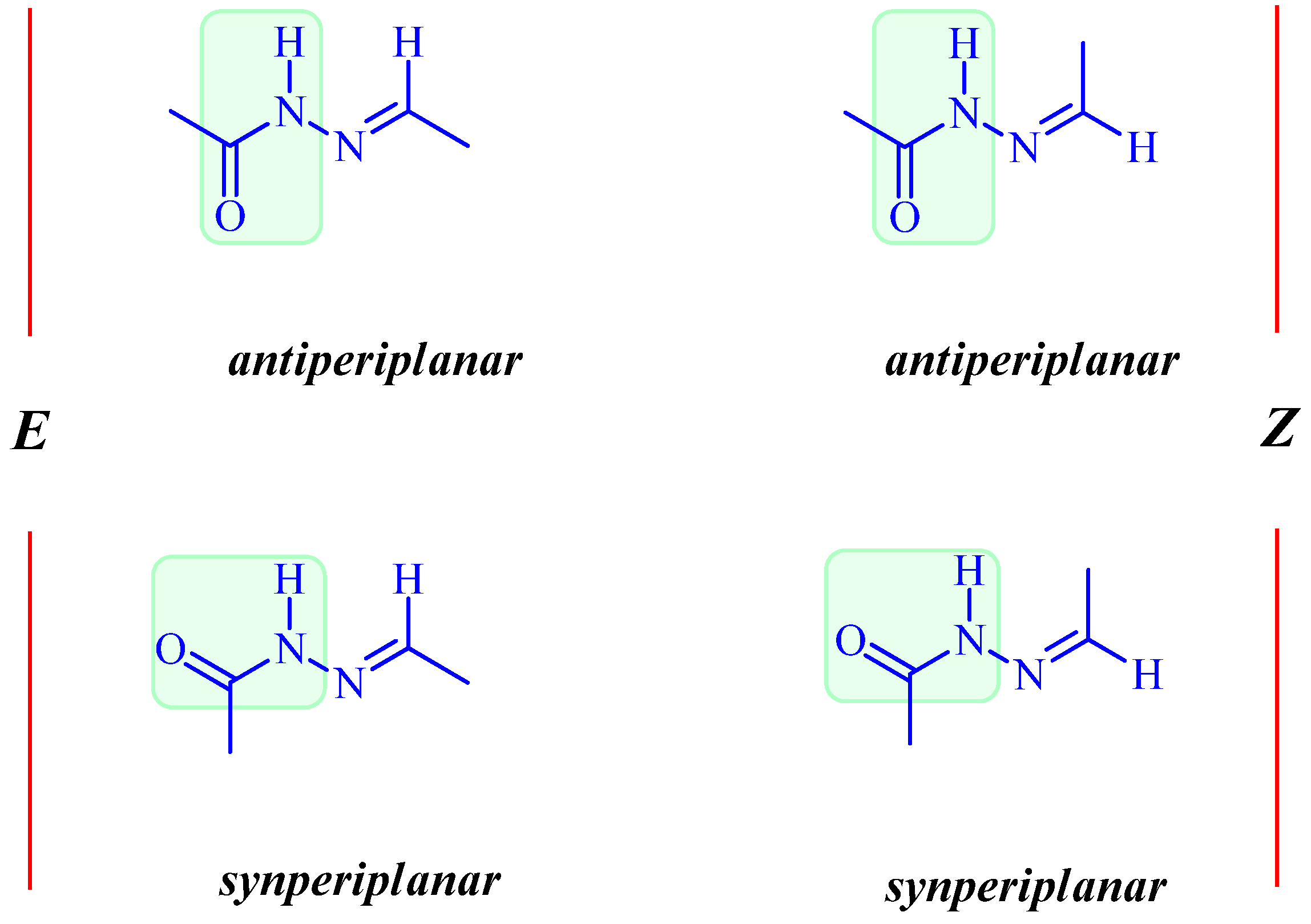

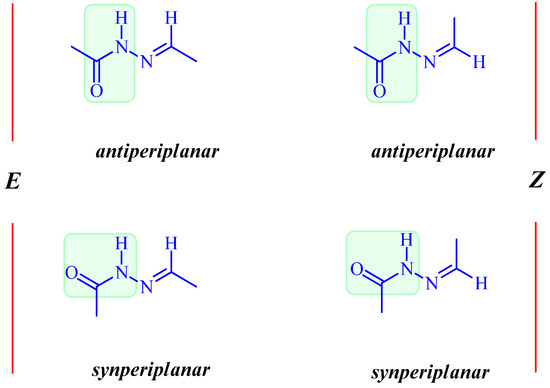

Figure 1. Stereoisomers of N-Acylhydrazones.
Figure 1. Stereoisomers of N-Acylhydrazones.
Molecules 26 04908 g001
Molecules 26 04908 sch001 550

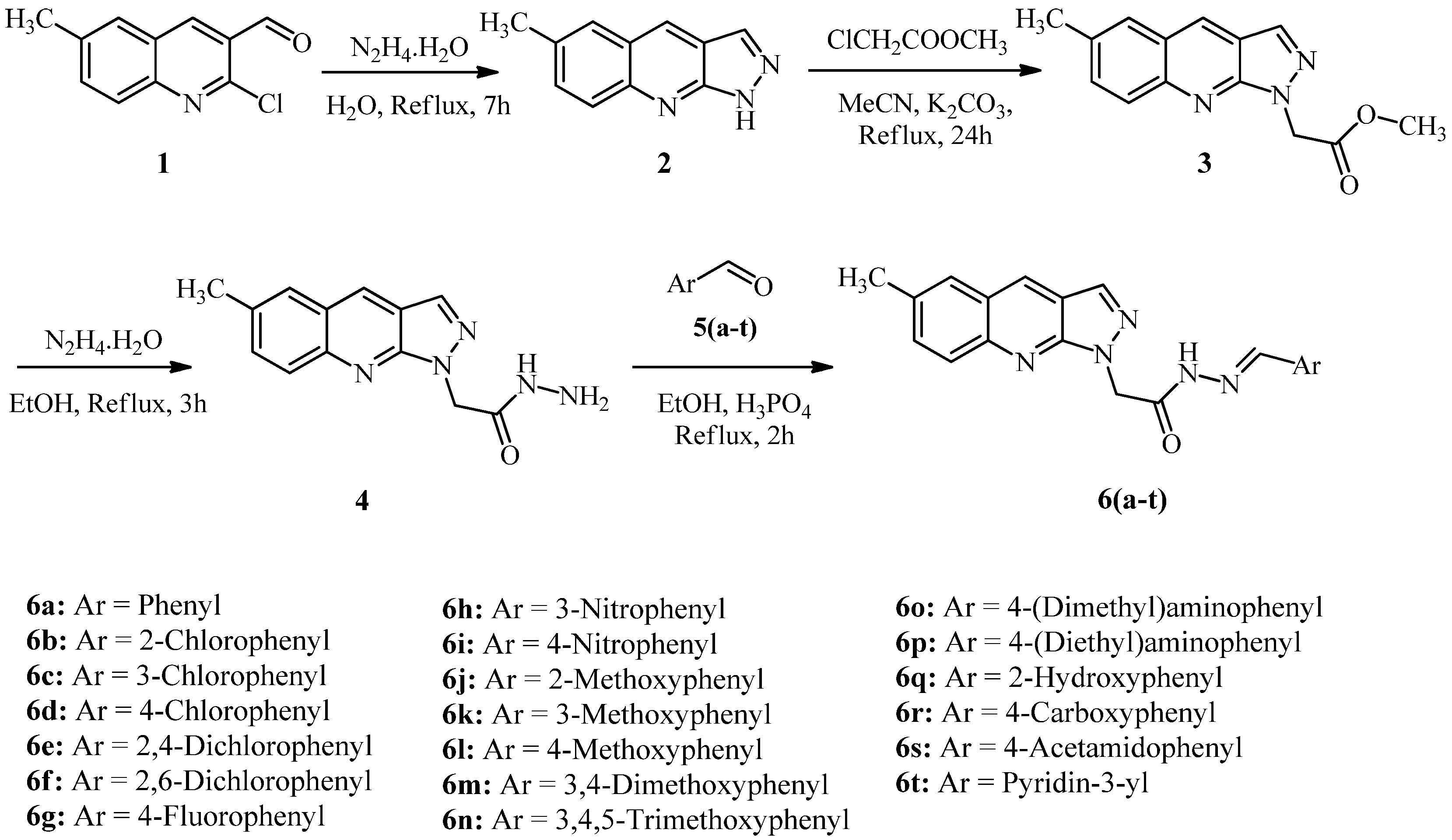

Scheme 1. Synthesis of 6-methyl-1H-pyrazolo[3,4-b]quinoline substituted N-acylhydrazones 6(a–t).
Scheme 1. Synthesis of 6-methyl-1H-pyrazolo[3,4-b]quinoline substituted N-acylhydrazones 6(a–t).
Molecules 26 04908 sch001
Molecules 26 04908 g002a 550Molecules 26 04908 g002b 550

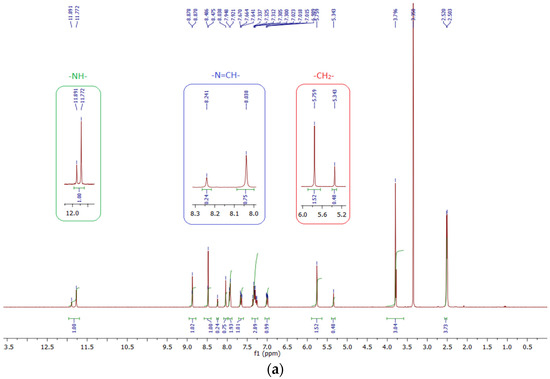

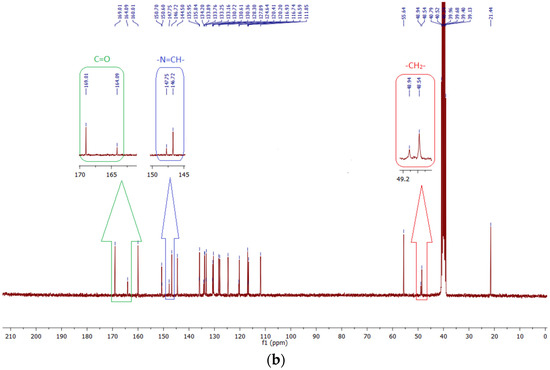

Figure 2. (a) 1H NMR and (b) 13C NMR spectra of N-Acylhydrazone 6k.
Figure 2. (a) 1H NMR and (b) 13C NMR spectra of N-Acylhydrazone 6k.
Molecules 26 04908 g002aMolecules 26 04908 g002b
Molecules 26 04908 g003 550

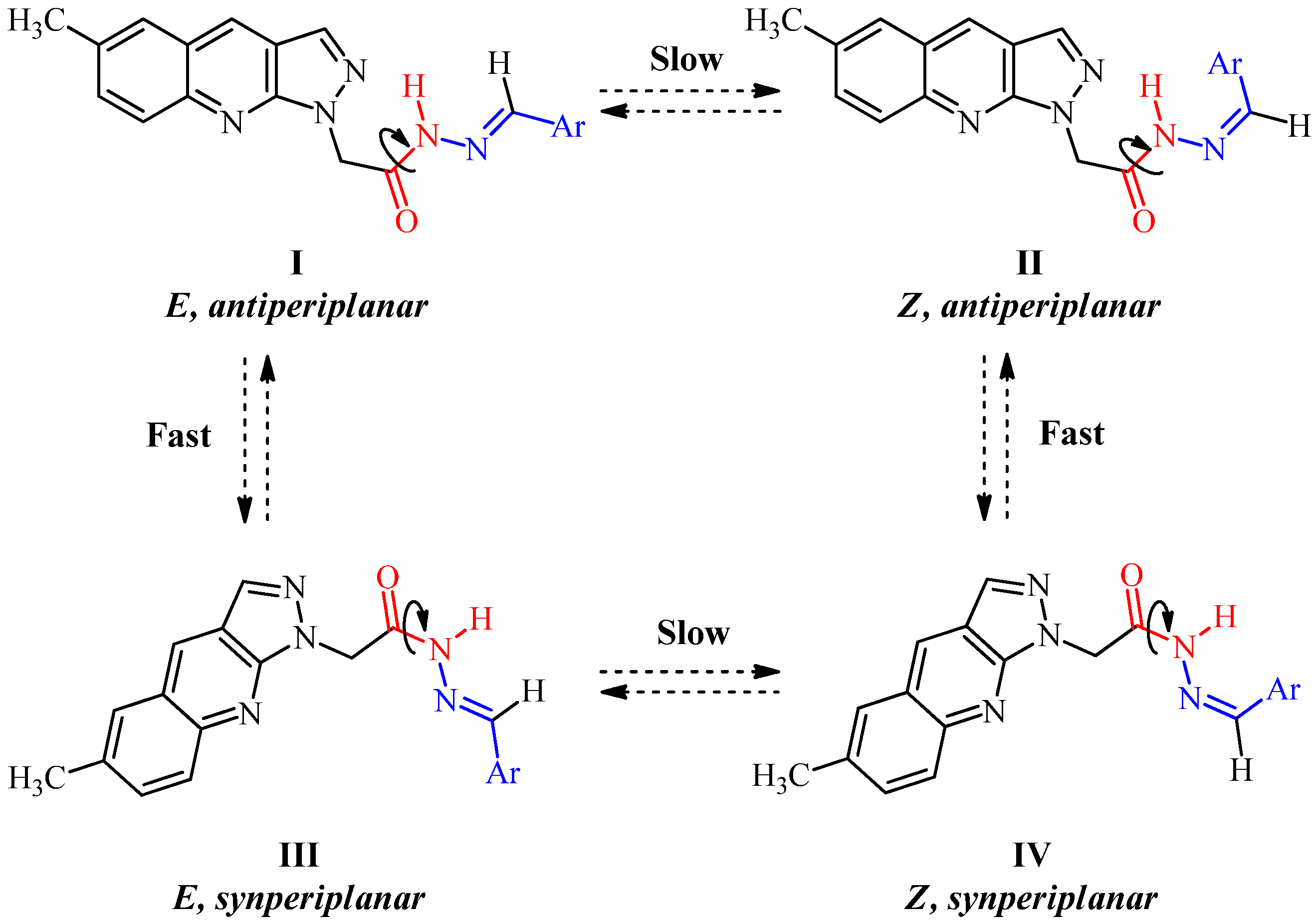

Figure 3. Rotational isomers arising due to C-N Bond C(O)-NH rotation.
Figure 3. Rotational isomers arising due to C-N Bond C(O)-NH rotation.
Molecules 26 04908 g003
Molecules 26 04908 g004 550

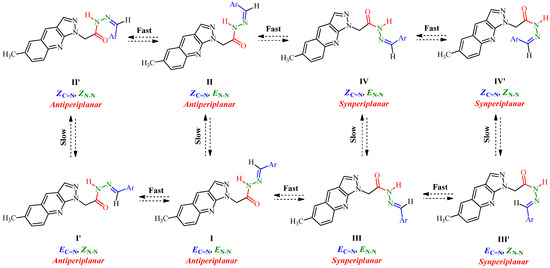

Figure 4. All the possible stereoisomers of N-Acylhydrazones 6(a–t).
Figure 4. All the possible stereoisomers of N-Acylhydrazones 6(a–t).
Molecules 26 04908 g004
Molecules 26 04908 g005 550
Figure 5. Possible interactions of E-Isomer in solution.
Figure 5. Possible interactions of E-Isomer in solution.
Molecules 26 04908 g005
Molecules 26 04908 g006 550

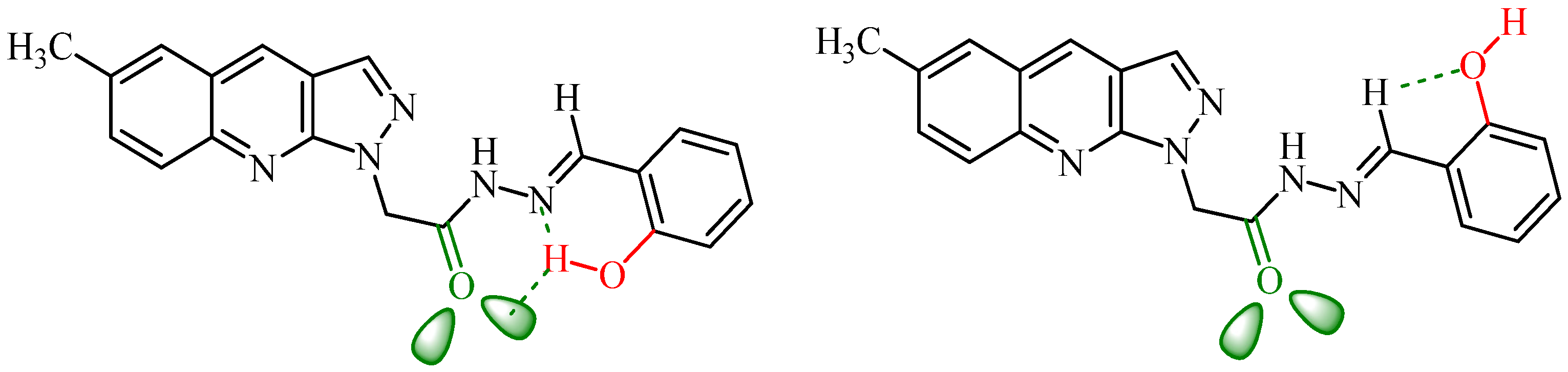

Figure 6. Possible intramolecular interactions in E(C=N) (N-N)—Antiperiplanar form of 6q.
Figure 6. Possible intramolecular interactions in E(C=N) (N-N)—Antiperiplanar form of 6q.
Molecules 26 04908 g006
Table
Table 1. Chemical shifts of duplicated peaks in 1H NMR spectra of compounds 6(a–t) in DMSO-d6.
Table 1. Chemical shifts of duplicated peaks in 1H NMR spectra of compounds 6(a–t) in DMSO-d6.
Molecules 26 04908 i001
CompoundChemical Shift δ (ppm)
C(O)-NHN=CHCH2-COAr-H 1
Range
syn-anti-syn-anti-syn-anti-
6a11.7511.888.068.285.755.357.64–8.56
6b11.9212.118.458.665.775.357.30–8.50
6c11.8612.028.048.265.775.367.41–7.95
6d11.8111.958.058.265.755.357.45–7.95
6e11.9612.168.388.605.775.357.37–8.04
6f12.0412.188.358.46 25.675.387.41–7.97
6g11.7611.898.068.275.755.347.22–7.95
6h11.9912.15--- 28.40 25.805.387.63–8.56
6i12.0412.198.158.385.795.397.65–8.22
6j11.7011.868.408.615.735.316.91–7.95
6k11.7711.898.048.245.765.346.98–7.95
6l11.6111.738.008.215.725.326.94–7.96
6m11.6611.767.998.195.765.336.98–7.95
6n11.7911.868.008.205.785.357.01–7.94
6o11.4411.557.96 28.125.695.296.66–7.96
6p11.4111.537.868.085.675.296.57–7.97
6q11.6512.068.388.48 25.725.366.78–8.00
6r11.8912.048.118.335.775.377.64–8.01
6s11.6511.788.008.205.735.327.62–7.95
6t11.93--- 38.11 28.335.775.367.39–8.27
1 Aryl protons excluding H-3 and H-4 of pyrazoloquinoline. 2 Signal overlapped by aromatic signals. 3 Signal not detected.
Table
Table 2. Ratio of conformers of 6(a–t) in DMSO-d6 *.
Table 2. Ratio of conformers of 6(a–t) in DMSO-d6 *.
Compoundsyn- Conformeranti- ConformerPercentage Isomeric Ratio
(syn-:anti-)
δ (ppm)Heightδ (ppm)Height
6a5.751.925.350.6275.6:24.4
6b5.771.965.350.6276.0:24.0
6c5.772.065.360.6675.7:24.3
6d5.752.025.350.6575.7:24.3
6e5.771.895.350.6674.1:25.9
6f5.672.035.380.5080.2:19.8
6g5.751.915.340.6375.2:24.8
6h5.801.005.380.4071.4:28.6
6i5.791.505.390.4576.9:23.1
6j5.731.505.310.4377.7:22.3
6k5.761.525.340.4876.0:24.0
6l5.721.465.320.5074.5:25.5
6m5.761.995.330.6974.3:25.7
6n5.781.475.350.4875.4:24.6
6o5.691.425.290.5472.4:27.6
6p5.671.415.290.4974.2:25.8
6q5.721.265.360.9856.2:43.8
6r5.771.455.370.4775.5:24.5
6s5.731.555.320.4477.9:22.1
6t5.771.585.360.5673.8:26.2
* Calculated from relative integration of -CH2- paired peak.
Table
Table 3. Data of distinct peaks in 13C NMR spectra of compounds 6(a–t) in DMSO-d6.
Table 3. Data of distinct peaks in 13C NMR spectra of compounds 6(a–t) in DMSO-d6.
Molecules 26 04908 i002
CompoundChemical Shift δ (ppm)
C(O)-NHN=CHCH2-COAr-C
Range
syn-anti-syn-anti-syn-anti-
6a169.0164.1146.7147.948.548.9116.9–150.7
6b169.1164.3146.7--48.649.0116.9–150.7
6c169.2164.3146.7--48.648.9116.9–150.7
6d169.3163.7146.7147.548.548.8116.7–150.5
6e169.2164.3146.7--48.5--116.9–150.7
6f169.2--146.7--48.348.8116.9–150.7
6g169.0164.0146.7--48.548.9116.1–161.8
6h169.2164.5146.7148.648.548.9116.9–150.7
6i173.8168.9148.1151.353.753.3121.7–155.4
6j168.8164.3146.7---48.548.9112.2–158.1
6k169.0164.1146.7147.848.548.9111.9–150.7
6l168.7163.8146.7147.748.548.9114.7–161.4
6m168.8163.8146.7148.048.648.9108.9–151.2
6n169.0164.0146.7147.848.649.0104.7–153.7
6o168.3163.4146.7148.648.548.9112.2–151.9
6p168.3164.2146.7148.748.648.9111.4–150.7
6q168.6164.0146.7148.048.548.8116.6–157.8
6r169.2164.3146.7150.648.649.0116.9–167.3
6s169.0163.8146.7147.648.548.9116.9–150.7
6t169.2164.3146.7145.248.648.9116.9–151.3
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Munir, R.; Javid, N.; Zia-ur-Rehman, M.; Zaheer, M.; Huma, R.; Roohi, A.; Athar, M.M. Synthesis of Novel N-Acylhydrazones and Their C-N/N-N Bond Conformational Characterization by NMR Spectroscopy. Molecules 2021, 26, 4908. https://doi.org/10.3390/molecules26164908

AMA Style

Munir R, Javid N, Zia-ur-Rehman M, Zaheer M, Huma R, Roohi A, Athar MM. Synthesis of Novel N-Acylhydrazones and Their C-N/N-N Bond Conformational Characterization by NMR Spectroscopy. Molecules. 2021; 26(16):4908. https://doi.org/10.3390/molecules26164908

Chicago/Turabian Style

Munir, Rubina, Noman Javid, Muhammad Zia-ur-Rehman, Muhammad Zaheer, Rahila Huma, Ayesha Roohi, and Muhammad Makshoof Athar. 2021. "Synthesis of Novel N-Acylhydrazones and Their C-N/N-N Bond Conformational Characterization by NMR Spectroscopy" Molecules 26, no. 16: 4908. https://doi.org/10.3390/molecules26164908

APA Style

Munir, R., Javid, N., Zia-ur-Rehman, M., Zaheer, M., Huma, R., Roohi, A., & Athar, M. M. (2021). Synthesis of Novel N-Acylhydrazones and Their C-N/N-N Bond Conformational Characterization by NMR Spectroscopy. Molecules, 26(16), 4908. https://doi.org/10.3390/molecules26164908

Article Metrics

Back to TopTop
