Article

Nickel(II)-Based Building Blocks with Schiff Base Derivatives: Experimental Insights and DFT Calculations †

by
Néstor Novoa
1,2,3,*,
Carolina Manzur
2,
Thierry Roisnel
3,
Samia Kahlal
3,
Jean-Yves Saillard
3,
David Carrillo
2,* and
Jean-René Hamon
3,*
1
Laboratorio de Química Inorgánica y Organometálica, Departamento de Química Analítica e Inorgánica, Facultad de Ciencias Químicas, Universidad de Concepción, Edmundo Larenas 129, Casilla 160-C, Concepción, Chile
2
Laboratorio de Química Inorgánica, Instituto de Química, Facultad de Ciencias, Pontificia Universidad Católica de Valparaíso, Avenida Universidad 330, Curauma 2371985, Valparaíso, Chile
3
Univ Rennes, CNRS, ISCR (Institut des Sciences Chimiques de Rennes)–UMR 6226, F-35000 Rennes, France
*
Authors to whom correspondence should be addressed.
†
This paper is dedicated to Prof. René Dabard (Honorary President of the University of Rennes 1) at the occasion of his 90th birthday.
Molecules 2021, 26(17), 5316; https://doi.org/10.3390/molecules26175316
Submission received: 8 July 2021 / Revised: 24 August 2021 / Accepted: 26 August 2021 / Published: 1 September 2021
(This article belongs to the Special Issue Metal-Organic Complexes: Applications in Chemistry and Materials Science)
Browse Figures
Versions Notes

Abstract

:
We have recently reported a series of neutral square planar tridentate Schiff base (L) complexes of the general formula [(L)M(py)], showing relatively high first-order hyperpolarizabilities and NLO redox switching behavior. In the present study, new members of this family of compounds have been prepared with the objective to investigate their potential as building blocks in the on-demand construction of D-π-A push–pull systems. Namely, ternary nickel(II) building blocks of general formula [(LA/D)Ni(4-pyX)] (4–7), where LA/D stands for an electron accepting or donating dianionic O,N,O-tridentate Schiff base ligand resulting from the monocondensation of 2-aminophenol or its 4-substituted nitro derivative and β-diketones R-C(=O)CH2C(=O)CH3 (R = methyl, anisyl, ferrocenyl), and 4-pyX is 4-iodopyridine or 4-ethynylpyridine, were synthesized and isolated in 60–78% yields. Unexpectedly, the Sonogashira cross-coupling reaction between the 4-iodopyridine derivative 6 and 4-ethynylpyridine led to the formation of the bis(4-pyridyl) acetylene bridged centrosymmetric dimer [{(LD)Ni}2(µ2-py-C≡C-py)] (8). Complexes 4–8 were characterized by elemental analysis, FT-IR and NMR spectroscopy, single crystal X-ray diffraction and computational methods. In each compound, the four-coordinate Ni(II) metal ion adopts a square planar geometry with two nitrogen and two oxygen atoms as donors occupying trans positions. In 8, the Ni…Ni separation is of 13.62(14) Å. Experimental results were proved and explained theoretically exploiting Density Functional Theory calculations.

1. Introduction

Schiff bases, characterized by an imine or azomethine group (>C=N- or –C(H)=N-, respectively), can be easily synthesized in one step upon condensation of an active carbonyl compound with a primary amine and elimination of one water molecule [1]. The use of differently substituted aldehydes or ketones and amines counterparts, most of the time commercially available, allows us to adjust their geometric and electronic properties and the formation of complex and sophisticated structures [2,3]. Schiff bases usually coordinate to a metallic ion through the imine nitrogen atom and are able to complex most metals in the periodic table with distinct oxidation states, coordination numbers and geometries [4,5,6,7], thus finding a plethora of applications within numerous scientific areas [8,9]. Their diverse applications, associated with their structural flexibility, made them essential compounds that have extensively been used in homogenous and heterogeneous catalysis [10,11,12,13,14], chemical sensing [15,16,17,18], nonlinear optics (NLO) [19,20,21,22], beside remarkable pharmacological and biological activities [23,24,25,26,27,28], to name a few.
Although the tetradentate chelating Schiff base ligands with the dianionic N2O2 donor set, known as salen-like ligands [29,30], and their corresponding complexes continue to be the most popular and the most studied for their numerous applications (sensing [31], medicine [32,33], catalysis [14,32,34], as synthons for various supramolecular structures [35,36,37]), Schiff base ligand with lower denticity, namely tridentate, are also common [30,38]. Tridentate ligands offer three donor atoms (mostly O, N and S) and act as anionic pincer-type ligand to efficiently chelate the metal ions, thus generating versatile conformationally rigid [M(LA/D)]n+-type metalloligands, where LA/D represents electron withdrawing (A) or electron donating (D) tridentate Schiff base ligands. Implementation of the remaining vacant coordination sites on the metal centers with additional co-ligands allows us to construct new multimetallic architectures with desired properties [39,40]. Using 4,4’-bipyridine (4,4’-bipy) as co-ligand does generally lead to the formation of centrosymmetric dinuclear species constructed from [(LA/D)M]n+ units which are connected through the bidentate 4,4’-bipy ligand having nitrogen-donor atoms [41,42,43,44]. Mononuclear complexes in which the 4,4’-bipy ligand shows monodentate coordination mode are rare and difficult to prepare [43]. This, therefore, strongly limits their use in the construction of asymmetric species and especially D-π-A push–pull systems with potential second-order nonlinear optical (NLO) response [45]. A convenient tool to assemble donor (D) and acceptor (A) metalloligands bridged by 4,4’-bipy or one of its conjugated derivatives into a NLO-active assembly would, therefore, consist in the linkage of two building blocks containing appropriately functionalized pyridine co-ligands via “click” chemistry [46], Schiff condensation [1,2] or carbon–carbon cross coupling reactions [47,48].
We have recently developed the chemistry of two new series of neutral square planar four-coordinate nickel(II)- and copper(II)-tridentate Schiff base (L) complexes of the type [(L)M(py)], where py represents a pyridine-based co-ligand [49,50,51]. Interestingly, those ternary chromophores exhibit relatively high first-order hyperpolarizabilities and show NLO redox switching behavior in the specific case of the electroactive pyridiylmethylenepyran co-ligand [51]. As an extension of this previous work, in this contribution we designed and investigated a new family of nickel(II) based ternary building blocks of general formula [(LA/D)Ni(4-pyX)] where LA/D stands for a dianionic O,N,O-tridentate Schiff base ligand resulting from the monocondensation of 2-aminophenol or its 4-substituted nitro derivative and β-diketones: R-C(=O)CH2C(=O)CH3 (R = methyl, anisyl, ferrocenyl), and 4-pyX is 4-iodopyridine or 4-ethynylpyridine (see formulas of complexes 4–7 in Scheme 1), with the aim of exploring their potential ability to generate D-π-A type assemblies via Sonogashira cross-coupling reactions [48]. Herein, we report on the synthesis, analytical and spectral characterization of the mono- 4–6 and bi-metallic 7 building units, and of the unexpected dipyridylethyne-bridged centrosymmetric dimer 8 (see Scheme 2), as well as the crystal and molecular structures of compounds 4–6 and 8. Density functional theory (DFT) calculations at the PBE0/Def2-TZVP level performed on all these complexes shed light on their electronic structure and bonding.

2. Results and Discussion

2.1. Synthesis and Characterization

The ternary neutral mononuclear complexes 4–6 and the heterobimetallic species 7 were synthesized following a simple one-pot three-step templated reaction [49]. First, the corresponding diprotic unsymmetrical Schiff base proligands 1–3 were doubly deprotonated with a slight excess of potassium tert-butoxide in THF at ambient temperature. A stochiometric amount of 4-iodopyridine or 4-ethynylpyridine hydrochloride and trimethylamine (TEA) was then added to the dark red reaction mixture before dropwise addition of a THF solution of nickel(II) nitrate hexahydrate salt (Scheme 1). Complexes 4–7 are isolated in reasonably good 60–78% yields as brown (4, 5) and red (6, 7) powders. They are all thermally stable, as well as air and moisture insensitive on storage under ordinary conditions. The four compounds exhibit good solubility in common polar organic solvents but are not soluble in ethanol, diethyl ether and hydrocarbons as pentane and hexane.
As a first attempt in the construction of donor–acceptor type complexes starting from the as-prepared building blocks 4–7, we reacted the electron releasing derivative 6 with a stoichiometric amount of 4-ethynylpyridine hydrochloride under C-C Sonogashira cross-coupling reaction conditions (see Section 3.2.5 for details). To our surprise, the reaction results in the formation of dimeric species 8 in which the two Schiff base nickel(II) metalloligands are linked through the bis(4-pyridyl) acetylene moiety, instead of the expected unsymmetrical mononuclear derivative [(4-MeO-C6H4-C(O)CH=C(CH3)N-C6H4-2-O)Ni(NC5H4-C≡C-C5H4N)] (Scheme 2). Complex 8 was isolated as a bench-stable dark red powder in 43% yield, poorly soluble in common organic solvents. Interestingly, a few black crystals of the known Pd(II) complex trans-PdI2(PPh3)2 (9) [52] deposited from the washings and were collected by filtration.
The formation of the dimeric species 8 could be explained by a two-step process (Scheme 2). Firstly, based on the formation of the diiodo palladium complex 9, C-C cross-coupling reaction between the building block 6 and the in situ generated 4-ethynylpyridine takes place to form the mononuclear intermediate in which the bis(4-pyridyl) acetylene is bound to the Ni(II) center in a monodentate coordination mode. Then, in a second step faster than the first one, the mononuclear intermediate would react via ligand exchange with yet unreacted complex 6 to form the final product 8. Another possibility could be the dissociation of complex 6 under the catalytic conditions to generate a solvated nickel species and free 4-iodopyridine that would undergo Pd-catalyzed C-C coupling with 4-ethynylpyridine to form the bis(4-pyridyl) acetylene that is ultimately captured by two metalloligands to form 8. However, this latter dissociation/association process seems more unlikely as the building block 6 is stable under the employed experimental conditions, i.e., THF and base (see Section 3.2).
The bulk purity of all the new compounds 4–8 was determined through elemental analysis. Their composition and formulation were established from FT-IR and 1H NMR spectroscopy, and single-crystal X-ray diffraction analysis. The solid-state FT-IR spectra exhibited the characteristic strong intensity bands in the ranges 1610–1550 cm−1, due to the ν(C···C), ν(C···N), ν(C···O) stretching vibrations of the Schiff base ligand, suggesting its ONO- tridentate coordination mode to the Ni(II) metal ion [49,50,51]. More specifically, the symmetrical N-O stretching mode of the nitro group was observed at 1300 and 1310 cm−1 for 4 and 5, respectively [53]. Moreover, the vibration attributed to ν(C≡C) is seen at 2227 cm−1 in the spectrum of 5 and at 2111 cm−1 in that of 8 (Figure S1, Supplementary Materials). For all the compounds, the strong deformation modes of the C-H bonds appeared about 760 cm−1.
The 1H NMR spectra displayed the expected resonance patterns consistent with the proposed structures. Full assignments are provided in Section 3.2 and the spectra of complexes 7 and 8 are depicted in Figures S2 and S3, respectively, as representative examples. In each spectrum, the singlets observed in the 2.42–2.59 ppm and 5.27–5.93 ppm ranges are due to the methyl (C7, Figure 1) and pseudo-aromatic CH=C methine protons (H-9), respectively. Singlets assigned to the methyl (C11, Figure 1), methoxy and free cyclopentadienyl ring protons are also seen at 1.84, 1.85, 3.72, 3.83 and 4.06 ppm for 4, 5, 6, 8 and 7, respectively. The magnetically nonequivalent aromatic protons of the imino-phenoxo fragment give rise to three (in 4 and 5) and four (in 6, 7 and 8) signals in the 6.31–8.13 ppm range with integral ratios of 1:1:1 and 1:1:1:1, respectively. The presence of the 4-substituted pyridine co-ligand was confirmed by the observation of a pair of low-field broad resonances integrating each for 2 H. The ortho-protons appear as the most downfield shifted signals of the spectra [49,51].
With the aim to explore the absorption spectrum of the new carbon-carbon cross coupling derivative 8, we carried out the UV-vis spectrum of the complex in CH2Cl2 solution. As expected, the spectrum is similar to that previously reported for its 4,4’-bipy bridged counterpart [44], exhibiting the same set of three absorption bands(Table S1). Accordingly, the high-energy band (a) observed at 295 nm can be attributed to the metal-to-ligand charge transfer transitions (MLCT) with a minor contribution of a π→π* transition. Band (b) that shows up at 417 nm can be assigned to a LMCT + π→π* transitions, whereas the low-energy absorption band (c), appearing at 456 nm, can be mainly attributed to a π→π* electronic transition.

2.2. Description of Crystal Structures

Diffraction-quality single crystals for X-ray structure investigation were obtained for compounds 4, 5, 6 and 8 by slow evaporation of the solvent from a saturated solution of the compound (see Section 3.2 and Section 3.3 for details), while single crystals of 9 formed by crystallization from a methanol/dichloromethane mixture. The crystal structure of 9 which has already been published as its bis-chloroform solvate [52], will not be discussed here. Perspective views of the nickel(II) complexes (4–6 and 8) are shown in Figure 1, Figure 2 and Figure 3, and that of the Pd(II) derivative 9 is displayed in Figure S4. Bond distances and angles for the first Ni(II) coordination sphere are gathered in Table 1, and selected bond distances and angles of complexes 4–6 and 8 are listed in Table S2. The single-crystal X-ray diffraction studies confirm the ternary nature of complexes 4, 5, 6 and 8 with the ONO-tridentate Schiff base framework and the 4-substituted pyridine ligand coordinated to the central Ni(II) ion. In each case, the four-coordinate metal ion is bonded to a N2O2 donor atoms set. The Ni(II) center adopts a quasi-perfect square planar geometry in the mononuclear species 4–6 that is very slightly distorted in the bimetallic counterpart 8. This is evidenced by the rather similar values of the four-coordinate geometry τ4 index of 0.054, 0.066 and 0.066 determined for 4, 5 and 6, respectively, whereas it is almost two-fold greater for 8 (τ4 = 0.124; τ4 = 0 for a perfect square planar geometry [54]. In the four complexes, the O-C, C-C and C-N bonds falling between single and double bond lengths and bond angles of sp2 hybridized atoms (Table S2) [55], suggests a significant electron delocalization throughout the entire Schiff base ligand. The other aspects of the structures are discussed below in three sections for the sake of simplicity.
Complex 4 crystallizes in the monoclinic centrosymmetric space group P21/c while complex 5 crystallizes in the orthorhombic centrosymmetric space group Pcnb, with in each case one molecule in the asymmetric unit. Both compounds consist of a common electron withdrawing dianionic Schiff base ligand chelating a nickel(II) ion through a deprotonated amide nitrogen atom (N1) and the carbonyl (O2) and phenolato (O1) oxygen atoms. The fourth position of the metal coordination sphere is occupied by the nitrogen atom (N2) of the 4-iodopyridine in 4 and of the 4-ethynylpyridine in 5 (Figure 1). In the square planar environment of the Ni(II) center, the four donor atoms adopt a N2O2 trans-configuration with O-Ni-O and N-Ni-N diagonal angles barely deviating from linearity (~175°, see Table 1). The Ni-O and Ni-N bond distances of complexes 4 and 5 span the range 1.817(2)–1.9402(16) Å (Table 1). They are typical of ternary square-planar Ni(II) Schiff base complexes [49,51]. In 5, a classical bond distance of 1.159(4) Å is measured for the terminal ethynyl C17-C18 triple bond, which is linear with a C14-C17≡C18 angle of 177.1(3)° [55]. In both complexes, the fused five- and six-membered heterometallacycles are essentially co-planar, making torsion angles of 12.6(9)° and 3.7(7)°, respectively, around the Ni-N1 axis. On the other hand, the 4-substituted pyridine co-ligand is twisted by 31.4(8)° and 35.1(6)° with respect to the metal coordination plane. In both 4 and 5, the electron withdrawing nitro group is coplanar with the phenyl ring, making dihedral angles of 3.8(4)° and 3.6(2)°, respectively. This suggests a significant delocalization of the electron density throughout the entire π-conjugated system. Lastly, the packing of both complexes 4 and 5 shows that the structures are stabilized by a network of intermolecular hydrogen bonds leading to the formation of a dipolar stacked orientation for 4 and zig-zag infinite chains for 5 (Figures S5 and S6, and Table S3).
The mononuclear nickel(II) derivative 6 crystallizes in the orthorhombic centrosymmetric space group Pbca with one molecule in the asymmetric unit. As in related complexes 4 and 5 above, the coordination sphere of the centered Ni(II) ion is made up of the ONO-tridentate Schiff base and 4-iodopyridine ligands (Figure 2). The nickel center adopts a square planar geometry with the nitrogen and oxygen atoms occupying mutually trans dispositions with diagonal angles of 174° (Table 1). The bond lengths and angles involving the metal center (Table 1) are very similar to those measured for its parent complex [49], the Ni-N(2) bond length always being the larger one. The fused five- and six-membered heterometallacycles are co-planar (2.7(2)°). The anisyl substituent makes a dihedral angle of 20.7(2)° with the plane of its attached heterometallacycle. The pyridine ring is twisted by 38.5(2)° with respect to the metal coordination plane. As expected, those metrical data are similar to those reported for four-coordinate Ni(II) Schiff base complexes containing anisyl group and 4-substituted pyridine co-ligand [49]. The molecular packing analysis of 6 reveals alternating spirals along the a-axis direction (Figure S7). Interestingly, no strong H-bond or π-π interactions can be found, thus attributing the crystal stability to weak supramolecular interactions.

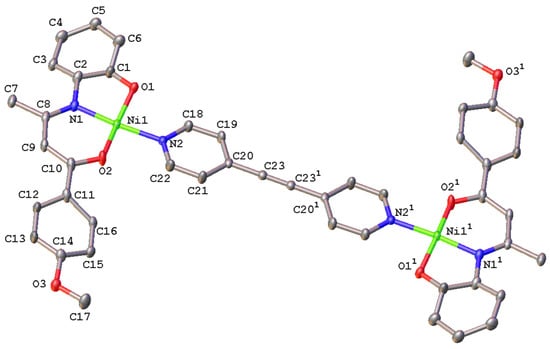

The binuclear complex 8 crystalizes in the monoclinic centrosymmetric P21/c space group with half a molecule in the asymmetric unit. The two halves of the dimeric entity are related by a crystallographic inversion center in the middle of the C≡C triple bond of the bridging bis(4-pyridyl) acetylene ligand, with a Ni…Ni separation of 13.6186(14) Å. The Ni(II) ion is tetracoordinated and lies in a slightly distorted square-planar environment (τ4 = 0.124), with the coordination sphere formed, such as in 6 above, by the ONO donor set of the anisyl-containing Schiff base ligand and the N-pyridyl atom of the conjugated bis(4-pyridyl) acetylene spacer (Figure 3). The three bond lengths involving the Ni(II) center and the donor atoms of the pincer-type ligand are similar to those found in the mononuclear counterpart 6 (Table 1). The Ni(1)-N(2) bond distance is somewhat larger by 0.04 Å in the dimeric species as previously noted with the corresponding 4,4’-bipyridine-bridged derivative [44]. Although the N(1)-Ni-N(2) transoid angle is of the same order as those found in 4–6, the O1-Ni-O2 angle averages 167.5° (Table 1), significantly deviating from linearity. Compared to complex 6, each half unit of the dimeric derivative 8 is rather flat, the anisyl group and the pyridyl ring being slightly twisted by 12.1(2)° and 9.9(2)°, respectively. Interestingly, the double coordination of the bis(4-pyridyl) acetylene by two [Ni(LD)] metalloligands does not affect the metrical parameters of the conjugated linker. The C≡C bond length of 1.199(6) Å as well as the ring (mean plane)-C≡C-Ring (mean plane) twist angle of 0.0(5)° are identical to those measured in free 4,4’-dipyridylacetylene (1.199(3) Å and 0.0(2)°, respectively) [56]. A similar C≡C bond length (1.184(11) Å) and ring twist angle (0.6(5)°) have also been reported for a related py-C≡C-py spaced dimeric Fe(II) complex featuring N2O2-tetradentate Schiff base-like ligand [56]. Finally, the crystal packing is stabilized by hydrogen bonds between O(3) and the -C7H3 and N1/O2 fragments of neighboring molecules to give a ladder-type packing oriented along the b-axis (Figure S8, Table S3).

2.3. DFT Analysis

The DFT-optimized geometries of complexes 4, 5 and 6 (Figure S9) are in a good agreement with their experimental X-ray counterparts. Selected optimized metrical data associated with the nickel coordination sphere are given in Table 1. There are similar to their corresponding X-ray values and show even a better homogeneity. The associated Wiberg bond indices are also quite homogeneous. The values computed for 7, for which no X-ray structure is available, fit well into the series. Its optimized structure is provided in Figure 4.
The (moderate) rotation of the pyridine ring away from coplanarity with the Ni coordination plane is also reproduced in complexes 4–6, indicating it is not a solid-state packing effect, but the result of intra-molecular steric effects. The computed natural atomic orbital (NAO) charges remain almost the same for the four complexes within the Ni coordination sphere (Table 2). Thus the various substituents on the pyridine and O,N,O-tridentate Schiff base ligands have little effect on the Ni coordination sphere.

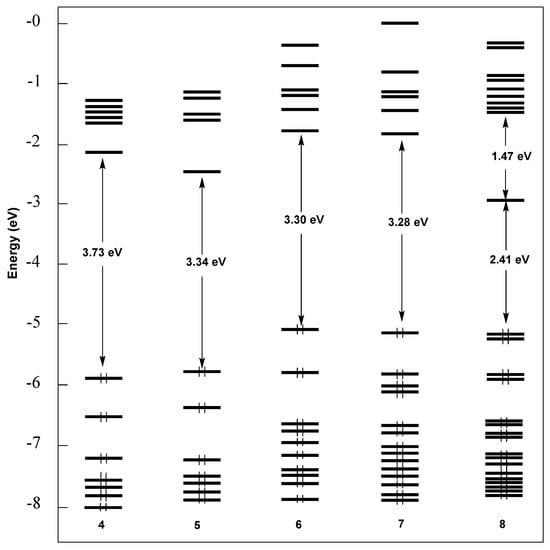

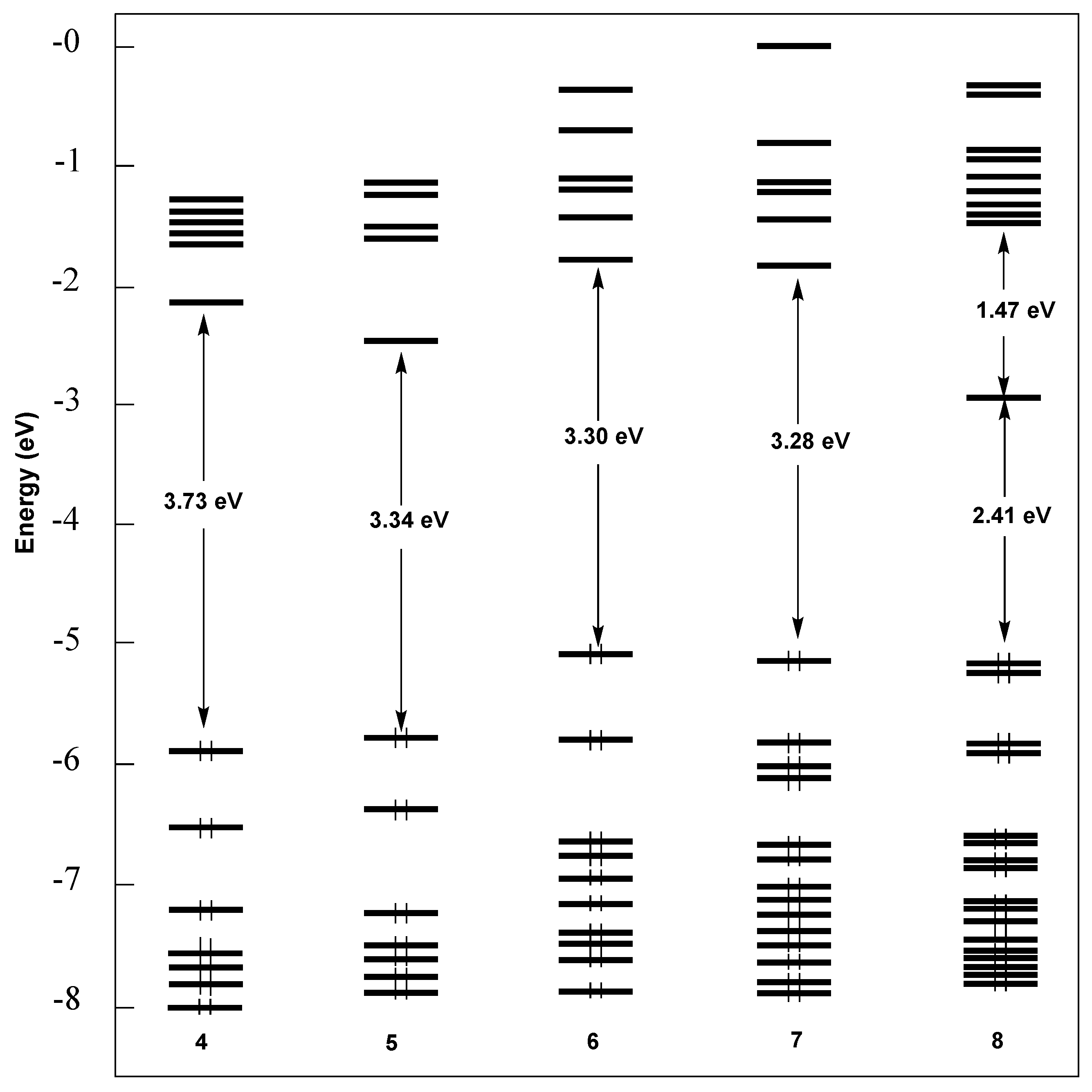

They however perturb differently the overall electronic structure of the four complexes through their specific action on the ligands they are attached to. This is exemplified by the frontier Kohn–Sham MO diagram of 4–7 shown in Figure 5. The NO2-substituted complexes 4 and 5 have their frontier orbitals lower in energy, as compared to complexes 6 and 7 that bear electro-donor substituents on the O,N,O-tridentate ligand. Although they have somewhat different energies, the LUMO’s of the four complexes are of similar π*(pyridine) nature (Figure S10). Similarly, their HOMO’s can be approximated to the conjugated π HOMO of the dianionic O,N,O-Schiff base ligand, perturbed by the R1 and R2 substituents (Figure S10). The highest occupied level of substantial metallic character is the HOMO-2 or HOMO-3, depending on the compound (including 7), suggesting that the metal will play a negligible role in most of their physico-chemical properties.
Shifting now to the dimer 8, one can again notice the good match between the X-ray and optimized geometries (Figure S9 and Table 1). The computed C≡C bond distance (1.208 Å) agrees well with its experimental counterpart (1.199 Å). Its computed ν(C≡C) vibrational frequency (2350 cm−1) is slightly larger than that found for 5 (calc. 2235 cm−1; exp. 2227 cm−1, see above). Among the few (moderate) structural differences between the X-ray and DFT geometries, one can notice a lower planarity of the O,N,O-ligands in the optimized geometry and a more linear O1-Ni-O2 angle (176° vs. 167° in the X-ray structure, see Table 1 and discussion above). These differences are likely originating from the packing force that exist only in the solid state. Although both the metrical data (Table 1) and NAO charges (Table 2) of 8 are consistent with negligible Ni…Ni communication (i.e. two independent metal centers), its MO diagram is not the duplication of two diagrams of the type of the mononuclear complexes 4–7, for example. Indeed, if the metals are not interacting, the two halves of the bipyridine ligand do interact through the C≡C bond, creating a low-lying LUMO, which becomes the low-lying LUMO of 8 (Figure S10). This orbital is the bonding combination between the out-of-plane π*(C≡C) orbital and π*(pyridine) orbitals of proper symmetry match. Calculations using the long-range corrected LC-wHPBE functional, supposed to better take into account conjugation in highly delocalized systems (see Computational Details) provided similar structural data (Table S4), MO shapes and level ordering, in agreement with the limited electronic communication through the metal centers.

3. Materials and Methods

3.1. Materials and Physical Measurements

Reactions were carried out under a dry argon atmosphere using standard Schlenk techniques. The solvents were dried and distilled according to standard procedures [57]. 4-Iodopyridine, 4-ethynylpyridine hydrochloride, 2-aminophenol, 2-amino-4-nitrophenol, 2,4-pentadione, triethylamine, potassium tert-butoxide, nickel(II) nitrate hexahydrate, copper iodide and trans-bis-triphenylphosphine palladium(II) dichloride were purchased from commercial sources and used without further purification. The proligands CH3-C(=O)CH=C(CH3)N(H)-C6H3-(4-NO2)-2-OH (1) [58,59], 4-MeO-C6H4-C(=O)C=C(CH3)N(H)-C6H4-2-OH (2) [49], and CpFe(C5H4)-C(=O)C=C(CH3)N(H)-C6H4-2-OH (3) [49], were synthesized according to published procedures. Solid-state FT-IR spectra were recorded on a Perkin-Elmer, Model Spectrum One, spectrophotometer with KBr disks in the 4000 to 400 cm−1 range. Electronic spectra were obtained using a Thermo Scientific, Helios Omega, spectrophotometer. 1H NMR spectra were measured on a Bruker AVANCE III 400 Instrument. All NMR spectra are reported in parts per million (ppm, δ) relative to tetramethylsilane (Me4Si), with the residual solvent proton resonance used as internal standards. Coupling constants (J) are reported in hertz (Hz), and integrations are reported as number of protons. The following abbreviations are used to describe peak patterns: br = broad, s = singlet, d = doublet, t = triplet, m = multiplet. Chemical shift assignments are given according to the atom numbering schemes depicted in Figure 1, Figure 2 and Figure 3 and Chart S1. Elemental analyses of 4–6 and 8 were conducted on a Thermo Finnigan Flash EA 1112 CHNS/O analyzer by the Microanalytical Service of the Centre Régional de Mesures Physiques de l’Ouest (Université de Rennes 1, France) and that of 7 was carried out with a Fisons - EA-1108 CHNS-O Element Analyzer (Thermo Scientific) by the Renewable Resources Laboratory of the Faculty of Chemical Sciences, UdeC (Chile). Melting points were determined in evacuated capillaries on a Kofler Bristoline melting point apparatus and were not corrected.

3.2. Synthesis of the Complexes

3.2.1. [{CH3-C(O)CH=C(CH3)N-C6H3(4-NO2)-2-O}Ni(NC5H4I)] (4)

A Schlenk tube was charged with a magnetic stir bar, 248 mg (1.05 mmol) of proligand 1, 354 mg (3.16 mmol) of potassium tert-butoxide and 1.0 mL of tetrahydrofuran (THF). After 5 min of stirring, a dark red precipitate formed and the reaction mixture was vigorously stirred for 25 min before adding 369 mg (1.8 mmol) of 4-iodopyridine. After 10 min of stirring, a solution of Ni(NO3)2·6H2O (437 mg, 1.5 mmol) in 5 mL of THF was added dropwise. The reaction mixture was vigorously stirred for 12 h at room temperature. The reaction was quenched with 10 mL of EtOH giving a precipitate. The solid material was filtered off, washed with 3 × 5 mL portion of cold (−5 °C) mixture of THF and EtOH (1:1, v:v), diethyl ether (2 × 3 mL portion), and dried under vacuum for 2 h. Yield: 366 mg (70%) of 4 as a light brown powder. Suitable monocrystals for X-ray diffraction study were obtained by slow evaporation (3 days) of a solution of the compound in dichloromethane petroleum ether mixture (2:1, v:v). m.p. 193 °C. Analysis calculated for C16H14IN3NiO4 (497.89 g mol−1): C, 38.60; H, 2.83; N, 8.44. Found: C, 38.37; H, 2.84; N, 8.50. FT-IR (KBr, cm−1): 3045(w) ν(C-H aryl), 2938(w) ν(C-H alkyl), 2828(w) νsim(CH3), 1599(s) ν(C…O), ν(C…N) and/or ν(C…C), 1550(s), 1300(s) νsym(N-O), 755(s) δ(C-H). 1H NMR (400 MHz, CD2Cl2): 1.84 (s, 3 H, O=C-CH3), 2.42 (s, 3 H, CH3), 5.27 (s, 1 H, H-9), 6.44 (d, 3JH,H = 7.9 Hz, 1 H, H-6), 7.66 (s,1 H, H-3), 7.70 (d, 3JH,H = 7.4 Hz, 1 H, H-5), 7.75 (br s, 2 H, H-13 and H-15), 8.08 (s, 2 H, H-12 and H-16).

3.2.2. [{CH3-C(O)CH=C(CH3)N-C6H3(4-NO2)-2-O}Ni(4-NC5H4-C≡CH)] (5)

This compound was obtained following a procedure similar to that described above for compound 4, using in this case, 248 mg (1.05 mmol) of the proligand 1, 354 mg (3.16 mmol) of potassium tert-butoxide, 1.0 mL of THF, 140 mg (1.8 mmol) of 4-ethynylpyridine hydrochloride, and 437 mg (1.5 mmol) of Ni(NO3)2·6H2O in 5 mL of THF. Yield: 324 mg (78%) of a brown powder. Suitable monocrystals for X-ray diffraction were obtained by slow evaporation (4 days) of a solution of the compound in dichloromethane. m.p. 145 °C. Analysis calculated for C18H15N3NiO4 (396.02 g mol−1): C, 54.59; H, 3.82; N, 10.61. Found: C, 54.74; H, 4.02; N, 10.59. FT-IR (KBr, cm−1): 3049(w) ν(C-H aryl), 2932(w) ν(C-H alkyl), 2832(w) νsim(CH3), 2227(w) ν(C≡C), 1604(s) ν(C…O), ν(C…N) and/or ν(C…C), 1557(s) νasym(N-O), 1310(s) νsym(N-O), 764(s) δ(C-H). 1H NMR (400 MHz, CD2Cl2): 1.85 (s, 3 H, O=C-CH3), 2.43 (s, 3 H, CH3), 3.49 (s, 1 H, C≡CH), 5.27 (s, 1 H, H-9), 6.47 (d, 3JH,H = 7.6 Hz, 1 H, H-6), 7.36 (d, 3JH,H = 7.4 Hz, 2 H, H-13 and H-15), 7.68 (d, 3JH,H = 7.4 Hz, 1 H, H-5), 8.13 (s, 1 H, H-3), 8.42 (br s, 2 H, H-12 and H-16).

3.2.3. [{4-MeO-C6H4-C(O)CH=C(CH3)N-C6H4-2-O}Ni(4-NC5H4I)] (6)

This compound was obtained following a procedure similar to that described above for compound 4, using in this case, 297 mg (1.05 mmol) of the proligand 2, 354 mg (3.16 mmol) of potassium tert-butoxide, 1.0 mL of THF, 369 mg (1.8 mmol) of 4-iodopyridine, and 437 mg (1.5 mmol) of Ni(NO3)2·6H2O in 1.5 mL of THF. Yield: 417 mg (73%) of dark red microcrystals. A monocrystal of this crop was selected and used for X-ray diffraction analysis. m.p. 190 °C. Analysis calculated for C22H19IN2NiO3 (544.99 g mol−1): C, 48.49; H, 3.51; N, 5.14. Found: C, 48.58; H, 3.47; N, 5.25. FT-IR (KBr, cm−1): 3049(w) ν(C-H aryl), 2932(w) ν(C-H alkyl), 2832(w) νsym(CH3), 1604(s) ν(C…O), ν(C…N) and/or ν(C…C), 1557(s), 1244(s) νasym(CH3-O-Ph), 764(s) δ(C-H). 1H NMR (400 MHz, CD2Cl2): 2.48 (s, 3 H, CH3), 3.72 (s, 3 H, OCH3), 5.83 (s, 1 H, H-9), 6.32 (t, 3JH,H = 7.5 Hz, 1 H, H-4), 6.50 (d, 3JH,H = 7.8 Hz, 1 H, H-6), 6.70 (t, 3JH,H = 7.5 Hz, 1 H, H-5), 6.75 (d, 3JH,H = 8.7 Hz, 2 H, H-13 and H-15), 7.23 (d, 3JH,H = 8.2 Hz, 1 H, H-3), 7.46 (d, 3JH,H = 8.5 Hz, 2 H, H-12 and H-16), 7.73 (br s, 2 H, H-19 and H-21), 8.24 (br s, 2 H, H-18 and H-22).

3.2.4. [{CpFe(C5H4)-C(O)CH=C(CH3)N-C6H4-2-O}Ni(4-NC5H4I)] (7)

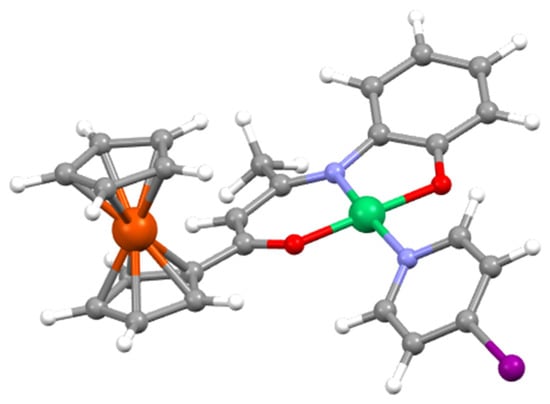

This organometallic derivative was obtained following a procedure similar to that described above for compound 4, using in this case 383 mg (1.05 mmol) of the metalloligand 3, 354 mg (3.16 mmol) of potassium tert-butoxide, 1.0 mL of THF, 369 mg (1.8 mmol) of 4-iodopyridine, and 437 mg (1.5 mmol) of Ni(NO3)2·6H2O in 1.5 mL of THF. Yield: 391 mg (60%) of a red powder. m.p. 188 °C. Analysis calculated for C25H21FeIN2NiO2 (622.89 g mol−1): C, 48.21; H, 3.40; N, 4.50. Found: C, 47.87; H, 3.86; N, 4.99. FT-IR (KBr, cm−1): 3049(w) ν(C-H aryl), 2932(w) ν(C-H alkyl), 2832(w) νsym(CH3), 1604(s) ν(C…O), ν(C…N) and/or ν(C…C), 1557(s), 1244(s), 764(s) δ(C-H). 1H NMR (400 MHz, CD2Cl2): 2.43 (s, 3 H, CH3), 4.06 (s, 5 H, C5H5), 4.22 (br s, 2 H, Hβ C5H4), 4.42 (br s, 2 H, Hα C5H4), 5.52 (s, 1 H, H-9), 6.31 (t, 3JH,H = 7.5 Hz, 1 H, H-4), 6.50 (d, 3JH,H = 7.8 Hz, 1 H, H-6), 6.67 (t, 3JH,H = 7.4 Hz, 1 H, H-5), 7.21 (d, 3JH,H = 8.0 Hz, 1 H, H-3), 7.77 (br s, 2 H, H-22 and H-24), 8.25 (br s, 2 H, H-21 and H-25).

3.2.5. [{(4-MeO-C6H4-C(O)CH=C(CH3)N-C6H4-2-O)Ni}2(µ-NC5H4-C≡C-C5H4N)] (8)

A Schlenk tube was charged with a magnetic stir bar, 85 mg (0.12 mmol) of trans-PdCl2(PPh3)2 (20% mmol), 46 mg (0.24 mmol) of CuI (40% mmol), 50 mL of THF and 10 mL of triethylamine The reaction mixture was stirred for 5 min. Then, 300 mg (0.60 mmol) of complex 6 and 126 mg (0.90 mmol) of 4-ethynylpyridine hydrochloride were successively added. Argon was bubbled for 15 min into the solution, which was then stirred at room temperature for 12 h. The reaction mixture was filtered on celite and the filtrate was removed under vacuum to provide a dark red powder. The solid material was washed with a 5 × 5 mL portion of methanol dichloromethane mixture (3:1, v:v). Yield: 210 mg (0.24 mmol, 43%) of a red powder. Suitable monocrystals for X-ray diffraction study were obtained by slow evaporation (8 days) of a solution of the compound in dichloromethane. Analysis calculated for C46H38N4Ni2O6 (860.17 g mol−1): C, 64.23; H, 4.45; N, 6.51. Found: C, 64.58; H, 4.49; N, 6.38. FT-IR (KBr, cm−1): 3008(w) ν(C-H aryl), 2958(w) ν(C-H alkyl), 2825(w) νsym(CH3), 2111(vw) ν(C≡C), 1604(s) ν(C…O), ν(C…N) and/or ν(C…C), 1558(s), 1244(s) νasym(CH3-O-Ph), 728(s) δ(C-H). 1H NMR (400 MHz, CD2Cl2): 2.59 (s, 6 H, H-7 and H-71), 3.83 (s, 6 H, H-17 and H-171), 5.93 (s, 2 H, H-9 and H-91), 6.44 (t, 3JH,H = 7.2 Hz, 2 H, H-4 and H-41), 6.66 (d, 3JH,H = 7.7 Hz, 2 H, H-6 and H-61), 6.80 (t, 3JH,H = 7.3 Hz, 2 H, H-5 and H-51), 6.86 (d, 3JH,H = 8.8 Hz, 4 H, H-13, H131 & H-15, H-151), 7.39 (d, 3JH,H = 8.1 Hz, 2 H, H-3 and H-31), 7.49 (br s, 4 H, H-19, H-191 and H-21, H-211), 7.60 (d, 3JH,H = 8.8 Hz, 4 H, H-12, H-121 and H-16, H-161), 8.73 (br s, 4 H, H-18 and H-22).

3.3. X-ray Crystal Structure Determinations

A crystal of appropriate size and shape of compounds 4, 5, 6, 8 and 9 was coated in Paratone-N oil, mounted on a cryoloop and transferred to the cold gas stream of the cooling device. Intensity data were collected at T = 150(2) K on a Bruker APEXII Kappa-CCD diffractometer equipped with a bidimensional CCD plate detector, using Mo-Kα radiation (λ = 0.71073 Å), and were corrected for absorption effects using multiscanned reflections. The five structures were solved by dual-space algorithm using the SHELXT program [60], and then refined with full-matrix least-square method based on F2 (SHELXL-2014) [61]. In compound 8, the two C6-aromatic rings exhibited a rotational disorder and have been modelled over two positions with equally refined occupancy of 0.50. The contribution of the very disordered dichloromethane crystallization solvent to the calculated structure factors of 9 were estimated following the BYPASS algorithm [62], implemented as the SQUEEZE option in PLATON [63]. Then, a new data set, free of solvent contribution, was used in the final refinement. All non-hydrogen atoms were refined with anisotropic atomic displacement parameters. Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms. A summary of the details about the data collection and refinement for the X-ray structures of the five compounds are documented in Table 3, and additional crystallographic details are in the CIF files. ORTEP views were drawn using OLEX2 software [64]. CCDC 2091893-2091897 (Table 3) contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk (accessed on 22 August 2021, or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).

3.4. Computational Details

DFT calculations [65,66,67] were carried out using the Gaussian16 package [68]. For the sake of consistency with our previous work [51], we employed the Def2TZVP basis set [69,70] together with the robust and rather computationally cheap PBE0 hybrid functional [71,72,73]. Since the investigated complexes possess conjugated fragments, the opportunity to use a long-range corrected functional [74,75,76] was also considered. Test calculations on complex 8 with the LC-wHPBE functional [77] provided similar structural data as with the PBE0 functional (Table S4), thus substantiating the use of the latter. The optimized geometries were fully characterized as true minima by analytical frequency calculations (no imaginary values). The geometries obtained from DFT calculations were used to perform natural atomic charge analysis with the NBO 6.0 program [78].

4. Conclusions

To summarize, five new four-coordinate nickel(II) complexes supported on O,N,O-tridentate Schiff base platforms have been synthesized and characterized using FT-IR and NMR spectroscopy, while their bulk purity was established through combustion analysis. The crystal structures of the three mononuclear species 4–6 and of the 4,4’-dipyridylethyne bridged bimetallic derivative 8 were elucidated by X-ray diffraction using single crystals, confirming (i) a square planar geometry at the Ni(II) center, (ii) the pincer-type nature of the Schiff base ligand that efficiently chelates the Ni(II) ions in a tridentate manner, and (iii) that the fourth coordination site is occupied by a functionalized pyridine. DFT calculations on complexes 4–7 indicate that the nature of the various substituents on the ligands has little effect on the nickel coordination sphere, but significantly perturb the energies of the HOMO and LUMO, which are ligand-based orbitals. The HOMO and LUMO being of pyridine and Schiff-base nature, respectively, this family of stable complexes is likely to display interesting NLO or photoluminescence properties that could be modulated by playing with the nature of the substituents. Although the two metal centers in 8 are not communicating, the electronic structure of 8 differs from that of the mononuclear species 4–7 by the existence of a bis(4-pyridyl) acetylene-based LUMO of low energy that led to expect different optical properties.

Supplementary Materials

The following are available online, Chart S1: Hydrogen and carbon atom labelling schemes for complex 7 used for NMR assignments, Figure S1: FT-IR spectrum of 8 recorded in KBr disk, Figure S2: 1H NMR spectrum of complex 7, recorded at 400 MHz in CD2Cl2, Figure S3: 1H NMR spectrum of complex 8, recorded at 400 MHz in CD2Cl2, Figure S4: Molecular structure of trans-PdI2(PPh3)2 (9), Figure S5: Crystal packing of 4 expanded through a-axis by H-bond interactions, Figure S6: Crystal packing of 5 expanded in the a- and c-axis plane by H-bond interactions, Figure S7: Crystal packing of 6 expanded in the a-axis direction, Figure S8: Crystal packing of 8 expanded in the b-axis through H-bond interactions, Figure S9: The DFT-optimized structures of complexes 4–6 and 8, Figure S10: The HOMOs and LUMOs of complexes 4–8, Table S1. UV-vis absorption data for compound 8 and its 4,4’-bipy bridged counterpart. Table S2: bond distances (Å) and angles (°) for compounds 4, 5, 6 and 8, Table S3: Hydrogen bond interactions in 4, 5 and 8, Table S4. Optimized bond distances (Å) obtained for compound 8 with the PBE0 and LC-wHPBE functionals.

Author Contributions

Conceptualization, C.M. and D.C.; methodology, C.M. and D.C.; software, N.N., T.R. and S.K.; validation, C.M., D.C. and J.-R.H.; formal analysis, J.-Y.S. and J.-R.H.; investigation, N.N., T.R. and S.K.; resources, D.C.; data curation, J.-Y.S. and J.-R.H.; writing—original draft preparation, J.-Y.S. and J.-R.H.; writing—review and editing, N.N., C.M., J.-Y.S. and J.-R.H.; supervision, C.M. and J.-R.H.; project administration, D.C.; funding acquisition, C.M., J.-Y.S. and D.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fondo Nacional de Desarrollo Científico y Tecnológico [FONDECYT (Chile), grant no. 1190034, and GENCI French national computer center, Grant a0090807367.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This research has been performed as part of the Chilean-French International Associated Laboratory for “Multifunctional Molecules and Materials“ (LIA M3-CNRS N°1207). Financial support from the Fondo Nacional de Desarrollo Científico y Tecnológico [FONDECYT (Chile), grant no. 1190034 (D.C. and C.M.)], the Vicerrectoría de Investigación y Estudios Avanzados, Pontificia Universidad Católica de Valparaíso, Chile (D.C. and C.M.), the CNRS and the Université de Rennes 1 are gratefully acknowledged. The GENCI French national computer center is acknowledged for computational resources (Grant a0090807367). N.N. thanks also the CONICYT (Chile) and BECAS-CHILE for support of a graduate and Joint Supervision Scholarship (PUCV/UR1).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds in this article are not available from the authors.

References

  1. Qin, W.; Long, S.; Panunzio, M.; Biondi, S. Schiff bases: A short survey on an evergreen chemistry tool. Molecules 2013, 18, 12264–12289. [Google Scholar] [CrossRef] [PubMed]
  2. Fabbrizzi, L. Beauty in Chemistry: Making Artistic Molecules with Schiff Bases. J. Org. Chem. 2020, 85, 12212–12226. [Google Scholar] [CrossRef]
  3. Vigato, P.A.; Tamburini, S. The challenge of cyclic and acyclic schiff bases and related derivatives. Coord. Chem. Rev. 2004, 248, 1717–2128. [Google Scholar] [CrossRef]
  4. Hylland, K.T.; Gerz, I.; DWragg, S.; Oien-Odegaard, S.; Tilset, M. The Reactivity of Multidentate Schiff Base Ligands Derived from Bi- and Terphenyl Polyamines towards M(II) (M=Ni, Cu, Zn, Cd) and M(III) (M=Co, Y, Lu). Eur. J. Inorg. Chem. 2021, 1869–1889. [Google Scholar] [CrossRef]
  5. Karmakar, M.; Chattopadhyay, S. A comprehensive overview of the orientation of tetradentate N2O2 donor Schiff base ligands in octahedral complexes of trivalent 3d metals. J. Mol. Struct. 2019, 1186, 155–186. [Google Scholar] [CrossRef]
  6. Liu, X.; Hamon, J.-R. Recent developments in penta-, hexa- and heptadentate Schiff base ligands and their metal complexes. Coord. Chem. Rev. 2019, 389, 94–118. [Google Scholar] [CrossRef]
  7. Miroslaw, B. Homo- and Hetero-Oligonuclear Complexes of Platinum Group Metals (PGM) Coordinated by Imine Schiff Base Ligands. Int. J. Mol. Sci. 2020, 21, 3493. [Google Scholar] [CrossRef]
  8. Abu-Dief, M.; Mohamed, I.M.A. A review on versatile applications of transition metal complexes incorporating Schiff bases. J. Basic Appl. Sci. 2015, 4, 119–133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Brodowska, K.; Łodyga-Chruscinska, E. Schiff bases: Interesting range of applications in various fields of science. Chemik 2014, 68, 645–647. [Google Scholar]
  10. Gupta, K.C.; Sutar, A.K. Catalytic activities of Schiff base transition metal complexes. Coord. Chem. Rev. 2008, 252, 1420–1450. [Google Scholar] [CrossRef]
  11. Das, P.; Linert, W. Schiff base-derived homogeneous and heterogeneous palladium catalysts for the Suzuki-Miyaura reaction. Coord. Chem. Rev. 2016, 311, 1–23. [Google Scholar] [CrossRef]
  12. Santoro, O.; Zhang, X.; Redshaw, C. Synthesis of Biodegradable Polymers: A Review on the Use of Schiff-Base Metal Complexes as Catalysts for the Ring Opening Polymerization (ROP) of Cyclic Esters. Catalysts 2020, 10, 800. [Google Scholar] [CrossRef]
  13. Balas, M.; Beaudoin, S.; Proust, A.; Launay, F.; Villanneau, R. Advantages of Covalent Immobilization of Metal-Salophen on Amino-Functionalized Mesoporous Silica in Terms of Recycling and Catalytic Activity for CO2 Cycloaddition onto Epoxides. Eur. J. Inorg. Chem. 2021, 1581–1591. [Google Scholar] [CrossRef]
  14. Schulz, E. Chiral Cobalt-Salen Complexes: Ubiquitous Species in Asymmetric Catalysis. Chem. Rec. 2021, 21, 427–439. [Google Scholar] [CrossRef] [PubMed]
  15. Berhanu, A.L.; Mohiuddin, I.; Malik, A.K.; Aulakh, J.S.; Kumar, V.; Kim, K.H. A review of the applications of Schiff bases as optical chemical sensors. Trends Anal. Chem. 2019, 116, 74–91. [Google Scholar] [CrossRef]
  16. Udhayakumari, D.; Inbaraj, V. A Review on Schiff Base Fluorescent Chemosensors for Cell Imaging Applications. J. Fluorescence 2020, 30, 1203–1223. [Google Scholar] [CrossRef]
  17. Niu, M.; Yang, X.; Ma, Y.; Hao, W.; Leng, X.; Schipper, D. Construction of Zn(II)/Cd(II)-Yb(III) Schiff Base Complexes for the NIR Luminescent Sensing of Fluoroquinolone Antibiotics. Inorg. Chem. 2021, 60, 5764–5770. [Google Scholar] [CrossRef] [PubMed]
  18. González, D.M.; Hernández, L.A.; Oyarce, J.; Alfaro, A.; Novoa, N.; Cisterna, J.; Brito, I.; Carrillo, D.; Manzur, C. A new and efficient high-performance electrochemical glucose sensor based on a metallopolymer derived from a cobaltate (III) Schiff base complex. Synth. Met. 2021, 271, 116633. [Google Scholar] [CrossRef]
  19. Nayar, C.R.; Ravikumar, R. Second order nonlinearities of Schiff bases derived from salicylaldehyde and their metal complexes. J. Coord. Chem. 2014, 67, 1–16. [Google Scholar] [CrossRef]
  20. Di Bella, S.; Colombo, A.; Dragonetti, C.; Righetto, S.; Roberto, D. Zinc(II) as a Versatile Template for Efficient Dipolar and Octupolar Second-Order Nonlinear Optical Molecular Materials. Inorganics 2018, 6, 133. [Google Scholar] [CrossRef] [Green Version]
  21. Rigamonti, L.; Forni, A.; Cariati, E.; Malavasi, G.; Pasini, A. Solid-State Nonlinear Optical Properties of Mononuclear Copper(II) Complexes with Chiral Tridentate and Tetradentate Schiff Base Ligands. Materials 2019, 12, 3595. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Celedón, S.; Roisnel, T.; Artigas, V.; Fuentealba, M.; Carrillo, D.; Ledoux-Rak, I.; Hamon, J.-R.; Manzur, C. Palladium (II) complexes of tetradentate donor-acceptor Schiff base ligands: Synthesis, spectral, structural, thermal and NLO properties. New J. Chem. 2020, 44, 9190–9201. [Google Scholar] [CrossRef]
  23. Arulmurugan, S.; Kavitha, H.P.; Venkatraman, B.R. Biological activities of Schiff base and its complexes: A review. Rasayan J. Chem. 2010, 3, 385–410. [Google Scholar]
  24. Kumar, J.; Rai, A.; Raj, V. A comprehensive review on the pharmacological activity of Schiff base containing derivatives. Org. Med. Chem. Int. J. 2017, 1, 555–564. [Google Scholar] [CrossRef]
  25. Kaczmarek, M.T.; Zabiszak, M.; Nowak, M.; Jastrzab, R. Lanthanides: Schiff base complexes, applications in cancer diagnosis, therapy, and antibacterial activity. Coord. Chem. Rev. 2018, 370, 42–54. [Google Scholar] [CrossRef]
  26. Hossain, M.S.; Roy, P.K.; Zakaria, C.; Kudrat-E-Zahan, M. Selected Schiff base coordination complexes and their microbial application: A review. Int. J. Chem. Stud. 2018, 6, 19–31. [Google Scholar]
  27. Gillard, M.; Weynand, J.; Bonnet, H.; Loiseau, F.; Decottignies, A.; Dejeu, J.; Defrancq, E.; Elias, B. Flexible RuII Schiff Base Complexes: G-Quadruplex DNA Binding and Photo-Induced Cancer Cell Death. Chem. Eur. J. 2020, 26, 13849–13860. [Google Scholar] [CrossRef] [PubMed]
  28. Rigamonti, L.; Reginato, F.; Ferrari, E.; Pigani, L.; Gigli, L.; Demitri, N.; Kopel, P.; Tesarova, B.; Heger, Z. From solid state to in vitro anticancer activity of copper(II) compounds with electronicallymodulated NNO Schiff base ligands. Dalton Trans. 2020, 49, 14626–14639. [Google Scholar] [CrossRef]
  29. Cozzi, P.G. Metal-Salen Schiff base complexes in catalysis: Practical aspects. Chem. Soc. Rev. 2004, 33, 410–421. [Google Scholar] [CrossRef]
  30. Liu, X.; Manzur, C.; Novoa, N.; Celedon, S.; Carrillo, D.; Hamon, J.-R. Multidentate unsymmetrically-substituted Schiff bases and their metal complexes: Synthesis, functional materials properties, and applications to catalysis. Coord. Chem. Rev. 2018, 357, 144–172. [Google Scholar] [CrossRef]
  31. Di Bella, S. Lewis acidic zinc(II) salen-type Schiff-base complexes: Sensing properties and responsive nanostructures. Dalton Trans. 2021, 50, 6050–6063. [Google Scholar] [CrossRef]
  32. Pessoa, J.C.; Correia, I. Salan vs. salen metal complexes in catalysis and medicinal applications: Virtues and pitfalls. Coord. Chem. Rev. 2019, 388, 227–247. [Google Scholar] [CrossRef]
  33. Erxleben, A. Transition metal salen complexes in bioinorganic and medicinal chemistry. Inorg. Chim. Acta 2018, 472, 40–57. [Google Scholar] [CrossRef]
  34. Bunda, S.; Voronova, K.; Kathó, A.; Udvardy, A.; Joó, F. Palladium (II)–Salan Complexes as Catalysts for Suzuki–Miyaura C–C Cross Coupling in Water and Air. Effect of the Various Bridging Units within the Diamine Moieties on the Catalytic Performance. Molecules 2020, 25, 3993. [Google Scholar] [CrossRef]
  35. Mondal, I.; Chattopadhyay, S. Development of multi-metallic complexes using metal-salen complexes as building blocks. J. Coord. Chem. 2019, 72, 3183–3209. [Google Scholar] [CrossRef]
  36. Freire, C.; Nunes, M.; Pereira, C.; Fernandes, D.M.; Peixoto, A.F.; Rocha, M. Metallo(salen) complexes as versatile building blocks for the fabrication of molecular materials and devices with tuned properties. Coord. Chem. Rev. 2019, 394, 104–134. [Google Scholar] [CrossRef]
  37. Cisterna, J.; Fuentealba, M.; Manzur, C.; Carrillo, D. Pentacoordinated Fe(III) complex containing the cis-N2O2 asymmetrical tetradentate Schiff base and p-Br-C6H4O- as ligands. Promising building block for the construction of dipolar D-π-A architectures: Synthesis, characterization, spectroscopic, electrochemical and structural studies. J. Mol. Struct. 2021, 1228, 129709. [Google Scholar] [CrossRef]
  38. Usman Anwar, M.; Al-Harrasi, A.; Rawson, J.M. Structures, properties and applications of Cu(II) complexes with tridentate donor ligands. Dalton Trans. 2021, 50, 5099–5108. [Google Scholar] [CrossRef]
  39. Ghorai, P.; Brandão, P.; Benmansour, S.; Gómez García, C.J.; Saha, A. Azido and thiocyanato bridged dinuclear Ni(II) complexes involving 8-aminoquinoline based Schiff base as blocking ligands: Crystal structures, ferromagnetic properties and magneto-structural correlations. Polyhedron 2020, 188, 114708. [Google Scholar] [CrossRef]
  40. Thakurta, S.; Maiti, M.; Butcher, R.J.; Gómez-García, C.J.; Tsaturyan, A.A. A trinuclear nickel(II) Schiff base complex with phenoxido- and acetato-bridges: Combined experimental and theoretical magneto-structural correlation. Dalton Trans. 2021, 50, 2200–2209. [Google Scholar] [CrossRef]
  41. Dinda, R.; Ghosh, S.; Falvello, L.R.; Tomás, M.; Mak, T.C.W. Synthesis, structure, and reactivity of some new dipyridyl and diamine-bridged dinuclear oxomolybdenum(VI) complexes. Polyhedron 2006, 25, 2375–2382. [Google Scholar] [CrossRef]
  42. Rigamonti, L.; Forni, A.; Pievo, R.; Reedijk, J.; Pasini, A. Synthesis, crystal structures and magnetic properties of dinuclear copper(II) compounds with NNO tridentate Schiff base ligands and bridging aliphatic diamine and aromatic diimine linkers. Dalton Trans. 2011, 40, 3381–3393. [Google Scholar] [CrossRef]
  43. Bhowmik, P.; Kanta Das, L.; Bauzá, A.; Chattopadhyay, S.; Frontera, A.; Ghosh, A. Anion dependent supramolecular architectures in Cu(II) complexes containing N2O-donor Schiff-base and 4,4′-bipyridine ligands: Structural analyses and theoretical studies. Inorg. Chim. Acta 2016, 448, 26–33. [Google Scholar] [CrossRef]
  44. Novoa, N.; Roisnel, T.; Dorcet, V.; Cador, O.; Manzur, C.; Carrillo, D.; Hamon, J.-R. Efficient preparation of multimetallic ONO-based Schiff base complexes of nickel(II) and copper(II). New J. Chem. 2016, 40, 5920–5929. [Google Scholar] [CrossRef]
  45. Di Bella, S.; Dragonetti, C.; Pizzotti, M.; Roberto, D.; Tessore, F.; Ugo, R. Coordination and Organometallic Complexes as Second-Order Nonlinear Optical Molecular Materials. Top. Organomet. Chem. 2010, 28, 1–55. [Google Scholar] [CrossRef]
  46. Liang, L.; Astruc, D. The Copper(I)-catalyzed Alkyne-Azide Cycloaddition (CuAAC) “Click” Reaction and its Applications. An Overview. Coord. Chem. Rev. 2011, 255, 2933–2945. [Google Scholar] [CrossRef]
  47. Hooshmand, S.E.; Heidari, B.; Sedghi, R.; Varma, R.S. Recent advances in the Suzuki-Miyaura cross-coupling reaction using efficient catalysts in eco-friendly media. Green Chem. 2019, 21, 381–405. [Google Scholar] [CrossRef]
  48. Chinchilla, R.; Najera, C. Recent advances in Sonogashira reactions. Chem. Soc. Rev. 2011, 40, 5084–5121. [Google Scholar] [CrossRef] [PubMed]
  49. Novoa, N.; Roisnel, T.; Hamon, P.; Kahlal, S.; Manzur, C.; Ngo, H.M.; Ledoux-Rak, I.; Saillard, J.-Y.; Carrillo, D.; Hamon, J.-R. Four-Coordinate Nickel(II) and Copper(II) Complexes Based ONO Tridentate Schiff Base Ligands: Synthesis, Molecular Structure, Electrochemical, Linear and Nonlinear Properties, and Computational Study. Dalton Trans. 2015, 44, 18019–18037. [Google Scholar] [CrossRef]
  50. Novoa, N.; Justaud, F.; Hamon, P.; Roisnel, T.; Cador, O.; Le Guennic, B.; Manzur, C.; Carrillo, D.; Hamon, J.-R. Doubly Phenoxide-Bridged Binuclear Copper(II) Complexes with ONO Tridentate Schiff Base Ligand: Synthesis, Structural, Magnetic and Theoretical studies. Polyhedron 2015, 86, 81–88. [Google Scholar] [CrossRef] [Green Version]
  51. Novoa, N.; Manzur, C.; Roisnel, T.; Dorcet, V.; Cabon, N.; Robin-Le Guen, F.; Ledoux-Rak, I.; Kahlal, S.; Saillard, J.-Y.; Carrillo, D.; et al. Redox-Switching of ternary Ni(II) and Cu(II) complexes: Synthesis, experimental and theoretical studies along with second-order nonlinear optical properties. New J. Chem. 2019, 43, 10468–10481. [Google Scholar] [CrossRef]
  52. Kubota, M.; Ohba, S.; Saito, Y. Structure of trans-Diiodobis(triphenylphosphine) palladium(II)-trichloromethane (1/1). Acta Crystallogr. Sect. C 1991, 47, 1727–1729. [Google Scholar] [CrossRef]
  53. Celedón, S.; Roisnel, T.; Carrillo, D.; Ledoux-Rak, I.; Hamon, J.-R.; Manzur, C. Transition metal(II) complexes featuring push-pull dianionic Schiff base ligands: Synthesis, crystal structure, electrochemical and NLO studies. J. Coord. Chem. 2020, 73, 3079–3094. [Google Scholar] [CrossRef]
  54. Yang, L.; Powell, D.R.; Houser, R.P. Structural variation in copper(I) complexes with pyridylmethylamide ligands: Structural analysis with a new four-coordinate geometry index, τ4. Dalton Trans. 2007, 955–964. [Google Scholar] [CrossRef]
  55. Allen, F.H.; Kennard, O.; Watson, D.G.; Brammer, L.; Orpen, A.G.; Taylor, R. Tables of bond lengths determined by X-ray and neutron diffraction. Part 1. Bond lengths in organic compounds. J. Chem. Soc. Perkin Trans. 1987, 2, S1–S19. [Google Scholar] [CrossRef]
  56. Dankhoff, K.; Lochenie, C.; Puchtler, F.; Weber, B. Solvent Influence on the Magnetic Properties of Iron(II) Spin-Crossover Coordination Compounds with 4,4′-Dipyridylethyne as Linker. Eur. J. Inorg. Chem. 2016, 2136–2143. [Google Scholar] [CrossRef] [Green Version]
  57. Armarego, W.L.F.; Chai, C.L.L. Purification of Laboratory Chemicals, 5th ed.; Butterworth-Heinemann, Elsevier Inc.: Amsterdam, The Netherlands, 2003; ISBN 9780750675710. [Google Scholar]
  58. Singh, R.V.; Tandon, J.P. Synthesis of Hexa-coordinated Ketimine Derivatives of Germanium(IV). J. Prakt. Chem. 1979, 321, 141–150. [Google Scholar] [CrossRef]
  59. Lazić, V.; Jurković, M.; Jednaćak, T.; Hrenar, T.; Parlov Vuković, J.; Novak, P. Intra- and intermolecular hydrogen bonding in acetylacetone and benzoylacetone derived enaminone derivatives. J. Mol. Struct. 2015, 1079, 243–249. [Google Scholar] [CrossRef]
  60. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef]
  62. Van Der Sluis, P.; Spek, A.L. BYPASS: An effective method for the refinement of crystal structures containing disordered solvent regions. Acta Crystallogr. Sect. A 1990, 46, 194–201. [Google Scholar] [CrossRef]
  63. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13. [Google Scholar] [CrossRef] [Green Version]
  64. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  65. Reddy, D.S.; Kutateladze, A.G. Structure Revision of an Acorane Sesquiterpene Cordycepol A. Org. Lett. 2016, 18, 4860–4863. [Google Scholar] [CrossRef]
  66. Kutateladze, A.G.; Reddy, D.S. High-Throughput in Silico Structure Validation and Revision of Halogenated Natural Products Is Enabled by Parametric Corrections to DFT-Computed 13C NMR Chemical Shifts and Spin-Spin Coupling Constants. J. Org. Chem. 2017, 82, 3368–3381. [Google Scholar] [CrossRef]
  67. Kutateladze, A.G.; Holt, T.; Reddy, D.S. Natural Products Containing the Oxetane and Related Moieties Present Additional Challenges for Structure Elucidation: A DU8+ Computational Case Study. J. Org. Chem. 2019, 84, 7575–7586. [Google Scholar] [CrossRef] [PubMed]
  68. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  69. Schaefer, A.; Horn, H.; Ahlrichs, R.J. Fully optimized contracted Gaussian basis sets for atoms Li to Kr. J. Chem. Phys. 1992, 97, 2571–2577. [Google Scholar] [CrossRef]
  70. Schaefer, A.; Huber, C.; Ahlrichs, R.J. Fully optimized contracted Gaussian basis sets of triple zeta valence quality for atoms Li to Kr. J. Chem. Phys. 1994, 100, 5829–5835. [Google Scholar] [CrossRef]
  71. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple (errata). Phys. Rev. Lett. 1997, 78, 1396. [Google Scholar] [CrossRef] [Green Version]
  73. Adamo, C.; Barone, V. Toward reliable density functional methods without adjustable parameters: The PBE0 model. J. Chem. Phys. 1999, 110, 6158–6169. [Google Scholar] [CrossRef]
  74. Szczepanik, D.W.; Sola, M.; Andrzejak, M.; Pawełek, B.; Dominikowska, J.; Kukułka, M.; Dyduch, K.; Krygowski, T.M.; Szatylowic, H. The Role of the Long-Range Exchange Corrections in the Description of Electron Delocalization in Aromatic Species. J. Comput. Chem. 2017, 38, 1640–1654. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Mahmoudi, G.; Babashkina, M.G.; Maniukiewicz, W.; Afkhami, F.A.; Nunna, B.B.; Zubkov, F.I.; Ptaszek, A.L.; Szczepanik, D.W.; Mitoraj, M.P.; Safin, D.A. Solvent-Induced Formation of Novel Ni(II) Complexes Derived from Bis-Thiosemicarbazone Ligand: An Insight from Experimental and Theoretical Investigations. Int. J. Mol. Sci. 2021, 22, 5337. [Google Scholar] [CrossRef]
  76. Mitoraj, M.P.; Babashkina, M.G.; Robeyns, K.; Sagan, F.; Szczepanik, D.W.; Seredina, Y.V.; Garcia, Y.; Safin, D.A. Chameleon-like Nature of Anagostic Interactions and Its Impact on Metalloaromaticity in Square-Planar Nickel Complexes. Organometallics 2019, 38, 1973–1981. [Google Scholar] [CrossRef]
  77. Henderson, T.M.; Izmaylov, A.F.; Scalmani, G.; Scuseria, G.E. Can short-range hybrids describe long-range-dependent properties? J. Chem. Phys. 2009, 131, 044108. [Google Scholar] [CrossRef] [PubMed]
  78. Glendening, E.D.; Badenhoop, J.K.; Reed, A.E.; Carpenter, J.E.; Bohmann, J.A.; Morales, C.L.; Weinhold, F. NBO 6.0; Theoretical Chemistry Institute, University of Wisconsin: Madison, WI, USA, 2013; Available online: http://nbo6.chem.wisc.edu (accessed on 16 March 2021).
Molecules 26 05316 sch001 550

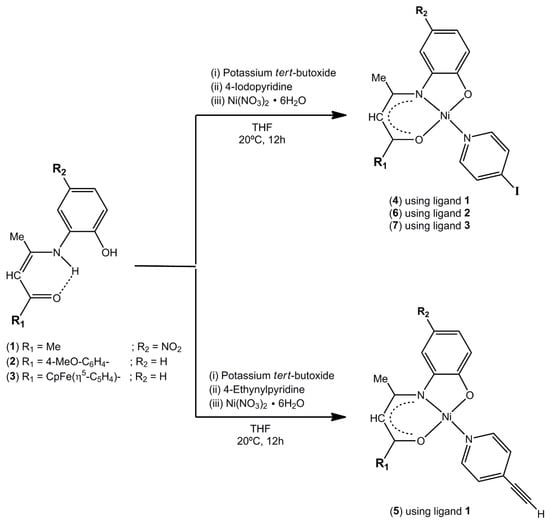

Scheme 1. Synthesis of complexes 4–7.
Scheme 1. Synthesis of complexes 4–7.
Molecules 26 05316 sch001
Molecules 26 05316 sch002 550

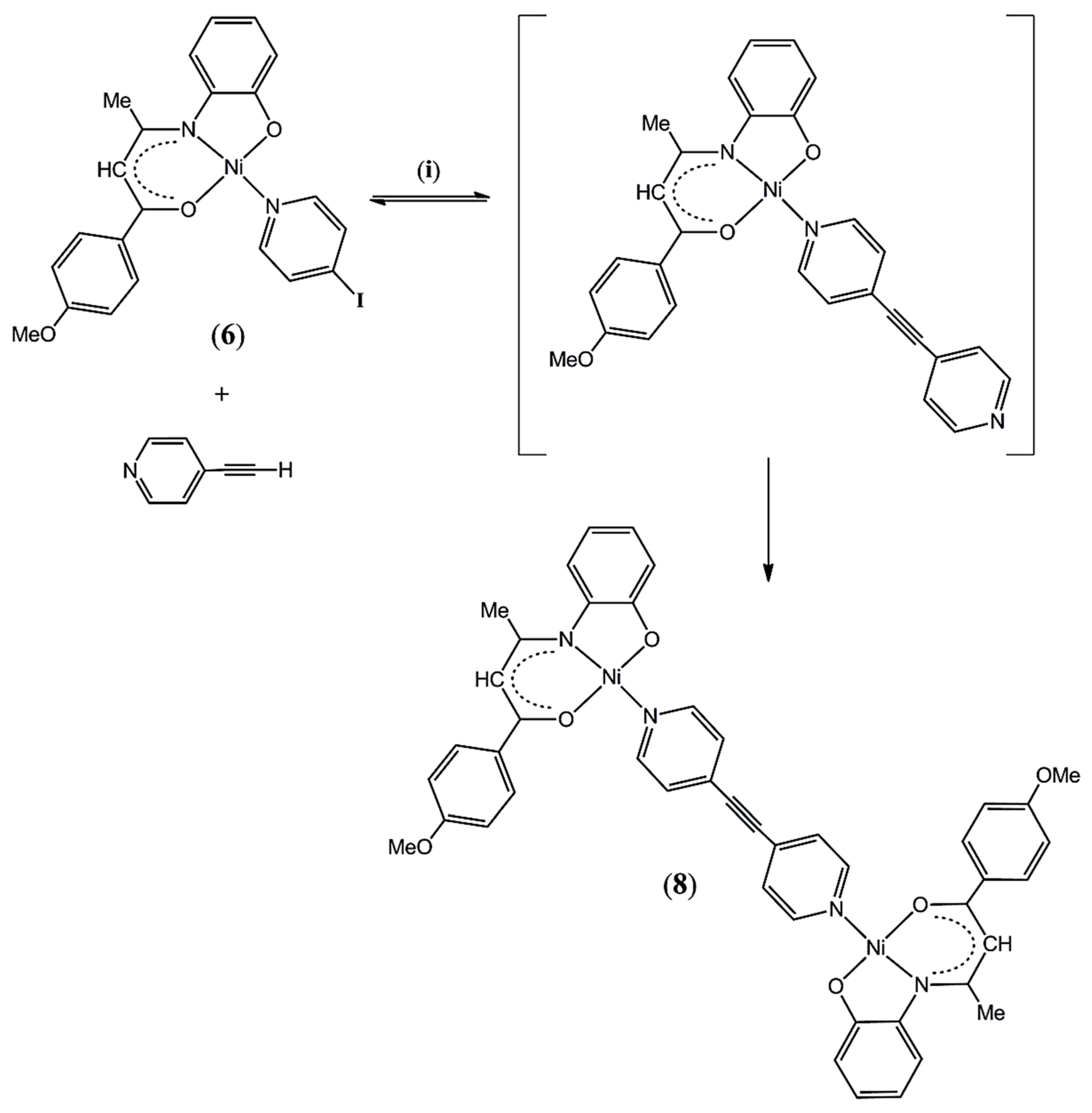

Scheme 2. Formation of the binuclear complex 8; (i) = trans-PdCl2(PPh3)2, CuI, TEA:THF (1:5, v:v), 12 h at 20 °C.
Scheme 2. Formation of the binuclear complex 8; (i) = trans-PdCl2(PPh3)2, CuI, TEA:THF (1:5, v:v), 12 h at 20 °C.
Molecules 26 05316 sch002
Molecules 26 05316 g001 550

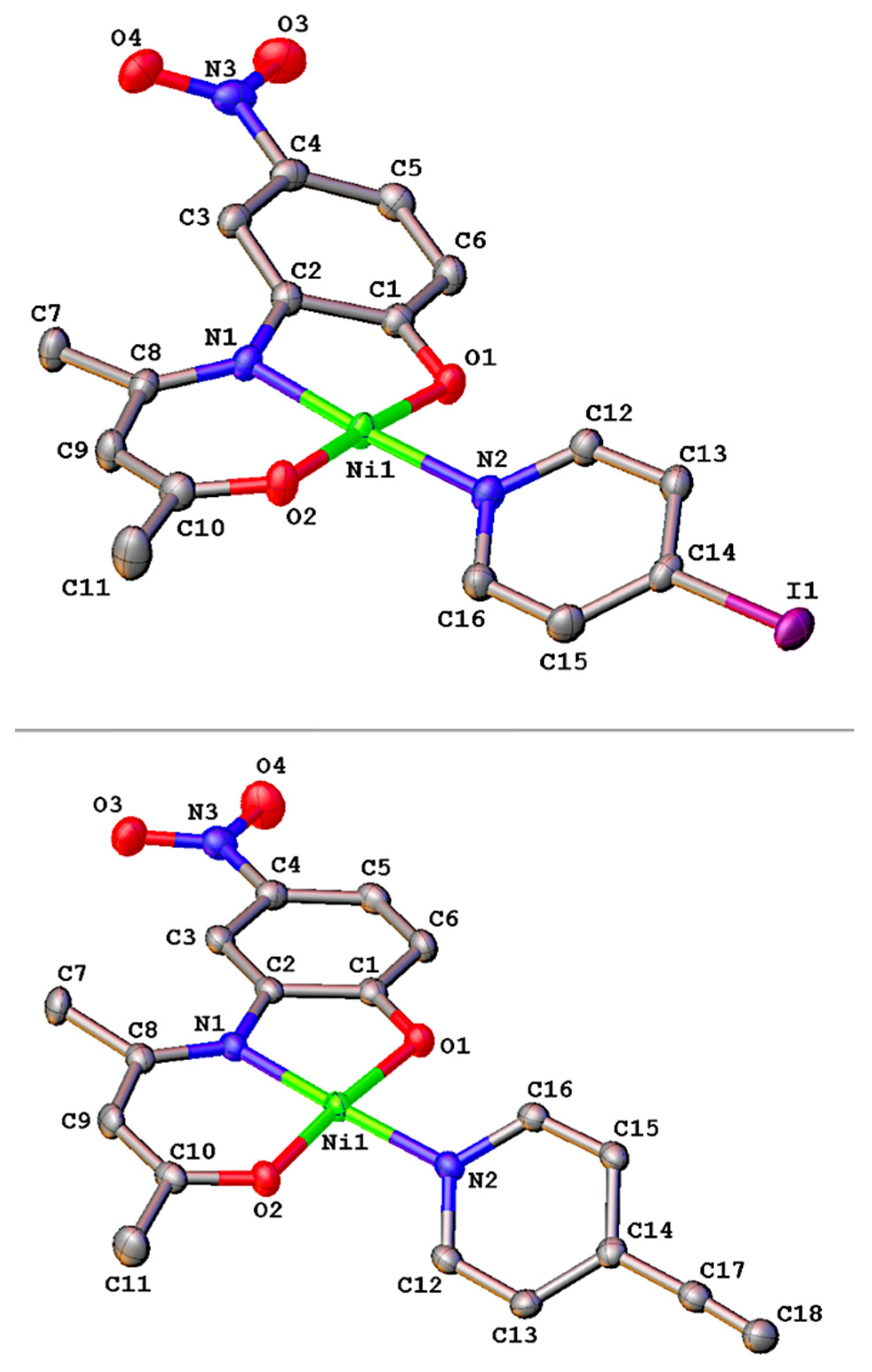

Figure 1. Molecular structures of complexes 4 (top) and 5 (bottom), with labelling scheme for selected atoms. Hydrogens have been omitted for clarity. Thermal ellipsoids are drawn at the 50% probability level.
Figure 1. Molecular structures of complexes 4 (top) and 5 (bottom), with labelling scheme for selected atoms. Hydrogens have been omitted for clarity. Thermal ellipsoids are drawn at the 50% probability level.
Molecules 26 05316 g001
Molecules 26 05316 g002 550

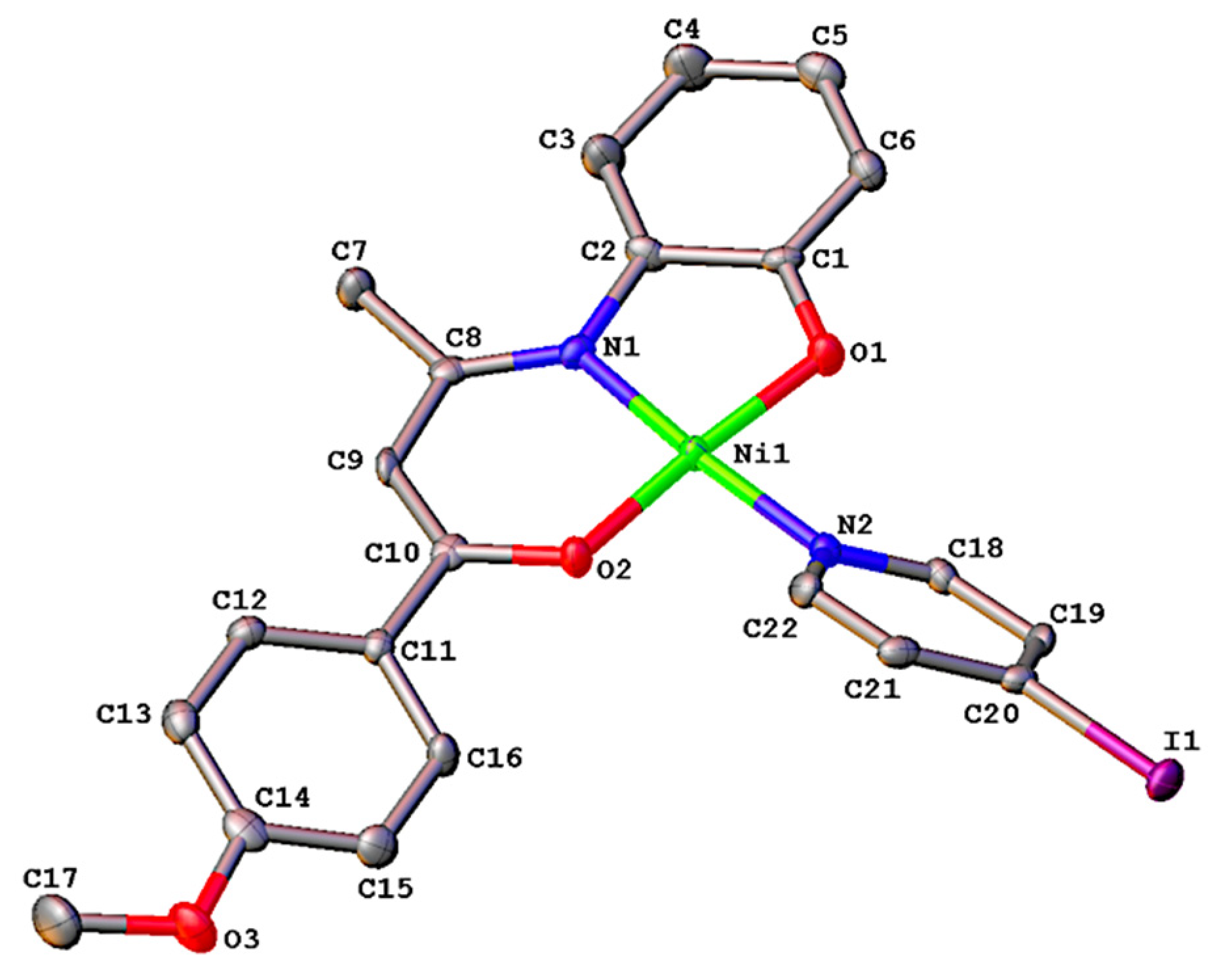

Figure 2. Molecular structure of complex 6 with labelling scheme for selected atoms. Hydrogens have been omitted for clarity. Thermal ellipsoids are drawn at the 50% probability level.
Figure 2. Molecular structure of complex 6 with labelling scheme for selected atoms. Hydrogens have been omitted for clarity. Thermal ellipsoids are drawn at the 50% probability level.
Molecules 26 05316 g002
Molecules 26 05316 g003 550
Figure 3. Molecular structure of complex 8 (molecule A)with labelling scheme for selected atoms. Hydrogens have been omitted for clarity. Thermal ellipsoids are drawn at the 40% probability level. Half unit of molecule was generated by symmetry operations -x, -y, -z.
Figure 3. Molecular structure of complex 8 (molecule A)with labelling scheme for selected atoms. Hydrogens have been omitted for clarity. Thermal ellipsoids are drawn at the 40% probability level. Half unit of molecule was generated by symmetry operations -x, -y, -z.
Molecules 26 05316 g003
Molecules 26 05316 g004 550
Figure 4. The DFT-optimized structure of complex 7.
Figure 4. The DFT-optimized structure of complex 7.
Molecules 26 05316 g004
Molecules 26 05316 g005 550
Figure 5. The MO energy level ordering of the five investigated complexes.
Figure 5. The MO energy level ordering of the five investigated complexes.
Molecules 26 05316 g005
Table
Table 1. Selected bond distances (Å) and angles (°) for compounds 4–8. Upper value: X-ray; lower value (in italics): DFT. Values into brackets are the corresponding computed Wiberg bond indices.
Table 1. Selected bond distances (Å) and angles (°) for compounds 4–8. Upper value: X-ray; lower value (in italics): DFT. Values into brackets are the corresponding computed Wiberg bond indices.
KERRYPNX4567 a8
Bond distances
Ni(1)-O(1)1.8365(14)
1.830 [0.368]		1.828(2)
1.831 [0.367]		1.819(3)
1.823 [0.388]
1.824 [0.388]		1.766(6) b, 1.892(5) b
1.823 [0.387]
Ni(1)-O(2)1.8313(14)
1.831 [0.334]		1.817(2)
1.832 [0.334]		1.812(3)
1.834 [0.323]
1.836 [0.322]		1.817(2)
1.833 [0.323]
Ni(1)-N(1)1.8786(16)
1.877 [0.399]		1.880(2)
1.877 [0.397]		1.880(3)
1.874 [0.403]
1.872 [0.404]		1.876(3)
1.873 [0.404]
Ni(1)-N(2)1.9402(16)
1.954 [0.291]		1.920(2)
1.949 [0.295]		1.924(3)
1.951 [0.286]
1.950 [0.286]		1.962(3)
1.951 [0.289]
Bond angles
O(1)-Ni(1)-O(2)176.53(6)
176		174.92(9)
177		173.55(13)
176
175		167.39(19)
176
N(1)-Ni(1)-N(2)175.88(7)
175		175.73(10)
175		175.22(15)
175
176		174.85(11)
175
O(1)-Ni(1)-N(1)87.39(7)
87		87.44(9)
87		88.34(14)
87
87		86.8(2)
87
O(1)-Ni(1)-N(2)88.84(7)
89		88.58(9)
89		87.01(14)
88
88		88.10(19)
88
O(2)-Ni(1)-N(1)95.96(7)
97		97.60(9)
96		97.72(14)
97
96		97.18(10)
96
O(2)-Ni(1)-N(2)87.83(7)
88		86.36(9)
88		86.97(14)
88
88		87.93(10)
88
a No X-ray structure data. b rotational disorder of the [C6H4O] fragment over two positions with equal occupancy (see Section 3.3 below).
Table
Table 2. Computed NAO charges within the nickel coordination sphere.
Table 2. Computed NAO charges within the nickel coordination sphere.
45678
F1.031.031.031.031.03
N(1)−0.52−0.52−0.51−0.51−0.51
N(2)−0.46−0.45−0.45−0.45−0.45
O(1)−0.71−0.71−0.73−0.73−0.73
O(2)−0.69−0.69−0.70−0.70−0.70
Table
Table 3. Crystal data, details of data collection and structure refinement parameters for compounds 4, 5, 6, 8 and 9.
Table 3. Crystal data, details of data collection and structure refinement parameters for compounds 4, 5, 6, 8 and 9.
45689
Empirical Formula C16H14IN3NiO4C18H15N3NiO4C22H19IN2NiO3C46H38N4Ni2O6C36H30I2P2Pd
Formula mass, g mol−1497.91396.04545.00860.22884.74
Collection T, K150(2)150(2)150(2)150(2)150(2)
crystal systemMonoclinicOrthorhombicOrthorhombicMonoclinicMonoclinic
space groupP21/cPcnbPbcaP21/cC2/c
a (Å)5.4337(4)13.5799(16)7.3551(4)11.3760(15)12.1810(5)
b (Å)26.3384(17)14.3565(17)22.5317(16)5.1862(6)15.3526(6)
c (Å)11.6425(8)16.9584(18)24.0937(16)32.521(4)19.4328(8)
β (°)92.270(3)909090.782(6)91.777(2)
V (Å3)1664.9(2)3306.2(7)3992.9(4)1918.5(4)3632.4(3)
Z48824
Dcalcd (g cm−3)1.9861.5911.8131.4891.618
Crystal size (mm)0.28 × 0.22 × 0.030.41 × 0.32 × 0.030.22 × 0.09 × 0.070.58 × 0.07 × 0.030.50 × 0.13 × 0.07
Crystal colorRedOrangeorangeBrownRed
Crystal descriptionPlatePlatePrismStickStick
F(000)976163221608921712
abs coeff (mm−1)3.0471.2042.5451.0392.321
θ range (°)2.336–27.4802.790–27.5153.034–27.4851.790–27.5712.853–27.442
range h,k,l−7/6, −34/30, −15/15−17/11, −13/18, -21/21−9/6, −21/29, −31/28−14/10, −6/6, −42/42−15/15, −19/16, −25/25
No. total refl.2614214085192011586628071
No. unique refl.37913777457243684140
Rint0.03190.05600.07840.04890.0336
Comp. θmax (%)99.799.199.898.699.7
Max/min transmission0.913/0.7110.965/0.6340.837/0.6630.969/0.7400.850/0.598
Data/Restraints/Parameters3791/0/2283777/0/2374572/0/2644368/0/2824140/0/186
Final R [I > 2σ(I)]R1 = 0.0198
wR2 = 0.0449		R1 = 0.0399
wR2 = 0.0962		R1 = 0.0451
wR2 = 0.0874		R1 = 0.0523
wR2 = 0.1087		R1 = 0.0184
wR2 = 0.0507
R indices (all data)R1 = 0.0225
wR2 = 0.0469		R1 = 0.0758
wR2 = 0.1146		R1 = 0.0705
wR2 = 0.0981		R1 = 0.0873
wR2 = 0.1248		R1 = 0.0206
wR2 = 0.0525
Goodness of fit/F21.1371.0281.0320.9740.890
Largest diff. Peak/hole (eÅ−3)0.451/−0.5290.592/−0.4810.632/−0.8000.419/−0.6190.501/−0.421
CCDC number20918962091897209189320918942091895
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Novoa, N.; Manzur, C.; Roisnel, T.; Kahlal, S.; Saillard, J.-Y.; Carrillo, D.; Hamon, J.-R. Nickel(II)-Based Building Blocks with Schiff Base Derivatives: Experimental Insights and DFT Calculations. Molecules 2021, 26, 5316. https://doi.org/10.3390/molecules26175316

AMA Style

Novoa N, Manzur C, Roisnel T, Kahlal S, Saillard J-Y, Carrillo D, Hamon J-R. Nickel(II)-Based Building Blocks with Schiff Base Derivatives: Experimental Insights and DFT Calculations. Molecules. 2021; 26(17):5316. https://doi.org/10.3390/molecules26175316

Chicago/Turabian Style

Novoa, Néstor, Carolina Manzur, Thierry Roisnel, Samia Kahlal, Jean-Yves Saillard, David Carrillo, and Jean-René Hamon. 2021. "Nickel(II)-Based Building Blocks with Schiff Base Derivatives: Experimental Insights and DFT Calculations" Molecules 26, no. 17: 5316. https://doi.org/10.3390/molecules26175316

APA Style

Novoa, N., Manzur, C., Roisnel, T., Kahlal, S., Saillard, J. -Y., Carrillo, D., & Hamon, J. -R. (2021). Nickel(II)-Based Building Blocks with Schiff Base Derivatives: Experimental Insights and DFT Calculations. Molecules, 26(17), 5316. https://doi.org/10.3390/molecules26175316

Article Metrics

Back to TopTop
