Article

Structural and Magnetic Studies on Nickel(II) and Cobalt(II) Complexes with Polychlorinated Diphenyl(4-pyridyl)methyl Radical Ligands

by
Ryota Matsuoka
1,2,
Tatsuhiro Yoshimoto
3,
Yasutaka Kitagawa
4 and
Tetsuro Kusamoto
1,2,5,*
1
Institute for Molecular Science, 5-1 Higashiyama, Myodaiji, Okazaki 444-8787, Aichi, Japan
2
SOKENDAI (The Graduate University for Advanced Studies), Shonan Village, Hayama 240-0193, Kanagawa, Japan
3
Department of Materials Chemistry, Ryukoku University, Otsu 520-2194, Shiga, Japan
4
Division of Chemical Engineering, Department of Materials Engineering Science, Graduate School of Engineering Science, Osaka University, Toyonaka, Osaka 560-8531, Japan
5
JST-PRESTO, 4-1-8, Honcho, Kawaguchi 332-0012, Saitama, Japan
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(18), 5596; https://doi.org/10.3390/molecules26185596
Submission received: 26 August 2021 / Revised: 9 September 2021 / Accepted: 10 September 2021 / Published: 15 September 2021
(This article belongs to the Special Issue Coordination Programming for Electro-, Magneto-, and Photofunctional Molecular Systems: A Theme Issue in Honor of Prof. Dr. Hiroshi Nishihara)
Browse Figures
Versions Notes

Abstract

:
New magnetic metal complexes with organic radical ligands, [M(hfac)2(PyBTM)2] (M = NiII, CoII; hfac = hexafluoroacetylacetonato, PyBTM = (3,5-dichloro-4-pyridyl)bis(2,4,6-trichlorophenyl)methyl radical), were prepared and their crystal structures, magnetic properties, and electronic structures were investigated. Metal ions in [M(hfac)2(PyBTM)2] constructed distorted octahedral coordination geometry, where the two PyBTM molecules ligated in the trans configuration. Magnetic investigation using a SQUID magnetometer revealed that χT increased with decreasing temperature from 300 K in the two complexes, indicating an efficient intramolecular ferromagnetic exchange interaction taking place between the spins on PyBTM and M with J/kB of 21.8 K and 11.8 K for [NiII(hfac)2(PyBTM)2] and [CoII(hfac)2(PyBTM)2]. The intramolecular ferromagnetic couplings in the two complexes could be explained by density functional theory calculations, and would be attributed to a nearly orthogonal relationship between the spin orbitals on PyBTM and the metal ions. These results demonstrate that pyridyl-containing triarylmethyl radicals are key building blocks for magnetic molecular materials with controllable/predictable magnetic interactions.

1. Introduction

Molecular materials with magnetic functions have been focused on as promising components for future molecule-based devices. This is mainly due to their good tunability in their physical properties by molecular design. Among the molecule-based magnetic materials developed to date, the coupling of magnetic metal ions and open-shell organic radical ligands has resulted in a variety of unprecedented materials such as a one-dimensional chain magnet with slow magnetic relaxation, light-responsive breathing crystals, and high-temperature molecular magnets [1,2,3]. In these materials, precise control of magnetic interactions between the radical and metals is the crucial factor for achieving desired functions. In general, a radical–metal magnetic interaction is interpreted by overlapping and orthogonality of spin orbitals on the radical and metal ion; the former and the latter result in antiferromagnetic (AFM) and ferromagnetic (FM) interactions, respectively [4,5]. In radical-coordinated metal complexes, coordination geometry around the metal center predominantly affects the strength (J, an exchange coupling constant) and sign (FM or AFM) of through-bond radical–metal interaction.
Polychlorinated triarylmethyl (PTM) radicals are an important class of stable organic radicals possessing an unpaired electron with S = 1/2 [6]. PTM radicals bearing metal-binding sites such as carboxylato and sulfonato moieties have been utilized to prepare magnetic molecular materials using a metal–radical heterospin strategy [7,8]. For example, efficient AFM interactions mediated through the carboxylato groups were elucidated between carboxylato-functionalized PTM, PTMMC, and CuII with a JR-Cu/kB value of −23.1 K [9].
We have recently prepared a series of PTM radicals, PyBTM, bisPyTM, trisPyM, (PyBTM = (3,5-dichloro-4-pyridyl)bis(2,4,6-trichlorophenyl)methyl radical, bisPyTM = bis(3,5-dichloro-4-pyridyl)(2,4,6-trichlorophenyl)methyl radical, trisPyM = tris(3,5-dichloro-4-pyridyl)methyl radical), possessing one, two, and three pyridyl groups in the triarylmethyl skeleton (Figure 1) [10,11,12]. Importantly, the pyridyl nitrogen atoms in these radicals can coordinate to metal ions such as CuII, MnII, ZnII, and AuI ions [12,13,14,15,16,17,18]. We have shown that CuII complexes [CuII(hfac)2(PyBTM)2] (hfac = hexafluoroacetylacetonato) and [CuII(hfac)2(bisPyTM)] demonstrated FM radical–CuII interaction with JR-Cu/kB of 47 K for the former and 46 K (low-temperature phase) and 11 K (high-temperature phase) for the latter [15,16], while [MnII(hfac)2(PyBTM)2] displayed AFM radical–MnII coupling (JR-Mn/kB of −9.7 K) [13]. These efficient radical–metal couplings are attributed to the spin densities of PyBTM and bisPyTM, which are well delocalized onto the π-conjugated framework including the pyridyl nitrogen atoms [10,11].
In this study, we prepared novel NiII and CoII complexes with coordinated PyBTMs, [M(hfac)2(PyBTM)2] (M = NiII, CoII) (Figure 1), to elucidate how the central metal ion affects structural and magnetic characteristics in this class of molecular heterospin systems. We herein report the synthesis, structures, and magnetic properties of [M(hfac)2(PyBTM)2] (M = NiII, CoII), where efficient FM radical–metal couplings were achieved. These results are different from PTM-ligated CoII and NiII complexes [M(PTMMC)2(pyridine)3(H2O)] (M = NiII, CoII) reported previously, where two PTMMCs were coordinated to the metal ions via the carboxylate groups in the trans fashion to demonstrate AFM radical–metal couplings with JR-M/kB = −23.6 K for M = NiII and −7.6 K for M = CoII [19].

2. Results and Discussion

[M(hfac)2(PyBTM)2] (M = NiII, CoII) were prepared by mixing PyBTM and M(hfac)2·nH2O in mixed solvent under reflux. The resulting complexes were characterized by elemental analysis, diffuse reflectance spectroscopy, and powder and single-crystal X-ray diffractions (Figure S1–3, Table S1). The complexes showed no detectable ESR signal in the solid state at room temperature. Both the X-ray diffraction studies revealed that [NiII(hfac)2(PyBTM)2] and [CoII(hfac)2(PyBTM)2] are both isostructural with the other [M(hfac)2(PyBTM)2] (M = ZnII, CuII, MnII) reported previously [13,16]. Here, we mainly focus on the crystal structure of [CoII(hfac)2(PyBTM)2] as the representative to discuss the structural characteristics of the two complexes. The unit cell contains two crystallographically non-equivalent [CoII(hfac)2(PyBTM)2] molecules, and one of them is shown in Figure 2a. The CoII ion forms a distorted octahedral coordination geometry, and is located on an inversion center. Two PyBTM radicals ligate to the CoII ion via the nitrogen atoms in a trans configuration. Averaged M–O1, M–O2, and M–N bond lengths for the two non-equivalent complexes are 2.048 Å, 2.047 Å, and 2.140 Å for M = CoII and 2.028 Å, 2.040 Å, and 2.078 Å for M = NiII. The coordination geometry is elongated along the M–N bond direction, as observed similarly in [ZnII(hfac)2(PyBTM)2] and [MnII(hfac)2(PyBTM)2] [13,16]. Trifluoromethyl groups in the hfac ligands are disordered in two positions. In the ligated PyBTM radicals, the C1 atom is located within a plane constructed by C4, C10, and C16 atoms, forming sp2 hybridization. The three aromatic rings construct propeller-like structures due to steric repulsion between the chlorine atoms in their ortho positions. These structural characteristics are similar to a non-coordinated PyBTM [10], confirming the radical character of the PyBTM ligands in [M(hfac)2(PyBTM)2].
Shortest M–M and C1–C1 distances in the crystal lattice are 8.5382 Å and 8.501(6) Å for M = CoII and 8.5557 Å and 8.51(2) Å for M = NiII; the spin centers are separated sterically. Several intermolecular Cl···F, Cl···H, and F···F atomic contacts were confirmed, which would mediate weak intermolecular AFM interactions suggested in the magnetic studies.
The magnetic properties of the complexes were examined using a SQUID magnetometer (Figure 3a). In [NiII(hfac)2(PyBTM)2], the χT value at 300 K was 2.12 cm3·K·mol−1 and was a little higher than the value expected from one S = 1 for NiII and two S = 1/2 spins for PyBTMs (1.75 cm3·K·mol–1 with g = 2.00). The χT value increased with decreasing temperature and reached a maximum around 20 K, indicating an FM interaction dominant between the spins. The subsequent decrease in the χT value below 20 K would be due to the intermolecular AFM interaction, as observed similarly in the other [M(hfac)2(PyBTM)2] complexes [13,16]. The FM interaction can be attributed to the intramolecular exchange interaction between the NiII and the PyBTM spins. The temperature dependence of χT was analyzed by a symmetrical three-spin model with H = −2JM-R(SRSM + SMSR) [20], where SM = 1 or 3/2 for M = NiII or CoII, SR = 1/2, and JM-R indicates an exchange coupling constant between the spins on M and PyBTM. The χT–T plot of [NiII(hfac)2(PyBTM)2] was fitted using Equation (1) [20]. N, μB, and kB indicate the Avogadro constant, the Bohr magneton, and the Boltzmann constant, respectively; x = exp(JM-R/kBT), and θ represents the intermolecular AFM interactions.
χ = [NμB2g2/kB(T−θ)][(10 + 2x−2 + 2x−4)/(5 + 3x−2 + 3x−4 + x−6)]
The fitting afforded JNi-R/kB, g, and θ values of 21.8 K, 2.13, and −2.63 K, respectively. The positive JNi-R/kB value confirms an efficient FM PyBTM–NiII interaction.
Figure 3b depicts the temperature dependence of χT of [CoII(hfac)2(PyBTM)2] measured at 10 kOe. The χT value was 3.78 cm3·K·mol−1 at 300 K (2.625 cm3·K·mol−1 when assumed from isolated one S = 3/2 and two S = 1/2 spins with g = 2.00), and increased upon cooling, confirming the predominant FM interaction taking place between the spins on CoII with S = 3/2 and PyBTM with S = 1/2. The subsequent decrease in χT below 20 K is presumably due to the intermolecular AFM interaction. The χT behavior was analyzed with Equation (2) based on the symmetrical three-spin model, as was done for [NiII(hfac)2(PyBTM)2], to yield JCo-R/kB, g, and θ values of 11.8 K, 2.24, and −3.87 K, respectively. A g-value larger than 2.0 would reflect magnetic anisotropy and spin-orbit coupling characteristic of CoII [20]. The positive JCo-R/kB value agreed with the presence of FM interaction between the spins.
χ = [NμB2g2/4kB(T−θ)][(35 + 10x−3 + 10x−5 + x−8)/(3 + 2x−3 + 2x−5 + x−8)]
The magnetic couplings between metal ions and radicals in the present heterospin system are interpreted based on the overlap or orthogonality of relevant spin orbitals, in which the former and the latter mediate AFM and FM exchange interactions, respectively. As the SOMO of PyBTM on the nitrogen atom has a pπ character, orbital overlap is expected for dyz and dxz orbitals of the metal ions while an orthogonal relationship can be achieved for dz2, dx2–y2, and dxy orbitals, assuming that the M–N bond direction corresponds to the z-axis direction. All these orbital interactions contribute to the magnetism of the complexes, thereby determining their net magnetic properties. In [M(hfac)2(PyBTM)2], it is expected that NiII possesses two unpaired electrons on the dz2 and dx2–y2 orbitals while CoII bears two of the three unpaired electrons on the dz2 and dx2–y2 orbitals. Accordingly, the FM couplings observed experimentally can be explained as orbital orthogonality of the spin orbitals.
The FM radical–metal couplings in [M(hfac)2(PyBTM)2] were reproduced theoretically by broken-symmetry DFT calculation. The geometries used for the calculations were extracted from the crystallographic data. [NiII(hfac)2(PyBTM)2] possesses a quintet ground state. The phase of spin density on the centering carbon atoms of the PyBTM ligands and the NiII ion is the same (Figure 4a). The results represent an FM configuration of the spins. The calculated JNi–R/kB values are 27.9 and 29.8 K for the two crystallographically non-quivalent molecules. These results were consistent with the experimental results, while the JNi–R/kB values calculated are little larger than the value estimated experimentally. Similarly, sextet ground states with FM radical–CoII couplings (5.4 and 4.8 K) are calculated for two crystallographically independent [CoII(hfac)2(PyBTM)2] molecules. The spin density distribution of one of the two [CoII(hfac)2(PyBTM)2] molecules is shown in Figure 4b. Namely, the theoretical calculations nicely support the FM interaction detected in magnetic studies.
In conclusion, novel heterospin complexes [NiII(hfac)2(PyBTM)2] and [CoII(hfac)2(PyBTM)2] were prepared and their structural and magnetic characteristics were investigated. The metal ions formed a distorted octahedral coordination environment with the two PyBTM radicals coordinating in the trans configuration in the solid state. Magnetic investigation elucidated FM interactions operated between PyBTM and the metal ions in the two complexes. The FM interactions could be interpreted as an orthogonal relationship between the spin orbitals. These results demonstrate that pyridyl-containing triarylmethyl radicals are key building blocks for magnetic molecular materials with controllable/predictable magnetic interactions.

3. Materials and Methods

3.1. General Methods

Unless otherwise noted, solvents (dichloromethane, chloroform, and hexane) and reagents ([CoII(hfac)2·nH2O] and [NiII(hfac)2·nH2O]) were purchased from TCI Co., Ltd. (Tokyo, Japan), FUJIFILM Wako Pure Chemical Corp. (Osaka, Japan), Kanto Chemical Co., Inc. (Tokyo, Japan), or Merck KGaA (Darmstadt, Germany), and used without further purification. Dry dichloromethane and hexane were purified with Ultimate Solvent System 4S (AS ONE Corp., Osaka, Japan). PyBTM was prepared according to the previous literature [10].

3.2. Syntheses of Complexes

[CoII(hfac)2(PyBTM)2]. Under a nitrogen atmosphere, [CoII(hfac)2·nH2O] (51.7 mg, 0.102 mmol for n = 2) was dissolved in dry hexane (30 mL) under reflux. To this solution was added a solution of PyBTM (105 mg, 0.202 mmol) in dry dichloromethane and dry hexane (1.4 mL and 2.6 mL) at the same temperature, and the mixture was refluxed for 16 h. The resulting suspension was cooled to −30 °C for 2 h, and the precipitates were collected by filtration. The solid was recrystallized from chloroform to give [CoII(hfac)2(PyBTM)2] as a red solid (37.9 mg, 0.025 mmol, 25%). Anal. Calcd for C46H14Cl16F12N2O4Co ([CoII(hfac)2(PyBTM)2]): C, 36.52; H, 0.93; N, 1.85. Found: C, 36.48; H, 1.17; N, 1.91. The single crystal of [CoII(hfac)2(PyBTM)2] suitable for X-ray analysis was obtained by slow vapor diffusion of hexane into a chloroform solution of [CoII(hfac)2(PyBTM)2] at 30 °C.
[NiII(hfac)2(PyBTM)2]. Under a nitrogen atmosphere, [NiII(hfac)2·nH2O] (51.4 mg, 0.101 mmol for n = 2) was dissolved in a mixed solvent of dry hexane (30 mL), dry dichloromethane (15 mL), and dry chloroform (14 mL) under reflux. To this solution was added a solution of PyBTM (105 mg, 0.202 mmol) in dry dichloromethane and dry hexane (1.4 mL and 2.6 mL) at the same temperature, and the mixture was refluxed for 15 h. The resulting suspension was cooled to −30 °C for 2 h, and the precipitates were collected by filtration. The solid was recrystallized from chloroform to give [NiII(hfac)2(PyBTM)2] as a red solid (71.4 mg, 0.047 mmol, 47%). Anal. Calcd for C46H14Cl16F12N2O4Ni ([NiII(hfac)2(PyBTM)2]): C, 36.53; H, 0.93; N, 1.85. Found: C, 36.28; H, 1.03; N, 1.90. The single crystal of [NiII(hfac)2(PyBTM)2] suitable for X-ray analysis was obtained by slow vapor diffusion of hexane into a chloroform solution of [NiII(hfac)2(PyBTM)2] at 30 °C.

3.3. Single-Crystal X-ray Diffraction Study

The data for single-crystal X-ray diffraction analyses were collected at 113 K on a ROD, Synergy Custom system (Rigaku Oxford Diffraction, Tokyo, Japan) equipped with mirror monochromated Mo-Kα radiation. A suitable single crystal was mounted on a looped film (micromount) with Paraton-N. Data were processed using CrysAlisPro 1.171.39.43c (Rigaku Oxford Diffraction, Tokyo, Japan). The structures were solved using SHELXT [21] and the whole structure was refined against F2 with SHELXL-2018/3 [22]. All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were located at idealized positions and were refined using a riding model with fixed thermal parameters. Crystal structure data (CIF, CCDC 2103614 for [CoII(hfac)2(PyBTM)2] and 2103615 for [NiII(hfac)2(PyBTM)2]) can be obtained free of charge from the Cambridge Crystallographic Data Centre.

3.4. Powder X-ray Diffraction Study

Powder X-ray diffraction measurements were performed at room temperature using a MiniFlex600 diffractometer (Rigaku Corp., Tokyo, Japan) (Cu-Kα radiation, λ= 1.5406 Å) operating at 40 kV/15 mA with a Kβ foil filter. The recorded diffraction pattern was analyzed by SmartLab Studio II (Rigaku Corp., Tokyo, Japan). The initial lattice parameters were obtained from the single-crystal data measured at 113 K, and were refined by the Pawley method.

3.5. Magnetic Measurements

The temperature dependence of the magnetic susceptibility of complexes was measured with a MPMS-7 SQUID magnetometer (Quantum Design Japan, Inc., Tokyo, Japan). Aluminum foil was used as a sample container, whose magnetic contribution was subtracted as background by measuring its own magnetic susceptibility in every measurement. The diamagnetic correction χdia for the sample was carried out with Pascal’s constants. χdia: 7.41 × 10−4 cm3·K·mol−1 for [CoII(hfac)2(PyBTM)2]; 7.40 × 10−4 cm3·mol−1 for [NiII(hfac)2(PyBTM)2].

3.6. DFT Calculations

The calculations were carried out using the Gaussian 16 Revision C.01 program package [23]. The geometry of each complex was extracted from the crystallographic data. Single-point calculations were performed assuming either sextet or doublet states for [CoII(hfac)2(PyBTM)2] and quintet or singlet states for [NiII(hfac)2(PyBTM)2], at the uB3LYP level of theory with the LANL2DZ (Hay-Wadt ECP) basis set for the metal atoms and the 6-31G(d) basis set for the other atoms [24,25,26]. The intramolecular exchange interactions were considered within the approximate spin-projection (AP) method proposed by Yamaguchi and co-workers [27,28,29]. Discussion on the difference between the calculated JM–R/kB values and the experimentally obtained ones is provided in the Supplementary Materials.

Supplementary Materials

Discussion on JM–R/kB values; Figure S1. Observed and calculated powder X-ray diffraction profiles for compounds; Figure S2. Crystal structure of [NiII(hfac)2(PyBTM)2]; Figure S3. Diffuse reflectance spectra of compounds; Table S1. Crystallographic data of complexes.

Author Contributions

Conceptualization, T.K.; methodology, T.K. and R.M.; validation, T.K., R.M., and Y.K.; formal analysis, T.K. and R.M.; investigation, T.Y., T.K., R.M., and Y.K.; resources, T.K., R.M., and Y.K.; data curation, T.K. and R.M.; writing—original draft preparation, T.K. and R.M.; writing—review and editing, T.Y., T.K., R.M., and Y.K.; visualization, T.K. and R.M.; supervision, T.K. and R.M.; project administration, T.K.; funding acquisition, T.K. and R.M. All authors have read and agreed to the published version of the manuscript.

Funding

The present study was supported by JST PRESTO Grant Number JPMJPR20L4 and JSPS KAKENHI Grant Numbers JP20H02759 and JP21K14649 and JP19K05401.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

A part of this work was performed with the aid of the Instrument Center, Inst. Mol. Sci. Okazaki, Japan. The computations were partly performed with the Research Center for Computational Science, Okazaki, Japan.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Caneschi, A.; Gatteschi, D.; Lalioti, N.; Sangregorio, C.; Sessoli, R.; Venturi, G.; Vindigni, A.; Rettori, A.; Pini, M.G.; Novak, M.A. Cobalt(II)-Nitronyl Nitroxide Chains as Molecular Magnetic Nanowires. Angew. Chem. Int. Ed. 2001, 40, 1760–1763. [Google Scholar] [CrossRef]
  2. Fedin, M.; Ovcharenko, V.; Sagdeev, R.; Reijerse, E.; Lubitz, W.; Bagryanskaya, E. Light-Induced Excited Spin State Trapping in an Exchange-Coupled Nitroxide-Copper(II)-Nitroxide Cluster. Angew. Chem. Int. Ed. 2008, 47, 6897–6899. [Google Scholar] [CrossRef]
  3. Perlepe, P.; Oyarzabal, I.; Mailman, A.; Yquel, M.; Platunov, M.; Dovgaliuk, I.; Rouzières, M.; Négrier, P.; Mondieig, D.; Suturina, E.A.; et al. Metal-Organic Magnets with Large Coercivity and Ordering Temperatures up to 242 °C. Science 2020, 370, 587–592. [Google Scholar] [CrossRef] [PubMed]
  4. Rey, P.; Ovcharenko, V.I. Copper(II) Nitroxide Molecular Spin-Transition Complexes. In Magnetism: Molecules to Materials IV.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2003; pp. 41–63. [Google Scholar] [CrossRef]
  5. Iwamura, H.; Inoue, K. Magnetic Ordering in Metal Coordination Complexes with Aminoxyl Radicals. In Magnetism: Molecules to Materials II.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2003; pp. 61–108. [Google Scholar] [CrossRef]
  6. Veciana, J.; Ratera, I. Polychlorotriphenylmethyl Radicals: Towards Multifunctional Molecular Materials. In Stable Radicals: Fundamentals and Applied Aspects of Odd-Electron Compounds; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2010; pp. 33–80. [Google Scholar] [CrossRef]
  7. Roques, N.; Maspoch, D.; Datcu, A.; Wurst, K.; Ruiz-Molina, D.; Rovira, C.; Veciana, J. Self-Assembly of Carboxylic Substituted PTM Radicals: From Weak Ferromagnetic Interactions to Robust Porous Magnets. Polyhedron 2007, 26, 1934–1948. [Google Scholar] [CrossRef]
  8. Ribas, X.; Maspoch, D.; Wurst, K.; Veciana, J.; Rovira, C. Coordination Capabilities of a Novel Organic Polychlorotriphenylmethyl Monosulfonate Radical. Inorg. Chem. 2006, 45, 5383–5392. [Google Scholar] [CrossRef] [PubMed]
  9. Maspoch, D.; Ruiz-Molina, D.; Wurst, K.; Vidal-Gancedo, J.; Rovira, C.; Veciana, J. Synthesis, Structural and Magnetic Properties of a Series of Copper(II) Complexes Containing a Monocarboxylated Perchlorotriphenylmethyl Radical as a Coordinating Open-Shell Ligand. J. Chem. Soc. Dalton Trans. 2004, 4, 1073–1082. [Google Scholar] [CrossRef]
  10. Hattori, Y.; Kusamoto, T.; Nishihara, H. Luminescence, Stability, and Proton Response of an Open-Shell (3,5- Dichloro-4-Pyridyl)Bis(2,4,6-Trichlorophenyl)Methyl Radical. Angew. Chem. Int. Ed. 2014, 53, 11845–11848. [Google Scholar] [CrossRef] [PubMed]
  11. Kimura, S.; Tanushi, A.; Kusamoto, T.; Kochi, S.; Sato, T.; Nishihara, H. A Luminescent Organic Radical with Two Pyridyl Groups: High Photostability and Dual Stimuli-Responsive Properties, with Theoretical Analyses of Photophysical Processes. Chem. Sci. 2018, 9, 1996–2007. [Google Scholar] [CrossRef] [Green Version]
  12. Kimura, S.; Uejima, M.; Ota, W.; Sato, T.; Kusaka, S.; Matsuda, R.; Nishihara, H.; Kusamoto, T. An Open-Shell, Luminescent, Two-Dimensional Coordination Polymer with a Honeycomb Lattice and Triangular Organic Radical. J. Am. Chem. Soc. 2021, 143, 4329–4338. [Google Scholar] [CrossRef]
  13. Kusamoto, T.; Kimura, S.; Nishihara, H. Structural and Magnetic Investigations of a Heterospin System Composed of High-Spin Mn(II) and Pyridyl-Containing Triarylmethyl Radicals. Chem. Lett. 2016, 45, 1057–1059. [Google Scholar] [CrossRef]
  14. Hattori, Y.; Kusamoto, T.; Nishihara, H. Enhanced Luminescent Properties of an Open-Shell (3,5-Dichloro-4-Pyridyl)Bis(2,4,6-Trichlorophenyl)Methyl Radical by Coordination to Gold. Angew. Chem. Int. Ed. 2015, 54, 3731–3734. [Google Scholar] [CrossRef]
  15. Kimura, S.; Uchida, H.; Kusamoto, T.; Nishihara, H. One-Dimensional Magnetic Chain Composed of CuII and Polychlorinated Dipyridylphenylmethyl Radical: Temperature-Dependent Jahn-Teller Distortion Correlated to π-Conjugation and Magnetic Properties. Dalton Trans. 2019, 48, 7090–7093. [Google Scholar] [CrossRef] [PubMed]
  16. Kusamoto, T.; Hattori, Y.; Tanushi, A.; Nishihara, H. Intramolecular Ferromagnetic Radical-CuII Coupling in a CuII Complex Ligated with Pyridyl-Substituted Triarylmethyl Radicals. Inorg. Chem. 2015, 54, 4186–4188. [Google Scholar] [CrossRef] [PubMed]
  17. Ogino, Y.; Kusamoto, T.; Hattori, Y.; Shimada, M.; Tsuchiya, M.; Yamanoi, Y.; Nishibori, E.; Sugimoto, K.; Nishihara, H. Solvent-Controlled Doublet Emission of an Organometallic Gold(I) Complex with a Polychlorinated Diphenyl(4-Pyridyl)Methyl Radical Ligand: Dual Fluorescence and Enhanced Emission Efficiency. Inorg. Chem. 2017, 56, 3909–3915. [Google Scholar] [CrossRef] [PubMed]
  18. Kimura, S.; Matsuoka, R.; Kimura, S.; Nishihara, H.; Kusamoto, T. Radical-Based Coordination Polymers as a Platform for Magnetoluminescence. J. Am. Chem. Soc. 2021, 143, 5610–5615. [Google Scholar] [CrossRef]
  19. Maspoch, D.; Domingo, N.; Ruiz-Molina, D.; Wurst, K.; Hernández, J.M.; Lloret, F.; Tejada, J.; Rovira, C.; Veciana, J. First-Row Transition-Metal Complexes Based on a Carboxylate Polychlorotriphenylmethyl Radical: Trends in Metal-Radical Exchange Interactions. Inorg. Chem. 2007, 46, 1627–1633. [Google Scholar] [CrossRef]
  20. Matsumoto, N.; Inoue, K.; Ohba, M.; Okawa, H.; Kida, S. Synthesis and Magnetic Property of Imidazolate-Bridged Cu(II)–M(II)–Cu(II) Complexes (M = Zn, Cu, Ni, Co, Mn). Bull. Chem. Soc. Jpn. 1992, 65, 2283–2285. [Google Scholar] [CrossRef]
  21. Sheldrick, G.M. SHELXT—Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. Sect. A Found. Crystallogr. 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  22. Sheldrick, G.M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  23. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian16 Revision C.01.; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  24. Hariharan, P.C.; Pople, J.A. The Influence of Polarization Functions on Molecular Orbital Hydrogenation Energies. Theor. Chim. Acta 1973, 28, 213–222. [Google Scholar] [CrossRef]
  25. Hay, P.J.; Wadt, W.R. Ab Initio Effective Core Potentials for Molecular Calculations. Potentials for the Transition Metal Atoms Sc to Hg. J. Chem. Phys. 1985, 82, 270–283. [Google Scholar] [CrossRef]
  26. Becke, A.D. Density-Functional Thermochemistry. III. The Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  27. Soda, T.; Kitagawa, Y.; Onishi, T.; Takano, Y.; Shigeta, Y.; Nagao, H.; Yoshioka, Y.; Yamaguchi, K. Ab Initio Computations of Effective Exchange Integrals for H-H, H-He-H and Mn2O2 Complex: Comparison of Broken-Symmetry Approaches. Chem. Phys. Lett. 2000, 319, 223–230. [Google Scholar] [CrossRef]
  28. Yamaguchi, K.; Kawakami, T.; Takano, Y.; Kitagawa, Y.; Yamashita, Y.; Fujita, H. Analytical and Ab Initio Studies of Effective Exchange Interactions, Polyradical Character, Unpaired Electron Density, and Information Entropy in Radical Clusters (R)N: Allyl Radical Cluster (N = 2−10) and Hydrogen Radical Cluster (N = 50). Int. J. Quantum Chem. 2002, 90, 370–385. [Google Scholar] [CrossRef]
  29. Kitagawa, Y.; Saito, T.; Yamaguchi, K. Approximate spin projection for broken-symmetry method and its application. In Symmetry (Group Theory) and Mathematical Treatment in Chemistry; IntechOpen: London, UK, 2018; pp. 121–139. [Google Scholar] [CrossRef] [Green Version]
Molecules 26 05596 g001 550

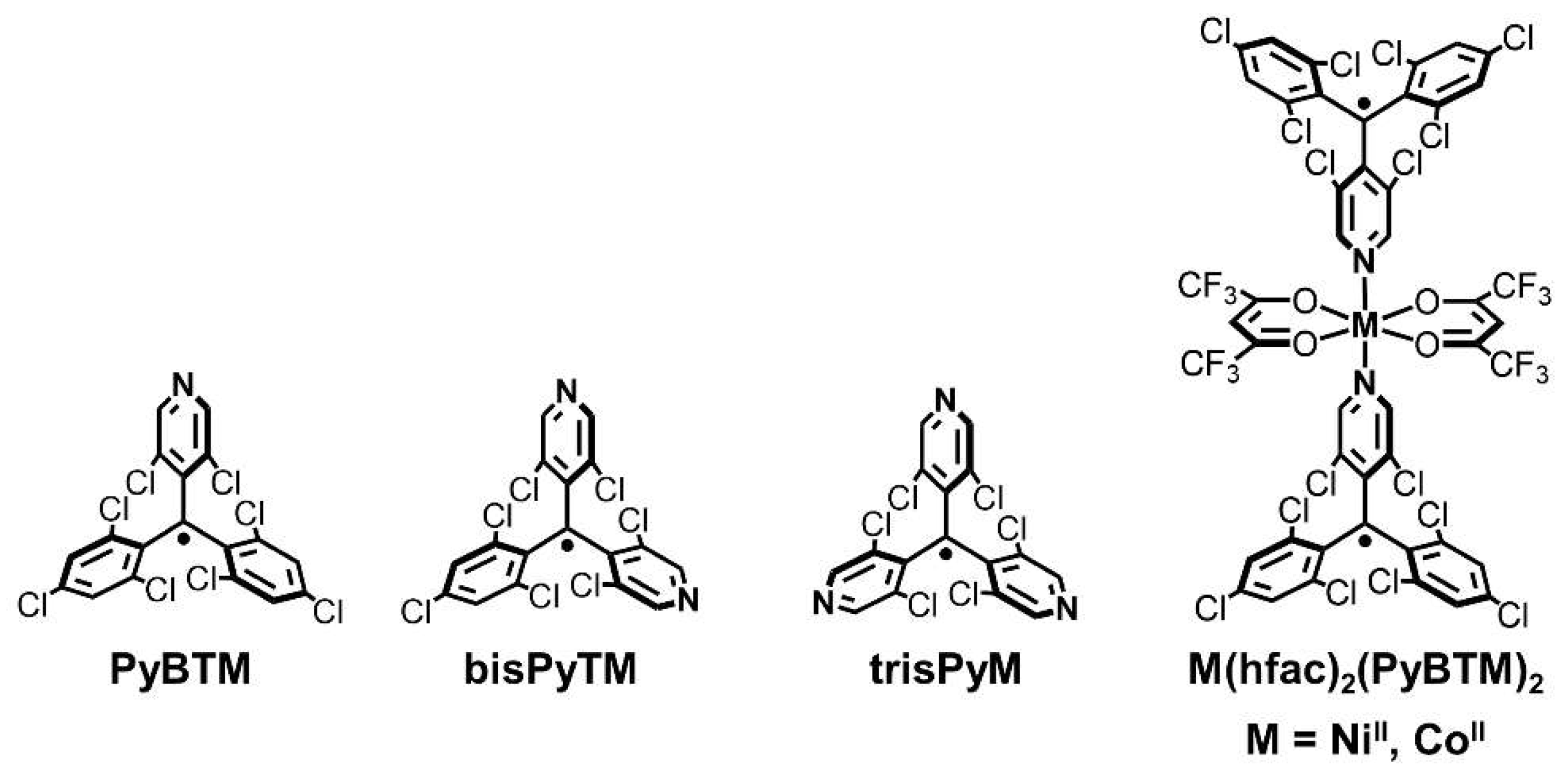

Figure 1. Chemical structures of radicals and [M(hfac)2(PyBTM)2] (M = NiII, CoII).
Figure 1. Chemical structures of radicals and [M(hfac)2(PyBTM)2] (M = NiII, CoII).
Molecules 26 05596 g001
Molecules 26 05596 g002 550

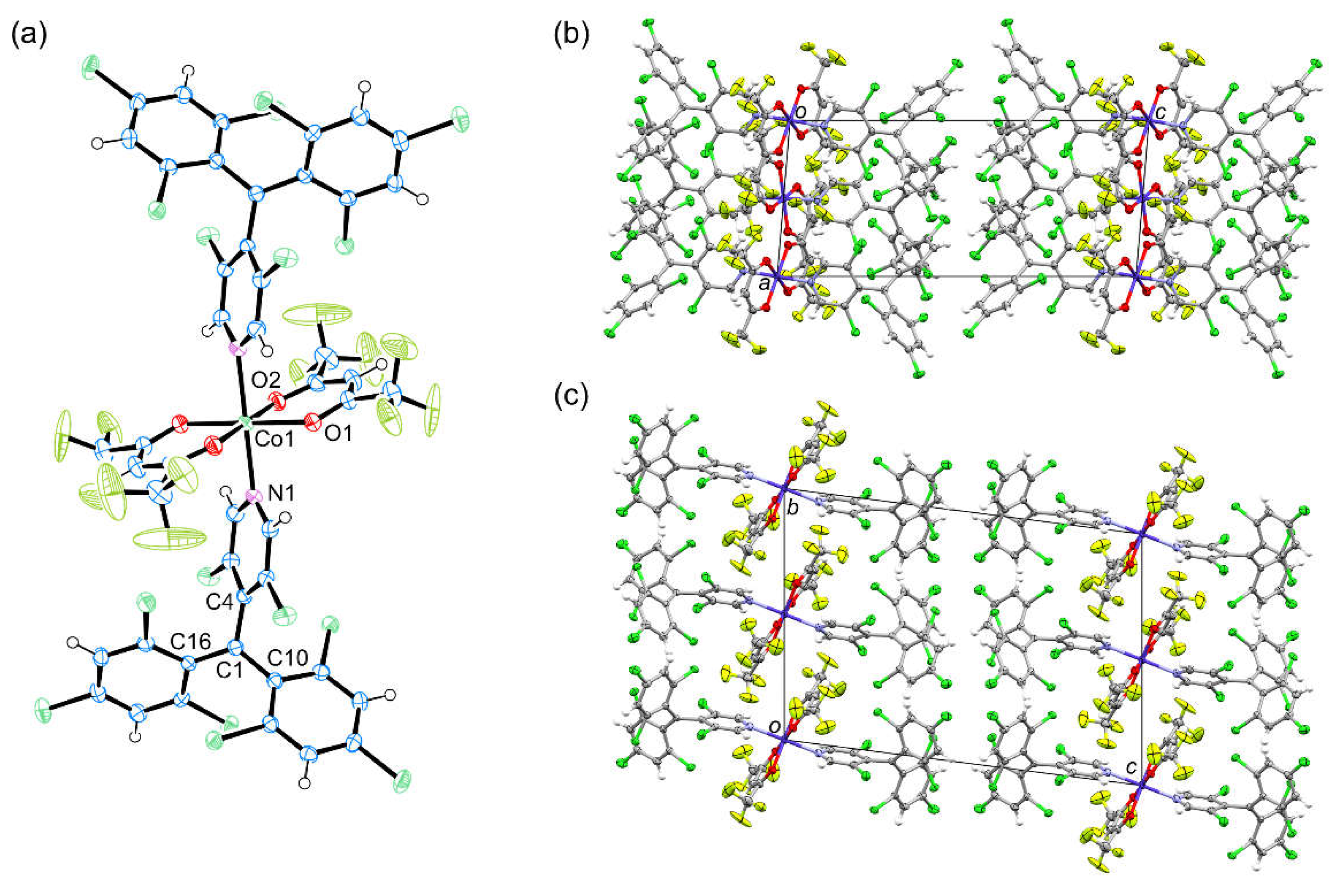

Figure 2. (a) Molecular structure of [CoII(hfac)2(PyBTM)2] in the crystal. (b) Crystal structure viewed along the b-axis and (c) the a-axis. The disorder of trifluoromethyl groups is omitted for clarity.
Figure 2. (a) Molecular structure of [CoII(hfac)2(PyBTM)2] in the crystal. (b) Crystal structure viewed along the b-axis and (c) the a-axis. The disorder of trifluoromethyl groups is omitted for clarity.
Molecules 26 05596 g002
Molecules 26 05596 g003 550

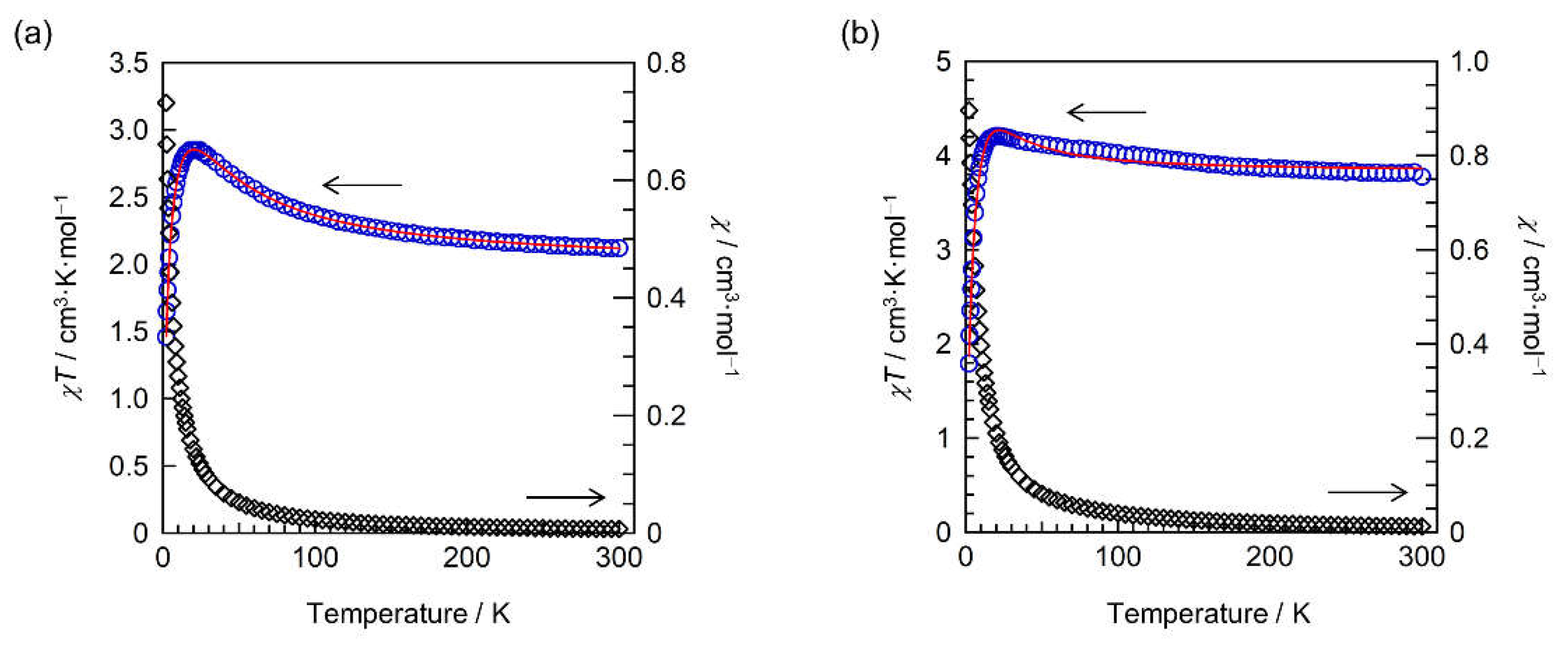

Figure 3. Temperature-dependent χ and χT at 10 kOe of (a) [NiII(hfac)2(PyBTM)2] and (b) [CoII(hfac)2(PyBTM)2]. Red lines indicate fitting curves.
Figure 3. Temperature-dependent χ and χT at 10 kOe of (a) [NiII(hfac)2(PyBTM)2] and (b) [CoII(hfac)2(PyBTM)2]. Red lines indicate fitting curves.
Molecules 26 05596 g003
Molecules 26 05596 g004 550
Figure 4. Spin-density distribution of (a) [NiII(hfac)2(PyBTM)2] and (b) [CoII(hfac)2(PyBTM)2] calculated using DFT: uB3LYP/6-31G(d) for C, H, O, Cl, F, and N; LANL2DZ for Ni and Co. One of the two crystallographically independent molecules is shown in each complex.
Figure 4. Spin-density distribution of (a) [NiII(hfac)2(PyBTM)2] and (b) [CoII(hfac)2(PyBTM)2] calculated using DFT: uB3LYP/6-31G(d) for C, H, O, Cl, F, and N; LANL2DZ for Ni and Co. One of the two crystallographically independent molecules is shown in each complex.
Molecules 26 05596 g004
