Synthesis of the Hexahydropyrrolo-[3,2-c]-quinoline Core Structure and Strategies for Further Elaboration to Martinelline, Martinellic Acid, Incargranine B, and Seneciobipyrrolidine

Abstract

Natural products are rich sources of interesting scaffolds possessing a plethora of biological activity. With the isolation of the martinella alkaloids in 1995, namely martinelline and martinellic acid, the pyrrolo[3,2-c]quinoline scaffold was discovered. Since then, this scaffold has been found in two additional natural products, viz. incargranine B and seneciobipyrrolidine. These natural products have attracted attention from synthetic chemists both due to the interesting scaffold they contain, but also due to the biological activity they possess. This review highlights the synthetic efforts made for the preparation of these alkaloids and formation of analogues with interesting biological activity.

1. Introduction

Natural products have been and continue to be an immense source of inspiration for organic chemists looking for challenging synthetic targets to test new synthetic strategies and methodologies [1,2,3,4,5,6,7,8,9]. In addition, natural products are good sources for discovery of novel scaffolds, which is important inspiration for new structural motifs in medicinal chemistry and eventually for drug discovery [10,11,12]. As of today, approximately 50% of all drugs approved by the US Food and Drug Administration (FDA) are based on natural products or derived from a natural product scaffold [13,14,15,16]. Many natural products are rich in stereocenters and possess a high degree of unsaturated carbon bonds. These properties are highly desirable in the development of pharmaceutically active compounds, since the clinical success of drug candidates directly correlates to their three-dimensional structure [17,18].

One such scaffold comprised of three stereocenters is the hexahydropyrrolo[3,2-c]quinoline scaffold, which was first discovered in the martinella alkaloids in 1995 (Figure 1) by Witherup and co-workers at the Merck laboratories [19]. They isolated martinelline (1) and martinellic acid (2) from the roots of the tropical plants Martinella iquitosensis and Martinella obovata. In 2016, martinelline (1) was also isolated from the leaves of Emilia coccinea (Sims) G Dons originating from Southern Nigeria [20]. The same year, martinellic acid (2) was identified in the Australian cane toad skin Bufo marinus [21], as well as in the flowering plant Elephantopus scaber [22]. The biological properties displayed by the martinella alkaloids included high binding affinity to bradykinin-, α₁-adrenergic-, and muscarinic receptors, as well as antimicrobial activity [19]. In fact, the juice from the martinella and emilia plants have been used by South American natives and Nigerians, respectively, to treat eye infections [23,24]. The emilia leaves have also traditionally been used in Southern Nigeria for birth control [20].

Since the discovery of the martinella alkaloids, the partially reduced pyrrolo[3,2-c]quinoline scaffold has been found in two additional natural products, namely incargranine B (3) and seneciobipyrrolidine (4) (Figure 1). Incargranine B (3) was isolated from Incarvillea mairei var. grandiflora by the Zhang group in 2010. They incorrectly identified the alkaloid as comprising an indolo-[1,7]-naphthyridine core structure [25]. The Lawrence group suggested that incargranine B (3) contained a dipyrroloquinoline scaffold after structural revision of the alkaloid [26]. A second dipyrroloquinoline alkaloid was isolated in 2013 from Senecio scandens and termed seneciobipyrrolidine (4) [27]. Despite the fact that Senecio scandens is a common Chinese herbal medicine used for treatment of a variety of ailments [28], neither of the dipyrroloquinolines have been assessed for biological activity.

All four natural products (1–4) have been isolated with an exo-stereochemistry, i.e., a trans-relationship between protons H-8 and H-9 and a cis-relationship between protons H-9 and H-10 (see martinelline (1) in Figure 1). Witherup and co-workers reported optical rotation values of α = +9.4 (c = 0.02, MeOH) and α = −8.5 (c = 0.01, MeOH) for martinelline (1) and martinellic acid (2), respectively. From synthetic preparation of the enantiopure alkaloids accompanied by reports of their optical rotation values (

Table 1. Reported optical rotation for the isolated and synthetically prepared natural products martinelline (1), martinellic acid (2), incargranine B (3), and seneciobipyrrolidine (4).

Compound	Optical Rotation [αD]	Concentration (mg/ 10 cm3)	Reference
1 (isolated)	+9.4	0.02	[19]
(−)-1	−108.0	0.09	[30]
(+)-1	+98.6	0.02	[30]
2 (isolated)	−8.5	0.01	[19]
(−)-2	−122.7	0.37	[29]
(−)-2	−118	0.3	[32]
(−)-2	−164.3	0.14	[30]
(+)-2	+165.5	0.11	[30]
(−)-2	−164.8	0.33	[31]
3 (isolated)	−12	0.275	[25]
(±)-3	−16.7	0.275	[26]
4 (isolated)	−72.9	0.10	[27]

), one may conclude that the isolated compounds consisted of epimeric mixtures [29,30,31,32]. After synthetic preparation of incargranine B ((±)3), the Lawrence group also concluded that the aglycon of the isolated alkaloid 3 was a mixture of epimers [26]. No values for optical rotation have been reported for synthetically prepared seneciobipyrrolidine (4). However, the α-value for the isolated seneciobipyrrolidine (4) reported by the Tan group (α = −72.9 (c = 0.10, MeOH)) may suggest that this alkaloid was of higher enantiopurity than the three other isolated natural products (1–3).

This review will highlight the synthetic efforts made for the preparation of these alkaloids, with particular focus on the assembly of the partially reduced pyrroloquinoline core structure, and formation of analogues with interesting biological activity. The review does not include synthetic approaches towards the structurally related hexahydroindolo-[3,2-c]-quinoline or the hexahydropyrrolo-[3,4-c]-pyrrole structures. Synthetic routes towards the martinella alkaloids have been reviewed in 2004 by Nyerges and in 2008 by Lovely and Bararinarayana [33,34]. Since 2008, new approaches towards the alkaloids have emerged, and medicinal applications of this core structure have been developed. Apart from specific prerequisite information, this review will not cover literature prior to the review in 2008.

2. Total and Formal Synthesis of Martinellic Acid (2)

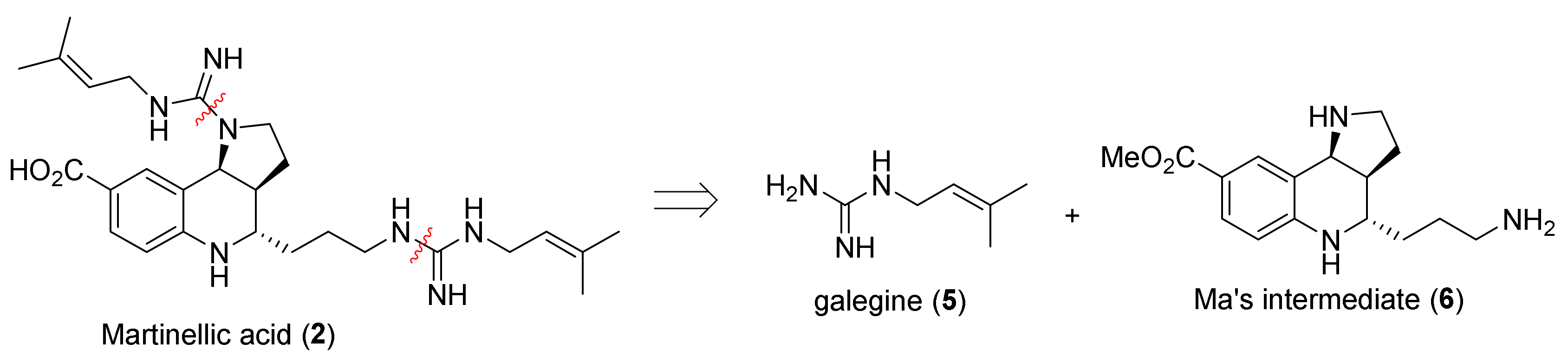

Synthesis of martinellic acid (2) has consistently been divided into two parts, namely assembly of the tricyclic scaffold and attachment of the galegine (5) side chains (Scheme 1). These guanidine-containing side chains were first isolated from Verbesina encelioiodes (Asteraceae) [35], and later identified as a toxic and antidiabetic component from Galega officinalis (Goat’s Rue) [36]. Guanylation of the martinella scaffold has been conducted under different reaction conditions [30,37,38,39], one of which is presented below in Ma and coworkers’ asymmetric synthesis of (−)-martinellic acid ((−)-2) from 2001 (Scheme 2) [29,37]. The precursor for the guanylation reaction in Ma and coworkers’ protocol, namely triamine 6, has since 2001 been referred to as Ma’s intermediate (6) and has been a key target compound in a handful of total and formal total syntheses of the martinella alkaloids [30,32,38,39,40,41,42,43,44,45,46,47]. We have therefore included a description of Ma and coworkers’ asymmetric synthesis of (−)-martinellic acid ((−)-2) in this review.

In their 2001 publication, Ma and co-workers reported the first total synthesis of martinellic acid (2) [37]. The report was followed up in a full account in 2003 (Scheme 2) [29]. The synthesis was initiated from chiral β-amino ester 7, which was obtained from 1,4-butandiol using a chiral auxiliary, following a procedure developed by Davies and co-workers [48]. Copper catalyzed coupling of 1,4-diiodobenzene with β-amino ester 8 provided acid 9. In the following N-, O-acylation step, predominance of O-acylation over N-acylation of amino acid 9 was observed. It was thus found that the acid first had to be converted to the corresponding methyl ester 10 before treatment with acetic anhydride at elevated temperature facilitated acylation of both the amino- and hydroxy functionalities. The resulting N-, O-acylated methyl ester was then hydrolyzed to the corresponding acid followed by a re-acylation of the free hydroxyl group. This provided acid 11 in 84% yield from methyl ester 10. Formation of the acyl chloride upon treatment with oxalyl chloride followed by an aluminum chloride (AlCl₃) mediated intramolecular acylation provided ketone 12 in 62% yield.

Palladium-catalyzed carbonylation of the iodide moiety within compound 12 followed by deacetylation and silyl protection of the hydroxyl group provided ketone 13. Alkylation of ketone 13 was conducted by enolization with lithium bis(trimethylsilyl)amide (LiHMDS) followed by addition of 2-bromoethyl triflate as the alkylating agent. Ma and co-workers found that the resulting ethyl bromide product was unstable and therefore converted the bromide directly to the corresponding azide with sodium azide. Reduction of the azide with triphenyl phosphine and water provided imine 14 in 48% yield from ketone 13. Reduction of imine 14 was found to work selectively with sodium borohydride only after deprotection of the O-silyl group. Protection of the resulting diamine with trifluoroacetic anhydride provided compound 15 in 94% yield from imine 14. A reaction sequence including mesylation, azidation, azide reduction, and N-deprotection gave triamine 6 (Ma’s intermediate) as the HCl salt.

To further convert the triamine 6 to martinellic acid, the primary amine and the hindered secondary amine functionality in the pyrrolidine ring was guanylated. Through experimentation, the Ma group found that the most efficient guanylation agent was N-Boc-protected methylisothiourea 16. Since elevated temperatures led to decomposition of the triamine 6, silver nitrate was used to promote the substitution of methanethiol in the guanylation reaction. By changing the solvent from acetonitrile to a mixture of acetonitrile and methanol (2:1), the yield for the reaction could be improved from 20% to 65%. This effect was most likely due to the poor solubility of triamine 6 in acetonitrile. The methyl ester 17 was finally converted to martinellic acid ((−)-2), as the TFA salt in 91% yield through base catalyzed hydrolysis of the ester and subsequent treatment with TFA.

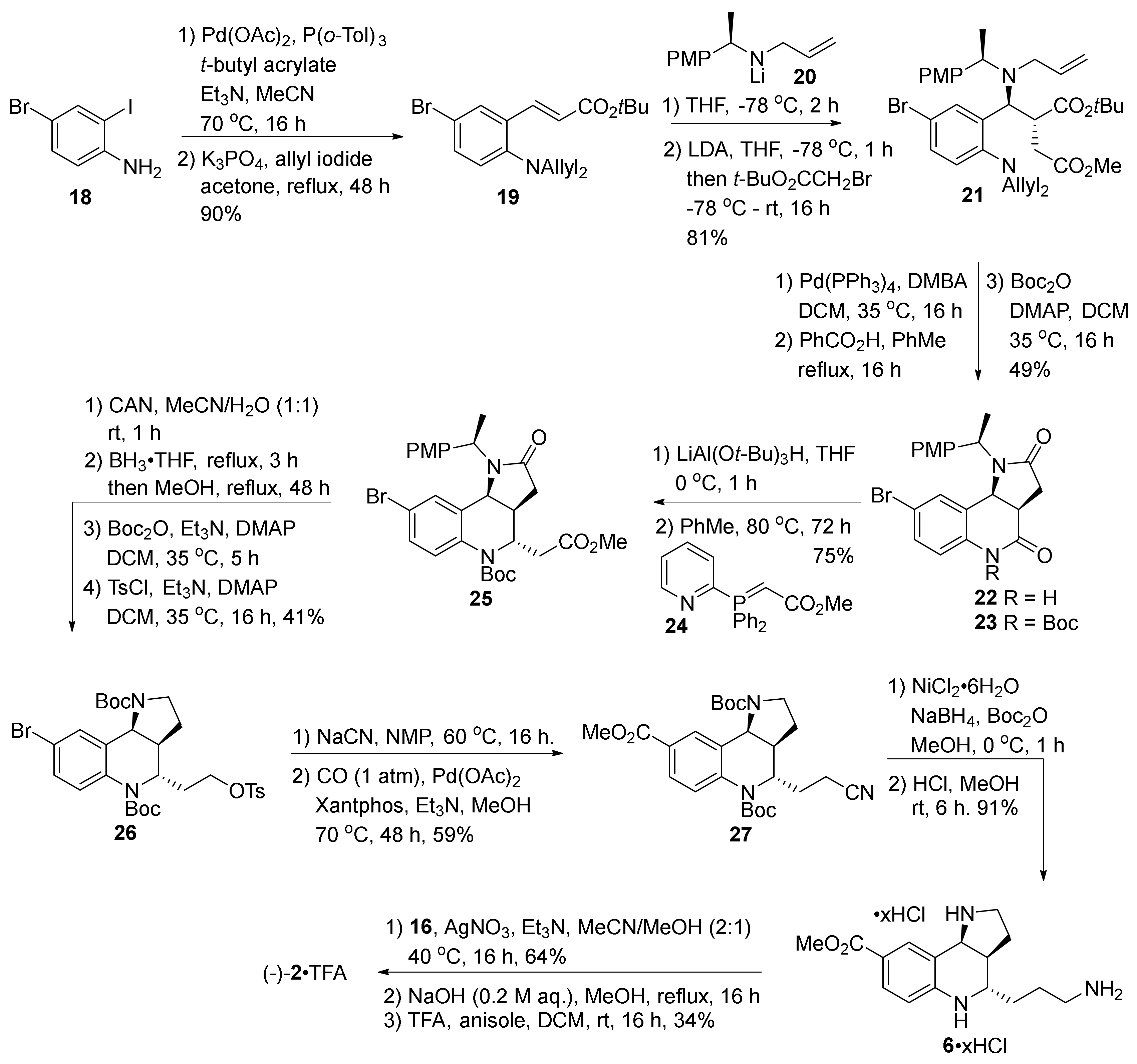

In 2013, Davies and co-workers published their own synthesis of (−)-martinellic acid ((−)-2) and (−)-epi-martinellic acid ((−)-epi-2) (Scheme 3) [32,40]. The synthesis began with a Heck cross-coupling between 2-iodo-4-bromoaniline 18 and tert-butyl acrylate, followed by bis-N-allyl protection, which provided ester 19 in 90% yield. Conjugate addition of (R)-lithium amide 20 to α,β-unsaturated ester 19 by means of a diastereoselective aza-Michael reaction was used to install the C-10 stereogenic center. Subsequent alkylation with methyl bromoacetate gave compound 21 as a single diastereomer.

In preliminary studies, the Davies group attempted to form the pyrrolidine ring through a free amine (N-10a) by conducting a hydrogenolysis of all N-protecting groups. Neither acid promoted reaction of the free amine with tert-butyl ester nor did the methyl ester provide the desired five-membered cyclized product. However, upon removal of only the N-allyl groups with Pd(PPh₃)₄ and N,N-dimethylbarbituric acid (DMBA), followed by benzoic acid promoted cyclization of both rings, simultaneously, pyrroloquinolinone 22 was obtained. In order to further regioselectively reduce the six-membered lactam over the five membered lactam moiety in compound 22, the electron withdrawing Boc-protecting group was introduced onto the N-8a nitrogen. The activated carbonyl group in compound 23 was then reduced with lithium tri-t-butoxyaluminum hydride LiAl(Ot-Bu)₃H to form the hemiaminal. Treating the hemiaminal with phosphorane 24 allowed for olefination and an intramolecular aza-Michael addition to give compound 25 in 75% yield as a single diastereomer. Phosphorane 24 was used in the olefination reaction instead of the corresponding Wittig reagent due to issues with separating the reaction product from triphenylphosphine ylide residues.

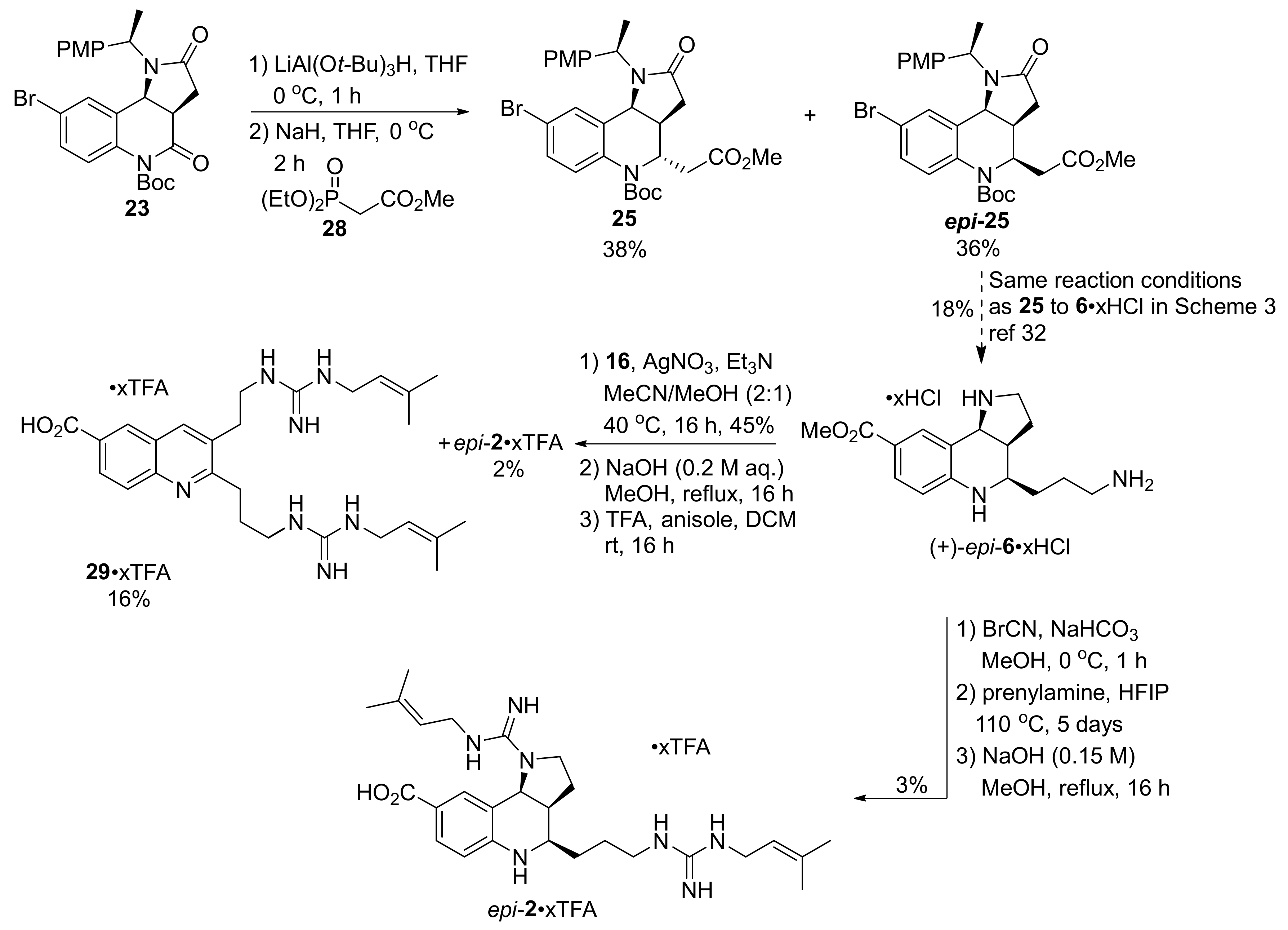

The p-methoxyphenyl (PMP)-protection group within compound 25 could be removed upon treatment with ceric ammonium nitrate (CAN). The resulting substrate was then treated with borane (BH₃) to reduce the amide and ester functionalities to the corresponding amine and alcohol moieties, respectively. The amine was Boc-protected, and the alcohol was tosylated, which provided pyrroloquinoline 26 in 41% yield over four steps. Treatment of compound 26 with sodium azide in N-methyl-2-pyrrolidinone (NMP) followed by methoxycarbonylation provided methyl ester 27. The nitrile group in compound 27 was then reduced to the corresponding amine upon treatment with sodium borohydride, and the resulting product was immediately Boc-protected in order to avoid formation of a tetracycle. Deprotection of the three N-Boc groups with methanolic HCl provided Ma’s intermediate (6•xHCl) in 91% yield. (−)-Martinellic acid ((−)-2•TFA) was finally obtained from the salt 6•xHCl in 49% yield using Ma’s guanylation procedure [37].

Initial studies by Davies and co-workers showed that a strong base, such as NaH, led to equilibration between diastereomers 25 and epi-25 (Scheme 4). Since this would provide access to the C(4)-epimer of martinellic acid 2•xHCl, the Davies group also synthesized compound (+)-epi-6•xHCl by an analogous series of steps to the ones used for the synthesis of Ma’s intermediate (−)-6•xHCl from pyrroloquinoline 25, in 18% overall yield (Scheme 3). The corresponding guanylated product was provided in 45% yield by following Ma’s protocol [37]. However, hydrolysis of the methoxy ester gave (−)-4-epi-Martinellic acid epi-2•xTFA in only 2% yield, accompanied by quinoline 29•xTFA in 16% yield. By using the procedure reported by Snider et al., epi-martinellic acid (epi-2•xTFA) was isolated in 3% yield over the three steps, and no formation of the quinoline 29•xTFA was observed [45].

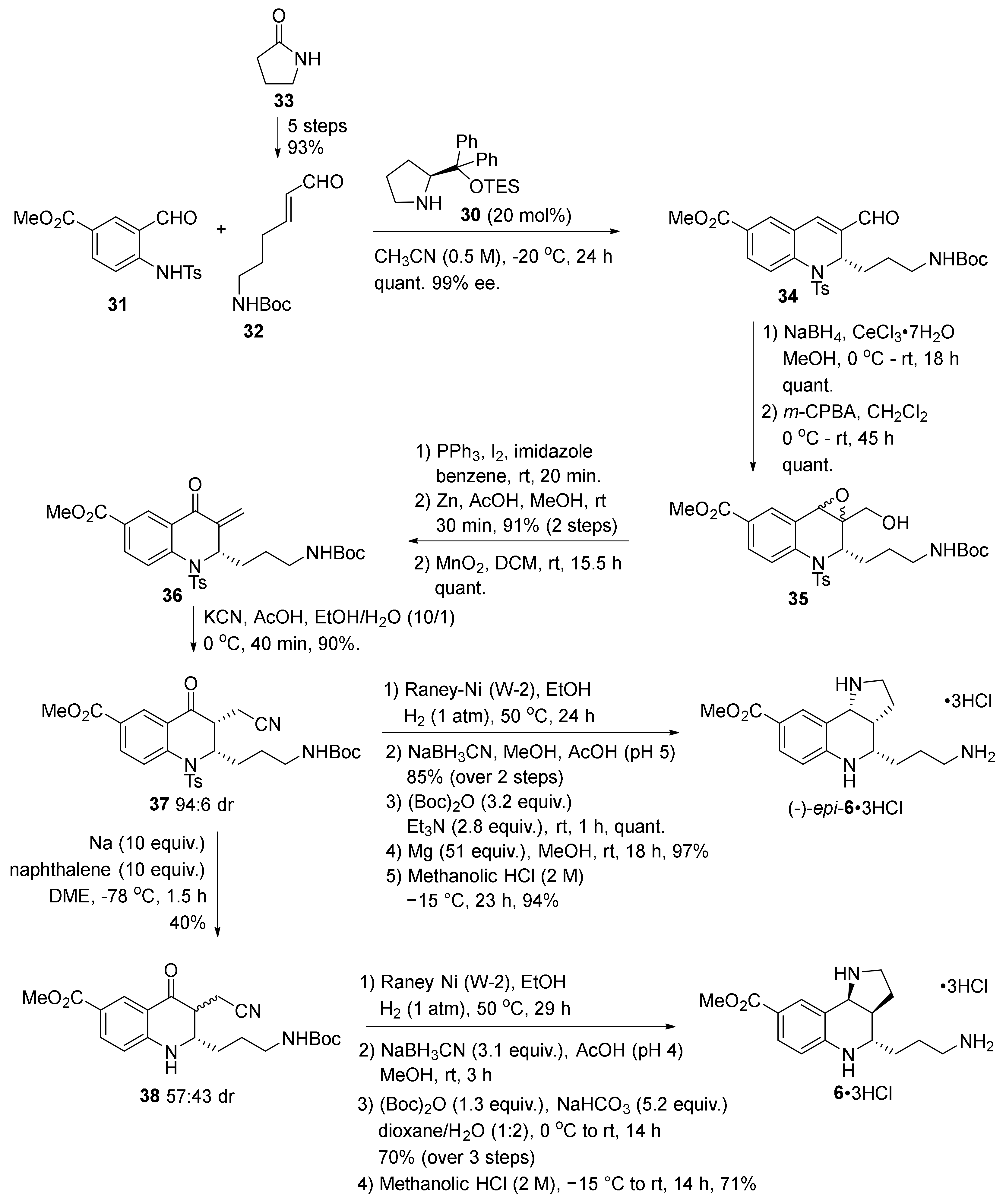

The Hamada group employed a previously reported asymmetric tandem Michael–aldol reaction using (S)-diphenylprolinol triethyl silyl ether 30 as an organocatalyst in the presence of sodium acetate (NaOAc) and four Å molecular sieves (4 Å MS) as starting point for their synthesis [42,49]. During optimization studies for the reaction between substrates 31 and 32 (obtained in 5 steps from pyrrole 33), the group found that when performed in acetonitrile at −20 °C, the reaction proceeded smoothly without NaOAc and 4 Å MS (Scheme 5). By using two equivalents of the alkene 32, due to slow reaction rate, together with 20 mol% of organocatalyst 30, quinoline 34 was obtained in quantitative yield from compound 31 and high enantiomeric excess. The aldehyde moiety in compound 34 was further reduced to the allyl alcohol with sodium borohydride and cerium chloride.

After several failed attempts to introduce the N-8a nitrogen to the allylic alcohol, Hamada employed a route to Ma’s intermediate (6) previously reported in their group [50]. The allylic alcohol was treated with m-chloroperbenzoic acid (m-CPBA) to form epoxide 35. Iodination of compound 35 and subsequent treatment with zinc and acetic acid to cleave the epoxide ring gave an allylic alcohol that was further oxidized to ketone 36 with activated manganese dioxide. The α,β-unsaturated ketone 36 was subjected to hydrocyanation to provide quinolone 37 in 90% yield and 94:6 dr. Only after formation of (−)-epi-Ma’s intermediate ((−)-epi-6) through a series of reduction and N-deprotection reactions could Hamada and co-workers conclude that cyano-quinolone diastereomer 37 exhibited cis-configuration. In their 2004 publication the Hamada group reported that the “2,3-trans arrangement was ambiguously confirmed by NMR” [50].

Base-promoted racemization of the cyano-sidechain with sodium naphthalenide and simultaneous N-tosyl-deprotection produced compound 38 as a diastereomeric mixture. The mixture was subjected to hydrogenation and reductive amination of the resulting imine followed by N-Boc protection. A final deprotection with methanolic HCl formed (−)-Ma’s intermediate as its HCl salt ((−)-6•3HCl). Hamada and co-workers hypothesized that the N-protecting group (Ts) controls the cis/trans isomer formation during cyanation, through a pseudo-1,3-diaxial interaction between the N-toluenesulfonyl group and 3-cyanomethylone. Without the tosyl group, they imagined that the isomerization of the 3-cyanomethyl group takes place during the hydrogenation reaction, and that the trans-product 6 is more stable due to torsional strain between the 2-(3-tert-bytoxycarbonylaminopropyl) group and the pyrrolidine ring in a cis-product.

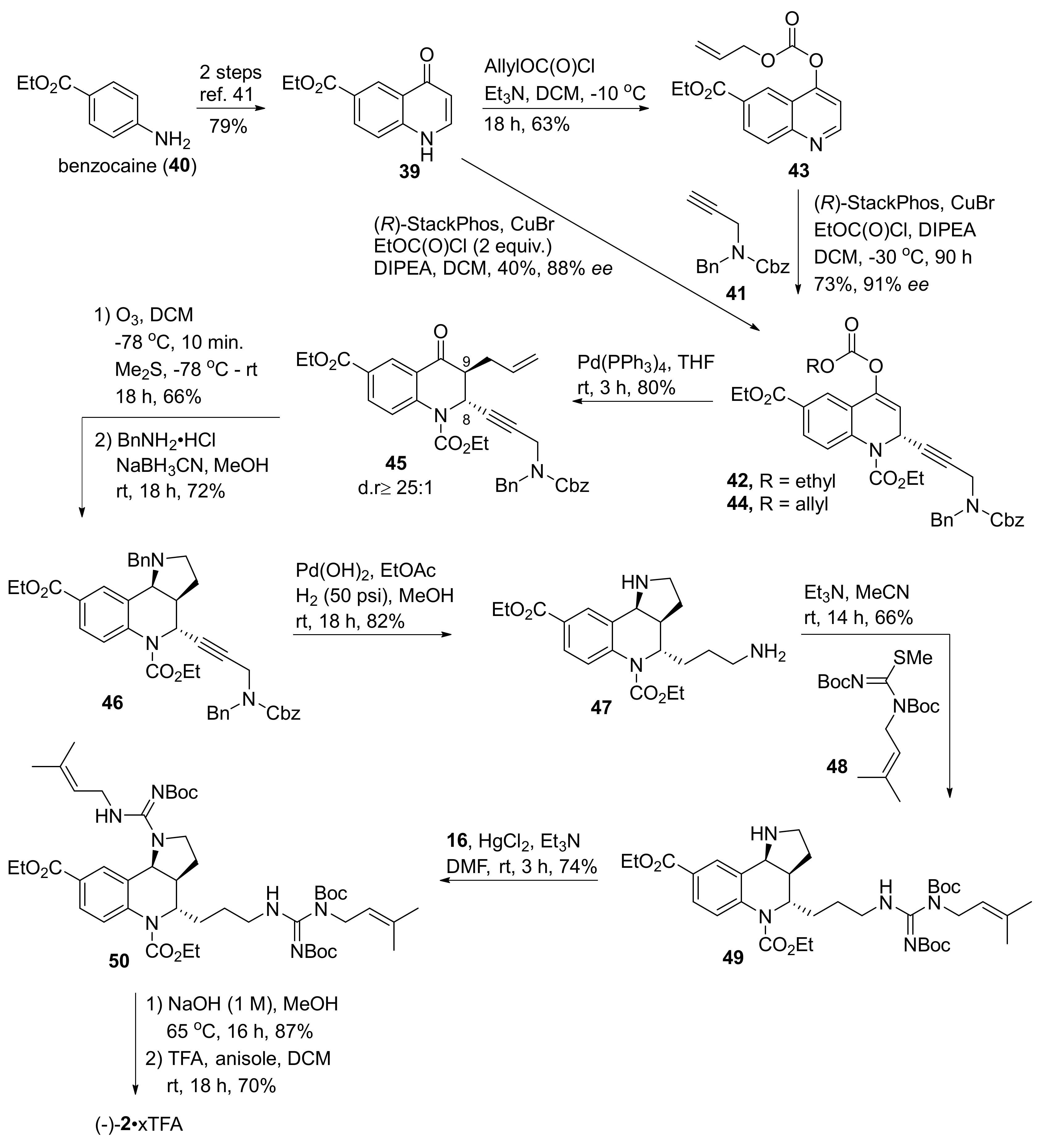

Another approach towards martinellic acid was presented by Pappoppula and Aponick in 2015 [51]. Their synthesis commenced from quinoline 39, which was synthesized in two steps from benzocaine (40) in 79% yield following a literature procedure (Scheme 6) [52]. The key step in this synthesis was a copper-catalyzed alkynylation reaction with alkyne 41, developed in the group, using (R)-StackPhos to set the C-8 stereochemistry. Their further strategy was to use an α-allylation reaction to diastereoselectively install the allyl group at C-9 [53]. To facilitate that chemistry, they therefore needed to convert ketone 39 to an aromatic enol.

In preliminary studies conducted by Pappoppula and Aponick, they wanted to see if it was possible to obtain alkyne 42 directly from quinoline 39, by forming the corresponding carbonate in situ. This route gave the alkynylated product 42 in 40% yield and 88% ee. Attempts to increase the yield were, however, unsuccessful, because once the carbamate was formed, the quinolone did not undergo further alkynylation, resulting in the formation of an unreactive biproduct, viz. N-protected quinoline. Instead, the group prepared allylcarbonate 43 by treating quinolone 39 with alloc chloride. Stereoselective alkynylation of carbonate 43 at 0 °C for 15 h using (R)-StackPhos provided alkyne 44 in 95% yield and 86% ee. By running the reaction at −25 °C for 48 h and increasing the reaction concentration from 0.1 to 0.4 M, the title compound 44 was obtained in 90% ee, however at a lower conversion (70% yield). When scaling up the reaction, the copper bromide catalyst loading could be reduced from 5 to 2 mol% without affecting the yield and stereoselectivity, providing alkyne 44 in 73% yield and 91% ee. Diastereoselective decarboxylative α-allylation of allyl carbonate 44 further provided ketone 45 in 80% yield with a >25:1 diastereomeric ratio. Allyl 45 was then treated with ozone followed by a double reductive amination of the resulting 1,4-diacarbonyl using benzyl amine and sodium cyanoborohydride to provide the tricycle 46. Reduction of the alkyne functionality upon treatment with Pd(OH)₂ and hydrogen (50 psi) while simultaneously removing three N-protecting groups resulted in the formation of amine 47 in 82% yield. Treating amine 47 with the di-Boc protected reagent 48 resulted in guanidinylation of the primary amine and formation of compound 49. The sterically hindered secondary amine was then guanidinylated with the more reactive guanidine 16 to provide compound 50 in 74% yield. Finally, the TFA salt of martinellic acid ((−)-2•xTFA) was obtained upon base catalyzed ethyl ester hydrolysis followed by deprotection of the N-Boc groups with TFA.

In 2008, Naito and co-workers presented the synthesis of (−)-martinellic acid ((−)-2), where the key reaction was a radical addition–cyclization–elimination (RACE) reaction with a chiral oxime ether 51 forming lactam 52. Lithium borohydride reduction of lactam 52 afforded pyrroloquinoline 53 (Scheme 7), which was brought forward to (−)-martinellic acid ((−)-2) over seven steps [31]. A full report of this method has been covered in the review by Lovely and Bararinarayana [34]. The approach unfortunately experienced some unsatisfactory yields and stereoselectivity, which prompted a second approach to martinellic acid.

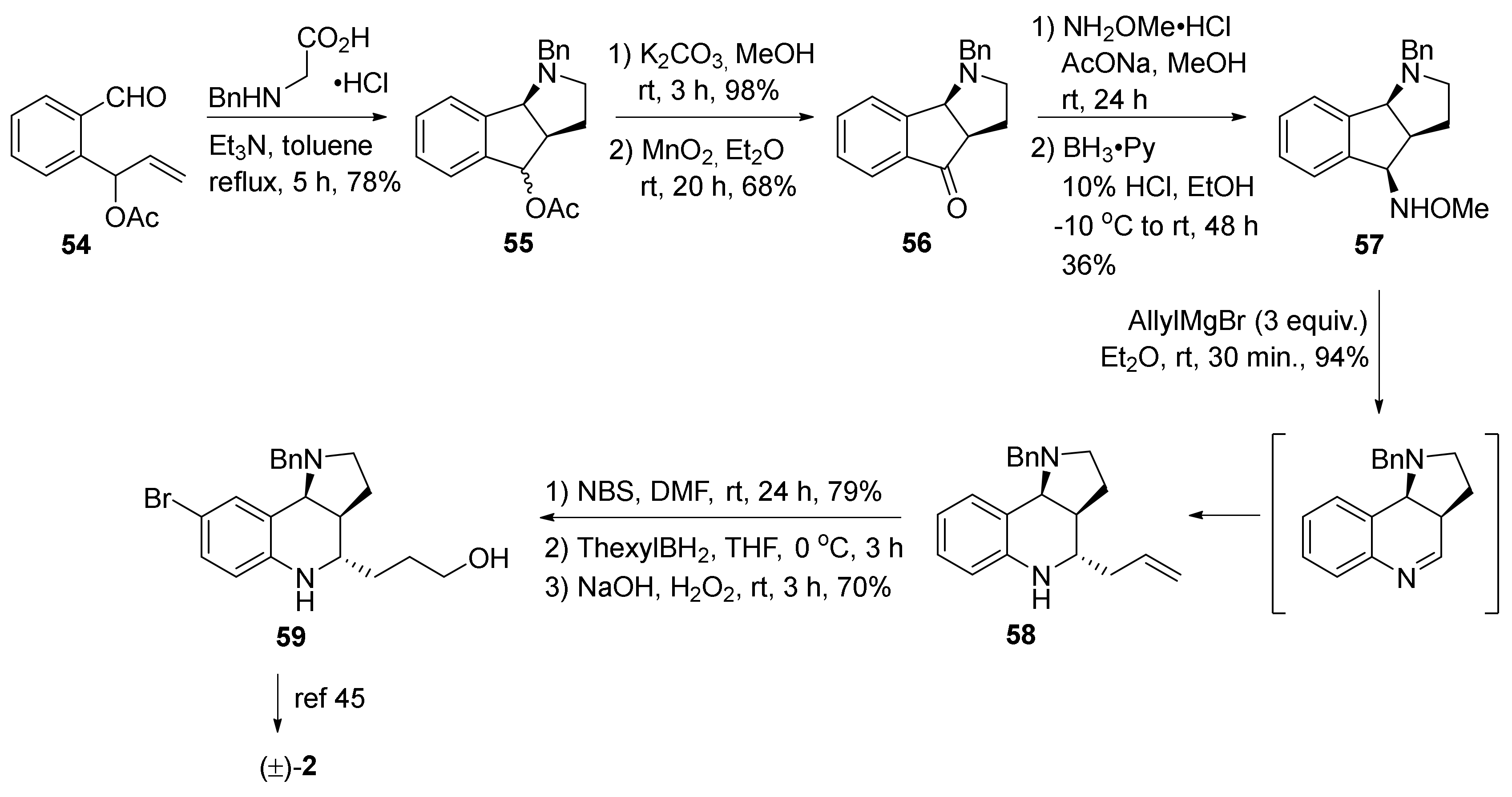

A formal synthesis of (±)-martinellic acid was further reported by the Naito group together with Miyata in 2010 using a new approach based on ring expansion of an oxime ether through a domino reaction, including elimination of an alcohol, rearrangement of a metal aryl methylamide, and addition of an organomagnesium reagent (Scheme 8) [54].

The work commenced by the condensation of aldehyde 54 with N-benzylglycine hydrochloride followed by a spontaneous [3+2] cycloaddition of the resulting azomethine ylide gave indenopyrrolidine 55 in 78% yield [54]. Acetate hydrolysis and manganese dioxide (MnO₂) oxidation of the resulting alcohol provided ketone 56. Condensation with O-methylhydroxylamine hydrochloride followed by borane reduction gave oxime ether 57 in 36% yield. A domino reaction with allylmagnesium bromide proceeded stereoselectively from oxime ether 57 to afford amine 58 in 94% yield. Bromination was followed by hydroboration-oxidation of the alkene. The resulting pyrroloquinoline 59 is an intermediate in the synthesis of (±)-martinellic acid reported by Snider et al. [45], in which compound 59 was converted to (±)-martinellic acid over six steps.

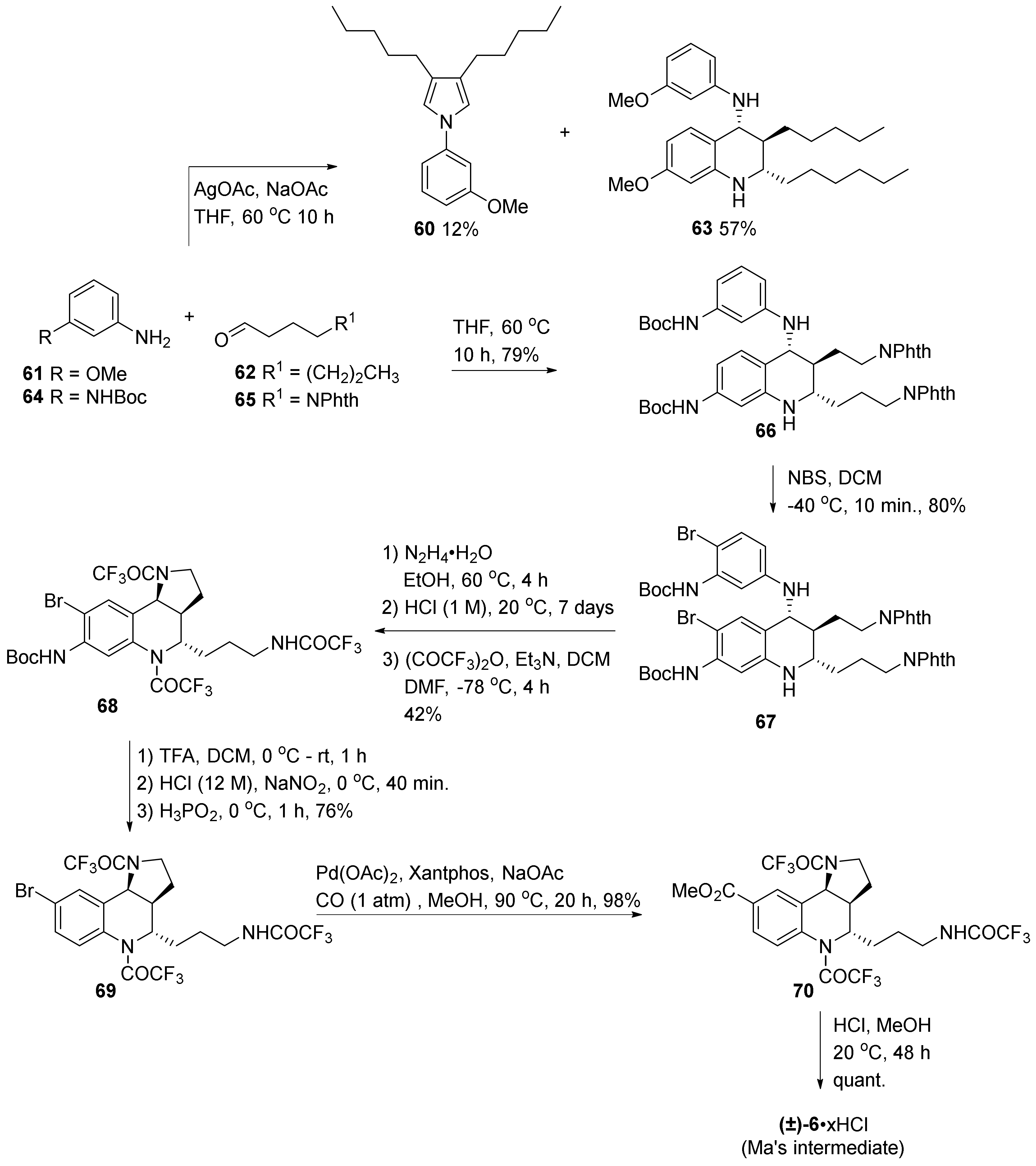

During their synthetic studies of poly-substituted pyrroles such as pyrrole 60 from amine 61 and aldehyde 62 using silver acetate (AgOAc) as oxidant, Jia and co-workers unexpectedly observed formation of quinoline 63 (Scheme 9) [41]. They proposed that formation of the quinoline 63 occurred in a Povarov reaction.

On further inspection the Jia group found that the reaction proceeded in THF at elevated temperature without any additional reagents, in high yield and high stereoselectivity with various R groups. To utilize this reaction in the synthesis of Ma’s intermediate (6), N-Boc protected amine 64 was reacted with N-phthaloyl protected aldehyde 65 to give quinoline 66 in 79% yield. In order to attach a handle for installing the methyl ester in Ma’s intermediate (6), the quinoline 66 was treated with N-bromosuccinimide (NBS) for 10 min to form bromide 67 in 80% yield.

N-phthaloyl groups were removed from bromide 67 upon treatment with hydrazine hydrate followed by treatment with HCl to facilitate ring closure of the five-membered ring. The resulting pyrroloquinoline was N-protected with trifluoroacetic anhydride to provide compound 68. The bromo quinoline 69 was obtained by N-Boc deprotection followed by reductive removal of the resulting amine. Carbonylation of the bromo quinoline 69 to form the corresponding methyl ester 70, followed by N-COCF₃ deprotection with HCl, afforded (±)-Ma’s intermediate ((±)-6•xHCl).

3. Tricyclic Core Scaffold Synthesis

In addition to synthetic preparation of the martinella alkaloids the synthesis of the tricyclic core of the natural products has also attracted significant attention. To this day, no studies of how the hexahydropyrrolo[3,2-c]quinoline structure has arisen biosynthetically in nature have been published. However, in their synthesis of the martinella alkaloids, Batey and Powell put together the tricyclic core structure 71 in an acid catalyzed two-component Povarov reaction between aniline 72 and enamide 73a (Scheme 10) and suggested that the martinella alkaloids may be naturally assembled in a related biosynthetic process [38,55]. The Povarov reaction (also known as the aza-Diels Alder reaction) has been a prevalent method for synthesizing N-heterocycles [56], including the pyrroloquinoline core structure [57]. Particularly, the assembly of the scaffold 74 from the aromatic imine 75 and the enamide 73 has been a well-studied reaction (Scheme 11) and will be firstly discussed in this section. However, other strategies have also been developed for the construction of the pyrroloquinoline scaffold, and these syntheses will further be presented in chronological order.

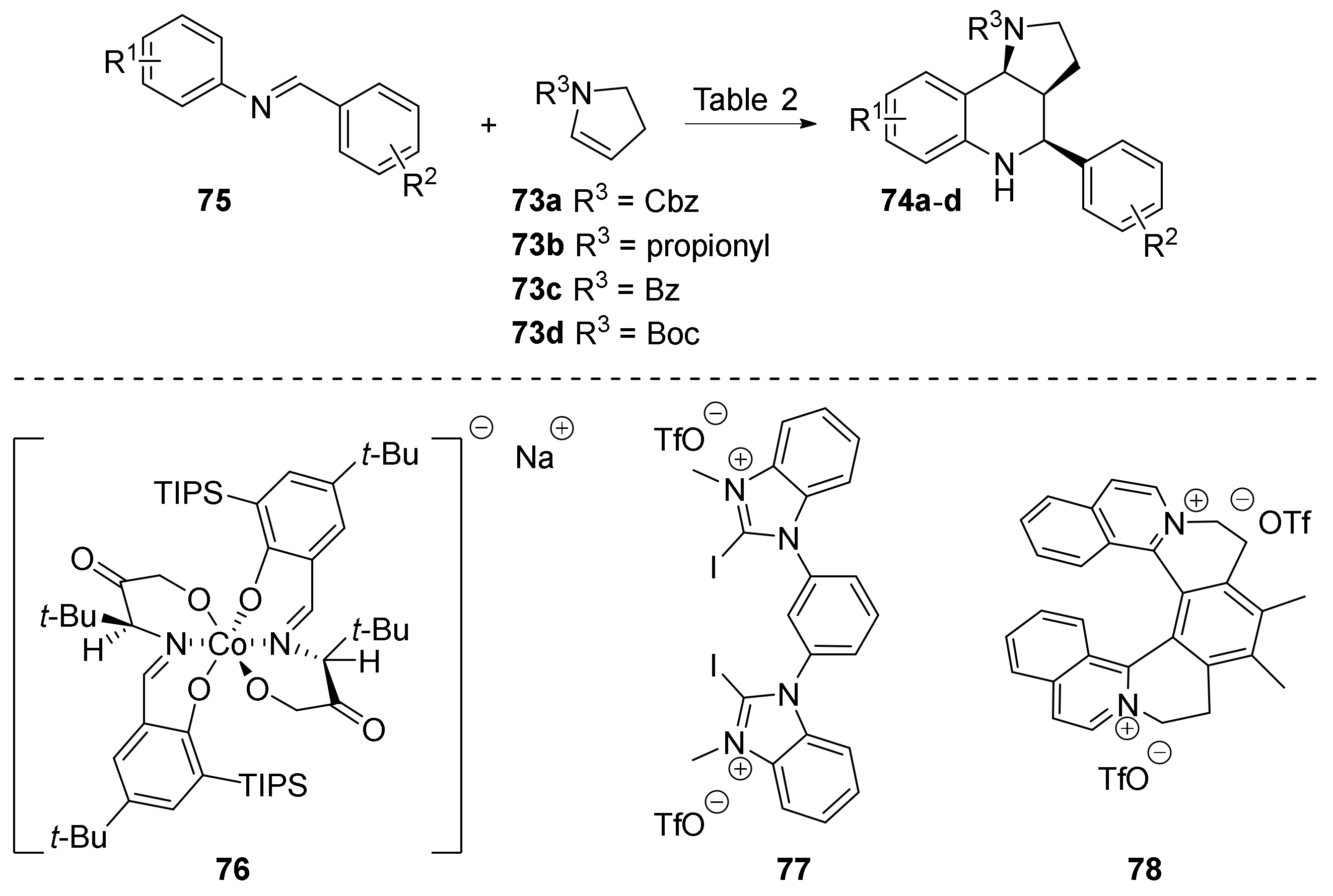

The formation of the 8-phenyl-pyrroloquinoline 74 from the Povarov reaction between aromatic imine 75 and N-protected enamide 73 has been a popular reaction for constructing the pyrroloquinoline scaffold (Scheme 11,

Table 2. Reaction conditions and outcome from the Povarov reaction between the aromatic imine 75 and enamide 73a–d (Scheme 11).

Entry	Reaction Conditions	R1	R2	Enamide	Yield	Endo:Exo	Reference
1	InCl3 (2 equiv.), MeCN, rt, 30 min	H	H	73b	41%	1:1	[58]
2		H	2-NO2	73b	50%	2:1
3	Zn(OTf)2 (10 mol%), DCM, rt	H	2-OH	73c	42%	>20:1	[59]
4	76 (10 mol%), 5 Å MS, n-hexane −40 °C, 72 h	H	H	73a	94%	>20:1	[60]
5	77 (10 mol%), MeCN, rt, 0.5–1 h	H	H	73a	95%	43:57	[61]
6	78 (10 mol%), MeCN, rt, 27 h	4-OMe	H	73d	86%	53:47	[62]
7	Micellar-SO3H, H2O, 25 °C, 18 h	H	4-O-DNA	73d	>90%	NR	[63]

NR = Not reported.

). The reaction was first reported by Hadden and Stevenson in 1999 [58]. They enabled the reaction with indium chloride to obtain the pyrroloquinoline 74 in a 1:1 mixture of endo/exo isomers (Table 2, Entry 1). The use of a 2-nitro phenyl aromatic imine 75 in the reaction favored formation of the endo-product 74b (Table 2, Entry 2). The endo-compound 74c was also obtained from the zinc triflate catalyzed Povarov reaction conducted by Wang and co-workers (Table 2, Entry 3) [59], as well as from the cobalt catalyzed reaction employing catalyst 76, presented by Gong and co-workers (Table 2, Entry 4) [60]. Other catalysts that have been explored for this reaction are the iodo catalyst 77 (Table 2, Entry 5) and helquat catalyst 78 (Table 2, Entry 6), both of which facilitated formation of approximately 1:1 mixtures of endo/exo isomers [61,62]. Synthesis of a DNA-barcoded library that included the pyrroloquinoline scaffold has also utilized the Povarov reaction to assemble the scaffold 74d, using a micellar sulfonic acid to catalyze the reaction [63].

The Jacobsen group produced the martinella scaffold in their experimental and computational study of Brønsted-acid promoted asymmetric Povarov reactions between N-aryl imines and electron rich alkenes [64]. They explored an anion-pathway for catalysts, such as urea (R)-79, in which the catalyst binds to the positively charged substrate through its counterion. They further showed that both the urea and sulfonyl functionalities where required for the catalyst 79 to facilitate the Povarov reaction. The exo-8-phenyl pyrroloquinoline 74a was obtained as the major stereoisomer (94–98% ee) in the reaction between N-aryl imines 75 and enamide 73a in the presence of urea (R)-79 and ortho-nitrobenzene sulfonic acid (NBSA) (Scheme 12). Stereoselectivity was flipped when reacting glyoxylate imine 80 with the enamide 73a in analogous conditions. In this case, the endo-isomer 81 was obtained as the major product in 95% enantiomeric excess.

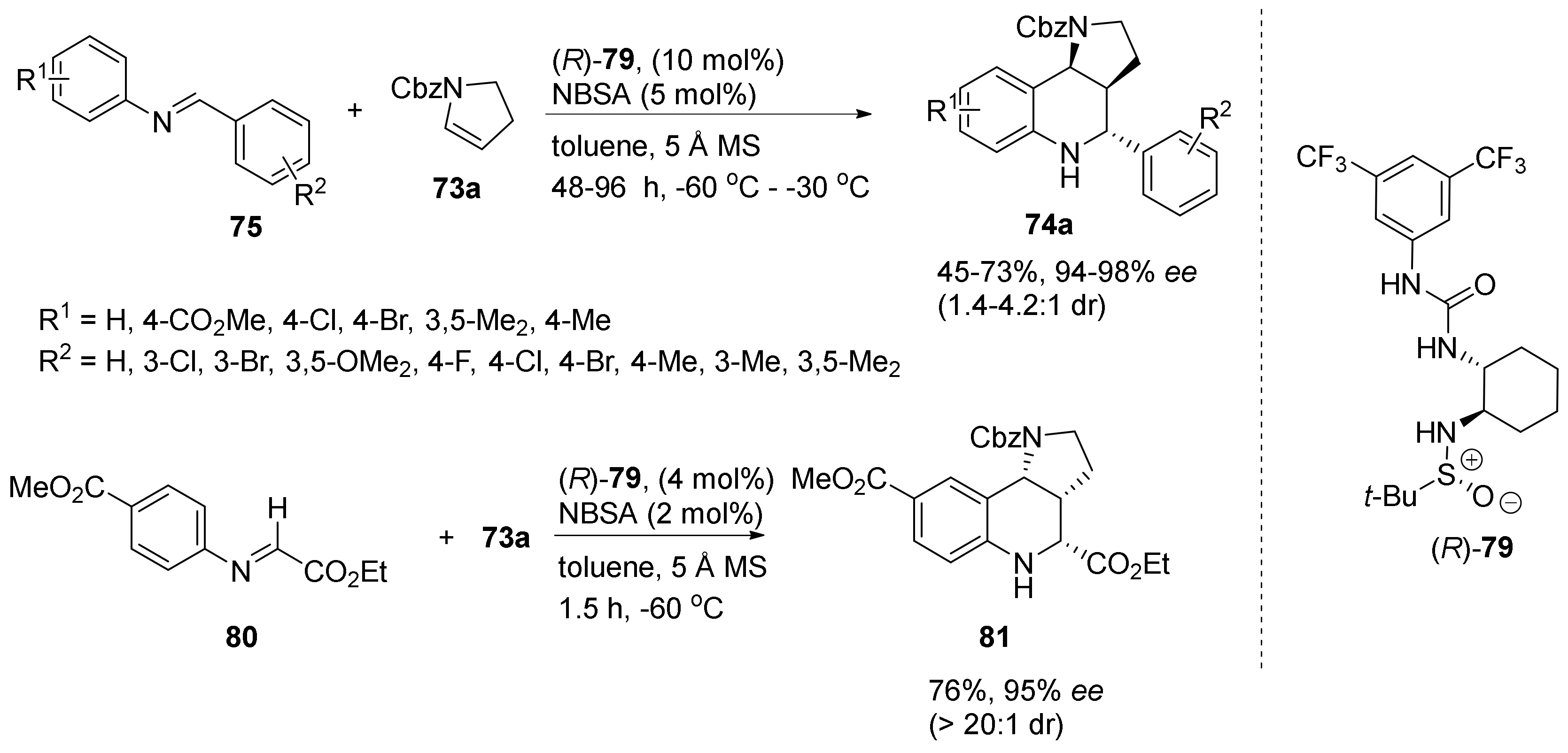

The synthetic method developed in the Jacobsen laboratory (Scheme 12) was further utilized together with Marcaurelle and co-workers to set up a 2328-membered library consisting of four pyrroloquinoline stereoisomers flanked with a variety of side chains and functional groups for a Stereo/Structure–Activity–Relationship (SSAR) study [65]. The library was assembled in two consecutive parts, namely, asymmetric synthesis of the four possible pyrroloquinoline stereoisomers (Scheme 13) followed by a solid phase synthesis for further diversification of the pyrroloquinoline scaffold (Scheme 14).

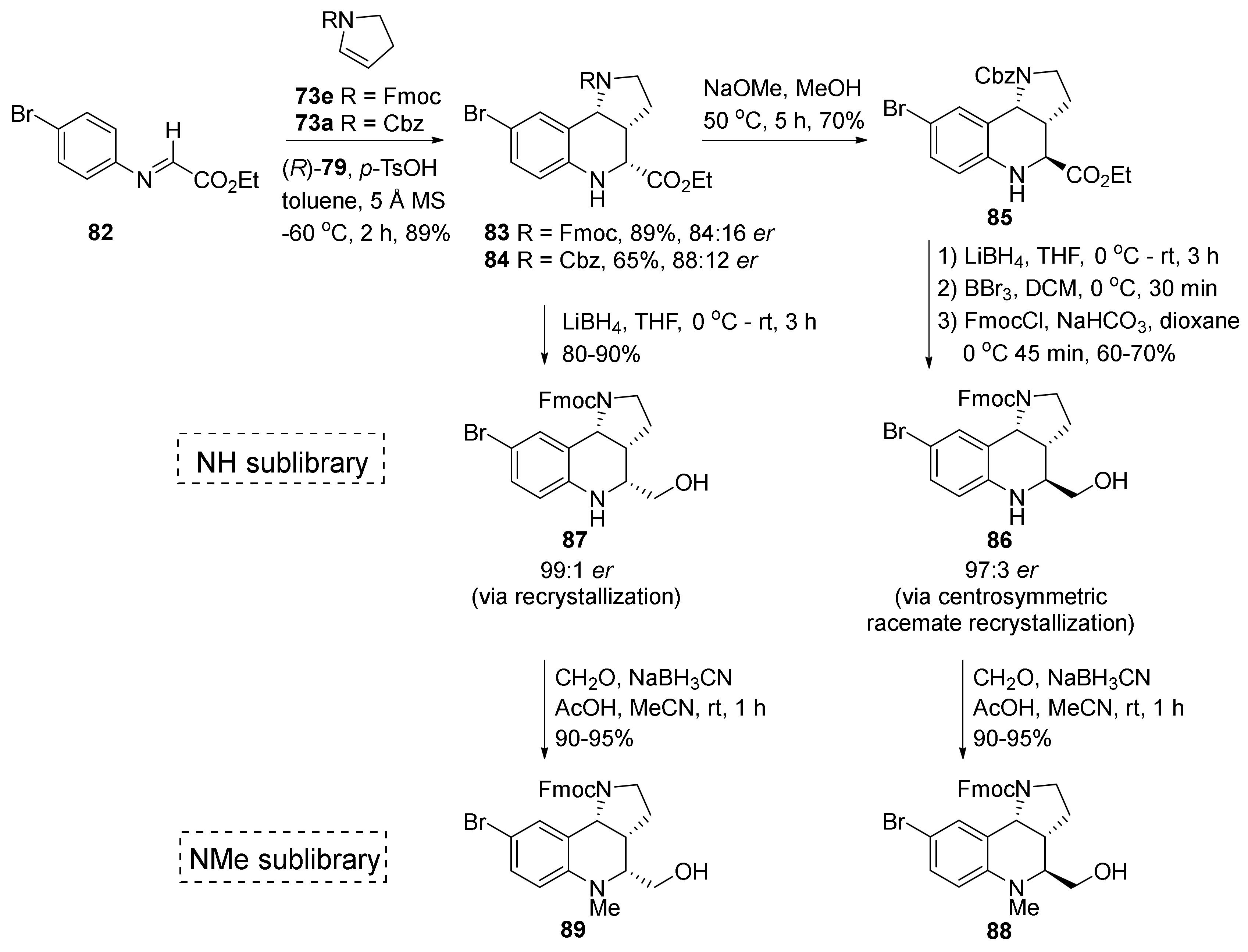

The pyrroloquinoline scaffold was synthesized via the urea 79 catalyzed Povarov reaction between aromatic imine 82 and dihydropyrrolidine 73a or 73e (Scheme 13). Fmoc- and Cbz-protected pyrroloquinolines 83 and 84 were obtained in high yield and enantiomeric ratio. The imine 82 tended to hydrolyze when the reaction was run at larger scale. To solve this hydrolysis issue, the Brønsted acid NBSA initially used in the Jacobsen group was replaced by anhydrous p-toluene sulfonic acid (p-TsOH) when the reaction was conducted on gram scale.

The tricycle mirror images ent-83 and ent-84 were obtained in the presence of urea catalyst (S)-79. To include all possible stereoisomers in the study, the group conducted an epimerization of the N-Cbz protected endo-isomers 84 and ent-84, employing sodium methoxide in methanol to afford the more thermodynamically stable exo-products 85 and ent-85. Reduction of the ester group in compound 85 with lithium borohydride followed by protecting group exchange from Cbz to the base labile Fmoc, a protecting group that was compatible with the following solid phase library synthesis, resulted in the formation of alcohol 86. The endo-pyrroloquinoline 83 was reduced with lithium borohydride to afford the corresponding alcohol 87. The N-Fmoc protected pyrroloquinolines 86 and 87 could be recrystallized to afford the enantiopure compounds in up to 97:3 and 99:1 er, respectively.

The quinoline amine in compounds 86 and 87 was the first site for the planned diversification of the scaffold. Marcaurelle and co-workers found that this secondary amine could be alkylated with only a limited number of aldehydes. The four enantiomers 86/ent-86 and 87/ent-87 were therefore N-alkylated prior to the solid phase diversification (Scheme 14), in a reductive amination reaction with formaldehyde, to afford N-methyl pyrroloquinolines 88/ent-88 and 89/ent-89. This first step of diversification afforded two groups of compounds that consisted of amines 86/ent-86 and 87/ent-87 and methylamines 88/ent-88 and 89/ent-89, which were referred to as the NH and NMe sublibraries, respectively.

All four stereoisomers of the NH and NMe sublibraries were further diversified by amine capping of the secondary pyrrolidine amine and cross-coupling of the aryl bromide moiety with selected building blocks (Scheme 14). To find appropriate building blocks for the amine capping, Marcaurelle and co-workers firstly conducted a feasibility study with 54 pre-selected substituents, including sulfonyl chlorides, isocyanates, carboxylic acids, and aldehydes. They then observed bis-capping of the NH sublibrary in the presence of isocyanates, and decomposition in the NMe sublibrary during reductive amination with aldehydes. Therefore, isocyanates (building blocks 43–54) were removed from the NH sublibrary design and aldehydes (building blocks 1–7) were removed from the design of the NMe sublibrary. This was followed by a feasibility study of palladium cross-coupling reactions. Since the Sonogashira cross-coupling conditions led to poor conversion, Suzuki-Miyaura cross-coupling conditions were further explored. A variety of ligands ((P(t-Bu)₃), PEPPSI, and S-Phos), palladium-catalysts (PdCl₂(PPh₃)₂ and Pd(dba)₂), bases (TEA, K₃PO₄, and CsCO₃), and solvents (EtOH, PhMe, 1,4-dioxane, and THF) were tested in order to minimize byproduct formation in the Suzuki–Miyaura cross-coupling reaction. Finally, appreciable conversion to the coupling products was achieved by using the Buchwald precatalyst 90 [66].

Based on the feasibility study, a virtual library including all possible combinations of a master list of building blocks was constructed, generating approximately 2400 compounds for each stereoisomer. A filter that excluded building block combinations with undesirable physicochemical properties (desirable properties: MW ≤ 500, ALogP −1 to 5, H-bond acceptors + donors ≤10, rotatable bonds ≤10 and TPSA ≤ 140) was then applied to the dataset. This finally brought together a library of 274 compounds for each of the NH scaffolds and 310 compounds for each of the NMe scaffolds.

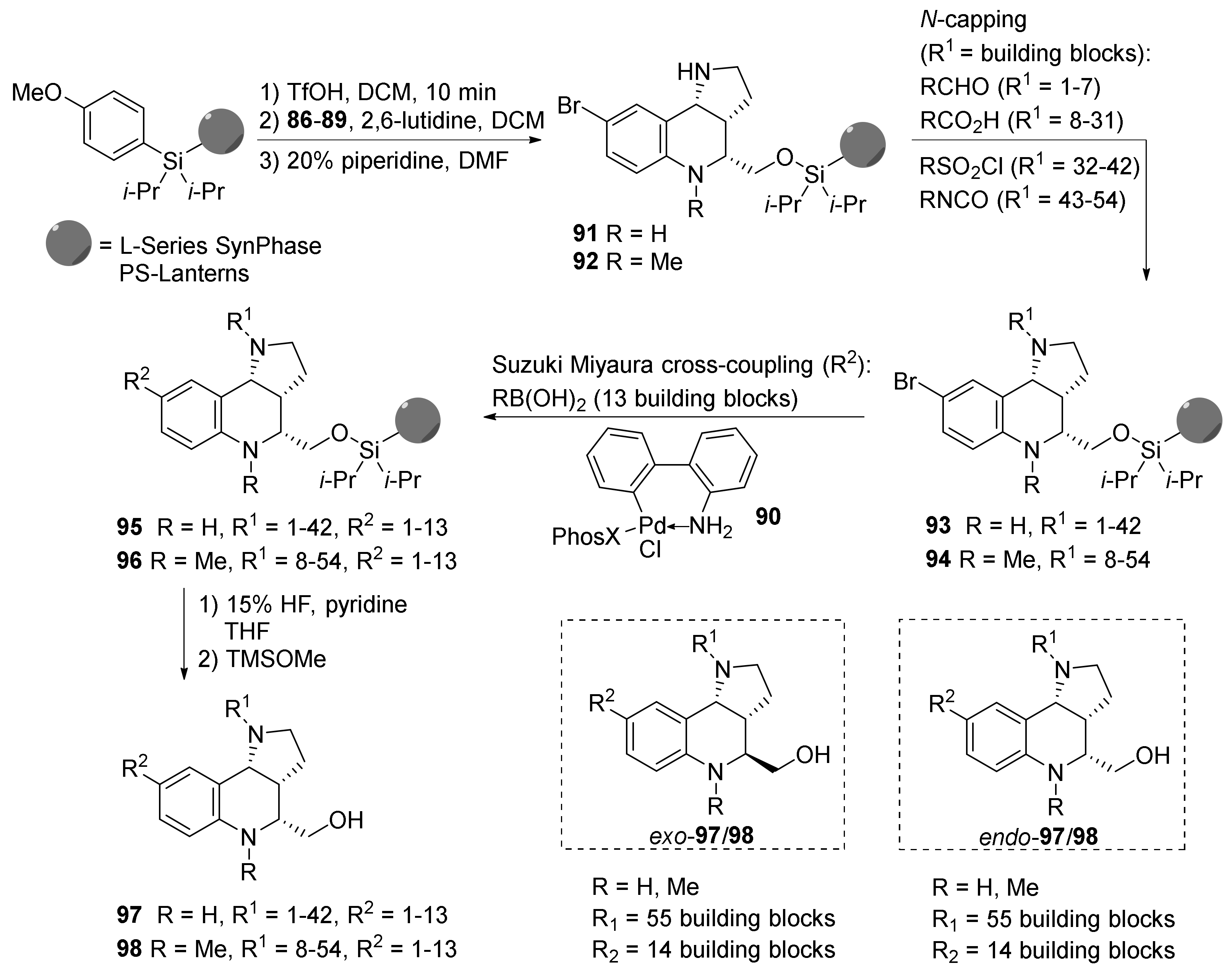

The 2328-membered library was finalized in a solid support synthesis (Scheme 14). The SynPhase Lanterns were activated by triflic acid (TfOH), and alcohols 86–89 were then loaded onto the solid support in the presence of 2,6-lutidine. Removal of the N-Fmoc group with piperidine in DMF afforded amines 91 and 92, which were subjected to N-capping with the 54 pre-selected building blocks. Suzuki–Miyaura cross-coupling of the resulting bromoanilines 93 and 94 with 14 different boronic acid building blocks in the presence of the Buchwald catalyst 90 afforded coupling products 95 and 96 [66]. The diversified products 95 and 96 were subsequently liberated from the solid support upon treatment with HF and pyridine to afford compounds 97 and 98. Analysis of the finalized library confirmed that the compounds exhibited suitable physicochemical properties for further biological testing. For this purpose, Marcaurelle and co-workers submitted the diversified pyrroloquinoline library to the NIH molecular library small molecule repository (NIH MLSMR).

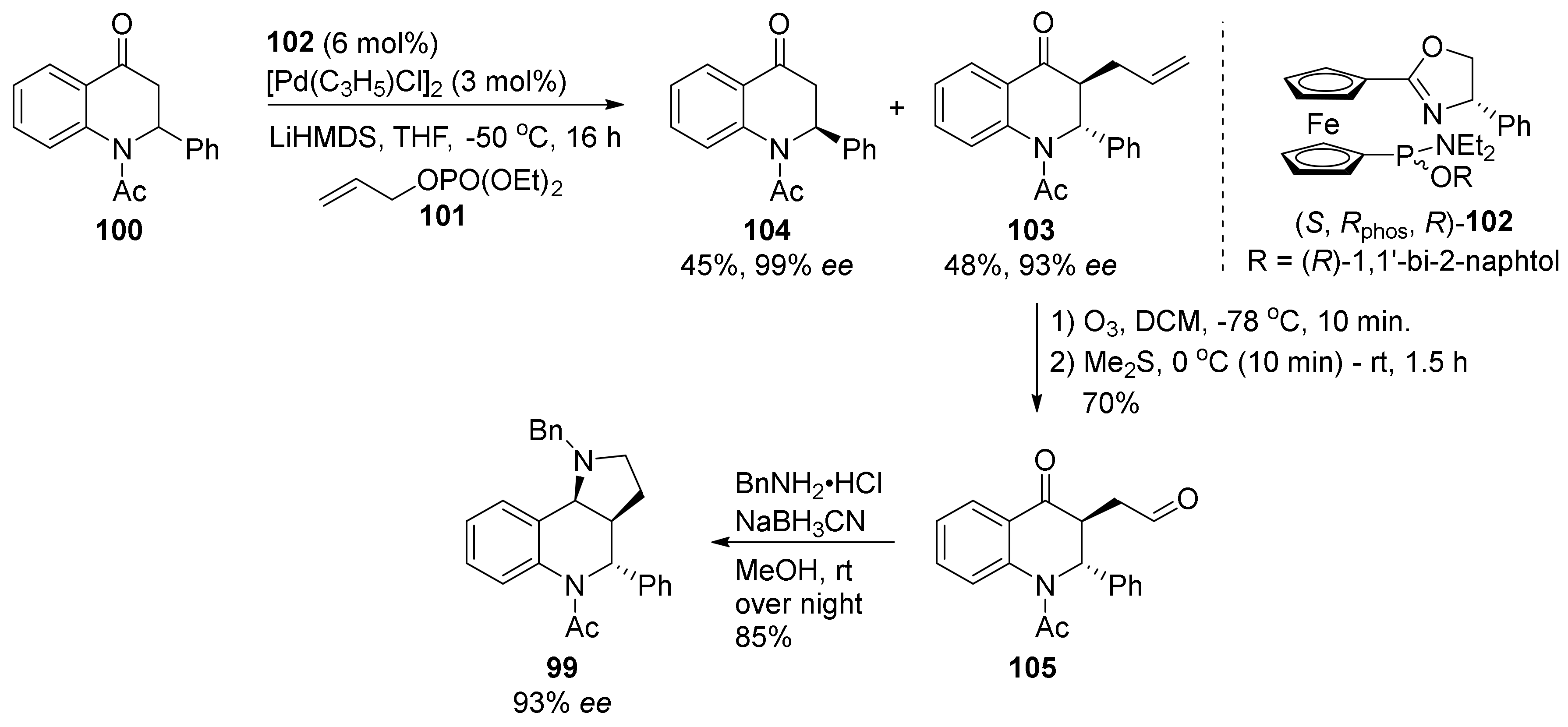

Hou and co-workers obtained the exo-diastereomer of phenyl-pyrroloquinoline 99 in 93% ee by kinetic resolution (Scheme 15) [67]. Quinoline 100 was subjected to a palladium catalyzed asymmetric allylic alkylation reaction with 50 mol% of allyl reagent 101 and 6 mol% of catalyst 102 in the presence of lithium bis(trimethylsilyl)amide (LiHMDS). These conditions favored formation of the trans-enantiomer 103, which at the same time enabled recovery of the close-to enantiopure hydroquinolone 104. Alkene 103 was further converted to the pyrroloquinoline 99 by first performing an ozonolysis to afford aldehyde 105, which was followed by a double reductive amination reaction with benzylamine and sodium cyanoborohydride as reducing agent to provide the tricyclic scaffold 99 in 85% yield.

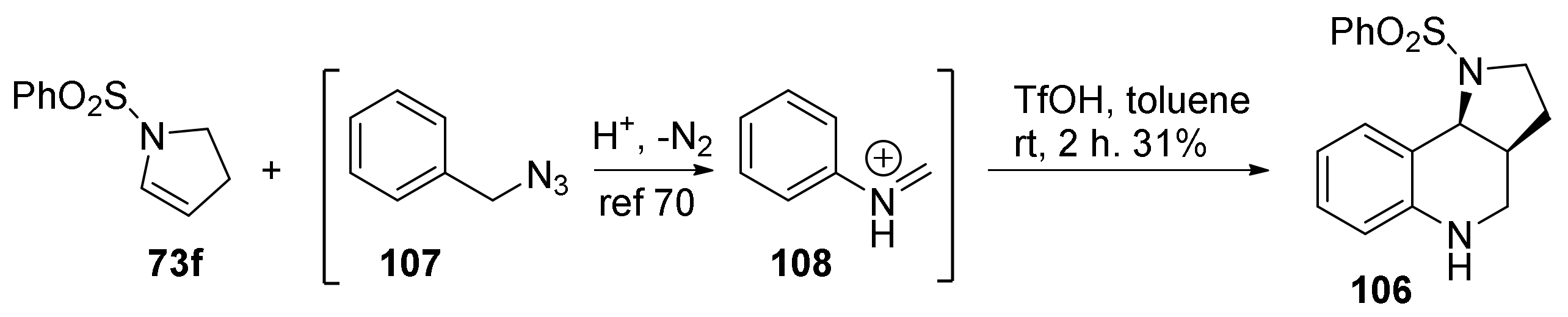

Gilliaizeau and Gigant synthesized a variety of nitrogen-fused tetrahydroquinolines, such as pyrroloquinoline 106 (Scheme 16), from benzyl azide 107 and cyclic non-aromatic enamides [68]. A similar assemble of the corresponding indoloquinoline had previously been reported by the Zhai group [69]. The pyrroloquinoline 106 was obtained with a cis relationship between the two chiral centers, by reacting benzyl azide 107 with pyrrole 73f in the presence of triflic acid in toluene. This synthesis, based on Aubè and co-workers’ discovery of acid, promoted benzyl azide to imine rearrangement [70], included two sequential Pictet–Spengler reactions upon in situ formation of an iminium intermediate 108 from benzyl azide 107.

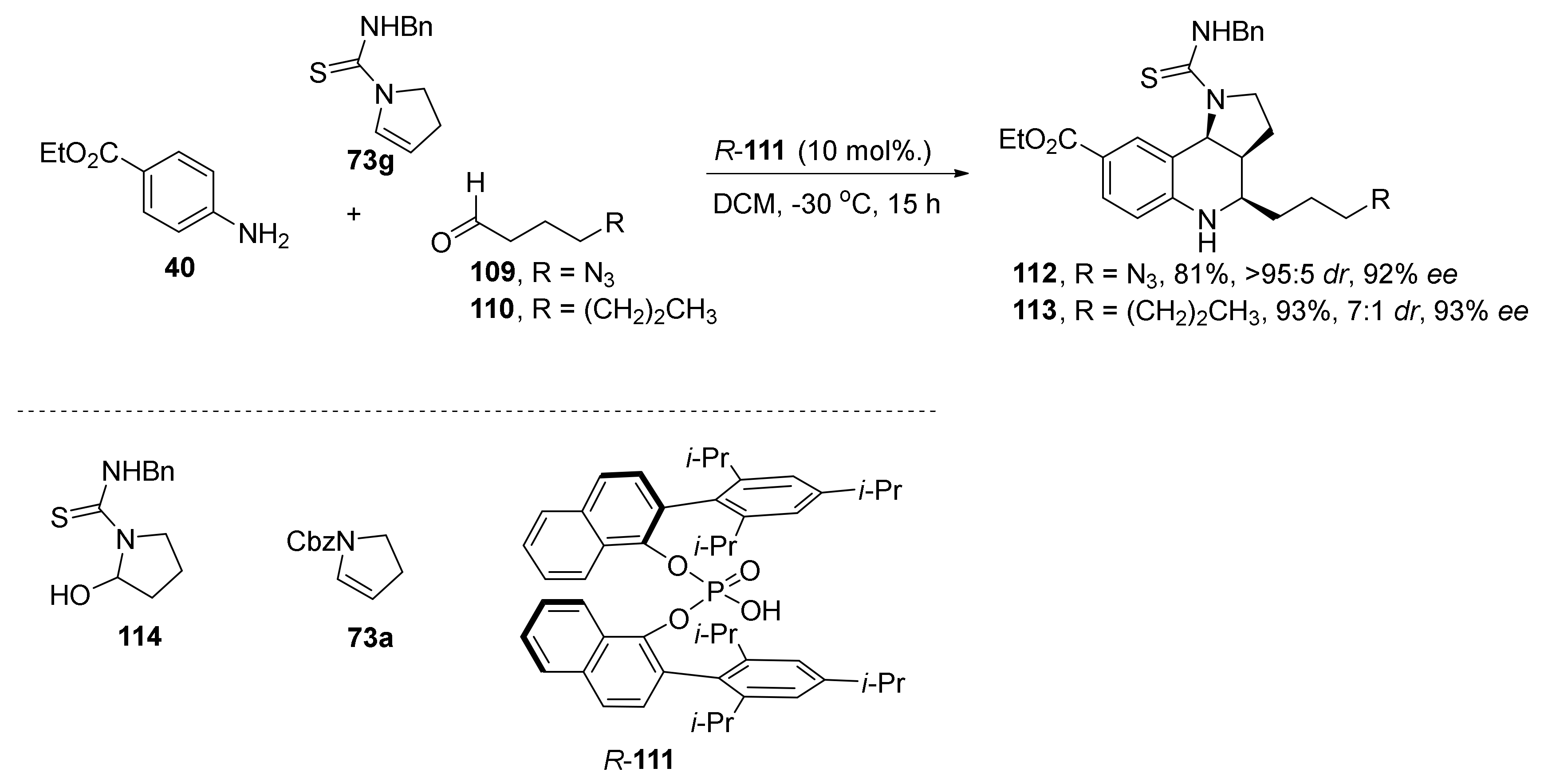

Masson and co-workers synthesized the endo-martinella scaffold in a chiral phosphoric acid-catalyzed enantioselective three-component Povarov reaction (Scheme 17) [71]. Aniline 40, enamine 73g, and aldehyde 109 or 110 were stirred together in the presence of phosphoric acid catalyst (R)-111 to provide endo-martinella scaffolds 112 and 113 in high enantiomeric excess. A similar multicomponent reaction between aniline, benzaldehyde, and pyrrolidine 114, catalyzed by lanthanide triflate to assemble the martinella scaffold was reported by Batey and Powell in 2001 [47]. Batey and Powell’s incentive for using the thiourea-protected pyrrolidine 114 was to provide the martinella scaffold with the guanidine precursor moiety pre-installed on the sterically hindered pyrrolidine nitrogen. In addition to this, Batey and Powell found that using thiourea 114 as the dienophile, instead of N-CBz enamide 73a, favored formation of the exo-pyrroloquinoline scaffold.

In the phosphoric acid (R)-111 catalyzed reaction, Masson and co-workers hypothesized that the benzyl-NH function of thiourea 73g participated together with the in situ formed imine in hydrogen bonding interactions with the phosphoric acid (R)-111. This dual activation thereby enhanced enantioselectivity of this reaction to provide endo-stereoisomers 112 and 113 in high ee.

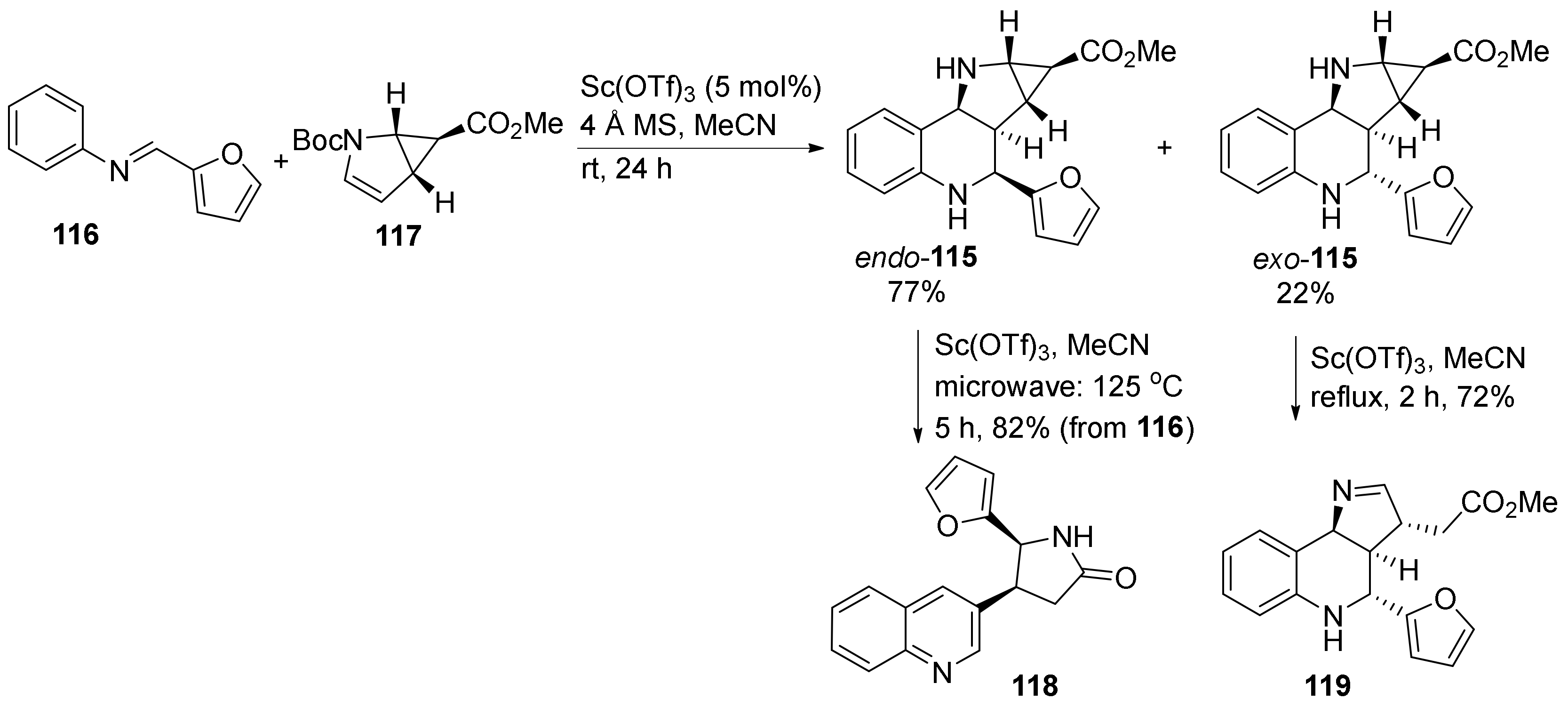

Roy and Reiser assembled the pyraoloquinoline scaffold 115 in a scandium triflate catalyzed Povarov reaction between aldimine 116 and enamide 117 at ambient temperature (Scheme 18) [72]. Upon applying heat to the reaction, they obtained 4,5-cis-disubstituted pyrrolidinone 118, a lead structure for pharmaceutical compounds that target diseases such as osteoporosis [73], in 82% yield. They further proposed a reaction mechanism for the formation of the pyrrolidinone 118 that included assembly of the tetracycle 115 in a Povarov reaction, which, upon ring opening of the cyclopropane, provided an iminium compound (such as imine 119). Further migration of the furan group, followed by aromatization of the quinoline structure and lactamization of the pyrrolidine moiety upon Boc-deprotection, could then provide pyrrolidinone 118. In the proposed mechanism, the cis-relationship between substituents on the pyrrolidinone 118 arose from the Povarov product endo-115. This proposal was confirmed when heating of tetracycle exo-115 in the presence of scandium triflate provided pyrroloquinoline 119, and not the pyrrolidinone 118.

Another asymmetric approach towards the pyrroloquinolines was presented by Zhou and co-workers in 2013 [74]. The stereochemistry was installed in a palladium catalyzed asymmetric intermolecular cyclization reaction between triflate 120 and Boc-protected pyrrolidine 73d to obtain the tricyclic alkene 121 in 76% yield and excellent ee (Scheme 19). The following treatment with ozone afforded ketone 122. Condensation of O-methyl hydroxylamine with the carbonyl moiety in ketone 122 followed by reduction of the resulting O-methyl oxime with sodium cyanoborohydride afforded amine 123. With compound 123 in hand, the further plan was to use Miyata and co-workers’ strategy (Scheme 8) for ring expansion to finalize the tricyclic scaffold 124 [54]. However, only upon N-Boc deprotection did ring expansion occur under Miyata and co-workers’ reaction conditions. Thus, after removing the Boc group by treatment with trifluoroacetic acid (TFA), pyrroloquinoline 124 was obtained in 86% yield with retained enantioselectivity.

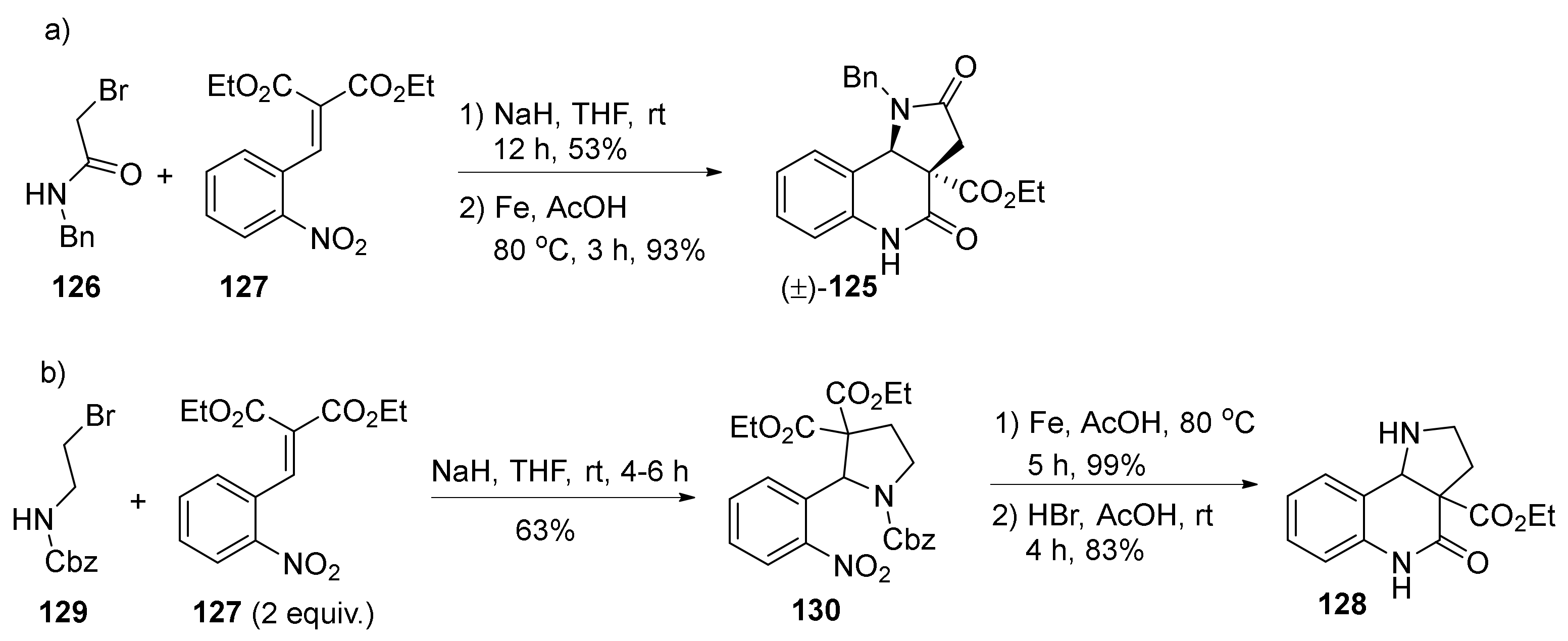

In a previously reported strategy, included in the 2008 review by Lovely and Bararinarayana [34], Daïch and co-workers reported the synthesis of the pyrroloquinoline scaffold 125 from α-bromoacetamide 126 and Michael acceptor 127 (Scheme 20a) [75]. In 2013, Daïch and co-workers reported an extension of this method in the synthesis of pyrroloquinoline 128 from bromoethyl carbamate 129 and diethyl malonate 127 (Scheme 20b) [76]. The reaction between carbamate 129 and Michael acceptor 127 in the presence of sodium hydride provided pyrrolidine 130 through an aza-Michael/intramolecular substitution reaction tandem sequence. The group experienced that all attempts to hydrogenate pyrrolidine 130 failed. They thus obtained the martinella scaffold 128 by iron-catalyzed reduction of nitrobenzyl-pyrrolidine 130 followed by acidic deprotection of the N-Cbz group.

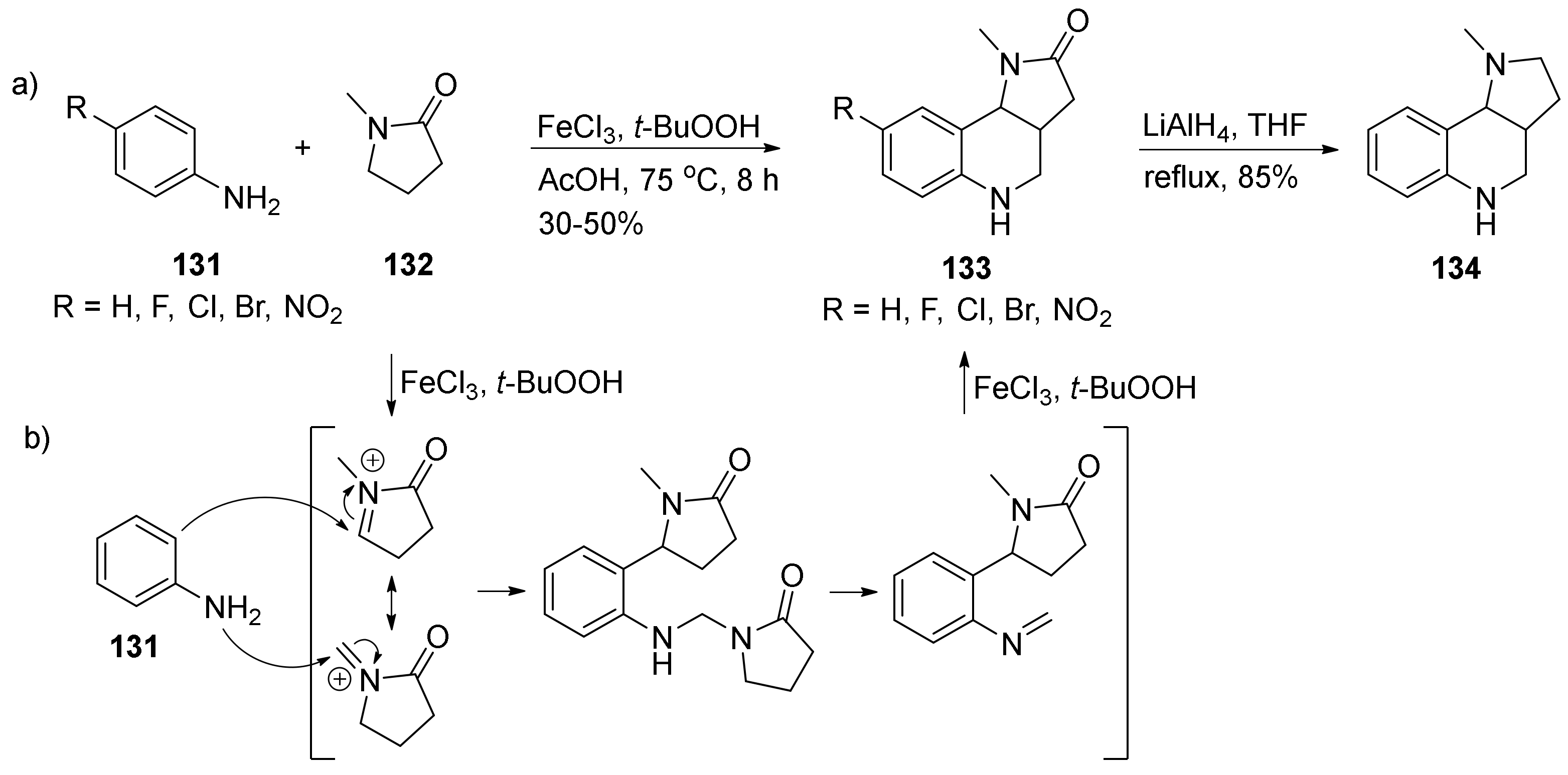

Bao and co-workers applied oxidative conditions to aniline and electron deficient anilines 131 dissolved in lactam 132 to form the tricyclic scaffold 133 (Scheme 21a) [77]. By using iron trichloride (FeCl₃) as catalyst and tert-butylperoxide (t-BuOOH) as oxidant in the presence of acetic acid (AcOH), the pyrroquinoline 133 was formed in 30–50% yield. Bao and co-workers further presented a plausible mechanism for the formation of the tricyclic scaffold 133 (Scheme 21b). The mechanism commenced with a single electron transfer (SET) oxidation of lactam 132 to the corresponding iminium ions. One C–C and one C–N bond was further formed upon addition of aniline 131. Elimination of a 2-pyrrolidone followed by an SET oxidation provided the pyrroloquinoline 133. Further reduction of the lactam moiety, using lithium aluminum hydride, afforded the hexahydropyrroloquinoline structure 134 in 85% yield.

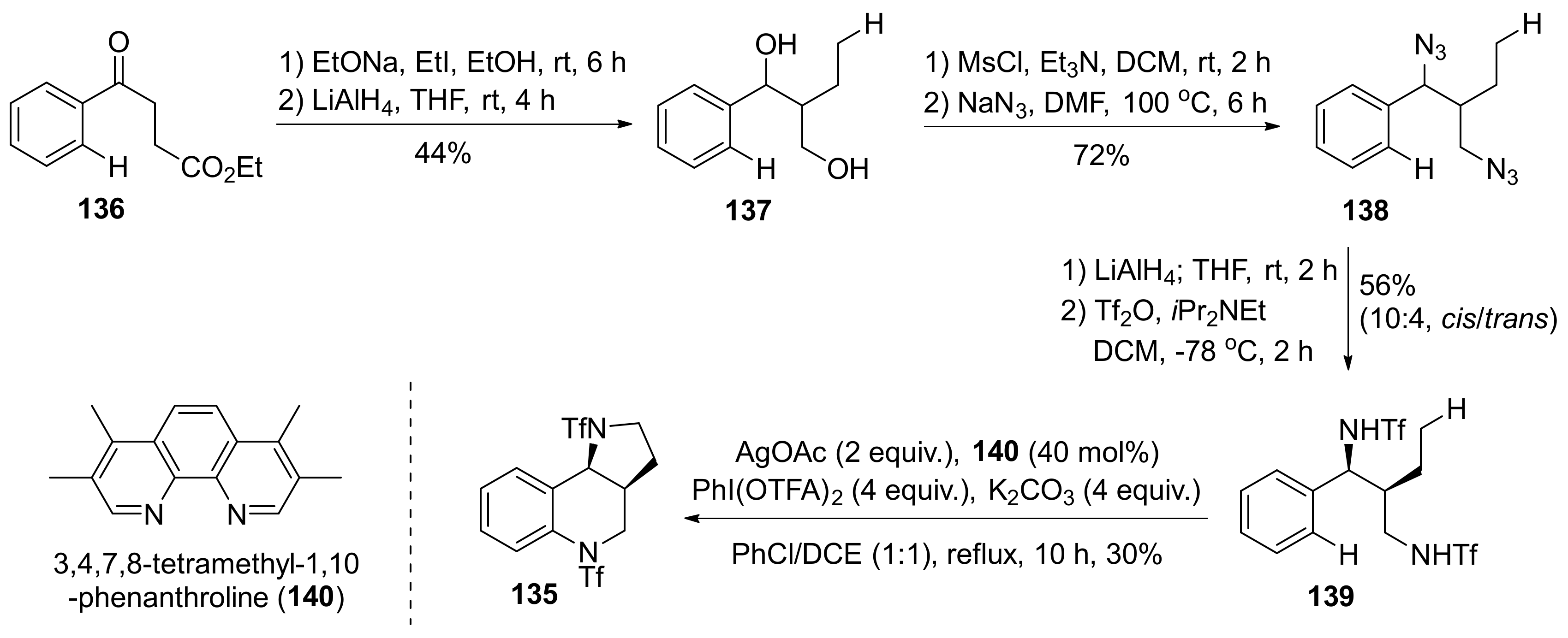

Shi and co-workers obtained the tricyclic scaffold 135 from silver catalyzed amination of inert CH-bonds (Scheme 22) [78]. The synthesis commenced from ketone 136, which was alkylated with ethyl iodide, followed by a lithium aluminum hydride (LiAlH₄) reduction of the ketone and ester moieties. The resulting diol 137 was converted to the corresponding azide 138 via mesylation with mesyl chloride followed by treatment with sodium azide. Reduction of the diazide 138 with LiAlH₄ followed by N-triflation wth triflic anhydride (Tf₂O) afforded diamine 139 with a 10:4 cis/trans relationship between the benzylic amine and the adjacent ethyl chain. The purity of the cis-isomer cis-139 was further enhanced to approximately 90% by crystallizing out its isomer trans-139. Pyrroloquinoline 135 was finally obtained from diamine 139 by a silver catalyzed amination reaction employing silver acetate (AgOAc) as the silver source, phenathroline 140 as the ligand, PhI(OTFA)₂ as the oxidant, and potassium carbonate as the base in a 1:1 solvent mixture of chlorobenzene (PhCl) and dichloroethane (DCE). The reaction was run at reflux for 10 h to afford the tricyclic scaffold 135 in 30% yield.

In 2014, Hui and co-workers employed a stereoselective N-heterocyclic carbene 141 catalyzed cascade reaction between ortho-aromatic aldimines (such as 142) and 2-bromoenals (such as 143) to form the martinella scaffold in high yield and excellent enantioselectivity (Scheme 23a) [79]. They hypothesized that this one-pot cascade reaction includes a Michael addition followed by a Mannich reaction and a lactamization to produce the pyrroloquinoline scaffold with the formation of three stereocenters in the sequence. In their optimization studies, the group found that superior stereoselectivity of the reaction was observed when using DABCO as the base rather than 1,8-diazabicyclic[5.4.0]undec-7-ene (DBU), triethyl amine, or cesium carbonate. They also experienced that the choice of solvent was crucial for the stereoselective outcome of the reaction, with 1,2-dichloroethane (DCE) favoring the reaction with highest diastereoselectivity. A scope study revealed the generality of the reaction. The applicability of the reaction was finally demonstrated with a gram scale synthesis of the bromo-phenyl pyrroloquinoline 144 in 93% yield and >25:1 dr. The carbene catalyzed reaction was also explored by Jin, Chi, and co-workers in 2018 (Scheme 23b) [80]. Instead of the diester imine 142 employed by Hui and co-workers, the p-nitro benzyl imine 145 was reacted with bromoenal 143 to form the pyrroloquinoline scaffold 146 in moderate to high yield and diastereomeric ratio.

Schneider and co-workers assembled the martinella scaffold in a sequential vinylogous Mannich–Mannich–Pictet–Spengler reaction [81]. Addition of bis-silyl dienediolate 147 to imine 148 in a vinologous Mannich reaction followed by a second addition of imine 148 provided pyrroloquinoline 149 in high yield and high diastereoselectivity (Scheme 24). In their proposed mechanism, the imine was added to silyl enol 150 in a Mannich reaction to form a diamino-α-keto ester. This reactive intermediate could then spontaneously cyclize to an imine followed by a Pictet–Spengler reaction with the neighbouring anisidine to form pyrroloquinoline 149.

In a scope study, they observed that low diastereoselectivity was induced in the reactions between intermediate 150 and the electron poor imines, such as imine 151. Through further work, they found that the diastereomeric outcome of the reaction could be flipped by altering reaction conditions. When acetonitrile was used as solvent, instead of 1,2-dimethoxyethane, and by altering the Brønsted acid from trifluoroacetic acid (TFA) to diphenyl phosphate, in addition to running the reaction at low temperature (−20 °C), they obtained diastereomer 152 with 85:15 dr in 84% yield.

The Schneider group reported a follow-up of this synthesis in 2018 [82]. When intermediate 150 was subjected to a Brønsted acid, such as HCl, dipyrroloquinolines 153 and 154 were formed in a combined yield of 69% and a ratio of 50:28:22 (153:154:other diastereomers) (Scheme 24). The group proposed that the cylic imine formed from intermediate 150 in an acid catalyzed reaction reacted with its enamine tautomer in a Mannich reaction to form a dimer. This was then followed by a Pictet–Spengler cyclization to form the dipyrroloquinoline scaffold 153 and 154, with the major diastereomer 153 in endo-configuration.

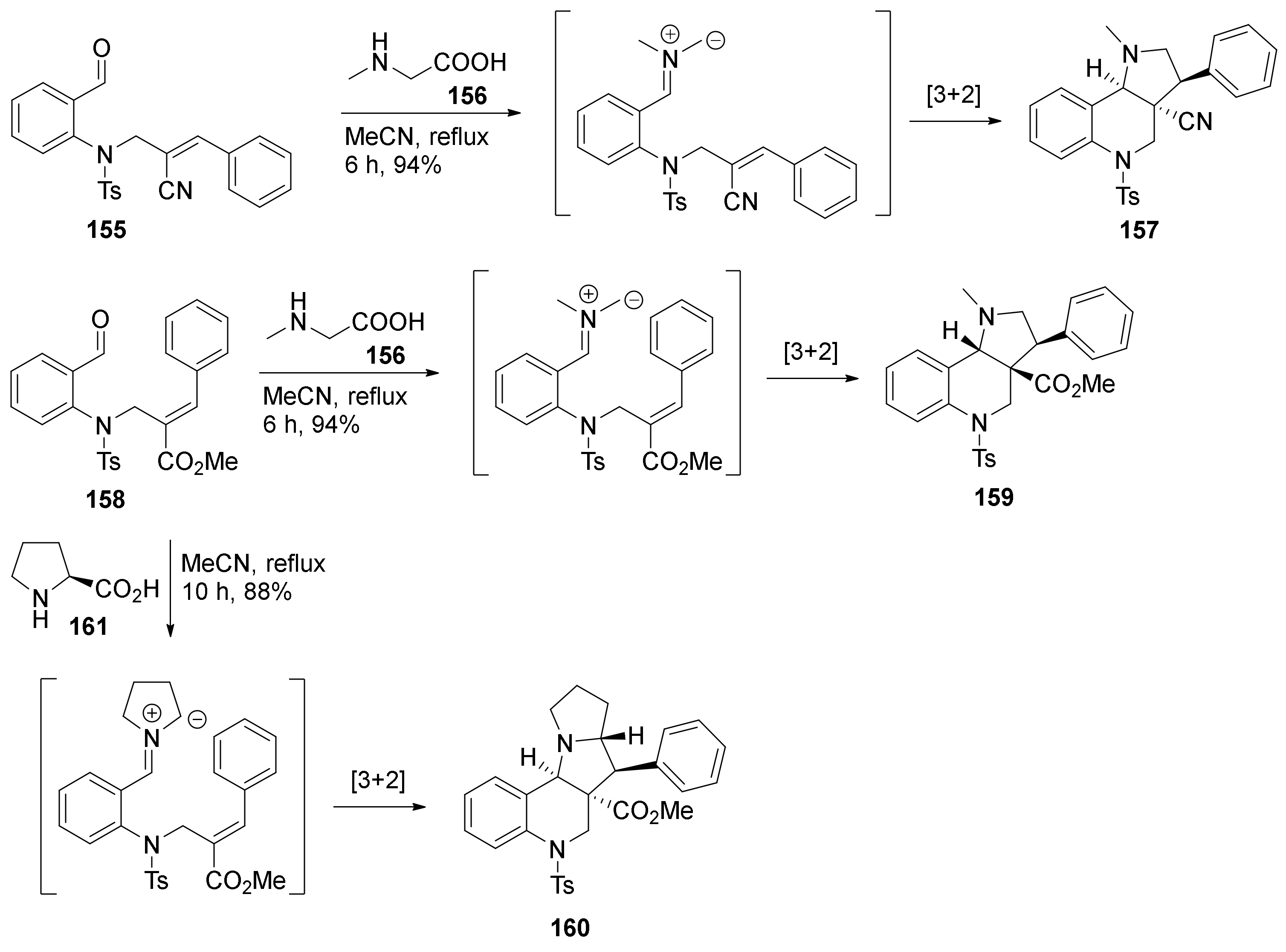

Bakthadoss and co-workers obtained the martinella scaffold from Bayliss Hillman derivatives via a 1,3-dipolar cycloaddition [83]. N-tosyl-N-allyl-2-aminobenzaldehyde (155) was treated with N-methyl glycine (156) to form pyrroloquinoline 157 in 94% yield through imine formation and decarboxylation followed by a 1,3-dipolar cyclization reaction (Scheme 25).

Pyrroloquinoline 157 comprised a trans-relationship between the nitrile and benzyl functionality. The reaction between N-allylated aldehyde 158 and glycine 156 provided pyrroloquinoline 159 with the benzyl moiety in cis-configuration to the methyl ester. The authors remark that the stereoselective outcomes coincide with the nature of the 1,3-dipolar addition reaction, with the cis- and trans-products 157 and 159 originating from cis-alkene 155 and trans-alkene 158, respectively. The group further produced tetracyclic pyrrolizinoquinoline 160 by treating aldehyde 158 with L-proline (161), using the same conditions as previously described.

Xiang and co-workers produced the martinella scaffold in an intramolecular [3+2] annulation of an acceptor-donor cyclopropane and an imine formed in situ [84]. Amide functionalized cyclopropane 162 was treated with aniline, initially at room temperature for 48 h, followed by addition of titanium tetrachloride (TiCl₄) to provide pyrolloquinoline 163 in 40% yield and 8:2 dr (Scheme 26). The product 163 was obtained in 93% yield and 95:5 dr, and reaction time was decreased to 24 h when the reaction temperature was increased to 60 °C and using toluene sulfonic acid (TsOH) as an additive in the first reaction in the sequence.

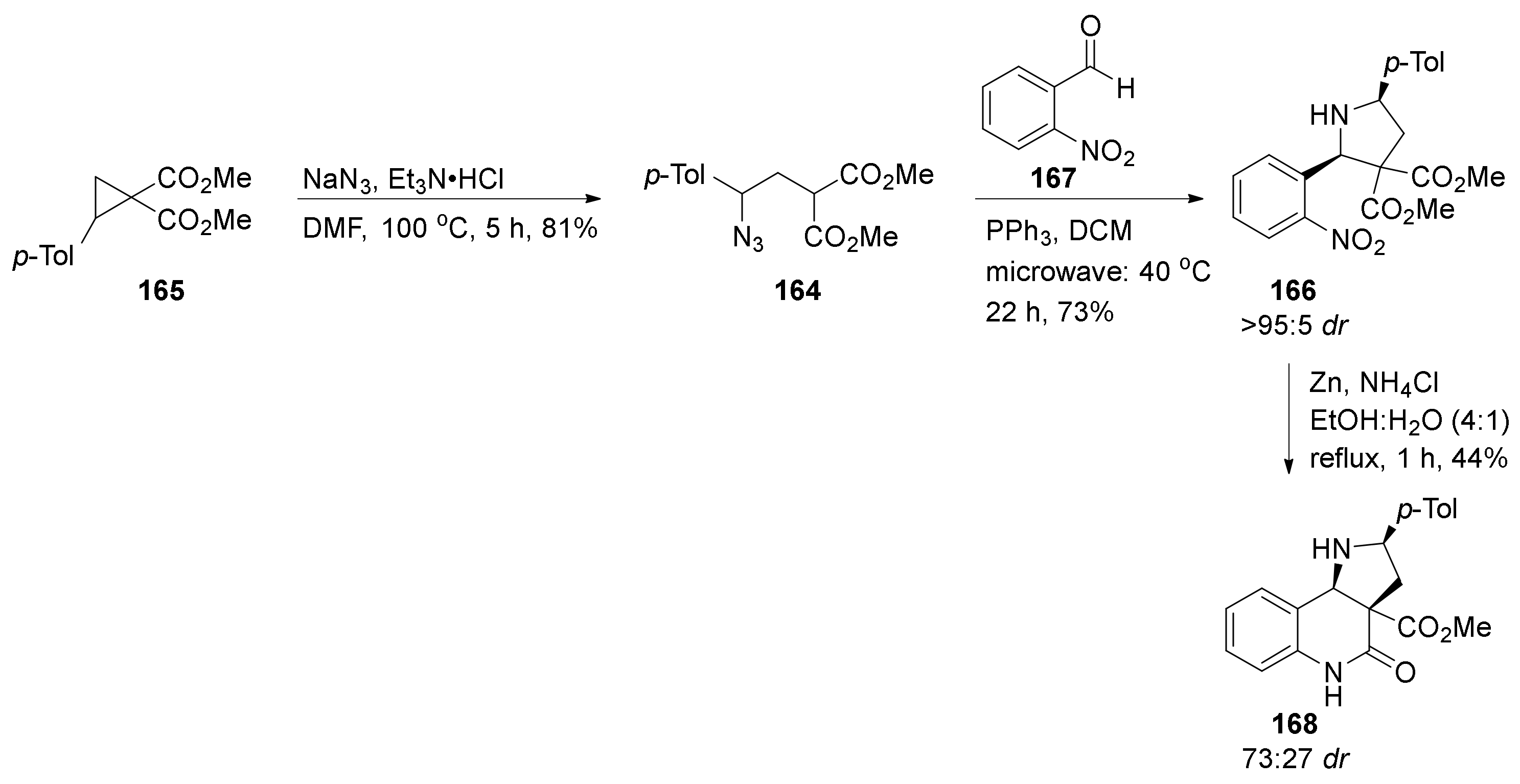

A similar version of the pyrroloquinoline scaffold 163 presented by Xiang and co-workers was also formed by Trushkov and co-workers as part of their combinatorial synthesis of di- and tetrahydropyrrole scaffolds (Scheme 27) [85]. The formation of the pyrroloquinoline scaffold commenced from azide 164, a building block formed from cyclopropane 165 by a ring opening procedure developed in the Trushkov group [86]. The pyrroline 166 was further formed from azide 164 in a domino reaction including a Staudinger reduction of the azide functionality in compound 164, followed by condensation with p-nitro benzaldehyde 167 and finally a reduction of the resulting iminium intermediate to the corresponding amine. Zink mediated nitro reduction of the domino reaction product 166 facilitated the amidative ring closure and thus the formation of pyrroloquinoline 168.

As part of a study on β-amino alkyne reactivity, Li and co-workers produced the martinella scaffold in a copper catalyzed cascade reaction including hydroamination of a β-amino alkyne followed by a Povarov reaction (Scheme 28) [87]. The β-amino alkyne 169 was activated with copper triflate to form the corresponding cyclic enamine, which in a Povarov reaction with the aromatic imine 170, formed pyrroloquinoline 171, with the major diastereomer in endo-configuration. The group further examined the reaction outcome from replacing copper triflate with other catalysts. Comparable results were obtained with copper chloride and iron triflate (Fe(OTf)₃); however, using zinc triflate or mercury triflate did not provide the desired product. The protic catalysts triflic acid and benzoic acid had no effect on the reaction. In work aimed at broadening the scope of the reaction the group observed that different R-groups on the aromatic rings facilitated variations in the endo/exo preference of the reaction products, exemplified here with the two diastereoselective reactions that generated the endo-171 and exo-172 products, respectively.

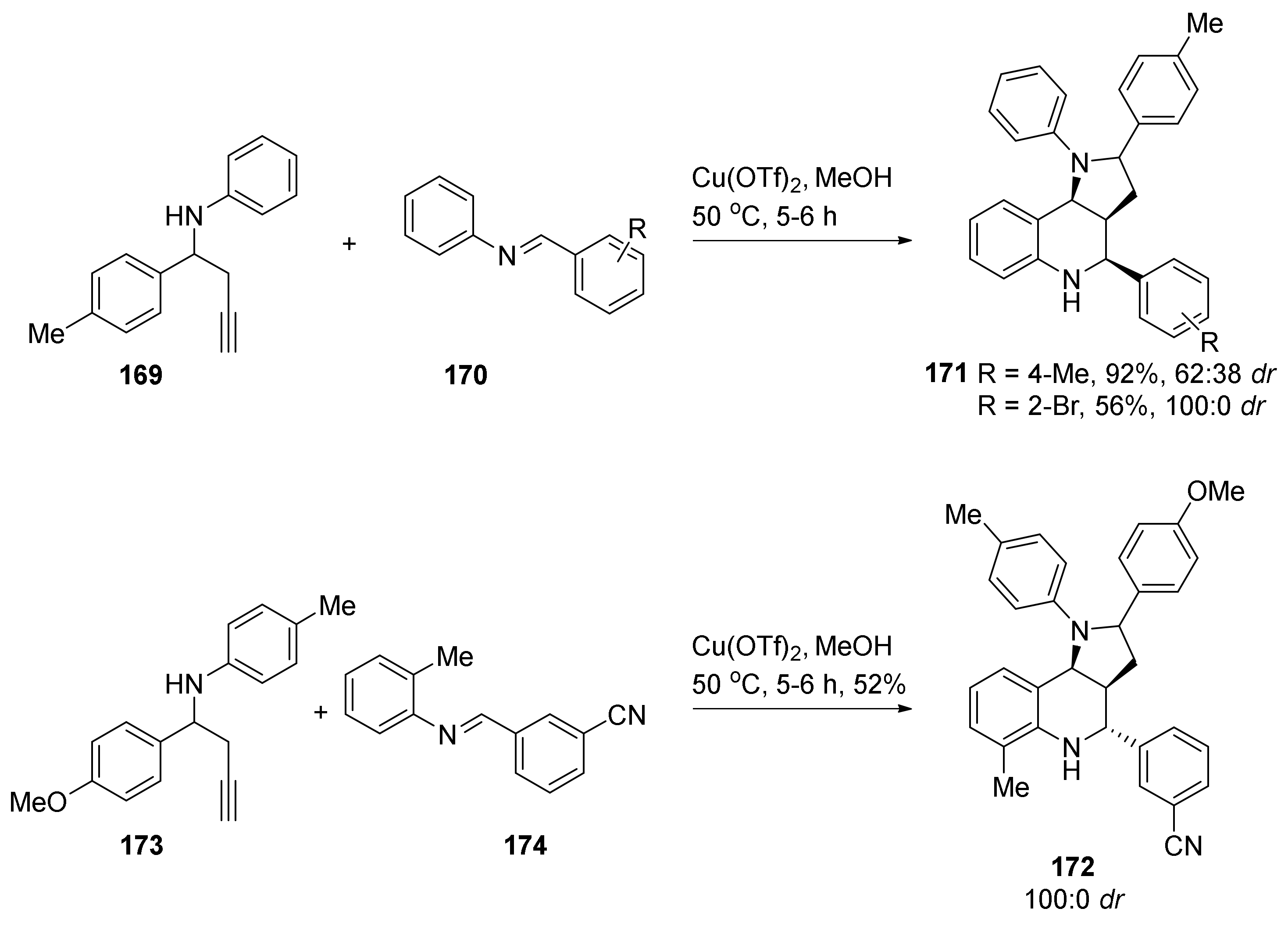

Li and co-workers further extended the utility of the copper catalyzed reaction to include synthesis of dipyrroloquinolines (such as 175) from aminoalkynes (such as 176) (Scheme 29) [88]. Instead of using an aromatic imine 170 in a Povarov reaction, the dipyrroloquinoline 175 was formed as a dimer. The proposed mechanism for this dimerization was a formal [4+2]-cycloaddition of the enamine formed in situ from the copper catalyzed hydroamination of aminoalkyne 176, to its imine tautomer. The group also showed that this method could be used to synthesize the aglycon moiety of Incargranine B (177) from aminoalkyne 178.

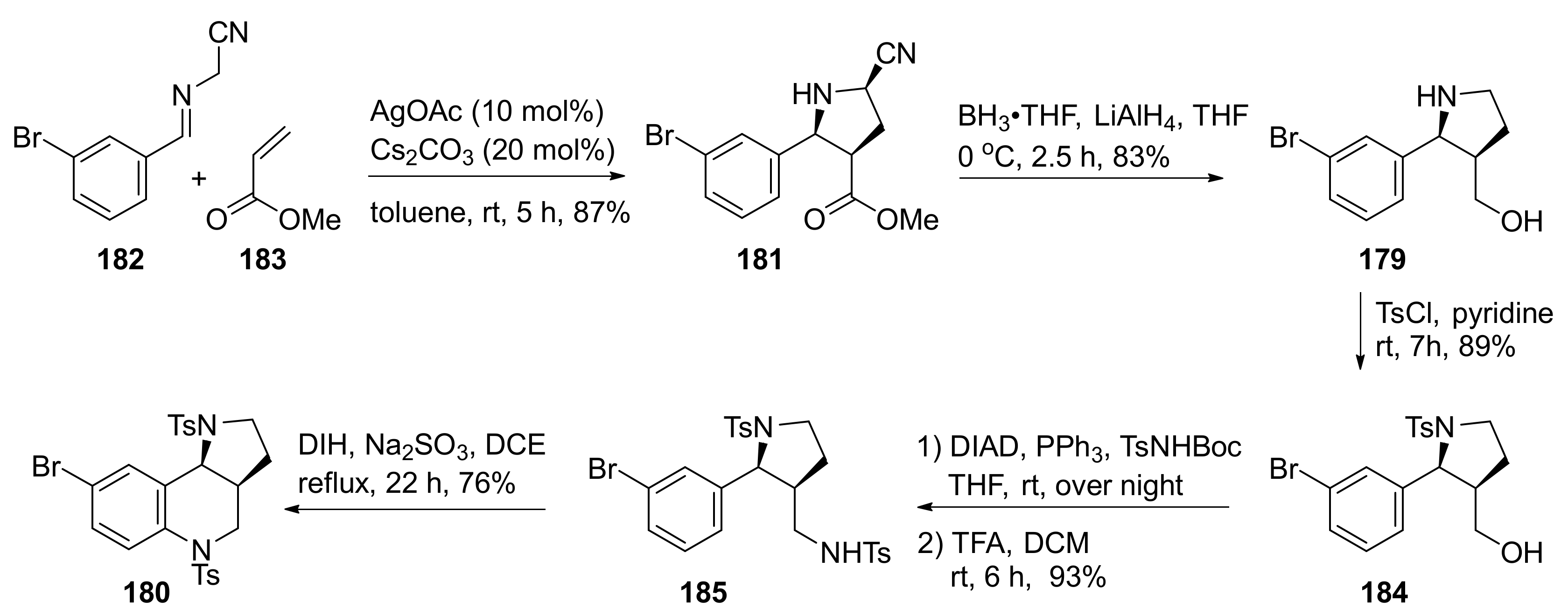

In a scope study of their synthetic route to multisubstituted β-prolinols such as 179, the Zhang group put together the tricyclic scaffold 180 (Scheme 30) [89]. A [3+2] cycloaddition mediated by silver acetate provided cyanoester 181 from imine 182 and Michael acceptor 183. Cyanoester 181 was then converted to prolinol 179 via ester reduction and concomitant reductive decyanation. For the reduction reaction, Zhang and co-workers explored a variety of reducing agents, including lithium aluminum hydride (LiAlH₄), diisobutylaluminium hydride (DIBAL-H), borohydride (BH₃), sodium borohydride (NaBH₄), and combinations of these. A combination of lithium aluminum hydride and borane provided prolinol 179 in highest yield. The N-tosylated prolinol 184 was obtained upon treatment with tosyl chloride, and further converted to the N-tosylated diamine 185 in a substitution reaction with N-Boc-toluenesulfonamide. A final aromatic C–H amination facilitated by 1,3-diiodo-5,5-dimethylhydantoin (DIH) furnished pyrroloquinoline 180 in 76% yield.

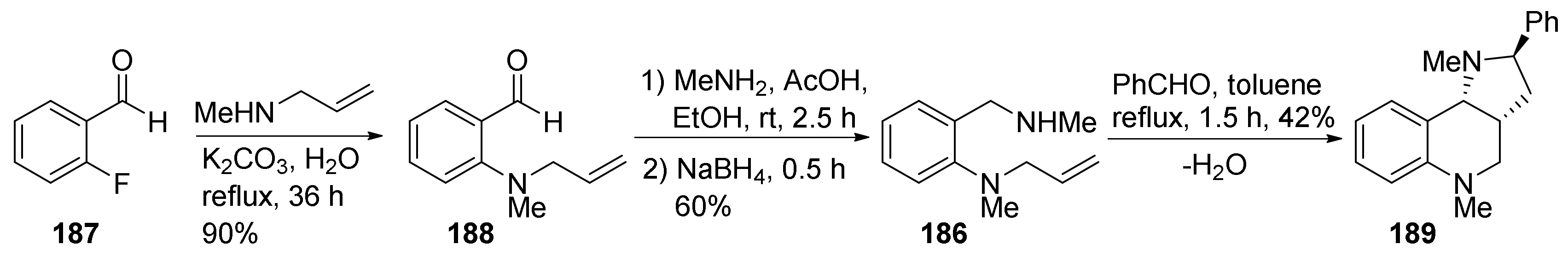

Xiang and co-workers formed the tricyclic scaffold from azomethine ylides (Scheme 31) [90]. Ylide 186 was prepared by coupling of 2-fluotobenzaldehyde 187 with N-methyl allylamine followed by condensation of the resulting aldehyde 188 with methylamine. The pyrroloquinoline 189 was formed as a mixture of enantiomers in moderate yield in a 1,3-dipolar cycloaddition between azomethine ylide 186 and benzaldehyde, while removing water by azeotropic distillation. Xiang and co-workers further observed that the yield from the cycloaddition reaction was somewhat enhanced (53–56%) when the aromatic ring in aniline 186 contained electron withdrawing substituents, such as a chloro or nitro group. Conversely, they observed a decreased reaction yield (19%) when applying said reaction conditions to the m-methoxy derivative of aniline 186.

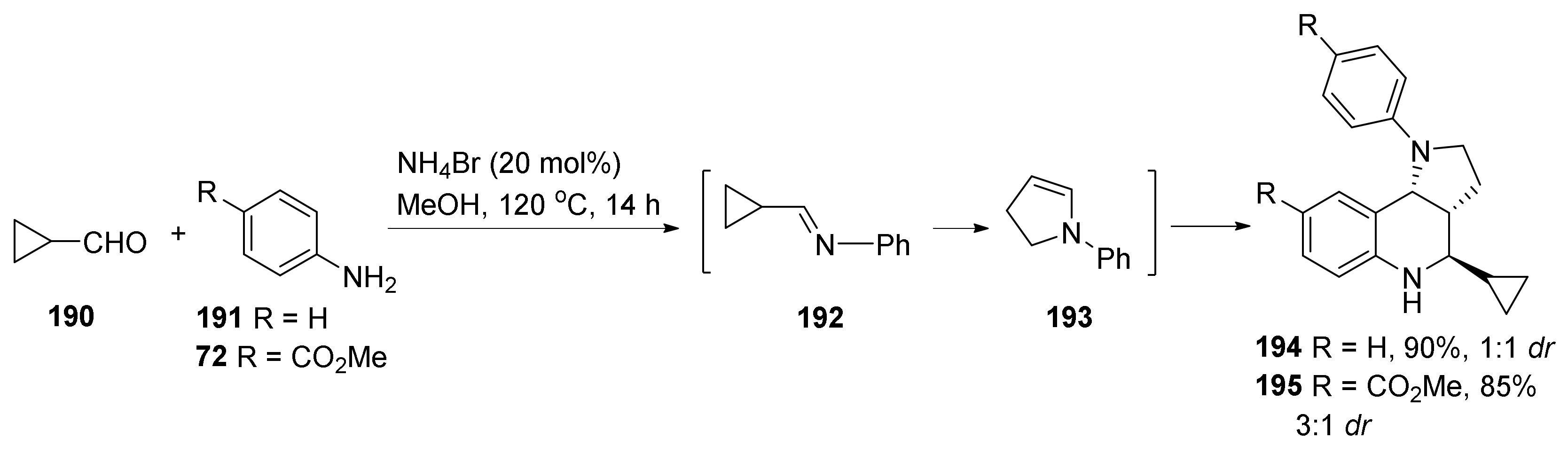

Another method for preparation of the tricyclic scaffold was presented by Huang and co-workers [91]. They treated cyclopropyl amine 190 and aniline 191 with ammonium bromide to promote formation of imine 192 in a condensation reaction (Scheme 32). Further catalytic isomerization of the cyclopropylimine 192 to dihydropyrrolidine 193 followed by a Povarov reaction between the imine 192 and the enamine 193 afforded pyrroloquinoline 194. When conducting the reaction with halide-substituted anilines, the group found that the p-anilines provided the pyrroloquinolines in highest yield. Nearly all reactions provided the product in approximately 1:1 diastereomeric mixtures, except in the case of p-CO₂Me-aniline 72, which afforded the product 195 with the major stereoisomer in exo-configuration.

Tatsuta and co-workers at Waseda University together with Kondo at Takeda Pharmaceutical company developed a method for the synthesis of pyrroloquinoline 196 via an asymmetric hydrogenation reaction using a rhodium catalyst together with the ferro-phosphine ligand 197 (Scheme 33) [92,93]. The synthesis commenced from PMB-protected pyrrolidone 198, which was alkylated with methyl methoxyacetate to form methoxy ketone 199. Enamine 200 was obtained from the acid catalyzed condensation of ketone 199 with aniline. Rhodium-catalyzed asymmetric reduction of the enamine 200 followed by recrystallization in isopropylether and n-hexane afforded the enantiopure amine 201. The N-protecting group was then converted from p-methoxybenzyl (PMB) to t-butyloxycarbonyl (Boc) to form compound 202, which was compatible with the following amide reduction by lithium triethyl borohydride (LiBHEt₃). Acid catalyzed intramolecular cyclization of the reduced product afforded pyrroloquinoline 203 in 94% yield over two steps. The final enantiopure product 196 was obtained in 21% overall yield as the HCl-salt upon acidic Boc-deprotection of carbamate 203.

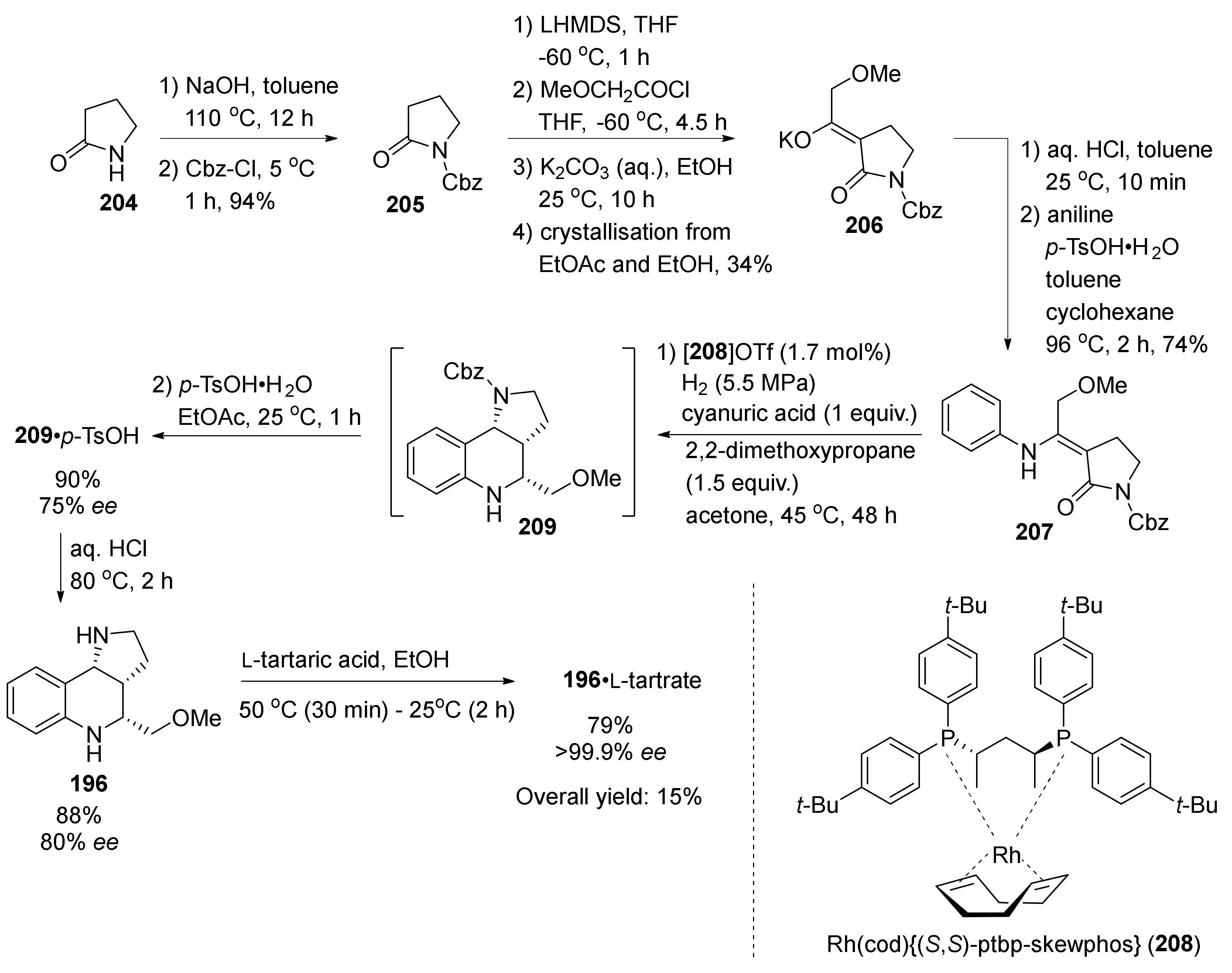

A second generation asymmetric synthesis of the pyrroloquinoline methyl ether 196 (Scheme 33) was reported by Yamada and co-workers at Takeda Pharmaceutical company (Scheme 34) [94]. To avoid the need for changing the protecting group during the synthetic pathway, pyrrolidone 204 was protected with a benzyloxy carbonyl (Cbz) group. The resulting N-protected pyrrolidone 205 was acylated with methoxyacetyl chloride and converted to the more stable potassium salt 206 by treatment with potassium carbonate in ethanol followed by a recrystallization step. The salt 206 was liberated to the corresponding ketone by treatment with hydrochloric acid and then condensed with aniline to afford enamine 207 in 74% yield. Asymmetric hydrogenation of enamine 207 with rhodium catalyst 208 in the presence of cyanuric acid and 2,2-dimethoxypropane provided pyrroloquinoline 209, which was converted into 209•p-TsOH by treatment with p-toluenesulfonic acid. The direct conversion of enamine 207 to the cyclized product 209 under said reduction conditions was a fortunate surprise for Yamada and co-workers. They hypothesized that the cyclization process proceeded in a four-step domino cascade. In their proposed mechanism, asymmetric hydrogenation of enamine 207 followed by a carbonyl reduction of the pyrrolidone formed the corresponding N,O-acetal, which was dehydrated and sulfonated with triflate present in the mixture. Finally, the triflate participated in a cis-selective intramolecular cyclization reaction with the aniline moiety to assemble the pyrroloquinoline scaffold 209. Amine 196 was obtained in 88% yield and 80% ee upon removal of the N-Cbz protecting group. Further chiral resolution with L-tartaric acid afforded the enantiopure tartrate salt 196•L-tartrate. The reaction which was conducted in large scale gave 62 kg of the final product 196•L-tartrate.

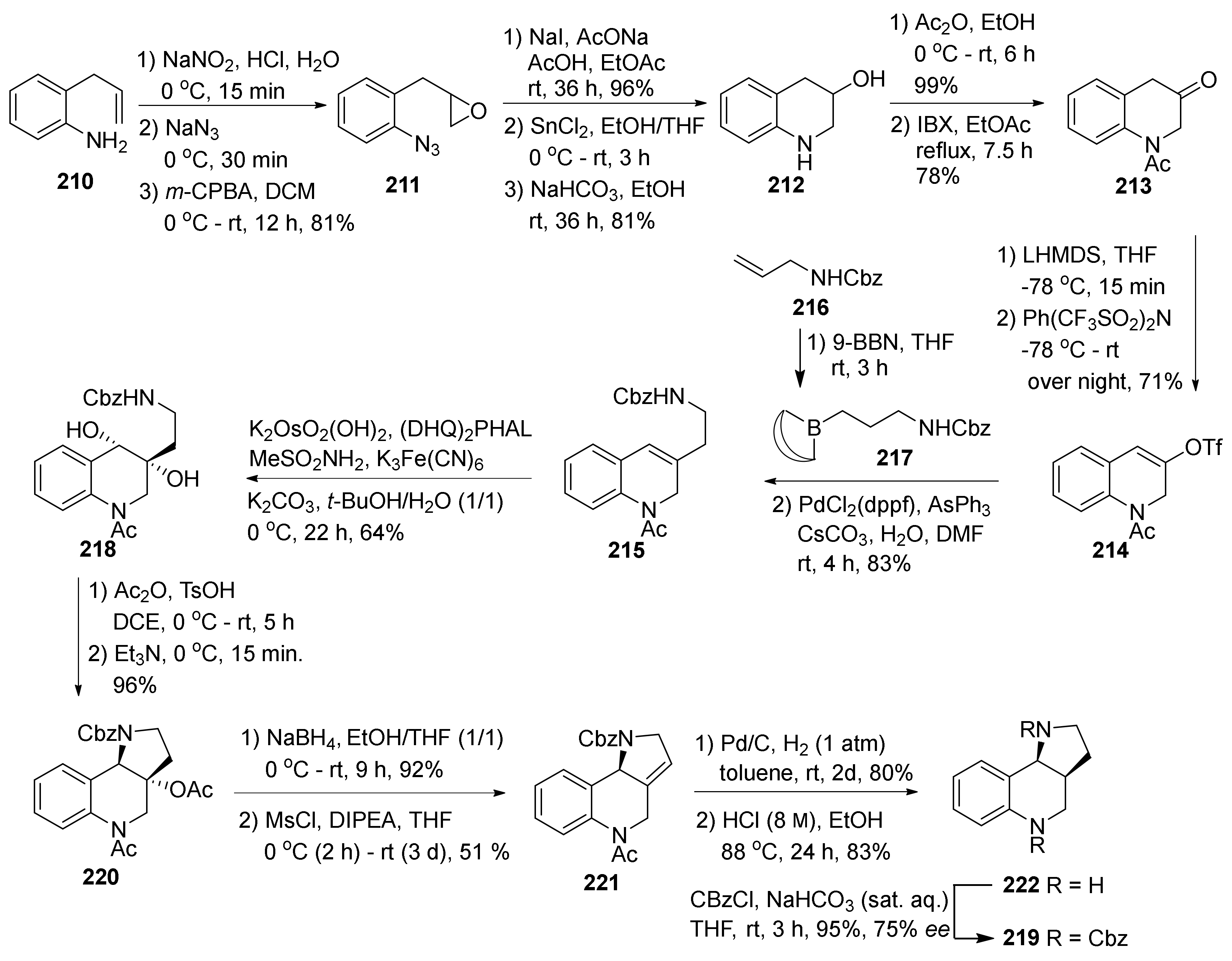

In our group, we investigated the applicability of Sharpless’ asymmetric strategies to obtain the tricyclic scaffold stereoselectively without the use of chiral building blocks or chiral auxiliary (Scheme 35) [95]. Allylamine 210 was converted to cyano-epoxide 211 by treatment with sodium azide followed by m-chloroperbenzoic acid (m-CPBA) epoxidation. Ring-opening of the epoxide 211 with sodium iodide followed by azide reduction and resulting quinoline cyclization afforded quinoline-3-ol 212. The quinoline amine 212 was then acetylated and the alcohol functionality was oxidized with 2-iodoxybenzoic acid. By treating the resulting ketone 213 with triflating agent N-phenyl-bis(trifluoromethanesulfonimide), using lithium bis(trimethylsilyl)amide as the base, gave triflate 214 in 71% yield. The Sharpless dihydroxylation substrate, namely alkene 215, was obtained from a sequential reaction entailing the hydroboration of N-Cbz-protected allylamine 216 followed by a Suzuki–Miyaura cross-coupling of the resulting boron 217 with triflate 214. The alkene 215 was further subjected to Sharpless asymmetric dihydroxylation (AD) conditions, using (DHQ)₂PHAL as the chiral ligand, to enantioselectively afford diol 218 in 64% yield.

The stereochemistry of the diol 218 was assigned by using Sharpless mneumonic device, which is a tool that can rationalize face selectivity of the AD reaction [96]. The stereochemical outcome from the AD reaction was later confirmed by HPLC analysis of N-Cbz protected pyrroloquinoline 219 on a chiral column. Acid catalyzed acetylation of diol 218 facilitated formation of the tricyclic structure 220 via an intramolecular substitution reaction. Based on the mechanism proposed by Jagadeessh and Rao [97], we hypothesized that the diacetate first underwent an intramolecular S_N1 reaction, forming an acetoxonium ion intermediate. The cyclized cis-product 220 was subsequently generated from a nucleophilic attack on the acetoxonium ion by the Cbz-protected amine. Ester 220 was reduced with sodium borohydride to the corresponding alcohol and then dehydrated to alkene 221 by treatment with MsCl and Hunig’s base (DIPEA). Hydrogenation of the alkene 221 followed by acid promoted removal of the N-protecting groups, afforded the final product 222.

After the first generation of scaffold synthesis, an alternative synthetic strategy to enhance enantioselectivity of the pyrroloquinoline scaffold and at the same time install handles on the scaffold for further elaboration to martinellic acid was initiated by Haarr and Sydnes (Scheme 36) [98]. Cinnamyl alcohol 223 was subjected to the Sharpless epoxidation reaction to afford bromo-epoxide 224 in 86% ee. Epoxide 224 was then regioselectively ring opened with allylamine in the presence of titanium(IV)isopropoxide to afford the corresponding amino-diol, which was subjected to a protection–deprotection sequence to afford the N-acetylated diol 225. In our synthetic design, we envisioned using the two alcohol moieties to first perform ring closing of the pyrrolidine ring followed by ring closing of the hetero-quinoline ring. Attempts to selectively oxidize the primary or the secondary alcohol moieties was unsuccessful. Selective silyl protection of the primary alcohol was thus conducted, followed by oxidation of the secondary alcohol using Dess Martin Periodinane (DMP) to form ketone 226. In order to accomplish cyclization of the pyrrolidine ring via a ring closing metathesis with the N-allyl functionality, we attempted to convert ketone 226 to alkene 227. No reaction took place under Wittig or Lombardo reaction conditions. Attempts to form the corresponding nitroalkene by reacting ketone 226 with nitromethane followed by a mesylation–elimination sequence was also unsuccessful. We speculated that there could be steric issues that caused the failure to install the alkene. Diol 225 was thus subjected to sodium periodate mediated oxidative cleavage to obtain aldehyde 228. Attempts of alkene formation were again unsuccessful and no conversion of aldehyde 228 to its corresponding alkene 229 was observed. Other efforts to work around the encountered synthetic challenges were conducted; however, those efforts were in vain.

4. Synthesis of Dipyrroloquinolines Towards Natural Products Seneciobipyrrolidine (3) and Incargranine B (4)

As mentioned in the introduction, the Zhang group isolated incargranine B (3) in 2010 from Incarvillea mairei var. grandiflora [25]. Based on the spectroscopical data, they proposed an indolo-[1,7]naphthyridine core structure for the alkaloid (Figure 2a). When Lawrence and co-workers later studied the most likely biogenesis route to incargranine B (3) from the main sources of alkaloid building blocks, they firstly recognized that incargranine B appeared to be a dimer biosynthesized from the glycosylated tyrosine precursor, salidroside (Figure 2, red part) [26]. However, they struggled to propose a plausible mechanism for the synthesis of the heterocyclic part (Figure 2a, blue part) of incargranine B. This led them to hypothesize that the originally proposed structure was wrongly assigned and that incargranine B in fact was a dipyrroloquinoline (Figure 2b) [26].

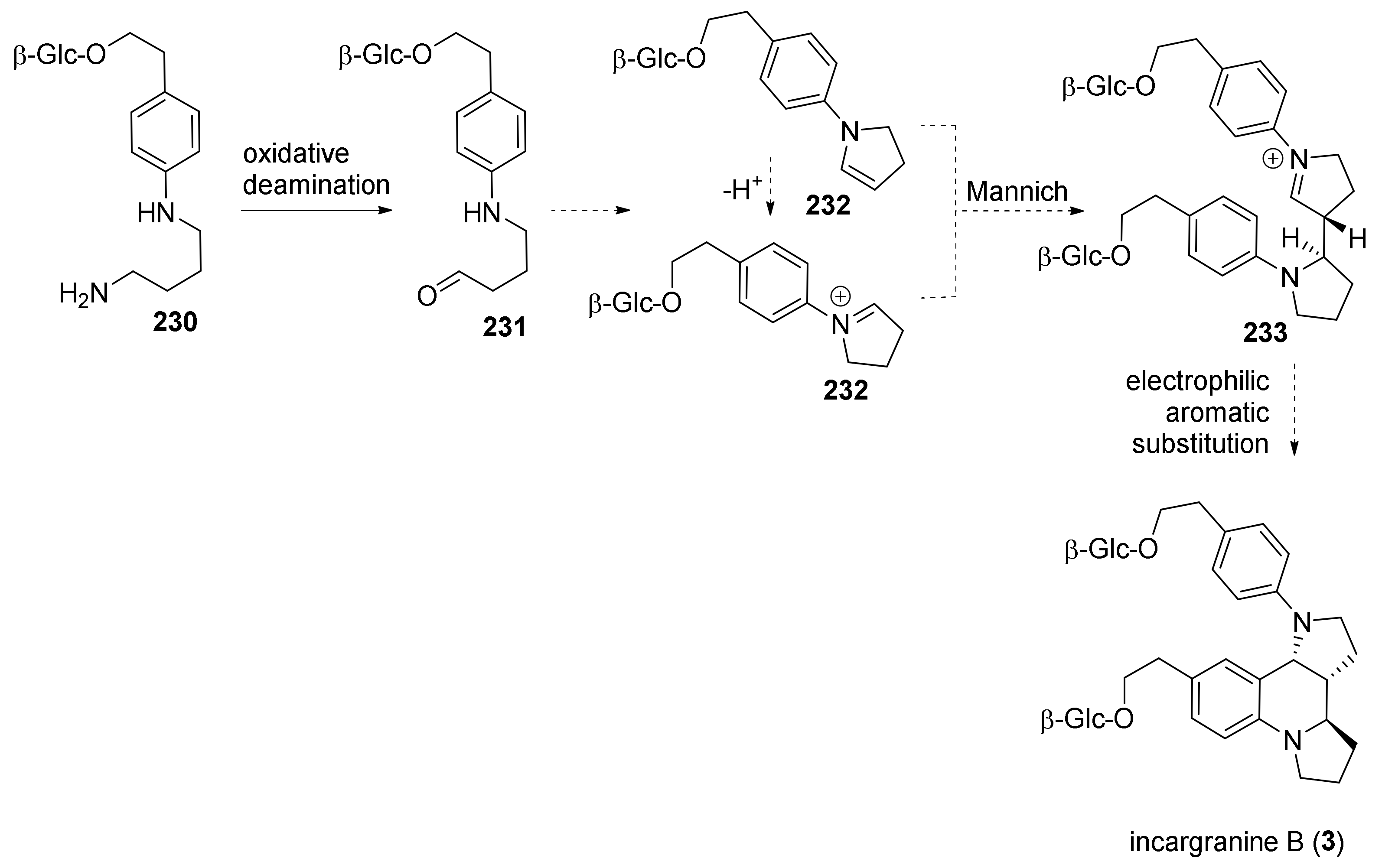

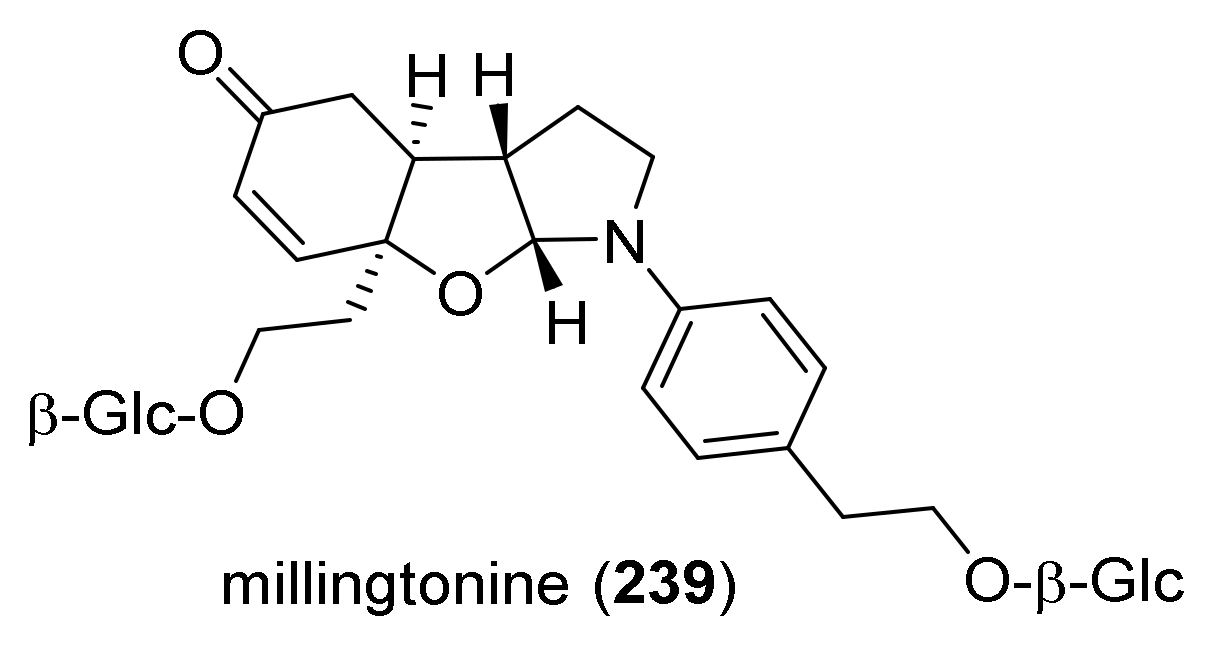

With this hypothesis in mind, Lawrence and co-workers suggested a biosynthetic route towards incargranine B (3), where phenylethanoid-diamine 230 was a reasonable precursor (Scheme 37). Diamine 230 could undergo oxidative deamination to form an amino aldehyde 231 that would undergo an intramolecular condensation to give imine/enamine 232. Dimerization of the imine/enamine 232 through a Mannich reaction to form an imine intermediate 233 that could be trapped in an electrophilic aromatic substitution reaction would provide incargranine B (3).

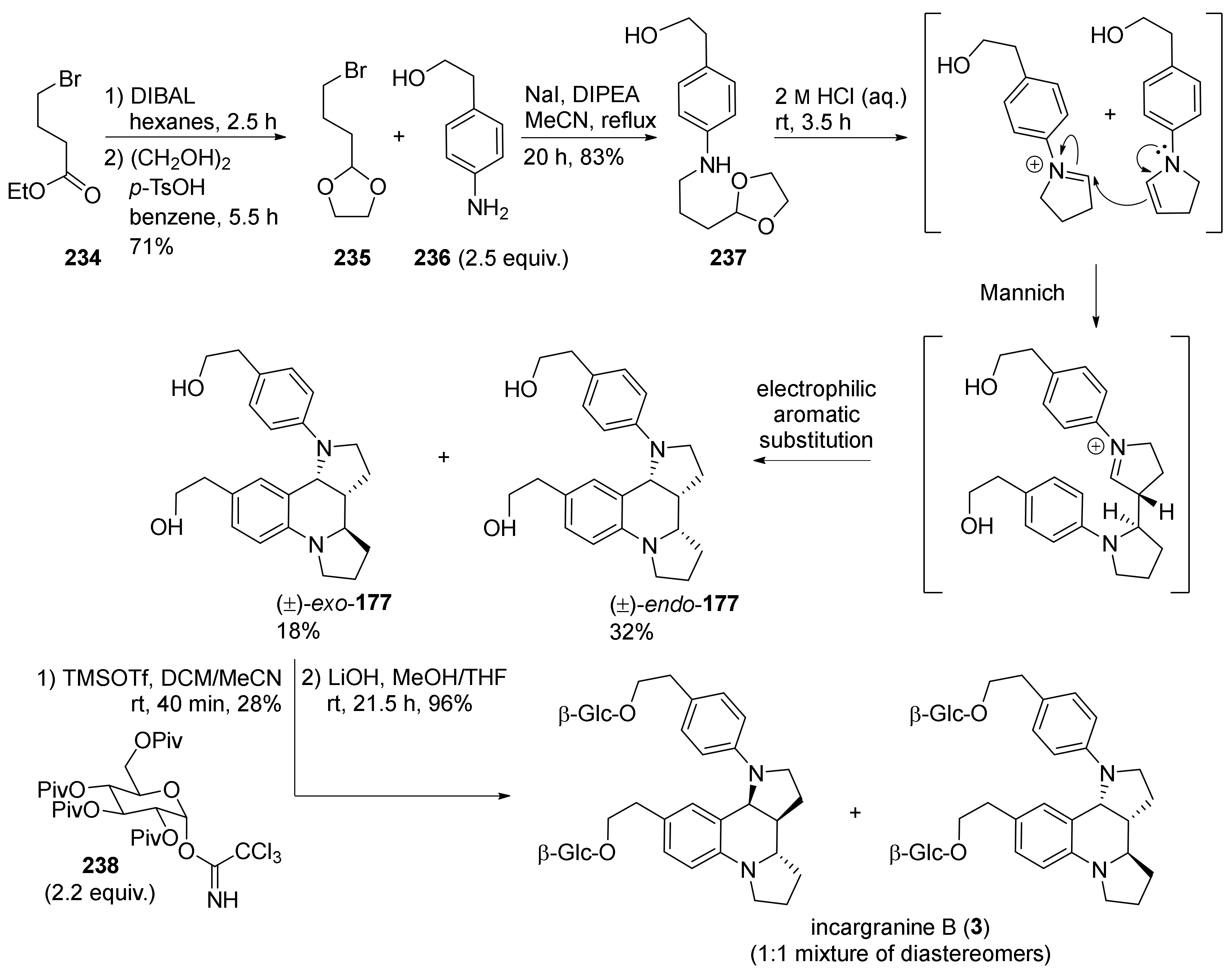

To confirm their structural revision work and suggested biosynthetic pathway, Lawrence and co-workers completed a biomimetic total synthesis of the revised structure for incargranine B (3) (Scheme 38). Reduction of ester 234 with DIBAL followed by acetal protection of the resulting aldehyde provided acetal 235 in 71% yield. Alkylation of aniline 236 with acetal 235 gave the dimerization precursor, acetal 237. Acidic hydrolysis of the acetal to form the corresponding aldehyde facilitated condensation with the amine to form the enamine in equilibration with the iminium ion. Further dimerization in a Mannich reaction followed by electrophilic aromatic substitution provided dipyrroloquinoline 177 as a close to racemic mixture (scalemic mixture). The isolated diastereomer (±)-exo-177 was further glycosylated with O-pivaloyl-protected glucoside 238. After basic deprotection of pivaloyl-groups with lithium hydroxide, incargranine B (3) was obtained as a mixture of diastereomers. The spectroscopic data of the synthesized incargranine B (3) were in full accord with the data reported by Zhang for the isolated natural product.

The optical rotation of the diastereomeric mixture 3 (α = −16.7 (c = 0.275, MeOH)) was close to the reported optical rotation of the isolated natural product (α = −12 (c = 0.275, MeOH)). Lawrence and co-workers therefore suggested that the isolated natural product 3 also consists of a mixture of diastereomers. They further drew a parallel to the biosynthetically related diglycosidic alkaloid, millingtonine (239) (Figure 3), which also naturally occurs as a mixture of diastereomers. The discrepancies of the optical rotation values between the isolated martinellic alkaloids and the synthesized enantiomers have resulted in several groups, suggesting that the martinella alkaloids also most likely are a close to racemic (or scalemic) mixture of enantiomers [30].

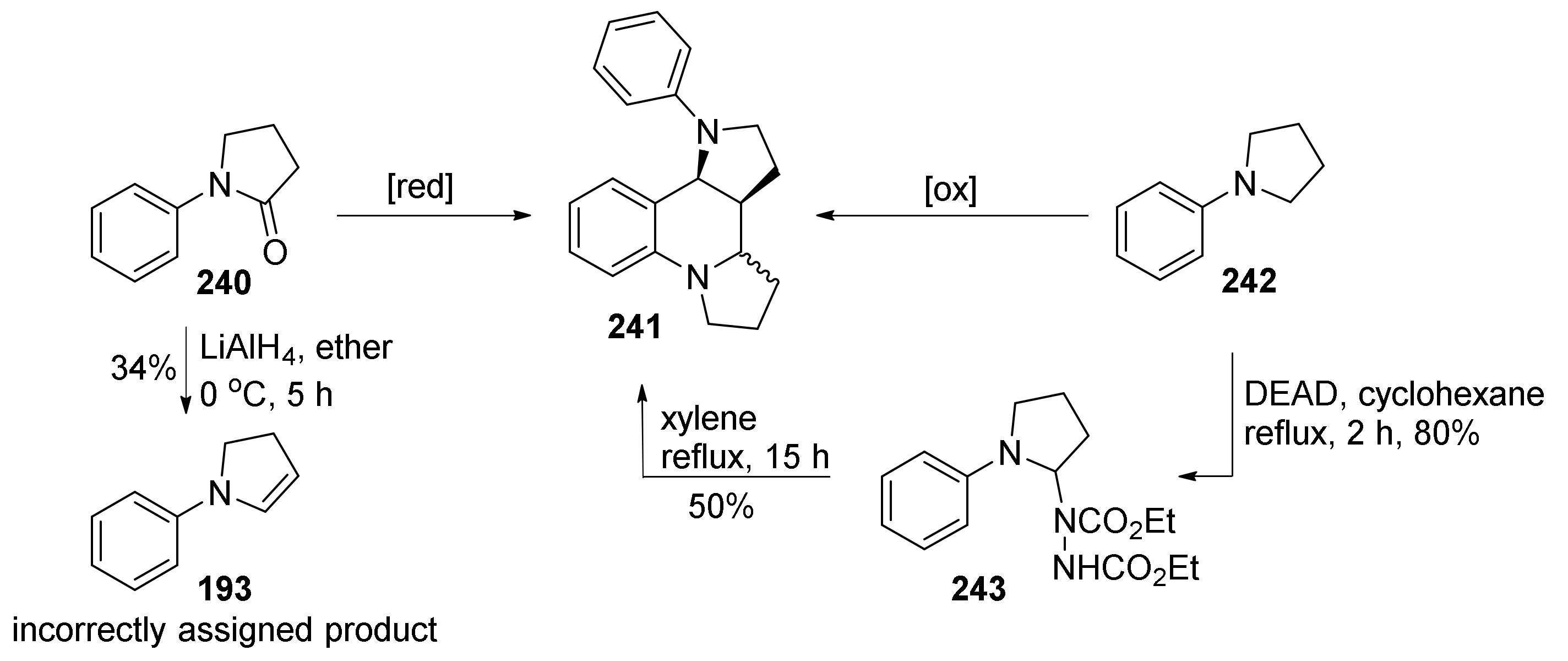

Interestingly, the dipyrroloquinoline scaffold was discovered in the laboratory decades before it was found in nature. The first synthesis of the dipyrroloquinoline was actually conducted in 1955 by Wittig and Sommer, in a lithium aluminium hydride (LiAlH₄) reduction reaction with lactam 240 (Scheme 39) [99]. The resulting product was incorrectly characterized to be pyrrole 193, accompanied by a comment on how the properties of this product 193 was remarkably different from its stereoisomer, i.e., the corresponding 2,5-dihydropyrrole. The error was discovered in 1974 by Swan and Wilcock and Kerr and co-workers in two separate studies [100,101]. Both groups described that the product formed under the Wittig and Sommer reaction conditions was in fact the dipyrroloquinoline 241 produced by dimerization of the enamine in equilibrium with the corresponding imine (

Table 3. Oxidative and reductive reaction conditions for formation of dipyrroloquinoline 241.

Entry	Starting Material	Conditions	Yield a	Endo:Exo	Reference
1	240	LiAlH4, ether, rt, 3.5 h	27%	38:36	[100]
2	242	O3, n-hexane, 0 °C	41%	NR	[101]
3	242	1) DEAD, cyclohexane, reflux, 2 h, 80% 2) xylene, reflux, 15 h	50%	28:22	[101]
4	242	γ-irradiation, 17 d	9%	~1:1	[102]
5	242	di-t-butylperoxide, 140 °C, 44 h	NR	~1:1	[102]
6	242	Dibenzoyl peroxide, MeCN, 0 °C, 9 h	28%	1:0	[102]
7	242	t-BuOOH, NaOAc•3H2O, cyclohexane 70 °C, 24 h	72%	1:0	[103]
8	242	Cu(OAc)2, O2, Et3N	26%	11:15	[104]
9	240	PhMe2SiLi, −78 to −20 °C	47%	31:16	[105]

^a isolated combined yield of stereoisomers; NR = not reported.

, entry 1).

Kerr and co-workers suggested that formation of the endo-product 241 as the major stereoisomer could support a concerted hetero Diels Alder dimerization mechanism [101]. In the same report, they also presented formation of the dimer 241 by oxidation of pyrrolidine 242 with ozone, or by using diethyl azodicarboxylate (DEAD) to form hydrazine 243, followed by thermal decomposition [101] (Scheme 39, Table 3, entry 2 and 3). Swan and co-workers similarly presented oxidative formation of the dimer 241 from pyrrolidine 242 using gamma-rays or peroxides (Table 3, entry 4–6) [102]. They suggested that the intermediate enamine was, under these conditions, formed from the pyrrolidine radical. When treating pyrrolidine 242 with t-butylperoxide, a mixture of stereoisomeric dimers 241 was formed. However, with dibenzoyl peroxide, only the endo-stereoisomer 241 was isolated. This peculiarity was also observed by Rao and Periasamy when they treated pyrrolidine 242 with t-butyl hydroperoxide (HYDRO) in the presence of sodium acetate to form the endo-dimer 241 in 72% yield (Table 3, entry 7) [103].

Another approach towards dipyrroloquinoline 241 was presented by Minakata and co-workers in 1997 [104]. They described that oxidation of pyrrolidine 242 with catalytic copper(II) and triethyl amine as an additive under an oxygen atmosphere resulted in the formation of the dimer 241 in 26% yield (Table 3, entry 8). Interestingly, this method favored formation of the exo-stereoisomer 241 in a 15:11 ratio. Buswell and Fleming later showed that the dimer 241 could be made from lactam 240, by treatment with dimethyl phenyl silyl lithium (PhMe₂SiLi) at −78 °C (Table 3, entry 9) [105]. Due to the high nucleophilicity of PhMe₂SiLi, Fleming suggested that the dimerization mechanism did not involve formation of an imine intermediate. Instead, he proposed that dimerization occurred between a pyrrolocarbene, formed from α-elimination of dimethyl phenyl silane oxide, and the corresponding dimethyl phenyl silane enolate. Formation of the dipyrroloquinoline 241 as a side product dimer when utilizing N-phenyl pyrrolidine in reactions with oxidative conditions is today a well-known issue [106,107,108,109,110,111,112].

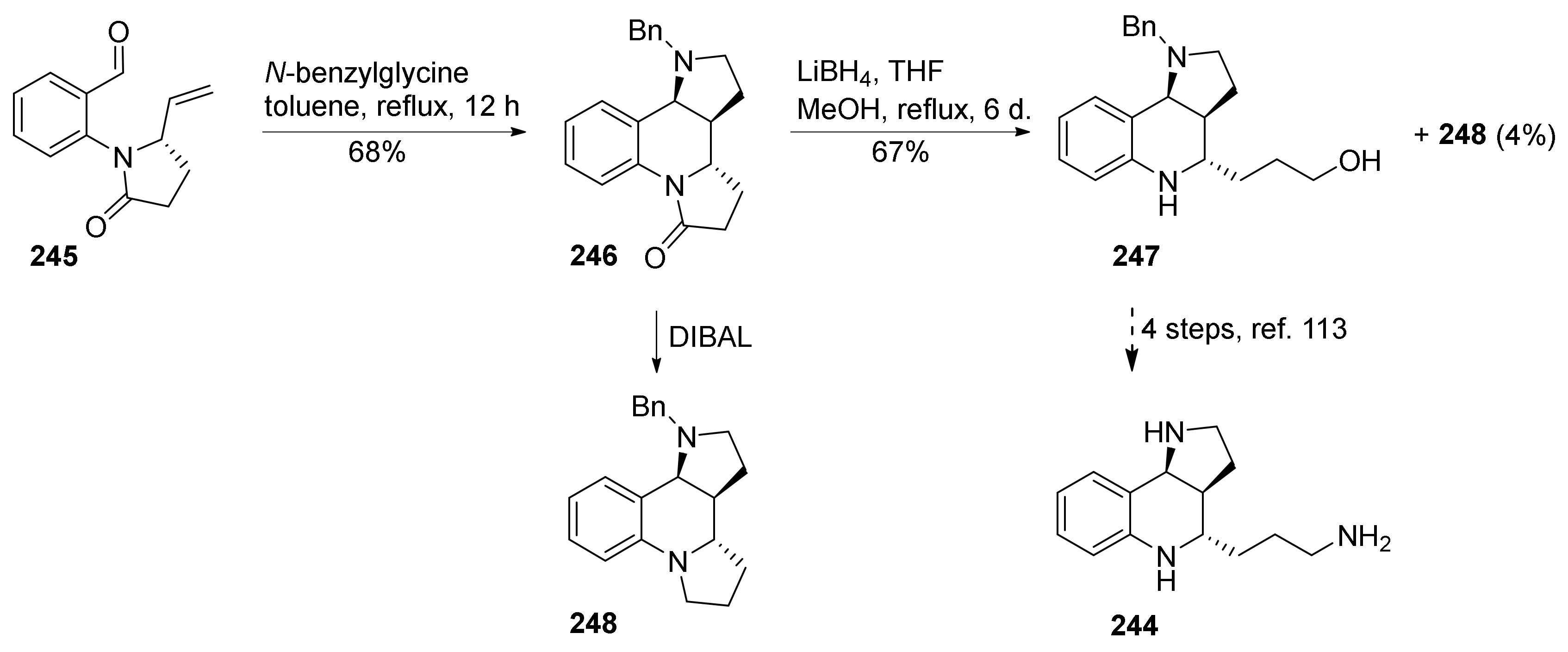

In their synthesis of triamine 244, Snider and co-workers prepared dipyrroloquinoline 245 as an intermediate (Scheme 40) [113]. A similar tetracycle 52 was also prepared by the Naito group in the RACE reaction previously mentioned (Scheme 7) [31]. Reduction of amide 246 with lithium borohydride afforded the desired alcohol 247 and minor amounts of pyrroline 248. Moreover, Snider mentioned that reduction with lithium aluminium hydride gave tricycle 247 and tetracycle 248 in a 1:1 mixture, and that dipyrroloquinoline 248 was formed exclusively upon treatment with DIBAL.

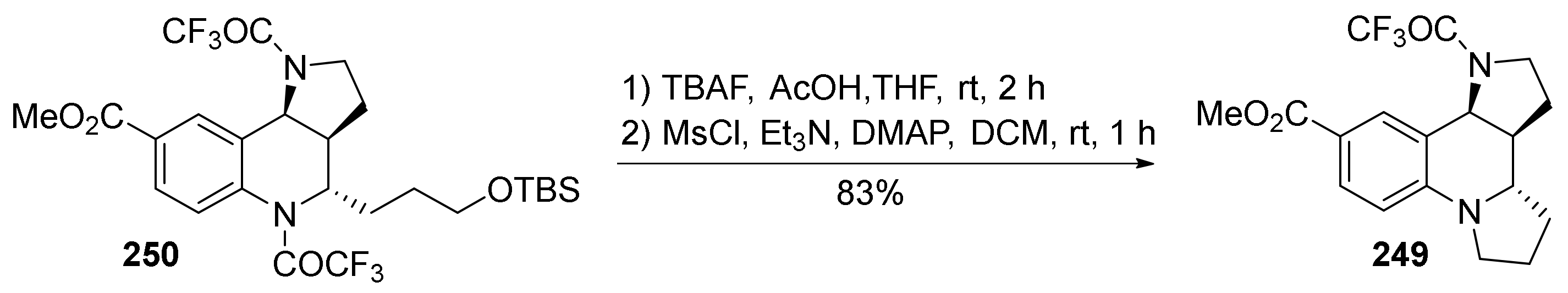

In a similar fashion to Snider, Ma and co-workers synthesized the dipyrroloquinoline 249 as a side product in their asymmetric total synthesis of martinellic acid [29]. N-,O-deprotection of pyrroloquinoline 250 with TBAF followed by treatment of the corresponding alcohol with methanesulfonyl chloride provided dipyrroloquinoline 249 in a substitution reaction in 83% yield (Scheme 41). The X-ray structure of tetracycle 249 was used to confirm the exo-stereochemistry of the pyrroloquinoline scaffold 250 and consequently also the final product of the synthesis, namely (−)-martinellic acid ((−)-2).

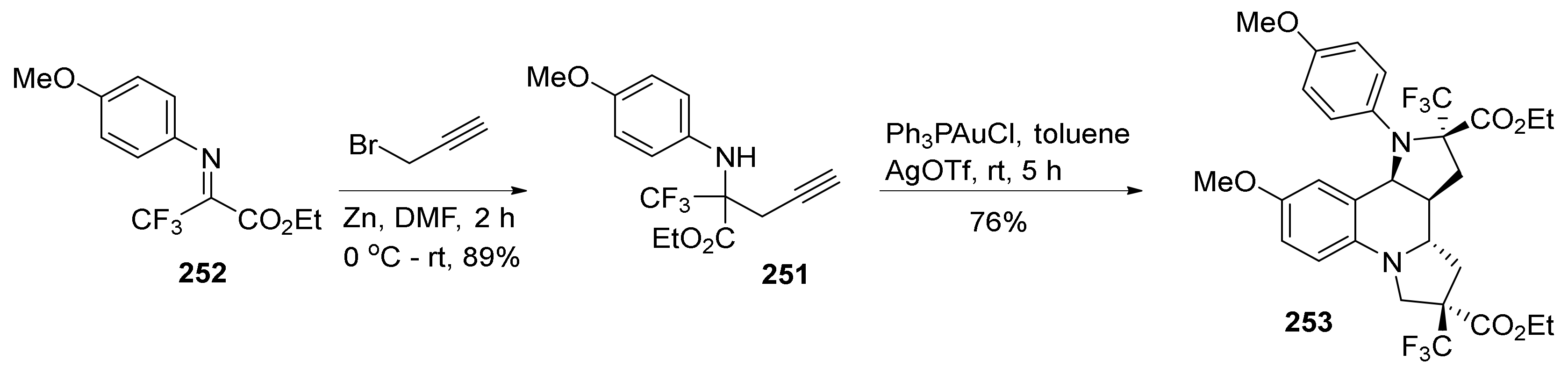

Fustero and co-workers developed a gold catalyzed stereoselective hydroamination of a propargylic amino ester, namely compound 251, to form the dipyrroloquinoline scaffold as the exo-diastereoisomer [114]. The reaction sequence commenced by treating iminoester 252 with propargylbromide in the presence of zinc providing propargylic amino ester 251 in good yield (Scheme 42). Hydroamination of the propargylic amino ester 251 to form the exo-dimer 253 was catalyzed by triphenylphosphine goldchloride (Ph₃PAuCl) and silver triflate (AgOTf) as an additive. During the optimization studies the group observed that solvents that were more polar than toluene, such as methanol and acetonitrile, resulted in the formation of more complex product mixtures and consequently lower yields of the desired product. As opposed to the choice of solvent, which had a large effect on the outcome of the reaction, the use of different gold catalysts in the presence of AgOTf, and other additives such as AgNTf₂, AgSbF₆, and AgBF₄ in the presence of Ph₃PAuCl gave comparable results and yields (68–78%) to the ones obtained under the original conditions.

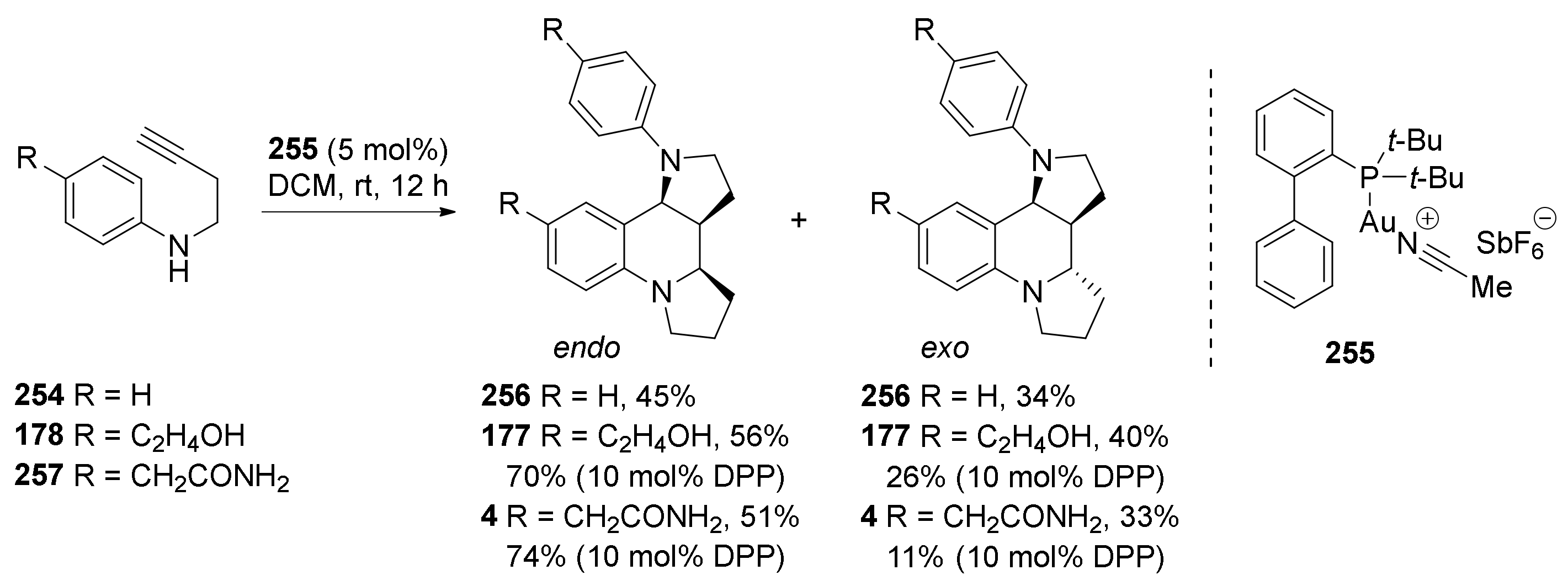

Another gold-catalyzed hydroamination of an aminoalkyne was described by the Liu group [115]. They presented the synthesis of the dipyrroloquinoline core from a 1,4-aminoalkyne 254 in a gold catalyzed tandem reaction with catalyst 255 (Scheme 43). The reaction sequence started with an intramolecular hydroamination reaction, followed by an aza–Diels Alder reaction, resulting in a 45:34 endo:exo mixture of diastereomer 256. The reaction scope was further expanded to obtain the Incargranine B aglycon 177 (56:40, endo:exo), along with the natural product seneciobipyrrolidine (4, 51:33, endo:exo) from aminoalkynes 178 and 257, respectively. Endo-diastereoselectivity was enhanced by addition of 10 mol% diphenylphosphate (DPP) to the reaction mixtures.

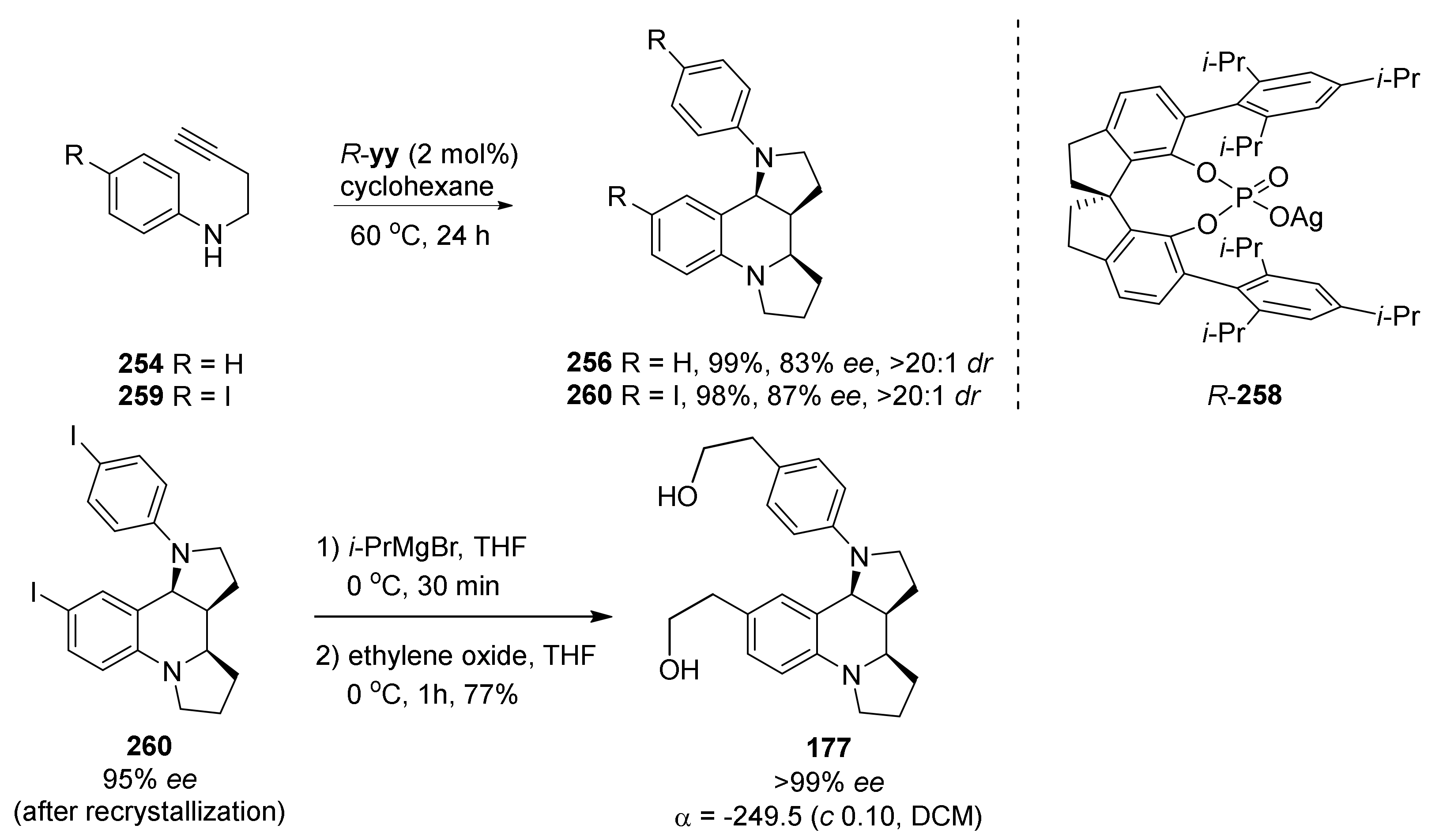

In their pursuit to enhance the stereochemical selectivity, the Liu group turned to silver catalysis [116]. When using a chiral silver-phosphate catalyst (R)-258 instead of a gold catalyst, the reaction proceeded with a higher enantio- and diastereoselectivities and higher yields on a wide array of aniline–alkyne substrates, exemplified here by alkynes 254 and 259 (Scheme 44). The resulting iodo-endo-product 260 was further converted to the epi-incargranine B aglycon 177 by means of a Grignard reaction with ethylene oxide.

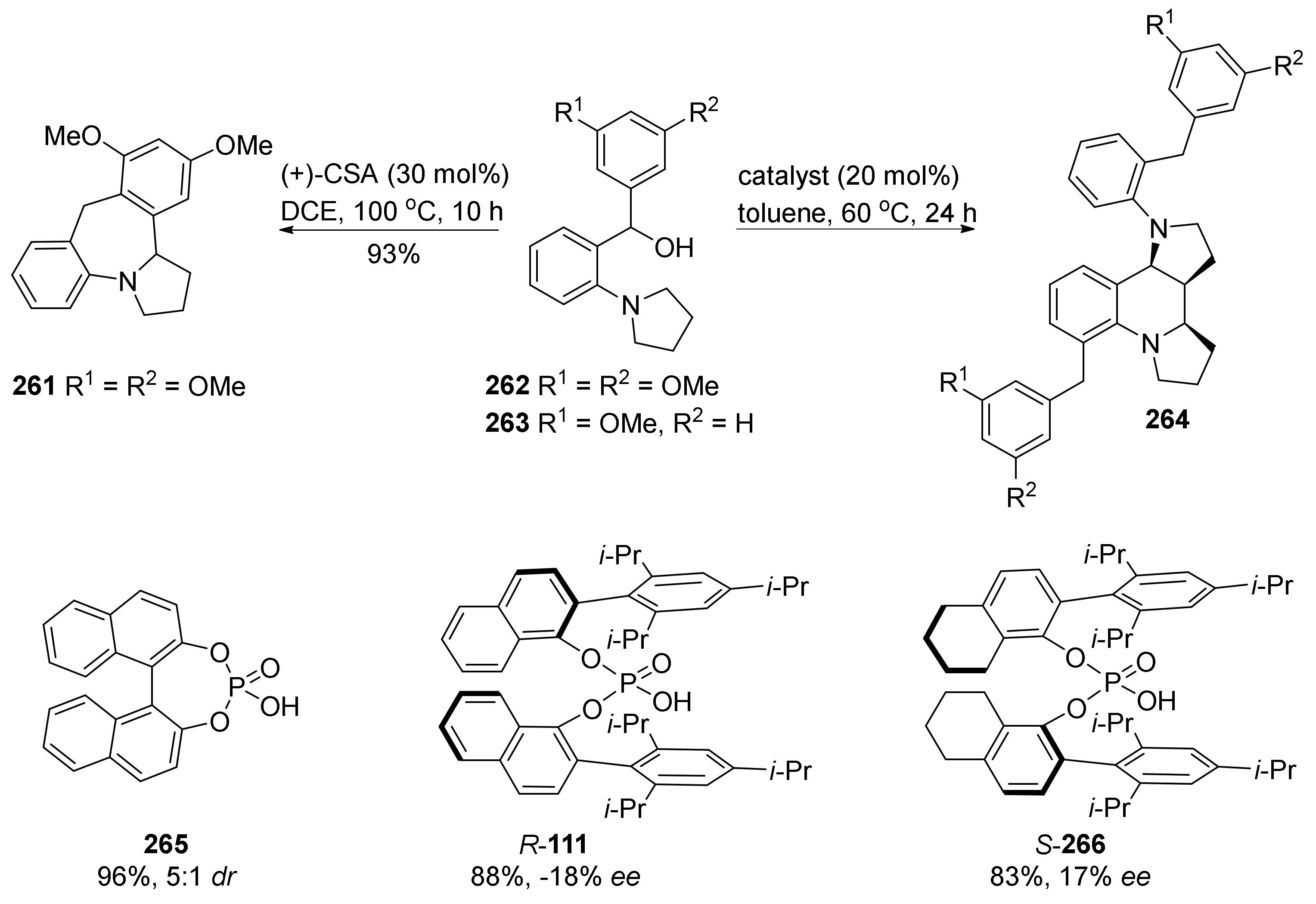

Xiao and co-workers were studying [1,5]-hydride transfer-cyclization reactions for the formation of benazepines 261 from pyrrolidine 262 (Scheme 45) [117]. When investigating the scope of this reaction, they discovered that by reducing the number of methoxy substituents on the aromatic ring (the R-groups) from two to one (such as in compound 263), benzazepines were no longer formed. Instead they obtained dipyrroloquinoline 264 in 20% yield. A study focusing on optimizing reaction conditions showed that by using the acid catalyst phenylphosphate 265 instead of (+)-10-camphorsulfonicacid ((+)-CSA) and conducting the reaction in toluene at 60 °C rather than in DCE at 100 °C gave dipyrroloquinoline 264 in 96% yield and 5:1 diastereomeric ratio, favoring formation of the endo-product (Scheme 45). The group further investigated the catalyst scope for the asymmetric synthesis of dimer 264. From their collection of acid catalysts, the most efficient were phosphates (R)-111 and (S)-266; however, these catalysts gave the exo- and endo-dimer 264 in only 18% and 17% ee, respectively.

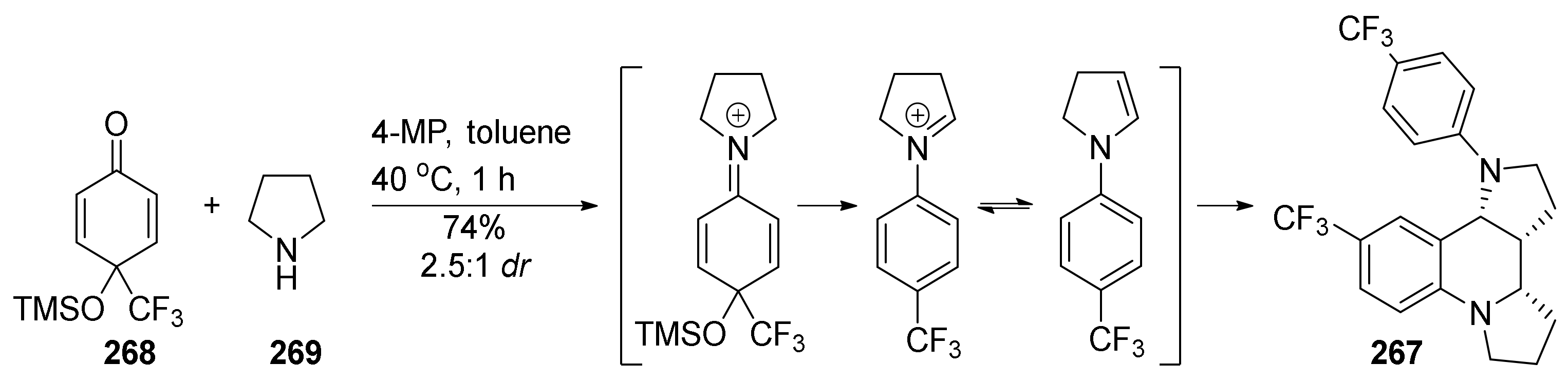

Liu and co-workers obtained the dipyrroloquinoline scaffold 267 in their study of in-situ formation of iminium ions generated from the condensation of 4-trifluoromethyl-p-quinols 268 with cyclic amines, such as pyrrolidine 269 (Scheme 46) [118]. Equal amounts of quinol 268 and amine 269 were stirred in toluene at elevated temperature, in the presence of 4-methoxyphenol (4-MP) as a proton donor, to afford the dipyrroloquinoline 267 in 74% yield and 2.5:1 dr.

5. Elaborating Biological Properties

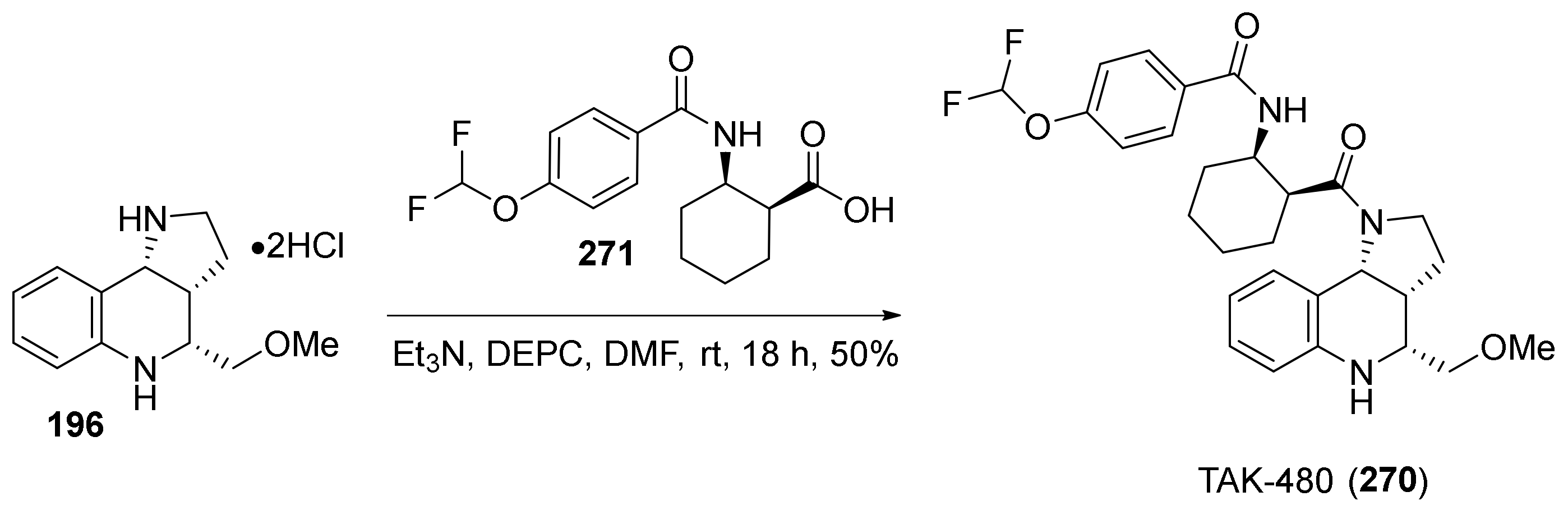

New and unusual scaffolds are as previously mentioned of great medicinal interest. Synthetic efforts to assemble the pyrroloquinoline scaffold have resulted in discovery of interesting biological activities. In 2005, Takeda Pharmaceutical company patented compounds with properties as NK₂ receptor antagonist for potential effectiveness in irritable bowel syndrome (IBS) patients [119,120,121]. Compounds in this patent, such as TAK-480 (270) (Scheme 47), were constructed around the pyrroloquinoline scaffold, which was assembled using the method developed in Takeda pharmaceutical company (Scheme 33) [92,93]. Drug candidate TAK-480 (270) is formed by linking the pyrroloquinoline 196 to the chiral cyclohexane carboxylic acid derivative 271, using triethyl amine and diethyl cyanophosphonate (DEPC) in DMF (Scheme 47) [122].

Another pharmaceutical compound built around the pyrroloquinoline scaffold is S-101479 (272), which has been produced by Kaken Pharmaceuticals (Figure 4). According to studies conducted by Furuya and co-workers, compound 272 exhibited a bone-anabolic effect in ovariectomized rats as a non-steroidal selective androgen receptor modulator (SARM) in osteoblastic cells [123,124]. The authors further suggest that, based on their results, the compound 272 could be a drug candidate for treatment of postmenopausal osteoporosis.

The Broad institute diversity oriented synthesis (DOS) library, including the pyrroloquinoline-based DOS library developed by Marcaurelle and co-workers, which was discussed previously, has in recent years been used for several high-throughput screenings of small molecules for specific biological activities [65]. Scherer and co-workers conducted a screening of the Broad Institute’s small molecule collection (~100,000 compounds) against the Gram positive, anaerobic, spore-forming, opportunistic pathogen Clostridium difficile, a major cause of C. difficile-associated diarrhea (CDAD) [125]. With a high-throughput screening of the compound collection against C. difficile, a compound containing the pyrroloquinoline scaffold (BRD0761 (273)) displayed MIC (µg/mL) = 0.06–1 for a number of clinical C. difficile isolates (Figure 5). BRD0761 (273) showed greater potency, and more significantly, superior selectivity against C. difficile compared to the last resort antibiotic vancomycin, commonly used to treat patients with CDAD. Solubility and permeability (in Caco-2 cells) of compound BRD0761 suggested that oral dosing would be a suitable administration method. Thus, an efficacy study performed on a mouse model of CDAD was conducted with daily oral dosing of 25 mg/kg. BRD0761 (273) did reduce mortality rate as well as shedding of C. difficile CFU in feces, however not as efficiently as vancomycin.

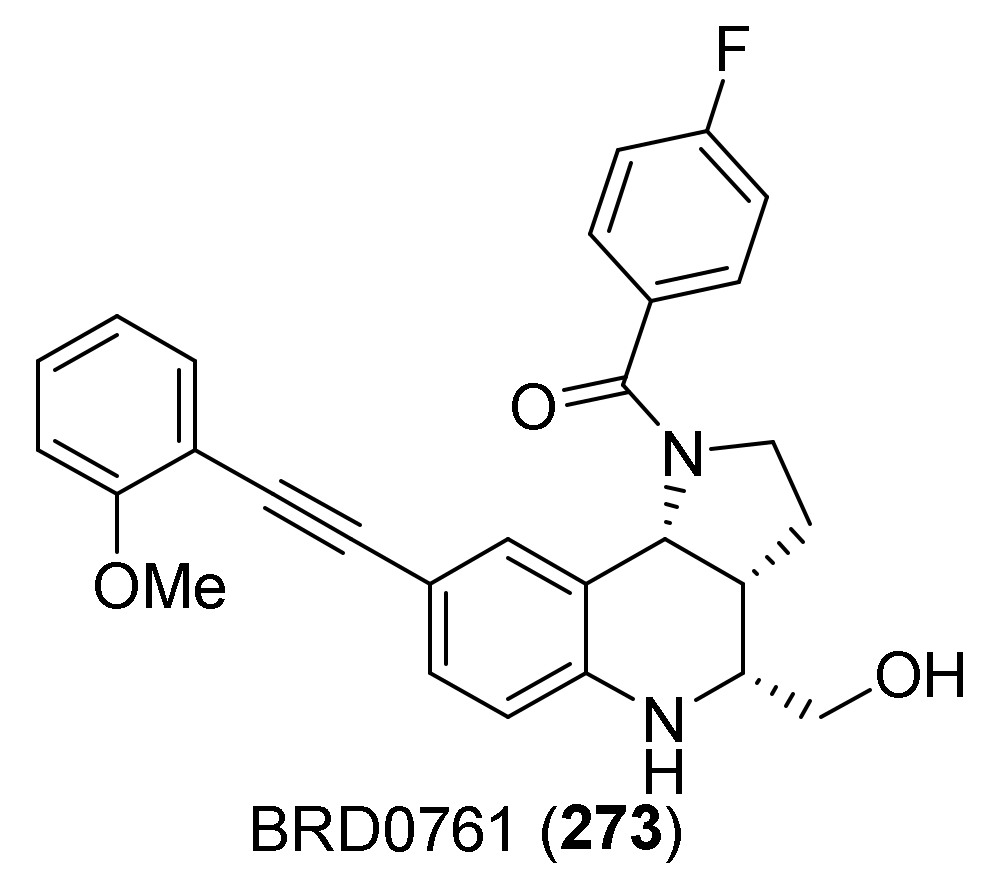

Investigation of the mode of action for BRD0761 (273) via genomic analysis of resistant mutants and in silico studies revealed that the compound most likely targets cell wall biosynthesis via inhibition of glutamate racemase [125]. The enzyme is a known target in other Gram positive bacteria, such as H. pylori and M. tuberculosis [126,127]. This was, however, a novel target in C. difficile. Based on studies from Astra Zeneca that show species specific structure and activity of the glutamate racemase [128], Scherer and co-workers suggested that finding selective C. difficile glutamate reductase inhibitors may lead to identification of C. difficile-specific antibiotics.

The Broad institute DOS library was also included in a screening of 256,486 compounds for inhibitors of the aminotransferase BioA, an enzyme in the biotin biosynthetic pathway in Mycobacterium tuberculosis [129]. In an initial enzyme inhibition screening of the compound library, the pyrroloquinoline scaffold represented nearly 12% of all hits in the study, including pyrroloquinoline 274 as the screening’s most potent hit (IC₅₀ = 75 nM) (Figure 6). However, the activity of compound 274 dropped (MIC₉₀ > 100) upon turning to whole cell screening.

As part of genome engineering technologies, control of the CRISPR-Cas9 activity, such as limiting off-target activity of the endonuclease Cas9, is essential. On this note, Choudhary and co-workers conducted a small molecule screen for stable, cell permeable, reversible inhibitors that disrupt the binding of the Streptococcus pyogenes endonuclease Cas9 (SpCas9) to DNA [130,131,132]. After an initial screening of representative compounds from the Broad institute DOS library, the “Povarov library”, which included a number of compounds with the pyrroloquinoline scaffold, was selected for further examination. BRD7087 (275) and BRD5779 (276) (Figure 7) were used to assess the inhibitory activity of the pyrroloquinoline scaffold. Both compounds displayed dose-dependent inhibition of SpCas9, were soluble in phosphate-buffered saline (PBS), and were non-cytotoxic.

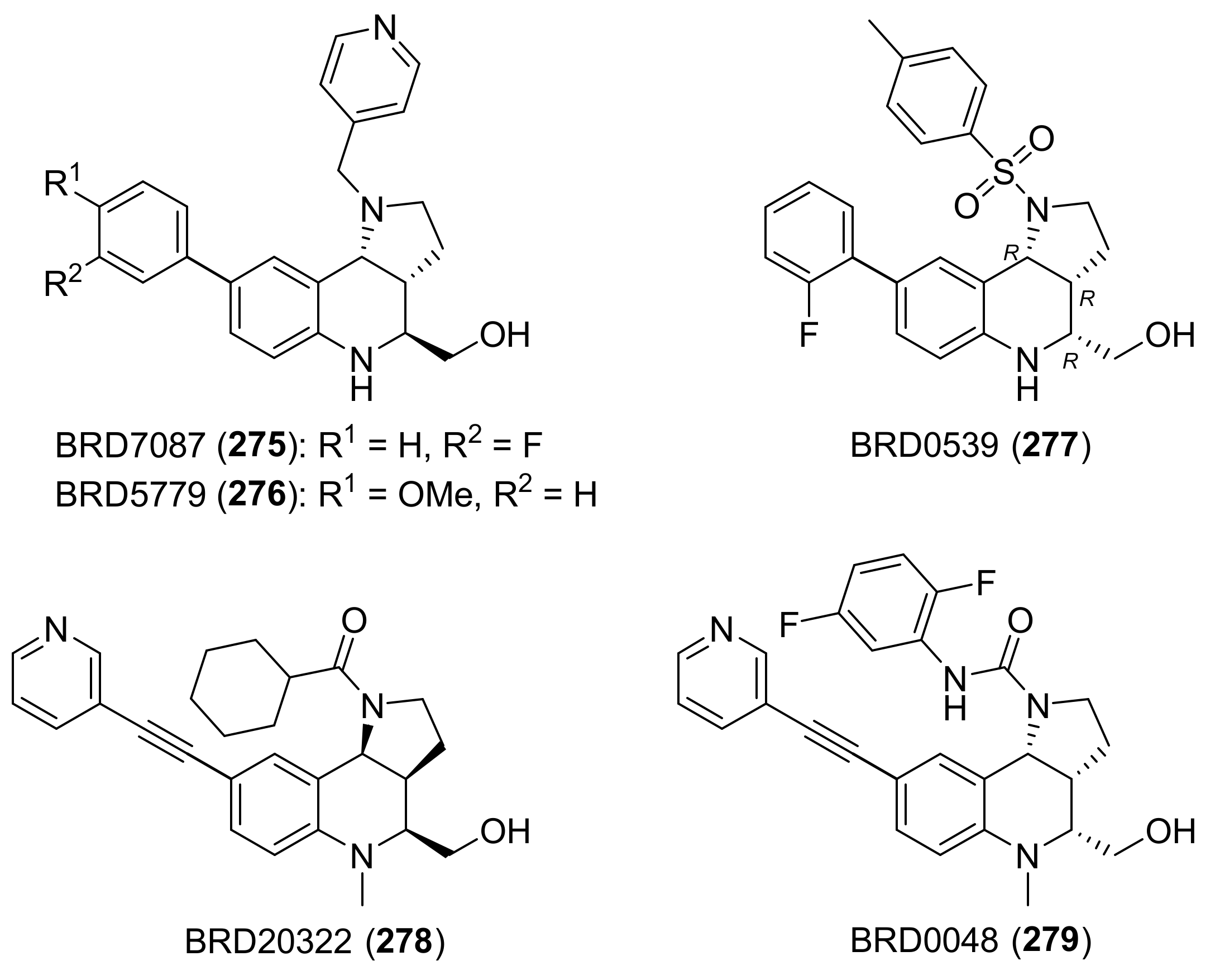

After further SpCas9 inhibitory testing of BRD7087 (275) analogues, one of the most promising hits, namely BRD0539 (277) (Figure 7), was analyzed in a structure–activity relationship (SAR) study of Cas9 inhibition potency. The study included examination of different N-linkages, replacement of the 2-fluorophenyl group, and evaluation of the scaffold stereochemistry. Sulfonamides on the pyrrolidine moiety displayed generally higher potency than corresponding amides. Displacement of the para-methyl group on the benzylic sulfonamide with para-fluoro, para-methoxy, or meta-methyl resulted in reduced inhibitory activity, as did introduction of heteroatoms (N and O) onto the aforementioned aromatic ring. Reduced activity was observed upon replacing the 2-fluorophenyl moiety with an alkenyl or a 3-N,N-dimethyl–carbamoyl–phenyl group, and also by introducing alkynyl spacers (such as seen in compounds 278 and 279). Finally, elucidation of the four possible stereoisomers confirmed that the pyrroloquinoline 277 with R,R,R-stereochemistry was the most potent inhibitor of SpCas9-DNA binding. In an equivalent approach to landing BRD0539 (277) as a functional potent SpCas9 inhibitor, BRD20322 (278) and BRD0048 (279) were identified as potent inhibitors of the transcription activation complex (Figure 7).

6. Concluding Remarks

Nature is an inexhaustible source of biologically interesting molecules that have benefitted humanity from its use as herbal medicine to isolation, characterization, and further synthetic manipulation of active ingredients. The biologically active martinella alkaloids in one such example. The chiral core structure found in the alkaloids, namely the hexahydropyrrolo-[3,2-c]-quinoline scaffold, has been an attractive synthetic target since its discovery in 1995. Exploration of the chemically diverse routes to this scaffold has laid the foundation for further elaboration of its potential medicinal benefits, aided by library syntheses and biological screening. As demonstrated by the Lawrence group, synthetic preparation of natural alkaloids also serves to control and revise the characterized structure of isolated natural products.

Though an excessive assembly of synthetic pathways towards the pyrroloquinoline scaffold has been prepared, much is yet to be discovered. The high biological activity found in the examination of the Broad Institute’s DoS Povarov library together with the limited number of biological assays of compounds assembled around the pyrroloquinoline structure shows that this scaffold is still an underexplored source for biologically active compounds. For further exploration of the chemical utility of this scaffold, systematic approaches, such as library screens, are required. On the other hand, synthetically challenging compounds are usually excluded from such libraries and SAR-studies that delimit the selection of compounds to be synthesized follow certain rules, such as the Lipinski’s rule of five. Therefore, fundamental curiosity-driven research is still needed for serendipitous discovery of compounds and their biological properties.
