Microwave-Assisted One-Pot Lipid Extraction and Glycolipid Production from Oleaginous Yeast Saitozyma podzolica in Sugar Alcohol-Based Media

by
André Delavault
1,*,
Katarina Ochs
1,
Olga Gorte
1,
Christoph Syldatk
1,
Erwann Durand
2,3 and
Katrin Ochsenreither
1
1
Technical Biology, Institute of Process Engineering in Life Sciences II, Karlsruhe Institute of Technology, 76131 Karlsruhe, Germany
2
CIRAD, UMR QualiSud, F-34398 Montpellier, France
3
QualiSud, Univ Montpellier, CIRAD, Institut Agro, Univ Avignon, Univ Réunion, 34000 Montpellier, France
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(2), 470; https://doi.org/10.3390/molecules26020470
Submission received: 17 December 2020 / Revised: 13 January 2021 / Accepted: 15 January 2021 / Published: 18 January 2021
(This article belongs to the Special Issue New Frontiers Regarding Surfactants and Biosurfactants: Production, Characterization and Application)
Browse Figures
Review Reports Versions Notes

Abstract

:
Glycolipids are non-ionic surfactants occurring in numerous products of daily life. Due to their surface-activity, emulsifying properties, and foaming abilities, they can be applied in food, cosmetics, and pharmaceuticals. Enzymatic synthesis of glycolipids based on carbohydrates and free fatty acids or esters is often catalyzed using certain acyltransferases in reaction media of low water activity, e.g., organic solvents or notably Deep Eutectic Systems (DESs). Existing reports describing integrated processes for glycolipid production from renewables use many reaction steps, therefore this study aims at simplifying the procedure. By using microwave dielectric heating, DESs preparation was first accelerated considerably. A comparative study revealed a preparation time on average 16-fold faster than the conventional heating method in an incubator. Furthermore, lipids from robust oleaginous yeast biomass were successfully extracted up to 70% without using the pre-treatment method for cell disruption, limiting logically the energy input necessary for such process. Acidified DESs consisting of either xylitol or sorbitol and choline chloride mediated the one-pot process, allowing subsequent conversion of the lipids into mono-acylated palmitate, oleate, linoleate, and stearate sugar alcohol esters. Thus, we show strong evidence that addition of immobilized Candida antarctica Lipase B (Novozym 435®), in acidified DES mixture, enables a simplified and fast glycolipid synthesis using directly oleaginous yeast biomass.

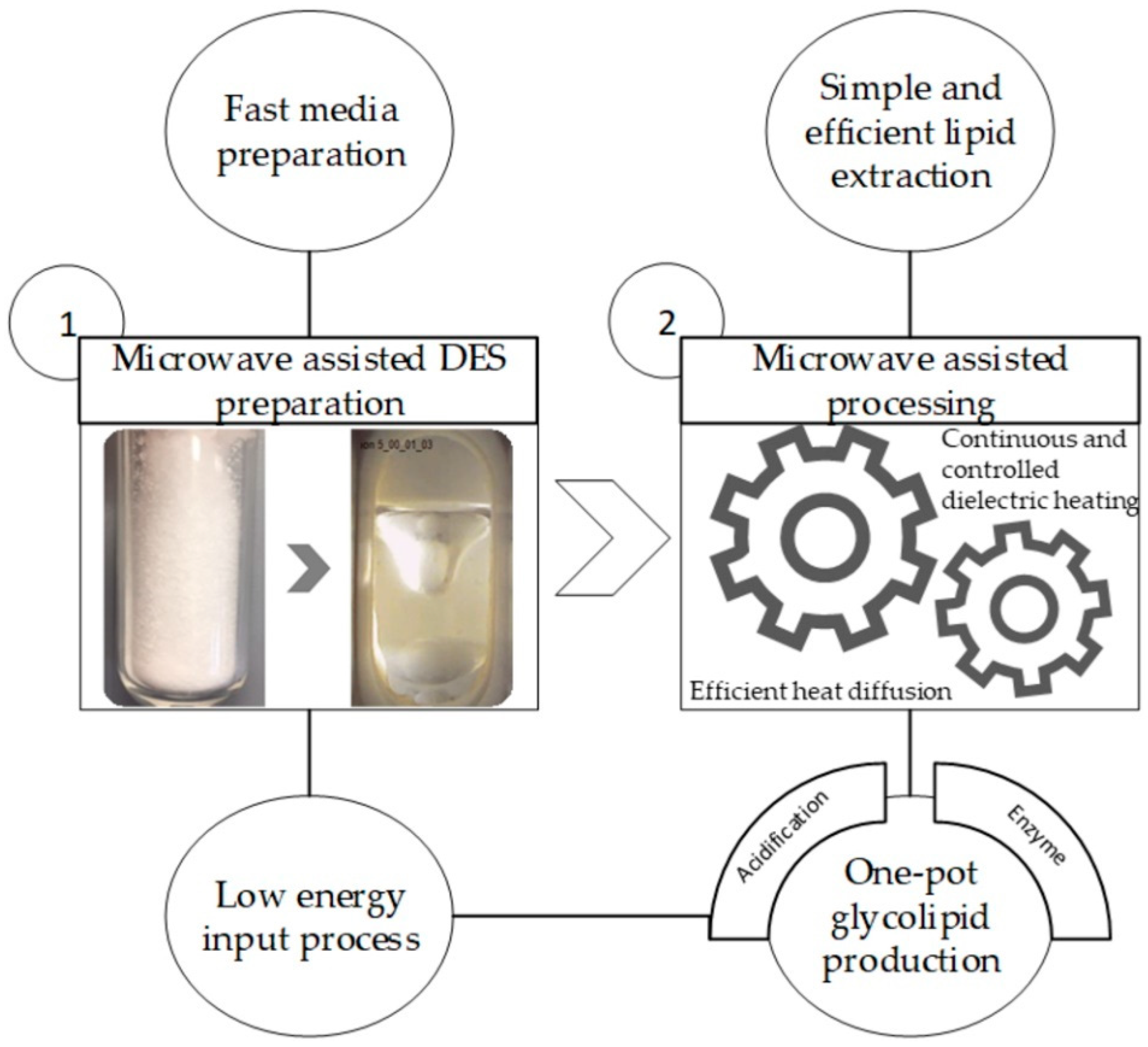

Graphical Abstract

1. Introduction

Surfactants are chemicals that are in an ever growing and worldwide demand in various fields of application like pharmaceutics, cosmetics, cleaning agents, or even the petroleum industry [1]. It is also reasonable to think that the recent Covid-19 crisis might boost this demand because of the use of such compounds in washing and more generally in hygiene products [2]. Such context makes it crucial to design processes in agreement with green chemistry principles that aim to synthetize amphiphilic molecules that are not only bio-sourced, but also biodegradable, using innovative and low energy input methods [3]. Glycolipids are in this regard an interesting class of surfactants since they are obtained via chemical or bio-chemical combination of a sugar, or sugar alcohol moiety, and a hydrophobic tail which can be a fatty acid, or a fatty alcohol. They are viable allies for greener surfactant production as the chemical functions that link the polar head and apolar tail are inherently biodegradable [4,5]. Indeed, in the chemical function bonding, those two components can be an ester when a lipase is supplied with a fatty acid playing the substrate role. Certain lipases, or acyltransferases, present the advantage to be useable in mild conditions and allow sugar ester synthesis when placed in water free conditions. We present here a potentially low energy input and simple process combined with a fast microwave-assisted preparation of low water content Deep Eutectic Systems (DESs) that uses constant and accurate control of the temperature coupled with an efficient diffusion of heat. Microwave-assisted chemistry is an environmentally friendly approach that can overcome limitations such as uneven heating, poor mixing, thermal stability of reagents, and high viscosity [6]. Such technology can be considered as a powerful, versatile, and flexible tool for chemical reactions, biomass treatment, and biocatalysis, which match with deep eutectic systems [7].
DESs were first proposed by Abbott et al. as alternative solvents to ionic liquids (ILs) [8]. At a certain molar ratio of the components, there is a significant lowering of the melting point, which results in the formation of a liquid at room temperature [9]. Our one-pot process used an acidified DES made of choline chloride and sugar alcohols, such as xylitol and sorbitol, to extract lipids from oleaginous biomass (S. podzolica (Saitozyma podzolica) DSM 27192). Subsequently, sugar alcohol esters were produced through lipase-catalyzed reaction. Palmitate, stearate, oleate, and linoleate monoesters were identified by spectrometric and spectroscopic methods. The overall strategy of our method is shown in the flowchart of Figure 1. A similar process was demonstrated by Siebenhaller et al., in which sugar esters were synthesized using a DES based on renewables. However, such integrated production required many steps like any other “Stop-and-go” process [10]. Parallelly, lipid extraction of oleaginous yeast cells is mostly carried out by a combination of cell disruption and extraction processes [11]. Mechanical, physical, chemical, and enzymatic methods have been used for cell disruption [12]. The most common methods for extraction are solvent system-based using chloroform-methanol [13] or ethanol-hexane [14]. It appeared therefore logical to look alternatively for greener and more innovative systems.
Previous work from Gorte et al. demonstrated, in this aim, the use of several methods for the pre-treatment of the biomass produced by S. podzolica, including multi-step use of mechanical techniques such as ball milling, ultra-sonication, and high–pressure homogenization [11]. In the present work, we shortened the biomass treatment process through a single step approach, after freeze-drying the biomass, removing therefore the cell disruption step. We introduced the media, the biomass, and the enzyme, all together in one reactor vessel assisted by microwave irradiation. Thus, we reduced the number of steps, and allowed both the lipid extraction and the production of sugar alcohol esters without stopping the reaction or changing the apparatus. The extraction efficiency was compared to a standard Folch extraction, and the amounts, along with the profile of extracted lipids, were investigated.
It was originally expected that enzymatic or auto-catalytic acylation reaction between sugar alcohols composing the DESs and fatty acids of the biomass would have happened without prior modification of the components. Acidified DES (AcDES) showed, compared to a standard DES, an improved lipid extraction alongside a clear formation of several components that were identified as being primarily mono-acylated sugar esters. The following results show the enhancement of DESs made of sugar alcohols and choline chloride for the lipid extraction from S. podzolica biomass and subsequent sugar alcohol ester formation when supplementing acid and Novozym 435® as biocatalyst in the system. The presented process can be carried under classical heating conditions, however, the microwave reactor provides accelerated media preparation alongside controlled heating and cooling conditions that end up in an eased handling of the viscous mixtures.

2. Results

The present work investigates and compares the preparation of several DESs (Table 1) obtained with a microwave dielectric heating versus a conventional convective thermal heating method. The extraction efficiency was investigated by the calculation of Fatty Acid Methyl Esters (FAMEs) and whole lipid per Cell Dry Weight (whole lipid/CDW), alongside the profiling of the lipids. Finally, structures of produced mono-acylated sugar alcohol esters were assessed using spectrometric and spectroscopic methods.

2.1. Comparative Study on the Production Time of Common and Sugar-Alcohol Based DESs

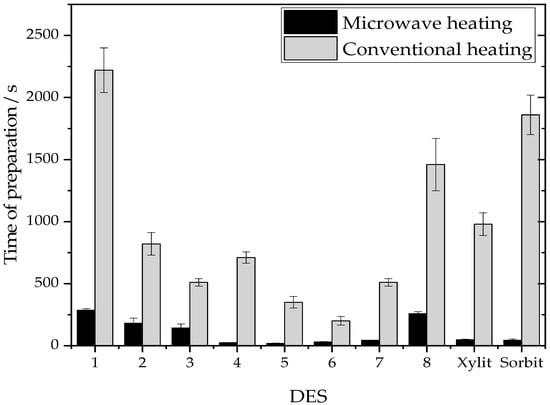

Figure 2 shows that formation of a DES with microwave heating was in all cases much faster than the thermal convective heating. Thus, the formation of a DES in the microwave can save considerable time, at least in such a scale. Considering the extremely short preparation times in the microwave, that were on average 16 times faster than in the incubator, it is reasonable to think that the energy input could be lower. Furthermore, choline chloride-based DESs were prepared on average 38% faster than betaine containing ones, regardless of the method.
Sugar-based DESs (1, 2, and 8) displayed overall longer preparation times, with either thermal or microwave heating. Such DESs are known to be difficult to prepare with conventional thermal heating and had to be produced with an adapted microwave method, since rapid heating was not possible. Adjusting the method automatically resulted in longer times to form such sensible DESs. Xylit DES and Sorbit DES, made with sugar alcohol, show drastically reduced formation times compared to the thermal heating method. Interestingly, sugar alcohol-based DESs were prepared faster than the non-reduced sugars, and observation tended to show that they were less susceptible to degradation.
Xylit DES and Sorbit DES were used to mediate the one-pot process, the sugar alcohols composing them also took part in the production of sugar alcohol esters. Next, we detail how the reaction’s crude was characterized and profiled post-reaction.

2.2. Post-Reaction Thin Layer Chromatography (TLC) of Glycolipids- and Non Glycolipids-Containing Mixtures

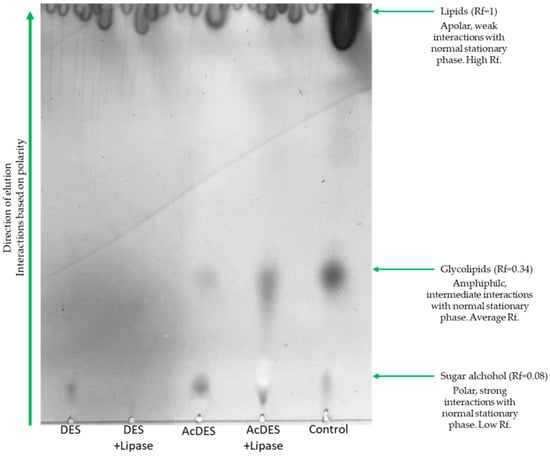

The TLC of Sorbit DES was presented in Figure 3. Similar profiles were obtained regardless of the DES. With a standard DES, with or without lipase, only a single spot could be identified (Rf = 0.08), corresponding to the sugar alcohol. In contrast, two spots with (Rf = 0.08 and 0.34) were found in an acidified DES without lipase. In the acidified DES with lipase, the same profile was obtained, but with higher intensity of the stain corresponding to the glycolipid (Rf = 0.34). A control reaction with an acidified DES with lipase, and fatty acid methyl esters (FAMEs) from single cell oil extraction, was performed for confirmation.
Chromatography purification performed thereafter allowed us to isolate each fraction containing either lipids or glycolipids.

2.3. Comparison of Extracted Whole Cell Lipid and Esterified Fatty Acids

To be quantified, the extracted fats have been esterified into methyl esters (FAMEs), and then, injected in a gas chromatography apparatus. The mean value of lipid content for all conditions carried out on the biomass in Sorbit DES or Xylit DES was calculated.
The amounts of FAMEs, whole lipids, and glycolipids per reaction were determined and are shown in Table 2. The highest amount of FAMEs and whole lipids was obtained by microwave DES preparation with acidified DES, followed by the similar condition with lipase addition. In addition, the sugar alcohol in the DES did not significantly affect the lipid, and the glycolipid, yields. In comparison, lipid extraction according to Folch (FE) and standard DES, with or without lipase, were far less efficient in this regard.

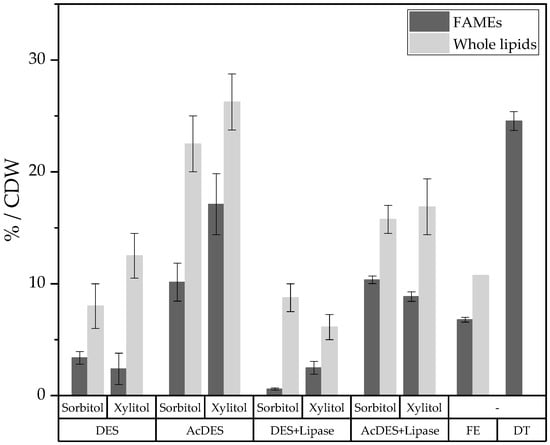

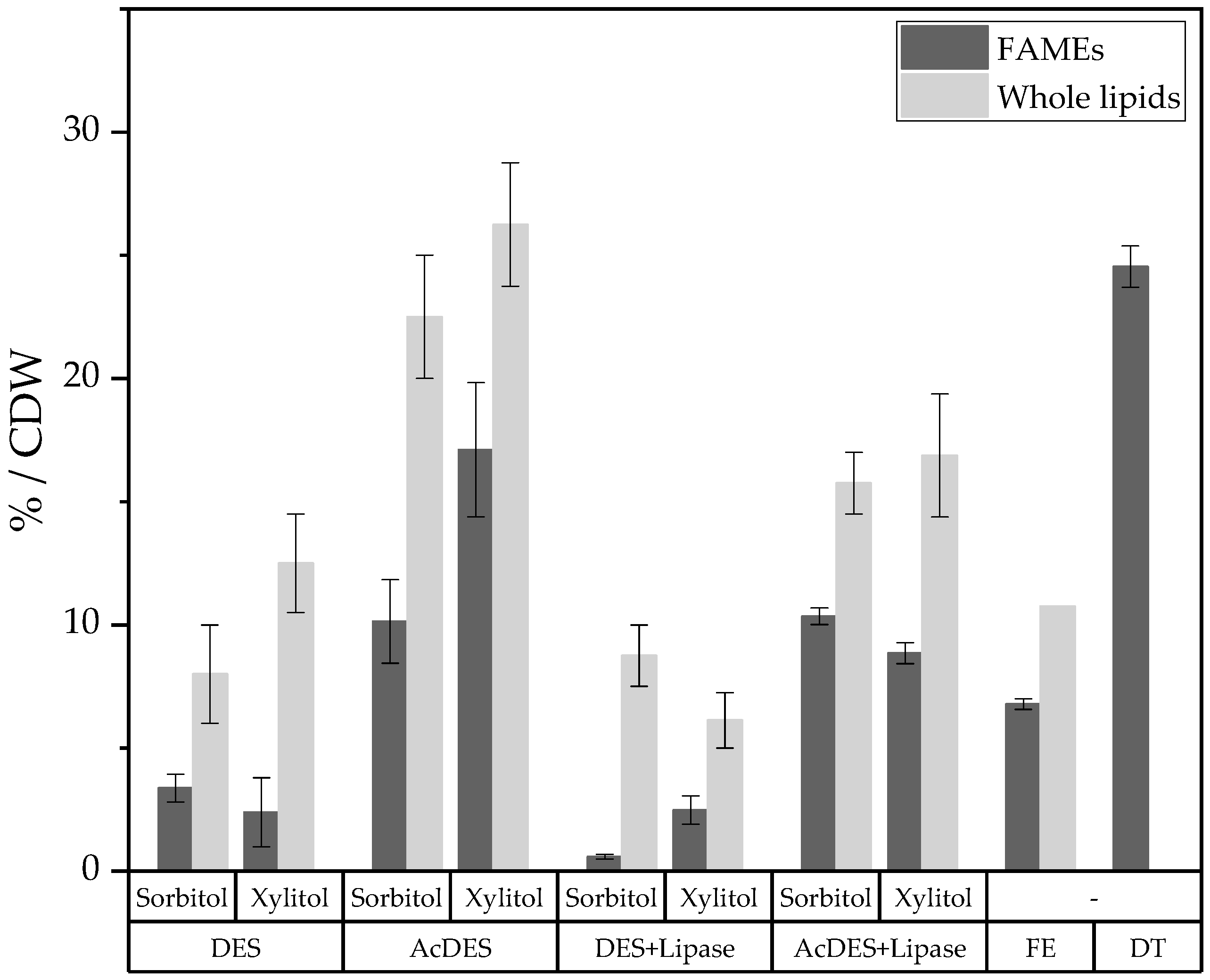

The FAMEs and whole lipids obtained per CDW are shown in Figure 4. A comparison of the different lipid extraction methods showed that direct transesterification of the oleaginous biomass to fatty acid methyl esters gave the highest FAMEs yield per CDW. Extraction according to Folch was less efficient in regard of the FAMEs and whole lipids contents. In comparison to DT, acidified Xylit DES extracted up to an honorable 70% FAMEs from robust yeast cells of S. podzolica. Intrinsically, our DESs were not the best extraction method reported however, the subsequent interesterification of those lipids for sugar alcohol ester production made the use of these unconventional media relevant.
Quantification of the various extracted fatty acids allowed then profiling of the lipid fraction.

2.4. Profiling of Extracted and Esterified Lipids

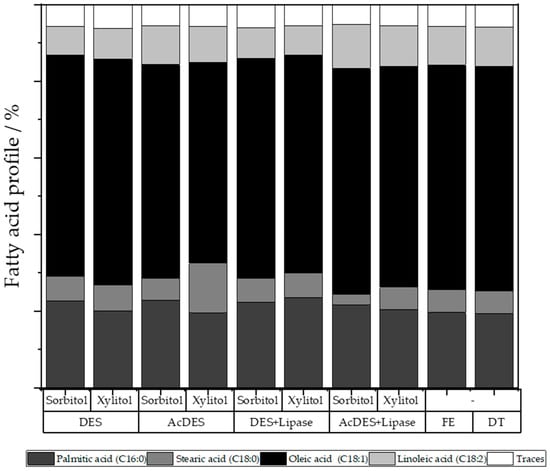

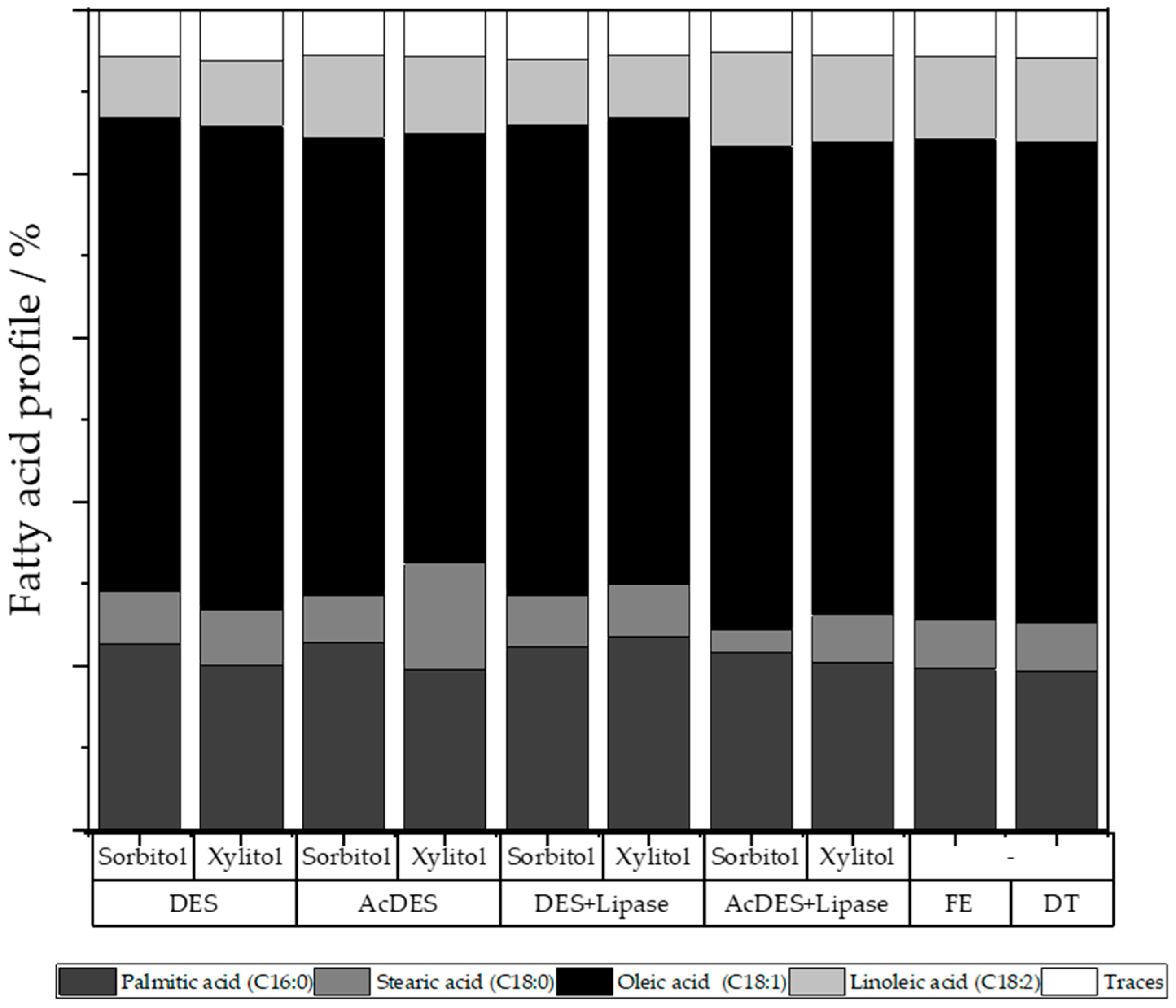

Lipid profiles were determined for each condition to assess if the fatty acid composition is influenced by the extraction method (Figure 5). When comparing the various fatty acid extraction methods, no significant differences in fatty acid profile were observed. In percentage terms, oleic acid (C18:1) with an average of 24.2% is the most common of all extraction methods, followed by palmitic acid (C16:0) with 9.0%, linoleic acid (C18:2) with 4.1%, and stearic acid (C18:0) with 2.8%.
Nonetheless, profiling helped rationalizing and elucidating the structure of the formed sugar alcohol esters. Indeed, the most occurring lipids were more likely to react and form the targeted compounds.

2.5. Structural Elucidation Using Spectroscopic and Spectrometric Methods

To analyze the structure of synthesized glycolipids, 1H-Nuclear Magnetic Resonance (NMR) and Mass Spectrometry (MS) were performed on the isolated glycolipid fractions. Chemical 1H-NMR shifts of sugar moiety (~4.11–3.51 ppm) and fatty acid chains (~2.25–0.80 ppm) were identified. MS performed additionally allowed clear structural identification of the mono-acylated sugar alcohols. The chemical shifts were as follows:
Glycolipid fraction with Xylit DES: 1H NMR (400 MHz, CD2Cl2) δ 4.17 (dd, J = 4.2, 2.0 Hz, 2H), 4.14 (dd, J = 3.8, 1.7 Hz, 3H), 4.15–4.08 (m, 3H), 4.12–4.06 (m, 2H), 4.02–3.92 (m, 2H), 3.90 (dd, J = 13.9, 3.5 Hz, 2H), 3.64 (dd, J = 9.6, 1.9 Hz, 1H), 2.24 (dq, J = 14.3 Hz, 4H), 1.97–1.89 (m, 2H), 1.26–1.19 (m, 38H), 0.80 (m, 9H). (Supplementary Figure S1).
Glycolipid fraction with Sorbit DES: 1H NMR (400 MHz, CD2Cl2) δ 4.05 (dd, J = 12.4, 5.4 Hz, 1H), 3.75 (d, J = 6.6 Hz, 1H), 3.63–3.39 (m, 4H), 2.25 (t, J = 7.5, 2H), 1.95 (dq, J = 12.4, 6.2 Hz, 4H), 1.26–1.16 (m, 27H), 0.80 (m, 6H). (Supplementary Figure S2).
MS was performed with ElectroSpray Ionization (ESI) (Supplementary Figure S3). The results of the spectrometric analysis for the synthesis in the Xylit DES and Sorbit DES are shown in Appendix A Table A1. Fourteen glycolipid fragments have been detected for the sorbitol-based DES. Thereof, 4 sorbitol palmitate, 4 sorbitol linoleate, 3 sorbitol stearate, and 3 sorbitol oleate. Twelve glycolipid fragments for the xylitol-based DES were detected. Thereof, 2 xylitol palmitate, 4 xylitol linoleate, 2 xylitol stearate, and 4 xylitol oleate.

3. Discussion

3.1. Microwave and DES Technologies: An Optimal Match?

In the present work, comparing the times required to produce common DESs with microwave and thermal heating, the efficiency of using a microwave to form these liquid mixtures was demonstrated. In theory, our approach could also significantly reduce processing time, energy costs, and equipment size compared to conventional convective or conductive thermal heating methods, but deeper investigations should be carried out to verify these claims [15,16,17]. Microwave assisted chemical processing requires the use of strong microwave absorbing solvents. Since the ability of some solvents, such as water, to interact in the electromagnetic field decreases sharply as temperatures rise, solvents with high thermal stability and low vapor pressure are inherently optimal [6]. DESs meet those requirements due to their polar nature and their outstanding number of hydrogen bonds. Indeed, as described by Nie et al., they are an ideal match for ionic conduction and dipole rotation occurring during heating. As a result, the energy emitted by the magnetron of the microwave can be absorbed optimally by the polar and ion-containing DESs [17,18]. Thus, we conjecture that a combined effect of both greater dipole rotation and ionic conduction allowed the ultra-fast preparation of the DESs presented in our study. Within the specific framework presented in this work, one-pot microwave treatment of oleaginous biomass could then represent a more economical substitute to pre-existing, notably mechanical, preparation procedures. Finally, and according to the literature, we did not expect thermal effects to have a significant role in the acceleration of DESs preparation or in the process itself [19,20]. However, in our case, further enzymatic kinetic studies comparing, for example, the influence of classical heating and microwaves, would be needed to fully prove this last claim as the matter remains controversial and unclear [21,22].
Microwave power input is however mainly limited by thermal decomposition of the DESs components [6]. Indeed, in high temperature treatments, sugar degradation may occur through a complex series of reactions known as the Maillard reaction or caramelization. During the latter, sugar molecules are broken down, and the reaction intermediates and reactants are then polymerized [23,24]. Thus, our method used 60 °C for 72 h, mostly in opposition to the literature that reports shorter reaction times but with temperatures reaching up to 150 °C.
In general, sugar based DESs exhibit high viscosity, density, and surface tension at room temperature. Thus, it is recommended to heat these DESs for processing, to ease their handling, since viscosity decreases when temperature increases [25]. Similarly, DESs containing betaine, instead of choline chloride, also tended to show higher times and difficulty to be formed. The addition of water to promote their formation was often required, as reported for betaine mixtures with glucose, urea, and small polyol molecules [26]. Microwave heating represents therefore a viable alternative to thermal heating for an efficient and scaled-up preparation for such mixtures. Sugars, such as glucose, sucrose, and arabinose could have been also tested for the glycolipids production, but the sugar alcohols were preferred because they were less represented in the literature. Moreover, we demonstrated that in combination with choline chloride, they were among the simplest and fastest DESs to prepare using microwave irradiation. Indeed, the presence of the hydroxyl function instead of an aldehyde decreases their reactivity for polymerization. In addition, Xu et al. could not detect any linearity between extraction yield and polarity for the extraction of flavonoids in a DES based on sugars. However, linearity could be found with DES made of sugar alcohols [27]. Reactivity of their primary alcohols was, because of the steric hindering, similar, thus hardly influenced the results. The use of DES media for extraction is then particularly worthwhile when at least one of its component undergoes conversion, thus creating a “2-in-1” system [28].

3.2. Unconventional Media for Lipid Extraction and Subsequent Production of Glycolipids

In this work, lipid extraction was achieved by treating the biomass with a combination of microwave, DES, and enzyme technologies that were individually reported as possible cell disruption methods [12]. Our designed one-pot extraction of lipids and production of mono-acylated sugar alcohol esters drastically reduced steps number. However, pretreatment of biomass by freeze-drying was still necessary, because moisture considerably reduced the yield of transesterification [29,30]. Indeed, moisture content of oleaginous microorganisms was over 80% [31]. In this work, highest lipid content could be measured with use of an acidified DES, followed by an acidified DES with addition of lipase. Since glycolipids were predominantly formed in an acidified DES with lipase, slightly less lipids have been measured as FAMEs. According to Gorte et al., it has been shown that by using acid instead of base, significantly more fatty acids could be obtained in the direct transesterification of the biomass. Yeast cell wall structure usually consists of two layers, including an inner layer with polysaccharides and an outer layer with glycoproteins covalently bound to the inner layer [32]. Thus, S. podzolica cells were very robust and needed harsh conditions for lipid extraction. That is why, in previous reports, mechanical methods such as high-pressure homogenizer and ball milling could recover higher yields of lipid per CDW and appeared more efficient that physical digestion with acidified DES.
Khoomrung et al. demonstrated the potential of a microwave-assisted technique for the rapid lipid extraction from yeast cells [33]. In addition, it has been shown that microwave pretreatment was one the most efficient methods among sonication, bead milling, and osmotic shock to extract lipids from oleaginous biomasses such as algae [34]. Carboxylic acid-based DESs seemed more suitable for the lipid extraction of oleaginous biomass, in comparison to sugar or polyol-based DESs [35]. This could be correlated to our results, which highlights that the sugar alcohol-based DES extracted significantly more lipids when acidified.
Lipase did not significantly influence the lipid extraction efficiency, since almost identical amounts of lipid contents were obtained in a standard DES, with or without lipase. However, lipase seemed to promote the glycolipid synthesis (Figure 3). An interesting aspect was the positive influence of HCl on the enzyme activity. It is known that Novozym 435® is stable over a relatively wide pH range, especially in the alkaline one. Here, we demonstrated that glycolipids could be formed in an acidified DES with lipase. Thus, we speculated that inactivation of the lipase was limited in the presence of 0.1 M of HCl in DES, since it was shown that Novozym 435® retained activity up to 0.3 M of acetic acid [36]. We conjecture that due to the high viscosity and low water activity/content of DESs [37], lipase activity was predominant as only a limited quantity of media could accumulate inside the porous acrylic carrier (Lewatit 1600) of Novozym 435®. Thus, the inactivation of the biocatalyst was rather minimal [38]. The conversion could partly occur due to acid or auto-catalysis, but based on our results, it is considered negligible [39,40,41]. ILs showed great efficiency toward lipid extraction as well, but imidazolium-based ones inhibited lipase activity [42,43]. Therefore, DESs represent a greener and simpler alternative in which biocatalysis can be performed [44,45]. Their association with microwave irradiation appeared interesting to form an effective duo using relatively mild conditions with overall low energy consumption [46].
During the flash chromatography purification, the glycolipid peak was only observed in the acidified DES with lipase, most likely because its concentration was too low to be detected by the light scattering detector (Supplementary Figure S4). Glycolipids were therefore obtained in quantities that allow flash chromatography purification when both acidification and the enzyme were combined.
Based on our “2-in-1” deep eutectic system [28], with the microwave-assisted procedure, glycolipids can be tailor-made based on any sugar- (or polyol)-based DES with any lipid-containing biomass [47]. The current work using S. podzolica biomass made it possible to obtain long-chain glycolipids with no prior modification of the lipids (e.g., ethylation, methylation, or vinylation) [48]. These sugar esters find application in various fields, such as in the cosmetics industry (e.g., rhamnolipids, sophorolipids, and mannosylerythritol lipids) and in the pharmaceutical industry (e.g., mannosylerythritol lipids) [49]. Insects such as Hermetia illucens also represent an interesting source of oleaginous biomass as they are more susceptible to provide short-chain lipids, notably lauric acid, and myristic acid [50,51]. Thus, by using such a biomass, short-chained glycolipids could be formed. The production of laurate sugar esters raises interest, especially in the pharmaceutical industry where they are notably used to form drug delivery systems [52,53]. The properties of the glycolipids can be influenced not only by chain length but also by the ramifications and degree of unsaturation [54,55]. Furthermore, use of oleaginous biomass allows esterification of branched and unbranched fatty acids, that have different chain lengths and contain one or several alkene groups that represent gateways for further chemoenzymatic reactions [56].

4. Materials and Methods

4.1. Materials

Lipase formulation Novozym 435® was given by Novozymes (Denmark). Lipid-containing yeast biomass was produced by fermentation as described below. All other chemicals were purchased either from Car Roth GmbH & Co. KG (Karlsruhe, Germany) or Sigma Aldrich Chemie GmbH (Taufkirchen, Germany) if not stated otherwise.

4.2. Microorganisms

The oleaginous basidiomycete used in this study was screened and deposited at the DSMZ culture collection (Deutsche Sammlung von Mikroorganismen und Zellkulturen, Brunswick, Germany) as Cryptococcus podzolicus DSM 27,192 by Schulze et al. [57]. After genome sequencing and annotation, the latter was phylogenetically reclassified to Saitozyma podzolica DSM 27,192 by Aliyu et al. [58].

4.3. DES Preparation with Microwave Dielectric Heating and Conventional Convective Heating

Formation of DESs was validated as reported by Dai et al. [59] and Hayyan et al. [25]. In a G30 Anton-Paar microwave vessel, DESs compounds were introduced according to the quantities in Table 1. The resulting mixture was manually homogenized with a spatula, then placed into the microwave synthesizer (Monowave 400, Anton-Paar, Ostfildern, Germany) where it was heated to 95 °C with slow heating mode for DESs made of actual sugars and rapid heating mode for the others (850 W, stirrer speed 600 rpm) with IR thermometer.
In a 50 mL Schott flask, DESs components were introduced according to Table 1. The resulting mixture was manually homogenized with a spatula, then placed into a Thermotron incubator (Infors HT, Bottmingen, Swittzerland) where it was heated to 95 °C at 300 rpm orbital shaking.
When clear homogenous phases were obtained, shaking and heating were stopped as the time was either given by the microwave software or simply noted from incubator’s timer.

4.4. Production of Single Cell Oil in Bioreactors

S. podzolica was cultivated in a 2.5 L Minifors bioreactor (Infors HT, Bottmingen, Switzerland) as described by Schulze et al. [57].

4.5. Microwave Processing of the Oleaginous Biomass

In an Anton-Paar G30 microwave vessel, were simultaneously introduced 10 mL of 5% 2M HCl (0.1 M) or 5% deionized water sugar alcohol-based DES with or without 200 mg of Novozym 435® (Novozymes, Bagsværd, Denmark) and 400 mg of lyophilized yeast powder. The reaction was then heated at 60 °C as fast as possible for 72 h with the Anton-Paar Ruby Thermometer (Anton-Paar, Ostfildern, Germany) (850 W, stirrer speed 600 rpm until temperature was reached, then 300 rpm). As a control, fatty acid methyl esters (FAMEs) were used as lipid source for the glycolipid production as described by Siebenhaller et al. [10].

4.6. DownStream Processing (DSP) and Flash Chromatorgaphy Purification of the Reaction’s Crude

Once the reaction finished, the resulting mixture was dissolved in 10 mL of deionized water. The mixture was filtered with a Buchner funnel and the solid was washed with 3 × 5 mL water and with 3 × 5 mL of ethyl acetate. Then, 10 mL of brine was added, the aqueous phase was extracted with 6 × 25 mL of ethyl acetate in a separatory funnel, the organic phases were then gathered and dried over MgSO4 for 15 min. The solid chemical dryer was filtered-off with filter paper and the solvent was evaporated with a rotary evaporator to obtain a brownish paste.
The crude paste obtained was re-dissolved in chloroform to be adsorbed over 4 g of silica (Kieselgel 60) for flash chromatography purification using the solid loading method. To purify this crude, a Reveleris PREP purification system equipped with a 4 g Flash Pure spherical column was used. Elution solvents were chloroform and methanol with a gradient such as: 2nd solvent percentage started at 0% for 1.5 min, 7% for 9.5 min, 15% for 3 min, and finally 100% for 3 min. The first fraction was fatty acids collected at 3 min. The second fraction was glycolipids collected at 4.5 min. The collected fractions were gathered and dry evaporated on a rotary evaporator for further analysis.
The total lipids per cell dry weight (CDW) were then calculated using the following formula:
% Lipids   per   Weight   ( CDW ) [ % ] = Lipid   extracted   [ mg ] Weight   CDW   [ mg ] × 100 % .

4.7. Folch Extraction and Direct Acidic Transesterification of the Biomass

To establish a base of comparison between methods for the extraction of lipids from oleaginous biomass, a Folch extraction was performed as follows. First, 400 mg of freeze-dried yeast biomass was homogenized by 45 sec vortex with 8 mL of chloroform/methanol (2/1) in a 15 mL Falcon tube. After dispersion, the whole mixture was agitated during 20 min in an orbital shaker at room temperature. The homogenate was filtrated with a funnel provided with filter paper. After centrifugation and siphoning of the upper phase, the lower chloroform phase containing lipids was dry evaporated under vacuum in a rotary evaporator to be analyzed and profiled using GC analysis.
As a reference for the lipid content comparison, direct acidic transesterification of the biomass was done, as described by Gorte et al. [11].

4.8. Acidic Transesterification to Fatty Acid Methyl Esters (FAMEs) of the Lipid Fraction

The dried lipid fraction purified by the flash chromatography was dissolved in 1.5 mL of hexane. The solution was transferred to a glass tube and 0.5 mL of the internal standard (2 mg/mL heptadecanoic acid) and 2.0 mL of 15% H2SO4 in methanol were added. In addition, a blank was prepared in a glass tube consisting of 1.5 mL hexane, 0.5 mL internal standard, and 2.0 mL 15% s H2SO4 in methanol. The glass tubes were then incubated for 2 h at 100 °C and 1000 rpm in a thermal shaker. In between, the samples were homogenized by hand at intervals of about 30 min. After incubation, the glass tubes were cooled on ice for at least 5 min. Then, 1 mL of MilliQ water was added to the glass tubes and centrifuged at 2500 rpm for 5 min. Finally, 1 mL from the upper phase was transferred to a GC vial.

4.9. GC Analysis of Fatty Acid Methyl Esters (FAMEs)

The quantitative and qualitative analyses of the transesterified FAMEs were performed gas-chromatographically using the 6890 N Network GC-System (Agilent Technologies Deutschland GmbH, Waldbronn, Germany). The device was coupled with a DB-Wax column (122–7032; l: 30 m d: 0.25 mm, Agilent Technologies Deutschland GmbH, Böblingen, Germany) and the detection was performed with an FID under 1.083 bar working pressure. Then, 1 mL of sample was injected at the initial temperature of 40 °C. The separation of the FAMEs was achieved by a temperature gradient from 40 to 250 °C with a rate of 8 °C/min and was kept for 10 min at 250 °C. To identify and quantify the FAMEs, the RM3 FAME Mix standard (07256-1AMP; Sigma Aldrich, Taufkirchen, Germany) was used. Chromatogram and integration of the main signals are given in Supplementary Figure S5.
The yield of FAMEs and the FAMEs per CDW [%] were then calculated using the following formulae:
FAMEs   [ mg ] = extracted   whole   lipids   [ mg ] × FAMEs   per   whole   lipid   [ % ] ,
FAMEs   per   CDW   [ % ] = FAMEs   [ mg ] CDW   [ mg ] × 100 % .

4.10. Thin Layer Chromatography (TLC) Analysis of Reaction Mixtures

After the DSP of the resulting mixtures, 10 mg of each reaction´s crude was dissolved in 1 mL of chloroform/methanol (75/25) and further used for TLC analysis as follows. First, 10 μL of the previously extracted organic phase was spotted onto a silica plate (Alugram SIL G, 60 Å, Macherey-Nagel GmbH & Co. KG, Düren, Germany). The eluent consisted of chloroform: methanol: acetic acid (65:15:2 v/v) [60]. After elution, TLC plate was dived into anisaldehyde: sulfuric acid: acetic acid (0.5:1:100 v/v) dying solution and subsequently revealed with a heat gun.

4.11. Spectroscopic and Spectrometric Methods for Structural Eluciation of Glycolipids

The nuclear magnetic resonance (NMR) spectroscopy spectra were measured in dichloromethane-d2 (CD2Cl2 purchased from Eurisotop, Saarbrücken, Germany) on a Avance 400 NMR instrument (Bruker Biospin GmbH, Rheinstetten, Germany), with 400 MHz for 1H. The chemical shifts are expressed in δ (ppm) versus tetramethylsilane (TMS) = 0. The mass spectrometry (MS) for mass identifications was performed with electrospray ionization (ESI) on a quadrupole Q Exactive Plus (ThermoFisher Scientific GmbH, Kandel, Germany) and recorded in positive mode. Raw data from MS and NMR was treated using MestReNova Suite 2020 [version 14.2.0].

4.12. Statistical Analysis

OriginPro software 9.7 [version 2020] (OriginLab Corporation, Northampton, MA, USA) was used for raw data treatment and statistical analysis. One-way ANOVA followed by post hoc test Tukey were performed using p-value < 0.05.

5. Conclusions

In this work, we demonstrated a proof of concept of the lipid extraction from oleaginous biomass and the subsequent glycolipids formation using lipase-catalyzed reaction with microwave-assisted processing in acidified DES. The medium made of choline chloride and sugar alcohols was prepared, among other more common DESs, in a matter of seconds using microwave technology, highlighting a technological match. In such “2-in-1” system, any combination of sugars and lipids is virtually possible to prepare tailor-made glycolipids. Indeed, other oleaginous biomasses for the synthesis of glycolipids could be considered. With the help of the developed robust reaction system combined with a proper identification strategy, compounds were isolated and characterized. In addition, screening for potential bioactivity of the DES containing mixtures or isolated compounds would be an interesting follow-up.
However, only a limited amount of glycolipid was obtained making optimization required. It is therefore important to investigate higher temperatures, different lipase formulations, and develop kinetic determination methods to allow an optimized scale-up of our process. In addition, chloroform and methanol were used as solvents for the purification of the glycolipids by flash chromatography. The replacement of the latter by halogen-free, more environmentally friendly solvents, such as hexane and ethyl acetate, or developing alternative methods to get rid of chromatographic purification should be considered.
The acidification of DESs to promote the lipase-catalyzed reaction must be understood in the future. Finding how much glycolipid can be produced by the specific activity of the lipase and how these conditions affect the overall activity and stability of the lipase formulation, as well as the recyclability of the biocatalyst, should all be investigated.

Supplementary Materials

The following are available online, Figure S1: Treated 1H-NMR experiment with zooms on the chemical shifts corresponding to the xylitol (A) and the fatty acids (B); Figure S2: Treated 1H-NMR experiment with zooms on the chemical shifts corresponding to the sorbitol (A) and the fatty acids (B); Figure S3: ESI-Q measurements of the isolated glycolipid fractions with xylitol-based esters (A) and sorbitol-based esters (B); Figure S4: Chromatograms of flash chromatography purification for a standard and acidified sugar alcohol-based DES with lipase; Figure S5: Example of a GC-chromatogram presenting main FAMEs in the lipid mixture and their signal integration.

Author Contributions

Conceptualization, A.D.; methodology, A.D., O.G. and K.O. (Katrin Ochsenreither); formal analysis, A.D.,E.D. and K.O. (Katrin Ochsenreither); investigation, A.D., O.G. and K.O. (Katarina Ochs); writing—original draft preparation, A.D.; writing—review and editing, A.D., O.G., K.O. (Katrin Ochsenreither) and E.D.; supervision, C.S., K.O. (Katrin Ochsenreither) initiated the acquisition of the microwave; funding acquisition, C.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work by A.D. was supported by the Bundesministerium für Bildung und Forschung (BMBF Allianz Biotenside AZ: 031B0469C). We gratefully thank the Open Access Publishing Fund of Karlsruhe Institute of Technology.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The main data presented in this study are available in the supplementary material.

Acknowledgments

The authors gratefully acknowledge Novozymes (Denmark) for the gift of enzyme formulation (Novozym 435®) that helped this work and especially Ramiro Martinez Gutierrez. We also thank Ute Wagner from Anton-Paar (Germany) for letting us do preliminary work on the microwave. We also express deep thanks to Karolin Kohnle, Qais Ahmad Parsa, Simon Oswald, Jasmin Busch, Lara Hirsch, Despina Savvidou and the team of Stefan Bräse from the Institute of Organic Chemistry of the KIT (Karlsruhe, Germany) for performing MS and NMR analysis.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds isolated from fat and glycolipid fractions are available from the authors.

Appendix A

Table
Table A1. Adducts obtained from the ElectronSpray Ionization-Quadrupole (ESI-Q) experiment for each isolated glycolipid fractions.
Table A1. Adducts obtained from the ElectronSpray Ionization-Quadrupole (ESI-Q) experiment for each isolated glycolipid fractions.
Xylitol-Based DES Process
Moleculem/zAdducts
Xylitol palmitate (XP)391.284[XP+H]+
409.439[XP+NH4]+
Xylitol oleate (XO)399.346[XO+H]+-H2O
417.321[XO+H]+
434.33[XO+NH4]+
439.450[XO+Na]+
Xylitol Linoleate (XL)396.427[XL+H]+-H2O
414.962[XL+H]+
430.976[XL+NH4]+
437.434[XL+Na]+
Xylitol Stearate (XS)401.341[XS+H]+-H2O
419.315[XS+H]+
Sorbitol-Based DES Process
Moleculem/zAdducts
Sorbitol palmitate (SP)387.235[SP+H]+-H2O
421.204[SP+H]+
443.232[SP+Na]+
437.235[SP+NH4]+
Sorbitol oleate (SO)393.209[SO+H]+-3H2O
447.292[SO+H]+
465.230[SO+NH4]+
Sorbitol linoleate (SL)391.283[SL+H]+-3H2O
409.183[SL+H]+-2H2O
445.276[SL+H]+
462.275[SL+NH4]+
Sorbitol stearate (SS)431.261[SS+H]+-H2O
449.271[SS+H]+
473.344[SS+Na]+

References

  1. Banat, I.M.; Carboué, Q.; Saucedo-Castañeda, G.; de Jesús Cázares-Marinero, J. Biosurfactants: The Green Generation of Speciality Chemicals and Potential Production Using Solid-State Fermentation (SSF) Technology. Bioresour. Technol. 2021, 320, 124222. [Google Scholar] [CrossRef] [PubMed]
  2. Pramod, K.; Kotta, S.; Jijith, U.S.; Aravind, A.; Abu Tahir, M.; Manju, C.S.; Gangadharappa, H.V. Surfactant-Based Prophylaxis and Therapy against COVID-19: A Possibility. Med. Hypotheses 2020, 143, 110081. [Google Scholar] [CrossRef] [PubMed]
  3. Gallou, F.; Isley, N.A.; Ganic, A.; Onken, U.; Parmentier, M. Surfactant Technology Applied toward an Active Pharmaceutical Ingredient: More than a Simple Green Chemistry Advance. Green Chem. 2016, 18, 14–19. [Google Scholar] [CrossRef] [Green Version]
  4. Baccile, N.; Nassif, N.; Malfatti, L.; Bogaert, I.N.A.V.; Soetaert, W.; Pehau-Arnaudet, G.; Babonneau, F. Sophorolipids: A Yeast-Derived Glycolipid as Greener Structure Directing Agents for Self-Assembled Nanomaterials. Green Chem. 2010, 12, 1564–1567. [Google Scholar] [CrossRef] [Green Version]
  5. Hirata, Y.; Ryu, M.; Oda, Y.; Igarashi, K.; Nagatsuka, A.; Furuta, T.; Sugiura, M. Novel Characteristics of Sophorolipids, Yeast Glycolipid Biosurfactants, as Biodegradable Low-Foaming Surfactants. J. Biosci. Bioeng. 2009, 108, 142–146. [Google Scholar] [CrossRef]
  6. González-Rivera, J.; Husanu, E.; Mero, A.; Ferrari, C.; Duce, C.; Tinè, M.R.; D’Andrea, F.; Pomelli, C.S.; Guazzelli, L. Insights into Microwave Heating Response and Thermal Decomposition Behavior of Deep Eutectic Solvents. J. Mol. Liq. 2020, 300, 112357. [Google Scholar] [CrossRef]
  7. Davies, E.; Deutz, P.; Zein, S.H. Single-Step Extraction-Esterification Process to Produce Biodiesel from Palm Oil Mill Effluent (POME) Using Microwave Heating: A Circular Economy Approach to Making Use of a Difficult Waste Product. Biomass Convers. Biorefin. 2020. [Google Scholar] [CrossRef]
  8. Abbott, A.P.; Boothby, D.; Capper, G.; Davies, D.L.; Rasheed, R.K. Deep Eutectic Solvents Formed between Choline Chloride and Carboxylic Acids: Versatile Alternatives to Ionic Liquids. J. Am. Chem. Soc. 2004, 126, 9142–9147. [Google Scholar] [CrossRef]
  9. Paiva, A.; Craveiro, R.; Aroso, I.; Martins, M.; Reis, R.L.; Duarte, A.R.C. Natural Deep Eutectic Solvents—Solvents for the 21st Century. ACS Sustain. Chem. Eng. 2014, 2, 1063–1071. [Google Scholar] [CrossRef]
  10. Siebenhaller, S.; Kirchhoff, J.; Kirschhöfer, F.; Brenner-Weiß, G.; Muhle-Goll, C.; Luy, B.; Haitz, F.; Hahn, T.; Zibek, S.; Syldatk, C.; et al. Integrated Process for the Enzymatic Production of Fatty Acid Sugar Esters Completely Based on Lignocellulosic Substrates. Front. Chem. 2018, 6. [Google Scholar] [CrossRef]
  11. Gorte, O.; Hollenbach, R.; Papachristou, I.; Steinweg, C.; Silve, A.; Frey, W.; Syldatk, C.; Ochsenreither, K. Evaluation of Downstream Processing, Extraction, and Quantification Strategies for Single Cell Oil Produced by the Oleaginous Yeasts Saitozyma Podzolica DSM 27192 and Apiotrichum Porosum DSM 27194. Front. Bioeng. Biotechnol. 2020, 8, 355. [Google Scholar] [CrossRef] [PubMed]
  12. Ochsenreither, K.; Glück, C.; Stressler, T.; Fischer, L.; Syldatk, C. Production Strategies and Applications of Microbial Single Cell Oils. Front. Microbiol. 2016, 7. [Google Scholar] [CrossRef] [Green Version]
  13. Folch, J.; Lees, M.; Sloane Stanley, G.H. A Simple Method for the Isolation and Purification of Total Lipides from Animal Tissues. J. Biol. Chem. 1957, 226, 497–509. [Google Scholar] [CrossRef]
  14. Liauw, M.Y.; Natan, F.A.; Widiyanti, P.; Ikasari, D.; Indraswati, N.; Soetaredjo, F.E. Extraction of Neem Oil (Azadirachta Indica A. Juss) Using N-Hexane and Ethanol: Studies of Oil Quality, Kinetic and Thermodynamic. ARPN J. Eng. Appl. Sci. 2008, 3, 49–54. [Google Scholar]
  15. Dallinger, D.; Kappe, C.O. Microwave-Assisted Synthesis in Water as Solvent. Chem. Rev. 2007, 107, 2563–2591. [Google Scholar] [CrossRef]
  16. Microwave Theory. In Microwaves in Organic and Medicinal Chemistry; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2012; pp. 9–39. ISBN 978-3-527-64782-8.
  17. LidstroÈm, P.; Tierney, J.; Wathey, B.; Westman, J. Microwave Assisted Organic SynthesisÐa Review. Tetrahedron 2001, 57, 9225–9283. [Google Scholar] [CrossRef]
  18. Nie, J.; Yu, G.; Song, Z.; Wang, X.; Li, Z.; She, Y.; Lee, M. Microwave-Assisted Deep Eutectic Solvent Extraction Coupled with Headspace Solid-Phase Microextraction Followed by GC-MS for the Analysis of Volatile Compounds from Tobacco. Anal. Methods 2017, 9, 856–863. [Google Scholar] [CrossRef]
  19. De la Hoz, A.; Díaz-Ortiz, Á.; Moreno, A. Microwaves in Organic Synthesis. Thermal and Non-Thermal Microwave Effects. Chem. Soc. Rev. 2005, 34, 164–178. [Google Scholar] [CrossRef]
  20. Herrero, M.A.; Kremsner, J.M.; Kappe, C.O. Nonthermal Microwave Effects Revisited:  On the Importance of Internal Temperature Monitoring and Agitation in Microwave Chemistry. J. Org. Chem. 2008, 73, 36–47. [Google Scholar] [CrossRef]
  21. Tasei, Y.; Mijiddorj, B.; Fujito, T.; Kawamura, I.; Ueda, K.; Naito, A. Thermal and Nonthermal Microwave Effects of Ethanol and Hexane-Mixed Solution as Revealed by In Situ Microwave Irradiation Nuclear Magnetic Resonance Spectroscopy and Molecular Dynamics Simulation. J. Phys. Chem. B 2020, 124, 9615–9624. [Google Scholar] [CrossRef]
  22. Kubo, M.T.; Siguemoto, É.S.; Funcia, E.S.; Augusto, P.E.; Curet, S.; Boillereaux, L.; Sastry, S.K.; Gut, J.A. Non-Thermal Effects of Microwave and Ohmic Processing on Microbial and Enzyme Inactivation: A Critical Review. Curr. Opin. Food Sci. 2020, 35, 36–48. [Google Scholar] [CrossRef]
  23. Coultate, T.P. Polysaccharides. In Food; RSC Publishing: Cambridge, UK, 2001; pp. 41–72. ISBN 978-1-84973-880-4. [Google Scholar]
  24. Jiang, B.; Liu, Y.; Bhandari, B.; Zhou, W. Impact of Caramelization on the Glass Transition Temperature of Several Caramelized Sugars. Part I: Chemical Analyses. J. Agric. Food Chem. 2008, 56, 5138–5147. [Google Scholar] [CrossRef] [PubMed]
  25. Hayyan, A.; Mjalli, F.S.; Alnashef, I.M.; Al-Wahaibi, Y.M.; Al-Wahaibi, T.; Hashim, M.A. Glucose-Based Deep Eutectic Solvents: Physical Properties. J. Mol. Liq. 2013, 178, 137–141. [Google Scholar] [CrossRef]
  26. Aroso, I.M.; Paiva, A.; Reis, R.L.; Duarte, A.R.C. Natural Deep Eutectic Solvents from Choline Chloride and Betaine—Physicochemical Properties. J. Mol. Liq. 2017, 241, 654–661. [Google Scholar] [CrossRef]
  27. Xu, M.; Ran, L.; Chen, N.; Fan, X.; Ren, D.; Yi, L. Polarity-Dependent Extraction of Flavonoids from Citrus Peel Waste Using a Tailor-Made Deep Eutectic Solvent. Food Chem. 2019, 297, 124970. [Google Scholar] [CrossRef]
  28. Pätzold, M.; Siebenhaller, S.; Kara, S.; Liese, A.; Syldatk, C.; Holtmann, D. Deep Eutectic Solvents as Efficient Solvents in Biocatalysis. Trends Biotechnol. 2019, 37, 943–959. [Google Scholar] [CrossRef]
  29. Sathish, A.; Smith, B.R.; Sims, R.C. Effect of Moisture on in Situ Transesterification of Microalgae for Biodiesel Production. J. Chem. Technol. Biotechnol. 2014, 89, 137–142. [Google Scholar] [CrossRef]
  30. Yousuf, A.; Khan, M.R.; Islam, M.A.; Wahid, Z.A.; Pirozzi, D. Technical Difficulties and Solutions of Direct Transesterification Process of Microbial Oil for Biodiesel Synthesis. Biotechnol. Lett. 2016. [Google Scholar] [CrossRef] [Green Version]
  31. Jin, G.; Yang, F.; Hu, C.; Shen, H.; Zhao, Z.K. Enzyme-Assisted Extraction of Lipids Directly from the Culture of the Oleaginous Yeast Rhodosporidium Toruloides. Bioresour. Technol. 2012, 111, 378–382. [Google Scholar] [CrossRef]
  32. Khoomrung, S.; Chumnanpuen, P.; Jansa-Ard, S.; Ståhlman, M.; Nookaew, I.; Borén, J.; Nielsen, J. Rapid Quantification of Yeast Lipid Using Microwave-Assisted Total Lipid Extraction and HPLC-CAD. Anal. Chem. 2013, 85, 4912–4919. [Google Scholar] [CrossRef]
  33. Klei, I.V.D.; Veenhuis, M.; Brul, S.; Klis, F.M.; Groot, P.W.J.D.; Müller, W.H.; van Driel, K.G.A.; Boekhout, T. Cytology, Cell Walls and Septa: A Summary of Yeast Cell Biology from a Phylogenetic Perspective. Yeasts 2011, 111–128. [Google Scholar] [CrossRef]
  34. Lee, J.-Y.; Yoo, C.; Jun, S.-Y.; Ahn, C.-Y.; Oh, H.-M. Comparison of Several Methods for Effective Lipid Extraction from Microalgae. Bioresour. Technol. 2010, 101, S75–S77. [Google Scholar] [CrossRef] [PubMed]
  35. Tommasi, E.; Cravotto, G.; Galletti, P.; Grillo, G.; Mazzotti, M.; Sacchetti, G.; Samorì, C.; Tabasso, S.; Tacchini, M.; Tagliavini, E. Enhanced and Selective Lipid Extraction from the Microalga P. Tricornutum by Dimethyl Carbonate and Supercritical CO2 Using Deep Eutectic Solvents and Microwaves as Pretreatment. ACS Sustain. Chem. Eng. 2017, 5, 8316–8322. [Google Scholar] [CrossRef]
  36. Martins, A.B.; Graebin, N.G.; Lorenzoni, A.S.G.; Fernandez-Lafuente, R.; Ayub, M.A.Z.; Rodrigues, R.C. Rapid and High Yields of Synthesis of Butyl Acetate Catalyzed by Novozym 435: Reaction Optimization by Response Surface Methodology. Process Biochem. 2011, 46, 2311–2316. [Google Scholar] [CrossRef] [Green Version]
  37. Dai, Y.; van Spronsen, J.; Witkamp, G.-J.; Verpoorte, R.; Choi, Y.H. Natural Deep Eutectic Solvents as New Potential Media for Green Technology. Anal. Chim. Acta 2013, 766, 61–68. [Google Scholar] [CrossRef]
  38. Ortiz, C.; Ferreira, M.L.; Barbosa, O.; dos Santos, J.C.S.; Rodrigues, R.C.; Berenguer-Murcia, Á.; Briand, L.E.; Fernandez-Lafuente, R. Novozym 435: The “Perfect” Lipase Immobilized Biocatalyst? Catal. Sci. Technol. 2019, 9, 2380–2420. [Google Scholar] [CrossRef] [Green Version]
  39. Lieu, T.; Yusup, S.; Moniruzzaman, M. Kinetic Study on Microwave-Assisted Esterification of Free Fatty Acids Derived from Ceiba Pentandra Seed Oil. Bioresour. Technol. 2016, 211, 248–256. [Google Scholar] [CrossRef]
  40. Reyes, H.R.; Hill, C.G. Kinetic Modeling of Interesterification Reactions Catalyzed by Immobilized Lipase. Biotechnol. Bioeng. 1994, 43, 171–182. [Google Scholar] [CrossRef]
  41. Keramat, M.; Golmakani, M.-T.; Durand, E.; Villeneuve, P.; Hosseini, S.M.H. Auto-Catalytic Production of Eugenyl Acetate and Eugenyl Butyrate Using Microwave Radiation: A Kinetic and Mechanism-Related Approach. J. Chem. Technol. Biotechnol. 2020. [Google Scholar] [CrossRef]
  42. Kim, Y.-H.; Choi, Y.-K.; Park, J.; Lee, S.; Yang, Y.-H.; Kim, H.J.; Park, T.-J.; Kim, Y.H.; Lee, S.H. Ionic Liquid-Mediated Extraction of Lipids from Algal Biomass. Bioresour. Technol. 2012, 109, 312–315. [Google Scholar] [CrossRef]
  43. Ganske, F.; Bornscheuer, U.T. Lipase-Catalyzed Glucose Fatty Acid Ester Synthesis in Ionic Liquids. Org. Lett. 2005, 7, 3097–3098. [Google Scholar] [CrossRef] [PubMed]
  44. Radošević, K.; Cvjetko Bubalo, M.; Gaurina Srček, V.; Grgas, D.; Landeka Dragičević, T.; Radojčić Redovniković, I. Evaluation of Toxicity and Biodegradability of Choline Chloride Based Deep Eutectic Solvents. Ecotoxicol. Environ. Saf. 2015, 112, 46–53. [Google Scholar] [CrossRef] [PubMed]
  45. Durand, E.; Lecomte, J.; Baréa, B.; Piombo, G.; Dubreucq, E.; Villeneuve, P. Evaluation of Deep Eutectic Solvents as New Media for Candida Antarctica B Lipase Catalyzed Reactions. Process Biochem. 2012, 47, 2081–2089. [Google Scholar] [CrossRef]
  46. Bermúdez, J.M.; Beneroso, D.; Rey-Raap, N.; Arenillas, A.; Menéndez, J.A. Energy Consumption Estimation in the Scaling-up of Microwave Heating Processes. Chem. Eng. Process. Process Intensif. 2015, 95, 1–8. [Google Scholar] [CrossRef] [Green Version]
  47. Pöhnlein, M.; Hausmann, R.; Lang, S.; Syldatk, C. Enzymatic Synthesis and Modification of Surface-Active Glycolipids: Enz Syn and Mod of Glycolipids. Eur. J. Lipid Sci. Technol. 2015, 117, 145–155. [Google Scholar] [CrossRef]
  48. Bornscheuer, U.T.; Yamane, T. Fatty Acid Vinyl Esters as Acylating Agents: A New Method for the Enzymatic Synthesis of Monoacylglycerols. J. Am. Oil Chem. Soc. 1995, 72, 193–197. [Google Scholar] [CrossRef]
  49. Lourith, N.; Kanlayavattanakul, M. Natural Surfactants Used in Cosmetics: Glycolipids. Int. J. Cosmet. Sci. 2009, 31, 255–261. [Google Scholar] [CrossRef]
  50. Ewald, N.; Vidakovic, A.; Langeland, M.; Kiessling, A.; Sampels, S.; Lalander, C. Fatty Acid Composition of Black Soldier Fly Larvae (Hermetia illucens)—Possibilities and Limitations for Modification through Diet. Waste Manag. 2020, 102, 40–47. [Google Scholar] [CrossRef]
  51. Hoc, B.; Genva, M.; Fauconnier, M.-L.; Lognay, G.; Francis, F.; Caparros Megido, R. About Lipid Metabolism in Hermetia Illucens (L. 1758): On the Origin of Fatty Acids in Prepupae. Sci. Rep. 2020, 10, 11916. [Google Scholar] [CrossRef]
  52. Szűts, A.; Szabó-Révész, P. Sucrose Esters as Natural Surfactants in Drug Delivery Systems—A Mini-Review. Int. J. Pharm. 2012, 433, 1–9. [Google Scholar] [CrossRef]
  53. Elmowafy, E.; El-Derany, M.O.; Biondo, F.; Tiboni, M.; Casettari, L.; Soliman, M.E. Quercetin Loaded Monolaurate Sugar Esters-Based Niosomes: Sustained Release and Mutual Antioxidant—Hepatoprotective Interplay. Pharmaceutics 2020, 12, 143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Karlson, P.; Doenecke, D.; Koolman, J.; Fuchs, G.; Gerok, W. Karlsons Biochemie und Pathobiochemie; Thieme: Stuttgart, Germany, 2005; ISBN 978-3-13-357815-8. [Google Scholar]
  55. Arcens, D.; Grau, E.; Grelier, S.; Cramail, H.; Peruch, F. Impact of Fatty Acid Structure on CALB-Catalyzed Esterification of Glucose. Eur. J. Lipid Sci. Technol. 2020, 122, 1900294. [Google Scholar] [CrossRef] [Green Version]
  56. Grüninger, J.; Delavault, A.; Ochsenreither, K. Enzymatic Glycolipid Surfactant Synthesis from Renewables. Process Biochem. 2019, 87, 45–54. [Google Scholar] [CrossRef]
  57. Schulze, I.; Hansen, S.; Großhans, S.; Rudszuck, T.; Ochsenreither, K.; Syldatk, C.; Neumann, A. Characterization of Newly Isolated Oleaginous Yeasts—Cryptococcus Podzolicus, Trichosporon Porosum and Pichia Segobiensis. AMB Express 2014, 4, 24. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Aliyu, H.; Gorte, O.; Neumann, A.; Ochsenreither, K. Draft Genome Sequence of the Oleaginous Yeast Saitozyma Podzolica (Syn. Cryptococcus Podzolicus) DSM 27192. Microbiol. Resour. Announc. 2019, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Dai, Y.; Witkamp, G.-J.; Verpoorte, R.; Choi, Y.H. Tailoring Properties of Natural Deep Eutectic Solvents with Water to Facilitate Their Applications. Food Chem. 2015, 187, 14–19. [Google Scholar] [CrossRef] [PubMed]
  60. Pöhnlein, M.; Ulrich, J.; Kirschhöfer, F.; Nusser, M.; Muhle-Goll, C.; Kannengiesser, B.; Brenner-Weiß, G.; Luy, B.; Liese, A.; Syldatk, C.; et al. Lipase-Catalyzed Synthesis of Glucose-6-O-Hexanoate in Deep Eutectic Solvents. Eur. J. Lipid Sci. Technol. 2015, 117, 161–166. [Google Scholar] [CrossRef]
Molecules 26 00470 g001 550
Figure 1. Flowchart of this study. Freeze-dried oleaginous biomass from S. podzolica was used in a one-pot microwave-assisted process that extracted fatty acids and subsequently produced a purifiable quantity of glycolipids when lipase and acidified Deep Eutectic System (DES) were jointly used.
Figure 1. Flowchart of this study. Freeze-dried oleaginous biomass from S. podzolica was used in a one-pot microwave-assisted process that extracted fatty acids and subsequently produced a purifiable quantity of glycolipids when lipase and acidified Deep Eutectic System (DES) were jointly used.
Molecules 26 00470 g001
Molecules 26 00470 g002 550
Figure 2. Preparation times of common and sugar-alcohol DESs with microwave heating and thermal heating, mean standard deviation indicates significant differences (p < 0.05).
Figure 2. Preparation times of common and sugar-alcohol DESs with microwave heating and thermal heating, mean standard deviation indicates significant differences (p < 0.05).
Molecules 26 00470 g002
Molecules 26 00470 g003 550
Figure 3. Thin layer chromatography of the reactions processed with microwave irradiation including a control using directly Fatty Acid Methyl Esters (FAMEs) from yeast biomass. AcDES: acidified DES; DES: standard DES.
Figure 3. Thin layer chromatography of the reactions processed with microwave irradiation including a control using directly Fatty Acid Methyl Esters (FAMEs) from yeast biomass. AcDES: acidified DES; DES: standard DES.
Molecules 26 00470 g003
Molecules 26 00470 g004 550
Figure 4. Fatty Acid Methyl Esters per Cell Dry Weight (FAMES/CDW) [%] for the microwave extraction of fatty acids under different reaction conditions, the Folch extraction process (FE), and the direct transesterification of the oily biomass to FAMEs (DT). Mean standard deviation indicates significant differences (p < 0.05).
Figure 4. Fatty Acid Methyl Esters per Cell Dry Weight (FAMES/CDW) [%] for the microwave extraction of fatty acids under different reaction conditions, the Folch extraction process (FE), and the direct transesterification of the oily biomass to FAMEs (DT). Mean standard deviation indicates significant differences (p < 0.05).
Molecules 26 00470 g004
Molecules 26 00470 g005 550
Figure 5. Distribution of fatty acids for the extraction carried out by microwave with different sugar alcohol-based DES conditions, the Folch extraction process (FE), and the direct transesterification (DT) on the oily biomass.
Figure 5. Distribution of fatty acids for the extraction carried out by microwave with different sugar alcohol-based DES conditions, the Folch extraction process (FE), and the direct transesterification (DT) on the oily biomass.
Molecules 26 00470 g005
Table
Table 1. Composition of common and sugar alcohol-based DESs studied.
Table 1. Composition of common and sugar alcohol-based DESs studied.
DES Number/NameHBDmR [mol]mHBD [g]HBAmR [mol]mHBA [g]mR [mol]mwater [g]wt % Water
1Arabinose16.45ChCl16.000.80.625
2Glucose15.00ChCl29.692.501.259
3Glycerol27.86Betaine15.001.000.776
4Urea24.30ChCl15.00---
5Glycerol26.60ChCl15.00---
61,2-Propanediol12.54ChCl14.651.000.608
71,4-Butanediol46.15Betaine12.001.000.314
8Saccharose15.00ChCl48.164.001.058
Xylit Xylitol15.45ChCl15.000.80.525
Sorbit Sorbitol16.53ChCl15.000.90.585
Note. Final volume of DES results in 10 ± 1 mL, HBA: hydrogen bond acceptor, HBD: hydrogen bond donor, mR: mole ratio.
Table
Table 2. Amounts of extracted whole lipids, FAMEs, and glycolipids per 10 mL of reaction.
Table 2. Amounts of extracted whole lipids, FAMEs, and glycolipids per 10 mL of reaction.
ConditionDESAcDESDES + LipaseAcDES + LipaseFEDT
Sugar Alchohol Sorbitol Xylitol Sorbitol XylitolSorbitolXylitolSorbitol Xylitol--
Extracted whole lipids ** (total amount (mg))32 ± 150 ± 290 ± 1105 ± 1.535 ± 125 ± 163 ± 168 ± 3.343 ± 1-
Extracted FAMEs ** (total amount (mg))14 ± 110 ± 245 ± 368 ± 32.4 ± 0.110 ± 140 ± 135 ± 127 ± 15 ± 1 ***
Glycolipid quantity (total amount (mg))--T *T *--~15~20--
Note. * T stands for Traces meaning observation of glycolipid production could be made on TLC, but the amount was too low for chromatography purification. ** All values are given as the mean ± standard deviation of at least three independent experiments using each 400 mg of freeze-dried biomass that showed statistically significant differences, p-value was < 0.05. *** Direct transeterification was done with 20 mg of freeze-dried biomass and only produced FAMEs.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Delavault, A.; Ochs, K.; Gorte, O.; Syldatk, C.; Durand, E.; Ochsenreither, K. Microwave-Assisted One-Pot Lipid Extraction and Glycolipid Production from Oleaginous Yeast Saitozyma podzolica in Sugar Alcohol-Based Media. Molecules 2021, 26, 470. https://doi.org/10.3390/molecules26020470

AMA Style

Delavault A, Ochs K, Gorte O, Syldatk C, Durand E, Ochsenreither K. Microwave-Assisted One-Pot Lipid Extraction and Glycolipid Production from Oleaginous Yeast Saitozyma podzolica in Sugar Alcohol-Based Media. Molecules. 2021; 26(2):470. https://doi.org/10.3390/molecules26020470

Chicago/Turabian Style

Delavault, André, Katarina Ochs, Olga Gorte, Christoph Syldatk, Erwann Durand, and Katrin Ochsenreither. 2021. "Microwave-Assisted One-Pot Lipid Extraction and Glycolipid Production from Oleaginous Yeast Saitozyma podzolica in Sugar Alcohol-Based Media" Molecules 26, no. 2: 470. https://doi.org/10.3390/molecules26020470

Article Metrics

Back to TopTop
