Antibacterial Activity of Thymus vulgaris L. Essential Oil Vapours and Their GC/MS Analysis Using Solid-Phase Microextraction and Syringe Headspace Sampling Techniques

by
Julien Antih
1,
Marketa Houdkova
1,
Klara Urbanova
2 and
Ladislav Kokoska
1,*
1
Department of Crop Sciences and Agroforestry, Faculty of Tropical Agrisciences, Czech University of Life Sciences Prague, Kamycka 129, 165 21 Prague-Suchdol, Czech Republic
2
Department of Sustainable Technologies, Faculty of Tropical Agrisciences, Czech University of Life Sciences Prague, Kamycka 129, 165 21 Prague-Suchdol, Czech Republic
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(21), 6553; https://doi.org/10.3390/molecules26216553
Submission received: 27 August 2021 / Revised: 20 October 2021 / Accepted: 26 October 2021 / Published: 29 October 2021
(This article belongs to the Special Issue Antimicrobial Activity of Plant Volatiles in Vapor Phase)
Browse Figure
Review Reports Versions Notes

Abstract

:
While the inhalation of Thymus vulgaris L. essential oil (EO) is commonly approved for the treatment of mild respiratory infections, there is still a lack of data regarding the antimicrobial activity and chemical composition of its vapours. The antibacterial activity of the three T. vulgaris EOs against respiratory pathogens, including Haemophilus influenzae, Staphylococcus aureus, and Streptococcus pyogenes, was assessed in both liquid and vapour phases using the broth microdilution volatilisation (BMV) method. With the aim of optimising a protocol for the characterisation of EO vapours, their chemical profiles were determined using two headspace sampling techniques coupled with GC/MS: solid-phase microextraction (HS-SPME) and syringe headspace sampling technique (HS-GTS). All EO sample vapours exhibited antibacterial activity with minimum inhibitory concentrations (MIC) ranging from 512 to 1024 μg/mL. According to the sampling technique used, results showed a different distribution of volatile compounds. Notably, thymol was found in lower amounts in the headspace—peak percentage areas below 5.27% (HS-SPME) and 0.60% (HS-GTS)—than in EOs (max. 48.65%), suggesting that its antimicrobial effect is higher in vapour. Furthermore, both headspace sampling techniques were proved to be complementary for the analysis of EO vapours, whereas HS-SPME yielded more accurate qualitative results and HS-GTS proved a better technique for quantitative analysis.

1. Introduction

Pneumonia is an acute lower respiratory infection (ALRI) mainly caused by bacterial pathogens, including Gram-positive bacteria such as Staphylococcus aureus, Streptococcus pneumoniae, and Streptococcus pyogenes, or Gram-negative strains such as Haemophilus influenzae [1,2,3]. For decades, they have been amongst the major causes of morbidity and mortality worldwide; this is particularly significant in low-income countries where vulnerable populations such as children under five years old, the elderly, and the immunocompromised population are at higher risk [4]. In 2019, ALRIs remained the world’s most deadly communicable diseases with nearly 2.6 million deaths and accounted for 15% of deaths in children under 5 years of age [5,6,7]. To reduce the fatality of these infections, the recommended treatment is the administration of a full course of appropriate antibiotics. Currently, nebulised antibiotics offer significant advantages over intravenous and oral therapies; amongst others, inhalation therapy allows to deliver high drug concentrations and to have more efficient and faster action while reducing the risk of side effects compared to systemic administrations [8]. Today, such treatments are already included in care protocols, especially for cystic fibrosis. For example, nebulised tobramycin, colistin, and aztreonam lysine are commonly used in Europe as inhaled antibiotics against chronic Pseudomonas aeruginosa infections [9]. However, difficulties with implementing optimal nebulisation techniques and the lack of robust clinical data have limited the widespread adoption of aerosol treatments [10,11,12]. Among other reasons, this can be attributed to both particle-related and patient-related factors. For instance, efficient delivery of aerosolised antibiotic particles in the lower parts of the lungs rests on the aerodynamic behaviour of the particles: larger particles preferably accumulate in the oropharyngeal area, while smaller particles deposit in the lower airways. Consequently, this alters drug delivery in the lungs as small particles carry fewer active substances [13]. Furthermore, the distribution of nebulised particles depends on the breathing manoeuvre used by the patient: rapid and forceful inhalations will see an increased deposition of drug in the upper airways, whereas slow and deep inhalations deposit particles in the lower part of the respiratory system [14]. As a result, drug delivery is also affected by the quality of inhalations which hinge on the patient’s age (especially children and elderly), the severity of the respiratory disease, or even the physical capability to perform a breathing manoeuvre [15].
In this context, plant-derived preparations, and more specifically, essential oils (EOs), are interesting alternatives in the development of novel antimicrobial volatile agents [16,17]. EOs’ typical physicochemical feature is high volatility at room temperature. Therefore, compared to aerosolised antibiotics, EO vapours are easy to inhale without requiring any specific breathing technique. At the same time, this characteristic allows for a uniform distribution of EOs’ active substances, at a significant concentration, in the lower section of the lungs [18]. As an example, a recent clinical trial study has already demonstrated that a Thymus vulgaris L. EO inhalation therapy would improve the respiratory conditions in patients with ventilator-associated pneumonia. Among other benefits, this treatment would facilitate the clearance of the mucous membrane, improve gas exchange in alveoli, and thus increase the oxygen saturation in patients’ blood [19]. Furthermore, EOs are complex mixtures containing a broad spectrum of chemically diverse compounds that work in synergy to provide their antibacterial properties. Their composition includes hydrocarbons (terpenes and terpenoids) and oxygenated compounds (phenols, aldehydes, alcohols, ketones, esters, and lactones) as well as sulphur or nitrogen substances such as isothiocyanates and pyrazines synthesised by certain plant families [20,21,22]. Because of their well-studied chemical compositions, EOs can be used for medicinal purposes if their long-standing usage and experience can be demonstrated [23]. Amongst the nearly 30 EOs approved by the Committee on Herbal Medicinal Products (HMPC) of the European Medicines Agency (EMA), the essential oil of T. vulgaris is one of the most important plant species used traditionally to treat respiratory disorders, including cough, bronchitis, laryngitis, and other respiratory congestions [24]. Moreover, several reports are validating the in vitro antibacterial activities of this EO on respiratory pathogens such as S. aureus and P. aeruginosa. Today, its composition is well known and comprises components such as thymol methyl ether, p-cymene, 1,8 cineol, and α-pinene, but it is widely believed that its antimicrobial activity is related to its content in two phenolic monoterpenes: thymol and carvacrol [25,26,27]. T. vulgaris is also used in complex herbal formulations. For instance, Bronchipret (Bionorica, Neumarkt, Germany) is an over-the-counter oral treatment consisting mainly of Hedera helix L. and T. vulgaris extracts. This herbal product is recommended in acute inflammation of the respiratory tract associated with cough and thick mucus [7]. Although recent studies suggest that the EO of T. vulgaris produce better results in antimicrobial activities in the vapour phase than their liquid phase [17,28,29], there is still a lack of available data regarding its growth-inhibitory effect against pneumonia-causing bacteria [28].
As opposed to well-established methods for the testing of antimicrobial susceptibility in both solid (i.e., agar disc diffusion) and liquid (broth microdilution) media, there is no standardised antimicrobial assay to study EO vapour phases according to, for example, the Clinical and Laboratory Standards Institute (CLSI) [30,31,32]. Today, disc volatilisation is the most common method to examine the in vitro growth inhibition of EOs’ volatile agents [33]; however, similar methods have already been developed and used (e.g., dressing model volatilisation test [34], or airtight apparatus disc volatilisation methods [28]). Unfortunately, such tests have limitations: they are generally not designed for high-throughput screening, some only allow the evaluation of a single concentration of each sample, and usually only provide qualitative data [35]. Furthermore, the lack of standardisation of methods has led to difficulties not only in interpreting but also in comparing antimicrobial growth results. For instance, from all studies examining T. vulgaris EO vapour antimicrobial activity, it is not unusual to observe results expressed in different ways, including unit volume of air [28] or even various definitions of minimum inhibitory concentrations (MICs) [36,37].
The antimicrobial properties of EO vapours are determined by the relative volatility and antimicrobial effects of their compounds [38]. It is therefore essential to understand their chemical composition, something that has not been well-explored yet [39]. Nowadays, to examine the content of EOs vapour, static headspace extraction coupled with gas chromatography–mass spectrometry (SHE-GC/MS) offers more advantages compared to traditional liquid extraction of samples. It is a simple, rapid, and solventless technique that requires a small amount of sample and allows the analysis of highly volatile compounds [40]. Consequently, studies examining the antimicrobial activity of EO vapours are also focused on their chemical composition using SHE-GC/MS. As an example, several studies have explored the chemical composition of T. vulgaris’s volatile agents using different SHE techniques, including solid-phase microextraction (HS-SPME) [37,41,42], which is currently the preferred technique to examine complex, volatile mixtures in laboratories [43]. This method uses a fused silica fibre coated with a stationary phase that is directly exposed to the sample headspace. After absorption of the analytes to the fibre coating, the sample is transferred into a GC injection port for thermal desorption [40]. HS-SPME sampling is not only a sensitive technique due to the concentration achieved by the fibre but also a selective one thanks to the different coating material available; repeatability is also one of its assets when used with a dedicated autosampler [40,44,45]. However, using fibre coating suffers limitations; for example, it is not uniformly sensitive; therefore, competitive adsorption between volatile agents for the limited number of active sites can be observed. Similarly, selectivity will be different depending on the coating polymer used [46,47]. As a result, GC peak areas might not reflect the exact compounds’; composition and proportion in the headspace. That is why other approaches can be considered for analysing the EO vapour profile, including gas tight syringe headspace sampling (HS-GTS). This technique is the most convenient and inexpensive way to sample highly volatile compounds from the headspace of a closed vessel [40,48]. The gas syringe with a pressure-lock valve is inserted into the headspace, and a fraction of its volume is removed. The gas sample, locked into the syringe, is then transferred and injected into the GC inlet. Despite the above-mentioned advantages, the potential of this method for headspace sampling of EO vapours has not fully been exploited yet. Intending to identify EO vapours with the potential to inhibit the growth of bacteria causing pneumonia, we performed a series of preliminary experiments with herbal products approved by the HMPC of the EMA for the treatment of infectious cough and cold [23]. It encompassed the assessment of the in vitro growth-inhibitory effect of Pimpinella anisum L. seed, Eucalyptus globulus Labill. leaf, Thymus vulgaris L. aerial part, Mentha × piperita L. leaf, and Foeniculum vulgare Mill. seed EOs using the broth microdilution volatilisation (BMV) method against H. influenzae, S. aureus, and S. pyogenes. This novel method was recently developed by our team [35]; it is a simple, rapid, and simultaneous technique that allows the assessment of EOs antibacterial activities at different concentrations in both liquid and vapour phases. As a result of these exploratory tests, T. vulgaris EOs was selected for further evaluation due to the lowest MICs it generated (J. Antih, M. Houdkova, and L. Kokoska, unpublished data). We therefore investigated the in vitro growth-inhibitory effect of T. vulgaris EOs in both liquid and vapour phases against the above-mentioned respiratory pathogens and compared their chemical compositions using GC-MS. Then, with the aim of optimising a protocol for the chemical characterisation of EO vapours, we performed a time series of headspace analyses comparing both HS-SPME and HS-GTS sampling techniques.

2. Results

2.1. Antimicrobial Activity

In this study, essential oil samples from dry plant material of T. vulgaris from three different suppliers were tested against three standard bacterial strains associated with respiratory infections using the BMV method (Table 1). All EOs presented a certain degree of antibacterial efficacy ranging from 512 to 1024 μg/mL in both liquid and vapour phases. Supplier C’s EO was the most active, with the lowest MICs value of 512 μg/mL in both liquid and vapour phases for the three bacteria strains. Similarly, S. pyogenes and H. influenzae growth were more affected by the EO of supplier B than S. aureus with MICs at 512 μg/mL and 1024 μg/mL in both broth and agar, respectively. On the contrary, the least effective EO source was from supplier A: results showed mild efficacy against H. influenzae (512 μg/mL), whereas a weaker inhibitory effect of 1024 μg/mL was observed against both S. aureus and S. pyogenes. Likewise, each EO affected the growth of S. pyogenes, H. influenzae, and S. aureus similarly in both liquid and vapour phases. No discrepancy between broth and agar results was observed on the tested strains. H. influenzae was the most susceptible bacterial strain (MICs = 512 μg/mL for all EOs tested) followed by S. pyogenes (MICs = 512 μg/mL supplier B and C and MIC = 1024 μg/mL for supplier C), while S. aureus was the least sensitive (MIC = 512 μg/mL supplier C and MICs = 1024 μg/mL for supplier A and B).

2.2. Chemical Analysis of EOs

In this investigation, T. vulgaris EOs from three different suppliers (A, B, and C) were extracted with respective yield values of 0.73, 1.23 and 1.25%. All EOs presented a strong herbaceous fragrance while being of different shades of orange colour. The complete chemical analyses of all samples are provided in Table 2 as well as in Figure 1a,b. Using the HP-5MS column, 54 compounds were identified in EOs of suppliers A and B, whereas 62 components were found in supplier C’s EO, representing 99.55, 99.65, and 99.62% of their respective total constituents, respectively. Similarly, using the DB-HeavyWAX column, 44, 43, and 36 components were determined, which constituted 99.30, 99.68, and 99.61% of the volatile oils, respectively. In the three samples analysed, monoterpenoids represented by thymol (phenolic monoterpene) followed by sesquiterpenoids mainly represented by β-caryophyllene were the two dominant groups of volatile agents identified. To a lesser extent, other groups were identified, such as oxygenated phenylpropanoids, oxygenated aliphatics, furanoids, and oxygenated diterpenes.
In all T. vulgaris EOs, thymol was the most abundant compound. When considering both HP-5MS/DB-HeavyWAX columns, supplier C’s EO percentage values were 48.09/48.65% in contrast to suppliers A and B results—i.e., 38.42/29.52% and 38.93/41.31%, respectively. Likewise, p-cymene was the second most abundant constituent in the three EO samples. While in sample C, the peak percentage area represented 12.75/12.90%, its value was twice as high in both supplier A and B EOs—22.15/16.43% and 22.03/25.35%. Carvacrol was the third abounding compound in A, B, and C samples, with percentage values of 10.61/3.84%, 10.85/5.59%, and 10.92/3.60%, respectively. Although the content of γ-terpinene was relatively high in the three samples, the amount detected in EOs from suppliers A and B (2.82/2.02% and 2.78/2.90%) were significantly lower than in supplier C EO (5.22/5.40%). Eventually, in EO samples A, B, and C, other compounds were detected in amounts lower than 1.80/1.08%, 1.82/1.77%, and 1.53/1.38%, respectively. Furthermore, ten compounds, including 4-carene, 4-pentenyl butyrate, α-cubebene, isobornyl acetate, calamenene, isoborneol, aromandendrene, lavandulyl butyrate, p-cymen-7-ol, and phytol, were only detected by the DB-HeavyWAX column at an amount lower than 0.86% in supplier A, 1.17% in supplier B, and 1.05% in supplier C.

2.3. Chemical Analysis of EOs’ Vapour Phase

In this study, the sampling of the headspace above a mixture of T. vulgaris EO and MH broth has been carried out using two different methods of extraction, i.e., HS-SPME and HS-GTS extractions. Headspace chemical compositions were measured every 3 h during a 12-h experiment using the HP-5MS column. Complete analyses are provided in Table 3 and Table 4, as well as Figure 1c,d. Using HS-SPME extraction, a total of 40, 38, and 43 volatile compounds were identified in the samples of suppliers A, B, and C, respectively. This represented 99.85, 99.89, and 99.63% of their respective total constituents at 12 hrs. In contrast, a significantly lower number of compounds was detected when using the HS-GTS extraction method. While 32 constituents were found in EO sample C, only 26 components in samples A and B were found, which accounted for 99.87, 99.95, and 99.71% of their total contents at time 12 h. Regardless of the extraction method used and the three samples analysed, monoterpenoids followed by sesquiterpene hydrocarbons were by far the two most predominant chemical groups of volatile compounds identified in the headspace. Other chemical categories present in minor amounts (oxygenated phenylpropanoids, oxygenated aliphatics, and furanoids) were identified using HS-SPME extraction only. On the other hand, cyclic ethers such as furan derivatives were only present in samples obtained by HS-GTS extraction.
Using the HS-SPME extraction method, the most abundant volatile substance across all T. vulgaris was p-cymene. Its percentage values during the whole experiment were rather similar in the headspace of samples A, B, and C, ranging from 54.57 to 58.61%, 69.91 to 74.50%, and 58.38 to 67.21%, respectively. Likewise, the second most abundant compound was γ-terpinene. While in sample A the peak percentage area was between 19.74 and 20.45% during the 12 h experiment, these values were lower in both supplier C and B, ranging from 12.37 to 16.18% and 7.07 to 9.30%, respectively. Thymol was the third abounding compound in A, B, and C samples during the entire 12-h period, with percentage values ranging from 2.61 to 3.36%, 2.13 to 5.25%, and 3.72 to 5.27%, respectively. Similarly using HS-GTS extraction, p-cymene (47.05 to 50.73% for sample A, 52.28 to 57.41% for sample B, and 44.80 to 49.28% for sample C), as well as γ-terpinene (13.40 to 17.45%, 5.76 to 6.99%, and 9.54 to 11.85% for sample A, B, and C, respectively), were the first two most abundant compounds in the headspace for all EO samples and during the full experiment. However, the third volatile substance detected in a significant amount was α-pinene, with percentage values over the 12-h experiment between 5.74 and 6.83%, 6.34 and 8.98%, and 6.90 and 7.96% for EO samples A, B, and C, respectively. Other differences have been observed when comparing the two sampling methods. Firstly, the number of compounds detected using HS-SPME was higher than when using HS-GTS extraction—i.e., on average, 41 versus 28 compounds. Then, the chemical analysis showed that when using HS-SPME extraction, a larger number of sesquiterpene hydrocarbons (14 components) were found in amounts lower than 3.09%, 1.59%, and 2.94% in EO samples A, B, and C, respectively. In contrast, using the HS-GTS method, only six compounds were found, including α-copaene, β-bourbonene, β-caryophyllene, γ-muurolene, γ-cadinene, and δ-cadinene, at amounts lower than 0.38% in sample A, 0.28% in sample B, and 0.58% in sample C. Similarly, percentage values of phenolic monoterpenes and derivatives were considerably higher using HS-SPME sampling method (overtime for samples A, B, and C, lower than 3.14%, 5.25%, and 5.27%, respectively) than HS-GTS extraction (values lower than 0.67%, 0.49%, and 0.58%, respectively). Eventually, despite the above-mentioned discrepancies, the headspace analysis of both sampling methods showed that there were no significant changes in the chemical composition in the vapour of the three EO samples of T. vulgaris over time.

3. Discussion

As reported by Houdkova and Kokoska [52], several assays have previously been developed for the evaluation of the antibacterial activity of volatile plant compounds in the vapour phase. However, there is still a lack of standardised methods, something that makes any interpretation and comparison difficult [52]. For instance, three different tests have been identified to investigate T. vulgaris EO vapours activity, and results are described differently according to each author. A study led by Inouye et al. [28] assessed the growth-inhibitory effects of two T. vulgaris EO vapours using the airtight box disc volatilisation method. Introducing the minimum inhibitory dose (MID) expressed in mg/L air, they determined that the vapour of carvacrol chemotype EOs were more active against Gram-negative H. influenzae than against Gram-positive strains such as S. pyogenes and S. aureus (MIDs of 3.13, 6.25, and 12.5 mg/L air, respectively). In this study, we reported similar results: H. influenzae was more susceptible—i.e., MIC = 512 µg/mL or 128 µg/cm3 considering the volume of the entire well—to the vapour of our three thymol chemotype EOs than the S. pyogenes, and S. aureus (MICs comprised in between 1024–512 µg/mL or 256–128 µg/cm3 for both bacteria strains). It is largely admitted that Gram-negative bacteria are more resistant to EOs than Gram-positive ones [53,54]. This weak antibacterial activity was attributed to the presence of hydrophilic polysaccharide chains in the outer membrane structure, preventing hydrophobic EOs from reaching the bacteria cell membrane [55]. One reason that could explain the higher susceptibility of H. influenzae to EOs would be the more hydrophobic nature of its outer membrane composed of oligosaccharide shorter chains [28]. This was confirmed by Reyes-Jurado et al. [56], who demonstrated that compounds including p-cymene, linalool, and thymol were able to disintegrate such outer membrane structures. Furthermore, various studies have subsequently assessed the growth-inhibitory effects of T. vulgaris EO vapour using vapour diffusion assay developed by Lopez et al. [37]. Nedorostova et al. [36] reported a MIC of 17 μL/L against S. aureus, which is, according to the author, equivalent to the result of Inouye et al. [28] against the same bacterium (MID = 12.5 mg/L of air). Similarly, Kloucek et al. [57] have observed that the vapour of T. vulgaris EO consisting mainly of geraniol had a MIC = 125 μL/L against S. aureus as well. In contrast to these findings, MIC values recorded in our study were usually higher—i.e., 1024–512 µg/mL (or 256–128 µg/cm3 considering the volume of the entire well). The discrepancy in results could be firstly explained by the quality of the EO samples used and their chemical compositions [28], but also by the disparate strains of bacteria used in the different antimicrobial assays [58]. Most importantly, this variation may also be attributed to the diverse methods used to explore the antimicrobial effect of T. vulgaris EO vapour, allowing various interpretations of the MIC [35,37,57]. That is why the BMV assay presented here is a powerful alternative to the previously developed techniques. While their designs only enable the assessment of EO vapour at a single concentration [57], the BMV assay is conceived to evaluate the EOs’ in vitro growth-inhibitory effect in liquid and gaseous phases simultaneously and at different concentrations, something that allows fast comparison of MIC values in both liquid and solid media. Based on broth microdilution [59] and disc volatilisation (DV) assays [33], the BMV experiments are conducted on standard 96-well immune plates, which offer several advantages such as cost and labour efficiency [57,60]: microplates are standard laboratory equipment that are commonly available and compared, for example, to the special airtight experimental apparatus used in certain methods such as in Seo et al. [61]. Furthermore, microplates can also be employed in fully automated workstations, unlike Petri dishes used in DV assays which therefore suffer from a lack of repeatability [62]. Other studies developed assays using microplates for detecting volatile substances antimicrobial activity, such as the vapour-phase-mediated patch assay of Feyaerts et al. [63]. However, contrary to the BMV assay, their designs only allow to determine relative microbial inhibition values, and their main limitation lies in only providing qualitative results [64]. Eventually, another asset of our assay is that modifications can be easily implemented for new applications. For instance, Netopilova et al. [17] modified the test to explore the combinatory effects of volatile substances using a chequerboard design and thus determine fractional inhibitory concentration (FIC) indices, something not possible with other methods. Overall, these features allow our method to be suitable for high-throughput screening and thus be a simple, fast, and reliable assay as well as providing reproducible and quantitative results [65]. Nevertheless, despite its numerous advantages, serially produced microplates are not designed for volatile substance testing, something that contributes to weaknesses shown by our assay. For example, only a limited volume of agar can be pipetted into each flange of the lid; this could impact the bacterial growth and thus affect the results. Most importantly, when testing EO vapours, the BMV assay also faces specific problems linked to the physico-chemical nature of EOs and, more particularly, their high volatility, viscosity, and hydrophobicity [52]. Firstly, volatility allows a loss of active substances by evaporation that can happen at different steps of the protocol, including during sample handling and experiment preparation, complications that are shared by all tests assessing EO properties [66,67]. More specifically to volatilisation assays, the level of vapour transition from the matrix into which the EO is included and its distribution into the inner atmosphere of the well during the experiment are two critical factors that may affect the results. For instance, the matrix influences both the intensity and the speed of the evaporation [35]. In our assay, a broth medium was used, which according to Orchard et al.’s [68] observations, would slow the level of vapour transition during the experiment and thus affect the bacterial growth. Similarly, as described by Reyes-Jurado et al. [69], the hydrophobicity and viscosity properties of the EO may also cause its uneven distribution through the broth medium, something that could also alter the distribution of the volatile agents into the well’s atmosphere. That is why the concentrations in the vapour phase used in our experiment should only be considered as indicative values.
The antibacterial properties of T. vulgaris are mainly attributed to the chemical composition of its EO, which has already been extensively studied. Its major constituents are mainly monoterpenoids, such as carvacrol, thymol, γ-terpinene, and p-cymene, but also sesquiterpenoids such as β-caryophyllene. Within the same species, the variation of proportions of these compounds defines the EO chemotype, which is named after the predominant constituent identified [70]. Our chemical analyses showed that thymol was the most abundant constituent within our samples, followed by p-cymene and carvacrol. This characterises our three EOs as thymol chemotypes. These findings are in accordance with several studies previously published. For instance, Schmidt et al. [71], Grosso et al. [72], and Nikolić et al. [25] reported thymol as the major component of their T. vulgaris thymol chemotype EOs (peak percentage area of 38.8%, 41.6%, and 49.1%, respectively); p-cymene was the second most abundant with 24.0%, 28.9%, and 20.0%, respectively. However, instead of carvacrol, γ-terpinene was detected as the third most abundant constituent (9.5%, 5.1%, and 4.2%, respectively). The variations in yields and concentrations of volatile compounds in our samples could be attributed to several factors occurring at different stages, from the growing conditions of the plants, the harvesting period to the storage conditions of the plant materials by the commercial suppliers [18,73]. For instance, Nezhadali et al. [56] showed that T. vulgaris harvested in the same location but at different stages of the plant growth resulted in different yields of EOs: the highest oil yield (1.39%) was obtained during the flowering period, whereas the lowest yield (0.83%) corresponded to the fruiting stage. Similarly, he reported that the concentration of thymol between those periods dropped from 63.01% to 38.23% of the total EO content. Subsequently, the characterisation of the EOs was carried out by GC/MS using two capillary columns of different polarities. The concomitant use of a polar column (DB-HeavyWAX) along with a non-polar (HP-5MS) allows revealing overlapped signal peaks and thus improves the identification of the separated compounds. Hudaib et al. [74], who analysed the chemical profile of T. vulgaris EO by GC/MC using the same approach, demonstrated that the polar column helped to enhance the resolution between compounds co-eluting on a non-polar column such as the couples (α-thujene, α-pinene) or (sabinene, β-pinene). This has also been observed in our study with, for instance, the couple (p-cymene-limonene). Moreover, as described by Fan et al. [75], while the main constituents of an EO are equally detected by both columns, a fraction is identified by either of them: in our study, 23 compounds out of 75 were detected using HP-5MS only—i.e., representing on average 5.82% of the compounds identified within the three samples—and 10 compounds (1.88% on average) with DB-HeavyWAX. The difference in detection recorded would be the result of the different polarity and material of the columns used [76]. Overall, these results suggest that complementing a non-polar with a polar column provides a more precise picture of the EO analysed than if displayed individually.
The characterisation of T. vulgaris EO vapours was carried out using two different sampling methods: HS-SPME and HS-GTS. In recent years, HS-SPME has become the preferred laboratory method for identifying EOs volatile compounds: it is a simple, fast, cost-effective, selective, and sensitive method that provides high-quality results [40,42,60]. With the aim to simulate the conditions of the antimicrobial susceptibility testing experiments performed in this study, the EO samples were prepared identically to the most active EO during the BMV assay (i.e., incubation temperature was at 37 °C and EOs dissolved in Mueller–Hinton (MH) broth medium concentrated at 512 µg/mL). In addition, we used a mixed coating material (DVB/CAR/PDMS) that gives better extraction yields for both polar and non-polar volatile constituents than simple fibre coatings [41,77]. As a result, our investigation revealed that although p-cymene and γ-terpinene were abundant in the headspace, the amount of thymol extracted by the coated fibre was unusually low (peak percentage area lower than 5.27% across the three EO samples). This observation is in contradiction with what was described in previously published research. For instance, Lugo-Estrada et al. [41], Soleimani et al. [78], and Nezhadali et al. [79], who investigated T. vulgaris EO vapour composition, all reported that thymol was the most abundant constituent of the headspace (peak percentage area of 34.28%, 28.50%, and 45.45%, respectively). As described by Adam et al. [80], efficient extractions of EO volatile compounds depend on optimised experimental parameters such as the selection of the fibre coating material and the incubation temperature of the EO sample. The lack of thymol could, therefore, be explained by several reasons. Firstly, it is the selectivity and sensitivity of the DVB/CAR/PDMS coating. Although it proved to be the most universal assembly for the isolation of compounds with diverse physico-chemical properties [81], Soleimani et al. [77] demonstrated in their comparative study that phenolic monoterpenes and, more particularly, thymol, were better extracted by a simple polydimethylsiloxane (PDMS) fibre than using mixed coating materials. Furthermore, as the transfer rate of volatile agents toward the fibre increases with the incubation temperature of the sample [81], the temperature chosen could have potentially limited the extraction of thymol in our investigation. For example, in their research work, Nezhadali et al. [82] compared the HS-SPME extraction efficiency of T. vulgaris EO main volatile agents at 25 °C and 50 °C using a water-based matrix. The result showed that the amount of thymol at higher temperatures is almost twice as high as at lower temperatures (73.09% and 45.45%, respectively). This suggests that different experimental conditions using the HS-SPME technique can yield different distributions of EO volatile compounds, and therefore, the result may not necessarily illustrate the actual chemical composition of the headspace above the EO samples. In contrast, the HS-GTS technique provided a different perspective on the constituency of the headspace, perhaps closer to the real distribution of volatile compounds in the vial at equilibrium [83]. Despite this, the results showed a peak percentage area for thymol lower than 0.60% across the three EO samples—even below the levels observed with the HS-SPME method. Using identical experimental conditions with both methods has demonstrated unusually low concentration levels of thymol. The possible explanation may therefore lie in the matrix in which the EO was inserted. As previously mentioned, the hydrophobic nature of volatile compounds worsens their solubility in water-based media (here the MH broth medium), which may reduce their dilution capability and result in an unequal distribution throughout the medium, something that may also affect their distribution into the well’s atmosphere [69].
The HS-GTS method also yielded interesting results with other components; for instance, the amount of α-pinene obtained with HS-GTS sampling (peak percentage area lower than 7.96% across the three EO samples) was at least three times higher than the amount extracted with HS-SPME (peak percentage area lower than 2.82%). Despite a lack of academic studies examining T. vulgaris EO using HS-GTS, these findings are consistent with the data available in other publications. Coleman et al. [84], for instance, compared the distribution of volatile constituents in the headspace above a sample of Juniperus virginiana EO using both HS-SPME and HS-GTS techniques. He observed that α-pinene dominated the headspace with 88.0% of the total composition when using HS-GTS, whereas it only exhibited 32.4% with the HS-SPME technique. According to the author, this difference may be explained by the sorption behaviour of α-pinene over time when using a coated fibre assembly. In fact, he demonstrated that the percentage composition of volatile compounds changes significantly with the fibre exposure time, with α-pinene levels dramatically descending with greater time exposure, while high molecular weight components increased with the sampling time.
When comparing the chemical profiles of T. vulgaris EO in the liquid phase with the headspace analyses, we observed significant differences between both phases. The EO liquid phase contained a greater number of substances with a variable distribution, whereas the headspace composition detected a smaller number of compounds represented mostly by highly volatile substances. This phenomenon is in accordance with what was already described in previous research [83]. Nevertheless, the three EO samples showed identical concentrations of antimicrobial activities during BMV experiments in both liquid and vapour phases. This raises the question as to the levels of the active concentration of the EO compounds in the vapour, and more particularly thymol as its main antimicrobial constituent [57]. As a phenolic compound, thymol is very stable, moderately soluble in water and of low volatility, and was detected in a lower amount in the headspace—i.e., peak area percentage lower than 5.27% (HS-SPME) and 0.60% (HS-GTS)—than in the sample of EO diluted in the broth (max. 48.65%). By contrast, α-pinene, which is highly volatile and extremely insoluble in water, followed the opposite trend (peak area percentage lower than 2.82% (HS-SPME), 7.84% (HS-GTS), and 0.62% in the sample of EO diluted in the broth). This was observed in previous studies and is explained by the difference in volatility: when the EO is introduced into a closed environment, volatile compounds start to diffuse at different rates according to their molecular weight until they reach equilibrium [69]. Despite its slower diffusion rate, we could possibly argue that the low levels of thymol detected in the headspace was sufficient to generate the same antimicrobial activity as its amount in the EO concentrated at 512 μg/mL. To compare, Wang et al. [84] observed that the active concentration of thymol in its vapour phase samples against oral pathogens was between 100–400 μg/mL. Although the correlation between the concentration of essential oil and thymol were not the subject of this study, the results strongly suggest that the effect of antimicrobial constituents of T. vulgaris EO (e.g., of thymol) is higher in vapour than in the liquid phase. To further support this, an additional investigation focused on thymol behaviour in vapour would be needed.

4. Materials and Methods

4.1. Plant Material and Sample Preparation

Dried aerial part bulk of Thymus vulgaris L. were randomly purchased at three local spice stores and e-shops (supplier A = Kralovství chuti s.r.o., Prague, Czech Republic; supplier B = Byliny Mikes s.r.o., Číčenice, Czech Republic; supplier C = Lbros s.r.o., Vrchlabí, Czech Republic). Subsequently, plant materials were ground and homogenised using a Grindomix apparatus (GM 100 Retsch, Haan, Germany). The residual moisture content was evaluated gravimetrically at 130 °C for 1 h by Scaltec SMO 01 Analyzer (Scaltec Instruments, Gottingen, Germany) in triplicates and results were expressed as arithmetic averages (15.29%, 14.54%, and 13.13% for suppliers A, B, and C, respectively).

4.2. Hydrodistillation of the Essential Oils

EOs were extracted by hydrodistillation of the ground material following the indication provided by the European Pharmacopoeia [85]: 100 g of ground plant materials placed in 1 L of distilled water was distilled for 3 h using Clevenger-type apparatus (Merci, Brno, Czech Republic). Since hydrodistillation is one of the commonly used methods for commercial production of Thymus vulgaris L. EO, the properties of samples prepared in our study should be similar to those commercially available [86]. Eventually, the extracted EOs were stored in sealed glass vials at 4 °C until further handling.

4.3. Bacterial Strains and Culture Media

In this study, the following standard strains of the American Type Culture Collection (ATCC) were used: H. influenzae ATCC 49247, S. aureus ATCC 29213, and S. pyogenes ATCC 19615. Both cultivation and assay media (broth/agar) were MH, complemented with Haemophilus Test Medium and defibrinated horse blood for H. influenzae, MH only for S. aureus, and Brain Heart Infusion when working with S. pyogenes. The pH of broths was equilibrated to a final value of 7.6 using Trizma base (Sigma-Aldrich, Prague, Czech Republic). All microbial strains, growth media, and additions were purchased from Oxoid (Basingstoke, Hampshire, UK).
Stock cultures of bacterial strains were cultivated in appropriate media at 37 °C for 24 h prior to the testing, and the bacterial suspension turbidity was adjusted to 0.5 McFarland standard using Densi-La-Meter II (Lachema, Brno, Czech Republic) to reach the final concentration of 107 CFU/mL. Ampicillin, oxacillin, and amoxicillin were purchased from Sigma-Aldrich (Prague, Czech Republic) and assayed as positive antibiotic controls [30].

4.4. Antimicrobial Assay

The in vitro growth-inhibitory effect of EOs was assessed using BVM method that allows simultaneous assessment of EOs antibacterial activities at different concentrations in both liquid and vapour phases [4,35]. Experiments were performed using standard 96-well microtiter plates (well volume = 400 μL) covered by tight-fitting lids with flanges designed to reduce evaporation (SPL Life Sciences, Naechon-Myeon, Korea). Initially, 30 μL of agar was pipetted into every flange on the lid, except the outermost flanges, and inoculated with 5 μL of bacterial suspension after solidification of the agar. Subsequently, each EO sample was dissolved in dimethyl sulfoxide (DMSO) (Sigma-Aldrich, Prague, Czech Republic) at a maximum concentration of 1% and diluted in an appropriate broth medium. Seven two-fold serially diluted concentrations of samples starting from 1024 μg/mL were prepared for all EOs. The final volume in each well was 100 μL. The plates were subsequently inoculated with a bacterial suspension using a 96-pin multi-blot replicator (National Institute of Public Health, Prague, Czech Republic). The wells containing inoculated and non-inoculated broth were prepared as growth and purity controls simultaneously. The outermost wells were left empty to prevent the edge effect. Eventually, clamps (Lux Tool, Prague, Czech Republic) were used for fastening the plate and lid together with handmade wooden pads (size 8.5 × 13 × 2 mm) and the microtiter plates were incubated at 37 °C for 24 h. The MICs were evaluated by visual assessment of bacterial growth after colouring of metabolically active bacterial colonies with thiazolyl blue tetrazolium bromide dye (MTT) at a concentration of 600 μg/mL (Sigma-Aldrich, Prague, Czech Republic), when the interface of colour change from yellow to purple (relative to that of colours in control wells) was recorded in broth and agar. The MIC values were determined as the lowest concentrations that inhibited bacterial growth compared with the compound-free control and expressed in μg/mL (1024, 512, 256,128, 64, 32, 16, and 8 μg/mL, respectively). In the case of the vapour phase, considering a uniform distribution of the volatile compounds in the liquid and gaseous phase, these concentrations can be expressed as weight of volatile agent per volume unit of a well; therefore, MIC values would be 256, 128, 64, 32, 16, 8, 4, and 2 μg/cm3, respectively). The DMSO used as the negative control at a concentration of 1% did not inhibit any of the strains tested either in broth or agar media. All experiments were set in triplicates in three independent measurements, and results were expressed as median/modal MICs values. According to the widely accepted norm in MIC testing, the mode and median were used for the final value calculation when triplicate endpoints were within the two- and three-dilution ranges, respectively.

4.5. Chemical Analysis of EOs

For the characterisation of the EOs, GC/MS analysis was performed using the dual-column/dual-detector gas chromatograph Agilent GC-7890B system (Agilent Technologies, Santa Clara, CA, USA). equipped with autosampler Agilent 7693, two columns, a fused-silica HP-5MS column (30 m × 0.25 mm, film thickness 0.25 μm, Agilent 19091s-433) and a DB-HeavyWAX (30 m × 0.25 mm, film thickness 0.25 μm, Agilent 122–7132), and a flame ionisation detector (FID) coupled with single quadrupole mass selective detector Agilent MSD-5977B. The operational parameters were the following: helium as carrier gas at 1 mL/min, injector temperature 250 °C for both columns. The oven temperature was raised for both columns after 3 min from 50 to 280 °C. Initially, the heating velocity was 3 °C/min until the system reached a temperature of 120 °C. Subsequently, the velocity increased to 5 °C/min until a temperature of 250 °C, and after 5 min holding time, the heating speed reached 15 °C/min until obtaining a temperature of 280 °C. Heating was followed by an isothermic period of 20 min. The EO samples were diluted in n-hexane for GC/MS (Merck KGaA, Darmstadt, Germany) at the concentration 20 μL/mL. One microliter of the solution was injected in split mode in a split ratio 1:30. The mass detector was set to the following conditions: ionisation energy 70 eV, ion source temperature 230 °C, scan time 1 s, mass range 40–600 m/z.
The identification of constituents was based on comparison of their retention indices (RIs), retention times (RT), and spectra with the National Institute of Standards and Technology Library ver. 2.0.f and the available literature [57]. The RIs were calculated for compounds separated by the HP-5MS column using the retention times of n-alkanes series ranging from C8 to C40 (Sigma-Aldrich, Prague, Czech Republic). For each EO analysed, the final number of compounds was calculated as the sum of components simultaneously identified using both columns and the remaining constituents identified by individual columns only. Quantitative data are expressed as relative percentage content of constituents determined by the FID.

4.6. Chemical Analysis of EOs’ Vapour Phase

The analysis of the chemical composition of the headspace above a mixture of MH broth and T. vulgaris EO at a concentration of 512 μg/mL (i.e., the lowest MIC value obtained from the BMV assay) was performed using two different sampling techniques: HS-SPME and HS-GTS. Regardless of the sampling method used, for each experiment, a set of five samples were prepared, and a volume of 2 mL of the above-mentioned mixture was introduced into a 4 mL glass vial. Except for the first sample (t = 0 h), all EO samples were placed into an oven set at a temperature of 37 °C for incubation until their analysis at 3, 6, 9, and 12 h.
In HS-SPME, the headspace sampling was achieve using a fibre assembly coated with a 50/30 μm mixed layer of divinylbenzene/carboxen/polydimehylsiloxane (DVB/CAR/PDMS—SUPELCO, Bellefonte, PA, USA). When equilibrium was reached between the mixture and the headspace, the needle of the HS-SPME holder was inserted into the vial, and the coated fibre was exposed to the headspace for 15 min for adsorption of the volatile compounds. The needle was subsequently removed, inserted into the GC injector port, and set in splitless mode, where the desorption of analytes occurred. The injector temperature was set at 250 °C, and the fibre was left into the injector for the whole analysis until the next measure.
As for HS-GTS, however, the sampling technique was carried out using a 2.5 mL SampleLock gas tight syringe (Hamilton Bonaduz AG, Bonaduz, Switzerland), including a twist valve lock and a positive rear plunger stop to prevent sample loss. At equilibrium, with the valve of the syringe closed, the needle was passed through the vial septum and inserted until reaching the middle of the headspace. The valve was then opened, and a 2.5 mL sample was collected. Afterwards, the valve was closed again; the syringe was removed from the vial and inserted into the GC injector at a similar temperature of 250 °C but set in splitless mode. Finally, the valve was opened one more time to inject the headspace sample, and the syringe was immediately removed.
For both sampling methods, measurements were repeated every 3 h during a 12-h incubation period. Furthermore, analyses were performed on the HP-5MS column with similar operational parameters as described in Section 4.5 for GC/MS analyses, and their quantification was expressed as relative percentage content of constituents determined by the FID.

4.7. Statistical Analysis

The chemical analysis of the EO sample from supplier C (the most active EO based on the results of the antimicrobial assay) was performed in triplicate, including the chromatographic analysis of its liquid-phase and the headspace analysis using both extraction techniques (HS-SPME and HS-GTS). Relative peak area percentages were expressed as mean average of these three measurements ± standard deviation. For all EO samples’ chemical profiles to be compared with one another, chemical analysis of EO samples from suppliers A and B was carried out in one replication only.

5. Conclusions

To summarise, this study reports the antibacterial activity of three T. vulgaris EOs hydrodistilled from commercial samples of different origins against three standard bacterial strains associated with respiratory infections, namely, H. influenzae, S. aureus, and S. pyogenes, in both liquid and vapour phases when assayed using the BVM method. While all bacterial strains were sensitive to T. vulgaris EO vapours to a certain degree, Gram-negative strains of H. influenzae showed the highest susceptibility. The GC/MS analysis identified the EO samples as a thymol chemotype, whose major constituents were monoterpenoids such as thymol, carvacrol linalool, γ-terpinene, and p-cymene, but also sesquiterpenoids represented by β-caryophyllene. In opposition, the chemical analysis of the headspace reported fewer compounds in the vapour with a predominance of p-cymene, γ-terpinene, and α-pinene, whereas the amount of thymol was unusually low. As for which of the two headspace sampling techniques could prove more valuable for the chemical analysis of EO vapours, results show that both methods are rather complementary and interdependent: HS-SPME with optimised experimental conditions may yield more accurate results when aiming for qualitative aspects, while HS-GTS could provide more accurate data representing the true headspace distribution of the EO volatile agents, therefore proving to be a better technique when aiming for quantitative analysis. Further research, however, is needed to corroborate this argument. Overall, the potential of the procedures examined in this study could be further exploited to better assess the benefits of EO volatile compounds and their applications in the healthcare and pharmaceutical industries. Results of this study also suggest a potential of T. vulgaris EO for application in inhalation therapy against respiratory infections; however, a further pharmacological evaluation will be necessary in order to verify its potential practical use.

Author Contributions

Conceptualization, L.K.; Formal analysis, J.A.; Investigation, J.A.; Supervision, M.H., K.U. and L.K.; Writing—original draft, J.A.; Writing—review & editing, M.H., K.U. and L.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Czech University of Life Sciences Prague (IGA 20213109) and the METROFOOD-CZ research infrastructure project (MEYS Grant No: LM2018100), including access to its facilities.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not available.

References

  1. Nguyen, T.K.P.; Tran, T.H.; Roberts, C.L.; Graham, S.M.; Marais, B.J. Child pneumonia—Focus on the Western Pacific Region. Paediatr. Respir. Rev. 2017, 21, 102–110. [Google Scholar] [CrossRef] [PubMed]
  2. Pneumonia: The Forgotten Killer of Children. Available online: https://apps.who.int/iris/handle/10665/43640 (accessed on 5 January 2021).
  3. Baron, S. Medical Microbiology, 4th ed.; University of Texas Medical Branch at Galveston: Galveston, TX, USA, 1996. [Google Scholar]
  4. Houdkova, M.; Urbanova, K.; Doskocil, I.; Rondevaldova, J.; Novy, P.; Nguon, S.; Chrun, R.; Kokoska, L. In vitro growth-inhibitory effect of Cambodian essential oils against pneumonia causing bacteria in liquid and vapour phase and their toxicity to lung fibroblasts. S. Afr. J. Bot. 2018, 118, 85–97. [Google Scholar] [CrossRef]
  5. World Health Organization—Forum of International Respiratory Societies. The Global Impact of Respiratory Disease, 2nd ed.; WHO: Geneva, Switzerland, 2017. [Google Scholar]
  6. Wang, X.; Li, Y.; O’Brien, K.L.; Madhi, S.A.; Widdowson, M.-A.; Byass, P.; Omer, S.B.; Abbas, Q.; Ali, A.; Amu, A.; et al. Global burden of respiratory infections associated with seasonal influenza in children under 5 years in 2018: A systematic review and modelling study. Lancet Glob. Health 2020, 8, 497–510. [Google Scholar] [CrossRef] [Green Version]
  7. Kokoska, L.; Kloucek, P.; Leuner, O.; Novy, P. Plant-derived products as antibacterial and antifungal agents in human health care. Curr. Med. Chem. 2019, 26, 5501–5541. [Google Scholar] [CrossRef]
  8. Borghardt, J.M.; Kloft, C.; Sharma, A. Inhaled therapy in respiratory disease: The complex interplay of pulmonary kinetic processes. Can. Respir. J. 2018, 2018, 2732017. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Döring, G.; Hoiby, N. Consensus study group early intervention and prevention of lung disease in cystic fibrosis: A European consensus. J. Cyst. Fibros. 2004, 3, 67–91. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. de Pablo, E.; Fernández-García, R.; Ballesteros, M.P.; Torrado, J.J.; Serrano, D.R. Nebulised antibiotherapy: Conventional versus nanotechnology-based approaches, is targeting at a nano scale a difficult subject? Ann. Transl. Med. 2017, 5, 448. [Google Scholar] [CrossRef] [Green Version]
  11. Schreiber, M.P.; Shorr, A.F. Inhaled antibiotics for the treatment of pneumonia. Curr. Opin. Pulm. Med. 2019, 25, 289–293. [Google Scholar] [CrossRef] [PubMed]
  12. Ehrmann, S.; Chastre, J.; Diot, P.; Lu, Q. Nebulized antibiotics in mechanically ventilated patients: A challenge for translational research from technology to clinical care. Ann. Intensive Care 2017, 7, 78. [Google Scholar] [CrossRef] [PubMed]
  13. Tiddens, H.A.W.M.; Bos, A.C.; Mouton, J.W.; Devadason, S.; Janssens, H.M. Inhaled antibiotics: Dry or wet? Eur. Clin. Respir. J. 2014, 44, 1308–1318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. de Jongh, F.H.C.; Rinkel, M.J.G.; Hoeijmakers, H.W.M. Aerosol deposition in the upper airways of a child. J. Aerosol Med. 2006, 19, 279–289. [Google Scholar] [CrossRef] [PubMed]
  15. Laube, B.L.; Jashnani, R.; Dalby, R.N.; Zeitlin, P.L. Targeting aerosol deposition in patients with cystic fibrosis: Effects of alterations in particle size and inspiratory flow rate. Chest 2000, 118, 1069–1076. [Google Scholar] [CrossRef]
  16. Heinrich, M. Fundamentals of Pharmacognosy and Phytotherapy, 2nd ed.; Elsevier: Edinburgh, UK, 2012. [Google Scholar]
  17. Netopilova, M.; Houdkova, M.; Urbanova, K.; Rondevaldova, J.; Damme, P.; Kokoska, L. In vitro antimicrobial combinatory effect of Cinnamomum cassia essential oil with 8-hydroxyquinoline against Staphylococcus aureus in liquid and vapour phase. J. Appl. Microbiol. 2020, 129, 906–915. [Google Scholar] [CrossRef] [PubMed]
  18. Başer, K.H.C.; Buchbauer, G. Handbook of Essential Oils: Science, Technology, and Applications, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2020. [Google Scholar]
  19. Ghahremani-Chabok, A.; Bagheri-Nesami, M.; Shorofi, S.A.; Mousavinasab, S.N.; Gholipour-Baradari, A.; Saeedi, M. The effects of Thymus vulgaris inhalation therapy on airway status and oxygen saturation of patients under mechanical ventilation: A randomized clinical trial. Adv. Integr. Med. 2020, 8, 92–100. [Google Scholar] [CrossRef]
  20. Bakkali, F.; Averbeck, S.; Averbeck, D.; Idaomar, M. Biological effects of essential oils—A review. Food Chem. Toxicol. 2008, 46, 446–475. [Google Scholar] [CrossRef] [PubMed]
  21. Pisoschi, A.; Pop, A.; Cecilia, G.; Turcuş, V.; Olah, N.-K.; Mathe, E. An overview of natural antimicrobials role in food. Eur. J. Med. Chem. 2017, 143, 922–935. [Google Scholar] [CrossRef] [PubMed]
  22. Tongnuanchan, P.; Benjakul, S. Essential oils: Extraction, bioactivities, and their uses for food preservation. J. Food Sci. 2014, 79, R1231–R1249. [Google Scholar] [CrossRef] [PubMed]
  23. HMPC Monographs: Overview of Recommendations for the Uses of Herbal Medicinal Products in the Paediatric Population. Available online: https://www.ema.europa.eu/en/documents/other/hmpc-monographs-overview-recommendations-uses-herbal-medicinal-products-paediatric-population_en.pdf (accessed on 6 January 2021).
  24. Assessment Report on Thymus vulgaris L., Thymus zygis L., Aetheroleum. Available online: https://www.ema.europa.eu/en/documents/herbal-report/draft-assessment-report-thymus-vulgaris-l-thymus-zygis-l-aetheroleum-revision-1_en.pdf (accessed on 6 January 2021).
  25. Nikolić, M.; Glamočlija, J.; Ferreira, I.C.F.R.; Calhelha, R.C.; Fernandes, Â.; Marković, T.; Marković, D.; Giweli, A.; Soković, M. Chemical composition, antimicrobial, antioxidant and antitumor activity of Thymus serpyllum L., Thymus algeriensis Boiss. and Reut and Thymus vulgaris L. essential oils. Ind. Crop. Prod. 2014, 52, 183–190. [Google Scholar] [CrossRef]
  26. Pina-Vaz, C.; Rodrigues, A.G.; Pinto, E.; Costa-de-Oliveira, S.; Tavares, C.; Salgueiro, L.; Cavaleiro, C.; Gonçalves, M.; de Oliveira, M. Antifungal activity of Thymus oils and their major compounds. J. Eur. Acad. Dermatol. Venereol. 2004, 18, 73–78. [Google Scholar] [CrossRef] [PubMed]
  27. Fani, M.; Kohanteb, J. In vitro antimicrobial activity of Thymus vulgaris essential oil against major oral pathogens. J. Evid. Based Complement. Altern. Med. 2017, 22, 660–666. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Inouye, S.; Takizawa, T.; Yamaguchi, H. Antibacterial activity of essential oils and their major constituents against respiratory tract pathogens by gaseous contact. J. Antimicrob. Chemother. 2001, 47, 565–573. [Google Scholar] [CrossRef] [Green Version]
  29. Tullio, V.; Nostro, A.; Mandras, N.; Dugo, P.; Banche, G.; Cannatelli, M.A.; Cuffini, A.M.; Alonzo, V.; Carlone, N.A. Antifungal activity of essential oils against filamentous fungi determined by broth microdilution and vapour contact methods. J. Appl. Microbiol. 2007, 102, 1544–1550. [Google Scholar] [CrossRef] [PubMed]
  30. M100Ed30|Performance Standards for Antimicrobial Susceptibility Testing, 30th ed. Available online: https://clsi.org/standards/products/microbiology/documents/m100/ (accessed on 2 February 2021).
  31. Borugă, O.; Jianu, C.; Mişcă, C.; Goleţ, I.; Gruia, A.; Horhat, F. Thymus vulgaris essential oil: Chemical composition and antimicrobial activity. J. Med. Life 2014, 7, 56–60. [Google Scholar] [PubMed]
  32. Ács, K.; Balázs, V.L.; Kocsis, B.; Bencsik, T.; Böszörményi, A.; Horváth, G. Antibacterial activity evaluation of selected essential oils in liquid and vapor phase on respiratory tract pathogens. BMC Complement. Altern. Med. 2018, 18, 227. [Google Scholar] [CrossRef] [Green Version]
  33. Bueno, J. Models of evaluation of antimicrobial activity of essential oils in vapour phase: A promising use in healthcare decontamination. Nat. Volatiles Essent. Oils 2015, 2, 16–29. [Google Scholar]
  34. Edwards-Jones, V.; Buck, R.; Shawcross, S.G.; Dawson, M.M.; Dunn, K. The effect of essential oils on methicillin-resistant Staphylococcus aureus using a dressing model. Burns 2004, 30, 772–777. [Google Scholar] [CrossRef]
  35. Houdkova, M.; Rondevaldova, J.; Doskocil, I.; Kokoska, L. Evaluation of antibacterial potential and toxicity of plant volatile compounds using new broth microdilution volatilization method and modified MTT assay. Fitoterapia 2017, 118, 56–62. [Google Scholar] [CrossRef] [PubMed]
  36. Nedorostova, L.; Kloucek, P.; Kokoska, L.; Stolcova, M.; Pulkrabek, J. Antimicrobial properties of selected essential oils in vapour phase against foodborne bacteria. Food Control 2009, 20, 157–160. [Google Scholar] [CrossRef]
  37. López, P.; Sánchez, C.; Batlle, R.; Nerín, C. Solid- and vapor-phase antimicrobial activities of six essential oils: Susceptibility of selected foodborne bacterial and fungal strains. J. Agric. Food Chem. 2005, 53, 6939–6946. [Google Scholar] [CrossRef]
  38. Laird, K.; Phillips, C. Vapour Phase: A potential future use for essential oils as antimicrobials?: Essential oil vapours and their antimicrobial activity. Lett. Appl. Microbiol. 2012, 54, 169–174. [Google Scholar] [CrossRef] [PubMed]
  39. Zhang, W.; Liang, X. Headspace gas chromatography-mass spectrometry for volatile components analysis in Ipomoea cairica (L.) sweet leaves: Natural deep eutectic solvents as green extraction and dilution matrix. Foods 2019, 8, 205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Ross, C.F. Headspace analysis. In Comprehensive Sampling and Sample Preparation; Elsevier: Amsterdam, The Netherlands, 2012; pp. 27–50. [Google Scholar]
  41. Lugo-Estrada, L.; Galindo-Rodríguez, S.A.; Pérez-López, L.A.; de Torres, N.W.; Álvarez-Román, R. Headspace–Solid-phase microextraction gas chromatography method to quantify Thymus vulgaris essential oil in polymeric nanoparticles. Pharmacogn. Mag. 2019, 15, 473. [Google Scholar]
  42. López, P.; Sánchez, C.; Batlle, R.; Nerín, C. Vapor-phase activities of cinnamon, thyme, and oregano essential oils and key constituents against foodborne microorganisms. J. Agric. Food Chem. 2007, 55, 4348–4356. [Google Scholar] [CrossRef] [PubMed]
  43. Reyes-Jurado, F.; Navarro-Cruz, A.R.; Ochoa-Velasco, C.E.; Palou, E.; López-Malo, A.; Ávila-Sosa, R. Essential oils in vapor phase as alternative antimicrobials: A review. Food Sci. Nutr. 2020, 60, 1641–1650. [Google Scholar] [CrossRef]
  44. Snow, N.H.; Bullock, G.P. Novel techniques for enhancing sensitivity in static headspace extraction-gas chromatography. J. Chromatogr. A 2010, 1217, 2726–2735. [Google Scholar] [CrossRef] [PubMed]
  45. Bicchi, C. Essential oils|gas chromatography. In Encyclopedia of Separation Science; Elsevier: Amsterdam, The Netherlands, 2000; pp. 2744–2755. [Google Scholar]
  46. Murray, R.A. Limitations to the use of solid-phase microextraction for quantitation of mixtures of volatile organic sulfur compounds. Anal. Chem. 2001, 73, 1646–1649. [Google Scholar] [CrossRef]
  47. Regti, A.; Kassimi, A.E.; Laamari, M.R.; Haddad, M.E. Competitive adsorption and optimization of binary mixture of textile dyes: A factorial design analysis. J. Assoc. Arab Univ. Basic Appl. Sci. 2017, 24, 1–9. [Google Scholar] [CrossRef] [Green Version]
  48. Kolb, B.; Ettre, L.S. Static Headspace-Gas Chromatography: Theory and Practice, 2nd ed.; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
  49. Adams, R.P. Identification of Essential Oil Components by Gas Chromatography/Mass Spectorscopy, 4th ed.; Allured Publishing Corp: Carol Stream, IL, USA, 2007. [Google Scholar]
  50. National Institute of Standards and Technology. Available online: https://www.nist.gov/ (accessed on 15 December 2020).
  51. Satyal, P.; Murray, B.; McFeeters, R.; Setzer, W. Essential oil characterization of Thymus vulgaris from various geographical locations. Foods 2016, 5, 70. [Google Scholar] [CrossRef] [PubMed]
  52. Houdkova, M.; Kokoska, L. Volatile antimicrobial agents and In vitro methods for evaluating their activity in the vapour phase: A review. Planta Med. 2020, 86, 822–857. [Google Scholar] [CrossRef] [PubMed]
  53. Smith-Palmer, A.; Stewart, J.; Fyfe, L. Antimicrobial properties of plant essential oils and essences against five important food-borne pathogens. Lett. Appl. Microbiol. 1998, 26, 118–122. [Google Scholar] [CrossRef] [PubMed]
  54. Mann, C.M.; Cox, S.D.; Markham, J.L. The outer membrane of Pseudomonas aeruginosa NCTC 6749 contributes to its tolerance to the essential oil of Melaleuca alternifolia (tea tree oil). Lett. Appl. Microbiol. 2000, 30, 294–297. [Google Scholar] [CrossRef] [PubMed]
  55. Reyes-Jurado, F.; Cervantes-Rincón, T.; Bach, H.; López-Malo, A.; Palou, E. Antimicrobial activity of Mexican oregano (Lippia berlandieri), Thyme (Thymus vulgaris), and Mustard (Brassica nigra) essential oils in gaseous phase. Ind. Crops Prod. 2019, 131, 90–95. [Google Scholar] [CrossRef]
  56. Nezhadali, A.; Nabavi, M.; Rajabian Noghundar, M.; Akbarpour, M.; Pourali, P.; Amini, F. Chemical variation of leaf essential oil at different stages of plant growth and in vitro antibacterial activity of Thymus vulgaris Lamiaceae, from Iran. Beni-Suef Univ. J. Basic Appl. Sci. 2014, 3, 87–92. [Google Scholar] [CrossRef] [Green Version]
  57. Kloucek, P.; Smid, J.; Frankova, A.; Kokoska, L.; Valterová, I.; Pavela, R. Fast screening method for assessment of antimicrobial activity of essential oils in vapor phase. Food Res. Int. 2012, 47, 161–165. [Google Scholar] [CrossRef]
  58. Muthaiyan, A.; Biswas, D.; Crandall, P.G.; Wilkinson, B.J.; Ricke, S.C. Application of orange essential oil as an antistaphylococcal agent in a dressing model. BMC Complement. Altern. Med. 2012, 12, 125. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Wiegand, I.; Hilpert, K.; Hancock, R.E.W. Agar and broth dilution methods to determine the minimal inhibitory concentration (MIC) of antimicrobial substances. Nat. Protoc. 2008, 3, 163–175. [Google Scholar] [CrossRef] [PubMed]
  60. Mottaleb, M.A.; Meziani, M.J.; Rafiq Islam, M. Solid-phase microextraction (SPME) and its application to natural products. In Encyclopedia of Analytical Chemistry: Applications, Theory and Instrumentation; Wiley: Hoboken, NJ, USA, 2006; pp. 105–127. [Google Scholar]
  61. Seo, H.S.; Beuchat, L.R.; Kim, H.; Ryu, J.H. Development of an experimental apparatus and protocol for determining antimicrobial activities of gaseous plant essential oils. Int. J. Food Microbiol. 2015, 215, 95–100. [Google Scholar] [CrossRef] [PubMed]
  62. Jorgensen, J.H.; Turnidge, J.D. Susceptibility test methods: Dilution and disk diffusion methods. In Manual of Clinical Microbiology; Jorgensen, J.H., Carroll, K.C., Funke, G., Pfaller, M.A., Landry, M.L., Richter, S.S., Warnock, D.W., Eds.; ASM Press: Washington, DC, USA, 2015; pp. 1253–1273. [Google Scholar]
  63. Feyaerts, A.F.; Mathé, L.; Luyten, W.; Tournu, H.; Dyck, K.V.; Broekx, L.; Dijck, P.V. Assay and recommendations for the detection of vapour-phase-mediated antimicrobial activities. Flavour Fragr. J. 2017, 32, 347–353. [Google Scholar] [CrossRef]
  64. Amat, S.; Baines, D.; Alexander, T.W. A vapour phase assay for evaluating the antimicrobial activities of essential oils against bovine respiratory bacterial pathogens. Lett. Appl. Microbiol. 2017, 65, 489–495. [Google Scholar] [CrossRef] [PubMed]
  65. Casey, J.T.; O’Cleirigh, C.; Walsh, P.K.; O’Shea, D.G. Development of a robust microtiter plate-based assay method for assessment of bioactivity. J. Microbiol. Methods 2004, 58, 327–334. [Google Scholar] [CrossRef] [PubMed]
  66. Fisher, K.; Phillips, C. Potential antimicrobial uses of essential oils in food: Is citrus the answer? Trends Food Sci. Technol. 2008, 19, 156–164. [Google Scholar] [CrossRef]
  67. Kalemba, D.; Kunicka, A. Antibacterial and antifungal properties of essential oils. Curr. Med. Chem. 2003, 10, 813–829. [Google Scholar] [CrossRef] [PubMed]
  68. Orchard, A.; van Vuuren, S. Commercial essential oils as potential antimicrobials to treat skin diseases. Evid. Based Complement. Alternat. Med. 2017, 2017, 4517971. [Google Scholar] [CrossRef] [Green Version]
  69. Reyes-Jurado, F.; Franco-Vega, A.; Ramírez-Corona, N.; Palou, E.; López-Malo, A. Essential oils: Antimicrobial activities, extraction methods, and their modeling. Food Eng. Rev. 2015, 7, 275–297. [Google Scholar] [CrossRef]
  70. Leyva-López, N.; Gutiérrez-Grijalva, E.P.; Vazquez-Olivo, G.; Heredia, J.B. Heredia Essential oils of oregano: Biological activity beyond their antimicrobial properties. Molecules 2017, 22, 989. [Google Scholar] [CrossRef] [Green Version]
  71. Schmidt, E.; Wanner, J.; Höferl, M.; Jirovetz, L.; Buchbauer, G.; Gochev, V.; Girova, T.; Stoyanova, A.; Geissler, M. Chemical composition, olfactory analysis and antibacterial activity of Thymus vulgaris chemotypes geraniol, 4-Thujanol/Terpinen-4-ol, thymol and linalool cultivated in southern France. Nat. Prod. Commun. 2012, 7, 1934578X1200700833. [Google Scholar] [CrossRef] [Green Version]
  72. Grosso, C.; Figueiredo, A.C.; Burillo, J.; Mainar, A.M.; Urieta, J.S.; Barroso, J.G.; Coelho, J.A.; Palavra, A.M.F. Composition and antioxidant activity of Thymus vulgaris volatiles: Comparison between supercritical fluid extraction and hydrodistillation. J. Sep. Sci. 2010, 33, 2211–2218. [Google Scholar] [CrossRef] [PubMed]
  73. Figueiredo, A.C.; Barroso, J.G.; Pedro, L.G.; Scheffer, J.J.C. Factors affecting secondary metabolite production in plants: Volatile components and essential oils. Flavour Fragr. J. 2008, 23, 213–226. [Google Scholar] [CrossRef]
  74. Hudaib, M.; Speroni, E.; Di Pietra, A.M.; Cavrini, V. GC/MS evaluation of thyme (Thymus vulgaris L.) oil composition and variations during the vegetative cycle. J. Pharm. Biomed. 2002, 29, 691–700. [Google Scholar] [CrossRef]
  75. Fan, S.; Chang, J.; Zong, Y.; Hu, G.; Jia, J. GC/MS Analysis of the composition of the essential oil from Dendranthema indicum vararomaticum using three extraction methods and two columns. Molecules 2018, 23, 576. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Netopilova, M.; Houdkova, M.; Urbanova, K.; Rondevaldova, J.; Kokoska, L. Validation of qualitative broth volatilization checkerboard method for testing of essential oils: Dual-column GC–FID/MS analysis and in vitro combinatory antimicrobial effect of Origanum vulgare and Thymus vulgaris against Staphylococcus aureus in liquid and vapor phases. Plants 2021, 10, 393. [Google Scholar]
  77. Adam, M.; Dobiáš, P.; Pavlíková, P.; Ventura, K. Comparison of solid-phase and single-drop microextractions for headspace analysis of herbal essential oils. Open Chem. 2009, 7, 303–311. [Google Scholar] [CrossRef]
  78. Soleimani, M.; Daryasari, A.P.; Ghorbani, A.; Hejri, O.M.; Mazaheri, R. Analysis of the volatile compounds in Thymus vulgaris L. using improved HS-SPME-GC/MS and comparison with conventional methods. J. Essent. Oil-Bear. Plants 2014, 17, 1233–1240. [Google Scholar] [CrossRef]
  79. Nezhadali, A.; Akbarpour, M.; Shirvan, B.Z.; Mousavi, M. Comparison of volatile organic compounds of Thymus vulgaris using hydrodistillation and headspace solid phase microextraction gas chromatography mass spectrometry. J. Chin. Chem. Soc. 2010, 57, 40–43. [Google Scholar] [CrossRef]
  80. Leggio, A.; Leotta, V.; Belsito, E.L.; Di Gioia, M.L.; Romio, E.; Santoro, I.; Taverna, D.; Sindona, G.; Liguori, A. Aromatherapy: Composition of the gaseous phase at equilibrium with liquid bergamot essential oil. Chem. Cent. J. 2017, 11, 111. [Google Scholar] [CrossRef] [PubMed]
  81. Coleman, W.M.; Lawrence, B.M. A Comparison of selected analytical approaches to the analysis of an essential oil. Flavour Fragr. J. 1997, 12, 1–8. [Google Scholar] [CrossRef]
  82. Cui, S.; Tan, S.; Ouyang, G.; Jiang, S.; Pawliszyn, J. Headspace solid-phase microextraction gas chromatography–mass spectrometry analysis of Eupatorium odoratum extract as an oviposition Repellent. J. Chromatogr. B 2009, 877, 1901–1906. [Google Scholar] [CrossRef] [PubMed]
  83. Chialva, F.; Gabri, G.; Liddle, P.A.P.; Ulian, F. Qualitative evaluation of aromatic herbs by direct headspace GC analysis. Applications of the method and comparison with the traditional analysis of essential oils. J. High. Resolut. Chromatogr. 1982, 5, 182–188. [Google Scholar] [CrossRef]
  84. Wang, T.-H.; Hsia, S.-M.; Wu, C.-H.; Ko, S.-Y.; Chen, M.Y.; Shih, Y.-H.; Shieh, T.-M.; Chuang, L.-C.; Wu, C.-Y. Evaluation of the antibacterial potential of liquid and vapor phase phenolic essential oil compounds against oral microorganisms. PLoS ONE 2016, 11, e0163147. [Google Scholar] [CrossRef] [Green Version]
  85. EDQM (Council of Europe). European Pharmacopoeia, 10th ed.; EDQM: Strasbourg, France, 2019. [Google Scholar]
  86. Thymi Aetheroleum. Available online: https://www.ema.europa.eu/en/medicines/herbal/thymi-aetheroleum (accessed on 16 February 2021).
Molecules 26 06553 g001 550

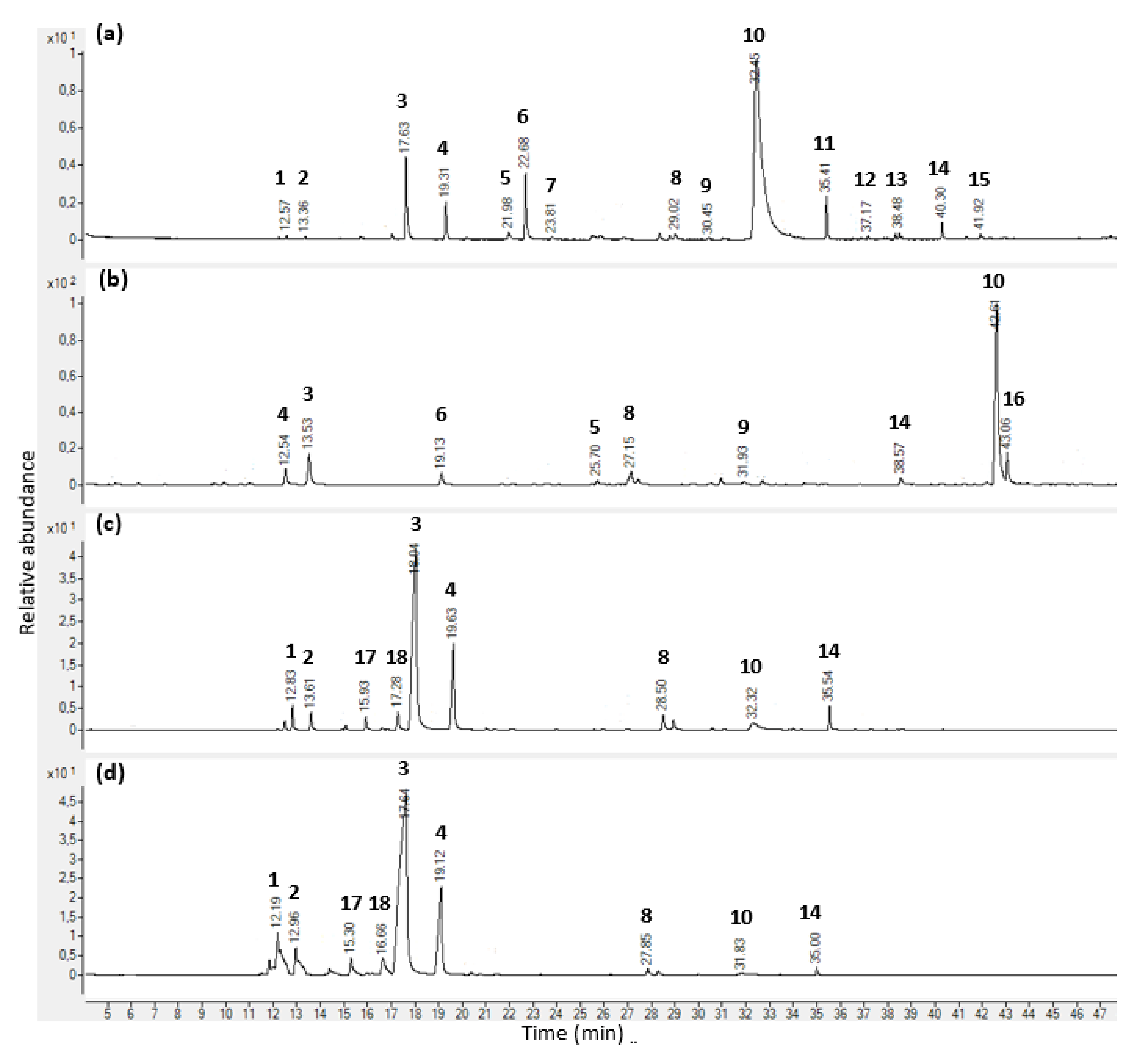

Figure 1. GC-MS chromatograms of Thymus vulgaris L. essential oil obtained from commercial source C and headspace analysis of its vapour. (a) Chromatogram on an HP-5MS column; (b) chromatogram on a DB-HeavyWAX column; (c) chromatogram of the headspace after a 9-h incubation period using solid-phase microextraction sampling technique; (d) chromatogram of the headspace after a 9-h incubation period using gas tight syringe sampling technique. Peak number and compound names: 1. α-pinene, 2. camphene, 3. p-cymene, 4. γ-terpinene, 5. linalool, 6. methyl octanoate, 7. Camphor, 8. Thymol methyl ether, 9. Carvone, 10. thymol. 11. β-caryophyllene, 12. γ-Muurolene, 13. δ-cadinene, 14. caryophyllene oxide, 15. α-epi-cadinol, 16. Carvacrol, 17. β-myrcene, 18. α-terpinene.
Figure 1. GC-MS chromatograms of Thymus vulgaris L. essential oil obtained from commercial source C and headspace analysis of its vapour. (a) Chromatogram on an HP-5MS column; (b) chromatogram on a DB-HeavyWAX column; (c) chromatogram of the headspace after a 9-h incubation period using solid-phase microextraction sampling technique; (d) chromatogram of the headspace after a 9-h incubation period using gas tight syringe sampling technique. Peak number and compound names: 1. α-pinene, 2. camphene, 3. p-cymene, 4. γ-terpinene, 5. linalool, 6. methyl octanoate, 7. Camphor, 8. Thymol methyl ether, 9. Carvone, 10. thymol. 11. β-caryophyllene, 12. γ-Muurolene, 13. δ-cadinene, 14. caryophyllene oxide, 15. α-epi-cadinol, 16. Carvacrol, 17. β-myrcene, 18. α-terpinene.
Molecules 26 06553 g001
Table
Table 1. In vitro growth-inhibitory effect of Thymus vulgaris L. essential oils in liquid and vapour phases against respiratory infection bacteria.
Table 1. In vitro growth-inhibitory effect of Thymus vulgaris L. essential oils in liquid and vapour phases against respiratory infection bacteria.
SupplierBacterium/Growth Medium/Minimum Inhibitory Concentration
Staphylococcus aureusStreptococcus pyogenesHaemophilus influenzae
BrothAgarBrothAgarBrothAgar
(µg/mL)(µg/mL)(µg/cm3)(µg/mL)(µg/mL)(µg/cm3)(µg/mL)(µg/mL)(µg/cm3)
A1024102425610241024256512512128
B10241024256512512128512512128
C512512128512512128512512128
Positive antibiotic control
Oxacillin0.25>2>0.5NTNTNTNTNTNT
AmoxicilinNTNTNT0.06>2>0.5NTNTNT
AmpicilinNTNTNTNTNTNT0.5>16>4
NT = Not tested.
Table
Table 2. Chemical composition of Thymus vulgaris L. essential oils obtained from 3 different commercial suppliers.
Table 2. Chemical composition of Thymus vulgaris L. essential oils obtained from 3 different commercial suppliers.
RI aCompoundCl. bSupplier/Column/Content (%)Identification e
ABC c
Obs.LitHP-5MSDB-WAXHP-5MSDB-WAXHP-5MSDB-WAXHP-5MSDB-WAX
761783 dMethyl α-methylbutanoateOA0.08- g0.08-0.05 ± 0.01-GC/MS-
923924α-ThujeneMH0.100.080.100.130.26 ± 0.020.24 ± 0.06RI, GC/MSGC/MS
929939α-PineneMH0.620.380.610.620.43 ± 0.030.38 ± 0.07RI, GC/MSGC/MS
944945CampheneMH0.440.260.430.430.19 ± 0.010.18 ± 0.03RI, GC/MSGC/MS
972969SabineneMH0.090.050.080.090.10 ± 0.010.09 ± 0.02RI, GC/MSGC/MS
9779791-octen-3-olOA0.310.200.320.300.35 ± 0.020.35 ± 0.06RI, GC/MSGC/MS
989988β-MyrceneMH0.310.210.310.350.58 ± 0.040.58 ± 0.11RI, GC/MSGC/MS
9949963-OctanolOA0.05-tr.f-tr.-RI, GC/MS-
10021002α-PhellandreneMH0.06-0.060.050.10 ± 0.010.08 ± 0.02RI, GC/MSGC/MS
100710083-CareneMH----tr.-RI, GC/MS-
10141014α-TerpineneMH0.62-0.61-1.07 ± 0.07-RI, GC/MS-
10251020p-CymeneAH22.1516.4322.0325.3512.75 ± 0.8412.90 ± 2.55RI, GC/MSGC/MS
10271031D-LimoneneMH-0.16-0.250.41 ± 0.030.23 ± 0.04RI, GC/MSGC/MS
10281023m-CymeneAH0.46-0.47--0.18 ± 0.17RI, GC/MSGC/MS
103010321,8-CineoleOM0.690.510.700.760.39 ± 0.030.47 ± 0.10RI, GC/MSGC/MS
10581054γ-TerpineneMH2.822.022.782.905.22 ± 0.335.40 ± 1.11RI, GC/MSGC/MS
10651068cis-thujanolOM0.170.060.180.070.37 ± 0.030.14 ± 0.03RI, GC/MSGC/MS
10711078cis-Linalool oxideFtr.-tr.---RI, GC/MS-
10871086TerpinoleneMH0.18-0.17-0.11 ± 0.01-RI, GC/MS-
10961102trans-thujanolOM-0.09-0.13tr.0.37 ± 0.08RI, GC/MSGC/MS
11001095LinaloolOM1.801.081.821.771.53 ± 0.071.38 ± 0.24RI, GC/MSGC/MS
11491141CamphorOM0.320.230.180.340.06 ± 0.010.16 ± 0.03RI, GC/MSGC/MS
11651165Endo-borneolOM1.14-1.15-0.63 ± 0.03-RI, GC/MS-
11761174Terpinen-4-olOM0.61-0.61-0.62 ± 0.04-RI, GC/MS-
11861180m-Cymen-8-olOM0.05-----RI, GC/MS-
11901183p-Cymen-8-olOM0.140.110.120.16--RI, GC/MSGC/MS
11961189α-TerpineolOM0.14-0.14-0.16 ± 0.02-RI, GC/MS-
12041195cis-DihydrocarvoneOMtr.-tr.-tr.-RI, GC/MS-
12351235Thymol methyl etherOPM1.152.111.153.010.76 ± 0.053.17 ± 0.67RI, GC/MSGC/MS
12441241Carvacrol methyl etherOPM0.910.860.911.350.66 ± 0.041.09 ± 0.23RI, GC/MSGC/MS
12561242CarvoneOM1.391.051.401.381.01 ± 0.051.05 ± 0.24RI, GC/MSGC/MS
12691255GeraniolMH0.05-0.050.090.05 ± 0.01tr.RI, GC/MSGC/MS
12861282AnetholeOPP0.220.210.230.300.11 ± 0.060.07 ± 0.02RI, GC/MSGC/MS
13041290ThymolPM38.4229.5238.9341.3148.09 ± 2.5348.65 ± 10.80RI, GC/MSGC/MS
13101298CarvacrolPM10.613.8410.855.5910.92 ± 3.503.60 ± 0.78RI, GC/MSGC/MS
13611357EstragoleOPP--0.070.05tr.0.09 ± 0.02RI, GC/MSGC/MS
13791374α-CopaeneSH0.21-0.21-0.09 ± 0.01-RI, GC/MS-
13881387β-BourboneneSH0.07tr.0.07-tr.-RI, GC/MSGC/MS
14241418β-CaryophylleneSH1.79-1.79-2.33 ± 0.13-RI, GC/MS-
14331446 dIsogermacrene DSH----tr.-GC/MS-
14581452α-HumuleneSH0.09tr.0.080.070.11 ± 0.010.12 ± 0.02RI, GC/MSGC/MS
14751475Geranyl propionateOM0.060.060.100.140.10 ± 0.010.11 ± 0.03RI, GC/MSGC/MS
14801478γ-MuuroleneSH0.190.150.210.220.21 ± 0.020.21 ± 0.04RI, GC/MSGC/MS
14831493α-AmorpheneSH--tr.-tr.-RI, GC/MS-
14981495ValenceneSH0.09-0.09-0.11 ± 0.01-RI, GC/MS-
15031499α-MuuroleneSH0.10-0.10-0.09 ± 0.01-RI, GC/MS-
15101509β-BisaboleneSH0.06-0.06-0.06 ± 0.01-RI, GC/MS-
15181513γ-CadineneSH0.380.430.390.580.33 ± 0.020.73 ± 0.16RI, GC/MSGC/MS
15271524δ-CadineneSH0.48-0.48-0.50 ± 0.03-RI, GC/MS-
15611564NerolidolOStr.---tr.-RI, GC/MS-
15851578SpathulenolOS--tr.-tr.-RI, GC/MS-
15911581Caryophyllene oxideOS1.310.921.321.240.68 ± 0.030.66 ± 0.15RI, GC/MSGC/MS
16171606Humulene epoxide IIOS0.06tr.0.060.05tr.-RI, GC/MSGC/MS
16211627EpicubenolOS0.06tr.0.06-tr.tr.RI, GC/MSGC/MS
16281630γ-EudesmolOS0.130.100.130.130.13 ± 0.010.13 ± 0.03RI, GC/MSGC/MS
16341642CubenolOStr.--0.09tr.-RI, GC/MSGC/MS
16481640α-epi-CadinolOS0.48tr.0.49-0.36 ± 0.030.05 ± 0.05RI, GC/MSGC/MS
16521645δ-CadinolOS-0.06--tr.tr.RI, GC/MSGC/MS
16611653α-CadinolOS0.05-0.05-0.07 ± 0.02-RI, GC/MS-
16821677CadaleneSH0.12-0.14-tr.-RI, GC/MS-
18441844Perhydrofarnesyl acetoneOMtr.-tr.-tr.-RI, GC/MS-
h10014-CareneMH---0.64-1.05 ± 0.23-GC/MS
hNA4-Pentenyl butyrateOM-tr.-0.06---GC/MS
h1351α-CubebeneSH-0.06-0.10-0.07 ± 0.01-GC/MS
h1290Isobornyl acetateOM-0.08-0.11---GC/MS
h1521CalameneneSH---0.19-tr.-GC/MS
h1156IsoborneolOM-0.86-1.17-0.74 ± 0.16-GC/MS
h1455AromandendreneSH-tr.-0.05-tr.-GC/MS
hNALavandulyl butyrateOM-0.05-0.07-tr.-GC/MS
h1372p-Cymen-7-olOM-tr.-0.05---GC/MS
h2105PhytolOD-0.07-0.23-tr.-GC/MS
Total identified (%) 99.5599.3099.6599.6899.6299.61
a RI = retention indices. Obs. = retention indices determined relative to a homologous series of n-alkanes (C8–C40) on an HP-5MS column. Lit. = literature RI values [49,50]; b Cl = class; AH—aromatic hydrocarbon, F—furanoid, MH—monoterpene hydrocarbon, OA—oxygenated aliphatic, OD—oxygenated diterpene, OM—oxygenated monoterpene, OPM—oxygenated phenolic monoterpene, OPP—oxygenated phenylpropanoid, PM—phenolic monoterpene, OS—oxygenated sesquiterpene, SH—sesquiterpene hydrocarbon. c Relative peak area percentage as mean of three measurements ± standard deviation. d Literature RI values [51]. e Identification method: GC/MS = mass spectrum was identical to that of National Institute of Standards and Technology Library (ver. 2.0.f); RI = the retention index was matching literature database. f tr. = traces, relative peak area < 0.05%. g - = not detected. h Retention indices were not calculated for compounds determined by DB-WAX column.
Table
Table 3. Chemical composition of the headspace above a mixture of Mueller–Hinton broth and Thymus vulgaris L. essential oils at a concentration of 512 µg/mL over a 12-h period using solid-phase microextraction sampling technique.
Table 3. Chemical composition of the headspace above a mixture of Mueller–Hinton broth and Thymus vulgaris L. essential oils at a concentration of 512 µg/mL over a 12-h period using solid-phase microextraction sampling technique.
RI aCompoundsCl. bSupplier/Time (h)/Content (%)
ABC c
Obs.Lit. 036912036912036912
921921TricycleneMH0.050.050.050.050.05tr. etr.0.050.070.070.08 ± 0.020.08 ± 0.010.07 ± 0.020.10 ± 0.010.08 ± 0.02
927924α-ThujeneMH0.950.910.830.840.930.970.790.981.101.071.01 ± 0.051.00 ± 0.030.93 ± 0.030.94 ± 0.130.94 ± 0.05
933939α-PineneMH2.372.252.182.112.371.971.602.232.452.412.73 ± 0.182.69 ± 0.132.57 ± 0.262.82 ± 0.302.70 ± 0.26
949945CampheneMH1.471.421.371.331.510.850.831.581.691.671.58 ± 0.561.56 ± 0.531.52 ± 0.582.13 ± 0.161.82 ± 0.57
976969SabineneMHtr.tr.- ftr.tr.tr.tr.0.050.060.06tr.tr.tr.0.07 ± 0.000.06 ± 0.02
978974β-PineneMH0.490.470.420.450.480.430.400.490.510.530.45 ± 0.010.49 ± 0.060.48 ± 0.070.56 ± 0.040.51 ± 0.06
9919883-OctanoneOAtr.tr.-tr.tr.--tr.tr.tr.-----
995988β-MyrceneMH2.762.702.632.482.721.531.451.791.881.881.62 ± 0.321.53 ± 0.181.51 ± 0.291.83 ± 0.031.62 ± 0.26
10091002α-PhellandreneMH0.360.350.340.330.350.190.190.200.200.200.26 ± 0.030.26 ± 0.020.25 ± 0.030.28 ± 0.010.24 ± 0.03
101310083-CareneMH0.210.210.210.200.220.090.080.130.140.140.11 ± 0.040.10 ± 0.030.10 ± 0.030.14 ± 0.010.12 ± 0.03
10211014α-TerpineneMH3.763.723.613.583.721.611.582.342.372.382.20 ± 0.662.17 ± 0.642.14 ± 0.652.92 ± 0.052.46 ± 0.64
10361020p-CymeneAH58.6156.2455.4154.5756.3574.2274.5071.0371.1669.9167.21 ± 7.0366.38 ± 7.4665.89 ± 6.3858.38 ± 0.2360.62 ± 6.81
10551023m-CymeneAHtr.0.050.05tr.tr.--------tr.tr.
10671054γ-TerpineneMH19.720.4520.3020.2320.187.077.239.309.189.1712.37 ± 2.8612.51 ± 2.6412.67 ± 3.0216.18 ± 0.1614.14 ± 2.88
10941086TerpinoleneMH0.310.330.310.320.320.100.110.240.240.240.16 ± 0.100.16 ± 0.100.17 ± 0.100.27 ± 0.010.21 ± 0.09
11011089p-CymeneneMH0.200.250.190.210.220.150.140.190.210.200.12 ± 0.060.10 ± 0.040.09 ± 0.020.14 ± 0.010.11 ± 0.03
11151095LinaloolOM0.270.260.250.260.330.130.100.280.340.340.23 ± 0.210.16 ± 0.120.16 ± 0.130.29 ± 0.030.19 ± 0.10
11531141CamphorOM0.05tr.tr.0.050.05tr.tr.0.060.060.06tr.tr.0.06 ± 0.040.09 ± 0.010.08 ± 0.04
11861165Endo-borneolOMtr.tr.tr.tr.tr.0.080.07tr.0.050.050.11 ± 0.020.09 ± 0.010.08 ± 0.010.07 ± 0.010.08 ± 0.01
11921174Terpinen-4-olOM0.060.080.080.100.10tr.tr.0.080.080.09tr.tr.0.06 ± 0.050.10 ± 0.010.09 ± 0.04
12131195EstragoleOPPtr.tr.tr.tr.tr.----tr.0.10 ± 0.060.13 ± 0.090.11 ± 0.040.17 ± 0.030.18 ± 0.06
12471235Thymol methyl etherOPM1.782.482.682.822.443.053.772.682.242.581.83 ± 0.132.41 ± 0.172.77 ± 0.412.61 ± 0.172.91 ± 0.34
12571241Carvacrol methyl etherOPM1.151.521.681.681.511.672.021.551.401.491.08 ± 0.121.37 ± 0.111.50 ± 0.141.54 ± 0.031.69 ± 0.11
12931287Bornyl acetateOM0.170.240.290.330.210.050.080.150.110.14tr.0.15 ± 0.080.15 ± 0.060.25 ± 0.040.24 ± 0.11
13061284AnetholOPPtr.tr.tr.0.05tr.-----tr.tr.0.08 ± 0.000.12 ± 0.020.12 ± 0.03
13391290ThymolPM2.612.803.143.363.125.253.502.132.643.155.27 ± 1.274.57 ± 0.814.62 ± 0.843.72 ± 0.075.05 ± 0.45
13681298CarvacrolPMtr.tr.tr.tr.tr.------tr.tr.tr.tr.
13811372p-Cymen-7-olOMtr.tr.tr.tr.tr.--tr.tr.tr.---tr.tr.
13861374α-CopaeneSH0.090.130.170.190.12tr.tr.0.110.070.11tr.tr.0.07 ± 0.080.16 ± 0.010.19 ± 0.05
13951387β-BourboneneSHtr.tr.0.050.07tr.tr.tr.tr.tr.0.05tr.tr.tr.0.09 ± 0.010.10 ± 0.01
14341418β-CaryophylleneSH1.592.142.743.091.940.260.321.591.131.490.77 ± 0.821.19 ± 1.261.28 ± 1.292.94 ± 0.322.40 ± 1.59
14421446 disogermacrene DSHtr.0.060.09tr.tr.--tr.tr.tr.-tr.tr.0.08 ± 0.06tr.
14691452α-HumuleneSHtr.tr.0.070.07tr.-tr.tr.tr.tr.tr.tr.tr.0.07 ± 0.010.06 ± 0.03
14751465cis-muurola-4(14),5-dieneSH-tr.tr.tr.---tr.-tr.---tr.tr.
14821475Geranyl propionateOMtr.tr.tr.tr.----------tr.
14911478γ-MuuroleneSH0.060.080.120.140.07tr.tr.0.06tr.0.06tr.0.07 ± 0.040.08 ± 0.050.12 ± 0.010.11 ± 0.05
15091480Germacrene DSHtr.tr.tr.tr.---tr.-----tr.tr.
15121491ValenceneSH-tr.tr.tr.---------tr.tr.
15151499α-MuuroleneSHtr.tr.tr.tr.tr.--tr.tr.tr.---tr.tr.
15201509β-BisaboleneSHtr.tr.tr.tr.tr.--tr.-tr.---tr.tr.
15321513γ-CadineneSH0.080.080.120.140.07tr.tr.0.07tr.0.07tr.0.10 ± 0.040.08 ± 0.030.12 ± 0.020.12 ± 0.05
15381524δ-CadineneSH0.10.10.150.170.09tr.tr.0.05tr.0.05tr.0.07 ± 0.040.08 ± 0.040.12 ± 0.020.11 ± 0.05
15411521CalameneneSHtr.tr.-0.07tr.tr.0.050.050.030.05tr.0.07 ± 0.010.06 ± 0.010.07 ± 0.010.07 ± 0.01
16051581Caryophyllene oxideOStr.tr.tr.tr.tr.---tr.tr.--tr.tr.tr.
Total identified (%) 99.6899.8399.9199.7799.8599.8999.1899.7299.6499.8999.3399.8799.8799.7499.63
a RI = retention indices. Obs. = retention indices determined relative to a homologous series of n-alkanes (C8-C40) on an HP-5MS column. Lit. = literature Ri values [49,50]; b Cl = class; AH—aromatic hydrocarbon, MH—monoterpene hydrocarbon, OA—oxygenated aliphatic, OM—oxygenated monoterpene, OPM—oxygenated phenolic monoterpene, OPP—oxygenated phenylpropanoid, PM—phenolic monoterpene, OS—oxygenated sesquiterpene, SH—sesquiterpene hydrocarbon. c Relative peak area percentage as mean of three measurements ± standard deviation. d Literature RI values from [51]. e tr. = traces, relative peak area < 0.05%. f - = not detected.
Table
Table 4. Chemical composition of the headspace above a mixture of Mueller–Hinton broth and Thymus vulgaris L. essential oils at a concentration of 512 µg/mL over a 12-h period using gas tight syringe headspace sampling technique.
Table 4. Chemical composition of the headspace above a mixture of Mueller–Hinton broth and Thymus vulgaris L. essential oils at a concentration of 512 µg/mL over a 12-h period using gas tight syringe headspace sampling technique.
RI aCompoundsCl. bSupplier/Time (h)/Content (%)
ABC c
Obs.Lit.036912036912036912
-NA2-Ethyl furanFtr. dtr.tr.-etr.0.090.090.090.070.040.09 ± 0.050.07 ± 0.010.08 ± 0.040.08 ± 0.020.07 ± 0.00
778NAMethyl α-methylbutyrateOA0.080.100.130.080.120.220.170.230.160.110.10 ± 0.070.08 ± 0.020.10 ± 0.040.07 ± 0.010.09 ± 0.00
912921TricycleneMH0.110.200.160.120.190.170.150.060.200.180.19 ± 0.010.17 ± 0.020.19 ± 0.010.20 ± 0.040.24 ± 0.00
918924α-ThujeneMH2.012.172.031.752.232.092.032.112.382.341.97 ± 0.241.89 ± 0.071.95 ± 0.151.91 ± 0.172.30 ± 0.00
924939α-PineneMH6.195.706.834.635.748.987.757.846.796.347.96 ± 2.056.94 ± 1.116.90 ± 1.737.20 ± 0.337.11 ± 0.00
939945CampheneMH3.403.213.572.693.284.594.044.073.813.714.59 ± 0.914.22 ± 0.354.16 ± 0.764.24 ± 0.034.45 ± 0.00
953969SabineneMH---0.07------tr.tr.0.05 ± 0.020.13 ± 0.190.06 ± 0.00
967980β-PineneMH0.910.830.850.780.871.070.880.990.890.810.75 ± 0.370.94 ± 0.040.91 ± 0.110.74 ± 0.250.81 ± 0.00
984988β-MyrceneMH2.882.803.143.132.881.881.891.981.902.061.82 ± 0.061.96 ± 0.241.88 ± 0.081.63 ± 0.152.09 ± 0.00
9981002α-PhellandreneMH0.310.350.230.200.350.050.110.110.100.070.13 ± 0.050.23 ± 0.060.20 ± 0.100.19 ± 0.030.22 ± 0.00
100210083-CareneMH0.280.250.360.130.260.300.120.110.080.050.14 ± 0.100.10 ± 0.050.13 ± 0.080.13 ± 0.050.16 ± 0.00
10101014α-TerpineneMH3.643.572.574.173.802.212.061.932.122.342.57 ± 0.182.87 ± 0.502.77 ± 0.332.41 ± 0.182.88 ± 0.00
10281020p-CymeneAH45.9347.0547.4850.7348.7852.2854.2956.8157.3057.4144.80 ± 1.0349.19 ± 2.6749.20 ± 3.0046.10 ± 2.1049.28 ± 0.00
10441023m-CymeneAHtr.tr.0.270.28tr.-----0.07 ± 0.070.09 ± 0.06tr.0.06 ± 0.08tr.
10581054γ-TerpineneMH13.4013.9015.4617.5414.805.766.226.586.696.999.54 ± 1.0011.77 ± 1.5211.82 ± 1.7010.32 ± 0.6811.85 ± 0.00
10831086TerpinoleneMH0.180.190.230.260.200.100.120.140.140.140.13 ± 0.020.18 ± 0.040.18 ± 0.030.14 ± 0.020.17 ± 0.00
10891089p-CymeneneMH0.100.090.130.140.090.080.090.100.090.090.06 ± 0.000.08 ± 0.010.07 ± 0.010.06 ± 0.020.06 ± 0.00
11031095LinaloolOM0.090.080.150.160.100.080.060.120.110.100.09 ± 0.030.09 ± 0.030.09 ± 0.010.06 ± 0.030.08 ± 0.00
11331141CamphorOMtr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.
1171NA2-Ethyl-5-methylfuranFtr.tr.tr.tr.tr.tr.-tr.-tr.tr.tr.tr.tr.tr.
11801174Terpinen-4-olOMtr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.tr.
12001195EstragoleOPP--tr.tr.------tr.tr.tr.tr.tr.
12341235Thymol methyl etherOPM0.340.340.620.670.430.240.390.450.430.490.31 ± 0.120.53 ± 0.150.57 ± 0.120.43 ± 0.080.50 ± 0.14
12441241Carvacrol methyl etherOPM0.210.190.380.400.250.130.230.250.250.280.19 ± 0.080.30 ± 0.090.33 ± 0.080.24 ± 0.050.29 ± 0.08
12811287Bornyl acetateOMtr.tr.0.050.05tr.-tr.tr.tr.tr.tr.tr.tr.tr.tr.
13281290ThymolPM0.500.270.580.600.280.250.100.280.260.220.46 ± 0.310.51 ± 0.360.55 ± 0.300.25 ± 0.100.58 ± 0.37
13721374α-CopaeneSHtr.tr.tr.tr.tr.-tr.tr.-tr.tr.tr.tr.tr.tr.
13811387β-BourboneneSH--tr.tr.-------tr.tr.-tr.
14171418β-CaryophylleneSH0.170.170.380.340.190.070.110.140.130.150.21 ± 0.110.37 ± 0.150.41 ± 0.000.28 ± 0.080.39 ± 0.20
14751478γ-MuuroleneSH--tr.tr.-----tr.tr.tr.tr.tr.tr.
15131513γ-CadineneSH--tr.tr.-------tr.tr.-tr.
15211524δ-CadineneSH--tr.tr.-------tr.tr.-tr.
Total identified (%) 99.9599.8099.9499.9499.9599.9899.8699.9099.9299.7199.8799.8399.9099.9099.87
a RI = retention indices. Obs. = retention indices determined relative to a homologous series of n-alkanes (C8–C40) on an HP-5MS column. Lit. = literature Ri values [49,50,51]. b Cl = Class; AH—aromatic hydrocarbon, MH—monoterpene hydrocarbon, OA—oxygenated aliphatic, OM—oxygenated monoterpene, OPM—oxygenated phenolic monoterpene, OPP—oxygenated phenylpropanoid, PM—phenolic monoterpene, OS—oxygenated sesquiterpene, SH—sesquiterpene hydrocarbon. c Relative peak area percentage as mean of three measurements ± standard deviation. d tr. = traces, relative peak area < 0.05%. e - = not detected.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Antih, J.; Houdkova, M.; Urbanova, K.; Kokoska, L. Antibacterial Activity of Thymus vulgaris L. Essential Oil Vapours and Their GC/MS Analysis Using Solid-Phase Microextraction and Syringe Headspace Sampling Techniques. Molecules 2021, 26, 6553. https://doi.org/10.3390/molecules26216553

AMA Style

Antih J, Houdkova M, Urbanova K, Kokoska L. Antibacterial Activity of Thymus vulgaris L. Essential Oil Vapours and Their GC/MS Analysis Using Solid-Phase Microextraction and Syringe Headspace Sampling Techniques. Molecules. 2021; 26(21):6553. https://doi.org/10.3390/molecules26216553

Chicago/Turabian Style

Antih, Julien, Marketa Houdkova, Klara Urbanova, and Ladislav Kokoska. 2021. "Antibacterial Activity of Thymus vulgaris L. Essential Oil Vapours and Their GC/MS Analysis Using Solid-Phase Microextraction and Syringe Headspace Sampling Techniques" Molecules 26, no. 21: 6553. https://doi.org/10.3390/molecules26216553

APA Style

Antih, J., Houdkova, M., Urbanova, K., & Kokoska, L. (2021). Antibacterial Activity of Thymus vulgaris L. Essential Oil Vapours and Their GC/MS Analysis Using Solid-Phase Microextraction and Syringe Headspace Sampling Techniques. Molecules, 26(21), 6553. https://doi.org/10.3390/molecules26216553

Article Metrics

Back to TopTop
