Article

Buffalo Yogurt Fortified with Eucalyptus (Eucalyptus camaldulensis) and Myrrh (Commiphora Myrrha) Essential Oils: New Insights into the Functional Properties and Extended Shelf Life

by
Ahmed Mohamed Hamed
1,*,
Awad A. Awad
1,
Ahmed E. Abdel-Mobdy
1,
Abdulhakeem Alzahrani
2 and
Ahmad Mohammad Salamatullah
2
1
Dairy Science Department, Faculty of Agriculture, Cairo University, Giza 12613, Egypt
2
Department of Food Science & Nutrition, College of Food and Agricultural Sciences, King Saud University, 11 P.O. Box 2460, Riyadh 11451, Saudi Arabia
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(22), 6853; https://doi.org/10.3390/molecules26226853
Submission received: 27 September 2021 / Revised: 2 November 2021 / Accepted: 8 November 2021 / Published: 13 November 2021
(This article belongs to the Special Issue Analysis of Bioactive Compounds in Food)
Browse Figure
Review Reports Versions Notes

Abstract

:
Eucalyptus (Eucalyptus camaldulensis) and Myrrh (Commiphora Myrrha) essential oils (EOs) stand out for their benefits in terms of health and functionality. Buffalo set yogurt enriched with different concentrations of EOs (0.3, 0.6, and 0.9%) were investigated. The effects of addition on sensory, syneresis, antibacterial activity, and bioactive properties (total phenol content and antioxidant activity) of yogurt were studied. The most acceptable organoleptic properties of treated yogurt were those samples treated with Eucalyptus oil. The levels of syneresis were decreased by increasing the concentration of EOs. Moreover, the antioxidant activity, antibacterial activity, and total phenolic content were enhanced by increasing the concentration of EOs. Yogurt with 0.9% Eucalyptus oil showed the highest antioxidant activity and total phenolic content. The same concentration of Eucalyptus oil showed the highest antibacterial activity against S. typhimurium (the inhibition zone was 20.63 mm) then E. coli (the inhibition zone was 19.43 mm). On the other hand, the highest antibacterial effect against L. monocytogene was for Myrrh oil-enriched yogurt by 0.9% and the inhibition zone was 19.21 mm. The obtained results showed that Eucalyptus and Myrrh oils can be applied to yogurt to improve its beneficial properties in terms of physical characteristics and for human health due to their antioxidant activity and phenolic materials.

1. Introduction

Functional yogurt plays an important role in human nutrition due to its content of proteins, lactose, calcium, and water-soluble vitamins [1]. In general, milk and its derivatives are not seen as a rich source of phenolic components [2]. Over the last few years, some functional milk products have been produced using fortification and enrichment, as consumers need good tasting nutritious foods [3]. Yogurt has thus begun to draw new customer groups because of its good taste and enhanced health benefits [4]. To enhance the quality of newly designed functional food products, which are foods that have a potentially positive effect on health beyond basic nutrition, food fortification is defined by the inclusion of one or more components regardless of their natural presence in food (since they occur naturally in food products) [5]. Essential oils (EOs) are often used in the food industry and are used for flavor, aromatherapy, additives, biopesticides, and pharmaceuticals because of their strong bioactivity, aromatic features, and many biological activities [6]. Chemical preservatives cannot eliminate several pathogenic bacteria, such as Listeria monocytogenes (Murray et al., 1926; Pirie, 1940), in food products or delay the growth of spoilage microorganisms [7]. Myrrh is a wholesome, natural flavors product approved by the US Administration for Food and Drugs (FDA, 2018; 21CFR172.510). Commiphora Myrrha (T. Nees) Engl. (common name: Myrrh) comes from Burseraceae family [8]. Extracts from various plant types were used as flavoring and seasoning agents in foodstuffs and beverages and as food preservatives in ancient times. Myrrh adds a typical taste and its antioxidant, bacteriostatic, and bactericidal effects enhance food storage [9]. It is also antibacterial and is used for many conditions. It also demonstrates significant inhibitory activity against Salmonella entericaserovar typhimirium [10]. Because sesquiterpenes are present in Myrrh, it possesses antibacterial and antimicrobial effects. Michie and Cooper [11] reported that in 1100bc Myrrh was used for the first time in the treatment of infected teeth and gut worms by Sumerians [12]. The Egyptians used Myrrh in ancient times to embalm. Myrrh oil has been used for several years to treat skin injuries and fungal infections caused by Candida albicans and Tineapedis [13]. Myrrh is an herbal product that has been used since ancient times for traditional medication and other purposes and it is safe to use and not poisonous to people [14]. In addition, it is generally recognized as a safe (GRAS) assessment program of the Flavor and Extract Manufacturers Association (FEMA) of the United States [15]. Different species of genus Eucalyptus L’Hér oil are used in the food, toiletries, pharmaceuticals, and cosmetics industries, and these applications are due to the anti-inflammatory, antioxidant antiseptic, flavoring, and antihyperglycemic properties of the molecules that are present in the oil [16]. A few studies investigated their activity against pathogenic and food spoilage bacteria [17]. Eucalyptus oil in Western civilization has been used as an expectorant for colds and coughs as well as a disinfectant for skin, myalgias liniment, and a counterirritant [18]. It has been found that the activity of antimicrobial Eucalyptus oils can differ significantly within microbial strains and species [19]. In a natural habitat, the buffalo grazing is a determinant of soil and vegetation that can affect the structure and function of vegetation coverage in many ways [20], for which it is necessary to establish a grazing plan [21,22] and crucial management actions which have effects on the antioxidant activity and chemical composition of the final product, such as yogurt and milk, while a confined environment plays a crucial role in the food provided by the farmer. Industrial milk processing is supplied by both big and small intensive farms working with cattle from various origins: specialized dairy breeds under advantageous environmental conditions, such as irrigated schemes with consistent green fodder supply [23]. To the best of our knowledge, this is the first work applying buffalo yogurt using both Eucalyptus and Myrrh oils to improve the physical characteristics due to their antioxidant activity and to extend the shelf life of the resultant yogurt. The study’s main goal was to examine the influence of Eucalyptus and Myrrh oil in various ratios of the yogurt’s functional properties. The impact of these concentrations on the antimicrobial, chemical, physical and sensory properties of the resultant yogurt was investigated as well as the antioxidant activity.

2. Materials and Methods

2.1. Materials

Fresh buffalo milk used in yogurt manufacturing was obtained from the herd of the Faculty of Agriculture, Cairo University, Giza, Egypt. The starter cultures starter culture consists of a 50:50 mixture of Lactobacillus delbrueckii subsp. bulgaricus and Streptococcus salivarius subsp. Thermophilus were obtained from Chr. Hansen, Hoersholm, Denmark. Eucalyptus and Myrrh essential oils were purchased from the Primagricu company, Benisuef, Egypt.

2.2. Methods

2.2.1. GC-MS Identification of Eucalyptus and Myrrh Oils Individual Compounds

The identification of Eucalyptus and Myrrh oil compounds was carried out using gas chromatography (Agilent Hewlett-Packard 6890, Agilent Technologies, Santa Clara, CA, USA) coupled with a mass spectrometer detector (MSD) (Agilent Technologies 5973N, Santa Clara, CA, USA). The method of identification was according to that described in [24,25]. To determine the compounds, Spectra was used for the identity of unknown compounds with the National Standards Institute of Technology (NIST, 98). Relative percentage amounts from GC-MS were measured using a commercial MS library (NIST98). The percentage values were the average of three sample injections.

2.2.2. Yogurt Manufacturing

The homogenized buffalo milk used had 6.1% fat, 3.5 ± 0.3% protein, and 84.3 ± 0.2% moisture. Homogenization of all the batches was carried out at 60 °C in a two-stage homogenizer (M/S Goma Engineers, Mumbai, India) with 1000 and 500 psi pressures at the first and second stages, respectively. The milk was heat-treated at 85 °C for 10 min, then cooled to 45 °C. The milk was divided into seven equal parts (C, E1, E2, E3, M1, M2, and M3). The first part was a control (C) with no EOs oil, and the three treatments were generated with various concentrations of Eucalyptus oil (0.3%, 0.6%, and 0.9%) referred to as E1, E2, and E3, respectively, and the other three treatments were generated with various concentrations of Myrrh oil (0.3%, 0.6%, and 0.9%) referred to as M1, M2, and M3, respectively, which were added before homogenization. These three concentrations were used after manufacturing the different formulations of yogurt and a preliminary sensory evaluation study was conducted to select the best formulations that will be used throughout the experiment. It was then inoculated into the processing vat at a concentration of 2% with yogurt starter cultures (50:50 mixture of Lactobacillus delbrueckii subsp. bulgaricus and Streptococcus salivarius subsp. Thermophilus). Starter cultures were prepared by cultivation in 10% nonfat dry milk, autoclaved at 115 °C for 15 min, inoculated under sterile conditions, incubated at 42 °C, and kept in a refrigerator at 4 °C until use. Then, the inoculated milk was incubated at 42 °C. Once the pH reached 4.6, which was controlled by sampling either in the fermentation tanks or directly in cups, the yogurt was packaged in covered plastic cups and was cooled down to 4–5 °C.

2.2.3. Physical and Chemical Analysis of Yogurt

Dry matter and fat content were calculated using official AOAC [26] techniques in samples of milk and various milk products. A laboratory pH meter was used to read the pH values (HI 93 1400, Hanna instruments, Smithfield, RI, USA). All measurements were carried out in triplicate.

2.2.4. Determination of Whey Syneresis

A 100 mL yogurt sample was weighed on a filter paper placed over a funnel, which measured Syneresis’ susceptibility to yogurt. The quantity of the whey collected in a beaker was calculated following 1 h of drainage and was used as a syneresis index. [27]. For the measurement of syneresis, the following formula was used:
Syneresis % = (W1 × 100)/W2
where: W1 = weight of whey collected after drainage; W2 = weight of yogurt sample. All measurements were carried out in triplicate.

2.2.5. Sensory Evaluation

A random selection of yogurt samples was evaluated for availability, surface smoothness, mouthfeel, and texture (soft, grain, springiness), flavor, and taste (sweetness, aroma), and overall admissibility by members of the department of dairy science of the faculty of agriculture at Cairo University. All these trained panelists (15 people) were experts and were chosen based on their desire to participate and their knowledge about dairy products. They were frequent yogurt consumers and did not have any allergies to it. Plain- and fortified-yogurt samples were presented in plastic coded (three-digit random codes) cups. Each cup contains 50 mL of yogurt samples that were freshly removed from the refrigerator. According to [28], the yogurt samples were evaluated on a nine-point scale for appearance, mouth feels, texture, flavor, and overall acceptability.

2.2.6. Total Phenolic Content

The microscale Folin–Ciocalteau method was used to calculate total phenolic content [29]. Gallic acid standards, samples (1.58 mL), or blanks of water were mixed in the cuvette and allowed to stand at room temperature for 8 min with 100 μL Folin–Ciocalteau reagent. A 20% Na2CO3 (200 μL) solution was added. Sample and standard absorption were tested at 765 nm. The gallic acid equivalents based upon a gallic acid standard curve were measured as total phenolic using a UV/Vis. Spectrophotometer (Jenway, Staffordshire, ST15 OSA, UK).

2.2.7. Radical Scavenging Activity

Radical scavenging activity was carried out according to [30,31]. In brief, water-soluble extract (WSE) was prepared in 0.1 M sodium phosphate buffer, pH 7.0, containing 1% (wt/vol) Triton X-100, and 2,2-diphenyl-1-picrylhydrazyl (DPPH; 100 μM) was prepared in organic solvent (methanol). An aliquot (1.5 mL) of WSE (sample) or 1.5 mL of buffer (control) was mixed with 1.5 mL of DPPH solution and was left in the recommended condition in the dark at room temperature for 30 min. Then the absorption of the solution by spectrophotometer was measured at 517 nm. The decreasing percentage of absorbance of the sample relative to the control was calculated as the relative scavenging activity [32].

2.2.8. Antibacterial Activity

To obtain the yogurt supernatant, samples were centrifuged (Centrifuge version C-28 AC BOECO, Hamburg, Germany) at 4000× g for 30 min at 4 °C [29]. The supernatants obtained were filtered with the 0.45-μm diameter millipore membrane filter and were stored at −20 °C for further analysis (antibacterial activity).
The supernatant filters were used to assess the antibacterial efficacy of certain pathogens (E. coli ATCC35218, L. monocytogenes ATCC19115, and S. typhimurium ATCC14028) according to [29] using an agar well diffusion assay. A diluted sample of 100 μL of yogurt supernatant was distributed on agar plates. The inhibition zone was measured after incubation at 37 °C/24–48 h. The bacterial activity was expressed as the inhibition zone (mm). Each test was conducted three times.

2.2.9. Statistical Analysis

The obtained data were statistically analyzed using two-way ANOVA using MSTAT-C software to assess the significant differences (p < 0.05) between the means of samples and the storage period. All data were presented as a mean ± standard deviation of three replicates. The means of results were compared by the Tukey test with a confidence interval set at 95%.

3. Results and Discussions

3.1. GC-MS of EOs

GC/MS analysis of Eucalyptus and Myrrh oils allowed the identification of different compounds (Table 1). For Myrrh oil, the analysis allowed the identification of 12 compounds reflecting 99.99% of the essential oil. The major compounds identified in Myrrh oil are presented in Table 1. Results indicate a significant amount of the major constituents identified in the Myrrh oil (10.6%, 7.4%, 18.4%, 23.4%, and 6.2%) for elements, Germacrene B and D, isofuranogermacrene, Furanodieneb, Furanoeudesma-1,3-diene, Lindestrene, and 2-acetoxyfuranodiene., respectively. Some previous studies reported by [33] found that the major compounds identified in Myrrh resin were 2-acetoxyfuranodiene (9.80%), furanoeudesma-,3-diene (8.97%), isofuranoger macrene (6.71%), and epicurzerenone (3.643%), followed by 2- methoxyfuranodiene (2.97%) and lindestrene (2.74%). In the same context, its main components, identified and quantified by GC/MS, were furanoeudesma-1,3-diene, 34.9%; lindestrene, 12.9%; curzerene, 8.5%; and germacrone, 5.8% [34]. It was noted that there are some differences, whether in the proportion of Myrrh compounds or their types, this could be due to the type of plant or the environment. For Eucalyptus oil, the major chemical composition of the Eucalyptus camaldulensis essential oil grown in northern Egypt is α- pinene (24.83%), 1,8-cineol (47.8%), Terpineol alpha (5.55%), pinocarveol (3.42%), 4-terpineol (1.66%), Trans-Pinocarveol (7.34%) and Pinacarvone (4.11%).

3.2. Sensory Evaluation

Table 2 shows the average sensory assessment scores for plain and fortified yogurt with Myrrh oil on days 1 and 14 of refrigerated storage. In terms of sensory characteristics, the yogurt samples vary in appearance, mouthfeel, texture, flavor, and overall acceptability. The plain sample had the best sensory qualities on the first day. However, at the end of storage (day 14) the control group’s scores for mouthfeel, appearance, texture, and overall acceptability decreased. All the sensory properties of yogurt fortified with Myrrh oil decreased after 14 days of refrigerated storage at 4 °C, which is likely due to a drop in aromatic components in yogurt. However, yogurt fortified with Eucalyptus oil was more acceptable than yogurt fortified with Myrrh oil. Other yogurt types remained unchanged. Other sensory indices (plain yogurt, yogurt fortified EOs) decreased with storage to day 14, but not significantly (p < 0.05) compared to day 1. According to [35], the acetaldehyde content of yogurt decreases throughout the storage period. This lower score may be due to an increase in the acidity of the yogurt, which could prevent the release of aromatic components [36]. The results showed that storage time influenced yogurt sensory characteristics and that all sensory attributes decreased in all types. In addition, yogurt fortified with Eucalyptus oil has more acceptability than yogurt fortified with Myrrh oil.

3.3. Physicochemical Analysis

The findings from the chemical analysis of yogurt samples are shown in Table 3. It was observed that there were no significant differences due to the addition of oils in different concentrations to the total solids (TS) of yogurt samples. In addition, there are no big differences between it and the control. Dhawi et al. [29] stated that the mass fraction of total dry matter in yogurt samples with plant extract was lower than that without extract. In this study, the TS content of EOs-enriched yogurt samples was found to be higher than regulated, whereas when fortified with 0.9% Eos, the highest dry matter rate was reported for both types of oils. In addition, these are aligned with the findings of [37], who reported that yogurt supplemented with peanut skin extract has a higher percentage of TS. Regarding the pH of yogurt samples, it decreased linearly during the storage period in yogurt samples. EOs-enriched yogurt samples containing 0.9% exhibited significantly (p < 0.05) higher pH than the other samples and yogurt enriched with Eucalyptus oil has the highest value of 4.70. It was found that the pH ranged from 4.67 to 4.70 in all treatments of yogurt fortified with peanut skin and, during cold storage, the pH values are decreased in all treatments to reach 4.42 with significant differences between treatments [38].

3.4. Whey Syneresis

Table 3 summarizes the syneresis percentage of yogurt. For the control samples, the syneresis (%) of the yogurts after 4 °C ranged from 9.84% to 12.43%. However, by increasing the concentration of Eos, the syneresis percentage was decreased. Syneresis percentage ranged between 8.44% and 10.83% for Eucalyptus oil and ranged between 8.12% and 11.33% for Myrrh oil. Syneresis% was increased by storage period in all types of yogurts. Throughout the storage period, the percentage of wheying-off was higher in control samples than in other treatments. The propensity to syneresis was lower in yogurt fortified with various concentrations of Myrrh oil (0.9%) than in control yogurt and yogurt fortified with Eucalyptus oil. The lower syneresis of yogurt fortified with Myrrh oil may be explained by the higher solid content (Table 3). Low-solid yogurts have a higher degree of syneresis than high-solid yogurts [36,37,39].

3.5. Total Phenolic Content (TPC)

Table 4 summarizes the TPC in water extracts of control and yogurt fortified with various concentrations of EOs. According to the current findings, the highest phenolic content was found in yogurt fortified with different concentrations of EOs, accompanied by lower concentrations of Myrrh oil, and finally the control sample. TPC levels in yogurt fortified with EOs before bacterial fermentation was higher than in the control sample. However, after two weeks of storage, TPC decreased in all kinds of yogurt to be 5.12, 15.45, 23.58, 26.35, 14.31, 22.63, and 25.33 for control—E1, E2, E3, M1, M2, and M3, respectively. As previously stated in previous studies, this was linked to the milk polyphenol interaction [40]. The formation and degradation of polyphenolic compounds were observed during the fermentation of milk by yogurt bacteria [41].

3.6. Antioxidant Activity

DPPH methods have been used to assess antioxidant activity in this analysis. Fresh control yogurt showed the lowest antioxidant activity value (Table 4) as radical scavenging activity (RSA%). Adding EOs resulted in a higher RSA percentage ratio, which depends on the concentration. Yogurt with 0.9% oil showed the highest RSA percent values (75.58% and 71.21% for E3 and M3, respectively) in fresh samples, while the control yogurt had the least value (15.33%) on day 1 of storage. With cold storage of control samples and fortified treatments (E1, E2, E3, M1, M2, and M3), the RSA percent decreased even with the highest RSA percentage values to be 13.82%, 45.11%, 56.84%, 67.45%, 43.72%, 53.21%, and 63.21% for control, E1, E2, E3, M1, M2, and M3, respectively). It is due to their hydrogen-donating or electronic potential that the antioxidant affects radical DPPH scavenging [42]. All EOs-rich yogurts were found to display an improvement in the percentage of RSA compared to plain yogurt, and the concentration of Eucalyptus oil has more RSA than Myrrh oil. Eucalyptus oil has been used in pharmaceutical products and traditional medicine and is also used as a flavoring agent in food products due to its desirable flavor, antioxidant activities, and antimicrobial activities [43]. Data from [44,45] showed that fortified yogurt has been used to investigate the function of antioxidants with the radical scavenging system of DPPH and its different types of natural ingredients. When compared to plain yogurt, all kinds of EOs-enriched yogurts display a higher antioxidant activity.

3.7. Antibacterial Activity

The antibacterial activity was measured using the agar well diffusion method, and the results were expressed as inhibition zone diameter (mm) (Figure 1). Antibacterial activity of yogurt enriched with EOs was significantly higher (p < 0.05) against E. coli, Salmonella typhimurium, and Listeria monocytogene. Yogurt enriched with 0.9% Eucalyptus oil showed the highest antibacterial activity against S. typhimurium (the inhibition zone was 20.63 mm) then E. coli (the inhibition zone was 19.43 mm). On the other hand, the highest antibacterial effect against L. monocytogene was for M3 and the inhibition zone was 19.21 mm. Essential oils extracted from different plants had antibacterial and antifungal properties. In the same way, [46] reported that significant growth-inhibiting effects on Gram-positive (E. coli) and Gram-negative bacteria (S. aureus) have been observed because of Eucalyptus oil. Reference [47] mentioned that the addition of 1.0 g/L from anise essential oil and oleoresin is influential in controlling the growth of spoilage microorganisms in all samples of yogurt. Finally, [48] found that the essential oils were effective in inhibiting the growth of spoilage microorganisms in yogurt. This could be due to the addition of Eucalyptus and Myrrh oil, which had antibacterial activities versus a wide range of mold, yeast, and pathogenic bacteria.

4. Conclusions

Fortifying yogurt with essential oils is of great interest to improve its functionality and increase its shelf life. According to the obtained data, Eucalyptus and Myrrh oil can be used successfully in the manufacturing of yogurt. The additions of 0.3%, 0.6%, and 0.9% of EOs levels to yogurt improved its physicochemical properties and extended its shelf life with appropriate acceptability and sensory properties. Acidity and the lack of growth of pathogenic microorganisms were considered the significant factors influencing the acceptability and shelf life of yogurt. Furthermore, fortified yogurt with Eucalyptus and Myrrh oil can be considered a novel product with functional healthy properties. Certainly, the Eucalyptus and Myrrh oil can be considered a preservative agent used in yogurt to extend its shelf life while avoiding using chemical preservatives.

Author Contributions

Conceptualization, A.M.H. and A.A.A.; methodology, A.M.H.; software, A.E.A.-M.; validation, A.M.H.; formal analysis, A.E.A.-M.; investigation, A.M.S.; resources, A.M.S.; data curation, A.M.H.; writing—original draft preparation, A.A., A.M.H.; writing—review and editing, A.M.H., A.A., A.M.S.; visualization, A.M.S.; supervision, A.M.H.; project administration, A.A.; funding acquisition, A.M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

The authors extend their appreciation to the Deanship of Scientific Research at King Saud University for funding this work through research group no. RG-1441-360. In addition, the authors are thankful to the Department of dairy science and Cairo University Research Park, Faculty of Agriculture, Cairo University, for investigating this study.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Ozturkoglu-Budak, S.; Akal, C.; Yetisemiyen, A. Effect of dried nut fortification on functional, physicochemical, textural, and microbiological properties of yogurt. J. Dairy Sci. 2016, 99, 8511–8523. [Google Scholar] [CrossRef] [Green Version]
  2. Das, K.; Choudhary, R.; Thompson-Witrick, K.A. Effects of new technology on the current manufacturing process of yogurt-to increase the overall marketability of yogurt. LWT-Food Sci. Technol. 2019, 108, 69–80. [Google Scholar] [CrossRef]
  3. Chadare, F.J.; Idohou, R.; Nago, E.; Affonfere, M.; Agossadou, J.; Fassinou, T.K.; Kénou, C.; Honfo, S.; Azokpota, P.; Linnemann, A.R.; et al. Conventional and food-to-food fortification: An appraisal of past practices and lessons learned. Food Sci. Nutr. 2019, 7, 2781–2795. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Pereira, P.C. Milk nutritional composition and its role in human health. Nutrition 2014, 30, 619–627. [Google Scholar] [CrossRef]
  5. Öztürk, B. Nanoemulsions for food fortification with lipophilic vitamins: Production challenges, stability, and bioavailability. Eur. J. Lipid. Sci. Technol. 2017, 119, 1–18. [Google Scholar] [CrossRef]
  6. Rios, J.L.; Recio, M.C. Medicinal plants and antimicrobial activity. J. Ethnopharmacol. 2005, 100, 80–84. [Google Scholar] [CrossRef] [PubMed]
  7. Tajkarimi, M.M.; Ibrahim, S.A.; Cliver, D.O. Antimicrobial herb and spice compounds in food. Food Control. 2010, 21, 1199–1218. [Google Scholar] [CrossRef]
  8. Hanuš, L.O.; Řezanka, T.; Dembitsky, V.M.; Moussaief, A. Myrrh-Commiphora chemistry. Biomed. Pap. Med. Fac. Univ. Palacky Olomouc Czech. Repub 2005, 149, 3–27. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Kim, S.Y.; Kang, D.H.; Kim, J.K.; Ha, Y.G.; Hwang, J.Y.; Kim, T.; Lee, S.H. Antibacterial activity of plant extracts against Salmonella Typhimurium, Escherichia coliO157:H7, and Listeria monocytogeneson fresh lettuce. J. Food Sci. 2011, 76, M41–M46. [Google Scholar] [CrossRef]
  10. Mohamed, A.G.; Abbas, H.M.; Kassem, J.M.; Gafour, W.A.; Attalah, A.G. Impact of Myrrh essential oil as a highly effective antibacterial agent in processed cheese spreads. Int. J. Dairy Sci. 2016, 11, 41–51. [Google Scholar] [CrossRef] [Green Version]
  11. Michie, C.A.; Cooper, E. Frankincense and Myrrh as remedies in children. J. R. Soc. Med. 1991, 84, 602–605. [Google Scholar]
  12. Stevenson, C.J. Aromatherapy in dermatology. Clin. Dermatol. 1998, l16, 689–694. [Google Scholar] [CrossRef]
  13. Rao, R.M.; Khan, Z.A.; Shah, A.H. Toxicity studies in mice of Commiphora molmololeo-gumresin. J. Ethnopharmacol. 2001, 76, 151–154. [Google Scholar] [CrossRef]
  14. El-Ashry, E.S.H.; Rashed, N.; Salama, O.M.; Saleh, A. Components, therapeutic value and uses of Myrrh. Pharmazie 2003, 58, 163–168. [Google Scholar] [PubMed]
  15. Kumar, T.A.; Bukvicki, D.; Gottardi, D.; Tabanelli, G.; Montanari, C.; Malik, A.; Guerzoni, M.E. Eucalyptus essential oil as a natural food preservative: In vivo and in vitro antiyeast potential. BioMed Res. Int. 2014, 2014, 969143. [Google Scholar]
  16. Khan, I.T.; Bule, M.; Rahman Ullah., M.N.; Asif, S.; Niaz, K. The antioxidant components of milk and their role in processing, ripening, and storage: Functional food. Vet. World 2019, 12, 12. [Google Scholar] [CrossRef] [Green Version]
  17. Moreira, M.R.; Ponce, A.G.; del Valle, C.E.; Roura, R.I. Inhibitory parameters of essential oils to reduce a food borne pathogen. Lebensm. Wiss. Technol. 2005, 38, 565–570. [Google Scholar] [CrossRef]
  18. Silva, J.; Abebe, W.; Sousa, S.M.; Duarte, V.G.; Machado, M.I.; Matos, F.J. Analgesic and anti-inflammatory effects of essential oils of Eucalyptus. J. Ethnopharmacol. 2003, 89, 277–283. [Google Scholar] [CrossRef]
  19. Dhakad, A.K.; Pandey, V.V.; Beg, S.; Rawat, J.M.; Singh, A. Biological, medicinal and toxicological significance of Eucalyptus leaf essential oil: A review. J. Sci. Food Agri. 2018, 98, 833–848. [Google Scholar] [CrossRef]
  20. Noy-Meir, I.; Gutman, M.; Kaplan, Y. Responses of Mediterranean grassland plants to grazing and protection. Ecology 1989, 77, 290–310. [Google Scholar] [CrossRef]
  21. Perrino, E.V.; Magazzini, P.; Musarella, C.M. Management of grazing “buffalo” to preserve habitats by Directive 92/43 EEC in a wetland protected area of the Mediterranean coast: PaludeFrattarolo, Apulia, Italy. EuroMediterr. J. Environ. Integr. 2021, 6, 32. [Google Scholar] [CrossRef]
  22. Bell, L.W.; Moore, A.D.; Kirkegaard, J.A. Evolution of crop–livestock integration systems that improve farm productivity and environmental performance in Australia. Agron. J. 2013, 57, 10–20. [Google Scholar] [CrossRef]
  23. Sraïri, M.T.; Benhouda, H.; Kuper, M.; Le Gal, P.Y. Effect of cattle management practices on raw milk quality on farms operating in a two-stage dairy chain. Trop. Anim. Health Prod. 2009, 41, 259–272. [Google Scholar] [CrossRef] [PubMed]
  24. Hamed, A.M.; Aborass, M.; El-Kafrawy, I.; Safwat, G. Comparative study for the detection of Egyptian buffalo butter adulteration with vegetable oils using conventional and advanced methods. J. Food Saf. 2019, 39, e12655. [Google Scholar] [CrossRef]
  25. Farag, M.A.; Wessjohann, L.A. Volatiles profiling in medicinal licorice roots using steam distillation and solid-phase microextraction (SPME) coupled to chemometrics. J. Food Sci. 2012, 77, C1179–C1184. [Google Scholar] [CrossRef]
  26. AOAC. Official Methods of Analysis, 20th ed.; Association of Official Analytical Chemists: Gaithersburg, MD, USA, 2007. [Google Scholar]
  27. Joel, I.; Guonong, Z. Production and evaluation of some physicochemical parameters of peanut milk yogurt. LWT—Food Sci. Technol. 2009, 42, 1132–1138. [Google Scholar]
  28. Abdel-Hamid, M.; Huang, Z.; Suzuki, T.; Enomoto, T.; Hamed, A.M.; Li, L.; Romeih, E. Development of a Multifunction Set Yogurt Using Rubus suavissimus S. Lee (Chinese Sweet Tea) Extract. Foods 2020, 9, 1163. [Google Scholar] [CrossRef]
  29. Dhawi, F.; El-Beltagi, H.S.; Aly, E.; Hamed, A.M. Antioxidant, Antibacterial Activities and Mineral Content of Buffalo Yoghurt Fortified with Fenugreek and Moringa oleifera Seed Flours. Foods 2020, 9, 1157. [Google Scholar] [CrossRef] [PubMed]
  30. Waterhouse, A.L. Determination of total phenolics. In Handbook of Food Analytical Chemistry: Pigments, Colorants, Flavors, Texture, and Bioactive Food Components; Wrolstad, R.E., Acree, T.E., Decker, E.A., Penner, M.H., Reid, D.S., Schwartz, S.J., Shoemaker, C.F., Smith, D., Sporns, P., Eds.; John Wiley & Sons: Hoboken, NJ, USA, 2005; pp. 463–470. [Google Scholar]
  31. Huang, L.; Goda, H.A.; Abdel-Hamid, M.; Renye, J.J.A.; Yang, P.; Huang, Z.; Li, L. Partial characterization of probiotic lactic acid bacteria isolated from Chinese dairy products. Int. J. Food Prop. 2021, 24, 446–456. [Google Scholar] [CrossRef]
  32. Sanlidrer, A.; Öner, Z. Determination of antioxidant activity of bioactive peptide fractions obtained from yogurt. J. Dairy Sci. 2011, 94, 5305–5314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Hanuš, L.O.; Rosenthal, D.; Řezanka, T.; Dembitsky, V.M.; Moussaief, A. Fast and easy GC/MS identification of Myrrh resins. Pharma. Chem. J. 2008, 42, 719–720. [Google Scholar] [CrossRef]
  34. Marongiu, B.; Piras, A.; Porcedda, S.; Scorciapino, A. Chemical composition of the essential oil and supercritical CO2 extract of Commiphora myrrha (Nees) Engl. and of Acorus calamus L. J. Agri. Food Chem. 2005, 53, 7939–7943. [Google Scholar] [CrossRef] [PubMed]
  35. Hassan, L.K.; Haggag, H.F.; ElKalyoubi, M.H.; Abd EL-Aziz, M.; El-Sayed, M.M.; Sayed, A.F. Physico- chemical properties of yogurt containing cress seed mucilage or guar gum. Ann. Agric.Sci. 2015, 60, 21–28. [Google Scholar] [CrossRef] [Green Version]
  36. Basiri, S.; Haidary, N.; Shekarforoush, S.S.; Niakousari, M. Flaxseed mucilage: A natural stabilizer in stirred yogurt. Carbohydr. Polym. 2018, 187, 59–65. [Google Scholar] [CrossRef]
  37. Ghalem, B.R.; Zouaoui, B. Evaluation of the quality of steamed yogurt treated by Lavandula and Chamaemelum speciesessential oils. J. Med. Plant. Res. 2013, 7, 3121–3126. [Google Scholar]
  38. Hamed, A.M.; Taha, S.H.; Darwish, A.A.; Aly, E. Antioxidant activity and some quality characteristics of buffalo yoghurt fortified with peanut skin extract powder. J. Food Sci. Technol. 2021, 58, 2431–2440. [Google Scholar] [CrossRef]
  39. Staff, M.C. Cultured milk and fresh cheese. In The Technology of Dairy Products; Early, R., Ed.; Chapman and Hall: New York, NY, USA, 1998; pp. 123–157. [Google Scholar]
  40. Dubeau, S.; Samson, G.; Tajmir-Riahi, H. Dual effects of milk on the antioxidant capacity of green: Darjeeling and English breakfast teas. Food Chem. 2010, 122, 539–545. [Google Scholar] [CrossRef]
  41. Muniandy, P.; Shori, A.B.; Baba, A.S. Influence of green, white and black tea addition on the antioxidant activity of probiotic yogurt during refrigerated storage. Food Packag. Shelf Life 2016, 8, 1–8. [Google Scholar] [CrossRef]
  42. Bandonian, D.; Murkovic, M. The detection of radical scavenging compounds in crude extract of borage (Boragoofficinalis, L.) by using an on-line HPLC-DPPH method. J. Biochem. Biophys. Methods. 2002, 53, 45–49. [Google Scholar] [CrossRef]
  43. Rodriguez-Garcia, I.; Silva-Espinoza, B.A.; Ortega-Ramirez, L.A.; Leyva, J.M.; Siddiqui, M.W.; Cruz-Valenzuela, M.R.; Gonzalez-Aguilar, G.A.; Ayala-Zavala, J.F. Oregano essential oil as an antimicrobial and antioxidant additive in food products. Crit. Rev. Food Sci. Nutr. 2016, 56, 717–727. [Google Scholar] [CrossRef]
  44. Zainoldin, K.H.; Baba, A.S. The Effect of Hylocereus polyrhizus and Hylocereus undatus on physicochemical, proteolysis, and antioxidant activity in yogurt. Int. J. Med. Sci. 2010, 1, 93–98. [Google Scholar]
  45. El Sayed, E.M.; Hamed, A.M.; Badran, S.M.; Mostafa, A.A. A survey of selective essential and toxic metals in milk in different regions of Egypt using ICP-AES. Int. J. Dairy Sci. 2011, 6, 158–164. [Google Scholar] [CrossRef]
  46. Bachir, R.G.; Benali, M. Antibacterial activity of the essential oils from the leaves of Eucalyptus globulus against Escherichia coli and Staphylococcus aureus. Asian Pac. J. Trop. Biomed. 2012, 2, 739–742. [Google Scholar] [CrossRef] [Green Version]
  47. Singh, G.; Kapoor, I.P.S.; Singh, P. Effect of volatile oil and oleoresin of anise on the shelf life of yogurt. J. Food Process. Preserv. 2011, 35, 778–783. [Google Scholar] [CrossRef]
  48. Yangilar, F.; Yildiz, P.O. Effects of using combined essential oils on quality parameters of bio-yogurt. J. Food Process. Preserv. 2017, 41, 1–9. [Google Scholar] [CrossRef]
Molecules 26 06853 g001 550

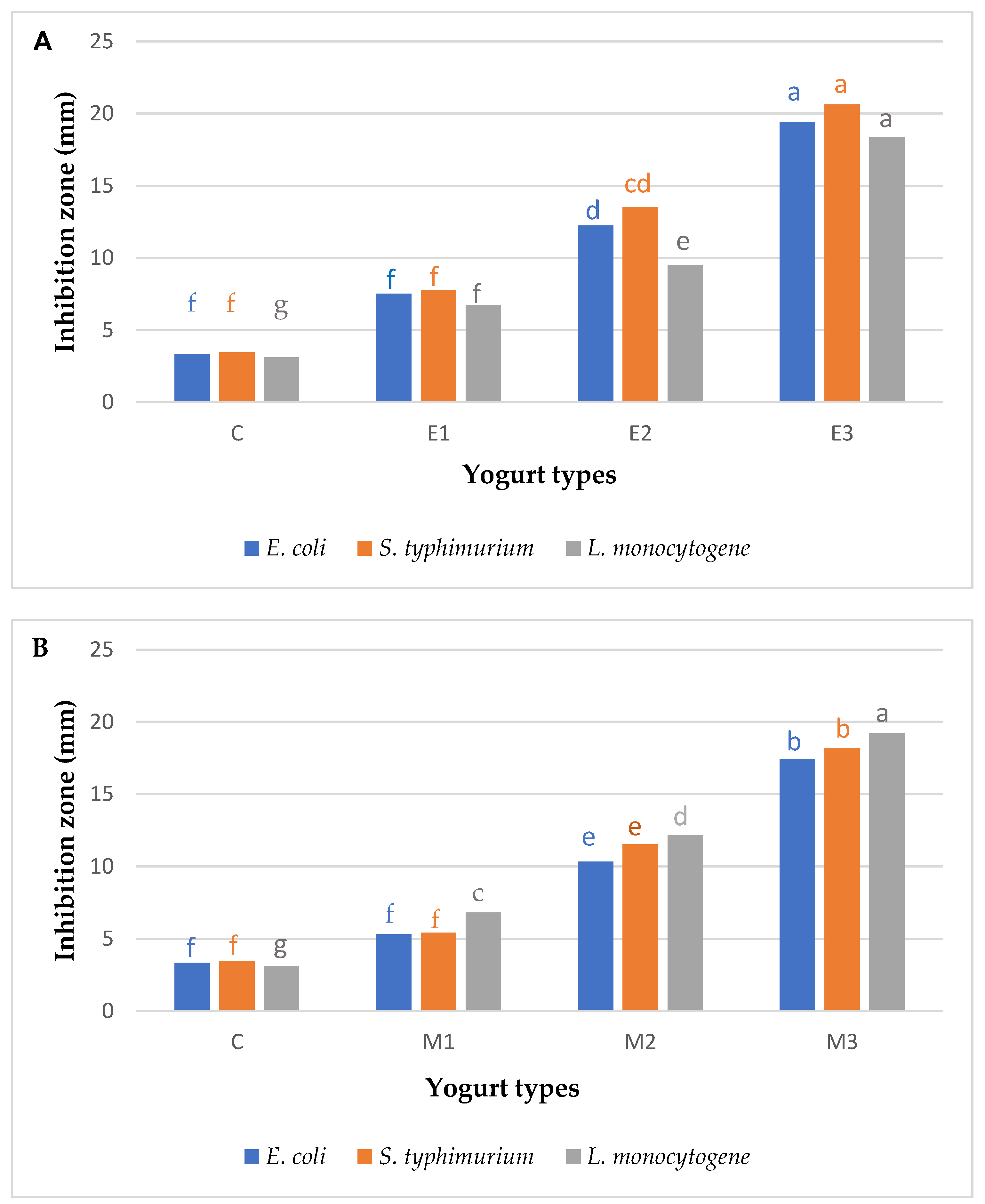

Figure 1. Antibacterial activity of plain yogurts and yogurts supplemented with Eucalyptus (A) and Myrrh (B) oil during cold storage. C: plain yogurt, E1: yogurt fortified with 0.3% Eucalyptus oil, E2: yogurt fortified with 0.6%, Eucalyptus oil, E3: yogurt fortified with 0.9% Eucalyptus oil, M1: yogurt fortified with 0.3% Myrrh oil, M2: yogurt fortified with 0.6%, Myrrh oil, M3: yogurt fortified with 0.9% Myrrh oil. Mean ± SD with different superscripts (small alphabet a, b, c, d, e, f, and g) differ significantly (p < 0.5).
Figure 1. Antibacterial activity of plain yogurts and yogurts supplemented with Eucalyptus (A) and Myrrh (B) oil during cold storage. C: plain yogurt, E1: yogurt fortified with 0.3% Eucalyptus oil, E2: yogurt fortified with 0.6%, Eucalyptus oil, E3: yogurt fortified with 0.9% Eucalyptus oil, M1: yogurt fortified with 0.3% Myrrh oil, M2: yogurt fortified with 0.6%, Myrrh oil, M3: yogurt fortified with 0.9% Myrrh oil. Mean ± SD with different superscripts (small alphabet a, b, c, d, e, f, and g) differ significantly (p < 0.5).
Molecules 26 06853 g001
Table
Table 1. Content compounds identified (%) of Eucalyptus and Myrrh oil.
Table 1. Content compounds identified (%) of Eucalyptus and Myrrh oil.
Myrrh OilEucalyptus Oil
CompoundPercentage (%)CompoundPercentage %
1δ-elemene2.2α-pinene24.83
2β-elemene6.71,8-cineol47.8
3Germacrene B4.5Terpineol alpha5.55
4γ-elemene1.7pinocarveol3.42
5Germacrene D2.94-terpineol1.66
6isofuranogermacrene18.4Trans-Pinocarveol7.34
7T-cadinol2.9alpha-terpinyl acetate1.54
8Furanodiene21.3Limonene1.2
9Furanoeudesma-1,3-diene23.4Pinacarvone4.11
10Lindestrene7.5Guaiene1.53
112-methoxyfuranodiene2.3Spathulenol1.02
122-acetoxyfuranodiene6.2
Table
Table 2. The average scores for sensory evaluation of plain and fortified yogurt with Eucalyptus and Myrrh oil.
Table 2. The average scores for sensory evaluation of plain and fortified yogurt with Eucalyptus and Myrrh oil.
TreatmentStorage TimeAppearanceMouthfeelTextureFlavorOverall
Acceptability
CD19.6 ± 0.10 A9.2 ± 0.10 A9.4 ± 0.10 A9.3 ± 0.10 A9.4 A
D 149.4 ± 0.10 AB9.2 ± 0.10 A9.2 ± 0.10 A9.1 ± 0.09 AB9.2 B
E1D19.8 ± 0.10 A9.6 ± 0.10A9.4 ± 0.10 A9.5 ± 0.10 A9.6 A
D 149.6 ± 0.10 AB9.4 ± 0.10 A9.6 ± 0.10 A9.3 ± 0.09 AB9.5 A
E2D19.4 ± 0.09 AB8.9 ± 0.09 A8.9 ± 0.09 A8.7 ± 0.09 AB9.0 C
D 148.8 ± 0.09 AB8.4 ± 0.08 A9.1 ± 0.10 A8.5 ± 0.08 B8.7 C
E3D18.7 ± 0.09 AB8.5 ± 0.09 A9.3 ± 0.10 A8.6 ± 0.09 AB8.8 C
D 148.5 ± 0.09AB8.4 ± 0.08 A9.2 ± 0.09 A8.5 ± 0.09 AB8.7 C
M1D19.0 ± 0.09 AB8.6 ± 0.09 A8.6 ± 0.09 A8.4 ± 0.09 AB88 C
D 148.2 ± 0.09 AB8.1 ± 0.08 A8.9 ± 0.10 A8.1 ± 0.08B8.4 E
M2D18.2 ± 0.09 AB8.2 ± 0.09 A9.2 ± 0.10 A8.3 ± 0.09 AB8.6 D
D 148.2 ± 0.09 AB8.0 ± 0.08 A8.8 ± 0.09 A8.2 ± 0.09 AB8.4 E
M3D18.6 ± 0.09 AB8.8 ± 0.09 A9.1 ± 0.09 A8.3 ± 0.09 AB8.8 C
D 148.0 ± 0.08 B8.4 ± 0.09 A8.8 ± 0.09 A8.2 ± 0.09 AB8.4 E
C: plain yogurt, E1: yogurt fortified with 0.3% Eucalyptus oil, E2: yogurt fortified with 0.6%, Eucalyptus oil, E3: yogurt fortified with 0.9% Eucalyptus oil, M1: yogurt fortified with 0.3% Myrrh oil, M2: yogurt fortified with 0.6%, Myrrh oil, M3: yogurt fortified with 0.9% Myrrh oil. Values are mean ± SD of three independent replicates. Means with different superscripts (A, AB, B, C, D and E) are significantly different (p < 0.05).
Table
Table 3. Total solids (TS) %, pH, and Syneresis volume (%) of yogurt samples during storage at 4 °C.
Table 3. Total solids (TS) %, pH, and Syneresis volume (%) of yogurt samples during storage at 4 °C.
TreatmentTS (%)pHSyneresis (%)
d 1d 7d 14d 1d 7d 14d 1d 7d 14
C16.8 ± 0.32 ab17.1 ± 0.75a17.2 ± 0.61 a4.55 ± 0.1 b4.43 ± 0.14 b4.42 ± 0.13 b9.84 ± 0.62 f11.33 ± 0.71 b12.43 ± 0.78 a
E117.1 ± 0.02 a17.3 ± 0.53 a17.5 ± 0.51 a4.64 ± 0.1 a4.56 ± 0.1 b4.55 ± 0.13 b8.72 ± 0.5 j9.61 ± 0.60 g10.83 ± 0.68 b
E217.3 ± 0.64 a17.4 ± 0.42 a17.6 ± 0.61 a4.68 ± 0.15 a4.63 ± 0.14 a4.61 ± 0.14a8.65 ± 0.52 k8.66 ± 0.54 j10.2 ± 0.63 e
E317.2 ± 0.33 a17.4 ± 0.54 ac17.5 ± 0.12 a4.70 ± 0.15 a4.58 ± 0.14 b4.53 ± 0.14 b8.44 ± 0.55 h9.50 ± 0.60 e9.75 ± 0.68 e
M117.0 ± 0.42 ab17.2 ± 0.42 a17.3 ± 0.41 a4.58 ± 0.15 b4.47 ± 0.14 b4.44 ± 0.13 b9.12 ± 0.58 h9.89 ± 0.62 ef11.33 ± 0.71 b
M217.0 ± 0.42 a17.2 ± 0.52 a17.5 ± 0.61 a4.64 ± 0.15 a4.55 ± 0.15 b4.55 ± 0.14 b8.83 ± 0.57 i9.51 ± 0.60 g10.66 ± 0.67 d
M317.1 ± 0.42 a17.3 ± 0.51 a17.7 ± 0.81 a4.66 ± 0.15 a4.56 ± 0.15 b4.50 ± 0.14 b8.12 ± 23 h9.14 ± 21 e9.84 ± 51 e
C: plain yogurt, E1: yogurt fortified with 0.3% Eucalyptus oil, E2: yogurt fortified with 0.6%, Eucalyptus oil, E3: yogurt fortified with 0.9% Eucalyptus oil, M1: yogurt fortified with 0.3% Myrrh oil, M2: yogurt fortified with 0.6%, Myrrh oil, M3: yogurt fortified with 0.9% Myrrh oil. Values are mean ± SD of three independent replicates. Means with different superscripts (small alphabet a, b, c, d, e, f, g, h, i, ab, ac and ef) are significantly different (p < 0.05).
Table
Table 4. Total phenols (µg Gallic acid equivalent/g sample) & Antioxidant potential measured by DPPH radical scavenging activity.
Table 4. Total phenols (µg Gallic acid equivalent/g sample) & Antioxidant potential measured by DPPH radical scavenging activity.
TreatmentTotal Phenolic ContentAntioxidant Activity
d 1d 7d 14d 1d 7d 14
C7.12 ± 0.11 k6.22 ± 0.09 k5.12 ± 0.08 l15.33 ± 0.16 i14.44 ± 0.14 j13.82 ± 0.14 k
E120.47 ± 0.31 f17.16 ± 0.26 h15.45 ± 0.24 i52.33 ± 0.52 f49.1 ± 0.49 g45.11 ± 0.45 h
E228.60 ± 0.44 b25.48 ± 0.39 c23.58 ± 0.36 d73.12 ± 0.73 a62.04 ± 0.62 d56.84 ± 0.57 e
E330.37 ± 0.34 a28.36 ± 0.28 b26.35 ± 0.25 c75.58 ± 0.76 a72.9 ± 0.73 b67.45 ± 0.67 b
M118.21 ± 0.32 g16.32 ± 0.53 h14.31 ± 0.34 i50.11 ± 0.55 f46.21 ± 0.39 g43.72 ± 0.23 h
M226.21 ± 0.21 c23.32 ± 0.21 d22.63 ± 0.32 f69.21 ± 0.13 b59.92 ± 0.33 d53.21 ± 0.32 e
M328.53 ± 0.34 b26.22 ± 0.21 c25.33 ± 0.35 c71.21 ± 0.36 a69.01 ± 0.21 b63.21 ± 0.22 c
C: plain yogurt, E1: yogurt fortified with 0.3% Eucalyptus oil, E2: yogurt fortified with 0.6%, Eucalyptus oil, E3: yogurt fortified with 0.9% Eucalyptus oil, M1: yogurt fortified with 0.3% Myrrh oil, M2: yogurt fortified with 0.6%, Myrrh oil, M3: yogurt fortified with 0.9% Myrrh oil. Values are mean ± SD of three independent replicates. Means with different superscripts (small alphabet a, b, c, d, e, f, g, h, i, j, k and l) are significantly different (p < 0.05).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hamed, A.M.; Awad, A.A.; Abdel-Mobdy, A.E.; Alzahrani, A.; Salamatullah, A.M. Buffalo Yogurt Fortified with Eucalyptus (Eucalyptus camaldulensis) and Myrrh (Commiphora Myrrha) Essential Oils: New Insights into the Functional Properties and Extended Shelf Life. Molecules 2021, 26, 6853. https://doi.org/10.3390/molecules26226853

AMA Style

Hamed AM, Awad AA, Abdel-Mobdy AE, Alzahrani A, Salamatullah AM. Buffalo Yogurt Fortified with Eucalyptus (Eucalyptus camaldulensis) and Myrrh (Commiphora Myrrha) Essential Oils: New Insights into the Functional Properties and Extended Shelf Life. Molecules. 2021; 26(22):6853. https://doi.org/10.3390/molecules26226853

Chicago/Turabian Style

Hamed, Ahmed Mohamed, Awad A. Awad, Ahmed E. Abdel-Mobdy, Abdulhakeem Alzahrani, and Ahmad Mohammad Salamatullah. 2021. "Buffalo Yogurt Fortified with Eucalyptus (Eucalyptus camaldulensis) and Myrrh (Commiphora Myrrha) Essential Oils: New Insights into the Functional Properties and Extended Shelf Life" Molecules 26, no. 22: 6853. https://doi.org/10.3390/molecules26226853

APA Style

Hamed, A. M., Awad, A. A., Abdel-Mobdy, A. E., Alzahrani, A., & Salamatullah, A. M. (2021). Buffalo Yogurt Fortified with Eucalyptus (Eucalyptus camaldulensis) and Myrrh (Commiphora Myrrha) Essential Oils: New Insights into the Functional Properties and Extended Shelf Life. Molecules, 26(22), 6853. https://doi.org/10.3390/molecules26226853

Article Metrics

Back to TopTop
