Ferrocene-Labelled Electroactive Aptamer-Based Sensors (Aptasensors) for Glycated Haemoglobin

by
Xue-Qing Feng
1,2,†,
Yi Ju
1,2,†,
Wei-Tao Dou
3,*,
Qing Li
2,
Zhong-Gan Jin
2,
Xiao-Peng He
3,
Tony D. James
4,5,* and
Bang-Ce Ye
1,*
1
Laboratory of Biosystem and Microanalysis, State Key Laboratory of Bioreactor Engineering, East China University of Science and Technology, Shanghai 200237, China
2
Shanghai Center for Clinical Laboratory, Shanghai 200237, China
3
Key Laboratory for Advanced Materials and Joint International Research Laboratory of Precision Chemistry and Molecular Engineering, Feringa Nobel Prize Scientist Joint Research Center, Frontiers Center for Materiobiology and Dynamic Chemistry, School of Chemistry and Molecular Engineering, East China University of Science and Technology, 130 Meilong Rd., Shanghai 200237, China
4
Department of Chemistry, University of Bath, Bath BA2 7AY, UK
5
School of Chemistry and Chemical Engineering, Henan Normal University, Xinxiang 453007, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2021, 26(23), 7077; https://doi.org/10.3390/molecules26237077
Submission received: 16 October 2021 / Revised: 14 November 2021 / Accepted: 19 November 2021 / Published: 23 November 2021
(This article belongs to the Special Issue Recent Advances in Molecular Sensors)
Browse Figures
Versions Notes

Abstract

:
Glycated haemoglobin (HbA1c) is a diagnostic biomarker for type 2 diabetes. Traditional analytical methods for haemoglobin (Hb) detection rely on chromatography, which requires significant instrumentation and is labour-intensive; consequently, miniaturized devices that can rapidly sense HbA1c are urgently required. With this research, we report on an aptamer-based sensor (aptasensor) for the rapid and selective electrochemical detection of HbA1c. Aptamers that specifically bind HbA1c and Hb were modified with a sulfhydryl and ferrocene group at the 3′ and 5′-end, respectively. The modified aptamers were coated through sulfhydryl-gold self-assembly onto screen printed electrodes, producing aptasensors with built in electroactivity. When haemoglobin was added to the electrodes, the current intensity of the ferrocene in the sensor system was reduced in a concentration-dependent manner as determined by differential pulse voltammetry. In addition, electrochemical impedance spectroscopy confirmed selective binding of the analytes to the aptamer-coated electrode. This research offers new insight into the development of portable electrochemical sensors for the detection of HbA1c

1. Introduction

The American Diabetes Association and World Health Organization have reported that blood concentrations of HbA1c over 6.5% are linked with the development of diabetes mellitus [1,2,3]. Accurate detection of HbA1c is of significant clinical value in screening, early diagnosis, treatment, and monitoring of complications associated with diabetes. Currently, a number of analytical methods for HbA1c detection are available for clinical practice, including ion exchange chromatography, gel electrophoresis, turbidity immunoassay and enzymatic methods [4,5,6,7]. However, owing to issues such as the requirement of operational complexity of the instrumentation and cost, miniaturized sensors that can rapidly detect HbA1c are urgently needed. Compared with the existing technology, aptamer-based electrochemical biosensors exhibit many advantages including (1) extended stability, (2) minimal blood for testing is required, and (3) using an aptamer [8,9,10,11] means that cast-type screen printing electrode construction of electrochemical sensors [12,13,14,15] can be used, which is convenient, enables miniaturization, and is low cost. Testing of HbA1c is commonly recommended by several countries for monitoring the development of diabetes. The Chinese Medical Association’s China Guideline for Type 2 Diabetes (2020 edition) [16] designated that laboratory measurements with strict quality control and the standardized test method for determination of glycosylated haemoglobin (HbA1c) can be used as a diagnostic criterion for diabetes, where the threshold for the diagnosis of diabetes is 6.5% HbA1c or higher. According to the results of the laboratory quality assessment conducted by the Clinical Laboratory Center of the National Health Commission and the Shanghai Clinical Laboratory Center, standardization of the HbA1c test in China has gradually improved, but there are still large differences amongst different regions and methods [17]. Encouragingly, since the quality of current HbA1c monitoring systems are sub-optimal, excellent development opportunities and prospects exist. At present, the HbA1c measurement instruments used in clinical laboratories in China are mostly imported and are very expensive. Therefore, development of an accurate, rapid, economical, and practical detection method is the goal of this research.
Consequently, with this research, we developed a simple, efficient, and low-cost electrochemical biosensor (Scheme 1) [18,19,20,21,22], which uses a low-cost screen-printed electrode as the test electrode. Two aptamer sequences were synthesized according to a previous study [23] with ferrocene and sulfhydryl denoted as Fc and SH, respectively:
I: HbA1c aptamer (Fc)5′-GGG GAC ACA GCA ACA CAC CCA CCC ACC AGC CCC AGC ATC ATG CCC ATC CGT CGT GTG TG-3′(SH)
II: Hb aptamer (Fc)5′-ACG CAC ACC AGA GAC AAG TAG CCC CCC AAA CGC GGC CAC GGA ACG CAG CAC CTC CAT GGC-3′(SH).
The aptamer system is constructed using a ferrocene as an electrical signal unit linked through the thiol self-assembled coating to a screen-printed gold electrode. After the HbA1c aptamer interacts with a specific protein, the electrical signal of the ferrocene in solution changes. The ratio between HbA1c and non-HbA1c can then be used to predict the occurrence of diabetes mellitus. Upon binding of the aptamer with HbA1c, the long distance between ferrocene and electrode hinders the electron transfer, thereby diminishing current intensity [24].

2. Results and Discussion

In order to evaluate the use of cyclic voltammetry (CV) with the HbA1c and Hb aptamer sensors, the sweep speed was set as 0.02–0.2 V/s and the scanning range used was 0.2–0.6 V. The cyclic voltammograms of the HbA1c aptamer sensor (aptasensor 1) (Figure 1a) and Hb aptamer sensor (aptasensor 2) (Figure 1b) indicated that the aptamer sensors exhibited a Faradaic peak of 0.22 V and an oxidation peak of 0.13 V; the two peaks are symmetric with a peak separation of 0.09 V. According to the plot of the scanning speed against the test current, the current of the aptamer sensor in the electrolyte was proportional to the scanning speed. This demonstrated that the chemical behaviour was controlled by interfacial electron transfer. The correlation equations of the oxidation and reduction peak for the HbA1c aptasensor (Figure 1c) were y = 10−4 + 10−6 (HbA1c oxidation peak) (R2 = 0.948) and Y = −10−4 − 10−6x (HbA1c reduction peak) (R2 = 0.918), respectively. The correlation equations of the oxidation and reduction peak for the Hb aptasensor (Figure 1d) were Y = 4 × 10−5 + 3 × 10−7x (Hb oxidation peak) (R2 = 0.950) and Y =−3 × 10−5 − 3 × 10−7x (Hb reduction peak) (R2 = 0.938), respectively. The amount (Г*) of aptamer 1 and 2 immobilized on the electrode was calculated to be 3.98 × 10−11 mol cm−2 and 1.89 × 10−11mol cm−2, respectively, according to the following equation Г* = Q × (nFA)−1 [25], where Q is the charge involved in the reaction, n is the number of transferred electrons, F is the Faraday constant and A is the geometric area of the electrode.
The impedance of the HbA1c aptamer sensor in HbA1c protein solutions with concentrations of 5.0, 10.0, 20.0, 30.0, and 40 μg/mL and the Hb aptamer sensor in Hb protein solutions with concentrations of 62.5 μg/mL, 125.0 μg/mL, 250.0 μg/mL, 500.0 μg/mL, were evaluated in 5 mmol/L [Fe(CN)6]3−/[Fe(CN)6]4− and 0.1 mol/L KCl electrolyte [20,21,22]. The Nyquist plots of the HbA1c and Hb impedance are shown in Figure 2a,b. With increasing protein concentration, the capacitive reactance arc in the high-frequency region gradually increased. More protein binds at higher polarization resistance, which indicates that both proteins had a certain blocking effect on the current transfer in the test solution, and the magnitude of the capacitive reactance arc reflects the magnitude of the binding protein action on the aptamer sensor.
The differential pulse voltammetry (DPV)-based detection of HbA1c and Hb by the aptamer sensors was achieved according to the protocol shown in the experimental section. The changes of the peak currents after binding of the corresponding proteins to the HbA1c and Hb aptamer sensors were determined by the DPV method (Figure 3a,b, respectively). The aptamer sensor response without protein addition was used as a control to quantitatively detect the corresponding protein. The protein concentration was used as the X axis and the peak current was the Y axis. The fitting curves of HbA1c and Hb are shown in Figure 3c,d, respectively. The fitting equations and correlation coefficients were as follows: Y = 10−6x/(11.740 + x) (R2 = 0.969) and Y = 10−6x/(95.916 + x) (R2 = 0.968). The dissociation constant (Kd) of HbA1c was 11.7 ± 3.3 μg/mL, and that of Hb was 95.9 ± 40.0 μg/mL as calculated via the equation Y = BmaxX/(Kd + X), where Y is the current intensity of the aptasensor in the presence of a protein, X is the concentration of the protein, and Bmax and Kd are the slope and intercept of the equation, respectively. Data were analyzed using Origin 8.5 (OriginLab Corporation). The linear range of the aptasensors were determined to be 0.1–14 μg/mL (R2 = 0.97) and 1–140 μg/mL (R2 = 0.95) for HbA1c and Hb, respectively. The limit of detection of the aptasensors were calculated to be 84 pg/mL and 237 pg/mL for HbA1c and Hb, respectively (3 σ/k, where σ is the standard deviation of the instrument and k is the slope of the plots shown in Figure 3c,d.
According to the HbA1c and Hb protein concentrations in Table 1, the DPV method was performed according to the established detection method. The protein concentration was used as the X axis and the peak current was the Y axis (Figure 4a,b); data for a broader protein concentration range are given in Table S1 and Figure S5. The second-order fitting equations for HbA1c and Hb were y = −7 × 10−10x2 + 5 × 10−8x + 3 × 10−7 (R2 = 0.960) and y = −5 × 10−11x2 + 2 × 10−8X −7 × 10−7 (R2 = 0.952) [26], respectively. The results indicated that the HbA1c concentration was in the range 2.0–22.0 μg/mL and the Hb concentration was in the range 80.0–160 μg/mL. The clinical detection range of HbA1c protein/Hb protein was calculated to be in the range of 4.4%–14.7% (25.0–137.5 mmol/mol). The results suggest that the signal change of both aptasensors correlates well to the protein concentration ranges typically detected in the blood, which could be potentially applicable for clinical application.
Abnormal HbA1c levels are a common pathophysiological basis for type 2 diabetes mellitus (T2DM) and pancreatic cancer, and it is observed long before the clinical symptoms of these diseases appear. Existing methods for the detection and evaluation of diabetes include microcolumn ion-exchange chromatography, affinity chromatography, high-performance liquid chromatography (HPLC), immunofluorescence, ion capture, and electrophoresis. The high-pressure liquid-phase method is considered to be the gold standard for HbA1c detection. At present, clinical laboratories typically use liquid chromatography detection methods for HbA1c detection. However, the dependence on large machines reduces patient compliance, and affects the effective management of diabetes. To date the use of point-of-care (POC) instruments for detection of HbA1c in clinical laboratories has not been investigated. Currently, HbA1c analysers have only been used in clinical trials for POC, so the creation of sensitive micro-HbA1c biosensors is still a work in progress.
Accurate POC devices for HbA1c evaluation are essential, but their development is constrained by the cost of the testing systems. Because T2DM is a progressive disease, early screening of the blood glucose status is an effective method for the treatment and management of early-stage diabetes, and it is very important to reduce the number of missed diabetes diagnoses. The electrochemical biosensor method established in this study for the detection of HbA1c [27,28] is simple to operate and inexpensive, and as such is suitable for general clinical use. The linear relationship of this method is over a range from 4.4% to 14.7% NGSP units and meets the requirements of clinical analysis. DPV tests indicated that the peak currents of both aptamer sensors gradually decreased with increasing protein concentrations. This was because the aptamer bound to the protein and formed a protein coating on the surface of the sensor to block electron transfer of the Fc group. From the Nyquist plots obtained from the impedance experiments, regardless of the presence or absence of the protein (blank), the shapes of the impedance spectra were similar, which was a flattened semicircular capacitive reactance arc with an inclined upward line (Warburg impedance). This “repressed” semicircular capacitive reactance arc is caused by frequency diffusion, which in turn is related to the interface uniformity, defects, and protein adsorption on the electrode surface. The Warburg diffusion line at the end of the spectrum is caused by diffusion. In addition, the size of the capacitive reactance arc reflects the size of the polarization resistance of the system. The polarization resistance is higher for a larger capacitive reactance arc, which means that the corresponding binding current density is smaller (that is, more protein binding).

3. Materials and Methods

3.1. General

All of the chemicals and reagents used were of analytical grade. Sodium dihydrogen phosphate monohydrate (NaH2P3O4·H2O), disodium hydrogen phosphate (Na2HP3O4·H2O), magnesium chloride (MgCl2), tris (hydroxymethyl) aminoethane (Tris), sodium chloride (NaCl), hydrochloric acid (HCl), sodium hydroxide (NaOH), sulfuric acid (H2SO4), potassium chloride (KCl), ethanol (CH3CH2OH), mercaptoethanol (MEH), and potassium ferricyanide (K3[Fe(CN)6]·3H2O and K4[Fe(CN)6]·3H2O) were purchased from Sigma-Aldrich. The disulfide bond reducing agent tris(2-formyl ethyl) phosphine hydrochloride (TCEP) was obtained from Thermo Fisher, Inc. HbA1c aptamer (Figures S1 and S2) and Hb aptamer (Figures S3 and S4) with a purity of 98% were synthesized by Sangon Bioengineering (Shanghai) Co., Ltd. HbA1c protein and Hb protein were purchased from Prospec Corporation. All experiments used ultrapure water (resistivity 18.2 MΩ/cm).

3.2. Apparatus

A CHI660E electrochemical workstation (Shanghai CH Instruments Ins., China) and screen-printed electrodes (220AT, Dropsense, Swiss) were used. The screen-printed electrodes consist of a three-electrode system: gold (Au, inner diameter = 4 mm) or aptamer-modified gold as the working electrode, gold as the counter electrode, and a silver electrode used as the reference electrode.

3.3. Preparation of Aptamer Biosensor

Electrodes were immersed in a 0.05 mol/L NaOH solution and scanned by CV until the signal is stable with a scanning range of −0.3V–1.3 V and scanning speed of 0.1 V/s. Electrodes were then treated under ultrasound in 100% ethanol and ultrapure water for 3 min. Subsequently, the electrodes were rinsed under ultrasound sequentially in 0.5 mmol/L H2SO4, 0.1 mmol/L KCl, and ultrapure water, followed by drying with N2 prior to use. HbA1c or Hb aptamer was diluted to a final concentration of 5 μmol/L with TM solution (5 mmol/L MgCl and 10 mmol/L Tris-HCl), to which was added a tris(2-formyl ethyl)phosphine hydrochloride solution (TCEP, concentration: 3 mmol/L) to reduce disulfide bonds. Then, the mixture was annealed at 37 °C for 20 min. Next, 3 μL of an aptamer solution was dropped onto the prepared electrodes, which were then incubated at room temperature for 16 h, rinsed three times with phosphate-buffered saline (PBS, 0.1 mol/L, pH 6.5, 1 mM MgCl2), and then dried with N2 prior to use.

3.4. Cyclic Voltammetry (CV)

CV was performed with a computer-controlled CHI760E electrochemical workstation (Chenhua Co., Ltd., Shanghai, China) between 0.2 and 0.6 V (vs. Ag/AgCl) at scan rates ranging from 0 to 200 mV/s. The electrolyte (5 mmol/L K3[Fe(CN)6], 5 mmol/L K4[Fe(CN)6]·3H2O/0.1 mol/L KCl) was degassed with N2 for 20 min before measurements. The screen-printed electrodes (SPEs) were pre-treated in NaOH (0.05 mol/L), H2SO4 (0.5 mmol/L), H2SO4 (0.5 mmol/L containing 0.1 mmol/L KCl) solution, and H2SO4 (0.05 mmol/L) by applying an anodic potential (scanning range −0.2 to 0.6 V, scanning speed 0.1 V/s (vs. Ag/AgCl) for 2 s), and they were then washed with ultrapure water and blown dry with N2 for use. The circular area (4 mm in diameter) was used as the working electrode, the reference electrode was printed with gold paste, and the auxiliary electrode was printed with AgCl as silver paste. For functionalization of the SPEs, a drop of the aptamer solution (5 μL) was dropped onto the working electrode and then dried under vacuum. The functionalized SPEs were then immersed in the electrolyte to record the cyclic voltammograms.

3.5. Differential Pulse Voltammetry (DPV)

DPV was performed with an amplitude of 0.5 V, a pulse width of 0.05 s, a standing time of 2 s, and a scanning range from −0.1 to 0.3 V in TM (5 mmol/L MgCl2, 10 mmol/L Tris-HCl, pH 6.5). For detection of the analytes, drops (5 μL) of the analyte solution (dissolved in phosphate-buffered saline or Tris-HCl) with different concentrations were dropped onto the aptamer-functionalized working electrode area of the SPE and incubated for 90 min. The electrodes were then rinsed with buffer solution three times, dried at room temperature, and immersed in degassed buffer for measurement.
Electrochemical impedance spectroscopy (EIS) [29,30,31,32]. EIS was performed with a CHI760E electrochemical workstation in the presence of an [Fe(CN)6]3−/[Fe(CN)6]4− (5 mmol/L) redox couple in 0.1 M KCl solution over a frequency range from 10 mHz to 100,000 Hz (perturbation signal 5 mV). All of the collected data were fitted using ZSimpWin software. The aptamer solution (5 μL) was first dropped onto the working electrode area of the SPE, dried under vacuum, and then the Nyquist plots were recorded. For detection of the sugar–lectin interactions, a drop of protein solution (Tris-HCl, 5 μL) was dropped onto the aptamer-functionalized electrode [33,34,35,36], dried under vacuum, and then the Nyquist plots were recorded.

3.6. Application of The Aptamer Sensors for Clinical Detection

In accordance with the requirements for clinical testing, different concentrations of protein samples with protein molecular weight of 63,000 were tested using the unit conversion formula IFCC (mmol/mol) = 10.93 × NGSP (National Glycohemoglobin Standardization Program) (%) −23.5 by DPV in 10 mmol/L Tris-HCl solution. Each sample was tested three times. The mean of the peak current test results were calculated using the protein concentration as the X axis and the peak current as the Y axis. Analysis by second-order linear fitting gave the relevant equations, correlation coefficient (r), and detection range.

3.7. Statistical Analysis

Microsoft Excel software was used to analyze the test data for evaluation of clinical detection application of the adapter sensors. Origin 8.5 software was used to analyze the alternating current (AC) impedance test data of the protein on the adapter sensor, method for detecting HbA1c and Hb by the adapter sensor, and the test data of the influence of the scanning speed on the signal of the adapter sensor.

4. Conclusions

The reported method has the advantages of small sample size, convenient operation, miniaturization, and low cost. We are currently working to expand our system to monitor both healthy and diseased populations in China in order to provide reference data for detection of HbA1c using our POC system.

Supplementary Materials

The following are available online, Figure S1: Mass spectrum of HbA1c aptamer (I), Figure S2: HPLC of HbA1c aptamer (I), Figure S3: Mass spectrum of Hb aptamer (II), Figure S4: HPLC of Hb aptamer (II), Table S1: Concentration used for HbA1c and Hb, Figure S5: Plotting the current changes of the aptasenors as a function of protein concentration.

Author Contributions

Conceptualization, Y.J. and X.-P.H.; methodology, X.-Q.F. and W.-T.D.; validation, X.-Q.F., Y.J., Q.L. and W.-T.D.; formal analysis, X.-Q.F., Q.L. and Z.-G.J.; investigation, X.-Q.F. and W.-T.D.; resources, Y.J. and X.-P.H.; data curation, Y.J.; writing—original draft preparation, X.-Q.F., Y.J. and W.-T.D.; writing—review and editing, X.-Q.F., X.-P.H., T.D.J. and B.-C.Y.; supervision, B.-C.Y.; project administration, B.-C.Y.; funding acquisition, Y.J. and B.-C.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (22107028), Natural Science Foundation of Shanghai (19ZR1445600), the Shanghai Science and Technology Committee (19410712600), National Postdoctoral Program for Innovative Talents (BX20190115), Shanghai Post-doctoral Excellence Program (2019044) and China Postdoctoral Science Foundation (2020M681206) for financial support. T.D.J. wishes to thank the Royal Society for a Wolfson Research Merit Award and the Open Research Fund of the School of Chemistry and Chemical Engineering, Henan Normal University for support (2020ZD01).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no competing interests.

Sample Availability

Not applicable.

References

  1. Schütze, D. One-dimensional diffusions with discontinuous scale. Z. Wahrscheinlichkeitstheorie Verwandte Geb. 1979, 49, 97–104. [Google Scholar] [CrossRef]
  2. Practice, C. Use of glycated haemoglobin (HbA1c) in the diagnosis of diabetes mellitus. Diabetes Res. Clin. Pract. 2011, 93, 299–309. [Google Scholar] [CrossRef]
  3. Li, F.R.; Zhang, X.R.; Zhong, W.F.; Li, Z.H.; Gao, X.; Kraus, V.B.; Lv, Y.B.; Zou, M.C.; Chen, G.C.; Chen, P.L.; et al. Glycated hemoglobin and all-cause and cause-specific mortality among adults with and without diabetes. J. Clin. Endocrinol. Metab. 2019, 104, 3345–3354. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Little, R.R. Performance of hemoglobin A1c assay methods: Good enough? Clin. Chem. 2014, 60, 1031–1033. [Google Scholar] [CrossRef] [Green Version]
  5. John, W.G. Haemoglobin A1c: Analysis and standardisation. Clin. Chem. Lab. Med. 2003, 41, 1199–1212. [Google Scholar] [CrossRef]
  6. Mostafa, S.A.; Davies, M.J.; Srinivasan, B.T.; Carey, M.E.; Webb, D.; Khunti, K. Should glycated haemoglobin (HbA1c) be used to detect people with type 2 diabetes mellitus and impaired glucose regulation? Postgrad. Med. J. 2010, 86, 656–662. [Google Scholar] [CrossRef]
  7. Sharma, P.; Panchal, A.; Yadav, N.; Narang, J. Analytical techniques for the detection of glycated haemoglobin underlining the sensors. Int. J. Biol. Macromol. 2020, 155, 685–696. [Google Scholar] [CrossRef]
  8. Meng, H.M.; Liu, H.; Kuai, H.; Peng, R.; Mo, L.; Zhang, X.B. Aptamer-integrated DNA nanostructures for biosensing, bioimaging and cancer therapy. Chem. Soc. Rev. 2016, 45, 2583–2602. [Google Scholar] [CrossRef]
  9. Zhang, Z.; Oni, O.; Liu, J. New insights into a classic aptamer: Binding sites, cooperativity and more sensitive adenosine detection. Nucleic Acids Res. 2017, 45, 7593–7601. [Google Scholar] [CrossRef]
  10. Mayer, M.; Baeumner, A.J. A megatrend challenging analytical chemistry: Biosensor and chemosensor concepts ready for the internet of things. Chem. Rev. 2019, 119, 7996–8027. [Google Scholar] [CrossRef]
  11. Munzar, J.D.; Ng, A.; Juncker, D. Duplexed aptamers: History, design, theory, and application to biosensing. Chem. Soc. Rev. 2019, 48, 1390–1419. [Google Scholar] [CrossRef]
  12. Ranjan, R.; Esimbekova, E.N.; Kratasyuk, V.A. Rapid biosensing tools for cancer biomarkers. Biosens. Bioelectron. 2017, 87, 918–930. [Google Scholar] [CrossRef]
  13. Ligler, F.S.; Gooding, J.J. Lighting up biosensors: Now and the decade to come. Anal. Chem. 2019, 91, 8732–8738. [Google Scholar] [CrossRef]
  14. Putnin, T.; Waiwinya, W.; Pimalai, D.; Chawjiraphan, W.; Sathirapongsasuti, N.; Japrung, D. Dual sensitive and rapid detection of glycated human serum albumin using a versatile lead/graphene nanocomposite probe as a fluorescence-electrochemical aptasensor. Analyst 2021, 146, 4357–4364. [Google Scholar] [CrossRef]
  15. Li, C.; Li, J.; Tang, H.; Yang, X.; Fei, Q.; Sun, C. A non-enzymatic electrochemical biosensor based on SiO2-Au nanoparticles for hemoglobin detection. Anal. Methods 2017, 9, 1265–1272. [Google Scholar] [CrossRef]
  16. Jia, W.; Weng, J.; Zhu, D.; Ji, L.; Lu, J.; Zhou, Z.; Zou, D.; Guo, L.; Ji, Q.; Chen, L.; et al. Standards of medical care for type 2 diabetes in China 2019. Diabetes. Metab. Res. Rev. 2019, 35, 2. [Google Scholar] [CrossRef] [Green Version]
  17. Ju, Y.; Li, Q.; Tang, L. Establishment of review criteria for Siemens Advia 2120 hematology analyzer and its application. Chin. J. Lab. Med 2018, 41, 804–807. [Google Scholar] [CrossRef]
  18. Chen, H.H.; Wu, C.H.; Tsai, M.L.; Huang, Y.J.; Chen, S.H. Detection of total and A1c-glycosylated hemoglobin in human whole blood using sandwich immunoassays on polydimethylsiloxane-based antibody microarrays. Anal. Chem. 2012, 84, 8635–8641. [Google Scholar] [CrossRef]
  19. Liu, H.; Crooks, R.M. Determination of percent hemoglobin A1c using a potentiometric method. Anal. Chem. 2013, 85, 1834–1839. [Google Scholar] [CrossRef]
  20. Sun, J.; Xianyu, Y.; Jiang, X. Point-of-care biochemical assays using gold nanoparticle-implemented microfluidics. Chem. Soc. Rev. 2014, 43, 6239–6253. [Google Scholar] [CrossRef]
  21. Sun, D.; Luo, Z.; Lu, J.; Zhang, S.; Che, T.; Chen, Z.; Zhang, L. Electrochemical dual-aptamer-based biosensor for nonenzymatic detection of cardiac troponin I by nanohybrid electrocatalysts labeling combined with DNA nanotetrahedron structure. Biosens. Bioelectron. 2019, 134, 49–56. [Google Scholar] [CrossRef]
  22. Huang, H.; Zhu, J.J. The electrochemical applications of rare earth-based nanomaterials. Analyst 2019, 144, 6789–6811. [Google Scholar] [CrossRef]
  23. Eissa, S.; Zourob, M. Aptamer-based label-free electrochemical biosensor array for the detection of total and glycated hemoglobin in human whole blood. Sci. Rep. 2017, 7, 1016. [Google Scholar] [CrossRef] [Green Version]
  24. Wu, M.-S.; Yuan, D.-J.; Xu, J.-J.; Chen, H.-Y. Sensitive electrochemiluminescence biosensor based on Au-ITO hybrid bipolar electrode amplification system for cell surface protein detection. Anal. Chem. 2013, 85, 11960–11965. [Google Scholar] [CrossRef]
  25. Liu, Q.; Li, Y.; Zhang, L.; Li, D.; Fan, C.; Long, Y.-T. Comparative studies on electrocatalytic activities of chemically reduced graphene oxide and electrochemically reduced graphene oxide noncovalently functionalized with poly(methylene blue). Electroanalysis 2010, 22, 2862–2870. [Google Scholar] [CrossRef]
  26. Li, M.; Guo, X.; Li, H.; Zuo, X.; Hao, R.; Song, H.; Aldalbahi, A.; Ge, Z.; Li, J.; Li, Q.; et al. Epitope binning assay using an electron transfer-modulated aptamer sensor. ACS Appl. Mater. Interfaces 2018, 10, 341–349. [Google Scholar] [CrossRef]
  27. Campanella, L.; Tomassetti, M. The Applications of sensors and biosensors in investigating drugs, foods, and nutraceuticals. Sensors 2019, 19, 3395. [Google Scholar] [CrossRef] [Green Version]
  28. Prabowo, B.; Purwidyantri, A.; Liu, K.-C. Surface plasmon resonance optical sensor: A Review on light source technology. Biosensors 2018, 8, 80. [Google Scholar] [CrossRef] [Green Version]
  29. Zhao, Y.-W.; Wang, H.-X.; Jia, G.-C.; Li, Z. Application of aptamer-based biosensor for rapid detection of pathogenic Escherichia coli. Sensors 2018, 18, 2518. [Google Scholar] [CrossRef] [Green Version]
  30. Ponzo, I.; Möller, F.M.; Daub, H.; Matscheko, N. A DNA-based biosensor assay for the kinetic characterization of ion-dependent aptamer folding and protein binding. Molecules 2019, 24, 2877. [Google Scholar] [CrossRef] [Green Version]
  31. Liu, J.; Jasim, I.; Shen, Z.; Zhao, L.; Dweik, M.; Zhang, S.; Almasri, M. A microfluidic based biosensor for rapid detection of Salmonella in food products. PLoS ONE 2019, 14, e0216873. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Zhbanov, A.; Yang, S. Electrochemical impedance spectroscopy of blood for sensitive detection of blood hematocrit, sedimentation and dielectric properties. Anal. Methods 2017, 9, 3302–3313. [Google Scholar] [CrossRef]
  33. Yüce, M.; Ullah, N.; Budak, H. Trends in aptamer selection methods and applications. Analyst 2015, 140, 5379–5399. [Google Scholar] [CrossRef] [PubMed]
  34. Lin, H.I.; Wu, C.C.; Yang, C.H.; Chang, K.W.; Lee, G.B.; Shiesh, S.C. Selection of aptamers specific for glycated hemoglobin and total hemoglobin using on-chip SELEX. Lab Chip 2015, 15, 486–494. [Google Scholar] [CrossRef]
  35. Moon, J.M.; Kim, D.M.; Kim, M.H.; Han, J.Y.; Jung, D.K.; Shim, Y.B. A disposable amperometric dual-sensor for the detection of hemoglobin and glycated hemoglobin in a finger prick blood sample. Biosens. Bioelectron. 2017, 91, 128–135. [Google Scholar] [CrossRef]
  36. Chen, Y.; Xiang, J.; Liu, B.; Chen, Z.; Zuo, X. Gold nanoparticle-engineered electrochemical aptamer biosensor for ultrasensitive detection of thrombin. Anal. Methods 2020, 12, 3729–3733. [Google Scholar] [CrossRef]
Molecules 26 07077 sch001 550

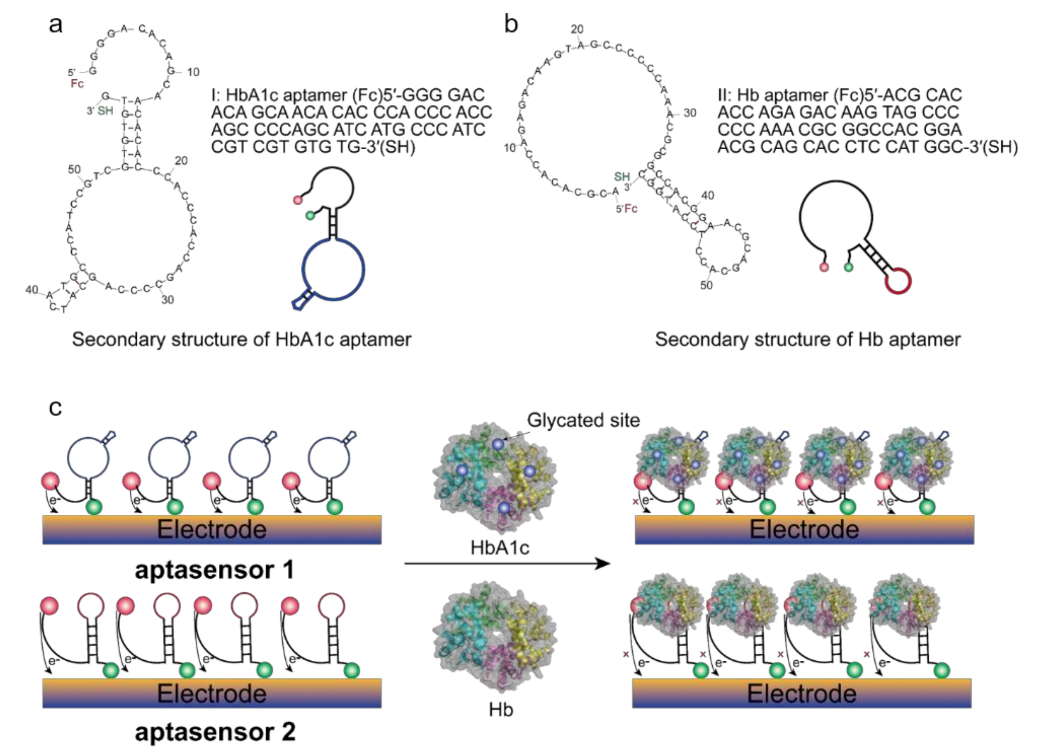

Scheme 1. Representative predicted secondary structures of (a) Hb aptamer ((Fc)5′-GGG GAC ACA GCA ACA CAC CCA CCC ACC AGC CCC AGC ATC ATG CCC ATC CGT CGT GTG TG-3′(SH)), and (b) HbAlc aptamer ((Fc)5′-ACG CAC ACC AGA GAC AAG TAG CCC CCC AAA CGC GGC CAC GGA ACG CAG CAC CTC CAT GGC-3′(SH)) simulated using Mfold software. (c) Schematic illustration of the construction of aptasensors 1 and 2 through sulfhydryl-gold self-assembly on screen printed electrodes, and the plausible sensing mechanism of the functionalized aptasensors for haemoglobin (Hb) (with aptasensor (1) and glycated haemoglobin (HbA1c) (with aptasensor (2); the presence of the proteins increases the distance from the electroactive ferrocene to the electrode surface, thereby impeding the electron transfer process.
Scheme 1. Representative predicted secondary structures of (a) Hb aptamer ((Fc)5′-GGG GAC ACA GCA ACA CAC CCA CCC ACC AGC CCC AGC ATC ATG CCC ATC CGT CGT GTG TG-3′(SH)), and (b) HbAlc aptamer ((Fc)5′-ACG CAC ACC AGA GAC AAG TAG CCC CCC AAA CGC GGC CAC GGA ACG CAG CAC CTC CAT GGC-3′(SH)) simulated using Mfold software. (c) Schematic illustration of the construction of aptasensors 1 and 2 through sulfhydryl-gold self-assembly on screen printed electrodes, and the plausible sensing mechanism of the functionalized aptasensors for haemoglobin (Hb) (with aptasensor (1) and glycated haemoglobin (HbA1c) (with aptasensor (2); the presence of the proteins increases the distance from the electroactive ferrocene to the electrode surface, thereby impeding the electron transfer process.
Molecules 26 07077 sch001
Molecules 26 07077 g001 550

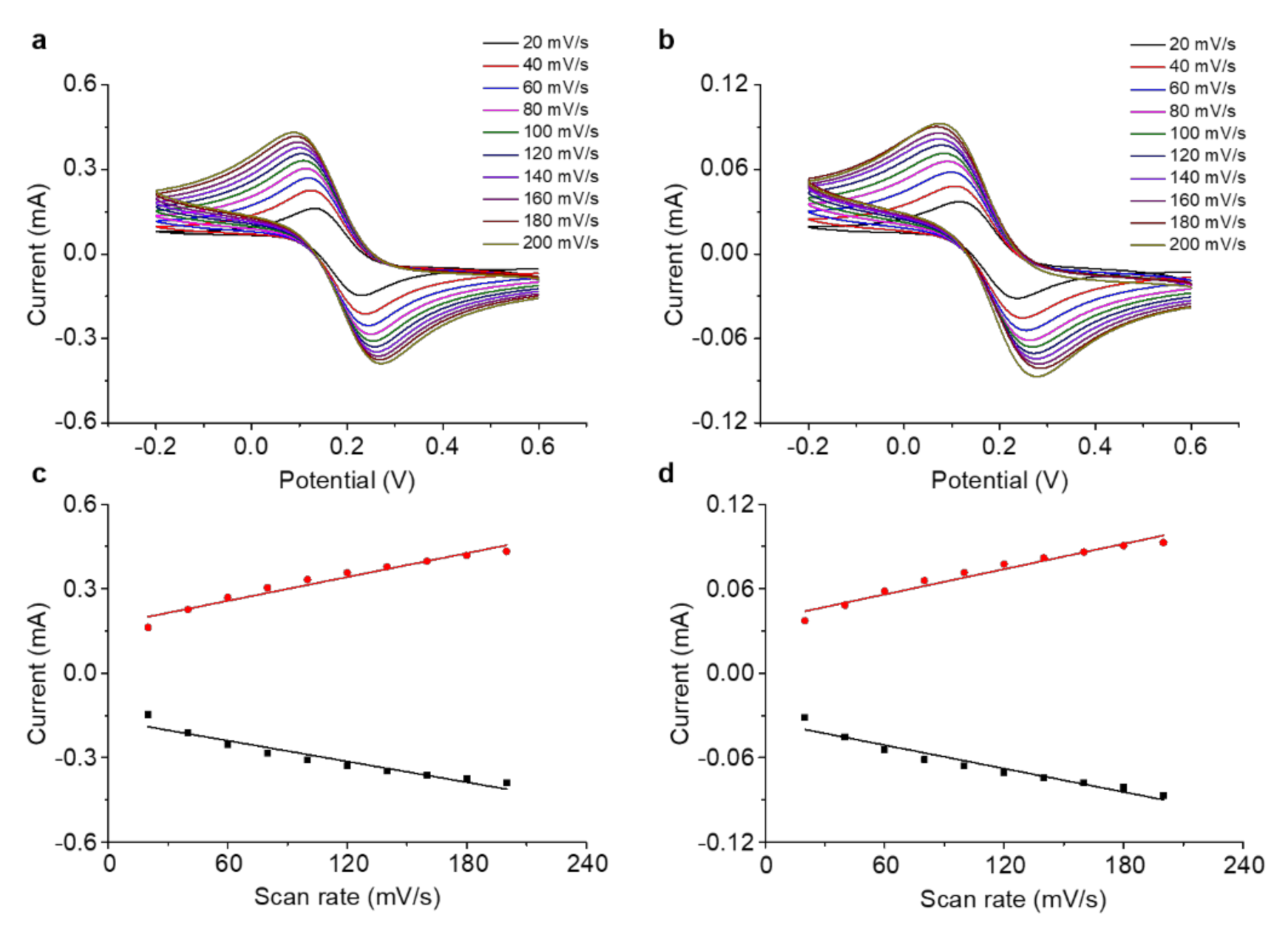

Figure 1. Cyclic voltametric curves of (a) aptasensor 1 and (b) aptasensor 2 with different scanning rates. Plotting the current intensity of (c) aptasensor 1 and (d) aptasensor 2 as a function of potential.
Figure 1. Cyclic voltametric curves of (a) aptasensor 1 and (b) aptasensor 2 with different scanning rates. Plotting the current intensity of (c) aptasensor 1 and (d) aptasensor 2 as a function of potential.
Molecules 26 07077 g001
Molecules 26 07077 g002 550

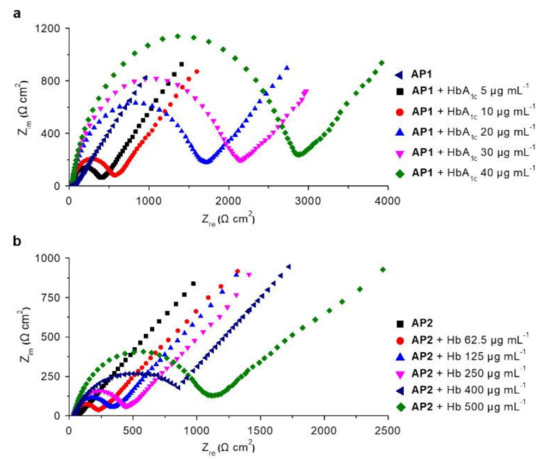

Figure 2. Impedimetric changes of (a) aptasensor 1 (AP1) with increasing HbA1c and (b) aptasensor 2 (AP2) with increasing Hb measured by AC impedance spectroscopy.
Figure 2. Impedimetric changes of (a) aptasensor 1 (AP1) with increasing HbA1c and (b) aptasensor 2 (AP2) with increasing Hb measured by AC impedance spectroscopy.
Molecules 26 07077 g002
Molecules 26 07077 g003 550

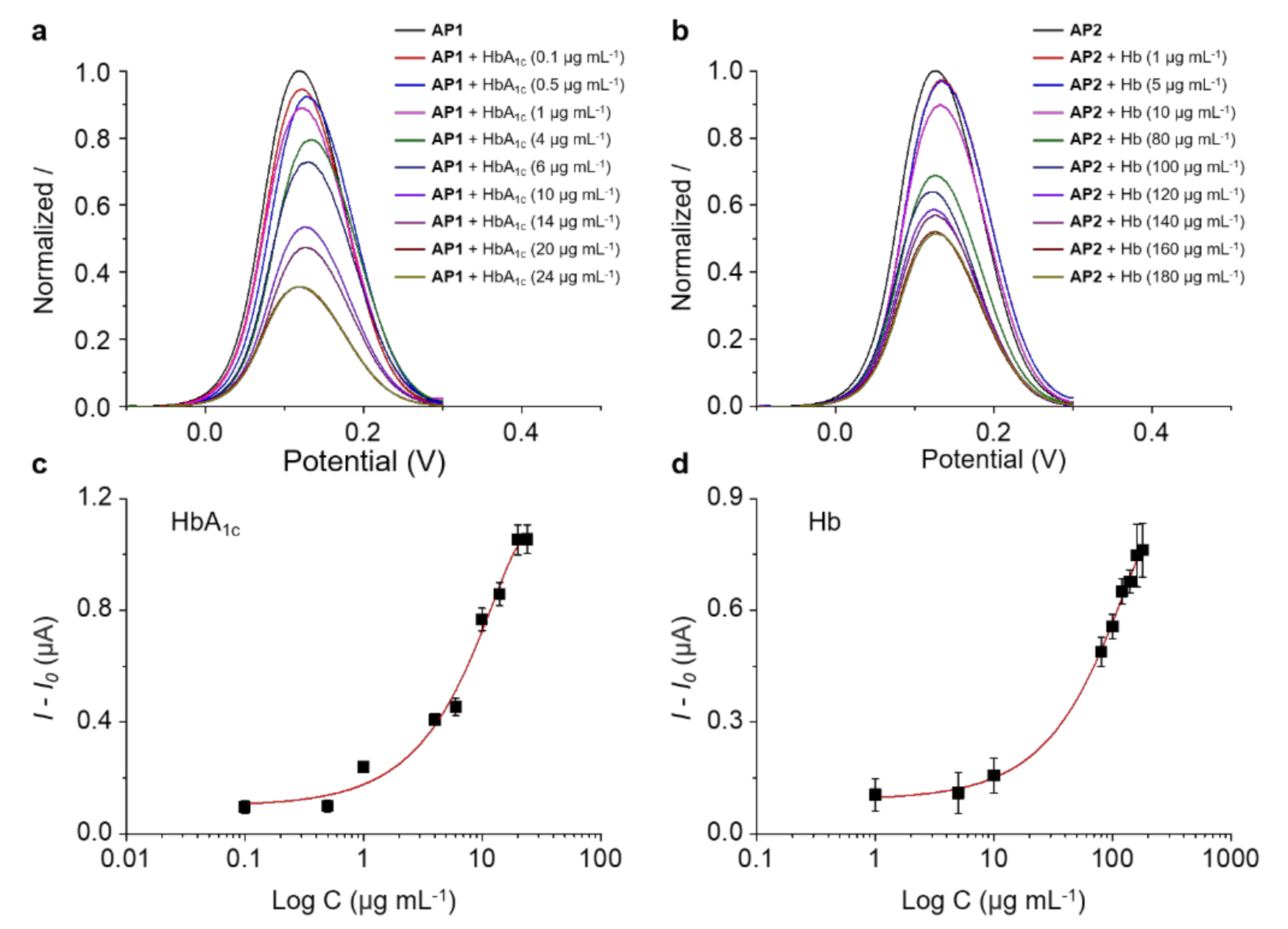

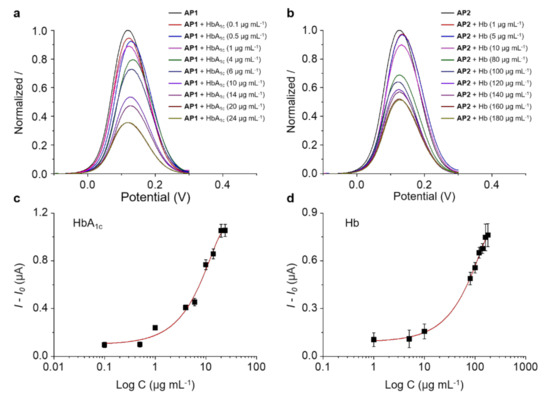

Figure 3. Differential pulse voltametric curves of (a) aptasensor 1 (AP1) with increasing HbA1c and (b) aptasensor 2 (AP2). The current intensity (I) of an aptasensor in the absence of HbA1c or Hb is normalized to that of the aptasensor in the presence of HbA1c or Hb. (c) Plotting the current changes of aptasensor 1 (AP1) with increasing HbA1c, and (d) Plotting the current changes of aptasensor 2 (AP2) with increasing Hb, where I and I0 are the current intensity of an aptasensor in the presence and absence of protein analyte, respectively. Error bars mean standard deviation (n = 3).
Figure 3. Differential pulse voltametric curves of (a) aptasensor 1 (AP1) with increasing HbA1c and (b) aptasensor 2 (AP2). The current intensity (I) of an aptasensor in the absence of HbA1c or Hb is normalized to that of the aptasensor in the presence of HbA1c or Hb. (c) Plotting the current changes of aptasensor 1 (AP1) with increasing HbA1c, and (d) Plotting the current changes of aptasensor 2 (AP2) with increasing Hb, where I and I0 are the current intensity of an aptasensor in the presence and absence of protein analyte, respectively. Error bars mean standard deviation (n = 3).
Molecules 26 07077 g003
Molecules 26 07077 g004 550

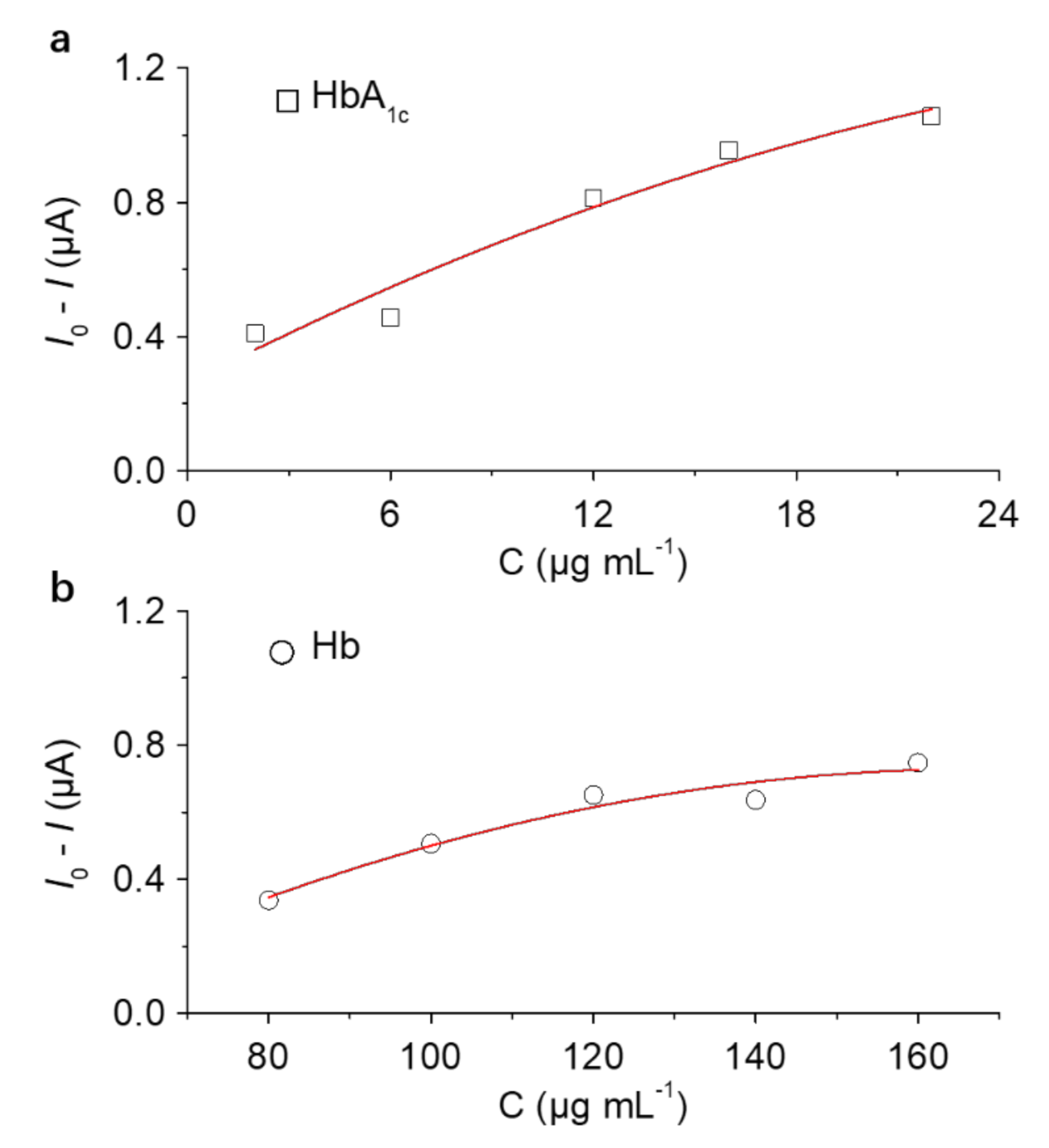

Figure 4. (a) Plotting the current changes of aptasensor 1 with increasing HbA1c, and (b) plotting the current changes of aptasensor 2 with increasing Hb, where I and I0 are the current intensity of an aptasensor in the presence and absence of protein analyte, respectively.
Figure 4. (a) Plotting the current changes of aptasensor 1 with increasing HbA1c, and (b) plotting the current changes of aptasensor 2 with increasing Hb, where I and I0 are the current intensity of an aptasensor in the presence and absence of protein analyte, respectively.
Molecules 26 07077 g004
Table
Table 1. Concentration of HbA1c and Hb, and clinically relevant detection range of HbA1c and Hb.
Table 1. Concentration of HbA1c and Hb, and clinically relevant detection range of HbA1c and Hb.
SpeciesUnitsCon.1Con.2Con.3Con.4Con.5
HbA1cμg/mL26121622
Hbμg/mL80100120140160
HbA1c/Hbmmol/mol2560100114137.5
NGSP%4.47.611.312.614.7
