The Three-Component Synthesis of 4-Sulfonyl-1,2,3-triazoles via a Sequential Aerobic Copper-Catalyzed Sulfonylation and Dimroth Cyclization

by
Max Van Hoof
,
Santhini Pulikkal Veettil
and
Wim Dehaen
*
Molecular Design and Synthesis, Department of Chemistry, KU Leuven, 3001 Leuven, Belgium
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(3), 581; https://doi.org/10.3390/molecules26030581
Submission received: 5 January 2021 / Revised: 18 January 2021 / Accepted: 19 January 2021 / Published: 22 January 2021
(This article belongs to the Special Issue N-Heterocycles: Synthesis, Functionalization, Electrochemical, Spectroscopic Characterization and Mechanistic Investigation)
Browse Figures
Versions Notes

Abstract

:
4-Sulfonyl-1,2,3-triazole scaffolds possess promising bioactivities and applications as anion binders. However, these structures remain relatively unexplored and efficient synthetic procedures for their synthesis remain desirable. A practical room-temperature, aerobic copper-catalyzed three-component reaction of aromatic ketones, sodium sulfinates, and azides is reported. This procedure allows for facile access to 4-sulfonyl-1,5-disubstituted-1,2,3-triazoles in yields ranging from 34 to 89%. The reaction proceeds via a sequential aerobic copper(II)chloride-catalyzed oxidative sulfonylation and the Dimroth azide–enolate cycloaddition.

Graphical Abstract

1. Introduction

4-Sulfonyl-1,2,3-triazole scaffolds possess very promising bioactivities, which include antibacterial [1] and antifungal agents [2,3], as well as potent antagonists of neutrophil elastase (HLE) [4] and the human pregnane X receptor (hPXR) [5,6,7], as shown in Figure 1. Additionally, they have found application as (monomeric) anion binders [8]. However, despite their promising applications, these structures remain relatively unexplored, making efficient synthetic procedures towards these scaffolds starting from readily available starting materials desirable.
Several methods for preparing 4-sulfonyl triazoles have been reported, each with their own drawbacks, as shown in Scheme 1. These routes include the non-catalyzed Huisgen azide–alkyne cycloadditions (AACs) of thio- or sulfonyl alkynes, which require high temperatures, long reaction times, and suffer from low yields and regioselectivity [4,9,10]. The metal catalyzed variants, of which the most notable are the IrAAC [11], RuAAC [12], and RhAAC [13], elegantly solve these issues. However, several limiting factors remain, such as the necessary multistep synthesis of the alkynyl sulfide [14,15,16,17] and sulfone starting materials [9,18,19,20], the use of stoichiometric oxidants for conversion of the thioether into a sulfone, and the high cost of the noble metal catalyst. The most prominent alternative to the AAC synthesis of 4-sulfonyl triazoles is the Dimroth azide–enolate cycloaddition of sulfonyl ketones [3,21,22,23,24]. While previously reported room temperature Dimroth cyclizations furnished 4-sulfonyl triazoles in good to high yields [3,22,23], the requirement of prior synthesis and isolation of the sulfonyl ketones reduces their sustainability and attractiveness [3,25,26,27,28,29,30,31,32,33,34,35]. Additionally, there are two alternative pathways, based on the Wolff triazole synthesis [36,37] and azide–alkene cycloaddition [38,39,40] that are both less attractive due to the use of unstable α-diazo-sulfonyl ketones, and the somewhat lower yields or availability of the starting materials.
In light of the above-mentioned limitations, we envisioned a multicomponent 4-sulfonyl-1,2,3-triazole synthesis that starts from readily available aromatic ketones, sodium sulfinates, and organic azides, via a one-pot oxidative sulfonylation and Dimroth cyclization sequence, as shown in Scheme 1. In order to increase the sustainability of the envisioned procedure, we wanted to avoid the use of stoichiometric oxidants such as hypervalent iodine [25], peroxides [41], copper salts [42,43], and silver salts [44,45] that are commonly used in oxidative coupling reactions, in favor of air as the terminal oxidant, which is environmentally benign and results only in formation of water as a side product [43,46,47]. Over the past decade, many catalysts have been developed that allow for aerobic/O2 oxidative coupling of diverse substrates, with the significant focus being on palladium [48,49,50,51] and other noble metal catalysts [43,50,52,53,54,55]. However, copper catalysts are particularly interesting when compared to noble metal catalysts. Next to generally being inexpensive, readily available, and of low toxicity, they have great potential for catalyzing a broad range of reactions. Catalysis by natural copper-oxidases can serve as an example [46]. This is epitomized by the wide array of aerobic copper-catalyzed oxidative coupling reactions that have been reported to date [46,56,57].

2. Results and Discussion

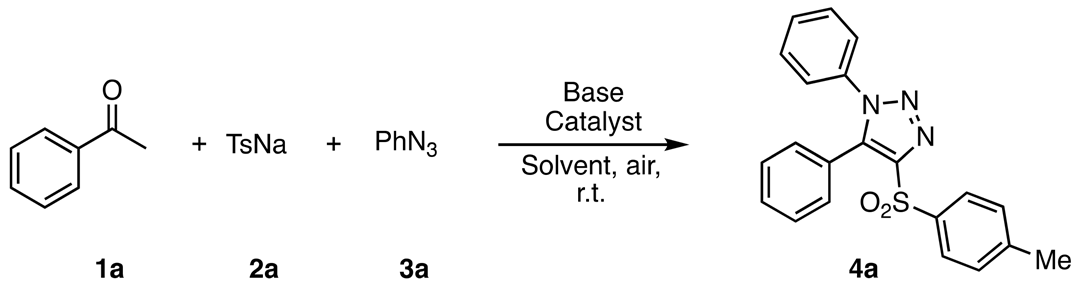

As starting point for our three-component aerobic oxidative sulfonylation/Dimroth sequence, we utilized the reaction conditions reported by Lan et al. for the CuBr2-catalysed synthesis of α-alkyl ketosulfones, as shown in Table 1 and Table S1 [26]. While the original ligand-free procedure furnished the ketosulfones from α-unsubstituted acetophenone only in a low yield of 20%, it was expected that subsequent transformation of the in situ formed ketosulfone into the corresponding 1,2,3-triazole would result in a significantly improved yield. Pleasingly, when applying these reaction conditions, the corresponding 4-tosyl triazole 4a was obtained in 54% yield (Entry 1). Different copper salts, including CuI, Cu(OAc)2, Cu(OTf)2, and CuCl2 were screened (Entries 1–5), and CuCl2 was found to be superior, furnishing 4a in an isolated yield of 71%, and 72% upon repetition of the experiment (Entry 2). Next, different bases and solvents were evaluated, as well as a reduction in the equivalents of base (Entries 6–15, and Tables S16–S18). However, any deviation from the standard conditions (Entry 2) resulted in a decreased yield. The amine base may perform a dual role, acting both as base and ligand. Pyridine and Et3N (Entry 6 and 7) presumably are unreactive because they are both weaker bases and ligands than DBU, thereby not sufficiently deprotonating the enol and stabilizing the copper complex. Surprisingly, DBN results in a markedly lower yield than DBU (Entry 8), 52% versus 72%, which may be the result of it being too strongly coordinated to the copper and thereby hindering the formation of the copper-enolate. K2CO3 and KOtBu presumably are unreactive since they are both less soluble in DMSO and weaker ligands (Entry 9 and 10). Presumably, DMSO is superior since it is both a polar coordinating solvent as well as a mild oxidant.
Subsequently, different tertiary amine ligands were screened, including TMEDA, 2,2′-bipyridine, 1,10-phenanthroline, and neocuproine (Entries 16–19). Primary and secondary amine ligands were excluded due to the risk of α-amination [58], and phosphine ligands were excluded due to their susceptibility to oxidative degradation [51]. Out of the evaluated amine ligands, TMEDA proved to be the superior with a yield of 81% (Entry 16). Finally, the catalyst loading and solvent volume were varied and an optimal loading of 10 mol% CuCl2/TMEDA and 2 mL volume of DMSO was found, resulting in a yield of 89% (Entry 28). As final control experiments, reactions were set up under the optimized conditions in either absence of CuCl2 (Entry 29) or under argon atmosphere (Entry 30), which resulted in no reaction and in less than 5% of triazole being formed.

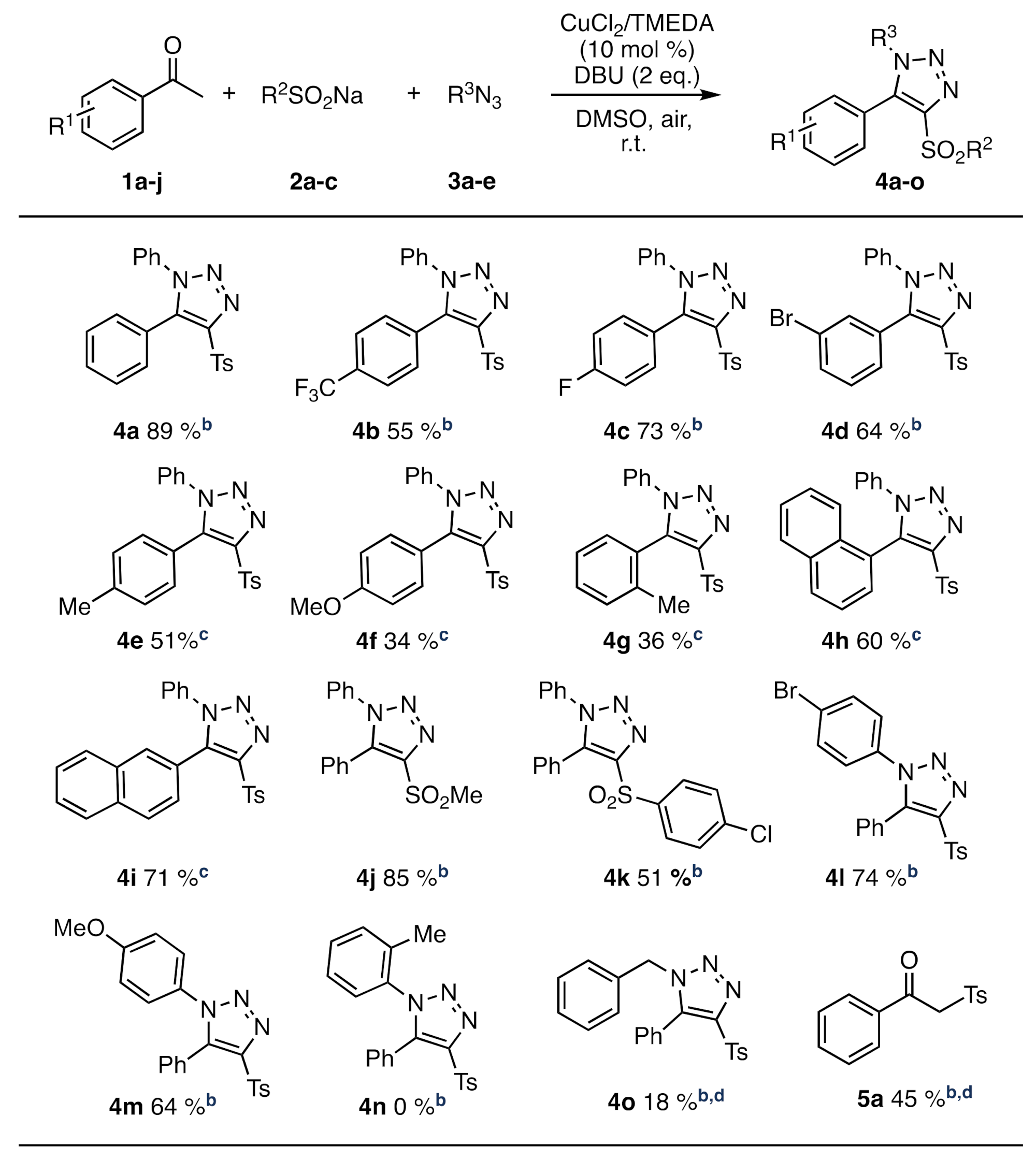

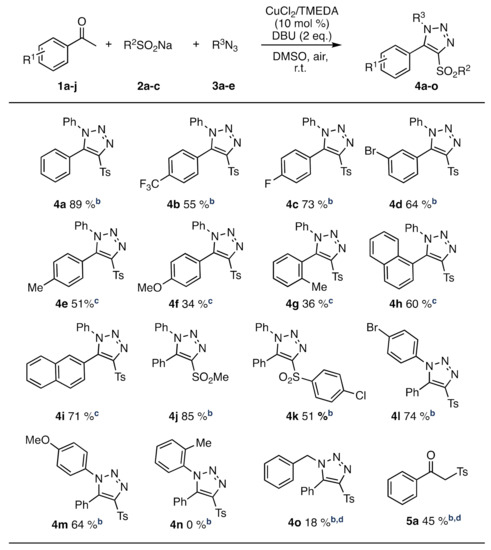

With the optimized conditions in hand, we set out to explore the substrate scope for this reaction and investigated various acetophenone derivatives, sodium sulfinates, and organic azides, as shown in Scheme 2. For the reaction of acetophenone derivatives 1a–j with sodium p-toluene sulfinate 2a and phenyl azide 3a, the yields of triazoles 4a–j varied from high to low. The reactions of electron-deficient acetophenones progressed at similar or faster rates yet resulted in lower yields. The 4-tosyl triazoles derived from p-trifluoromethyl substituted 4b, p-fluoro substituted 4c, and o-bromo substituted 4d acetophenone were obtained in yields of 55 (4b), 73 (4c), and 64% (4d). The reduced yields compared to 4a can be in part explained by the occurrence of Regitz diazo transfer, as observed previously for cyclic sulfonyl ketones [24] and evidenced by the observation of nitrogen evolution from the reaction mixture and the presence of a minor quantity of aniline in the crude mixture, as determined by GC/MS. However, no other product from this side-reaction could be isolated. The presence of donating substituents resulted in a reduced reaction rate and concomitantly reduced yields. The p-methyl and p-methoxy substituted triazoles 4e and 4f were obtained in yields of 51% and 34% after 48 h. Next, the influence of steric hindrance was investigated and the expected negative correlation between steric hindrance and product yields was observed. The o-methyl and 1-naphthyl triazoles 4g and 4h give reduced yields in comparison to their less sterically hindered counterparts, the p-methyl and 2-naphthyl triazoles 4e and 4i, 36% (4g) versus 51% (4e) and 60% (4h) versus 71% (4i). Several aliphatic ketones including acetone, pinacolone, and trifluoromethyl acetone were screened without success, as expected.
A plausible reason for the limitations of the reaction scope for ketones is given in the final paragraph, after discussing the reaction mechanism.
Pleasingly, 4-methyl sulfinate triazole 4j was furnished in a good yield of 85%. However, in the case of the p-chlorophenyl sulfonyl triazole 4k, a yield of only 51% was obtained. Finally, the scope in azide was evaluated and both for phenyl azides with electron-withdrawing and donating groups, good yields of 74% (4l) and 64% (4m) were obtained. Regrettably, sterically hindered azides were unreactive and no triazole 4n formed. Benzyl azide performed far less effectively and furnished the triazole 4o in 18% yield, along with 45% of sulfonyl ketone 5a.
A plausible reason for the limitations of the reaction scope for azides is given in the final paragraph, after discussing the reaction mechanism.

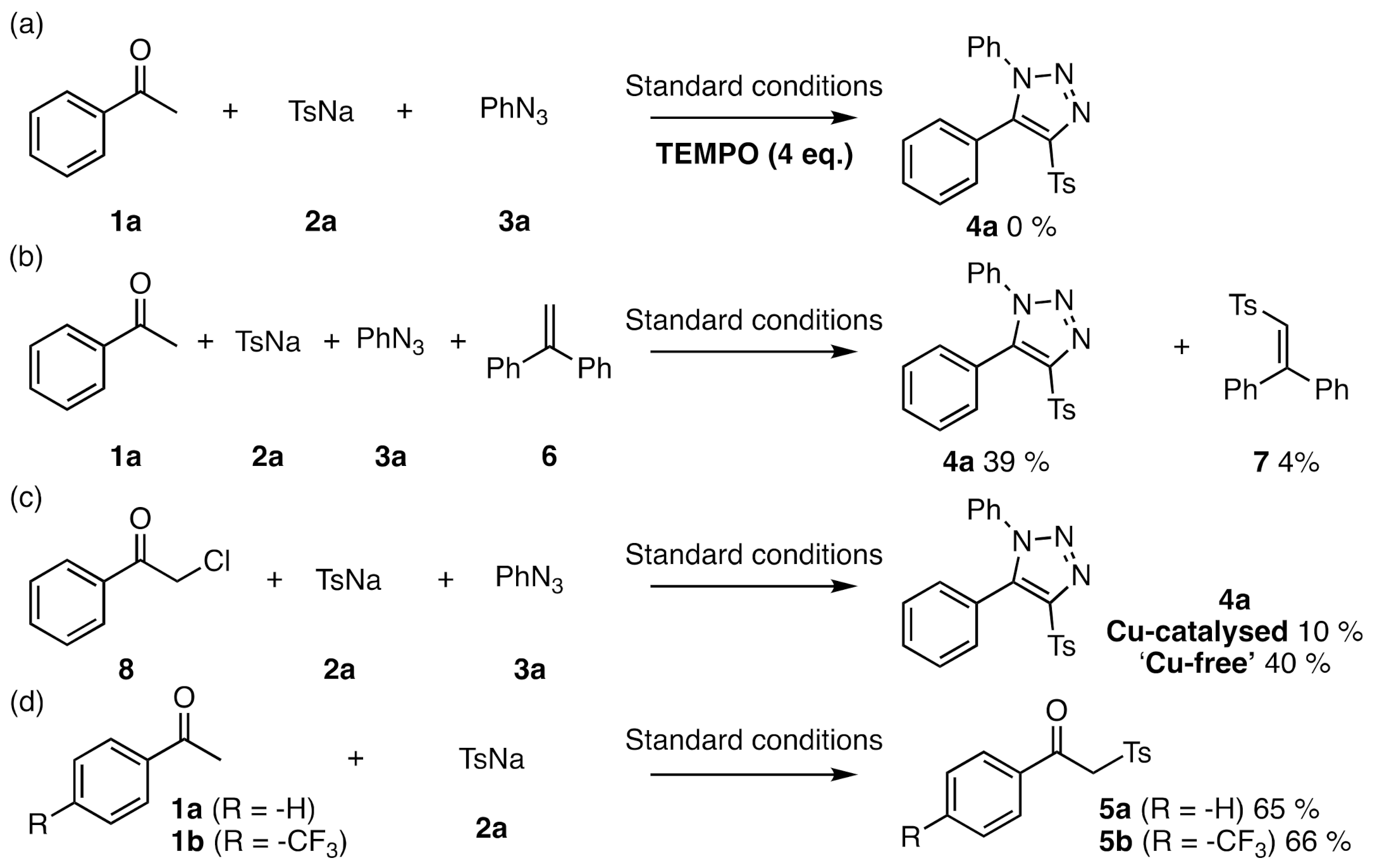

In order to gain more insight into the mechanism, several control experiments were performed. In the absence of CuCl2 no reaction occurred, and under argon atmosphere less than 5% of product formed, as shown in Table S1 (Entry 32–33), which shows that the copper salt is required for catalyzing the reaction and oxygen is needed for catalytic turnover. Addition of four equivalents of TEMPO completely inhibited the reaction, as shown in Scheme 3a. From the control reaction in the presence of 1,1-diphenylethylene (DPE) 6, a radical trapping reagent, the sulfonyltriazole 4a, could be isolated in a reduced yield of 39% and the yield of the radical trapping product 7 was rather low, 4%, as shown in Scheme 3b. These results indicate involvement of both free radicals and alternative mechanisms, such as via oxidative chlorination or via an organometallic intermediate.
Phenacyl chloride 8 is a possible reaction intermediate, considering that the halogenation of the carbonyl α-position by stoichiometric copper halides, as well as diverse aerobic copper-catalyzed oxidative halogenations, have been reported [46,59,60]. From the reaction of 8 under standard conditions in presence and absence of the copper catalyst, triazole 4a was obtained in yields of 11% and 45%, as shown in Scheme 4c. This indicates that 8 may be an intermediate in the oxidative sulfonylation, although, it shows that there must be alternative operative pathways. However, it should be noted that 8 was not isolated from or observed in the reaction mixture. Additionally, the reported copper-catalyzed oxidative halogenation reactions generally take place under (Lewis) acidic conditions, which raise the Cu(II) reduction potential and consequently promote single-electron transfer SET reactivity. Conversely, basic conditions and stronger ligands stabilize both Cu(II) and Cu(III), or lower the Cu(II) reduction potential, which reduces SET reactivity and favors the formation of organometallic intermediates [46,61].
The intermediacy of the sulfonyl ketone 5 is supported by the observation of the NMR characteristic peak in the crude reaction mixture at reduced reaction times. When the oxidative sulfonylation was performed in absence of azide good yields of phenacyl sulfones 5a and 5b were obtained, as shown in Scheme 3d, which proves its intermediacy. Advantageously, this shows that the presented methodology can also be used for the synthesis of sulfonyl ketones in good yield.

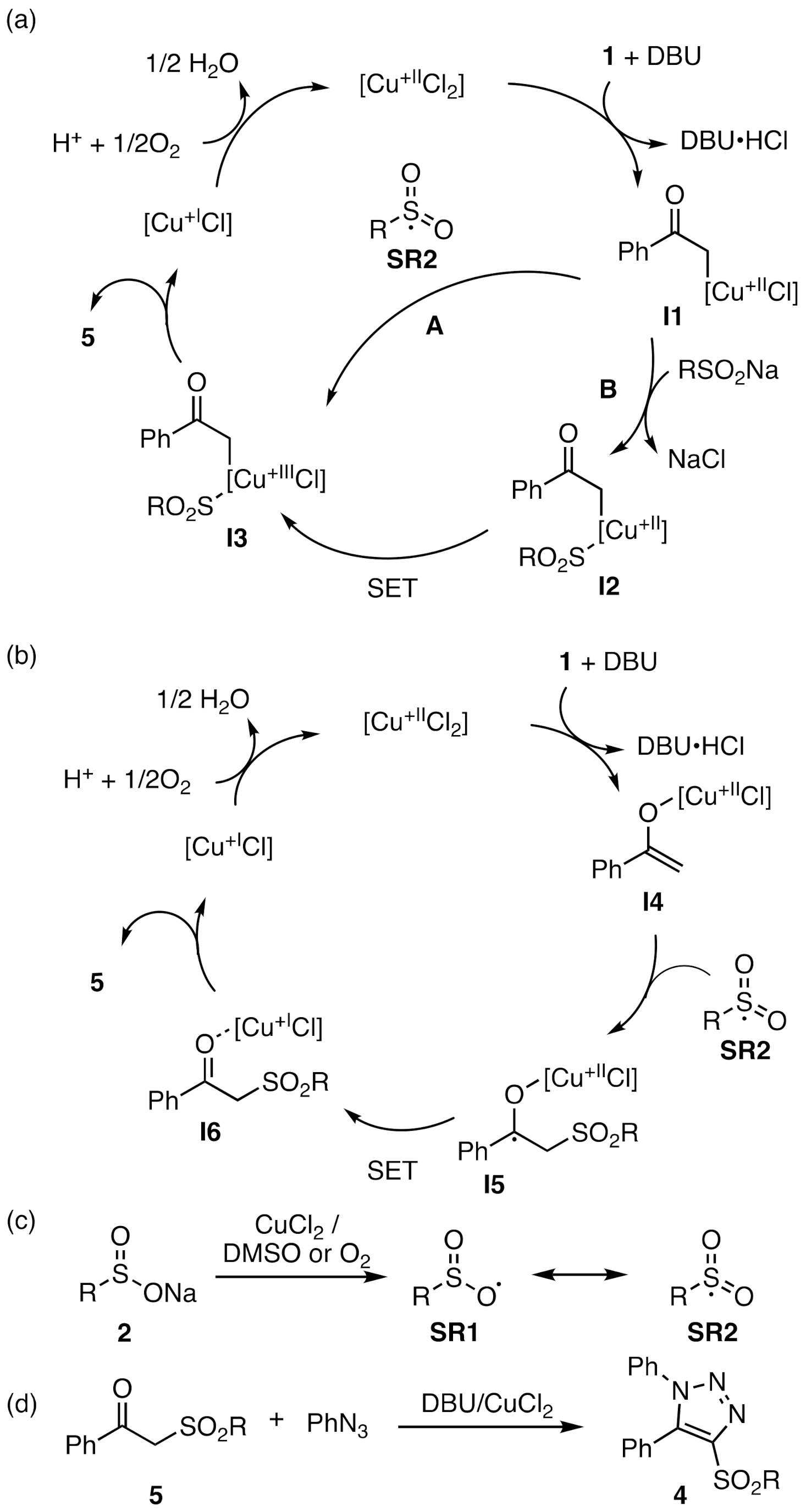

Based on the reaction outcomes and literature reports [26,27,46,62,63,64,65,66,67], three plausible mechanisms are considered, as shown in Scheme 4, two of which are analogous to those described by Lan et al. (Scheme 4a pathway A and Scheme 4b) [26]. First, DBU deprotonates the acetophenone 1, and the resulting enolate exchanges chloride at Cu(II), forming intermediate I1. Next, there are two possible pathways, as shown in Scheme 4a. Via pathway A, the free sulfonyl radical SR2 is formed through oxidation of the sulfinate 2 by Cu(II), oxygen, or DMSO via a SET mechanism [63,64,65,66,67], as shown in Scheme 4b, and then undergoes oxidative addition to the Cu(II) complex, forming Cu(III)-intermediate I3 [26,27,66]. Via pathway B, ligand exchange of the chloride for sulfinate results in the formation of Cu(II)-intermediate I2. This intermediate can then be oxidized via SET by CuCl2, or by oxygen or DMSO, resulting in the formation of Cu(III)-intermediate I3. Reductive elimination of I3 results in the formation of sulfonyl ketone 5 and Cu(I)Cl. Finally, oxidation of Cu(I) by oxygen or DMSO regenerates the Cu(II)-catalyst [26,27,46,62,66].
In the third pathway, as shown in Scheme 4b, the sulfonyl radical SR2 reacts with copper enolate I4 with formation of a benzylic ketyl radical I5. Oxidation of the ketyl radical I5 by Cu(II) via an intramolecular SET process forms the ketosulfone 5 and Cu(I)Cl, which is reoxidized by oxygen to regenerate the active copper(II) catalyst [46,62,63,64,65,66,67]. The sulfonyl ketone 5 can undergo DBU Bronsted-basic and/or CuCl2 Lewis-acidic mediated Dimroth enolate/azide cycloaddition, forming the 4-sulfonyl triazole 4.
The reason why the reaction scope is limited to aromatic ketones can be explained by the reaction mechanisms shown in Scheme 4, in which the first step involves the formation of a (copper-) enolate. The observation that the reaction times increase for more electron-rich aromatic ketones indicates that this deprotonation may be the rate limiting step. This fact would explain why acetone and pinacolone are unreactive since these are less acidic than acetophenone by at least 1.8 orders of magnitude. On the other hand, 1,1,1,-trifluoroacetone, while more acidic, may be unreactive due to its high tendency to form hydrates with water [68]. The reason for the reduced yields of 1,2,3-triazole 4o from the reaction with benzyl azide are intrinsic to the Dimroth azide–enolate cycloaddition, which was defined by L’abbé in 1971 as “the condensation of organic azides with active methylene compounds in the presence of an equimolar amount of organic or inorganic base leading to highly substituted 1,2,3-triazoles in a regioselective manner” [69,70]. The reaction mechanism involves either a stepwise concerted [3+2] cycloaddition or a stepwise addition of the enolate to the azide with formation of an N1-triazenyl ion intermediate. The rate of this cycloaddition depends on the stabilization of this ion [71]. For this reason, aromatic azides with electron-donating groups are expected to react more slowly than those with withdrawing substituents, and benzyl azides and aliphatic azides are expected to react more slowly than their aromatic counterparts.

3. Materials and Methods

3.1. General Information

All chemicals were purchased from Acros Organics (Geel, Belgium), Merck (Darmstadt, Germany), Alfa Aesar (Kandel, Germany), Fluorochem (Hadfield, UK), and TCI Europe (Zwijndrecht, Belgium) and used as received. For column chromatography, 70–230 mesh silica 60 (Acros, Geel, Belgium) was used as the stationary phase. NMR data were recorded using a Bruker AV 400 MHz (Bruker (Biospin), Kontich, Belgium) and chemical shifts (δ) were reported in parts per million (ppm) referenced to tetramethylsilane (1H), or the internal (NMR) solvent signal (13C) as internal standards [72]. High-resolution mass spectra were acquired on a quadrupole orthogonal acceleration time-of-flight mass spectrometer (Synapt G2 HDMS, Waters, Milford, MA, USA). Samples were infused at 3 μL/min and spectra were obtained in positive ionization mode with a resolution of 15,000 (FWHM—full width at half maximum) using leucine enkephalin as a lock mass. Melting points (not corrected) were determined using a Reichert Thermovar apparatus. GC/MS were measured on a Thermo Finnigan Interscience Trace™ GC gas chromatographer (Waltham, Massachusetts, USA) coupled to a Thermo Scientific ITQ 900™ mass spectrometer (Waltham, Massachusetts, USA) in full-scan EI (electron ionization) mode. Phenyl azide (3a), 4-bromophenyl azide (3b), 4-methoxyphenyl azide (3c), and benzyl azide (3d) were prepared according to literature procedures [40,73].
FAIR Data is available as Supporting Information for Publication and includes the primary NMR FID files for compounds: 4a, 4b, 4c, 4d, 4e, 4f, 4g, 4h, 4i, 4j, 4k, 4l, 4m, 4o, 5a, 5b.

3.2. General Procedure and Characterization Data

To a 10 mL round bottom flask, acetophenone 1a–j (0.50 mmol), DMSO (dry, 2 mL), sodium sulfinate 2a–c (1.00 mmol, 2 eq.), DBU (150 µL, 1.00 mmol, 2 eq.), TMEDA (8 µL, 0.05 mmol, 10 mol%), and azide 3a–e (0.75 mmol, 1.5 eq.) were added sequentially. The reaction was initiated by addition of CuCl2 (6.7 mg, 10 mol%). After stirring open vessel for 24 or 48 h at 25 °C, 5 mL EtOAc and 3 mL NH3Cl were added and the mixture was transferred to a separation funnel along with 20 mL EtOAc. Then, 3 mL H2O was added in order to break the suspension. The organic phase was collected and following two more extractions (2 × 25 mL EtOAc), washed with brine, dried over Na2SO4, and concentrated in vacuo. Flash chromatography with ethyl acetate/petroleum ether 10–60% as eluent afforded the title products as off-white and white solids.
1,5-Diphenyl-4-[(4-methylphenyl)sulfonyl]-1H-1,2,3-triazole (4a), Prepared according to the general procedure using acetophenone 1a (60 mg, 0.50 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4a (170 mg, 0.453 mmol, 89%) as a white solid; mp 175–177 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.82–7.71 (app. d, J = 8.3 Hz, 2H), 7.50–7.43 (m, 1H), 7.43–7.30 (m, 5H), 7.30–7.17 (m, 6H), 2.39 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 146.1, 144.9, 138.6, 137.7, 135.4, 130.5, 130.4, 129.9, 129.8, 129.4, 128.6, 128.1, 125.1, 124.3, 21.7. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C21H17N3O2S1: 376.11141; found: 376.1113.
1-Phenyl-4-[(4-methylphenyl)sulfonyl]-5-(4-trifluoromethylphenyl)-1H-1,2,3-triazole (4b), Prepared according to the general procedure using 4′-(trifluoromethyl)acetophenone 1b (94 mg, 0.50 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4b (122 mg, 0.275 mmol, 55%) as an off-white solid; mp 208–210 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.86–7.76 (app. d, J = 8.1 Hz, 2H), 7.71–7.60 (app. d, J = 8.1 Hz, 2H), 7.50–7.34 (m, 5H), 7.33–7.27 (app. d, J = 8.0 Hz, 2H), 7.24–7.16 (app. d, J = 7.7, 2H), 2.42 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 146.8, 145.4, 137.4, 137.1, 135.2, 132.5 (q, J = 33.1 Hz), 131.2, 130.3, 130.0, 129.8, 128.4, 125.7 (q, J = 3.6 Hz), 125.3, 123.6 (q, J = 272.7 Hz), 21.8. 19F-NMR (377 MHz, CDCl3): δ (ppm)–63.00 Hz. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C22H16F3N3O2S1: 444.09879; found: 444.0987.
1-Phenyl-4-[(4-methylphenyl)sulfonyl]-5-(4-fluorophenyl)-1H-1,2,3-triazole (4c), Prepared according to the general procedure using 4′-fluoroacetophenone 1c (68 mg, 0.49 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4c (122 mg, 0.359 mmol, 73%) as an off-white solid; mp 150–152 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.83–7.70 (app. d, J = 8.2 Hz, 2 H), 7.47–7.33 (m, 3 H), 7.32–7.24 (m, 4H), 7.33–7.25 (app. d, J = 7.1 Hz, 2H), 7.13–7.03 (app. t, J = 8.6 Hz, 2 H), 2.40 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 163.9 (d, J = 252.3 Hz) 146.3, 145.1, 137.7, 137.6, 135.3, 132.7 (d, J = 8.8 Hz), 130.1, 129.9, 129.6, 128.2, 125.3, 120.4 (d, J = 3.5 Hz), 116.0 (d, J = 22.2 Hz), 21.7. 19F-NMR (377 MHz, CDCl3): δ (ppm)—108.69 Hz. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C21H16F1N3O2S1: 394.10199; found: 394.1018.
1-Phenyl-4-[(4-methylphenyl)sulfonyl]-5-(3-bromomethylphenyl)-1H-1,2,3-triazole (4d), Prepared according to the general procedure using 4′-bromoacetophenone 1d (100 mg, 0.500 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4d (145 mg, 0.319 mmol, 64%) as an off-white solid; mp 158–160 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.85–7.75 (app. d, J = 8.2 Hz, 2H), 7.63–7.55 (app. d, J = 7.9 Hz, 1H), 7.47–7.34 (m, 4H), 7.33–7.18 (m, 6, H), 2.42 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 146.6, 145.3, 137.5, 137.0, 135.2, 133.7, 133.2, 130.22, 130.20, 130.0, 129.7, 129.2, 128.3, 126.4, 125.2, 122.5, 21.8. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C21H16Br1N3O2S1: 454.02198; found: 454.0216.
1-Phenyl-4-[(4-methylphenyl)sulfonyl]-5-(4-methylphenyl)-1H-1,2,3-triazole (4e), Prepared according to the general procedure using 4′-methylacetophenone 1e (67 mg, 0.49 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4e (97 mg, 0.25 mmol, 51%) as an off-white solid; mp 116–118 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.83–7.73 (app. d, J = 8.3 Hz, 2H), 7.43–7.22 (m, 3 H), 7.30–7.24 (m, 2H), 7.24–7.11 (m, 6H), 2.40 (s, 3H), 2.38 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 146.1, 144.9, 140.9, 138.9, 137.9, 135.7, 130.4, 129.8, 129.5, 129.4, 128.3, 125.3, 121.3, 21.7, 21.6. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C22H19N3O2S1: 390.12706; found: 390.1269.
1-Phenyl-4-[(4-methylphenyl)sulfonyl]-5-(4-methoxyphenyl)-1H-1,2,3-triazole (4f), Prepared according to the general procedure using 4′-methoxyacetophenone 1f (75 mg, 0.50 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 48 h. Flash chromatography using EtOAc/petroleum ether 10–60% yielded 4f (70 mg, 0.17 mmol, 34%) as an off-white solid; mp 122–125 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.82–7.73 (app. d, J = 8.3 Hz, 2H), 7.44–7.31 (m, 3 H), 7.30–7.16 (m, 6 H), 6.92–6.84 (app. d, J = 8.8 Hz, 2H), 3.83 (s, 3H), 2.39 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 161.2, 145.8, 144.9, 138.7, 137.8, 135.6, 132.0, 129.8, 129.4, 128.1, 125.2, 116.0, 114.2, 55.4, 21.7. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C22H19N3O3S1: 406.12198; found: 406.1212.
1-Phenyl-4-[(4-methylphenyl)sulfonyl]-5-(4-methoxyphenyl)-1H-1,2,3-triazole (4g), Prepared according to the general procedure using 2′-methyl acetophenone 1g (67 mg, 0.50 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 48 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4g (69 mg, 0.18 mmol, 36%) as a white solid; mp 154–156 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.75–7.65 (app. d, J = 8.3 Hz, 2 H), 7.44–7.13 (m, 11H), 2.40 (s, 3H), 1.73 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 146.6, 144.9, 138.5, 137.79, 137.77, 135.8, 131.1, 131.0, 130.6, 129.8, 129.5, 128.2, 126.13, 124.3, 124.1, 21.8, 19.7. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C22H19N3O2S1: 390.12706; found: 390.1266.
1-Phenyl-4-[(4-methylphenyl)sulfonyl]-5-(1-naphtyl)-1H-1,2,3-triazole (4h), Prepared according to the general procedure using 1-acetonaphtone 1h (84 mg, 0.49 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 48 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4h (126 mg, 0.296 mmol, 60%) as a white solid; mp = 195–197 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 8.99–7.92 (app. d, J = 8.2 Hz, 1H), 7.89–7.80 (app. d, J = 8.2 Hz, 1H), 7.59–7.47 (m, 3H), 7.46–7.38 (m, 2H), 7.29–7.12 (m, 6H), 7.09–6.99 (app. d, J = 8.1 Hz, 2H), 7.98–7.88 (app. d, J = 8.4 Hz, 1H), 2.29 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 147.7, 144.7, 137.5, 137.3, 135.7, 133.3, 131.6, 131.2, 130.0, 129.8, 129.5, 129.3, 128.7, 128.2, 127.3, 125.6, 125.0, 124.3, 124.2, 122.0, 21.6. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C25H19N3O2S1: 426.12706; found: 426.1269.
1-Phenyl-4-[(4-methylphenyl)sulfonyl]-5-(2-naphtyl)-1H-1,2,3-triazole (4i), Prepared according to the general procedure using 2-acetonaphtone 1i (84 mg, 0.49 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–50% yielded 4i (149 mg, 0.350 mmol, 71%) as a white solid; mp 206–208 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.93–7.69 (m, 6 H), 7.64–7.47 (m, 2H), 7.43–7.09 (m, 8H), 2.36 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 146.5, 144.9, 138.7, 137.8, 135.6, 133.8, 132.6, 131.2, 129.9, 129.8, 129.5, 128.6, 128.5, 128.3, 127.9, 127.9, 127.1, 126.4, 125.2, 121.6, 21.7. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C25H19N3O2S1: 426.12706; found: 426.1265.
1,5-Diphenyl-4-methylsulfonyl-1H-1,2,3-triazole (4j), Prepared according to the general procedure using acetophenone 1a (60 mg, 0.50 mmol), sodium methanesulfinate 2b (110 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–60% yielded 4j (127 mg, 0.424 mmol, 85%) as a white solid; mp 155–157 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.52–7.32 (m, 8H), 7.32–7.20 (app. d, J = 7.46 Hz, 2H), 2.34 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 145.3, 138.4, 135.5, 130.8, 130.5, 130.1, 129.6, 128.8, 125.4, 123.9, 43.5. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C15H13N3O3S1: 300.08011; found: 300.0800.
1,5-Diphenyl-4-[(4-chlorophenyl)sulfonyl]-1H-1,2,3-triazole (4k), Prepared according to the general procedure using acetophenone 1a (60 mg, 0.50 mmol), sodium 4-chlorophenylsulfinate 2c (198 mg, 1.00 mmol), and phenyl azide 3a (83 μL, 0.75 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–60% yielded 4k (100 mg, 0.253 mmol, 85%) as an off-white solid; mp = 149–151 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.90–7.74 (app. d, J = 8.3 Hz), 7.63–7.32 (m, 8 H), 7.32–7.13 (m, 4H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 145.6, 140.7, 139.2, 139.0, 135.4, 130.7, 130.5, 130.0, 129.7, 129.5, 128.8, 125.2, 124.2. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C20H14Cl1N3O3S1: 396.05679; found: 396.0558.
1-(4-Bromophenyl)-4-[(4-methylphenyl)sulfonyl]-5-phenyl-1H-1,2,3-triazole (4l), Prepared according to the general procedure using acetophenone 1a (60 mg, 0.50 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and 4-bromophenyl azide 3b (149 mg, 0.750 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4l (167 mg, 0.368 mmol, 74%) as a pale brown solid; mp 192–194 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.82–7.73 (app. d, J = 8.3 Hz, 2H), 7.53–7.46 (m, 3H), 7.46–7.38 (m, 2H), 7.32–7.24 (m, 4H), 7.15–7.07 (app d, J = 8.8 Hz, 2H), 2.41 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 146.5, 145.1, 138.6, 137.6, 134.5, 132.8, 130.8, 130.5, 129.9, 128.9, 128.3, 126.6, 124.14, 121.12, 21.8. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C21H16Br1N3O2S1: 454.02198; found: 454.0222.
1-(4-Methoxyphenyl)-4-[(4-methylphenyl)sulfonyl]-5-phenyl-1H-1,2,3-triazole (4m, known compound [22]). Prepared according to the general procedure using acetophenone 1a (60 mg, 0.50 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and 4-methoxyphenyl azide 3c (113 mg, 0.750 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–50% yielded 4m (130 mg, 0.312 mmol, 64%) as a white solid; mp 194–196 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.82–7.73 (app. d, J = 8.3 Hz, 2H), 7.49–7.43 (m, 1H), 7.43–7.35 (m, 2H), 7.30–7.23 (m, 4H), 7.16–7.10 (app. d, J = 9 Hz, 2H), 6.86–6.80 (app. d, J = 9 Hz, 2H), 3.79 (s, 3H), 2.40 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 160.6, 146.1, 144.9, 138.7, 137.9, 130.6, 130.5, 129.9, 128.7, 128.5, 128.3, 126.7, 124.7, 114.6, 55.7, 21.8. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C22H19N3O3S1: 454. 406.12198; found: 406.1220.
1-Benzyl-4-[(4-methylphenyl)sulfonyl]-5-phenyl-1H-1,2,3-triazole (4o), Prepared according to the general procedure using acetophenone 1a (60 mg, 0.50 mmol), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol), and benzyl azide 3d (94 mL, 0.75 mmol). Reaction temperature was 35 °C and reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–40% yielded 4o (35 mg, 0.090 mmol, 18%) as an off-white semi-solid. 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.74–7.67 (app. d, J = 8.32, 2 H), 7.57–7.51 (m, 1H), 7.48–7.42 (m, 2H), 7.28–7.20 (m, 5H), 7.18–7.12 (m, 2H), 6.98–9.62 (m, 2H), 5.33 (s, 2H), 2.39 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 146.2, 144.8, 139.0, 137.9, 134.0, 130.8, 130.2, 129.8, 129.0, 128.8, 128.8, 128.2, 127.9, 124.5, 52.7, 21.8. HRMS (ESI-Q-TOF): m/z [M + H]+ calcd. for C22H19N3O2S1: 390.12706; found: 390.1270.

3.3. Procedures for Mechanistic Studies

3.3.1. Procedure A: Reaction under Argon Atmosphere

To a flame dried, Ar-flushed 10 mL Schlenck tube, sodium p-toluene sulfinate 2a (178 mg, 1.00 mmol, 2 eq.) and CuCl2 (6.7 mg, 10 mol%) were added. After evacuating and filling with argon three times, DMSO (dry, 2 mL), DBU (150 µL, 1.00 mmol, 2 eq.), TMEDA (15 µL, 0.05 mmol, 10 mol%) and phenyl azide 3a (83 μL, 0.75 mmol, 1.5 eq.) and acetophenone 1a (60 mg, 58 µL, 0.50 mmol) were added sequentially. After stirring for 24 h at 25 °C, 5 mL EtOAc and 3 mL NH3Cl were added and the mixture was transferred to a separation funnel along with 20 mL EtOAc. Then, 3 mL H2O was added in order to break the suspension. The organic phase was collected and following two more extractions (2 × 25 mL EtOAc), washed with brine, dried over Na2SO4, and concentrated in vacuo. TLC, 1H-NMR, and GC/MS showed only a trace of triazole 4a.

3.3.2. Procedure B: Reaction in Presence of TEMPO

To a 10 mL round bottom flask, acetophenone 1a (60 mg, 0.50 mmol), DMSO (dry, 2 mL), p-toluene sulfinate 2a (178 mg, 1.00 mmol, 2 eq.), DBU (150 µL, 1.00 mmol, 2 eq.), TMEDA (15 µL, 0.05 mmol, 10 mol phenyl), azide 3a (83 μL, 0.75 mmol, 1.5 eq.), and TEMPO (312 mg, 2 mmol, 4 eq.) were added sequentially. The reaction was initiated by addition of CuCl2 (6.7 mg, 10 mol%). After stirring the open vessel for 24 h at 25 °C, 5 mL EtOAc and 3 mL NH3Cl were added and the mixture was transferred to a separation funnel along with 20 mL EtOAc. Then, 3 mL H2O was added in order to break the suspension. The organic phase was collected and following two more extractions (2 × 25 mL EtOAc), washed with brine, dried over Na2SO4, and concentrated in vacuo. TLC, 1H-NMR, and GC/MS showed no triazole 4a or sulfonyl ketone 5a.

3.3.3. Procedure C: Reaction of 1,1-Diphenylethylene (DPE)

To a 10 mL round bottom flask, acetophenone 1a (60 mg, 0.50 mmol), DMSO (dry, 2 mL), p-toluene sulfinate 2a (1.00 mmol, 2 eq.), DBU (150 µL, 1.00 mmol, 2 eq.), TMEDA (15 µL, 0.05 mmol, 10 mol%), phenyl azide 3a (83 μL, 0.75 mmol, 1.5 eq.), and DPE (180 mg, 1.00 mmol, 2 eq.) were added sequentially. The reaction was initiated by addition of CuCl2 (6.7 mg, 10 mol%). After stirring the open vessel for 24 h at 25 °C, 5 mL EtOAc and 3 mL NH3Cl were added and the mixture was transferred to a separation funnel along with 20 mL EtOAc. Then, 3 mL H2O was added in order to break the suspension. The organic phase was collected and following two more extractions (2 × 25 mL EtOAc), washed with brine, dried over Na2SO4, and concentrated in vacuo. Flash chromatography with ethyl acetate/petroleum ether 10–40% as eluent afforded triazole 4a (73 mg, 0.194 mmol, 39%) and radical trapping product 7 (14 mg, 0.0419 mmol, 4%). 1H-NMR for 7 was in accordance with the literature.

3.3.4. Procedure D: Reaction of Phenacyl Chloride under Standard Conditions

To a 10 mL round bottom flask, phenacyl chloride 8 (77 mg, 0.50 mmol), DMSO (dry, 2 mL), p-toluene sulfinate 2a (1.00 mmol, 2 eq.), DBU (150 µL, 1.00 mmol, 2 eq.), TMEDA (15 µL, 0.05 mmol, 10 mol%), and phenyl azide 3a (83 μL, 0.75 mmol, 1.5 eq.) were added sequentially. The reaction was initiated by addition of CuCl2 (6.7 mg, 10 mol%). After stirring the open vessel for 24 h at 25 °C, 5 mL EtOAc and 3 mL NH3Cl were added and the mixture was transferred to a separation funnel along with 20 mL EtOAc. Then, 3 mL H2O was added in order to break the suspension. The organic phase was collected and following two more extractions (2 × 25 mL EtOAc), washed with brine, dried over Na2SO4, and concentrated in vacuo. Flash chromatography with ethyl acetate/petroleum ether 10–40% as eluent afforded triazole 4a (19 mg, 0.05 mmol, 10%).

3.3.5. Procedure E: Reaction of Phenacyl Chloride under Copper-Free Conditions

To a 10 mL round bottom flask, phenacyl chloride 8 (77 mg, 0.50 mmol), DMSO (dry, 2 mL), p-toluene sulfinate 2a (1.00 mmol, 2 eq.), DBU (150 µL, 1.00 mmol, 2 eq.), TMEDA (15 µL, 0.05 mmol, 10 mol%), and phenyl azide 3a (83 μL, 0.75 mmol, 1.5 eq.) were added sequentially. After stirring the open vessel for 24 h at 25 °C, 5 mL EtOAc and 3 mL NH3Cl were added and the mixture was transferred to a separation funnel along with 20 mL EtOAc. Then, 3 mL H2O was added in order to break the suspension. The organic phase was collected and following two more extractions (2 × 25 mL EtOAc), washed with brine, dried over Na2SO4, and concentrated in vacuo. Flash chromatography with ethyl acetate/petroleum ether 10–40% as eluent afforded triazole 4a (75 mg, 0.20 mmol, 40%).

3.3.6. Procedure F: Reaction of Acetophenone (1a) in Absence of Azide towards Ketosulfones 5a and 5b

To a 10 mL round bottom flask, acetophenone 1a,b (0.50 mmol), DMSO (dry, 2 mL), sodium p-toluenesulfinate 2a (178 mg, 1.00 mmol, 2eq), DBU (150 µL, 1.00 mmol, 2 eq.), and TMEDA (15 µL, 0.050 mmol, 10 mol%) were added sequentially. The reaction was initiated by addition of CuCl2 (6.7 mg, 10 mol%). After stirring the open vessel for 24 h at 25 °C, 5 mL EtOAc and 3 mL NH3Cl were added and the mixture was transferred to a separation funnel along with 20 mL EtOAc. Then, 3 mL H2O was added in order to break the suspension. The organic phase was collected and following two more extractions (2 × 25 mL EtOAc), washed with brine, dried over Na2SO4, and concentrated in vacuo. Flash chromatography with ethyl acetate/petroleum ether 10–30% as eluent afforded the title products as white solids.
1-Phenyl-2-(toluene-4-sulfonyl)-ethanone (5a, Known compound [74,75]). Prepared according to the general procedure using acetophenone 1a (60 mg, 0.50 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–30% yielded 5a (89 mg, 0.324 mmol, 65%) as a white solid; mp 105–106 °C (Lit. mp 105–106 °C) [75]. 1H-NMR (400 MHz, CDCl3): δ (ppm) 8.03–7.87 (app. d, J = 7.2 Hz, 2 H), 7.83–7.70 (app. d, J = 6.8 Hz, 2H), 7.67–7.56 (m, 1H), 7.54–7.42 (m, 2H), 7.38–7.26 (app. d, J = 6.8 Hz, 2H), 4.72 (s, 2H), 2.43 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 188.3, 145.5, 135.88, 135.87, 134.4, 129.9, 129.4, 128.9, 128.7, 63.7, 21.8.
1-(4-Trifluoromethylphenyl)-2-(toluene-4-sulfonyl)-ethanone (5b, known compound [27]). Prepared according to the general procedure using 4′-(trifluoromethyl)acetophenone 1b (94 mg, 0.50 mmol). Reaction time was 24 h. Flash chromatography using EtOAc/petroleum ether 10–30% yielded 5b (113 mg, 0.330 mmol, 66%) as a white solid; mp 136–137 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 8.14–8.00 (app. d, J = 8.2 Hz, 2H), 8.85–8.65 (m, 4H), 4.42–4.28 (app. d, J = 8.1 Hz), 4.76 (s, 2H), 2.44 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 187.6, 145.8, 138.4, 135.6, 135.4 (q, J = 32.9 Hz), 130.0, 129.8, 128.6, 127.5, 125.9 (q, J = 3.7 Hz), 123.5 (q, J = 272.9 Hz), 119.4, 63.9, 21.8. 19F-NMR (377 MHz, CDCl3) δ (ppm) −63.29 (s, 1H). HRMS (ESI-Q-TOF): m/z [M + Na]+ calcd. for C25H19N3O2S1: 365.04299; found: 365.0427.

4. Conclusions

In conclusion, we have developed an efficient Cu-catalyzed three-component synthesis of 4-sulfonyl triazoles from aromatic ketones, azides, and sodium sulfinates, with air oxygen as terminal oxidant, operating at room temperature. This reaction involves a sequential oxidative sulfonylation of aromatic ketones/Dimroth cyclization. Preliminary mechanistic investigations indicate that both sulfonyl free radicals and organometallic Cu(III)-intermediates are involved.

Supplementary Materials

The following are available online. Table S1: Optimization of reaction conditions, copies and primary NMR FID files of the 1H, 19F, and 13C-NMR spectra.

Author Contributions

Conceptualization, M.V.H., S.P.V., and W.D.; methodology, M.V.H.; investigation, M.V.H. and S.P.V.; writing—original draft preparation, M.V.H.; writing—review and editing, M.V.H., S.P.V., and W.D.; funding acquisition, W.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by project financing from KU Leuven, grant number C14/19/78.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or supplementary material. FAIR Data is available as Supporting Information for Publication and includes the primary NMR FID files for compounds: 4a, 4b, 4c, 4d, 4e, 4f, 4g, 4h, 4i, 4j, 4k, 4l, 4m, 4o, 5a, 5b.

Acknowledgments

The authors acknowledge Bart Van Huffel for technical assistance with the NMR spectrometry and Jef Rozenski for the HRMS measurements. Mass spectrometry was made possible by the support of the Hercules Foundation of the Flemish Government (grant 20100225-7).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Sample Availability

Not available.

References

  1. Narsimha, S.; Battula, K.S.; Reddy, N.V. Microwave-Assisted One-Pot Synthesis of Benzo[d]Thiazole Containing 1,2,3-Triazoles by Using Organo Catalytic Reaction and Their Antibacterial Activity. Heterocycl. Lett. 2017, 7, 1139–1146. [Google Scholar]
  2. Gonzalez-Calderon, D.; Mejia-Dionicio, M.G.; Morales-Reza, M.A.; Ramirez-Villalva, A.; Morales-Rodriguez, M.; Jauregui-Rodriguez, B.; Diaz-Torres, E.; Gonzalez-Romero, C.; Fuentes-Benites, A. Azide-Enolate 1,3-Dipolar Cycloaddition in the Synthesis of Novel Triazole-Based Miconazole Analogues as Promising Antifungal Agents. Eur. J. Med. Chem. 2016, 112, 60–65. [Google Scholar] [CrossRef] [PubMed]
  3. Ramírez-Villalva, A.; González-Calderón, D.; Rojas-García, R.I.; González-Romero, C.; Tamaríz-Mascarúa, J.; Morales-Rodríguez, M.; Zavala-Segovia, N.; Fuentes-Benítes, A. Synthesis and Antifungal Activity of Novel Oxazolidin-2-One-Linked 1,2,3-Triazole Derivatives. MedChemComm 2017, 8, 2258–2262. [Google Scholar] [CrossRef] [PubMed]
  4. Hlasta, D.J.; Ackerman, J.H. Steric Effects on the Regioselectivity of an Azide-Alkyne Dipolar Cycloaddition Reaction: The Synthesis of Human Leukocyte Elastase Inhibitors. J. Org. Chem. 1994, 59, 6184–6189. [Google Scholar] [CrossRef]
  5. Lin, W.; Wang, Y.-M.; Chai, S.C.; Lv, L.; Zheng, J.; Wu, J.; Zhang, Q.; Wang, Y.-D.; Griffin, P.R.; Chen, T. SPA70 Is a Potent Antagonist of Human Pregnane X Receptor. Nat. Commun. 2017, 8, 741. [Google Scholar] [CrossRef] [Green Version]
  6. Li, L.; Welch, M.A.; Li, Z.; Mackowiak, B.; Heyward, S.; Swaan, P.W.; Wang, H. Mechanistic Insights of Phenobarbital-Mediated Activation of Human but Not Mouse Pregnane X Receptor. Mol. Pharmacol. 2019, 96, 345–354. [Google Scholar] [CrossRef]
  7. Huber, A.D.; Wright, W.C.; Lin, W.; Majumder, K.; Low, J.A.; Wu, J.; Buchman, C.D.; Pintel, D.J.; Chen, T. Mutation of a Single Amino Acid of Pregnane X Receptor Switches an Antagonist to Agonist by Altering AF-2 Helix Positioning. Cell. Mol. Life Sci. 2020. [Google Scholar] [CrossRef]
  8. Álvarez-Pérez, M.; Velado, M.; García-Puentes, D.; Sáez, E.; Vicent, C.; Fernández de la Pradilla, R.; Viso, A.; de la Torre, M.C.; Sierra, M.A. Sulfur Groups Improve the Performance of Triazole- and Triazolium-Based Interaction Units in Anion Binding. J. Org. Chem. 2017, 82, 3341–3346. [Google Scholar] [CrossRef] [Green Version]
  9. Gao, D.; Zhai, H.; Parvez, M.; Back, T.G. 1,3-Dipolar Cycloadditions of Acetylenic Sulfones in Solution and on Solid Supports. J. Org. Chem. 2008, 73, 8057–8068. [Google Scholar] [CrossRef]
  10. Salameh, B.A.; Cumpstey, I.; Sundin, A.; Leffler, H.; Nilsson, U.J. 1H-1,2,3-Triazol-1-Yl Thiodigalactoside Derivatives as High Affinity Galectin-3 Inhibitors. Bioorg. Med. Chem. 2010, 18, 5367–5378. [Google Scholar] [CrossRef]
  11. Ding, S.; Jia, G.; Sun, J. Iridium-Catalyzed Intermolecular Azide—Alkyne Cycloaddition of Internal Thioalkynes under Mild Conditions. Angew. Chem. Int. Ed. 2014, 53, 1877–1880. [Google Scholar] [CrossRef] [PubMed]
  12. Destito, P.; Couceiro, J.R.; Faustino, H.; López, F.; Mascareñas, J.L. Ruthenium-Catalyzed Azide—Thioalkyne Cycloadditions in Aqueous Media: A Mild, Orthogonal, and Biocompatible Chemical Ligation. Angew. Chem. Int. Ed. 2017, 56, 10766–10770. [Google Scholar] [CrossRef] [PubMed]
  13. Song, W.; Zheng, N.; Li, M.; Dong, K.; Li, J.; Ullah, K.; Zheng, Y. Regiodivergent Rhodium(I)-Catalyzed Azide—Alkyne Cycloaddition (RhAAC) to Access Either Fully Substituted Sulfonyl-1,2,3-Triazoles under Mild Conditions. Org. Lett. 2018, 20, 6705–6709. [Google Scholar] [CrossRef]
  14. Braga, A.L.; Reckziegel, A.; Menezes, P.H.; Stefani, H.A. Alkynyl Sulfides and Selenides from Alkynyl Bromides and Diorganoyl Chalcogenides Promoted by Copper(I) Iodide. Tetrahedron Lett. 1993, 34, 393–394. [Google Scholar] [CrossRef]
  15. Reeves, J.T.; Camara, K.; Han, Z.S.; Xu, Y.; Lee, H.; Busacca, C.A.; Senanayake, C.H. The Reaction of Grignard Reagents with Bunte Salts: A Thiol-Free Synthesis of Sulfides. Org. Lett. 2014, 16, 1196–1199. [Google Scholar] [CrossRef] [PubMed]
  16. Frei, R.; Wodrich, M.D.; Hari, D.P.; Borin, P.-A.; Chauvier, C.; Waser, J. Fast and Highly Chemoselective Alkynylation of Thiols with Hypervalent Iodine Reagents Enabled Through a Low Energy Barrier Concerted Mechanism. J. Am. Chem. Soc. 2014, 136, 16563–16573. [Google Scholar] [CrossRef]
  17. Gao, W.-C.; Shang, Y.-Z.; Chang, H.-H.; Li, X.; Wei, W.-L.; Yu, X.-Z.; Zhou, R. N-Alkynylthio Phthalimide: A Shelf-Stable Alkynylthio Transfer Reagent for the Synthesis of Alkynyl Thioethers. Org. Lett. 2019, 21, 6021–6024. [Google Scholar] [CrossRef]
  18. Hamnett, D.J.; Moran, W.J. Improving Alkynyl(Aryl)Iodonium Salts: 2-Anisyl as a Superior Aryl Group. Org. Biomol. Chem. 2014, 12, 4156–4162. [Google Scholar] [CrossRef] [Green Version]
  19. Chen, P.; Zhu, C.; Zhu, R.; Wu, W.; Jiang, H. MnO2-Promoted Oxidative Radical Sulfonylation of Haloalkynes with Sulfonyl Hydrazides: C(Sp)–S Bond Formation towards Alkynyl Sulfones. Chem. Asian J. 2017, 12, 1875–1878. [Google Scholar] [CrossRef]
  20. Singh, R.; Allam, B.K.; Singh, N.; Kumari, K.; Singh, S.K.; Singh, K.N. A Direct Metal-Free Decarboxylative Sulfono Functionalization (DSF) of Cinnamic Acids to α,β-Unsaturated Phenyl Sulfones. Org. Lett. 2015, 17, 2656–2659. [Google Scholar] [CrossRef]
  21. Pokhodylo, N.T.; Matiychuk, V.S.; Obushak, M.D. (Arylsulfonyl)Acetones and -Acetonitriles: New Activated Methylenic Building Blocks for Synthesis of 1,2,3-Triazoles. Synthesis Stuttgart. 2009, 2321–2323. [Google Scholar] [CrossRef]
  22. Saraiva, M.T.; Costa, G.P.; Seus, N.; Schumacher, R.F.; Perin, G.; Paixão, M.W.; Luque, R.; Alves, D. Room-Temperature Organocatalytic Cycloaddition of Azides with β-Keto Sulfones: Toward Sulfonyl-1,2,3-Triazoles. Org. Lett. 2015, 17, 6206–6209. [Google Scholar] [CrossRef]
  23. Blastik, Z.E.; Klepetářová, B.; Beier, P. Enamine-Mediated Azide-Ketone [3+2] Cycloaddition of Azidoperfluoroalkanes. ChemistrySelect 2018, 3, 7045–7048. [Google Scholar] [CrossRef]
  24. Pokhodylo, N.T.; Tupychak, M.A.; Palchykov, V.A. Dihydro-2H-Thiopyran-3(4H)-One-1,1-Dioxide—A New Cyclic Ketomethylenic Reagent for the Dimroth-Type 1,2,3-Triazole Synthesis. Synth. Commun. 2020, 50, 1835–1844. [Google Scholar] [CrossRef]
  25. Samakkanad, N.; Katrun, P.; Techajaroonjit, T.; Hlekhlai, S.; Pohmakotr, M.; Reutrakul, V.; Jaipetch, T.; Soorukram, D.; Kuhakarn, C. IBX/I2-Mediated Reaction of Sodium Arenesulfinates with Alkenes: Facile Synthesis of β-Keto Sulfones. Synthesis Stuttgart. 2012, 44, 1693–1699. [Google Scholar] [CrossRef]
  26. Lan, X.-W.; Wang, N.-X.; Bai, C.-B.; Zhang, W.; Xing, Y.; Wen, J.-L.; Wang, Y.-J.; Li, Y.-H. Ligand-Mediated and Copper-Catalyzed C(Sp3)-H Bond Functionalization of Aryl Ketones with Sodium Sulfinates under Mild Conditions. Sci. Rep. 2015, 5, 18391. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Tang, X.; Huang, L.; Xu, Y.; Yang, J.; Wu, W.; Jiang, H. Copper-Catalyzed Coupling of Oxime Acetates with Sodium Sulfinates: An Efficient Synthesis of Sulfone Derivatives. Angew. Chem. Int. Ed. 2014, 53, 4205–4208. [Google Scholar] [CrossRef] [PubMed]
  28. Yang, X.; Yang, J.; Yan, K.; Qin, H.; Dong, W.; Wen, J.; Wang, H. A Naphthalimide-Based ND-O-EAc Photocatalyst for Sulfonation of Alkenes to Access β-Ketosulfones under Visible Light. Eur. J. Org. Chem. 2020, 2020, 3456–3461. [Google Scholar] [CrossRef]
  29. Chandran, R.; Pise, A.; Shah, S.K.; Rahul, D.; Suman, V.; Tiwari, K.N. Copper-Catalyzed Thiolation of Terminal Alkynes Employing Thiocyanate as the Sulfur Source Leading to Enaminone-Based Alkynyl Sulfides under Ambient Conditions. Org. Lett. 2020, 22, 6557–6561. [Google Scholar] [CrossRef]
  30. Yavari, I.; Shaabanzadeh, S. Electrochemical Synthesis of β-Ketosulfones from Switchable Starting Materials. Org. Lett. 2020, 22, 464–467. [Google Scholar] [CrossRef]
  31. Cui, P.; Liu, Q.; Wang, J.; Liu, H.; Zhou, H. One-Pot Synthesis of Chiral β-Hydroxysulfones from Alkynes via Aerobic Oxysulfonylation and Asymmetric Reduction in MeOH/H2O. Green Chem. 2019, 21, 634–639. [Google Scholar] [CrossRef]
  32. Miles, M.L.; Hauser, C.R. Terminal Benzoylation of Certain β-Oxo Sulfones to Form Dioxo Sulfones by Means of Sodium Hydride. Dibenzoylation of Dimethyl Sulfone. J. Org. Chem. 1964, 29, 2329–2331. [Google Scholar] [CrossRef]
  33. Grossert, J.S.; Dubey, P.K.; Gill, G.H.; Cameron, T.S.; Gardner, P.A. The Preparation, Spectral Properties, Structures, and Base-Induced Cleavage Reactions of Some α-Halo-β-Ketosulfones. Can. J. Chem. 1984, 62, 798–807. [Google Scholar] [CrossRef]
  34. Long, J.; Gao, W.; Guan, Y.; Lv, H.; Zhang, X. Nickel-Catalyzed Highly Enantioselective Hydrogenation of β-Acetylamino Vinylsulfones: Access to Chiral β-Amido Sulfones. Org. Lett. 2018, 20, 5914–5917. [Google Scholar] [CrossRef]
  35. Katritzky, A.R.; Abdel-Fattah, A.A.A.; Wang, M. Efficient Conversion of Sulfones into β-Keto Sulfones by N-Acylbenzotriazoles. J. Org. Chem. 2003, 68, 1443–1446. [Google Scholar] [CrossRef]
  36. Ahamad, S.; Kumar, A.; Kant, R.; Mohanan, K. Metal-Free Three-Component Assembly of Fully Substituted 1,2,3-Triazoles. Asian J. Org. Chem. 2018, 7, 1698–1703. [Google Scholar] [CrossRef]
  37. Safrygin, A.; Dar’in, D.; Kantin, G.; Krasavin, M. α-Diazo-β-Oxosulfones as Partners in the Wolff 1,2,3-Triazole Synthesis and the Wolff Rearrangement in the Presence of Aromatic Amines. Eur. J. Org. Chem. 2019, 2019, 4721–4724. [Google Scholar] [CrossRef]
  38. Farrington, A.; Hough, L. A New Entry to Triazoles from Carbohydrates. Chem. Commun. 1965, 219–220. [Google Scholar] [CrossRef]
  39. Farrington, A.; Hough, L. A Fused Pyrrolidotriazole Derivative from Bis(Ethylsulphonyl)-(2,3-O-Isopropylidene-4-O-Methanesulphonyl-α-D-Lyxopyranosyl)Methane. Carbohydr. Res. 1974, 38, 107–115. [Google Scholar] [CrossRef]
  40. Thomas, J.; John, J.; Parekh, N.; Dehaen, W. A Metal-Free Three-Component Reaction for the Regioselective Synthesis of 1,4,5-Trisubstituted 1,2,3-Triazoles. Angew. Chem. Int. Ed. 2014, 53, 10155–10159. [Google Scholar] [CrossRef]
  41. Zhou, L.; Yi, H.; Zhu, L.; Qi, X.; Jiang, H.; Liu, C.; Feng, Y.; Lan, Y.; Lei, A. Tuning the Reactivity of Radical through a Triplet Diradical Cu(II) Intermediate in Radical Oxidative Cross-Coupling. Sci. Rep. 2015, 5, 15934. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Fu, H.; Wang, S.-S.; Li, Y.-M. Copper-Mediated Oxidative Radical Addition/Cyclization Cascade: Synthesis of Trifluoromethylated and Sulfonated Quinoline-2,4(1H,3H)-Diones. Adv. Synth. Catal. 2016, 358, 3616–3626. [Google Scholar] [CrossRef]
  43. Funes-Ardoiz, I.; Maseras, F. Oxidative Coupling Mechanisms: Current State of Understanding. ACS Catal. 2018, 8, 1161–1172. [Google Scholar] [CrossRef]
  44. Choi, H.; Min, M.; Peng, Q.; Kang, D.; Paton, R.S.; Hong, S. Unraveling Innate Substrate Control in Site-Selective Palladium-Catalyzed C–H Heterocycle Functionalization. Chem. Sci. 2016, 7, 3900–3909. [Google Scholar] [CrossRef] [Green Version]
  45. Itahara, T.; Ikeda, M.; Sakakibara, T. Alkenylation of 1-Acylindoles with Olefins Bearing Electron-Withdrawing Substituents and Palladium Acetate. J. Chem. Soc. Perkin Trans. 1 1983, 1361–1363. [Google Scholar] [CrossRef]
  46. McCann, S.D.; Stahl, S.S. Copper-Catalyzed Aerobic Oxidations of Organic Molecules: Pathways for Two-Electron Oxidation with a Four-Electron Oxidant and a One-Electron Redox-Active Catalyst. Accounts Chem. Res. 2015, 48, 1756–1766. [Google Scholar] [CrossRef] [Green Version]
  47. Lei, A.; Shi, W.; Liu, C.; Zhang, H.; He, C. Oxidative Cross-Coupling Reactions; WIley: Hoboken, NJ, USA, 2016; pp. 1–9. [Google Scholar] [CrossRef]
  48. Stahl, S.S. Palladium Oxidase Catalysis: Selective Oxidation of Organic Chemicals by Direct Dioxygen-Coupled Turnover. Angew. Chem. Int. Ed. 2004, 43, 3400–3420. [Google Scholar] [CrossRef]
  49. Gligorich, K.M.; Sigman, M.S. Recent Advancements and Challenges of PalladiumII-Catalyzed Oxidation Reactions with Molecular Oxygen as the Sole Oxidant. Chem. Commun. 2009, 3854–3867. [Google Scholar] [CrossRef]
  50. Gulzar, N.; Schweitzer-Chaput, B.; Klussmann, M. Oxidative Coupling Reactions for the Functionalisation of C–H Bonds Using Oxygen. Catal. Sci. Technol. 2014, 4, 2778–2796. [Google Scholar] [CrossRef]
  51. Wang, D.; Weinstein, A.B.; White, P.B.; Stahl, S.S. Ligand-Promoted Palladium-Catalyzed Aerobic Oxidation Reactions. Chem. Rev. 2018, 118, 2636–2679. [Google Scholar] [CrossRef]
  52. Zhu, B.; Lazar, M.; Trewyn, B.G.; Angelici, R.J. Aerobic Oxidation of Amines to Imines Catalyzed by Bulk Gold Powder and by Alumina-Supported Gold. J. Catal. 2008, 260, 1–6. [Google Scholar] [CrossRef]
  53. Ackermann, L.; Wang, L.; Lygin, A.V. Ruthenium-Catalyzed Aerobic Oxidative Coupling of Alkynes with 2-Aryl-Substituted Pyrroles. Chem. Sci. 2012, 3, 177–180. [Google Scholar] [CrossRef]
  54. Matsushita, M.; Kamata, K.; Yamaguchi, K.; Mizuno, N. Heterogeneously Catalyzed Aerobic Oxidative Biaryl Coupling of 2-Naphthols and Substituted Phenols in Water. J. Am. Chem. Soc. 2005, 127, 6632–6640. [Google Scholar] [CrossRef] [PubMed]
  55. Jiang, B.; Feng, Y.; Ison, E.A. Mechanistic Investigations of the Iridium(III)-Catalyzed Aerobic Oxidation of Primary and Secondary Alcohols. J. Am. Chem. Soc. 2008, 130, 14462–14464. [Google Scholar] [CrossRef] [PubMed]
  56. Hamada, T.; Ye, X.; Stahl, S.S. Copper-Catalyzed Aerobic Oxidative Amidation of Terminal Alkynes:  Efficient Synthesis of Ynamides. J. Am. Chem. Soc. 2008, 130, 833–835. [Google Scholar] [CrossRef] [PubMed]
  57. Campbell, A.N.; Stahl, S.S. Overcoming the “Oxidant Problem”: Strategies to Use O2 as the Oxidant in Organometallic C–H Oxidation Reactions Catalyzed by Pd (and Cu). Accounts Chem. Res. 2012, 45, 851–863. [Google Scholar] [CrossRef]
  58. Wu, K.; Huang, Z.; Qi, X.; Li, Y.; Zhang, G.; Liu, C.; Yi, H.; Meng, L.; Bunel, E.E.; Miller, J.T.; et al. Copper-Catalyzed Aerobic Oxidative Coupling: From Ketone and Diamine to Pyrazine. Sci. Adv. 2015, 1, e1500656. [Google Scholar] [CrossRef] [Green Version]
  59. Wang, J.; Wang, X.; Niu, Z.-Q.; Wang, J.; Zhang, M.; Li, J.-H. Copper Nitrate–Catalyzed α-Bromination of Aryl Ketones with Hydrobromic Acid. Synth. Commun. 2016, 46, 165–168. [Google Scholar] [CrossRef]
  60. Su, P.; Fan, C.; Yu, H.; Wang, W.; Jia, X.; Rao, Q.; Fu, C.; Zhang, D.; Huang, B.; Pan, C.; et al. Synthesis of Ti-Al Binary Oxides and Their Catalytic Application for C-H Halogenation of Phenols, Aldehydes and Ketones. Mol. Catal. 2019, 475, 110460. [Google Scholar] [CrossRef]
  61. Suess, A.M.; Ertem, M.Z.; Cramer, C.J.; Stahl, S.S. Divergence between Organometallic and Single-Electron-Transfer Mechanisms in Copper(II)-Mediated Aerobic C–H Oxidation. J. Am. Chem. Soc. 2013, 135, 9797–9804. [Google Scholar] [CrossRef]
  62. Wendlandt, A.E.; Suess, A.M.; Stahl, S.S. Copper-Catalyzed Aerobic Oxidative C–H Functionalizations: Trends and Mechanistic Insights. Angew. Chem. Int. Ed. 2011, 50, 11062–11087. [Google Scholar] [CrossRef] [PubMed]
  63. Nishida, A.; Hamada, T.; Yonemitsu, O. Hydrolysis of Tosyl Esters Initiated by an Electron Transfer from Photoexcited Electron-Rich Aromatic Compounds. J. Org. Chem. 1988, 53, 3386–3387. [Google Scholar] [CrossRef]
  64. Tang, X.; Huang, L.; Qi, C.; Wu, X.; Wu, W.; Jiang, H. Copper-Catalyzed Sulfonamides Formation from Sodium Sulfinates and Amines. Chem. Commun. 2013, 49, 6102–6104. [Google Scholar] [CrossRef] [PubMed]
  65. Jiang, Q.; Xu, B.; Jia, J.; Zhao, A.; Zhao, Y.-R.; Li, Y.-Y.; He, N.-N.; Guo, C.-C. Copper-Catalyzed Aerobic Decarboxylative Sulfonylation of Cinnamic Acids with Sodium Sulfinates: Stereospecific Synthesis of (E)-Alkenyl Sulfones. J. Org. Chem. 2014, 79, 7372–7379. [Google Scholar] [CrossRef]
  66. Rao, W.-H.; Jiang, L.-L.; Liu, X.-M.; Chen, M.-J.; Chen, F.-Y.; Jiang, X.; Zhao, J.-X.; Zou, G.-D.; Zhou, Y.-Q.; Tang, L. Copper(II)-Catalyzed Alkene Aminosulfonylation with Sodium Sulfinates for the Synthesis of Sulfonylated Pyrrolidones. Org. Lett. 2019, 21, 2890–2893. [Google Scholar] [CrossRef]
  67. Wang, Y.; Ding, J.; Zhao, J.; Sun, W.; Lian, C.; Chen, C.; Zhu, B. Iminyl Radical-Promoted Imino Sulfonylation, Imino Cyanogenation and Imino Thiocyanation of γ,δ-Unsaturated Oxime Esters: Synthesis of Versatile Functionalized Pyrrolines. Org. Chem. Front. 2019, 6, 2240–2244. [Google Scholar] [CrossRef]
  68. Buschmann, H.-J.; Füldner, H.-H.; Knoche, W. The Reversible Hydration of Carbonyl Compounds in Aqueous Solution. Part I, The Keto/Gem-Diol Equilibrium. Ber. Bunsenges. Phys. Chem. 1980, 84, 41–44. [Google Scholar] [CrossRef]
  69. L’abbé, G. Dimroth Reaction. Ind. Chim. Belge 1971, 36, 3–10. [Google Scholar]
  70. John, J.; Thomas, J.; Dehaen, W. Organocatalytic Routes toward Substituted 1,2,3-Triazoles. Chem. Commun. 2015, 51, 10797–10806. [Google Scholar] [CrossRef]
  71. Ramachary, D.B.; Shashank, A.B.; Karthik, S. An Organocatalytic Azide–Aldehyde [3+2] Cycloaddition: High-Yielding Regioselective Synthesis of 1,4-Disubstituted 1,2,3-Triazoles. Angew. Chem. Int. Ed. 2014, 53, 10420–10424. [Google Scholar] [CrossRef]
  72. Gottlieb, H.E.; Kotlyar, V.; Nudelman, A. NMR Chemical Shifts of Common Laboratory Solvents as Trace Impurities. J. Org. Chem. 1997, 62, 7512–7515. [Google Scholar] [CrossRef] [PubMed]
  73. Campbell-Verduyn, L.S.; Mirfeizi, L.; Dierckx, R.A.; Elsinga, P.H.; Feringa, B.L. Phosphoramidite Accelerated Copper(i)-Catalyzed [3+2] Cycloadditions of Azides and Alkynes. Chem. Commun. 2009, 2139–2141. [Google Scholar] [CrossRef] [PubMed]
  74. Lai, C.; Xi, C.; Jiang, Y.; Hua, R. One-Pot Approach for the Regioselective Synthesis of β-Keto Sulfones Based on Acid-Catalyzed Reaction of Sulfonyl Chlorides with Arylacetylenes and Water. Tetrahedron Lett. 2005, 46, 513–515. [Google Scholar] [CrossRef]
  75. Qian, H.; Huang, X. Solid-Phase Synthesis of β-Keto Sulfones. Synthesis Stuttgart. 2006, 1934–1936. [Google Scholar] [CrossRef]
Molecules 26 00581 g001 550

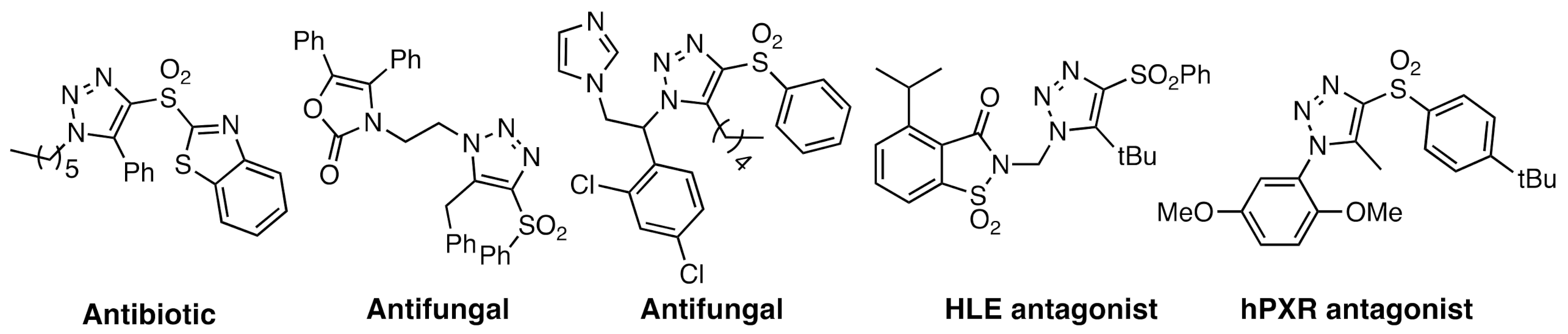

Figure 1. Examples of bioactive 4-sulfonyl triazoles.
Figure 1. Examples of bioactive 4-sulfonyl triazoles.
Molecules 26 00581 g001
Molecules 26 00581 sch001 550

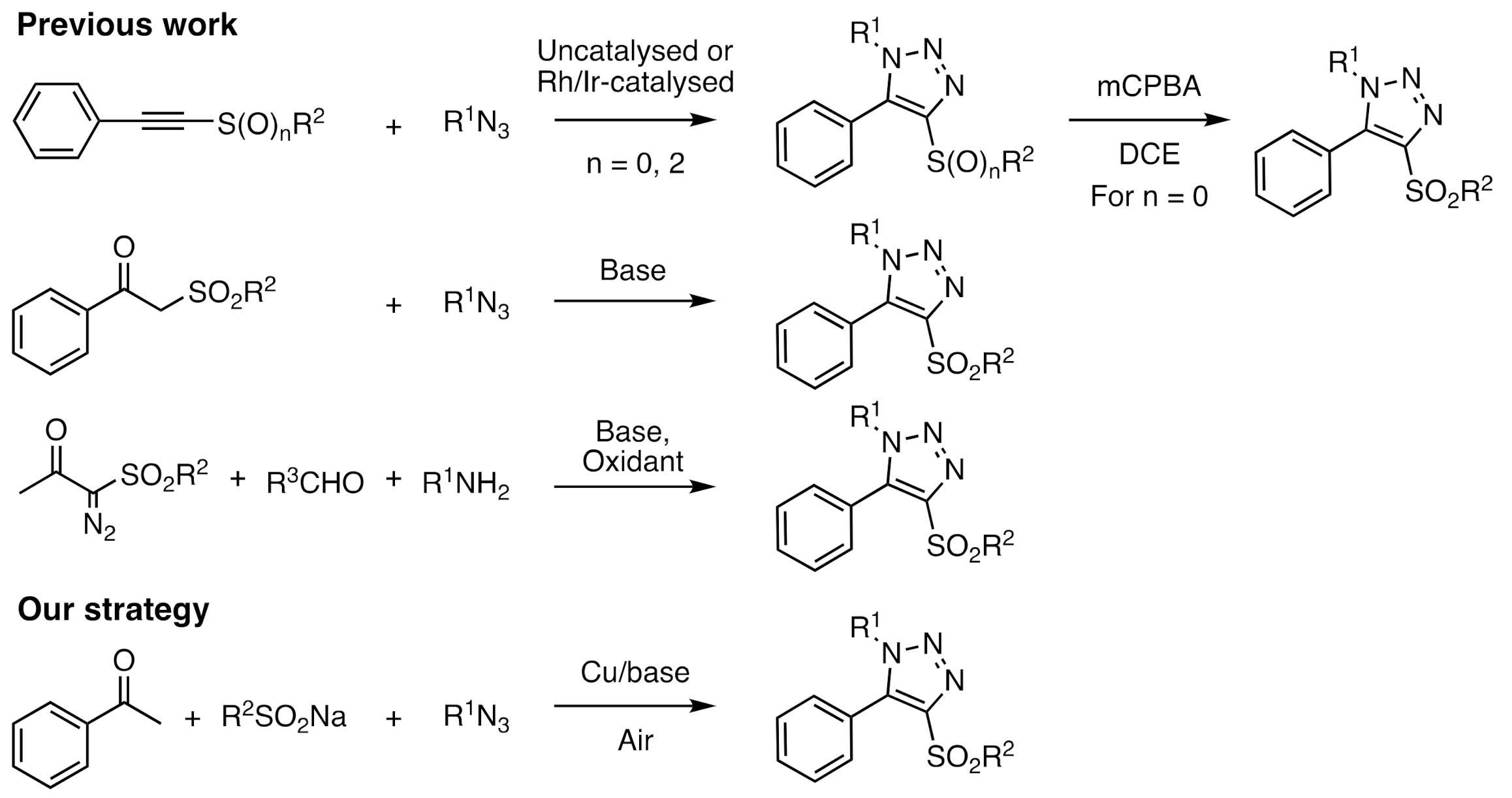

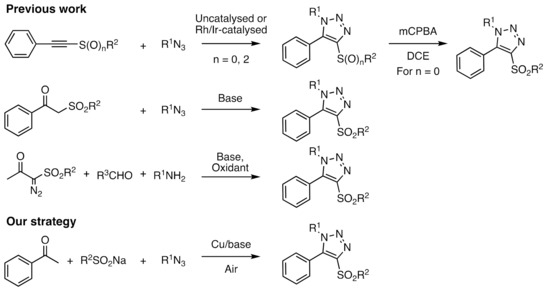

Scheme 1. Synthetic routes towards 4-sulfonyl-triazoles.
Scheme 1. Synthetic routes towards 4-sulfonyl-triazoles.
Molecules 26 00581 sch001
Molecules 26 00581 sch002 550
Scheme 2. Substrate scope for three-component 4-sulfonyl triazole synthesis. a Reaction conditions: Acetophenone 1 (0.50 mmol), sodium sulfinate 2 (1.00 mmol), DBU (1.00 mmol), CuCl2/TMEDA (10%) in DMSO (2 mL) under air atmosphere. b 24 h. c 48 h. d 35 °C. Ts = p-toluene sulfonyl.
Scheme 2. Substrate scope for three-component 4-sulfonyl triazole synthesis. a Reaction conditions: Acetophenone 1 (0.50 mmol), sodium sulfinate 2 (1.00 mmol), DBU (1.00 mmol), CuCl2/TMEDA (10%) in DMSO (2 mL) under air atmosphere. b 24 h. c 48 h. d 35 °C. Ts = p-toluene sulfonyl.
Molecules 26 00581 sch002
Molecules 26 00581 sch003 550
Scheme 3. Mechanistic control experiments. (a) Reaction in presence of TEMPO. (b) Reaction in presence of DPE 6. (c) Reaction of phenacyl chloride under standard and copper-free conditions. (d) Reaction in absence of azide 3a.
Scheme 3. Mechanistic control experiments. (a) Reaction in presence of TEMPO. (b) Reaction in presence of DPE 6. (c) Reaction of phenacyl chloride under standard and copper-free conditions. (d) Reaction in absence of azide 3a.
Molecules 26 00581 sch003
Molecules 26 00581 sch004 550
Scheme 4. Proposed mechanism for three-component reaction for (a) oxidative sulfonylation via Cu(III)-intermediate, (b) oxidative sulfonylation via Cu(II)-intermediate, (c) generation of sulfonyl radical, and (d) enolate/azide cycloaddition.
Scheme 4. Proposed mechanism for three-component reaction for (a) oxidative sulfonylation via Cu(III)-intermediate, (b) oxidative sulfonylation via Cu(II)-intermediate, (c) generation of sulfonyl radical, and (d) enolate/azide cycloaddition.
Molecules 26 00581 sch004
Table
Table 1. Optimization of reaction conditions a.
Table 1. Optimization of reaction conditions a.
Molecules 26 00581 i001
EntryCatalystBaseBase pKaH SolventLigandYield (%) b
1CuBr2DBU12DMSOnone56
2CuCl2DBU12DMSOnone71 (72)
3CuIDBU12DMSOnone47
4Cu(OAc)2DBU12DMSOnone62
5Cu(OTf)2DBU12DMSOnone64
6CuCl2Pyridine3.4DMSOnone0
7CuCl2Et3N9DMSOnone0
8CuCl2DBN13.4DMSOnone52
9CuCl2K2CO310.3DMSOnone0
10CuCl2KOtBu29.4DMSOnone0
11CuCl2DBU12DCMnone0
12CuCl2DBU12EtOAcnone5
13CuCl2DBU12ACNnone7
14CuCl2DBU12DMFnone24
15CuCl2DBU12EtOHnone4
16CuCl2DBU12DMSOTMEDA81
17CuCl2DBU12DMSO2,2’-bipyridine67
18CuCl2DBU12DMSO1,10-phenatroline68
19CuCl2DBU12DMSONeocuproine58
20CuCl2DBU12DMSOTMEDA84 d
21CuCl2DBU12DMSOTMEDA77 e
22CuCl2DBU12DMSOTMEDA89 f
23CuCl2DBU12DMSOTMEDA50 g
24noneDBU12DMSOTMEDANr c
25CuCl2DBU12DMSOTMEDA<5 h
a Reaction conditions: Acetophenone 1 (0.50 mmol), sodium p-toluene sulfinate 2 (1.00 mmol), DBU (1.00 mmol), catalyst (20%) in DMSO (3 mL) under air atmosphere. b Isolated yield. c n.r. = no reaction. d DMSO (2 mL). e DMSO (1 mL). f CuCl2/TMEDA (10 mol%), DMSO (2 mL). g CuCl2/TMEDA (5 mol%), DMSO (2 mL). h Reaction under argon atmosphere. The entry highlighted in bold corresponds to the optimized conditions.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Van Hoof, M.; Veettil, S.P.; Dehaen, W. The Three-Component Synthesis of 4-Sulfonyl-1,2,3-triazoles via a Sequential Aerobic Copper-Catalyzed Sulfonylation and Dimroth Cyclization. Molecules 2021, 26, 581. https://doi.org/10.3390/molecules26030581

AMA Style

Van Hoof M, Veettil SP, Dehaen W. The Three-Component Synthesis of 4-Sulfonyl-1,2,3-triazoles via a Sequential Aerobic Copper-Catalyzed Sulfonylation and Dimroth Cyclization. Molecules. 2021; 26(3):581. https://doi.org/10.3390/molecules26030581

Chicago/Turabian Style

Van Hoof, Max, Santhini Pulikkal Veettil, and Wim Dehaen. 2021. "The Three-Component Synthesis of 4-Sulfonyl-1,2,3-triazoles via a Sequential Aerobic Copper-Catalyzed Sulfonylation and Dimroth Cyclization" Molecules 26, no. 3: 581. https://doi.org/10.3390/molecules26030581

Article Metrics

Back to TopTop
