Communication

Acid-Activated Motion Switching of DB24C8 between Two Discrete Platinum(II) Metallacycles

by
Yi-Xiong Hu
1,†,
Gui-Yuan Wu
1,2,†,
Xu-Qing Wang
1,
Guang-Qiang Yin
3,
Chang-Wei Zhang
1,
Xiaopeng Li
3,
Lin Xu
1,* and
Hai-Bo Yang
1,*
1
Shanghai Key Laboratory of Green Chemistry and Chemical Processes, School of Chemistry and Molecular Engineering, East China Normal University, 3663 N. Zhongshan Road, Shanghai 200062, China
2
Anhui Province Key Laboratory of Optoelectronic Material Science and Technology, School of Physics and Electronic Information, Anhui Normal University, Wuhu 241002, China
3
College of Chemistry and Environmental Engineering, Shenzhen University, Shenzhen 518055, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2021, 26(3), 716; https://doi.org/10.3390/molecules26030716
Submission received: 3 January 2021 / Revised: 25 January 2021 / Accepted: 26 January 2021 / Published: 30 January 2021
(This article belongs to the Special Issue A Fascinating Story of Supramolecular Chemistry: A Themed Issue in Honor of Prof. Harry W. Gibson)
Browse Figures
Versions Notes

Abstract

:
The precise operation of molecular motion for constructing complicated mechanically interlocked molecules has received considerable attention and is still an energetic field of supramolecular chemistry. Herein, we reported the construction of two tris[2]pseudorotaxanes metallacycles with acid–base controllable molecular motion through self-sorting strategy and host–guest interaction. Firstly, two hexagonal Pt(II) metallacycles M1 and M2 decorated with different host–guest recognition sites have been constructed via coordination-driven self-assembly strategy. The binding of metallacycles M1 and M2 with dibenzo-24-crown-8 (DB24C8) to form tris[2]pseudorotaxanes complexes TPRM1 and TPRM2 have been investigated. Furthermore, by taking advantage of the strong binding affinity between the protonated metallacycle M2 and DB24C8, the addition of trifluoroacetic acid (TFA) as a stimulus successfully induces an acid-activated motion switching of DB24C8 between the discrete metallacycles M1 and M2. This research not only affords a highly efficient way to construct stimuli-responsive smart supramolecular systems but also offers prospects for precisely control multicomponent cooperative motion.

1. Introduction

Molecular machines in living systems have long been in widespread use and played a critical role in life’s activities [1,2]. Inspired by this, chemists have devoted time to designing, synthesizing and assembling molecules in laboratory conditions to obtain man-made molecular machines with amusing processes and attractive functions [3,4,5,6,7]. As a result, during the past few decades, varieties of man-made molecular machines such as molecular pumps [8,9], molecular muscles [10,11,12,13], molecular shuttles [14,15,16,17], and others [18,19,20] have been successfully fabricated. Mechanically interlocked molecules (MIMs) [21,22], with intriguing topologies and unique dynamic features, have been considered as a versatile platform in developing molecular machines.
Pseudorotaxanes, a type of MIMs which consist of axles encircled by ring components, have received widespread attention in the fields of supramolecular chemistry and materials science [23,24,25,26,27]. Up to now, the most common strategy to prepare pseudorotaxanes is to use macrocylic hosts including crown ethers, cyclodextrins, calixarenes, pillararenes, cucurbiturils etc. encircling the linear guest molecules [28,29,30,31,32,33,34]. In addition, it is worth noting that pseudorotaxanes were usually used as precursors toward the construction of rotaxanes, catenanes and molecular switches [35,36,37,38,39,40,41,42]. As a consequence, the design and preparation of pseudorotaxanes, especially with intriguing and novel topologies, have been raising more interest and are still greatly challenging.
The coordination-driven self-assembly strategy is one of the major developments in supramolecular chemistry during the past few decades [43,44]. To date, by taking advantage of highly directional and relatively strong metal–ligand bonds, massive numbers of discrete supramolecular coordination complexes (SCCs) including two-dimensional (2-D) metallacycles and three-dimensional (3-D) metallacages have been prepared [45,46,47,48]. The constructed supramolecular coordination architectures have shown aesthetical features with well-defined shapes, sizes, and geometries and enabled a range of functions including sensing, drug delivery, liquid crystal, control of optical properties, and so on [49,50,51,52,53,54,55,56,57,58,59]. For example, our group have reported the construction of complex multicomponent systems based on metallacycles through orthogonal self-assembly and the self-sorting strategy, in which eighteen precursors could efficiently self-assemble into two discrete tris[2]pseudorotaxanes in one pot [60]. Due to the straightforward and efficient preparation method, the fabrication of novel pseudorotaxane systems based on SCCs assumes outstanding advantage and offers a great possibility to achieve cooperative motion.
Toward this goal, herein, we designed and synthesized two 120° dipyridyl donors (1 and 2) decorated with bipyridinium (BIPY2+) and dibenzylamine (R1NHR2), respectively (Scheme 1). When the 120° diplatinum(II) acceptor was combined with different 120° dipyridyl donors, two hexagonal Pt(II) metallacycles modified by bipyridinium (BIPY2+) or dibenzylamine (R1NHR2) on the periphery were successfully formed through coordination-driven self-assembly. In addition, due to the difference of molecular size between two 120° dipyridyl donors, the prepared metallacycles could coexist in one pot and exhibited great self-sorting properties. Furthermore, DB24C8 was carefully employed to bind different metallacycles to form tris[2] pseudorotaxanes through host–guest interaction. More interestingly, owing to the binding ability of DB24C8 with the protonated recognition sites of R1NHR2 (R1NH2+R2), which is stronger than that of BIPY2+ [11], an acid activated process could be implemented to induce motion switching of DB24C8 between discrete metallacycles M1 and M2. This research provides a novel strategy to fabricate multicomponent cooperative motion switching in complex systems and exhibits the potential for constructing stimuli-responsive smart materials.

2. Results and Discussion

2.1. Synthesis and Characterization

The Zinke reaction of compound S1 with compound S2 yielded the 120° dipyridyl donor ligand 1 in a moderate yield as shown in Scheme S1. Moreover, the 120° dipyridyl donor ligand 2 was easily synthesized through an esterification reaction between compounds S3 and S4 (Scheme S2). Stirring the mixtures of 120° donor ligand 1 or 2 with 120° di-Pt(II) acceptor 3 in the stoichiometric ratio in acetone led to the formation of metallacycle M1 or M2 guided by the coordination-driven self-assembly approach, respectively (Scheme 1). Multinuclear NMR 31P {1H} and 1H spectra analysis of the metallacycles M1 and M2 revealed the formation of discrete metallacycles with highly symmetric structures (Figure 1). For instance, both the 31P {1H} NMR spectra of M1 and M2 displayed a sharp singlet (ca. 14.20 ppm for M1 and 14.54 ppm for M2). The two singlets have been shifted upfield from the starting 120° di-Pt(II) acceptor 3, which appears at approximately 19.82 ppm (Figure 1e–g). This change, as well as the decrease in coupling of the flanking 195Pt satellites (ca. ΔJPPt = −143.06 Hz for M1 and ΔJPPt = −149.12 Hz for M2), was consistent with the electron back-donation from the platinum atoms. Moreover, as shown in Figure 1a–d, the 1H NMR spectrum of metallacycle M1 or M2 displayed the downfield shifts of the pyridyl proton signals compared with the 120° dipyridyl donor 1 or 2 (ca. Δδ = 0.38 or 0.44 ppm of Hα or Hβ for M1; Δδ = 0.44 or 0.44 ppm of Hα or Hβ for M2). All these phenomena were attributed to the loss of electron density upon coordination by the nitrogen lone pair to platinum metal centers, which indicated the formation of platinum-nitrogen (Pt-N) bonds as well.
Further characterization by two-dimensional (2-D) spectroscopic techniques (1H-1H COSY, NOESY and DOSY) agreed with the formation of the metallacycles M1 and M2 (Figures S1–S6). The results showed that the presence of cross-peaks between the signals of the pyridine protons (α-H and β-H) and the PEt3 protons (-CH2 and -CH3) in the 2-D NOESY spectrum, which supported the formation of Pt-N bonds (Figures S2 and S5). Moreover, 2-D diffusion-ordered spectroscopy (DOSY) was also employed to evaluate the discrete metallacycles M1 and M2. All DOSY spectra of M1 and M2 presented one set of signals that indicated the existence of discrete metallacycles M1 or M2, respectively (Figures S3 and S6). Mass spectrometric studies of metallacycles M1 and M2 were performed by using electrospray ionization time-of-flight mass spectrometry (ESI-TOF-MS), which provided further strong support for metallacycles M1 and M2. For instance, the ESI-TOF-MS spectrum of M1 or M2 revealed peaks at m/z = 1373.9945, 1070.2709, 1233.9489, 958.2781, corresponding to the [M1−4PF6−]4+, [M1−5PF6−]5+, [M2−4PF6−]4+ and [M2–5PF6−]5+ species, respectively. These peaks were isotopically resolved (Figure 1h–j) and agreed very well with their theoretical distribution.

2.2. Self-Sorting Process of Metallacycles M1 and M2

Upon stirring the mixture of 120° donor ligands 1 and 2 with 120° diplatinum-(II) acceptor 3 in a ratio of 1:1:2 in d6-acetone at room temperature for 2 h, two discrete metallacycles M1 and M2 with different sizes were constructed by the coordination-driven self-assembly and self-sorting one-pot method. The self-sorting process has been demonstrated by 31P {1H} NMR and 1H NMR spectra (Figure 2). For example, two sets of sharp signal peaks were found in 31P NMR, 12.88 and 12.79 ppm, respectively, which indicate the successful preparation of two different dominant platinum containing assemblies (Figure 2e). Moreover, as shown in Figure S19, superimposed 31P NMR and 1H NMR spectra of two individual metallacycles M1 and M2 with the self-sorting system highly matched signal peaks, providing further evidence to confirm the self-sorting process. The self-sorting system that was controlled by the size of different 120° donor ligands provided discrete, different sized metallacycles M1 and M2 modified with different host–guest recognition sites.

2.3. Tris[2]pseudorotaxanes Metallacycles TPRM1 and TPRM2

The highly efficient coordination-driven self-assembly of multiple recognition sites-containing derivatives provides the possibility to generate higher-order [2]pseudorotaxanes such as tris[2]pseudorotaxanes. Tris-recognition sitescontaining derivatives M1 or M2 (BIPY2+ units for M1 and R1NHR2 units for M2) was selected to thread compound 4 (DB24C8) to form two different tris[2]pseudorotaxanes metallacycles TPRM1 or TPRM2, respectively (Figure 3 and Figure 4). The 1H NMR spectra of a 1:3 mixtures of metallacycle M1 and compound 4 in CD2Cl2/CD3NO2 (1/1, v/v) showed significant shifts due to the complexation of BIPY2+ units and compound 4 (Figure 3). For instance, it was found that protons H4 and H5 on BIPY2+ units of metallacycle M1 shifted upfield from 8.67 to 8.25 ppm and 8.54 to 8.00 ppm, respectively, and all proton signals on BIPY2+ recognition sites became broad. Moreover, the aryl protons on compound 4 were found to shift upfield from 6.84 to 6.75 ppm. Further characterization with 2-D spectroscopic techniques (1H-1H COSY and NOESY) proved the formation of tris[2]pseudorotaxanes metallacycle TPRM1. For example, the 2-D NOESY spectrum of TPRM1 clearly exhibited the presence of through-space interactions between the Hc proton of the complexed compound 4 and the BIPY2+ protons H6 (Figure S10). All obtained results supported that the metallacycle M1 with three recognition sites was threaded through the cavity of compound 4 to form host–guest complexation tris[2]pseudorotaxanes metallacycle TPRM1 in the solution.
As shown in Figure 4, the host–guest interaction of metallacycle M2 and compound 4 have also been investigated for forming host–guest complexation tris[2]pseudorotaxanes metallacycle TPRM2 by 1H NMR, 2-D spectroscopic techniques (1H-1H COSY and NOESY). The R1NHR2 units on the metallacycle M2 exposed to 3.0 eq. trifluoroacetic acid (TFA) could be protonated and formed the metallacycle M2’ with three R1NH2+R2 units. The protons on R1NH2+R2 exhibited downfield shifts (ca. Δδ = 0.55 ppm of H9’ + 10’; Δδ = 0.13 ppm of H3’ + 4’) in the 1H NMR spectra of M2 and 3.0 eq. TFA in a mixed solution of CD2Cl2/CD3NO2 (Figure 4c,d). Then the metallacycle M2’ and compound 4 combined with 1:3 ratio in CD2Cl2/CD3NO2 (1/1, v/v), as shown in Figure 4b, and the observation of three sets of peaks in the 1H NMR spectra was attributed to uncomplexed metallacycle M2’, uncomplexed compound 4, and the complex between metallacycle M2’ and compound 4. For example, the partial proton signals of H8’ that take place downfield shifted from 5.19 to 5.00 ppm, and the partial aryl protons of compound 4 also shifted to 6.92 from 6.84 ppm. Notably, the above-mentioned processes also characterized by 2-D 1H-1H COSY and NOESY (Figures S13–S17), which provided further support for the formation of tris[2]pseudorotaxanes metallacycle TPRM2 through host–guest interaction with metallacycle M2’ and compound 4. As a result, the addition of acid as stimulus endows metallacycle M2 a switchable feature that controlling the host–guest property via chemical stimulus. In addition, 1H NMR titration experiments were investigated for two tris[2]pseudorotaxanes metallacycles TPRM1 and TPRM2 (Figures S12 and S18).

2.4. Acid-Activated Motion Switching of DB24C8

Owing to the following advantages: (i) different sizes of metallacycles M1 and M2 could coexist in one pot via self-sorting strategy; (ii) different recognition sites of two metallacycles (BIPY2+ for M1 and R1NHR2 for M2) could bond identical compound 4 to construct tris[2]pseudorotaxanes through host–guest interaction, respectively; (iii) the host–guest property of metallacycle M2 with compound 4 could control activate or degenerate by acid or base stimulus. Meanwhile, as an additional benefit, BIPY2+ and R1NH2+R2 units exhibited different binding ability with compound 4 according to previous literature reports. Thus, acid-activated motion switching of compound 4 between two discrete metallacycles M1 and M2 were tried to investigated.
Firstly, as an acid–base controlled experiments, metallacycle M2 and compound 4 combined with TFA and DBU (1,8-diazabicyclo[5.4.0]undec-7-ene) to characterize the formation and degradation of the tris[2]pseudorotaxanes TPRM2. The 1H NMR spectra of the mixtures of metallacycle M2 and compound 4 with 1:3 ratio in CD2Cl2/CD3NO2 (1/1, v/v) exhibited that the proton H8’ split into two peaks in which the CD3NO2 had weak acidity and caused the protonation of R1NHR2 units to form the small amounts of TPRM2 (Figure S21b). Subsequently, 0.75 eq. DBU was added to the mixed system to neutralize the acid in the solution, which caused the proton H8’ to return to its original position (Figure S21c). Then TFA was added to this system, giving rise to form tris[2]pseudorotaxanes TPRM2. The proton H8’ split into two peaks proved the complex between metallacycle M2′ and DB24C8. Therefore, the addition of DBU to neutralize the acid in the solution before all studies of molecular motion was quite necessary. Subsequently, acid-activated motion switching of compound 4 between two discrete metallacycles M1 and M2 were investigated by 1H NMR (Figure 5). When mixing the mixture of metallacycles M1 and M2 with the base of DBU in a 1:1:0.75 ratio in CD2Cl2/CD3NO2 (1/1, v/v), three sets of signals were observed (Figure 5b). After the addition of 3.0 eq. of compound 4 into the mixtures, as indicated in 1H NMR spectra (Figure 5c), the proton H4 or H5 on M1 shifted upfield from 7.150 to 7.192 ppm or 6.987 to 7.013 ppm, respectively, both accompanied with a slight broadening effect, and as a comparison the protons on M2 remained unchanged, indicating the formation of the self-sorting system containing tris[2]pseudorotaxanes TPRM1 and metallacycle M2. Then, upon adding 3.0 eq. TFA into the system, the protons’ signal on BIPY2+ of metallacycle M1 returned to the initial position and the partial protons’ signal of R1NH2+R2 on M2′ shifted upfield, which was attributed to the stronger binding ability between compound 4 and R1NH2+R2 than that of the BIPY2+ units (Figure 5d). Thus, a new self-sorting system was established, accompanied by the motion of multiple compound 4 molecules from metallacycle M1 to metallacycle M2. More interestingly, addition of 3.0 eq. DBU to deprotonate of R1NH2+R2 units on metallacycle M2′ to the R1NHR2, the 1H NMR spectrum showed signals corresponding to the compound 4 threaded BIPY2+ on the metallacycle M1 (Figure 5e). Therefore, acid-activated motion switching of compound 4 between two discrete metallacycles M1 and M2 was successfully fabricated through host–guest interaction and the self-sorting strategy.

3. Materials and Methods

All reagents were commercially available and used as supplied without further purification. Compounds S1, S2, S3, S4 and 3 were prepared according to the published procedures. Deuterated solvents were purchased from Cambridge Isotope Laboratory (Andover, MA, USA).
All solvents were dried according to standard procedures and all of them were degassed under N2 for 30 min before use. All air-sensitive reactions were carried out under inert N2 atmosphere. 1H NMR, 13C NMR and 31P NMR spectra were recorded on Bruker 300 MHz Spectrometer (1H: 300 MHz; 31P: 122 MHz), Bruker 400 MHz Spectrometer (1H: 400 MHz; 13C: 101 MHz, 31P: 162 MHz) and Bruker 500 MHz Spectrometer (1H: 500 MHz; 13C: 126 MHz, 31P: 202 MHz) at 298 K. The 1H and 13C NMR chemical shifts are reported relative to residual solvent signals, and 31P {1H} NMR chemical shifts are referenced to an external unlocked sample of 85% H3PO4 (δ 0.0). 2D NMR spectra (1H-1H COSY, NOESY and DOSY) were recorded on Bruker 500 MHz Spectrometer (1H: 500 MHz) at 298 K. The MALDI MS experiments were carried out on a Bruker UltrafleXtreme MALDI TOF/TOF Mass Spectrometer (Bruker Daltonics, Billerica, MA, USA), equipped with smartbeam-II laser. All spectra were measured in positive reflectron or linear mode.

4. Conclusions

In summary, two hexagonal Pt(II) metallacycles M1 and M2 decorated with different recognition sites were successfully constructed and exhibited great self-sorting properties. Both of metallacycles M1 and M2 could bind identical compound of DB24C8 via host–guest interaction to form different tris[2]pseudorotaxanes TPRM1 and TPRM2, respectively. The constructed tris[2]pseudorotaxanes TPRM2 systems could suffer from the chemical stimuli of DBU to induce DB24C8 to leave from the binding sites of the metallacycle M2, which successfully demonstrated the motion of DB24C8. Based on the host–guest interaction and the self-sorting strategy, the discrete metallacycles M1 and M2 have been employed as a unique motion platform for DB24C8 to realize acid-activated motion switching through acid–base stimuli. This study provided a new insight into the design of multiple molecular motion under the influence of chemical stimuli and exhibited potential for constructing stimuli-responsive smart materials.

Supplementary Materials

The following are available online. Schemes S1–S2: the synthesis of compounds 1 and 2, Schemes S3–S4: the construction of metallacycles M1 and M2, Figures S1–S6: the 2D NMR spectrum, Figures S7–S18: the characterization of tris[2]pseudorotaxanes TPRM1 and TPRM2, Figures S19–S21: the characterization of acid-activated motion switching, Figures S22–S31: the 1H, 31P, 13C NMR and MS spectra of new compounds. References [61,62,63,64,65] are cited in the supplementary materials.

Author Contributions

Conceptualization, Y.-X.H., L.X. and H.-B.Y.; formal analysis, Y.-X.H. and G.-Y.W.; investigation, Y.-X.H. and G.-Y.W.; resources, X.-Q.W., C.-W.Z., G.-Q.Y. and X.L.; writing—original draft preparation, Y.-X.H. and G.-Y.W.; writing—review and editing, Y.-X.H., L.X. and H.-B.Y.; supervision, L.X. and H.-B.Y.; funding acquisition, H.-B.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Opening Projects of Shanghai Key Laboratory of Green Chemistry and Chemical Processes.

Data Availability Statement

Not available.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Berg, J.M.; Tymoczko, J.L.; Stryer, L. Biochemsitry, 5th ed.; W.H. Freeman: New York, NY, USA, 2003; Volume 34. [Google Scholar]
  2. Karagiannis, P.; Ishii, Y.; Yanagida, T. Molecular machines like myosin use randomness to behave predictably. Chem. Rev. 2014, 114, 3318–3334. [Google Scholar] [CrossRef] [PubMed]
  3. Kinbara, K.; Aida, T. Toward intelligent molecular machines: Directed motions of biological and artificial molecules and assemblies. Chem. Rev. 2005, 105, 1377–1400. [Google Scholar] [CrossRef]
  4. Sluysmans, D.; Stoddart, J.F. Growing community of artificial molecular machinists. Proc. Natl. Acad. Sci. USA 2018, 115, 9359–9361. [Google Scholar] [CrossRef] [Green Version]
  5. van Leeuwen, T.; Lubbe, A.S.; Štacko, P.; Wezenberg, S.J.; Feringa, B.L. Dynamic control of function by light-driven molecular motors. Nat. Rev. Chem. 2017, 1, 1–7. [Google Scholar] [CrossRef]
  6. Dietrich-Buchecker, C.; Jimenez-Molero, M.C.; Sartor, V.; Sauvage, J.P. Rotaxanes and catenanes as prototypes of molecular machines and motors. Pure Appl. Chem. 2003, 75, 1383–1393. [Google Scholar] [CrossRef]
  7. Erbas-Cakmak, S.; Leigh, D.A.; McTernan, C.T.; Nussbaumer, A.L. Artificial Molecular Machines. Chem. Rev. 2015, 115, 10081–10206. [Google Scholar] [CrossRef] [Green Version]
  8. Cheng, C.; McGonigal, P.R.; Schneebeli, S.T.; Li, H.; Vermeulen, N.A.; Ke, C.; Stoddart, J.F. An artificial molecular pump. Nat. Nanotechnol. 2015, 10, 547–553. [Google Scholar] [CrossRef] [PubMed]
  9. Qiu, Y.; Zhang, L.; Pezzato, C.; Feng, Y.; Li, W.; Nguyen, M.T.; Cheng, C.; Shen, D.; Guo, Q.-H.; Shi, Y.; et al. A molecular dual pump. J. Am. Chem. Soc. 2019, 141, 17472–17476. [Google Scholar] [CrossRef]
  10. Collin, J.-P.; Dietrich-Buchecker, C.; Gaviña, P.; Jimenez-Molero, M.C.; Sauvage, J.-P. Shuttles and muscles: Linear molecular machines based on transition metals. Acc. Chem. Res. 2001, 34, 477–487. [Google Scholar] [CrossRef]
  11. Fang, L.; Hmadeh, M.; Wu, J.; Olson, M.A.; Spruell, J.M.; Trabolsi, A.; Yang, Y.-W.; Elhabiri, M.; Albrecht-Gary, A.-M.; Stoddart, J.F. Acid-base actuation of [c2]daisy chains. J. Am. Chem. Soc. 2009, 131, 7126–7134. [Google Scholar] [CrossRef]
  12. Iwaso, K.; Takashima, Y.; Harada, A. Fast response dry-type artificial molecular muscles with [c2]daisy chains. Nat. Chem. 2016, 8, 625–632. [Google Scholar] [CrossRef] [PubMed]
  13. Li, W.-J.; Wang, W.; Wang, X.-Q.; Li, M.; Ke, Y.; Yao, R.; Wen, J.; Yin, G.-Q.; Jiang, B.; Li, X.; et al. Daisy chain dendrimers: Integrated mechanically interlocked molecules with stimuli-induced dimension modulation feature. J. Am. Chem. Soc. 2020, 142, 8473–8482. [Google Scholar] [CrossRef] [PubMed]
  14. Anelli, P.L.; Spencer, N.; Stoddart, J.F. A molecular shuttle. J. Am. Chem. Soc. 1991, 113, 5131–5133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Vukotic, V.N.; Zhu, K.; Baggi, G.; Loeb, S.J. Optical distinction between ″slow″ and ″fast″ translational motion in degenerate molecular shuttles. Angew. Chem. Int. Ed. 2017, 56, 6136–6141. [Google Scholar] [CrossRef]
  16. Goldup, S.M. Molecular machines swap rings. Nature 2018, 557, 39–40. [Google Scholar] [CrossRef] [Green Version]
  17. Wang, X.-Q.; Li, W.-J.; Wang, W.; Wen, J.; Zhang, Y.; Tan, H.; Yang, H.-B. Construction of type III-C rotaxane-branched dendrimers and their anion-induced dimension modulation feature. J. Am. Chem. Soc. 2019, 141, 13923–13930. [Google Scholar] [CrossRef]
  18. Lewandowski, B.; De Bo, G.; Ward, J.W.; Papmeyer, M.; Kuschel, S.; Aldegunde, M.J.; Gramlich, P.M.E.; Heckmann, D.; Goldup, S.M.; D’Souza, D.M.; et al. Sequence-specific peptide synthesis by an artificial small-molecule machine. Science 2013, 339, 189–193. [Google Scholar] [CrossRef] [Green Version]
  19. Badjic, J.D.; Balzani, V.; Credi, A.; Silvi, S.; Stoddart, J.F. A molecular elevator. Science 2004, 303, 1845–1849. [Google Scholar] [CrossRef]
  20. Wang, W.; Chen, L.-J.; Wang, X.-Q.; Sun, B.; Li, X.; Zhang, Y.; Shi, J.; Yu, Y.; Zhang, L.; Liu, M.; et al. Organometallic rotaxane dendrimers with fourth-generation mechanically interlocked branches. Proc. Natl. Acad. Sci. USA 2015, 112, 5597–5601. [Google Scholar] [CrossRef] [Green Version]
  21. Stoddart, J.F. The chemistry of the mechanical bond. Chem. Soc. Rev. 2009, 38, 1802–1820. [Google Scholar] [CrossRef]
  22. Fang, L.; Olson, M.A.; Benitez, D.; Tkatchouk, E.; Goddard, W.A., III; Stoddart, J.F. Mechanically bonded macromolecules. Chem. Soc. Rev. 2010, 39, 17–29. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Zhang, M.; Yan, X.; Huang, F.; Niu, Z.; Gibson, H.W. Stimuli-responsive host-guest systems based on the recognition of cryptands by organic guests. Acc. Chem. Res. 2014, 47, 1995–2005. [Google Scholar] [CrossRef] [PubMed]
  24. Zheng, B.; Wang, F.; Dong, S.Y.; Huang, F. Supramolecular polymers constructed by crown ether-based molecular recognition. Chem. Soc. Rev. 2012, 41, 1621–1636. [Google Scholar] [CrossRef]
  25. Qu, D.-H.; Wang, Q.-C.; Zhang, Q.-W.; Ma, X.; Tian, H. Photoresponsive host-guest functional systems. Chem. Rev. 2015, 115, 7543–7588. [Google Scholar] [CrossRef] [PubMed]
  26. He, Z.; Jiang, W.; Schalley, C. Integrative self-sorting: A versatile strategy for the construction of complex supramolecular architecture. Chem. Soc. Rev. 2015, 44, 779–789. [Google Scholar] [CrossRef] [Green Version]
  27. Zhou, H.-Y.; Han, Y.; Chen, C.-F. pH-Controlled motions in mechanically interlocked molecules. Mater. Chem. Front. 2020, 4, 12–28. [Google Scholar] [CrossRef]
  28. Kim, K. Mechanically interlocked molecules incorporating cucurbituril and their supramolecular assemblies. Chem. Soc. Rev. 2002, 31, 96–107. [Google Scholar] [CrossRef] [Green Version]
  29. Pazos, E.; Novo, P.; Peinador, C.; Kaifer, A.E.; García, M.D. Cucurbit[8]uril (CB[8])-based supramolecular switches. Angew. Chem. Int. Ed. 2019, 58, 403–416. [Google Scholar] [CrossRef]
  30. Yang, H.-B.; Ghosh, K.; Northrop, B.H.; Zheng, Y.-R.; Lyndon, M.M.; Muddiman, D.C.; Stang, P.J. A highly efficient approach to the self-assembly of hexagonal cavity-cored tris[2]pseudorotaxanes from several components via multiple noncovalent interactions. J. Am. Chem. Soc. 2007, 129, 14187–14189. [Google Scholar] [CrossRef] [Green Version]
  31. Price, T.L.; Gibson, H.W. Supramolecular pseudorotaxane polymers from biscryptands and bisparaquats. J. Am. Chem. Soc. 2018, 140, 4455–4465. [Google Scholar] [CrossRef]
  32. Wang, J.; Zhang, H.-Y.; Zhang, X.-J.; Song, Z.-H.; Zhao, X.-J.; Liu, Y. Light-controlled reversible formation and dissociation of nanorods via interconversion of pseudorotaxanes. Chem. Commun. 2015, 51, 7329–7332. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, X.M.; Chen, Y.; Huo, X.F.; Wu, X.; Gu, B.H.; Liu, Y. Sulfonato-β-cyclodextrin mediated supramolecular nanoparticle for controlled release of berberine. ACS Appl. Mater Interfaces 2018, 10, 24987–24992. [Google Scholar] [CrossRef] [PubMed]
  34. Xue, M.; Yang, Y.; Chi, X.; Zhang, Z.; Huang, F. Pillararenes, a new class of macrocycles for supramolecular chemistry. Acc. Chem. Res. 2012, 45, 1294–1308. [Google Scholar] [CrossRef] [PubMed]
  35. Xue, M.; Yang, Y.; Chi, X.; Yan, X.; Huang, F. Development of pseudorotaxanes and rotaxanes: From synthesis to stimuliresponsive motions to applications. Chem. Rev. 2015, 115, 7398–7501. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, X.-Q.; Li, W.-J.; Wang, W.; Yang, H.-B. Heterorotaxanes. Chem. Commun. 2018, 54, 13303–13308. [Google Scholar] [CrossRef]
  37. Li, Z.-Y.; Zhang, Y.; Zhang, C.-W.; Chen, L.-J.; Wang, C.; Tan, H.; Yu, Y.; Li, X.; Yang, H.-B. Cross-linked supramolecular polymer gels constructed from discrete multi-pillar[5]arene metallacycles and their multiple stimuli-responsive behavior. J. Am. Chem. Soc. 2014, 136, 8577–8589. [Google Scholar] [CrossRef]
  38. Yamamoto, K.; Nameki, R.; Sogawa, H.; Takata, T. Macrocyclic dinuclear palladium complex as a novel doubly threaded [3]rotaxane scaffold and its application as a rotaxane cross-linker. Angew. Chem. Int. Ed. 2020, 59, 18023–18028. [Google Scholar] [CrossRef]
  39. Hwang, W.; Yoo, J.; Hwang, I.-C.; Lee, J.; Ko, Y.H.; Kim, H.W.; Kim, Y.; Lee, Y.; Hur, M.Y.; Parl, K.M.; et al. Hierarchical self-assembly of poly-pseudorotaxanes into artificial microtubules. Angew. Chem. Int. Ed. 2020, 59, 3460–3464. [Google Scholar] [CrossRef]
  40. Meng, Z.; Xiang, J.-F.; Chen, C.-F. Directional molecular transportation based on a catalytic stopper-leaving rotaxane system. J. Am. Chem. Soc. 2016, 138, 5652–5658. [Google Scholar] [CrossRef]
  41. Shi, Z.-T.; Yu, J.-J.; Zhang, Q.; Li, M.-M.; Liang, W.-J.; Zhao, C.-X.; Qu, D.-H. Controlling interfacial interactions of supramolecular assemblies by light-responsive overcrowded alkenes. Chem. Commun. 2019, 55, 10292–10295. [Google Scholar] [CrossRef]
  42. Wu, G.-Y.; Shi, X.L.; Phan, H.; Qu, H.; Hu, Y.-X.; Yin, G.-Q.; Zhao, X.-L.Z.; Li, X.; Xu, L.; Yu, Q.L.; et al. Efficient self-assembly of heterometallic triangular necklace with strong antibacterial activity. Nat. Commun. 2020, 11, 3178. [Google Scholar] [CrossRef] [PubMed]
  43. Chakrabarty, R.; Mukherjee, P.S.; Stang, P.J. Supramolecular coordination: Self-assembly of finite two- and three-dimensional ensembles. Chem. Rev. 2011, 111, 6810–6918. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Fujita, M.; Tominaga, M.; Hori, A.; Therrien, B. Coordination assemblies from a Pd(II)-cornered square complex. Acc. Chem. Res. 2005, 38, 369–378. [Google Scholar] [CrossRef] [PubMed]
  45. Chakraborty, S.; Newkome, G.R. Terpyridine-based metallosupramolecular constructs: Tailored monomers to precise 2D-motifs and 3D-metallocages. Chem. Soc. Rev. 2018, 47, 3991–4016. [Google Scholar] [CrossRef] [PubMed]
  46. Cook, T.R.; Stang, P.J. Recent developments in the preparation and chemistry of metallacycles and metallacages via coordination. Chem. Rev. 2015, 115, 7001–7045. [Google Scholar] [CrossRef]
  47. McConnell, A.J.; Wood, C.S.; Neelakandan, P.P.; Nitschke, J.R. Stimuli-responsive metal−ligand assemblies. Chem. Rev. 2015, 115, 7729–7793. [Google Scholar] [CrossRef] [Green Version]
  48. Chen, L.-J.; Yang, H.-B. Construction of stimuli-responsive functional materials via hierarchical self-assembly involving coordination interactions. Acc. Chem. Res. 2018, 51, 2699–2710. [Google Scholar] [CrossRef]
  49. Shanmugaraju, S.; Mukherjee, P.S. Self-assembled discrete molecules for sensing nitroaromatics. Chem. Eur. J. 2015, 21, 6656–6666. [Google Scholar] [CrossRef]
  50. Chang, X.; Zhou, Z.; Shang, C.; Wang, G.; Wang, Z.; Qi, Y.; Li, Z.-Y.; Wang, H.; Cao, L.; Li, X.; et al. Coordination-driven self-assembled metallacycles incorporating pyrene: Fluorescence mutability, tunability, and aromatic amine sensing. J. Am. Chem. Soc. 2019, 141, 1757–1765. [Google Scholar] [CrossRef]
  51. Datta, S.; Misra, S.K.; Saha, M.L.; Lahiri, N.; Louie, J.; Pan, D.; Stang, P.J. Orthogonal self-assembly of an organoplatinum(II) metallacycle and cucurbit[8]uril that delivers curcumin to cancer cells. Proc. Natl. Acad. Sci. USA 2018, 115, 8087–8092. [Google Scholar] [CrossRef] [Green Version]
  52. Li, R.-J.; Holstein, J.J.; Hiller, W.G.; Andréasson, J.; Clever, G.H. Mechanistic interplay between light switching and guest binding in photochromic [Pd2Dithienylethene4] coordination cages. J. Am. Chem. Soc. 2019, 141, 2097–2103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Huang, C.-B.; Xu, L.; Zhu, J.-L.; Wang, Y.-X.; Sun, B.; Li, X.; Yang, H.-B. Real-time monitoring the dynamics of coordination-driven self-assembly by fluorescence-resonance energy transfer. J. Am. Chem. Soc. 2017, 139, 9459–9462. [Google Scholar] [CrossRef] [PubMed]
  54. Yamashina, M.; Sartin, M.M.; Sei, Y.; Akita, M.; Takeuchi, S.; Tahara, T.; Yoshizawa, M. Preparation of highly fluorescent host-guest complexes with tunable color upon encapsulation. J. Am. Chem. Soc. 2015, 137, 9266–9269. [Google Scholar] [CrossRef] [PubMed]
  55. Zhu, H.; Li, Q.; Shi, B.; Xing, H.; Sun, Y.; Lu, S.; Shangguan, L.; Li, X.; Huang, F.; Stang, P.J. Formation of planar chiral platinum triangles via pillar[5]arene for circularly polarized luminescence. J. Am. Chem. Soc. 2020, 142, 17340–17345. [Google Scholar] [CrossRef]
  56. Hong, C.M.; Bergman, R.G.; Raymond, K.N.; Toste, F.D. Self-assembled tetrahedral hosts as supramolecular catalysts. Acc. Chem. Res. 2018, 51, 2447–2455. [Google Scholar] [CrossRef]
  57. Chen, L.-J.; Chen, S.; Qin, Y.; Xu, L.; Yin, G.-Q.; Zhu, J.-L.; Zhu, F.-F.; Zheng, W.; Li, X.; Yang, H.-B. Construction of porphyrin-containing metallacycle with improved stability and activity within mesoporous carbon. J. Am. Chem. Soc. 2018, 140, 5049–5052. [Google Scholar] [CrossRef]
  58. Hu, Y.-X.; Hao, X.; Xu, L.; Xie, X.; Xiong, B.; Hu, Z.; Sun, H.; Yin, G.-Q.; Li, X.; Peng, H.; et al. Construction of supramolecular liquid-crystalline metallacycles for holographic storage of colored images. J. Am. Chem. Soc. 2020, 142, 6285–6294. [Google Scholar] [CrossRef]
  59. Chen, L.; Chen, C.; Sun, Y.; Lu, S.; Huo, H.; Tan, T.; Li, A.; Li, X.; Ungar, G.; Liu, F.; et al. Luminescent metallacycle-cored liquid crystals induced by metal coordination. Angew. Chem. Int. Ed. 2020, 59, 10143–10150. [Google Scholar] [CrossRef]
  60. Wang, W.; Zhang, Y.; Sun, B.; Chen, L.-J.; Xu, X.-D.; Wang, M.; Li, X.; Yu, Y.; Jiang, W.; Yang, H.-B. The construction of complex multicomponent supramolecular systems via the combination of orthogonal self-assembly and the self-sorting approach. Chem. Sci. 2014, 5, 4554–4560. [Google Scholar] [CrossRef]
  61. Yin, H.; Rosas, R.; Gigmes, D.; Ouari, O.; Wang, R.; Kermagoret, A.; Bardelang, D. Metal actuated ring translocation switches in water. Org. Lett. 2018, 20, 3187–3191. [Google Scholar] [CrossRef]
  62. Samanta, S.K.; Moncelet, D.; Briken, V.; Isaacs, L. Metal–organic polyhedron capped with cucurbit[8]uril delivers doxorubicin to cancer cells J. Am. Chem. Soc. 2016, 138, 14488–14496. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Yang, H.-B.; Hawkridge, A.M.; Huang, S.D.; Das, N.; Bunge, S.D.; Muddiman, D.C.; Stang, P.J. Coordination-driven self-assembly of metallodendrimers possessing well-defined and controllable cavities as cores J. Am. Chem. Soc. 2007, 129, 2120–2129. [Google Scholar] [CrossRef] [PubMed]
  64. Amirsakis, D.G.; Elizarov, A.M.; Garcia-Garibay, M.A.; Glink, P.T.; Stoddart, J.F.; White, A.J.; Williams, D.J.; Amirsakis, D.G.; Elizarov, A.M.; Garcia-Garibay, M.A.; et al. Diastereospecific Photochemical Dimerization of a Stilbene-Containing Daisy Chain Monomer in Solution as well as in the Solid State. Angew. Chem. Int. Ed. 2003, 42, 1126–1132. [Google Scholar] [CrossRef] [PubMed]
  65. Ghosh, K.; Yang, H.-B.; Northrop, B.H.; Lyndon, M.M.; Zheng, Y.-R.; Muddiman, D.C.; Stang, P.J. Coordination-driven self-assembly of cavity-cored multiple crown ether derivatives and poly[2]pseudorotaxanes. J. Am. Chem. Soc. 2008, 130, 5320–5334. [Google Scholar] [CrossRef]
Molecules 26 00716 sch001 550

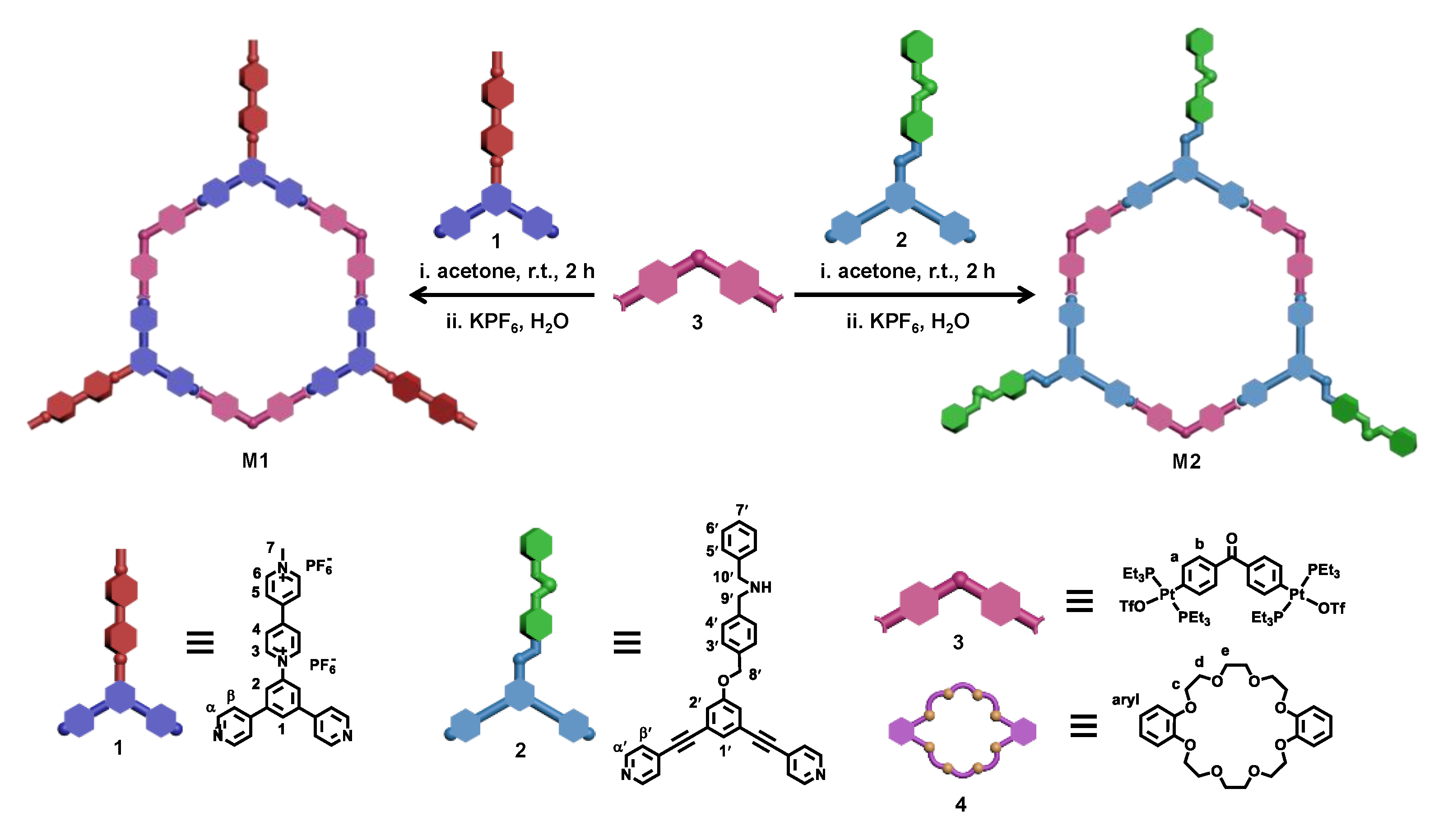

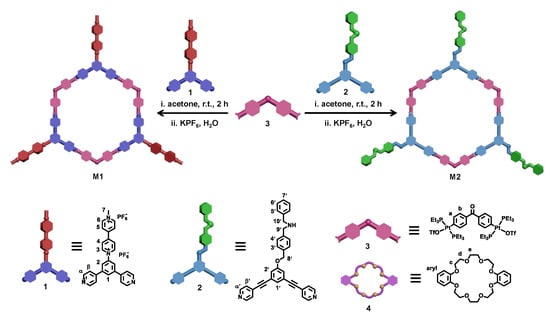

Scheme 1. Self-assembly of 120° donor ligand 1 or 2 and the 120° diplatinum (II) acceptor 3 into discrete hexagonal metallacycle M1 or M2.
Scheme 1. Self-assembly of 120° donor ligand 1 or 2 and the 120° diplatinum (II) acceptor 3 into discrete hexagonal metallacycle M1 or M2.
Molecules 26 00716 sch001
Molecules 26 00716 g001 550

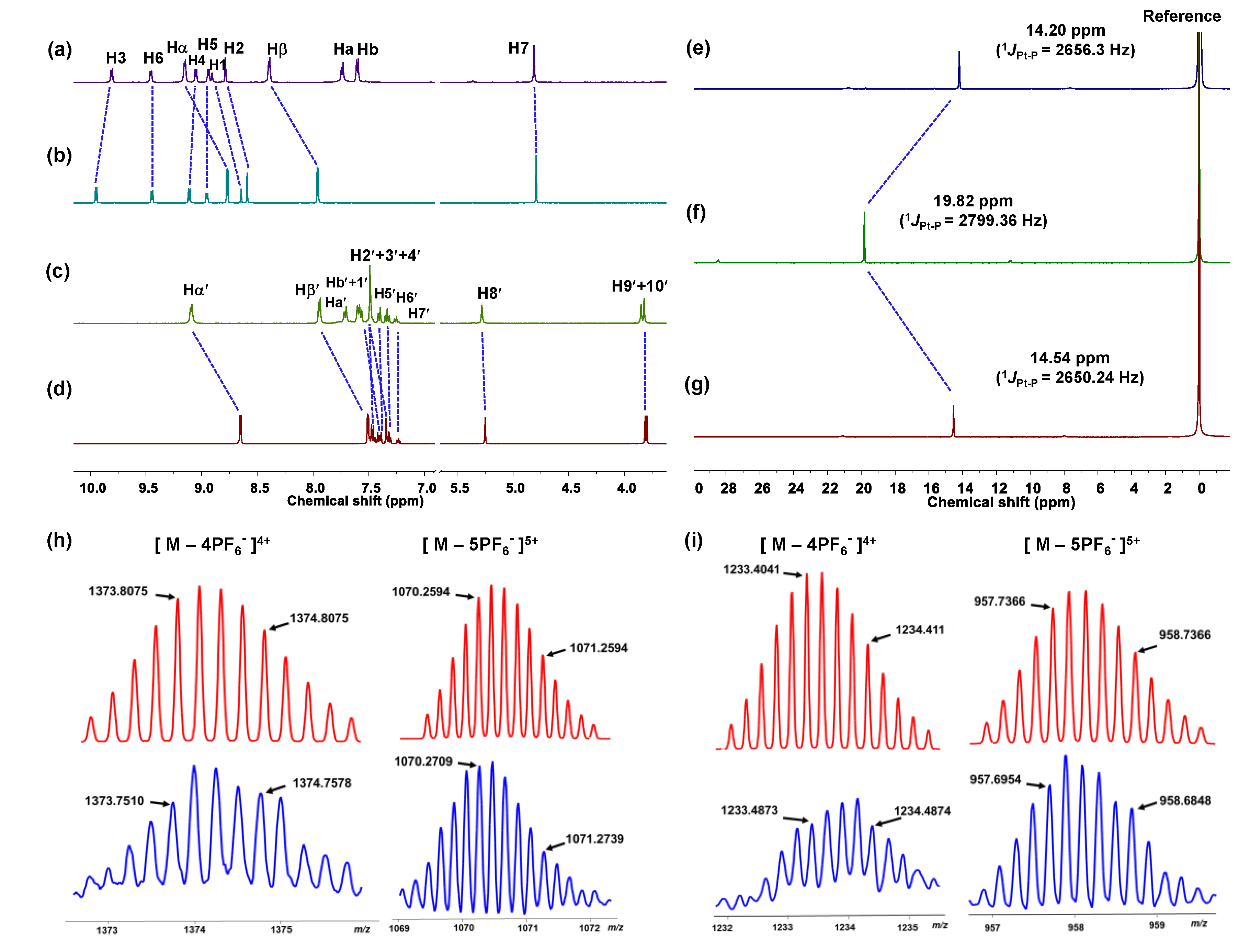

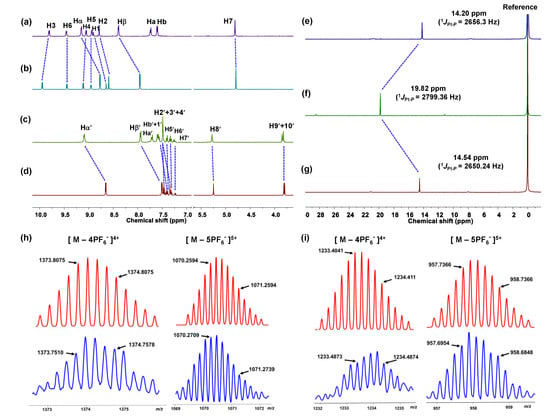

Figure 1. Partial 1H NMR spectra (500 M, d-acetone, 298 K) of (a) metallacycle M1, (b) ligand 1, (c) metallacycle M2, (d) ligand 2. 31P NMR spectra (202 MHz, 298 K) of (e) metallacycle M1 (d-acetone), (f) 120° acceptor 3 (CD2Cl2), (g) metallacycle M2 (d-acetone). Theoretical (red) and experimental (blue) electrospray ionization time-of-flight mass spectrometry (ESI-TOF-MS) spectra of (h) metallacycle M1 and (i) metallacycle M2.
Figure 1. Partial 1H NMR spectra (500 M, d-acetone, 298 K) of (a) metallacycle M1, (b) ligand 1, (c) metallacycle M2, (d) ligand 2. 31P NMR spectra (202 MHz, 298 K) of (e) metallacycle M1 (d-acetone), (f) 120° acceptor 3 (CD2Cl2), (g) metallacycle M2 (d-acetone). Theoretical (red) and experimental (blue) electrospray ionization time-of-flight mass spectrometry (ESI-TOF-MS) spectra of (h) metallacycle M1 and (i) metallacycle M2.
Molecules 26 00716 g001
Molecules 26 00716 g002 550

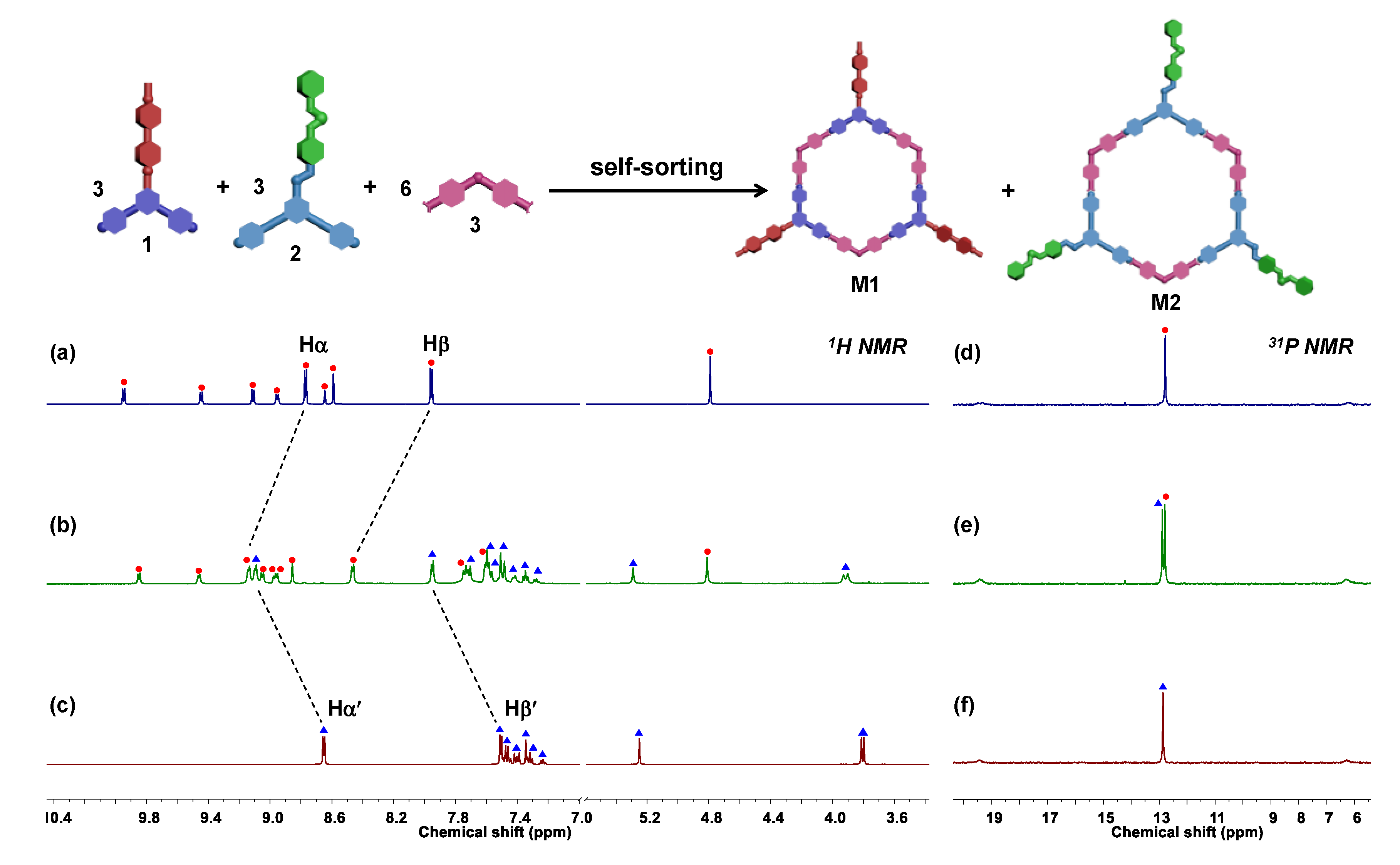

Figure 2. The partial 1H NMR spectra (500 MHz, 298 K, d-acetone) (left) of the ligand 1 (a); the size-controlled self-sorting system (b); and the ligand 2 (c). The partial 31P NMR spectra (202 MHz, 298 K) (right) of the individual metallacycle M1 (d); the size-controlled self-sorting system (e); and the individual metallacycle M2 (f).
Figure 2. The partial 1H NMR spectra (500 MHz, 298 K, d-acetone) (left) of the ligand 1 (a); the size-controlled self-sorting system (b); and the ligand 2 (c). The partial 31P NMR spectra (202 MHz, 298 K) (right) of the individual metallacycle M1 (d); the size-controlled self-sorting system (e); and the individual metallacycle M2 (f).
Molecules 26 00716 g002
Molecules 26 00716 g003 550

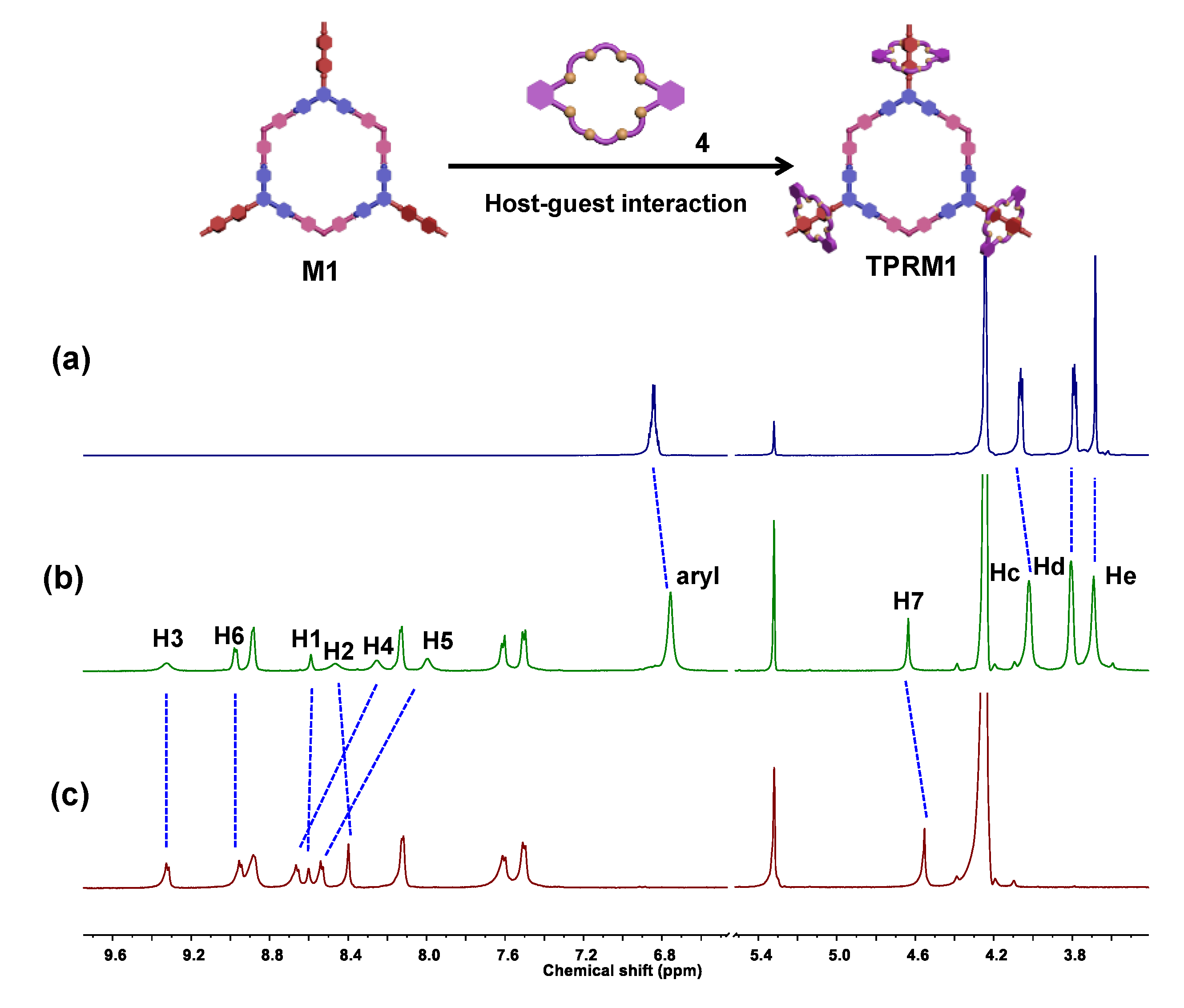

Figure 3. The 1H NMR spectra (500 MHz, 298 K) in CD2Cl2/CD3NO2 (1:1, v/v) of the tris[2]pseudorotaxanes TPRM1 system (a) compound 4; (b) tris[2]pseudorotaxanes TPRM1; (c) metallacycle M1.
Figure 3. The 1H NMR spectra (500 MHz, 298 K) in CD2Cl2/CD3NO2 (1:1, v/v) of the tris[2]pseudorotaxanes TPRM1 system (a) compound 4; (b) tris[2]pseudorotaxanes TPRM1; (c) metallacycle M1.
Molecules 26 00716 g003
Molecules 26 00716 g004 550

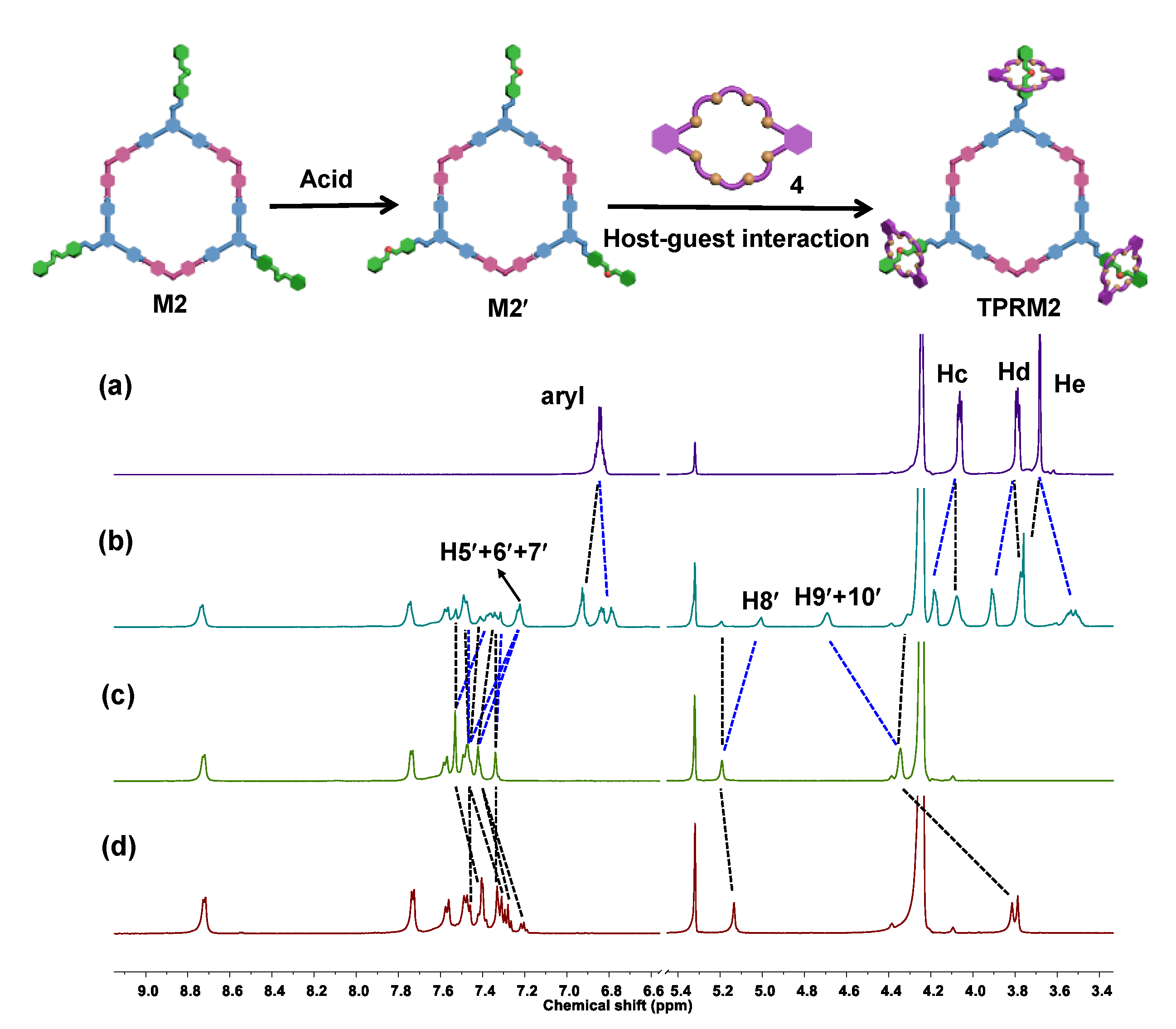

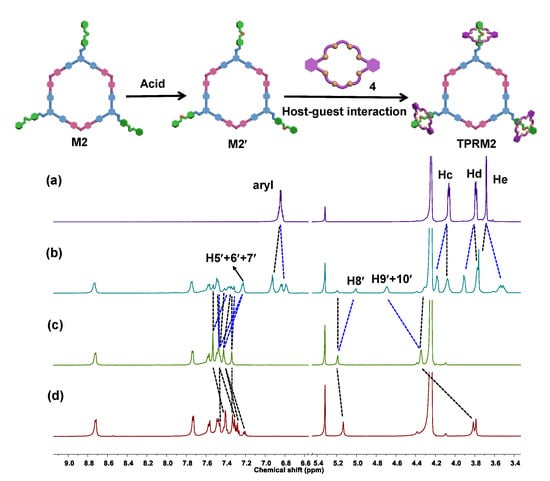

Figure 4. The 1H NMR spectra (500 MHz, 298 K) in CD2Cl2/CD3NO2 (1:1, v/v) of the tris[2]pseudorotaxanes TPRM2 system (a) compound 4; (b) tris[2]pseudorotaxanes TPRM2; (c) metallacycle M2′; (d) metallacycle M2. (complexed signals of blue line and uncomplexed signals of black line).
Figure 4. The 1H NMR spectra (500 MHz, 298 K) in CD2Cl2/CD3NO2 (1:1, v/v) of the tris[2]pseudorotaxanes TPRM2 system (a) compound 4; (b) tris[2]pseudorotaxanes TPRM2; (c) metallacycle M2′; (d) metallacycle M2. (complexed signals of blue line and uncomplexed signals of black line).
Molecules 26 00716 g004
Molecules 26 00716 g005 550

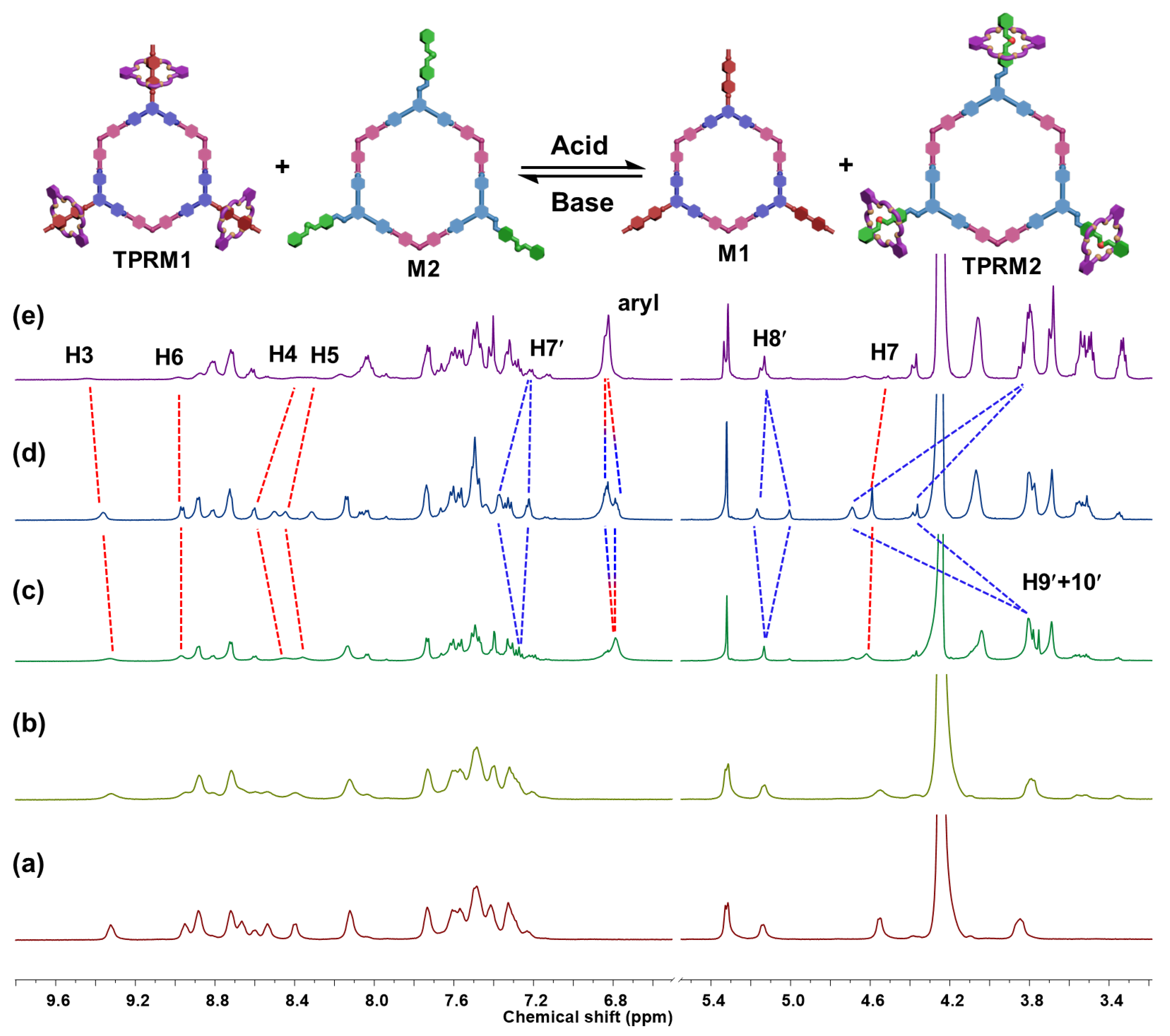

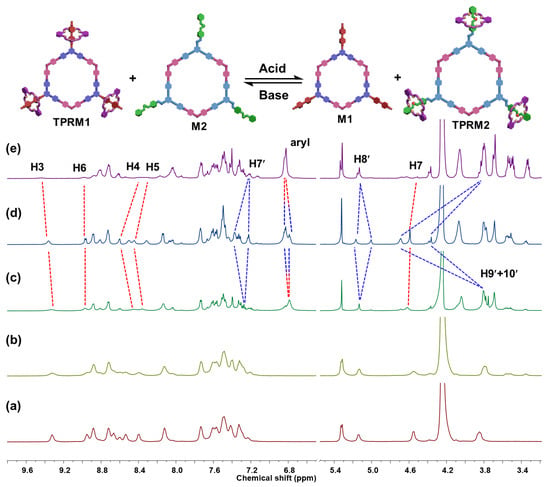

Figure 5. The partial 1H NMR spectra (500 MHz, 298 K) in CD2Cl2/CD3NO2 (1:1, v/v) of the acid-activated motion switching system (a) the self-sorting system of metallacycles M1 and M2; (b) addition of 0.75 eq DBU to sample a; (c) addition of 3.0 eq compound 4 to sample b; (d) addition of 3.0 eq TFA to sample c; (e) addition of 3.0 eq DBU to sample d.
