Constructing an Efficient Bacillus subtilis Spore Display by Using Cohesin−Dockerin Interactions

by
He Wang
1,*,†,
Xiaomin Jiang
2,†,
Yongchang Qian
3 and
Lianghong Yin
3
1
School of Grain Science and Technology, Jiangsu University of Science and Technology, Zhenjiang 212100, China
2
School of Agricultural and Food Sciences, Zhejiang Agriculture and Forestry University, Hangzhou 311300, China
3
School of Forestry and Biotechnology, Zhejiang Agriculture and Forestry University, Hangzhou 311300, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2021, 26(4), 1186; https://doi.org/10.3390/molecules26041186
Submission received: 13 January 2021 / Revised: 19 February 2021 / Accepted: 21 February 2021 / Published: 23 February 2021
(This article belongs to the Special Issue Enzyme Immobilization Ⅳ)
Browse Figures
Versions Notes

Abstract

:
Bacillus subtilis spore display has become a field of increasing interest in the past two decades. To improve the efficiency of B. subtilis spore display, its directed modification was performed based on the cellulosome architecture by introducing onto them divergent cohesin (Coh) modules that can specifically bind to the target enzyme bearing the matching dockerins (Doc). In this study, five different pairs of cohesins and dockerins, selected from four cellulolytic microbes, were examined for their capabilities in displaying a tetrameric enzyme β-galactosidase from Bacillus stearothermophilus IAM11001 on the surface of B. subtilis WB600 spores. Immunofluorescence microscopy, western blotting, dot blotting, and enzyme assay was applied to confirm its surface expression. All the resultant five Coh–Doc based spore display can hydrolyze o-nitrophenyl-β-D-galactopyranoside. Further, the optimized Coh–Doc based spore display exhibited the highest display efficiency. Overall, the results of current study may open new perspectives on the use of Coh–Doc interaction, which will find application in improving the efficiency of B. subtilis spore display.

1. Introduction

It has been 20 years since Isticato and colleagues described the use of CotB to anchor the C-terminal fragment of tetanus toxin on the Bacillus subtilis spores for developing a vaccine against tetanus [1]. B. subtilis spore surface display, referring to the expression of desired enzyme or antigen (target protein) on the surface of spore via fusion with a spore coat protein (anchoring motif), has been proven to be a powerful tool in fields of vaccine development, enzyme immobilization, as well as the delivery of cancer drug and human-related proteins [2,3]. The B. subtilis spore surface display offers natural advantages that include high safety, outstanding stability, and unique ability to display a broad variety of biomolecules, like antigens, tetrameric enzymes and proteins [4].
Currently, spore surface display can be accomplished through non-genetic and genetic approaches [5]. The non-genetic method highly depends on passive adsorption between the spore surface and the target protein, which involves electrostatic forces, hydrogen bonding, and hydrophobic interactions. However, those nonspecific affinities lead to uncontrollable adsorption, and the storage stability of the adsorbed protein is sometimes unsatisfactory [6]. The genetic method is completed by directly fusing anchoring motifs such as CotB, CotC, and CotG with target proteins. In this manner, a strong covalent bond between the anchoring motif and target protein can be created. However, the loss of catalytic activity is challenging, since most of the spore displayed proteins are buried in the coat layer, which makes it inaccessible for the binding of substrates [7].
Despite the great strides achieved in the past two decades, B. subtilis spore display still suffers from low expression level of the protein of interest, thus rendering it unsuitable for industrial applications. Tavassoli et al. [8] observed that the CotC deficient spores displaying B. subtilis 168 β-galactosidase retained 1.6-fold higher residual activity than the wild-type spores after three reuses, although both exhibited the same initial enzyme activity and expression level. The work of Nguyen and Schumann [9] also indicated that the isopropyl-β-D-thiogalactoside (IPTG)-inducible promoter PSgrac could greatly increase the expression of Bacillus amyloliquefaciens α-amylase Q (AmyQ), but it gave the lowest activity (1.5 U) as compared to those obtained with Pgrac (3 U) and PcotB (2.5 U). It is noted that there was a big difference in the number of CotB∆–AmyQ molecule displayed per spore between the Pgrac and PcotB promoter, in which the former was calculated to be almost two times higher than the latter. Collectively, these observations suggest that a small portion of fusion proteins could exist in an enzymatically inactive form surrounding the spore surface, a restriction likely be due to the result of low catalytic efficiency arising from the steric hindrance between anchoring motif and the displayed enzyme.
Cellulosomes are extracellular large multienzyme complexes that are commonly produced by many different anaerobic cellulolytic bacteria [10]. Each of them contains one or more cohesin modules that interact with complementary modules termed dockerins. The cohesin-dockerin (Coh–Doc) interaction is considered to be one of nature’s strongest bimolecular interactions. Furthermore, the binding affinity between cohesin and dockerin is not influenced by the fused enzyme and the linker [11]. The architecture and unique subunit arrangement of the cellulosome can have the genetic potential to create a robust B. subtilis spore display platform by the Coh–Doc interaction. Inspired from these observations, the first evidence is the expression of Escherichia coli β-galactosidase on the spore surface with a controllable manner through Coh–Doc interaction [7]. Introducing Coh–Doc interaction might relieve the spatial barrier between the anchoring motif and the displayed protein, thus contributing to its elevated catalytic efficiency.
The objective of this research was to improve the performance of B. subtilis spore display by grafting an appropriated Coh–Doc system between anchoring motif and protein of interest. For this purpose, five different Coh–Doc modular pairs from different bacterial origins were utilized. A CotG-mediated B. subtilis spore display was engineered using β-galactosidase from Bacillus stearothermophilus IAM11001 (Bsβ–Gal) as a model. The surface-expression of Bsβ–Gal on the spores was demonstrated and its display efficiency was compared to conventional spore display based on direct fusion strategy and native protein display without anchoring motif (Figure 1).

2. Results

2.1. Generation of Coh–Doc Based Spore Surface Display Systems

To identify the most efficient Coh–Doc module for the display of Bsβ–Gal on the surface of B. subtilis spores, CotG, which has been proved to facilitate Bacillus spore surface display of Bsβ–Gal in our previous research [12], was employed as an anchoring motif. Meanwhile, three representative types of Coh–Doc modules, namely type I and type II Coh–Doc complexes from Clostridium thermocellum ATCC 27405, type I Coh–Doc complexes from Clostridium cellulovorans DSM 743B and Clostridium cellulolyticum ATCC 35319 and type III Coh–Doc complex from Ruminococcus flavefaciens FD-1, were selected. All the five selected cohesin genes were obtained by PCR and cloned to the C-terminus of CotG of pEB03-cotG, which was tagged with the FLAG sequence at the 3′-end of the cohesin gene. Following the transformation of wild type B. subtilis WB600 with the display plasmid, recombinant spores carrying CotG-fused cohesin were harvested. Besides, bgaB gene encoding a model protein Bsβ–Gal was also PCR amplified and ligated into pET-28a, generating pET-28a-bgaB. Dockerin gene was amplified and fused to the C-terminal end of bgaB. In addition, the linker GGGGS was inserted between Bsβ–Gal and its dockerin module. After transformation into E. coli BL21(DE3), different types of Bsβ–Gal–Docs were purified by Ni-affinity chromatography column and confirmed by SDS-PAGE analysis. To examine whether the Bsβ–Gal could be assembled onto the spore surface, each of the dockerin fused Bsβ–Gal–Doc was incubated with spores surface-displaying a fusion of CotG and corresponding cohesin. After the same period of incubation, the assembly of Bsβ–Gal onto the spore surface was achieved by Coh–Doc interaction.

2.2. Demonstration of Coh–Doc Based Spore Surface Display Using Immunofluorescence Analysis

The purified spores of CotG–Coh were first labeled with Alexa Fluor 488-conjugated anti–FLAG antibody, and then observed using immunofluorescence microscopy. As shown in Figure 2a, no detectable signal was observed on B. subtilis WB600 containing pEB03-cotG, however, all five recombinant spores presented strong fluorescence signals, suggesting the successful expression of cohesin on the spore surface. To testify whether Bsβ–Gal–Doc was anchored on the spore surface via interaction between cohesin and dockerin, the localization of CotG–Coh/Bsβ–Gal–Doc was also assayed using immunofluorescence analysis. As a control, B. subtilis WB600 harboring pEB03-cotG alone showed no detectable fluorescence. By contrast, five Coh–Doc based spore displayed Bsβ–Gals, together with CotG–Bsβ–Gal and Pcry1Aa–Bsβ–Gal exhibited much stronger fluorescence signals than the control (Figure 2b), supporting that Bsβ–Gal, recognized by the antibody, resided on the surface of spores.

2.3. Confirmation of Coh–Doc Based Spore Surface Display

CotG–Coh/Bsβ–Gal–Doc was further characterized by the western blotting technique. Initial investigation into the surface expression of CotG–Coh was performed using anti–FLAG antibody. From the results shown in Figure 3a, a specific major band of approximately 45 kDa matching the theoretical molecular weight of CotG fused cohesin was detected in all five CotG–Coh samples, while B. subtilis WB600 harboring pEB03-cotG presented no similar protein band, suggesting that the specific band was target protein contained FLAG tag. The western blotting analysis verified successful expression of different CotG-fused cohesins on the spores.
Then, the presence of CotG–Coh/Bsβ–Gal–Doc on the spores was examined through a western blotting experiment using goat anti-rabbit Bsβ–Gal secondary antibody. The results showed single bands at the expected MWs for Pcry1Aa–Bsβ–Gal (97 kDa), CotG–Bsβ–Gal (102 kDa), and Bsβ–Gal–Doc (85~97 kDa). Figure 3b shows that CotG–Coh/Bsβ–Gal–Doc was immobilized on the spores, since only one main characteristic band was found on the gel for all the seven different spores displayed Bsβ–Gals. However, no similar protein bands were detected in the loading well for the wild type spores. Furthermore, the expression level of Bsβ–Gal identified in all spore display systems were very higher than that of adsorbed treatment sample. From the above, the experimental data proofed the correct expression of Bsβ–Gal based on five different Coh–Doc interactions on the surface of the spores. The five different types of Coh–Doc based spore displayed Bsβ–Gals exhibited similar expression level, but lower than that of CotG–Bsβ–Gal or Pcry1Aa–Bsβ–Gal, which was confirmed via the western blotting method. Among Coh–Doc based spore display systems, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I with the highest expression level and CotG–RfCoh-III/Bsβ–Gal–RfDoc-III with the lowest expression level were chosen for further evaluation.

2.4. Effect of Coh–Doc Pair Type on Spore Display Efficiency

To further evaluate the applicability of Coh–Doc based spore display, the efficiency of spore displayed Bsβ–Gal joined with different Coh–Doc module pairs was compared by examining their activities toward the hydrolysis of o-nitrophenyl-β-D-galactopyranoside (ONPG). As shown in Figure 4, all five spores displayed Bsβ–Gals exhibited activities ranging from 1.64 to 1.97 U/mg spores, with CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I (1.97 U/mg spores) being the highest. The activities of Pcry1Aa–Bsβ–Gal and CotG–Bsβ–Gal were determined as 2.48 and 1.83 U/mg spores, respectively. Interestingly, wild type B. subtilis WB600 spores pre-incubated with Bsβ–Gal–Doc appears to be able to hydrolyze ONPG compared to those pre-incubated in phosphate buffer (data not shown), indicating that the very small amount of Bsβ–Gal–Doc adsorbed onto spores was active. Thus, the activity observed with Coh–Doc based spore displayed Bsβ–Gal is most likely due to the combination of the activities of the spore displayed Bsβ–Gal and the adsorbed enzyme. Although it was difficult to distinguish between the enzymatic activity due to the spore displayed Bsβ–Gal or to the adsorbed Bsβ–Gal, Coh–Doc based spore displayed Bsβ–Gal demonstrated the potential of Coh–Doc interaction to advance B. subtilis spore display platform.
Next, the dot blotting analysis was performed. A comparative study was made between conventional spore display from Pcry1Aa–Bsβ–Gal or CotG–Bsβ–Gal and individual Coh–Doc based spore displayed Bsβ–Gal, respectively CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I and CotG–RfCoh-III/Bsβ–Gal–RfDoc-III. From the results summarized in Table 1, the number of fusion protein molecules per spore was estimated as 1.3×105 for Pcry1Aa–Bsβ–Gal, almost 3 times higher than that of CotG–Bsβ–Gal. However, as already noted the activity of Pcry1Aa–Bsβ–Gal was only about 1.4 times higher than that of CotG–Bsβ–Gal, the former of which showed a relatively lower display efficiency despite higher expression level, revealing that of the Bsβ–Gal tethered on the spore surface, a small but quite portion was catalytically inactive.
On the other hand, as Table 1 shows, the number of CotG–Bsβ–Gal molecules was 4.3 × 104 per spore, which was approximately 1.4-fold higher than that of CotG–CcmCoh-I/Bsβ–Gal–CcmDocI (3.0 × 104) and 1.5-fold higher than that of CotG–RfCoh-III/Bsβ–Gal–RfDoc-III (2.8 × 104). Surprisingly, CotG–Bsβ–Gal showed a relatively low activity than CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I, but only 1.1 times higher than that of CotG–RfCoh-III/Bsβ–Gal–RfDoc-III. Similar to Pcry1Aa–Bsβ–Gal, CotG–Bsβ–Gal expression level did not correlate well with its activity. These results implied that Coh–Doc based spore display exhibited a higher display efficiency than the conventional spore display via direct fusion or native protein display.

2.5. Enzymatic Properties of Spore Displayed Bsβ–Gal

The influences of pH, temperature, and organic solvent on the enzymatic properties were investigated. The purified Bsβ–Gal displayed the highest activity at pH 6.5. The optimum pH of spore displayed Bsβ–Gal for ONPG hydrolysis was 6.0 (Figure 5a), which was consistent with the reported results [12]. As Figure 5a shows, CotG–Bsβ–Gal maintained a relatively high activity level at pH varying from 6.0 to 9.0 as compared with other types of Bsβ–Gal. Pcry1Aa–Bsβ–Gal, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I and CotG–RfCoh-III/Bsβ–Gal–RfDoc-III presented similar pH activity profiles. Notably, free Bsβ–Gal exhibited a relatively low activity within the pH range of 7.0–9.0, indicating it was unstable at alkaline pH conditions. In short, as for spore displayed Bsβ–Gal, the optimum pH shifting to an acidic region and high activity obtained in alkaline environment was mainly attributed to the spore resistant features.
The behavior of spores displayed Bsβ–Gal was also studied in the temperature range of 55 to 80 °C at the optimal pH buffer. The same optimum temperature was found for spore displayed Bsβ–Gal at 75 °C, which was 5 C higher than that of free Bsβ–Gal (Figure 5b). Interestingly, free Bsβ–Gal had a relatively high activity at 55–70 °C, besides broadening. Thermostability of spore displayed Bsβ–Gal was investigated at 65, 70 and 75 °C for 0–2.5 h. At all the tested temperatures, both free and spore displayed Bsβ–Gal activities decreased over time (Figure 5c–e). It was found that CotG–Bsβ–Gal, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I and CotG–RfCoh-III/Bsβ–Gal–RfDoc-III retained 16.3 ± 2.2%, 7.8 ± 1.1% and 6.7 ± 2.4% residual activities, respectively, after 2 h-incubation at 75 °C, whereas both free Bsβ–Gal and Pcry1Aa–Bsβ–Gal nearly lost all of their activities (Figure 5e). Figure 5 also shows that free Bsβ–Gal and Pcry1Aa–Bsβ–Gal without anchoring motif displayed similar temperature stability trends, especially at higher temperatures (70 and 75 °C). More importantly, CotG–Bsβ–Gal, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I and CotG–RfCoh-III/Bsβ–Gal–RfDoc-III retained higher activities than Pcry1Aa–Bsβ–Gal and free Bsβ–Gal. The superior thermostability upon spore display by direct fusion or Coh–Doc affinity could be due to the unique structure and resistance properties of the spore, which allows Bsβ–Gal to endure high temperature for a longer time.
The activity and stability of spore displayed Bsβ–Gal was further examined in the presence of organic solvents at a volume ratio of 1:1. As summarized in Table 2, under the specified conditions, the relative activity of free Bsβ–Gal was positively correlated with the octanol/water partition coefficient of organic solvent (defined as logP, which was calculated using online service https://www.molinspiration.com (accessed on 6 January 2021)). This result may be attributed to the higher activity of Bsβ–Gal in non-polar solvent [13]. Intriguingly, Pcry1Aa–Bsβ–Gal without anchoring motif has projected a similar organic solvent stability profile as its free Bsβ–Gal form. Table 2 also shows that spore displayed Bsβ–Gal through direct fusion or Coh–Doc affinity was able to withstand in most of the tested organic solvents, demonstrating their excellent organic solvent resistance. A similar result was found on the spore displayed β–Gal derived from E. coli [13]. Toluene, a representative aromatic organic compound with logP of 2.39, maintained 73.3% of the initial activity (CotG–Bsβ–Gal), 67.4% (CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I), and 71.3% (CotG–RfCoh-III/Bsβ–Gal–RfDoc-III), respectively, whereas only 33.1% of activity was retained for free Bsβ–Gal. Besides, ethyl ether having logP equivalent to 1.05, maintained 56.1% of the initial activity (CotG–Bsβ–Gal), 47.2% (CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I), and 46.5% (CotG–RfCoh-III/Bsβ–Gal–RfDoc-III), respectively. However, the activity of free Bsβ–Gal was reduced to 21.4%. All types of Bsβ–Gals experienced a sharp decline in stability in ethanol and 1,4-dioxane. Moreover, 1,4-dioxane acted as the most detrimental organic solvent to an extent. It was shown that no detectable remaining activity was observed for Pcry1Aa–Bsβ–Gal and free Bsβ–Gal. Even for spore displayed forms, only 3.6% (CotG–Bsβ–Gal), 0.4% (CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I), and 1.1% (CotG–RfCoh-III/Bsβ–Gal–RfDoc-III) of activities were retained.
The recyclable performance of an enzyme is a key issue for practical applications. For assessing the reusability of spore displayed Bsβ–Gal, a total of six cycles were explored. As shown in Figure 5f, the relative activities of all four types of spore displayed Bsβ–Gals gradually decreased with increasing recycle numbers, and each of them still remained about 60% of its initial activity after 6 times of recycling. Different types of spore displayed Bsβ–Gals exhibited similar residual activities after every run. A recent study by Chen et al. [6] described that E. coli β–Gal displayed on the spores via Coh–Doc interaction still maintained 80% of its initial activity after four rounds of reuse. Taken together, those observations demonstrated good reusability of the spore displayed Bsβ–Gal.
For biocatalysts, calculating the kinetic parameters is crucial for their realistic application. The Km values of free purified Bsβ–Gal, Pcry1Aa–Bsβ–Gal, CotG–Bsβ–Gal, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I and CotG–RfCoh-III/Bsβ–Gal–RfDoc-III were measured as 2.97, 5.71, 4.43, 3.83 and 3.71 mM, respectively. The free purified Bsβ–Gal with a Km of 2.97 mM for ONPG is consistent with the reported data by Chen et al. [14]. This suggests that spore displayed Bsβ–Gals with high Km values are more likely to exhibit a less affinity for artificial substrate ONPG compared with the free enzyme (Table 3). Coh–Doc based spore display, however, exhibited significantly lower Km than native protein spore display or direct fusion spore display. This phenomenon may be ascribed to the introduction of a specific Coh–Doc pair, which could greatly increase the spatial distance between the target enzyme and the anchoring motif, thereby modulating Bsβ–Gal’s flexibility necessary for substrate affinity. Moreover, CotG–RfCoh-III/Bsβ–Gal–RfDoc-III (3.71 mM) and CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I (3.83 mM) had the relatively lower Km, the Vmax with the latter (1.04 μmol min−1 mg spores−1) being approximately 1.3 times that of the former (0.78 μmol min−1 mg spores−1). In light of enzymes with low kinetic values, the CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I could have a potential for practical bioprocess.

3. Discussion

Demand in the global enzyme market has greatly increased as a result of the growing population and exhaustion of natural resources. The utilization of enzymes is rendered more favorable in industrial processes especially by enzyme immobilization. In recent decades, great advances in the field of enzyme immobilization have made immobilized enzymes very promising catalysts in modern industry. However, enzyme immobilization (especially chemical immobilization) is still facing many challenges if analyzed in a global way, such as the overall cost of the supports, the ease of the immobilization protocols and protein conformation sensitivity [15,16]. Developing novel immobilization approaches to improve enzyme performance has been a permanent pursuit. Surface display of enzymes on the B. subtilis spores presents an alternative for enzyme immobilization.
Though B. subtilis spore display offers several advantages over the existing enzyme immobilization methods, the efficiency of display systems is very low. This restricts the application of B. subtilis spore display as biocatalysts. Thus, constructing an efficient B. subtilis spore display platform for enzyme immobilization is necessary from both the theoretical and applied sciences point of view. To date, however, few reports are aimed at improving display efficiency. Recently, displaying target protein on the spores via high-affinity Coh–Doc interaction has been demonstrated to be a promising approach. Chen et al. [7] only examined the possibility of type I Coh-Doc complexes from C. thermocellum and R. flavefaciens to immobilize enzymes on the spores. Other two Coh-Doc interactions, namely type II and type III, were not tested. The universality of Coh-Doc interaction for the spore display of biologically active molecules should be further confirmed by more studies. The efficiency of different types of B. subtilis spore display was previously recorded in separate studies on β-galactosidases from B. stearothermophilus IAM11001 and E. coli [7,12,17]. The aim of this study is thus to gain more insights into the efficiency of Coh–Doc based spore display in comparison with the conventional spore display via direct fusion or native protein display. A key for developing such spore display may be the screening of suitable Coh–Doc modules. In a previous report, a type I Coh–Doc pair originating from C. thermocellum ATCC 27405 was applied to construct E. coli β–Gal spore display system, wherein the fusion gene cotG–coh was directly integrated into the B. subtilis genome [7]. To achieve improved performance, herein, three kinds of Coh–Doc pairs (namely type I, type II, and type III) were chosen, and an episomal plasmid pEB03 was employed. To minimize the steric hindrance and endow the enzyme with more flexibility, a suitable linker was fused between Bsβ–Gal and its dockerin module. In doing so, Bsβ–Gal was successfully immobilized on the surface of recombinant B. subtilis WB600 spores through CotG as an anchoring motif via Coh–Doc interaction.
The effect of type of Coh–Doc on display efficiency was investigated. CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I exhibited significant improvement in display efficiency compared to those of conventional spore display, suggesting the critical role of incorporation of a suitable Coh–Doc module in enhancing display efficiency. This result could be ascribed to the following aspects: (1) three types of Coh–Doc interactions exhibited different distribution, specificity and structure; (2) the binding of cohesin from mesophilic C. cellulovorans DSM 743B to counterpart dockerin is highly selective, whereas in C. thermocellum ATCC 27405 and C. cellulolyticum ATCC 35319 the cohesin interacted at random with available cohesin of scaffoldins [18,19]; (3) cellulosome produced by C. thermocellum ATCC 27405 was observed to be larger than those for C. cellulovorans DSM 743B and C. cellulolyticum ATCC 35319 [20]; (4) a type III Coh–Doc interaction was only discovered in R. flavefaciens FD-1 [21].
Generally, the dockerin fused Bsβ–Gal that is tethered to the spore surface through Coh-Doc interaction has high flexibility to react with substrate. Moreover, a better distribution of Bsβ–Gal–Doc on the spore surface may give rise to more efficient interaction with substrate. Therefore, by introducing Coh–Doc module pair between CotG and Bsβ–Gal, which could weaken the spatial confinement effect and alter the distribution of CotG-fused protein, the display efficiency of CotG–Bsβ–Gal was effectively improved. A previous study has documented that overproduced CotG protein tended to accumulate at the midpoint of the spores. Hypothetically, a considerable amount of CotG–Bsβ–Gal may embed at the midpoints of the spores, being difficultly accessed to substrate molecules and hampering its catalytic activity. Similar to enzyme immobilization, the relatively lower display efficiency is sometimes associated with changes in the CotG–Bsβ–Gal enzyme structure [22].
Despite the high expression level, the decreased display efficiency of Pcry1Aa–Bsβ–Gal over those of the Coh–Doc based spore display or CotG–Bsβ–Gal would imply that the former had a lower proportion of active enzyme on the spore surface. Furthermore, Pcry1Aa–Bsβ–Gal was not effectively protected from high temperatures and organic solvents. It has been hypothesized that the proteins in an embedded state could reduce the display efficiency of enzymes but afford considerable protection to displayed enzymes. In most instances, the inactivation of multimeric enzymes is dissociation of the enzyme subunits or loss of their correct assembly structure [23]. Based on these observations, a possible explanation might be that Pcry1Aa–Bsβ–Gal was overproduced during the display process, which resulted in an undesired fold of some enzyme molecules into an inactive form or the dissociation of enzyme subunits.
The thermostability assay revealed that spore-displayed Bsβ–Gal via direct fusion or Coh–Doc interaction possessed enhanced thermostability compared to its native form. Importantly, CotG–Bsβ–Gal could attain a relatively higher degree of protection than CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I. By displaying on the spores, a significant enhancement in thermostability was also found on the β–Gal of E. coli that fused with CotG [13]. Other enzymes, such as organophosphorus hydrolase and haloalkane dehalogenase, when displayed as a fusion with CotG, were reported to exhibit higher thermostability than their free forms [24,25]. The ability to withstand organic solvent is another sought after feature, as it would benefit real bioprocess. Our data showed that both direct fusion and Coh-Doc based spore displayed Bsβ–Gal could be more tolerable to organic solvent than Pcry1Aa–Bsβ–Gal and the free enzyme. Similar to thermostability, there is no discernible difference in organic solvent resistance between Pcry1Aa–Bsβ–Gal and free Bsβ–Gal. In general, the spore surface of B. subtilis is highly hydrophobic [26], and hydrophobic and electrostatic interactions are the main driving forces of spore passive adsorption [27]. The spore displayed Bsβ–Gal with no anchoring motif (Pcry1Aa–Bsβ–Gal) was unstable when exposed to organic solvents. This instability could in part be elucidated by the hydrophobic effect of organic solvents resulted by the detachment of some Bsβ–Gal adsorbed on the spore surface. Besides, changes in environment (such as temperature and organic solvent) may destabilize the hydrophobic and electrostatic interactions between Bsβ–Gal and spore surface structure and cause the dissociation of subunits, leading to its inactivation.
From these results, the extreme robustness as well as the thermal and organic solvent stability of spore displayed Bsβ–Gal is due to the spore inert structure, and the interaction between the displayed enzyme and the proteins in the coat layer. In particularly, the latter may strengthen the stability of Bsβ–Gal multimeric structure and prevent subunit dissociation, thereby resulting in better catalytic performance. Furthermore, analysis of the effects of temperature and organic solvent on the stability of Pcry1Aa–Bsβ–Gal had depicted that native protein display without anchoring motif was unable to exhibit superior performance over direct fusion spore display or Coh–Doc based spore display thereby limiting its potential use in practical applications.
In this paper, we further investigated the Coh–Doc interaction-based display method that could effectively improve the display performance of Bsβ–Gal on the spores by evaluating the efficiency and technical feasibility of three kinds of Coh–Doc interactions. This is the first time that such an elaborate comparison has been made between conventional spore display and several of their individual Coh–Doc-based spore displays from four microbes. In particularly, the observation that the same Bsβ-gal was displayed on the spores with different efficiencies by Coh-Doc of different origins or different types of the same origin, suggests that these Coh-Doc modules have crucial role in constructing B. subtilis spore display. In another word, the most appropriate Coh-Doc have to be identified for each enzyme to be immobilized and for each specific application. This, on the other hand, reflects the importance of our work to scientific field of B. subtilis spore display. As indicated in this work, Coh–Doc from C. cellulolyticum ATCC 35319 exhibited the highest display efficiency and substrate affinity; thus, it can be considered as a preferable choice for enzyme immobilization.

4. Materials and Methods

4.1. Bacterial Strains and Growth Conditions

All bacterial strains and plasmids used are listed in Table S1. E. coli (DH5α or BL21(DE3)), used for gene cloning and protein production, were cultured in LB broth. B. subtilis WB600 was used as display host. Sporulation was triggered by nutrient deprivation in Difco sporulation medium (DSM). Spore preparation was performed as described before [12]. Media were supplemented with ampicillin, kanamycin, or spectinomycin when necessary.

4.2. Construction of Spore Display Plasmid and Its Transformation

A list of primers used in the experiments is shown in Table S2. The genes encoding type I and type II cohesins (Ctcoh-I and Ctcoh-II) of C. thermocellum ATCC 27405 were amplified from its genomic DNA by PCR, followed by separate insertion into a previously constructed non-integrative plasmid pEB03-cotG to create pEB03-cotG-Ctcoh-I and pEB03-cotG-Ctcoh-II, respectively. Similarly, a type I cohesin from C. cellulovorans DSM 743B (Ccscoh-I), a type I cohesin from C. cellulolyticum ATCC 35319 (Ccmcoh-I) and a type III cohesin from R. flavefaciens FD-1 (Rfcoh-III) were PCR amplified and cloned into pEB03-cotG to generate pEB03-cotG-Ccscoh-I, pEB03-cotG-Ccmcoh-I and pEB03-cotG-Rfcoh-III, respectively. For the construction of a direct fusion-based spore display system (CotG–Bsβ–Gal), full-length bgaB encoding Bsβ–Gal was cloned by amplifying it from pJS-cotY-bgaB [28]. pEB03-cotG-bgaB was constructed similarly to that described for pEB03-cotG-Ctcoh-I. To develop a native protein spore display system (Pcry1Aa–Bsβ–Gal), a sporulation-specific promoter Pcry1Aa was chemically synthesized based on the previous results [17], and inserted into an earlier constructed plasmid pEB03-bgaB [12], resulting in the pEB03-Pcry1Aa-bgaB. Each construct was fused with a FLAG tag at the C-terminus for detection purpose. After verifying by restriction digestion and DNA sequencing, all of the plasmid constructs were transformed into competent wild type B. subtilis WB600 cells. Transformants were screened on LB plate containing 300 μg/mL spectinomycin and further checked by colony PCR analysis.

4.3. Expression and Purification of Bsβ–Gal–Doc

Cloning of bgaB was performed by PCR from pJS-cotY-bgaB followed by ligation into pET-28a, yielding pET-28a-bgaB. Two kinds of dockerin genes, namely a type I dockerin and a type II dockerin, were first PCR amplified from C. thermocellum ATCC 27405 and cloned into pET-28a-bgaB to give pET-28a-bgaB-Ctdoc-I and pET-28a-bgaB-Ctdoc-II, respectively. Similarly, a type I dockerin gene of C. cellulovorans (Ccsdoc-I), a type I dockerin gene of C. cellulolyticum (Ccmdoc-I) and a type III dockerin gene of R. flavefaciens (Rfdoc-III) were PCR amplified and inserted into pET-28a-bgaB to generate pET28b-bgaB-Ccsdoc-I, pET28b-bgaB-Ccmdoc-I and pET28b-bgaB-Rfdoc-III, respectively. The colony PCR and DNA sequencing were used to confirm the insertion and the identity of the recombinant clones. Finally, the correct recombinant plasmids were transformed into E. coli BL21(DE3).
Bsβ–Gal expression was induced by 0.6 mM IPTG at 30 °C for 10 h. The harvested cells were collected by centrifugation, resuspended in 20 mM Tris-HCl buffer and then disrupted by ultrasonication with 20 min pulses at 20 kHz. After heat treatment at 80 °C for 20 min, the crude enzyme was purified through a Ni-NTA Prepacked chromatographic column (Sangon Biotech, Shanghai, China). The detailed procedure for separation of the enzyme extract was followed the product instruction’s guide. The active fractions were pooled and dialyzed against 20 mM Tris-HCl. The purify of Bsβ–Gal was detected by SDS-PAGE.

4.4. Bsβ–Gal Assembly on the Spore Surface

To confirm the assembly of Bsβ–Gal on the spore surface, the Bsβ–Gal was fused with five different dockerin modules and expressed in E. coli. After cells were cultured in DSM at 37 °C for 48 h, the B. subtilis spores expressing a fusion of CotG and cohesin were harvested using the described method before [28]. Each of the obtained recombinant spores displaying CotG–CtCoh-I, CotG–CtCoh-II, CotG–CcsCoh-I, CotG–CcmCoh-I and CotG–RfCoh–III (1.0 × 108 CFU/mL) were incubated with the corresponding purified dockerin-fused Bsβ–Gal (0.05 mg/mL), i.e., Bsβ–Gal–CtDoc-I, Bsβ–Gal–CtDoc-II, Bsβ–Gal–CcsDoc-I, Bsβ–Gal–CcmDoc-I and Bsβ–Gal–RfDoc-III, respectively. The binding assay was conducted at 37 °C for 30 min under gentle shaking. At last, the nonspecifically bound proteins were removed by washing the spores thrice with phosphate-buffered saline (PBS, pH 7.0).

4.5. Western Blotting and Dot Blotting Analyses

For western blotting analysis, the coat proteins were extracted by treatment of the purified recombinant spores with 1% (w/v) SDS and 50 mM dithiothreitol as described elsewhere (Cutting and Van der Horn [29]). Western blotting analysis was done as follows. The first step was to confirm the surface expression of CotG–Coh fusion protein on the spores using rabbit anti–FLAG antibody as a primary antibody. The extracted spore coat proteins of different recombinant strains were separately subjected to SDS-PAGE, followed by western blotting with horseradish peroxidase (HRP)–conjugated goat anti-rabbit IgG. The blots were developed with HRP–DAB substrate kit to visualize protein band. Next, to validate the immobilization of Bsβ–Gal-Doc on the spores via interaction with CotG–Coh, extracted spore coat proteins of different recombinant strains were separated on 12% SDS-PAGE, and then analyzed on a western blotting, in which signals were developed with rabbit polyclonal anti–Bsβ–Gal antibody. Dot blotting experiment was applied to further quantify the amount of CotG–Coh/Bsβ–Gal-Doc in the spore coat following the procedures of Wang et al. [12].

4.6. Immunofluorescence Microscopy

Procedures of the immunofluorescence experiment were virtually the same as formerly described [28]. The sample was probed using rabbit anti–FLAG antibody or rabbit anti–Bsβ–Gal antibody, followed by Alexa Fluor 488-conjugated goat anti-rabbit IgG secondary antibody. Images were captured using a SP2 confocal microscope system (Leica, Mannheim, Germany).

4.7. Assay of Spore Displayed Bsβ–Gal Activity

The activity of dockerin-fused Bsβ–Gal was measured using ONPG as a specific substrate. The reaction mixture contained 800 μL of 2.5 g/L ONPG in 20 mM potassium phosphate buffer (pH 6.0) and 200 μL of prepared spore suspension. After 5 min of incubation at 75 °C, 1 mL of 10% (w/v) sodium carbonate was added to stop the reaction. The amount of the produced o-nitrophenol (ONP) was determined by measuring absorbance at 420 nm. The wild type B. subtilis WB600 spores were used as a negative control. One unit of spore-anchored Bsβ–Gal activity was described as the amount of 1 μM ONP per minute under the specified conditions.

4.8. Characterization of Spore Displayed Bsβ–Gal

The impact of pH on the activity of spore displayed Bsβ–Gal was investigated by using phosphate citrate buffer (pH 5.0–7.0), potassium phosphate buffer (pH 7.0–8.0), and Tris-HCl buffer (pH 8.0–9.0) at a concentration of 0.1 M. The optimum temperature was determined at temperatures of 55, 60, 65, 70, 75 and 80 °C. Thermostability was evaluated according to the protocol described by Wang et al. [12]. The effect of organic solvents (ethyl ether, toluene, 1-chloroheptane, n-hexane, acetonitrile, ethanol, cyclohexanone and 1,4-dioxane) on the stability of spore displayed Bsβ–Gal was examined by subjecting the enzyme along with organic solvents to pre-incubation at 25 °C for 1 h. Besides, the reuse stability and determination of kinetic constants of different CotG-based Bsβ–Gal spore display systems were also characterized. The kinetic parameters of spore displayed Bsβ–Gals were investigated by using varying concentrations of ONPG (0.83–20 mM) as substrate. The kinetic data were fitted to the Lineweaver-Burk equation and the Michaelis constant (Km) and maximum velocity (Vmax) values were obtained.

Supplementary Materials

The following are available online, Table S1: Strains and plasmids used in this study, Table S2: List of all primers used in the study.

Author Contributions

Study design: Performing the experiments: X.J. and H.W. Writing the manuscript: H.W. Data analysis: X.J., H.W., Y.Q. and L.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (grant number 31701535).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available within the article.

Acknowledgments

We are grateful to Chenggang Xu, School of Life Science at Shanxi University, for the gift of C. cellulolyticum ATCC 35319 and to Zhiqiang Wen, School of Environmental and Biological Engineering at Nanjing University of Science and Technology, for the gift of C. cellulovorans DSM 743B.

Conflicts of Interest

The authors declare that they have no conflict of interest.

Sample Availability

Not applicable.

References

  1. Isticato, R.; Cangiano, G.; Tran, H.T.; Ciabattini, A.; Medaglini, D.; Oggioni, M.R.; De Felice, M.; Del Pozzo, G.; Ricca, E. Surface display of recombinant proteins on Bacillus subtilis spores. J. Bacteriol. 2001, 183, 6294–6301. [Google Scholar] [CrossRef] [Green Version]
  2. Lin, P.; Yuan, H.; Du, J.; Liu, K.; Liu, H.; Wang, T. Progress in research and application development of surface display technology using Bacillus subtilis spores. Appl. Microbiol. Biotechnol. 2020, 104, 2319–2331. [Google Scholar] [CrossRef]
  3. Zhang, X.; Al-Dossary, A.; Hussain, M.; Setlow, P.; Li, J. Applications of Bacillus subtilis spores in biotechnology and advanced materials. Appl. Environ. Microbiol. 2020, 86, e01096-20. [Google Scholar] [CrossRef]
  4. Wang, H.; Wang, Y.; Yang, R. Recent progress in Bacillus subtilis spore-surface display: Concept, progress, and future. Appl. Microbiol. Biotechnol. 2017, 101, 933–949. [Google Scholar] [CrossRef]
  5. Donadio, G.; Lanzilli, M.; Sirec, T.; Ricca, E.; Isticato, R. Localization of a red fluorescence protein adsorbed on wild type and mutant spores of Bacillus subtilis. Microb. Cell Fact. 2016, 15, 1–12. [Google Scholar] [CrossRef] [Green Version]
  6. Chen, L.; Holmes, M.; Schaefer, E.; Mulchandani, A.; Ge, X. Highly active spore biocatalyst by self-assembly of co-expressed anchoring scaffoldin and multimeric enzyme. Biotechnol. Bioeng. 2018, 115, 557–564. [Google Scholar] [CrossRef]
  7. Chen, L.; Mulchandani, A.; Ge, X. Spore-displayed enzyme cascade with tunable stoichiometry. Biotechnol. Prog. 2017, 33, 383–389. [Google Scholar] [CrossRef] [PubMed]
  8. Tavassoli, S.; Hinc, K.; Iwanicki, A.; Obuchowski, M.; Ahmadian, G. Investigation of spore coat display of Bacillus subtilis β-galactosidase for developing of whole cell biocatalyst. Arch. Microbiol. 2013, 195, 197–202. [Google Scholar] [CrossRef] [PubMed]
  9. Nguyen, Q.A.; Schumann, W. Use of IPTG-inducible promoters for anchoring recombinant proteins on the Bacillus subtilis spore surface. Protein Expr. Purif. 2014, 95, 67–76. [Google Scholar] [CrossRef] [PubMed]
  10. Anandharaj, M.; Lin, Y.J.; Rani, R.P.; Nadendla, E.K.; Ho, M.C.; Huang, C.C.; Cheng, J.F.; Chang, J.J.; Li, W.H. Constructing a yeast to express the largest cellulosome complex on the cell surface. Proc. Natl. Acad. Sci. USA 2020, 117, 2385–2394. [Google Scholar] [CrossRef]
  11. Fan, S.; Liang, B.; Xiao, X.; Tang, X.; Lojou, E.; Cosnier, S.; Liu, A. Controllable display of sequential enzymes on yeast surface with enhanced biocatalytic activity toward efficient enzymatic biofuel cells. J. Am. Chem. Soc. 2020, 142, 3222–3230. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, H.; Yang, R.; Hua, X.; Zhang, W.; Zhao, W. An approach for lactulose production using the CotX-mediated spore-displayed β-galactosidase as a biocatalyst. J. Microbiol. Biotechnol. 2016, 26, 1267–1277. [Google Scholar] [CrossRef]
  13. Kwon, S.J.; Jung, H.C.; Pan, J.G. Transgalactosylation in a water-solvent biphasic reaction system with β-galactosidase displayed on the surfaces of Bacillus subtilis spores. Appl. Environ. Microbiol. 2007, 73, 2251–2256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Chen, W.; Chen, H.; Xia, Y.; Zhao, J.; Tian, F.; Zhang, H. Production, purification, and characterization of a potential thermostable galactosidase for milk lactose hydrolysis from Bacillus stearothermophilus. J. Dairy Sci. 2008, 91, 1751–1758. [Google Scholar] [CrossRef]
  15. Fernandez-Lafuente, R. Editorial for special issue: Enzyme immobilization and its applications. Molecules 2019, 24, 4619. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Lozančić, M.; Mrša, V.; Teparić, R. Surface display—an alternative to classic enzyme immobilization. Catalysts 2019, 9, 728. [Google Scholar] [CrossRef] [Green Version]
  17. Pan, J.G.; Choi, S.K.; Jung, H.C.; Kim, E.J. Display of native proteins on Bacillus subtilis spores. FEMS Microbiol. Lett. 2014, 358, 209–217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Israeli-Ruimy, V.; Bule, P.; Jindou, S.; Dassa, B.; Moraïs, S.; Borovok, I.; Barak, Y.; Slutzki, M.; Hamberg, Y.; Cardoso, V.; et al. Complexity of the Ruminococcus flavefaciens FD-1 cellulosome reflects an expansion of family-related protein-protein interactions. Sci. Rep. 2017, 7, 42355. [Google Scholar] [CrossRef] [Green Version]
  19. Wang, Y.; Leng, L.; Islam, M.K.; Liu, F.; Lin, C.S.K.; Leu, S.Y. Substrate-related factors affecting cellulosome-induced hydrolysis for lignocellulose valorization. Int. J. Mol. Sci. 2019, 20, 3354. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Tamaru, Y.; Miyake, H.; Kuroda, K.; Nakanishi, A.; Matsushima, C.; Doi, R.H.; Ueda, M. Comparison of the mesophilic cellulosome-producing Clostridium cellulovorans genome with other cellulosome-related clostridial genomes. Microb. Biotechnol. 2011, 4, 64–73. [Google Scholar] [CrossRef] [Green Version]
  21. Borne, R.; Bayer, E.A.; Pagès, S.; Perret, S.; Fierobe, H.P. Unraveling enzyme discrimination during cellulosome assembly independent of cohesin-dockerin affinity. FEBS J. 2013, 280, 5764–5779. [Google Scholar] [CrossRef] [Green Version]
  22. Rodrigues, R.C.; Ortiz, C.; Berenguer-Murcia, Á.; Torres, R.; Fernández-Lafuente, R. Modifying enzyme activity and selectivity by immobilization. Chem. Soc. Rev. 2013, 42, 6290–6307. [Google Scholar] [CrossRef] [PubMed]
  23. Fernández-Lafuente, R. Stabilization of multimeric enzymes: Strategies to prevent subunit dissociation. Enzym. Microb. Technol. 2009, 45, 405–418. [Google Scholar] [CrossRef]
  24. Wang, F.; Song, T.; Jiang, H.; Pei, C.; Huang, Q.; Xi, H. Bacillus subtilis spore surface display of haloalkane dehalogenase DhaA. Curr. Microbiol. 2019, 76, 1161–1167. [Google Scholar] [CrossRef] [PubMed]
  25. Song, T.; Wang, F.; Xiong, S.; Jiang, H. Surface display of organophosphorus-degrading enzymes on the recombinant spore of Bacillus subtilis. Biochem. Biophys. Res. Commun. 2019, 510, 13–19. [Google Scholar] [CrossRef] [PubMed]
  26. Wiencek, K.M.; Klapes, N.A.; Foegeding, P.M. Hydrophobicity of Bacillus and Clostridium spores. Appl. Environ. Microbiol. 1990, 56, 2600–2605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Cho, E.A.; Kim, E.J.; Pan, J.G. Adsorption immobilization of Escherichia coli phytase on probiotic Bacillus polyfermenticus spores. Enzym. Microb. Technol. 2011, 49, 66–71. [Google Scholar] [CrossRef]
  28. Wang, H.; Yang, R.; Hua, X.; Zhao, W.; Zhang, W. Functional display of active β-galactosidase on Bacillus subtilis spores using crust proteins as carriers. Food Sci. Biotechnol. 2015, 24, 1755–1759. [Google Scholar] [CrossRef]
  29. Cutting, S.M.; Vander-Horn, P.B. Genetic analysis. In Molecular biological methods for Bacillus, 1st ed.; Harwood, C.R., Cutting, S.M., Eds.; Wiley: Chichester, UK, 1990; Volume 1, pp. 27–74. [Google Scholar]
Molecules 26 01186 g001 550

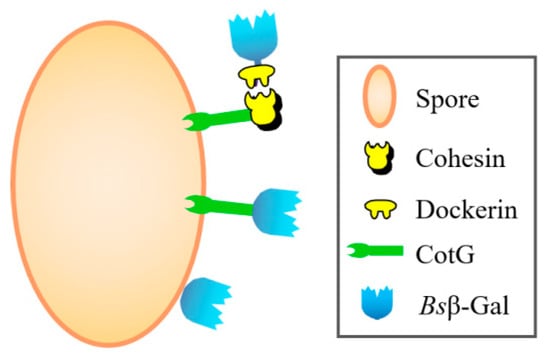

Figure 1. Scheme of three different types of Bsβ–Gal B. subtilis spore display formats.
Figure 1. Scheme of three different types of Bsβ–Gal B. subtilis spore display formats.
Molecules 26 01186 g001
Molecules 26 01186 g002a 550Molecules 26 01186 g002b 550

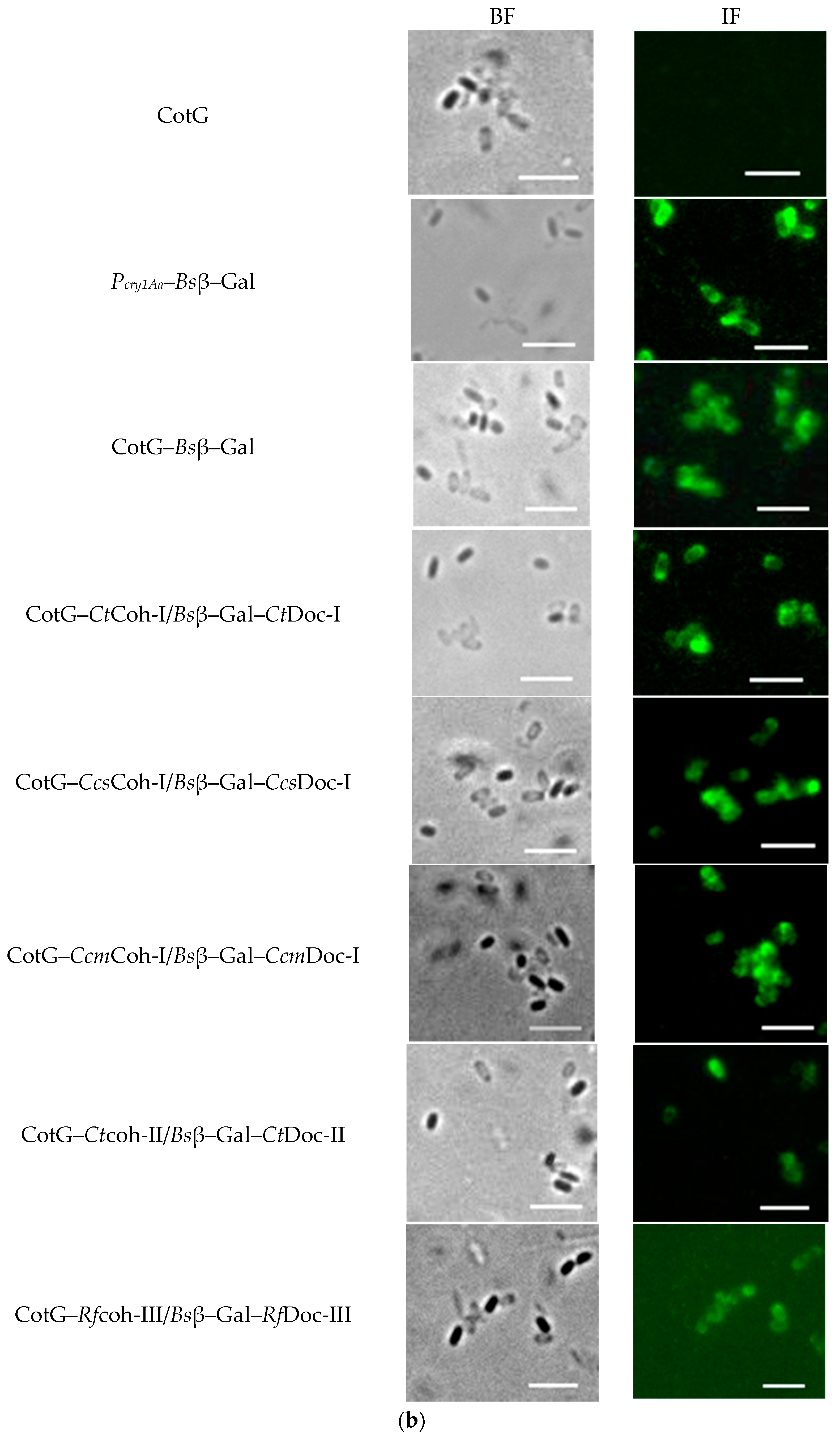

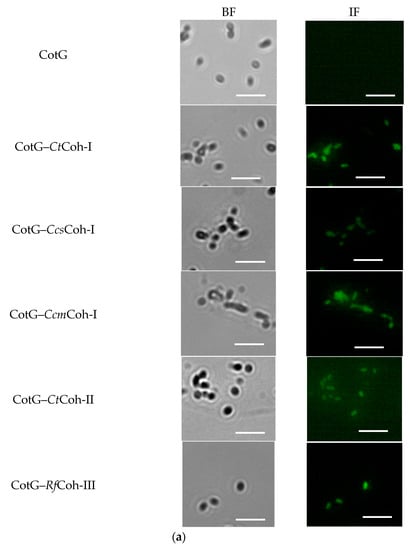

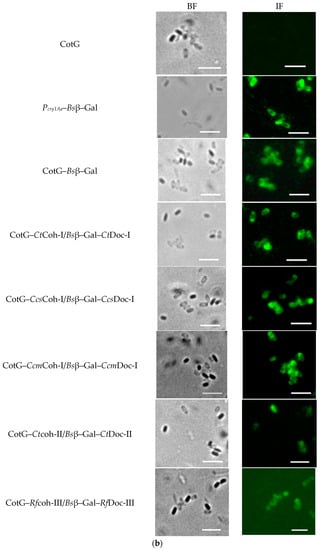

Figure 2. Identification of surface-expression of CotG–Coh (a) and CotG–Coh/Bsβ–Gal–Doc (b) by immunofluorescence microscopy analysis. After being labeled with rabbit polyclonal anti–Bsβ–Gal antibody, purified spores carrying CotG–Coh were imaged with fluorescent microscopy. The same procedure was applied on the spores carrying CotG–Coh/Bsβ–Gal–Doc, except that they were labeled with anti–Bsβ–Gal–Alexa Fluor 488. Spores obtained with B. subtilis WB600/pEB03-cotG served as a negative control. BF and IF, bright field and immunofluorescence images, respectively. Scale bar, 20 μm.
Figure 2. Identification of surface-expression of CotG–Coh (a) and CotG–Coh/Bsβ–Gal–Doc (b) by immunofluorescence microscopy analysis. After being labeled with rabbit polyclonal anti–Bsβ–Gal antibody, purified spores carrying CotG–Coh were imaged with fluorescent microscopy. The same procedure was applied on the spores carrying CotG–Coh/Bsβ–Gal–Doc, except that they were labeled with anti–Bsβ–Gal–Alexa Fluor 488. Spores obtained with B. subtilis WB600/pEB03-cotG served as a negative control. BF and IF, bright field and immunofluorescence images, respectively. Scale bar, 20 μm.
Molecules 26 01186 g002aMolecules 26 01186 g002b
Molecules 26 01186 g003 550

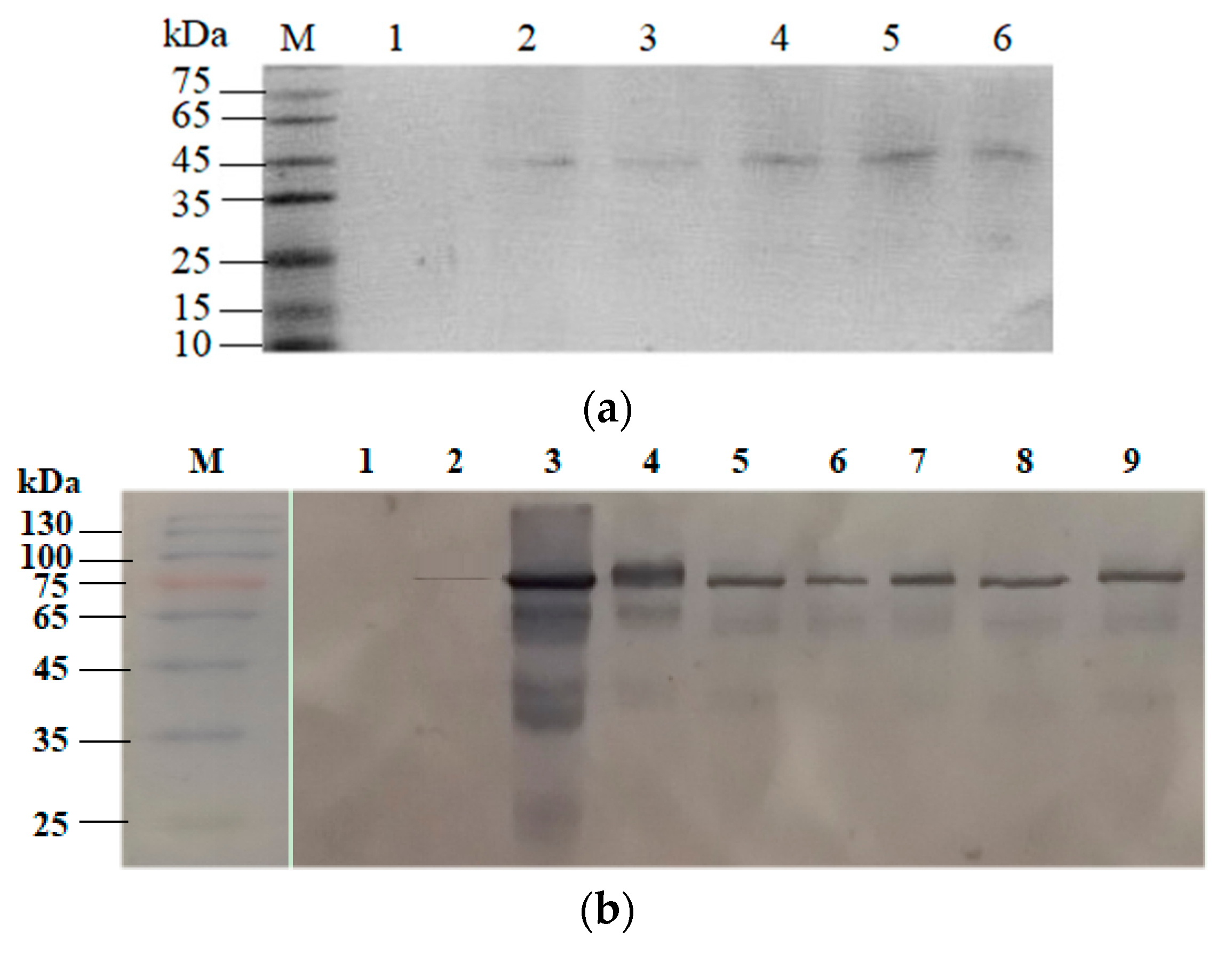

Figure 3. Western blotting analysis of immobilization of Bsβ–Gal on the spores via Coh–Doc interaction. (a) Expression of CotG–Coh was analyzed using anti–FLAG as the primary antibody. M, standard protein marker; 1, CotG; 2, CotG–CtCoh-I; 3, CotG–CtCoh-II; 4, CotG–CcsCoh-I; 5, CotG–CcmCoh-I; 6, CotG–RfCoh-III. (b) Expression of CotG–Coh/Bsβ–Gal-Doc was detected using anti–Bsβ–Gal–HRP. M, prestained standard protein marker; 1, CotG; 2, Bsβ–Gal–CtDoc-I (adsorbed onto the wild type spores); 3, Pcry1Aa–Bsβ–Gal; 4, CotG–Bsβ–Gal; 5, CotG–CtCoh-I/Bsβ–Gal–CtDoc-I; 6, CotG–Ctcoh-II/Bsβ–Gal–CtDoc-II; 7, CotG–CcsCoh-I/Bsβ–Gal–CcsDoc-I; 8, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I; 9, CotG–Rfcoh-III/Bsβ–Gal–RfDoc-III.
Figure 3. Western blotting analysis of immobilization of Bsβ–Gal on the spores via Coh–Doc interaction. (a) Expression of CotG–Coh was analyzed using anti–FLAG as the primary antibody. M, standard protein marker; 1, CotG; 2, CotG–CtCoh-I; 3, CotG–CtCoh-II; 4, CotG–CcsCoh-I; 5, CotG–CcmCoh-I; 6, CotG–RfCoh-III. (b) Expression of CotG–Coh/Bsβ–Gal-Doc was detected using anti–Bsβ–Gal–HRP. M, prestained standard protein marker; 1, CotG; 2, Bsβ–Gal–CtDoc-I (adsorbed onto the wild type spores); 3, Pcry1Aa–Bsβ–Gal; 4, CotG–Bsβ–Gal; 5, CotG–CtCoh-I/Bsβ–Gal–CtDoc-I; 6, CotG–Ctcoh-II/Bsβ–Gal–CtDoc-II; 7, CotG–CcsCoh-I/Bsβ–Gal–CcsDoc-I; 8, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I; 9, CotG–Rfcoh-III/Bsβ–Gal–RfDoc-III.
Molecules 26 01186 g003
Molecules 26 01186 g004 550

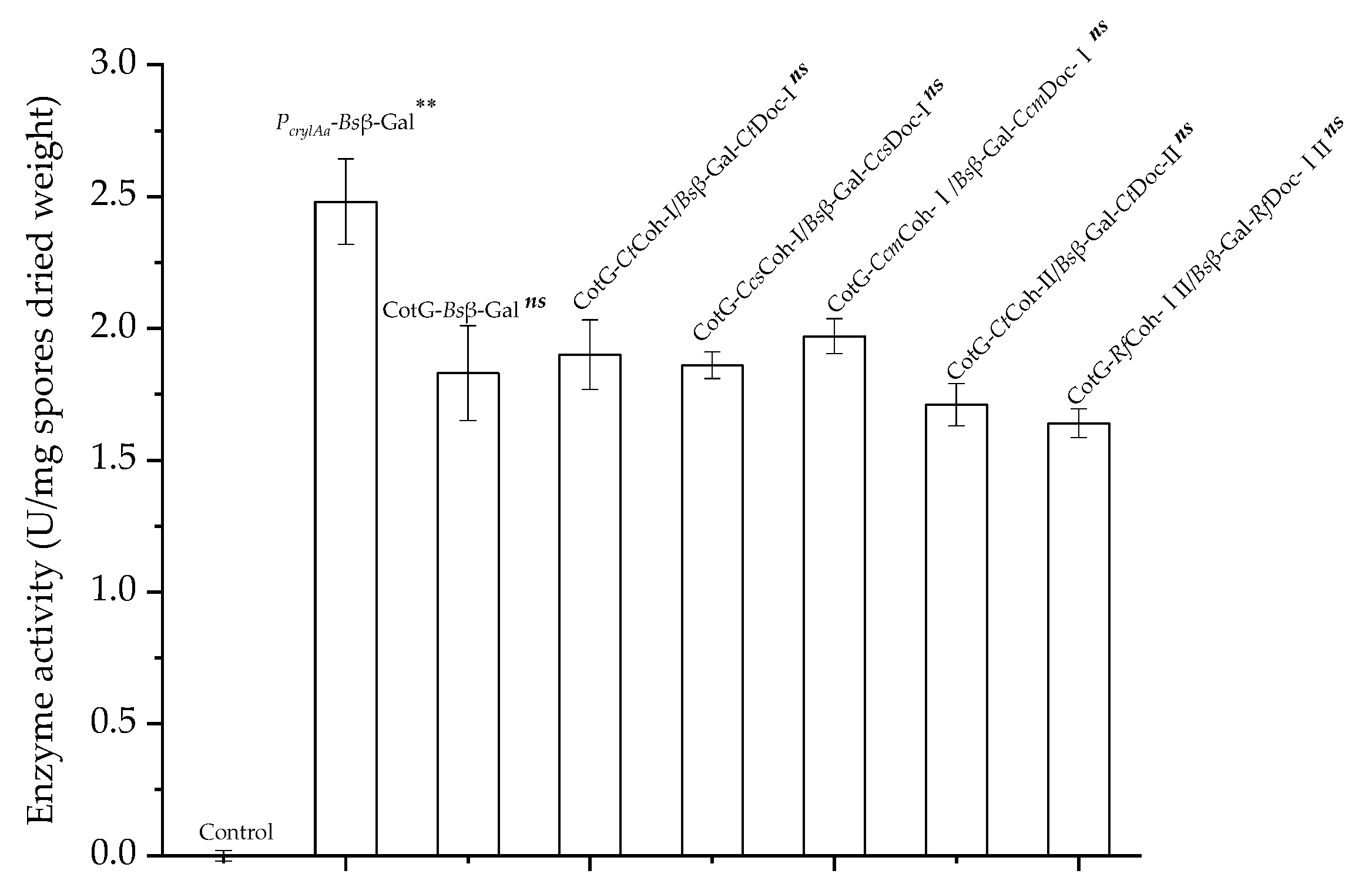

Figure 4. Comparison between the enzyme activities of different spore-displayed Bsβ–Gals. Control, wild type B. subtilis WB600 spores. The values are the means obtained from triplicated experiments. Error bars represent standard deviations. Comparison of data among groups was performed one-way ANOVA with Tukey’s post-hoc test. ** denotes significant difference between Pcry1Aa–Bsβ–Gal and other six groups (p < 0.05); ns indicates no significant differences between any two of those groups (CotG–Bsβ–Gal, CotG–CtCoh-I/Bsβ–Gal–CtDoc-I, CotG–Ctcoh-II/Bsβ–Gal–CtDoc-II, CotG–CcsCoh-I/Bsβ–Gal–CcsDoc-I, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I and CotG–Rfcoh-III/Bsβ–Gal–RfDoc-III) (p > 0.05).
Figure 4. Comparison between the enzyme activities of different spore-displayed Bsβ–Gals. Control, wild type B. subtilis WB600 spores. The values are the means obtained from triplicated experiments. Error bars represent standard deviations. Comparison of data among groups was performed one-way ANOVA with Tukey’s post-hoc test. ** denotes significant difference between Pcry1Aa–Bsβ–Gal and other six groups (p < 0.05); ns indicates no significant differences between any two of those groups (CotG–Bsβ–Gal, CotG–CtCoh-I/Bsβ–Gal–CtDoc-I, CotG–Ctcoh-II/Bsβ–Gal–CtDoc-II, CotG–CcsCoh-I/Bsβ–Gal–CcsDoc-I, CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I and CotG–Rfcoh-III/Bsβ–Gal–RfDoc-III) (p > 0.05).
Molecules 26 01186 g004
Molecules 26 01186 g005 550

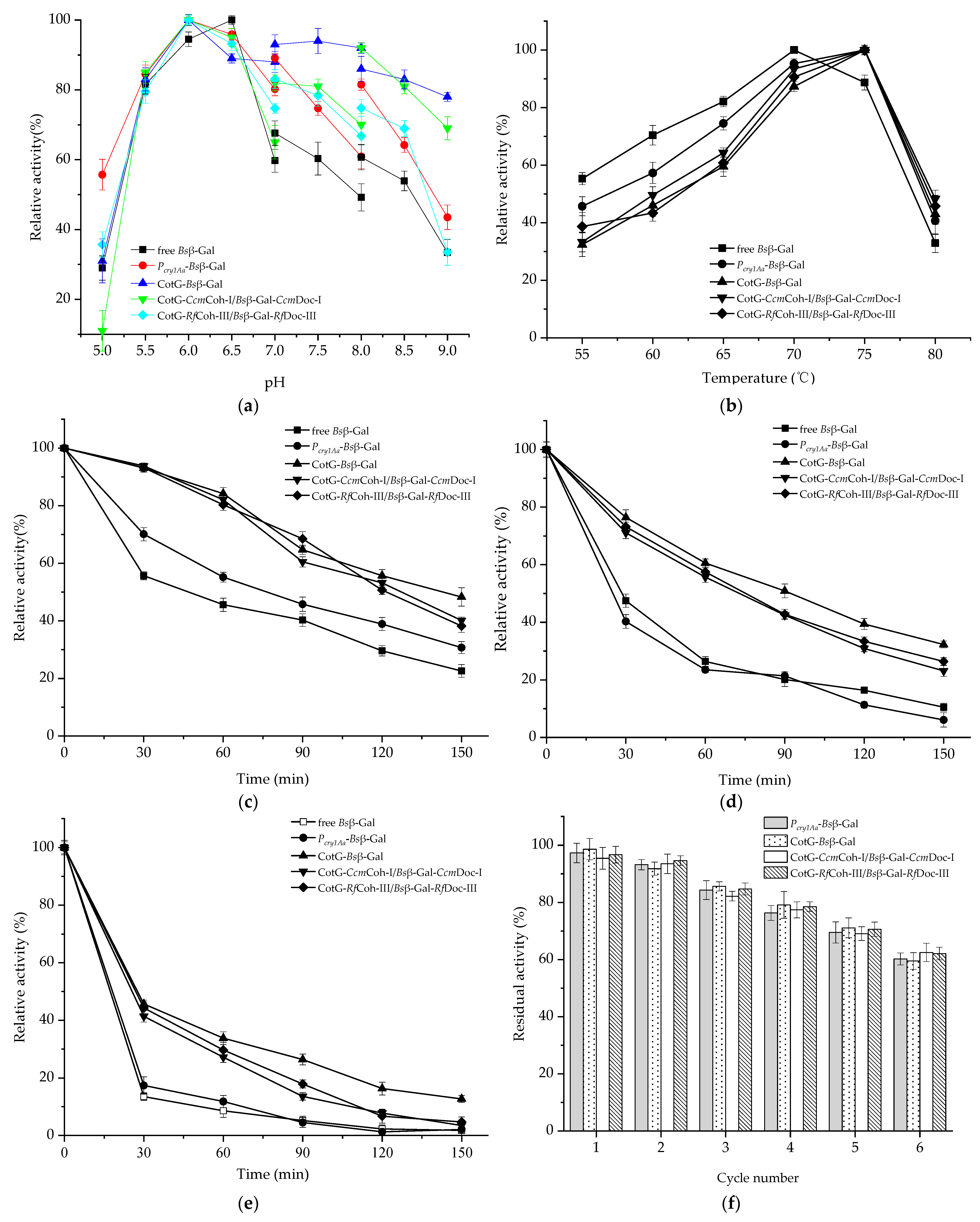

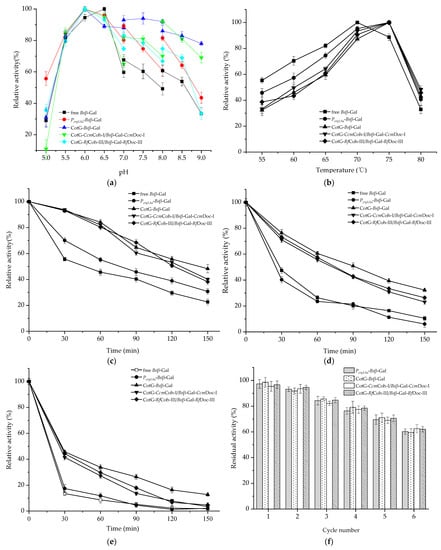

Figure 5. Characterizations of spore-displayed Bsβ–Gals. (a) Optimum pH of spore-displayed and purified Bsβ–Gals. (b) The effect of temperature on the activities of spore-displayed and purified Bsβ–Gals. Temperature stabilities of spore-displayed and purified Bsβ–Gals at 60 °C (c), 65 °C (d) and 70 °C (e), respectively. (f) Reusability of spore-displayed Bsβ–Gals. The data are the means of three replicates. Error bars represent standard deviations.
Figure 5. Characterizations of spore-displayed Bsβ–Gals. (a) Optimum pH of spore-displayed and purified Bsβ–Gals. (b) The effect of temperature on the activities of spore-displayed and purified Bsβ–Gals. Temperature stabilities of spore-displayed and purified Bsβ–Gals at 60 °C (c), 65 °C (d) and 70 °C (e), respectively. (f) Reusability of spore-displayed Bsβ–Gals. The data are the means of three replicates. Error bars represent standard deviations.
Molecules 26 01186 g005
Table
Table 1. Quantification of Bsβ–Gal expression by dot-blot analysis.
Table 1. Quantification of Bsβ–Gal expression by dot-blot analysis.
Bsβ–Gal SourceAmount of Sample UsedDensity in OD/mm2 (± SD)β–Gal
Concentration (ng)		Number of Fusion Protein Molecules per Spore
Free Bsβ–Gal10.0 ng50.3 (± 0.12)NA
5.0 ng25.8 (± 0.04)NA
2.5 ng12.9 (± 0.06)NA
CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I2.0 × 10642.2 (± 0.07)8.43.0 × 104
1.0 × 10622.1 (± 0.02)4.4
5.0 × 10510.9 (± 0.11)2.2
CotG–RfCoh-III/Bsβ–Gal–RfDoc-III2.0 × 10639.8 (± 0.13)7.92.8 × 104
1.0 × 10619.6 (± 0.12)3.9
5.0 × 10511.4 (± 0.08)2.3
CotG–Bsβ–Gal1.0 × 10636.6 (± 0.06)7.34.3 × 104
5.0 × 10519.1 (± 0.11)3.8
2.5 × 1059.8 (± 0.04)2.0
Pcry1Aa–Bsβ–Gal5.0 × 10542.3 (± 0.06)8.41.3 × 105
2.5 × 10521.1 (± 0.09)4.2
1.3 × 10511.9 (± 0.05)2.4
Table
Table 2. Stabilities of spore displayed and free Bsβ–Gals in various organic solvents.
Table 2. Stabilities of spore displayed and free Bsβ–Gals in various organic solvents.
SolventlogP Value of SolventRelative Activity (%)
Free Bsβ-GalPcry1Aa–Bsβ–GalCotG–Bsβ–GalCotG–CcmCoh-I/Bsβ–Gal–CcmDoc-ICotG–RfCoh-III/Bsβ–Gal–RfDoc-III
Control 100 ± 0.8100 ± 1.3100 ± 1.8100 ± 0.9100 ± 1.6
n-Hexane3.6693.4 ± 2.193.7 ± 2.7102.4 ± 3.498.3 ± 3.597.2 ± 2.4
1-Chloroheptane3.3790.6 ± 2.591.8 ± 2.9107.8 ± 1.799.3 ± 2.298.5 ± 3.1
Toluene2.3933.1 ± 1.137.5 ± 1.673.3 ± 2.567.4 ± 1.471.2 ± 1.8
Cyclohexanone1.4037.2 ± 1.339.3 ± 1.967.8 ± 2.262.9 ± 2.766.1 ± 2.0
Ethyl ether1.0521.4 ± 0.727.9 ± 1.456.1 ± 2.647.2 ± 1.346.5 ± 1.5
Acetonitrile0.4712.3 ± 0.411.4 ± 0.230.6 ± 0.528.2 ± 0.629.5 ± 1.0
Ethanol0.0601.7 ± 0.113.2 ± 0.36.5 ± 0.48.3 ± 0.2
1,4-Dioxane−0.23003.6 ± 0.10.4 ± 0.11.1 ± 0.1
The logP of various organic solvents was predicted using the toolkit at the site: www.molinspiration.com (accessed on 6 January 2021). The results were calculated with three replicates and expressed as mean ± standard deviation (SD).
Table
Table 3. The kinetics constants of four different types of spore displayed Bsβ–Gals.
Table 3. The kinetics constants of four different types of spore displayed Bsβ–Gals.
Recombinant SporesVmax/(μmol·min−1·mg·spores−1 (dry weight))Km/(mM)
Bsβ–Gal7.24 ± 0.12 a2.97 ± 0.05 a
Pcry1Aa–Bsβ–Gal1.01 ± 0.16 b5.71 ± 0.09 b
CotG–Bsβ–Gal0.77 ± 0.13 b4.43 ± 0.16 c
CotG–CcmCoh-I/Bsβ–Gal–CcmDoc-I1.04 ± 0.08 b3.83 ± 0.10 d
CotG–RfCoh-III/Bsβ–Gal–RfDoc-III0.78 ± 0.11 b3.71 ± 0.17 d
The results were calculated with triplicated tests and expressed as mean ± standard deviation (SD). Means within the same column with different superscript letters are significantly different (p < 0.05).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, H.; Jiang, X.; Qian, Y.; Yin, L. Constructing an Efficient Bacillus subtilis Spore Display by Using Cohesin−Dockerin Interactions. Molecules 2021, 26, 1186. https://doi.org/10.3390/molecules26041186

AMA Style

Wang H, Jiang X, Qian Y, Yin L. Constructing an Efficient Bacillus subtilis Spore Display by Using Cohesin−Dockerin Interactions. Molecules. 2021; 26(4):1186. https://doi.org/10.3390/molecules26041186

Chicago/Turabian Style

Wang, He, Xiaomin Jiang, Yongchang Qian, and Lianghong Yin. 2021. "Constructing an Efficient Bacillus subtilis Spore Display by Using Cohesin−Dockerin Interactions" Molecules 26, no. 4: 1186. https://doi.org/10.3390/molecules26041186

APA Style

Wang, H., Jiang, X., Qian, Y., & Yin, L. (2021). Constructing an Efficient Bacillus subtilis Spore Display by Using Cohesin−Dockerin Interactions. Molecules, 26(4), 1186. https://doi.org/10.3390/molecules26041186

Article Metrics

Back to TopTop
