Solvent-Controlled Self-Assembled Oligopyrrolic Receptor ^†

Abstract

We report a fully organic pyridine-tetrapyrrolic U-shaped acyclic receptor 10, which prefers a supramolecular pseudo-macrocyclic dimeric structure (10)₂ in a less polar, non-coordinating solvent (e.g., CHCl₃). Conversely, when it is crystalized from a polar, coordinating solvent (e.g., N,N-dimethylformamide, DMF), it exhibited an infinite supramolecular one-dimensional (1D) “zig-zag” polymeric chain, as inferred from the single-crystal X-ray structures. This supramolecular system acts as a potential receptor for strong acids, e.g., p-toluenesulfonic acid (PTSA), methane sulfonic acid (MSA), H₂SO₄, HNO₃, and HCl, with a prominent colorimetric response from pale yellow to deep red. The receptor can easily be recovered from the organic solution of the host–guest complex by simple aqueous washing. It was observed that relatively stronger acids with pK_a < −1.92 in water were able to interact with the receptor, as inferred from ¹H NMR titration in tetrahydrofuran-d₈ (THF-d₈) and ultraviolet–visible (UV–vis) spectroscopic titrations in anhydrous THF at 298 K. Therefore, this new dynamic supramolecular receptor system may have potentiality in materials science research.

1. Introduction

Supramolecular architectures, such as capsules, cages, and polymers, have proven their value by demonstrating functional properties, such as host–guest chemistry and catalysis [1,2,3,4,5], drug delivery [6,7,8,9], and anion binding [10,11,12], with high efficiencies and selectivity. Rebek and co-workers have pioneered this area by exploring dynamic hydrogen-bonded complementary receptor–guest systems [13,14,15]. After his epochal discovery of the first fully organic supramolecular “tennis-ball” and “molecular softball” used for various host–guest complexation studies and catalytic activities as “microreactors” for bimolecular reactions, several research groups have extensively studied discrete cage-like architectures employing metal–ligand self-assembly [16,17,18,19]. Meanwhile, pioneered by Fujita, several well-defined metallacages have been demonstrated as reaction containers for various catalytic reactions [20,21,22]. Similarly, supramolecular polymers have been demonstrated as anion and ion-pair receptors by Sessler and co-workers [23,24,25]. All of these fully organic supramolecular dynamic cages, robust metallacages, and polymeric materials are of great importance in the modern-day chemical research field for their unique chemical behaviors, which are used for (1) exclusively synthesizing a particular target product, (2) anion “capture and release,” (3) ion-pair recognition, (4) removal of specific pollutants, and (5) drug delivery for biomedical research. Therefore, the creation of new organic supramolecular receptors is in demand to understand the in-depth mechanism of various host–guest complexations and other potential applications of these self-assembled structures.

Strong organic acids (e.g., methane sulfonic acid (MSA), p-toluenesulfonic acid (PTSA), etc.) and mineral acids (e.g., HCl, HNO₃, H₂SO₄, etc.) are common laboratory and industrial waste materials and are potential hazards. Therefore, capturing and sensing these acids with suitable receptors is an avenue that needs to be explored. Many such synthetic receptors are reported so far in the current literature, and can be used to sense and capture selective organic acids [26,27,28,29,30]. Recently, we have been interested in developing potential oligopyrrolic supramolecular receptors for acid recognition in an organic medium capable of releasing these acid guests upon simple aqueous wash. The strategy of making these kinds of acid receptors is principally based on the incorporation of pyridine- or naphthyridine-based heterocyclic cores into an oligopyrrolic molecular skeleton. Herein, we designed and synthesized such a pyridine-based tetrapyrrolic acyclic receptor unit (10), which self-assembles in the solid phase in two different forms depending on the solvent polarity and the ability to coordinate (Figure 1). Inspired by the successful results obtained from our earlier naphthyridine-based system (11) that was recently reported [30], we initially thought that the incorporation of pyridine (pK_a = 5.20 in water) into this new receptor skeleton used in the present study may provide a more basic environment than the naphthyridine- based (pK_a = 3.39 in water) receptor reported earlier. Similarly to the naphthyridine-based receptor 11, the presence of sterically crowded ethyl groups at the β-positions of the pyrrole units in our present acyclic receptor system 10 imposes an orthogonal arrangement of terminal pyrrole units relative to the mean plane defined by the three central heterocyclic rings, as inferred from single-crystal X-ray structural analyses. This unique “building block” allows us to provide a suitable platform for constructing either a self-assembled dimeric cage (10)₂ or an infinite polymer (10)_n via C=O···HN quadruple hydrogen-bonding interactions within neighboring acyclic units, as shown in the case of our earlier receptor 11 (see the inset of Figure 1 for details). Incorporating a terminal pyrrole that possesses an α-ester group provides an additional source of complementary hydrogen bond donors (i.e., NH moieties) and acceptors (i.e., C=O units) in the same molecular edifice. In addition to that, the NH protons of the adjacent pyrrole rings also help hydrogen-bonding interactions with the corresponding anions generated in the medium. It was speculated that such systems would allow us to provide a suitable skeleton for proton-coupled anion recognition studies. In pursuit of this goal, pyridine was positioned within the system, promoting the protonation step caused by suitable acids. Consequently, this new supramolecular pseudo-macrocyclic receptor provides further knowledge of strong acid sensing and recognition with high reversibility.

2. Results and Discussion

2.1. Synthesis

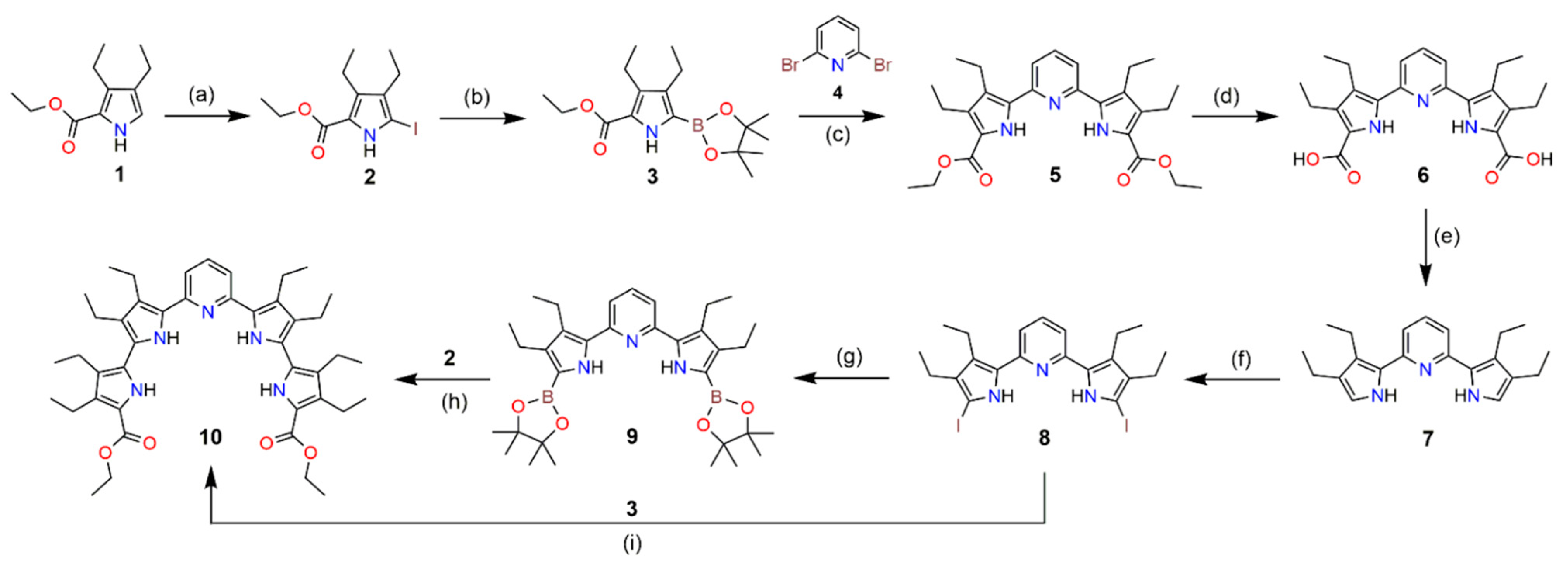

The acyclic receptor 10 was synthesized via a multistep process, which is described below in Scheme 1. Precursor 3 was synthesized using procedures from the literature [30,31]. Compound 5 was synthesized via a Pd(II)-acetate-catalyzed Suzuki–Miyaura cross-coupling reaction using commercially available 2,6-dibromo-pyridine [32]. Hydrolysis of compound 5 with NaOH solution was followed by the decarboxylation of compound 6 at both the terminal pyrroles to produce a highly reactive intermediate compound 7. Iodination of the terminal α-free pyrrole of 7 followed by a Pd(0)-catalyzed Suzuki–Miyaura cross-coupling reaction with compound 3 gave the desired final receptor 10 in moderate yield (58%). Additionally, compound 10 was prepared by Miyaura borylation of terminal iodo-pyrroles, followed by a Pd(0) cross-coupling reaction with precursor 2 with a similar isolated yield (55%). Compound 10 was characterized by ¹H-, ¹³C-, and two-dimensional nuclear magnetic resonance (NMR) spectroscopic analyses (correlation spectroscopy (COSY) and nuclear overhauser effect spectroscopy (NOESY)) and mass spectrometry (Figures S9–S12 and S31).

In terms of the characterization of the dimeric receptor (10)₂, we performed electrospray ionization time-of-flight (ESI-TOF) mass spectrometric analysis (Figure S13). The peak at m/z ≈ 1416 (assigned for [(10)₂ + H]⁺ species) was seen, supporting our proposed dimeric model in the gaseous state. This dimeric form was further confirmed by solid-state single crystallographic analyses (vide infra).

2.2. X-ray Crystallography

Single crystals of precursor 5 and acyclic receptor 10, suitable for X-ray crystallographic analyses, were grown from anhydrous CHCl₃ and anhydrous N,N-dimethylformamide (DMF) solution by diffusion of hexanes into the respective solutions. The corresponding crystallographic data were uploaded to the Cambridge Crystallographic Data Centre (CCDC) under reference numbers CCDC-2056093, 2056094, and 2058193. As inferred from the X-ray crystallographic analyses, compound 5 possesses a coplanar arrangement that forms an infinite supramolecular polymer of linear “zig-zag” monomers through hydrogen-bonding interactions with adjacent units in the solid state (Figure S34).

As mentioned earlier, receptor 10 preferentially self-assembles in the discrete dimeric form to produce a supramolecular pseudo-macrocyclic cage with the empirical chemical formula (10)₂ when crystalized from a relatively less polar non-coordinating solvent, e.g., CHCl₃ (Figure 2a–d). This produces a small rectangular inner cavity that is suitable for small acid guests. The “total potential solvent occupied void volume”, which was calculated using PLATON crystallographic software [33], was approximately 1632 ų (which is 30.9% per unit cell volume, 5289 ų). The crystal packing diagram of (10)₂ is shown in Figure S37a,b.

Conversely, when receptor 10 was crystallized from the polar coordinating solvent N,N-dimethylformamide (DMF) an infinite 1D supramolecular polymeric structure (Figure 2e,f and Figure S39) was produced by intermolecular hydrogen-bonding interactions. This is believed to be due to the higher coordination capability of DMF molecules (acting as hydrogen bond acceptors) than that of non-coordinating CHCl₃ molecules. As shown in Figure 3, the DMF solvent molecules are coordinated to the inner pyrrolic NH protons via hydrogen-bonding interactions within the pocket of the “U”-shaped receptor unit. The average N–O bond distance in NH···O=C hydrogen-bonded host–guest complex within the inner pyrroles to the “O” atom of DMF located at the core is ca. 2.892 Å, as seen from X-ray structural analyses (Figure S40).

The observed solvent-dependent self-assembly in the solid receptor 10 in apolar non-coordinating (where dimeric form predominates) vs. polar coordinating solvent (where the polymeric form predominates) is in stark contrast to our earlier report based on a naphthyridine core (11), where only the dimeric unit was observed in solution and solid phase, irrespective of solvent polarity.

2.3. Structural Behavior in Solution

In an effort to gain insight into the aggregation properties of 10, a concentration-dependent ¹H NMR spectral analysis was performed in CDCl₃ and THF-d₈ (Figure S29a,b). Upon changing the concentration of the host solution from a millimolar (mM) to a micromolar (μM) concentration, no noticeable change in chemical shift was observed (e.g., Δδ = 0.01 ppm for the NH proton resonances at ca. 8.72 and 9.23 ppm in CDCl₃). Therefore, it was speculated that only a single predominant species was present in the solution phase. Moreover, variable-temperature (VT) ¹H NMR studies (from 328 to 213 K) in CDCl₃ revealed a slight change in the chemical shift (Δδ~0.27 ppm) of the signals of pyrrolic NH moieties (δ = 8.72 and 9.23 ppm), indicating weak solvent interactions (Figure S14). Therefore, a robust form of the supramolecular dimeric cage-like structure was present in CDCl₃. A similar chemical shift distribution pattern was also seen with receptor 11, adopting a self-assembled dimeric structure [30]. The ¹H–¹H NOESY spectrum (Figure 4c) revealed distinct intermolecular spatial interactions between the CH₂ moiety of the terminal OEt groups and the NH of the pyrrole rings in the receptor, suggesting a dimeric structure in CDCl₃ at 298 K. In contrast, in relatively high polar and coordinating solvents (e.g., in both THF-d₈ and DMF-d₇), these pyrrolic NH signals shifted significantly (Δδ = 0.85 ppm) upon lowering the temperature, which indicates the considerable solvent coordination of monomeric 10 in these solvents (Figures S15 and S16). Therefore, the dissociated single molecule might be present in these solvents.

2.4. Acid Recognition Studies Using Spectroscopy

To evaluate the capability of receptor 10 for host–guest recognition in solution, ¹H NMR and absorption spectroscopic analyses were performed through titration of various common organic and mineral acids in CDCl₃ and THF-d₈ at 298 K. During the experiments, a wide range of acids with different pK_a values ranging from 4.88 (propionic acid) to −6.30 (HCl) were investigated. It was observed that relatively stronger acids (pK_a ≤ –1.92) were necessary for the initial protonation of the pyridine moiety. After the initial protonation event, subsequent anion binding took place. Introduction of anions as their tetrabutylammonium (TBA⁺) salts did not result in any noticeable change in either ¹H NMR or absorption studies. We rationalized this observation, as protonation is a primary requirement to achieve the anion binding. Due to the inability of TBA⁺ salts to protonate the pyridine moiety, no change in chemical shift was observed, indicating that there was no complexation taking place.

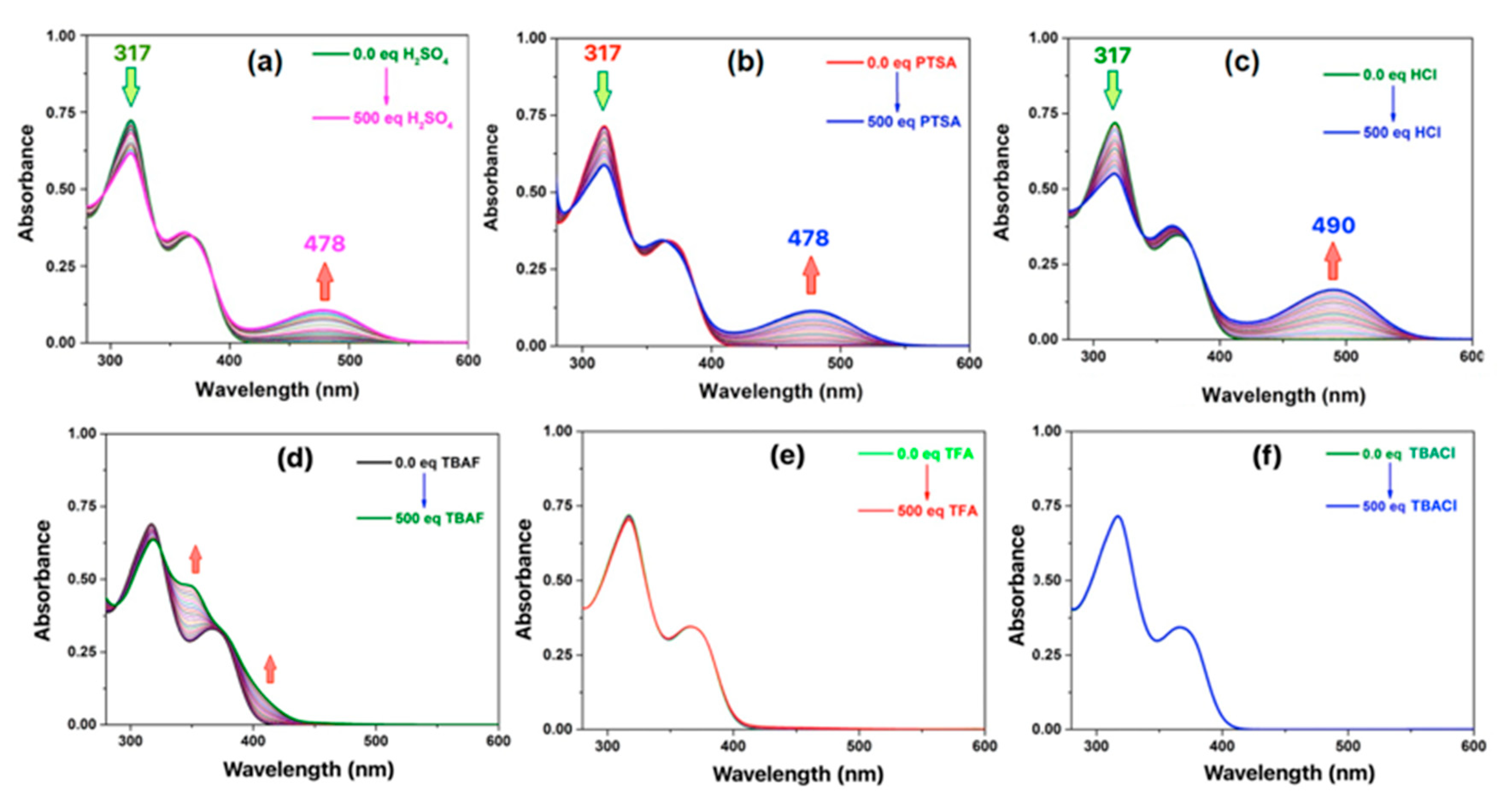

The ultraviolet–visible (UV–vis) spectroscopic titrations were performed with acids in anhydrous THF. All of the controlled titration experiments were carried out by keeping the receptor concentration constant at [10] = 2.00 × 10⁻⁵ M while varying the titrating acid concentration between 0 and 500 equiv in all the cases, keeping all other experimental conditions identical. Color changes from pale yellow to deep red in the solutions were observed with the naked eye, from which it was found that incremental addition of acid to the receptor induced a hypochromic shift of the absorption maxima at λ = 317 nm along with the appearance of a new band at λ = 478 nm (in the case of H₂SO₄, MSA, and PTSA) and λ = 490 nm (in the case of HCl) (Figure 5a–c). These spectral changes were fitted using the multivariate analysis tool BindFit [34,35]. Careful analysis revealed that even after adding up to 500 equiv of these acid guests, there was no indication of the binding event’s reaching saturation. The resulting data were unable to produce any acceptable binding isotherm in BindFit, suggesting very weak binding interactions. No spectroscopic changes were observed after the addition of 500 equiv of weak acids, e.g., acetic acid (Figure S32a), propionic acid (Figure S32b), and TFA (Figure 5e)) and anions in the form of their TBA salt, e.g., TBACl (Figure 5f)), in THF. Furthermore, it was noticed that the peak intensities of the protonated species (λ_max = 490 nm for HCl-adduct) could be dependent on the pK_a of the acids used. Therefore, the most significant change was observed in the case of HCl (which had the lowest value (pK_a = −6.30) in the series).

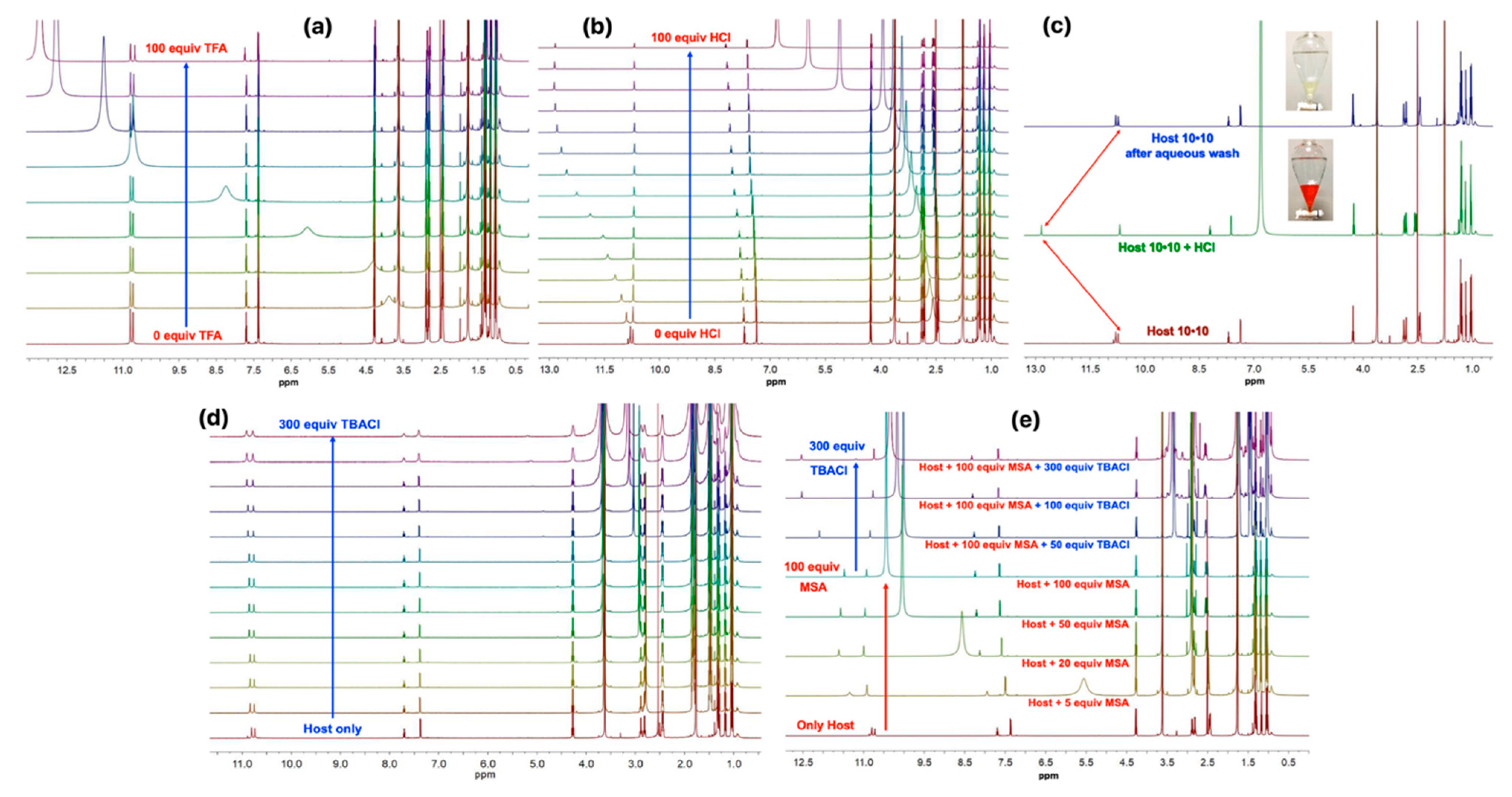

The ¹H NMR titrations of 10 ([10] = 5 mM) were performed against incremental addition of 100 equiv of selected acid guests in THF-d₈ at 298 K. There was no discernable change in the proton resonances in ¹H NMR under identical experimental conditions when receptor 10 was titrated against TFA (pK_a = 0.23 in water) in THF-d₈, indicating that there was no host–guest binding (Figure 6a). This reflects its inability to protonate the pyridine moiety of receptor 10. However, when the titrations were performed against MSA (pK_a = −1.92 in water), PTSA (pK_a = −2.80 in water), HNO₃ (pK_a = −1.3 in water), H₂SO₄ (pK_a = −3.0 in water), and HCl (pK_a = −6.30 in water), downfield shifts of one of the NH protons (10.75 ppm) were observed (Figures S18–S20). A similar type of spectral signature and the chemical shift were observed when the titration was performed against incremental addition of H₂SO₄ guest in DMF-d₇ at 298 K (Figure S30). This is a clear indication of the pyrrole NH···anion interactions upon protonation. These phenomena are directly related to the pK_a of the acids, and the highest chemical shift change (Δδ = 2.25 ppm) was observed in the case of HCl, which is the strongest acid of the series used in this study. Interestingly, the pristine host could be recovered through a simple aqueous wash, as inferred from ¹H NMR spectroscopic analysis (Figure 6c).

As discussed from the system of receptor 11, we tested the binding of the organic dicarboxylic acids, such as oxalic acid (pK_a1 = 1.24 in water), maleic acid (pK_a1 = 1.90 in water), malonic acid (pK_a1 = 2.83 in water), fumaric acid (pK_a1 = 3.03 in water), and succinic acid (pK_a1 = 4.20 in water), and monocarboxylic acids, such as acetic acid (pK_a = 4.76 in water) and propionic acid (pK_a = 4.88 in water). However, no changes in the chemical shift of the pyrrolic NH signals were observed in the ¹H NMR spectrum. Likewise, no changes in the absorption maxima were observed in the UV–vis spectroscopic experiments, even after the addition of 500 equiv of these relatively weaker acids. Similarly, this is thought to be due to their relatively weak acidity (pK_a ≤ −1.92 in water). Therefore, it is speculated that the pK_a of acids mainly plays an important role during anion recognition within this supramolecular receptor in solution.

When receptor 10 was titrated using various tetrabutylammonium salts (e.g., TBA⁺Cl⁻, TBA⁺Br⁻, TBA⁺OAc⁻, TBA⁺HSO₄⁻, etc.) in CDCl₃, no significant change in chemical shift was observed under identical experimental conditions to those observed above (Figures S27 and S28). Similarly, no chemical shift was observed when the titration was performed in THF-d₈ (Figure 6d), indicating that there was no anion binding event. When TBA⁺F⁻ was used, changes in chemical shifts were observed. The addition of TBAF caused deprotonation of the pyrrolic NH protons, as inferred from the ¹H NMR titration in CDCl₃ at 298 K (Figure S24). The low-temperature ¹H NMR spectroscopic analyses revealed the formation of the HF₂⁻ signal at 16.5 ppm (Figure S25). This change was also observed in the absorption spectra (Figure 5d). These observations led us to assume that protonation is required to achieve the anion binding.

To confirm this proton-coupled anion binding phenomenon, an additional titration was performed. This has been done through the incremental addition of 100 equiv of MSA to the receptor to protonate the pyridine first, followed by the gradual addition of 300 equiv of TBACl salt as a source of Cl⁻ anions. Interestingly, a downfield chemical shift of the inner NH proton signal was observed upon TBACl addition (Figure 6e). As shown in Figure 6b, there were specific chemical shift changes in the aromatic CH resonances of the pyridine moiety at the para position. The downfield chemical shift of the protons (Δδ = 0.64 ppm, observed in the control experiment of proton-coupled anion binding shown in Figure 6e, and Δδ = 0.51 ppm observed in the case of HCl, Figure 6b) might be the combined effect of protonation-induced change in aromaticity within the central “pyrrole–pyridine–pyrrole” system, followed by an anion binding process. This unequivocally supports our proposed proton-coupled anion binding mechanism involved with this supramolecular receptor.

2.5. Theoretical Studies

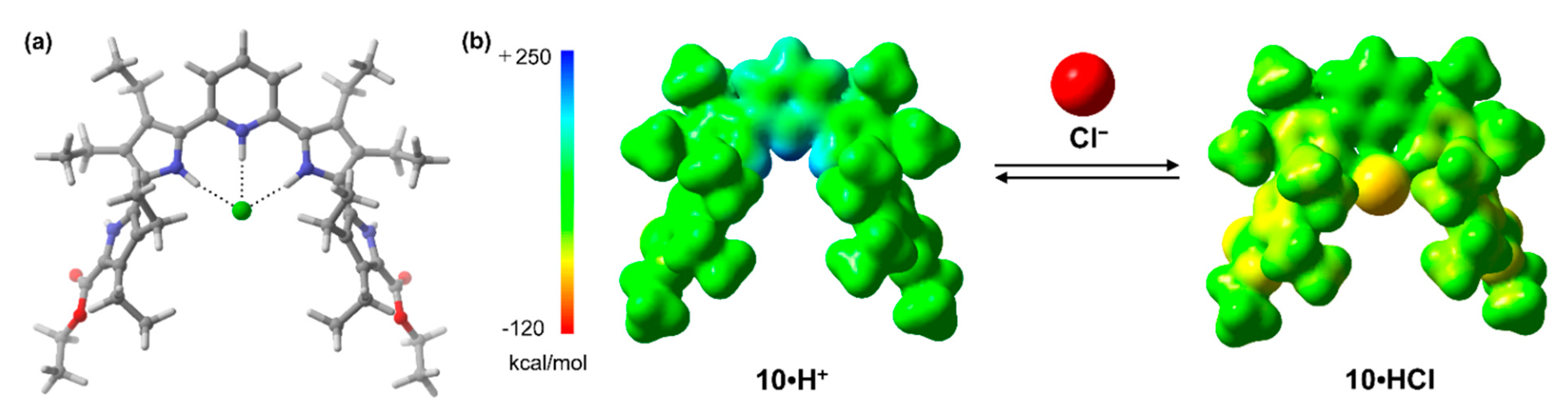

In the host–guest system, hydrogen-bonding interactions are ubiquitous in molecular recognition. The electronic nature and the number of donor sites in the host molecules vary the complementary geometries of the complexes. Therefore, to gain structural insight into the binding mode of the host–guest complexes, we performed theoretical calculations by employing density functional theory (DFT) in the gas phase. M06-X2 calculations yielded a predicted protonated complex [(10 + H)⁺(Cl⁻)] with HCl as an acid (Figure 7a). The protonation of the pyridine moiety in 10 offers a specific cavity surrounded by hydrogen-bonding donors, stabilizing a chloride-bound complex with the estimated gas-phase binding energy of −17.9 kcal mol⁻¹. In the comparative analysis of the electrostatic potential (ESP) map of 10 and the 1,8-naphthyridine-analogue 11 reported earlier [30], a greater extent of negative potential around the naphthyridine-nitrogens was observed, indicating a higher basicity (Figure S41). Even considering the intrinsically high basicity of the pyridine ring, the cavity is relatively crowded by adjacent pyrrole rings and β-ethyl groups, which may hamper the protonation at the pyridine moiety in 10. The outer pyrroles attached to the terminal ester groups in (10)₂ contribute solely towards dimer formation with a neighboring unit. It is speculated that in the polymeric unit of receptor 10, HCl also binds inside the pocket. The expected supramolecular dimeric complex, [(10 + H)⁺(Cl⁻)]₂ in the gas phase, was also estimated to be −62.5 kcal mol⁻¹ (Figure S42). As observed for the anion-exchange experiment, the positive electrostatic potential (ESP) at the cavity of the protonated 10 (i.e., 10 + H⁺) leads to a reduction in the negative ESP of the chloride anion (Figure 7b).

3. Materials and Methods

3.1. General Experiments

3.1.1. Chemicals and Consumables

All the chemicals used during the synthesis of receptor 10 were purchased from various commercial sources and directly used without further purification.

• Iodine (I₂) (CAS No: 7553-56-2), Triethylamine (Et₃N) (CAS No: 121-44-8), Potassium carbonate (K₂CO₃) (CAS No: 584-08-7), Sodium bicarbonate (NaHCO₃) (CAS No: 144-55-8), Sodium thiosulfate (Na₂S₂O₃) (CAS No: 7772-98-7), Dichloromethane (CH₂Cl₂) (CAS No: 75-09-2) were purchased from Adamas-beta^®, Shanghai, China.
• Sodium hydroxide (NaOH) (CAS No: 1310-73-2), Ethanol (EtOH) (CAS No: 64-17-5) were purchased from Energy Chemical, Shanghai, China.
• Palladium(II) acetate, Pd(OAc)₂ (CAS No: 3375-31-3), Tetrakis(triphenylphosphine)palladium, Pd(PPh₃)₄ (CAS No: 14221-01-3), Triphenylphosphine, PPh₃ (CAS No: 603-35-0), Dichlorobis(triphenylphosphine)palladium(II) (PdCl₂(PPh₃)₂) (CAS No: 13965-03-2) were purchased from Merck-Sigma, Shanghai, China.
• Potassium iodide (KI) (CAS No: 7681-11-0), N,N-Dimethylformamide (DMF) (CAS No: 68-12-2), Ethylene glycol (EG) (CAS No: 107-21-1), 1,4-Dioxane (CAS No: 123-91-1) were purchased from Acros Organics, NJ, USA.
• Pinacolborane, HB(pin) (CAS No: 25015-63-8), 2,6-Dibromopyridine (CAS No: 626-05-1) were purchased from TCI, Tokyo, Japan.
• All anhydrous solvents were either purchased from Sigma Aldrich, Shanghai, China or Acros Organics Shanghai China or collected from the solvent purification plant at the Center for Supramolecular Chemistry and Catalyses, Shanghai University. All reactions were carried out under an argon atmosphere unless noted otherwise.
• Chromatographic separations were performed by using 100–200 mesh silica gel obtained from Merck-Sigma, Darmstadt, Germany.
• The thin-layer chromatographic (TLC) analyses were carried out using Silica Gel 60 F₂₄₅ glass sheets, which were used to monitor the progress of the reactions and were purchased from Merck-Sigma, Darmstadt, Germany.
• Final separations of the compounds were performed using a recycling preparative gel permeation chromatography (GPC) from Japan Analytical Industries (JAI), Hiroshima Japan using THF as the mobile phase. The oligopyrrole derivatives 1–9 were synthesized with moderate to good yields by following the procedures in the literature [30,31,32].

3.1.2. Investigation and Characterization

¹H NMR (600 MHz) and ¹³C NMR (150 MHz) data were collected at room temperature on a Bruker 600 MHz NMR spectrometer using CDCl₃, THF-d₈, or DMF-d₇ at 298 K unless noted otherwise. All chemical shifts (¹H NMR and ¹³C NMR ppm) were reported in (δ, ppm) relative to the residual deuterated solvent peaks of CDCl₃ (7.25 ppm) or CD₂Cl₂ (5.32 ppm). MALDI-TOF mass spectrometric measurements were made using a Bruker (Autoflex speed) matrix-assisted laser desorption ionization time-of-flight mass spectrometer. Some compounds were analyzed using a Bruker Microflex 2 LRF 20 spectrometer using dithranol (1,8,9-trihydroxyanthracene) as the matrix. UV–vis spectra were recorded in anhydrous THF at 298 K using a Varian Cary 50 spectrophotometer. The concentration of all the entities was maintained at 2 × 10⁻⁵ M in THF.

3.2. Synthesis

Synthesis of Acyclic Receptor 10

A mixture of 8 (0.5 mmol), Pd(PPh₃)₄ (0.025 mmol), and K₂CO₃ (2.5 mmol) was suspended in a mixture of DMF (10 mL) and water (5 mL), and the reaction was heated to 95 °C under an Ar atmosphere. Compound 3 (1.2 mmol) was dissolved in DMF (4 mL) and added via a syringe pump over the course of 1 h. The reaction was stirred at the same temperature for another 15 h. After the reaction mixture was cooled to room temperature, water was added. The organic layer was extracted with CH₂Cl₂ and washed with water three times. After removing the solvent, the reaction mixture was purified through silica gel chromatography using petroleum ether/ethyl acetate (20/1 to 10/1, (v/v)) as eluent to get 10 as a light-yellow solid in 55% yield. Another way to get the poly-pyrrolic receptor 10 was synthesized through the Pd(II)-catalyzed Suzuki–Miyaura cross-coupling reaction between precursors 9 and 2 to obtain 10 in 58% yield. ¹H NMR (600 MHz, CDCl₃): δ: 9.23 (s, 2H, pyrrole NH), 8.72 (s, 2H, pyrrole NH), 7.67 (t, J = 7.9 Hz, 1H, pyridine CH), 7.30 (d, J = 7.9 Hz, 2H, pyridine CH), 4.29 (q, J = 7.1 Hz, 4H, CH₂), 2.81 (q, J = 7.3 Hz, 4H, pyrrole CH₂), 2.76 (q, J = 7.3 Hz, 4H, pyrrole CH₂), 2.52 (q, J = 7.4 Hz, 4H, pyrrole CH₂), 2.46 (q, J = 7.4 Hz, 4H, pyrrole CH₂), 1.34 (t, J = 7.1 Hz, 6H, pyrrole CH₃), 1.29 (t, J = 7.5 Hz, 6H, pyrrole CH₃), 1.18 (t, J = 7.4 Hz, 6H, pyrrole CH₃), 1.13 (t, J = 7.5 Hz, 6H, pyrrole CH₃), 1.01 (t, J = 7.4 Hz, 6H, CH₃) ppm. ¹³C NMR (150 MHz, CDCl₃): δ: 161.26, 149.81, 137.26, 133.54, 127.02, 126.17, 125.24, 125.09, 125.03, 120.67, 118.09, 115.46, 59.84, 18.51, 18.34, 17.77, 17.73, 16.56, 16.33, 15.75, 15.41, 14.46 ppm. MALDI-TOF MS: Calcd for C₄₃H₅₇N₅O₄, 707.960. Found: 708.364 [M + H]⁺.

3.3. Theoretical Calculations

All calculations were performed using the Gaussian16 program package [36]. The meta-hybrid functional M06-2X was employed for the DFT calculations, and the 6-31G(d) basis set was employed for all atoms [37]. The crystal structure of 10 was used as an input file for generating the supramolecular complex with HCl. All calculated geometries were checked to be true minima through vibrational analysis and showed no imaginary frequencies. According to Equation (1), the free energies (ΔG) of the monomers (hosts and acids separately) and the corresponding complexes were calculated. They include standard-state zero-point energies (ΔE) and thermal corrections (ΔG_T). The association free energy of each host–guest system was calculated according to Equation (2), which includes the basis set superposition error (BSSE) determined by counterpoise correction [38,39]. All graphics on optimized structures were generated with CYLview [40].

ΔG = ΔE + ΔG_T

(1)

ΔG_BE = G(complex) − G(host) − G(guest)+

(2)

4. Conclusions

A fully organic “U”-shaped acyclic pyridine-tetrapyrrolic receptor was designed and synthesized. This receptor self-assembles as a robust dimeric pseudo-macrocyclic cage from a nonpolar, non-coordinating solvent. However, it forms a 1D “zig-zag” supramolecular polymeric chain in polar coordinating solvents. The structures of cage-like dimeric form and polymeric self-assembled constructs were confirmed through single-crystal X-ray diffraction analyses. The pyridine moiety within the receptor in our current system 10 promotes the recognition of strong acids within the cavity. Host–guest complexation studies using various organic and mineral acids were performed with ¹H NMR and UV–vis spectroscopic analyses. The receptor acts as a potential sensor for strong (both organic and mineral) acids with a pK_a value < −1.92 in water, with a visible color change from pale yellow to deep red. The pure receptor can be easily recovered from the organic host–guest mixture after simple aqueous washing. Detailed experimental analyses of these supramolecular systems suggest a two-step proton-coupled anion recognition process. This complete recognition study of an acyclic oligopyrrole in the solution phase leads us to suggest that the pyridine-appended oligopyrrole might be a promising candidate for the “capture and release” of strong acids from laboratory or industrial wastes by employing the liquid–liquid extraction technique.
