New Nitro-Laterally Substituted Azomethine Derivatives; Synthesis, Mesomorphic and Computational Characterizations
Abstract
:1. Introduction
2. Results and Discussion
2.1. Mesomorphic and Optical Behavior
2.2. DFT Calculations

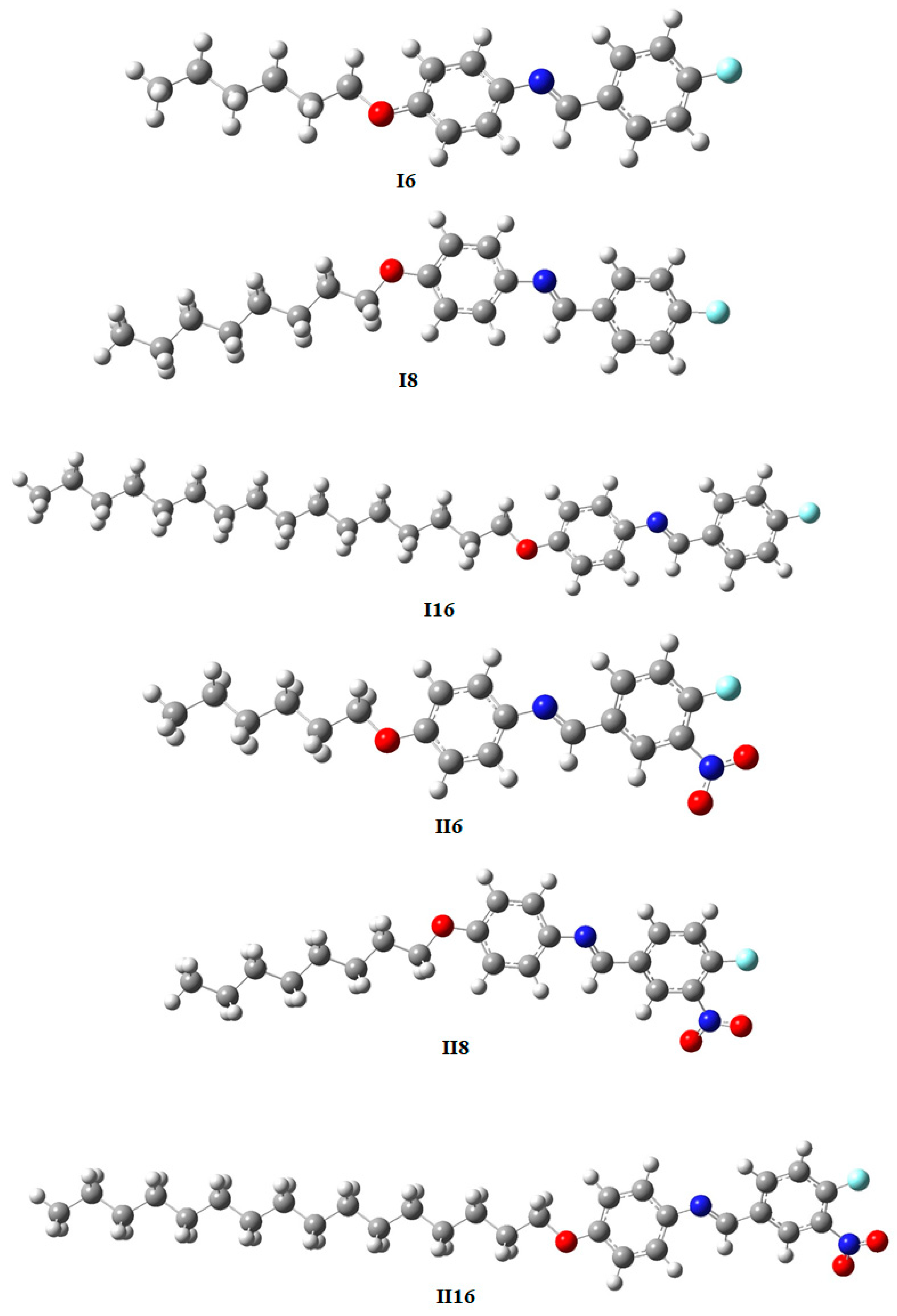

2.2.1. Geometrical Simulations and Thermal Parameters
2.2.2. Frontier Molecular Orbitals (FMOs)
2.2.3. Molecular Electrostatic Potential (MEP)
3. Experimental
3.1. Materials

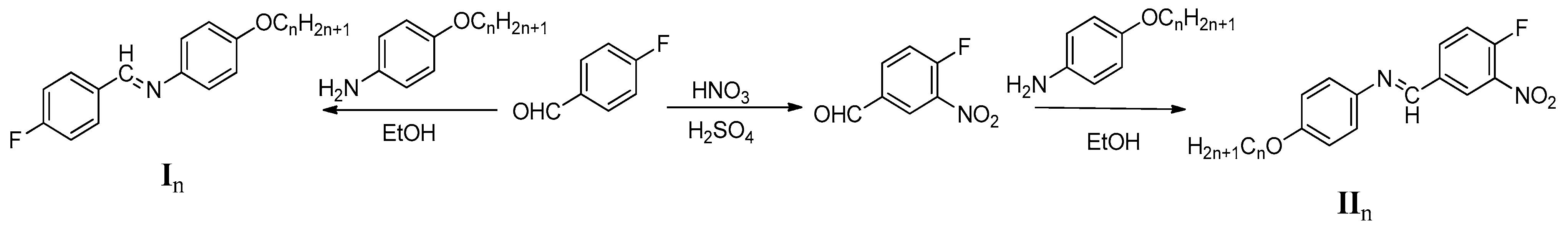

3.2. Synthesis
4. Conclusions
- All compounds of the synthesized laterally neat group (In) were mesomorphic, exhibiting liquid crystalline mesophases monotropically.
- The observed smectic A phase in group In covered all lengths of terminal alkoxy chains.
- The compounds in group IIn were non-mesomorphic, which attributed to the steric hindrance of the large size of the nitro group, which disrupted the SmA phase.
- The molecular geometries of the investigated compounds were highly impacted by the electronic nature, location, and size of the attached NO2 substituent.
- The high dipole moment and steric hindrance of the NO2 moiety explain their non-mesomorphic properties.
- The electronic and geometric structures of the nitro group through intermolecular interactions have an essential role that affects the thermal and physical properties of the present investigated compounds.
