Siloxanes in Biogas: Approaches of Sampling Procedure and GC-MS Method Determination
Abstract
:1. Introduction
- C8Si3O2H24 + 16 O2 → 3 SiO2 + 8 CO2 + 12 H2O (linear VMS—L3)
- C10Si5O5H30 + 20 O2 → 5 SiO2 + 10 CO2 + 15 H2O (cyclic VMS—D5)
2. Results

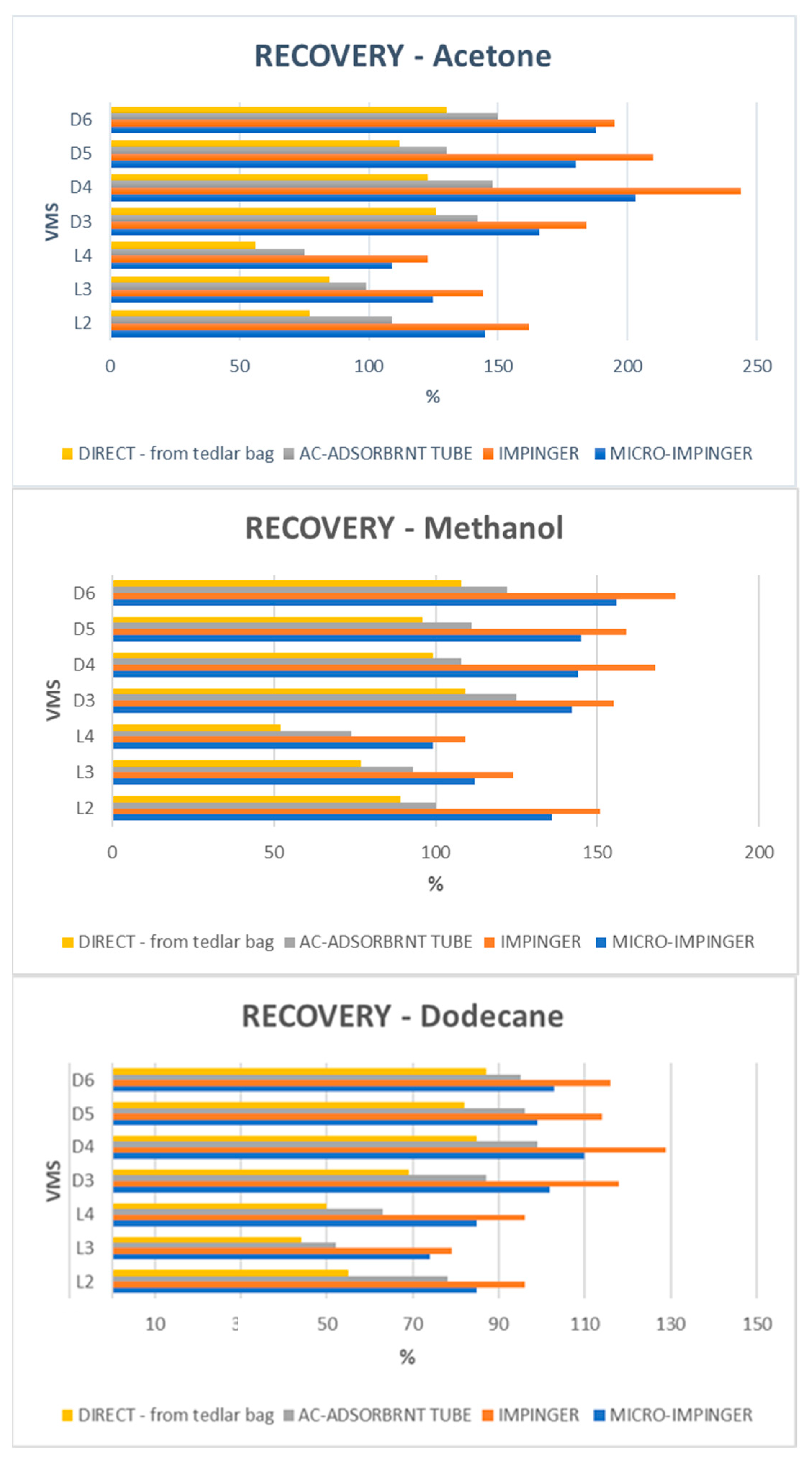

2.1. Procedure Validation

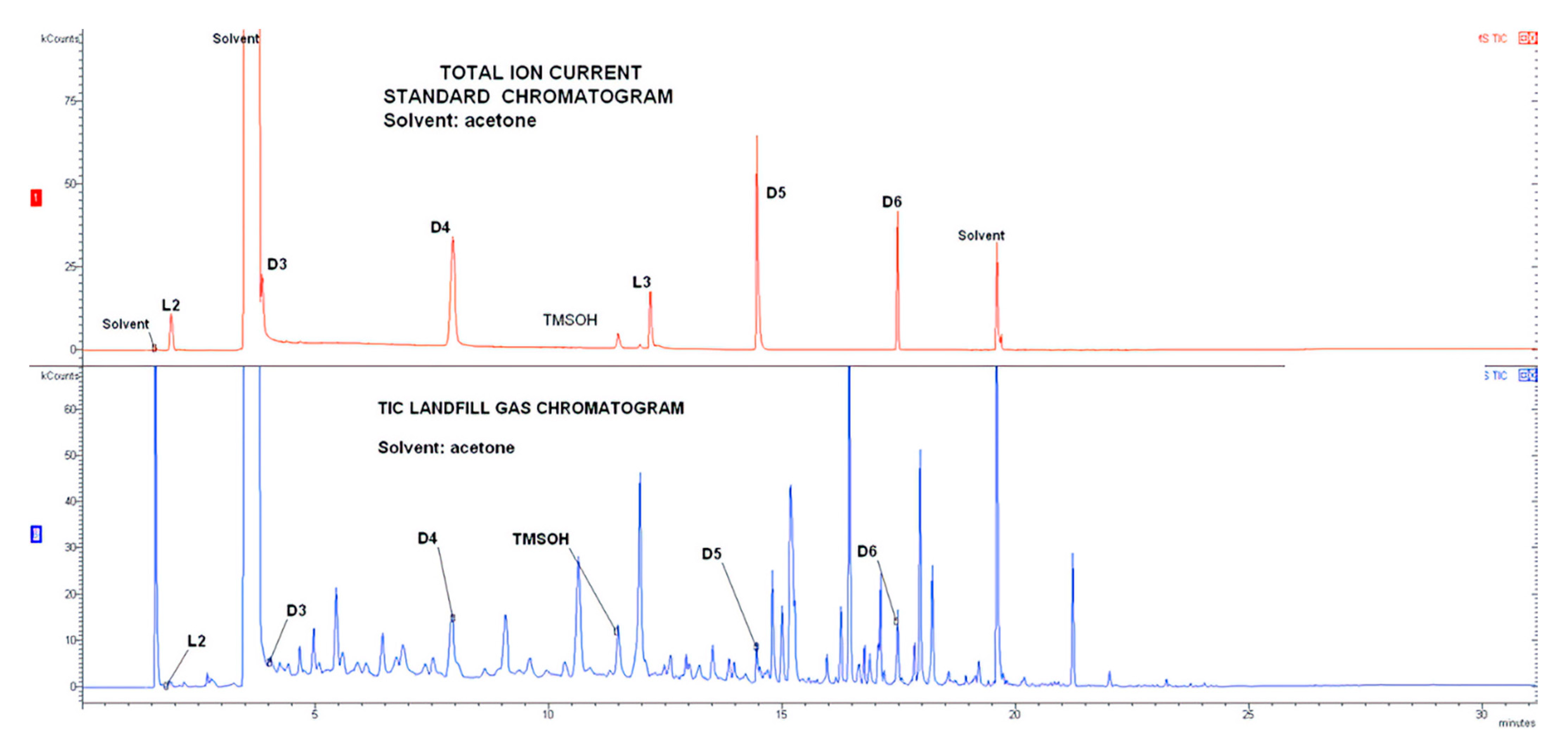

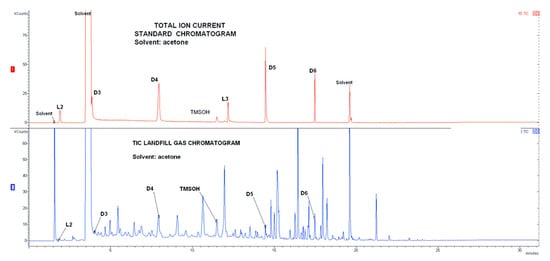

2.2. Gas Chromatographic Siloxanes Determination
2.2.1. Agriculture Biogas
2.2.2. WWTP Biogas
2.2.3. Landfill Biogas

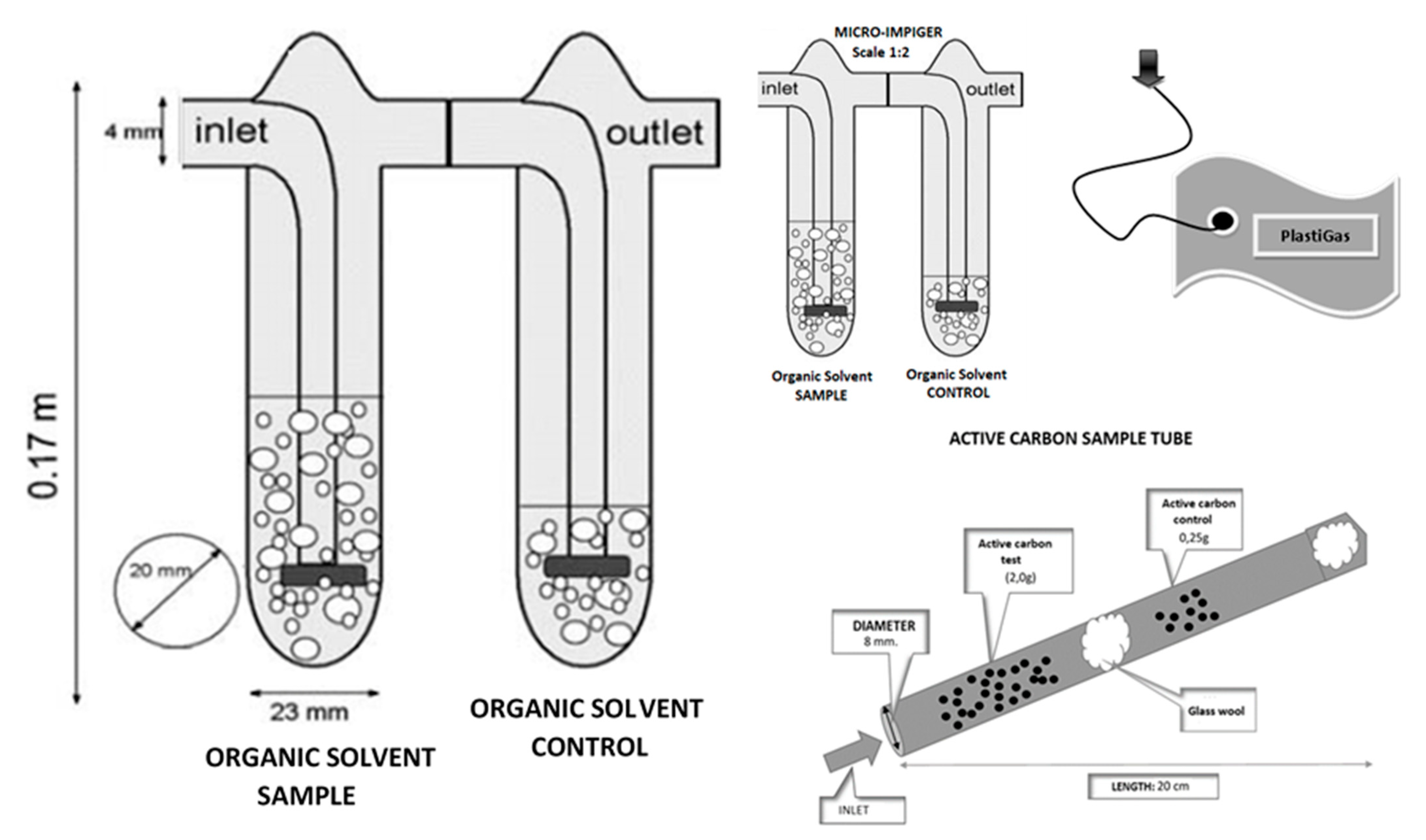

2.3. Sampling Approaches
2.4. Further Routes of Development
3. Materials and Methods
3.1. Standards, Reagents, and Calibration Curves Preparation
3.2. Biogas Samples and Sample Preparation

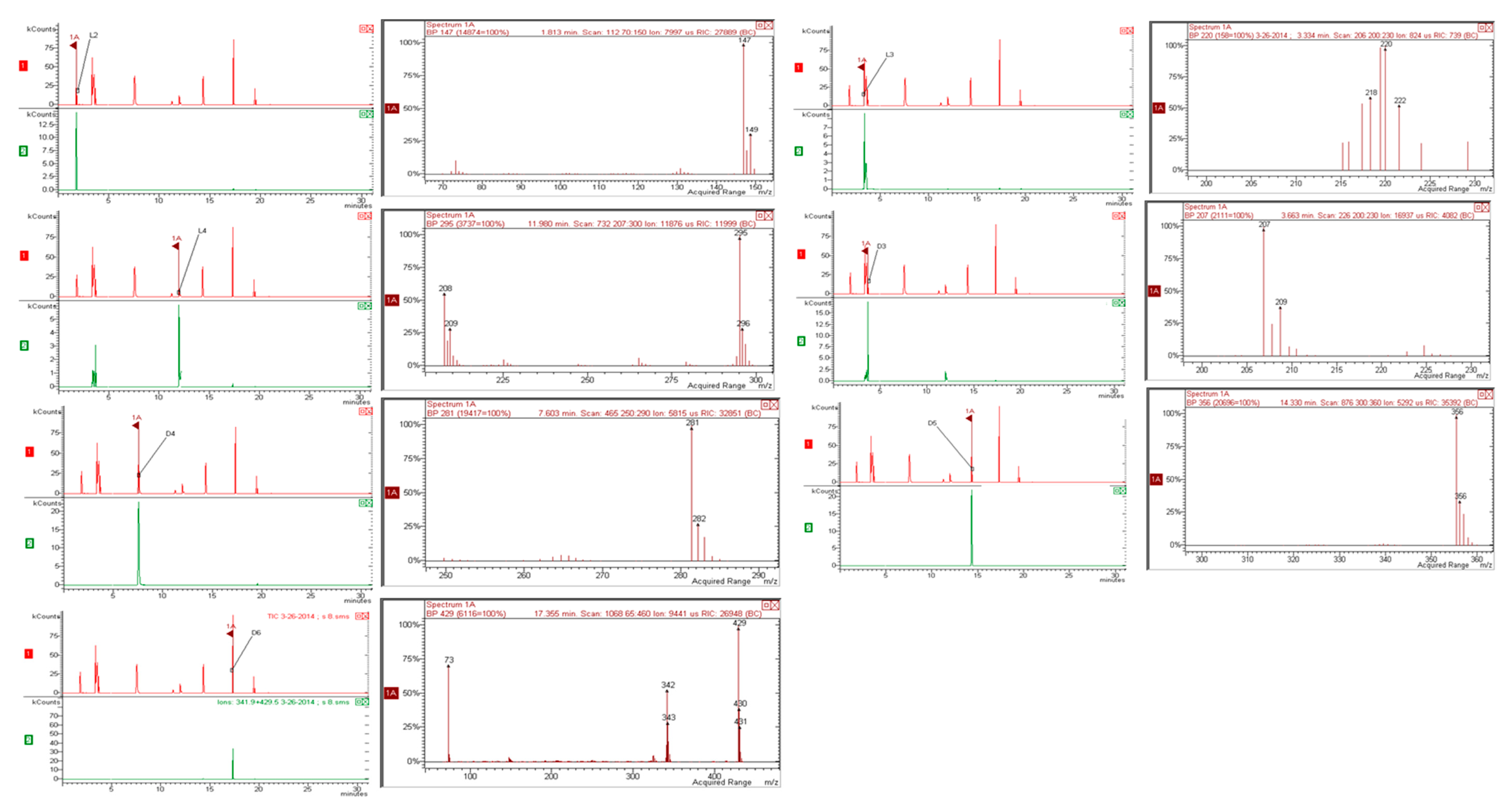

3.3. GC-MS System
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Sample Availability
References
- Igliński, B.; Piechota, G.; Iwański, P.; Skarzatek, M.; Pilarski, G. 15 Years of the Polish agricultural biogas plants: Their history, current status, biogas potential and perspectives. Clean Technol. Environ. Policy 2020, 22, 281–307. [Google Scholar] [CrossRef]
- Pilarski, G.; Kyncl, M.; Stegenta, S.; Piechota, G. Emission of Biogas from Sewage Sludge in Psychrophilic Conditions. Waste Biomass Valorization 2020, 11, 3579–3592. [Google Scholar] [CrossRef]
- Piechota, G.; Igliński, B. Biomethane in Poland—Current Status, Potential, Perspective and Development. Energies 2021, 14, 1517. [Google Scholar] [CrossRef]
- Ghidotti, M.; Fabbri, D.; Torri, C. Determination of linear and cyclic volatile methyl siloxanes in biogas and biomethane by solid-phase microextraction and gas chromatography-mass spectrometry. Talanta 2019, 195, 258–264. [Google Scholar] [CrossRef]
- De Arespacochaga, N.; Valderrama, C.; Raich-Montiu, J.; Crest, M.; Mehta, S.C.; Cortina, J. Understanding the effects of the origin, occurrence, monitoring, control, fate and removal of siloxanes on the energetic valorization of sewage biogas—A review. Renew. Sustain. Energy Rev. 2015, 52, 366–381. [Google Scholar] [CrossRef] [Green Version]
- Arrhenius, K.; Brown, A.S.; Van Der Veen, A.M. Suitability of different containers for the sampling and storage of biogas and biomethane for the determination of the trace-level impurities—A review. Anal. Chim. Acta 2016, 902, 22–32. [Google Scholar] [CrossRef]
- Amaral, A.F.; Previtali, D.; Bassani, A.; Italiano, C.; Palella, A.; Pino, L.; Vita, A.; Bozzano, G.; Pirola, C.; Manenti, F. Biogas beyond CHP: The HPC (heat, power & chemicals) process. Energy 2020, 203, 117820. [Google Scholar] [CrossRef]
- Piechota, G.; Igliński, B.; Buczkowski, R. Development of measurement techniques for determination main and hazardous components in biogas utilised for energy purposes. Energy Convers. Manag. 2013, 68, 219–226. [Google Scholar] [CrossRef]
- Soreanu, G.; Beland, M.; Falletta, P.; Edmonson, K.; Svoboda, L.; Al-Jamal, M.; Seto, P. Approaches concerning siloxane removal from biogas-A review. Can. Biosyst. Eng. 2011, 53, 8.1–8.18. [Google Scholar]
- Piechota, G.; Buczkowski, R. Development of chromatographic methods by using direct-sampling procedure for the quantification of cyclic and linear volatile methylsiloxanes in biogas as perspective for application in online systems. Int. J. Environ. Anal. Chem. 2014, 94, 837–851. [Google Scholar] [CrossRef]
- Norm ST-IGG-3501:2019. Quality and Technical Requirements for Biomethane Injected to Gas-Grid: [PL]: Wymagania Jakościowe i Tech-Niczne Dla Biometanu Wprowadzanego Do Sieci. 2019. Available online: https://www.igg.pl/index.php/sprzedaz-dokumentow-standaryzacyjnych (accessed on 30 March 2021). (In Polish).
- Piechota, G.; Igliński, B.; Buczkowski, R. An experimental approach for the development of direct-absorption sampling method for determination of trimethylsilanol and volatile methylsiloxanes by the GC-MS technique in landfill gas. Int. J. Environ. Anal. Chem. 2015, 95, 1–11. [Google Scholar] [CrossRef]
- EPA. Environmental Protection Agency, Consumer Products Solvents Database; EPA Library: Washington, DC, USA, 2020. Available online: https://www.epa.gov/ (accessed on 19 March 2021).
- Varaprath, S.; Frye, C.L.; Hamelink, J. Aqueous solubility of permethylsiloxanes (silicones). Environ. Toxicol. Chem. 1996, 15, 1263–1265. [Google Scholar] [CrossRef]
- ChemFinder Database, Library (Software). 2020. Available online: https://pubchem.ncbi.nlm.nih.gov/ (accessed on 30 March 2021).
- GE Silicones. MSDS Hexamethyldisiloxane; GE Silicones: Waterford, NY, USA, 2001. [Google Scholar]
- Kochetkov, A.; Smith, J.S.; Ravikrishna, R.; Valsaraj, K.T.; Thibodeaux, L.J. Air-water partition constants for volatile methyl siloxanes. Environ. Toxicol. Chem. 2001, 20, 2184–2188. [Google Scholar] [CrossRef]
- European Commission. IUCLID Dataset. Hexamethyldisilixane. 107-46-0; European Chemical Bureau, European Commission: Helsinki, Finland, 2000. [Google Scholar]
- Schweigkofler, M.; Niessner, R. Removal of siloxanes in biogases. J. Hazard. Mater. 2001, 83, 183–196. [Google Scholar] [CrossRef]
- Dewil, R.; Appels, L.; Baeyens, J. Energy use of biogas hampered by the presence of siloxanes. Energy Convers. Manag. 2006, 47, 1711–1722. [Google Scholar] [CrossRef]
- Grümping, R.; Mikolajczak, D.; Hirner, A. Determination of trimethylsilanol in theenvironment by LT-GC/ICP-OES and GC–MS. Fersenius. J. Anal. Chem. 1998, 363, 347–352. [Google Scholar]
- Ajhar, M.; Travesset, M.; Yüce, S.; Melin, T. Siloxane removal from landfill and digester gas—A technology overview. Bioresour. Technol. 2010, 101, 2913–2923. [Google Scholar] [CrossRef]
- Arnold, M.; Kajolinna, T. Development of on-line measurement techniques for siloxanes and other trace compounds in biogas. Waste Manag. 2010, 30, 1011–1017. [Google Scholar] [CrossRef] [PubMed]
- Mazzoni, S.M.; Roy, S.; Grigoras, S. Eco-Relevant Properties of Selected Organosilicon Materials. In Organosilicon Materials. The Handbook of Environmental Chemistry; Chandra, G., Ed.; Springer: Berlin/Heidelberg, Germany, 1997. [Google Scholar] [CrossRef]
- Across Organics. MSDS Hexamethyldisiloxane; Across Organics Company: Fair Lawn, NJ, USA, 2004. [Google Scholar]
- Across Organics. MSDS Octamethyltrisiloxane; Across Organics Company: Fair Lawn, NJ, USA, 2004. [Google Scholar]
- Ouyang, C.Y.; Lee, J.-K.; Krysak, M.E.; Sha, J.; Ober, C.K. Environmentally friendly patterning of thin films in linear methyl siloxanes. J. Mater. Chem. 2012, 22, 5746–5750. [Google Scholar] [CrossRef]
- Across Organics. MSDS Hexamethylcyclotrisiloxane; Across organics Company: Fair Lawn, NJ, USA, 2005. [Google Scholar]
- GE Silicones. MSDS Hexamethylcyclotrisiloxane; GE Silicones: Waterford, NY, USA, 2001. [Google Scholar]
- Across Organics. MSDS Octamethylcyclotertasiloxane; Across organics Company: Fair Lawn, NJ, USA, 2005. [Google Scholar]
- Piechota, G.; Hagmann, M.; Buczkowski, R. Removal and determination of trimethylsilanol from the landfill gas. Bioresour. Technol. 2012, 103, 16–20. [Google Scholar] [CrossRef] [PubMed]
- James, J.T. Spacecraft Maximum Allowable Concentrations for Selected Airbone Contaminants; US National Research Council; National Academy Press: Washington, DC, USA, 2000; pp. 151–174. [Google Scholar]
- Dow Corning. MSDS Dodecamethylcyclohexasiloxane; Dow Corning: Midland, MI, USA, 1999. [Google Scholar]
- Langford, V.; Gray, J.; Maclagan, R.; McEwan, M. Detection of Siloxanes in Landfill Gas and Biogas Using SIFT-MS. Curr. Anal. Chem. 2013, 9, 558–564. [Google Scholar] [CrossRef]
- Tansel, B.; Surita, S.C. Differences in volatile methyl siloxane (VMS) profiles in biogas from landfills and anaerobic digesters and energetics of VMS transformations. Waste Manag. 2014, 34, 2271–2277. [Google Scholar] [CrossRef]
- Tansel, B.; Surita, S.C. Selectivity and limitations of carbon sorption tubes for capturing siloxanes in biogas during field sampling. Waste Manag. 2016, 52, 122–129. [Google Scholar] [CrossRef]
- Arrhenius, K.; Yaghooby, H.; Rosell, L.; Büker, O.; Culleton, L.; Bartlett, S.; Murugan, A.; Brewer, P.; Li, J.; van der Veen, A.M.; et al. Suitability of vessels and adsorbents for the short-term storage of biogas/biomethane for the determination of impurities—Siloxanes, sulfur compounds, halogenated hydrocarbons, BTEX. Biomass Bioenergy 2017, 105, 127–135. [Google Scholar] [CrossRef]
- Raich-Montiu, J.; Ribas-Font, C.; De Arespacochaga, N.; Roig-Torres, E.; Broto-Puig, F.; Crest, M.; Bouchy, L.; Cortina, J.L. Analytical methodology for sampling and analysing eight siloxanes and trimethylsilanol in biogas from different wastewater treatment plants in Europe. Anal. Chim. Acta 2014, 812, 83–91. [Google Scholar] [CrossRef] [PubMed]
- Beese, J. Betriebsoptimierung der motorischen Gasverwertung durch den Einsatz von Gasreinigungsanlagen. Presented at Deponiegas 2007, Siloxa Engineering AG, FH Trier Saska, Germany, 10–11 January 2007. [Google Scholar]
- Badjagbo, K.; Furtos, A.; Alaee, M.; Moore, S.; Sauvé, S. Direct Analysis of Volatile Methylsiloxanes in Gaseous Matrixes Using Atmospheric Pressure Chemical Ionization-Tandem Mass Spectrometry. Anal. Chem. 2009, 81, 7288–7293. [Google Scholar] [CrossRef]
- Mojsiewicz-Pieńkowska, K.; Krenczkowska, D. Evolution of consciousness of exposure to siloxanes—review of publications. Chemosphere 2018, 191, 204–217. [Google Scholar] [CrossRef]
Bond Type | Si–Si | Si–C | Si–H | C–C | C–O | C–H | Si–O |
---|---|---|---|---|---|---|---|
Free energies of ionization (kcal/mol) | 45< | 69 | 72 | 81 | 84 | 100 | 103 |
Name | Hexamethyl- Disiloxane | Octamethyl- Trisiloxane | Decamethyl- Tertasiloxane | Hexamethylcyclo- Trisiloxan | Octamethylcyclo- Tetrasiloxan | Decamethylcyclo- Pentasiloxane | Dodecamethylcyclo- Hexasiloxane | References |
---|---|---|---|---|---|---|---|---|
Abbreviation | L2 | L3 | L4 | D3 | D4 | D5 | D6 | |
Structure | ||||||||
Molecular formula | C6H18OSi2 | C8H24O2Si3 | C10H30O3Si4 | C6H18O3Si3 | C8H24O4Si4 | C10H30O5Si5 | C12H36O6Si6 | |
Physical properties | Liquid, colorless, odorless | Liquid, colorless, odorless | solid | Solid, white, with a hydrocarbon odor | Liquid, colorless, oily, odorless | Liquid, oily | Liquid, colorless, faint odor | [10] |
Molecular weight (Da) | 162.38 | 236.54 | 310.7 | 222.47 | 296.61 | 370.80 | 444.93 | [10,12] |
Boiling point, °C | 101 | 153 | 193.95 | 135 | 175.5 | 210 | 245 | [10,12] |
Melting point, °C | −59 | −82 | no data | 64 | 17.5 | 7.5 | −3 | [10,13] |
Water solubility mg/L w 23 °C | 0.93 | 0.034 | 0.006 (at 25 °C) | 1.56 | 0.056 | 0.017 | 0.005 | [10,12,14] |
Vapor density (air = 1) | 5.5 | 8.16 | no data | 8.00 | >1 | no data | no data | [10,15] |
Viscosity, cP at 25 °C | 0.86 | 1.2 | 1.7 (at 20 °C) | no data | 2.6 | no data | no data | [10,12,13] |
Vapor pressure, mm Hg at 25 °C | 42.2 | 13.90 | 0.43 (0.55) | 3.53 | 1.05 | 0.20 | 0.049 | [10,12,13,16] |
Henry’s constant | 2.4 ± 0.2, at 27 °C | 121 ± 12, at 27 °C | no data | no data | 24 ± 3, at 28 °C | 12 ± 2, at 26 °C | 5.9 ± 2.9, at 26 °C | [6,17] |
Octanol/water partition coefficient (Log Pow) | 4.2 | 4.8 | no data | 4.47 | 5.1 | 5.2 | 5.86 | [13,14,18,19] |
Structure | ||||||||
Molecular formula | C6H18OSi2 | C8H24O2Si3 | C10H30O3Si4 | C6H18O3Si3 | C8H24O4Si4 | C10H30O5Si5 | C12H36O6Si6 | [12,19,20,21,22,23,24] |
Molar volume (g/cm3) at 20 °C | 210.0 | 287.3 | 364.6 | 231.9 | 309.2 | 386.5 | 463.8 | [12,19,20,21,22,23,24] |
Density (g/cm3) at 20 °C | 0.765 | 0.820 | 0.854 | 0.856 | 0.953 | 0.955 | 0.959 | [12,19,20,21,22,23,24] |
Critical temperature (°C) | 245.15 | 297.95 | 333.35 | 281.05 | 313.35 | 346.05 | 382.25 | [12,19,20,21,22,23,24] |
Critical pressure (atm) | 19.4 | 17.3 | 14.9 | 17.7 | 13.2 | 11.5 | 12.9 | [12,19,20,21,22,23,24] |
Critical volume (m3/kmol) | 629.0 | 906.0 | 1173.7 | 707.1 | 979.0 | 1216.0 | 1493.1 | [12,19,20,21,22,23,24] |
References | [25] | [26] | [12,27] | [28,29] | [30,31] | [32] | [33] |

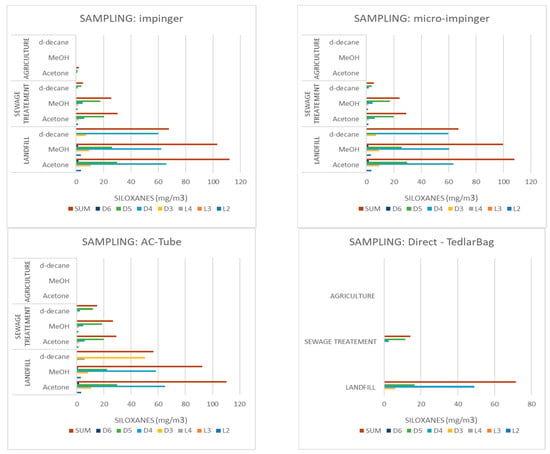

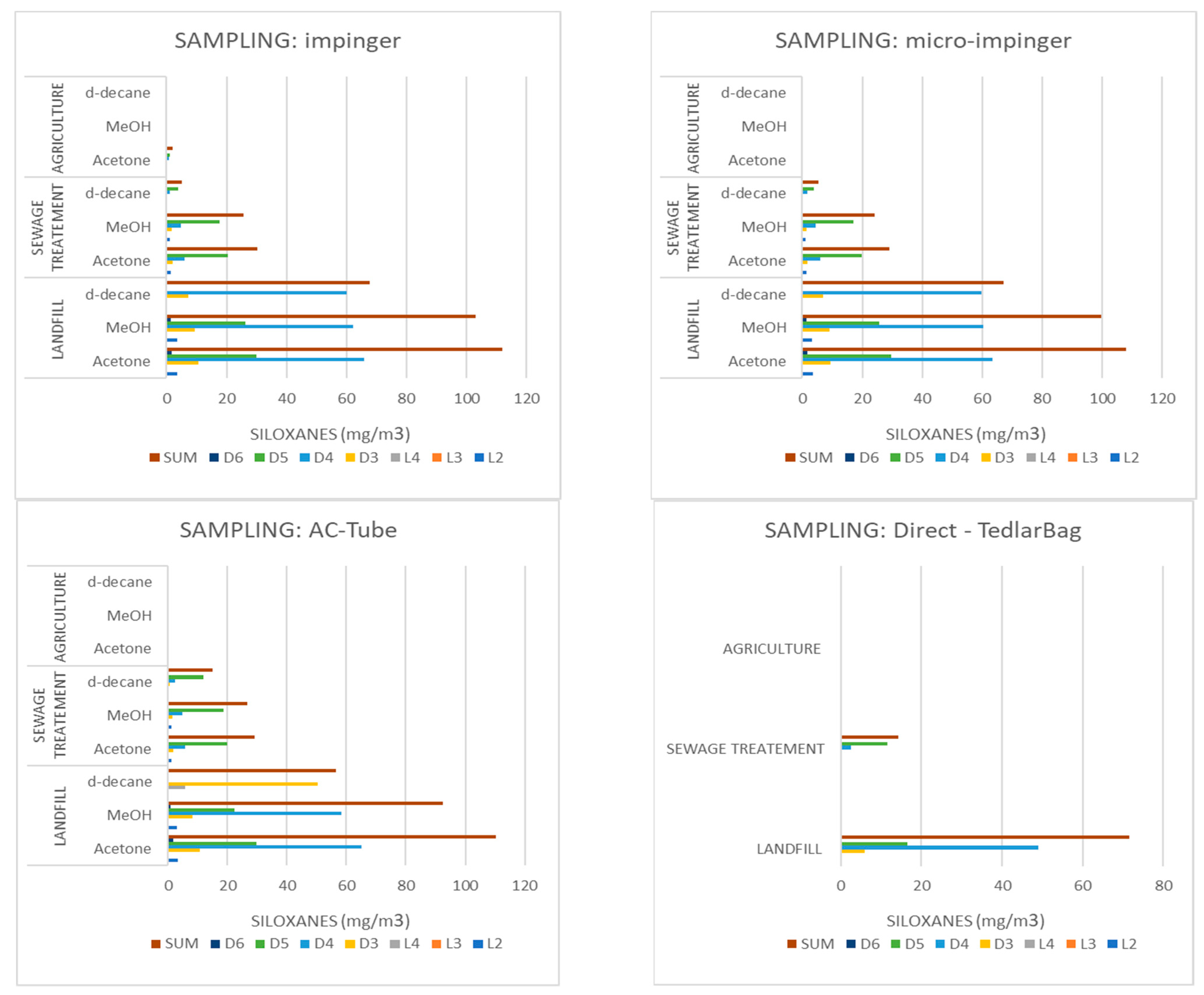

Siloxanes Concentrations (mg\m3 ± RSD) | |||||||||
---|---|---|---|---|---|---|---|---|---|
Method: GC-MS | |||||||||
Biogas Type: VMS/Extraction Solvent | Landfill | Sewage Treatment | Agriculture | ||||||
Acetone | Methanol | d-decane | Acetone | Methanol | d-decane | Acetone | Methanol | d-decane | |
Sampling: Micro-Impinger | |||||||||
L2 | 3.4 ± 0.3 | 3.2 ± 0.3 | 0.2 ± 0.1 | 1.4 ± 0.1 | 1.0 ± 0.1 | n.d | n.d | n.d | n.d |
L3 | 0.2 ± 0.1 | n.d | n.d | n.d | n.d | n.d | n.d | n.d | n.d |
L4 | 0.1 ± 0.1 | n.d | n.d | n.d | n.d | n.d | n.d | n.d | n.d |
D3 | 9.5 ± 0.1 | 9.0 ± 0.1 | 7.0 ± 0.2 | 1.8 ± 0.1 | 1.3 ± 0.2 | n.d | n.d | n.d | n.d |
D4 | 63.5 ± 0.2 | 60.4 ± 0.3 | 59.8 ± 0.3 | 5.9 ± 0.1 | 4.5 ± 0.2 | 1.6 ± 0.1 | 0.6 ± 0.2 | n.d | n.d |
D5 | 29.7± 0.2 | 25.8 ± 0.3 | 0.2 ± 0.1 | 19.9 ± 0.1 | 17.2 ± 0.1 | 3.9 ± 0.1 | 0.9 ± 0.1 | 0.3 ± 0.1 | n.d |
D6 | 1.7 ± 0.1 | 1.3 ± 0.2 | n.d | 0.2 ± 0.1 | 0.2 ± 0.1 | n.d | n.d | n.d | n.d |
Sampling: Regular Impinger | |||||||||
L2 | 3.5 ± 0.3 | 3.5 ± 0.3 | 0.3 ± 0.1 | 1.4 ± 0.1 | 1.2 ± 0.1 | n.d | n.d | n.d | n.d |
L3 | 0.2 ± 0.1 | n.d | n.d | n.d | n.d | n.d | n.d | n.d | n.d |
L4 | 0.1 ± 0.1 | n.d | n.d | n.d | n.d | n.d | n.d | n.d | n.d |
D3 | 10.6 ± 0.1 | 9.4 ± 0.2 | 7.1 ± 0.2 | 2.0 ± 0.1 | 1.6 ± 0.2 | n.d | n.d | n.d | n.d |
D4 | 65.8 ± 0.2 | 62.4 ± 0.2 | 60.0 ± 0.3 | 6.1 ± 0.1 | 4.8 ± 0.2 | 1.9 ± 0.1 | 0.8 ± 0.2 | n.d | n.d |
D5 | 30.0 ± 0.2 | 26.4 ± 0.2 | 0.3 ± 0.1 | 20.5 ± 0.1 | 17.8 ± 0.1 | 4.0 ± 0.1 | 1.1 ± 0.1 | 0.4 ± 0.1 | n.d |
D6 | 1.8 ± 0.1 | 1.4 ± 0.2 | n.d | 0.2 ± 0.1 | 0.3 ± 0.1 | n.d | n.d | n.d | n.d |
Sampling: AC Tube | |||||||||
L2 | 3.2 ± 0.3 | 2.9 ± 0.3 | n.d | 1.3 ± 0.1 | 1.1 ± 0.1 | n.d | n.d | n.d | n.d |
L3 | n.d | n.d | n.d | n.d | n.d | n.d | n.d | n.d | n.d |
L4 | n.d | n.d | n.d | n.d | n.d | n.d | n.d | n.d | n.d |
D3 | 10.6 ± 0.1 | 8.1 ± 0.2 | 5.9 ± 0.2 | 1.9 ± 0.1 | 1.5 ± 0.1 | 0.6 ± 0.1 | n.d | n.d | n.d |
D4 | 65.2 ± 0.2 | 58.2 ± 0.2 | 50.3 ± 0.2 | 5.8 ± 0.1 | 5.0 ± 0.1 | 2.3 ± 0.2 | 0.7 ± 0.1 | 0.3 ± 0.1 | n.d |
D5 | 29.6 ± 0.2 | 22.4 ± 0.2 | n.d | 20.0 ± 0.1 | 18.8 ± 0.2 | 12.0 ± 0.2 | 0.3 ± 0.1 | 0.4 ± 0.1 | n.d |
D6 | 1.7 ± 0.1 | 1.0 ± 0.2 | n.d | 0.2 ± 0.1 | 0.2 ± 0.1 | n.d | n.d | n.d | n.d |
Sampling: TedlarBag (direct injection) | |||||||||
Landfill Biogas | Sewage Biogas | Agriculture Biogas | |||||||
L2 | n.d | n.d | n.d | ||||||
L3 | n.d | n.d | n.d | ||||||
L4 | n.d | n.d | n.d | ||||||
D3 | 5.9 ± 0.3 | 0.7 ± 0.2 | n.d | ||||||
D4 | 49.1 ± 0.2 | 2.6 ± 0.2 | n.d | ||||||
D5 | 16.6 ± 0.1 | 11.6 ± 0.3 | n.d | ||||||
D6 | n.d | n.d | n.d |
System: Varian 3800, CTC, Saturn IT2200/GC-MS | ||||||
---|---|---|---|---|---|---|
VMS | Calibration Curves Parameters Impinger Method (Solvent: Acetone) | Range of Linearity (mg/m3) | ||||
y = ax + b | ||||||
a ± RSD | B ± RSD | LoD | LoQ | R2 | ||
(mg/m3) | ||||||
Landfill Biogas—Direct from TedlarBag | ||||||
L2 | 219.16 ± 19.08 | −425.05 ± 12.52 | 0.08 | 0.10 | 0.989 | 0.14–5.00 |
L3 | 409.12 ± 10.06 | −504.13 ± 20.86 | 0.06 | 0.11 | 0.986 | 0.12–2.83 |
L4 | 502.36 ± 14.69 | −917.23 ± 14.09 | 0.09 | 0.11 | 0.985 | 0.14–2.00 |
D3 | 409.52 ± 10.67 | −103.81 ± 20.06 | 0.03 | 0.06 | 0.992 | 0.10–30.62 |
D4 | 301.08 ± 17.04 | −612.00 ±103.04 | 0.02 | 0.06 | 0.997 | 0.10–70.06 |
D5 | 326.06 ± 10.27 | −5490.23 ± 103.16 | 0.02 | 0.04 | 0.991 | 0.10–30.60 |
D6 | 336.69 ± 11.15 | 452.20 ± 50.01 | 0.04 | 0.09 | 0.992 | 0.11–2.06 |
Sewage Biogas—AC Tube (with extraction, solvent: acetone/methanol) | ||||||
L2 | 286.56 ± 12.03 | −619.06 ± 13.15 | 0.04 | 0.08 | 0.994 | 0.12–5.06 |
L3 | 319.25 ± 8.12 | −114.96 ± 2.06 | 0.04 | 0.08 | 0.993 | 0.12–3.08 |
L4 | 293.22 ± 9.06 | −63.11 ± 19.85 | 0.04 | 0.06 | 0.991 | 0.14–1.06 |
D3 | 366.06 ± 13.57 | −106.25 ± 8.22 | 0.03 | 0.05 | 0.992 | 0.10–40.09 |
D4 | 488.14 ± 19.03 | 99.11 ± 2.98 | 0.01 | 0.04 | 0.991 | 0.11–80.84 |
D5 | 477.02 ± 19.06 | −63.00 ± 9.14 | 0.01 | 0.05 | 0.995 | 0.11–40.09 |
D6 | 611.42 ± 10.04 | 62.22 ± 14.93 | 0.01 | 0.04 | 0.992 | 0.11–3.95 |
Agriculture Gas (Impinger Method) | ||||||
L2 | 504.55 ± 19.06 | −247.00 ± 15.03 | 0.03 | 0.05 | 0.997 | 0.11–10.52 |
L3 | 18.06 ± 2.06 | −85.09 ± 6.16 | 0.02 | 0.06 | 0.994 | 0.12–10.06 |
L4 | 1274.51 ± 15.23 | −52.85 ± 14.00 | 0.02 | 0.05 | 0.998 | 0.10–25.16 |
D3 | 506.76 ± 3.85 | −85.04 ± 13.02 | 0.02 | 0.05 | 0.997 | 0.10–50.62 |
D4 | 607.55 ± 14.06 | 106.07 ± 26.33 | 0.01 | 0.04 | 0.997 | 0.10–100.74 |
D5 | 1019.00 ± 52.03 | −69.04 ± 8.04 | 0.01 | 0.05 | 0.996 | 0.11–50.20 |
D6 | 704.03 ± 23.06 | 106.08 ± 25.88 | 0.01 | 0.04 | 0.996 | 0.14–10.60 |
