Article

Three-Component Reactions of 3-Arylidene-3H-Indolium Salts, Isocyanides and Amines

by
Hung M. Nguyen
1,2,
Nikita E. Golantsov
1,*,
Alexandra S. Golubenkova
1,
Victor B. Rybakov
3 and
Leonid G. Voskressensky
1,*
1
Department of Organic Chemistry, Faculty of Science, Peoples’ Friendship University of Russia (RUDN University), 6 Miklukho-Maklaya St., 117198 Moscow, Russia
2
Faculty of Natural Sciences, Hung Vuong University, Nguyen Tat Thanh Street, Viet Tri 35120, Vietnam
3
Faculty of Chemistry, Lomonosov Moscow State University, 1-3 Leninskiye Gory, 119991 Moscow, Russia
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(9), 2402; https://doi.org/10.3390/molecules26092402
Submission received: 31 March 2021 / Revised: 12 April 2021 / Accepted: 19 April 2021 / Published: 21 April 2021

Abstract

:
A multicomponent reaction of isocyanides with aryl(indol-3-yl)methylium salts and amines has been found. A series of aryl(indol-3-yl)acetimidamides was obtained in up to 96% yields. In the case of ethyl isocyanoacetate, the reaction is followed by cyclization to form 3,5-dihydro-4H-imidazol-4-one derivatives.

1. Introduction

Isocyanide-based multicomponent reactions play an outstanding role in the syntheses of heterocycles [1,2], biologically relevant compounds [3,4,5,6,7] and for diversity-oriented synthesis [6,7,8,9]. In the case of the famous Ugi reaction, isocyanide interacts with iminium salt generated in situ from carbonyl compound and amine [10]. A number of transformations, in which isocyanide interacts with a previously prepared iminium salt or cyclic imines in the presence of protic acid, have been described [11,12,13,14,15]. The potency of methods, based on the Ugi reaction, increases with the possibility of subsequent modification or cyclization of obtained products of multicomponent reaction [16,17,18,19,20,21].
Recently we have developed a method for the synthesis of alkyl aryl(indol-3-yl)acetimidates and aryl(indol-3-yl)acetamides based on a three-component reaction of isocyanides with such a specific class of electrophilic reagents as 3-arylidene-3H-indolium salts and oxygen-containing nucleophiles, water and alcohols (Scheme 1a) [22]. 3-Arylidene-3H-indolium salts can be considered as stabilized diarylmethylium ions or as simple vinylogous iminium ions, the latter being in better agreement with the data of X-ray structural analyses of these compounds [23,24]. The use of 3-arylidene-3H-indolium salts as partners in the reaction with isocyanides provides access to compounds possessing indole scaffold, privileged from the medicinal chemistry point of view [25].
Herein, we report a three-component reaction of 3-aryliden-3H-indolium salts 1 with isocyanides and amines to form aryl(indol-3-yl)acetimidamides 2 (Scheme 1b). In the case of isocyanoacetic ester the reaction can be accompanied by subsequent cyclization with the formation of imidazolone derivatives 3.

2. Results and Discussion

Starting salts 1ah were obtained by alkylation of the corresponding indoles 4 followed by reaction of N-alkylindoles 5ad with aromatic aldehydes 6 under conditions similar to previously published procedures (Scheme 2) [22,23,24].
Next, the reaction of salt 1a with benzyl isocyanide 7a and p-anisidine (8a) was studied (Scheme 3; Table 1). In various solvents, including protic, aprotic non-polar and polar, the target product of three-component reaction, amidine 2a, was formed with admixture of compound 9, product of two-component reaction of the 3-arylidene-3H-indolium salt with the amine. The resulting compounds were isolated by chromatography as free bases after treatment of the reaction mixture with saturated NaHCO3 solution. Carrying out the reaction in acetonitrile medium made it possible to minimize the amount of the by-product 9. In this case, target amidine 2a was formed in good yield after 3 h at room temperature, and 12 h was required to complete the reaction. An attempt to accelerate the reaction by increasing the temperature was unsuccessful due to a tar formation and an increase in the amount of the by-product 9.
According to the optimized procedure, a series of imidamides 2 was synthesized (Scheme 4). Compounds 2 containing an alkyl group together with an aryl group at the amidine nitrogen atoms are presented as the most stable tautomer according to NMR data [26], and compound 2j—as a tautomeric mixture (for copies of NMR spectra, see Supplementary Materials). Interestingly, amidine 2a was synthesized using two different combinations of isonitrile and amine, and the best yield was obtained by using benzyl isocyanide (7a) and p-anisidine (8a). Compound 2j was also obtained by two methods, by using either p-methoxyphenylisocyanide (7b) and p-chloroaniline (8c) or p-chlorophenylisocyanide (7c) and amine 8a. In this case both reagent combinations gave comparable results. The reaction with aliphatic cyclohexylamine, as well as with benzylamine (8b) proceeded with lower yield of target amidine 2i due to side processes.
When ethyl isocyanoacetate 7d was employed in this reaction with p-anisidine (8a), a new product, imidazolone 3a, was obtained in good yield (82%) instead of the corresponding imidamide (Scheme 5). Therefore, we continued to investigate the reaction of 3-arylidene-3H-indolium salts 1ag with isocyanoacetic ester 7d and amines 9 in MeCN at room temperature (method A). Thus, we have obtained a series of imidazolones 3ao using various aromatic amines (Scheme 5). The exceptions were sterically hindered ortho-substituted anilines and weakly nucleophilic ester of para-aminobenzoic acid, in these cases, cyclization did not occur, and amidines 10ac containing ester group were isolated. We also failed to isolate the desired cyclization products with aliphatic amines. In the case of benzylamine, isopropylamine and cyclohexylamine a complex mixture of products that did not contain imidazolones 3ps was formed, while sterically hindered tert-butylamine gave acyclic imidamide 10d. To our surprise, the reaction with O-benzylhydroxylamine led to the formation of only acyclic imidamides 10e,f, represented by a mixture of tautomers in a 1:1 ratio. It was possible to obtain imidazolones 3po using aliphatic amines (with the exception of tert-butylamine) with a low yield, when the reaction was carried out in a closed vessel under microwave irradiation at 130 °C (method B). The latter method, however, showed lower efficiency in comparison with the initial, method A, for the synthesis of imidazolones 3a,f from aromatic amines, and at the same time, it did not allow to obtain the corresponding cyclization products involving sterically hindered amines and O-benzylhydroxylamine.
The structure of compound 3d was unambiguously confirmed by X-ray structural analysis (Figure 1) [27].
Next, it is necessary to discuss the proposed mechanism of discovered transformations based on our observations and previous studies (Scheme 6) [22,23]. Isonitrile initially attacks 3-arylidene-3H-indolium salt, which acts as an electrophilic reagent, vinylogous iminium 3H-indolium ion. The formed nitrilium salt A then reacts with amine leading to amidinium tetrafluoroborate B, which upon treatment with NaHCO3 gives a mixture of tautomeric imidamides 2 and 2’. In the absence of steric or electronic restrictions imidamides 10 containing ester group undergo spontaneous cyclization leading to imidazolones 3.

3. Materials and Methods

3.1. General Information

Starting reagents were purchased from commercial sources and were used without any additional purification or were prepared according to literature procedures. 1H and 13C NMR spectra were acquired on a Jeol JNM-ECA 600 spectrometer (Jeol Ltd, Tokyo, Japan) (with operating frequencies of 600 and 150 MHz, respectively) at room temperature and referenced to the residual signals of the solvent. The solvent used for NMR was CDCl3. Chemical shifts are reported in parts per million (δ/ppm). Coupling constants are reported in Hertz (J/Hz). The peak patterns are indicated as follows: s, singlet; d, doublet; t, triplet; q, quadruplet; m, multiplet; dd, doublet of doublets and br s, broad singlet. Infrared spectra were measured on an Infralum FT-801 FT/IR instrument. The wavelengths are reported in reciprocal centimeters (νmax/cm−1). Mass spectra were recorded with LCMS-8040 Triple quadrupole liquid chromatograph mass-spectrometer from Shimadzu (ESI) (Shimadzu, Tokyo, Japan). HRMS spectra were recorded on a Bruker MicrOTOF-Q II. Elemental analysis was performed on Euro Vector EA-3000 elemental analyzer. The reaction progress was monitored by TLC and the spots were visualized under UV light (254 or 365 nm). Column chromatography was performed using silica gel (230–400 mesh). Melting points were determined on SMP-10 apparatus and were uncorrected. Solvents were distilled and dried according to standard procedures.

3.2. Synthesis of Compounds 1ah

Known tetrafluoroborates 1af along with two new salts 1g,h were prepared according to literature procedures [22,23,24].
1-Benzyl-3-(4-chlorobenzylidene)-3H-indolium Tetrafluoroborate (1g). Bright orange solid; yield 1.83 g (91% from 1.00 g 1-benzyl-1H-indole); mp 200–202 °C (dec.). IR (KBr): 3118, 3071, 3025, 1813, 1607, 1581, 1530, 1495, 1448, 1371, 1253, 1192, 1088, 1058, 948, 831, 859, 713, 638, 578 cm–1. 1H NMR (600 MHz, CDCl3 + TFA; ~ 1.5:1 Z/E diastereomeric mixture): δ = 9.13 (s, 1.5H), 8.93 (s, 1H), 8.82 (s, 1.5H), 8.68 (s, 1H), 8.24 (d, J = 7.7 Hz, 1H), 8.03 (d, J = 7.7 Hz, 1.5H), 7.97 (d, J = 8.6 Hz, 2H), 7.87 (d, J = 8.6 Hz, 3H), 7.69–7.57 (m, 12.5H), 7.48–7.37 (m, 12.5H), 5.71 (s, 3H), 5.62 (s, 2H). 13C NMR (150 MHz, CDCl3 + TFA): δ = 163.1, 161.4, 157.6, 154.2, 144.4, 143.4, 143.0, 140.5, 135.1, 134.4, 132.0, 131.8, 131.3, 131.2, 130.9, 130.6, 130.5, 130.4, 130.3, 130.2, 130.1, 130.0, 128.9, 128.7, 128.4, 128.2, 125.0, 124.3, 121.6, 117.3, 115.5, 115.4, 115.37, 113.5, 111.7, 55.2, 54.6. MS (ESI): m/z = 330 [M − BF4]+; HRMS (TOF ES+): m/z [M − BF4]+ calcd for C22H17ClN+: 330.1049; found: 330.1051.
1-Benzyl-5-methoxy-3-(4-chlorobenzylidene)-3H-indolium Tetrafluoroborate (1h). Brownish solid; yield 1.60 g (85% from 1.00 g 1-benzyl-5-methoxy-1H-indole); mp 196–198 °C (dec.). IR (KBr): 3122, 2982, 2843, 1620, 1582, 1526, 1484, 1440, 1376, 1298, 1264, 1234, 1192, 1091, 1053, 1032, 965, 856, 825, 756, 705, 646 cm–1. 1H NMR (600 MHz, CDCl3+TFA; ~ 2.55:1 Z/E diastereomeric mixture): δ = 8.98 (s, 2.55H), 8.81 (s, 1H), 8.73 (s, 2.55H), 8.61 (s, 1H), 7.93 (d, J = 8.5 Hz, 2H), 7.84 (d, J = 8.5 Hz, 5.10H), 7.71 (d, J = 2.2 Hz, 1H), 7.62 (d, J = 8.5 Hz, 2H), 7.56 (d, J = 8.5 Hz, 5.10H), 7.50 (d, J = 2.3 Hz, 2.55H), 7.46–7.35 (m, 21.30H), 7.11 (dd, J = 9.0, 2.2 Hz, 1H), 7.07 (dd, J = 9.0, 2.3 Hz, 2.55H), 5.63 (s, 5.10H), 5.55 (s, 2H), 3.93 (s, 7.65H), 3.85 (s, 3H). 13C NMR (150 MHz, CDCl3+TFA): δ = 161.9, 161.8, 161.6, 159.8, 156.5, 152.1, 143.8, 142.7, 134.9, 134.1, 133.9, 131.9, 131.6, 131.1, 130.7, 130.6, 130.4, 130.3, 130.1, 130.0, 129.9, 128.7, 128.6, 128.3, 117.3, 117.0, 116.5, 116.4, 116.0, 115.4, 113.5, 111.6, 110.4, 106.4, 56.4, 56.3, 55.2, 54.7. MS (ESI): m/z = 360 [M − BF4]+; HRMS (TOF ES+): m/z [M − BF4]+ calcd for C23H19ClNO+: 360.1155; found: 360.1160.

3.3. Synthesis of Imidamide 2

Isocyanide 7 (0.65 mmol) and amine 8 (0.6 mmol) were dissolved in abs. MeCN (5 mL). A salt 1 (0.5 mmol) was then added. The reaction mixture was stirred at r.t. for 12 h and concentrated in vacuo. The residue was dissolved in EtOAc (50 mL), washed with NaHCO3 (2 × 25 mL), brine (20 mL), and dried over anhydrous Na2SO4. The EtOAc was evaporated in vacuo. The residue was chromatographed on a column with silica gel with EtOAc-hexane.
The following compounds were prepared:
N-Benzyl-2-(1-benzyl-1H-indol-3-yl)-N’,2-bis(4-methoxyphenyl)acetimidamide (2a). Brownish oil; yield 271 mg (96%) from 7a, 8a and 170 mg (50%) from 7b, 8b; Rf = 0.69 (EtOAc-hexane, 1:3). IR (KBr): 3413, 3030, 2932, 2832, 1671, 1629, 1497, 1466, 1356, 1334, 1238, 1177, 1101, 1030, 836, 741, 698 cm–1. 1H-NMR (600 MHz, CDCl3), δ = 7.39 (d, J = 7.9, 1H), 7.24–7.17 (m, 8H), 7.13 (d, J = 8.6, 2H), 7.11–7.07 (m, 3H), 6.97–6.93 (m, 2H), 6.82 (d, J = 8.6 Hz, 2H), 6.73 (d, J = 8.8 Hz, 2H), 6.66 (s, 1H), 6.65 (d, J = 8.8 Hz, 2H), 5.44 (s, 1H), 5.22 (d, J = 16.2 Hz, 1H), 5.18 (d, J = 16.2 Hz, 1H), 4.75 (br s, 1H), 4.58–4.51 (m, 2H), 3.81 (s, 3H), 3.76 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 158.6, 158.4, 155.0, 139.4, 137.6, 137.2, 132.3, 129.7 (2C), 128.9, 128.6 (2C), 128.5, 128.1, 127.8 (2C), 127.7, 127.3, 127.1, 126.5 (2C), 123.2 (2C), 122.6, 119.8, 119.6, 115.6, 115.0, 114.1 (2C), 114.0 (2C), 110.0, 55.6, 55.4, 50.1, 45.5, 43.5. MS (ESI): m/z = 566 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C38H36N3O2+: 566.2802; found: 566.2805.
N-Benzyl-2-(1-benzyl-1H-indol-3-yl)-2-(4-methoxyphenyl)-N’-phenylacetimidamide (2b). Brownish oil; yield 227 mg (85%); Rf = 0.53 (EtOAc-hexane, 1:5). IR (KBr): 3417, 3055, 3028, 2930, 2834, 1947, 1885, 1631, 1591, 1509, 1483, 1356, 1334, 1301, 1249, 1176, 1070, 1029, 906, 801, 738, 697 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.42 (d, J = 7.9, 1H), 7.25–7.10 (m, 15H), 6.99–6.93 (m, 3H), 6.84 (d, J = 8.7 Hz, 2H), 6.78–6.73 (m, 2H), 6.67 (s, 1H), 5.44 (s, 1H), 5.24 (d, J = 16.2 Hz, 1H), 5.20 (d, J = 16.2 Hz, 1H), 4.82 (br s, 1H), 4.62-4.55 (m, 2H), 3.82 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 158.6, 157.8, 151.0, 139.4, 137.5, 137.2, 132.3, 129.7 (2C), 128.9 (2C), 128.7, 128.6 (2C), 128.5, 127.8 (2C), 127.7 (2C), 127.3, 127.1, 126.5 (2C), 122.6, 122.5 (2C), 122.0, 119.8, 119.6, 115.4, 114.1 (2C), 110.0, 55.4, 50.1, 45.5, 43.6. MS (ESI): m/z = 536 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C37H34N3O+: 536.2696; found: 536.2695.
N-Benzyl-2-(1-benzyl-1H-indol-3-yl)-N’-(4-chlorophenyl)-2-(4-methoxyphenyl)acetimidamide (2c). Orange oil; yield 234 mg (82%); Rf = 0.44 (EtOAc-hexane, 1:5). IR (KBr): 3418, 3060, 3028, 2929, 2835, 1951, 1885, 1807, 1629, 1587, 1509, 1482, 1356, 1334, 1301, 1249, 1177, 1089, 1030, 838, 740, 697 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.39 (d, J = 7.9, 1H), 7.25 – 7.19 (m, 8H), 7.14 – 7.08 (m, 7H), 6.98–6.93 (m, 2H), 6.84 (d, J = 8.7 Hz, 2H), 6.66–6.62 (m, 3H), 5.37 (s, 1H), 5.23 (d, J = 16.2 Hz, 1H), 5.19 (d, J = 16.2 Hz, 1H), 4.87 (br s, 1H), 4.58-4.52 (m, 2H), 3.82 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 158.7, 158.2, 147.7, 139.1, 137.5, 137.2, 132.0, 129.7 (2C), 128.9 (2C), 128.7 (2C), 128.6 (2C), 128.5, 127.8 (2C), 127.7, 127.2, 127.1, 127.0, 126.5 (2C), 123.8 (2C), 122.7, 119.9, 119.4, 115.2, 114.2 (2C), 110.1, 55.4, 50.1, 45.5, 43.8. MS (ESI): m/z = 570 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C37H33ClN3O+: 570.2306; found: 570.2304.
N-Benzyl-2-(1-benzyl-1H-indol-3-yl)-N’-(4-methoxyphenyl)-2-(p-tolyl)acetimidamide (2d). Brownish oil; yield 261 mg (87%); Rf = 0.50 (EtOAc-hexane, 1:4). IR (KBr): 3415, 3058, 3030, 2921, 2832, 1672, 1628, 1497, 1466, 1453, 1356, 1334, 1237, 1201, 1177, 1101, 1029, 969, 832, 740, 697 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.38 (d, J = 7.9, 1H), 7.24–7.16 (m, 8H), 7.12–7.06 (m, 7H), 6.97–6.94 (m, 2H), 6.73 (d, J = 8.8 Hz, 2H), 6.68 (s, 1H), 6.66 (d, J = 8.8 Hz, 2H), 5.47 (s, 1H), 5.23 (d, J = 16.2 Hz, 1H), 5.19 (d, J = 16.2 Hz, 1H), 4.75 (br s, 1H), 4.59-4.52 (m, 2H), 3.76 (s, 3H), 2.35 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 158.3, 155.0, 139.5, 137.6, 137.2, 137.1, 137.0, 136.6, 129.4 (2C), 128.9 (2C), 128.6 (2C), 128.53 (2C), 128.50, 127.8 (2C), 127.7, 127.3, 127.1, 126.5 (2C), 123.2 (2C), 122.5, 119.8, 119.7, 115.4, 114.1 (2C), 110.0, 55.6, 50.1, 45.5, 43.9, 21.2. MS (ESI): m/z = 550 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C38H36N3O+: 550.2853; found: 550.2793.
N-Benzyl-2-(1-benzyl-5-bromo-1H-indol-3-yl)-N’-(4-methoxyphenyl)-2-(p-tolyl)acetimidamide (2e). Brownish oil; yield 192 mg (61%); Rf = 0.46 (EtOAc-hexane, 1:4). IR (KBr): 3424, 3253, 3030, 2928, 1870, 1735, 1630, 1497, 1356, 1236, 1030, 830, 732, 697 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.44 (d, J = 1.8 Hz, 1H), 7.25–7.20 (m, 7H), 7.16–7.12 (m, 2H), 7.12–7.05 (m, 5H), 6.96–6.90 (m, 2H), 6.73 (d, J = 8.8 Hz, 2H), 6.72 (s, 1H), 6.63 (d, J = 8.8 Hz, 2H), 5.40 (s, 1H), 5.20 (d, J = 16.2 Hz, 1H), 5.16 (d, J = 16.2 Hz, 1H), 4.65 (br s, 1H), 4.63-4.48 (m, 2H), 3.76 (s, 3H), 2.35 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 157.9, 155.1, 144.1, 139.4, 137.1, 136.9, 136.8, 135.8, 129.6 (2C), 129.5, 129.0 (2C), 128.6 (2C), 128.5 (2C), 127.9, 127.8 (2C), 127.2, 126.7, 126.4 (2C), 125.5, 123.1 (2C), 123.3, 114.9, 114.2 (2C), 113.2, 111.6, 55.6, 50.4, 45.5, 43.6, 21.2. MS (ESI): m/z = 628 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C38H35BrN3O+: 628.1958; found: 628.1960.
N-Benzyl-2-(1-benzyl-5-methoxy-1H-indol-3-yl)-N’-(4-chlorophenyl)-2-(p-tolyl)acetimidamide (2f). Brownish oil; yield 222 mg (76%); Rf = 0.49 (EtOAc-hexane, 1:5). IR (KBr): 3385, 3032, 2915, 1744, 1631, 1587, 1480, 1453, 1357, 1266, 1202, 1166, 1097, 1039, 901, 843, 823, 786, 737, 703, 644, 588 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.25–7.19 (m, 6H), 7.14–7.08 (m, 9H), 6.96–6.91 (m, 2H), 6.84 (dd, J = 8.9, 2.4 Hz, 1H), 6.77 (d, J = 2.4 Hz, 1H), 6.64 (d, J = 8.5 Hz, 2H), 6.61 (s, 1H), 5.33 (s, 1H), 5.18 (d, J = 16.2 Hz, 1H), 5.14 (d, J = 16.2 Hz, 1H), 4.89 (br s, 1H), 4.60-4.51 (m, 2H), 3.78 (s, 3H), 2.36 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 158.1, 154.4, 149.7, 139.2, 137.6, 136.9, 136.8, 132.4, 129.5 (2C), 129.1, 128.9 (2C), 128.8 (2C), 128.6 (2C), 128.5 (2C), 127.8 (2C), 127.7 (2C), 127.6, 127.2, 127.1, 126.5, 126.4 (2C), 114.7, 112.9, 111.0, 101.0, 55.9, 50.4, 45.6, 44.2, 21.2. MS (ESI): m/z = 584 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C38H35ClN3O+: 584.2463; found: 584.2470.
N-Benzyl-2-(1-benzyl-1H-indol-3-yl)-N’-(4-bromo-2-chlorophenyl)-2-phenylacetimidamide (2g). Brownish oil; yield 170 mg (55%); Rf = 0.58 (EtOAc-hexane, 1:5). IR (KBr): 3418, 3063, 3031, 2918, 1947, 1888, 1810, 1706, 1634, 1601, 1529, 1494, 1452, 1359, 1256, 1199, 1175, 1080, 1028, 918, 846, 734, 689 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.51–7.47 (m, 2H), 7.30–7.26 (m, 3H), 7.25–7.21 (m, 7H), 7.21–7.14 (m, 5H), 7.10 (ddd, J = 8.0, 6.9, 1.1, 1H), 7.00–6.93 (m, 3H), 6.63 (d, J = 1.9 Hz, 1H), 6.28 (d, J = 8.5 Hz, 1H), 5.26–5.16 (m, 3H), 5.10 (br s, 1H), 4.64–4.57 (m, 2H). 13C-NMR (150 MHz, CDCl3), δ = 158.5, 147.1, 139.6, 138.9, 137.4, 137.2, 131.9, 130.7, 129.8, 128.9 (2C), 128.8 (2C), 128.7 (2C), 128.6 (2C), 127.8 (2C), 127.7 (2C), 127.4, 127.3, 127.2, 126.5 (2C), 125.5, 122.7, 120.0, 119.9, 117.0, 114.2, 110.1, 50.2, 45.8, 45.6. MS (ESI): m/z = 618 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C36H30BrClN3+: 618.1306; found: 618.1314.
N-Benzyl-N’-(4-methoxyphenyl)-2-(1-methyl-1H-indol-3-yl)-2-(p-tolyl)acetimidamide (2h). Brownish oil; yield 168 mg (71%); Rf = 0.56 (EtOAc-hexane, 1:3). IR (KBr): 3418, 3060, 3028, 2929, 2835, 1951, 1885, 1807, 1629, 1587, 1509, 1482, 1356, 1334, 1301, 1249, 1177, 1089, 1030, 838, 740, 697 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.40 (d, J = 7.9 Hz, 1H), 7.30–7.27 (m, 1H), 7.26–7.19 (m, 4H), 7.16–7.12 (m, 2H), 7.11–7.07 (m, 5H), 6.73 (d, J = 8.9 Hz, 2H), 6.65 (d, J = 8.9 Hz, 2H), 6.51 (d, J = 0.9 Hz, 1H), 5.42 (s, 1H), 4.81 (br s, 1H), 4.63-4.51 (m, 2H), 3.75 (s, 3H), 3.66 (s, 3H), 2.36 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 158.4, 155.0, 144.3, 139.6, 137.5, 137.4, 136.5, 129.4 (2C), 129.0, 128.5 (2C), 128.4 (2C), 127.9 (2C), 127.1, 127.0, 123.3 (2C), 122.3, 119.5, 119.4, 114.7, 114.1 (2C), 109.4, 55.6, 45.5, 43.9, 32.9, 21.3. MS (ESI): m/z = 474 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H32N3O+: 474.2539; found: 474.2536.
2-(1-Benzyl-1H-indol-3-yl)-N’-cyclohexyl-N-(4-methoxyphenyl)-2-(p-tolyl)acetimidamide (2i) Orange oil; yield 68 mg (35%); Rf = 0.40 (EtOAc-hexane, 1:5). IR (KBr): 3414, 3030, 2926, 2851, 1628, 1498, 1465, 1452, 1350, 1335, 1237, 1204, 1178, 1100, 1035, 835, 740, 695 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.36 (d, J = 7.9 Hz, 1H), 7.30–7.26 (m, 3H), 7.26–7.22 (m, 2H), 7.20–7.14 (m, 1H), 7.11–7.04 (m, 5H), 7.02 (d, J = 7.5 Hz, 2H), 6.74–6.67 (m, 3H), 6.64 (s, 1H), 5.37 (s, 1H), 5.28 (d, J = 16.2 Hz, 1H), 5.23 (d, J = 16.2 Hz, 1H), 3.74 (s, 3H), 2.35 (s, 3H), 2.04–1.85 (m, 2H), 1.59–1.25 (m, 6H), 1.13–0.83 (m, 4H). 13C-NMR (150 MHz, CDCl3), δ = 155.7, 154.0, 138.6, 137.6, 137.4, 137.3, 137.1, 129.3 (2C), 128.9 (2C), 128.5, 128.4 (2C), 127.7, 127.2, 126.7, 126.5 (2C), 123.4, 122.5, 121.7, 119.7 (2C), 114.1 (2C), 109.9, 55.5, 50.1, 48.6, 43.9, 32.8, 32.6, 25.9, 24.7, 24.5, 21.2. MS (ESI): m/z = 542 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C37H40N3O+: 542.3166; found: 542.3166.
2-(1-Benzyl-1H-indol-3-yl)-N-(4-chlorophenyl)-N’,2-bis(4-methoxyphenyl)acetimidamide (2j). Brownish oil; yield 231 mg (80%) from 7b, 8c and 240 mg (82%) from 7c, 8a; Rf = 0.51 (EtOAc-hexane, 1:5). IR (KBr): 3391, 3127, 3063, 3027, 2948, 2909, 2832, 2052, 1894, 1818, 1637, 1586, 1507, 1409, 1362, 1335, 1303, 1244, 1181, 1086, 1031, 969, 881, 839, 742, 695, 627, 562 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.47–7.34 (m, 3H), 7.32–7.27 (m, 4H), 7.23–7.13 (m, 4H), 7.12–7.07 (m, 2H), 7.05 (d, J = 7.0 Hz, 2H), 6.85 (d, J = 8.7 Hz, 2H), 6.82–6.73 (m, 3H), 6.70–6.61 (m, 2H), 6.41 (s, 1H), 5.43 (s, 1H), 5.30 (d, J = 16.2 Hz, 1H), 5.26 (d, J = 16.2 Hz, 1H), 3.82 (s, 3H), 3.76 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 158.8, 155.7, 155.5, 137.5, 137.3, 133.1, 131.9, 129.6 (2C), 129.0 (2C), 128.7 (2C), 128.6, 127.9 (2C), 127.1, 126.6 (2C), 123.3, 122.8, 122.4, 121.6 (2C), 120.6, 120.2, 119.5, 115.1, 114.3 (2C), 114.2 (2C), 110.2, 55.7, 55.4, 50.3, 44.4. MS (ESI): m/z = 586 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C37H33ClN3O2+: 586.2256; found: 586.2261.
N-((1-Benzyl-1H-indol-3-yl)(4-methoxyphenyl)methyl)-4-methoxyaniline (9). According to synthesis of imidamide (2a) without the isocyanide addition, compound 9 (90 mg, 40%) was obtained as brownish oil; Rf = 0.63 (EtOAc– hexane, 1:7). IR (KBr): 3400, 3030, 3003, 2931, 2833, 1609, 1585, 1510, 1464, 1356, 1335, 1300, 1242, 1172, 1033, 819, 741, 702 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.60 (d, J = 8.0 Hz, 1H), 7.44 (d, J = 8.7 Hz, 2H), 7.31–7.26 (m, 3H), 7.26–7.23 (m, 1H), 7.18 (ddd, J = 8.0, 7.0, 1.0 Hz, 1H), 7.11–7.06 (m, 3H), 6.89 (d, J = 8.7 Hz, 2H), 6.81 (s, 1H), 6.75 (d, J = 9.0 Hz, 2H), 6.58 (d, J = 9.0 Hz, 2H), 5.73 (s, 1H), 5.24 (s, 2H), 3.81 (s, 3H), 3.74 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 158.8, 152.0, 142.3, 137.6, 137.2, 135.2, 128.9 (2C), 128.5 (2C), 127.7, 127.5, 126.9, 126.7 (2C), 122.2, 119.8, 119.6, 118.7, 114.9 (2C), 114.6 (2C), 114.0 (2C), 110.1, 56.2, 55.9, 55.4, 50.2. MS (ESI): m/z = 447 [M − H]+.

3.4. Synthesis of Imidazolone 3 and Synthesis Imidamides 10af

Representative Procedure under Thermal Conditions (Method A). Ethyl isocyanoacetate 7d (0.65 mmol) and aromatic amine 8 (0.75 mmol) were dissolved in abs. MeCN (5 mL), and salt 1 (0.5 mmol) was then added. The reaction mixture was stirred at r.t. for 12 h and concentrated in vacuo. The residue was dissolved in EtOAc (50 mL), washed with NaHCO3 (2 × 25 mL), brine (20 mL), and dried over anhydrous Na2SO4. The EtOAc was evaporated in vacuo. The residue was chromatographed on a column with silica gel with EtOAc-hexane.
Representative Procedure under Microwave Conditions (Method B). Ethyl isocyanoacetate 7d (0.65 mmol) and aromatic amine 8 (0.60 mmol) were dissolved in abs. MeCN (5 mL), salt 1 (0.5 mmol) and NaHCO3 (1.5 equiv.) were then added. The reaction mixture in closed vial was placed into microwave reactor and irradiated at 130 °C for 30 min. Upon reaction completion, the reaction mixture was concentrated in vacuo. The residue was dissolved in EtOAc (50 mL), washed with H2O (2 × 25 mL), brine (20 mL) and dried over anhydrous Na2SO4. The EtOAc was evaporated in vacuo. The residue was chromatographed on a column with silica gel with EtOAc-hexane.
The following compounds were prepared:
2-((1-Benzyl-1H-indol-3-yl)(4-methoxyphenyl)methyl)-1-(4-methoxyphenyl)-1H-imidazol-5(4H)-one (3a). Brownish oil; yield 211 mg (82%, method A) and 173 mg (67%, method B); Rf = 0.25 (EtOAc– hexane, 1:1). IR (KBr): 3063, 2932, 2836, 1736, 1687, 1608, 1511, 1466, 1300, 1250, 1175, 1110, 1030, 830, 742, 698 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.32–7.27 (m, 3H), 7.25–7.21 (m, 2H), 7.16–7.13 (m, 3H), 7.08–7.02 (m, 3H), 6.89 (s, 1H), 6.86 (d, J = 9.0 Hz, 2H), 6.83 (d, J = 9.0 Hz, 2H), 6.81 (d, J = 8.7 Hz, 2H), 5.28 (d, J = 16.2 Hz, 1H), 5.23 (d, J = 16.2 Hz, 1H), 5.15 (s, 1H), 4.39–4.29 (m, 2H), 3.80 (s, 3H), 3.78 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.4, 167.1, 160.0, 158.9, 137.5, 137.0, 130.6, 129.9 (2C), 129.4 (2C), 128.9 (2C), 128.1, 127.8, 127.2, 126.8 (2C), 125.9, 122.3, 119.7, 119.1, 114.9 (2C), 114.1 (2C), 113.5, 110.2, 59.1, 55.7, 55.4, 50.3, 42.1. MS (ESI): m/z = 516 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H30N3O3+: 516.2281; found: 516.2283.
2-((1-Benzyl-1H-indol-3-yl)(4-methoxyphenyl)methyl)-1-(4-chlorophenyl)-1H-imidazol-5(4H)-one (3b). Brownish oil; yield 205 mg (79%, method A); Rf = 0.25 (EtOAc– hexane, 1:1). IR (KBr): 3061, 2932, 2836, 1890, 1737, 1631, 1610, 1546, 1510, 1492, 1466, 1249, 1174, 1091, 1051, 1030, 992, 796, 739, 696, 635 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.33–7.26 (m, 6H), 7.25 (d, J = 8.3 Hz, 1H), 7.18–7.16 (m, 1H), 7.15 (d, J = 8.7 Hz, 2H), 7.08–7.04 (m, 3H), 6.87 (d, J = 8.7 Hz, 2H), 6.85 (s, 1H), 6.82 (d, J = 8.8 Hz, 2H), 5.26 (d, J = 16.2 Hz, 1H), 5.22 (d, J = 16.2 Hz, 1H), 5.13 (s, 1H), 4.42–4.31 (m, 2H), 3.78 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 180.8, 166.2, 159.0, 137.4, 137.0, 135.1, 131.9, 130.2, 129.8 (2C), 129.8 (2C), 129.4 (2C), 128.9 (2C), 128.0, 127.8, 127.0, 126.8 (2C), 122.4, 119.8, 119.0, 114.2 (2C), 113.0, 110.2, 59.1, 55.4, 50.3, 42.3. MS (ESI): m/z = 520 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H27ClN3O2+: 520.1786; found: 520.1791.
2-((1-Benzyl-1H-indol-3-yl)(p-tolyl)methyl)-1-(p-tolyl)-1H-imidazol-5(4H)-one (3c). Light pink solid; mp 186–188 °C; yield 192 mg (80%, method A); Rf = 0.44 (EtOAc– hexane, 1:1). IR (KBr): 3025, 2914, 2866, 1901, 1730, 1632, 1542, 1513, 1466, 1454, 1370, 1337, 1315, 1179, 1159, 1052, 992, 816, 800, 752, 729, 722, 699, 631, 614 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.31–7.27 (m, 3H), 7.26–7.20 (m, 2H), 7.15–7.11 (m, 5H), 7.10–7.05 (m, 4H), 7.04–7.01 (m, 1H), 6.91 (s, 1H), 6.84 (d, J = 8.4 Hz, 2H), 5.27 (d, J = 16.2 Hz, 1H), 5.23 (d, J = 16.2 Hz, 1H), 5.18 (s, 1H), 4.39–4.30 (m, 2H), 2.36 (s, 3H), 2.31 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.2, 166.9, 139.2, 137.6, 137.1, 137.0, 135.6, 130.7, 130.3 (2C), 129.4 (2C), 128.9 (2C), 128.7 (2C), 128.1, 127.9 (2C), 127.8, 127.2, 126.8 (2C), 122.3, 119.7, 119.1, 113.3, 110.1, 59.1, 50.3, 42.5, 21.3, 21.2. MS (ESI): m/z = 484 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H30N3O+: 484.2383; found: 484.2385.
2-((1-Benzyl-1H-indol-3-yl)(p-tolyl)methyl)-1-(4-methoxyphenyl)-1H-imidazol-5(4H)-one (3d). Red solid; mp 200–202 °C; yield 207 mg (83%, method A); Rf = 0.31 (EtOAc– hexane, 1:1). IR (KBr): 3022, 2902, 2838, 1730, 1628, 1513, 1465, 1373, 1338, 1302, 1255, 1174, 1161, 1051, 991, 831, 799, 750, 733, 700, 615, 583, 556 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.32–7.27 (m, 3H), 7.26–7.21 (m, 2H), 7.16–7.11 (m, 3H), 7.10–7.05 (m, 4H), 7.04–7.01 (m, 1H), 6.91 (s, 1H), 6.86 (d, J = 9.0 Hz, 2H), 6.83 (d, J = 9.0 Hz, 2H), 5.28 (d, J = 16.2 Hz, 1H), 5.24 (d, J = 16.2 Hz, 1H), 5.16 (s, 1H), 4.39–4.30 (m, 2H), 3.80 (3H), 2.31 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.4, 167.1, 160.0, 137.5, 137.1, 137.0, 135.5, 129.41 (2C), 129.40 (2C), 128.9 (2C), 128.7 (2C), 128.1, 127.8, 127.2, 126.8 (2C), 125.9, 122.3, 119.7, 119.1, 114.9 (2C), 113.3, 110.1, 59.1, 55.7, 50.3, 42.5, 21.2. MS (ESI): m/z = 500 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H30N3O2+: 500.2332; found: 500.2330.
2-((1-Benzyl-1H-indol-3-yl)(p-tolyl)methyl)-1-(4-hydroxyphenyl)-1H-imidazol-5(4H)-one (3e). Brownish solid; mp 164–166 °C; yield 163 mg (67%, method A); Rf = 0.28 (EtOAc-hexane, 3:2). IR (KBr): 3280, 3030, 2926, 1736, 1629, 1611, 1514, 1467, 1453, 1377, 1336, 1273, 1170, 1054, 909, 834, 733, 698 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.32–7.29 (m, 1H), 7.26–7.17 (m, 4H), 7.14–7.00 (m, 9H), 6.82 (s, 1H), 6.65 (d, J = 8.7 Hz, 2H), 6.50 (d, J = 8.7 Hz, 2H), 5.22–5.13 (m, 3H), 4.40–4.31 (m, 2H), 2.30 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 182.1, 167.6, 157.2, 137.5, 137.2, 137.0, 135.2, 129.5 (2C), 129.3 (2C), 128.8 (2C), 128.7 (2C), 128.3, 127.7, 127.2, 126.8 (2C), 124.7, 122.3, 119.7, 119.0, 116.6 (2C), 113.1, 110.3, 59.0, 50.2, 42.6, 21.2. MS (ESI): m/z = 486 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H28N3O2+: 486.2176; found: 486.2178.
2-((1-Benzyl-1H-indol-3-yl)(p-tolyl)methyl)-1-(4-chlorophenyl)-1H-imidazol-5(4H)-one (3f). Light pink solid; mp 206–208 °C; yield 194 mg (77%, method A) and 167 mg (66%, method B); Rf = 0.27 (EtOAc– hexane, 1:1). IR (KBr): 3024, 2909, 1898, 1737, 1631, 1553, 1512, 1493, 1466, 1454, 1378, 1336, 1313, 1173, 1156, 1093, 1051, 1018, 991, 962, 831, 794, 752, 723, 699, 624, 576, 564 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.33–7.26 (m, 6H), 7.24 (d, J = 8.4 Hz, 1H), 7.18–7.14 (m, 1H), 7.12 (d, J = 8.2 Hz, 2H), 7.11–7.03 (m, 5H), 6.88–6.84 (m, 3H), 5.26 (d, J = 16.2 Hz, 1H), 5.22 (d, J = 16.2 Hz, 1H), 5.15 (s, 1H), 4.41–4.31 (m, 2H), 2.32 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 180.8, 166.2, 137.4, 137.3, 137.0, 135.2, 135.1, 132.0, 129.8 (2C), 129.5 (2C), 129.4 (2C), 128.9 (2C), 128.7 (2C), 128.1, 127.8, 127.1, 126.8 (2C), 122.4, 119.9, 119.0, 112.8, 110.2, 59.1, 50.3, 42.8, 21.2. MS (ESI): m/z = 504 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H27ClN3O+: 504.1837; found: 504.1839.
2-((1-Benzyl-1H-indol-3-yl)(p-tolyl)methyl)-1-(9H-fluoren-2-yl)-1H-imidazol-5(4H)-one (3g). Brownish oil; yield 159 mg (57%, method A); Rf = 0.41 (EtOAc– hexane, 1:1). IR (KBr): 3054, 2923, 2871, 2246, 1897, 1737, 1630, 1456, 1374, 1180, 1053, 1019, 909, 769, 734, 697, 643 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.81 (d, J = 7.5 Hz, 1H), 7.75 (d, J = 7.9 Hz, 1H), 7.56 (d, J = 7.4 Hz, 1H), 7.44–7.41 (m, 1H), 7.38–7.35 (m, 1H), 7.31 (d, J = 7.9 Hz, 1H), 7.29–7.22 (m, 4H), 7.16–7.13 (m, 3H), 7.09 (d, J = 7.9 Hz, 2H), 7.07–7.05 (m, 2H), 7.04–7.00 (m, 3H), 6.96 (s, 1H), 5.28–5.20 (m, 3H), 4.47–4.35 (m, 2H), 3.83–3.68 (m, 2H), 2.33 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.3, 167.0, 144.5, 143.7, 142.7, 140.7, 137.4, 137.1, 137.0, 135.5, 131.6, 129.4 (2C), 128.9 (2C), 128.8 (2C), 128.2, 127.8, 127.6, 127.3, 127.1, 126.83, 126.8 (2C), 125.3, 125.0, 122.3, 120.6, 120.4, 119.7, 119.1, 113.2, 110.1, 59.2, 50.3, 42.6, 36.9, 21.2. MS (ESI): m/z = 558 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C39H32N3O+: 558.2540; found: 558.2544.
2-((1-Benzyl-1H-indol-3-yl)(4-chlorophenyl)methyl)-1-(p-tolyl)-1H-imidazol-5(4H)-one (3h). Yellowish solid; mp 190–192 °C; yield 124 mg (49%, method A); Rf = 0.50 (EtOAc– hexane, 1:1). IR (KBr): 3062, 3029, 2914, 1890, 1732, 1630, 1615, 1513, 1489, 1474, 1455, 1370, 1328, 1192, 1178, 1158, 1089, 1049, 1015, 986, 909, 752, 738, 724, 699 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.32–7.26 (m, 4H), 7.25–7.23 (m, 3H), 7.18 (d, J = 8.4 Hz, 2H), 7.16–7.11 (m, 3H), 7.09–7.05 (m, 2H), 7.03 (ddd, J = 7.9, 7.1, 0.9 Hz, 1H), 6.91 (s, 1H), 6.84 (d, J = 8.3 Hz, 2H), 5.28 (d, J = 16.2 Hz, 1H), 5.24 (d, J = 16.2 Hz, 1H), 5.20 (s, 1H), 4.40–4.30 (m, 2H), 2.36 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 180.9, 166.5, 139.4, 137.4, 137.2, 137.0, 133.4, 130.5, 130.4 (2C), 130.2 (2C), 128.9 (2C), 128.8 (2C), 128.0, 127.9, 127.8 (2C), 127.0, 126.8 (2C), 122.5, 119.9, 119.0, 112.6, 110.2, 59.1, 50.3, 42.3, 21.3. MS (ESI): m/z = 504 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H27ClN3O+: 504.1837; found: 504.1840.
2-((1-Benzyl-1H-indol-3-yl)(4-chlorophenyl)methyl)-1-(4-methoxyphenyl)-1H-imidazol-5(4H)-one (3i). Brownish oil; yield 130 mg (50%, method A); Rf = 0.35 (EtOAc– hexane, 1:1). IR (KBr): 3061, 2933, 2837, 2048, 1889, 1737, 1630, 1512, 1490, 1466, 1334, 1299, 1249, 1174, 1089, 1029, 831, 803, 787, 735, 698 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.32–7.27 (m, 4H), 7.26–7.23 (m, 3H), 7.18 (d, J = 8.5 Hz, 2H), 7.17–7.14 (m, 1H), 7.09–7.05 (m, 2H), 7.03 (ddd, J = 7.9, 7.1, 0.8 Hz 1H), 6.91 (s, 1H), 6.85 (d, J = 9.1 Hz, 2H), 6.82 (d, J = 9.1 Hz, 2H), 5.28 (d, J = 16.2 Hz, 1H), 5.24 (d, J = 16.2 Hz, 1H), 5.18 (s, 1H), 4.40–4.29 (m, 2H), 3.80 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.1, 166.6, 160.1, 137.4, 137.2, 137.0, 133.4, 130.2 (2C), 129.3 (2C), 128.9 (2C), 128.8 (2C), 128.0, 127.9, 127.0, 126.8 (2C), 125.7, 122.5, 119.9, 119.0, 115.0 (2C), 112.5, 110.2, 59.0, 55.7, 50.3, 42.3. MS (ESI): m/z = 520 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H27ClN3O2+: 520.1786; found: 520.1790.
2-((1-Benzyl-5-bromo-1H-indol-3-yl)(p-tolyl)methyl)-1-(4-methoxyphenyl)-1H-imidazol-5(4H)-one (3j). Orange oil; yield 240 mg (83%, method A); Rf = 0.29 (EtOAc– hexane, 1:1). IR (KBr): 3031, 2938, 2917, 2837, 1869, 1735, 1686, 1630, 1542, 1511, 1467, 1374, 1333, 1299, 1249, 1173, 1107, 1051, 1030, 993, 830, 791, 729, 698, 619 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.38 (d, J = 1.8 Hz, 1H), 7.31–7.26 (m, 3H), 7.20 (dd, J = 9.0, 1.8 Hz, 1H), 7.12–7.08 (m, 4H), 7.07 (d, J = 8.4 Hz, 1H), 7.05–7.01 (m, 2H), 6.96 (s, 1H), 6.86–6.83 (m, 4H), 5.24 (d, J = 16.2 Hz, 1H), 5.21 (d, J = 16.2 Hz, 1H), 5.09 (s, 1H), 4.39–4.29 (m, 2H), 3.82 (s, 3H), 2.32 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.2, 166.9, 160.1, 137.3, 137.0, 135.5, 135.1, 129.5 (2C), 129.4 (2C), 129.3, 129.0 (2C), 128.9, 128.6 (2C), 128.0, 126.7 (2C), 125.7, 125.2, 121.6, 114.9 (2C), 113.1, 112.9, 111.7, 59.0, 55.7, 50.5, 42.3, 21.2. MS (ESI): m/z = 578 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H29BrN3O2+: 578.1438; found: 578.1450.
2-((1-Benzyl-5-bromo-1H-indol-3-yl)(p-tolyl)methyl)-1-(4-hydroxyphenyl)-1H-imidazol-5(4H)-one (3k). Brownish solid; mp 126–128 °C; yield 203 mg (72%, method A); Rf = 0.22 (EtOAc– hexane, 1:1). IR (KBr): 3270, 3062, 3033, 2921, 1735, 1628, 1542, 1514, 1468, 1454, 1376, 1338, 1274, 1169, 1053, 908, 834, 791, 730, 689 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.41 (d, J = 1.8 Hz, 1H), 7.26–7.22 (m, 4H), 7.19 (dd, J = 8.7, 1.8 Hz, 1H), 7.09–7.02 (m, 5H), 7.01–6.97 (m, 2H), 6.84 (s, 1H), 6.65 (d, J = 8.7 Hz, 2H), 6.52 (d, J = 8.7 Hz, 2H), 5.17 (d, J = 16.2 Hz, 1H), 5.12 (d, J = 16.2 Hz, 1H), 5.06 (s, 1H), 4.41–4.32 (m, 2H), 2.31 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.9, 167.3, 157.1, 137.5, 137.0, 135.6, 134.7, 129.6 (2C), 129.5, 129.3 (2C), 128.9 (2C), 128.8, 128.6 (2C), 127.9, 126.7 (2C), 125.2, 124.7, 121.5, 116.6 (2C), 113.2, 112.7, 111.8, 59.0, 50.4, 42.4, 21.2. MS (ESI): m/z = 564 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H27N3O2+: 564.1281; found: 564.1284.
2-((1-Benzyl-5-bromo-1H-indol-3-yl)(p-tolyl)methyl)-1-(4-chlorophenyl)-1H-imidazol-5(4H)-one (3l). Brownish oil; yield 198 mg (68%, method A); Rf = 0.38 (EtOAc– hexane, 1:1). IR (KBr): 3063, 3031, 2919, 2867, 2246, 1896, 1736, 1631, 1509, 1492, 1468, 1370, 1332, 1172, 1091, 1052, 1017, 993, 908, 827, 791, 730, 698, 648 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.42 (d, J = 1.9 Hz, 1H), 7.32–7.26 (m, 5H), 7.22 (dd, J = 8.7, 1.9 Hz, 1H), 7.12–7.06 (m, 5H), 7.04–7.01 (m, 2H), 6.90 (s, 1H), 6.86 (d, J = 8.7 Hz, 2H), 5.23 (d, J = 16.2 Hz, 1H), 5.19 (d, J = 16.2 Hz, 1H), 5.07 (s, 1H), 4.41–4.31 (m, 2H), 2.32 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 180.6, 165.9, 137.5, 136.9, 135.6, 135.3, 134.7, 131.8, 129.9 (2C), 129.6 (2C), 129.5 (2C), 129.3, 129.0 (2C), 128.7, 128.6 (2C), 128.0, 126.7 (2C), 125.3, 121.6, 113.3, 112.6, 111.8, 59.0, 50.5, 42.6, 21.2. MS (ESI): m/z = 582 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H26BrClN3O+: 582.0942; found: 582.0951.
2-((1-Benzyl-5-methoxy-1H-indol-3-yl)(4-chlorophenyl)methyl)-1-(4-methoxyphenyl)-1H-imidazol-5(4H)-one (3m). Brownish oil; yield 140 mg (51%, method A); Rf = 0.31 (EtOAc– hexane, 1:1). IR (KBr): 3064, 3001, 2933, 2835, 1736, 1685, 1628, 1511, 1489, 1453, 1375, 1333, 1299, 1249, 1174, 1090, 1031, 913, 830, 793, 733, 704 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.31–7.27 (m, 3H), 7.25–7.23 (m, 2H), 7.20 (d, J = 8.5 Hz, 2H), 7.12 (d, J = 8.9 Hz, 1H), 7.08–7.05 (m, 2H), 6.90 (s, 1H), 6.85 (d, J = 8.9 Hz, 2H), 6.83–6.79 (m, 3H), 6.70 (d, J = 2.4 Hz, 1H), 5.24 (d, J = 16.2 Hz, 1H), 5.21 (d, J = 16.2 Hz, 1H), 5.15 (s, 1H), 4.38–4.30 (m, 2H), 3.80 (s, 3H), 3.74 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.1, 166.7, 160.1, 154.3, 137.4, 137.2, 133.4, 132.3, 130.2 (2C), 129.3 (2C), 128.9 (2C), 128.8 (2C), 128.6, 127.9, 127.5, 126.8 (2C), 125.6, 114.9 (2C), 112.3, 111.6, 111.0, 101.1, 59.0, 55.9, 55.7, 50.5, 42.3. MS (ESI): m/z = 550 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H29ClN3O3+: 550.1892; found: 550.1895.
2-((1-Benzyl-5-methoxy-1H-indol-3-yl)(4-chlorophenyl)methyl)-1-(p-tolyl)-1H-imidazol-5(4H)-one (3n). Brownish oil; yield 128 mg (48%, method A); Rf = 0.44 (EtOAc– hexane, 1:1). IR (KBr): 3064, 3032, 2920, 2834, 1896, 1737, 1683, 1629, 1577, 1514, 1489, 1454, 1373, 1332, 1214, 1175, 1090, 1039, 1015, 910, 816, 797, 730, 704, 613 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.32–7.27 (m, 3H), 7.26–7.23 (m, 2H), 7.19 (d, J = 8.5 Hz, 2H), 7.14–7.10 (m, 3H), 7.07–7.04 (m, 2H), 6.87 (s, 1H), 6.85–6.79 (m, 3H), 6.68 (d, J = 2.4 Hz, 1H), 5.24 (d, J = 16.2 Hz, 1H), 5.20 (d, J = 16.2 Hz, 1H), 5.14 (s, 1H), 4.40–4.28 (m, 2H), 3.73 (s, 3H), 2.36 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 180.9, 166.6, 154.3, 139.4, 137.4, 137.2, 133.4, 132.3, 130.6, 130.3 (2C), 130.2 (2C), 128.9 (2C), 128.8 (2C), 128.7, 127.90, 127.8 (2C), 127.5, 126.8 (2C), 112.3, 111.7, 111.0, 101.2, 59.1, 56.0, 50.5, 42.3, 21.3. MS (ESI): m/z = 534 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H29ClN3O2+: 534.1942; found: 534.1947.
2-((1-Benzyl-5-methoxy-1H-indol-3-yl)(4-chlorophenyl)methyl)-1-(4-hydroxyphenyl)-1H-imidazol-5(4H)-one (3o). Brownish solid; mp 102–104 °C; yield 129 mg (40%, method A); Rf = 0.32 (EtOAc– hexane, 1:1). IR (KBr): 3250, 3064, 3033, 2963, 2951, 1734, 1717, 1684, 1624, 1514, 1489, 1456, 1339, 1271, 1218, 1173, 1090, 1014, 834, 735 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.29–7.27 (m, 2H), 7.26–7.22 (m, 4H), 7.16 (d, J = 8.4 Hz, 2H), 7.10 (d, J = 9.1 Hz, 1H), 7.04–7.01 (m, 2H), 6.82–6.78 (m, 2H), 6.70 (d, J = 2.4 Hz, 1H), 6.64 (d, J = 8.8 Hz, 2H), 6.52 (d, J = 8.8 Hz, 2H), 5.18 (d, J = 16.2 Hz, 1H), 5.14 (d, J = 16.2 Hz, 1H), 5.09 (s, 1H), 4.39–4.34 (m, 2H), 3.74 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.9, 167.1, 157.1, 154.2, 137.4, 136.8, 133.5, 132.3, 130.2 (2C), 129.3 (2C), 128.9 (2C), 128.8, 127.8 (2C), 127.4, 126.8 (2C), 124.6, 116.6 (2C), 115.9, 112.2, 111.4, 111.1, 101.2, 59.0, 56.0, 50.4, 42.3. MS (ESI): m/z = 536 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H27ClN3O3+: 536.1735; found: 536.1736.
1-Benzyl-2-((1-benzyl-1H-indol-3-yl)(4-methoxyphenyl)methyl)-1H-imidazol-5(4H)-one (3p) Brownish oil; yield 63 mg (25%, method B); Rf = 0.17 (EtOAc– hexane, 1:1). IR (KBr): 3060, 3030, 2926, 2836, 1885, 1727, 1678, 1627, 1510, 1466, 1384, 1334, 1249, 1173, 1029, 805, 741, 698 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.41–7.33 (m, 3H), 7.30–7.26 (m, 2H), 7.26–7.21 (m, 2H), 7.21–7.18 (m, 2H), 7.15 (ddd, J = 8.2, 7.0, 1.1 Hz, 1H), 7.13–7.09 (m, 3H), 7.07–7.04 (m, 2H), 7.02 (ddd, J = 8.0, 7.0, 1.0 Hz, 1H), 6.84 (d, J = 8.8 Hz, 2H), 6.83 (s, 1H), 5.29 (d, J = 16.2 Hz, 1H), 5.21 (d, J = 16.2 Hz, 1H), 5.18 (s, 1H), 4.58 (s, 2H), 4.32–4.29 (m, 2H), 3.77 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.3, 167.5, 159.1, 137.4, 137.1, 136.5, 134.6, 129.8 (2C), 129.2 (2C), 128.9 (2C), 128.2, 127.9, 127.8, 127.1, 127.0 (2C), 126.8 (2C), 122.5, 119.9, 118.9, 114.3 (2C), 112.8, 110.3, 58.6, 55.4, 50.3, 43.7, 42.4. MS (ESI): m/z = 500 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H30N3O2+: 500.2333; found: 500.2334.
2-((1-Benzyl-1H-indol-3-yl)(4-methoxyphenyl)methyl)-1-isopropyl-1H-imidazol-5(4H)-one (3q) Brownish oil; yield 77 mg (34%, method B); Rf = 0.43 (EtOAc– hexane, 1:1). IR (KBr): 3056, 3029, 2925, 2854, 1885, 1722, 1613, 1511, 1466, 1364, 1302, 1249, 1176, 1121, 1033, 966, 797, 740, 698, 621 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.43 (d, J = 8.0 Hz, 1H), 7.30–7.26 (m, 4H), 7.26–7.23 (m, 2H), 7.19 (ddd, J = 8.2, 7.1, 1.1 Hz, 1H), 7.10–7.07 (m, 3H), 6.91 (s, 1H), 6.88 (d, J = 8.8 Hz, 2H), 5.42 (s, 1H), 5.32–5.26 (m, 2H), 4.11–4.09 (m, 2H), 4.02–3.96 (m, 1H), 3.79 (s, 3H), 1.25 (d, J = 6.9 Hz, 3H), 1.22 (d, J = 6.8 Hz, 3H). 13C-NMR (150 MHz, CDCl3), δ = 181.9, 167.7, 159.0, 137.4, 137.2, 130.2, 129.9 (2C), 128.9 (2C), 127.8, 127.6, 127.1, 126.8 (2C), 122.6, 119.9, 119.1, 114.3 (2C), 113.0, 110.3, 58.8, 55.4, 50.3, 46.8, 42.8, 19.7, 19.6. MS (ESI): m/z = 452 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C29H30N3O2+: 452.2332; found: 492.2327.
2-((1-Benzyl-1H-indol-3-yl)(4-methoxyphenyl)methyl)-1-cyclohexyl-1H-imidazol-5(4H)-one (3r) Brownish oil; yield 85 mg (35%, method B); Rf = 0.31 (EtOAc– hexane, 1:1). IR (KBr): 3114, 3068, 3032, 2954, 2932, 2854, 1875, 1724, 1623, 1548, 1513, 1468, 1451, 1304, 1243, 1198, 1176, 1051, 1015, 974, 893, 854, 816, 795, 738, 699, 569 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.43 (d, J = 8.0 Hz, 1H), 7.30–7.26 (m, 5H), 7.26–7.22 (m, 1H), 7.21–7.17 (m, 1H), 7.11–7.07 (m, 3H), 6.82 (s, 1H), 6.88 (d, J = 8.7 Hz, 2H), 5.45 (s, 1H), 5.32–5.26 (m, 2H), 4.13–4.10 (m, 2H), 3.79 (s, 3H), 3.57–3.50 (m, 1H), 2.16–2.06 (m, 2H), 1.72–1.66 (m, 1H), 1.65–1.58 (m, 1H), 1.54–1.47 (m, 1H), 1.36–1.30 (m, 1H), 1.24–1.17 (m, 1H), 1.14–1.05 (m, 1H), 1.04–0.94 (m, 1H), 0.86–0.76 (m, 1H). 13C-NMR (150 MHz, CDCl3), δ = 181.6, 167.6, 159.0, 137.4, 137.1, 130.1, 129.9 (2C), 128.9 (2C), 127.8, 127.6, 127.1, 126.8 (2C), 122.6, 120.0, 119.1, 114.3 (2C), 113.2, 110.3, 58.6, 55.4, 55.1, 50.3, 42.8, 29.3, 29.1, 26.2, 26.1, 24.9. MS (ESI): m/z = 492 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H34N3O2+: 492.2646; found: 492.2649.
1-Benzyl-2-((1-benzyl-1H-indol-3-yl)(p-tolyl)methyl)-1H-imidazol-5(4H)-one (3s) Brownish oil; yield 64 mg (26%, method B); Rf = 0.44 (EtOAc– hexane, 1:1). IR (KBr): 3058, 3029, 2920, 2850, 1727, 1690, 1680, 1629, 1549, 1467, 1453, 1383, 1334, 1170, 1014, 910, 796, 730, 698 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.40–7.35 (m, 3H), 7.29–7.26 (m, 2H), 7.25–7.18 (m, 4H), 7.14 (ddd, J = 8.2, 7.0, 1.1 Hz, 1H), 7.13–7.10 (m, 3H), 7.08 (d, J = 8.2 Hz, 2H), 7.06–7.03 (m, 2H), 7.01 (ddd, J = 8.0, 7.0, 1.0 Hz, 1H), 6.82 (s, 1H), 5.28 (d, J = 16.2 Hz, 1H), 5.20 (d, J = 16.2 Hz, 1H), 5.19 (s, 1H), 4.58 (d, J = 16.2 Hz, 1H), 4.54 (d, J = 16.2 Hz, 1H), 4.29–4.27 (m, 2H), 2.31 (s, 3H). 13C-NMR (150 MHz, CDCl3), δ = 180.5, 167.3, 137.4, 137.3, 137.1, 136.5, 134.8, 129.7 (2C), 129.2 (2C), 128.9 (2C), 128.6 (2C), 128.2, 127.9, 127.8, 127.1, 127.0 (2C), 126.7 (2C), 122.5, 119.9, 119.0, 113.3, 110.3, 58.7, 50.3, 43.7, 42.9, 21.2. MS (ESI): m/z = 484 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H30BrClN3O+: 484.2383; found: 484.2384.
Ethyl-2-(2-(1-benzyl-1H-indol-3-yl)-N’-(2-chlorophenyl)-2-(p-tolyl)acetimidamido)acetate (10a). Light orange oil; yield 201 mg (73%, method A); Rf = 0.53 (EtOAc-hexane, 1:4). IR (KBr): 3428, 2978, 2924, 1741, 1634, 1509, 1468, 1194, 1030, 799, 739 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.39 (d, J = 8.0 Hz, 1H), 7.33–7.28 (m, 3H), 7.27–7.22 (m, 2H), 7.16–7.12 (m, 3H), 7.11–7.06 (m, 4H), 7.03 (ddd, J = 8.0, 5.4, 0.9 Hz, 1H), 6.99 (s, 1H), 6.87 (td, J = 7.6, 1.5 Hz, 1H), 6.83 (td, J = 7.6, 1.7 Hz, 1H), 6.43 (dd, J = 7.7, 1.5 Hz, 1H), 5.33–5.25 (m, 3H), 5.21 (s, 1H), 4.22–4.11 (m, 2H), 4.18 (q, J = 7.2 Hz, 2H), 2.34 (s, 3H), 1.25 (t, J = 7.2 Hz, 3H). 13C-NMR (150 MHz, CDCl3), δ = 170.8, 158.2, 147.4, 137.6, 137.1, 136.8, 136.7, 129.5, 129.4 (2C), 129.1, 128.9 (2C), 128.7 (2C), 127.7, 127.3, 126.8, 126.6 (2C), 126.5, 124.1, 123.0, 122.3, 119.9, 119.7, 114.2, 110.0, 61.2, 50.3, 44.8, 43.5, 21.3, 14.3. MS (ESI): m/z = 550 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C34H33ClN3O2+: 550.2256; found: 550.2258.
Ethyl-2-(2-(1-benzyl-1H-indol-3-yl)-N’-(4-bromo-2-chlorophenyl)-2-phenylacetimidamido)acetate (10b). Orange oil; yield 230 mg (75%, method A); Rf = 0.47 (EtOAc-hexane, 1:3). IR (KBr): 3429, 3063, 3030, 2979, 2928, 2160, 1951, 1885, 1742, 1631, 1511, 1466, 1375, 1196, 1029, 864, 818, 740 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.46 (d, J = 2.2 Hz, 1H), 7.42 (d, J = 8.0 Hz, 1H), 7.32–7.27 (m, 5H), 7.26–7.22 (m, 4H), 7.17 (ddd, J = 8.2, 7.1, 1.1 Hz, 1H), 7.10–7.04 (m, 3H), 6.95 (dd, J = 8.5, 2.2 Hz, 1H), 6.90 (s, 1H), 6.24 (d, J = 8.5 Hz, 1H), 5.38 (br s, 1H), 5.30 (d, J = 16.2 Hz, 1H), 5.26 (d, J = 16.2 Hz, 1H), 5.19 (s, 1H), 4.22-4.07 (m, 2H), 4.18 (q, J = 7.2 Hz, 2H), 1.24 (t, J = 7.2 Hz, 3H). 13C-NMR (150 MHz, CDCl3), δ = 170.5, 158.4, 146.7, 139.5, 137.5, 137.1, 131.9, 129.8, 129.2, 129.0 (2C), 128.9 (2C), 128.8 (2C), 127.8, 127.5, 127.4, 127.2, 126.7 (2C), 125.3, 122.6, 119.9, 119.8, 114.4, 113.8, 110.2, 61.3, 50.3, 45.4, 43.5, 14.3. MS (ESI): m/z = 614 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C33H30BrClN3O+: 614.1204; found: 614.1208.
Methyl-4-((2-(1-benzyl-1H-indol-3-yl)-1-((2-ethoxy-2-oxoethyl)amino)-2-(p-tolyl) ethylidene) amino)benzoate (10c). Brownish oil; yield 189 mg (66%, method A); Rf = 0.47 (EtOAc-hexane, 1:3). IR (KBr): 3419, 3056, 3027, 2971, 2930, 1752, 1705, 1634, 1594, 1519, 1497, 1467, 1435, 1281, 1255, 1190, 1167, 1112, 1101, 1015, 964, 916, 875, 804, 777, 730, 711, 696, 600 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.83 (d, J = 8.5 Hz, 2H), 7.32–7.28 (m, 3H), 7.27–7.21 (m, 2H), 7.17 (ddd, J = 8.0, 7.1, 1.0 Hz, 1H), 7.14–7.09 (m, 4H), 7.08–7.04 (m, 3H), 6.93 (s, 1H), 6.71 (d, J = 5.5 Hz, 2H), 5.33 (s, 1H), 5.30 (d, J = 16.2 Hz, 1H), 5.26 (d, J = 16.2 Hz, 1H), 4.17 (q, J = 7.2 Hz, 2H), 4.14–4.00 (m, 2H), 3.86 (s, 3H), 2.34 (s, 3H), 1.24 (t, J = 7.2 Hz, 3H). 13C-NMR (150 MHz, CDCl3), δ = 170.8, 167.4, 153.1, 152.0, 137.5, 137.2, 137.0, 131.7, 130.6 (2C), 129.6 (2C), 128.9 (2C), 128.5 (2C), 127.8 (2C), 127.2, 126.6(2C), 124.0, 122.6, 122.3, 122.2, 119.9, 119.4, 113.9, 110.2, 61.3, 51.9, 50.3, 44.2, 43.5, 21.3, 14.3. MS (ESI): m/z = 574 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C36H36N3O4+: 574.2700; found: 574.2703.
Ethyl-2-(2-(1-benzyl-1H-indol-3-yl)-N’-(tert-butyl)-2-(4-methoxyphenyl)acetimidamido)acetate (10d) Brownish oil; yield 100 mg (43%, method A); Rf = 0.40 (EtOAc– hexane, 1:1). IR (KBr): 3412, 3059, 3030, 2957, 2932, 2836, 1738, 1638, 1611, 1583, 1510, 1466, 1453, 1357, 1249, 1177, 1110, 1034, 820, 808, 742, 696 cm−1. 1H-NMR (600 MHz, CDCl3), δ = 7.51 (d, J = 8.0 Hz, 1H), 7.29–7.21 (m, 6H), 7.20–7.06 (m, 2H), 7.02–6.96 (m, 2H), 6.87 (d, J = 8.8 Hz, 2H), 6.64 (s, 1H), 5.35 (s, 1H), 5.29 (d, J = 16.2 Hz, 1H), 5.23 (d, J = 16.2 Hz, 1H), 4.24–4.00 (m, 5H), 3.81 (s, 3H), 1.26 (s, 12H). 13C-NMR (150 MHz, CDCl3), δ = 173.2, 158.9, 158.6, 137.7, 137.1, 131.8, 129.8 (2C), 128.9 (2C), 128.5, 127.7, 127.5, 126.4 (2C), 122.5, 119.9, 119.8, 115.4, 114.3 (2C), 110.0, 60.4, 57.8, 55.4, 51.1, 50.1, 43.4, 28.6 (3C), 14.4. MS (ESI): m/z = 512 [M + H]+; HRMS (TOF ES+): m/z [M + H]+ calcd for C32H38N3O3+: 512.2908; found: 512.2911.
Ethyl-2-((2-(1-benzyl-1H-indol-3-yl)-1-((benzyloxy)amino)-2-(4-methoxyphenyl)ethylidene)amino)acetate (10e). Orange oil; yield 205 mg (73%, method A); Rf = 0.67 (EtOAc-hexane, 1:3). IR (KBr): 3403, 3059, 3030, 2979, 2931, 2836, 1743, 1632, 1611, 1510, 1496, 1466, 1453, 1370, 1247, 1201, 1177, 1028, 820, 741, 697cm−1. 1H-NMR (600 MHz, CDCl3, mixture of tautomers 1:1), δ = 7.42 (d, J = 8.0 Hz, 1H), 7.39–7.36 (m, 2H), 7.33–7.26 (m, 12H), 7.26–7.19 (m, 9H), 7.17–7.12 (m, 2H), 7.09–7.05 (m, 4H), 7.04–7.00 (m, 2H), 6.87 (dd, J = 8.6 Hz, 2H), 6.84–6.80 (m, 4H), 6.02 (s, 1H), 5.72 (br s, 1H), 5.29–5.22 (m, 4H), 5.17 (s, 1H), 5.02–4.97 (m, 2H), 4.92–4.83 (m, 2H), 4.22 (br s, 1H), 4.16–4.02 (m, 4H), 3.90–3.75 (m, 4H), 3.81 (s, 3H), 3.79 (s, 3H), 1.20 (t, J = 7.2 Hz, 3H), 1.18 (t, J = 7.2 Hz, 3H). 13C-NMR (150 MHz, CDCl3, mixture of tautomers 1:1), δ = 170.8, 170.5, 158.5, 158.4, 158.1, 154.5, 138.9, 138.8, 137.8, 137.6, 137.0, 136.9, 131.9, 131.4, 129.9 (2C), 129.8 (2C), 128.9 (2C), 128.8 (2C), 128.7, 128.5 (2C), 128.4 (2C), 128.3 (2C), 128.1 (2C), 128.0, 127.7, 127.6, 127.59, 127.57, 127.4, 126.6 (2C), 122.3, 122.1, 120.0, 119.7, 119.6, 119.5, 114.3, 114.03 (2C), 113.98, 113.8 (2C), 110.0, 109.9, 75.6, 75.3, 61.4, 61.0, 55.4, 55.3, 50.2, 50.1, 44.7, 43.9, 42.8, 40.2, 14.24, 14.18. MS (ESI): m/z = 562 [M − H]+; HRMS (TOF ES+): m/z [M − H]+ calcd for C35H36N3O4+: 562.2711; found: 562.2706.
Ethyl-2-(2-(1-benzyl-1H-indol-3-yl)-N’-(benzyloxy)-2-(p-tolyl)acetimidamido)acetate (10f). Orange oil; yield 109 mg (60%, method A); Rf = 0.44 (EtOAc-hexane, 1:5). IR (KBr): 3405, 3028, 2979, 2919, 2861, 1742, 1631, 1511, 1496, 1467, 1453, 1371, 1334, 1200, 1024, 910, 807, 777, 740, 697 cm−1. 1H-NMR (600 MHz, CDCl3, mixture of tautomers 1:1), δ = 7.42 (d, J = 8.0 Hz, 1H), 7.40–7.37 (m, 2H), 7.33–7.26 (m, 11H), 7.26–7.18 (m, 10H), 7.17–7.12 (m, 4H), 7.09 (d, J = 8.0 Hz, 2H), 7.08–7.05 (m, 4H), 7.02 (ddd, J = 8.0, 7.0, 1.0 Hz, 2H), 6.83 (dd, J = 2.9, 0.7 Hz, 2H), 6.04 (s, 1H), 5.73 (br s, 1H), 5.29–5.23 (m, 4H), 5.20 (s, 1H), 5.00 (m, 2H), 4.91–482 (m, 2H), 4.23 (br s, 1H), 4.11–4.00 (m, 4H), 3.91–3.75 (m, 4H), 2.36 (s, 3H), 2.33 (s, 3H), 1.20 (t, J = 7.2 Hz, 3H), 1.18 (t, J = 7.2 Hz, 3H). 13C-NMR (150 MHz, CDCl3, mixture of tautomers 1:1), δ = 170.8, 170.5, 158.1, 154.4, 138.9, 138.8, 137.8, 137.6, 137.0, 136.9, 136.7, 136.4, 136.3, 136.2, 129.4 (2C), 129.2 (2C), 128.9 (2C), 128.8 (2C), 128.7 (2C), 128.6, 128.5 (2C), 128.3 (2C), 128.1 (2C), 128.0, 127.8, 127.7. 127.6, 127.5 (2C), 127.4, 127.1, 126.8, 126.6 (2C), 126.5 (2C), 122.3, 122.1, 120.0, 119.7, 119.6, 119.5, 114.1, 113.8, 110.0, 109.8, 75.6, 75.3, 61.3, 61.0, 50.2, 50.1, 44.7, 43.9, 43.2, 40.6, 21.3, 21.2, 14.3, 14.2. MS (ESI): m/z = 546 [M − H]+; HRMS (TOF ES+): m/z [M − H]+ calcd for C35H36N3O3+: 546.2762; found: 546.2756.

4. Conclusions

We have developed a new three-component reaction of 3-arylidene-3H-indolium salt, isocyanide and amine leading to N,N-disubstituted aryl(indol-3-yl)acetimidamides with yields up to 96%. We have also shown that in the case of ethyl isocyanoacetate the cyclization to form 3,5-dihydro-4H-imidazol-4-one (1H-imidazol-5(4H)-one) fragment could take place. These reactions furnish a new practical synthetic approach to a series of compounds with a privileged indole scaffold, which are prospective choices for seeking new physiologically active compounds.

Supplementary Materials

The following are available online.

Author Contributions

Conceptualization, N.E.G., H.M.N. and L.G.V.; methodology, N.E.G. and H.M.N.; investigation, H.M.N., A.S.G.; resources, N.E.G. and L.G.V.; X-ray analysis V.B.R.; writing, H.M.N., N.E.G. and A.S.G.; supervision, L.G.V.; project administration, N.E.G.; funding acquisition, L.G.V. All authors have read and agreed to the published version of the manuscript.

Funding

The publication has been prepared with the support of the Russian Science Foundation (project No. 18-73-10057).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Dataset presented in this study is available in this article.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available on request from the authors.

References

  1. Sadjadi, S.; Heravi, M.M.; Nazari, N. Isocyanide-based multicomponent reactions in the synthesis of heterocycles. RSC Adv. 2016, 6, 53203–53272. [Google Scholar] [CrossRef]
  2. Váradi, A.; Palmer, T.C.; Dardashti, R.N.; Majumdar, S. Isocyanide-based multicomponent reactions for the synthesis of heterocycles. Molecules 2016, 21, 19. [Google Scholar] [CrossRef] [Green Version]
  3. Dömling, A.; Ugi, I. Multicomponent reactions with isocyanides. Angew. Chem. Int. Ed. 2000, 39, 3168–3210. [Google Scholar] [CrossRef]
  4. Zarganes-Tzitzikas, T.; Chandgude, A.L.; Dömling, A. Multicomponent Reactions, Union of MCRs and beyond. Chem. Rec. 2015, 15, 981–996. [Google Scholar] [CrossRef] [PubMed]
  5. Koopmanschap, G.; Ruijter, E.; Orru, R.V.A. Isocyanide-based multicomponent reactions towards cyclic constrained peptidomimetics. Beilstein J. Org. Chem. 2014, 10, 544–598. [Google Scholar] [CrossRef] [PubMed]
  6. Dömling, A. Recent developments in isocyanide based multicomponent reactions in applied chemistry. Chem. Rev. 2006, 106, 17–89. [Google Scholar] [CrossRef]
  7. Dömling, A.; Wang, W.; Wang, K. Chemistry and biology of multicomponent reactions. Chem. Rev. 2012, 112, 3083–3135. [Google Scholar] [CrossRef] [Green Version]
  8. Biggs-Houck, J.E.; Younai, A.; Shaw, J.T. Recent advances in multicomponent reactions for diversity-oriented synthesis. Curr. Opin. Chem. Biol. 2010, 14, 371–382. [Google Scholar] [CrossRef]
  9. Bariwal, J.; Kaur, R.; Voskressensky, L.G.; Van der Eycken, E.V. Post-Ugi cyclization for the construction of diverse heterocyclic compounds: Recent updates. Front. Chem. 2018, 6, 557. [Google Scholar] [CrossRef]
  10. Ugi, I. The α-Addition of Immonium Ions and Anions to Isonitriles Accompanied by Secondary Reactions. Angew. Chem. Int. Ed. 1962, 1, 8–21. [Google Scholar] [CrossRef]
  11. Nutt, R.F.; Joullié, M.M. The Four-Component Condensation: A New Versatile Method for the Synthesis of Substituted Prolyl Peptides. J. Am. Chem. Soc. 1982, 104, 5852–5853. [Google Scholar] [CrossRef]
  12. Nenajdenko, V.G.; Gulevich, A.V.; Balenkova, E.S. The Ugi reaction with 2-substituted cyclic imines. Synthesis of substituted proline and homoproline derivatives. Tetrahedron 2006, 62, 5922–5930. [Google Scholar] [CrossRef]
  13. Gulevich, A.V.; Shevchenko, N.E.; Balenkova, E.S.; Röschenthaler, G.-V.; Nenajdenko, V.G. Efficient multicomponent synthesis of α-trifluoromethyl proline, homoproline, and azepan carboxylic acid dipeptides. Synlett 2009, 3, 403–406. [Google Scholar] [CrossRef]
  14. Shmatova, O.I.; Nenajdenko, V.G. Synthesis of tetrazole-derived organocatalysts via azido-ugi reaction with cyclic ketimines. J. Org. Chem. 2013, 78, 9214–9222. [Google Scholar] [CrossRef] [PubMed]
  15. Borisov, R.S.; Voskressensky, L.G.; Polyakov, A.I.; Borisova, T.N.; Varlamov, A.V. A concise approach toward tetrazolyl-substituted benzazocines via a novel isocyanide-based multicomponent reaction. Synlett 2014, 25, 955–958. [Google Scholar] [CrossRef]
  16. Voskressensky, L.G.; Titov, A.A.; Samavati, R.; Kobzev, M.S.; Dorovatovskii, P.V.; Khrustalev, V.N.; Hong, H.C.; An Dang Thi, T.; Nguyen Van, T.; Sorokina, E.A.; et al. Synthesis of 1-tetrazolyl-substituted 2,3,4,9-tetrahydro-1H-carbolines and their transformations involving activated alkynes. Chem. Heterocycl. Compd. 2017, 53, 575–581. [Google Scholar] [CrossRef]
  17. Nazeri, M.T.; Farhid, H.; Mohammadian, R.; Shaabani, A. Cyclic Imines in Ugi and Ugi-Type Reactions. ACS Comb. Sci. 2020, 22, 361–400. [Google Scholar] [CrossRef]
  18. Hulme, C.; Dietrich, J. Emerging molecular diversity from the intramolecular Ugi reaction: Iterative efficiency in medicinal chemistry. Mol. Divers. 2009, 13, 195–207. [Google Scholar] [CrossRef]
  19. Kaïm, L.E.; Grimaud, L. Ugi–Smiles couplings: New entries to N-aryl carboxamide derivatives. Mol. Divers. 2010, 14, 855–867. [Google Scholar] [CrossRef] [PubMed]
  20. Sharma, U.K.; Sharma, N.; Vachhani, D.D.; Van der Eycken, E.V. Metal-mediated post-Ugi transformations for the construction of diverse heterocyclic scaffolds. Chem. Soc. Rev. 2015, 44, 1836–1860. [Google Scholar] [CrossRef] [Green Version]
  21. Xiuming, L.; Xueshun, J.; Liang, Y. Recent progress on post-Ugi reaction. Chin. J. Org. Chem. 2017, 37, 2237–2249. [Google Scholar] [CrossRef]
  22. Golantsov, N.E.; Nguyen, H.M.; Golubenkova, A.S.; Varlamov, A.V.; Van der Eycken, E.V.; Voskressensky, L.G. Three-component reaction of 3-arylidene-3H-indolium salts, isocyanides, and alcohols. Front. Chem. 2019, 7, 345. [Google Scholar] [CrossRef] [PubMed]
  23. Follet, E.; Berionni, G.; Mayer, P.; Mayr, H. Structure and reactivity of indolylmethylium ions: Scope and limitations in synthetic applications. J. Org. Chem. 2015, 80, 8643–8656. [Google Scholar] [CrossRef]
  24. Barbero, M.; Buscaino, R.; Cadamuro, S.; Dughera, S.; Gualandi, A.; Marabello, D.; Cozzi, P.G. Synthesis of bench-stable diarylmethylium tetrafluoroborates. J. Org. Chem. 2015, 80, 4791–4796. [Google Scholar] [CrossRef] [PubMed]
  25. Barreiro, E.J. Privileged Scaffolds in Medicinal Chemistry: An Introduction. In Privileged Scaffolds in Medicinal Chemistry: Design, Synthesis, Evaluation; Bräse, S., Ed.; Royal Society of Chemistry: London, UK, 2015; pp. 5–6. [Google Scholar] [CrossRef]
  26. Khan, A.T.; Sidick Basha, R.; Lal, M.; Mir, M.H. Formation of unexpected α-amino amidine through three-component ‘UGI condensation reaction’. RSC Adv. 2012, 2, 5506–5509. [Google Scholar] [CrossRef]
  27. Rybakov, V.B.; Nguyen, H.M.; Golantsov, N.E.; Voskressensky, L.G. CCDC 1993787. Exp. Cryst. Struct. Determ. 2020. [Google Scholar] [CrossRef]

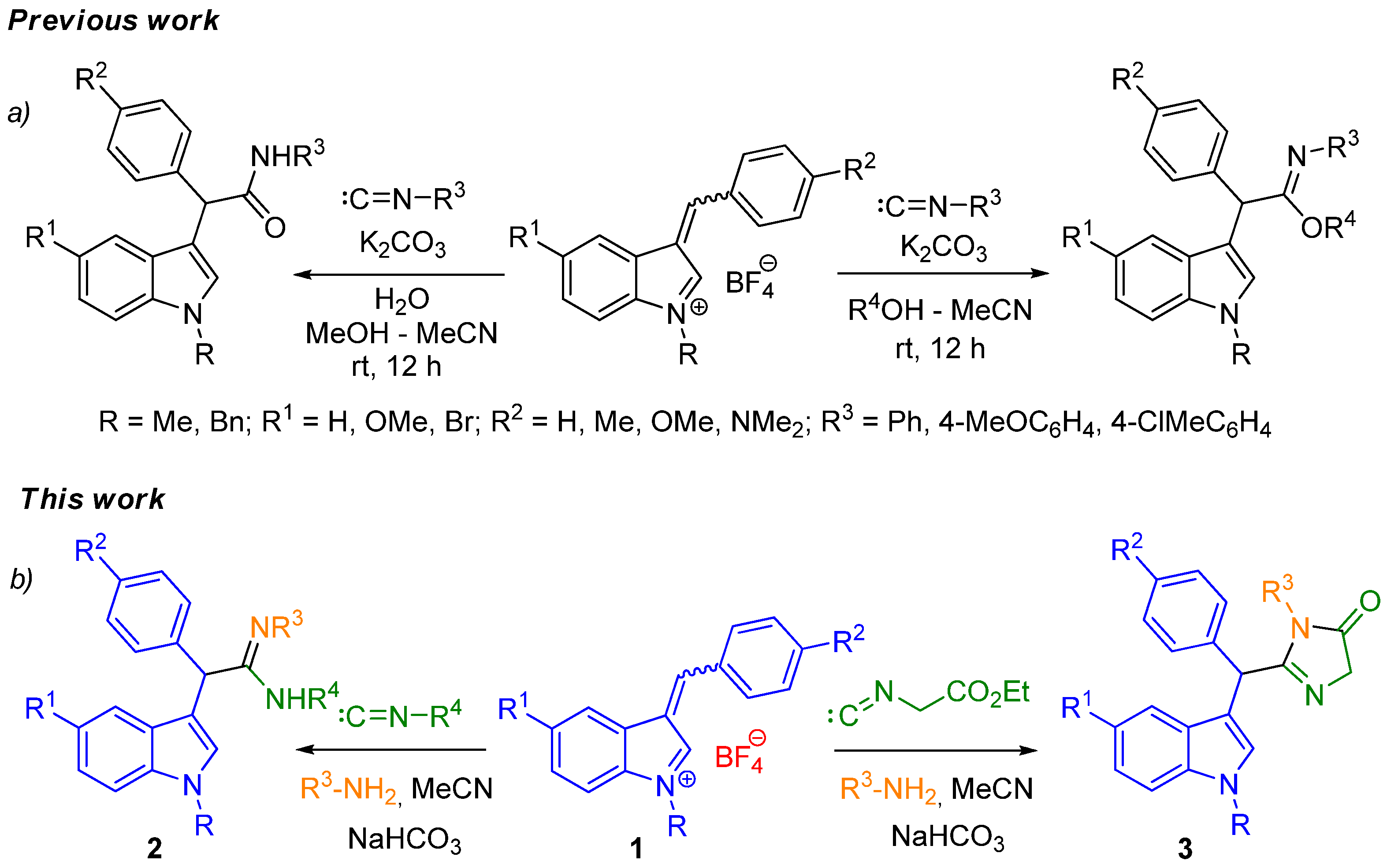

Scheme 1. Reactions of 3-arylidene-3H-indolium salts with isocyanides: (a) our previous work; (b) this work.
Scheme 1. Reactions of 3-arylidene-3H-indolium salts with isocyanides: (a) our previous work; (b) this work.
Molecules 26 02402 sch001

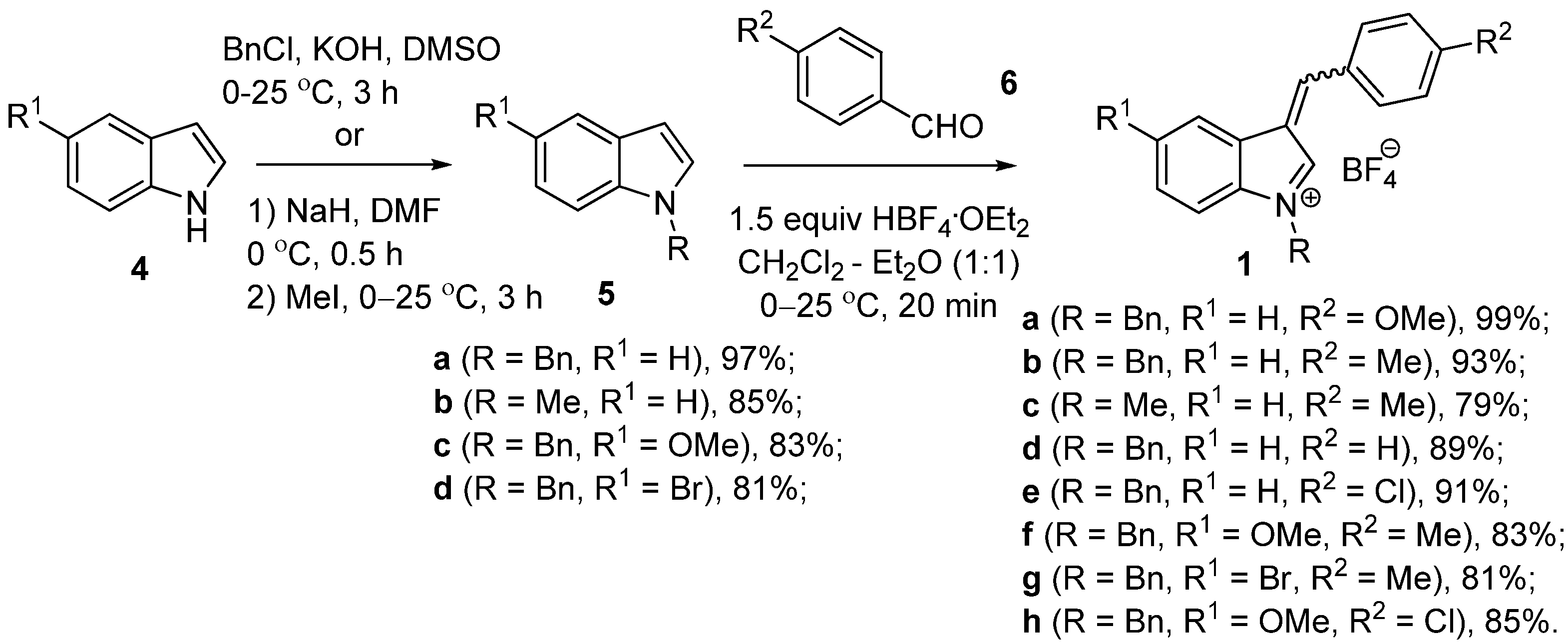

Scheme 2. Synthesis of 3-arylidene-3H-indolium salts 1ah.
Scheme 2. Synthesis of 3-arylidene-3H-indolium salts 1ah.
Molecules 26 02402 sch002

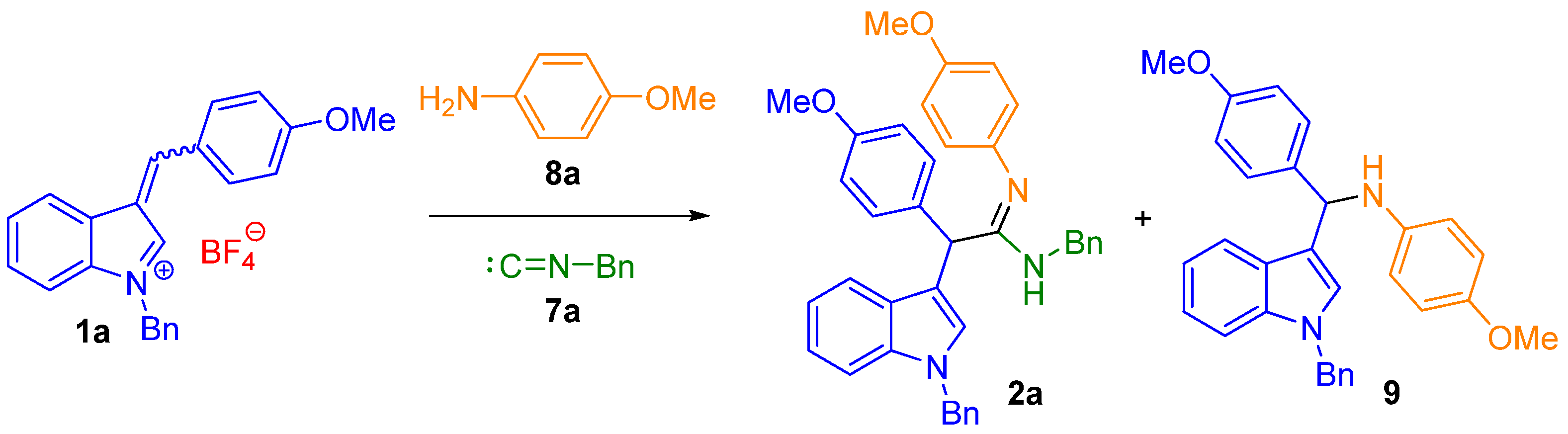

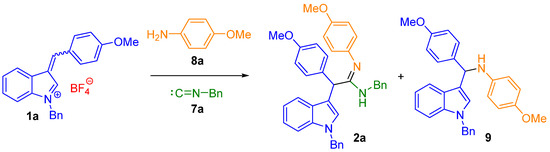

Scheme 3. Reaction of salt 1a with isonitrile 7a and amine 8a.
Scheme 3. Reaction of salt 1a with isonitrile 7a and amine 8a.
Molecules 26 02402 sch003

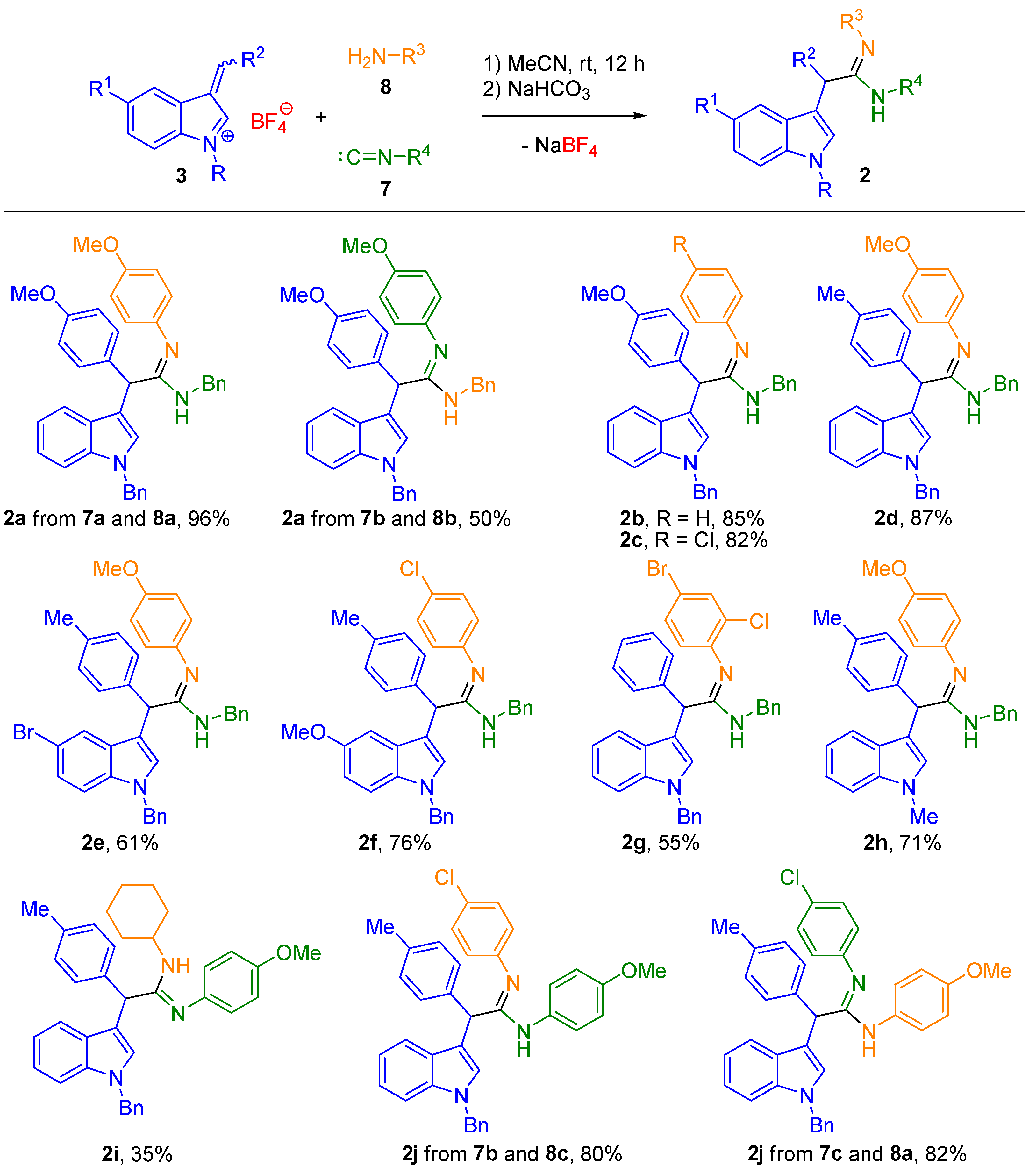

Scheme 4. Synthesis of imidamides 2.
Scheme 4. Synthesis of imidamides 2.
Molecules 26 02402 sch004

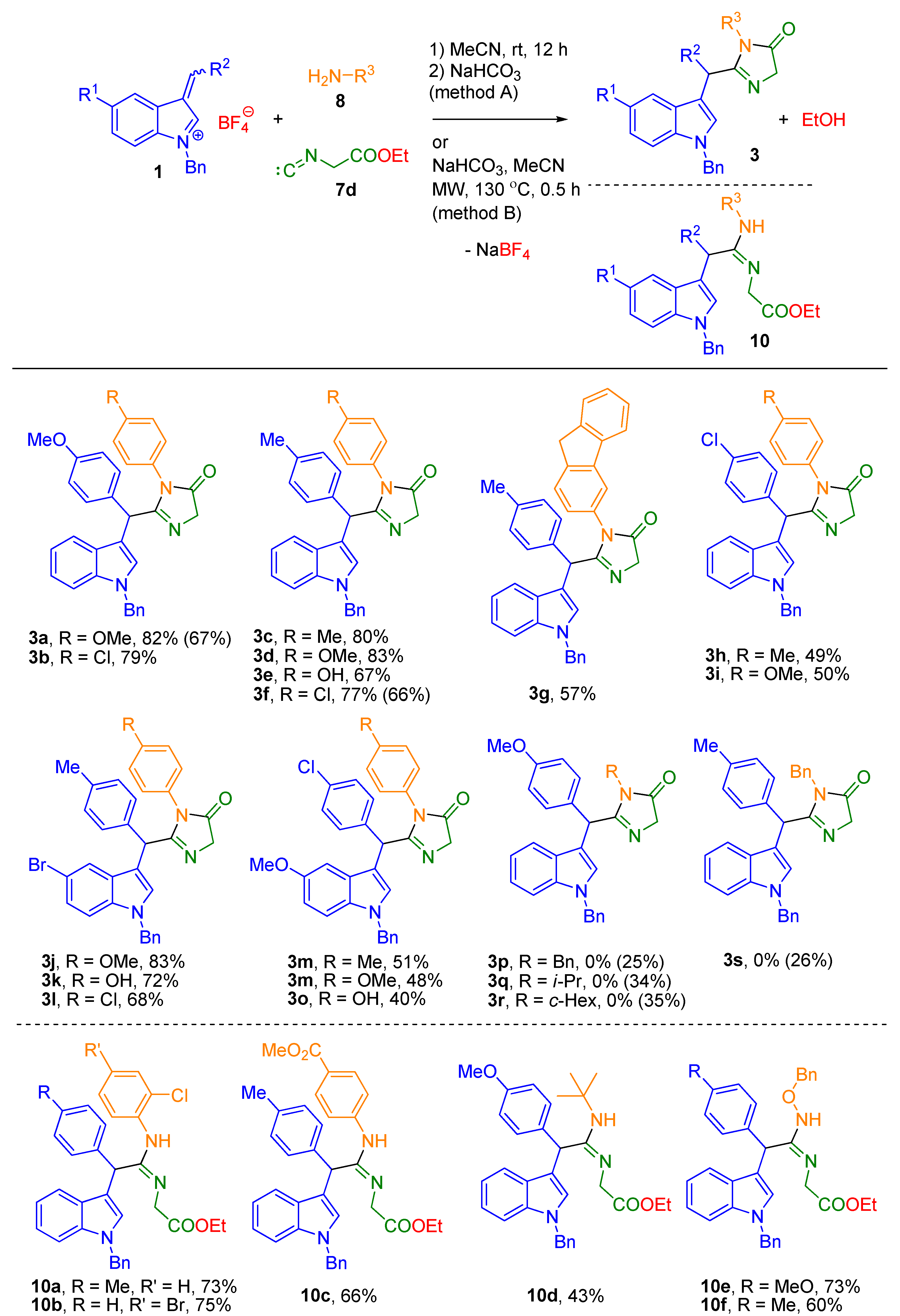

Scheme 5. Reactions of 3-arylidene-3H-indolium salts 1 with isonitrile 7d and amines 8. The yields of imidazolones 3 obtained by method B are indicated in parentheses.
Scheme 5. Reactions of 3-arylidene-3H-indolium salts 1 with isonitrile 7d and amines 8. The yields of imidazolones 3 obtained by method B are indicated in parentheses.
Molecules 26 02402 sch005

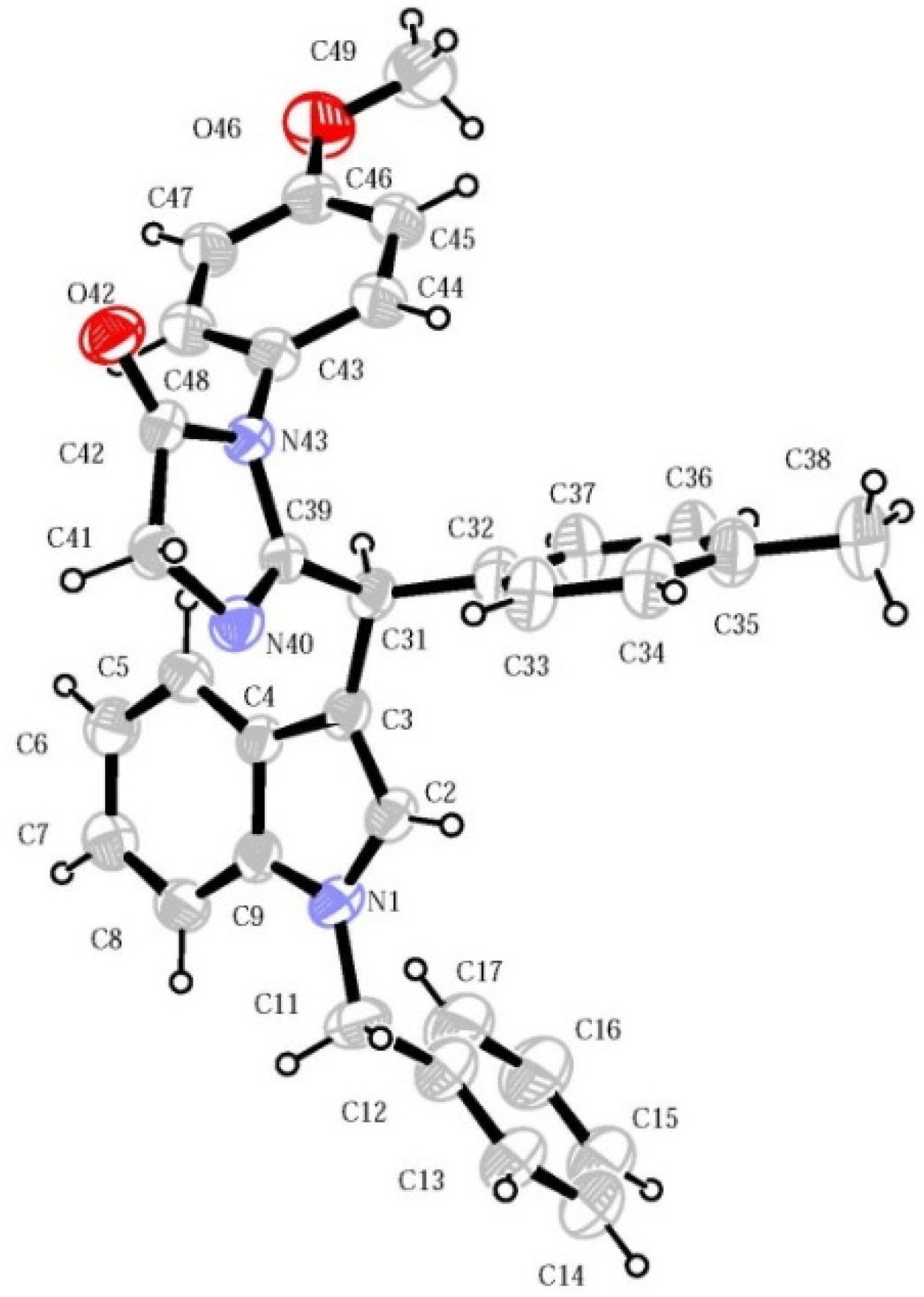

Figure 1. Crystal structure of imidazolone 3d.
Figure 1. Crystal structure of imidazolone 3d.
Molecules 26 02402 g001

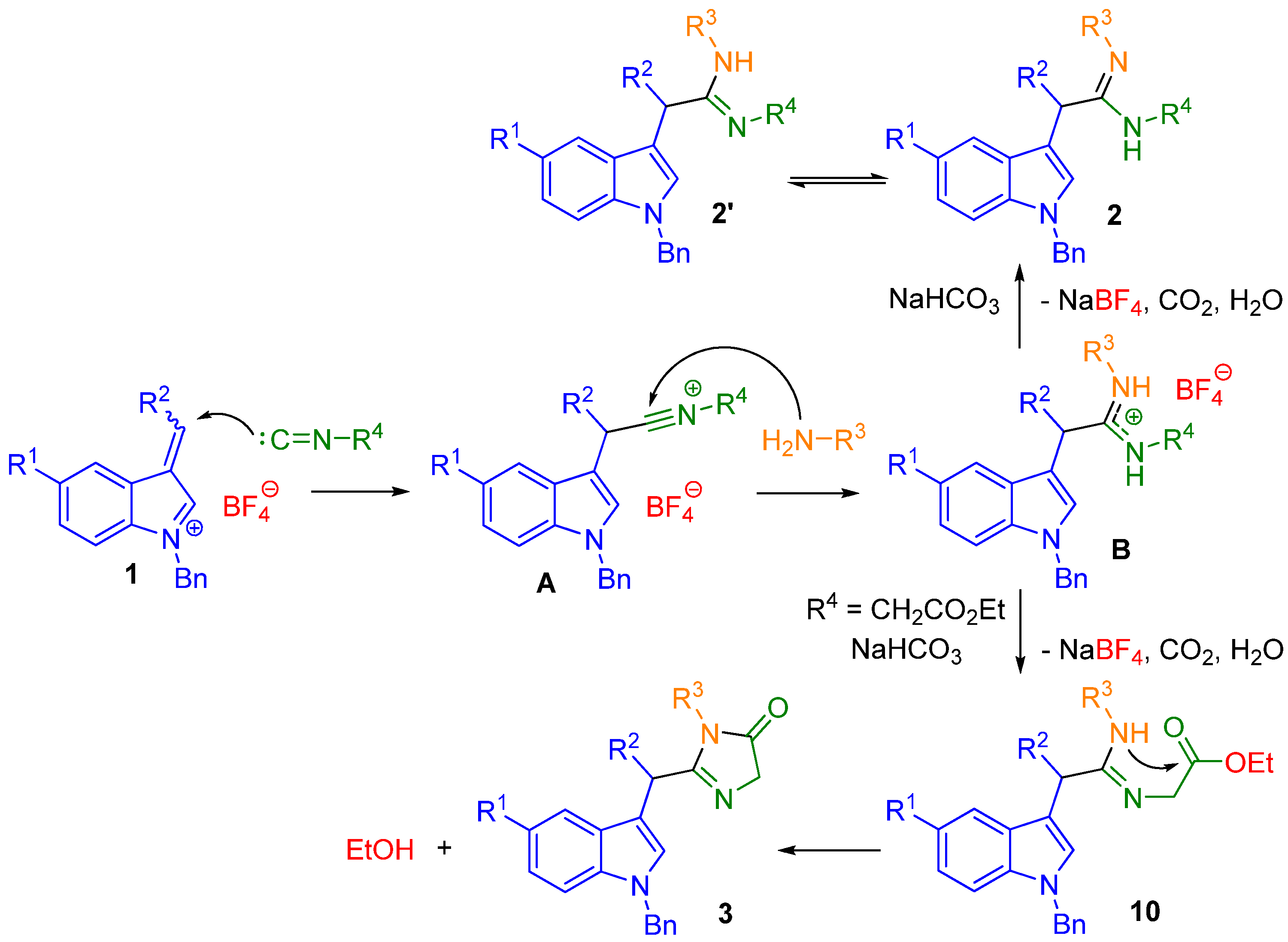

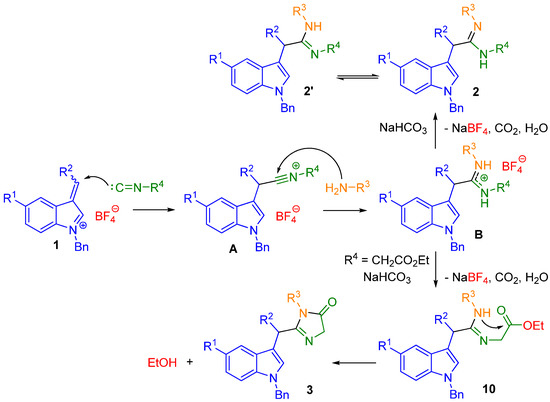

Scheme 6. Proposed mechanism for the reactions of 3-arylidene-3H-indolium salts 1 with isocyanides 7 and amines 8.
Scheme 6. Proposed mechanism for the reactions of 3-arylidene-3H-indolium salts 1 with isocyanides 7 and amines 8.
Molecules 26 02402 sch006
Table 1. Reaction optimization for imidamide 2a synthesis.
Table 1. Reaction optimization for imidamide 2a synthesis.
EntrySolventTemperature (°C)Time (h)Yield (%) a
1 bMeOH20 °C12 h53 (10)
2 bEtOH20 °C12 h64 (5)
3 bToluene20 °C12 h85 (3)
4 b1,4-Dioxane20 °C12 h71 (8)
5 bDMF20 °C12 h67 (10)
6 bMeCN20 °C3 h75 (traces)
7 bMeCN20 °C6 h92 (traces)
8 bMeCN20 °C12 h96 (traces)
9 bMeCN82 °C1 h34 (21)
10 cMeCN20 °C12 h(40)
a The yield of 9 is indicated in parentheses; b Conditions: (1) 1.3 equiv. 7a, 1.2 equiv. 8a; (2) NaHCO3; c isocyanide 7a was not added.
