Ultrasound-Assisted Synthesis of Fluorescent Azatetracyclic Derivatives: An Energy-Efficient Approach

by
Gheorghita Zbancioc
1,*,
Catalina-Ionica Ciobanu
2,
Ionel I. Mangalagiu
1,2 and
Costel Moldoveanu
1,*
1
Chemistry Department, Alexandru Ioan Cuza University of Iasi, Carol I Bvd., 700506 Iasi, Romania
2
Institute of Interdisciplinary Research-CERNESIM Centre, Alexandru Ioan Cuza University of Iasi, Carol I Bvd., 700506 Iasi, Romania
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(10), 3180; https://doi.org/10.3390/molecules27103180
Submission received: 28 March 2022 / Revised: 12 May 2022 / Accepted: 14 May 2022 / Published: 16 May 2022
(This article belongs to the Special Issue Recent Progress in Green Organic Synthesis)
Browse Figures
Versions Notes

Abstract

:
We report here an energy-efficient and straight synthesis of two new classes of derivatized fluorescent azatetracycles under ultrasound (US) irradiation. A first class of azatetracyclic compounds was synthesized by heterogeneous catalytic bromination of the α-keto substituent attached to the pyrrole moiety of the tetracyclic cycloadducts, while for the second, one class was synthesized by nucleophilic substitution of the bromide with the azide group. Comparative with conventional thermal heating (TH) under US irradiation, both types of reactions occur with substantially higher yields, shortened reaction time (from days to hours), lesser energy consumed, easier workup of the reaction, and smaller amounts of solvent required (at least three to five-fold less compared to TH), which make these reactions to be considered as energy efficient. The derivatized azatetracycle are blue emitters with λmax of fluorescence around 430–445 nm. A certain influence of the azatetracycle substituents concerning absorption and fluorescent properties was observed. Compounds anchored with a bulky azide group have shown decreased fluorescence intensity compared with corresponding bromides.

Graphical Abstract

1. Introduction

In the recent years, ultrasound (US)-assisted reactions have become a modern and successful tool in organic and medicinal chemistry. US irradiation of organic reactions has several important advantages in terms of higher yields, increased purity of the compounds and selectivity, shorter reaction times, lower costs, and simplicity in handling and processing in comparison with conventional thermal heating (TH), being a facile alternative to several organic syntheses [1,2,3,4,5,6,7,8]. In addition, due to milder reaction conditions, less or no side reactions, the use of small amounts of solvents, and the energy-saving nature, the reaction can be considered eco-friendly [9,10,11].
Comparative with other derivatives, organic fluorophores have some undeniable advantages such us a wide spectral range, small size, great photostability, and, in many cases, high brightness. They are now widely used in drug discovery, cellular imaging, environmental analysis, and various medical applications. Probe structure can be varied to control excitation and emission wavelengths, target-binding affinity, chemical reactivity, and subcellular localization [12].
The structural arrangement of the azatetracycles, 18 π-electron N-fused heterocycles, containing a bridgehead nitrogen atom shared by an electron-excessive pyrrole and an azine electron-deficient six-membered ring, make them a pure blue-emitting moiety [13,14,15,16,17]. This uneven π-electron distribution between the two fused rings and the planar geometry (due to the sp2 hybridization of all the atoms in the fused ring) of the molecule is an important feature that leads to electron delocalization.
Moreover, the potential applications for medicinal chemistry as antimicrobial [18], antifungal [19], anticancer [20], and antituberculosis [21] agents and their fluorescence emission [22,23,24] increased the interest in the azaheterocycles field. The combined use of the two distinct properties (biological and optical) has suggested interesting applications as fluorescent biomarkers [13,25,26,27].
Our group focused on the dipolar cycloaddition reactions of azinium ylides with various dipolarophiles in order to obtain new compounds with fluorescent properties and biological activities [28,29,30,31,32,33,34,35,36]. We also added additional contributions in the field of using US irradiation in organic synthesis [1,2,3,4,5,37]. Herein, we propose a facile, efficient, and environmentally friendly method using US irradiation for the derivatization of previously obtained blue-emitting derivatives. The goal of the derivatization of these compounds was to increase their reactivity in order to make them easier to bind to various biomacromolecules of interest. Through this binding, the molecules can be labeled, facilitating their identification in order to study their mechanisms of action in the biological environment. Thus, these derivatives can be used as fluorescent azatetracyclic building blocks.

2. Results and Discussion

In previous studies [13], we halogenated the carbonyl group in α-position, obtaining halogenated derivatives with enhanced reactivity, which represent building blocks in the synthesis of fluorescent compounds. These derivatives can be incorporated into biological macromolecules (peptides, proteins, polysaccharides, lipides, and DNA) in order to fluorescent labeling those.
In the present study, we applied this functionalization to the azatetracyclic derivatives that we previously obtained [37]. Thus, the tetracyclic cycloadduct products 1a–d were subjected to the bromination in heterogeneous catalysis using copper (II) bromide in chloroform/ethyl acetate, as is presented in Scheme 1.
This reaction system is highly regioselective, leading only to α-bromo-derivatives, but less selective regarding to the resulting mono or dibrominated product. Using this procedure, we performed the bromination of cycloadducts 1a–d with copper (II) bromide, both under conventional TH, and US irradiation in order to study the reaction selectivity. In Table 1, the optimized conditions we employed are listed.
As can be observed from Scheme 1 and Table 1, the major disadvantages of the bromination reaction under conventional TH are long reaction time (one day) and moderate yield (46 to 54%). In addition, under conventional TH, in the case of the 1a–c tetracyclic derivatives bromination, both monobrominated 2a–c (as major product) and dibrominated 3a–c (as minor product) products were obtained. In the case of the 1d tetracyclic derivative bromination, only the monobrominated 2d product was obtained, most probably because of the steric hindrance between the carbomethoxy from the second position and the methyl from the propanoyl group.
Under US irradiation, these disadvantages were eliminated since the reaction time was shortened from one day to one hour, the yield was increased by 15 to 20%, and the most important, selectivity to the monobrominated product is increased to specificity (no dibrominated product was observed). In addition, the solvent amounts used under this procedure were five times lower than the corresponding quantities used under conventional conditions (see Experimental). Since the used solvent was a toxic halogenated compound, the reduction of its used amount qualifies the US-assisted reactions as less polluting.
The efficiency of US irradiation in the bromination reactions could be explained by the cavitation phenomena leading to enhanced mass transfer and better homogenization of the reaction mixture as previously reported [3].
The bromo derivatives with increased reactivity are valuable intermediary in synthetic chemistry, because they could be used as alkylating agents for direct chemical labelling of proteins targets cysteine and amine groups. Moreover, these brominated products can be easier converted to the corresponding azides using the procedure described in the literature [37,38]. The resulted azides are also highly valuable intermediary in synthetic chemistry since they can be used in the click chemistry, being extraordinary stabled toward H2O, O2, and the majority of organic synthesis condition [39]. In Scheme 2 is presented the reaction pathway for the synthesis of the new azides.
The reaction of the bromoderivatives with sodium azide in CHCl3/H2O mixture in the presence of the phase transfer catalyst tetrabutylammonium bromide (TBAB) took place at room temperature under vigorous stirring. The corresponding azides were obtained with good yield, but the major disadvantage was the reaction time (48 h).
To reduce the reaction time, we performed the reaction under US. In Table 2, the optimized condition and the corresponding yield are presented.
The data from Table 2 show that under US irradiation the reaction times decrease substantially from 2 days to 2 hours and the yield was improved by 10–15%. The efficiency of US irradiation in these reactions could be explained by the same cavitation phenomena. The solvent amounts used in the case of the US assisted reaction were at least three times lower than the corresponding quantities used under conventional conditions (see Experimental Section). Since the used solvent was a toxic halogenated compound, the reduction of its used amount qualifies the former reactions as less polluting.
The structures of compounds were proved through elemental and spectral analysis (FT-IR, 1H-NMR, 13C-NMR, and two-dimensional experiments 2D-COSY, HMQC, HMBC). The main argument that the substitution reaction of the bromine with azide group took place was found in the IR spectrum where the azide group present an absorption band in the range of 2200 cm−1, characteristic for this moiety (see Figures S19–S22 from Supplementary Materials). An additional proof for the azide formation is provided by the long range 1H-15N correlation HMBC spectrum, (see Figures S8d, S9d, S10d and S11d from Supplementary Materials) which shows that nitrogen atoms from the azide group is bonded to the methylene from α-position of the carbonyl group. The remaining signals in the FT-IR, 1H-NMR, and 13C-NMR spectra are all in accordance with the proposed structures.
Optical properties of the functionalized azatetracycles (bromides 2a–d and azides 4a–d) were investigated on diluted solutions (less than 10−5 mol/L) prepared in chloroform. The dilution of each solution was adjusted thus the absorbances maxima measured in the 340–440 nm range, and reported on a 10 mm cuvette, to fit in 0.5–0.6 unit range.
Since the compounds 2a–d and 4a–d have a relatively similar structure, they exhibit small differences in their experimental UV-Vis absorption spectra, as can be seen from Figure 1. The absorption maxima of the eight functionalized azatetracycles in chloroform, are summarized in Table 3. As we can observe in Table 3 and Figure 1, the position of the absorption bands depends on the substituents of the pyrrole ring. Thus, in the case of all compounds (Figure 1), three relatively well-separated absorption regions are observed (first between 240–300 nm, second between 300–335 nm and the third between 335–440 nm, respectively). The absorption bands from the first region have a higher (double or more) intensity than the absorption bands from the second region, and the latter ones have a higher (less than double) intensity than the absorption bands from the third region. The absorption bands responsible for the blue emission of the azatetracycles are situated in the third region (335–440 nm). In this region four more or less separated absorption bands are visible. A detailed discussion of the absorption spectra is presented in the Supplementary Materials.
All the studied tetracyclic derivatives have emission spectra consisting of one band situated in the 400–510 nm region (Figure 2). For the samples 2a–d, 4a, and 4c the emission band is structured indicating a planar structure of the molecules, while in the case of the samples 4b and 4d this band is unstructured. A more detailed discussion on the absorption vs. emission spectra of the eight derivatives is presented in the Supplementary Matterials (see Figure S27).
The position of the band is significantly influenced by the presence of a carbomethoxy group at the 2nd position of the azatetracyclic skeleton. For the obtained bromides 2a–d, a hypsochromic shift of Δmax = 12 nm (2a compared with 2b) and Δmax = 11 nm (2c compared with 2d) could be observed in emission spectra, while for the obtained azides 4a–d, a bathochromic shift of Δmax = 5 nm (4a compared with 4b) and Δmax = 15 nm (4c compared with 4d) could be observed (Table 3 and Figure 2).
This different behavior of the bromides vs. azides, in terms of: the form of the absorption band (structured versus unstructured), fluorescence intensity (higher versus lower), and the hypsochromic versus bathochromic shift in the emission spectra, can be explained by their structural difference, azide group being bulkier than the bromide. The bulky volume of the azide increases the steric hindrance between the carbomethoxy group at the second position of the azatetracyclic skeleton and the azide group, which determine part of the molecule to exit out of a plane. The alteration of the planar structure of the molecule determines a decrease in fluorescence. This fact can be observed when comparing the fluorescence intensity of the bromides 2a–d versus azides 4a–d, and also if we compare the fluorescence intensity of the underivatized cycloadducts 1a–d with the fluorescence intensity of the derivatized azatetracyclic bromides 2a–d or azides 4a–d [37].
We consider that after the removal of the bromide group (by alkylation) or azide group (by click reaction), the fluorescence intensity of the new compounds should increase according to our previous experimental findings [17]. The increased reactivity and a possible increase of the fluorescence after binding determine us to consider that these derivatives can be used as fluorescent markers in biomolecule labeling.
Figure 2 presents the emission spectra in the chloroform of the bromides 2a–d (left column) and of the azides 4a–d (right column).
The optical absorption and emission maxima of the azatetracyclic derivatives in chloroform are summarized in Table 3.
Table 3 and Figure 2 show that all the compounds are blue emitters (λmax of fluorescence around 430–445 nm). Compound 2a has higher intensity in the emission spectra. Different behaviors (in terms of the maximum of the emission) of the samples 2a, 2c compared with 2b, 2d and of the samples 4a, 4c compared with 4b, 4d shown in Table 3 should relate to the difference in the electronic structures of 2a, 2c and 4a, 4c related to 2b, 2d and 4b, 4d, respectively. The fluorescence quantum yields of azatetracyclic bromides are higher than the fluorescence quantum yields of azatetracyclic azides. As seen in Table 3, bromides 2a–d have a moderate to low quantum yield (22–16%), while azides 4a–d have low quantum yield values (9–5%).
The fluorescence quantum yields of these compounds show their ability to serve as long-term monitoring fluorescent probes. This aspect is particularly important due to the continuous high demand in photostable fluorophores, especially for in vivo microscopy, to obtain high-quality images and to allow prolonged monitoring of same cells over time [32,40].

3. Experimental Section

3.1. General Procedure

All the reagents and solvents were purchased from commercial sources and used without further purification except bromoacetone which was synthesized by the reaction of acetone with bromine in acetic acid as the catalyst. Melting points were recorded on an Electrothermal MEL-TEMP (Barnstead International, Dubuque, IA, USA) apparatus in open capillary tubes and are uncorrected. Analytical thin-layer chromatography was performed with commercial silica gel plates 60 F254 (Merck, Darmstadt, Germany) and visualized with UV light. The NMR spectra were recorded on a (Bruker, Vienna, Austria) Avance III 500 MHz spectrometer operating at 500 for 1H and 125 MHz for 13C. The following abbreviations were used to designate chemical shift multiplicities: s = singlet, d = doublet, t = triplet, m = multiplet. Chemical shifts were reported in delta (δ) units, part per million (ppm) and coupling constants (J) in Hz. Infrared (IR) data were recorded as films on potassium bromide (KBr) pellets on a FT-IR Vertex-70 (Bruker Optik, Leipzig, Germania) spectrophotometer. Ultrasound-assisted reactions were carried out using Bandelin Ultrasound reactor (Sonopuls GM 3200, Berlin, Germany), with a nominal power of 200 W and a frequency of 20 kHz. The booster horn SH 213 G was fixed tightly to the ultrasonic converter. The titanium flat probe tip TT13 (diameter: 12.7 mm; length: 7 mm) was fixed tightly to the booster horn. The titanium probe tip was immersed in the used solvent. The used reactor allowed us to control the pulse sequence, as well as the amplitude (mean percent of the nominal power) and the irradiation time. All these parameters are expected to influence the reaction. The reactions were performed using 5 s pulse on/5 s pulse off and 60% of the instrument nominal power. UV-Vis spectra were recorded on a (Shimadzu, Kyoto, Japan) 1800 PC spectrophotometer in chloroform (spectroscopic grade) solution. The fluorescence measurements were made using a (Edinburgh Instruments, Livingstone, UK) F900 photoluminescence spectrometer, in the same solvent as for the UV-Vis spectra, with the excitation wavelength set to the absorption band maximum. For all spectral determinations the solutions were kept in 10 mm path length quartz cells. The fluorescence quantum yield was determined at room temperature with an (Edinburgh Instruments, Livingstone, UK), with an integrating sphere and the excitation wavelength corresponds to the maximum of the absorption band.

3.1.1. General Procedure for Synthesis of Brominated Azatetracyclic Derivatives, 2a–d and 3a–c under Conventional TH Conditions and US Irradiation

Next, 1 mmol of cycloadduct 1a–d (0.317 g for cycloadduct 1a; 0.375 g for cycloadduct 1b; 0.331 g for cycloadduct 1c; 0.389 g for cycloadduct 1d) dissolved in 30 mL mixture of chloroform/ethyl acetate (1:1 ratio) was added dropwise under stirring and refluxing, in one hour, to a suspension of 2 mmol copper (II) bromide (0.448 g) in 20 mL mixture of chloroform/ethyl acetate (1:1 ratio). The stirring and refluxing were continued for 24 h. The hot solution was filtered, in order to remove the copper (I) bromide that formed. The solvent was evaporated by vacuum distillation. The crude product was purified by column chromatography on silica gel (eluted with dichloromethane).
Under US irradiation, 1 mmol of cycloadduct 1a–d (0.317 g for cycloadduct 1a; 0.375 g for cycloadduct 1b; 0.331 g for cycloadduct 1c; 0.389 g for cycloadduct 1d), and 2 mmol of copper (II) bromide (0.448 g), in 10 mL solvent (chloroform/ethyl acetate in 1:1 ratio), were placed in the reaction vessel and exposed to irradiation (from 1 h; see Table 1). Once the irradiation cycle was completed, the reaction tube was removed from the reactor, and processed as indicated above for TH condition.

3.1.2. General Procedure for Synthesis of Functionalized Azatetracyclic Derivatives, 4a–d under Conventional TH Conditions and US Irradiation

To a solution of 0.5 mmol of brominated azatetracyclic derivatives 2a–d (0.198 g for 2a; 0.227 g for 2b; 0.205 g for 2c; 0.234 g for 2d) in chloroform (15 mL) 0.55 mmol of sodium azide (0.036 g), water (7.5 mL), and 0.12 mmol of tetrabutylammonium bromide (0.04 g) were added. The reaction mixture was stirred vigorously at room temperature for 48 h. After the reaction was finished (TLC), the reaction mixture was washed with water (3 × 25 mL), dried over magnesium sulfate and evaporated under reduced pressure to give the crude product. The purification of the crude product was done by column chromatography on silica gel, eluted with dichloromethane.
Under US irradiation, the mixture of 0.5 mmol of brominated azatetracyclic derivatives 2a–d (0.198 g for 2a; 0.227 g for 2b; 0.205 g for 2c; 0.234 g for 2d) in chloroform (5 mL), 0.55 mmol of sodium azide (0.036 g), water (2.5 mL), and 0.12 mmol of tetrabutylammonium bromide (0.04 g) was placed into the double walls water cooled reaction vessel and exposed to irradiation (from 2 h; see Table 2). Once the irradiation cycle was completed, the reaction tube was removed from the reactor, and processed as indicated above for TH condition.
The spectral characterization of the obtained compounds is presented in the Supplementary Materials.

4. Conclusions

In conclusion, we report herein an energy-efficient method for obtaining two new classes of derivatized blue-fluorescent azatetracycles, both under conventional thermal heating and under unconventional ultrasound irradiation.
The synthesis of the derivatized fluorescent azatetracycles were performed in two steps: bromination in heterogeneous catalysis and nucleophilic substitution.
Regarding the bromination reactions, we used the heterogeneous catalysis with copper (II) bromide in chloroform/ethyl acetate of the previously obtained cycloadducts. The bromination reactions occur regioselectively both under conventional and unconventional heating, leading only to α-brominated products with increased reactivity. Comparative with conventional TH, the bromination reactions under US irradiation occur with increased selectivity in regard to the monobrominated compound.
The brominated cycloadducts were used as an intermediary for the synthesis of corresponding azides azatetracycles derivatives, by using a nucleophilic substitution of the bromide atom with sodium azide in a chloroform/water mixture and TBAB as phase transfer catalyst. The reactions occur at room temperature under vigorous stirring, with good yield, but in a long reaction time (24 h). The use of US irradiation reduces the reaction time (2 h) and improves the reaction yield.
The use of the US irradiation in the case of both derivatization reactions (bromination and nucleophilic substitution with azide) offers several advantages in terms of yield, easier workup of the reaction, a substantial decrease in the consumed solvent, and a substantial reduction in reaction time (from days to hours) and thus a consequent diminution in energy consumption. Taking into consideration these advantages, the proposed method should be considered energy efficient and less polluting. The efficiency of US irradiation reactions could be explained by the cavitation phenomena leading to enhanced mass transfer and better homogenization of the reaction mixture.
The absorption and emission maxima of the obtained azatetracyclic derivatives were studied, these compounds being blue emitters. The absorption and emission spectra are dependent on their structure, and compounds with similar structure having small differences in their spectra. The bulky volume of the azide increases the steric hinderance with the carbomethoxy group at the second position and determine part of the molecule to exit out of a plane. The alteration of the planar structure of the molecule determines a decrease of the fluorescence. This fact can be observed when comparing the fluorescence intensity and fluorescence quantum yields of the bromides versus azides.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27103180/s1. Spectral characterization, details of the NMR (1H NMR, 13C NMR, 1H-15N HMBC), IR, absorption and emission spectra of the synthesized compounds can be found in the Supplementary Materials.

Author Contributions

Design, synthesis, and writing were performed by I.I.M., G.Z. and C.M. The evaluation of fluorescent properties was performed by G.Z. and C.M.; wxperimental work and structure elucidation were performed by G.Z., C.-I.C. and C.M.; I.I.M., G.Z. and C.M. revised the first draft of the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant of the Romanian Ministry of Education and Research, CNCS-UEFISCDI, project number PN-III-P4-ID-PCE-2020-0371, within PNCDI III.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

Acknowledgment to the infrastructure support from Operational Program Competitiveness 2014-2020, Axis 1, under POC/448/1/1 Research infrastructure projects for public R&D institutions/Sections F 2018, through the Research Center with Integrated Techniques for Atmospheric Aerosol Investigation in Romania (RECENT AIR) project, under grant agreement MySMIS no. 127324. The authors are thankful to UEFISCDI Bucharest, Romania, project PN-III-P1-1.1-TE-2016-1205 and PN-III-P4-ID-PCE-2020-0371, for financial support and to the CERNESIM Center, within the Institute for Interdisciplinary Research at the Alexandru Ioan Cuza University of Iasi, for the infrastructure used in the recording of spectral experiments.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Bejan, V.; Moldoveanu, C.; Mangalagiu, I.I. Ultrasounds assisted reactions of steroid analogous of anticipated biological activities. Ultrason. Sonochem. 2009, 16, 312–315. [Google Scholar] [CrossRef]
  2. Zbancioc, G.; Zbancioc, A.M.; Mangalagiu, I.I. Ultrasound and microwave assisted synthesis of dihydroxyacetophenone derivatives with or without 1,2-diazine skeleton. Ultrason. Sonochem. 2014, 21, 802–811. [Google Scholar] [CrossRef]
  3. Zbancioc, G.; Moldoveanu, C.; Mangalagiu, I.I. Ultrasound assisted synthesis of imidazolium salts: An efficient way to ionic liquids. Ultrason. Sonochem. 2015, 23, 376–384. [Google Scholar] [CrossRef]
  4. Bejan, V.; Mantu, D.; Mangalagiu, I.I. Ultrasound and microwave assisted synthesis of isoindolo-1,2-diazine: A comparative study. Ultrason. Sonochem. 2012, 19, 999–1002. [Google Scholar] [CrossRef]
  5. Mantu, D.; Moldoveanu, C.; Nicolescu, A.; Deleanu, C.; Mangalagiu, I.I. A facile synthesis of pyridazinone derivatives under ultrasonic irradiation. Ultrason. Sonochem. 2009, 16, 312–315. [Google Scholar] [CrossRef]
  6. Borsoi, A.F.; Paz, J.D.; Pissinate, K.; Rambo, R.S.; Pestana, V.Z.; Bizarro, C.V.; Basso, L.A.; Machado, P. Ultrasound-Assisted Synthesis of 4-Alkoxy-2-methylquinolines: An Efficient Method toward Antitubercular Drug Candidates. Molecules 2021, 26, 1215. [Google Scholar] [CrossRef]
  7. Banik, B.K.; Sahoo, B.M.; Kumar, B.V.V.R.; Panda, K.C.; Jena, J.; Mahapatra, M.K.; Borah, P. Green Synthetic Approach: An Efficient Eco-Friendly Tool for Synthesis of Biologically Active Oxadiazole Derivatives. Molecules 2021, 26, 1163. [Google Scholar] [CrossRef]
  8. Rodríguez-Villar, K.; Yépez-Mulia, L.; Cortés-Gines, M.; Aguilera-Perdomo, J.D.; Quintana-Salazar, E.A.; Olascoaga Del Angel, K.S.; Cortés-Benítez, F.; Palacios-Espinosa, J.F.; Soria-Arteche, O.; Pérez-Villanueva, J. Synthesis, Antiprotozoal Activity, and Cheminformatic Analysis of 2-Phenyl-2H-Indazole Derivatives. Molecules 2021, 26, 2145. [Google Scholar] [CrossRef]
  9. Cintas, P. Ultrasound and green chemistry—Further comments. Ultrason. Sonochem. 2016, 28, 257–258. [Google Scholar] [CrossRef]
  10. Lupacchini, M.; Mascitti, A.; Giachi, G.; Tonucci, L.; d’Alessandro, N.; Martinez, J.; Colacino, E. Sonochemistry in non-conventional, green solvents or solvent-free reactions. Tetrahedron 2017, 73, 609–653. [Google Scholar] [CrossRef]
  11. Chatel, G. How sonochemistry contributes to green chemistry? Ultrason. Sonochem. 2018, 40, 117–122. [Google Scholar] [CrossRef] [PubMed]
  12. Fu, Y.; Finney, N.S. Small-molecule fluorescent probes and their design. RSC Adv. 2018, 8, 29051–29061. [Google Scholar] [CrossRef] [Green Version]
  13. Moldoveanu, C.; Amariucai-Mantu, D.; Mangalagiu, V.; Antoci, V.; Maftei, D.; Mangalagiu, I.I.; Zbancioc, G. Microwave Assisted Reactions of Fluorescent Pyrrolodiazine Building Blocks. Molecules 2019, 24, 3760. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Tisler, M. Structure and Reactivity Correlation of bicyclic 10-π electron systems with bridgehead nitrogen. Pure Appl. Chem. 1980, 52, 1611–1621. [Google Scholar] [CrossRef] [Green Version]
  15. Maftei, D.; Zbancioc, G.; Humelnicu, I.; Mangalagiu, I. Conformational effects on the lowest excited states of benzoyl-pyrrolopyridazine: Insights from PCM time-dependent DFT. J. Phys. Chem. A 2013, 117, 3165–3175. [Google Scholar] [CrossRef]
  16. Zbancioc, G.; Mangalagiu, I.I. Pyrrolopyridazine derivatives as blue organic luminophores: Synthesis and properties. Part 2. Tetrahedron 2010, 66, 278–282. [Google Scholar] [CrossRef]
  17. Zbancioc, G.; Huhn, T.; Groth, U.; Deleanu, C.; Mangalagiu, I.I. Pyrrolodiazine derivatives as blue organic luminophores: Synthesis and properties. Part 3. Tetrahedron 2010, 66, 4298–4306. [Google Scholar] [CrossRef] [Green Version]
  18. Karnik, A.V.; Malviya, N.J.; Kulkarni, A.M.; Jadhav, B.L. Synthesis and in vitro antibacterial activity of novel heterocyclic derivatives of 18-nor-equilenin. Eur. J. Med. Chem. 2006, 41, 891–895. [Google Scholar] [CrossRef]
  19. Burbiel, J.; Bracher, F. Azasteroids as antifungals. Steroids 2003, 68, 587–594. [Google Scholar] [CrossRef]
  20. Singh, J.; Singh, R.; Gupta, P.; Rai, S.; Ganesher, A.; Badrinarayan, P.; Sastry, G.N.; Konwar, R.; Panda, G. Targeting progesterone metabolism in breast cancer with L-proline derived new 14-azasteroids. Bioorgan. Med. Chem. 2017, 25, 4452–4463. [Google Scholar] [CrossRef]
  21. Thomas, S.T.; Yang, X.; Sampson, N.S. Inhibition of the M. tuberculosis 3β-hydroxysteroid dehydrogenase by azasteroids. Bioorgan. Med. Chem. Lett. 2011, 21, 2216–2219. [Google Scholar] [CrossRef] [Green Version]
  22. Bagnich, S.A.; Gulyakevich, O.V.; Mikhalchuk, A.L. Spectral-Luminescent Properties of 12-Oximino Derivatives of 8-AZA-D-Homogona-12,17a-Diones and their Concentration Dependence. J. Fluoresc. 2008, 18, 277–283. [Google Scholar] [CrossRef]
  23. Borisevich, N.A.; Raichyonok, T.F.; Sukhodola, A.A.; Tolstorozhev, G.B. Delayed Fluorescence and Phosphorescence of 8-Aza-d-Homogonane in the Gas and Condensed Phases. J. Fluoresc. 2006, 16, 649–653. [Google Scholar] [CrossRef]
  24. Akhrem, A.A.; Borisevich, N.A.; Gulyakevich, O.V.; Mikhalchuk, A.L.; Raichyonok, T.F.; Tikhomirov, S.A.; Tolstorozhev, G.B. Specific fluorescence properties and picosecond transient absorption of 8- azasteroids. J. Fluoresc. 1999, 9, 357–361. [Google Scholar] [CrossRef]
  25. Li, Z.; Askim, J.R.; Suslick, K.S. The Optoelectronic Nose: Colorimetric and Fluorometric Sensor Arrays. Chem. Rev. 2019, 119, 231–292. [Google Scholar] [CrossRef]
  26. Wu, L.; Qu, X. Cancer Biomarker Detection: Recent Achievements and Challenges. Chem. Soc. Rev. 2015, 44, 2963–2997. [Google Scholar] [CrossRef]
  27. Queralto, N.; Berliner, A.N.; Goldsmith, B.; Martino, R.; Rhodes, P.; Lim, S.H. Detecting Cancer by Breath Volatile Organic Compound Analysis: A Review of Array-Based Sensors. J. Breath Res. 2014, 8, 027112. [Google Scholar] [CrossRef]
  28. Moldoveanu, C.; Zbancioc, G.; Mantu, D.; Maftei, D.; Mangalagiu, I.I. The Cycloaddition of the Benzimidazolium Ylides with Alkynes: New Mechanistic Insights. PLoS ONE 2016, 11, e0156129. [Google Scholar] [CrossRef] [Green Version]
  29. Zbancioc, A.M.; Miron, A.; Tuchilus, C.; Rotinberg, P.; Mihai, C.T.; Mangalagiu, I.I.; Zbancioc, G. Synthesis and in vitro analysis of novel dihydroxyacetophenone derivatives with antimicrobial and antitumor activities. Med. Chem. 2014, 10, 476–483. [Google Scholar] [CrossRef]
  30. Antoci, V.; Mantu, D.; Cozma, D.G.; Usru, C.; Mangalagiu, I.I. Hybrid anticancer 1,2-diazine derivatives with multiple mechanism of action. Part 3. Med. Hypotheses 2014, 82, 11–15. [Google Scholar] [CrossRef]
  31. Marangoci, N.L.; Popovici, L.; Ursu, E.L.; Danac, R.; Clima, L.; Cojocaru, C.; Coroaba, A.; Neamtu, A.; Mangalagiu, I.I.; Pinteala, M.; et al. Pyridyl-indolizine derivatives as DNA binders and pH-sensitive fluorescent dyes. Tetrahedron 2016, 72, 8215–8222. [Google Scholar] [CrossRef]
  32. Sardaru, M.C.; Carp, O.; Ursu, E.L.; Craciun, A.M.; Cojocaru, C.; Silion, M.; Kovalska, V.; Mangalagiu, I.I.; Danac, R.; Rotaru, A. Cyclodextrin Encapsulated pH Sensitive Dyes as Fluorescent Cellular Probes: Self-Aggregation and In Vitro Assessments. Molecules 2020, 25, 4397. [Google Scholar] [CrossRef]
  33. Mantu, D.; Antoci, V.; Mangalagiu, I.I. Design, synthesis and antituberculosis activity of some new pyridazine derivatives: Bis-pyridazine. Part IV. Infect. Disord.-Drug Targets 2013, 13, 344–351. [Google Scholar] [CrossRef]
  34. Gherasim, C.; Airinei, A.; Tigoianu, R.; Craciun, A.M.; Danac, R.; Nicolescu, A.; Isac, D.; Mangalagiu, I.I. Synthesis and photophysical insights of new fused N-heterocyclic derivatives with isoquinoline skeleton. J. Mol. Liq. 2020, 310, 113196. [Google Scholar] [CrossRef]
  35. Antoci, V.; Cucu, D.; Zbancioc, G.; Moldoveanu, C.; Mangalagiu, V.; Amariucai-Mantu, D.; Aricu, A.; Mangalagiu, I.I. Bis-(imidazole/benzimidazole)-pyridine derivatives: Synthesis, structure and antimycobacterial activity. Future Med. Chem. 2020, 12, 207–222. [Google Scholar] [CrossRef] [Green Version]
  36. Antoci, V.; Oniciuc, L.; Amariucai-Mantu, D.; Moldoveanu, C.; Mangalagiu, V.; Amarandei, A.M.; Lungu, C.N.; Dunca, S.; Mangalagiu, I.I.; Zbancioc, G. Benzoquinoline Derivatives: A Straightforward and Efficient Route to Antibacterial and Antifungal Agents. Pharmaceuticals 2021, 14, 335. [Google Scholar] [CrossRef]
  37. Moldoveanu, C.; Mangalagiu, I.; Zbancioc, G. Fluorescent Azasteroids through Ultrasound Assisted Cycloaddition Reactions. Molecules 2021, 26, 5098. [Google Scholar] [CrossRef]
  38. Rusu, R.; Szumna, A.; Rosu, N.; Dumea, C.; Danac, R. New Triazole Appended tert-Butyl Calix[4]arene Conjugates: Synthesis, Hg2+ Binding Studies. Tetrahedron 2015, 71, 2922–2926. [Google Scholar] [CrossRef]
  39. Rostovtsev, V.V.; Green, L.G.; Fokin, V.V.; Sharpless, K.B. A Stepwise Huisgen Cycloaddition Process: Copper(I)-Catalyzed Regioselective Ligation of Azides and Terminal Alkynes. Angew. Chem. Int. Ed. 2002, 41, 2596–2599. [Google Scholar] [CrossRef]
  40. Pricope, G.; Ursu, E.L.; Sardaru, M.; Cojocaru, C.; Clima, L.; Marangoci, N.; Danac, R.; Mangalagiu, I.I.; Simionescu, B.C.; Pinteala, M.; et al. Novel cyclodextrin-based pH-sensitive supramolecular host–guest assembly for staining acidic cellular organelles. Polym. Chem. 2018, 9, 968–975. [Google Scholar] [CrossRef]
Molecules 27 03180 sch001 550

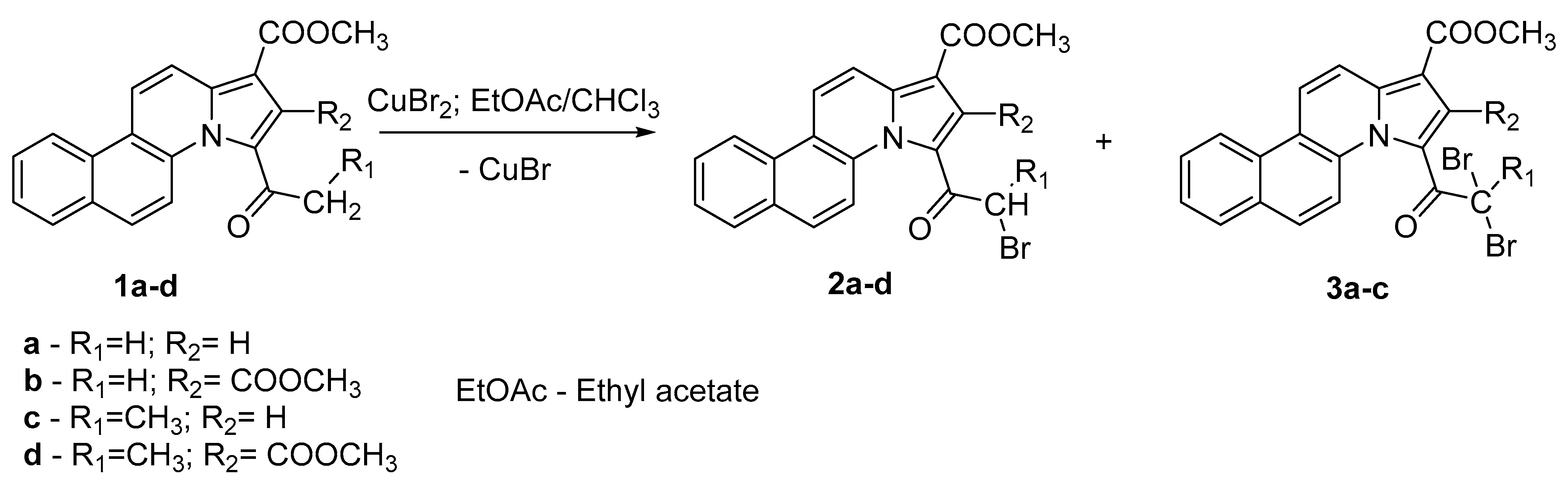

Scheme 1. The α-bromination reaction of tetracyclic cycloadducts, 1a–d.
Scheme 1. The α-bromination reaction of tetracyclic cycloadducts, 1a–d.
Molecules 27 03180 sch001
Molecules 27 03180 sch002 550

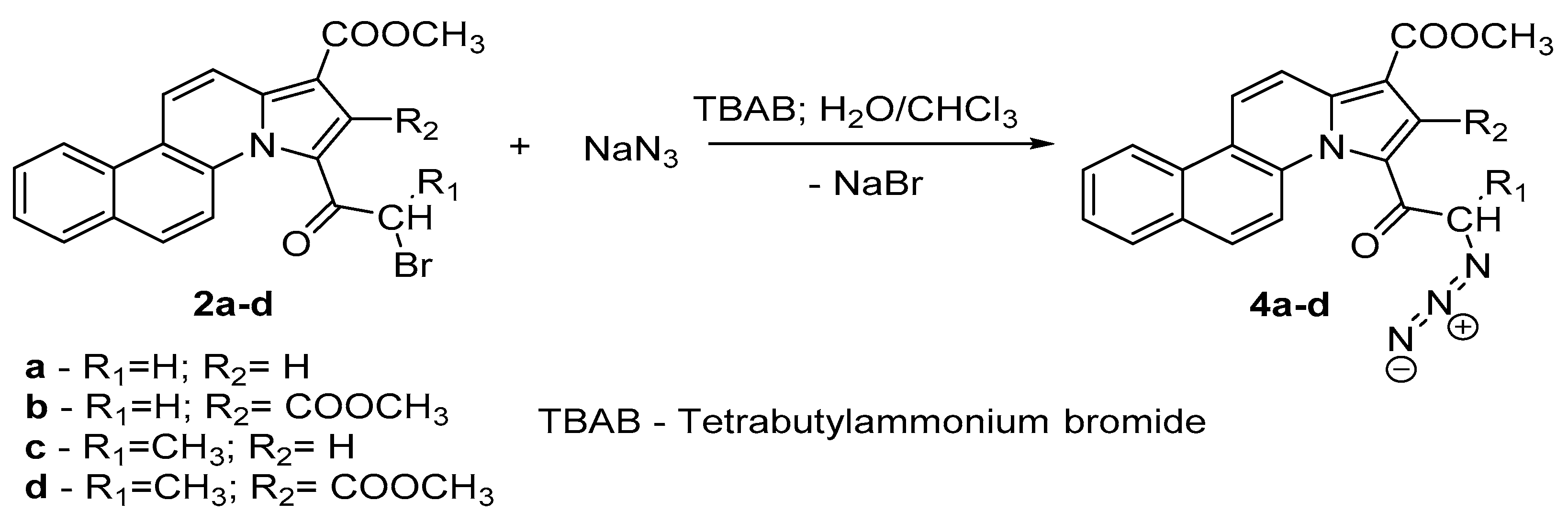

Scheme 2. Synthesis reaction of tetracyclic azide derivatives 4a–d.
Scheme 2. Synthesis reaction of tetracyclic azide derivatives 4a–d.
Molecules 27 03180 sch002
Molecules 27 03180 g001 550

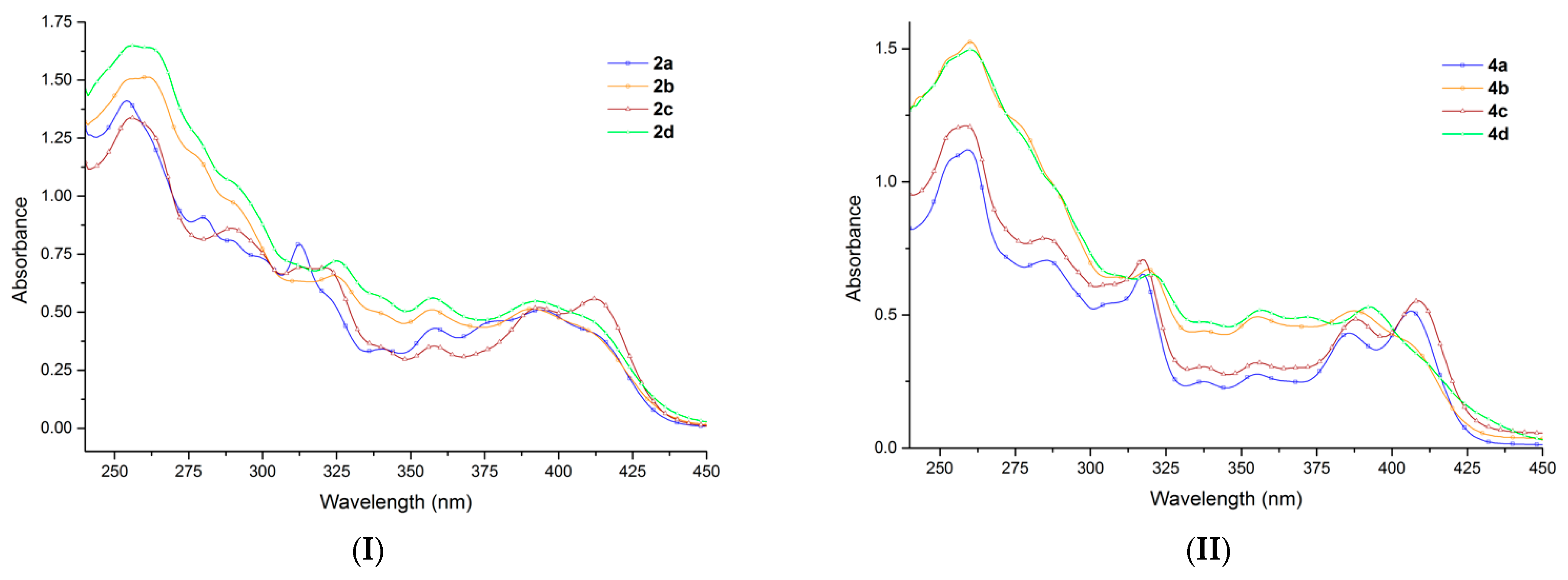

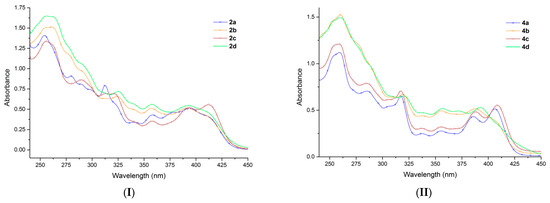

Figure 1. The absorption spectra recorded in chloroform solution of the functionalized derivatives: (I) bromides 2a–d and (II) azides 4a–d.
Figure 1. The absorption spectra recorded in chloroform solution of the functionalized derivatives: (I) bromides 2a–d and (II) azides 4a–d.
Molecules 27 03180 g001
Molecules 27 03180 g002 550

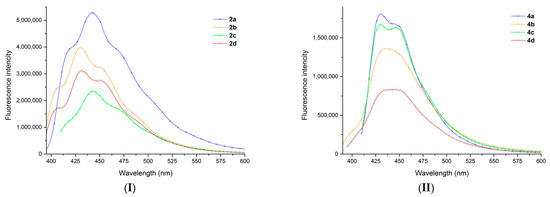

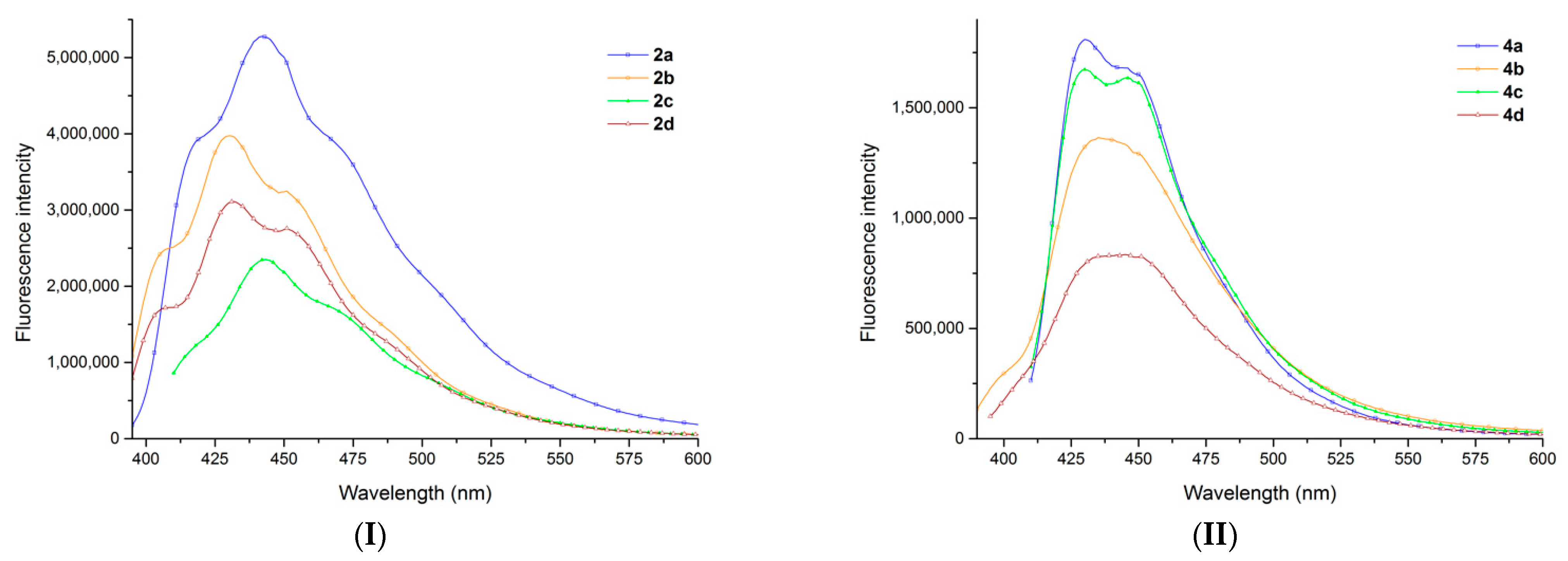

Figure 2. The emission spectra recorded in chloroform solution of the functionalized derivatives: bromides 2a–d (I) and azides 4a–d (II). Excitation wavelength was: 380 nm for sample 4b; 385 nm for samples 2a, 2b, 2d, and 4d; and 400 nm for samples 2c, 4a, and 4c.
Figure 2. The emission spectra recorded in chloroform solution of the functionalized derivatives: bromides 2a–d (I) and azides 4a–d (II). Excitation wavelength was: 380 nm for sample 4b; 385 nm for samples 2a, 2b, 2d, and 4d; and 400 nm for samples 2c, 4a, and 4c.
Molecules 27 03180 g002
Table
Table 1. The synthesis of brominated azatetracyclic derivatives under US irradiation and conventional TH.
Table 1. The synthesis of brominated azatetracyclic derivatives under US irradiation and conventional TH.
CompoundUltrasoundsConventional TH
Reaction Time, (h)Yield, %Reaction Time, (h)Yield, %
2a1872452
2b1742446
2c1852453
2d1702454
3a102410
3b102415
3c102411
Table
Table 2. The synthesis of corresponding azides under US irradiation and room temperature stirring.
Table 2. The synthesis of corresponding azides under US irradiation and room temperature stirring.
CompoundUltrasoundsRoom Temperature Stirring
Reaction Time, (h)Yield, %Reaction Time, (h)Yield, %
4a2934882
4b2864870
4c2954883
4d2834868
Table
Table 3. λmax (nm) of absorption spectra, λmax (nm) of emission spectra and fluorescence quantum yield (%) of compounds 2a–d and 4a–d.
Table 3. λmax (nm) of absorption spectra, λmax (nm) of emission spectra and fluorescence quantum yield (%) of compounds 2a–d and 4a–d.
CompoundFluorescence
(λmax, nm)		Absorption
(λmax, nm)		Quantum Yields
(%)
2a44339422.11
2b43139118.64
2c44441215.92
2d43339317.09
4a4304069.34
4b4353877.17
4c4304098.99
4d4453935.30
λexc = 380 nm for sample 4b; λexc = 385 nm for samples 2a, 2b, 2d and 4d; λexc = 400 nm for samples 2c, 4a and 4c.
