Article

Application of meso-CF3-Fluorophore BODIPY with Phenyl and Pyrazolyl Substituents for Lifetime Visualization of Lysosomes

by
Irina S. Trukhan
1,
Denis N. Tomilin
2,
Nataliya N. Dremina
1,
Lyubov N. Sobenina
2,
Michael G. Shurygin
1,
Konstantin B. Petrushenko
2,
Igor K. Petrushenko
3,
Boris A. Trofimov
2,* and
Irina A. Shurygina
1,*
1
Irkutsk Scientific Center of Surgery and Traumatology, 664003 Irkutsk, Russia
2
A.E. Favorsky Irkutsk Institute of Chemistry, Siberian Branch, Russian Academy of Science, 664033 Irkutsk, Russia
3
Irkutsk National Research Technical University, 664074 Irkutsk, Russia
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(15), 5018; https://doi.org/10.3390/molecules27155018
Submission received: 6 July 2022 / Revised: 26 July 2022 / Accepted: 4 August 2022 / Published: 7 August 2022
(This article belongs to the Special Issue Design, Synthesis and Biological Activity of Nitrogen-Containing Heterocyclic Compounds)
Browse Figures
Review Reports Versions Notes

Abstract

:
A bright far-red emitting unsymmetrical meso-CF3-BODIPY fluorescent dye with phenyl and pyrazolyl substituents was synthesized by condensation of trifluoropyrrolylethanol with pyrazolyl-pyrrole, with subsequent oxidation and complexation of the formed dipyrromethane. This BODIPY dye exhibits optical absorption at λab ≈ 610–620 nm and emission at λem ≈ 640–650 nm. The BODIPY was studied on Ehrlich carcinoma cells as a lysosome-specific fluorescent dye that allows intravital staining of cell structures with subsequent real-time monitoring of changes occurring in the cells. It was also shown that the rate of uptake by cells, the rate of intracellular transport into lysosomes, and the rate of saturation of cells with the dye depend on its concentration in the culture medium. A concentration of 5 μM was chosen as the most suitable BODIPY concentration for fluorescent staining of living cell lysosomes, while a concentration of 100 μM was found to be toxic to Ehrlich carcinoma cells.

1. Introduction

Boradiazaindacene (BODIPY) dyes are now becoming more and more widespread in applied sciences among a large family of applicable fluorescent dyes, due to their unique properties. Their photophysical characteristics make it possible to use BODIPY-based materials in dye-sensitized solar cells [1,2,3], OLEDs and dye lasers [4], for photo-catalytic hydrogen generation [5], nonlinear optics [6,7], naked-eye metal detection [8,9], and sensors of biological targets [10,11,12].
BODIPY-based fluorescent probes play a key role in biotechnological and biochemical research, allowing visualization and tracking of biologically significant molecules, drugs, and macrostructures [13,14], which makes them a powerful tool for studying intercellular and intracellular biochemical processes; for example, for evaluating the medical efficacy and cytotoxic effects of a substance in the process of preclinical development of biologically active compounds [15,16,17]. The significance of BODIPY-based probes for diagnostic studies was demonstrated in a work in which an activity-based probe, bearing a BODIPY motif, was able to visualize active SARS-CoV-2 main protease within the nasopharyngeal epithelial cells of patients with active COVID-19 infection [18].
Among the known probes with absorption/emission peaks in the 300–800 nm range, those with near-infrared (NIR) absorption and emission are considered to be preferable due to their better tissue penetration, and lower interference and photo damage to living cells [19]. BODIPY-based probes meet this requirement and have proven their efficacy among commercially available substances for fluorescent imaging in the healthcare industry and allied fields [13], which are actively using this effective and versatile method for non-invasive in vivo and in vitro biochemical real-time research [20].
Lysosome imaging is of special interest, since they are involved in many physiological and pathological processes occurring in living cells, such as macromolecule degradation, plasma membrane repair, cellular homeostasis maintenance, apoptosis, and destruction product removal [21,22,23,24,25]. Participating in signal transduction, lysosomes contribute to proliferation, anabolic and catabolic process regulation, and also affect the activity of other cellular compartments and are involved in the cell immune response [26,27]. In this regard, hereditary or acquired lysosome dysfunctions are responsible, not only for a group of disorders of lysosome accumulation, but also play a significant role in the development and progression of certain diseases associated with metabolic disorders, including cancer [28,29,30,31].
Thus, studies of pathological processes related to lysosome function damage, including carcinogenesis, metastasis, and drug resistance of tumor cells, determined the importance of real-time lysosome imaging at the subcellular level for developing strategies aimed at suppressing tumor growth and enhancing antitumor therapy [30,32,33].
For lysosome staining, the most common tools are LysoTracker/LysoSensor (ThermoFisher Scientific, Waltham, MA, USA) and LYSO-ID (Enzo Biochem Inc, New York, NY, USA) widely used for biochemical investigations [34]. Unfortunately, these dyes are not without flaws: storage requires low temperature and light protection, and application is limited only to short-term visualization [35]. In addition, it was reported, that LysoTracker was inclined to reversible photoconversion to green after illumination by a light source equipped with a 560/40 excitation filter [36] and could act as P-glycoprotein transport substrate [37], which should be taken into account when using these probes.
In this regard, the search for fluorescent dyes capable of selectively staining lysosomes, suitable for use in living cell cultures, readily soluble in water media, and non-toxic and stable inside cells under experimental conditions and during storage remains a relevant task.

2. Results and Discussion

2.1. Synthesis of BODIPY 1

Herein, the synthesis of BODIPY dye 1, 4,4-difluoro-5-phenyl-3-(1,5-diphenyl-3-1H-pyrazolyl)-8-trifluoromethyl-4-boron-3a,4a-diaza-s-indacene as a potential intravital lysosome sensor is reported.
The choice of this compound was due to the fact that BODIPY fluorophores containing aromatic or heterocyclic substituents at the 3- and (or) 5-positions [38,39] or the strongly electron-withdrawing substituents, such as CF3, at the meso-position of BODIPY core, cause a deep bathochromic shift of absorption and emission maxima and therefore can be applied in biochemical studies. For example, meso-CF3-BODIPY dyes are employed as fluorescent sensors for in vivo imaging systems and in photodynamic therapy [40,41,42,43,44,45,46]. The BODIPY dyes with a meso-CF3-group also have at least two benefits as biochemical probes. First, the probe molecule is small. Second, the CF3-group is known to be useful as an NMR marker [47]. In addition, the CF3 fragment itself has additional advantages, such as increasing the lipophilicity of the compounds. The introduction of a pharmacologically important active pyrazole scaffold that possesses almost all types of pharmacological activities, including anticancer [48,49,50,51], to the molecule can provide additional benefits for the fluorophore. Moreover, the target compound, due to a combination of the donor (pyrazole) [52] and acceptor (phenyl) pyrrole units bonded by the trifluoromethynylene spacer, is characterized by an asymmetric structure and, hence, increased polarization and polarizability of molecules.

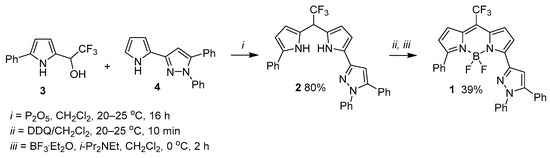

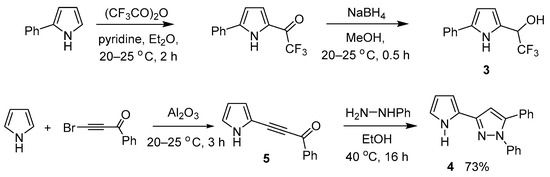

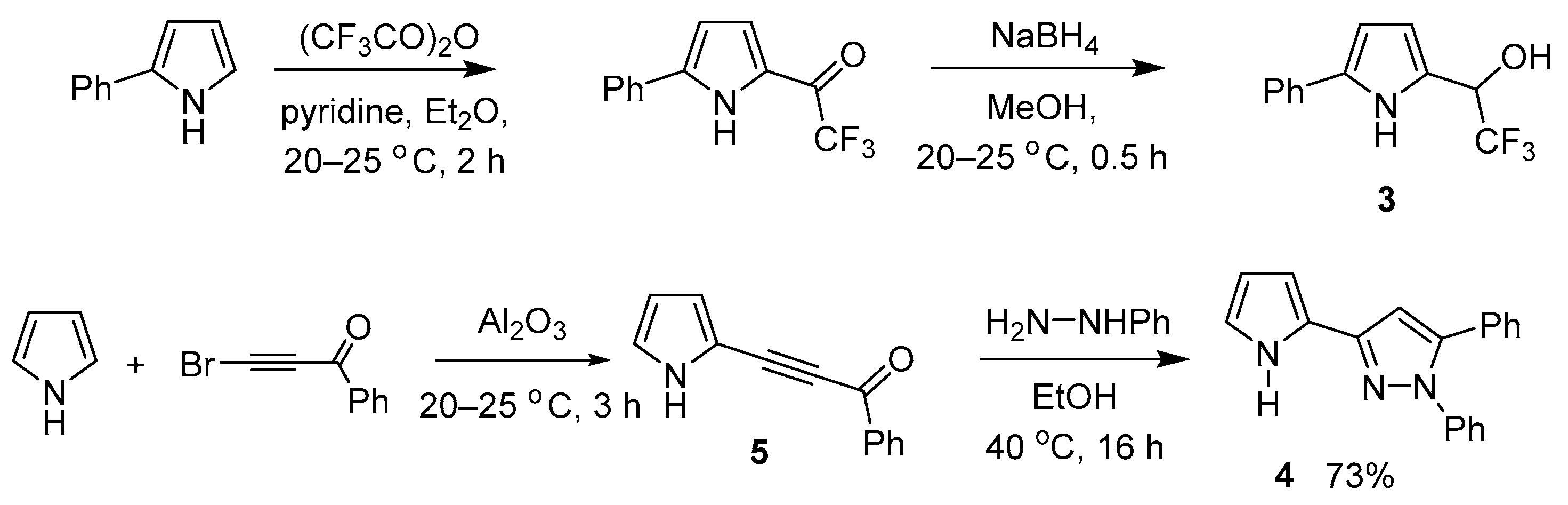

The approach to BODIPY 1 includes as a key step the assembly of dipyrromethane 2 from two molecular counterparts: 2,2,2-trifluoro-1-(5-phenylpyrrol-2-yl)ethan-1-ol 3 and pyrrolyl-pyrazole 4 as OH and CH components, respectively (Scheme 1). 2,2,2-Trifluoro-1-(5-phenylpyrrol-2-yl)ethan-1-ol 3 was obtained according to the procedure in [53]. For the synthesis of pyrrolyl-pyrazole 4, the cross-coupling of pyrrole with benzoylbromoacetylene in solid Al2O3 [54,55,56] was followed by the treatment of 2-benzoylethynylpyrrole 5 thus formed with phenylhydrazine (Scheme 1). The formation of pyrrolyl-pyrazole was carried out with slight heating up to 40 °C of 2-benzoylethynylpyrrole with 1.5 (Scheme 1) of phenylhydrazine in EtOH overnight.
The reaction of trifluoropyrrolylethanol 3 with pyrrolyl-pyrazole 4 was carried out in the presence of an equimolar quantity of P2O5 to give dipyrromethane 2 in an 80% yield (Scheme 2). The final stage, oxidation of dipyrromethane with DDQ followed by complexation of the formed dipyrromethene with BF3 etherate, was realized as a one-pot procedure, to afford the target BODIPY dye 1 in a 39% yield (Scheme 2).

2.2. Spectroscopic and Photophysical Properties of BODIPY Dye

The electronic absorption and fluorescence spectra of BODIPY 1 in three common organic solvents of different polarities and polarizabilities are shown in Figure 1.
The spectroscopic and photophysical characteristics of dye 1, including the positions of the maxima of the absorption (λabs) and emission (λem) bands, Stokes shifts (ΔνSt), and fluorescence quantum yields (ΦF), are presented in detail in Table 1. The synthesized dye has an intense and narrow long wavelength absorption band situated at λabs (max) ≥ 610 nm, which is typical for BODIPY derivatives. These bands undergo a red shift by approximately 10 nm as the solvent polarizability increases, on going from MeCN to toluene and DMSO. The fluorescence quantum yields of dye 1 are high (up to 0.9).
To evaluate the photostability of the synthesized dye 1, long-term irradiation of BODIPY 1 in MeCN and toluene was performed. The experiments indicated the loss of less than 3% of the fluorescence intensity of the sample, implying their photostability (Figure 2).

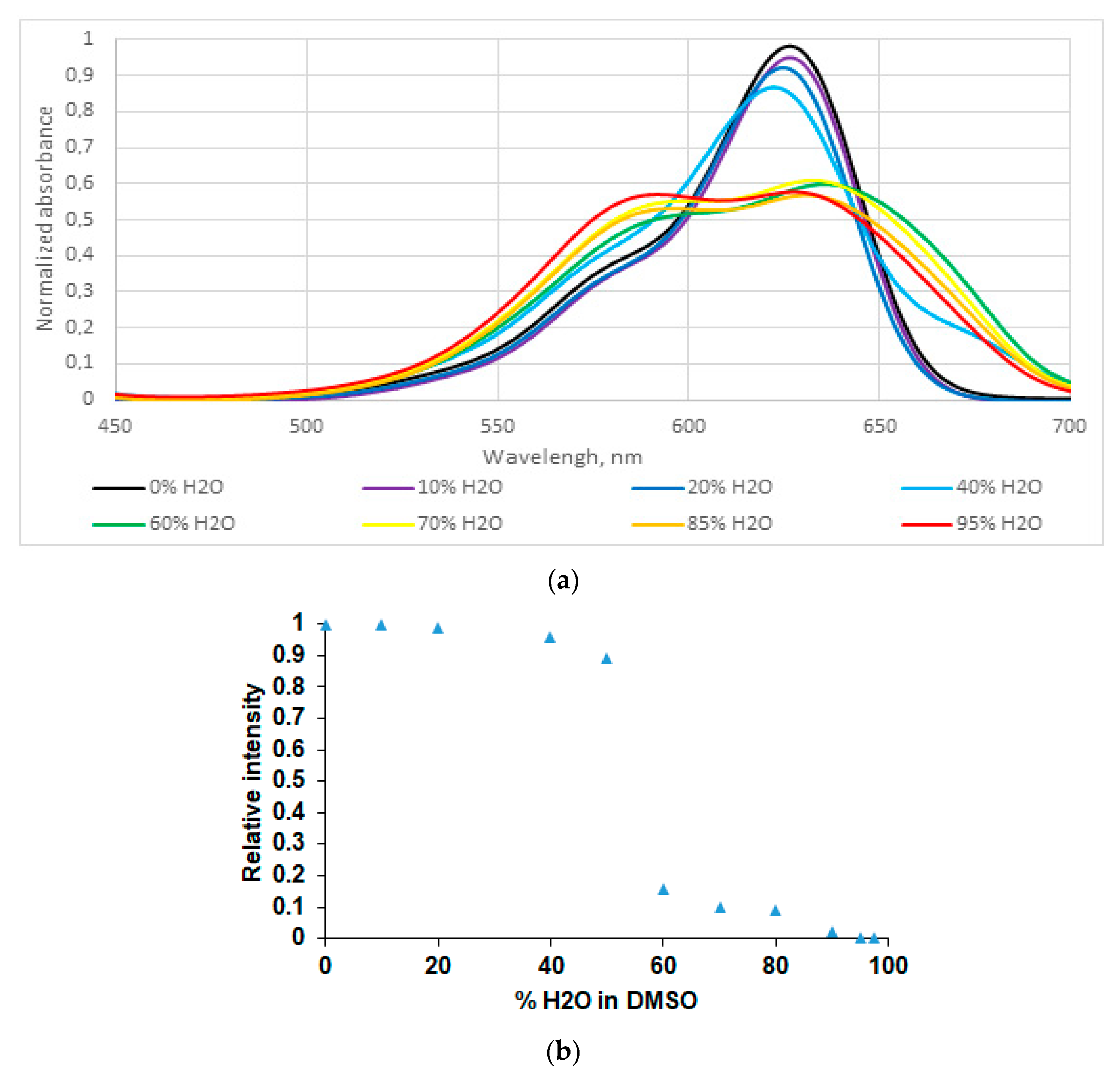

The same experiments, carried out in pure DMSO, showed slow bleaching of BODIPY 1, resulting in a visible color change from blue to virtually colorless and the disappearance of the red fluorescence. Probably, this happened due to the specific solute–solvent interaction between fluorophore and DMSO [58]. The exact mode of action of DMSO (and/or H2O) and an acid was not studied in this work.
Many applications in medicine and biology, such as fluorescence labeling or sensing, require operation in an aqueous solution. Therefore, studies of the optical properties of BODIPY 1 in H2O were performed. Due to the hydrophobic nature of dye 1, DMSO was used as a co-solvent. The absorption and fluorescence spectra of BODIPY 1 in the DMSO–H2O mixture with an incremental amount of water from 0 to 95 vv% are presented at Figure 3a. It is clearly seen that in a mixture of DMSO–H2O, a typical aggregation effect [59,60] took place: absorption spectra and fluorescence intensity first remained almost unchanged with increasing water content, and then changed dramatically when a certain content of water was reached. The threshold reflects the starting point of the aggregation of hydrophobic dye. After the aggregation begins, a small increase in water content caused significant fluorescence quenching (Figure 3b). In our case, a significant change in the shape of the absorption spectrum and a considerable decrease in the fluorescence intensity were observed at a water content >50%. At >95% water content, BODIPY 1 practically did not fluoresce.

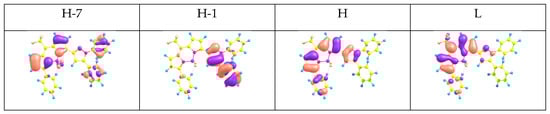

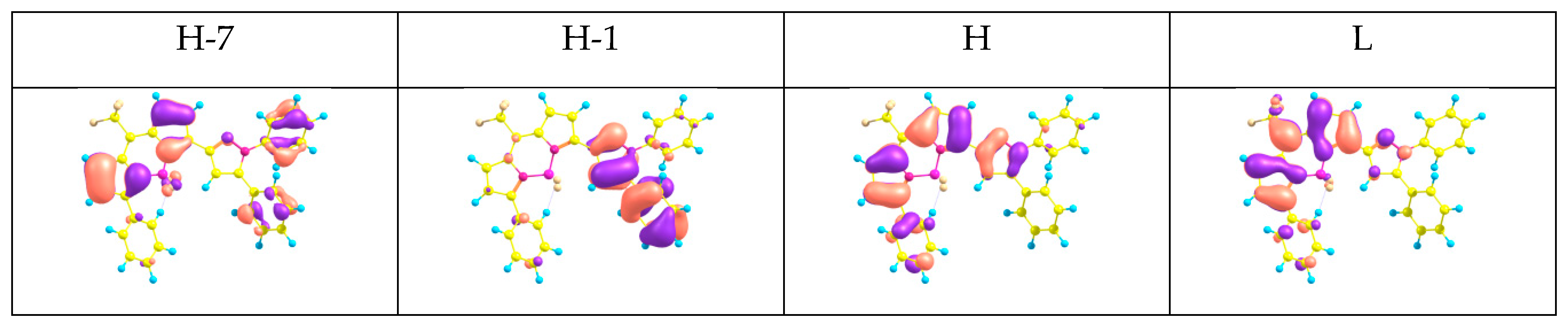

As in other meso-CF3-BODIPY dyes with aryl substituents at the positions 3 and 5 [46,47,53,57,61,62,63,64,65], most long-wave S0 → S1 absorption bands and slightly Stokes-shifted S1 → S0 respectively to the fluorescence bands, are due to the π-π* one electron excitation from the HOMO to LUMO (Table 2). These band shoulders (Figure 1) could be assigned to vibrational bands of the same transitions [66]. The significantly weaker absorption bands located in the experimental spectra above 450 nm could be assigned to the envelopes of S0 → S2 and S0 → S3 transitions of the charge-transfer character (Figure 4). It is of note that there is a large energy gap between the strong main S0 → S1 transition and the next very weak S0 → S2 and S0 → S3 transitions (Table 2). This is consistent with a high experimental ΦF in organic solvents (Table 1) [67].

2.3. Evaluation of Lysosome-Specific Sensing

The study of BODIPY 1 as a lysosome tracker was conducted on an Ehrlich ascites carcinoma cell culture. An aqueous BODIPY solution was added to the culture medium, to final concentrations of the substance in samples of 1 μM, 5 μM, 25 μM, and 100 μM.

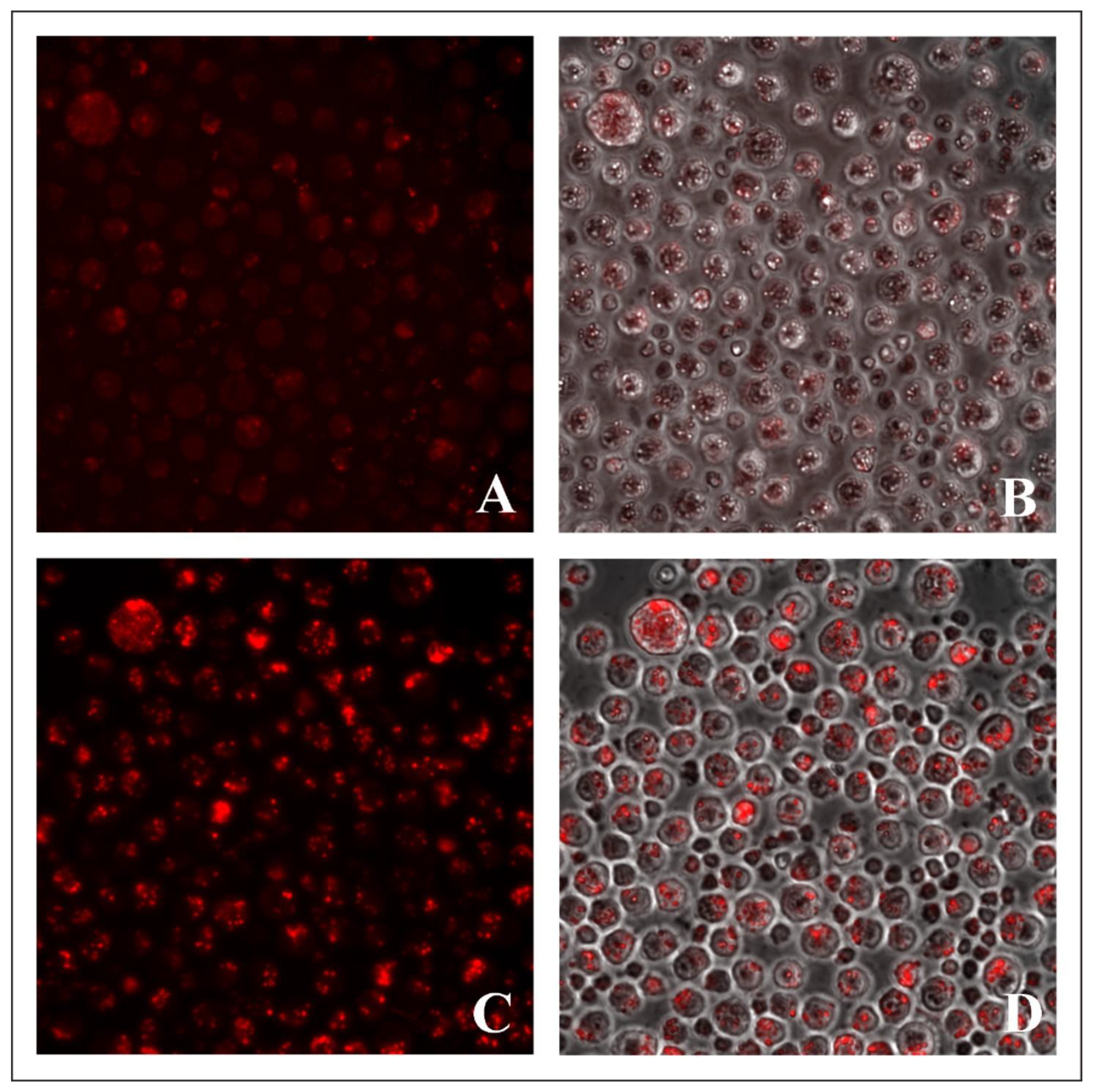

As a result of the study, it was found that 1.5 h after adding BODIPY 1 solution with a concentration of 1 μM to the cell culture medium, non-localized fluorescence was observed in the whole volume of Ehrlich ascitic carcinoma cells in the red region of the spectrum (extinction filter 550–650 nm) (Figure 5A,B).
After 12 h of incubation, intracellular fluorescence was predominantly observed in rounded vacuolar-type structures, uniformly distributed in the cytoplasmic space, or localized at one of the poles of the tumor cells, which was accompanied by a fluorescence intensity increase. Over the next 12 h, the fluorescence intensity continued to rise, the localization of the dye inside the cells was observed, mainly in the membrane structures, the number of which visualized increased (Figure 5C,D). Upon incubation of carcinoma cells with higher concentrations of the dye (5, 25, and 100 μM) after 1.5 h, along with non-localized fluorescence, colored rounded structures were visualized in the cells (Figure 6, Figure 7 and Figure 8A,B), the largest number of which was observed during incubations with BODIPY at a concentration of 100 μM (Figure 8A,B).
At the same time, all the samples studied completely lacked dye fluorescence in the culture medium. The data obtained indicate that the cell absorption rate of the studied BODIPY in the first hours after its addition, as well as the rate of its transport to intracellular structures, depended on the concentration of the dye in the culture medium. Over the next 12 and 24 h, the number of stained rounded elements in the cells increased, and the fluorescence intensity of intracellular structures also grew in accordance with the concentration of BODIPY introduced (Figure 5, Figure 6, Figure 7 and Figure 8C,D).
The most intense fluorescence was observed in ascites carcinoma cells, when treated with 100 μM BODIPY for 24 h. In this case, the visualized cells’ fluorescence spread to most parts of the cytoplasmic volume (Figure 8C,D), which indicates that the number of intracellular elements stained with the dyes had significantly increased; in addition, the observed fluorescence may have been the result of the fusion of intracellular vacuolar structures, containing BODIPY.
To confirm that the BODIPY-positive structures observed in carcinoma cells were lysosomes, we used immunocytochemical staining of samples, based on the use of antibodies specific for LAMP1 (lysosome-associated membrane protein 1). These proteins, along with LAMP2, are the more abundant components of the glycoconjugate coating on the inner side of the lysosomal membrane, and are involved in such cellular processes as phagocytosis, autophagy, lipid transport, and aging [68,69]. In this regard, these proteins are widely used as lysosome markers in the study of various cell types [70,71,72]. The results of fluorescent staining in our investigation showed that the studied BODIPY 1 dye in the cells of ascitic Ehrlich carcinoma was localized in the same compartments as LAMP1, arranged mainly around the cell nuclei, which was confirmed by the overlapping fluorescent stain areas (Figure 9).
Statistical analysis of the data showed that the differences between the fluorescence intensity in the first 1.5 h of incubation with BODIPY at a concentration of 1 μM did not significantly differ from the control (Figure 10). The control was taken as a weak auto fluorescence of carcinoma cells, visualized with the same filter (550–650 nm) as BODIPY 1. There were also no significant differences in the fluorescence intensities when comparing the 1.5-h exposure of the 1 μM and 5 μM substance; however, compared with the control, the fluorescence intensity during incubation with BODIPY 1 at a concentration of 5 μM significantly increased. The fluorescence after exposure of 25 and 100 μM for 1.5 h was significantly higher, both in comparison with the control, and when compared with lower concentrations of the dye. At the same time, after 12 and 24 h of incubation, the fluorescence in all samples was significantly more intensive in comparison with the control, thus the increasing of the intensity linearly depended on the concentration of the substance in the medium. However, no significant differences in the fluorescence intensity of samples incubated with 25 μM and 100 μM of BODIPY 1 were observed at later periods. A probable explanation for this fact is that the absorption capacity of a dye by a living cell is limited, and with an increase in its concentration in the medium by four times, there was no significant growth in the fluorescence intensity in the cell, as was observed when exposed to lower concentrations of BODIPY 1.
A comparison of the data on the changes in fluorescence intensity over time (Figure 10) showed that during incubation with low concentrations (1 and 5 μM), the intensity gradually increased during the day, while application of 25 μM BODIPY 1 led to an abrupt rise in fluorescence intensity in the first 12 h, with a smaller increase in the next 12 h of incubation.
Similar differences in the rate of absorption of the dye by cells during experiment were partially observed when exposed to a 100 μM concentration (Figure 11). The fluorescence intensity during incubation with BODIPY 1 at this concentration in the first hours was already quite high compared to the samples exposed to a lower concentration; however, it increased only in the first 12 h of incubation, whereas no significant growth in intensity was observed in the next 12 h. This may indicate that at higher concentrations, not only the absorption rate of the BODIPY 1 increased, but also the rate of maximum saturation. The inability of the cells to further absorb BODIPY 1 at the 100 μM concentration may have been associated with a transport function interruption, which in turn may have been the result of the progress of the autophagy process in the cells induced by the stressful effect of BODIPY 1 in high concentrations and accompanied by the fusion of lysosomes with autophagosomes and partial degradation of cell structures. Such a scenario also explains the appearance in some cells of larger fluorescently stained structures occupying most of the cytoplasm, the occurrence of which may have been associated with the fusion of lysosomes with each other or with autophagosomes.

3. Materials and Methods

3.1. General Information

IR spectra were obtained on a “Bruker IFS-25” spectrometer (400–4000 cm−1, KBr pellets or thin films on KBr plates). 1H (400.1 MHz), 13C (100.6 MHz), and 19F (376.5 MHz) NMR spectra were recorded on a “Bruker Avance 400” instrument in CDCl3. The assignment of signals in the 1H NMR spectra was made using COSY and NOESY experiments. Resonance signals of carbon atoms were assigned based on 1H-13C HSQC and 1H-13C HMBC experiments. The 1H and 13C chemical shifts were referenced to CDCl3 and 19F-CFCl3, respectively. The chemical shifts were recorded in ppm. Elemental analyses (C, H, N) were performed on an EA FLASH 1112 Series (CHN Analyzer) instrument. Fluorine content was determined on a SPECOL 11 (Carl Zeiss Jena, Germany) spectrophotometer. Melting point (uncorrected) was determined on a Stuart SMP50 apparatus. High-resolution mass spectra were recorded from acetonitrile solution with 0.1% HFBA on HPLC Agilent 1200/Agilent 6210 TOF instrument equipped with an electrospray ionization (ESI) source.
All solvents (Merck, Darmstadt, Germany, spectroscopic grade) were used without further purification. Photophysical properties were recorded immediately after sample preparation. UV/Vis absorption spectra were measured on a Lambda-35 (Perkin-Elmer, Waltham, MA, USA) spectrophotometer. Excitation and fluorescence spectra were measured on a FLSP-920 combined steady state and time resolved fluorescence spectrometers (Edinburgh Instrument, Levingston, UK). Fluorescence spectra were obtained with a Xenon lamp and 1.0 cm quartz cuvette. All fluorescence and excitation spectra were corrected for the wavelength dependence of the monochromator and the photomultiplier sensitivity. For samples, a right-angle configuration was used, and to avoid re-absorption, the maximum absorbance was kept below 0.1. The temperature of the samples was controlled by an external flow of thermostated water. The fluorescence quantum yields (ΦF) of the BODIPY systems were obtained by comparing the areas under the corrected emission spectrum. The Equation (1) was used to calculate quantum yield:
ΦF = Φref Fsampl Aref n2 sampl/Fref Asampl n2 ref
The photostability of BODIPY 1 in toluene and MeCN was investigated using a collimated light source from a 150 W Xe lamp in air. The steady-state fluorescence spectroscopy of the samples was monitored for 180 min.
The study of BODIPY 1 as a lysosome sensor was conducted on an Ehrlich ascites carcinoma cell culture, which was obtained from a transplantable culture maintained in white laboratory mice. This culture was acquired from the nursery of Science State Scientific Center for Virology and Biotechnology Vector of the Federal State Institution of the (Russia, Novosibirsk Region, Koltsovo Village), veterinary certificate 254 No. 0336050 of 28 July 2010. Ascitic fluid was taken 9 days after transplantation, since this period is characterized by the logarithmic growth of the Ehrlich ascites carcinoma strain [73]. The resulting cell suspension was diluted 500 times with DMEM culture medium (Dulbecco’s Modified Eagle’s Medium, Sigma-Aldrich Co, St. Louis, MO, USA) supplemented with 10% FBS (Fetal Bovine Serum, Sigma-Aldrich, Co, St. Louis, MO, USA) and 1% antibiotic/antimycotic (10.000 units/mL penicillin, 10,000 μg/mL streptomycin and 25 μg/mL amphotericin B, Gibco (Thermo Fisher Scientific, Waltham, MA, USA). Cell culture was cultured for 1 day at a temperature of 37 °C, a humidity of 80%, and a CO2 content of 5% under the conditions of a CO2 incubator in BioStation CT (Nikon, Nikon Corporation, Tokyo, Japan).
The BODIPY 1 was dissolved in DMSO, followed by adjustment to a final concentration with bi-distilled water (the total dilution of DMSO was about 20 times). An aqueous BODIPY solution was added to the culture medium, to final concentrations of the substance in samples of 1 μM, 5 μM, 25 μM, and 100 μM. From the moment the BODIPY solution was added, the cell culture was incubated for 24 h.
Cells for immunofluorescence studies were fixed with 70% ethanol and, after permeabilization, with 1% Triton X-100, and stained with antibodies to LAMP1 (Cat. MA5-29385, Invitrogen, Carlsbad, CA, USA) in a dilution of 1:200. Alexa fluor 488 goat anti-rabbit IgG (H + L) (Cat. NA-11034, Invitrogen, Carlsbad, CA, USA) in a dilution of 1:300 was used as secondary antibody. Nuclei were stained with Hoechst (Cat. NH-3570, Invitrogen, Carlsbad, CA, USA), 1:300.
Visualization of the specific staining and photofixation of samples 1.5 h, 12 h, and 24 h after adding the substance to the medium was carried out using BioStation CT 4.1, Nikon, Nikon Corporation, Tokyo, Japan). Fluorescence intensity analysis was performed applying the NIS-Elements AR, software product v. 5.00. The study was carried out using equipment from the centers of collective use “Diagnostic images in surgery”. Statistical analysis was performed in the R programming environment. The Kruskal–Wallis criterion was used for the variance analysis, and a posteriori analysis was performed using the Tukey criterion.

3.2. Synthesis of 1,5-Diphenyl-3-(1H-pyrrol-2-yl)-1H-pyrazole (4)

An excess of phenylhydrazine (0.162 g, 1.5 mmol) was added to the solution of 2-benzoylethynylpyrrole (0.195 g, 1.0 mmol) in EtOH (10 mL). The reaction mixture was stirred at 40 °C overnight, diluted with 30 mL of H2O, and extracted by diethyl ether. The residue after removing the solvent was recrystallized from n-hexane, to afford 0.317 g (73%) of pyrrolyl-pyrazole as a yellow viscous oil.
1H NMR (400.13 MHz, CDCl3) δ 9.08 (br s, 1H), 7.35–7.30 (m, 7H), 7.27–7.25 (m, 3H), 6.84–6.82 (m, 1H), 6.65 (s, 1H), 6.56–6.54 (m, 1H), 6.29–6.27 (m, 1H).
13C NMR (100.6 MHz, CDCl3) δ 146.2, 144.3, 140.1, 130.5, 129.0 (2C), 128.8 (2C), 128.5 (2C), 128.4, 127.4, 125.6, 125.3 (2C), 118.5, 109.3, 106.8, 104.3.
IR (KBr, cm−1): 3439, 3257, 3061, 1599, 1541, 1497, 1451, 1409, 1356, 1179, 1108, 1071, 1028, 979, 908, 799, 763, 729, 697.
Anal. Calcd for C19H15N3: C, 79.98; H, 5.30; N, 14.73; Found: C, 80.21; H, 5.48; N, 14.54%.

3.2.1. Synthesis of 1,5-Diphenyl-3-(5-(2,2,2-trifluoro-1-(5-phenyl-1H-pyrrol-2-yl)ethyl)-1H-pyrrol-2-yl)-1H-pyrazole (2)

P2O5 (0.170 g, 1.2 mmol) was added to the stirred mixture of pyrrolyl-pyrazole 3 (0.285 g, 1.0 mmol) and trifluoro(pyrrolyl)ethanol 2 (0.241 g, 1.0 mmol) in dried dichloromethane (6 mL), and the reaction mixture was stirred at room temperature for 3 h. Then NaHCO3 (0.202 g, 2.4 mmol) was added and the mixture was stirred at room temperature for 10 min. The formed precipitate was filtered off, and the residue after removing the solvent was purified with column chromatography on SiO2 (n-hexane/Et2O 3:1) to afford 0.406 g (80%) of dipyrromethane as a white solid. Mp 78–80 °C.
1H NMR (400.1 MHz, CDCl3) δ 9.04 (br s, 1H), 8.36 (br s, 1H), 7.43–7.42 (m, 2H), 7.36- 7.29 (m, 10H), 7.25–7.19 (m, 3H), 6.66 (s, 1H), 6.54–6.53 (m, 1H), 6.47–6.46 (m, 1H), 6.35–6.31 (m, 2H), 4.91–4.85 (q, J = 9.0 Hz, 1H).
13C NMR (100.6 MHz, CDCl3) δ 145.6, 144.7, 134.0, 133.0, 132.5, 130.4, 129.1 (2C), 128.9 (2C), 128.8 (2C), 128.6 (2C), 128.5, 127.7, 126.7, 126.5, 125.4 (2C), 125.2 (q, J = 280.0 Hz), 124.1 (2C), 124.0, 123.8, 110.9, 110.3, 107.4, 106.7, 104.4, 43.6 (q, J = 30.2 Hz).
IR (KBr, cm−1): 3346, 3037, 1601, 1546, 1503, 1451, 1406, 1351, 1255, 1162, 1107, 1044, 909, 763, 733, 698, 523.
Anal. Calcd for C31H23F3N4: C, 73.22; H, 4.56; F, 11.21; N, 11.02; Found: C, 73.54; H, 4.71; F, 11.43; N, 10.85%.

3.2.2. Synthesis of 4,4-Difluoro-5-phenyl-3-(1,5-diphenyl-3-1H-pyrazolyl)-8-trifluoromethyl-4-bora-3a,4a-diaza-s-indacene (1)

The mixture of dipyrromethane (0.508 g, 1.0 mmol) and DDQ (0.227 g, 1.0 mmol) in dried dichloromethane (10 mL) was stirred at room temperature for 1 h. The (i-Pr)2NEt (1.29 g, 10.0 mmol) was added, the solution was stirred for 10 min and cooled to 0 °C, then boron trifluoride etherate (1.562 g, 11.0 mmol) was added dropwise. The reaction mixture was stirred at 0 °C for 2 h, then the ~2/3 of solvent was removed under vacuum, and the obtained residue was purified by column chromatography (SiO2, hexane/dichloromethane, 2:1) to yield 0.216 g (39%) of the BODIPY dye as green crystals, mp 175–177 °C.
1H NMR (400.1 MHz, CDCl3) δ 7.94 (m, 2H), 7.58 (s, 1H), 7.47 (m, 5H), 7.40 (m, 1H), 7.33 (m, 8H), 7.26 (m, 1H), 7.25 (m, 1H), 6.72 (m, 1H).
13C NMR (100.6 MHz, CDCl3) δ 159.9, 155.1, 145.0, 143.5, 139.7, 134.4, 132.9, 132.4, 130.4, 130.0, 129.9, 129.7 (t, J = 4.0 Hz), 129.2 (2C), 129.1 (2C), 128.9, 128.7, 128.6 (2C), 128.5 (2C), 128.4, 128.3, 125.4 (2C), 125.3 (q, J = 32.8 Hz), 123.3, 122.8 (q, J = 275.9 Hz), 122.1, 111.3 (t, J = 4.0 Hz).
19F NMR (376.5 MHz, CDCl3) δ −54.9 (CF3), −136.0 (BF2).
IR (KBr, cm−1): 1574, 1521, 1472, 1397, 1351, 1279, 1224, 1137, 1086, 1020, 919, 797, 760, 692.
Anal. Calcd for C31H20BF5N4: C, 67.17; H, 3.64; B, 1.95; F, 17.14; N, 10.11; Found: C, 67.26; H, 3.90; F, 17.32; N, 9.89%.
HRMS (ESI) m/z: [M + H] + Calcd for C31H20BF5N4 555.1794; Found 555.1783.

4. Conclusions

A new unsymmetrical meso-CF3-BODIPY fluorescent dye, with phenyl and pyrazolyl substituents emitted at λem ≈ 640–650 nm with high quantum yield (0.7–0.9), was proposed for fluorescence visualization of lysosomes. This BODIPY 1 is characterized by the ability to accumulate in cell lysosomes, with the rate of its absorption by the cell and intracellular transport, as well as the rate of saturation of the cell with the substance, depending on its concentration in the culture medium. The observed absorption limit of the substance by cells at a concentration of BODIPY 1 in the culture medium may be associated with transformations induced in cells by the stressful effect of a high BODIPY concentration. As a result of the analysis of the obtained data, the concentration of 5 μM was chosen as the most convenient concentration of the tested substance for fluorescent staining of lysosomes, since during incubation with such a concentration intense fluorescent staining was observed, gradually increasing during the day, and at the same time there was no toxic effect on cells, as when using high concentrations of BODIPY 1. Thus, can be concluded that the synthesized BODIPY is easy to use, stable in the form of an aqueous solution, does not require special storage conditions, and is suitable for staining intracellular structures.

Author Contributions

I.A.S., B.A.T. and I.S.T. conceptualized the work, interpreted the results and prepared the manuscript; I.S.T., N.N.D., M.G.S. and I.A.S. performed the studies using cell cultures; I.S.T. conducted statistical processing of the results of the study; D.N.T. and L.N.S. synthesized the BODIPY; K.B.P. carried out photo-chemical investigations; I.K.P. carried out quantum-chemical calculations. All authors have read and agreed to the published version of the manuscript.

Funding

The synthesis of BODIPY and analysis of its spectroscopic and photophysical properties were carried out with the financial support of the Russian Foundation for Basic Research, grant 19-53-53008 GFEN_a).

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Ethics Committee of the Irkutsk Scientific Center of Surgery and Traumatology (protocol N 09, 16 December 2021).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The main results were obtained using the equipment of the Baikal Analytical Center for Collective Use, Siberian Branch of the Russian Academy of Sciences. The investigation of BODIPY 1 as a lysosome tracker was carried out as part of the state task of the National Center for Scientific and Technical Research. The authors thank the Shared Research Facilities for Physical and Chemical Ultramicroanalysis, Limnological Institute, SB RAS (HRMS-TOF Spectra) for the equipment. Equipment of “Diagnostic images in surgery” was used in the study.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 1–4 are available from the authors.

References

  1. Klfout, H.; Stewart, A.; Elkhalifa, M.; He, H. BODIPYs for Dye-Sensitized Solar Cells. ACS Appl. Mater. Interfaces 2017, 9, 39873–39889. [Google Scholar] [CrossRef] [PubMed]
  2. Thumuganti, G.; Gupta, V.; Singh, S.P. New dithienosilole- and dithienogermole-based BODIPY for solar cell applications. New J. Chem. 2019, 43, 8735–8740. [Google Scholar] [CrossRef]
  3. Sharma, G.D.; Dahiya, H.; Singh, M.K.; Li, P.; Chayal, G.; Xu, H. Efficient Ternary Polymer Solar Cells Employing Well Matched Medium Band Gap and Narrow Band Gap Nonfullerene Acceptors. ACS Appl. Energy Mater. 2022, 5, 7813–7821. [Google Scholar] [CrossRef]
  4. Chapran, M.; Angioni, E.; Findlay, N.J.; Breig, B.; Cherpak, V.; Stakhira, P.; Tuttle, T.; Volyniuk, D.; Grazulevicius, J.V.; Nastishin, Y.A.; et al. An Ambipolar BODIPY Derivative for a White Exciplex OLED and Cholesteric Liquid Crystal Laser toward Multifunctional Devices. ACS Appl. Mater. Interfaces 2017, 9, 4750–4757. [Google Scholar] [CrossRef] [Green Version]
  5. Luo, G.-G.; Lu, H.; Zhang, X.-L.; Dai, J.-C.; Wu, J.-H.; Wu, J.-J. The relationship between the boron dipyrromethene (BODIPY) structure and the effectiveness of homogeneous and heterogeneous solar hydrogen-generating systems as well as DSSCs. Phys. Chem. Chem. Phys. 2015, 17, 9716–9729. [Google Scholar] [CrossRef]
  6. Shi, W.-J.; Lo, P.-C.; Singh, A.; Ledoux-Rak, I.; Ng, D.K.P. Synthesis and second-order nonlinear optical properties of push-pull BODIPY derivatives. Tetrahedron 2012, 68, 8712–8718. [Google Scholar] [CrossRef]
  7. Wang, H.-Q.; Ye, J.-T.; Zhang, Y.; Zhao, Y.-Y.; Qiu, Y.-Q. A thorough understanding of the nonlinear optical properties of BODIPY/carborane/diketopyrrolopyrrole hybrid chromophores: Module contribution, linear combination, one-/two-dimensional difference and carborane’s arrangement. J. Mater. Chem. C 2019, 7, 7531–7547. [Google Scholar] [CrossRef]
  8. Huang, L.; Zhang, J.; Yu, X.; Ma, Y.; Huang, T.; Shen, X.; Qiu, H.; He, X.; Yin, S. A Cu2+-selective fluorescent chemosensor based on BODIPY with two pyridine ligands and logic gate. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2015, 145, 25–32. [Google Scholar] [CrossRef]
  9. Qu, X.; Bian, Y.; Li, J.; Pan, Y.; Bai, Y. A red fluorescent BODIPY probe for iridium (III) ion and its application in living cells. R. Soc. Open Sci. 2019, 6, 181090. [Google Scholar] [CrossRef]
  10. Dorh, N.; Zhu, S.; Dhungana, K.B.; Pati, R.; Luo, F.-T.; Liu, H.; Tiwari, A. BODIPY-Based Fluorescent Probes for Sensing Protein Surface-Hydrophobicity. Sci. Rep. 2015, 5, 18337. [Google Scholar] [CrossRef] [Green Version]
  11. Gao, Y.-G.; Zhang, Y.; Shi, Y.-D.; Hao, H.-J.; Gong, B.; Lu, Z.-L. Fluorescent sensors based on [12] aneN3-modified BODIPY: Discrimination of different biological thiols in aqueous solution and living cells. Bioorg. Med. Chem. 2016, 24, 1550–1559. [Google Scholar] [CrossRef] [PubMed]
  12. Yang, J.; Zhang, R.; Zhao, Y.; Tian, J.; Wang, S.; Gros, C.P.; Xu, H. Red/NIR neutral BODIPY-based fluorescent probes for lighting up mitochondria. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2021, 248, 119199. [Google Scholar] [CrossRef] [PubMed]
  13. Kowada, T.; Maeda, H.; Kikuchi, K. BODIPY-based probes for the fluorescence imaging of biomolecules in living cells. Chem. Soc. Rev. 2015, 44, 4953–4972. [Google Scholar] [CrossRef]
  14. Kolemen, S.; Akkaya, E.U. Reaction-based BODIPY probes for selective bio-imaging. Coord. Chem. Rev. 2018, 354, 121–134. [Google Scholar] [CrossRef]
  15. Leblond, F.; Davis, S.C.; Valdés, P.A.; Pogue, B.W. Pre-clinical whole-body fluorescence imaging: Review of instruments, methods and applications. J. Photochem. Photobiol. B 2010, 98, 77–94. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Shashkova, S.; Leake; Mark, C. Single-molecule fluorescence microscopy review: Shedding new light on old problems. Biosci. Rep. 2017, 37, BSR20170031. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Fröhlich, E. Cellular Screening Methods for the Study of Nanoparticle-Induced Lysosomal Damage. In Lysosomes-Associated Diseases and Methods to Study Their Function; Pooja Dhiman Sharma, IntechOpen: London, UK, 2017. [Google Scholar] [CrossRef]
  18. Rut, W.; Groborz, K.; Zhang, L.; Sun, X.; Zmudzinski, M.; Pawlik, B.; Wang, X.; Jochmans, D.; Neyts, J.; Młynarski, W.; et al. SARS-CoV-2 Mpro inhibitors and activity-based probes for patient-sample imaging. Nat. Chem. Biol. 2020, 17, 222–228. [Google Scholar] [CrossRef] [PubMed]
  19. Shi, Y.; Meng, X.; Yang, H.; Song, L.; Liu, S.; Xu, A.; Chen, Z.; Huang, W.; Zhao, Q. Lysosome-specific sensing and imaging of pH variations in vitro and in vivo utilizing a near-infrared boron complex. J. Mater. Chem. B 2019, 7, 3569–3575. [Google Scholar] [CrossRef]
  20. Marshall, M.V.; Rasmussen, J.C.; Tan, I.C.; Aldrich, M.B.; Adams, K.E.; Wang, X.; Fife, C.E.; Maus, E.A.; Smith, L.A.; Sevick-Muraca, E.M. Near-Infrared Fluorescence Imaging in Humans with Indocyanine Green: A Review and Update. Open Surg. Oncol. J. 2010, 2, 12–25. [Google Scholar] [CrossRef]
  21. Christensen, K.A.; Myers, J.T.; Swanson, J.A. pH-dependent regulation of lysosomal calcium in macrophages. J. Cell Sci. 2002, 115, 599–607. [Google Scholar] [CrossRef]
  22. Watts, C. The endosome–lysosome pathway and information generation in the immune system. Biochim. Et Biophys. Acta (BBA) Proteins Proteom. 2012, 1824, 14–21. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Chikte, S.; Panchal, N.; Warnes, G. Use of LysoTracker dyes: A flow cytometric study of autophagy. Cytom. Part A 2014, 85, 169–178. [Google Scholar] [CrossRef] [PubMed]
  24. Zhu, J.-L.; Xu, Z.; Yang, Y.; Xu, L. Small-molecule fluorescent probes for specific detection and imaging of chemical species inside lysosomes. Chem. Commun. 2019, 55, 6629–6671. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, H.; Han, X.; Xu, J. Lysosome as the Black Hole for Checkpoint Molecules. In Regulation of Cancer Immune Checkpoints: Molecular and Cellular Mechanisms and Therapy; Xu, J., Ed.; Springer: Singapore, 2020; pp. 325–346. [Google Scholar]
  26. Lawrence, R.E.; Zoncu, R. The lysosome as a cellular centre for signalling, metabolism and quality control. Nat. Cell Biol. 2019, 21, 133–142. [Google Scholar] [CrossRef] [PubMed]
  27. Ballabio, A.; Bonifacino, J.S. Lysosomes as dynamic regulators of cell and organismal homeostasis. Nat. Rev. Mol. Cell Biol. 2020, 21, 101–118. [Google Scholar] [CrossRef]
  28. Platt, F.M.; Boland, B.; van der Spoel, A.C. Lysosomal storage disorders: The cellular impact of lysosomal dysfunction. J. Cell Biol. 2012, 199, 723–734. [Google Scholar] [CrossRef] [Green Version]
  29. He, L.-Q.; Lu, J.-H.; Yue, Z.-Y. Autophagy in ageing and ageing-associated diseases. Acta Pharmacol. Sin. 2013, 34, 605–611. [Google Scholar] [CrossRef] [Green Version]
  30. Fennelly, C.; Amaravadi, R.K. Lysosomal Biology in Cancer. In Lysosomes: Methods and Protocols; Öllinger, K., Appelqvist, H., Eds.; Springer: New York, NY, USA, 2017; pp. 293–308. [Google Scholar]
  31. Elliott, I.A.; Dann, A.M.; Xu, S.; Kim, S.S.; Abt, E.R.; Kim, W.; Poddar, S.; Moore, A.; Zhou, L.; Williams, J.L.; et al. Lysosome inhibition sensitizes pancreatic cancer to replication stress by aspartate depletion. Proc. Natl. Acad. Sci. USA 2019, 116, 6842–6847. [Google Scholar] [CrossRef] [Green Version]
  32. Rebecca, V.W.; Nicastri, M.C.; McLaughlin, N.; Fennelly, C.; McAfee, Q.; Ronghe, A.; Nofal, M.; Lim, C.-Y.; Witze, E.; Chude, C.I.; et al. A Unified Approach to Targeting the Lysosome’s Degradative and Growth Signaling Roles. Cancer Discov. 2017, 7, 1266–1283. [Google Scholar] [CrossRef] [Green Version]
  33. Bonam, S.R.; Wang, F.; Muller, S. Lysosomes as a therapeutic target. Nat. Rev. Drug Discov. 2019, 18, 923–948. [Google Scholar] [CrossRef] [Green Version]
  34. Johnson, I.D. Molecular Probes Handbook: A Guide to Fluorescent Probes and Labeling Technologies; Life Technologies Corporation: Carlsbad, CA, USA, 2010. [Google Scholar]
  35. Available online: https://www.blossombio.com/pdf/products/UG_ENZ-51034-K500.pdf (accessed on 12 May 2022).
  36. Freundt, E.C.; Czapiga, M.; Lenardo, M.J. Photoconversion of Lysotracker Red to a green fluorescent molecule. Cell Res. 2007, 17, 956–958. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Zhitomirsky, B.; Farber, H.; Assaraf, Y.G. LysoTracker and MitoTracker Red are transport substrates of P-glycoprotein: Implications for anticancer drug design evading multidrug resistance. J. Cell. Mol. Med. 2018, 22, 2131–2141. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Lu, H.; Mack, J.; Yang, Y.; Shen, Z. Structural modification strategies for the rational design of red/NIR region BODIPYs. Chem. Soc. Rev. 2014, 43, 4778–4823. [Google Scholar] [CrossRef] [Green Version]
  39. Poirel, A.; De Nicola, A.; Ziessel, R. Oligothienyl-BODIPYs: Red and Near-Infrared Emitters. Org. Lett. 2012, 14, 5696–5699. [Google Scholar] [CrossRef]
  40. Awuah, S.G.; Polreis, J.; Biradar, V.; You, Y. Singlet Oxygen Generation by Novel NIR BODIPY Dyes. Org. Lett. 2011, 13, 3884–3887. [Google Scholar] [CrossRef]
  41. Awuah, S.G.; Das, S.K.; D’Souza, F.; You, Y. Thieno–Pyrrole-Fused BODIPY Intermediate as a Platform to Multifunctional NIR Agents. Chem. Asian J. 2013, 8, 3123–3132. [Google Scholar] [CrossRef] [PubMed]
  42. You, Y.; Awuah, S.; Watley, R. BODIPY Derivatives and Methods of Synthesis and Use Thereof. US 20150158888 A1, 5 December 2013. [Google Scholar]
  43. Watley, R.L.; Awuah, S.G.; Bio, M.; Cantu, R.; Gobeze, H.B.; Nesterov, V.N.; Das, S.K.; D’Souza, F.; You, Y. Dual Functioning Thieno-Pyrrole Fused BODIPY Dyes for NIR Optical Imaging and Photodynamic Therapy: Singlet Oxygen Generation without Heavy Halogen Atom Assistance. Chem. Asian J. 2015, 10, 335–1343. [Google Scholar] [CrossRef]
  44. Liu, L.; Fu, L.; Jing, T.; Ruan, Z.; Yan, L. pH-Triggered Polypeptides Nanoparticles for Efficient BODIPY Imaging-Guided Near Infrared Photodynamic Therapy. ACS Appl. Mater. Interfaces 2016, 8, 8980–8990. [Google Scholar] [CrossRef]
  45. Wang, J.; Li, J.; Chen, N.; Wu, Y.; Hao, E.; Wei, Y.; Mu, X.; Jiao, L. Synthesis, structure and properties of thiophene-fused BODIPYs and azaBODIPYs as near-infrared agents. New J. Chem. 2016, 40, 5966–5975. [Google Scholar] [CrossRef]
  46. Jiang, X.-D.; Fang, T.; Liu, X.; Xi, D. Synthesis of meso-CF3-Substituted BODIPY Compounds with Redshifted Absorption. Eur. J. Org. Chem. 2017, 2017, 5074–5079. [Google Scholar] [CrossRef]
  47. Li, L.; Nguyen, B.; Burgess, K. Functionalization of the 4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (BODIPY) core. Bioorg. Med. Chem. Lett. 2008, 18, 3112–3116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Naim, M.; Alam, O.; Nawaz, F.; Alam, M.; Alam, P. Current status of pyrazole and its biological activities. J. Pharm. Bioallied Sci. 2016, 8, 2–17. [Google Scholar] [CrossRef] [PubMed]
  49. Karrouchi, K.; Radi, S.; Ramli, Y.; Taoufik, J.; Mabkhot, Y.N.; Al-aizari, F.A.; Ansar, M.H. Synthesis and Pharmacological Activities of Pyrazole Derivatives: A Review. Molecules 2018, 23, 134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Costa, R.F.; Turones, L.C.; Cavalcante, K.V.N.; Rosa Júnior, I.A.; Xavier, C.H.; Rosseto, L.P.; Napolitano, H.B.; da Silva Castro, P.F.; Neto, M.L.F.; Galvão, G.M.; et al. Heterocyclic Compounds: Pharmacology of Pyrazole Analogs From Rational Structural Considerations. Front. Pharmacol. 2021, 12, 666725. [Google Scholar] [CrossRef]
  51. Bennani, F.E.; Doudach, L.; Cherrah, Y.; Ramli, Y.; Karrouchi, K.; Ansar, M.H.; Faouzi, M.E.A. Overview of recent developments of pyrazole derivatives as an anticancer agent in different cell line. Bioorg. Chem. 2020, 97, 103470. [Google Scholar] [CrossRef]
  52. Lanke, S.K.; Sekar, N. Pyrazole based solid state emissive NLOphores with TICT characteristics: Synthesis, DFT and TDDFT studies. Dyes Pigm. 2016, 126, 62–75. [Google Scholar] [CrossRef]
  53. Sobenina, L.N.; Vasil’tsov, A.M.; Petrova, O.V.; Petrushenko, K.B.; Ushakov, I.A.; Clavier, G.; Meallet-Renault, R.; Mikhaleva, A.I.; Trofimov, B.A. General Route to Symmetric and Asymmetric meso-CF3-3(5)-Aryl(hetaryl)- and 3,5-Diaryl(dihetaryl)-BODIPY Dyes. Org. Lett. 2011, 13, 2524–2527. [Google Scholar] [CrossRef]
  54. Trofimov, B.A.; Stepanova, Z.V.; Sobenina, L.N.; Mikhaleva, A.I.; Ushakov, I.A. Ethynylation of pyrroles with 1-acyl-2-bromoacetylenes on alumina: A formal ‘inverse Sonogashira coupling’. Tetrahedron Lett. 2004, 45, 6513–6516. [Google Scholar] [CrossRef]
  55. Trofimov, B.A.; Sobenina, L.N. Targets in Heterocyclic Systems; Attanasi, O.A., Spinelli, D., Eds.; Società Chimica Italiana: Roma, Italy, 2009; Volume 13, pp. 92–119. [Google Scholar]
  56. Sobenina, L.N.; Trofimov, B.A. Recent Strides in the Transition Metal-Free Cross-Coupling of Haloacetylenes with Electron-Rich Heterocycles in Solid Media. Molecules 2020, 25, 2490. [Google Scholar] [CrossRef]
  57. Sobenina, L.N.; Petrova, O.V.; Petrushenko, K.B.; Ushakov, I.A.; Mikhaleva, A.I.; Meallet-Renault, R.; Trofimov, B.A. Synthesis and Optical Properties of Difluorobora-s-diazaindacene Dyes with Trifluoromethyl meso-Substituents. Eur. J. Org. Chem. 2013, 2013, 4107–4118. [Google Scholar] [CrossRef]
  58. Adamoczky, A.; Nagy, T.; Fehér, P.P.; Pardi-Tóth, V.; Kuki, Á.; Nagy, L.; Zsuga, M.; Kéki, S. Isocyanonaphthol Derivatives: Excited-State Proton Transfer and Solvatochromic Properties. Int. J. Mol. Sci. 2022, 23, 7250. [Google Scholar] [CrossRef] [PubMed]
  59. Hu, X.; Zhang, J.; Yu, Z.; Xie, Y.; He, H.; Qi, J.; Dong, X.; Lu, Y.; Zhao, W.; Wu, W. Environment-responsive aza-BODIPY dyes quenching in water as potential probes to visualize the in vivo fate of lipid-based nanocarriers. Nanomed. Nanotechnol. Biol. Med. 2015, 11, 1939–1948. [Google Scholar] [CrossRef] [PubMed]
  60. Descalzo, A.B.; Ashokkumar, P.; Shen, Z.; Rurack, K. On the Aggregation Behaviour and Spectroscopic Properties of Alkylated and Annelated Boron-Dipyrromethene (BODIPY) Dyes in Aqueous Solution. ChemPhotoChem 2020, 4, 120–131. [Google Scholar] [CrossRef] [Green Version]
  61. Umezawa, K.; Nakamura, Y.; Makino, H.; Citterio, D.; Suzuki, K. Bright, Color-Tunable Fluorescent Dyes in the Visible−Near-Infrared Region. J. Am. Chem. Soc. 2008, 130, 1550–1551. [Google Scholar] [CrossRef]
  62. Tomilin, D.N.; Petrushenko, K.B.; Sobenina, L.N.; Gotsko, M.D.; Ushakov, I.A.; Skitnevskaya, A.D.; Trofimov, A.B.; Trofimov, B.A. Synthesis and Optical Properties of meso-CF3-BODIPY with Acylethynyl Substituents in the 3-Position of the Indacene Core. Asian J. Org. Chem. 2016, 5, 1288–1294. [Google Scholar] [CrossRef]
  63. Petrushenko, K.B.; Petrushenko, I.K.; Petrova, O.V.; Sobenina, L.N.; Trofimov, B.A. Novel environment-sensitive 8-CF3-BODIPY dye with 4-(dimethylamino)phenyl group at the 3-position: Synthesis and optical properties. Dyes Pigm. 2017, 136, 488–495. [Google Scholar] [CrossRef]
  64. Petrushenko, K.B.; Petrushenko, I.K.; Petrova, O.V.; Sobenina, L.N.; Ushakov, I.A.; Trofimov, B.A. Environment-Responsive 8-CF3-BODIPY Dyes with Aniline Groups at the 3 Position: Synthesis, Optical Properties and RI-CC2 Calculations. Asian J. Org. Chem. 2017, 6, 852–861. [Google Scholar] [CrossRef]
  65. Tomilin, D.N.; Sobenina, L.N.; Petrushenko, K.B.; Ushakov, I.A.; Trofimov, B.A. Design of novel meso-CF3-BODIPY dyes with isoxazole substituents. Dyes Pigm. 2018, 152, 14–18. [Google Scholar] [CrossRef]
  66. Baruah, M.; Qin, W.; Flors, C.; Hofkens, J.; Vallée, R.A.L.; Beljonne, D.; Van der Auweraer, M.; De Borggraeve, W.M.; Boens, N. Solvent and pH Dependent Fluorescent Properties of a Dimethylaminostyryl Borondipyrromethene Dye in Solution. J. Phys. Chem. A 2006, 110, 5998–6009. [Google Scholar] [CrossRef]
  67. Tomilin, D.N.; Sagitova, E.F.; Petrushenko, K.B.; Sobenina, L.N.; Ushakov, I.A.; Yang, G.; Hu, R.; Trofimov, B.A. Asymmetric meso-CF3-BODIPY dyes based on cycloalkanopyrroles. Dyes Pigm. 2020, 176, 108228. [Google Scholar] [CrossRef]
  68. Wilke, S.; Krausze, J.; Büssow, K. Crystal structure of the conserved domain of the DC lysosomal associated membrane protein: Implications for the lysosomal glycocalyx. BMC Biol. 2012, 10, 62. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Alessandrini, F.; Pezzè, L.; Ciribilli, Y. LAMPs: Shedding light on cancer biology. Semin. Oncol. 2017, 44, 239–253. [Google Scholar] [CrossRef] [PubMed]
  70. Wang, L.; Han, X.; Qu, G.; Su, L.; Zhao, B.; Miao, J. A pH probe inhibits senescence in mesenchymal stem cells. Stem Cell Res. Ther. 2018, 9, 343. [Google Scholar] [CrossRef] [PubMed]
  71. Bhat, O.M.; Yuan, X.; Camus, S.; Salloum, F.N.; Li, P.-L. Abnormal Lysosomal Positioning and Small Extracellular Vesicle Secretion in Arterial Stiffening and Calcification of Mice Lacking Mucolipin 1 Gene. Int. J. Mol. Sci. 2020, 21, 1713. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Hilverling, A.; Szegö, E.M.; Dinter, E.; Cozma, D.; Saridaki, T.; Falkenburger, B.H. Maturing Autophagosomes are Transported Towards the Cell Periphery. Cell. Mol. Neurobiol. 2022, 42, 155–171. [Google Scholar] [CrossRef] [PubMed]
  73. Sukhov, B.G.; Ganenko, T.V.; Pogodaeva, N.N.; Kuznetsov, S.V.; Silkin, I.I.; Losovsksya, E.A.; Shurygin, M.G.; Shurygina, I.A.; Trofimov, B.A. Agent with Antitumor Activity Based on Arabinogalactan Nanocomposites with Selenium and Methods for Prepariation of Such Nanobiocomposites. RU2015132794A, 5 August 2015. [Google Scholar]
Molecules 27 05018 sch001 550
Scheme 1. Synthesis of BODIPY 1 precursors.
Scheme 1. Synthesis of BODIPY 1 precursors.
Molecules 27 05018 sch001
Molecules 27 05018 sch002 550

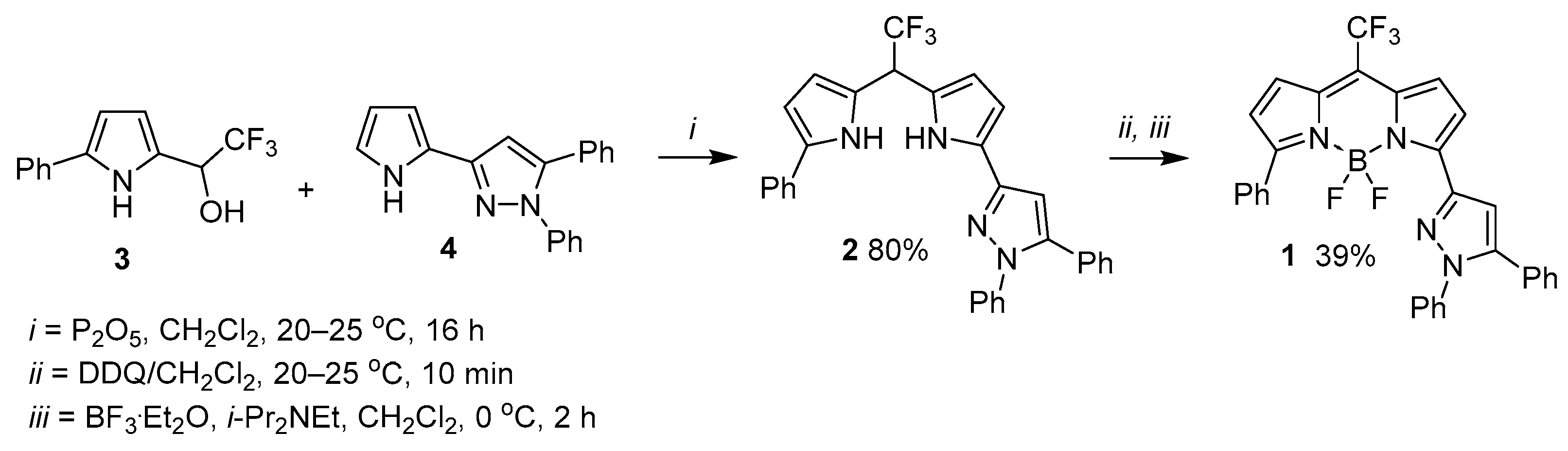

Scheme 2. Assembly of BODIPY 1.
Scheme 2. Assembly of BODIPY 1.
Molecules 27 05018 sch002
Molecules 27 05018 g001 550

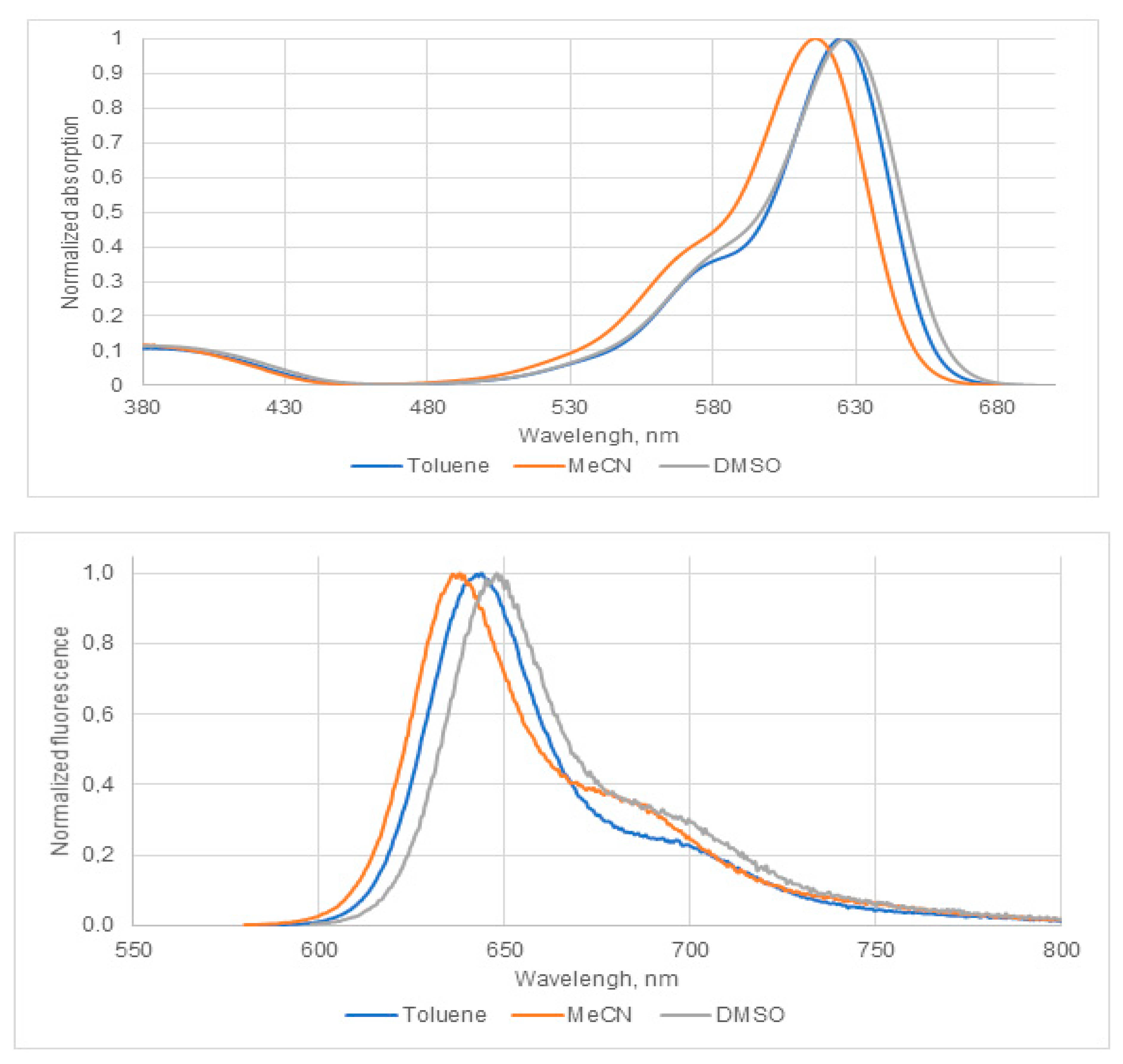

Figure 1. The electronic absorption and fluorescence spectra of BODIPY 1.
Figure 1. The electronic absorption and fluorescence spectra of BODIPY 1.
Molecules 27 05018 g001
Molecules 27 05018 g002 550

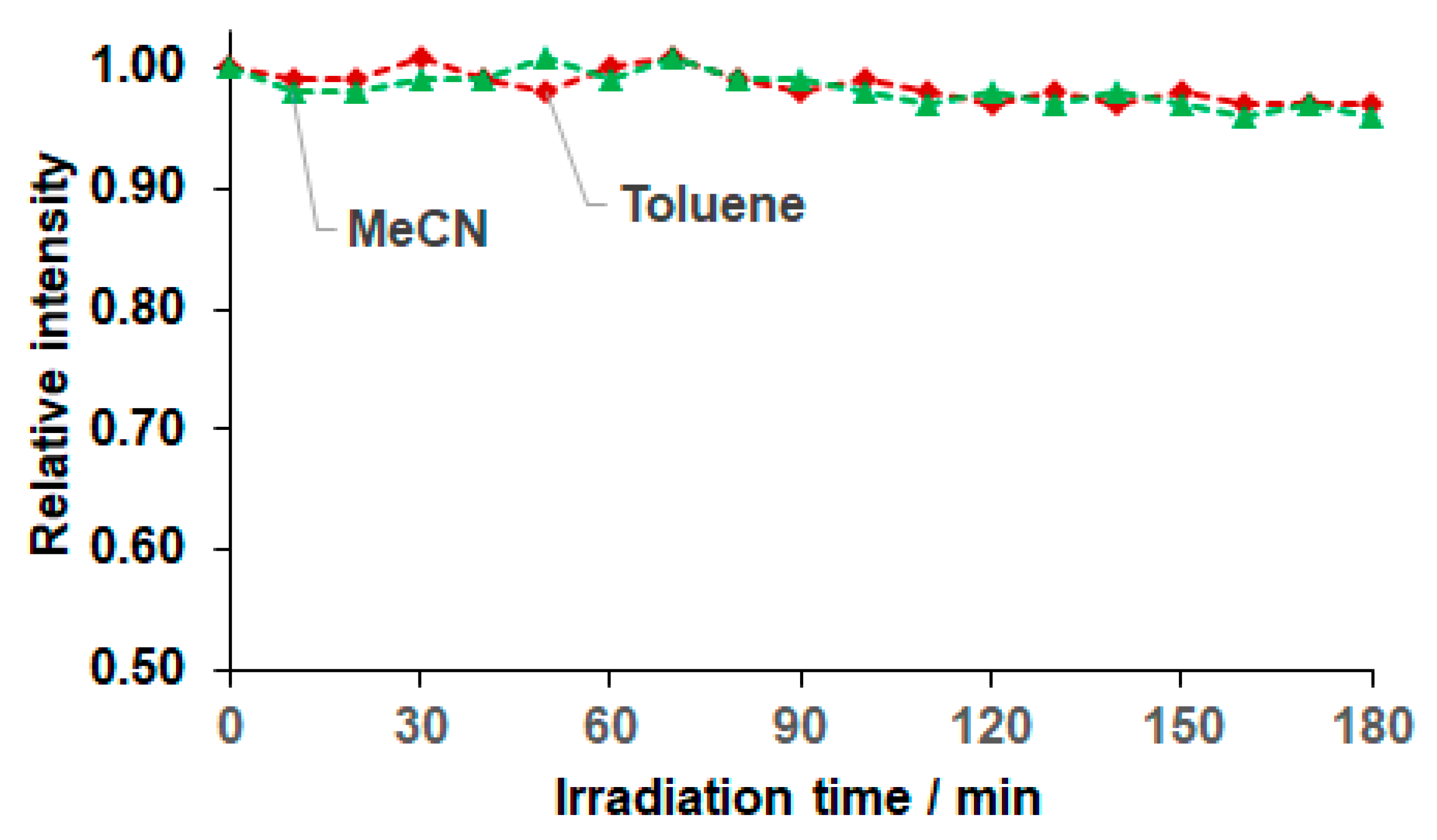

Figure 2. The photostability of BODIPY 1 in toluene and MeCN under the irradiation of a 150 W xenon lamp.
Figure 2. The photostability of BODIPY 1 in toluene and MeCN under the irradiation of a 150 W xenon lamp.
Molecules 27 05018 g002
Molecules 27 05018 g003 550
Figure 3. (a). Visible absorption spectra of BODIPY 1 (1.0 × 10−5 M) in a DMSO–H2O binary solution at different ratios. (b). The variation of the fluorescence relative intensity (IF/IF0) of BODIPY 1 as a function of % H2O in DMSO. The concentration of the dye was kept constant 1.0 × 10−5 M.
Figure 3. (a). Visible absorption spectra of BODIPY 1 (1.0 × 10−5 M) in a DMSO–H2O binary solution at different ratios. (b). The variation of the fluorescence relative intensity (IF/IF0) of BODIPY 1 as a function of % H2O in DMSO. The concentration of the dye was kept constant 1.0 × 10−5 M.
Molecules 27 05018 g003
Molecules 27 05018 g004 550
Figure 4. The relevant molecular orbitals of BODIPY 1 calculated at the TD-CAM-B3LYP/def2-TZVP level of theory.
Figure 4. The relevant molecular orbitals of BODIPY 1 calculated at the TD-CAM-B3LYP/def2-TZVP level of theory.
Molecules 27 05018 g004
Molecules 27 05018 g005 550

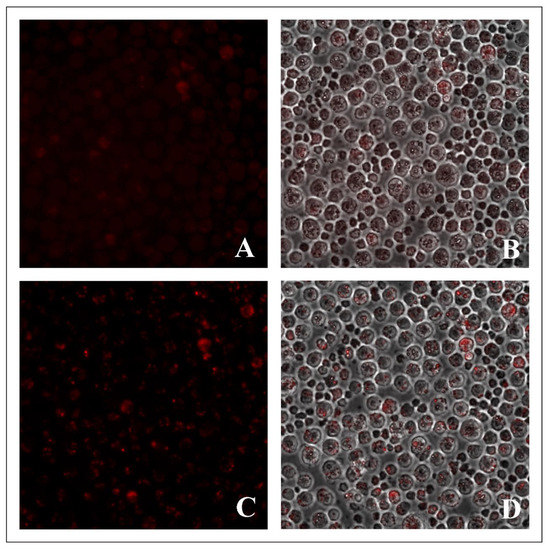

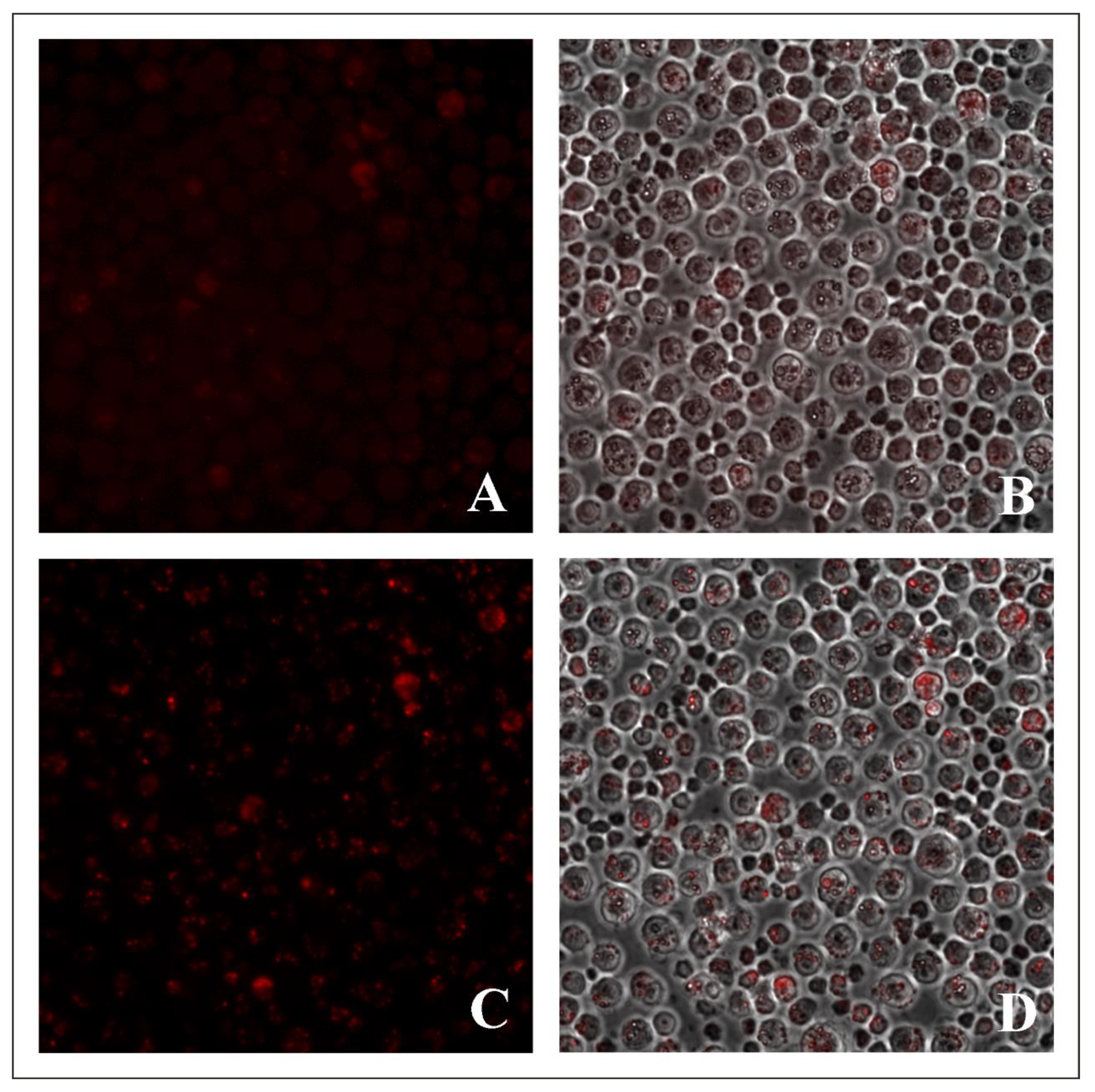

Figure 5. Ehrlich ascites carcinoma cell culture after 1.5 h (A,B) and 24 h (C,D) of incubation with BODIPY 1 at a concentration of 1 μM. (A,C)—fluorescent staining, (B,D)—overlapping a fluorescent staining with the phase contrast image. Magnification 40×.
Figure 5. Ehrlich ascites carcinoma cell culture after 1.5 h (A,B) and 24 h (C,D) of incubation with BODIPY 1 at a concentration of 1 μM. (A,C)—fluorescent staining, (B,D)—overlapping a fluorescent staining with the phase contrast image. Magnification 40×.
Molecules 27 05018 g005
Molecules 27 05018 g006 550
Figure 6. Ehrlich ascites carcinoma cell culture after 1.5 h (A,B) and 24 h (C,D) of incubation with BODIPY 1 at a concentration of 5 μM. (A,C)—fluorescent staining, (B,D)—overlapping a fluorescent staining with the phase contrast image. Magnification 40×.
Figure 6. Ehrlich ascites carcinoma cell culture after 1.5 h (A,B) and 24 h (C,D) of incubation with BODIPY 1 at a concentration of 5 μM. (A,C)—fluorescent staining, (B,D)—overlapping a fluorescent staining with the phase contrast image. Magnification 40×.
Molecules 27 05018 g006
Molecules 27 05018 g007 550

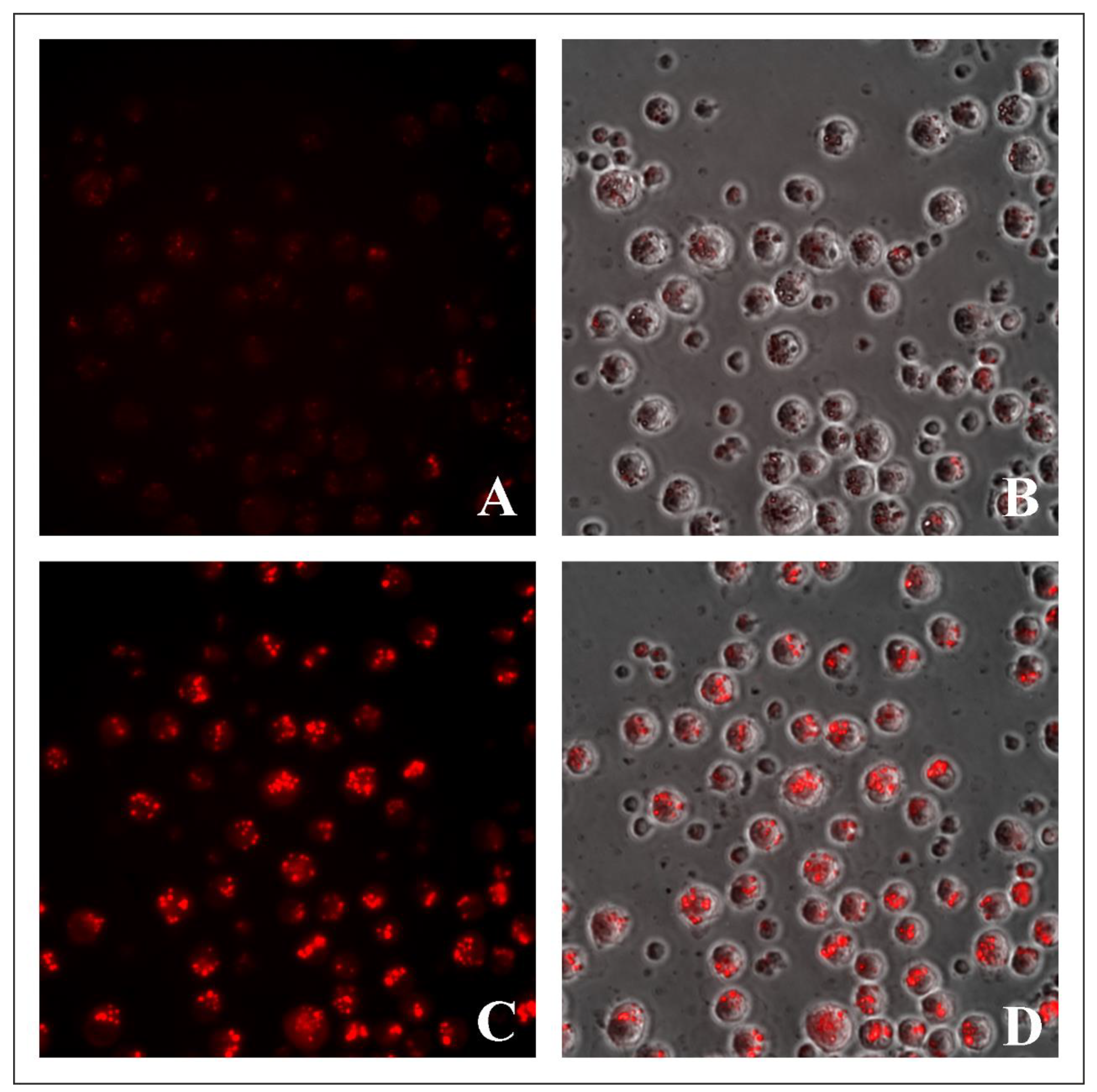

Figure 7. Ehrlich ascites carcinoma cell culture after 1.5 h (A,B) and 24 h (C,D) of incubation with BODIPY 1 at a concentration of 25 μM. (A,C)—fluorescent staining, (B,D)—overlapping a fluorescent staining with the phase contrast image. Magnification 40×.
Figure 7. Ehrlich ascites carcinoma cell culture after 1.5 h (A,B) and 24 h (C,D) of incubation with BODIPY 1 at a concentration of 25 μM. (A,C)—fluorescent staining, (B,D)—overlapping a fluorescent staining with the phase contrast image. Magnification 40×.
Molecules 27 05018 g007
Molecules 27 05018 g008 550

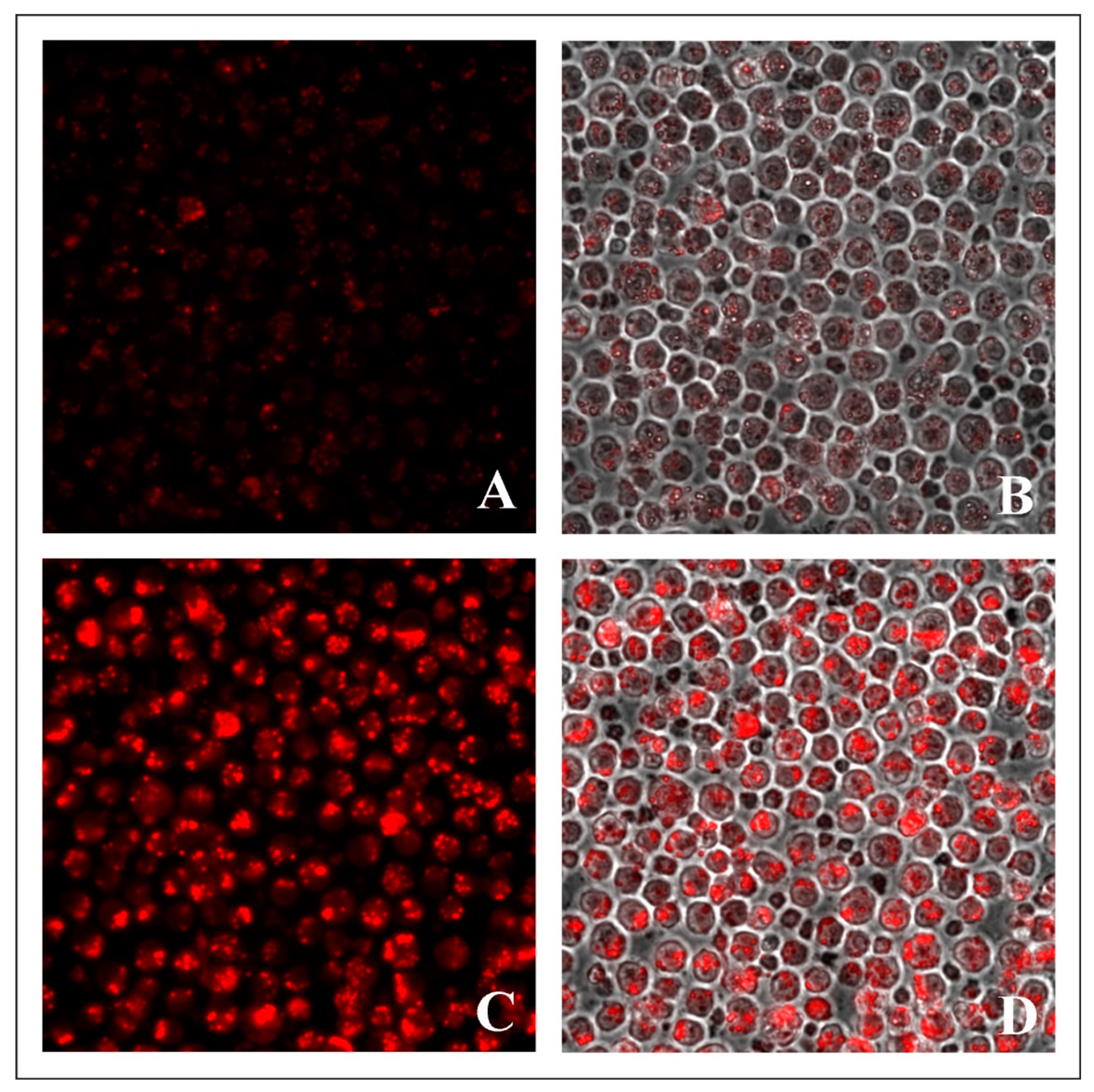

Figure 8. Ehrlich ascites carcinoma cell culture after 1.5 h (A,B) and 24 h (C,D) of incubation with BODIPY 1 at a concentration of 100 μM. (A,C)—fluorescent staining, (B,D)—overlapping a fluorescent staining with the phase contrast image. Magnification 40×.
Figure 8. Ehrlich ascites carcinoma cell culture after 1.5 h (A,B) and 24 h (C,D) of incubation with BODIPY 1 at a concentration of 100 μM. (A,C)—fluorescent staining, (B,D)—overlapping a fluorescent staining with the phase contrast image. Magnification 40×.
Molecules 27 05018 g008
Molecules 27 05018 g009 550

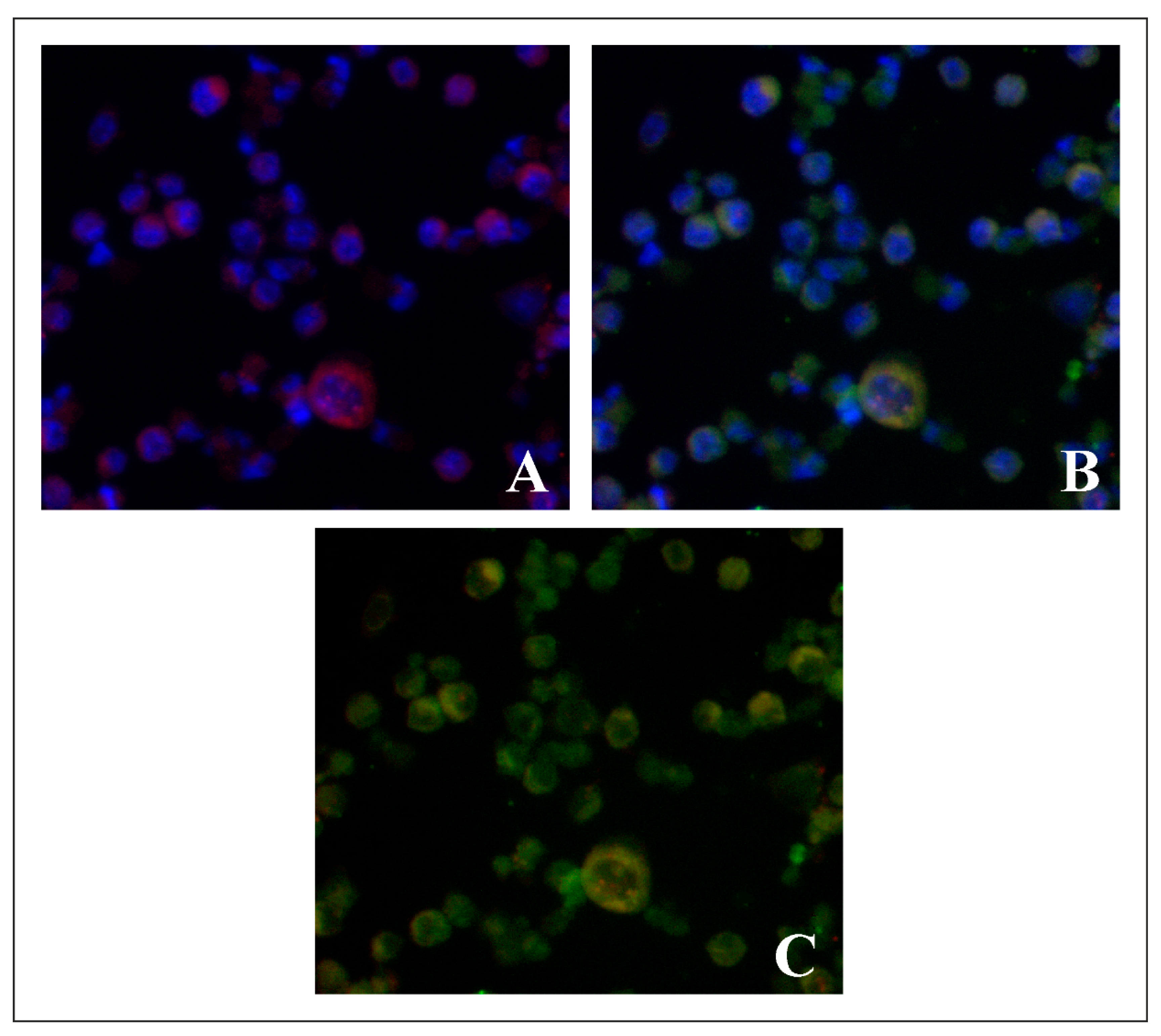

Figure 9. Fluorescent microscopic images showing colocalization of lysosomal markers LAMP1 and BODIPY 1 in Ehrlich ascitic carcinoma cells: (A)—BODIPY 1 (red) and nuclei (blue), (B)—LAMP1 (green) and nuclei (blue), (C)—overlapping BODIPY 1 and LAMP1 fluorescent staining. Magnification 40×.
Figure 9. Fluorescent microscopic images showing colocalization of lysosomal markers LAMP1 and BODIPY 1 in Ehrlich ascitic carcinoma cells: (A)—BODIPY 1 (red) and nuclei (blue), (B)—LAMP1 (green) and nuclei (blue), (C)—overlapping BODIPY 1 and LAMP1 fluorescent staining. Magnification 40×.
Molecules 27 05018 g009
Molecules 27 05018 g010 550

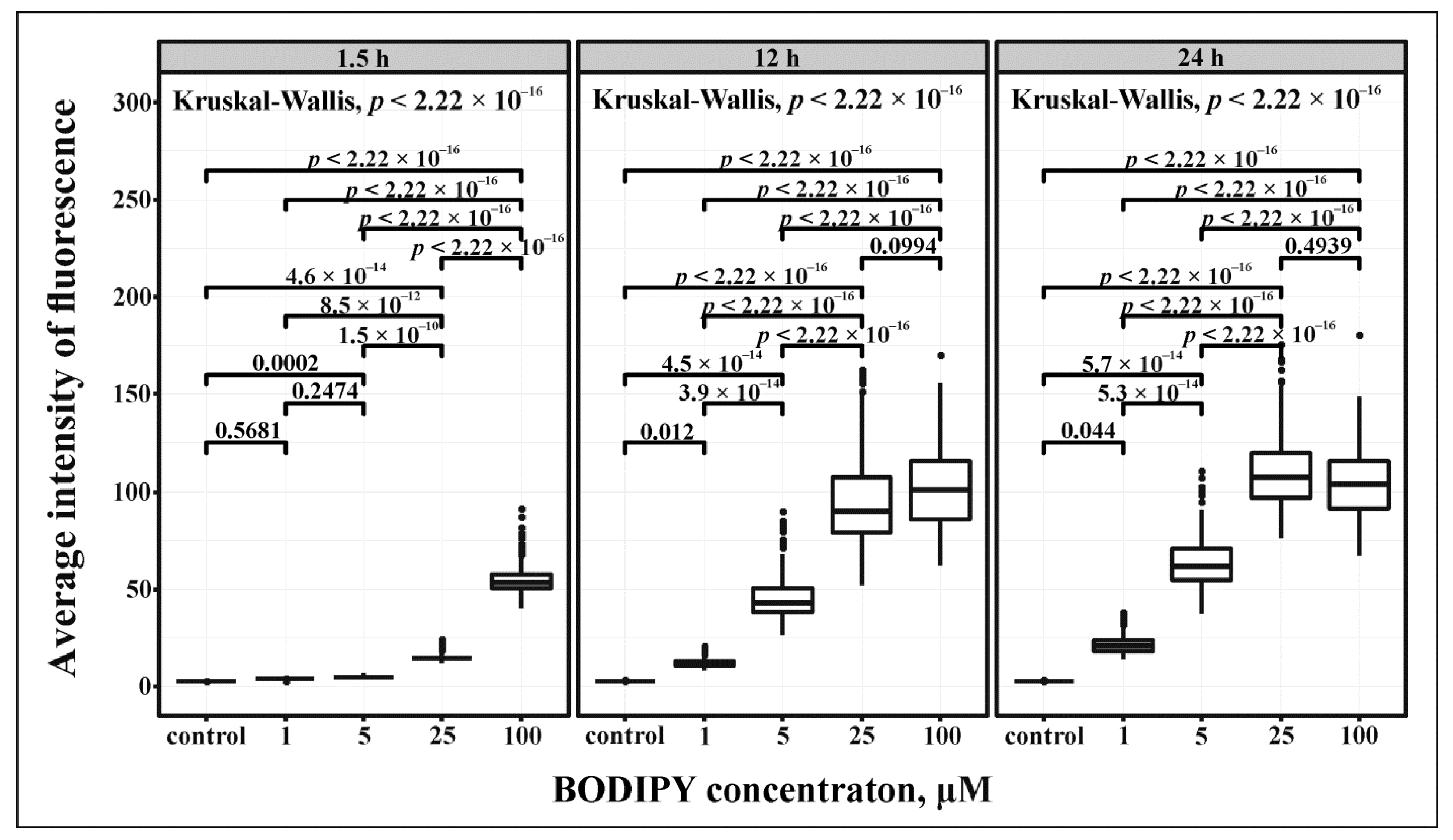

Figure 10. Comparison of the average fluorescence intensities observed in Ehrlich ascites carcinoma cells after 1.5, 12, and 24 h of incubation with BODIPY 1 at concentrations of 1, 5, 25, and 100 μM. Medians, and first and third quartiles are presented; significant differences are considered when p-value < 0.05. The posterior comparison was carried out by concentration.
Figure 10. Comparison of the average fluorescence intensities observed in Ehrlich ascites carcinoma cells after 1.5, 12, and 24 h of incubation with BODIPY 1 at concentrations of 1, 5, 25, and 100 μM. Medians, and first and third quartiles are presented; significant differences are considered when p-value < 0.05. The posterior comparison was carried out by concentration.
Molecules 27 05018 g010
Molecules 27 05018 g011 550

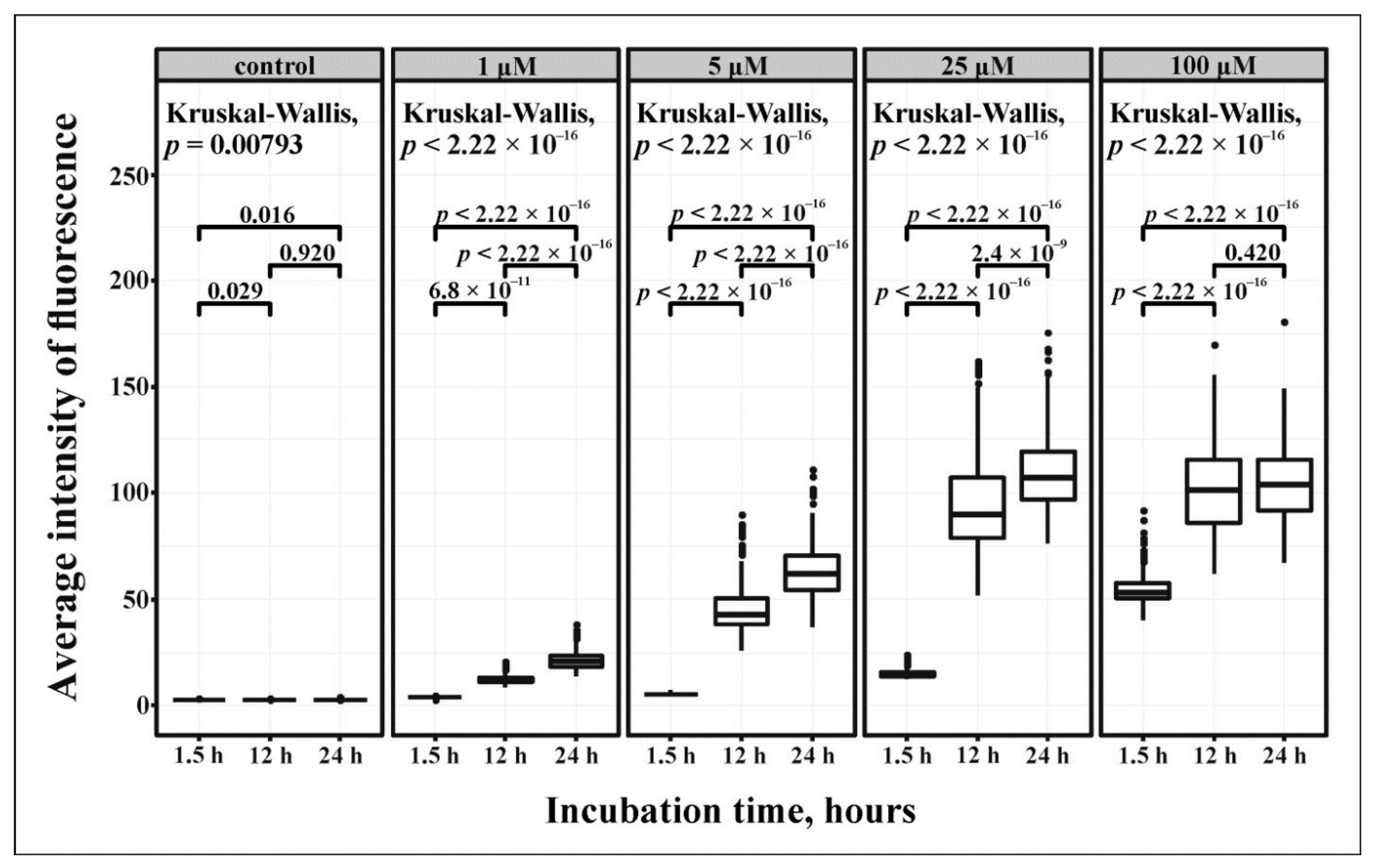

Figure 11. Comparison of the average fluorescence intensities observed in Ehrlich ascites carcinoma cells after 1.5, 12, and 24 h of incubation with BODIPY 1 at concentrations of 1, 5, 25, and 100 μM. Medians, first, and third quartiles are presented; significant differences are considered when p-value < 0.05. A posteriori comparison was performed with incubation time.
Figure 11. Comparison of the average fluorescence intensities observed in Ehrlich ascites carcinoma cells after 1.5, 12, and 24 h of incubation with BODIPY 1 at concentrations of 1, 5, 25, and 100 μM. Medians, first, and third quartiles are presented; significant differences are considered when p-value < 0.05. A posteriori comparison was performed with incubation time.
Molecules 27 05018 g011
Table
Table 1. Spectroscopic and photophysical characteristics of BODIPY 1 at 22 °C.
Table 1. Spectroscopic and photophysical characteristics of BODIPY 1 at 22 °C.
Solventλabs (Max), nmε (Max), M−1 cm−1 aλem (Max), nmΔνSt, cm−1ΦF b
Toluene61980,0006446270.9 ± 0.1
MeCN61073,0006387190.8 ± 0.1
DMSO62160,0006486710.7 ± 0.1
a The molar extinction coefficients were determined with an accuracy +/− 200 M−1 cm−1. b Relative to 4,4-difluoro-3-(4-methoxyphenyl)-5-phenyl-8-trifluoromethyl-4-bora-3a,4a-diaza-s-indacene (ΦF = 0.89 in MeCN) [57].
Table
Table 2. Energies, oscillator strengths, and dominant molecular orbital configurations of vertical absorption S0 → Si (i = 1–3) transitions and S1 → S0 fluorescence transition for BODIPY 1 in vacuum, calculated at the TD-CAM-B3LYP level of theory.
Table 2. Energies, oscillator strengths, and dominant molecular orbital configurations of vertical absorption S0 → Si (i = 1–3) transitions and S1 → S0 fluorescence transition for BODIPY 1 in vacuum, calculated at the TD-CAM-B3LYP level of theory.
TransitionEV, eVλ, nmfMain Configuration (%)
S0 → S12.524930.79 H-L (96)
→S23.823240.06H-7-L (55)
→S33.983120.01 H-1-L (73)
S1 → S02.355290.78H-L (97)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Trukhan, I.S.; Tomilin, D.N.; Dremina, N.N.; Sobenina, L.N.; Shurygin, M.G.; Petrushenko, K.B.; Petrushenko, I.K.; Trofimov, B.A.; Shurygina, I.A. Application of meso-CF3-Fluorophore BODIPY with Phenyl and Pyrazolyl Substituents for Lifetime Visualization of Lysosomes. Molecules 2022, 27, 5018. https://doi.org/10.3390/molecules27155018

AMA Style

Trukhan IS, Tomilin DN, Dremina NN, Sobenina LN, Shurygin MG, Petrushenko KB, Petrushenko IK, Trofimov BA, Shurygina IA. Application of meso-CF3-Fluorophore BODIPY with Phenyl and Pyrazolyl Substituents for Lifetime Visualization of Lysosomes. Molecules. 2022; 27(15):5018. https://doi.org/10.3390/molecules27155018

Chicago/Turabian Style

Trukhan, Irina S., Denis N. Tomilin, Nataliya N. Dremina, Lyubov N. Sobenina, Michael G. Shurygin, Konstantin B. Petrushenko, Igor K. Petrushenko, Boris A. Trofimov, and Irina A. Shurygina. 2022. "Application of meso-CF3-Fluorophore BODIPY with Phenyl and Pyrazolyl Substituents for Lifetime Visualization of Lysosomes" Molecules 27, no. 15: 5018. https://doi.org/10.3390/molecules27155018

Article Metrics

Back to TopTop
