Study on the Structure of a Mixed KCl and K2SO4 Aqueous Solution Using a Modified X-ray Scattering Device, Raman Spectroscopy, and Molecular Dynamics Simulation

1
Engineering Research Center of Seawater Utilization of Ministry of Education, School of Chemical Engineering and Technology, Hebei University of Technology, Tianjin 300130, China
2
School of Materials, Sun Yat-sen University, Guangzhou 511400, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Molecules 2022, 27(17), 5575; https://doi.org/10.3390/molecules27175575
Submission received: 5 August 2022 / Revised: 25 August 2022 / Accepted: 27 August 2022 / Published: 30 August 2022
(This article belongs to the Special Issue Saline Wastewater: Characteristics and Treatment Technologies)

Abstract

:
The microstructure of a mixed KCl and K2SO4 aqueous solution was studied using X-ray scattering (XRS), Raman spectroscopy, and molecular dynamics simulation (MD). Reduced structure functions [F(Q)], reduced pair distribution functions [G(r)], Raman spectrum, and pair distribution functions (PDF) were obtained. The XRS results show that the main peak (r = 2.81 Å) of G(r) shifted to the right of the axis (r = 3.15 Å) with increased KCl and decreased K2SO4. The main peak was at r = 3.15 Å when the KCl concentration was 26.00% and the K2SO4 concentration was 0.00%. It is speculated that this phenomenon was caused by the main interaction changing, from K-OW (r = 2.80 Å) and OW-OW (r = 2.80 Å), to Cl-OW (r = 3.14 Å) and K+-Cl (r = 3.15 Å). According to the trend of the hydrogen bond structure in the Raman spectrum, when the concentration of KCl was high and K2SO4 was low, the destruction of the tetrahedral hydrogen bond network in the solution was more serious. This shows that the destruction strength of the anion to the hydrogen bond network structure in solution was Cl > SO42−. In the MD simulations, the coordination number of OW-OW decreased with increasing KCl concentration, indicating that the tetrahedral hydrogen bond network was severely disrupted, which confirmed the results of the Raman spectroscopy. The hydration radius and coordination number of SO42− in the mixed solution were larger than Cl, thus revealing the reason why the solubility of KCl in water was greater than that of K2SO4 at room temperature.

1. Introduction

Potassium is essential for production and life [1,2,3,4]; with the rapid development of the economy in China and the need for agricultural production, the demand for potassium has become increasingly strong. However, potassium resources are relatively scarce in China, and global terrestrial potash resources are limited. An efficient potassium extraction process is important. It is hoped that this solution structure study can give some theoretical advice on the development of this process.
As far as potash solution is concerned, some scholars studied it as early as the middle of the last century. Gallo and Corradini [5] used molecular dynamics to study the structural properties of aqueous potassium chloride and fluoride solutions under ambient and supercooled conditions. It was found that the addition of both KCl and KF resulted in the distortion of the O-O structure and the second shell would move to a shorter distance. This effect was more pronounced as the concentration increased and more pronounced in KF than in KCl, especially with supercooling. Kerdcharoen [6] used QM/MM and ONIOM-XS methods to study K+ and Ca2+ in water and calculated that the average hydration number around K+ was 6.3. Kabbalee [7] also used ONIOM-XS MD simulation to study the solvation structure and kinetics of K+ in ammonia water. Simulations showed that the first solvation shell of K+ is very flexible and can form 4- to 10-fold coordinated K+ ligands. The average coordination number of K+ is 7.0, and it contains about 4.8 water molecules and 2.2 ammonia molecules. Our group has also conducted some studies on the structure of potassium salt solutions [8,9,10,11]. For example, by studying a mixed solution of KCl and NaCl [12], it was found that Na+ damages the hydrogen bond structure to a greater degree than K+. Under the experimental conditions, both the radius of hydration and the number of hydrations of Na+ were smaller than that of K+, which provided a micro reason to understand the solubility difference between these two salts. For KCl aqueous solution, as the concentration of the solution increases, contact ion pairs appear when the concentration is higher than 15.00%, and the hydration number of K+ gradually decreases [13]. Experimental and simulation [8,9,10, 11,12,13,14,15,16] analyses showed that the coordination number of K+ is in the range of 5.71–6.53 at the temperature of 300–450 K and the concentration of 0.01–3 mol/L.
Studying the structure of a KCl and K2SO4 mixed aqueous solution has an important practical significance for guiding the industrial extraction of potassium from seawater. Generally speaking, an X-ray scattering experiment is one of the most effective methods for studying the structure of an aqueous solution. However, due to the complexity of the structure of the aqueous solution, results obtained using only one test method are not convincing. Therefore, a combination of multiple test methods is required, to verify the accuracy of the results. Many scholars have studied the OH stretching vibration of water using the Raman spectrum [17,18,19,20,21] and proposed that the Raman OH stretching band can be fitted into five sub-bands and that each peak can be assigned to OH groups with different local hydrogen bond structures. Therefore, the microstructure changes of mixed aqueous solutions of KCl and K2SO4 can be inferred from the interpretation of the OH stretching zone of water.
In this work, the effects of KCl and K2SO4 on a mixed aqueous solution structure were studied using a self-modified X-ray scattering device, Raman spectroscopy, and molecular dynamics simulation. In this study, we tried to use several test methods, to obtain a more comprehensive solution of the microstructure information, which can be used as a basis for judging the changes of ionic interactions in a solution and to provide theoretical guidance for their separation.

2. Results and Discussion

2.1. X-ray Scattering Analysis

The normalized results of the X-ray scattering of the mixed aqueous solution of KCl and K2SO4 are shown in Figure 1. It can be seen that as the mass fraction of K2SO4 in the solution decreased and the mass fraction of the KCl increased, the characteristic peak gradually shifted from 13.1° to 14.0°; and the shoulder peak at 19° gradually disappeared. Comparing the scattering spectrum of the mixed solution and pure water, it can be seen that the scattering spectrum of pure water was closer to that of the 10.0% K2SO4 solution, but it was quite different from the scattering spectrum of 26.0% KCl solution. It is speculated that the reason for this is that the quantity ratio of ions to water molecules in the 26.0% KCl solution (1:11.8) was much greater than the quantity ratio in the 10.0% K2SO4 solution (1:87). In addition, the curve intersects at 18.5° and 25.0°. Through the study of a single aqueous solution, it can be seen from Figure 2 that, in the K2SO4 solution, the spectrum has intersection points at approximately 16.4° and 22.0°; while in the KCl solution, the intersection points appear at 18.5° and 24.8°. It can be seen that KCl had a great influence on the mixed solution system. This is because the solubility of K2SO4 (12 g/100 g H2O at 25 °C) was lower than that of KCl (35.7 g/100 g H2O at 25 °C).
The reduced structure function [F(Q)] and the reduced pair distribution functions [G(r)] of the mixed aqueous solution system obtained using PDFgetX3 processing are shown in Figure 3 and Figure 4.
It can be seen from Figure 3 that with the decrease of KCl mass fraction and the increase of K2SO4 mass fraction in the mixed solution, a flat-topped peak appeared near Q = 2.5 Å−1, which gradually split into two peaks, and the double peaks became more and more obvious. The peak appearing at this position is the structural characteristic peak of the aqueous solution, which is related to the hydrogen bond network structure in the water [22]. The peak near Q = 5 Å−1, which is very sensitive to the degree of hydrogen bond destruction in the solution [23], tended to move to the right of abscissa. Study of the structure of a single potassium salt aqueous solution shows that the law of peak movement in the mixed aqueous solution is the result of the superposition of two potassium salts, but the effect of KCl is stronger.
At the same time, an G(r) image of mixed the KCl and K2SO4 aqueous solutions is presented in Figure 4. It can be seen from Figure 4 that, as the mass fraction of KCl increased and the mass fraction of K2SO4 decreased, the peak near r = 2.81 Å gradually broadened. It can be seen from a single aqueous solution that the combined action of O-O and K+-O is related to this peak. In the KCl aqueous solution with a high mass fraction, the main peak appeared at 3.15 Å [13]. It is judged that, in the mixed solution, K+-Cl contact ion pairs appeared with the increase of KCl mass fraction, resulting in the broadening of the peak shape near r = 2.81 Å. The peak near 1.0 Å represents the intramolecular O-H interaction of water molecules. As can be seen from Figure 4, as the mass fraction of KCl in the mixed solution increased, the peak value moved to the right on the abscissa, from 1.06 Å to 1.16 Å, which is consistent with the change rule of a single KCl aqueous solution. This proves that the influence of KCl on the structure of the aqueous solution was greater than K2SO4. At the same time, it also shows that the influence of Cl on the structure of the aqueous solution was stronger than that of SO42−. For the mixed aqueous solution system, this peak position was greater than 0.97 Å calculated by molecular dynamics, which is the O–H covalent bond length in the pure water molecule [13]. This shows that the addition of KCl and K2SO4 both made the O-H covalent bond lengthen and have a stretching tendency. To discuss the generation of contact ion pairs and the changes in hydrogen bonds in more detail, it is worthwhile to analyze the results of the Raman spectroscopy and molecular dynamics simulations.

2.2. Raman Spectroscopy Results and Analysis

In order to make the comparison more convenient, the Raman intensity has been normalized, and the results are shown in Figure 5.
It can be seen from Figure 5 that, with the decrease of KCl and the increase of K2SO4 in the mixed aqueous solution, the shoulder peaks appearing in the range of 3200–3300 cm−1 showed an expanding trend; the overall peak shape of the scanning range gradually broadened. At the same time, the characteristic peak shifted significantly, from 3450 cm−1 to 3424 cm−1. Through the study of the structure of a single potassium salt solution, it can be proven that these changes are consistent with the laws presented in a single potassium salt aqueous solution [24].
To further explore the microstructure of the mixed aqueous solution of KCl and K2SO4, it was divided into five Gaussian peaks using a deconvolution fitting method [25,26,27], which were assigned to υDAA-OH, υDDAA-OH, υDA-OH, υDDA-OH, and υfree-OH symmetrical stretching vibrations, and the results are shown in Figure 6. Where D stands for the donor, which provides H to form hydrogen bonds with other water molecules; and A is the acceptor, which bonds with other water molecules using lone pair electrons on oxygen. Figure 7 shows the proportion of the five hydrogen bond structures in the mixed aqueous solution as a function of the mass fraction. These changes indicated that the content of DDAA and free OH increased continuously as the Cl concentration gradually decreased and the SO42− concentration gradually increased in the mixed aqueous solution; in this process, the DDA and DA-type hydrogen bonds continued to decrease. From the changing trend of the DDAA-type hydrogen bond structure in Figure 7, it can be seen that the destruction of the DDAA-type hydrogen bond structure by Cl was greater than that of SO42−. Therefore, the changing trend of the mixed aqueous solution was mainly affected by the change in the KCl mass fraction.
Table 1 lists the Gaussian peak positions of different types of OH stretching vibrations in mixed solutions. Table 1 demonstrates that the peak position of each Gaussian peak was reasonably stable and did not fluctuate significantly over a wide range of wavenumbers as the solute concentration was altered.

2.3. Simulation Results Analysis

Pair distribution function (PDF) is a method to obtain the atomic structure characteristics of a system in molecular dynamics simulation. We used PDF to further analyze the microstructure of the mixed aqueous solution. The hydration radius can be obtained directly from the PDF, where the first peak corresponds to the first coordination layer around the central atom. The first peak in PDF corresponds to the first coordination layer surrounding the central atom. The number of atoms in the first coordination layer (coordination number) is the product of the integral of the area of the first peak and the number density. According to Equation (1):
N ( r ) = 4 π ρ N 0 r r 2 g ( r ) d r ,
where ρN represents the average number density, and r represents the hydration radius.
Figure 8 depicts the PDF and coordination number diagrams for K+-Cl in mixed aqueous solutions containing varying concentrations of KCl and K2SO4. It can be seen from Figure 8a that the first peak was relatively strong, indicating the short-range order of the ion arrangement in the aqueous solution. As can be seen from the changes in PDF and the coordination number in Figure 8, as the mass fraction of KCl in the mixed aqueous solution increased, the first peak in (a) moved to a smaller distance from 3.14 Å to 3.10 Å; (b) the coordination number between K+-Cl increased, from 0.08 to 0.83, indicating an enhanced interaction between K+-Cl. This conclusion confirms that in the G(r) function, the broadening of the peak at the 2.81 Å position toward the high r direction was caused by the K+-Cl interaction.
Figure 9 depicts the PDF and coordination number plots of OW-OW in mixed aqueous solutions of KCl and K2SO4 with different concentrations. It can be seen from Figure 9 that the radial distribution function and coordination number of OW-OW in different concentrations of KCl-K2SO4 aqueous solutions showed regular changes. It can be seen from Figure 9b that, the higher the KCl concentration, the lower the coordination number, ranging from 4.10 to 3.44, indicating that the OW-OW interaction in water was gradually weakened, and the tetrahedral hydrogen-bonded water network was severely damaged. This is consistent with the Raman conclusion that KCl damages the hydrogen bond structure of DDAA more severely than K2SO4.
Figure 10 is a PDF diagram of K-OW with various concentrations of KCl and K2SO4 in mixed aqueous solutions. Figure 10 demonstrates that the first peak of the K+-OW PDF was at 2.7 Å. Combining the positions of the first peaks in Figure 8a and Figure 9a, it was proven that the earlier G(r) analysis hypotheses, that the peak near 2.8 Å resulted from the interaction of K+-Cl, K+-OW, and OW-OW, were accurate.
Figure 11 shows the PDF of Cl-OW and S-OW in mixed aqueous solutions of KCl and K2SO4 with different concentrations. It can be seen from Figure 11 that the first peak functions of the radial distributions of Cl-OW and S-OW appeared around 3.14 Å and 3.45 Å, respectively, and the first peak of S-OW was higher than that of Cl-OW. In addition, the position of the first peak did not change much in the mixed aqueous solutions with different mass fractions, indicating that the concentration had little effect on the interaction between Cl-OW and S-OW.
Figure 12 is a diagram of the coordination numbers of Cl-OW (blue) and S-OW (red) in mixed aqueous solutions. It can be seen from the figure that the coordination number of Cl-OW was smaller than that of S-OW. Combining the PDF diagrams of Cl-OW and S-OW, it was found that the hydration radius and coordination number of SO42- in the mixed solution components was larger than that of Cl, thus revealing the reason why the solubility of KCl in water was greater than that of K2SO4.

3. Materials and Methods

3.1. Sample Preparation

KCl and K2SO4 were used to prepare the solution. GR reagent produced by Tianjin Guangfu Fine Chemical Research Institute (the contents of KCl and K2SO4 are not less than 99.99%) was selected. The experimental water was prepared using the uhw-i90t, and its resistivity was 18.25 MΩ cm at room temperature. The mixed aqueous solutions of KCl and K2SO4 with mass fractions of 26.0% KCl/0.0% K2SO4 (abbreviated as “KC26-KS0”, the same below); 20.0% KCl/2.1% K2SO4; 15.0% KCl/3.3% K2SO4; 10.0% KCl/4.9% K2SO4; 5.0% KCl/7.1% K2SO4; and 0.0% KCl/10.0% K2SO4 were prepared by the mass method. The prepared mixed solutions with their basic properties are shown in Table 2.
To compare the effect of single solutions, the experiments were also configured with different concentrations of single K2SO4 aqueous solution and single KCl aqueous solution, which can be seen in Table 3 and Table 4.

3.2. X-ray Scattering Experiment

X-ray scattering data were tested on a modified D8–Focus X-ray scattering device [28]. The light energy was 17.45 keV, and the 2θ scanning range was 5°–150°.

3.3. Raman Spectroscopy Experiment

Raman spectroscopy was performed on a confocal Raman microscope spectrometer (inVia, Renishaw, London, UK) at room temperature. The laser excitation wavelength was 532 nm, the objective lens was 50 times, and the spectral scanning range was 2800–3800 cm−1.

3.4. Molecular Dynamics Simulation

The simulations in this paper used the potential energy model provided by the COMPASS II force field of the Materials Studio software package [29,30]. The Construction function in the Amorphous Cell module was used to build a preliminary model. Then, on this basis, the Geometry Optimization function in the Forcite Calculation module was used to perform ensemble optimization on the preliminary model; and the force field was the COMPASS II force field (See Supplementary Materials for details). The number of particles used was determined by the solution concentration, as shown in Table 2. The Nose method was used for the isothermal simulation, the simulation temperature was 298 K, the side length of the initial water box model was 26 Å, and the Berendsen method was selected for the pressure control. Three specification sets of NVT, NPT, and NVE were used in sequence. The initial configuration of the simulation was a face-centered cubic lattice, and the initial orientation of each particle was random. The initial velocity of each particle was sampled according to the Maxwell distribution, using cubic periodic boundary conditions. The van der Waals effect and electrostatic effect were obtained using the Atom-based method and the Ewald method, respectively; and the motion equation of the system was solved using the velocity-Verlet algorithm. The time step of the simulation was 0.2 fs, and the total time of each simulation was 100 ps.

3.5. Method of Structure Analysis

The intensity of the X-ray scattering spectrum was the superposition of multiple scattering intensities [31]. PDFgetX3 was used to process the X-ray scattering data, to obtain the information needed to analyze the structure of the solution [32]. The X-ray scattering results could be converted into the structural function (S(Q)) through this software [33]. Equation (2) was used to Fourier transform the S(Q), to obtain the reduced pair distribution function, G(r) [34].
G ( r ) = ( 2 / π ) 0 Q [ S ( Q ) 1 ] sin ( Q r ) d Q   = 4 π r ρ 0 ( g ( r ) 1 )   = ( 2 / π ) 0 F ( Q ) sin ( Q r ) d Q
where F ( Q ) = Q [ S ( Q ) 1 ] , which is called the reduced structure functions. Q represents the scattering vector; r is the distance between atoms; ρ0 is the number density of atoms in the system; and g(r) is the atomic pair distribution function.

4. Conclusions

The microscopic solution structure of a KCl and K2SO4 mixed aqueous solution system was examined using X-ray scattering, Raman spectroscopy, and molecular dynamics simulation in this article, yielding the following results:
The X-ray scattering results showed that as KCl increased and K2SO4 decreased, the main peak of G(r) was widened to the right side of the abscissa. The main peak was wide, as the KCl concentration was 26.00% and the K2SO4 concentration was 0.00%. It is speculated that this phenomenon was due to the main interaction between K-OW (r = 2.80 Å) and OW-OW (r = 3.10 Å) and K+-Cl (r = 3.15 Å). The results of Raman spectroscopy demonstrated that the DDAA–type hydrogen bonding structure was disrupted, and the disruption of the DDAA–type hydrogen bonding structure by Cl was larger than that by SO42−. In the MD simulation, the coordination number of OW-OW decreased with the increase of KCl concentration, indicating that the tetrahedral hydrogen bond network was severely damaged, which confirmed the results of the Raman spectrum. In summary, it was shown that the trend of KCl-K2SO4 mixed aqueous solution was mainly influenced by the concentration of KCl.

Supplementary Materials

The supporting information [35,36,37,38,39,40,41] can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27175575/s1.

Author Contributions

Conceptualization, M.Q., F.L. and M.W.; methodology, F.L. and M.W.; software, M.Q.; validation, F.L., J.Y. and Z.J.; formal analysis, H.Z.; investigation, X.M.; resources, Y.Z.; data curation, M.Q. and M.W.; writing-original draft preparation, F.L., M.Q. and M.W.; writing-review and editing, M.Q. and F.L.; visualization, S.W. and J.B.; supervision, X.G.; project administration, J.L.; funding acquisition, J.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Fund of Hebei Province, grant number: E2020202020; Ministry of Education Innovation Team Development Plan, grant number: IRT14R14; Hebei Modern Marine Chemical Technology Collaborative Innovation Center, grant number: jijiaoke [2013] No.37; Construction of Integrated Teaching Resources for “Potassium Extraction from Seawater” based on Both Engineering and Learning, grant number: 202002046010; Construction and Application of Teaching Resources for Marine Technology based on the Integration of Science and Education, grant number: 2020GJJG029.

Data Availability Statement

The datasets used and/or analyzed in the present study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors thank the beamline BL14B1, BL13W1, and BL02U2 (Shanghai Synchrotron Radiation Facility) for providing help during experiments.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Sample information for compounds is available from the authors.

References

  1. Ren, Y.; Yu, M.; Liu, J.; Zhang, Y. Phase Equilibrium, Structural Properties and Separation Process Studies of Potassium-Ammonium-Based Solid Solution in Aqueous-Solid Solution (AQ-SS). J. Chem. Thermodyn. 2020, 144, 106084. [Google Scholar] [CrossRef]
  2. Trivedi, J.S.; Bhadja, V.; Makwana, B.S.; Jewrajka, S.K.; Chatterjee, U. Sustainable process for the preparation of potassium sulfate by electrodialysis and its concentration and purification by a nanofiltration process. RSC Adv. 2016, 6, 71807–71817. [Google Scholar] [CrossRef]
  3. Chen, H.; Zhang, J.; Wang, X.; Nie, Y.; Gao, S.; Zhang, M.; Ma, Y.; Dai, Q.; Li, D.; Kan, S.; et al. K2SO4 nanowires a good nanostructured template. Phys. Lett. A 2006, 355, 222–227. [Google Scholar] [CrossRef]
  4. Li, S.; Sun, K.; Zhao, Y.; Nie, G.; Song, S. Purification and rapid dissolution of potassium sulfate in aqueous solutions. RSC Adv. 2019, 9, 2156–2161. [Google Scholar] [CrossRef] [PubMed]
  5. Gallo, P.; Corradini, D.; Rovere, M. Do ions affect the structure of water? The case of potassium halides. J. Mol. Liq. 2014, 189, 52–56. [Google Scholar] [CrossRef]
  6. Supachai, W.; Anan, T.; Teerakiat, K. Hydration structure and dynamics of K+ and Ca2+ in aqueous solution: Comparison of conventional QM/MM and ONIOM-XS MD simulations. Chem. Phys. Lett. 2011, 517, 171–175. [Google Scholar] [CrossRef]
  7. Kabbalee, P.; Sripa, P.; Tongraar, A.; Kerdcharoen, T. Solvation structure and dynamics of K+ in aqueous ammonia solution: Insights from an ONIOM-XS MD simulation. Chem. Phys. Lett. 2015, 633, 152–157. [Google Scholar] [CrossRef]
  8. Li, F.; Li, S.; Zhuang, X.; Yuan, J. Study on the Structure of Potassium Chloride Aqueous Solution by Molecular Dynamics and Raman Spectroscopy Methods. Chem. Eng. Transac. 2017, 61, 769–774. [Google Scholar] [CrossRef]
  9. Li, S.; Yuan, J.; Li, F.; Liu, Z. Local structures and the dissolving behavior of aqueous ammonia and its KCl and NH4Cl solutions: A Raman spectroscopy and X-ray scattering study. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2016, 162, 27–35. [Google Scholar] [CrossRef]
  10. Yuan, J.; Bao, J. Molecular dynamics simulation of K+, Na+ and Cl hydration. Comput. Appl. Chem. 2009, 26, 1295. [Google Scholar] [CrossRef]
  11. Zhou, Q.; Yuan, J.; Bao, J.; Li, F. Molecular dynamics simulation of ionic concentration effects on ionic hydration in aqueous KCI solutions. Comput. Appl. Chem. 2011, 28, 1189–1193. [Google Scholar] [CrossRef]
  12. Yuan, J.S.; Liu, Z.Y.; Li, F.; Li, S.Y. Study of the Hydrated Structure of KCl and NaCl Mixed Solutions Using X-ray Diffraction and Raman Spectroscopy. Acta Phys. Chim. Sin. 2016, 32, 1143–1150. [Google Scholar] [CrossRef]
  13. Li, F.; Yuan, J.; Li, D.; Li, S.; Han, Z. Study on the structure of aqueous potassium chloride solutions using the X-ray diffraction and Raman spectroscopy methods. J. Mol. Struct. 2015, 1081, 38–43. [Google Scholar] [CrossRef]
  14. Wang, J.; Lin, H.; An, S.; Li, S.; Yuan, J. Concentration-dependent structure of KCl aqueous solutions under weak magnetic field from the X-ray diffraction and molecular dynamics simulation. J. Mol. Struct. 2019, 1201, 127130. [Google Scholar] [CrossRef]
  15. Liu, Y.; Lu, H.; Wu, Y.; Hu, T.; Li, Q. Hydration and coordination of K+ solvation in water from ab initio molecular-dynamics simulation. J. Chem. Phys. 2010, 132, 124503–124506. [Google Scholar] [CrossRef]
  16. Mancinelli, R.; Botti, A.; Bruni, F.; Ricci, M.A.; Soper, A.K. Hydration of Sodium, Potassium, and Chloride Ions in Solution and the Concept of Structure Maker/Breaker. J. Phys. Chem. B. 2007, 111, 13570–13577. [Google Scholar] [CrossRef]
  17. Khoshtariya, D.E.; Zahl, A.; Dolidze, T.D.; Neubrand, A.; Eldik, R.V. Discrimination of Diverse (Pressure/Temperature-Dependent/Independent) Inherent Sub-structures in Liquid Water (D2O) from Difference Vibrational Spectroscopy. J. Phys. Chem. B. 2004, 108, 14796–14799. [Google Scholar] [CrossRef]
  18. Khoshtariya, D.E.; Dolidze, T.D.; Lindqvist-Reis, P.; Neubrand, A.; van Eldik, R. Liquid water (D2O): A dynamic model emerging from near-infrared DO-D stretching overtone studies. J. Mol. Liq. 2002, 96–97, 45–63. [Google Scholar] [CrossRef]
  19. Khoshtariya, D.E.; Hansen, E.; Leecharoen, R.; Walker, G.C. Probing protein hydration by the difference O–H (O–D) vibrational spectroscopy: Interfacial percolation network involving highly polarizable water-water hydrogen bonds. J. Mol. Liq. 2003, 105, 13–36. [Google Scholar] [CrossRef]
  20. Sun, Q. Raman spectroscopic study of the effects of dissolved NaCl on water structure. Vib. Spectrosc. 2012, 62, 110–114. [Google Scholar] [CrossRef]
  21. Sun, Q. Local statistical interpretation for water structure. Chem. Phys. Lett. 2013, 568, 90–94. [Google Scholar] [CrossRef]
  22. Fu, L.; Bienenstock, A.; Brennan, S. The information content of electron flow through adsorbed molecular monolayers. J. Chem. Phys. 2009, 131, 234702. [Google Scholar] [CrossRef] [PubMed]
  23. Qiao, M.D.; Wang, S.C.; Li, F.; Wang, M.L.; Meng, X.Z.; Zhu, H.Y.; Feng, M.Y.; Zhang, D.Y.; Li, T.B.; Zhang, Y.; et al. The trade-off effect of KCl and NH4Cl on the hydrated structure in their mixed aqueous solutions. J. Mol. Struct. 2022, 1264, 133213. [Google Scholar] [CrossRef]
  24. Hu, Q.; Zhao, H. Understanding the effects of chlorine ion on water structure from a Raman spectroscopic investigation up to 573 K. J. Mol. Struct. 2019, 1182, 191–196. [Google Scholar] [CrossRef]
  25. Sun, Q. The Raman OH stretching bands of liquid water. Vib. Spectrosc. 2009, 51, 213–217. [Google Scholar] [CrossRef]
  26. Sun, Q.; Qin, C. Raman OH stretching band of water as an internal standard to determine carbonate concentrations. Chem. Geol. 2011, 283, 274–278. [Google Scholar] [CrossRef]
  27. Sun, Q. The single donator-single acceptor hydrogen bonding structure in water probed by Raman spectroscopy. J. Chem. Phys. 2010, 132, 054507. [Google Scholar] [CrossRef]
  28. Li, F.; Han, Z.; Li, D.C.; Li, S.Y.; Yuan, J.S. Determination of the Structure of Aqueous Solutions by θ-2θ X-ray Diffractometer. Chin. J. Anal. Lab. 2014, 33, 1072–1076. [Google Scholar] [CrossRef]
  29. Wang, J.; Lin, H.; Li, F.; Li, S.; An, S.; Yuan, J. Concentration-dependent structure of mixed NH4Cl and (NH4)2SO4 aqueous solutions from the X-ray diffraction, Raman spectroscopy and molecular dynamics simulations. J. Mol. Struct. 2019, 1185, 469–477. [Google Scholar] [CrossRef]
  30. Wang, X.; Chen, S.; Li, F.; Yuan, J. Study on the aqueous solution structure of sodium chloride. J. At. Mol. Phys. 2020, 37, 768–777. [Google Scholar]
  31. Egami, T.; Billinge, S. Underneath the Bragg Peaks: Structural Analysis of Complex Materials, 2nd ed.; Pergamon Press: Oxford, UK, 2003; pp. 217–236. [Google Scholar]
  32. Juhás, P.; Davis, T.; Farrow, C.L.; Billinge, S.J.L. PDFgetX3: A rapid and highly automatable program for processing powder diffraction data into total scattering pair distribution functions. J. Appl. Crystallogr. 2013, 46, 560–566. [Google Scholar] [CrossRef] [Green Version]
  33. Jeong, I.K.; Thompson, J.J.; Proffen, T.; Turner, A.M.P.; Billinge, S.J.L. PDFgetX: A program for obtaining the atomic pair distribution function from X-ray powder diffraction data. J. Appl. Crystallogr. 2001, 34, 536. [Google Scholar] [CrossRef]
  34. Yang, X.; Juhas, P.; Farrow, C.L.; Billinge, S.J.L. Novel and Permanent Measurement of Formation Pore Pressure. J. Appl. Crystallogr. 2014, 11–14. [Google Scholar] [CrossRef]
  35. Sun, H.; Jin, Z.; Yang, C. COMPASS II: Extended coverage for polymer and drug-like molecule databases. J. Mol. Modeling 2016, 22, 1–10. [Google Scholar] [CrossRef]
  36. Sun, H. COMPASS: An ab initio force-field optimized for condensed-phase applications overview with details on alkane and benzene compounds. J. Phys. Chem. B 1998, 102, 7338–7364. [Google Scholar]
  37. Yang, J.; Ren, Y.; Tian, A.M. COMPASS force field for 14 inorganic molecules, He, Ne, Ar, Kr, Xe, H2, O2, N2, NO, CO, CO2, NO2, CS2, and SO2, in liquid phases. J. Phys. Chem. B. 2000, 104. [Google Scholar] [CrossRef]
  38. Bouazizi, S.; Nasr, S.; Jaîdane, N. Local order in aqueous NaCl solutions and pure water: X-ray scattering and molecular dynamics simulations study. J. Phys. Chem. B. 2006, 110, 23515. [Google Scholar] [CrossRef] [PubMed]
  39. Bouazizi, S.; Nasr, S. Structural investigations of high concentrated aqueous LiCl solutions: X-ray scattering and MD simulations approach. J. Mol. Struct. 2008, 875, 121–129. [Google Scholar] [CrossRef]
  40. Zhu, H.; Zhuang, X.; Meng, X.; Wang, M.; Wang, X.; Li, F.; Yuan, J. Concentration-dependent structure of mixed (NH4)2SO4 and K2SO4 aqueous solutions using the X-ray diffraction, Raman spectroscopy and molecular dynamics simulations. Vib Spectrosc. 2021, 116, 103292. [Google Scholar] [CrossRef]
  41. Meng, X.; Zhuang, X.; Fu, Y.; Yuan, J.; Li, S.; Chen, S. Local structure of NH4Cl solution and its correlation with osmotic coefficient by molecular dynamics simulation and Raman spectroscopy. Vib Spectrosc. 2020, 111, 103155. [Google Scholar] [CrossRef]

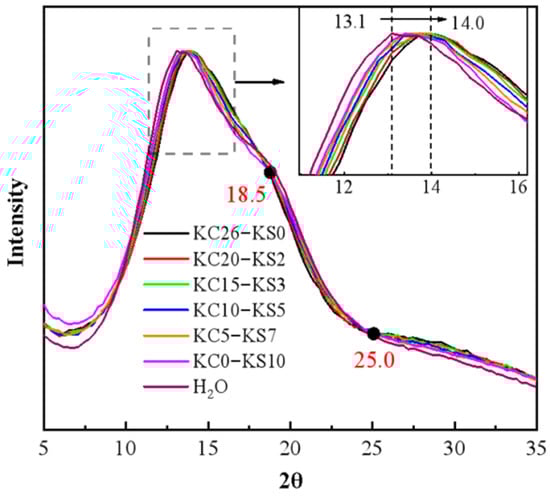

Figure 1. X-ray scattering spectra of mixed KCl and K2SO4 aqueous solutions with different mass fractions.
Figure 1. X-ray scattering spectra of mixed KCl and K2SO4 aqueous solutions with different mass fractions.
Molecules 27 05575 g001

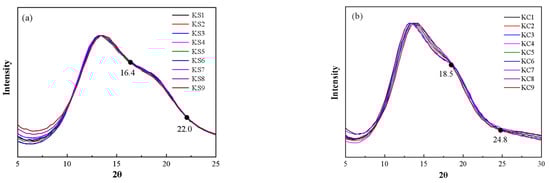

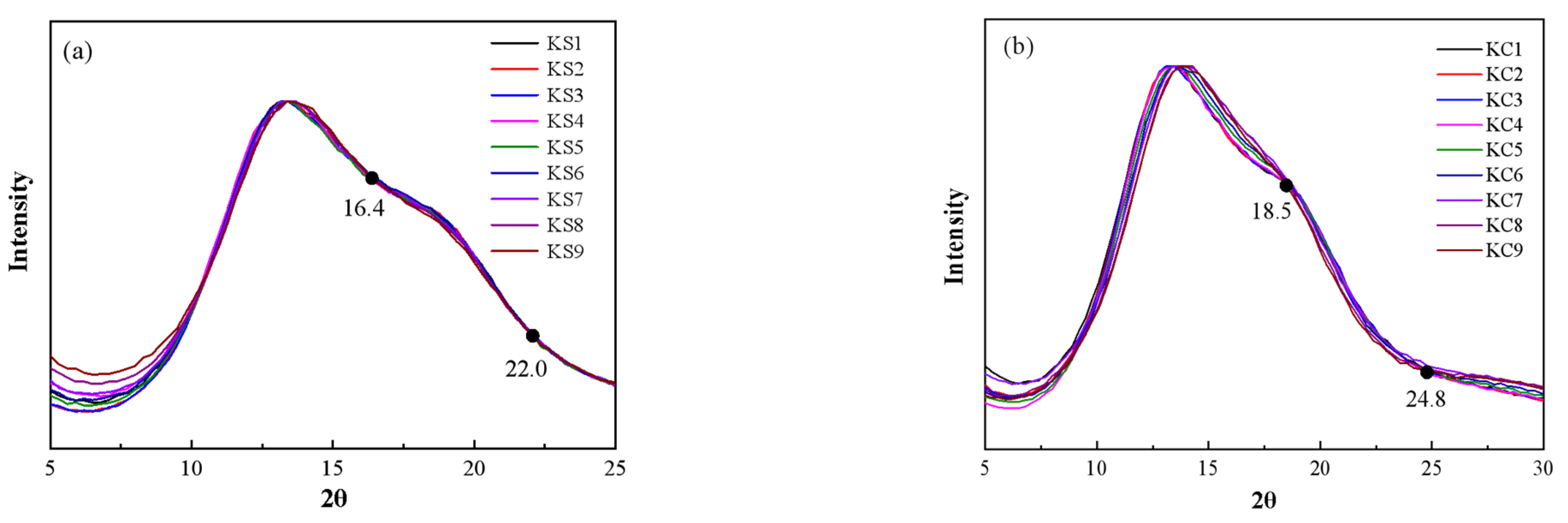

Figure 2. Local magnification of X-ray scattering in a single aqueous solution system: (a) K2SO4 aqueous solution; (b) KCl aqueous solution.
Figure 2. Local magnification of X-ray scattering in a single aqueous solution system: (a) K2SO4 aqueous solution; (b) KCl aqueous solution.
Molecules 27 05575 g002

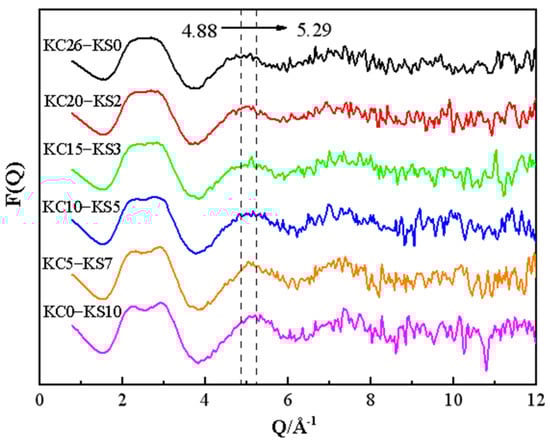

Figure 3. F(Q) of mixed KCl and K2SO4 aqueous solution with different mass fractions.
Figure 3. F(Q) of mixed KCl and K2SO4 aqueous solution with different mass fractions.
Molecules 27 05575 g003

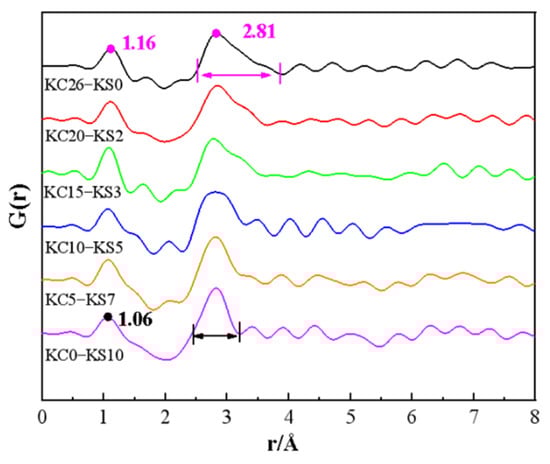

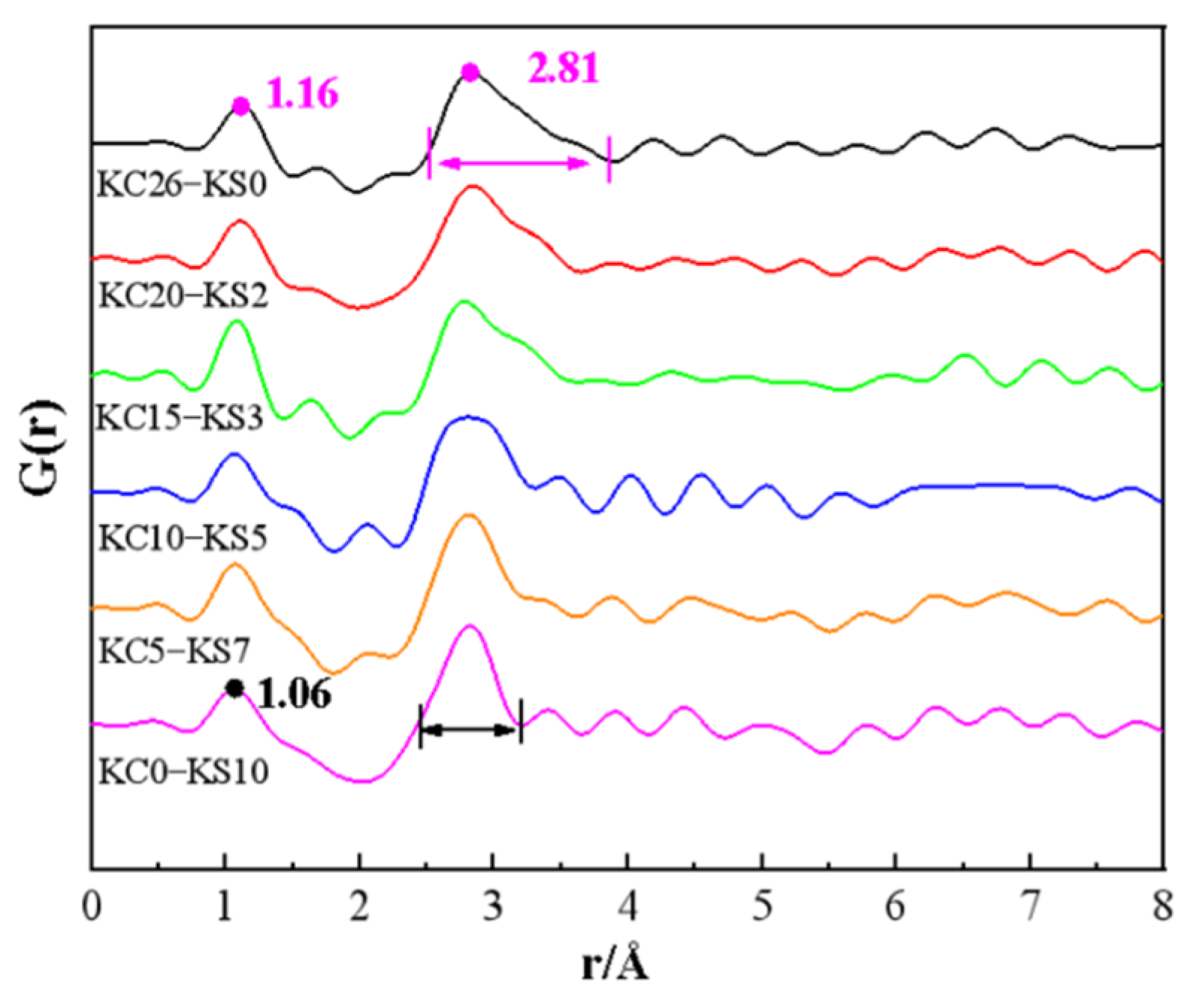

Figure 4. G(r) of mixed KCl and K2SO4 aqueous solution with different mass fractions.
Figure 4. G(r) of mixed KCl and K2SO4 aqueous solution with different mass fractions.
Molecules 27 05575 g004

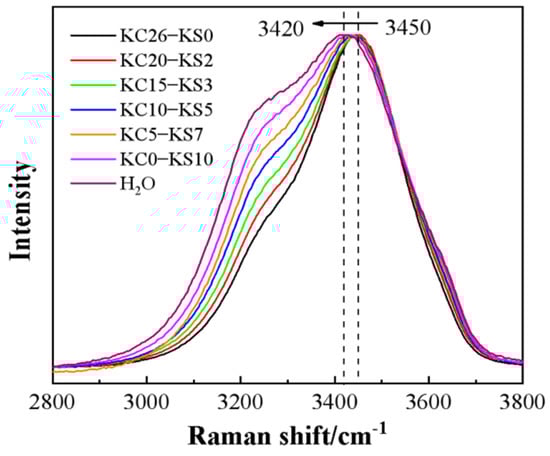

Figure 5. Raman spectra of mixed KCl and K2SO4 aqueous solution with different mass fractions.
Figure 5. Raman spectra of mixed KCl and K2SO4 aqueous solution with different mass fractions.
Molecules 27 05575 g005

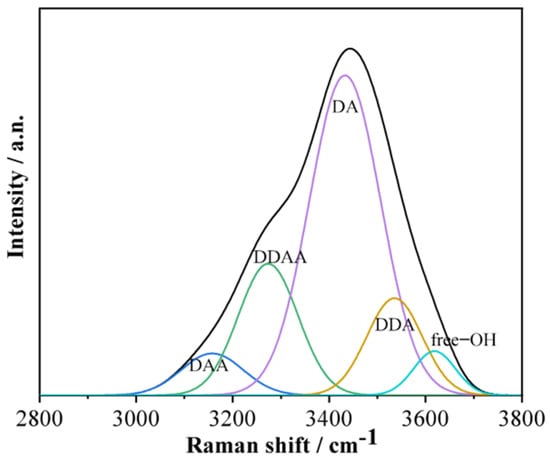

Figure 6. Deconvolution Fitting of Raman Spectra of 5% KCl-7.1% K2SO4 Mixed Solution.
Figure 6. Deconvolution Fitting of Raman Spectra of 5% KCl-7.1% K2SO4 Mixed Solution.
Molecules 27 05575 g006

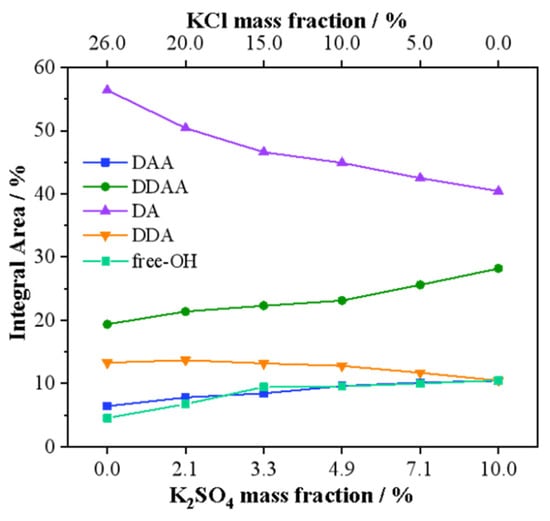

Figure 7. Variation of the Raman peak area in the OH stretching vibration range of KCl–K2SO4 mixed aqueous solutions with different mass fractions.
Figure 7. Variation of the Raman peak area in the OH stretching vibration range of KCl–K2SO4 mixed aqueous solutions with different mass fractions.
Molecules 27 05575 g007

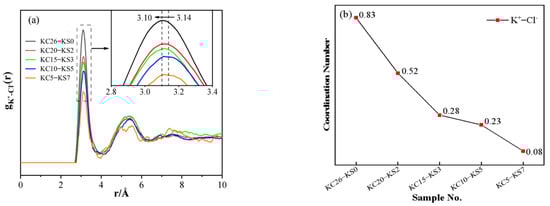

Figure 8. PDF (a) and coordination number (b) of K+-Cl in different concentrations of KCl–K2SO4 aqueous solution.
Figure 8. PDF (a) and coordination number (b) of K+-Cl in different concentrations of KCl–K2SO4 aqueous solution.
Molecules 27 05575 g008

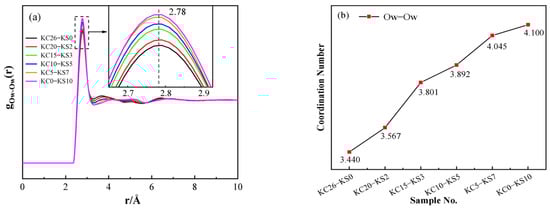

Figure 9. PDF (a) and coordination number (b) of OW-OW in different concentrations of KCl–K2SO4 aqueous solution.
Figure 9. PDF (a) and coordination number (b) of OW-OW in different concentrations of KCl–K2SO4 aqueous solution.
Molecules 27 05575 g009

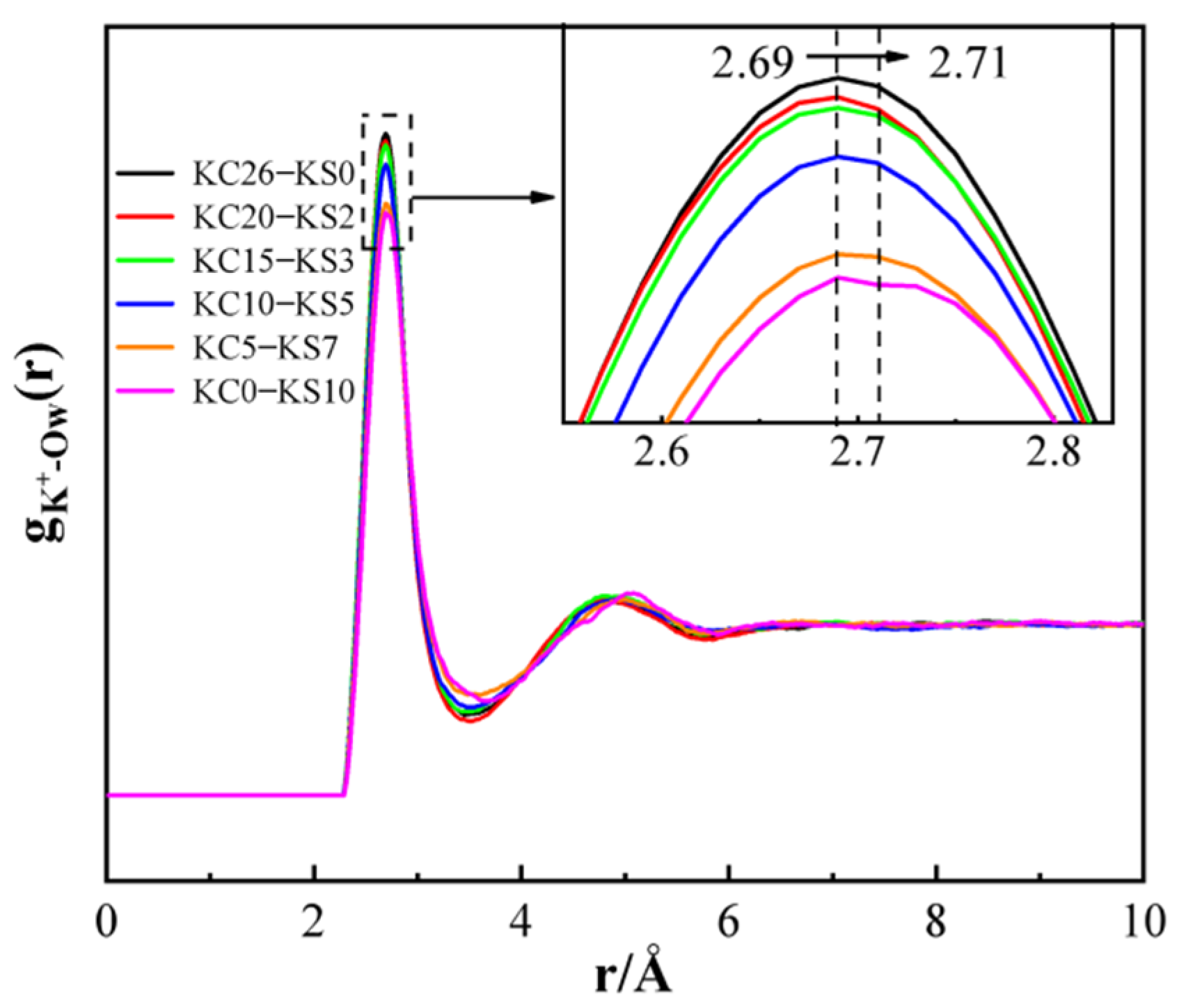

Figure 10. PDF of K+-OW in different concentrations of KCl–K2SO4 aqueous solution.
Figure 10. PDF of K+-OW in different concentrations of KCl–K2SO4 aqueous solution.
Molecules 27 05575 g010

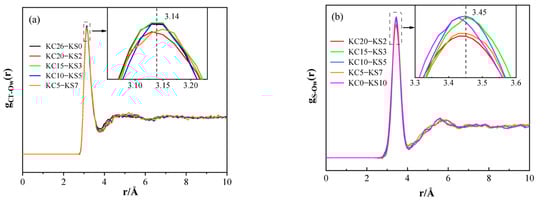

Figure 11. PDF of Cl-OW (a) and S-OW (b) of KCl–K2SO4 aqueous solutions.
Figure 11. PDF of Cl-OW (a) and S-OW (b) of KCl–K2SO4 aqueous solutions.
Molecules 27 05575 g011

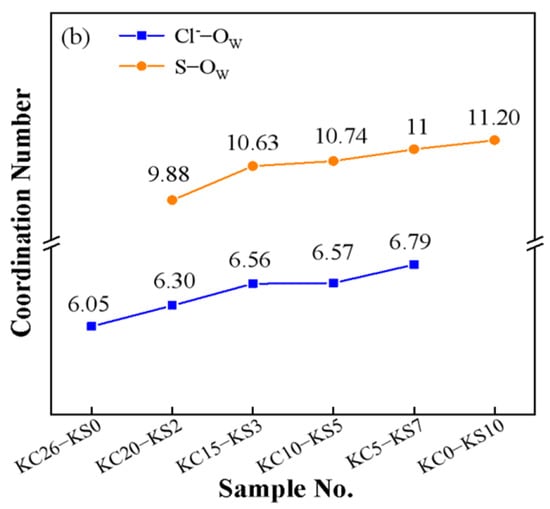

Figure 12. Coordination number of Cl-OW (blue) and S-OW (red) in mixed aqueous solutions.
