An Ultrastable Porous Polyhedral Oligomeric Silsesquioxane/Tetraphenylthiophene Hybrid as a High-Performance Electrode for Supercapacitors

by
Mohsin Ejaz
1,
Mohamed Gamal Mohamed
1,2,*,
Santosh U. Sharma
3,4,
Jyh-Tsung Lee
3,4,5,
Chih-Feng Huang
6,
Tao Chen
7 and
Shiao-Wei Kuo
1,5,*
1
Department of Materials and Optoelectronic Science, College of Semiconductor and Advanced Technology Research, National Sun Yat-sen University, Kaohsiung 80424, Taiwan
2
Chemistry Department, Faculty of Science, Assiut University, Assiut 71515, Egypt
3
Department of Chemistry, National Sun Yat-sen University, Kaohsiung 80424, Taiwan
4
International PhD Program for Science, Department of Chemistry, National Sun Yat-sen University, Kaohsiung 80424, Taiwan
5
Department of Medicinal and Applied Chemistry, Kaohsiung Medical University, Kaohsiung 807, Taiwan
6
Department of Chemical Engineering, i-Center for Advanced Science and Technology (iCAST), National Chung Hsing University, 145 Xingda Road, South District, Taichung 40227, Taiwan
7
Ningbo Institute of Material Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(19), 6238; https://doi.org/10.3390/molecules27196238
Submission received: 26 August 2022 / Revised: 17 September 2022 / Accepted: 19 September 2022 / Published: 22 September 2022
(This article belongs to the Section Inorganic Chemistry)
Browse Figures
Versions Notes

Abstract

:
In this study, we synthesized three hybrid microporous polymers through Heck couplings of octavinylsilsesquioxane (OVS) with 2,5-bis(4-bromophenyl)-1,3,4-oxadiazole (OXD-Br2), tetrabromothiophene (Th-Br4), and 2,5-bis(4-bromophenyl)-3,4-diphenylthiophene (TPTh-Br2), obtaining the porous organic–inorganic polymers (POIPs) POSS-OXD, POSS-Th, and POSS-TPTh, respectively. Fourier transform infrared spectroscopy and solid state 13C and 29Si NMR spectroscopy confirmed their chemical structures. Thermogravimetric analysis revealed that, among these three systems, the POSS-Th POIP possessed the highest thermal stability (T5: 586 °C; T10: 785 °C; char yield: 90 wt%), presumably because of a strongly crosslinked network formed between its OVS and Th moieties. Furthermore, the specific capacity of the POSS-TPTh POIP (354 F g−1) at 0.5 A g−1 was higher than those of the POSS-Th (213 F g−1) and POSS-OXD (119 F g−1) POIPs. We attribute the superior electrochemical properties of the POSS-TPTh POIP to its high surface area and the presence of electron-rich phenyl groups within its structure.

Graphical Abstract

1. Introduction

Porous organic polymers (POPs) are multidimensional materials featuring strong covalent bonds among their organic building blocks. They have recently gained popularity in the field of porous materials because of their low density, high porosity, and excellent thermal stability [1,2,3,4,5,6,7,8,9,10]. POPs have found applications in, for example, energy storage, lithium-ion batteries, gas separation, nanofiltration, drug carrying, optoelectronics, photocatalysis, and water treatment [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28]. They have been synthesized using various techniques, including Friedel–Crafts, Yamamoto, Schiff base, Sonogashira, Yamamoto, Heck, and Suzuki reactions [29,30,31,32,33,34,35,36,37,38,39,40,41,42]. Furthermore, POPs comprise many subgroups of materials, including metal–organic frameworks, conjugated microporous polymers, covalent organic frameworks, hypercrosslinked polymers, polymers of intrinsic microporosity, and covalent triazine-based frameworks [20,21,22,23,24,25]. Hybrid porous materials incorporating polyhedral oligomeric silsesquioxane (POSS) units are interesting because of their outstanding mechanical and thermal characteristics and high surface areas [42,43,44,45,46,47]. POSS derivatives are nanosized compounds having diameters of 1–3 nm, with regulated porosity and defined structures [48,49,50,51,52,53,54,55,56]. Many POPs synthesized from POSS derivatives have exhibited remarkable thermal stabilities, fluorescence characteristics, and surface areas [56,57,58,59,60,61,62,63,64,65]. The boom in wearable and portable electronics has led to tremendous demand for cheap, eco-friendly, and high-performance energy-storage appliances [66,67,68,69,70,71,72]. The most crucial factors for a high-energy storage system are excellent energy density, safe operation, fabrication from accessible materials, high durability, and a prolonged life cycle. Although supercapacitors are energy storage systems that satisfy all these requirements [70,71,72], their energy densities have remained lower than those of batteries, thereby limiting their applications to date [73]. Incorporating redox-active groups into carbonaceous substances can enhance the performance of supercapacitors, potentially imparting them with functions that combine the mechanisms of pseudocapacitors and electrical double-layer capacitors (EDLCs) [74,75]. In this study, we synthesized three new hybrids porous POSS materials displaying excellent porosity and thermal stability, with potential for use in energy storage. Heck couplings of octavinylsilsesquioxane (OVS) with 2,5-bis(4-bromophenyl)-1,3,4-oxadiazole (OXD-Br2), tetrabromothiophene (Th-Br4), and 2,5-bis(4-bromophenyl)-3,4-diphenylthiophene (TPTh-Br2) in N,N-dimethylformamide (DMF) in the presence of a Pd catalyst and triethylamine (Et3N) as the base afforded the porous organic–inorganic polymers (POIPs) POSS-OXD, POSS-Th, and POSS-TPTh, respectively (Scheme 1). Herein, we describe their chemical structures, morphologies, pore sizes, thermal stabilities, electrochemical properties, and CO2 capture performance.

2. Synthesis Methods

2.1. Materials

Potassium carbonate (K2CO3), sodium bicarbonate (NaHCO3), and OVS were purchased from Alfa Aesar. 4-Bromobenzoyl bromide, hydrazine monohydrate (NH2NH2·H2O), methanol (MeOH), thiophene (Th), 1,4-dioxane (DO), tetrahydrofuran (THF), acetone, and DMF were procured from Acros. Benzeneboronic acid [PhB(OH)2], palladium tetrakis(triphenylphosphine) [Pd(PPh3)4], copper iodide (CuI), and Et3N were obtained from Sigma–Aldrich (Darmstadt, Germany).

2.2. N,N′-Bis(4-bromobenzoyl)hydrazine

A solution of 4-bromobenzoyl bromide (3.00 g, 11.3 mmol) and Et3N (3.75 mL, 27.0 mmol) in CHCl3 (50 mL) was cooled in an ice bath. NH2NH2·H2O (0.28 mL) was added and then the mixture was stirred for 10 h. The resultant white solid was washed sequentially with water and 10% NaHCO3 and then dried in an oven for 24 h (Yield: 80%, Scheme S1a). FTIR (Figure S1a): 3190 (NH), 1650 (C=O) cm−1. 1H NMR (Figure S2a): 10.67 (NH), 7.74–7.85 (ArH) ppm. 13C NMR (Figure S2c): 166.21 (C=O), 132.51–127.21 (aromatic carbon nuclei) ppm.

2.3. 2,5-Bis(4-bromophenyl)-1,3,4-oxadiazole (OXD-Br2)

A mixture of N,N′-bis(4-bromobenzoyl)hydrazine (2.50 g, 6.27 mmol) and POCl3 (74 mL) were heated at 80 °C for 24 h. The mixture was poured into cold water. The white needles were collected and washed with cold EtOH and water to afford OXD-Br2 (85%) (Scheme S1b). FTIR (Figure S1b): 3086 (C–H aromatic) cm−1. 1H NMR (Figure S2b): 8.07–7.85 (8H, ArH) ppm. 13C NMR (Figure S2d): 164.11 (C=N), 133.52–122.66 ppm.

2.4. 2,3,4,5-Tetrabromothiophene (Th-Br4)

Br2 (5.3 mL, 0.033 mmol) was added slowly to a solution of Th (2.0 g, 0.023 mmol) in CHCl3 (15 mL) at 0 °C and then the mixture was heated under reflux for 8 h. NaOH solution (2 M,100 mL) was added and then the mixture was heated under reflux for 8 h. The solid was filtered off and washed with water and EtOH to give Th-Br4 as a white powder (80%) (Scheme S2). FTIR (KBr, cm−1): 1636 (C=C). 1H NMR (500 MHz, CDCl3, δ, ppm, Figure S3): No peaks detected. 13C NMR (125 MHz, CDCl3, δ, ppm, Figure S4): 116.936, 110.284.

2.5. 2,3,4,5-Tetraphenylthiophene (TPTh)

A mixture of Th-Br4 (2.00 g, 1.40 mmol), Pd(PPh3)4 (0.300 g, 0.0500 mmol), 4-phenylboronic acid (3.70 g, 6.53 mmol), and K2CO3 (8.30 g, 16.6 mmol) was degassed three times under a flow of N2. DO (50 mL) and H2O (10 mL) were added and then the mixture was heated at 90 °C for 48 h. The solution was placed in ice-cold H2O and neutralized with HCl (2 mL). The solids were filtered off, washed with water and MeOH, and dried to produce a white powder (Scheme S3). FTIR (KBr, cm−1, Figure S5): 3063 (C–H aromatic), 1595 (C=C). 1H NMR (500 MHz, DMSO-d6, δ, ppm, Figure S6): 7.37–6.97 (16H, CH aromatic). 13C NMR (125 MHz, DMSO-d6, δ, ppm, Figure S7): 140.31–127.74 (Th and aromatic carbon nuclei).

2.6. 2,5-Bis(4-bromophenyl)-3,4-diphenylyhiophene (TPTh-Br2)

A solution of TPTh (5.00 g, 12.8 mmol) and Br2 (4.20 g) in CHCl3 (40 mL) was cooled at 0 °C (ice bath) for 4 h. After evaporation of the solvent, the residue was washed with EtOH to give a yellow solid (85%) (Scheme S4). FTIR (KBr, cm−1, Figure S8): 3047.38 (C–H aromatic). 1H NMR (500 MHz, DMSO-d6, δ, ppm, Figure S9): 7.37–6.81 (ArH). 13C NMR (125 MHz, DMSO-d6, δ, ppm, Figure S10): 140.87–121.97 (Th and aromatic carbon nuclei).

2.7. POSS-OXD, POSS-Th, and POSS-TPTh POIPs

A mixture of OVS (0.600 g, 0.950 mmol), OXD-Br2 (0.700 g, 1.84 mmol) [or Th-Br4 (0.750 g, 1.88 mmol) or TPTh-Br2 (0.86 g, 1.57 mmol)], anhydrous K2CO3 (2.09 g, 15.1 mmol), and Pd(PPh3)4 (0.0500 g, 0.0430 mmol) in DMF (50 mL) was heated under reflux for 48 h at 120 °C under N2. The resulting solid was collected, washed sequentially with MeOH, acetone, and THF, then dried in an oven to afford the POSS-OXD POIP (white powder, 0.45 g, 75%) [or the POSS-Th (white powder, 0.55 g, 92%) or POSS-TPTh (yellow powder, 0.51 g, 85%) POIPs].

3. Results

3.1. Synthesis and Character of POSS-OXD, POSS-Th and POSS-TPTh POIPs

Scheme 1 illustrates the syntheses of the three types of hybrid porous POSS frameworks: POSS-OXD, POSS-Th, and POSS-TPTh. We prepared OXD-Br2 through the reaction of N,N′-bis(4-bromobenzoyl)hydrazine with POCl3 at 80 °C (Scheme S1) and Th-Br4 through the reaction of Th with Br2 in CHCl3 at 0 °C (Scheme S2). We then obtained TPTh (Scheme S3) in high purity and yield through Suzuki coupling of Th-Br4 with PhB(OH)2 in toluene in the presence of Pd(PPh3)4 and K2CO3. Bromination of TPTh in CH2Cl2 in the presence of Br2 afforded TPTh-Br2 as a yellow solid (Scheme S4). Finally, we obtained the POSS-OXD, POSS-Th, and POSS-TPTh POIPs through Heck couplings of OXD-Br2, Th-Br4, and TPTh-Br2, respectively, with OVS in DMF in the presence of Pd(PPh3)4, Et3N, and K2CO3 at 120 °C for 48 h. These POSS-POIPs (Scheme 1) displayed poor solubility in all organic solvents, consistent with the successful Heck reactions of the OVS units and the formation of POSS materials with high degrees of crosslinking.
FTIR spectroscopy revealed the functional groups present in the synthesized porous POSS-POIP materials (Figure 1). The spectrum of OVS featured absorption bands at 3066, 1600, and 1106 cm−1, corresponding to the stretching of C=C–H, C=C, and Si–O–Si bonds, respectively (Figure 1a). The FTIR spectra of OXD-Br2, Th-Br4, TPTh-Br2, POSS-OXD POIP, POSS-Th POIP, and POSS-TPTh POIP revealed signals for aromatic C–H bonds in the range 3042–3082 cm−1 and for C=C stretching in the range 1600–1640 cm−1 (Figure 1b–g). In addition, the signals for the Si–O–Si units from all three porous POIPs were wider than that of OVS, consistent with the formation of crosslinked networks (Figure 1). In addition, the FTIR spectra of all the POIPs featured bands representing OH groups, resulting from their absorption of water.
The solid state 13C NMR spectra of the POIPs (Figure 2a) featured signals for their carbon nuclei in the ranges 121.7–134.85 ppm for the POSS-OXD POIP, 130.64–133.62 ppm for the POSS-Th POIP, and 118.42–136.14 ppm for the POSS-TPTh POIP, corresponding to the aromatic and SiCH=CH carbon nuclei of their framework structures. Solid state 29Si NMR spectroscopy confirmed the presence of POSS units in these POIPs frameworks (Figure 2b), with signals at −13.5 and −80 ppm assigned to Si=CH2 and T3 moieties, respectively.
We used TGA to examine the thermal stabilities of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs (Figure 3a). The thermal decomposition temperatures Td5 and Td10 and the char yields of the POSS-OXD POIP were 260 °C, 386 °C, and 69 wt%, respectively; for POSS-Th POIP, they were 586 °C, 786 °C, and 90 wt%, respectively; and for the POSS-TPTh POIP, they were 513 °C, 586 °C, and 86 wt%, respectively. For all three porous POIPs, these high values are consistent with the presence of highly crosslinked networks formed between the OVS and OXD, Th, and TPTh moieties. Notably, the thermal stability and char yield of the POSS-Th POIP were higher than those of the POSS-OXD and POSS-TPTh POIPs, as well as those of all other previously reported porous POSS systems [57,58], implying its higher crosslinking density. Table 1 summarizes the thermal properties of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs. X-ray diffraction revealed that the POSS-OXD, POSS-Th, and POSS-TPTh POIPs were all amorphous materials with no long-range order in their characteristics (Figure 3b), consistent with data reported previously for porous hybrid POSS materials [57,58].
We performed N2 adsorption/desorption measurements to obtain the porosity parameters of the POIPs (Figure 4a–c, Table 1). With reference to IUPAC classifications, the adsorption isotherm of the POSS-OXD POIP was of type III; that of POSS-Th POIP was of types II and IV; and that of POSS-TPTh POIP had type II characteristics. Furthermore, the N2 absorption uptake potentials for the POSS-Th and POSS-TPTh POIPs increased in the low- and high-pressure regions, confirming the existence of meso- and microspores in their structures; in contrast, POSS-OXD POIP had high N2 absorption uptake at high pressure, suggesting the presence of only macropores. The specific surface area of the POSS-TPTh POIP (682 m2 g−1) was higher than those of the POSS-Th (605 m2 g−1) and POSS-OXD (94 m2 g−1) POIPs. The pore diameters of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs were 2.34, 1.96, and 1.88 nm, respectively (Figure 4d–f, Table 1); their total pore volumes were 0.02, 0.23, and 0.23 cm3 g−1, respectively.
Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) revealed (Figure 5) that the morphologies of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs were irregular clusters of tiny spherical particles. Furthermore, energy dispersive X-ray (EDX) spectroscopy of the SEM images (Figure S11) demonstrated the presence of C, N, O, and Si atoms in the POSS-OXD POIP and C, O, Si, and S elements in both the POSS-Th and POSS-TPTh POIPs.

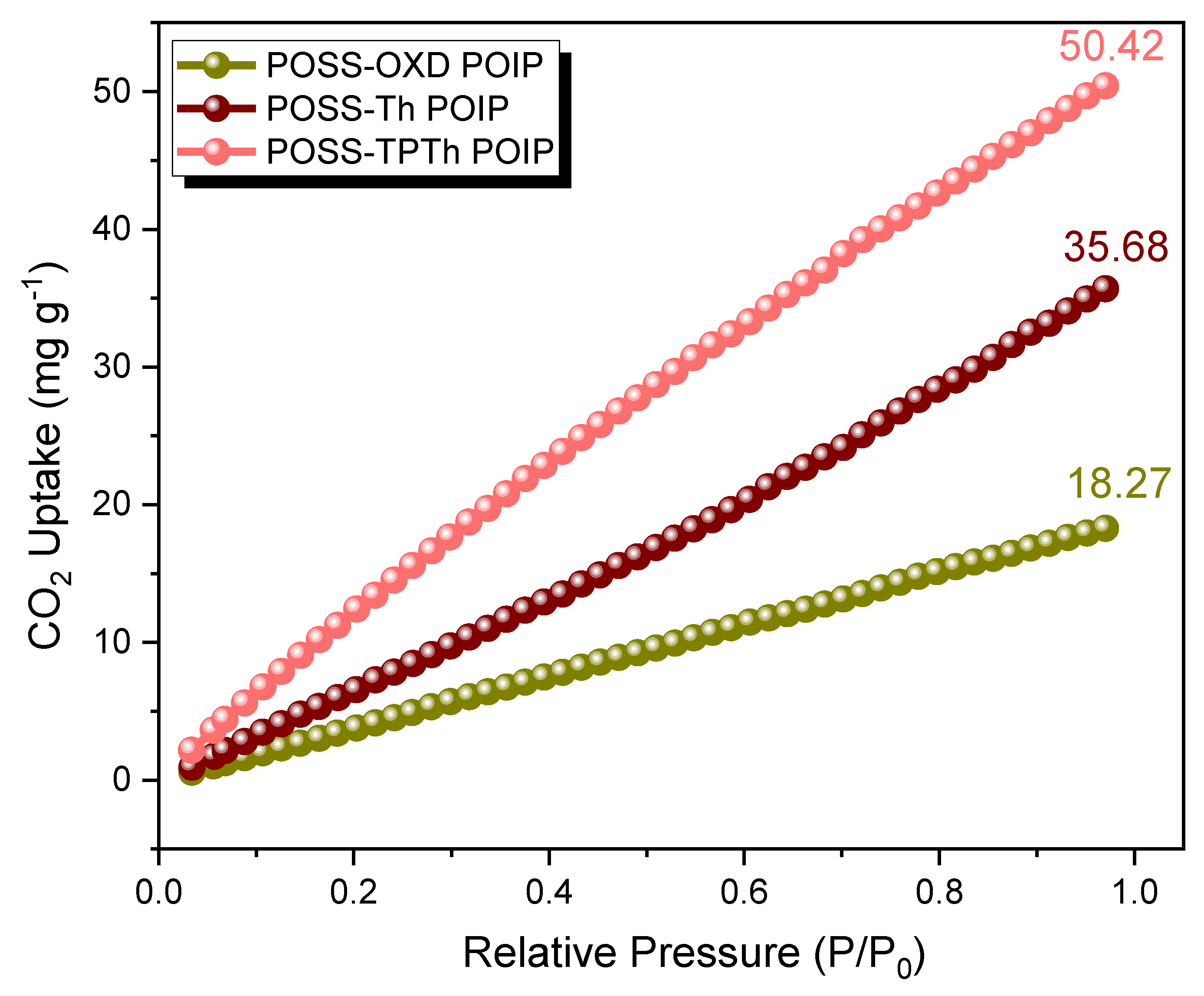

We tested these three porous POSS materials for their ability to capture CO2 at 298 °C (Figure 6). The POSS-OXD, POSS-Th, and POSS-TPTh POIPs had CO2 capture capacities of 18.27, 35.68, and 50.42 mg g−1, respectively. The relatively high CO2 capture capacity of the POSS-TPTh POIP was presumably due to its Brunauer–Emmett–Teller (BET) surface area being higher than those of the POSS-Th and POSS-OXD POIPs.

3.2. Electrochemical Performance of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs

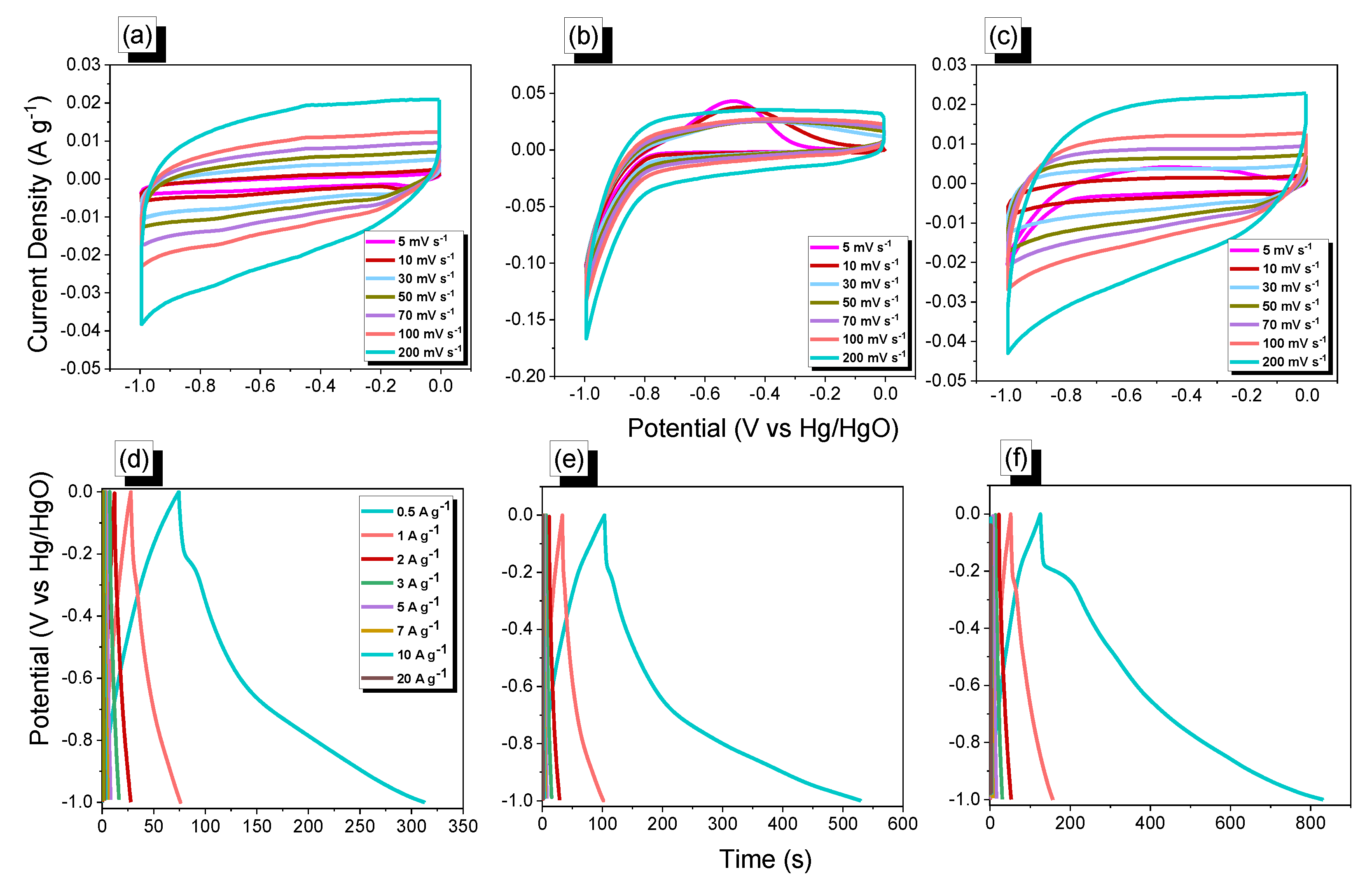

We employed cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) measurements to examine the electrochemical behavior of our three POIPs in aqueous 1 M KOH, using a three-electrode configuration. We recorded the CV profiles of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs at various scan rates between 1.00 to 0 V (Figure 7a–c). The rectangular CV profiles with slight humps for all three POSS systems indicate that their capacitive effects were caused by EDLC [76,77]. The humps suggest the involvement of pseudocapacitance responses emerging from the presence of the N and S heteroatoms and electron-rich phenyl groups in the OXD, Th, and TPTh structures, respectively, facilitating the passage of the electrolyte to the electrode area and for the electrons to keep moving from one electrode to another [78,79]. Upon increasing the scan rate, the current densities improved without affecting the shapes of the CV curves, confirming the high-rate capabilities, stabilities, and kinetic features of all three porous POSS systems. The electrochemical properties of the POSS-TPTh POIP were superior to those of the POSS-Th and POSS-OXD POIPs, presumably because of its electron-rich phenyl groups and S heteroatoms, high surface area, and blend of micro- and mesoporosity. All these factors would ensure higher mobility of the electrolyte to the surface of the electrode, resulting in accelerated mass transport and enhanced electrochemical performance. Figure 7d–f display the GCD behavior of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs, respectively, measured at various current densities. In the discharge profiles, each porous POSS system provided a nearly triangular GCD curve with a small bend, indicating the combined impacts of pseudocapacitance and EDLC.
Furthermore, the charging profiles were smaller than the discharging curves throughout the GCD analyses, indicating that all the porous POIPs displayed excellent capacitance. The discharging profile of the POSS-TPTh POIP was more significant than those of the POSS-Th and POSS-OXD POIPs, indicating its relatively high specific capacitance. It is worth mentioning that the IR drop in the galvanostatic charge-discharge profile is related to the equivalent series resistance, charge-transfer resistance, and double-layer capacitance of the energy storage devices, such as supercapacitors. A supercapacitor has its own stored energy in the form of internal resistance which is lost during this process [80]. Figure 8a reveals that the specific capacitances of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs were 119, 213, and 354 F g−1, respectively, at a current density of 0.5 A g−1. Furthermore, the specific capacitance gap remained large when measured at a higher current density of 20 A g−1, where the POSS-OXD, POSS-Th, and POSS-TPTh POIPs had specific capacities of 16, 15, and 30.4 F g−1, respectively. We suggest that the structure of the POSS-TPTh POIP was responsible for its relatively outstanding performance, with its electron-rich phenyl rings and S heteroatoms allowing the electrolytes to approach the electrode surface more rapidly than in the POSS-OXD and POSS-Th POIPs. The specific capacitances of all three porous POIPs decreased upon increasing the current density from 0.5 to 20 A g−1, presumably because of insufficient time for ion transportation at higher current densities. Moreover, the energy density of the POSS-TPTh POIP (176.75 W h kg−1) was also higher than those of the POSS-Th (106.59 W h kg−1) and POSS-OXD (59.57 W h kg−1) POIPs (Figure 8b).

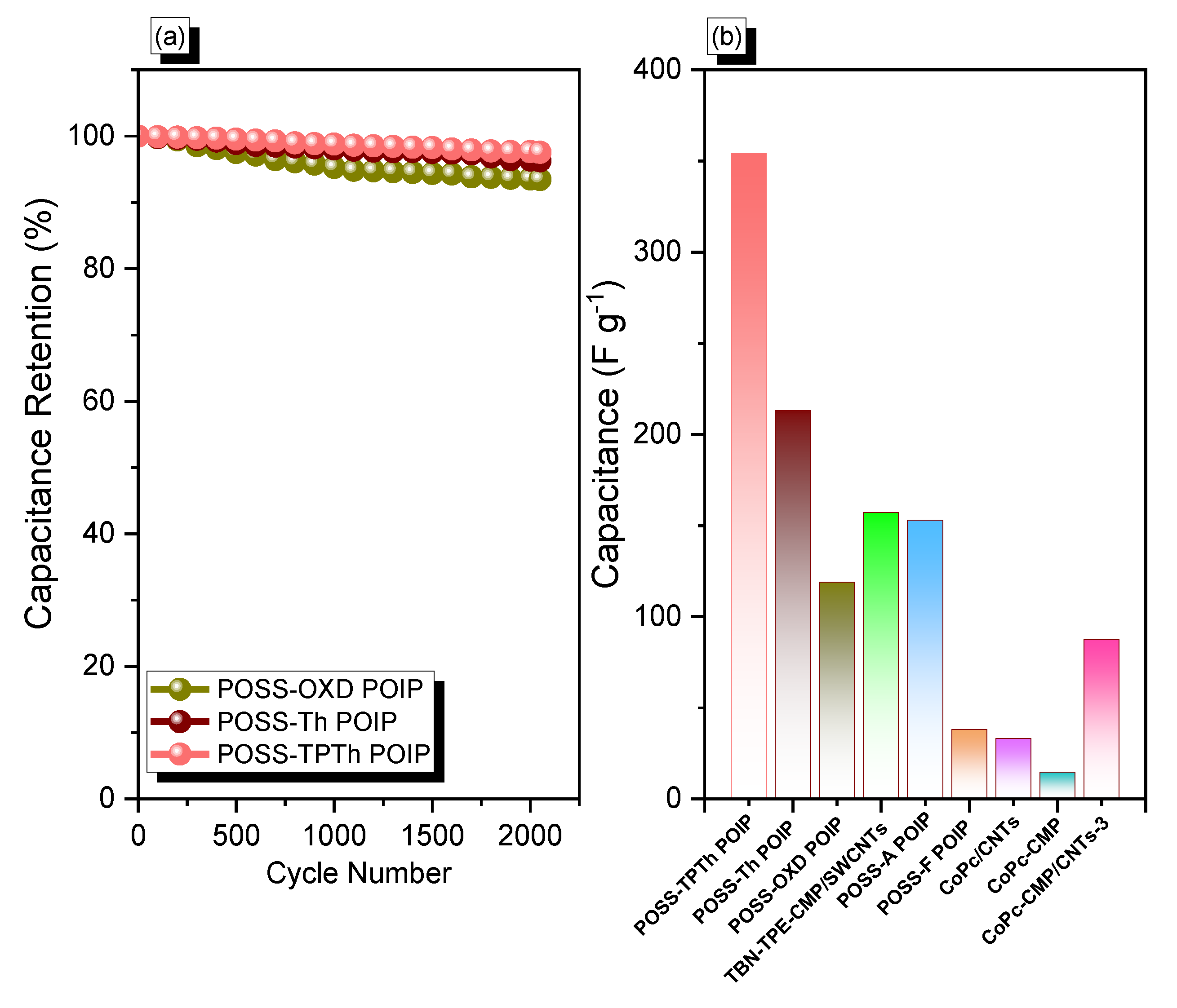

Finally, we examined the stabilities of all three POIPs through GCD analyses over 2000 cycles at 10 A g−1 (Figure 9a and Figures S12–14). The POSS-OXD, POSS-Th, and POSS-TPTh POIPs displayed outstanding cycling stabilities, with retention of their capacitance of 93.41, 96.27, and 97.56%, respectively. In addition, the specific capacitances of both the POSS-Th and POSS-TPTh POIPs were excellent when compared with those of previously published porous frameworks and porous polymer composite materials (Figure 9b) [27,28,58].
Additionally, we investigated the electrochemical characteristics of all three POSS-POIP samples in two electrode systems for a symmetric supercapacitor through coin cells. The electrochemical characteristics were conducted between a potential range of 0 to −0.2 V at different scan rates, as shown in Figure S15. The CV profiles of all the POSS-POIPs electrodes (Figure S15a–c) were approximately rectangular with the presence of humps in the low potential window—the expected response of supercapacitors due to the existence of EDLC and pseudocapacitive capacitive characteristics. The pseudocapacitance response was caused by the introduction of heteroatoms (N, O, and S) in the backbone of the POSS-POIPs. The functionality of the electrodes seemed to be stable at high scan rates, indicating that the current density also increased, revealing improved stability and a symmetric capacity of all POSS-POIPs materials. Furthermore, the GCD profiles (Figure S15d–f) were nearly triangular with a bent shape due to the presence of heteroatoms in all the POSS-POIPs, demonstrating EDLC and pseudocapacitance effects. The specific capacitance was observed as 41.05, 27.63 and 7.11 F g−1 for POSS-TPTh POIP, POSS-Th POIP, and POSS-OXD POIP electrode samples, respectively, at 0.5 A g−1. Thus, these results revealed that POSS-TPTh POIP experienced superior electrochemical properties to POSS-Th POIP, and POSS-OXD POIP. The superior electrochemical properties of the POSS-TPTh POIP sample were attributed to its high surface area and electron-rich phenyl group in its structure. In order to understand the resistance behavior of these as-prepared electrodes as symmetric supercapacitors devices, we carried out the impedance measurement, as shown in Figure S16. The EIS plots reveal the ohmic resistance, which is also known as the series resistance, of these electrode materials to be 2.083, 3.799 and 4.491 Ω for POSS-TPTh POIP, POSS-OXD POIP and POSS-Th POIP, respectively. This confirms the superior performance of the POSS-TPTh POIP electrodes compared to the others by virtue of their smallest series resistance offering better conductivity. Apart from this, all the electrodes displayed a clear semicircle in the higher frequency region which corresponds to their charge-transfer resistance. As indicated in the plots, the charge-transfer values obtained from these electrodes were 4.479, 13.72 and 20.16 Ω, for POSS-TPTh POIP, POSS-OXD POIP and POSS-Th POIP, respectively. The electrode composed of POSS-TPTh POIP offers almost negligible charge-transfer resistance, with improved conductivity compared to the others. Thus, POSS-TPTh POIP is an outstanding electrode material for energy storage which has the potential to be used in real-life applications.

4. Conclusions

In conclusion, we used Heck reactions to synthesize the hybrid OVS-based POIPs POSS-OXD, POSS-Th, and POSS-TPTh. TGA revealed that the thermal stability of the POSS-Th POIP (T10: 785 °C; char yield: 90 wt%) was higher than those of the POSS-OXD and POSS TPTh POIPs. N2 isothermal profiles and electrochemical analyses indicated that POSS-TPTh POIP had the highest BET surface area (682 m2 g−1) and an excellent specific capacity (354 F g−1) when compared with those of the other two POIPs. The superior energy storage performance of the POSS-TPTh POIP was due to its high surface area and electron-rich phenyl groups, which were not present in the POSS-OXD and POSS-Th POIPs. In addition to this, we evaluated the electrochemical performance of a symmetric supercapacitor two-electrode device which exhibited great potential for energy-storage. These findings suggest that the POSS-TPTh and POSS-Th POIP materials, with their high surface areas, might find application in wastewater treatment and in Li and Li-S batteries.

Supplementary Materials

The following are available online: https://www.mdpi.com/article/10.3390/molecules27196238/s1, Scheme S1. Syntheses of (a) N,N′-bis(4-bromobenzoyl)hydrazine and (b) OXD-Br2. Scheme S2. Synthesis of Th-Br4 through bromination reaction of thiophene. Scheme S3. Synthesis of TPTh from Th-Br4 through Suzuki coupling reaction. Scheme S4. Synthesis of TPTh-Br2 from Th-4Ph through bromination reaction. Figure S1. FTIR spectra of (a) N,N′-bis(4-bromobenzoyl)hydrazine and (b) OXD-Br2. Figure S2. (a,b) 1H and (c,d) 13C NMR spectra of (a,c) N,N′-bis(4-bromobenzoyl)hydrazine and (b,c) OXD-Br2. Figure S3. 1H NMR spectrum of Th-Br4. Figure S4. 13C NMR spectrum of Th-Br4. Figure S5. FTIR spectrum of TPTh. Figure S6. 1H NMR spectrum of TPTh. Figure S7. 13C NMR spectrum of TPTh. Figure S8. FTIR analysis of TPTh-Br2. Figure S9. 1H NMR analysis of TPTh-Br2. Figure S10. 13C NMR analysis of TPTh-Br2. Figure S11. SEM and elemental mapping (EDX) profile of the as-prepared (a) POSS-OXD POIP, (b) POSS-Th POIP and (c) POSS-TPTh POIP. Figure S12. Stability test of the as-prepared POSS-OXD POIP. Figure S13. Stability test of the as-prepared POSS-Th POIP. Figure S14. Stability test of the as-prepared POSS-TPTh POIP. Figure S15. Cyclic voltammetry curves (a–c) and (d–f) galvanostatic charge-discharge profiles of POSS-OXD, POSS-Th and POSS-TPTh POIPs. Figure S16. Nyquist plots of POSS-Th, POSS-TPTh, and POSS-OXD POIPs.

Author Contributions

Conceptualization, M.E., M.G.M., S.U.S., T.C., C.-F.H. and J.-T.L.; software, M.E. and M.G.M.; validation, M.E., T.C., C.-F.H. and M.G.M.; formal analysis, M.E. and M.G.M.; resources, S.-W.K.; data curation, M.E., M.G.M. and S.U.S.; writing—original draft preparation, M.E., M.G.M. and S.-W.K.; writing—review and editing, M.E., M.G.M., S.U.S. and S.-W.K.; visualization, M.E., M.G.M. and S.-W.K.; supervision, M.G.M. and S.-W.K.; project administration, M.G.M. and S.-W.K.; funding acquisition, S.-W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported financially by the Ministry of Science and Technology, Taiwan, under contracts MOST 106-2221-E-110- 067-MY3, 108-2638-E-002-003-MY2, and 108-2221-E-110-014-MY3.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and supplementary material.

Acknowledgments

This study was supported financially by the Ministry of Science and Technology, Taiwan, under contracts MOST 108-2221-E-110-014-MY3. The authors thank the staff at National Sun Yat-sen University for their assistance with TEM (ID: EM022600) experiments. The authors acknowledge a generous allocation of computer time granted by the Compute Canada national HPC platform.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Wen, J.; Chen, S.; Liu, Y.; Chen, H.; Liu, B.; Yang, M.; Li, H. Triphenylimidazolium-incorporated, benzbisimidazole-linked porous organic polymers as efficient catalyst for CO2 conversion. Microporous Mesoporous Mater. 2022, 339, 111999. [Google Scholar] [CrossRef]
  2. Bai, W.; Wang, F.; Yan, L.; Sun, H.; Zhu, Z.; Chen, L.; Li, J.; Liang, W.; Li, A. Porous organic polymers (POPs) membrane via thiol-yne click chemistry for efficient particulate matter capture and microplastics separation. Microporous Mesoporous Mater. 2022, 329, 111509. [Google Scholar] [CrossRef]
  3. Chen, D.; Liu, C.; Tang, J.; Luo, L.; Yu, G. Fluorescent porous organic polymers. Polym. Chem. 2019, 10, 1168–1181. [Google Scholar] [CrossRef]
  4. Kiciński, W.; Dyjak, S.; Gratzke, M. Pyrolysis of Porous Organic Polymers under a Chlorine Atmosphere to Produce Heteroatom-Doped Microporous Carbons. Molecules 2021, 26, 3656. [Google Scholar] [CrossRef]
  5. Mohamed, M.G.; Elsayed, M.H.; Elewa, A.M.; EL-Mahdy, A.F.M.; Yang, C.H.; Mohammed, A.A.K.; Chou, H.H.; Kuo, S.W. Pyrene-containing conjugated organic microporous polymers for photocatalytic hydrogen evolution from water. Catal. Sci. Technol. 2021, 11, 2229–2241. [Google Scholar] [CrossRef]
  6. Yang, Y.; Lai, Z. Ferrocene-based porous organic polymer for photodegradation of methylene blue and high iodine capture. Microporous Mesoporous Mater. 2021, 316, 110929. [Google Scholar] [CrossRef]
  7. Pan, X.; Ding, C.; Zhang, Z.; Ke, H.; Cheng, G. Functional porous organic polymer with high S and N for reversible iodine capture. Microporous Mesoporous Mater. 2020, 300, 110161. [Google Scholar] [CrossRef]
  8. Aly, K.I.; Sayed, M.M.; Mohamed, M.G.; Kuo, S.W.; Younis, O. A facile synthetic route and dual function of network luminescent porous polyester and copolyester containing porphyrin moiety for metal ions sensor and dyes adsorption. Microporous Mesoporous Mater. 2020, 298, 110063. [Google Scholar] [CrossRef]
  9. Mohamed, M.G.; Zhang, X.; Mansoure, T.H.; El-Mahdy, A.F.M.; Huang, C.F.; Danko, M.; Xin, Z.; Kuo, S.W. Hypercrosslinked porous organic polymers based on tetraphenylanthraquinone for CO2 uptake and high-performance supercapacitor. Polymer 2020, 205, 122857. [Google Scholar] [CrossRef]
  10. Du, X.H.; Jiang, Z.; Liu, Z.; Xu, C. BODIPY-linked conjugated porous polymers for dye wastewater treatment. Microporous Mesoporous Mater. 2022, 322, 111711. [Google Scholar] [CrossRef]
  11. Mohamed, M.G.; Hu, H.Y.; Madhu, M.; Ejaz, M.; Sharma, S.U.; Tseng, W.L.; Samy, M.M.; Huang, C.W.; Lee, J.T.; Kuo, S.W. Construction of Ultrastable Conjugated Microporous Polymers Containing Thiophene and Fluorene for Metal Ion Sensing and Energy Storage. Micromachines 2022, 13, 1466. [Google Scholar] [CrossRef]
  12. Mohamed, M.G.; Chaganti, S.V.; Sharma, U.S.; Samy, M.M.; Ejaz, M.; Lee, J.T.; Zhang, K.; Kuo, S.W. Constructing Conjugated Microporous Polymers Containing the Pyrene-4,5,9,10-Tetraone Unit for Energy Storage. Acs Appl. Energy Mater. 2022, 5, 10130–10140. [Google Scholar] [CrossRef]
  13. Mohamed, M.G.; Chaganti, S.V.; Sharma, L.M.S.; Samy, M.M.; Sharma, S.U.; Lee, J.T.; Elsayed, M.H.; Chou, H.H.; Kuo, S.W. Ultrastable Porous Organic Polymers Containing Thianthrene and Pyrene Units as Organic Electrode Materials for Supercapacitors. ACS Appl. Energy Mater. 2022, 5, 6442–6452. [Google Scholar] [CrossRef]
  14. Sachs, M.; Sprick, R.S.; Pearce, D.; Hillman, S.A.J.; Monti, A.; Guilbert, A.A.Y.; Brownbill, N.J.; Dimitrov, S.; Shi, X.; Blanc, F.; et al. Understanding structure-activity relationships in linear polymer photocatalysts for hydrogen evolution. Nat. Commun. 2018, 9, 4968. [Google Scholar] [CrossRef]
  15. Mohamed, M.G.; Chen, W.C.; EL-Mahdy, A.F.M.; Kuo, S.W. Porous organic/inorganic polymers based on double-decker silsesquioxane for high-performance energy storage. J. Polym. Res. 2021, 28, 219. [Google Scholar] [CrossRef]
  16. Sprick, R.S.; Bai, Y.; Guilbert, A.A.Y.; Zbiri, M.; Aitchison, C.M.; Wilbraham, L.; Yan, Y.; Woods, D.J.; Zwijnenburg, M.A.; Cooper, A.I. Photocatalytic hydrogen evolution from water using fluorene and dibenzothiophene sulfone-conjugated microporous and linear polymers. Chem. Mater. 2019, 2, 305–313. [Google Scholar] [CrossRef]
  17. Wang, Y.; Dong, L.; Lai, G.; Wei, M.; Jiang, X.; Bai, L. Nitrogen-doped hierarchically porous carbons derived from Polybenzoxazine for enhanced Supercapacitor performance. Nanomaterials 2019, 9, 131. [Google Scholar] [CrossRef]
  18. Samy, M.M.; Mohamed, M.G.; Kuo, S.W. Pyrene-functionalized tetraphenylethylene polybenzoxazine for dispersing single-walled carbon nanotubes and energy storage. Compos. Sci. Technol. 2020, 199, 108360. [Google Scholar] [CrossRef]
  19. Li, L.; Lu, F.; Xue, R.; Ma, B.L.; Li, Q.; Wu, N.; Liu, H.; Yao, W.Q.; Guo, H.; Yang, W. Ultrastabletriazine-based covalent organic framework with an interlayer hydrogen bonding for supercapacitor applications. Acs Appl. Mater. Interfaces 2019, 11, 26355–26363. [Google Scholar] [CrossRef]
  20. Mohamed, M.G.; Sharma, S.U.; Liu, N.Y.; Mansoure, T.H.; Samy, M.M.; Chaganti, S.V.; Chang, Y.L.; Lee, J.Y.; Kuo, S.W. Ultrastable Covalent Triazine Organic Framework Based on Anthracene Moiety as Platform for High-Performance Carbon Dioxide Adsorption and Supercapacitors. Int. J. Mol. Sci. 2022, 23, 3174. [Google Scholar] [CrossRef]
  21. Elewa, A.M.; EL-Mahdy, A.F.M.; Elsayed, M.H.; Mohamed, M.G.; Kuo, S.W.; Chou, H.H. Sulfur-doped triazine-conjugated microporous polymers for achieving the robust visible-light-driven hydrogen evolution. Chem. Eng. J. 2021, 421, 129825. [Google Scholar] [CrossRef]
  22. Ma, W.; Zhang, C.; Gao, X.; Shu, C.; Yan, C.; Wang, F.; Chen, Y.; Zeng, J.H.; Jiang, J.X. Structure evolution of azo-fused conjugated microporous polymers for high performance lithium-ion batteries anodes. J. Power Sources 2020, 453, 227868. [Google Scholar] [CrossRef]
  23. Yang, W.; Huang, B.; Li, L.; Zhang, K.; Li, Y.; Huang, J.; Tang, X.; Hu, T.; Yuan, K.; Chen, Y. Covalently Sandwiching MXene by Conjugated Microporous Polymers with Excellent Stability for Supercapacitors. Small Methods 2020, 4, 2000434. [Google Scholar] [CrossRef]
  24. Singh, G.; Lee, J.; Karakoti, A.; Bahadur, R.; Yi, J.; Zhao, D.; AlBahily, K.; Vinu, A. Emerging trends in porous materials for CO2 capture and conversion. Chem. Soc. Rev. 2020, 49, 4360–4404. [Google Scholar] [CrossRef] [PubMed]
  25. Mohamed, M.G.; Ahmed, M.M.M.; Du, W.T.; Kuo, S.W. Meso/microporous carbons from conjugated hyper-crosslinked polymers based on tetraphenylethene for high performance CO2 capture and supercapacitor. Molecules 2021, 26, 738. [Google Scholar] [CrossRef]
  26. Samy, M.M.; Mohamed, M.G.; Kuo, S.W. Directly synthesized nitrogen-and-oxygen–doped microporous carbons derived from a bio-derived polybenzoxazine exhibiting high-performance supercapacitance and CO2 uptake. Eur. Polym. J. 2020, 138, 109954. [Google Scholar] [CrossRef]
  27. Mei, L.; Cui, X.; Duan, Q.; Li, Y.; Lv, X.; Wang, H.G. Metal phthalocyanine-linked conjugated microporous polymer hybridized with carbon nanotubes as a high-performance flexible electrode for supercapacitors. Int. J. Hydrog. Energy 2020, 45, 22950–22958. [Google Scholar] [CrossRef]
  28. Samy, M.M.; Mohamed, M.G.; EL-Mahdy, A.F.M.; Mansoure, T.H.; Wu, K.C.W.; Kuo, S.W. High-performance supercapacitor electrodes prepared from dispersions of tetrabenzonaphthalene-based conjugated microporous polymers and carbon nanotubes. Acs Appl. Mater. Interfaces 2021, 13, 51906–51916. [Google Scholar] [CrossRef]
  29. Samy, M.M.; Mekhemer, I.M.A.; Mohamed, M.G.; Elsayed, M.H.; Lin, K.H.; Yi-Kuan Chen, Y.K.; Wu, T.L.; Chou, H.H.; Kuo, S.W. Conjugated microporous polymers incorporating Thiazolo[5,4-d]thiazole moieties for Sunlight-Driven hydrogen production from water. Chem. Eng. J. 2022, 446, 137158. [Google Scholar] [CrossRef]
  30. Zhang, X.; Qiu, B.; Zou, Y.; Wang, S.; Mai, W.; Cao, Y.; Wang, Y.; Chen, J.; Li, T. Green synthesized cobalt-bipyridine constructed conjugated microporous polymer: An efficient heterogeneous catalyst for cycloaddition of epoxides via CO2 fixation under ambient conditions. Microporous Mesoporous Mater. 2019, 319, 110758. [Google Scholar] [CrossRef]
  31. Zhang, C.; He, Y.; Mu, P.; Wang, X.; He, Q.; Chen, Y.; Zeng, J.; Wang, F.; Xu, Y.; Jiang, J.X. Toward high performance thiophene-containing conjugated microporous polymer anodes for lithium-ion batteries through structure design. Adv. Funct. Mater. 2018, 28, 1705432. [Google Scholar] [CrossRef]
  32. Zhang, C.; Qiao, Y.; Xiong, P.; Ma, W.; Bai, P.; Wang, X.; Li, Q.; Zhao, J.; Xu, Y.; Chen, Y.; et al. Conjugated microporous polymers with tunable electronic structure for high-performance potassium-ion batteries. Acs Nano. 2019, 13, 745–754. [Google Scholar] [CrossRef] [PubMed]
  33. Amin, K.; Ashraf, N.; Mao, L.; Faul, C.F.J.; Wei, Z. Conjugated microporous polymers for energy storage: Recent progress and challenges. Nano Energy 2021, 85, 105958. [Google Scholar] [CrossRef]
  34. Saber, A.F.; Sharma, S.U.; Lee, J.T.; El-Mahdy, A.F.M.; Kuo, S.W. Carbazole-conjugated microporous polymers from Suzuki–Miyaura coupling for supercapacitors. Polymer 2022, 254, 125070. [Google Scholar] [CrossRef]
  35. Lee, J.S.M.; Cooper, A.I. Advances in conjugated microporous polymers. Chem. Rev. 2020, 120, 2171–2214. [Google Scholar] [CrossRef]
  36. Mei, L.; Cui, X.; Wei, J.; Duan, Q.; Li, Y. Metal phthalocyanine-based conjugated microporous polymer/carbon nanotube composites as flexible electrodes for supercapacitors. Dye. Pigm. 2021, 190, 109299. [Google Scholar] [CrossRef]
  37. Vinodh, R.; Gopi, C.V.V.M.; Kummara, V.G.R.; Atchudanc, R.; Ahamad, T.; Sambasivam, S.; Yi, M.; Obaidat, I.M.; Kim, H.J. A review on porous carbon electrode material derived from hypercrosslinked polymers for supercapacitor applications. J. Energy Stor. 2020, 32, 101831. [Google Scholar] [CrossRef]
  38. Seenath, J.S.; Biswal, B.P. Construction of MXene-Coupled Nitrogen-Doped Porous Carbon Hybrid from a Conjugated Microporous Polymer for High-Performance Supercapacitors. Adv. Energy Sustain. Res. 2021, 2, 2000052. [Google Scholar] [CrossRef]
  39. Bhanja, P.; Das, S.K.; Bhunia, K.; Pradhan, D.; Hayashi, T.; Hijikata, Y.; Irle, S.; Bhaumik, A. A new porous polymer for highly efficient capacitive energy storage. Acs Sustain. Chem. Eng. 2018, 6, 202–209. [Google Scholar] [CrossRef]
  40. Wang, H.G.; Cheng, Z.H.; Liao, Y.Z.; Li, J.H.; Weber, J.; Thomas, A.; Faul, C.F.J. Conjugated microporous polycarbazole networks as precursors for nitrogen enriched microporous carbons for CO2 storage and electrochemical capacitors. Chem. Mater. 2017, 29, 4885. [Google Scholar] [CrossRef] [Green Version]
  41. Mohamed, M.G.; Chang, W.C.; Kuo, S.W. Crown Ether– and Benzoxazine–Linked Porous Organic Polymers Displaying Enhanced Metal Ion and CO2 Capture through Solid State Chemical Transformation. Macromolecules 2022, 55, 7879–7892. [Google Scholar] [CrossRef]
  42. Mohamed, M.G.; Chen, T.C.; Kuo, S.W. Solid-state chemical transformations to enhance gas capture in benzoxazine-linked conjugated microporous polymers. Macromolecules 2021, 54, 5866–5877. [Google Scholar] [CrossRef]
  43. Feng, Y.; Jia, Y.; Guang, S.; Xu, H. Study on thermal enhancement mechanism of POSS-containing hybrid nanocomposites and relationship between thermal properties and their molecular structure. J. Appl. Polym. Sci. 2010, 115, 2212–2220. [Google Scholar] [CrossRef]
  44. Madhavan, K.; Reddy, B.S.R. Synthesis and characterization of polyurethane hybrids: Influence of the polydimethylsiloxane linear chain and silsesquioxane cubic structure on the thermal and mechanical properties of polyurethane hybrids. J. Appl. Polym. Sci. 2009, 113, 4052–4065. [Google Scholar] [CrossRef]
  45. Liu, H.; Liu, H. Selective dye adsorption and metal ion detection using multifunctional silsesquioxane-based tetraphenylethene linked nanoporous polymers. J. Mater. Chem. A 2017, 5, 9156–9162. [Google Scholar] [CrossRef]
  46. Yang, X.; Liu, H. Ferrocene-functionalized silsesquioxane-based porous polymer for efficient removal of dyes and heavy metal ions. Chem. Eur. J. 2018, 24, 13504–13511. [Google Scholar] [CrossRef]
  47. Yan, J.; Choi, J.H.; Jeong, Y.G. Freestanding supercapacitor electrode applications of carbon nanofibers based on polyacrylonitrile and polyhedral oligomeric silsesquioxane. Mater. Des. 2018, 139, 72–80. [Google Scholar] [CrossRef]
  48. Liu, J.; Liu, Y.; Jiang, X.; Luo, Y.; Lyu, Y. POSS-based microporous polymers: Efficient Friedel-Crafts synthesis, CO2 capture and separation properties. Micropor. Mesopor. Mater. 2017, 250, 203–209. [Google Scholar] [CrossRef]
  49. Mohamed, M.G.; Kuo, S.W. Functional Polyimide/Polyhedral Oligomeric Silsesquioxane Nanocomposites. Polymers 2019, 11, 26. [Google Scholar] [CrossRef]
  50. Shen, R.; Du, Y.; Yang, X.; Liu, H. Silsesquioxanes-based porous functional polymers for water purification. J. Mater. Sci. 2020, 55, 7518–7529. [Google Scholar] [CrossRef]
  51. Mohamed, M.G.; Kuo, S.W. Functional Silica and Carbon Nanocomposites Based on Polybenzoxazines. Macromol. Chem. Phys. 2019, 220, 1800306. [Google Scholar] [CrossRef]
  52. Kuo, S.W. Hydrogen bonding interactions in polymer/polyhedral oligomeric silsesquioxane nanomaterials. J. Polym. Res. 2022, 29, 69. [Google Scholar] [CrossRef]
  53. Ren, J.; Feng, J.; Wang, L.; Chen, G.; Zhou, Z.; Li, Q. High specific surface area hybrid silica aerogel containing POSS. Microporous Mesoporous Mater. 2021, 310, 110456. [Google Scholar] [CrossRef]
  54. Ghasemi, M.; Fahimi, Z.; Moradlou, O.; Seize, M.R. Porous gel polymer electrolyte for the solid state metal oxide supercapacitor with a wide potential window. J. Taiwan Inst. Chem. Eng. 2021, 118, 223–231. [Google Scholar] [CrossRef]
  55. Mohamed, M.G.; Kuo, S.W. Progress in the self-assembly of organic/inorganic polyhedral oligomeric silsesquioxane (POSS) hybrids. Soft Matter 2022, 18, 5535–5561. [Google Scholar] [CrossRef]
  56. Seo, S.; Chaikittisilp, W.; Koike, N.; Yokoi, T.; Okubo, T. Porous inorganic–organic hybrid polymers derived from cyclic siloxane building blocks: Effects of substituting groups on mesoporous structures. Microporous Mesoporous Mater. 2019, 278, 212–218. [Google Scholar] [CrossRef]
  57. Mohamed, M.G.; Tsai, M.Y.; Wang, C.F.; Huang, C.F.; Danko, M.; Dai, L.; Chen, T.; Kuo, S.W. Multifunctional polyhedral oligomeric silsesquioxane (POSS) based hybrid porous materials for CO2 uptake and iodine adsorption. Polymers 2021, 13, 221. [Google Scholar] [CrossRef]
  58. Mohamed, M.G.; Mansoure, T.H.; Takashi, Y.; Samy, M.M.; Chen, T.; Kuo, S.-W. Ultrastable porous organic/inorganic polymers based on polyhedral oligomeric silsesquioxane (POSS) hybrids exhibiting high performance for thermal property and energy storage. Microporous Mesoporous Mater. 2021, 328, 111505. [Google Scholar] [CrossRef]
  59. Wang, D.; Yang, W.; Feng, S.; Liu, H. Amine post-functionalized POSS-based porous polymers exhibiting simultaneously enhanced porosity and carbon dioxide adsorption properties. Rsc Adv. 2016, 6, 13749–13756. [Google Scholar] [CrossRef]
  60. Wang, D.; Xue, L.; Li, L.; Deng, B.; Feng, S.; Liu, H.; Zhao, X. Rational design and synthesis of hybrid porous polymers derived from polyhedral oligomeric silsesquioxanes via Heck coupling reactions. Macromol. Rapid Commun. 2013, 34, 34861–34866. [Google Scholar] [CrossRef]
  61. Mohamed, M.G.; Liu, N.Y.; EL-Mandy, A.F.M.; Kuo, S.W. Ultrastable luminescent hybrid microporous polymers based on polyhedral oligomeric silsesquioxane for CO2 uptake and metal ion sensing. Microporous Mesoporous Mater. 2021, 311, 110695. [Google Scholar] [CrossRef]
  62. Wang, Q.; Liu, H.; Jiang, C.; Liu, H. Silsesquioxane-based triphenylamine functionalized porous polymer for CO2, I2 capture and nitro-aromatics detection. Polymer 2020, 186, 122004. [Google Scholar] [CrossRef]
  63. Du, Y.; Unno, M.; Liu, H. Hybrid nanoporous materials derived from ladder- and cage-type silsesquioxanes for water treatment. ACS Appl. Nano Mater. 2020, 3, 1535–1541. [Google Scholar] [CrossRef]
  64. Wang, Y.; Soldatov, M.; Wang, Q.; Liu, H. Phosphazene functionalized silsesquioxane-based porous polymers for absorbing I2, CO2 and dyes. Polymer 2021, 218, 123491. [Google Scholar] [CrossRef]
  65. Wang, D.; Yang, W.; Feng, S.; Liu, H. Constructing hybrid porous polymers from cubic octavinyl silsequioxane and planar halogenated benzene. Polym. Chem. 2014, 5, 3634–3642. [Google Scholar] [CrossRef]
  66. Sajjad, M.; Tao, R.; Kang, K.; Luo, S.; Qiu, L. Phosphine-based porous organic polymer/rGO aerogel composites for high-performance asymmetric supercapacitor. Acs Appl. Energy Mater. 2021, 4, 828–838. [Google Scholar] [CrossRef]
  67. Xu, J.; He, Y.; Bi, S.; Wang, M.; Yang, P.; Wu, D.; Wang, J.; Zhang, F. An olefin-linked covalent organic framework as a flexible thin-film electrode for a high-performance micro-supercapacitor. Angew. Chem. Int. Ed. 2019, 131, 12193–12197. [Google Scholar] [CrossRef]
  68. He, X.; Xie, X.; Wang, J.; Ma, X.; Xie, Y.; Gu, J.; Xiao, N.; Qiu, J. From fluorine molecules to ultrathin carbon nanonets with an enhanced charge transfer capability for supercapacitors. Nanoscale 2019, 11, 6610–6619. [Google Scholar] [CrossRef]
  69. Khattak, A.M.; Ghazi, Z.A.; Liang, B.; Khan, N.A.; Iqbal, A.; Li, L.; Tang, Z. A redox active 2D covalent organic framework with pyridine moieties capable of faradaic energy storage. J. Mater. Chem. A 2016, 4, 16312–16317. [Google Scholar] [CrossRef]
  70. Xu, L.; Shi, R.; Li, H.; Han, C.; Wu, M.; Wong, C.P.; Kang, F.; Li, B. Pseudocapacitive anthraquinone modified with reduced graphene oxide for flexible symmetric all solid-state supercapacitors. Carbon 2018, 127, 459–468. [Google Scholar] [CrossRef]
  71. Khattak, A.M.; Sin, H.; Ghazi, Z.A.; He, X.; Liang, B.; Khan, N.A.; Alanagh, H.R.; Iqbal, A.; Li, L.; Tang, Z. Controllable fabrication of redox-active conjugated microporous polymers on reduced graphene oxide for high performance faradaic energy storage. J. Mater. Chem. 2018, 6, 18827–18832. [Google Scholar] [CrossRef]
  72. Kusuma, H.D.; Rochmadi; Prasetyo, I.; Ariyanto, T. Mesoporous Manganese Oxide/Lignin-Derived Carbon for High Performance of Supercapacitor Electrodes. Molecules 2021, 26, 7104. [Google Scholar] [CrossRef] [PubMed]
  73. DeBlase, C.R.; Silberstein, K.E.; Truong, T.T.; Abruña, H.D.; Dichtel, W.R. β-Ketoenamine-Linked covalent organic frameworks capable of pseudocapacitive energy storage. J. Am. Chem. Soc. 2013, 135, 16821–16824. [Google Scholar] [CrossRef] [PubMed]
  74. Guo, B.; Yang, Y.; Hu, Z.; An, Y.; Zhang, Q.; Yang, X.; Wang, X.; Wu, H. Redox-active organic molecules functionalized nitrogen-doped porous carbon derived from metal-organic framework as electrode materials for supercapacitor. Electrochim. Acta 2017, 223, 74–84. [Google Scholar] [CrossRef]
  75. Li, M.; Liu, J.; Zhang, T.; Song, X.; Chen, W.; Chen, L. 2D redox-active covalent organic frameworks for supercapacitors: Design, synthesis, and challenges. Small 2021, 17, 2005073. [Google Scholar] [CrossRef]
  76. Luo, B.C.; Chen, Y.; Zhang, Y.B.; Huo, J.Q. Nitrogen-rich anthraquinone–triazine conjugated microporous polymer networks as high-performance supercapacitor. New J. Chem. 2021, 45, 17278–17286. [Google Scholar] [CrossRef]
  77. He, Y.; Cheng, Z.H.; Zuo, H.Y.; Yan, C.N.; Liao, Y.Z. Green Synthesis of Pyridyl Conjugated Microporous Polymers as Precursors for Porous Carbon Microspheres for Efficient Electrochemical Energy Storage. ChemElectroChem 2019, 7, 959–966. [Google Scholar] [CrossRef]
  78. Park, S.Y.; Kang, C.W.; Lee, S.M.; Kim, H.J.; Ko, Y.; Choi, J.; Son, S.U. Nanoparticulate Conjugated Microporous Polymer with Post-Modified Benzils for Enhanced Pseudocapacitor Performance. Chem. Eur. J. 2020, 26, 12343–12348. [Google Scholar] [CrossRef]
  79. Liu, X.; Liu, C.-F.; Lai, W.-Y.; Huang, W. Porous Organic Polymers as Promising Electrode Materials for Energy Storage Devices. Adv. Mater. Technol. 2020, 5, 2000154. [Google Scholar] [CrossRef]
  80. Oliveira, R.D.; Santos, C.S.; Garcia, J.R.; Vidotti, M.; Marchesi, L.F.; Pessoa, C.A. IR drop studies of poly(aniline)-based modified electrodes. J. Electroanal. Chem. 2020, 878, 114662. [Google Scholar] [CrossRef]
Molecules 27 06238 sch001 550

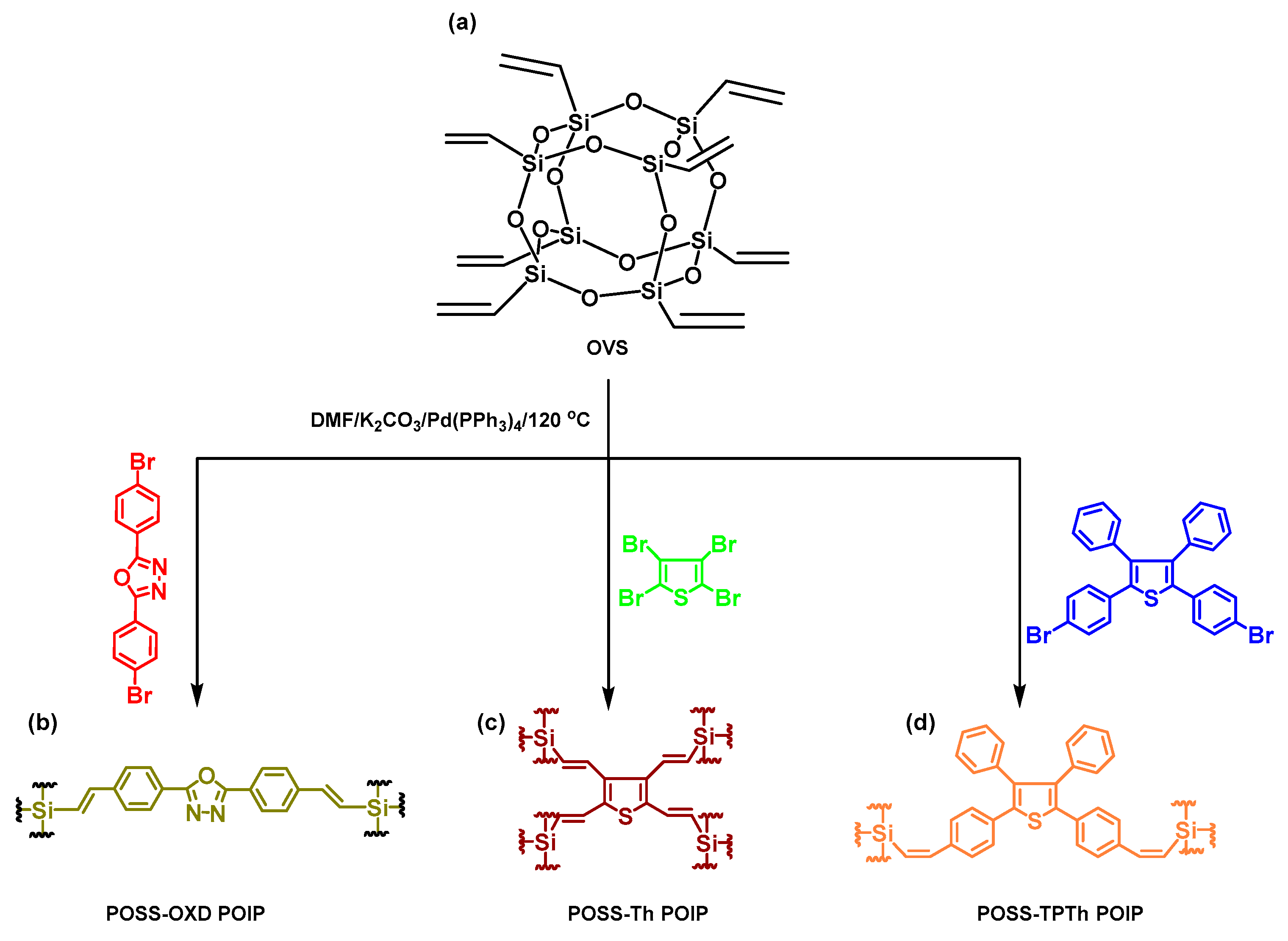

Scheme 1. Synthesis of the (b) POSS-OXD, (c) POSS-Th, and (d) POSS-TPTh POIPs through Heck reactions of (a) OVS.
Scheme 1. Synthesis of the (b) POSS-OXD, (c) POSS-Th, and (d) POSS-TPTh POIPs through Heck reactions of (a) OVS.
Molecules 27 06238 sch001
Molecules 27 06238 g001 550

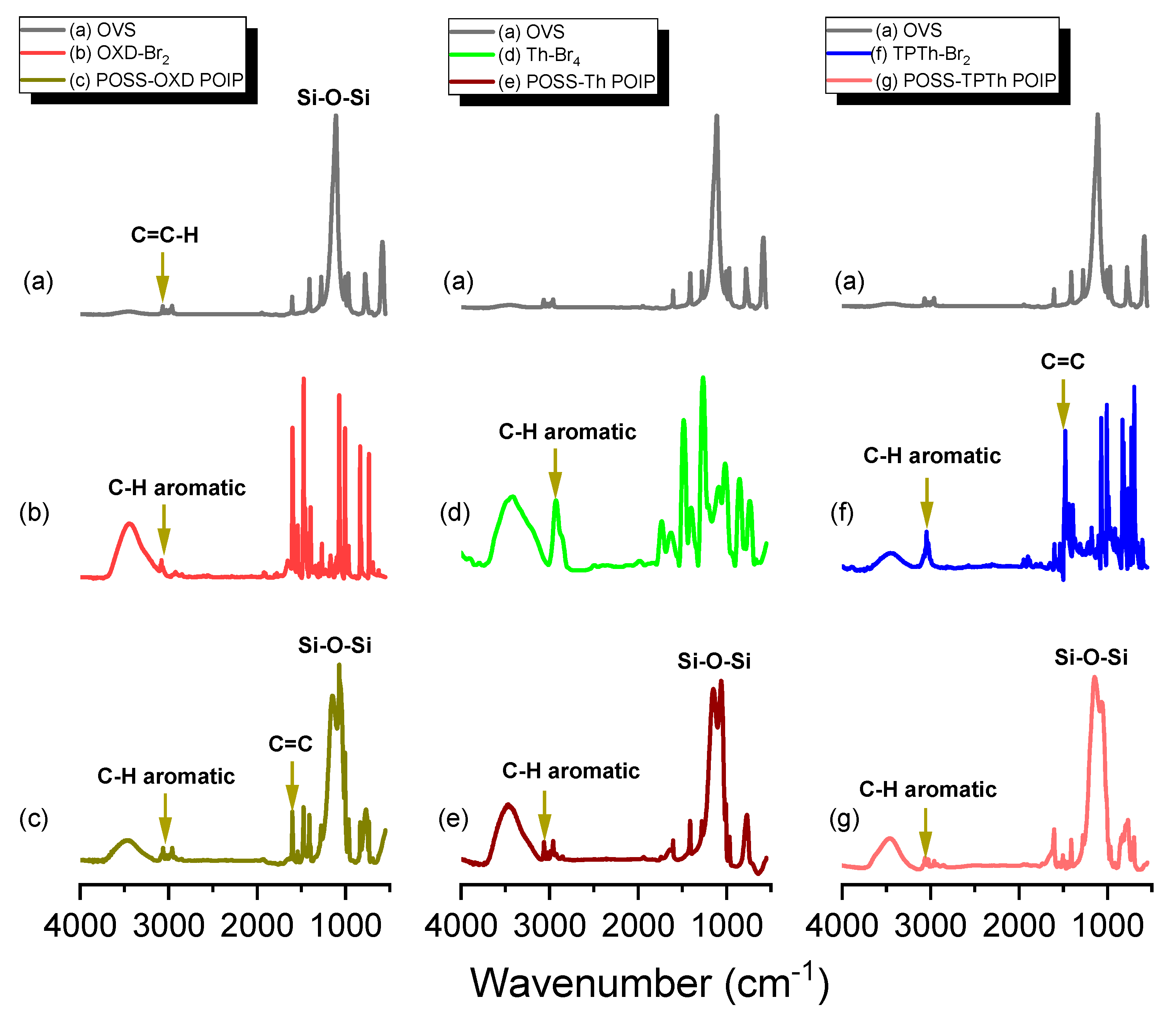

Figure 1. FTIR spectra of (a) OVS, (b) OXD-Br2, (c) POSS-OXD POIP, (d) Th-Br4, (e) POSS-Th POIP, (f) TPTh-Br2, and (g) POSS-TPTh POIP, recorded at 25 °C.
Figure 1. FTIR spectra of (a) OVS, (b) OXD-Br2, (c) POSS-OXD POIP, (d) Th-Br4, (e) POSS-Th POIP, (f) TPTh-Br2, and (g) POSS-TPTh POIP, recorded at 25 °C.
Molecules 27 06238 g001
Molecules 27 06238 g002 550

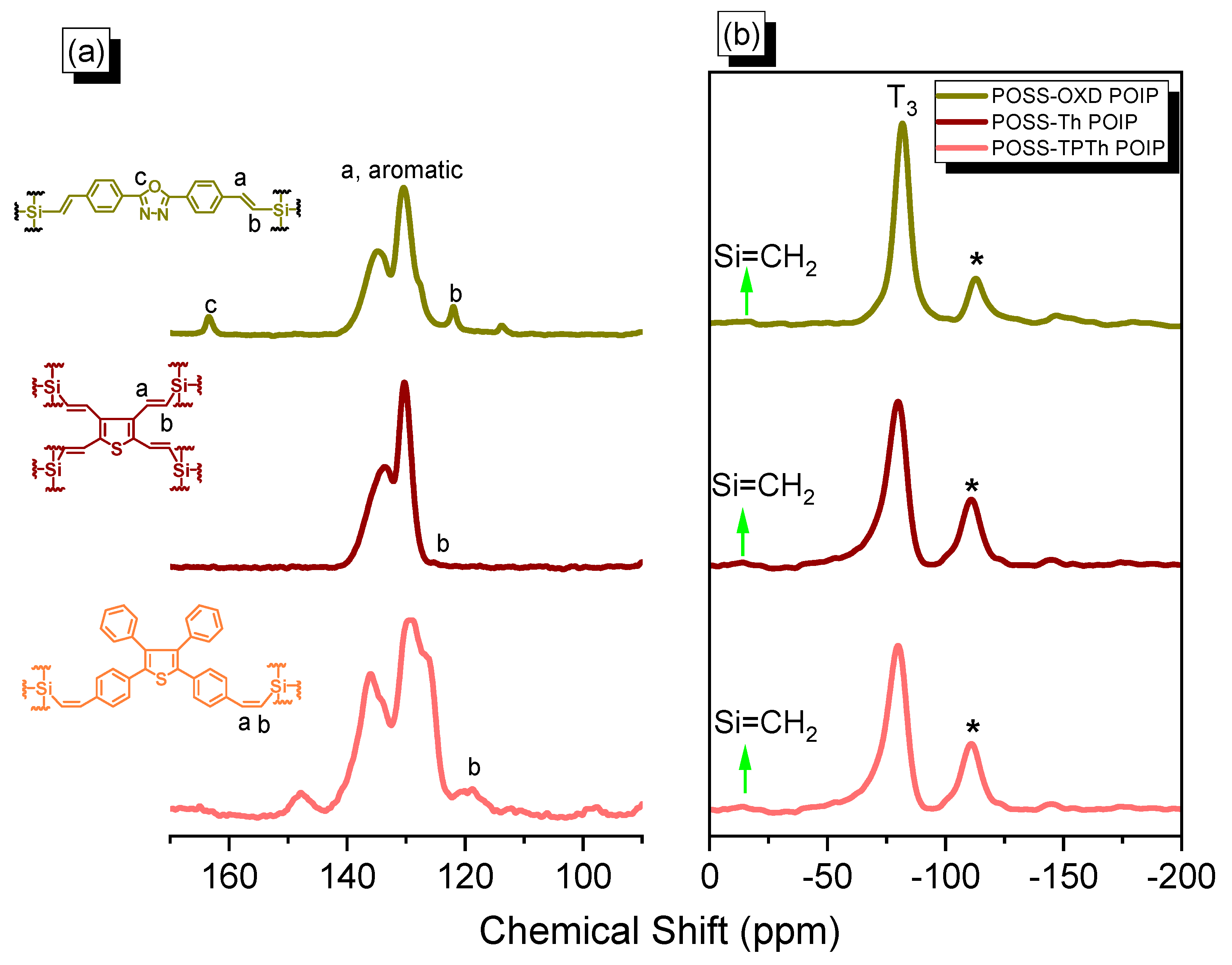

Figure 2. Solid state (a) 13C and (b) 29Si NMR spectra of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs. * is the side band of solid state nuclear magnetic resonance spectroscopy (NMR).
Figure 2. Solid state (a) 13C and (b) 29Si NMR spectra of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs. * is the side band of solid state nuclear magnetic resonance spectroscopy (NMR).
Molecules 27 06238 g002
Molecules 27 06238 g003 550

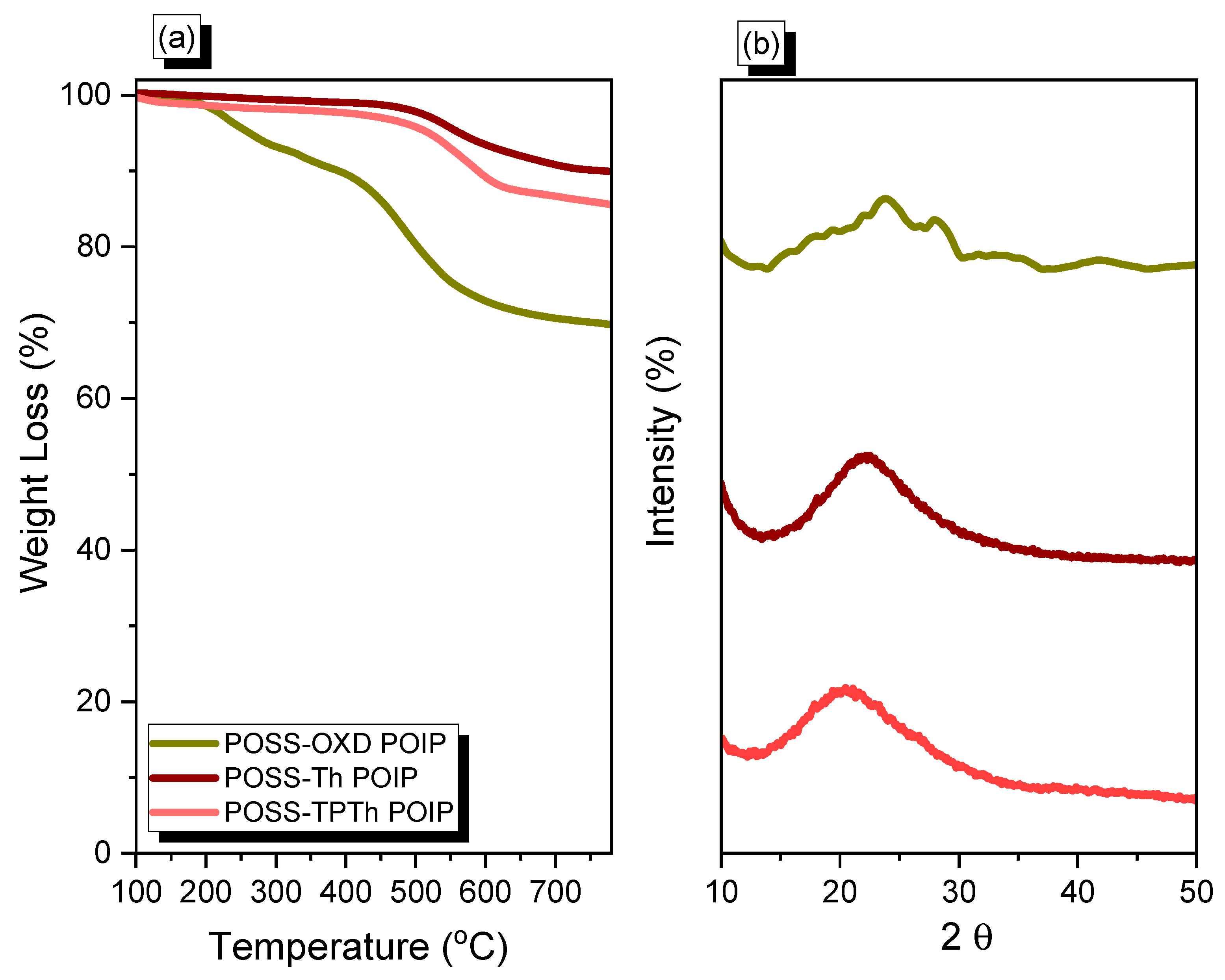

Figure 3. (a) TGA traces and (b) XRD patterns of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs.
Figure 3. (a) TGA traces and (b) XRD patterns of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs.
Molecules 27 06238 g003
Molecules 27 06238 g004 550

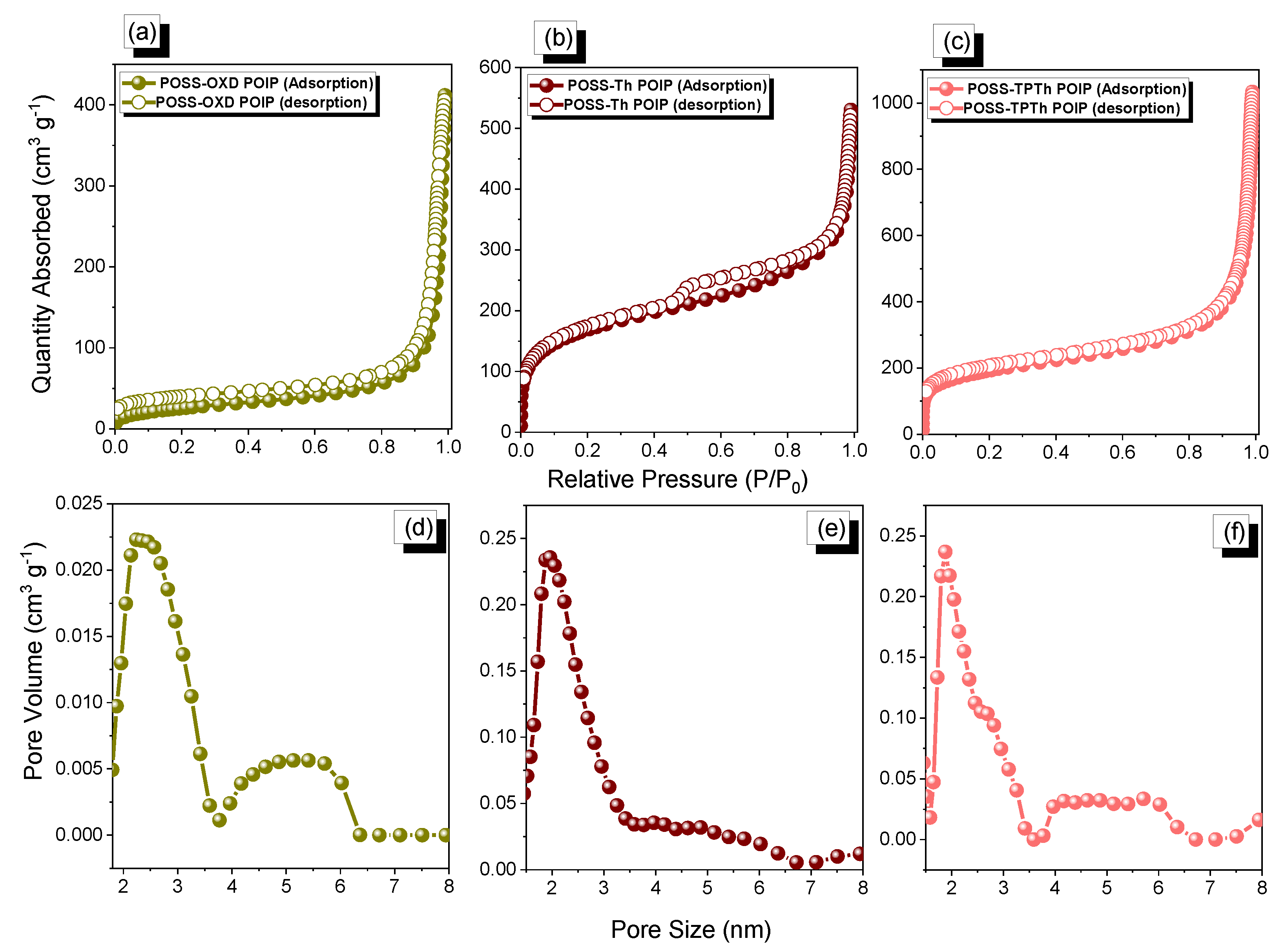

Figure 4. (a–c) N2 adsorption/desorption isotherms and (d–f) pore diameter patterns of the (a,d) POSS-OXD, (b,e) POSS-Th, and (c,f) POSS-TPTh POIPs.
Figure 4. (a–c) N2 adsorption/desorption isotherms and (d–f) pore diameter patterns of the (a,d) POSS-OXD, (b,e) POSS-Th, and (c,f) POSS-TPTh POIPs.
Molecules 27 06238 g004
Molecules 27 06238 g005 550

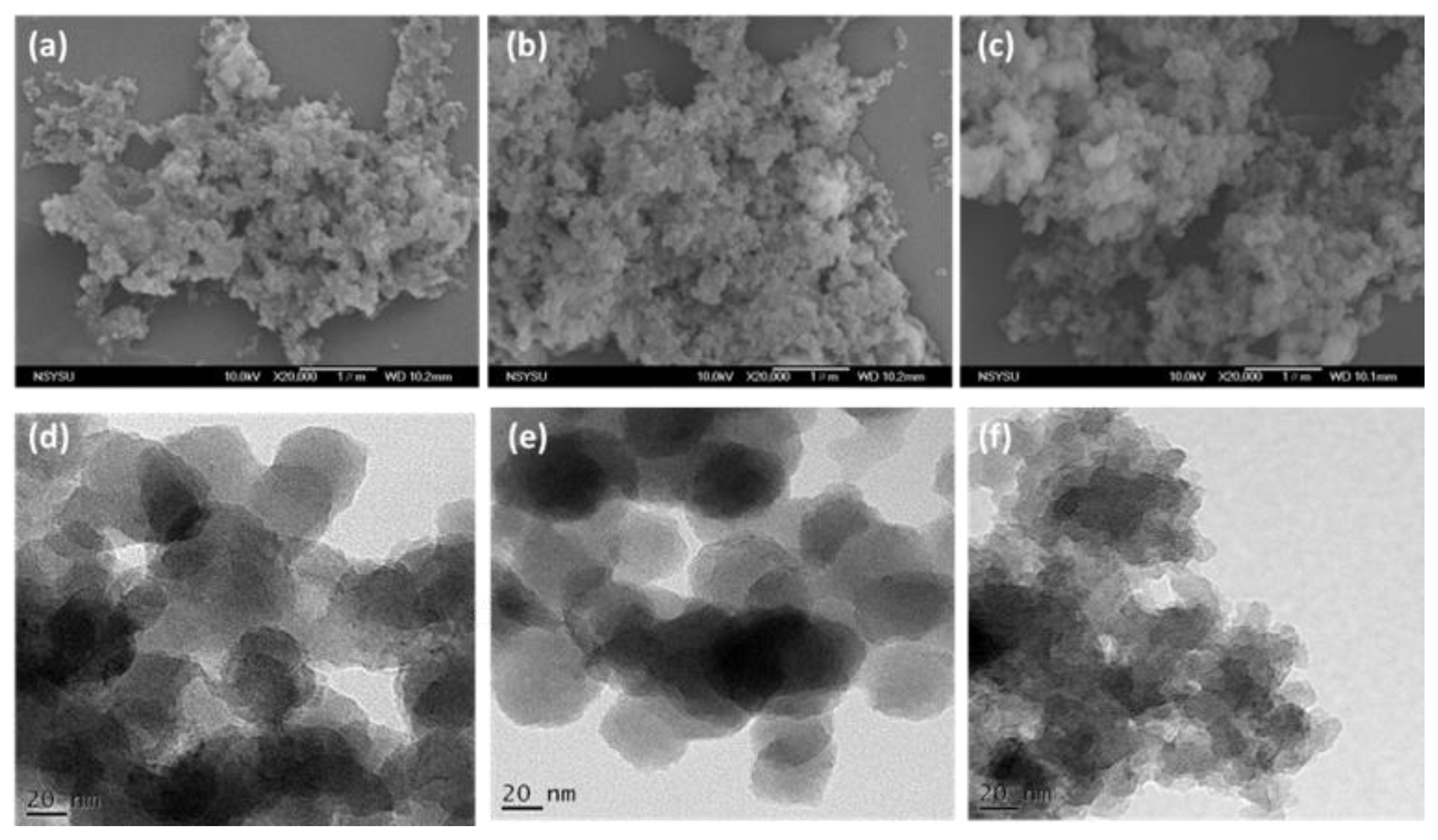

Figure 5. (a–c) SEM and (d–f) TEM images of the (a,d) POSS-OXD, (b,e) POSS-Th, and (c,f) POSS-TPTh POIPs.
Figure 5. (a–c) SEM and (d–f) TEM images of the (a,d) POSS-OXD, (b,e) POSS-Th, and (c,f) POSS-TPTh POIPs.
Molecules 27 06238 g005
Molecules 27 06238 g006 550
Figure 6. CO2 uptake capacities of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs.
Figure 6. CO2 uptake capacities of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs.
Molecules 27 06238 g006
Molecules 27 06238 g007 550
Figure 7. (a–c) CV and (d–f) GCD traces of the (a,d) POSS-OXD, (b,e) POSS-Th, and (c,f) POSS-TPTh POIPs.
Figure 7. (a–c) CV and (d–f) GCD traces of the (a,d) POSS-OXD, (b,e) POSS-Th, and (c,f) POSS-TPTh POIPs.
Molecules 27 06238 g007
Molecules 27 06238 g008 550
Figure 8. (a) Capacitance and (b) Ragone plots for the POSS-OXD, POSS-Th, and POSS-TPTh POIPs.
Figure 8. (a) Capacitance and (b) Ragone plots for the POSS-OXD, POSS-Th, and POSS-TPTh POIPs.
Molecules 27 06238 g008
Molecules 27 06238 g009 550
Figure 9. (a) Durability and (b) electrochemical performance of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs, compared with those of previously reported porous materials.
Figure 9. (a) Durability and (b) electrochemical performance of the POSS-OXD, POSS-Th, and POSS-TPTh POIPs, compared with those of previously reported porous materials.
Molecules 27 06238 g009
Table
Table 1. TGA, BET, and capacitance data for the POIPs.
Table 1. TGA, BET, and capacitance data for the POIPs.
SampleTd10 (°C)Char Yield (wt.%)Surface Area (m2 g−1)Pore Volume (cm3 g−1)Pore Size (nm)Capacity at 0.5 A g−1 (F g−1)
POSS-OXD POIP38669940.022.34119
POSS-Th POIP786906050.231.98213
POSS-TPTh POIP586866820.231.87354
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ejaz, M.; Mohamed, M.G.; Sharma, S.U.; Lee, J.-T.; Huang, C.-F.; Chen, T.; Kuo, S.-W. An Ultrastable Porous Polyhedral Oligomeric Silsesquioxane/Tetraphenylthiophene Hybrid as a High-Performance Electrode for Supercapacitors. Molecules 2022, 27, 6238. https://doi.org/10.3390/molecules27196238

AMA Style

Ejaz M, Mohamed MG, Sharma SU, Lee J-T, Huang C-F, Chen T, Kuo S-W. An Ultrastable Porous Polyhedral Oligomeric Silsesquioxane/Tetraphenylthiophene Hybrid as a High-Performance Electrode for Supercapacitors. Molecules. 2022; 27(19):6238. https://doi.org/10.3390/molecules27196238

Chicago/Turabian Style

Ejaz, Mohsin, Mohamed Gamal Mohamed, Santosh U. Sharma, Jyh-Tsung Lee, Chih-Feng Huang, Tao Chen, and Shiao-Wei Kuo. 2022. "An Ultrastable Porous Polyhedral Oligomeric Silsesquioxane/Tetraphenylthiophene Hybrid as a High-Performance Electrode for Supercapacitors" Molecules 27, no. 19: 6238. https://doi.org/10.3390/molecules27196238

APA Style

Ejaz, M., Mohamed, M. G., Sharma, S. U., Lee, J. -T., Huang, C. -F., Chen, T., & Kuo, S. -W. (2022). An Ultrastable Porous Polyhedral Oligomeric Silsesquioxane/Tetraphenylthiophene Hybrid as a High-Performance Electrode for Supercapacitors. Molecules, 27(19), 6238. https://doi.org/10.3390/molecules27196238

Article Metrics

Back to TopTop
