Review

The Backbone of Success of P,N-Hybrid Ligands: Some Recent Developments

by
Martin B. Smith
Department of Chemistry, Loughborough University, Loughborough, Leics LE11 3TU, UK
Molecules 2022, 27(19), 6293; https://doi.org/10.3390/molecules27196293
Submission received: 7 September 2022 / Revised: 21 September 2022 / Accepted: 21 September 2022 / Published: 23 September 2022
(This article belongs to the Special Issue Recent Advances in Phosphorus Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
Organophosphorus ligands are an invaluable family of compounds that continue to underpin important roles in disciplines such as coordination chemistry and catalysis. Their success can routinely be traced back to facile tuneability thus enabling a high degree of control over, for example, electronic and steric properties. Diphosphines, phosphorus compounds bearing two separated PIII donor atoms, are also highly valued and impart their own unique features, for example excellent chelating properties upon metal complexation. In many classical ligands of this type, the backbone connectivity has been based on all carbon spacers only but there is growing interest in embedding other donor atoms such as additional nitrogen (–NH–, –NR–) sites. This review will collate some important examples of ligands in this field, illustrate their role as ligands in coordination chemistry and highlight some of their reactivities and applications. It will be shown that incorporation of a nitrogen-based group can impart unusual reactivities and important catalytic applications.

Graphical Abstract

1. Introduction

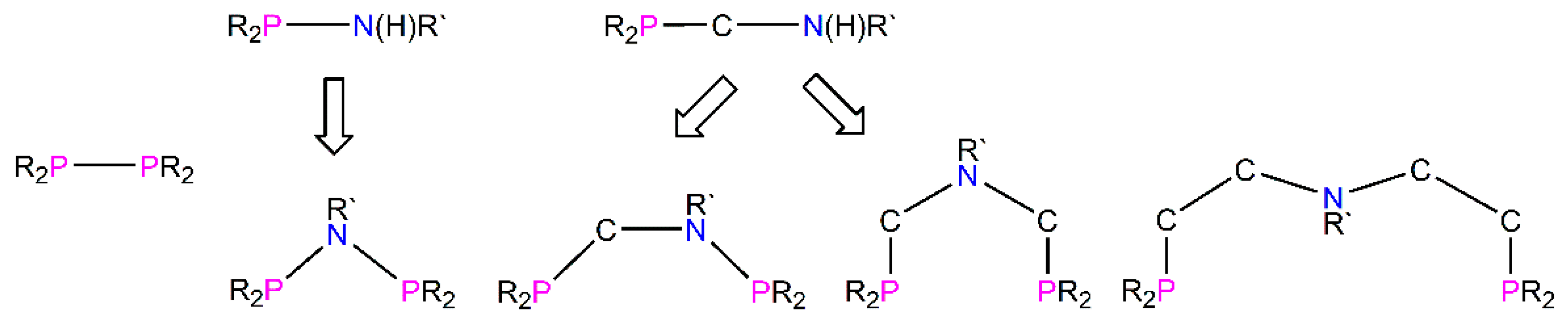

Phosphorus compounds are of widespread fascination due to their importance in organic, coordination/organometallic chemistry, catalysis, and numerous other applications. Many such P-based compounds are derived from simple fundamental building blocks such as white phosphorus (P4) for example. Various industrial processes for accessing simple P-based compounds are well known and, nowadays, current challenges in generating such compounds more efficiently [1] and sustainably are being actively pursued [2]. Interest has spurred in converting P4 into useful compounds directly [3,4] and this area will no doubt continue to be a highly important area going forward.

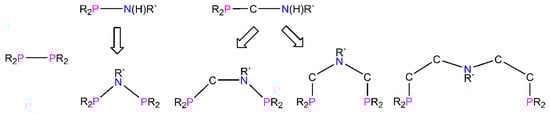

The following review will provide a brief update, from the Author’s perspective, of selected examples of chelating diphosphines with a central nitrogen functional group in the backbone and illustrate the diverse behaviour(s) imparted by this additional donor atom. The focus will be on ligand design and synthesis protocols, 31P{1H} NMR spectroscopy as a useful tool for assessing purity and characterisation and an illustration of how such ligands are used, primarily in coordination chemistry and catalysis. This review is by no means exhaustive but will highlight the growing emergence of these ligands versus their all-carbon backbone counterparts which historically have been known for several decades. Depending on the diphosphine ligand, 4-, 5-, 6- (Figure 1) and larger chelate/macrocyclic rings with one (or more) –NH–/–NR– sites are formed upon complexation to a range of typical transition metals. The present review aims to embrace the Reader with a perspective of the importance of these ligands and their continuing prominence going forward. These ligands constitute important families to the already extensive number of known phosphorus compounds. As will be illustrated, the tuneability of phosphines thereby precisely controlling properties such as electronic effects, sterics, asymmetry, solubility, chirality etc is applicable to the diphosphines discussed here.

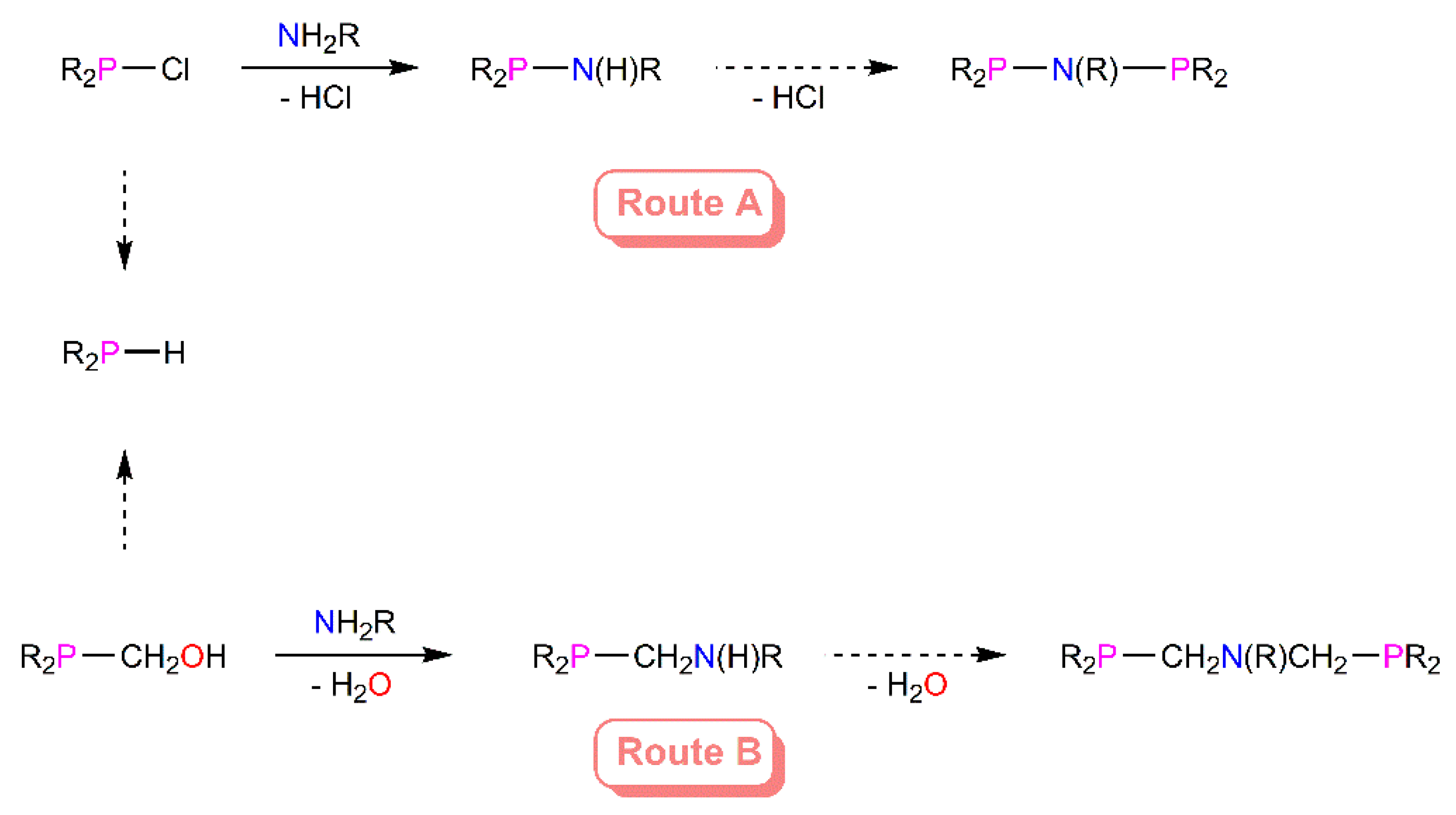

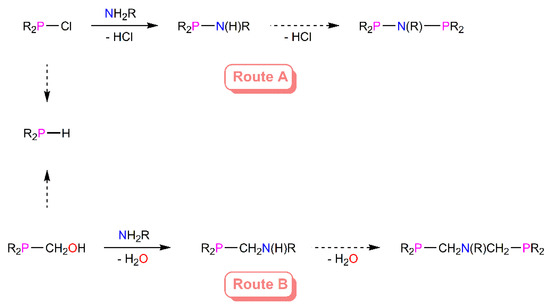

Unlike general synthetic phosphorus methodologies widely used for constructing P–C bonds [5], the transformations shown in Scheme 1 are simple condensations and employ, typically, secondary chlorophosphines or secondary phosphines as key starting reagents. In many instances, especially the Phospha-Mannich based reactions [6,7], work-up and isolations are straightforward and target P(III) compounds can often be accessed in good to high yields. Furthermore, in an industrial context, these reactions are important in the industrial preparation of flame retardants for cotton based materials using [P(CH2OH)4]+ salts and condensation with urea [8]. The utility of this approach will be highlighted, using suitable examples, in the following sections.

2. P–N Chemistry

2.1. Synthesis of Selected Examples

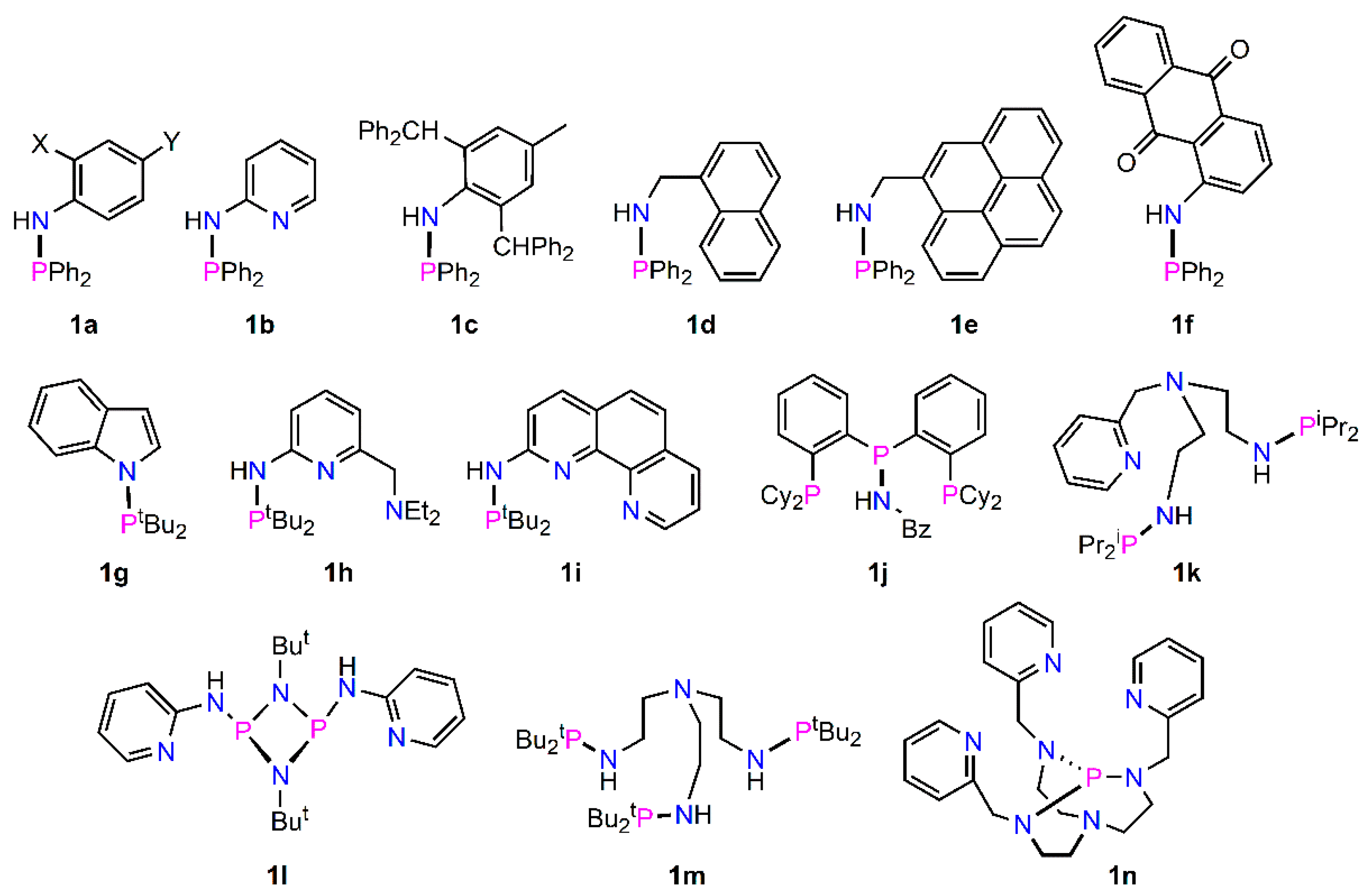

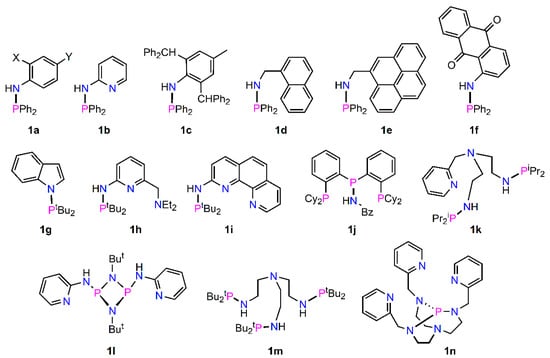

The ligand 1a (Figure 2), bearing a phenyl substituent (X = Y = H), has been known for over 25 years [9] and related analogues have been described [10]. The pyridyl analogue, 1b, was first reported in 2000 by Woollins and co-workers and prepared from 2-aminopyridine, NEt3, and ClPPh2 at 0 °C and isolated as a white powder in 78% yield [11]. Reaction of an in situ generated lithiated amide, with 1 equiv. of Ph2PCl, afforded air stable 1c as a white solid in 66% yield and showed a 31P signal at 38.5 ppm [12]. A single crystal X-ray structure analysis of 1c revealed a P–N distance of 1.702(13) Å. Ligand 1c could function in a P-monodentate fashion, but also through one of the phenyl rings on the benzhydryl group as a tethered η6-arene when bound at a Ru(II) piano-stool centre. Pope and co-workers [13] prepared a range of fluorescent phosphinous amides 1d–f from a stoichiometric reaction of the appropriate primary amine:ClPPh2 in CH2Cl2, and NEt3, at 0 °C. It was found that 1d–f could be isolated as colourless, yellow oils or as a dark orange solid and showed 31P signals at 42.2, 42.1, and 26.1 ppm, respectively. These ligands were coordinated to gold(I) and displayed interesting photophysical properties. In 2022, unlike conventional pathways to phosphinoamines (Route A, Scheme 1) previously highlighted, an electrochemical route has been reported as an alternative strategy for generating P–N bonds. For example, 1g could be accessed through coupling of secondary amines/phosphines and concomitant H2 evolution [14]. Utilising a single P–N bond forming step has successfully enabled the preparation of PN2-tridentate ligands such as 1h and 1i [15,16] which have subsequently been widely studied in various catalytic transformations via metal ligand cooperative catalysis. The synthesis of 1h was accomplished using NEt3/nBuLi, tBu2PCl, and 6-[(diethylamino)methyl]pyridine-2-amine. The tridentate phosphinoamine, 1j, was prepared from Cy2PCl and BzNH2 in C7H8, in the presence of excess NEt3, and was isolated as a colourless solid in 69% yield [17]. The 31P NMR of 1j showed one resonance for the PN atom at 32.6 ppm (as a dd) and −12.6 ppm (as a d for the -PCy2 groups, Table 1). Other multidentate ligands, such as 1k [18], were synthesised by reaction of (2-C5H4N)CH2N(CH2CH2NH2)2 with 2 equiv. of iPr2PCl in THF in the presence of excess NEt3 to afford the desired product as a pale yellow oil in 88% yield and a 31P NMR at 63.9 ppm (in C6D6). P–N formation can be accomplished, through condensation, upon reaction of 2-aminopyridine and [ClP(μ-NtBu)]2 in the presence of excess NEt3, in THF, to afford 1l as a colourless crystalline solid in 32% yield. The 31P NMR spectrum showed a signal at 106.4 ppm whilst single crystal X-ray analysis revealed an intramolecular N–H…N H-bond spanning the P2N2 four-membered core [19]. The tripodal phosphinoamine 1m [20,21] was readily prepared from N(CH2CH2NH2)3 and tBu2PCl (3 equivs) in THF in the presence of DBU and isolated as a colourless oil in 95% yield and with a 31P NMR signal at 77.9 ppm (in C6D6). The three NH sites could further be readily deprotonated, with nBuLi and quenched with GaCl3, to form a corresponding Ga compound. The ligand 1n (abbreviated as TPAP) was synthesised from reaction of tris[2-[N-(2-pyridinemethyl)-amino]ethyl]amine and ClP(NMe2)2, which upon subsequent deprotonation with excess tBuOK in THF gave 1n as a white solid which displayed a 31P resonance at 126 ppm [22,23].
A well-known transformation of tertiary phosphines is their oxidation and this reactivity is also the case for phosphinoamines which react with H2O2, elemental sulfur or selenium or even BH3.SMe2 to give the corresponding P(V) analogues. These aminophosphine chalcogenides display a rich and varied chemistry towards a range of alkali metal complexes, frequently involving deprotonation of the NH group [24].

2.2. Importance of –N(H)– Backbone Functionality in P–N Ligands

The impact of an –N(H)– group in catalysis can be nicely illustrated by the methyl substituted derivative Ph2PN(Me)(2-C5H4N) 1o which could be prepared from 2-(methylamino)pyridine in Et2O and nBuLi as base followed by quenching with ClPPh2 [25]. After workup, 1o was isolated as a pale yellow crystalline solid in 65%. The palladium(II) catalysed methoxycarbonylation of olefins using 1b as ligand, bearing an –NH– spacer, was found to be an efficient catalyst system. In contrast, when using 1o instead, a significantly reduced catalytic activity was observed thereby demonstrating an important effect of the –NH– group. The free –NH– group in these singly substituted phosphinoamines also enables further P–N bond coupling reactions to occur leading to, for example, unsymmetrical P–N–P diphosphinoamines, as will be discussed further in Section 3.2.
Coordinated aminophosphines, bearing an –NH– group, often display excellent hydrogen bonding capabilities and are often investigated using single crystal X-ray crystallography. For example, cis-dichoroplatinum(II) complexes of ester functionalised analogues of 1a show intramolecular N–H…ClPt H-bonding [10]. With the inclusion of an additional acceptor, such as that in 1b, intermolecular N–H…N hydrogen bonding linking two molecules into a dimer pair was observed [11]. Other H-bonding motifs have also been observed but are not discussed here.
Deprotonation of the secondary amine group can also enable amido based ligands to be prepared as illustrated by the elegant work of Velian and co-workers [26]. This group showed that the coordinated Ph2PN(H){C6H4(4-Me)} ligand in a cobalt selenide cluster could be deprotonated, using nBuLi and reacted with FeCl2, to form a mixed Co/Fe cluster in which [Ph2PN{C6H4(4-Me)}]− bridges an Fe and Co metal centre. Likewise, a copper complex of 1j, was found to undergo deprotonation with KH to form a binuclear amido complex in which 1j functions as a P3N-tetradentate ligand [17]. Deprotonation of 1m with nBuLi was shown to afford trianionic trisamido ligands which could be used to form an interesting array of heterometallic complexes [18,19]. The –NH– group in complexes of pincer ligands (e.g., 1h, 1i) play an important catalytic role through metal-ligand cooperation involving dearomatisation/rearomatisation via deprotonation/reprotonation steps [16].

3. P–N–P Chemistry

3.1. Synthesis of Selected Examples

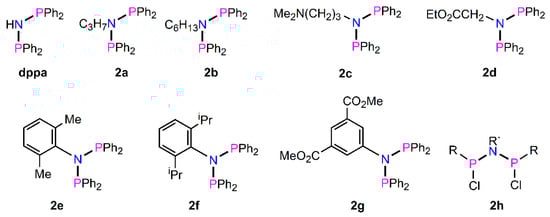

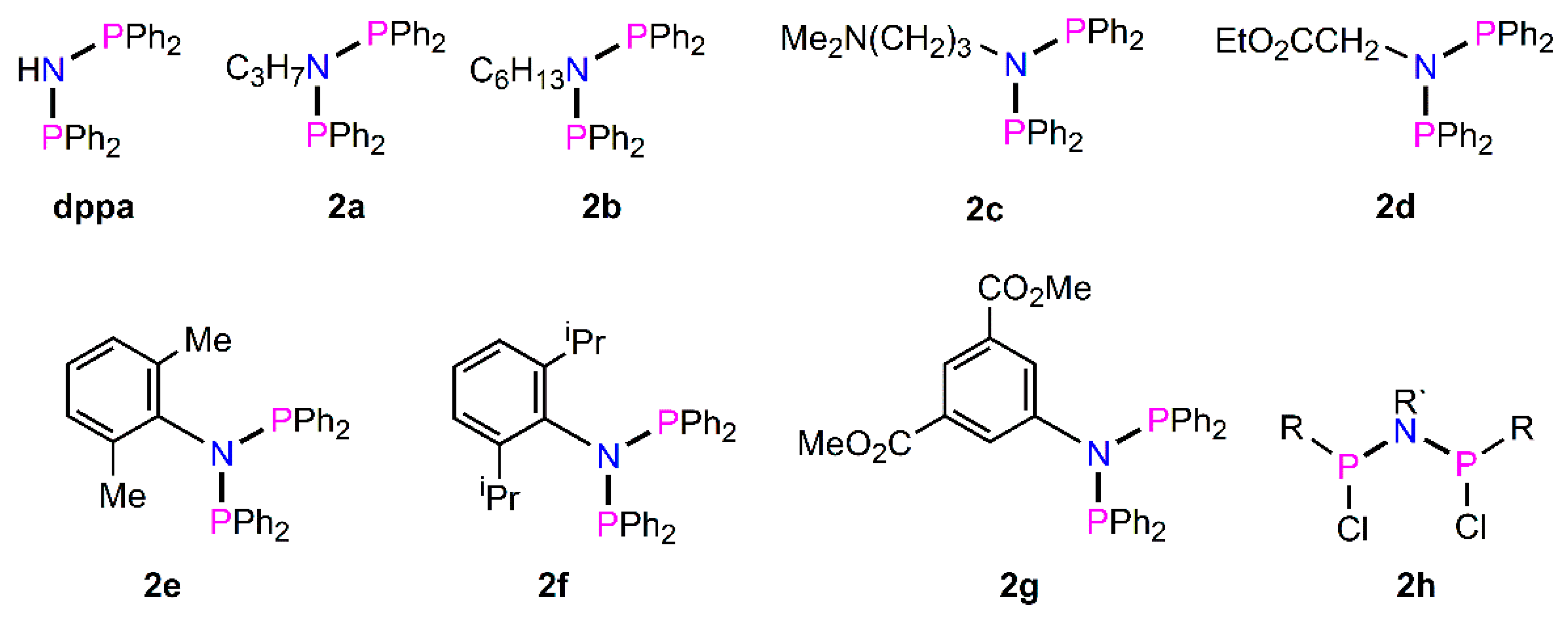

Small bite-angle diphosphines such as the ubiquitous dppm [bis(diphenylphosphino)methane] have attracted much interest over the years as an excellent chelating or bridging ligand for mononuclear and polynuclear metal centres. Closely related to dppm, namely dppa [bis(diphenylphosphino)amine, Figure 3], has also been widely studied as an excellent coordinating ligand [27,28,29,30]. One further attractive advantage of dppa, over dppm, is the ease by which it is possible to further functionalise the central amine with a range of different substituents and some highlights to demonstrate this behaviour will be reviewed here. The diphosphine, dppa, can readily be synthesised from ClPPh2 and (Me3Si)2NH and isolated as a white solid [31].
One of the most spectacular successes of bis(phosphino)amines in catalysis has focused on extensive studies of PNP ligands that have been reported, in relation to the formation of 1-octene via a Cr catalysed ethylene tetramerisation [32]. A typical PNP ligand is based on Ph2PN(iPr)PPh2 (2a) and an extensive library of other –N(alkyl)– based systems have been reported [33,34]. Suntharalingam and co-workers [35] prepared a simple alkyl chain (diphosphino)amine, Ph2PN(C6H13)PPh2 (2b) from n-hexylamine and 2 equiv. of ClPPh2 in CH2Cl2 in the presence of NEt3 and was isolated as a white solid in 81% yield. A diagnostic 31P resonance at δ 62.1 ppm (in CDCl3) was observed (Table 1). Homoleptic Group 10 metal complexes were prepared, as their tetrafluoroborate salts, and the Pd/Pt complexes were shown to be extremely potent complexes for CSC mammosphere activity. Additional functionalities have been incorporated into the –N(R)– backbone (2c, 2d) and, in these cases, no further donor atom participation was found in the resulting complexes that were studied [36,37]. Khan and co-workers have used some simple, –N(aryl)– modified, (diphosphino)amines to investigate a range of Au(I) complexes and their aurophilic behaviour [38]. Two ligands studied in this work were Ph2PN(Ph)PPh2 and 2,6-Me2C6H3N(PPh2)2 (2e) which both react with AuCl(SMe2) to afford P-monodentate or P,P-bridging gold(I) complexes. From X-ray diffraction studies of these complexes, strong intramolecular Au…Au contacts were observed and displayed excellent luminescent properties with high quantum yields. The same group [39] also used bis(phosphino)amines, here 2,6-iPr2C6H3N(PPh2)2 (2f). for synthesising further Au(I) complexes. An alternative illustration of routes to the synthesis of PNP ligands was provided by Pal and co-workers who prepared Ph2PN(2,6-iPr2C6H3)PPh2 (2f), in a two-step process, from the primary amine/nBuLi/ClPPh2 in Et2O, to give the desired PNP ligand as a yellow solid in 87% yield. The 31P NMR spectrum showed a singlet at −6.4 ppm significantly upfield from other –N(arene)– diphosphines of this type. In addition to 2e, (p-Me)C6H4N(PPh2)2 could be used to prepare Cu(I) complexes that exhibited mechanochromic as well as thermochromic luminescent behaviour. This may be attributed to the shortened Cu…Cu contacts [40]. We showed that PNP ligands, with ester groups on the central –N(arene)– core (e.g., 2g) could be synthesised from the amine/ClPPh2/NEt3 in Et2O [41]. Ligands such as 2h could be prepared from Me3SiN(R`)SiMe3/2 equiv. PCl2R and, depending on the R groups employed, could be obtained as a mixture of R,S/S,S and R,R stereoisomers in different amounts [42].

3.2. Importance of –N(R)– Backbone Functionality in P–N–P Ligands

The –NH– backbone functionality in P–N–P ligands is a good donor, for H-bonding, and has been shown to H-bond to various solvents (e.g., dioxane, MeOH, acetone) and anions (e.g., PF6−) [27,28,29,30].
Furthermore, like dppm, it is possible to deprotonate the –NH– proton to give the corresponding diphenylphosphinoamido anion which could also coordinate to metal centres. To illustrate this point, Kemp and co-workers [43] prepared a five-co-ordinate indium(III) complex In(iPr2PNPiPr2)2Cl by reaction of (iPr2P)2NLi and InCl3 in Et2O/THF.
Routes to increasing donor functionality in PNP ligand systems have been realised through the works of several groups. Balakrisna and co-workers [44] described a new terpyridine based diphosphinoamine 2i (Figure 4) prepared from reaction of the parent amine and ClPPh2, in CH2Cl2 and the presence of NEt3. The phosphine 2i was isolated as a colourless solid in 48% yield and displayed a characteristic 31P resonance at δ 69.3 ppm (in CDCl3). From a single crystal X-ray analysis, the two P–N bond distances are 1.713(2) and 1.721(2) Å with a P–N–P angle of 114.46(12)°. The sum of the angles around the nitrogen centre is 359.77° indicating a planar geometry. Diphosphine 2i was shown to exhibit various ligating motifs (P,P-chelate, P,P-bridging, or as a multidentate system using all P2N3 donor atoms). Braunstein and co-workers [45,46] prepared a series of bis(phosphino)amines, including the thioether ligands 2j and 2k [R = PhCH2, CH3(CH2)5]. These were prepared from the corresponding primary amines and ClPPh2, in the presence of NEt3, in Et2O at 0 °C. Both 2j and 2k showed a single peak at δ 62.9 ppm in their 31P{1H} NMR spectra and both ligands could be used to afford heterodinuclear and trinuclear metal complexes through P2S-binding. Roodt and co-workers [47] developed new pathways to potentially water-soluble P–N–P ligands such as 2l. Hence, the N-Boc ligand was synthesised from the free primary amine and ClPPh2, in CH2Cl2, in the presence of NEt3. The product was isolated as a white solid in 81% yield and the 31P showed a signal at 63.8 ppm (in CD2Cl2). This ligand could be “protected” by coordination to an {Re(CO)3} fragment, whereupon the protecting group was removed with CF3CO2H followed by neutralisation to give a free pendant amine site.

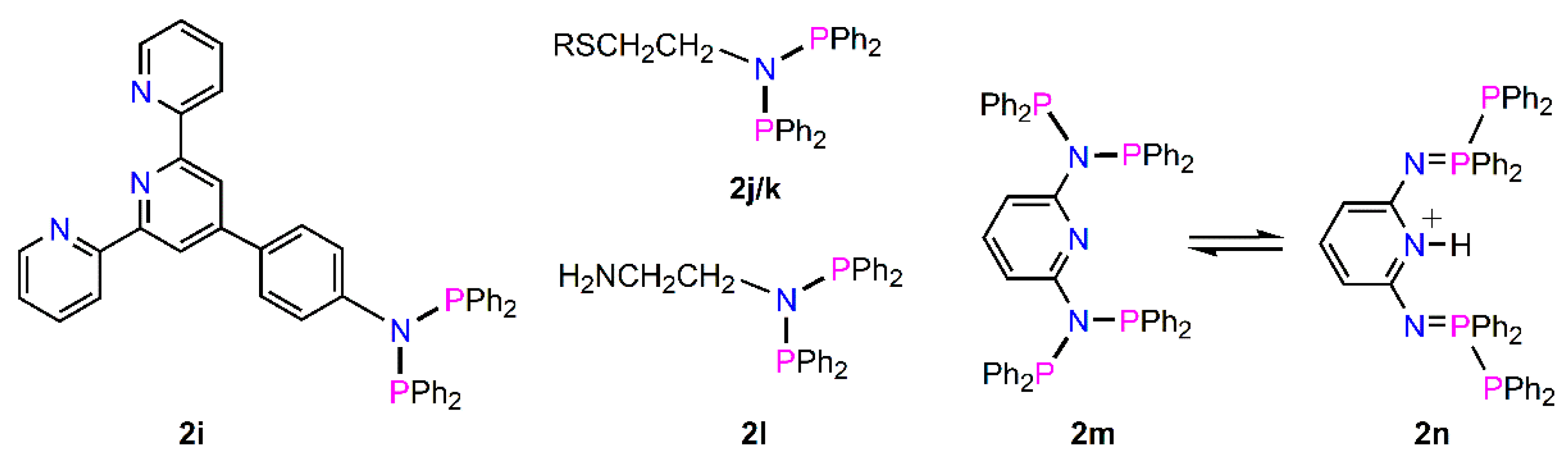

Unsymmetrical R`2PN(R)PR``2 ligands [48,49,50] could also be synthesised through stoichiometric reaction of two different chlorophosphines and MeNH2 or PhobPN(H)Me (Phob = phobane) and Ar2PCl in the presence of NEt3. There was also a strong correlation with iminobisphosphine PPN products formed under certain experimental conditions [49,50,51]. On this theme, another intriguing reaction to note, for bis(phosphino)amines, is their rearrangement to iminobisphosphines, which is reversible and promoted by protonation/deprotonation [52]. The N=P–P group is isomeric to the P–N–P systems. The bis(phosphino)amine 2m reacts with HBF4 in CH2Cl2 to give 2n, as the tetrafluoroborate salt in quantitative yield. Deprotonation of 2n with NEt3 regenerated 2m. Agapie and co-workers have also shown the importance of aluminum induced isomerisation of PNP to PPN ligands and relevance to Cr based ethylene tetramerisation catalysis [53].
The impact of an –N– substituent is clear with regard to the relationship between steric effects and 1-octene/1-hexene selectivities using PNP/Cr complexes. Roodt [54] introduced a steric parameter to describe the steric bulk at the N atom of a range of bis(phosphino)amine ligands, a parameter similar to the Tollman cone angle widely appreciated. Furthermore, simple –N(R)– group manipulation (R = H, Me, Et) of bis(diphenylphosphino)amines can afford a range of novel, unique, polynuclear gold(I) sulfido complexes as reported in 2020 by Yam and co-workers [28].
Finally, our group has shown [41] that the P–N bond undergoes room temperature methanolysis in which one bond is cleaved affording a phosphinoamine, bearing an –NH– group, and a cis MeOPPh2 phosphinite bound at a Pt(II) square planar metal. Furthermore, C–H activation of an ortho C–Harom was found to occur, within the coordination sphere, affording a five-membered metallacycle that was confirmed by single crystal X-ray crystallography.

4. Bicyclic P–N Chemistry

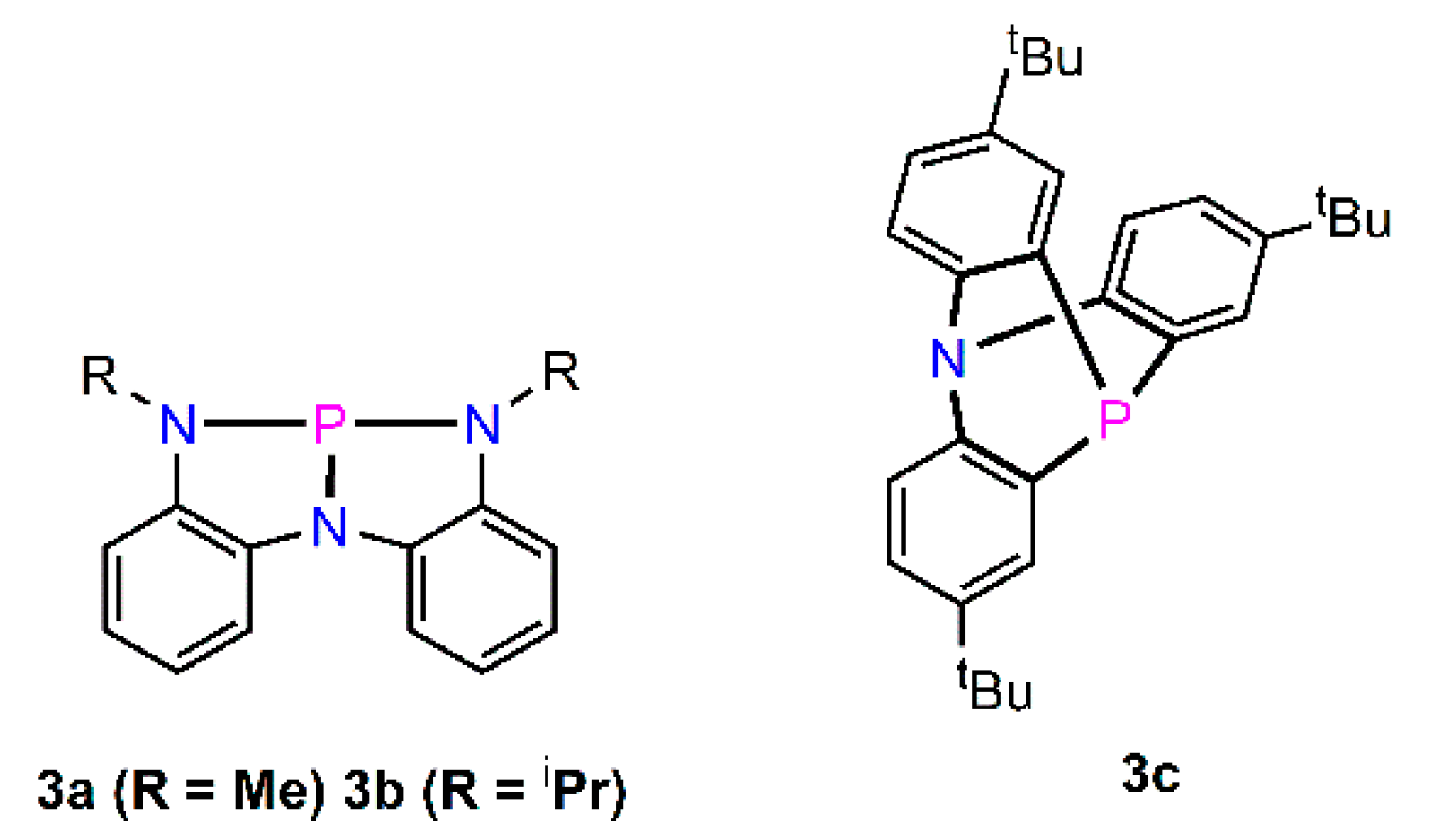

Radosevich and co-workers [55] reported the synthesis of two phosphorus triamides 3a/3b (R = Me, iPr, Figure 5) from the reaction of triamines and PCl3 and NEt3 in a mixed THF/Et2O solvent to give 3a in 80% yield as an off-white solid. The N-propyl analogue, 3b, was prepared in 83% yield. For 3a the observed 31P shift was at 159.8 ppm and the P–N distances were found to be 1.7014(14) Å and 1.7190(13) Å whereas the pseudoaxial nitrogen was longer [1.7610(12) Å]. The synthesis of an unusual 10-aza-9-phosphatriptycene, [56] was achieved by reaction of the brominated tertiary amine and tBuLi, followed by addition of (ArO)3P (1 equiv) to give 3c in 71% yield and whose 31P displayed a signal at −77.0 ppm.

5. P–C–N Chemistry

5.1. Synthesis of Selected Examples

Careful monitoring of the reaction conditions for the preparation of the tBu phosphine 4a (Figure 6), as a yellow oil, were required and involved performing the reaction at r.t. in CH2Cl2 with 1.5 equiv. of amine and Ph2PCH2OH [57]. The 31P NMR shift (in CH2Cl2) was −16.7 ppm (Table 1). Under dynamic vacuum, the reaction of aniline and Ph2PCH2OH gave the phenyl analogue, 4b, in 95% yield and showed a signal at −19.4 ppm (in C6D6). The pyrimidine ligand 4c was prepared from Ph2PH, (CH2O)n and 2-aminopyrimidine, in C7H8 and isolated in 93% as a white solid [58]. The 31P chemical shift was indicative of single substitution. The 1,10-phenanthroline functionalise ligand, 4d, could be isolated in 63% yield as a yellow solid, from the in situ reaction of HPPh2, (CH2O)n and 2-amino-1,10-phenanthroline [59]. The PN2-tridentate behaviour could be demonstrated through coordination to Co2+ and Ni2+ affording octahedral complexes with two ligands per metal. Here, the ligands are either PN2- or N2-coordinated. In 2021, Ren and co-workers showed that 4d could afford a trinuclear Au2Ag complex through PN2-coordination [60]. An alternative entry route to Ph2PCH2OH could be achieved through base (NEt3) treatment of [PPh2(CH2OH)2]Cl [61]. Accordingly, this was used to access 4e in 95% yield and which displayed a typical 31P resonance at −35.9 ppm. The corresponding oxide was obtained through reaction with aq. H2O2 in CHCl3. The phosophino-aza crown 4f could be prepared from the parent amine, HPPh2, CH2O in THF at 60 °C as a colourless oil in 80% isolated yield and showed a 31P chemical shift at −26.3 ppm [62]. Using a Re(I) complex of 4f incorporating the macrocyclic ring promoted binding of Group 2 metal ions. In 2021, our group recently described an unusual approach for obtaining coordinated P–C–N ligands from a bridging P–C–N–C–P ligand that was promoted by internal acid protonation from an arene group located on the central N atom [63]. This was shown to be a remarkably clean reaction affording 4g [and only RuCl2(p-cym)(Ph2PH), cym = cymene] and the progress of the reaction could be carefully monitored, in solution, by NMR spectroscopy. In the absence of a metal, this reaction did not proceed cleanly. It should also be added that P–C–N ligands can also undergo P–C cleavage affording a secondary phosphine complex. Reaction of tris(2-aminophenyl)amine in CH2Cl2 with Ph2PCH2OH (3 equiv.) in the presence of CaH2 to remove H2O, gave the phenyl 4h compound as a pale white solid in 82% yield and with a 31P of −19.6 ppm (in C6D6) [64]. A similar approach could be employed, for the isopropyl analogue of 4h, using iPr2PCH2OH affording a white powder in 90% yield [δ(P) 3.1 ppm, C6D6] [65]. Finally, the success of Phospha-Mannich condensations, with Ph2PCH2OH, could be realised for the synthesis of highly decorated dendrimers with multiple terminal N–C–PPh2 functionalities [66].

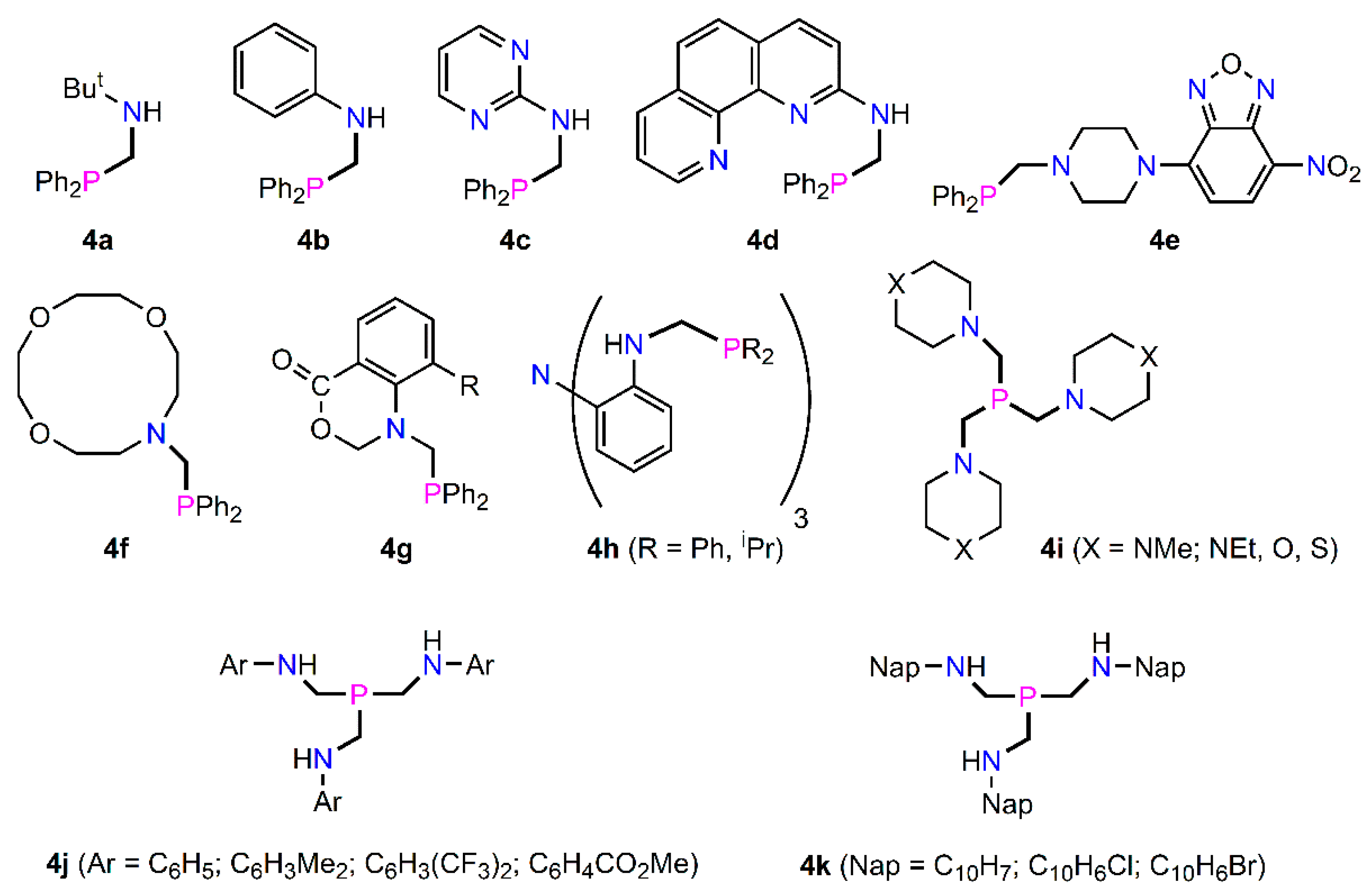

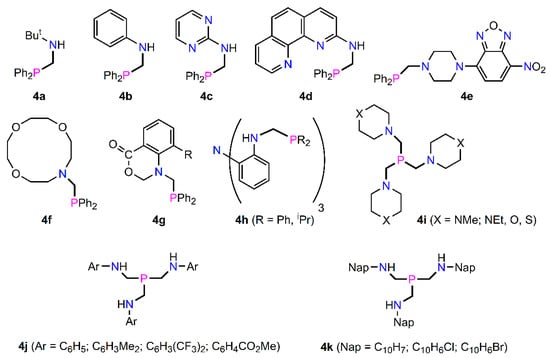

The synthesis of tripodal aminomethylphosphines, 4i [67], 4j [68,69,70,71,72,73] and 4k [74] have successfully been achieved through threefold condensation using P(CH2OH)3 and three equiv. of the appropriate amine, either in dynamic vacuum or using toluene as solvent in an azeotropic distillation to remove water. For 4k, the use of [P(CH2OH)4]Cl as a P(V) precursor and reaction with 4 equiv. of amine afforded the corresponding tetraaminoalkylphosphonium salts, followed by reduction with tBuOK, gave the tripodal ligands in >85% isolated yields.

5.2. Importance of –N(H)– Backbone Functionality in P–C–N Ligands

The –N(H)– functionality can undergo intermolecular N–H…O H-bonding to solvent molecules such as MeOH and EtOH. In tripodal ligands such as 4k intramolecular N–H…N H-bonding persists between adjacent arms of the aminomethyl groups on P [74].
The –NH– group was shown to promote protonolysis of LnacnacLnR2(THF) (Ln = Y and Lu) with 2 equiv. of Ph2PCH2N(H)Ph yielding phosphinoamido complexes. Further reaction with Ni(COD)2 (COD = cycloocta-1,5-diene) resulted in an unusual heterobimetallic species in which one of the P–C bonds was cleaved and the imine group is present within the coordination sphere. Cui et al. [75] showed how [Ph2PCH2NPh]− chelating amido ligands could be obtained upon deprotonation of the secondary amine, Ph2PCH2N(H)Ph. Furthermore, unusual heterobimetallic complexes could be obtained in which P–C bond cleavage of one [Ph2PCH2NPh]− ligand with both the PhN=CH2 and PPh2 fragments present in the coordination sphere. These findings demonstrate, under these conditions, the instability of the [Ph2PCH2NPh]− ligand. Johnson and co-workers [68,69,70,71,72,73] used tripodal ligands, based on three amido and one P donor sites, for constructing novel heterometallic complexes. The synthesis of 4j was accomplished using the water-soluble trialkylphosphine, P(CH2OH)3 and the desired aniline under neat conditions and with use of dynamic vacuum to remove water. In some cases, it was necessary to use C7H8 as solvent and Dean-Stark setup to remove water. The 31P{1H} NMR data for 4j are shown in Table 1. Reaction of 4j with excess elemental selenium in C7H8 gave the corresponding selenides as white solids in >80% isolated yields. The 31P{1H} NMR spectra showed downfield singlets, flanked with 77Se satellites, with JPSe couplings around 700 Hz. Reaction with AlMe3 resulted in loss of one of the –CH2N(H)Ar arms.
Our group have previously shown that the –NH– group could be further modified to form unsymmetrical PCNCP ligands using a second equiv. of HOCH2PR2 [76]. These unsymmetrical ligands showed a range of coordination capabilities as a function of the more sterically encumbered R group. More recently, we have also shown the –NH– group could be deprotonated with base, and quenched with ClPPh2, to afford PCNP ligands (see Section 8).

6. PTA Chemistry

6.1. Synthesis of Selected Examples

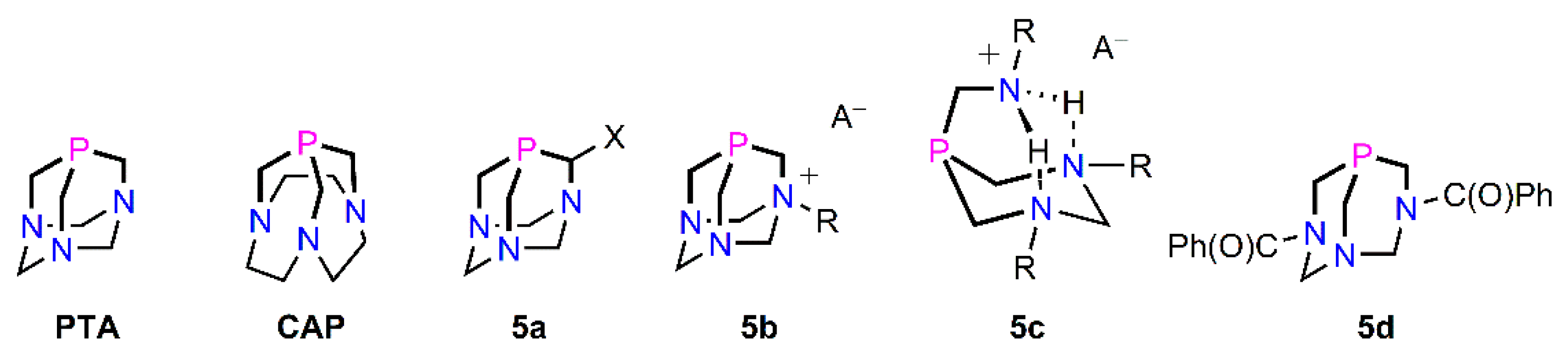

PTA (1,3,5-triaza-7-phosphaadamantane, Figure 7) is a unique, air stable and water soluble trialkylphosphine that has been extensively studied [77] for its coordination capabilities [78,79,80,81], catalytic [77], and medicinal properties [82]. In 2015, an electron rich tricyclic analogue of PTA, namely CAP (1,4,7-triaza-9-phosphatricyclo[5.3.2.1]tridecane, was reported [77,83,84]. Both PTA and CAP could be prepared by Phospha-Mannich condensations of hexamethylenetetramine or 1,4,7-triazacyclononane and P(CH2OH)3 [77]. Typically, this procedure involved reaction of commercially available THPC and 1,4,7-triazacyclononane in water/NaOH to give CAP in 39% isolated yield as a white crystalline solid [84]. The 31P shows a singlet at 47.8 ppm in CDCl3 (Table 1).
Various “upper rim” functionalisations (5a, X = various enamines [85], phosphines [86], imidazolyl [87]) have been obtained, via a intermediate lithiated PTA species, thus enabling access to a greater pool of “PTA like” ligand systems. Frost and co-workers [85] showed that lithiated PTA intermediate with aromatic nitriles gave enamine modified ligands in 49–91% yields as white solids. The 31P NMR spectra show a typical single resonance around −87.0 ppm. All compounds were shown to slowly oxidise, in the solid state, but in solution this reactivity was more rapid (1 month in chlorinated solvents). Oxidation with H2O2 afforded the corresponding phosphine oxides. P,N-chelation could be demonstrated by coordination to a W(CO)4 fragment. Kwiatkowska and co-workers [88] recently reported the first examples of enantiomerically pure PTA ligands using a series of hydrolytic enzymes in a stereoselective acetylation performed under kinetic resolution conditions.

6.2. Importance of -N- Backbone Functionality in PTA and Related Compounds

Whilst various efforts have focused on “upper rim” modification of the carbon atom between P and N, the presence of N donor atoms has enabled alkylations of PTA to be performed using various benzylic halides and all showed good water solubility [89,90]. These alkylated PTA ligands 5b (A = Cl−, Br−, PF6−) could be used as Rh(I) catalyst precursors for the aqueous-biphasic hydroformylation of 1-octene [89] and as Au(I) complexes anticancer agents [90]. Other quaternisations have been reported and used to generate Ru complexes that showed cytotoxic activity towards cancer cell lines [82].
Both PTA and CAP display N-protonation characteristics that were be monitored by 31P{1H} NMR spectroscopy [77]. Our group found that cationic trialkylphosphines 5c are intramolecular H-bonded analogues of PTA and could function as effective ligands to Ru(II) and Rh(III) metal centres [91]. PTA was shown to undergo direct N-acylation with benzoic anhydride affording 5d in 38% yield and was shown to be soluble in both water and other polar solvents [92].
Whilst various examples of complexes of PTA are known, using exclusively the P-donor, it has also been possible to construct networks using both P/N donor atoms [93].

7. P–C–N–C–P Chemistry

7.1. Synthesis of Selected Examples

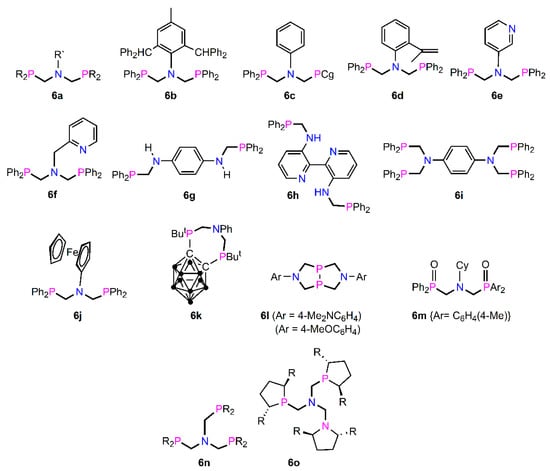

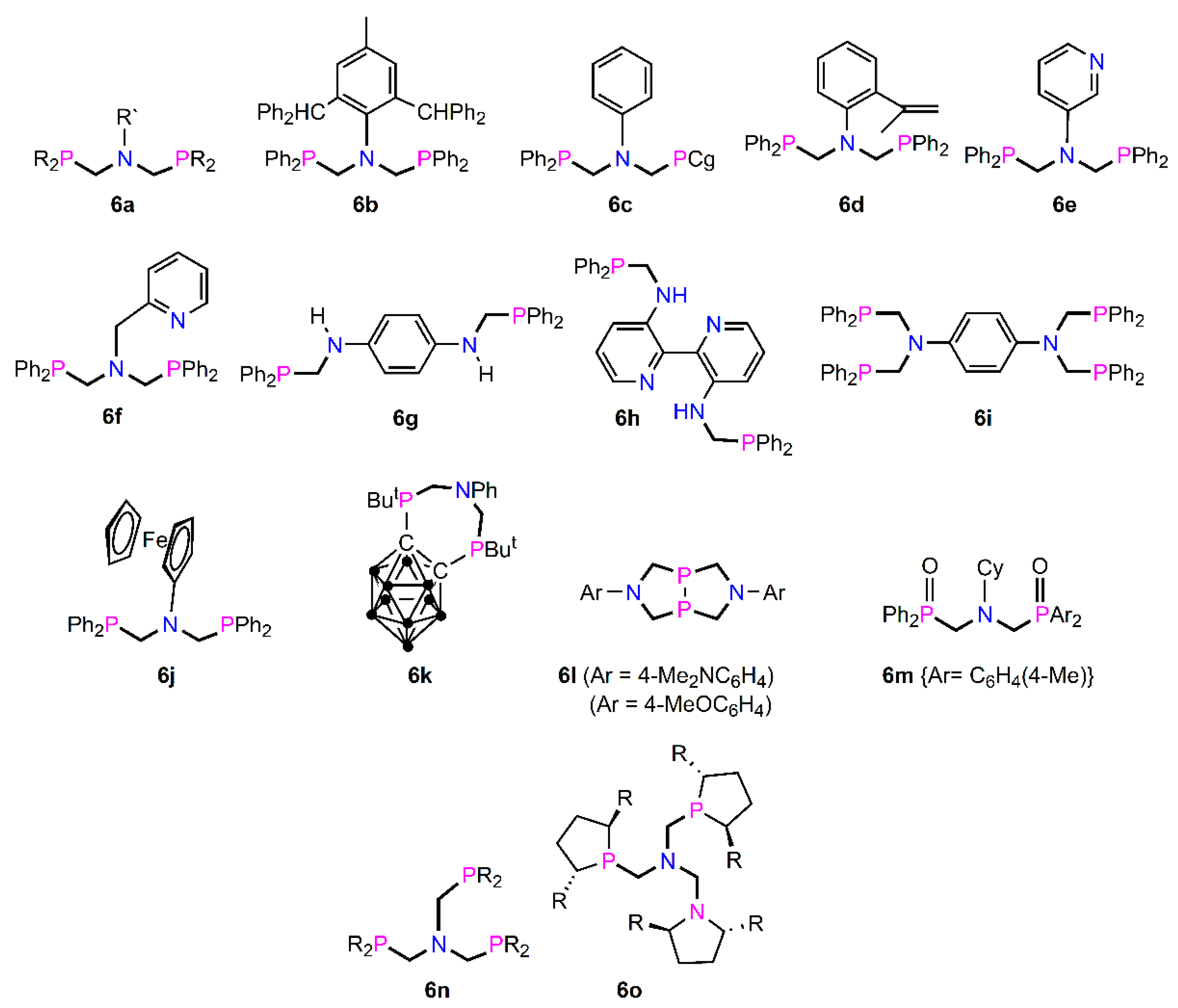

As analogues of dppp [bis(1,3-diphenylphosphino)propane], P–C–N–C–P ligands have received widespread appeal. In their excellent review, Balint and co-workers [94] highlighted various aspects of P–C–N–C–P (and P–C–N) ligands and the Reader is directed here for further insights. This type of synthesis methodology (Route B, Scheme 1) can be extended to various R/R` groups on both P and N donors and studied, for example in conjunction with Cr, for tri- and tetramerisation of ethylene [95]. In some cases, the ligands 6a (Figure 8) were found to be extremely air sensitive. Typical R groups on both P centres include Ph and Cy, whilst on N they include iPr, tBu, and Ph. The bisphosphine, 6b, could be prepared under similar conditions as an air stable colourless solid and showed a 31P signal at −25.9 ppm [96]. Ligand 6b was found to react with Au(I) and shown to act as a bridging or chelating diphosphine depending on stoichiometry. In all cases presented so far, the –PR2 groups are identical. Our group reported the first examples of nonsymmetrical P–C–N–C–P ligands 6c using a two-step synthesis [76]. This was further corroborated by the presence of two 31P signals in the NMR spectrum consistent with inequivalent P nuclei. We also observed these ligands could bind in various motifs (P-monodentate, PP-chelate, and PP-bridging two different metal centres). The differences in ligating behaviour could be attributed to the sterics of both R groups on the two P-centres. We have also reported the synthesis of a 2-alkenyl N-arene functionalised P–C–N–C–P ligand 6d [97]. N-pyridyl functionalised bis(phosphino)amines 6e and 6f (95% yield, 31P −27.7 ppm) could be synthesised from Ph2PH, CH2O and the appropriate pyridylamine [98,99,100,101]. Both 6e and 6f show diverse coordination chemistries with Group 11 metals. Bridging P–C–N (6g) [102], 2,2`-bipyridyl diphosphine (6h) [103] and the polyphosphine P–C–N–C–P (6i) [104,105] ligands have also been reported. Tetradentate ligands 6i, based on a phenyl, naphthyl or biphenyl scaffold have been prepared and show (by single crystal XRD) weak C–H…π interactions upon complexation to Group 11 metal centres [105]. The air stable orange ferrocenyl bisphosphinoamine 6j could be prepared, in 87% yield, from double condensation of the ferrocenyl primary amine and Ph2PCH2OH and showed a 31P signal at −23.5 ppm [106]. The X-ray structure of this compound was also determined. Likewise the carborane functionalised phosphine 6k could be prepared from CH2O, H2NPh in DMF at 60 °C for 3 h and showed two singlets at 30.2 and 36.6 ppm (ratio 30:1 for rac:meso) for the two diastereomers [107]. Our group recently described a novel diphosphane 6l, based on two five membered, bicyclic P2C2N, rings that could be prepared from [P(CH2OH)4]+ and (4-Me2N)C6H4NH2 or (4-MeO)C6H4NH2 [108,109]. Microwave assisted Kabachnik-Fields reaction of aminomethylphosphine oxides and (CH2O)n and Ph2P(O)H gave the corresponding (un)symmetrical phosphine oxides, such as 6m, in excellent (>90%) yield bearing a central –NH– or –NR– group [110].
Miller and co-workers [111,112,113] prepared tripodal phenyl and cyclopentyl phosphines, 6n, from Ph2P(CH2OH)2+ and NH3. The latter in 59% yield and showed a 31P signal at −18.4 ppm. Tridentate ligands 6n can be prepared either from [Ph2P(CH2OH)2]Cl or in situ, from P(C5H9)2H/(CH2O)n and NH3. The 31P{1H} NMR spectrum showed a singlet at −18.4 ppm indicative of this substitution pattern. Both P3- and P2-coordination modes were observed at Ru metal centres. This is a common fragment that is present in a range of phosphine ligands that are finding excellent applications in catalysis and coordination chemistry. In 2011, Gade and co-workers reported the synthesis of tridentate 2,5-dimethyl- and 2,5-diphenylsubstituted phospholanes 6o using a similar synthetic methodology [114].

7.2. Importance of –N(R)– Backbone Functionality in P–C–N–C–P Ligands

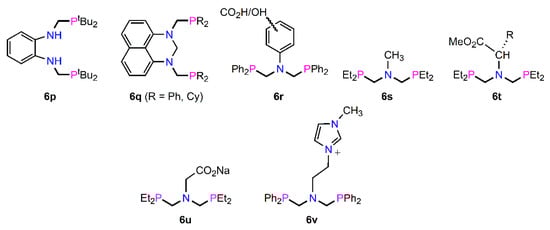

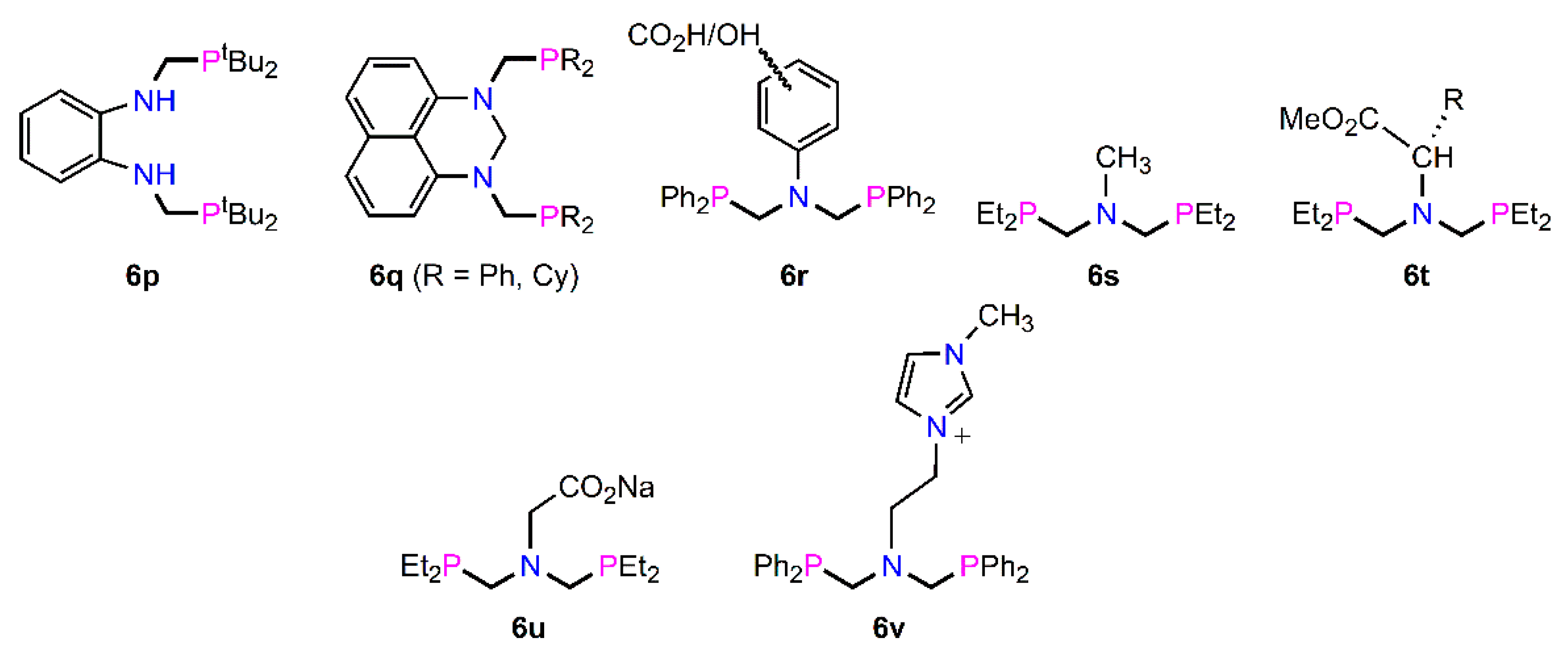

Previously, diphosphine 6g bearing two secondary amine groups, is capable of acting as a bridging ligand. In contrast, the groups of Yamashita [115] and Hill [116,117] have shown related 1,2-substituted bis(phosphino)amines 6p and 6q (Figure 9) are precursors to hydroborane and PCP pincer proligands. Hence, reaction of 1,2-phenylenediamine with tBu2PH and CH2O gave 6p in 68% yield, with both –NH– groups available for further reaction, in this case with BH3.SMe2 and nPr2NH to afford a hydroborane in this case. Whilst 6q was not isolated, it is clearly an intermediate which subsequently reacts with CH2O to form N,N`-bis(phosphinomethyl)-dihydroperimidines.
Our group have been interested, for a number of years, in highly decorated ditertiary phosphines with –CO2H and/or –OH functionalities in the N-arene backbone and have found positioning to be important in determining packing arrangements as seen for various Au(I), Pd(II), Pt(II), and Ru(II) metal centres studied [118,119,120,121,122]. The diphosphine 6r forms an unusual hexameric structure in which the ligand acts as a P2O-tridentate ligand [121]. We have shown, by careful manipulation of the R group on the nitrogen atom, the ability to impact a range of packing motifs through H-bonding patterns at various late transition metal centres. In addition, the position of, for example, –CO2H groups could also result in intramolecular protonation of one of the P–C bonds forming lactone functionalised P–C–N ligands at a coordinated metal centre [63]. A similar P–C bond cleavage has been observed in a piano-stool complex of 4i (X = O) which, in the Ru(II) coordination sphere, shows a single secondary aminophosphine ligand and Cp/PPh3 ligands [123]. In 6r, where only a singly ortho hydroxy group is available, P2O-tripodal coordination at Re(V) and Tc(V) oxo centres has very recently been observed [124].
One of the earliest demonstrations of the importance of the pendant amine is its susceptibility towards protonation, relevant to many catalytic processes involving hydrogen. For example, elegant work by Bullock and co-workers [125] has shown that the tricarbonyl iron complex Fe(CO)3(6s) undergoes protonation, with [(Et2O)2H]+[B(C6F5)4]− at the Fe, whilst with HBF4.OEt2, protonation occurs at the iron and pendant N. Treatment with excess HOTf gives a dicationic complex where both the Fe and N centres are protonated. Protonation reactions have also been studied in disubstituted diiron systems as well [126]. In addition to the protonation capabilities at the pendant amine, the nitrogen can also participate in further bonding to a transition metal, acting as a facial P2N-tridentate system as found in [Mo(Cp)(PNP-6s)(CO)]+ [127].
Whilst many studies have focused on the use of Ph2PCH2OH, the more electron rich Et2PCH2OH has been used to access a range of amino acid ester ligands 6t [128]. The Rh complexes have been used for the catalytic hydrogenation of CO2 and found to be active with respect to formate formation.
The ligand 6u has been used to support a Ni(0) metal centre, and immobilised within a protein scaffold via in situ amide bond formation [129]. Finally, Li and co-workers have used a hybrid NHC-diphosphine 6v as a facial coordinating ligand for the Ru-catalysed synthesis of N-substituted lactams by acceptorless dehydrogenative coupling of diols with primary amines [130].

8. P–C–N–P and P–N–N–P Ligands

Synthesis of Selected Examples

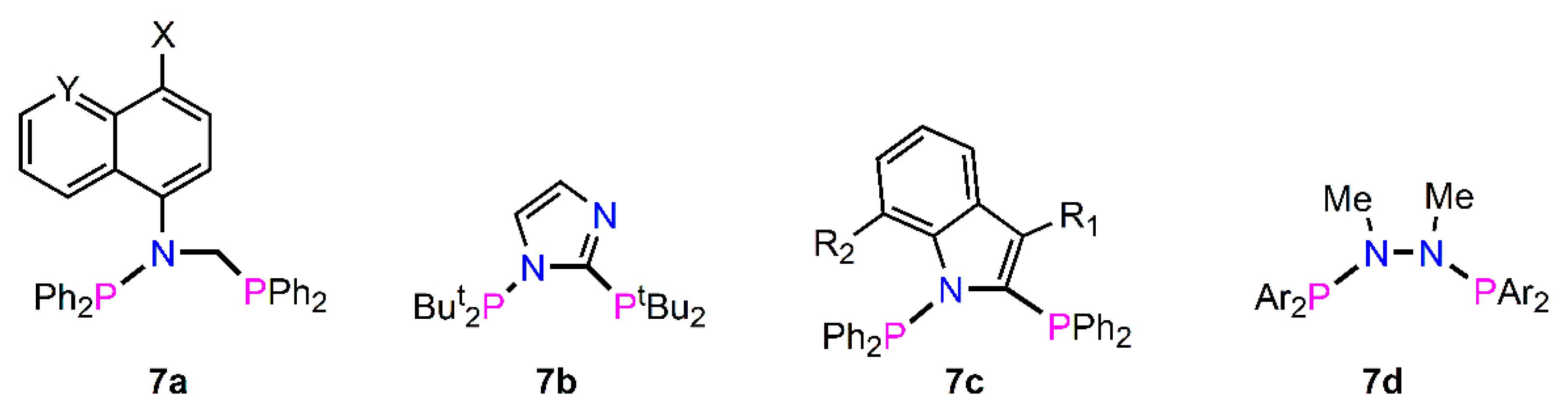

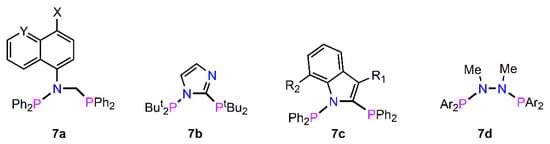

Recent work by our group has shown that rare examples of P–C–N–P ligands 7a (Figure 10), with an N-backbone group, could be synthesised by reaction of the singly substituted naphthyl P–C–N precursors, with ClPPh2 in the presence of LDA [131]. These ligands coordinate to Cr(0) centres generating the corresponding octahedral tetracarbonyl complexes. Furthermore, these ligands were also hown to be effective, in the presence of Cr(acac)3 and MMAO-3A, for ethylene tri-/tetramerisations. Conversely, starting from tBu2PNC3H3N and deprotonation with nBuLi at −78 °C then quenching with tBu2PCl at low temperature then warming to r.t. gave 7b in 71% isolated yield [132]. Two doublets in the 31P NMR support the non-symmetric structure. Only 5% P–N hydrolysis took place in CDCl3 indicating 7b has good solution stability under these conditions. The same approach could be used to access a series of diphosphinoindole ligands 7c [133]. Reaction of the P(III) intermediate with nBuLi, in Et2O, at −78 °C and reaction with ClPPh2 gave the chelating ligands 7c in 35–73% isolated yields. The NMR spectra showed one doublet around 39 ppm for the phosphinoamine and a further second doublet around −25 ppm. In relation to PNP and PCNCP ligands this is a hitherto new class of ligand that has received only limited attention so far.
Simple Ar2P–N–N–PAr2 ligands, 7d, can be accessed through the direct reaction of the appropriate hydrazine and ClPR2 (Ar = 2-MeC6H4, 2MeOC6H4) [48].

9. P–C–C–N–C–C–P Ligands

9.1. Synthesis of Selected Examples

The basic backbone here represents an important ligand class of terdentate ligand, or “pincer” ligands [134,135] given they can occupy three coordination sites at a metal site. In this context, the central N atom can be viewed as either neutral palindromic or anionic palindromic ligands depending on the charge at nitrogen. Usually the central –NR– group is either a secondary amine, tertiary amine or 2,6-pyridyl group for example. In this case, the role of the central N atom can be more influential on the reactivity of the complex, via electron effects and the variation of the trans influence. Some illustrative examples of ligands of this type are shown in Figure 11 and a brief discussion of the synthesis and reactivity are described here. It is important that these pincer ligands can import good stability and hence often chosen for this property.
We use some recent elegant examples, from the literature, to highlight these classes of diphosphines. As will also be mentioned, these ligands can display noninnocent behaviour and can expand the application of such complexes in transition metal chemistry. This will involve formation of a C=N double bond as will be illustrated and how this can be used to impart further reactivity, either in catalysis and/or through bond activation. Note also, the pincer arrangement also allows outer sphere effects, like what previously seen for the PCNCP ligands with regard to protonation.

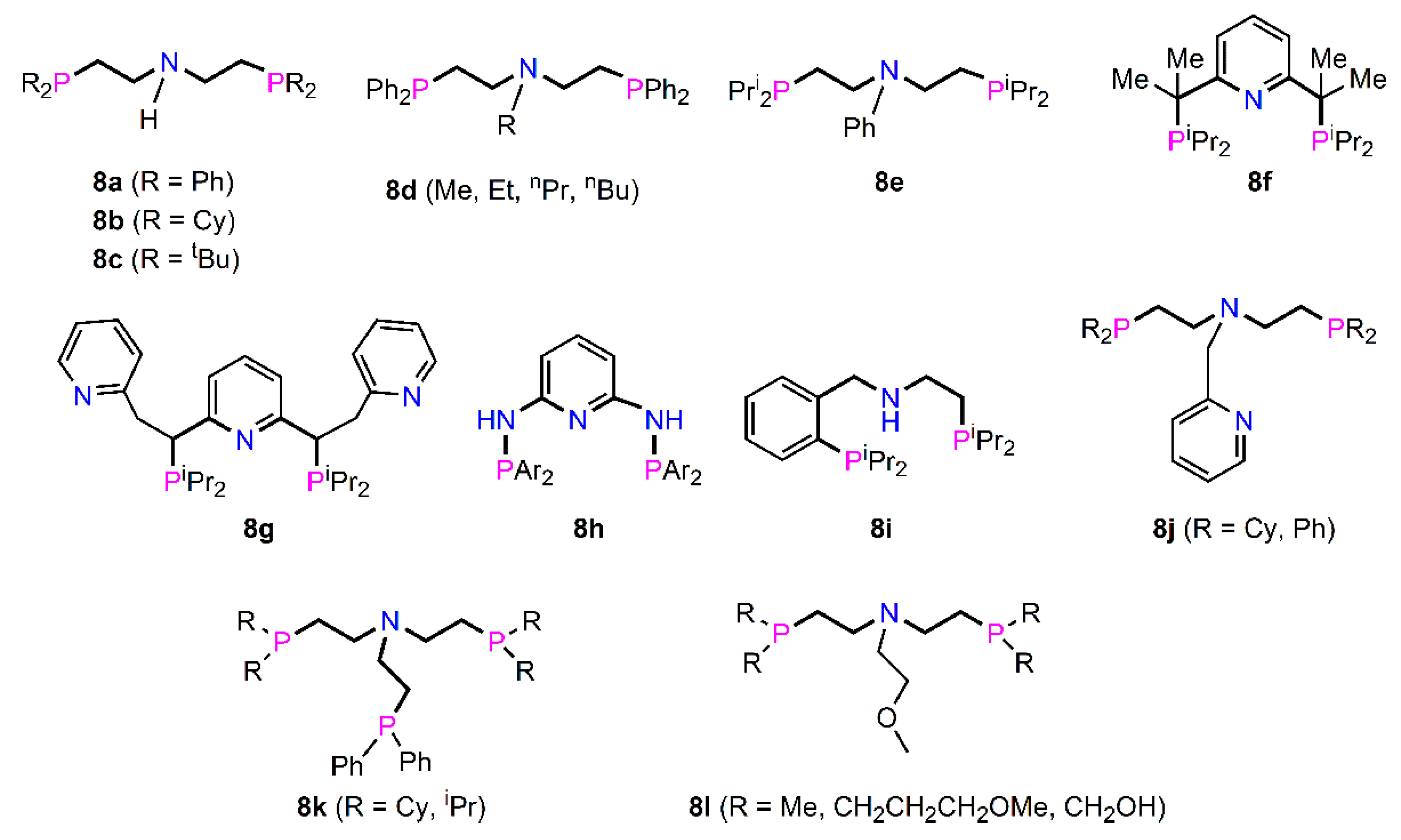

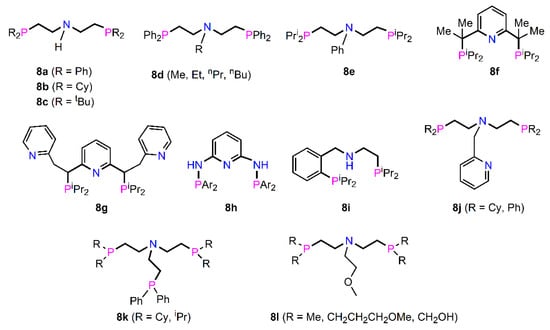

The first type of R2P–C–C–N(H)–C–C–PR2 pincer ligands to consider (Figure 11) are those with a central –N(H)– group where R = Ph (8a) [136,137], Cy (8b) [138], tBu (8c) [139]. The Ph derivative 8a was synthesised from Ph2PH, tBuOK and (ClCH2CH2)2NH2+Cl− in THF and could be isolated as a viscous oil showing a 31P shift at −20.6 ppm (C6D6) [136]. The tBu analogue 8c was prepared from tBu2PLi and Me3SiN(CH2CH2Cl)2 at −60 °C in THF and isolated as a viscous light yellow liquid in 76% yield showing a 31P signal at 22.3 ppm (in C6D6). Tertiary alkylamine diphosphinoamine ligands 8d [140] and the phenyl-substituted 8e [141,142] are also known and could easily be obtained, in 44% yield, from reaction of the lithium salt and the bis(chloroethyl)amine HCl salt.
PNP pincer ligands with a pyridyl N atom are also known, both with –CH2PR2 groups and with –CMe2PR2 (8f) [143,144] or –CH{CH2(2-C5H4N)}PR2 (8g) [145] substituents. Furthermore, the spacer can also be a –N(H)– group, as opposed to a –CH2– group, as is the case for 8h [146] and prepared by the P–N coupling of ClP(C6H4CO2tBu)2 with 2,6-diaminopyridine in the presence of NEt3 and showed a 31P signal at 25.4 ppm (in CDCl3). Unsymmetrical PNP-pincer ligands such as 8i is an excellent ligand, in conjunction with metals such as Mn [147,148,149,150] or Ru [151] for various catalytic transformations.
Pyridal appended (8j) [152], tetradentate P–C–C–N–C–C–P (8k) [152] and water-soluble derivatives (8l) [153] have also been prepared, the latter via the diprimary phosphine intermediate (H2PCH2CH2)2N(CH2CH2OMe).

9.2. Importance of –N(R)– Backbone Functionality in P–C–C–N–C–C–P Ligands

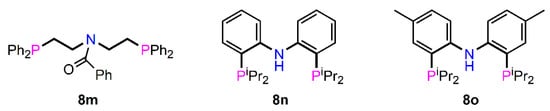

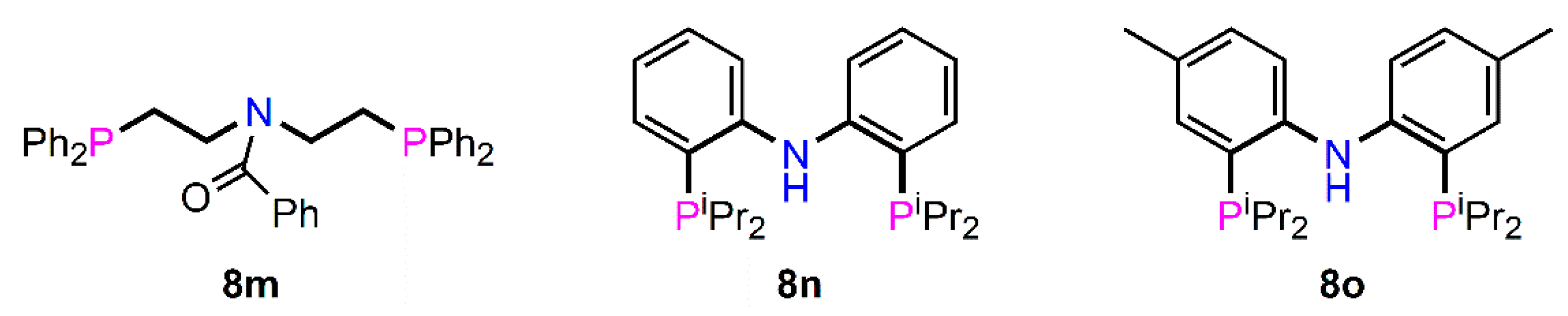

In a recent study in 2022 [154], the synthesis of a large family of N-amide functionalised PNP ligands 8m, including water-soluble variants [155], has been reported using an acyl chloride, NH2(CH2CH2PPh2)2+Cl− and NEt3 in CH2Cl2. The 31P{1H} NMR spectra show typically two singlets around −20 ppm, due to restricted amide bond rotation.
Deprotonation of the secondary amine can result in a facial PNP coordination in which there is an amido group. This can be appreciated in several examples (8n, 8o) of compounds shown in Figure 12 [156,157]. Dearomatisation is also important as a function of deprotonation and extensive studies have been undertaken in this field [135].

10. Small/Medium Ring Based Cyclic Ligands

10.1. Synthesis of Selected Examples

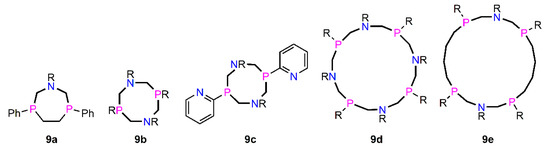

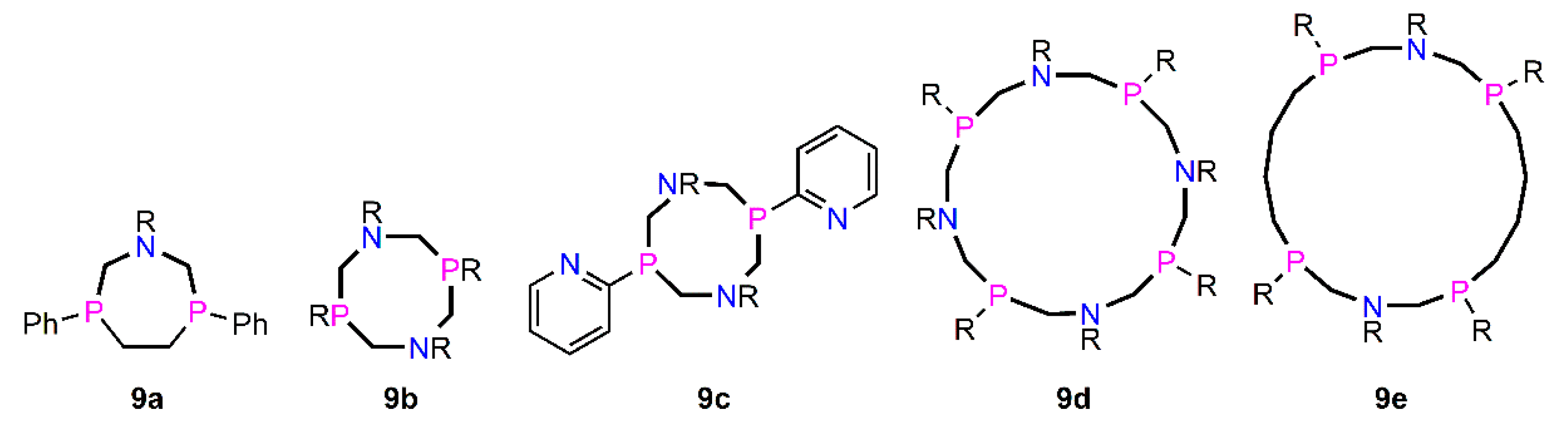

The Mannich condensation reaction can be used to form chiral seven membered macrocycles [158]. As is normal for this synthesis protocol, reaction of the bis(phosphine) with (CH2O)n at around 100 °C led to te rac/meso hydroxymethyl functionalised diphosphine which, upon treatment with chiral amines, gave 1-aza-3,6-diphosphacycloheptanes 9a as air-stable crystalline solids (Figure 13). The X-ray structure revealed short P…P distances (3.120 and 3.118 Å) in comparison to known rac isomers. Condensations with arylamines such as aniline, p-toluidine and 5 aminoisophthalic acid and benzylamine were undertaken. Two 31P peaks at −25 and −27 ppm for the arylamines and −33.5 and −31.8 for benzylamine were observed (Table 1). The reaction of Ph(H)P(CH2)2P(H)Ph with CH2O, afforded the corresponding hydroxymethyldiphosphine, then reaction with iPentNH2, in DMF, gave a mixture of products as verified by 31P NMR [159]. Isolation of the macrocycle was possible in 21% yield and confirmed by X-ray crystallography. Helm and co-workers [160] expanded this seven-membered ring ligand family to other 4-C6H4X analogues (X= OMe, H, Me, Br, Cl, CF3) and a subsequent series of Ni-based electrocatalysts for hydrogen generation.
Various eight membered cyclo-P2N2 macrocycles have received attention and been described. For example, cyclic diphosphines PR2NR`2 (R = Ph, tBu; R` = Ph, Bn, 9b) have been used to prepare diiron [161] and ruthenium [162] complexes. A water-soluble variant of 9b, bearing –CO2H groups, has also been reported by Hey-Hawkins and co-workers [163]. The 1,5-diaza-3,7-diphosphacyclooctane 9c could be conveniently prepared from (2-C5H4N)P(CH2OH)2 and condensation with primary amines leading to a range of air-stable crystalline products. Only one signal was observed in the 31P{1H} NMR spectra in the region −33 to −63 ppm [164]. Other modifications of the pyridyl cyclic diphosphines [165,166,167] could also be achieved, following similar procedures to that employed for 9c, and suitably disposed for various coordination studies to be undertaken.
A synthetic strategy based on dynamic covalent chemistry of macrocyclic aminomethylphosphines has been developed for various 14- [168], 16- [169], 18- [170] and 20-membered P4N2 macrocycles. These reactions start with bis(phosphino)alkanes, formaldehyde and primary amines resulting in multiple products. The amine in question is again also important and influences the outcome of the condensation reaction. Again, the lability of the P–CH2–N fragment is important for these dynamic systems.

10.2. Importance of –N(R)– Backbone Functionality in Cyclic Diphosphines

As seen in previous sections within this review, the interaction of the pendant amine in complexes of cyclic diphosphines of 9c (and related analogues) has previously been studied towards protonation reactions [171], heterolytic splitting of H2 [172], electrocatalytic alcohol oxidation [173], and hydroalkoxylation [174].
Immobilisation of ligands of the type 9c have been undertaken in which a suitable para substituted group on the N arene groups has been introduced enabling anchoring to a metal oxide surface (via phosphonic acid groups) [175], glassy carbon electrodes (via a CuI catalysed alkyne-azide cycloaddition) [176], or a carbon electrode (via amide bond formation) [177]. Recently, Kubiak and co-workers [178] prepared a partially substituted derivative through a multistep approach. The penultimate step, involved lithiation of a bromo intermediate and reaction with ClP(O)(OEt2)2 in THF at −108 °C. The phosphonate P2N2 ligand was isolated in 76% yield. A 31P spectrum showed a singlet at −49.4 ppm (in CDCl3). Here, the group achieved immobilisation via modification of the arene on the P donors (as opposed instead to the N donors as described previously).

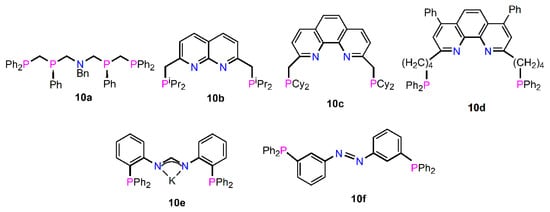

11. P–C–P–C–N–C–P–C–P and P–C2–N–C2–N–C2–P Ligands

11.1. Synthesis of Selected Examples

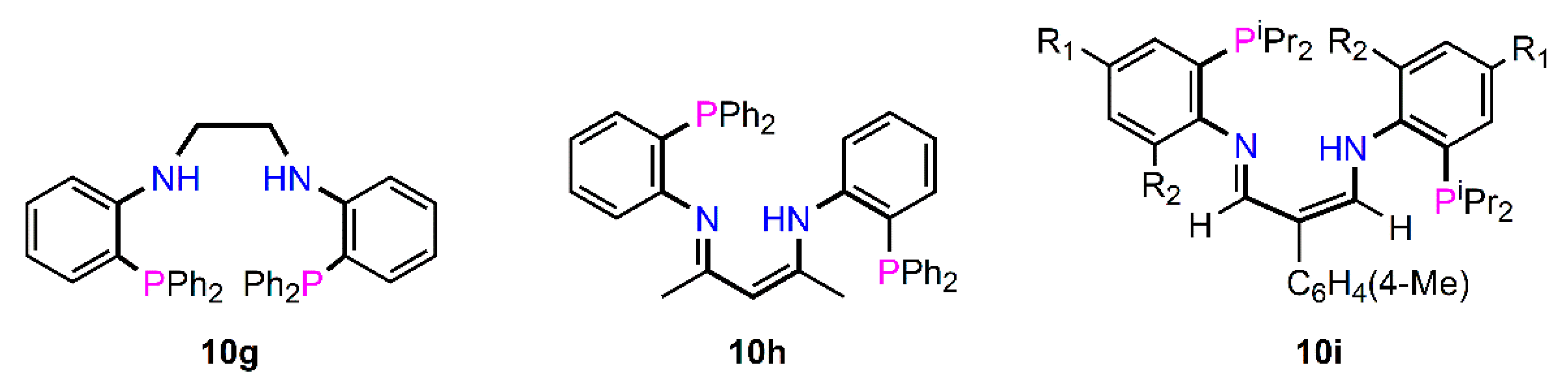

In this penultimate section, some examples bearing one (or two) amine groups in a diphosphine backbone (Figure 14) are highlighted. Ligand 10a could be prepared from Ph2PCH2P(Ph)CH2OH and BnNH2 as a mixture of meso-/rac- diastereomers [179]. Dissolution in CH3CN enabled precipitation of the meso isomer in 25% yield. The 31P{1H} NMR showed two doublets at −41.7 and −22.3 ppm for the meso form. 1,8-naphthyridine ligands 10b (R = iPr, tBu) [180,181] and 1,10-phenanthroline ligands 10c (R = Cy, Ph) [182,183] and 10d [184] are all examples of PNNP-tetradentate ligands. Finally, 10e could be prepared, as the potassium salt, via reaction of KPPh2 with N,N`-bis(2-fluorophenyl)-formamidine in C7H8 in excellent yield and showed a 31P signal at −14.3 ppm (d8-THF) [185,186,187]. The 3,3`-azo-benzene phosphine 10f (31P −4.9 ppm, CDCl3) was prepared in 66% yield from HPPh2, meta-diiodo-azobenzene and Pd(PPh3)4/NEt3 in C7H8 at 100 °C [188].

11.2. Importance of –N(R)– Backbone Functionality

A bisamido, dianionic ligand could be accessed through the neutral parent proligand bisamine 10g (Figure 15) and deprotonation achieved through reaction with Mg(nBu)2/C7H8 [189] or reaction with a dimesityliron(II) dimer in THF [190]. Lee and Thomas [191] recently found a nickel templated replacement approach of Ph substituents on P could be achieved leading to different –PR2 substitutions [with Me, iPr or –(CH2)3– groups]. Deprotonation of ligands 10h [192] and 10i [193] gave β-diketiminate ligands whose structural flexibility can be realised through complexation to various metal centres.
Table
Table 1. 31P{1H} NMR data for selected ligands discussed in this review.
Table 1. 31P{1H} NMR data for selected ligands discussed in this review.
Ligandδ(P)/ppmNMR SolventReference
1a25.9CDCl3[25]
1b26.4CDCl3[11]
1c38.5CDCl3[12]
1d42.2CDCl3[13]
1e42.1CDCl3[13]
1f26.1CDCl3[13]
1g71.3CDCl3[14]
1j32.6 (and 12.6)C6D6[17]
1k63.9C6D6[18]
1l106.4CDCl3[19]
1m77.9C6D6[20]
1n126CD3CN[23]
dppa43.1CDCl3[31]
2a50.1CDCl3[32]
2b62.1CDCl3[35]
2f−6.4CD2Cl2[39]
2g69.0CDCl3[41]
2ha137.9/135.3C7D8[42]
2i69.3CDCl3[44]
2m59.5CDCl3[52]
2n17.2 and −20.0 (JPP 277 Hz)CD2Cl2[52]
3a159.8CDCl3[55]
3c−77.0CDCl3[56]
4a−16.7C6D6[57]
4b−19.4C6D6[57]
4c−17.1CDCl3[58]
4d−18.6CDCl3[59]
4f−26.3C6D6[62]
4h−19.6C6D6[64]
4ica. −61.0CD3COCD3[67]
4j−29.6 to −33.6C6D6[68,69]
4kca. −42.0CD3SOCD3[74]
PTA−98.3D2O[77]
−101.0CDCl3[77]
CAP46.7 D2O[77]
52.8CDCl3[77]
47.8CDCl3[84]
5aca. −87.0CDCl3[85]
5cca. −55.0CD3SOCD3[91]
5d−77.9CDCl3[92]
6ab−26.5C6D6[95]
6b−25.9CDCl3[96]
6c−27.4 and −41.5 (JPP 4 Hz)CDCl3[76]
6d−27.3CDCl3[97]
6e−28.0CD3SOCD3[98]
6f−27.7CDCl3[101]
6h−19.7CDCl3[103]
6j−25.3CDCl3[106]
6k30.2 and 36.7-[107]
6lca. −34.5CDCl3[108,109]
6nc−28.0CDCl3[112]
6p29.5C6D6[115]
6qc−26.0 C6D6[116]
6r−22.1 to −28.1CDCl3[120]
7ad67.0 and −21.7CDCl3[131]
7b79.6 and 7.0 (JPP ~101 Hz)CDCl3[132]
7de47.3CDCl3[48]
8c22.3C6D6[139]
8dca. −19.0CDCl3[140]
8e−0.4C6D6[141]
8hf25.4CDCl3[146]
8kg−7.0 and −19.6CDCl3[152]
8lh−52.8CDCl3[153]
8m−20.7 and −21.5CDCl3[154]
9ac−25.8 and −26.6C6D6[158]
9ci−33.5CDCl3[164]
10a−22.3 and (JPP 121 Hz)CDCl3[177]
10b11.8C6D6[178]
10e−14.3d8-THF[186]
10f−4.9CDCl3[188]
10h−14.5CDCl3[192]
a R = Ph, R` = Me; b R = Ph, R` = iPr; c R = Ph; d X = H, Y = CH; e Ar = 2-MeC6H4; f Ar = 4-CO2tBuC6H4; g R = Cy; h R = Me; i R = 2-C5H4N.

12. Catalysis

There has been considerable interest in the development and application of monodentate, bidentate, and polydendate phosphorus containing ligands of various metal complexes as catalysts for wide ranging transformations of academic and industrial relevance. This is also true for phosphine ligands encompassing one (or more) nitrogen donor sites in their ligand backbone structure. The manganese(I) complex MnBr(CO)3(P,N-1b) was shown to act as a pre-catalyst for the alkylation of amines via reductive amination of aldehydes using molecular H2 as reductant [194]. The ruthenium(I) pincer complex RuH(Cl)CO(PN2-1i) has been shown to hydrogenate catalytically challenging arenols to their corresponding tetrahydronaphthols or cyclohexanols [16,195]. Significant advances have been achieved with chromium catalysts of PNP ligands, for example 2a, for selective ethylene tri-/tetramerizations [32,33,34]. Furthermore recent examples of note include incorporation of an N-triptycene group into the PNP backbone [196], the introduction of bulky -SiR3 groups thereby avoiding use of methylaluminoxane [197], and the preparation of new unsymmetrical PNP ligands from Ph2PNH(cyclopentyl) [198]. The isopropyl PNP bis(phosphinoamine) ligand 2a has also been successfully applied to the gold catalysed allylation of aryl boronic acids [199], manganese catalysed dehydrosilylation and hydrosilylation of alkenes [200], and the 2,6-iPr2C6H3 PNP ligand 2f (and its C6H5 analogue) were effective in the Buchwald-Hartwig coupling of various sterically hindered substrates [201]. The ready tuneability of PNP bis(phosphinoamine) ligands can be elegantly illustrated by the preparation of PNPO monoxides which can act as P,O-chelating ligands to Pd(II) and Ni(II) to afford catalysts for the copolymerization of ethylene with carbon monoxide [202,203]. Nickel(II) catalysts with cyclic diphosphine ligands incorporating pendant amines have been extensively studied as electrocatalysts for both the oxidation and production of H2 [204]. Richeson and co-workers [205] have shown that Ni(II) complexes with the PNP pincer ligands 2,6-{Ph2PNR}2(NC5H3) (R = H, Me) can electrocatalytically generate hydrogen from H2O/MeCN solutions. Mononuclear iridium(I) complexes of bulky PNNP tetradentate ligands have been shown to be efficient photocatalysts for CO2 reduction [206].

13. Conclusions

It is without doubt that phosphorus ligands are an important class of compound widely appreciated by the coordination chemistry community. Whilst considerable focus has long been on all carbon backbone P-ligands, there is a considerable growing interest in the incorporation of one (or more) nitrogen atoms. The importance of this class can be released through the facile syntheses of such ligands and the tuneability, in terms of additional reactivities, that can be imparted through the central nitrogen centre. These types of ligands will continue to play a pivotal role in future avenues of phosphorus and transition metal chemistry.

Funding

This review received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The Author declares no conflict of interest.

References

  1. Geeson, M.B.; Cummins, C.C. Let’s make white phosphorus obsolete. ACS Cent. Sci. 2020, 6, 848–860. [Google Scholar] [CrossRef] [PubMed]
  2. Zhai, F.; Xin, T.; Geeson, M.B.; Cummins, C.C. Sustainable production of reduced phosphorus compounds: Mechanochemical hydride phosphorylation using condensed phosphates as a route to phosphite. ACS Cent. Sci. 2022, 8, 332–339. [Google Scholar] [CrossRef] [PubMed]
  3. Scott, D.J.; Cammarata, J.; Schimpf, M.; Wolf, R. Synthesis of monophosphines directly from white phosphorus. Nat. Chem. 2021, 13, 458–464. [Google Scholar] [CrossRef] [PubMed]
  4. Rothfelder, R.; Streitferdt, V.; Lennert, U.; Cammarata, J.; Scott, D.J.; Zeitler, K.; Gschwind, R.M.; Wolf, R. Photocatalytic arylation of P4 and PH3: Reaction development through mechanistic insight. Angew. Chem. Int. Ed. 2021, 60, 24650–24658. [Google Scholar] [CrossRef] [PubMed]
  5. Munzeiwa, W.A.; Omondi, B.; Nyamori, V.O. Architecture and synthesis of P,N-heterocyclic phosphine ligands. Beilstein J. Org. Chem. 2020, 16, 362–383. [Google Scholar] [CrossRef]
  6. Moiseev, D.V.; James, B.R. Phospha-Mannich reactions of PH3 and its analogs. Phosphorus Sulfur Silicon Relat. Elem. 2022, 197, 277–326. [Google Scholar] [CrossRef]
  7. Moiseev, D.V.; James, B.R. Phospha-Mannich reactions of RPH2, R2PH and R3P. Phosphorus Sulfur Silicon Relat. Elem. 2022, 197, 327–391. [Google Scholar] [CrossRef]
  8. Moiseev, D.V.; James, B.R. Syntheses and rearrangements of tris(hydroxymethyl)phosphine and tetrakis(hydroxymethyl)phosphonium salts. Phosphorus Sulfur Silicon Relat. Elem. 2020, 195, 687–712. [Google Scholar] [CrossRef]
  9. Homma, Y.; Fukuda, K.; Iwasawa, N.; Takaya, J. Ruthenium-catalyzed regio- and site-selective ortho C–H borylation of phenol derivatives. Chem. Commun. 2020, 56, 10710–10713. [Google Scholar] [CrossRef]
  10. Sojka, M.; Tousek, J.; Badri, Z.; Foroutan-Nejad, C.; Necas, M. Bifurcated hydrogen bonds in platinum(II) complexes with phosphinoamine ligands. Polyhedron 2019, 170, 593–601. [Google Scholar] [CrossRef]
  11. Aucott, S.M.; Slawin, A.M.Z.; Woollins, J.D. The co-ordination chemistry of 2-(diphenylphosphinoamino)pyridine. J. Chem. Soc. Dalton Trans. 2000, 15, 2559–2575. [Google Scholar] [CrossRef]
  12. Pandey, M.K.; Mague, J.T.; Balakrishna, M.S. Sterically demanding phosphines with 2,6-dibenzhydryl-4-methylphenyl core: Synthesis of RuII, PdII, and PtII Complexes, and structural and catalytic studies. Inorg. Chem. 2018, 57, 7468–7480. [Google Scholar] [CrossRef]
  13. Groves, L.M.; Ward, B.D.; Newman, P.D.; Horton, P.N.; Coles, S.J.; Pope, S.J.A. Synthesis and characterisation of fluorescent aminophosphines and their coordination to gold(I). Dalton Trans. 2018, 47, 9324–9333. [Google Scholar] [CrossRef]
  14. Yuan, Y.; Liu, X.; Hu, J.; Wang, P.; Wang, S.; Alhumade, H.; Lei, A. Electrochemical oxidative N–H/P–H cross-coupling with H2 evolution towards the synthesis of tertiary phosphines. Chem. Sci. 2022, 13, 3002–3008. [Google Scholar] [CrossRef] [PubMed]
  15. He, L.-P.; Chen, T.; Gong, D.; Lai, Z.; Huang, K.-W. Enhanced reactivities toward amines by introducing an imine arm to the pincer ligand: Direct coupling of two amines to form an imine without oxidant. Organometallics 2012, 31, 5208–5211. [Google Scholar] [CrossRef]
  16. Li, H.; Goncalves, T.P.; Lupp, D.; Huang, K.-W. PN3(P)-pincer complexes: Cooperative catalysis and beyond. ACS Catal. 2019, 9, 1619–1629. [Google Scholar] [CrossRef]
  17. Aloisi, A.; Crochet, E.; Nicolas, E.; Berthet, J.-C.; Lescott, C.; Thuéry, P.; Cantat, T. Copper-ligand cooperativity in H2 activation enables the synthesis of copper hydride complexes. Organometallics 2021, 40, 2064–2069. [Google Scholar] [CrossRef]
  18. Xin, X.; Zhu, C. Isolation of heterometallic cerium(III) complexes with a multidentate nitrogen-phosphorus ligand. Dalton Trans. 2020, 49, 603–607. [Google Scholar] [CrossRef]
  19. Plajer, A.J.; Zhu, J.; Pröhm, P.; Rizzuto, F.J.; Keyser, U.F.; Wright, D.S. Conformational control in main group phosphazane anion receptors and transporters. J. Am. Chem. Soc. 2020, 142, 1029–1037. [Google Scholar] [CrossRef]
  20. Sun, X.; Zhu, Q.; Xie, Z.; Su, W.; Zhu, J.; Zhu, C. An unprecedented Ga/P frustrated Lewis pair: Synthesis, characterization, and reactivity. Chem. Eur. J. 2019, 25, 14295–14299. [Google Scholar] [CrossRef]
  21. Shi, K.; Douair, I.; Feng, G.; Wang, P.; Zhao, Y.; Maron, L.; Zhu, C. Heterometallic clusters with multiple rare earth metal–transition metal bonding. J. Am. Chem. Soc. 2021, 143, 5998–6005. [Google Scholar] [CrossRef]
  22. Thammavongsy, Z.; Cunningham, D.W.; Sutthirat, N.; Eisenhart, R.J.; Ziller, J.W.; Yang, J.Y. Adaptable ligand donor strength: Tracking transannular bond interactions in tris(2-pyridylmethyl)-azaphosphatrane (TPAP). Dalton Trans. 2018, 47, 14101–14110. [Google Scholar] [CrossRef]
  23. Thammavongsy, Z.; Khosrowabadi Kotyk, J.F.; Tsay, C.; Yang, J.Y. Flexibility is key: Synthesis of a tripyridylamine (TPA) congener with a phosphorus apical donor and coordination to cobalt(II). Inorg. Chem. 2015, 54, 11505–11510. [Google Scholar] [CrossRef]
  24. Kumar, C.A.; Panda, T.K. Recent development of aminophosphine chalcogenides and boranes as ligands in s-block metal chemistry. Phosphorus Sulfur Silicon 2017, 192, 1084–1101. [Google Scholar] [CrossRef]
  25. Aguirre, P.A.; Lagos, C.A.; Moya, S.A.; Zúñiga, C.; Vera-Oyarce, C.; Sola, E.; Peris, G.; Bayón, J.C. Methoxycarbonylation of olefins catalyzed by palladium complexes bearing P,N-donor ligands. Dalton Trans. 2007, 46, 5419–5426. [Google Scholar] [CrossRef]
  26. Kephart, J.A.; Mitchell, B.S.; Chirila, A.; Anderton, K.J.; Rogers, D.; Kaminsky, W.; Velian, A. Atomically defined nanopropeller Fe3Co6Se8(Ph2PNTol)6: Functional model for the electronic metal–support interaction effect and high catalytic activity for carbodiimide formation. J. Am. Chem. Soc. 2019, 141, 19605–19610. [Google Scholar]
  27. Hsu, C.-W.; Rathnayaka, S.C.; Islam, S.M.; MacMillan, S.N.; Mankad, N.P. N2O reductase activity of a [Cu4S] cluster in the 4CuI redox state modulated by hydrogen bond donors and proton relays in the secondary coordination sphere. Angew. Chem. Int. Ed. 2020, 59, 627–631. [Google Scholar] [CrossRef]
  28. Yan, L.-L.; Yao, L.-Y.; Yam, V.W.-W. Concentration- and solvation-induced reversible structural transformation and assembly of polynuclear gold(I) sulfido complexes. J. Am. Chem. Soc. 2020, 142, 11560–11568. [Google Scholar] [CrossRef]
  29. Böttcher, H.-C.; Heinemann, J. Synthesis and molecular structure of [Ru3(CO)10(μ-dppa)] (dppa = Ph2PN(H)PPh2) provided by its dioxane solvate. Z. Anorg. Allg. Chem. 2020, 646, 1787–1789. [Google Scholar] [CrossRef]
  30. Johnson, B.J.; Lindeman, S.V.; Mankad, N.P. Assembly, structure, and reactivity of Cu4S and Cu3S models for the nitrous oxide reductase active site, Cuz*. Inorg. Chem. 2014, 53, 10611–10619. [Google Scholar] [CrossRef]
  31. Wang, F.T.; Najdzionek, J.; Leneker, K.L.; Wasserman, H.; Braitsch, D.M. A facile synthesis of imidotetraphenyldiphosphinic acids. Synth. React. Inorg. Met. Org. Chem. 1978, 8, 119–125. [Google Scholar] [CrossRef]
  32. Bollman, A.; Blann, K.; Dixon, J.T.; Hess, F.M.; Killian, E.; Maumela, H.; McGuinness, D.S.; Morgan, D.H.; Neveling, A.; Otto, S.; et al. Ethylene tetramerization: A new route to produce 1-octene in exceptionally high selectivities. J. Am. Chem. Soc. 2004, 126, 14712–14713. [Google Scholar] [CrossRef]
  33. Kuhlmann, S.; Blann, K.; Bollmann, A.; Dixon, J.T.; Killian, E.; Maumela, M.C.; Maumela, H.; Morgan, D.H.; Prétoruis, M.; Taccardi, N.; et al. N-substituted diphosphinoamines: Toward rational ligand design for the efficient tetramerization of ethylene. J. Catal. 2007, 245, 279–284. [Google Scholar] [CrossRef]
  34. Blann, K.; Bollmann, A.; de Bod, H.; Dixon, J.T.; Killian, E.; Nongodlwana, P.; Maumela, M.C.; Maumela, H.; McConnell, A.E.; Morgan, D.H.; et al. Ethylene tetramerisation: Subtle effects exhibited by N-substituted diphosphinoamine ligands. J. Catal. 2007, 249, 244–249. [Google Scholar] [CrossRef]
  35. Xiao, Z.; Johnson, A.; Singh, K.; Suntharalingam, K. The discrete breast cancer stem cell mammosphere activity of group 10-bis(azadiphosphine) metal complexes. Angew. Chem. Int. Ed. 2021, 60, 6704–6709. [Google Scholar] [CrossRef]
  36. Song, L.-C.; Zhang, L.-D.; Zhang, W.-W.; Liu, B.-B. Heterodinuclear Ni/M (M = Mo, W) complexes relevant to the active site of [NiFe]-hydrogenases: Synthesis, characterization, and electrocatalytic H2 evolution. Organometallics 2018, 37, 1948–1957. [Google Scholar] [CrossRef]
  37. Zhao, P.-H.; Ma, Z.-Y.; Hu, M.-Y.; He, J.; Wang, Y.-Z.; Jing, X.-B.; Chen, H.-Y.; Wang, Z.; Li, Y.-L. PNP-Chelated and -bridged diiron dithiolate complexes Fe2(μ-pdt)(CO)4{(Ph2P)2NR} together with related monophosphine complexes for the [2Fe]H subsite of [FeFe]-hydrogenases: Preparation, structure, and electrocatalysis. Organometallics 2018, 37, 1280–1290. [Google Scholar] [CrossRef]
  38. Kathewad, N.; Kumar, N.; Dasgupta, R.; Ghosh, M.; Pal, S.; Khan, S. The syntheses and photophysical properties of PNP-based Au(I) complexes with strong intramolecular Au…Au interactions. Dalton Trans. 2019, 48, 7274–7280. [Google Scholar] [CrossRef]
  39. Pal, S.; Kathewad, N.; Pant, R.; Khan, S. Synthesis, characterization, and luminescence studies of gold(I) complexes with PNP- and PNB-based ligand systems. Inorg. Chem. 2015, 54, 10172–10183. [Google Scholar] [CrossRef]
  40. Kathewad, N.; Pal, S.; Kumawat, R.L.; Ehesan Ali, M.; Khan, S. Synthetic diversity and luminescence properties of ArN(PPh2)2-based copper(I) complexes. Eur. J. Inorg. Chem. 2018, 2518–2523. [Google Scholar] [CrossRef]
  41. Gaw, K.G.; Smith, M.B.; Wright, J.B.; Slawin, A.M.Z.; Coles, S.J.; Hursthouse, M.B.; Tizzard, G.J. Square-planar metal(II) complexes containing ester functionalised bis(phosphino)amines: Mild P–N methanolysis and Carene–H cyclometallation. J. Organomet. Chem. 2012, 699, 39–47. [Google Scholar] [CrossRef] [Green Version]
  42. Höhne, M.; Joksch, M.; Konieczny, K.; Müller, B.H.; Spannenberg, A.; Peulecke, N.; Rosenthal, U. Selective reductions of N,N-bis{chloro(aryl)-phosphino}-amines yielding three-, five-, six-, and eight-membered cyclic azaphosphanes. Chem. Eur. J. 2017, 23, 4298–4309. [Google Scholar] [CrossRef] [PubMed]
  43. Dickie, D.A.; Barker, M.T.; Land, M.A.; Hughes, K.E.; Clyburne, J.A.C.; Kemp, R.A. Rapid, reversible, solid–gas and solution-phase insertion of CO2 into In–P bonds. Inorg. Chem. 2015, 54, 11121–11126. [Google Scholar] [CrossRef] [PubMed]
  44. Naik, S.; Kumar, S.; Mague, J.T.; Balakrishna, M.S. A hybrid terpyridine-based bis(diphenylphosphino)amine ligand, terpy-C6H4N(PPh2)2: Synthesis, coordination chemistry and photoluminescence studies. Dalton Trans. 2016, 45, 18434–18437. [Google Scholar] [CrossRef]
  45. Todisco, S.; Mastrorilli, P.; Latronico, M.; Gallo, V.; Englert, U.; Re, N.; Creati, F.; Braunstein, P. Sulfur-assisted phenyl migration from phosphorus to platinum in PtW2 and PtMo2 clusters containing thioether-functionalized short-bite ligands of the bis(diphenylphosphanyl)amine-type. Inorg. Chem. 2015, 54, 4777–4798. [Google Scholar] [CrossRef]
  46. Gallo, V.; Mastrorilli, P.; Nobile, C.F.; Braunstein, P.; Englert, U. Chelating versus bridging bonding modes of N-substituted bis(diphenylphosphanyl)amine ligands in Pt complexes and Co2Pt clusters. Dalton Trans. 2006, 2342–2349. [Google Scholar] [CrossRef]
  47. Kama, D.V.; Frei, A.; Brink, A.; Braband, H.; Alberto, R.; Roodt, A. New approach for the synthesis of water soluble fac-[MI(CO)3]+ bis(diarylphosphino)alkylamine complexes (M = 99Tc, Re). Dalton Trans. 2021, 50, 17506–17514. [Google Scholar] [CrossRef]
  48. Bowen, L.E.; Charernsuk, M.; Hey, T.W.; McMullin, C.L.; Orpen, A.G.; Wass, D.F. Ligand effects in chromium diphosphine catalysed olefin co-trimerisation and diene trimerisation. Dalton Trans. 2010, 39, 560–567. [Google Scholar] [CrossRef]
  49. Haddow, M.F.; Jaltai, J.; Hanton, M.; Pringle, P.G.; Rush, L.E.; Sparkes, H.A.; Woodall, C.H. Aminophobanes: Hydrolytic stability, tautomerism and application in Cr-catalysed ethene oligomerisation. Dalton Trans. 2016, 45, 2294–2307. [Google Scholar] [CrossRef]
  50. Makume, B.F.; Holzapfel, C.W.; Maumela, M.C.; Willemse, J.A.; van den Berg, J.A. Ethylene tetramerisation: A structure-selectivity correlation. ChemPlusChem 2020, 85, 2308–2315. [Google Scholar] [CrossRef]
  51. Maumela, M.C.; Blann, K.; de Bod, H.; Dixon, J.T.; Gabrielli, W.F.; Williams, D.B.G. Efficient synthesis of novel N-substituted bulky diphosphinoamines. Synthesis 2007, 2007, 3863–3867. [Google Scholar] [CrossRef]
  52. Fei, Z.; Biricik, N.; Zhao, D.; Scopelliti, R.; Dyson, P.J. Transformation between diphosphinoamines and iminobiphosphines: A reversible P–N–P↔N = P–P rearrangement triggered by protonation/deprotonation. Inorg. Chem. 2004, 43, 2228–2230. [Google Scholar] [CrossRef]
  53. Lifschitz, A.M.; Hirscher, N.A.; Lee, H.B.; Buss, J.A.; Agapie, T. Ethylene tetramerization catalysis: Effects of aluminium-induced isomerization of PNP to PPN ligands. Organometallics 2017, 36, 1640–1648. [Google Scholar] [CrossRef]
  54. Cloete, N.; Visser, H.G.; Engelbrecht, I.; Overett, M.J.; Gabrielli, W.F.; Roodt, A. Ethylene tri- and tetramerization: A steric parameter selectivity switch from X-ray crystallography and computational analysis. Inorg. Chem. 2013, 52, 2268–2270. [Google Scholar] [CrossRef] [PubMed]
  55. Zhao, W.; McCarthy, S.M.; Lai, T.Y.; Yennawar, H.P.; Radosevich, A.T. Reversible intermolecular E–H oxidative addition to a geometrically deformed and structurally dynamic phosphorous triamide. J. Am. Chem. Soc. 2014, 136, 17634–17644. [Google Scholar] [CrossRef]
  56. Cao, Y.; Napoline, J.W.; Bacsa, J.; Pollet, P.; Soper, J.D.; Sadighi, J.P. Synthesis of an azaphosphatriptycene and its rhodium carbonyl complex. Organometallics 2019, 38, 1868–1871. [Google Scholar] [CrossRef]
  57. Payet, E.; Auffrant, A.; Le Goff, X.F.; Le Floch, P. Phosphine- and thiophosphorane-amine ligands: Lithiation and coordination to Rh(I). J. Organomet. Chem. 2010, 695, 1499–1506. [Google Scholar] [CrossRef]
  58. Kumar, S.; Mondal, D.; Balakrishna, M.S. Diverse architectures and luminescence properties of Group 11 complexes containing pyrimidine-based phosphine, N-((diphenylphosphine)methyl)pyrimidin-2-amine. ACS Omega 2018, 3, 16601–16614. [Google Scholar] [CrossRef]
  59. Zhang, Y.-P.; Zhang, M.; Chen, X.-R.; Lu, C.; Young, D.J.; Ren, Z.-G.; Lang, J.-P. Cobalt(II) and nickel(II) complexes of a PNN type ligand as photoenhanced electrocatalysts for the hydrogen evolution reaction. Inorg. Chem. 2020, 59, 1038–1045. [Google Scholar] [CrossRef]
  60. Tao, Y.; Wang, Y.; Hu, S.; Young, D.J.; Lu, C.; Li, H.-X.; Ren, Z.-G. A photoluminescent Au(I)/Ag(I)/PNN coordination complex for relatively rapid and reversible alcohol sensing. Dalton Trans. 2021, 50, 6773–6777. [Google Scholar] [CrossRef]
  61. de Almeida, R.F.M.; Santos, T.C.B.; da Silva, L.C.; Suchodolski, J.; Krasowska, A.; Stokowa-Soltys, K.; Puchalska, M.; Starosta, R. NBP derived diphenyl(aminomethyl)phosphane—A new fluorescent dye for imaging of low pH regions and lipid membranes in living cells. Dye. Pigment. 2021, 184, 108771. [Google Scholar] [CrossRef]
  62. Hazari, A.; Labinger, J.A.; Bercaw, J.E. A versatile ligand platform that supports Lewis acid promoted migratory insertion. Angew. Chem. Int. Ed. 2012, 51, 8268–8271. [Google Scholar] [CrossRef]
  63. De’Ath, P.; Elsegood, M.R.J.; Halliwell, C.A.G.; Smith, M.B. Mild intramolecular P–C(sp3) bond cleavage in bridging diphosphine complexes of RuII, RhIII, and IrIII. J. Organomet. Chem. 2021, 937, 121704. [Google Scholar] [CrossRef]
  64. Cui, P.; Xiong, C.; Du, J.; Huang, Z.; Xie, S.; Wang, H.; Zhou, S.; Fang, H.; Wang, S. Heterobimetallic scandium-group 10 metal complexes with LM ⟶ Sc (LM = Ni, Pd, Pt) dative bonds. Dalton Trans. 2020, 49, 124–130. [Google Scholar] [CrossRef] [PubMed]
  65. Rudd, P.A.; Liu, S.; Gagliardi, L.; Young, V.G., Jr.; Lu, C.C. Metal-alane adducts with zero-valent nickel, cobalt, and iron. J. Am. Chem. Soc. 2011, 133, 20724–20727. [Google Scholar] [CrossRef] [PubMed]
  66. Majoral, J.P.; Zablocka, M.; Caminade, A.-M.; Balczewski, P.; Shi, X.; Mignani, S. Straightforward synthesis of gold nanoparticles by adding water to an engineered small dendrimer. Coord. Chem. Rev. 2018, 358, 80–91. [Google Scholar] [CrossRef]
  67. Starosta, R.; Florek, M.; Król, J.; Puchalska, M.; Kochel, A. Copper(I) iodide complexes containing new aliphatic aminophosphine ligands and diimines–luminescent properties and antibacterial activity. New J. Chem. 2010, 34, 1441–1449. [Google Scholar] [CrossRef]
  68. Raturi, R.; Lefebvre, J.; Leznoff, D.B.; McGarvey, B.R.; Johnson, S.A. A phosphine-mediated through-space exchange coupling pathway for unpaired electrons in a heterobimetallic lanthanide–transition metal complex. Chem. Eur. J. 2008, 14, 721–730. [Google Scholar] [CrossRef]
  69. Han, H.; Elsmaili, M.; Johnson, S.A. Diligating tripodal amido-phosphine ligands: The effect of a proximal antipodal early transition metal on phosphine donor ability in a building block for heterometallic complexes. Inorg. Chem. 2006, 45, 7435–7445. [Google Scholar] [CrossRef]
  70. Han, H.; Johnson, S.A. Bridged dinuclear tripodal tris(amido)phosphane complexes of titanium and zirconium as diligating building blocks for organometallic polymers. Eur. J. Inorg. Chem. 2008, 471–482. [Google Scholar] [CrossRef]
  71. Han, H.; Johnson, S.A. Ligand design for the assembly of polynuclear complexes: Synthesis and structures of trinuclear and tetranuclear aluminum alkyl complexes bearing tripodal diamidoselenophosphinito ligands and a comparison to related tripodal triamidophosphine complexes. Organometallics 2006, 25, 5594–5602. [Google Scholar] [CrossRef]
  72. Keen, A.L.; Doster, M.; Han, H.; Johnson, S.A. Facile assembly of a Cu9 amido complex: A new tripodal ligand design that promotes transition metal cluster formation. Chem. Commun. 2006, 1221–1223. [Google Scholar] [CrossRef] [PubMed]
  73. Hatnean, J.A.; Raturi, R.; Lefebvre, J.; Leznoff, D.B.; Lawes, G.; Johnson, S.A. Assembly of triangular trimetallic complexes by triamidophosphine ligands: Spin-frustrated Mn2+ plaquettes and diamagnetic Mg2+ analogues with a combined through-space, through-bond pathway for 31P-31P spin–spin coupling. J. Am. Chem. Soc. 2006, 128, 14992–14999. [Google Scholar] [CrossRef] [PubMed]
  74. Carpenter-Warren, C.L.; Cunnington, M.; Elsegood, M.R.J.; Kenny, A.; Hill, A.R.; Miles, C.R.; Smith, M.B. Synthesis, metal coordination and structural studies of trisubstituted P{CH2-1-N(H)naphthyl}3 ligands. Inorg. Chim. Acta 2017, 462, 289–297. [Google Scholar] [CrossRef]
  75. Cui, P.; Huang, X.; Du, J.; Huang, Z. P–C bond cleavage induced Ni(II) complexes bearing rare-earth-metal-based metalloligand and reactivities towards isonitrile, nitrile, and epoxide. Inorg. Chem. 2021, 60, 3249–3258. [Google Scholar] [CrossRef]
  76. Brown, G.M.; Elsegood, M.R.J.; Lake, A.J.; Sanchez-Ballester, N.M.; Smith, M.B.; Varley, T.S.; Blann, K. Mononuclear and heterodinuclear metal complexes of nonsymmetric ditertiary phosphanes derived from R2PCH2OH. Eur. J. Inorg. Chem. 2007, 1405–1414. [Google Scholar] [CrossRef]
  77. Guerriero, A.; Gonsalvi, L. From traditional PTA to novel CAP: A comparison between two adamantane cage-type aminophosphines. Inorg. Chim. Acta 2021, 518, 120251. [Google Scholar] [CrossRef]
  78. Lanorio, J.P.; Mebi, C.A.; Frost, B.J. The synthesis, structure and H/D exchange reactions of water-soluble half-sandwich ruthenium(II) hydrides of indenyl and dihydropentalenyl. Organometallics 2019, 38, 2031–2041. [Google Scholar] [CrossRef]
  79. Battistin, F.; Balducci, G.; Milani, B.; Alessio, E. Water-soluble ruthenium(II) carbonyls with 1,3,5-triaza-7-phosphoadamantane. Inorg. Chem. 2018, 57, 6991–7005. [Google Scholar] [CrossRef]
  80. Mager, N.; Robeyns, K.; Hermans, S. Synthesis of water-soluble ruthenium clusters by reaction with PTA (1,3,5-triaza-7-phosphaadamantane). J. Organomet. Chem. 2015, 794, 48–58. [Google Scholar] [CrossRef]
  81. Serrano-Ruiz, M.; Imberti, S.; Bernasconi, L.; Jadagayeva, N.; Scalambra, F.; Romerosa, A. Study of the interaction of water with the aqua-soluble dimeric complex [RuCp(PTA)2–μ-CN–1κC:2κ2N-RuCp(PTA)2](CF3SO3) (PTA = 1,3,5-triaza-7-phosphaadamantane) by neutron and X-ray diffraction in solution. Chem. Commun. 2014, 50, 11587–11590. [Google Scholar] [CrossRef] [PubMed]
  82. Murray, B.S.; Babak, M.V.; Hartinger, C.G.; Dyson, P.J. The development of RAPTA compounds for the treatment of tumors. Coord. Chem. Rev. 2016, 306, 86–114. [Google Scholar] [CrossRef]
  83. Britvin, S.N.; Lotnyk, A. Water-soluble phosphine capable of dissolving elemental gold: The missing link between 1,3,5-triaza-7-phosphaadamantane (PTA) and Verkade’s ephemeral ligand. J. Am. Chem. Soc. 2015, 137, 5526–5535. [Google Scholar] [CrossRef] [PubMed]
  84. Scattolin, T.; Voloshkin, V.A.; Martynova, E.; Vanden Broeck, S.M.P.; Beliš, M.; Cazin, C.S.J.; Nolan, S.P. Synthesis and catalytic activity of palladium complexes bearing N-heterocyclic carbenes (NHCs) and 1,4,7-triaza-9-phosphatricyclo[5.3.2.1]tridecane (CAP) ligands. Dalton Trans. 2021, 50, 9491–9499. [Google Scholar] [CrossRef] [PubMed]
  85. Enow, R.A.E.; Lee, W.-C.; Cournoyer, T.D.; Sunderland, T.L.; Frost, B.J. Unusual water-soluble imino phosphine ligand: Enamine and imine derivatives of 1,3,5-triaza-7-phosphaadamantane (PTA). Inorg. Chem. 2018, 57, 9142–9152. [Google Scholar] [CrossRef]
  86. Sears, J.M.; Lee, W.-C.; Frost, B.J. Water soluble diphosphine ligands based on 1,3,5-triaza-7-phosphaadamantane (PTA-PR2): Synthesis, coordination chemistry, and ruthenium catalyzed nitrile hydration. Inorg. Chim. Acta 2015, 431, 248–257. [Google Scholar] [CrossRef]
  87. Krogstad, D.A.; Guerriero, A.; Ienco, A.; Manca, G.; Peruzzini, M.; Reginato, G.; Gonsalvi, L. Imidazolyl-PTA derivatives as water-soluble (P,N) ligands for ruthenium-catalyzed hydrogenations. Organometallics 2011, 30, 6292–6302. [Google Scholar] [CrossRef]
  88. Kwiatkowska, M.; Blaszczyk, J.; Sieroń, L.; Lielbasiński, P. Enzymatic approach to the synthesis of enantiomerically pure hydroxy derivatives of 1,3,5-triaza-7-phosphaadamantane. J. Org. Chem. 2021, 86, 8556–8562. [Google Scholar] [CrossRef]
  89. Ramarou, D.S.; Makhubela, B.C.E.; Smith, G.S. Synthesis of Rh(I) alkylated-PTA complexes as catalyst precursors in the aqueous-biphasic hydroformylation of 1-octene. J. Organomet. Chem. 2018, 870, 23–31. [Google Scholar] [CrossRef]
  90. Atrián-Blasco, E.; Gascón, S.; Rodríguez-Yoldi, M.J.; Laguna, M.; Cerrada, E. Novel gold(I) thiolate derivatives synergistic with 5-fluorouracil as potential selective anticancer agents in colon cancer. Inorg. Chem. 2017, 56, 8562–8579. [Google Scholar] [CrossRef]
  91. Ekubo, A.T.; Elsegood, M.R.J.; Lake, A.J.; Smith, M.B. Intramolecular hydrogen-bonded tertiary phosphines as 1,3,5-triaza-7-phosphaadamantane (PTA) analogues. Inorg. Chem. 2009, 48, 2633–2638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Mahmoud, A.G.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. A new amido-phosphane as ligand for copper and silver complexes. Synthesis, characterization and catalytic application for azide–alkyne cycloaddition in glycerol. Dalton Trans. 2021, 50, 6109–6125. [Google Scholar] [CrossRef] [PubMed]
  93. Battistin, F.; Vidal, A.; Cavigli, P.; Balducci, G.; Iengo, E.; Alessio, E. Orthogonal coordination chemistry of PTA towards Ru(II) and Zn(II) (PTA = 1,3,5-triaza-7-phosphaadamantane) for the construction of 1D and 2D metal-mediated porphyrin networks. Inorg. Chem. 2020, 59, 4068–4079. [Google Scholar] [CrossRef] [PubMed]
  94. Bálint, E.; Tajti, A.; Tripolszky, A.; Keglevich, G. Synthesis of platinum, palladium and rhodium complexes of α-aminophosphine ligands. Dalton Trans. 2018, 47, 4755–4778. [Google Scholar] [CrossRef] [PubMed]
  95. Klemps, C.; Payet, E.; Magna, L.; Saussine, L.; Le Goff, X.F.; Le Floch, P. PCNCP ligands in the chromium-catalyzed oligomerization of ethylene: Tri- versus tetramerization. Chem. Eur. J. 2009, 15, 8259–8268. [Google Scholar] [CrossRef]
  96. Pandey, M.K.; Kunchur, H.S.; Mondal, D.; Radhakrishna, L.; Kote, B.S.; Balakrishna, M.S. Rare Au…H interactions in gold(I) complexes of bulky phosphines derived from 2,6-dibenzhydryl-4-methylphenyl core. Inorg. Chem. 2020, 59, 3642–3658. [Google Scholar] [CrossRef]
  97. Cao, B.; Elsegood, M.R.J.; Lastra-Calvo, N.; Smith, M.B. New (aminomethyl)phosphines via selective hydrophosphination and/or phosphorus based Mannich condensation reactions. J. Organomet. Chem. 2017, 853, 159–167. [Google Scholar] [CrossRef]
  98. Wang, J.-F.; Liu, S.-Y.; Liu, C.-Y.; Ren, Z.-G.; Lang, J.-P. Silver(I) complexes with a P–N hybrid ligand and oxyanions: Synthesis, structures, photocatalysis and photocurrent responses. Dalton Trans. 2016, 45, 9294–9306. [Google Scholar] [CrossRef]
  99. Jiang, M.-S.; Tao, Y.-H.; Wang, Y.-W.; Lu, C.; Young, D.J.; Lang, J.-P.; Ren, Z.-G. Reversible solid-state phase transitions between Au–P complexes accompanied by switchable fluorescence. Inorg. Chem. 2020, 59, 3072–3078. [Google Scholar] [CrossRef]
  100. Xu, W.-D.; Yan, J.-J.; Feng, M.-Y.; Li, H.-Y.; Young, D.J.; Ren, Z.-G. A photoluminescent thermometer made from a thermoresponsive tetranuclear gold complex and phosphor N630. Dalton Trans. 2021, 50, 16395–16400. [Google Scholar] [CrossRef]
  101. Penney, M.K.; Giang, R.; Klausmeyer, K.K. Single, double, and triple silver centers bound by a tetradentate N,P ligand. Polyhedron 2015, 85, 275–283. [Google Scholar] [CrossRef]
  102. Wang, X.-J.; Gui, L.-C.; Ni, Q.-L.; Liao, Y.-F.; Jiang, X.-F.; Tang, L.-H.; Zhang, Z.; Wu, Q. π-Stacking induced complexes with Z-shape motifs featuring a complementary approach between electron-rich arene diamines and electron-deficient aromatic N-heterocycles. CrystEngComm 2008, 10, 1003–1010. [Google Scholar] [CrossRef]
  103. Mondal, D.; Sardar, G.; Kabra, D.; Balakrishna, M.S. 2,2′-Bipyridine derived doubly B ← N fused bisphosphine-chalcogenides, [C5H3N(BF2){NCH2P(E)Ph2}]2 (E = O, S, Se): Tuning of structural features and photophysical studies. Dalton Trans. 2022, 51, 6884–6898. [Google Scholar] [CrossRef] [PubMed]
  104. Yang, M.; Wu, X.-Y.; Wang, H.-F.; Young, D.J.; Ren, Z.-G.; Lang, J.-P. Novel silver–phosphine coordination polymers incorporating a Wurster’s blue–like radical cation with enhanced photoelectric properties. Chem. Commun. 2019, 55, 6599–6602. [Google Scholar] [CrossRef] [PubMed]
  105. Hou, R.; Huang, T.-H.; Wang, X.-J.; Jiang, X.-F.; Ni, Q.-L.; Gui, L.-C.; Fan, Y.-J.; Tan, Y.-L. Synthesis, structural characterization and luminescent properties of a series of Cu(I) complexes based on polyphosphine ligands. Dalton Trans. 2011, 40, 7551–7558. [Google Scholar] [CrossRef]
  106. Navrátil, M.; Cisařová, I.; Štepnicka, P. Synthesis, coordination and electrochemistry of a ferrocenyl-tagged aminobisphosphane ligand. Eur. J. Inorg. Chem. 2021, 3781–3792. [Google Scholar] [CrossRef]
  107. Kreienbrink, A.; Lönnecke, P.; Findeisen, M.; Hey-Hawkins, E. Endocyclic P–P bond cleavage in carbaborane-substituted 1,2-diphosphetane: A new route to secondary phosphinocarbaboranes. Chem. Commun. 2012, 48, 9385–9387. [Google Scholar] [CrossRef]
  108. Edgar, M.; Elsegood, M.R.J.; Liu, P.; Miles, C.R.; Smith, M.B.; Wu, S. Dinuclear palladium(II) and platinum(II) complexes of a readily accessible bicyclic diphosphane. Eur. J. Inorg. Chem. 2022, e202200017. [Google Scholar] [CrossRef]
  109. Coles, S.J.; Horton, P.N.; Kimber, P.; Klooster, W.T.; Liu, P.; Plasser, F.; Smith, M.B.; Tizzard, G.J. Reversible P–P bond cleavage at an iridium(III) metal centre. Chem. Commun. 2022, 58, 5598–5601. [Google Scholar] [CrossRef]
  110. Bálint, E.; Tripolszky, A.; Hegedüs, L.; Keglevich, G. Microwave-assisted synthesis of N,N-bis(phosphinoylmethyl)amines and N,N,N-tris(phosphinoylmethyl)amines bearing different substituents on the phosphorus atoms. Belstein J. Org. Chem. 2019, 15, 469–473. [Google Scholar] [CrossRef]
  111. Phanopoulos, A.; White, A.J.P.; Long, N.J.; Miller, P.W. Insight into the stereoelectronic parameters of N-triphos ligands via coordination to tungsten(0). Dalton Trans. 2016, 45, 5536–5548. [Google Scholar] [CrossRef]
  112. Miller, P.W.; White, A.J.P. The preparation of multimetallic complexes using sterically bulky N-centred tripodal dialkyl phosphino ligands. J. Organomet. Chem. 2010, 695, 1138–1145. [Google Scholar] [CrossRef]
  113. Phanopoulos, A.; Brown, N.J.; White, A.J.P.; Long, N.J.; Miller, P.W. Synthesis, characterization, and reactivity of ruthenium hydride complexes of N-centred triphosphine ligands. Inorg. Chem. 2014, 53, 3742–3752. [Google Scholar] [CrossRef] [PubMed]
  114. Fillol, J.L.; Kruckenberg, A.; Scherl, P.; Wadepohl, H.; Gade, L.H. Stitching phospholanes together piece by piece: New modular di- and tridentate stereodirecting ligands. Chem. Eur. J. 2011, 17, 14047–14062. [Google Scholar] [CrossRef] [PubMed]
  115. Segawa, Y.; Yamashita, M.; Nozaki, K. Syntheses of PBP pincer iridium complexes: A supporting boryl ligand. J. Am. Chem. Soc. 2009, 131, 9201–9203. [Google Scholar] [CrossRef] [PubMed]
  116. Hill, A.F.; McQueen, C.M.A. Dihydroperimidine-derived N-heterocyclic pincer carbene complexes via double C–H activation. Organometallics 2012, 31, 8051–8054. [Google Scholar] [CrossRef]
  117. McQueen, C.M.A.; Hill, A.F.; Ma, C.; Ward, J.S. Ruthenium and osmium complexes of dihydroperimidine-based N-heterocyclic carbene pincer ligands. Dalton Trans. 2015, 44, 20376–20385. [Google Scholar] [CrossRef]
  118. De’Ath, P.; Elsegood, M.R.J.; Sanchez-Ballester, N.M.; Smith, M.B. Low-dimensional architectures in isomeric cis-PtCl2{Ph2PCH2N(Ar)CH2PPh2} complexes using regioselective-N(Aryl)-group manipulation. Molecules 2021, 26, 6809. [Google Scholar] [CrossRef]
  119. Smith, M.B.; Dale, S.H.; Coles, S.J.; Gelbrich, T.; Hursthouse, M.B.; Light, M.E.; Horton, P.N. Hydrogen bonded supramolecular assemblies based on neutral square-planar palladium(II) complexes. CrystEngComm 2007, 9, 165–175. [Google Scholar] [CrossRef]
  120. Smith, M.B.; Dale, S.H.; Coles, S.J.; Gelbrich, T.; Hursthouse, M.B.; Light, M.E. Isomeric dinuclear gold(I) complexes with highly functionalised ditertiary phosphines: Self-assembly of dimers, rings and 1-D polymeric chains. CrystEngComm 2006, 8, 140–149. [Google Scholar] [CrossRef]
  121. Elsegood, M.R.J.; Smith, M.B.; Staniland, P.M. Neutral molecular Pd6 hexagons using κ3-P2O-terdentate ligands. Inorg. Chem. 2006, 45, 6761–6770. [Google Scholar] [CrossRef] [PubMed]
  122. Dann, S.E.; Durran, S.E.; Elsegood, M.R.J.; Smith, M.B.; Staniland, P.M.; Talib, S.; Dale, S.H. Supramolecular chemistry of half-sandwich organometallic building blocks based on RuCl2(p-cymene)Ph2PCH2Y. J. Organomet. Chem. 2006, 691, 4829–4842. [Google Scholar] [CrossRef]
  123. Plotek, M.; Starosta, R.; Komarnicka, U.K.; Skórska-Stania, A.; Stochel, G.; Kyziol, A.; Jezowska-Bojczuk, M. Unexpected formation of [Ru(η5-C5H5)(PH{CH2N-(CH2CH2)2O}2)(PPh3)2]BF4—The first “piano-stool” ruthenium complex bearing a secondary aminomethylphosphane ligand. RSC Adv. 2015, 5, 2952–2955. [Google Scholar] [CrossRef]
  124. Cooper, S.M.; White, A.J.P.; Eykyn, T.R.; Ma, M.T.; Miller, P.W.; Long, N.J. N-Centered tripodal phosphine Re(V) and Tc(V) oxo complexes: Revisiting a [3 + 2] mixed-ligand approach. Inorg. Chem. 2022, 61, 8000–8014. [Google Scholar] [CrossRef]
  125. Chambers, G.M.; Johnson, S.I.; Raugei, S.; Bullock, R.M. Anion control of tautomeric equilibria: Fe–H vs. N–H influenced by NH…F hydrogen bonding. Chem. Sci. 2019, 10, 1410–1418. [Google Scholar] [CrossRef]
  126. Ezzaher, S.; Capon, J.-F.; Gloaguen, F.; Pétillon, F.Y.; Schollhammer, P.; Talarmin, J. Influence of a pendant amine in the second coordination sphere on proton transfer at a dissymmetrically disubstituted diiron system related to the [2Fe]H subsite of [FeFe]H2ase. Inorg. Chem. 2009, 48, 2–4. [Google Scholar] [CrossRef]
  127. Zhang, S.; Bullock, R.M. Molybdenum hydride and dihydride complexes bearing diphosphine ligands with a pendant amine: Formation of complexes with bound amines. Inorg. Chem. 2015, 54, 6397–6409. [Google Scholar] [CrossRef]
  128. Walsh, A.P.; Laureanti, J.A.; Katipamula, S.; Chambers, G.M.; Priyadarshani, N.; Lense, S.; Bays, J.T.; Linehan, J.C.; Shaw, W.J. Evaluating the impacts of amino acids in the second and outer coordination spheres of Rh-bis(diphosphine) complexes for CO2 hydrogenation. Faraday Discuss. 2019, 215, 123–140. [Google Scholar] [CrossRef]
  129. Laureanti, J.A.; Su, Q.; Shaw, W.J. A protein scaffold enables hydrogen evolution for a Ni-bisdiphosphine complex. Dalton Trans. 2021, 50, 15754–15759. [Google Scholar] [CrossRef]
  130. Zheng, Y.; Nie, X.; Long, Y.; Ji, L.; Fu, H.; Zheng, X.; Chen, H.; Li, R. Ruthenium-catalysed synthesis of N-substituted lactams by acceptorless dehydrogenative coupling of diols with primary amines. Chem. Commun. 2019, 55, 12384–12387. [Google Scholar] [CrossRef]
  131. Blann, K.; Bollmann, A.; Brown, G.M.; Dixon, J.T.; Elsegood, M.R.J.; Raw, C.R.; Smith, M.B.; Tenza, K.; Willemse, J.A.; Zweni, P. Ethylene oligomerisation chromium catalysts with unsymmetrical PCNP ligands. Dalton Trans. 2021, 50, 4345–4354. [Google Scholar] [CrossRef] [PubMed]
  132. Brill, M.; Rominger, F.; Hofmann, P. 1,2-Bis(di-tert-butylphosphino)imidazole (dtbpi): A versatile imidazole-based, rigid, bulky bisphosphine ligand for transition metals. Organometallics 2015, 34, 506–521. [Google Scholar] [CrossRef]
  133. Ma, X.; Liu, Y.; Wang, Z.; Zhao, X.; Mi, P.; Zhang, J. Ethylene tri-/tetramerization catalysts supported by diphosphinoindole ligands. J. Organomet. Chem. 2022, 958, 122175. [Google Scholar] [CrossRef]
  134. Peris, E.; Crabtree, R.H. Key factors in pincer ligand design. Chem. Soc. Rev. 2018, 47, 1959–1968. [Google Scholar] [CrossRef]
  135. Kar, S.; Milstein, D. Sustainable catalysis with fluxional acridine-based PNP pincer complexes. Chem. Commun. 2022, 58, 3731–3746. [Google Scholar] [CrossRef] [PubMed]
  136. Hermosilla, P.; López, P.; García-Orduña, P.; Lahoz, F.J.; Polo, V.; Casado, M.A. Amido complexes of iridium with a PNP pincer ligand: Reactivity towards alkynes and hydroamination catalysis. Organometallics 2018, 37, 2618–2629. [Google Scholar] [CrossRef]
  137. Kirlin, F.L.; Borden, O.J.; Head, M.C.; Kelly, S.E.; Chianese, A.R. Epoxide hydrogenolysis catalyzed by ruthenium PNN and PNP pincer complexes. Organometallics 2022, 41, 1025–1033. [Google Scholar] [CrossRef]
  138. Abogosh, A.K.; Alghanem, M.K.; Ahmad, S.; Al-Asmari, A.; As Sobeai, H.M.; Sulaiman, A.A.A.; Fettouchi, M.; Popoola, S.A.; Alhoshani, A.; Isab, A.A. A novel cyclic dinuclear gold(I) complex induces anticancer activity via an oxidative stress-mediated intrinsic apoptotic pathway in MDA-MB-231 cancer cells. Dalton Trans. 2022, 51, 2760–2769. [Google Scholar] [CrossRef]
  139. Meiners, J.; Friedrich, A.; Herdtweek, E.; Schneider, S. Facile double C–H activation of tetrahydrofuran by an iridium PNP pincer complex. Organometallics 2009, 28, 6331–6338. [Google Scholar] [CrossRef]
  140. Salvarese, N.; Refosco, F.; Seraglia, R.; Roverso, M.; Dolmella, A.; Bolzati, C. Synthesis and characterization of rhenium(III) complexes with (Ph2PCH2CH2)2NR diphosphinoamine ligands. Dalton Trans. 2017, 46, 9180–9191. [Google Scholar] [CrossRef]
  141. Curley, J.B.; Hert, C.; Bernskoetter, W.H.; Hazari, N.; Mercado, B.Q. Control of catalyst isomers using an N-phenyl-substituted RN(CH2CH2PiPr2)2 pincer ligand in CO2 hydrogenation and formic acid dehydrogenation. Inorg. Chem. 2022, 61, 643–656. [Google Scholar] [CrossRef]
  142. Curley, J.B.; Townsend, T.M.; Bernskoetter, W.H.; Hazari, N.; Mercado, B.Q. Iron, cobalt, and nickel complexes supported by a iPrPNPhP pincer ligand. Organometallics 2022, 41, 301–312. [Google Scholar] [CrossRef]
  143. Lapointe, S.; Khaskin, E.; Fayzullin, R.R.; Khusnutdinova, J.R. Nickel(II) complexes with electron-rich, sterically hindered PNP pincer ligands enable uncommon modes of ligand dearomatization. Organometallics 2019, 38, 4433–4447. [Google Scholar] [CrossRef]
  144. Deolka, S.; Faysullin, R.R.; Khaskin, E. Bulky PNP ligands blocking metal-ligand cooperation allow for isolation of Ru(0), and lead to catalytically active Ru complexes in acceptorless alcohol dehydrogenation. Chem. Eur. J. 2022, 28, e202103778. [Google Scholar] [CrossRef]
  145. Deolka, S.; Tarannam, N.; Fayzullin, R.R.; Kozuch, S.; Khaskin, E. Unusual rearrangement of modified PNP ligand based Ru complexes relevant to alcohol dehydrogenation catalysis. Chem. Commun. 2019, 55, 11350–11353. [Google Scholar] [CrossRef] [PubMed]
  146. Reiner, B.R.; Mucha, N.T.; Rothstein, A.; Temme, J.S.; Duan, P.; Schmidt-Rohr, K.; Foxman, B.M.; Wade, C.R. Zirconium metal–organic frameworks assembled from Pd and Pt PNNNP pincer complexes: Synthesis, postsynthetic modification, and Lewis acid catalysis. Inorg. Chem. 2018, 57, 2663–2672. [Google Scholar] [CrossRef] [PubMed]
  147. Das, U.K.; Chakraborty, S.; Diskin-Posner, Y.; Milstein, D. Direct conversion of alcohols into alkenes by dehydrogenative coupling with hydrazine/hydrazone catalyzed by manganese. Angew. Chem. Int. Ed. 2018, 57, 13444–13448. [Google Scholar] [CrossRef]
  148. Kaithal, A.; Hölscher, M.; Leitner, W. Catalytic hydrogenation of cyclic carbonates using manganese complexes. Angew. Chem. Int. Ed. 2018, 57, 13449–13453. [Google Scholar] [CrossRef]
  149. Ryabchuk, P.; Stier, K.; Junge, K.; Checinski, M.P.; Beller, M. Molecularly defined manganese catalyst for low-temperature hydrogenation of carbon monoxide to methanol. J. Am. Chem. Soc. 2019, 141, 16923–16929. [Google Scholar] [CrossRef]
  150. Kaithal, A.; Hölscher, M.; Leitner, W. Carbon monoxide and hydrogen (syngas) as a C1-building block for selective catalytic methylation. Chem. Sci. 2021, 12, 976–982. [Google Scholar] [CrossRef]
  151. Kishore, J.; Thiyagarajan, S.; Gunanathan, C. Ruthenium(II)-catalysed direct synthesis of ketazines using secondary alcohols. Chem. Commun. 2019, 55, 4542–4545. [Google Scholar] [CrossRef]
  152. Gradiski, M.V.; Kharat, A.N.; Ong, M.S.E.; Lough, A.J.; Smith, S.A.M.; Morris, R.H. A one-step preparation of tetradentate ligands with nitrogen and phosphorus donors by reductive amination and representative iron complexes. Inorg. Chem. 2020, 59, 11041–11053. [Google Scholar] [CrossRef] [PubMed]
  153. Bolzati, C.; Salvarese, N.; Spolaore, B.; Vittadini, A.; Forrer, D.; Brunello, S.; Ghiani, S.; Maiocchi, A. Water-soluble [Tc(N)(PNP)] moiety for room-temperature 99mTc labeling of sensitive target vectors. Mol. Pharm. 2022, 19, 876–894. [Google Scholar] [CrossRef] [PubMed]
  154. Deng, Z.; Han, S.; Ke, M.; Ning, Y.; Chen, F.-E. Ligand-enabled palladium-catalyzed hydroesterification of vinyl arenes with high linear selectivity to access 3-arylpropanoate esters. Chem. Commun. 2022, 58, 3921–3924. [Google Scholar] [CrossRef] [PubMed]
  155. Zhang, L.; Ning, Y.; Ye, B.; Ru, T.; Chen, F.-E. Water-soluble diphosphine ligands for rhodium-catalyzed branch-selective hydroaminomethylation of vinyl arenes with anilines in water. Green Chem. 2022, 24, 4420–4424. [Google Scholar] [CrossRef]
  156. Liang, L.-C.; Liao, S.-M.; Zou, X.-R. Facial-meridional isomerization and reductive elimination in [(R2P-o-C6H4)2N]PtMe3 (R = Ph, iPr). Inorg. Chem. 2021, 60, 15118–15123. [Google Scholar] [CrossRef]
  157. Bacciu, D.; Chen, C.-H.; Surawatanawong, P.; Foxman, B.M.; Ozerov, O.V. High-spin manganese(II) complexes of an amido/bis(phosphine) PNP ligand. Inorg. Chem. 2010, 49, 5328–5334. [Google Scholar] [CrossRef]
  158. Karasik, A.A.; Balueva, A.S.; Moussina, E.I.; Naumov, R.N.; Dobrynin, A.B.; Krivolapov, D.B.; Litvinov, I.A.; Sinyashin, O.G. 1,3,6-Azadiphosphacycloheptanes: A novel type of heterocyclic diphosphines. Heteroatom Chem. 2008, 19, 125–132. [Google Scholar] [CrossRef]
  159. Musina, E.I.; Wittmann, T.I.; Strelnik, I.D.; Naumova, O.E.; Karasik, A.A.; Krivolapov, D.B.; Islamov, D.R.; Kataeva, O.N.; Sinyashin, O.G.; Lönnecke, P.; et al. Influence of the rac–meso isomerization of seven-membered cyclic bisphosphines on the predominant formation of chelate complexes. Polyhedron 2015, 100, 344–350. [Google Scholar] [CrossRef]
  160. Stewart, M.P.; Ho, M.-H.; Wiese, S.; Lindstrom, M.L.; Thogerson, C.E.; Raugei, S.; Bullock, R.M.; Helm, M.L. High catalytic activity for hydrogen production using nickel electrocatalysts with seven-membered cyclic diphosphine ligands containing one pendant amine. J. Am. Chem. Soc. 2013, 135, 6033–6046. [Google Scholar] [CrossRef]
  161. Hobballah, A.; Lounissi, S.; Motei, R.; Elleouet, C.; Pétillon, F.Y.; Schollhammer, P. Synthesis, characterization and electrochemical reductive properties of complexes [Fe2(CO)4(κ2-PPh2NR2)(μ-dithiolato)] related to the H-cluster of [FeFe]-H2ases. Eur. J. Inorg. Chem. 2021, 205–216. [Google Scholar] [CrossRef]
  162. Bhattacharya, P.; Heiden, Z.M.; Chambers, G.M.; Johnson, S.I.; Bullock, R.M.; Mock, M.T. Catalytic ammonia oxidation to dinitrogen by hydrogen atom abstraction. Angew Chem. Int. Ed. 2019, 58, 11618–11624. [Google Scholar] [CrossRef] [PubMed]
  163. Karasik, A.A.; Naumov, R.N.; Sommer, R.; Sinyashin, O.G.; Hey-Hawkins, E. Water-soluble aminomethyl(ferrocenylmethyl)phosphines and their trinuclear transition metal complexes. Polyhedron 2002, 21, 2251–2256. [Google Scholar] [CrossRef]
  164. Musina, E.I.; Khrizanforova, V.V.; Strelnik, I.D.; Valitov, M.I.; Spiridonova, Y.S.; Krivolapov, D.B.; Litvinov, I.A.; Kadirov, M.K.; Lönnecke, P.; Hey-Hawkins, E.; et al. New functional cyclic aminomethylphosphine ligands for the construction of catalysts for electrochemical hydrogen transformations. Chem. Eur. J. 2014, 20, 3169–3182. [Google Scholar] [CrossRef] [PubMed]
  165. Strelnik, I.D.; Dayanova, I.R.; Kolesnikov, I.E.; Fayzullin, R.R.; Litvinov, I.A.; Samigullina, A.I.; Gerasimova, T.P.; Katsyuba, S.A.; Musina, E.I.; Karasik, A.A. The assembly of unique hexanuclear copper(I) complexes with effective white luminescence. Inorg. Chem. 2019, 58, 1048–1057. [Google Scholar] [CrossRef]
  166. Dayanova, I.R.; Shamsieva, A.V.; Strelnik, I.D.; Gerasimova, T.P.; Kolesnikov, I.E.; Fayzullin, R.R.; Islamov, D.R.; Saifina, A.F.; Musina, E.I.; Hey-Hawkins, E.; et al. Assembly of heterometallic AuICu2I2 cores on the scaffold of NPPN-bridging cyclic bisphosphine. Inorg. Chem. 2021, 60, 5402–5411. [Google Scholar] [CrossRef]
  167. Dayanova, I.; Khabibullin, R.; Strelnik, I.; Musina, E.; Karasik, A.; Sinyashin, O. Synthesis of palladium(II) complexes of N-p-iodophenyl substituted 1,5-diaza-3,7-diphosphacyclooctanes. Phosphorus Sulfur Silicon Relat. Elem. 2019, 194, 515–516. [Google Scholar] [CrossRef]
  168. Wittmann, T.I.; Musina, E.I.; Krivolapov, D.B.; Litvinov, I.A.; Kondrashova, S.A.; Latypov, S.K.; Karasik, A.A.; Sinyashin, O.G. Covalent self-assembly of the specific RSSR isomer of 14-membered tetrakisphosphine. Dalton Trans. 2017, 46, 12417–12420. [Google Scholar] [CrossRef]
  169. Mock, M.T.; Chen, S.; O’Hagan, M.; Rousseau, R.; Dougherty, W.G.; Kassel, W.S.; Bullock, R.M. Dinitrogen reduction by a chromium(0) complex supported by a 16-membered phosphorus macrocycle. J. Am. Chem. Soc. 2013, 135, 11493–11496. [Google Scholar] [CrossRef]
  170. Musina, E.I.; Wittmann, T.I.; Musin, L.I.; Balueva, A.S.; Shpagina, A.S.; Litvinov, I.A.; Lönnecke, P.; Hey-Hawkins, E.; Karasik, A.A.; Sinyashin, O.G. Dynamic covalent chemistry approach toward 18-membered P4N2 macrocycles and their nickel(II) complexes. J. Org. Chem. 2020, 85, 14610–14618. [Google Scholar] [CrossRef]
  171. Tronic, T.A.; Kaminsky, W.; Coggins, M.K.; Mayer, J.M. Synthesis, protonation, and reduction of ruthenium-peroxo complexes with pendent nitrogen bases. Inorg. Chem. 2012, 51, 10916–10928. [Google Scholar] [CrossRef] [PubMed]
  172. Kireev, N.V.; Kiryutin, A.S.; Pavlov, A.A.; Yurkovskaya, A.V.; Musina, E.I.; Karasik, A.A.; Shubina, E.S.; Ivanov, K.L.; Belkova, N.V. Nickel(II) dihydrogen and hydride complexes as the intermediates of H2 heterolytic splitting by nickel diazadiphosphacyclooctane complexes. Eur. J. Inorg. Chem. 2021, 4265–4272. [Google Scholar] [CrossRef]
  173. Gunasekara, T.; Tong, Y.; Speelman, A.L.; Erickson, J.D.; Appel, A.M.; Hall, M.B.; Wiedner, E.S. Role of high-spin species and pendant amines in electrocatalytic alcohol oxidation by a nickel phosphine complex. ACS Catal. 2022, 12, 2729–2740. [Google Scholar] [CrossRef]
  174. Chapple, D.E.; Hoffer, M.A.; Boyle, P.D.; Blacquiere, J.M. Alkyne hydrofunctionalization mechanism including an off-cycle alkoxycarbene deactivation complex. Organometallics 2022, 41, 1532–1542. [Google Scholar] [CrossRef]
  175. Gross, M.A.; Reynal, A.; Durrant, J.R.; Reisner, E. Versatile photocatalytic systems for H2 generation in water based on an efficient DuBois-type nickel catalyst. J. Am. Chem. Soc. 2014, 136, 356–366. [Google Scholar] [CrossRef] [PubMed]
  176. Das, A.K.; Engelhard, M.H.; Lense, S.; Roberts, J.A.S.; Bullock, R.M. Covalent attachment of diphosphine ligands to glassy carbon electrodes via Cu-catalyzed alkyne-azide cycloaddition. Metallation with Ni(II). Dalton Trans. 2015, 44, 12225–12233. [Google Scholar] [CrossRef]
  177. Rodriguez-Maciá, P.; Dutta, A.; Lubitz, W.; Shaw, W.J.; Rüdiger, O. Direct comparison of the performance of a bio-inspired synthetic nickel catalyst and a [NiFe]-hydrogenase, both covalently attached to electrodes. Angew. Chem. Int. Ed. 2015, 54, 12303–12307. [Google Scholar] [CrossRef]
  178. Brunner, F.M.; Neville, M.L.; Kubiak, C.P. Investigation of immobilization effects on Ni(P2N2)2 electrocatalysts. Inorg. Chem. 2020, 59, 16872–16881. [Google Scholar] [CrossRef]
  179. Nakajima, T.; Maeda, M.; Matsui, A.; Nishigaki, M.; Kotani, M.; Tanase, T. Unsymmetric dinuclear RhI2 and RhIRhIII complexes supported by tetraphosphine ligands and their reactivity of oxidative protonation and reductive dichlorination. Inorg. Chem. 2022, 61, 1102–1117. [Google Scholar] [CrossRef]
  180. van Beek, C.B.; van Leest, N.P.; Lutz, M.; de Vos, S.D.; Klein Gebbink, R.J.M.; de Bruin, B.; Broere, D.L.J. Combining metal–metal cooperativity, metal–ligand cooperativity and chemical non-innocence in diiron carbonyl complexes. Chem. Sci. 2022, 13, 2094–2104. [Google Scholar] [CrossRef]
  181. Kounalis, E.; Lutz, M.; Broere, D.L.J. Tuning the bonding of a μ-mesityl ligand on dicopper(I) through a proton-responsive expanded PNNP pincer ligand. Organometallics 2020, 39, 585–592. [Google Scholar] [CrossRef]
  182. Gautam, M.; Tanaka, S.; Sekiguchi, A.; Nakajima, Y. Long-range metal–ligand cooperation by iron hydride complexes bearing a phenanthroline-based tetradentate PNNP ligand. Organometallics 2021, 40, 3697–3702. [Google Scholar] [CrossRef]
  183. Takeshita, T.; Sato, K.; Nakajima, Y. Selective hydrosiloxane synthesis via dehydrogenative coupling of silanols with hydrosilanes catalysed by Fe complexes bearing a tetradentate PNNP ligand. Dalton Trans. 2018, 47, 17004–17010. [Google Scholar] [CrossRef] [PubMed]
  184. Takeda, H.; Kamiyama, H.; Okamoto, K.; Irimajiri, M.; Mizutani, T.; Koike, K.; Sekine, A.; Ishitani, O. Highly efficient and robust photocatalytic systems for CO2 reduction consisting of a Cu(I) photosensitizer and Mn(I) catalysts. J. Am. Chem. Soc. 2018, 140, 17241–17254. [Google Scholar] [CrossRef]
  185. Naina, V.R.; Krätschmer, F.; Roesky, P.W. Selective coordination of coinage metals using orthogonal ligand scaffolds. Chem. Commun. 2022, 58, 5332–5346. [Google Scholar] [CrossRef] [PubMed]
  186. Dahlen, M.; Kehry, M.; Lebedkin, S.; Kappes, M.M.; Klopper, W.; Roesky, P.W. Bi- and trinuclear coinage metal complexes of a PNNP ligand featuring metallophilic interactions and an unusual charge separation. Dalton Trans. 2021, 50, 13412–13420. [Google Scholar] [CrossRef]
  187. Dahlen, M.; Seifert, T.P.; Lebedkin, S.; Gamer, M.T.; Kappes, M.M.; Roesky, P.W. Tetra- and hexanuclear string complexes of the coinage metals. Chem. Commun. 2021, 57, 13146–13149. [Google Scholar] [CrossRef]
  188. Cazorla, C.; Casimiro, L.; Arif, T.; Deo, C.; Goual, N.; Retailleau, P.; Métivier, R.; Xie, J.; Voituriez, A.; Marinetti, A.; et al. Synthesis and properties of photoswitchable diphosphines and gold(I) complexes derived from azobenzenes. Dalton Trans. 2021, 50, 7284–7292. [Google Scholar] [CrossRef]
  189. Bestgen, S.; Schoo, C.; Neumeier, B.L.; Feuerstein, T.J.; Zovko, C.; Köppe, R.; Feldmann, C.; Roesky, P.W. Intensely photoluminescent diamidophosphines of the alkaline-earth metals, aluminum, and zinc. Angew. Chem. Int. Ed. 2018, 57, 14265–14269. [Google Scholar] [CrossRef]
  190. Hatzis, G.P.; Thomas, C.M. Metal–ligand cooperativity across two sites of a square planar iron(II) complex ligated by a tetradentate PNNP ligand. Chem. Commun. 2020, 56, 8611–8614. [Google Scholar] [CrossRef]
  191. Lee, K.; Thomas, C.M. Nickel-templated replacement of phosphine substituents in a tetradentate bis(amido)bis(phosphine) ligand. Inorg. Chem. 2021, 60, 17348–17356. [Google Scholar] [CrossRef] [PubMed]
  192. Zovko, C.; Bestgen, S.; Schoo, C.; Görner, A.; Goicoechea, J.M.; Roesky, P.W. A phosphine functionalized β-diketimine ligand for the synthesis of manifold metal complexes. Chem. Eur. J. 2020, 26, 13191–13202. [Google Scholar] [CrossRef] [PubMed]
  193. Marlier, E.E.; Seong, C.M.; Brunclik, S.A.; Nevins, M.H.; Nolan, E.L.; Olson, A.K.; Osnaya, M.; Reuter, A.; Swanson, M.E.; Wood, O.G.H.; et al. Synthesis and structures of a family of hybrid donor N2P2 beta-diketiminate zinc complexes. Polyhedron 2021, 201, 115150. [Google Scholar] [CrossRef]
  194. Wei, D.; Bruneau-Voisine, A.; Valyaev, D.A.; Lugan, N.; Sortais, J.-B. Manganese catalyzed reductive amination of aldehydes using hydrogen as a reductant. Chem. Commun. 2018, 54, 4302–4305. [Google Scholar] [CrossRef] [PubMed]
  195. Li, H.; Wang, Y.; Lai, Z.; Huang, K.-W. Selective catalytic hydrogenation of arenols by a well-defined complex of ruthenium and phosphorus-nitrogen PN3-pincer ligand containing a phenanthroline backbone. ACS Catal. 2017, 7, 4446–4450. [Google Scholar] [CrossRef]
  196. Barman, S.; Jaseer, E.A.; Garcia, N.; Elanany, M.; Khawaji, M.; Xu, W.; Lin, S.; Alasiri, H.; Akhtar, M.N.; Theravalappil, R. A rational approach towards selective ethylene oligomerization via PNP-ligand design with an N-triptycene functionality. Chem. Commun. 2022, 58, 10044–10047. [Google Scholar] [CrossRef]
  197. Park, H.S.; Kim, T.H.; Baek, J.W.; Lee, H.J.; Kim, T.J.; Ryu, J.Y.; Lee, J.; Lee, B.Y. Extremely active ethylene tetramerization catalysts avoiding the use of methylaluminoxane: [iPrN{P(C6H4-p-SiR3)2}2CrCl2]+[B(C6F5)4]−. ChemCatChem 2019, 11, 4351–4359. [Google Scholar] [CrossRef]
  198. Alam, F.; Fan, H.; Dong, C.; Zhang, J.; Ma, J.; Chen, Y.; Jiang, T. Chromium catalysts stabilized by alkylphosphanyl PNP ligands for selective ethylene tri-/tetramerization. J. Catal. 2021, 404, 163–173. [Google Scholar] [CrossRef]
  199. Levin, M.D.; Toste, F.D. Gold-catalyzed allylation of aryl boronic acids: Accessing cross-coupling reactivity with gold. Angew. Chem. Int. Ed. 2014, 53, 6211–6215. [Google Scholar] [CrossRef]
  200. Dong, J.; Yuan, X.-A.; Yan, Z.; Mu, L.; Ma, J.; Zhu, C.; Xie, J. Manganese-catalysed divergent silylation of alkenes. Nat. Chem. 2021, 13, 182–190. [Google Scholar] [CrossRef]
  201. Kathewad, N.; Anagha, M.C.; Parvin, N.; Parambath, S.; Parameswaran, P.; Khan, S. Facile Buchwald-Hartwig coupling of sterically encumbered substrates effected by PNP ligands. Dalton Trans. 2019, 48, 2730–2734. [Google Scholar] [CrossRef] [PubMed]
  202. Chen, S.-Y.; Pan, R.-C.; Chen, M.; Liu, Y.; Chen, C.; Lu, X.-B. Synthesis of nonalternating polyketones using cationic diphosphazane monoxide-palladium complexes. J. Am. Chem. Soc. 2021, 143, 10743–10750. [Google Scholar] [CrossRef] [PubMed]
  203. Chen, S.-Y.; Ren, B.-H.; Li, S.-H.; Song, Y.-H.; Jiao, S.; Zou, C.; Chen, C.; Lu, X.-B.; Liu, Y. Cationic P,O-coordinated nickel(II) catalysts for carbonylative polymerization of ethylene: Unexpected product selectivity via subtle electronic variation. Angew. Chem. Int. Ed. 2022, e202204126. [Google Scholar]
  204. Wiedner, E.S.; Appel, A.M.; Raugei, S.; Shaw, W.J.; Bullock, R.M. Molecular catalysts with diphosphine ligands containing pendant amines. Chem. Rev. 2022, 122, 12427–12474. [Google Scholar] [CrossRef] [PubMed]
  205. Norouziyanlakvan, S.; Rao, G.K.; Ovens, J.; Gabidullin, B.; Richeson, D. Electrocatalytic H2 generation from water relying on cooperative ligand electron transfer in “PN3P” pincer-supported NiII complexes. Chem. Eur. J. 2021, 27, 13518–13522. [Google Scholar] [CrossRef]
  206. Kamada, K.; Jung, J.; Kametani, Y.; Wakabayashi, T.; Shiota, Y.; Yoshizawa, K.; Bae, S.H.; Muraki, M.; Naruto, M.; Sekizawa, K.; et al. Importance of steric bulkiness of iridium photocatalysts with PNNP tetradentate ligands for CO2 reduction. Chem. Commun. 2022, 58, 9218–9221. [Google Scholar] [CrossRef]
Molecules 27 06293 g001 550
Figure 1. Cartoon illustration of some known diphosphines bearing a N atom in the backbone (R, R` = alkyl, aryl group).
Figure 1. Cartoon illustration of some known diphosphines bearing a N atom in the backbone (R, R` = alkyl, aryl group).
Molecules 27 06293 g001
Molecules 27 06293 sch001 550
Scheme 1. Key steps for relevant P-based ligand syntheses utilising R2PCl and R2PH.
Scheme 1. Key steps for relevant P-based ligand syntheses utilising R2PCl and R2PH.
Molecules 27 06293 sch001
Molecules 27 06293 g002 550
Figure 2. Selected examples of phosphinoamines bearing one or more P–N bonds.
Figure 2. Selected examples of phosphinoamines bearing one or more P–N bonds.
Molecules 27 06293 g002
Molecules 27 06293 g003 550
Figure 3. Selected examples of known bis(phosphino)amines.
Figure 3. Selected examples of known bis(phosphino)amines.
Molecules 27 06293 g003
Molecules 27 06293 g004 550
Figure 4. Selected examples of functionalised bis(phosphino)amines.
Figure 4. Selected examples of functionalised bis(phosphino)amines.
Molecules 27 06293 g004
Molecules 27 06293 g005 550
Figure 5. Selected examples of cyclic P,N-ligands.
Figure 5. Selected examples of cyclic P,N-ligands.
Molecules 27 06293 g005
Molecules 27 06293 g006 550
Figure 6. Selected examples of aminomethylphosphines bearing one or more P–C–N bonds.
Figure 6. Selected examples of aminomethylphosphines bearing one or more P–C–N bonds.
Molecules 27 06293 g006
Molecules 27 06293 g007 550
Figure 7. Selected examples of PTA, CAP, and related compounds (A = anion).
Figure 7. Selected examples of PTA, CAP, and related compounds (A = anion).
Molecules 27 06293 g007
Molecules 27 06293 g008 550
Figure 8. Selected examples of bis- and tris-aminomethylphosphines.
Figure 8. Selected examples of bis- and tris-aminomethylphosphines.
Molecules 27 06293 g008
Molecules 27 06293 g009 550
Figure 9. Selected examples of P–C–N–C–P ligands.
Figure 9. Selected examples of P–C–N–C–P ligands.
Molecules 27 06293 g009
Molecules 27 06293 g010 550
Figure 10. Selected examples of P–C–N–P diphosphines.
Figure 10. Selected examples of P–C–N–P diphosphines.
Molecules 27 06293 g010
Molecules 27 06293 g011 550
Figure 11. Selected examples of P–C–C–N–C–C–P diphosphines and related analogues.
Figure 11. Selected examples of P–C–C–N–C–C–P diphosphines and related analogues.
Molecules 27 06293 g011
Molecules 27 06293 g012 550
Figure 12. Selected examples of P–C–C–N–C–C–P diphosphines.
Figure 12. Selected examples of P–C–C–N–C–C–P diphosphines.
Molecules 27 06293 g012
Molecules 27 06293 g013 550
Figure 13. Selected examples of ring structures incorporating P–C–N backbones.
Figure 13. Selected examples of ring structures incorporating P–C–N backbones.
Molecules 27 06293 g013
Molecules 27 06293 g014 550

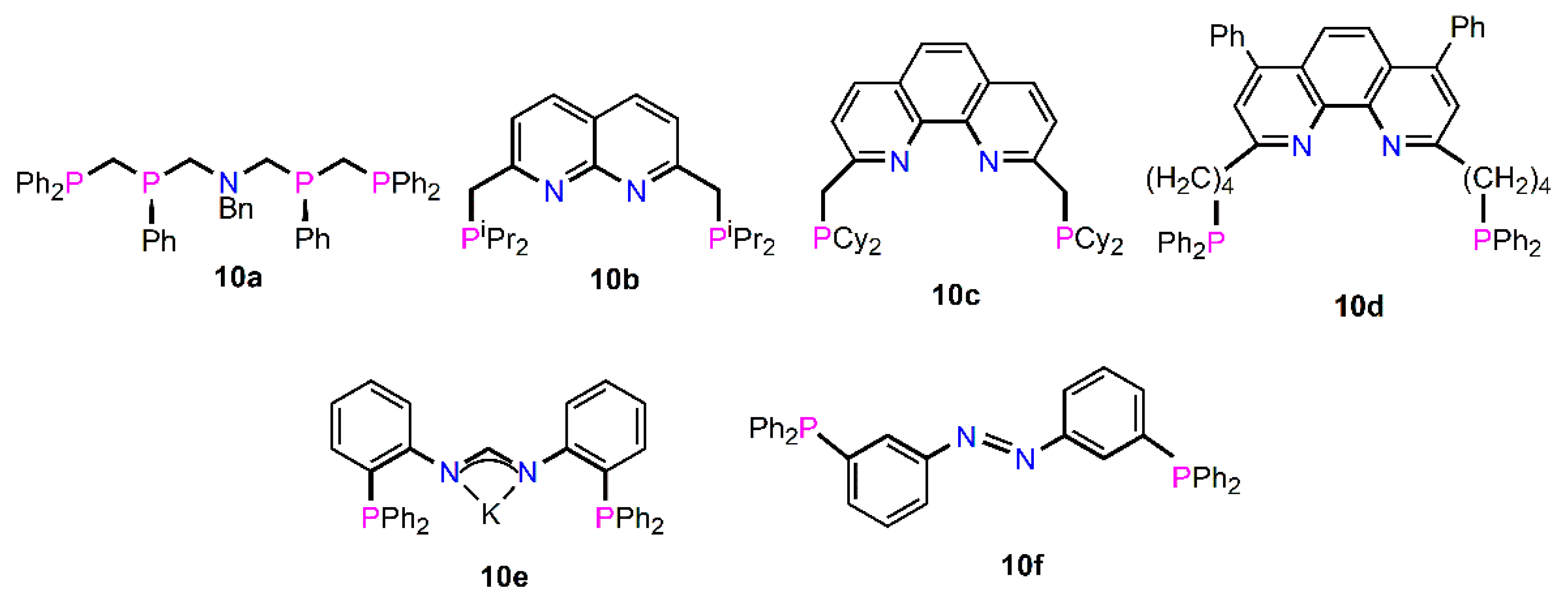

Figure 14. Selected examples of P–C–P–C–N–C–P–C–P, P–Cm–N–Cn–N–Cm–P and P–C3–N–N–C3–P ligands (m = 2,5; n = 1,2).
Figure 14. Selected examples of P–C–P–C–N–C–P–C–P, P–Cm–N–Cn–N–Cm–P and P–C3–N–N–C3–P ligands (m = 2,5; n = 1,2).
Molecules 27 06293 g014
Molecules 27 06293 g015 550
Figure 15. Selected proligands to anionic P–C2–N–C2–N–C2–P and P–C2–N–C3–N–C2–P ligands.
Figure 15. Selected proligands to anionic P–C2–N–C2–N–C2–P and P–C2–N–C3–N–C2–P ligands.
Molecules 27 06293 g015
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Smith, M.B. The Backbone of Success of P,N-Hybrid Ligands: Some Recent Developments. Molecules 2022, 27, 6293. https://doi.org/10.3390/molecules27196293

AMA Style

Smith MB. The Backbone of Success of P,N-Hybrid Ligands: Some Recent Developments. Molecules. 2022; 27(19):6293. https://doi.org/10.3390/molecules27196293

Chicago/Turabian Style

Smith, Martin B. 2022. "The Backbone of Success of P,N-Hybrid Ligands: Some Recent Developments" Molecules 27, no. 19: 6293. https://doi.org/10.3390/molecules27196293

APA Style

Smith, M. B. (2022). The Backbone of Success of P,N-Hybrid Ligands: Some Recent Developments. Molecules, 27(19), 6293. https://doi.org/10.3390/molecules27196293

Article Metrics

Back to TopTop
