Sulfur Nanoparticle-Decorated Nickel Cobalt Sulfide Hetero-Nanostructures with Enhanced Energy Storage for High-Performance Supercapacitors

by
Yedluri Anil Kumar
1,†,
Anuja A. Yadav
2,†,
Bandar Ali Al-Asbahi
3,
Seok-Won Kang
2 and
Md Moniruzzaman
4,*
1
Department of Physics, United Arab Emirates University, Al Ain 15551, United Arab Emirates
2
Department of Automotive Engineering, Yeungnam University, 280 Daehak-ro, Gyeongsan 38541, Gyeongbuk-do, Korea
3
Department of Physics & Astronomy, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
4
Department of Chemical and Biological Engineering, Gachon University, 1342 Seongnam-daero, Seongnam-si 13120, Gyeonggi-do, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2022, 27(21), 7458; https://doi.org/10.3390/molecules27217458
Submission received: 22 September 2022 / Revised: 25 October 2022 / Accepted: 28 October 2022 / Published: 2 November 2022
(This article belongs to the Special Issue Advances in Electrochemical Energy Storage Devices 2.0)
Browse Figures
Versions Notes

Abstract

:
Transition-metal sulfides exaggerate higher theoretical capacities and were considered a type of prospective nanomaterials for energy storage; their inherent weaker conductivities and lower electrochemical active sites limited the commercial applications of the electrodes. The sheet-like nickel cobalt sulfide nanoparticles with richer sulfur vacancies were fabricated by a two-step hydrothermal technique. The sheet-like nanoparticles self-combination by ultrathin nanoparticles brought active electrodes entirely contacted with the electrolytes, benefiting ion diffusion and charges/discharges. Nevertheless, defect engineers of sulfur vacancy at the atomic level raise the intrinsic conductivities and improve the active sites for energy storage functions. As a result, the gained sulfur-deficient NiCo2S4 nanosheets consist of good specific capacitances of 971 F g−1 at 2 A g−1 and an excellent cycle span, retaining 88.7% of the initial capacitance over 3500 cyclings. Moreover, the values of capacitance results exhibited that the fulfilling characteristic of the sample was a combination of the hydrothermal procedure and the surface capacitances behavior. This novel investigation proposes a new perspective to importantly improve the electrochemical performances of the electrode by the absolute engineering of defects and morphologies in the supercapacitor field.

Graphical Abstract

1. Introduction

Worldwide, research is rising investigating safe, portable, renewable electrochemical electrical applications, and lightweight electrical gadgets, such as supercapacitors (SCs), which consider eco-friendly stabilities as well as higher energy/power densities [1,2,3]. In energy storage applications, supercapacitors (SCs) attained widespread consciousness on account of their extraordinary benefits in terms of rapid charging/discharging procedures, high reliability, excellent power densities, cheaper price, and environmental natures [4,5,6,7]. Meanwhile, the weaker energy densities of SCs have constricted them from laboratory scales to practical-span productivity [8,9,10]. Thus, higher performance sample-electrodes are worth finding for enhancing the energy densities of SCs.
Among them, transition-metal sulfides were advised as an essential source for the SCs application, owing to their higher capacity results, cheaper prices, innate abundances, and eco-friendliness [11]. Comparable to binary metal sulfides, bimetallic sulfide types (e.g., CuCo2S4 [12], NiCo2S4 [13], FeCo2S4 [14], MnCo2S4 [15]) normally manifest good added electrochemical behaviors for the given two causes: (i) the synergetic reaction of bimetallic sulfide types would consider a richer redox reaction; and (ii) bimetallic sulfide types normally exhibit higher conductivities [16,17,18]. Nevertheless, the insufficient energy storage active sites and weaker ion diffusion kinetics were reasoned by the limit of ion diffusion connections, which led to poorer rate capabilities and specific capacities [19]. Recent research has been maintained to enhance the electrochemical performances of the samples’ electrodes by morphology optimization and defect formations [20,21,22]. For instance, Wan et al. constructed NiCo2S4 porous nanotubes using sacrifices precursors to reason redox reactions at intrinsic activate sites, allow for faster ion transportations in the aqueous electrolyte, and represent a higher specific capacity of 933 F g−1 at 1 A g−1 [23]; Chen et al. fabricated caterpillar-type NiCoS crystals, exhibiting the higher specific capacitance of 1777 F g−1 at 1 A g−1 and retaining a 90.9% capacity of the starting cycles over 3000 cycles at 10 A g−1 [24]; Zhou et al. synthesized oxygen-deficient (Vo-ZnO/CoO) nanowires [25], in which the oxygen defect improves the redox processes, allowing for faster electron transportation rates; and Huang et al. fabricated NiS@C with a sulfur vacancy (H-NiS1−X/C−50), where the sulfur vacancy formations provide lattice distortion reactions, exhibiting improved conductivities and good electrochemical activities (1728 F g−1, 1 A g−1) [26]. Evidentially, the combination of sulfur-deficient NiCo2S4 with a conductive matrix-type nickel foam can enhance the cycling performances and rate capabilities of materials. Meanwhile, it has been noted that bimetallic nickel cobalt sulfide consists of numerous redox sites and abundant valence states [27]; therefore, it might be a favoring electrode applicant for SCs, in which its less efficient ion/electron transportations hinder the electrochemical activity. To the best of our understanding, the performances of a sulfur-deficient NiCo2S4 were not adequate, and it was the main endeavor to further boost the electrochemical activities of SCs. Compared to the recently reported composited bimetallic sulfides, it could be anticipated that the sulfur-deficient NiCo2S4 composite might provide stronger cooperative effects and assist volume alterations, promising to enhance the electrochemical performances for SCs applications.
Based on the above findings, we integrate deficient engineering with rational nano-morphology construction to grow sheet-like nickel cobalt sulfide nanoparticles, self-assembling by ultrathin nanoparticles with richer sulfur vacancies through hydrothermal treatment. The fabricated electrode consists of higher conductivities and numerous abundant activation sites, providing good specific capacitances of 971 F g−1 at 2 A g−1 and the 88.7% retained rate of the prior capacitances over 3500 long cycles. Moreover, the sulfur-deficient NiCo2S4 nanosheets electrode exhibits lower resistances, revealing the extraordinary current conductivity of the sample material. In the investigation, the interconnected nanoparticle-type sulfur-deficient NiCo2S4 nanosheets composite was illustrated to be perfect for SCs applications.

2. Materials and Methods

2.1. Reagents and Chemicals

Nickel nitrate hexahydrate (Ni(NO3)2·6H2O, 99.0%), cobalt nitrate hexahydrate (Co(NO3)2·6H2O, 98.6%), and sodium sulfide nonahydrate (Na2S·9H2O, 98.0%] were purchased by Sigma-Aldrich. All the chemicals were analytically graded and used without any further procedure. The nickel foam was pre-treated before being utilized.

2.2. Preparation of Sheet-like NiCo2S4 Nanoparticles with Richer Sulfur Vacancies on Ni Foam

In the preparation of sulfur-deficient sheet-like NiCo2S4 nanoparticles, 0.5 mmol Ni(NO3)2·6H2O, 0.9 mmol Co(NO3)2·6H2O, and 1.17 mmol Na2S·9H2O were dissolved in 40 mL of DI water under continuous stirring to gain a pink product. Next, the Ni foam with product precursors was kept in a Teflon-lined stainless autoclave and optimized at 110 °C for 13 h. After reaching room temperature, the samples were rinsed with DI water and subjected to the drying process to gain the needed products. After being dried, the black precipitate product was annealed at 400 °C for 1 h in a furnace in a continual Ar atmosphere. The representative mass load of the sulfur-deficient NiCo2S4 composite was ∼2.6 mg cm−2.

2.3. Characterizations and Instruments

The surface morphology and structures of the samples were observed using a scanning electron microscope (SEM, JSM-7800F equipping) and transmission electron microscopy (TEM, JEM-2100F, Busan, Korea). The crystal structures of the samples were determined using characteristic diffraction peaks measured by X-ray diffraction (XRD) analysis, which was performed using Bruker D8 Advance. X-ray photoelectron spectroscopy (ESCCALAB 250Xi, Busan, Korea) was organized to investigate the chemical bonding details of the electrodes.

2.4. Electrochemical Performance Test

The evaluation of all the electrochemical calculations for the electrodes was organized in 3: an electrode setup employing the current precursor products as the working electrodes, Platinum (Pt) sheet as the counter, and Ag/AgCl as the references electrode. Moreover, the current working electrode was assessed utilizing a 3-electrode cell with 2 M KOH electrolytes. Galvanostatic charge–discharge (GCD), cyclic voltammetry (CV), and electrochemical impedance spectroscopies (EIS) are evaluated by an electrochemical workstation. The specific capacitances (Csp, F g−1) of the samples were calculated by Equation (1) based on CD plots [28,29,30]:
Cs = (I × Δt)/m × ΔV
where Δt (s), I (A), m (g), and ΔV (V) designate the discharge times, currents, the mass of the electrode, and the applied potential, respectively.

3. Results and Discussion

3.1. Structure Characterization

The fabrication of the sulfur-deficient sheet-like NiCo2S4 nanoparticles on nickel foam is reported in Figure 1. The Ni foam consists of a porous nature composed of interconnected nickel skeletons, which possess the benefits of excellent electrical conductivities and richer porosity, consequently supplying numerous active sites for the redox process. Thus, the growth of sheet-like NiCo2S4 particles on the nickel skeleton was a reasonable possibility. First, the NiCo2S4 particles were acquired by a hydrothermal process accompanied by annealing at 400 °C for 1 h in the Ar atmosphere. The gained thin nanosheets were collected from nanosheets with a porous nature.
Figure 2 displays the microscopic morphology of the as-synthesized pure NiCo2S4 nanoparticles electrode and sulfur-deficient NiCo2S4 nanosheet composite samples. As illustrated in Figure 2a,b, the pure NiCo2S4 nanoparticles sample holds slightly incomplete developed and shapeless particle-type morphologies. Dissimilar to the pure NiCo2S4 nanoparticles, the sulfur-deficient NiCo2S4 nanosheets composite was made up of ultrathin-type nanosheets, self-assembling sheet-like particles with a median diameter of around 7 μm (Figure 2c,d). This hierarchical nano-micro unique construction would supply abundant redox sites with higher active sites, condensing the diffusion networks of electrons/ions throughout the electrochemical reactions. In addition, the hydrothermal treatment affected the microstructure and crystallinity of the sulfur-deficient NiCo2S4 nanosheets composite, with the composite leading to the agglomeration of metallic nanoparticles and the electrochemical reactions of the electrode.
Figure 3 displayed the TEM and HRTEM images of sulfur-deficient NiCo2S4 nanosheet composites. TEM images in Figure 3a further clarified that the metallic particles were flat and immobilized on the nickel foam skeleton porous structure. Figure 3b shows that, in the high-resolution TEM images, sulfur-deficient NiCo2S4 nanosheet composites possess lattice fringes, such that spaces of 0.24 and 0.28 nm were acquired; which are in excellent accordance with the (400) and (511) planes of NiCo2S4, respectively [31,32]. On the other hand, the EDS elemental maps in Figure 3c–e depicted the uniform distributions of Ni, C, and S, revealing that the sulfur-deficient NiCo2S4 nanosheet composites are victoriously synthesized by a two-pot hydrothermal route.
The diffraction phase and purity of the as-reported pure NiCo2S4 nanoparticles electrode and sulfur-deficient NiCo2S4 nanosheet composites are investigated using X-ray diffraction analysis (Figure 4). The characteristic peaks at 26.7°, 31.5°, 38.4°, 47.5°, and 50.6° are attributed with the (220), (311), (400), (422), and (511) planes of the cubic NiCo2S4 phases, respectively (PDF#20-0782) [33,34]. It is obvious that all the good diffraction peaks of the NiCo2S4 would be ascribed to NiCo2S4 without clear diffractions correlated to the impurities, which evidences the successful preparation of sulfur-deficient NiCo2S4 nanosheet composites. Moreover, no additional peaks from the remaining crystallized planes could be gained from the electrode, noticing the excellent form of a pure NiCo2S4 sample.
The chemical composition and elemental bonding states of the as-reported electrodes are fixed by using XPS spectra (Figure 4b–e). Figure 4b indicates a survey spectra of the sulfur-deficient NiCo2S4 nanosheets composites., which reports a dominance of Ni, C, and S [35]. The typical spectrum of Ni 2p (Figure 5b) and Co 2p (Figure 5c) corroborate the binary spin-orbits, respectively. In Figure 5b, in which there are the Ni 2p spectra, the 875.7 and 856.5 eV peaks are located from the Ni 2p1/2 and Ni 2p3/2, respectively [36,37]. Accordingly, the Co 2p spectra in Figure 5c illustrate that the 802.4 and 783.3 peaks are located therein and associated with Co 2p [38,39,40]. Figure 5d displays the XPS spectrum of S 2p, revealing the existence of sulfide ions in the binary Ni-Co-S. The foremost peaks of S 2p were allocated at 168.9 eV. These noticed data were related to the earlier reporting [41]. The XPS findings recognize that the atomic ratios of Ni, Co, and S elements in the NiCo2S4 nanosheets were 1:2.93:4.94, which correlates with the findings output of the NiCo2S4 samples. The XRD and XPS results were fitting, considering the chemical elemental states and the formation compositions of the pure NiCo2S4 phases. Furthermore, the XPS spectra displayed the mixed chemical elemental states necessity of Ni 2p/Ni 3p and Co 2p/Co 3p, which play an important role in developing the entire electrochemical activities of the NiCo2S4 sample.

3.2. Electrochemical Performance

The CV and GCD plots were first organized to find out the electrochemical activities of the pure NiCo2S4 nanoparticles electrode and the sulfur-deficient NiCo2S4 nanosheet composites in the three-electrode setup. As illustrated in Figure 5a, a symmetric Faraday redox pairs plot was noticed from the CV plot, which is because of their highly reversible redox process amid Ni3+/Ni2+ and Co3+/ Co2+ beneath alkaline solutions, resulting in the typical nature of PCs. The Faradaic possible reaction of the sulfur-deficient NiCo2S4 nanosheets composite was suggested as given [42,43]:
Ni3S4 + OH− ↔ Ni3S4 (OH) + e−
Ni3S4 (OH) + OH− ↔ Ni3S4O + H2O + e−
CoO2 + e− + H2O ↔ Co(3+) OOH + OH−
The CV plot region of the sulfur-deficient NiCo2S4 nanosheet composites was much larger than that of the pure NiCo2S4 nanoparticles electrode, revealing its high charging storing capability. Figure 5b illustrates the GCD plots of both electrodes, and clear charge/discharge platforms were denoted in all the particulars, further proposing its PCs properties. As expected, the sulfur-deficient NiCo2S4 nanosheet composites showed longer discharging times, which disclosed their higher capacitances.
Figure 6a discloses the CV plots of sulfur-deficient NiCo2S4 nanosheet composites at various sweep rates. Acquiescing with the polarizing effects of the sample electrodes, improving the sweep rates (5 to 100 mV s−1) led to the cathode’s peak shifting to fewer potentials, whereas the anode, peaking according to the reverse trends, moved to a higher potential. Figure 6b displays the GCD plot of the sulfur-deficient NiCo2S4 nanosheets composite electrode at different current values (2 to 20 A g−1). The plot shapes are nearly similar and symmetrical, indicating its good electrochemical reversibility. Figure S1 demonstrates the CV and GCD plots of the pure NiCo2S4 nanoparticles electrode at various scan rates (5 to 100 mV s−1) and current densities (2 to 20 A g−1) in the 2M KOH aqueous electrolyte; this further exhibited its superior rate capabilities. According to the GCD results, the measured specific capacitance of both electrodes was reported in Figure 6c. At 1 A/g, the specific capacitances of the pure NiCo2S4 nanoparticles electrode and sulfur-deficient NiCo2S4 nanosheet composites were 564 and 971 F g−1, respectively. These data values confirm that the hydrothermal route significantly overblows the specific capacitances of the composite. On the contrary, the higher sulfur-deficient NiCo2S4 nanosheets composite leads to the agglomeration of the metallic particle; thus, hindering the electrical migrations and holding back their electrochemical process. When the sulfur-deficient NiCo2S4 nanosheets composite is at 2 A g−1, a specific surface region is large enough to reveal the required electrochemical active speeds to enhance the networks of the electrode sample and electrolytes.
In Figure 6d, the pure NiCo2S4 nanoparticles electrode and sulfur-deficient NiCo2S4 nanosheet composites reported smaller semi-circled diameters in the higher-frequencies area, and have roughly vertical lines in the lower frequencies region; this hinted that the sulfur-deficient NiCo2S4 nanosheet composites have optimal conductivities as well as quick charging transportation capabilities. The EIS curve is composed of the equivalent series resistance (Rs), the charge transfer resistance (Rct), and Warburg diffusion resistance (Rw), which is related to the resistance of ionic diffusion in the electrolyte. The fitting results show that the Rct values of the sulfur-deficient NiCo2S4 nanosheets composite and pure NiCo2S4 are 0.145 and 0.194 Ω, respectively. Therefore, it can be determined that the charge transfer resistance of the sulfur-deficient NiCo2S4 nanosheets composite is the smallest. Furthermore, the equivalent series resistance values of the sulfur-deficient NiCo2S4 nanosheets composite and pure NiCo2S4 are 1.732 and 0.831 Ω, respectively. The slope of the sulfur-deficient NiCo2S4 nanosheets composite is the largest, indicating that it has a high diffusivity of the electrolyte. In both cases, the Rs and Rct values of the sulfur-deficient NiCo2S4 nanosheets composite has a strong dynamic response and electrical conductivity.
Figure 7 illustrates the long cycles of the sulfur-deficient NiCo2S4 nanosheet composites at 3 A g−1. After 3500 long cycles of charges/discharges, the capacity retention of the sulfur-deficient NiCo2S4 nanosheet composites is still retained at 88.7%, further illustrating the outstanding life span of cycling stability analysis. From Table 1, the specified capacitance results data of the electrodes are demonstrated for comparison. Figure S2 illustrates the EIS curves of the sulfur-deficient NiCo2S4 before and after 3500 cycles of the stability test at 3 Ag−1.

4. Conclusions

We demonstrated a higher-efficiency approach to enhance the higher-performance electrode materials for supercapacitors by constructing rational nanomorphologies and increasing sulfur vacancies in NiCo2S4. The physical morphology data results exhibited that the hydrothermal route corresponds to the composite material crystallinity. By the data values, the as-developed sulfur-deficient NiCo2S4 nanosheet composites display a superior specific capacitance of 971 F g−1 at 2 A g−1 and capacitance retentions of 88.7% at 3 A g−1 over 3500 long cycles. The excellent electrochemical capabilities would have corresponded to the involvement of sulfur vacancies and well-constructive superior specific area particle-like morphology that improves the electrode’s conductivities, enhances activated sites for the electrochemical reactions, and encourages the electrolyte penetrations into the sample material. This study would open unique and favoring paths for the succession of future generations of high-performance materials for SCs. The developed electrode exhibited attractive potential in SCs applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27217458/s1, Figure S1: CV and GCD plots of pure NiCo2S4 nanoparticles electrode at various scan rates and current densities in aqueous electrolyte; Figure S2: EIS curves of the sulfur deficient NiCo2S4 before and after 3500 cycles of stability test at 3 Ag−1.

Author Contributions

Conceptualization, Y.A.K. and A.A.Y.; supervision and validation, M.M. and B.A.A.-A.; investigation and writing, Y.A.K., A.A.Y. and M.M.; investigation and visualization, B.A.A.-A. and S.-W.K.; validation, B.A.A.-A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Researchers’ supporting project number (RSP-2021/348), King Saud University, Riyadh, Saudi Arabia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

Researchers’ supporting project number (RSP-2021/348), King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sharma, P.; Sundaram, M.M.; Watcharatharapong, T.; Jungthawan, S.; Ahuja, R. Tuning the Nanoparticle Interfacial Properties and Stability of the Core–Shell Structure in Zn-Doped NiMoO4@AWO4. ACS Appl. Mater. Interfaces 2021, 13, 56116–56130. [Google Scholar] [CrossRef] [PubMed]
  2. Sharma, R.; Sundaram, M.M.; Watcharatharapong, T.; Laird, D.; Euchner, H.; Ahuja, R. Zn Metal Atom Doping on the Surface Plane of One-Dimesional NiMoO4 Nanorods with Improved Redox Chemistry. ACS Appl. Mater. Interfaces 2020, 12, 44815–44829. [Google Scholar] [CrossRef] [PubMed]
  3. Yedluri, A.K.; Anitha, T.; Kim, H.-J. Fabrication of Hierarchical NiMoO4/NiMoO4 Nanoflowers on Highly Conductive Flexible Nickel Foam Substrate as a Capacitive Electrode Material for Supercapacitors with Enhanced Electrochemical Performance. Energies 2019, 12, 1143. [Google Scholar] [CrossRef] [Green Version]
  4. Dahal, B.; Mukhiya, T.; Ojha, G.P.; Chhetri, K.; Tiwari, A.P.; Muthurasu, A.; Lee, M.; Chae, S.H.; Kim, T.; Chung, D.C.; et al. A multicore-shell architecture with a phase-selective (α + δ)MnO2 shell for an aqueous-KOH-based supercapacitor with high operating potential. Chem. Eng. J. 2020, 387, 124028. [Google Scholar] [CrossRef]
  5. Dahal, B.; Chhetri, K.; Muthurasu, A.; Mukhiya, T.; Tiwari, A.P.; Gautam, J.; Lee, J.Y.; Chung, D.C.; Kim, H.Y. Biaxial Stretchability in High-Performance, All-Solid-State Supercapacitor with a Double-Layer Anode and a Faradic Cathode Based on Graphitic-2200 Knitted Carbon Fiber. Adv. Energy Mater. 2021, 11, 2002961. [Google Scholar] [CrossRef]
  6. Gautam, J.; Liu, Y.; Gu, J.; Ma, Z.; Dahal, B.; Chishti, A.N.; Ni, L.; Diao, G.; Wei, Y. Three-dimensional nano assembly of nickel cobalt sulphide/polyaniline@polyoxometalate/reduced graphene oxide hybrid with superior lithium storage and electrocatalytic properties for hydrogen evolution reaction. J. Colloid Interface Sci. 2022, 614, 642–654. [Google Scholar] [CrossRef]
  7. Gautam, J.; Liu, Y.; Gu, J.; Ma, Z.; Zha, J.; Dahal, B.; Zhang, L.N.; Chishti, A.N.; Ni, L.; Diao, G.; et al. Fabrication of Polyoxometalate Anchored Zinc Cobalt Sulfide Nanowires as a Remarkable Bifunctional Electrocatalyst for Overall Water Splitting. Adv. Funct. Mater. 2021, 31, 2106147. [Google Scholar] [CrossRef]
  8. Dahal, B.; Mukhiya, T.; Ojha, G.P.; Muthurasu, A.; Chae, S.H.; Kim, T.; Kang, D.; Kim, H.K. In-built fabrication of MOF assimilated B/N co-doped 3D porous carbon nanofiber network as a binder-free electrode for supercapacitors. Electrochim. Acta 2019, 301, 209–219. [Google Scholar] [CrossRef]
  9. Kim, T.; Subedi, S.; Dahal, B.; Chhetri, K.; Mukhiya, T.; Muthurasu, A.; Gautam, J.; Lohani, P.C.; Acharya, D.; Pathak, I.; et al. Homogeneous Elongation of N-Doped CNTs over Nano-Fibrillated Hollow-Carbon-Nanofiber: Mass and Charge Balance in Asymmetric Supercapacitors Is No Longer Problematic. Adv. Sci. 2022, 9, 2200650. [Google Scholar] [CrossRef]
  10. Yoon, J.H.; Kumar, Y.A.; Sambasivam, S.; Hira, S.A.; Krishna TN, V.; Zeb, K.; Uddin, W.; Kumar, K.D.; Obaidat, I.M.; Kim, S.; et al. Highly efficient copper-cobalt sulfide nano-reeds array with simplistic fabrication strategy for battery-type supercapacitors. J. Energy Stor. 2020, 32, 101988. [Google Scholar] [CrossRef]
  11. Yedluri, A.K.; Kim, H.-J. Wearable super-high specific performance supercapacitors using a honeycomb with folded silk-like composite of NiCo2O4 nanoplates decorated with NiMoO4 honeycombs on nickel foam. Dalton Trans. 2018, 47, 15545–15554. [Google Scholar] [CrossRef]
  12. Kumar, Y.A.; Sambasivam, S.; Hira, S.A.; Zeb, K.; Uddin, W.; Krishna TN, V.; Kumar, K.D.; Obaidat, I.M.; Kim, H.J. Boosting the energy density of highly efficient flexible hybrid supercapacitors via selective integration of hierarchical nanostructured energy materials. Electrochim. Acta 2020, 364, 137318. [Google Scholar] [CrossRef]
  13. Kulurumotlakatla, D.K.; Yedluri, A.K.; Kim, H.J. Hierarchical NiCo2S4 nanostructure as highly efficient electrode material for high-performance supercapacitor applications. J. Energy Stor. 2020, 31, 101619. [Google Scholar] [CrossRef]
  14. Huang, Y.; Zhao, Y.; Bao, J.; Lian, J.; Cheng, M.; Li, H. Lawn-like FeCo2S4 hollow nanoneedle arrays on flexible carbon nanofiber film as binder-free electrodes for high-performance asymmetric pseudocapacitors. J. Alloys Compd. 2019, 772, 337–347. [Google Scholar] [CrossRef]
  15. Elshahawy, A.M.; Li, X.; Zhang, H.; Hu, Y.T.; Ho, K.H.; Guan, C.; Wang, J. Controllable MnCo2S4 nanostructures for high performance hybrid supercapacitors. J. Mater. Chem. A 2017, 5, 7494–7506. [Google Scholar] [CrossRef]
  16. Sun, W.; Du, Y.; Wu, G.; Gao, G.; Zhu, H.; Shen, J.; Zhang, K.; Cao, G. Constructing metallic zinc–cobalt sulfide hierarchical core–shell nanosheet arrays derived from 2D metal–organic-frameworks for flexible asymmetric supercapacitors with ultrahigh specific capacitance and performance. J. Mater. Chem. A 2019, 7, 7138–7150. [Google Scholar] [CrossRef]
  17. Yang, Y.; Huang, W.; Li, S.; Ci, L.; Si, P. Surfactant-dependent flower- and grass-like Zn0.76Co0.24S/Co3S4 for high-performance all-solid-state asymmetric supercapacitors. J. Mater. Chem. A 2018, 6, 22830–22839. [Google Scholar] [CrossRef]
  18. Li, H.; He, Y.; Dai, Y.; Ren, Y.; Gao, T.; Zhou, G. Bimetallic SnS2/NiS2@S-rGO nanocomposite with hierarchical flower-like architecture for superior high rate and ultra-stable half/full sodium-ion batteries. Chem. Eng. J. 2022, 427, 131784. [Google Scholar] [CrossRef]
  19. Li, Y.; Qian, J.; Zhang, M.; Wang, S.; Wang, Z.; Li, M.; Bai, Y.; An, Q.; Xu, H.; Wu, F.; et al. Co-Construction of Sulfur Vacancies and Heterojunctions in Tungsten Disulfide to Induce Fast Electronic/Ionic Diffusion Kinetics for Sodium-Ion Batteries. Adv. Mater. 2020, 32, 2005802. [Google Scholar] [CrossRef]
  20. Kumar, Y.A.; Kim, H.-J. Preparation and electrochemical performance of NiCo2O4@NiCo2O4 composite nanoplates for high performance supercapacitor applications. New J. Chem. 2018, 42, 19971–19978. [Google Scholar] [CrossRef]
  21. Niu, L.; Wu, T.; Chen, M.; Yang, L.; Yang, J.; Wang, Z.; Kornyshev, A.A.; Jiang, H.; Bi, S.; Feng, G. Conductive Metal-Organic Frameworks for Supercapacitors. Adv. Mater. 2022, e2200999. [Google Scholar] [CrossRef] [PubMed]
  22. Lee, Y.S.; Kumar, Y.K.; Sambasivam, S.; Hira, S.A.; Zeb, K.; Uddin, W.; Reddy, S.P.R.; Kumar, K.D.; Obaidat, I.M.; Kim, H.J.; et al. CoCu2O4 nanoflowers architecture as an electrode material for battery type supercapacitor with improved electrochemical performance. Nano-Struct. Nano-Objects 2020, 24, 100618. [Google Scholar] [CrossRef]
  23. Wan, H.; Jiang, J.; Yu, J.; Xu, K.; Miao, L.; Zhang, L.; Chen, H.; Ruan, Y. NiCo2S4 porous nanotubes synthesis via sacrificial templates: High-performance electrode materials of supercapacitors. CrystEngComm 2013, 15, 7649–7651. [Google Scholar] [CrossRef]
  24. Chen, X.; Chen, D.; Guao, X.; Wang, R.; Zhang, H. Facile Growth of Caterpillar-like NiCo2S4 Nanocrystal Arrays on Nickle Foam for High-Performance Supercapacitors. ACS Appl. Mater. Interfaces 2017, 9, 18774–18781. [Google Scholar] [CrossRef] [PubMed]
  25. Zhou, X.; Yue, X.; Dong, Y.; Zheng, Q.; Lin, D.; Du, X.; Qu, G. Enhancing electrochemical performance of electrode material via combining defect and heterojunction engineering for supercapacitors. J. Colloid Interface Sci. 2021, 599, 68–78. [Google Scholar] [CrossRef] [PubMed]
  26. Huang, C.; Gao, A.; Yi, F.; Wang, Y.; Shu, D.; Liang, Y.; Zhu, Z.; Ling, J.; Hao, J. Metal organic framework derived hollow NiS@C with S-vacancies to boost high-performance supercapacitors. Chem. Eng. J. 2021, 419, 129643. [Google Scholar] [CrossRef]
  27. Zhu, Y.; Wu, Z.; Jing, M.; Xuming, J.; Xuming, Y.; Song, W.; Ji, X. Mesoporous NiCo2S4 nanoparticles as high-performance electrode materials for supercapacitors. J. Power Sources 2015, 273, 584–590. [Google Scholar] [CrossRef]
  28. Xie, P.; Yuan, W.; Liu, X.; Peng, Y.; Yin, Y.; Li, Y.; Wu, Z. Multifunctional surfactants for synthesizing high-performance energy storage materials. Energy Storage Mater. 2021, 36, 56–76. [Google Scholar] [CrossRef]
  29. Lobato, B.; Suárez, L.; Guardia, L.; Centeno, T.A. Capacitance and surface of carbons in supercapacitors. Carbon 2017, 122, 434–445. [Google Scholar] [CrossRef] [Green Version]
  30. Zhang, X.; Wang, Y.; Yu, X.; Tu, J.; Ruan, D.; Qiao, Z.J. High-performance discarded separator-based activated carbon for the application of supercapacitors. Energy Storage 2021, 44, 103378. [Google Scholar] [CrossRef]
  31. Lin, L.; Liu, J.; Liu, T.; Hao, J.; Ji, K.; Sun, R.; Zeng, W.; Wang, Z. Growth-controlled NiCo2S4 nanosheet arrays with self-decorated nanoneedles for high-performance pseudocapacitors. J. Mater. Chem. A 2015, 3, 17652–17658. [Google Scholar] [CrossRef]
  32. Yedluri, A.K.; Kulurumotlakatla, D.K.; Sangaraju, S.; Obaidat, I.M.; Kim, H.J. Facile synthesis of novel and highly efficient CoNi2S4-Ni(OH)2 nanosheet arrays as pseudocapacitive-type electrode material for high-performance electrochemical supercapacitors. J. Energy Stor. 2020, 31, 101623. [Google Scholar] [CrossRef]
  33. Wang, H.; Ren, Q.; Brett, D.J.L.; He, G.; Wang, R.; Key, J.; Ji, S. Double-shelled tremella-like NiO@Co3O4@MnO2 as a high-performance cathode material for alkaline supercapacitors. J. Power Sources 2017, 343, 76–82. [Google Scholar] [CrossRef]
  34. Zeng, Z.; Wang, D.; Zhu, J.; Xiao, F.; Li, Y.; Zhu, X. NiCo2S4 nanoparticles//activated balsam pear pulp for asymmetric hybrid capacitors. CrystEngComm 2016, 18, 2363–2374. [Google Scholar] [CrossRef]
  35. Wang, C.; Wang, J.; Wu, W.; Qian, J.; Song, S.; Yue, Z.J. Feasibility of activated carbon derived from anaerobic digester residues for supercapacitors. Power Sources 2019, 412, 683–688. [Google Scholar] [CrossRef]
  36. Brousse, T.; Bélanger, D.; Long, J.W. To Be or Not to Be Pseudocapacitive? J. Electrochem. Soc. 2015, 162, A5185. [Google Scholar] [CrossRef] [Green Version]
  37. Gu, C.; Ge, X.; Wang, X.; Tu, J. Cation–anion double hydrolysis derived layered single metal hydroxide superstructures for boosted supercapacitive energy storage. J. Mater. Chem. A 2015, 3, 14228–14238. [Google Scholar] [CrossRef]
  38. Chhetri, K.; Tiwari, A.P.; Dahal, B.; Ojha, G.P.; Mukhiya, T.; Lee, M.; Kim, T.; Chae, S.; Muthurasu, A.; Kim, H.Y. A ZIF-8-derived nanoporous carbon nanocomposite wrapped with Co3O4-polyaniline as an efficient electrode material for an asymmetric supercapacitor. J. Electroanal. Chem. 2020, 856, 113670. [Google Scholar] [CrossRef]
  39. Chhetri, K.; Dahal, B.; Mukhiya, T.; Tiwari, A.P.; Muthurasu, A.; Kim, H.Y. Integrated hybrid of graphitic carbon-encapsulated CuxO on multilayered mesoporous carbon from copper MOFs and polyaniline for asymmetric supercapacitor and oxygen reduction reactions. Carbon 2021, 179, 89–99. [Google Scholar] [CrossRef]
  40. Yang, Y.; Wang, X.; Huang, F.; Zhao, J.; Wang, X. Ni(OH)2 nanodot-decorated Co–Co LDH/C hollow nanocages for a high performance supercapacitor. Dalton Trans. 2020, 49, 17310–17320. [Google Scholar] [CrossRef]
  41. Zhang, J.; Wang, Z.; Deng, T.; Zhang, W. Ni(OH)2 derived Ni-MOF supported on carbon nanowalls for supercapacitors. NanoTechnology 2021, 32, 195404. [Google Scholar] [CrossRef] [PubMed]
  42. Cai, D.; Wang, D.; Wang, C.; Liu, B.; Wang, L.; Liu, Y.; Li, Q.; Wang, T. Construction of desirable NiCo2S4 nanotube arrays on nickel foam substrate for pseudocapacitors with enhanced performance. Electrochim. Acta 2015, 151, 35–41. [Google Scholar] [CrossRef]
  43. Kumar, Y.A.; Kumar, K.D.; Kim, H.J. A novel electrode for supercapacitors: Efficient PVP-assisted synthesis of Ni3S2 nanostructures grown on Ni foam for energy storage. Dalton Trans. 2020, 49, 4050–4059. [Google Scholar] [CrossRef] [PubMed]
  44. Pu, J.; Cui, F.; Chu, S.; Wang, T.; Sheng, E.; Wang, Z. Preparation and Electrochemical Characterization of Hollow Hexagonal NiCo2S4 Nanoplates as Pseudocapacitor Materials. ACS Sustain. Chem. Eng. 2014, 2, 809–815. [Google Scholar] [CrossRef]
  45. Pu, J.; Wang, T.; Wang, H.; Tong, Y.; Lu, C.; Kong, W.; Wang, Z. Direct Growth of NiCo2S4 Nanotube Arrays on Nickel Foam as High-Performance Binder-Free Electrodes for Supercapacitors. ChemPlusChem 2014, 79, 577–583. [Google Scholar] [CrossRef]
  46. Shinde, S.K.; Jalak, M.B.; Ghodake, G.S.; Maile, N.C.; Kumbhar, V.S.; Lee, D.S.; Fulari, V.J.; Kim, D.Y. Chemically synthesized nanoflakes-like NiCo2S4 electrodes for high-performance supercapacitor application. Appl. Sur. Sience. 2019, 466, 822–829. [Google Scholar] [CrossRef]
  47. Yu, L.; Zhang, L.; Wu, H.B.; Lou, X.W. Formation of Ni(x)Co(3-x)S₄ hollow nanoprisms with enhanced pseudocapacitive properties. Angew. Chem. Int. Ed. 2014, 53, 3711–3714. [Google Scholar] [CrossRef]
  48. Xiao, J.; Wan, L.; Yang, S.; Xiao, F.; Wang, S. Design Hierarchical Electrodes with Highly Conductive NiCo2S4 Nanotube Arrays Grown on Carbon Fiber Paper for High-Performance Pseudocapacitors. Nano Lett. 2014, 14, 831–838. [Google Scholar] [CrossRef]
  49. Chen, H.; Jiang, J.; Zhang, L.; Wan, H.; Qi, T.; Xia, D. Highly conductive NiCo2S4 urchin-like nanostructures for high-rate pseudocapacitors. Nanoscale 2013, 5, 8879–8883. [Google Scholar] [CrossRef]
Molecules 27 07458 g001 550

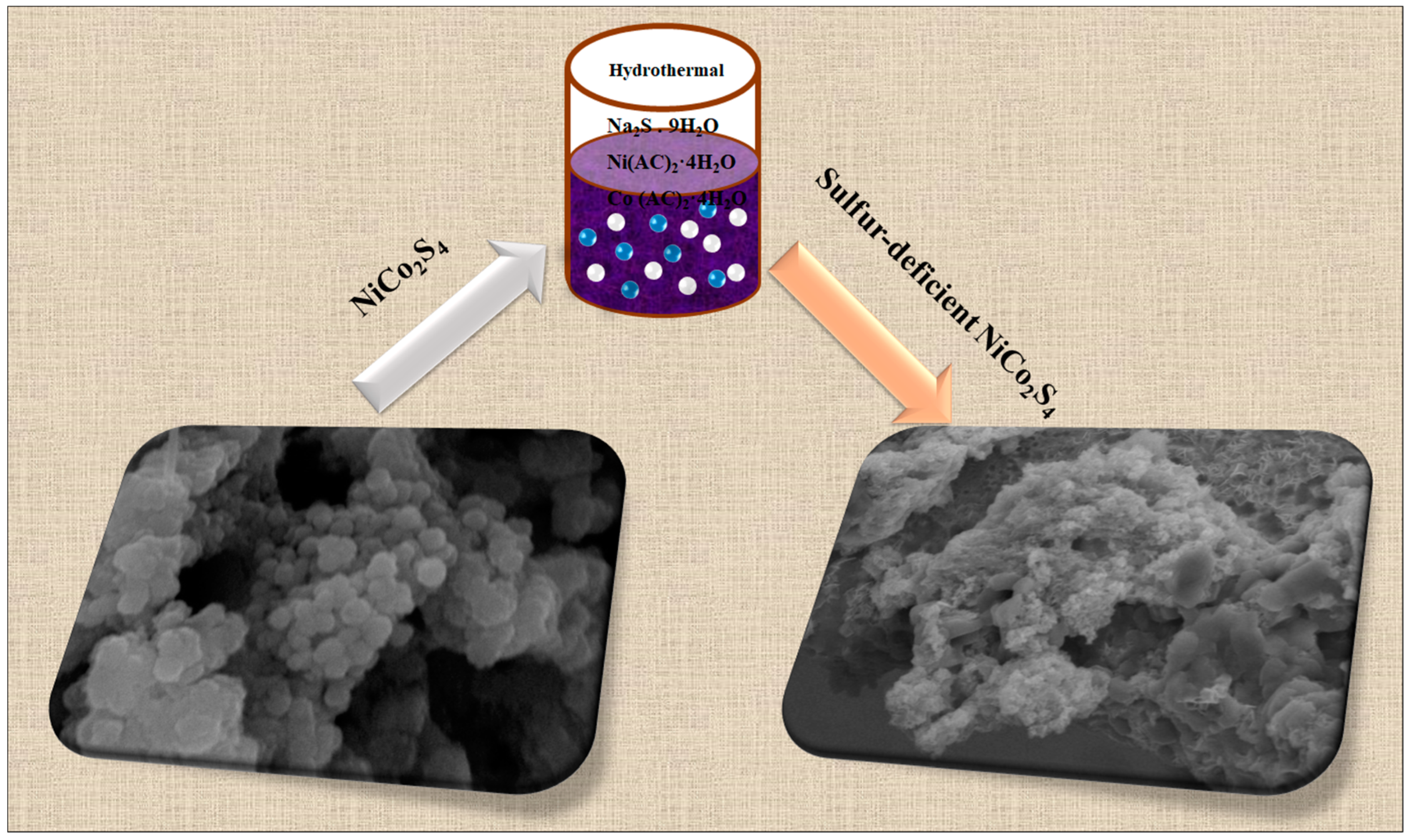

Figure 1. Schematic diagram illustrating the preparation of NiCo2S4 electrode and sulfur-deficient NiCo2S4 nanosheet composites on Ni foam substrate.
Figure 1. Schematic diagram illustrating the preparation of NiCo2S4 electrode and sulfur-deficient NiCo2S4 nanosheet composites on Ni foam substrate.
Molecules 27 07458 g001
Molecules 27 07458 g002 550
Figure 2. (a,b) SEM and FESEM images of pure NiCo2S4 nanoparticles electrode; and (c,d) SEM and FESEM images of the sulfur-deficient NiCo2S4 nanosheets composite.
Figure 2. (a,b) SEM and FESEM images of pure NiCo2S4 nanoparticles electrode; and (c,d) SEM and FESEM images of the sulfur-deficient NiCo2S4 nanosheets composite.
Molecules 27 07458 g002
Molecules 27 07458 g003 550
Figure 3. (a,b) TEM and HRTEM images, and (c–e) the elemental mapping images of sulfur-deficient NiCo2S4 nanosheets composite.
Figure 3. (a,b) TEM and HRTEM images, and (c–e) the elemental mapping images of sulfur-deficient NiCo2S4 nanosheets composite.
Molecules 27 07458 g003
Molecules 27 07458 g004 550
Figure 4. (a) XRD patterns of pure NiCo2S4 nanoparticles electrode and sulfur-deficient NiCo2S4 nanosheet composites. (b) XPS survey spectra, and (c–e) Ni 2p, Co 2p, and S 2p spectra for sulfur-deficient NiCo2S4 nanosheet composites.
Figure 4. (a) XRD patterns of pure NiCo2S4 nanoparticles electrode and sulfur-deficient NiCo2S4 nanosheet composites. (b) XPS survey spectra, and (c–e) Ni 2p, Co 2p, and S 2p spectra for sulfur-deficient NiCo2S4 nanosheet composites.
Molecules 27 07458 g004
Molecules 27 07458 g005 550

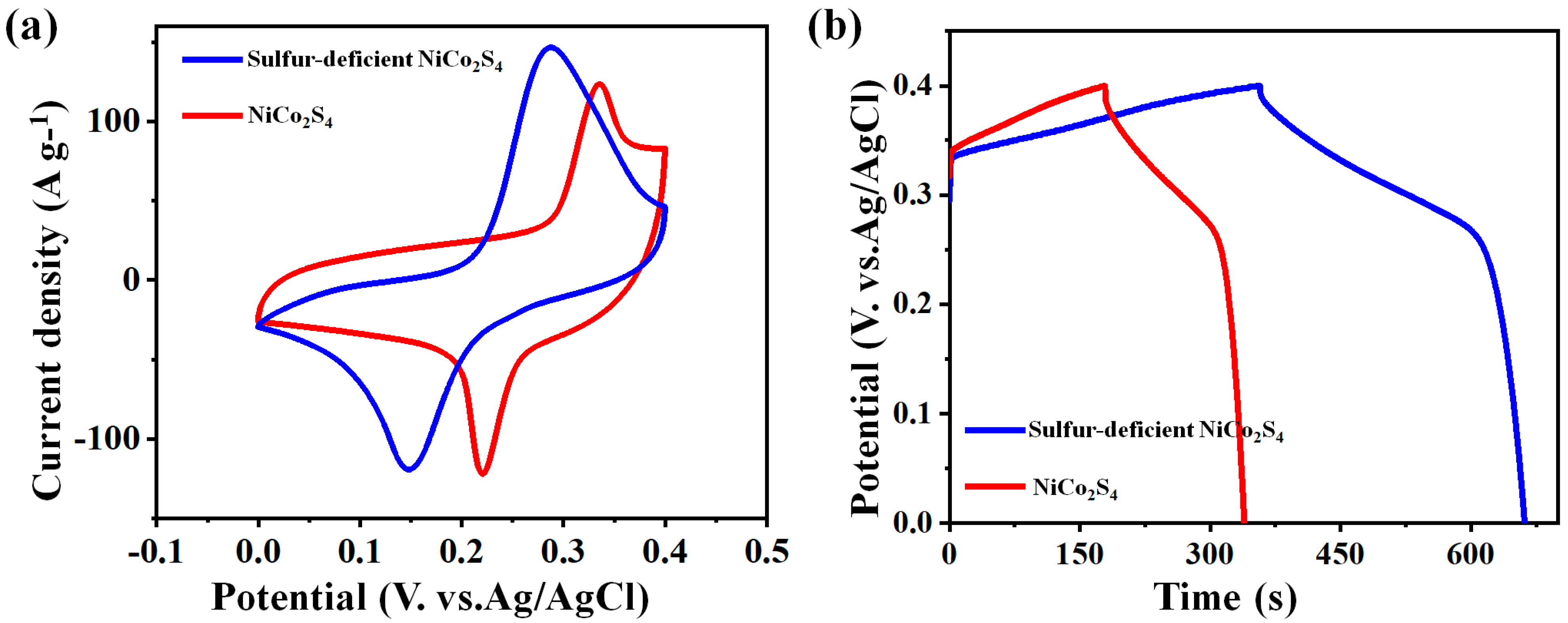

Figure 5. (a) CV curves and (b) GCD curves of pure NiCo2S4 nanoparticles electrode and sulfur-deficient NiCo2S4 nanosheet composites.
Figure 5. (a) CV curves and (b) GCD curves of pure NiCo2S4 nanoparticles electrode and sulfur-deficient NiCo2S4 nanosheet composites.
Molecules 27 07458 g005
Molecules 27 07458 g006 550

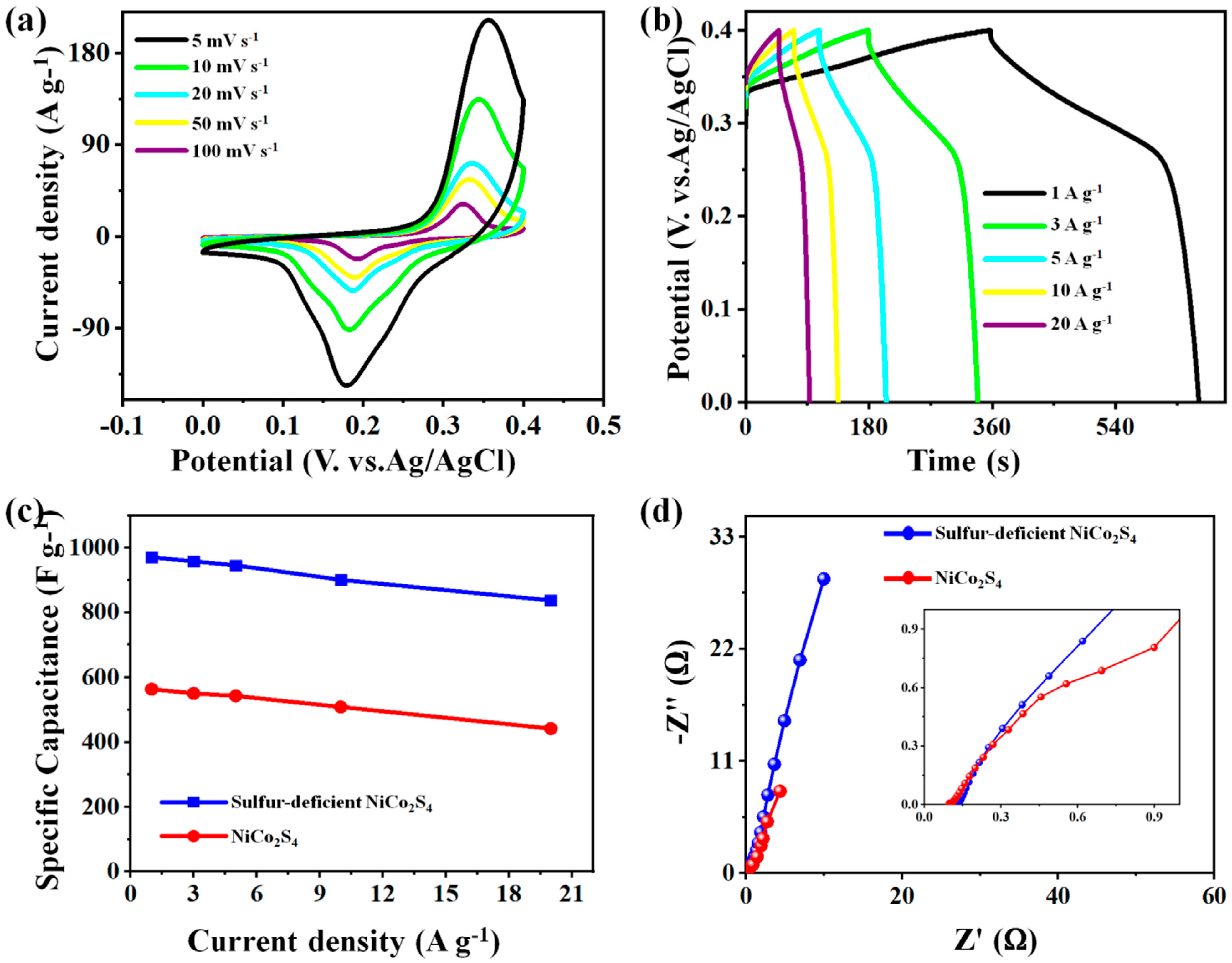

Figure 6. (a) CV curves and (b) GCD curves of the sulfur-deficient NiCo2S4 nanosheets composite electrode; (c) specific capacitances and (d) EIS curves of the pure NiCo2S4 nanoparticles electrode, and sulfur-deficient NiCo2S4 nanosheet composite electrodes.
Figure 6. (a) CV curves and (b) GCD curves of the sulfur-deficient NiCo2S4 nanosheets composite electrode; (c) specific capacitances and (d) EIS curves of the pure NiCo2S4 nanoparticles electrode, and sulfur-deficient NiCo2S4 nanosheet composite electrodes.
Molecules 27 07458 g006
Molecules 27 07458 g007 550

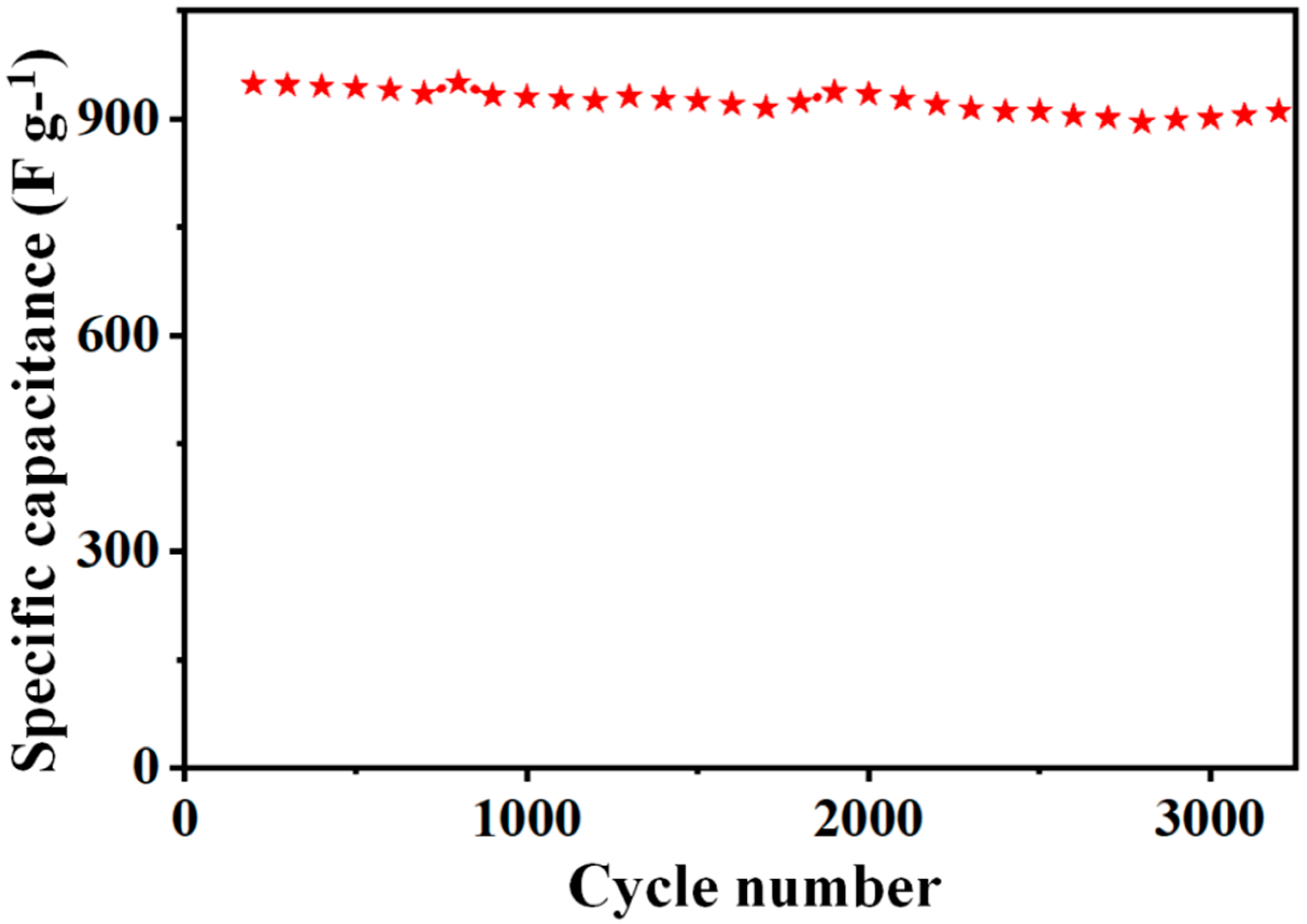

Figure 7. Cycling stability of the sulfur-deficient NiCo2S4 nanosheet composites over 3500 long cycles at a constant current density of 3 A g−1.
Figure 7. Cycling stability of the sulfur-deficient NiCo2S4 nanosheet composites over 3500 long cycles at a constant current density of 3 A g−1.
Molecules 27 07458 g007
Table
Table 1. Comparison of the specific capacitance of the sulfur-deficient NiCo2S4 nanosheets composites electrode prepared in the present work and other reports in the literature.
Table 1. Comparison of the specific capacitance of the sulfur-deficient NiCo2S4 nanosheets composites electrode prepared in the present work and other reports in the literature.
ElectrodePreparation MethodCapacitance Current DensityRef.
NiCo2S4 hollow hexagonal nanoplatesSacrificial template method437 F g−11 A g−1[44]
NiCo2S4 nanotube arraysHydrothermal method738 F g−14 A g−1[45]
NiCo2S4 nanoflakesIonic layer adsorption1076 F g−1 1 A g−1[46]
NiCo2S4 hollow nanoprismsSacrificial template method895.2 F g−11 A g−1[47]
NiCo2S4 nanotube arraysElectrodeposition 2.86 F cm−2 4 mA cm−2[48]
NiCo2S4 nanostructurePrecursor transformation method1050 F g−1 2 A g−1[49]
Sulfur-deficient NiCo2S4 nanosheetsHydrothermal method 971 F g−12 A g−1This Work
