Article

Trichoderma versus Fusarium—Inhibition of Pathogen Growth and Mycotoxin Biosynthesis

by
Marta Modrzewska
1,*,
Lidia Błaszczyk
2,
Łukasz Stępień
3,
Monika Urbaniak
3,
Agnieszka Waśkiewicz
4,
Tomoya Yoshinari
5 and
Marcin Bryła
1
1
Department of Food Safety and Chemical Analysis, Waclaw Dabrowski Institute of Agricultural and Food Biotechnology—State Research Institute, Rakowiecka 36, 02-532 Warsaw, Poland
2
Plant Microbiomics Team, Institute of Plant Genetics, Polish Academy of Sciences, 60-479 Poznan, Poland
3
Plant-Pathogen Interaction Team, Institute of Plant Genetics, Polish Academy of Sciences, 60-479 Poznan, Poland
4
Department of Chemistry, Poznan University of Life Sciences, Wojska Polskiego 75, 60-625 Poznan, Poland
5
Division of Microbiology, National Institute of Health Sciences, 3-25-26 Tonomachi, Kawasaki-ku, Kawasaki-shi 210-9501, Kanagawa, Japan
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(23), 8146; https://doi.org/10.3390/molecules27238146
Submission received: 10 October 2022 / Revised: 18 November 2022 / Accepted: 20 November 2022 / Published: 23 November 2022
(This article belongs to the Special Issue Microbial Natural Products 2022)
Browse Figures
Review Reports Versions Notes

Abstract

:
This study evaluated the ability of selected strains of Trichoderma viride, T. viridescens, and T. atroviride to inhibit mycelium growth and the biosynthesis of mycotoxins deoxynivalenol (DON), nivalenol (NIV), zearalenone (ZEN), α-(α-ZOL) and β-zearalenol (β-ZOL) by selected strains of Fusarium culmorum and F. cerealis. For this purpose, an in vitro experiment was carried out on solid substrates (PDA and rice). After 5 days of co-culture, it was found that all Trichoderma strains used in the experiment significantly inhibited the growth of Fusarium mycelium. Qualitative assessment of pathogen–antagonist interactions showed that Trichoderma colonized 75% to 100% of the medium surface (depending on the species and strain of the antagonist and the pathogen) and was also able to grow over the mycelium of the pathogen and sporulate. The rate of inhibition of Fusarium mycelium growth by Trichoderma ranged from approximately 24% to 66%. When Fusarium and Trichoderma were co-cultured on rice, Trichoderma strains were found to inhibit DON biosynthesis by about 73% to 98%, NIV by about 87% to 100%, and ZEN by about 12% to 100%, depending on the pathogen and antagonist strain. A glycosylated form of DON was detected in the co-culture of F. culmorum and Trichoderma, whereas it was absent in cultures of the pathogen alone, thus suggesting that Trichoderma is able to glycosylate DON. The results also suggest that a strain of T. viride is able to convert ZEN into its hydroxylated derivative, β-ZOL.

1. Introduction

It is estimated that plant diseases contribute to 15% of crop losses worldwide, and about 80% of these losses are caused by pathogenic fungi [1,2]. In recent years, fungal diseases of cereal plants have become a serious threat as a consequence of climate change [3]. Fusarium fungi are among the most important pathogens contributing to crop yield loss and reduced grain quality [4]. The greatest losses in cultivated cereal crops are associated with fusarium head blight (FHB) or fusarium ear rot (FER) in maize, which are mainly caused by F. graminearum and F. culmorum [5]. These fungi are common in Europe, North America, and Asia. It is thought that the temperatures and water activity (aw) optimal for Fusarium growth are 20–30 °C and 0.980–0.995, respectively. The optimal conditions for F. graminearum growth are 25–30 °C and aw = 0.98, while for F. culmorum 20–25 °C and aw > 0.98 [6]. Infection of cereal plants by Fusarium is often associated with the biosynthesis of mycotoxins. The most common mycotoxins include trichothecenes (e.g., deoxynivalenol (DON), nivalenol (NIV), and zearalenone (ZEN)) [7,8,9]. DON and NIV exhibit immunotoxic, cytotoxic, and genotoxic effects, and NIV additionally exhibits hepatotoxic effects [10,11,12]. ZEN, on the other hand, can disrupt the function of the endocrine system and contribute to genital lesions due to oestrogen receptor binding, posing a risk to human and animal health [13].
In recent years, the food laws related to the use of pesticides in plant protection has become extremely restrictive in the European Union. Farmers are obliged to produce their crops according to integrated procedures, including biological methods in plant protection [14,15]. Additionally, in the context of current climate change, the migration of pathogens and pests towards the poles is considered a challenge [16]. This can result in changes in pathogen populations responsible for cereal plant infections. Residues of plant protection products in agricultural raw materials may be dangerous for human health also when present in low, permitted amounts. In view of these challenges, alternative, environmentally friendly measures of plant protection against cereal plant pathogens are needed [17]. Recently, the potential of microorganisms exhibiting antagonistic properties against various pathogens has received increasing attention. Plant protection by means of microorganisms can offer many advantages as these not only compete with pathogens, but also contribute to improved plant performance through their biostimulatory action [18]. Of particular interest among the vast group of potential biocontrol microorganisms, are Trichoderma fungi. These are found in all climate zones, residing in a variety of environments, most commonly in the soil [19]. As reported by Zehra et al. [20], the optimal conditions for the growth and spore production by Trichoderma fungi are temperatures ranging from 25–40 °C and a water activity as high as 0.98 [6,21]. Many Trichoderma species have been used as agents to improve the efficiency of nutrient use by crop plants [22]. Trichoderma spp. display diverse biostimulatory activities and antagonistic properties. Antagonistic properties of Trichoderma fungi include the ability to compete for space and nutrients, mycoparasitism, and antibiosis [23].
Recent studies have proven that Trichoderma fungi are not only capable of displaying antagonistic properties towards other pathogenic fungi but can also inhibit the biosynthesis of mycotoxins [24]. Furthermore, enzymes secreted by these fungi may promote mycotoxin degradation or biotransformation [25]. Mycotoxin modifications involving fungal enzymes can lead to the formation of new compounds with varying in toxicity compared to their basic analogues [26]. Biocontrol measures are currently underexplored in the context of limiting Fusarium growth in cereal crops [27]. Therefore, it is necessary to pre-select different strains of individual Trichoderma spp. to assess their antagonistic potential. This paper presents an assessment of the antagonistic capacity of selected Trichoderma strains against F. culmorum and F. cerealis strains, and of their ability to inhibit the biosynthesis of Fusarium-produced toxins.

2. Results

2.1. Evaluation of the Antagonistic Potential of Trichoderma Fungi

Antagonistic tests showed that all Trichoderma strains inhibited the growth of the tested F. culmorum and F. cerealis strains (Figure 1 and Figure 2). After 5 days of incubation, the pathogen inhibition rate ranged between 24% and 66%, depending on the pathogen and the Trichoderma strain (Table 1).
Qualitative assessment of the interactions between colonies after 5 days of co-cultures of Trichoderma spp. and Fusarium spp. are presented in Table 2. All the studied Trichoderma strains outgrew and sporulated on the mycelium of F. culmorum KF191. T. atroviride AN523 also overgrew the mycelium of F. culmorum KF846. This strain was the most effective antagonist against Fusarium spp. In the qualitative assessment it received the highest average score of 7 in the Mańka’s scale.

2.2. The Effect of Trichoderma on Mycotoxin Biosynthesis by Fusarium spp.

The ability of Trichoderma to inhibit the biosynthesis of Fusarium mycotoxins was assessed. The presence of DON, 3- + 15-acetyl-deoxynivalenol (3- + 15-AcDON), deoxynivalenol-3-glucoside (DON-3G), NIV, NIV-3G, fusarenone X (FUS-X), ZEN, zearalenone-14-sulphate (ZEN-14S), zearalenone-14-glucoside (ZEN-14G), α-zearalenol (α-ZOL) and β-zearalenol (β-ZOL) was analysed. These mycotoxins were present in the post-culture media (Table 3). The presence of ZEN-14G or NIV-3G (>LOQ) was not confirmed in any of the tested samples.
F. culmorum KF191 strain produced 3- + 15-AcDON, ZEN, ZEN-14S, α-ZOL, and β-ZOL in the control culture at concentrations of 23.95, 47.36, 3.608, 0.50, and 1.28 mg/kg, respectively. In all bi-culture combinations, Trichoderma strains significantly reduced the levels of the tested toxins, which ranged from below LOQ to 2.85 mg/kg (for 3- + 15-AcDON), from 0.56 to 28.21 mg/kg (for ZEN), from 1.78 to 90.78 mg/kg (for ZEN-14S), from below LOQ to 0.18 mg/kg (for α-ZOL) and from 0.07 to 1.05 mg/kg (for β-ZOL).
F. culmorum KF350 strain was able to synthesize NIV, FUSX, ZEN, ZEN-14S, α-ZOL, and β-ZOL at the levels of 15.83, 86.86, 12.20, 641.68, and 0.28 0.62 mg/kg, respectively. Only the bi-culture combination KF350 vs. AN355 had a significantly higher β-ZOL content (i.e., 1.09 mg/kg), while the other combinations exhibited a significantly lower content of this compound (i.e., 0.21–0.74 mg/kg). For other toxins their levels in the bi-cultures were significantly lower than in the control medium, ranging from below LOQ to 0.31 mg/kg (for NIV), 0.13 to 5.18 mg/kg (for FUS-X), 0.25 to 10.75 mg/kg for (ZEN), 17.31 to 57.61 mg/kg (for ZEN-14S) and from below LOQ to 0.22 mg/kg (for α-ZOL).
DON, 3- + 15-AcDON, ZEN, ZEN-14S α-ZOL, and β-ZOL were identified in the control F. culmorum KF846 strain at average levels of 82.53, 111.09, 164.29, 2714.08, 2.17 and 2.77 mg/kg, respectively. Additionally, in the KF846 vs. AN690 combination a higher β-ZOL content (4.60 mg/kg) was observed than in the control KF846 strain. The presence of DON-3G was observed in the co-culture medium, whereas it was not found in the control medium. DON-3G content in these media ranged from below LOQ to 2.43 mg/kg, depending on the combination For other toxins, the contents in the bi-culture media were significantly lower than control sample (F. culmorum KF846) (Table 3).
The KF583 F. cerealis strain synthesized NIV, FUS-X, ZEN, ZEN-14S, and β-ZOL in control culture, at the levels of 24.07, 119.70, 238.63, 9337, and 6.63 mg/kg, respectively. The levels of NIV, FUS-X, ZEN, ZEN-14S, and β-ZOL were also lower in media from co-culture than in the control sample (F. cerealis KF583), and ranged from below LOQ to 0.84, from below LOQ to 11.98, from 0.31 to 15.86, from 0.31 to 2.20, from 0.67 to 9.70 and from below LOQ to 0.83 mg/kg, respectively.

3. Discussion

3.1. Antagonistic Properties

Trichoderma spp. exhibit antagonistic properties towards other fungi and microorganisms, mostly through competition, antibiosis, and mycoparasitism [28]. Trichoderma fungi are among the most aggressive competitors of Fusarium, and mycoparasitism is their key biocontrol mechanism [29,30]. In our experiment it was shown that all strains of T. viride, T. viridescens, and T. atroviride tested were capable of inhibiting the growth of F. culmorum and F. cerealis with an average inhibition rate of 33% to 54%, depending on the Trichoderma strain. So far, published research has shown the potential of Trichoderma fungi to limit the growth of pathogenic Fusarium species and the results were consistent with our findings. Błaszczyk et al. [31] observed that T. atroviride, T. citrinoviride, T. cremeum, T. hamatum, T. harzianum, T. koningiopsis, T. longibrachiatum, T. longipile, T. viride, and T. viridescens inhibited the mycelium growth of F. culmorum in vitro and the inhibition rate ranged from 27% to 80%. On the other hand, Larran et al. [32] showed that T. harzianum in a co-culture with F. graminearum was able to inhibit mycelium growth of the pathogen in vitro by 46%. Relatively high (up to 81%) inhibition of F. graminearum growth by T. citrinoviride, T. harzianum, and T. asperellum was obtained in vitro by Xue et al. [33]. The discrepancies between ours and published results were probably caused by differences in experimental models used. Similarly, Veenstra et al. [34] observed a 52% growth inhibition of F. verticillioides by T. asperellum after simultaneous strain inoculation on a PDA medium, probably caused by competition for resources, as T. asperellum grew faster than F. verticillioides. As reported by Perincherry et al. [35], the faster growth of Trichoderma species may be due to competition for nutrients. Metabolites putatively produced by Trichoderma can also be a limiting factor for the growth of pathogenic Fusarium species. Mironenka et al. [36] found that some metabolites biosynthesized by T. harzianum (i.e., 14-amino acid peptaibols, T22-azophilone and harzianic acid) caused severe oxidative stress and inhibited the growth of F. culmorum.
In our study all Trichoderma strains studied outgrew and sporulated on the F. culmorum KF191 mycelium and T. atroviride AN523 also outgrew the F. culmorum KF846 mycelium. Sallam et al. [37] found that T. atroviride and T. longibrachiatum wrap themselves around the hyphae of the pathogen to inhibit the growth of F. oxysporum and produced substances which may play an important role in the lysis of cell wall components of the pathogen. The ability of Trichoderma to wrap around or penetrate the mycelium of a pathogen was confirmed by Halifu et al. [38] in a co-culture of T. virens and R. solani. Matarese et al. [39] also highlighted mycoparasitism, mediated by the production of cell wall-degrading enzymes (CWDEs) as a key biocontrol mechanism for Trichoderma strains.

3.2. Biosynthesis Inhibition of Fusarium Toxins by Trichoderma Species

The studied Trichoderma strains inhibited mycotoxin biosynthesis by Fusarium fungi (DON, 3- + 15-AcDON, NIV, FUS-X, ZEN, α-ZOL, β-ZOL, and ZEN-14S) by 12% to 100% relative to the control samples. This inhibition was probably caused by a reduction in the size of pathogenic mycelium and/or the interference of Fusarium and Trichoderma metabolic pathways. Similar studies were carried out [31,36,40] and very similar results were obtained by Tian et al. [40], who observed in bi-cultures of F. graminearum and various Trichoderma strains that ZEN biosynthesis was inhibited by 9% to 97%, α-ZOL by 31% to 87% and β-ZOL by 34% to 89%. In our experiment, the biosynthesis of mycotoxins tested was inhibited by 12% to 99%, 23% to 100%, and 13% to 100%, respectively. Mironenka et al. [36] also observed that the presence of T. harzianum in co-culture with F. culmorum resulted in the inhibition of ZEN biosynthesis by more than 90%. Our findings were consistent with previous reports of Błaszczyk et al. [31], who showed that the inhibition of F. culmorum and F. cerealis mycotoxin biosynthesis by T. atroviride and T. viride was correlated with the inhibition of pathogen mycelium growth. Studied Trichoderma strains inhibited DON biosynthesis at an average level of 75% to 92%, 72% to 96% for NIV, 21% to 99% for ZEN, and 77% to 100% for 3-AcDON.
Lower mycotoxin levels in the co-cultured media compared to Fusarium monocultures seem to be a natural consequence of mycelium inhibition of the pathogen. However, an almost two-fold increase of β-ZOL (1.1 and 4.6 mg/kg) was observed in F. culmorum KF350 and F. culmorum KF846 samples co-cultured with T. viride AN355. The above observation may be related to the initiation of unspecified stress factors in Fusarium by the antagonist. The available literature reports little information indicating that the presence of a competitor (Trichoderma spp.) stimulates pathogen mycotoxin biosynthesis. However, as reported by Voigt et al. [41], external stresses, such as competing microorganisms can activate defence mechanisms in pathogenic Fusarium species and thus contribute to increased pigments (aurofusarin and rubrofusarin), microsporins and mycotoxin (DON, ZEN) biosynthesis. Mironenka et al. [42] suggested that metabolites biosynthesized by Trichoderma caused severe oxidative stress and affected ZEN production. The reason for the higher β-ZOL level in the co-culture medium compared to the monocultures can also be explained by the ability of the Trichoderma fungi to biotransform ZEN to β-ZOL. ZEN is a toxin that is always present together with β-ZOL at significant concentrations. As confirmed by Tian et al. [40], T. atroviride in a ZEN-containing medium (2 µg/mL) was marginally able to biotransform the toxin to the α-ZOL and β-ZOL forms [40]. In our results, ZEN-14S was observed in monocultures with Fusarium at very high levels (641.7–9.337 mg/kg) compared to ZEN levels (12.2–238.6 mg/kg). We believe that the studied Fusarium strains may be able to activate defence mechanisms against the toxic effects of accumulated ZEN. One of these mechanisms may involve the ZEN sulphation reaction as our previous studies suggest [43]. Tian et al. [40] believed that ZEN sulphation is one of the detoxification processes of this compound by Trichoderma. These conclusions were observed after cultivating cultures of T. harzianum, T. koningii, T. longibrachiatum, T. atroviride, T. asperellum, and T. virens on a ZEN-containing medium. Although the authors demonstrated the presence of ZEN-14S in the substrate, no quantitative analysis of this substance was performed. In our study lower levels of both ZEN-14S and ZEN were observed in co-cultures, with ZEN-14S prevailing. The hypothesis that Trichoderma fungi is able to biotransform ZEN to ZEN-14S remains speculative, as the presence of ZEN-14S in the substrates may be the result of the combined activities of pathogen and antagonist.
A very interesting observation was made when F. culmorum KF846 was co-cultured with T. viride AN355, T. viride AN690, T. viridescens AN508, T. viridescens AN609, T. atroviride AN705 and T. atroviride AN153 with DON-3G being detected. This compound was not observed in the pathogen monoculture, which could indicate the ability of Trichoderma to biotransform DON via glycosylation. Thus far, very little is known about the capacity of Trichoderma fungi to glycosylate mycotoxins [40,44]. Tian et al. [44] showed that T. harzianum, T. atroviride, and T. asperellum strains contributed to the inhibition of DON biosynthesis and its biotransformation to DON-3G in contact with F. graminearum. Although the ability of the Trichoderma fungi to transform DON to DON-3G was confirmed in our study, this ability was not demonstrated in the case of NIV. Presumably, this could be caused by the lower levels of NIV (from below the LOQ level to 2.01 mg/kg) in the co-culture media compared to the levels of DON (from below the LOQ level to 22.34 mg/kg). While the ability of Trichoderma fungi to glycosylate DON was proven, it was not observed for ZEN. ZEN-14G (above the LOQ level) was not observed in control media nor in media with co-cultured strains. Our results were consistent with the observations of Tian et al. [40], who also did not find ZEN-14G in the media. This particular aspect of the study will be researched further. The findings and their implications should be discussed in the broadest context possible. Future research directions may also be highlighted.

4. Materials and Methods

4.1. Chemicals and Reagents

Solutions of analytical standards DON, DON-3G, 3-acetyl-deoxynivalenol (3-AcDON), 15-acetyl-deoxynivalenol (15-AcDON), NIV, FUSX, ZEN, α-ZOL, β -ZOL were purchased from Romer Labs (Tulln, Austria) and ZEN-14S and ZEN-14G were purchased from Aokin (Berlin, Germany). The certified standard of NIV-3G (110 µg/mL) was isolated from wheat according to the procedure described by Yoshinari et al. [45]. Methanol and water of LC-MS purity were purchased from Witko (Lodz, Poland), formic acid 98–100% (ultrapure) and ammonium formate 97% (extra pure) were purchased from Chem-Lab (Zedelgem, Belgium). Potato-dextrose agar (PDA) was provided by Oxoid (Basingstoke, UK).

4.2. Fungal Isolates

Four strains of Fusarium spp. (i.e., F. culmorum KF191, F. culmorum KF350, F. culmorum KF846, F. cerealis KF583) and eight strains of Trichoderma spp. (i.e., T. viridescens AN508, T. viridescens AN609, T. viride AN355, T. viride AN690, T. atroviride AN153, T. atroviride AN215, T. atroviride AN523 and T. atroviride AN705) were used in the studies. All the species were obtained from the culture collection of the Institute of Plant Genetics of the Polish Academy of Sciences in Poznań, Poland.

4.3. Dual Culture Bioassay

Experiments were designed to evaluate the inhibition of pathogenic fungi growth and conducted in bi-cultures, on an agar medium (potato dextrose agar, PDA) according to the method described by Błaszczyk et al. [31]. The fungal culture was grown on 8.5 cm diameter Petri dishes. The fungi were inoculated simultaneously, in a combination: antagonistic strain with pathogen strain on the opposite sides of the plate at a distance of approximately 8 cm between the strains. Single cultures on PDA plates were the control samples. Plates were incubated at 25 ± 2 °C, 12 h/12 h night/day cycle. The cultures were grown for 5 days. The fungal growth was measured with a ruler, every 24 h, up to the day of contact between the mycelium of the pathogen and the antagonist. The experiment was conducted in independent triplicates.
After 5 days of co-incubation, a qualitative assessment of pathogen–antagonist interactions was carried out using the scale proposed by Mańka [46]. The scale shows the degree of domination of one colony by another and takes the following values: 0 (the antagonist mycelium has outgrown 50% of the plate surface area), +4 (the antagonist mycelium has outgrown 75% of the plate surface area), +6 (the antagonist mycelium has outgrown 85% of the plate surface area), +8 (the antagonist mycelium has outgrown 95% of the plate surface area and/or the pathogen mycelium).
The inhibitory effect of Trichoderma isolates on pathogen growth was assessed by estimating the percentage (%) reduction in pathogen growth in the presence of the antagonist, according to the following formula: (Rc − R)/Rc × 100, where Rc is the estimates of radial growth of a pathogen in the control sample and R is the estimates of radial growth of a pathogen in the bi-culture [31].

4.4. Determination of the Mycotoxin Biosynthesis Inhibition

The fungi were inoculated simultaneously in combination: Trichoderma and pathogen strains on rice grains. Fungal strains growing in single cultures comprised the control samples. 15 g of long-grain white rice and 4 mL of sterile water were added to an Erlenmeyer flask, left overnight and sterilized in an autoclave the next day, at 121 °C for 30 min. The rice was inoculated with 3 cm2 of 7-day-old mycelium grown on a PDA medium. The average humidity of the culture was kept at approximately 30% and maintained for 14 days. After incubation, the cultures were dried at room temperature and ground using a knife-type mill (Grindomix GM 200, Retsch, Haan, Germany). The ground samples of inoculated rice were stored under freezing conditions (below −30 °C) until mycotoxin analysis.

4.5. Sample Preparation

The samples were prepared according to the modified method described by Uwineza et al. [47]. Ground 0.5 g samples of inoculated rice were extracted with 20 mL of an acetonitrile mixture: 0.01% formic acid (84:16, v/v) using a homogenizer (Unidrive X 1000, Cat Scientific, Paso Robles, CA, USA) at 5000 rpm for 2 min. The mixture was then centrifuged for 10 min (MPW-380R, MPW Med. Instruments, Warsaw, Poland) at 10,000 rpm. The extract was then filtered through a 0.45 µm nylon syringe filter. 2 mL of the filtrate was transferred to a round-bottom flask and evaporated in a vacuum evaporator (Heidolph Instruments, Schwabach, Germany). The residue was dissolved in 0.6 mL of methanol and 0.4 mL of 0.25% formic acid. After each solvent addition, the samples were subjected to sonication and the total volume was filtered through a nylon syringe filter (0.22 µm). If necessary (samples exceeding the analytical method range), samples were diluted with a solution mixture of the same solvent composition.

4.6. UHPLC-HESI-MS/MS

Mycotoxins were analysed using a liquid chromatography-Q-Exactive Orbitrap mass spectrometry setup operating with a heated electrospray interface (UHPLC-HESI-MS/MS) (Thermo Fisher Scientific, Waltham, MA, USA). The analytes were separated on a C18 Cortecs chromatography column (100 mm × 2.1 mm × 1.6 μm, Waters) with a built-in filter placed upstream of the chromatography column. The mobile phase consisted of water and methanol in ratios of 90:10 (phase A) and 10:90 (phase B), respectively. Both phases contained 5 mM ammonium formate and 0.2% formic acid. The following flow gradient was used: from 0 to 2 min, 100% phase A; from 2 to 3 min, 75% phase A; from 3 to 6 min, 40% phase A; from 6 to 26 min, 0% phase A; from 26–30 min, 100% phase A. The flow rate was 300 µL/min, and the volume of the injected sample was −2 µL. The 70,000-resolution mass spectrometer operated in both positive and negative ionisation modes, with a scan range of 100 to 1000 m/z. The parameters of the ion source were as follows: spraying voltage 3.2 kV (for positive polarisation) and 2.2 kV (for negative polarisation), temperature 350 °C, shielding gas pressure 40 IU, auxiliary gas pressure 10 IU, capillary temperature 250 °C. Characteristic parameters for the identification of the tested analytes are given in Table S1.

4.7. Statistical Analysis

Statistical analysis of the results was performed using Statistica 13 software (Statsoft, Carlsbad, CA, USA). One-way variance analysis (one-way ANOVA) was used to determine the significance of pathogen growth inhibition by Trichoderma and the degree of toxin biosynthesis inhibition. The significance of differences was determined at a significance level of α = 0.01. The homogeneity of the groups was determined using the Tukey HSD test.

4.8. Method Validation

In the analytical method of mycotoxin determination, the analytical range, the coefficient of determination (R2) for the calibration curve, the limit of detection (LOD) and the limit of quantification (LOQ) were determined for each analyte (Table S2). The limits of detection and quantification were taken as analyte concentrations at which the signal-to-noise (S/N) ratio was equal to 3 and 10, respectively. Recovery (R%) and repeatability (expressed as relative standard deviation RSD%) were determined for each tested analyte. As the study analysed samples of post-culture media in which extreme levels of mycotoxins were found, it is virtually impossible to determine the recovery and precision parameters for such a wide range of analyte concentrations and levels. Therefore, amplifications in a limited range of mycotoxin concentrations were carried out on diluted extracts of the rice medium. The amplification levels and the results for recovery and repeatability in the method are shown in Table S3. The matrix effect was verified by an analysis based on the comparison of the slope coefficients of the calibration curves prepared by analysing the standards in the solvent and in the matrix extracted from the monoculture medium containing the T. atroviride AN705 isolate. Recovery values for the analysed mycotoxins ranged from 70% to 112%, depending on the analyte and the level of amplification, with a relative standard deviation of 2.0% to 21.7%.

5. Conclusions

The results provided new information related to the ability of Trichoderma to modify Fusarium mycotoxins. The Trichoderma fungi not only showed the ability to inhibit pathogen growth and reduce toxin biosynthesis by Fusarium but also contributed to the glycosylation of DON and the biotransformation of ZEN to its hydroxylated derivative β-ZOL. We have also indicated that Trichoderma fungi may be a potential natural fungicide for Fusarium pathogens; however, their efficacy may vary between species and strains, and it is very likely to be different under in vivo conditions, as many environmental and agrotechnical factors may affect the antagonism efficacy. Therefore, further research in this area is required.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27238146/s1, Table S1: Ions mass and retention time for individual mycotoxins; Table S2: Correlation coefficient, analytical ranges, limit of detection (LOD), and limit of quantification (LOQ); Table S3: Recovery rate (R%) and method repeatability (expressed as relative standard deviation, RSD%) for individual analytes at four different fortification levels.

Author Contributions

Conceptualization, M.M. and M.B.; methodology, M.M., M.B., L.B. and Ł.S.; validation, M.M. and M.B.; formal analysis, M.M., M.B., L.B., T.Y. and Ł.S.; investigation, M.M., M.U. and L.B.; resources, Ł.S., L.B., T.Y. and M.B.; data curation, M.M. and L.B.; writing—original draft preparation, M.M.; writing—review and editing, M.M., M.B., Ł.S. and A.W.; visualization, M.M.; supervision, M.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Science Centre Poland, grant number 2019/33/B/NZ9/02743.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon reasonable request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Chatterjee, S.; Kuang, Y.; Splivallo, R.; Chatterjee, P.; Karlovsky, P. Interactions among filamentous fungi Aspergillus niger, Fusarium verticillioides and Clonostachys rosea: Fungal biomass, diversity of secreted metabolites and fumonisin production. BMC Microbiol. 2016, 16, 83. [Google Scholar] [CrossRef] [Green Version]
  2. Parveen, G.; Urooj, F.; Moin, S.; Farhat, H.; Fahim, M.F.; Ehteshamul-Haque, S. Estimation of losses caused by root rotting fungi and root knot nematodes infecting some important crops in lower sindh and hub, balochistan of Pakistan. Pak. J. Bot. 2020, 52, 673–678. [Google Scholar] [CrossRef]
  3. Peng, Y.; Li, S.J.; Yan, J.; Tang, Y.; Cheng, J.P.; Gao, A.J.; Yao, X.; Ruan, J.J.; Xu, B.L. Research progress on phytopathogenic fungi and their role as biocontrol agents. Front. Microbiol. 2021, 12, 670135. [Google Scholar] [CrossRef]
  4. Różewicz, M.; Wyzińska, M.; Grabiński, J. The most important fungal diseases of cereals—Problems and possible solutions. Agronomy 2021, 11, 714. [Google Scholar] [CrossRef]
  5. Miedaner, T.; Boeven, A.L.G.C.; Gaikpa, D.S.; Kistner, M.B.; Grote, C.P. Genomics-assisted breeding for quantitative disease resistances in small-grain cereals and maize. Int. J. Mol. Sci. 2020, 21, 9717. [Google Scholar] [CrossRef]
  6. Mannaa, M.; Kim, K.D. Influence of temperature and water activity on deleterious fungi and mycotoxin production during grain storage. Mycobiology 2017, 45, 240–254. [Google Scholar] [CrossRef] [PubMed]
  7. Palacios, S.A.; Del Canto, A.; Erazo, J.; Torres, A.M. Fusarium cerealis causing Fusarium head blight of durum wheat and its associated mycotoxins. Int. J. Food Microbiol. 2021, 346, 109161. [Google Scholar] [CrossRef]
  8. Bryła, M.; Stępniewska, S.; Modrzewska, M.; Waśkiewicz, A.; Podolska, G.; Ksieniewicz-Woźniak, E.; Yoshinari, T.; Stepień, Ł.; Urbaniak, M.; Roszko, M.; et al. Dynamics of deoxynivalenol and nivalenol glucosylation in wheat cultivars infected with Fusarium culmorum in field conditions—A 3 year study (2018–2020). J. Agric. Food Chem. 2022, 70, 4291–4302. [Google Scholar] [CrossRef] [PubMed]
  9. Schiwek, S.; Alhussein, M.; Rodemann, C.; Budragchaa, T.; Beule, L.; von Tiedemann, A.; Karlovsky, P. Fusarium culmorum produces NX-2 toxin simultaneously with deoxynivalenol and 3-acetyl-deoxynivalenol or nivalenol. Toxins 2022, 14, 456. [Google Scholar] [CrossRef]
  10. Gerez, J.R.; Pinton, P.; Callu, P.; Grosjean, F.; Oswald, I.P.; Bracarense, A.P.F. Deoxynivalenol alone or in combination with nivalenol and zearalenone induce systemic histological changes in pigs. Exp. Toxicol. Pathol. 2015, 67, 89–98. [Google Scholar] [CrossRef] [PubMed]
  11. Abdel-Wahhab, M.A.; El-Nekeety, A.A.; Salman, A.S.; Abdel-Aziem, S.H.; Mehaya, F.M.; Hassan, N.S. Protective capabilities of silymarin and inulin nanoparticles against hepatic oxidative stress, genotoxicity and cytotoxicity of deoxynivalenol in rats. Toxicon 2018, 142, 1–13. [Google Scholar] [CrossRef]
  12. Lu, P.S.; Wang, Y.; Jiao, L.; Sun, S.C. Nivalenol affects Cyclin B1 level and activates SAC for cell cycle progression in mouse oocyte meiosis. Cell Prolif. 2022, 55, e13277. [Google Scholar] [CrossRef]
  13. Ropejko, K.; Twarużek, M. Zearalenone and its metabolites—General overview, occurrence, and toxicity. Toxins 2021, 13, 35. [Google Scholar] [CrossRef] [PubMed]
  14. Köhl, J.; Kolnaar, R.; Ravensberg, W.J. Mode of action of microbial biological control agents against plant diseases: Relevance beyond efficacy. Front. Plant Sci. 2019, 10, 845. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Kuchheuser, P.; Birringer, M. Pesticide residues in food in the European Union: Analysis of notifications in the European Rapid Alert System for Food and Feed from 2002 to 2020. Food Control 2022, 133, 108575. [Google Scholar] [CrossRef]
  16. Barzman, M.; Lamichhane, J.R.; Booij, K.; Boonekamp, P.; Desneux, N.; Huber, L.; Messean, A. Research and development priorities in the face of climate change and rapidly evolving pests. Sustain. Agric. Res. 2015, 17, 1–27. [Google Scholar] [CrossRef]
  17. Azizbekyan, R.R. Biological preparations for the protection of agricultural plants. Appl. Biochem. Microbiol. 2019, 55, 816–823. [Google Scholar] [CrossRef]
  18. Nayak, N.; Sar, K.; Sahoo, B.K.; Mahapatra, P. Beneficial effect of effective microorganism on crop and soil—A review. Res. Rev. J. Pharmacogn. Phytochem. 2020, 9, 3070–3074. [Google Scholar]
  19. Rai, S.; Kashyap, P.L.; Kumar, S.; Srivastava, A.K.; Ramteke, P.W. Comparative analysis of microsatellites in five different antagonistic Trichoderma species for diversity assessment. World J. Microbiol. Biotechnol. 2016, 32, 8. [Google Scholar] [CrossRef]
  20. Zehra, A.; Dubey, M.K.; Meena, M.; Upadhyay, R.S. Effect of different environmental conditions on growth and sporulation of some Trichoderma species. J. Environ. Biol. 2017, 38, 197. [Google Scholar] [CrossRef]
  21. Longa, C.M.O.; Pertot, I.; Tosi, S. Ecophysiological requirements and survival of a Trichoderma atroviride isolate with biocontrol potential. J. Basic Microbiol. 2008, 48, 269–277. [Google Scholar] [CrossRef]
  22. Zeilinger, S.; Gruber, S.; Bansal, R.; Mukherjee, P.K. Secondary metabolism in Trichoderma—Chemistry meets genomics. Fungal Biol. Rev. 2016, 30, 74–90. [Google Scholar] [CrossRef]
  23. López-Bucio, J.; Pelagio-Flores, R.; Herrera-Estrella, A. Trichoderma as biostimulant: Exploiting the multilevel properties of a plant beneficial fungus. Sci. Hortic. 2015, 196, 109–123. [Google Scholar] [CrossRef]
  24. Tian, Y.; Zhang, D.; Cai, P.; Lin, H.; Ying, H.; Hu, Q.N.; Wu, A. Elimination of Fusarium mycotoxin deoxynivalenol (DON) via microbial and enzymatic strategies: Current status and future perspectives. Trends Food Sci Technol. 2022, 124, 96–107. [Google Scholar] [CrossRef]
  25. Dini, I.; Alborino, V.; Lanzuise, S.; Lombardi, N.; Marra, R.; Balestrieri, A.; Ritieni, A.; Woo, S.; Vinale, F. Trichoderma enzymes for degradation of aflatoxin B1 and ochratoxin A. Molecules 2022, 27, 3959. [Google Scholar] [CrossRef]
  26. Tian, Y.; Yu, D.; Liu, N.; Tang, Y.; Yan, Z.; Wu, A. Confrontation assays and mycotoxin treatment reveal antagonistic activities of Trichoderma and the fate of Fusarium mycotoxins in microbial interaction. Environ. Pollut. 2020, 267, 115559. [Google Scholar] [CrossRef]
  27. Modrzewska, M.; Bryła, M.; Kanabus, J.; Pierzgalski, A. Trichoderma as a biostimulator and biocontrol agent against Fusarium in the production of cereal crops: Opportunities and possibilities. Plant Pathol. 2022, 71, 1471–1485. [Google Scholar] [CrossRef]
  28. Mukherjee, P.K.; Mendoza-Mendoza, A.; Zeilinger, S.; Horwitz, B.A. Mycoparasitism as a mechanism of Trichoderma-mediated suppression of plant diseases. Fungal Biol. Rev. 2022, 39, 15–33. [Google Scholar] [CrossRef]
  29. Rajani, P.; Rajasekaran, C.; Vasanthakumari, M.M.; Olsson, S.B.; Ravikanth, G.; Shaanker, R.U. Inhibition of plant pathogenic fungi by endophytic Trichoderma spp. through mycoparasitism and volatile organic compounds. Microbiol. Res. 2021, 242, 126595. [Google Scholar] [CrossRef]
  30. Hewedy, O.A.; Abdel-Lateif, K.S.; Bakr, R.A. Genetic diversity and biocontrol efficacy of indigenous Trichoderma isolates against Fusarium wilt of pepper. J. Basic Microbiol. 2020, 60, 126–135. [Google Scholar] [CrossRef]
  31. Błaszczyk, L.; Basińska-Barczak, A.; Ćwiek-Kupczyńska, H.; Gromadzka, K.; Popiel, D. Stępień, Ł. Suppressive effect of Trichoderma spp. on toxigenic Fusarium species. Pol. J. Microbiol. 2017, 66, 85. [Google Scholar] [CrossRef] [PubMed]
  32. Larran, S.; Santamarina Siurana, M.P.; Roselló Caselles, J.; Simón, M.R.; Perelló, A. In vitro antagonistic activity of Trichoderma harzianum against Fusarium sudanense causing seedling blight and seed rot on wheat. ACS Omega 2020, 5, 23276–23283. [Google Scholar] [CrossRef] [PubMed]
  33. Xue, A.G.; Guo, W.; Chen, Y.; Siddiqui, I.; Marchand, G.; Liu, J.; Ren, C. Effect of seed treatment with novel strains of Trichoderma spp. on establishment and yield of spring wheat. Crop Prot. 2017, 96, 97–102. [Google Scholar] [CrossRef]
  34. Veenstra, A.; Rafudeen, M.S.; Murray, S.L. Trichoderma asperellum isolated from African maize seed directly inhibits Fusarium verticillioides growth in vitro. Eur. J. Plant Pathol. 2019, 153, 279–283. [Google Scholar] [CrossRef]
  35. Perincherry, L.; Łalak-Kańczugowska, J.; Stępień, Ł. Fusarium-Produced mycotoxins in plant-Pathogen interactions. Toxins 2019, 11, 664. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Mironenka, J.; Różalska, S.; Bernat, P. Potential of Trichoderma harzianum and its metabolites to protect wheat seedlings against Fusarium culmorum and 2, 4-D. Int. J. Mol. Sci. 2021, 22, 13058. [Google Scholar] [CrossRef]
  37. Sallam, N.; Eraky, A.M.; Sallam, A. Effect of Trichoderma spp. on Fusarium wilt disease of tomato. Mol. Biol. Rep. 2019, 46, 4463–4470. [Google Scholar] [CrossRef]
  38. Halifu, S.; Deng, X.; Song, X.; Song, R.; Liang, X. Inhibitory mechanism of Trichoderma virens ZT05 on Rhizoctonia solani. Plants 2020, 9, 912. [Google Scholar] [CrossRef] [PubMed]
  39. Matarese, F.; Sarrocco, S.; Gruber, S.; Seidl-Seiboth, V.; Vannacci, G. Biocontrol of Fusarium head blight: Interactions between Trichoderma and mycotoxigenic Fusarium. Microbiology 2012, 158, 98–106. [Google Scholar] [CrossRef]
  40. Tian, Y.; Tan, Y.; Yan, Z.; Liao, Y.; Chen, J.; De Boevre, M.; De Saeger, S.; Wu, A. Antagonistic and detoxification potentials of Trichoderma isolates for control of zearalenone (ZEN) producing Fusarium graminearum. Front. Microbiol. 2018, 8, 2710. [Google Scholar] [CrossRef]
  41. Voigt, C.A.; von Scheidt, B.; Gacser, A.; Kassner, H.; Lieberei, R.; Schäfer, W.; Salomon, S. Enhanced mycotoxin production of a lipase-deficient Fusarium graminearum mutant correlates to toxin-related gene expression. Eur. J. Plant Pathol. 2007, 117, 1–12. [Google Scholar] [CrossRef]
  42. Mironenka, J.; Różalska, S.; Soboń, A.; Bernat, P. Trichoderma harzianum metabolites disturb Fusarium culmorum metabolism: Metabolomic and proteomic studies. Microbiol. Res. 2021, 249, 126770. [Google Scholar] [CrossRef]
  43. Ksieniewicz-Woźniak, E.; Bryła, M.; Michałowska, D.; Waśkiewicz, A.; Yoshinari, T. Transformation of selected Fusarium toxins and their masked forms during malting of various cultivars of wheat. Toxins 2021, 13, 866. [Google Scholar] [CrossRef] [PubMed]
  44. Tian, Y.; Tan, Y.; Liu, N.; Yan, Z.; Liao, Y.; Chen, J.; De Saeger, S.; Yang, H.; Zhang, Q.; Wu, A. Detoxification of deoxynivalenol via glycosylation represents novel insights on antagonistic activities of Trichoderma when confronted with Fusarium graminearum. Toxins 2016, 8, 335. [Google Scholar] [CrossRef] [Green Version]
  45. Yoshinari, T.; Sakuda, S.; Furihata, K.; Furusawa, H.; Ohnishi, T.; Sugita-Konishi, Y.; Ishizaki, N.; Terajima, J. Structural determination of a nivalenol glucoside and development of an analytical method for the simultaneous determination of nivalenol and deoxynivalenol, and their glucosides, in wheat. J. Agric. Food Chem. 2014, 62, 1174–1180. [Google Scholar] [CrossRef] [PubMed]
  46. Mańka, K. Fungal communities as criterion for estimating the effect of the environment of plant disease in Poland. Zesz. Probl. Postęp. Nauk Rol. 1974, 160, 9–23. [Google Scholar]
  47. Uwineza, P.A.; Urbaniak, M.; Bryła, M.; Stepien, Ł.; Modrzewska, M.; Waśkiewicz, A. In vitro effects of lemon balm extracts in reducing the growth and mycotoxins biosynthesis of Fusarium culmorum and F. proliferatum. Toxins 2022, 14, 355. [Google Scholar] [CrossRef]
Molecules 27 08146 g001 550
Figure 1. Fungal morphology of Fusarium in dual-culture assay on PDA after 5 days of incubation. F. culmorum KF191; F. culmorum KF350; F. culmorum KF846; F. cerealis KF583. Fusarium strain and Trichoderma strain grown alone-control, Fusarium strain with T. viride AN355, T. viride AN690, T. viridescens AN508, T. viridescens AN609, T. atroviride AN705, T. atroviride AN153, T. atroviride AN215, T. atroviride AN523.
Figure 1. Fungal morphology of Fusarium in dual-culture assay on PDA after 5 days of incubation. F. culmorum KF191; F. culmorum KF350; F. culmorum KF846; F. cerealis KF583. Fusarium strain and Trichoderma strain grown alone-control, Fusarium strain with T. viride AN355, T. viride AN690, T. viridescens AN508, T. viridescens AN609, T. atroviride AN705, T. atroviride AN153, T. atroviride AN215, T. atroviride AN523.
Molecules 27 08146 g001
Molecules 27 08146 g002 550

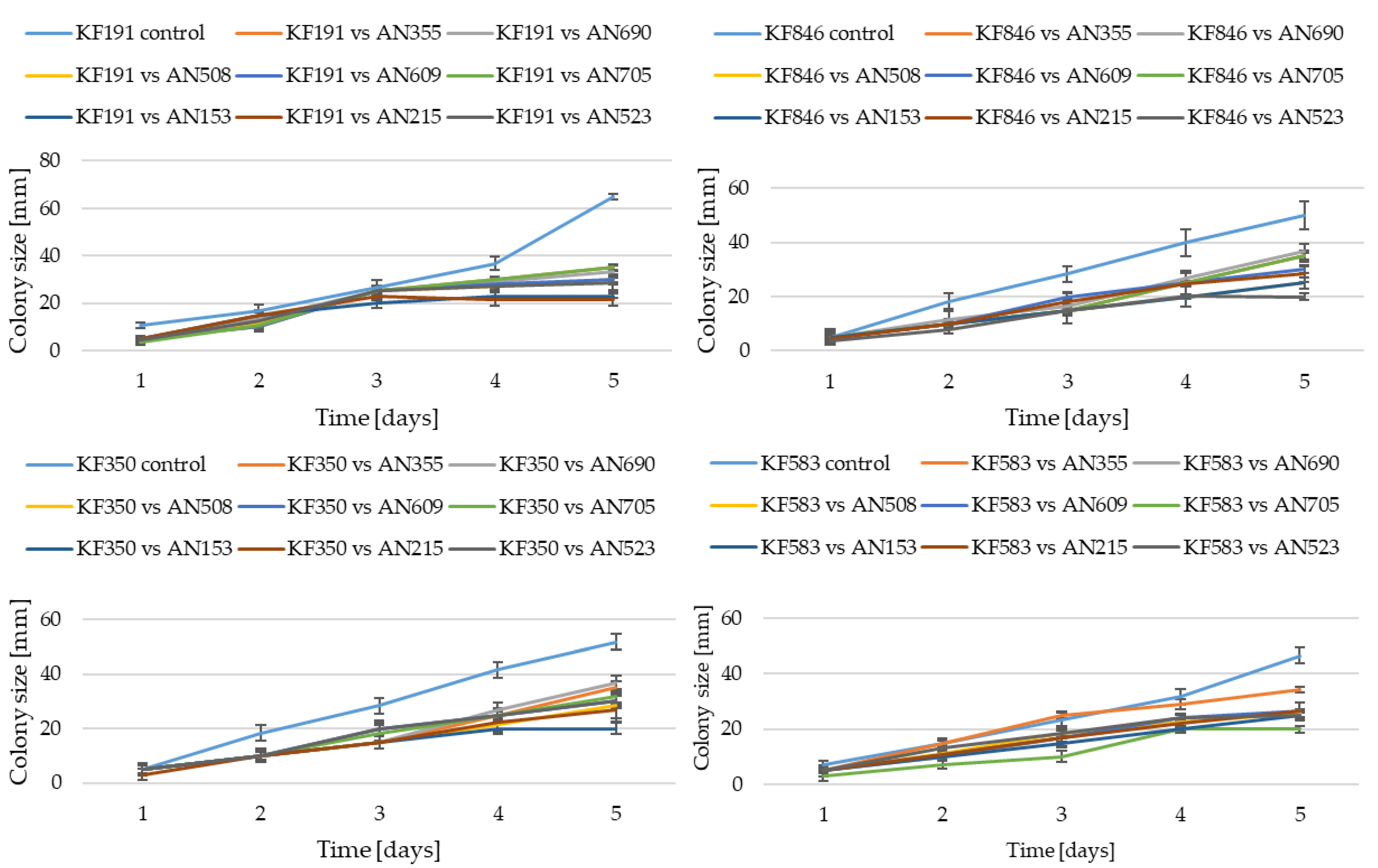

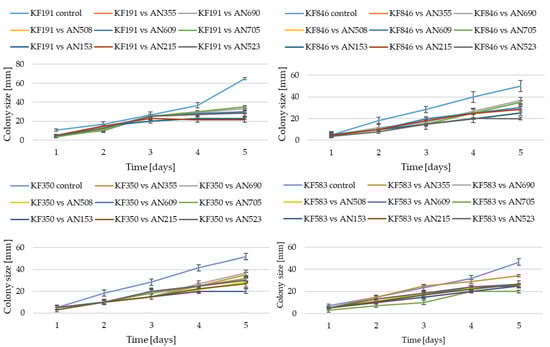

Figure 2. The inhibitory effect of antagonistic Trichoderma isolates on the growth rate of Fusarium spp. on PDA. The strain designations are the same as in Figure 1.
Figure 2. The inhibitory effect of antagonistic Trichoderma isolates on the growth rate of Fusarium spp. on PDA. The strain designations are the same as in Figure 1.
Molecules 27 08146 g002
Table
Table 1. Estimated inhibition (in % ± SD) of mycelial growth of Fusarium spp. by Trichoderma spp. after 5 days of co-incubation on PDA medium (n = 3).
Table 1. Estimated inhibition (in % ± SD) of mycelial growth of Fusarium spp. by Trichoderma spp. after 5 days of co-incubation on PDA medium (n = 3).
Pathogen/
Antagonist		F. culmorum KF191F. culmorum KF350F. culmorum KF846F. cerealis KF583Average
T. virideAN35545.8 * ± 2.432.7 * ± 1.930.0 * ± 2.023.9 ± 2.133.1 ± 9.2
AN69053.6 * ± 2.442.3 * ± 9.648.0 * ± 2.045.1 * ± 2.147.3 ± 4.9
T. viridescensAN50849.0 * ± 3.931.4 * ± 7.828.0 * ± 7.250.0 * ± 15.039.6 ± 11.5
AN60951.6 * ± 1.642.3 * ± 3.836.0 * ± 2.042.3 * ± 5.343.0 ± 6.4
T. atrovirideAN70556.8 * ± 3.942.9 * ± 2.959.3 * ± 5.049.3 * ± 7.652.1 ± 7.4
AN15345.3 * ± 1.639.1 * ± 5.650.0 * ± 2.057.7 * ± 4.248.0 ± 7.9
AN21563.0 * ± 3.359.6 * ± 1.950.0 * ± 2.042.3 * ± 5.353.7 ± 9.4
AN52365.6 * ± 4.149.4 * ± 6.242.7 * ± 6.442.3 * ± 5.350.0 ± 10.9
SD—standard deviation, the “*” symbol indicates a statistically significant result.
Table
Table 2. The assessment of the interaction between Trichoderma vs. Fusarium colonies after 5 days of co-culturing on PDA medium.
Table 2. The assessment of the interaction between Trichoderma vs. Fusarium colonies after 5 days of co-culturing on PDA medium.
Pathogen/
Antagonist		F. culmorum KF191F. culmorum KF350F. culmorum KF846F. cerealis KF583Average *
T. virideAN35584445.0
AN69084465.5
T. viridescensAN50884666.0
AN60986666.5
T. atrovirideAN70586466.0
AN15386666.5
AN21586666.5
AN52386867.0
*—triplicates, all observations were equal in all cases and were averaged to identify the most effective antagonist.
Table
Table 3. Mycotoxin production (mg/kg) by Fusarium strains on solid substrates (rice kernels) in the presence/absence of the Trichoderma strains.
Table 3. Mycotoxin production (mg/kg) by Fusarium strains on solid substrates (rice kernels) in the presence/absence of the Trichoderma strains.
StrainMycotoxin [mg/kg]
DONDON3G3- + 15-AcDONNIVFUS-XZENZEN-14Sα-ZOLβ-ZOL
F. culmorum KF191
KF191 control<LOQ<LOQ23.95 a ± 3.89<LOQ<LOQ47.36 a ± 8.693608 a ± 1850.50 a ± 0.101.28 a ± 0.23
KF191 vs. AN355<LOQ<LOQ2.85 b ± 0.93 (↓88%)<LOQ<LOQ8.44 b ±1.64 (↓82%)90.78 b ± 14.10 (↓97%)0.18 b ± 0.04 (↓64%)1.05 a ± 0.06 (↓18%)
KF191 vs. AN690<LOQ<LOQ0.18 b ±0.02 (↓99%)<LOQ<LOQ4.2 b ± 0.31 (↓91%)19.62 b ± 4.36 (↓99%)<LOQ b (↓100%)0.41 b ± 0.11 (↓68%)
KF191 vs. AN508<LOQ<LOQ0.43 b ± 0.09 (↓98%)<LOQ<LOQ1.69 b ± 0.22 (↓96%)10.53 b ± 2.85 (↓99%)<LOQ b (↓100%)0.20 b ± 0.08 (↓84%)
KF191 vs. AN609<LOQ<LOQ0.4 b ±0.14 (↓98%)<LOQ<LOQ0.56 b ± 0.05 (↓99%)1.78 b ± 0.65 (↓99%)<LOQ b (↓100%)0.07 b ± 0.02 (↓94%)
KF191 vs. AN705<LOQ<LOQ1.68 b ± 0.61 (↓93%)<LOQ<LOQ1.97 b ± 0.21 (↓96%)2.89 b ± 0.61 (↓99%)<LOQ b (↓100%)0.30 b ± 0.01 (↓76%)
KF191 vs. AN153<LOQ<LOQ0.11 b ± 0.01 (↓99%)<LOQ<LOQ0.99 b ± 0.17 (↓98%)13.06 b ± 2.35 (↓99%)<LOQ b (↓100%)0.22 b ± 0.02 (↓83%)
KF191 vs. AN215<LOQ<LOQ<LOQ b (↓100%)<LOQ<LOQ2.75 b ± 0.49 (↓94%)52.51 b ± 9.65 (↓98%)<LOQ b (↓100%)0.17 b ± 0.02 (↓84%)
KF191 vs. AN523<LOQ<LOQ0.14 b ± 0.03 (↓99%)<LOQ<LOQ28.21 b ± 9.73 (↓40%)85.91 b ± 20.09 (↓97%)<LOQ b (↓100%)0.69 b ± 0.21 (↓46%)
F. culmorum KF350
KF350 control<LOQ<LOQ<LOQ15.83 a ± 5.1486.86 a ± 21.9012.20 a ± 3.21641.68 a ± 1650.28 a ± 0.050.62 a ± 0.11
KF350 vs. AN355<LOQ<LOQ<LOQ2.01 b ± 0.54 (↓87%)5.18 b ± 0.91 (↓94%)7.59 b ± 1.70 (↓38%)33.15 b ± 10.10 (↓95%)0.22 a ± 0.05 (↓21%)1.09 b ± 0.38 (↑75%)
KF350 vs. AN690<LOQ<LOQ<LOQ0.58 b ± 0.21 (↓96%)0.55 b ± 0.11 (↓99%)2.34 b ± 0.58 (↓81%)35.23 b ± 15.53 (↓95%)<LOQ (↓100%)0.21 b ± 0.06 (↓66%)
KF350 vs. AN508<LOQ<LOQ<LOQ1.41 b ± 0.10 (↓91%)0.41 b ± 0.05 (↓99%)1.97 b ± 0.17 (↓84%)52.78 b ± 6.27 (↓92%)<LOQ (↓100%)0.40 a ± 0.14 (↓35%)
KF350 vs. AN609<LOQ<LOQ<LOQ1.13 b ± 0.47 (↓93%)0.78 b ± 0.25 (↓99%)10.75 a ± 3.86 (↓12%)17.31 b ± 4.89 (↓97%)<LOQ (↓100%)0.36 a ± 0.17 (↓42%)
KF350 vs. AN705<LOQ<LOQ<LOQ1.42 b ± 0.06 (↓91%)3.19 b ± 1.24 (↓96%)6.98 b ± 1.74 (↓43%)31.13 b ± 6.39 (↓95%)<LOQ (↓100%)0.30 a ± 0.07 (↓52%)
KF350 vs. AN153<LOQ<LOQ<LOQ<LOQ b (↓100%)0.48 b ± 0.19 (↓99%)1.85 b ± 0.02 (↓85%)123.38 b ± 11.18 (↓80%)<LOQ (↓100%)0.74 a ± 0.16 (↑19%)
KF350 vs. AN215<LOQ<LOQ<LOQ<LOQ b (↓100%)0.13 b ± 0.04 (↓99%)0.25 b ± 0.12 (↓98%)22.01 b ± 8.31 (↓98%)<LOQ (↓100%)<LOQ b (↓100%)
KF350 vs. AN523<LOQ<LOQ<LOQ0.31 b ± 0.03 (↓98%)0.54 b ± 0.07 (↓99%)0.73 b ± 0.08 (↓94%)57.61 b ± 13.94 (↓91%)<LOQ (↓100%)<LOQ b (↓100%)
F. culmorum 846
KF846 control82.53 a ± 14.96<LOQ a111.09 a ± 33.53<LOQ<LOQ164.29 a ± 16.772714 a± 5722.17 a ± 0.252.77 a ± 0.28
KF846 vs. AN35512.29 b ± 1.00 (↓85%)0.86 b ± 0.151.94 b ± 0.22 (↓98%)<LOQ<LOQ64.33 b ± 5.96 (↓61%)76.56 b ± 20.77 (↓97%)1.09 b ± 0.42 (↓49%)4.60 b ± 1.57 (↑66%)
KF846 vs. AN69022.34 b ± 3.77 (↓73%)2.43 b ± 0.213.26 b ± 0.90 (↓97%)<LOQ<LOQ58.56 b ± 14.95 (↓64%)49.20 b ± 6.84 (↓98%)0.58 b ± 0.17 (↓73%)2.42 a ± 0.91 (↓12%)
KF846 vs. AN50818.40 b ± 1.13 (↓78%)1.28 b ± 0.268.14 b ± 1.77 (↓92%)<LOQ<LOQ40.56 b ± 11.57 (↓75%)37.31 b ± 1.37 (↓98%)0.68 b ± 0.25 (↓68%)1.15 b ± 0.49 (↓58%)
KF846 vs. AN6095.11 b ± 1.33 (↓94%)1.55 b ± 0.480.81 b ± 0.19 (↓99%)<LOQ<LOQ54.46 b ± 9.70 (↓67%)46.04 b ± 6.17 (↓98%)0.52 b ± 0.08 (↓76%)1.56 a ± 0.14 (↓44%)
KF846 vs. AN7056.21 b ± 0.49 (↓92%)0.69 b ± 0.163.32 b ± 0.28 (↓97%)<LOQ<LOQ104.30 b ± 16.69 (↓37%)52.75 b ± 10.76 (↓98%)0.33 b ± 0.05 (↓85%)1.31 b ± 0.12 (↓53%)
KF846 vs. AN1532.21 b ± 0.15 (↓97%)1.41 b ± 0.341.64 b ± 0.23 (↓98%)<LOQ<LOQ12.14 b ± 1.23 (↓93%)13.89 b ± 2.19 (↓99%)<LOQ b (↓100%)0.42 b ± 0.09 (↓85%)
KF846 vs. AN2151.90 b ± 0.60 (↓98%)<LOQ a1.93 b ± 0.48 (↓98%)<LOQ<LOQ6.89 b ± 2.28 (↓96%)44.37 b ± 3.92 (↓98%)<LOQ b (↓100%)0.26 b ± 0.10 (↓91%)
KF846 vs. AN5233.01 b ± 0.36 (↓96%)<LOQ a0.38 b ± 0.03 (↓99%)<LOQ<LOQ21.55 b ± 4.08 (↓87%)24.83 b ± 5.64 (↓99%)<LOQ b (↓100%)0.29 b ± 0.05 (↓89%)
F. cerealis 583
KF583 control<LOQ<LOQ<LOQ24.07 a ± 9.42119.70 a ± 44.26238.63 a ± 38.669337 a ± 1146<LOQ6.63 a ± 1.56
KF583 vs. AN355<LOQ<LOQ<LOQ0.84 b ± 0.29 (↓96%)11.70 b ± 4.55 (↓90%)2.20b ± 0.62 (↓99%)4.20 b ± 0.72 (↓99%)<LOQ0.70 b ± 0.16 (↓89%)
KF583 vs. AN690<LOQ<LOQ<LOQ0.17 b ± 0.03 (↓99%)11.98 b ± 0.82 (↓90%)1.09 b ± 0.26 (↓99%)3.41 b ± 0.34 (↓99%)<LOQ<LOQ b (↓100%)
KF583 vs. AN508<LOQ<LOQ<LOQ0.25 b ± 0.07 (↓98%)1.54 b ± 0.07 (↓98%)0.54 b ± 0.09 (↓99%)1.31 b ± 0.47 (↓99%)<LOQ<LOQ b (↓100%)
KF583 vs. AN609<LOQ<LOQ<LOQ0.17 b ± 0.07 (↓99%)0.87 b ± 0.03 (↓99%)0.31 b ± 0.12 (↓99%)0.67 b ± 0.11 (↓99%)<LOQ0.83 b ± 0.19 (↓87%)
KF583 vs. AN705<LOQ<LOQ<LOQ0.83 b ± 0.11 (↓96%)9.84 b ± 0.76 (↓91%)15.86 b ± 3.39 (↓93%)9.70 b ± 1.34 (↓99%)<LOQ0.30 b ± 0.06 (↓95%)
KF583 vs. AN153<LOQ<LOQ<LOQ<LOQ b (↓100%)<LOQ b (↓100%)0.37 b ± 0.08 (↓99%)1.50 b ± 0.38 (↓99%)<LOQ<LOQ b (↓100%)
KF583 vs. AN215<LOQ<LOQ<LOQ<LOQ b (↓100%)<LOQ b (↓100%)1.52 b ± 0.54 (↓99%)7.14 b ± 0.57 (↓99%)<LOQ<LOQ b (↓100%)
KF583 vs. AN523<LOQ<LOQ<LOQ<LOQ b (↓100%)0.31 b ± 0.11 (↓99%)0.37 b ± 0.05 (↓99%)1.62 b ± 0.34 (↓99%)<LOQ0.08 b ± 0.02 (↓98%)
↑ rise in mycotoxin concentration; ↓ decline in mycotoxin concentration; values within columns followed by the same letter are not significantly different according for α = 0.01.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Modrzewska, M.; Błaszczyk, L.; Stępień, Ł.; Urbaniak, M.; Waśkiewicz, A.; Yoshinari, T.; Bryła, M. Trichoderma versus Fusarium—Inhibition of Pathogen Growth and Mycotoxin Biosynthesis. Molecules 2022, 27, 8146. https://doi.org/10.3390/molecules27238146

AMA Style

Modrzewska M, Błaszczyk L, Stępień Ł, Urbaniak M, Waśkiewicz A, Yoshinari T, Bryła M. Trichoderma versus Fusarium—Inhibition of Pathogen Growth and Mycotoxin Biosynthesis. Molecules. 2022; 27(23):8146. https://doi.org/10.3390/molecules27238146

Chicago/Turabian Style

Modrzewska, Marta, Lidia Błaszczyk, Łukasz Stępień, Monika Urbaniak, Agnieszka Waśkiewicz, Tomoya Yoshinari, and Marcin Bryła. 2022. "Trichoderma versus Fusarium—Inhibition of Pathogen Growth and Mycotoxin Biosynthesis" Molecules 27, no. 23: 8146. https://doi.org/10.3390/molecules27238146

Article Metrics

Back to TopTop
