Genome-Wide Identification and Characterization of TCP Gene Family Members in Melastoma candidum

by
Hui Li
1,2,†,
Xiaoxia Wen
3,†,
Xiong Huang
4,
Mingke Wei
5,
Hongpeng Chen
6,
Yixun Yu
2,* and
Seping Dai
1,*
1
Guangzhou Institute of Forestry and Landscape Architecture, Guangzhou 510405, China
2
College of Forestry and Landscape Architecture, South China Agricultural University, Guangzhou 510642, China
3
Faculty of Electronic Information Engineering, Guangdong Baiyun University, Guangzhou 510450, China
4
College of Forestry, Sichuan Agricultural University, Chengdu 611130, China
5
State Key Laboratory of Tree Genetics and Breeding, Chinese Academy of Forestry, Beijing 100091, China
6
School of Traditional Chinese Medicinal Resources, Guangdong Pharmaceutical University, Guangzhou 510006, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2022, 27(24), 9036; https://doi.org/10.3390/molecules27249036
Submission received: 16 November 2022 / Revised: 14 December 2022 / Accepted: 15 December 2022 / Published: 18 December 2022
(This article belongs to the Section Natural Products Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
It has been confirmed that the plant-specific Teosinte-branched 1/Cycloidea/Proliferating (TCP) gene family plays a pivotal role during plant growth and development. M. candidum is a native ornamental species and has a wide range of pharmacodynamic effects. However, there is still a lack of research on TCP’s role in controlling M. candidum’s development, abiotic stress responses and hormone metabolism. A comprehensive description of the TCP gene family in M. candidum is urgently needed. In this study, we used the HMMER search method in conjunction with the BLASTp method to identify the members of the TCP gene family, and a total of 35 TCP genes were identified. A domain analysis further confirmed that all 35 TCPs contained a TCP superfamily, a characteristic involved in dimerization and DNA binding that can be found in most genes from this gene family, suggesting that our identification was effective. As a result of the domain conservation analysis, the 35 TCP genes could be classified into two classes, TCP-P and TCP-C, based on the conservative regions of 55 and 59 amino acids, respectively. Gene-duplication analysis revealed that most TCP genes were present in duplication events that eventually led to TCP gene expansion in M. candidum. All the detected gene pairs had a Ka/Ks value of less than one, suggesting that purification selection is the most important factor that influences the evolution of TCP genes. Phylogenetic analysis of three species displayed the evolutionary relationship of TCP genes across different species and further confirmed our results. The real-time quantitative PCR (qRT-PCR) results showed that McTCP2a, McTCP7a, McTCP10, McTCP11, McTCP12a, McTCP13, McTCP16, McTCP17, McTCP18, McTCP20 and McTCP21 may be involved in leaf development; McTCP4a, McTCP1, McTCP14, McTCP17, McTCP18, McTCP20, McTCP22 and McTCP24 may be involved in flower development; and McTCP2a, McTCP3, McTCP5a, McTCP6, McTCP7a, McTCP9, McTCP11, McTCP14 and McTCP16 may be involved in seed development. Our results dissect the TCP gene family across the genome of M. candidum and provide valuable information for exploring TCP genes to promote molecular breeding and property improvement of M. candidum in the future.

1. Introduction

TCP is a kind of plant-specific transcription factor (TF) with conserved sequences of 55 or 59 amino acids as a characteristic domain that is responsible for activating or repressing the transcription process and is involved in protein–protein interactions [1]. The TCP gene family was named after the TCP domain from the first identified members: TB1 (teosinte branched1 from maize) [2], CYC (cycloidea from Antirrhinum) [3], and PCFs (PCF proteins from rice) [4]. TB1 could determine apical dominance in maize [2]. In Antirrhinum majus, CYC has been shown to play a role in floral bilateral symmetry [5]. The PCF1 and PCF2 proteins could bind to the promoter of PCNA to influence DNA replication and repair, etc. [4]. The TCP transcription factors (TFs) have been classified into two classes, namely Class I (also known as TCP-P) and Class II (also known as TCP-C), based on differences in their TCP domains [6]. TCP-P consists mainly of the PCF class, while TCP-C consists of two clades, namely the CIN clade and the CYC/TB1 clade [6,7]. Currently, it is thought that many of the identified TCP proteins harbor a ubiquitous TCP domain with a noncanonical basic helix–loop–helix (bHLH) structure, which is quite different from the DNA-binding basic helix–loop–helix structure [8]. A small number of TCPs also harbor an R domain, an 18–20 residue arginine-rich motif [7], acquired in most members of the CYC/TB1 family and barely in CIN members [9,10]. Several studies indicated that the R domain may form a hydrophilic α-helix [11].
TCP TFs are involved in a variety of biological processes, such as flower and leaf development [12,13], flower symmetry [14], shoot branching [15], leaf morphogenesis and senescence [16], circadian clock [17], stress response [18,19,20], etc., generally acting through plant-hormone-mediated signaling. In addition, TCP TFs could act downstream of hormonally mediated pathways as transcriptional modulators of the processes involved in cell division [21], or act upstream of plant hormones and influence levels of hormone synthesis, transport and signal transduction [22]. In Arabidopsis, AtTCP4 regulates jasmonic acid (JA) biosynthesis through interaction with the JGB to further mediate pollen germination and gametophyte development [23]. MPK8 interacts with AtTCP14 in the nucleus and phosphorylates AtTCP14 outside the nucleus to promote seed germination [24]. TCPs of Class II could form complexes with FT further and then bind on the promoter of AP1 to regulate flowering [25]. Li et al. found that a group of AS2-binding TCP TFs, including TCP3, TCP4, TCP10 and TCP24, were regulators of leaf development by binding directly to the promoter of BP and KNAT2 to repress their expression [26]. TCP genes can also improve plant resistance and adaptation. For example, AtTCP20 could activate nitrate-assimilatory-related genes to improve their expression level under nitrogen starvation conditions [18]. Overexpression of DgTCP1 improved the cold tolerance of chrysanthemum when comparing wild types [19]. In Oryza sativa, OsPCF2 could activate the expression of OsNHX1 to promote salt and drought tolerance [20]. The expression of some TCP genes is regulated by miR319 to influence leaf shapes and petal development. In the JAGGED AND WAVY (JAW-D) mutant, for instance, overexpression of miR319a leads to low expression of five class II members, TCP2, TCP3, TCP4, TCP10 and TCP24. The transgenic plants exhibited phenotypic defects, including highly serrated leaves, petal development changes and delayed leaf senescence [13,16,27].
In some species, TCP genes have been identified, and they vary greatly from species to species. For example, 24 TCP gene members were found in Arabidopsis [6]; 30 TCP member genes were found in Solanum lycopersicum [28]; 27 TCP genes were identified in Citrullus lanatus [29]; 23 TCP genes were found in Halaenopsis equestris [30]; 39 TCP genes had been confirmed in Brassica rapa ssp [31]; 75 TCP genes were found in Gossypium barbadense [32]; 21 TCP genes were found in O. sativa [33]; 27 TCP genes were found in Cucumis sativu [34]; 30 TCP genes were found in tomato [28]; 46 TCP genes were found in Zea mays L. [35]; 20 TCP genes were confirmed in peach [36]; 19 TCP genes were found in Fragaria vesca [37]; 33 TCPs were identified in Populus euphratica [38]; and 17 TCP genes were confirmed in Vitis vinifera [39]. Although TCP genes have important regulatory roles in plant growth and development, abiotic stress responses and hormone metabolism, limited information is available on M. candidum. Here, we performed a comprehensive bioinformatic analysis of the TCP gene family based on the genome of M. candidum. Characterization of TCPs in M. candidum was carried out based on motif, domains and gene structure analyses. Key conserved domains in each type of TCP protein were confirmed. Duplication events of TCP genes were investigated through collinearity analysis within the genome. Synonymous substitution (Ks) and nonsynonymous substitution rates (Ka) and their ratio (Ka/Ks) were calculated to confirm the divergence time and major force to promote the evolution of TCP genes pairs in M. candidum. Evolutionary analyses among Arabidopsis, Populus and M. candidum were performed to illustrate the gene relationships of the three species. qRT-PCR was employed to investigate the expression pattern of the selected TCP genes in different tissues and developmental stages. Our research will assist in better comprehending the classification and expression pattern of TCP genes in M. candidum and provide valuable information for studying the functions of the TCP gene family during development or abiotic stress to further use them in the molecular breeding of M. candidum.

2. Results

2.1. Chromosome Distribution and Evolution Relationship of TCP Genes

We first conducted an HMMER search through the genome of M. candidum and a total of 35 TCP gene family members were obtained. As a result of the distribution analysis of the 35 identified TCP gene members, it was found that all 35 members were unevenly distributed within 11 out of 12 chromosomes, with the exception of Chr11. With seven members and five members, Chr07 and Chr12 were the main TCP carriers with the highest proportion of TCP gene distribution, respectively occupying 20% and 14.3% of the total chromosomes. There were fewer TCP genes present in Chr02, Chr03, Chr04 and Chr06, as compared with other chromosomes; only two TCP genes were distributed (Figure 1). A phylogenetic tree for these 35 members of the TCP gene family was constructed by MEGA6.01 based on the amino acid sequences extracted from the genome file. The phylogenetic result showed that the 35 TCP gene family members could be divided into three main clades: TCP-P (Class I), CIN and CYC/TB1 (Figure 2). There were 11 subfamily members found in TCP-P, including McTCP6, McTCP7, McTCP8, McTCP9, McTCP11, McTCP14, McTCP16, McTCP19, McTCP20, McTCP21 and McTCP22. Within the TCP-P group, there were also three sub-clades that can be distinguished between the members. Amongst, McTCP9 was found to be divided into a single clade, suggesting that it differs greatly from other TCPs. In comparison to other TCP genes, McTCP19, McTCP20, McTCP7, McTCP22 and McTCP14 were close to each other. CYC/TB1 and CIN are both members of the TCP-C (Class II) group. Three main members of the TCP gene family had been identified in the subgroup CYC/TB1, including McTCP1, McTPC12 and McTCP18. Moreover, in our detailed divisions, we determined that McTCP1, McTCP12b and McTCP12e were classified as one group, while McTCP12a, McTCP12c, McTCP12d and McTCP18 were classified as another group. Among the members of the CIN subgroup, eight members of the TCP gene family had been identified, including McTCP2, McTCP3, McTCP4, McTCP5, McTCP10, McTCP13, McTCP17 and McTCP24. Amongst them, approximately three sub-clades could be divided. McTCP5, McTCP13 and McTCP17 were classified into one clade; McTCP2 and McTCP24 were grouped into one group; McTCP3, McTCP4 and McTCP10 were classified into a single clade (Figure 2).

2.2. Motif, Domain, Gene Structure and Promoter Analysis of TCP Genes in M. candidum

To further verify the identified 35 TCP gene members, we performed motif, domain and gene structure analysis. In the promoter region, genes in four clades (C1–C4) showed obvious motif characteristics: adjacent motif 1 and motif 2; genes in clade five and clade six displayed obvious adjacent motifs of 1 and 3. According to domain analysis, the most common characteristics of TCP gene family members were TCP superfamily proteins, which was a key characteristic that distinguishes the TCP gene family from other gene families. This indicates that all the 35 members belonged to the TCP gene family. There was, however, a great deal of variation in the TCP superfamily proteins between the different types of TCP individuals. The results of gene structure analysis showed that all the TCP genes in M. candidum contained only one exon, and more than 50% of TCP genes lack UTR annotation, which might be caused by the assembling quality of the genome (Figure 3).
The promoter analysis results showed that the promoter region of some TCP genes contained plant hormone-response elements. For example, 60% (21 out of 35) of TCP genes promoters contained a TGA element, which is an auxin-responsive element; 62.86% (22 out of 35) carried a TCA element, which is a salicylic-acid-responsiveness element; 60% (21 out of 35) contained an O2 site element, which is a zein-metabolism-regulation element; 91.43% (32 out of 35) harbored an ABRE-binding site, which is an abscisic-acid-responsiveness element; 80% (28 out of 35) harbored an MeJA motif, which is an MeJA-responsiveness element, etc. Promoters of some genes contained a stress-responsive element. For instance, 65.71% (23 out of 35) of TCP gene promoters carried LTR, a low-temperature-responsiveness element; 54.29% (19 out of 35) had an MBS-binding site, a drought-inducibility binding site; 48.57% (17 out of 35) contained a TC-rich repeat, a defense stress-responsiveness element; only 5.71% (2 out of 35) contained a WUN motif, a wound-responsive element (Figure 4 and Figure 5). All sequences of the bind sites are listed in Table S1. We also observed that the promoter of TCP2b included an MBSI element, which controls flavonoid biosynthesis (Table S1).

2.3. Conserved Region Analyses of the Identified TCP Proteins

We aligned the protein sequences of 35 TCPs to find their conserved region by the ClustalW method. The results showed that these 35 TCPs were not conserved well enough (Figure 6), indicating that there are functional differences between members of the TCP gene family (Figure 3). This was consistent with the results of the domain analysis of TCPs in other species. An earlier study has shown that TCP TFs can be classified into two classes, Class I and Class II [6]. In both of the classes, the N-terminus of the proteins is characterized by a basic-helix–loop–helix structure motif [40]. According to our aligned sequences of these genes, we found that they could be roughly divided into two classes. The first group of TCPs contained McTCP6, McTCP7a, McTCP7b, McTCP8, McTCP9, McTCP11, McTCP14, McTCP16, McTCP19a-c, McTCP20, McTCP21 and McTCP22 (Figure S1a). These 14 TCPs are highly conservative and belong to the TCP-P type with a 55 aa-long conserved region. The second group included McTCP1, McTCP2a, b, McTCP3, McTCP4a–d, McTCP5a–c, McTCP10, McTCP12a–e, McTCP13, McTCP17, McTCP18 and McTCP24. These 21 TCPs are highly conservative at the 7 aa to 24 aa positions (Figure S1b) and belong to the TCP-C type with a 59 aa-long conserved region. In both groups, their conservation parts were comprised of Basic Helix I–Loop–Helix II structures. Our conservation analysis results illustrated that these TCPs may have evolved into two functionally different groups in M. candidum. In addition, we observed that seven TCPs in CYC/TB1 also contained another conserved domain, namely the R domain, with six of these genes having an R domain with a length of 18 aa, whereas McTCP18 only had a 14 aa-length R domain (Figure 6b).

2.4. Duplication Events and Divergence Time Estimation of TCP Gene Pairs

To investigate the duplication events of identified TCP genes, we conducted a collinearity analysis of these TCP genes from the genome level by using TBtools software. Figure 7a shows the associated gene pairs of TCP genes. A total of 34 out of 35 genes were found to have corresponding genes, indicating that TCP genes have gone through extensive duplication events. To understand the divergence time of gene pairs, we calculated the synonymous substitution rate (Ks/dS) and estimated the divergence time by using a divergence rate of 6.5 × 10−9 per synonymous site per year [41]. There was a wide range of divergence times between 12.8 and 99.82 million years ago for the TCP genes (Figure 7b). The earliest duplication event of TCP genes in M. candidum was McTCP18 and McTCP12d, which happened with a divergence of about 99.82 MYA. Most of the members of the same sub-family have undergone duplication events in recent years. For example, McTCP24 and McTCP2a diverged at about 12.8 MYA; McTCP4b and McTCP3 diverged at about 22.01 MYA; McTCP7a and McTCP21 experienced duplication events at about 21.26 MYA; and McTCP20 and McTCP16 diverged from each other at 18.21 MYA. There were, however, some members of the same sub-families that separated a long time ago as well. For example, McTCP4a and McTCP3 diverged at about 81.85 MYA; McTCP12b and McTCP12e separated at 74.58 MYA; and McTCP4c and McTCP4d broke away at 82.83 MYA. Combining phylogenetic trees, we found that the longer the divergence time, the more distant evolutionary relationships were. A substitution ratio mutation (Ka/Ks) reflects the selection method experienced by gene pairs. When Ka/Ks < 1, the genes experience purifying selection, which means the selection process could neutralize mutation to maintain the stability of the protein; in contrast, when Ka/Ks > 1, the genes experience positive selection, which means great mutation happens in genes and eventually leads to a change in coded proteins. Our identified TCP gene pairs had Ka/Ks values ranging from 0.1 to 0.33, proving that all of these genes experienced a purification selection process in M. candidum (Figure 7b). This reflected that M. candidum experienced little severe mutation disturbance during its life cycle on earth.

2.5. Evolutionary Relationship of TCP Genes among Different Species

Eukaryotic genomes differ in the degree to which genes remain on corresponding chromosomes (synteny) and in corresponding orders (collinearity) [42]. Comparative analysis of species genomes could illustrate genomic evolution. Species relationships could be studied by searching for conserved genes pairwise among them [7]. To understand the evolutionary relationships of TCP genes among different species, we conducted a multi-collinearity analysis by selecting herbal species A. thaliana and woody species P. trichocarpa. A total of 71.4% (25 out of 35) TCP genes of M. candidum had a collinearity connection with 18 TCP genes of A. thaliana, and 74.3% (26 out of 35) TCP genes of M. candidum had a collinearity connection with 20 TCP genes of P. trichocarpa (Figure 8). According to the phylogenetic tree, these TCP genes were divided into three main groups. The first clade was mainly comprised of TCP-P group members, such as TCP9 (At2g45680, Potri.003G120201, Potri.001G111800, McTCP9), TCP19 (At5g51910, McTCP19, Potri.012G135900), TCP6 (At5g41030, McTCP6), TCP20 (At3g27010, Potri.001G327100, Potri.003G167900, Potri.001G060000, McTCP20), TCP14 (At3g47620, McTCP14), TCP15 (At1g69690, McTCP15), TCP22 (At1g72010, Potri.019G081800, McTCP22) and TCP23 (At1g35560, Potri.013G110700) (Figure 9). It was interesting to note that McTCP9 is highly homologous to At2g45680 (AtTCP9), whereas it was closely clustered with TCP19 of Arabidopsis and P. trichocarpa in the phylogenetic tree. McTCP19 was highly homologous to AT5G51910 (AtTCP19), but it was closely clustered with TCP9 of Arabidopsis and P. trichocarpa. This evidence showed that TCP9 and TCP19 had relatively close evolutionary relationships. The second clade mainly comprised CYC/TB1-type TCP genes, such as TCP1 (Potri.017G112000), TCP12 (Potri.015G050500, Potri.012G059900, Potri.008G115800, Potri.010G130200, At1g68800, McTCP12b–e) and TCP18 (At3g18550, McTCP18). Interestingly, in this clade, we only obtained one TCP1 gene in P. trichocarpa, indicating a low collinearity relationship for this gene among three species and high similarity of TCP1 in P. trichocarpa with other TCP genes such as McTCP12e in the other two species (Figure 9). More TCP12 genes were found in Populus and M. candidum, suggesting that more complex gene-duplication events for TCP12 happened in these two species than in Arabidopsis. The third clade mainly comprised CIN-type TCP genes, such as TCP4 (Potri.011G096600, Potri.019G091300, At3g15030, McTCP4a–d), TCP3 (Potri.001G375800, At1g53230, McTCP3), TCP13 (Potri.017G094800, At3g0215, McTCP13), TCP5 (Potri.015G058800, At5g60970, McTCP5a–c), TCP10 (At2g31070, McTCP10), TCP2 (At4g18390, McTCP2a and b) and TCP24 (At1g30210, McTCP24) (Figure 9). Amongst them, McTCP4 and McTCP5 had more members, suggesting that these two subfamilies experienced more complex gene-duplication events in M. candidum than in Arabidopsis and P. trichocarpa. TCP2, TCP4, TCP10, TCP14, TCP15 and TCP18 were only found in collinearity relations between M. candidum and Arabidopsis, reflecting that these genes were conserved in these two species. In each clade, we observed a closer evolutionary relationship intraspecies than interspecies. In all, our results still proved the similar characteristics of TCP genes in different species, and the TCP genes identified in M. candidum were reliable.

2.6. Expression Patterns of the Identified TCP Genes in Different Tissues of M. candidum

To understand the expression pattern of TCP genes, we took part of them to perform qRT-PCR experiments with cDNA as templated from nine kinds of tissues of M. candidum. These nine tissues included young leaves (YL), adult leaves (AL), young stems (YS), adult stems (AS), seeds (S), roots (R), early-stage flowers (EF), middle-stage flowers (MF) and blooming flowers (BF) (Figure 9). Interestingly, our study suggested that more than half of the selected TCP genes, including McTCP2a, McTCP7a, McTCP10, McTCP11, McTCP12a, McTCP13, McTCP16, McTCP17, McTCP18, McTCP20 and McTCP21, were highly expressed in adult leaves, indicating that they could play important roles in leaf development. Some TCP genes had low expression levels in all nine tissues, such as McTCP1, McTCP5a, McTCP6, McTCP9 and McTCP19a. Even though McTCP5a, McTCP6 and McTCP9 exhibited low levels of expression in all the tissues tested, they still displayed higher expression levels in seeds than in the rest tissues. Several TCP genes, including McTCP2a, McTCP3, McTCP5a, McTCP6, McTCP7a, McTCP9, McTCP11, McTCP14 and McTCP16, had high expression levels in seeds. It was found that all of the selected TCP genes had low expression levels in roots and young leaves. In the early stages of flower development, McTCP4a, McTCP10, McTCP17, McTCP18 and McTCP24 were highly expressed; in the middle-stage flowers, McTCP14 was highly expressed; and in the blooming flowers, McTCP20 and McTCP22 were highly expressed (Figure 10). These results reflected the different roles of TCP gene family members during flower development.

3. Discussion

TCP TFs play important roles in diverse biological processes [43,44], making them promising candidates in molecular breeding. Although the TCP genes have been identified in some model species, such as Arabidopsis, rice, maize, Populus, etc., the identification of TCP genes in M. candidum has still not been reported because of the absence of complete genome resources. In this study, we integrated the HMMER search and BLASTp method to identify TCP gene family members based on the genome of M. candidum. Combining domain analyses, a total of 35 TCP TFs were identified and were classified into two typical classes of TCPs, TCP-P and TCP-C. Most TCP genes were found to have been duplicated, resulting in their expansion in M. candidum. The expansion of TCP genes may reflect the involvement of these genes in a more complicated transcription process in the perennial shrub species.
The analysis of the phylogenetic trees of TCPs—in M. candidum and multi-species—supports the results of earlier related research [2,3,4], which has declared two subfamilies are included in TCP gene family. In addition, we have also detected conserved regions in our identified TCP proteins that are similar to those reported previously, which illustrates that there is a high degree of conservation of TCPs across species. However, there were also some subtle differences. For example, several studies have suggested that the R domain of the R proteins is primarily responsible for mediating the interactions of proteins [45]. In contrast, in CIN- and TCP-P-type TFs, we did not yet find the R domain; this is different from TCP identification in bananas [7,45], indicating different characteristics of TCPs between M. candidum and bananas. It is important to note, however, that there are different numbers or types of TCPs in different species. A number of previous studies have also revealed that there are a large number of differences between different species, ranging from 17 to 75 family members [6,31,32,35,37,39]. During the course of our study, a total of 35 TCP gene members were identified. However, comparing 24 TCP genes in Arabidopsis, we observed that TCP15 and TCP23 were not present in our results. When we used 24 TCP genes of Arabidopsis as a query to blast against the database of the M. candidum genome, we found that all 24 TCP genes of Arabidopsis were able to find the best match in M. candidum (Table S2). Furthermore, all of the best matches in this study belonged to the TCP genes we had identified in M. candidum. Some TCP genes in Arabidopsis, such as AT1G53230 (AtTCP3) and AT3G15030 (AtTCP4), were best matched with McTCP3, and AT2G37000 (AtTCP11), AT3G47620 (AtTCP14) and AT1G69690 (AtTCP15) were best matched with McTCP11, illustrating that gene-duplication events also happened in Arabidopsis. Hence, it is normal that we might not be able to find all TCP genes in our results because of the different rules for naming genes. In regards to the different number of genes identified in a specific family, it has been suggested that it may be due to the differences in the species themselves; for example, gene-duplication events and the size of the genome in one species could have an effect on the number of genes identified in a specific family [45]. The second reason is because of the threshold that was chosen when performing the HMMER search. There are some researchers who broaden the definition of the E value from 0.01 to 0.10 [10]. There is no doubt that the results will be different if the threshold is set at a different level. As of now, researchers only name genes numerically, which results in the loss of gene structure information, as well as the existence of gene duplications. Therefore, in a related field, authoritative and reasonable naming standards are urgently needed.
The TCP transcription factors are ancient proteins that are specific to plants. Although there have been no reports in unicellular algae, they have been reported in pluricellular green algae, moss, ferns and lycophytes, typically with five to six members in them [10,43]. Gene family expansion and evolution are mostly attributed to gene-duplication events such as segmental, tandem, transposition and whole-genome-duplication (WGD) events [46,47]. Segmentally duplicated genes are those that are present on different chromosomes and show similar expression patterns [48]. According to this concept, we found that many gene pairs were also distributed across different chromosomes as well, such as McTCP8/McTCP12, McTCP17/McTCP5a and 5b, McTCP3/McTCP4a and 4b, etc., indicating that segmental duplication events play important roles in the TCP gene member expansion process of M. candidum (Figure 7a). The results of this study are in agreement with previous investigations of the TCP gene family in other species [35,38,49]. In most plants, WGD is also the dominant cause of genome diversity [7]. Based on synonymous substitution rate (Ks) analysis, previous studies had defined different types of WGD events such as α + β WGD and γ WGD events [45,50]. Using this method, we were able to determine that the genome of M. candidum has undergone three WGD events during evolution. Amongst them, approximately 41.7% (10 out of 24) TCP gene pairs experienced WGDα events (Ks < 0.45), 16.7% (4 out of 24) of TCP gene pairs experienced WGDβ events (0.45 ≤ Ks ≤ 0.85) and 41.7% (10 out of 24) TCP gene pairs experienced WGDγ events (Ks > 0.85) (Figure 7b), suggesting WGD is responsible for the expansion of the TCP gene family in M. candidum. A gene pair with a Ks greater than 0.85 indicates that the gene may have originated from a more ancient duplication event and has since undergone multiple rounds of WGD. Earlier studies have shown that TCP gene expansion is not uniformly distributed in various classes of bananas. For example, the CIN subclade exhibited more gene duplication than any other subclade [7]. However, in our results, we did not observe uneven distribution of gene-duplication events in three types of TCP genes. There were duplication events detected in most of the TCP genes of different types (Figure 7a,b). It is a possibility that this may be caused by the species itself.
There is a relationship between the expression profile of genes and the function of those genes [51]. The genes had distinct expression profiles in diverse organs, suggesting their role in the development of various organs. There is a great deal of evidence that TCP transcription factors play an important role in plant growth and development, including the development of all types of branches, leaves and flowers [21,45], as well as fruit development and ripening [37]. Some research had proved that more than two thirds of TCP-C subfamily genes have organ-specific expressions [10] and could inhibit plant growth and cell differentiation [22]. TCP-P—and some CIN—genes were detected in the flower, leaf and stem of Prunus mume [10]. In Arabidopsis, eight CIN-type genes, including AtTCP2, AtTCP3, AtTCP4, AtTCP5, AtTCP10, AtTCP13, AtTCP17 and AtTCP24, are highly transcribed in the leaf and are responsible for the regulation of leaf growth [16,52]. CYC genes may be related to changes in petal size [53] and floral zygomorphy [54]. In accordance with the previous study, our results of qRT-PCR assays revealed that some members of the TCP-P sub-family—such as McTCP6, McTCP8, McTCP14 and McTCP22, —and some members of the CYC sub-family—such as McTCP1 and McTCP8—were highly expressed in the stems of M. candidum. Several TCP-P members—such as McTCP7a, McTCP8, McTCP9, McTCP11, McTCP14, McTCP16, McTCP20 and McTCP21—CYC members—such as McTCP1, McTCP12a and McTCP18—as well as TCP-C gene family members—such as McTCP2a, McTCP3, McTCP5a, McTCP10, McTCP13 and McTCP17—were highly expressed in leaves of M. candidum. There was a high-level expression of CIN sub-family members such as McTCP3, McTCP4a, McTCP8, McTCP10 and McTCP20 in the flowers of M. candidum (Figure 9). These results indicate that TCP genes may be functionally conserved among different species.

4. Materials and Methods

4.1. Identification of TCP Transcription Factors

The genome resource of M. candidum was provided by Zhou’s group of Sun Yat-sen University (unpublished data). To identify TCP gene family members in M. candidum, the TCP domain HMM profile (PF03634) was used as a query to perform a HMMER search with an E-value cut-off of 1 × 10−3 through the M. candidum genome by following the HMMER User Guide. All the motif analyses for the obtained proteins were conducted on MEME Suite Version 5.5.0. Available online: https://meme-suite.org/meme/tools/meme (accessed on 24 August 2022) and domain analyses were performed on the PFAM website (https://www.ebi.ac.uk/Tools/pfa/pfamscan/) with an E-value 1 × 10−5 to further verify the identified TCP gene members.

4.2. Phylogeny Tree Construction and Location of TCP Gene Family Members in Chromosome

All the identified TCP genes were aligned by MUSCLE method in MEGA 6.01, and then a phylogenetic tree was constructed by the ML (maximum likelihood) method based on LG models with 1000 bootstrap replications. The phylogeny tree was visualized on the Interactive tree of life (iTOL). Available online: https://itol.embl.de/ (accessed on 26 August 2022). By utilizing the Gene Location Visualize from the GTF/GFF function module of TBtools software, we visualized the distribution of TCP genes along the chromosomes through the gtf annotation of the genome and the gene density file.

4.3. Visualization of Motif, Domain, Gene Structure and Promoter of TCP Genes

Motif, domain, gene structure and promoter analyses were conducted for all the identified TCP genes. The upstream 2000 bp of the TCP CDs were extracted for the purpose of conducting promoter analyses on PlantCARE. Available online: https://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 28 August 2022). With the .gff file of the genome, gene structures including CDs and untranslational region (UTR) were displayed in the gene structure view of TBtools. Based on the identification of TCP transcription factor parts, the motifs and domains of TCP genes were visualized by the gene structure view and Batch SMART module of the TBtools software, respectively.

4.4. Conserved Region Analysis of the TCP Proteins

The protein sequences of identified TCPs were first aligned by the ClustalW method in MEGA software. The aligned fasta file was input into Jalview software to show the conserved region of all the aligned TCPs. The Seqlogo graph of the conserved region was produced by the Amazing Simple SeqLogo module of TBtools to show the conservation of amino acids in the corresponding region.

4.5. Identification of TCP Gene Pairs and Divergence Time Estimation

Gene collinearity analysis and visualization within the M. candidum genome were conducted by TBtools [55]. In a nutshell, (1) the collinearity, CTL, and .gff file were produced by the One Step MCScanX-Super Fast module; (2) the chromosome length file was generated by the Fasta stats module; (3) a gene pair file was produced from the collinearity file by the File Merge for MCScanX module; (4) a link region file was generated by the File Transformat for Microsyteny viewer module; (5) gene pairs of TCP gene family members were produced by the Text Block Extract and Filter module. Based on the above analyses, we aligned protein sequences and ORFs of the TCP gene pairs by ClustalW method in MEGA software. The synonymous substitution (Ks) and non-synonymous substitution (Ka) rates were calculated using the CODEML program of PAML on PAL2NAL. Available online: http://www.bork.embl.de/pal2nal/ (accessed on 29 August 2022) [56]. Divergence times (DT) of the gene pairs were estimated using the formula T = Ks/2λ, with the divergence rate λ = 6.5 × 10−9 [41,57]. TCP gene pairs were visualized in the Advanced circos module of the TBtools [55].

4.6. Collinearity and Phylogeny Analyses of TCP Genes among Different Species

Multiple Chr layout, gene link and .gff files between A. thaliana and M. candidum, P. trichocarpa and M. candidum were produced by the One Step MCScanX-Super Fast module of the TBtools with an E-value of 1 × 10−3. The homologous genes among the different species were obtained from the merged gene link file after merging three files of two comparison groups using the File Merge For MCScan-X module. By using the extracted protein sequence of these homologous genes, a phylogeny tree among three species was performed in MEGA by the ML method with 1000 boot replications. TCP gene collinearity plots among different species were visualized by the Multiple Synteny Plot module of the TBtools [55].

4.7. Quantitative Real-Time PCR and Statistical Analysis of the Selected TCP Genes in Different Tissues of M. candidum

A total of 22 selected TCP genes (Table S3) were blasted against the whole genome of M. candidum to find a specific region, and then the primers were designed for qRT-PCR. Nine tissues, including young leaves (YL), adult leaves (AL), young stems (YS), adult stems (AS), seeds (S), roots (R) and three-stage flowers (EF, MF, LF), were collected to extract the total RNA by OminiPlant RNA Kit (DNase I) (CW2598, CWBIO, Taizhou, China) following the manufacturer’s instructions. After checking the quality of the total RNAs, 0.5 μg of total RNA was reverse-transcribed into first-strand cDNA using the PrimeScript RT reagent Kit gDNA Eraser (Takara, Dalian, China). Then, the SYBR @Premix Ex Taq TMII (Takara, Dalian, China) was used for qRT-PCR of genes, following the manufacturer’s instruction, on the Illumina Eco real-time PCR system (Illumina, USA) platform. The α-tubulin gene of M. candidum was used as the internal reference gene. Ct values obtained on the thermal cycler platform were then calculated by the 2−ΔCt algorithm [58]. Using mixtures of cDNAs from nine tissues, primer PCR amplification efficiency was evaluated by following Pfaffl’s research [59]. Primers sequences, length of PCR products and PCR amplification efficiency for each pair of primers are listed in Table S3. Relative expression levels of selected genes in different tissues were analyzed using ANOVA with Duncan’s test by SPSS 18.0 software. The graphs were visualized by GraphPad Prism 9 and Adobe Illustrator 2020.

5. Conclusions

Collectively, a total of 35 TCP gene family members were identified based on the genome-wide identification of M. candidum in our study. In the identified TCP gene family members, there was a common domain in the TCP superfamily. Despite the fact that there were differences between all the TCP genes, the same gene type showed high conservation. The number of TCP genes was more due to more frequent gene-duplication events that occurred in M. candidum. It is more likely that the majority of TCP genes had been affected by natural selection rather than human interference. TCP genes showed distinct family members from two model species. A greater focus should be placed on functional exploration to expand their application in the garden and pharmaceutical industries. Our results provided valuable information for understanding the classification and functions of TCP genes in M. candidum.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27249036/s1, Figure S1: Conservation analysis of two types of TCP genes. The same color in the column and the big size of the letters mean a highly conservative region; Table S1: Identified cis-elements in promoter region of TCP genes; Table S2: Blast results of 24 TCP genes in Arabidopsis with corresponding genes in M. candidum; Table S3: Primers used in qRT-PCR.

Author Contributions

H.L., S.D. and Y.Y.; methodology, designed this paper; H.L., X.W., X.H. and M.W.; software, and visualization, H.C.; validation, H.L. and X.W.; writing—original draft preparation, S.D. and Y.Y.; writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the project of Guangzhou Ecological Garden Science & Technology Collaborative Innovation Center (202206010058); Funding of scientific research projects for postdoctor (2022BSHKYZZ); Improved Varieties Breeding and High-efficiency Cultivation Techniques Research & Demonstration of Traditional Chinese Medicine (KTP20200175).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Renchao Zhou of Sun Yat-sen University for providing the genome resource of M. candidum.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Manassero, N.G.U.; Viola, I.L.; Welchen, E.; Gonzalez, D.H. TCP transcription factors: Architectures of plant form. Biomol. Concepts 2013, 4, 111–127. [Google Scholar] [CrossRef] [PubMed]
  2. Doebley, J.; Stec, A.; Hubbard, L. The evolution of apical dominance in maize. Nature 1997, 386, 485–488. [Google Scholar] [CrossRef] [PubMed]
  3. Luo, D.; Carpenter, R.; Copsey, L.; Vincent, C.; Clark, J.; Coen, E. Control of organ asymmetry in flowers of Antirrhinum. Cell 1999, 99, 367–376. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Kosugi, S.; Ohashi, Y. PCF1 and PCF2 specifically bind to cis elements in the rice proliferating cell nuclear antigen gene. Plant Cell 1997, 9, 1607–1619. [Google Scholar]
  5. Luo, D.; Carpenter, R.; Vincent, C.; Copsey, L.; Coen, E. Origin of floral asymmetry in Antirrhinum. Nature 1996, 383, 794–799. [Google Scholar] [CrossRef]
  6. Navaud, O.; Dabos, P.; Carnus, E.; Tremousaygue, D.; Hervé, C. TCP transcription factors predate the emergence of land plants. J. Mol. Evol. 2007, 65, 23–33. [Google Scholar] [CrossRef]
  7. Sánchez Moreano, J.P.; Xu, X.; Aucapiña Criollo, C.B.; Chen, X.; Lin, Y.; Munir, N.; Lai, Z. Genome-wide identification and comprehensive analyses of TCP gene family in banana (Musa L.). Trop. Plant Biol. 2021, 14, 180–202. [Google Scholar] [CrossRef]
  8. Xu, R.; Sun, P.; Jia, F.; Lu, L.; Li, Y.; Zhang, S.; Huang, J. Genomewide analysis of TCP transcription factor gene family in Malus domestica. J. Genet. 2014, 93, 733–746. [Google Scholar] [CrossRef]
  9. Brameier, M. Genome-wide comparative analysis of microRNAs in three non-human primates. BMC Res. Notes 2010, 3, 64. [Google Scholar] [CrossRef] [Green Version]
  10. Zhou, Y.; Xu, Z.; Zhao, K.; Yang, W.; Cheng, T.; Wang, J.; Zhang, Q. Genome-wide identification, characterization and expression analysis of the TCP gene family in Prunus mume. Front. Plant Sci. 2016, 7, 1301. [Google Scholar] [CrossRef] [Green Version]
  11. Reeves, P.A.; Olmstead, R.G. Evolution of the TCP gene family in Asteridae: Cladistic and network approaches to understanding regulatory gene family diversification and its impact on morphological evolution. Mol. Biol. Evol. 2003, 20, 1997–2009. [Google Scholar] [CrossRef] [PubMed]
  12. Efroni, I.; Blum, E.; Goldshmidt, A.; Eshed, Y. A protracted and dynamic maturation schedule underlies Arabidopsis leaf development. Plant Cell 2008, 20, 2293–2306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Nag, A.; King, S.; Jack, T. miR319a targeting of TCP4 is critical for petal growth and development in Arabidopsis. Proc. Natl. Acad. Sci. USA 2009, 106, 22534–22539. [Google Scholar] [CrossRef] [Green Version]
  14. Busch, A.; Zachgo, S. Control of corolla monosymmetry in the Brassicaceae Iberis amara. Proc. Natl. Acad. Sci. USA 2007, 104, 16714–16719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Aguilar-Martínez, J.A.; Poza-Carrión, C.; Cubas, P. Arabidopsis BRANCHED1 acts as an integrator of branching signals within axillary buds. Plant Cell 2007, 19, 458–472. [Google Scholar] [CrossRef]
  16. Palatnik, J.F.; Allen, E.; Wu, X.; Schommer, C.; Schwab, R.; Carrington, J.C.; Weigel, D. Control of leaf morphogenesis by microRNAs. Nature 2003, 425, 257–263. [Google Scholar] [CrossRef] [Green Version]
  17. Giraud, E.; Ng, S.; Carrie, C.; Duncan, O.; Low, J.; Lee, C.P.; Van Aken, O.; Millar, A.H.; Murcha, M.; Whelan, J. TCP transcription factors link the regulation of genes encoding mitochondrial proteins with the circadian clock in Arabidopsis thaliana. Plant Cell 2010, 22, 3921–3934. [Google Scholar] [CrossRef] [Green Version]
  18. Guan, P.; Ripoll, J.-J.; Wang, R.; Vuong, L.; Bailey-Steinitz, L.J.; Ye, D.; Crawford, N.M. Interacting TCP and NLP transcription factors control plant responses to nitrate availability. Proc. Natl. Acad. Sci. USA 2017, 114, 2419–2424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Li, X.; Yang, Q.; Liao, X.; Tian, Y.; Zhang, F.; Zhang, L.; Liu, Q. A natural antisense RNA improves chrysanthemum cold tolerance by regulating the transcription factor DgTCP1. Plant Physiol. 2022, 190, 605–620. [Google Scholar] [CrossRef]
  20. Almeida, D.M.; Gregorio, G.B.; Oliveira, M.M.; Saibo, N.J. Five novel transcription factors as potential regulators of OsNHX1 gene expression in a salt tolerant rice genotype. Plant Mol. Biol. 2017, 93, 61–77. [Google Scholar] [CrossRef] [PubMed]
  21. Zheng, A.; Sun, F.; Cheng, T.; Wang, Y.; Xie, K.; Zhang, C.; Xi, Y. Genome-wide identification of members of the TCP gene family in switchgrass (Panicum virgatum L.) and analysis of their expression. Gene 2019, 702, 89–98. [Google Scholar] [CrossRef] [PubMed]
  22. Nicolas, M.; Cubas, P. TCP factors: New kids on the signaling block. Curr. Opin. Plant Biol. 2016, 33, 33–41. [Google Scholar] [CrossRef] [PubMed]
  23. Ju, Y.; Guo, L.; Cai, Q.; Ma, F.; Zhu, Q.-Y.; Zhang, Q.; Sodmergen. Arabidopsis JINGUBANG is a negative regulator of pollen germination that prevents pollination in moist environments. Plant Cell 2016, 28, 2131–2146. [Google Scholar] [PubMed] [Green Version]
  24. Zhang, W.; Cochet, F.; Ponnaiah, M.; Lebreton, S.; Mathéron, L.; Pionneau, C.; Boudsocq, M.; Resentini, F.; Huguet, S.; Blázquez, M.A.; et al. The MPK 8-TCP 14 pathway promotes seed germination in Arabidopsis. Plant J. 2019, 100, 677–692. [Google Scholar] [CrossRef]
  25. Li, D.; Zhang, H.; Mou, M.; Chen, Y.; Xiang, S.; Chen, L.; Yu, D. Arabidopsis class II TCP transcription factors integrate with the FT–FD module to control flowering. Plant Physiol. 2019, 181, 97–111. [Google Scholar] [CrossRef]
  26. Li, Z.; Li, B.; Shen, W.H.; Huang, H.; Dong, A. TCP transcription factors interact with AS2 in the repression of class-I KNOX genes in Arabidopsis thaliana. Plant J. 2012, 71, 99–107. [Google Scholar] [CrossRef]
  27. Schommer, C.; Palatnik, J.F.; Aggarwal, P.; Chételat, A.; Cubas, P.; Farmer, E.E.; Nath, U.; Weigel, D. Control of jasmonate biosynthesis and senescence by miR319 targets. PLoS Biol. 2008, 6, e230. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Parapunova, V.; Busscher, M.; Busscher-Lange, J.; Lammers, M.; Karlova, R.; Bovy, A.G.; Angenent, G.C.; de Maagd, R.A. Identification, cloning and characterization of the tomato TCP transcription factor family. BMC Plant Biol. 2014, 14, 157. [Google Scholar] [CrossRef] [Green Version]
  29. Shi, P.; Guy, K.M.; Wu, W.; Fang, B.; Yang, J.; Zhang, M.; Hu, Z. Genome-wide identification and expression analysis of the ClTCP transcription factors in Citrullus lanatus. BMC Plant Biol. 2016, 16, 85. [Google Scholar] [CrossRef] [Green Version]
  30. Lin, Y.-F.; Chen, Y.-Y.; Hsiao, Y.-Y.; Shen, C.-Y.; Hsu, J.-L.; Yeh, C.-M.; Mitsuda, N.; Ohme-Takagi, M.; Liu, Z.-J.; Tsai, W.-C. Genome-wide identification and characterization of TCP genes involved in ovule development of Phalaenopsis equestris. J. Exp. Bot. 2016, 67, 5051–5066. [Google Scholar] [CrossRef] [Green Version]
  31. Du, J.; Hu, S.; Yu, Q.; Wang, C.; Yang, Y.; Sun, H.; Yang, Y.; Sun, X. Genome-wide identification and characterization of BrrTCP transcription factors in Brassica rapa ssp. rapa. Front. Plant Sci. 2017, 8, 1588. [Google Scholar] [CrossRef]
  32. Zheng, K.; Ni, Z.; Qu, Y.; Cai, Y.; Yang, Z.; Sun, G.; Chen, Q. Genome-wide identification and expression analyses of TCP transcription factor genes in Gossypium barbadense. Sci. Rep. 2018, 8, 14526. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Liu, M.-M.; Wang, M.-M.; Yang, J.; Wen, J.; Guo, P.-C.; Wu, Y.-W.; Ke, Y.-Z.; Li, P.-F.; Li, J.-N.; Du, H. Evolutionary and comparative expression analyses of TCP transcription factor gene family in land plants. Int. J. Mol. Sci. 2019, 20, 3591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Wen, H.; Chen, Y.; Du, H.; Zhang, L.; Zhang, K.; He, H.; Pan, J.; Cai, R.; Wang, G. Genome-wide identification and characterization of the TCP gene family in cucumber (Cucumis sativus L.) and their transcriptional responses to different treatments. Genes 2020, 11, 1379. [Google Scholar] [CrossRef] [PubMed]
  35. Ding, S.; Cai, Z.; Du, H.; Wang, H. Genome-wide analysis of TCP family genes in Zea mays L. identified a role for ZmTCP42 in drought tolerance. Int. J. Mol. Sci. 2019, 20, 2762. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Guo, Z.-H.; Shu, W.-S.; Cheng, H.-Y.; Wang, G.-M.; Qi, K.-J.; Zhang, S.-L.; Gu, C. Expression analysis of TCP genes in peach reveals an involvement of PpTCP. A2 in ethylene biosynthesis during fruit ripening. Plant Mol. Biol. Rep. 2018, 36, 588–595. [Google Scholar] [CrossRef]
  37. Wei, W.; Hu, Y.; Cui, M.-Y.; Han, Y.-T.; Gao, K.; Feng, J.-Y. Identification and transcript analysis of the TCP transcription factors in the diploid woodland strawberry Fragaria vesca. Front. Plant Sci. 2016, 7, 1937. [Google Scholar] [CrossRef] [Green Version]
  38. Ma, X.; Ma, J.; Fan, D.; Li, C.; Jiang, Y.; Luo, K. Genome-wide identification of TCP family transcription factors from Populus euphratica and their involvement in leaf shape regulation. Sci. Rep. 2016, 6, 32795. [Google Scholar] [CrossRef] [Green Version]
  39. Jiu, S.; Xu, Y.; Wang, J.; Wang, L.; Wang, S.; Ma, C.; Guan, L.; Abdullah, M.; Zhao, M.; Xu, W.; et al. Genome-wide identification, characterization, and transcript analysis of the TCP transcription factors in Vitis vinifera. Front. Genet. 2019, 10, 1276. [Google Scholar] [CrossRef]
  40. Danisman, S.; van Dijk, A.D.; Bimbo, A.; van der Wal, F.; Hennig, L.; de Folter, S.; Angenent, G.C.; Immink, R.G. Analysis of functional redundancies within the Arabidopsis TCP transcription factor family. J. Exp. Bot. 2013, 64, 5673–5685. [Google Scholar] [CrossRef] [Green Version]
  41. Gaut, B.S.; Morton, B.R.; McCaig, B.C.; Clegg, M.T. Substitution rate comparisons between grasses and palms: Synonymous rate differences at the nuclear gene Adh parallel rate differences at the plastid gene rbcL. Proc. Natl. Acad. Sci. USA 1996, 93, 10274–10279. [Google Scholar] [CrossRef] [PubMed]
  42. Tang, H.; Bowers, J.E.; Wang, X.; Ming, R.; Alam, M.; Paterson, A.H. Synteny and collinearity in plant genomes. Science 2008, 320, 486–488. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Martín-Trillo, M.; Cubas, P. TCP genes: A family snapshot ten years later. Trends Plant Sci. 2010, 15, 31–39. [Google Scholar] [CrossRef] [PubMed]
  44. Danisman, S.; Van der Wal, F.; Dhondt, S.; Waites, R.; de Folter, S.; Bimbo, A.; van Dijk, A.D.; Muino, J.M.; Cutri, L.; Dornelas, M.C. Arabidopsis class I and class II TCP transcription factors regulate jasmonic acid metabolism and leaf development antagonistically. Plant Physiol. 2012, 159, 1511–1523. [Google Scholar] [CrossRef] [Green Version]
  45. Wang, J.; Wang, Z.; Jia, C.; Miao, H.; Zhang, J.; Liu, J.; Xu, B.; Jin, Z. Genome-wide identification and transcript analysis of TCP gene family in Banana (Musa acuminata L.). Biochem. Genet. 2022, 60, 204–222. [Google Scholar] [CrossRef]
  46. Leister, D. Tandem and segmental gene duplication and recombination in the evolution of plant disease resistance genes. Trends Genet. 2004, 20, 116–122. [Google Scholar] [CrossRef] [Green Version]
  47. Zhang, J. Evolution by gene duplication: An update. Trends Ecol. Evol. 2003, 18, 292–298. [Google Scholar] [CrossRef] [Green Version]
  48. Li, Y.; Zhu, Y.; Yao, J.; Zhang, S.; Wang, L.; Guo, C.; Van Nocker, S.; Wang, X. Genome-wide identification and expression analyses of the homeobox transcription factor family during ovule development in seedless and seeded grapes. Sci. Rep. 2017, 7, 1–16. [Google Scholar] [CrossRef] [Green Version]
  49. Li, W.; Li, D.-D.; Han, L.-H.; Tao, M.; Hu, Q.-Q.; Wu, W.-Y.; Zhang, J.-B.; Li, X.-B.; Huang, G.-Q. Genome-wide identification and characterization of TCP transcription factor genes in upland cotton (Gossypium hirsutum). Sci. Rep. 2017, 7, 10118. [Google Scholar] [CrossRef] [Green Version]
  50. D’hont, A.; Denoeud, F.; Aury, J.-M.; Baurens, F.-C.; Carreel, F.; Garsmeur, O.; Noel, B.; Bocs, S.; Droc, G.; Rouard, M.; et al. The banana (Musa acuminata) genome and the evolution of monocotyledonous plants. Nature 2012, 488, 213–217. [Google Scholar] [CrossRef] [Green Version]
  51. Xu, Z.; Sun, L.; Zhou, Y.; Yang, W.; Cheng, T.; Wang, J.; Zhang, Q. Identification and expression analysis of the SQUAMOSA promoter-binding protein (SBP)-box gene family in Prunus mume. Mol. Genet. Genom. 2015, 290, 1701–1715. [Google Scholar] [CrossRef] [PubMed]
  52. Ori, N.; Cohen, A.R.; Etzioni, A.; Brand, A.; Yanai, O.; Shleizer, S.; Menda, N.; Amsellem, Z.; Efroni, I.; Pekker, I.; et al. Regulation of LANCEOLATE by miR319 is required for compound-leaf development in tomato. Nat. Genet. 2007, 39, 787–791. [Google Scholar] [CrossRef] [PubMed]
  53. Costa, M.M.R.; Fox, S.; Hanna, A.I.; Baxter, C.; Coen, E. Evolution of regulatory interactions controlling floral asymmetry. Development 2005, 132, 5093–5101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Yang, X.; Pang, H.-B.; Liu, B.-L.; Qiu, Z.-J.; Gao, Q.; Wei, L.; Dong, Y.; Wang, Y.-Z. Evolution of double positive autoregulatory feedback loops in CYCLOIDEA2 clade genes is associated with the origin of floral zygomorphy. Plant Cell 2012, 24, 1834–1847. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  56. Wei, B.; Zhang, R.-Z.; Guo, J.-J.; Liu, D.-M.; Li, A.-L.; Fan, R.-C.; Mao, L.; Zhang, X.-Q. Genome-wide analysis of the MADS-box gene family in Brachypodium distachyon. PLoS ONE 2014, 9, e84781. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Lynch, M.; Conery, J.S. The evolutionary fate and consequences of duplicate genes. Science 2000, 290, 1151–1155. [Google Scholar] [CrossRef] [Green Version]
  58. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative CT method. Nat. Protoc. 2008, 3, 1101–1108. [Google Scholar] [CrossRef]
  59. Pfaffl, M.W.; Horgan, G.W.; Leo, D. Relative expression software tool (REST©) for group-wise comparison and statistical analysis of relative expression results in real-time PCR. Nucleic Acids Res. 2002, 30, e36. [Google Scholar] [CrossRef]
Molecules 27 09036 g001 550

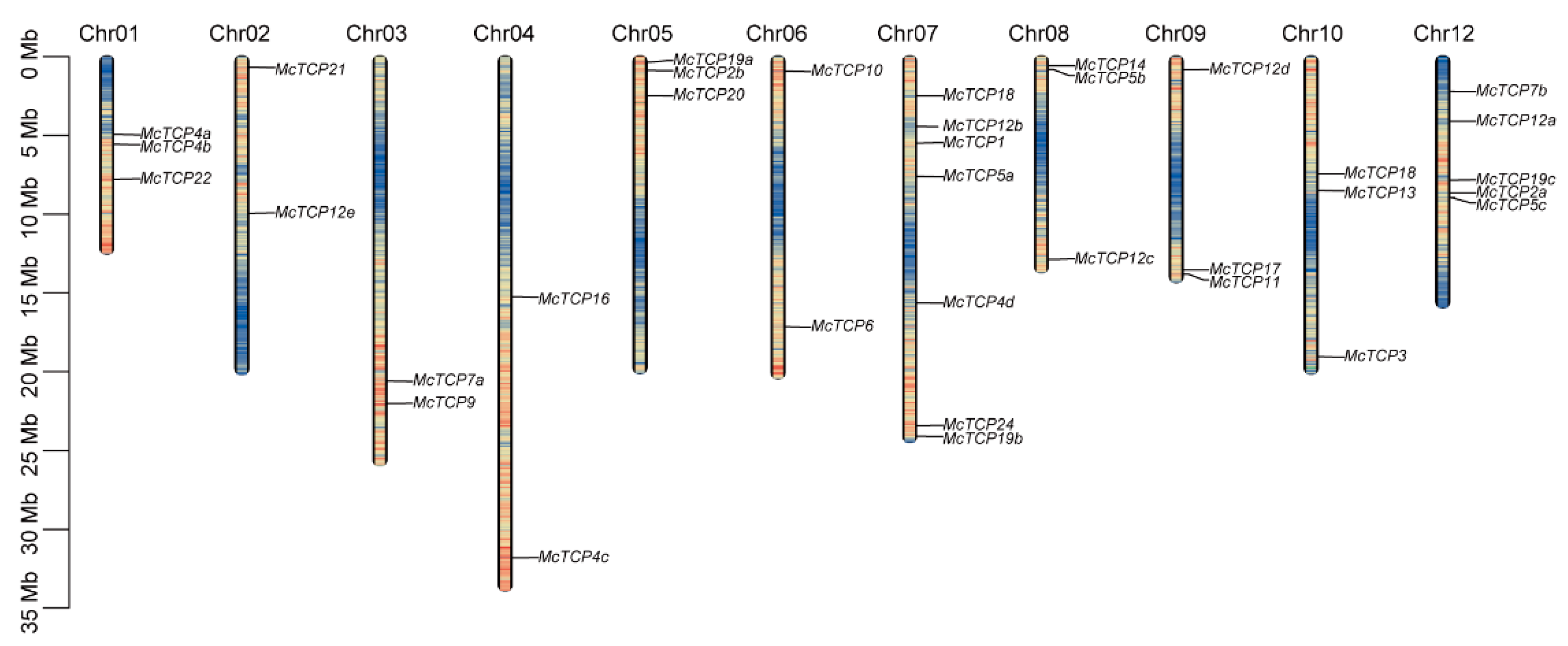

Figure 1. Gene location in different chromosomes. Length of the bars represents the size of the chromosome. Different color within each bar represents gene density on the chromosome. Red means high gene density, and blue means low gene density.
Figure 1. Gene location in different chromosomes. Length of the bars represents the size of the chromosome. Different color within each bar represents gene density on the chromosome. Red means high gene density, and blue means low gene density.
Molecules 27 09036 g001
Molecules 27 09036 g002 550

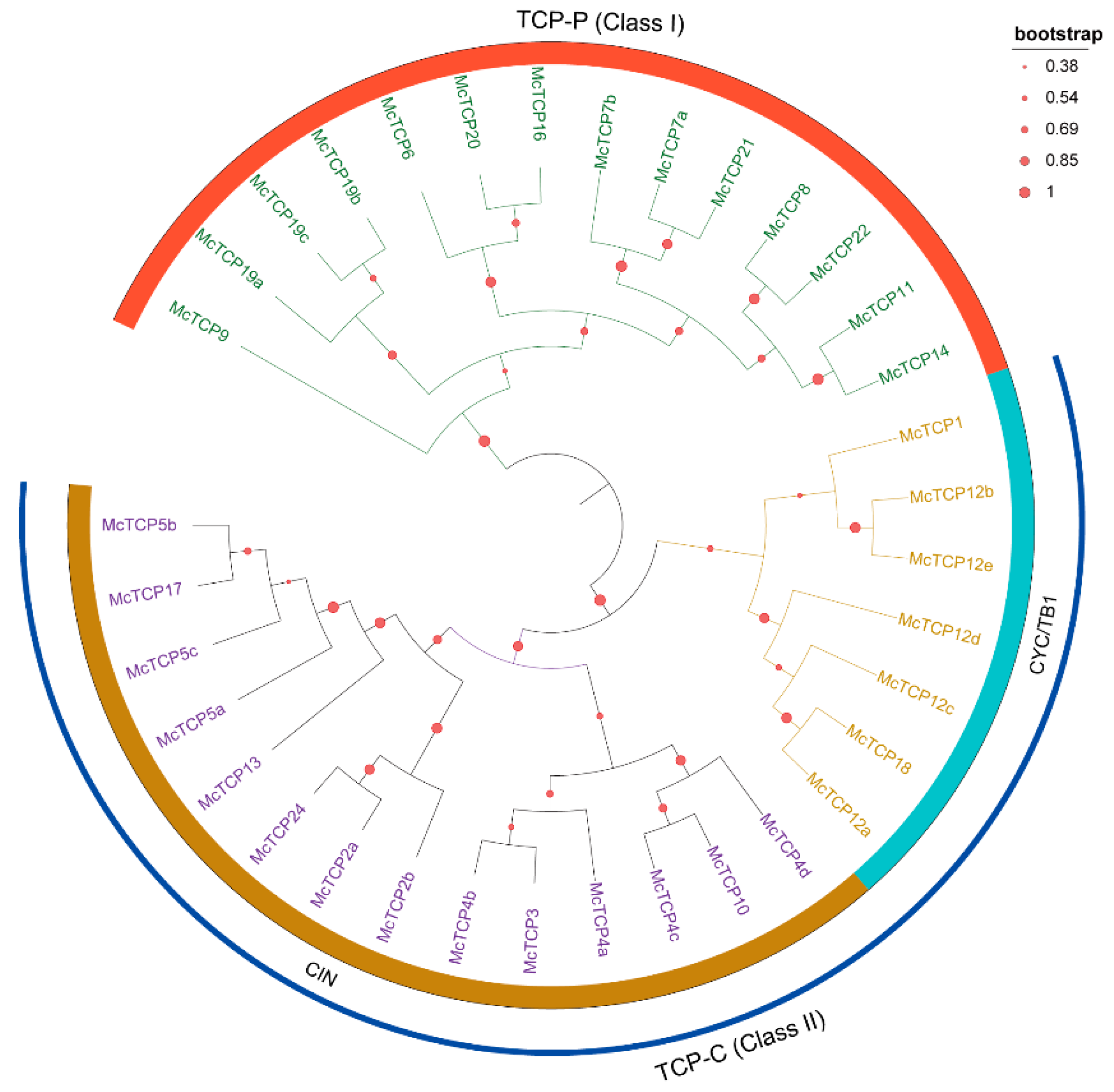

Figure 2. Phylogenetic evolution of TCP family members. Different colors of the outer ring denote the three main TCP genes. The blue arc represents TCP-C-type genes. The red dots on the tree branches represent bootstrap value. The size of the dots is in proportion to the bootstrap value.
Figure 2. Phylogenetic evolution of TCP family members. Different colors of the outer ring denote the three main TCP genes. The blue arc represents TCP-C-type genes. The red dots on the tree branches represent bootstrap value. The size of the dots is in proportion to the bootstrap value.
Molecules 27 09036 g002
Molecules 27 09036 g003 550

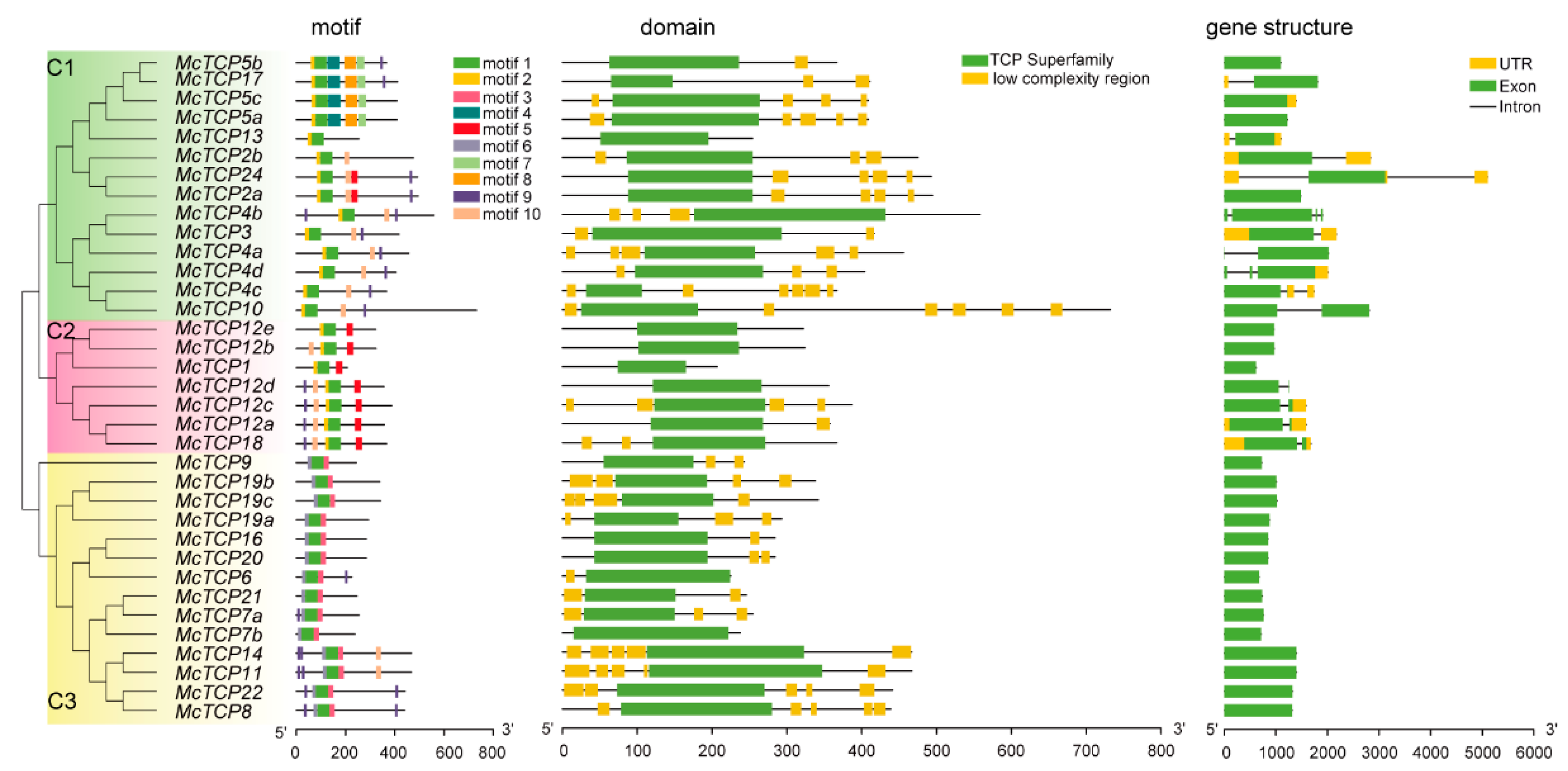

Figure 3. Motif, domain and gene structure analyses of TCP family members. Rectangles with different colors represent different motifs, domains, UTRs and exons, respectively.
Figure 3. Motif, domain and gene structure analyses of TCP family members. Rectangles with different colors represent different motifs, domains, UTRs and exons, respectively.
Molecules 27 09036 g003
Molecules 27 09036 g004 550
Figure 4. Promoter analysis of TCP family members. The red dot on branches of the phylogeny trees denotes bootstrap value. Different color models on the black lines mean elements of promoters.
Figure 4. Promoter analysis of TCP family members. The red dot on branches of the phylogeny trees denotes bootstrap value. Different color models on the black lines mean elements of promoters.
Molecules 27 09036 g004
Molecules 27 09036 g005 550

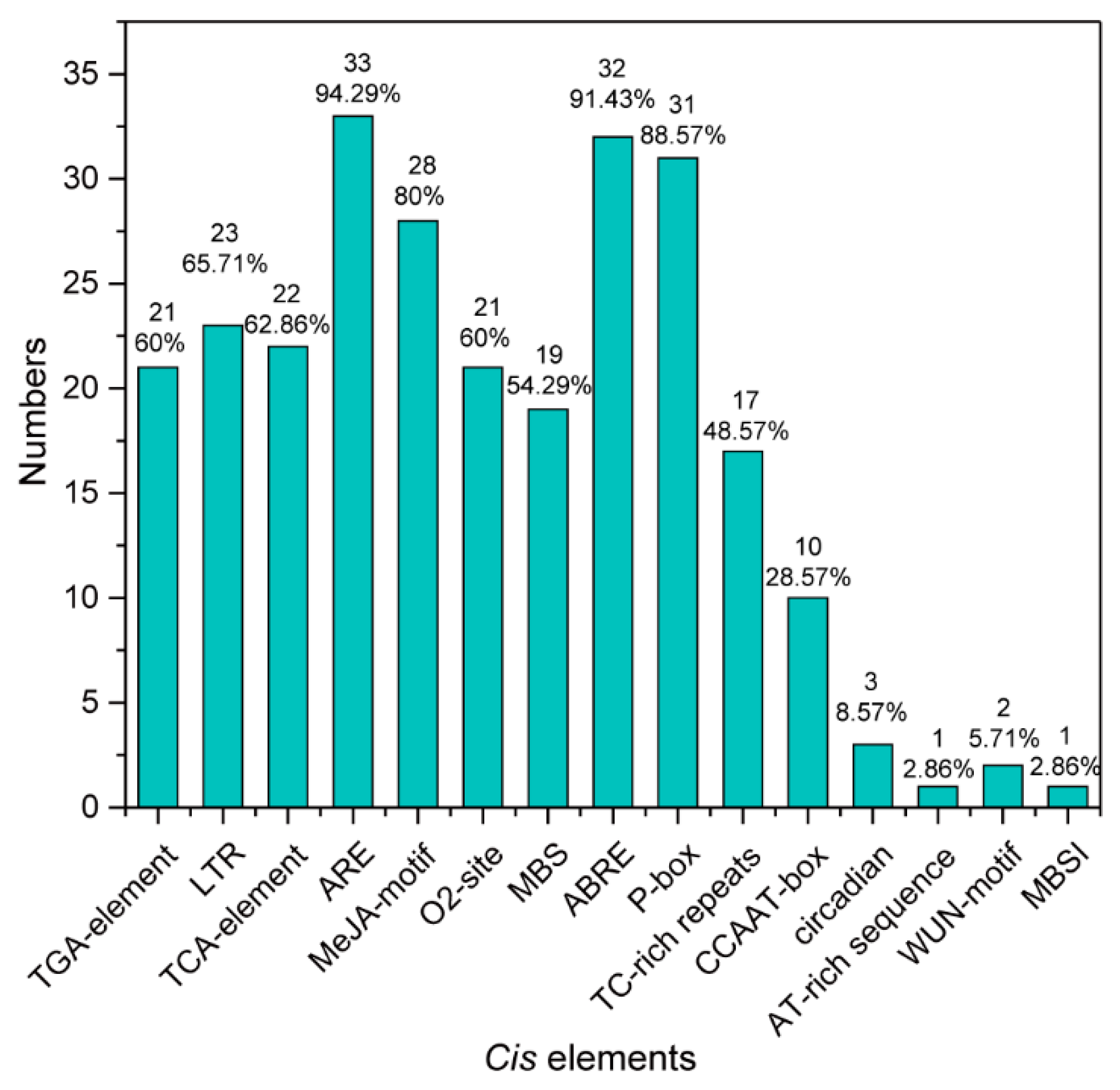

Figure 5. Statistics of different Cis elements in the promoter of the identified 35 TCP genes.
Figure 5. Statistics of different Cis elements in the promoter of the identified 35 TCP genes.
Molecules 27 09036 g005
Molecules 27 09036 g006 550
Figure 6. Sequence alignment and seqlogo of TCP TFs. (a) Alignment of the TCP superfamily domain in all identified TCP TFs; (b) Alignment of the R domain in all identified TCP TFs. The same color in the column and the big size of the letters in the seqlogo graph denote a high level of conservation in the corresponding position.
Figure 6. Sequence alignment and seqlogo of TCP TFs. (a) Alignment of the TCP superfamily domain in all identified TCP TFs; (b) Alignment of the R domain in all identified TCP TFs. The same color in the column and the big size of the letters in the seqlogo graph denote a high level of conservation in the corresponding position.
Molecules 27 09036 g006
Molecules 27 09036 g007 550

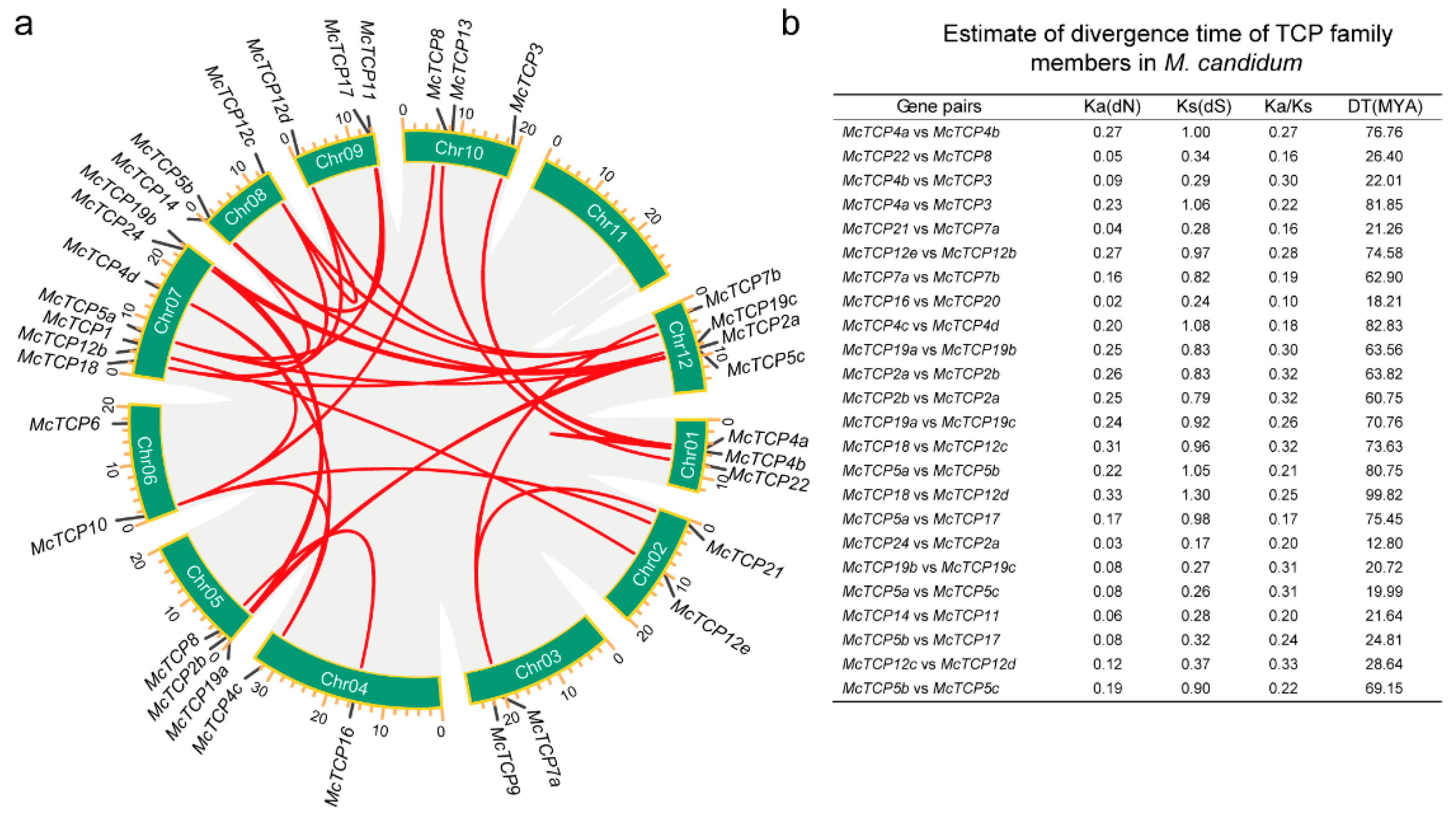

Figure 7. TCP gene pairs within M. candidum. (a) circos graph of TCP family members in M. candidum. Red lines within the circos graph represent a gene pair relationship. (b) Divergence time estimation of TCP gene pairs. Ka means non-synonymous substitution rate; Ks means synonymous substitution rate; DT means divergence time.
Figure 7. TCP gene pairs within M. candidum. (a) circos graph of TCP family members in M. candidum. Red lines within the circos graph represent a gene pair relationship. (b) Divergence time estimation of TCP gene pairs. Ka means non-synonymous substitution rate; Ks means synonymous substitution rate; DT means divergence time.
Molecules 27 09036 g007
Molecules 27 09036 g008 550

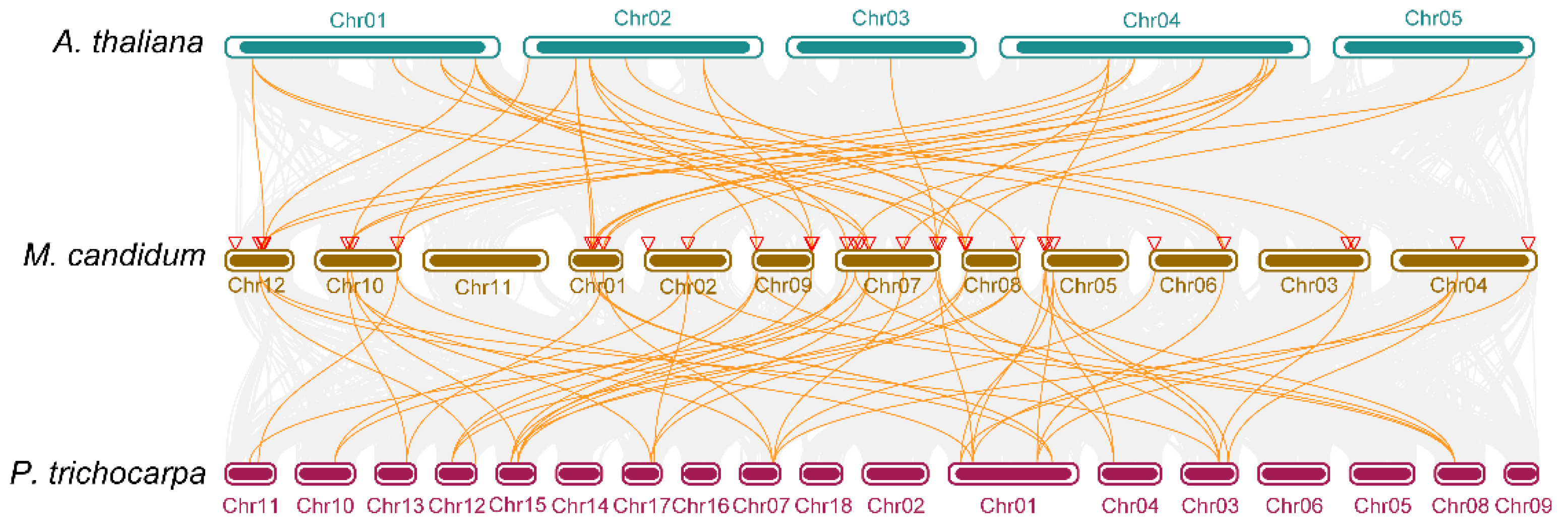

Figure 8. Multi-collinearity analysis of three species. The orange lines between two species denote collinearity genes among different species.
Figure 8. Multi-collinearity analysis of three species. The orange lines between two species denote collinearity genes among different species.
Molecules 27 09036 g008
Molecules 27 09036 g009 550

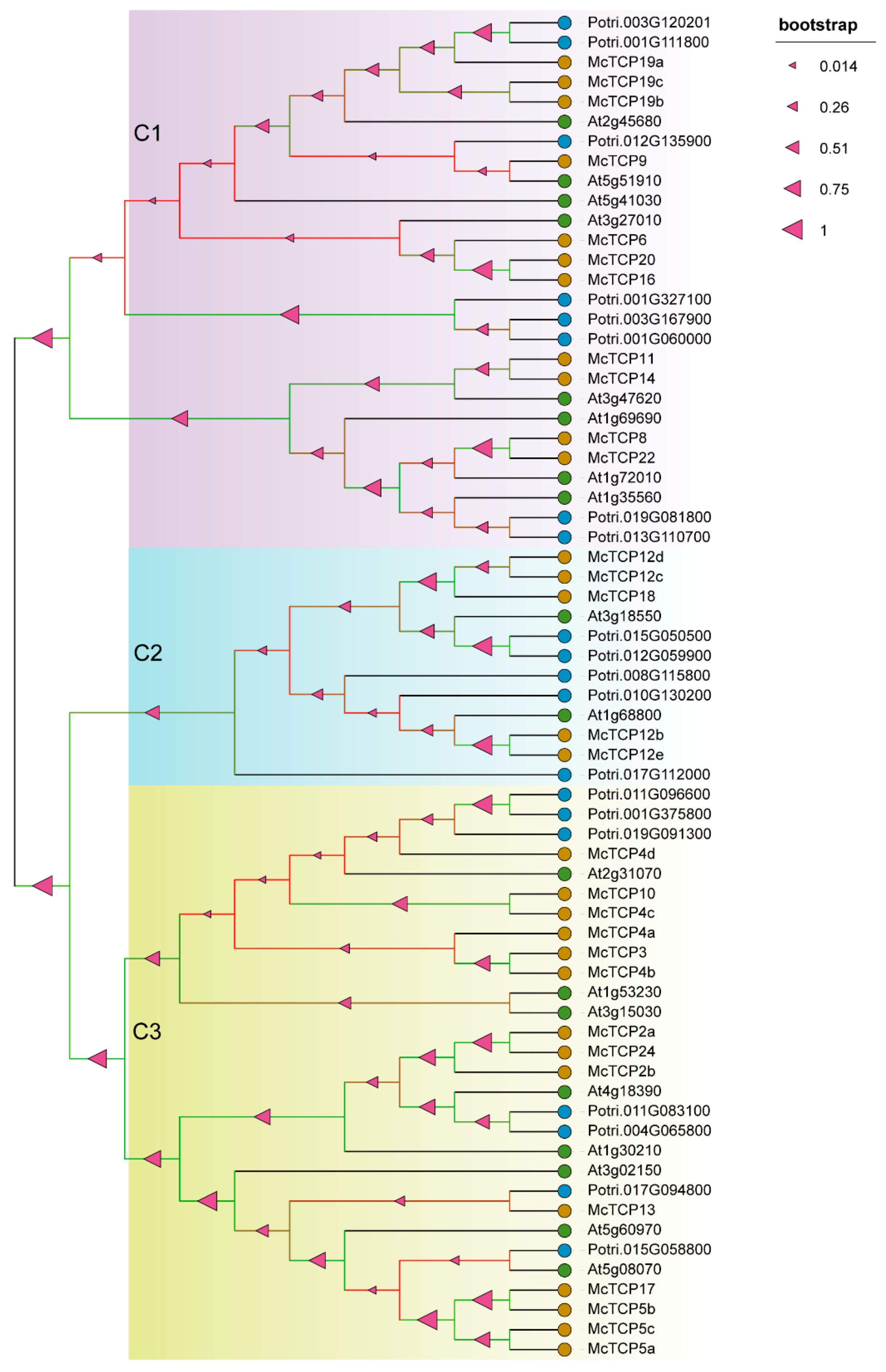

Figure 9. Phylogenetic evolution of TCP family members in three species. Different color models represent different clades. The pink triangle represents the bootstrap value, and the size of the triangle is in proportion to the bootstrap value. Before the gene name, blue dots represent P. trichocarpa, brown dots represent M. candidum, sapphire blue dots represent A. thaliana.
Figure 9. Phylogenetic evolution of TCP family members in three species. Different color models represent different clades. The pink triangle represents the bootstrap value, and the size of the triangle is in proportion to the bootstrap value. Before the gene name, blue dots represent P. trichocarpa, brown dots represent M. candidum, sapphire blue dots represent A. thaliana.
Molecules 27 09036 g009
Molecules 27 09036 g010 550
Figure 10. Expression analysis of TCP-family genes in nine tissues by qRT-PCR. YL: young leaves; AL: adult leaves; YS: young stems; AS: adult stems; S: seeds; R: roots; EF: early-stage flowers; MF: middle-stage flowers; BF: blooming flowers. Hollow circles in these graphs represent the relative expression of three biological repeats. The relative expression levels are shown as the means ± SDs. Duncan’s test was used to evaluate significant difference levels. Lowercase letters mean p ≤ 0.05, capital letters mean p ≤ 0.01.
Figure 10. Expression analysis of TCP-family genes in nine tissues by qRT-PCR. YL: young leaves; AL: adult leaves; YS: young stems; AS: adult stems; S: seeds; R: roots; EF: early-stage flowers; MF: middle-stage flowers; BF: blooming flowers. Hollow circles in these graphs represent the relative expression of three biological repeats. The relative expression levels are shown as the means ± SDs. Duncan’s test was used to evaluate significant difference levels. Lowercase letters mean p ≤ 0.05, capital letters mean p ≤ 0.01.
Molecules 27 09036 g010
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, H.; Wen, X.; Huang, X.; Wei, M.; Chen, H.; Yu, Y.; Dai, S. Genome-Wide Identification and Characterization of TCP Gene Family Members in Melastoma candidum. Molecules 2022, 27, 9036. https://doi.org/10.3390/molecules27249036

AMA Style

Li H, Wen X, Huang X, Wei M, Chen H, Yu Y, Dai S. Genome-Wide Identification and Characterization of TCP Gene Family Members in Melastoma candidum. Molecules. 2022; 27(24):9036. https://doi.org/10.3390/molecules27249036

Chicago/Turabian Style

Li, Hui, Xiaoxia Wen, Xiong Huang, Mingke Wei, Hongpeng Chen, Yixun Yu, and Seping Dai. 2022. "Genome-Wide Identification and Characterization of TCP Gene Family Members in Melastoma candidum" Molecules 27, no. 24: 9036. https://doi.org/10.3390/molecules27249036

Article Metrics

Back to TopTop
