Recent Developments in Carbon-Based Nanocomposites for Fuel Cell Applications: A Review

Abstract

Carbon-based nanocomposites have developed as the most promising and emerging materials in nanoscience and technology during the last several years. They are microscopic materials that range in size from 1 to 100 nanometers. They may be distinguished from bulk materials by their size, shape, increased surface-to-volume ratio, and unique physical and chemical characteristics. Carbon nanocomposite matrixes are often created by combining more than two distinct solid phase types. The nanocomposites that were constructed exhibit unique properties, such as significantly enhanced toughness, mechanical strength, and thermal/electrochemical conductivity. As a result of these advantages, nanocomposites have been used in a variety of applications, including catalysts, electrochemical sensors, biosensors, and energy storage devices, among others. This study focuses on the usage of several forms of carbon nanomaterials, such as carbon aerogels, carbon nanofibers, graphene, carbon nanotubes, and fullerenes, in the development of hydrogen fuel cells. These fuel cells have been successfully employed in numerous commercial sectors in recent years, notably in the car industry, due to their cost-effectiveness, eco-friendliness, and long-cyclic durability. Further; we discuss the principles, reaction mechanisms, and cyclic stability of the fuel cells and also new strategies and future challenges related to the development of viable fuel cells.

1. Introduction

In recent years, hydrocarbon-based (coal, gas, and oil) fossil fuels have predominantly been used to meet our global energy demand. However, fossil fuels can create severe damage to the environment by emitting toxic pollutants such as SO_x, NO_x, and CO_x [1,2]. Therefore, the development of clean and green energy storage technologies is essential to protect the environment and also fulfill the global energy demand [3]. There are numerous methods that have been used to make key efforts in the development of high-efficient-based energy conversion and storage technologies [4,5]. Among them, the water-splitting process is an important energy storage system that produces hydrogen efficiently in fuel cells, where electrocatalyst plays a crucial role [6]. In general, metal hydroxide-based electrode catalysts are used as electrode materials in fuel cells. However, they have several limitations, such as high cost, limited accessibility, and short service-life, restricting their contribution to meet energy storage technologies [7]. In order to reduce the cost of electrodes, researchers have been focused on developing carbon-supported electrocatalysts that are effectively used in several energy storage technologies, such as supercapacitors, fuel cells, solar cells, and batteries, due to their outstanding low-residual current, cost-effectiveness, and long-cyclic durability [8,9,10,11,12,13,14].

Fuels cells are classified as phosphoric acid fuel cell (PAFC), polymer electrolyte membrane fuel cell (PEMFC), alkaline fuel cell (AFC), molten carbonate fuel cell (MCFC), and solid-oxide fuel cell (SOFC) based on the types of electrolytes used [15]. Among them, PAFC, PEMFC, and AFC are appropriate for automobiles and portable applications because they run at low temperatures (300 °C), whereas MCFC and SOFC operate at relatively high temperatures (>500 °C) and may be suitable for stationary applications. Electrochemical performance, efficiency, and durability are crucial factors to consider when choosing electrode materials for fuel cell applications [16]. The overall electrochemical reaction process can occur at both anode and cathode as follows:

• $At anode, oxidation$

$$2H_2 \to 4H^{+}+4e^{-}$$

(1)

• $At anode, oxidation$

$$O_2+4H^{+}+4e^{-}\to 2H_{2}O$$

(2)

• $Overall reaction$

$$2H_2+O_2 \to 2H_{2}O$$

(3)

During the electrochemical reaction, electrons and protons are created at the anode (oxidation reaction), while water and heat are produced at the cathode (reduction reaction) [17,18].

Numerous methods have been used to develop carbon-supported nanocomposites, most notably sol–gel [19] microwave (MW) assisted [20], sonochemical [21], electrochemical [22], and hydrothermal (HT) [23]. Among them, the electrochemical technique is a promising one due to several merits, including shorter fabrication time, uniform and desired thickness of film deposition, and higher stability [24]. For instance, a multifunctional N and O co-doped 3D carbon aerogel has been prepared through the carbonization route. The fabricated carbon felt–polyvinyl alcohol–polyaniline CF–PVA–PANI catalyst showed excellent catalytic activity towards ORR activities [25]. Correspondingly, a robust bi-functional-based N-doped carbon aerogel modified nickel (Ni/NCA) composite was prepared using hydrazine hydrate as a reductant at high temperature. Interestingly, the developed Ni/NCA composite appeared as agglomerated metal particles, which exhibited better electrocatalytic activity and good cyclic durability for the electrocatalytic reduction of p-nitrophenol [26]. On the other hand, Lopez et al. [27] developed a novel type of N-doped carbon nanofiber by the electrospinning technique with an applied voltage of 15 kV, and it served as a remarkable catalyst for ORR application. Further, an effective electrodeposition approach was used to successfully construct a simple pathway for the fabrication of bimetallic supported fullerene-based (Pd-W@fullerene) composite with the applied potential ranges of 1.2 to 0.25 V. The constructed Pd-W@fullerene was shown to be a promising catalyst for energy applications [28]. In another report, a durable electrode was fabricated using mixed nanomaterials such as gold nanoparticles and multi-walled carbon nanotubes incorporated on graphene nanoribbon (Au–NT–G) by HT treatment and the resulting composite played a significant role in polymer electrolyte membrane fuel cell technology [29].

Here, we summarize a comprehensive analysis of synthetic strategies used to develop different types of carbon-based nanomaterials and their relevant fuel cell applications. Further, we investigate the important factors that induce catalytic performance of nanomaterials, such as size, shape, morphology, synergic effect, and chemical interactions. Moreover, we compared the stability and catalytic performance of carbon-based nanomaterials to the commercial catalyst.

2. Carbon Aerogel-Based Electrode Materials

Carbon aerogels (CAs) are considered as a promising electrode material for energy storage and conversion applications in fuel cells, supercapacitors, and batteries due to their inherent characteristics, including massive specific surface area (SSA), a large pore volume, excellent electrical conductivity, and outstanding chemical, mechanical, and thermal stabilities [30,31,32]. In addition, they can be prepared from cellulose biomass, which is one of the most naturally abundant and cost-effective biopolymers [33]. For instance, Yang et al. developed N-doped CAs (NCAs) based on pyrolysis of polyacrylonitrile at controlled temperatures ranging from 600 to 900 °C [34]. The resulting nanocomposite was used for ORR application in the microbial fuel cell (MFC). The MFC not only produces electricity but is also used to treat wastewater [35]. In the MFC, organic waste matter is oxidized into electrons and protons at the microorganism-modified anode, whereas oxygen is reduced to water at the cathode. The developed NCAs catalyst was utilized as cathode material in MFC and displayed an impressive catalytic response towards ORR in 0.1 mol L⁻¹ NaOH. Further, the N-doping causes the catalytic active site generation to be induced, and subsequently it enhances the catalytic response of the catalyst. The XPS data revealed that the N content in NCAs varied from 8 to 24% depending upon the temperature used for catalyst preparation. The onset (E_onset) potential was found to be +0.81, +0.82, +0.85, and +0.84 V vs. RHE for the catalysts fabricated at different temperatures of 600, 700, 800, and 900 °C, respectively. These results corroborate that the catalyst fabricated at 800 °C (NCA-800) represented a better catalyst compared to other ensuing high pyridinic-N and graphitic-N contents. Furthermore, a maximum power density of 1048 ± 47 mW m⁻² was achieved at the NCA catalyst when applied in the MFC, and this value is comparable to the value observed with the commercial Pt/C catalyst (1051 ± 28 mW m⁻²).

Porous NCAs were synthesized using two different routes, namely NH₄OH–urea and NaOH–urea, by pyrolysis of cellulose aerogel derived from coir fibers [36]. Interestingly, these two routes rendered entirely different pore size CAs, as shown in Figure 1. The SEM image clearly indicates that the starting material (cellulose fibers) had a cylindrical shape with many internal pores. The estimated pores size and wall thickness were ~3 μm and ~3.2 μm, respectively (Figure 1a). In the NaOH–urea system, the internal structure of the aerogel disintegrated and obtained a sizeable internal pore with a broken wall (Figure 1b). On the other hand, the carbon aerogel prepared from NH₄OH–urea system provided a stable structure with a larger internal pore size than the NaOH–urea system (Figure 1c). It revealed that ammonia is not only involved in the dissolution of cellulose, but it also creates defects in the carbon aerogel, and consequently, it causes an aerogel with a higher SSA and pore volume to be obtained. The internal pore size of the starting material, cellulose aerogels, was 200 μm, and it reduced to 150 and 176 μm upon pyrolysis of carbon−NaOH and carbon−NH₄OH aerogels, respectively. Overall, the active SSA and pore volume increased from 70 to 3730 m²g⁻¹ and 0.54 to 4.20 cm³ g⁻¹, respectively. Further, the developed catalyst was evaluated in terms of ORR activity in an alkaline medium. Both carbon−NaOH and carbon−NH₄OH aerogels displayed a well-pronounced reduction peak at −0.39 V (vs. Ag/AgCl) in the O₂-saturated 0.1 mol L⁻¹ KOH solution (Figure 1d). In contrast, no peak appeared in the N₂-saturated 0.1 mol L⁻¹ KOH solution, implying that the observed peak was associated with the ORR. Further, the carbon−NH₄OH aerogel showed a current density of 1.05 mA cm⁻², which was two times higher than that of the carbon−NaOH aerogel.

In another report, a robust macroporous carbon aerogel (MCA) was designed by pyrolysis of resorcinol–formaldehyde (RF) aerogel mixtures under an Ar atmosphere [37]. To achieve macropores in the composite, isocyanate derived polymer was introduced into the RF framework. It has been reported that the cross-linker isocyanate loses its chemical bonding with nanoparticles in the RF framework and develops the macropores. The developed macroporous aerogels were used as a substrate for the deposition of Pt. The coverage of Pt on aerogels was estimated to be 5.67 × 10⁻¹¹ mol cm⁻², which is equal to 57% of monolayer coverage. Finally, the as-prepared Pt coated aerogel was successfully used as an electrode material for fuel cell applications.

Recently, the development of porosity-tunable carbon aerogel for proton-exchange membrane fuel cells (PEMFCs) was demonstrated by Gu et al. [38]. It is well known that the diffusion of the reactants and products are directed to affect the performance of the PEMFCs. Therefore, it is essential to use the correct pore size of the membrane, depending on the analytes. The synthesis and electrode fabrication protocols are illustrated in Figure 2a–d. Firstly, the CA was synthesized by sol–gel polymerization of resorcinol and formaldehyde. Then, the CA was impregnated with carbon black (CB), and then platinum nanoparticles (PtNPs) were attached to the CA–CB mixture through chemical reduction by NaBH₄. Further, a different ratio of R/Na₂CO₃ was used to prepare the various pore sizes of CAs. CA-100, CA-200, and CA-300 were obtained by mixing 1.54 g, 3.08 g, and 4.62 g of resorcinol with 0.016 g of Na₂CO₃. The pore size of CA played a crucial role in the deposition of PtNPs. It was revealed that the micropore structure (<2 nm) is not appropriate for deposition of 2–4 nm of PtNPs, whereas the mesoporous structure is highly suitable due to their bigger size that is around 2–50 nm. Further, the mesopore structure stimulates the ionomer loading and creates an effective network for adequate proton transportation for H₂ and O₂. Figure 2d shows the step-by-step construction of membrane electrode assembly, where the homogenous catalyst ink was airbrushed on the carbon paper and dried. Then, the catalyst coated carbon papers were hot-pressed with Nafion 117 membrane at 130 °C for 1 min. The developed materials were tested in the context of hydrogen adsorption/desorption reaction, and it was found that CA-200 exhibited better activity than other catalysts. The surface area was estimated for Pt/CA-200 and Pt/CB and found to be 188 m² g⁻¹ and 86.4 m² g⁻¹, respectively (Figure 2e).

Another group [39] used the same precursors to synthesize CA for hydrogen storage applications. Na₂CO₃ is usually used to dry the wet catalyst. However, it causes shrinking of the catalyst. In order to avoid this issue, the authors used the organic condensing agent triethylamine (TEA). Different ratios of resorcinol and formaldehyde were used to develop the catalyst and characterize it using different techniques. The BET data revealed that the optimized catalyst (CA-1000) had a surface area of 545.03 m² g⁻¹, pore volume of 0.271 cm³ g⁻¹, and pore size of 1.96 nm. Furthermore, the hydrogen storage efficiency was evaluated to be 4.0 wt%.

Further, a highly conducting and mesoporous CA was developed using resorcinol and furfuraldehyde (FFA) as precursors for PEMFC [40]. The MW-assisted polyol process was employed to incorporate the PtNPs into the CA. TEM images of PtNPs-loaded CA (PtCA) display that PtNPs were uniformly distributed on the CA with an average particle size of 3.5 nm. The as-prepared catalyst was tested towards ORR, and the activity was compared to the commercial catalyst JM20; it was found that the catalyst exhibited an onset potential of 964 mV vs. RHE compared to 918 mV of the JM20. Additionally, the half-wave potential was estimated to be 814 mV, which was 27 mV positively shifted compared to the JM20. Further, the catalytic performance was evaluated towards PEMFCs, and it was found that the PtCA showed a power density of 536 mW cm⁻² at 0.6 V, whereas JM20 exhibited a power density of 525 mW cm⁻² under similar conditions.

Graphene (GR) is a 2D-material, and it has high electron conductivity, a large SSA, and outstanding chemical stability [41]. However, 2D-layered GR sheets readily undergo π−π restacking by van der Waals attraction, driving reduction of the surface area and consequently affecting the electronic properties of the materials [42]. To resolve this issue, Zhou et al. demonstrated the fabrication of 3D-graphene/carbon nanotube (GR–CNTs) aerogels and PVA acquired as an organic binder [43]. The CNTs were introduced into the GR to control the restacking of GR sheets. A solvothermal process was employed to incorporate the PtNPs onto GR–CNTs. The capacitance property of the developed catalyst was tested for use as electrode material in supercapacitors. It was found that Pt/GR–CNTs exhibited a relatively higher ECSA value (75.0 m² g⁻¹) than their counterparts, such as Pt/GR (30.0 m² g⁻¹) and Pt/CNTs (28.5 m² g⁻¹).

The single atom-based transition-metal catalyst is considered an emerging nanomaterial for ORR applications. Several strategies were implemented to improve the catalytic performance of the single atom-based transition-metal catalyst, including electronic structure modulation, defect engineering, and integration with other suitable support [44]. The preparation of NCAs was demonstrated, where Co atoms (Co-NCA@F127-1) were atomically dispersed on chitosan template [45]. A polymeric material was obtained by reacting the p-aminophenol and F with HMTA under acidic and high-temperature conditions, and the resulting polymer was coated onto a chitosan template. To acquire the phenolic resin/Co²⁺ composite hydrogel, Co ions were chelated with the developed polymer that contained active functional groups, namely −OH, −NH₂, and −COOH. Moreover, a surfactant, poloxamer (F127), was incorporated into the composite to improve the mechanical stability as well as control the morphology and pore structure of the CAs. The morphological characterization of CA by TEM revealed that it appeared as a 3D cross-linked coral structure. Further, ORR activity was investigated under alkaline conditions by the developed Co-NCA@F127-1, and the catalytic response was compared with the commercial Pt/C (Figure 3). It was found that the Co-NCA@F127-1 displayed an onset and half-wave potential of 0.935 V and 0.805 V vs. RHE, respectively, which is almost 128 mV higher than that of NCAs. In addition, in terms of diffusion limiting current density, the Co-NCA@F127-1 (5.96 mA cm⁻²) outperformed the commercial Pt/C (5.21 mA cm⁻²).

A molecular-templating strategy was employed to develop microporous carbon aerogels (MPCAs) using a fast and straightforward polycondensation of 4,4′-biphenyl dicarboxaldehyde (BPDA) with octaaminophenyl polyhedral oligomeric silsesquioxane (POSS-NH₂) [46]. The as-prepared MPCAs displayed a 3D interconnected macroporous structure along with a well-defined micropore framework (Figure 4a). To improve the catalytic efficiency of MPCAs, iron (III) nitrate was introduced with methylene blue by a simple annealing process. The obtained catalysts were investigated towards the ORR in 0.1 mol L⁻¹ KOH, and it was found that the MPCAs–Fe^III exhibited remarkable catalytic response compared to the Fe-free MPCAs and the commercial Pt/C catalyst (Figure 4b). The Fe^III incorporated MPCAs showed half-wave potential and current density of 0.88 V and 5.8 mA cm⁻², respectively, and these values were relatively superior to those of their counterparts, such as pristine MPCAs (0.76 V, 4.8 mA cm⁻²), Fe^III doped microporous carbon particles (MPCPs-Fe) (0.82 V, 4.8 mA cm⁻²), and also the commercial Pt/C catalyst (0.85 V, 5.3 mA cm⁻²). Further, the durability of the MPCAs–Fe^III catalyst was investigated by chronoamperometric measurements. Figure 4c depicts that there was a discernable change in the current response after 10,000 cycles, and it indicates that the catalyst has long-lasting catalytic activity for ORR. Moreover, no significant change in the morphology was observed for the catalyst after 10 h of continuous current measurement. These results revealed that MPCAs–Fe^III is a promising catalyst for fuel cell applications.

3. Carbon Nanofiber-Based Electrode Materials

Nanostructured carbons, including zero-dimensional (0D) carbon dots and quantum dots, one-dimensional (1D) carbon nanotubes (CNTs), and two-dimensional (2D) graphene, have attracted the interest of researchers in recent years [47]. Past research suggested that the size, structure, shape, and functionalization of carbon nanofibers are responsible for their characteristic applications in many fields, including materials science, nanotechnology, energy storage, biomedicine, tissue engineering, and environmental science [48,49,50,51,52]. It has been suggested that the high porosity formed by fiber interlacing allows the species to easily pass through the fiber layers without causing excessive pressure drop, which is advantageous for mass transfer [53]. In general, CNTs have received considerably greater attention than CNFs due to several advantages, such as lower levels of microstructural flaws, stronger tensile strength, smaller dimensions, and lower density. On the other hand, CNFs are a good alternative since their manufacturing technique is easily transferrable to industry. However, CNFs are approximately 2 to 3 times cheaper than SWCNTs or MWCNTs [54]. In particular, CNFs perform many purposes as active electrode materials in fuel cell research [55]. For instance, CNFs are effectively used in microbial fuel cells (MBFC) [56], direct methanol fuel cells (DMFC) [57], direct ethanol fuel cells (DEFC) [58], membrane fuel cells (MFC) [59], and polymer electrolyte membrane fuel cells (PEMFC) [60]. However, one disadvantage of CNFs is their limited surface area (less than 200 m² g⁻¹), which makes it difficult to disperse metal nanoparticles (MNPs) on CNF surfaces. Typically, very high metal concentrations are necessary in real fuel cell electrodes (20–60 wt%) [61,62]. The requirement of high metal concentration is due to the need to create a thin catalyst layer with a high density of catalytic sites, which is essential to reduce ohmic drop and mass transfer limits [63]. However, it is necessary to maintain a good dispersion of tiny MNPs as well as a robust resistance to corrosion phenomena for the catalyst. Electrochemical corrosion is highly connected to surface area and the presence of flaws in the graphitic structure. In this regard, it is critical to identify effective preparation processes capable of achieving good metal dispersion on low surface area supports as well as increasing the metallic phase’s resilience against sintering and dissolution [64,65]. We summarized the physical and electrochemical properties of carbon-based electrode materials used in fuel cell applications (

Table 1. Summary of the various synthetic strategies, morphologies and their fuel cell properties of the recent reported carbon based catalysts.

Electrodes	Method	Morphology	SSA (m2 g−1)	Electrolyte (M)	Power Density (mW cm−2)	Ref.
N-CNF a	Pyrolysis	Nanofiber	916	0.1 KOH	10	[27]
NCAs b	Pyrolysis	Hollow structure	-	0.1 NaOH	1048 ± 47	[34]
Fe-Ricobendazole	Sacrificial route	Agglomerated particles	600	0.1 KCl:Buffer	0.200	[35]
CA c	Pyrolysis	Spherical structure	3730	0.1 KOH	1.05	[36]
Pt/CA	Sol-gel, NaBH4	Nanoparticles	700	−	333.4	[38]
Pt-MCA	Sol-gel	Mesoporous structure	613	0.5 H2SO4	536	[40]
Fe/Co/CNF	Electrospinning	Nanofiber	272	0.5 H2SO4	195	[48]
CNTs/CNFs	Electrospinning	Nanofiber	-	-	362 ± 20	[51]
GNFd-PtRu	Polyol	Nanofiber	16.9	-	19.2	[52]
WC/CNFe	Hydrothermal	Nanofiber	44.058	1 KOH	9.0	[58]

^a Nitrogen-doped carbon nanofiber. ^b Nitrogen doped carbon aerogel. ^c Carbon aerogel. ^d Graphtized nano fiber. ^e Tungsten carbide based carbon nanofiber.

).

Till now, the various forms such as porous [66], hollow [67], helical [68], twisted [69], and stacked [70] structures of CNF have been fabricated by various experimental approaches [71]. Furthermore, the functionalities of CNFs are easily tailored through both chemical and physical alterations, which is extremely beneficial for doping functional nanoscale building blocks on the surface of CNFs, which yield a variety of CNF-based functional nanomaterials. CNFs have been manufactured using a wide range of techniques, including catalytic chemical vapor deposition (CCVD) [72], arc discharge [73], and laser ablation [74]. While arc discharge and laser ablation produce high-purity CNFs, they require a large-scale operation and substantial production costs. Furthermore, because these technologies rely on carbon electrodes, they are inappropriate for large production in the long run. However, for many applications, a cost-effective approach to mass manufacturing is necessary. Pt catalysts on catalytically graphitized CNF performed exceptionally well in terms of ORR activity and durability [75]. Different forms of Pt catalysts such as Pt/CNF, Pt/GCF-HT, and Pt/GCF-(Co) were thoroughly investigated towards ORR. The additional heat treatment step on the catalytically graphitized CNF resulted in the formation of a unique pore structure with prominent meso/macropores. This may further enlarge the effective specific surface area and consequently provide more reactive sites. The morphologies of the Pt catalysts were investigated through a high-resolution FE-SEM, as shown in Figure 5a–c. Pt NPs were clearly loaded on fiber-based carbon supports with a thickness of 250 nm. A close examination of the morphology revealed that the Pt deposited as evenly for Pt/CNF and Pt/GCF-HT, whereas they developed porously on Pt/GCF-HT (Co). Figure 5d–f shows that Pt particles were aggregated on the CNF support, while uniformly dispersed on GCF-GCF-(Co). In comparison to Pt/CNF and Pt/GCF-HT, a reduced size of Pt NPs dispersed on GCF-(Co) according to HR-TEM images, as shown in Figure 5g–i. The average particle size was determined for Pt/CNF, Pt/GCF-HT, and Pt/GCF-(Co) and was found to be 6.0, 4.7, and 3.9 nm, respectively. In terms of PEMFC efficiency, the Pt/GCF-(Co)-HT attained a higher maximum power density of 0.85 W cm⁻² in the active area of 25 cm² upon a modest loading level of 0.1 mg Pt cm⁻². When compared to the commercial Pt/C-TKK catalyst, the Pt/GCF-(Co)-HT catalyst had a superior mass transfer performance (over 2.2 A cm²). Further, Pt catalysts incorporated graphitized carbon in the PEMFC cathode; the 25 cm² size of a single cell is schematically represented in Figure 5j [74].

Cai and co-workers [76] developed a new MFC (Figure 6a) using CNTs/CNFs electrodes. The resulting catalyst had a high power density of 306 ± 14 mW·m⁻², which was 140% superior to the conventional Pt/C. The longevity of the CNTs/CNFs catalyst was tested, and it was found that catalytic activity was retained up to 60 days without a voltage drop. The EIS was used to examine the internal resistance of the developed catalyst. The value of the first intersection of Nyquist plots and the Z’ axis was the value of an analogous electrical circuit consisting of an ohmic resistance (R_ohm). The Nyquist plots were fitted with different vital experimental parameters such as double-layer capacitance, Warburg impedance, electrolyte diffusion resistance, pore adsorption capacitance, and charge-transfer resistance (Figure 6b). Tafel plots were used to compute exchange current density (i₀), a crucial characteristic of ORR activity, by fitting the over potential from 80 to 100 mV (Figure 6c). Overall, the CNTs/CNFs electrode achieved a high apparent capacitance (0.68 ± 0.11 F·cm⁻²) and a long discharge time, which could be attributed to the simultaneous effects of electrochemical double-layer capacitance and pseudo-capacitance behavior. These characteristics indicated that CNTs/CNFs are promising catalysts for MFCs applications.

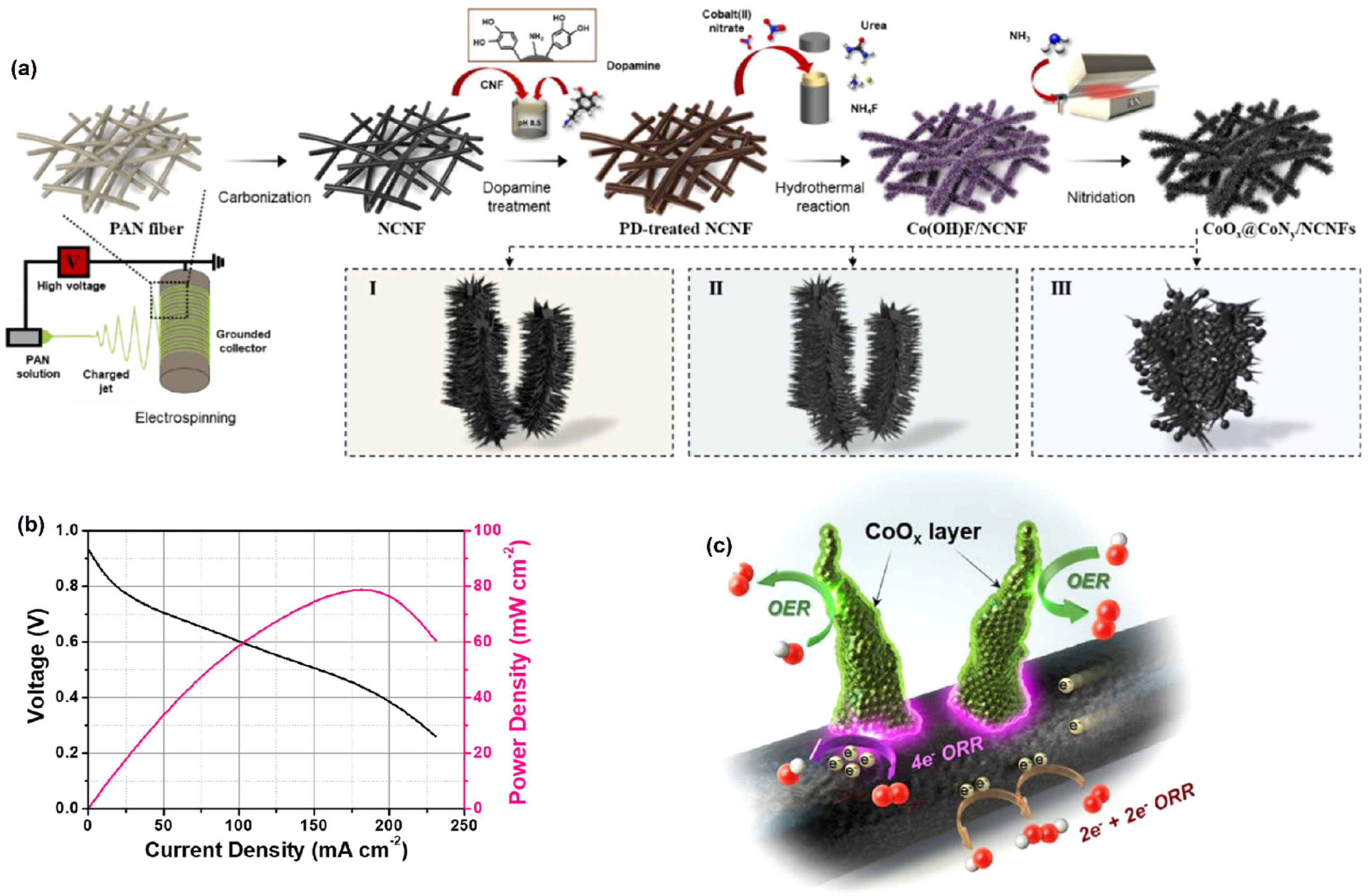

Yoon et al. [77] demonstrated the CoO_x@CoN_y/NCNF550-catalyst-coated MEA used for ORR application. Figure 7a illustrates the fabrication processes of CoO_x@CoNy/NCNFs achieved at various nitridation temperatures. Initially, 1D-N-doped CNF (NCNF) paper was made by electrospinning polyacrylonitrile (PAN) soaked in dimethyl formamide (DMF) solution and then carbonizing it. A consistent polydopamine (PD) coating layer formed on the surface of the NCNF paper by immersing it in a dopamine solution at ambient temperature. After 12 h of dopamine polymerization, the solution color changed from pale brown to dark brown. With a significant power density (~80 mW cm⁻²) of 177.2 mA cm⁻², the CoOx@CoNy/NCNF550-catalyst-coated MEA demonstrated outstanding electrochemical ORR performance in AMFC (Figure 7b). It was revealed that the observed excellent ORR and OER activities were associated with the synergic effect between CoO_x@CoN_y nanorods and NCNF. The ORR activity of NCNF was investigated, and the authors realized that it had a very poor catalytic response as a result of the 2e⁻ transfer process [78]. The ORR was assisted by the interfacial rim sites between the CoO_x@CoN_y and NCNF, which allowed for moderate adsorption of intermediates and quick charge injection. Moreover, the Co₄N nanorods’ oxidized coatings offered effective OER active sites with increased Co d-band vacancies.

Jeon et al. [79] fabricated CNF/TiO₂–Pt nanofibrous electrocatalyst via an in situ process through the protocol given in Figure 8a. The discovered nanofibrous catalyst had a larger active surface area and excellent ORR activity. The structural change that occurred upon the calcination and reduction procedure of the electrospun nanofibers can be noticed in the XRD analysis (Figure 8b). Furthermore, the HR-TEM photograph in Figure 8c depicts the whole synthesis flow of the nanofibrous composite structure, and it was discovered that before reduction, the surface appeared as a single phase of NiTiO₃ with a typical interplanar distance of 2.7, harmonizing the (104) plane. On the other hand, after the reduction process, spherical Ni NPs with an average size of ~10 nm were well-deposited on the TiO₂ nanofiber surface. The fabricated CNF/TiO₂–Pt served as a better catalyst for ORR applications. Further, it was mentioned that the chemical structure of Pt NPs was modified on the CNF/TiO₂–Pt surface due to the interaction between the Pt NPs and TiO₂, as illustrated in Figure 8d.

4. Graphene-Based Electrode Materials

Fuel cells are a type of energy conversion device that can generate electricity as long as fuel is available. Because the chemical energy of fuels is directly transformed into electricity, fuel cells have far better system efficiency than combustion engines, as well as lower pollution emissions. As a result, fuel cells are one of the most appealing technologies for addressing global energy and environmental concerns while also making our lives cleaner and more sustainable. An electrolyte is layered between two electrodes in an atypical fuel cell [80]. On the anode surface, the fuel is oxidized, and the liberated electrons pass through an external circuit to decrease O₂ at the cathode. To complete the circuit, the mobile charge carriers (H⁺, OH⁻, CO₂³⁻, or O²⁻) pass via electrolytes at the same time. Among various nanomaterials, GR and its derivatives have strong chemical, electrical, and mechanical capabilities, allowing them to be used as mass alternative materials in fuel cell applications. In recent years, many kinds of research have been focused on maximizing the potential usage of graphene-based materials in fuel cells. GR-based materials are excellent electrocatalyst supports because they increase the number of active sites and make electron transit easier for both fuel oxidation and ORR [81,82]. Due to their high electrocatalytic activity, high poisoning tolerance, and low cost, metal-free GR materials have been proved to be excellent candidates for ORR applications [83]. The impact of electronic structural change, doping configurations, defects, or graphene functional groups on the performance of fuel cells have been studied extensively [84]. The incorporation of graphene-based materials into polymer membranes can improve ionic conductivity and correspondingly reduce the fuel crossover [85]. High proton conductivity and impermeability to water, H₂, and methanol make polymer membranes incorporating GR materials intriguing as fillers/additives [86]. In addition to electrolytes and electrodes, GR-based materials can increase current collection, fuel/air distribution, and bipolar plate stability [87].

GR is a one-atom-thick layer containing hexagonally arranged sp²-hybridized carbons [88,89]. In 2010, Andre Geim and Konstantin Novoselov received the Nobel Prize in Physics for their significant contributions to the development of GR-based catalysts [90]. Since then, GR has become the fastest-growing sector of science, spurring enormous effort and achievement in this field. GR-based materials include graphene oxide (GO), reduced graphene oxide (rGO), heteroatom-doped graphene, functionalized GR, and three-dimensional (3D) graphene present with a wide range of physical and chemical characteristics, as summarized in

Table 2. The significant properties of Gr-based materials for fuel cell applications.

Gr	GO	Heteroatom Doped Gr	3D Gr
large surface area	strong hydrophilicity	tunable charge and spin density distribution	large surface area
high charge mobility	high proton conductivity	abundant active sites	high intrinsic electrical conductivity
high chemical stability	moderated electrical conductivity	high electrocatalytic activity	well-organized pore structure
strong mechanical strength	tunable electrochemical behavior	fast heterogeneous electron transfer rate	mechanical flexibility

[91,92].

The use of GR materials in fuel cells has been shown to offer a number of advantages. For instance, GR-based materials act as potential ORR and fuel oxidation electrocatalysts due to their huge surface area and conductive properties [93]. Further, strong ionic conductivity, high tensile strength, and restricted fuel permeability are achieved while combining polymer membranes with GR [94]. Bipolar plate conductivity and corrosion resistance can be improved upon incorporating GR with an electrode material. Qiu et al. [95] used SiO₂ nanosphere templates to create 3D holey rGO hollow nanospheres sandwiched by interior and exterior Pt nanoparticles (Pt@holeyr-GO@Pt hollow nanospheres) (Figure 9). The mass activity for MOR was 1.3- and 1.7-fold higher in Pt@holelyr-GO@Pt hollow nanospheres compared to Pt@r-GO@Pt hollow nanospheres and commercial Pt/C, respectively, due to increased mechanical strength and mass diffusion, as well as more exposed active sites.

Modifying GR with heteroatom and functional groups provides more anchor sites for metal NPs, which significantly improves ethanol electrooxidation (EOR) activity and durability [96,97]. For instance, Yang et al. [96] used a diazo process to create aniline-functionalized graphene to bind Pd NPs for EOR. The mass activity of the catalyst with aniline groups (43.1 mA mg⁻¹) was almost five times greater than that of the catalyst without aniline modification (8.9 mA mg⁻¹) after 7200 s of testing, which was attributable to the well distributed Pd NPs and significant contact between aniline groups and Pd. The 3D-structured graphene can also improve ethanol transport by reducing catalyst aggregation and deactivation [98]. Yao et al. [99] used GO and ZIF-8 as precursors to spray-dry Pd encapsulated into hollow N-doped GR microspheres, displaying greater EOR activity (2490 mA mg⁻¹) in alkaline medium than Pd/rGO (1232 mA mg⁻¹). As previously stated, hollow N-doped GR microspheres are useful not only for immobilizing Pd NPs, but also for facilitating reactant diffusion for a better catalytic response [100].

5. Single-Walled Carbon Nanotube-Based Materials

Over the past three decades, the rapid development of nanotechnology occurred towards the 1D structural form of CNTs, which is considered the allotropic form of carbon [101]. SWCNTs have become the most versatile materials due to their outstanding properties such as unique structure, superior mechanical and electrical properties, excellent flexibility, low-processing cost, optical transparency, larger SSA, and excellent catalytic properties. Their diameters range from 0.7 to 10.0 nm [102]. So far, SWCNTs have attracted and hold great potential applications in various fields and have also expanded to solar cells [103], biomedicine [104], and energy storage devices [105], etc. The structural form of SWCNTs consists of a graphene sheet (single layer) rolled into a cylindrical tube format. In general, SWCNT-supported Pt-deposited thin film catalysts could facilitate better transport in DMFC applications [106]. Bimetallic based composites such as Pt-Ru/SWCNT and Pt-Mo/SWCNT were developed through a chemical reduction method, where the electrocatalysts were annealed for 2 h at 400 °C under N₂ atmospheric conditions. Moreover, the as-synthesized Pt-Ru/SWCNT composite showed better current and power densities than Pt/SWCNTs catalysts [107]. Rajala and co-workers [108] fabricated PtNWs on SWCNTs (PtNWs/SWCNTs); the fabricated PtNWs/SWCNTs catalyst was pretreated with ozone, which renders polar surface groups on the SWCNT. The fabricated PtNWs/SWCNT-O₃ composites were more hydrophilic in nature than non-ozonized compounds. This is due to an increase of oxygen-containing groups in the catalysts during the pretreatment with ozone. The synthesis procedure is outlined in Figure 10. Furthermore, the larger spherical agglomerates are more stable, and they do not create such NW structures. However, sub-nm Pt particles are required to produce PtNWs during the heat treatment, as shown in Figure 10b,c for before and after heat treatment of CNT bundles with PtNWs. Further, PtNWs/SWCNT-O₃ catalysts outperformed in the hydrogen evolution reaction (HER) study with higher mass activity, which was estimated by DFT calculations [108].

Fernandez et al. [109] tested the electrochemical behavior of SWCNT by using cyclic voltammetry and spectroscopic techniques. Moreover, SWCNTs were able to store hydrogen within their pores, which was confirmed through the galvanostatic charge–discharge method. Hu’s group [110] found that enclosing catalytically active potassium and iron metal nanoparticles in SWCNT catalysts improves ORR electrocatalytic activity. Further, Wu and Xu [111] showed that in comparison with the assembly using Pt supported on both MWCNT and SWCNT electrodes, during the electrochemical oxidation of methanol, Pt-SWCNT/NAF catalyst displayed significantly enhanced power density, lower onset potential, and lower R_CT values using CV and EIS analysis, whereas Pt-MWCNT/NAF catalysts displayed higher tolerance to CO poisoning and richness in oxygen-containing functional groups. A membrane electrode assembly (MEA) of SWCNT/CNF electrode was synthesized by Grishkumar et al. [112] via a simple electrophoretic technique. From the Nyquist plot, the SWCNT/Pt catalyst exhibited a lower R_CT value than that of CB/Pt (Figure 11a,b). The overall power output was investigated through galvanostatic polarization methods (Figure 11c,d).

Yoo et al. [113] prepared ivy-like conductive m-SWCNTs nanonets using a one-pot surface engineering strategy as displayed in Figure 12a. The authors employed Nd0.5Sr0.5CoO3 (NSC)-perovskite as a catalyst for the ORR/OER to test the feasibility of m-SWCNTs. Using a rotating ring-disk electrode (RRDE), the electrochemical ORR/OER performance of the NSC@m-SWCNTs was investigated in an oxygen-saturated 0.1 MKOH. The well-developed m-SWCNT nanonets are projected to increase electron conductivity on the NSC surface, making the NSC@m-SWCNTs electrochemical kinetics easier. The catalytic ORR activity of SWCNTs is widely recognized [114]. As a result, the NSC@m-SWCNTs can demonstrate bifunctional OER/ORR activities (see Figure 12b). The NSC@m-SWCNTs had a better ORR onset potential (−0.12 V against Hg/HgO) than the NSC (−0.25 V vs. Hg/HgO) and NSC@p-SWCNTs (−0.18 V vs. Hg/HgO) in the cathodic scan (Figure 12c). The NSC@m-SWCNTs’ greater catalytic activity was attributable to their higher diffusion-limiting current density than the NSC and NSC@p-SWCNTs. The NSC@m-SWCNTs are a potential bifunctional catalyst, according to these findings. Despite the fact that this outstanding study shows tremendous potential, there are few publications on the use of isolated SWCNTs as ORR/OER electrocatalysts. In another study, the two different types of carbon nanotube (SWCNT and SWCNT/PANI)-based electrocatalysts were developed by the arc discharge method. The electrocatalysts SSA of hydrophilic and hydrophobic values and their interactions were discussed. The as-prepared SWCNT/PANI catalysts showed significantly enhanced fuel cell efficiency [115].

6. Multi-Walled Carbon Nanotube-Based Electrode Materials

In recent years, MWCNTs-based electrode nanomaterials have attracted great attention due to their fascinating electrical, mechanical, thermal, and optical properties [116]. In 1991, Sumio Iijima developed carbon nanotubes from fullerene by the arc discharge method [117]. During the past three decades, carbon nanotube-based electrocatalysts have contributed to various electrochemical applications, such as electrochemical sensors [118], gas sensors [119], and energy storage devices [120,121,122]. MWCNTs are arranged in the form of cylindrical shapes made of sp²-carbon, and the diameter and length range from 3 to 30 nm and 40 to 50 nm, respectively [123]. Moreover, they consists of manifold-wrapped single graphene sheets into hollow tubes, whose outside diameters are 2 nm [124]. More specifically, MWCNTs are still the most promising candidate for developing next-generation transparent energy storage and conversion technology [125]. For the first time, Sun et al. [126] developed a porous polyaniline/multi-walled carbon nanotube-based Co₉S₈ (Co₉S₈+PPANI/MWCNT) composite that can act as a next-generation electrochemical hydrogen storage device and achieved a discharge capacity value of 689.2 mAh g⁻¹. Interestingly, the spherical shaped nanoparticle of Pt₂Ir/MWCNT composite has become a well-balanced bi-functional electrocatalyst, and more specifically a fresh active catalyst surface through electrode materials that play an important role in the development of direct methanol fuel cell applications. The catalyst has exhibited a mass activity value of 933.3 mA/mg_Pt [127]. Dogan et al. [128] introduced hexagonal-based boron nitrite with a conducting polymer supported MWCNT (h-BN-Ph-NH-CO-MWCNT) composite by coupling, acylation, and oxidation routes. The electrode materials have high van der Waals interactions with hydrogen, the acyl group playing an important role in enhancing their electrocatalytic activities. Moreover, the composite had an increasing hydrogen storage capacity under cryogenic conditions. Tian et al. [129] synthesized Pt nanoparticles supported on MWCNT (Pt/MWCNT) composite by the intermittent microwave irradiation (IMT) technique, and with H₂PtCl₆ used as a precursor. Figure 13a shows the TEM image of Pt/MWCNT; the Pt nanoparticles were uniformly placed on the MWCNT with a size range from 1.5 to 4.0 nm. The binding energy study of the Pt/MWCNT composite was carried out by XPS analysis before and after the reduction treatment process. Before the reduction process, the particles were clearly indicated at Pt 4f, Cl 2p, C 1s, and O 1s, respectively, whereas the Cl 2p peak vanished from the Pt/MWCNT composite after the reduction treatment method. The removal of halide ions can influence the catalytic activity of methanol fuel cells (Figure 13b). The electrochemical properties of Pt/MWCNT composite were studied using the cyclic voltammetric technique, using 0.5 M H₂SO₄ solution (Figure 13c). The as-synthesized Pt/MWCNT nanocomposite showed significantly enhanced methanol oxidation compared to E-TEK 40% Pt/C catalyst under acidic conditions (Figure 13d).

Generally, composite materials are often used for the development of polymer electrolyte membrane fuel cells. Barker et al. [130] showed the Nafion (NAF) proton exchange membrane and ceria-coated multi-walled carbon nanotube (CeO₂/MWCNT/NAF) composite by wet chemical as well as solution-casting techniques. Figure 14a shows the TEM micrograph of the MWCNT wall after treatment of ceria nanoparticles, i.e., the diameter of the ceria particle was about 5 nm. The tensile strength and mechanical properties of CeO₂/MWCNT/NAF composites were enhanced by the typical stress–strain study (Figure 14b). The electrode stability of the composite materials was tested using an open circuit potential value of the membrane degraded at 0.472 mV h⁻¹, as shown in Figure 14c. The gas cross-over study revealed that the catalyst retained activity for up to 96 h (Figure 14d).

Similarly, multi-walled carbon nanotube-based flower-like Pt nanostructure electrocatalysts were synthesized by the wet chemical reduction route. A TEM image of Pt-nanoparticle decorated MWCNT shows the flower and budlike morphologies and their average distribution of 80 nm (Figure 15a–c). The decorated Pt-MWCNT electrocatalysts were used to evaluate ORR by the CV technique in 0.5 M H₂SO₄ (Figure 15d). The electrocatalytic oxidation of methanol was evaluated by the CV technique, the anodic peak potentials were observed at ~0.9 V, and the methanol oxidation onset potential occurred at ~0.42 V (Figure 15e). The steady-state current was examined by using the chronopotentiometric technique (Figure 15f) [131]. Mink and co-workers successfully proposed a method to develop an MWCNT-based anode, and it was confirmed to be a feasible micro sized fuel cell device. The MWCNT-based anode materials hold promise as energy storage devices, and generated both electricity and water [132].

7. Fullerene-Based Electrode Materials

Buckminsterfullerene or C₆₀ is an allotropic carbon present in different forms such as a spherical, tubular, and ellipsoid shape and was discovered by Kroto in 1985. It is represented as 0-D carbon-based materials [133]. Fullerene (C₆₀) received considerable attention owing to its high electron transporting properties, good electron-accepting ability, and stable structural arrangements [134,135,136]. Moreover, C₆₀-based electrode materials have been used as an efficient electrocatalyst in many fields, such as solar cells [137], batteries [138], biosensors [139], and fuel cells, etc. [140]. Having remarkable properties, such as convenience, low temperature operation, and high energy density of direct methanol fuel cells, using fullerene nanosheet modified (Pt/Ru/Sn/W fullerene) electrocatalysts could increase their catalytic activity with fuel cell efficiency [141]. The Pt-supported fullerene (Pt/C₆₀(OH)_24-27)-based electrocatalyst was synthesized through a simple process, where formic acid was used as a reducing agent. From TEM analysis, the agglomerated spherical-shaped fullerene (Pt/C₆₀(OH)_24–27) was obtained. Moreover, it can be used as an efficient electrocatalyst during the electrocatalytic oxidation of ethanol [142]. Rambabu and Bhat [143] developed a sulfonated polyether ether ketone supported sulfonated fullerene (SPEEK-Sfu)-based composite membrane by the diazotization reaction route. The SPEEK-Sfu composite membrane matrix showed better oxidation resistance with reduced methanol permeability in DMFCs. A new class of heterostructured boron nitride nanosheets was modified with fullerene molecules by a new strategic route to form 10% F/BCN multifunctional-based supramolecules (Figure 16a). Using the LSV technique, the constructed 10% F/BCN//10% F/BCN cell device exhibited remarkable current density (10 mA cm⁻²), and the insert digital image shows the overall water splitting process (Figure 16b). Finally, the 10% F/BCN electrocatalyst was tested through the chronoamperometric method, using a measurement period of about 20 h, showed good electrode stability (Figure 16c) [144].

Xiao et al. [145] reported an inorganic fullerene-based WS₂ supported Pd nanoparticle catalyst by the sol-immobilization method, and the semi-spherical nature of the IF-Pd/WS₂ catalyst exhibited excellent electrocatalytic activity towards HER with good cyclic stability. Generally, NAF can be used as an electrolyte for all types of electrode fabrication processes due to its good ionic conductivity and excellent electrode stability [146]. Rambabu et al. [147] prepared a composite membrane of NAF ionomer using functionalized fullerene (NAF^®-FF) via the diazotization reaction method, where 4-benzenediazonium sulfonic acid was used as a precursor. Hence, the NAF^®-FF composite membrane showed enhanced proton conductivity upon testing with different methanol concentration levels and exhibited a power density of 146 mW cm⁻² in DMFC for NAF^®-FF (1 wt%) with better stability. Zhang et al. [148] fabricated hybrid materials of graphene–fullerene, in addition to Pd NPs that were deposited on GO-PyrC₆₀ via a simple HT approach. The hybrid-supported Pd/RGO-PyrC₆₀ catalyst showed increased catalytic activity towards methanol oxidation. Feng et al. [149] designed a fullerene quantum dots (FQDs)-based CoNi layered double hydroxide (CoNi-LDH) nanosheet anchored with Ni foam (NF) via a self-assembled process. The decorated FQD/CoNi-LDH/NF catalyst showed excellent electrocatalytic activity for OER and HER as well as urea oxidation at ambient atmospheric conditions.

8. Conclusions and Perspectives

Carbon-based electrocatalysts have made major contributions in recent years to the development of cost-effective and environmentally-friendly hydrogen fuel cell energy storage technology that fulfills worldwide energy demand. It is apparent that contemporary research efforts are underway to develop low-cost carbon materials with improved power conversion efficiency, reduced CO₂ and CO emissions, and greater durability. To build high-efficiency electrocatalysts, several techniques were adapted. Until now, much effort has gone into synthesizing carbon-based catalysts with various functionalization in order to obtain larger surface areas, uniform surface morphologies, and uniform nanoparticle dispersions, all of which can improve electrochemical properties and long-term durability of electrocatalysts. From these studies, a fundamental idea has been gained into the mechanistic details regarding the morphology, size effect, and synergic effect of the catalyst towards ORR and HER. Further, it has been demonstrated that the different forms of carbon-based composite electrodes, such as CAs, CNFs, fullerene, SWCNTs, MWCNTs, and GR, etc., were successfully used as promising candidates for fuel cell catalysts. Indeed, the ability to tailor the features of these interesting materials, especially their electrical characteristics, to reflect the specific requirements of each application promises to be a potent means of future improvements in this cutting-edge domain.

Most of the CNT-based electrocatalysts reviewed in the article showed a better catalytic response and were comparable to the expensive commercial catalysts. As a result, simple, low-cost, scalable, and controlled methods for producing CNT-based nanocomposites should always be designed, and various CNT-based applications are expected to move rapidly in the near future, opening the door to a plethora of new potentials in this promising and exciting field. Even though significant progress in developing low-cost CNT-based catalysts for hydrogen fuel cell applications has been made, several challenges remain to apply the developed catalysts for large-scale commercial applications. The major area of research is focus to improving the stability and long-term catalytic efficiency of the catalyst in alkaline and acidic media.
