Euphormins A and B, New Pyranocoumarin Derivatives from Euphorbia formosana Hayata, and Their Anti-Inflammatory Activity

by
Yu-Hsuan Lan
1,*,
I-Hsiao Chen
2,
Hsin-Hung Lu
3,
Ting-Jing Guo
3,
Tsong-Long Hwang
3,4,5 and
Yann-Lii Leu
3,6,*
1
School of Pharmacy, China Medical University, Taichung 406, Taiwan
2
Department of Medical Laboratory Science, College of Medical Science and Technology, I Shou University, Kaohsiung 824, Taiwan
3
Graduate Institute of Natural Products, College of Medicine, Chang Gung University, Taoyuan 333, Taiwan
4
Research Center for Chinese Herbal Medicine, Graduate Institute of Healthy Industry Technology, College of Human Ecology, Chang Gung University of Science and Technology, Taoyuan 333, Taiwan
5
Department of Anesthesiology, Chang Gung Memorial Hospital, Taoyuan 333, Taiwan
6
Tissue Bank, Chang Gung Memorial Hospital at Linkou, Taoyuan 333, Taiwan
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(6), 1885; https://doi.org/10.3390/molecules27061885
Submission received: 17 January 2022 / Revised: 6 March 2022 / Accepted: 8 March 2022 / Published: 14 March 2022
(This article belongs to the Collection Phenolic Compounds from Plants: Chemistry, Analysis and Biological Activity)
Browse Figures
Versions Notes

Abstract

:
Euphormin-A (1) and euphormin-B (2), two new pyranocoumarin derivatives, and forty known compounds (3–42) were isolated from Euphorbia formosana Hayata (Euphorbiaceae). The chemical structures of all compounds were established based on spectroscopic analyses. Several isolates were evaluated for their anti-inflammatory activity. Compounds 1, 2, 10, 18, 25, and 33 significantly inhibited against superoxide anion generation and elastase release by human neutrophils in response to formyl-L-methionyl-L-leucyl-L-phenylalanine/cytochalasin B (fMLP/CB). Furthermore, compounds 25 and 33 displayed the most potent effects with IC50 values of 0.68 ± 0.18 and 1.39 ± 0.12 µM, respectively, against superoxide anion generation when compared with the positive control (2.01 ± 0.06 µM).

1. Introduction

The genus Euphorbia belongs to the family Euphorbiaceae, which includes more than 2000 species that are distributed throughout southern and eastern Africa, Madagascar, and tropical Asia [1]. Chemical and pharmacological studies of the plants in the genus Euphorbia have been conducted, including research on the stems, leaves, roots, latex, and seeds [2]. Previous phytochemical studies reported the presence of benzenoids [3], flavonoids [4], steroids [5], terpenoids [6,7], cerebrosides [8], and coumarins [9]. Many of the isolated constituents showed beneficial biological activities. Benzenoid derivatives, such as gallic acid, exhibit antibacterial, antiviral, anti-inflammatory, and antitumor activities [10]. Flavonoids, such as quercetin, inhibit various cancer cells [11]. Monoterpenes, such as loliolide exert inhibitory activity on AChE [12]. Triterpenes, such as squalene, inhibit the ATM-dependent signaling pathway following DNA damage through the intracellular induction of Wip1 expression [13]. Euphorbia formosana Hayata, a perennial herb that grows in western Taiwan, is commonly used to treat snakebite, rheumatism, herpes zoster, liver cirrhosis, scabies, and photoaging [14]. Previous chemical studies of aerial parts of E. formosana have demonstrated the presence of polyphenols, monocyclic phenols, flavonoids, steroids, monoterpenes, diterpenoids, triterpenes, coumarins, chlorophylls, quinone, inositol, monosaccharides, tannin, and miscellaneous [14,15]. In an effort to discover naturally occurring anti-inflammatory agents from this plant, several portions from the root extract of E. formosana were examined. At the tested concentration (10 µg/mL), the methanol, n-hexane, ethyl acetate, n-butyl alcohol, and water extracts inhibited superoxide anion generation by 57.26 ± 3.51% (n-hexane extract) and 65.15 ± 3.30% (H2O extract), and inhibited elastase release by 77.15 ± 6.36% (methanol extract), 51.29 ± 5.85% (n-hexane extract), 87.15 ± 4.31% (ethyl acetate extract), 40.55 ± 6.52% (n-butyl alcohol extract), and 22.92 ± 3.91% (H2O extract) in the preliminary bioassay. Chromatographic separation of all portions resulted in the isolation of two new compounds, euphormin-A (1) and euphormin-B (2), as well as forty known compounds. This paper describes the structural elucidation of new compounds 1 and 2 and the inhibitory activities of several isolates on superoxide generation and elastase release by neutrophils.

2. Results and Discussion

2.1. Purification and Structure Elucidation of Isolated Compounds

The MeOH extract of dried roots from E. formosana was suspended in water and partitioned into n-hexane, ethyl acetate, and n-butyl alcohol to afford n-hexane, EtOAc, n-butanol, and an aqueous fraction. All fractions were repeatedly subjected to column chromatography to yield two new compounds (Figure 1) and forty known compounds including ellagic acid (3) [16], glutinone (4) [17], isopimara-7,15-dien-3-one (5) [18], β-sitostenone (6) [19], euphol (7) [20], octacosyl ferulate (8) [21], β-sitosterol (9) [22], larixol (10) [23], tirucalla-8,25-diene-3,24-diol (11) [24], cycloart-23-ene-3β,25-diol (12) [25], helioscopinolide E (13) [26], ergosterol peroxide (14) [27], 3,3′-di-O-methylellagic acid (15) [28], aurantiamide acetate (16) [29], β-sitosteryl-3-O-glucoside (17) [22], epi-manool (18) [23], 6-methoxy-7,8-methylenedioxycoumarin (19) [30], 4-methyl-5,6-dihydropyran-2-one (20) [31], 3,3′,4,4′-tetra-O-methylellagic acid (21) [32], 3′-O-methyl-3,4-methylenedioxyellagic acid (22) [33], methyl gallate (23) [34], dehydrochebulic acid trimethyl ester (24) [35], methyl brevifolincarboxylate (25) [36], gallic acid (26) [37], phyllanthusiin E (27) [38], quercetin-3-O-α-L-rhamnoside (28) [39], kaempferol-3-O-α-L-rhamnoside (29) [40], 1,3,4,6-tetra-O-galloyl-β-D-glucopyranose (30) [41], 5-hydroxymethylfurfural (31) [42], euoniside (32) [43], brevifolin (33) [44], 3,3′-di-O-methylellagic acid 4′-O-β-xylopyranoside (34) [16], 3,3′-di-O-methylellagic acid 4′-O-β-glucoside (35) [28], scopoletin (36) [45], 5-hydroxymethylfuran-2-carboxylic acid (37) [46], 8-hydroxy-1,2,3,4-tetrahydroisoquinoline-3-carboxylic acid (38) [47], 6-hydroxy-1-methyl-1,2,3,4-tetrahydroisoquinoline-3-carboxylic acid (39) [48], 2-hydroxymethyl-5-hydroxypyridine (40) [49], maltohexaose (41) [50], and bergapten (42) [51].

2.1.1. Euphormin-A (Compound 1)

Compound 1 was obtained as a white powder with the molecular formula C16H14O11, as determined by the HRESIMS data ([M-H]− m/z 381.0442; calcd 381.0452) and supported by the presence of 16 carbon signals in its 13C-NMR spectrum. The UV spectrum of 1 showed absorption maxima at 223, 277, and 310 nm. The IR spectrum showed absorption peaks for hydroxy (3364 cm−1) and carbonyl groups (1749 and 1695 cm−1). The 1H-NMR spectrum showed one aromatic proton signal at δ 7.19 (1H, s), two methine proton peaks at δ 5.41 (1H, d, J = 1.2 Hz) and δ 4.80 (1H, d, J = 1.2 Hz), one methylene proton peak at δ 3.29 (1H, d, J = 16.8 Hz) and δ 3.16 (1H, d, J = 16.8 Hz), and a singlet of two methoxy groups at δ 3.89 (3H, s) and δ 3.79 (3H, s) (Table 1). The 13C-NMR spectrum combined with the HMQC experiments indicated the presence of one methylene carbon (δ 36.3), two methine carbons (δ 48.3, 79.1), two methoxy groups (δ 51.4, 53.0), one oxygenated quaternary carbon (δ 88.0), six aromatic carbons (δ 112.1, 116.8. 119.9, 134.9, 147.2, 147.9) and four ketones (δ 166.5, 169.1, 170.5, 170.9) (Figure 2). The 1H-1H COSY correlation was observed for the H-10/H-13 spin system. In the HMBC spectrum, the position of the methoxy carbonyl group at C-2 was elucidated by the HMBC correlations from δ 7.19 (H-7) to δ 166.5 (C-1) and δ 119.9 (C-3) and from δ 3.89 (OCH3) to δ 166.5 (C-1). Another methoxy carbonyl group at C-13 was confirmed using the HMBC correlations of δ 5.41 (H-13) to δ 48.3 (C-10), δ 88.0 (C-9), δ 119.9 (C-3), δ 170.5 (C-14) and δ 170.9 (C-12), and of δ 3.79 (OCH3) to δ 170.5 (C-14). Furthermore, the linkage of the two lactone rings was confirmed using the HMBC correlations of δ 5.41 (H-13) to δ 48.3 (C-10), δ 88.0 (C-9), δ 119.9 (C-3), and δ 170.9 (C-12), of δ 4.80 (H-10) to δ 119.9 (C-3) and δ 147.9 (C-4), and of δ 3.16 and δ 3.29 (CH2-11) to δ 48.3 (C-10), δ 88.0 (C-9), and δ 169.1 (C-8) (Figure 3). Based on the above structural evidence, the planar structure of 1 was established. The relative configuration of 1 was deduced by analyzing its NOESY data, in which the correlations of δ 5.41 (H-13) and δ 4.80 (H-10) indicated close spatial proximity (Figure 4); thus, the compound was assigned as β-oriented. Therefore, the structure of compound 1 was determined as shown in Figure 1, and it was named euphormin-A.

2.1.2. Euphormin-B (Compound 2)

Compound 2 was isolated as a brown crystal with an elemental composition of C15H12O11 as determined by its HRESIMS ([M-H]− m/z 367.0288; calcd 367.0296). The IR spectrum displayed absorption characteristics of hydroxy (3358 cm−1) and carbonyl (1740 cm−1) functional groups. The UV spectrum exhibited bands at 227, 276, and 316 nm. The 1H-NMR spectrum of 2 also displayed one aromatic proton signal at δ 7.03 (1H, s, H-7), one methylene resonance at δ 3.15 (1H, d, J = 16.4 Hz) and δ 2.96 (1H, d, J = 16.4 Hz), two methine resonances at δ 4.97 (1H, d, J = 1.6 Hz) and δ 4.65 (1H, d, J = 1.6 Hz), and one methoxy group at δ 3.74 (3H, s). The 13C-NMR spectrum showed 15 signals, including one methylene (δ 37.7), one methoxy carbon (δ 52.7), six aromatic carbons (δ 148.8, 14.8, 133.9, 122.2, 117.6, 112.0), one oxygenated quaternary carbon (δ 90.0), and four ketones (δ 176.6, 176.6, 174.6, 168.2) (Table 1). The NMR data for 2 were similar to those of compound 1 except for the disappearance of a methoxy signal, suggesting that 2 is an analog of 1 (Figure 2). The position of the methoxy group at C-1 was elucidated using the HMBC correlations of δ 3.74 (OCH3, s) to δ 168.2 (C-1) and of δ 7.03 (H-7) to δ 168.2 (C-1) and 117.2 (C-2). The HMBC correlations from δ 4.97 (H-10) to δ 82.1 (C-13), δ 122.2 (C-3), δ 148.8 (C-4), δ 174.6 (C-12), and δ 176.6 (C-8, C-14), from δ 2.95 and 3.15 (CH2-11) to δ 49.3 (C-10), δ 90.0 (C-9), and δ 174.6 (C-12), and from δ 4.65 (H-13) to δ 49.3 (C-10), δ 90.0 (C-9), δ 122.2 (C-3) and δ 174.6 (C-12) (Figure 3) also allowed us to confirm the linkage of the two lactone rings. In the NOESY spectrum, δ 4.97 (H-13) and δ 4.65 (H-10) are oriented to the β side of the structure. Consequently, the structure of 2 was identified and named euphormin-B.
In summary, a bioassay-guided separation of E. formosana roots resulted in the isolation of two new pyranocoumarins 1 and 2, showing potential anti-inflammatory activity. In addition, forty known compounds 3–42 were isolated and elucidated. The present study certainly enriches the chemical diversity and provides more chemotaxonomic evidence for E. formosana.

2.2. Anti-Inflammatory Activity

Overexpression of neutrophils has already been regarded to display significant correlations with various human diseases, such as rheumatoid arthritis, ischemia, reperfusion injury, chronic obstructive pulmonary disease, and asthma [52,53,54,55,56]. In response to diverse stimuli, activated neutrophils secreted a series of cytotoxins, such as superoxide anion and elastase [57]. This study evaluated several constituents inhibiting superoxide anion generation and elastase release in human neutrophils responding to fMLP/CB (Table 2). The results showed that the new pyranocoumarin derivatives 1 and 2 were promising anti-inflammatory compounds against superoxide anion generation with IC50 values of 4.51 ± 0.45 and 3.68 ± 0.05 µM, respectively, indicating that pyranocoumarins were the potential active anti-inflammatory components in the water fraction of this plant. More importantly, two polyphenolic compounds 25 and 33 exhibited more potent anti-inflammatory activity against superoxide anion generation with IC50 values of 0.68 ± 0.18 and 1.39 ± 0.12 µM, respectively. The results of compounds 25 and 33 suggested comparable anti-inflammatory activities with the positive control (2.01 ± 0.06 µM). Besides, compound 18 exhibited moderate inhibitory activity against elastase release. Based on our present study, the compounds isolated from E. formosana were promising candidates for further pharmaceutical developments as new anti-inflammatory entities.

3. Materials and Methods

3.1. General Experimental Procedures

Melting points were measured on a Fisher Scientific melting point apparatus and were uncorrected. UV spectra were recorded on a Hitachi UV-3010 spectrophotometer in MeOH solution. IR spectra were recorded on a Jasco FT-IR-410 spectrophotometer as KBr discs. The 1H- and 13C-NMR spectra were recorded on a Bruker Avance-400 spectrometer. Chemical shifts values are given with tetramethylsilane as an internal reference.

3.2. Plant Material

E. formosana roots were collected by Dr. Yi Jen Hsieh at Tzu Chi University, Hualien, Taiwan. A voucher specimen (No. EFR-1) was deposited at the Department of Laboratory Medicine and Biotechnology, School of Medicine, Tzu Chi University, Taiwan.

3.3. Extraction and Isolation

Dried E. formosana roots (15.0 kg) were extracted with MeOH several times, and the combined extract was concentrated to give the crude extract (3203.3 g). The extract was suspended in water and partitioned into n-hexane, ethyl acetate (EtOAc), and n-butyl alcohol (n-BuOH) to afford n-hexane, EtOAc, n-butanol, and aqueous fractions, respectively. Then, 3 (234.1 g) was purified from the insoluble portion. The n-hexane extract was subjected to a silica gel column that was eluted with n-hexane in a step gradient with EtOAc for gradually increasing polarity to generate 10 fractions (Fr. 1–10). Fr. 1 was separated using a silica gel column eluted with n-hexane:EtOAc (25:1) to obtain 4 (4.0 mg) and 5 (23.5 mg). Fr. 2 was separated using a silica gel column eluted with n-hexane-EtOAc (14:1) to obtain 6 (1.0 mg) and 7 (1.72 g). Fr. 3 was separated using a silica gel column eluted with n-hexane-EtOAc (9:1) to obtain 8 (69.2 mg). Fr. 4 was separated using a silica gel column eluted with n-hexane-EtOAc (5:1) to obtain 9 (24.3 mg). Fr. 6 was separated using a silica gel column eluted with n-hexane-acetone (7:1) to obtain 10 (1.23 g) and 11 (2.3 mg). Fr. 7 was separated using a silica gel column eluted with n-hexane-acetone (5:1) to obtain 12 (1.8 mg). Fr. 8 was separated using a silica gel column eluted with n-hexane-CHCl3 (1:1) to obtain 13 (1.3 mg) and 14 (22.5 mg). Fr. 9 was separated using a silica gel column eluted with n-hexane-CHCl3 (3:1) to obtain 15 (11.6 mg) and 16 (23.0 mg). Fr.10 was filtered to give 17 (170.8 mg). The EtOAc extract was subjected to a silica gel column eluted with CHCl3 in a step gradient with MeOH for gradually increasing polarity to generate 11 fractions (Fr. 1–11). Fr. 2 was separated using a silica gel column eluted with n-hexane-EtOAc (11:1) to obtain 18 (0.99 g). Fr. 3 was separated using a silica gel column eluted with n-hexane-EtOAc (11:1) to obtain 19 (1.8 mg) and 20 (14.5 mg). Fr. 4 was separated using a silica gel column eluted with CHCl3-acetone (25:1) to obtain 21 (19.0 mg). Fr. 5 was separated using a silica gel column eluted with CHCl3-MeOH (50:1) to obtain 22 (6.9 mg). Fr. 7 was separated using a silica gel column eluted with CHCl3-acetone (9:1) to obtain 23 (9.0 mg) and 24 (155.6 mg). Fr. 8 was separated using a silica gel column eluted with CHCl3-MeOH (15:1) to obtain 25 (3.66 g). Fr. 9 was separated using a silica gel column eluted with CHCl3-MeOH (9:1) to obtain 26 (30.2 mg). Fr. 10 was separated using a silica gel column eluted with CHCl3-MeOH (9:1) to obtain 27 (45.0 mg). Fr. 11 was separated using a silica gel column eluted with CHCl3-MeOH (5:1) to obtain 28 (407.3 mg), 29 (21.0 mg), and 30 (2.6 mg). The n-butanol extract was chromatographed on a Diaion HP-20 column eluted with H2O, followed by a step gradient with MeOH to obtain 10 fractions (Fr. 1–10). Fr. 4 was separated using a silica gel column eluted with CHCl3-MeOH (7:1) to obtain 31 (1.4 mg). Fr. 5 was separated using a silica gel column eluted with CHCl3-MeOH (11:1) to obtain 32 (24.1 mg). Fr. 7 was separated using a silica gel column eluted with CHCl3-MeOH (9:1) to obtain 33 (37.7 mg). Fr. 8 was separated using a silica gel column eluted with CHCl3-MeOH (9:1) to obtain 34 (29.23 mg), 35 (362.5 mg), and 36 (1.8 mg). The H2O extract was chromatographed on a Diaion HP-20 column eluted with H2O, followed by a step gradient with MeOH to obtain 14 fractions (Fr. 1–14). Fr. 1 was separated using a Diaion HP-20 column eluted with MeOH-H2O (1:3) to obtain 37 (4.8 mg). Fr. 3 was separated using a Diaion HP-20 column eluted with MeOH-H2O (1:4) to obtain 1 (11.1 mg), 2 (8.0 mg), 38 (27.2 mg), 39 (28.2 mg), 40 (32.4 mg), and 41 (39.6 mg). Fr. 14 was separated using a silica gel column eluted with EtOAc-MeOH (5:1) to obtain 34 (459.9 mg), 15 (37.9 mg), 26 (30.6 mg), and 42 (0.8 mg).
Euphormin-A (1). White powder; C16H14O11; mp > 280 °C; [α]D + 44.2° (c 0.05, MeOH); UV λmaxnm (logε): 223 (4.48), 277 (4.07), 310 (3.70); IRνmax cm−1:1634, 1695, 1749, 3364; HRESIMS [M-H]− m/z 381.0442 (calcd for C16H13O11, 381.0452); for the 1H-NMR and 13C-NMR spectral data see Table 1 and Supplementary S4 and S5.
Euphormin-B (2). Brown crystal; C15H12O11; mp > 280 °C; [α]D + 36.7° (c 0.05, MeOH); UV λmaxnm (logε): 227 (4.28), 276 (3.90), 316 (3.60); IRνmax cm−1:1630, 1740, 3358; HRESIMS [M-H]− m/z 367.0288 (calcd for C15H11O11, 367.0296); for the 1H-NMR and 13C-NMR spectra, data see Table 1 and Supplementary S13 and S14.

3.4. Bioassay Methods

3.4.1. Preparation of Human Neutrophils

Blood was taken from healthy human donors (20–32 years old) by venipuncture using a protocol approved by the institutional review board at Chang Gung Memorial Hospital. Neutrophils were isolated by a standard method of dextran sedimentation prior to centrifugation in a Ficoll Hypaque gradient and hypotonic lysis of erythrocytes. Purified neutrophils that contained > 98% viable cells, as determined by the Trypan blue exclusion method, were resuspended in calcium (Ca2+)-free Hank’s balanced salt solution (HBSS) buffer at pH 7.4 and were maintained at 4 °C until use.

3.4.2. Measurement of Superoxide Anion Generation

The assay for the generation of superoxide anion was based on the SOD-inhibited reduction of ferricytochrome c [57,58]. In brief, after supplementation with 0.5 mg/mL ferricytochrome c and 1 mM Ca2+, neutrophils (6 × 105 cells/mL) were equilibrated at 37 °C for 2 min and incubated with drugs or an equal volume of vehicle (0.1% DMSO) for 5 min. Cells were activated with 100 nM fMLP during preincubation with 1 μg/mL cytochalasin B (fMLP/CB) for 3 min. Changes in the absorbance with the reduction of ferricytochrome c at 550 nm were continuously monitored in a double-beam, six-cell positioner spectrophotometer with constant stirring (Hitachi U-3010). Calculations were based on the differences in reactions with and without SOD (100 U/mL) divided by the extinction coefficient for the reduction of ferricytochrome c (ε = 21.1/mM/10 mm).

3.4.3. Measurement of Elastase Release

Azurophilic granule degranulation was determined by elastase release, as described previously [57,58]. Experiments were performed using MeO-Suc-Ala-Ala-Pro-Val-p-nitroanilide as the elastase substrate. Briefly, after supplementation with MeO-Suc-Ala-Ala-Pro-Val-p-nitroanilide (100 µM), neutrophils (6 × 105/mL) were equilibrated at 37 °C for 2 min and incubated with drugs or an equal volume of vehicle (0.1% DMSO, as control) for 5 min. Cells were activated by 100 nM fMLP and 0.5 µg/mL CB, and changes in absorbance at 405 nm were continuously monitored to assay elastase release. The results were expressed as the percentage elastase release in the fMLP/CB-activated, drug-free control system.

3.4.4. Statistical Analysis

Results were expressed as mean ± S.E.M. Computation of 50% inhibitory concentration (IC50) was computer-assisted (PHARM/PCS v.4.2). Statistical comparisons were made between groups using the Student’s t test. Values of p less than 0.05 were considered to be statistically significant

4. Conclusions

Two new compounds (1 and 2) and forty known compounds (3–42) were isolated from the roots of E. formosana. The chemical structures of these isolates were elucidated based on their spectroscopic data. The anti-inflammatory activity of the isolated compounds was evaluated. The results showed that compounds 1, 2, 10, 25, and 33 inhibited fMLP-induced superoxide generation. In addition, new compounds 1 and 2 showed promising anti-inflammatory activity against superoxide anion generation, with IC50 values of 4.51 ± 0.45 and 3.68 ± 0.05 μM, respectively. Among the isolates, compounds 25 and 33 were the most potent with IC50 values of 0.68 ± 0.18 and 1.39 ± 0.12 μM, respectively, against superoxide anion generation. Furthermore, compound 18 exhibited good anti-inflammatory activity against elastase release, with IC50 values of 8.07 ± 1.40 μM. Based on the above results, E. formosana should be a helpful herbal medicine for patients with the inflammation-related disease.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27061885/s1, Figure S1: IR spectrum of euphormin-A, Figure S2: UV spectrum of euphormin-A, Figure S3: Mass spectrum of euphormin-A, Figure S4: 1H-NMR (400 MHz, CD3OD) spectrum of euphormin-A, Figure S5: 13C-NMR (100 MHz, CD3OD) spectrum of euphormin-A, Figure S6: 1H-1H COSY spectrum of euphormin-A, Figure S7: 1H-1H NOESY spectrum of euphormin-A, Figure S8: HSQC spectrum of euphormin-A, Figure S9: HMBC spectra of euphormin-A, Figure S10: IR spectrum of euphormin-B, Figure S11: UV spectrum of euphormin-B, Figure S12: Mass spectrum of euphormin-B, Figure S13: 1H-NMR (400 MHz, D2O) spectrum of euphormin-B, Figure S14: 13C-NMR (100 MHz, D2O) spectrum of euphormin-B, Figure S15: 1H-1H COSY spectrum of euphormin-B, Figure S16: 1H-1H NOESY spectrum of euphormin-B, Figure S17: HSQC spectrum of euphormin-B, Figure S18: HMBC spectra of euphormin-B, Figure S19: Inhibitory effect of compounds 1, 2, 10, 18, 25, and 33 from E. formosana on superoxide anion generation and elastase release by human neutrophils in response to fMLP/CB.

Author Contributions

Conceptualization, Y.-H.L. and Y.-L.L.; data curation, Y.-L.L.; formal analysis, Y.-H.L. and I.-H.C.; funding acquisition, Y.-H.L. and Y.-L.L.; investigation, H.-H.L., T.-J.G. and T.-L.H.; project administration, Y.-H.L. and Y.-L.L.; resources, T.-L.H. and Y.-L.L.; supervision, Y.-L.L.; validation, Y.-H.L. and I.-H.C.; visualization, Y.-H.L. and I.-H.C.; writing—original draft, Y.-H.L. and I.-H.C.; writing—review & editing, Y.-H.L. and Y.-L.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by China Medical University (CMU110-MF-77) and the Ministry of Science and Technology (MOST 110-2320-B-039-038). The funders had no role in the study design, data collection, and analysis, decision to publish, or preparation of the manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The support in performing LC-MS/MS measurements from The Instrument Center of National Chung Hsing University is greatly acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Jassbi, A.R. Chemistry and biological activity of secondary metabolites in Euphorbia from Iran. Phytochemistry 2006, 67, 1977–1984. [Google Scholar] [CrossRef] [PubMed]
  2. Shi, Q.W.; Su, X.S.; Kiyota, H. Chemical and pharmacological research of the plants in genus Euphorbia. Chem. Rev. 2008, 108, 4295–4327. [Google Scholar] [CrossRef] [PubMed]
  3. Saleem, H.; Zengin, G.; Locatelli, M.; Mollica, A.; Ahmad, I.; Mahomoodally, F.M.; Abidin, S.A.Z.; Ahemad, N. In vitro biological propensities and chemical profiling of Euphorbia milii Des Moul (Euphorbiaceae): A novel source for bioactive agents. Ind. Crop Prod. 2019, 130, 9–15. [Google Scholar] [CrossRef]
  4. Yang, Z.G.; Jia, L.N.; Shen, Y.; Ohmura, A.; Kitanaka, S. Inhibitory effects of constituents from Euphorbia lunulata on differentiation of 3T3-L1 cells and nitric oxide production in RAW264.7 Cells. Molecules 2011, 16, 8305–8318. [Google Scholar] [CrossRef] [Green Version]
  5. Tanaka, R.; Kasubuchi, K.; Kita, S.; Tokuda, H.; Nishino, H.; Matsunaga, S. Bioactive steroids from the whole herb of Euphorbia chamaesyce. J. Nat. Prod. 2000, 63, 99–103. [Google Scholar] [CrossRef]
  6. Shi, J.G.; Shi, Y.P.; Jia, Z.J. Sesquiterpenoids from Euphorbia wangii. Phytochemistry 1997, 45, 343–347. [Google Scholar]
  7. Appendino, G.; Jakupovic, S.; Tron, G.C.; Jakupovic, J.; Milon, V.; Ballero, M. Macrocyclic diterpenoids from Euphorbia semiperfoliata. J. Nat. Prod. 1998, 61, 749–756. [Google Scholar] [CrossRef]
  8. Cateni, F.; Zilic, J.; Zacchigna, M.; Procida, G. Cerebrosides with antiproliferative activity from Euphorbia peplis L. Fitoterapia 2010, 81, 97–103. [Google Scholar] [CrossRef]
  9. Mahmoud, Z.F.; Abdel Salam, N.A. Coumarins of Euphorbia terracina L. and Euphorbia paralias L. growing in Egypt. Pharmazie 1979, 34, 446–447. [Google Scholar]
  10. Liao, C.C.; Chen, S.C.; Huang, H.P.; Wang, C.J. Gallic acid inhibits bladder cancer cell proliferation and migration via regulating fatty acid synthase (FAS). J. Food Drug Anal. 2018, 26, 620–627. [Google Scholar] [CrossRef]
  11. Ranganathan, S.; Halagowder, D.; Sivasithambaram, N.D. Quercetin suppresses twist to induce apoptosis in MCF-7 breast cancer cells. PLoS ONE 2015, 10, e0141370. [Google Scholar] [CrossRef] [Green Version]
  12. Fang, Z.; Jeong, S.Y.; Jung, H.A.; Choi, J.S.; Min, B.S.; Woo, M.H. Anticholinesterase and antioxidant constituents from Gloiopeltis furcata. Chem. Pharm. Bull. 2010, 58, 1236–1239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Tatewaki, N.; Konishi, T.; Nakajima, Y.; Nishida, M.; Saito, M.; Eitsuka, T.; Sakamaki, T.; Ikekawa, N.; Nishida, H. Squalene inhibits ATM-dependent signaling in γIR-induced DNA damage response through induction of Wip1 phosphatase. PLoS ONE 2016, 11, e0147570. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Yu, C.C.; Hsieh, C.R.; Hsiao, G.; Chen, P.Y.; Chang, M.L.; Yin, H.W.; Lee, T.H.; Lee, C.K. Regulated expressions of MMP-2, -9 by diterpenoids from Euphorbia formosana Hayata. Molecules 2012, 17, 2082–2090. [Google Scholar] [CrossRef] [Green Version]
  15. Lan, Y.H.; Yen, C.H.; Leu, Y.L. Chemical constituents from the aerial parts of Euphorbia formosana Hayata and their chemotaxonomic significance. Biochem. Syst. Ecol. 2020, 88, 103967. [Google Scholar] [CrossRef]
  16. Li, X.C.; Elsohly, H.N.; Hufford, C.D.; Clark, A.M. NMR assignments of ellagic acid derivatives. Magn. Reson. Chem. 1999, 37, 856–859. [Google Scholar] [CrossRef]
  17. Olea, R.S.G.; Torres, L.M.B.; Roque, L.C.; Roque, N.F. 13C NMR spectroscopic data for glutinol and derivatives. Magn. Reson. Chem. 1994, 32, 378–379. [Google Scholar] [CrossRef]
  18. Lago, J.H.G.; Brochini, C.B.; Roque, N.F. Terpenes from leaves of Guarea macrophylla (Meliaceae). Phytochemistry 2000, 55, 727–731. [Google Scholar] [CrossRef]
  19. Baldé, A.M.; Apers, S.; Bruyne, T.E.D.; Heuvel, H.V.D.; Claeys, M.; Vlietinck, A.J.; Pieters, L.A.C. Steroids from Harrisonia abyssinica. Planta Med. 2000, 66, 67–69. [Google Scholar] [CrossRef] [PubMed]
  20. Leong, Y.W.; Harrison, L.J. (20R,23E)-Eupha-8,23-diene-3β,25-diol from Tripetalum cymosum. Phytochemistry 1999, 50, 849–857. [Google Scholar] [CrossRef]
  21. Ruan, H.L.; Zhou, X.F.; Zhang, Y.H.; Pi, H.F.; Wu, J.Z.; Sun, H.D. Ferulic acid esters from Euphorbia hylonoma. Fitoterapia 2007, 78, 72–73. [Google Scholar] [CrossRef] [PubMed]
  22. Chang, Y.C.; Chang, F.R.; Wu, Y.C. The constituents of Lindera glauca. J. Chin. Chem. Soc. 2000, 47, 373–378. [Google Scholar] [CrossRef]
  23. Bolster, M.G.; Jansen, B.J.M.; Groot, A.D. The synthesis of ambrox®-like compounds starting from (+)-larixol. Tetrahedron 2001, 57, 5663–5679. [Google Scholar] [CrossRef]
  24. Xu, W.; Zhu, C.; Cheng, W.; Fan, X.; Chen, X.; Yang, S.; Guo, Y.; Ye, F.; Shi, J. Chemical constituents of the roots of Euphorbia micractina. J. Nat. Prod. 2009, 72, 1620–1626. [Google Scholar] [CrossRef] [PubMed]
  25. Khan, M.T.H.; Khan, S.B.; Ather, A. Tyrosinase inhibitory cycloartane type triterpenoids from the methanol extract of the whole plant of Amberboa ramosa Jafri and their structure-activity relationship. Bioorg. Med. Chem. 2006, 14, 938–943. [Google Scholar] [CrossRef]
  26. Duarte, N.; Lage, H.; Ferreira, M.J.U. Three new jatrophane polyesters and antiproliferative constituents from Euphorbia tuckeyana. Planta Med. 2008, 74, 61–68. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Lee, J.S.; Ma, C.M.; Park, D.K.; Yoshimi, Y.; Hatanaka, M.; Hattori, M. Transformation of ergosterol peroxide to cytotoxic substances by rat intestinal bacteria. Biol. Pharm. Bull. 2008, 31, 949–954. [Google Scholar] [CrossRef] [Green Version]
  28. Pakulski, G.; Budzianowski, J. Ellagic acid derivatives and naphthoquinones of Dionaea muscipula from in vitro cultures. Phytochemistry 1996, 41, 775–778. [Google Scholar] [CrossRef]
  29. Park, B.Y.; Min, B.S.; Oh, S.R.; Kim, J.H.; Bae, K.H.; Lee, H.K. Isolation of flavonoids, a biscoumarin and an amide from the flower buds of Daphne genkwa and the evaluation of their anti-complement activity. Phytother. Res. 2006, 20, 610–613. [Google Scholar] [CrossRef]
  30. Mezache, N.; Akkal, S.; Laouar, H.; Seguin, E. Flavonoids from Chrysanthemum myconis and their antibacterial activity. Chem. Nat. Compd. 2009, 45, 715–716. [Google Scholar] [CrossRef]
  31. Shintani, R.; Hayashi, T. Rhodium-catalyzed asymmetric 1,4-addition of sodium tetraarylborates to β,β-disubstituted α,β-unsaturated esters. Org. Lett. 2011, 13, 350–352. [Google Scholar] [CrossRef] [PubMed]
  32. Silva, O.; Gomes, E.T.; Wolfender, J.L.; Marston, A.; Hostettmann, K. Application of high performance liquid chromatography coupled with ultraviolet spectroscopy and electrospray mass spectrometry to the characterisation of ellagitannins from Terminalia macroptera roots. Pharm. Res. 2000, 17, 1396–1401. [Google Scholar] [CrossRef] [PubMed]
  33. Khallouki, F.; Haubner, R.; Hull, W.E.; Erben, G.; Spiegelhalder, B.; Bartsch, H.; Owen, R.W. Isolation, purification and identification of ellagic acid derivatives, catechins, and procyanidins from the root bark of Anisophyllea dichostyla R. Br. Food Chem. Toxicol. 2007, 45, 472–485. [Google Scholar] [CrossRef] [PubMed]
  34. Nishioka, T.; Kawabata, J.; Aoyama, Y. Baicalein, an α-glucosidase inhibitor from Scutellaria baicalensis. J. Nat. Prod. 1998, 61, 1413–1415. [Google Scholar] [CrossRef]
  35. Camacho-Luis, A.; Gayosso-De-Lucio, J.A.; Torres-Valencia, J.M.; Muñoz-Sánchez, J.L.; Alarcón-Hernández, E.; López, R.; Barrón, B.L. Antioxidant constituents of Geranium bellum rose. J. Mex. Chem. Soc. 2008, 52, 103–107. [Google Scholar]
  36. Fang, S.H.; Rao, Y.K.; Tzeng, Y.M. Anti-oxidant and inflammatory mediator’s growth inhibitory effects of compounds isolated from Phyllanthus urinaria. J. Ethnopharmacol. 2008, 116, 333–340. [Google Scholar] [CrossRef]
  37. Wu, T.S.; Chang, F.C.; Wu, P.L.; Kuoh, C.S.; Chen, I.S. Constituents of leaves of Tetradium glabrifolium. J. Chin. Chem. Soc. 1995, 42, 929–934. [Google Scholar] [CrossRef]
  38. Yoshida, T.; Itoh, H.; Matsunaga, S.; Tanaka, R.; Okuda, T. Tannins and related polyphenols of Euphorbiaceous plant. IX. Hydrolysable tannins with 1C4 glucose core from Phyllanthus flexosus MUELL. ARG. Chem. Pharm. Bull. 1992, 40, 53–60. [Google Scholar] [CrossRef] [Green Version]
  39. Wang, X.W.; Mao, Y.; Wang, N.L.; Yao, X.S. A new phloroglucinol diglycoside derivative from Hypericum japonicum Thunb. Molecules 2008, 13, 2796–2803. [Google Scholar] [CrossRef]
  40. Garcez, W.S.; Yoshida, M.; Gottlieb, O.R. Benzylisoquinoline alkaloids and flavonols from Ocotea vellosiana. Phytochemistry 1995, 39, 815–816. [Google Scholar] [CrossRef]
  41. Tanaka, T.; Fukumori, M.; Ochi, T.; Kouno, I. Paeonianins A-E, new dimeric and monomeric ellagitannins from the fruits of Paeonia lactiflora. J. Nat. Prod. 2003, 66, 759–763. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, P.; Guo, H.; Tian, Y.; Wang, Q.; Guo, D. Benzoic acid allopyranosides from the bark of Pseudolarix kaempferi. Phytochemistry 2006, 67, 1395–1398. [Google Scholar] [CrossRef] [PubMed]
  43. Tantray, M.A.; Shawl, A.S.; Khuroo, M.A.; Bhat, B.A. Two new coumarins from Euonymus hamiltonianus. Fitoterapia 2008, 79, 234–235. [Google Scholar] [CrossRef] [PubMed]
  44. Nawwar, M.A.M.; Hussein, S.A.M.; Merfort, I. NMR Spectral analysis of polyphenols from Punica granatum. Phytochemistry 1994, 36, 793–798. [Google Scholar] [CrossRef]
  45. Kayser, O.; Kolodziej, H. Highly oxygenated coumarins from Pelargonium sidoides. Phytochemistry 1995, 39, 1181–1185. [Google Scholar] [CrossRef]
  46. Matsui, T.; Kudo, A.; Tokuda, S.; Matsumoto, K.; Hosoyama, H. Identification of a new natural vasorelaxatant compound, (+)-osbeckic acid, from rutin-free tartary buckwheat extract. J. Agric. Food. Chem. 2010, 58, 10876–10879. [Google Scholar] [CrossRef]
  47. Isono, F.; Sakaida, Y.; Takahashi, S.; Kinoshita, T.; Nakamura, T.; Inukai, M. Mureidomycins E and F, minor components of mureidomycins. J. Antibiot. 1993, 46, 1203–1207. [Google Scholar] [CrossRef]
  48. Muller, P.; Schutte, H.R. 1-Methyl-6-hydroxy-1,2,3,4-tetrahydroiso-qulinoline-3-carboxylic acid in the milky juice of Euphorbia myrsinites L. Z. Naturforsch. B J. Chem. Sci. 1968, 23, 491–493. [Google Scholar] [CrossRef]
  49. Miyake, Y.; Ebata, M. The structures of a β-galactosidase inhibitor, galactostatin, and its derivatives. Agric. Biol. Chem. 1988, 52, 661–666. [Google Scholar]
  50. Whitlock, H.W. The Aldrich Library of 13C and 1H FT NMR Spectra; Aldrich Chemical, Co.: St. Louis, MO, USA, 1993; Volume I, p. 311. [Google Scholar]
  51. Gattuso, G.; Barreca, D.; Caristi, C.; Gargiulli, C.; Leuzzi, U. Distribution of flavonoids and furocoumarins in juices from cultivars of Citrus bergamia Risso. J. Agric. Food. Chem. 2007, 55, 9921–9927. [Google Scholar] [CrossRef]
  52. Malech, H.L.; Gallin, J.I. Current concepts: Immunology neutrophils in human diseases. N. Engl. J. Med. 1987, 317, 687–694. [Google Scholar] [CrossRef]
  53. Witko-Sarsat, V.; Rieu, P.; Descamps-Latscha, B.; Lesavre, P.; Halbwachs-Mecarelli, L. Neutrophils: Molecules, functions and pathophysiological aspects. Lab. Investig. 2000, 80, 617–653. [Google Scholar] [CrossRef] [Green Version]
  54. Okajima, K.; Harada, N.; Uchiba, M. Ranitidine reduces ischemia/reperfusion-induced liver injury in rats by inhibiting neutrophil activation. J. Pharmacol. Exp. Ther. 2002, 301, 1157–1165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Ennis, M. Neutrophils in asthma pathophysiology. Curr. Allergy Asthma Rep. 2003, 3, 159–165. [Google Scholar] [CrossRef] [PubMed]
  56. Vinten-Johansen, J. Involvement of neutrophils in the pathogenesis of lethal myocardial reperfusion Injury. Cardiovasc. Res. 2004, 61, 481–497. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Hwang, T.L.; Li, G.L.; Lan, Y.H.; Chia, Y.C.; Hsieh, P.W.; Wu, Y.H.; Wu, Y.C. Potent inhibition of superoxide anion production in activated human neutrophils by isopedicin, a bioactive component of the Chinese medicinal herb Fissistigma oldhamii. Free Radic. Biol. Med. 2009, 46, 520–528. [Google Scholar] [CrossRef] [PubMed]
  58. Leu, Y.L.; Hwang, T.L.; Kuo, P.C.; Liou, K.P.; Huang, B.S.; Chen, G.F. Constituents from Vigna vexillata and their anti-inflammatory activity. Int. J. Mol. Sci. 2012, 13, 9754–9768. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Molecules 27 01885 g001 550

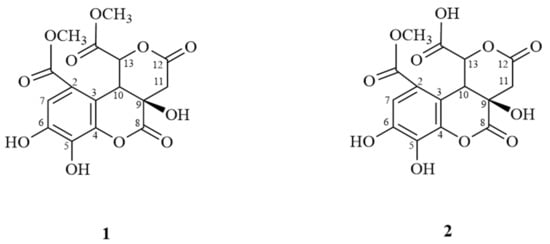

Figure 1. Structures of compounds 1 and 2.
Figure 1. Structures of compounds 1 and 2.
Molecules 27 01885 g001
Molecules 27 01885 g002 550

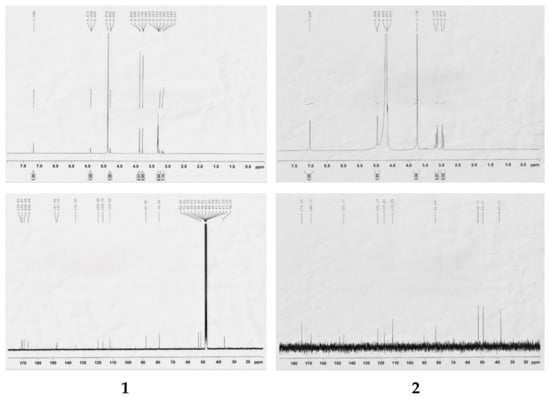

Figure 2. 1H-NMR and 13 C-NMR spectra of compounds 1 and 2.
Figure 2. 1H-NMR and 13 C-NMR spectra of compounds 1 and 2.
Molecules 27 01885 g002
Molecules 27 01885 g003 550
Figure 3. Key HMBC and COSY correlations of compounds 1 and 2.
Figure 3. Key HMBC and COSY correlations of compounds 1 and 2.
Molecules 27 01885 g003
Molecules 27 01885 g004 550

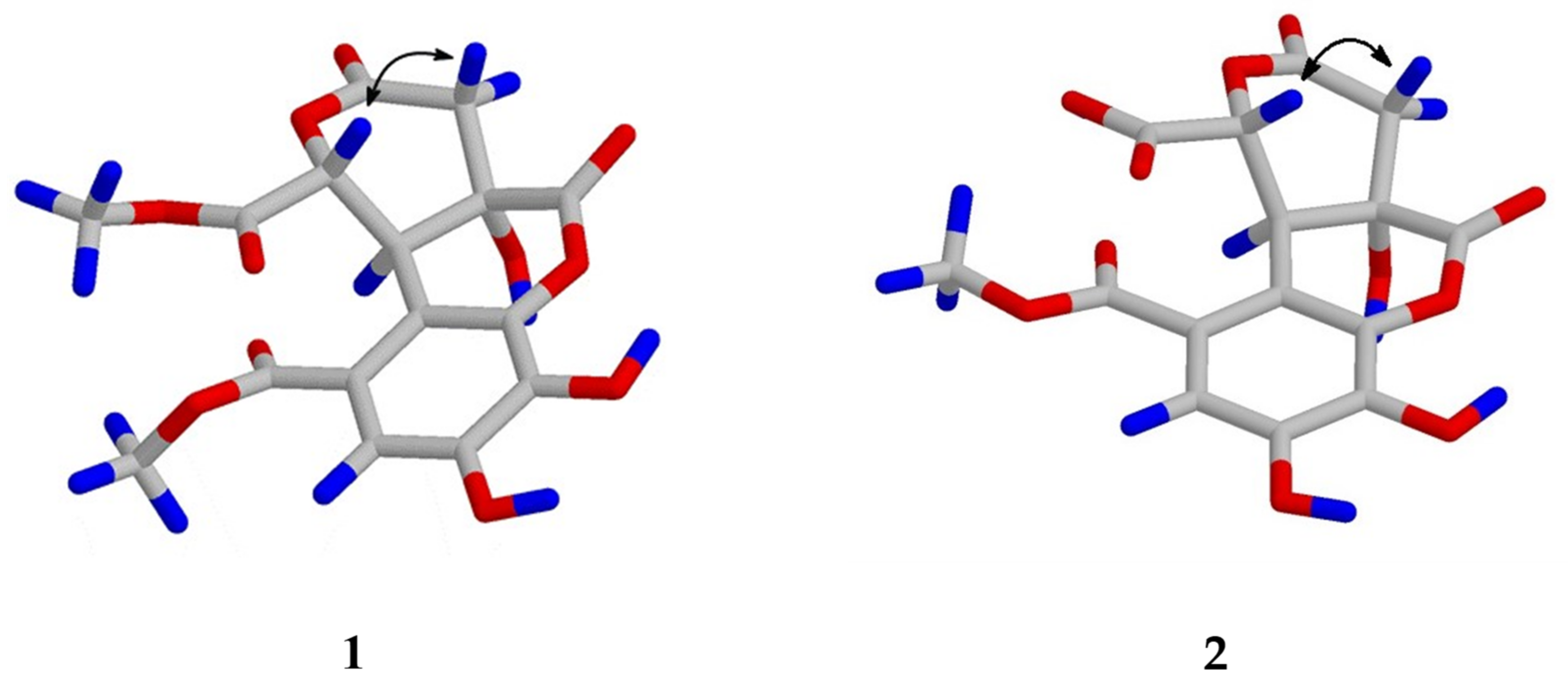

Figure 4. Key NOESY correlations of compounds 1 and 2.
Figure 4. Key NOESY correlations of compounds 1 and 2.
Molecules 27 01885 g004
Table
Table 1. 1H-NMR and 13C-NMR spectral data for compounds 1 and 2 (1 in CD3OD and 2 in D2O) a.
Table 1. 1H-NMR and 13C-NMR spectral data for compounds 1 and 2 (1 in CD3OD and 2 in D2O) a.
12
Positionδ (H)δ (C)uδ (H)δ (C)
1 166.5 168.1
2 116.8 117.6
3 119.9 122.2
4 147.9 148.8
5 134.9 133.9
6 147.2 145.8
77.19, s112.17.30, s112.0
8 169.1 176.6
9 88.0 90.0
104.80, d, J = 1.2 Hz48.34.97, d, J = 1.6 Hz49.3
113.16, d, J = 16.8 Hz36.32.96, d, J = 16.4 Hz37.7
3.29, d, J = 16.8 Hz 3.15, d, J = 16.4 Hz
12 170.9 174.6
135.41, d, J = 1.2 Hz79.14.65, d, J = 1.6 Hz82.1
14 170.5 176.6
1-OCH33.89, s53.03.74, s52.7
14-OCH33.79, s51.1
a Chemical shift values are given in ppm, and J values in parentheses are given in Hz. Assignments were confirmed by 1H-1H COSY, HMQC, and HMBC experiments.
Table
Table 2. Inhibitory effects of compounds 1, 2, 10, 18, 25, and 33 from E. formosana on superoxide anion generation and elastase release by human neutrophils in response to fMLP/CB.
Table 2. Inhibitory effects of compounds 1, 2, 10, 18, 25, and 33 from E. formosana on superoxide anion generation and elastase release by human neutrophils in response to fMLP/CB.
CompoundsSuperoxide AnionElastase
IC50 (μM) aIC50 (μM) a or (Inh %) b
14.51 ± 0.45>10
23.68 ± 0.05>10
103.81 ± 0.43>10
18-8.07 ± 1.40
250.68 ± 0.18(17.65 ± 1.14) ***
331.39 ± 0.12>10
LY294002 c2.01 ± 0.063.24 ± 0.34
a Concentration necessary for 50% inhibition; b Percentage of inhibition (Inh %) at 10 µM concentration. Results are presented as mean ± S.E.M. (n = 3). *** p < 0.001 compared with the control value; c A phosphatidylinositol-3-kinase inhibitor was used as a positive control for superoxide anion generation and elastase release.
