Influence of Homogenizing Methodology on Mechanical and Tribological Performance of Powder Metallurgy Processed Titanium Composites Reinforced by Graphene Nanoplatelets

by
Sultan Mahmood
1,
Amjad Iqbal
2,3,*,
Rafi-ud-Din
4,
Abdul Wadood
1,
Abdul Mateen
5,
Muhammad Amin
6,
Ibrahim S. Yahia
7,8,9 and
Heba Y. Zahran
7,8,9
1
Department of Materials Science and Engineering, Institute of Space Technology, Islamabad 44000, Pakistan
2
Department of Materials Technologies, Faculty of Materials Engineering, Silesian University of Technology, Gliwice 44-100, Poland
3
CEMMPRE—Centre for Mechanical Engineering Materials and Processes, Department of Mechanical Engineering, University of Coimbra, Rua Luı’s Reis Santos, 3030-788 Coimbra, Portugal
4
Materials Division, Pakistan Institute of Nuclear Science and Technology, Islamabad 45650, Pakistan
5
Department of Materials Science and Engineering, Pak-Austria Fachhochschule Institute of Applied Sciences and Technology, Haripur 22621, Pakistan
6
Department of Energy System Engineering Seoul, Seoul National University, Seoul 08826, Korea
7
Laboratory of Nano-Smart Materials for Science and Technology (LNSMST), Department of Physics, Faculty of Science, King Khalid University, P.O. Box 9004, Abha 61413, Saudi Arabia
8
Research Center for Advanced Materials Science (RCAMS), King Khalid University, P.O. Box 9004, Abha 61413, Saudi Arabia
9
Nanoscience Laboratory for Environmental and Biomedical Applications (NLEBA), Semiconductor Lab., Metallurgical Lab.1, Department of Physics, Faculty of Education, Ain Shams University, Roxy, Cairo 11757, Egypt
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(9), 2666; https://doi.org/10.3390/molecules27092666
Submission received: 23 March 2022 / Revised: 17 April 2022 / Accepted: 18 April 2022 / Published: 21 April 2022
(This article belongs to the Special Issue Graphene-Based Nanocomposites for Advanced Applications)
Browse Figures
Versions Notes

Abstract

:
In the present work, 0.25 wt%GNP-Ti composites were prepared through powder metallurgy route by adopting three types of mixing modes to investigate the extent of mixing on the mechanical and tribological properties. Dry ball milling, wet ball milling, and rotator mixing were independently employed to homogenize the composite constituents. Three types of composite powders obtained were subsequently sintered into composite pellets by cold compaction followed by vacuum sintering. Morphological investigation of composite powders performed by SEM revealed better homogenization of GNPs in Ti matrix for dry ball milled composite powder, whereas wet ball milled and rotator mixed composite powders showed aggregation and bundling of GNPs. Micro Vickers hardness of composites produced via dry ball milling is 4.56% and 15.7% higher than wet ball milled and rotator mixed samples, respectively. Wear test performed by pin-on-disk tribometer showed higher wear loss for wet ball milled and rotator mixed composites in comparison to dry ball milled.

1. Introduction

Metal matrix composites (MMCs) have been regarded as an essential class of engineering materials due to their better thermal and mechanical performance [1,2]. Conventionally, titanium and its alloys seem to be a better choice for automotive, aerospace, and bio-medical applications owing to the medium density, moderate mechanical strength, good corrosion and oxidation resistance, better fracture toughness, and biocompatibility. However, their use in many applications is limited because of poor wear resistance and lower electrical and thermal properties [3,4]. Poor tribological performance of titanium, for example, inferior fretting behavior and lower wear resistance, are chiefly due to its low thermal conductivity and less plastic shearing resistance [5]. In addition, many structural and engineering applications require a higher degree of mechanical strength. To overcome such deficiencies in titanium, numerous reinforcement materials have been incorporated to develop titanium matrix composites (TMCs) [6]. Various ceramic reinforcements have been reported in the literature to improve the strength and wear resistance of Ti and its alloys. Shufeng et al. investigated the synergic effect of in situ synthesized TiC-TiB reinforcements on microstructure and mechanical properties of TMCs and observed a 1.7 times increase in tensile strength accompanying a 12.5% decline in ductility for 13.6 vol% reinforcement [7]. Ti/TiC nanocomposites were synthesized by Gu et al., who found optimum content of TiC as 12.5 wt% to achieve a 2 times increase in microhardness and considerably low coefficient of friction (COF) and wear rate [8]. Wang et al. achieved 3.5 times higher compressive strength at the expense of a 20% decline in strain to failure for in situ synthesized nanometric TiC-Ti composites compared to un-reinforced Ti [9]. Al2O3-Ti nanocomposites were produced by Zarghani et al. through friction stir processing and noticed 1.5 times enhancement in compressive yield strength for 3.9 vol% Al2O3-Ti in comparison to as received Ti [10]. Huang et al. obtained 1.36 times increase in tensile strength for 5 vol%TiB nanowires reinforced Ti-6Al-4V composites compared to that of un-reinforced alloy [11]. Pan et al. developed in situ formed TiC-Ti composites and showed 62% higher nano-indentation hardness and 30% lower COF than pure Ti [12]. Recently, Jin et al. found a 68.6% increase in hardness and 32.6% improvement in wear resistance of TiB2-Ti composites produced by selective laser melting [13]. However, reported enhancement in mechanical strength and wear resistance is achieved at the cost of lightweight, toughness, thermal, and electrical properties because ceramics have higher densities, low fracture toughness, and poor thermal and electrical conductivity than titanium [14].
In view of the above, lightweight reinforcement materials having high strength, toughness, and electrical and thermal conductivity are indispensable in realizing the goal of producing titanium composites for aerospace, automotive, and bio-medical applications. In this perspective, carbonaceous materials, for example, carbon fiber (CF), nano-diamond (ND), carbon nanotubes (CNTs), and graphene nanoplatelets (GNPs), emerged as an ideal choice thanks to their superior chemical and physical characteristics [15,16]. Nano-diamonds reinforcement (0.35 wt%) in the Ti matrix resulted in a 71.5% reduction in wear rate, as investigated by Saba et al. [17]. CNTs due to the high aspect ratio, high strength, and self-lubrication properties appear to be a promising reinforcement for TMCs [18]. Research conducted by Kuzumaki et al. demonstrated a 5.5 times improvement in hardness of Ti through 0.8 vol% CNTs reinforcement [19]. Kondoh et al. achieved a 1.2 and 1.5 times increase in tensile and yield strength, respectively, for 0.35 wt% CNT-Ti composites without much reduction in the ductility [20]. Moreover, 3 wt% CNT-Ti composites were produced by Xue et al., wherein they confirmed good compressive strengthat elevated temperature when subjected to higher strain [21]. Wang et al. reported 61% compressive strength enhancement for 0.4 wt% CNT-Ti composites [22]. Munir et al. researched on the powder metallurgy processing of CNT-Ti composite and investigated the influence of processing parameters and CNTs content on microstructural, mechanical, and wear properties. Increase in compressive strength by 1.5 times and wear reduction by a factor of 3.4 were reported for 0.5 wt% CNT-Ti composites [23,24,25]. However, among carbonaceous reinforcement materials, graphene has led the race, because it is gifted with low density (1.8 g/cm3), high strength (125 GPa), high elastic modulus (1.1 TPa), very good electrical conductivity (2 × 108/ohm/m), remarkable thermal conductivity (5 × 103 W/m/K), very high specific surface (2630 m2/g), and outstanding self-lubrication behavior [26]. Graphene is basically a two-dimensional single atomic layer of SP2 hybridized carbon atoms arranged in a honeycomb lattice with a bond length of 0.142 nm. Its extraordinary self-lubrication is due to easy sliding on the densely packed surface [27]. However, the synthesis of perfect single layer graphene with ideal properties is not practicable [28]. Therefore, multilayer graphene with more than 10 layers, termed as graphene nanoplatelets (GNPs), retaining most of the single layer properties has been proved to be a more suitable reinforcement choice for composites applications [29].
Therefore keeping in mind the aim to develop lightweight, tough, and wear resistant composites, a systematic literature survey regarding GNPs-Ti composites has been carried out which shows that research in this area is in the initial stage. Prior works synthesized the GNPs-Ti composites through the powder metallurgy (PM) route and explored some significant aspects. Yang et al. produced graphene platelets (GPs) reinforced titanium composite via ball milling, cold compaction, and microwave sintering. They reported an 8% increase in thermal conductivity for 0.4 wt% GP, while the maximum compressive strength was recorded at 0.3 wt% GPs [30]. Song et al. synthesized TMCs reinforced by multilayer graphene (MLGs) through solution ball milling and spark plasma sintering (SPS) and found an optimum content of 0.5 wt% MLGs for improvement in microscopic mechanical properties and scratch resistance of TMCs, but properties declined at 1.5 wt% MLGs. [31]. Cao et al. achieved a 12%, 20%, and 15% increase in tensile strength, yield strength, and elastic modulus, respectively, for 0.5 wt% graphene nanoflakes (GNFs) reinforced Ti-6Al-4V composites fabricated via blending, wet mixing, hot isostatic pressing (HIP), and isothermal forging. Notably, enhancement in mechanical properties was registered without the loss of ductility [32]. Gurbuz et al. developed 0.15, 0.30, 0.45, and 0.60 wt% GNPs-Ti composites by blending, ball milling, cold compaction, and vacuum sintering. Optimized sintering conditions were noticed at 1100 °C, 120 min for 0.15 wt% GNPs-Ti composites, displaying a 86% increase in hardness [33]. Mu et al. have explored the influence of GNPs contents and its dispersion on the mechanical performance of TMCs, in addition to the role of secondary processing such as hot rolling on mechanical properties of GNP-Ti composite, produced through wet ball milling and spark plasma sintering. Tensile strength and yield strength were enhanced to 24% and 27%, respectively, for 0.4 wt% GNPs, whereas for 0.8 wt% GNPs-Ti composite system, the nanoindentation test showed a 96% hardness increase in the direction perpendicular to hot rolling [34,35]. Guo et al. used ball milling and SPS to fabricate Ti-6Al-4V matrix composites reinforced by Ni-P coated GNFs with varying content from 0.25 to 1.5 wt%. They observed a uniform distribution of GNFs and reported a 1.6 times increase in compressive yield stress for 0.5 wt% GNFs while maintaining 34.2% ductility [36].
Despite some very encouraging outcomes, the field is still open to explore the full perspective of graphene reinforced titanium matrix composites for their effective use in aerospace, automotive, and bio-medical sectors. Processing of these composites poses some big challenges. Since the first and crucial step in PM is the homogenous mixing of composite constituents to attain optimum property attributes in sintered composite [37], the primary target in developing GNPs-Ti composites is to overcome the challenge of GNPs aggregation in the titanium matrix because GNPs dispersion in metal matrices is even more difficult than CNTs, due to the very high specific surface area of graphene [38]. Therefore, ample homogenization of GNPs-Ti composites powders before consolidation is the most vital process phase. Earlier works focused on PM processing by employing one type of homogenizing approach. Keeping in view the applications demand of TMCs such as landing gear and turbine engine parts for aircraft and bone and dental implants [39,40], there is a need to explore and compare various homogenizing techniques and optimize the best suitable method to reach the targeted attributes, for example, enhanced mechanical and tribological characteristics. To the authors’ best knowledge, no comprehensive study on the investigation of homogenizing methodology’s influence on the mechanical and tribological performance of GNPs-Ti composites has been published so far.
The main purpose of this research is to produce GNPs-Ti composites with a higher level of mechanical and tribological performance suitable for the longer and proficient functioning of aerospace and bio-medical components. Therefore, this work is primarily designed to develop 0.25 wt% GNP-Ti composites through PM processing by adopting three different homogenizing approaches: dry ball milling, wet ball milling, and rotator mixing. The influence of homogenizing methodologies on morphological variations of composite powders and its connection with the mechanical strength and tribological properties of developed composites have been investigated.

2. Experimental Part

2.1. Materials

Matrix material used in this research is commercially pure titanium powder, having a mean particle size of 28.8 µm and bulk shape morphology as evident in Figure 1a,b. The chemical composition of as received Ti powder is presented in Table 1. For reinforcement, GNPs having an average thickness of 5–25 nm and a length of 1–20 µm are used. The morphology of GNPs is shown in Figure 1c. Both raw materials were purchased from Guangzhou Jiechuang, Co., Ltd. (Guangzhou, Guangdong, China).

2.2. Processing

The solid-state powder metallurgy route is adopted to produce 0.25 wt% GNP-Ti composite samples. In the first step, GNPs are homogenized in Ti powder through three different mixing techniques to obtain three types of composite powders. In the second stage, composite powders are cold pressed followed by vacuum sintering to obtain three types of sample batches. Samples preparation through this route is described in subsequent sections, and processing parameters are summarized in Table 2.

2.2.1. Dry Ball Milling

In this technique, 0.25 wt% GNP-Ti composite powder is obtained through ball milling in dry form by employing a planetary ball mill (PM 4, Retsch, Germany). Besides composite constituents, 0.3 wt% stearic acid (SA) is added as a process control agent (PCA). The function of PCA during mechanical alloying is to avoid cold welding and accelerate the fracturing of powder particles [41]. GNPs and Ti powders in weighed quantity are put into a steel vial (500 mL, ID = 100 mm) together with the tungsten carbide balls as a milling media. Balls of dissimilar sizes (5 mm and 10 mm diameter) are used to bring in more collisions and promote fracturing over cold welding [42]. Ball to powder ratio (BPR) is set at 6:1. Ball milling is performed at 225 rpm for 3 h in dry argon atmosphere to prevent oxidation of freshly produced surfaces [43].

2.2.2. Wet Ball Milling

In wet ball milling, initially, GNPs slurry is prepared by dispersing GNPs in methanol at a ratio of 1 mg/1 mL, via 30 min ultrasonication in a water bath at 60 °C. Secondly, Ti powder slurry is produced by mixing it in methanol at the proportion of 1 g/2 mL by ultrasonication for 30 min in the water bath at 60 °C. In the third step, two slurries are mixed thoroughly by a 30 min magnetic stirring to obtain the composite slurry. Then, composite slurry is charged into a steel vial (500 mL, ID = 100 mm) along with milling media of tungsten carbide balls of 5 mm and 10 mm in diameter. Ball to powder ratio (BPR) is 6:1 and wet ball milling is conducted at 225 rpm for 3 h. Finally, ball milled slurry is dried completely at 100 °C in the oven.

2.2.3. Rotator Mixing

To prepare 0.25 wt% GNP-Ti GNPs composite powder via rotator mixing, first GNPs and Ti powder slurries are prepared as in Section 2.2.2. Then, a rotator mixer with the stainless-steel blade is employed to mix these two slurries at 300 rpm for 3 h. After that, composite slurry prepared is fully dried in the oven at 100 °C.

2.2.4. Consolidation

GNP-Ti composite powders (0.25 wt%) prepared via three mixing methods are consolidated by uniaxial cold compaction and subsequent vacuum sintering. In the first step, composite powders are charged in a steel die with an inner cavity diameter of 19 mm and cold pressed at 400 MPa using a hydraulic press (15-Ton, STENHɸJ). Zinc stearate is incorporated to act as a die lubricant [44]. Successively, pressed compacts termed as green pellets are sintered in a vacuum furnace (Energyen, Korea) at 1100 °C for 2 h at a heating and cooling rate of 10 °C/min under 10−3 Pa vacuum.

2.3. Characterization

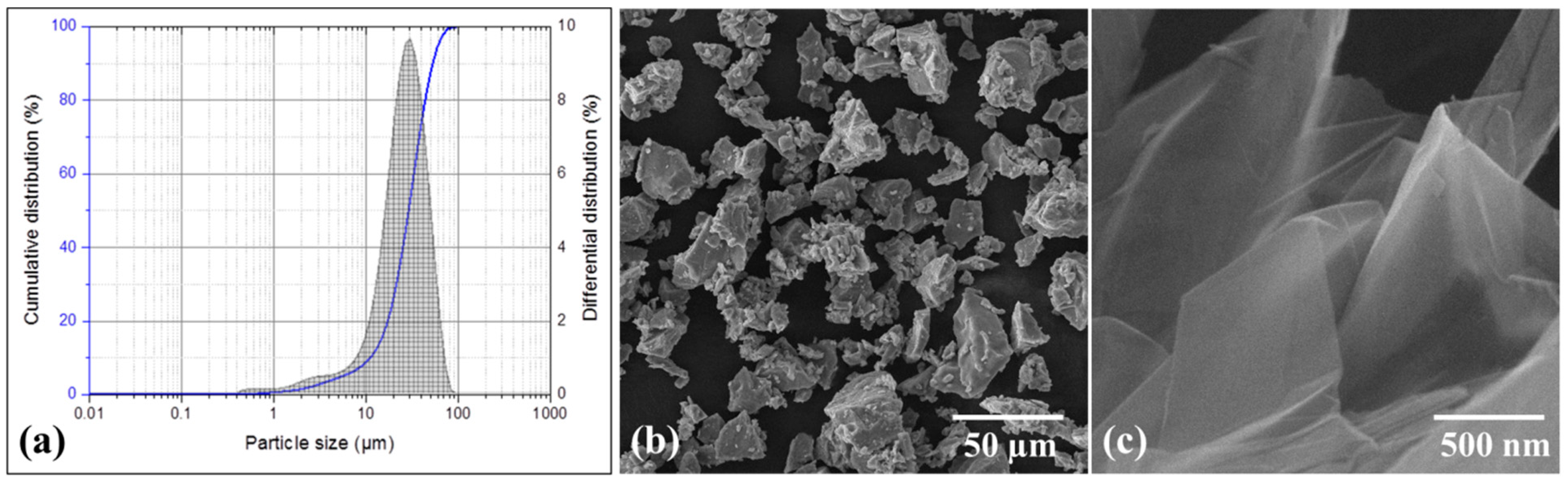

Particle size analysis of as received Ti powder is performed by the laser diffraction particle size analyzer (Mastersizer 3000E, Malvern Instruments, Malvern, UK). The morphology of Ti powder and GNPs is examined by field emission scanning electron microscope (FE-SEM MIRA-III, TESCON, Kohoutovice, Czech Republic) in the secondary electron imaging mode at an accelerating voltage of 20 KV. The purity of Ti powder is analyzed by inductively coupled plasma-optical emission spectroscopy (ICP-OES). This technique is preferred because its detection limits are in the parts per billion (ppb) to parts per million (ppm) range and can analyze trace impurities in metal and alloys. Further, chemical and ionization interferences relatively do not occur in ICP-OES, which gives highly accurate results. Principles of operation, samples detail, and analyzing procedures can be found elsewhere [45,46].
Morphological modifications induced in 0.25 wt% GNP-Ti composite powders by homogenizing methods are investigated by FE-SEM in secondary electron imaging mode at an accelerating voltage of 20 KV. Raman spectroscopy (Horiba HR 800 UV) is used to investigate the quality of as received graphene and its structural integrity in composites. A HE-NE laser of 633 nm wavelength is used at a numerical aperture of 50× lens with 600 g/mm grating. Raman scattering is performed at six different points of each sample with a scattering range of 200–3500 cm−1. The crystal structure of raw materials and phase composition of composites are analyzed by X-ray diffraction (XRD) technique, using Rigaku X-ray diffractometer with Cu Kα radiation over 2θ scanning range of 20–80°.
The green density of cold compacted pellets is calculated by the geometrical method, while the sintered density of composite pellets is determined by the Archimedes principle using a densimeter (AU-900S, Dong Guan Hong Tuo Instrument Company, Guangdong, China) having an accuracy of 10−3 g. Samples for hardness measurement are prepared by a series of grinding and polishing steps to attain a 1 µm finish. Polished specimens are ultrasonically cleaned in ethanol for 30 min and dried in an oven. Hardness measurement is performed by a Vickers micro-hardness tester (Karl Frank, Wurzburg, Germany) equipped with a pyramid diamond indenter at a load of 980.7 mN for 15 s. As 100% dense composite material fabrication is not possible through the described PM route. Therefore, hardness reading may vary to some extent at different locations of the same sample due to the presence of porosity [47,48]. Because of this, 6 readings were recorded at various points of the sample, and an average was taken.
Tribological properties of composites are studied by performing the wear test on pin-on-disk tribometer (MT-Spain). Specimens in round shape (18 mm diameter, 6 mm thickness) are prepared through grinding up to 2000 grit finish. Before testing, each specimen is ultrasonically cleaned in ethanol for 30 min, dried in the oven, and weighed carefully using an electronic weighing balance having accuracy up to 4 decimal places. The specimen is fixed at a rotating disk while diamond pin is employed as the counter body. Wear tests are run at 10 N load, 3 mm track radius, 100 rpm, 190 m sliding distance, in the dry state at 25 °C and 55%RH. As a result of the wear test, wear tracks are produced at the sample surface, and the removed material or wear debris is collected. The sample is cleaned, dried, and weighed again to record the wear mass loss. The wear rate is determined as per ASTM G-99. The coefficient of friction (COF) is plotted from machine data up to the sliding distance at which the constant COF value is reached. The wear behavior or wear mechanisms involved are studied by examining the worn surfaces pattern and wear debris morphology through FE-SEM in secondary electron imaging mode at an accelerating voltage of 20 KV. Energy dispersive x-ray analysis (EDX) of worn surfaces and collected wear debris has been performed by FE-SEM.

3. Results and Discussion

3.1. Morphological Evolution of Composite Powders

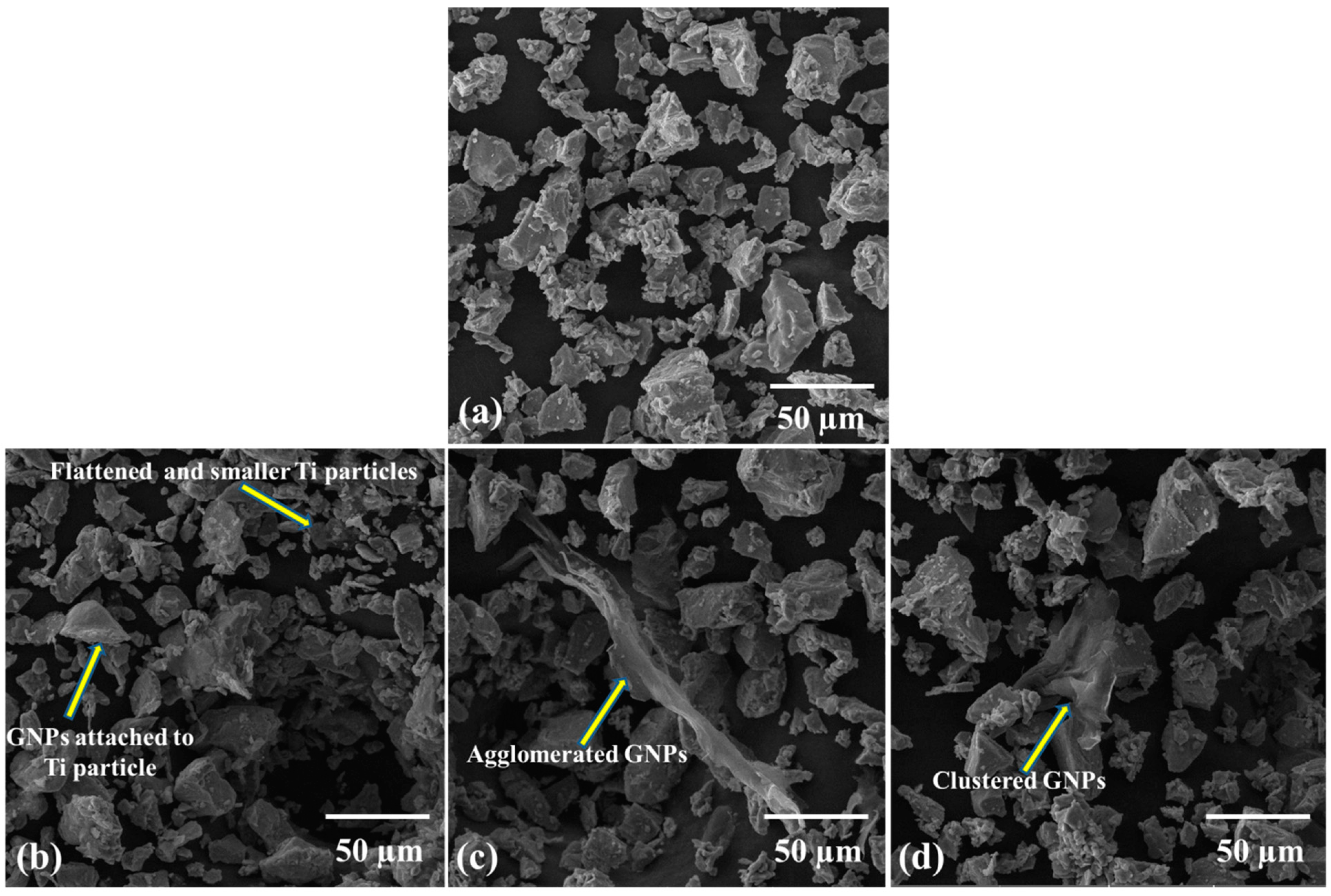

Figure 2 shows the morphology of as received Ti and 0.25 wt% GNPs-Ti composite powders prepared via three different mixing techniques. A significant change in the morphology of composite powders has been observed compared to as received Ti powder. In addition, SEM images manifested the dependence of composite powder morphology and GNPs dispersion pattern on the mixing method. In contrast to bulk shaped morphology of unreinforced Ti powder (Figure 2a), dry ball milled composite powder exhibits more flattened and smaller Ti particles (Figure 2b). On the other hand, relatively less reduction in particle size and almost insignificant morphology shift from bulky to flattened has been noticed for both wet ball milled and rotator mixed composite powders (Figure 2c,d). Moreover, the homogenous distribution of GNPs in Ti matrix is also of great importance in connection with final composite properties. In this perspective, different GNPs dispersion patterns were seen concerning the mixing route as obvious in Figure 2 and Figure 3. It can be noticed in Figure 2c and Figure 3b that wet ball milled composite powder present some kind of GNPs agglomeration which appears to be bundled and clustered. Nevertheless, for rotator mixed composite powder, the extent of agglomeration is relatively less, and GNPs seem to be folded as obvious in Figure 2d and Figure 3c. These detected variations in particles morphology and GNPs distribution pattern may be attributed to the different mechanisms and process dynamics of the homogenizing approach. It is expected that during the dry ball milling of composite powder, at certain milling energy and time, a dynamic balance of compression, shear, and impact forces is reached [49]. Therefore, as a result, Ti particles are flattened due to the pressing action of compressive forces, while particles shearing during ball milling yields cracks on the surface, and ultimately, impact forces break down the particles into smaller fragments [50]. In addition, high impact forces during dry ball milling contribute to the attachment of GNPs onto the surface of Ti particles, resulting in better homogenization of the composite powder [35]. Conversely, wet ball milling has a minor impact on the beneficial modification of Ti particle size and shape, in addition to GNPs clustering in Ti matrix. This may be ascribed to the inadequate compressive and impact forces hindered by the wet medium leading to poorer composite powder characteristics [51], whereas for rotator mixed composite powder, particles fragmentation into smaller ones does not happen owing to the nonexistence of grinding media. However, prevailing rotational forces lead to less accumulation of GNPs in Ti matrix in contrast with wet ball milling [52].

3.2. Raman Spectroscopy

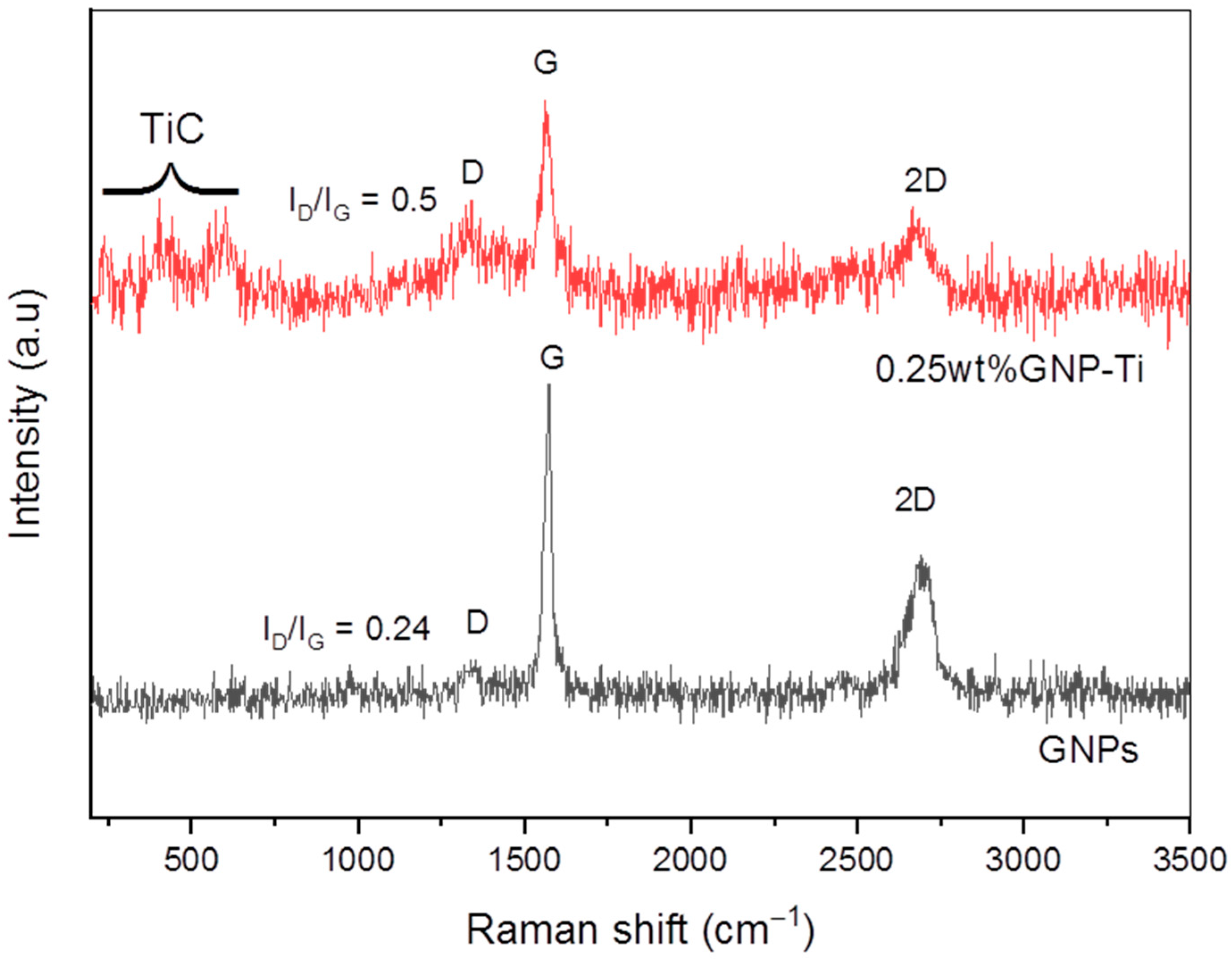

Effective use of graphene as reinforcement in Ti composites is largely associated with the retention of structural properties during the composites’ synthesis process [53]. Raman spectroscopy is a powerful non-destructive technique to investigate the quality and structural integrity of carbonaceous materials. It gives a characteristic spectrum of any material depending on the vibrational modes of its molecules [54]. Figure 4 represents the Raman spectra of starting graphene and 0.25 wt% GNP-Ti composite powder produced by the dry ball milling method. Spectra reveal typical D, G, and 2D bands of graphene at 1340, 1575, and 2690 cm−1, respectively. D-band in spectra is related to the concentration and measure of disorders in C-C bond in graphitic materials. G-band represents the in-plane vibration of C-C bonds and the extent of metallicity or graphitization. 2D-band is associated with multilayer graphene structure [55]. Composite powders also show D, G, and 2D bands peaks at 1340, 1575, and 2690 cm−1, respectively, corresponding to starting GNPs peaks. This confirms the presence and survival of un-reacted GNPs in composite powders after homogenizing [23]. Ti peaks are not revealed in the observed spectral range which may be due to the reason that no active vibrational modes are present in Ti to be detected by Raman spectroscopy [56]. Relatively less intensity of the 2D-band than the G-band is observed in spectra of graphene and composite powder as well, which indicates the existence of graphene in multilayers [57].
Raman peak intensity ratio (ID/IG) is the measure of structural defects in graphitic materials [58]. ID/IG ratio of starting graphene material is determined as 0.24, whereas for composite powder it is 0.5. This points out the presence of limited defects in as received GNPs. Intensity ratio ID/IG is relatively higher for composite powder, which is an obvious indication of induced structural defects in GNPs present in composite powder due to the homogenization process [53]. Further analysis of Raman spectra of 0.25 wt% GNP-Ti composite powders shows peaks at 260, 418, and 605 cm−1. These peaks indicate the formation of interfacial compound TiC during milling. This observation is further supported by a relatively higher spectrum background in composite powder than as received GNPs, which is also ascribed to the TiC formation due to harsh ball milling conditions. Similar findings have been reported in earlier works [23,57].

3.3. XRD Analysis

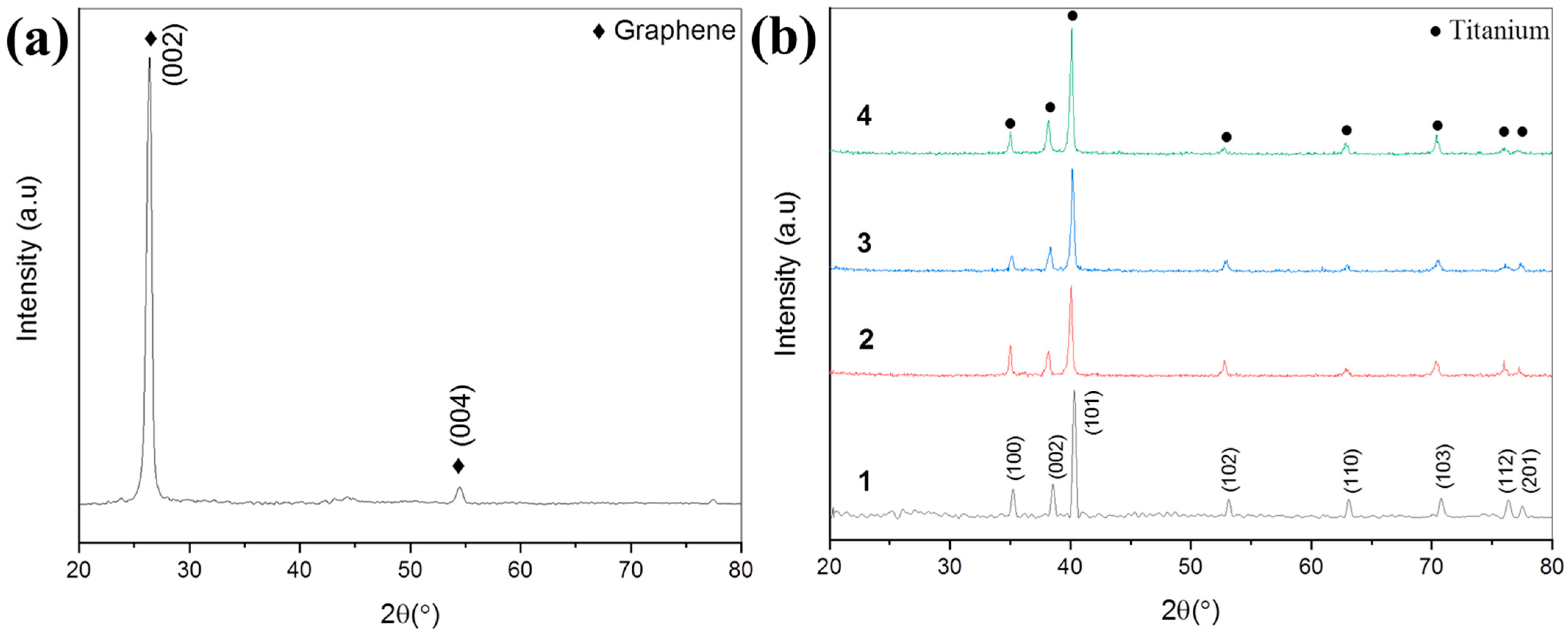

XRD patterns of as received graphene nanoplatelets, pure titanium, and 0.25 wt% GNP-Ti composites are presented in Figure 5. XRD peaks shown in Figure 5a are characteristic of graphene confirming its quality [59,60], whereas pure Ti and 0.25 wt% GNP-Ti composites exhibited elemental Ti peaks having hexagonal close packed (hcp) structure, as evident in Figure 5b. Ti Peaks are indexed as (001), (002), (101), (102), (110), (103), (112), and (201), which correspond to hexagonal Ti [61]. However, in all composites, peaks corresponding to graphene are not detected because in this study the weight fraction of GNPs is very low (0.25%), whereas XRD has a detection limit for the identification of low concentrations of nano-sized second phase [62]. Further, XRD patterns do not show the peaks of interfacial compound TiC. However, there is a possibility for the formation of nanocrystalline TiC due to the reaction between Ti and graphene during the homogenizing and sintering process [23]. This argument is well supported by the Raman spectroscopy results presented in Section 3.2. However, the identification of very small amounts of TiC in GNP-Ti composites through the XRD technique may not be possible due to the XRD detection constraint of XRD [63].

3.4. Density and Sinterability of Composites

As discussed in Section 3.1, the morphology of composite powder and pattern of GNPs dispersion in the matrix are mainly dependent on the mixing method, and consequently, density and sinterability of the composites are also modified. Theoretical densities of the composites were computed by the rule of mixture [64]
ρ c = ρ G N P W G N P + ρ M W M
where ρ is the density; W is the weight fraction, and the subscripts “C”, “GNP”, and “M” denote the composite, GNPs, and Ti matrix, respectively. Theoretical density calculated from the above equation and experimentally measured green and sintered densities are put into the below equation to compute the sinterability (Ø) of composites.
Ø = ρs − ρg/ρth − ρg
where ρs, ρg and ρth are the sintered, green, and theoretical densities, respectively. Results are shown in Table 3. This suggests that the composite samples processed through dry ball milling display the highest green and sintered density, whereas those processed through wet ball milling display the lowest. Sinterability of composite powder compact depends upon particle size, shape, particle size distribution, and homogenous mixing of composite constituents in addition to sintering conditions [47]. Therefore, dependency of sinterability upon the mixing approach may be linked to the morphology evolution of Ti particles and GNPs dispersion style in the matrix. It is quite evident from Figure 2 that composite powder mixed via dry ball milling presented flattened morphology and a reasonable fraction of smaller particles as well. Moreover, GNPs adherence to Ti particles (Figure 3a) leads to its homogenous dispersion. These aspects have a substantial role in promoting the sintering kinetics through easy and quick material transport [44,65]. Consequently, the sinterability of composites produced via dry ball milling is higher, and the density also exhibits an analogous trend. In the case of wet ball milled and rotator mixed composites, GNPs agglomeration has a negative impact on density. During mixing and consolidation, GNPs aggregation promotes friction between GNPs interlayers and also between GNPs layers and Ti particles. As a consequence, constraint in GNPs rearrangement and reduction in the contact area between GNPs and Ti particles result in relatively higher porosity and lower density [66]. Table 4 presents the density and porosity of various GNP-Ti composites processed through the pressureless sintering method.

3.5. Mechanical Strength of Composites

The mechanical strength of a material is directly related to its hardness, as reported by many researchers [67,68,69]. Therefore, in this study, hardness measurement is performed on synthesized composites to evaluate their mechanical performance. Figure 6 depicts the hardness of three types of composites concerning homogenizing method. Composites synthesized via dry ball milling exhibit higher hardness than others. This trend points out the dependence of mechanical strength upon the composite constituents homogenizing approach, and this is believed to be caused by two factors, namely, porosity level in sintered composite and GNPs role as nano-reinforcement. It is well known that the strength of a material can be increased by reducing the extent of plastic deformation by restricting the dislocation movement [70,71]. The presence of porosity in the composite compact has a negative effect on its strengthening efficiency. Because pores facilitate easy dislocation movement, a consequently higher degree of plastic deformation results in reduced hardness [72,73], as is the case of composites processed through wet ball milling and rotator mixing in the present work (Figure 6).
Secondly, the role of nano-metric reinforcements in improving the mechanical strength of composite materials through the well-known strengthening mechanisms is widely accepted [74,75]. Graphene nanoplatelets being the only few layers of atomically thin graphene have proved to be the most effective nano-reinforcement for boosting the strengthening efficiency of metal matrices through the contribution of their strengthening mechanisms [29,76]. These mechanisms are: (i) Hall–Petch strengthening due to the restriction of grain growth by the GNPs pinning effect [77], (ii) Orowan strengthening because of dislocations looping around possibly formed in situ TiC dispersoids [78], (iii) Taylor relationship or enhanced dislocation density (EDD) effect due to the mismatch of elastic modulus (EM) and coefficient of thermal expansion (CTE) between GNPs and Ti matrix [10], (iv) efficient load transfer effect from Ti matrix to GNPs by interfacial shear stress because of high elastic modulus of GNPs and strong interface bond by TiC between GNPs and Ti matrix [74], (v) contribution from dispersion strengthening effect owing to homogenously dispersed GNPs and in situ formed TiC particles in the matrix, and (vi) solid solution strengthening by the interstitial carbon atoms in titanium lattice [79]. However, the strengthening mechanisms’ contribution is largely dependent on GNPs content and their homogenous dispersion in matrix material [80]. Generally, higher GNPs contents favor more strengthening efficiency. However, it has been reported that strength declines beyond 0.5 wt% GNPs due to their agglomeration and clustering [31].
It is worth mentioning here that the results obtained in this study are in close agreement with the above argument and prior works, as evident in Table 5. Correlating the hardness results with the morphological evolution study of composite powders, it is obvious that good adherence of GNPs onto the Ti particle surface favors uniform dispersion in the dry ball milled sample (Figure 2b), so the sintered composite displays higher hardness. In contrast, apparent GNPs aggregation and bundling have been observed in wet ball milled and rotator mixed composite powders, respectively (Figure 2c,d), and hence they exhibit relatively less hardness. In view of above, the dry ball milling approach has shown good potential to adequately homogenize the 0.25 wt% GNP-Ti composite constituents and achieve good mechanical strength in the final composite.

3.6. Tribological Performance

Table 6 presents the results of tribological testing performed on composite samples, in relation to coefficient of friction (COF) and wear rate. It is inferred from the results that composites processed via dry ball milling present relatively less wear loss than wet ball milled and rotator mixed ones, so they exhibit reduced wear rate and coefficient of friction. As discussed in Section 3.5, the strength of composites is directly related to the degree of sinterability and homogenous GNPs dispersion in the matrix. The hardness of a material is linked to its wear properties in some way [81]. Consequently, for composites produced via dry balling, the extent of plastic deformation will be lower, thereby producing less abrasion, which results in reduced wear loss and consequently lower COF value as evident in Figure 7. On the other hand, a somewhat higher porosity level and GNPs clustering in the Ti matrix promote plastic deformation, thus producing more wear debris, so higher wear loss and COF are recorded for composites processed via wet ball milled and rotator mixing. However, slightly better wear resistance has been observed for rotator mixed composites than wet ball milled composites because of relatively less GNPs agglomeration. Figure 8 shows SEM images of worn surfaces for three types of composite samples. The less plowing effect is observed for the composite produced via the dry ball milling method in comparison with the other two. Delamination of layers occurs because of the adhesive wear mechanism, whereas it is obvious that due to the higher plowing effect and abrasion, the abrasive wear mechanism is operative for the wet ball milled and rotator mixed composite samples. Observations are also well supported by the morphological investigation of wear debris as evident in Figure 9. EDX results presented in Figure 10 and Figure 11 confirmed the absence of wear debris from the counter surface.
It has been found in earlier works that improved tribological performance of GNP reinforced metal and ceramics matrix composites occurs because of the low shear, protective nature, and self-lubrication behavior of graphene [82,83]. Therefore, its homogenous dispersion in metal matrices may result in the formation of a stable and thin dry lubricant film between the sliding surfaces which considerably lowers the coefficient of friction and wear loss [38,84]. Thus, GNPs because of their load bearing capability in metal matrices and ability to form a stable lubricating tribofilm render reduced shear forces, resulting in a lesser degree of plastic deformation beneath the surface mating area, hence improving wear resistance [85]. However, this valuable contribution would be decreased if GNPs agglomeration and aggregation occur [86]. Thus, 0.25 wt% GNP-Ti composites produced via dry ball milling have displayed good tribological performance for their safe and effective use in applications demanding wear and friction control.

4. Conclusions

In the present research, 0.25 wt% GNP-Ti composites prepared via powder metallurgy route were investigated regarding the influence of composite constituents mixing methods upon composite properties. Dry ball milling, wet ball milling, and rotator mixing approaches were employed, and their link with morphological evolution of composite powder, sinterability, mechanical strength, and tribological performance were explored. Major outcomes are summarized below:
  • The morphological study shows better homogenization of composite constituents for dry ball milled composite powders owing to the adherence of GNPs to Ti particles as a result of impact forces. GNPs aggregation for wet ball milled and rotator mixed has been observed.
  • Density and sinterability of composites produced through the dry ball milling method display higher values due to the better sintering kinetics resulting from the particles’ flattened morphology, good combination of small and large particles, and well dispersed GNPs.
  • Composites processed via dry ball milling show better mechanical strength, as the micro Vickers hardness is 4.56% and 15.7% higher than that of wet ball milled and rotator mixed composites, respectively. This improvement is due to the relatively denser composite and the greater role of the strengthening mechanisms as a result of GNPs’ uniform dispersion.
  • The self-lubricating characteristics of GNPs have a key role in improving the tribological properties of 0.25 wt% GNP-Ti composites through the protective tribofilm formation. The effect is more pronounced in the case of dry ball milled composites due to well homogenized GNPs in the Ti matrix.
  • For effective use in aerospace and tribological applications, 0.25GNP-Ti composites with improved mechanical and tribological performance have been synthesized via the powder metallurgy route by adopting the homogenizing approach of dry ball milling.

Author Contributions

Conceptualization, S.M., A.I., R.-u.-D.; formal analysis, S.M., A.I. and R.-u.-D.; funding acquisition, A.I., I.S.Y. and H.Y.Z.; investigation, S.M., A.I. and R.-u.-D.; methodology, A.W. and A.M.; project administration; A.W. and A.M., resources, A.W. and A.M.; visualization, S.M., A.I., R.-u.-D. and M.A.; writing—original draft, S.M. and R.-u.-D.; writing—review and editing, S.M., A.I. and R.-u.-D. All authors have read and agreed to the published version of the manuscript.

Funding

The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education, in Saudi Arabia, for funding this research work through the project number: (IFP-KKU-2020/9).

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

The data is presented in this research article.

Conflicts of Interest

The authors declare no conflict of interest in this article.

Sample Availability

Not applicable.

References

  1. Mortensen, A.; Llorca, J. Metal matrix composites. Annu. Rev. Mater. Res. 2010, 40, 243–270. [Google Scholar] [CrossRef]
  2. Elanchezhian, C.; Vijaya Ramnath, B.; Ramakrishnan, G.; Sripada Raghavendra, K.N.; Muralidharan, M.; Kishore, V. Review on metal matrix composites for marine applications. Mater. Today Proc. 2018, 5, 1211–1218. [Google Scholar] [CrossRef]
  3. Banerjee, D.; Williams, J. Perspectives on titanium science and technology. Acta Mater. 2013, 61, 844–879. [Google Scholar] [CrossRef]
  4. Miller, P.; Holladay, J. Friction and wear properties of titanium. Wear 1958, 2, 133–140. [Google Scholar] [CrossRef]
  5. Chauhan, S.; Dass, K. Dry sliding wear behaviour of titanium (Grade 5) alloy by using response surface methodology. Adv. Tribol. 2013, 2013, 272106. [Google Scholar] [CrossRef] [Green Version]
  6. Ammisetti, D.K.; Harish Kruthiventi, S.S. Recent trends on titanium metal matrix composites: A review. Mater. Today Proc. 2021, 46, 9730–9735. [Google Scholar] [CrossRef]
  7. Shufeng, L.; Kondoh, K.; Imai, H.; Chen, B.; Jia, L.; Umeda, J. Microstructure and mechanical properties of P/M titanium matrix composites reinforced by in-situ synthesized TiC–TiB. Mater. Sci. Eng. A 2015, 628, 75–83. [Google Scholar]
  8. Gu, D.; Meng, G.; Li, C.; Meiners, W.; Poprawe, R. Selective laser melting of TiC/Ti bulk nanocomposites: Influence of nanoscale reinforcement. Scr. Mater. 2012, 67, 185–188. [Google Scholar] [CrossRef]
  9. Wang, C.M.; Gao, S.Y.; Xiao, S.F.; Chen, Y.G. In Situ Formation of Ti Matrix Composites Reinforced Nanometric TiC by Powder Metallurgy Technique. Adv. Mater. Res. 2015, 1061–1062, 100–103. [Google Scholar] [CrossRef]
  10. Shafiei-Zarghani, A.; Kashani-Bozorg, S.F.; Gerlich, A.P. Strengthening analyses and mechanical assessment of Ti/Al2O3 nano-composites produced by friction stir processing. Mater. Sci. Eng. A 2015, 631, 75–85. [Google Scholar] [CrossRef]
  11. Huang, L.; Wang, L.; Qian, M.; Zou, J. High tensile-strength and ductile titanium matrix composites strengthened by TiB nanowires. Scr. Mater. 2017, 141, 133–137. [Google Scholar] [CrossRef]
  12. Pan, Y.; Li, W.; Lu, X.; Hayat, M.D.; Yin, L.; Song, W.; Qu, X.; Cao, P. Microstructure and tribological properties of titanium matrix composites reinforced with in situ synthesized TiC particles. Mater. Charact. 2020, 170, 110633. [Google Scholar] [CrossRef]
  13. Jin, J.; Zhou, S.; Zhao, Y.; Zhang, Q.; Wang, X.; Li, W.; Chen, D.; Zhang, L.-C. Refined microstructure and enhanced wear resistance of titanium matrix composites produced by selective laser melting. Opt. Laser Technol. 2021, 134, 106644. [Google Scholar] [CrossRef]
  14. Bakshi, S.; Lahiri, D.; Agarwal, A. Carbon nanotube reinforced metal matrix composites-a review. Int. Mater. Rev. 2010, 55, 41–64. [Google Scholar] [CrossRef]
  15. Khanna, V.; Kumar, V.; Bansal, S.A. Effect of carbonaceous nanomaterials’ reinforcement on mechanical properties of aluminium metal-based nanocomposite: A review. Mater. Today Proc. 2021, 38, 289–295. [Google Scholar] [CrossRef]
  16. Dong, L.L.; Lu, J.W.; Fu, Y.Q.; Huo, W.T.; Liu, Y.; Li, D.D.; Zhang, Y.S. Carbonaceous nanomaterial reinforced Ti-6Al-4V matrix composites: Properties, interfacial structures and strengthening mechanisms. Carbon 2020, 164, 272–286. [Google Scholar] [CrossRef]
  17. Saba, F.; Zhang, F.; Liu, S.; Liu, T. Tribological properties, thermal conductivity and corrosion resistance of titanium/nanodiamond nanocomposites. Compos. Commun. 2018, 10, 57–63. [Google Scholar] [CrossRef]
  18. Munir, K.S.; Kingshott, P.; Wen, C. Carbon nanotube reinforced titanium metal matrix composites prepared by powder metallurgy—A review. Crit. Rev. Solid State Mater. Sci. 2015, 40, 38–55. [Google Scholar] [CrossRef]
  19. Kuzumaki, T.; Ujiie, O.; Ichinose, H.; Ito, K. Mechanical characteristics and preparation of carbon nanotube fiber-reinforced Ti composite. Adv. Eng. Mater. 2000, 2, 416–418. [Google Scholar] [CrossRef]
  20. Kondoh, K.; Threrujirapapong, T.; Imai, H.; Umeda, J.; Fugetsu, B. Characteristics of powder metallurgy pure titanium matrix composite reinforced with multi-wall carbon nanotubes. Compos. Sci. Technol. 2009, 69, 1077–1081. [Google Scholar] [CrossRef] [Green Version]
  21. Xue, F.; Jiehe, S.; Yan, F.; Wei, C. Preparation and elevated temperature compressive properties of multi-walled carbon nanotube reinforced Ti composites. Mater. Sci. Eng. A 2010, 527, 1586–1589. [Google Scholar] [CrossRef]
  22. Wang, F.-C.; Zhang, Z.-H.; Sun, Y.-J.; Liu, Y.; Hu, Z.-Y.; Wang, H.; Korznikov, A.V.; Korznikova, E.; Liu, Z.-F.; Osamu, S. Rapid and low temperature spark plasma sintering synthesis of novel carbon nanotube reinforced titanium matrix composites. Carbon 2015, 95, 396–407. [Google Scholar] [CrossRef]
  23. Munir, K.S.; Li, Y.; Qian, M.; Wen, C. Identifying and understanding the effect of milling energy on the synthesis of carbon nanotubes reinforced titanium metal matrix composites. Carbon 2016, 99, 384–397. [Google Scholar] [CrossRef]
  24. Munir, K.S.; Zheng, Y.; Zhang, D.; Lin, J.; Li, Y.; Wen, C. Microstructure and mechanical properties of carbon nanotubes reinforced titanium matrix composites fabricated via spark plasma sintering. Mater. Sci. Eng. A 2017, 688, 505–523. [Google Scholar] [CrossRef]
  25. Munir, K.S.; Zheng, Y.; Zhang, D.; Lin, J.; Li, Y.; Wen, C. Improving the strengthening efficiency of carbon nanotubes in titanium metal matrix composites. Mater. Sci. Eng. A 2017, 696, 10–25. [Google Scholar] [CrossRef]
  26. Phiri, J.; Gane, P.; Maloney, T.C. General overview of graphene: Production, properties and application in polymer composites. Mater. Sci. Eng. B 2017, 215, 9–28. [Google Scholar] [CrossRef] [Green Version]
  27. Berman, D.; Erdemir, A.; Sumant, A.V. Graphene: A new emerging lubricant. Mater. Today 2014, 17, 31–42. [Google Scholar] [CrossRef]
  28. Nieto, A.; Lahiri, D.; Agarwal, A. Synthesis and properties of bulk graphene nanoplatelets consolidated by spark plasma sintering. Carbon 2012, 50, 4068–4077. [Google Scholar] [CrossRef]
  29. Nieto, A.; Bisht, A.; Lahiri, D.; Zhang, C.; Agarwal, A. Graphene reinforced metal and ceramic matrix composites: A review. Int. Mater. Rev. 2017, 62, 241–302. [Google Scholar] [CrossRef]
  30. Yang, W.-Z.; Huang, W.-M.; Wang, Z.-F.; Shang, F.-J.; Huang, W.; Zhang, B.-Y. Thermal and Mechanical Properties of Graphene–Titanium Composites Synthesized by Microwave Sintering. Acta Metall. Sin. (Engl. Lett.) 2016, 29, 707–713. [Google Scholar] [CrossRef] [Green Version]
  31. Song, Y.; Chen, Y.; Liu, W.W.; Li, W.L.; Wang, Y.G.; Zhao, D.; Liu, X.B. Microscopic mechanical properties of titanium composites containing multi-layer graphene nanofillers. Mater. Des. 2016, 109, 256–263. [Google Scholar] [CrossRef]
  32. Cao, Z.; Wang, X.; Li, J.; Wu, Y.; Zhang, H.; Guo, J.; Wang, S. Reinforcement with graphene nanoflakes in titanium matrix composites. J. Alloys Compd. 2017, 696, 498–502. [Google Scholar] [CrossRef]
  33. Gürbüz, M.; Mutuk, T. Effect of process parameters on hardness and microstructure of graphene reinforced titanium composites. J. Compos. Mater. 2018, 52, 543–551. [Google Scholar] [CrossRef]
  34. Mu, X.N.; Cai, H.N.; Zhang, H.M.; Fan, Q.B.; Zhang, Z.H.; Wu, Y.; Ge, Y.X.; Wang, D.D. Interface evolution and superior tensile properties of multi-layer graphene reinforced pure Ti matrix composite. Mater. Des. 2018, 140, 431–441. [Google Scholar] [CrossRef]
  35. Mu, X.N.; Cai, H.N.; Zhang, H.M.; Fan, Q.B.; Wang, F.C.; Zhang, Z.H.; Wu, Y.; Ge, Y.X.; Chang, S.; Shi, R.; et al. Uniform dispersion of multi-layer graphene reinforced pure titanium matrix composites via flake powder metallurgy. Mater. Sci. Eng. A 2018, 725, 541–548. [Google Scholar] [CrossRef]
  36. Guo, Y.; Yu, K.; Niu, J.; Sun, M.; Dai, G.; Sun, Z.; Chang, H. Effect of reinforcement content on microstructures and mechanical properties of graphene nanoflakes-reinforced titanium alloy matrix composites. J. Mater. Res. Technol. 2021, 15, 6871–6882. [Google Scholar] [CrossRef]
  37. Qian, M.; Froes, F.H. Titanium Powder Metallurgy: Science, Technology and Applications; Butterworth-Heinemann: Oxford, UK, 2015. [Google Scholar]
  38. Moghadam, A.D.; Omrani, E.; Menezes, P.L.; Rohatgi, P.K. Mechanical and tribological properties of self-lubricating metal matrix nanocomposites reinforced by carbon nanotubes (CNTs) and graphene—A review. Compos. Part B Eng. 2015, 77, 402–420. [Google Scholar] [CrossRef]
  39. Mouritz, A.P. Introduction to Aerospace Materials; Elsevier: Amsterdam, The Netherlands, 2012. [Google Scholar]
  40. Zhang, L.C.; Chen, L.Y. A review on biomedical titanium alloys: Recent progress and prospect. Adv. Eng. Mater. 2019, 21, 1801215. [Google Scholar] [CrossRef] [Green Version]
  41. Suryanarayana, C. Mechanical alloying and milling. Prog. Mater. Sci. 2001, 46, 1–184. [Google Scholar] [CrossRef]
  42. Suryanarayana, C. Recent developments in mechanical alloying. Rev. Adv. Mater. Sci. 2008, 18, 203–211. [Google Scholar]
  43. Froes, F.; Mashl, S.; Hebeisen, J.; Moxson, V.; Duz, V. The technologies of titanium powder metallurgy. JOM J. Miner. Met. Mater. Soc. 2004, 56, 46–48. [Google Scholar] [CrossRef]
  44. Evans, C.A.; Brundle, C.R.; Wilson, S. Encyclopedia of Materials Characterization; Reed Publishing: New York, NY, USA, 1992. [Google Scholar]
  45. Committee, H. ASM Handbook, Vol. 10: Materials Characterization, 3rd ed.; ASM International: Almere, The Netherlands, 1992. [Google Scholar]
  46. Watts, J.F. Encyclopedia of Materials Characterization; Brundle, C.R., Evans, C.A., Jr., Wilson, S., Eds.; Butterworth-Heinemann: Stoneham, MA, USA, 1992; Elsevier: Amsterdam, The Netherlands, 1993; ISBN 0-7506-9168-9. [Google Scholar]
  47. Kang, S.-J.L. 1—SINTERING PROCESSES. In Sintering; Kang, S.-J.L., Ed.; Butterworth-Heinemann: Oxford, UK, 2005; pp. 3–8. [Google Scholar] [CrossRef]
  48. Froes, F.; Eylon, D.; Eichelman, G.; Burte, H. Developments in titanium powder metallurgy. JOM 1980, 32, 47–54. [Google Scholar] [CrossRef]
  49. Al-Sherbini, A.-S.; Bakr, M.; Ghoneim, I.; Saad, M. Exfoliation of graphene sheets via high energy wet milling of graphite in 2-ethylhexanol and kerosene. J. Adv. Res. 2017, 8, 209–215. [Google Scholar] [CrossRef] [PubMed]
  50. Stobinski, L.; Lesiak, B.; Malolepszy, A.; Mazurkiewicz, M.; Mierzwa, B.; Zemek, J.; Jiricek, P.; Bieloshapka, I. Graphene oxide and reduced graphene oxide studied by the XRD, TEM and electron spectroscopy methods. J. Electron Spectrosc. Relat. Phenom. 2014, 195, 145–154. [Google Scholar] [CrossRef]
  51. Munir, K.S.; Qian, M.; Li, Y.; Oldfield, D.T.; Kingshott, P.; Zhu, D.M.; Wen, C. Quantitative Analyses of MWCNT-Ti Powder Mixtures using Raman Spectroscopy: The Influence of Milling Parameters on Nanostructural Evolution. Adv. Eng. Mater. 2015, 17, 1660–1669. [Google Scholar] [CrossRef]
  52. Pérez-Bustamante, R.; Bolaños-Morales, D.; Bonilla-Martínez, J.; Estrada-Guel, I.; Martínez-Sánchez, R. Microstructural and hardness behavior of graphene-nanoplatelets/aluminum composites synthesized by mechanical alloying. J. Alloys Compd. 2014, 615, S578–S582. [Google Scholar] [CrossRef]
  53. Jia, H.; Zhang, Z.; Qi, Z.; Liu, G.; Bian, X. Formation of nanocrystalline TiC from titanium and different carbon sources by mechanical alloying. J. Alloys Compd. 2009, 472, 97–103. [Google Scholar] [CrossRef]
  54. Suryanarayana, C.; Ivanov, E.; Boldyrev, V. The science and technology of mechanical alloying. Mater. Sci. Eng. A 2001, 304, 151–158. [Google Scholar] [CrossRef]
  55. Ali, A.-A.; Baumli, P.; Mucsi, G. Mechanical Alloying and Milling; University of Miskolc: Miskolc, Hungaria, 2015. [Google Scholar]
  56. Eisen, W.B. Advances in Powder Metallurgy and Particulate Materials; Metal Powder Industries Federation: Princeton, USA, 2001. [Google Scholar]
  57. Bose, A. Advances in Particulate Materials; Elsevier: Amsterdam, The Netherlands, 2013. [Google Scholar]
  58. Larkin, P.J. Chapter 1—Introduction: Infrared and Raman Spectroscopy. In Infrared and Raman Spectroscopy, 2nd ed.; Larkin, P.J., Ed.; Elsevier: Amsterdam, The Netherlands, 2018; pp. 1–5. [Google Scholar] [CrossRef]
  59. Mu, X.N.; Zhang, H.M.; Cai, H.N.; Fan, Q.B.; Zhang, Z.H.; Wu, Y.; Fu, Z.J.; Yu, D.H. Microstructure evolution and superior tensile properties of low content graphene nanoplatelets reinforced pure Ti matrix composites. Mater. Sci. Eng. A 2017, 687, 164–174. [Google Scholar] [CrossRef]
  60. Hulman, M. 15—Raman spectroscopy of graphene. In Graphene, 2nd ed.; Skakalova, V., Kaiser, A.B., Eds.; Woodhead Publishing: Cambridge, UK, 2021; pp. 381–411. [Google Scholar] [CrossRef]
  61. Lohse, B.; Calka, A.; Wexler, D. Raman spectroscopy as a tool to study TiC formation during controlled ball milling. J. Appl. Phys. 2005, 97, 114912. [Google Scholar] [CrossRef] [Green Version]
  62. Liu, J.; Wu, M.; Yang, Y.; Yang, G.; Yan, H.; Jiang, K. Preparation and mechanical performance of graphene platelet reinforced titanium nanocomposites for high temperature applications. J. Alloys Compd. 2018, 765, 1111–1118. [Google Scholar] [CrossRef]
  63. Jiang, J.; Pachter, R.; Mehmood, F.; Islam, A.E.; Maruyama, B.; Boeckl, J.J. A Raman spectroscopy signature for characterizing defective single-layer graphene: Defect-induced I(D)/I(D’) intensity ratio by theoretical analysis. Carbon 2015, 90, 53–62. [Google Scholar] [CrossRef]
  64. Chawla, K.K. Metal matrix composites. In Composite Materials; Springer: Berlin/Heidelberg, Germany, 2012; pp. 197–248. [Google Scholar]
  65. Angelo, P.; Subramanian, R. Powder Metallurgy: Science, Technology and Applications; Prentice Hall Of India Private Limited: Delhi, India, 2008. [Google Scholar]
  66. Rahimian, M.; Ehsani, N.; Parvin, N.; reza Baharvandi, H. The effect of particle size, sintering temperature and sintering time on the properties of Al–Al2O3 composites, made by powder metallurgy. J. Mater. Processing Technol. 2009, 209, 5387–5393. [Google Scholar] [CrossRef]
  67. Khodabakhshi, F.; Gerlich, A.P. On the correlation between indentation hardness and tensile strength in friction stir processed materials. Mater. Sci. Eng. A 2020, 789, 139682. [Google Scholar] [CrossRef]
  68. Mahmoud Ali, M.; Omran, A.N.M.; Abd-El-Hakeem Mohamed, M. Prediction the correlations between hardness and tensile properties of aluminium-silicon alloys produced by various modifiers and grain refineries using regression analysis and an artificial neural network model. Eng. Sci. Technol. Int. J. 2021, 24, 105–111. [Google Scholar] [CrossRef]
  69. Dehuri, B.; Soumya Pradhan, S. Correlations between hardness and tensile strength of cracked aluminium plates repaired with composite patches. Mater. Today Proc. 2020, 21, 1335–1339. [Google Scholar] [CrossRef]
  70. Hansen, N.; Barlow, C.Y. 17—Plastic Deformation of Metals and Alloys. In Physical Metallurgy, 5th ed.; Laughlin, D.E., Hono, K., Eds.; Elsevier: Oxford, UK, 2014; pp. 1681–1764. [Google Scholar] [CrossRef]
  71. Gupta, A.; Khatirkar, R.; Singh, J. A review of microstructure and texture evolution during plastic deformation and heat treatment of β-Ti alloys. J. Alloys Compd. 2022, 899, 163242. [Google Scholar] [CrossRef]
  72. Bidulský, R.; Bidulská, J.; Grande, M.A. Effect of high-temperature sintering and severe plastic deformation on the porosity distribution. High Temp. Mater. Processes 2009, 28, 337–342. [Google Scholar] [CrossRef]
  73. Roberts, J.; Ueda, Y. Influence of Porosity on Deformation and Fracture of UO2. J. Am. Ceram. Soc. 1972, 55, 117–124. [Google Scholar] [CrossRef]
  74. Casati, R.; Vedani, M. Metal matrix composites reinforced by nano-particles—A review. Metals 2014, 4, 65–83. [Google Scholar] [CrossRef]
  75. Molina-Aldareguia, J.M.; Elizalde, M.R. Metal Matrix Composites reinforced with nano-size reinforcements. Compos. Sci. Technol. 2010, 70, 2227. [Google Scholar] [CrossRef]
  76. Hu, Z.; Tong, G.; Lin, D.; Chen, C.; Guo, H.; Xu, J.; Zhou, L. Graphene-reinforced metal matrix nanocomposites—A review. Mater. Sci. Technol. 2016, 32, 930–953. [Google Scholar] [CrossRef]
  77. Sanaty-Zadeh, A. Comparison between current models for the strength of particulate-reinforced metal matrix nanocomposites with emphasis on consideration of Hall–Petch effect. Mater. Sci. Eng. A 2012, 531, 112–118. [Google Scholar] [CrossRef]
  78. Zhang, Z.; Chen, D.L. Contribution of Orowan strengthening effect in particulate-reinforced metal matrix nanocomposites. Mater. Sci. Eng. A 2008, 483–484, 148–152. [Google Scholar] [CrossRef]
  79. Li, S.; Sun, B.; Imai, H.; Mimoto, T.; Kondoh, K. Powder metallurgy titanium metal matrix composites reinforced with carbon nanotubes and graphite. Compos. Part A Appl. Sci. Manuf. 2013, 48, 57–66. [Google Scholar] [CrossRef]
  80. Mu, X.N.; Cai, H.N.; Zhang, H.M.; Fan, Q.B.; Wang, F.C.; Zhang, Z.H.; Ge, Y.X.; Shi, R.; Wu, Y.; Wang, Z.; et al. Uniform dispersion and interface analysis of nickel coated graphene nanoflakes/ pure titanium matrix composites. Carbon 2018, 137, 146–155. [Google Scholar] [CrossRef]
  81. Fang, L.; Zhou, Q.; Li, Y. An explanation of the relation between wear and material hardness in three-body abrasion. Wear 1991, 151, 313–321. [Google Scholar] [CrossRef]
  82. Zhang, Y.; Chromik, R.R. Tribology of self-lubricating metal matrix composites. In Self-Lubricating Composites; Springer: Berlin/Heidelberg, Germany, 2022; pp. 31–71. [Google Scholar]
  83. Xu, Z.; Shi, X.; Zhai, W.; Yao, J.; Song, S.; Zhang, Q. Preparation and tribological properties of TiAl matrix composites reinforced by multilayer graphene. Carbon 2014, 67, 168–177. [Google Scholar] [CrossRef]
  84. Tabandeh-Khorshid, M.; Omrani, E.; Menezes, P.L.; Rohatgi, P.K. Tribological performance of self-lubricating aluminum matrix nanocomposites: Role of graphene nanoplatelets. Eng. Sci. Technol. Int. J. 2016, 19, 463–469. [Google Scholar] [CrossRef] [Green Version]
  85. Rohatgi, P.K.; Tabandeh-Khorshid, M.; Omrani, E.; Lovell, M.R.; Menezes, P.L. Tribology of metal matrix composites. In Tribology for Scientists and Engineers; Springer: Berlin/Heidelberg, Germany, 2013; pp. 233–268. [Google Scholar]
  86. Tabandeh-Khorshid, M.; Kumar, A.; Omrani, E.; Kim, C.; Rohatgi, P. Synthesis, characterization, and properties of graphene reinforced metal-matrix nanocomposites. Compos. Part B Eng. 2020, 183, 107664. [Google Scholar] [CrossRef]
Molecules 27 02666 g001 550
Figure 1. Stating materials: (a) particle size analysis of Ti powder; SEM micrographs showing morphology of (b) Ti powder and (c) GNPs.
Figure 1. Stating materials: (a) particle size analysis of Ti powder; SEM micrographs showing morphology of (b) Ti powder and (c) GNPs.
Molecules 27 02666 g001
Molecules 27 02666 g002 550
Figure 2. SEM micrographs at magnification of 1 kx showing morphology of (a) as received Ti powder, and 0.25 wt% GNP-Ti composite powders mixed through (b) dry ball milling, (c) wet ball milling, and (d) rotator mixing.
Figure 2. SEM micrographs at magnification of 1 kx showing morphology of (a) as received Ti powder, and 0.25 wt% GNP-Ti composite powders mixed through (b) dry ball milling, (c) wet ball milling, and (d) rotator mixing.
Molecules 27 02666 g002
Molecules 27 02666 g003 550

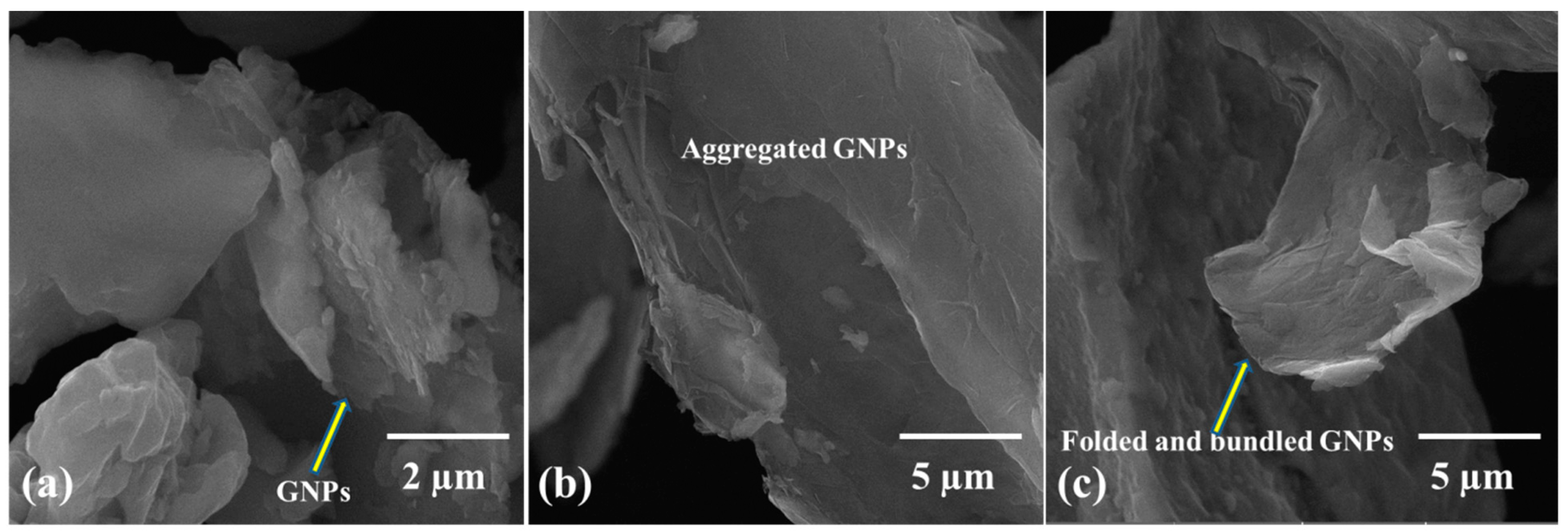

Figure 3. Higher magnification SEM micrographs showing morphology of 0.25 wt% GNP-Ti composite powders mixed through (a) dry ball milling (at magnification of 25 kx), (b) wet ball milling (at magnification of 10 kx), and (c) rotator mixing (at magnification of 10 kx).
Figure 3. Higher magnification SEM micrographs showing morphology of 0.25 wt% GNP-Ti composite powders mixed through (a) dry ball milling (at magnification of 25 kx), (b) wet ball milling (at magnification of 10 kx), and (c) rotator mixing (at magnification of 10 kx).
Molecules 27 02666 g003
Molecules 27 02666 g004 550
Figure 4. Raman spectra of starting graphene material and 0.25 wt% GNP-Ti composite powder produced via dry ball milling technique.
Figure 4. Raman spectra of starting graphene material and 0.25 wt% GNP-Ti composite powder produced via dry ball milling technique.
Molecules 27 02666 g004
Molecules 27 02666 g005 550
Figure 5. XRD patterns of (a) as received GNPs, (b) as received Ti (1), 0.25 wt% GNP-Ti composites processed through: dry ball milling (2), wet ball milling (3), and rotator mixing (4).
Figure 5. XRD patterns of (a) as received GNPs, (b) as received Ti (1), 0.25 wt% GNP-Ti composites processed through: dry ball milling (2), wet ball milling (3), and rotator mixing (4).
Molecules 27 02666 g005
Molecules 27 02666 g006 550
Figure 6. Micro Vickers hardness of 0.25 wt% GNP-Ti composites in relation to mixing method.
Figure 6. Micro Vickers hardness of 0.25 wt% GNP-Ti composites in relation to mixing method.
Molecules 27 02666 g006
Molecules 27 02666 g007 550
Figure 7. Coefficient of friction plot obtained from wear test of 0.25 wt% GNP-Ti composites in connection with mixing method.
Figure 7. Coefficient of friction plot obtained from wear test of 0.25 wt% GNP-Ti composites in connection with mixing method.
Molecules 27 02666 g007
Molecules 27 02666 g008 550
Figure 8. SEM images (at magnification of 1 kx) of worn surface as a result of wear test performed on 0.25 wt% GNP-Ti composites produced via (a) dry ball milling, (b) wet ball milling, (c) rotator mixing.
Figure 8. SEM images (at magnification of 1 kx) of worn surface as a result of wear test performed on 0.25 wt% GNP-Ti composites produced via (a) dry ball milling, (b) wet ball milling, (c) rotator mixing.
Molecules 27 02666 g008
Molecules 27 02666 g009 550

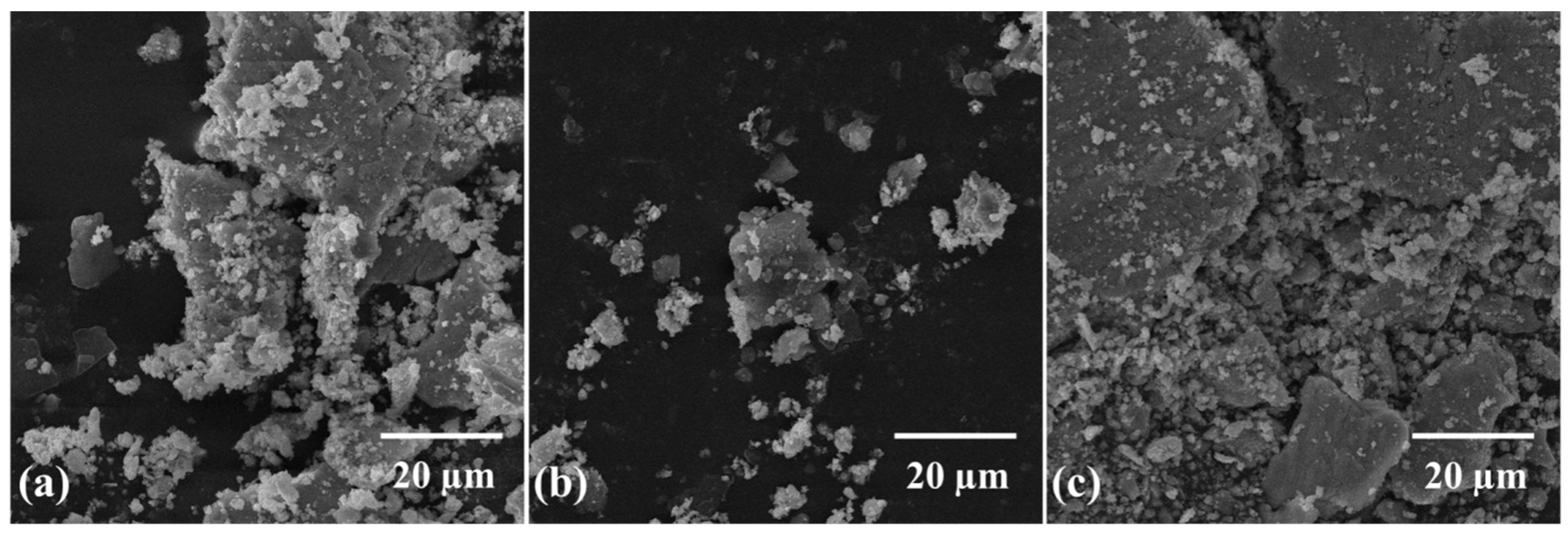

Figure 9. SEM images (at magnification of 3 kx) of wear debris collected after wear test performed on 0.25 wt% GNP-Ti composites prepared through (a) dry ball milling, (b) wet ball milling, (c) rotator mixing.
Figure 9. SEM images (at magnification of 3 kx) of wear debris collected after wear test performed on 0.25 wt% GNP-Ti composites prepared through (a) dry ball milling, (b) wet ball milling, (c) rotator mixing.
Molecules 27 02666 g009
Molecules 27 02666 g010 550

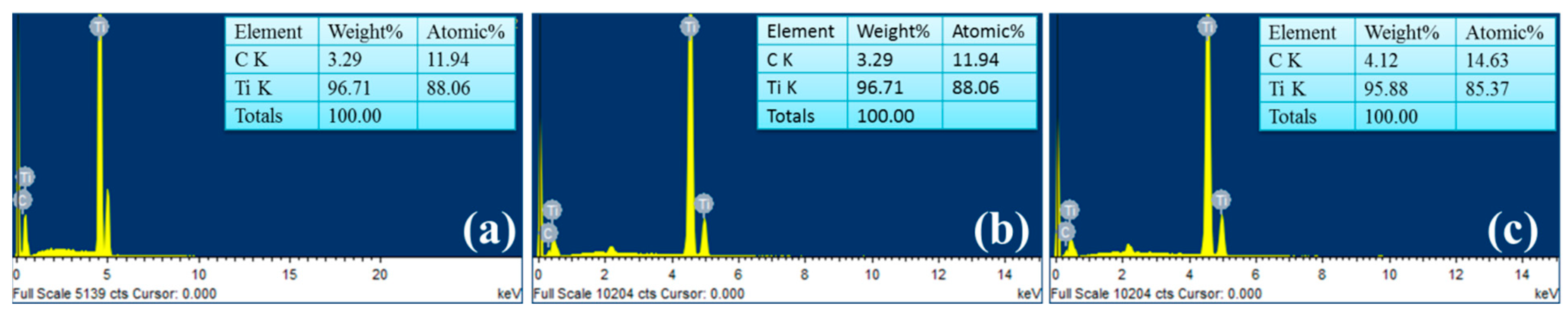

Figure 10. EDX results performed on wear tracks of 0.25 wt% GNP-Ti composites prepared through (a) dry ball milling, (b) wet ball milling, (c) rotator mixing.
Figure 10. EDX results performed on wear tracks of 0.25 wt% GNP-Ti composites prepared through (a) dry ball milling, (b) wet ball milling, (c) rotator mixing.
Molecules 27 02666 g010
Molecules 27 02666 g011 550

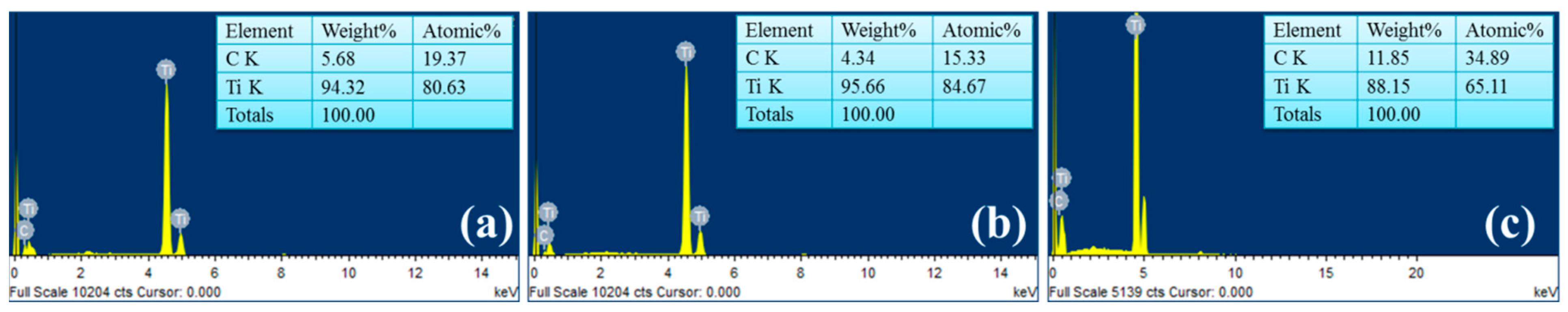

Figure 11. EDX results performed on wear debris of 0.25 wt% GNP-Ti composites prepared through (a) dry ball milling, (b) wet ball milling, (c) rotator mixing.
Figure 11. EDX results performed on wear debris of 0.25 wt% GNP-Ti composites prepared through (a) dry ball milling, (b) wet ball milling, (c) rotator mixing.
Molecules 27 02666 g011
Table
Table 1. Chemical composition of as received Titanium powder.
Table 1. Chemical composition of as received Titanium powder.
Element Concentration (%)
FeAlTi
0.0360.02199.943
Table
Table 2. Processing parameters for 0.25 wt% GNP-Ti composites.
Table 2. Processing parameters for 0.25 wt% GNP-Ti composites.
Sample BatchComposite Constituents MixingConsolidation
MethodMediumCharge RatioSpeedTimeCompaction
Pressure		Sintering
Temperature		Sintering
Time		Heating and Cooling RateSintering
Environment
1Dry ball millingTungsten carbide ballsBalls to powder ratio 6:1225 rpm3 h400 MPa1100 °C2 h10 °C/min10−3 vacuum
2Wet ball millingTungsten carbide ballsBalls to powder ratio 6:1225 rpm3 h
3Rotator mixingStainless steel bladeVolume filled 1/3300 rpm3 h
Table
Table 3. Density and sinterability of 0.25 wt% GNP-Ti composites.
Table 3. Density and sinterability of 0.25 wt% GNP-Ti composites.
Composites Processed viaTheoretical
Density
(g/cm3)		Green DensitySintered DensitySinterability
Actual
(g/cm3)		Relative
(%)		Actual
(g/cm3)		Relative
(%)
Dry ball milling4.533.8 ± 0.184.0 ± 2.04.4 ± 0.197.0 ± 2.00.82 ± 0.04
Wet ball milling4.533.5 ± 0.177.0 ± 2.04.2 ± 0.193.0 ± 2.00.68 ± 0.04
Rotator mixing4.533.5 ± 0.177.0 ± 2.04.3 ± 0.195.0 ± 2.00.78 ± 0.04
Table
Table 4. Density and porosity in sintered GNP-Ti composites.
Table 4. Density and porosity in sintered GNP-Ti composites.
Composite SystemProcessingRelative Density (RD)
(%)		Porosity (%)
(100-%RD)		References
0.25 wt% GNP-TiDry ball milling97.0 ± 2.03.0 ± 2.0This study
Cold compaction
Vacuum sintering
0.25 wt% GNP-TiWet ball milling93.0 ± 2.07.0 ± 2.0This study
Cold compaction
Vacuum sintering
0.25 wt% GNP-TiRotator mixing95.0 ± 2.05 ± 2.0This study
Cold compaction
Vacuum sintering
0.30 wt% GNP-TiDry ball milling96.673.33[33]
Cold compaction
Vacuum sintering
0.30 wt% GNP-TiDry ball milling955[30]
Cold compaction
Microwave sintering
Table
Table 5. Hardness of GNP-Ti composites.
Table 5. Hardness of GNP-Ti composites.
Composite SystemProcessingHardnessReferences
0.25 wt% GNP-TiDry ball milling440 ± 20 HV0.1This study
Cold compaction
Vacuum sintering
0.25 wt% GNP-TiWet ball milling420 ± 20 HV0.1This study
Cold compaction
Vacuum sintering
0.25 wt% GNP-TiRotator mixing380 ± 20 HV0.1This study
Cold compaction
Vacuum sintering
0.30 wt% GNP-TiDry ball milling519 ± 35 HV0.5[33]
Cold compaction
Vacuum sintering
0.30 wt% GNP-TiDry ball milling435 ± 28 HV1[57]
Spark plasma sintering
Table
Table 6. Tribological results obtained by the wear test performed through pin-on-disk tribometer.
Table 6. Tribological results obtained by the wear test performed through pin-on-disk tribometer.
Composites Produced throughWear Loss
(g)		Wear Rate
mm3/Nm		Coefficient of Friction
Dry ball milling0.0013 ± 0.00020.000120.350
Wet ball milling0.0072 ± 0.00020.000840.413
Rotator mixing0.0063 ± 0.0020.000720.415
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mahmood, S.; Iqbal, A.; Rafi-ud-Din; Wadood, A.; Mateen, A.; Amin, M.; Yahia, I.S.; Zahran, H.Y. Influence of Homogenizing Methodology on Mechanical and Tribological Performance of Powder Metallurgy Processed Titanium Composites Reinforced by Graphene Nanoplatelets. Molecules 2022, 27, 2666. https://doi.org/10.3390/molecules27092666

AMA Style

Mahmood S, Iqbal A, Rafi-ud-Din, Wadood A, Mateen A, Amin M, Yahia IS, Zahran HY. Influence of Homogenizing Methodology on Mechanical and Tribological Performance of Powder Metallurgy Processed Titanium Composites Reinforced by Graphene Nanoplatelets. Molecules. 2022; 27(9):2666. https://doi.org/10.3390/molecules27092666

Chicago/Turabian Style

Mahmood, Sultan, Amjad Iqbal, Rafi-ud-Din, Abdul Wadood, Abdul Mateen, Muhammad Amin, Ibrahim S. Yahia, and Heba Y. Zahran. 2022. "Influence of Homogenizing Methodology on Mechanical and Tribological Performance of Powder Metallurgy Processed Titanium Composites Reinforced by Graphene Nanoplatelets" Molecules 27, no. 9: 2666. https://doi.org/10.3390/molecules27092666

Article Metrics

Back to TopTop
